KASPERSKY LAB

Kaspersky® Administration Kit 6.0

Deployment Guide

KASPERSKY® ADMINISTRATION KIT 6.0

Deployment Guide

Kaspersky Lab Ltd.

Visit our website: http://www.kaspersky.com/

Revision date: February 2007.

Contents

CHAPTER 1. KASPERSKY® ADMINISTRATION KIT .................................................. 5

1.1. Purpose, structure and main functions................................................................. 5

1.2. Software and Hardware Requirements................................................................ 7

1.3. Distribution kit ........................................................................................................ 9

1.4. Help desk for registered users .............................................................................. 9

1.5. The purpose of this document .............................................................................. 9

1.6. Conventions......................................................................................................... 10

CHAPTER 2. TYPICAL SCHEMES OF DEPLOYMENT OF ANTI-VIRUS

PROTECTION............................................................................................................ 11

2.1. Schemes of deployment of anti-virus protection on the computers within the

logical network ................................................................................................... 11

2.2. Building a centralized anti-virus protection administration system .................... 12

CHAPTER 3. INSTALLING KASPERSKY ADMINISTRATION KIT ........................... 14

3.1. Installing MSDE from the Kaspersky Administration Kit distribution package .. 15

3.2. Installing the Administration Server and Administration Console on Local

Host .................................................................................................................... 17

3.3. Removing Kaspersky Administration Kit components....................................... 33

3.4. Updating the application version......................................................................... 33

CHAPTER 4. INSTALLATION AND REMOVAL OF SOFTWARE ON THE

COMPUTERS ............................................................................................................ 35

4.1. Remote software installation............................................................................... 36

4.1.1. Creating an installation package.................................................................. 37

4.1.2. Reviewing and configuring the installation package settings...................... 40

4.1.3. Creating and configuring the Network Agent installation package ............. 45

4.1.4. Creating and Configuring Administration Server Installation Package....... 49

4.1.5. Creating a task for distribution of the installation package on the slave

Administration Servers.................................................................................. 49

4.1.6. Distribution of the installation packages within a group using network

agents............................................................................................................ 51

4 Kaspersky® Administration Kit

4.1.7. Creating a remote installation task............................................................... 53

4.1.8. Configuring the deployment task.................................................................. 66

4.1.9. Deploying application to slave administration servers................................. 68

4.1.10. Remote software removal .......................................................................... 70

4.2. Deployment wizard.............................................................................................. 71

4.3. Local software installation ................................................................................... 75

4.3.1. Local installation of the Network Agent........................................................ 76

4.3.2. Local installation of the application administration plugin............................ 81

4.3.3. Installing applications in non-interactive mode ............................................ 82

APPENDIX A. GLOSSARY........................................................................................... 84

APPENDIX B. KASPERSKY LAB................................................................................. 91

B.1. Other Kaspersky Lab Products .......................................................................... 92

B.2. Contact Us........................................................................................................... 98

CHAPTER 1. KASPERSKY®

ADMINISTRATION KIT

1.1. Purpose, structure and main

functions

Kaspersky® Administration Kit is an application that is designed to provide a

centralized solution for most important administration tasks associated with

managing the corporate network anti-virus security system based on Kaspersky

Lab’s applications included into Kaspersky Anti-Virus Business Optimal and

Kaspersky Corporate Suite. Kaspersky Administration Kit supports all network

configurations that use TCP/IP protocol.

Kaspersky Administration Kit is a tool for corporate network administrators and

anti-virus security officers.

The application enables the administrator to:

• Deploy or remove Kaspersky Lab applications across a network connec-

tion to computers within the network. This feature enables the administra-

tor to copy the required set of Kaspersky Lab's applications to a selected

computer and then deploy these applications on the network computers.

• Ensure remote centralized management of Kaspersky Lab applications.

This feature enables the administrator to create a multi-level anti-virus

protection system and manage the operation of all applications from a

single administrator's workstation. This is particularly important for larger

companies that have a local network consisting of a large number of

computers that may cover several separate buildings or offices. This fea-

ture enables the administrator to:

• group computers into administration groups based on the func-

tions performed by such computers and the set of applications

installed on them;

• configure the application settings in a centralized way by creat-

ing and applying group policies;

• configure individual settings of the application for individual

computers using the application settings.

• manage the operation of the applications in a centralized way

by creating and running group and global tasks.

6 Kaspersky® Administration Kit

• create individual patterns for the application's operation by

creating and running tasks for a set of computers from different

administration groups.

• Automatically update the anti-virus database and application modules on

computers. This feature allows centralized updating of the anti-virus data-

base for all installed Kaspersky Lab's applications without accessing the

Kaspersky Lab's internet updates server for each individual update. The

updating can be performed automatically according to the schedule set up

by the administrator. The administrator can monitor the installation of the

updates on the client computers.

• Receive reports using a dedicated system. This feature allows centralized

collection of statistical information about the operation of all installed

Kaspersky Lab's applications, monitoring the correctness of the operation

of these applications and creating reports based on the information ob-

tained. The administrator can create a cumulative network report about

the operation of an application or reports about the operation of applica-

tion installed on each computer.

• Use events notification system. Mail notification sending system. This fea-

ture allows the administrator to create a list of events in the operation of

the applications about which he or she will receive notifications. The list of

such event may, for example, include detection of a new virus or an error

that occurred when attempting to update the anti-virus database on a

computer, detection of a new computer in the network.

• Perform license management. This capability supports centralized instal-

lation of license keys for all installed enterprise applications, tracking of

compliance with the license agreement (number of licenses should corre-

spond to number of running applications) and license agreement expira-

tion date.

• Cooperate with Cisco Network Admission Control (NAC). This functional-

ity provides a mapping between host antivirus protection conditions and

Cisco NAC statuses.

Kaspersky Administration Kit application consists of three main components:

• Administration server performs the function of centralized storage of in-

formation about Kaspersky Lab's applications installed in the corporate

network and about managing such applications.

• Network Agent coordinates the interaction between the Administration

Server and Kaspersky Lab's applications installed on a specific network

node (a workstation or a server). This component supports all Windows-

applications included in the Kaspersky Lab Business Optimal and

Kaspersky® Administration Kit 7

Kaspersky Corporate Suites. Separate versions of Administration Agent

exist for Kaspersky Lab Novell and UNIX applications.

• Administration Console provides a user interface to the administration

services of the Administration Server and Network Agent. The manage-

ment module is implemented as the extension of the Microsoft Manage-

ment Console (MMC).

1.2. Software and Hardware

Requirements

Administration Server

• Software requirements

• Microsoft Data Access Components (MDAC) version 2.8 and

above

• MSDE 2000 SP 3 or MS SQL Server 2000 SP 31 or higher or

MySQL version 5.0.22 (default code page UTF-8) or MS SQL 2-

-5 or higher or MS SQL 2005 Express or higher;

• Microsoft Windows 2000 SP 1 or higher; Microsoft Windows XP

Professional SP 1 or higher; Microsoft Windows XP Profes-

sional x64 and higher, Microsoft Windows Server 2003 or

higher; Microsoft Windows Server 2003x64 or higher Microsoft

Windows NT4 SP 6a or higher, Microsoft Windows Vista, Mi-

crosoft Windows Vista x64..

• Hardware requirements:

• Intel Pentium III processor, 800 MHz or faster

• 128 MB RAM

• 400 MB available space on hard drive

Administration Console

1 You can install MSDE from the package included in the Kaspersky Administration Kit

distribution package.

8 Kaspersky® Administration Kit

• Software requirements:

• Microsoft Windows 2000 SP 1 or higher; Microsoft Windows XP

Professional SP 1 or higher; Microsoft Windows XP Profes-

sional x64 and higher, Microsoft Windows Server 2003 or

higher; Microsoft Windows Server 2003x64 or higher Microsoft

Windows NT4 SP 6a or higher, Microsoft Windows Vista, Mi-

crosoft Windows Vista x64;

• Microsoft Management Console version 1.2 or higher

• When running under Microsoft Windows NT4 you need Micro-

soft Internet Explorer 6.0 installed.

• Hardware requirements:

• Intel Pentium II processor, 400 MHz or faster

• At least 64 MB RAM

• 10 MB of available hard drive space

Network Agent

• Software requirements:

• For Windows systems:

• Microsoft Windows 98; Microsoft Windows ME; Microsoft Win-

dows 2000 SP 1 or higher; Microsoft Windows NT4 SP 6a or

higher; Microsoft Windows XP Professional x64 or higher, Mi-

crosoft Windows XP Professional SP 1 or higher, and Windows

Server 2003 or higher; Microsoft Windows Server 2003 x64 or

higher, Microsoft Windows Vista, Microsoft Windows Vista x64;

• For Novell systems:

• Novell NetWare 6 SP or higher; Novell NetWare 6.5 SP3 or

higher

• Hardware requirements:

• For Windows systems:

o Intel Pentium processor, 233 MHz or faster

o 32 MB RAM

o 10 MB available space on hard drive

• For Novell systems:

o Intel Pentium processor, 233 MHz or better

o 12 MB RAM

Kaspersky® Administration Kit 9

o 32 MB free (available) space on hard drive

1.3. Distribution kit

This software product is supplied free-of-charge with any Kaspersky Lab's

application included into the package of Kaspersky Anti-Virus Business Optimal

and Kaspersky Corporate Suite (retail box version) and also available for

download from Kaspersky Lab's corporate website at www.kaspersky.com.

1.4. Help desk for registered users

Kaspersky Lab offers a large service package, enabling its legal users to enjoy

all available features of Kaspersky Lab's products.

Once you purchase a license for any Kaspersky Lab's product included into

Kaspersky Anti-Virus Business Optimal or Kaspersky Corporate Suite, you

become a registered user of Kaspersky Administration Kit. After this you will

receive the following services during the term of your license:

• New versions of the anti-virus software application;

• Consultations on matters related to the installation, configuration, and op-

eration of the anti-virus application by phone or based on requests sent

using a web form;

When sending a request to the Technical support service, make sure

you specify information about the license for Kaspersky Lab's

application used in conjunction with Kaspersky Administration Kit.

• Information about new Kaspersky Lab applications and about new com-

puter viruses (for those who subscribe to the Kaspersky Lab newsletter).

Kaspersky Lab does not provide information related to operation and use of

your operating system or various other technologies.

1.5. The purpose of this document

This Guide contains a description of the installation of Kaspersky Administration

Kit and remote installation of applications within a computer network of simple

configuration.

General concepts and application operation scheme are provided in the

Kaspersky Administration Kit Administrator's Guide; step-by-step description of

10 Kaspersky® Administration Kit

actions when using the application is provided in the Kaspersky Administration

Kit Reference Book.

In order to review questions that our users often ask Kaspersky Lab's support

specialists visit our website and follow the Services ÆKnowledge base link.

This section contains information about installation, configuration and functioning

of Kaspersky Lab's applications and about removal of most commonly spread

viruses and disinfection of infected files.

1.6. Conventions

Various formatting features and icons are used throughout this document

depending on the purpose and the meaning of the text. The table below lists the

conventions used in the text.

Convention Meaning

Bold font Menu titles, commands, window titles,

dialog elements, etc.

Note

Additional information, notes.

Attention

Information you should pay special

attention to.

To perform an action:

1. Step 1.

2. …

Description of the successive user's

steps and possible actions

[modifier] – modifier name. Command line modifier

Information messages and

command line text Text of configuration files, information

messages and command line

CHAPTER 2. TYPICAL

SCHEMES OF DEPLOYMENT

OF ANTI-VIRUS

PROTECTION

2.1. Schemes of deployment of anti-

virus protection on the

computers within the logical

network

There are two common scenarios that show how you can deploy reliable anti-

virus protection using Kaspersky Administration Kit:

• You can remotely install applications on client computers across the logi-

cal network from a single workstation. The installation and connection to

the remote management system proceed automatically, requiring no in-

teraction from the administrator and allowing to install the anti-virus soft-

ware on any number of client computers.

• You can locally install applications on every networked computer. In this

case, all required components and the administrator workstation are

manually installed. Connection settings are set during the installation of

the Network Agent. This deployment scenario is used only if centralized

deployment is impossible.

Remote installation can be used for installation of any applications selected by

the user.

However, bear in mind that Kaspersky Administration Kit supports

administration of only Kaspersky Lab's application the distribution package of

which includes a specialized component - the application administration plugin.

12 Kaspersky® Administration Kit

2.2. Building a centralized anti-virus

protection administration

system

The first step to building a system of centralized management over an enterprise

network through Kaspersky Administration Kit is to design a logical network. At

this stage, you should make the following decisions:

1. Select isolated sections within the network and determine the

number of Administration servers that must be installed. The use of

hierarchy of administration servers will allow to considerably

decrease the load on the communication channels and increase

the system reliability.

2. Which computers in the corporate network structure will function as

the main Administration server, the slave servers administrator

servers, administrator's workstations, and client computers. Note

that all computers on which Kaspersky Lab applications are

installed will act as client computers.

3. Which criteria will be used to organize client computers in groups?

What will be the group hierarchy?

4. Which deployment scenario will be used: remote or local

installation?

During the next stage, the administrator has to build a logical network, i.e., install

the following Kaspersky Administration Kit components on networked computers,

namely:

1. Install the Administration Servers on computers within the

corporate network.

2. Install the Administration Console on computers from which the

administration will be provided.

3. Make decision regarding assigning of the logical network

administrators, determine which other user categories will interact

with the system and assign a list of functions to be performed to

each category.

4. Create lists of users and grant to each group access rights required

to perform functions assigned to this group and related to access

rights.

Typical Schemes of Deployment of anti-virus protection 13

After this, it is required to create a hierarchy of the Administration servers and for

each Server create a logical network structure as follows: create a hierarchy of

the administration groups and distribute computers among the corresponding

groups.

During the next stage, you should install the Network Agent and selected

Kaspersky Lab applications on client computers and install the corresponding

administration plugins on the administrator workstation.

If you use the remote installation option, the Network agent may be installed

together with any application, in this case no separate installation of the Network

agent is required.

During the final step, you should configure the installed applications by assigning

and applying group policies and creating tasks.

Using the Quick Start Wizard, the administrator can easily build an anti-virus

protection system for his/her network and perform minimum configuration. Briefly

configuring the anti-virus protection system means creating a logical network

identical to the domain structure of the Windows network and the anti-virus

protection system based on versions 5.0 and 6.0 of Kaspersky Anti-Virus for

Windows Workstations.

CHAPTER 3. INSTALLING

KASPERSKY

ADMINISTRATION KIT

Before starting the installation, make sure that the computer meets the software

and hardware requirements to the Administration Server and the Administrator's

workstation (see section 1.3 on page 9).

MSDE (Microsoft Data Engine), MySQL server or Microsoft SQL server is used

to store the Administration Server information. If no MSDE or SQL server is

installed, you have to install one of them before installing the Administration

Server. In order to do it, you can use the distribution packages you have. In order

to install MSDE you can also use Kaspersky Administration Kit distribution

package. The MSDE installation procedure from the Kaspersky Administration Kit

is discussed in detailed below (see section 3.1 on page 15).

For installation of Kaspersky Administration Kit the local administrator's rights are

required for the computer on which the installation is performed.

The setup wizard will offer you to install the application components of Kaspersky

Administration Kit (the Administration Server and Administration Console) on the

computer on which the setup wizard is run. Such configuration is recommended

at the initial stage of creating the centralized administration system.

All the required ports should be open on a host computer for installed application

components to work properly. A listing of default ports used by Kaspersky

Administration Kit is given in Table 1.

Table 1

Port Num-

ber Protocol Description

Host Running Administration Server

13000 TCP and

UDP SSL protocol is used:

• to receive data from clients;

• to connect to update agents;

• to connect to slave Administration Servers;

• to receive notification of host shutdown.

Installing Kaspersky Administration Kit 15

Port Num-

ber Protocol Description

14000 TCP Used:

• to receive data from clients;

• to connect to update agents;

• to connect to slave Administration Servers.

18000 HTTP Used by Administration Server to download data

from a Cisco NAC authentication server.

Host Designated as Update Server

13000 TCP Used by clients to connect.

13001 TCP Use by client computers to connect if a host with

Administration Server is designated as update

agent.

14000 TCP Used by clients to connect.

14001 TCP Use by client computers to connect if a host with

Administration Server is designated as update

agent.

Client Running Administration Agent

15000 UDP Use to receive requests to connect to Administra-

tion Server.

3.1. Installing MSDE from the

Kaspersky Administration Kit

distribution package

Before installing MSDE you must install Microsoft Data Access Components

(MDAC) 2.8 or higher (the distribution package is available Microsoft website).

Installation of MSDE from the Kaspersky Administration Kit distribution package

to a computer is performed locally.

16 Kaspersky® Administration Kit

To install MSDE:

1. Run the executable file in the MSDE2KSP3 directory on the

Kaspersky Administration Kit 5.0 installation CD. The installation

wizard will then suggest that you configure settings and run the

application. Follow the setup wizard’s instructions.

2. First steps are common and include unpacking required files from

the distribution package and copying them to the hard drive of your

computer, verification of the required software, accepting the

license agreement and providing information about the user and the

company.

3. Then define the following in the Installation folder dialog box:

• in the Application modules field - the folder for installation of

the MSDE application files. The default folder is:

<Disk:\Program Files\Microsoft SQL Server. If this folder

does not exist, it will be created automatically.

• in the Database field - a folder that will be used to store the

MSDE server database. The default folder is also

<Disk:\Program Files\Microsoft SQL Server.

To select the folders use the Browse button.

4. After this, in the SQL server name dialog box (see Figure Figure

1) specify the name that will be assigned to this server. By default

the name is not created and to address the server the name of the

computer on which the server is installed will be used. If you wish to

assign a different name, uncheck the By default box and enter a

new name in the SQL server name.

After you have configured the settings, you can review them and start the

installation. Once the installation is successfully completed, MSDE will be

installed on your computer.

Installing Kaspersky Administration Kit 17

Figure 1. Selecting the server name

3.2.

Installing the Administration

Server and Administration

Console on Local Host

This section describes a local installation of Administration Server and/or

Console. If there is even a single Administration Server running on a network,

additional servers may be installed using forced installation under the remote

installation task. When creating the task, use an Administration Server

installation package

To install the Administration Server and / or the Administration Console on local

host,

1. Run the setup.exe file in installation CD. The installation wizard will then

suggest that you configure settings Follow the setup wizard’s

instructions.

2. First, the wizard will unpack required files from the distribution package

and copy them to the hard drive of your computer, offer you to accept the

license agreement and provide information about the user and the

company.

18 Kaspersky® Administration Kit

3. Then define the folder to be used to install the components. The default

folder is: <Disk:\Program Files\Kaspersky Lab\Kaspersky

Administration Kit. If this folder does not exist, it will be created

automatically. To change the folder, use the Browse button.

4. After this, select Kaspersky Administration Kit components that you wish

to install (see Figure 2):

• Administration Server. Under this option, it can be specified

whether standard Kaspersky Lab components to integrate with

Cisco NAC are to be installed. If installation is required, check

Kaspersky Lab Posture Validation Server for Cisco NAC.

Parameters for cooperation with Cisco NAC may be configured

under properties or Administration Server policies (cf. Kaspersky

Administration Server Reference Guide).

• Administration Console.

• Network Agent

Figure 2. Selecting components for installation

You can select either all components or the Administration Console only.

You cannot select installation of the Administration Server without

installation of the Console. The default option is to install all components.

Installing Kaspersky Administration Kit 19

A server version of the Network Agent will be installed with the

Administration Server. Their joint installation is impossible using a

regular version of the Network Agent. If this component is already

installed on your computer, remove it and reinstall the

Administration Server.

Pay attention to the information displayed in the wizard window:

• in the Description field in right section - about the component selected;

• in the bottom section - about the disk space required to install the se-

lected components and available disk space on the drive selected for the

installation.

If you selected only the Administration Console, no further steps devoted

to configuring the installation settings will be required and you will switch

directly to the stage where you only review these settings and start the

installation.

5. If you selected installation of the Administration Server, define during the

next step under which account the Administration Server will be started

as a service on this computer (see Figure 3).

Figure 3. Selecting the account

You can select one of two options:

20 Kaspersky® Administration Kit

• Domain User account - the Administration Server will be started under

the user account included into the domain. In this case the Administration

Server will initiate all operations using the rights of this account and during

the next stage you will be offered to specify the user whose account will

be used.

If a Windows domains structure has been created within the corporate

network we recommend selecting the domain administrator's account in

order to start the Administration Server. In the future it will allow to avoid

configuring additional settings, for example, specifying account of a user

who is granted with the domain administrator's rights when creating a

deployment (remote installation) task (see section 0 on page 53).

• Local System account - the Administration Server will be started under

the System account with all rights granted to this account. In this case

you do not select a user account and will switch directly to the stage

where you will have to specify the recourse to store the Administration

Server's information database .

For the correct operation of Kaspersky Administration Kit it is mandatory

that the account used to start the Administration Server is granted the

rights of the administrator for the resource used to store the Administra-

tion Server's information database.

6. If you selected a domain's user account to start the Administration Server

under, you will be offered to specify such user.

In order to do it, in the User name field in the wizard window (see Figure

4) select the user name using the Browse… button or enter this name

manually out of names registered within the current domain. After this,

enter the password used to register the user in the domain.

Installing Kaspersky Administration Kit 21

Figure 4. Selecting user

If you selected a user who does not have the domain administrator's

rights, the Administration Server will be launched under his account,

however the functionality of Kaspersky Administration Kit will be

somewhat restricted. For example, it may not have the rights required to

execute a deployment task using a launch scenario (see section 0 on

page 53) and polling some domains of the Windows network.

For the correct operation of the Administration server, the account used

to launch it must have the following rights:

• Log on as a service;

• Act as part of the operating system;

• Access this computer from the network;

• Replace a process level token;

• Increase quotas/ Adjust memory quotas for a process.

If the user you selected is a domain administrator, but it does not have the

rights listed above, such rights will be granted to this user (see Figure 5).

22 Kaspersky® Administration Kit

Figure 5. Message about rights granted to the user.

7. During the next stage you will be offered to define resourse Microsoft

SQL server (MSDE) or MySQL (see Figure 6), that will be used to store

the Administration Server information database.

Figure 6. Selecting the database

8. If during the previous stage you selected MSDE or Microsoft SQL server

and you are planning to use a server installed within the corporate

network to work with Kaspersky Administration Kit, indicate such server's

name in the SQL server name and specify the name of the database

that will be created to store the Administration Server data in the SQL

server database name (see Figure 7). The default database name is

KAV.

Installing Kaspersky Administration Kit 23

Value (local) will be automatically assigned to the Server name field if an

SQL server is detected on the computer from which Kaspersky

Administration Kist is being installed. To display the list of all Microsoft

SQL servers installed in the network, press the Browse… button.

If the Administration Server will be started under the local administrator's

account or under the system account, the Browse button will not be

available.

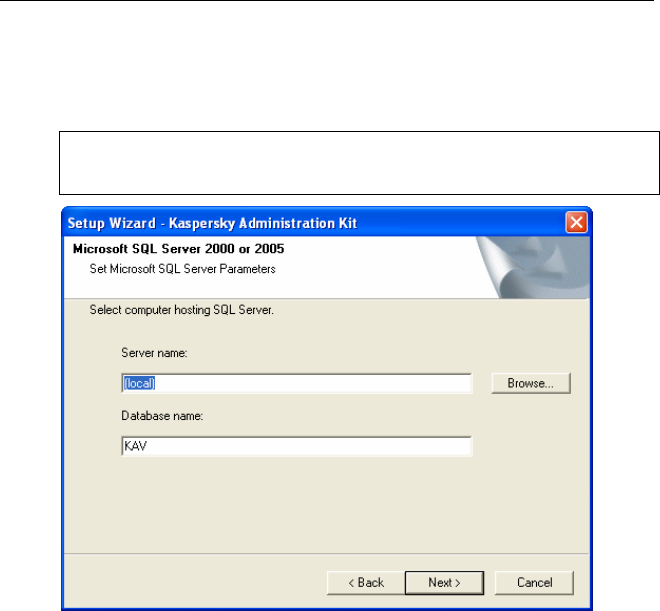

Figure 7. Selecting SQL server

If during the previous stage MySQL server was selected, specify in this

window (see Figure 8) its name in the MySQL server name field (by

default IP address of the computer onto which Kaspersky Administration

Kit is being installed will be used) and specify port to be used for

connection in the Port field (the default port is 3306). In the MySQL

server database name field specify the database name that will be

created to store the Administration Server data (by default the database

will be created under name KAV).

If during the previous stage MySQL server was selected, specify in this

window

24 Kaspersky® Administration Kit

Figure 8. Selecting MySQL server

If there are no SQL servers in the network and you cannot use them, you

have to install one (see section 3.1 on page 15).

If you wish to install an SQL server on the computer from which you are

installing Kaspersky Administration Kit, you have to abort the installation

and restart it after you have installed the SQL server.

If you install Kaspersky Administration Kit onto a remote computer, it is

not required to interrupt the Kaspersky Administration Kit installation

wizard. Install the SQL server and return to the Kaspersky Administration

Kit installation.

9. During this step you have to define the authentication mode to be used by

the Administration Server to connect to the SQL server.

For MSDE or Microsoft SQL server you can select of the following two

options (see Figure 9).

• Microsoft Windows Authentication Mode - in this case the

account used to start the Administration server will be used to

verify the rights;

• SQL Server Authentication Mode - if you select this option,

the account specified below will be used to verify the rights. Fill

in the Account, Password and Confirm password fields.

Installing Kaspersky Administration Kit 25

If Administration Server Database is on another computer,

you need to choose SQL server authentication mode when

installing or updating an Administration Server.

Figure 9. SQL server authentication mode

For MySQL server indicate the account and the password (see Figure

10).

Figure 10. MySQL server authentication mode

26 Kaspersky® Administration Kit

10. After this (see Figure 11), specify the location to store the shared folder

that will be used:

• to store files required for remote installation of applications (files

will be copied to the Administration Servers when installation

packages are created);

• to store the updates copied from the updates source to the

Administration server.

This resource will be public to all users for reading only.

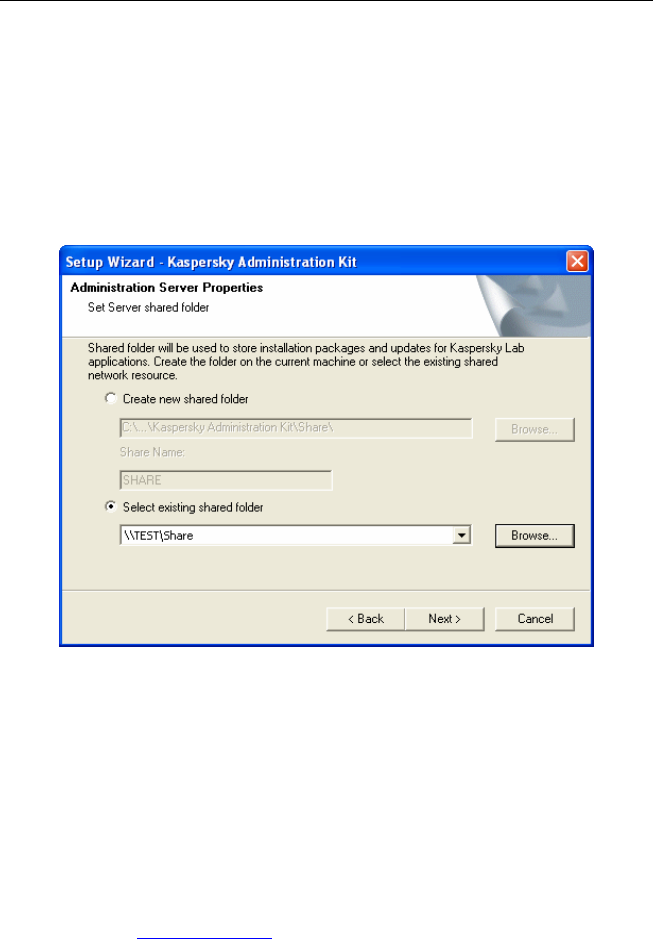

Figure 11. Creating a shared folder

You can select one of the following two options:

• Create new shared folder - to create a new folder; you will

have to specify path to the folder in the field below.

• Select existing shared folder - in order to select a shared

folder from the list of existing shared folders.

A public shared folder can be stored either locally, on the computer from

which the installation is performed or remotely, on any of the computers

included into the corporate network. A shared folder can be specified both

using the Browse button, and manually by entering a UNC path (for

example, \\server\KLShare) in the appropriate field.

Installing Kaspersky Administration Kit 27

By default a local folder KLShare will be created in the folder specified for

installation of the Kaspersky Administration Kit application components.

11. Use the next wizard dialog to specify Administration Server address (cf.

Figure 13) by setting:

• DNS name. This option is used when there is a DNS server on

the network which clients can use to obtain Administration

Server address.

• NetBIOS name. This option is used where clients obtain

Administration Server address through the NetBIOS protocol or

if there is a WINS server on the network.

• IP address. This option is used where the Administration Server

has a static IP address which will not subsequently change .

If required, check Allow NetBIOS Name Service in Kaspersky

Antivirus 6.0 Anti-Hacker. This will open UDP port 137 in Kaspersky

Antivirus 6.0 Anti-Hacker installed on the host. This port is used to obtain

Administration Server IP address.

Figure 12. Administration Server Address

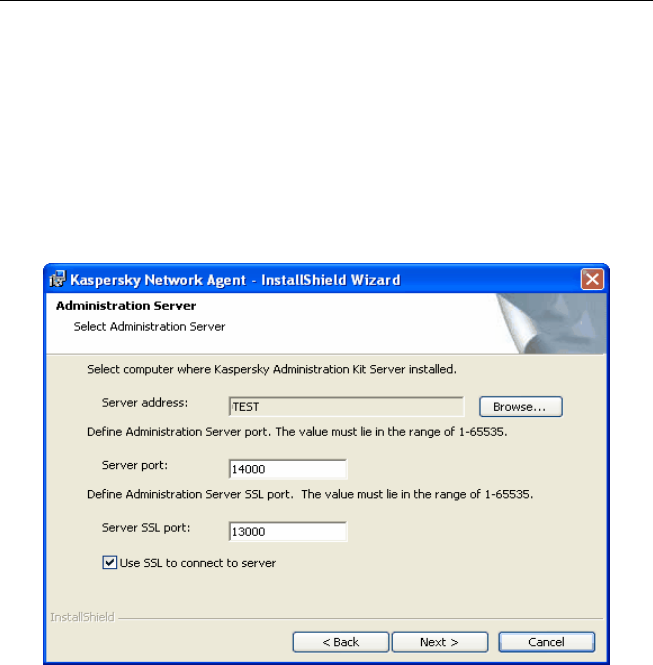

12. After this configure settings to be used for connection to the

Administration Server (see Figure 13);

28 Kaspersky® Administration Kit

• port number that will be used to connect to the Administration

Server. By default port 14000 will be used. If it has been

assigned, you can change it.

• SSL port number that will be used for secure connection to the

Administration Server u sing SSL protocol. By default port

13000 port is used.

If the Administration Server is running Microsoft Windows XP

SP 2, then the in-built firewall will block TCP port under

numbers 13000 and 14000. Therefore, in order to ensure

access, these ports must be opened manually on the host

running the Administration Server.

Figure 13. Settings used to connect to the Administration Server

13. In this wizard window (see Figure 14), indicate the method for creation

the certificate to be used for authentication of the Administration Server

being installed.

Two options are provided:

• Create new certificate - select this option if you are installing a

new Administration Server. Save a backup copy of the

certificate so that later, if required, it would be easier for you to

restore the date and structure of the logical network of this

Installing Kaspersky Administration Kit 29

Server. In order to do it, check the Create a backup copy of

the certificate box.

• Restore certificate - select this option if you are restoring the

Administration server with no backup copy available. In this

case you can restore the data and the structure of the logical

network of the previous Administration Server.

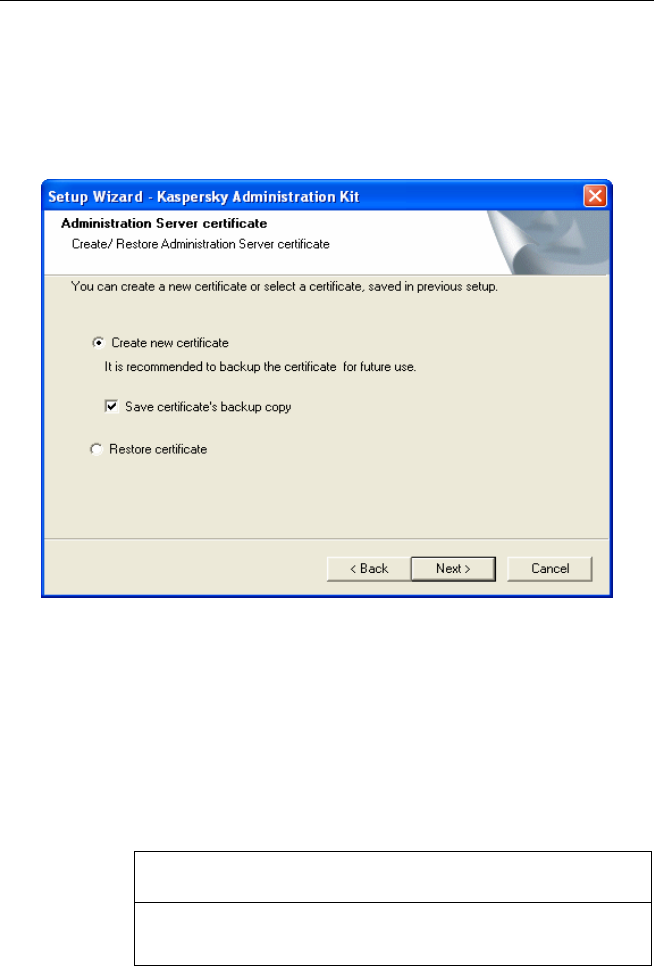

Figure 14. Selecting the method to be used to receive the Administration Server certificate

14. If during the previous stage you selected creation of a new certificate and

saving its backup copy, specify the following in the corresponding

window (see Figure 15):

• folder for saving the backup copy of the certificate file;

• password that will be use for encryption when creating a new

certificate and its decryption during its restoration from a

backup copy;

• password confirmation.

In order to be able to restore the data of the Administration

Server later, you must save the Server's certificate.

When restoring the certificate you must enter the same pass-

word that was used for backup copying. If you enter an incor-

rect password, the certificate will not be restored.

30 Kaspersky® Administration Kit

Figure 15. Selecting folder for saving the backup copy of the certificate

If during the previous stage you select the option of restoring the Server's

certificate from a backup copy, specify the following in the corresponding

window (see Figure 16):

• folder in which the backup copy of the certificate file is saved;

• password that was used for encryption when creating a backup

copy of the certificate.

Installing Kaspersky Administration Kit 31

Figure 16. Selecting the folder for storing the backup copy of the certificate.

After you have finished configuring the Kaspersky Administration Kit installation

settings, you can review them and start the installation.

After the installation of the Administration Console an icon will appear in menu

Start → Programs→Kaspersky Administration Kit of your computer. This icon

can be used to start the Console.

The Administration Server and Agent will be installed on a host computer as

services with attributes listed in Table 2. The table also lists properties of the

Kaspersky Lab Posture Validation Server (PVS) for Cisco NAC, which is going to

run on the host in question if appropriate components had been installed together

with the Administration Server.

Table 2

Property Administration

Server

Kaspersky Lab PVS

for Cisco NAC

Administration

Agent

Service

Name CSAdminServer nacserver klnagent

Displayed

Service

Name

Kaspersky

Administration

Server

Kaspersky Lab

Cisco NAC Posture

Validation Server

Kaspersky

Network Agent

32 Kaspersky® Administration Kit

Property Administration

Server

Kaspersky Lab PVS

for Cisco NAC

Administration

Agent

Process

Name in

Windows

Task Man-

ager

klserver.exe klnacserver.exe klnagent.exe

Startup Type Automatically, at operating system boot.

User Name Local Service or user specified.

A server version of the Network Agent will be installed on the computer together

with the Administration Server. It is included into the structure of the

Administration Server component and is installed or removed together with it and

can only interact with the Administration Server installed locally. You do not have

to configure the settings used by the Agent to connect to the Administration

Server, as programmatically this connection is implemented based on the

assumption that these components are installed on the same computer. Such

configuration allows to avoid additional configuration and possible conflicts in the

operation of the components if they are installed separately.

A server version of the Network Agent is installed with the same attributes and

performs the same application administration functions as the standard Network

Agent. It will operate based on the policy of the group into which the

Administration Server's computer is included as a client computer, all tasks

provided for the Network Agent will be created except the Server change task.

A separate installation of the Network Agent on the Administration Server's

computer is not required. Its functions will be performed by the server version.

You can review properties of the following services: Kaspersky Administration

Server, Kaspersky Network Agent, and Kaspersky Lab Cisco NAC Posture

Validation Server; and monitor their operation using the standard Windows

administration tools - Computer Management → Services. Information about

operation of the Kaspersky Administration Server service will be registered

and saved in the Windows system log on the computer where the Administration

Server is installed, in a separate branch of the Kaspersky Event Log.

Additionally, groups of local users KLAdmins and KLOperators will be created

on the computer on which the Administration Server is installed. If the

Administration Server is run under the account of a user included into the

domain, then groups KLAdmins and KLOperators will be added to the list of

groups of the domain users. Change of the list of the groups is performed using

standard Windows administration tools.

Installing Kaspersky Administration Kit 33

3.3. Removing Kaspersky

Administration Kit components

You can uninstall Kaspersky Administration Kit using both the Uninstall Kasper-

sky Administration Kit option under Start → Programs → Kaspersky Ad-

ministration Kit and the standard Windows Add / Remove Programs facility.

This will start a wizard that will uninstall all application components (including

plugins) from the computer. In the event that you do not request that the wizard

remove the shared folder (KLShare), remove it manually after all the tasks it is

needed for are complete.

When you are removing the programs you will be offered to save a backup copy

of the Administration Server.

3.4. Updating the application version

In order to update Kaspersky Administration Kit versions 4.x and 5.0 (Planned

Update 1 and Planned Update 2) to later versions you have to uninstall the

previous version and install a new one as described in this Guide

When updating versions 5.0 (Planned Update 3) and 6.0 to a newer version, data

may be recovered out of a backup generated by an earlier version of the

application. To accomplish this, we recommend that you follow a procedure

described below:

Data restoration during the upgrade to a later application version is supported

starting with Kaspersky Administration Kit version 5.0 Maintenance Pack 3.

1. Using the klbackup.exe utility create a backup copy of the installed

Administration Server's data. This utility is included into the Kaspersky

Administration Kit distribution package and after the installation of the

Administration Server it is located in the root installation folder. Note that

in order to be able to fully restore the Administration Server data you have

to save the Server’s certificate. This is a mandatory setting for the

klbackup.exe utility.

2. Run installation of the upgraded version of Kaspersky Administration Kit

6.0 on the computer on which the previous version of the Administration

Server and/or Console is installed. Upgrade the component. During the

upgrade all data and settings of the previous version of the Administration

Server and/or Console will be saved and made available in the new

version. Backward compatibility between the new and the old versions of

34 Kaspersky® Administration Kit

the Administration Server is supported. The new version of Administration

Server is backward compatible with the previous version.

3. In order to upgrade the Network Agent installed on the network

computers, create a group or a global task for installation of a newer

version of the component. Run the task manually or according to the

schedule. After this task is successfully completed, the newer version of

the Network Agent will be upgraded.

If you encounter any problems during the installation, you can restore the

previous version of Kaspersky Administration Kit using the backup copy of

the Administration Server's data created before the upgrading.

If even a single Administration Server is installed, additional servers may be

updated using the remote installation task and the Administration Server install

package.

CHAPTER 4. INSTALLATION AND

REMOVAL OF SOFTWARE

ON THE COMPUTERS

Before you start the installation, you must make sure that the software and

hardware of the computers meet the corresponding requirements (see section

1.3 on page 9)

Kaspersky Administration Kit allows installation and removal of Kaspersky Lab's

applications using the following methods:

• remotely in a centralized way, via the Administration Console;

• locally, individually on each computer.

Connection of the Administration Server with the client computers is ensured by

the Network Agent component. Therefore this component must be installed on

each computer that will be connected to the remote centralized administration

system before the installation of the anti-virus applications. If you use the

centralized method to install the applications via the Administration Console, the

Network Agent can be installed together with one of the applications.

On the computer on which the Administration Server is installed, only server

version of the Network Agent can be used. It is included into the Administration

Server structure and is installed and removed together with the Administration

Server (see section 3.2 on page 17).

You do not have to install the Network Agent on this computer.

The Network Agent is installed the same way as the applications - that is either

remotely or locally.

The Network Agents can differ depending on the Kaspersky Lab's applications

for which they are installed. In some cases only local installation of the Network

Agent is possible (details see Guides to the corresponding applications). The

Network Agent is installed on the client computer only once.

Kaspersky Administration Kit application administration interface is implemented

by the corresponding administration plugins. Therefore, in order to access the

application administration interface, the corresponding plugin must be installed

on the administrator's workstation. In case of the remote installation method, it is

installed automatically when the first installation package for the corresponding

application is created. In case of a local installed on the client computer, the

administration plugin must be installed manually by the administrator.

36 Kaspersky® Administration Kit

Under the current version of Kaspersky Administration Kit the following

Kaspersky Lab applications may be managed remotely:

• Workstation and file server protection:

• Kaspersky Antivirus 5.0 for Windows File Servers;

• Kaspersky Antivirus 6.0 for Windows Servers;

• Kaspersky Antivirus 5.0 for Windows Workstations;

• Kaspersky Antivirus 6.0 for Windows Workstations;

• Kaspersky Antivirus 5.0 Second Opinion Solution;

• Kaspersky Antivirus 5.7 for Novell NetWare;

• Perimeter defense:

• Kaspersky Antivirus 5.6 for Microsoft ISA Server 2000

Enterprise Edition.

• Mail server protection:

• Kaspersky Antivirus 5.5 for Microsoft Exchange Server

2000/2003, Planned Update 1;

• Kaspersky Security 5.5 for Microsoft Exchange Server 2003,

Planned Update 1.

For detailed information on managing the above applications using Kaspersky

Administration Kit see relevant application Manuals.

4.1. Remote software installation

Remote software installation can be performed from the administrator's

workstation in the main application window of Kaspersky Administration Kit.

Some Kaspersky Lab's applications can be installed only the client computers

only locally (details see Guides to the corresponding applications). However,

remote administration of these applications using Kaspersky Administration Kit

will be available.

In order to perform remote software installation:

1. Create an installation package (see section 0 on page 53). The structure

of this package will include files required to install the application and the

files that contain settings of the installation package.

Installation and Removal of Software on the Computers 37

Installation package contains file setup.exe using which the local

installation of the application in non-interactive mode is

performed.

2. Create remote installation task (see section 0 on page 53).

In order to install the application on all computers in the logical network or

several administration groups or on specific computers from various

groups, you must create a global deployment (remote installation) task.

In order to install the application on all computers of an administration

group (including all nested groups and slave servers), you must create a

group deployment (remote installation) task.

You can use the deployment wizard (see section 4.2 on page 71) to create

either a group or a global task.

The task you create will be run according to the schedule. Application

operation settings on each client computer will be configured based on

the group policy and the default settings of the application.

You can abort the installation process by manually interrupting execution

of the task.

All installation packages created for the Administration Server will be located on

the console tree in a special container Remote Installation. On the

Administration Server these installation packages will be stored in the specified

shared folder in the service folder Packages.

You can review the properties of the installation package, change its name and

settings using the Properties: <Package Name> window (see Figure 20). This

window opens using the Properties shortcut menu command or the analogous

item in the Action menu.

The installation packages created can be distributed on the slave Administration

Servers (see section 4.1.4 on page 49) and on the computers within a group

using the updating agents (see section 4.1.6 on page 51).

One installation package can be reused many times to create deployment tasks.

Applications may also be installed in non-interactive mode.

4.1.1. Creating an installation package

in order to create an installation package:

1. Connect to the Administration Server you need.

38 Kaspersky® Administration Kit

2. Select in the console tree the Remote installation node, open the

shortcut menu and select command Create → Installation Package or

use the analogous item in the Action menu. This will start the wizard.

Follow its instructions.

3. You will be offered to specify the name of the installation package and

during the next step - to specify the application to be installed (see Figure

17).

If you are installing an application that supports remote installation via

Kaspersky Administration Kit, you have to select the Create the

installation package for Kaspersky Lab's application option from the

drop-down list. Using the Browse… button, select file that contains

description of the application (file has extension .kpd and is bundled with

all Kaspersky Lab applications for which remote administration via

Kaspersky Administration Kit is supported) or a self-extracting archive of

the Kaspersky Lab's application (file has extension .exe and can be

downloaded from the Kaspersky Lab's website). As the result, fields with

the application name and the version number will be automatically filled

in.

Figure 17. Creating an installation package. Selecting application to be installed

Settings of the installation package will be created by default and will

correspond to the application selected to be installed. You can change

the settings after the package is created using the package properties

review window (see section 4.1.2 on page 40).

Installation and Removal of Software on the Computers 39

If you create an installation package to install other applications (see

Figure 18):

• select Create installation package for application specified by

the user from the drop-down list;

• indicate the path to the application distribution package using

the Browse button;

• install the Copy entire folder into the installation package

box, if the package must contain the entire content of the folder

in which the distribution file is located;

• specify the settings used to run the executable file in the entry

line provided if such settings are required to install the

application (for example, running in non-interactive mode using

switch /s).

Figure 18. Creating and installation package to install application specified by user.

4. In the next wizard window (see Figure 19), you can specify the license

key that will be included into the installation package. In order to do it,

press the Browse… button and select the required file of the license key

(file has extension .key)

If you do not wish to include the license key into the installation package,

simply press the Next> button.

40 Kaspersky® Administration Kit

A license key is not required as the installation package for Administration

Server and Agent is being generated.

Figure 19. Creating an installation package. Selecting the license key

5. After this the required set of files for the installation of the specified

application onto the client computers will be downloaded to shared folder

on the Administration Server and a check whether the administration

plugin for the selected application is installed on the administrator's

workstation will be performed. If such plugin is not installed or its version

is older than the version included into the distribution package, the new

plugin will be installed and the old plugin will be replaced.

Upon the completion of the wizard, the installation package created will be added

to the Remote installation node and displayed in the results pane.

4.1.2. Reviewing and configuring the

installation package settings

To review the properties of the installation package, change its name and

settings:

Installation and Removal of Software on the Computers 41

in the console tree, expand the Remote Installation node, select the

required installation package in the results pane and use the Properties

command from the shortcut menu or the analogous command from the

Action menu.

This will open window Properties <Installation package name> see

Figure 20) that consists of tabs General, Settings, Licenses and OS

reboot.

The General tab (see Figure 20) includes general information about the

package:

• package name;

• name and version of the application for which installation the

package has been created;

• package size;

• creation date.

The Settings tab (see Figure 21) contains the installation package

settings for the application for which installation the package is created.

These settings are created by default at the stage of the package creation

and if required, you can modify them.

42 Kaspersky® Administration Kit

Figure 20. Installation package properties review window

The General tab

Installation and Removal of Software on the Computers 43

Figure 21. Installation package properties review window

The Settings tab

The License tab (see Figure 22) contains general information about the

license for the application for which installation the package is created.

The License tab is not available in the properties of the Network Agent

or the Administration Server installation package properties.

44 Kaspersky® Administration Kit

Figure 22. Installation package properties review window

The License tab

On the OS reboot tab (see Figure 23) you can determine actions to be

performed if the computer must be restarted after the installation of the

application. You can select one of the following options:

• Do not restart the operating system

• If required, restart the operating system automatically – this

will reboot the operating system only as needed.

• Prompt user for action - if this option is selected, you can:

o create an information message that will be displayed in an

entry field to notify the user that the operating system must

be restarted.

o specify a frequency of notifications about the operating sys-

tem restart if the user cancelled the restart, by checking the

Repeat prompt every (min.) box and specifying the inter-

val for the message to be displayed;

Installation and Removal of Software on the Computers 45

o specify automatic restart of the computer's operating sys-

tem if it is not performed by the user within the specified

time interval starting with the moment the application has

been installed. In order to do it, check the Force the restart

in (min.) box and specify the time interval.

If a locked computer needs to be rebooted, check Close Running

Applications Automatically. By default this option is unchecked.

Figure 23. Installation package properties review window

The Operating System restart tab

4.1.3. Creating and configuring the

Network Agent installation package

The installation package for the remote installation of the Network Agent does

not have to be created manually. It is created automatically during the installation

of Kaspersky Administration Kit and located in the Remote installation node.

46 Kaspersky® Administration Kit

If the package for the remote installation of the Network Agent has been deleted,

then in order to create it again, select file klnagent.kpd located in the NetAgent

folder of the Kaspersky Administration Kit distribution package to be used as the

file that contains the description

The settings of the Network Agent installation contain a minimum set of settings

required to ensure the functioning of the component immediately following its

installation. The values of the settings match the values of the default application

settings. If required, these can be changed using the Settings and the

Administration Group tabs of the installation package properties window.

The Settings tab (see Figure 21) contains settings used by the Network agent

after it is installed on the client computers to connect to the Administration Server

(by default, values of the current server will be used during the creation).

• Address of the computer on which the Administration Server is installed.

• Number of port used for unsecured connection to the Administration

Server. By default port 14000 is used. If this port is busy, you can change

it.

• Number of port used for secure connection to the Administration Server

using SSL protocol. By default port 13000 is used.

Only decimal representation is allowed.

• Certificate file for authentication of the access to the Administration

Server. The value of this setting is determined by the Use the Server

Certificate box.

If the box is not checked by default, the certificate file will be automatically

obtained from the Administration Server when the Agent connects to it for

the first time.

If the Use Server Certificate box is checked, authentication will be

performed based on the certificate file specified using the Browse button.

This file has extension .cer and is located in the Cert folder of the

Kaspersky Administration Kit installation folder. You can change the

certificate file by selecting the file you need using the Browse button.

• Which port will be used by the Network Agent to connection to the Server:

simple or secure. The value of this setting is determined by the Use SSL

connection box. If the box is checked, the connection is performed via a

secure port using SSL protocol, if the box is unchecked, the connection is

performed via an unsecured port.

• The proxy server connection settings. If a proxy server is used by the

Network Agent to connect to the Server, check the Use proxy server

Installation and Removal of Software on the Computers 47

box. After this press the Settings button and in the window that will open

enter the proxy server address, user name and the password.

• Opening UDP Port 137 used to obtain Administration Server IP address in

Kaspersky Antivirus 6.0 Anti-Hacker. Check Enable NetBIOS in

Kaspersky Antivirus 6.0 Anti-Hacker.

• Adding a UDP port required by the Administration Agent to the Microsoft

Windows firewall exceptions list. Check Open Administration Agent

Ports on Microsoft Windows Firewall.

After the installation of the Network Agent you can change the values of the

settings used to connect to the Administration Server using the policy and the

application's settings.

If you remotely reinstall the Network Agent on the client computer the values of

the settings used to connect to the Server and the Administration server

certificate will be replaced with new ones.

The Administration Group tab (cf. Figure 25) is used to define a subgroup of

the Network group into which computers will be added after the Network Agent

has been installed on them. You can select of the following options:

• add computers to folders Corresponding to the computer position in

the Windows network: domain or a work group (this option is selected

by default);

• add all computers In group specified in the entry field. If you select this

option, enter the name of the folder in the field below. If the Network

group does not contain such folder, it will be created (you can also indi-

cate the name of any existing folder in the Network group).

This folder will be used to store all computers newly detected in the

network; even if a computer had previously been detected by the

Administration Server and put into the folder corresponding to its

position within the network before the installation of the Network Agent.

Computers detected in the network prior to the installation of the

Network Agent will remain in their old positions in the Network group.

After the installation of the Network Agent you can not change the folder to store

the computers in the Network group as this setting is not included into the policy

and the application settings.

48 Kaspersky® Administration Kit

Figure 24. Administration Agent Installation Package Properties Windows. Administration

Group Tab

The Network Agent is installed on the computer as a service with the following

set of attributes:

• service name KLNagent;

• displayed name Kaspersky Network Agent;

• automatic start at the operating system startup;

• with the Local system account.

You can review properties of the Kaspersky Network Agent service, start it,

stop it and monitor its operation using the standard Windows administration tools

- Computer Management → Services.

Installation and Removal of Software on the Computers 49

4.1.4. Creating and Configuring

Administration Server Installation

Package

When creating an Administration Server installation package as a file with

description, select file ak6.kpd, located in the root directory of the Kaspersky

Administration Kit distribution.

The properties of the Administration Server installation package are shown on

two tabs: General (cf. Figure Figure 20) and Reboot OS (cf. Figure Figure 23).

The other properties are the same as Administration Server default settings.

4.1.5. Creating a task for distribution of the

installation package on the slave

Administration Servers

In order to create the task for distribution of the installation package on the slave

Administration Servers:

1. Connect to the Administration Server you need.

2. Select the Global tasks node in the console tree, open the shortcut menu

and select the New → Task command or use the analogous item in the

Action menu. This will start the wizard. Follow its instructions.

3. For the Kaspersky Administration Kit application select the Packages

retranslation task task type.

4. In the next wizard window (see Figure 25) select which installation

packages must be distributed. Select one of the following options:

• All installation packages.

• Selected installation packages. In this case check boxes next

to the names of the required installation packages in the table

below.

50 Kaspersky® Administration Kit

Figure 25. Creating a set of installation packages

Specify the required value in the The maximum number of simultaneous

downloads:.

5. In the next wizard window (see Figure 26) check boxes next to the names

of the slave Administration Servers to which the installation packages

must be distributed.

Installation and Removal of Software on the Computers 51

Figure 26. Selecting slave Administration Servers

6. In the next wizard window specify the task launch schedule (details see

section 0 on page 53).

7. To exit the wizard when it is completed, press the Finish button.

4.1.6. Distribution of the installation

packages within a group using

network agents

In order to distribute installation packages within a group, you can use updating

agents. The updating agents receive installation packages and updates from the

Administration Server and save them in the Kaspersky Lab's application

installation folder.

The location of the folder that contains the updates and the installation

packages cannot be changed; its size cannot be restricted.

Later the installation packages will be distributed to the client computers using

the multi-address delivery. Delivery of the new installation packages within a

group is only performed once. If at the moment of the delivery a client computer

was disconnected from the corporate logical network, then when the installation

task is run the Network Agent will automatically download the required

installation package from the updating agent.

52 Kaspersky® Administration Kit

In order to create the list of the updating agents and configure them to distribute

installation packages to computers within a group,

1. Connect to the required Administration Server.

2. Select the required group in the console tree, open the shortcut menu and

select the Properties command or use the analogous item in the Actions

menu.

3. In the group properties window that will open, on the Updating Agents

tab (see Figure 27) create the list of computers that will act as the

updating agents within the group, using the Add and the Remove

buttons.

Figure 27. The group properties window.

The Updating Agents tab

4. Edit the updating agent's settings. In order to do it, select the agent in the

list and press the Properties button. In the <Updating agent name>

properties window that will open (see Figure 28) do the following:

• specify the number of the port used by the client computer to

connect to the updating agent. The default port number is

14001. If this port is being used, you can change it;

Installation and Removal of Software on the Computers 53

• specify the number of the port used by the client computer to

securely connect to the updating agent using SSL protocol. The

default port number is 13001;

• check box Use multiaddress IP delivery and fill in fields

Multicast IP Address and Multicast IP Port Number.

5. Press the Apply or the ОК button.

Figure 28. Updating agent properties windowCreating a remote installation task

When this task is executed, remote installation of software on the client

computers is performed using one of the two methods: forced installation or

installation using the startup scenario.

Forced installation allows performing the remote installation of software on the

specific client computers within the logical network. When the task is run, the

Administration Server will copy from the shared folder a set of files required to

install the application to each client computer in the temporary folder and

launches the installer application on each computer. In order to successfully

perform the forced installation task the Administration Sever must have the rights

of the local administrator on the client computers within the logical network. This

method is recommended for installation of applications onto computers running

54 Kaspersky® Administration Kit

Microsoft Windows NT/2000/2003/XP that support such ability or onto computers

running Microsoft Windows 98/Me on which the Network Agent is installed.

If the connection between the Administration Server and the client computer is

established via Internet or is protected by a firewall, shared folders cannot be

used to transfer data. In this case the files required to install the application to

the client computer can be delivered by the Network Agent. The Network Agent

is installed on such computers locally.

The second method - installation using the startup scenario - allows to assign

a remote installation task to a specific user (or several users') account. As the

result of the task execution, a record about launching the installer application will

be entered into the startup scenario for the selected users. The installer

application is located in the shared folder on the Administration Server. In order

to ensure successful task execution, the account under which it is run or the

Administration Server must have the right to modify the startup scenarios in the

domain controller database. As the results of the user registration with the

domain an attempt will be made to install the application on the client computer

from which the user has registered. This method is recommended for installation

of the Kaspersky Lab's applications onto the computers running MS Windows

98/Me.

In order to ensure successful execution of the remote installation task using the

startup scenario, users for which changes are made in the scenarios, must

have the local administrator's rights on their respective computers.

Group tasks for remote software installation onto the client computers are

executed using the forced installation method only. When creating a global task,

you can select the method you require: the forced installation or installation using

the startup scenario.

In order to create a global task for remote installation using the forced installation

method:

1. Connect to the required Administration Server.

2. Select the Global tasks node in the console tree, open the shortcut

menu and select the New / Task command or use the analogous item in

the Action menu. This will start the task creation wizard. Follow its

instructions.

3. Specify the task name.

4. When selecting the application and the task type (see Figure 29), specify

values Kaspersky Administration Kit and Remote application

installation respectively.

Installation and Removal of Software on the Computers 55

Figure 29. Specifying the task type

5. After this, specify the installation package that will be installed during the

execution of this task (see Figure 30). Select the required package from

the packages created for the particular Administration Server or create a

new package using the New… button.

Some applications that support administration via Kaspersky

Administration Kit can be installed on the computers only locally.

Detailed information see Guides to the corresponding applications.

56 Kaspersky® Administration Kit

Figure 30. Selecting the installation package for installation

6. During this stage select the Push install option (see Figure 31)

Figure 31. Selecting installation method

Installation and Removal of Software on the Computers 57

7. In this wizard window (see Figure 32) you will be offered to determine

additional installation settings.

• Whether the application must be reinstalled if it has already

been installed on the computer.

Check the Do not install application if it is already installed

box in order to prevent repeated installation (by default the box

is checked). In this case for the computers on which the

application is installed locally or as the result of previous

scheduled launch of the remote installation task, the task will

not be launched.

If the box is unchecked, the remote installation task will be

launched by scheduled until the maximum number of attempts

to install the application has been reached.

• To specify the method for delivery of the files required to install

the application on the client computers.

In order to do it, perform the following in the Downloading the

installation package group of fields:

o Check the Using Microsoft Windows resources from

public access folder box if you wish that the transfer of

the files required to install the application to the client com-

puters is performed using Windows tools and the shared

folders (by default this box is checked).

o Check the Using Administration Agent box so that the

files are delivered to the client computers by the Network

Agent installed on each computer (by default this box is

checked).

o In the The maximum number of simultaneous

downloads field specify the maximum number of client

computers that can download information from the Admini-

stration Sever.

• Specify the number of attempts to perform the installation in

case of a scheduled task launched by entering the required

value in the Number of attempts field. Repeated attempts are

made in case of an error during the execution in the course of

the previous installation.

58 Kaspersky® Administration Kit

Figure 32. Additional installation settings

8. During this step (see Figure 33) you will be offered to install the Network

Agent together with the application.

We recommend that you use the joint installation in order to reduce load

on the Administration Server. In order to do it check the Install along

with Administration Agent box and check box next to the name of the

required installation package. If required, create a new installation

package using the Create button.

Installation and Removal of Software on the Computers 59

Figure 33. Selecting joint installation with the Network Agent

9. Determine the method to select the computers on which the task will be

created (see Figure 34):

• Based on data obtained in a Windows network poll. In this

case computers for installation will be selected based on the

data received by the Administration Server based on the

corporate Windows network polling.

• Based on manually entered host addresses. In this case

computers for installation will be selected manually.

60 Kaspersky® Administration Kit

Figure 34. Selecting the method to be used to select the client computers

If computers are selected based on the data received as the result of the

Windows network polling, the list will be created in the wizard window

(see Figure 35) and will be performed in the same way as when adding

computers to the logical network (details see Reference Book for

Kaspersky Administration Kit). You can select either the computers of the

logical network (the Groups folder) or computers that have not yet been

included into the logical network (the Network folder).

Installation and Removal of Software on the Computers 61

Figure 35. Creating the list of computers for installation based on the Windows network

data

If you select computers manually, then the list is created by entering

NETBIOS or DNS names, IP addresses (or a range of IP addresses) of

the computers or by importing the list from a txt file in which each address

must be entered in a new line (see Figure 36).

Figure 36. Creating the list of computers for installation based on IP addresses

62 Kaspersky® Administration Kit

10. In the next wizard window specify under which account the deployment

task will be launched on the computers (see Figure 37).

The account must have the administrator's rights for all computers

on which you plan to perform remote software installation.

When installing the software on the computers included in various

domains, between such domains and the domain in which the

Administration Server is working trusted relationship must exist.

Select one of the following options:

• Default account - if the Administration Server is run under the

domain user's account (see section 3.2 on page 17) and this

account has rights required to install the software.

• Specified account - if the Administration Server is run under

the system account or if the Administration Server's account

des not have the rights required to launch the deployment task.

In order to remotely install the software on the computers not

included into the domain, launch the remote installation task under

the account of a user who has the administrator's rights on these

computers.

In the fields provided below specify the attributes of the user whose

account conform to the required conditions.

Installation and Removal of Software on the Computers 63

Figure 37. Selecting the account

11. Then create the schedule to launch the task (see Figure 38).

• Select the required task launch mode from the Scheduled

launch drop-down list:

o Manually

o Every N hour(s)

o Daily

o Weekly

o Monthly

o Once (in this case the deployment task will only run once

on the computer irrespective of the result of its execution).

o Now (immediately following the creation of task and com-

pletion of the wizard).

o Upon completion of another task (remote installation

task will not start until after a specified task exits)

64 Kaspersky® Administration Kit

• Configure the schedule settings in the group of fields based on

the selected mode (details see Reference Guide for Kaspersky

Administration Kit).

Figure 38. Daily task launch

In order to create a global deployment task using the startup scenario:

1. Connect to the required Administration Server.

2. Select the Global tasks node in the console tree, open the shortcut menu

and select the New / Task command or use the analogous item in the

Action menu. This will start the task creation wizard. Follow its

instructions.

3. Specify the task name.

4. When selecting the application and the task type (see Figure 29), select

Kaspersky Administration Kit and Application remote installation

respectively.

5. In the next window (see Figure 30) specify the installation package to be

used for the installation. This is performed the same way as with the

forced installation method (see above).

6. After this select the Installation using the startup scenario option (see

Figure 31)

Installation and Removal of Software on the Computers 65

7. In the next wizard window (see Figure 36) select accounts of users for

which the startup scenario must be changed.

When the installation task is started, Kaspersky Administration Kit checks

whether a startup script is specified for any other users in addition to those

selected. If that is the case, installation will not proceed. Appropriate error

information will be written out to the log file.

Figure 39. Selecting accounts

8. During the next step of the wizard (see Figure 37), similarly to using the

forced installation method (see above),

9. In the Task launch schedule (see Figure 38) create a schedule the same

way as it is created if the forced installation method is used (see above).

After the wizard is complete, the deployment task you created will be added to

the Global tasks node and displayed in the results pane. If required, you can

modify its settings (details see section 4.1.7 on page 66).

In order to do it,

select the Remote installation node in the console tree, select the

installation package required in the results pane, open the shortcut menu

and select the Install command or use the analogous command from the

Action menu. This will launch the deployment task creation wizard

described above, however, this wizard will not include the task type and

installation package selection steps. Follow its instructions.

Alternatively you can launch the group deployment task creation wizard.

66 Kaspersky® Administration Kit

In order to do it,

select the Groups node in the console tree, open the shortcut menu and

select the Install command or use the analogous command from the

Action menu. This will launch the group deployment task creation wizard

described above, however, this wizard will not include the task type and

computer group selection steps. Follow its instructions.

4.1.7. Configuring the deployment task

Deployment tasks are configured the same way as any task (details see

Reference Book for Kaspersky Administration Kit). Provided below is a detailed

discussion of settings specific for this type of tasks provided on the Settings tab.

If you are editing a task that will perform forced installation (see Figure 40), you

can:

• determine whether you have to reinstall the application if it is already in-

stalled on the client computer;

• specify the method to be used to deliver the files required to install the

application to the client computer and specify the maximum number of

simultaneous connections;

• specify the number of attempts to perform the installation if the task is run

based on schedule.

Installation and Removal of Software on the Computers 67

Figure 40. Configuring a deployment task

Push installation method

When configuring a deployment task using a startup scenario, you can us the

Settings tab to change the list of accounts of users for who the startup scenario

will be modified (see Figure 41). To edit the list use the Add and the Remove

buttons.

68 Kaspersky® Administration Kit

Figure 41. Configuring a deployment task using the startup scenario.

4.1.8. Deploying application to slave

administration servers

This task enables you to install and update software on slave servers

Before creating the task make sure that an installation package is on all the

servers. Use Package retranslation task to send the package to server (see

section 4.1.5).

To create application deployment to slave servers task:

1. Connect to the required Administration Server.

2. Select the Global tasks node in the console tree, open the shortcut

menu and select the New / Task command or use the analogous item in

the Action menu. This will start the task creation wizard. Follow its

instructions.

3. Specify the task name.

Installation and Removal of Software on the Computers 69

4. When selecting the application and the task type (see Figure 29), specify

values Kaspersky Administration Kit and Deploy application to slave

administration servers.

5. Specify the installation package that will be installed during the execution

of this task

6. Check the Do not install application if it is already installed box in or-

der to prevent repeated installation (by default the box is checked).

7. This step is not available for a global task. Select Slave Administration

Servers (Figure. 42) and make up a list of slave servers

Figure 42. Creating a list of slave administration servers

8. Then create the schedule to launch the task

70 Kaspersky® Administration Kit

Figure 43. Application Deployment to slave administration servers task. Settings tab.

4.1.9. Remote software removal

In order to remotely remove the software:

Create a task similarly to creation of a deployment task (see section 0 on

page 53); select Remote application removal as the task type and

select the required Kaspersky Lab's application from the Application to

be removed drop-down list in the Application window (see Figure 44). In

order to remove a third-party application, check the Third-party

application and select the application to be removed.

The drop-down list contains the list of applications detected on the

computers of the logical networks after the Network Agent had been

installed on these computers.

Installation and Removal of Software on the Computers 71

Figure 44. Selecting an application to be removed

The task you created will be run according to the schedule.

4.2. Deployment wizard

You can use deployment wizard to install Kaspersky Lab's applications. This

wizard allows performing application deployment using the forced installation

method using installation packaged created or directly from the distribution

package.

The wizard performs the following:

• creation of an installation package to install the application (if such pack-

age has not been installed earlier). The package is stored in the Remote

installation node under the name that matches the name and the version

of the application and can be used to install the application later.

• creation and launching of global and group deployment tasks. The task

created will be located in the Global tasks or Group tasks folder of the

group for which the task was created and can be manually run later. The

name of the task matches the name of the package for the application in-

stallation: Installation <Name of the selected installation package>.

72 Kaspersky® Administration Kit

In order to install application using the deployment wizard:

1. Connect to the required Administration Server.

2. In the console tree of the main Kaspersky Administration Kit application

window select the node corresponding to the required Administration

Server, open the shortcut menu and select the Deployment wizard

command or use the analogous command in the Action menu. This will

run the wizard. Follow its instructions.

3. In the window that will open (see Figure 45) specify the installation

package that will be installed. If you are installing the application from a

distribution package and/or if the installation package has not been

created, create a new installation package. In order to do it press the

New… button; this will open the installation package creation wizard (see

section 4.1.1 on page 37).

Figure 45. Selecting an installation package

4. In the next wizard window, if required, specify the Network Agent

installation package to be jointly installed (details see section 0 on page

53).

5. In the wizard window (see Figure 46) determine on which computers the

application will be installed. In order to do it, select one of the options:

Installation and Removal of Software on the Computers 73

• Install the application onto selected computers, if you select

this option, then after the wizard is complete a global application

deployment task will be created.

• Install application onto computers in the administration

group - as the result of the wizard's work, a group task will be

created.

Figure 46. Selecting a task type

6. Then if you are creating a group task, specify a group on whose

computers the application will be remotely installed (see Figure 47), or

select computers for the installation. If the application must be installed on

all client computers within the logical network, select the Groups group.

74 Kaspersky® Administration Kit

Figure 47. Selecting a group

7. Then determine under which account the deployment task will be run on

the computers (details see section 0 on page 53).

Figure 48. Selecting a user's account

Installation and Removal of Software on the Computers 75

8. After this a window will open that will display the process of distribution

and execution of the deployment task on the computers of the selected

group (see Figure 49). You can switch to the final window of the wizard

without waiting for the process to be completed. In order to do it, press the

Next button. You can view detailed information about the results of the

task execution on each computer using the History button.

Figure 49. Deployment task execution

4.3. Local software installation

The local software installation is performed individually on each computer. In

order to perform local installation you must have the administrator's right for the

local computer.

Some applications that support administration using Kaspersky Administration

Kit can be installed on computers only locally. Details see Guides to the

corresponding applications.

General procedure for the software installation during local deployment of the

anti-virus protection system can be as follows:

• install the Network Agent and configure the connection between the client

computer and the Administration Server (see section 4.3.1 on page 76);

76 Kaspersky® Administration Kit

• install the required applications on the computer that will be included into

the anti-virus protection system according to the description in the corre-

sponding Guides;

• install the administration plugin for each of the installed Kaspersky Lab's

applications into the administrator's workstation (see section 4.3.2 on

page 81).

Kaspersky Administration Kit support local application installation in non-

interactive mode based on the files created during installation package creation

(see section 4.3.3 on page 82).

4.3.1. Local installation of the Network

Agent

In order to locally install the Network Agent on the computer:

1. Run file setup.exe (or setup.msi) located on the distribution CD of the

Kaspersky Administration Kit application in folder NetAgent. The

installation process is facilitated by the wizard. The wizard will offer you to

configure the installation settings. Follow its instructions.

2. First steps of the installation process are the usual procedure and involve

unpacking required files from the distribution package and copying them

on the hard drive of your computer, accepting the license agreement and

providing information about the user and the company.

3. Then you have to define the Network Agent installation folder. The default

installation folder is Program Files\Kaspersky Lab\NetworkAgent. If

such folder does not exist, it will be created automatically. To change the

folder use the Browse… button.

4. In the next wizard window (see Figure 50) you will have to configure

settings used by the Network Agent to connect to the Administration

Server. In order to do this define the following:

• address of the computer on which the Administration Server is

or will be installed. The computer's IP address or name in the

Windows network can be used as the computer address. Alter-

natively, you can select the computer using the Browse button.

• whether UDP Port 137, used to obtain Administration Server IP

address needs to be opened in Kaspersky Antivirus 6.0 Anti-

Hacker. If so, check Enable NetBIOS Name Service in

Kaspersky Antivirus 6.0 Anti-Hacker.

Installation and Removal of Software on the Computers 77

• the port number using which the Network Agent will connect to

the Administration Server. By default port 14000 will be used. If

it has been assigned, you can change it. Only decimal repre-

sentation is allowed.

• port number that will be used for secure connection to the

Administration Server using SSL protocol. By default port 13000

port is used. If it has been assigned, you can change it. Only

decimal representation is allowed. In order to make sure that

the connection is using a secured port (using SSL protocol)

check the Use SSL to connect to server box.

Figure 50. Configuring settings used to connect to the Administration Server

5. If the Network Agent connects to the Server via a proxy server (see

Figure 51)l, configure the corresponding connection settings:

• Check the Use a proxy server to connect to the Administra-

tion Kit Server box and enter the address and the name of the

port to connect to the proxy server. Only decimal notation is al-

lows (for example: Proxy address: proxy.test.com; Port: 8080).

• If a password is used to access the proxy server, fill in the

Proxy login and the Proxy password fields.

If no proxy server is used, skip this step by pressing the Next button.

78 Kaspersky® Administration Kit

Figure 51. Configuring the connection settings via a proxy server

6. After this, determine which folder of the Network group the computer

must be added to after it is detected by the Administration Server during

the Windows network polling. Select one of the following options: (see

Figure 52):

• Default group name - the computer will be added to the folder

that corresponds to its position in the Windows network: domain

or the workgroup (this is the default option).

• Define group name - the computer will be added to the folder

specified in the Group name field. If you select this option, en-

ter the folder name. If such folder does not exist in the Network

group, it will be created (you can specify the name of any of the

folders existing in the Network group).

Installation and Removal of Software on the Computers 79

Figure 52. Selecting the group in the Network folder to store the computers

7. During the next stage (see Figure 53) you have to specify the method you

would like to use to receive the certificate of the Administration Server's to

which the Network Agent will connect. Select one of the following options:

• Default certificate - the Administration Server's certificate will

be received when the Network Agent connects to it for the first

time (this is the default options);

• Select certificate file - authentication at the Administration

Server will be performed based on the certificate specified by

the administrator. If you select this option, specify the Admini-

stration Server's certificate file to be used.

The certificate file has extension .cer and is located on the

Administration Server in the Cert folder in the Kaspersky

Administration Kit installation folder.

You can copy the certificate file to the shared folder or onto a

disk and use a copy of the file to install the Network Agent.

80 Kaspersky® Administration Kit

Figure 53. Selecting the method to be used to receive the Administration Server's

certificate

8. In the final wizard window (see Figure 54) you will be offered to run the

Network Agent immediately after the wizard is complete. If you would like

to run it later, uncheck the Launch Network Agent box checked by

default.

If you are planning to use the hard drive of the computer on which the Network

Agent is installed in order to create a disk image and deploy it on other

computers, the Launch Network Agent box must be unchecked.

Installation and Removal of Software on the Computers 81

Figure 54. Configuring the launch of the Network Agent

After the wizard is complete, the Network Agent will be installed on your

computer.

You can review the properties of the Kaspersky Network Agent service, start,

stop or monitor it using the standard Windows administration tools - Computer

Management → Services.

A plugin for cooperation with Cisco Network Admission Control (NAC) is always

installed to a host together with an Administration Agent. The plugin is invoked if

the Cisco Trust Agent application is installed.

4.3.2. Local installation of the application

administration plugin

In order to install the application administration plugin,

on the computer on which the Administration Console is installed, run

executable file klcfginst.exe, located on the application's distribution CD.

This file is included into all applications that can be administered via

Kaspersky Administration Kit. The installation is facilitated by a wizard

and does not require any configuration. It will offer you to configure the

installation settings and start it.

82 Kaspersky® Administration Kit

The file of the administration plugin for the Network Agent klcfginst.exe

is located in the NetAgent folder of the distribution package of

Kaspersky Administration Kit

4.3.3. Installing applications in non-

interactive mode

In order to install an application in non-interactive mode:

1. Create the required installation package (see section4.1.1xx) if the

installation package for the application you would like to install has not

been created.

Installation packages will be saved in some shared folder under the

Administration Server Packages system directory when the

Administration Server is being installed. A subfolder will correspond to

each installation package.

2. Configure installation package settings as required.

3. Install application using one of the methods below:

Copy the entire folder corresponding to the desired installation package

from the Administration Server to the client. Open the copied folder on the

client and start the executable (file with the .exe extension) using the /s

switch.

Access the shared folder for the desired installation package on the

Administration Server from the client. Then start the executable with the

/s switch.

4. Run executable file setup.exe with modifier /s included into the

distribution package of the application being installed, on the

computer onto which you plan to install the application using non-

interactive mode.

Installation packages are stored on the Administration Server in

the shared folder specified during the Administration Server

installation stage, in service folder Packages.

When installing Kaspersky Administration Kit non-interactively, an answer

file may be used. This file contains all the application install parameters

and enables the application to be installed more than once with the same

parameters.

Installation and Removal of Software on the Computers 83

To generate a Kaspersky Administration Kit answer file:

1. Use the command line to go to the folder containing a Kaspersky

Administration Kit distribution and run the executable with switches

/r and /f1"<file path>\setup.iss"2 (for example, setup.exe /r

/f1"C:\setup.iss").

• This will start the application installation wizard on the host

computer.

2. Follow the prompts offered by the wizard to configure application

installation settings. For example, Administration Server or Console

only may be selected for installation.

Once the installation is complete, the selected version of Kaspersky

Administration Kit will have been installed on the host computer, and an answer

file will have been generated and placed in the specified directory. The resulting

answer file should be copied into the relevant installation package folder on the

Administration Server. This will cause Kaspersky Administration Kit to install non-

interactively using one of the methods above with the configuration specified in

the answer file.

An answer file may be used to update Kaspersky Administration Kit non-

interactively. However, it can only be used to update the application version that

had been utilized to generate the file.

2 The complete path to the answer file must be specified.

APPENDIX A. GLOSSARY

This Guide uses some specific terms related to anti-virus protection. Glossary is

a list of definitions of these terms. The glossary entries are arranged in

alphabetical order to facilitate using the glossary.

A

Available updates – Service Packs that contain urgent updates

accumulated over time and latest changes in the application

architecture.

Administration group – Computers grouped in accordance with their

functional and installed Kaspersky Lab applications. Grouping

significantly facilitates the management process and allows the

administrator to manage all computers as a single entity. A group might

include other groups. Group policies and group tasks can be created for

each application of installed on group members.

Administration Console– A Kaspersky Administration Kit component that

provides user interface for the administrative services of the

Administration Server and Network Agent.

Anti-virus database – A database created by Kaspersky Lab specialists

that contains detailed definitions of all currently existing viruses and

methods for their detection and disinfection. Anti-virus applications use

the database to successfully detect and disinfect viruses. The anti-virus

database available on the Kaspersky Lab websites is regularly updated

as new virus threats appear. Registered users of Kaspersky Lab

applications have access to database updates. To keep your computer

constantly protected from viruses, we strongly recommend that you

download updates on a regular basis.

Administrator workstation – A computer where the Administration Console

of Kaspersky Administration Kit is installed. Using the Console, the

administrator can build and manage the anti-virus protection system

based on Kaspersky Lab applications.

Anti-virus protection status – Current status of anti-virus protection that

characterizes the security level for your computer.

Administration Server – A Kaspersky Administration Kit component that

centrally stores information about Kaspersky Lab applications installed

on clients and manages these applications.

Administration Server certificate – A certificate used to authenticate the

Administration Server upon connection of the Administration Console to

the server and data transmission between the server and clients. The

Administration Server certificate is created during the installation of the

Appendix A 85

Administration Server. It is located in the Cert folder of the installation

folder.

B

Block object – Prevent external applications from accessing an object. The

blocked object cannot be read, executed, modified, or deleted.

Backing up – copying data of the Administration server for storage and

subsequent restoration performed by the backup utility. The utility allows

to save:

Administration Server database that stores policies, tasks, application settings,

and events logged on the Administration Server

Information about the logical networks and client configurations

Installation files for the remote installation of applications (contents of the Pack-

ages, Uninstall, Updates folders)

Administration Server certificate

Backup folder – A directory that contains backups of deleted and

disinfected objects.

Backup license key – a license key installed for a Kaspersky Lab's

application, but not activated. Depending on the settings, activation of

the key can be performed automatically upon the expiration of the

current key or manually.

Backup storage – A folder that contains the backup copies of

Administration Server data created by the backup utility.

C

Console (management) plug-in – A special component that provides an

interface for remotely managing an application through the

Administration Console. The plug-ins are specific to each application

and are included in all Kaspersky Lab applications that can be managed

through Kaspersky Administration Kit.

Centrally managing an application – Managing an application through

Kaspersky Administration Kit.

Client, Administration Server (or client computer) – a computer, a server,

or a workstation with the installed Network Agent and managed

Kaspersky Lab applications.

Current license key – a license key installed and currently used to work

with a Kaspersky Lab's application. This key determines the license

period and the licensing policy regarding to the product.

D

Disinfection – A method of treating infected objects. Disinfection implies

partial or full recovery of data or results in a decision that these files

cannot be disinfected. Objects are disinfected using the anti-virus

database. If disinfection is the first action to be applied to an object, i. e.

86 Kaspersky® Administration Kit

the first action after detection of a suspicious object, the program

creates a backup of this file. If some data are lost during disinfection,

you can use the backup to recover this object.

Deleting an object – A method of handling an object. To delete an object is

to remove it physically from a computer. This method is recommended

for treating infected objects. If deleting is the first action applied to an

object, it is necessary to create a backup of this object before deleting it.

You can use the backup to restore the original object.

E

Exclusions – User-defined settings that exclude certain objects from scans.

You can customize the exclusion rules for real-time protection and on-

demand scans. Thus, you can disable scanning of archives during a full

scan or exclude files from scans by their masks.

E-mail databases – Databases that contain e-mail messages stored on

your computer. Every incoming/outgoing message is saved in the

database after you receive/send it. Such databases are scanned in the

on-demand scanning mode.

F

Forced installation – a method of remote installation of Kaspersky Lab's

applications that allows to perform remote installation on specific client

computers of the logical network. In order to ensure successful

execution of a forced installation task the account used to run the task

must have the right for remote launch of the applications on the client

computers of the logical network. This method is recommended for

installation of applications onto computers running Microsoft Windows

NT/2000/2003/XP that support such feature or onto computers running

Microsoft Windows 98/Me on which the Network Agent is installed.

G

Global task – A task defined for and running on a number of clients from

different administration groups.

Group Task – A task defined for and running on all clients in a group.

Group policy – A set of application settings in an administration group

managed through Kaspersky Administration Kit. Group policies can be

different for each group. Group policies are specific to individual

applications. The policy involves configuration of all parameters of

applications.

I

IChecker technology – A technology that excludes the objects from future

scans that remained unmodified since the last scan. The IChecker

technology was implemented by using the object checksum database.

Appendix A 87

IStreams technology – A technology that excludes the files stored on

NTFS-formatted disks that remained unmodified since the last scan.

The IStreams technology was implemented by using a method of

storing file checksums in the additional NTFS streams.

Infected object – An object containing a virus. We recommend that you

abandon working on these objects because they can infect your

computer.

Installation package – A package of files used to install Kaspersky Lab

applications on remote hosts on a logical network. Installation packages

are based on a special .kpd file included in the application distribution

kit, which contains a minimum set of parameters that provide the basic

functionality of the application immediately after the installation. The

values of the parameters are default settings of the applications.

Installation using the startup scenario – a method of remote installation

of Kaspersky Lab's applications that allows to assign a remote

installation task to a specific account of a user (or several users). When

a user is registered with a domain, an attempt will be made to install the

application on the client computer from which the user has registered.

This method is recommended for installation of Kaspersky Lab's

applications onto computers running Microsoft Windows 98/Me.

K

Kaspersky Lab update servers – A list of http and ftp Kaspersky Lab

websites where you can copy updates to your computer from.

Kaspersky Administration Kit – An application for centralized performance

of key administrative tasks. It gives you complete control over the

enterprise anti-virus policy based on Kaspersky Lab applications.

L

License key – A file with the .kеy extension that serves as your personal

"key". This file is required for correct operation of Kaspersky Lab

applications. The license key is included in the distribution kit if you

purchased your copy of the application from Kaspersky Lab distributors.

If you purchased the application online, the license key is sent to you

via e-mail. Without the license key, Kaspersky Anti-Virus DOES NOT

WORK.

Logical network operator – A user that monitors the system of anti-virus

protection managed by Kaspersky Administration Kit.

Local management – Management of an application through a local

interface.

Local task – A task created for and running on a single client.

License period – A period during which you have the right to take

advantage of the full functionality of Kaspersky Anti-Virus. As a rule, the

88 Kaspersky® Administration Kit

license period defined by the license key is one year from the date of

purchase. After your license expires, the application will operate but you

will not be able to update the anti-virus database.

Local network administrator – A user who installs, configures, and

maintains Kaspersky Administration Kit and remotely manages

Kaspersky Lab applications installed on the logical network computers.

M

Maximum protection – A protection level that ensures comprehensive

protection but slightly decreases performance characteristics.

Maximum speed – A protection level that has a maximum operation speed

but a lower security level.

N

Network Agent – A Kaspersky Administration Kit component that provides

communication between the Administration Server and Kaspersky Lab

applications installed on specific network nodes (workstations or

servers). This component is common to all Windows applications

included in Kaspersky Lab Business Optimal and Corporate Suite.

Separate versions of Administration Agent exist for Kaspersky Lab

Novell and UNIX applications.

O

OLE-object – An object linked or embedded into other files by using OLE

technology.

On-demand full scan – An administrator-defined mode that scans all files

on your computer for viruses and disinfects/deletes infected objects

upon their detection.

P

Policy – see Group policy

Push installation – A remote installation method that allows you to install

Kaspersky Lab software on specified computers on your logical

network. In order to successfully perform the task using a push

installation, the account used to launch this task must have rights to run

applications on remote clients. This method is recommended for

computers running MS Windows NT/2000/2003/XP, which support this

feature, or for computers that are running MS Windows 98/Me and have

an installed Network Agent.

Q

Quarantining – A method of handling a suspicious object. Access to this

object is blocked and the file is moved to the quarantine for further

processing.

Appendix A 89

Quarantine – A special storage that isolates infected and suspicious

objects.

R

Real-time protection – A scanning mode in which an anti-virus application

is memory resident. In the real-time protection mode, the application

scans all objects when you open them for reading, writing, or executing.

Before enabling access to an object, Kaspersky Anti-Virus scans it for

viruses and, if a virus is detected, blocks access to the object, disinfects

it or deletes it (depending on user-defined settings).

Recommended level – The level of antivirus protection with default settings

recommended by Kaspersky Lab experts which ensures the optimal

protection of your computer. This level is set by default.

Remote installation– Installation of Kaspersky Lab applications using the

services provided by Kaspersky Administration Kit.

Restoring – Restoring Administration Server data using a backup utility.

The information for restoring is available in the backup storage. The

utility allows you to restore:

Administration Server database that stores policies, tasks, application settings,

and events logged on the Administration Server

Information about the logical networks and client configurations

Installation files for the remote installation of applications (contents of the Pack-

ages, Uninstall, Updates folders)

Administration Server certificate

S

Script-based installation – An installation method that relates the remote

installation task with a specified user account (several accounts). When

the specified user logs onto the domain, the application will be installed

on the client where this user has logged on. This method is

recommended for use with computers running MS Windows 95/98/Me

Settings, task – Application settings specific for each type of task.

Settings, applications – Application settings specific for all types of tasks

performed by this application.

Severity level – A parameter that classifies an event recorded during

Kaspersky Anti-Virus performance. There are four severity levels:

• Critical

• Error

• Warning

• Info

Events of the same kind can be of different severity levels, depending on

a specific situation.

90 Kaspersky® Administration Kit

Startup objects – A set of programs that are necessary for launching and

smooth operation of the operating system and other software installed

on your computer. Your operating system launches these objects during

each startup. Some viruses attempt to infect the startup objects and can

cause a startup failure.

Suspicious object – An object that contains either a modified code of a

well-known virus or a code reminiscent of a virus yet unknown to

Kaspersky Lab specialists.

Scan files by format – In this scanning mode, the program analyzes the

contents of a file, namely, the format identifier in the file header.

Scan files by extension – In the scanning mode, the program takes into

account the scanned file extension.

T

Task – An action that has a name performed by a Kaspersky Lab

application.

Third party application – An anti-virus application by a third-party vendor

or a Kaspersky Lab's application not supporting administration via

Kaspersky Administration Kit.

U

Unknown virus – A new virus that is not recorded in the anti-virus

database. As a rule, Kaspersky Anti-Virus detects unknown viruses

using an heuristic code analyzer and objects containing these viruses

are identified as suspicious.

Updating – A function of Kaspersky Anti-Virus that updates/adds new files

(anti-virus database or program modules) retrieved from Kaspersky Lab

update servers.

Updating agents - computers that act as intermediate centers for

distributing updates and installation packages within the administration

groups.

V

Virtual drives (RAM drives) – A part of RAM emulating a normal physical

disk of a personal computer.

Virus activity threshold – number of viruses detected for a specified

time interval. When this number is exceeded, the situation is regarded as

a Virus outbreak (virus attack). This parameter is important for defining

virus epidemics because the administration can respond in a timely

fashion to new threats and take preventive measures to protect his/her

network.

APPENDIX B. KASPERSKY LAB

Founded in 1997, Kaspersky Lab has become a recognized leader in information

security technologies. It produces a wide range of data security software and

delivers high-performance, comprehensive solutions to protect computers and

networks against all types of malicious programs, unsolicited and unwanted e-

mail messages, and hacker attacks.

Kaspersky Lab is an international company. Headquartered in the Russian

Federation, the company has representative offices in the United Kingdom,

France, Germany, Japan, USA (CA), the Benelux countries, China, Poland, and

Romania. A new company department, the European Anti-Virus Research

Centre, has recently been established in France. Kaspersky Lab's partner

network incorporates more than 500 companies worldwide.

Today, Kaspersky Lab employs more than 450 specialists, each of whom is

proficient in anti-virus technologies, with 10 of them holding M.B.A. degrees, 16

holding Ph.Ds, and senior experts holding membership in the Computer Anti-

Virus Researchers Organization (CARO).

Kaspersky Lab offers best-of-breed security solutions, based on its unique

experience and knowledge, gained in over 14 years of fighting computer viruses.

A thorough analysis of computer virus activities enables the company to deliver

comprehensive protection from current and future threats. Resistance to future

attacks is the basic policy implemented in all Kaspersky Lab's products. At all

times, the company’s products remain at least one step ahead of many other

vendors in delivering extensive anti-virus coverage for home users and corporate

customers alike.

Years of hard work have made the company one of the top security software

manufacturers. Kaspersky Lab was one of the first businesses of its kind to

develop the highest standards for anti-virus defense. The company’s flagship

product, Kaspersky Anti-Virus, provides full-scale protection for all tiers of a

network, including workstations, file servers, mail systems, firewalls, Internet

gateways, and hand-held computers. Its convenient and easy-to-use

management tools ensure advanced automation for rapid virus protection across

an enterprise. Many well-known manufacturers use the Kaspersky Anti-Virus

kernel, including Nokia ICG (USA), F-Secure (Finland), Aladdin (Israel), Sybari

(USA), G Data (Germany), Deerfield (USA), Alt-N (USA), Microworld (India) and

BorderWare (Canada).

Kaspersky Lab's customers benefit from a wide range of additional services that

ensure both stable operation of the company's products, and compliance with

specific business requirements. Kaspersky Lab's anti-virus database is updated

every hour. The company provides its customers with a 24-hour technical

support service, which is available in several languages to accommodate its

international clientele.

92 Kaspersky® Administration Kit

B.1. Other Kaspersky Lab Products

Kaspersky Lab News Agent

The News Agent is intended for timely delivery of news published by Kaspersky

Lab, for notifications about the current status of virus activity and fresh news. The

program reads the list of available news channels and their content from news

server of Kaspersky Lab with specified frequency.

The product performs the following functions:

• It visualizes in the system tray the current status of virus activity.

• The product allows the users to subscribe and unsubscribe from news

channels.

• It retrieves news from each subscribed channel with the specified fre-

quency and notifies about fresh news.

• It allows reviewing news on the subscribed channels.

• It allows reviewing the list of channels and their status.

• It allows opening pages with news details in your browser.

News Agent is a stand-alone Microsoft Windows application, which can be used

independently or may be bundled with various integrated solutions offered by

Kaspersky Lab Ltd.

Kaspersky® OnLine Scanner

The program is a free service offered to the visitors of Kaspersky Lab's corporate

website. The service allows an efficient online anti-virus scan of your computer.

Kaspersky OnLine Scanner runs directly from your browser. Thus, users can

quickly test their computers in case of a slightest suspicion of malicious infection.

Using the service, visitors can:

• Exclude archives and e-mail databases from scanning.

• Select standard/extended anti-virus databases for scanning.

• Save a report on the scanning results in txt or html formats.

Kaspersky® OnLine Scanner Pro

The program is a subscription service offered to the visitors of Kaspersky Lab's

corporate website. The service allows an efficient online anti-virus scan of your

computer and disinfection of dangerous files. Kaspersky OnLine Scanner Pro

runs directly from your browser. Using the service, visitors can:

• Exclude archives and e-mail databases from scanning.

Appendix B 93

• Select standard/extended anti-virus databases for scanning.

• Save a report on the scanning results in txt or html formats.

Kaspersky Anti-Virus® 6.0

Kaspersky Anti-Virus 6.0 is designed to safeguard personal computers against

malicious software as an optimal combination of conventional methods of anti-

virus protection and new proactive technologies.

The program provides for complex anti-virus checks including:

• Anti-virus scanning of e-mail traffic on the level of data transmission

protocol (POP3, IMAP and NNTP for incoming mail and SMTP for out-

going messages) irrespectively of the mail client being used as well as

disinfection of e-mail databases.

• Real-time anti-virus scanning of Internet traffic transferred via HTTP.

• Anti-virus scanning of individual files, directories or drives. In addition, a

preset scan task can be used to initiate anti-virus analysis exclusively

for critical areas of the operating system and start-up objects of Micro-

soft Windows.

Proactive protection offers the following features:

• Control of changes within file system. The program allows users to

create a list of applications, which it will control on a per component basis.

It helps protect application integrity against the influence of malicious

software.

• Monitoring of processes in random-access memory. Kaspersky Anti-

Virus 6.0 in a timely manner notifies users whenever it detects dangerous,

suspicious or hidden processes or in case when unauthorized changes in

standard processes occur.

• Monitoring of changes in OS registry due to internal system registry

control.

• Blocking of dangerous VBA macros in Microsoft Office documents.

• System restoration after malicious spyware influence accomplished due

to recording of all changes in the registry and computer file system and an

opportunity to perform their roll-back at user's discretion.

Kaspersky® Internet Security 6.0

Kaspersky® Internet Security 6.0 is an integrated solution for protection of

personal computers against the main information-related threats, i.e. viruses,

hackers, spam and spyware. A common user interface allows configuration and

management of all solution components.

94 Kaspersky® Administration Kit

The anti-virus protection feature includes:

• Anti-virus scanning of e-mail traffic on the level of data transmission

protocol (POP3, IMAP and NNTP for incoming mail and SMTP for outgo-

ing messages) irrespectively of the mail client being used. The program

includes plug-ins for popular e-mail clients (Microsoft Office Outlook, Mi-

crosoft Outlook Express and The Bat!) and supports disinfection of their

e-mail databases.

• Real-time anti-virus scanning of Internet traffic transferred via HTTP.

• File system protection: anti-virus scanning of individual files, directories

or drives. In addition, the application can perform anti-virus analysis ex-

clusively for critical areas of the operating system and start-up objects of

Microsoft Windows.

• Proactive protection: the program performs constant monitoring of ap-

plication activity and processes running in random-access memory pre-

venting dangerous changes to the file system and registry, and restores

the system after malicious influence.

Protection against Internet-fraud is guaranteed owing to the ability to

recognize phishing attacks, which helps prevent confidential data leaks (first of

all, your passwords, bank account and credit card numbers), and block execution

of dangerous scripts on web pages, pop-up windows and advertisement

banners. The feature blocking charged phone calls helps identify software that

attempts to use your modem for hidden unauthorized connection to paid phone

services and prevents such activity.

Kaspersky® Internet Security 6.0 registers attempts to scan the ports of your

computer, which frequently precede network attacks, and successfully defends

against typical hacker attacks. The program uses defined rules as a basis for

control over all network transactions tracking all incoming and outgoing data

packets. Stealth mode (owing to the SmartStealth™ technology) prevents

computer detection from outside. When you switch into that mode, the system

will block all network activity except for a few transactions allowed in user-

defined rules.

The program employs complex approach to anti-spam filtering of incoming e-mail

messages:

• Verification against black and white lists of recipients (including addresses

of phishing sites).

• Inspection of phrases in message body.

• Analysis of message text using a self-learning algorithm.

• Recognition of spam sent in image files.

Appendix B 95

Kaspersky® Security for PDA

Kaspersky® Security for PDA provides reliable anti-virus protection for data

saved on various types of hand-held computers and smartphones. The program

includes an optimal set of anti-virus defense tools:

• anti-virus scanner that scans information (saved both in internal memory

of PDA and smartphones or on memory cards of any type) on user de-

mand;

• anti-virus monitor to intercept viruses in files that are either copied from

other handhelds or are transferred using HotSync™ technology.

Kaspersky® Security for PDA protects your handheld (PDA) from unauthorized

intrusion by encrypting both access to the device and data stored on memory

cards.

Kaspersky Anti-Virus Mobile

Kaspersky ® Anti-Virus Mobile provides antivirus protection for mobile devices

running Symbian OS and Microsoft Windows Mobile. The program provides

comprehensive virus scanning, including:

• On-demand scans of the mobile device's onboard memory, memory

cards, an individual folder, or a specific file. If an infected file is de-

tected, it is moved to Quarantine or deleted.

• Real-time scanning – all incoming and outgoing files are automatically

scanned, as will as files when attempts are made to access them

• Scheduled scans of data stored in the mobile device's memory

• Protection from text message spam

Kaspersky Anti-Virus® Business Optimal

This package provides a unique configurable security solution for small- and

medium-sized corporate networks.

96 Kaspersky® Administration Kit

Kaspersky Anti-Virus® Business Optimal guarantees full-scale anti-virus

protection3 for:

• Workstations running Microsoft Windows 98/ME, Microsoft Windows

NT/2000/XP Workstation and Linux.

• File servers running Microsoft Windows NT 4.0 Server, Microsoft

Windows 2000/2003 Server/Advanced Server, Microsoft Windows 2003

Server, Novell Netware, FreeBSD and Linux; Samba file storage

• E-mail systems including Microsoft Exchange 2000/2003, Lotus

Notes/Domino, postfix , exim, sendmail, and qmail mail systems

• Internet gateways: CheckPoint Firewall –1; Microsoft ISA Server 2000

Standard Edition, Microsoft ISA Server 2004 Standard Edition

The Kaspersky Anti-Virus® Business Optimal distribution kit includes Kaspersky®

Administration Kit, a unique tool for automated deployment and administration.

You are free to choose from any of these anti-virus applications, according to the

operating systems and applications you use.

Kaspersky® Corporate Suite

This package provides corporate networks of any size and complexity with

comprehensive, scalable anti-virus protection. The package components have

been developed to protect every tier of a corporate network, even in mixed

computer environments. Kaspersky® Corporate Suite supports the majority of

operating systems and applications installed across an enterprise. All package

components are managed from one console and have a unified user interface.

Kaspersky® Corporate Suite delivers a reliable, high-performance protection

system that is fully compatible with the specific needs of your network

configuration.

Kaspersky® Corporate Suite provides comprehensive anti-virus protection for:

• Workstations running Microsoft Windows 98/ME, Microsoft Windows

NT/2000/XP Workstation and Linux;

• File servers running Microsoft Windows NT 4.0 Server, Microsoft

Windows 2000, 2003 Server/Advanced Server, Novell Netware,

FreeBSD, Linux; Samba file storage

3 Depending on the type of distribution kit.

Appendix B 97

• E-mail systems, including Microsoft Exchange Server 2000/2003, Lotus

Notes/Domino, sendmail, postfix , exim, and qmail mail systems

• Internet gateways: CheckPoint Firewall –1; Microsoft ISA Server 2000

Enterprise Edition, Microsoft ISA Server 2004 Enterprise Edition

• Hand-held computers (PDAs), running Symbian OS, Microsoft Windows

CE and Palm OS, and also smartphones running Microsoft Windows

Mobile 2003 for Smartphone and Microsoft Smartphone 2002.

The Kaspersky® Corporate Suite distribution kit includes Kaspersky®

Administration Kit, a unique tool for automated deployment and administration.

You are free to choose from any of these anti-virus applications, according to the

operating systems and applications you use.

Kaspersky® Anti-Spam

Kaspersky® Anti-Spam is a cutting-edge software suite that is designed to help

organizations with small- and medium-sized networks wage war against the

onslaught of unsolicited e-mail messages (spam). The product combines the

revolutionary technology of linguistic analysis with modern methods of e-mail

filtration, including DNS Black Lists and formal letter features. Its unique

combination of services allows users to identify and wipe out up to 95% of

unwanted traffic.

Installed at the entrance to a network, where it monitors incoming e-mail traffic

streams for spam, Kaspersky® Anti-Spam acts as a barrier to unsolicited e-mail.

The product is compatible with any mail system and can be installed on either an

existing mail server or a dedicated one.

Kaspersky® Anti-Spam’s high performance is ensured by daily updates to the

content filtration database adding samples provided by the Company’s linguistic

laboratory specialists. Databases are updated every 20 minutes.

Kaspersky Security® for Microsoft Exchange 2003

Kaspersky Security for Microsoft Exchange performs anti-virus processing of

incoming and outgoing mail messages as well as messages stored at the server,

including letters in public folders and filters out unsolicited correspondence using

"smart" spam recognition techniques in combination with Microsoft technologies.

The application scans all messages arriving at an Exchange Server via SMTP

protocol checking them for the presence of viruses using Kaspersky Lab's anti-

virus technologies and for the presence of SPAM attributes. It filters out spam

based on formal attributes (mail address, IP address, letter size, heading) and

analyzes the content of messages and of their attachments using "smart'

technologies, including unique graphic signatures for identifying graphic SPAM.

The application scans both the message body and the attached files.

98 Kaspersky® Administration Kit

Kaspersky® Mail Gateway

Kaspersky Mail Gateway is a comprehensive solution that provides complete

protection for users of mail systems. This application installed between the

corporate network and the Internet scans all components of e-mail messages for

the presence of viruses and other malware (Spyware, Adware, etc.) and

performs centralized anti-spam filtration of e-mail stream. The application

contains a number of advanced tools for filtering e-mail traffic by name and

MIME attachments and a series of tools that reduce the load on the mail system

and prevent hacker attacks.

Kaspersky Anti-Virus® for Proxy Servers

Kaspersky Anti-Virus® for Proxy Server is an antivirus solution for protecting web

traffic transferred over HTTP protocol through a proxy server. The application

scans Internet traffic in real time, protects against malware penetrating your

system while web surfing, and scans files downloaded from the Internet.

Kaspersky Anti-Virus® for MIMESweeper for SMTP

Kaspersky Anti-Virus® for MIMESweeper for SMTP provides high-speed antivirus

scans of SMTP traffic on servers running Clearswift MIMESweeper.

The program is designed as a plug-in for Clearswift MIMESweeper for SMTP and

scans for viruses and processes incoming and outgoing e-mails in real time.

B.2. Contact Us

If you have any questions, comments, or suggestions, please refer them to one

of our distributors or directly to Kaspersky Lab. We will be glad to assist you in

any matters related to our product by phone or via email. All of your

recommendations and suggestions will be thoroughly reviewed and considered.

Technical

support Please find the technical support information at

http://www.kaspersky.com/supportinter.html

General

information WWW: http://www.kaspersky.com

http://www.viruslist.com

Email: sales@kaspersky.com

APPENDIX C. LICENSE

AGREEMENT

NOTICE TO ALL USERS: CAREFULLY READ THE FOLLOWING LEGAL

AGREEMENT (“AGREEMENT”) FOR THE LICENSE OF SPECIFIED

SOFTWARE (“SOFTWARE”) PRODUCED BY KASPERSKY LAB.

(“KASPERSKY LAB”).

IF YOU HAVE PURCHASED THIS SOFTWARE VIA INTERNET BY CLICKING

THE ACCEPT BUTTON, YOU (EITHER AN INDIVIDUAL OR A SINGLE LEGAL

ENTITY) CONSENT TO BE BOUND BY AND BECOME A PARTY TO THIS

AGREEMENT. IF YOU DO NOT AGREE TO ALL OF THE TERMS OF THIS

AGREEMENT, CLICK THE BUTTON THAT INDICATES THAT YOU DO NOT

ACCEPT THE TERMS OF THIS AGREEMENT, AND DO NOT INSTALL THE

SOFTWARE.

IF YOU HAVE PURCHASED THIS SOFTWARE ON A PHYSICAL MEDIUM,

HAVING BROKEN THE CD'S SLEEVE, YOU (EITHER AN INDIVIDUAL OR A

SINGLE ENTITY) ARE CONSENTING TO BE BOUND BY THIS AGREEMENT.

IF YOU DO NOT AGREE TO ALL OF THE TERMS OF THIS AGREEMENT DO

NOT BREAK THE CD's SLEEVE ,DOWNLOAD, INSTALL OR USE THIS

SOFTWARE. IF YOU HAVE BROKEN THE CD'S SLEEVE OR OPENED THE

BOX, YOU WILL NOT BE ENTITLED TO RETURN THE SOFTWARE FOR

REFUND. SOFTWARE FOR HOME USE (KASPERSKY ANTI-VIRUS

PERSONAL, KASPERSKY ANTI-VIRUS PERSONAL PRO, KASPERSKY ANTI-

HACKER, KASPERSKY SECURITY FOR PDA) PURCHASED AS A

DOWNLOAD VIA THE INTERNET MAY BE RETURNED FOR A FULL REFUND

WITHIN 14 DAYS AFTER PURCHASE FROM KASPERSKY LAB, IT'S

AUTHORIZED DISTRIBUTOR OR RESELLER. OTHER PRODUCTS ARE NON

REFUNDABLE. THE RIGHT TO RETURN AND REFUND EXTENDS ONLY TO

THE ORIGINAL PURCHASER.

All references to “Software” herein shall be deemed to include the software

activation key (“Key Identification File”) with which you will be provided by

Kaspersky Lab as part of the Software.

1. License Grant. Subject to the payment of the applicable license fees,

and subject to the terms and conditions of this Agreement, Kaspersky Lab

hereby grants to you the non-exclusive, non-transferable right to use one copy of

the specified version of the Software and the accompanying documentation (the

“Documentation”) for the term of this Agreement solely for your own internal

business purposes. You may install one copy of the Software on one computer,

workstation, personal digital assistant, or other electronic device for which the

100 Kaspersky® Administration Kit

Software was designed (each, a “Client Device”). If the Software is licensed as a

suite or bundle with more than one specified Software product, this license

applies to all such specified Software applications, subject to any restrictions or

usage terms specified on the applicable price list or application packaging that

apply to any such Software applications individually.

1.1 Use. The Software is licensed as a single application; it may not be

used on more than one Client Device or by more than one user at a time, except

as set forth in this Section.

1.1.1 The Software is “in use” on a Client Device when it is loaded into the

temporary memory (i.e., random-access memory or RAM) or installed into the

permanent memory (e.g., hard disk, CD-ROM, or other storage device) of that

Client Device. This license authorizes you to make only as many back-up copies

of the Software as are necessary for its lawful use and solely for back-up

purposes, provided that all such copies contain all of the Software’s proprietary

notices. You will maintain records of the number and location of all copies of the

Software and Documentation and will take all reasonable precautions to protect

the Software from unauthorized copying or use.

1.1.2 If you sell the Client Device on which the Software is installed, you will

ensure that all copies of the Software have been previously deleted.

1.1.3 You shall not decompile, reverse engineer, disassemble or otherwise

reduce any party of this Software to a humanly readable form nor permit any

third party to do so. The interface information necessary to achieve

interoperability of the Software with independently created computer programs

will be provided by Kaspersky Lab on request on payment of its reasonable costs

and expenses for procuring and supplying such information. In the event

Kaspersky Lab notifies you that it does not intend to make such information

available for any reason, including (without limitation) costs, you shall be

permitted to take such steps to achieve interoperability provided that you only

reverse engineer or decompile to the extent permitted by law.

1.1.4 You shall not permit any third party to copy (other than as expressly

permitted herein), make error corrections to, or otherwise modify, adapt, or

translate the Software nor create derivative works of the Software.

1.1.5 You shall not rent, lease or lend the Software to any other person, nor

transfer or sub-license your license rights to any other person.

1.1.6 You shall not use this Software in automatic, semi-automatic or manual

tools designed to create virus signatures, virus detection routines, any other data

or code for detecting malicious code or data.

1.2 Server-Mode Use. You may use the Software on a Client Device or on

or as a server (“Server”) within a multi-user or networked environment (“Server-

Mode”) only if such use is permitted in the applicable price list or application

Appendix C 101

packaging for the Software. A separate license is required for each Client Device

or “seat” that may connect to the Server at any time, regardless of whether such

licensed Client Devices or seats are concurrently connected to or actually

accessing or using the Software. Use of software or hardware that reduces the

number of Client Devices or seats directly accessing or utilizing the Software

(e.g., “multiplexing” or “pooling” software or hardware) does not reduce the

number of licenses required (i.e., the required number of licenses would equal

the number of distinct inputs to the multiplexing or pooling software or hardware

“front end”). If the number of Client Devices or seats that can connect to the

Software exceeds the number of licenses you have obtained, then you must

have a reasonable mechanism in place to ensure that your use of the Software

does not exceed the use limits specified for the license you have obtained. This

license authorizes you to make or download such copies of the Documentation

for each Client Device or seat that is licensed as are necessary for its lawful use,

provided that each such copy contains all of the Documentation proprietary

notices.

1.3 Volume Licenses. If the Software is licensed with volume license terms

specified in the applicable application invoicing or packaging for the Software,

you may make, use or install as many additional copies of the Software on the

number of Client Devices as the volume license terms specify. You must have

reasonable mechanisms in place to ensure that the number of Client Devices on

which the Software has been installed does not exceed the number of licenses

you have obtained. This license authorizes you to make or download one copy of

the Documentation for each additional copy authorized by the volume license,

provided that each such copy contains all of the Document’s proprietary notices.

2. Duration. This Agreement is effective for the period specified in the Key

File (the unique file which is required to fully enable the Software, please see

Help/ about Software or Software about, for Unix/Linux version of the Software

see the notification about expiration date of the Key File) unless and until earlier

terminated as set forth herein. This Agreement will terminate automatically if you

fail to comply with any of the conditions, limitations or other requirements

described herein. Upon any termination or expiration of this Agreement, you

must immediately destroy all copies of the Software and the Documentation. You

may terminate this Agreement at any point by destroying all copies of the

Software and the Documentation.

3. Support.

(i) Kaspersky Lab will provide you with the support services (“Support

Services”) as defined below for a period of one year following:

(a) payment of its then current support charge, and;

(b) successful completion of the Support Services Subscription Form as

provided to you with this Agreement or as available on the Kaspersky Lab

102 Kaspersky® Administration Kit

website, which will require you to produce the Key Identification File which will

have been provided to you by Kaspersky Lab with this Agreement. It shall be at

the absolute discretion of Kaspersky Lab whether or not you have satisfied this

condition for the provision of Support Services.

(ii) Support Services will terminate unless renewed annually by payment of

the then-current annual support charge and by successful completion of the

Support Services Subscription Form again.

(iii) By completion of the Support Services Subscription Form you consent

to the terms of the Kaspersky Lab Privacy Policy which is attached to this

Agreement, and you explicitly consent to the transfer of data to other countries

outside your own as set out in the Privacy Policy.

(iv) “Support Services” means

(a) Daily updates of anti-virus database;

(b) Free software updates, including version upgrades;

(c) Extended technical support via E-mail and phone hotline provided by

Vendor and/or Reseller;

(d) Virus detection and curing updates in 24-hours period.

4. Ownership Rights. The Software is protected by copyright laws.

Kaspersky Lab and its suppliers own and retain all rights, titles and interest in

and to the Software, including all copyrights, patents, trademarks and other

intellectual property rights therein. Your possession, installation, or use of the

Software does not transfer any title to the intellectual property in the Software to

you, and you will not acquire any rights to the Software except as expressly set

forth in this Agreement.

5. Confidentiality. You agree that the Software and the Documentation,

including the specific design and structure of individual programs and the Key

Identification File constitute confidential proprietary information of Kaspersky

Lab. You shall not disclose, provide or otherwise make available such

confidential information in any form to any third party without the prior written

consent of Kaspersky Lab. You shall implement reasonable security measures to

protect such confidential information, but without limitation to the foregoing shall

use best endeavors to maintain the security of the Key Identification File.

6. Limited Warranty

(i) Kaspersky Lab warrants that for [90] days from first download or

installation the Software will perform substantially in accordance with the

functionality described in the Documentation when operated properly and in the

manner specified in the Documentation.

Appendix C 103

(ii) You accept all responsibility for the selection of this Software to meet

your requirements. Kaspersky Lab does not warrant that the Software and/or the

Documentation will be suitable for such requirements nor that any use will be

uninterrupted or error free;

(iii) Kaspersky Lab does not warrant that this Software identifies all known

viruses, nor that the Software will not occasionally erroneously report a virus in a

title not infected by that virus;

(iv) Your sole remedy and the entire liability of Kaspersky Lab for breach of

the warranty at paragraph (i) will be at Kaspersky Lab option, to repair, replace or

refund of the Software if reported to Kaspersky Lab or its designee during the

warranty period. You shall provide all information as may be reasonably

necessary to assist the Supplier in resolving the defective item;

(v) The warranty in (i) shall not apply if you (a) make or cause to be made

any modifications to this Software without the consent of Kaspersky Lab, (b) use

the Software in a manner for which it was not intended or (c) use the Software

other than as permitted under this Agreement;

(vi) The warranties and conditions stated in this Agreement are in lieu of all

other conditions, warranties or other terms concerning the supply or purported

supply of, failure to supply or delay in supplying the Software or the

Documentation which might but for this paragraph (v) have effect between the

Kaspersky Lab and your or would otherwise be implied into or incorporated into

this Agreement or any collateral contract, whether by statute, common law or

otherwise, all of which are hereby excluded (including, without limitation, the

implied conditions, warranties or other terms as to satisfactory quality, fitness for

purpose or as to the use of reasonable skill and care).

7. Limitation of Liability

(i) Nothing in this Agreement shall exclude or limit Kaspersky Lab’s liability

for (i) the tort of deceit, (ii) death or personal injury caused by its breach of a

common law duty of care or any negligent breach of a term of this Agreement,

(iii) any breach of the obligations implied by s.12 Sale of Goods Act 1979 or s.2

Supply of Goods and Services Act 1982 or (iv) any liability which cannot be

excluded by law.

(ii) Subject to paragraph (i), the Supplier shall have no liability (whether in

contract, tort, restitution or otherwise) for any of the following losses or damage

(whether such losses or damage were foreseen, foreseeable, known or

otherwise):

(a) Loss of revenue;

(b) Loss of actual or anticipated profits (including for loss of profits on

contracts);

104 Kaspersky® Administration Kit

(c) Loss of the use of money;

(d) Loss of anticipated savings;

(e) Loss of business;

(f) Loss of opportunity;

(g) Loss of goodwill;

(h) Loss of reputation;

(i) Loss of, damage to or corruption of data, or;

(j) Any indirect or consequential loss or damage howsoever caused

(including, for the avoidance of doubt, where such loss or damage is of the type

specified in paragraph (ii), (a) to (ii), (i).

(iii) Subject to paragraph (i), Kaspersky Lab’s liability (whether in contract,

tort, restitution or otherwise) arising out of or in connection with the supply of the

Software shall in no circumstances exceed a sum equal to the amount equally

paid by you for the Software.

8. The construction and interpretation of this Agreement shall be governed

in accordance with the laws of England and Wales. The parties hereby submit to

the jurisdiction of the courts of England and Wales save that Kaspersky Lab as

claimant shall be entitled to initiate proceedings in any court of competent

jurisdiction.

9. (i) This Agreement contains the entire understanding of the

parties with respect to the subject matter hereof and supersedes all and any prior

understandings, undertakings and promises between you and Kaspersky Lab,

whether oral or in writing, which have been given or may be implied from

anything written or said in negotiations between us or our representatives prior to

this Agreement and all prior agreements between the parties relating to the

matters aforesaid shall cease to have effect as from the Effective Date. Save as

provided in paragraphs (ii) - (iii), you shall not have any remedy in respect of an

untrue statement made to you upon which you relied in entering into this

Agreement (“Misrepresentation”) and Kaspersky Lab shall not have any liability

to the other than pursuant to the express terms of this Agreement.

(ii) Nothing in this Agreement shall exclude or limit Kaspersky Lab’s liability

for any Misrepresentation made by it knowing that it was untrue.

(iii) The liability of Kaspersky Lab for Misrepresentation as a fundamental

matter, including a matter fundamental to the maker’s ability to perform its

obligations under this Agreement, shall be subject to the limitation of liability set

out in paragraph 7(iii).
