Concert Performer Series Digital Piano

Owner’s Manual

Model: CP117

II

All descriptions and specifications in this manual are subject to change without notice.

III

Important Safety Instructions

WARNING - When using electric products, basic precautions should always be followed, including the following.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

AVIS : RISQUE DE CHOC ELECTRIQUE - NE PAS OUVRIR.

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lighting flash with arrowhead symbol, within

an equilateral triangle, is intended to alert the user

to the presence of uninsulated "dangerous voltage"

within the product's enclosure that may be of

sufficient magnitude to constitute a risk of electric

shock to persons.

The exclamation point within an equilateral triangle

is intended to alert the user to the presence of

important operating and maintenance (servicing)

instructions in the leterature accompanying the

product.

WARNING

TO REDUCE THE RISK OF

FIRE OR ELECTRIC

SHOCK, DO NOT EXPOSE

THIS PRODUCT TO RAIN

OR MOISTURE.

SAVE THESE INSTRUCTIONS

Read all the instructions before using the product.

denotes that care should be taken.

The example instructs the user to take care

not to allow fingers to be trapped.

denotes a prohibited operation.

The example instructs that disassembly of

the product is prohibited.

denotes an operation that should be

carried out.

The example instructs the user to remove the

power cord plug from the AC outlet.

Examples of Picture Symbols

WARNING

Indicates a potential hazard that could result in death

or serious injury if the product is handled incorrectly.

120V 240V230V

Do not use this product near water - for example, near a bathtub,

washbowl, kitchen sink, in a wet basement, or near a swimming

pool, or the like.

Do not attempt to service the product beyond that

described in the user-maintenance instructions. All

other servicing should be reffered to qualified

service personnel.

Do not touch the power plug with wet

hands. There is a risk of electrical shock.

Treat the power cord with care as well.

Stepping on or tripping over it can break

or short-circuit the wire inside.

The product should be connected to a

power supply only of the type described

in the operatiing instructions or as

marked on the product.

Pulling the AC power cord itself may damage

the cord, causing a fire, electric shock or

short-circuit.

When disconnecting the AC power cord's plug,

always hold the plug and pull it to remove it.

INSTRUCTIONS PERTAINING TO A RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS

IV

CAUTION Indicates a potential hazard that could result in injury or damage to

the product or other property if the product is handled incorrectly.

Do not use the product in the following areas.

● Areas, such as those near windows, where the product is

exposed to direct sunlight

● Extremely hot areas, or close to heat sources such as

radiators, heat registers, or other products that produce heat.

● Extremely cold areas, such as outside

● Extremely humid areas

● Areas where a large amount of sand or dust is present

● Areas where the product is exposed to excessive vibrations

Using the product in such areas may result in product

breakdown.

This product in combination with an amplifier

and headphones or speakers, may be capable

or producing sound level that could cause

permanent hearing loss. Do not operate for a

long period of time at a high volume level or at

a level that is uncomfortable. If you experience

any hearing loss or ringing in the ear, you

should consult an audiologist.

This product may be equipped with a polarized

line plug (one blade wider than the other). This

is a safety feature.

If you are unable to insert the plug into the

outlet, contact an electrician to replace your

obsolete outlet.

Do not defeat the safety purpose of the plug.

Care should be taken so that objects do not

fall and liquids are not spilled into the

enclosure through openings. The product shall

not be exposed to dripping or splashing. No

objects filled with liquids, such as vases, shall be

placed on the product.

Always turn the power off when the instrument is not in

use. The product is not completely disconnected from

the power supply even when the power switch is

turned off. The power supply cord of the product

should be unplugged from the outlet when left unused

for a long period of time.

Before connecting cords, make sure that

the power to this product and other devices

is turned OFF.

Failure to do so may cause breakdown of

this product and other devices.

When connecting the AC power cord and

other cords, take care not to get them tangled.

Failure to do so may damage them, resulting

in fire, electric shock or short-circuit.

The product should be located so that its location or position

does not interfere with its proper ventilation.

Keep the instrument away from electrical

motors, neon signs, fluorescent light

fixture, and other sources of electrical

noises.

OFF

OFF Do not lean against the keyboard.

Doing so may cause the product to fall

over, resulting in injury.

Take care not to drop the product.

Please note that the product is heavy and

must be carried by more than one person.

Dropping the product may result in

breakdown.

It is a good practice to have the instrument near the AC outlet

and the power cord plug in a position so that it can readily be

disconnected in an emergency.

V

The product should be serviced by qualified service personnel

when:

● The power supply cord or the plug has been damaged.

● Objects have fallen, or liquid has been spilled into the product.

● The product has been exposed to rain.

● The product does not appear to operate normally or exhibits a

marked change in performance.

● The product has been dropped, or the enclosure damaged.

Do not wipe the product with benzene or thinner.

Doing so may result in discoloration or deformation of

the product.

When cleaning the product, put a soft cloth in

lukewarm water, squeeze it well, then wipe the

product.

To reduce the risk of injury, close supervision is necessary

when a product is used near children.

This product should be used only with the stand that is

provided by the manufacturer.

Should an abnormality occur in the product, immediately turn

the power OFF, disconnect the power cord plug, and

then contact the shop from which the product was purchased.

CAUTION:

To prevent electric shock, match wide blade of plug to wide slot, fully

insert.

ATTENTION:

Pour éviter les chocs électriques, introduire la lame la plus large de

la fiche dans la borne correspondante de la prise et pousser jusqu'au

fond.

Do not stand on the product or exert

excessive force.

Doing so may cause the product to become

deformed or fall over, resulting in breakdown

or injury.

FCC Information

This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may

cause harmful interference to radio communications.

If this equipment does cause harmful interference to radio or television reception,

which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the following

measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a different electrical circuit from the

receiver.

• Consult the dealer or an experienced radio/TV technician for help.

Canadian Radio Interference Regulations

This instrument complies with the limits for a class B digital apparatus, pursuant to

the Radio Interference

Regulations, C.R.C., c. 1374.

Kawai Concert Performer Series Digital Piano

VI

Table of Contents

Parts and Names . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Overview

LCD Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Select Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Dial . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Basic Controls

Selecting a Part to Play . . . . . . . . . . . . . . . . . . . . . 9

Splitting the keyboard. . . . . . . . . . . . . . . . . . . . . . 10

Selecting Sounds . . . . . . . . . . . . . . . . . . . . . . . . . 11

Mixer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Effects . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Effect Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Effect Priority Guidelines . . . . . . . . . . . . . . . . . . . 20

Transpose and Octave Shift . . . . . . . . . . . . . . . . 22

Metronome . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Piano Only . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Using a Style

Selecting and Playing a Style . . . . . . . . . . . . . . . 26

Fill-In and Variation . . . . . . . . . . . . . . . . . . . . . . . 28

Auto Accompaniment System . . . . . . . . . . . . . . . 28

Bass Inversion . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

1-2 Play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Registration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Registration Groups . . . . . . . . . . . . . . . . . . . . . . . 31

Style Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Song Stylist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Harmony . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Recording a Song

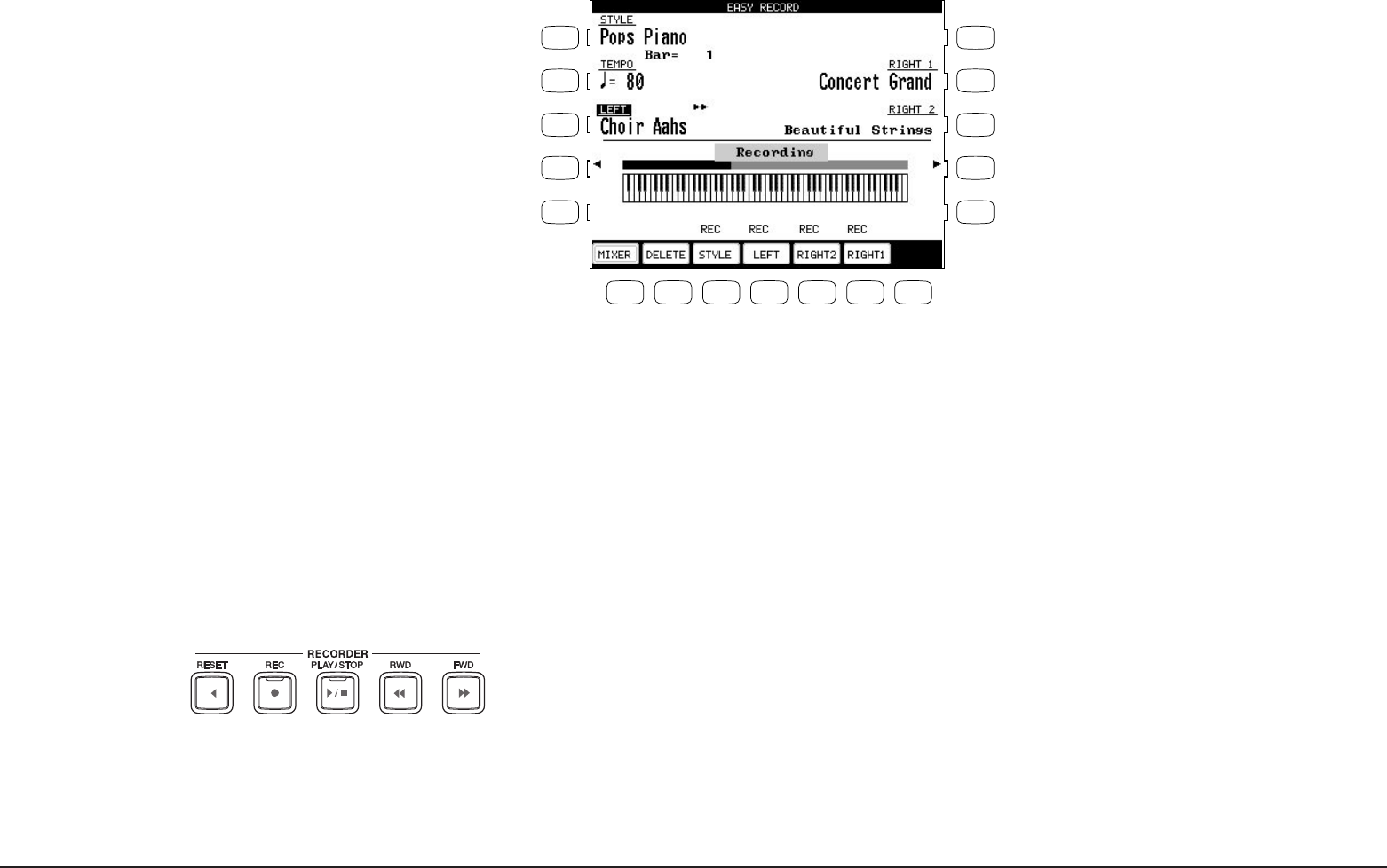

Easy Recording . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Part Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

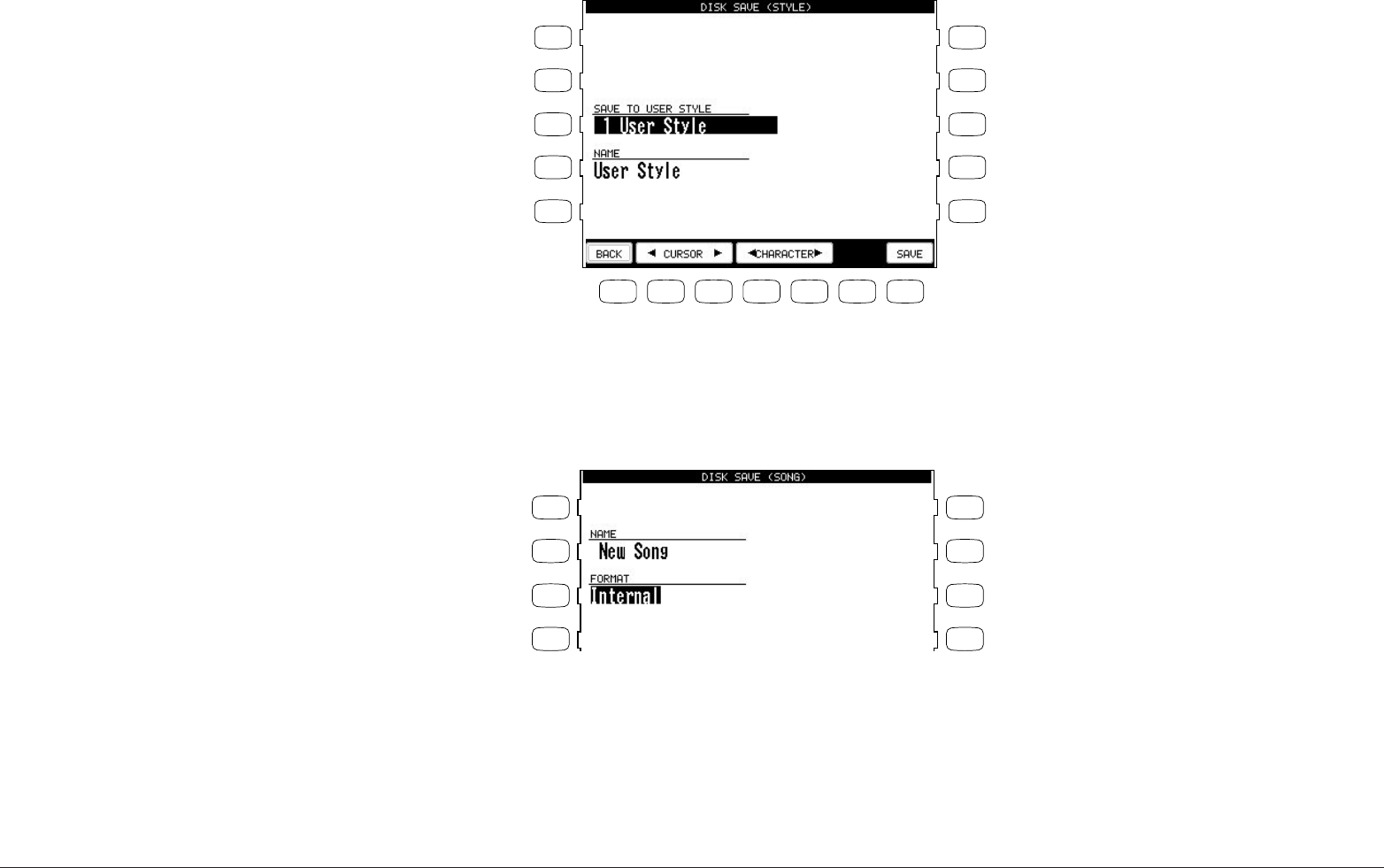

Saving the song . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Erasing the song . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Advanced Recording . . . . . . . . . . . . . . . . . . . . . . 47

Real-time Recording . . . . . . . . . . . . . . . . . . . . . . . 48

Mixer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Track Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Loop Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Style Paste . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Introduction

Thank you for purchasing the Kawai Concert Performer

(CP) Series Ensemble Digital Piano.

The CP Series piano has been designed to provide you with

the ultimate musical experience, no matter your skill level.

Featuring superbly realistic instrument tones and the most finely

crafted keyboard in its class, the CP is a unique musical instrument

resulting from the combination of Kawai’s seventy-plus years

experience in making acoustic pianos, along with cutting-edge

digital music technologies.

With over 600 different instrument and drum sounds at your

disposal, you will have the flexibility to perform any kind of music

ranging from traditional to contemporary. The Auto-

Accompaniment Styles provide the enjoyment of playing rich, fully

orchestrated music in hundreds of musical genres. Thanks to

the Song Stylist feature, you will never have to worry about finding

the best sounds and style to perform a particular song.

The Concert Performer incorporates many professional

features, such as a 16-track Recorder and a 3.5-inch Floppy Disk

Drive. For the non-player, Kawai’s unique Concert Magic feature

creates the thrill of being a performing musician simply by tapping

any key on the keyboard.

The Concert Performer offers tremendous opportunities

for anyone who is interested in learning, playing, and listening to

music. Please read this manual thoroughly and keep it handy as

a reference so that you can get the most out of this incredible

instrument.

We hope you enjoy every moment that you spend with your

Concert Performer.

Introduction

VII

Punch-In Recording . . . . . . . . . . . . . . . . . . . . . . . 54

Song Edit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Bar Editing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Event Edit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Creating Your Own Styles

Conductor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

Making a Style with Get Phrase from Recorder . 77

Auto-accompaniment System . . . . . . . . . . . . . . . . 81

Making a Style with Phrase Combination . . . . . 83

Editing Sounds

Editing the Preset Effect Settings . . . . . . . . . . . . 86

Playing Songs from a Floppy Disk

About songs on Floppy Disk . . . . . . . . . . . . . . . . 88

Selecting a Song from Disk . . . . . . . . . . . . . . . . . 89

Controlling Playback of a Song . . . . . . . . . . . . . . 91

Playing with Concert Magic

Selecting a Concert Magic Song . . . . . . . . . . . . . 94

Performing a Concert Magic Song . . . . . . . . . . . 95

Concert Magic Song Arrangements . . . . . . . . . . . 99

Creating a Concert Magic Song . . . . . . . . . . . . 100

System Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102

Tuning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104

Touch Curve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105

Virtual Voicing . . . . . . . . . . . . . . . . . . . . . . . . . . 106

Resonance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107

Concert Magic Sound . . . . . . . . . . . . . . . . . . . . . 108

Pedal Assign . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109

Fill-in Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112

Effect for Sound . . . . . . . . . . . . . . . . . . . . . . . . . . 113

Temperament . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114

MIDI Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118

Power Up Settings . . . . . . . . . . . . . . . . . . . . . . . . 123

Soft Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124

Software Version . . . . . . . . . . . . . . . . . . . . . . . . . 125

Screen Hold . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126

Floppy Disk Operations

Disk Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128

Saving Data to a Floppy Disk . . . . . . . . . . . . . . 129

Loading Data from a Floppy Disk . . . . . . . . . . 132

Erasing Data from a Floppy Disk . . . . . . . . . . . 135

Formatting a Floppy Disk . . . . . . . . . . . . . . . . . 136

Getting Assistance: Using Help and Demo

Using the Help . . . . . . . . . . . . . . . . . . . . . . . . . . 138

Using the Demonstrations . . . . . . . . . . . . . . . . . 140

Appendices

Preset Sounds . . . . . . . . . . . . . . . . . . . . . . . . . . 142

Preset Styles . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147

Song Stylists . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149

Concert Magic Songs . . . . . . . . . . . . . . . . . . . . . 154

Table of Chord Types . . . . . . . . . . . . . . . . . . . . . 158

Example of Connection . . . . . . . . . . . . . . . . . . . 160

USB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162

Program Change Numbers . . . . . . . . . . . . . . . . 164

Drum/SFX Kit Mapping . . . . . . . . . . . . . . . . . . . 170

MIDI Implementation Chart . . . . . . . . . . . . . . . 172

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . 173

Kawai Concert Performer Series Digital Piano

P. 2

9. Accompaniment (page 28)

These buttons are used to turn the Auto-Accompaniment function on/off, and select

the Auto-Accompaniment mode.

10. 1-2 Play (page 30)

This button is used to automatically choose an appropriate sound and setup for the

selected style.

11. Metronome (page 24)

This button is used to turn the Metronome on/off.

12. Tap (page 24, 26)

This button is used to tap in the desired tempo for a song or Style.

13. Sync/Fade out (page 27)

When active, the accompaniment style will start as soon as you play a note or chord

on the keyboard. Press this button while a Style is playing to fade in or out of the

Style.

14. Start/Stop (page 27)

This button is used to start and stop the accompaniment style.

15. Intro/Ending (page 27)

These buttons are used to play an intro section that leads into the style. If you

press this button while the stye is playing an ending section will be played before

stopping.

1. Power

Turns the piano on/off.

2. Master Volume Slider

This slider is used to adjust the overall volume level of the instrument.

3. Accomp/Song Volume Slider

This slider is used to adjust the volume level of the Auto Accompaniment Styles.

Also used to adjust the volume level of a song played from the CP Recorder or directly

from a floppy disk. This slider does not affect the Master Volume Slider setting.

4. Demo (page 140)

This button is used to select the built-in demo songs.

5. Concert Magic (page 94)

This button is used to select the built-in Concert Magic songs.

6. Song Stylist (page 36)

This button is used to select the Song Stylist Registrations.

7. Style Conductor (page 74)

These buttons are used to modify or create your own Accompaniment Styles.

8. Style (page 26)

These buttons are used to select an Accompaniment Style to play along with.

Parts and Names

1

2 3

4

5

6

78

12

13 14

15

9

16

10

17 18

19

11

21

Basic Controls

P. 3

16. Fill-in (page 28)

These buttons are used to select one of the four short fill-in sections that embellish

the style and lead into the different variation sections of the Style.

17. Variation (page 28)

These buttons are used to select one of the four variation sections within the chosen

Style.

18. Help (page 138)

These buttons are used to access Help menus which contain explanations of the CP

piano’s features.

19. Exit

This button is used to back up to the next-higher screen level. Repeatedly pressing

the Exit button from any screen on the CP will bring you back to the CP’s main play

screen.

20. LCD Screen

Displays information about the CP’s current sound selections, settings, options,

etc.

21. Select Buttons

These buttons are used to select items displayed on the LCD screen.

22. Save Regist

This button is used to save up to 80 of your own favorite panel settings.

23. Regist Groups (page 31)

This button is used to select one of the 10 groups of panel settings.

24 Contrast

Adjusts the contrast of the LCD screen for easier viewing.

25. Tempo/Value Dial (page 8)

This dial is used to adjust tempo, scroll through different selections, and adjust data

values for items on the LCD screen.

26. Transpose (page 22)

This button is used to change the overall pitch of the CP in half-note steps.

27. Octave Shift (page 22)

These buttons are used to change the overall pitch of the CP in octave steps.

28. Sound Selection (page 11)

These buttons are used to select the desired sound category. Use the SELECT buttons

or the DIAL to select a sound within the category.

29. Part (page 9)

Selects which of the three parts (Left/Split, Right 1, Right 2) are active and

ready to be played with the sounds assigned to them.

21 22

23

24

25

26

27

28

29 30

32

31 35

34

33

36

37

38

39

40

20

21

Kawai Concert Performer Series Digital Piano

P. 4

Bottom ViewPedals

30. Piano Only (page 25)

This button is used to automatically assign the Concert Grand sound to the Right 1

part.

31. Registrations (page 31)

These buttons are used to recall one of the eight panel settings available in the

currently selected Registration group.

32. Reverb (page 15)

This button turns on/off the Reverb. Press and hold the button to select the Reverb

settings menu.

33. Chorus (page 16)

This button turns on/off the Chorus. Press and hold the button to select the Chorus

settings menu.

34. Effects (page 18)

This button turns on/off the Effects. Press and hold the button to select the Effect

settings menu.

35. Harmony (page 40)

This button turns on/off the Harmony for the instrument sounds. Press and hold the

button to select the Harmony settings menu.

36. Advanced Recorder (page 47)

This button is used to access the Advanced Recorder functions.

37. System (page 102)

This button is used to access the system settings menu.

38. Disk (page 88, 128)

This button is used to access the Floppy Disk functions..

39. Recorder (page 42)

Used to record and play back a song.

40. Disk Drive

Reads and writes data to a standard 3.5” floppy disk..

41. Soft Pedal

Depressing this pedal softens the sound and reduces its volume. This pedal can

also be assigned to control other functions. (See page 109)

42. Sostenuto Pedal

Depressing this pedal after playing the keyboard and before releasing the keys

sustains the sound of only the keys just played. This pedal can also be assigned

to control other functions. (See page 109)

41 42 43 44

Basic Controls

P. 5

43. Sustain Pedal

Sustains the sound after lifting your hands from the keyboard.

44. Headphone Jacks

There are two jacks for headphones provided at the left end on the bottom of the

piano. These jacks are used to connect up to two headphones to the CP piano.

45. MIDI Jacks

These jacks are used to connect external MIDI devices to the CP. Enabled only

when the MIDI is selected in the System menu. (See page 119)

46. USB Jack

This jack is used to connect a personal computer to the CP. Enabled only when the

USB is selected in the System menu. (See page 119)

47. Line Out Jacks

These jacks are used to provide stereo output of the CP’s sound to amplifiers,

tape recorders or similar equipment. The audio signal coming through the LINE

IN jacks is also routed to these jacks.

48. Line In Jacks

These jacks are used to connect stereo outputs from other audio equipment or

electronic instruments to the CP’s speakers. The audio signal coming through

these jacks bypasses the CP’s volume control.

Rear Terminals

47 48

45 46

Kawai Concert Performer Series Digital Piano

P. 6

Overview

This manual provides you with all the information you will need in

order to take full advantage of the Concert Performer’s potential.

Before you begin learning how to use the specific features, it is

important to understand some of the basic ideas behind the

instrument’s design.

The Concert Performer has been designed to have an easy and

intuitive user interface. However, the instrument has so many

features that it is simply impractical to have a dedicated button for

every single one. As a result, many features and functions are

selected by choosing them from lists, or “menus”, that are presented

to you on the CP’s large display screen. Often times selecting an

item from a menu may access another “sub-menu” of options

specific to that item. This system of menus and sub-menus keeps

everything logical and straightforward and becoming familiar with

how to make your way through them is very easy.

LCD Screen

The LCD Screen is the window through which the Concert Performer communicates with you. The

large display size allows many items to be clearly displayed at the same time, allowing for not only

words but graphics to be shown as well.

Select Buttons

Most of the buttons on the front panel are used to directly select a function on the CP that you

would like to work with. In most cases, the specific function name is printed on the front panel

directly above the button. For example, there are buttons labeled 1-2 PLAY, FILL-IN, and so on. In

this manual, references to these buttons are always printed in capital letters for clarity. Most of

these buttons have an LED Indicator (small light) on them. This Indicator will be turned ON when

a function is in use so that you can quickly see if that function is active.

There are 17 SELECT buttons surrounding the LCD screen that do not have labels printed next to

them because they do not have predetermined functions. Instead, they are used to select whatever

items are currently displayed next to them on the LCD screen. For example, a SELECT button

might be used to select an instrument sound on one screen, while on another screen the same

SELECT button might serve to activate a feature related to Floppy Disk.

Basic Controls

P. 7

To keep things simple, this manual will refer to the five SELECT buttons along the left side of the

LCD screen as L1-L5. Likewise, the five SELECT buttons along the right side of the screen will be

referred to as R1-R5. The seven SELECT buttons along the bottom of the screen, which are also

known as function buttons, will be referred to as F1-F7.

In some cases when you see an item displayed on the screen and press the L or R button next to it,

that item on the screen will become highlighted (shown in reverse color) to indicate you have

selected that item. Sometimes a submenu screen relating to that item will be displayed and present

you with further options.

When you press one of the F buttons, the corrosponding function on the LCD screen will be

highlighted to indicate that it has been selected.

R2 Selects the RIGHT1 Part. Use the F6, F7

buttons, Sound buttons, or the Dial to

change the Sound.

R3 Selects the RIGHT2 Part. Use the F6,

F7buttons, Sound buttons, or the Dial to

change the Sound.

No functions are assigned to the R1, R4 and R5

buttons on this screen.

"RIGHT 1" is highlighted to indicate that this Part

is now selected.

L1 Selects Style. Use the F2,F3

buttons, Style buttons, or the Dial

to change the active Style.

L2 Selects Tempo. Use the Dial or the

TAP TEMPO button to change the

Tempo

L3 Selects the LEFT Part. Use the F6,

F7buttons, Sound buttons, or the

Dial to change the Sound.

No functions are assigned to the L4 and L5

buttons on this screen.

F1 Takes you to the MIXER settings screen.

F2, F3 Selects a Style.

F4, F5 Adjusts the volume level for the Part currently selected.

F6, F7 Selects a sound for the selected Part. "Sound" is highlighted

to indicate this graphic button is active.

Kawai Concert Performer Series Digital Piano

P. 8

Dial

The Dial is used to change data values and scroll through options that are displayed on the LCD

screen.

When you turn the Dial, you will notice that whatever item on the LCD screen is currently selected

(highlighted) will be affected. Or in some cases when the screen presents you with a list of choices,

turning the Dial will allow you to quickly scroll through the list until you arrive at your choice. It

can also be used instead of the L, R, and F buttons as another way of selecting or changing an item

or value on the LCD screen.

Basic Controls

P. 9

Basic Controls

This chapter discusses the basic operations that are used to play

the Concert Performer, such as sound selection, Part configuration

and effect settings.

Selecting a Part to Play

When the CP’s main play screen is displayed (For example, when the CP is first turned on), you are

presented with three sound Parts that can be played from the keyboard. These three Parts are

named LEFT/SPLIT, RIGHT 1 and RIGHT 2, and each one has an instrument sound assigned to it.

You can selectively turn on/off any combination of these three Parts, allowing you to have up to

three different sounds at the same time across the keyboard.

Sounds assigned to Parts RIGHT 1 and RIGHT 2 will be layered on top of each other when both

Parts are active at the same time. Activating the LEFT/SPLIT Part automatically splits the keyboard

so that only the sound that is assigned to the LEFT/SPLIT Part is heard when you play in the lower

octave keys. Each Part has a dedicated button on the front panel that selects and turns on/off that

Part. You can also select a Part by pressing the appropriate L or R button.

Selecting a Part is easy:

1) Press the PART button for the Part you wish to activate. The PART button LED will light.

2) Press the PART button again to turn that Part off.

• If the LCD screen is currently showing the main play screen, you can tell which Parts are active

by looking at the name of the sound assigned to it. If the name of a sound is in large typeface,

then the Part it is assigned to is active. If the sound name is displayed in small typeface, then the

Part is not active.

L 1

L 2

L 3

L 4

R 1

R 2

R 3

R 4

This example indicates:

RIGHT1 is currently active

RIGHT2, LEFT are inactive.

Kawai Concert Performer Series Digital Piano

P. 10

Splitting the keyboard.

When the LEFT/SPLIT Part is activated, the CP automatically splits the keyboard and only the

sound assigned to the LEFT/SPLIT Part will be heard when you play below a specified key (split

point) on the keyboard. The default split point is between F2 and F#2 but you can freely change the

split point to any key on the keyboard.

To change the split point:

1) Press the LEFT/SPLIT button to activate the LEFT/SPLIT Part. The LEFT/SPLIT button LED will light

and the LCD screen will display a diagram of the CP’s 88 note keyboard.

2) Press the LEFT/SPLIT button again, and while holding it down, press the desired key on the keyboard

that you want to serve as the split point. The key you press will become the lowest note the Right

hand Parts will play (RIGHT1 and RIGHT2). The LEFT/SPLIT sound will be heard when keys below

the split point are played.

You may also use the L4 and R4 buttons to move the split point. On the LCD screen the split point

marker will move across the 88 note keyboard diagram as you press these buttons.

• Moving the split point completely to the LEFT end of the keyboard will allow the LEFT/SPLIT

Part to function as a layer with the two right hand Parts. In this manner you can create a three-

part layer across the entire keyboard.

L 1

L 2

L 3

L 4

L 5

F 1 F 2 F 3 F 4 F 5 F 6 F 7

R 1

R 2

R 3

R 4

R 5

L4 Lowers the split point. R4 Raises the split point.

Basic Controls

P. 11

Selecting Sounds

The Concert Performer has over 600 instrument and drum sounds available from the front panel.

You can freely assign any of these sounds to the three Parts. Remember that there is always a sound

assigned to each of the Parts, even if some of the Parts are not currently active.

The sounds span a tremendous variety of instruments, ranging from traditional acoustic sounds to

modern electronic tones. To help you quickly find the sound that you want, the sounds have been

organized into 14 categories. Each category has a dedicated Sound Selection button on the front

panel.

To select a Sound:

1) In the main play screen, select the Part to which you wish to assign a new sound using the L3, or R2-

R3 buttons. The selected Part will become highlighted.

2) Press the SOUND button for the sound category that you are interested in. The first page of sounds in

that category will be displayed. There are at least three pages of sounds in each category. Use the

F1-5 buttons to view the other pages in a category.

3) Select a sound by pressing the L or R button that is next to the displayed name.

4) Press the F1-F5 buttons to show the Sounds on the other pages for the same category.

5) You can also use the Dial to scroll through all of the categories and sounds one by one.

Kawai Concert Performer Series Digital Piano

P. 12

Use the L or R buttons to select your desired Sound.

F1-F4 Selects the different pages of Sounds within a category.

F7 Takes you to the Sound Edit menu. (See "Editing Sounds"

on page 86.)

L 1

L 2

L 3

L 4

L 5

F 1 F 2 F 3 F 4 F 5 F 6 F 7

R 1

R 2

R 3

R 4

R 5

Basic Controls

P. 13

Mixer

This Mixer screen allows you to change the volume, panning, reverb and chorus levels, as well as

turn the effect on/off for each Part.

To use the Mixer:

1) Press the MIXER button (F1) while on the main play screen.

2) Use the F2–F5 and F7 buttons to select which Part you wish to adjust.

3) Use the L and R buttons to select a setting to change.

4) Use the Dial to change the value.

• Volume level can be also adjusted from the main play screen, using the VOLUME buttons (F4,

F5).

L 1

L 2

L 3

L 4

L 5

F 1 F 2 F 3 F 4 F 5 F 6 F 7

R 1

R 2

R 3

R 4

R 5

L1 Selects the Effect On and Off.

L2 Selects reverb level.

L3 Selects chorus level.

L4 Selects Panning.

L5 Selects volume level.

After you make your desired selection, use the Dial to

change the value.

F1 Takes you to the next page of the Mixer.

F2–F5 Selects the part to change.

F7 Adjusts the volume level for the Harmony.

Kawai Concert Performer Series Digital Piano

P. 14

The Mixer not only lets you set the overall volume level for the Style, but set individual volume

levels for the 6 Sections within a Style.

To adjust the individual Section level:

1) On the Mixer screen, press the STYLE MIXER button (F1). The Style Mixer screen will be selected.

2) Use the F2–F7 buttons to choose a Section, then use the Dial to change the volume.

3) Press the BACK button (F1) to go back the previous Mixer screen, or press the EXIT button to go back

to the main play screen.

L 1

L 2

L 3

L 4

L 5

F 1 F 2 F 3 F 4 F 5 F 6 F 7

R 1

R 2

R 3

R 4

R 5

F1 Takes you to the previous Mixer screen.

F2–F7 Selects the Section that you wish to change.

Basic Controls

P. 15

Effects

You might have noticed that when you select some of the sounds, the LED indicator for the REVERB,

CHORUS, or EFFECTS button is turned on. The reason for this is some of the sounds are set up

with one or more of these effects on as part of their initial setting.

Adding an effect to the sound enhances tonal quality and improves acoustical realism. The CP

piano is provided with three separate groups of effects. The first is REVERB, the second is CHORUS,

and third group EFFECTS contains other useful effects such as Delay, Phaser, Rotary Speaker etc.

There is a dedicated button on the front panel for each Effects group and each of the three Effect

groups can be turned on/off separately or used in combination for each part. The Concert Performer

has a selection of 27 different Reverb, Chorus, and Effect types that can be used to enhance or even

dramatically alter the instrument sounds. Each of the over 600 instrument and drum sounds has

already been assigned a REVERB and CHORUS setting and an additional EFFECT that suits that

particular type of instrument. For example, a moderate Delay effect is used on the Church Organ to

recreate the sense of being in a large church, and a Rotary speaker effect is used on the Drawbar

organ to give it an authentic, vintage feel.

If you wish, you can change any of these effect settings to suit your tastes separately for each sound

save them as the new Preset effect settings for that Sound (See Sound Edit on page 86). In addtion,

by setting the Effect For Sound function in the System to “Panel” the CP will ignore the preset

effect settings for each Sound (see Effect For Sound on page 113).

(The CP piano can also remember your Effect settings as part of a Registration. See Registration on

page 31.)

To add Reverb:

1) Press the REVERB button. The REVERB button LED will light.

2) If you wish to edit the settings, hold down the REVERB button for a moment until the Reverb Settings

screen is displayed.

3) Use the F3-F6 buttons to select the Part you want to edit.

4) Use the L2-L4 buttons to select the specific setting that you wish to change.

5) Use the Dial to change the value.

6) Press the EXIT button to leave the Reverb Settings menu.

7) If you wish to turn the reverb effect off, press the REVERB button again.

Kawai Concert Performer Series Digital Piano

P. 16

Type of Reverb

Hall 1, Hall 2 Simulates the ambiance of a concert hall or theater.

Stage 1, Stage 2 Simulates the ambiance of a small hall or live house.

Room 1, Room 2 Simulates the ambiance of a living room or small rehearsal room.

Plate Simulates the sound of a metallic plate reverb.

• The LED Indicator on the REVERB button will be lit whenever Reverb is turned on for the any

Part except ACC (regardless of each part’s Effect Priority). See “Effect Priority Guidelines” later

in this chapter for an explanation of Effect Priority.

To add Chorus:

1) Press the CHORUS button. The CHORUS button LED will light.

2) If you wish to edit the settings, hold down the CHORUS button for a moment until the Chorus Settings

screen is displayed.

3) Use the F3–F5 buttons to select the Part you want to edit

4) Use the L2–L4 buttons to select the specific setting that you wish to change.

L 1

L 2

L 3

L 4

L 5

F 1 F 2 F 3 F 4 F 5 F 6 F 7

R 1

R 2

R 3

R 4

R 5

L2 Selects the Reverb type. Use the Dial to choose

one of the 7 Reverb types.

L3 Selects Reverb on/off. Use the Dial to turn the

Reverb on/off for the selected Part.

L4 Selects Reverb depth. Use the Dial to change

the Reverb depth for the selected Part.

F3–F6 Selects the Part you want to change. Repeatedly pressing

the appropriate button also turns the Reverb on/off for

that Part.

Basic Controls

P. 17

• The Indicator light on the CHORUS button will be lit only when Chorus is turned on for the

active “Priority Part”. See “Effect Priority Guidelines” later in this chapter for an explanation of

this.

• You can select from four chorus types when in the Chorus Settings menu. There is a fifth chorus

type which is assigned as an Effect from the Effect Settings menu. In this way, you can actually

have two chorus effects active if so desired.

5) Turn the Dial to change the value.

6) Press the EXIT button to leave the Chorus Settings menu.

7) If you wish to turn the chorus off, press the CHORUS button again.

L2 Selects the Chorus type. Use the Dial to choose

one of the 4 Chorus types.

L3 Selects Chorus on/off. Use the Dial to turn the

Chorus on/off for the selected Part.

L4 Selects Chorus depth. Use the Dial to change

the Chorus depth for the selected Part.

F3–F5 Selects the Part you want to change. Repeatedly pressing the

appropriate button also turns the Chorus on/off for that Part.

L 1

L 2

L 3

L 4

L 5

F 1 F 2 F 3 F 4 F 5 F 6 F 7

R 1

R 2

R 3

R 4

R 5

Kawai Concert Performer Series Digital Piano

P. 18

To add an Effect:

1) Press the EFFECT button. The EFFECT button LED will light.

2) If you wish to edit the settings, hold down the button for a moment until the Effect Settings screen is

displayed.

3) Use the F3–F5 button to turn ON/OFF the Effect for each part.

4) Use the L2–L5, R3 buttons to select the specific setting that you wish to change.

5) Turn the Dial to change the value.

6) Press the EXIT button to leave the Effect Settings screen.

7) If you wish to turn the Effect off, push the EFFECTS button again.

L2 Selects Effect type. Use the Dial to choose one

of the 16 Effect types.

L3 Selects Wet Balance. Use the Dial to change the

value.

L4 Selects a different editable setting for each Effect

type. Use the Dial to change the value.

R3 Selects a different editable setting for

each Effect type. Use the Dial to

change the value.

F3–F5 Turns the Effect on/off for each Part.

L 1

L 2

L 3

L 4

L 5

F 1 F 2 F 3 F 4 F 5 F 6 F 7

R 1

R 2

R 3

R 4

R 5

Basic Controls

P. 19

Effect Types

Chorus Simulates the rich character of a vocal choir or string ensemble, by layering a

slightly detuned version of the sound over the original to enrich it.

Flanger Creates a shifting comb-filter, which adds motion and a “hollow” tone to the

sound.

Celeste A three-phase chorus without modulation.

Ensemble A three-phase chorus with a slight modulation to each phase.

Delay 1-3 Adds echoes to the sound. The three types differ in the length of time between

the echoes.

Auto Pan Moves the sound left and right across the stereo field at a variable rate.

Tremolo Modulates the volume of the sound. This is a vibrato type effect.

Tremulant A combination of Tremolo and Vibrato. It simulates the tremulant pipes of a

church organ.

Phaser Creates a phase change, adding motion to the sound.

Rotary 1-2 This effect simulates the sound of the Rotary Speaker cabinet commonly used

with electric organs. Rotary 2 adds distortion. The soft pedal is used to change

the speed of the rotor between SLOW and FAST.

Auto Wah Sweeps a tone filter up and down at the beginning of a note, recreating the popular

vintage wah wah pedal sound.

Enhancer Emphasizes high frequencies to make a sound more easily discernible in a mix.

Distortion Adds frequencies that were not present in the original sound, resulting in a “fuzzy”

or warmer tone.

Kawai Concert Performer Series Digital Piano

P. 20

Effect Priority Guidelines

Reverb and Chorus are global effects. In other words, all of the Parts and the Accompaniment Style

must share the same Reverb and Chorus type. However each of these Parts can have a different

amount of Reverb and Chorus applied to them. In addition Reverb and Chorus can be independently

turned on/off for each part. However, since the CP’s EFFECT section can only have one Effect

turned on at a time (in addition to the REVERB and CHORUS), what happens if you have two (or

more) Parts active, with entirely different sounds, each with a different Effect setting?

In these cases, the CP’s Effects section can only use the Effect settings for one of the Parts. The

EFFECT section chooses which Effect settings to use based upon a predetermined priority order

for each of the Parts. The Priority order is RIGHT 1> RIGHT 2 > LEFT/SPLIT. The preset effect

settings for the Priority Part will be used and the other Parts will either share these settings or may

have their Effects automatically turned off.

This “Priority Part” depends on the current situation. If you only have one Part active, regardless

of which Part it is, the preset effect settings for that sound will be used. If you have two or more

Parts active, then the CP will treat one of them as the Priority Part, and ignore the settings of the

other(s).

If the Effect For Sound is set to “Panel” in the System then the Preset effect settings for each Sound

will be ignored and the Part Priority will be ignored. (See Effect For Sound on page 113).

Here are some guidelines for Effect Priority:

• Priority is given to the Parts in the following order: RIGHT1>RIGHT2>LEFT. This means that

anytime the RIGHT1 Part is active, its Effect settings will be used, not only for its sound but for

any sound in any other Part, that you want to add effects to. Likewise, the only time an active

LEFT Part’s settings will be applied is if the other 2 Parts are inactive.

• Unlees you change them, the Effect settings will only change in response to a change in the

Priority Part being activated/deactivated, or a new sound is assigned to an active Priority Part.

In the latter case, the new Effect settings will reflect the Preset effect settings for the new

sound.

• When the Effect settings change for the Piority Part, the Effects will be automatically turned off

for the other Parts. (This is so that your Flute sound on RIGHT2 doesn’t suddenly get effected

by the Distortion settings of the Electric Guitar that you’ve just assigned to the RIGHT1 Part!)

• You can, however, turn the effect on for any Part by adjusting the Effect On/Off option in the

display for that Part.

Basic Controls

P. 21

• The LED Indicator on the EFFECT and CHORUS buttons will be on only when the active Priority

Part has these effects turned on.

Example

Assume that your CP is set up according to the following chart:

RIGHT1 RIGHT 2 LEFT INDICATOR

Part Inactive Active Active

Effect On On On On

If you then select a different sound for RIGHT2, the Effect setting for the RIGHT1, LEFT will be

turned off automatically. This is because RIGHT2 is the Priority Part (note that the RIGHT1 Part is

NOT the Priority Part because it was inactive).

The chart would now look like this:

RIGHT1 RIGHT 2 LEFT INDICATOR

Part Inactive Active Active

Effect Off On Off On

Even if you now assign a new sound to the RIGHT1 Part, the Effect settings for the other Parts

won’t change, because RIGHT1 is still inactive, so therefore would not have priority.

Once you make the RIGHT1 Part active, however, it would now be considered the Priority Part.

The Effect settings for the other Parts will again be turned off. The Indicator light on the EFFECT

button will now reflect the Effect status for the sound assigned to RIGHT1.

RIGHT1 RIGHT 2 LEFT INDICATOR

Part Active Active Active

Effect Off Off Off Off

At this point, if the Effect that has been called up along with the RIGHT1 sound is one that you’d

like to use for the other Parts, simply select Effect On in the LCD display for those Parts.

Kawai Concert Performer Series Digital Piano

P. 22

Transpose and Octave Shift

Transpose raises or lowers the CP’s pitch in half- step increments. Octave Shift does the same but

in octave increments.

Transpose can be especially useful when you have learned a song in one key and have to play it in

another key. The transpose feature allows you to play the song in the original key, but hear it in

another key. You can transpose the Concert Magic songs, the Accompaniment Styles, any songs

played back by the Easy/Advanced Recorder and any of the over 600 instrument and drum sounds

available in the CP.

Octave shift can be very useful when you are playing multiple sounds across the keyboard. You

may want to use the octave shift to adjust a bass sound assigned to the LEFT/SPLIT Part to play in

the proper pitch range, or to set one sound in a layer to play in a different octave so that it mixes

well with other sounds in the layer. Octave shift is only available for the three Parts: LEFT/SPLIT,

RIGHT1 and RIGHT 2.

To Transpose:

1) Press either the ß or † TRANSPOSE buttons. The LCD screen shows you a number telling you how

many half steps up or down you have transposed the piano. -5, for example, represents a transposition

that is 5 half steps lower.

2) To cancel the Transpose setting, press both the ß and † buttons at the same time. The transpose

amount will disappear from the LCD screen, indicating that the CP is now back to its original setting.

To use the Octave Shift:

1) Select the Part that you would like to apply the shift to.

2) Press either the ß or † OCTAVE SHIFT buttons. The number of shifted octaves (up or down) will be

displayed with an “ß” in the LCD screen.

3) To cancel the octave shift, press both the ß and † buttons at the same time. The symbols will

disappear from the screen, indicating that the selected Part is back to its normal octave range.

Basic Controls

P. 23

L 1

L 2

L 3

L 4

L 5

F 1 F 2 F 3 F 4 F 5 F 6 F 7

R 1

R 2

R 3

R 4

R 5

L3 Selects the LEFT Part to be Transposed or Octave

Shifted.

R2 Selects the RIGHT1 Part to be Transposed

or Octave Shifted.

R3 Selects the RIGHT2 Part to be Transposed

or Octave Shifted.

The number of octaves shifted is represented by

the number of triangles shown above the sound

name for each Part.

Transpose amount is shown at the bottom of the

screen.

• The Octave Shift has a range of four octaves in each direction. However, some on board sounds

may have a limited range in which they play properly. If you shift too far out of this range, the

instrument may sound strange or may not play at all. This has no affect on the CP’s proper

function though, and you should feel encouraged to use this feature as a means of getting

interesting tonal variations out of the preset Sounds.

Kawai Concert Performer Series Digital Piano

P. 24

Metronome

Rhythm is one of the most important elements when learning music. It is important to practice

playing the piano at the correct tempo and with a steady rhythm. The CP piano’s metronome is a

tool that helps you to achieve this by providing a steady beat for you play along with.

To use the Metronome:

1) Press the METRONOME button. The CP piano will start counting with an audible steady beat. You

will see Volume level, Beat (time signature), as well as the Metronome icon appear in the LCD

screen next to the Tempo value.

2) Use the BEAT, VOLUME, or TEMPO buttons (F2–F7) to select the setting you wish to change.

3) Use the F buttons (F2-F7) or the Dial to change the values.

You can also adjust the tempo by tapping on the TAP TEMPO button. Simply tap on the button with

your finger three or more times at the desired tempo, and the CP will automatically translate that

into a tempo value on the screen!

4) To stop the metronome, press the METRONOME button again.

L 1

L 2

L 3

L 4

L 5

F 1 F 2 F 3 F 4 F 5 F 6 F 7

R 1

R 2

R 3

R 4

R 5

F1 Takes you to the Mixer menu.

F2, F3 Changes the Beat. Choose from 1/4, 2/4, 3/4, 4/4, 5/4,

6/8, 7/8, 9/8 and 12/8 time signatures.

F4, F5 Adjusts the volume level.

F6, F7 Adjusts the tempo.

Basic Controls

P. 25

Piano Only

The Piano Only button provides a way to quickly set the Concert Performer up to play the Concert

Grand piano sound. Pressing the Piano Only button immediately turns off all Parts except the Right

1 part and sets the Right 1 sound to Concert Grand.

The Piano Only button also turns off all auto-accompaniment functions and stops the Easy/Advanced

Recorder. Additionally, pressing the Piano Only button will cause the CP to exit any function or

editing screen (except for Concert Magic) and immediately return to the Main Screen.

When you are using Concert Magic, pressing the Piano Only button will change the Concert Magic

song’s preset sounds to Concert Grand piano.

• You can also use the Piano Only button as a “panic button” to immediately stop any unintended

accompaniment style or recording, or to quickly exit any confusing situation and return to a

familiar piano sound.

To use Piano Only:

Press the PIANO ONLY button. The Main Screen is displayed and the Concert Grand sound is assigned

to RIGHT1.

Kawai Concert Performer Series Digital Piano

P. 26

Using a Style

The Concert Performer contains 182 built-in Styles for you to play

along with, covering a wide variety of musical genres. You can

choose from a simple drum or percussion accompaniment or add

in a fully orchestrated arrangement. In addition to the Full Styles

which provide a full musical arrangement including Drums, Bass,

and other accompanying instruments, there are Intimate Styles with

Solo Piano Styles if you just want to play along with a piano

accompaniment. If the on board variety of styles is not enough, or

if you have creative ideas of your own, the CP contains other

features such as Style Maker and Conductor to help you edit or

create your own custom Styles. These features are explained in

the section of this manual “Creating Your Own Styles”, page 74.

Selecting and Playing a Style

The Styles are organized into 13 categories, each with a dedicated STYLE SELECT button on the

front panel.

To select a Style:

1) Press the STYLE button for the category of your choice. The LCD screen will display the first Style

Selection page for that category.

2) Press the L or R button next to the on-screen name of the Style you wish to select.

3) Each Style category has two pages of styles. If you don't see your desired Style on the currently

displayed page, you can use the F1- F2 buttons to select the other page. Press another STYLE button

to jump to another category, or turn the Dial to scroll through all the Styles one by one.

4) If you wish play the selected Style, press either

the START/STOP button to start the Style playing immediately,

or the INTRO/ENDING button to start the Style with an Intro pattern.

You can also press the SYNC/FADE OUT button before starting a Style or pressing the INTRO/ENDING

buttons. When the SYNC/FADE OUT button is pressed, the Style will not start until you play a note or

chord on the keyboard.

5) To adjust the tempo of the Style, select Tempo on the main play screen and use the Dial to change the

Tempo.

You can also use the TAP TEMPO button. Tap the button three or more times at the desired tempo,

and the CP will automatically translate your taps into an on-screen Tempo value.

6) To stop the Style, press either,

the START/STOP button to stop the Style immediately,

or the INTRO/ENDING button to stop with an ending pattern,

You can also press the SYNC/FADE OUT button and have the Style fade out gradually.

Basic Controls

P. 27

• When you are in the main play screen, you can select a Style by just using the Dial. Press the L1

button or F2–F3 (STYLE) and “Style” will become highlighted. Use the Dial or press the F2–F3

button to select another Style.

Use the L or R buttons to select your desired Style.

F1, F2 Select the different pages within a Style category.

L 1

L 2

L 3

L 4

L 5

F 1 F 2 F 3 F 4 F 5 F 6 F 7

R 1

R 2

R 3

R 4

R 5

When this button is pressed before starting a Style or before pressing the

INTRO/ENDING button, the Style will not start until you play a note or chord

on the keyboard. When this button is pressed while the Style is running the

Style will gradually fade out. When this button is pressed during a fade out

the Style will gradually fade back in and you may resume playing the Style.

You can press the SYNC/FADE OUT button at any time while any of the

patterns (Intro, Variation, Ending) in the Style are running to fade in or out

of the Style.

Starts or stops the Style immediately.

When one of these buttons is pressed to start a Style the selected Intro

pattern will be played before the selected Variation pattern plays. There are

both major and minor versions for each Intro. The Auto-accompaniment

System will decide which Intro to use based upon the first Chord you play

(major or minor). The LCD screen will display a countdown in bars to show

how many bars you have until the variation begins playing. When one

of these buttons is pressed while the Style is running the selected Ending

pattern will be played before the Style stops. There are major and minor

versions for each Ending.

Kawai Concert Performer Series Digital Piano

P. 28

• The CP remembers the last Style selection that you made within each category while the power

is on. When you press a STYLE button, the CP will automatically select the Style previously

chosen in the same category.

• When you switch from one Style to another while it is running, the new Style will wait until the

beginning of the next measure before it begins to play.

Fill-In and Variation

Each Style is made of four Variation patterns and four Fill-in patterns.

Fill-ins are short patterns that temporarily embellish the Style. Fill-ins can add excitement and

rhythmic change to the Style and be used as a musical lead in between the Variations. To use a Fill-

in, just press one of the FILL IN buttons. You will hear the fill-in begin playing immediately from a

musically appropriate spot.

Fill-ins can also be used as a short intro. First press the SYNC/FADE OUT button then press one of

the FILL-IN buttons to select a desired Fill-in. Press any key on the keyboard to start the style. After

the Fill-in plays, the selected Variation will play.

To select a Variation, press one of the four VARIATION buttons to select the desired Variation. The

Selected VARIATION button LED will light.

• You can set the CP to automatically play a Fill-in anytime you press a VARIATION button as you

switch from one Variation to another. Select your preferred option in the Fill-in mode. (See page

112)

Auto Accompaniment System

The Auto-accompaniment System (ACC) is a powerful feature that determines how the Styles will

interact with you as you play. The ACC System analyzes your playing and adjusts the notes the

Style plays to follow the Chords that you play on the keyboard. The ACC System is capable of

recognizing single finger as well as more complex chord voicings. The CP recognizes 61 chord

types as well as most of their inversions. (See page 158 for a chord table.) There are three modes of

key recognition—One Finger, Fingered, and Full Keyboard. Your choice of which mode to use

depends on your skill level and the selected musical style.

Basic Controls

P. 29

Fingered The player must play at least three notes of a chord below the split point (LEFT/

SPLIT Part) before the ACC System will recognize the chord type. (See page 158

for chord table.)

One Finger Uses a simplified chord method that allows beginners to specify a chord type by

playing only one or two notes below the split point. The types of chords that can

be recognized in this manner are limited to Major, Minor, 7th and Major 7th.

While the player can trigger basic chords with as little as one finger, the ACC

System will recognize more complex chord types if you play them, even you are

in the One Finger mode.

Full Keyboard The player must play at least three notes of a chord anywhere across the 88 keys

before the ACC System will recognize the chord type. This mode is similar to

Fingered however, Full Keyboard recognizes chord types from three or more

notes played anywhere across the 88 keys not just below the split point.

Bass Inversion

When Bass Inversion is on, the Bass Section of the Style will follow the lowest note of the chord

voicing played on the keyboard. With Bass Inversion on it is possible to specify a chord over a

certain bass note by the chord voicing you play. For example, a C chord over a G bass, or a Bb7

chord over a C Bass. Bass Inversion will work with all three key recognition modes but when in

One Finger mode, you play at least two notes of a chord for Bass Inversion to function.

To turn Auto-accompaniment (ACC) on:

1) Select a Style that you would like to play.

2) Press one of the ACCOMPANIMENT buttons to select the Key Recognition mode. The selected Key

recognition mode will be displayed at the bottom of the LCD screen if you're on the main play screen.

3) Press the BASS INVERSION button if you would like to turn it on.

4) Press the ACC ON/OFF button to activate the Auto-accompaniment System (ACC).

5) Press the START/STOP button to start the Style, and play some chords in the LEFT/SPLIT Part. You

will hear the Style start and also change keys and chord types as you play different chords.

6) If you want to cancel or stop the Auto-accompaniment, press the ACC ON/OFF button again. If you

turn the ACC off without stopping the Style the drum rhythms will continue to play.

Kawai Concert Performer Series Digital Piano

P. 30

• When you play along with the Auto-accompaniment using the Fingered or Full Keyboard modes,

you may hear two sounds playing the chords: one is selected by the front panel and the other is

pre programmed for the Style. This is because the sounds used by the Auto-accompaniment

Style are independent of the Left and Right Part sound settings. Therefore you will hear the

instrument sounds played by your hand as well as those generated by the accompaniment.

In most cases, these are just duplicate notes being played using different sounds. In some cases

however, you may hear different notes or an unexpected chord inversion. If the overall musical

effect is undesirable, try turning the LEFT/SPLIT Part off and let the accompaniment play alone.

• You can use the Auto-accompaniment (ACC) System without the Style running. In this way you

can make use of the chord recognition without having the pre programmed rhythms or patterns

playing. Just turn the ACC on and play without starting the Style. You will hear the bass and

chord parts only. This may be useful when you play a musical piece that is not played with

drums. The accompaniment sounds are pre programmed to best suit the different Styles, and

you cannot alter them. When playing in One Finger mode, however, you can replace the chord

sound with the sound chosen for the LEFT/SPLIT Part. Assign your preferred sound and make

the LEFT/SPLIT Part active.

You can also start a Style without the ACC on. In this way you can have just drums and percussion

accompany you.

1-2 Play

If you want to play using an Accompaniment Style, but have no idea as to what sounds you should

use for the right and left-hand parts, try using the 1-2 Play feature. This feature gives you a

preprogrammed panel setup with appropriate sounds and settings for the Style you have chosen.

To use 1-2 Play:

1) Select the Style you would like to play.

2) Press the 1-2 PLAY button. The 1-2 Play indicator will become lit, and the words “1-2 Play” are

displayed in the Main Screen. The SYNC/FADE OUT button is activated as well.

3) Activate one of the INTO/ENDING buttons if you want the Style to begin with an introduction. Start the

Style by playing a key on the left side of the keyboard, or by pressing the START/STOP button.

4) Press the 1-2 PLAY button again to turn it off.

Basic Controls

P. 31

• Among the settings contained in the 1-2 Play setting are the Sounds assigned to the keyboard

Parts (Right 1/2, Left), Tempo, and Mixer settings.

Registration

A Registration is a setup that remembers the panel settings along with many other performance

functions so that you can recall them at the touch of a button. This lets you begin to play quickly

instead of spending a lot of time programming all the settings and values manually.

There are 8 Registration buttons on the panel of the Concert Performer. Each button contains a

different registration. Pressing any of the Registration buttons activates the setup stored there.

Pressing another Registration button changes to the registration stored in that button. Pressing the

active Registration button again deactivates the registration and returns you to the original panel

setup.

Registration Groups

There are 10 Registration Groups in the Concert Performer. Each group contains settings for the 8

Registration buttons on the panel. Each group represents a “family” of settings for the CP. The

sound and performance capability of the Concert Performer is remarkable, and each registration

group is designed to take full advantage of certain types of sounds available in the instrument.

Switching from one Registration Group to another instantly changes the Registration buttons from

Pipe Organ settings to Orchestra settings, for example.

• The default Registration Group is “American Pop”, a family of registrations designed to play

popular music from the 1940’s through today.

With 8 Registration buttons and 10 Registration Groups, you have a total of 80 preprogrammed

Registrations available. Plus, you can overwrite any registration with your own unique setups.

To use a Registration:

1) Press the REGIST GROUPS button. Ten Registration Groups will be displayed.

2) Highlight any Group from the list by using the L and R buttons.

3) Press one of the eight REGISTRATION buttons to activate a Registration from your selected Registration

Group.

4) To return to the Main Screen, press the EXIT button.

Kawai Concert Performer Series Digital Piano

P. 32

• The CP remembers how the front panel was setup before you chose a Registration so that after

exiting the Registration, the prior settings will be restored.

• It is not necessary to always begin with the REGIST GROUPS button when selecting a Registration.

If the group you want to use is already selected, pressing one of the REGISTRATION buttons will

activate a setup from that group. The CP will remember the Registration Group last chosen as

long as the power remains on.

• You cannot use the 1-2 Play function and Registrations at the same time. Choosing one always

cancels the other.

Use the L and R buttons to select the Group. Then

press one of eight REGISTRATION buttons to call

the desired setup.

L 1

L 2

L 3

L 4

L 5

F 1 F 2 F 3 F 4 F 5 F 6 F 7

R 1

R 2

R 3

R 4

R 5

F6, F7 Takes you to the Registration Group Name screen.

Basic Controls

P. 33

• The following settings can be stored in a Registration:

Sounds (Right1, Right2, Left), Split Point, Style and Variation, Fill-in mode, Tempo,

Accompaniment settings, Mixer settings, Chorus settings, Effect settings, Harmony settings,

Voicing, Detune, Resonance and Left Pedal functions.

• You can save your Registrations on a floppy disk and load them into the CP later. (See page 128)

To create your own Registration:

1) Set up the panel and functions in the way that you’d like to save them.

2) Press the SAVE REGIST button. Use the R1 – R5 buttons to select the Registration Group in which to

save your setup. Use the F1 – F2 buttons to view the 10 Registration Groups in sets of five.

3) Press one of the 8 REGISTRATION buttons to specify which location you’d like to save your Registration

to.

R1–R5 Selects the Registration Group to save in.

L 1

L 2

L 3

L 4

L 5

F 1 F 2 F 3 F 4 F 5 F 6 F 7

R 1

R 2

R 3

R 4

R 5

Press the F1-F2 buttons to display the Registration

Groups on the other pages.

Press the specific REGISTRATION button where

you’d like to save to.

Kawai Concert Performer Series Digital Piano

P. 34

To rename the Registration Group:

1) Press the REGIST GROUPS button.

2) Use the L and R buttons to select the Group to rename.

3) Press the NAME (F6, F7) button.

L 1

L 2

L 3

L 4

L 5

F 1 F 2 F 3 F 4 F 5 F 6 F 7

R 1

R 2

R 3

R 4

R 5

Use the L and R buttons to select the Group to rename.

4) In the Registration Group Name screen, use the CURSOR (F2, F3) buttons and the CHARACTER (F4,

F5) buttons to change the name. You can also use the Dial to change the characters.

5) Press the SAVE (F6, F7) button to confirm the name.

Basic Controls

P. 35

L 1

L 2

L 3

L 4

L 5

F 1 F 2 F 3 F 4 F 5 F 6 F 7

R 1

R 2

R 3

R 4

R 5

F1 Takes you to the previous menu.

F2, F3 Moves the cursor over the characters in the name.

F4, F5 Selects a character.

F6, F7 Saves the name

Style Lock

Pressing the STYLE LOCK button keeps the current Style, even if another Registration is selected.

This allows you to change Sounds and settings by the Registration button while keeping the Style

as-is. As long as the STYLE LOCK button is on, changing registrations will not change the style.

However, you can always manually change the style, even if the Style Lock is on.

Press the STYLE LOCK button again to turn it off.

Kawai Concert Performer Series Digital Piano

P. 36

Song Stylist

With over 600 Sounds and 182 Styles, it can sometimes be difficult to decide the best settings with

which to play a song. Even if you are very familiar with the Concert Performer, you may want a

quick way to change the CP’s setup to play another song. The Song Stylist feature was created to

handle this situation for you. You simply pick the name of the song you want to play and the

Concert Performer sets up everything for you.

The Song Stylist contains a list of 514 popular song titles. In the Song Stylist, there is an appropriate

setup for each of those songs. You may search for your favorite title either alphabetically by song

name, or by category of musical genre. Once you’ve found the song you want to play, simply press

one button and the CP is immediately setup for that song and ready for you to begin.

• The Song Stylist contains no prerecorded music, only the setup to play the chosen song. You

must play the actual music yourself.

To use the Song Stylist:

1) Press the SONG STYLIST button. The Name Menu list appears, showing alphabet to search for the

SONG STYLIST. Use the L and R buttons to search for the title in alphabetical order.

2) Press the SEARCH BY CATEGORY button. The Category list appears, showing the different musical

genres for the SONG STYLIST.

3) Use the SEARCH BY CATEGORY buttons (F1, F2) to display the Category choices on the other page.

When you have found the category you want, use the L and R buttons to select it. A list of songs

within that musical category appears.

Basic Controls

P. 37

L 1

L 2

L 3

L 4

L 5

F 1 F 2 F 3 F 4 F 5 F 6 F 7

R 1

R 2

R 3

R 4

R 5

F1, F2 Shows the other categories.

F3, F4 Shows the song list in alphabetical order.

F6 Searches for a title from a floppy disk.

Use the L, R buttons to select your desired category.

L 1

L 2

L 3

L 4

L 5

F 1 F 2 F 3 F 4 F 5 F 6 F 7

R 1

R 2

R 3

R 4

R 5

Use the L, R buttons to search for a title listed in

alphabetical order.

F1,F2 Jumps to the Song Stylist Category menu.

F6 Search for a title from a floppy disk.

Kawai Concert Performer Series Digital Piano

P. 38

4) Use the PAGE buttons (F1, F2) to display the Song Titles on the other pages in the same category.

5) Use the L and R buttons to select one of the ten songs displayed in the screen. The CP automatically

returns to the Main Screen ready with all of the settings for that song.

6) You may start and play the song in your usual manner. You can operate the CP normally and make

any changes to the Song Stylist setup that you wish.

7) To play another song, press the Songlist (F7) button. To exit, press the SONG STYLIST button again

or press the EXIT button.

Use the L or R buttons to select your desired song.

L 1

L 2

L 3

L 4

L 5

F 1 F 2 F 3 F 4 F 5 F 6 F 7

R 1

R 2

R 3

R 4

R 5

F1, F2 Searches for a title on the other pages.

F4 Starts the Chain Play.

F6 Searches for a title from the internal presets.

F7 Selects the song.

Selecting a song from a floppy disk.

F1, F2 Searches for a title on the other pages.

F3 Jumps to the Song Stylist Category menu.

F4 Searches for a title in alphabetical order.

F6 Searches for a title from a floppy disk.

F7 Selects the Song.

L 5

F 1 F 2 F 3 F 4 F 5 F 6 F 7

R 5

Basic Controls

P. 39

• You may use different Sounds, Styles, Tempo and other settings to customize to your taste.

• When choosing a Song Stylist created by you (or someone else) and saved to floppy disk, there

may be a recorded melody and chord track available. The chord track, called the Auto Chord

Progression, will provide you with the chord changes to the song.

You may also find a song title by searching the list alphabetically.

To search the Song Stylist by Song Title:

1) Press the SONG LIST (F7) button. The Category list appears, showing the different musical genres

for the SONG STYLIST.

2) Press the SEARCH BY NAME (F3, F4) buttons. In the Name Menu, press the L or R buttons to take you

to the first letter of the name of the song. For example, if your song title starts with “G”, press the L3

button.

3) Use the PAGE (F1, F2) to search for the name of your song. When you find the song, press the

corresponding L or R button. The CP automatically returns to the Main Screen ready with all of the

settings for that song.

L1 Highlights the Style.

L2 Adjusts the Tempo.

L3 Highlights the LEFT Part.

L4 Changes the split point.

L 1

L 2

L 3

L 4

L 5

F 1 F 2 F 3 F 4 F 5 F 6 F 7

R 1

R 2

R 3

R 4

R 5

F1, F2 Turns on the Auto Chord Progression (if available).

F3, F4 Turns on the Melody part (if available).

F5, F6 Adjusts the volume level for the sound.

F7 Takes you back to the Song Stylist menu.

R2 Highlights the RIGHT 1 Part.

R3 Highlights the RIGHT 2 Part.

R4 Changes the split point.

Kawai Concert Performer Series Digital Piano

P. 40

Harmony

When the Auto-Accompaniment is on, you can use Harmony function. The Harmony function

automatically adds notes to your right hand (melody) part to help you sound more professional.

This function analyzes the notes you play and automatically adds notes from the Accompaniment

chord (shown in the Main Screen when the Accompaniment is on), creating a “harmony” part (even

if you are only playing single notes in the left and right hands).

There are 10 types of Harmony.

Block Adds three or four notes based on the chord.

Open Adds three or four notes based on the chord. Harmony notes may extend over one

octave below the lowest right-hand note.

Jazz Adds three or four notes based on the chord.

Rockn’ Adds a note at a fifth (or fourth) interval to the lowest note played in the RIGHT

Part.

Dynamic Adds three or four notes based on the chord. Harmony notes are played within

one octave below the lowest note played in the right hand.

Duet Adds a note according to the lowest note played in the right hand and based on the

chord.

Octave Takes the highest note played in the right hand and doubles it an octave down.

Octave Duet Adds an Octave note and a Duet note.

Vocal 1 Adds a single note above the top note of the right hand based on the chord.

Vocal 2 Adds three notes based on the chord. The lowest note will always be the root of

the chord.

Basic Controls

P. 41

To use Harmony:

1) Press the HARMONY button. The button will be lit to show that it is active. The Harmony symbol will

also appear in the Main Screen.

2) To change the Harmony type, hold down the Harmony button for a moment until the Harmony Select

menu is displayed.

3) Choose the Harmony type using the L and R buttons.

4) Press the EXIT button to leave the Harmony Select menu.

5) To turn off the Harmony, press the HARMONY button again.

• The additional notes created by Harmony are added to the RIGHT 1 Part, if that part is on. If the

RIGHT 1 Part is off, the additional notes are added to the RIGHT 2 Part. If both parts are off,

there will be no Harmony even though the HARMONY button is lit. The Harmony notes are

played with the same sound as the part they are added to.

• You can volume mix the Harmony separately in the MIXER screen.

• If the Accompaniment in not on, you will not be able to activate Harmony.

L 1

L 2

L 3

L 4

L 5

F 1 F 2 F 3 F 4 F 5 F 6 F 7

R 1

R 2

R 3

R 4

R 5

Use the L or R buttons to select your desired

Harmony type.

Kawai Concert Performer Series Digital Piano

P. 42

Recording a Song

independent tracks separately. In addition, with Advanced

Recorder you can edit your recorded data one measure or even

one note at a time.

Song data created on other instruments in the Standard MIDI File

format (SMF) can also be loaded into the CP’s recorder to be played

or edited. The CP’s recorder can read both Type 1 and 0 SMF files.

Please read the following sections carefully to learn more about

the capabilities of the Easy and Advanced recorder.

The CP has built-in recording capabilities that allow you to record

and play back your performances. Since the CP records your

performances as digital data, not audio data, you can easily edit

your performances after recording them. There are two ways to

use the CP’s recording feature:

Easy Recorder records your playing much like a tape recorder and

is just as easy to use. The CP will record all of your playing as well

as any changes you make to the front panel settings during the

recording.

Advanced Recorder is useful for creating more complex recordings.

Advanced Recorder gives you the ability to record on up to 16

Easy Recording

The Easy Recorder will record all of your playing as well as any settings you have made on the front

panel or in the mixer screen at the touch of a button. Simply press the REC button and the CP will

begin recording with the first note you play. You can also record a Style along with your playing if

you like. Before you begin recording its a good idea to select your desired sound(s) and make any

panel settings you would like to record.

To record:

1) Press the REC button. The REC button LED will blink and the LCD screen will show Rec Ready. If you

want to, you can still change sounds or panel settings before proceeding.

2) Start recording in one of the following ways:

A. Play the keys and the CP will automatically start recording with the first note you play.

B. If you are recording with a Style, press the START/STOP button to start the recorder with the Style.

Pressing the INTRO/ENDING button will include an Intro phrase at the beginning of the recording.

C. You can also press the SYNC button to begin recording the Style and your own playing together.

D. Press the PLAY/STOP button to start with a 2-bar countdown to help you get ready.

3) When you are finished recording, press the PLAY/STOP button.

You may resume recording from the point where you stopped by repeating these steps from step 2.

Recording a Song

P. 43

• You may resume recording from the bar where you stopped by repeating these steps. You can

also change sounds, tempo, and make other changes to the panel settings before you continue

recording.

• To Re-record or make other changes to a previously recorded section of a song, please read the

section titled “Re-recording or adding another Part” on page 44.

To play back the recorded song:

1) Press the RESET button in the RECORDER section of the front panel to return to the first bar of the

song.

2) Press the PLAY/STOP button to play back the song.

3) Press the PLAY/STOP button again to stop at any time.

4) Pressing the PLAY/STOP button again resumes the playback from the bar where you stopped.

5) Use the RWD or FWD buttons to rewind or fast-forward through the recording.

L 1

L 2

L 3

L 4

L 5

F 1 F 2 F 3 F 4 F 5 F 6 F 7

R 1

R 2

R 3

R 4

R 5

The current bar number is displayed.

You can make changes to the panel settings before

and during recording using the L and R buttons.

F1 Takes you to the Mixer menu.

F2 Deletes the recorded song data

F3-F6 Changes the part status.

Kawai Concert Performer Series Digital Piano

P. 44

Part Status

The playback and record status for the RIGHT/ LEFT Parts and the Style are displayed at the bottom

of the LCD screen. Whether you are in the process of recording or playing back your song it is

helpful to know the status for each of these Parts.

The LCD screen will show the following Part status messages at the bottom of the screen:

REC This Part is ready to be recorded. This message is only displayed after the REC button has

been pressed.

PLAY This Part has been recorded and will be heard both on playback and while recording.

MUTE This Part has been recorded but will be silent both on playback and while recording.

– – – This part has not been recorded.

After you have recorded a song you can change the status for a Part by pressing the appropriate

button, F3-6 below the LCD screen. Pressing the F buttons during playback will select PLAY or

MUTE. REC can only be selected after you press the REC button but before you begin recording.

During recording you can however set any Part to PLAY or MUTE by pressing the appropriate F

button.

You can record all RIGHT/LEFT Parts as well as the Style simultaneously or only certain Parts as

you choose. When you first record a song all Parts and the Style will be automatically set to REC

but only the active Parts and the Style will be recorded. When you are finished recording the status

for any active Parts and the Style will automatically change from REC to PLAY. After recording, the

status for any RIGHT/LEFT Parts that were not active during recording will be automatically changed

to - - - to show they have not been recorded yet.

When you press the PLAY/STOP button to listen to your song any Parts set to PLAY status will be

heard.

Re-recording or adding another Part

After you have recorded a song you can Re-record a Part or add (overdub) other Parts if you like

with the following procedure. Re-recording a Part completely erases the previous performance for

that Part automatically.

To Re-record or add a Part:

1) Make sure the Part(s) you wish to Re-record are active, then select any sounds or change panel

settings as desired.

Recording a Song

P. 45

2) Press the REC button.

3) Press the appropriate F button(s) below the LCD screen to set the desired Part(s) to REC.

4) Begin recording by following step 2 in the “To Record” section on page 42.

Remember Re-Recording a Part completely erases the previously recorded performance for that

Part. You can Re-record or add any of the RIGHT/LEFT Parts as many times as you like but you can

only have one performance/sound for each RIGHT/LEFT Part.

Saving the song

Once you finish recording a song you should save it to disk before you turn the power OFF. Once

the power is turned OFF your song data will be lost.

See the section titled “Saving Data to a Floppy Disk” on page 129.

• If you press the EXIT button to get out of the Easy Recorder, the CP will automatically prompt

you to save your work.

Erasing the song

Whenever a Part is selected for recording, the new performance is written right over any existing

one that may be there for that Part. In this sense, the Easy Recorder is just like a tape machine. A

new song will simply erase the old song during the recording process.

However, if you wish to simply erase all the Parts and the Style in a song at once you can use the

Delete function.

To delete a song:

1) Press the DELETE button (F2) while the Recorder is not recording or currently ready to record. The

CP will ask if you are sure.

2) Use either the YES (F7) button to proceed or NO (F1) to cancel.

Kawai Concert Performer Series Digital Piano

P. 46

• DELETE erases all of the performance data for all Parts and the Style in the song. The panel

setup, such as Style, Tempo, and Sound settings are not erased by the DELETE function.

L 1

L 2

L 3

L 4

L 5

F 1 F 2 F 3 F 4 F 5 F 6 F 7

R 1

R 2

R 3

R 4

R 5

F1 Cancels erasing the song.

F7 Proceeds with erasing the song.

Recording a Song

P. 47

Advanced Recording

The Advanced Recorder is a full featured sixteen track MIDI recorder that includes many of the

same professional features found on dedicated MIDI sequencing (recording) devices. In addition

to sixteen MIDI tracks the CP Advanced recorder provides a separate Style, chord, and tempo track

for even more flexibility.

Even though you can create recordings of great musical complexity using the Advanced recorder

you will find that it is still very straightforward and easy to use.

Using the Advanced Recorder allows you much greater control over the recording and compositional

process than that offered by the Easy Recorder. However, songs created using the Easy Recorder

can also be edited using the Advanced Recorder by simply pressing the ADVANCED RECORDER

button.

To go to the Advanced Recorder Menu:

Press the ADVANCED RECORDER button. The recording options will be displayed on the screen.

R1 Edit the general settings for the song.

R2 Edit the song by bars.

R3 Edit the song by MIDI events.

R4 Create your own new user Style.

F1 Converts recorded Style data into MIDI note data that can then

be edited in the Advanced Recorder. Style Paste will only be

displayed if the current song was recorded using a Style.

L 1

L 2

L 3

L 4

L 5

F 1 F 2 F 3 F 4 F 5 F 6 F 7

R 1

R 2

R 3

R 4

R 5

L1 Change the Reverb, Effect, Panning, Volume level

and Chorus for each of the 16 tracks.

L2 Prepares the track for real-time recording.

L3 Re-record specific measures within your song.

L4 Select the sound to be assigned to each of the

16 tracks, and change the track's recording and

play back status.

L5 Edit loop settings for the song.

Kawai Concert Performer Series Digital Piano

P. 48

Real-time Recording

With Real-time record, the CP records your performance as you are playing it, in real-time. You can

select any of the sixteen instrument tracks or the Style and tempo tracks to record, but you can

only record on one track at a time. Since the Advanced Recorder only records on one track at a

time, only the RIGHT 1 Part is active in the Advanced Recorder. Any other active Parts are

automatically turned OFF when the ADVANCED RECORDER button is pressed. In addition to

selecting the desired track to record, the Real-time recording screen provides many other useful

Real-time recording functions.

To use Real-time recording:

1) From the Advanced Recorder menu, press the L2 button to select “Real Time REC”, or simply press

the REC button. The REC button LED will blink and the LCD screen will display the “Real Time REC”

screen.

2) Use the F, L and R buttons to select a function to edit. Use the Dial to change the values.

3) If necessary, you can go to the Mixer and Track Settings screens by pressing the appropriate F

buttons.

F1 Cancels the real-time recording setup and returns you to the Advanced

Recorder menu.

F2 Takes you to the Mixer menu.

F4, F5 Takes you to the Track Settings menu.

F6 Turns the Loop feature on/off

L 1

L 2

L 3

L 4

L 5

F 1 F 2 F 3 F 4 F 5 F 6 F 7

R 1

R 2

R 3

R 4

R 5

R1 Changes the time signature.

R2 Changes the tempo.

R3 Selects the recording mode. REPLACE

erases the previous data and records the

new data in its place. OVERDUB mixes the

new data with the previous data so that both

are heard together. Repeatedly pressing the

R3 button switches between the REPLACE

and OVERDUB.

R4 Selects the ending bar for the Loop feature.

This function is available only when Loop

is turned on.

L1 Selects the track on which you want to record.

There are 16 Instrument tracks, 1 Tempo track,

and 1 Style track.

L2 Selects the sound or Style that you want to

record with.

L3 Shows the current bar and beat number.

L4 Selects the starting bar for the Loop feature. This

function is a available only when Loop is turned

ON.

Recording a Song

P. 49

4) Start recording by pressing the PLAY/STOP button while the REC button LED is blinking. There is an

automatic two bar count in before the CP begins recording. If you are recording on the Style track you

must press the START/STOP or INTRO buttons instead of the PLAY/STOP button. When recording a

Style there is no two bar count in, recording begins immediately.

You can cancel recording at anytime by pressing the REC button again or by pressing the F1 button to

return to the Advanced Recorder menu.

• When you select a Style to record the default tempo for that Style is ignored. The Style will use

the current tempo setting for the song instead. You can set the desired tempo on the Real-time

record screen before recording or change the tempo after you have recorded in Song Edit or on

the tempo track in Event Edit.

• When you are recording on the Style track only the Style will be recorded. The style track will

record any chords (to the chord track) you play but the actual notes you are playing will not be

recorded.

• When the recording is done, the Mixer screen will automatically be displayed.

To play back the recorded song:

1) Press the RESET button in the RECORDER section of the front panel to return to the first bar of the

song.

2) Press the PLAY/STOP button to play back the song.

3) Press the PLAY/STOP button again to stop at any time.

4) Pressing the PLAY/STOP button again resumes the playback from the bar where you stopped.

5) Use the RWD or FWD buttons to rewind or fast-forward through the recording.

Mixer

On the Mixer screen, you can change the following settings for each of the 16 tracks: Reverb level,

Chorus level, Effect on/off, Panning, Track mute, Volume level.

To use the Mixer:

1) Use the TRACK buttons (F2, F3) to select which of the 16 tracks you wish to make changes to.

2) Use the L1 and L5 buttons to choose the track setting that you want to change.

3) Use the Dial to change the value.

Kawai Concert Performer Series Digital Piano

P. 50

4) At this point, you can start recording or go to another menu to continue setting up.

• You can make changes on the Mixer screen at any time except while the CP is busy recording.

The Mixer screen is accessible from the Advanced Recorder menu, Track Settings screen and

Real-time Rec screen.

• You can save any changes you have made to the settings on the Mixer screen at any bar or beat

in your song. Simply play back the song or press the FWD/RWD buttons until you reach the

exact bar and beat where you want to make changes to the Mixer settings and stop the song.

Make any changes on the Mixer screen, then press the SAVE button (F7). You can do this as

many times and in as many places within your song as you wish.

Note

“Saving” here only means any changes you made on the Mixer screen were saved as part of the

song. Once you finish recording a song or after you make any important changes you should save

it to disk before you turn the power OFF. Once the power is turned OFF your song data and any

changes you have made will be lost.

See the section titled “Saving Data to a Floppy Disk” on page 129.

L 1

L 2

L 3

L 4

L 5

F 1 F 2 F 3 F 4 F 5 F 6 F 7

R 1

R 2

R 3

R 4

R 5

L1, L5 Used to select the track setting you want to

change. Use the Dial to change the value.

F1 Returns you to the Advanced Recorder menu.

F2, F3 Selects the track that you wish to edit.

F4, F5 Takes you to the Track Settings menu.

F6 Turns Loop ON/OFF.

F7 Saves the Mixer settings as part of the song.

Recording a Song

P. 51

Track Settings

The Track Settings screen shows you the Play, Record, and Mute status for each track. In addition

it shows you what sound is assigned for the sixteen instrument tracks. You can change the track

status or select a different sound for each track.

The Track Status screen will show the following Status messages.

Rec This track is ready to be recorded.

Play This track has been recorded and will be heard both on playback and while recording.

MIDI Rec MIDI Rec enables the CP to record incoming MIDI data from an external MIDI

instrument connected to the MIDI jacks. You can set more than one track to MIDI

Rec, enabling the CP to record on several tracks simultaneously over MIDI.

Mute This track has been recorded but will be silent both on playback and while recording.

Empty This track has not been recorded.

After you have recorded a song you can change the status for a track by pressing the STATUS

button (F3) below the LCD screen. Pressing the STATUS button during playback will select Play or

Mute. Pressing the STATUS button after entering Real-time record but before recording begins, will

select Play, MIDI Rec, or Mute. Rec can only be selected from the Real-time Record screen. The

Track settings screen cannot be accessed during recording.

To use the Track Settings screen:

1) Press the TRACK SETTINGS button (L4) on the Advanced Recorder menu.

2) Press the L3 and L4 buttons to select the track that you wish to edit. If you wish to select tracks 10-

16, the Style, or Tempo tracks, press the L5 button to jump to these tracks. Press the L2 button to

return to tracks 1-9.

3) Press the STATUS button (F3) to change the status to PLAY, MUTE or MIDI REC.

4) If you wish to change the sound assigned to the track, press the SOUND buttons (F5, F6). You can

also select sounds by pressing any of the SOUND buttons.

5) When you are finished, press the MENU button (F1) to return to the Advanced Recorder menu or

press the MIXER button (F2) to go to the Mixer menu.

Kawai Concert Performer Series Digital Piano

P. 52

• As discussed in the above section, MIDI Rec enables the CP to record incoming MIDI data from

an external MIDI instrument connected to the MIDI jacks. You can set more than one track to

MIDI REC, enabling the CP to record on several tracks simultaneously over MIDI. Each MIDI

Rec track will record on the incoming MIDI channel that corresponds to its track number. Track

1 records MIDI channel 1 and so on.

Loop Settings

The Loop function lets you specify certain bars or your entire song to repeat over and over. Loop is

a global function and all tracks will be looped equally. You cannot have different loop settings for

each track.

To set the Loop:

1) Go to the Loop Settings screen by pressing the L5 button in the Advanced Recorder menu.

2) Use the L2–L4 buttons to select the different settings, then use the Dial to change the values.

3) Press the L2 button to turn the Loop ON/OFF.

4) Press the L3 button to specify the bar where you want the Loop to start.

L 1

L 2

L 3

L 4

L 5

F 1 F 2 F 3 F 4 F 5 F 6 F 7

R 1

R 2

R 3

R 4

R 5

L2 Jumps to tracks 1-9.

L3, L4 Selects the tracks one at a time.

L5 Jumps to tracks 10-16, Tempo, and Style.

R1 Changes the tempo. Use the Dial to change

the value.

F1 Returns you to the Advanced Recorder menu.

F2 Takes you to the Mixer.

F3 Changes the track’s status.

F5, F6 Selects a different sound for the track.

F7 Saves the Track settings as part of the song.

Recording a Song

P. 53

5) Press the L4 button to specify the bar where you want the Loop to end.

6) Press the MENU button (F1) to return to the Advanced Recorder menu when you are finished.

• You can turn looping on and off in the Mixer menu. However, you still have to set the Start and

End Bar from the Loop Settings menu.

• You can set up looping for recording in the Real-time REC menu as well. In the Real-time REC

menu, when you turn on the looping, the Start Bar and End Bar information will be automatically

copied from the Loop Settings menu.

Style Paste

When you record a Style as part of your song, the Style data is automatically recorded on the Style

track. This data is unique to the CP, and cannot be used with any other musical instruments.

Additionally the instrument tracks that are part of the Style cannot be edited individually.

Style Paste converts any Style data recorded on the Style track into MIDI note and event data and

places it on separate tracks (Trks 9-16). Once the Style data is converted into actual note data, you

can view and edit the individual Style tracks as if you had recorded the data yourself. Also your

song including the Style can now be played back by any other MIDI instrument that reads Standard

MIDI File (SMF) format song data.

L2 Turns the Loop ON/OFF.

L3 Specifies the starting bar.

L4 Specifies the ending bar.

L 1

L 2

L 3

L 4

L 5

F 1 F 2 F 3 F 4 F 5 F 6 F 7

R 1

R 2

R 3

R 4

R 5

F1 Takes you back to the Advanced Recorder menu.

Kawai Concert Performer Series Digital Piano

P. 54

• Before you use Style Paste, you need to make sure Tracks 9-16 are empty or don’t contain important

data. When the Style is pasted, the data from the Style track will be pasted into these tracks and

will replace any existing data.

To use Style Paste:

1) Press the STYLE PASTE button (F1) while you are in the Advanced Recorder menu. The LCD screen

will prompt you for confirmation.

2) If you would like to proceed, press the YES button (F7), or press the NO button (F1) to cancel.

Punch-In Recording

Punching In means being able to automatically start recording right in the middle of a track that is

playing back, continue recording new data on that track for a specified number of measures, and

then automatically stop recording at a specific measure and hear the rest of the track play to the

end. This tool is very valuable if you wish to record over some misplayed notes in the middle of a

track, but would like to preserve the music in the measures leading up to, and following, the trouble

spot.

F1 Cancels the Style Paste.

F7 Proceeds with Style Paste.

L 1

L 2

L 3

L 4

L 5

F 1 F 2 F 3 F 4 F 5 F 6 F 7

R 1

R 2

R 3

R 4

R 5

Recording a Song

P. 55

To use Punch-in recording:

1) Select Punch In/Out in the Advanced Recorder menu.

2) Use the L and R buttons to select the options and change their values using the Dial. Select AUTO

with the R5 button to have the CP automatically handle the punching in/out while you play.

3) Press the REHEARSAL button (F4, F5) to listen to the song for rehearsal. If you need to adjust mixing

or if you would like to loop the song, use the MIXER (F2) or LOOP ON/OFF (F6) button.

4) When you are ready to record, press the REC button and then the PLAY button. The music will start

immediately from the Start Bar that you have chosen. Once the song reaches the Punch In Bar, any

notes that you play on the keyboard will be recorded.

Recording will stop when the song reaches the Punch-Out Bar, but the CP will keep playing back the

song to the end unless you press the STOP button.

You can repeat the punch-in/out section by turning the looping on with the F6 button.

5) Listen to what you have recorded and re-record if necessary.

F1 Takes you to the Advanced Recorder menu.

F2 Takes you to the Mixer Settings menu.

F4, F5 Plays the song for rehearsal.

F6 Turns Loop on/off.

L 1

L 2

L 3

L 4

L 5

F 1 F 2 F 3 F 4 F 5 F 6 F 7

R 1

R 2

R 3

R 4

R 5

R1 Changes the time signature.

R2 Changes the tempo.

R3 Selects the recording mode. REPLACE

erases the previous data and records the

new data in its place. OVERDUB mixes the

new data with the previous data so that both

are heard together. Repeatedly pressing the

R3 button switches between the REPLACE

and OVERDUB.

R5 Selects the Punch-in method, Auto or Pedal.

Repeatedly pressing the R5 button switches

between the Auto and Pedal.

L1 Selects the track to Punch in on.

L3 Selects the measure in the song from where you

want the CP to start playing.

L4 Selects the measure where the CP will punch-in

and start recording.

L5 Selects the measure where the CP will punch-

out and stop recording.

Kawai Concert Performer Series Digital Piano

P. 56

• If you set the CP to Punch-In at the very first measure of the song, the metronome will

automatically play a two-measure intro to assist you with the timing. These “ticks” will not be

recorded as part of the track.

Punch-In recording using the pedal

Instead of specifically setting an automatic Punch-In and Punch-Out Bar, you can use the center

pedal to manually Punch In and Out.

• You can punch in and out with pedal one time for each pass over the track that you make.

To use the pedal to Punch-In/Out:

1) Use the R5 button to select Pedal in the Punch In/Out menu.

2) Use the L and R buttons to set up other recording options.

3) Press the REC button to start. The song will start playing.

4) When the song reaches the bar where you wish to punch in, press the center pedal and play the

keyboard.

5) When you reach the bar where you wish to punch out, press the pedal again to stop recording. Notice

that the song keeps playing to the end (it’s just no longer recording) or until you press STOP.

F1 Takes you to the Advanced Recorder menu.

F2 Takes you to the Mixer Settings menu.

F4, F5 Plays the song for reharsal.

F6 Turns Loop on/off.

L 1

L 2

L 3

L 4

L 5

F 1 F 2 F 3 F 4 F 5 F 6 F 7

R 1

R 2

R 3

R 4

R 5

R1 Changes the time signature.

R2 Changes the tempo.

R3 Selects the recording mode. REPLACE

erases the previous data and records the new

data in its place. OVERDUB mixes the new

data with the previous data so that both are

heard together. Repeatedly pressing the R3

button switches between the REPLACE and

OVERDUB.

R5 Selects Auto or Pedal as the Punch-In

method. Repeatedly pressing the R5 button

switches between the Auto and Pedal.

L1 Selects the track to Punch in.

L3 Selects the measure in the song from where you

want the CP to start playing.

Recording a Song

P. 57

Song Edit

Song Edit lets you name, transpose, and change initial tempo settings for your song.

To edit the song:

1) Select Song Edit from the Advanced Recorder menu. The Song Edit screen is displayed.

2) Use the L and R buttons to select the setting that you wish to change, then use the Dial to change the

value.

3) To name to the song, use the F2 and F3 buttons to move the cursor over the characters in the name,

then use the Dial to select characters.

4) Press the L3 button to set the transpose amount. You can transpose your song +/- 24 in half step

increments.

5) Press L4 to change the initial tempo setting of the song.

6) When you are finished, press the MENU button (F1) to return to the Advanced Recorder menu.

F1 Takes you to the Advanced Recorder menu.

F2, F3 Moves the cursor over the characters when naming the song.

L 1

L 2

L 3

L 4

L 5

F 1 F 2 F 3 F 4 F 5 F 6 F 7

R 1

R 2

R 3

R 4

R 5

L2 Names the song.

L3 Adjusts transposition.

L4 Sets the initial tempo of the song.

Kawai Concert Performer Series Digital Piano

P. 58

Bar Editing

Bar Edit contains many useful editing functions. You can edit your song one bar or any number of

bars at a time.

To use Bar Edit:

1) In the Advanced Recorder menu select Bar Edit (R2). The Bar Edit screen will be displayed.

2) Use the L and R buttons to select the desired editing function. The editing screen for that function

will be displayed.

Use the L and R buttons to select the desired edit

function.

F1 Takes you to the Advanced Recorder menu.

L 1

L 2

L 3

L 4

L 5

F 1 F 2 F 3 F 4 F 5 F 6 F 7

R 1

R 2

R 3

R 4

R 5

Recording a Song

P. 59

• Resolution determines the timing value the quantize function will use to shift the notes you want

to quantize. For example, setting a quarter note resolution will shift all of the quantized notes to

the nearest quarter beat. Setting an eighth note resolution will shift all of the quantized notes to

the nearest eighth beat and so on. In the Advanced Recorder, quantize values are expressed in

note values and as a number that indicates how many clock beats each note value contains. The

Advanced Recorder divides each beat in a bar into 96 smaller clock beats. A Quarter note is 96

clock beats, an eighth note is 48 clock beats, and a sixteenth note is 24 clock beats and so on.

The quantize resolution range is from quarter notes (96 clocks), to 64th note triplets (4 clocks).

Quantize

Quantize automatically shifts the timing of a note. This can be used to correct imperfect timing in

a performance by shifting notes that were played either too early or too late so they will fall exactly

on the correct beat. For example, you can accurately align any out of time notes to the nearest 8th-

or 16th-note beat depending on the type of song you are quantizing. Sometimes quantizing all of

your notes to exactly the same beat can make your playing sound too stiff. The Advanced Recorder

quantize function allows you to set a quantize “Range” so only the notes that were very early or late

are quantized. Notes that were almost perfect are not quantized thus keeping more of the original

feeling in your music.

R2 Selects the note Resolution for quantization.

Use the Dial to change the value.

R3, R4 Sets the Low and High Range for

quantization. Use the Dial to change the

value.

F1 Returns you to the Advanced Recorder menu.

F2 Undoes the quantization which was just applied. This option

is not always available.

F7 Applies the quantization to your recording.

L 1

L 2

L 3

L 4

L 5

F 1 F 2 F 3 F 4 F 5 F 6 F 7

R 1

R 2

R 3

R 4

R 5

L1 Selects the track that you wish to quantize.

L2, L3 Selects the bar range that you want to quantize.

Use the Dial to set the bar numbers.

L4 Selects the lowest note that you want to quantize.

Use the Dial to change the note value.

L5 Selects the highest note that you want to

quantize. Use the Dial to change the note value.

Kawai Concert Performer Series Digital Piano

P. 60

• Range sets up timing “borders” around the Resolution value you specify. Notes within these

borders will not be quantized and notes outside the borders will be moved to the nearest beat

specified by the resolution value (Quarter note, Eighth note, etc.). The negative value represents

the placement of the “border” before the beat, and the positive value represents the placement

the “border” after the beat. Together, these two “borders” form a timing “range” around the

specified beat.

The notes that fall inside the Range

are not shifted at all.

The notes that fall beyond the

Range are moved to the closest

“border” of the Range.

Selecting zero Range results in no

“range”, and all notes are shifted

to the precise beat.

Resolution

24 Beat 12 Beat 12

Range

0, 0

«»«

»« «

Resolution

24 Beat 12 Beat 12

Range

-3, 3

«

»

Resolution

48 Beat 24 Beat 24

Range

2, 10

«

»

By experimenting with Resolution and Range settings, you can correct the timing of the notes in your

recording while still allowing for a natural, human feel.

Recording a Song

P. 61

Copy

The Copy function allows you to copy a section or all of the data on a track to another location.

The destination may be on the same track, or it can be on another track.

• The destination of the copied data must either be:

1) A location that already has data in it.

2) The first blank bar after the end of a track (Bar 1 if the destination track is empty).

For example, if a track only has 10 bars in it, you cannot copy data onto bar 20. You can, however,

copy data to bars 1 through 11.

• Copied data replaces any current data that may be at the destination.

R2 Selects the destination track. Use the Dial

to select the track number 1-16, Tempo, or

Chord.

R3 Selects the bar in the destination track where

the copied data will be placed.

F1 Returns you to the Advanced Recorder menu.

F2 Undoes the copying. This option is not always available.

F7 Proceed with copying.

L 1

L 2

L 3

L 4

L 5

F 1 F 2 F 3 F 4 F 5 F 6 F 7

R 1

R 2

R 3

R 4

R 5

L2 Selects the track to be copied. Use the Dial to

select the track numbers 1-16, Tempo, or Chord.

L3 Selects the bar where the data that you are

copying starts. Use the Dial to change the bar

number.

L4 Selects the bar where the data that you are

copying ends. Use the Dial to change the bar

number.

Kawai Concert Performer Series Digital Piano

P. 62

Delete

Delete completely erases and removes the bars that you specify.

F1 Returns you to the Advanced Recorder menu.

F2 Undoes the deletion. This option is not always available.

F7 Proceed with the deletion.

L 1

L 2

L 3

L 4

L 5

F 1 F 2 F 3 F 4 F 5 F 6 F 7

R 1

R 2

R 3

R 4

R 5

L2 Selects the track to be deleted. Use the Dial to

choose 1-16, Tempo, Chord or All.

L3 Selects the first bar that has the data you want

to delete. Use the Dial to change bars.

L4 Selects the last bar that contains the data that

you want to delete. Use the Dial to change bars.

Recording a Song

P. 63

Insert

The Insert function duplicates data from specified bars and copies it to a certain location. However,

the current data at the destination is not erased, but instead is pushed back to make room for the

copied data.

• If you just wish to insert empty bars into a track, select INSERT BAR (F3 or F4), and a sub-menu

will be displayed. You can insert empty bars into a track between bars that have data, or at the

first blank bar at the end of the track.

R2 Selects the destination track where you want

this data inserted. Choose from 1-16,

Tempo, Chord or All.

R3 Selects the bar in the destination track where

you want this data inserted.

F1 Takes you to the Advanced Recorder menu.

F2 Undoes the Insert. This option is not always available.

F3, F4 Takes you to the Insert Bar menu.

F7 Proceeds with the Insert.

L 1

L 2

L 3

L 4

L 5

F 1 F 2 F 3 F 4 F 5 F 6 F 7

R 1

R 2

R 3

R 4

R 5

L2 Selects the track that contains the data you wish

to duplicate. Choose from 1-16, Tempo, Chord

or All.

L3 Selects the first bar that has the data you want

to duplicate.

L4 Selects the last bar that has the data you want to

duplicate.

Kawai Concert Performer Series Digital Piano

P. 64

R2 Selects the track where the empty bars are

going to be inserted. Choose 1-16, Tempo,

Chord or All.

R3 Selects the location in the destination track

where you want the empty bars inserted.

Use the Dial to choose the location.

F1 Takes you to the previous menu.

F2 Undoes the Insert. This option is not always available.

F7 Proceeds with the Insert.

L 1

L 2

L 3

L 4

L 5

F 1 F 2 F 3 F 4 F 5 F 6 F 7

R 1

R 2

R 3

R 4

R 5

L2 Selects the number of empty bars you wish to

insert. Use the Dial to change the value.

L3 Selects the time signature for the bars that are

going to be inserted. Use the Dial to change the

value.

Recording a Song

P. 65

Erase

Erases data in the bars that you specify, and leaves them as empty bars.

F1 Takes you to the Advanced Recorder menu.

F2 Undoes the Erase. This option is not always available.

F7 Proceeds with the Erase.

L 1

L 2

L 3

L 4

L 5

F 1 F 2 F 3 F 4 F 5 F 6 F 7

R 1

R 2

R 3

R 4

R 5

L2 Selects the track that has the bars you want to

erase. Choose 1-16, Tempo or Chord.

L3 Selects the first bar to be erased. Use the Dial to

change the bar.

L4 Selects the last bar to be erased. Use the Dial to

change the bar.

Kawai Concert Performer Series Digital Piano

P. 66

Merge

Merge combines data from two tracks. You can make complex musical phrases using several tracks,

then combine them together on one track. Remember that there can only be one instrument sound

assigned to each track, so the resulting merged track will play all the combined data using one

instrument sound. Merge can be useful for making rhythm patterns by first recording different

drum/ percussion parts using the same drum kit on several tracks for easy editing of each instrument,

or recording the right and left hand parts of a piano piece and combining them later on one track to

free up extra tracks for more recording.

• Merge does not automatically erase the track from where you copied the data.

R2 Select the track where you want this data

merged to. Choose 1-16.

F1 Takes you to the Advanced Recorder menu.

F2 Undoes the Merge. This option is not always available.

F7 Proceed with the Merge.

L 1

L 2

L 3

L 4

L 5

F 1 F 2 F 3 F 4 F 5 F 6 F 7

R 1

R 2

R 3

R 4

R 5

L2 Selects the track from where you want to copy

data. Choose 1-16.

Recording a Song

P. 67

Gate Time Modify

Gate time refers to the length of a note as a percentage. Whatever the length of a note is when it is

first recorded, this value is considered as its Gate time of 100%. By editing the length of the note,

you can shorten it to 10% or lengthen it to 300% of the original value.

R2 Adjusts the Gate time in 10% increments.

Use the Dial to select a value from 10%-

300%.

F1 Takes you to the Advanced Recorder menu.

F2 Undoes the Gate time adjustment. This option is not always

available.

F7 Proceeds with applying the Gate time adjustment.

L 1

L 2

L 3

L 4

L 5

F 1 F 2 F 3 F 4 F 5 F 6 F 7

R 1

R 2

R 3

R 4

R 5

L2 Selects the track in which you want to modify

Gate times. Use the Dial to choose the track.

L3 Selects the first bar of the data that you want to

modify Gate times for. Use the Dial to change

bars.

L4 Selects the last bar of the data that you want to

modify Gate times for. Use the Dial to change

bars.

Kawai Concert Performer Series Digital Piano

P. 68

Velocity Modify

Velocity refers to how hard a key is struck, which translates into the dynamics of how loud the

produced sound is.

A note’s Velocity is a numerical value from 1-127. When editing the note Velocities in your recording,

you can change them within a +/-100 range of their original values.

R2 Adjusts Velocity from -100 to +100 of their

current values.

F1 Takes you to the Advanced Recorder menu.

F2 Undoes the Velocity adjustment. This option is not always

available.

F7 Proceeds with adjusting the Velocity values.

L 1

L 2

L 3

L 4

L 5

F 1 F 2 F 3 F 4 F 5 F 6 F 7

R 1

R 2

R 3

R 4

R 5

L2 Selects the track in which you want to adjust

Velocity.

L3 Selects the bar where the data you want to adjust

starts.

L4 Selects the bar where the data you want to adjust

ends.

Recording a Song

P. 69

Clock Move

In the Resolution section of this manual we learned that the CP Advanced recorder divides each

beat in a bar into 96 clock beats, also expressed as a quarter note. Therefore there are 48 clocks per

eighth note, and 24 clocks per sixteenth note and so on. This relationship holds true regardless of

the song’s tempo.

On the CP, you can shift the timing of all notes in a track by shifting the entire track ahead (negative

values) or behind (positive values) the beat by a certain clock value. Clock move is useful for

adjusting the overall timing of a track. For example, if a certain sound you recorded responds

slowly and sounds behind the beat, you could shift the timing of the notes ahead of the beat to

compensate for the sounds slow response and make its timing feel more natural.

R2 Sets how many clocks you wish to move the

track. Choose from –999 to +999.

F1 Takes you to the Advanced Recorder menu.

F2 Undoes the clock move. This option is not always available.

F7 Proceeds with applying the clock move.

L 1

L 2

L 3

L 4

L 5

F 1 F 2 F 3 F 4 F 5 F 6 F 7

R 1

R 2

R 3

R 4

R 5

L2 Selects the track that you wish to move. Choose

from 1-16.

Kawai Concert Performer Series Digital Piano

P. 70

Transpose

This will transpose the notes within a specified bar(s) up or down in half-step increments.

R2 Adjusts transposition amount in half-step

increments from -24 to 24.

F1 Takes you to the Advanced Recorder menu.

F2 Undoes the transposition. This option is not always available.

F7 Proceeds with applying the transposition.

L 1

L 2

L 3

L 4

L 5

F 1 F 2 F 3 F 4 F 5 F 6 F 7

R 1

R 2

R 3

R 4

R 5

L2 Selects the track that has the notes you want to

transpose. Choose from 1-16.

L3 Selects the bar where the notes you want to

transpose start.

L4 Selects the bar where the notes you want to

transpose end.

Recording a Song

P. 71

Event Edit

Event Edit enables you to examine and edit your performance note by note.

To use Event Edit:

1) Select Event Edit in the Advanced Recorder menu. The Event Edit screen will be displayed.

2) Choose the track that you want to edit using the TRACK buttons (F3, F4). Note that Style, Chord, and

Tempo track can be edited as well.

3) Use the L buttons to scroll up or down the event list until you find the specific event that you want to

edit. You can also use the Dial to scroll through the event list. You will hear the individual events

being played as you scroll over them.

4) Use the CURSOR buttons (F5, F6) buttons to determine how you want to scroll through the event list.

Selecting Bar scrolls through the event list bar by bar, selecting Beat scrolls through the event list

beat by beat and so on. The selection will become highlighted.

L 1

L 2

L 3

L 4

L 5

F 1 F 2 F 3 F 4 F 5 F 6 F 7

R 1

R 2

R 3

R 4

R 5

L2 Moves the cursor to the previous bar.

L3 Moves the cursor up the event list.

L4 Moves the cursor down the event list.

L5 Moves the cursor to the next bar.

R1 Removes the selected event.

R2 Creates a new event.

R3 Modifies the existing event.

F1 Takes you to the Advanced Recorder menu.

F3, F4 Selects the track to work with.

F5, F6 Moves the cursor across the columns in the event list.

F7 Starts playing the Track.

Kawai Concert Performer Series Digital Piano

P. 72

5) Select the function that you would like to apply to this event. You can select DELETE (R1) to remove

the event, INSERT (R2) to create a new event at any specified location, or REPLACE (R3) to change

the existing event. Enter new values in the pop up Entry Box when you select INSERT or REPLACE.

When Inserting or Replacing an event, use the CURSOR buttons to select the specific part of the

event you want to edit. Use the Dial to change the value.

6) Press the EXEC (F7) button to proceed, or press CANCEL (F2). The CP will prompt you for confirmation.

7) Use the MENU button (F1) to return to the Advanced Recorder menu when you are done editing.

L 1

L 2

L 3

L 4

L 5

F 1 F 2 F 3 F 4 F 5 F 6 F 7

R 1

R 2

R 3

R 4

R 5

FI Takes you to the Advanced Recorder Menu.

F2 Cancel the edit.

F5, F6 Moves the cursor across the columns in the event list.

Recording a Song

P. 73

Kawai Concert Performer Series Digital Piano

P. 74

Creating Your Own Styles

The Conductor allows you to edit the Style data and personalize it

to your taste.

The Style Maker allows you to create Styles of your own.

There are three ways of using this feature: Make a New Style, Edit

an Existing Style, and Phrase Combination.

The Concert Performer contains 182 built-in Styles covering a wide

variety of musical genres. There are two powerful features that

allow you to edit any of these Styles to better suit your musical

tastes, or even create your own Style entirely from scratch! These

are the Conductor and the Style Maker.

Conductor

The Conductor is used to edit Preset data.

Easy Style Edit This is an easy way to edit the Style data. The CP built-in styles are comprised

three different types, Full, Intimate, and Solo Piano Styles. A Full Style

consists of six instrument tracks called Sections. These are the Drums,

Bass, and four Accompaniment tracks. The Intimate Styles have four

Sections, Drum, Bass, And Two Accompaniment tracks. The Solo piano

Styles have two Accompaniment Tracks (Right and Left hand) and no Drum

or Bass tracks.

When you play a Style, each of these sections plays a musical Phrase

composed for that type of instrument. Each section can play one of four

different musical phrases, one for each of the four variations within a Style.

Easy Edit lets you assign which of these four Phrases will be played by each

section for each of the four variations within the style. This means you can

mix and match the different phrases for each section to create your own

unique arrangements. Once you are satisfied with your edits, you can save

your Easy Style edits to the PRESET STYLE.

Creating Your Own Styles

P. 75

To use Easy Edit:

1) Select the Style and the Variation (1–4) that you would like to edit.

2) Press the EDIT button. The LCD screen will display the Easy Style Edit screen.

3) Use the F2–F7 buttons to select a Section to edit.

4) Use the L buttons to select the desired Phrase (1-4) for each Section. You can edit while the Style is

running to hear your changes.

5) To mute a Section, press the corresponding F button. Pressing the F button again will un-mute the

section.

6) If you would like to save your edits, press the SAVE TO PRESET (R1) button. The saved contents will

be written to the PRESET STYLE. If you don’t save your edits, they will be lost when you turn the

power OFF.

7) Press the EXIT button to leave the Easy Style Edit screen.

L2–L5 Selects a Phrase for the Section.

F2–F7 Selects which Section is being changed. Pressing again will

mute the Section.

L 1

L 2

L 3

L 4

L 5

F 1 F 2 F 3 F 4 F 5 F 6 F 7

R 1

R 2

R 3

R 4

R 5

R1 Saves the changes to the Preset Style.

Kawai Concert Performer Series Digital Piano

P. 76

Resetting the Style

The CP always remembers the original Preset Style settings. If you wish to restore those factory

settings before saving your edits, simply press the RESET button in the Conductor.

• If you would like to revert all Styles back to their original factory settings, after you have pressed

the SAVE button, use reset Conductor on the Soft Reset screen. See the section titled “Soft

Reset” on page 124.

Note:

Easy Edit doesn’t allow you to edit the Intro, Ending and Fill-ins. However, muting a Section in the

Style will result in automatic muting of the same Section in the Intro, Ending and Fill-ins. If you

mute a certain Section, you need to consider what effect it will have on the overall Style.

• Pressing the SAVE button will save all Styles at one time. You cannot save individually.

• For Intimate Styles the ACC 3/4 Sections are not used and cannot be edited.

• For Solo Piano Styles the Drum, Bass, and ACC 3/4 Sections are not used and cannot be edited.

Creating Your Own Styles

P. 77

Making a Style with Get Phrase from Recorder

This is the most flexible way to create a new Style.

You can take music that you have recorded using the CP’s own Recorder and convert it into Style

data. Or, you can use an external MIDI device or a personal computer to create the musical phrases,

then load the data into the CP’s Recorder and convert those.

Configuration of a Style

A complete Style consists of the following patterns:

Basic pattern 4 patterns (Variation 1–4) Max 16 measures

Fill-in 4 patterns (Fill-In 1–4) 1 or 2 measures

Intro Major 2 pattern Max 16 measures

Intro Minor 2 pattern Max 16 measures

Ending Major 2 pattern Max 16 measures

Ending Minor 2 pattern Max 16 measures

• Each of these are made of six Sections—Drum, Bass, ACC1, ACC2, ACC3 and ACC4. However

you don’t necessarily have to have all of them to create a Style. For example, you may not need

to use some Variations or Sections to accomplish your musical idea. These unused sections may

be left blank, or filled with Section data copied from the initial source Style that you were asked

to choose at the beginning of the Style Maker process.

• The different Sections can be of varying bar lengths as long as they stay within the limit. Having

them all the same length may make the Style easier to use in a song, but you may find that having

uneven bar lengths among the Sections can create interesting musical results.

• Before you can generate a Style from these phrases, you have to have them loaded into the

Recorder, keeping in mind which tracks in the Recorder are going hold data for which Sections

in the new Style.

• The source recording in the CP’s Recorder can be in any key. However, you need to know what

key that is, because you will have to specify that as part of generating a new Style. For simplicity’s

sake it is advisable to record in C if you are planing on using the recording with the Style Maker.

Kawai Concert Performer Series Digital Piano

P. 78

To create a Style:

1) Press the ADVANCED RECORDER button. The LCD screen will display the Advanced Recorder menu.

2) In the Advanced Recorder menu, press the Style Maker button (R4). The LCD screen will display the

first Style Maker screen.

3) To make a completely new Style, press the Make New Style button (L1). To edit an existing style,

press the Edit Existing Style button (L3) and use the Dial to select the style you want to edit.

4) Press the ENTER button (F7). The Style Maker Get Phrase screen will be displayed.

L 1

L 2

L 3

L 4

L 5

F 1 F 2 F 3 F 4 F 5 F 6 F 7

R 1

R 2

R 3

R 4

R 5

L1 Selects Make New Style.

L3 Selects Edit Existing Style.

L5 Selects Phrase Combination.

F1 Go to the Advanced Recorder menu.

F7 Enters the selected Style Maker menu.

R3 Selects the Style you want to edit.

R5 Selects the Initial Style.

Creating Your Own Styles

P. 79

5) Use the F2–F7 buttons to select which track from the Recorder has the data that you want used for

each Section of the Style. You can switch off a Section by pressing its F button twice, and the Section

will not be created in your Style.

6) Use the L and R buttons to set up the options and select the proper data from the Recorder. You may

have different options for each track.

7) Press the MORE button (F1) for advanced settings.

8) Press the R4 button to generate the Style. You can listen to it by pressing the START/STOP button.

L1 Selects which pattern you are currently creating.

L2 Selects the first bar of the phrase in the recording

that you want to convert.

L3 Selects the bar length of the phrase in the

recording that you want to convert.

L4 Enter the key that the phrase was in.

L5 Selects the track where the phrase was recorded.

R2 Saves the new Style.

R4 Generates the new Style from your settings.

F1 Takes you to the next menu for more options.

F2-F7 Selects which Section(s) you are working with. Pressing

twice deactivates the Section so that it will not be

incorporated into the new Style.

L 1

L 2

L 3

L 4

L 5

F 1 F 2 F 3 F 4 F 5 F 6 F 7

R 1

R 2

R 3

R 4

R 5

Kawai Concert Performer Series Digital Piano

P. 80

9) If you would like to save it, press SAVE (R2).

10) Press the PRESET TEMPO button (L1) and use the dial to set the default tempo for the style.

11) Press the SAVE TO button (L3) and use the Dial to select the location to save your new Style.

12) Press the NAME button (L4). Use the F2 and F3 buttons to move the cursor and use the F4 and F5

buttons or the Dial to select the characters to name the style.

13) Press the SAVE button (F7).

F1 Takes you to the previous menu.

F2, F3 Moves the cursor.

F4, F5 Selects the characters.

F7 Saves the style to User Style.

L 1

L 2

L 3

L 4

L 5

F 1 F 2 F 3 F 4 F 5 F 6 F 7

R 1

R 2

R 3

R 4

R 5

Creating Your Own Styles

P. 81

Auto-accompaniment System

The Concert Performer Auto-Accompaniment System (ACC) analyzes your playing and adjusts the

note data recorded in the different Phrases in a pattern to match the root key and chord type you

are playing. The ACC System also shifts the octave for each phrase to keep each section playing

within its musically useful range. To get the most out of this System, any new Style you create can

benefit from some fine tuning of these settings.

When you press the MORE button (F1) on the Style Maker Get Phrase screen, the Style Maker

Detail Settings screen will be displayed.

Accompaniment Type (ACC Type)

This setting determines how Phrases being played by a particular section in a pattern will be analyzed

by the Auto-accompaniment (ACC) System. There are Two Accompaniment Types: Chordal and

Scalic (melodic). Chordal Phrases usually consist of block chords or arppegiated chords. You

should set this kind Phrase to Chordal. Scalic Phrases usually play melodic phrases that serve to

add interest to the style as well as provide counter melodies and riffs. Melodic Phrases or Phrases

that contain chromatic passages should be set to Scalic. Scalic Phrases can also contain chords but

they will be analyzed differently than chords in a Chordal Phrase. The Bass section is automatically

set to Scalic since it will rarely if ever play chords.

The terms Open and Close apply to Chordal Phrases, and refer to how the CP will regulate the

voicing of a Chordal Phrase. Setting a Section to Open will allow for open-voiced chords, which

might be good for guitar and string sounds. Setting a Section to Close maintains closed voiced

chords, which are better suited to piano parts and other chording or comping instruments.

Range

This determines the chord inversions that a Chordal Phrase will play.

The term “range” here has nothing to do with the span of actual chord notes. It selects which note

in the chord will serve as the basis of the chord inversion.

HI is the initial setting and is recommended as a starting point. MID plays an inversion based on the

next lower note in relation to HI, while LO plays an inversion based two-notes lower.

Crossover

This determines the point where a Scalic Phrase will be transposed to keep the notes in a musically

useful range. When notes in a Scalic Phrase fall below the Crossover point you select they will be

transposed up one octave by the Accompaniment System. For example if you set the Crossover

Kawai Concert Performer Series Digital Piano

P. 82

point to E, the Phrase would begin to be transposed up one octave whenever you play a chord with

an E as the root.

Experiment with the different Chordal and Scalic settings to find the one that works best with each

Phrase.

Bass Limit

This is an option for the Bass section and sets the limit for the lowest note the Bass will play. If a

note in a Bass Phrase falls below the limit, it will automatically be transposed up an octave.

To adjust the auto-accompaniment system:

1) Use the L2-L4 buttons to select the setting you wish to change.

2) Use the F3-F7 buttons to select the Section.

3) Use the Dial to select or change a value.

4) When done, press the BACK button (F1) to go back the previous menu. Then save the Style if necessary.

L 1

L 2

L 3

L 4

L 5

F 1 F 2 F 3 F 4 F 5 F 6 F 7

R 1

R 2

R 3

R 4

R 5

L2 Changes ACC Type.

L3 Changes RANGE.

L4 Changes CROSS OVER.

L5 Changes BASS LIMIT.

F1 Takes you to the previous menu.

F2 Plays the style.

F3-F7 Selects the Section.

Creating Your Own Styles

P. 83

Making a Style with Phrase Combination

Phrase Combination is similar to Easy Style Edit in the Conductor. Phrase Combination however,

lets you not only combine Phrases from within the selected Style but you can also combine Phrases

from any of the Styles in the CP to create a new Style. Additionally you can edit Fill-ins and basic

patterns (Variations).

• You cannot change the Intro and Ending Phrases. These will remain the same as in your selected

Style.

To use Phrase Combination:

1) In the Advanced Recorder menu, press the Style Maker button (R4). The LCD screen will display the

first Style Maker screen.

2) Press the Phrase Combination button (L5) and use the dial to select the initial style.

3) Press the ENTER button (F7) to proceed to the next screen.

4) Use the L2 and R2 buttons to select which of the four Fill-ins and Variations you would like to change.

5) Use the L3 and L5 buttons to select the Section to change.

6) Use the F4 and F5 buttons to move the cursor between the Style and Phrase column.

7) Use the Dial to change the current Style or Phrase. You can jump to the desired Style category by

pressing the Style select buttons directly.

8) Press the PLAY button (F2) to listen to the new Style.

9) Press the SAVE button (F7) to save the new Style.

Kawai Concert Performer Series Digital Piano

P. 84

10) Press the PRESET TEMPO button (L1) and use the dial to set the default tempo for the style.

11) Press the SAVE TO button (L3) and use the Dial to select the location to be saved.

12) Press the NAME button (L4). Use the F2 and F3 buttons to move the cursor and use the F4 and F5

buttons or the Dial to select the characters to name the style.

13) Press the SAVE button (F7).

L 1

L 2

L 3

L 4

L 5

F 1 F 2 F 3 F 4 F 5 F 6 F 7

R 1

R 2

R 3

R 4

R 5

R2 Selects the pattern to change. Choose

Variation 1–4 or Fill-in 1–4.

L2 Selects the pattern to change. Choose Variation

1–4 or Fill-in 1–4.

L3, L5 Selects the Section to be modified.

F1 Takes you to the previous menu.

F2 Plays the new style.

F4, F5 Moves the cursor between the Style and Phrase columns.

F7 Saves the modified data as a new Style.

Creating Your Own Styles

P. 85

L 1

L 2

L 3

L 4

L 5

F 1 F 2 F 3 F 4 F 5 F 6 F 7

R 1

R 2

R 3

R 4

R 5

L1 Sets the default tempo for the style.

L3 Selects the location to be saved.

L4 Names the style.

F1 Takes you to the Style Maker Record screen.

F2, F3 Moves the cursor.

F4, F5 Selects the characters.

F7 Saves the style to User Style.

Kawai Concert Performer Series Digital Piano

P. 86

Editing Sounds

Even though the Concert Performer has over 600 high quality

instrument and drum sounds built-in, there may be times when you

would like to change some of the qualities of a sound to really get

the tonal character that you have in mind. The CP allows you edit

certain settings for individual sounds.

Editing the Preset Effect Settings

Each of the CP instrument Sounds has preset Chorus and Effect settings that are applied automatically

whenever that sound is selected.

You can change these settings to suit your tastes and save them so they become the preset settings

for that Sound.

To adjust the settings:

1) Select the sound you want to edit and press the SOUND EDIT button (F7). The Preset Sound Settings

screen will be displayed.

2) Press the L1 button and then turn the Dial to select which preset sound you wish to modify.

3) Use the L and R buttons to select the different effect settings and use the Dial to change their value.

4) When you are finished, press the SAVE button (F7) to save your settings.

Editing Sounds

P. 87

L 1

L 2

L 3

L 4

L 5

F 1 F 2 F 3 F 4 F 5 F 6 F 7

R 1

R 2

R 3

R 4

R 5

L1 Selects the preset sound to edit.

L2 Turns the Chorus on/off.

L3 Turns the Effect on/off.

L4 Selects an effect type.

L5 Adjusts the effect setting.

R2 Adjusts the chorus level.

R4, R5 Adjusts the effect setting.

F1 Takes you to the previous menu.

F7 Saves the settings.

• Pressing the SAVE (F7) button will save all changes made in the Preset Effect Settings menu. If

you exit the Preset Effect Settings menu without saving your changes, the settings will remain

unchanged.

Kawai Concert Performer Series Digital Piano

P. 88

If you wish to play a song without any intentions to make permanent

changes or additional recordings, you can use the CP’s Disk Song

Play function to load the song very quickly for playback. Using the

disk drive in this way makes the Concert Performer an enjoyable

source of entertainment for parties and other social events, as well

as a great tool for the professional musician or music educator.

The Concert Performer’s floppy disk drive provides a convenient

way to playback songs recorded in the CP’s Internal Format or

Standard MIDI File (SMF) format. Songs in the CP’s internal format

typically are ones that you have recorded on your own instrument.

There are many sources of SMF songs, including disks for sale from

professional musicians and publishers, songs shared among

musicians and hobbyists, and Internet sites that feature SMF songs

available for download.

About songs on Floppy Disk

If you will use a blank disk to store and play your own compositions made on the Concert Performer,

there isn’t much to worry about. The CP can format the disk (if it isn’t already formatted), and the

CP’s internal song format remembers everything about your song, including which sounds to use

with the recorded tracks. However, if you wish to purchase a disk of songs from your music store

or publisher, play a disk given to you by someone else, or play songs downloaded from the Internet,

you will need to remember a few simple points:

• The CP reads only DOS formatted disks, either double-sided double-density (720KB) or high

density (1.4MB). These are the most commonly used disk formats in both computers and musical

instruments.

• The CP recognizes song files written in the Standard MIDI File format as long as they have DOS

file names ending with “.MID”. There are two types of Standard MIDI File formats, Format 0 and

1. The CP can read the song data of both formats, however it will only display the lyrics of a song

written as format 0.

• Songs that have been composed with the General MIDI (GM) standard will sound fine without

any additional work, because data in the files will inform the CP as to what sounds to use when

playing the song. If the song was not composed to the GM standard, you may find it necessary to

edit the song to assign the correct sounds to the various tracks. Fortunately, almost all

commercially available MIDI files adhere to the General MIDI standard.

Playing Songs from a Floppy Disk

Playing Songs From a Floppy Disk

P. 89

• The CP can also recognize most songs formatted for the PianoDisc player piano system and

songs formatted for Yamaha’s Disk Orchestra Collection. (Please check with your Kawai dealer

or distributor for further information).

Selecting a Song from Disk

A single floppy disk can store dozens of song files at one time, depending on the length of the songs.

To select a song:

1) Put the disk in the Floppy Disk Drive and press the DISK button. In the Disk menu, select Song Play

(R3). After the CP searches the disk it will display the first ten available songs. If there are more

than ten songs on the disk, use the SEARCH buttons (F2, F3) to list the additional songs.

2) Use the L and R buttons to select the song you want to hear. You can also select a song by using the

Dial.

3) Once your desired song is highlighted, press PLAY/STOP to have the CP load the song and automatically

start playing. You may also press SELECT (F7) to have the CP load the data and wait for you to start

it manually.

4) Press the SONG CHAIN (F4, F5) buttons to have the CP automatically play all songs, one after another.

5) When your selected song is ready to play, the Disk Song Play screen is displayed. Use the Recorder

control buttons on the left side of the panel to control the playback of the song.

Kawai Concert Performer Series Digital Piano

P. 90

The L and R buttons select the song you want to

hear.

F1 Takes you to the Disk menu.

F2, F3 Lists the next or previous ten titles.

F4, F5 Starts the Chain Play.

F7 Selects the song and takes you to the Disk Song Play screen.

L 1

L 2

L 3

L 4

L 5

F 1 F 2 F 3 F 4 F 5 F 6 F 7

R 1

R 2

R 3

R 4

R 5

Playing Songs From a Floppy Disk

P. 91

Controlling Playback of a Song

As the song plays, you can adjust the tempo, play or sing along with on the keyboard, and even turn

on/off the different instrument parts (tracks) in the song.

The status of the song parts is displayed at the bottom of the LCD screen. You will see the parts

referred to as the CP’s three Parts + Style if the song was created on the CP, or as Channels (ch 1-16)

if the song is a MIDI file. Displayed above each part is its current status:

PLAY The part will be heard when you play the song.

MUTE The part has data, but it won’t be heard when you play the song.

– – – – The part has no data to play.

• Transpose and Octave Shift are available when a song is playing. Octave Shift affects only the

notes you play “live” on the keyboard, not the music playing from the song file. Transpose can

be applied separately to the keyboard sound and the song sounds. This lets you play the keyboard

in your preferred key along with a song recorded in a different (or more difficult) key.

Use the front panel’s dedicated TRANSPOSE buttons to affect the keyboard sound. Use the

Song Transpose option (R4 and R5) in the Disk Song Play menu to affect the song data.

• The Song Transpose option is available only for the song data in Standard MIDI file.

To make adjustments to the song:

1) In the Disk Song Play screen, use the R1, R2, R3, and L3 buttons to highlight and assign sounds to

the CP’s four keyboard Parts. These will be the sounds that you can play live from the keyboard as

the song is playing. Once a Part is highlighted, press any of the Sound category buttons to select a

new sound.

2) Use the F buttons to play and mute any of the song’s instrument parts.

3) Press the L4 button to use the Mixer to make adjustments to the song’s instrument parts. (See page

49 for the Mixer function.)

4) Use the R4 and R5 buttons to transpose the song data.

5) Use the panel TRANSPOSE and OCTAVE SHIFT buttons to adjust the CP’s keyboard Parts.

6) Press the PLAY/STOP button to start the song.

7) To adjust the tempo, press the L2 button and use the Dial to change values.

8) Press the PLAY/STOP button again to stop the song.

Kawai Concert Performer Series Digital Piano

P. 92

L2 Adjusts the song’s tempo.

L3 Highlights the LEFT Part.

L4 Takes you to the Mixer screen.

L5 Displays the song’s lyrics (if available in the data).

R2 Highlights the RIGHT1 Part.

R3 Highlights the RIGHT2 Part.

R4, R5 Transposes the song (but not the keyboard).

F1 Takes you to the Disk Song Select menu.

F2-F5 Turns the song part on/off.

F6, F7 Displays the status of the next set of 4 song parts. (Ch 5–8,

Ch9–12, Ch 13–16).

L 1

L 2

L 3

L 4

L 5

F 1 F 2 F 3 F 4 F 5 F 6 F 7

R 1

R 2

R 3

R 4

R 5

Playing Songs From a Floppy Disk

P. 93

• You cannot record or permanently edit the song while using the Disk Song Play function. If you

would like to record your live performance along with the song from the disk, or if you want to

make detailed and permanent edits to the song, you will need to load the song’s data into the

Recorder using the Disk Load function. See the chapter “Recording a Song” (page 42) for details

on how to record a song, and “Floppy Disk Operations” (page 130) for an explanation of how to

load a song into the Recorder.

If the song you are playing has lyrics included in the data, the Show Lyrics (L5) button will appear

on the Song Play screen. If you press the Show Lyrics button, the song’s lyrics will then appear

inside a box. You can follow a ball moving over the lyrics as the song plays. Press the Full Screen

(R5) button to expand the lyrics display to the full screen. Press the Normal Screen (F1) button to

return to the normal lyrics screen.

In the normal lyrics screen, press the F1 button to return to the Song Play screen.

L2 Adjusts tempo.

R1, R2 Transposes the song.

R5 Displays the lyrics on the full screen.

F1 Returns to the Song Play screen.

F2-F5 Turns the song parts on/off.

F6, F7 Displays the status of the next set of 4 song parts (Ch 5–8, Ch9–

12, Ch 13–16).

L 1

L 2

L 3

L 4

L 5

F 1 F 2 F 3 F 4 F 5 F 6 F 7

R 1

R 2

R 3

R 4

R 5

Kawai Concert Performer Series Digital Piano

P. 94

As you play a CM song, a handy Note Navigator display helps you

keep track of where you are in the music, as well as suggesting

how the rhythm of the song should be tapped out on the keys.

Many of the CM songs have lyrics that can be displayed as the song

is being performed. As the song is played, a Bouncing Ball makes

its way over the lyrics, following the player’s performance and

encouraging everyone around the instrument to sing along.

The Concert Performer can also automatically play any of the

Concert Magic songs. Listening to the song first can make it easier

to play. There is also a Chain Play mode, giving you options to

listen to groups of CM songs.

Playing with Concert Magic

Thanks to Kawai’s innovative CONCERT MAGIC (CM) feature,

absolutely anyone can sit at the Concert Performer and experience

the joy of being a real performing musician… even if they have

never touched a musical instrument in their life!

Concert Magic allows you to play a song by simply tapping any key

on the keyboard. Regardless of what keys you play, the notes that

are heard will be the correct ones for the song. However, what

makes this really exciting is that you control the timing of the notes,

as well as their dynamics. This lets you add a level of expressiveness

and individuality to the song that makes it real musical performance.

Selecting a Concert Magic Song

The 176 on-board Concert Magic songs are divided into eight groups by song category: Children’s

Songs, American Classics, Patriotic Songs, Christmas Songs, Hymns, Classics, Special Occasions,

and International songs.

• In addition, you can create and play your own Concert Magic songs using the floppy disk drive.

To select a song:

1) Press the CONCERT MAGIC button. The song selection menu will be displayed.

2) Ten song titles from the Children’s Songs category will be displayed. The category name is displayed

at the very top of the screen. If you want to go to another song category, press SEARCH BY CATEGORY

(F1, F2). You can also search for a specific title by using SEARCH BY NAME (F3, F4), which will list

all 176 song titles in alphabetical order. You may also use the Dial to scroll through all the titles one

after another.

• If you wish to play a CM song from floppy disk, press the DISK button (F6) to see the list of songs

on disk.

3) When you have found the song that you want to play, use the L or R buttons to move the box over the

title. Press the SELECT button (F7) to choose it. The Note Navigator screen will be displayed, and

you are ready to perform!

Playing with the Concert Magic

P. 95

Performing a Concert Magic Song

Playing the Concert Magic song you’ve selected is very easy. Just begin tapping any key on the

keyboard and the song will play. Concert Magic plays the correct notes of the song, but you must

provide the rhythm. Being familiar with how a particular song sounds does make it easier, but

watching the Note Navigator screen can help you play a song that you’ve never heard before.

The Note Navigator provides an outline of the song’s rhythm that looks a lot like the real music. The

dots (•) in the display are the notes that you play. The spacing of the notes gives a clue to the timing

(rhythm) of the notes. Notes that are closer together are played faster; notes that are farther apart

are played longer. Notes that are evenly spaced are played evenly, and so on.

Up to four lines of music are displayed. After you’ve played past a note in the song, the dot becomes

a cross (+) to help you keep track of where you now are. When you get to the bottom of the screen,

the top lines change to show the next lines of music, as if you had turned the page. When you get to

the end of the song you will see a double line, and then the song will reset to the beginning.

The L and R buttons select the desired song.

F1, F2 Searches by song category.

F3, F4 Searches by song name.

F5 Enters the Chain Play mode of the Concert Magic.

F6 Searches for a song on floppy disk.

F7 Can also select the song.

L 1

L 2

L 3

L 4

L 5

F 1 F 2 F 3 F 4 F 5 F 6 F 7

R 1

R 2

R 3

R 4

R 5

Kawai Concert Performer Series Digital Piano

P. 96

To play a selected CM song:

1) In the Note Navigator screen press START (F4) if you want to first listen to the song. The CP will play

the song. Press the STOP (F4) button to stop. Notice how the Note Navigator displays the rhythm as

the song is playing.

2) If you wish to play the CM song yourself, start tapping any of 88 keys while the song is stopped, and

the song will play.

3) Press the RESET (F4) button at any time to start at the beginning of the song again.

4) To play another song, press the SONG LIST buttons (F6, F7) to display the list.

5) If you have selected a song that has lyrics, you may view them by pressing the LYRICS button (F1,F2)

6) If you would like to play any song by steady tapping (instead of following the original rhythm), press

the STEADY BEAT button (F3).

7) To exit Concert Magic, simply press the CONCERT MAGIC button again.

F1, F2 Displays the selected song’s lyrics, if available.

F3 Allows you to play any song by steady tapping.

F4 Starts and stops the song. Also used to reset the song when

performing.

F5 Saves the changed Sounds.

F6, F7 Selects another song.

L 1

L 2

L 3

L 4

L 5

F 1 F 2 F 3 F 4 F 5 F 6 F 7

R 1

R 2

R 3

R 4

R 5

Playing with the Concert Magic

P. 97

• When you reach the end of the song, press any key one more time. This will not produce sound,

but instead resets the song to the beginning for another performance.

• The Bouncing Ball only works with song files that are specifically designed for Concert Magic to

take advantage of this feature.

• A Concert Magic song is made of two parts - a melody part and accompaniment part. Many of the

songs have different instrument sounds assigned each part to make the music more interesting.

You can select different sounds for each part separately. The RIGHT1 Part plays the melody. To

change its sound, press any Sound category button and select a new sound. The LEFT Part

handles the accompaniment. To change its sound, first turn off the RIGHT1 Part and then press

any Sound category button to select a new sound. Don’t forget to turn the RIGHT1 Part back on

before you begin to play.

• You can use the PIANO ONLY button to quickly change the sound for both parts to the Concert

Grand piano.

F1, F2 Returns to the Note Navigator screen.

F3 Allows you to play any song by steady beat tapping.

F4 Starts and stops the song. Also used to reset the song when

performing.

F5 Saves the changed Sounds.

F6, F7 Selects another song.

L 1

L 2

L 3

L 4

L 5

F 1 F 2 F 3 F 4 F 5 F 6 F 7

R 1

R 2

R 3

R 4

R 5

Kawai Concert Performer Series Digital Piano

P. 98

• You can also activate the RIGHT2 Part to use as a layer (additional sound) for the melody. You

can also select any new sound for the RIGHT2 part. Turn off all Parts except the one you wish to

change, and then select the new sound. Don’t forget to turn all necessary Parts back on before

you begin to play.

• You can save your new sound settings by pressing the SAVE button (F4). The Soft Reset function

will be required to return the sounds to their original settings (see page 125).

• You can transpose the song by pressing the TRANSPOSE buttons.

To enter the Chain Play mode of the Concert Magic:

1) Press the CONCERT MAGIC button. The song selection menu will be displayed.

2) Press the CHAIN PLAY button (F4). The Chain Play menu will be displayed.

3) Use the L and R buttons to highlight a setting, then turn the Dial to change that setting. You can

choose to play songs from any one category, or to play all 176 CM songs. You can also choose to use

each song’s preset sounds, or to play the songs using the Concert Grand piano sound only.

4) Press the PLAY button (F4) to start playing the songs.

5) To exit Concert Magic, press the CONCERT MAGIC button again.

L 1

L 2

L 3

L 4

L 5

F 1 F 2 F 3 F 4 F 5 F 6 F 7

R 1

R 2

R 3

R 4

R 5

R2 Selects the song category.

F4 Starts the chain play.

F6, F7 Returns to the song list.

L2 Selects Play mode.

L4 Selects Sound mode.

Playing with the Concert Magic

P. 99

Concert Magic Song Arrangements

Concert Magic songs are specially arranged so that they will work well with your key tapping. Each

of the 176 CM songs falls into one of three categories of musical arrangements of varying difficulty.

EASY BEAT

These are the easiest songs to play. To perform them, simply tap any key with a constant beat. You

can easily see which songs are Easy Beat songs when you look at the Note Navigator. The dots will

line up at a constant interval in the screen, indicating a constant beat.

MELODY PLAY

These songs are also quite easy to play, especially if you are familiar with them. To perform them,

tap the keys to the rhythm of the melody (as if you were singing).

SKILLFUL

These songs are more challenging. To perform them, carefully follow the rhythm as shown in the

Note Navigator. It may require some practice to successfully play these songs. Even skilled players

will enjoy the challenge that these songs offer.

Steady Beat Play

After you choose a song, you can press the STEADY BEAT button (F3) to play the song by steady

tapping instead of the original rhythm. You can play any song from any arrangement category by

tapping steady beats.

Kawai Concert Performer Series Digital Piano

P. 100

Creating a Concert Magic Song

You can also use Concert Magic to play a song that isn’t one of the 176 built-in titles. You can record

a new song using the Concert Performer’s Recorder and then save on a floppy disk as a Standard

MIDI File (SMF). The song can now be selected by pressing the DISK button when you are in the

Concert Magic song selection screen.

• You can also record a song for Concert Magic by using an external sequencer. Remember to save

it to a floppy disk as a Standard MIDI File.

As you might imagine, getting your song to sound exactly the way you want it to in Concert Magic

may require a few adjustments to the original arrangement. The most important consideration is to

keep the musical arrangement as simple as possible. Concert Magic “pauses” the song after every

note as it waits for you to tap the next key. If there are complex rhythm patterns that have many

notes per beat, the song may become overly difficult to play. Here are some suggestions for creating

a Concert Magic song:

1) Record the melody first using the RIGHT 1 Part in the Easy Recorder (or Track 2 in the Advanced

Recorder).

2) Then record the accompaniment using the LEFT Part in the Easy Recorder (or Track 4 in the Advanced

Recorder).

3) Arrange the accompaniment so that its notes fall on the same beats as the melody. (This creates a

Melody Play arrangement.)

4) If you want to be a little more adventurous, insert a few carefully placed accompaniment notes in

between melody notes. (This creates a Skillful arrangement.)

5) If you are recording your song using an external sequencer, record the melody on channel 2 and the

accompaniment on channel 4.

6) For best results, you should quantize your parts.

• Of course, these are merely suggestions. There are no steadfast rules for how to compose your

CM song. In fact, very rewarding musical experiences may come out of simple trial and error.

Playing with the Concert Magic

P. 101

Kawai Concert Performer Series Digital Piano

P. 102

System Menu

The System Menu contains all of the functions that affect the overall

performance of the CP piano. This includes functions such as the

System settings, tuning, and MIDI Setup. By adjusting these settings

you can tailor the CP’s performance to your taste.

To use the System menu:

1) Press the SYSTEM button. The SYSTEM button LED will light and the System menu is displayed.

2) Use the F1 and F2 buttons to access the System Menu pages.

3) Use the L, R and F buttons to select the function you wish to change. A sub-menu with further options

for that function will be displayed.

4) Use the L, R and F buttons to choose a setting from the sub-menu and use the Dial to change its

value.

• If you would like to have the CP remember your settings and have them immediately applied

every time you turn the instrument on, select Power Up Setting (Page 2-R1) from the System

menu, and choose “Save Current Settings” (L2).

• For further details on resetting data, see page 124.

System Menu

P. 103

R1 Selects the Pedal functions.

R2 Selects the Fill-in mode for the

Accompaniment Styles.

R3 Selects the Effect priority settings.

R4 Selects the Temperament settings.

R5 Selects the MIDI settings.

F1, F2 Selects the different System Menu pages.

L1 Selects the overall tuning of the CP.

L2 Selects the Touch Curve (Key velocity sensitivity).

L3 Selects the Voicing settings.

L4 Selects the Resonance effect for the sustain

pedal.

L5 Selects the Concert Magic Sound mode.

L 1

L 2

L 3

L 4

L 5

F 1 F 2 F 3 F 4 F 5 F 6 F 7

R 1

R 2

R 3

R 4

R 5

L 1

L 2

L 3

L 4

L 5

F 1 F 2 F 3 F 4 F 5 F 6 F 7

R 1

R 2

R 3

R 4

R 5

L1 Selects the Power up mode settings.

L2 Restores the initial factory settings.

R1 Selects the Screen Hold settings

R2 Displays the software version.

F1, F2 Selects the different System Menu pages.

Kawai Concert Performer Series Digital Piano

P. 104

Tuning

Tuning allows you to adjust the CP’s pitch. You may need to adjust the tuning when you play with

other instruments.

The master pitch is displayed in Hertz. The range of adjustment is from 427.0 to 453.0 Hz. The

factory preset value is set to the modern standard A = 440.0 Hz.

• You can also adjust the tuning for each Part separately. This can be used to simulate a chorus-

like effect by layering the same sound in RIGHT1 and RIGHT2 and slightly detuning them. Each

Part can be raised or lowered by up to 50 cents. (50 cents = 1/4 tone).

L2 Selects the master pitch.

L3 Selects the pitch for the LEFT Part. R3 Selects the pitch for the RIGHT1 Part.

R4 Selects the pitch for the RIGHT2 Part.

F1 Takes you to the System menu.

L 1

L 2

L 3

L 4

L 5

F 1 F 2 F 3 F 4 F 5 F 6 F 7

R 1

R 2

R 3

R 4

R 5

System Menu

P. 105

Touch Curve

When playing a piano, the volume of the sound produced increases in direct relation to how hard a

key is struck. The CP’s Normal Touch curve offers the standard feel of an acoustic piano for practicing

music. The CP offers five other touch curves ranging from light to heavy.

Normal This is the standard touch of an acoustic piano.

Light 1, 2 For those still developing finger strength, such as a child, a louder sound is

produced even when the piano is played with a soft touch. Light 2 is lighter than

Light 1.

Heavy 1, 2 Perfect for those with strong fingers. Requires a heavier touch to produce a loud

volume. Heavy 2 is heavier than Heavy 1.

Off A constant volume is produced regardless of how hard the keys are struck. This

setting is suitable for sounds that have a fixed dynamic range such as Organ or

Harpsichord.

• LIGHT and HEAVY do not represent the physical weight of the keys. These are settings that

affect the sensitivity of the keys, which determines the volume level in response to the key

movement.

L1 Selects the normal setting.

L2 Selects a moderately light touch.

L3 Selects a light touch.

L4 Selects a moderately heavy touch.

L5 Selects a heavy touch.

R1 Turns off the Touch sensitivity entirely.

F1 Takes you to the System menu.

L 1

L 2

L 3

L 4

L 5

F 1 F 2 F 3 F 4 F 5 F 6 F 7

R 1

R 2

R 3

R 4

R 5

Kawai Concert Performer Series Digital Piano

P. 106

Virtual Voicing

Voicing is a technique used by piano technicians to mold the character of a piano’s sound. The

Voicing function lets you change the CP piano’s tone quality by choosing one of four types of voicings.

Normal Produces the normal timbre of an acoustic piano throughout the entire dynamic

range. This is the default setting.

Bright Produces a brighter tone throughout the entire dynamic range.

Mellow Produces a mellower tone throughout the entire dynamic range.

Dynamic The tone will change dramatically from mellow to bright according to your

playing.

• The current voicing selection is global for all the instrument Sounds. You can not have an

individual setting for each Sound.

• While voicing is a technique used for optimizing the tone of an acoustic piano, this function can

be used on all the Sounds on the CP piano.

L2 Selects Normal.

L3 Selects Mellow.

R2 Selects Dynamic.

R3 Selects Bright.

L 1

L 2

L 3

L 4

L 5

F 1 F 2 F 3 F 4 F 5 F 6 F 7

R 1

R 2

R 3

R 4

R 5

F1 Takes you to the System menu.

System Menu

P. 107

Resonance

When the sustain pedal is depressed on an acoustic piano, all the dampers are lifted up allowing the

strings to vibrate freely. In this condition, when you play a note not only will the strings for the note

you played vibrate but other strings will vibrate due to sympathetic resonance. The Resonance

function simulates this phenomenon. You can select from three levels of Resonance.

Off No resonance.

Normal Simulates the natural resonance characteristics of an acoustic piano.

Deep Produces a more intense resonance.

L2 Selects normal resonance.

L3 Selects deep resonance.

R2 Turns off the resonance.

L 1

L 2

L 3

L 4

L 5

F 1 F 2 F 3 F 4 F 5 F 6 F 7

R 1

R 2

R 3

R 4

R 5

F1 Takes you to the System menu.

Kawai Concert Performer Series Digital Piano

P. 108

Concert Magic Sound

This function determines which sounds the Concert Magic songs will be played with.

Preset Plays all the Concert Magic songs with the Preset Sounds assigned to each song.

Piano Plays all the Concert Magic songs with the Concert Grand piano.

F1 Takes you to the System menu.

L 1

L 2

L 3

L 4

L 5

F 1 F 2 F 3 F 4 F 5 F 6 F 7

R 1

R 2

R 3

R 4

R 5

L2 Selects Preset sounds.

L3 Selects Piano sound.

System Menu

P. 109

Pedal Assign

The Soft and Sostenuto pedals on the Concert Performer function as much more than just traditional

piano pedals. These pedals can be assigned to control various other functions on the CP piano.

Damper Pedal (Right)

Sustain only Can be activated or deactivated separately for each Part.

Pedal assignment options for Soft Pedal (Left) and Sostenuto Pedal (Center)

Soft Softens the sound and reduces its volume.

Sostenuto Sustains only notes that were held when pedal was depressed.

Start/Stop Controls start/stop for Styles and Songs.

Harmony on/off Turns the instrument Harmony function on/off.

Registration Switches from one Registration to another. You may choose the order,

1 to 8 or 8 to 1.

Style Variation Switches from one Style Variation to another. You may choose the

order, 1 to 4 or 4 to 1.

Intro/Ending Plays the Intro or Ending.

Fill In Plays the Fill-in currently selected.

Break Interrupts the whole Style.

Drums Only Interrupts the Style except Drum part.

Sync/Fade Out Controls the SYNC/FADE OUT button.

Glide Bends the pitch up and down as programmed by you.

Modulation Applies programmable vibrato to the sound.

Rotary Fast/Slow Controls the speed of rotary speaker effect. This function will be

automatically assigned to the Soft Pedal (Left) when a sound that has

the rotary effect turned on is selected as the Priority Part.

Left Hand Hold Holds the notes played in the LEFT/SPLIT Part as long as the pedal is

depressed.

Panel Lock Locks all buttons on the panel to prevent them from being tampered

with or pressed accidentally while you are playing. Press the assigned

pedal once to lock the panel buttons. Press the assigned pedal again to

unlock the panel buttons.

Kawai Concert Performer Series Digital Piano

P. 110

• The pedal assignments made to the Left pedal will be saved as part of a Registration. The pedal

assignments made to the Center pedal are global and are not saved as part of a Registration.

1) Select the Pedal Assign (R1) option in the System menu (page 1). The LCD screen will display the

Pedal Assign screen. Use the L buttons to select which pedal you want to make assignments for.

F1 Takes you to the System menu.

L 1

L 2

L 3

L 4

L 5

F 1 F 2 F 3 F 4 F 5 F 6 F 7

R 1

R 2

R 3

R 4

R 5

L2 Selects the Right pedal (Damper).

L3 Selects the Center pedal (Sostenuto).

L4 Selects the Left pedal (Soft).

System Menu

P. 111

2) Use the L and R buttons to select the setting and use the Dial to change its value.

L2 Selects a function to assign to the pedal. Use the other L and R buttons to adjust parameters.

L 1

L 2

L 3

L 4

L 5

F 1 F 2 F 3 F 4 F 5 F 6 F 7

R 1

R 2

R 3

R 4

R 5

F1 Back to the Pedal Assign menu.

F4-F6 Selects the different pedals.

Kawai Concert Performer Series Digital Piano

P. 112

Fill-in Mode

This determines whether or not a Fill-in will be automatically played each time a VARIATION button

is pressed.

There are two options.

Normal A Fill-in will not be automatically played each time a VARIATION button is

pressed. Fill ins will only be played if a FILL button is pressed.

Auto A Fill-in will be played each time a VARIATION button is pressed. The Fill-in

that is played will be the one that accompanies the Variation that you are leaving.

For example, if Variation 1 is currently active, and you select Variation 2, the

Fill-in for Variation 1 will be played.

L2 Selects Normal mode.

L3 Selects Auto mode.

F1 Takes you to the System menu.

L 1

L 2

L 3

L 4

L 5

F 1 F 2 F 3 F 4 F 5 F 6 F 7

R 1

R 2

R 3

R 4

R 5

System Menu

P. 113

Effect for Sound

This function determines whether or not the Preet Effects settings assigned to each Sound will be

used or not.

Preset The Preset Effect settings for each Sound will be used. This is the default setting.

Panel The preset Effect settings for each Sound will not be used. In other words,

changing the Sounds will not change the Effect types and other settings for the

Effects. This allows you to set each Effect section (REVERB, CHORUS, and

EFFECTS) to your own taste and use your Effect settings for all sounds. The

panel setting is very useful if you only want to use certain Effects at all times or

if you want to prevent the Effects from constantly changing each time you select

a new Sound.

F1 Takes you to the System menu.

L 1

L 2

L 3

L 4

L 5

F 1 F 2 F 3 F 4 F 5 F 6 F 7

R 1

R 2

R 3

R 4

R 5

Kawai Concert Performer Series Digital Piano

P. 114

Temperament

The CP offers not only equal temperament (the modern standard) but also immediate access to

temperaments popular during the Renaissance and Baroque periods.

You can also create your own User tuning Temperament as well.

1) Select Temperament form the System Menu. The LCD screen will display the Temperament screen.

2) Select your desired Temperament with the L and R buttons.

3) Set the Temperament Key with the F2 and F3 buttons.

4) If you select Equal temperament, use the F5 and F6 buttons to set Stretch Tuning to On, Off, or Piano

Only. (For an explanation of Equal and Equal Stretched tuning see page 115).

Stretch=On: Applies the Stretched Tuning to all instrument Sounds.

Stretch=Off: Stretched Tuning is turned Off for all the instrument Sounds Off.

Stretch=Piano (only): Applies the Stretched Tuning only to the Piano Sound. The tuning for any other

active sounds layered with a piano sound will be stretched to match the piano. If no piano sound is

active the tuning for any active sounds will not be stretched.

L 1

L 2

L 3

L 4

L 5

F 1 F 2 F 3 F 4 F 5 F 6 F 7

R 1

R 2

R 3

R 4

R 5

L1 Selects Equal.

L2 Selects Meantone.

L3 Selects Pure Major.

L4 Selects Pure minor.

L5 Selects Pythagorean.

R1 Selects Werckmeister.

R2 Selects Kirnberger.

R3 Selects Arabic 1.

R4 Selects Arabic 2.

R5 Selects User.

F1 Takes you to the System menu.

F2, F3 Selects the Temperament Key.

F5, F6 Selects the Stretch tuning type On/Off/Piano.

F7 Takes you to the User Temperament screen.

System Menu

P. 115

Brief explanation of temperaments

Temperament Keys

Limitless modulation of the key became available only after the invention of Equal temperament.

When you use a temperament other than Equal temperament, you must carefully choose the key to

play in. For example, if the song you are going to play is written in D major, choose “D” to set the

temperament key.

Equal Temperament (Flat)

This is an “unstretched” equal temperament that divides the scale into twelve equal semitones. This

produces the same chordal intervals in all twelve keys, and has the advantage of limitless modulation

of the key. However the tonality of each key becomes less characteristic and no chord is in pure

consonance.

Equal Temperament (Stretched)

This is the most popular piano temperament and is the initial setting. The hearing ability of a

human is uneven and is not as accurate with high frequency and low frequency as it is with the

middle range. This temperament’s tuning is stretched to compensate for this so the sound will be

heard naturally to the ears. This “Stretched” equal temperament is a practical variation of the

“unstretched” equal temperament which was invented on a mathematical basis.

Pure Temperament

This temperament, which eliminates dissonances for thirds and fifths is still popular for choral

music because of its perfect harmony.

You need to be aware what key you are playing in with this temperament. Any key modulation will

result in dissonances. When you play music in a particular key, you need to match the key of the

temperament as well.

Pythagorean Temperament

This temperament, which uses mathematical ratios to eliminate dissonance for fifths, is very limited

for use with chords, but it produces very characteristic melodic lines.

Meantone Temperament

This temperament, which uses a mean between a major and minor whole tone to eliminate dissonance

for thirds, was devised to eliminate the lack of consonance’s experienced with certain fifths for the

Pure temperament. It produces chords that are more beautiful than those with the equal temperament.

Kawai Concert Performer Series Digital Piano

P. 116

Werckmeister III, Kirnberger III Temperament

These two temperaments are placed in between Meantone and Pythagorean. For music with few

accidentals, this temperament produces the beautiful chords of the mean tone, but as accidentals

increase, the temperament produces the characteristic melodies of the Pythagorean temperament.

It is used primarily for classical music written in the Baroque era to revive the original characteristics.

Arabic

Some oriental scales, including the Arabic, are characterized for “quarter-tone” which is half of a

half-tone (50 cents). This makes the music sound very different from traditional western music.

The CP Piano provides two of the most popular Arabic scales, although you can create more

variations with the User Temperament function. With Arabic 1, the notes B and E are a quartertone

lower than the Occidental Scale, while the notes A and E are lower with Arabic 2.

To create a User Temperament:

1) On the Temperament screen, press the EDIT button (F7). The User Temperament screen will be

displayed.

2) Use the KEY buttons (F3, F4) to select the note to edit.

3) Use the Dial or TUNE buttons (F5, F6) to change the value. The value is represented in cents above

or below Equal temperament and ranges from –50 to +50.

4) Press the SAVE button (F7) to save the User Temperament.

System Menu

P. 117

• The User Temperament alters the tuning for each octave equally. In other words, you cannot

alter the tuning of different sections of the CP’s keyboard range separately.

F1 Takes you to the Temperament menu.

F3, F4 Selects the note to edit.

F7 Saves the User Temperament.

L 1

L 2

L 3

L 4

L 5

F 1 F 2 F 3 F 4 F 5 F 6 F 7

R 1

R 2

R 3

R 4

R 5

Kawai Concert Performer Series Digital Piano

P. 118

MIDI Menu

The letters MIDI stand for Musical Instrument Digital Interface, an international standard for

connecting MIDI equipped synthesizers, drum machines, and other electronic instruments so that

they can exchange data. Personal computers can also be equipped for MIDI communication.

Electronic instruments equipped with MIDI can transmit and receive performance data such as,

notes, what sound to play, pedal information, volume, etc. through the MIDI In/Out/Thru Jacks.

This data can be recorded with a device like a sequencer or a computer.

• In this manual we will only discuss the basic MIDI functions that pertain directly to the CP. For

detailed literature on MIDI, please visit the music department of your local bookstore.

On page one of the MIDI Settings menu you can configure the following settings.

Right Transmit Channel

Sets the MIDI Transmit Channel for the RIGHT hand Parts. You can select MIDI Channels 1-16.

Left Transmit Channel

Sets the MIDI Transmit Channel for the LEFT/SPLIT Part. You can select MIDI Channels 1-16.

Chord Detect Channel

Sets the MIDI receive channel for chord data being sent to the CP. The Accompaniment System can

be controlled remotely on this MIDI channel by an external MIDI controller. You can select MIDI

channels 1-16, OFF, All, or MIDI Accordion. When set to ALL the Accompaniment System will

respond to any chord data it receives on ANY MIDI channel.

Local Control ON/OFF

This determines whether the CP’s sound will be played from the piano’s keyboard (“ON”) or only

from an external MIDI instrument (“OFF”). Even with local control “off” the CP’s keyboard will

still transmit to an external MIDI instrument or personal computer.

System Menu

P. 119

Clock

Clock is a data code that a MIDI instrument uses as the reference for its Tempo settings as well as

Style Start/Stop commands. When it is set to INTERNAL, the CP uses its own built-in clock to

control tempo settings. When set to EXTERNAL, the CP reads the clock data that it receives via

MIDI and uses this data to control the Tempo.

To configure the MIDI Settings:

1) On page 1 in the System menu, press the MIDI (R5) button. The LCD screen will display the first MIDI

page.

2) Use the L and R buttons to select the setting and use the Dial to change the values.

F1-F4 Selects the other MIDI Settings pages.

L2 Selects Transmit channel for the RIGHT Part.

Choose 1–16.

L3 Selects Transmit channel for the LEFT Part.

Choose 1–16.

L4 Selects the chord detect Receive channel.

Choose 1–16, OFF, All, or MIDI Accordion.

L 1

L 2

L 3

L 4

L 5

F 1 F 2 F 3 F 4 F 5 F 6 F 7

R 1

R 2

R 3

R 4

R 5

R2 Turns Local Control on/off.

R3 Selects the Clock source.

R4 Selects MIDI or USB

Kawai Concert Performer Series Digital Piano

P. 120

Transmit MIDI Data

On page two of the MIDI Setting menu you can determine what MIDI data will be transmitted from

the CP.

“Keyboard = On/Off” Determines whether or not note data that is generated by the keys being

played will be transmitted.

“Program = On/Off” Determines whether or not the CP piano will transmit program change

information when a Sound is selected on the CP.

“Control = On/Off” Determines whether or not changes in controllers (such as the pedals being

depressed) will be transmitted.

“System Exclusive = On/Off” Determines whether or not all of the CP’s settings will be transmitted

in a special format that is understood by another CP.

“Clock = On/Off” Determines whether or not the CP’s Clock data will be transmitted.

“ACC = On/Off” Determines whether or not the data from the Auto Accompaniment System will be

transmitted.

F1-F4 Selects the other MIDI Settings pages.

L2 Selects whether note data is transmitted.

L3 Selects whether Bank and Program Change data

is transmitted.

L4 Selects whether Controller data is transmitted.

R2 Selects whether System Exclusive data is

transmitted.

R3 Selects whether Clock data is transmitted.

R4 Selects whether Auto-accompaniment data is

transmitted.

L 1

L 2

L 3

L 4

L 5

F 1 F 2 F 3 F 4 F 5 F 6 F 7

R 1

R 2

R 3

R 4

R 5

System Menu

P. 121

On page three of the MIDI Settings menu, you can determine which MIDI channels the CP will

receive MIDI data on. The CP can receive MIDI data on all 16 MIDI channels at once or only certain

MIDI channels.

Channel Receive On/Off

Each of the 16 MIDI channels can be set separately to On or Off.

Use the L2, R2, L4 and R4 buttons to select the channel

and use the Dial to change the setting, On and Off.

F1-F4 Selects the other MIDI Settings pages.

L 1

L 2

L 3

L 4

L 5

F 1 F 2 F 3 F 4 F 5 F 6 F 7

R 1

R 2

R 3

R 4

R 5

Kawai Concert Performer Series Digital Piano

P. 122

MIDI Accordion

On page four of the MIDI Settings Menu you can configure the CP to be played from a MIDI Accordion.

L2 Selects receive channel for the Chord (Left) part.

Choose 1-16.

R2 Selects receive channel for the Melody

(Right1) part. Choose 1-16.

R3 Selects receive channel for the Bass (Right2)

part. Choose 1-16.

F1-F4 Selects the other MIDI Settings pages.

L 1

L 2

L 3

L 4

L 5

F 1 F 2 F 3 F 4 F 5 F 6 F 7

R 1

R 2

R 3

R 4

R 5

System Menu

P. 123

Power Up Settings

This determines whether the CP stores your preferred panel and system settings as the default

settings and applies them automatically when the instrument is turned on.

Select Save Current Settings (L2) in the Power Up Setting menu to save the current panel settings

automatically as the default settings when the CP is turned on.

Select Restore Factory Settings (L3) to return the CP to the factory default settings. The original

factory settings will now be used by the CP when it is turned on.

• The CP never automatically stores Panel and System settings. If you make any new changes that

you want to save, you must use the Save Current Settings (L2) command.

L2 Saves the current settings.

L3 Restores the initial factory settings.

F1 Takes you to the System menu.

F7 Applies the selected settings.

L 1

L 2

L 3

L 4

L 5

F 1 F 2 F 3 F 4 F 5 F 6 F 7

R 1

R 2

R 3

R 4

R 5

Kawai Concert Performer Series Digital Piano

P. 124

Soft Reset

The Soft Reset function allows you to return all of the User Settings back to the original Factory

Settings. You can instantly reset all of the user settings or only the ones you want to Reset at the

touch of a button.

To perform a Soft Reset:

1) Press SOFT RESET button (L2) on Page two in the System menu. The Soft Reset screen will be

displayed.

2) Use the L and R buttons to choose type of data you want to reset.

3) Press EXEC button (F7).

4) Press YES (F7) to proceed, or NO (F1) to back out.

F1 Takes you to the System menu without resetting data.

F7 Proceeds with the Reset.

L1 Selects Regist Groups.

L2 Selects Conductor.

L3 Selects Sound Settings.

L4 Selects Concert Magic.

L5 Selects System Settings.

R1 Selects User Styles.

R5 Selects ALL.

L 1

L 2

L 3

L 4

L 5

F 1 F 2 F 3 F 4 F 5 F 6 F 7

R 1

R 2

R 3

R 4

R 5

System Menu

P. 125

Software Version

This function is used to show what system software version is currently installed in the CP.

To show the software version:

1) Press the Software Version button (R2) on page two in the System menu.

2) The software version will appear in the LCD screen.

F1 Takes you to the System menu.

L 1

L 2

L 3

L 4

L 5

F 1 F 2 F 3 F 4 F 5 F 6 F 7

R 1

R 2

R 3

R 4

R 5

Kawai Concert Performer Series Digital Piano

P. 126

Screen Hold

Most of the on-screen menus that you work with on the Concert Performer will remain displayed

until you select something or press a particular button. However, some screens may be displayed

only temporarily, switching back to a main screen if you allow the CP to sit idle without pressing

any buttons. You can adjust a time setting for how long these screens stay displayed before switching,

or even choose to have them hold without switching.

This adjustable time function is effective with the following menus:

• Sound Select menu

• Style Select menu

• Reverb Settings menu called up by holding down the REVERB button.

• Effect Settings menu called up holding down the EFFECT button.

• Chorus Settings menu called up by holding down the CHORUS button.

• Harmony Settings menu called up by holding down the HARMONY button.

L2 Turns Screen Hold on/off. Setting Screen Hold

on makes all screens display without

automatically switching

L3 Adjusts the time that passes before the screen

switches (5 to 20 seconds). This is available

only when the Screen Hold is off.

L 1

L 2

L 3

L 4

L 5

F 1 F 2 F 3 F 4 F 5 F 6 F 7

R 1

R 2

R 3

R 4

R 5

Display Control

P. 127

Kawai Concert Performer Series Digital Piano

P. 128

disk so the student may play along. This can greatly assist the

learning process. Finally, there are numerous sites on theWorld

Wide Web dedicated to the sharing and selling of MIDI music that

can be downloaded and played on your Concert Performer

instrument. For instructions on how to use one of these Song Disks

on your CP, see “Playing Songs from a Floppy Disk” on page 90.

Floppy Disk Operations

The Concert Performer has a built-in 3.5” floppy disk drive that

can read and write to double-density (720KB) or high-density

(1.4MB) disks. These are the exact same disks that are used with

your personal computer. You can use floppy disks to quickly and

easily build up an extensive library of Concert Performer data that

can be shared with other CP owners.

There are many companies who specialize in just making MIDI song

files of popular and traditional tunes that can be purchase on floppy

disk. In fact, these days almost any popular song that you can think

of has probably been turned into a MIDI file by someone! Many

publishers of piano lesson books now provide the music on floppy

Disk Menu

The Disk menu is where you can work with various disk operations. There are five functions that

you can choose from.

To work with a disk:

1) Press the DISK button. The Disk menu will be displayed.

2) Use the L and R buttons to select the preferred function.

Floppy Disk Operations

P. 129

L 1

L 2

L 3

L 4

L 5

F 1 F 2 F 3 F 4 F 5 F 6 F 7

R 1

R 2

R 3

R 4

R 5

L2 Loads data from a floppy disk.

L3 Saves data onto a floppy disk.

L4 Erases data from a floppy disk.

R2 Formats a floppy disk.

R3 Plays the song data from a floppy disk.

(See page 88.)

Saving Data to a Floppy Disk

This important function stores your custom data to disk so that you can retrieve it at a later time.

You can save the following data:

Song Song data currently in the Recorder. You can save it as the CP’s own unique

format (Internal) or as Standard MIDI File format (SMF) or Stylist format (Internal

format plus Registration setting).

User Style Each User Style or all 20 User Styles at once.

Regist Group Each Registration Group, containing 8 Registrations, or all 10 Registration Groups

at once.

Temperament One User Temperament setting.

All Settings This allows you to save the current settings of the above data types except for

Song data and User Touch data at once, as a single file.

Kawai Concert Performer Series Digital Piano

P. 130

Use the L and R buttons to select the type of data

to save.

L 1

L 2

L 3

L 4

L 5

F 1 F 2 F 3 F 4 F 5 F 6 F 7

R 1

R 2

R 3

R 4

R 5

F1 Takes you to the Disk menu.

To save your data:

1) In the Disk menu, select SAVE (L3). The Disk Save menu will be displayed.

2) Use the L and R buttons to select the type of data to save. Then the particular sub-menu for that data

type will be displayed.

3) Use the appropriate L button, CURSOR buttons (F2, F3) and CHARACTER buttons (F4, F5) to give the

data file a name.

When saving a Song, use the L3 button and the Dial to select whether the song data file will be in the

INTERNAL (CP’s unique) format, or SMF (Standard MIDI File) format or Stylist format.

• The data saved in Stylist format can be called up only in Song Stylist mode.

• When you select SMF format, data in the style track will be automatically pasted to tracks 9-16.

This will erase any existing data on tracks 9-16.

4) Make sure that a formatted floppy disk is in the drive. Then press the SAVE button (F6, F7) to save

the selected data to the disk.

Floppy Disk Operations

P. 131

L 1

L 2

L 3

L 4

R 1

R 2

R 3

R 4

L 1

L 2

L 3

L 4

L 5

F 1 F 2 F 3 F 4 F 5 F 6 F 7

R 1

R 2

R 3

R 4

R 5

F1 Takes you to the previous menu.

F2, F3 Moves the cursor over the characters in the name.

F4, F5 Selects a character to use in the name.

F7 Saves the data file to floppy disk.

Example: Saving a Style

L3 Selects which file you would like to save, or if all

files are to be save as a single “all” file.

L4 Names the data file.

Example: Saving a Song

L2 Names the data file.

L3 Selects which format the data should be saved

as.

Kawai Concert Performer Series Digital Piano

P. 132

L 1

L 2

L 3

L 4

L 5

F 1 F 2 F 3 F 4 F 5 F 6 F 7

R 1

R 2

R 3

R 4

R 5

Use the L and R buttons to select the type of data

to load.

F1 Takes you to the disk menu.

Loading Data from a Floppy Disk

This function allows you to retrieve the stored data from disk.

Song One Song can be loaded into the Recorder from disk.

User Style Up to 20 Styles can be loaded from disk. This number varies depending on the

size of the data contained in the Styles.

Regist Group Up to 10 Groups, containing 8 Registrations each, can be loaded from disk.

Temperament One User Temperament can be loaded from disk.

All Settings Loads the “All Settings” file on disk.

To load the data from a disk:

1) In the Disk menu, press LOAD (L2). The Disk Load menu will be displayed.

2) Insert your floppy disk into the drive.

3) Use the L and R buttons to select the type of data to load. Then a sub-menu will be displayed that

lists all available files of that type.

Floppy Disk Operations

P. 133

L 1

L 2

L 3

L 4

L 5

F 1 F 2 F 3 F 4 F 5 F 6 F 7

R 1

R 2

R 3

R 4

R 5

Use the L and R buttons to select the data to load.

F1 Takes you to the previous menu.

F2, F3 Displays more selections.

F4 Selects the “All” file type if that is how the files were

saved.

F5 Displays data files that were saved individually.

F7 Proceeds to the next screen.

4) When loading User Style or Registration data, you can choose whether to load data that was stored

individually or to load all the data that was saved as an “All” file. Press ALL (F4) to load data that

was saved as an “All” file. Press EACH (F5) if data files were saved individually.

5) Use the L and R buttons to select the data to load. Use the PAGE (F1, F2) buttons to display more

data, if available.

6) Press the EXEC (F7) button to proceed. The screen will display the destination where the data will be

loaded.

Kawai Concert Performer Series Digital Piano

P. 134

L 1

L 2

L 3

L 4

L 5

F 1 F 2 F 3 F 4 F 5 F 6 F 7

R 1

R 2

R 3

R 4

R 5

L3 Selects the destination to load individually a Style,

Conductor, Sound or Registration.

F1 Takes you to the previous menu.

F7 Loads the data.

7) When loading an individual data file, use the L3 button and the Dial to select the preferred destination.

8) Then press the EXEC button to load the selected data into the CP. Press BACK (F1) to cancel loading.

Floppy Disk Operations

P. 135

L 1

L 2

L 3

L 4

L 5

F 1 F 2 F 3 F 4 F 5 F 6 F 7

R 1

R 2

R 3

R 4

R 5

Use the L and R buttons to select the data.

F1 Takes you to the previous menu.

F2, F3 Displays more selections.

F4 Displays the “All” data file if present.

F5 Displays individual files.

F7 Proceeds to the next screen.

Erasing Data from a Floppy Disk

This lets you erase unnecessary data from the floppy disk.

You can erase Song, User Style, Registrations, User Temperament and ALL.

To erase the data from a disk:

1) In the Disk menu press DELETE (L4). The Disk Delete menu will be displayed.

2) Insert the floppy disk into the drive.

3) Use the L and R buttons to select the type of data to erase. A sub-menu of file names will be

displayed.

4) When you erase User Style or Registration, determine whether you are going to erase individual data

files by pressing EACH (F5) or the “All” data file by pressing ALL (F4).

5) Press EXEC (F7) to erase the selected data from the disk. Or press BACK (F1) to cancel erasing and

go back to the previous menu.

Kawai Concert Performer Series Digital Piano

P. 136

Formatting a Floppy Disk

Before a floppy disk can be used to save data for the first time, it will need to be formatted. This

simply means that the disk must be “prepared” to hold data.

The Concert Performer can read and write to MS-DOS formatted disks. You can purchase pre-

formatted floppy disks from any computer or office supply store. Floppy disks may also be formatted

on a PC computer, or the CP can format them itself. There are two types of 3.5” floppy disk in the

market, 2DD (which can hold 720KB of data) or 2HD (which can hold 1,440KB or 1.44MB of data).

Both can be used in the exact same fashion with the Concert Performer.

• You can always re-format a disk at any time. Keep in mind, though, that every time you format a

disk, all data that is currently on it will be erased. Re-formatting is a good way to completely

erase a disk that might have been used previously on a computer, since there may be all sorts of

irrelevant data files left on it otherwise.

To format a disk:

1) In the Disk menu, press FORMAT (R2). The Disk Format menu will be displayed.

2) Insert the floppy disk into the drive.

3) Use the L2 or L3 buttons to select the size of disk you are using, 2HD or 2DD.

4) Press EXEC (F7) to proceed. The screen prompts you for confirmation.

5) Press YES (F7) again to start formatting. Or press NO (F1) to cancel formatting and go back to the

previous menu.

• It takes about a minute to format a floppy disk. Once the formatting is complete, the LCD screen

returns to the Disk menu automatically.

Floppy Disk Operations

P. 137

L 1

L 2

L 3

L 4

L 5

F 1 F 2 F 3 F 4 F 5 F 6 F 7

R 1

R 2

R 3

R 4

R 5

L2 Formats a 2HD disk.

L3 Formats a 2DD disk.

F1 Cancels formatting and takes you to the Disk menu.

F7 Starts formatting the disk.

Kawai Concert Performer Series Digital Piano

P. 138

There are times when you might not have the Owner’s Manual at

your side, and you need an explanation of a button or feature.

Fortunately, there are built-in Help guides to give you a hand. The

Help function provides a basic introduction and overview of most

of the features found in the CP.

There are also many built-in Demostration songs that really show

of the musical potential of the Concert Performer. These songs

were composed by some of the top musicians in the music industry,

and will undoubtedly impress and inspire you.

Getting Assistance: Using Help and Demo

Using the Help

To get Help, simply press the HELP button to the left of the display. The display will show an

explanation on the function or feature that you are presently working on. Help is available at any

time, except when the CP is busy recording your performance or accessing a floppy disk.

To use the Help:

1) Press the HELP button. The Help text will be displayd in the LCD screen.

2) If the text is not what you are looking for, press the INDEX (F1) button to list the HELP topics. Use the

F1 and F2 buttons to list more topics on the other pages.

3) Use the appropriate L or R button to select the topic, and the text will be displayed.

4) Use the F3 or F4 button to change the language. English, German, French, and Spanish are available.

5) To leave Help, press the EXIT button.

The first time you sit at the Concert Performer, you may feel

overwhelmed by the wealth of features and options that it offers.

You will find, though, that if you keep this Owner’s Manual handy

you can learn to use the different functions as you need them, at

your own pace. And, there is certainly nothing wrong with only

using a few basic features, and thoroughly enjoying them. After

all, the Concert Performer is first and foremost a musical

instrument, and its whole purpose is to provide you with the tools

for musical expression and fun no matter your skill level.

Getting Assisted—Help and Demo

P. 139

Use the L and R buttons to selct a Help topic.

F1, F2 Searches for more Help topics on the other

pages.

F1 Takes you to the Help menu.

F3, F4 Selects the language.

L 1

L 2

L 3

L 4

L 5

F 1 F 2 F 3 F 4 F 5 F 6 F 7

R 1

R 2

R 3

R 4

R 5

L 1

L 2

L 3

L 4

L 5

F 1 F 2 F 3 F 4 F 5 F 6 F 7

R 1

R 2

R 3

R 4

R 5

Kawai Concert Performer Series Digital Piano

P. 140

Using the Demonstrations

There are two types of Demonstrations programmed in the CP piano.

Sound Category Demos

Each Sound category has a song, or songs, that demonstrate the sound choices and capabilities

found in the category.

Style Category Demos

Each Style category has a song, or songs, that demonstrate how the Auto-Accompaniment Styles

can be used.

To listen to a Sound/Style Demo:

1) Press the DEMO button.

2) Select your preferred Demo piece by either,

pressing any of the SOUND category buttons to select a Sound Demo,

or pressing any of the STYLE category buttons to select a Style Demo.

Sound or Style categories may have more than one demo songs played in sequence. Press the

Sound or Style button repeatedly to skip to the next demo song.

3) To exit, press the EXIT, PLAY/STOP or the DEMO button.

Getting Assisted—Help and Demo

P. 141

• When a selected Demo song ends, another song of the same type will be randomly chosen from

another category and played. You can select another demo song at any time by pressing the

appropriate button.

The SOUND category buttons are used to select the demo for that

sound category.

L 1

L 2

L 3

L 4

L 5

F 1 F 2 F 3 F 4 F 5 F 6 F 7

R 1

R 2

R 3

R 4

R 5

The STYLE category buttons are used to select the demo for that

Style category.

Kawai Concert Performer Series Digital Piano

Preset Sounds

Appendices

Appendices

PIANO

PAGE 1 PAGE 2 PAGE 3 PAGE 4

Concert Grand Mellow Grand Jazz Grand New Age Piano

Studio Grand Rock Grand Crystal EP New Age Piano 2

Modern Piano Honky Tonk Piano & Guitar New Age Piano 3

Electric Grand Electric Grand 2 Mono Grand Piano & Vibes

Piano Octaves Piano Octaves 2 Wide Honky Tonk New Age EP

Classic EP Classic EP 2 Piano & EP New Age EP 2

Modern EP Classic EP 3 Piano & EP 2 New Age EP 3

Modern EP 2 Modern EP 3 Piano & EP 3

60’s EP EP Legend Piano & Organ

Tremolo EP EP Phase Piano & Organ 2

DRAWBAR

PAGE 1 PAGE 2 PAGE 3 PAGE 4

Be 3 Be More Drawbar Bass Jazz Organ

Jazzer Be Nice 16’ Drawbar Jazz Organ 2

Hi-Lo Odd Man 8’ Drawbar Rock Organ

Full Organ Screamin’ 5 1/3’ Drawbar

Mellow Hollow 4’ Drawbar

Drawbar Drawbar 2 2 2/3’ Drawbar

Percussive Organ Percussive Organ 3 2’ Drawbar

Percussive Organ 2 Drawbar 3 1 3/5’ Drawbar

4’ percussion Soft Solo 1 1/3’ Drawbar

2 2/3’ percussion Key Click 1’ Drawbar

ORGAN

PAGE 1 PAGE 2 PAGE 3 PAGE 4

Full Pipes Baroque Mix 8’ Reed Small Ensemble 2

Small Ensemble 8’ Diapason 8’ Flute Celeste 8’ & 4’ Diapason

8’ Celeste Church Organ 3 8’ Flute Chiff Principal Choir

Church Organ Puff Organ 2 2/3’ Flute Chiff Stopped Pipe

Church Organ 2 Electronic Organ 2 8’ Flute Principal Pipe

Electronic Organ 60’s Organ 8’ & 2’ Flute Chiffy Tibia

Mixer Reed Organ 4’ & 2’ Flute

Theater Organ Theater Organ 3 2 2/3’ Flute

Theater Organ 2 Theater Organ 4 1 3/5’ Flute

Reeds 8’ Diapason 2 8’ Diapason 3

Appendice

P. 143

STRING

PAGE 1 PAGE 2 PAGE 3 PAGE 4

Beautiful Strings String Quartet Violin Ensemble Octave Strings

String Ensemble Strings & Brass Cello Ensemble String Sustaining

String Ensemble 2 Warm Strings String Bass Ens Synth String Orch

Synth Strings Synth Strings 3 Mono Strings String Sforzando

Synth Strings 2 60’s Strings Strings & Bell

Violin Slow Violin Strings & Piano

Viola Tremolo Strings Strings & Piano 2

Cello Pizzicato Slow Cello

Contrabass Orchestra Hit

Harp String & Harp

WOODWIND

PAGE 1 PAGE 2 PAGE 3 PAGE 4

Alto Sax Soft Alto Sax Flute & Mute Tpt Pan Flute 2

Tenor Sax Soft Tenor Sax Flute & Strings Piccolo 2

Baritone Sax Breathy Tenor Sax Octave Saxes Slow Pan Flute

Soprano Sax Sax Section Big Band Winds 2 Recorder 2

Big Band Winds Piccolo Orchestral Flute

Flute Jazz Flute Orch Clarinet

Clarinet Jazz Clarinet Orchestral Winds 2

Pan Flute Recorder Oboe & Bassoon

Oboe English Horn

Orchestral Winds Bassoon

BRASS

PAGE 1 PAGE 2 PAGE 3 PAGE 4

Solo Trumpet Flugel Horn Bright Solo Tpt Dixieland Trumpet

Muted Trumpet Muted Trumpet 2 Trumpet Ensemble Sentimental Bone

Cup Mute Trumpet Cup Mute Trombone Trumpet & Alto Brass & Synth

Trumpet Bright Trombone Trombone & Tenor Brass & Synth 2

Trombone Trombone 2 Brass & Sax

French Horns Warm French Horn Brass Pad

Tuba Jump Brass Mute Brass Ens

Brass Section Brass Section 2 French Horn & Strg

Synth Brass Synth Brass 3

Synth Brass 2 Synth Brass 4

Kawai Concert Performer Series Digital Piano

VOCAL & PAD

PAGE1 PAGE 2 PAGE 3 PAGE 4

Choir Aahs Choir Aahs 2 Slow Choir Halo 2

Voice Oohs Humming Breathy Choir Brightness 2

Itopia Choir Ooh New Age 3

Warm Pad Sine Pad Choir & String New Age 4

Brightness Halo Bright Warm Pad

Atmosphere Synth Vocal Metallic Pad 2

New Age Bowed Polysynth 2

Sweep Metallic New Age 2

Polysynth Soundtrack

Voice Analolog Voice

HARPSI & MALLET

PAGE 1 PAGE 2 PAGE 3 PAGE 4

Harpsichord Harpsichord Octave Soft Marimba Harpsi & Strings

Clavi Synth Clavi Wide Marimba Harpsi & Pipes

Celesta Glockenspiel Wide Vibraphone Harpsi & Strings 2

Handbells Carillon Harpsichord 2 Harpsi & Pipes 2

Church Bells Tubular Bells Wide Harpsichord

Steel Drums Rolling Steel Drum Muted Handbells

Vibraphone Rolling Vibes Vibes & Guitar

Marimba Rolling Marimba Octave Vibes

Xylophone Synth Mallet Steel Drums 2

Music Box Hard Marimba

GUITAR

PAGE 1 PAGE 2 PAGE 3 PAGE 4

Finger Nylon Gtr Nylon Acoustic 2 Nylon Acoustic 3 Jazz Guitar 3

Nylon Acoustic Steel String 2 Jazz Guitar 2 Delayed Elec Gtr

Steel Guitar 12 String Nylon Electric Mellow Steel Strg

Electric Guitar Electric Guitar 2 Guitar & Strings Pedal Steel 2

Jazz Guitar Electric Guitar 3 Guitar Pad Muted Guitar 2

Pedal Steel Hawaiian Guitar Guitar Feedback Gtr Cutting Noise

Country Lead Rhythm Guitar Dynamic Overdrive

Muted Electric Ukulele Dist Feedback

Overdrive Cutting Guitar Dist Rhythm

Distortion Elec Gtr Harmonics Gtr Fret Noise

Appendice

P. 145

BASS

PAGE 1 PAGE 2 PAGE 3

Acoustic Bass Acoustic Bass 2 Octave Fretless

Electric Bass Finger Slap Bass Poly Synth Bass

Finger Bass Warm Synth Bass Clavi Bass 2

Pick Bass Clavi Bass Ac Bass & Piano

Fretless Bass Hammer Bass Elec Bass & Piano

Ac Bass & Ride Elec Bass & Ride Acoustic Bass 3

Slap Bass Slap Bass 2 Acoustic Bass 4

Synth Bass Synth Bass 3

Synth Bass 2 Synth Bass 4

Attack Bass Rubber Bass

SYNTH

PAGE1 PAGE 2 PAGE 3 PAGE 4

Classic Synth Classic Synth 3 Multi Sweep Analog Brass 3

Classic Synth 2 Fifth Warm Sweep Square Comp

Square Square 2 Bowed 2 Square Pad

Sine Sequenced Analog Saw Pad Goblin

Chiff Charang Big Saw

Bass & Lead Lead Octave Saw

Wire Lead Soft Wire Lead Clean Square

Crystal Echo Bell Square Lead

Rain Pad Caliope

Analog Brass Analolog Brass 2

SPECIALTY

PAGE 1 PAGE 2 PAGE 3 PAGE4 PAGE5

Strumming Ac Gtr Picking Elec Gtr Accordion Shakuhachi Taisho Koto

Strumming Ac Gtr 2 Pick/Strum Gtr French Accordion Sitar Bag Pipe

Picking Ac Gtr Pick/Strum Gtr 2 Tango Accordion Blown Bottle Euro Hit

Picking Ac Gtr 2 Strumming Mandolin French Accordion 2 Koto Bass Hit Plus

Mandolin Strumming Banjo Accordion 2 Kalimba

Banjo Blues Harmonica Celtic Harp Ocarina

Picking Banjo Wah Harmonica Dulcimer Shamisen

Harmonica Wah Harmonica 2 Mellow Mandolin Sitar 2

Whistle Fiddle Whistlers Shanai

Strumming Elec Gtr Slow Fiddle

Kawai Concert Performer Series Digital Piano

DRUM

PAGE 1 PAGE 2 PAGE 3 PAGE 4

Standard Kit Timpani Sleigh Bells Soft Timpani

Jazz Kit Rolling Timpani Triangle Soft Timpani Roll

Brush Kit Taiko Drums Repeating Castanet Orch Cymbal & BD

Room Kit Melodic Toms Cym & Bass Drum Finger Snap

Power Kit Concert Bass Drum Snare Roll Tambourine

Analog Kit Woodblock Melodic Tom 2 Bass Drum

Dance Kit Agogo Synth Drum Hand Clap

Electric Kit Tinkle Bell Rhythm Box Tom Crash Cymbal Mute

Orchestra Kit Castanet Electric Drum

Standard Kit 2 Reverse Cymbal Snare Roll 2

SFX

PAGE 1 PAGE 2 PAGE 3 PAGE4

SFX Kit Telephone Wind Chime Starship

Applause Helicopter Car Passing Punch

Seashore Gunshot Car Stopping Heartbeat

Stream Explosion Breath Noise Laser Gun

Rain Machine Gun Horse Gallop Scratch

Thunder Siren Door Creak Trolley Bell

Wind Foot Step Car Engine Whistle Down

Bird Tweet Door Slam Car Crash Whistle Up

Laughing Dog Barking Train Bubble

Screaming Telephone 2 Jet Plane

Appendice

P. 147

Preset Styles

SWING & BIG BAND

50’S & 60’S POP & ROCK

PAGE 1 PAGE 1 PAGE 2 PAGE1 PAGE2

Fast Big Band 50’s Rock 50’s Rock 3 70’s R&B 70’s Country Rock

Fast Big Band 2 50’s Rock 2 60’s Rock 70’s R&B 2 70’s Pop Rock

Medium Big Band 50’s Rockabilly 60’s Rock 2 Disco Folk Rock

Slow Big Band 50’s Folk 60’s Folk Rock Disco 2 Rock Shuffle

Night Club Rock Rhumba 60’s R&B Disco 3 Pop Shuffle

Medium Swing Surf Rock 60’s R&B 2 Latin Rock 80’s Dance

Medium Swing 2 60’s Pop 80’s Rock Pop / Funk

Nice and Easy 60’s Pop 2 Pop / Rock

Slow Swing Motown Classic Rock

Slow Swing 2 Motown 2 Slow Rock

BALLAD COUNTRY BLUES & GOSPEL

PAGE 1 PAGE 2 PAGE1 PAGE2 PAGE1

Modern Ballad Modern Ballad 2 Country Shuffle Country Pop 2 Beat KC Blues

Pop Ballad Modern Ballad 3 Country Stomp Road Trip Slow R&B

6/8 Ballad R&B Ballad Boot Scootin Fast R&B

70’s Pop Ballad R&B Ballad 2 Train Beat Blues / Rock

Pop Ballad 2 Folk Rock Ballad Modern Train Beat Slow Blues

Mod Country Ballad Country Ballad Bluegrass Gospel Shuffle

Country Pop Ballad 70’s Rock Ballad Texas Swing Southern Gospel

50’s Ballad Rock Ballad Redneck Rock Fast Gospel

50’s Orch Ballad Rock Ballad 2 Country Rock Slow Gospel

50’s Ballad 2 Soft Rock Ballad Country Rock 2 6/8 Gospel

JAZZ & CONTEMP CLASSIC PIANO SOLO PIANO

PAGE 1 PAGE 1 PAGE 1 PAGE 2

Smooth Jazz Showman Swing Fast Show

Jazz / pop Pops Piano Two Beat Swing Standard

Latin Jazz Table for Two Two Beat Shuffle Standard Ballad

Jazz R&B Ragtime Bossa Pop Waltz

Latin Jazz 2 Country Piano Boogie Jazz Waltz

Cont 16 Beat Rock Legend Pop Country Ballad

Cont 16 Beat 2 Toons Pop Ballad Country waltz

Jammin Organ Boogie 3/4 Standard New Age 2

Cont 8 Beat Dixieland New Age 3

Cont 8 Beat 2 New Age 6/8 Pop/Rock

Kawai Concert Performer Series Digital Piano

LATIN & ISLAND KID & HOLIDAY TRADITIONAL

PAGE 1 PAGE 1 PAGE2 PAGE1 PAGE2

Bossa Nova Kids March Holiday 4/4 Foxtrot Cha Cha 2

Bossa Nova 2 Kids 6/8 March Holiday Two Beat Soft Shoe Polka 2

Salsa Kids 2 Beat Holiday Shuffle Polka Torchlight

Samba Kid 2 Beat Shuffle Holiday Rock Cha Cha

Beguine Kids 3/4 Holiday Waltz Dixieland

Hawaiian Kids Folk 2 Beat Holiday Waltz 2 Two Beat

Reggae 3/4 Lullaby Holiday Waltz 3 Ballroom

Calypso 4/4 Lullaby Holiday Waltz 4 Tango

Mambo March

Rhumba March 2

WALT & BROADWAY

PAGE1 PAGE2

Standard Waltz Country Waltz

Standard Waltz 2 Country Waltz 2

Orchestral Waltz Jazz Waltz

Classic Waltz French Waltz

Traditional Waltz European Waltz

Medium Show Beat 12/8 Slow

Fast Show Beat Slow Show

Fast Show Beat 2 Dixie Show

Medium Show Swing 3/4 Show

Medium Show Beat 2 6/8 Show

Appendice

P. 149

A

Achy Breaky Heart

Ain't Misbehavin'

Ain't No Woman

Ain't Too Proud

All I Wanna Do

All Of Me

All Shook Up

Alley Cat

Aloha Oe

Always A Woman

Always On My Mind

Amazing Grace

America

American Pie

Annie's Song

Anniversary Waltz

Anything Goes

Arthur's Theme

As Time Goes By

At The Hop

Auld Lang Syne

Aura Lee

Autumn Leaves

B

Baby Face

Bad Leroy Brown

Beauty & The Beast

Beer Barrel Polka

Begin The Beguine

Behind Closed Door

Benny And The Jets

Best Of My Love

Bewitched

Bill Bailey

Billie Jean

Birthday Song

Blue Bayou

Blue Bossa

Blue Moon

Blue Suede Shoes

Blue Velvet

Blueberry Hill

Body And Soul

Boogie Bugle Boy

Boot Scootin'

Boy From NY City

Brick House

Bridge Over Water

Brown Eyed Girl

By The Time I Get

Bye Bye Love

C

Cabaret

California Dreamin

California Girls

Can You Feel Love

Canadian Sunset

Candle In The Wind

Can't Get Started

Can't Help Falling

Can't Hurry Love

Can't Smile

Can't Stop Loving

Careless Whisper

Celebration

Chain Of Fools

Chances Are

Change The World

Chantilly Lace

Chapel Of Love

Chatt. Choo Choo

Chattahoochee

Cherish

Cherry Pink&Apple

Chicago

Christmas Song

Climb Ev'ry Mtn

Close To You

Colors Of The Wind

Come Rain Or Shine

Comin Up Roses

Copacabana

Corcovado

Could I Have Dance

Could It Be I'm

Could It Be Magic

Coward Of County

Crazy

Crazy Little Thing

Cruisin Down River

Crusin'

D

Dance To The Music

Dancin' In Street

Daniel

Days Of Wine Roses

Deep Purple

Deja Vu

Desafinado

Desperado

Didn't We Almost

Dock Of The Bay

Don't Be Cruel

Don't Cry For Me

Don't Fall In Love

Don't Fence Me In

Don't Get Around

Don't Give Up On

Don't It Make My

Don't Worry B Hapy

Downtown

Dream

Dueling Banjos

E

Earth Angel

Ebony & Ivory

Edelweiss

Elvira

End Of The Road

Endless Love

Evergreen

Every Breath You

Everybody Plays

Everything I Do

Everything Is Beau

Evil Ways

Eyes Of Love

F

Falling In Love

Fascination

Feelings

Feels So Good

Feels So Right

Ferry Cross Mersey

Fever

Fields Of Gold

Fire & Rain

Flashdance

Fly Me To The Moon

Folsom Prison

For All We Know

For He's A Jolly

Forever And Ever

Free Ride

Freeway Of Love

Friends Low Places

Friends See Me Now

From A Distance

Song Stylists

Kawai Concert Performer Series Digital Piano

Hello Dolly

Hello Mary Lou

Help

Help Me Make It

Here Comes Santa

Here's Rainy Day

Hey Jude

Hold Your Hand

Holly Jolly Xmas

Honesty

Honky Tonk Man

Honky Tonk Woman

Hound Dog

How Am I Supposed

How Deep Is Love

How Great Thou Art

How Insensitive

How Sweet It Is

Hurts So Good

Hustle, The

I

I Believe

I Could Write Book

I Don't Know How

I Fall To Pieces

I Get Around

I Got A Name

I Got Rhythm

I Just Called To

I Need Your Lovin

I Only Have Eyes

I Saw Mommy Kiss

I Shot The Sheriff

I Walk The Line

I Will Always Love

I Will Survive

I Write The Songs

If Ever I Lose My

If I Had A Hammer

If You Don't Know

I'll Be Home Xmas

I'll Be There

I'll Fly Away

I'm A Believer

I'm A Country Boy

Imagine

In The Mood

Islands In Stream

Isn't It Romantic

Isn't She Lovely

It Had To Be You

It's A Grand Night

It's A Small World

It's My Party

It's Not For Me

It's Now Or Never

It's Too Late

J

Jailhouse Rock

Jambalaya

Jingle Bell Rock

Jingle Bells

Johnny B. Goode

Joy To The World

Juke Box Sat. Nite

Jump

Just A Closer Walk

Just A Gigolo

Just As I Am

Just My Imaginatn

Just Once

Just The Two Of Us

Just Way You Are

K

Kansas City

King Of The Road

Kokomo

Kum Ba Yah

L

La Bamba

Lady

Last Dance

Last Date

Laughter In Rain

Lay Down Sally

Layla

Leaving Jet Plane

Let It Be

Let It Snow!

Lets Get It On

Let's Stay Togethr

Light My Fire

Loco-Motion, The

Lollipop

Long Winding Road

Look Of Love

Love Boat, The

Love First Degree

Love Is A Many

Love Is Blue

Love Me Tender

Loves Me Like Rock

Love's Theme

Luchenbach Texas

Lucille

Lyin Eyes

Frosty The Snowman

Fun, Fun, Fun

G

Gambler, The

G'bye Yellow Brick

Georgia On My Mind

Georgy Girl

Get Down Tonight

Get Me To Church

Gimme Some Lovin'

Girl From Ipanema

Give My Regards To

Glory Of Love, The

Glow Worm

Goin Out Of My Hed

Good Golly MsMolly

Great Balls O Fire

Greatest Love,The

Green Green Grass

Green Onions

Groovin

Guitars, Cadillacs

H

Handy Man

Happy Birthday

Happy Together

Happy Trails

Hard Days Night

Harlem Nocturne

Hawaiian Wedding

Heard It Grapevine

Heart Will Go On

Heartbreak Hotel

Heat Is On

Heatwave

Heaven

Appendice

P. 151

M

Macho Man

Mack The Knife

Mammas Don't Let

Mandy

Maniac

Margaritaville

Marianne

Me And Bobby McGee

Memory

Mercy Mercy Me

Merry Little Xmas

Michael Row Boat

Midnight Hour

Midnight Train 2GA

Misty

Monday Monday

Moon River

Moonlight In VT

More

Morning Dance

Mr. Bojangles

Mrs. Robinson

Music Box Dancer

Music Music Music

My Cherie Amore

My Favorite Things

My Funny Valentine

My Girl

My Life

My Wild Irish Rose

N

Nadia's Theme

New Kid In Town

New York, New York

Night And Day

Night Fever

Norwegian Wood

O

Ode To Joy

Oh What A Beautifl

Oklahoma

Old Cape Cod

Old Rugged Cross

Old Time R & R

Old Time Religion

On Street Where U

On The Road Again

On Top Ole Smoky

One (Chorus Line)

Only You

Ooh Baby Baby

Open Arms

Orange Blossom

Our Day Will Come

Over The Rainbow

P

Party's Over, The

Peace In Valley

Peaceful Easy Feel

Peanuts' Theme

Penn. 6-5000

People

Phantom

Physical

Piano Man

Pink Panther

Please Mr. Postman

Please Release Me

Precious Memories

Pretty Woman

Proud Mary

Puff Magic Dragon

Q

Quando, Quando

Que Sera, Sera

R

Rainbow Connection

Ramblin Rose

Red Red Wine

Red Roses

Rescue Me

Respect

Reunited

Rhinestone Cowboy

Rock Around Clock

Rock This Town

Rocket Man

Rockin' Xmas Tree

Rocky Mtn High

Rocky Top

Rose Garden

Rose, The

Rudolph

S

San Francisco

Satin Doll

Satisfaction

Save Best For Last

Send In The Clowns

Sentimental Reason

September

Seventy-six Bones

Shadow Your Smile

Shake Your Booty

Shake,Rattle,Roll

Sh-Boom

She Believes In Me

She Loves You

She's In Love

Shop Around

Signed Sealed Del

Silent Night

Singing In Rain

Sixteen Tons

Sleigh Ride

Smoke Gets in Eyes

Smooth Operator

Snow Bird

Some Day My Prince

Some Enchanted Eve

Something

Something To Talk

Somewhere Out Ther

Song Sung Blue

Soul Man

Sound of Music

Spanish Eyes

Spanish Harlem

St. Elmo's Fire

St. Thomas

Stand By Me

Stand By Your Man

Stompin' Savoy

Stormy Weather

Strangers In Night

String Of Pearls

Summer Breeze

Summer Place, A

Summer Samba

Summertime

Summertime Blues

Sunny

Sunrise, Sunset

Surfin USA

Surrey With Fringe

Sweet Caroline

Sweet Home Alabama

Swingin On A Star

Kawai Concert Performer Series Digital Piano

T

Take It Easy

Take Me Out To The

Take The A Train

Take This Job And

Takin Care Bizness

Tammy

Tea For Two

Tears In Heaven

Tempted

Tennessee Watlz

Tequila

Tequila Sunrise

Thanks For Memory

That Kind Of Girl

That'll Be The Day

That's Amore

That's Life

That's The Way

That's What Friend

Then Came You

There's No Bizness

Think

This Masquerade

Three Coins In A

Three Times A Lady

Through The Years

Time In A Bottle

Tiny Bubbles

To All The Girls

Tomorrow

Tonight

Top Of The World

TROUBLE

Try To Remember

Turn Turn Turn

Tutti Frutti

Tuxedo Junction

Twist & Shout

Twist, The

U

Unchained Melody

Under Boardwalk

Unforgettable

Up Where We Belong

V

Ventura Highway

W

Wake Little Susie

Wake Me Up

Walk On By

Walkin' Midnight

Wasted Days And

Watch What Happens

Wave

Way We Were, The

Way You Do, The

We Are Family

We Are The World

We're In This Love

We've Got Tonight

We've Only Begun

What A Friend

What I Did 4 Love

What Wondrful Wrld

What Would U Think

When A Man Loves A

When Can I See You

When I Fall n Love

When I'm 64

When Irish Eyes

When Sunny Gets

When The Saints Go

When U Wish Upon

Where Did Love Go

White Christmas

Whole New World, A

Why Do Fools Fall

Wind Beneath Wings

Winter Wonderland

Wipe Out

With A Little Help

With Or Without U

Woman

Y

Yakety Sax

Yesterday

YMCA

You Light Up Life

You Make Me Feel

You Needed Me

You Send Me

Your Cheatin Heart

Your Song

You're 16

You're So Vain

You've Got Friend

You've Lost That

Appendice

P. 153

Kawai Concert Performer Series Digital Piano

Children’s Songs

Twinkle, Twinkle, Little Star . . . . . . . . . . . . . . . . . . . . . . . . . .

MP ✔

I’m A Little Teapot

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . MP ✔

This Old Man

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . MP ✔

Mary Had A Little Lamb

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . MP ✔

London Bridge

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . MP ✔

Row, Row, Row Your Boat

. . . . . . . . . . . . . . . . . . . . . . . . . . . MP ✔

Hickory Dickory Dock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

MP ✔

Pop Goes The Weasel

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . MP

Good Morning To You . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

MP ✔

Frère Jacques

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . MP ✔

The Farmer In The Dell

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . MP ✔

Bingo

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . MP ✔

Itsy, Bitsy Spider

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . MP ✔

Where, O Where Has My Little Dog Gone?

. . . . . . . . . . . . . . EB ✔

The Muffin Man

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . MP ✔

Three Blind Mice

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . MP ✔

Old MacDonald Had A Farm . . . . . . . . . . . . . . . . . . . . . . . . .

MP ✔

Did You Ever See A Lassie?

. . . . . . . . . . . . . . . . . . . . . . . . . . MP ✔

Ten Little Indians

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . MP

Brahm’s Lullaby

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . SK ✔

Rock A Bye Baby

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . MP ✔

Here We Go Round The Mulberry Bush . . . . . . . . . . . . . . . . .

MP ✔

Little Brown Jug

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . MP ✔

She’ll Be Comin’ Around The Mountain . . . . . . . . . . . . . . . .

EB ✔

Whistler And His Dog

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . SK

Polly Wolly Doodle

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . MP

Chopsticks

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . SK

Christmas Songs

Hark The Herald Angels Sing . . . . . . . . . . . . . . . . . . . . . . . .

MP ✔

Jingle Bells

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . MP ✔

Deck The Halls

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . MP ✔

O Come All Ye Faithful

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . MP ✔

Joy To The World

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . MP ✔

The First Noel

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . MP ✔

Silent Night

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . MP ✔

We Wish You A Merry Christmas

. . . . . . . . . . . . . . . . . . . . . . MP ✔

What Child Is This? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

MP ✔

Angels We Have Heard On High

. . . . . . . . . . . . . . . . . . . . . . . MP ✔

It Came Upon A Midnight Clear

. . . . . . . . . . . . . . . . . . . . . . . MP ✔

Away In A Manger

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . MP ✔

O Holy Night

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . EB ✔

O Tannenbaum (O Christmas Tree)

. . . . . . . . . . . . . . . . . . . . MP ✔

The Twelve Days Of Christmas (12 Days of Christmas)

. . . . . MP ✔

We Three Kings Of Orient Are . . . . . . . . . . . . . . . . . . . . . . . .

MP ✔

O Little Town Of Bethlehem . . . . . . . . . . . . . . . . . . . . . . . . . .

MP ✔

Ave Maria

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . SK

Patriotic Songs

My Country ’Tis Of Thee

. . . . . . . . . . . . . . . . . . . . . . . . . . . . MP ✔

Battle Hymn Of The Republic . . . . . . . . . . . . . . . . . . . . . . . . .

MP ✔

America The Beautiful . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

MP ✔

Yankee Doodle

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . MP ✔

Hail To The Chief

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . MP ✔

Song Title Type Lyrics

Concert Magic Songs

The words in bold type are the title displayed in the LCD screen.

Song Title Type Lyrics

Appendice

P. 155

Washington Post March . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SK

You’re A Grand Old Flag

. . . . . . . . . . . . . . . . . . . . . . . . . . . . EB ✔

Stars And Stripes Forever . . . . . . . . . . . . . . . . . . . . . . . . . . .

SK

Anchors Aweigh

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . SK ✔

Under The Double Eagle

. . . . . . . . . . . . . . . . . . . . . . . . . . . . SK

Star Spangled Banner, The . . . . . . . . . . . . . . . . . . . . . . . . . .

MP

American Classics

Danny Boy

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . EB ✔

Down In The Valley

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . EB ✔

Let Me Call You Sweetheart

. . . . . . . . . . . . . . . . . . . . . . . . . EB ✔

Home Sweet Home

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . EB ✔

My Bonnie Lies Over The Ocean . . . . . . . . . . . . . . . . . . . . . .

MP ✔

In The Good Old Summertime

. . . . . . . . . . . . . . . . . . . . . . . . EB ✔

For He’s A Jolly Good Fellow

. . . . . . . . . . . . . . . . . . . . . . . . . MP ✔

Bill Bailey Won’t You Please Come Home . . . . . . . . . . . . . . .

EB ✔

Give My Regards To Broadway . . . . . . . . . . . . . . . . . . . . . . .

SK ✔

Clementine

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . MP ✔

Fascination

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . SK

Home On The Range

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . MP ✔

Take Me Out To The Ballgame

. . . . . . . . . . . . . . . . . . . . . . . . EB ✔

Auld Lang Syne

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . MP ✔

Michael Row The Boat Ashore . . . . . . . . . . . . . . . . . . . . . . . .

MP ✔

Oh, Susanna

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . SK ✔

On Top Of Old Smokey

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . EB ✔

Bicycle Built For Two

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . EB ✔

The Camptown Races

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . MP ✔

The Band Played On

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . EB ✔

When Johnny Comes Marching Home

. . . . . . . . . . . . . . . . . . MP ✔

When The Saints Go Marching In . . . . . . . . . . . . . . . . . . . . .

EB ✔

Beautiful Dreamer

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . EB ✔

Ta Ra Ra Boom De Ay

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . MP ✔

Turkey In The Straw

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . SK

Blue Bells Of Scotland

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . MP ✔

Down By The Riverside

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . SK ✔

By The Light Of The Silvery Moon

. . . . . . . . . . . . . . . . . . . . . SK ✔

Shine On Harvest Moon

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . SK ✔

American Patrol March . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

MP

Dixie

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . SK ✔

Yellow Rose Of Texas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SK ✔

Arkansas Traveler

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . MP ✔

Old Kentucky Home

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . SK ✔

Red River Valley

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . EB ✔

The Entertainer

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . SK

Old Folks At Home

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . SK ✔

Maple Leaf Rag

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . SK

After The Ball Is Over . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SK ✔

After You’ve Gone

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . EB ✔

Thunder And Blazes

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . SK

Annie Laurie

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . MP ✔

Wabash Cannonball

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . SK ✔

I’ve Been Working On The Railroad

. . . . . . . . . . . . . . . . . . . . EB ✔

Grandfather’s Clock

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . EB ✔

Aloha Oe

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . MP

(continue)

Song Title Type Lyrics Song Title Type Lyrics

EB: Easy Beat, MP: Melody Play, SK: Skilfull

Kawai Concert Performer Series Digital Piano

Favorite Hymns

Fairest Lord Jesus

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . MP ✔

Amazing Grace

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . MP ✔

Doxology

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . MP ✔

For The Beauty Of The Earth . . . . . . . . . . . . . . . . . . . . . . . . .

MP ✔

O Worship The King

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . MP ✔

The Old Rugged Cross

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . MP ✔

Holy, Holy, Holy

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . MP ✔

What A Friend We Have In Jesus . . . . . . . . . . . . . . . . . . . . . .

MP ✔

Rock Of Ages

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . MP ✔

Trust And Obey

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . MP ✔

Sweet Hour Of Prayer

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . MP ✔

Just As I Am

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . MP ✔

Jesus Loves The Little Children

. . . . . . . . . . . . . . . . . . . . . . MP ✔

A Mighty Fortress

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . MP ✔

Christ The Lord Is Risen Today . . . . . . . . . . . . . . . . . . . . . . .

MP ✔

It Is Well With My Soul (When Peace Like) . . . . . . . . . . . . . .

MP ✔

Crown Him With Many Crowns

. . . . . . . . . . . . . . . . . . . . . . . MP ✔

Blest Be The Tie That Binds. . . . . . . . . . . . . . . . . . . . . . . . . .

MP ✔

Come Thou Almighty King

. . . . . . . . . . . . . . . . . . . . . . . . . . . MP ✔

My Jesus, I Love Thee . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

MP ✔

The Church’s One Foundation

. . . . . . . . . . . . . . . . . . . . . . . . MP ✔

Gloria Patri

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . MP ✔

The Solid Rock

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . MP ✔

Standing On The Promises

. . . . . . . . . . . . . . . . . . . . . . . . . . MP ✔

I Need Thee Every Hour . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

MP ✔

Savior Like A Shepherd Lead Us . . . . . . . . . . . . . . . . . . . . . .

MP ✔

Stand Up, Stand Up For Jesus

. . . . . . . . . . . . . . . . . . . . . . . . MP ✔

Onward Christian Soldiers

. . . . . . . . . . . . . . . . . . . . . . . . . . . MP ✔

All Hail The Power Of Jesus Name . . . . . . . . . . . . . . . . . . . .

MP ✔

To God Be The Glory

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . MP ✔

Hallelujah Chorus

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . SK

Jesu, Joy of Man’s Desiring

. . . . . . . . . . . . . . . . . . . . . . . . . SK

Classical Selections

Andante from Symphony No. 94 by Haydn . . . . . . . . . . . . . .

MP

Fur Elise by Beethoven . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

EB

An Die Freude (Ode To Joy) . . . . . . . . . . . . . . . . . . . . . . . . . .

MP

Clair De Lune by Debussy . . . . . . . . . . . . . . . . . . . . . . . . . . .

SK

Skater’s Waltz

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . SK

Peter And The Wolf

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . SK

Minuet In G by J.S. Bach . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SK

Romeo And Juliet

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . SK

Blue Danube Waltz

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . SK

Sleeping Beauty Waltz . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

EB

Gavotte by Gossec . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SK

Waltz Of The Flowers

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . SK

Toreador Song from “Carmen” by Bizet . . . . . . . . . . . . . . . . .

SK

“Fledermaus” by J. Strauss . . . . . . . . . . . . . . . . . . . . . . . . . .

EB

Norwegian Dance by Grieg . . . . . . . . . . . . . . . . . . . . . . . . . .

SK

William Tell Overture. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SK

Can Can

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . SK

Emperor Waltz

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . SK

March Militaire by Chopin . . . . . . . . . . . . . . . . . . . . . . . . . . .

SK

Grand March from “Aida” by Verdi . . . . . . . . . . . . . . . . . . . .

SK

Gymnopedie by Sati . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SK

Gypsy Chorus from “Carmen” by Bizet. . . . . . . . . . . . . . . . . .

SK

Largo from Symphony No. 9 by Dvorák . . . . . . . . . . . . . . . . .

SK

Song Title Type Lyrics Song Title Type Lyrics

Appendice

P. 157

Prelude In A by Chopin . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

MP

Pizzicato Polka

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . SK

Rondeau by Mouret . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SK

Voice Of Spring

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . EB

Allegro Moderato from Symphony Nr. 8 by Schubert . . . . . .

SK

Special Occasions

Bridal Chorus from “Lohengrin” by Wagner . . . . . . . . . . . . .

MP ✔

Wedding March from “Midsummer Night’s Dream” . . . . . . .

by Mendelssoh . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SK

Pomp And Circumstance . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SK

Mazel Tov

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . EB

International Songs

When Irish Eyes Are Smiling . . . . . . . . . . . . . . . . . . . . . . . . .

EB ✔

Hatikvah

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . MP ✔

My Wild Irish Rose

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . MP ✔

Chiapenacas

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . SK

Funiculi Funicula

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . SK ✔

La Marseillaise

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . MP ✔

La Paloma

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . SK ✔

Santa Lucia

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . SK ✔

Habanera

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . SK

‘O Sole Mio

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . SK

EB: Easy Beat, MP: Melody Play, SK: Skilfull

Song Title Type Lyrics

Kawai Concert Performer Series Digital Piano

Table of Chord Types

This table describes the fingering of 61 types of chords, including inversions, that the CP piano

recognizes. All these are represented here in the key of C, but of course any transposition of these

chords to other keys apply.

Entries on the chart with an asterisk (*) are easy fingerings that can be recognized in the One-

Finger mode.

C Maj

C7

C ∆7

C6 C sus4 C b5

C aug

C6 9 C add9

C9

C11 C13

C7 b5

C7 #5

C7 sus4

C7 b9

**

*

*

*

Cm

Cm7

Cm6 Cm6 9

Cm#5

*

Appendice

P. 159

C7 #9

C7 #11

C7 b9 11 C7 b9 #11 C7 #9 #11

C9 13 C9 11 13

Cm add9

Cm9

Cm7 11 Cm9 11

C7 #9 13

C9 #11 13

C7 b13

C7 b9 b13

C7 #9 b13

C7 b9 13

C9 b13

C7 b9 11 13

Cm7 b13 Cm7 11 b13

Cm7 b5 Cm7 b5 b9

Cm7 b5 11

Cm7 b5 9

C ∆7 #5

C ∆7 b5

C ∆9 13

C ∆9 #11

C ∆9

C ∆7 13 C∆7 #11 13 C∆9 #11 13 C∆ 9 #11 13

Cm9

C dim C dim∆7C dim b13

C dim 9 C dim 11

Kawai Concert Performer Series Digital Piano

A. Using External Speakers

The Concert Performer has an amplifier and built-in speakers and together,

they produce a powerful sound. However, for larger venues or outdoor

performances, you may need to use additional amplification and speaker

systems.

Standard 1/4-inch audio cables can be plugged into the CP’s stereo Line Out

jacks for this purpose. The CP’s Master Volume will affect the signals levels

output from the Line Out Jacks. Amplifier

B. Using the Concert Performer with Your Home Audio System

You can connect audio cables from your stereo system or another source to

the CP’s Line In jacks. The sound of your stereo playing a tape, CD, or even

radio will be heard through the CP’s speaker system and mixed in with any

sounds from the CP itself, enabling you to play along with your favorite songs!

Connect the CP with your CD player or other device as illustrated.

Tape Recorder CD Player

C. Recording Your Performance with Your Tape Recorder

Even though the CP117 do not have a CD-R Drive you can still make a recording

from your CP using the Line out Jacks. Simply connect an external CD-R

recorder or other recording device (Cassette, Audio software from a personal

computer etc.) to the CP’s Line Out Jacks. Everything that you hear coming

out of the CP’s built-in speaker system is also sent out through the Line Out

Jacks and can be recorded. You can also record anything that is connected to

the Line In Jacks along with anything being played by the CP.

Example of Connection

A

VOLUME

ACCOMPANIMENT

HELP

REGISTRATION

PART

SOUND

RECORDER

STYLE

FILL IN

VARIATION

BC

VOLUME

ACCOMPANIMENT

HELP

REGISTRATION

PART

SOUND

RECORDER

STYLE

FILL IN

VARIATION

Appendice

P. 161

D. Using the Concert Performer with an External MIDI

Instrument

MIDI lets you expand the creative possibilities of the CP by

connecting it to an external MIDI device or personal computer.

Use a MIDI cable to connect the CP’s MIDI Out jack to the other

device’s MIDI In. Likewise, connect the MIDI Out jack of the other

device to the CP’s MIDI In.

E. Using The Concert Performer with Your Personal

Computer

Your personal computer can be used as a MIDI device as well. In

order to connect your computer to the CP you will need a MIDI

interface. Check with your local music store or computer dealer

for more information about particular models of these interface

devices. Once you have your computer connected to your Concert

Performer, you can think of it as a powerful extension of the CP’s

own music processing abilities. There are hundreds of software

programs available that you can use to do everything from learn

the basics of piano playing, to creating film scores for your home

movies, to composing the next great digital symphony.

If you don’t wish to purchase a MIDI interface device for your

computer, the Concert Performer has a special type of interface

built in to it that may make the connection easier. The CP can be

connected directly to the back of your computer via a USB cable.

In order for the CP and your computer to properly communicate

over this USB cable, you first need to set the MIDI-USB switch

located next to the MIDI jacks to USB. Also your computer must

have a USB driver installed. Please read the instruction on the

next page for the details about the USB driver.

Sound Module

Personal

Computer

DE

VOLUME

ACCOMPANIMENT

HELP

REGISTRATION

PART

SOUND

RECORDER

STYLE

FILL IN

VARIATION

Kawai Concert Performer Series Digital Piano

USB

The Concert Performer can be connected with a personal computer with a USB cable for exchanging MIDI data. You need a USB driver

installed in your computer.

[For Windows XP/Me users]

A standard USB driver is already installed in your computer. You don’t need to install a new driver.

[For Windows 2000/98SE users]

You need to install the designated driver in your computer. Visit the KAWAI web site at http://www.kawai.co.jp/english/Download1.html and

download the program.

[For Macintosh users]

Currently we don’t have a USB driver available for Macintosh computers. Please use an appropriate MIDI interface and MIDI cables when

connecting the Concert Performer to a Macintosh computer.

NOTE:

When both MIDI jacks and USB jack are connected, USB has priority.

When connecting USB cable to the Concert Performer, first connect the USB cable and then turn the power of the Concert Performer on.

It may take some time to startcommunication when the Concert Performer is connected to the computer via USB.

When USB communication is unstable with connection via hub, connect the USB cable directly to the USB port of the computer.

Turning the power of the Concert Performer on/off or disconnecting the USB cable while the following actions may cause unstable

communication.

while installing USB driver

while booting up the computer

while MIDI application is working

while communicating with the computer

while the computer is in energy saver mode

* If you have any problem with USB communication, consult the instruction manual of your computer and check your computer set up.

* Windows is registerd trademark of Microsoft Corporation.

* Macintosh is registerd trademark of Apple Computer, Inc.

Appendice

P. 163

Kawai Concert Performer Series Digital Piano

Bank

Category Sound Name Prog MSB LSB

PIANO Concert Grand 1 121 0

Studio Grand 1 121 1

Modern Piano 2 121 0

Electric Grand 3 121 0

Piano Octaves 1 95 1

Classic EP 5 121 0

Modern EP 6 121 0

Modern EP 2 6 121 1

60’s EP 5 121 3

Tremolo EP 5 95 1

Mellow Grand 1 121 2

Rock Grand 2 121 1

Honky Tonk 4 121 0

Electric Grand 2 3 121 1

Piano Octaves 2 1 95 2

Classic EP 2 5 121 1

Classic EP 3 5 121 2

Modern EP 3 6 121 2

EP Legend 6 121 3

EP Phase 6 121 4

Jazz Grand 1 95 8

Crystal EP 6 95 1

Piano & Guitar 2 95 4

Mono Grand 1 95 3

Wide Honky Tonk 4 121 1

Piano & EP 2 95 1

Piano & EP 2 2 95 2

Piano & EP 3 2 95 3

Piano & Organ 1 95 6

Piano & Organ 2 1 95 7

New Age Piano 1 95 9

New Age Piano 2 1 95 10

New Age Piano 3 1 95 11

Piano & Vibes 1 95 12

New Age EP 6 95 2

New Age EP 2 6 95 3

New Age EP 3 6 95 4

Bank

Category Sound Name Prog MSB LSB

DRAWBAR Be 3 17 95 1

Jazzer 18 95 1

Hi-Lo 17 95 3

Full Organ 18 95 4

Mellow 17 95 5

Drawbar 17 121 0

Percussive Organ 18 121 0

Percussive Organ 2 18 121 1

4' percussion 18 95 3

2 2/3' percussion 18 95 2

Be More 17 95 2

Be Nice 17 95 7

Odd Man 17 95 6

Screamin’ 17 95 4

Hollow 18 95 6

Drawbar 2 17 121 3

Percussive Organ 3 18 121 2

Drawbar 3 17 121 1

Soft Solo 17 95 8

Key Click 122 95 1

Drawbar Bass 18 95 8

16' Drawbar 19 95 1

8' Drawbar 19 95 2

5 1/3' Drawbar 19 95 3

4' Drawbar 19 95 4

2 2/3' Drawbar 19 95 5

2' Drawbar 19 95 6

1 3/5' Drawbar 19 95 7

1 1/3' Drawbar 19 95 8

1' Drawbar 19 95 9

Jazz Organ 18 95 11

Jazz Organ 2 18 95 12

Rock Organ 19 121 0

Bank

Category Sound Name Prog MSB LSB

ORGAN Full Pipes 20 95 9

Small Ensemble 20 95 8

8' Celeste 20 95 5

Church Organ 20 121 0

Church Organ 2 20 121 1

Electronic Organ 17 95 9

Mixer 18 95 5

Theater Organ 20 95 1

Theater Organ 2 20 95 2

Reeds 20 95 10

Baroque Mix 20 95 7

8' Diapason 20 95 6

Church Organ 3 20 121 2

Puff Organ 21 121 1

Electronic Organ 2 17 95 10

60’s Organ 17 121 2

Reed Organ 21 121 0

Theater Organ 3 20 95 3

Theater Organ 4 20 95 4

8' Diapason 2 18 95 7

8' Reed 21 95 1

8' Flute Celeste 21 95 9

8' Flute Chiff 21 95 7

2 2/3' Flute Chiff 21 95 8

8' Flute 21 95 2

8' & 2' Flute 21 95 3

4' & 2' Flute 21 95 4

2 2/3' Flute 21 95 5

1 3/5' Flute 21 95 6

8' Diapason 3 20 95 20

Small Ensemble 2 20 95 25

8’ & 4’ Diapason 20 95 24

Principal Choir 20 95 23

Stopped Pipe 20 95 21

Principal Pipe 20 95 22

Chiffy Tibia 20 95 17

Program Change Numbers

Appendice

P. 165

Bank

Category Sound Name Prog MSB LSB

STRING Beautiful Strings 45 95 1

String Ensemble 49 121 0

String Ensemble 2 50 121 0

Synth Strings 51 121 0

Synth Strings 2 52 121 0

Violin 41 121 0

Viola 42 121 0

Cello 43 121 0

Contrabass 44 121 0

Harp 47 121 0

String Quartet 49 95 2

Strings & Brass 49 121 1

Warm Strings 49 95 1

Synth Strings 3 51 121 1

60’s Strings 49 121 2

Slow Violin 41 121 1

Tremolo Strings 45 121 0

Pizzicato 46 121 0

Orchestra Hit 56 121 0

String & Harp 49 95 6

Violin Ensemble 41 95 1

Cello Ensemble 43 95 2

String Bass Ens 44 95 1

Mono Strings 49 95 3

Strings & Bell 49 95 5

Strings & Piano 1 95 4

Strings & Piano 2 1 95 5

Slow Cello 43 95 1

Octave Strings 49 95 4

String Sustaining 49 95 10

Synth String Orch 51 95 1

String Sforzando 49 95 9

Bank

Category Sound Name Prog MSB LSB

BRASS Solo Trumpet 57 121 1

Muted Trumpet 60 121 0

Cup Mute Trumpet 60 95 1

Trumpet 57 121 0

Trombone 58 121 0

French Horns 61 121 0

Tuba 59 121 0

Brass Section 62 121 0

Synth Brass 63 121 0

Synth Brass 2 64 121 0

Flugel Horn 57 95 1

Muted Trumpet 2 60 121 1

Cup Mute Trombone 60 95 2

Bright Trombone 58 121 2

Trombone 2 58 121 1

Warm French Horn 61 121 1

Jump Brass 63 121 3

Brass Section 2 62 121 1

Synth Brass 3 63 121 1

Synth Brass 4 64 121 1

Bright Solo Tpt 57 95 3

Trumpet Ensemble 57 95 2

Trumpet & Alto 57 95 4

Trombone & Tenor 58 95 1

Brass & Sax 62 95 5

Brass Pad 62 95 2

Mute Brass Ens 60 95 3

French Horn & Strg 61 95 1

Dixieland Trumpet 57 95 10

Sentimental Bone 58 95 7

Brass & Synth 62 95 3

Brass & Synth 2 62 95 4

Bank

Category Sound Name Prog MSB LSB

WOODWIND Alto Sax 66 121 0

Tenor Sax 67 121 0

Baritone Sax 68 121 0

Soprano Sax 65 121 0

Big Band Winds 74 95 2

Flute 74 121 0

Clarinet 72 121 0

Pan Flute 76 121 0

Oboe 69 121 0

Orchestral Winds 74 95 3

Soft Alto Sax 66 95 1

Soft Tenor Sax 67 95 2

Breathy Tenor Sax 67 95 1

Sax Section 62 95 1

Piccolo 73 121 0

Jazz Flute 74 95 1

Jazz Clarinet 72 95 1

Recorder 75 121 0

English Horn 70 121 0

Bassoon 71 121 0

Flute & Mute Tpt 74 95 6

Flute & Strings 74 95 8

Octave Saxes 67 95 3

Big Band Winds 2 74 95 4

Orchestral Flute 74 95 7

Orch Clarinet 72 95 2

Orchestral Winds 2 74 95 5

Oboe & Bassoon 69 95 4

Pan Flute 2 76 95 2

Piccolo 2 73 95 1

Slow Pan Flute 76 95 1

Recorder 2 75 95 1

Kawai Concert Performer Series Digital Piano

Bank

Category Sound Name Prog MSB LSB

GUITAR Finger Nylon Gtr 25 95 4

Nylon Acoustic 25 121 0

Steel Guitar 26 121 0

Electric Guitar 28 121 0

Jazz Guitar 27 121 0

Pedal Steel 27 121 1

Country Lead 29 121 3

Muted Electric 29 121 0

Overdrive 30 121 0

Distortion 31 121 0

Nylon Acoustic 2 25 121 2

Steel String 2 26 121 3

12 String 26 121 1

Electric Guitar 2 28 121 1

Electric Guitar 3 29 121 2

Hawaiian Guitar 27 95 1

Rhythm Guitar 28 121 2

Ukulele 25 121 1

Cutting Guitar 29 121 1

Elec Gtr Harmonics 32 121 0

Nylon Acoustic 3 25 121 3

Jazz Guitar 2 27 95 2

Nylon Electric 28 95 1

Guitar & Strings 26 95 2

Guitar Pad 26 95 3

Guitar Feedback 32 121 1

Dynamic Overdrive 30 121 1

Dist Feedback 31 121 1

Dist Rhythm 31 121 2

Gtr Fret Noise 121 121 0

Jazz Guitar 3 27 95 3

Delayed Elec Gtr 28 95 4

Mellow Steel Strg 26 95 1

Pedal Steel 2 27 95 5

Muted Guitar 2 29 95 1

Gtr Cutting Noise 121 121 1

Bank

Category Sound Name Prog MSB LSB

HARPSI & Harpsichord 7 121 0

MALLET Clavi 8 121 0

Celesta 9 121 0

Handbells 15 95 1

Church Bells 15 121 1

Steel Drums 115 121 0

Vibraphone 12 121 0

Marimba 13 121 0

Xylophone 14 121 0

Music Box 11 121 0

Harpsichord Octave 7 121 1

Synth Clavi 8 121 1

Glockenspiel 10 121 0

Carillon 15 121 2

Tubular Bells 15 121 0

Rolling Steel Drum 115 121 0

Rolling Vibes 12 121 0

Rolling Marimba 13 121 0

Synth Mallet 99 121 1

Hard Marimba 13 95 1

Soft Marimba 13 95 2

Wide Marimba 13 121 1

Wide Vibraphone 12 121 1

Harpsichord 2 7 121 3

Wide Harpsichord 7 121 2

Muted Handbells 15 95 2

Vibes & Guitar 12 95 1

Octave Vibes 12 95 2

Steel Drums 2 115 95 1

Harpsi & Strings 7 95 1

Harspi & Pipes 7 95 3

Harpsi & Strings 2 7 95 2

Harpsi & Pipes 2 7 95 4

Bank

Category Sound Name Prog MSB LSB

VOCAL & PAD Choir Aahs 53 121 0

Voice Oohs 54 121 0

Itopia 92 121 1

Warm Pad 90 121 0

Brightness 101 121 0

Atmosphere 100 121 0

New Age 89 121 0

Sweep 96 121 0

Polysynth 91 121 0

Voice 86 121 0

Choir Aahs 2 53 121 1

Humming 54 121 1

Choir 92 121 0

Sine Pad 90 121 1

Halo 95 121 0

Synth Vocal 55 121 0

Bowed 93 121 0

Metallic 94 121 0

Soundtrack 98 121 0

Analog Voice 55 121 1

Slow Choir 53 95 2

Breathy Choir 53 95 1

Ooh 54 95 1

Choir & String 53 95 3

Bright Warm Pad 90 95 1

Metallic Pad 2 94 95 1

Polysynth 2 91 95 1

New Age 2 89 95 1

Halo 2 95 95 1

Brightness 2 101 95 1

New Age 3 89 95 2

New Age 4 89 95 3

Appendice

P. 167

Bank

Category Sound Name Prog MSB LSB

BASS Acoustic Bass 33 95 2

Electric Bass 34 95 1

Finger Bass 34 121 0

Pick Bass 35 121 0

Fretless Bass 36 121 0

Ac Bass & Ride 33 95 1

Slap Bass 37 121 0

Synth Bass 39 121 0

Synth Bass 2 40 121 0

Attack Bass 40 121 3

Acoustic Bass 2 33 121 0

Finger Slap Bass 34 121 1

Warm Synth Bass 39 121 1

Clavi Bass 39 121 3

Hammer Bass 39 121 4

Elec Bass & Ride 34 95 2

Slap Bass 2 38 121 0

Synth Bass 3 39 121 2

Synth Bass 4 40 121 1

Rubber Bass 40 121 2

Octave Fretless 36 95 1

Poly Synth Bass 39 95 1

Clavi Bass 2 39 95 2

Ac Bass & Piano 33 95 3

Elec Bass & Piano 34 95 3

Acoustic Bass 3 33 95 4

Acoustic Bass 4 33 95 5

Bank

Category Sound Name Prog MSB LSB

SYNTH Classic Synth 82 121 0

Classic Synth 2 82 121 1

Square 81 121 0

Sine 81 121 2

Chiff 84 121 0

Bass & Lead 88 121 0

Wire Lead 85 121 1

Crystal 99 121 0

Rain Pad 97 121 0

Analog Brass 63 121 2

Classic Synth 3 82 121 3

Fifth 87 121 0

Square 2 81 121 1

Sequenced Analog 82 121 4

Charang 85 121 0

Lead 82 121 2

Soft Wire Lead 88 121 1

Echo Bell 103 121 1

Caliope 83 121 0

Analog Brass 2 64 121 2

Multi Sweep 96 95 1

Warm Sweep 96 95 2

Bowed 2 93 95 1

Saw Pad 82 95 3

Big Saw 82 95 1

Octave Saw 82 95 2

Clean Square 81 95 1

Square Lead 81 95 3

Analog Brass 3 64 95 1

Square Comp 89 95 5

Square Pad 81 95 2

Goblin 102 121 0

Bank

Category Sound Name Prog MSB LSB

SPECIALTY Strumming Ac Gtr 26 121 0

Strumming Ac Gtr 2 25 121 0

Picking Ac Gtr 25 121 0

Picking Ac Gtr 2 26 121 0

Mandolin 26 121 2

Banjo 106 121 0

Picking Banjo 106 121 0

Harmonica 23 121 0

Whistle 79 121 0

Strumming Elec Gtr 28 121 2

Picking Elec Gtr 27 121 0

Pick/Strum Gtr 26 121 1

Pick/Strum Gtr 2 26 121 0

Strumming Mandolin 26 121 2

Strumming Banjo 106 121 0

Blues Harmonica 23 95 2

Wah Harmonica 23 95 1

Wah Harmonica 2 23 95 3

Fiddle 111 121 0

Slow Fiddle 111 95 1

Accordion 22 121 1

French Accordion 22 121 0

Tango Accordion 24 121 0

French Accordion 2 22 95 1

Accordion 2 22 95 2

Celtic Harp 47 121 1

Dulcimer 16 121 0

Mellow Mandolin 26 95 4

Whistlers 79 95 1

Shakuhachi 78 121 0

Sitar 105 121 0

Blown Bottle 77 121 0

Koto 108 121 0

Kalimba 109 121 0

Ocarina 80 121 0

Shamisen 107 121 0

Sitar 2 105 121 1

Shanai 112 121 0

Taisho Koto 108 121 1

Bag Pipe 110 121 0

Euro Hit 56 121 3

Bass Hit Plus 56 121 1

Kawai Concert Performer Series Digital Piano

Bank Exclusive*

Category Sound Name Prog MSB LSB kk=KIT No

DRUM Standard Kit 1 120 0 1

Jazz Kit 33 120 0 33

Brush Kit 41 120 0 41

Room Kit 9 120 0 9

Power Kit 17 120 0 17

Analog Kit 26 120 0 26

Dance Kit 27 120 0 27

Electric Kit 25 120 0 25

Orchestra Kit 49 120 0 49

Standard Kit 2 2 120 0 2

Timpani 48 121 0

Rolling Timpani 48 121 0

Taiko Drums 117 121 0

Melodic Toms 118 121 0

Concert Bass Drum 117 121 1

Woodblock 116 121 0

Agogo 114 121 0

Tinkle Bell 113 121 0

Castanet 116 121 1

Reverse Cymbal 120 121 0

Sleigh Bells 113 95 1

Triangle 113 95 2

Repeating Castanet 116 121 1

Cym & Bass Drum 117 95 1

Snare Roll 117 95 2

Melodic Tom 2 118 121 1

Synth Drum 119 121 0

Rhythm Box Tom 119 121 1

Electric Drum 119 121 2

Snare Roll 2 117 95 3

Soft Timpani 48 95 1

Soft Timpani Roll 48 95 2

Orch Cymbal & BD 117 95 8

Finger Snap 116 95 4

Tambourine 114 95 1

Bass Drum 117 95 7

Hand Clap 116 95 3

Crash Cymbal Mute 120 95 7

Bank Exclusive*

Category Sound Name Prog MSB LSB kk=KIT No

SFX SFX Kit 57 120 0

Applause 127 121 0

Seashore 123 121 0

Stream 123 121 4

Rain 123 121 1

Thunder 123 121 2

Wind 123 121 3

Bird Tweet 124 121 0

Laughing 127 121 1

Screaming 127 121 2

Telephone 125 121 0

Helicopter 126 121 0

Gunshot 128 121 0

Explosion 128 121 3

Machine Gun 128 121 1

Siren 126 121 5

Foot Step 127 121 5

Door Slam 125 121 3

Dog Barking 124 121 1

Telephone 2 125 121 1

Wind Chime 125 121 5

Car Passing 126 121 3

Car Stopping 126 121 2

Breath Noise 122 121 0

Horse Gallop 124 121 2

Door Creak 125 121 2

Car Engine 126 121 1

Car Crash 126 121 4

Train 126 121 6

Jet Plane 126 121 7

Starship 126 121 8

Punch 127 121 3

Heartbeat 127 121 4

Laser Gun 128 121 2

Scratch 125 121 4

Trolley Bell 99 95 1

Whistle Down 126 95 6

Whistle Up 126 95 7

Bubble 123 121 5

* For Drum Kits, send Exclusive Message (F0 40 7F 33 gg mm 10 On 7F kk F7)

after Program Change.

Appendice

P. 169

Kawai Concert Performer Series Digital Piano

Standard Kit Standard Kit 2 Room Kit Power Kit Electric Kit Analog Kit Dance Kit Jazz Kit Brush Kit Orchestra Kit

C1 C 24

C# 25 Snare Roll

D 26 Finger Snap

D# 27 High Q Std2 HHC

E 28 Slap Std1 HHP

F 29 Scratch Push Scratch Push2 Scratch Push2 Scratch Push2 Std2 HHO

F# 30 Scratch Pull Scratch Pull2 Scratch Pull2 Scratch Pull2 Std1 Ride1

G 31 Sticks

G# 32 Square Click

A 33 Metronome Click

A# 34 Metronome Bell

B 35 Std1 BD2 Std2 BD2 Room BD2 Power BD2 Elect BD2 Analog BD2 Dance BD2 Jazz BD2 Jazz BD2 Jazz BD1

C2 C 36 Std1 BD1 Std2 BD1 Room BD1 Power BD1 Elect BD1 Analog BD1 Dance BD1 Jazz BD1 Jazz BD1 Orch BD1

C# 37 Rim Analog Rim Jazz Rim Jazz Rim

D 38 Std1 SD1 Std2 SD1 Room SD1 Power SD1 Elect SD1 Analog SD1 Dance SD1 Jazz SD1 Brush Tap Orch SD1

D# 39 Hand Clap Jazz Hand Clap Brush Slap Castanets

E 40 Std1 SD2 Std2 SD2 Room SD2 Power SD2 Elect SD2 Analog SD2 Dance SD2 Jazz SD2 Brush Swirl Orch SD1

F 41 Std1 LowTom2 RoomLowTom2 PowerLowTom2 Elect LowTom2 Analog LowTom2 DanceLowTom2 BrushLowTom2 Timpani F

F# 42 Std1 HHC Std2 HHC Std1 HHC Std1 HHC Std2 HHC Analog HHC Dance HHC Std2 HHC Brush HHC Timpani F#

G 43 Std1 Low Tom1 RoomLowTom1 PowerLowTom1 Elect Low Tom1 Analog Low Tom1 DanceLowTom1 BrushLowTom1 Timpani G

G# 44 Std1 HHP Analog HHP 808 HHP Timpani G#

A 45 Std1 Mid Tom2 RoomMidTom2 PowerMidTom2 Elect Mid Tom2 Analog Mid Tom2 DanceMidTom2 BrushMidTom2 Timpani A

A# 46 Std1 HHO Std2 HHO Std1 HHO Std1 HHO Std2 HHO Analog HHO Dance HHO Std2 HHO Brush HHO Timpani A#

B 47 Std1 Mid Tom1 RoomMidTom1 PowerMidTom1 Elect Mid Tom1 Analog Mid Tom1 DanceMidTom1 BrushMidTom1 Timpani B

C3 C 48 Std1 Hi Tom2 RoomHiTom2 Power Hi Tom2 Elect Hi Tom2 Analog Hi Tom2 DanceHiTom2 Brush Hi Tom2 Timpani c

C# 49 Std1 Crash1 Analog Crash1 Brush Crash Timpani c#

D 50 Std1 Hi Tom1 RoomHiTom1 Power Hi Tom1 Elect Hi Tom1 Analog Hi Tom1 DanceHiTom1 Brush Hi Tom1 Timpani d

D# 51 Std1 Ride1 Brush Ride1 Timpani d#

E 52 China ReverseCymbal ReverseCymbal Timpani e

F53Cup Brush Ride Bell Timpani f

F# 54 TambourIne

G 55 Splash

G# 56 Cowbell Analog Cowbell

A 57 Crash2 Orch Cymbal2

A# 58 Vibra slap

B 59 Ride2 Orch Cymbal1

C4 C 60 Hi Bongo

C# 61 Low Bongo

D 62 Mute Hi Conga Analog Hi Conga

D# 63 Hi Conga Analog Mid Conga

E 64 Low Conga Analog Low Conga

F 65 Hi Timbale

F# 66 Low Timbale

G 67 Hi Agogo

G# 68 Low Agogo

A 69 Cabasa

A# 70 Maracas Analog Maracas

B 71 Short Whistle

C5 C 72 Long Whistle

C# 73 Short Guiro

D 74 Long Guiro

D# 75 Claves Analog Claves

E 76 Hi Wood Blk

F 77 Low Wood Blk

F# 78 Mute Cuica Hi Hoo

G 79 Open Cuica Low Hoo

G# 80 Mute Triangle Ele Mut Triangle Ele Mut Triangle

A 81 Open Triangle Ele Open Triangle Ele Open Triangle

A# 82 Shaker

B 83 Jingle Bell

C6 C 84 Bell Tree Bar Chimes

C# 85 Castanets

D 86 Mute Surdo

D# 87 Open Surdo

E88 Applause

Drum/SFX Kit Mapping : Same as Standard Kit

Appendice

P. 171

SFX Kit SFX Kit 2 Nature Transportation War Games Animal Farm Mystery Theatre Game Show Counting Trip to Japan

A21 Monster

A# 22

B23 Horse Gallop Rain

C1 C24

C# 25 Screaming

D26

D# 27

E28 Explosion

F29 Horse Whinney Thunder

F# 30

G31 Plane

G# 32

A33

A# 34 Jet Plane

B 35 Seashore Foot Step Pig Wind

C2 C36

C# 37 Train

D38

D# 39 High Q

E40

Slap Seashore

F 41 Scratch Push Pop Stream Whip Snap Punch Cow Applause Applause "One"

F# 42 Scratch Pull Breath Noise

G 43 Sticks Nou Voice Temple Block

G# 44 Square Click Tsuzumi

A45

Metronome Click Nou Voice 2 Horse Gallop

A# 46 Metronome Bell Tsuzumi High Shime Taiko

B 47 Guitar Fret Noise Nou Voice 3 Rain Gunshot Cat Screaming Laughing "Uhh"

C3 C48

Gtr. Cutt. Noise/up Nou Voice 4

C# 49 Gtr. Cutt. Noise/down Gong 1 Horse Whinney Tsuzumi

D 50 String Slap of Bass Low Tap

D# 51 Fl.Key Click Gong 2

E52

Laughing High Tap Tsuzumi High

F 53 Scream "One" Thunder Car Engine Machine Gun Dog Barking Gunshot Sceaming "Two"

F# 54 Punch Whip Slap

G 55 Heart Beat "Two" Nou Voice

G# 56 Footsteps 1 "Uhh"

A57

Footsteps 2 "Three" Car Passing

A# 58 Applause "And" Nou Voice 2

B 59 Door Creaking "Four" Rain & Thunder Laser Gun Crow Siren Game Show Correct "And"

C4 C60

Door "Ready"

C# 61 Scratch Typewriter Car Stopping Nou Voice 3

D 62 Wind Chime "Play"

D# 63 Car-Engine Typewriter

E64

Car-Stop Kiss Nou Voice 4

F 65 Car-Pass Finger Cymbal Wind Car Crash Exposion Chick Peep Footstep Game Show Wrong "Three"

F# 66 Car-Crash Game Show Wrong

G 67 Siren Game Show Correct Nou Flute

G# 68 Train Telephon

A69

Jetplane Claxson Car Horn

A# 70 Helicopter Plane

B 71 Starship Trolley Bell Wind Chime Burst Noise Chicken Door Slam Gong "Four"

C5 C72

Gun Shot Cat

C# 73 Mashine Gun Pig Aaoogo/Claxson

D 74 Lasergun Cow Shamisen

D# 75 Explosion Horse-Whinney

E76

Dog Rooster

F 77 Horse-Gallop Chicken Bird Tweet Siren Siren Rooster Door Creak Gong 2 "Ready"

F# 78 Birds Chicken Peep

G 79 Rain Crow

G# 80 Thunder Cu-Coo

A81

Wind Seagulls Trolley Bell

A# 82 Seashore Sparrow

B 83 Stream Crickets 1 Bird Tweet 2 Helicopter Cu-coo Dog Barking Long Kiss "Play"

C6 C84

Bubble Crickets 2

C# 85 Monster Train

D86 Koto

D# 87

E88

F 89 Crickets Helicopter Plane Bird Tweet Heartbeat Heartbeat Handclap

F# 90

G91

G# 92

A93 Plane

A# 94 Nagadou Taiko2

B95 Jet Plane Bird Tweet 2 Punch Finger Cymbal Finger Snap

C7 C96

C# 97 Jet Plane Nagadou Taiko1

D98

D# 99

E 100 HiraTaiko

F 101 Starship Crickets Telephone

F# 102

G 103 Nagadou RIM

G# 104

A 105

A# 106

B 107 Crickets 2 Telephone 2 Japan WoodBlk

C8 C 108

Appendice

P. 172

MIDI Implementation Chart

MODEL: Kawai Digital Piano CP117

DAT E : JUNE 2006

VERSION 1.0

Function Transmitted

*1

Recognized Remarks

Basic Default 1 1-16

Channel Changed 1-16 1-16

Mode Default Mode 3 Mode 3

Messages X Mode 3, 4

Altered *****

Note 36-96 0-127

Number True voice ***** 0-127

Velocity Note ON O O

Note OFF X X

After Key's X X

Touch Ch's X O

Pitch Bend O

*2

O

0, 32 O O Bank Select

1O

*3

O Modulation

5 O O Portamento Time

Control 6, 38 O O Data Entry

Change 7 O O Volume

10 O O Panpot

11 O O Expression

64 O O Damper (Hold 1)

65 O O Portament On/Off

66 O O Sostenuto

67 O O Soft

69 O

*4

O Hold 2

70 O O Sustain Level

71 X O Resonance

72 O O Release Time

73 O O Attack Time

74 O O Cutoff

75 O O Decay Time

76 X O Vibrato Speed

77 O O Vibrato Depth

78 X O Vibrato Delay

84 O O Portamento Control

91 O O Reverb Send Level

93 O O Chorus Send Level

0-95

*5

X O General Controller

98, 99 X O NRPN LSB, MSB

100, 101 O O RPN LSB, MSB

Program O O *6 Program Number

Change True # 0-127

*6

1-128

System Exclusive O O

: Song pos X X

Common : Song sel X X

: Tune X X

System : Clock O O

Real Time : Commands O O

: All Sound OFF X O (120)

: Reset All Controller X O (121)

Aux : Local ON/OFF X X

Messages : All Note OFF X O (123)

: Active Sense O O

: Reset X X

Notes *1 NOT sequencer mode

*2 Glide Pedal

*3 Modulation Pedal

*4 Left Hand Hold Pedal

*5 Possible to Select (default = 16)

Mode 1: OMNI ON, POLY Mode 2: OMNI ON, MONO O: Yes

Mode 3: OMNI OFF, POLY Mode 4: OMNI OFF, MONO X: No

Specifications

CP117

Keyboard 88 Weighted Keys , Advanced Hammer Action IV

Polyphony Maximum 96

Preset Sounds Over 600 including Drum kits

Styles 182 Styles (4 Variations per Style)

Maximum 20 User Styles

Style Controls Start/Stop, Intro/Ending (2 per Style), Fill-in (4 per Style), Fade Out, Sync Start, Tap Tempo

Metronome  = 10–300, 1/4, 2/4, 3/4, 4/4, 5/4, 6/8, 7/8, 9/8, 12/8

Auto-Accompaniment Fingered, One Finger, Full Keyboard, Bass Inversion, Harmony (10 types)

Song Stylist 514 Songs

Conductor Easy Conductor

Effects Chorus (5), Flanger, Ensemble, Celeste, Delay (3), Auto Pan, Tremolo,

Tremulant, Phaser, Rotary Speaker (2), Auto Wah, Enhancer, Distortion,

Reverb (Room1/2, Stage1/2, Hall1/2, Plate )

Temperaments 9 Types and one User Temperament

Other Features One-Two Play, 80 Registrations, Concert Magic (176 Preset Songs ),

Help, 3 Parts (Right 1/2, Left), Split (Selectable Split Point),

Mixer, Master Volume, Accompaniment Volume, Transpose, Octave Shift,

Tune, Sympathetic Resonance, Virtual Voicing, Metronome

MIDI (16 Part Multi-Timbral Capability)

Recorder 16 Tracks and separate Style, Chord and Tempo tracks,

Punch-In Recording, Editing capability,

The total memory capacity of the recorder is approximately 50,000 notes.

Disk Song Play (Reads/Writes Standard MIDI file format, Lyrics)

Pedals Sustain , Sostenuto, Soft, (15 Functions can be assigned.)

Jacks Headphones (2), LINE IN (L/MONO, R), LINE OUT (L/MONO, R),

MIDI (IN, OUT, THRU), USB for the Personal Computer

Data Media 3.5” floppy Disk Drive (2HD/2DD, DOS format)

Output Power 80 W

Speakers 6” x 2

Power Consumption 90 W

Finish Rosewood

Dimensions (W x D x H) 4’ 8” x 1’ 10” x 3’ 1”, 141 x 56 x 92 cm

Weight (without bench) 150 lbs, 68 kg

Concert Performer Series Digital Piano

OW992E-C0606

Printed in Indonesia
