Keeson Technology BT40SC BLUETOOTH 4.0 RECEIVER User Manual
Jiaxing Shufude Electric Bed Co., Ltd. BLUETOOTH 4.0 RECEIVER Users Manual
Users Manual
BT40SC User Guide

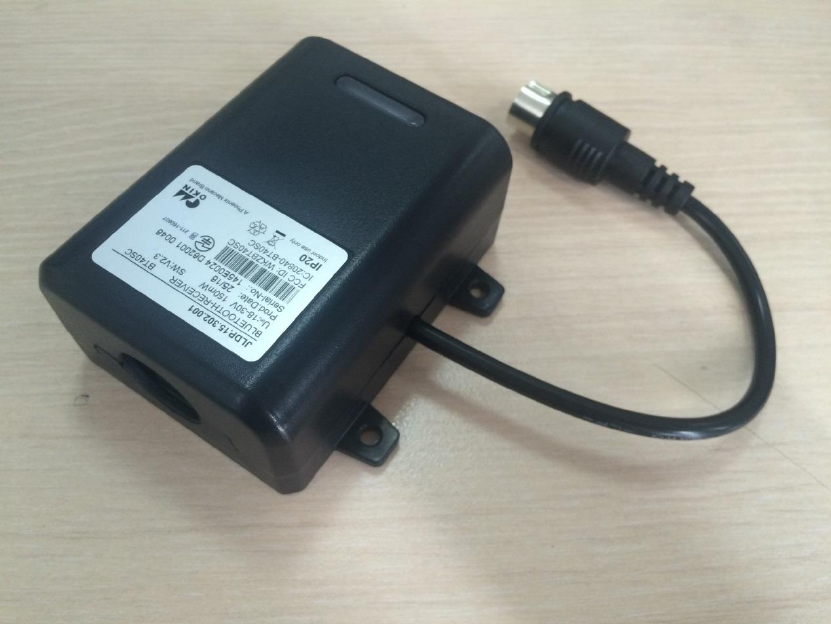

Appearance
Specification
1.Part Number: JLDP.15.302.001;
2.Working Voltage: 18-30V;
3.Working Current: 5mA @29V;
4.Operation Temperature:-20~55℃;
5.Storage temperature: -45~85℃;
6.RF Frequency Range: 2402MHz to 2480MHz;
7.RF Modulation: GFSK;
8.RF Transmitted Power: 0 dBm;
9.Housing Material: ABS 765A, 94V-0;
Interface Description
1. Status Indication: one color, two different status
Status 1: Breathing lamp, when powered on;
Status 2: Blue, when Bluetooth is linked by smart phone;
2. Main-MFP Interface:
Connect to the main control unit, including both power supply and communication port;
3. Sub-MFP Interface:
Operation Instructions
The BT40SC is an optional accessory for the bedding system. It connected to the main control
unit. Also it’s a Bluetooth receiver and all the operations are completed by APP in the smart
phone.
For the detailed the operation, please see the APP user manual.
Status Indication
Sub-MFP Interface
Main-MFP INterface
NOTE:
Any Changes or modifications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
To satisfy FCC RF Exposure requirements for this transmission devices,Thie equipment can contact
with the body, according to KDB447498 D01 General RF Exposure Guidance, This equipment
doesn't need to evaluate the stand-alone SAR . The antenna(s) used for this transmitter must not
be co-located or operating in conjunction with any other antenna or transmitter. Changes or
modifications not expressly approved by the party responsible for compliance could void the user's
authority to operate the equipment.
FCC Radiation Exposure Statement:
