Keeson Technology CU358 CONTROL BOX User Manual
Jiaxing Shufude Electric Bed Co., Ltd. CONTROL BOX Users Manual
Users Manual
Innovation Department Date： 2015.10.05
Product specification Author： John
CU358-4
Product specification
CU358-4 Control BoxProduct Specification Version： 1
Date： 2015-10-05 Author： John Review
：
Approval
：
1. Product appearance chart
SoftideCU358-4 control box
2. Product dimension figure
Innovation Department Date： 2015.10.05
Product specification Author： John
CU358-4
Product specification
CU358-4 Control BoxProduct Specification Version： 1
page2/5
Date： 2015-10-05 Author： John Review
：
Approval
：
3. Product Function

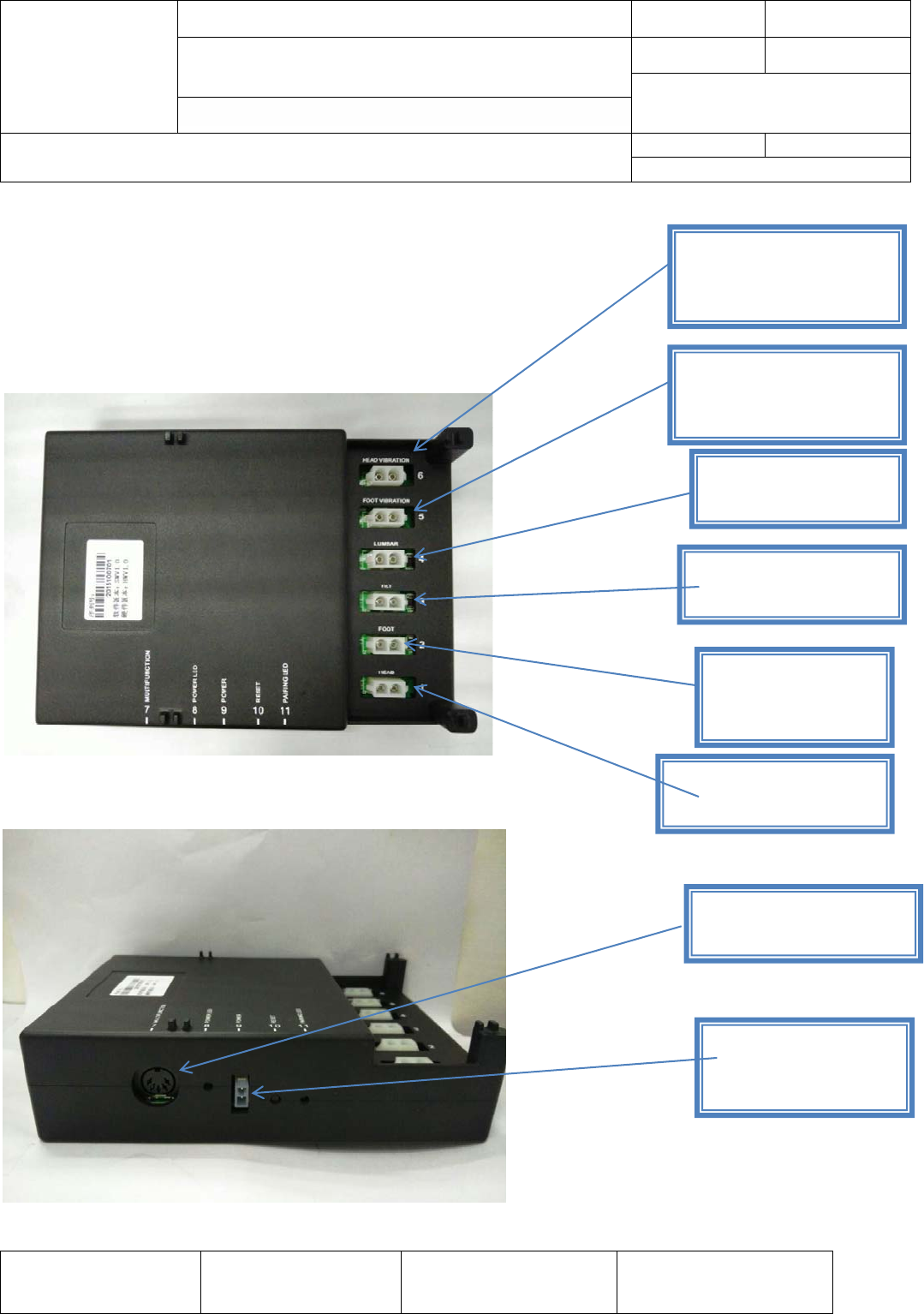

1、Interface function specification；
Power cable
（POWER）
interface
Interface
(MULTIFUNCTION)
Actuator
（FOOT）
interface
Actuator
（HEAD）interface
Actuator
（TILT）interface
Massage motor
(HEAD)interface
(HEAD VIBRATION)
Massage motor
(FOOT)interface
(FOOT VIBRATION)
Actuator
（LUMBAR）interface
Innovation Department Date： 2015.10.05
Product specification Author： John
CU358-4
Product specification
CU358-4 Control BoxProduct Specification Version： 1
page 3/5
Date： 2015-10-05 Author： John Review
：
Approval
：
Interface（HEAD）:Actuator(HEAD) interface；
Interface（FOOT）:Actuator(FOOT) interface；
Interface（TILT）:Actuator (TITL)interface；
Interface（LUMBAR）:Actuator (LUMBAR)interface；
Interface（FOOT VIBRATION）:Massage motor(FOOT) interface；
Interface（HEAD VIBRATION）:Massage motor(HEAD) interface；
Interface（POWER）:Power supply interface of control box，the power LED is near the power interface；
Interface（MULTIFUNCTION）:Multifunctional interface，connect with sync cable and external equipments
such as LED,POWER DOWN BOX、Bluetooth and so on；
2、Function description of the buttons；
a．code matchong :double click RESET button ,LED will light and enter into the state of code matching；
b．Reset :Long press RESEETbuttn，enter into the state of reset，the bed lay flat；
3、Extended function describtion；
External equipment such as bluetooth connects with control box through multifunctional
interface;Double click RESETbutton,the control box enter into binding state;long press RESET
button,the actuator moves in,release the button, the actuator stops moving in；There are two
batteries of 9V inner POWER DOWN BOX, under the state of power down of control box,long press the
positive RESET button, the actuator moves in(in order to lay flat the bed), release the button, the
actuator stops moving in；
Innovation Department Date： 2015.10.05
Product specification Author： John
CU358-4
Product specification
CU358-4 Control BoxProduct Specification Version： 1
page4/5
Date： 2015-10-05 Author： John Review
：
Approval
：
4.Main requirements for product performance parameters

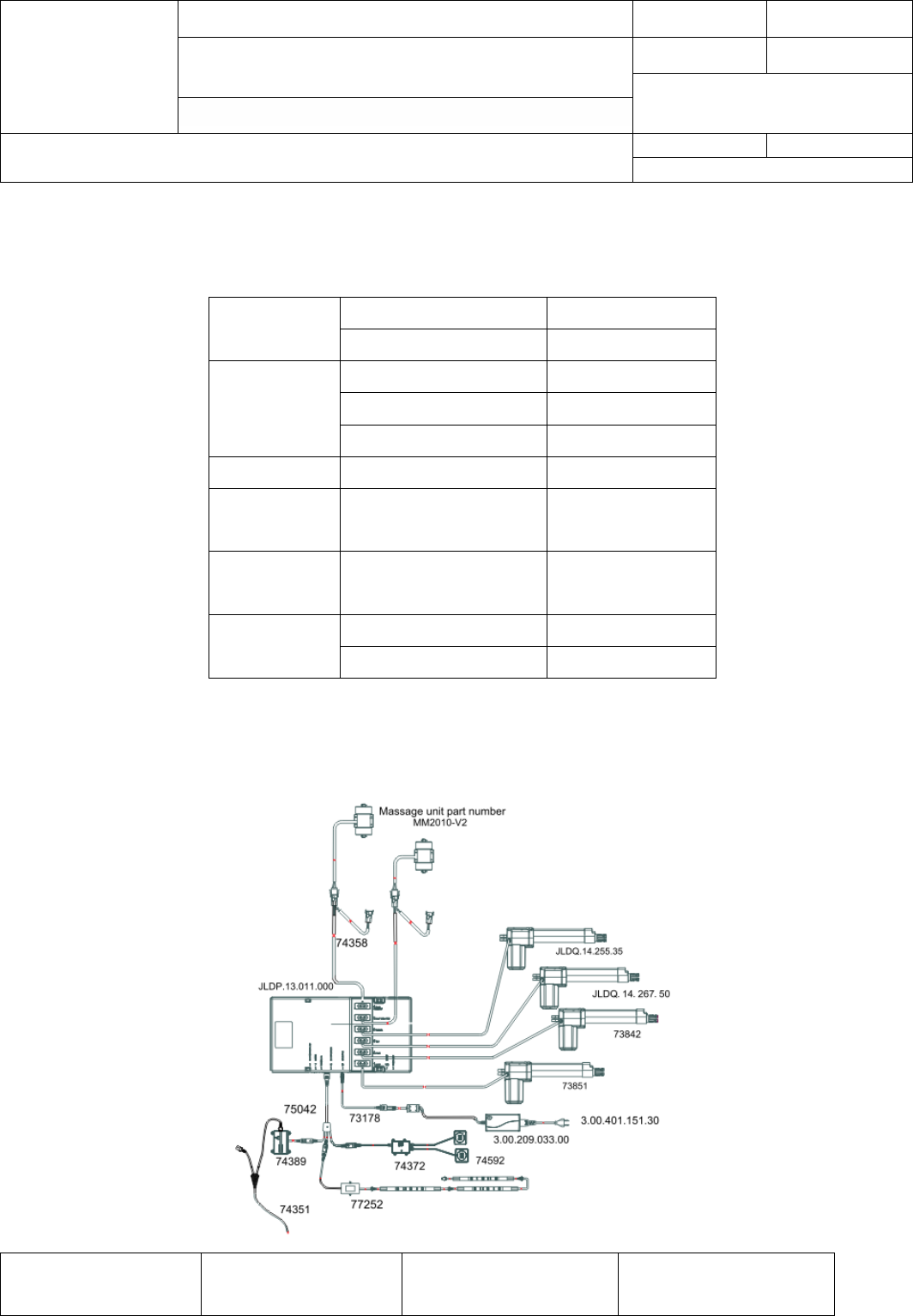

5、Product connection diagram
input Input voltage range 18-30VDC
Output current 2A@29V
output RF frequency range 2.379~2.496GHz
RF modulation mode GFSK
RF transmit power 0dB
enxironment Indoor use
Work
temperature
-10~40℃
Storage
temperature
-20~55℃
other Protection level IP20
Flame retardant rating 94V-0
Innovation Department Date： 2015.10.05
Product specification Author： John
CU358-4
Product specification
CU358-4 Control BoxProduct Specification Version： 1
page5/5
Date： 2015-10-05 Author： John Review
：
Approval
：
6、Range of application
Mainly used in family or medical bed.
7、Frequently asked question
None
8、Installation considerations
To fix with screw nut, pay attention not to fold or bend when installing, overexertion will cause the breakage of the screw nut.
9、Maintenance
1、Non-waterproof product are not allowed to place in wet areas, and all the products cannot be washed by water but wipe by
alcohol.
2、The appearance is adopt plastic material with many components, which need to be handle with care install correctly.
3、Comply with safety operation procedures. Do not overload the products, and eliminate unsafe factors in time.
4、Operating environment and temperature: Under normal temperature.
5、Relative humidity:≤80%。
Any Changes or modifications not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
