E L ! T E

H_ 3t

Front-Loading Automatic Washer

Owner's Manual and Installation hstructions

Lavadora autom_tica de carga frontal

Manual deUpropietafio einstrucciones de instamaci6n M

Laveuse automatique _chargement frontal 0r

Manuel de Futilisateur et Instructions d'instat_ation

Sears Roebuck and Co., Hoffman Estates, |L 60179, U.S.A. www.sears.com

4619 7020 3971 Sears Canada, Inc., Toronto, Ontario, Canada M5B 2B8 www.sears.ca

TABLE OF CONTENTS

WE SERVICE WHAT WE SELL ........................................... 2

WARRANTY ......................................................................... 3

PEDESTAL OPTION WARRANTY ...................................... 3

WASHER SAFETY ............................................................. 4

INSTALLATION REQUIREMENTS ..................................... 5

Tools and Parts ............................................................................ 5

Alternate Parts You May Need ..................................................... 5

Optional Pedestal ......................................................................... 5

Location Requirements ................................................................ 5

Drain System ................................................................................ 6

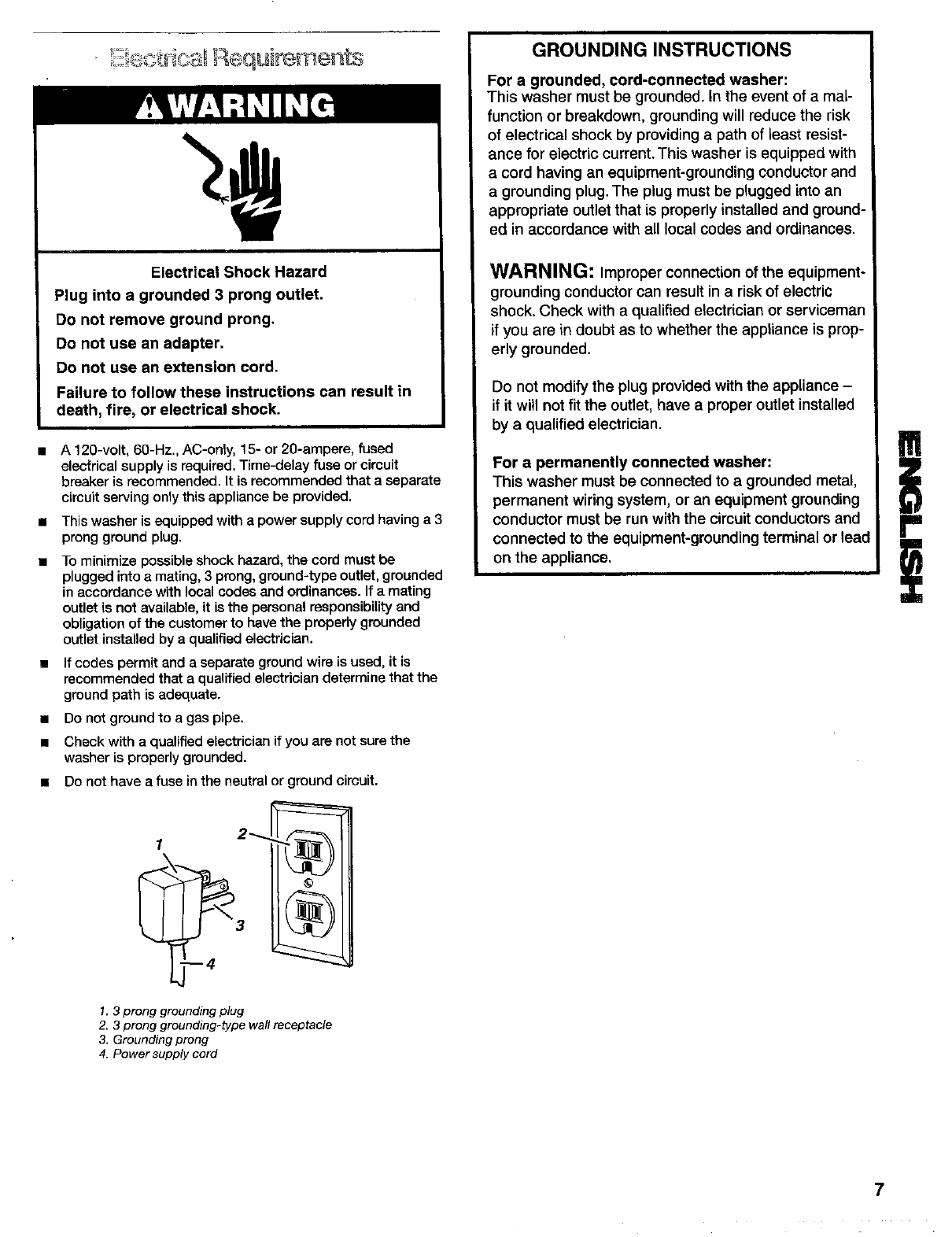

Electrical Requirements ................................................................ 7

INSTALLATION INSTRUCTIONS ....................................... 8

Remove Transport System........................................................... 8

Route the Drain Hose ................................................................... 8

Connect the Inlet Hoses............................................................... 8

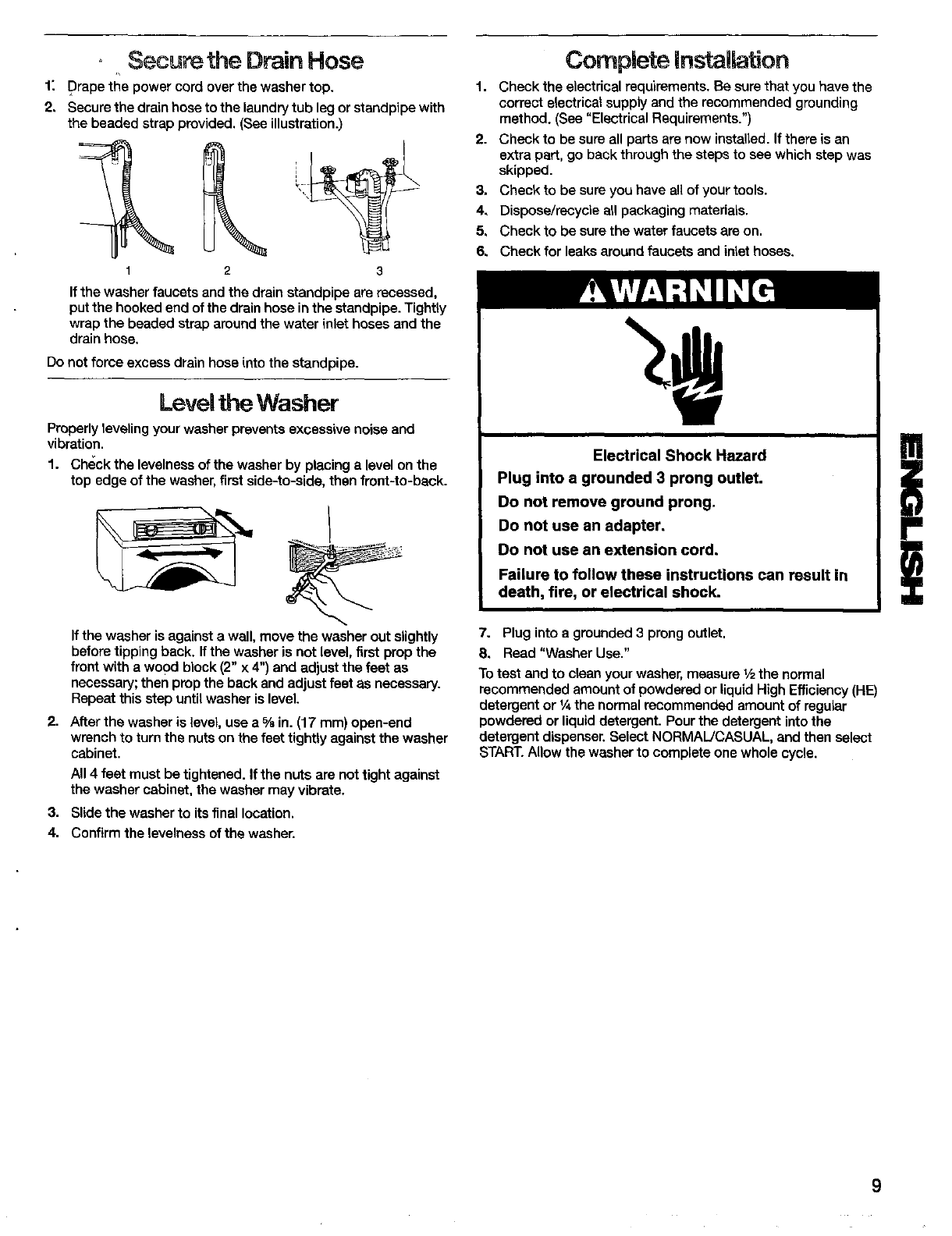

Secure the Drain Hose ................................................................. 9

Level the Washer .......................................................................... 9

Complete Installation.................................................................... 9

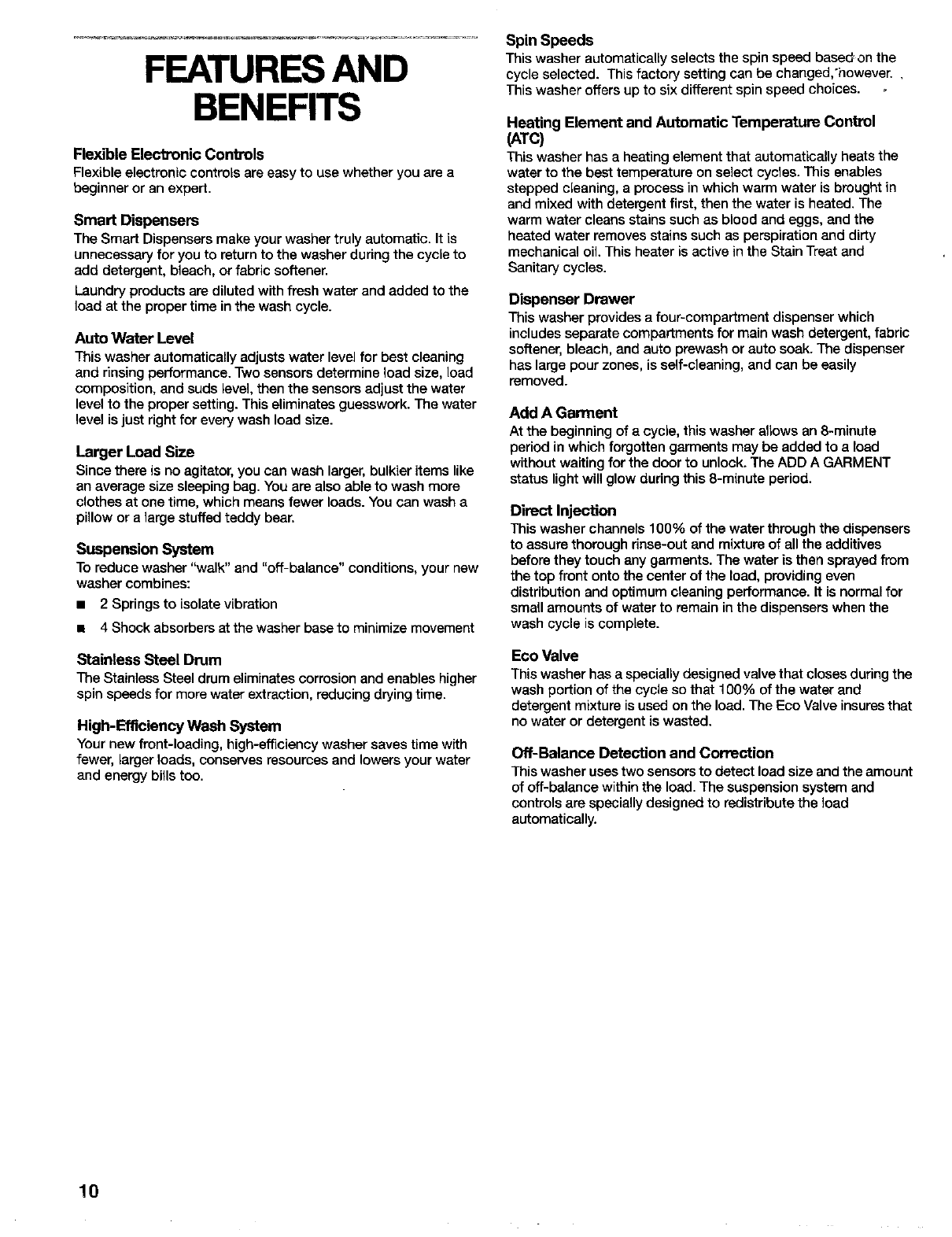

FEATURES AND BENEFITS ............................................. 10

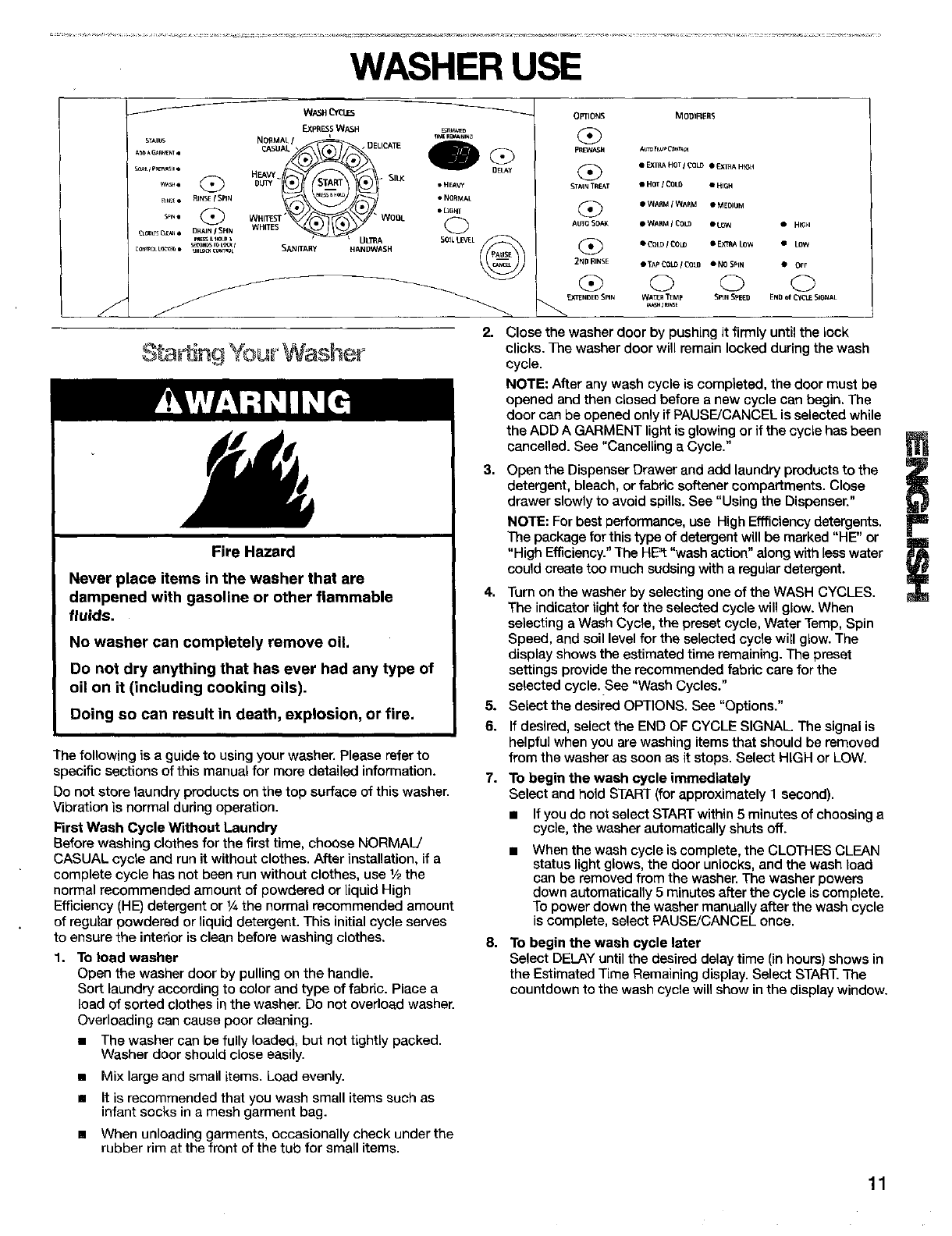

WASHER USE ................................................................. 11

Starting Your Washer ................................................................ 11

Using the Dispenser .................................................................. 12

Pausing or Restarting ................................................................ 13

Changing Cycles, Options and Modifiers ................................. 13

Status Lights.............................................................................. 13

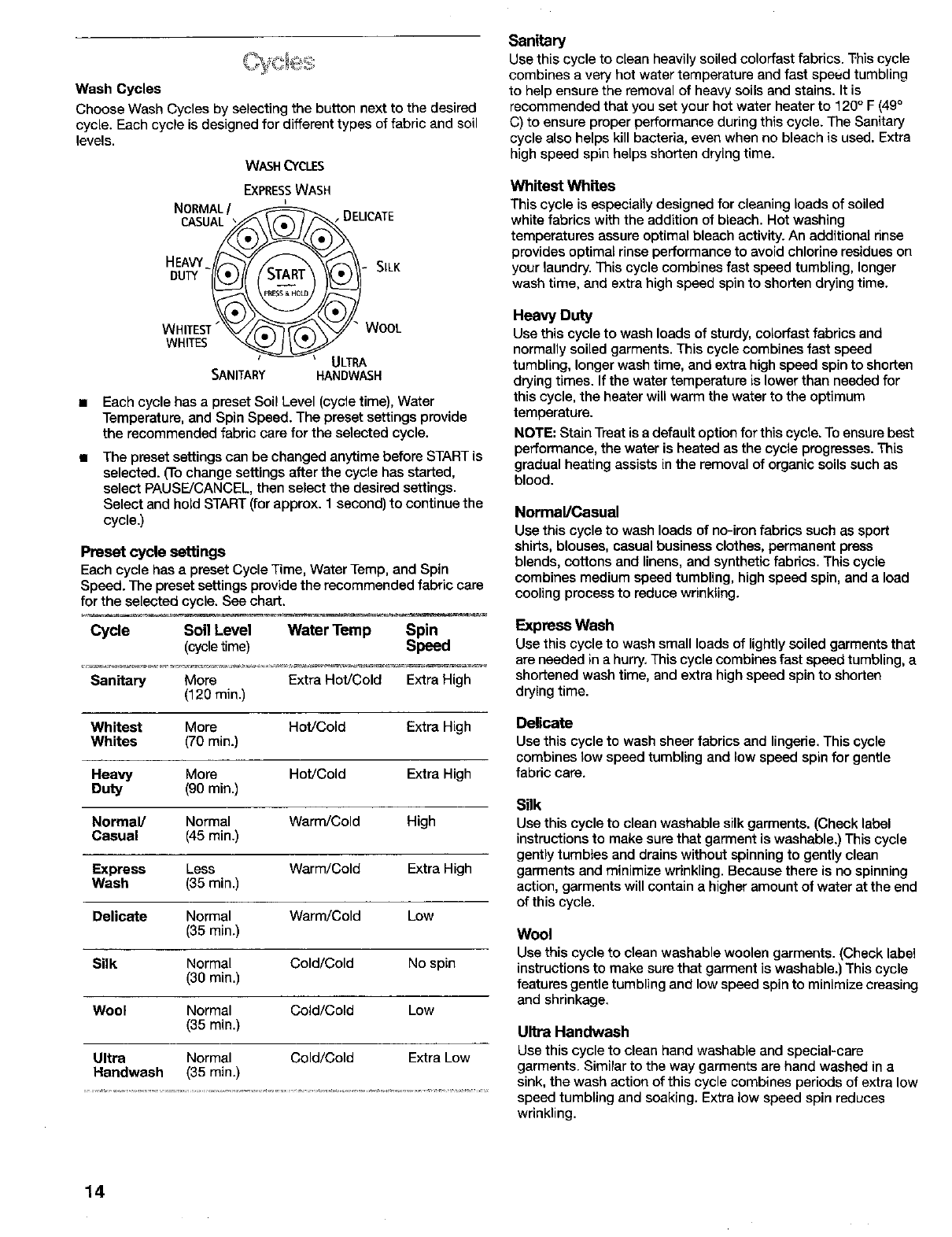

Cycles ........................................................................................ 14

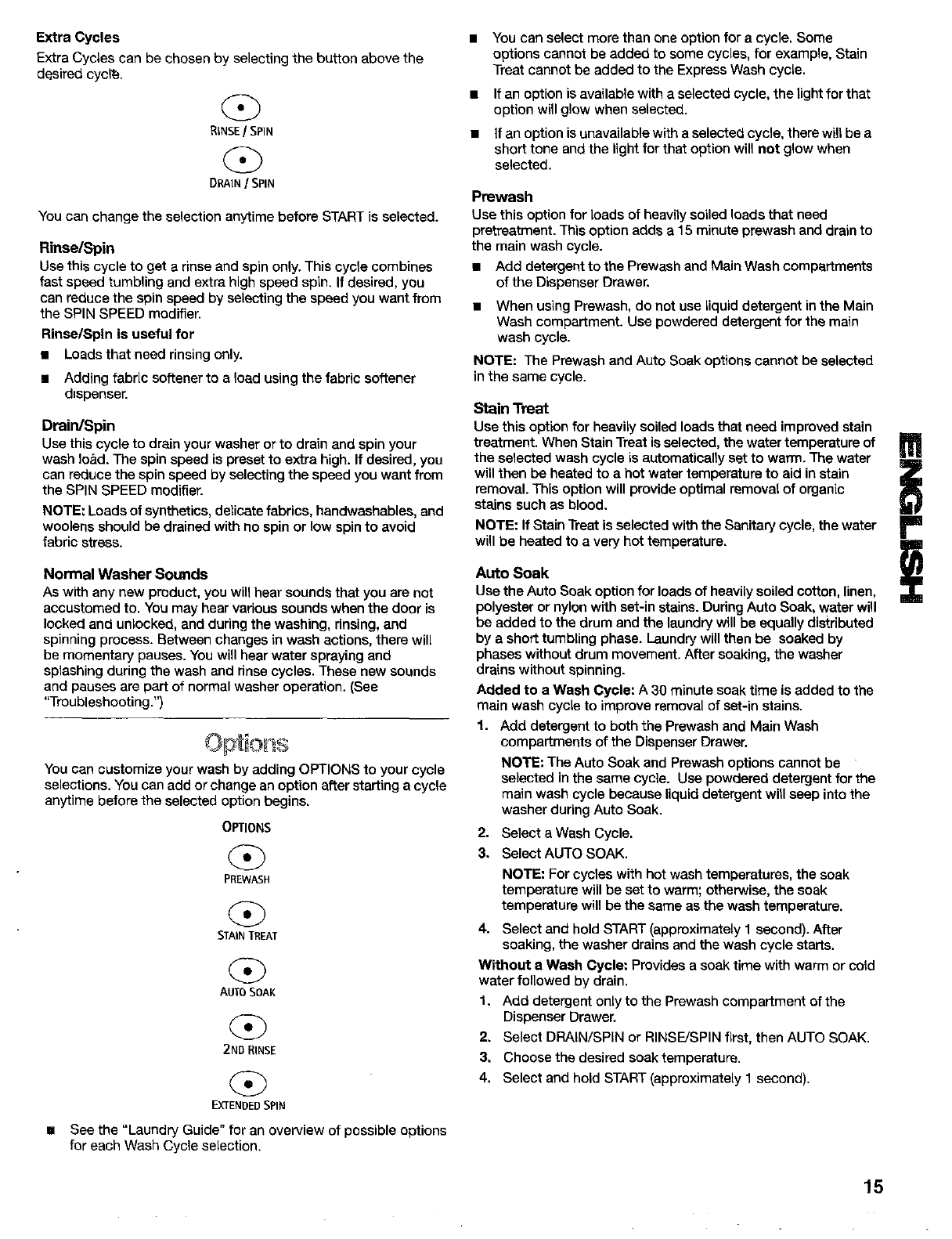

Options ...................................................................................... 15

Modifiers .................................................................................... 16

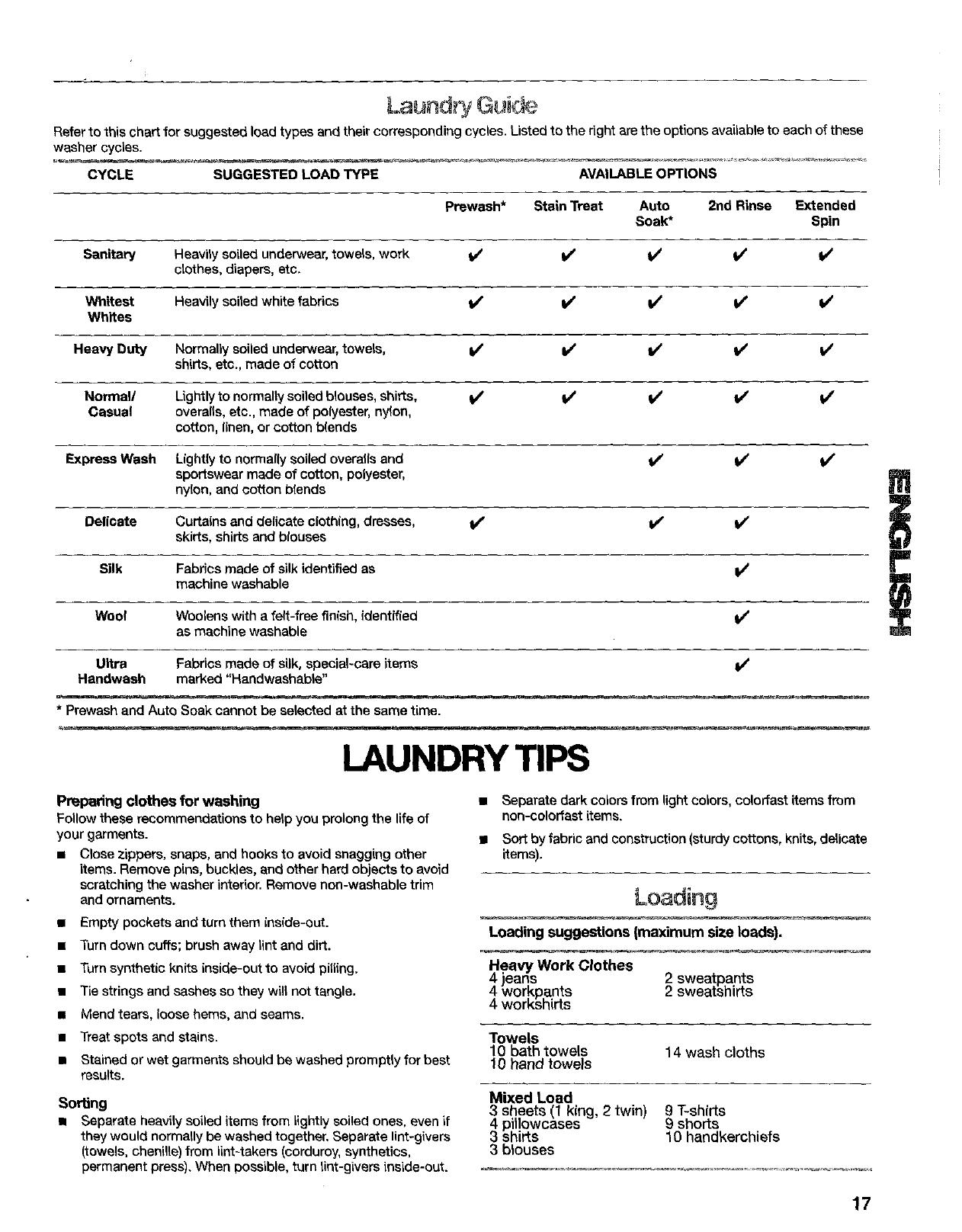

Laundry Guide ........................................................................... 17

LAUNDRY TIPS .................................................................. 17

Loading .................................................................................... 17

WASHER CARE ................................................................. t8

Cleaning Your Washer ............................................................... 18

Water Inlet Hoses ...................................................................... 18

Vacation, Storage, and Moving Care ........................................ 18

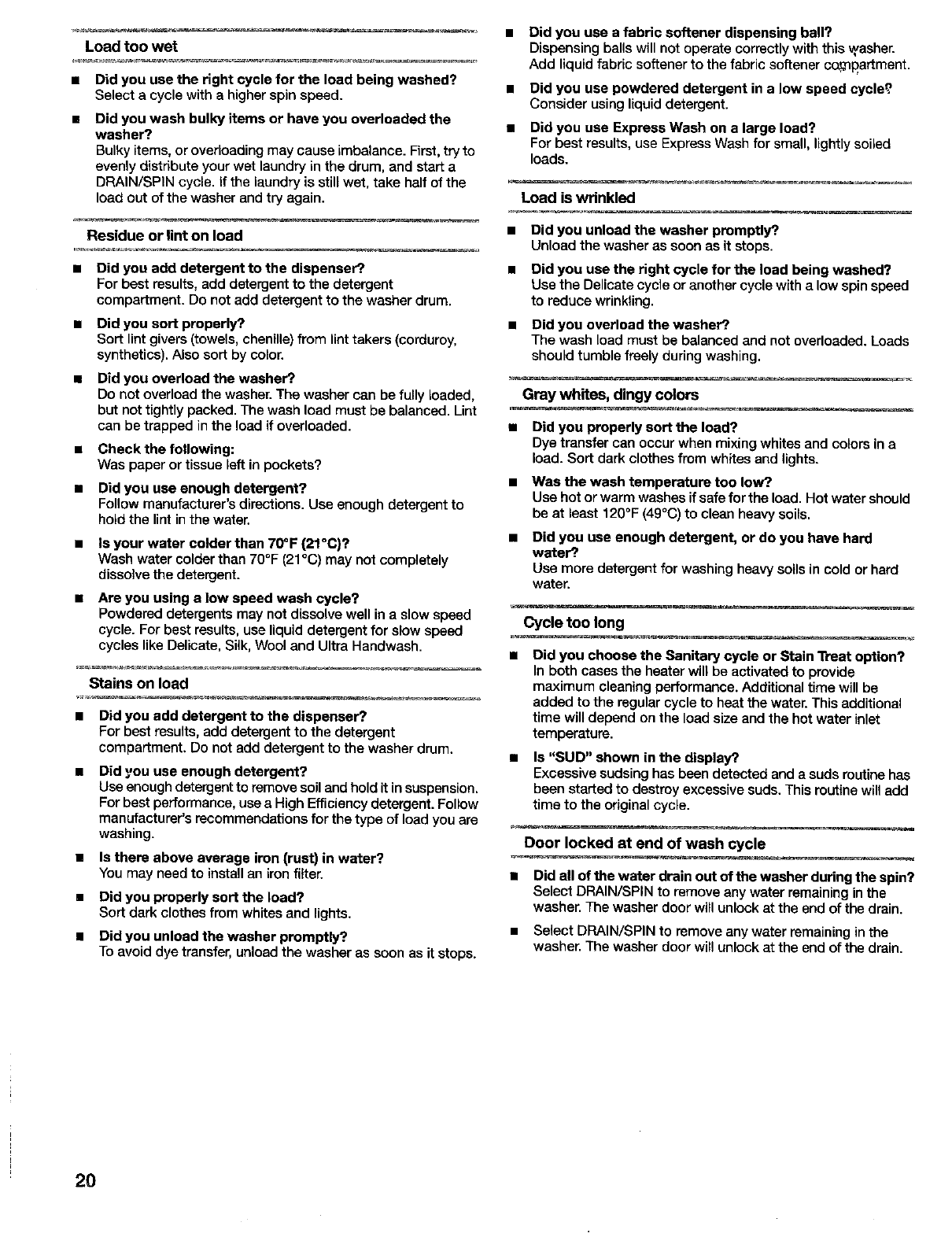

TROUBLESHOOTING ....................................................... 19

WE SERVICE

WHAT WE SELL

Your purchase has added value because you can depend on

Sears HomeCentral ®for service. With over 12,000 trained repair

specialists and access to over 4.2 million parts and accessories,

we have the tools, parts, knowledge and skills to ensure our

pledge: We Service What We Sell.

Sears Maintenance Agreements

Your Kenmore ®appliance is designed, manufactured and tested

to provide years of dependable operation. Yet any major

appliance may require service from time to time. The Sears

Maintenance Agreement offers you an outstanding service

program, affordably priced.

The Sears Maintenance Agreement

• is your way to buy tomorrow's service at today's price.

• Eliminates repair bills resulting from normal wear and tear.

• Provides for non-technical and instructional assistance.

•Even if you don't need repairs, provides an annual Preventive

Maintenance Check, at your request, to ensure that your

appliance is in proper running condition.

Some limitations apply. For more information, cell

1-800-827-6655.

For irrformation concerning Sears Canada Maintenance

Agreements, call 1-800-361-6665.

WARRANTY

Limited Lifetime Warranty on Stainless Steel Drum

For the lifetime of the washer from the date of purchase, Sears

will replace the Stainless Steel wash drum due to defective

material or workmanship. You will be charged for labor after the

first year.

Limited Ten-Year Warranty on Plastic Tub*

For the second through tenth year from the date of purchase,

Sears will replace the plastic tub if defective in material or

workmanship. You will be charged for labor after the first year.

Limited Five-Year Warranty on Drive System Parts*

For the second through fifth year from the date of purchase,

Sears will replace the following drive system parts if defective in

material or workmanship: drive pulley and drive belt. You will be

charged for labor after the first year.

Limited Two-Year Warranty on SENSOR SMART TM

Electronic Conhol Board

For two years from the date of purchase, Sears wilt replace the

electronic control boards if defective in material or workmanship.

You will be charged for labor after the first year.

Full One-Year Warranty on Mechanical and Electrical Parts

For one year from the date of purchase, when this washer is

installed and operated according to the instructions provided in

the Owner's Manual, Sears will repair or replace any of its

mechanical or electrical parts if defective in matedal or

workmanship.

Warranty Restriction

Ifthe washer is subject to other than private family use, the above

warranty coverage is effective for only 90 days.

Warranty Service

Warranty service is available by contacting the nearest Sears

Service Center in the United States or Canada. This warranty

applies only while the product is in use in the United States or

Canada. This warranty gives you specific legal rights and you

may also have other rights which vary from state to state or

province to province.

*Warranty terms may vary in Canada.

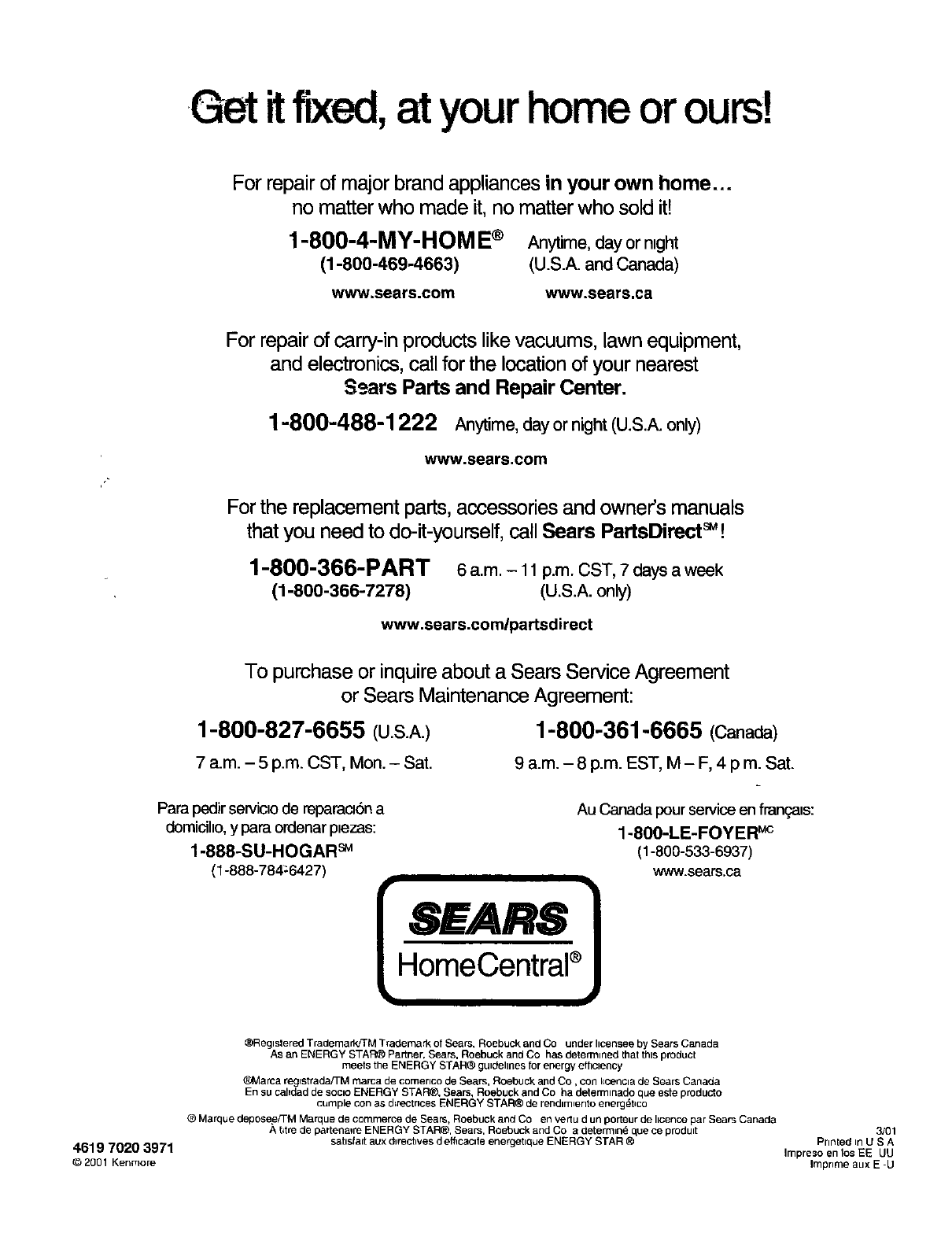

Please reference the service numbers located on the back page

of this manual

Sears, Roebuck and Co.

D/817WA, Hoffman Estates, IL 60179

Sears Canada, Inc.

Toronto, Ontario, Canada M5B 2B8

In the space below, record your complete model number, serial

number, and purchase date. You can find this information on the

model and serial number label.

Have this information available to help you quickly obtain

assistance or service when you contact Sears concerning your

appliance.

Model number 110

Serial number

Purchase date

Save these instructions and your sales receipt for future

reference.

PEDESTALOPTION

WARRANTY

Full One-Year Warranty on Mechanical Parts

For one year from the date of purchase, when this pedestal is

installed with this washer and is operated according to the

instructions provided in the Owner's Manual, supplier will repair

or replace any of its mechanical or electrical parts if defective in

material or workmanship.

Warranty Reebiction

If the pedestal is subject to other than private fatuity use and or if

the pedestat is used with any other product than those listed in

the installation instructions, the above warranty coverage is null

and void.

In the space below, record your complete model number, serial

number, and purchase date. You can find this information on the

model and serial number label.

Have this information available to help you quickly obtain

assistance or service when you contact Sears concerning your

appliance.

Model number 110

Serial number

Purchase date

Save these instructions and your sales receipt for future

reference.

WASHER SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appFiance,Always read and obey all

safety messages,

This is the safety alert symbol

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or

"WARNING," These words mean:

You can be killed or seriously injured if you don't

immediately follow instructions.

You can be killed or seriously injured if you don't

follow instructions.

All safety messages will tell you what the potential hazard is,tell you how to reduce the chance of injury, and tell you

what can happen if the instructions are not followed.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: To reduce the risk of fire, electric shock, or injury to persons when using the washer, follow basic

precautions, including the following:

• Read all instructions before using the washer.

• Do not wash articles that have been previously

cleaned in, washed in, soaked in, or spotted with

gasoline, dry-cleaning solvents, other flammable,

or explosive substances as they give off vapors

that could ignite or explode.

•Do not add gasoline, dry-cleaning solvents, or

other flammable, or explosive substances to the

wash water. These substances give off vapors

that could ignite or explode.

• Under certain conditions, hydrogen gas may be

produced in a hot water system that has not been

used for 2 weeks or more. HYDROGEN GAS IS

EXPLOSIVE. If the hot water system has not

been used for such a period, before using the

washing machine, turn on all hot water faucets

and let the water flow from each for several

minutes. This will release any accumulated

hydrogen gas. As the gas is flammable, do not

smoke or use an open flame during this time.

• Do not allow children to play on or in the washer. Close

supervision of children is necessary when the washer is

used near children.

• Before the washer is removed from service or discarded,

remove the door or lid.

• Do not reach into the washer if the drum, tub or agitator

is moving.

• Do not install or store the washer where it wilt be

exposed to the weather.

• Do not tamper with controls.

• Do not repair or replace any part of the washer or

attempt any servicing unless specifically recommended

in this manual or in published user-repair instructions

that you understand and have the skills to carry out.

• See "Electrical Requirements" for grounding instructions.

SAVE THESEINSTRUCTIONS

INSTALLATION

REQUIREMENTS A pedestal may be purchased separately for this washer. This

pedestal will add about 14 inches to the height of your unit for a

total vertical height of approximately 52 inches (132 cm).

Tools and Pa s

Assemble the necessary tools and supplies before beginning the

washer installation. The pads suppled are in the washer drum.

Tools needed for connecting the water inlet hoses

•Pliers (that open to 1 9/_ in. [39.5 mm])

a Flashlight (optional)

Tools needed for installation

• Open end wrench% in. (17 mm) and 1/2in. (13 mm)

= Level

•Wood block (2" x 4") Optional Pedestal

li Ruler or measuring tape This pedestal is available in three colors:

Parts supplied: White - Part Number 4282

Bisque - Part Number 4284

_Graphite -Part Number 4286

To order, call your local Sears store or Sears Service Center. For

further information, please reference the service numbers located

on the back page of this manual.

Beadedstrap Transport oit.olepi.g Localon Requirements

A emate Pan You May Need

Parts listed are available from your local Sears store or Sears

Service Center. Please reference the service numbers located on

the back of this manual.

If You Have You Will Need to Buy

Selecting the proper location for your washer improves

performance and minimizes noise and possible washer "walk."

Your washer can be installed under acustom counter, or in a

basement, laundry room, closet, or recessed area. (See "Drain

System.")

Companion appliance location requirements should also be

considered. Proper installation is your responsibility.

You will need

Laundry tub or Sump pump system (if not already

standpipe taller available)

than 96 in. (2.4 m)

Overhead sewer Standard 20 gal. (76 L), 30 in. (76.2 cm)

tall drain tub or utility sink and sump

pump (available from local plumbing

suppliers)

Floor drain Siphon break, Part Number 285834;

additional drain hose Part Number

8318155; and connector kit, Part

Number 285835

Drain hose too Drain hose extension kit, Part Number

short 285863

aAwater heater set to deliver 120°F (49°C) water to the

washer.

A grounded electrical outlet located within 5 ft (1.5 m) of

where the power cord is attached to the back of the washer.

(See "Electrical Requirements.")

Hot and cold water faucets located within 4 ft (1.2 m) of the

hot and cold water fill valves, and water pressure of

20-100 psi (137.9-689.6 kPa).

Water faucets

beyond reach of

fill hoses

2longer water fill hoses:

6 ft (1.8 m) Part Number 76314,

10 ft (3.0 m) Part Number 350008

= A level floor with a maximum slope of 1 in. (2.5 cm) under

entire washer. Installing the washer on carpeting is not

recommended.

• A sturdy and solid floor to support the washer with a total

weight (water and load) of 400 Ibs (180 kg).

Do not operate your washer in temperatures below 32°F (0°C).

Some water can remain in the washer and can cause damage in

low temperatures.

Washer Dimensions

50-1/2 in. 27 in.

D ain System

The washer can be installed using the standpipe drain system.

(floor or wall), the laundry tub drain system, or the floor drain

system. Select the drain hose installation method you need. (See

"Alternate Parts You May Need.")

38 in.

(96.5 cm)

(80.0 cm}

Custom undereounter installation

The dimensions shown are for the minimum spacingallowed

0in

0in 27in 0in

Recessed area or closet installation

The dimensions shownare for the minimumspacingallowed.

====-_ _}

10"__'/," _-I_"I_-

(0c_) (80cm) (0_)

3,,

(_6cm)

3,,

I. Side view -closet or confined area

2. Closet door with vents

Additional spacing should be considered for ease of

installation and servicing.

Additional clearances might be required for wall, door and

floor moldings.

Additional spacing of 1 in. (2.5 cm) on all sides of the washer

is recommended to reduce noise transfer.

For closet installation, with a door, the minimum ventilation

openings in the top and bottom of the door are required

(view 2). Louvered doors with equivalent ventilation openings

in the top and bottom are acceptable.

30" rain.

(76.2 cm]

Standpipe drain system -wall or floor (view I & 2)

The standpipe drain requires a minimum diameter standpipe of 2

in, (5 cm), The minimum carry-away capacity can be no less than

17 gal. (64 L) per minute.

The top of the standpipe must be at least 30 in. (76.2 cm) high

and no higher than 96 in, (2.4 m) from the bottom of the washer.

Laundry tub drain system (view 1)

The laundry tub needs a minimum 20 gal. (76 L) capacity. The top

of the laundry tub must be at least 30 in. (76.2 cm) above the

floor.

Floor drain system (view 2)

The floor drain system requires a siphon break that may be

pumhased separately. (See "Alternate Parts You May Need.")

The siphon break must be a minimum of 28 in, (71 cm) from the

bottom of the washer. Additional hoses might be needed.

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong,

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in

death, fire, or electrical shock.

A 120-volt, 60-Hz., AC-only, 15- or 20-ampere, fused

elecfrical supply is required. Time-delay fuse or circuit

breaker is recommended. It is recommended that a separate

circuit serving only this appliance be provided.

• This washer is equipped with a power supply cord having a 3

prong ground plug.

• To minimize possible shock hazard, the cord must be

plugged into a mating, 3 prong, ground-type outlet, grounded

in accordance with local codes and ordinances. If a mating

outlet is not available, it is the personal responsibility and

obligation of the customer to have the propedy grounded

outlet installed by a qualified electrician.

•If codes permit and aseparate ground wire is used, it is

recommended that a qualified electrician determine that the

ground path is adequate.

• Do not ground to a gas pipe.

• Check with aqualified electrician if you are not sure the

washer is properly grounded.

•Do not have a fuse in the neutral or ground circuit.

GROUNDING INSTRUCTIONS

For a grounded, cord-connected washer:

This washer must be grounded. In the event of a mal-

function or breakdown, grounding will reduce the risk

of electrical shock by providing a path of Least resist-

ance for electric current. This washer is equipped with

acord having an equipment-grounding conductorand

a grounding plug. The plug must be plugged into an

appropriate outlet that is properly installed and ground-

ed in accordance with all local codes and ordinances.

WARNING: Improper connection of the equipment-

grounding conductor can result in a risk of electric

shock. Check with a qualified electrician or serviceman

if you are in doubt as to whether the appliance is prop-

erly grounded.

Do not modify the plug provided with the appliance -

if it will not fit the outlet, have a proper outlet installed

by a qualified electrician.

For a permanently connected washer:

This washer must be connected to agrounded metal,

permanent wiring system, or an equipment grounding

conductor must be run with the circuitconductors and

connected to the equipment-grounding terminal or lead

on the appliance,

1.3 prong grounding plug

2. 3 prong grounding-type wall receptacle

3. Grounding prong

4. Power supply cord

INSTALLATION

INSTRUCTIONS

Remove Transport System

IMPORTANT: Position the washer so that the rear of the unit

is within approximately 3 feet (90 cm) of the final location.

There are 4bolts in the rear panel of the washer that support the

suspension system during transportation.

1. Using a 1/2in. (13 ram) wrench, loosen each of the bolts.

2. Once the bolt is loose, move it to the center of the hole and

completely pull out the bolt, including the red plastic spacer

covering the bolt and the cable attached to the bolt. The

power cord will be attached to all 4 bolts.

3. Once all 4 bolts are removed, remove the power cord from

each bolt holder, and discard bolts, red plastic spacers, and

cables.

4. Close the holes with the transport bolt hole plugs.

Route the Drain Hose

Proper routing of the drain hose protects your floors from .

damage due to water leakage. Carefully read and follow these

instructions.

The drain hose is connected to your washer.

To prevent drain water from going back into the washer:.

•Do not straighten the drain hose, and do not force excess

drain hose into standpipe. Hose should be secure, but loose

enough to provide a gap for air.

• Do not lay excess hose on the bottom of the laundry tub.

Floor drain

You may need additional parts. (See Floor Drain under "Alternate

Parts You May Need.")

Connect the Inlet Hoses

Connect the inlet hoses to the water faucets

Make sure the washer drum is empty.

1. Attach the hose with the red color indicator to the hot water

faucet. Screw on coupling by hand until it is seated on the

washer.

2. Attach the hose with the blue color indicator to the cold water

faucet. Screw on coupling by hand until it is seated on the

washer.

3. Using pliers, tighten the couplings with an additional two-

thirds turn.

NOTE: Do not overUghten. Damage to the coupling can result.

4. Turn on the water faucets and check for leaks.

NOTE: Replace inlet hoses after 5 years of use to reduce the

risk of hose failure. Record hose installation or replacement

dates on the hoses for future reference.

Periodically inspect and replace hoses if bulges, kinks, cuts,

wear, or leaks are found.

Secu the Drain Hose

1_ Drape the power cord over the washer top.

2, Secure the drain hose to the laundry tub leg or standpipe with

the beaded strap provided. (See illustration.)

Ifthe washer faucets and the drain standpipe are recessed,

put the hooked end of the drain hose in the standpipe. Tightly

wrap the beaded strap around the water inlet hoses and the

drain hose.

Do not force excess drain hose into the standpipe.

Levelthe Washer

Properly leveling your washer prevents excessive noise and

vibration.

1. Ch=;ckthe levelness of the washer by placing a level on the

top edge of the washer, first side-to-side, then front-to-back.

If the washer is against a wall, move the washer out slightly

before tipping back. If the washer is not level, first prop the

front with a wood block (2" x 4") and adjust the feet as

necessary; then prop the back and adjust feet as necessary.

Repeat this step until washer is level.

2. After the washer is level, use a% in. (17 mm) open-end

wrench to turn the nuts on the feet tightly against the washer

cabinet.

All 4 feet must be tightened. If the nuts are not tight against

the washer cabinet, the washer may vibrate.

3. Slide the washer to its final location.

4. Confirm the levelness of the washer.

Complete InstaUation

1. Check the electrical requirements. Be sure that you have the

correct electrical supply and the recommended grounding

method. (See "Electrical Requirements.")

2. Check to be sure all parts are now installed. If there is an

extra part, go back through the steps to see which step was

skipped.

3. Check to be sure you have all of your tools.

4. Dispose/recycle all packaging materials,

5, Check to be sure the water faucets are on.

6. Check for leaks around faucets and inlet hoses.

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in

death, fire, or electrical shock.

7. Plug into a grounded 3 prong outlet.

8. Read "Washer Use."

To test and to clean your washer, measure 1/2the normal

recommended amount of powdered or liquid High Efficiency (HE)

detergent or 1/4the normal recommended amount of regular

powdered or liquid detergent. Pour the detergent into the

detergent dispenser. Select NORMAL/CASUAL, and then select

START. Allow the washer to complete one whole cycle.

FEATURES AND

BENEFITS

Flexible Elec'_onic Controls

Flexible electronic controls are easy to use whether you are a

beginner or an expert,

Smart Dispensers

The Smart Dispensers make your washer truly automatic. It is

unnecessary for you to return to the washer during the cycle to

add detergent, bleach, or fabric softener.

Laundry products are diluted with fresh water and added to the

load at the proper time in the wash cycle.

Auto Water Level

This washer automatically adjusts water level for best cleaning

and rinsing performance. Two sensors determine load size, load

composition, and suds level, then the sensors adjust the water

level to the proper setting. This eliminates guesswork. The water

level is just right for every wash load size.

Larger Load Size

Since there is no agitator, you can wash larger, bulkier items like

an average size sleeping bag. You are also able to wash more

clothes at one time, which means fewer loads. You can wash a

pillow or a large stuffed teddy bear.

Suspension System

To reduce washer "walk" and "off-balance" conditions, your new

washer combines:

•2 Springs to isolate vibration

• 4 Shock absorbers at the washer base to minimize movement

Stainless Steel Drum

The Stain]ass Steel drum eliminates corrosion and enables higher

spin speeds for more water extraction, reducing drying time.

High-Efficiency Wash System

Your new front-loading, high-efficiency washer saves time with

fewer, larger loads, conserves resources and lowers your water

and energy bills too.

Spin Speeds

This washer automatically selects the spin speed base_ on the

cycle selected. This factory setting can be changed,'however..

This washer offers up to six different spin speed choices.

Heating Element and Automatic Temperature Control

(ATC)

This washer has a heating element that automatically heats the

water to the best temperature on select cyclas. This enables

stepped cleaning, a process in which warm water is brought in

and mixed with detergent first, then the water is heated. The

warm water cleans stains such as blood and eggs, and the

heated water removes stains such as perspiration and dirty

mechanical oil. This heater is active in the Stain Treat and

Sanitary cycles.

Dispenser Drawer

This washer provides a four-comparfment dispenser which

includes separate compartments for main wash detergent, fabric

softener, bleach, and auto prewash or auto soak. The dispenser

has large pour zones, isself-cleaning, and can be easily

removed.

Add A Garment

At the beginning of a cycle, this washer allows an 8-minute

period in which forgotten garments may be added to a load

without waiting for the door to unlock. The ADD A GARMENT

status light will glow during this 8-minute period.

Direct Injec'don

This washer channels 100% of the water through the dispensers

to assure thorough rinse-out and mixture of all the additives

before they touch any garments. The water is then sprayed from

the top front onto the center of the load, providing even

distribution and optimum cleaning performance. It is normal for

small amounts of water to remain in the dispensers when the

wash cycle is complete.

Eco Valve

This washer has aspeciany designed valve that closes during the

wash portion of the cycle so that 100% of the water and

detergent mixture is used on the load. The Eco Valve insuresthat

no water or detergent is wasted.

Off-Balance Detection and Correction

This washer uses two sensors to detect load size and the amount

of off-balance within the load. The suspension system and

controls are specially designed to redistribute the load

automatically.

WASHER USE

__ w_sHCYCLES

EXPRESSWASH E_o

_:ArU_ NORMAL/'

CASUAL •.DELICATE O _

R[NS_O ffl IN L

SPiNii "•

_Fs_. D_NISPIN_nES

¢_L Le_, sm_ _L_S SANITARy HANDWASH

f _

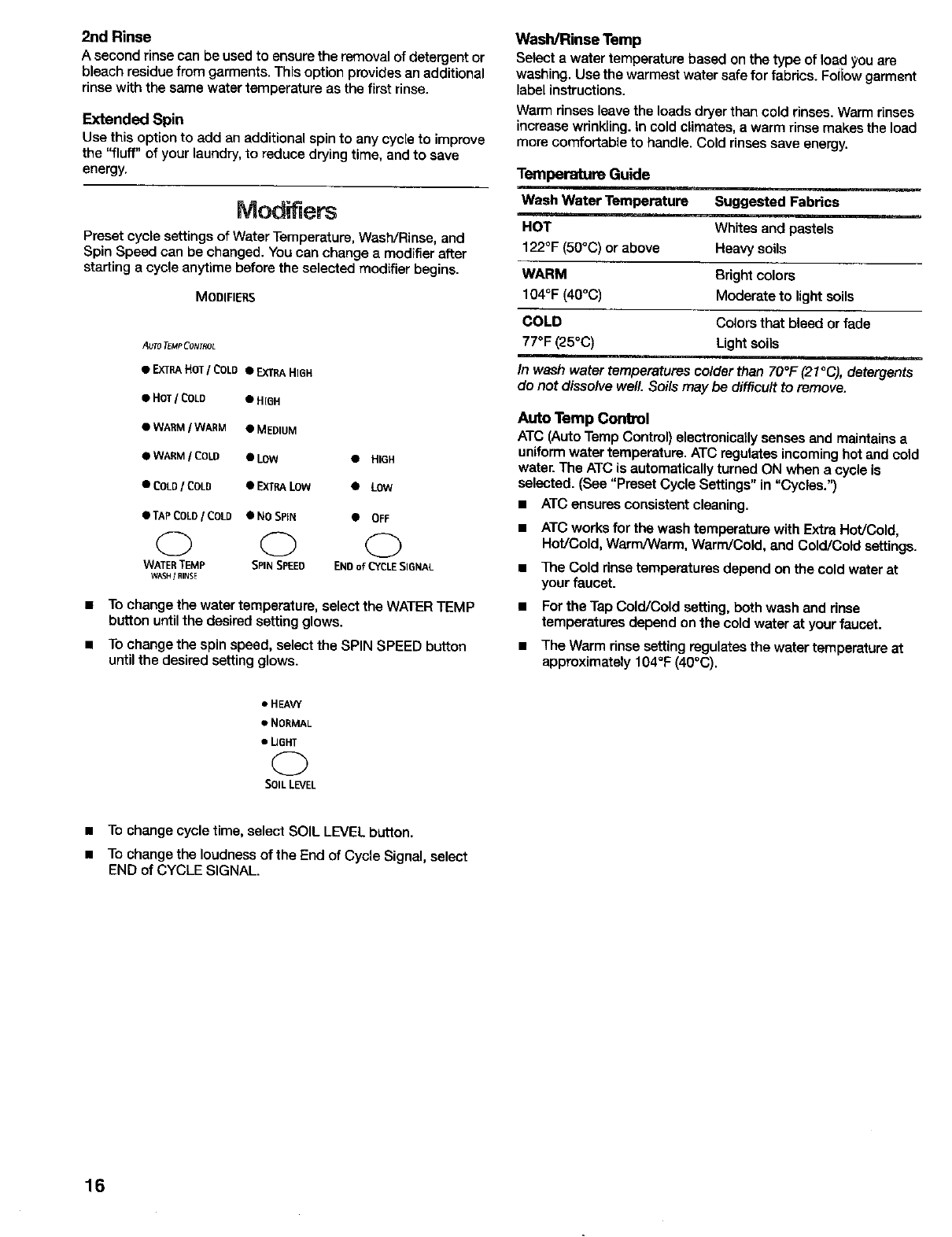

MODtRERSOPTIONS

| EX_ H0T /_LD _ _.X_A HIGH

• WArM I WARM •M EOIIJM

AUTO _OAK •WARM ! _OL_ •_J3W •HIGH

_OLO i_ • EXTRALOW •LOW

2NDRINSE @TApCo_D/COL o IINOSPlN •OFF

_NDEO SFtN WATER TEMp SNN S_E_ EN_ of L_'CL_ 51GNAL

Your Washer

Fire Hazard

Never place items in the washer that are

dampened with gasoline or other flammable

fluids.

No washer can completely remove oil

Do not dry anything that has ever had any type of

oil on it (including cooking oils).

Doing so can result in death, explosion, or fire.

The following is a guide to using your washer, Please refer to

specific sections of this manual for more detailed information.

Do not store laundry products on the top surface of this washer.

Vibration is normal during operation.

First Wash Cycle Without Laundry

Before washing clothes for the first time, choose NORMAL/

CASUAL cycle and run it without clothes. After installation, if a

complete cycle has not been run without clothes, use % the

normal recommended amount of powdered or liquid High

Efficiency (HE) detergent or %the normal recommended amount

of regular powdered or liquid detergent. This initial cycle serves

to ensure the interior is clean before washing clothes.

1. To load washer

Open the washer door by pulling on the handle.

Sort laundry according to color and type of fabric. Place a

load of sorted clothes in the washer. Do not overload washer.

Overloading can cause poor cleaning.

[] The washer can be fully loaded, but not tightly packed.

Washer door should close easily.

Close the washer door by pushing it firmly until the lock

clicks. The washer door will remain locked during the wash

cycle.

NOTE: After any wash cycle is completed, the door must be

opened and then closed before a new cycle can begin. The

door can be opened only if PAUSE/CANCEL is selected while

the ADD A GARMENT light is glowing or if the cycle has been

cancelled. See "Cancelling a Cycle."

Open the Dispenser Drawer and add laundry products to the

detergent, bleach, or fabric softener compartments. Close

drawer slowly to avoid spills. See "Using the Dispenser."

NOTE: For best performance, use High Effficiency detergents.

The package for this type of detergent will be marked "HE" or

"High Efficiency." The HEft "wash action" along with less water

could create too much sudsing with a regular detergent.

4. Turn on the washer by selecting one of the WASH CYCLES.

The indicator lightfor the selected cycle will glow. When

selecting a Wash Cycle, the preset cycle, Water Temp, Spin

Speed, and soil level for the selected cycle will glow. The

display shows the estimated time remaining. The preset

settings provide the recommended fabric care for the

selected cycle. See "Wash Cycles."

5. Select the desired OPTIONS. See "Options."

6. If desired, select the END OF CYCLE SIGNAL. The signal is

helpfu] when you are washing items that should be removed

from the washer as soon as it stops. Select HIGH or LOW.

7. To begin the wash cycle immediately

Select and hold START (for approximately 1 second),

[] Ifyou do not select START within 5 minutes of choosing a

cycle, the washer automatically shuts off.

[] When the wash cycle is complete, the CLOTHES CLEAN

status light glows, the door unlocks, and the wash load

can be removed from the washer. The washer powers

down automaticaUy 5 minutes after the cycle is complete.

To power down the washer manually after the wash cycle

is complete, select PAUSE/CANCEL once.

8. To begin the wash cycle later

Select DELAY until the desired delay time (in hours) shows in

the Estimated Time Remaining display. Select START.The

countdown to the wash cycle will show in the display window.

[] Mix large and small items. Load evenly.

a It is recommended that you wash small items such as

infant socks in a mesh garment bag.

a When unloading garments, occasionally check under the

rubber rim at the front of the tub for small items.

Your new washer has a dispenser drawer with four separate

compartments for your laundry products--two are for detergent,

one is for liquid chlorine bleach, and one is for liquid fabric

softener. Laundry products are diluted and dispensed

automatically at the proper time during the wash cycle, making it

unnecessary for you to return to the washer during the cycle to

add them.

it is normal for small amounts of water to remain in the

dispensers when the wash cycle is complete.

Do not put laundry additives directly into the wash tub. Always

use the proper dispensers when adding laundry products.

Choosing the Right Detergent

For best washing performance, use a High Efficiency (HE), or

low-sudsing, detergent• Regular detergents may cause

oversudsing in the washer. If a High Efficiency detergent is

unavailable, use 1/2the recommended amount of regular

detergent.

To fill dispenser compartments

1. Pull out the dispenser drawer.

2. Add the desired laundry product to the proper compartment.

3. Push in the dispenser drawer completely.

Main Wash detergent compartment

(Number 3 in Dispenser Illustration)

Add liquid or powdered detergent to this compartment for your

main wash cycle• The detergent separator must always be in

place, either in the front or back position.

IMPORTANT: If you are using the Prewash option, the Auto Soak

with a wash cycle, or Delay, powdered detergent must be used in

the main wash compartment since liquid detergents may seep

out of the main wash compartment during the prewash, soak

time, or delay before the main wash begins•

•Do not fill beyond the "MAX" level•

•Liquid or powdered color-safe bleach may be added to the

Main Wash compartment along with the same type of

detergent, liquid or powdered.

Liquid detergent: Put the SEPARATOR in the front position,

between the guides, as shown following• There will be no gap

between the bottom of the wash cycle detergent

compartment and the bottom of the separator.

<] POWDER

Dispenser

1. Prewash detergent compartment

2. Separator

3. Main Wash detergent compartment

4. Dispenser release lever

5. Bleach compartment

6. Fabric softener compartment

Prewash detergent compartment

(Number I in Dispenser Illustration)

Add detergent to this compartment when using the Prewash

option or Auto Soak. Liquid or powdered detergent may be used

in this compartment. The detergent will automatically be

dispensed during Prewash if the Prewash option is selected or

during the soak time ifAuto Soak is selected.

s If you use High Efficiency (HE) detergent, add !/3the

recommended amount to the prewash compartment and %

the recommended amount to the main wash compartment.

=If you use regular detergent, add 1/6of the recommended

amount to the prewash compartment and 1/3of the

recommended amount to the main wash compartment.

Separator in front position, between guides

I. Separator

2. Guide

Powdered detergent: Put the SEPARATOR in the back

position, behind the guides, as shown following• There will be

agap between the bottom of the wash cycle detergent

compartment and the bottom of the separator.

11 <3POWDER_ PREWASH_L_

LIQUI

Separator in back position, behind guides

1. Separator

2. Guide

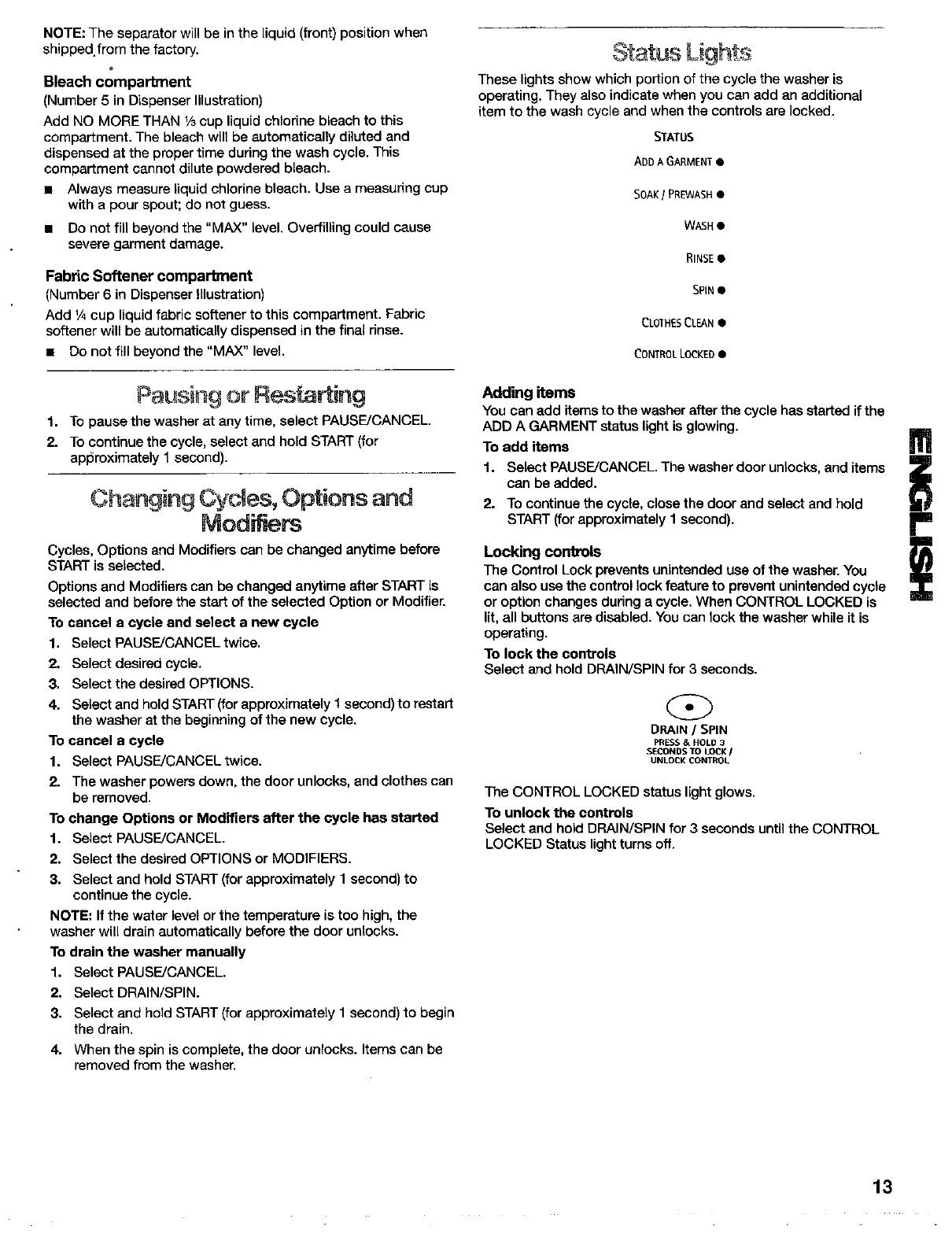

NOTE: The separator will be in the liquid (front) position when

shipped from the factory.

Bleach comparb'nent

(Number 5 in Dispenser Illustration)

Add NO MORE THAN 1/3cup liquid chlorine bleach to this

compartment. The bleach will be automatically diluted and

dispensed at the proper time during the wash cycle, This

compartment cannot dilute powdered bleach.

• Always measure liquid chlorine bleach. Use ameasuring cup

with a pour spout; do not guess.

•Do not fill beyond the "MAX" level. Overfilling could cause

severe garment damage.

Fabric Softener comparb'nent

(Number 6 in Dispenser illustration)

Add 1/4cup liquid fabric softener to this compartment. Fabric

softener will be automatically dispensed in the final rinse.

• Do not fill beyond the "MAX" level.

Pausing or Restarting

1. To pause the washer at any time, select PAUSE/CANCEL

2. To continue the cycle, select and hold START (for

apl_roximately I second).

ChangingOyctes,Options and

Modifiers

Cycles, Options and Modifiers can be changed anytime before

START is selected.

Options and Modifiers can be changed anytime after START is

selected and before the start of the selected Option or Modifier.

To cancel a cycle and select a new cycle

1. Select PAUSE/CANCEL twice,

2. Select desired cycle.

3. Select the desired OPTIONS.

4. Select and hold START (for approximately I second) to restart

the washer at the beginning of the new cycle.

To cancel a cycle

1. Select PAUSE/CANCEL twice.

2. The washer powers down, the door unlocks, and clothes can

be removed.

To change Options or Modifiers after the cycle has started

1. Select PAUSE/CANCEL

2. Select the desired OPTIONS or MODIFIERS.

3. Select and hold START (for approximately 1 second) to

continue the cycle,

NOTE: If the water level orthe temperature is too high, the

washer will drain automatically before the door unlocks.

To drain the washer manually

1. Select PAUSE/CANCEL.

2. Select DRAIN/SPIN.

3. Select and hold START (for approximately 1 second) to begin

the drain.

4. When the spin is complete, the door unlocks. Items can be

removed from the washer.

$ atusLigh ,

These lightsshow which portionofthecyclethewasher is

operating.They alsoindicatewhen you can add an additional

itemto thewash cycleand when the controlsarelocked.

STATUS

ADDA GARMENT•

SOAK ]PREWASH •

WASH €

RINSE •

SPIN •

CLOTHESCLEAN •

CONTROL LOCKED •

Adding items

You can add items to the washer after the cycle has started if the

ADD A GARMENT status light is glowing.

To add items

1. Select PAUSE/CANCEL The washer door unlocks, and items

can be added.

2. To continue the cycle, close the door and select and hold

START (for approximately I second).

Locking contzols

The Control Lock prevents unintended use of the washer. You

can also use the control lock feature to prevent unintended cycle

or option changes during a cycle, When CONTROL LOCKED is

lit, all buttons are disabled. You can lock the washer while it is

operating.

To lock the controls

Select and hold DRAIN/SPIN for 3 seconds.

DRAIN /SPIN

PRESS & HOLD 3

SECONDS TO LOCK I

UNLOCK CONTROL

The CONTROL LOCKED status light glows.

To unlock the controls

Select and hold DRAIN/SPIN for 3 seconds untilthe CONTROL

LOCKED Status light turns off.

Wash Cycles

Choose Wash Cycles by selecting the button next to the desired

cycle. Each cycle is designed for different types of fabric and soil

levels.

WASHCYCLES

EXPRESSWASH

SANITARY

DELICATE

- SILK

WOOL

U_RA

HANDWASH

•Each cycle has a preset Soil Level (cycle time), Water

Temperature, and Spin Speed. The preset settings provide

the recommended fabric care for the selected cycle.

• The preset settings can be changed anytime before START is

selected. (To change settings after the cycle has started,

select PAUSE/CANCEL, then select the desired settings.

Select and hold START (for approx. 1 second) to continue the

cycle.)

Preset cycle settings

Each cycle has a preset Cycle Time, Water Temp, and Spin

Speed. The preset settings provide the recommended fabric care

for the selected cycle. See chart.

Cycle Soil Level Water Temp Spin

(cycletime) Speed

Sanitary More Extra Hot/Cold Extra High

(120 min.)

Whitest More Hot/Cold Extra High

Whites (70 min.)

Heavy More Hot/Cold Extra High

Duty (90 min.)

Normal/ Normal Warm/Cold High

Casual (45 min.)

Express Less Warm/Cold Extra High

Wash (35 min.)

Delicate Normal Warm/Cold Low

(35 min.)

Silk Normal Cold/Cold No spin

(30 min.)

Wool Normal Cold/Cold Low

(35 min.)

Ultra Normal Cold/Cold Extra Low

Handwash (35 min.)

Sanitary

Use this cycle to clean heavily soiled colorfast fabrics. This cycle

combines a very hot water temperature and fast speed tumbling

to help ensure the removal of heavy soils and stains. It is

recommended that you set your hot water heater to 120°F (49°

C) to ensure proper performance during this cycle. The Sanitary

cycle also helps kill bacteria, even when no bleach is used. Extra

high speed spin helps shorten drying time.

Whitest Whites

This cycle is especially designed for cleaning loads of soiled

white fabrics with the addition of bleach. Hot washing

temperatures assure optimal bleach activity. An additional rinse

provides optimal rinse performance to avoid chlorine residues on

your laundry. This cycle combines fast speed tumbling, longer

wash time, and extra high speed spin to shorten drying time.

Heavy Duty

Use this cycle to wash loads of sturdy, colorfast fabrics and

normally soiled garments. This cycle combines fast speed

tumbling, longer wash time, and extra high speed spin to shorten

drying times. If the water temperature is lower than needed for

this cycle, the heater will warm the water to the optimum

temperature.

NOTE: Stain Treat is a default option for this cycle, To ensure best

performance, the water is heated as the cycle progresses. This

gradual heating assists in the removal of organic soils such as

blood.

NormaVCasual

Use this cycle to wash loads of no-iron fabrics such as sport

shirts, blouses, casual business clothes, permanent press

blends, cottons and linens, and synthetic fabrics. This cycle

combines medium speed tumbling, high speed spin, and a load

cooling process to reduce wrinkling.

Express Wash

Use this cycle to wash small loads of lightly soiled garments that

are needed in a hurry. This cycle combines fast speed tumbling, a

shortened wash time, and extra high speed spin to shorten

drying time.

Delicate

Use this cycle to wash sheer fabrics and lingerie. This cycle

combines low speed tumbling and low speed spin for gentle

fabric care.

Silk

Use this cycle to clean washable silk garments, (Check label

instructions to make sure that garment is washable.) This cycle

gently tumbles and drains without spinning to gently clean

garments and minimize wrinkling. Because there is no spinning

action, garments will contain a higher amount of water at the end

of this cycle.

Wool

Use this cycle to clean washable woolen garments. (Check label

instructions to make sure that garment is washable.) This cycle

features gentle tumbling and low speed spin to minimize creasing

and shrinkage,

Ultra Handwash

Use this cycle to clean hand washable and special-care

garments. Similar to the way garments are hand washed in a

sink, the wash action of this cycle combines periods of extra low

speed tumbling and soaking. Extra low speed spin reduces

wrinkling.

Extra Cycles

Extra Cycles can be chosen by selecting the button above the

d_sired cycle.

RINSE/SPIN

DRAIN/SPIN

You can change the selection anytime before START is selected.

Rinse/Spin

Use this cycle to get a rinse and spin only. This cycle combines

fast speed tumbling and extra high speed spin. If desired, you

can reduce the spin speed by selecting the speed you want from

the SPIN SPEED modifier.

Rinse/Spin is useful for

• Loads that need rinsing only.

mR Adding fabric softener to a load using the fabric softener

dispenser.

Drain/Spin

Use this cycle to drain your washer or to drain and spin your

wash Io&d. The spin speed is preset to extra high. If desired, you

can reduce the spin speed by selecting the speed you want from

the SPIN SPEED modifier.

NOTE: Loads of synthetics, delicate fabrics, handwashables, and

woolens should be drained with no spin or low spin to avoid

fabric stress.

Normal Washer Sounds

As with any new product, you will hear sounds that you are not

accustomed to. You may hear various sounds when the door is

locked and unlocked, and during the washing, rinsing, and

spinning process. Between changes in wash actions, there will

be momentary pauses. You will hear water spraying and

splashing during the wash and rinse cycles. These new sounds

and pauses are part of normal washer operation. (See

"Troubleshooting.")

You can customize your wash by adding OPTIONS to your cycle

selections. You can add or change an option after starting a cycle

anytime before the selected option begins.

OPTIONS

PREWASH

STAIN TREAT

AUTO SOAK

2ND RINSE

EXTENDED SPIN

See the "Laundry Guide" for an overview of possible options

for each Wash Cycle selection.

You can select more than one option for a cycle. Some

options cannot be added to some cycles, for example, Stain

Treat cannot be added to the Express Wash cycle.

If an option is available with a selected cycle, the light for that

option will glow when selected.

If an option is unavailable with a selected cycle, there will be a

short tone and the light for that option will not glow when

selected.

Prewash

Use this option for loads of heavily soiled loads that need

pretreatment. This option adds a 15 minute prewash and drain to

the main wash cycle.

• Add detergent to the Prewash and Main Wash compartments

of the Dispenser Drawer.

•When using Prewash, do not use liquid detergent in the Main

Wash compartment. Use powdered detergent for the main

wash cycle.

NOTE: The Prewash and Auto Soak options cannot be selected

in the same cycle.

Stain Treat

Use this option for heavily soiled loads that need improved stain

treatment. When Stain Treat is selected, the water temperature of

the selected wash cycle is automatically set to warm. The water

will then be heated to a hot water temperature to aid in stain

removal. This option will provide optimal removal of organic

stains such as blood.

NOTE: If Stain Treat is selected with the Sanitary cycle, the water

will be heated to avery hot temperature.

Auto Soak

Use the Auto Soak option for loads of heavily soiled cotton, linen,

polyester or nylon with set-in stains. During Auto Soak, water will

be added to the drum and the laundry will be equally distributed

by a short tumbling phase. Laundry willthen be soaked by

phases without drum movement. After soaking, the washer

drains without spinning.

Added to a Wash Cycle: A 30 minute soak time is added to the

main wash cycle to improve removal of set-in stains.

1. Add detergent to both the Prewash and Main Wash

compartments of the Dispenser Drawer.

NOTE: The Auto Soak and Prewash options cannot be

selected in the same cycle. Use powdered detergent for the

main wash cycle because liquid detergent will seep into the

washer during Auto Soak.

2. Select a Wash Cycle.

8. Select AUTO SOAK.

NOTE: For cycles with hot wash temperatures, the soak

temperature will be set to warm; otherwise, the soak

temperature will be the same as the wash temperature.

4. Select and hold START (approximately 1 second). After

soaking, the washer drains and the wash cycle starts.

Without a Wash Cycle: Provides a soak time with warm or cold

water followed by drain.

1, Add detergent only to the Prewash compartment of the

Dispenser Drawer.

2, Select DRAIN/SPIN or RINSE/SPIN first, then AUTO SOAK.

3, Choose the desired soak temperature.

4. Select and hold START (approximately 1 second).

2rid Rinse

A second rinse can be used to ensure the removal of detergent or

bleach residue from garments, This option provides an additional

rinse with the same water temperature as the first rinse.

Extended Spin

Use this option to add an additional spin to any cyc[e to improve

the "fluff" of your laundry, to reduce drying time, and to save

energy.

Mod ers

Preset cycle settings of Water Temperature, Wash/Rinse, and

Spin Speed can be changed. You can change a modifier after

starting a cycle anytime before the selected modifier begins.

MODIFIERS

AUTOTb_fPCONTROL

•EXTRAHOT /COLD • EXTRAHIGH

•HOT/COLD •H[GH

•WARM/WARM • MEDIUM

• WARM /COLD • LOW

•COLD/COLD • EXTRALOW

•TAP COLDICOLD •NO SPIN

(2) Q

WATERTEMP SPIN SPEED

WASH /RINSE

•HIGH

• Low

• OFF

END of CYCLESIGNAL

•To change the water temperature, select the WATER TEM P

button untilthe desired setting glows.

• To change the spin speed, select the SPIN SPEED button

until the desired setting glows.

Wash/Rinse Temp

Select a water temperature based on the type of load you are

washing, Use the warmest water safe for fabrics. Foilow garment

label instructions.

Warm rinses leave the loads dryer than cold rinses. Warm rinses

increase wrinkling. In cold climates, a warm rinse makes the load

more comfortable to handle. Cold rinses save energy.

Temperature Guide

Wash Water Temperature Suggested Fabrics

HOT Whites and pastels

122°F (50°C) or above Heavy soils

WARM Bright colors

104°F (40°C) Moderate to light soils

COLD Colors that bleed or fade

77°F (25°C) Light soils

In wash water temperatures colder than 70°F (21 °C), detergents

do not dissolve well. Softs may be difficult to remove.

Auto Temp Control

ATC (Auto Temp Control) electronically senses and maintains a

uniform water temperature. ATC regulates incoming hot and cold

water. The ATC is automatically turned ON when a cycle is

selected. (See "Preset Cycle Settings" in "Cycles.")

•ATC ensures consistent cleaning.

•ATC works for the wash temperature with Extra Hot/Cold,

Hot/Cold, Warm/Warm, Warm/Cold, and Cold/Cold settings.

• The Cold rinsetemperatures depend on the cold water at

your faucet.

•For the Tap Cold/Cold setting, both wash and rinse

temperatures depend on the cold water at your faucet.

• The Warm dnse setting regulates the water temperature at

approximately 104°F (40°C).

• HEAVY

•NORMAL

•LIGHT

SOIL LEVEL

• To change cycle time, select SOIL LEVEL button.

• To change the loudness of the End of Cycle Signal, select

END of CYCLE SIGNAL.

LaundEr

Refer to this chart for suggested load types and their corresponding cycles. Listed to the right are the options available to each of these

washer cycles.

CYCLE SUGGESTED LOAD TYPE AVAILABLE OPTIONS

Prewash* Stain Treat Auto 2nd Rinse Extended

Soak* Spin

Sanitary Heavily soiled underwear, towels, work _ I/ V' I_

clothes, diapers, etc.

Whitest Heavily soiled white fabrics t,/ I/ V' I/ b/

Whites

Heavy Duty Normally soiled underwear, towels, I/ I/ Iv/ V' V'

shirts, etc., made of cotton

Normal/ Lightly to normally soiled blouses, shirts, _V' If lib' V'

Casual overalls, etc., made of polyester, nylon,

cotton, linen, or cotton blends

Express Wash Lightly to normally soiled overalls and t/ V' V'

sportswear made of cotton, polyester,

nylon, and cotton blends

Delicate Curtains and delicate clothing, dresses, tb" If V'

skirts, shirts and blouses

Silk Fabrics made of silk identified as iv/

machine washable

Wool Woolens with a felt-free finish, identified t/

as machine washable

Ultra Fabrics made of silk, special-care items iv/

Handwash marked "Handwashable"

* Prswash and Auto Soak cannot be selected at the same time.

LAUNDRY TIPS

Preparing clothes for washing

Follow these recommendations to help you prolong the life of

your garments.

• Close zippers, snaps, and hooks to avoid snagging other

items. Remove pins, buckles, and other hard objects to avoid

scratching the washer interior. Remove non-washable trim

and ornaments.

• Empty pockets and turn them inside-out.

•Turn down cuffs; brush away lint and dirt.

•Turn synthetic knits inside-out to avoid pilling.

•Tie strings and sashes so they wilt not tangle.

• Mend tears, loose hems, and seams.

•Treat spots and stains.

• Stained or wet garments should be washed promptly for best

results.

Sorting

s Separate heavily soiled items from lightly soiled ones, even if

they would normally be washed together. Separate lint-givers

(towels, chenille) from lint-takers (corduroy, synthetics,

permanent press), When possible, turn lint-givers inside-out.

Separate dark colors from light colors, colorfast items from

non-colorfast items.

Sort by fabric and construction (sturdy cottons, knits, delicate

items),

Loading suggestions {maximum size loads).

Heavy Work Clothes

4jeans 2 sweatpants

4 worKpants 2 sweatshirts

4 workshirts

Towels

10 bath towels 14 wash cloths

f0 hand towels

Mixed Load

3 sheets (1 king, 2twin)

4pillowcases

3 shirts

3 blouses

9 T-shirts

9 shorts

10 handkerchiefs

WASHER CARE

Cleaning the exterior

Use a soft damp cloth or sponge to wipe up any spills.

Occasionally wipe the outside of your washer to keep it looking

new, Use mild soap and water. Do not use abrasive products.

Cleaning the interior

Use a soft damp cloth or sponge to occasionally wipe the inner

door to remove any detergent residue, Use mild soap and water.

Do not use abrasive products.

Cleaning the door seal

Use a soft damp cloth or sponge when necessary. Check the fold

of the seal periodically for any foreign objects.

Cleaning the dispenser drawer

The dispenser drawer is removable for easy cleaning.

1. UnlockthedispenserdrawerbypressingtheReleaseLeverin

the Prewash compartment. See "Using the Dispenser."

Remove the drawer.

2. Remove the inserts (the siphon from the softener and bleach

compartments and the separator).

3, Wash the parts under running water.

4. Replace the inserts and return the dispenser to the drawer.

Wat÷r in,of Hos÷s

Replace inlet hoses after five years of use to reduce the risk of

hose failure. Periodically inspect and replace inlet hoses if

bulges, kinks, cuts, wear or leaks are found.

When replacing your inlet hoses, record the date of replacement.

Install and store your washer where it will not freeze. Because

some water may stay in the hoses, freezing can damage your

washer. If storing or moving your washer during freezing weather,

winterize it.

Non-use or vacation care:

Operate your washer only when you are at home. If you will be on

vacation or not using your washer for an extended period of time,

you should:

• Unplug washer or disconnect power.

= Turn off the water supply to the washer. This helps avoid

accidental flooding (due to a water pressure surge) while you

are away.

= Slightly open door to provide ventilation.

To winterize washer:

1. Put 1 quart (1 L) of R.V.-type antifreeze in the drum.

2. Run washer on a DRAIN /SPIN cycle.

3. Unplug washer or disconnect power.

4. Shut off both water faucets.

5. Disconnect water inlet hoses from faucets and drain.

To use washer again:

1, Flush water pipes.

2. Reconnect water inlet hoses to faucets.

3, Turn on both water faucets,

4. Plug in washer or reconnect power.

5. Run the washer through the NORMAL/CASUAL cycle with _A

the normal recommended amount of detergent to clean out

antifreeze.

TO transport the washer:.

1. If washer willbe moved duringfreezing weather, put in a quart

(1 L) of R.V.-type antifreeze in the drum. Run washer on a

DRAIN /SPIN cycle.

2. Unplug the power cord.

3. Disconnect the drain hose from the drain system and attach

to rear panel clips.

4. Shut off both water faucets.

5. Disconnect the water inlet hoses from faucets, then drain the

hoses and clip them to the rear panel of the washer.

6. Do not reuse transport bolts, Unit must be transported in the

upright position,

Re-installing the washer

1. Follow the "Installation Instructions" to locate, level and

connect the washer.

2. Run the washer through the NORMAL/CASUAL cycle with _

the normal recommended amount of detergent to clean the

washer and remove the antifreeze, if used.

TROUBLESHOOTING

First try the solutions suggested hera to possibly avoid the

cost of a service call...

Washer displaying code message and tone sounds

S"HF" 0Nater Inlet Problem--no water or insufficient water

supply)

Select PAUSE/CANCEL twice to cancel the cycle. Unplug

washer or disconnect power.

Check the following:

Are water faucets completely turned on?

Are screens at inlet hose connection to washer clogged?

Are water inlet hoses kinked?

Are water inlet hoses frozen?

Plug in washer or reconnect power. Re-select cycle and press

START. If the problem remains, call for service.

"F02" (Drain Problem)

Select PAUSE/CANCEL twice to cancel the cycle, Unplug

washer or disconnect power.

Cl_eck the following:

Is the drain hose kinked?

ts the drain hose frozen?

Is the drain hose clogged?

Is the drain hose more than 96 in. (2.4 m) above the floor?

="SUD" (Suds Routine)

When excessive suds are detected, a suds routine •

automatically starts. This routine removes extra suds and

assures proper rinsing of your garments. "SUD" is displayed

during rinsing and at the end of the cycle to inform you that

Suds Routine was activated. To avoid excessive sudsing,

reduce detergent amounts or use HE detergents. •

•"F" Variables [F4 to F16] (Electrical Problem)

Select PAUSE/CANCEL twice to cancel the cycle. Select

DRAIN/SPIN ifthere is excessive water in the washer.

Re-select cycle and press START. If the problem remains, call

for service.

Washer won't start

= Check the following:

Is the power cord plugged into a grounded 3 prong outlet?

Is the washer door firmly shut?

Has a cycle been selected, but START has not been selected

and held for one second?

Was the door open after completion of last cycle?

Washer won't fill, wash or rinse

!Check the following:

Is the power cord plugged into agrounded 3 prong outlet?

Is there power at the plug? Check electrical source or call

electrician.

Are the hot and cold water faucets turned on?

Is the water inlet hose kinked?

Are the water inlet valve screens clogged?

Washer stops

•Check the following:

Is the power cord plugged into a grounded 3 prong outlet?

Is there power at the plug?

Check electrical source or call electrician.

Has a fuse blown or has the cimuit breaker tripped?

If problem continues, call electrician.

Are you using an extension cord?

Do not use an extension cord.

Washer won't drain or spin

• Is the drain hose clogged, or the end of the drain hose

more than 96 in. (2.4 m) above the floor?.

s Is your voltage low?

Check electrical source or call electrician. Do not use an

extension cord.

i Is the "SUD" routine active?

Cycle will complete once extra suds are removed.

Washer makes noise or vibrates

•Is the washer level?

The washer must be level. The four feet should be propedy

installed, and the nuts should be tightened against the

washer cabinet.

As water is drained from the washer, you may hear air being

pulled through the pump. This happens during the end of

draining. It is normal.

Are you washing items with metal snaps, buckles or

zippers?

You may hear metal items touching the washer drum. This is

normal.

Is washer installed on a sturdy and solid floor?.

Refer to the "Installation Instructions" for flooring

requirements. Noise and vibration may be reduced by placing

a piece of _ in. (19.1 ms) plywood underneath your washer.

The plywood may extend underneath both washer and d_Jer

to keep them at equal heights.

Washerleaks

s Check household plumbing for leaks.

Dispensers clogged or leaking

•Are the laundry products in the correct dispenser

compartment?

Add the correct amounts of detergent, fabric softener or

liquid chlorine bleach to the correct compartments. Add

powdered or color-safe bleach to the Main Wash

compartment.

Is the detergent separator in the correct position?

Separator should be in the front position when using liquid

detergent and inthe back position when using powdered

detergent,

Load too wet

• Did you use the right cycle for the load being washed?

Select a cycle with a higher spin speed.

mDid you wash bulky items or have you overloaded the

washer?,

Bulky items, or overloading may cause imbalance. First, try to

evenly distribute your wet laundry in the drum, and start a

DRAIN/SPIN cycle, if the laundry is stillwet, take half of the

load out of the washer and try again.

Residue or lint on load

=Did you add detergent to the dispenser?.

For best results, add detergent to the detergent

compartment. Do not add detergent to the washer drum.

= Did you sort properly?.

Sort lint givers (towels, chenille) from linttakers (corduroy,

synthetics). Also sort by color.

Did you overload the washer?.

Do not overload the washer. The washer can be fully loaded,

but not tightly packed. The wash load must be balanced. Lint

can be trapped in the load if overloaded.

•Checkthe following:

Was paper or tissue left in pockets?

•Did you use enough detergent?

Follow manufacturer's directions. Use enough detergent to

hold the lint in the water.

•Is your water colder than 70°F (21°C)?

Wash water colder than 70°F (21°C) may not completely

dissolve the detergent.

•Are you using a low speed wash cycle?

Powdered detergents may not dissolve well in a slow speed

cycle. For best results, use liquid detergent for slow speed

cycles like Delicate, Silk, Wool and Ultra Handwash.

Stains on load

= Did you add detergent to the dispenser?.

For best results, add detergent to the detergent

compartment. Do not add detergent to the washer drum.

[]

Did you use enough detergent?

Use enough detergent to remove soil and hold it in suspension.

For best performance, use aHigh Efficiency detergent. Follow

manufacturer's recommendations for the type of load you are

washing.

Is there above average iron (rust) in water?

You may need to install an iron fitter.

Did you properly sort the load?

Sort dark clothes from whites and lights.

Did you unload the washer promptly?.

To avoid dye transfer, unload the washer as soon as it stops.

mDid you use a fabric softener dispensing ball?

Dispensing balls will not operate correctly with this washer.

Add liquid fabric softener to the fabric softener co_qp,arfment.

a Did you use powdered detergent in a low speed cycle?

Consider using liquid detergent.

•Did you use Express Wash on a large load?

For best results, use Express Wash for small, lightly soiled

loads.

Load is wrinkled

•Did you unload the washer promptly?.

Unload the washer as soon as it stops.

Did you use the right cycle for the load being washed?

Use the Delicate cycle or another cycle with alow spin speed

to reduce wrinkling.

Did you overload the washer?.

The wash load must be balanced and not overloaded. Loads

should tumble freely during washing.

Gray whites, dingy colors

•Did you properly sort the load?

Dye transfer can occur when mixing whites and colors in a

load. Sort dark clothes from whites and lights.

mWas the wash temperature too low?.

Use hot or warm washes if safe for the load. Hot water should

be at least 120°F (49°C) to clean heavy soils.

Did you use enough detergent, or do you have hard

water?.

Use more detergent for washing heavy soils in cold or hard

water,

Cycle too long

•Did you choose the Sanitary cycle or Stain Treat option?

In both cases the heater will be activated to provide

maximum cleaning performance. Additional time will be

added to the regular cycle to heat the water. This additional

time will depend on the load size and the hot water inlet

temperature.

Is "SUD" shown in the display?

Excessive sudsing has been detected and a suds routine has

been started to destroy excessive suds. This routine will add

time to the original cycle.

Door locked at end of wash cycle

•Did all of the water drain out of the washer during the spin?

Select DRAIN/SPIN to remove any water remaining in the

washer. The washer door will unlock at the end of the drain.

•Select DRAIN/SPIN to remove any water remaining in the

washer. The washer door will unlock at the end of the drain.

Get itfixed,at yourhomeorours!

For repair of major brand appliances in your own home...

no matter who made it, no matter who sold it!

1-800-4-MY-HOME ® Anytime,dayorntght

(1-800-469-4663) (U.S.A. and Canada)

www.sears.com www.sears,ca

For repair of carry-in products like vacuums, lawn equipment,

and electronics, call for the location of your nearest

Sears Parts and Repair Center.

1-800-488-1222 Anytime, day or night (U.S.A. only)

www.sears.com

For the replacement parts, accessories and owner's manuals

that you need to do-it-yourself, call Sears PartsDirect _ !

1-800-366-PART 6 a.m. - 11 p.m. CST, 7 days a week

(1-800-366-7278) (U.S.A. only)

www.sears.com/partsdirect

To purchase or inquire about a Sears Service Agreement

or Sears Maintenance Agreement:

1-800-827-6655 (U.S.A.) 1-800-361-6665 (Canada)

7 a.m. - 5 p.m. CST, Mon. - Sat. 9 a.m. - 8 p.m. EST, M - F, 4 p m. Sat.

Para pedir servicto de reparaci6n a

domicilto, y para ordenar ptezas:

1-888-SU-HOGAR sM

(1-888-784_6427)

Au Canada pour service en franc,,aB:

1-800-LE-FOYER Mc

(1-800-533-6937)

www.sears.ca

SEARS

HomeCentral®

4619 7020 3971

®RegBtered Trademark/TM Trademark of Sears, Roebuck and Co under hcensee by Sears Canada

As an ENERGY STAR_ Partner, Sears, Roebuck and Co has determined that this product

meets the ENERGY STAR_ guidelines for energy efficiency

_Marca reglstrada/TM rnarca de comerlco de Seam, Roebuck and Co, con Llcencla de Sears Canada

En su caltdad de socto ENERGY STAR®, Sears, Roebuck and Co ha deterrntnado que este produeto

cumple con as directnces ENERGY STAR_ de rendtmlento energ_tlco

® Marque depose eFi-M Marque de cornmerce de Sears, Roebuck and Co en vertu dun porteur de hcence par Sears Canada

A t_tre de partena_re ENERGY STAR®, Sears, Roebuck and Co a determ=ne que ee produit

sattsfatt aux d_rechves deff_cac_te energettque ENERGY STAR ®3/01

Pnnted tn U S A

Impreso en los EE UU

Irnpnme aux E -U

Kenmore Elite 11042922200 User Manual WASHER Manuals And Guides L0302234

KENMORE ELITE Residential Washers Manual L0302234 KENMORE ELITE Residential Washers Owner's Manual, KENMORE ELITE Residential Washers installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
