Page Count: 65

T®

Bottom Freezer Refrigerator

use& _ureGuide

Refrigerador con congelador inferior

Guiudeus0yCu_dud00p_o33

RGfrigGrateur _compartiment congGlateur infGrieur

Guided°u_H_su_one_d°÷n_re_ienopu_e65

"-trio

596.75522400,

596.75532400,

596.75523400,

596.75533400,

596.75524400,

596.75534400,

596.75529400,

596.75539400,

Part No. 12828112 Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A. www.seais.com

Form No. B/05/04 Sears Canada, Inc., Toronto, Ontario, Canada M5B 2B8 Au Canada, www.sears.ca

Litho U.S.A.

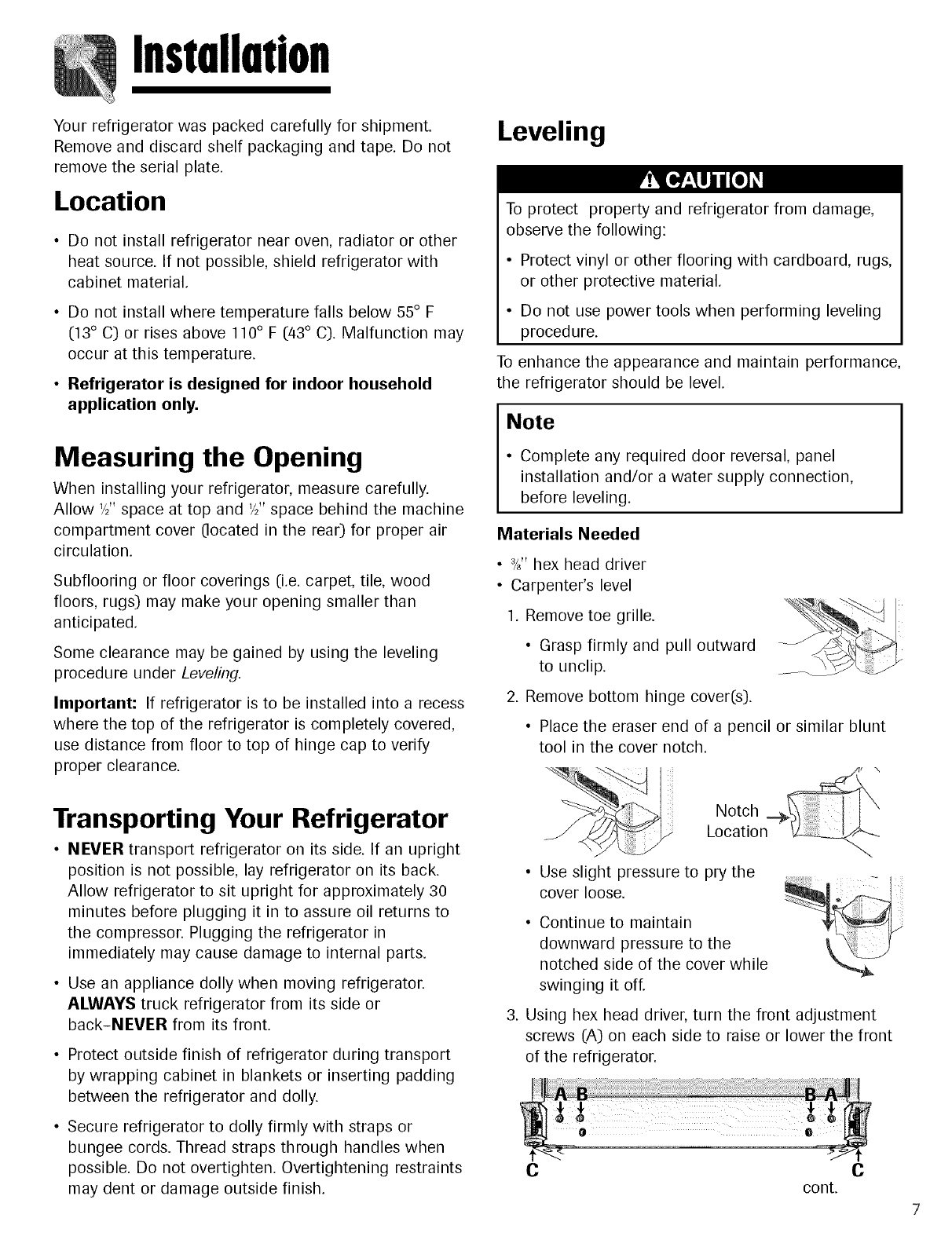

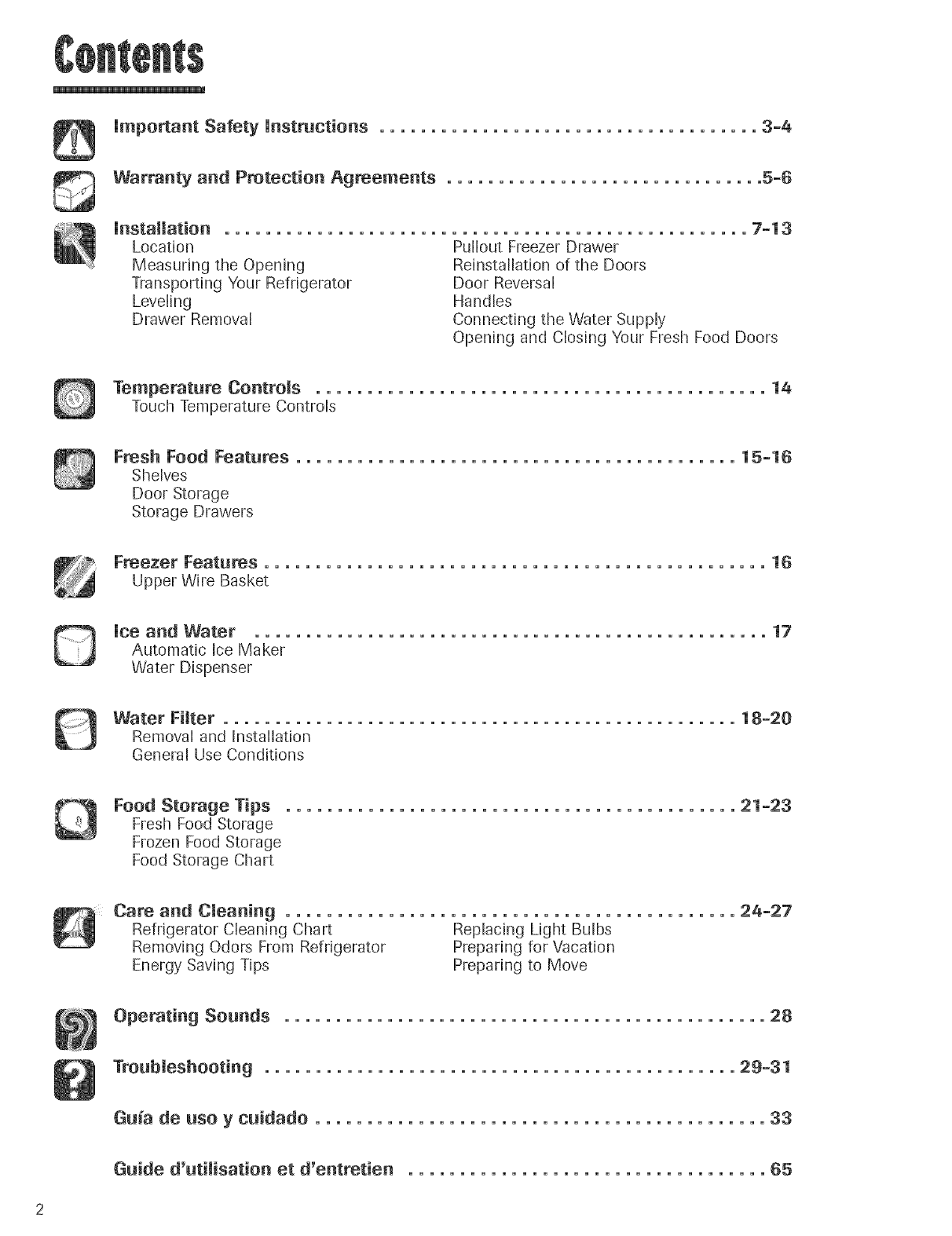

Jnstamlation

Location

Measuring the Opening

Transporting Your Refrigerator

Leveling

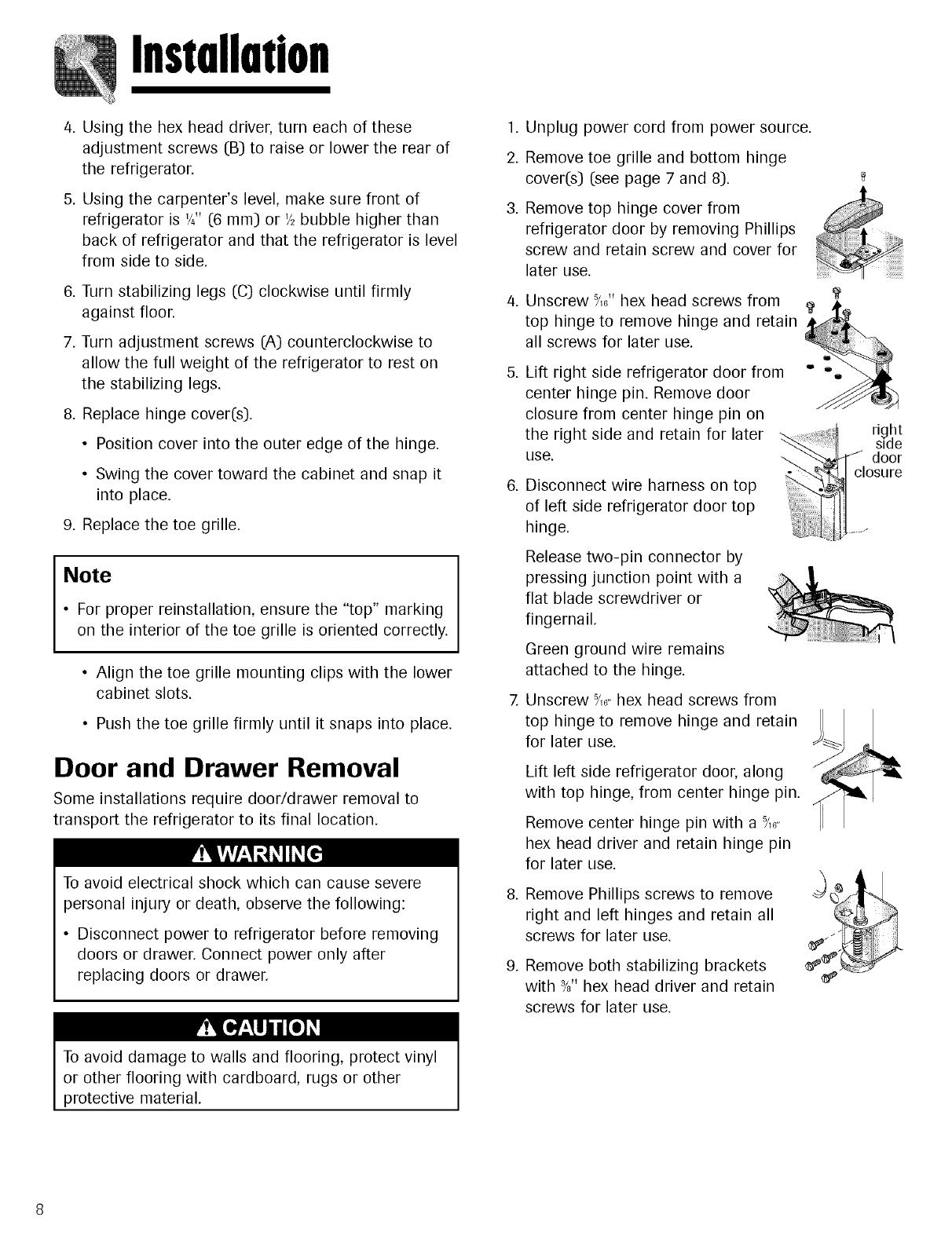

Drawer Removal

................................................... 7-13

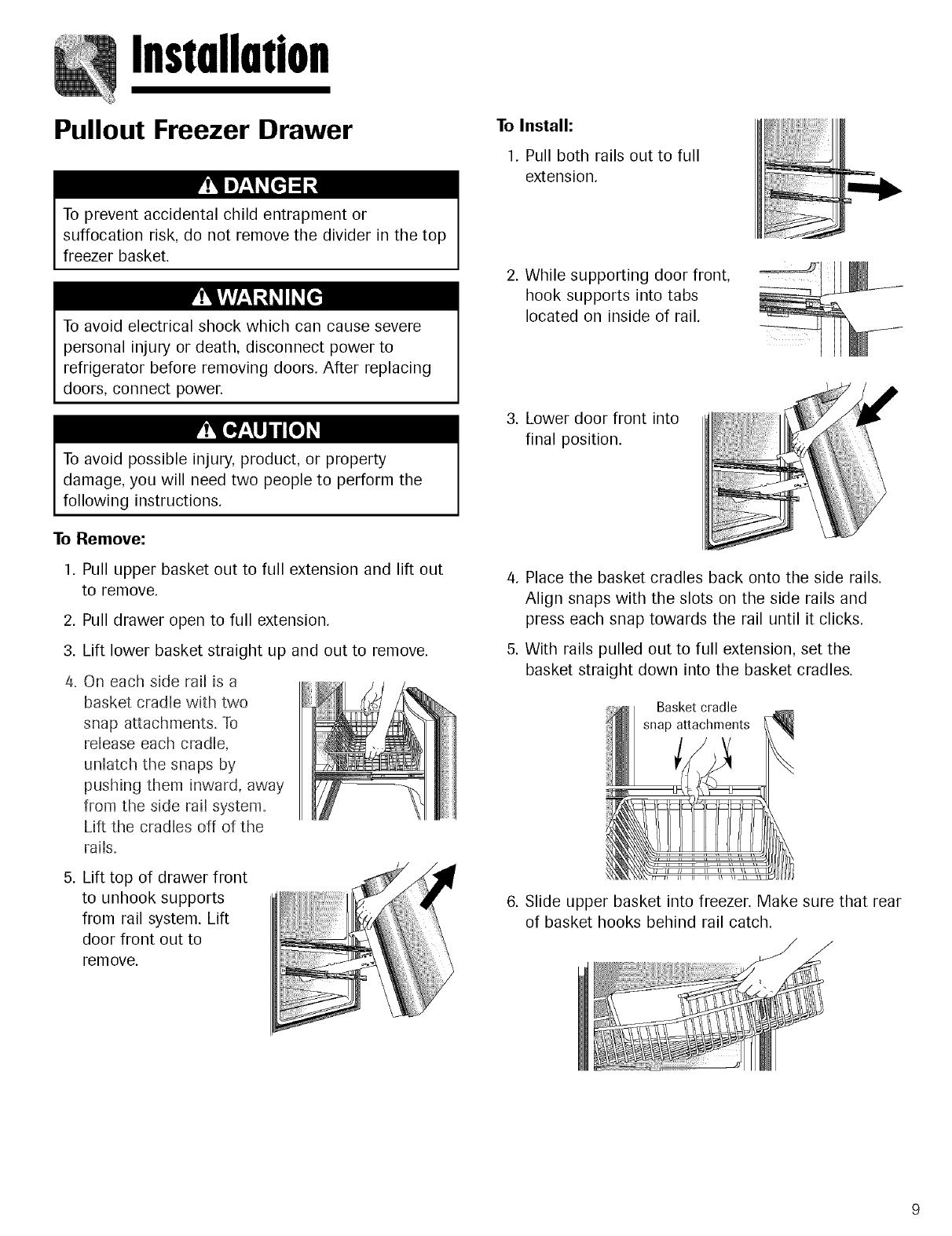

Pullout Freezer Drawer

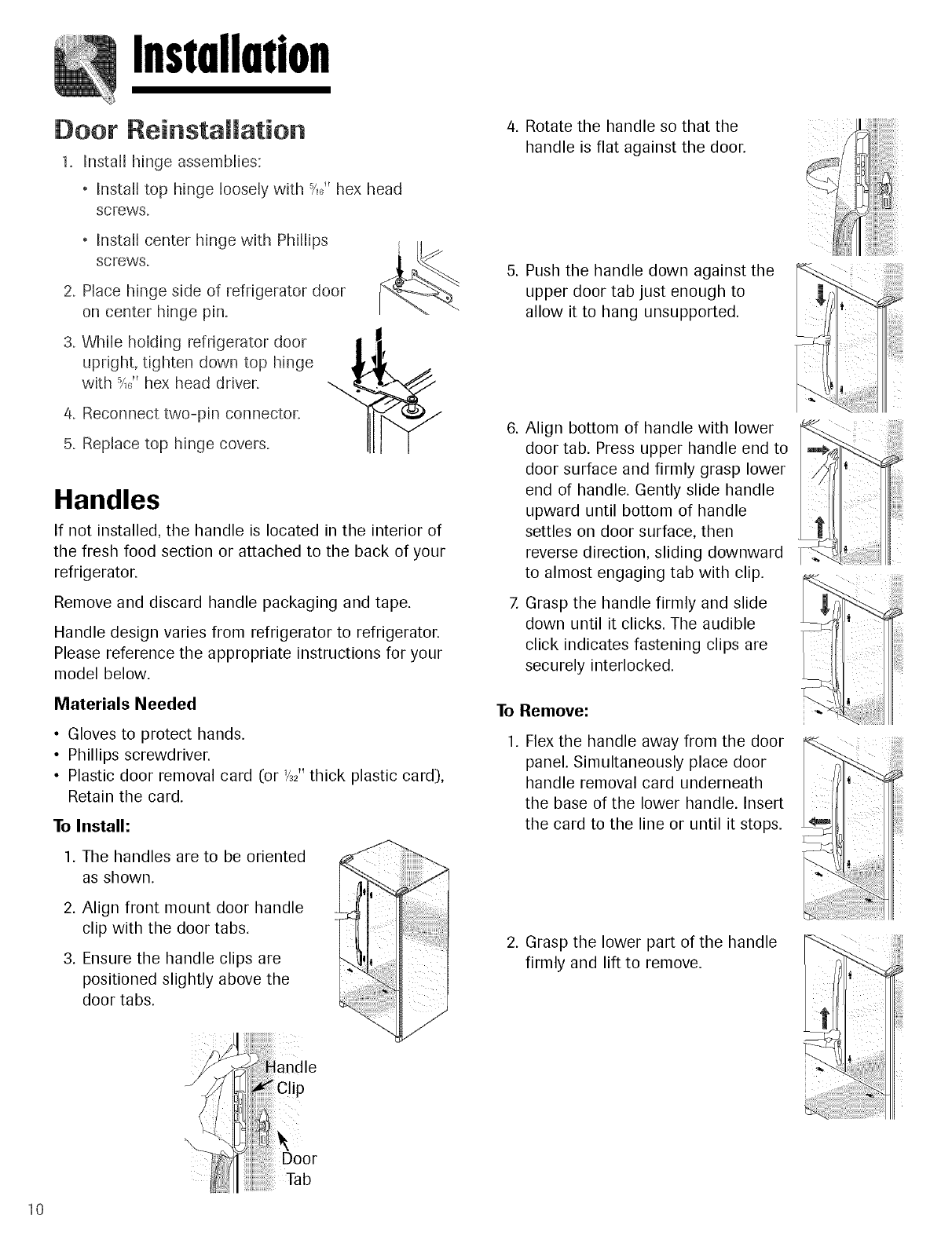

Reinstallation of the Doors

Door Reversal

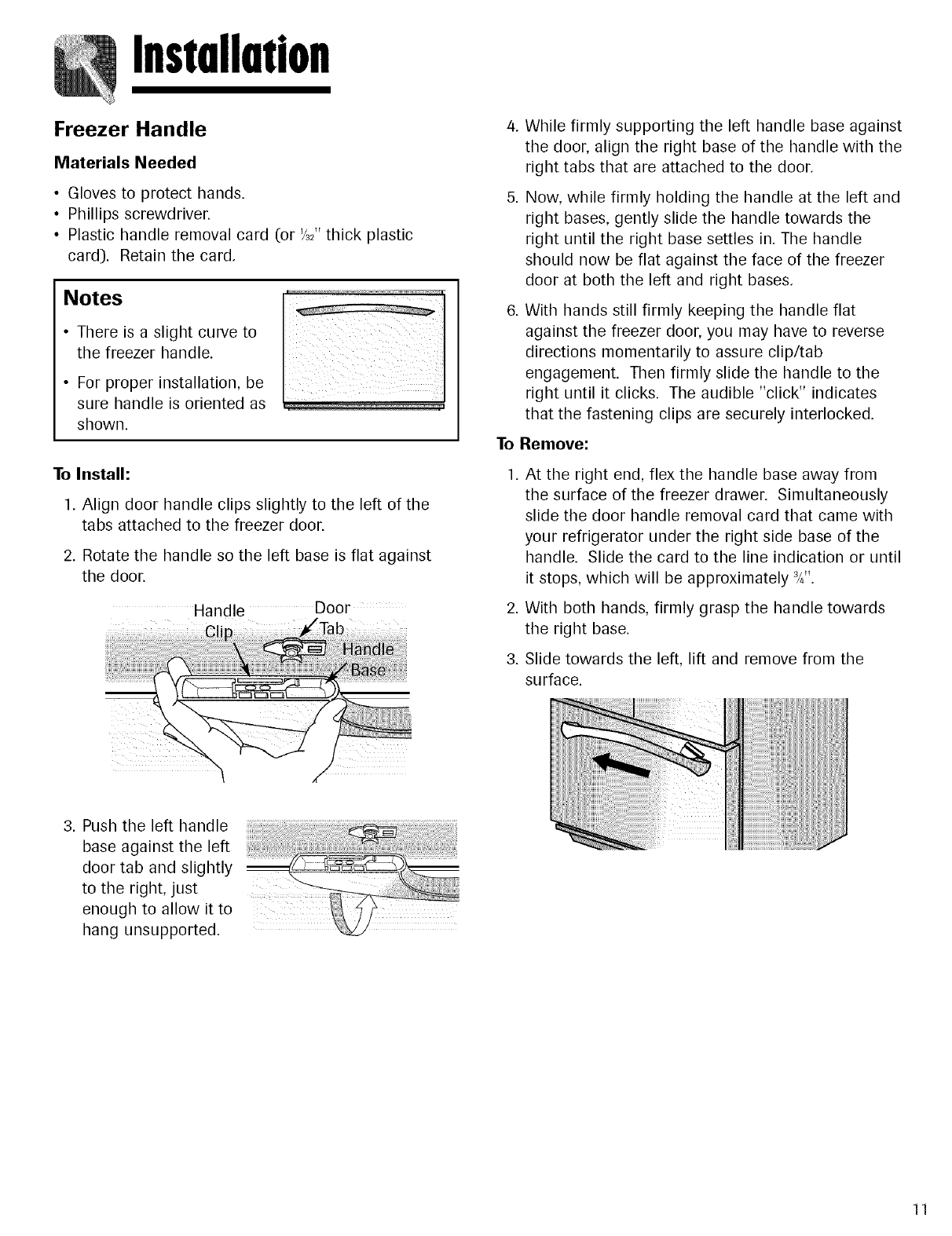

Handles

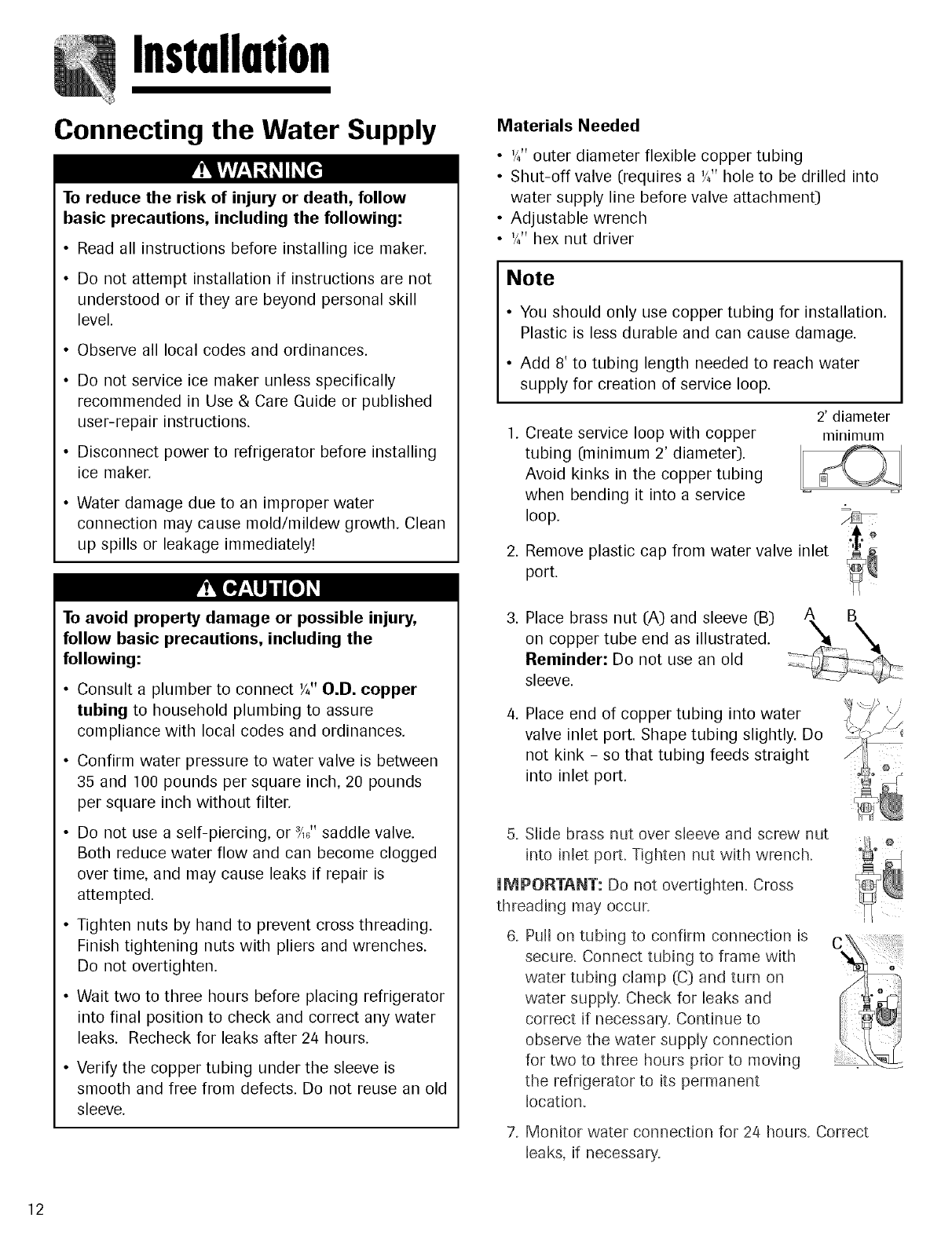

Connecting the Water Supply

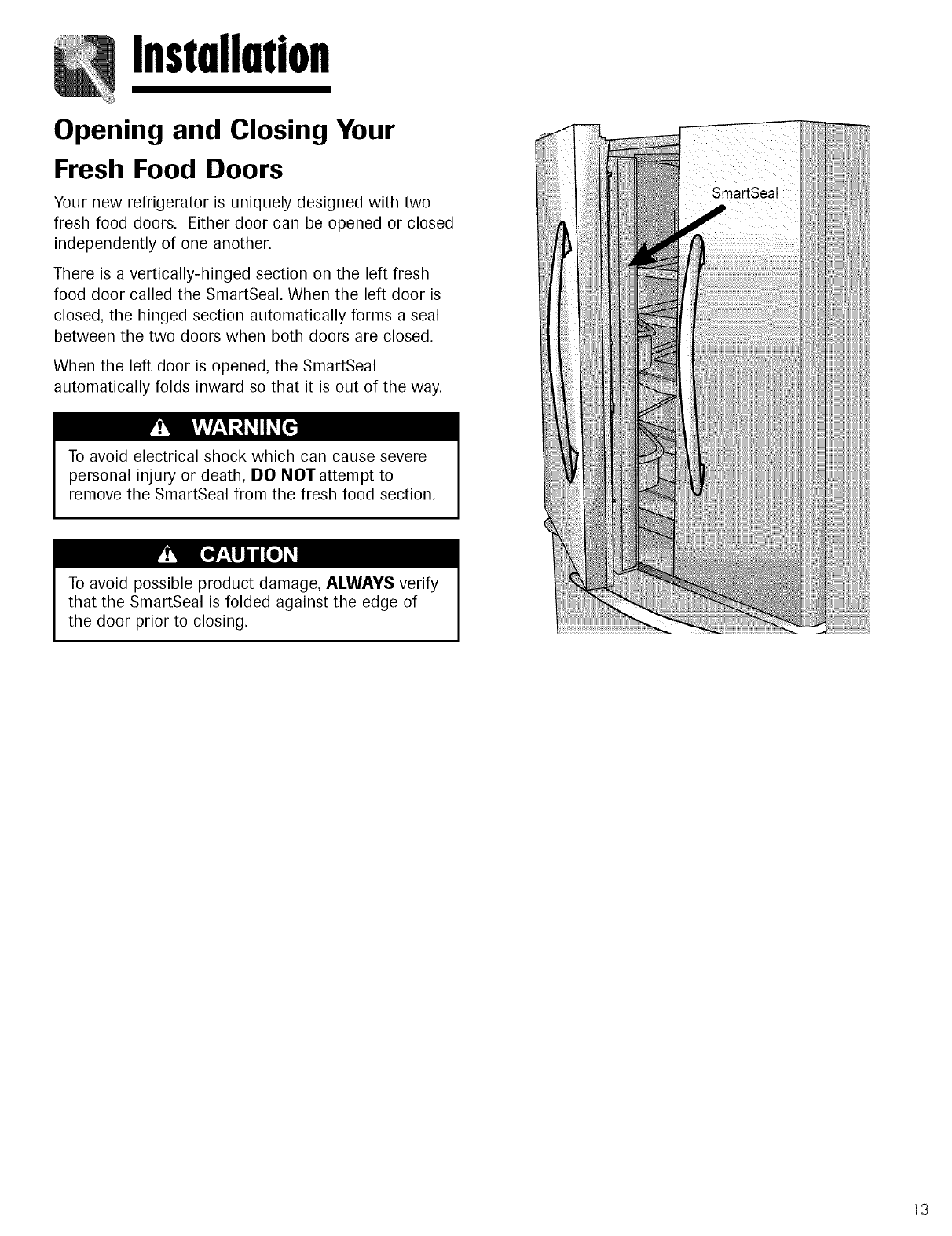

Opening and Closing Your Fresh Food Doors

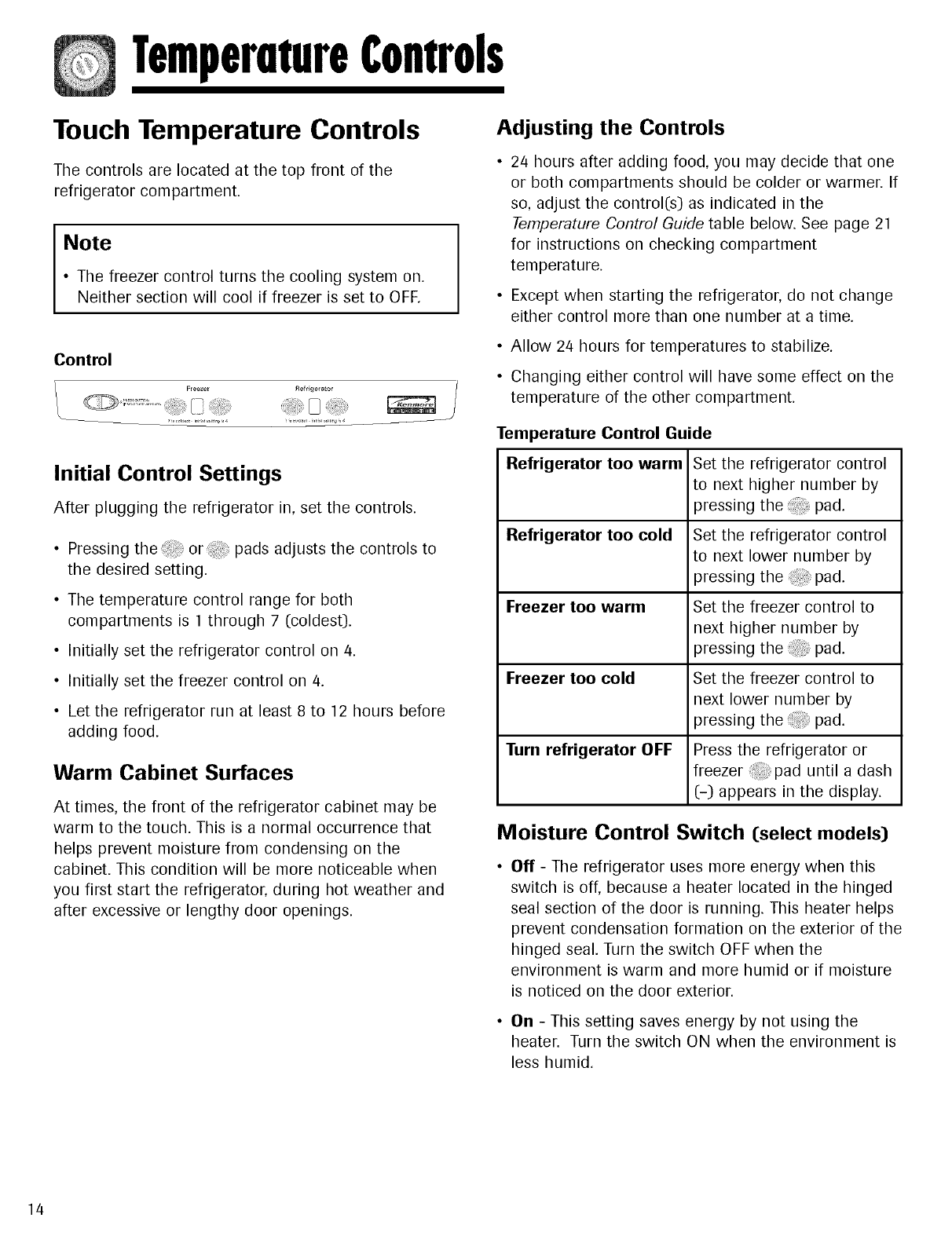

Temperature Controls ............................................ 14

Touch Temperature Controls

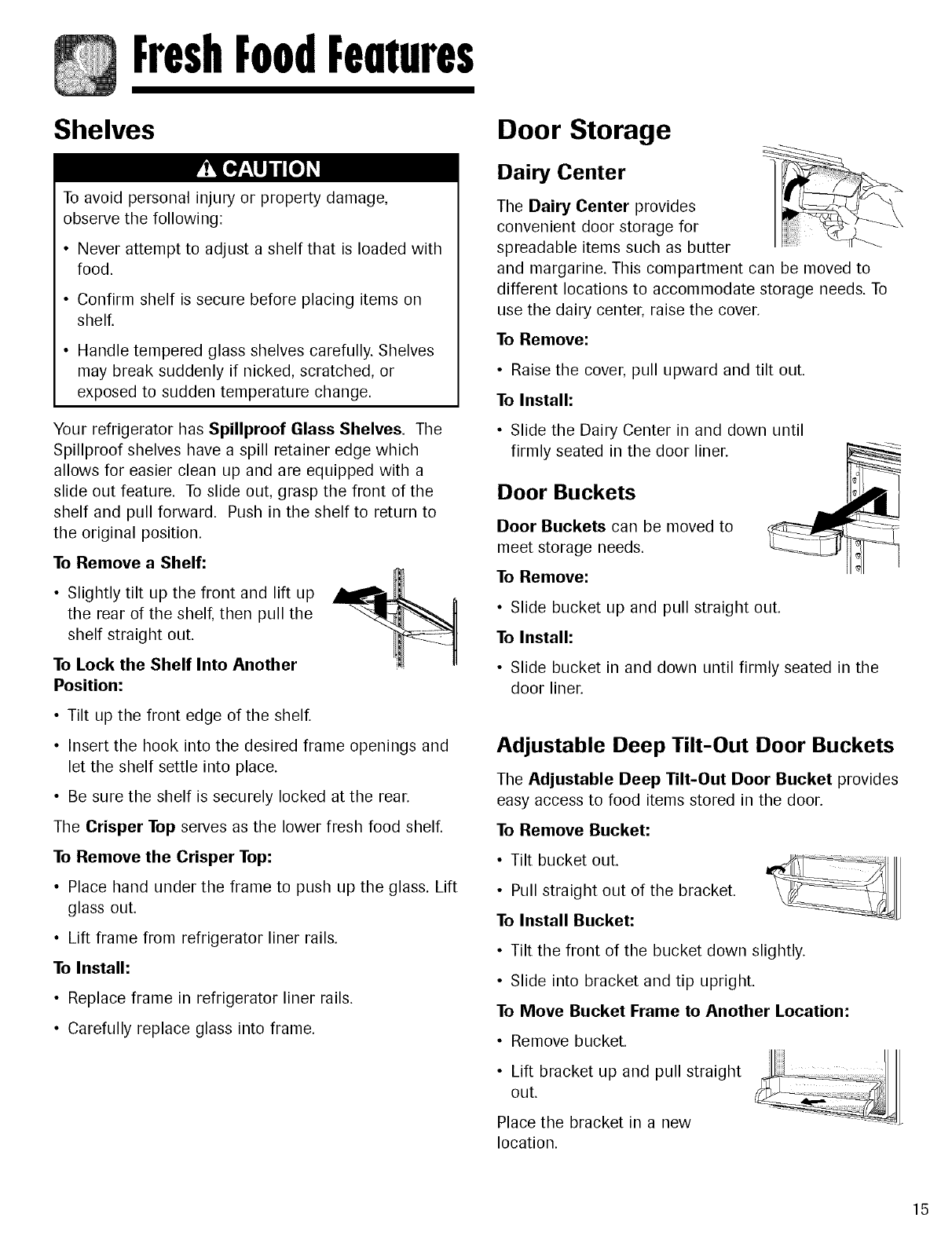

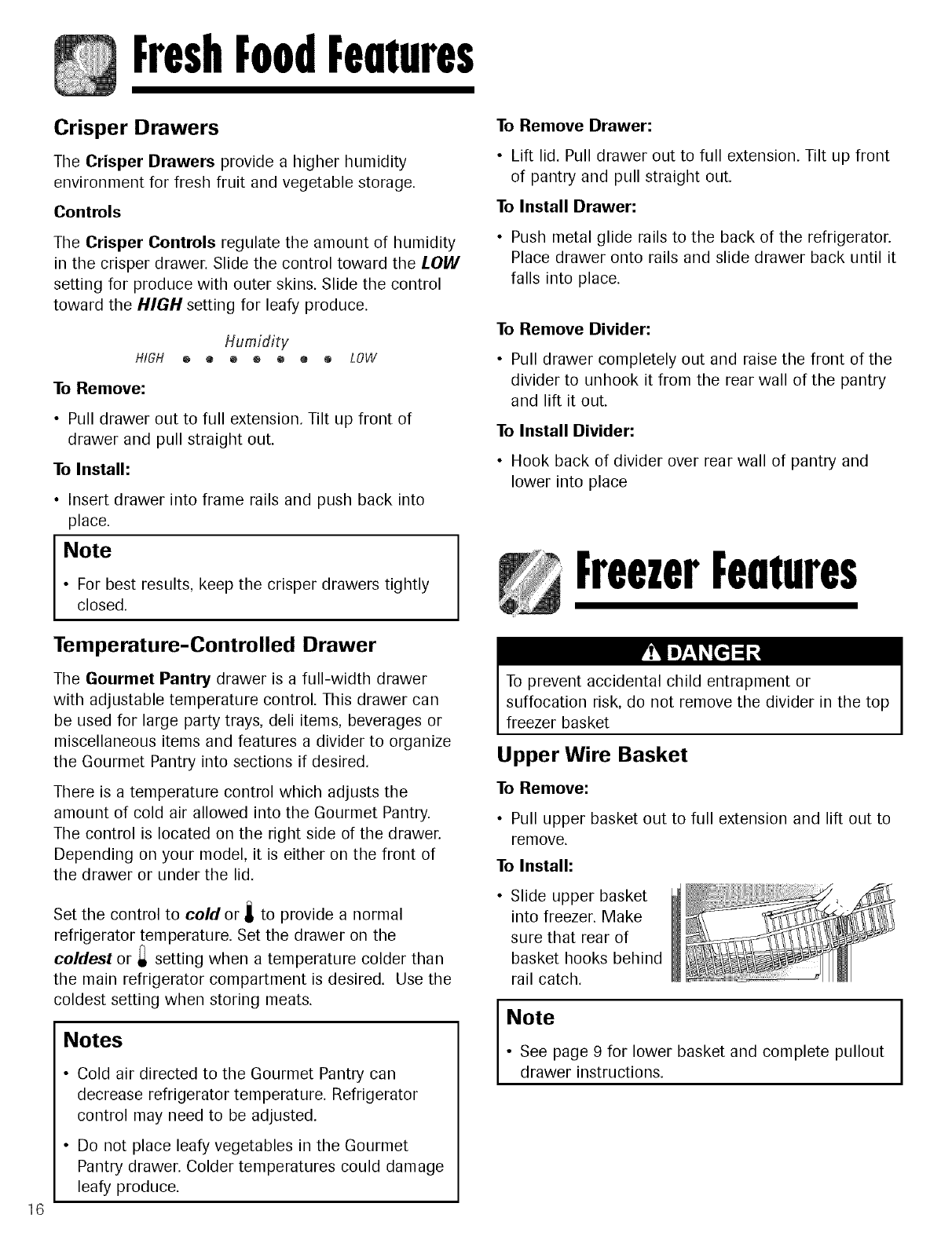

Fresh Food Features ........................................... 15-16

Shelves

Door Storage

Storage Drawers

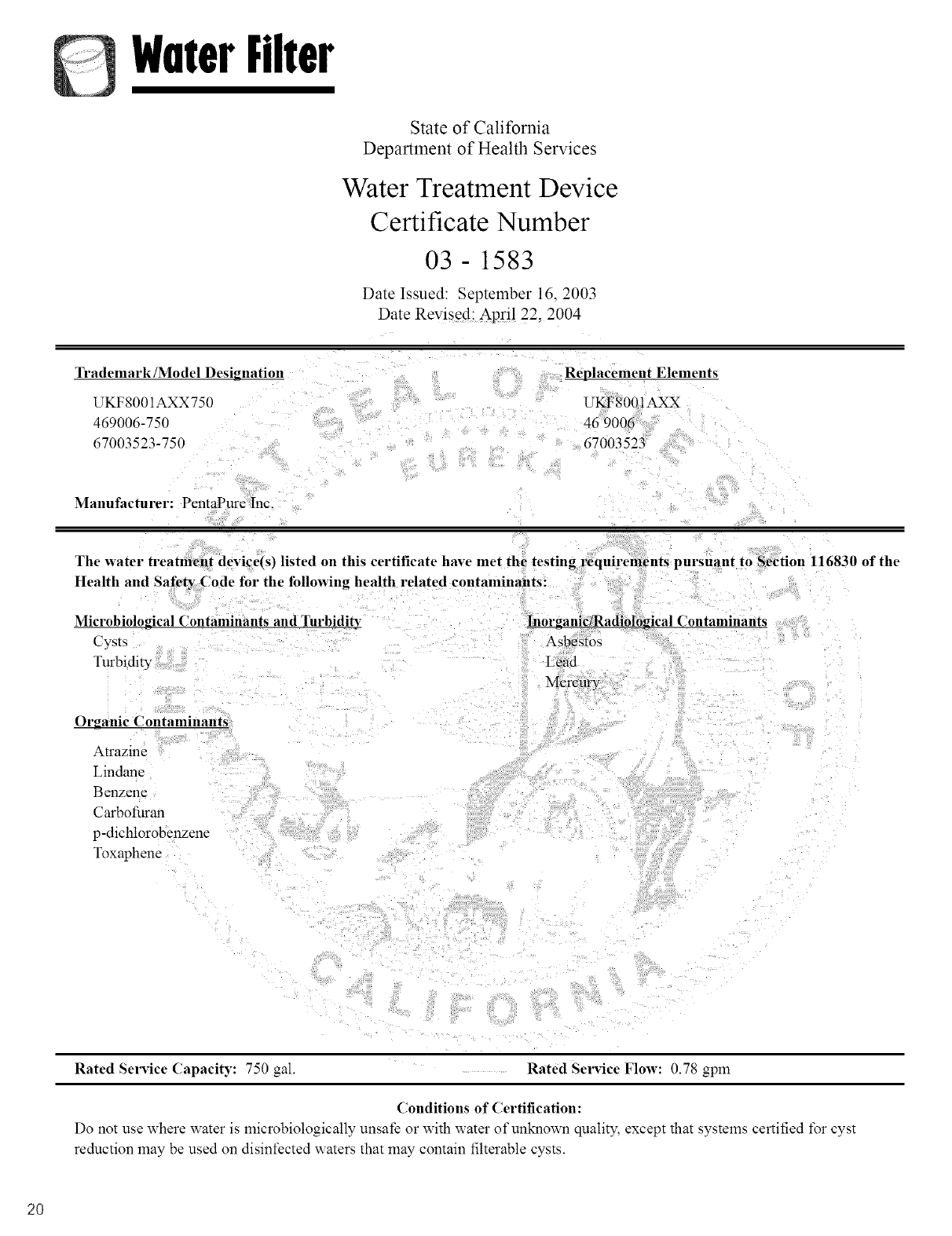

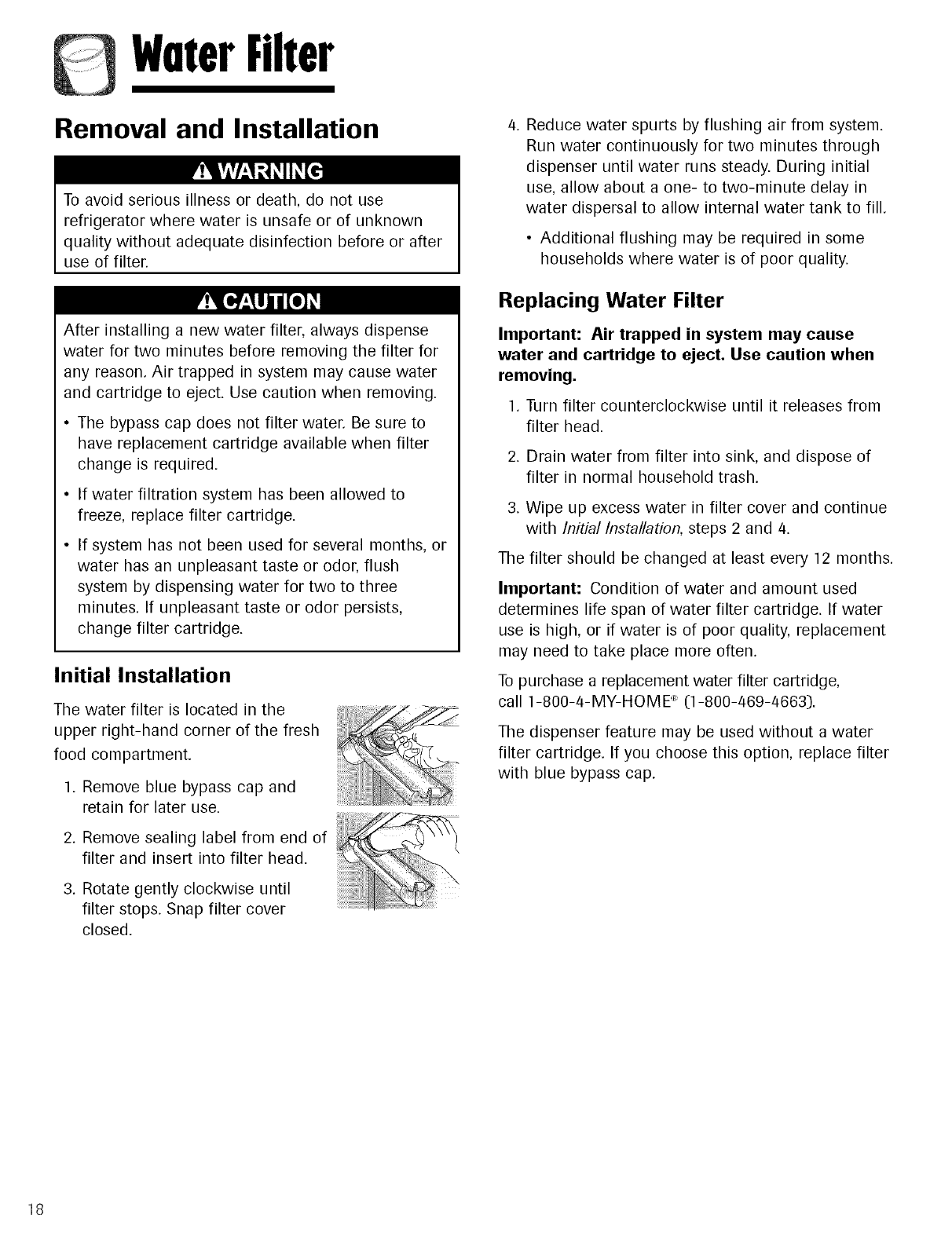

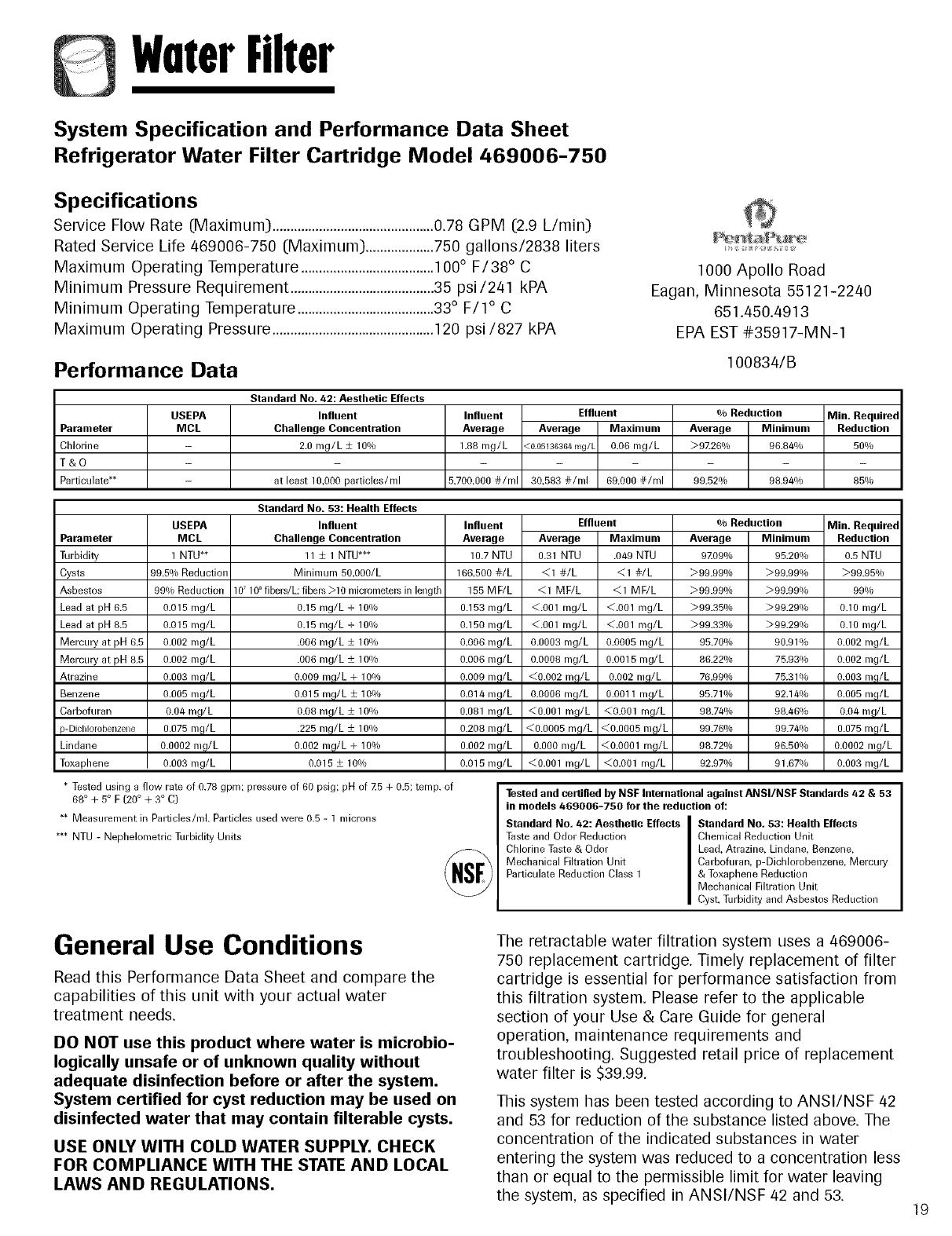

Water FiJter .................................................. 18-20

Removal and Installation

General Use Conditions

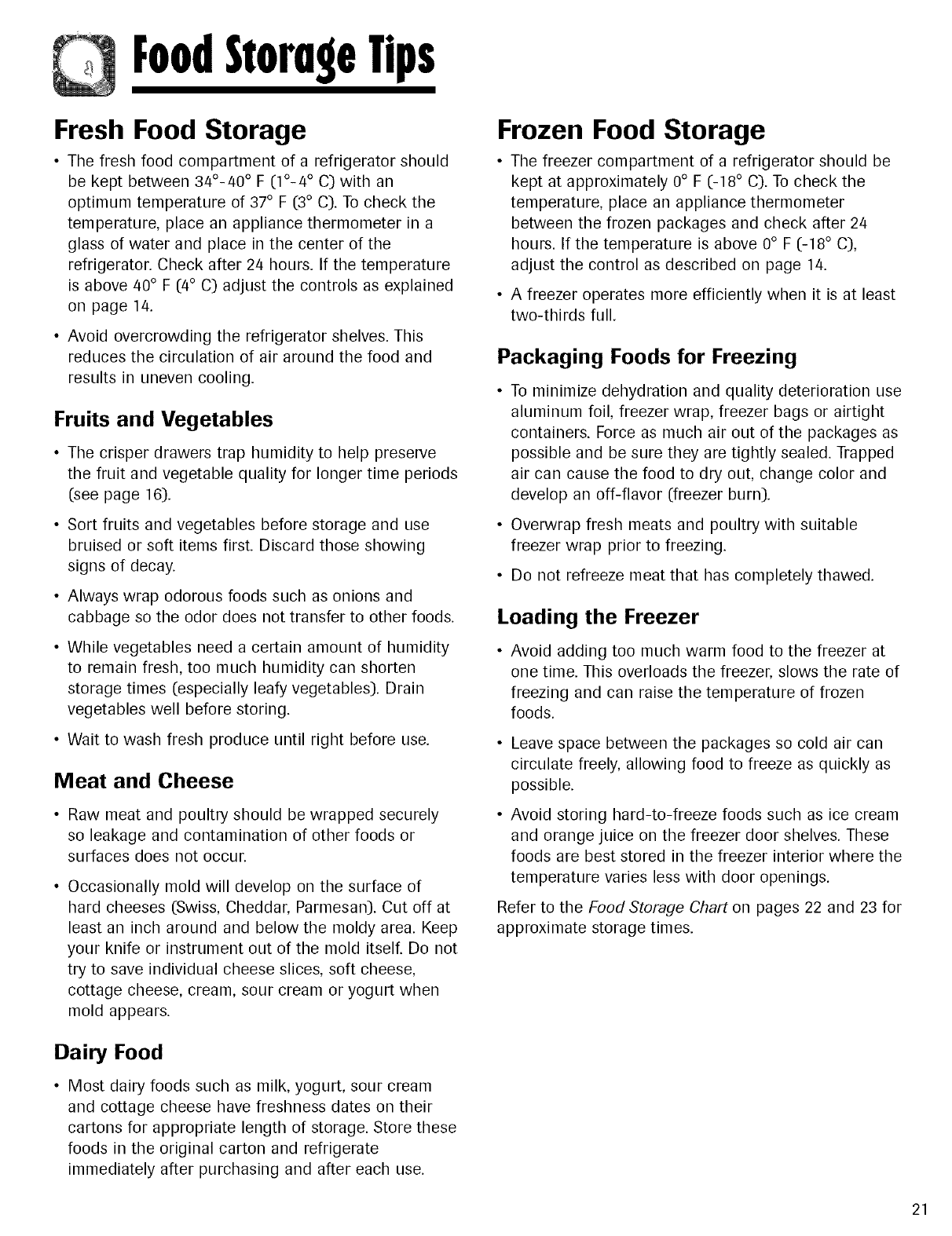

Food Storage Tips

Fresh Food Storage

Frozen Food Storage

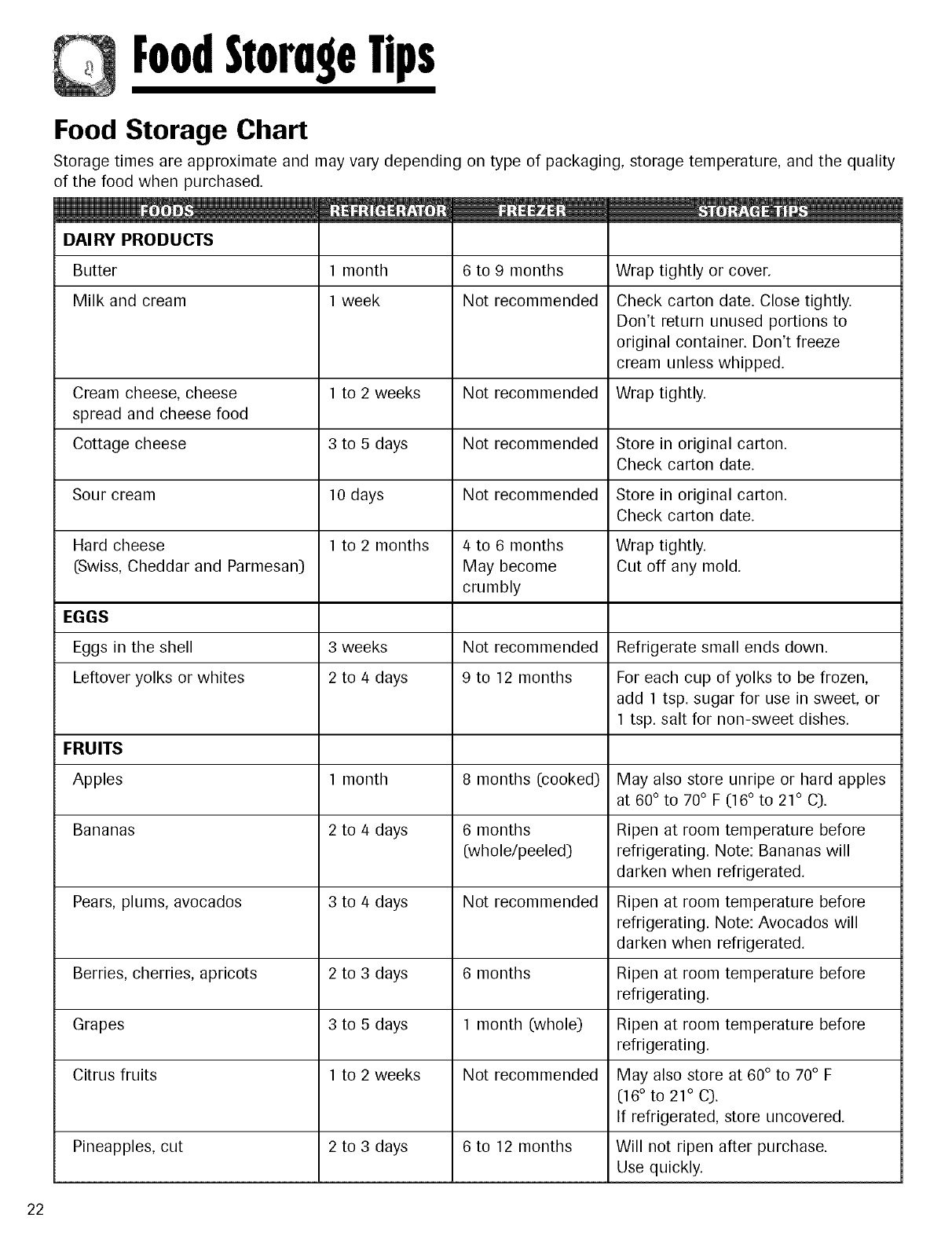

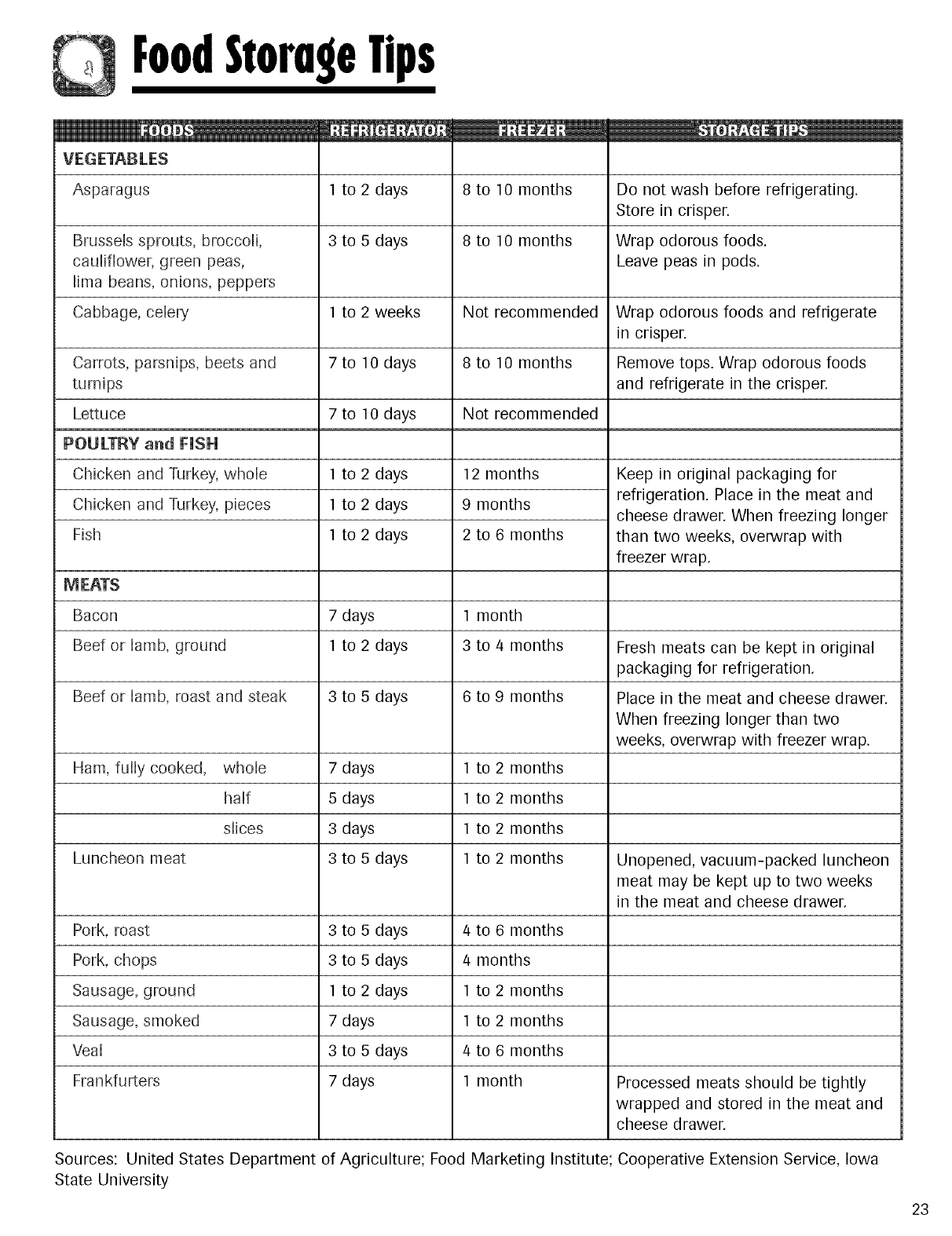

Food Storage Chart

............................................ 21-23

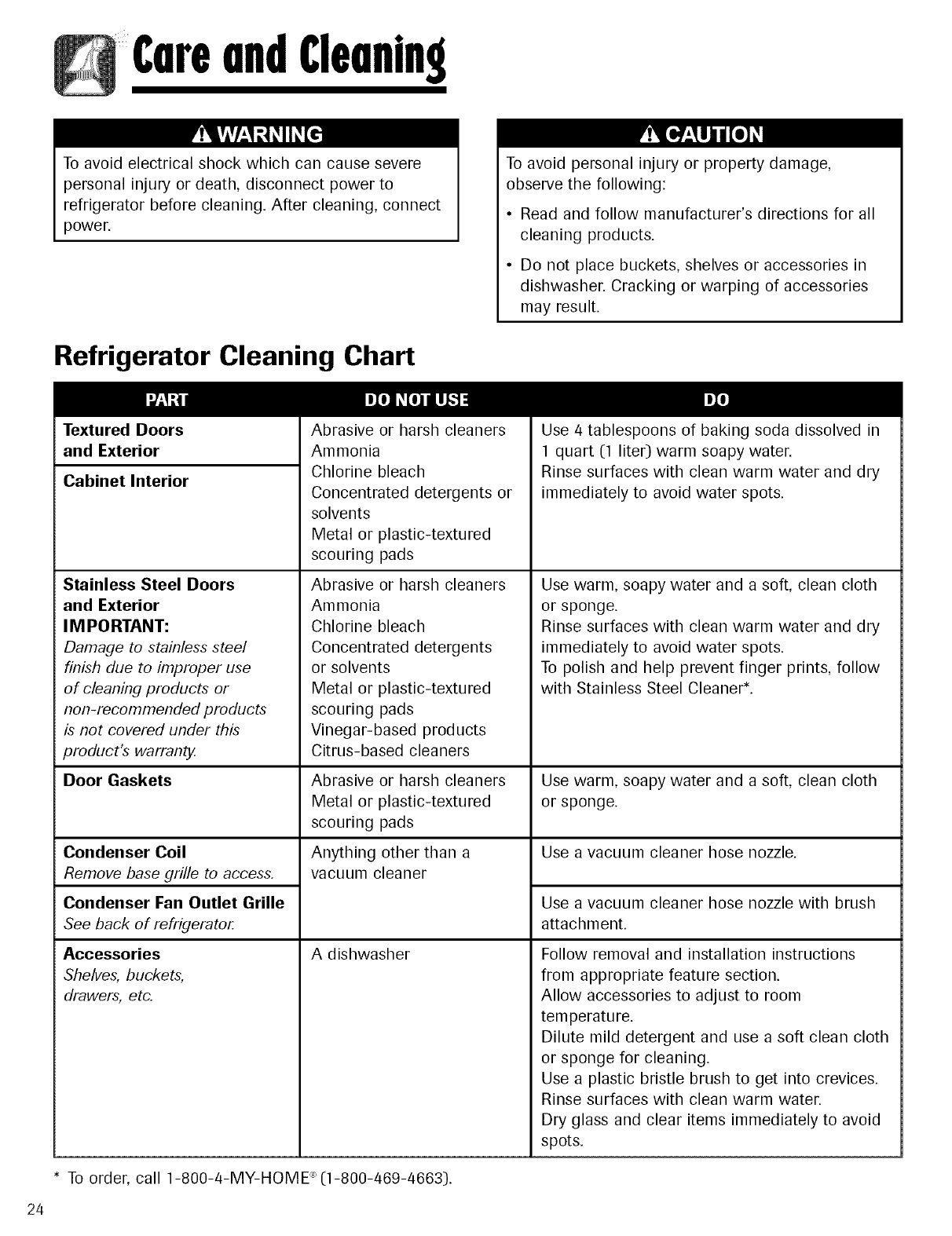

Care and Cleaning ............................................ 24-27

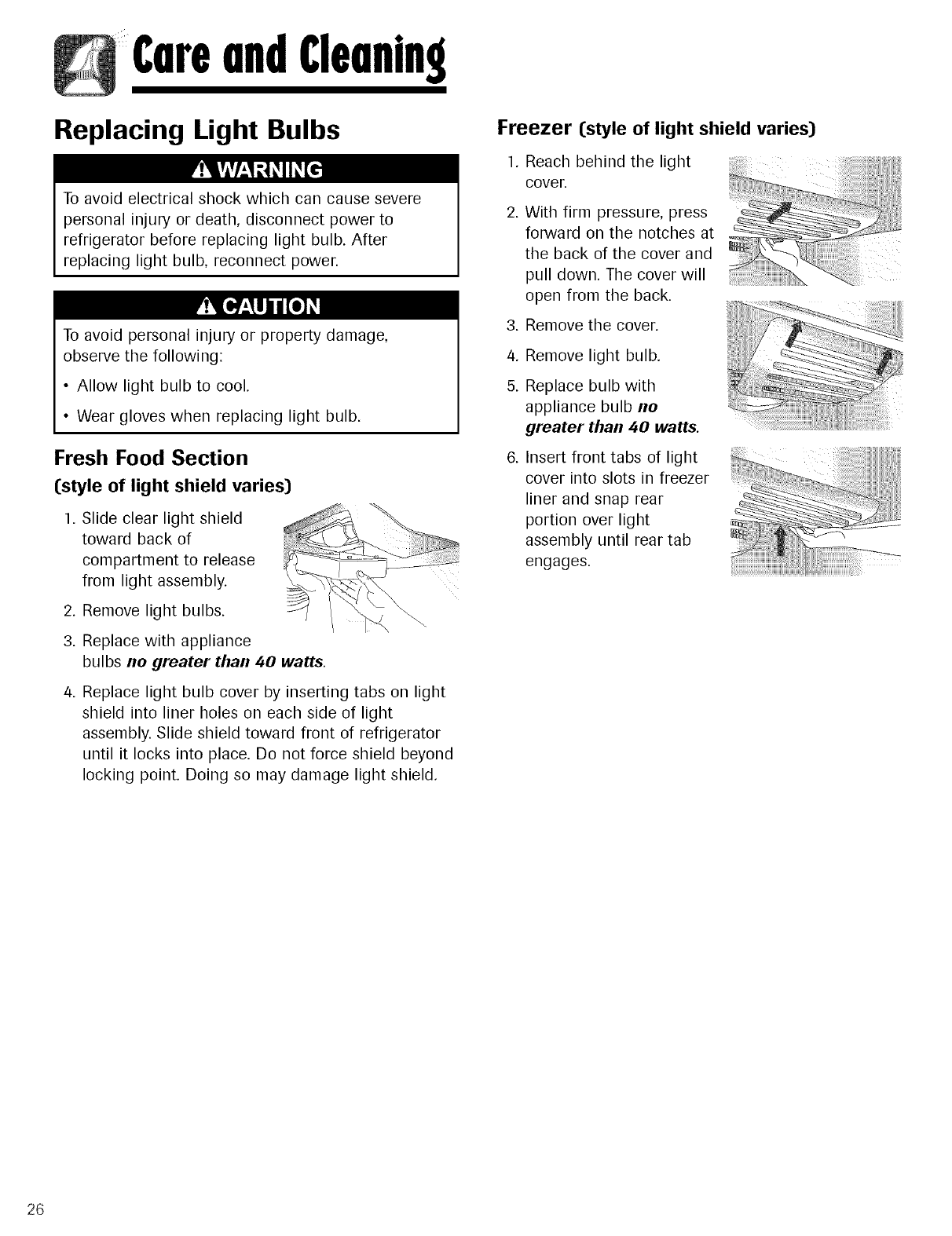

Refrigerator Cleaning Chart Replacing Light Bulbs

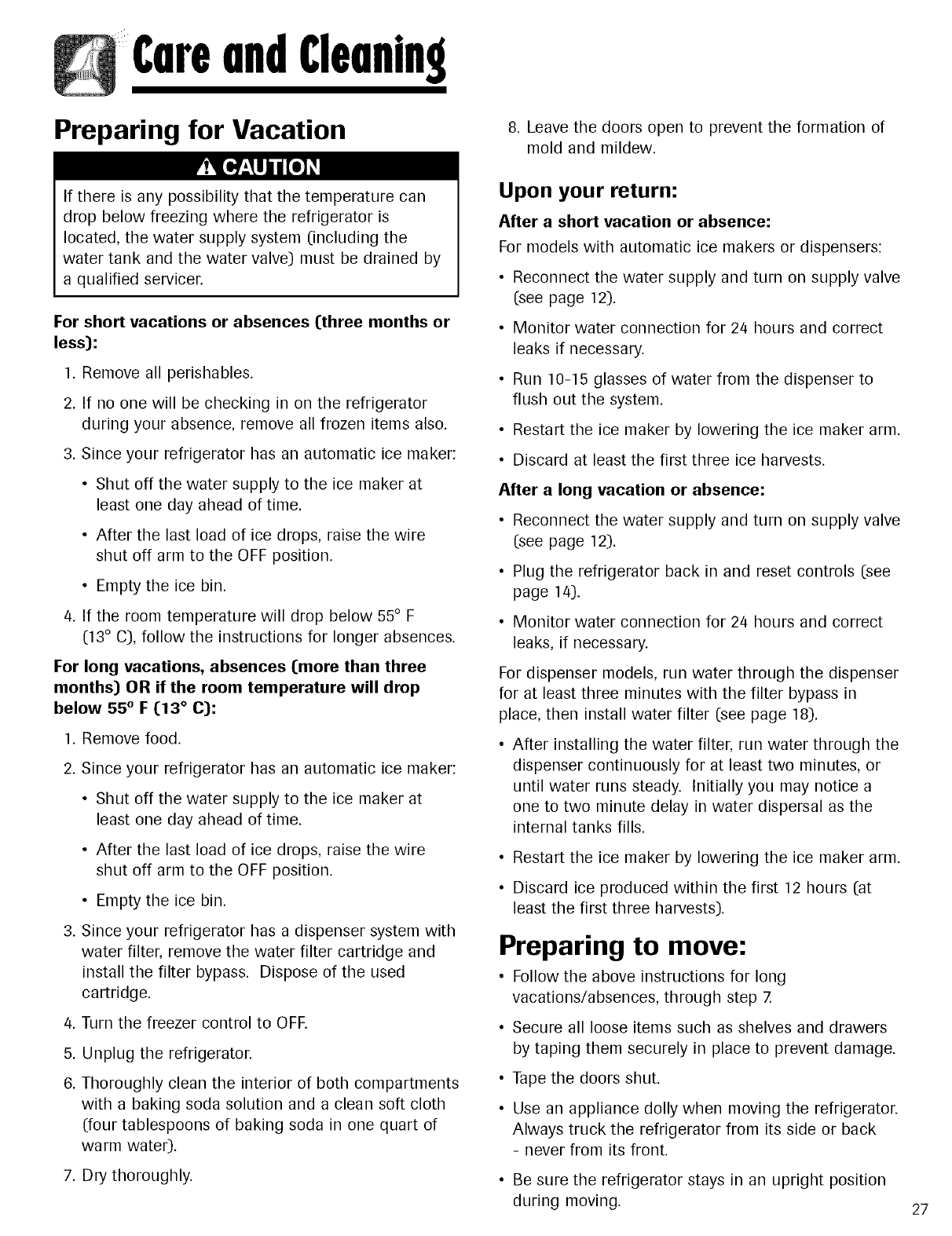

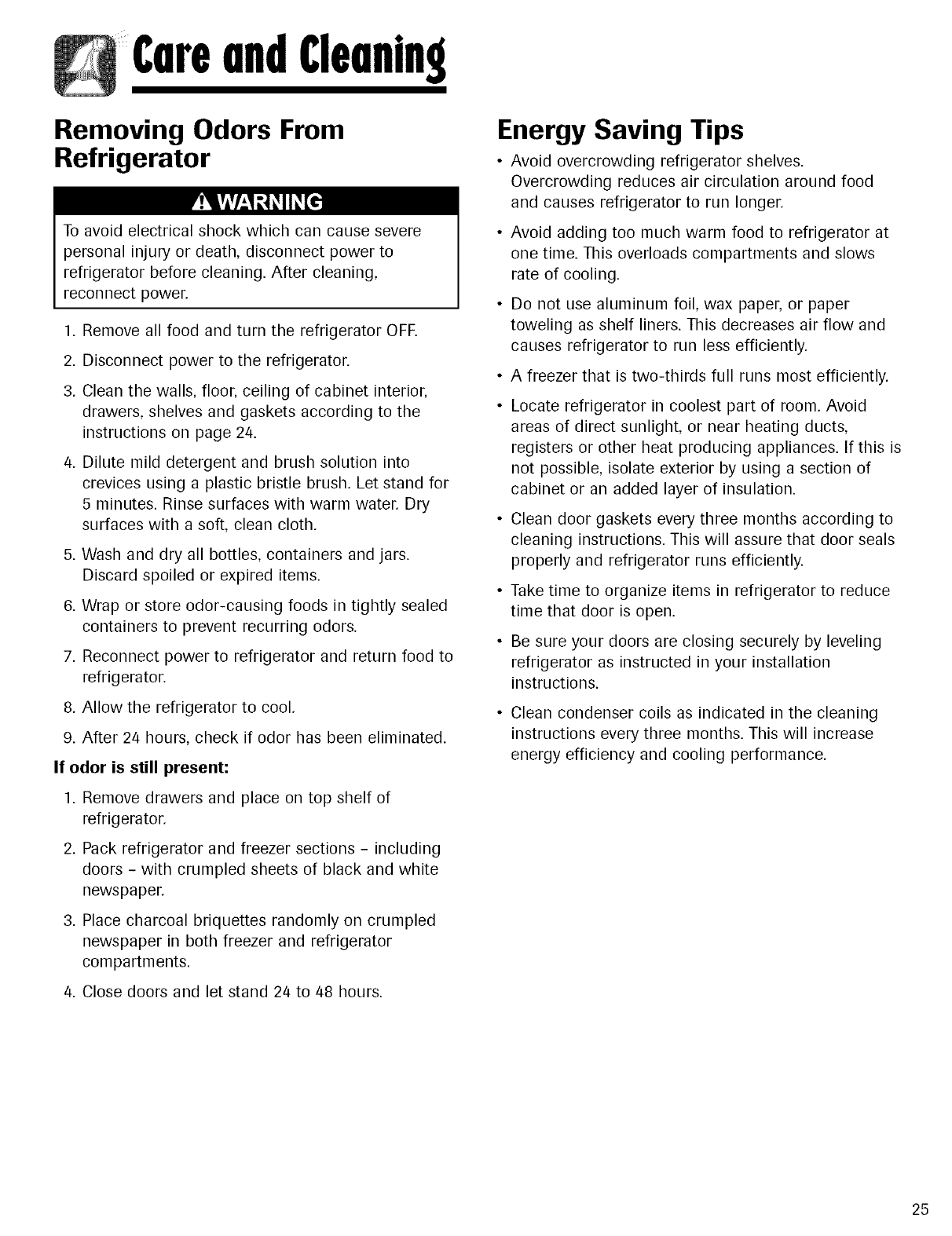

Removing Odors From Refrigerator Preparing for Vacation

Energy Saving Tips Preparing to Move

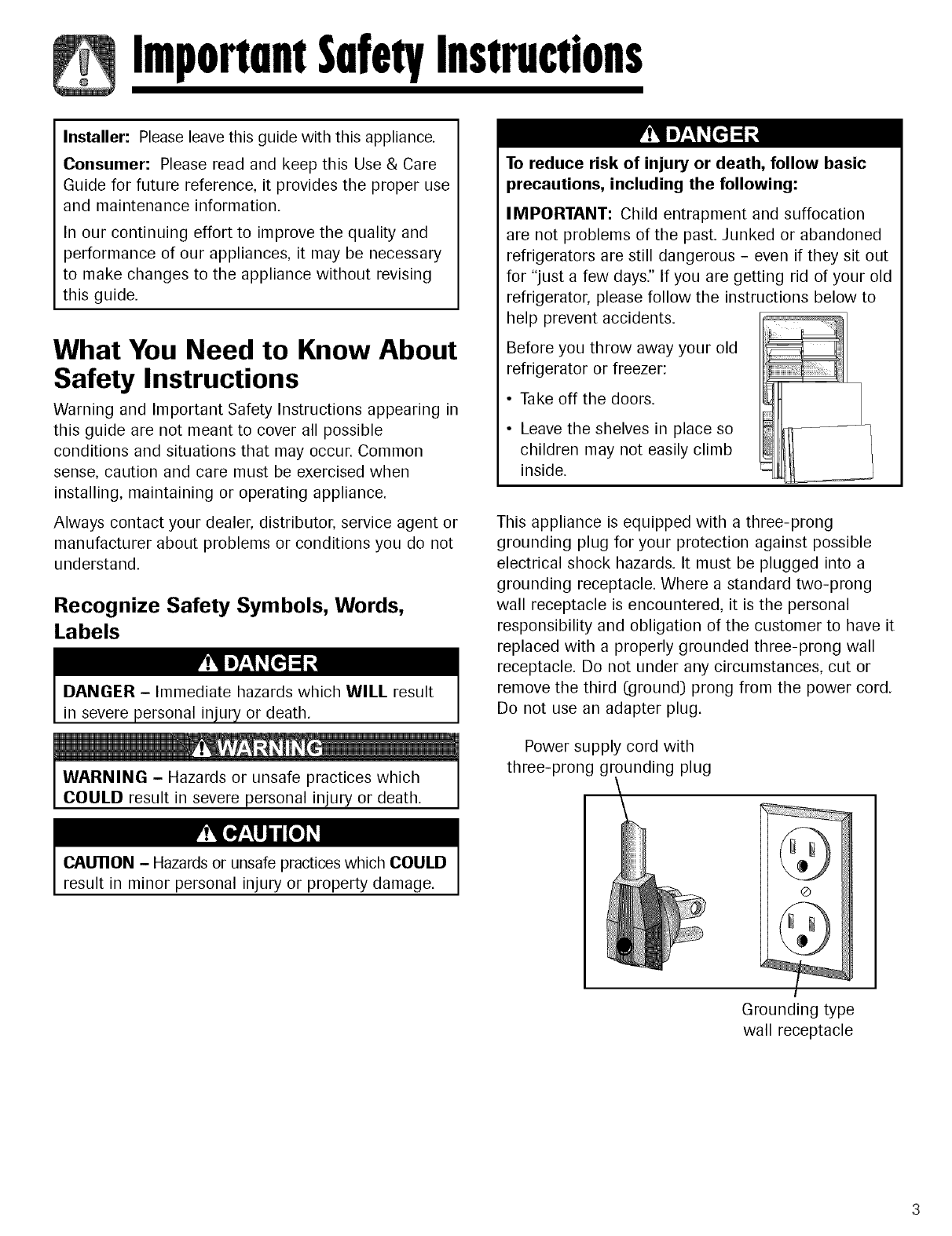

ImportnntSnfetyInstructions

Installer: Please leave this guide with this appliance.

Consumer: Please read and keep this Use & Care

Guide for future reference, it provides the proper use

and maintenance information.

In our continuing effort to improve the quality and

performance of our appliances, it may be necessary

to make changes to the appliance without revising

this guide.

What You Need to Know About

Safety Instructions

Warning and Important Safety Instructions appearing in

this guide are not meant to cover all possible

conditions and situations that may occur. Common

sense, caution and care must be exercised when

installing, maintaining or operating appliance.

Always contact your dealer, distributor, service agent or

manufacturer about problems or conditions you do not

understand.

Recognize Safety Symbols, Words,

Labels

DANGER - Immediate hazards which WILL result

in severe personal injury or death.

WARNING - Hazards or unsafe practices which

COULD result in severe personal injury or death.

To reduce risk of injury or death, follow basic

precautions, including the following:

IMPORTANT: Child entrapment and suffocation

are not problems of the past. Junked or abandoned

refrigerators are still dangerous - even if they sit out

for "just a few days." If you are getting rid of your old

refrigerator, please follow the instructions below to

help prevent accidents.

Before you throw away your old

refrigerator or freezer:

•Take off the doors.

• Leave the shelves in place so

children may not easily climb

inside.

This appliance is equipped with a three-prong

grounding plug for your protection against possible

electrical shock hazards. It must be plugged into a

grounding receptacle. Where a standard two-prong

wall receptacle is encountered, it is the personal

responsibility and obligation of the customer to have it

replaced with a properly grounded three-prong wall

receptacle. Do not under any circumstances, cut or

remove the third (ground) prong from the power cord.

Do not use an adapter plug.

Power supply cord with

three-prong grounding plug

CAUTION - Hazards or unsafe practices which COULD

result in minor personal injury or property damage.

Grounding type

wall receptacle

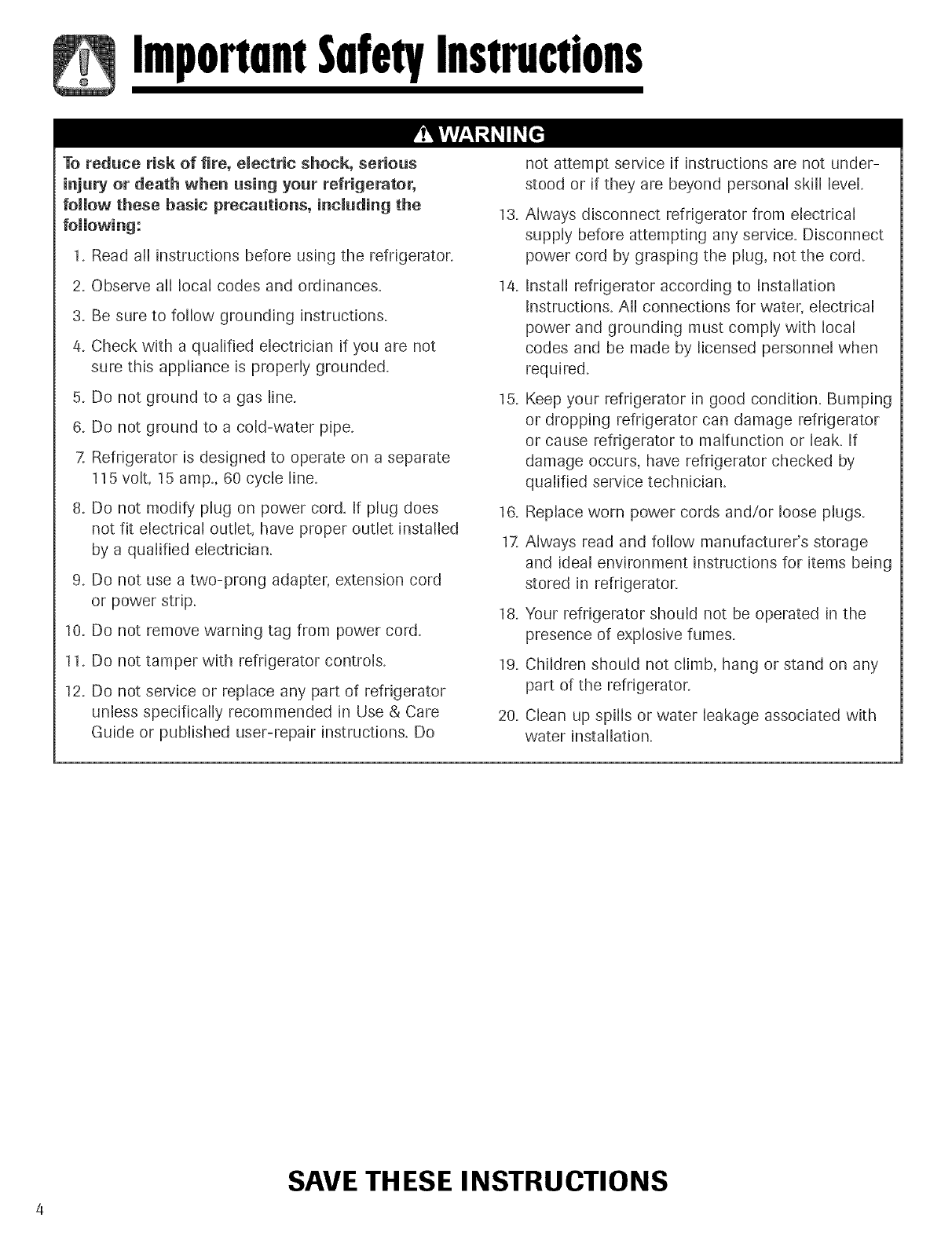

ImportnntSnfetyInstructions

To reduce risk of fire, electric shock, serious

injury or death when using your refrigerator,

follow these basic precautions, including the 13.

following:

1. Read all instructions before using the refrigerator.

2. Observe all local codes and ordinances. 14.

3. Be sure to follow grounding instructions.

a. Check with a qualified electrician if you are not

sure this appliance is properly grounded.

5_ Do not ground to a gas line_ 15_

6. Do not ground to a cold-water pipe.

7. Refrigerator is designed to operate on a separate

115 volt, 15 amp., 60 cycle line.

8. Do not modify plug on power cord. If plug does 16.

not fit electrical outlet, have proper outlet installed

by a qualified electrician. 17.

9. Do not use a two-prong adapter, extension cord

or power strip. 18.

10. Do not remove warning tag from power cord.

11. Do not tamper with refrigerator controls. 19.

12. Do not service or replace any part of refrigerator

unless specifically recommended in Use & Care 20.

Guide or published user-repair instructions. Do

not attempt service if instructions are not under-

stood or if they are beyond personal skill levek

Always disconnect refrigerator from electrical

supply before attempting any service. Disconnect

power cord by grasping the plug, not the cord.

Install refrigerator according to Installation

Instructions. All connections for water, electrical

power and grounding must comply with local

codes and be made by licensed personnel when

required.

Keep your refrigerator in good condition. Bumping

or dropping refrigerator can damage refrigerator

or cause refrigerator to malfunction or leak. If

damage occurs, have refrigerator checked by

qualified service technician.

Replace worn power cords and/or loose plugs.

Always read and follow manufacturer's storage

and ideal environment instructions for items being

stored in refrigerator.

Your refrigerator should not be operated in the

presence of explosive fumes.

Children should not climb, hang or stand on any

part of the refrigerator.

Clean up spills or water leakage associated with

water installation.

SAVE TH ESE I NSTRUCTIONS

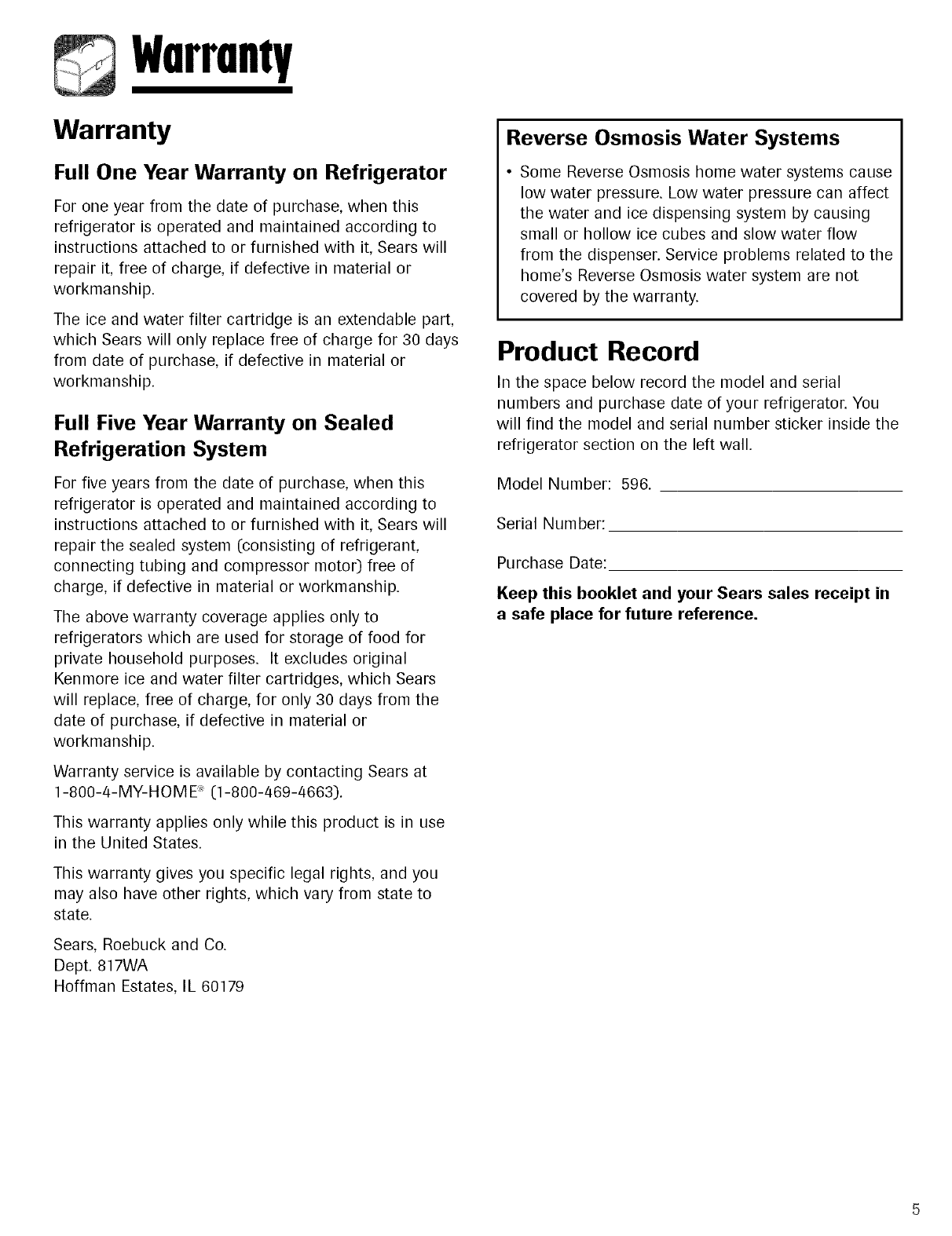

Harranty

Warranty

Full One Year Warranty on Refrigerator

For one year from the date of purchase, when this

refrigerator is operated and maintained according to

instructions attached to or furnished with it, Sears will

repair it, free of charge, if defective in material or

workmanship.

The ice and water filter cartridge is an extendable part,

which Sears will only replace free of charge for 30 days

from date of purchase, if defective in material or

workmanship.

Full Five Year Warranty on Sealed

Refrigeration System

For five years from the date of purchase, when this

refrigerator is operated and maintained according to

instructions attached to or furnished with it, Sears will

repair the sealed system (consisting of refrigerant,

connecting tubing and compressor moto0 free of

charge, if defective in material or workmanship.

The above warranty coverage applies only to

refrigerators which are used for storage of food for

private household purposes. It excludes original

Kenmore ice and water filter cartridges, which Sears

will replace, free of charge, for only 30 days from the

date of purchase, if defective in material or

workmanship.

Warranty service is available by contacting Sears at

1-800-4-MY-HOME "_0-800-469-4663).

This warranty applies only while this product is in use

in the United States.

This warranty gives you specific legal rights, and you

may also have other rights, which vary from state to

state.

Sears, Roebuck and Co.

Dept. 817WA

Hoffman Estates, IL 60179

Reverse Osmosis Water Systems

• Some Reverse Osmosis home water systems cause

low water pressure. Low water pressure can affect

the water and ice dispensing system by causing

small or hollow ice cubes and slow water flow

from the dispenser. Service problems related to the

home's Reverse Osmosis water system are not

covered by the warranty.

Product Record

In the space below record the model and serial

numbers and purchase date of your refrigerator. You

will find the model and serial number sticker inside the

refrigerator section on the left wall.

Model Number: 596.

Serial Number:

Purchase Date:

Keep this booklet and your Sears sales receipt in

a safe place for future reference.

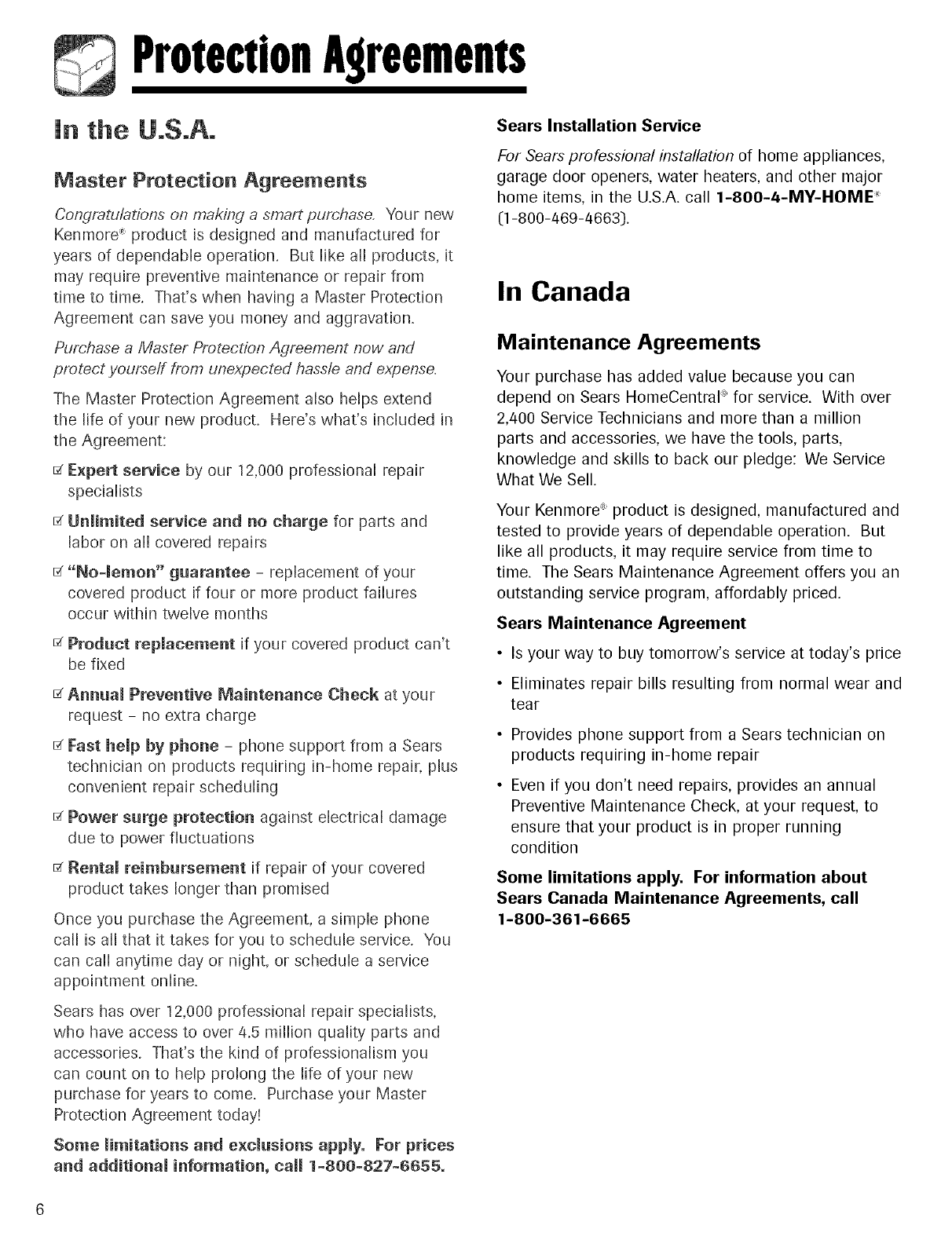

ProtectionAgreements

in the U.S.A°

Master Protection Agreements

Congratulations on making a smart purchase. Your new

Kenmore _ product is designed and manufactured for

years of dependable operation. But like all products, it

may require preventive maintenance or repair from

time to time. That's when having a Master Protection

Agreement can save you money and aggravation.

Purchase a Master Protect.ion Agreement now and

protect yourseff from unexpected hassle and expense.

The Master Protection Agreement also helps extend

the life of your new producL Here's what's included in

the Agreement:

E_Expert service by our 12,000 professional repair

specialists

dUnlimited service and no charge for parts and

labor on all covered repairs

d"No-lemon" guarantee - replacement of your

covered product if four or more product failures

occur within twelve months

E_Product replacement if your covered product can't

be fixed

dAnnual Preventive Maintenance Check at your

request - no extra charge

dFast help by phone - phone support from a Sears

technician on products requiring in-home repair, plus

convenient repair scheduling

dPower surge protection against electrical damage

due to power fluctuations

E_Rental reimbursement if repair of your covered

product takes longer than promised

Once you purchase the Agreement, a simple phone

call is all that it takes for you to schedule service. You

can call anytime day or night, or schedule a service

appointment online.

Sears has over 12,000 professional repair specialists,

who have access to over 4.5 million quality parts and

accessories. That's the kind of professionalism you

can count on to help prolong the life of your new

purchase for years to come. Purchase your Master

Protection Agreement today!

Some limitations and e×clusions apply, For prices

and additional information, call 1-800-827-8855o

Sears Installation Service

For Sears professional installation of home appliances,

garage door openers, water heaters, and other major

home items, in the U.S.A. call 1-800-4-MY-HOME _

(1-800-/469-4663).

In Canada

Maintenance Agreements

Your purchase has added value because you can

depend on Sears HomeCentraP for service. With over

2,400 Service Technicians and more than a million

parts and accessories, we have the tools, parts,

knowledge and skills to back our pledge: We Service

What We Sell.

Your Kenmore _ product is designed, manufactured and

tested to provide years of dependable operation. But

like all products, it may require service from time to

time. The Sears Maintenance Agreement offers you an

outstanding service program, affordably priced.

Sears Maintenance Agreement

• Is your way to buy tomorrow's service at today's price

• Eliminates repair bills resulting from normal wear and

tear

• Provides phone support from a Sears technician on

products requiring in-home repair

• Even if you don't need repairs, provides an annual

Preventive Maintenance Check, at your request, to

ensure that your product is in proper running

condition

Some limitations apply. For information about

Sears Canada Maintenance Agreements, call

1-800-361-6665

Installation

Your refrigerator was packed carefully for shipment.

Remove and discard shelf packaging and tape. Do not

remove the serial plate.

Location

• Do not install refrigerator near oven, radiator or other

heat source. If not possible, shield refrigerator with

cabinet material.

• Do not install where temperature falls below 55° F

(13° C) or rises above 110° F (43° C). Malfunction may

occur at this temperature.

•Refrigerator is designed for indoor household

application only.

Measuring the Opening

When installing your refrigerator, measure carefully.

Allow Y2"space at top and '/2" space behind the machine

compartment cover (located in the rear) for proper air

circulation.

Subflooring or floor coverings (i.e. carpet, tile, wood

floors, rugs) may make your opening smaller than

anticipated.

Some clearance may be gained by using the leveling

procedure under Leveling.

Important: If refrigerator is to be installed into a recess

where the top of the refrigerator is completely covered,

use distance from floor to top of hinge cap to verify

proper clearance.

Transporting Your Refrigerator

• NEVER transport refrigerator on its side. If an upright

position is not possible, lay refrigerator on its back.

Allow refrigerator to sit upright for approximately 30

minutes before plugging it in to assure oil returns to

the compressor. Plugging the refrigerator in

immediately may cause damage to internal parts.

• Use an appliance dolly when moving refrigerator.

ALWAYS truck refrigerator from its side or

back-NEVER from its front.

• Protect outside finish of refrigerator during transport

by wrapping cabinet in blankets or inserting padding

between the refrigerator and dolly.

• Secure refrigerator to dolly firmly with straps or

bungee cords. Thread straps through handles when

possible. Do not overtighten. Overtightening restraints

may dent or damage outside finish.

Leveling

To protect property and refrigerator from damage,

observe the following:

• Protect vinyl or other flooring with cardboard, rugs,

or other protective material.

• Do not use power tools when performing leveling

proced ure.

To enhance the appearance and maintain performance,

the refrigerator should be level.

Note

• Complete any required door reversal, panel

installation and/or a water supply connection,

before leveling.

Materials Needed

•3/8"hex head driver

• Carpenter's level

1. Remove toe grille.

• Grasp firmly and pull outward

to unclip.

2. Remove bottom hinge cover(s).

• Place the eraser end of a pencil or similar blunt

tool in the cover notch.

Notch

Location

• Use slight pressure to pry the

cover loose.

• Continue to maintain

downward pressure to the

notched side of the cover while

swingmg it off.

3. Using hex head driver, turn the front adjustment

screws (A) on each side to raise or lower the front

of the refrigerator.

C C

cont.

Installation

Using the hex head driver, turn each of these

adjustment screws (B) to raise or lower the rear of

the refrigerator.

Using the carpenter's level, make sure front of

refrigerator is '/4" (6 ram) or '/2bubble higher than

back of refrigerator and that the refrigerator is level

from side to side.

6. Turn stabilizing legs (C) clockwise until firmly

against floor.

7. Turn adjustment screws (A) counterclockwise to

allow the full weight of the refrigerator to rest on

the stabilizing legs.

8. Replace hinge cover(s).

• Position cover into the outer edge of the hinge.

• Swing the cover toward the cabinet and snap it

into place.

9. Replace the toe grille.

Note

• For proper reinstallation, ensure the "top" marking

on the interior of the toe grille is oriented correctly.

• Align the toe grille mounting clips with the lower

cabinet slots.

• Push the toe grille firmly until it snaps into place.

Door and Drawer Removal

Some installations require door/drawer removal to

transport the refrigerator to its final location.

To avoid electrical shock which can cause severe

personal injury or death, observe the following:

• Disconnect power to refrigerator before removing

doors or drawer. Connect power only after

replacing doors or drawer.

Unplug power cord from power source.

Remove toe grille and bottom hinge

cover(s) (see page 7 and 8).

Remove top hinge cover from

refrigerator door by removing Phillips

screw and retain screw and cover for

later use.

Unscrew _,6" hex head screws from

top hinge to remove hinge and retain

all screws for later use.

Lift right side refrigerator door from " "

center hinge pin. Remove door

closure from center hinge pin on

the right side and retain for later

use.

Disconnect wire harness on top

of left side refrigerator door top

hinge.

Release two-pin connector by

pressing junction point with a

flat blade screwdriver or

fingernail.

Green ground wire remains

attached to the hinge.

Unscrew %6..hex head screws from

top hinge to remove hinge and retain

for later use.

Lift left side refrigerator door, along

with top hinge, from center hinge pin.

Remove center hinge pin with a _/,_..

hex head driver and retain hinge pin

for later use.

Remove Phillips screws to remove

right and left hinges and retain all

screws for later use.

Remove both stabilizing brackets

with %" hex head driver and retain

screws for later use.

right

stde

J door

closure

To avoid damage to walls and flooring, protect vinyl

or other flooring with cardboard, rugs or other

protective material.

Installation

Pullout Freezer Drawer

To prevent accidental child entrapment or

suffocation risk, do not remove the divider in the top

freezer basket.

To avoid electrical shock which can cause severe

personal injury or death, disconnect power to

refrigerator before removing doors. After replacing

doors, connect power.

To avoid possible injury, product, or property

damage, you will need two people to perform the

following instructions.

To Remove:

1. Pull upper basket out to full extension and lift out

to remove.

2. Pull drawer open to full extension.

3. Lift lower basket straight up and out to remove.

/4. On each side raft is a

basket cradle with two

snap attachments. To

release each cradle,

unlatch the snaps by

pushing them inward, away

from the side raft system.

Lift the cradles off of the

rails.

5. Lift top of drawer front

to unhook supports

from rail system. Lift

door front out to

remove.

To Install:

1. Pull both rails out to full

extension.

2. While supporting door front,

hook supports into tabs

located on inside of rail.

3. Lower door front into

final position.

4. Place the basket cradles back onto the side rails.

Align snaps with the slots on the side rails and

press each snap towards the rail until it clicks.

5. With rails pulled out to full extension, set the

basket straight down into the basket cradles.

Basket cradle

snap attachments

6. Slide upper basket into freezer. Make sure that rear

of basket hooks behind rail catch.

Installation

Door ReinstaHation

1. Install hinge assemblies:

Install top hinge loosely with _/,_"hex head

screws.

Install center hinge with Phillips

screws.

Place hinge side of refrigerator door

on center hinge pin.

While holding refrigerator door

upright, tighten down top hinge

with -_/,_"hex head driver.

4. Reconnect two-pin connector.

5. Replace top hinge covers.

Handles

If not installed, the handle is located in the interior of

the fresh food section or attached to the back of your

refrigerator.

Remove and discard handle packaging and tape.

Handle design varies from refrigerator to refrigerator.

Please reference the appropriate instructions for your

model below.

Materials Needed

•Gloves to protect hands.

• Phillips screwdriver.

• Plastic door removal card ([or '/32"thick plastic card},

Retain the card.

To Install:

1. The handles are to be oriented

as shown.

Align front mount door handle

clip with the door tabs.

Ensure the handle clips are

positioned slightly above the

door tabs.

4. Rotate the handle so that the

handle is flat against the door.

5. Push the handle down against the

upper door tab just enough to

allow it to hang unsupported.

Align bottom of handle with lower

door tab. Press upper handle end to

door surface and firmly grasp lower

end of handle. Gently slide handle

upward until bottom of handle

settles on door surface, then

reverse direction, sliding downward

to almost engaging tab with clip.

Grasp the handle firmly and slide

down until it clicks. The audible

click indicates fastening clips are

securely interlocked.

To Remove:

1. Flex the handle away from the door

panel. Simultaneously place door

handle removal card underneath

the base of the lower handle. Insert

the card to the line or until it stops.

2. Grasp the lower part of the handle

firmly and lift to remove.

Installation

Freezer Handle

Materials Needed

•Gloves to protect hands.

• Phillips screwdriver.

• Plastic handle removal card (or %" thick plastic

card). Retain the card.

Notes

• There is a slight curve to

the freezer handle.

• For proper installation, be

i iii i I i_ i _i

ii ii i _iili

sure handle is oriented as .:,_:,:_,;;:_;_:;=_,,,_,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,.

shown.

To Install:

1. Align door handle clips slightly to the left of the

tabs attached to the freezer door.

2. Rotate the handle so the left base is flat against

the door.

Handle Door

While firmly supporting the left handle base against

the door, align the right base of the handle with the

right tabs that are attached to the door.

Now, while firmly holding the handle at the left and

right bases, gently slide the handle towards the

right until the right base settles in. The handle

should now be flat against the face of the freezer

door at both the left and right bases.

With hands still firmly keeping the handle flat

against the freezer door, you may have to reverse

directions momentarily to assure clip/tab

engagement. Then firmly slide the handle to the

right until it clicks. The audible "click" indicates

that the fastening clips are securely interlocked.

To Remove:

At the right end, flex the handle base away from

the surface of the freezer drawer. Simultaneously

slide the door handle removal card that came with

your refrigerator under the right side base of the

handle. Slide the card to the line indication or until

it stops, which will be approximately 3/4".

With both hands, firmly grasp the handle towards

the right base.

Slide towards the left, lift and remove from the

surface.

3. Push the left handle

base against the left

door tab and slightly

to the right, just

enough to allow it to

hang unsupported.

Installation

Connecting the Water Supply

To reduce the risk of injury or death, follow

basic precautions, including the following:

•Read all instructions before installing ice maker.

• Do not attempt installation if instructions are not

understood or if they are beyond personal skill

level.

• Observe all local codes and ordinances.

Do not service ice maker unless specifically

recommended in Use & Care Guide or published

user-repair instructions.

Disconnect power to refrigerator before installing

ice maker.

• Water damage due to an improper water

connection may cause mold/mildew growth. Clean

up spills or leakage immediately!

To avoid property damage or possible injury,

follow basic precautions, including the

following:

• Consult a plumber to connect Y#' O.D. copper

tubing to household plumbing to assure

compliance with local codes and ordinances.

• Confirm water pressure to water valve is between

35 and 100 pounds per square inch, 20 pounds

per square inch without filter.

• Do not use a self-piercing, or _,6"saddle valve.

Both reduce water flow and can become clogged

over time, and may cause leaks if repair is

attempted.

• Tighten nuts by hand to prevent cross threading.

Finish tightening nuts with pliers and wrenches.

Do not overtighten.

• Wait two to three hours before placing refrigerator

into final position to check and correct any water

leaks. Recheck for leaks after 2/4 hours.

• Verify the copper tubing under the sleeve is

smooth and free from defects. Do not reuse an old

sleeve.

Materials Needed

•Ya"outer diameter flexible copper tubing

•Shut-off valve (requires a X" hole to be drilled into

water supply line before valve attachment)

• Adjustable wrench

• '4" hex nut driver

Note

• You should only use copper tubing for installation.

Plastic is less durable and can cause damage.

• Add 8'

supply

to tubing length needed to reach water

for creation of service loop.

Create service loop with copper

tubing (minimum 2' diameter).

Avoid kinks in the copper tubing

when bending it into a service

loop.

2' diameter

minimum

2. Remove plastic cap from water valve inlet

port.

Place brass nut (A) and sleeve (B)

on copper tube end as illustrated.

Reminder: Do not use an old

sleeve.

Place end of copper tubing into water

valve inlet port. Shape tubing slightly. Do

not kink - so that tubing feeds straight

into inlet port.

5. Slide brass nut over sleeve and screw nut

into inbt port. Tighten nut with wrench.

UMPORTANT: Do not overdghten. Cross

threading may occur.

Pull on tubing to confirm connection is

secure. Connect tubing to frame with

water tubing clamp (C) and turn on

water supply. Check for leaks and

correct if necessary. Continue to

observe the water supply connection

for two to three hours prior to moving

the refrigerator to its permanent

location.

7. Monitor water connection for 2/4 hours. Correct

leaks, if necessary.

Installation

Opening and Closing Your

Fresh Food Doors

Your new refrigerator is uniquely designed with two

fresh food doors. Either door can be opened or closed

independently of one another.

There is a vertically-hinged section on the left fresh

food door called the SmartSeal. When the left door is

closed, the hinged section automatically forms a seal

between the two doors when both doors are closed.

When the left door is opened, the SmartSeal

automatically folds inward so that it is out of the way.

To avoid electrical shock which can cause severe

personal injury or death, DO NOT attempt to

remove the SmartSeal from the fresh food section.

To avoid possible product damage, ALWAYS verify

that the SmartSeal is folded against the edge of

the door prior to closing.

TemperatureControls

Touch Temperature Controls

The controls are located at the top front of the

refrigerator compartment.

Note

•The freezer control turns the cooling system on.

Neither section will cool if freezer is set to OFE

Control

Freezer Refr_gerato_

Adjusting the Controls

24 hours after adding food, you may decide that one

or both compartments should be colder or warmer. If

so, adjust the control(s) as indicated in the

Temperature Control Guide table below. See page 21

for instructions on checking compartment

temperature.

• Except when starting the refrigerator, do not change

either control more than one number at a time.

Initial Control Settings

After plugging the refrigerator in, set the controls.

• Pressing the @ or@ pads adjusts the controls to

the desired setting.

• The temperature control range for both

compartments is 1 through 7 (coldest).

• Initially set the refrigerator control on 4.

• Initially set the freezer control on 4.

• Let the refrigerator run at least 8 to 12 hours before

adding food.

Warm Cabinet Surfaces

At times, the front of the refrigerator cabinet may be

warm to the touch. This is a normal occurrence that

helps prevent moisture from condensing on the

cabinet. This condition will be more noticeable when

you first start the refrigerator, during hot weather and

after excessive or lengthy door openings.

• Allow 24 hours for temperatures to stabilize.

• Changing either control will have some effect on the

temperature of the other compartment.

Temperature Control Guide

Refrigerator too warm

Refrigerator too cold

Freezer too warm

Freezer too cold

Turn refrigerator OFF

Set the refrigerator control

to next higher number by

pressing the @ pad.

Set the refrigerator control

to next lower number by

pressing the @ pad.

Set the freezer control to

next higher number by

pressing the pad.

Set the freezer control to

next lower number by

pressing the pad.

Press the refrigerator or

freezer pad until a dash

(-) appears in the display.

Moisture Control Switch (select models)

Off - The refrigerator uses more energy when this

switch is off, because a heater located in the hinged

seal section of the door is running. This heater helps

prevent condensation formation on the exterior of the

hinged seal. Turn the switch OFF when the

environment is warm and more humid or if moisture

is noticed on the door exterior.

• On - This setting saves energy by not using the

heater. Turn the switch ON when the environment is

less humid.

FreshFoodFemures

Shelves

To avoid personal injury or property damage,

observe the following:

• Never attempt to adjust a shelf that is loaded with

food.

• Confirm shelf is secure before placing items on

shelf.

• Handle tempered glass shelves carefully. Shelves

may break suddenly if nicked, scratched, or

exposed to sudden temperature change.

Your refrigerator has Spillproof Glass Shelves. The

Spillproof shelves have a spill retainer edge which

allows for easier clean up and are equipped with a

slide out feature. To slide out, grasp the front of the

shelf and pull forward. Push in the shelf to return to

the original position.

To Remove a Shelf:

• Slightly tilt up the front and lift up

the rear of the shelf, then pull the

shelf straight out.

To Lock the Shelf into Another

Position:

• Tilt up the front edge of the shelf.

• Insert the hook into the desired frame openings and

let the shelf settle into place.

• Be sure the shelf is securely locked at the rear.

The Crisper Top serves as the lower fresh food shelf.

To Remove the Crisper Top:

• Place hand under the frame to push up the glass. Lift

glass out.

• Lift frame from refrigerator liner rails.

To Install:

• Replace frame in refrigerator liner rails.

• Carefully replace glass into frame.

Door Storage

Dairy Center

The Dairy Center provides

convenient door storage for

spreadable items such as butter

and margarine. This compartment can be moved to

different locations to accommodate storage needs. To

use the dairy center, raise the cover.

To Remove:

• Raise the cover, pull upward and tilt out.

1"o Install:

• Slide the Dairy Center in and down until

firmly seated in the door liner.

Door Buckets

Door Buckets can be moved to

meet storage needs.

To Remove:

• Slide bucket up and pull straight out.

To Install:

• Slide bucket in and down until firmly seated in the

door liner.

Adjustable Deep Tilt-Out Door Buckets

The Adjustable Deep Tilt-Out Door Bucket provides

easy access to food items stored in the door.

To Remove Bucket:

• Tilt bucket out.

• Pull straight out of the bracket.

To Install Bucket:

• Tilt the front of the bucket down slightly.

• Slide into bracket and tip upright.

To Move Bucket Frame to Another Location:

• Remove bucket.

• Lift bracket up and pull straight

out.

Place the bracket in a new

location.

FreshFoodFemures

Crisper Drawers

The Crisper Drawers provide a higher humidity

environment for fresh fruit and vegetable storage.

Controls

The Crisper Controls regulate the amount of humidity

in the crisper drawee Slide the control toward the LOW

setting for produce with outer skins. Slide the control

toward the HIGH setting for leafy produce.

Humidity

HIGH ® • ® o • • o LOW

To Remove:

• Pull drawer out to full extension. Tilt up front of

drawer and pull straight out.

To install:

• Insert drawer into frame rails and push back into

place.

Note

• For best results, keep the crisper drawers tightly

closed.

Temperature-Controlled Drawer

The Gourmet Pantry drawer is a full-width drawer

with adjustable temperature control. This drawer can

be used for large party trays, dell items, beverages or

miscellaneous items and features a divider to organize

the Gourmet Pantry into sections if desired.

There is a temperature control which adjusts the

amount of cold air allowed into the Gourmet Pantry.

The control is located on the right side of the drawer.

Depending on your model, it is either on the front of

the drawer or under the lid.

Set the control to cold or _ to provide a normal

refrigerator temperature. Set the drawer on the

coldest or _ setting when a temperature colder than

the main refrigerator compartment is desired. Use the

coldest setting when storing meats.

Notes

• Cold air directed to the Gourmet Pantry can

decrease refrigerator temperature. Refrigerator

control may need to be adjusted.

• Do not place leafy vegetables in the Gourmet

Pantry drawer. Colder temperatures could damage

leafy produce.

To Remove Drawer:

• Lift lid. Pull drawer out to full extension. Tilt up front

of pantry and pull straight out.

To Install Drawer:

• Push metal glide rails to the back of the refrigerator.

Place drawer onto rails and slide drawer back until it

falls into place.

To Remove Divider:

• Pull drawer completely out and raise the front of the

divider to unhook it from the rear wall of the pantry

and lift it out.

To Install Divider:

• Hook back of divider over rear wall of pantry and

lower into place

FreezerFeatures

To prevent accidental child entrapment or

suffocation risk, do not remove the divider in the top

freezer basket

Upper Wire Basket

To Remove:

• Pull upper basket out to full extension and lift out to

remove.

To Install:

•Slide upper basket

into freezer. Make

sure that rear of

basket hooks behind

rail catch.

Note

• See page 9 for lower basket and complete pullout

drawer instructions.

I©eundWuter

Automatic Ice Maker

Connect the ice maker to the water supply as

instructed on page 12. Proper water flow and a level

refrigerator are essential for optimal ice maker

performance.

Operating Instructions

• Confirm ice bin is in place and ice maker arm is

down.

• After freezer section reaches between 0° to 2° F (-18 °

to -17 ° C), ice maker fills with water and begins

operating. You will have a complete

harvest of ice approximately every

three hours.

• Allow approximately 24 hours after

installation to receive first harvest of

ice.

• Discard ice created within first 12 hours of operation

to assure system is flushed of impurities.

• Stop ice production by raising ice maker arm until

click is heard.

• Ice maker will remain in the off position until arm is

pushed down.

• The first one or two batches will probably contain

undersized and irregular cubes because of air in the

supply line.

• When the ice cubes are ejected it is normal for

several cubes to be joined together at the ends. They

can easily be broken apart. The ice maker will

continue to make ice until the supply of ice cubes

raises the sensor arm, shutting the ice maker off.

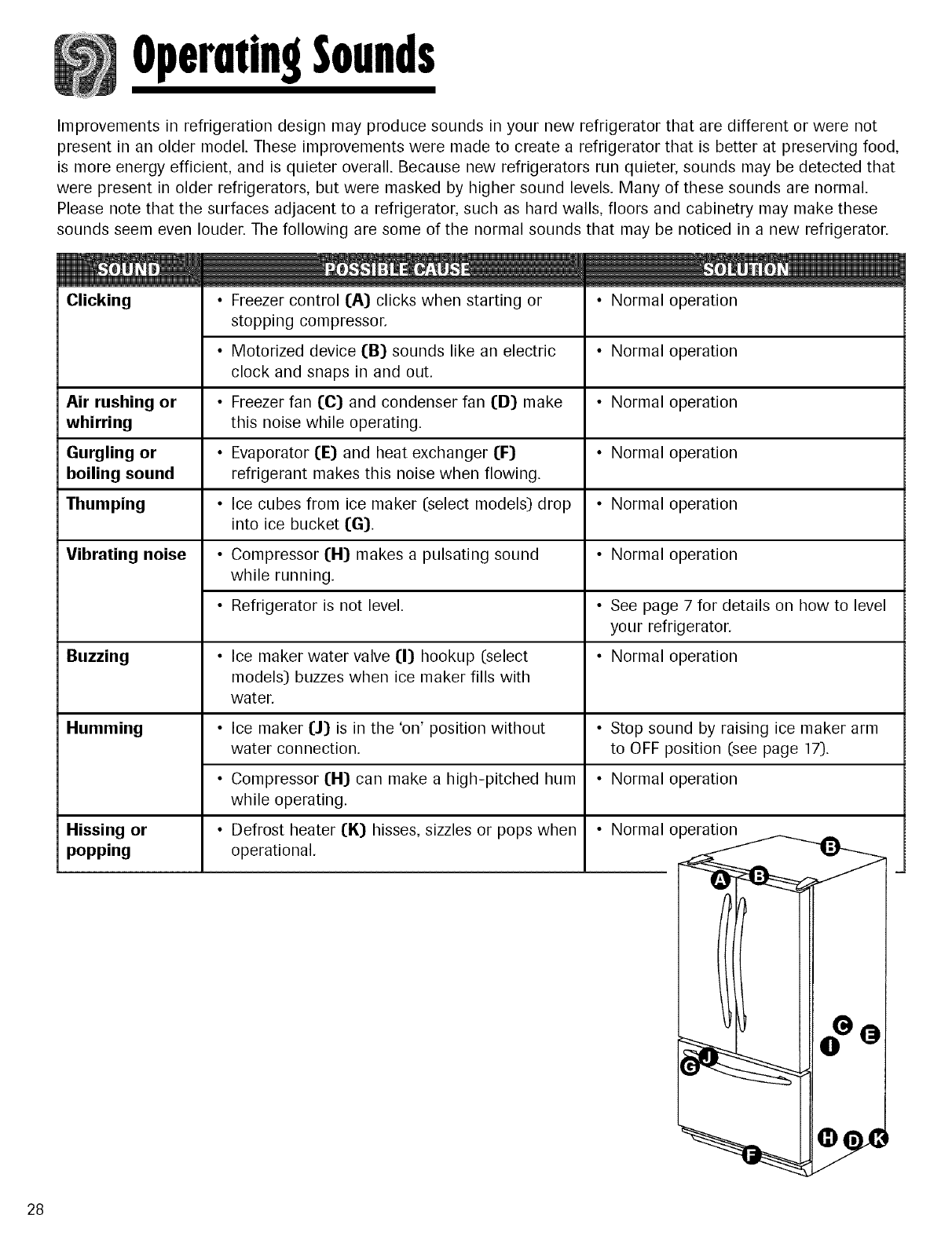

• Certain sounds may accompany the various cycles of

the ice maker. The motor may have a slight hum, the

cubes will rattle as they fall into an empty storage

pan and the water valve may click or "buzz"

occasionally.

• If the ice is not used frequently, the ice cubes will

become cloudy, shrink, stick together and taste stale.

Empty the ice storage bin periodically and wash it in

lukewarm water. Be sure to dry the bin thoroughly

before replacing it.

• Beverages and foods should not be placed in the ice

storage bin for quick chilling. These items can block

the sensor arm, causing the ice maker to

malfunction.

• Turn off (arm up) the ice maker when the water

supply is to be shut off for several hours.

To Remove the Ice Bin:

• Pull it forward, away from the ice maker. To avoid the

ice maker dumping ice while the bin is removed, turn

the ice maker off by raising the sensor arm.

To Install the Ice Bin:

• Reverse the above procedure. Turn the ice maker on

by lowering the sensor arm.

To avoid personal injury or property damage,

observe the following:

• Do not place fingers or hands on the automatic ice

making mechanism while the refrigerator is

plugged in. This will help protect you from possible

injury. It will also prevent interference with moving

parts of the ejector mechanism and the heating

element that releases the cubes.

• Under certain rare circumstances, ice cubes may

be discolored, usually appearing with a green-

bluish hue. The cause of this unusual discoloration

can be a combination of factors such as certain

characteristics of local waters, household

plumbing and the accumulation of copper salts in

an inactive water supply line which feeds the ice

maker. Continued consumption of such discolored

ice cubes may be injurious to health. If such

discoloration is observed, discard the ice cubes

and contact your dealer to purchase and install a

water line filter.

• Water damage due to improper water connection

may cause mold/mildew growth.

• Clean up water and ice spills to avoid personal

injury and to prevent mold/mildew growth.

Water Dispenser

The Water Dispenser is located on

the left side waft of the fresh food

section. This design is for cold water

dispensing only.

To Dispense Water:

• Hold container under spout and

press dispenser pad.

WaterFilter

Removal and Installation

To avoid serious illness or death, do not use

refrigerator where water is unsafe or of unknown

quality without adequate disinfection before or after

use of filter.

After installing a new water filter, always dispense

water for two minutes before removing the filter for

any reason. Air trapped in system may cause water

and cartridge to eject. Use caution when removing.

•The bypass cap does not filter water. Be sure to

have replacement cartridge available when filter

change is required.

• If water filtration system has been allowed to

freeze, replace filter cartridge.

If system has not been used for several months, or

water has an unpleasant taste or odor, flush

system by dispensing water for two to three

minutes. If unpleasant taste or odor persists,

change filter cartridge.

Initial Installation

The water filter is located in the

upper right-hand corner of the fresh

food compartment.

1. Remove blue bypass cap and

retain for later use.

2. Remove sealing label from end of

filter and insert into filter head.

3. Rotate gently clockwise until

filter stops. Snap filter cover

closed.

4. Reduce water spurts by flushing air from system.

Run water continuously for two minutes through

dispenser until water runs steady. During initial

use, allow about a one- to two-minute delay in

water dispersal to allow internal water tank to fill.

• Additional flushing may be required in some

households where water is of poor quality.

Replacing Water Filter

Important: Air trapped in system may cause

water and cartridge to eject. Use caution when

removing.

1. Turn filter counterclockwise until it releases from

filter head.

2. Drain water from filter into sink, and dispose of

filter in normal household trash.

3. Wipe up excess water in filter cover and continue

with hTitial Installation, steps 2 and 4.

The filter should be changed at least every 12 months.

Important: Condition of water and amount used

determines life span of water filter cartridge. If water

use is high, or if water is of poor quality, replacement

may need to take place more often.

To purchase a replacement water filter cartridge,

call 1-800-4-MY-HOMP _(1-800-469-4663).

The dispenser feature may be used without a water

filter cartridge. If you choose this option, replace filter

with blue bypass cap.

WaterFilter

System Specification and Performance Data Sheet

Refrigerator Water Filter Cartridge Model 469006-750

Specifications

Service Flow Rate (Maximun]) .............................................0.78 GPM (2.9 L/min)

Rated Service Life 469006-750 (Maximum) ...................750 gallons/2838 liters

Maximum Operating Temperature .....................................100° F/38 ° C

Minimum Pressure Requirement ........................................35 psi/241 kPA

Minimum Operating Temperature ......................................33° F/1 ° C

Maximum Operating Pressure .............................................120 psi/827 kPA

1000 Apollo Road

Eagan, Minnesota 55121-2240

651.450.4913

EPA EST #35917-MN-1

Performance Data

Parameter

Chlorine

T&O

Particulate _*

100834/B

USEPA

MCL

Standard No. 42: Aesthetic Effects

Influent

Challenge Concentration

2.0 mg/L ± 10%

Min. Required

Reduction

50%

Influent

Average

1.88 mg/L

5.700.000 #/ml

Effluent

Average Maximum

(0.05136364 mg/[ 0.06 mg/L

30.583 #/ml 69.000 #/ml

%Reduction

Average Minimum

>9726% 96.84%

99.52% 98.94%

at least 10,000 particles/ml 85%

Parameter

Turbidity

Cysts

Asbestos

Lead at pH 6.5

Lead at pH 8.5

Mercury at pH 6.5

Mercury at pH 8.5

Atrazine

Benzene

Carbofuran

)-Dichlolobenzene

Lindane

Toxaphene

USEPA

MCL

1 NTU_*

99.5% Reduction

99% Reduction

0.015 mg/L

0.002 mg/L

0.003 nff_/L

0.005 m_)/L

0.04 m_)/L

0.075 mg/L

0.0002 m_)/L

0.003 mg/L

Standard No. 53: Health Effects

Influent

Challenge Concentration

11 ± 1 NTU***

Minimum 5&OOO/L

107108fibers/L; fibers >10 nlicrometers in length

0.15 mg/L + 10%

.006 mg/L ± 10%

0.009 mq/L + 10%

0.015 m_)/L ± 10%

0.08 m_)/L ± 10%

.225 mg/L ± 10%

0.002 m_iL + 10%

0.015 ± 10O/o

Influent

Average

10.7 NTU

166,500 #/L

155 MF/L

0.153 mg/L

0.150 mg/L

0.006 mg/L

0.009 nff_/L

0.014 nl_)/L

0.081 m_)/L

0.208 m_)/L

0.002 m_iL

0.015 mg/L

Effluent

Average Maximum

0.31 NTU .049 NTU

<1 #/L <1 #/L

<1 MF/L <1 MF/L

<.001 mg/L <.001 mg/L

0.0003 mg/L 0.0005 mg/L

0.0008 mg/L 0.0015 mg/L

<0.002 mq/L 0.002 mg/L

0.0006 m_)/L 0.0011 m_)/L

<0.001 mg/L <0.001 m_)/L

<0.0005 mg/L <0.0005 m_)/L

0.0O0 m_iL <0.0001 m_)/L

<0.001 mg/L <0.001 mg/L

%Reduction

Average Minimum

9709% 95.20%

>99.99% >99.99%

>99.35% >9929%

>99.33% >9929%

95.70% 90.91o/o

86.22% 75,93%

76,99% 75.31%

95.71% 92.14%

98.74% 98.46%

99.76% 99.74%

98.72% 96.50%

92.97O/o 91.67%

Min. Required

Reduction

0.5 NTU

>99.95%

99%

0.10 mg/L

0.002 mg/L

0.003 mg/L

0.005 mg/L

0.04 m_)/L

0.075 mg/L

0.0002 m_iL

0.003 mg/L

Tested using a flow rate of 0.78 gpm; pressure of 60 psig; pH of Z5 + 0.5; temp. of

68 ° +5° F (20 ° +3 ° C)

** Measurement in Particles/mL Particles used were 0.5 - 1 microns

*** NTU -Nephelometric Turbidity Units

Tested and certified by NSF International against ANSI/NSF Standards 42 & 53

in models 469006-750 for the reduction of:

Standard No. 42: Aesthetic Effects Standard No. 53: Health Effects

Taste and Odo_ Reduction Cbenlical Reduction Unit

Chlorine Taste & Odor Lead, Atrazine, Lindane, Benzene,

Mechanical Filtration Unit Caibofuian, p-Dichlorobenzene, Mercury

Particulate Reduction Class 1 & Toxaphene Reduction

Mechanical Filtration Unit

Cyst, Turbidity and Asbestos Reduction

General Use Conditions

Read this Performance Data Sheet and compare the

capabilities of this unit with your actual water

treatment needs.

DO NOT use this product where water is microbic-

logically unsafe or of unknown quality without

adequate disinfection before or after the system.

System certified for cyst reduction may be used on

disinfected water that may contain filterable cysts.

USE ONLY WITH COLD WATER SUPPLY. CHECK

FOR COMPLIANCE WITH THE STATE AND LOCAL

LAWS AND REGULATIONS.

The retractable water filtration system uses a/469006-

750 replacement cartridge. Timely replacement of filter

cartridge is essential for performance satisfaction from

this filtration system. Please refer to the applicable

section of your Use & Care Guide for general

operation, maintenance requirements and

troubleshooting. Suggested retail price of replacement

water filter is $39.99.

This system has been tested according to ANSI/NSF/42

and 53 for reduction of the substance listed above. The

concentration of the indicated substances in water

entering the system was reduced to a concentration less

than or equal to the permissible limit for water leaving

the system, as specified in ANSI/NSF/42 and 53. 19

WaterFilter

State of California

Department of Health Services

Water Treatment Device

Certificate Number

03- 1583

Date Issued: September 16, 2003

Date Revised: April 22. 2004

Trademark/Model Designation

UKFS001AXX750

469006-750

67003523-750

Replacement Elements

Manufacturer: PentaPure Inc.

of the

Cysts

Turbidity

Organic Contaminants

Atrazine

Lmdmle

Benzene

CarboIhran

p-dichtorobenzene

loxaphene

Rated Service Capacity: 750 gal. Rated Service Flow: 0.78 gpm

Conditions of Certification:

Do not use where water is lnicrobiotogically unsafe or with water of unkno_x_ quality, except that systems certified t\_r cyst

reduction may be used on disinfected waters that may contain filterable cysts.

FoodStorugeTips

Fresh Food Storage

•The fresh food compartment of a refrigerator should

be kept between 340-40 ° F (1°-4 ° C) with an

optimum temperature of 37° F (3° C). To check the

temperature, place an appliance thermometer in a

glass of water and place in the center of the

refrigerator. Check after 24 hours. If the temperature

is above 40° F (4° C) adjust the controls as explained

on page 14.

• Avoid overcrowding the refrigerator shelves. This

reduces the circulation of air around the food and

results in uneven cooling.

Fruits and Vegetables

• The crisper drawers trap humidity to help preserve

the fruit and vegetable quality for longer time periods

(see page 16).

• Sort fruits and vegetables before storage and use

bruised or soft items first. Discard those showing

signs of decay.

• Always wrap odorous foods such as onions and

cabbage so the odor does not transfer to other foods.

• While vegetables need a certain amount of humidity

to remain fresh, too much humidity can shorten

storage times (especially leafy vegetables). Drain

vegetables well before storing.

• Wait to wash fresh produce until right before use.

Meat and Cheese

• Raw meat and poultry should be wrapped securely

so leakage and contamination of other foods or

surfaces does not occur.

• Occasionally mold will develop on the surface of

hard cheeses (Swiss, Cheddar, Parmesan). Cut off at

least an inch around and below the moldy area. Keep

your knife or instrument out of the mold itself. Do not

try to save individual cheese slices, soft cheese,

cottage cheese, cream, sour cream or yogurt when

mold appears.

Dairy Food

• Most dairy foods such as milk, yogurt, sour cream

and cottage cheese have freshness dates on their

cartons for appropriate length of storage. Store these

foods in the original carton and refrigerate

immediately after purchasing and after each use.

Frozen Food Storage

• The freezer compartment of a refrigerator should be

kept at approximately 0° F (-18 ° C). To check the

temperature, place an appliance thermometer

between the frozen packages and check after 2/4

hours. If the temperature is above 0° F (-18 ° C),

adjust the control as described on page 1/4.

• A freezer operates more efficiently when it is at least

two-thirds full.

Packaging Foods for Freezing

To minimize dehydration and quality deterioration use

aluminum foil, freezer wrap, freezer bags or airtight

containers. Force as much air out of the packages as

possible and be sure they are tightly sealed. Trapped

air can cause the food to dry out, change color and

develop an off-flavor (freezer burn).

• Overwrap fresh meats and poultry with suitable

freezer wrap prior to freezing.

• Do not refreeze meat that has completely thawed.

Loading the Freezer

Avoid adding too much warm food to the freezer at

one time. This overloads the freezer, slows the rate of

freezing and can raise the temperature of frozen

foods.

• Leave space between the packages so cold air can

circulate freely, allowing food to freeze as quickly as

possible.

Avoid storing hard-to-freeze foods such as ice cream

and orange juice on the freezer door shelves. These

foods are best stored in the freezer interior where the

temperature varies less with door openings.

Refer to the Food Storage Chart on pages 22 and 23 for

approximate storage times.

FoodStorageTips

Food Storage Chart

Storage times are approximate and may vary depending on type of packaging, storage temperature, and the quality

of the food when purchased.

DAI RY PRODUCTS

Butter 1 month 6 to 9 months Wrap tightly or cover.

Milk and cream 1 week Not recommended Check carton date. Close tightly.

Don't return unused portions to

original container. Don't freeze

cream unless whipped.

Cream cheese, cheese 1 to 2 weeks Not recommended Wrap tightly.

spread and cheese food

Cottage cheese 3 to 5 days Not recommended Store in original carton.

Check carton date.

Sour cream 10 days Not recommended Store in original carton.

Check carton date.

Hard cheese 1 to 2 months 4 to 6 months Wrap tightly.

(Swiss, Cheddar and Parmesan) May become Cut off any mold.

crumbly

EGGS

Eggs in the shell 3 weeks Not recomnlended Refrigerate small ends down.

Leftover yolks or whites 2 to/4 days 9 to 12 months For each cup of yolks to be frozen,

add 1 tsp. sugar for use in sweet, or

1 tsp. salt for non-sweet dishes.

FRUITS

Apples 1 month 8 months (cooked) May also store unripe or hard apples

at 60° to 70° F (16° to 21° C).

Bananas 2 to/4 days 6 months Ripen at room temperature before

(whole/peeled] refrigerating. Note: Bananas will

darken when refrigerated.

Pears, plums, avocados 3 to/4 days Not recommended Ripen at room temperature before

refrigerating. Note: Avocados will

darken when refrigerated.

Berries, cherries, apricots 2 to 3 days 6 months Ripen at room temperature before

refrigerating.

Grapes 3 to 5 days 1 month (whole) Ripen at room temperature before

refrigerating.

Citrus fruits 1 to 2 weeks Not recommended May also store at 60° to 70° F

06 ° to 21° C).

If refrigerated, store uncovered.

Pineapples, cut 2 to 3 days 6 to 12 months Will not ripen after purchase.

Use quickly.

FoodStorugeTips

VEGETABLES

Asparagus 1 to 2 days 8 to 10 months Do not wash before refrigerating.

Store in crisper.

Brussels sprouts, broccoli, 3 to 5 days 8 to 10 months Wrap odorous foods.

cauliflower, green peas, Leave peas in pods.

lima beans, onions, peppers

Cabbage, celery 1 to 2 weeks Not recommended Wrap odorous foods and refrigerate

in crisper.

7 to 10 days 8 to 10 months Remove tops. Wrap odorous foods

and refrigerate in the crisper.

7 to 10 days Not recommended

Carrots, parsnips, beets and

turnips

Lettuce

POULTRY and FUSH

Chicken and Turkey, whole

Chicken and Turkey, pieces

Fish

I to 2 days

12 months

9 months

2 to 6 months

Keep in original packaging for

refrigeration. Place in the meat and

cheese drawer. When freezing longer

than two weeks, overwrap with

freezer wrap.

M EATS

Bacon 7 days 1 month

Beef or lamb, ground 1 to 2 days 3 to 4 months Fresh meats can be kept in original

packaging for refrigeration.

Beef or lamb, roast and steak 3 to 5 days 6 to 9 months Place in the meat and cheese drawer.

When freezing longer than two

weeks, overwrap with freezer wrap.

Ham, fully cooked, whole 7 days 1 to 2 months

half 5 days 1 to 2 months

slices 3 days 1 to 2 months

Luncheon meat 3 to 5 days 1 to 2 months Unopened, vacuum-packed luncheon

meat may be kept up to two weeks

in the meat and cheese drawer.

Pork, roast 3 to 5 days 4 to 6 months

Pork, chops 3 to 5 days 4 months

Sausage, ground 1 to 2 days 1 to 2 months

Sausage, smoked 7 days 1 to 2 months

Veal 3 to 5 days 4 to 6 months

Frankfurters 7 days 1 month Processed meats should be tightly

wrapped and stored in the meat and

cheese drawer.

Sources: United States Department of Agriculture; Food Marketing Institute; Cooperative Extension Service, Iowa

State University

andCleaning

To avoid electrical shock which can cause severe

personal injury or death, disconnect power to

refrigerator before cleaning. After cleaning, connect

power.

Refrigerator Cleaning Chart

To avoid personal injury or property damage,

observe the following:

•Read and follow manufacturer's directions for all

cleaning products.

• Do not place buckets, shelves or accessories in

dishwasher. Cracking or warping of accessories

may result.

Textured Doors

and Exterior

Cabinet Interior

Stainless Steel Doors

and Exterior

I M PORTANT:

Damage to stainless steel

finish due to improper use

of cleaning products or

non-recommended products

is not covered under this

product_ warranty.

Door Gaskets

Condenser Coil

Remove base grille to access.

Condenser Fan Outlet Grille

See back of refrigerator.

Accessories

Shelves, buckets,

drawers, etc.

Abrasive or harsh cleaners

Ammonia

Chlorine bleach

Concentrated detergents or

solvents

Metal or plastic-textured

scouring pads

Abrasive or harsh cleaners

Ammonia

Chlorine bleach

Concentrated detergents

or solvents

Metal or plastic-textured

scouring pads

Vinegar-based products

Citrus-based cleaners

Abrasive or harsh cleaners

Metal or plastic-textured

scouring pads

Anything other than a

vacu unl cleaner

A dishwasher

Use 4 tablespoons of baking soda dissolved in

1 quart (1 liter) warm soapy water.

Rinse surfaces with clean warm water and dry

immediately to avoid water spots.

Use warm, soapy water and a soft, clean cloth

or sponge.

Rinse surfaces with clean warm water and dry

immediately to avoid water spots.

To polish and help prevent finger prints, follow

with Stainless Steel Cleaner*.

Use warm, soapy water and a soft, clean cloth

or sponge.

Use a vacuum cleaner hose nozzle.

Use a vacuum cleaner hose nozzle with brush

attachment.

Follow removal and installation instructions

from appropriate feature section.

Allow accessories to adjust to room

tern peratu re.

Dilute mild detergent and use a soft clean cloth

or sponge for cleaning.

Use a plastic bristle brush to get into crevices.

Rinse surfaces with clean warm water.

Dry glass and clear items immediately to avoid

spots.

* To order, call 1-800-4-MY-HOME "_(1-800-469-4663).

andCleaning

Removing Odors From

Refrigerator

To avoid electrical shock which can cause severe

personal injury or death, disconnect power to

refrigerator before cleaning. After cleaning,

reconnect power.

1. Remove all food and turn the refrigerator OFE

2. Disconnect power to the refrigerator.

3. Clean the walls, floor, ceiling of cabinet interior,

drawers, shelves and gaskets according to the

instructions on page 24.

4. Dilute mild detergent and brush solution into

crevices using a plastic bristle brush. Let stand for

5 minutes. Rinse surfaces with warm water. Dry

surfaces with a soft, clean cloth.

5. Wash and dry all bottles, containers and jars.

Discard spoiled or expired items.

6. Wrap or store odor-causing foods in tightly sealed

containers to prevent recurring odors.

7. Reconnect power to refrigerator and return food to

refrigerator.

8. Allow the refrigerator to cool.

9. After 24 hours, check if odor has been eliminated.

If odor is still present:

1. Remove drawers and place on top shelf of

refrigerator.

2. Pack refrigerator and freezer sections - including

doors - with crumpled sheets of black and white

newspaper.

3. Place charcoal briquettes randomly on crumpled

newspaper in both freezer and refrigerator

compartments.

4. Close doors and let stand 24 to 48 hours.

Energy Saving Tips

• Avoid overcrowding refrigerator shelves.

Overcrowding reduces air circulation around food

and causes refrigerator to run longer.

• Avoid adding too much warm food to refrigerator at

one time. This overloads compartments and slows

rate of cooling.

• Do not use aluminum foil, wax paper, or paper

toweling as shelf liners. This decreases air flow and

causes refrigerator to run less efficiently.

• A freezer that is two-thirds full runs most efficiently.

Locate refrigerator in coolest part of room. Avoid

areas of direct sunlight, or near heating ducts,

registers or other heat producing appliances. If this is

not possible, isolate exterior by using a section of

cabinet or an added layer of insulation.

• Clean door gaskets every three months according to

cleaning instructions. This will assure that door seals

properly and refrigerator runs efficiently.

• Take time to organize items in refrigerator to reduce

time that door is open.

• Be sure your doors are closing securely by leveling

refrigerator as instructed in your installation

instructions.

• Clean condenser coils as indicated in the cleaning

instructions every three months. This will increase

energy efficiency and cooling performance.

andCleaning

Replacing Light Bulbs

To avoid electrical shock which can cause severe

personal injury or death, disconnect power to

refrigerator before replacing light bulb. After

replacing light bulb, reconnect power.

To avoid personal injury or property damage,

observe the following:

• Allow light bulb to cool.

• Wear gloves when replacing light bulb.

Fresh Food Section

(style of light shield varies)

Slide clear light shield

toward back of

compartment to release

from light assembly.

2. Remove light bulbs.

3. Replace with appliance

bulbs no greater than 40 watts.

.Replace light bulb cover by inserting tabs on light

shield into liner holes on each side of light

assembly. Slide shield toward front of refrigerator

until it locks into place. Do not force shield beyond

locking point. Doing so may damage light shield.

Freezer (style of light shield varies)

1. Reach behind the light

cover.

2. With firm pressure, press

forward on the notches at

the back of the cover and

pull down. The cover will

open from the back.

3. Remove the cover.

Remove light bulb.

Replace bulb with

appliance bulb no

greater than 40 watts.

Insert front tabs of light

cover into slots in freezer

liner and snap rear

portion over light

assembly until rear tab

engages.

andCleaning

Preparing for Vacation

If there is any possibility that the temperature can

drop below freezing where the refrigerator is

located, the water supply system (including the

water tank and the water valve) must be drained by

a qualified servicer.

For short vacations or absences (three months or

less):

1. Remove all perishables.

2. If no one will be checking in on the refrigerator

during your absence, remove all frozen items also.

3. Since your refrigerator has an automatic ice maker:

• Shut off the water supply to the ice maker at

least one day ahead of time.

• After the last load of ice drops, raise the wire

shut off arm to the OFF position.

• Empty the ice bin.

4. If the room temperature will drop below 55° F

(13° C), follow the instructions for longer absences.

For long vacations, absences (more than three

months) OR if the room temperature will drop

below 55 ° F (13 ° C):

1. Remove food.

2. Since your refrigerator has an automatic ice maker:

• Shut off the water supply to the ice maker at

least one day ahead of time.

• After the last load of ice drops, raise the wire

shut off arm to the OFF position.

• Empty the ice bin.

3. Since your refrigerator has a dispenser system with

water filter, remove the water filter cartridge and

install the filter bypass. Dispose of the used

cartridge.

4. Turn the freezer control to OFF.

5. Unplug the refrigerator.

6. Thoroughly clean the interior of both compartments

with a baking soda solution and a clean soft cloth

(four tablespoons of baking soda in one quart of

warm water).

7. Dry thoroughly.

8. Leave the doors open to prevent the formation of

mold and mildew.

Upon your return:

After ashort vacation or absence:

For models with automatic ice makers or dispensers:

• Reconnect the water supply and turn on supply valve

(see page 12).

• Monitor water connection for 24 hours and correct

leaks if necessary.

• Run 10-15 glasses of water from the dispenser to

flush out the system.

• Restart the ice maker by lowering the ice maker arm.

• Discard at least the first three ice harvests.

After a long vacation or absence:

• Reconnect the water supply and turn on supply valve

(see page 12).

• Plug the refrigerator back in and reset controls (see

page 14).

• Monitor water connection for 24 hours and correct

leaks, if necessary.

For dispenser models, run water through the dispenser

for at least three minutes with the filter bypass in

place, then install water filter (see page 18).

• After installing the water filter, run water through the

dispenser continuously for at least two minutes, or

until water runs steady. Initially you may notice a

one to two minute delay in water dispersal as the

internal tanks fills.

• Restart the ice maker by lowering the ice maker arm.

• Discard ice produced within the first 12 hours (at

least the first three harvests).

Preparing to move:

• Follow the above instructions for long

vacations/absences, through step 7.

• Secure all loose items such as shelves and drawers

by taping them securely in place to prevent damage.

• Tape the doors shut.

• Use an appliance dolly when moving the refrigerator.

Always truck the refrigerator from its side or back

- never from its front.

• Be sure the refrigerator stays in an upright position

during moving. 27

Opercnin9Sounds

Improvements in refrigeration design may produce sounds in your new refrigerator that are different or were not

present in an older model. These improvements were made to create a refrigerator that is better at preserving food,

is more energy efficient, and is quieter overall. Because new refrigerators run quieter, sounds may be detected that

were present in older refrigerators, but were masked by higher sound levels. Many of these sounds are normal.

Please note that the surfaces adjacent to a refrigerator, such as hard walls, floors and cabinetry may make these

sounds seem even louder. The following are some of the normal sounds that may be noticed in a new refrigerator.

Clicking • Freezer control (A) clicks when starting or •Normal operation

stopping compressor.

• Motorized device (B) sounds like an electric • Normal operation

clock and snaps in and out.

Air rushing or • Freezer fan (C) and condenser fan (D) make • Normal operation

whirring this noise while operating.

Gurgling or • Evaporator (E) and heat exchanger (F) • Normal operation

boiling sound refrigerant makes this noise when flowing.

Thumping • Ice cubes from ice maker (select models) drop •Normal operation

into ice bucket (G).

Vibrating noise • Compressor (H) makes a pulsating sound •Normal operation

while running.

• Refrigerator is not level. • See page 7 for details on how to level

your refrigerator.

Buzzing • Ice maker water valve (I) hookup (select • Normal operation

models) buzzes when ice maker fills with

water.

Humming • Ice maker (J) is in the 'on' position without • Stop sound by raising ice maker arm

water connection, to OFF position (see page 17).

• Compressor (H) can make a high-pitched hum • Normal operation

while operating.

Hissing or • Defrost heater (K) hisses, sizzles or pops when • Normal operation

popping operational.

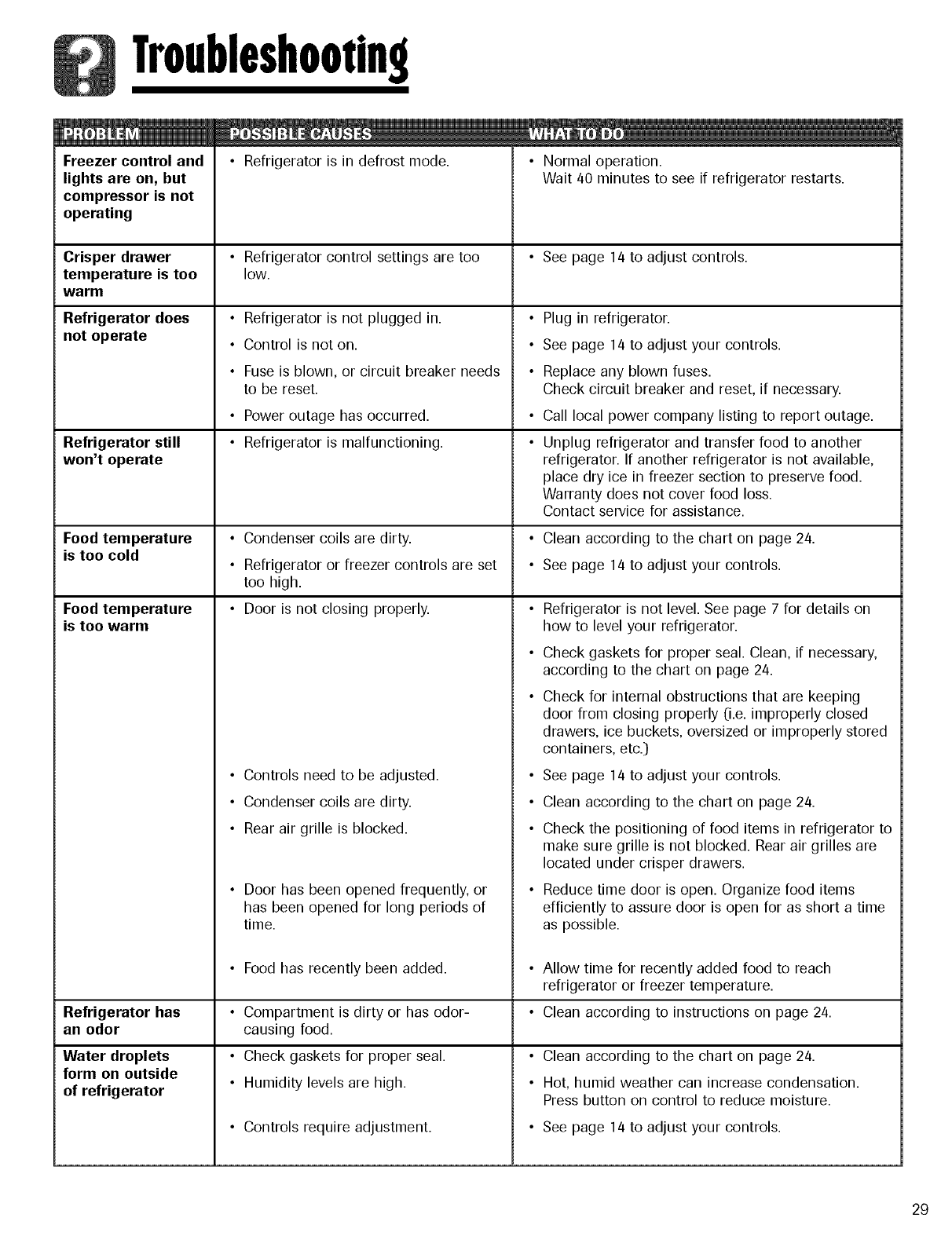

Troubleshooting

Freezer control and

lights are on, but

compressor is not

operating

•Normal operation.

Wait 40 minutes to see if refrigerator restarts.

Crisper drawer • See page 14 to adjust controls.

temperature is too

warm

Refrigerator does

not operate

Refrigerator still

won't operate

Food temperature

is too cold

Food temperature

is too warm

Plug in refrigerator.

See page 14 to adjust your controls.

Replace any blown fuses.

Check circuit breaker and reset, if necessary.

Call local power company listing to report outage.

Unplug refrigerator and transfer food to another

refrigerator. If another refrigerator is not available,

place dry ice in freezer section to preserve food.

Warranty does not cover food loss.

Contact service for assistance.

Clean according to the chart on page 24.

See page 14 to adjust your controls.

• Refrigerator is in defrost mode.

• Refrigerator control settings are too

low.

• Refrigerator is not plugged in. •

• Control is not on. •

• Fuse is blown, or circuit breaker needs •

to be reset.

• Power outage has occurred. •

• Refrigerator is malfunctioning. •

• Condenser coils are dirty. •

• Refrigerator or freezer controls are set •

too high.

• Door is not closing properly. •

• Controls need to be adjusted. •

• Condenser coils are dirty. •

• Rear air grille is blocked. •

• Door has been opened frequently, or •

has been opened for long periods of

time.

• Food has recently been added. •

• Compartment is dirty or has odor- •

causing food.

• Check gaskets for proper seal. •

• Humidity levels are high. •

• Controls require adjustment. •

Refrigerator is not level. See page 7 for details on

how to level your refrigerator.

Check gaskets for proper seal. Clean, if necessary,

according to the chart on page 24.

Check for internal obstructions that are keeping

door from closing properly O.e.improperly closed

drawers, ice buckets, oversized or improperly stored

containers, etc._

See page 14 to adjust your controls.

Clean according to the chart on page 24.

Check the positioning of food items in refrigerator to

make sure grille is not blocked. Rear air grilles are

located under crisper drawers.

Reduce time door is open. Organize food items

efficiently to assure door is open for as short a time

as possible.

Allow time for recently added food to reach

refrigerator or freezer temperature.

Refrigerator has Clean according to instructions on page 2/4.

an odor

Water droplets

form on outside

of refrigerator

Clean according to the chart on page 24.

Hot, humid weather can increase condensation.

Press button on control to reduce moisture.

See page 14 to adjust your controls.

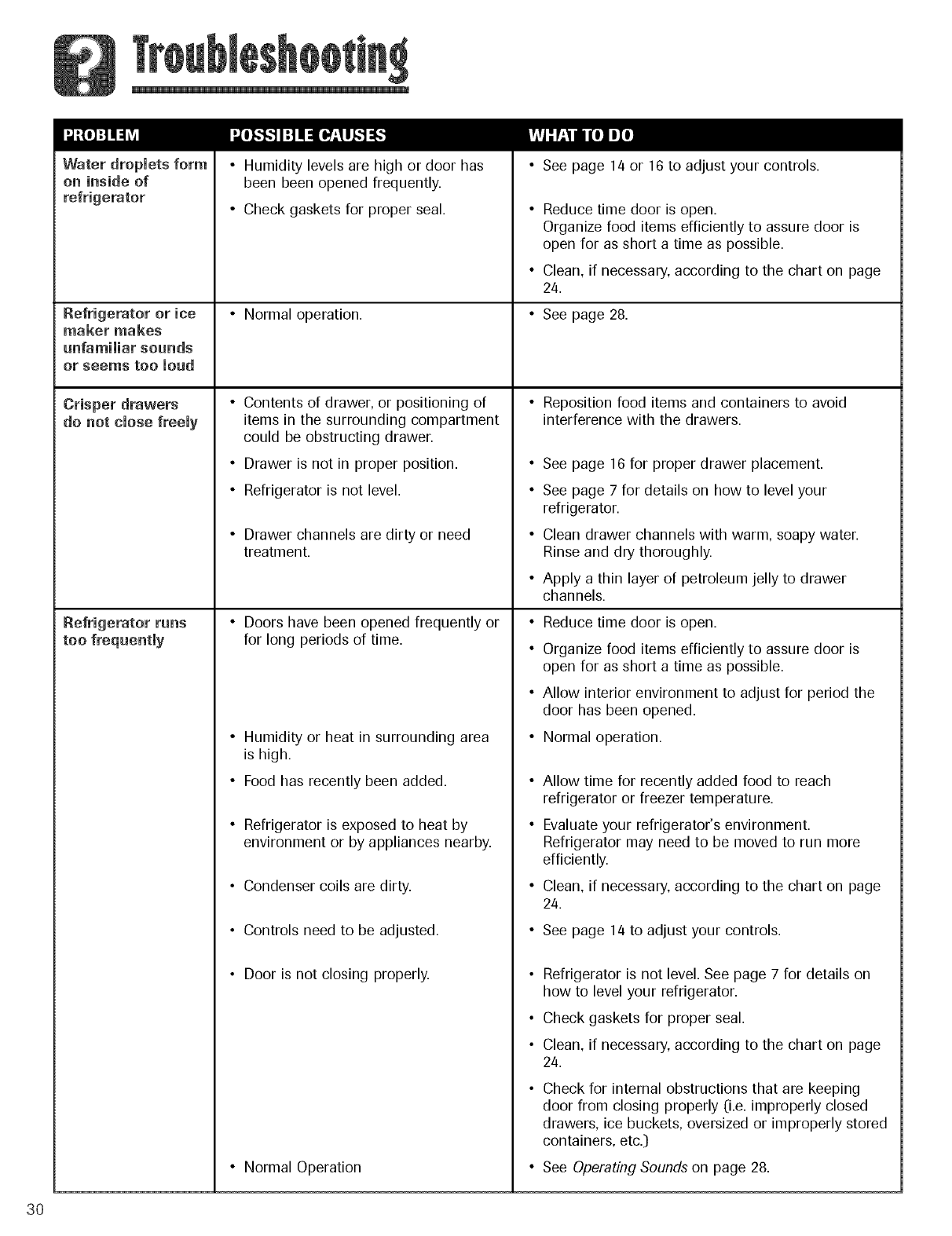

Waterdropletsform

oninside of

Refrigerator or ice

maker makes

unfamiliar sounds

or seems too loud

Crisper drawers

do not close freely

Refrigerator runs

too freqaentmy

• Humidity levels are high or door has

been been opened frequently.

• Check gaskets for proper seal.

• Normal operation.

• Contents of drawer, or positioning of

items in the surrounding compartment

could be obstructing drawer.

• Drawer is not in proper position.

• Refrigerator is not level.

• Drawer channels are dirty or need

treatment.

• Doors [lave beer] opened frequently or

for long periods of time.

• Humidity or heat in surrounding area

is high.

• Food has recently been added.

• Refrigerator is exposed to heat by

environment or by appliances nearby.

• Condenser coils are dirty.

• Controls need to be adjusted.

• Door is not closing properly.

• Normal Operation

• See page 14 or 16 to adjust your controls.

• Reduce time door is open.

Organize food items efficiently to assure door is

open for as short a time as possible.

• Clean, if necessary, according to the chart on page

24.

• See page 28.

• Reposition food items and containers to avoid

interference with tile drawers.

• See page 16 for proper drawer placement.

• See page 7for details on [low to level your

refrigerator.

• Clean drawer channels with warm, soapy water.

Rinse and dry thoroughly.

• Apply a thin layer of petroleum jelly to drawer

channels.

• Reduce time door is open.

• Organize food items efficiently to assure door is

open for as short a time as possible.

• Allow interior environment to adjust for period the

door has been opened.

• Normal operation.

Allow time for recently added food to reach

refrigerator or freezer temperature.

Evaluate your refrigerator's environment.

Refrigerator may need to be moved to run more

efficiently.

Clean, if necessary, according to the chart on page

24.

See page 14 to adjust your controls.

• Refrigerator is not level. See page 7 for details on

how to level your refrigerator.

• Check gaskets for proper seal.

• Clean, if necessary, according to the chart on page

24.

Check for internal obstructions that are keeping

door from closing properly O.e.improperly closed

drawers, ice buckets, oversized or improperly stored

containers, etc.)

See Operating Sounds on page 28.

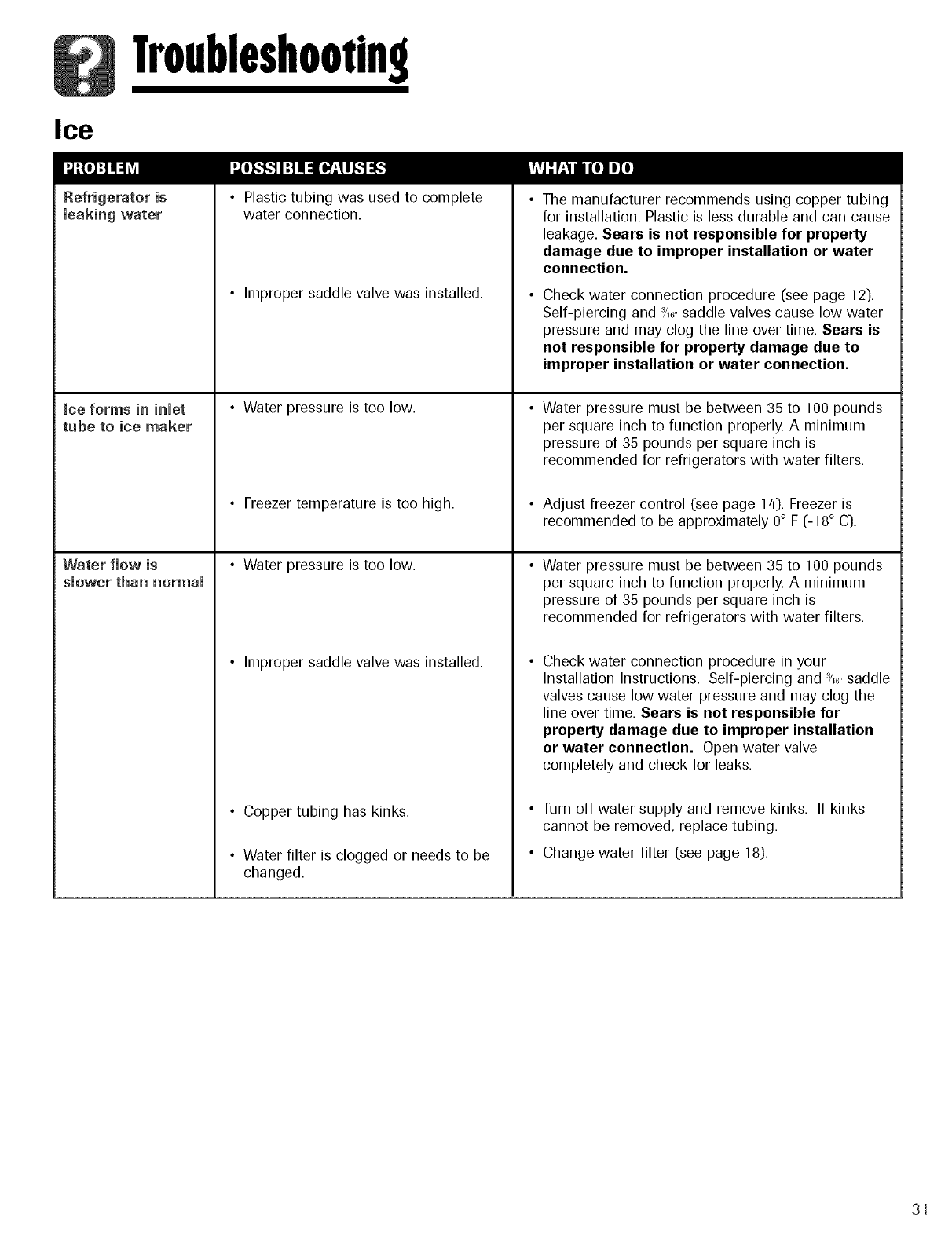

Troubleshooting

Ice

Refrigerator is

leaking water

(ce forms in inlet

tube to ice maker

Water flow is

smower than normal

• Plastic tubing was used to complete

water connection.

• Improper saddle valve was installed.

• Water pressure is too low.

• Freezer temperature is too high.

• Water pressure is too low.

• Improper saddle valve was installed.

• Copper tubing has kinks.

• Water filter is clogged or needs to be

changed.

The manufacturer recommends using copper tubing

for installation. Plastic is less durable and can cause

leakage. Sears is not responsible for property

damage due to improper installation or water

connection.

Check water connection procedure (see page 12).

Self-piercing and 3/,_..saddle valves cause low water

pressure and may clog the line over time. Sears is

not responsible for property damage due to

improper installation or water connection.

Water pressure must be between 35 to 100 pounds

per square inch to function properly, A minimum

pressure of 35 pounds per square inch is

recommended for refrigerators with water filters,

Adjust freezer control (see page 14:).Freezer is

recommended to be approximately 0° F (-18° C).

Water pressure must be between 35 to 100 pounds

per square inch to function properly. A minimum

pressure of 35 pounds per square inch is

recommended for refrigerators with water filters.

Check water connection procedure in your

Installation Instructions. Self-piercing and 3/,_..saddle

valves cause low water pressure and may clog tile

line over time. Sears is not responsible for

property damage due to improper installation

or water connection. Open water valve

completely and check for leaks.

Turn off water supply and remove kinks. If kinks

cannot be removed, replace tubing.

Change water filter (see page 18).

................. Your Home

................. iiiiiiiiiiiiiiiiii

For repair-in your home-of all major brand appliances,

lawn and garden equipment, or heating and cooling systems,

no matter who made it, no matter who sold it!

For the replacement parts, accessories and

owner's manuals that you need to do-it-yourself.

For Sears professional installation of home appliances

and items like garage door openers and water heaters.

1-800-4-MY-HOM E®(1-800-469-4663)

Call anytime, day or night (U.S.A. and Canada)

www.sears.corn www.sears.ca

ouraorne ..................

For repair of carry-in items like vacuums, lawn equipment,

.... and electronics, call or go on-line for the location of your nearest

Sears Parts .& Repair Center.

18004881222

Call anytime, day or night (U.S.A. only)

www.sears.com

To purchase a protection agreement (U.S.A.) or

maintenance agreement (Canada)on a product serviced by Sears: CCC::

CCC::

1-800-827-6655 (U.S.A.) 1-800-361-6665 (Canada)

Pard pedir servicio de reparaciCn Au Canada pour service en frangais:

a domicilio, y pard ordenar piezas: 1.800.LE.FOYERMO

1-888-SU-HOGARSM (1-800-533-6937)

(1-888-784-6427) www.sears.ca

6EARS

®Registered Trademark /TMTrademark /SMService Mark of Sears, Roebuck and Co.

®Marca Registrada /TMMarca de Fabrica /SMMarca de Servicio de Sears, Roebuck and Co.

MCMarque de commerce /MDMarque dCposee de Sears, Roebuck and Co. © Sears, Roebuck and Co.

T®

Bottom Freezer Refrigerator

use& _ureGuide

Refrigerador con congelador inferior

Guiudeus0yCu_dud00p_o33

RGfrigGrateur _compartiment congGlateur infGrieur

Guided°u_H_su_one_d°÷n_re_ienopu_e65

"-trio

596.75522400,

596.75532400,

596.75523400,

596.75533400,

596.75524400,

596.75534400,

596.75529400,

596.75539400,

Part No. 12828112 Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A. www.seais.com

Form No. B/05/04 Sears Canada, Inc., Toronto, Ontario, Canada M5B 2B8 Au Canada, www.sears.ca

Litho U.S.A.

Jnstamlation

Location

Measuring the Opening

Transporting Your Refrigerator

Leveling

Drawer Removal

................................................... 7-13

Pullout Freezer Drawer

Reinstallation of the Doors

Door Reversal

Handles

Connecting the Water Supply

Opening and Closing Your Fresh Food Doors

Temperature Controls ............................................ 14

Touch Temperature Controls

Fresh Food Features ........................................... 15-16

Shelves

Door Storage

Storage Drawers

Water FiJter .................................................. 18-20

Removal and Installation

General Use Conditions

Food Storage Tips

Fresh Food Storage

Frozen Food Storage

Food Storage Chart

............................................ 21-23

Care and Cleaning ............................................ 24-27

Refrigerator Cleaning Chart Replacing Light Bulbs

Removing Odors From Refrigerator Preparing for Vacation

Energy Saving Tips Preparing to Move

ImportnntSnfetyInstructions

Installer: Please leave this guide with this appliance.

Consumer: Please read and keep this Use & Care

Guide for future reference, it provides the proper use

and maintenance information.

In our continuing effort to improve the quality and

performance of our appliances, it may be necessary

to make changes to the appliance without revising

this guide.

What You Need to Know About

Safety Instructions

Warning and Important Safety Instructions appearing in

this guide are not meant to cover all possible

conditions and situations that may occur. Common

sense, caution and care must be exercised when

installing, maintaining or operating appliance.

Always contact your dealer, distributor, service agent or

manufacturer about problems or conditions you do not

understand.

Recognize Safety Symbols, Words,

Labels

DANGER - Immediate hazards which WILL result

in severe personal injury or death.

WARNING - Hazards or unsafe practices which

COULD result in severe personal injury or death.

To reduce risk of injury or death, follow basic

precautions, including the following:

IMPORTANT: Child entrapment and suffocation

are not problems of the past. Junked or abandoned

refrigerators are still dangerous - even if they sit out

for "just a few days." If you are getting rid of your old

refrigerator, please follow the instructions below to

help prevent accidents.

Before you throw away your old

refrigerator or freezer:

•Take off the doors.

• Leave the shelves in place so

children may not easily climb

inside.

This appliance is equipped with a three-prong

grounding plug for your protection against possible

electrical shock hazards. It must be plugged into a

grounding receptacle. Where a standard two-prong

wall receptacle is encountered, it is the personal

responsibility and obligation of the customer to have it

replaced with a properly grounded three-prong wall

receptacle. Do not under any circumstances, cut or

remove the third (ground) prong from the power cord.

Do not use an adapter plug.

Power supply cord with

three-prong grounding plug

CAUTION - Hazards or unsafe practices which COULD

result in minor personal injury or property damage.

Grounding type

wall receptacle

ImportnntSnfetyInstructions

To reduce risk of fire, electric shock, serious

injury or death when using your refrigerator,

follow these basic precautions, including the 13.

following:

1. Read all instructions before using the refrigerator.

2. Observe all local codes and ordinances. 14.

3. Be sure to follow grounding instructions.

a. Check with a qualified electrician if you are not

sure this appliance is properly grounded.

5_ Do not ground to a gas line_ 15_

6. Do not ground to a cold-water pipe.

7. Refrigerator is designed to operate on a separate

115 volt, 15 amp., 60 cycle line.

8. Do not modify plug on power cord. If plug does 16.

not fit electrical outlet, have proper outlet installed

by a qualified electrician. 17.

9. Do not use a two-prong adapter, extension cord

or power strip. 18.

10. Do not remove warning tag from power cord.

11. Do not tamper with refrigerator controls. 19.

12. Do not service or replace any part of refrigerator

unless specifically recommended in Use & Care 20.

Guide or published user-repair instructions. Do

not attempt service if instructions are not under-

stood or if they are beyond personal skill levek

Always disconnect refrigerator from electrical

supply before attempting any service. Disconnect

power cord by grasping the plug, not the cord.

Install refrigerator according to Installation

Instructions. All connections for water, electrical

power and grounding must comply with local

codes and be made by licensed personnel when

required.

Keep your refrigerator in good condition. Bumping

or dropping refrigerator can damage refrigerator

or cause refrigerator to malfunction or leak. If

damage occurs, have refrigerator checked by

qualified service technician.

Replace worn power cords and/or loose plugs.

Always read and follow manufacturer's storage

and ideal environment instructions for items being

stored in refrigerator.

Your refrigerator should not be operated in the

presence of explosive fumes.

Children should not climb, hang or stand on any

part of the refrigerator.

Clean up spills or water leakage associated with

water installation.

SAVE TH ESE I NSTRUCTIONS

Harranty

Warranty

Full One Year Warranty on Refrigerator

For one year from the date of purchase, when this

refrigerator is operated and maintained according to

instructions attached to or furnished with it, Sears will

repair it, free of charge, if defective in material or

workmanship.

The ice and water filter cartridge is an extendable part,

which Sears will only replace free of charge for 30 days

from date of purchase, if defective in material or

workmanship.

Full Five Year Warranty on Sealed

Refrigeration System

For five years from the date of purchase, when this

refrigerator is operated and maintained according to

instructions attached to or furnished with it, Sears will

repair the sealed system (consisting of refrigerant,

connecting tubing and compressor moto0 free of

charge, if defective in material or workmanship.

The above warranty coverage applies only to

refrigerators which are used for storage of food for

private household purposes. It excludes original

Kenmore ice and water filter cartridges, which Sears

will replace, free of charge, for only 30 days from the

date of purchase, if defective in material or

workmanship.

Warranty service is available by contacting Sears at

1-800-4-MY-HOME "_0-800-469-4663).

This warranty applies only while this product is in use

in the United States.

This warranty gives you specific legal rights, and you

may also have other rights, which vary from state to

state.

Sears, Roebuck and Co.

Dept. 817WA

Hoffman Estates, IL 60179

Reverse Osmosis Water Systems

• Some Reverse Osmosis home water systems cause

low water pressure. Low water pressure can affect

the water and ice dispensing system by causing

small or hollow ice cubes and slow water flow

from the dispenser. Service problems related to the

home's Reverse Osmosis water system are not

covered by the warranty.

Product Record

In the space below record the model and serial

numbers and purchase date of your refrigerator. You

will find the model and serial number sticker inside the

refrigerator section on the left wall.

Model Number: 596.

Serial Number:

Purchase Date:

Keep this booklet and your Sears sales receipt in

a safe place for future reference.

ProtectionAgreements

in the U.S.A°

Master Protection Agreements

Congratulations on making a smart purchase. Your new

Kenmore _ product is designed and manufactured for

years of dependable operation. But like all products, it

may require preventive maintenance or repair from

time to time. That's when having a Master Protection

Agreement can save you money and aggravation.

Purchase a Master Protect.ion Agreement now and

protect yourseff from unexpected hassle and expense.

The Master Protection Agreement also helps extend

the life of your new producL Here's what's included in

the Agreement:

E_Expert service by our 12,000 professional repair

specialists

dUnlimited service and no charge for parts and

labor on all covered repairs

d"No-lemon" guarantee - replacement of your

covered product if four or more product failures

occur within twelve months

E_Product replacement if your covered product can't

be fixed

dAnnual Preventive Maintenance Check at your

request - no extra charge

dFast help by phone - phone support from a Sears

technician on products requiring in-home repair, plus

convenient repair scheduling

dPower surge protection against electrical damage

due to power fluctuations

E_Rental reimbursement if repair of your covered

product takes longer than promised

Once you purchase the Agreement, a simple phone

call is all that it takes for you to schedule service. You

can call anytime day or night, or schedule a service

appointment online.

Sears has over 12,000 professional repair specialists,

who have access to over 4.5 million quality parts and

accessories. That's the kind of professionalism you

can count on to help prolong the life of your new

purchase for years to come. Purchase your Master

Protection Agreement today!

Some limitations and e×clusions apply, For prices

and additional information, call 1-800-827-8855o

Sears Installation Service

For Sears professional installation of home appliances,

garage door openers, water heaters, and other major

home items, in the U.S.A. call 1-800-4-MY-HOME _

(1-800-/469-4663).

In Canada

Maintenance Agreements

Your purchase has added value because you can

depend on Sears HomeCentraP for service. With over

2,400 Service Technicians and more than a million

parts and accessories, we have the tools, parts,

knowledge and skills to back our pledge: We Service

What We Sell.

Your Kenmore _ product is designed, manufactured and

tested to provide years of dependable operation. But

like all products, it may require service from time to

time. The Sears Maintenance Agreement offers you an

outstanding service program, affordably priced.

Sears Maintenance Agreement

• Is your way to buy tomorrow's service at today's price

• Eliminates repair bills resulting from normal wear and

tear

• Provides phone support from a Sears technician on

products requiring in-home repair

• Even if you don't need repairs, provides an annual

Preventive Maintenance Check, at your request, to

ensure that your product is in proper running

condition

Some limitations apply. For information about

Sears Canada Maintenance Agreements, call

1-800-361-6665

Installation

Your refrigerator was packed carefully for shipment.

Remove and discard shelf packaging and tape. Do not

remove the serial plate.

Location

• Do not install refrigerator near oven, radiator or other

heat source. If not possible, shield refrigerator with

cabinet material.

• Do not install where temperature falls below 55° F

(13° C) or rises above 110° F (43° C). Malfunction may

occur at this temperature.

•Refrigerator is designed for indoor household

application only.

Measuring the Opening

When installing your refrigerator, measure carefully.

Allow Y2"space at top and '/2" space behind the machine

compartment cover (located in the rear) for proper air

circulation.

Subflooring or floor coverings (i.e. carpet, tile, wood

floors, rugs) may make your opening smaller than

anticipated.

Some clearance may be gained by using the leveling

procedure under Leveling.

Important: If refrigerator is to be installed into a recess

where the top of the refrigerator is completely covered,

use distance from floor to top of hinge cap to verify

proper clearance.

Transporting Your Refrigerator

• NEVER transport refrigerator on its side. If an upright

position is not possible, lay refrigerator on its back.

Allow refrigerator to sit upright for approximately 30

minutes before plugging it in to assure oil returns to

the compressor. Plugging the refrigerator in

immediately may cause damage to internal parts.

• Use an appliance dolly when moving refrigerator.

ALWAYS truck refrigerator from its side or

back-NEVER from its front.

• Protect outside finish of refrigerator during transport

by wrapping cabinet in blankets or inserting padding

between the refrigerator and dolly.

• Secure refrigerator to dolly firmly with straps or

bungee cords. Thread straps through handles when

possible. Do not overtighten. Overtightening restraints

may dent or damage outside finish.

Leveling

To protect property and refrigerator from damage,

observe the following:

• Protect vinyl or other flooring with cardboard, rugs,

or other protective material.

• Do not use power tools when performing leveling

proced ure.

To enhance the appearance and maintain performance,

the refrigerator should be level.

Note

• Complete any required door reversal, panel

installation and/or a water supply connection,

before leveling.

Materials Needed

•3/8"hex head driver

• Carpenter's level

1. Remove toe grille.

• Grasp firmly and pull outward

to unclip.

2. Remove bottom hinge cover(s).

• Place the eraser end of a pencil or similar blunt

tool in the cover notch.

Notch

Location

• Use slight pressure to pry the

cover loose.

• Continue to maintain

downward pressure to the

notched side of the cover while

swingmg it off.

3. Using hex head driver, turn the front adjustment

screws (A) on each side to raise or lower the front

of the refrigerator.

C C

cont.

Installation

Using the hex head driver, turn each of these

adjustment screws (B) to raise or lower the rear of

the refrigerator.

Using the carpenter's level, make sure front of

refrigerator is '/4" (6 ram) or '/2bubble higher than

back of refrigerator and that the refrigerator is level

from side to side.

6. Turn stabilizing legs (C) clockwise until firmly

against floor.

7. Turn adjustment screws (A) counterclockwise to

allow the full weight of the refrigerator to rest on

the stabilizing legs.

8. Replace hinge cover(s).

• Position cover into the outer edge of the hinge.

• Swing the cover toward the cabinet and snap it

into place.

9. Replace the toe grille.

Note

• For proper reinstallation, ensure the "top" marking

on the interior of the toe grille is oriented correctly.

• Align the toe grille mounting clips with the lower

cabinet slots.

• Push the toe grille firmly until it snaps into place.

Door and Drawer Removal

Some installations require door/drawer removal to

transport the refrigerator to its final location.

To avoid electrical shock which can cause severe

personal injury or death, observe the following:

• Disconnect power to refrigerator before removing

doors or drawer. Connect power only after

replacing doors or drawer.

Unplug power cord from power source.

Remove toe grille and bottom hinge

cover(s) (see page 7 and 8).

Remove top hinge cover from

refrigerator door by removing Phillips

screw and retain screw and cover for

later use.

Unscrew _,6" hex head screws from

top hinge to remove hinge and retain

all screws for later use.

Lift right side refrigerator door from " "

center hinge pin. Remove door

closure from center hinge pin on

the right side and retain for later

use.

Disconnect wire harness on top

of left side refrigerator door top

hinge.

Release two-pin connector by

pressing junction point with a

flat blade screwdriver or

fingernail.

Green ground wire remains

attached to the hinge.

Unscrew %6..hex head screws from

top hinge to remove hinge and retain

for later use.

Lift left side refrigerator door, along

with top hinge, from center hinge pin.

Remove center hinge pin with a _/,_..

hex head driver and retain hinge pin

for later use.

Remove Phillips screws to remove

right and left hinges and retain all

screws for later use.

Remove both stabilizing brackets

with %" hex head driver and retain

screws for later use.

right

stde

J door

closure

To avoid damage to walls and flooring, protect vinyl

or other flooring with cardboard, rugs or other

protective material.

Installation

Pullout Freezer Drawer

To prevent accidental child entrapment or

suffocation risk, do not remove the divider in the top

freezer basket.

To avoid electrical shock which can cause severe

personal injury or death, disconnect power to

refrigerator before removing doors. After replacing

doors, connect power.

To avoid possible injury, product, or property

damage, you will need two people to perform the

following instructions.

To Remove:

1. Pull upper basket out to full extension and lift out

to remove.

2. Pull drawer open to full extension.

3. Lift lower basket straight up and out to remove.

/4. On each side raft is a

basket cradle with two

snap attachments. To

release each cradle,

unlatch the snaps by

pushing them inward, away

from the side raft system.

Lift the cradles off of the

rails.

5. Lift top of drawer front

to unhook supports

from rail system. Lift

door front out to

remove.

To Install:

1. Pull both rails out to full

extension.

2. While supporting door front,

hook supports into tabs

located on inside of rail.

3. Lower door front into

final position.

4. Place the basket cradles back onto the side rails.

Align snaps with the slots on the side rails and

press each snap towards the rail until it clicks.

5. With rails pulled out to full extension, set the

basket straight down into the basket cradles.

Basket cradle

snap attachments

6. Slide upper basket into freezer. Make sure that rear

of basket hooks behind rail catch.

Installation

Door ReinstaHation

1. Install hinge assemblies:

Install top hinge loosely with _/,_"hex head

screws.

Install center hinge with Phillips

screws.

Place hinge side of refrigerator door

on center hinge pin.

While holding refrigerator door

upright, tighten down top hinge

with -_/,_"hex head driver.

4. Reconnect two-pin connector.

5. Replace top hinge covers.

Handles

If not installed, the handle is located in the interior of

the fresh food section or attached to the back of your

refrigerator.

Remove and discard handle packaging and tape.

Handle design varies from refrigerator to refrigerator.

Please reference the appropriate instructions for your

model below.

Materials Needed

•Gloves to protect hands.

• Phillips screwdriver.

• Plastic door removal card ([or '/32"thick plastic card},

Retain the card.

To Install:

1. The handles are to be oriented

as shown.

Align front mount door handle

clip with the door tabs.

Ensure the handle clips are

positioned slightly above the

door tabs.

4. Rotate the handle so that the

handle is flat against the door.

5. Push the handle down against the

upper door tab just enough to

allow it to hang unsupported.

Align bottom of handle with lower

door tab. Press upper handle end to

door surface and firmly grasp lower

end of handle. Gently slide handle

upward until bottom of handle

settles on door surface, then

reverse direction, sliding downward

to almost engaging tab with clip.

Grasp the handle firmly and slide

down until it clicks. The audible

click indicates fastening clips are

securely interlocked.

To Remove:

1. Flex the handle away from the door

panel. Simultaneously place door

handle removal card underneath

the base of the lower handle. Insert

the card to the line or until it stops.

2. Grasp the lower part of the handle

firmly and lift to remove.

Installation

Freezer Handle

Materials Needed

•Gloves to protect hands.

• Phillips screwdriver.

• Plastic handle removal card (or %" thick plastic

card). Retain the card.

Notes

• There is a slight curve to

the freezer handle.

• For proper installation, be

i iii i I i_ i _i

ii ii i _iili

sure handle is oriented as .:,_:,:_,;;:_;_:;=_,,,_,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,.

shown.

To Install:

1. Align door handle clips slightly to the left of the

tabs attached to the freezer door.

2. Rotate the handle so the left base is flat against

the door.

Handle Door

While firmly supporting the left handle base against

the door, align the right base of the handle with the

right tabs that are attached to the door.

Now, while firmly holding the handle at the left and

right bases, gently slide the handle towards the

right until the right base settles in. The handle

should now be flat against the face of the freezer

door at both the left and right bases.

With hands still firmly keeping the handle flat

against the freezer door, you may have to reverse

directions momentarily to assure clip/tab

engagement. Then firmly slide the handle to the

right until it clicks. The audible "click" indicates

that the fastening clips are securely interlocked.

To Remove:

At the right end, flex the handle base away from

the surface of the freezer drawer. Simultaneously

slide the door handle removal card that came with

your refrigerator under the right side base of the

handle. Slide the card to the line indication or until

it stops, which will be approximately 3/4".

With both hands, firmly grasp the handle towards

the right base.

Slide towards the left, lift and remove from the

surface.

3. Push the left handle

base against the left

door tab and slightly

to the right, just

enough to allow it to

hang unsupported.

Installation

Connecting the Water Supply

To reduce the risk of injury or death, follow

basic precautions, including the following:

•Read all instructions before installing ice maker.

• Do not attempt installation if instructions are not

understood or if they are beyond personal skill

level.

• Observe all local codes and ordinances.

Do not service ice maker unless specifically

recommended in Use & Care Guide or published

user-repair instructions.

Disconnect power to refrigerator before installing

ice maker.

• Water damage due to an improper water

connection may cause mold/mildew growth. Clean

up spills or leakage immediately!

To avoid property damage or possible injury,

follow basic precautions, including the

following:

• Consult a plumber to connect Y#' O.D. copper

tubing to household plumbing to assure

compliance with local codes and ordinances.

• Confirm water pressure to water valve is between

35 and 100 pounds per square inch, 20 pounds

per square inch without filter.

• Do not use a self-piercing, or _,6"saddle valve.

Both reduce water flow and can become clogged

over time, and may cause leaks if repair is

attempted.

• Tighten nuts by hand to prevent cross threading.

Finish tightening nuts with pliers and wrenches.

Do not overtighten.

• Wait two to three hours before placing refrigerator

into final position to check and correct any water

leaks. Recheck for leaks after 2/4 hours.

• Verify the copper tubing under the sleeve is

smooth and free from defects. Do not reuse an old

sleeve.

Materials Needed

•Ya"outer diameter flexible copper tubing

•Shut-off valve (requires a X" hole to be drilled into

water supply line before valve attachment)

• Adjustable wrench

• '4" hex nut driver

Note

• You should only use copper tubing for installation.

Plastic is less durable and can cause damage.

• Add 8'

supply

to tubing length needed to reach water

for creation of service loop.

Create service loop with copper

tubing (minimum 2' diameter).

Avoid kinks in the copper tubing

when bending it into a service

loop.

2' diameter

minimum

2. Remove plastic cap from water valve inlet

port.

Place brass nut (A) and sleeve (B)

on copper tube end as illustrated.

Reminder: Do not use an old

sleeve.

Place end of copper tubing into water

valve inlet port. Shape tubing slightly. Do

not kink - so that tubing feeds straight

into inlet port.

5. Slide brass nut over sleeve and screw nut

into inbt port. Tighten nut with wrench.

UMPORTANT: Do not overdghten. Cross

threading may occur.

Pull on tubing to confirm connection is

secure. Connect tubing to frame with

water tubing clamp (C) and turn on

water supply. Check for leaks and

correct if necessary. Continue to

observe the water supply connection

for two to three hours prior to moving

the refrigerator to its permanent

location.

7. Monitor water connection for 2/4 hours. Correct

leaks, if necessary.

Installation

Opening and Closing Your

Fresh Food Doors

Your new refrigerator is uniquely designed with two

fresh food doors. Either door can be opened or closed

independently of one another.

There is a vertically-hinged section on the left fresh

food door called the SmartSeal. When the left door is

closed, the hinged section automatically forms a seal

between the two doors when both doors are closed.

When the left door is opened, the SmartSeal

automatically folds inward so that it is out of the way.

To avoid electrical shock which can cause severe

personal injury or death, DO NOT attempt to

remove the SmartSeal from the fresh food section.

To avoid possible product damage, ALWAYS verify

that the SmartSeal is folded against the edge of

the door prior to closing.

TemperatureControls

Touch Temperature Controls

The controls are located at the top front of the

refrigerator compartment.

Note

•The freezer control turns the cooling system on.

Neither section will cool if freezer is set to OFE

Control

Freezer Refr_gerato_

Adjusting the Controls

24 hours after adding food, you may decide that one

or both compartments should be colder or warmer. If

so, adjust the control(s) as indicated in the

Temperature Control Guide table below. See page 21

for instructions on checking compartment

temperature.

• Except when starting the refrigerator, do not change

either control more than one number at a time.

Initial Control Settings

After plugging the refrigerator in, set the controls.

• Pressing the @ or@ pads adjusts the controls to

the desired setting.

• The temperature control range for both

compartments is 1 through 7 (coldest).

• Initially set the refrigerator control on 4.

• Initially set the freezer control on 4.

• Let the refrigerator run at least 8 to 12 hours before

adding food.

Warm Cabinet Surfaces

At times, the front of the refrigerator cabinet may be

warm to the touch. This is a normal occurrence that

helps prevent moisture from condensing on the

cabinet. This condition will be more noticeable when

you first start the refrigerator, during hot weather and

after excessive or lengthy door openings.

• Allow 24 hours for temperatures to stabilize.

• Changing either control will have some effect on the

temperature of the other compartment.

Temperature Control Guide

Refrigerator too warm

Refrigerator too cold

Freezer too warm

Freezer too cold

Turn refrigerator OFF

Set the refrigerator control

to next higher number by

pressing the @ pad.

Set the refrigerator control

to next lower number by

pressing the @ pad.

Set the freezer control to

next higher number by

pressing the pad.

Set the freezer control to

next lower number by

pressing the pad.

Press the refrigerator or

freezer pad until a dash

(-) appears in the display.

Moisture Control Switch (select models)

Off - The refrigerator uses more energy when this

switch is off, because a heater located in the hinged

seal section of the door is running. This heater helps

prevent condensation formation on the exterior of the

hinged seal. Turn the switch OFF when the

environment is warm and more humid or if moisture

is noticed on the door exterior.

• On - This setting saves energy by not using the

heater. Turn the switch ON when the environment is

less humid.

FreshFoodFemures

Shelves

To avoid personal injury or property damage,

observe the following:

• Never attempt to adjust a shelf that is loaded with

food.

• Confirm shelf is secure before placing items on

shelf.

• Handle tempered glass shelves carefully. Shelves

may break suddenly if nicked, scratched, or

exposed to sudden temperature change.

Your refrigerator has Spillproof Glass Shelves. The

Spillproof shelves have a spill retainer edge which

allows for easier clean up and are equipped with a

slide out feature. To slide out, grasp the front of the

shelf and pull forward. Push in the shelf to return to

the original position.

To Remove a Shelf:

• Slightly tilt up the front and lift up

the rear of the shelf, then pull the

shelf straight out.

To Lock the Shelf into Another

Position:

• Tilt up the front edge of the shelf.

• Insert the hook into the desired frame openings and

let the shelf settle into place.

• Be sure the shelf is securely locked at the rear.

The Crisper Top serves as the lower fresh food shelf.

To Remove the Crisper Top:

• Place hand under the frame to push up the glass. Lift

glass out.

• Lift frame from refrigerator liner rails.

To Install:

• Replace frame in refrigerator liner rails.

• Carefully replace glass into frame.

Door Storage

Dairy Center

The Dairy Center provides

convenient door storage for

spreadable items such as butter

and margarine. This compartment can be moved to

different locations to accommodate storage needs. To

use the dairy center, raise the cover.

To Remove:

• Raise the cover, pull upward and tilt out.

1"o Install:

• Slide the Dairy Center in and down until

firmly seated in the door liner.

Door Buckets

Door Buckets can be moved to

meet storage needs.

To Remove:

• Slide bucket up and pull straight out.

To Install:

• Slide bucket in and down until firmly seated in the

door liner.

Adjustable Deep Tilt-Out Door Buckets

The Adjustable Deep Tilt-Out Door Bucket provides

easy access to food items stored in the door.

To Remove Bucket:

• Tilt bucket out.

• Pull straight out of the bracket.

To Install Bucket:

• Tilt the front of the bucket down slightly.

• Slide into bracket and tip upright.

To Move Bucket Frame to Another Location:

• Remove bucket.

• Lift bracket up and pull straight

out.

Place the bracket in a new

location.

FreshFoodFemures

Crisper Drawers

The Crisper Drawers provide a higher humidity

environment for fresh fruit and vegetable storage.

Controls

The Crisper Controls regulate the amount of humidity

in the crisper drawee Slide the control toward the LOW

setting for produce with outer skins. Slide the control

toward the HIGH setting for leafy produce.

Humidity

HIGH ® • ® o • • o LOW

To Remove:

• Pull drawer out to full extension. Tilt up front of

drawer and pull straight out.

To install:

• Insert drawer into frame rails and push back into

place.

Note

• For best results, keep the crisper drawers tightly

closed.

Temperature-Controlled Drawer

The Gourmet Pantry drawer is a full-width drawer

with adjustable temperature control. This drawer can

be used for large party trays, dell items, beverages or

miscellaneous items and features a divider to organize

the Gourmet Pantry into sections if desired.

There is a temperature control which adjusts the

amount of cold air allowed into the Gourmet Pantry.

The control is located on the right side of the drawer.

Depending on your model, it is either on the front of

the drawer or under the lid.

Set the control to cold or _ to provide a normal

refrigerator temperature. Set the drawer on the

coldest or _ setting when a temperature colder than

the main refrigerator compartment is desired. Use the

coldest setting when storing meats.

Notes

• Cold air directed to the Gourmet Pantry can

decrease refrigerator temperature. Refrigerator

control may need to be adjusted.

• Do not place leafy vegetables in the Gourmet

Pantry drawer. Colder temperatures could damage

leafy produce.

To Remove Drawer:

• Lift lid. Pull drawer out to full extension. Tilt up front

of pantry and pull straight out.

To Install Drawer:

• Push metal glide rails to the back of the refrigerator.

Place drawer onto rails and slide drawer back until it

falls into place.

To Remove Divider:

• Pull drawer completely out and raise the front of the

divider to unhook it from the rear wall of the pantry

and lift it out.

To Install Divider:

• Hook back of divider over rear wall of pantry and

lower into place

FreezerFeatures

To prevent accidental child entrapment or

suffocation risk, do not remove the divider in the top

freezer basket

Upper Wire Basket

To Remove:

• Pull upper basket out to full extension and lift out to

remove.

To Install:

•Slide upper basket

into freezer. Make

sure that rear of

basket hooks behind

rail catch.

Note

• See page 9 for lower basket and complete pullout

drawer instructions.

I©eundWuter

Automatic Ice Maker

Connect the ice maker to the water supply as

instructed on page 12. Proper water flow and a level

refrigerator are essential for optimal ice maker

performance.

Operating Instructions

• Confirm ice bin is in place and ice maker arm is

down.

• After freezer section reaches between 0° to 2° F (-18 °

to -17 ° C), ice maker fills with water and begins

operating. You will have a complete

harvest of ice approximately every

three hours.

• Allow approximately 24 hours after

installation to receive first harvest of

ice.

• Discard ice created within first 12 hours of operation

to assure system is flushed of impurities.

• Stop ice production by raising ice maker arm until

click is heard.

• Ice maker will remain in the off position until arm is

pushed down.

• The first one or two batches will probably contain

undersized and irregular cubes because of air in the

supply line.

• When the ice cubes are ejected it is normal for

several cubes to be joined together at the ends. They

can easily be broken apart. The ice maker will

continue to make ice until the supply of ice cubes

raises the sensor arm, shutting the ice maker off.

• Certain sounds may accompany the various cycles of

the ice maker. The motor may have a slight hum, the

cubes will rattle as they fall into an empty storage

pan and the water valve may click or "buzz"

occasionally.

• If the ice is not used frequently, the ice cubes will

become cloudy, shrink, stick together and taste stale.

Empty the ice storage bin periodically and wash it in

lukewarm water. Be sure to dry the bin thoroughly

before replacing it.

• Beverages and foods should not be placed in the ice

storage bin for quick chilling. These items can block

the sensor arm, causing the ice maker to

malfunction.

• Turn off (arm up) the ice maker when the water

supply is to be shut off for several hours.

To Remove the Ice Bin:

• Pull it forward, away from the ice maker. To avoid the

ice maker dumping ice while the bin is removed, turn

the ice maker off by raising the sensor arm.

To Install the Ice Bin:

• Reverse the above procedure. Turn the ice maker on

by lowering the sensor arm.

To avoid personal injury or property damage,

observe the following:

• Do not place fingers or hands on the automatic ice

making mechanism while the refrigerator is

plugged in. This will help protect you from possible

injury. It will also prevent interference with moving

parts of the ejector mechanism and the heating

element that releases the cubes.

• Under certain rare circumstances, ice cubes may

be discolored, usually appearing with a green-

bluish hue. The cause of this unusual discoloration

can be a combination of factors such as certain

characteristics of local waters, household

plumbing and the accumulation of copper salts in

an inactive water supply line which feeds the ice

maker. Continued consumption of such discolored

ice cubes may be injurious to health. If such

discoloration is observed, discard the ice cubes

and contact your dealer to purchase and install a

water line filter.

• Water damage due to improper water connection

may cause mold/mildew growth.

• Clean up water and ice spills to avoid personal

injury and to prevent mold/mildew growth.

Water Dispenser

The Water Dispenser is located on

the left side waft of the fresh food

section. This design is for cold water

dispensing only.

To Dispense Water:

• Hold container under spout and

press dispenser pad.

WaterFilter

Removal and Installation

To avoid serious illness or death, do not use

refrigerator where water is unsafe or of unknown

quality without adequate disinfection before or after

use of filter.

After installing a new water filter, always dispense

water for two minutes before removing the filter for

any reason. Air trapped in system may cause water

and cartridge to eject. Use caution when removing.

•The bypass cap does not filter water. Be sure to

have replacement cartridge available when filter

change is required.

• If water filtration system has been allowed to

freeze, replace filter cartridge.

If system has not been used for several months, or

water has an unpleasant taste or odor, flush

system by dispensing water for two to three

minutes. If unpleasant taste or odor persists,

change filter cartridge.

Initial Installation

The water filter is located in the

upper right-hand corner of the fresh

food compartment.

1. Remove blue bypass cap and

retain for later use.

2. Remove sealing label from end of

filter and insert into filter head.

3. Rotate gently clockwise until

filter stops. Snap filter cover

closed.

4. Reduce water spurts by flushing air from system.

Run water continuously for two minutes through

dispenser until water runs steady. During initial

use, allow about a one- to two-minute delay in

water dispersal to allow internal water tank to fill.

• Additional flushing may be required in some

households where water is of poor quality.

Replacing Water Filter

Important: Air trapped in system may cause

water and cartridge to eject. Use caution when

removing.

1. Turn filter counterclockwise until it releases from

filter head.

2. Drain water from filter into sink, and dispose of

filter in normal household trash.

3. Wipe up excess water in filter cover and continue

with hTitial Installation, steps 2 and 4.

The filter should be changed at least every 12 months.

Important: Condition of water and amount used

determines life span of water filter cartridge. If water

use is high, or if water is of poor quality, replacement

may need to take place more often.

To purchase a replacement water filter cartridge,

call 1-800-4-MY-HOMP _(1-800-469-4663).

The dispenser feature may be used without a water

filter cartridge. If you choose this option, replace filter

with blue bypass cap.

WaterFilter

System Specification and Performance Data Sheet

Refrigerator Water Filter Cartridge Model 469006-750

Specifications

Service Flow Rate (Maximun]) .............................................0.78 GPM (2.9 L/min)

Rated Service Life 469006-750 (Maximum) ...................750 gallons/2838 liters

Maximum Operating Temperature .....................................100° F/38 ° C

Minimum Pressure Requirement ........................................35 psi/241 kPA

Minimum Operating Temperature ......................................33° F/1 ° C

Maximum Operating Pressure .............................................120 psi/827 kPA

1000 Apollo Road

Eagan, Minnesota 55121-2240

651.450.4913

EPA EST #35917-MN-1

Performance Data

Parameter

Chlorine

T&O

Particulate _*

100834/B

USEPA

MCL

Standard No. 42: Aesthetic Effects

Influent

Challenge Concentration

2.0 mg/L ± 10%

Min. Required

Reduction

50%

Influent

Average

1.88 mg/L

5.700.000 #/ml

Effluent

Average Maximum

(0.05136364 mg/[ 0.06 mg/L

30.583 #/ml 69.000 #/ml

%Reduction

Average Minimum

>9726% 96.84%

99.52% 98.94%

at least 10,000 particles/ml 85%

Parameter

Turbidity

Cysts

Asbestos

Lead at pH 6.5

Lead at pH 8.5

Mercury at pH 6.5

Mercury at pH 8.5

Atrazine

Benzene

Carbofuran

)-Dichlolobenzene

Lindane

Toxaphene

USEPA

MCL

1 NTU_*

99.5% Reduction

99% Reduction

0.015 mg/L

0.002 mg/L

0.003 nff_/L

0.005 m_)/L

0.04 m_)/L

0.075 mg/L

0.0002 m_)/L

0.003 mg/L

Standard No. 53: Health Effects

Influent

Challenge Concentration

11 ± 1 NTU***

Minimum 5&OOO/L

107108fibers/L; fibers >10 nlicrometers in length

0.15 mg/L + 10%

.006 mg/L ± 10%

0.009 mq/L + 10%

0.015 m_)/L ± 10%

0.08 m_)/L ± 10%

.225 mg/L ± 10%

0.002 m_iL + 10%

0.015 ± 10O/o

Influent

Average

10.7 NTU

166,500 #/L

155 MF/L

0.153 mg/L

0.150 mg/L

0.006 mg/L

0.009 nff_/L

0.014 nl_)/L

0.081 m_)/L

0.208 m_)/L

0.002 m_iL

0.015 mg/L

Effluent

Average Maximum

0.31 NTU .049 NTU

<1 #/L <1 #/L

<1 MF/L <1 MF/L

<.001 mg/L <.001 mg/L

0.0003 mg/L 0.0005 mg/L

0.0008 mg/L 0.0015 mg/L

<0.002 mq/L 0.002 mg/L

0.0006 m_)/L 0.0011 m_)/L

<0.001 mg/L <0.001 m_)/L

<0.0005 mg/L <0.0005 m_)/L

0.0O0 m_iL <0.0001 m_)/L

<0.001 mg/L <0.001 mg/L

%Reduction

Average Minimum

9709% 95.20%

>99.99% >99.99%

>99.35% >9929%

>99.33% >9929%

95.70% 90.91o/o

86.22% 75,93%

76,99% 75.31%

95.71% 92.14%

98.74% 98.46%

99.76% 99.74%

98.72% 96.50%

92.97O/o 91.67%

Min. Required

Reduction

0.5 NTU

>99.95%

99%

0.10 mg/L

0.002 mg/L

0.003 mg/L

0.005 mg/L

0.04 m_)/L

0.075 mg/L

0.0002 m_iL

0.003 mg/L

Tested using a flow rate of 0.78 gpm; pressure of 60 psig; pH of Z5 + 0.5; temp. of

68 ° +5° F (20 ° +3 ° C)

** Measurement in Particles/mL Particles used were 0.5 - 1 microns

*** NTU -Nephelometric Turbidity Units

Tested and certified by NSF International against ANSI/NSF Standards 42 & 53

in models 469006-750 for the reduction of:

Standard No. 42: Aesthetic Effects Standard No. 53: Health Effects

Taste and Odo_ Reduction Cbenlical Reduction Unit

Chlorine Taste & Odor Lead, Atrazine, Lindane, Benzene,

Mechanical Filtration Unit Caibofuian, p-Dichlorobenzene, Mercury

Particulate Reduction Class 1 & Toxaphene Reduction

Mechanical Filtration Unit

Cyst, Turbidity and Asbestos Reduction

General Use Conditions

Read this Performance Data Sheet and compare the

capabilities of this unit with your actual water

treatment needs.

DO NOT use this product where water is microbic-

logically unsafe or of unknown quality without

adequate disinfection before or after the system.

System certified for cyst reduction may be used on

disinfected water that may contain filterable cysts.

USE ONLY WITH COLD WATER SUPPLY. CHECK

FOR COMPLIANCE WITH THE STATE AND LOCAL

LAWS AND REGULATIONS.

The retractable water filtration system uses a/469006-

750 replacement cartridge. Timely replacement of filter

cartridge is essential for performance satisfaction from

this filtration system. Please refer to the applicable

section of your Use & Care Guide for general

operation, maintenance requirements and

troubleshooting. Suggested retail price of replacement

water filter is $39.99.

This system has been tested according to ANSI/NSF/42

and 53 for reduction of the substance listed above. The

concentration of the indicated substances in water

entering the system was reduced to a concentration less

than or equal to the permissible limit for water leaving

the system, as specified in ANSI/NSF/42 and 53. 19

WaterFilter

State of California

Department of Health Services

Water Treatment Device

Certificate Number

03- 1583

Date Issued: September 16, 2003

Date Revised: April 22. 2004

Trademark/Model Designation

UKFS001AXX750

469006-750

67003523-750

Replacement Elements

Manufacturer: PentaPure Inc.

of the

Cysts

Turbidity

Organic Contaminants

Atrazine

Lmdmle

Benzene

CarboIhran

p-dichtorobenzene

loxaphene

Rated Service Capacity: 750 gal. Rated Service Flow: 0.78 gpm

Conditions of Certification:

Do not use where water is lnicrobiotogically unsafe or with water of unkno_x_ quality, except that systems certified t\_r cyst

reduction may be used on disinfected waters that may contain filterable cysts.

FoodStorugeTips

Fresh Food Storage

•The fresh food compartment of a refrigerator should

be kept between 340-40 ° F (1°-4 ° C) with an

optimum temperature of 37° F (3° C). To check the

temperature, place an appliance thermometer in a

glass of water and place in the center of the

refrigerator. Check after 24 hours. If the temperature

is above 40° F (4° C) adjust the controls as explained

on page 14.

• Avoid overcrowding the refrigerator shelves. This

reduces the circulation of air around the food and

results in uneven cooling.

Fruits and Vegetables

• The crisper drawers trap humidity to help preserve

the fruit and vegetable quality for longer time periods

(see page 16).

• Sort fruits and vegetables before storage and use

bruised or soft items first. Discard those showing

signs of decay.

• Always wrap odorous foods such as onions and

cabbage so the odor does not transfer to other foods.

• While vegetables need a certain amount of humidity

to remain fresh, too much humidity can shorten

storage times (especially leafy vegetables). Drain

vegetables well before storing.

• Wait to wash fresh produce until right before use.

Meat and Cheese

• Raw meat and poultry should be wrapped securely

so leakage and contamination of other foods or

surfaces does not occur.

• Occasionally mold will develop on the surface of

hard cheeses (Swiss, Cheddar, Parmesan). Cut off at

least an inch around and below the moldy area. Keep

your knife or instrument out of the mold itself. Do not

try to save individual cheese slices, soft cheese,

cottage cheese, cream, sour cream or yogurt when

mold appears.

Dairy Food

• Most dairy foods such as milk, yogurt, sour cream

and cottage cheese have freshness dates on their

cartons for appropriate length of storage. Store these

foods in the original carton and refrigerate

immediately after purchasing and after each use.

Frozen Food Storage

• The freezer compartment of a refrigerator should be

kept at approximately 0° F (-18 ° C). To check the

temperature, place an appliance thermometer

between the frozen packages and check after 2/4

hours. If the temperature is above 0° F (-18 ° C),

adjust the control as described on page 1/4.

• A freezer operates more efficiently when it is at least

two-thirds full.

Packaging Foods for Freezing

To minimize dehydration and quality deterioration use

aluminum foil, freezer wrap, freezer bags or airtight

containers. Force as much air out of the packages as

possible and be sure they are tightly sealed. Trapped

air can cause the food to dry out, change color and

develop an off-flavor (freezer burn).

• Overwrap fresh meats and poultry with suitable

freezer wrap prior to freezing.

• Do not refreeze meat that has completely thawed.

Loading the Freezer

Avoid adding too much warm food to the freezer at

one time. This overloads the freezer, slows the rate of

freezing and can raise the temperature of frozen

foods.

• Leave space between the packages so cold air can

circulate freely, allowing food to freeze as quickly as

possible.

Avoid storing hard-to-freeze foods such as ice cream

and orange juice on the freezer door shelves. These

foods are best stored in the freezer interior where the

temperature varies less with door openings.

Refer to the Food Storage Chart on pages 22 and 23 for

approximate storage times.

FoodStorageTips

Food Storage Chart

Storage times are approximate and may vary depending on type of packaging, storage temperature, and the quality

of the food when purchased.

DAI RY PRODUCTS

Butter 1 month 6 to 9 months Wrap tightly or cover.

Milk and cream 1 week Not recommended Check carton date. Close tightly.

Don't return unused portions to

original container. Don't freeze

cream unless whipped.

Cream cheese, cheese 1 to 2 weeks Not recommended Wrap tightly.

spread and cheese food

Cottage cheese 3 to 5 days Not recommended Store in original carton.

Check carton date.

Sour cream 10 days Not recommended Store in original carton.

Check carton date.

Hard cheese 1 to 2 months 4 to 6 months Wrap tightly.

(Swiss, Cheddar and Parmesan) May become Cut off any mold.

crumbly

EGGS

Eggs in the shell 3 weeks Not recomnlended Refrigerate small ends down.

Leftover yolks or whites 2 to/4 days 9 to 12 months For each cup of yolks to be frozen,

add 1 tsp. sugar for use in sweet, or

1 tsp. salt for non-sweet dishes.

FRUITS

Apples 1 month 8 months (cooked) May also store unripe or hard apples

at 60° to 70° F (16° to 21° C).

Bananas 2 to/4 days 6 months Ripen at room temperature before

(whole/peeled] refrigerating. Note: Bananas will

darken when refrigerated.

Pears, plums, avocados 3 to/4 days Not recommended Ripen at room temperature before

refrigerating. Note: Avocados will

darken when refrigerated.

Berries, cherries, apricots 2 to 3 days 6 months Ripen at room temperature before

refrigerating.

Grapes 3 to 5 days 1 month (whole) Ripen at room temperature before

refrigerating.

Citrus fruits 1 to 2 weeks Not recommended May also store at 60° to 70° F

06 ° to 21° C).

If refrigerated, store uncovered.

Pineapples, cut 2 to 3 days 6 to 12 months Will not ripen after purchase.

Use quickly.

FoodStorugeTips

VEGETABLES

Asparagus 1 to 2 days 8 to 10 months Do not wash before refrigerating.

Store in crisper.

Brussels sprouts, broccoli, 3 to 5 days 8 to 10 months Wrap odorous foods.

cauliflower, green peas, Leave peas in pods.

lima beans, onions, peppers

Cabbage, celery 1 to 2 weeks Not recommended Wrap odorous foods and refrigerate

in crisper.

7 to 10 days 8 to 10 months Remove tops. Wrap odorous foods

and refrigerate in the crisper.

7 to 10 days Not recommended

Carrots, parsnips, beets and

turnips

Lettuce

POULTRY and FUSH

Chicken and Turkey, whole

Chicken and Turkey, pieces

Fish

I to 2 days

12 months

9 months

2 to 6 months

Keep in original packaging for

refrigeration. Place in the meat and

cheese drawer. When freezing longer

than two weeks, overwrap with

freezer wrap.

M EATS

Bacon 7 days 1 month

Beef or lamb, ground 1 to 2 days 3 to 4 months Fresh meats can be kept in original

packaging for refrigeration.

Beef or lamb, roast and steak 3 to 5 days 6 to 9 months Place in the meat and cheese drawer.

When freezing longer than two

weeks, overwrap with freezer wrap.

Ham, fully cooked, whole 7 days 1 to 2 months

half 5 days 1 to 2 months

slices 3 days 1 to 2 months

Luncheon meat 3 to 5 days 1 to 2 months Unopened, vacuum-packed luncheon

meat may be kept up to two weeks

in the meat and cheese drawer.

Pork, roast 3 to 5 days 4 to 6 months

Pork, chops 3 to 5 days 4 months

Sausage, ground 1 to 2 days 1 to 2 months

Sausage, smoked 7 days 1 to 2 months

Veal 3 to 5 days 4 to 6 months

Frankfurters 7 days 1 month Processed meats should be tightly

wrapped and stored in the meat and

cheese drawer.

Sources: United States Department of Agriculture; Food Marketing Institute; Cooperative Extension Service, Iowa

State University

andCleaning

To avoid electrical shock which can cause severe

personal injury or death, disconnect power to

refrigerator before cleaning. After cleaning, connect

power.

Refrigerator Cleaning Chart

To avoid personal injury or property damage,

observe the following:

•Read and follow manufacturer's directions for all

cleaning products.

• Do not place buckets, shelves or accessories in

dishwasher. Cracking or warping of accessories

may result.

Textured Doors

and Exterior

Cabinet Interior

Stainless Steel Doors

and Exterior

I M PORTANT:

Damage to stainless steel

finish due to improper use

of cleaning products or

non-recommended products

is not covered under this

product_ warranty.

Door Gaskets

Condenser Coil

Remove base grille to access.

Condenser Fan Outlet Grille

See back of refrigerator.

Accessories

Shelves, buckets,

drawers, etc.

Abrasive or harsh cleaners

Ammonia

Chlorine bleach

Concentrated detergents or

solvents

Metal or plastic-textured

scouring pads

Abrasive or harsh cleaners

Ammonia

Chlorine bleach

Concentrated detergents

or solvents

Metal or plastic-textured

scouring pads

Vinegar-based products

Citrus-based cleaners

Abrasive or harsh cleaners

Metal or plastic-textured

scouring pads

Anything other than a

vacu unl cleaner

A dishwasher

Use 4 tablespoons of baking soda dissolved in

1 quart (1 liter) warm soapy water.

Rinse surfaces with clean warm water and dry

immediately to avoid water spots.

Use warm, soapy water and a soft, clean cloth

or sponge.

Rinse surfaces with clean warm water and dry

immediately to avoid water spots.

To polish and help prevent finger prints, follow

with Stainless Steel Cleaner*.

Use warm, soapy water and a soft, clean cloth

or sponge.

Use a vacuum cleaner hose nozzle.

Use a vacuum cleaner hose nozzle with brush

attachment.

Follow removal and installation instructions

from appropriate feature section.

Allow accessories to adjust to room

tern peratu re.

Dilute mild detergent and use a soft clean cloth

or sponge for cleaning.

Use a plastic bristle brush to get into crevices.

Rinse surfaces with clean warm water.

Dry glass and clear items immediately to avoid

spots.

* To order, call 1-800-4-MY-HOME "_(1-800-469-4663).

andCleaning

Removing Odors From

Refrigerator

To avoid electrical shock which can cause severe

personal injury or death, disconnect power to

refrigerator before cleaning. After cleaning,

reconnect power.

1. Remove all food and turn the refrigerator OFE

2. Disconnect power to the refrigerator.

3. Clean the walls, floor, ceiling of cabinet interior,

drawers, shelves and gaskets according to the

instructions on page 24.

4. Dilute mild detergent and brush solution into

crevices using a plastic bristle brush. Let stand for

5 minutes. Rinse surfaces with warm water. Dry

surfaces with a soft, clean cloth.

5. Wash and dry all bottles, containers and jars.

Discard spoiled or expired items.

6. Wrap or store odor-causing foods in tightly sealed

containers to prevent recurring odors.

7. Reconnect power to refrigerator and return food to

refrigerator.

8. Allow the refrigerator to cool.

9. After 24 hours, check if odor has been eliminated.

If odor is still present:

1. Remove drawers and place on top shelf of

refrigerator.

2. Pack refrigerator and freezer sections - including

doors - with crumpled sheets of black and white

newspaper.

3. Place charcoal briquettes randomly on crumpled

newspaper in both freezer and refrigerator

compartments.

4. Close doors and let stand 24 to 48 hours.

Energy Saving Tips

• Avoid overcrowding refrigerator shelves.

Overcrowding reduces air circulation around food

and causes refrigerator to run longer.

• Avoid adding too much warm food to refrigerator at

one time. This overloads compartments and slows

rate of cooling.

• Do not use aluminum foil, wax paper, or paper

toweling as shelf liners. This decreases air flow and

causes refrigerator to run less efficiently.

• A freezer that is two-thirds full runs most efficiently.

Locate refrigerator in coolest part of room. Avoid

areas of direct sunlight, or near heating ducts,

registers or other heat producing appliances. If this is

not possible, isolate exterior by using a section of

cabinet or an added layer of insulation.

• Clean door gaskets every three months according to

cleaning instructions. This will assure that door seals

properly and refrigerator runs efficiently.

• Take time to organize items in refrigerator to reduce

time that door is open.

• Be sure your doors are closing securely by leveling

refrigerator as instructed in your installation

instructions.

• Clean condenser coils as indicated in the cleaning

instructions every three months. This will increase

energy efficiency and cooling performance.

andCleaning

Replacing Light Bulbs

To avoid electrical shock which can cause severe

personal injury or death, disconnect power to

refrigerator before replacing light bulb. After

replacing light bulb, reconnect power.

To avoid personal injury or property damage,

observe the following:

• Allow light bulb to cool.

• Wear gloves when replacing light bulb.

Fresh Food Section

(style of light shield varies)

Slide clear light shield

toward back of

compartment to release

from light assembly.

2. Remove light bulbs.

3. Replace with appliance

bulbs no greater than 40 watts.

.Replace light bulb cover by inserting tabs on light

shield into liner holes on each side of light

assembly. Slide shield toward front of refrigerator

until it locks into place. Do not force shield beyond

locking point. Doing so may damage light shield.

Freezer (style of light shield varies)

1. Reach behind the light

cover.

2. With firm pressure, press

forward on the notches at

the back of the cover and

pull down. The cover will

open from the back.

3. Remove the cover.

Remove light bulb.

Replace bulb with

appliance bulb no

greater than 40 watts.

Insert front tabs of light

cover into slots in freezer

liner and snap rear

portion over light

assembly until rear tab

engages.

andCleaning

Preparing for Vacation

If there is any possibility that the temperature can

drop below freezing where the refrigerator is

located, the water supply system (including the

water tank and the water valve) must be drained by

a qualified servicer.

For short vacations or absences (three months or

less):

1. Remove all perishables.

2. If no one will be checking in on the refrigerator

during your absence, remove all frozen items also.

3. Since your refrigerator has an automatic ice maker:

• Shut off the water supply to the ice maker at

least one day ahead of time.

• After the last load of ice drops, raise the wire

shut off arm to the OFF position.

• Empty the ice bin.

4. If the room temperature will drop below 55° F

(13° C), follow the instructions for longer absences.

For long vacations, absences (more than three

months) OR if the room temperature will drop

below 55 ° F (13 ° C):

1. Remove food.

2. Since your refrigerator has an automatic ice maker:

• Shut off the water supply to the ice maker at

least one day ahead of time.

• After the last load of ice drops, raise the wire

shut off arm to the OFF position.

• Empty the ice bin.

3. Since your refrigerator has a dispenser system with

water filter, remove the water filter cartridge and

install the filter bypass. Dispose of the used

cartridge.

4. Turn the freezer control to OFF.

5. Unplug the refrigerator.

6. Thoroughly clean the interior of both compartments

with a baking soda solution and a clean soft cloth

(four tablespoons of baking soda in one quart of

warm water).

7. Dry thoroughly.

8. Leave the doors open to prevent the formation of

mold and mildew.

Upon your return:

After ashort vacation or absence:

For models with automatic ice makers or dispensers:

• Reconnect the water supply and turn on supply valve

(see page 12).

• Monitor water connection for 24 hours and correct

leaks if necessary.

• Run 10-15 glasses of water from the dispenser to

flush out the system.

• Restart the ice maker by lowering the ice maker arm.

• Discard at least the first three ice harvests.

After a long vacation or absence:

• Reconnect the water supply and turn on supply valve

(see page 12).

• Plug the refrigerator back in and reset controls (see

page 14).

• Monitor water connection for 24 hours and correct

leaks, if necessary.

For dispenser models, run water through the dispenser

for at least three minutes with the filter bypass in

place, then install water filter (see page 18).

• After installing the water filter, run water through the

dispenser continuously for at least two minutes, or

until water runs steady. Initially you may notice a

one to two minute delay in water dispersal as the

internal tanks fills.

• Restart the ice maker by lowering the ice maker arm.

• Discard ice produced within the first 12 hours (at

least the first three harvests).

Preparing to move:

• Follow the above instructions for long

vacations/absences, through step 7.

• Secure all loose items such as shelves and drawers

by taping them securely in place to prevent damage.

• Tape the doors shut.

• Use an appliance dolly when moving the refrigerator.

Always truck the refrigerator from its side or back

- never from its front.

• Be sure the refrigerator stays in an upright position

during moving. 27

Opercnin9Sounds

Improvements in refrigeration design may produce sounds in your new refrigerator that are different or were not

present in an older model. These improvements were made to create a refrigerator that is better at preserving food,

is more energy efficient, and is quieter overall. Because new refrigerators run quieter, sounds may be detected that

were present in older refrigerators, but were masked by higher sound levels. Many of these sounds are normal.

Please note that the surfaces adjacent to a refrigerator, such as hard walls, floors and cabinetry may make these

sounds seem even louder. The following are some of the normal sounds that may be noticed in a new refrigerator.

Clicking • Freezer control (A) clicks when starting or •Normal operation

stopping compressor.

• Motorized device (B) sounds like an electric • Normal operation

clock and snaps in and out.

Air rushing or • Freezer fan (C) and condenser fan (D) make • Normal operation

whirring this noise while operating.

Gurgling or • Evaporator (E) and heat exchanger (F) • Normal operation

boiling sound refrigerant makes this noise when flowing.

Thumping • Ice cubes from ice maker (select models) drop •Normal operation

into ice bucket (G).

Vibrating noise • Compressor (H) makes a pulsating sound •Normal operation

while running.

• Refrigerator is not level. • See page 7 for details on how to level

your refrigerator.

Buzzing • Ice maker water valve (I) hookup (select • Normal operation

models) buzzes when ice maker fills with

water.

Humming • Ice maker (J) is in the 'on' position without • Stop sound by raising ice maker arm

water connection, to OFF position (see page 17).

• Compressor (H) can make a high-pitched hum • Normal operation

while operating.

Hissing or • Defrost heater (K) hisses, sizzles or pops when • Normal operation

popping operational.

Troubleshooting

Freezer control and

lights are on, but

compressor is not

operating

•Normal operation.

Wait 40 minutes to see if refrigerator restarts.

Crisper drawer • See page 14 to adjust controls.

temperature is too

warm

Refrigerator does

not operate

Refrigerator still

won't operate

Food temperature

is too cold

Food temperature

is too warm

Plug in refrigerator.

See page 14 to adjust your controls.

Replace any blown fuses.

Check circuit breaker and reset, if necessary.

Call local power company listing to report outage.

Unplug refrigerator and transfer food to another

refrigerator. If another refrigerator is not available,

place dry ice in freezer section to preserve food.

Warranty does not cover food loss.

Contact service for assistance.

Clean according to the chart on page 24.

See page 14 to adjust your controls.

• Refrigerator is in defrost mode.

• Refrigerator control settings are too

low.

• Refrigerator is not plugged in. •

• Control is not on. •

• Fuse is blown, or circuit breaker needs •

to be reset.

• Power outage has occurred. •

• Refrigerator is malfunctioning. •

• Condenser coils are dirty. •

• Refrigerator or freezer controls are set •

too high.

• Door is not closing properly. •

• Controls need to be adjusted. •

• Condenser coils are dirty. •

• Rear air grille is blocked. •

• Door has been opened frequently, or •

has been opened for long periods of

time.

• Food has recently been added. •

• Compartment is dirty or has odor- •

causing food.

• Check gaskets for proper seal. •

• Humidity levels are high. •

• Controls require adjustment. •

Refrigerator is not level. See page 7 for details on

how to level your refrigerator.

Check gaskets for proper seal. Clean, if necessary,

according to the chart on page 24.

Check for internal obstructions that are keeping

door from closing properly O.e.improperly closed

drawers, ice buckets, oversized or improperly stored

containers, etc._

See page 14 to adjust your controls.

Clean according to the chart on page 24.

Check the positioning of food items in refrigerator to

make sure grille is not blocked. Rear air grilles are

located under crisper drawers.

Reduce time door is open. Organize food items

efficiently to assure door is open for as short a time

as possible.

Allow time for recently added food to reach

refrigerator or freezer temperature.

Refrigerator has Clean according to instructions on page 2/4.

an odor

Water droplets

form on outside

of refrigerator

Clean according to the chart on page 24.

Hot, humid weather can increase condensation.

Press button on control to reduce moisture.

See page 14 to adjust your controls.

Waterdropletsform

oninside of

Refrigerator or ice

maker makes

unfamiliar sounds

or seems too loud

Crisper drawers

do not close freely

Refrigerator runs

too freqaentmy

• Humidity levels are high or door has

been been opened frequently.

• Check gaskets for proper seal.

• Normal operation.

• Contents of drawer, or positioning of

items in the surrounding compartment

could be obstructing drawer.

• Drawer is not in proper position.

• Refrigerator is not level.

• Drawer channels are dirty or need

treatment.

• Doors [lave beer] opened frequently or

for long periods of time.

• Humidity or heat in surrounding area

is high.

• Food has recently been added.

• Refrigerator is exposed to heat by

environment or by appliances nearby.

• Condenser coils are dirty.

• Controls need to be adjusted.

• Door is not closing properly.

• Normal Operation

• See page 14 or 16 to adjust your controls.

• Reduce time door is open.

Organize food items efficiently to assure door is

open for as short a time as possible.

• Clean, if necessary, according to the chart on page

24.

• See page 28.

• Reposition food items and containers to avoid

interference with tile drawers.

• See page 16 for proper drawer placement.

• See page 7for details on [low to level your

refrigerator.

• Clean drawer channels with warm, soapy water.

Rinse and dry thoroughly.

• Apply a thin layer of petroleum jelly to drawer

channels.

• Reduce time door is open.

• Organize food items efficiently to assure door is

open for as short a time as possible.

• Allow interior environment to adjust for period the

door has been opened.

• Normal operation.

Allow time for recently added food to reach

refrigerator or freezer temperature.

Evaluate your refrigerator's environment.

Refrigerator may need to be moved to run more

efficiently.

Clean, if necessary, according to the chart on page

24.

See page 14 to adjust your controls.

• Refrigerator is not level. See page 7 for details on

how to level your refrigerator.

• Check gaskets for proper seal.

• Clean, if necessary, according to the chart on page

24.

Check for internal obstructions that are keeping

door from closing properly O.e.improperly closed

drawers, ice buckets, oversized or improperly stored

containers, etc.)

See Operating Sounds on page 28.

Troubleshooting

Ice

Refrigerator is

leaking water

(ce forms in inlet

tube to ice maker

Water flow is

smower than normal

• Plastic tubing was used to complete

water connection.

• Improper saddle valve was installed.

• Water pressure is too low.

• Freezer temperature is too high.

• Water pressure is too low.

• Improper saddle valve was installed.

• Copper tubing has kinks.

• Water filter is clogged or needs to be

changed.

The manufacturer recommends using copper tubing

for installation. Plastic is less durable and can cause

leakage. Sears is not responsible for property

damage due to improper installation or water

connection.

Check water connection procedure (see page 12).

Self-piercing and 3/,_..saddle valves cause low water

pressure and may clog the line over time. Sears is

not responsible for property damage due to

improper installation or water connection.

Water pressure must be between 35 to 100 pounds

per square inch to function properly, A minimum

pressure of 35 pounds per square inch is

recommended for refrigerators with water filters,

Adjust freezer control (see page 14:).Freezer is

recommended to be approximately 0° F (-18° C).

Water pressure must be between 35 to 100 pounds

per square inch to function properly. A minimum

pressure of 35 pounds per square inch is

recommended for refrigerators with water filters.

Check water connection procedure in your

Installation Instructions. Self-piercing and 3/,_..saddle

valves cause low water pressure and may clog tile

line over time. Sears is not responsible for

property damage due to improper installation

or water connection. Open water valve

completely and check for leaks.

Turn off water supply and remove kinks. If kinks

cannot be removed, replace tubing.

Change water filter (see page 18).

................. Your Home

................. iiiiiiiiiiiiiiiiii

For repair-in your home-of all major brand appliances,

lawn and garden equipment, or heating and cooling systems,

no matter who made it, no matter who sold it!

For the replacement parts, accessories and

owner's manuals that you need to do-it-yourself.

For Sears professional installation of home appliances

and items like garage door openers and water heaters.

1-800-4-MY-HOM E®(1-800-469-4663)

Call anytime, day or night (U.S.A. and Canada)

www.sears.corn www.sears.ca

ouraorne ..................

For repair of carry-in items like vacuums, lawn equipment,

.... and electronics, call or go on-line for the location of your nearest

Sears Parts .& Repair Center.

18004881222

Call anytime, day or night (U.S.A. only)

www.sears.com

To purchase a protection agreement (U.S.A.) or

maintenance agreement (Canada)on a product serviced by Sears: CCC::

CCC::

1-800-827-6655 (U.S.A.) 1-800-361-6665 (Canada)

Pard pedir servicio de reparaciCn Au Canada pour service en frangais:

a domicilio, y pard ordenar piezas: 1.800.LE.FOYERMO

1-888-SU-HOGARSM (1-800-533-6937)

(1-888-784-6427) www.sears.ca

6EARS

®Registered Trademark /TMTrademark /SMService Mark of Sears, Roebuck and Co.

®Marca Registrada /TMMarca de Fabrica /SMMarca de Servicio de Sears, Roebuck and Co.

Instrucciones Importantes sobre Seguridad ........................ 34-35

Garantia y Servicio ............................................. 36-37

Instalaci6n ................................................... 38-44

Ubicaci0n

Medici0n de la Cavida

Transporte del Refrigerador

Nivelado

Desmontaje de la Puerta

Caj0n Deslizable del Congelador

Reinstalaci0n de la Puerta

InversiOn de la Puerta

Manijas

Conexi0n del Suministro de Agua

Apertura y Cierre de las Puertas del Refrigerador

Controles de la Temperatura ........................................ 45

Controles de la Temperatura Sensibles al Tacto

Caracteristicas del Refrigerador .................................. 46-47

Bandejas

Almacenamiento en la Puerta

Cajones

Caracteristicas del Congelador ..................................... 48

Canasta Superior de Alambre

Hielo y Agua .................................................... 49

M_quina Autom_tica de Hacer Hielo

Distribuidor de Agua

Filtro del Agua ................................................ 50-52

Instalaci0n y Desmontage

Condiciones de uso Generales

Sugerencia para Conservar los Alimentos ......................... 53-55

Conservaci0n de Alimentos Frescos

Conservaci0n de Alimentos Congelados

Tabla de Conservaci0n de los Alimentos

Cuidado y Limpieza ............................................ 56-59

Tabla de Limpieza del Refrigerador Reemplazo de los Focos

Eliminaci0n de los Olores del Refrigerador Preparaci0n para las Vacaciones

Sugerencias para Ahorro de Energia Preparaci0n para una Mudanza

Sonidos del Funcionamiento ....................................... 60

Localizaci6n y Soluci6n de Averias ............................... 61-63

Guide d'utilisation et d'entretien .................................... 65

Kenmore Elite 59675522400 User Manual REFRIGERATOR Manuals And Guides L0407465

KENMORE ELITE Bottom Mount Refrigerator Manual L0407465 KENMORE ELITE Bottom Mount Refrigerator Owner's Manual, KENMORE ELITE Bottom Mount Refrigerator installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
