Use & Care Guide

Manual de Usa y Cuidado

Guide d'Utisafion et d'Enfrefien

English /Espa_ol /French

Models/Modelos/Mod_Jes: 795.7248 _

Kenmore Elifeo

MFL62184470

Sears Brancls Management Corporation

Hoffman Estates, iL 60179 U.S.A.

www._enmore.co_

wvv%v.sea rs.com

Sears Canada Inc.

Toronto, Ontario, Canada M5B 2C3

w_/w_.sears.ca

Warranty .............................................................................3

Protection Agreements ..............................................4

important Safety instructions ...........................5-7

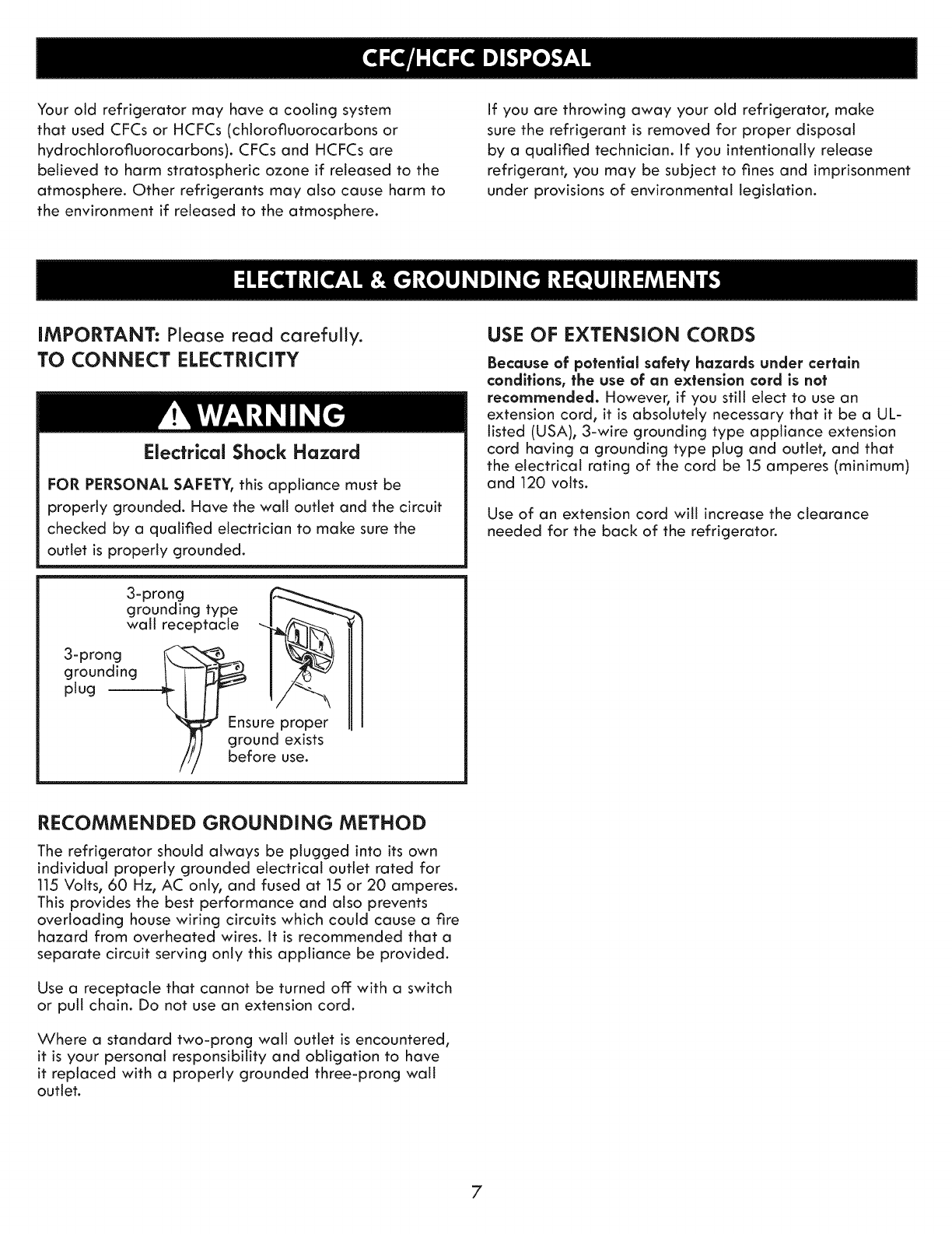

Electrical &Grounding Requirements ..............7

Parts and Features .......................................................8

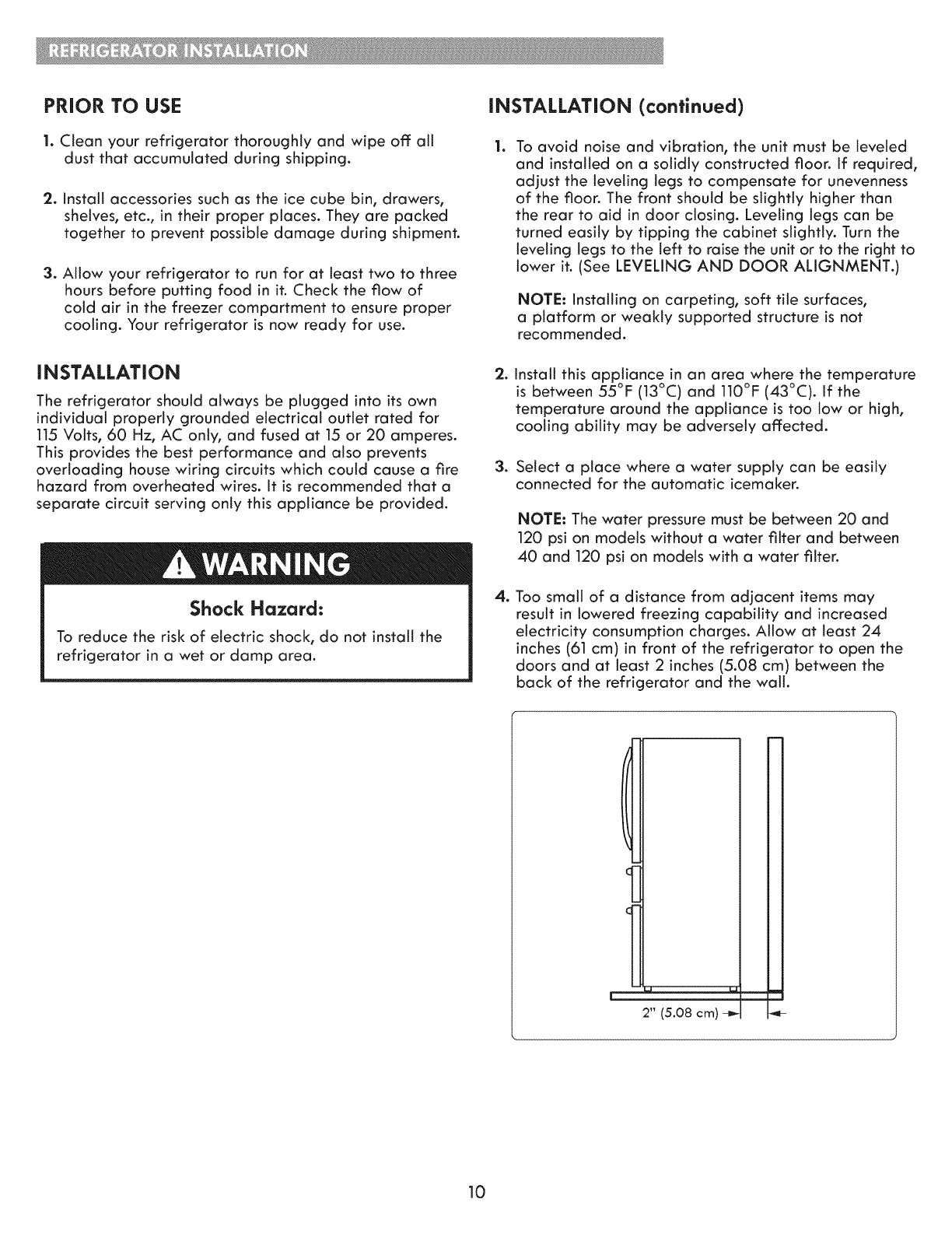

Refrigerator Installation .............................. 9-18

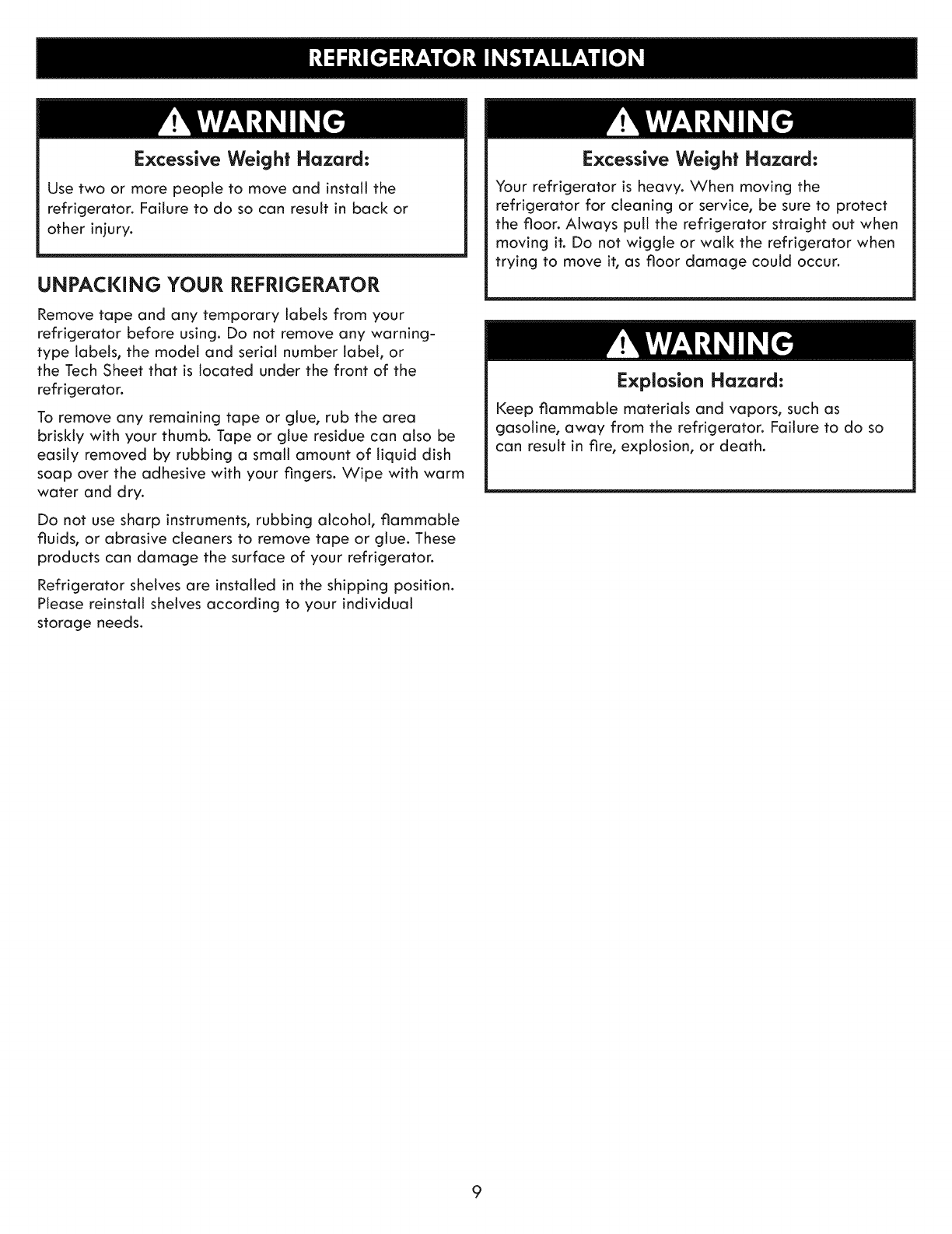

Unpacking Your Refrigerator .......................... 9

Installation ....................................................................10

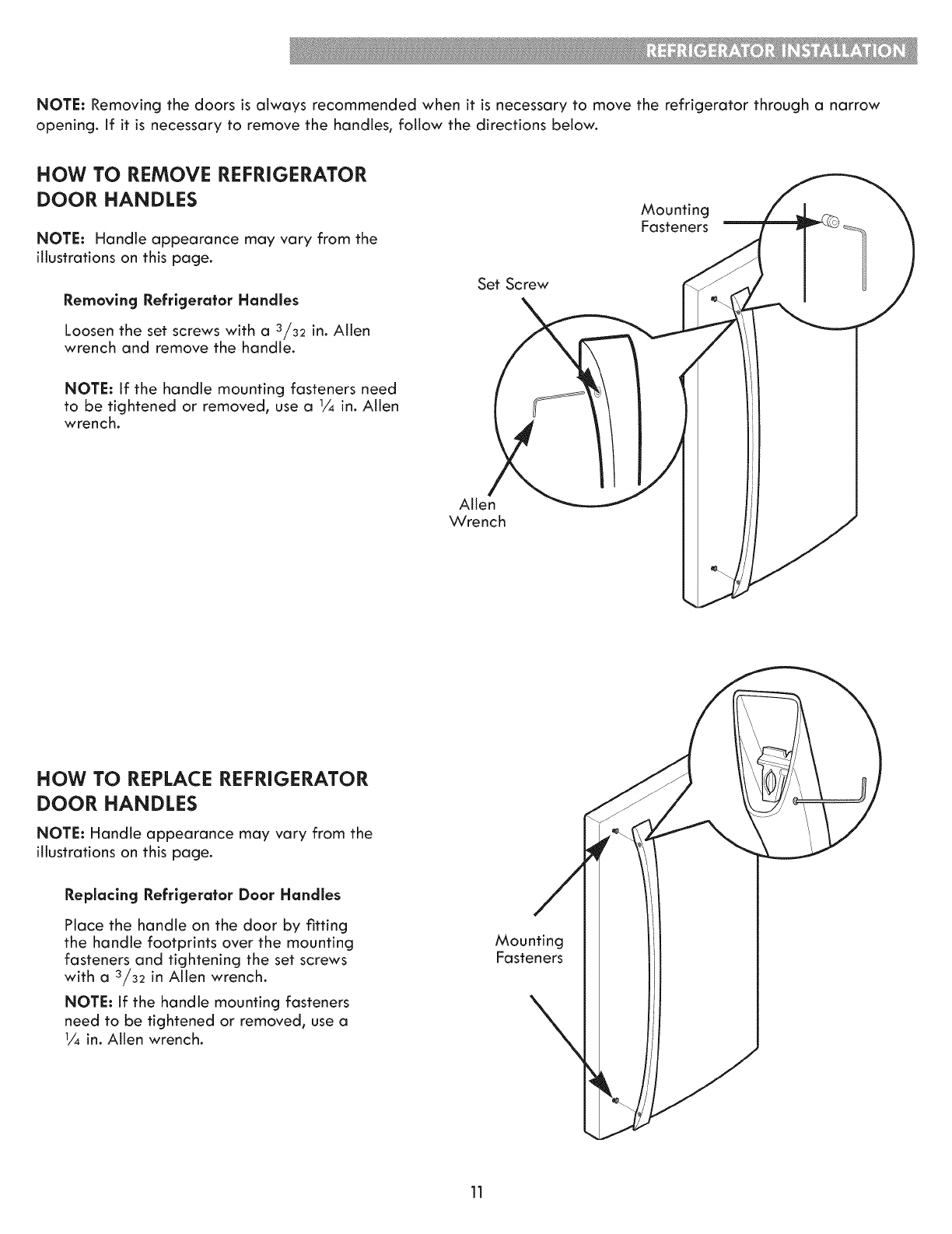

Removing/Replacing Your Refrigerator and

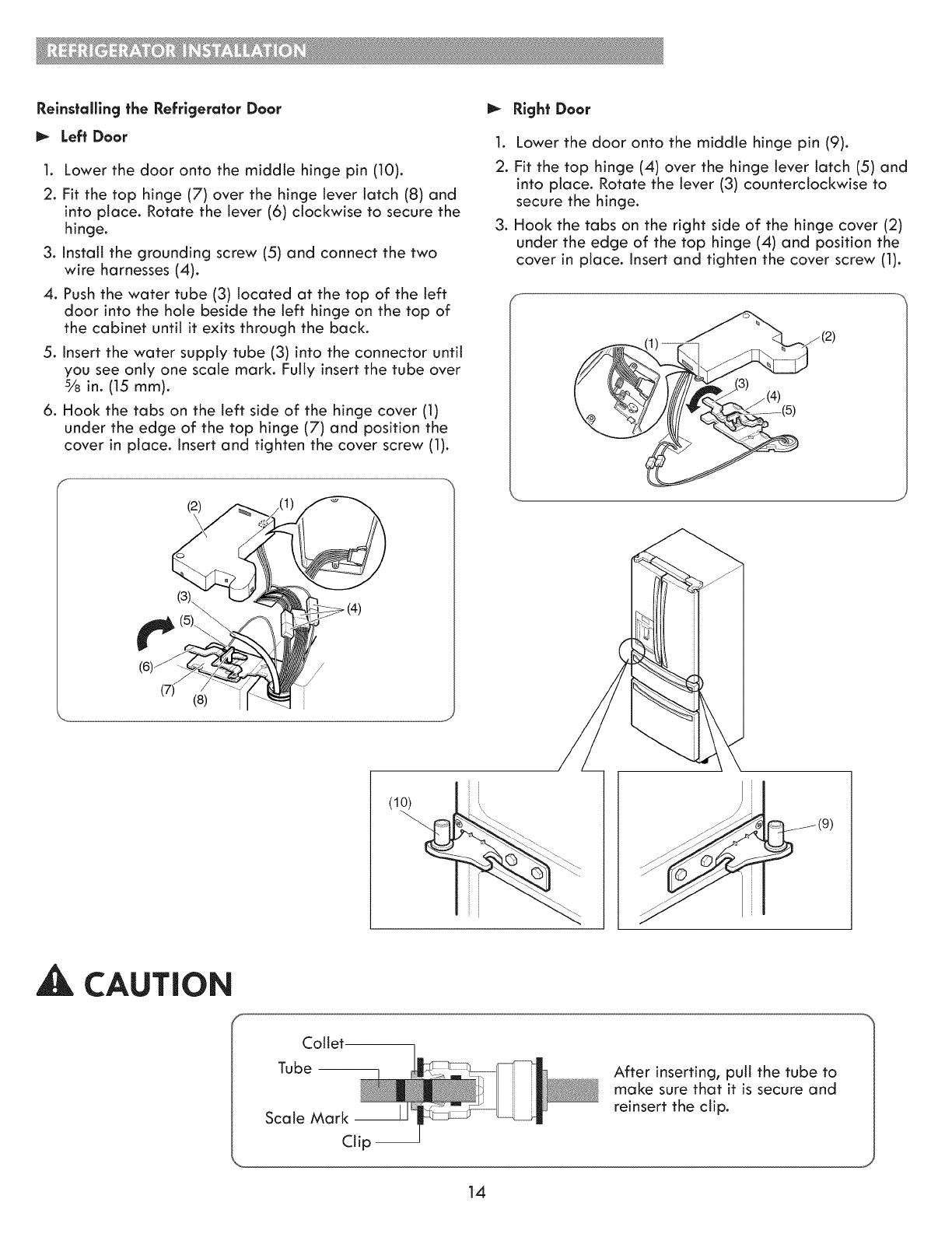

Freezer Handles, Doors and Drawers .......11-17

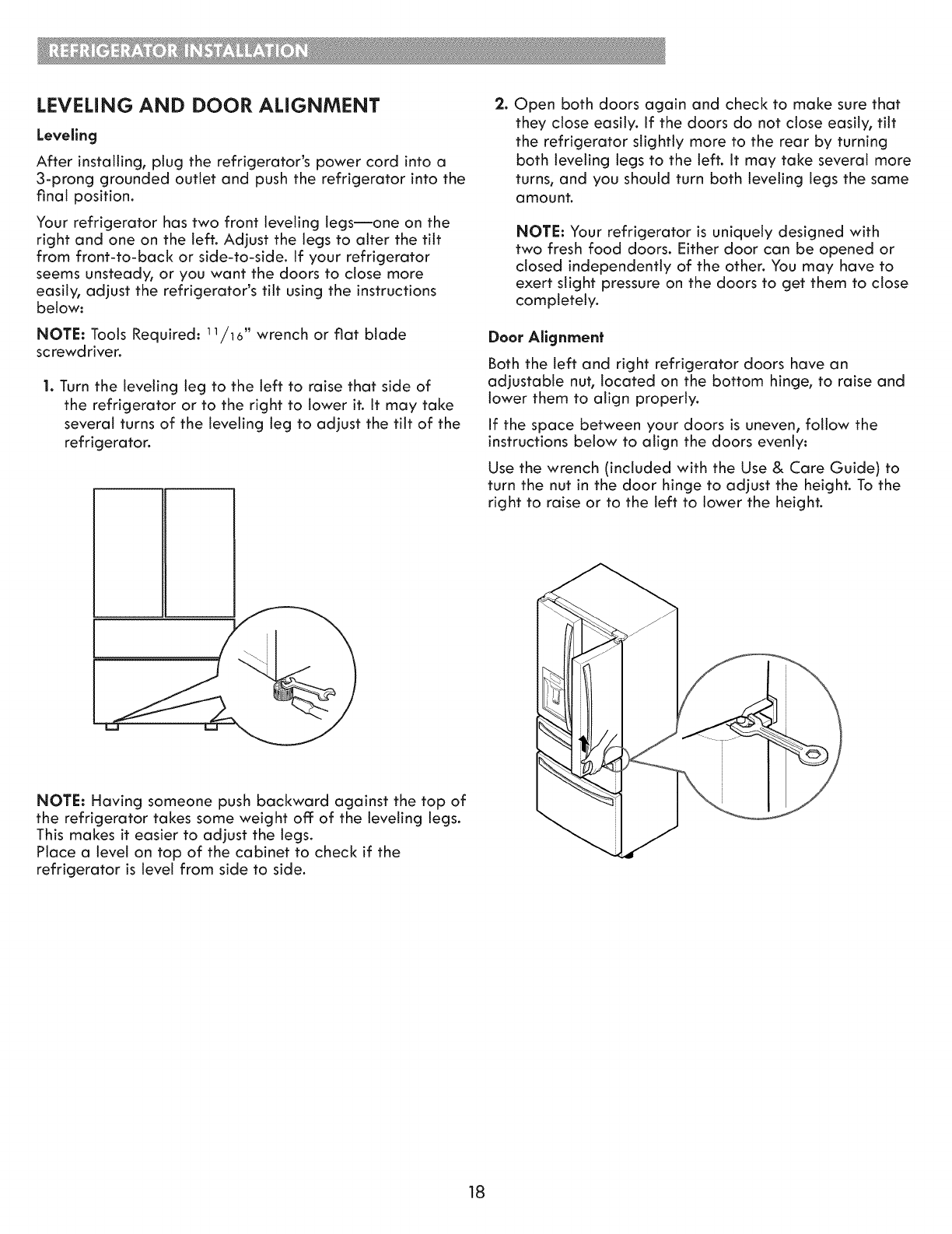

Leveling and Door Alignment ...................... 18

Using Your Refrigerator ............................. 19-31

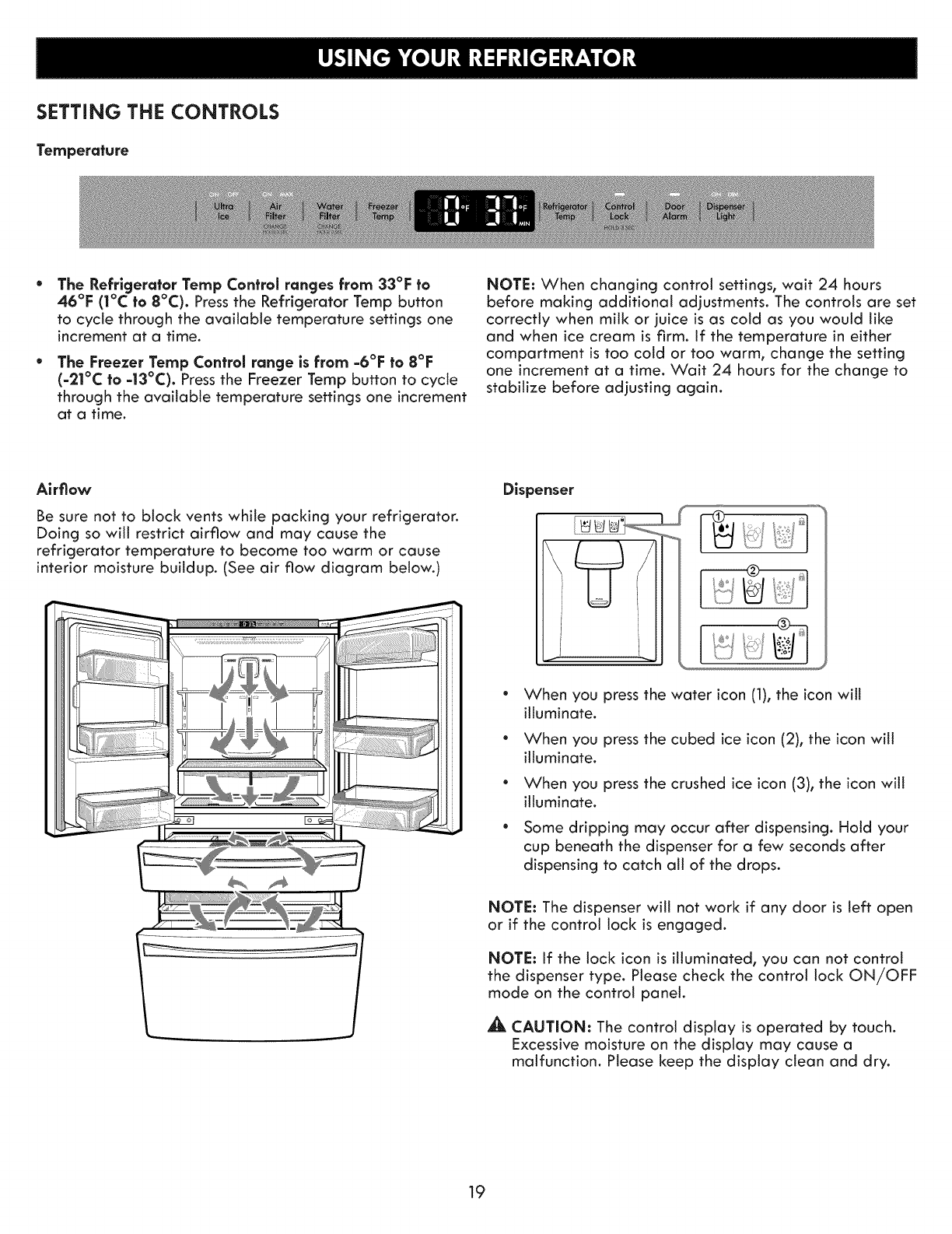

Setting the Controls .................................. 19-21

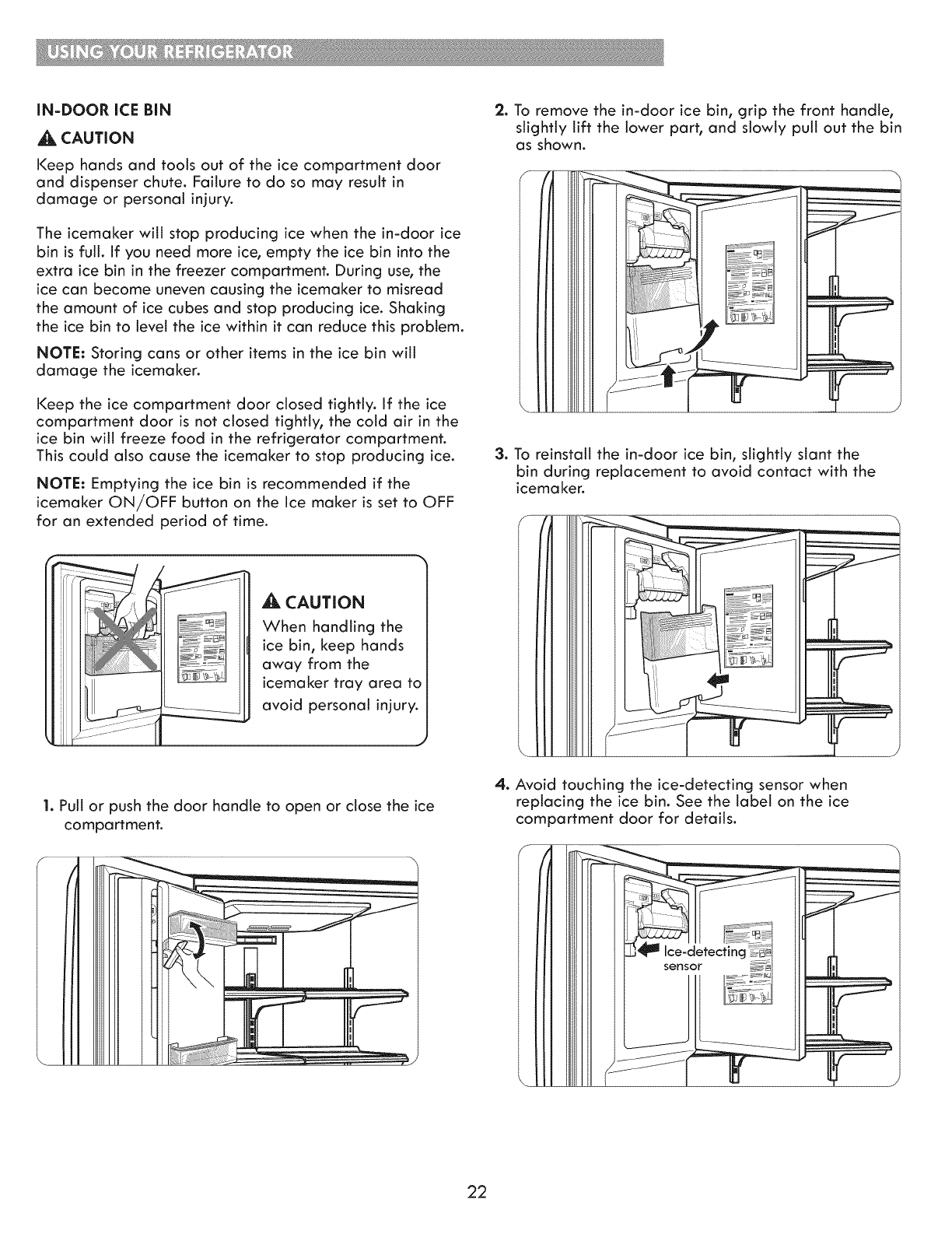

In-Door Ice Bin ...........................................................22

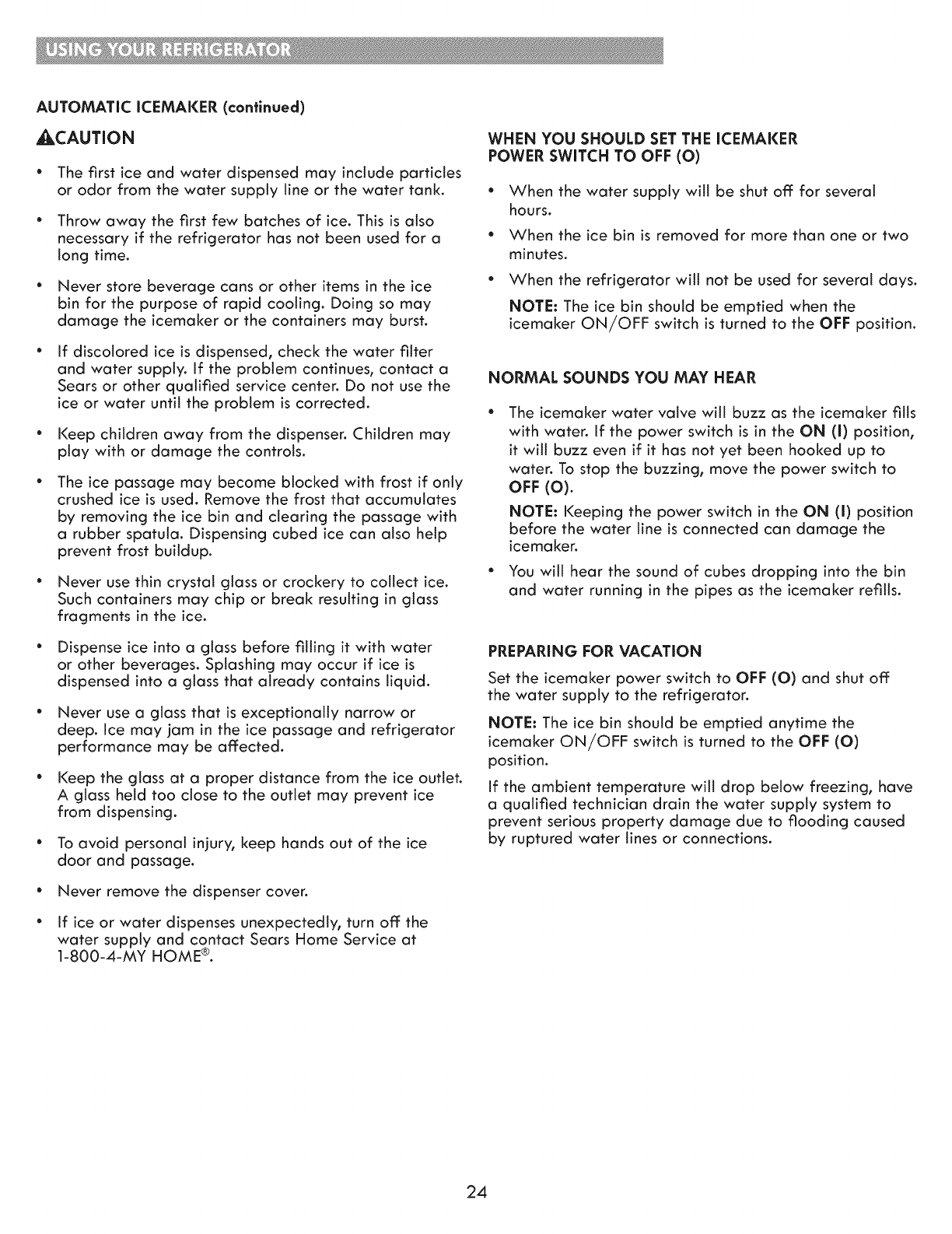

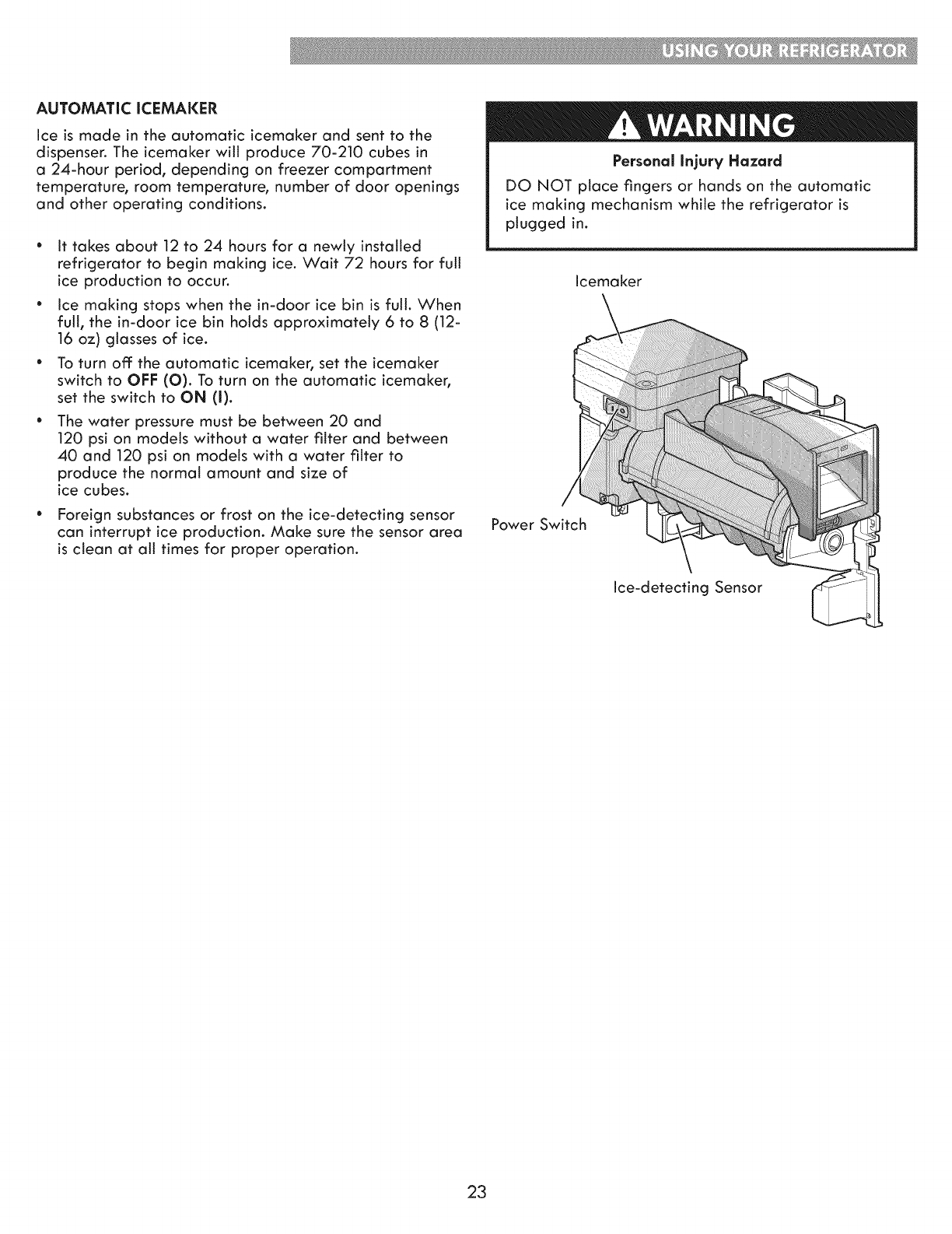

Automatic Icemaker ............................... 23-24

Food Storage Guide .................................... 25

Refrigerator Section

Water Dispenser ........................................... 26

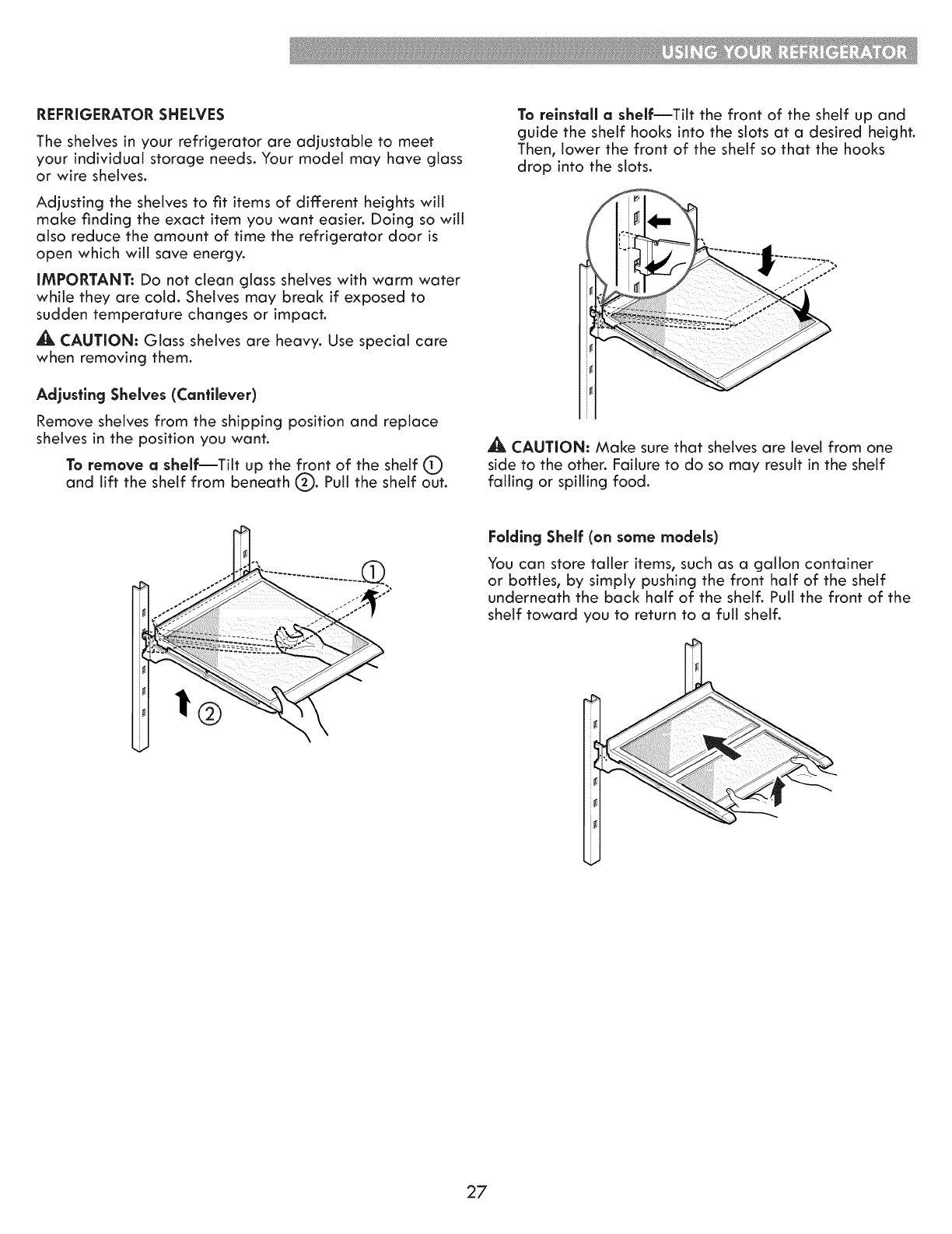

Refrigerator Shelves ...............................................27

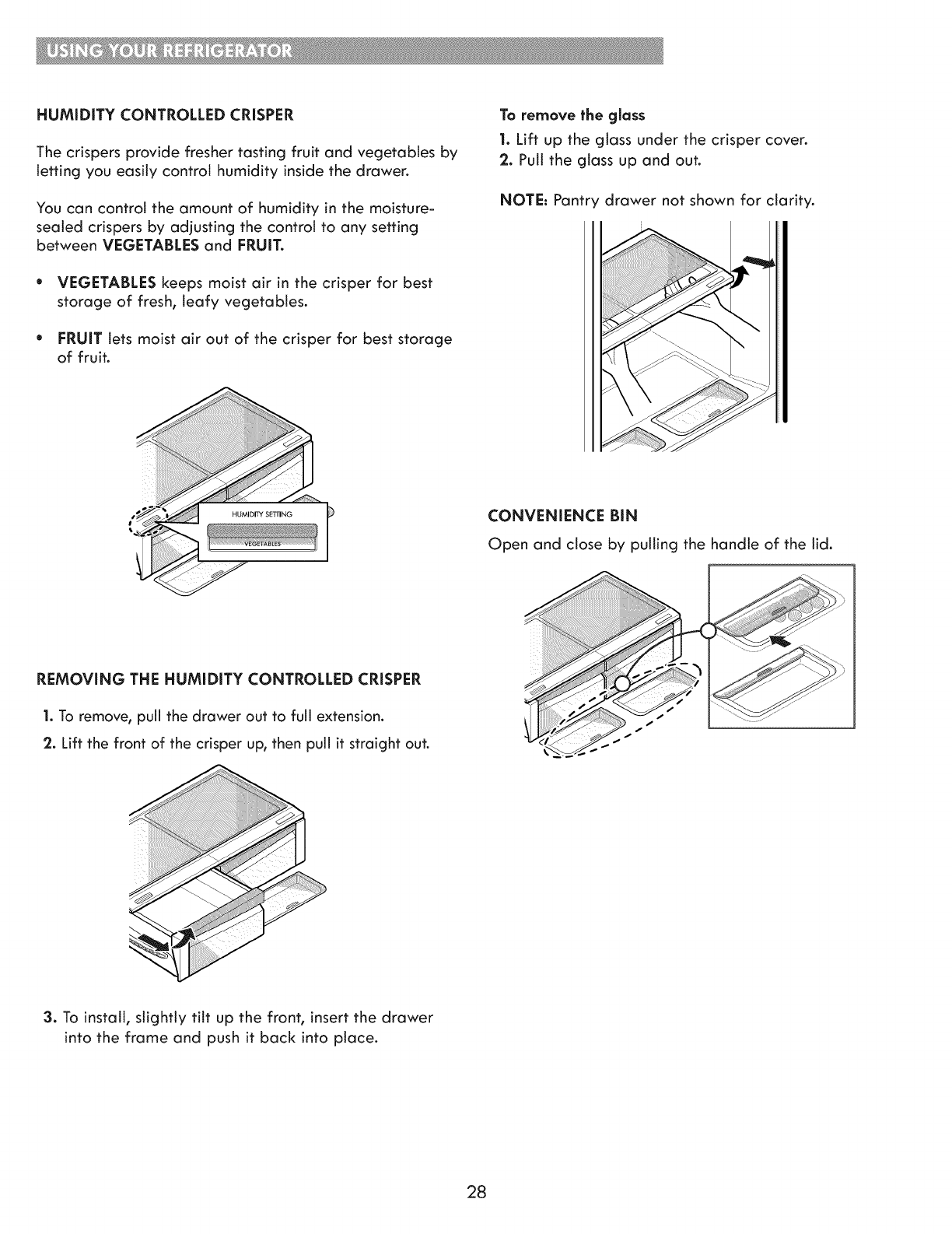

Humidity Controlled Crisper ........................ 28

Convenience Bin ............................................... 28

Door Bin ........................................................ 29

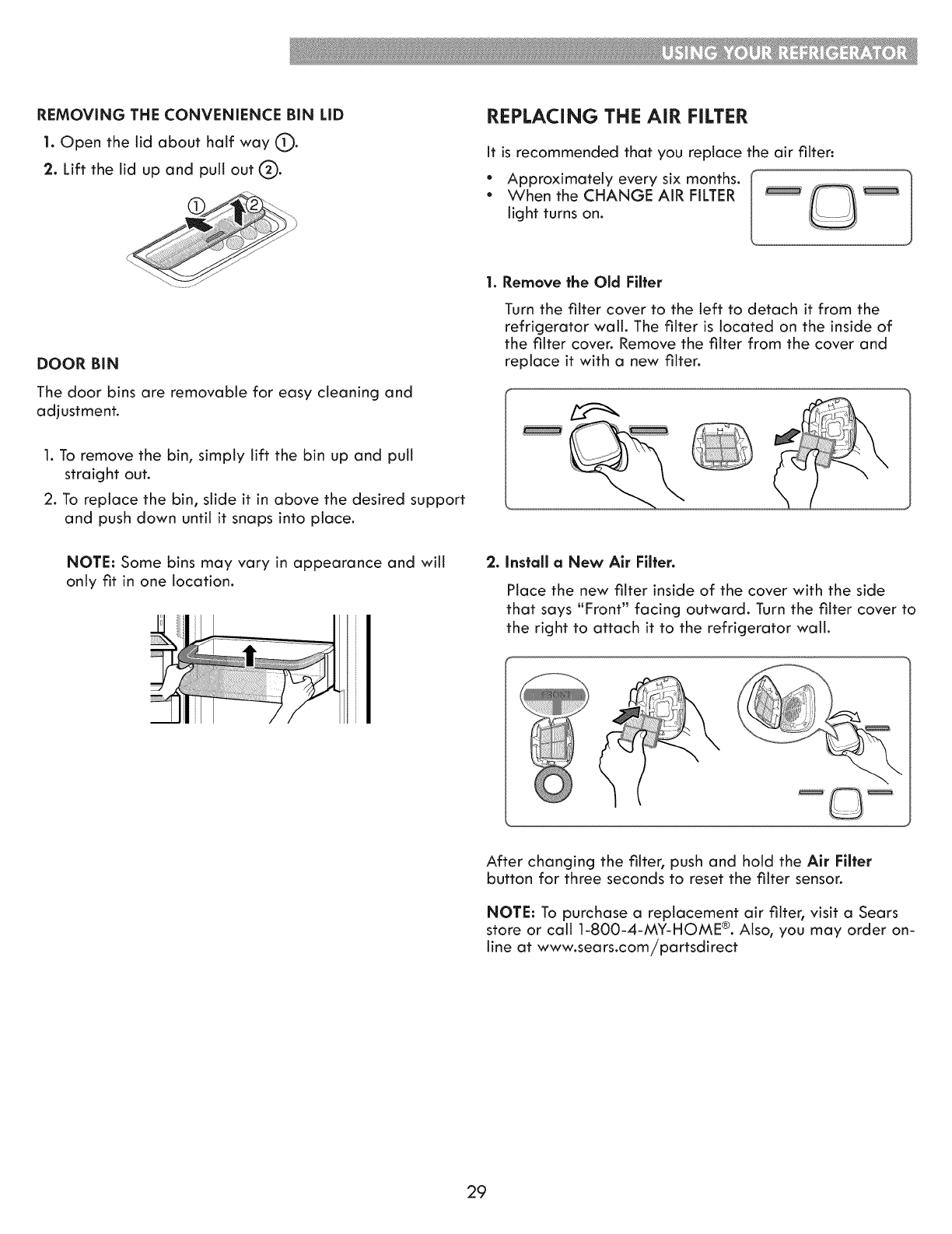

Replacing the Air Filter ................................ 29

Freezer Section

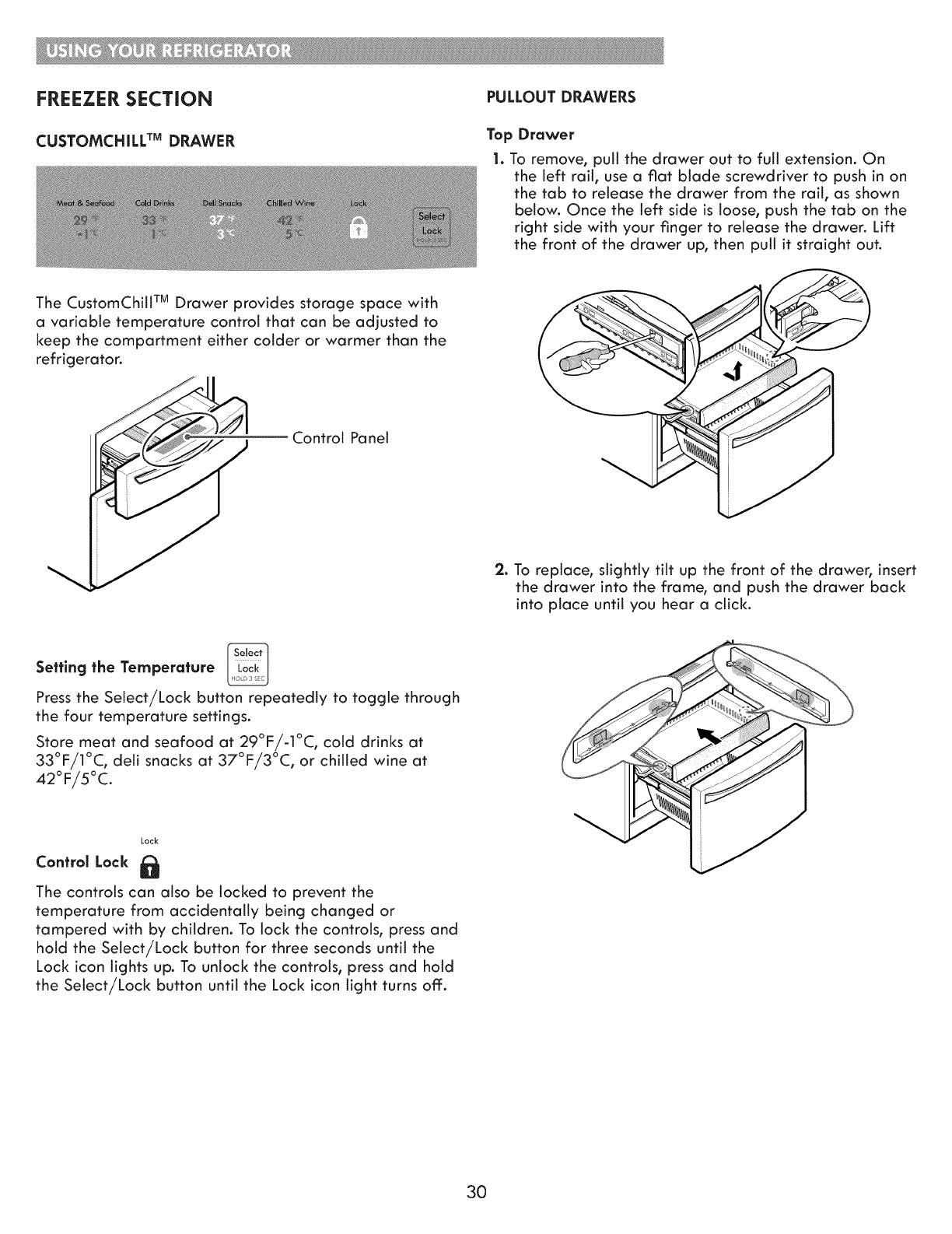

CustomChill TM Drawer ................................. 30

Pullout Drawers ............................................ 30

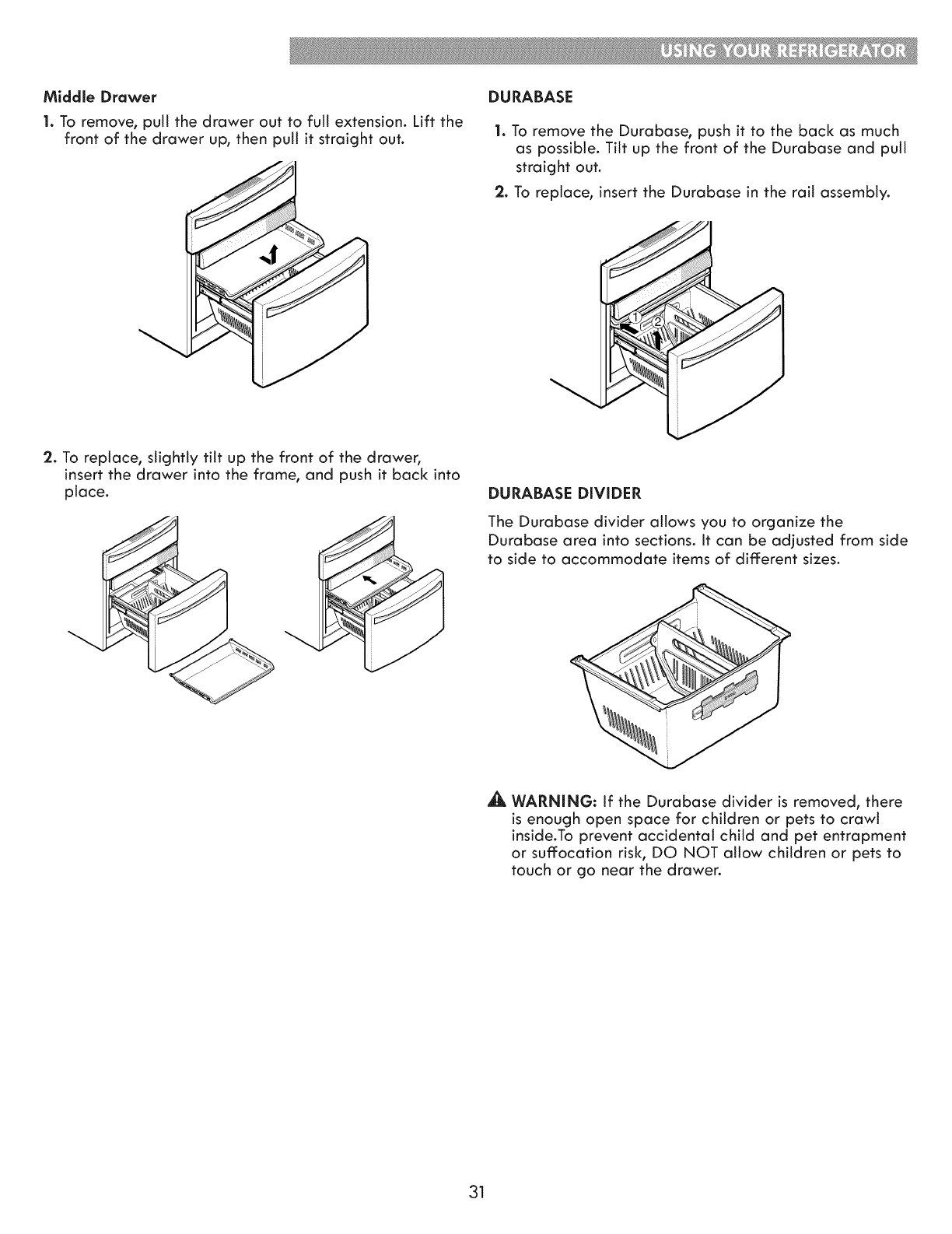

Durabase ........................................................ 31

Durabase Divider ........................................... 31

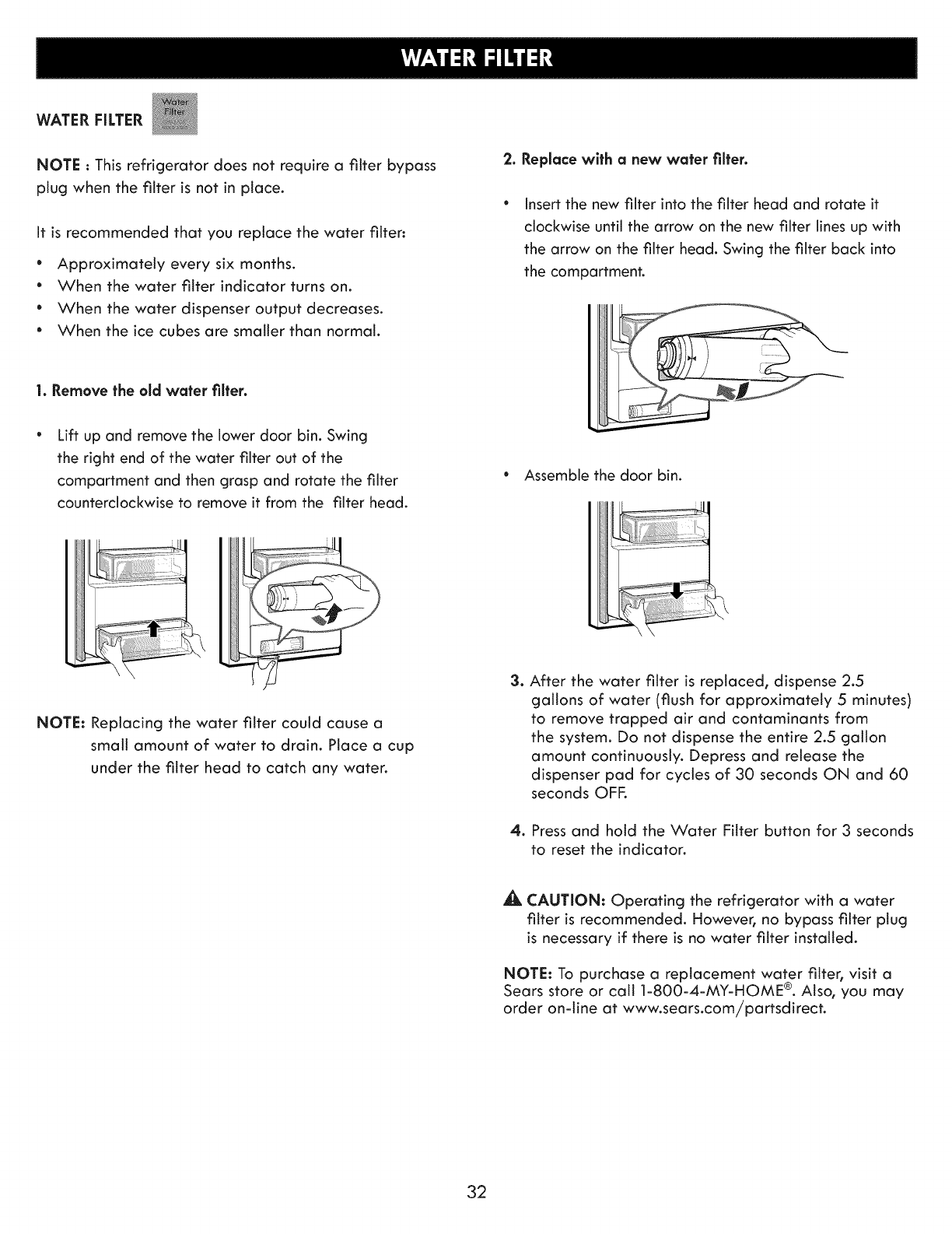

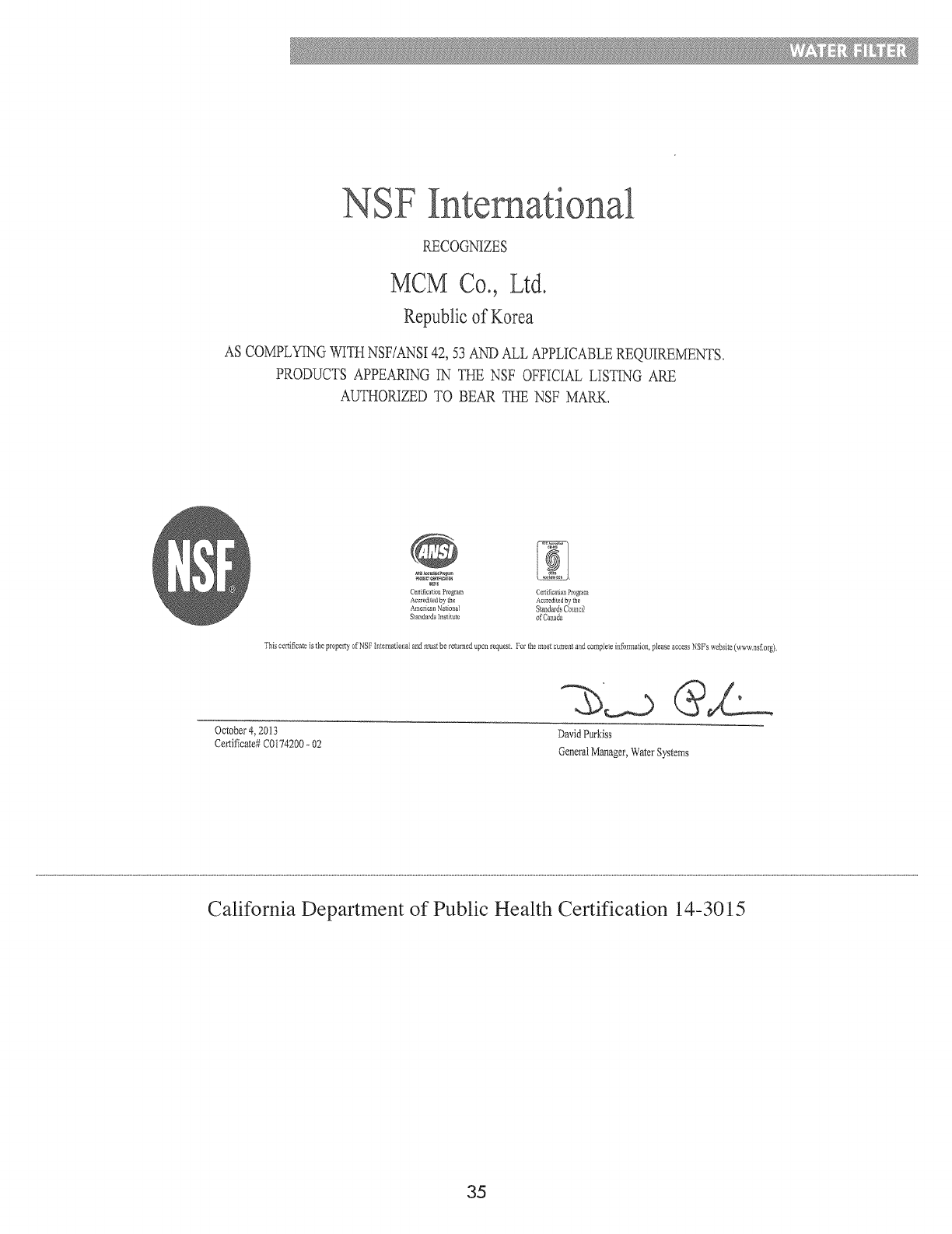

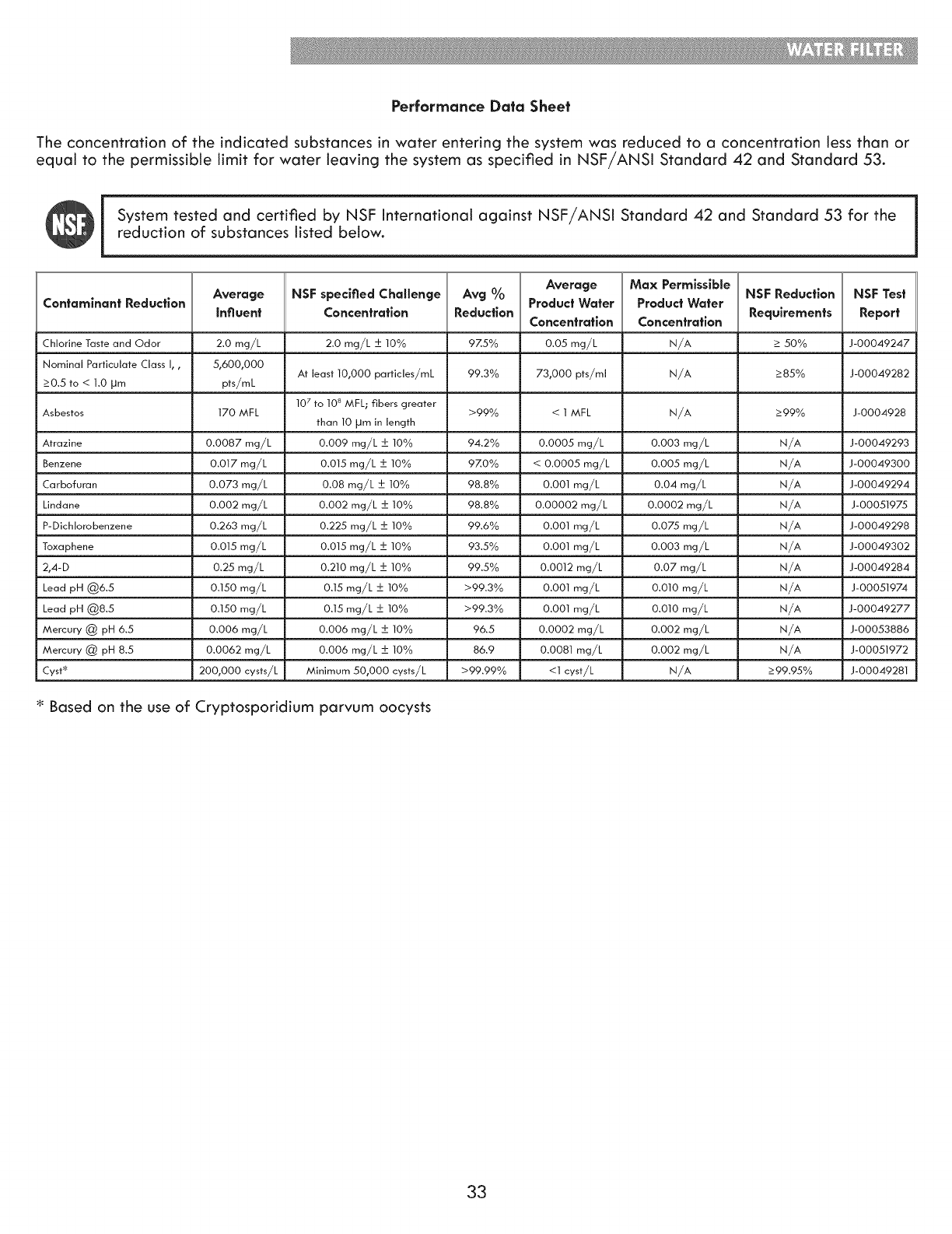

Water Filter ................................................ 32-35

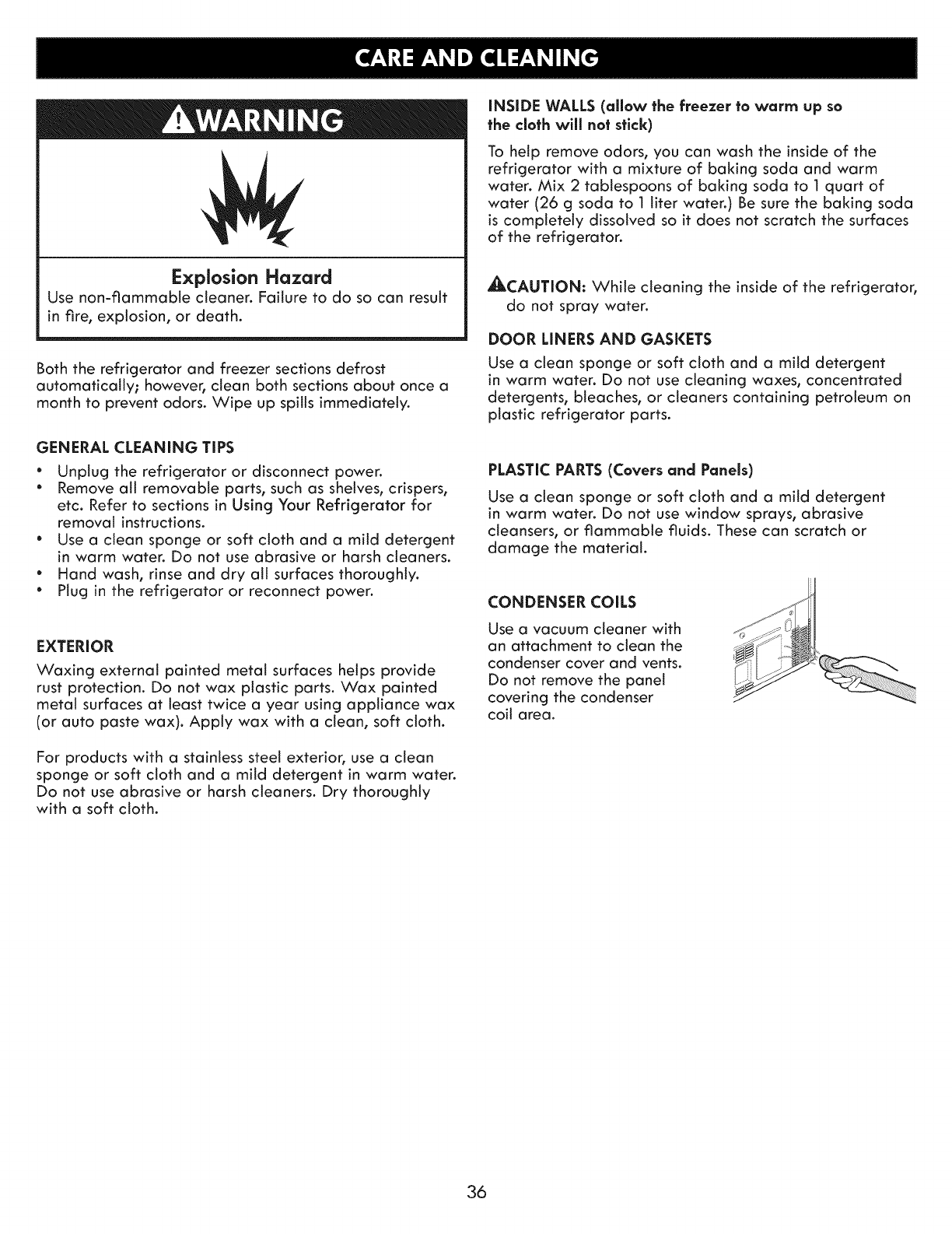

Care And Cleaning ................................... 36-37

General Cleaning Tips ................................ 36

Exterior .......................................................... 36

Inside Walls ................................................... 36

Door Liner And Gaskets ............................... 36

Plastic Parts.................................................... 36

Condenser Coils ............................................. 36

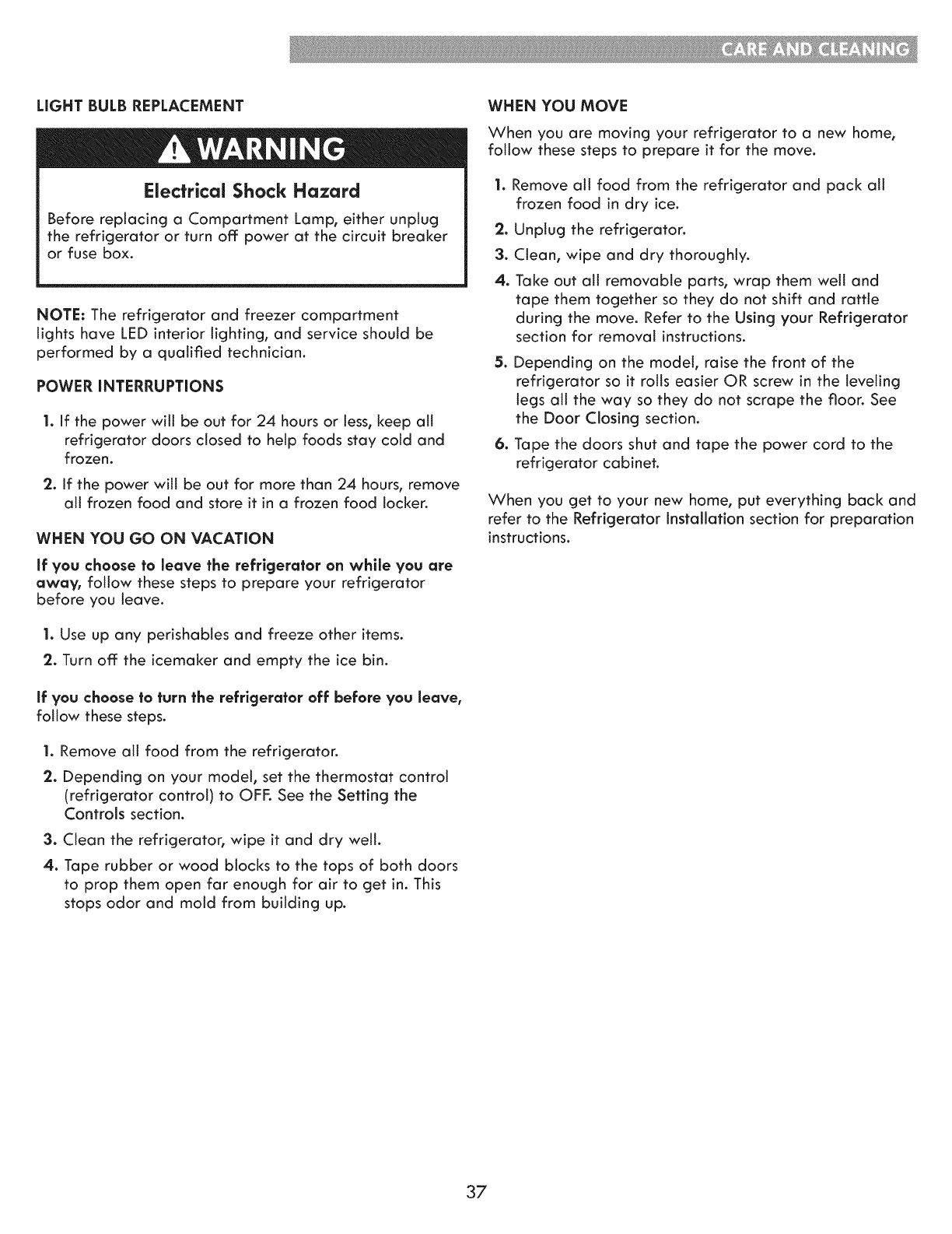

Light Bulb Replacement ............................... 37

Power Interruptions ....................................... 37

When You Go On Vacation ........................ 37

When You Move ............................................ 37

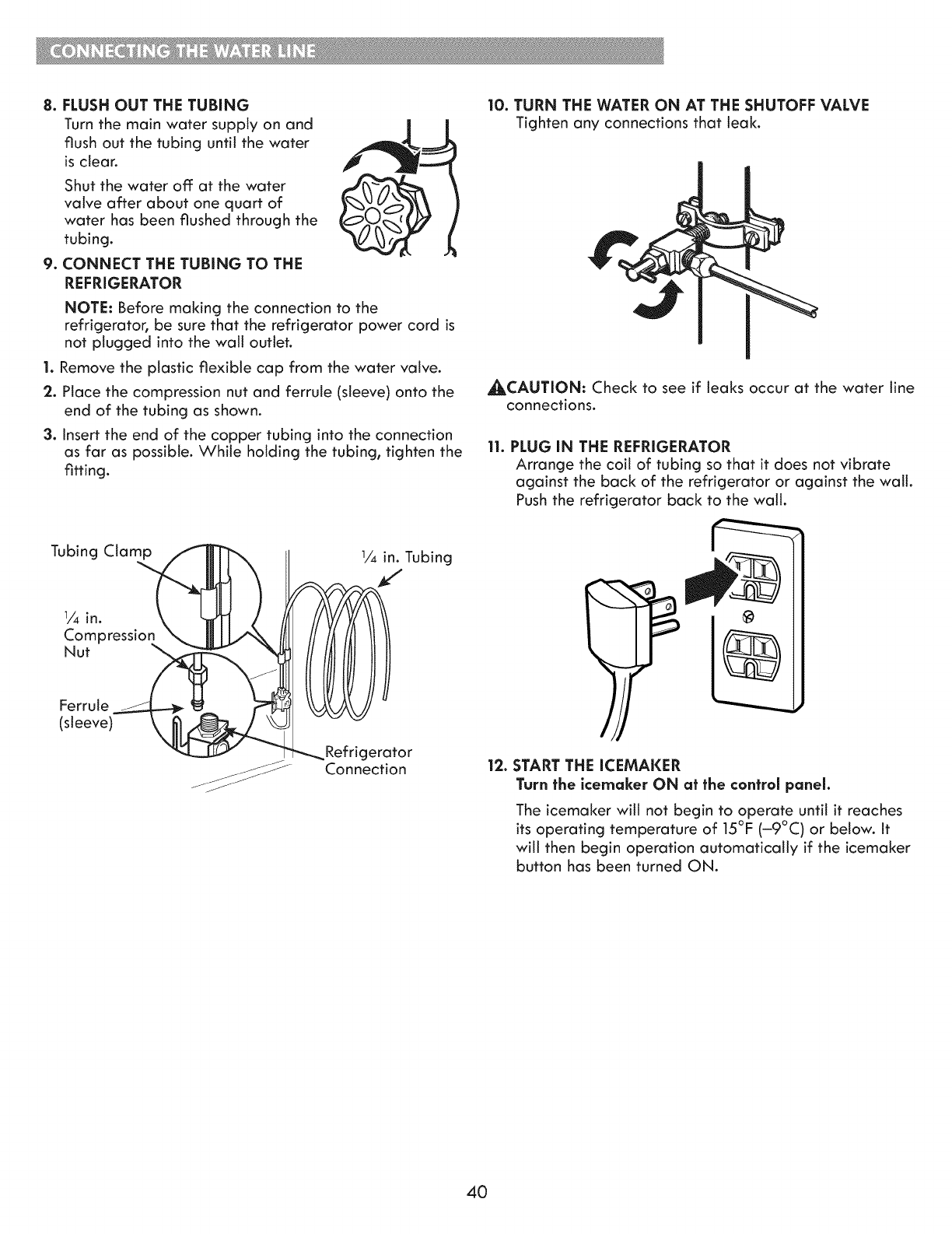

Connecting the Water Line ...................... 38-40

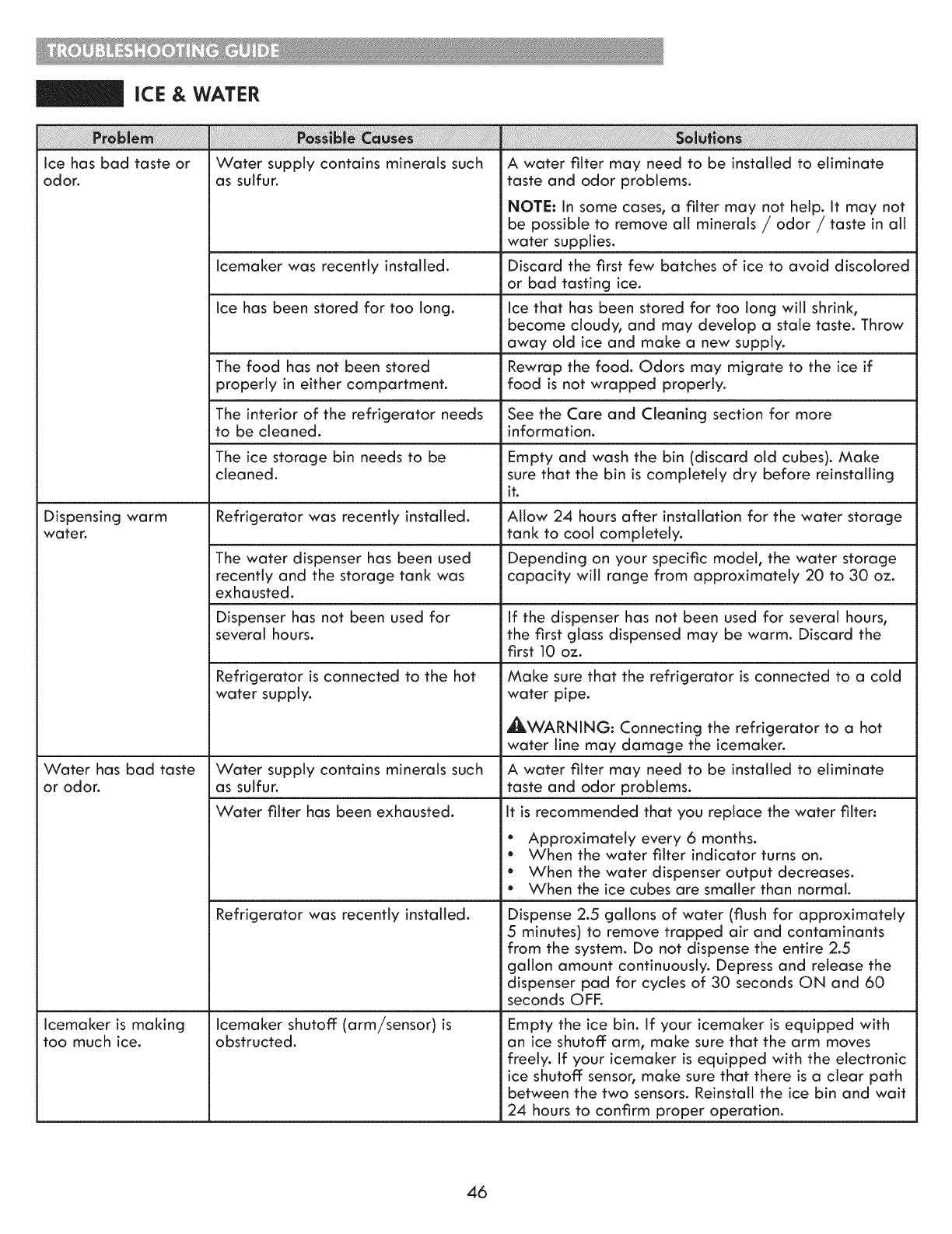

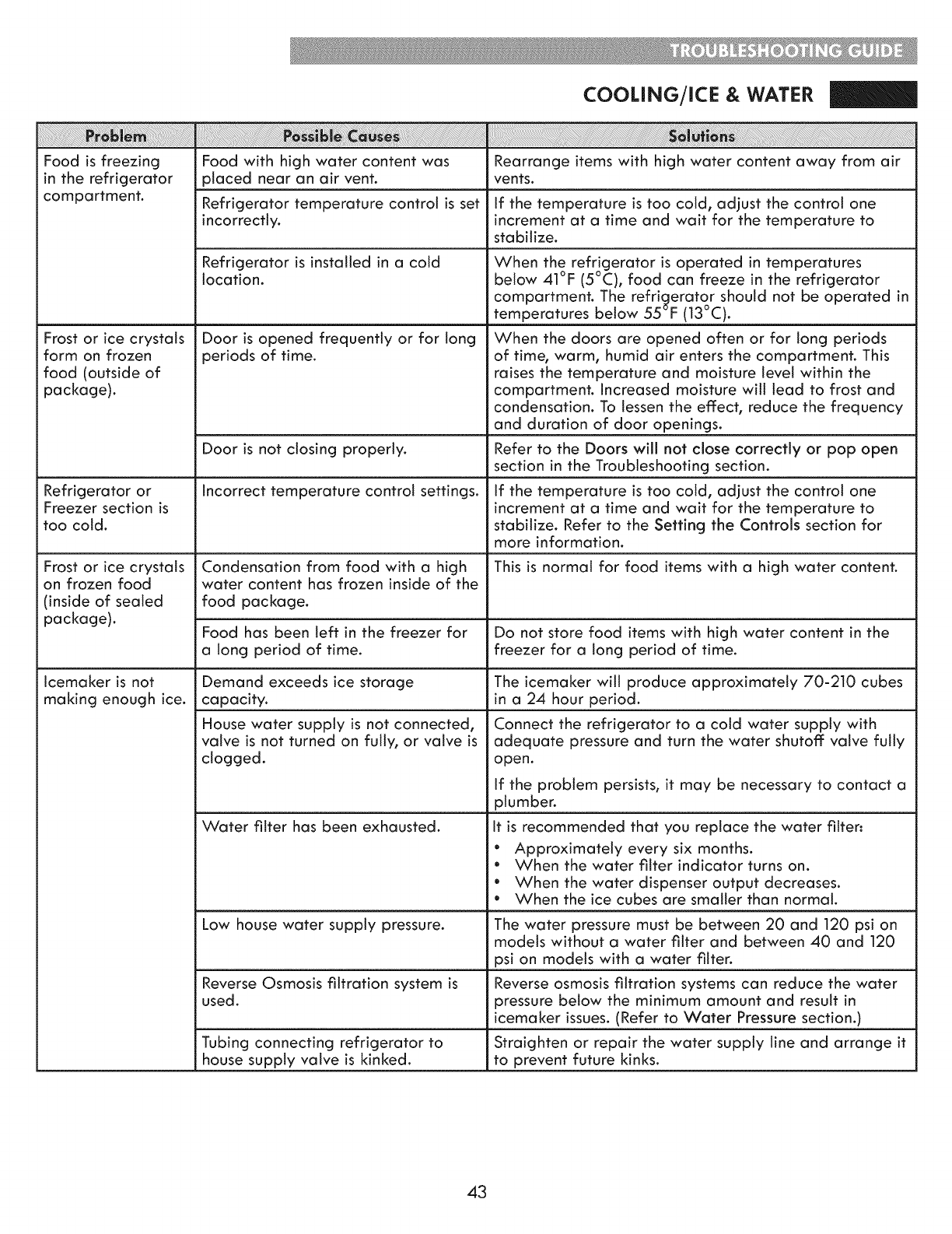

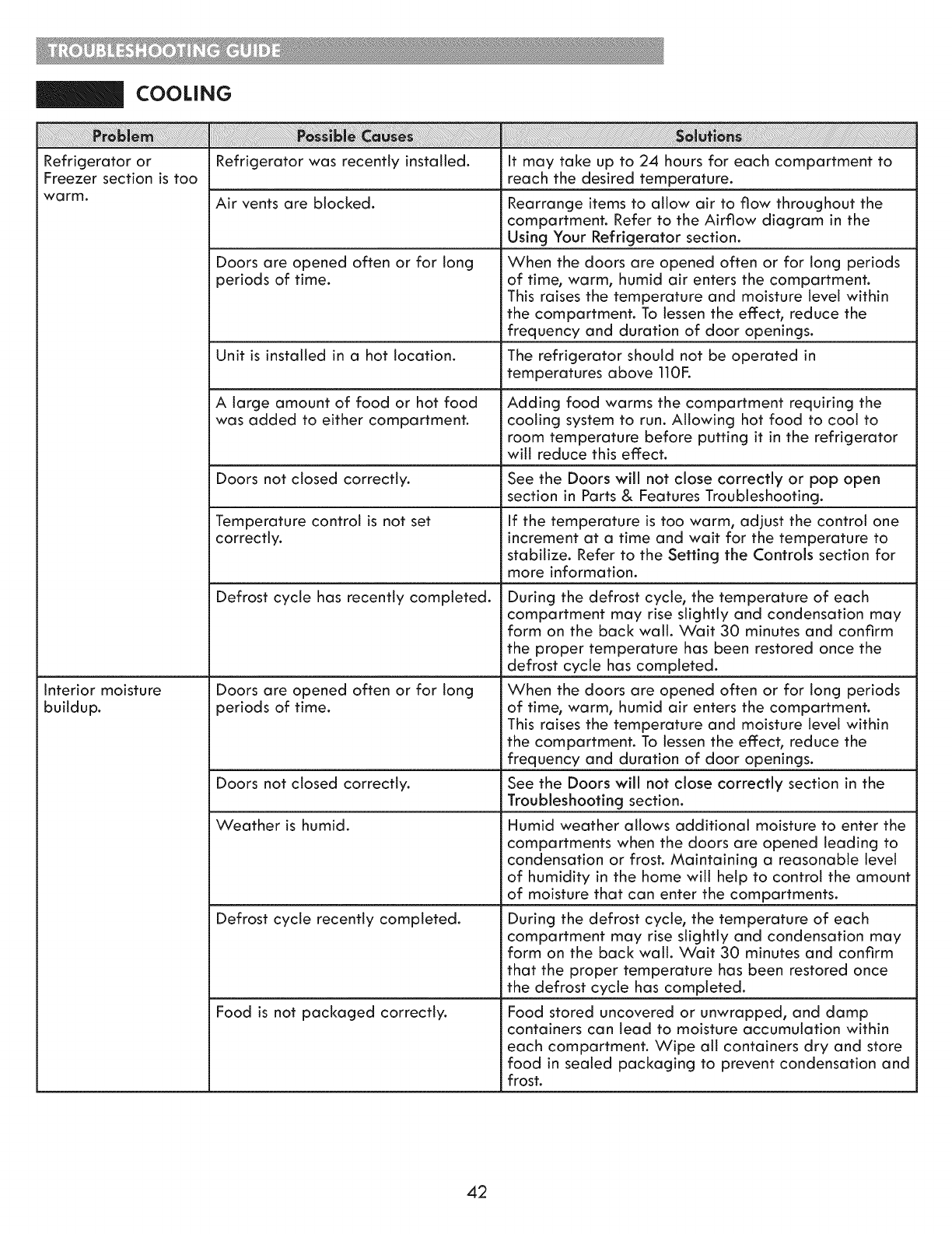

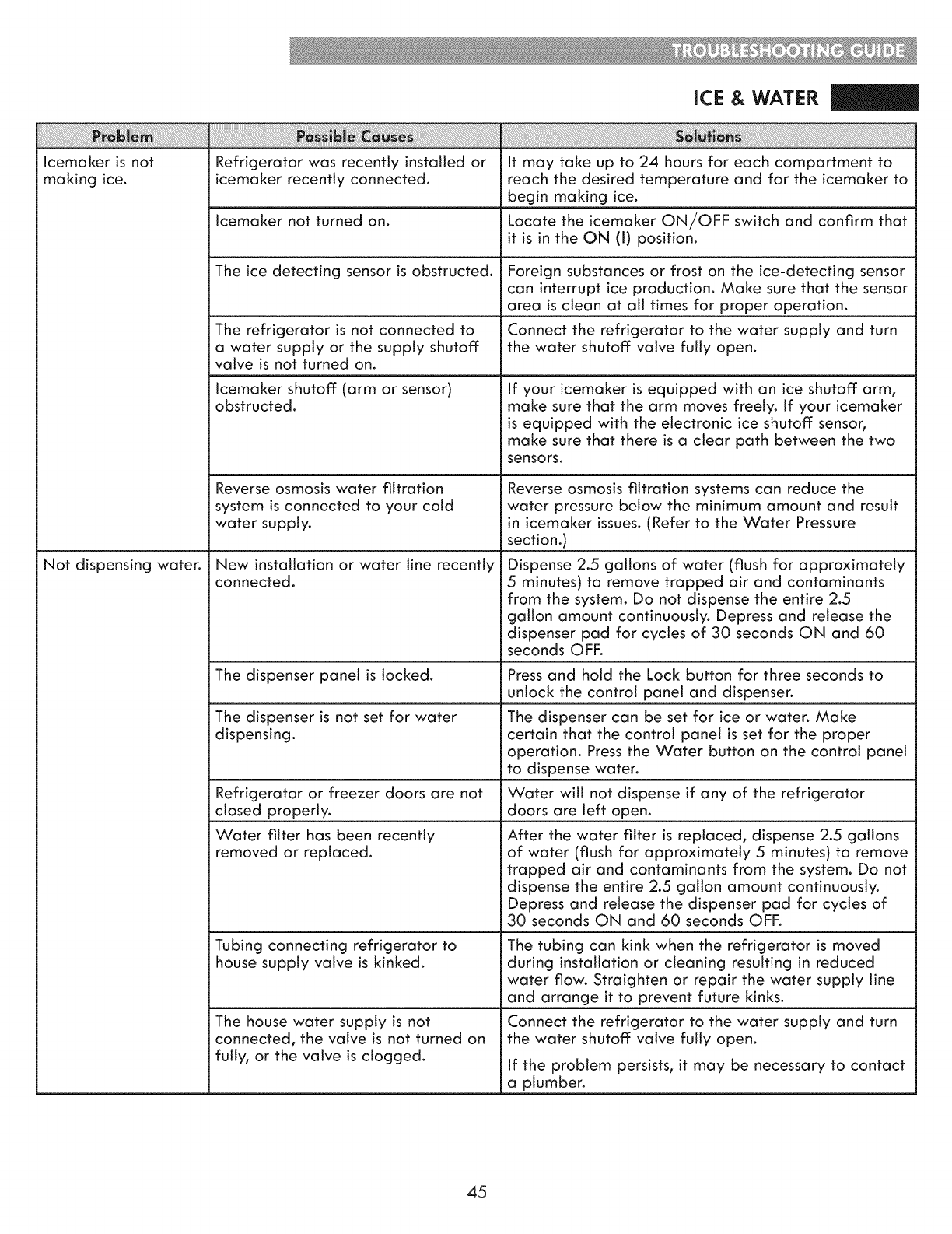

Troubleshooting Guide .............................. 41-48

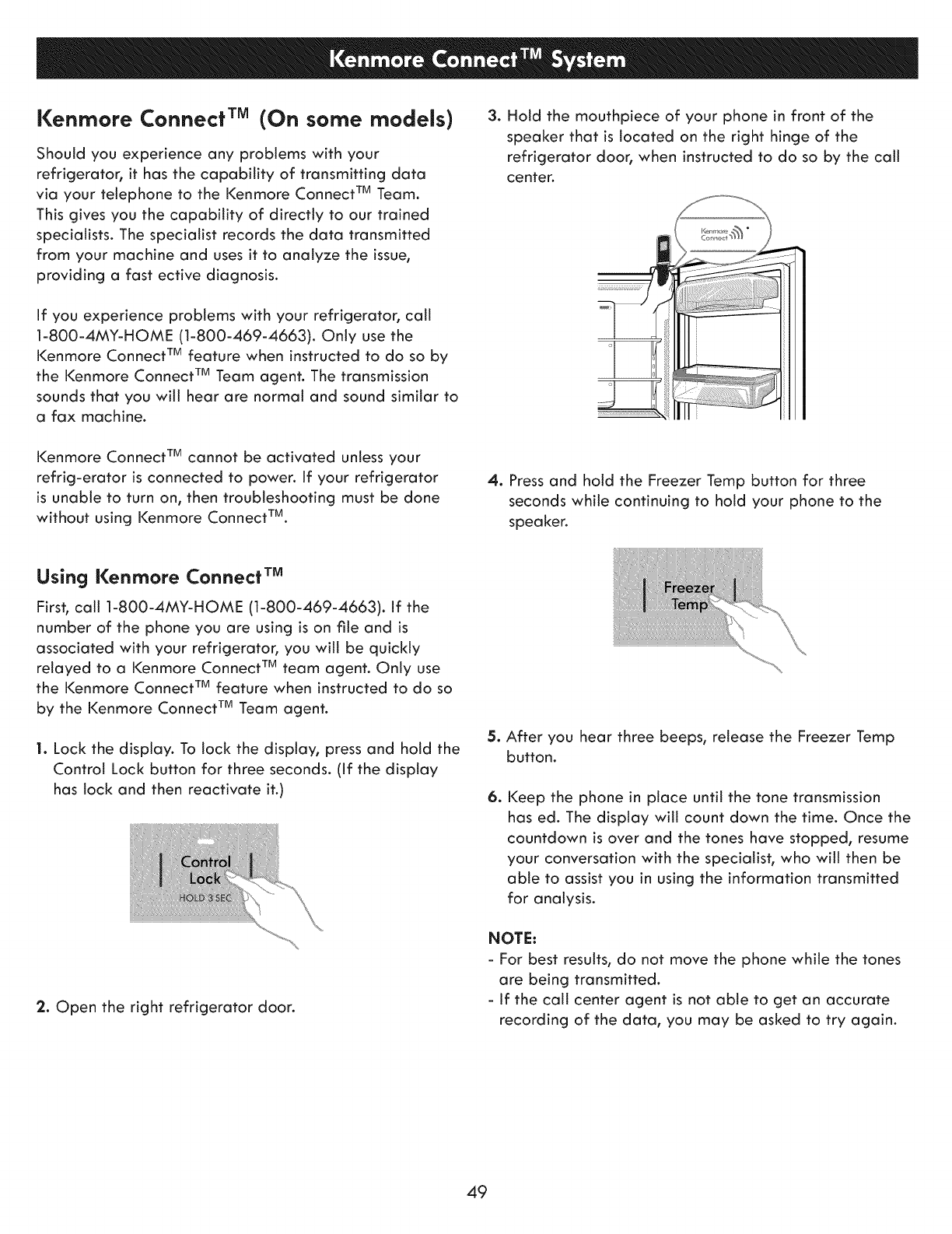

Kenmore Connect TM ................................. 49

Service ............................................... Back Cover

REFRIGERATOR WARRANTY

/' l(enmore Elite Limited Warranty

When this appliance is installed, operated and maintained according to all supplied instructions,the following

warranty coverage applies. To arrange for warranty service, call 1-800-4-MY-HOME® (1-800-469-4663).

• One Year Limited Warranty on Appllance

For one year from the date of purchase, free repair will be provided if any non-consumable part of this appliance

fails due to defects in material or workmanship. If the appliance is ever used for other than private family

purposes, this coverage applies for only 90 days from the purchase date, and is void in Canada.

•Five Year Limited Warranty on Sealed System

For five years from the date of purchase, the sealed refrigerant system of this appliance is warranted against any

defects in material or workmanship. New system components will be supplied for defective ones free of charge.

You are responsible for the labor cost of component installation after the first year from the date of purchase.

If the appliance is ever used for other than private family purposes, this coverage applies for only one year from

the purchase date.

• Ten Year Limited Warranty on Linear Compressor

For ten years from the date of purchase, the linear compressor of this appliance is warranted against any defects

in material or workmanship. A new linear compressor will be supplied free of charge. You are responsible for the

labor cost of installation after the first year from the date of purchase. If the appliance is ever used for other than

private household purposes, this coverage applies for only two years from the purchase date.

This warranty covers only defects in material and workmanship, and will NOT pay for:

1. Consumable parts that can wear out from normal use, including but not limited to filters, belts, light bulbs, and

bags.

2. A service technician to instruct the user in correct product installation, operation or maintenance.

3. A service technician to clean or maintain this product.

4. Damage to or failure of this product if it is not installed, operated or maintained according to all instructions

supplied with the product.

5. Damage to or failure of this product resulting from accident, abuse, misuse or use for other than its intended

purpose.

6. Damage to or failure of this product caused by the use of detergents, cleaners, chemicals or utensils other than

those recommended in all instructions supplied with the product.

Z Damage to or failure of parts or systems resulting from unauthorized modifications made to this product.

Disclaimer of implied warranties; limitation of remedies

Customer's sole and exclusive remedy under this limited warranty shall be product repair as provided herein. Implied

warranties, including warranties of merchantability or fitness for a particular purpose, are limited to one year or

the shortest period allowed by law. Sears shall not be liable for incidental or consequential damages. Some states

and provinces do not allow the exclusion or limitation of incidental or consequential damages, or limitation on the

duration of implied warranties of merchantability or fitness, so these exclusions or limitations may not apply to you.

This warranty applies only while this appliance is used in the United States or Canada*

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

* In Canada, in-home repair service is not available in all areas, nor will this warranty cover user or servicer travel

and transportation expenses if this product is located in a remote area (as defined by Sears Canada Inc.) where an

authorized servicer is not available.

Sears Brands Management Corporation, Haffman Estates, IL 60179

Sears Canada inc., Toronto, Ontario, Canada MSB 2C3

Master Protection Agreements

Congratulations on making a smart purchase. Your new

Kenmore Elite ® product is designed and manufactured

for years of dependable operation. But like all products,

it may require preventive maintenance or repair from

time to time. That's when having a Master Protection

Agreement can save you money and aggravation.

The Master Protection Agreement also helps extend

the life of your new product. Here's what the

Agreement* includes:

Parts and labor needed to hetp keep products

operating properly under normal use, not just defects.

Our coverage goes well beyond the productwarranty.

No deductibles, no functional failure excluded from

coverage-- real protection.

•Expert service by a force of more than 10,000

authorized Sears service technicians, which means

someone you can trust will be working on your product.

•Unllmifed service calls and nationwide service, as

often as you want us, whenever you want us.

•"No-lemon" guarantee - replacement of your covered

product if four or more product failures occur within

twelve months.

• Product replacement if your covered product can't be

fixed.

• Annual Preventive Maintenance Check at your request

-no extra charge.

* Fast help by phone -we call it Rapid Resolution

- phone support from a Sears representative on all

products. Think of us as a "talking owner's manual."

Power surge protectionagainst electrical damage due

to power fluctuations.

$250 Food Loss Protection annually for any food

spoilage that is the result of mechanical failure of any

covered refrigerator or freezer.

Rental reimbursement if repair of your covered

product takes longer than promised.

25% discount off the regular price of any non-covered

repair service and related installed parts.

Once you purchase the Agreement, a simple phone call

is all that it takes to schedule service. You can call at

any time day or night, or schedule aservice appointment

online.

The Master Protection Agreement is a risk free purchase.

If you cancel for any reason during the product warranty

period, we will provide a full refund or a prorated refund

anytime after the product warranty period expires.

Purchase your Master Protection Agreement today!

Some Jlmltafions and excJuslons apply.

For prices and addltlonal information in the

U.S.A. call 1-800-827-6655.

*Coverage in Canada varies on some items. For full

detalis call Sears Canada at 1=800=361=6665.

Sears Installatlon Service

For Sears professional installation of home appliances,

garage door openers, water heaters, and other major

home items, in the U.S.A. or Canada caff

1-800-4-MY-HOME ®.

In the space below, record the date of purchase, model and serial number of your product. You will find the model and

serial number printed on an identification label located on the interior liner of the refrigerator compartment. Have these

items of information available whenever you contact Sears concerning your product.

Model No.

Serial No.

Date of Purchase

Save these instructions and attach your sales receipt for future reference.

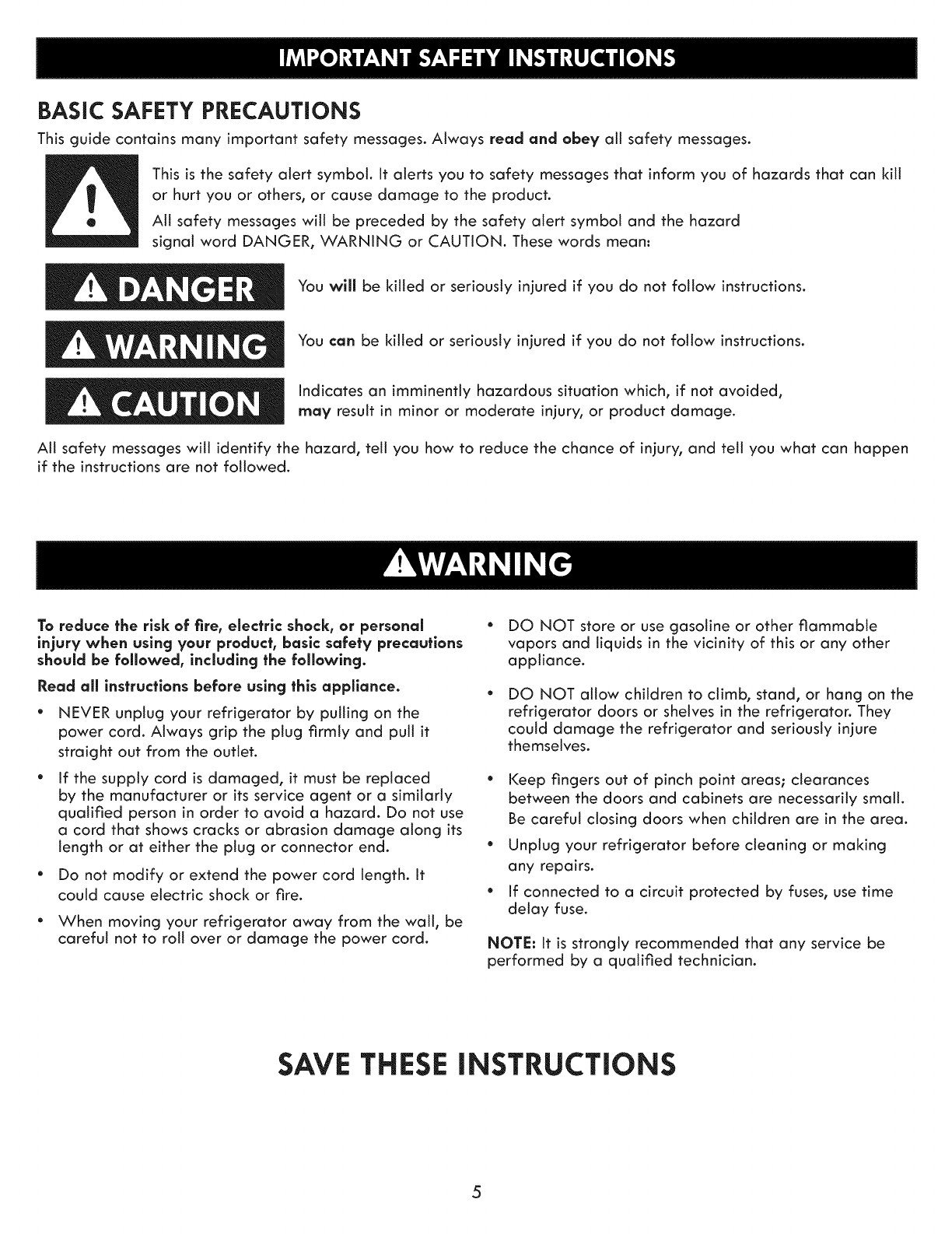

BASIC SAFETY PRECAUTIONS

This guide contains many important safety messages. Always read and obey all safety messages.

This is the safety alert symbol. It alerts you to safety messages that inform you of hazards that can kill

or hurt you or others, or cause damage to the product.

All safety messages will be preceded by the safety alert symbol and the hazard

signal word DANGER, WARNING or CAUTION. These words mean:

You wlll be killed or seriously injured if you do not follow instructions.

You can be killed or seriously injured if you do not follow instructions.

Indicates an imminently hazardous situation which, if not avoided,

may result in minor or moderate injury, or product damage.

All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell you what can happen

if the instructions are not followed.

To reduce the risk of fire, electric shock, or personal

injury when using your product, basic safety precautions

should be followed, incJudlncj the followincj.

Read all instructions before using this appllance.

*NEVER unplug your refrigerator by pulling on the

power cord. Always grip the plug firmly and putt it

straight out from the outtet.

If the supply cord is damaged, it must be replaced

by the manufacturer or its service agent or a similarly

qualified person in order to avoid a hazard. Do not use

a cord that shows cracks or abrasion damage along its

length or at either the plug or connector end.

*Do not modify or extend the power cord length, it

could cause electric shock or fire.

*When moving your refrigerator away from the wall, be

careful not to rotl over or damage the power cord.

*DO NOT store or use gasoline or other flammable

vapors and liquids in the vicinity of this or any other

appliance.

DO NOT allow children to climb, stand, or hang on the

refrigerator doors or shelves in the refrigerator. They

could damage the refrigerator and seriously injure

themselves.

*Keep fingers out of pinch point areas; clearances

between the doors and cabinets are necessarily small.

Be careful closing doors when children are in the area.

*Unplug your refrigerator before cleaning or making

any repairs.

*If connected to a circuit protected by fuses, use time

delay fuse.

NOTE: It is strongly recommended that any service be

performed by a qualified technician.

SAVE THESE iNSTRUCTiONS

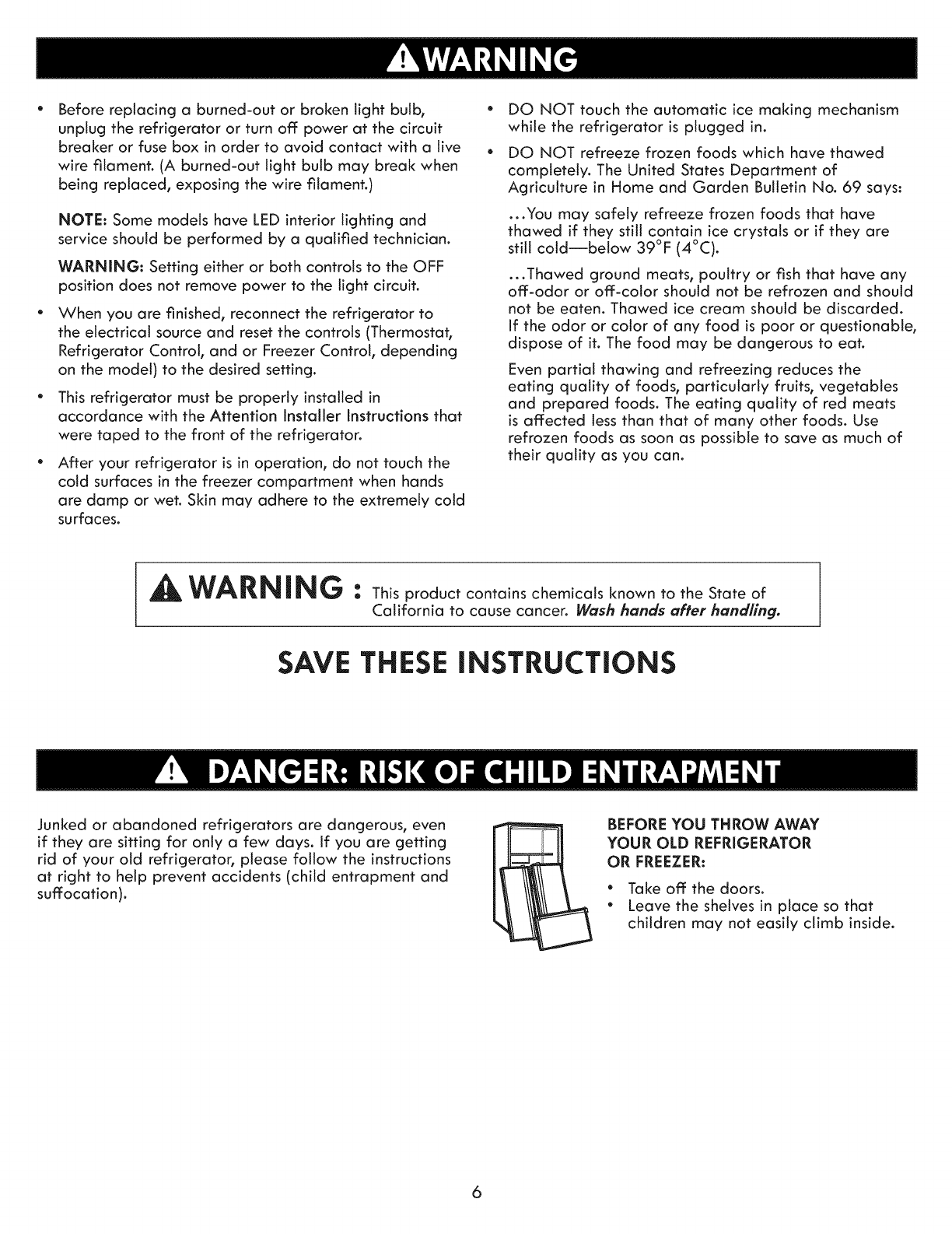

Before replacing a burned-out or broken light bulb,

unplug the refrigerator or turn off power at the circuit

breaker or fuse box in order to avoid contact with a live

wire filament. (A burned-out light bulb may break when

being replaced, exposing the wire filament.)

NOTE: Some models have LED interior lighting and

service should be performed by a qualified technician.

WARNING: Setting either or both controls to the OFF

position does not remove power to the light circuit.

When you are finished, reconnect the refrigerator to

the electrical source and reset the controls (Thermostat,

Refrigerator Control, and or Freezer Control, depending

on the model) to the desired setting.

This refrigerator must be properly installed in

accordance with the Attention Installer Instructions that

were taped to the front of the refrigerator.

After your refrigerator is in operation, do not touch the

cold surfaces in the freezer compartment when hands

are damp or wet. Skin may adhere to the extremely cold

surfaces.

DO NOT touch the automatic ice making mechanism

while the refrigerator is plugged in.

DO NOT refreeze frozen foods which have thawed

completely. The United States Department of

Agriculture in Home and Garden Bulletin No. 69 says:

...You may safely refreeze frozen foods that have

thawed if they still contain ice crystals or if they are

still cold--below 39°F (4°C).

...Thawed ground meats, poultry or fish that have any

off-odor or off-color should not be refrozen and should

not be eaten. Thawed ice cream should be discarded.

If the odor or color of any food is poor or questionable,

dispose of it. The food may be dangerous to eat.

Even partial thawing and refreezing reduces the

eating quality of foods, particularly fruits, vegetables

and prepared foods. The eating quality of red meats

is affected tess than that of many other foods. Use

refrozen foods as soon as possible to save as much of

their quality as you can.

'_ WARNING : This product contains chemicals known to the State of

California to cause cancer. Wash hands after handling.

SAVE THESE INSTRUCTIONS

Junked or abandoned refrigerators are dangerous, even

if they are sitting for only a few days. If you are getting

rid of your old refrigerator, please follow the instructions

at right to help prevent accidents (child entrapment and

suffocation).

BEFORE YOU THROW AWAY

YOUR OLD REFRIGERATOR

OR FREEZER:

•Take off the doors.

•Leave the shelves in place so that

children may not easily climb inside.

Your old refrigerator may have a cooling system

that used CFCs or HCFCs (chlorofluorocarbons or

hydrochtorofluorocarbons). CFCs and HCFCs are

believed to harm stratospheric ozone if released to the

atmosphere. Other refrigerants may also cause harm to

the environment if released to the atmosphere.

if you are throwing away your old refrigerator, make

sure the refrigerant is removed for proper disposal

by a qualified technician. If you intentionally release

refrigerant, you may be subject to fines and imprisonment

under provisions of environmental legislation.

iMPORTANT: Please read carefully.

TO CONNECT ELECTRiCiTY

Electrical Shock Hazard

FOR PERSONAL SAFETY, this appliance must be

properly grounded. Have the wall outlet and the circuit

checked by a qualified electrician to make sure the

outlet is properly grounded.

USE OF EXTENSION CORDS

Because of potentlal safety hazards under certain

conditions, the use of an extension card is not

recommended. However, if you still elect to use an

extension cord, it is absolutely necessary that it be a UL-

listed (USA), 3-wire grounding type appliance extension

cord having a grounding type ptug and outlet, and that

the electrical rating of the cord be 15 amperes (minimum)

and 120 volts.

Use of an extension cord witl increase the clearance

needed for the back of the refrigerator.

3-prong

grounding type

walt receptacle

3-prong

grounding

plug

RECOMMENDED GROUNDING METHOD

The refrigerator should always be plugged into its own

individual properly grounded electrical outlet rated for

115 Volts, 60 Hz, AC only, and fused at 15 or 20 amperes.

This provides the best performance and also prevents

overloading house wiring circuits which could cause a fire

hazard from overheated wires. It is recommended that a

separate circuit serving only this appliance be provided.

Use a receptacle that cannot be turned off: with a switch

or putt chain. Do not use an extension cord.

Where a standard two-prong wall outlet is encountered,

it is your personal responsibility and obligation to have

it replaced with a properly grounded three-prong walt

outlet.

Use this page to become more familiar with the parts and features of your refrigerator.

NOTE: This guide covers several different models. The refrigerator you have purchased may have some or all of the items

listed below. The locations of the features shown below may not match your model.

O Refrigerator Light

Fixed Door Bins

Ice Compartment

(Icemaker and Ice Bin)

Articulating Mullion

O Refrigerator Light (side)

Water Tank Cover

O Water Filter

O Humidity Controlled Crisper

O Durabase

O Control Panel

O Kenmore Connect TM Speaker

Air Filter

Adjustable Dairy Bin

Refrigerator Shelves

Adjustable Door Bins

Air Tight Crisper

Convenience Bin

Durabase Divider

CustomChill TMControls

Top Pullout Drawer

Middle Pullout Drawer

Ice Bin

Ice Compartment

Door

Excessive Weight Hazard:

Use two or more people to move and install the

refrigerator. Failure to do so can result in back or

other injury.

UNPACKING YOUR REFRIGERATOR

Remove tape and any temporary labels from your

refrigerator before using. Do not remove any warning-

type labels, the model and serial number label, or

the Tech Sheet that is located under the front of the

refrigerator.

To remove any remaining tape or glue, rub the area

briskly with your thumb. Tape or gtue residue can also be

easily removed by rubbing a small amount of liquid dish

soap over the adhesive with your fingers. Wipe with warm

water and dry.

Do not use sharp instruments, rubbing alcohol, flammable

fluids, or abrasive cleaners to remove tape or glue. These

products can damage the surface of your refrigerator.

Refrigerator shelves are installed in the shipping position.

Please reinstall shelves according to your individual

storage needs.

Excessive Weight Hazard:

Your refrigerator is heavy. When moving the

refrigerator for cleaning or service, be sure to protect

the floor. Always pull the refrigerator straight out when

moving it. Do not wiggle or walk the refrigerator when

trying to move it, as floor damage could occur.

Explosion Hazard:

Keep flammable materials and vapors, such as

gasoline, away from the refrigerator. Failure to do so

can result in fire, explosion, or death.

PRIOR TO USE

1. Clean your refrigerator thoroughly and wipe off all

dust that accumulated during shipping.

2. Install accessories such as the ice cube bin, drawers,

shelves, etc., in their proper places. They are packed

together to prevent possible damage during shipment.

3. Allow your refrigerator to run for at least two to three

hours before putting food in it. Check the flow of

cold air in the freezer compartment to ensure proper

cooling. Your refrigerator is now ready for use.

iNSTALLATiON

The refrigerator should always be plugged into its own

individual properly grounded electrical outlet rated for

115 Volts, 60 Hz, AC only, and fused at 15 or 20 amperes.

This provides the best performance and also prevents

overloading house wiring circuits which could cause a fire

hazard from overheated wires. It is recommended that a

separate circuit serving only this appliance be provided.

Shock Hazard:

To reduce the risk of electric shock, do not instalt the

refrigerator in a wet or damp area.

iNSTALLATiON (continued)

lo To avoid noise and vibration, the unit must be leveled

and installed on a solidly constructed floor. If required,

adjust the leveling legs to compensate for unevenness

of the floor. The front shoutd be slightly higher than

the rear to aid in door closing. Leveling legs can be

turned easily by tipping the cabinet slightly. Turn the

leveling legs to the left to raise the unit or to the right to

lower it. (See LEVELING AND DOOR ALIGNMENT.)

NOTE: installing on carpeting, soft tile surfaces,

a platform or weakly supported structure is not

recommended.

install this appliance in an area where the temperature

is between 55°F (13°C) and 110°F (43°C). If the

temperature around the appliance is too low or high,

cooling ability may be adversely affected.

Select a place where a water supply can be easily

connected for the automatic Jcemaken

NOTE: The water pressure must be between 20 and

120 psi on models without a water filter and between

40 and 120 psi on models with a water filter.

Too small of a distance from adjacent items may

result in lowered freezing capability and increased

electricity consumption charges. Allow at least 24

inches (61 cm) in front of the refrigerator to open the

doors and at least 2 inches (5.08 cm) between the

back of the refrigerator and the wall.

r----

2" (5.08 cm) -_

J__

NOTE: Removing the doors is always recommended when it is necessary to move the refrigerator through a narrow

opening, if it is necessary to remove the handles, follow the directions below.

HOW TO REMOVE REFRIGERATOR

DOOR HANDLES

NOTE: Handle appearance may vary from the

illustrations on this page.

Removing Refrigerator Handles

Loosen the set screws with a3/32 in. Alien

wrench and remove the handle.

Set Screw

Mounting

Fasteners

NOTE: if the handle mounting fasteners need

to be tightened or removed, use a 1/4 in. Allen

wrench.

Allen

Wrench

HOW TO REPLACE REFRIGERATOR

DOOR HANDLES

NOTE: Handle appearance may vary from the

illustrations on this page.

Replaclng Refrigerator Door Handles

Place the handle on the door by @ring

the handle footprints over the mounting

fasteners and tightening the set screws

with a 3/32 in Alien wrench.

NOTE: If the handle mounting fasteners

need to be tightened or removed, use a

1/4in. Allen wrench.

Mounting

Fasteners

NOTE: Removing the doors is always recommended when it is necessary to move the refrigerator through a narrow

opening, if it is necessary to remove the handles, follow the directions below.

HOW TO REMOVE FREEZER DOOR HANDLES

NOTE: Handle appearance may vary from the illustrations

on this page.

Removing Freezer Drawer Handles

Loosen the set screws located on the lower side of

the handle with a 1/8in. Alien wrench and remove the

handle.

NOTE: If the handle mounting fasteners need to be

tightened or removed, use a 1/4 in. Alien wrench.

HOW TO REPLACE FREEZER DOOR HANDLES

NOTE: Handle appearance may vary from the illustrations

on this page.

Replacing Freezer Drawer Bandies

Place the handle on the door by fitting the handle

footprints over the mounting fasteners and tightening the

set screws with a 1/8 in. Alien wrench.

NOTE: If the handle mounting fasteners need to be

tightened or removed, use a 1/4 in. Alien wrench.

When assembling or disassembling the handles:

•Grasp the handle firmly to ensure it will not drop or

cause injury.

•Prevent the handle from swinging toward nearby

people or animals.

•insert the bracket hole of the handle into the stopper

bolt of the door exactly, then assemble the set screws

to fix the handle in place.

•Check for any gap between the door and handle after

the handle is fixed in place.

REMOVING AND REPLACING

REFRIGERATOR DOORS

Excessive Weight Hazard:

Use two or more people to remove and install the

refrigerator doors. Failure to do so can result in back or

other injury.

Electrical Shock Hazard

Disconnect the electrical supply to the refrigerator

before installing. Failure to do so could result in

serious injury or death.

Do not put hands, feet or other objects into the air

vents or bottom of the refrigerator. You may be

injured or receive an electrical shock.

To remove the left refrigerator door:

On the back of the refrigerator, pull the water tube out of

the cotlet fitting on the connector by pressing the fitting

release ring (see picture below).

_, CAUTION: Before you begin, remove food and bins

from the doors.

(2)

(3)\

(8)

1. Open the door. Remove the top hinge cover screw (1).

Lift up the cover (2).

2. Remove the cover.

3. Pull out the tube (3).

4. Disconnect all wire harnesses (4).

5. Remove the grounding screw (5).

6. Rotate hinge lever (6) counterclockwise. Lift the top

hinge (7) free of the hinge lever latch (8).

CAUTION: When lifting the hinge free of the latch,

be careful that the door does not fall forward.

7. Lift the door from the middle hinge pin and remove the

door.

8. Place the door, inside facing up, on a non-scratching

surface.

To remove the right refrigerator door:

)S/_ 3) /(4)

1. Open the door. Remove the top hinge cover screw (1).

Lift up the cover (2).

2. Remove the cover.

3. Rotate the hinge lever (3) clockwise. Lift the top hinge

(4) free of the hinge lever latch (5).

CAUTION: When lifting the hinge free of the latch, be

careful that the door does not fall forward.

4. Lift the door from the middle hinge pin and remove

the door.

5. Place the door, inside facing up, on a non-scratching

surface.

Reinstalllng the Refrigerator Door

Left Door

1. Lower the door onto the middle hinge pin (10).

2. Fit the top hinge (7) over the hinge lever latch (8) and

into place. Rotate the lever (6) clockwise to secure the

hinge.

3. Install the grounding screw (5) and connect the two

wire harnesses (4).

4. Push the water tube (3) located at the top of the left

door into the hole beside the left hinge on the top of

the cabinet until it exits through the back.

5. Insert the water supply tube (3) into the connector until

you see only one scale mark. Fully insert the tube over

5/8 in. (15 mm).

6. Hook the tabs on the left side of the hinge cover (1)

under the edge of the top hinge (7) and position the

cover in place. Insert and tighten the cover screw (1).

(2)

(3).

(8)

Right Door

1. Lower the door onto the middle hinge pin (9).

2. Fit the top hinge (4) over the hinge lever latch (5) and

into place. Rotate the lever (3) counterclockwise to

secure the hinge.

3. Hook the tabs on the right side of the hinge cover (2)

under the edge of the top hinge (4) and position the

cover in place. Insert and tighten the cover screw (1).

<_ (2)

(lO) I

_ (9)

ACAUTION

Cotlet

Tube --

Scale Mark

Clip --

After inserting, pull the tube to

make sure that it is secure and

reinsert the clip.

HOW TO REMOVE THE CUSTOMCHILL TM

DRAWER

HOW TO iNSTALL THE CUSTOMCHILL TM

DRAWER

1. Pull the drawer open to full extension. Remove the

basket by lifting the basket from the rail system.

NOTE :Before removing the CustomChill TM drawer,

it must be disconnected from the

temperature control.

2. Disconnect the wire harness connection at the end of

the right rail by pressing on the tabs on either side.

It may help to use a small, fiat-blade screwdriver to

apply pressure to the ends of the tabs on either side.

1. Grasp the door on each side and lower it into place

on the rail system.

2. Reconnect the wire harness to the connection at the

end of the right rail by aligning the two ends and

pushing them together until you hear a click. The tabs

should snap back into place. Tug gently to make sure

the connection is secure.

NOTE :If you do not reconnect the wire harness

securely, the CustomChill TM drawer will not

work properly.

3. Hold both sides of the door and lift it to remove it

from the rail system.

3. Pull the drawer open to full extension. Lower the

basket onto the rail system.

HOW TO REMOVE THE FREEZER DRAWER

WARNING:

*Use two or more people to remove and install the freezer

drawer. Failure to do so can result in back or other injury.

"Do not sit or stand on the freezer drawer.

"To prevent accidental entrapment or suffocation, keep

children and pets away from the drawer. Do not leave the

drawer open.

_i_ CAUTION:

•Do not hold the handle when removing or replacing the

drawer. The handle may come off, causing personal injury.

•Be careful of sharp hinges on both sides of the drawer.

•When you lay the drawer down, be careful not to damage

the floor.

Remove the middle drawer by pulling the drawer out to

full extension. Lift the front of the drawer up, then pull it

straight out.

Remove the Durabase by opening the freezer drawer

to full extension and lifting the basket off of the rail

assembly.

Pull the freezer drawer open to full extension.

Remove the top pullout drawer by first pulling the

drawer open to full extension.

.Remove the screws from the rails at both ends.

6. With both hands, grip both sides of the drawer and pull

it up to remove it from the rails.

_I_ CAUTION: Do not hold the handle when removing or

replacing the drawer. The handle may come off, causing

personal injury.

Z Hold both rails and push them in simultaneously.

On the left rail, use a fiat blade screwdriver to push in

on the tab to release the drawer from the rail, as shown

below. Once the left side is loose, push the tab on the

right side with your finger to release the drawer. Lift the

front of the drawer up, then pull it straight out.

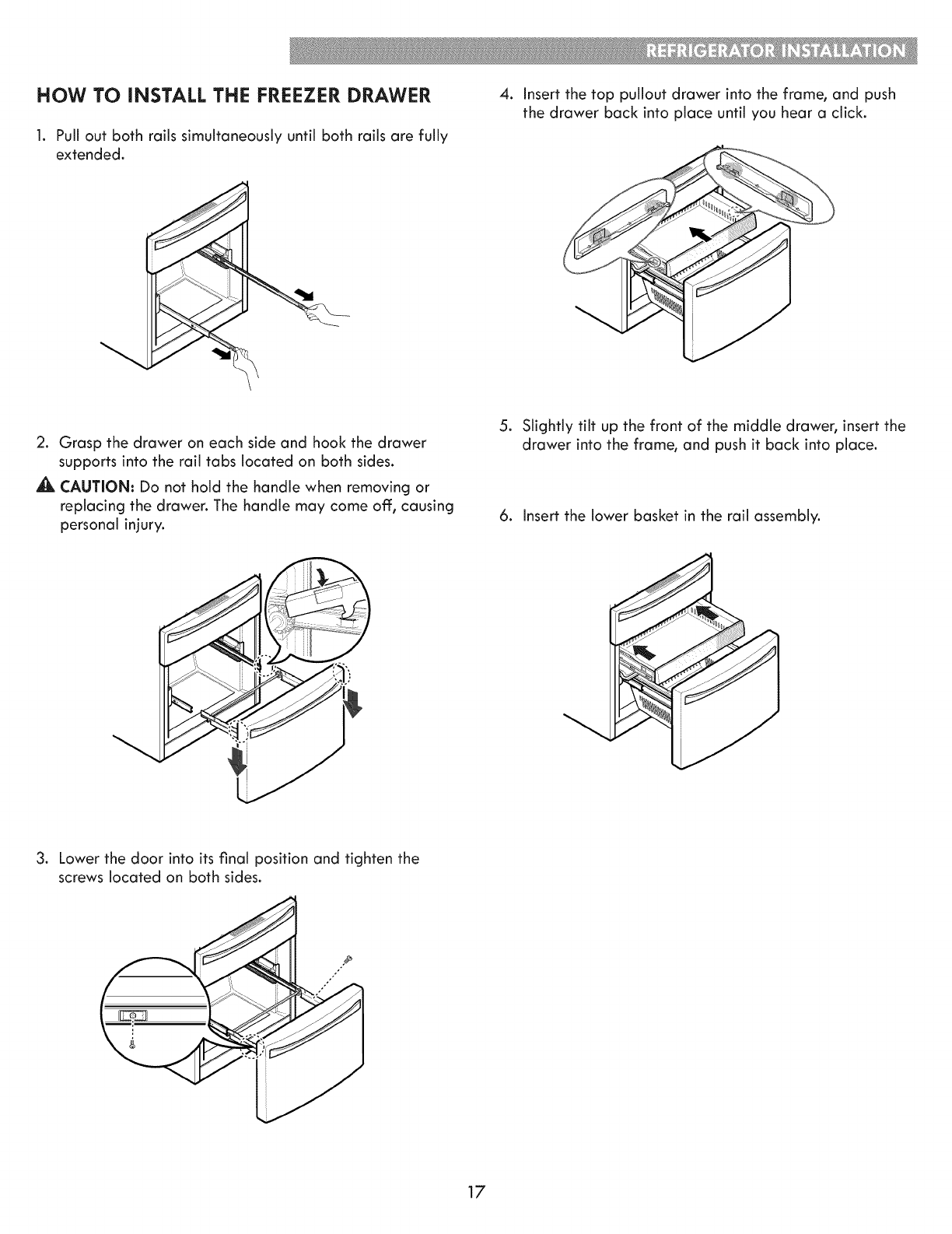

HOW TO iNSTALL THE FREEZER DRAWER

1. Pull out both rails simultaneously until both rails are fully

extended.

.Insert the top pullout drawer into the frame, and push

the drawer back into place until you hear a click.

2. Grasp the drawer on each side and hook the drawer

supports into the rail tabs located on both sides.

CAUTION: Do not hold the handle when removing or

replacing the drawer. The handle may come off, causing

personal injury.

.Slightly tilt up the front of the middle drawer, insert the

drawer into the frame, and push it back into place.

6. Insert the lower basket in the rail assembly.

3. Lower the door into its final position and tighten the

screws located on both sides.

°oo°°

LEVELING AND DOOR ALIGNMENT

Leveling

After installing, plug the refrigerator's power cord into a

3-prong grounded outlet and push the refrigerator into the

final position.

Your refrigerator has two front leveling legs--one on the

right and one on the left. Adjust the legs to alter the tilt

from front-to-back or side-to-side. If your refrigerator

seems unsteady, or you want the doors to close more

easily, adjust the refrigerator's tilt using the instructions

below:

NOTE: Tools Required: 11/16" wrench or fiat blade

screwd river.

1. Turn the leveling leg to the left to raise that side of

the refrigerator or to the right to lower it. It may take

several turns of the leveling leg to adjust the tilt of the

refrigerator.

oOpen both doors again and check to make sure that

they close easily. If the doors do not close easily, tilt

the refrigerator slightly more to the rear by turning

both leveling legs to the left. It may take several more

turns, and you should turn both leveling legs the same

amount.

NOTE: Your refrigerator is uniquely designed with

two fresh food doors. Either door can be opened or

closed independently of the other. You may have to

exert slight pressure on the doors to get them to close

completely.

Door Ailgnment

Both the left and right refrigerator doors have an

adjustable nut, located on the bottom hinge, to raise and

lower them to align properly.

If the space between your doors is uneven, follow the

instructions below to align the doors evenly:

Use the wrench (included with the Use & Care Guide) to

turn the nut in the door hinge to adjust the height. To the

right to raise or to the left to lower the height.

NOTE: Having someone push backward against the top of

the refrigerator takes some weight off of the leveling legs.

This makes it easier to adjust the legs.

Place a level on top of the cabinet to check if the

refrigerator is level from side to side.

SETTING THE CONTROLS

Temperature

The Refrigerator Temp Control ranges from 33°F to

46°F (I°C to 8°C). Press the Refrigerator Temp button

to cycle through the available temperature settings one

increment at a time.

The Freezer Temp Control range is from =6°F to 8°F

(-21°C to -13°C). Press the Freezer Temp button to cycle

through the available temperature settings one increment

at a time.

NOTE: When changing control settings, wait 24 hours

before making additional adjustments. The controls are set

correctly when milk or juice is as cold as you would like

and when ice cream is firm. If the temperature in either

compartment is too cold or too warm, change the setting

one increment at a time. Wait 24 hours for the change to

stabilize before adjusting again.

Airflow

Be sure not to block vents while packing your refrigerator.

Doing so will restrict airflow and may cause the

refrigerator temperature to become too warm or cause

interior moisture buildup. (See air flow diagram below.)

Dispenser

When you press the water icon (1), the icon will

illuminate.

When you press the cubed ice icon (2), the icon will

illuminate.

When you press the crushed ice icon (3), the icon will

illuminate.

Some dripping may occur after dispensing. Hold your

cup beneath the dispenser for a few seconds after

dispensing to catch all of the drops.

NOTE: The dispenser will not work if any door is left open

or if the control lock is engaged.

NOTE: If the lock icon is illuminated, you can not control

the dispenser type. Please check the control lock ON/OFF

mode on the control panel.

_lL CAUTION: The control display is operated by touch.

Excessive moisture on the display may cause a

malfunction. Please keep the display clean and dry.

Air Filter

The Air Filter helps remove odors from the

refrigerator. The Air Filter has two settings, Auto and

MAX. In Auto mode, the Air Filter will cycle on and off

in increments of ten minutes on and one hundred and

ten minutes of. if set to the MAX mode, the Air Filter

will stay on continuously for four hours, cycling on and

off: in increments of ten minutes on and five minutes

off:. After four hours, the Air Filter will switch to Auto

mode.

*Auto mode is the default mode.

*Press the Air Filter button once for MAX mode.

Air Filter Reset

When the CHANGE icon turns on, the air filter needs

to be replaced. After replacing the air filter, press and

hold the Air Filter button for three seconds to turn the

icon light off:. It is recommended to change the air

filter approximately every 6months.

Ultra Ice

When you press and hold the Ultra Ice button, the

Ultra Ice graphic will illuminate in the display and will

continue for 24 hours. The function will automatically

shut off: after 24 hours.

You can stop this function manually by pressing the

button one more time.

This function increases both ice making and freezing

capabilities.

Accent Light/Light Sensor

This light has three settings: On, Off: and Auto. If

the light is set to the Auto mode, the Accent Light

will automatically turn on and off: according to the

brightness of the room, as detected by the light

sensor.

Articulating Mullion

This feature is a metal strip attached to the left door

that articulates (rotates) 90 degrees as the door is

closed, forming a mullion (base) for the left and right

door gaskets to seal against.

CAUTION

To reduce the risk of scratching the door or breaking the

door mullion, please make sure that the refrigerator door

mullion is always folded in.

Water Filter Reset

When the water filter indicator turns on, you need

to change the water filter. After changing the water

filter, press and hold the Water Filter button for

three seconds to turn the indicator light off:. You need

to change the water filter approximately every six

months.

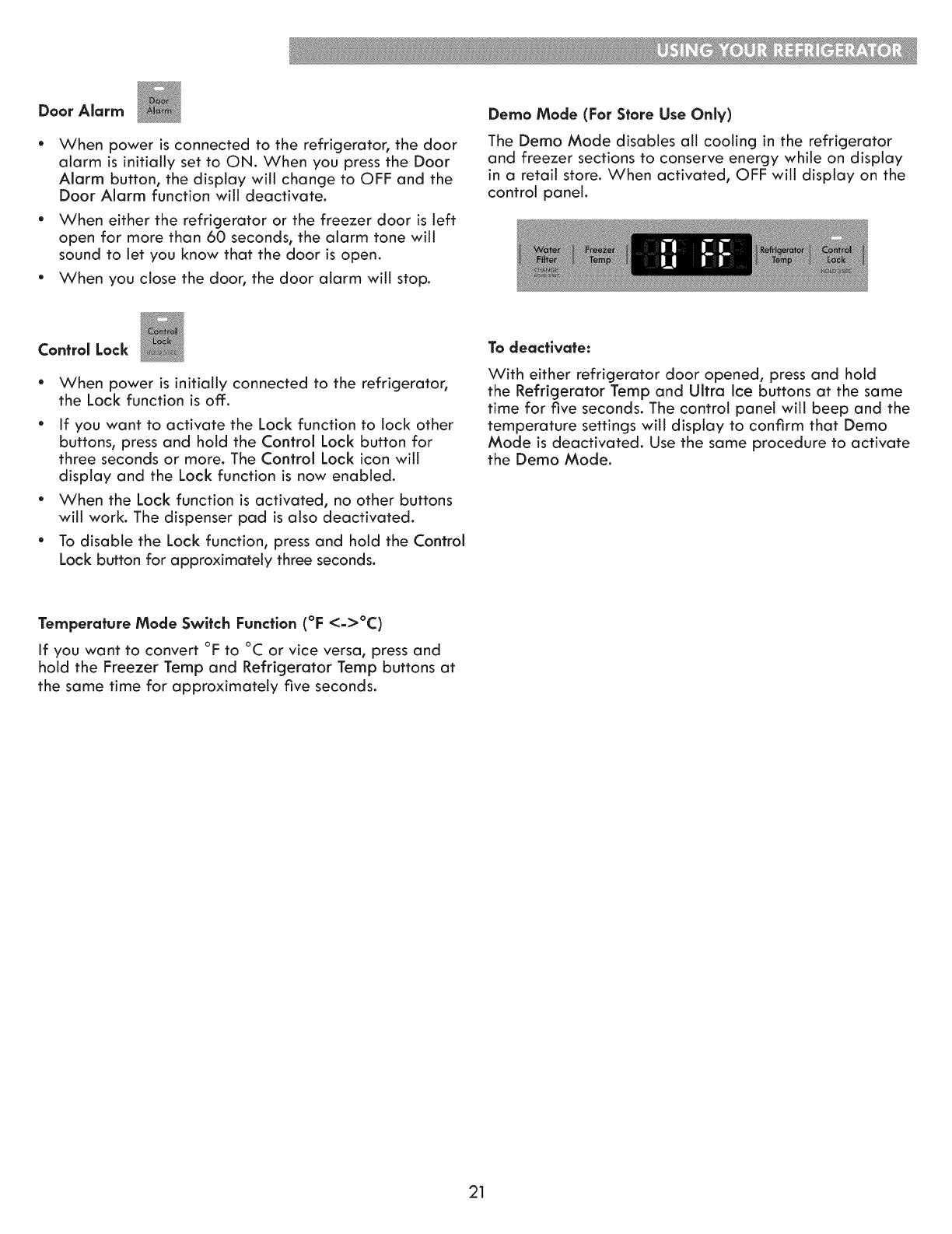

Door Alarm

When power is connected to the refrigerator, the door

alarm is initially set to ON. When you press the Door

Alarm button, the display will change to OFF and the

Door Alarm function will deactivate.

When either the refrigerator or the freezer door is left

open for more than 60 seconds, the alarm tone will

sound to let you know that the door is open.

When you close the door, the door alarm will stop.

Demo Mode (For Store Use Only)

The Demo Mode disables all cooling in the refrigerator

and freezer sections to conserve energy while on display

in a retail store. When activated, OFF will display on the

control panel.

Control Lock

When power is initially connected to the refrigerator,

the Lock function is off.

if you want to activate the Lock function to lock other

buttons, press and hold the Control Lock button for

three seconds or more. The Control Lock icon will

display and the Lock function is now enabled.

*When the Lock function is activated, no other buttons

will work. The dispenser pad is also deactivated.

*To disable the Lock function, press and hold the Control

Lock button for approximately three seconds.

To deactivate:

With either refrigerator door opened, press and hold

the Refrigerator Temp and Ultra Ice buttons at the same

time for five seconds. The control panet will beep and the

temperature settings will display to confirm that Demo

Mode is deactivated. Use the same procedure to activate

the Demo Mode.

Temperature Mode Switch Function (°F <->°C)

if you want to convert °F to °C or vice versa, press and

hold the Freezer Temp and Refrigerator Temp buttons at

the same time for approximately five seconds.

IN=DOOR ICE BIN

A, CAUTION

Keep hands and tools out of the ice compartment door

and dispenser chute. Failure to do so may result in

damage or personal injury.

The icemaker will stop producing ice when the in-door ice

bin is full. If you need more ice, empty the ice bin into the

extra ice bin in the freezer compartment. During use, the

ice can become uneven causing the icemaker to misread

the amount of ice cubes and stop producing ice. Shaking

the ice bin to level the ice within it can reduce this problem.

NOTE: Storing cans or other items in the ice bin will

damage the icemaker.

Keep the ice compartment door closed tightly. If the ice

compartment door is not closed tightly, the cold air in the

ice bin will freeze food in the refrigerator compartment.

This could also cause the icemaker to stop producing ice.

NOTE: Emptying the ice bin is recommended if the

icemaker ON/OFF button on the Ice maker is set to OFF

for an extended period of time.

2. To remove the in=door ice bin, grip the front handle,

slightly lift the lower part, and slowly pull out the bin

as shown.

3. To reinstall the in=door ice bin, slightly slant the

bin during replacement to avoid contact with the

icema ker.

,A CAUTION

When handling the

ice bin, keep hands

away from the

1. Pull or push the door handle to open or close the ice

compartment.

4. Avoid touching the ice-detecting sensor when

replacing the ice bin. See the label on the ice

compartment door for details.

_ Ice-detecting ;_I

AUTOMATIC ICEMAKER

Ice is made in the automatic icemaker and sent to the

dispenser. The icemaker will produce 70-210 cubes in

a 24-hour period, depending on freezer compartment

temperature, room temperature, number of door openings

and other operating conditions.

It takes about 12 to 24 hours for a newly installed

refrigerator to begin making ice. Wait 72 hours for full

ice production to occur.

Ice making stops when the in-door ice bin is full. When

full, the in-door ice bin holds approximately 6to 8 (12-

16 oz) glasses of ice.

To turn off the automatic icemaker, set the icemaker

switch to OFF (O). To turn on the automatic icemaker,

set the switch to ON (I).

The water pressure must be between 20 and

120 psi on models without a water filter and between

40 and 120 psi on models with a water filter to

produce the normal amount and size of

ice cubes.

Foreign substances or frost on the ice-detecting sensor

can interrupt ice production. Make sure the sensor area

is clean at all times for proper operation.

Personal Injury Hazard

DO NOT place fingers or hands on the automatic

ice making mechanism while the refrigerator is

plugged in.

Icemaker

Power Switch

Ice-detecting Sensor

AUTOMATIC ICEMAKER (continued)

ACAUTION

The first ice and water dispensed may include particles

or odor from the water supply line or the water tank.

Throw away the first few batches of ice. This is also

necessary if the refrigerator has not been used for a

long time.

Never store beverage cans or other items in the ice

bin for the purpose of rapid cooling. Doing so may

damage the icemaker or the containers may burst.

If discolored ice is dispensed, check the water filter

and water supply. If the problem continues, contact a

Sears or other qualified service center. Do not use the

ice or water until the problem is corrected.

Keep children away from the dispenser. Children may

play with or damage the controls.

The ice passage may become blocked with frost if only

crushed ice is used. Remove the frost that accumulates

by removing the ice bin and clearing the passage with

a rubber spatula. Dispensing cubed ice can also help

prevent frost buildup.

Never use thin crystal glass or crockery to collect ice.

Such containers may chip or break resulting in glass

fragments in the ice.

Dispense ice into a glass before filling it with water

or other beverages. Splashing may occur if ice is

dispensed into a glass that already contains liquid.

Never use a glass that is exceptionally narrow or

deep. Ice may jam in the ice passage and refrigerator

performance may be affected.

Keep the glass at a proper distance from the ice outlet.

A glass held too close to the outlet may prevent ice

from dispensing.

To avoid personal injury, keep hands out of the ice

door and passage.

Never remove the dispenser cover.

If ice or water dispenses unexpectedly, turn off: the

water supply and contact Sears Home Service at

1-800-4-MY HOME ®.

WHEN YOU SHOULD SET THE ICEMAKER

POWER SWITCH TO OFF (O)

*When the water supply will be shut off for several

hours.

*When the ice bin is removed for more than one or two

minutes.

When the refrigerator will not be used for several days.

NOTE: The ice bin should be emptied when the

icemaker ON/OFF switch is turned to the OFF position.

NORMAL SOUNDS YOU MAY HEAR

The icemaker water valve will buzz as the icemaker fills

with water. If the power switch is in the ON (I) position,

it will buzz even if it has not yet been hooked up to

water. To stop the buzzing, move the power switch to

OFF (O).

NOTE: Keeping the power switch in the ON (I) position

before the water line is connected can damage the

icemaker.

You will hear the sound of cubes dropping into the bin

and water running in the pipes as the icemaker refills.

PREPARING FOR VACATION

Set the icemaker power switch to OFF (O) and shut off

the water supply to the refrigerator.

NOTE: The ice bin should be emptied anytime the

icemaker ON/OFF switch is turned to the OFF (O)

position.

If the ambient temperature will drop below freezing, have

a qualified technician drain the water supply system to

prevent serious property damage due to flooding caused

by ruptured water lines or connections.

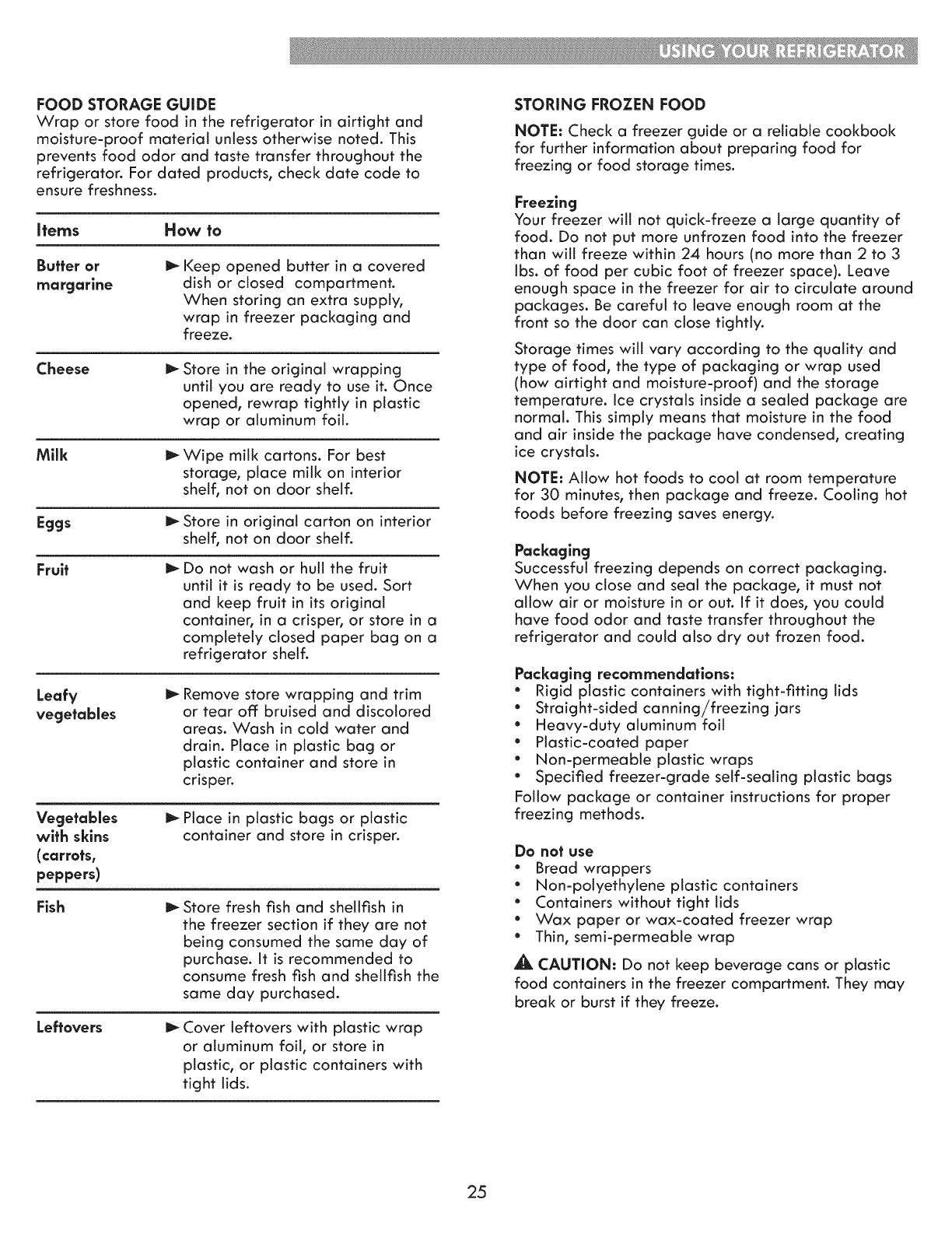

FOOD STORAGE GUIDE

Wrap or store food in the refrigerator in airtight and

moisture-proof material unless otherwise noted. This

prevents food odor and taste transfer throughout the

refrigerator. For dated products, check date code to

ensure freshness.

items How to

Butter or

margarine

Keep opened butter in a covered

dish or closed compartment.

When storing an extra supply,

wrap in freezer packaging and

freeze.

Cheese

Milk

Store in the original wrapping

until you are ready to use it. Once

opened, rewrap tightly in plastic

wrap or aluminum foil.

Wipe milk cartons. For best

storage, place milk on interior

shelf, not on door shelf.

Eggs ll_ Store in original carton on interior

shelf, not on door shelf.

Fruit _ Do not wash or hull the fruit

until it is ready to be used. Sort

and keep fruit in its original

container, in a crisper, or store in a

completely closed paper bag on a

refrigerator shelf.

Leafy

vegetables

Remove store wrapping and trim

or tear off: bruised and discolored

areas. Wash in cold water and

drain. Place in plastic bag or

plastic container and store in

crisper.

Vegetables

with skins

(carrots,

peppers)

Place in plastic bags or plastic

container and store in crispen

Fish Store fresh fish and shellfish in

the freezer section if they are not

being consumed the same day of

purchase. It is recommended to

consume fresh fish and shellfish the

same day purchased.

Leftovers Cover leftovers with plastic wrap

or aluminum foil, or store in

plastic, or plastic containers with

tight lids.

STORING FROZEN FOOD

NOTE: Check a freezer guide or a reliable cookbook

for further information about preparing food for

freezing or food storage times.

Freezing

Your freezer will not quick-freeze a targe quantity of

food. Do not put more unfrozen food into the freezer

than will freeze within 24 hours (no more than 2 to 3

lbs. of food per cubic foot of freezer space). Leave

enough space in the freezer for air to circulate around

packages. Be careful to leave enough room at the

front so the door can close tightly.

Storage times will vary according to the quality and

type of food, the type of packaging or wrap used

(how airtight and moisture-proof) and the storage

temperature. Ice crystals inside a sealed package are

normal. This simply means that moisture in the food

and air inside the package have condensed, creating

ice crystals.

NOTE: Allow hot foods to cool at room temperature

for 30 minutes, then package and freeze. Cooling hot

foods before freezing saves energy.

Packaging

Successful freezing depends on correct packaging.

When you close and seat the package, it must not

allow air or moisture in or out. If it does, you could

have food odor and taste transfer throughout the

refrigerator and could also dry out frozen food.

Packaging recommendations:

*Rigid plastic containers with tight-fitting lids

*Straight-sided canning/freezing jars

*Heavy-duty aluminum foil

*Plastic-coated paper

*Non-permeable plastic wraps

*Specified freezer-grade self-sealing plastic bags

Follow package or container instructions for proper

freezing methods.

Do nat use

*Bread wrappers

*Non-polyethylene plastic containers

*Containers without tight lids

*Wax paper or wax-coated freezer wrap

*Thin, semi-permeable wrap

CAUTION: Do not keep beverage cans or plastic

food containers in the freezer compartment. They may

break or burst if they freeze.

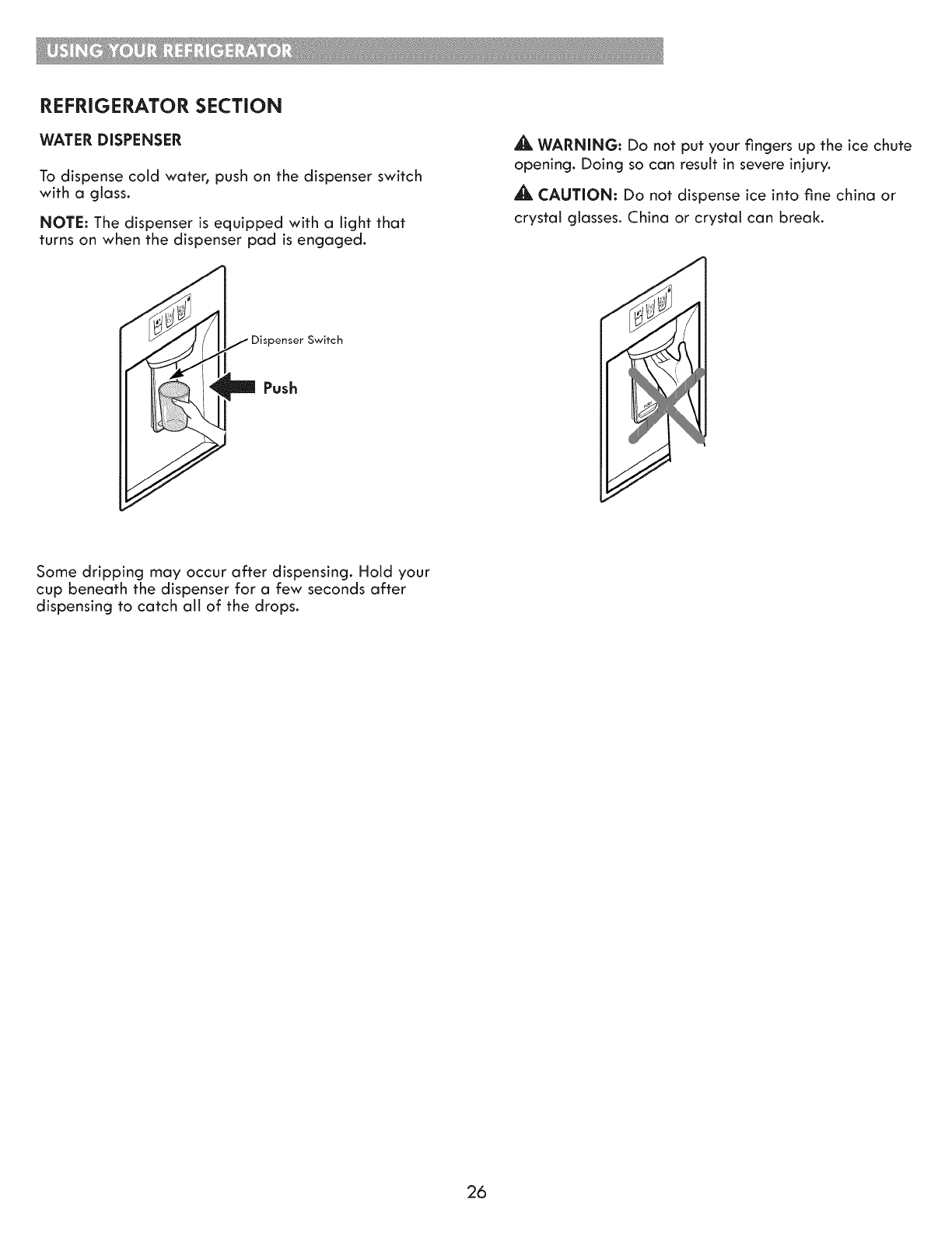

REFRIGERATOR SECTION

WATER DISPENSER

To dispense cold water, push on the dispenser switch

with a glass.

NOTE: The dispenser is equipped with a light that

turns on when the dispenser pad is engaged.

WARNING: Do not put your fingers up the ice chute

opening. Doing so can result in severe injury.

A_, CAUTION" Do not dispense ice into fine china or

crystal glasses. China or crystal can break.

Dispenser Switch

Push

Some dripping may occur after dispensing. Hold your

cup beneath the dispenser for a few seconds after

dispensing to catch all of the drops.

REFRIGERATOR SHELVES

The shelves in your refrigerator are adjustable to meet

your individual storage needs. Your model may have glass

or wire shelves.

Adjusting the shelves to fit items of different heights will

make flnding the exact item you want easier. Doing so will

also reduce the amount of time the refrigerator door is

open which will save energy.

IMPORTANT: Do not clean glass shelves with warm water

while they are cold. Shelves may break if exposed to

sudden temperature changes or impact.

_, CAUTION: Glass shelves are heavy. Use special care

when removing them.

Adjusting Shelves (Cantilever)

Remove shelves from the shipping position and replace

shelves in the position you want.

To remove a shelf--Tilt up the front of the shelf C)

and lift the shelf from beneath (_. Putt the shelf out.

To relnstall a shelf--Tilt the front of the shelf up and

guide the shelf hooks into the slots at a desired height.

Then, lower the front of the shelf so that the hooks

drop into the slots.

_t, CAUTION: Make sure that shelves are level from one

side to the other. Failure to do so may result in the shelf

falling or spilling food.

Foldlng Shelf (on some models)

You can store taller items, such as a gallon container

or bottles, by simply pushing the front half of the shelf

underneath the back half of the shelf. Putt the front of the

shelf toward you to return to a full shelf.

HUMiDiTY CONTROLLED CRISPER

The crispers provide fresher tasting fruit and vegetables by

letting you easily controt humidity inside the drawer.

You can control the amount of humidity in the moisture-

sealed crispers by adjusting the control to any setting

between VEGETABLES and FRUIT.

* VEGETABLES keeps moist air in the crisper for best

storage of fresh, leafy vegetables.

"FRUIT lets moist air out of the crisper for best storage

of fruit.

To remove the glass

1. Lift up the glass under the crisper cover.

2. Putt the glass up and out.

NOTE: Pantry drawer not shown for clarity.

CONVENIENCE BiN

Open and close by pulling the handle of the lid.

REMOVING THE HUMIDITY CONTROLLED CRISPER

1. To remove, pull the drawer out to full extension.

2. Lift the front of the crisper up, then pull it straight out.

iiii

3. To install, slightly tilt up the front, insert the drawer

into the frame and push it back into place.

REMOVING THE CONVENIENCE BIN LID

1. Open the lid about half way C_.

2. Lift the lid up and putt out C)"

................)

DOOR BIN

The door bins are removable for easy cleaning and

adjustment.

1. To remove the bin, simply lift the bin up and putt

straight out.

2. To replace the bin, slide it in above the desired support

and push down until it snaps into place.

REPLACING THE AiR FILTER

it is recommended that you replace the air filter:

•Approximately every six months.

•When the CHANGE AIR FILTER

light turns on.

1. Remove the Old Filter

Turn the filter cover to the left to detach it from the

refrigerator wall. The filter is located on the inside of

the filter cover. Remove the filter from the cover and

replace it with a new filter.

NOTE: Some bins may vary in appearance and will

only fit in one location.

2. Install aNew Air Filter.

Place the new filter inside of the cover with the side

that says "Front" facing outward. Turn the filter cover to

the right to attach it to the refrigerator wall.

After changing the filter, push and hold the Air Filter

button for three seconds to reset the filter sensor.

NOTE: To purchase a replacement air filter, visit a Sears

store or call 1-800-4-MY-HOME ®. Also, you may order on-

line at www.sears.com/partsdirect

FREEZER SECTION

CUSTOMCHILL TM DRAWER

PULLOUT DRAWERS

Top Drawer

I. To remove, putt the drawer out to full extension. On

the left rail, use a fiat blade screwdriver to push in on

the tab to release the drawer from the rail, as shown

below. Once the left side is loose, push the tab on the

right side with your finger to release the drawen Lift

the front of the drawer up, then putt it straight out.

The CustomChill TM Drawer provides storage space with

a variable temperature control that can be adjusted to

keep the compartment either colder or warmer than the

refrigerator.

Control Panel

2o To replace, slightly tilt up the front of the drawer, insert

the drawer into the frame, and push the drawer back

into place until you hear a click.

Setting the Temperature I,_LockI

Press the Select/Lock button repeatedly to toggle through

the four temperature settings.

Store meat and seafood at 29°F/-1°C, cold drinks at

33°F/1°C, deli snacks at 37°F/3°C, or chilled wine at

42°F/5°C.

Lock

Control Lock

The controls can also be locked to prevent the

temperature from accidentally being changed or

tampered with by children. To lock the controls, press and

hold the Select/Lock button for three seconds until the

Lock icon lights up. To unlock the controls, press and hold

the Select/Lock button until the Lock icon light turns off.

Middle Drawer

1. To remove, putt the drawer out to full extension. Lift the

front of the drawer up, then putt it straight out.

DURABASE

1. To remove the Durabase, push it to the back as much

as possible. Tilt up the front of the Durabase and putt

straight out.

2. To replace, insert the Durabase in the rail assembly.

2. To replace, slightly tilt up the front of the drawer,

insert the drawer into the frame, and push it back into

place. DURABASE DiViDER

The Durabase divider allows you to organize the

Durabase area into sections. It can be adjusted from side

to side to accommodate items of different sizes.

WARNING: If the Durabase divider is removed, there

is enough open space for children or pets to crawt

inside.To prevent accidental child and pet entrapment

or suffocation risk, DO NOT allow children or pets to

touch or go near the drawer.

WATER FILTER

NOTE :This refrigerator does not require a filter bypass

plug when the filter is not in place.

It is recommended that you replace the water filter:

* Approximately every six months.

* When the water filter indicator turns on.

* When the water dispenser output decreases.

* When the ice cubes are smaller than normal.

1. Remove the old water filter.

Lift up and remove the lower door bin. Swing

the right end of the water filter out of the

compartment and then grasp and rotate the filter

counterclockwise to remove it from the filter head.

2. Replace with anew water filter.

Insert the new filter into the filter head and rotate it

clockwise until the arrow on the new filter lines up with

the arrow on the filter head. Swing the filter back into

the compartment.

*Assemble the door bin.

NOTE: Replacing the water filter could cause a

small amount of water to drain. Place a cup

under the filter head to catch any water.

3. After the water filter is replaced, dispense 2.5

gallons of water (flush for approximately 5minutes)

to remove trapped air and contaminants from

the system. Do not dispense the entire 2.5 gallon

amount continuously. Depress and release the

dispenser pad for cycles of 30 seconds ON and 60

seconds OFF.

4. Press and hold the Water Filter button for 3 seconds

to reset the indicator.

,_ CAUTION: Operating the refrigerator with a water

filter is recommended. However, no bypass filter plug

is necessary if there is no water filter installed.

NOTE: To purchase a replacement water filter, visit a

Sears store or call 1-800-4-MY-HOME ®. Also, you may

order on-line at www.sears.com/partsdJrect.

Performance Data Sheet

The concentration of the indicated substances in water entering the system was reduced to a concentration less than or

equal to the permissible limit for water leaving the system as specified in NSF/ANSI Standard 42 and Standard .53.

System tested and certified by NSF International against NSF/ANSI Standard 42 and Standard 53 for the

reduction of substances listed below.

Average Max Permissible NSF Reduction NSF Test

Contaminant Reduction Average NSF specified Challenge Avg %Product Water Product Water

Infiuent Concentration Reduction Concentration Concentration Requirements Report

Chlorine Taste and Odor 2.0 mg/L 2.0 mg/L _+10% 97.5% 0.05 mg/L N/A _>50% J-00049247

Nominal Particulate Class I,, 5,600,000 At least 10,000 particles/mL 99.3% 73,000 pts/ml N/A _>85% J-00049282

_>0.5to < 1.0 JJm pts/mL

107 to 108 MFL; fibers greater

Asbestos 170 MFL >99% < 1MFL N/A _>99% J-0004928

than 10 tJm in length

Atrazine 0.0087 mg/L 0.009 mg/L _+10% 94.2% 0.0005 mg/L 0.003 mg/L N/A J-00049293

Benzene 0.017 mg/L 0.015 mg/L _+10% 97.0% < 0.0005 mg/L 0.005 mg/L N/A J-00049300

Carbofuran 0.073 mg/L 0.08 mg/L _+ 10% 98.8% 0.001 mg/L 0.04 mg/L N/A J-00049294

Lindane 0.002 mg/L 0.002 mg/L _+10% 98.8% 0.00002 mg/L 0.0002 mg/L N/A J-00051975

P-Dichlorobenzene 0.263 mg/L 0.225 mg/L _+ 10% 99.6% 0.001 mg/L 0.075 mg/L N/A J-00049298

Toxaphene 0.015 mg/L 0.015 mg/L _+10% 93.5% 0.001 mg/L 0.003 mg/L N/A J-00049302

2,4-D 0.25 mg/L 0.210 mg/L _+10% 99.5% 0.0012 mg/L 0.07 mg/L N/A J-00049284

Lead pH @6.5 0.150 mg/L 0.15 mg/L _+ 10% >99.3% 0.001 mg/L 0.010 mg/L N/A J-00051974

Lead pH @8.5 0.150 mg/L 0.15 mg/L _+ 10% >99.3% 0.001 mg/L 0.010 mg/L N/A J-00049277

Mercury @ pH 6.5 0.006 mg/L 0.006 mg/L _+10% 96.5 0.0002 mg/L 0.002 mg/L N/A J-00053886

Mercury @ pH 8.5 0.0062 mg/L 0.006 mg/L _+10% 86.9 0.0081 mg/L 0.002 mg/L N/A J-00051972

Cyst _: 200,000 cysts/L Minimum 50,000 cysts/L >99.99% <1 cyst/L N/A _>99.95% J-00049281

Based on the use of Cryptosporidium parvum oocysts

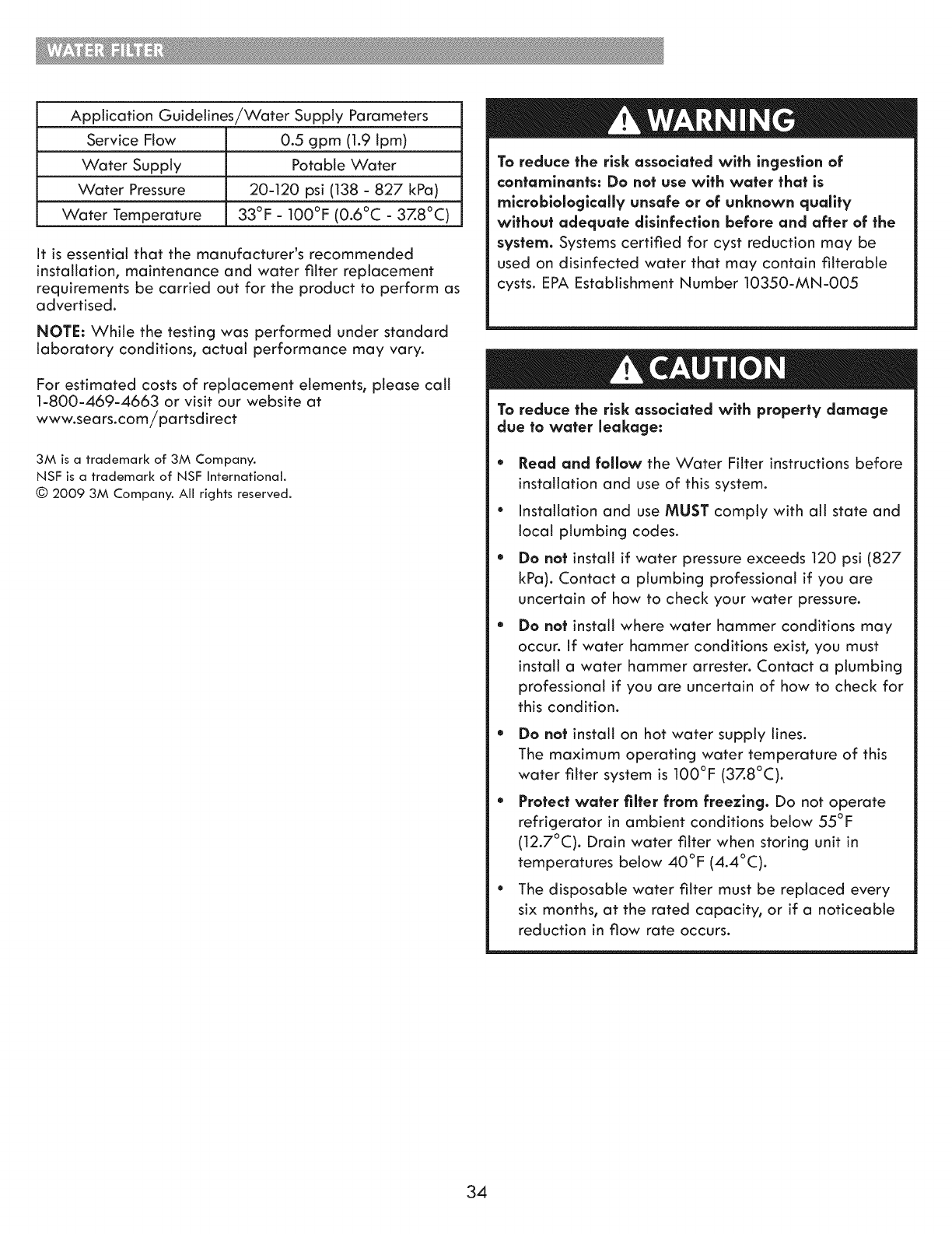

Application Guidelines/Water Supply Parameters

Service Flow 0.5 gpm (1.9 lpm)

Water Supply Potable Water

Water Pressure 20-120 psi (138 - 827 kPa)

Water Temperature 33°F - 100°F (0.6°C - 3Z8°C)

it is essential that the manufacturer's recommended

installation, maintenance and water filter replacement

requirements be carried out for the product to perform as

advertised.

NOTE: While the testing was performed under standard

laboratory conditions, actual performance may vary.

For estimated costs of replacement elements, please call

1-800-469-4663 or visit our website at

www.sears.com/partsdJrect

3M is a trademark of 3M Company.

NSF is a trademark of NSF International.

To reduce the risk associated with ingestion of

contaminants: Do not use with water that is

microbiologlcally unsafe or of unknown quality

without adequate disinfection before and after of the

system. Systems certified for cyst reduction may be

used on disinfected water that may contain filterable

cysts. EPA Establishment Number 10350-MN-005

To reduce the risk associated with property damage

due to water leakage:

Read and follow the Water Filter instructions before

installation and use of this system.

Installation and use MUST comply with all state and

local plumbing codes.

Do not install if water pressure exceeds 120 psi (827

kPa). Contact a plumbing professional if you are

uncertain of how to check your water pressure.

Do not install where water hammer conditions may

occur. If water hammer conditions exist, you must

install a water hammer arrester. Contact a plumbing

professional if you are uncertain of how to check for

this condition.

*Do not install on hot water supply lines.

The maximum operating water temperature of this

water filter system is 100°F (37.8°C).

* Protect water filter from freezing. Do not operate

refrigerator in ambient conditions below 55°F

(12.7°C). Drain water filter when storing unit in

temperatures below 40°F (4.4°C).

The disposable water filter must be replaced every

six months, at the rated capacity, or if a noticeable

reduction in flow rate occurs.

NSF

RECOGNIZES

MCM Co., Ltd,

Republicof Korea

AS COMPLYINGWITH NSF/ANS142, 53 AND ALL APPLICABLER£QUIREMENTS,

PRODUCTS APPEARffNGIN Tt-_ NSF OFFICIAL LISTING AP&;

AUTHONZED TO BEAR TIM NSF MARK,

('e_tific,ltollpgoNm'n Certil_catioAPl_gram

Accreditedbythe Accreditedby_he

AmericaTlNationa! StandardsCo_nsil

SiaadardsInsoarte ofCanada

Tais certificateis the propertyofNSF [nternatlox:aiand rrlustbe returneduponrequest. For lhemostcurrental_dcomp/eleinfom_a{ion,please accessNSF'swebsite(www.ns£og},

October4, 2013

Cex_ificate#C0174200- 02 DavidPurkiss

General Manager, Water Systems

California Department of Public Health Certification 14-3015

Explosion Hazard

Use non-flammable cleaner. Failure to do so can result

in fire, explosion, or death.

Both the refrigerator and freezer sections defrost

automatically; however, clean both sections about once a

month to prevent odors. Wipe up spills immediately.

GENERAL CLEANING TIPS

*Unplug the refrigerator or disconnect powen

*Remove all removable parts, such as shelves, crispers,

etc. Refer to sections in Using Your Refrigerator for

removal instructions.

*Use a clean sponge or soft cloth and a mild detergent

in warm water. Do not use abrasive or harsh cleaners.

*Hand wash, rinse and dry all surfaces thoroughly.

*Plug in the refrigerator or reconnect power.

EXTERIOR

Waxing external painted metal surfaces helps provide

rust protection. Do not wax plastic parts. Wax painted

metal surfaces at least twice a year using appliance wax

(or auto paste wax). Apply wax with a clean, soft cloth.

For products with a stainless steel exterior, use a clean

sponge or soft cloth and a mild detergent in warm water.

Do not use abrasive or harsh cleaners. Dry thoroughly

with a soft cloth.

INSIDE WALLS (allow the freezer to warm up so

the cloth wlll not stick)

To help remove odors, you can wash the inside of the

refrigerator with a mixture of baking soda and warm

water. Mix 2 tablespoons of baking soda to 1 quart of

water (26 g soda to 1 liter water.) Be sure the baking soda

is completely dissolved so it does not scratch the surfaces

of the refrigerator.

_,CAUTION: While cleaning the inside of the refrigerator,

do not spray water.

DOOR LINERS AND GASKETS

Use a clean sponge or soft cloth and a mild detergent

in warm water. Do not use cleaning waxes, concentrated

detergents, bleaches, or cleaners containing petroleum on

plastic refrigerator parts.

PLASTIC PARTS (Covers and Panels)

Use a clean sponge or soft cloth and a mild detergent

in warm water. Do not use window sprays, abrasive

cleansers, or flammable fluids. These can scratch or

damage the material.

CONDENSER COILS

Use a vacuum cleaner with

an attachment to clean the

condenser cover and vents.

Do not remove the panel

covering the condenser

coil area.

LIGHT BULB REPLACEMENT

Electrical Shock Hazard

Before replacing a Compartment Lamp, either unplug

the refrigerator or turn off power at the circuit breaker

or fuse box.

NOTE: The refrigerator and freezer compartment

lights have LED interior lighting, and service should be

performed by a qualified technician.

POWER iNTERRUPTiONS

1. if the power will be out for 24 hours or less, keep all

refrigerator doors closed to help foods stay cold and

frozen.

2. if the power will be out for more than 24 hours, remove

all frozen food and store it in a frozen food locker.

WHEN YOU GO ON VACATION

if you choose to leave the refrigerator on while you are

away, follow these steps to prepare your refrigerator

before you leave.

1. Use up any perishables and freeze other items.

2. Turn off the icemaker and empty the ice bin.

if you choose to turn the refrigerator off before you leave,

follow these steps.

1. Remove all food from the refrigerator.

2. Depending on your model, set the thermostat control

(refrigerator control) to OFF. See the Setting the

Controls section.

3. Clean the refrigerator, wipe it and dry well.

4. Tape rubber or wood blocks to the tops of both doors

to prop them open far enough for air to get in. This

stops odor and mold from building up.

WHEN YOU MOVE

When you are moving your refrigerator to a new home,

follow these steps to prepare it for the move.

1. Remove all food from the refrigerator and pack all

frozen food in dry ice.

2. Unplug the refrigerator.

3. Clean, wipe and dry thoroughly.

4. Take out all removable parts, wrap them well and

tape them together so they do not shift and rattle

during the move. Refer to the Using your Refrigerator

section for removal instructions.

5. Depending on the model, raise the front of the

refrigerator so it roils easier OR screw in the leveling

legs all the way so they do not scrape the floor. See

the Door Closing section.

6. Tape the doors shut and tape the power cord to the

refrigerator cabinet.

When you get to your new home, put everything back and

refer to the Refrigerator Installation section for preparation

instructions.

BEFORE YOU BEGIN

This water line installation is not covered by the refrigerator

warranty. Follow these instructions carefully to minimize the

risk of expensive water damage.

Water hammer (water banging in the pipes) in house

plumbing can cause damage to refrigerator parts and can

lead to water leakage or flooding. Call a qualified plumber

to correct water hammer before installing the water supply

line to the refrigerator.

CAUTION: To prevent burns and product damage, only

connect the refrigerator water line to a cold water supply.

WHAT YOU WILL NEED

*Copper Tubing, 1/4 in. outer

diameter, to connect the refrigerator

to the water supply. Be sure both

ends of the tubing are cut square.

*To determine how much tubing you

need: measure the distance from the water valve on the

back of the refrigerator to the water supply pipe. Then,

add 8 feet (2.4 m). Be sure there is sufficient extra tubing

(about 8 feet [2.4 m] coiled into 3 turns of about 10 in.

[25 cm] diameter) to allow the refrigerator to move out

from the wall after installation.

If you use your refrigerator before connecting the water * Power drllI.

line, make sure the icemaker power switch is in the OFF (O)

position.

CAUTION: Do not install the icemaker tubing in areas

where temperatures fall below freezing.

WATER PRESSURE

The water pressure must be between 20 and 120 psi on

models without a water filter and between 40 and 120 psi

on models with a water filter.

if areverse osmosis water nitration system is connected

to your cold water supply, this water line installation is not

covered by the refrigerator warranty. Follow the following

instructions carefully to minimize the risk of expensive water

damage.

if areverse osmosis water fiitratlon system is connected

to your cold water supply, the water pressure to the reverse

osmosis system needs to be a minimum of 40 to 60 psi (2.8

kgf/cm 2 - 4.2 kgf/cm 2, less than 2.0-3.0 sec. to fill a cup of

7oz capacity).

if the water pressure from the reverse osmosis system is less

than 21 psi or 1.5 kgf/cm2 (takes more than 4.0 sec to fill a

cup of 7oz capacity):

*Check to see if the sediment filter in the reverse osmosis

system is blocked. Replace the filter if necessary.

*Allow the storage tank on the reverse osmosis system to

refill after heavy usage.

If the issue concerning water pressure from reverse

osmosis remains, call a licensed, qualified plumber.

All installations must be in accordance with local

plumbing code requirements.

CAUTION: Wear eye protection during installation to

prevent injury.

1.6 in. or adjustable wrench.

Fiat blade and Phllllps head screwdrivers.

Two ¼in. outer diameter

compression nuts and

2ferrules (sleeves) to

connect the copper tubing

to the shutoff valve and the

refrigerator water valve.

If your existing copper water

line has a flared fitting at the

end, you will need an adapter

(available at plumbing supply

stores) to connect the water line

to the refrigerator OR you can

cut off the flared fitting with

a tube cutter and then use a

compression fitting.

Shutoff valve to connect

to the cold water llne. The

shutoff valve should have a water inlet with a minimum

inside diameter of s/32 in. at the point of connection

to the COLD WATER LINE.

Saddle-type shutoff valves _'x_

are included in many water _ I_

supply kits. Before purchasing, x_,_-_(,-{,_i,_

make sure asaddle-type _,_,x'_xJ_p_

valve complies with your local _ -

plumbing codes.

NOTE: A Self Piercing Saddle Type Water Valve should

not be used.

Electrical Shock Hazard

When using any electrical device (such as a power

drill) during installation, be sure the device is battery

powered, double insulated or grounded in a manner that

will prevent the hazard of electric shock.

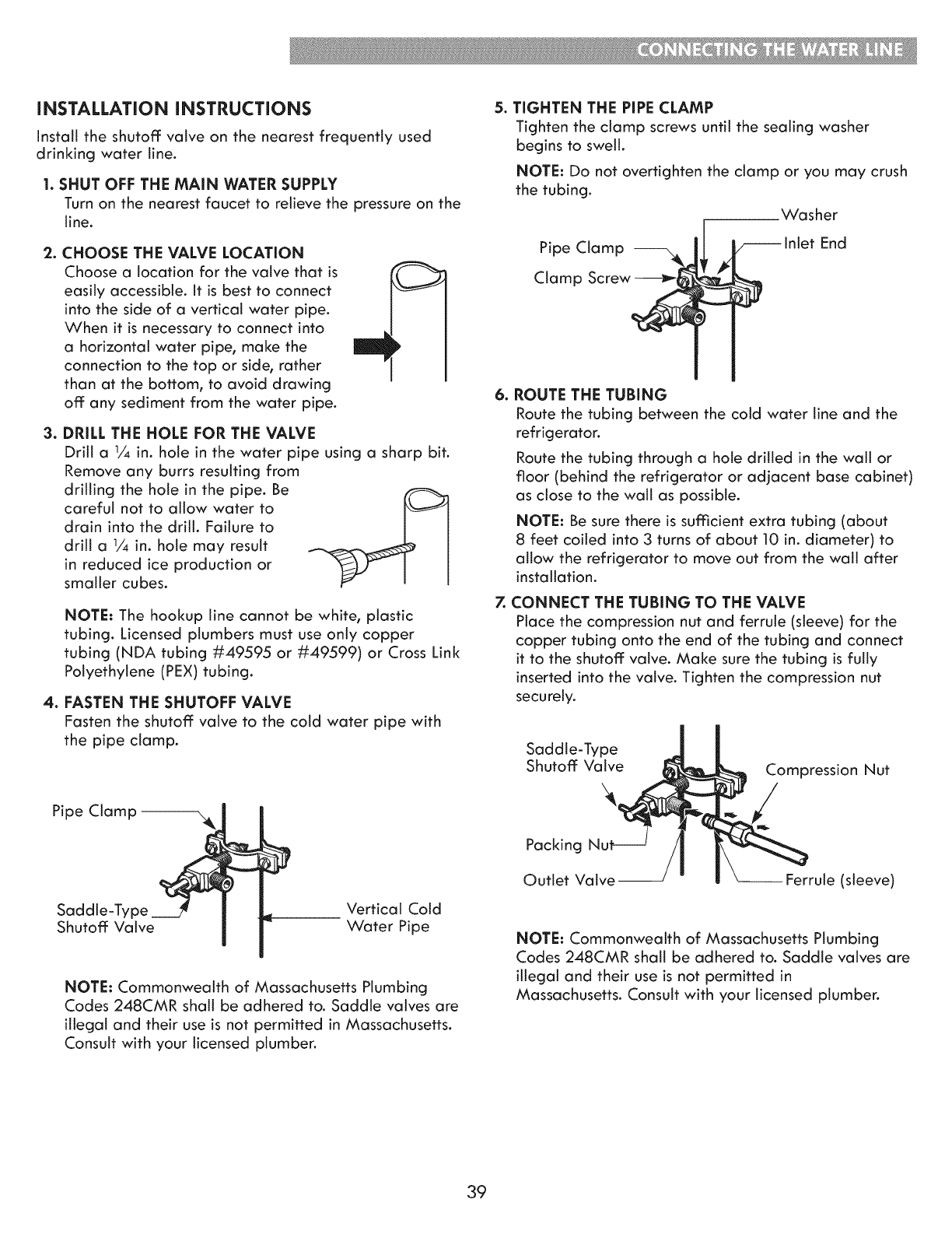

iNSTALLATiON iNSTRUCTiONS

Install the shutoff valve on the nearest frequently used

drinking water line.

1. SHUT OFF THE MAIN WATER SUPPLY

Turn on the nearest faucet to relieve the pressure on the

line.

2. CHOOSE THE VALVE LOCATION

Choose a location for the valve that is

easily accessible, it is best to connect

into the side of a vertical water pipe.

When it is necessary to connect into

a horizontal water pipe, make the

connection to the top or side, rather

than at the bottom, to avoid drawing

off any sediment from the water pipe.

3. DRILL THE HOLE FOR THE VALVE

Drill a I/4 in. hole in the water pipe using a sharp bit.

Remove any burrs resulting from

drilling the hole in the pipe. Be

careful not to allow water to

drain into the drill. Failure to

drill a 1/4 in. hole may result

in reduced ice production or

smaller cubes.

NOTE: The hookup line cannot be white, plastic

tubing. Licensed plumbers must use only copper

tubing (NDA tubing #49595 or #49599) or Cross Link

Polyethylene (PEX) tubing.

4. FASTEN THE SHUTOFF VALVE

Fasten the shutoff valve to the cold water pipe with

the pipe clamp.

Pipe Clamp-

Saddle-Ty_

Shutoff Valve Vertical Cold

Water Pipe

NOTE: Commonwealth of Massachusetts Plumbing

Codes 248CMR shall be adhered to. Saddle valves are

illegal and their use is not permitted in Massachusetts.

Consult with your licensed plumber.

5. TIGHTEN THE PIPE CLAMP

Tighten the clamp screws until the sealing washer

begins to swell.

NOTE: Do not overtighten the clamp or you may crush

the tubing.

Washer

Pipe Clamp

Clamp Screw_

,-------inlet End

r E

ROUTE THE TUBING

Route the tubing between the cold water line and the

refrigerator.

Route the tubing through a hole drilled in the wall or

floor (behind the refrigerator or adjacent base cabinet)

as close to the wall as possible.

NOTE: Be sure there is sufficient extra tubing (about

8 feet coiled into 3 turns of about 10 in. diameter) to

attow the refrigerator to move out from the wall after

installation.

CONNECT THE TUBING TO THE VALVE

Place the compression nut and ferrule (sleeve) for the

copper tubing onto the end of the tubing and connect

it to the shutoff valve. Make sure the tubing is fully

inserted into the valve. Tighten the compression nut

securely.

Saddle-Type

Shutoff Valve _

Packing Nu_

Outlet Valve

h]_ ompression Nut

Ferrule (sleeve)

NOTE: Commonwealth of Massachusetts Plumbing

Codes 248CMR shall be adhered to. Saddle valves are

illegat and their use is not permitted in

Massachusetts. Consult with your licensed plumber.

8. FLUSH OUT THE TUBING

Turn the main water supply on and

flush out the tubing until the water

is clear.

Shut the water o_ at the water

valve after about one quart of

water has been flushed through the

tubing.

9. CONNECT THE TUBING TO THE

REFRIGERATOR

NOTE: Before making the connection to the

refrigerator, be sure that the refrigerator power cord is

not plugged into the wall outlet.

1. Remove the plastic flexible cap from the water valve.

2. Place the compression nut and ferrule (sleeve) onto the

end of the tubing as shown.

3. Insert the end of the copper tubing into the connection

as far as possible. While holding the tubing, tighten the

fitting.

Tubing Clamp _

1/4 in. _ "

CompressionNut_>_ _'__t i

Ferrule _

(sleeve)

1/4 in. Tubing

_--_Refrigerator

Connection

10. TURN THE WATER ON AT THE SHUTOFF VALVE

Tighten any connections that leak.

_,CAUTION: Check to see if leaks occur at the water line

connections.

II. PLUG IN THE REFRIGERATOR

Arrange the coil of tubing so that it does not vibrate

against the back of the refrigerator or against the wall.

Push the refrigerator back to the wail.

12. START THE ICEMAKER

Turn the icernaker ON af the control panel.

The icemaker win not begin to operate until it reaches

its operating temperature of 15°F (-9°C) or below. It

will then begin operation automatically if the icemaker

button has been turned ON.

Before conducting troubleshooting, make sure that the following basic requirements are met.

Service Flow 0.5 gpm (1.9 lpm)

Water Supply Potable Water

Water Pressure 20-120 psi (138 - 827 kPa)

Operating Ambient 55OF _ 110OF

Temperature Limits

115 Volts, 60 Hz, AC only, and fused

Electrical Ratings at 15 or 20 amperes.

COOLI NG

Refrigerator is in the defrost cycle.

Demo Mode allows the lights and control display to

work normally while disabling cooling to save energy

while on the showroom floor. Refer to the Setting the

Controls section for instructions on how to disable

Demo Mode.

During the defrost cycle, the temperature of each

compartment may rise slightly. Wait 30 minutes and

conflrm the proper temperature has been restored

once the defrost cycle has completed.

Refrigerator was recently installed. It may take up to 24 hours for each compartment to

reach the desired temperature.

Refrigerator was recently relocated. If the refrigerator was stored for a long period of time

or moved on its side, it is necessary for the refrigerator

to stand upright for 24 hours before connecting it to

power.

Cooling System runs Refrigerator is replacing an older Modern refrigerators require more operating time but

too much. model, use less energy due to more emcient technology.

Refrigerator was recently plugged in The refrigerator will take up to 24 hours to cool

or power restored, completely.

Door opened often or a large amount

of food /hot food was added.

Doors are not closed completely.

Refrigerator is installed in a hot

location.

Condenser ,/back cover is clogged.

Adding food and opening the door warms the

refrigerator, requiring the compressor to run longer in

order to cool the refrigerator back down. In order to

conserve energy, try to get everything you need out of

the refrigerator at once, keep food organized so it is

easy to find, and close the door as soon as the food is

removed. (Refer to the Food Storage Guide.)

Firmly push the doors shut. If they will not shut all the

way, see the Doors will not close completely or pop

open section in Parts & Features Troubleshooting.

The compressor will run longer under warm conditions.

At normal room temperatures (70°F) expect your

compressor to run about 40% to 80% of the time.

Under warmer conditions, expect it to run even more

often. The refrigerator should not be operated above

110°F.

Use a vacuum cleaner with an attachment to clean the

condenser cover and vents. Do not remove the panel

covering the condenser coil area.

COOLING

Refrigerator or Refrigerator was recently installed, it may take up to 24 hours for each compartment to

Freezer section is too reach the desired temperature.

warm. Air vents are blocked. Rearrange items to allow air to flow throughout the

compartment. Refer to the Airflow diagram in the

Using Your Refrigerator section.

interior moisture

buildup.

Doors are opened often or for long

periods of time.

Unit is installed in a hot location.

A large amount of food or hot food

was added to either compartment.

Doors not closed correctly.

Temperature control is not set

correctly.

Defrost cycle has recently completed.

Doors are opened often or for long

periods of time.

When the doors are opened often or for long periods

of time, warm, humid air enters the compartment.

This raises the temperature and moisture level within

the compartment. To lessen the effect, reduce the

frequency and duration of door openings.

The refrigerator should not be operated in

temperatures above 110F.

Adding food warms the compartment requiring the

cooling system to run. Allowing hot food to coot to

room temperature before putting it in the refrigerator

will reduce this effect.

See the Doors will not close correctly or pop open

section in Parts & Features Troubleshooting.

if the temperature is too warm, adjust the control one

increment at a time and wait for the temperature to

stabilize. Refer to the Setting the Controls section for

more information.

During the defrost cycle, the temperature of each

compartment may rise slightly and condensation may

form on the back wall. Wait 30 minutes and confirm

the proper temperature has been restored once the

defrost cycle has completed.

When the doors are opened often or for long periods

of time, warm, humid air enters the compartment.

This raises the temperature and moisture level within

the compartment. To lessen the effect, reduce the

frequency and duration of door openings.

Doors not closed correctly. See the Doors will not close correctly section in the

Troubleshooting section.

Weather is humid.

Defrost cycle recently completed.

Food is not packaged correctly.

Humid weather allows additional moisture to enter the

compartments when the doors are opened leading to

condensation or frost. Maintaining a reasonable level

of humidity in the home will help to control the amount

of moisture that can enter the compartments.

During the defrost cycle, the temperature of each

compartment may rise slightly and condensation may

form on the back wall. Wait 30 minutes and confirm

that the proper temperature has been restored once

the defrost cycle has completed.

Food stored uncovered or unwrapped, and damp

containers can lead to moisture accumulation within

each compartment. Wipe all containers dry and store

food in sealed packaging to prevent condensation and

frost.

COOLING/ICE&WATER

Food is freezing Food with high water content was Rearrange items with high water content away from air

in the refrigerator placed near an air vent. vents.

compartment. Refrigerator temperature control is set If the temperature is too cold, adjust the control one

incorrectly, increment at a time and wait for the temperature to

stabilize.

Refrigerator is installed in a cold When the refrigerator is operated in temperatures

location, below 41°F (5°C), food can freeze in the refrigerator

compartment. The refrigerator should not be operated in

temperatures below 55°F (13°C).

Frost or ice crystals

form on frozen

food (outside of

package).

Door is opened frequently or for long

periods of time. When the doors are opened often or for tong periods

of time, warm, humid air enters the compartment. This

raises the temperature and moisture level within the

compartment. Increased moisture will lead to frost and

condensation. To lessen the effect, reduce the frequency

and duration of door openings.

Door is not closing properly. Refer to the Doors will not close correctly or pop open

section in the Troubleshooting section.

Refrigerator or Incorrect temperature control settings. If the temperature is too cold, adjust the control one

Freezer section is increment at a time and wait for the temperature to

too cold. stabilize. Refer to the Setting the Controls section for

more information.

Frost or ice crystals Condensation from food with a high This is normal for food items with a high water content.

on frozen food water content has frozen inside of the

(inside of sealed food package.

package). Food has been left in the freezer for Do not store food items with high water content in the

a long period of time. freezer for a long period of time.

Icemaker is not Demand exceeds ice storage The icemaker will produce approximately 70-210 cubes

making enough ice. capacity, in a 24 hour period.

House water supply is not connected,

valve is not turned on fully, or valve is

clogged.

Water filter has been exhausted.

Connect the refrigerator to a cold water supply with

adequate pressure and turn the water shutoff valve fully

open.

if the problem persists, it may be necessary to contact a

plumber.

it is recommended that you replace the water filter:

• Approximately every six months.

When the water filter indicator turns on.

When the water dispenser output decreases.

When the ice cubes are smaller than normal.

Low house water supply pressure. The water pressure must be between 20 and 120 psi on

models without a water filter and between 40 and 120

psi on models with a water filter.

Reverse Osmosis filtration system is Reverse osmosis filtration systems can reduce the water

used. pressure below the minimum amount and result in

icemaker issues. (Refer to Water Pressure section.)

Tubing connecting refrigerator to Straighten or repair the water supply line and arrange it

house supply valve is kinked, to prevent future kinks.

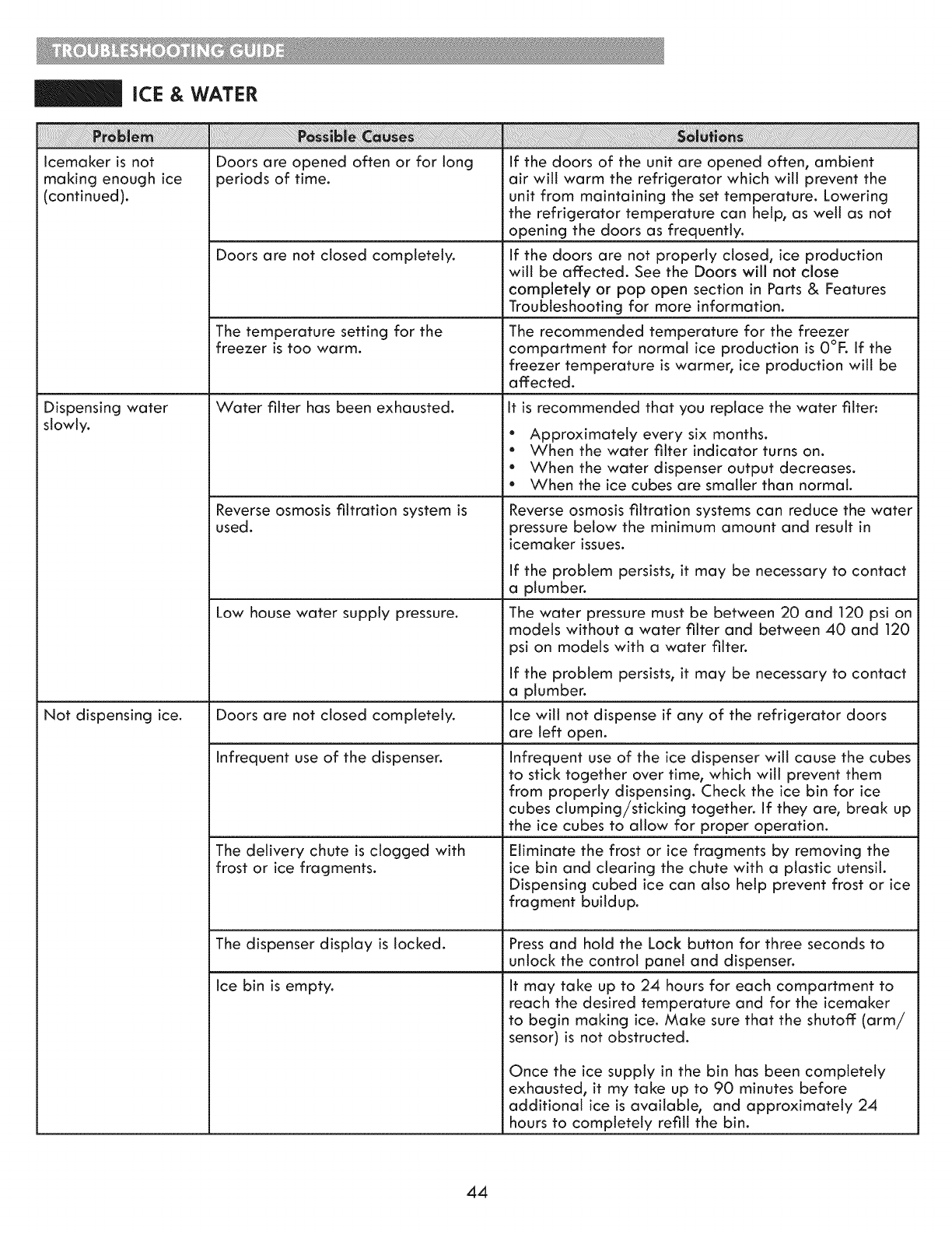

iCE & WATER

Icemaker is not

making enough ice

(continued).

Dispensing water

slowly.

Doors are opened often or for long

periods of time.

Doors are not closed completely.

The temperature setting for the

freezer is too warm.

Water filter has been exhausted.

Reverse osmosis filtration system is

used.

Low house water supply pressure.

Not dispensing ice. Doors are not closed completely.

Infrequent use of the dispenser.

The delivery chute is clogged with

frost or ice fragments.

The dispenser display is locked.

Ice bin is empty. It may take up to 24 hours for each compartment to

!iiii ili !iI

If the doors of the unit are opened often, ambient

air will warm the refrigerator which will prevent the

unit from maintaining the set temperature. Lowering

the refrigerator temperature can help, as well as not

opening the doors as frequently.

If the doors are not properly closed, ice production

will be affected. See the Doors will not close

completely or pop open section in Parts & Features

Troubleshooting for more information.

The recommended temperature for the freezer

compartment for normal ice production is 0°F. If the

freezer temperature is warmer, ice production will be

affected.

It is recommended that you replace the water filter:

• Approximately every six months.

• When the water filter indicator turns on.

• When the water dispenser output decreases.

• When the ice cubes are smaller than normal.

Reverse osmosis filtration systems can reduce the water

pressure below the minimum amount and result in

icemaker issues.

If the problem persists, it may be necessary to contact

a plumber.

The water pressure must be between 20 and 120 psi on

models without a water filter and between 40 and 120

psi on models with a water filter.

If the problem persists, it may be necessary to contact

a plumber.

Ice will not dispense if any of the refrigerator doors

are left open.

Infrequent use of the ice dispenser will cause the cubes

to stick together over time, which will prevent them

from properly dispensing. Check the ice bin for ice

cubes clumping/sticking together. If they are, break up

the ice cubes to allow for proper operation.

Eliminate the frost or ice fragments by removing the

ice bin and clearing the chute with a plastic utensil.

Dispensing cubed ice can also help prevent frost or ice

fragment buildup.

Press and hold the Lock button for three seconds to

unlock the control panel and dispenser.

reach the desired temperature and for the icemaker

to begin making ice. Make sure that the shutoff (arm/

sensor) is not obstructed.

Once the ice supply in the bin has been completely

exhausted, it my take up to 90 minutes before

additional ice is available, and approximately 24

hours to completely refill the bin.

Icemaker is not Refrigerator was recently installed or

making ice. icemaker recently connected.

Icemaker not turned on.

The ice detecting sensor is obstructed.

The refrigerator is not connected to

a water supply or the supply shutoff

valve is not turned on.

Icemaker shutoff (arm or sensor)

obstructed.

Reverse osmosis water filtration

system is connected to your cold

water supply.

iCE & WATER

i!! iii i! i! i iii il il il il il il il il iiii_ ii_ _iiil i_ i_i ililili iiiii!_iiiiiiiiiii il il !i ! ii il il ili!i !i !i ii i ii iiiii iiilli

Solut o.s

it may take up to 24 hours for each compartment to

reach the desired temperature and for the icemaker to

begin making ice.

Locate the icemaker ON/OFF switch and confirm that

it is in the ON (I) position.

Foreign substances or frost on the ice-detecting sensor

can interrupt ice production. Make sure that the sensor

area is clean at all times for proper operation.

Connect the refrigerator to the water supply and turn

the water shutoff valve fully open.

If your icemaker is equipped with an ice shutoff arm,

make sure that the arm moves freely. If your icemaker

is equipped with the electronic ice shutoff: sensor,

make sure that there is a clear path between the two

sensors.

Reverse osmosis filtration systems can reduce the

water pressure below the minimum amount and result

in icemaker issues. (Refer to the Water Pressure

section.)

Not dispensing water. New installation or water line recently Dispense 2.5 gallons of water (flush for approximately

connected. 5minutes) to remove trapped air and contaminants

The dispenser panel is locked.

The dispenser is not set for water

dispensing.

Refrigerator or freezer doors are not

dosed properly.

Water filter has been recently

removed or replaced.

Tubing connecting refrigerator to

house supply valve is kinked.

The house water supply is not

connected, the valve is not turned on

fully, or the valve is clogged.

from the system. Do not dispense the entire 2.5

gallon amount continuously. Depress and release the

dispenser pad for cycles of 30 seconds ON and 60

seconds OFF.

Press and hold the Lock button for three seconds to

unlock the control panel and dispenser.

The dispenser can be set for ice or water. Make

certain that the control panel is set for the proper

operation. Press the Water button on the control panel

to dispense water.

Water will not dispense if any of the refrigerator

doors are left open.

After the water filter is replaced, dispense 2.5 gallons

of water (flush for approximately 5minutes) to remove

trapped air and contaminants from the system. Do not

dispense the entire 2.5 gallon amount continuously.

Depress and release the dispenser pad for cycles of

30 seconds ON and 60 seconds OFF.

The tubing can kink when the refrigerator is moved

during installation or cleaning resulting in reduced

water flow. Straighten or repair the water supply line

and arrange it to prevent future kinks.

Connect the refrigerator to the water supply and turn

the water shutoff valve fully open.

If the problem persists, it may be necessary to contact

a plumber.

iCE & WATER

Ice has bad taste or

odor. Water supply contains minerals such

as sulfur. A water filter may need to be installed to eliminate

taste and odor problems.

NOTE: In some cases, a filter may not help. It may not

be possible to remove all minerals /odor /taste in all

water supplies.

Icemaker was recently installed. Discard the first few batches of ice to avoid discolored

or bad tasting ice.

Ice has been stored for too long. Ice that has been stored for too long will shrink,

become cloudy, and may develop a stale taste. Throw

away old ice and make a new supply.

The food has not been stored Rewrap the food. Odors may migrate to the ice if

properly in either compartment, food is not wrapped properly.

The interior of the refrigerator needs See the Care and Cleaning section for more

to be cleaned, information.

The ice storage bin needs to be Empty and wash the bin (discard old cubes). Make

cleaned, sure that the bin is completely dry before reinstalling

it.

Dispensing warm Refrigerator was recently installed. Allow 24 hours after installation for the water storage

water, tank to coot completely.

The water dispenser has been used Depending on your specific model, the water storage

recently and the storage tank was capacity will range from approximately 20 to 30 oz.

exhausted.

Dispenser has not been used for If the dispenser has not been used for several hours,

several hours, the first glass dispensed may be warm. Discard the

first 10 oz.

Refrigerator is connected to the hot

water supply. Make sure that the refrigerator is connected to a cold

water pipe.

LI_WARNING: Connecting the refrigerator to a hot

water line may damage the icemaker.

Water has bad taste Water supply contains minerals such A water filter may need to be installed to eliminate

or odor. as sulfur, taste and odor problems.

Water filter has been exhausted. It is recommended that you replace the water filter:

Refrigerator was recently installed.

Icemaker shutoff: (arm/sensor) is

obstructed.

Icemaker is making

too much ice.

• Approximately every 6months.

• When the water filter indicator turns on.

• When the water dispenser output decreases.

• When the ice cubes are smaller than normal.

Dispense 2.5 gallons of water (flush for approximately

5minutes) to remove trapped air and contaminants

from the system. Do not dispense the entire 2.5

gallon amount continuously. Depress and release the

dispenser pad for cycles of 30 seconds ON and 60

seconds OFF.

Empty the ice bin. If your icemaker is equipped with

an ice shutoff: arm, make sure that the arm moves

freely. If your icemaker is equipped with the electronic

ice shutoff: sensor, make sure that there is a clear path

between the two sensors. Reinstall the ice bin and wait

24 hours to confirm proper operation.

Clicking

NOISE

Dripping

Pulsating or High-

Pitched Sound

The defrost control will click when

the automatic defrost cycle begins

and ends. The thermostat control (or

refrigerator control on some models)

will also click when cycling on and

ofF.

Normal Operation

Rattling Rattling noises may come from the Normal Operation

flow of refrigerant, the water line on

the back of the unit, or items stored

on top of or around the refrigerator.

Refrigerator is not resting solidly on Floor is weak or uneven or leveling legs need to be

the floor, adjusted. See the Door Alignment section.

Refrigerator with linear compressor Normal Operation

was jarred while running.

Whooshing Evaporator fan motor is circulating Normal Operation

air through the refrigerator and

freezer compartments.

Air is being forced over the condenser Normal Operation

by the condenser fan.

Gurgling Refrigerant flowing through the Normal Operation

cooling system.

Popping Contraction and expansion of the Normal Operation

inside walls due to changes in

temperature.

Sizzling Water dripping on the defrost heater Normal Operation

during a defrost cycle.

Vibrating If the side or back of the refrigerator To eliminate the noise, make sure that the sides and

is touching a cabinet or wall, some of back cannot vibrate against any wall or cabinet.

the normal vibrations may make an

audible sound.

Water running into the drain pan Normal Operation

during the defrost cycle.

Normal OperationYour refrigerator is designed to run

more efficiently to keep your food

items at the desired temperature. The

high efficiency compressor may cause

your new refrigerator to run longer

than your old one, but it is still more

energy efficient than previous models.

While the refrigerator is running, it is

normal to hear a pulsating or high-

pitched sound.

PARTS & FEATURES

Doors will not close Food packages are blocking the door Rearrange food containers to clear the door and door

correctly or pop open. shelves.

open. Ice bin, crisper cover, pans, shelves, Push bins all the way in and put crisper cover, pans,

door bins, or baskets are out of shetves and baskets into their correct positions. See the

position. Using Your Refrigerator section for more information.

The doors were removed during Remove and replace the doors according to the

product installation and not properly Removing and Replacing Refrigerator Handles and

replaced. Doors section.

Refrigerator is not leveled properly. See Door Alignment in the Refrigeration Installation

section to level refrigerator.

Doors are difficult to The gaskets are dirty or sticky. Clean the gaskets and the surfaces that they touch.

open. Rub a thin coat of appliance polish or kitchen wax on

the gaskets after cleaning.

Door was recently closed.

Refrigerator wobbles

or seems unstable.

Lights do not work.

Refrigerator has an

unusual odor.

The interior of

the refrigerator is

covered with dust or

soot.

Leveling legs are not adjusted

properly.

Floor is not level.

LED interior lighting failure.

The Air Filter may need to be set to

the MAX setting or replaced.

The refrigerator is located near a fire

source, such as a fireplace, chimney

or candle.

When you open the door, warmer air enters the

refrigerator. As the warm air cools, it can create a

vacuum. If the door is hard to open, wait one minute

to allow the air pressure to equalize, then see if it

opens more easily.

Refer to the Leveling and Door Alignment section.

it may be necessary to add shims under the leveling

legs or rollers to complete installation.

The refrigerator compartment lamp is LED interior

lighting, and service should be performed by

a qualified technician. Refer to the Light Bulb

Replacement section.

Set the Air Filter to the MAX setting, if the odor does

not go away within 24 hours, the filter may need to be

replaced. See the Replacing the Air Filter section for

replacement instructions.

Make sure that the refrigerator is not located near a

fire source, such as a fireplace, chimney or candle.

Kenmore Connect TM (On some models)

Should you experience any problems with your

refrigerator, it has the capability of transmitting data

via your telephone to the Kenmore Connect TM Team.

This gives you the capability of directly to our trained

specialists. The specialist records the data transmitted

from your machine and uses it to analyze the issue,

providing a fast ective diagnosis.

3. Hold the mouthpiece of your phone in front of the

speaker that is located on the right hinge of the

refrigerator door, when instructed to do so by the call

center.

If you experience problems with your refrigerator, call

1-800-4MY-HOME (t-800-469-4663). Only use the

I<enmore Connect TM feature when instructed to do so by

the I<enmore Connect TM Team agent. The transmission

sounds that you will hear are normal and sound similar to

a fax machine.

Kenmore Connect TM cannot be activated unless your

refrig-erator is connected to power. If your refrigerator

is unable to turn on, then troubleshooting must be done

without using Kenmore Connect TM.

4. Press and hold the Freezer Temp button for three

seconds while continuing to hold your phone to the

speaker.

Using Kenmore Connect TM

First, call 1-800-4MY-HOME (1-800-469-4663). If the

number of the phone you are using is on file and is

associated with your refrigerator, you will be quickly

relayed to a I<enmore Connect TM team agent. Only use

the Kenmore Connect TM feature when instructed to do so

by the I<enmore Connect TM Team agent.

1. Lock the display. To lock the display, press and hold the

Control Lock button for three seconds. (if the display

has lock and then reactivate it.)

2. Open the right refrigerator door.

5o After you hear three beeps, release the Freezer Temp

button.

oKeep the phone in place until the tone transmission

has ed. The display will count down the time. Once the

countdown is over and the tones have stopped, resume

your conversation with the specialist, who will then be

able to assist you in using the information transmitted

for analysis.

NOTE:

- For best results, do not move the phone while the tones

are being transmitted.

- If the call center agent is not able to get an accurate

recording of the data, you may be asked to try again.

Your Home

For troubleshooting, product manuals and expert advice:

managemylife

www.managemylife.com

For repair - in your home - of all major brand appliances,

lawn and garden equipment, or heating and cooling systems,

no matter who made it, no matter who sold it!

For the replacement parts, accessories and

owner's manuals that you need to do-it-yourself.

For Sears professional installation of home appliances

and items like garage door openers and water heaters.

1-800-4-MY-HOME ®(1-800-469-4663)

Call anytime, day or night (U.S.A. and Canada)

www.sears.com www.sears.ca

Our Home

For repair of carry-in items like vacuums, lawn equipment,

and electronics, call anytime for the location of your nearest

Sears Parts & Repair Service Center

1-800-488-1222 (U.S.A.) 1-800-469-4663 (Canada)

www.sears.com www.sears.ca

To purchase a protection agreement on a product serviced by Sears:

1-800-827-6655 (U.S.A.) 1-800-361-6665 (Canada)

Para pedir servicio de reparaci6n

a domicilio, y para ordenar piezas:

1-888-SU-HOGAR ®

(1-888-784-6427

www.sears.com

Au Canada pour service en fran(_ais:

1-800-LE-FOYER Mc

(1-800-533-6937)

www.sears.ca

®Registered Trademark /TMTrademark of KCD IP, LLC in the United States, or Sears Brands, LLC in other countries

® Marca Registrada /TMMarca de Fabrica de KCD IP, LLC en Estados Unidos, o Sears Brands, LLC in otros paises

MCMarque de commerce /MDMarque d6pos6e de Sears Brands, LLC

Kenmore Elite 79572482410 User Manual REFRIGERATOR Manuals And Guides 1407079L

Navigation menu

Versions of this User Manual:

Views

Navigation
