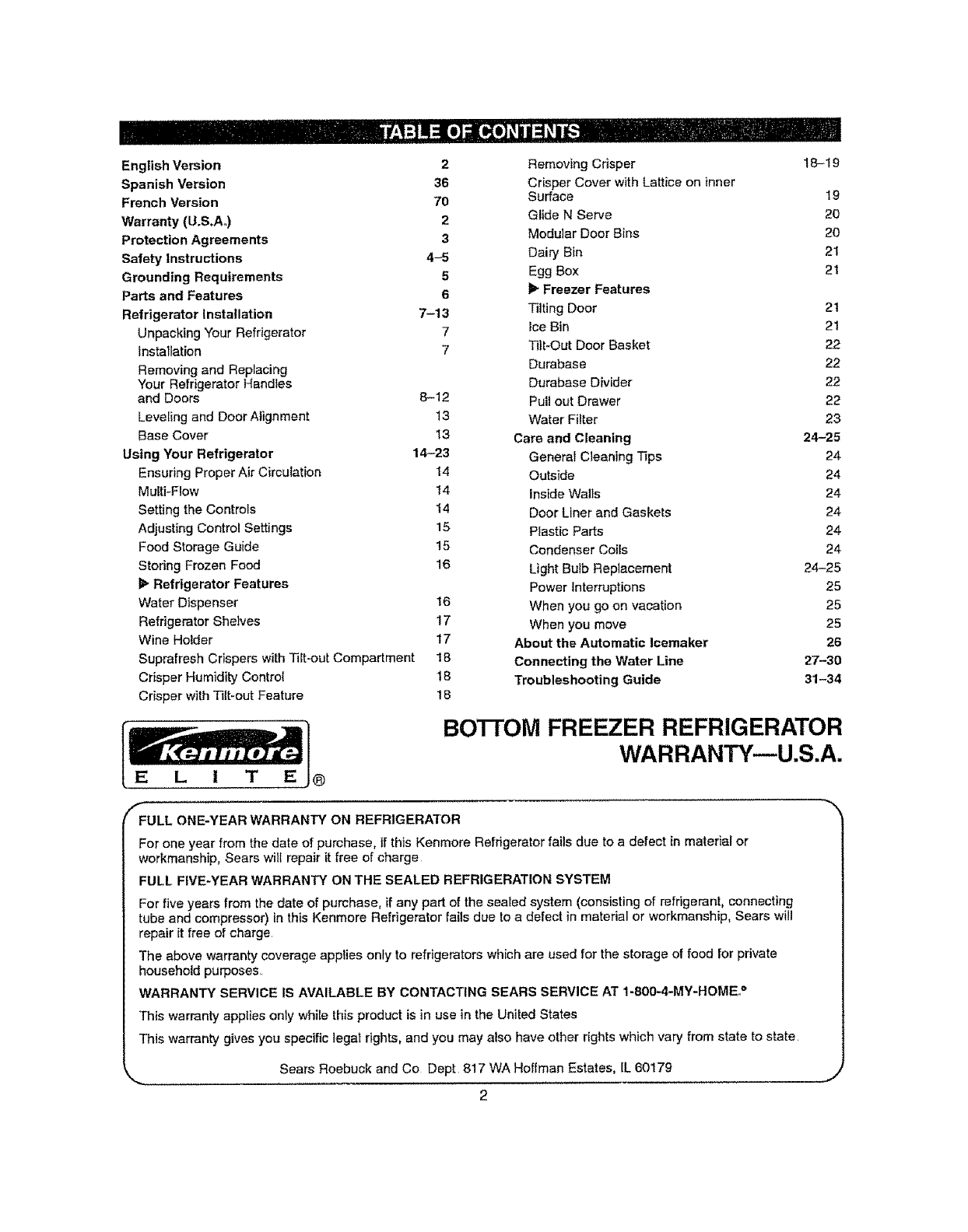

OWNER'S MANUAL

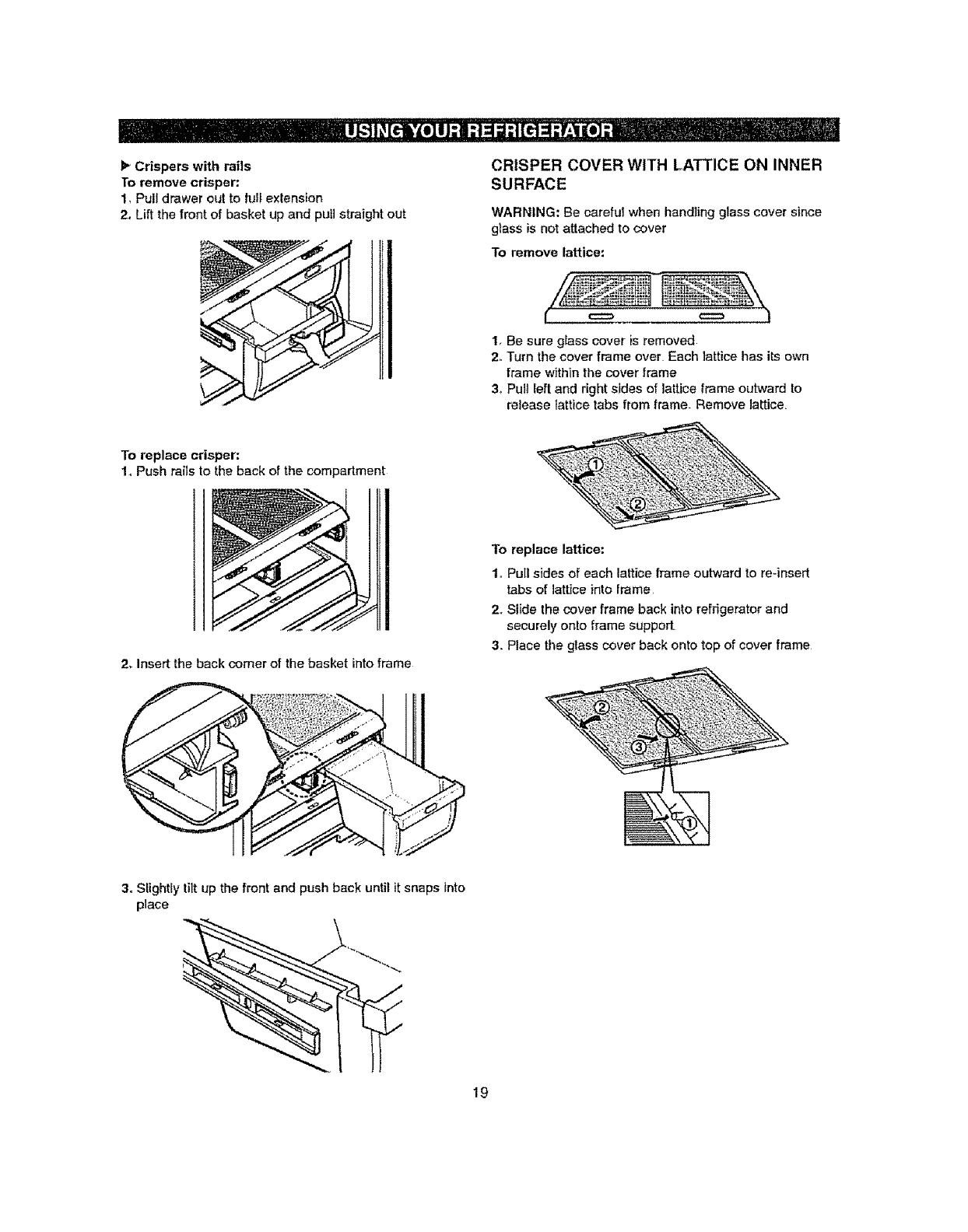

English Version 2Removing Crisper 18-I 9

Spanish Version 36 Crisper Cover with Lattice on inner

French Version 70 Surface ! 9

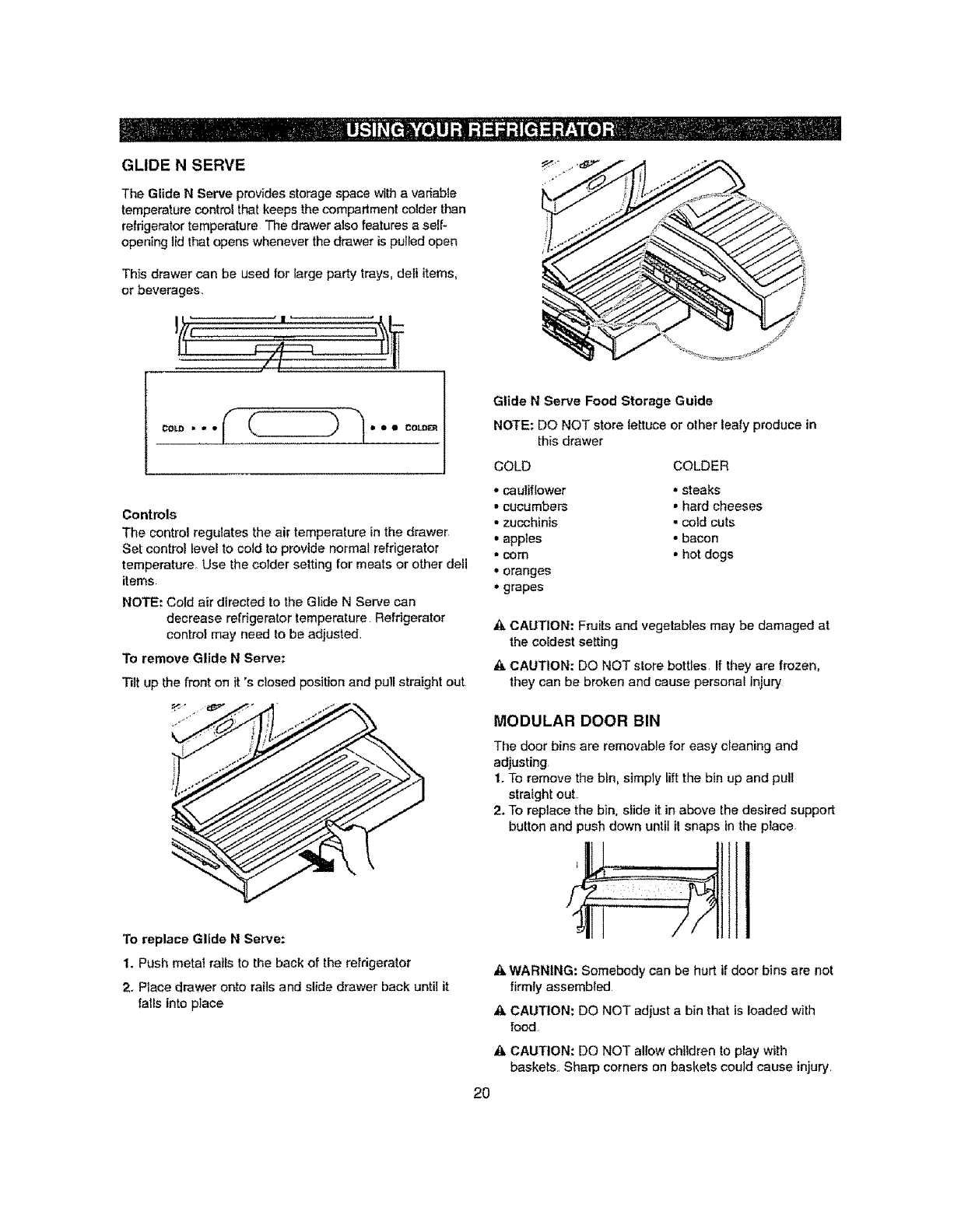

Warranty (U.S.Ao) 2 Glide N Serve 20

Protection Agreements 3Modular Door Bins 20

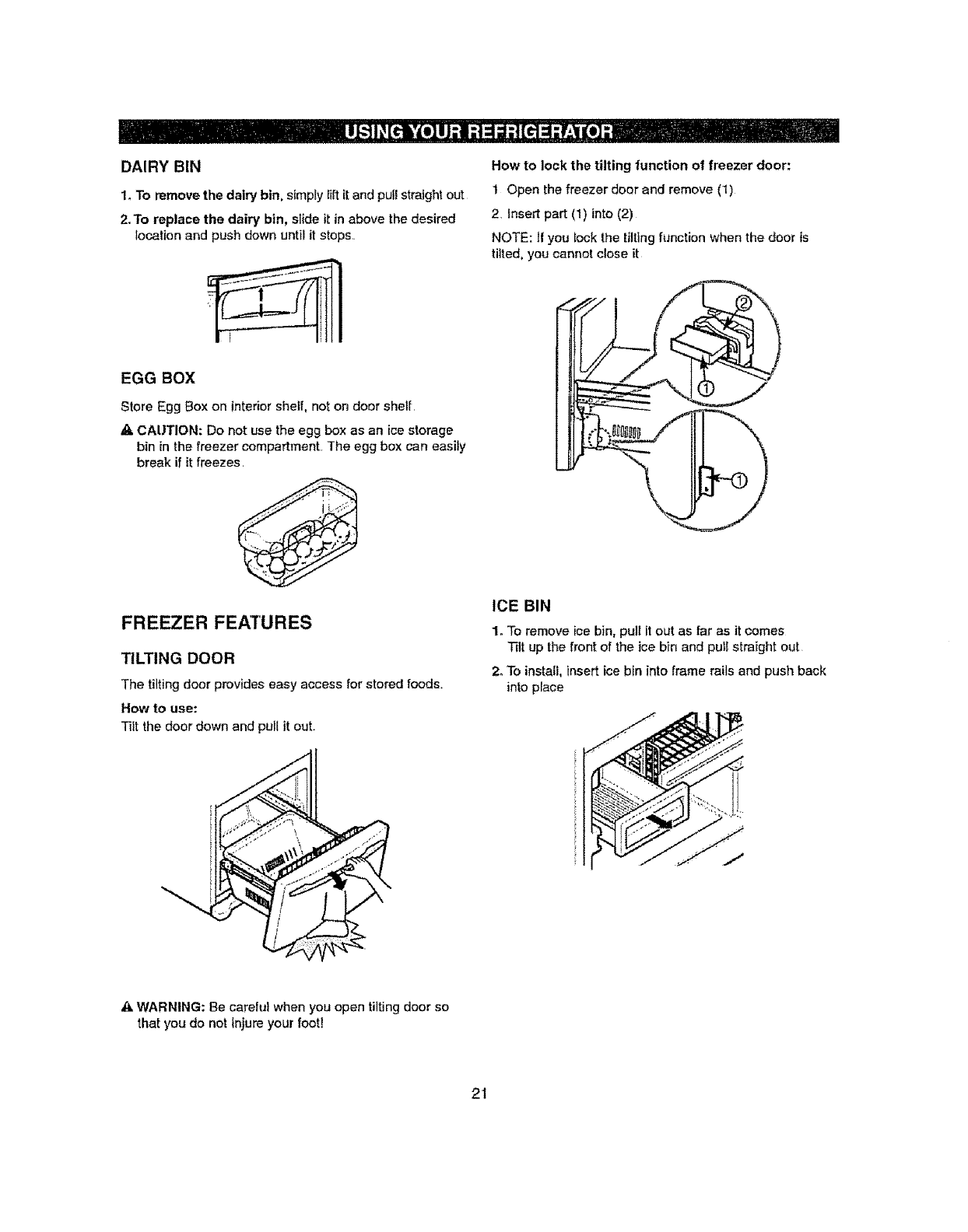

Safety instructions 4-5 Dairy Bin 21

Grounding Requirements 5Egg Box 2t

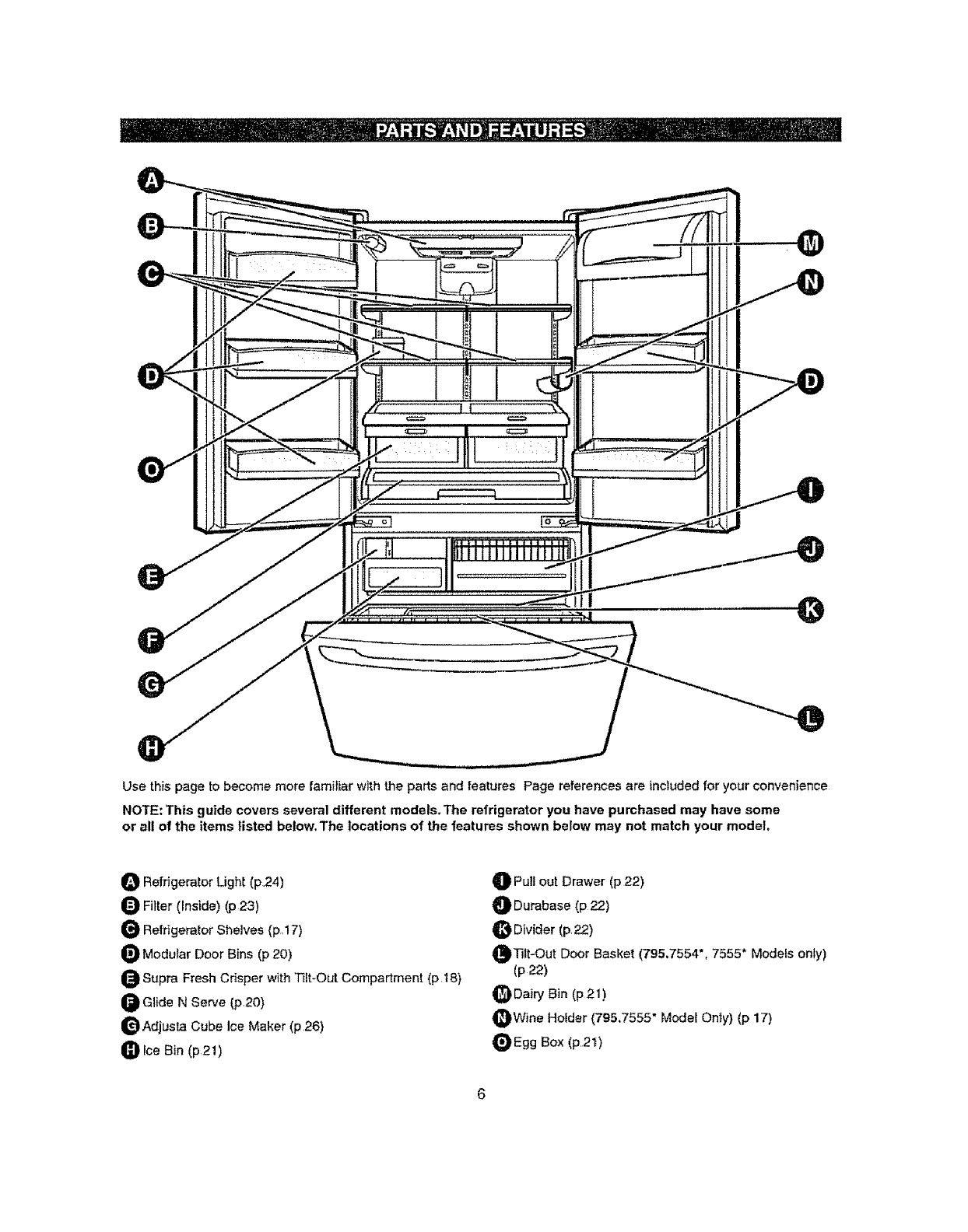

Parts and Features 6 _ Freezer Features

Refrigerator Installation 7-13 Tilting Door 21

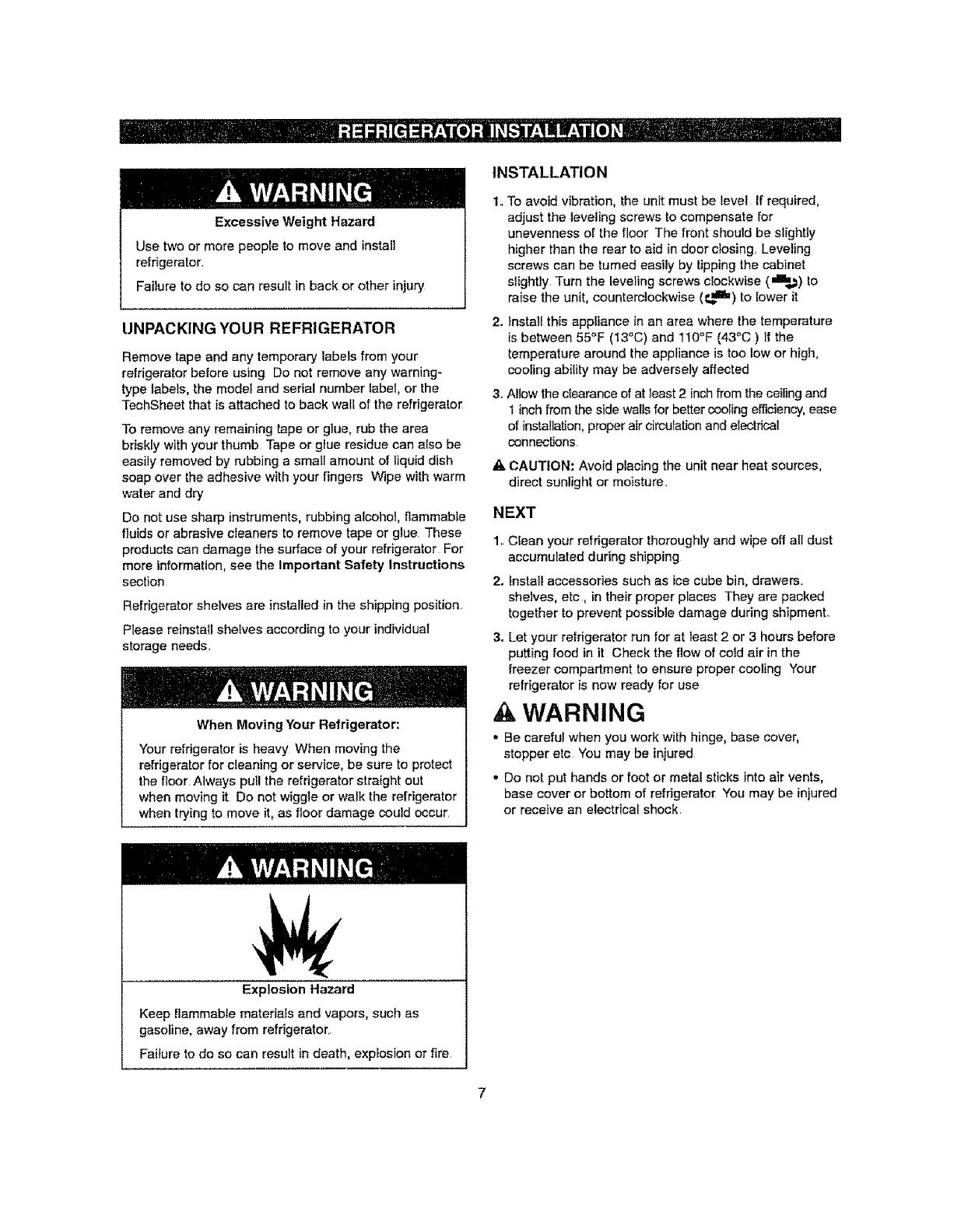

Unpacking Your Refrigerator 7 ice Bin 21

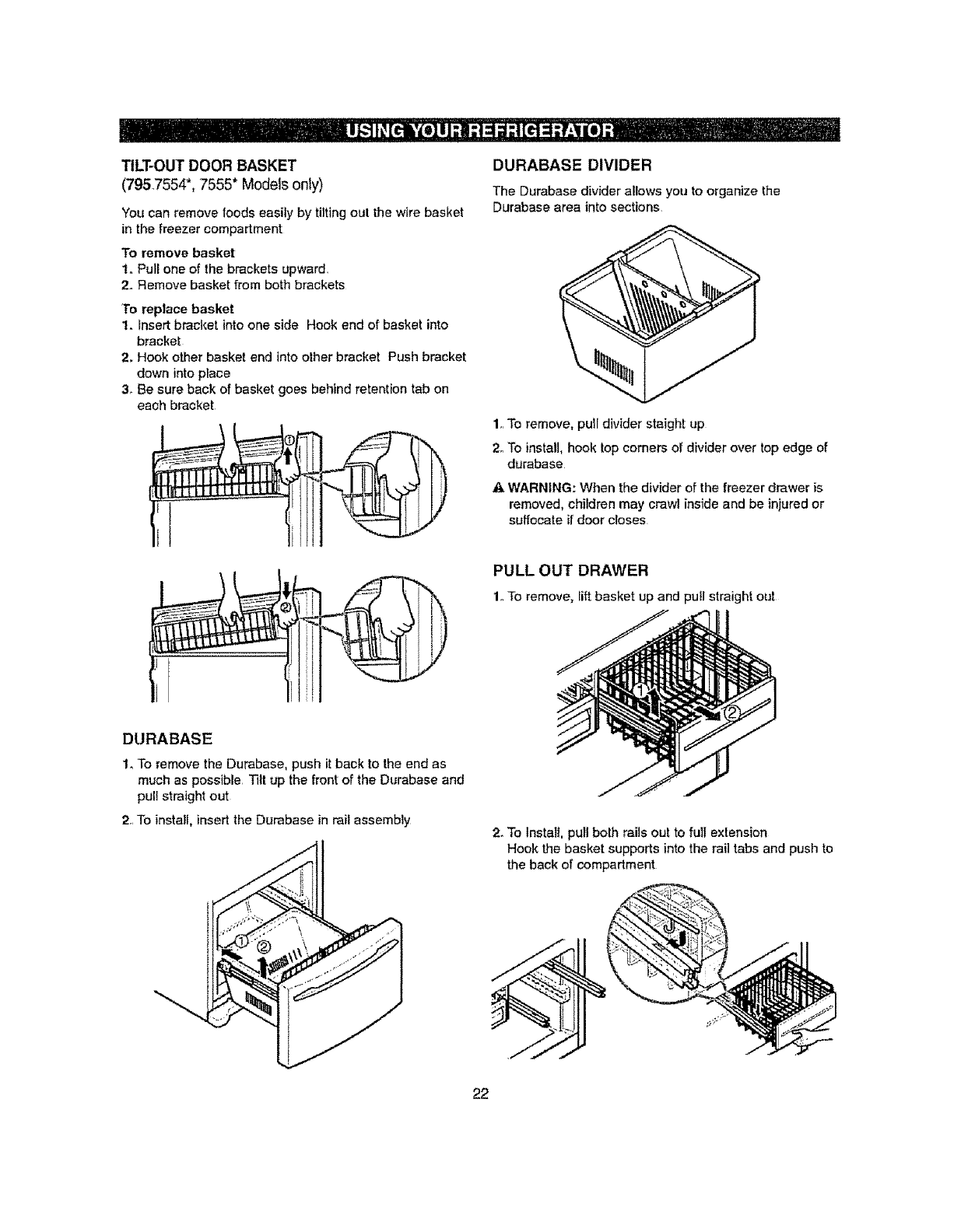

installation 7 Titt-Out Door Basket 22

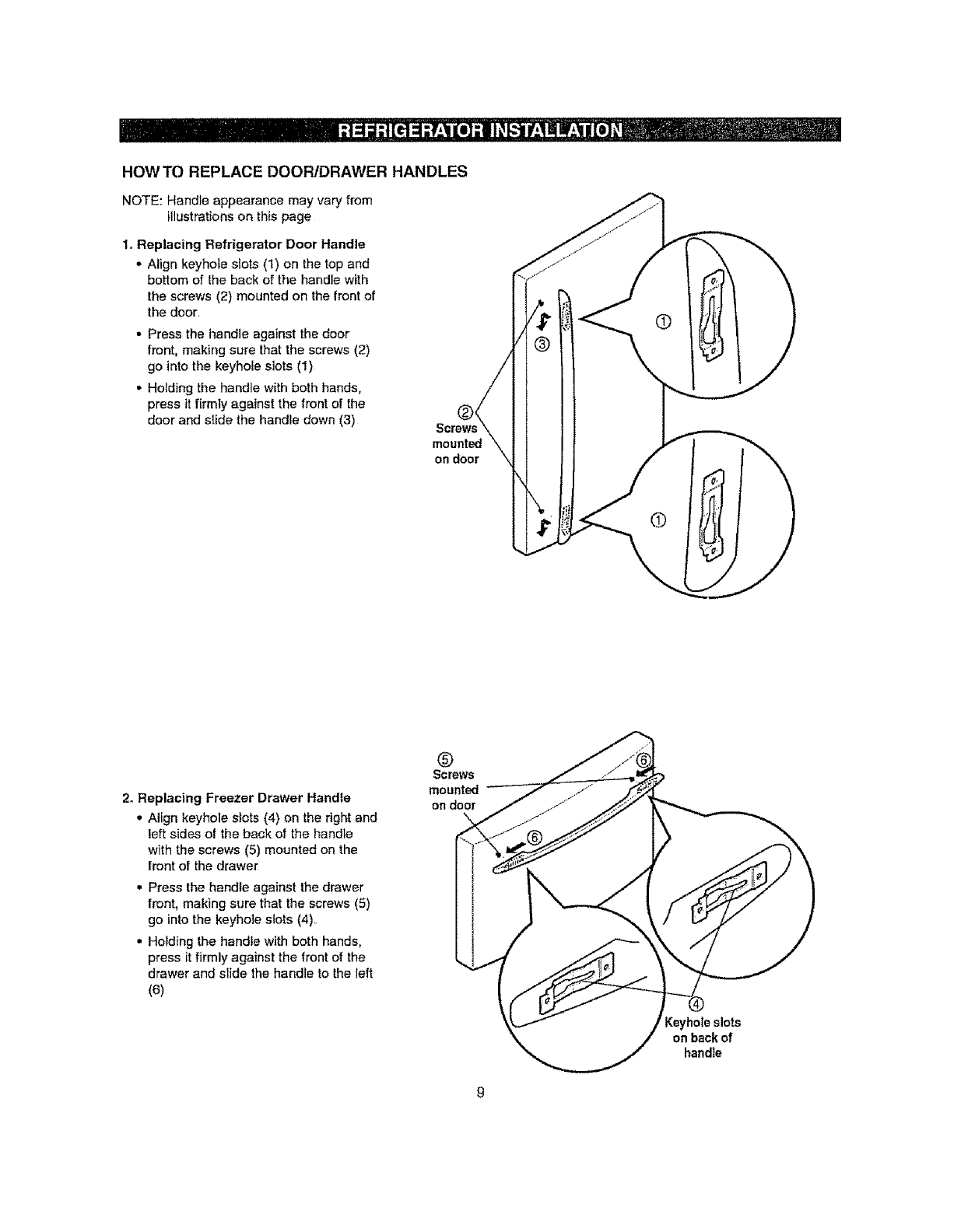

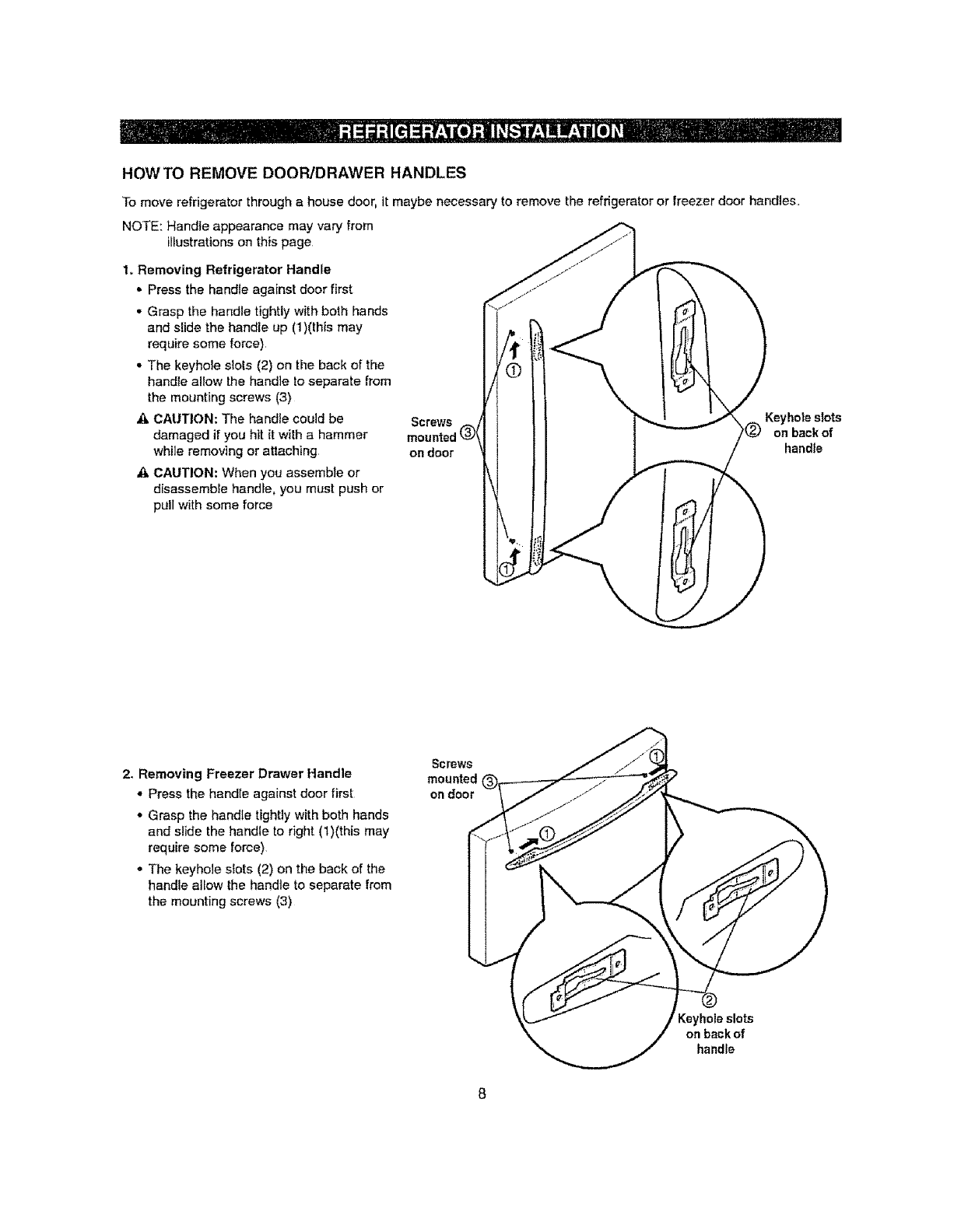

Removing and Replacing Durabase 22

Your Refrigerator Handles Durabase Divider 22

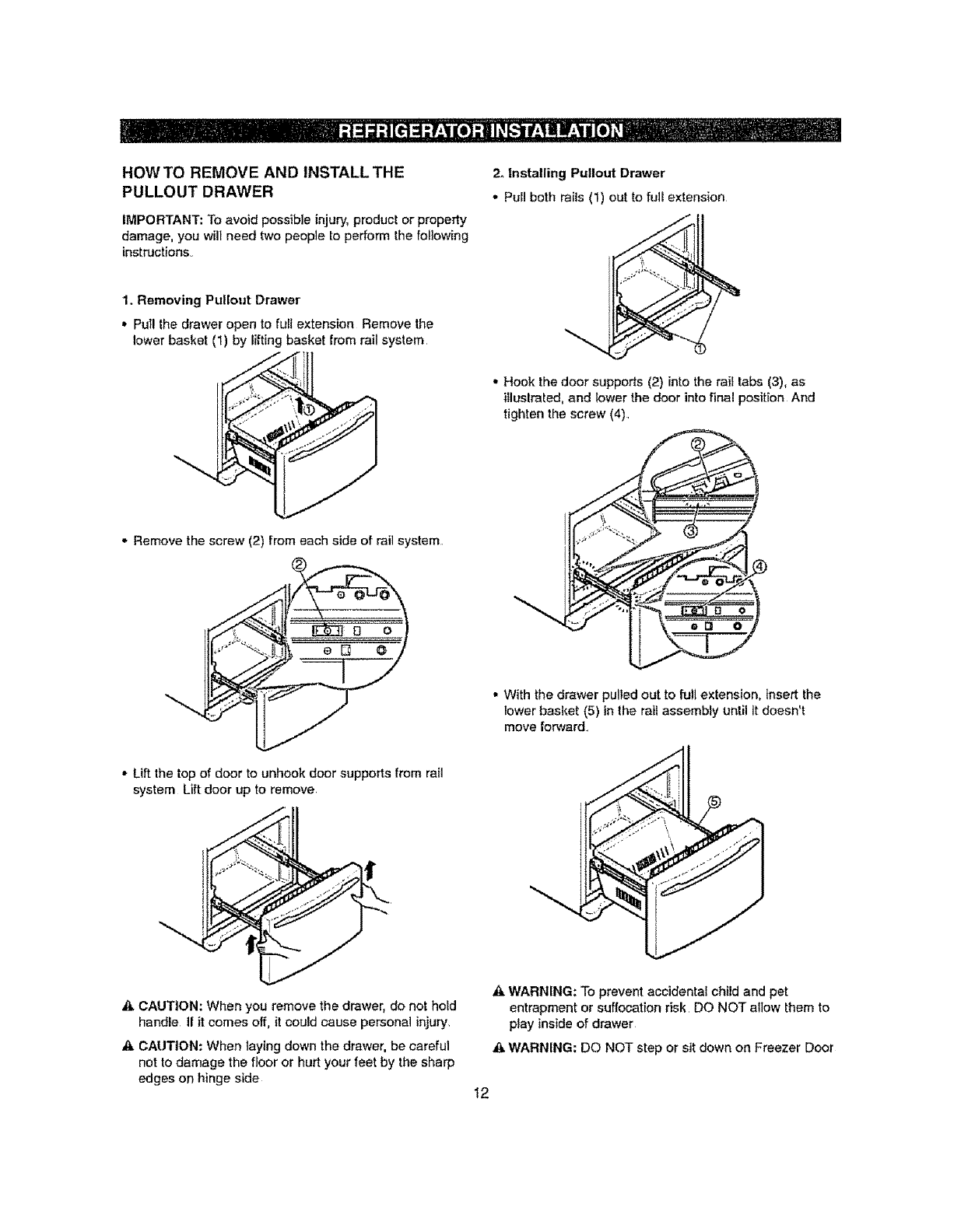

and Doors 8-12 Pull out Drawer 22

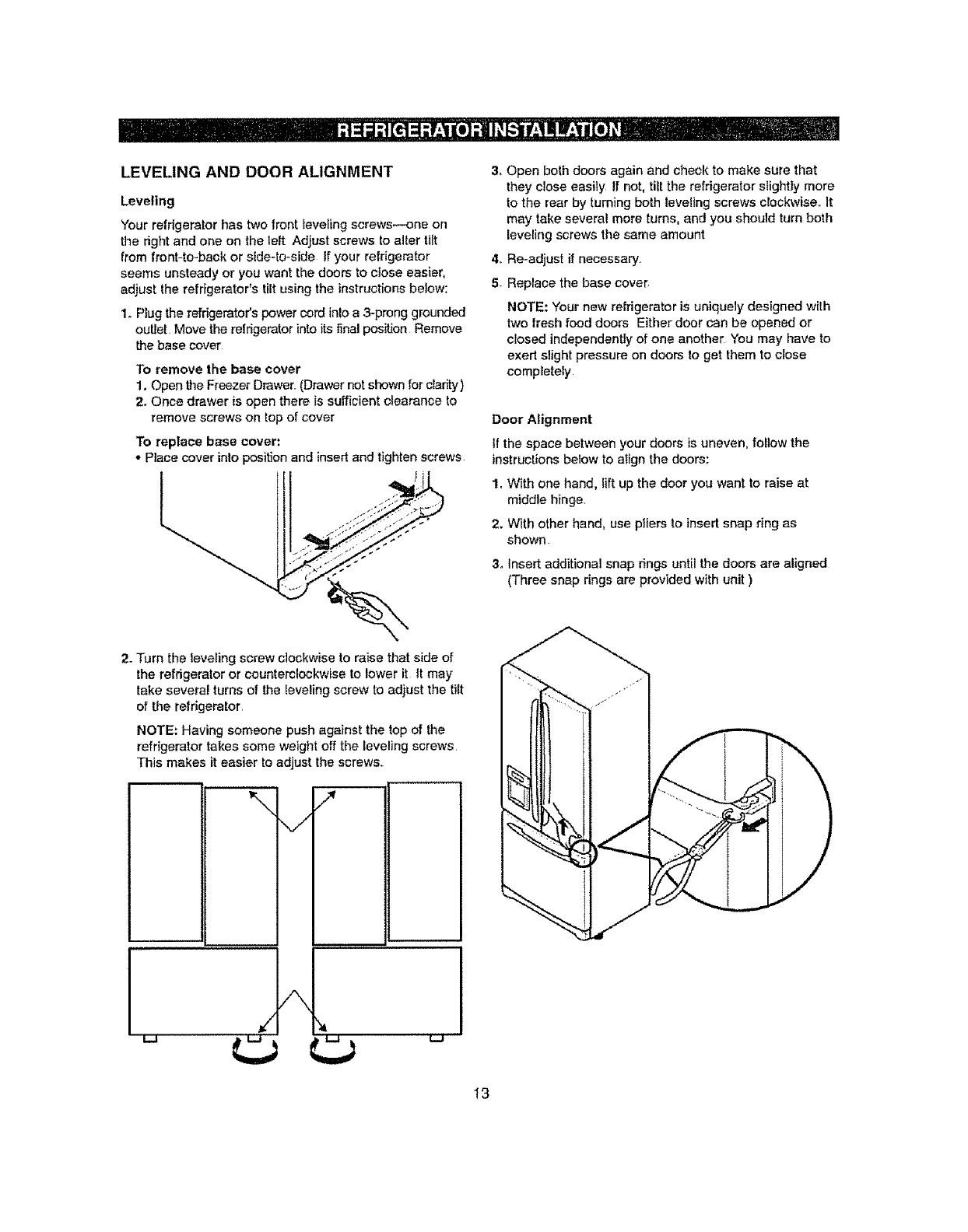

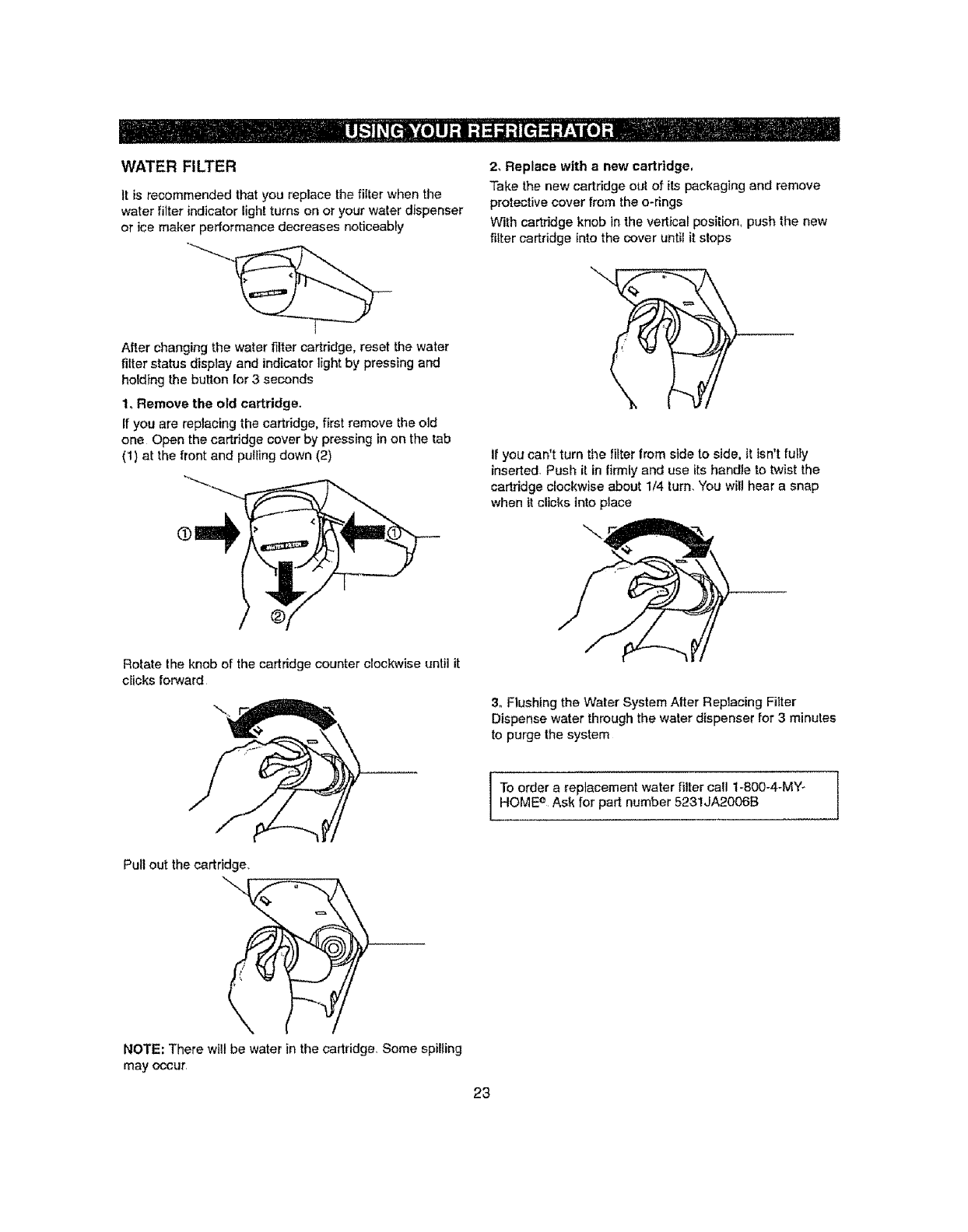

Leveling and Door Alignment 13 Water Filter 23

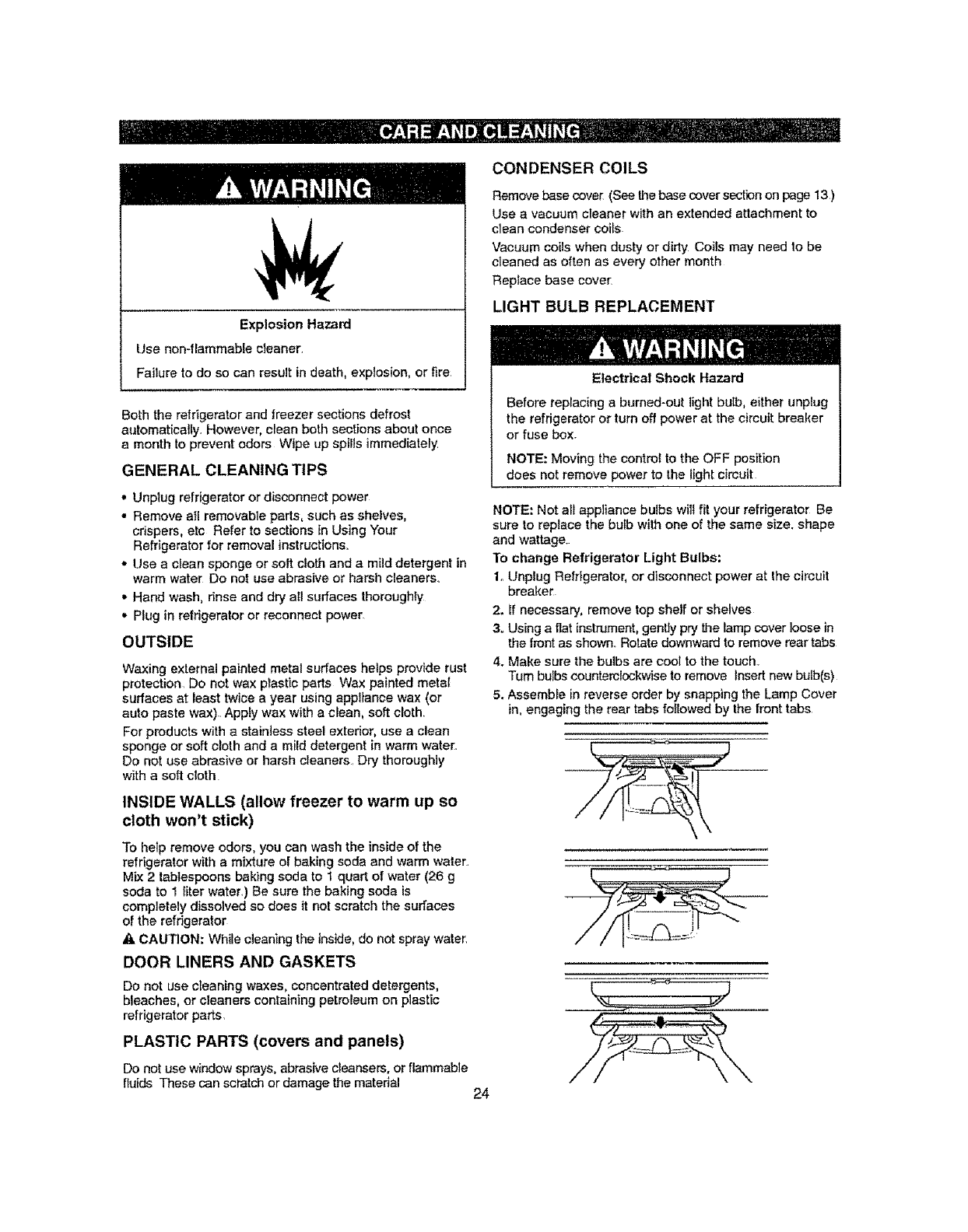

Base Cover 13 Care and Cleaning 24-25

Using Your Refrigerator 14-23 General Cleaning Tips 24

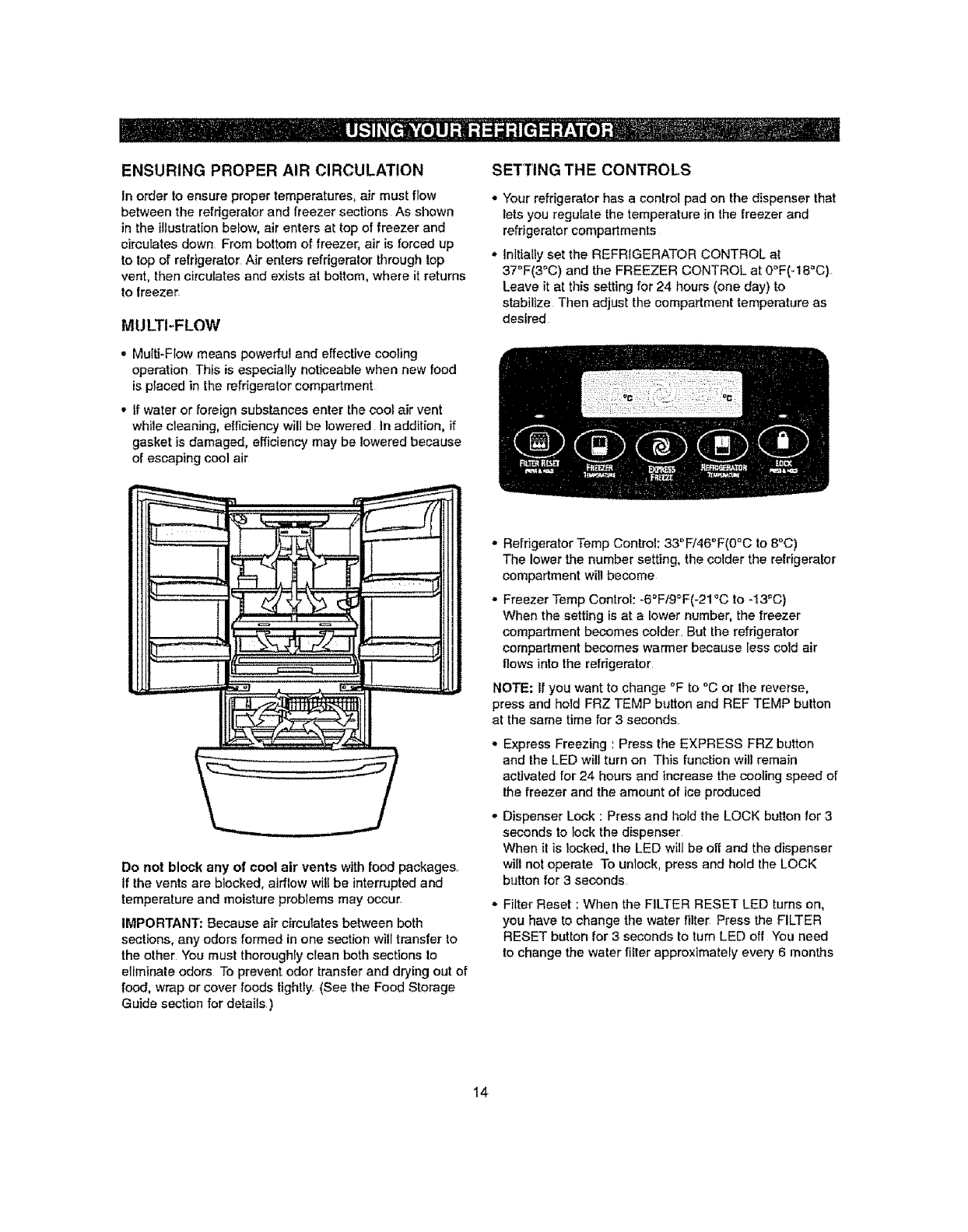

Ensuring Proper Air Circulation 14 Outside 24

Multi-Flow 14 Inside Wafts 24

Setting the Controls 14 Door Liner and Gaskets 24

Adjusting Control Settings 15 Plastic Parts 24

Food Storage Guide 15 Condenser Coils 24

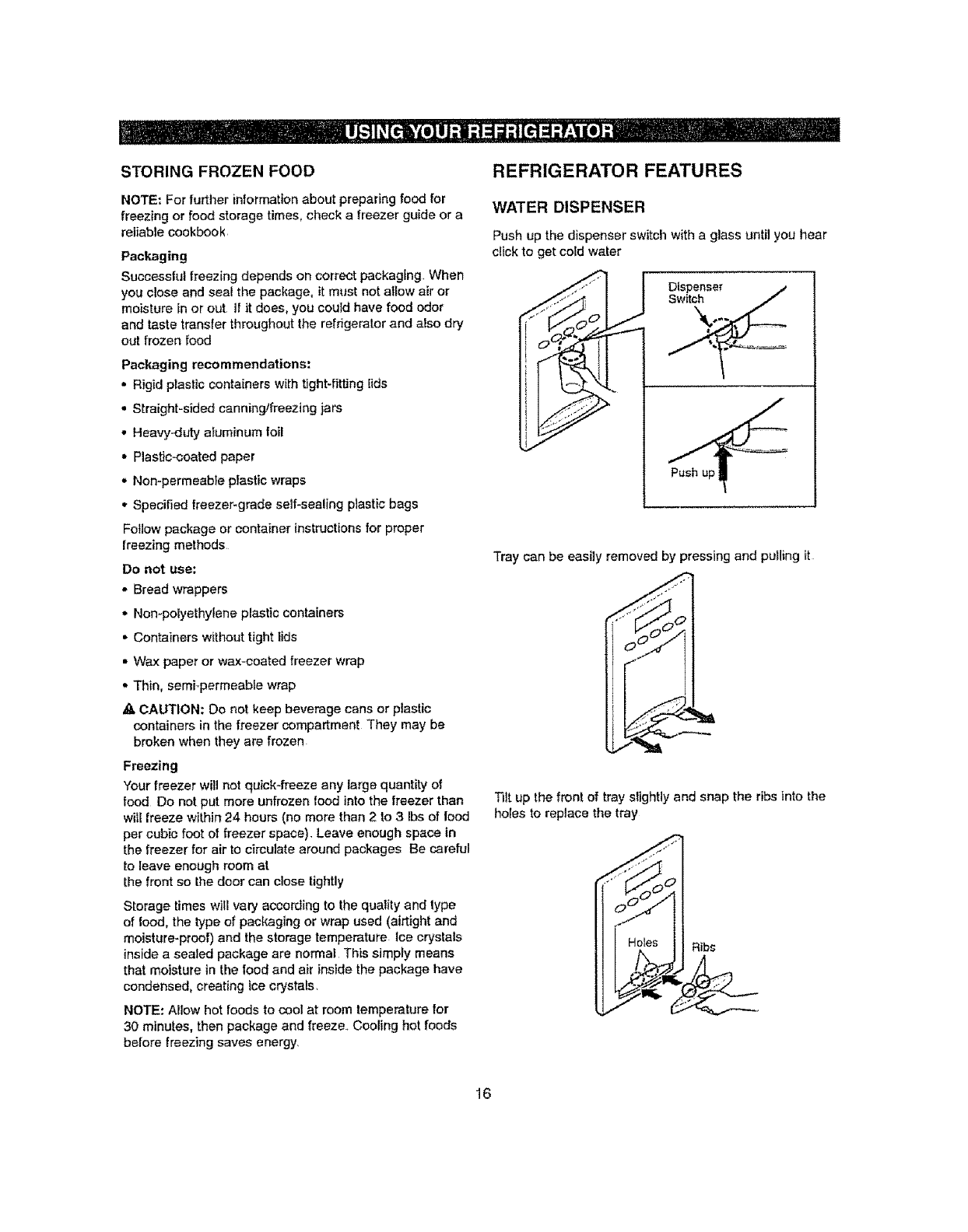

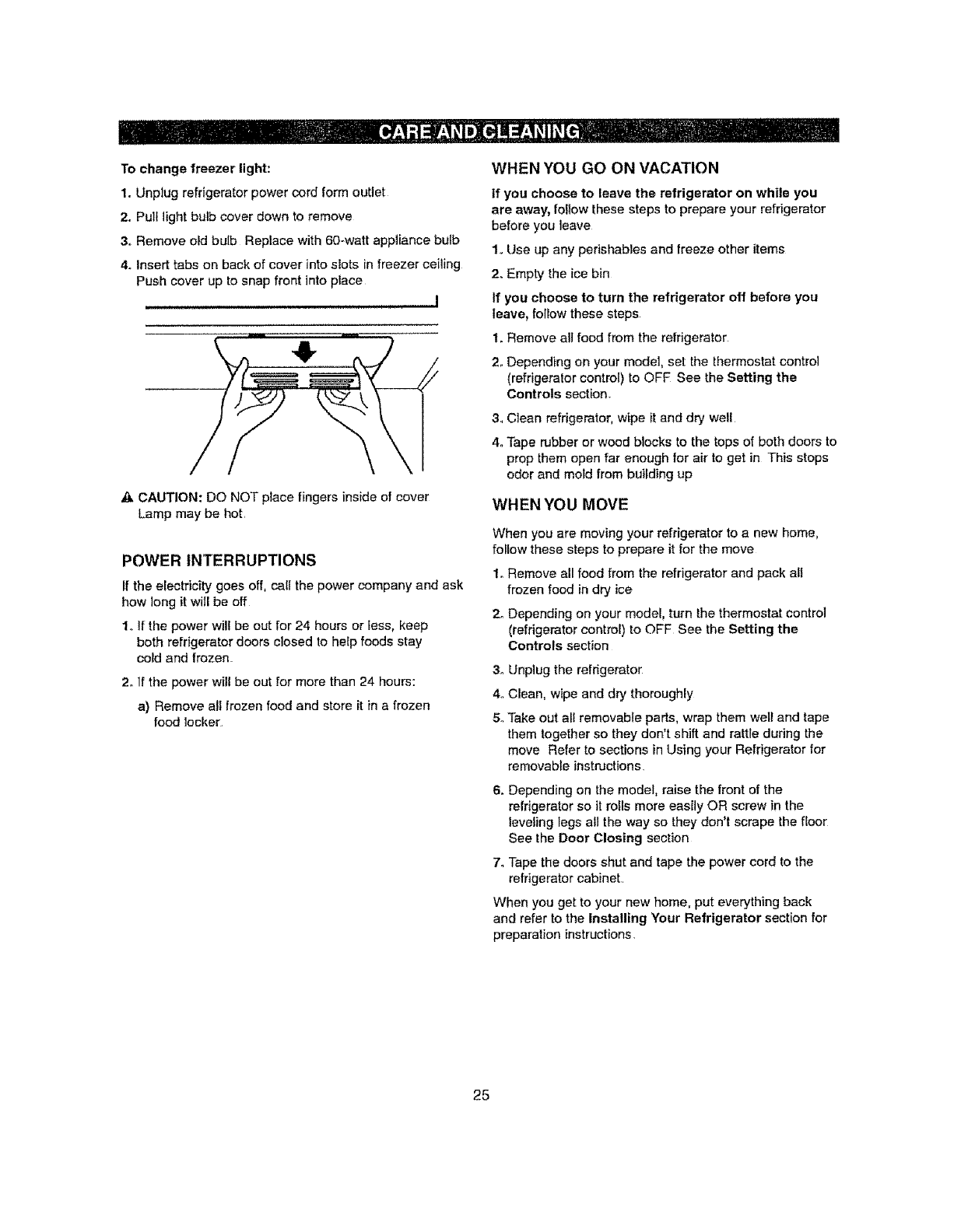

Storing Frozen Food 16 Light Bulb Replacement 24-25

1_ Refrigerator Features Power Interruptions 25

Water Dispenser 16 When you go on vacation 25

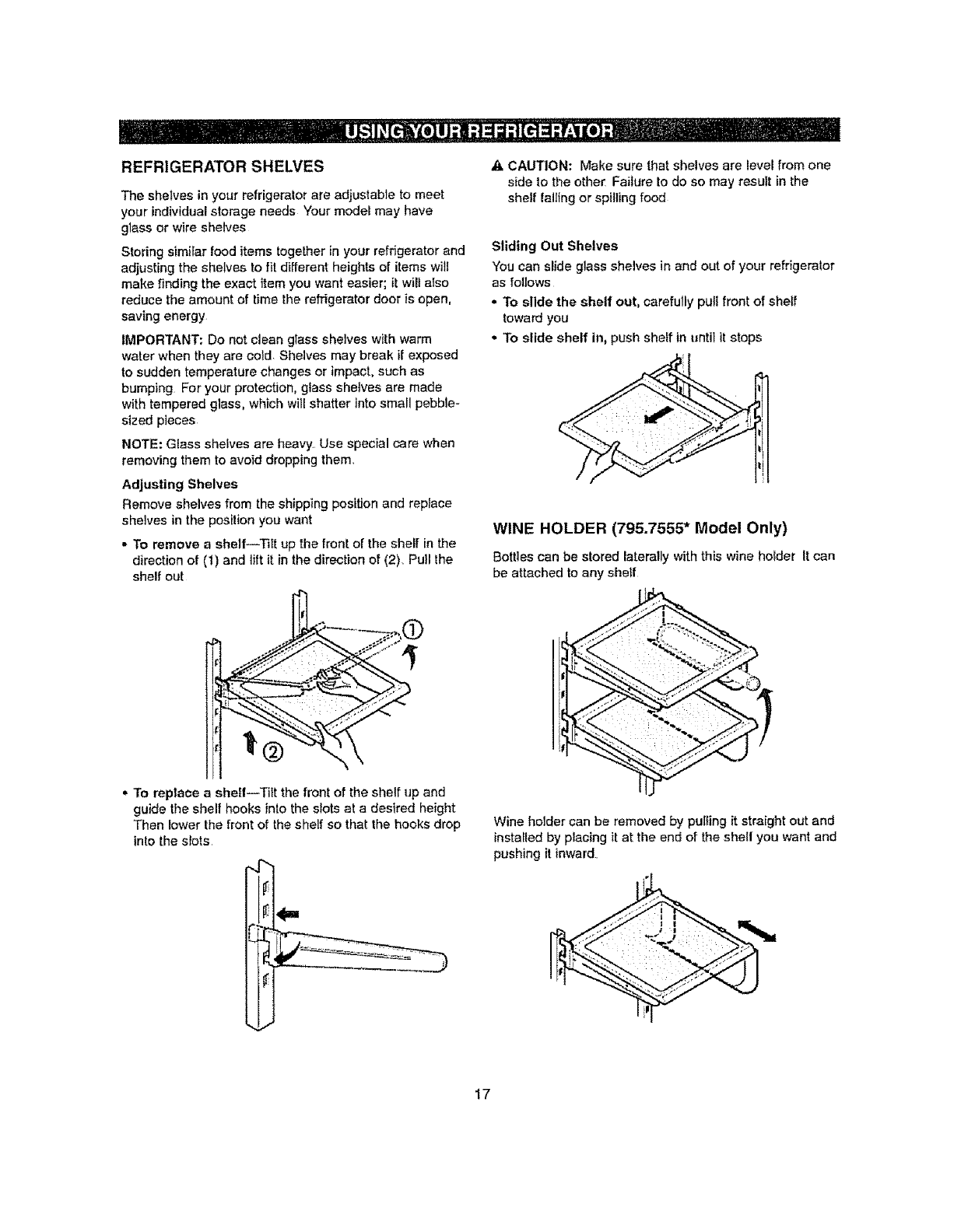

Refrigerator Shelves 17 When you move 25

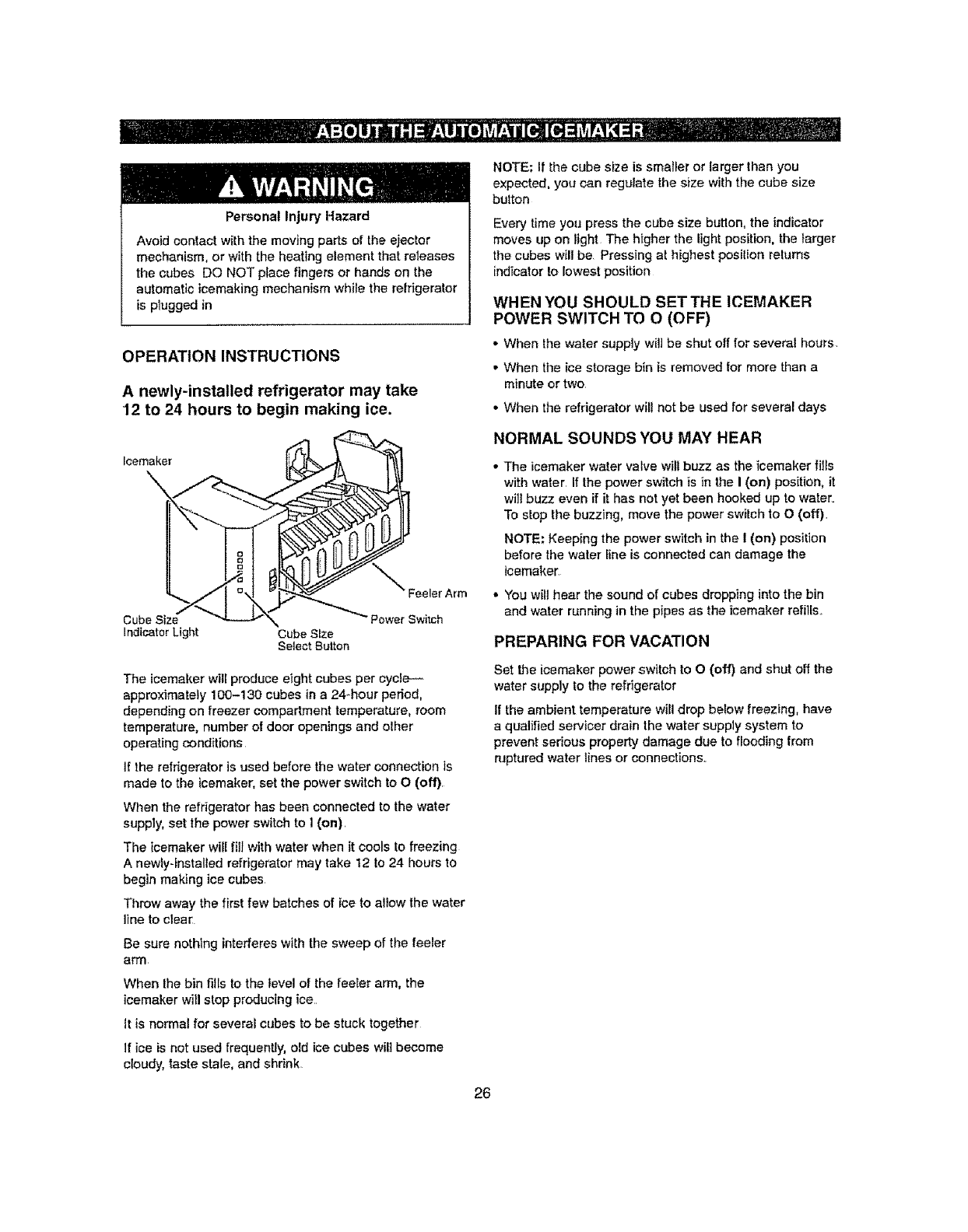

Wine Holder 17 About the Automatic Icemaker 26

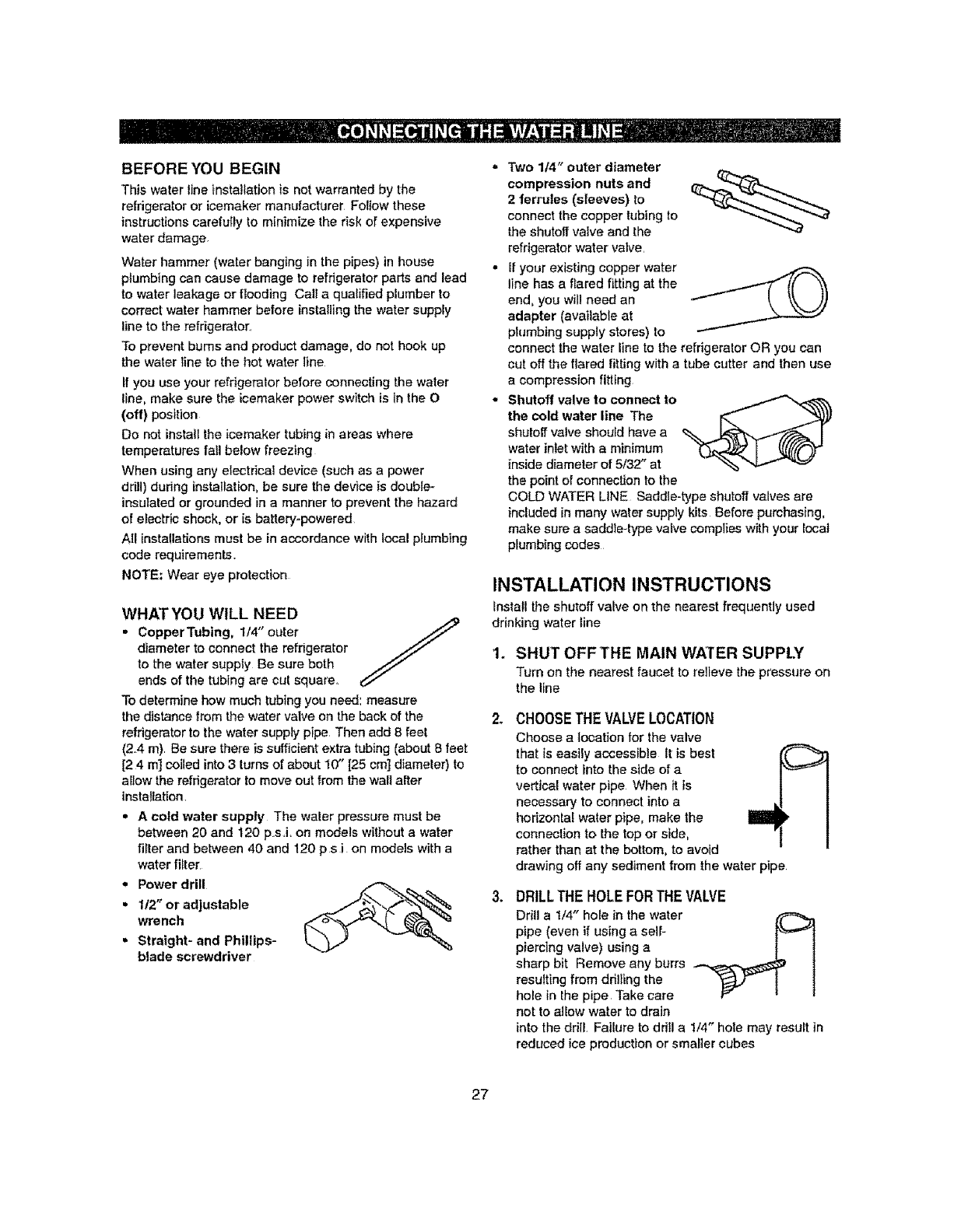

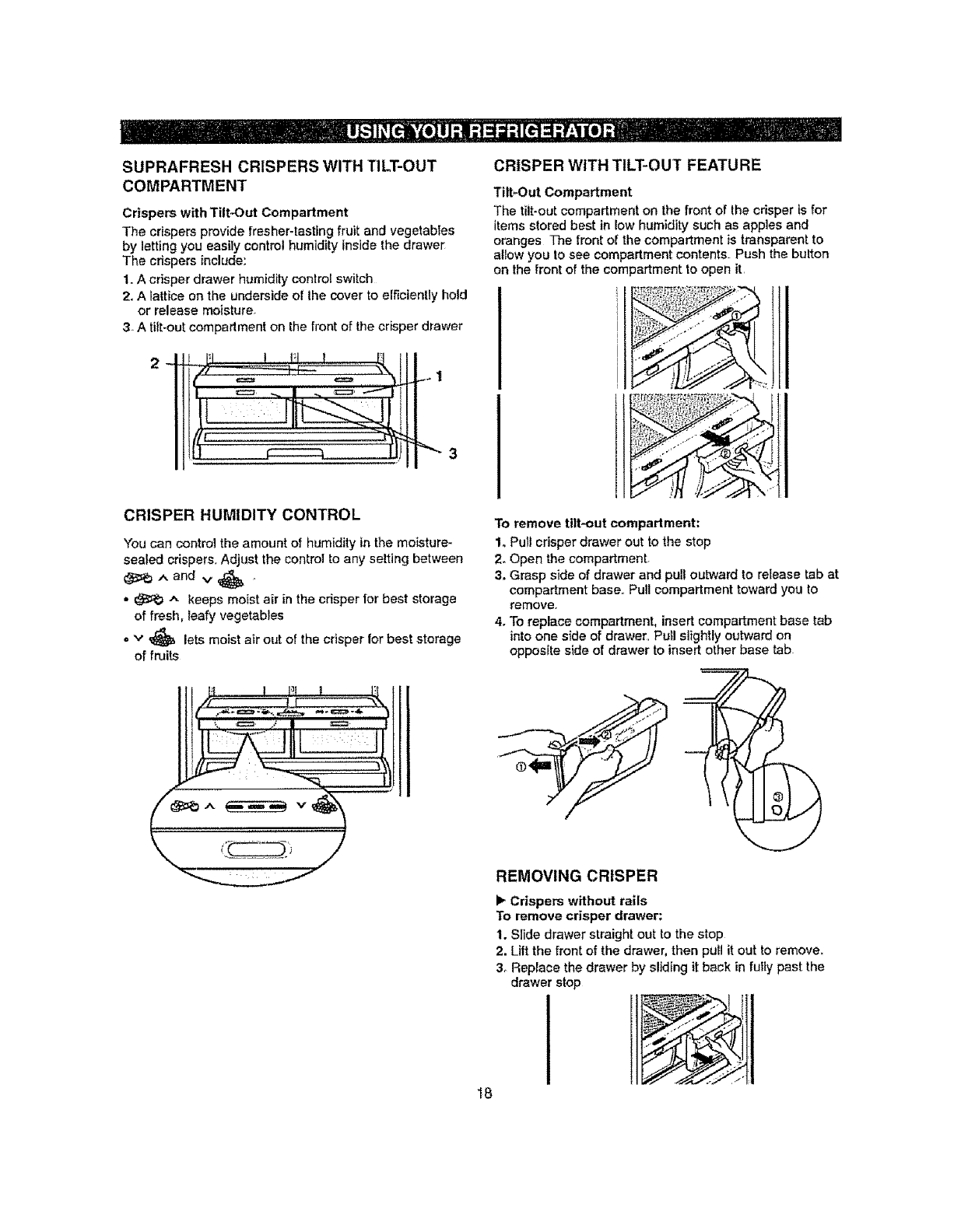

Suprafresh Crispers with TiR-out Compartment 18 Connecting the Water Line 27-30

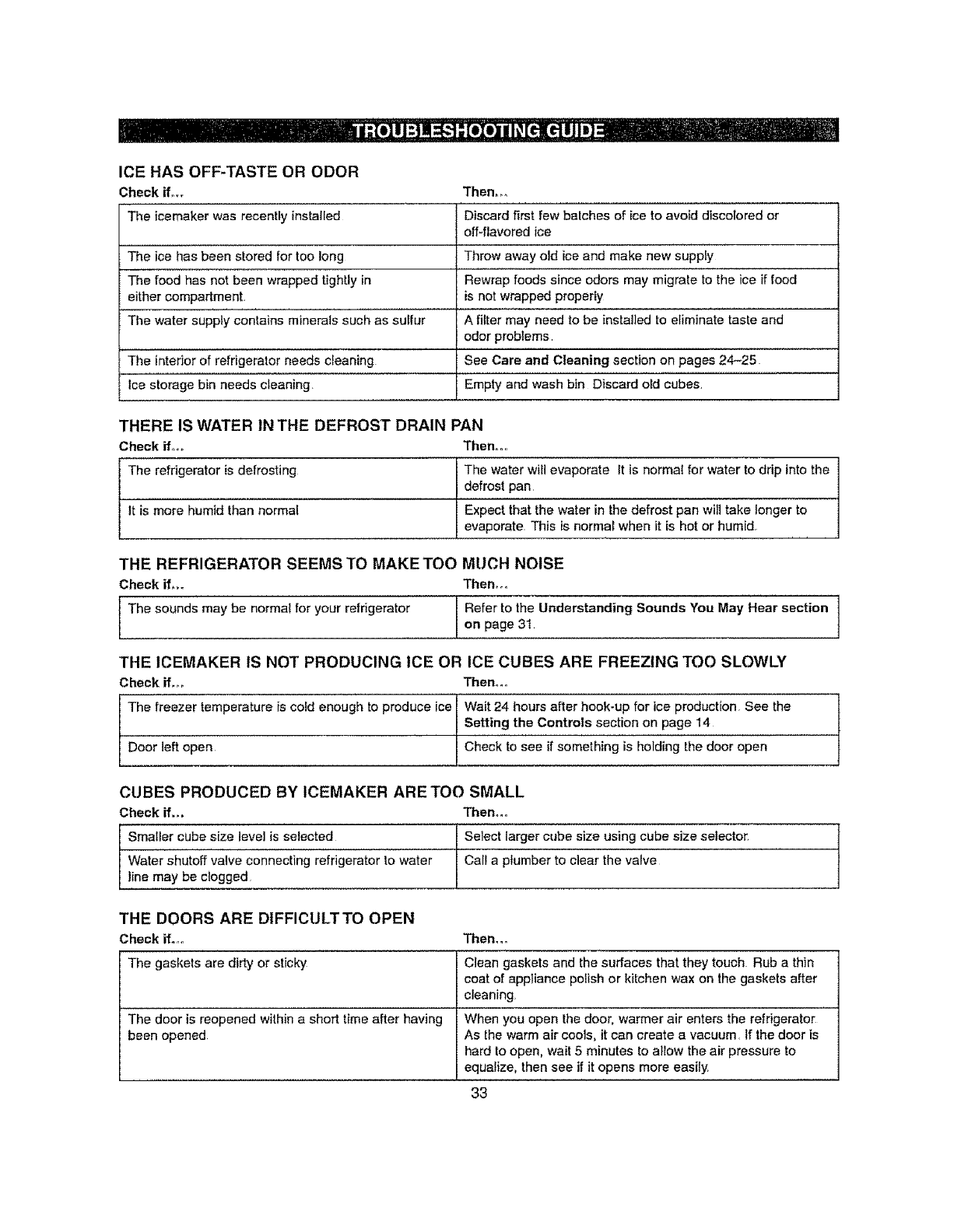

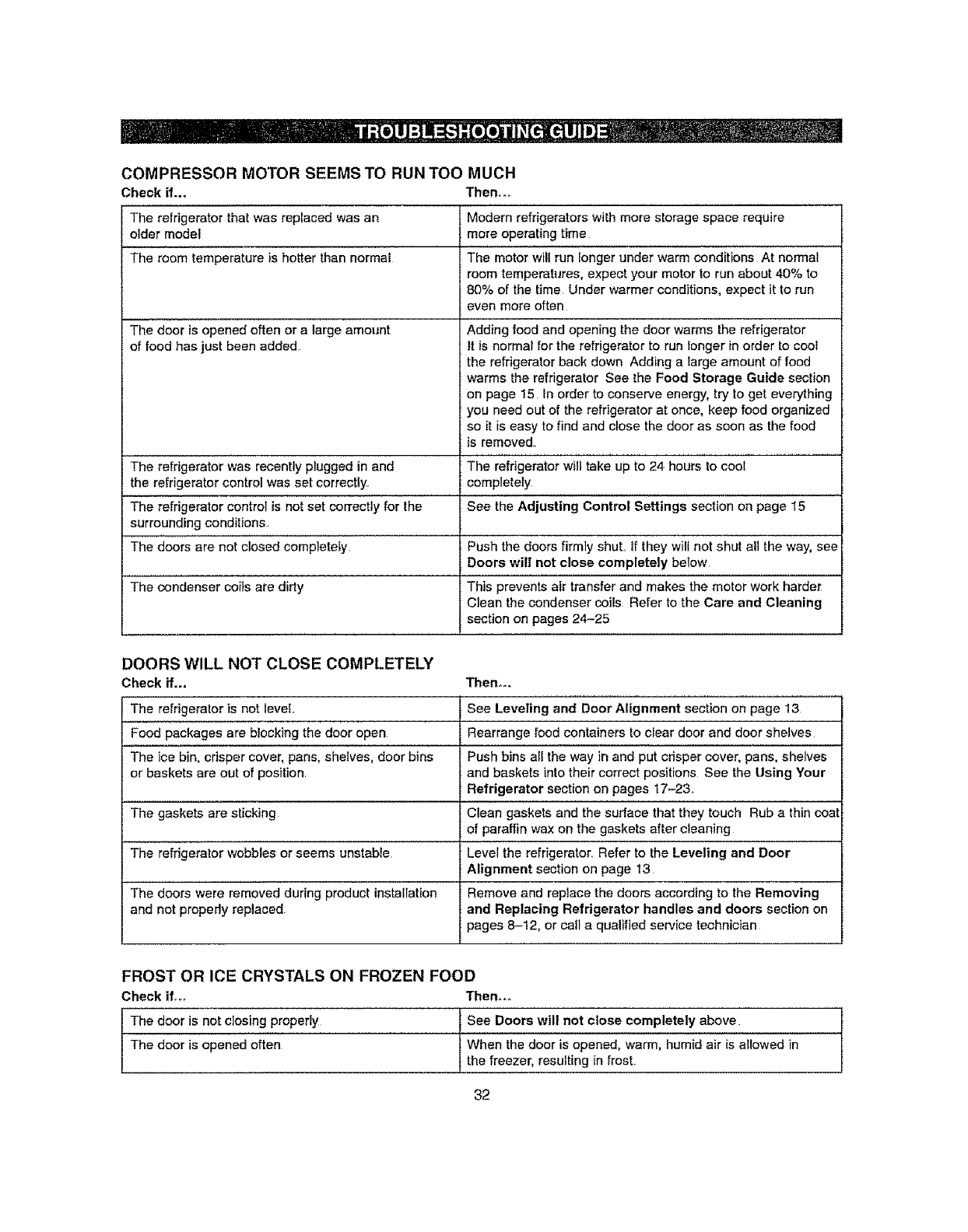

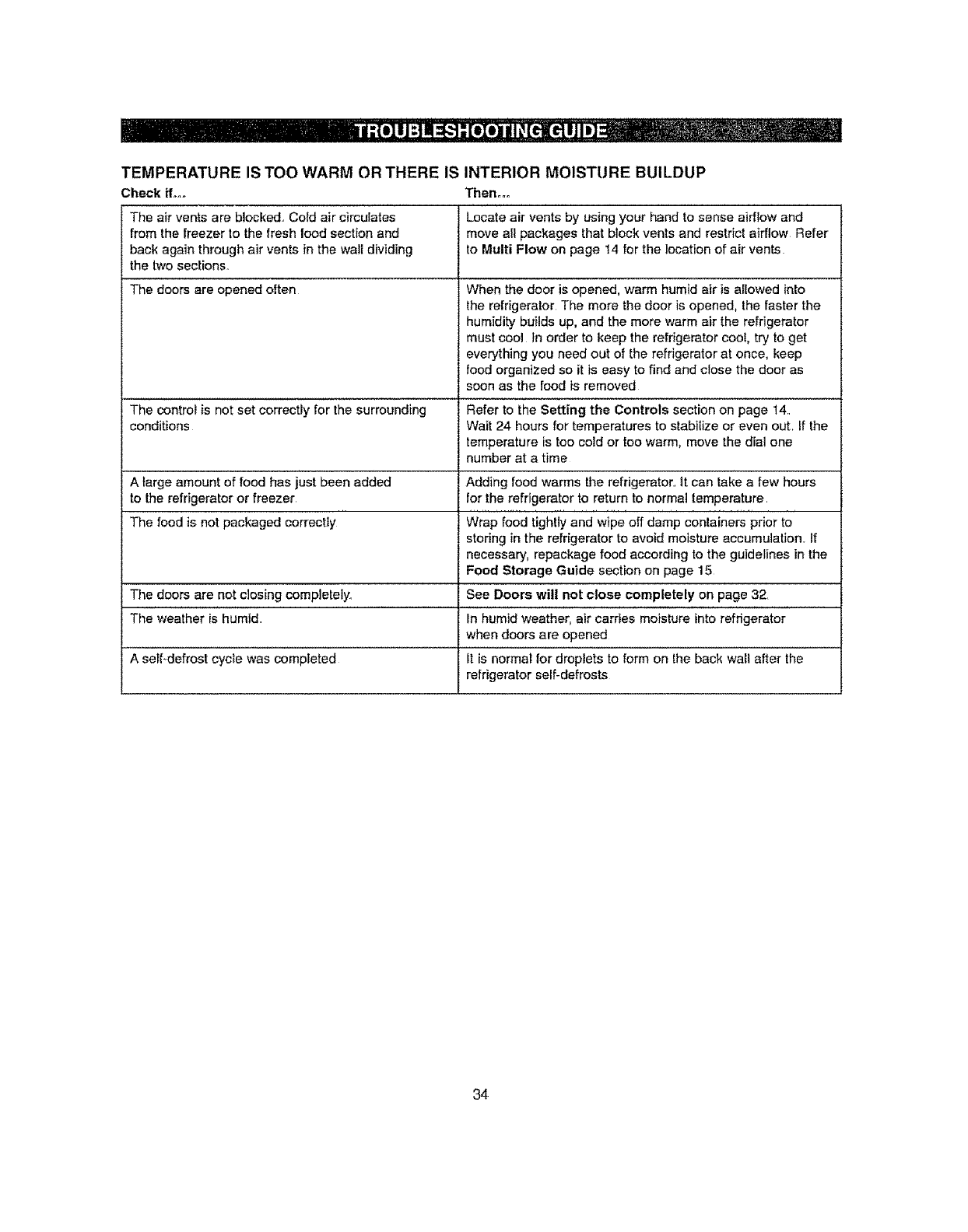

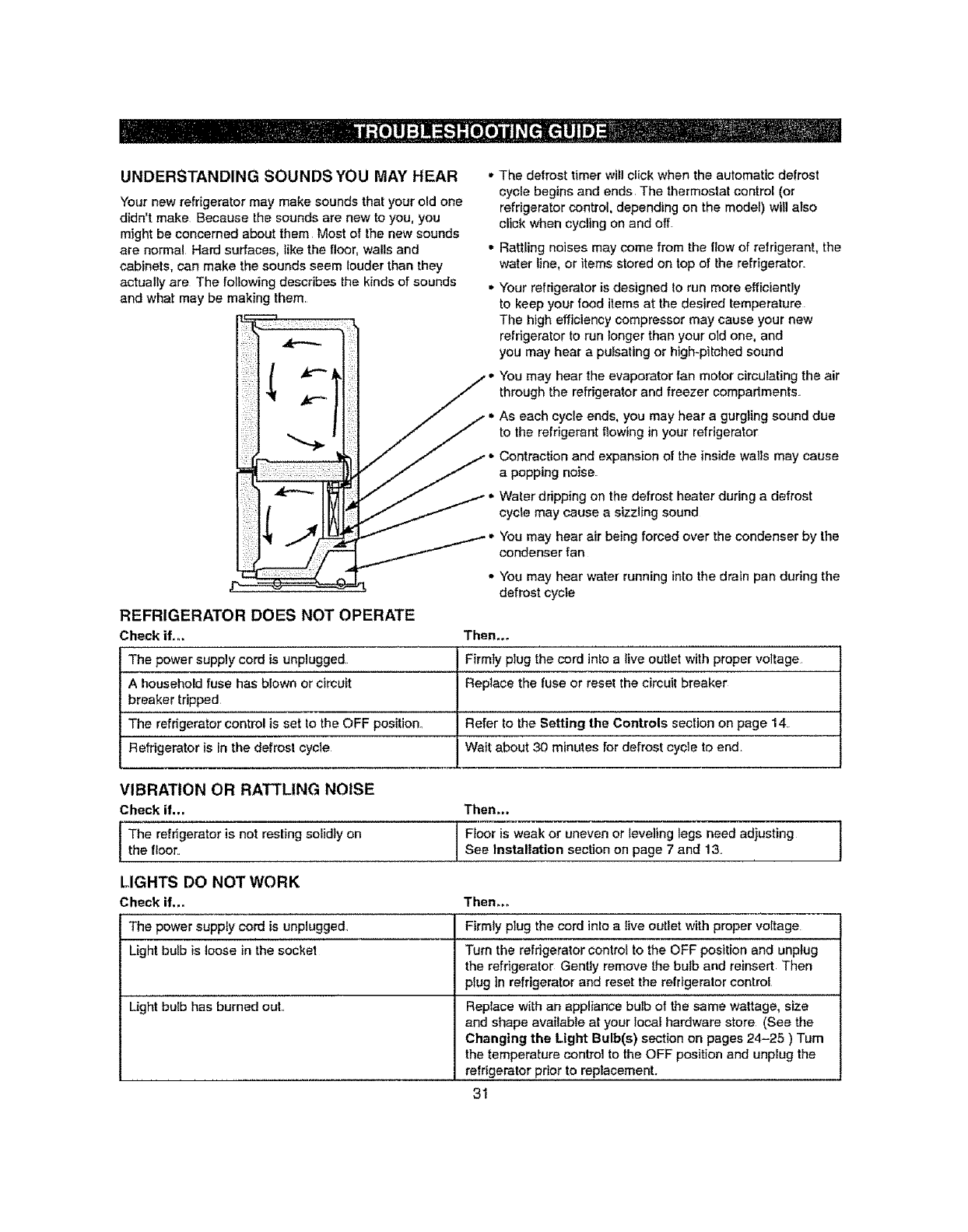

Crisper Humidity Control 18 Troubleshooting Guide 31-34

Crisper with Tilt-out Feature 18

E L 1TE®

BOSOM FREEZER REFRIGERATOR

WARRANTYmU.S.A.

_FULL ONE-YEAR WARRANTY ON REFRIGERATOR

For one year from the date of purchase, if this Kenmore Refrigerator fails due to adefect in material or

workmanship, Sears will repair it free of charge

FULL FIVE-YEAR WARRANTY ON THE SEALED REFRIGERATION SYSTEM

For five years from the dale of purchase, if any part of the seared system (consisting of refrigerant, connecting

tube and compressor) in this Kenmore Refrigerator fails due to a defect in material or workmanship, Sears will

repair it tree of charge

The above warranty coverage applies only to refrigerators which are used for the storage of food for private

household purposes,

WARRANTY SERVICE IS AVAILABLE BY CONTACTING SEARS SERVICE AT 1-800-ZI-MY-HOMEo"

This warranty applies only while this product is in use in the United States

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state,

Sears Roebuckand Co Dept 817 WA HoffmanEstates, [L 60179

In the U.S.A.

Master Protection Agreements

Congratulations on making a smart purchase Your new

Kenmore = product is designed and manufactured for years

of dependable operation But fike all products, it may

require preventive maintenance or repair from time to time

That's when having a Master Protection Agreement can

save you money and aggravation

Purchase aMaster Protection Agreement now and protect

yourseff from unexpected hassle and expense

The Master Protection Agreement also helps extend

the fife of your new product Here's what's included

in the Agreement:

it Expert service by our 12,000 professional repair

specialists

V' Unlimited service and no charge for parts and fabor

on all covered repairs

v" "No-lemon" guarantee--repiacament of your covered

product if four or more product failures occur within

twelve months

V' Product replacement if your covered product can't

be fixed

I/Annual Preventive Maintenance Check at your

request--no extra charge

,,,/Fast help by phone--phone support from a Sears

technician on products requiring in-home repair, plus

convenient repair scheduling

v' Power surge protection against electrical damage due

to power fluctuations

v' Rental reimbursement if repair of your covered product

takes longer than promised

Once you purchase the Agreement, a simple phone

call is aEIthat it takes for you to schedule service.

You can call anytime day or night, or schedule a

service appointment online

Sears has over 12,000 professional repair specialists,

who have access to over 4 5 million quality parts and

accessories That's the kind of professionalism you can

count on to help prolong the life of your new purchase

for years to come Purchase your Master Protection

Agreement today!

Some limitations and exclusions apply,

For prices and additional information call

1-800-827-6655,,

Sears Installation Service

For Sears professional installation of home appliances,

garage door openers, water heaters, and other major

home items, in the USA calf 1-800-4-MY-HOME. _

In Canada

Maintenance Agreements

"(our purchase has added value because you can depend

on Sears HomeCentraP for service. Wilh over 2400

Service Technicians and more than a million parts and

accessories, we have the tools, parts, knowledge and

skills to back our pledge: We Service What We Sell

Your Kenmore°product is designed, manufactured and

tested to provide years of dependable operation

But like all products, it may require service from time to

time. The Sears Maintenance Agreement offers you an

outstanding service program, affordabEy priced.

The Sears Maintenance Agreement:

•Is your way to buy tomorrow's service at today's price

• Eliminates repair bills resulting from normal wear and

tear

• Provides phone support from a Sears technician on

products requiring in-home repair

• Even if you don't need repairs, provides an annual

Preventive Maintenance Check, at your request, to

ensure that your product is proper running condition

Some limitations apply. For more information about

Sears Canada Maintenance Agreements,

call 1-800=361-6665

In the space below, record the date of purchase, model and serial number of your product. You will find the model and

serial number printed on an identification label located on the right-hand side of the refrigerator compartment Have

these items of information available whenever you contact Sears concerning your product

Model No. Date of Purchase

Serial No Dealer

Save these instructions and attach your sales receipt for future reference

This guidecontains many importantsafety messages,Always read and obeyall safetymessages

This is the safety alert symbol It alerts you to safety messages that inform you

of hazards Ihat can kill or hurt you or otllers, or cause damage to the product

All safety messages will be preceded by the safety alert symbol and the hazard

signal word DANGER, WARNING, CAUTION, These words mean:

You wilt be killed or seriously injured if you don't follow instructions

You ca_._Onbe killed or seriously injured if you don't follow instructions

Indicates an imminently hazardous situation which, if no[ avoided,

may result in minor or moderate injury, or product damage only

All safety messages will identify the hazard, tell you how to reduce the chance of injuryand tel]you what can happen if

the instructions are not foliowed

To reduce the risk of fire, electric shock, or injury

to persons when using your product, basic safety

precautions should be followed, including the following:

Read all instructions before using this appliance.

•NEVER unplug your refrigerator by pulling on the power

cord Always grip the plug firmly and puli it straight out {rom

the outlet

• Repair or replace immediatelyall electric service cords that

have become frayed or otherwise damaged Do not use a

cord that shows cracks or abrasion damage along its length

or at either the plug or connector end

• When moving your refrigerator away from the wall,

be careful not to roll over or damage the power cord

• DO NOT store or use gasoline or other flammable vapors

and liquids in the vicinity of thisor any other appliance

• DO NOT allow children to climb, stand or hang on the

reldgerator doors or shelves in the refrigerator They could

damage the refrigerator and seriously injure themselves.

• Keep lingers out of pinch point areas; clearances between

the doors and cabinet are necessariIy small Be careful

closing doors when children are in the area

• Unplug your refrigerator before cleaning or making any

repairs

NOTE: We strongly recommend that any servicing be

performed by a qualified individual

•Before replacing a bumed-out light bulb, unplug the

refrigerator or lure off power at thecircuit breaker or fuse

box in order to avoid contact with a live wire filament. (A

burned-out light bulb may break when being replaced.)

NOTE, Betting either or both controls to the OFF position

does no! remove power to the light circuit

This refrigerator must be properly installed in accordance

with the Attention Installer Instructions that were taped

to the front ol the relrigerator

After your refrigerator is in operation, do not touch the cold

surfaces in the freezer compartment when hands are damp

or wet Skin may adhere to the extremely cold surfaces

In refrigerators with automatic icemakers, avoid contact

with the moving parts of the ejector mechanism, or with the

healing element that releases the cubes. DO NOT place

fingers or hands on the automatic ioemaking mechanism

while the refrigerator is plugged in

DO NOT refreeze frozen foods which have thawed

completely The United States Department of Agricullure in

Home and Garden Bulletin No 69 says:

.You may safely refreeze frozen foods that have thawed if

they still contain ice crystals or if they are sti!l cold--below

40°F (4°C)

Thawed ground meats, poultry or fish that have any off-

odor or off-color should not be refrozen and should not be

eaten Thawed ice cream shoufd be discarded If the odor

or color of any food is poor or questionable, get rid of it

Tile food may be dangerous to eat

Even partial thawing and refreezing reduces the eating

quality of foods, particularly fruits, vegetables and prepared

foods. The eating quality el red meats is affected less than

that of many other foods Use refrozen foods as soon as

possible to save as much of their quality as you can

SAVE THESE INSTRUCTIONS

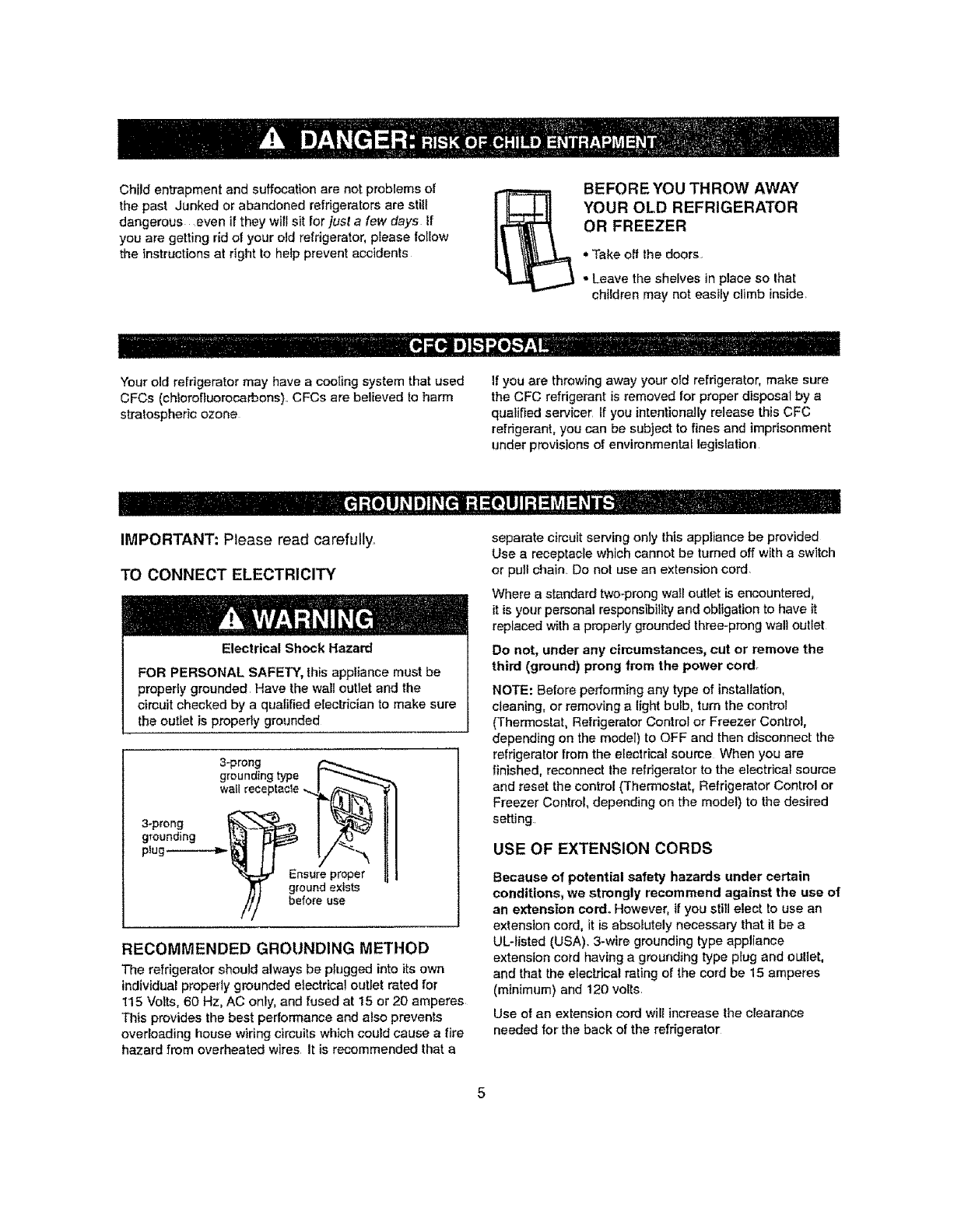

Child entrapment and suffocation are not problems of

the past Junked or abandoned refrigerators are stilt

dangerous even if they will sit for just a few days If

you are getting rid of your old refrigerator, please fo_low

tile instructions at right to help prevent accidents

BEFORE YOU THROW AWAY

YOUR OLD REFRIGERATOR

OR FREEZER

,, Take off the doors.

•Leave the shelves in place so Ihat

children may not easily climb inside.

Your old refrigerator may have a cooling system that used

CFCs (chloroftuerocarbons). CFCs are believed to harm

stratospheric ozone

if you are throwing away your oId refrigerator, make sure

the CFC refrigerant is removed for proper disposal by a

qualified servicer If you intentlona]ly release this CFC

refrigerant, you can be subject to fines and imprisonment

under provisions of environmental legislation

IMPORTANT: Please read carefully.

TO CONNECT ELECTRICITY

Electrical Shock Hazard

FOR PERSONAL SAFETY, this appliance must be

properly grounded Have the wall outlet and the

circuit checked by aqualified electrlcian to make sure

the outlet is properly grounded

3-prong

groundingtype

3.proog

grounding

plug.-.--------_-. Ensur

sts

RECOMMENDED GROUNDING METItOD

The refrigerator should always be plugged into its own

individualproperly grounded electrical outlet rated for

115 Volts, 60 Hz, AC only, and fused at 15 or 20 amperes

This provides the best performance and also prevents

overloading house wiring circuits which could cause a fire

hazard from overheated wires It is recommended that a

separate circuit serving only this appliance be provided

Use a receptacle which cannot be turned off with a switch

or pull chain Do not use an extension cord.

Where a standard two-prong wail outlet is encountered,

it is your personal responsibility and obligation to have it

replaced ,Mth a properly grounded three-prong waft outlet

Do not, under any circumstances, cut or remove the

third (ground) prong from the power cord.

NOTE: Before performing any type of installation,

cleaning, or removing a light bulb, turn the control

(Thermostat, Refrigerator Control or Freezer Control,

depending on the model) to OFF and then disconnect the

refrigerator from the electrical source When you are

finished, reconnect the refrigerator to the electrical source

and reset the control (Thermostat, Refrigerator Control or

Freezer Control, depending on the model) to the desired

setting.

USE OF EXTENSION CORDS

Because of potential safety hazards under certain

conditions, we strongly recommend against the use of

an extension cord° However, if you still elect to use an

extension cord, it is absolutely necessary that it be a

UL-listed (USA). 3-wire grounding type appliance

extension cord having a grounding type p{ug and outlet,

and that the electrical rating of the cord be 15 amperes

(minimum) and 120 veils.

Use of an extension cord will increase the clearance

needed for the back of the refr;gerator

Use this page to become more familiar with the parts and features Page references are included for your convenience

NOTE: This guide covers several different models_ The refrigerator you have purchased may have some

or all of the items listed below.The locations of the features shown below may not match your model.

O Refrigerator Light (p24)

O Filter (inside) (p23)

G Refrigerator Shelves (p,17)

O Modular Door Bins (p 20)

O Supra Fresh Crisper with T_lt-Out Compartment (p18)

Glide N Serve (p20)

_) Adjusta Cube Ice Maker (p 26)

ice Bin (p21)

Pull out Drawer (p 22)

O Durabase (p 22)

Q Divider (p 22)

OTitt-Out Doer Basket (795.7554", 7555* Models only)

(p 22)

_)Dairy Bin(p21)

O Wine Holder (795,7555" Mode{ Only) (p 17)

_[_Egg Box (p2t)

Excessive Weight Hazard

Use two or more people to move and install

refrigerator

Failure to de so can result in back or other injury

UNPACKING YOUR REFRIGERATOR

Remove tape and any temporary labels from your

refrigerator before using Do not remove any warning-

type labels, the model and serial number label, or the

TechSheet that is attached to back walt of the refrigerator

To remove any remaining tape or glue, rub the area

briskly with your thumb Tape or gfue residue can atso be

easity removed by rubbing a small amount of liquid dish

soap ever the adhesive with your fingers Wipe with warm

water and dry

Do not use sharp instruments, rubbing alcohol, flammable

fluids or abrasive cleaners to remove tape or glue. These

products can damage the surface of your refrigerator For

more information, see the Important Safety Instructions

section

Refrigerator shelves are instafled in the shipping position.

Please reinstalt shelves according to your individual

storage needs.

When Moving Your Refrigerator:

Your refrigerator is heavy When moving the

refrigeratorfor cleaning or service, be sure to protect

the floor Always pu_lthe refrigerator straight out

when moving it Do not wiggle or walk the refrigerator

when trying to move it, as floor damage could occur,

INSTALLATION

To avoid vibration, the unit must be level If required,

adjust the leveling screws to compensate for

unevenness of the floor The front should be stight_y

higher than the rear to aid in door closing. Leveling

screws can be turned easily by tipping the cabinet

slightly Turn the leveling screws clockwise (i_.) to

raise the unit, counterclockwise (_"==") to tower it

Install this appliance in an area where the temperature

is between 55°F (13°C) and 110_'F(43°C) If the

temperature around the appliance is toe low or high,

cooling ability may be adversely affected

3. Allow the clearance of at ]east 2 inch from the ceMng and

1inch from the side walls for better cooling efficiency, ease

of instatlation, proper air circulaUen and electrical

o0nnecUons

ACAUTION: Avoid placing the unit near heat sources,

direct sunlight or moisture

1.. Cfean your refrigerator thoroughly and wipe off all dust

accumulated during shipping

2. install accessories such as ice cube bin, drawers.

shelves, etc, in their proper places They are packed

together to prevent possible damage during shipment.

3. Let your refrigerator run for at least 2 or 3 hours before

putting food in it Check the flow of cold air in the

freezer compartment to ensure proper cooling Your

refrigerator is now ready for use

il WARNING

• Be careful when you work with hinge, base cover,

stopper etc You may be injured

• Do not put hands or foot or metal sticks into air vents,

base cover or bottom of refrigerator You may be injured

or receive an electricar shock.

Explosion Hazard

Keep flammable materials and vapors, such as

gasoline, away from refrigerator.

Faiiure to do so can result in death, expFosion or fire

HOW TO REMOVE DOOR/DRAWER HANDLES

To move refrigerator through a house door, it maybe necessary to remove the refrigerator or freezer door handles,

NOTE: Handle appearance may vary from

illustrations on this page

1. Removing Refrigerator Handle

•Press the handle against door first

• Grasp the handle tightly with both hands

and slide the handte up (1)(this may

require some force)

•The keyhole slots (2) on the back of the

handle allow the handle to separate from

the mounting screws (3)

• , CAUTION: The handle could be

damaged if you hit it with a hammer

while removing or attaching

A CAUTION: When you assemble or

disassemble handle, you must push or

pull with some force

Screws

mounted

on door

Keyhole slots

onbackof

handle

2, Removing Freezer Drawer Handle

• Press the handte against door first

• Grasp the handte tightly with both hands

and slide the handle to right (1)(this may

require some force)

• The keyhole slots (2) on the back of the

handle allow the handle to separate from

the mounting screws (3)

Scows

moun_d

on door

Keyhole slots

on backof

handle

HOWTO REPLACE DOOR/DRAWER HANDLES

NOTE: Handle appearance may vary from

illustrations on th}s page

1. Replacing Refrigerator Door Handle

,' Align keyhole slots (1) on the top and

bottom of the back of the handle with

the screws (2) mounted on the front of

the door.

•Press the handle against the door

front, making sure that the screws (2)

go into the keyhole slots (t)

• Holding the handle with both hands,

press it firmly against the front of the

door and slide the handle down (3) Q(

mounted

on door

2. Replacing Freezer Drawer Handle

• Align keyhole slots (4) on the right and

left sides of the back of the handle

with the screws (5) mounted on the

front of the drawer

• Press the handle against the drawer

front, making sure that the screws (5)

go into the keyhole slots (4),.

• Holding the handle with both hands,

press it firmly against the front of the

drawer and slide the handle to the left

(6)

Screws

mounted

on door

Keyholeslots

onback of

handle

REMOVING AND REPLACING REFRIGERATOR DOORS

1, Removing Retrigerator Door

•0, CAUTION; Before you begin, unplug the refrigerator Remove food and bins from doors,

Left Door

1 Open door Loosen top hinge cover screw (1),

Use fiat tip screwdriver to pry back hooks on front underside of cover (3) Lift up cover

2 Disconnect door switch wire harness (2) Remove cover.

3 Disconnect water supply tube by pushing back on the disconnect ring (4) and pulling tube out.

4 Disconnect lhe three wire harnesses (5) Remove the grounding screw (6)

5 Rotate hinge lever (7) counterclockwise and remove Ltft top hinge (8) free of hinge lever latch (9)

ACAUTION- When fifttng hinge free of latch, be careful that door does not fall forward

6 Lift door up from middle hinge pin (10) and remove door

7Piece door, inside facing up, down onto a non-scratching surface

I_ Right Door

1 Open door Loosen top hinge cover screw (I) Lift up cover (3)

2 Disconnect door switch wire harness (2) Remove cover..

3 Disconnect wire hamess (5) Remove the grounding screw (6)

4. Rotate hinge lever (7) clockwise and remove Lift top hinge (8) free of hinge lever latch (9).

CAUTION: When lifting hinge free of latch, be carefut that door does not fall forward

5 Lift door up from middle hinge pin (10) and remove door

6, Place door, inside facing up, down onto a nomscratching surface.

2,, Replacing Refrigerator Door

b' Right Door

1Lower the door onto middle hinge pin (10)

2 Fit top hinge (8) over hinge lever latch (9) and into place Insert hinge lever (7) under lever latch Rotate lever

counterclockwise to secure hinge

3 Instal] the grounding screw (6) and connect the three wire harnesses (5).

4 Connect door switch wire harness (2),

5, Hook tab on door switch side of cover under edge of wire opening in cabinet top,, Position cover (3) into place Insert

and tighten cover screw (1)

I_ Left Door

1 Lower the door onto mtddte hinge pin (10)

2 Fit top hinge (8) over hinge lever latch (9) and into place Insert hinge lever (7) under lever talch Rotate lever clockwise

to secure hinge

3 Install lhe grounding screw (6) and connect the three wire harnesses (5),

4 Connect door switch wire harness (2).

5 Insert the water supply tube (3) into the connector tube until you see only one scale mark

(Fully insert the tube over 5/8"(15mm)).

6 Hook tab on door switch side of cover (3) under edge of wire opening tn cabinet top Position cover into place Insert

and tighten cover screw (1)

Correct

HOW TO REMOVE AND INSTALL THE

PULLOUT DRAWER

IMPORTANT: To avoid possible injury, product or property

damage, you will need two people to perform the following

instructions,

2oInstalling Pullout Drawer

• Pull both rails (1) out to full extension

1. Removing Pullout Drawer

• Pull the drawer open to full extension Remove the

lower basket (1) by lifting basket from rail system

,, Hook the door supports (2) into the rail tabs (3), as

illuslraled, and lower the door into final position And

tighten the screw (4),

• Remove the screw (2) from each side of rail system

,With the drawer pulled out to full extension, insert the

lower basket (5) in the rail assembly until it doesn't

move forward,

• Lift the top of door to unhook door supports from rail

system Lift door up to remove

CAUTION: When you remove the drawer, do not hold

handle If it comes off, it could cause personal injury

A CAUTION: When laying down the drawer, be careful

not to damage the floor or hurt your feet by the sharp

edges on hinge side

AWARNING: To prevent accidental child and pet

entrapment or suffocation risk DO NOT allow them to

play inside of drawer

,& WARNING; DO NOT step or sit down on Freezer Door

LEVELING AND DOOR ALIGNMENT

Leveling

Your refrigerator has two front leveling screws--one on

the fight and one on the lelt Adjust screws to alter tilt

from front-to-back or side-to-side If your refrigerator

seems unsteady or you want the doors to close easier,

adjust the refrigerator's tilt using the instructions below:

1o Plug the refrigerator's power cord inlo a 3-prong grounded

outlet Move the refrigerator into its final position Remove

the base cover

To remove the base cover

1. Open the Freezer Drawer.(Drawer not shown for clarity)

2. Once drawer is open there is sufficient clearance to

remove screws on top of cover

To replace base cover:

* Place cover into posit_onand insertand tighten screws

Open both doors again and check to make sure tidal

they close easily If not, tilt the refrigerator slightly more

to the rear by turningboth leveling screws clockwise.. It

may take several more turns, and you should turn both

leveling screws the same amount

Re-adjust if necessary.

Replace the base cover,

NOTE: Your new rekigerator is uniquely designed with

two fresh food doors Either door can be opened or

closed independently of one another: You may have to

exert slight pressure on doors to get them to close

completely

Door Alignment

tt the space between your doors is uneven, follow the

instructions below to align the doors:

I, With one hand, lift up the door you want to raise at

middle hinge,

2, With other hand, use pliers to insert snap ring as

shown

3o Insert additional snap fings until the doors are aligned

(Three snap rings are provided with unit )

2. Turn the teveiing screw clockwise to raise that side of

the refrigerator or counte_lockwise to lower it It may

take several turns of the leveling screw to adjust the tilt

of the refrigerator,

NOTE: Having someone push against the top of the

refrigerator takes some weight off the leveling screws.

This makes iteasier to adjust the screws.

L..I LTJ

ENSURING PROPER AIR CIRCULATION

In order to ensure proper temperatures, air must flow

between the refrigerator and freezer sections As shown

inthe illustrationbelow, air enters at top of freezer and

circulates down From bottom of freezer, air is forced up

to top of refrigerator Air enters refrigerator through top

vent, then circulates and exists at bottom, where it returns

to freezer

MULTI-FLOW

,Multi-Flow means powerful and effective cooling

operation This is especially noticeable when new food

is placed in the refrigerator compartment

• If water or foreign subs_nces enter the cool air vent

while cleaning, efficiency will be lowered, in addition, ff

gasket is damaged, efficiency may be lowered because

of escaping cool air

SETTING THE CONTROLS

•Your refrigerator has a control pad on the dispenser that

lets you regulate the temperature in the freezer and

refrigerator compartments

°Initially set the REFRIGERATOR CONTROL at

37"F(3°C) and the FREEZER CONTROL at 0°F(-18"C)

Leave it at this setting for 24 hours (one day) to

stabilize Then adjust the compartment temperature as

desired

Do not block any of cool air vents with food packages,

If the vents are blocked, airflow witlbe interruptedand

temperature and moisture problems may occur,

IMPORTANT: Because air circulates between both

sections, any odors formed in one section will transfer to

the other You must thoroughlyclean both sections to

eliminate odors To prevent odor transfer and drying out of

food, wrap or cover foods tightly (See the Food Storage

Guide section for details )

, Refrigerator Temp Control: 33_F/46°F(0°C to 8°C)

The lower the number setting, the colder the refrigerator

compartment will become

• Freezer Temp Control: -6°F/9_F(-21 _C to -13_C)

When the setting is at a lower number, the freezer

compartment becomes colder, But the refrigerator

compartment becomes warmer because tess cold air

flows into the refrigerator

NOTE; If you want to change °F to °C or the reverse,

press and hold FRZ TEMP button and REF TEMP button

el the same time for 3seconds

- Express Freezing : Press the EXPRESS FRZ botton

and the LED wi!i turn on This function will remain

activated for 24 hours and increase the cooling speed of

the freezer and the amount of ice produced

° Dispenser Lock : Press and hold the LOCK button for 3

seconds to lock the dispenser

When it is locked, Ihe LED wil! be off and the dispenser

will nol operate To unlock, press and hold the LOCK

button for 3 seconds

• Filter Reset : When the FILTER RESET LED turns on,

you have to change the water filter Press the FILTER

RESET button for 3 seconds to turn LED off You need

to change the water filter approximately every 6 months

ADJUSTING CONTROL SETTINGS

Give the refrigerator time to coot down completely before

making final adjustments It is best to wait 24 hours

before doing this The mid-settings indicated in the

previous section should be correct for normal household

refrigerator usage The controls are set correctly when

milk or juice is as cold as you like and when ice cream

is firm

The refrigerator control functions as the thermostat for the

entire appliance (refrigerator and freezer sections) The

higher the number setting, the longer the compressor will

run to keep the temperature colder The freezer control

adjusts the coM air flow from the freezer to the

refrigerator Setting the freezer control to a lower

temperature keeps more cold air in the Freezer

compartment to make it colder

if you need to adjust temperatures in the refrigerator or

freezer, start by adjusting the refrigerato_ Then wait 24

hours before checking the freezer temperature If it is too

warm or toe cofd, then adjust the freezer controt

Use the settings listed in the chart below as a guide

Always remember to wait at least 24 hours between

adjustments,

CONDITION/ RECOMMENDED

REASON: ADJUSTMENT:

[] REFRIGERATOR section too

warm

- Door opened often

- Large amount of food added

- Room temperature very warm

Set REFRIGERATOR

control to next lower

number, wait 24

hours, then re-check

[] FREEZER section too

warm/ice not made fast

enough

- Door opened often

- Large amount of food added

- Very cold room temperature

(can't cycle often enough)

- Heavy ice usage

- Air vents blocked by items

Set FREEZER control

to next lower number,

wait 24 hours, then re-

check

Move items out of

airstream

i REFRIGERATOR section too

cold

-Controfs not set correctly for

your conditions

Set REFRIGERATOR

control to next higher

number, wait 24

hours, then re-check

FOOD STORAGE GUIDE

Wrap or store food in the refrigerator in airtight and

moisture-proof material unless otherwise noted This

prevents food odor and taste transfer throughout the

refrigerator For dated products, check date cede to

ensure freshness

Items How to

Butter or i_. Keep opened butter in a covered

margarine dish or closed compartment

When storing an extra supply,

wrap in freezer packaging and

freeze.

Cheese _. Store in the original wrapping until

you are ready to use it Once

opened, rewrap tightly in plastic

wrap or aluminum foil

Milk F Wipe milk cartons For best

storage, place milk on interior

shelf, not on door shelf..

Eggs _- Store in original carton or Egg Box

on interior shelf, not on door shelf

Fruit _- Wash, let dry, and store in

refrigerator in plastic bags or in

the crisper Do not wash or hull

berries until you are ready to use

them. Sort and keep berries in

their original container in a

crisper, or store in a sloosely

closed paper bag on a refrigerator

shelf

Leafy vegetables I_ Remove store wrapping and trim

or tear off bruised and discolored

areas Wash in cold water and

drain Place in plastic bag or

plastic container and store in

crisper

Vegetables with I_ Place in plastic bags or plastic

skins (carrots, container and store in crisper.

peppers)

Fish I_ Use fresh fish and shellfish the

same day purchased

Leftovers I_ Cover leftovers with plastic wrap

or aluminum foil.. Plastic

containers with tight lids can also

be used

ImFREEZER section too cold

- Controls not set correctly for

your conditions

Set FREEZER control

to next higher number,

wait 24 hours, then re-

check

STORING FROZEN FOOD REFRIGERATOR FEATURES

NOTE: For further informationabout preparingfood for

freezing or food storage times, check afreezer guide or a

reliable cookbook

Packaging

Successful freezing depends on correct packaging When

you close and sea! the package, it must not allow air or

moisture in or out if it does, you could have food odor

and taste transfer throughout the refrigerator and also dry

out frozen food

Packaging recommendations:

• Rigid plastic containers with tight-fitting lids

•Straight-sided canningtfreezing jars

• Heavy-dubj aluminum foil

• Plastic-coated paper

,, Non-permeable plastic wraps

• Specified freezer-grade serf-sealing plastic bags

Follow package or container instructions for proper

freezing methods

Do not use;

• Bread wrappers

• Non-polyethylene plastic containers

• Containers without tight lids

• Wax paper or wax-coated freezer wrap

• Thin, semi-permeable wrap

,_. CAUTION: Do not keep beverage cans or plastic

containers in the freezer compartment They may be

broken when they are frozen

Freezing

Your freezer will not quick-freeze any large quantity of

food Do not put more unfrozen food into the freezer than

willfreeze within 24 hours (no more than 2to 3 Ibs of Iood

per cubic foot of freezer space) Leave enough space in

the freezer for air to circulate around packages Be careful

to leave enough room at

the front so the door can close tightly

Storage times will vary according to the quality and lype

of food, the type of packaging or wrap used (airtight and

moisture-proof) and the storage temperature Ice crystals

inside a sealed package are normal This simply means

that moisture in the food and air inside the package have

condensed, creating ice crystals

NOTE: Allow hot foods to cool at room temperature for

30 minutes, then package and freeze_ Cooling hot foods

before freezing saves energy

WATER DISPENSER

Push up the dispenser switch with a glass until you hear

click to get cold water

Dispenser

Switch

Tray can be easily removed by pressing and puffing it

Tilt up the front of tray slightly and snap the ribs into the

holes to replace the tray

....................... i ,,,,,, ,, ,,,,,,,,,,,i,! 'I'IIIIIIHI

!_'el .... ,o"

REFRIGERATOR SHELVES

The shelves in your refrigerator are adjustable to meet

your individual storage needs Your model may have

glass or wire shelves

Storing similar food items together in your refrigerator and

adjusting the shelves to fit different heights of items will

make finding the exact item you want easier; it wilt also

reduce the amount of time the refrigerator door is open,

saving energy

IMPORTANT: Do not clean glass shelves with warm

water when they are cold. Shelves may break if exposed

to sudden temperature changes or impact, such as

bumping For your protection, glass shelves are made

with tempered glass, which will shatter into small pebble-

sized pieces

NOTE: Glass shelves are heavy, Use special care when

removing them to avoid dropping them,

Adjusting Shelves

Remove shelves from the shipping position and replace

shelves in the position you want

,, To remove ashelf--_tt up the front of the shelf in the

direction of (t) and tilt it in the direction of (2)_ Pull the

shelf out

CAUTION: Make sure that shelves are level from one

side to the other Failure to do so may result in the

shelf failing or spilling food

Sliding Out Shelves

You can slide glass shelves in and out of your refrigerator

as follows

', To slide the shell out, carefully pull front of shelf

toward you

oTo slide shelf in, push shelf in until it stops

WINE HOLDER (795.7555* Model Only)

Bottles can be stored laterally with this wine holder It can

be attached to any shelf

*To replace ashelf--Tilt the front of the shelf up and

guide the shelf hooks into the slots at a desired height

Then lower the front of the shelf so that the hooks drop

info the slots

Wine holder can be removed by pulling it straight out and

installed by placing it at the end of the shell you want and

pushing it inward,

SUPRAFRESH CRISPERS WITH TILT-OUT

COMPARTMENT

Crispers with Tilt-Out Compartment

The crispers provide fresher-tasting fruit and vegetables

by letting you easily control humidity inside Lhe drawer

The crispers include:

1,,A crisper drawer humidity control switch

2oA lattice on the underside of ihe cover to efficiently hold

or release meisture_

3Atilt-out compartment on the front of the crisper drawer

CRISPER HUMIDITY CONTROL

You can control the amount of humidity in the moisture-

sealed crispers. Adjust the control to any setting between

_^and v_ o

• _ ^ keeps moist air in the crisper lor best storage

of fresh, leafy vegetables

=Y _ lets moist air out of the crisper for best storage

of fruits

CRISPER WITH TILT-OUT FEATURE

Tilt-Out Compartment

The tilt-out compartment on the front of the crisper is for

items stored best in low humidity such as apples and

oranges The front of the compartment is transparent to

allow you to see compartment contents. Push the button

on the front of the compartment to open it

To remove tilt, out compartment:

1. Pull crisper drawer out to the stop

2. Open the compartment

3, Grasp side of drawer and pull ou_vard to release tab at

compartment base, Pull compartment toward you to

remove.

4. To replace compartment, insert compartment base tab

into one side of drawer, Pull slightly outward on

opposite side of drawer to insert other base tab

REMOVING CRISPER

P"Crispers without rails

To remove crisper drawer:

1. Slide drawer straight out to the stop

2. Lift the front of the drawer, then put! it out to remove.

3_ Replace the drawer by sliding it back in fully past the

drawer stop

i"[ei'ze]ij--i ;t =1;I;t [c4 {

1_Crispers with rails

To remove crisper:

1, Pul!drawer out to hilt extension

2. Lift the front of basket up and pull strafght out

CRISPER COVER WITH LATTICE ON INNER

SURFACE

WARNING: Be careful when handling glass cover since

glass is not attached to cover

To remove lattice:

To replace crisper:

1. Push rails to the back of the compartment

2, Insertthe back comer of the basket into frame

3. Slightly tilt up the front and push back until it snaps into

place

1_ Be sure glass cover is removed

2. Turn the cover frame over Each lattice has its own

frame within the cover frame

3_ Puli left and right sides of lattice frame outward to

release lattice tabs from frame Remove lattice.

To replace lattice:

t. Pu[I sides of each lattice frame outward to re-insert

tabs of lattice into frame

2. Slide the cover frame back into refrigerator and

securely onto frame support

3. Place the glass cover back onto top of cover frame

mi------ _I[,.!I _[e]i'trO]ll ;I ;| _ d ;| [_ _ ;l:'t {el; - -

GLIDE N SERVE

The Glide NServe provides storage space with a vadabie

temperature control that keeps the compartment colder than

refrigerator temperature The drawer also features a self

opening lid that opens whenever the drawer is pulled open

This drawer can be used for large party trays, deli items,

or beverages.

oo... >

Controls

The control regulates the air temperature in the drawer,

Set control level to cold to provide normal refrigerator

temperature, Use the colder setting for meats or other dell

items

NOTE: Cold air directed to the Glide N Serve can

decrease refrigerator temperature Refrigerator

control may need to be adjusted.

To remove Glide NServe:

Tilt up the front on it's closed position and pull straight out

To replace Glide N Serve:

1. Push metal rails to the back of the refrigerator

2. Place drawer onto rails and slide drawer back until it

falls into place

Glide N Serve Food Storage Guide

NOTE: DO NOT store lettuce or other leafy produce in

this drawer

COLD COLDER

. cauliflower •steaks

•cucumbers ,, hard cheeses

• zucchinis • cold cuts

•apples •bacon

•cam •hot dogs

•oranges

•grapes

A CAUTION: Fruits and vegetables may be damaged at

the coldest setting

_t. CAUTION: DO NOT store botttes, If they are frozen,

they can be broken and cause personal injury

MODULAR DOOR BIN

The door bins are removable for easy cleaning and

adjusting

1. To remove the bin, simply [itt the bin up and pull

straight out.

2. To replace the bin, siide it in above the desired support

button and push down until it snaps in the place

_WARNtNG: Somebody can be hurt if door bins are not

firmly assembled

_t. CAUTION: DO NOT adjust a bin that is loaded with

food

_, CAUTION: DO NOT allow children to play with

baskets, Sharp corners on baskets could cause injury

I,_.']I_[€]i't[I]l ] ;I ;| :1;I ;1[el :1;_;_1(t];

DAIRY BIN

1. To remove the dairy bin, simply lift tt and pull straight out

2.To replace the dairy bin, slide it in above the desired

location and push down until it stops,,

EGG BOX

Store Egg Box on interior shell not on door shelf.

ACAUTION: Do not use the egg box as an ice storage

bin in the freezer compartment The egg box can easity

break if it freezes,

How to lock the tilting function ot freezer door:

t Open the freezer door and remove (1)

2 Insert part (1) into (2)

NOTE: 11you lock the tilting function when the door is

tilted, you cannot close it

FREEZER FEATURES

TILTING DOOR

The tilting door provides easy access for stored foods.

How to use:

Tilt the door down and pull it out.

ICE BIN

1. To remove ice bin, pull it out as far as it comes

Tilt up the front of the ice bin and pull straight out

2o To install, insert ice bin into frame rails and push back

into prace

_, WARNING: Be careful when you open tiltingdoor so

that you do not injure your foot!

TILT-OUTDOOR BASKET

(795.7554*, 7555* Models only)

You can remove foods easily by tilting out the wire basket

in the freezer compartment

To remove basket

to Pull one of the brackets upward

2. Remove basket from beth brackets

To replace basket

1. insert bracket into one side Hook end of basket into

bracket

2, Hook other basket end into other bracket Push bracket

down into place

3_ Be sure back of basket goes behind retention tab on

eaoh bracket

i'" _......

DURABASE DIVIDER

The Durabase divider allows you to organize the

Durabase area into sections

1..To remove, pull divider staight up

2oTo install, hook top comers of divider over top edge of

durabase

,& WARNING: When the divider of the freezer drawer is

removed, children may crawl inside and be injured or

suffocate if door closes

PULL OUT DRAWER

1. To remove, lift basket up and pull straight ou!

DURABASE

1. To remove the Durabase, push it back to the end as

much as possible _lt up the front of the Durabase and

pull straight out

2. To install, insert the Durabase in rail assembly 2. To lnstalI, pull both rails out to fuli extension

Hook the basket supports into the rail tabs and push to

the back of compartment

WATER FILTER

It is recommended that you replace the filler when the

water filter indicator light turns on or your water dispenser

or ice maker performance decreases noticeably

After changing the water filter cartridge, reset the water

filter status display and indicator light by pressing and

holding the button for 3 seconds

1, Remove the old cartridge.

[f you are replacing the cartridge, first remove the old

one Open the cartridge cover by pressing in on the tab

(1) at the front and pulling down (2)

2, Replace with anew cartridge,

Take the new cartridge oul of its packaging and remove

protective cover from the o-dngs

With cartridge knob in the vertical position, push the new

filter cartridge into the cover until it stops

ff you can't turn the filter from side to side, it isn't fully

inserted. Push it in firmly and use its handle to twist the

cartridge clockwise about 1/4 turn, You will hear a snap

when it clicks into place

Rotate the knob of the cartridge counter clockwise until it

clicks forward

Pull out the cartridge.

NOTE: There will be water in the cartridge, Some spilling

may occur

3. Flushing the Water System Alter Replacing Filter

Dispense water through the water dispenser for 3 minutes

to purge the system

To order a replacement water filter call 1-800-4-MY_

HOMEe Ask for part number 5231JA2006B

Explosion Hazard

Use non41ammable cleaner

Failure to do so can result in death, explosion, or fire

Both the refrigerator and freezer sections defrost

automatically However, clean both sections about once

a month to prevent odors Wipe up spills immediately

GENERAL CLEANING TIPS

• Unplug refrigerator or disconnect power

• Remove all removable parts, such as shelves,

crispers, ete Refer to sections fn Using Your

Refrigerator for removal instructions.

,* Use a clean sponge or solt cloth and a mild detergent in

warm water Do not use abrasive or harsh cleaners.

- Hand wash, rinse and dry all surfaces thoroughly

• Plug in refrigerator or reconnect power

OUTSIDE

Waxing external painted metal surfaces helps provide rust

protection Do not wax plastic parts Wax painted metal

surfaces at least twice a year using appliance wax (or

auto paste wax) Apply wax with a cfean, soft cloth

For products with a stainless steet exterior, use a clean

sponge or soft cloth and a mild detergent in warm water

Do not use abrasive or harsh cleaners Dry thoroughly

with a soft cloth

INSIDE WALLS (allow freezer to warm up so

cloth won't stick)

To help remove odors, you can wash the inside of the

refrigerator with a mixture of baking soda and warm water

Mix 2 tablespoons baking soda to i quart of water (26 g

soda to 1 liter water.) Be sure the baking soda is

completely dissolved so does it not scratch the surfaces

of the refrigerator

,& CAUTION: While cleaning the inside, do not spray water

DOOR LINERS AND GASKETS

Do not use cleaning waxes, concentrated detergents,

bleaches, or cleaners containing petroleum on plastic

refrigerator parts,

PLASTIC PARTS (covers and panels)

CONDENSER COILS

Remove base cover (See the base cover section on page 13 )

Use a vacuum cleaner with an extended attachment to

clean condenser coils

Vacuum coils when dusty or dirty Coils may need to be

cleaned as often as every other month

Replace base cove+:

LIGHT BULB REPLACEMENT

Electrical Shock Hazard

Before replacing a burned-out light bulb, either unplug

the refdgerator or turn off power at the circuit breaker

or fuse box

NOTE: Moving the control to the OFF position

does not remove power to the light circuit

NOTE: Not all appliance bulbs wilt fit your refrigerator Be

sure to replace the bulb with one of the same size. shape

and wattage

To change Refrigerator Light Bulbs:

1. Unplug Refrigerator, or disconnect power at the circuit

breaker

2. Ef necessary, remove top shelf or shelves

3. Using aflat instrument, genUy pry the lamp cover loose in

the front as shown Rotate downward to remove rear tabs

4. Make sure the bulbs are cool to the touch+

Tum bulbs counterclockwise to remove Insert new bulb(s)

5. Assembfe in reverse order by snapping the Lamp Cover

in, engaging the rear tabs foftowed by the front tabs

Do not use window sprays, abrasive cleansers, or flammable

fluids These can scratch or damage the material 24

To change freezer light:

1. Unplug refrigerator power cord form outlet

2. Pull light bulb cover down to remove

3,_Remove old bulb Replace with 60-watt appliance bulb

4. Insert tabs on back of cover into slots in freezer ceiling

Push cover up to snap front into place

.& CAUTION: DO NOT place fingers inside of cover

Lamp may be hot,

POWER INTERRUPTIONS

If the electricity goes off, call the power company and ask

how long it will be off

1o If the power will be out for 24 hours or less, keep

both refrigerator doors closed to help foods stay

cold and frozen

2. If the power will be out for more than 24 hours:

a) Remove all frozen food and store it in a frozen

food locker

WHEN YOU GO ON VACATION

If you choose to leave the refrigerator on while you

are away, follow these steps to prepare your refrigerator

before you teave

1. Use up any perishables and freeze other items

2. Empty the ice bin

If you choose to turn the refrigerator off before you

leave, follow these steps

1. Remove all food from the refrigerator

2_ Depending on your model, set the thermostat control

(refrigerator control) to OFF See the Setting the

Controls section_

3o Clean refrigerator, wipe it and dry well

4. Tape rubber or wood blocks to the tops of both doors to

prop them open far enough for air to get in This stops

odor and mold from building up

WHEN YOU MOVE

When you are moving your refrigerator to a new home,

follow these steps to prepare it for the move

1. Remove all food from the refrigerator and pack all

frozen food in dry ice

2o Depending on your model, turn the thermostat control

(refrigerator conlroE) to OFF See the Setting the

Controls section

3oUnplug the refrigerator

4. Clean, wipe and dry thoroughly

5oTake out all removable parts, wrap them well and tape

them together so they don't shift and rattle during the

move Refer to sections in Using your Refrigerator for

removable instructions,

6. Depending on the model, raise the front of the

refrigerator so it rolls more easily OR screw in the

leveling legs all the way so they don't scrape the floor

See the Door Closing section

7. Tape the doors shut and tape the power cord to the

refrigerator cabinet,

When you get to your new home, put everything back

and refer to the Installing Your Refrigerator section for

preparation instructions,

Personal Injury Hazard

Avoid contact with the moving parts of the ejector

mechanism, or with the heating element that releases

the cubes DO NOT place fingers or hands on the

automatic icemaking mechanism while the relrigeralor

is plugged in

OPERATION INSTRUCTIONS

A newly-installed refrigerator may take

12 to 24 hours to begin making ice.

The icemaker will produce eight cubes per cycle--

approximately 100-130 cubes in a 24_hour pedod,

depending on freezer compartment temperature, room

temperature, number of door openings and olher

operating conditions

If the refrigerator is used before the water connection is

made lo the tcemaker, set the power switch to O (off),

When the refrigerator has been connected to the water

supply, set the power switch to I (on),

The ieemaker will fill with water when it cools to freezing

A newly-installed refrigerator may take t2 to 24 I_ours to

begin making ice cubes

Throw away the first few batches of ice to allow the water

line to clear

Be sure nothtng interferes with the sweep of the feeler

arm

When the bin fills to the level of the teeter arm, the

icemaker will stop producingice

It is normal for several cubes to be stuck together

If ice is not used frequently, old ice cubes will become

cloudy, taste stale, and shrink

NOTE; It the cube size is smaller or larger than you

expected, you can regulate the size with the cube size

button

Every time you press the cube size button, the indicator

moves up on light The higher the light position, the larger

the cubes wilt be Pressing at highest posilion returns

indicator to lowest position

WHEN YOU SHOULD SET THE ICEMAKER

POWER SWITCH TO O (OFF)

• When the water supply w[!l be shut off for several hours

• When the ice storage bin is removed for more than a

minute or two

• When the refrigerator will not be used for several days

NORMAL SOUNDS YOU MAY HEAR

• The icemaker water valve wiltbuzz as the icemaker fil_s

with water, If the power switch is in the I (on) position, it

wiltbuzz even if ithas not yet been hooked up to water,

To stop the buzzing, move the power swilch to O (off).

NOTE; Keeping the power switch in the I (on) position

before the water fineis connected can damage the

icemaker

* YOUwill hear the sound of cubes dropping into the bin

and water running in the pipes as the icemaker refills.,

PREPARING FOR VACATION

Set the icemaker power switch to O (off) and shut off the

water supply to the refrigerator

If the ambient temperature will drop below freezing, have

a qualified servicer drain the water supply system to

prevent serious property damage due to flooding from

ruptured water lines or connections,,

BEFORE YOU BEGIN

This water line installation is not warranted by the

refrigerator or icemaker manufacturer Follow these

instroctionscarefully to minimize the risk of expensive

water damage

Water hammer (water banging in the pipes) in house

plumbing can cause damage to refrigerator parts and lead

to water leakage or flooding Call a qualified plumber to

correct water hammer before installing the water supply

line to the refrigerator.

To prevent bums and product damage, do not hook up

the water line to the hot water line

If you use your refrigerator before connecting the water

line, make sure the icemaker power switch is in the O

(off) position

Do not install the icemaker tubing in areas where

temperatures fall below freezing

When using any electrical device (such as a power

drill) dudng installation, be sure the device is double-

insulated or grounded in a manner to prevent the hazard

of electric shock, or is battery-powered

All insta!lations must be in accordance with local plumbing

code requirements.

NOTE: Wear eye protection

WHATYOU WILL NEED J_

,, CopperTubing, 1/4" outer //

diameter to connect the refrigerator

to the water supply Be sure both

ends of the tubing are cul square.

To determine how much tubing you need: measure

the distance from the water valve on the back of the

refrigerator to the water supply pipe. Then add 8 feet

(2.4 m) Be sure there is sufficient extra tubing (about 8 feet

[2 4 m] coiled into 3 turns of about 10" [25 cm] diameter) to

allow the refrigerator to move out from the wall after

installation.

,, A cold water supply The waler pressure must be

between 20 and 120 ps.i= on models without a water

filter and between 40 and 120 psi on models with a

water fiite[

. Power drill

', 112' or adjustable

wrench

* Straight- and Phillips-

blade screwdriver

=Two 1/4" outer diameter

compression nuts and

2ferrules (sleeves) to

connect the copper tubing to

the shutoff valve and the

refrigeratorwater valve,

oIf your existing copper water

line has a flared fitting at the

end, you will need an

adapter (available at

plumbing supply stores) to

connect the water line to the refrigerator OR you can

cut off the flared fitting with a tube cutter and then use

a compression fitting

Shutoff valve to connect to

the cold water line The

shutoff valve should have a

water inlet with a minimum

inside diameter of 5/32" at

the point of connection to the

COLD WATER LINE Saddle-type shutoff valves are

included in many water supply kits Before purchasing,

make sure a saddle-type vaive complies with your local

plumbing codes

INSTALLATION INSTRUCTIONS

Install the shutoff valve on the nearest frequently used

drinking water line

1. SHUT OFFTHE MAIN WATER SUPPLY

Turn on the nearest faucet to reflevethe pressure on

the line

CHOOSE THE VALVE LOCATION

Choose alocation for the valve

that ts easily accessible It is best

to connect into the side of a

vertical water pipe When it is

necessary to connect into a

horizontal water pipe, make the

connection to the top or side,

rather than at the bottom, to avoid

drawing off any sediment from the water pipe

DRILLTHE HOLEFORTHEVALVE

Drill a1/4" hole in the water

pipe (even if using a self-

piercing valve) using a

sharp bit Remove any burrs

resulting from drilling the

hole in the pipe Take care

not to allow water to drain

into the dritl Failure to drill a 1/4" here may result in

reduced ice production or smaller cubes

INSTALLATION INSTRUCTIONS

(CONTINUED)

4. FASTEN THE SHUTOFF VALVE

Fasten the shutoff valve to the cold water pipe with

the pipe clamp

Saddle-Type

Shutoff Valve Water Pipe

NOTE: Commonwealth of Massachusetts Plumbing

Codes 248CMR shah be adhered to Saddte valves

are illegal and use is not permitted in Massachusetts

Consult with your licensed plumber

5. TIGHTEN THE PIPE CLAMP

Tighten the clamp screws until the sealing washer

begins to swell

NOTE: Do not overtighten or you may crush

the pipe

Pipe Clamp

Clamp Sctew_

'Washer

/---.-Inlet End

7. CONNECT THE TUBING TO THE VALVE

Place the compression nut and ferrule (sleeve)

for copper tubing onto the end of the tubing and

connect it to the shutoff valve Make sure the tubing is

fulfy inserted into the valve Tighten the compression

nut securely

Saddle-Type J

Shutoff Valve _,_.._

Packing _ //I

Nut i/I

Outlet _ "

Valve

Compression

Ferrule (sleeve)

NOTE: Commonwealth of Massachusetts Plumbing

Codes 248CMR shall be adhered to Saddle valves

are illegal and use is not permitted in Massachusetts

Consult with your licensed plumber

& FLUSH OUT THE TUBING

Turn on the main water supply

and flush water through the

tubing into a bucket until the

water runs clear

Shul the water off at the water

valve after about one quart of

water has been flushed through

the tubing

6, ROUTE THE TUBING

Route the copper tubing between the cold water pipe

and the refrigerator

Route the tubing through a hole ddlled in the wall or

floor (behind the retdgerator or adjacent base cabinet)

as close to the wall as possible

NOTE: Be sure there is sufficient extra tubing (about

8 feet coiled into 3 turns of about 10" diameter) to

allow the refrigerator to move out from the wall after

installation

.CONNECT THE TUBING TO THE

REFRIGERATOR

Removing and Replacing Valve Cover

NOTE:

- Before making the connection to the refrigerator, be

sure the refrigerator power cord is not plugged into

the wall outlet

1. Loosen screw on top of plastic cove[,

4, Insert the tube into the valve and fasten with wrench

as shown In the figure below

,_ CAUTION: Check to see if water dripping occurs at

water line connections

5. Bend the tube upwards and fasten it into the ctamp

provided to hold it in position, Replace the cover

and tighten the cover screw.

2. Lift off the cover by slightly pushing up g

clamp

3,, Place a compression nut and a ferrule(sfeeve) onto

the end of tubing

10,TURN THE WATER ON AT THE

SHUTOFF VALVE

Tighten any connections lhat leak

Reattach the compressor compartment access cover

11. PLUG IN THE REFRIGERATOR

Arrange the coil of tubing so that it does not vibrate

against the back of the refrigerator or against the wail

Push the refrigerator back to the wall.

12.START THE ICEMAKER

Set the tcemaker power switch to the ON position.

The icemaker will begin to operate when it reaches a

temperature of 15°F (-9°C)_

UNDERSTANDING SOUNDS YOU MAY HEAR

Your new refrigerator may make sounds that your old one

didn't make Because the sounds are new to you, you

might be concerned about them Most of the new sounds

are normal Hard surfaces, like the floor, walls and

cabinets, can make the sounds seem louder than they

actually are The following describes the kinds of sounds

and what may be makin( them

_ ""==t

_ii_!_::.e---- i!i:_iii_

The defrost timer will click when the automatic defrost

cycle begins and ends The thermostat control (or

refrigerator control, depending on the model) will also

click when cycling on and off.

Rattling noises may come from the flow of refrigerant, the

water line, or items stored on top of the refrigerator

Your refrigerator is designed to run more efficiently

to keep your food items at the desired temperature

The high efficiency compressor may cause your new

refrigerator to run longer than your old one, and

you may hear a pulsating or high-pitched sound

You may hear the evaporator fan motor circulating the air

through the refrigerator and freezer compartments.

As each cycle ends, you may hear a gurgling sound due

to the refrigerant flowing in your refrigerator

Contraction and expansion of the inside walls may cause

a popping no_se

Water dripping on the defrost heater during a defrost

cycle may cause a sizzling sound

You may hear air being forced over the condenser by the

condenser fan

You may hear water running into the drain pan during the

defrost cycle

REFRIGERATOR DOES NOT OPERATE

Check iL, Then...

The power supply cord is unplugged. Firmly plug the cord into a live outlet with proper voltage

A household fuse has blown or circuit Replace the fuse or reset the circuit breaker

breaker tripped

The refrigerator control is set to the OFF position.. Refer to the Setting the Controls section on page 14.

Refrigerator is In the defrost cycle Wait about 30 minutes for defrost cycle to end,

VIBRATION OR RATTLING NOISE

Check if,,, Then,,.

I The refrigerator is not resting solidly on iFloor is weak or uneven or leveling legs need ad,iusting

the floor. See Installation section on page 7 and 13o

LIGHTS DO NOT WORK

Check if,,, Then,,,

The power supply cord is unplugged. Firmly plug the cord inlo a live outlet with proper voltage

Light bulb is loose in the socket Turn the refrigerator control to the OFF position and unplug

the refrigerator Gently remove the bulb and reinsert Then

plug in refrigerator and reset the refrigeralor control

Light bulb has burned oul. Replace with an appliance bulb of the same wattage, size

and shape available at your local hardware store (See the

Changing the Light Bulb(s) section on pages 24-25 ) Turn

the temperature control to the OFF position and unplug the

refrigerator prior to replacement.

-- .

COMPRESSOR MOTOR SEEMS TO RUN TOO MUCH

Check if.._ Then,_

The refrigerator that was replaced was an

cider model

The room temperature is hotter than normal

The door is opened often or a large amount

of food has just been added

vlodern refrigerators with more storage space require

more operating time

The motor will run longer under warm conditions At normal

room temperatures, expect your motor to run about 40% to

80% of the time Under warmer conditions, expect it to run

even more often

Adding food and opening the door warms the refrigerator

it is normal for the refrigerator to run longer in order to cool

the refrigerator back down Adding a large amount of food

warms the refrigerator See the Food Storage Guide section

on page 15 In order to conserve energy, try to get everything

you need out of the refrigerator at once, keep food organized

so it is easy to find and close the door as soon as the food

Is removed.

The refrigerator was recently plugged in and The refrigerator will take up to 24 hours to cool

the refrigerator control was set correctly completely

The refrigerator control is not set correctly for the See the Adjusting Control Settings section on page t5

surrounding conditions.

The doors are not closed completely Push the doors firmly shut. If they will not shut all the way, see

Doors will not close completely below

The condenser coils are dirty This prevents air transfer and makes the motor work harder

Clean the condenser coils Refer to the Care and Cleaning

section on pages 24-25

DOORS WILL NOT CLOSE COMPLETELY

Check ft..,

The refrigerator is not level.

Food packages are blocking the door open

The ice bin, crisper cover, pans, shelves, door bins

or baskets are out of position

The gaskets are sticking

The refrigerator wobbles or seems unstable.

The doors were removed during product installation

and not propedy replaced

Then...

See Leveling and Door Alignment section on page 13

Rearrange food containers to clear door and door shelves

Push bins all the way in and put crisper cover, pans, shelves

and baskets into their correct positions See the Using Your

Refrigerator section on pages t7-23.

Clean gaskets and the surface that they touch Rub a thin coat

of paraffin wax on the gaskets after cleaning

Level the refrigerator. Refer to the Leveling and Door

Alignment section on page t3

Remove and replace the doors according to the Removing

and Replacing Refrigerator handles and doors section on

pages 8-12, or carl a qualified service technician

Check ifoo,

The door is not closingproperly

The door is opened often

FROST OR ICE CRYSTALS ON FROZEN FOOD

Then ......

I See Doors will not close completely above

| When the door is opened, warm, humid air is allowed in

._ the freezer, resulting in frost.

ICE HAS OFF+TASTE OR ODOR

Check if+++ Then_

The icemaker was recently installed

The ice has been stored for too long

The food has not been wrapped tightly in

either compartment.

The water supply contains minerals such as suffur

The interior of refrigerator needs cleaning

Ice storage bin needs cleaning.

Discard first few batches of ice to avoid discolored or

off-flavored ice

Throw away old ice and make new supply

Rewrap foods since odors may migrate to the ice if food

is not wrapped properly

A filter may need to be installed to eliminate taste and

odor problems

See Care and Cleaning section on pages 24-25

Empty and wash bin Discard o_d cubes

THERE IS WATER IN THE DEFROST DRAIN PAN

Check if .... Then°°°

The refrigerator is defrosting The water will evaporate It is normal for water to drip into the

defrost pan

It is more humid than normal Expect that the water in the defrost pan will take longer to

evaporate. This is normal when it is hot or humid.

THE REFRIGERATOR SEEMS TO MAKETOO MUCH NOISE

Check if,,+ Then-°

I The sounds may be normal for your refrigerator I Refer to the Understanding Sounds You May Hear section

ton page 3!

THE ICEMAKER IS NOT PRODUCING ICE OR ICE CUBES ARE FREEZING TOO SLOWLY

Check if,++ Then..,

The freezer temperature is cold enough to produce ice Wait 24 hours after hook-up for ice production See the

Setting the Controls section on page 14

Door left open Check to see if something is holding the door open

CUBES PRODUCED BY ICEMAKER ARE TOO SMALL

Check if,,, Then+,+

Smaller cube size level is selected Select larger cube size using cube size selector.

Water shutoff valve connecting refrigerator to water Call a plumber to clear the valve

line may be clogged

THE DOORS ARE DIFFICULTTO OPEN

Check if ..... Then_.

The gaskets are dirty or sticky Clean gaskets and the surfaces that they touch Rub a thin

coat of appliance polish or kitchen wax on the gaskets after

cleaning.

The door is reopened within a short time after having When you open the door, warmer air enters the refrigerator

been opened As the warm air cools, it can create a vacuum. If the door is

hard to open, wait 5 minutes to allow the air pressure to

equalize, then see if it opens more easily

TEMPERATURE IS TOO WARM OR THERE IS INTERIOR MOISTURE BUILDUP

Check ifo_ Then...

The air vents are blockedr Cold air cimulates

from the freezer to the fresh food section and

back again through air vents in the wall dividing

the two secfions.

The doors are opened often

Locate air vents by using your hand to sense airflow and

move a!l packages that block vents and restrict airflow Refer

to Multi Flow on page 14 for the location of air vents

When the door is opened, warm humid air is allowed into

the refrigerator The more the door is opened, the faster the

humidily builds up, and the more warm air the refrigerator

must cool In order to keep the refrigerator cool, try to get

everything you need out of the refrigerator at once, keep

food organized so it is easy to find and close the doer as

soon as the food is removed

The control is not set correctly for the surrounding Refer to the Setting the Controls section on page 14.

conditions Wait 24 hours for temperatures to stabilize or even out. If the

temperature is too cold or too warm, move the dial one

number at a time

A large amount of food has just been added Adding food warms the refrigerator. It can take a few hours

to the refrigerator or freezer for the refrigerator to return to normal temperature.

The food is not packaged correctly Wrap food tightly and wipe off damp containers prior to

storing in the refrigerator to avoid moisture accumulation If

necessary, repackage food according to the guidelines in the

Food Storage Guide section on page 15

The doors are not closing completely. See Doors will not close completely on page 32.

The weather is humid In humid weather, air carries moisture into refrigerator

when doors are opened

A self-defrost cycle was completed It is normal for droplets to form on the back wall after the

refrigerator self-defrosts

Kenmore Elite 79575196401 User Manual REFRIGERATOR Manuals And Guides L0803318

KENMORE ELITE Bottom Mount Refrigerator Manual L0803318 KENMORE ELITE Bottom Mount Refrigerator Owner's Manual, KENMORE ELITE Bottom Mount Refrigerator installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
