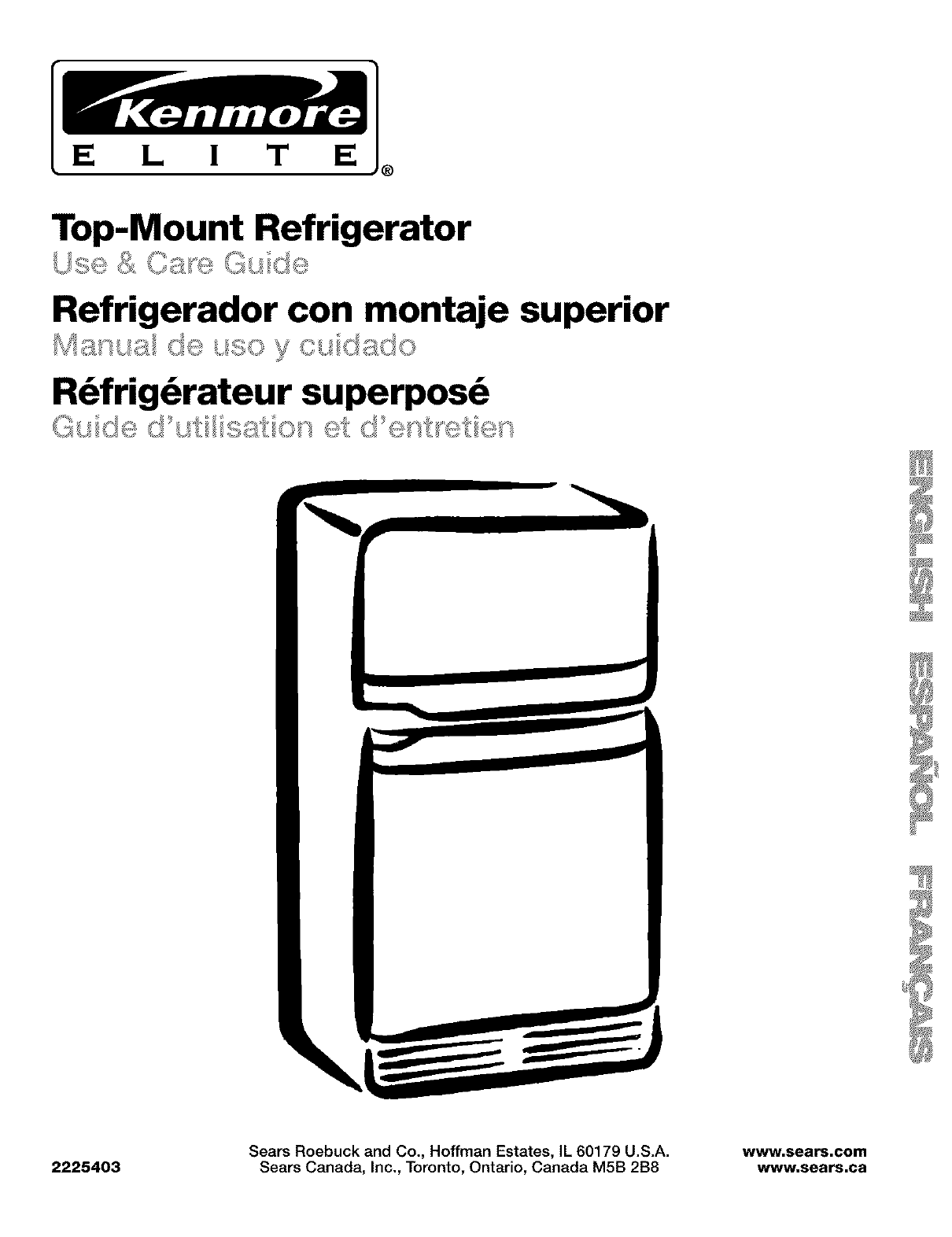

E L ! T E ®
Top-Mount Refrigerator
Use '_ _"_(,,:,_k(] ,,_
Refrigerador con montaje superior
R_frig_rateur superpos_
Sears Roebuck and Co., Hoffman Estates, IL 60179 U.S.A. www.sears.com
2225403 Sears Canada, Inc., Toronto, Ontario, Canada M5B 2B8 www.sears.ca
TABLE OF CONTENTS
WARRANTY ..................................................................................... 2
REFRIGERATOR SAFETY .............................................................. 3
Proper Disposal of Your Old Refrigerator .................................... 3
REFRIGERATOR INSTALLATION ................................................. 4
Unpacking .................................................................................... 4
Location Requirements ................................................................ 4
Electrical Requirements ................................................................ 5
Water Supply Connection ............................................................ 5
Refrigerator Doors: Removing,
Reversing (optional) & Replacing ................................................. 6
Door Closing and Alignment ........................................................ 8
Water System Preparation ........................................................... 8
Normal Sounds ............................................................................. 9
REFRIGERATOR USE .................................................................... 9
Ensuring Proper Air Circulation .................................................... 9
Using the Control(s) ...................................................................... 9
Water Dispenser ........................................................................ 10
Interior Water Filtration System ................................................. 10
Ice Maker ................................................................................... 11
REFRIGERATOR FEATURES ..................................................... 12
Refrigerator Shelves .................................................................. 12
Lateral Adjustable Shelf ............................................................. 12
Crispers and Meat Drawers ...................................................... 12
Crisper Humidity Control ........................................................... 13
Chilled Meat Drawer .................................................................. 13
Wine or Can/Bottle Rack ........................................................... 13
Utility or Egg Bin ........................................................................ 14
FREEZER FEATURES ................................................................. 14
Freezer Shelf .............................................................................. 14
Adjustable Half-width Freezer Shelf .......................................... 14
Pull-out Freezer Floor ................................................................ 14
DOOR FEATURES ....................................................................... 14
Door Rails .................................................................................. 14
Can Racks and Door Bins ......................................................... 15
Adjustable Utility Compartment & Tray ..................................... 15
Flip-up Door Shelf ..................................................................... 15
REFRIGERATOR CARE ............................................................... 15
Cleaning ..................................................................................... 15
Changing the Light Bulbs .......................................................... 16
Power Interruptions ................................................................... 16
Vacation and Moving Care ........................................................ 16
TROUBLESHOOTING .................................................................. 17
PROTECTION AGREEMENTS .................................................... 18
In the U.S.A ................................................................................ 18
In Canada .................................................................................. 19
Accessories ............................................................................... 19
WATER FILTER CERTIFICATIONS ............................................ 19
PRODUCT DATA SHEETS .......................................................... 20
SERVICE NUMBERS ............................................... BACK COVER
WARRANTY
ONE-YEAR FULL WARRANTY ON REFRIGERATOR
For one year from the date of purchase, when this refrigerator is
operated and maintained according to instructions attached to or
furnished with the product, Sears will repair this refrigerator, free
of charge, if defective in material or workmanship.
FIVE-YEAR FULL WARRANTY ON SEALED REFRIGERATION
SYSTEM
For five years from the date of purchase, when this refrigerator is
operated and maintained according to owner's instructions
attached to or furnished with the product, Sears will repair the
sealed system (consisting of refrigeration, connecting tubing, and
compressor), free of charge, if defective in materials or
workmanship.
The above warranty coverage applies only to refrigerators which
are used for storage of food for private household purposes and
excludes original and replacement Kenmore Filtered Ice & Water
filter cartridges (if equipped with the filter system). Original and
replacement cartridges are warranted for 30 days, parts only,
against defects in material or workmanship.
WARRANTY SERVICE IS AVAILABLE BY CONTACTING THE
NEAREST SEARS SERVICE CENTER IN THE UNITED STATES
OR CANADA.
This warranty applies only while this product is in use in the
United States or Canada. This warranty gives you specific
legal rights, and you may also have other rights which vary
from state to state or province to province.
Warranty terms may vary in Canada. Contact your local Sears
Service Center for complete details,
Sears, Roebuck and Co.
Dept. 817WA, Hoffman Estates, IL 60179
Sears Canada, Inc., Toronto, Ontario, Canada M5B 2B8
Product Record
In the space below, record your complete model number, serial
number, and purchase date. You can find this information on the
model and serial number label located on the inside wall of the
refrigerator compartment.
Have this information available to help you obtain assistance or
service more quickly whenever you contact Sears concerning
your refrigerator.
Model number 106.
Serial number
Purchase date
Save these instructions and your sales receipt for future
reference.
2

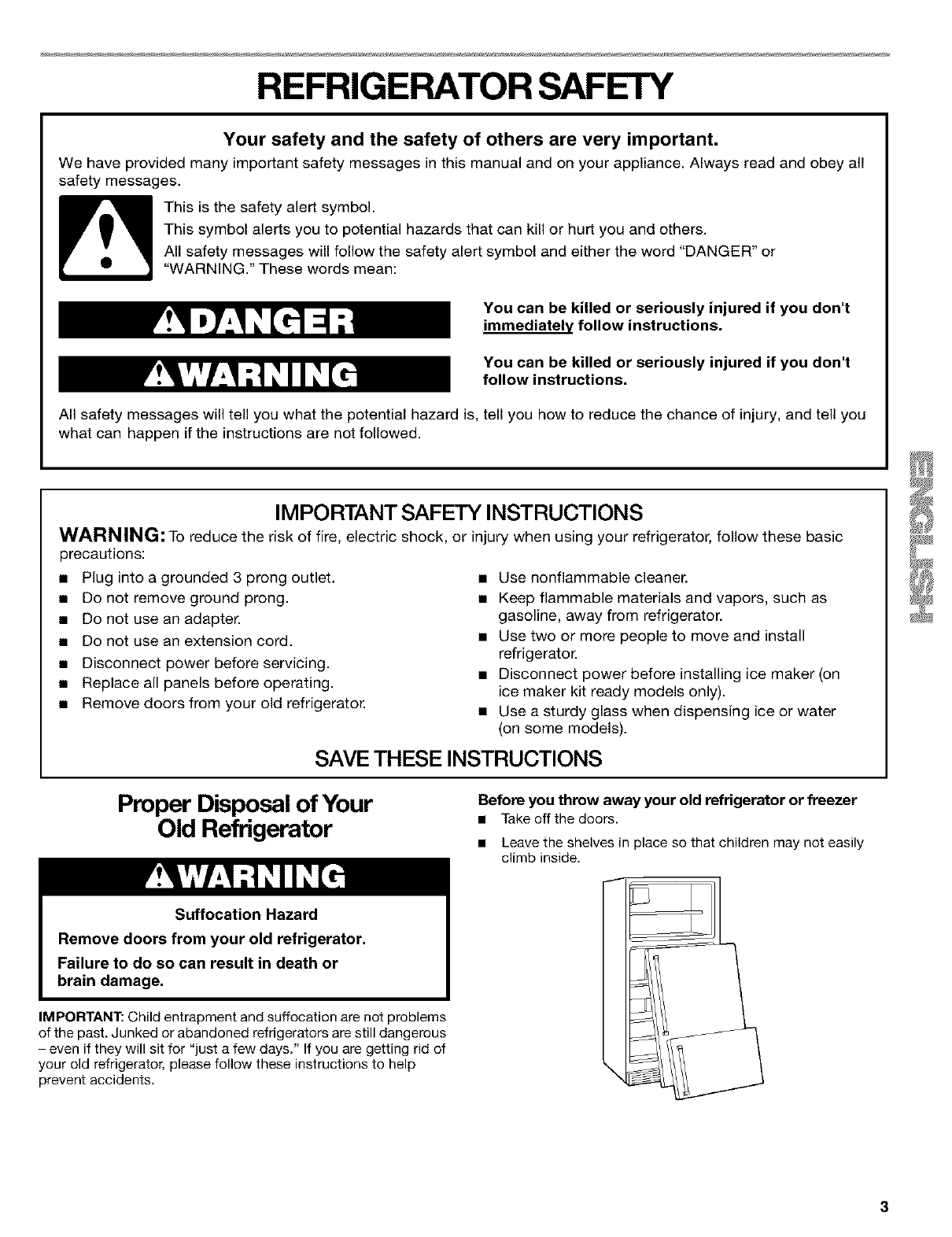

REFRIGERATOR SAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all
safety messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word "DANGER" or
"WARNING." These words mean:
You can be killed or seriously injured if you don't
immediately follow instructions.
You can be killed or seriously injured if you don't
follow instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you
what can happen if the instructions are not followed.
IMPORTANT SAFETY INSTRUCTIONS
WARN ING: To reduce the risk of fire, electric shock, or injury when using your refrigerator, follow these basic
precautions:
• Plug into a grounded 3 prong outlet.
• Do not remove ground prong.
• Do not use an adapter.
• Do not use an extension cord.
• Disconnect power before servicing.
• Replace all panels before operating.
• Remove doors from your old refrigerator.
Use nonflammable cleaner.
• Keep flammable materials and vapors, such as
gasoline, away from refrigerator.
• Use two or more people to move and install
refrigerator.
• Disconnect power before installing ice maker (on
ice maker kit ready models only).
• Use a sturdy glass when dispensing ice or water
(on some models).
SAVE THESE INSTRUCTIONS
Proper Disposal of Your
Old Refrigerator
Before you throw away your old refrigerator or freezer
• Takeoff the doors.
• Leave the shelves in place so that children may not easily
climb inside,
IMPORTANT: Child entrapment and suffocation are not problems
of the past. Junked or abandoned refrigerators are still dangerous
-even if they will sit for "just a few days." If you are getting rid of
your old refrigerator, please follow these instructions to help
prevent accidents.

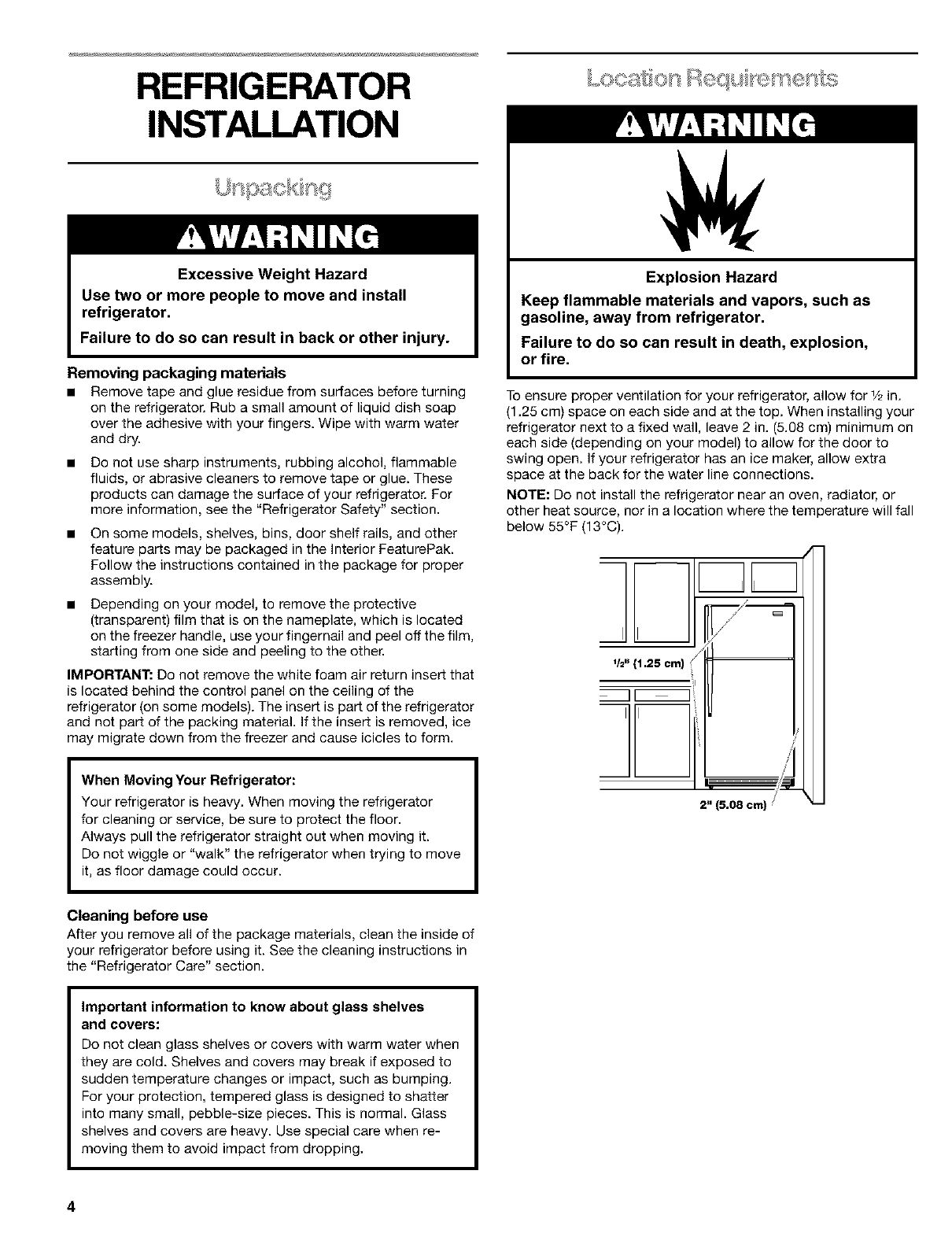

REFRIGERATOR
INSTALLATION
Removing packaging materials
•Remove tape and glue residue from surfaces before turning
on the refrigerator. Rub a small amount of liquid dish soap
over the adhesive with your fingers. Wipe with warm water
and dry.
Do not use sharp instruments, rubbing alcohol, flammable
fluids, or abrasive cleaners to remove tape or glue. These
products can damage the surface of your refrigerator. For
more information, see the "Refrigerator Safety" section.
On some models, shelves, bins, door shelf rails, and other
feature parts may be packaged in the Interior FeaturePak.
Follow the instructions contained in the package for proper
assembly.
Depending on your model, to remove the protective
(transparent) film that is on the nameplate, which is located
on the freezer handle, use your fingernail and peel off the film,
starting from one side and peeling to the other.
IMPORTANT: Do not remove the white foam air return insert that
is located behind the control panel on the ceiling of the
refrigerator (on some models). The insert is part of the refrigerator
and not part of the packing material. If the insert is removed, ice
may migrate down from the freezer and cause icicles to form.
When Moving Your Refrigerator:
Your refrigerator is heavy. When moving the refrigerator
for cleaning or service, be sure to protect the floor.
Always pull the refrigerator straight out when moving it.
Do not wiggle or "walk" the refrigerator when trying to move
it, as floor damage could occur.
Explosion Hazard
Keep flammable materials and vapors, such as
gasoline, away from refrigerator,
Failure to do so can result in death, explosion,
or fire,
To ensure proper ventilation for your refrigerator, allow for 1/2in.
(1.25 cm) space on each side and at the top. When installing your
refrigerator next to a fixed wall, leave 2 in. (5.08 cm) minimum on
each side (depending on your model) to allow for the door to
swing open. If your refrigerator has an ice maker, allow extra
space at the back for the water line connections.
NOTE: Do not install the refrigerator near an oven, radiator, or
other heat source, nor in a location where the temperature will fall
below 55°F (13°C).
f
V2" (1,25 cm) /
il
_t t
2" (5.08 cm)
Cleaning before use
After you remove all of the package materials, clean the inside of
your refrigerator before using it. See the cleaning instructions in
the "Refrigerator Care" section.
Important information to know about glass shelves
and covers:
Do not clean glass shelves or covers with warm water when
they are cold. Shelves and covers may break if exposed to
sudden temperature changes or impact, such as bumping.
For your protection, tempered glass is designed to shatter
into many small, pebble-size pieces. This is normal. Glass
shelves and covers are heavy. Use special care when re-
moving them to avoid impact from dropping.
4
ElectricalShockHazard
Plugintoagrounded3 prongoutlet.
Donotremovegroundprong.
Donot useanadapter.
Donot useanextensioncord.
Failureto follow these instructions can result in
death, fire, or electrical shock.
Cold water supply
Connect the ice maker to a cold water line with water pressure
between 30 and 126 psi. If you have questions about your water
pressure, call your utility company.
Connecting to Water Line
1.
2,
3.
Unplug refrigerator or disconnect power.
Turn OFF main water supply. Turn ON nearest faucet long
enough to clear line of water.
Locate a 1/2in. to 1V4in. (1.25 cm to 3.18 cm) vertical COLD
water pipe near the refrigerator.
NOTE: Horizontal pipe will work, but drill on the top side of
the pipe, not the bottom. This will help keep water away from
the drill and normal sediment from collecting in the valve.
4. Determine the length of copper tubing you need. Measure
from the connection on the lower left rear of refrigerator to the
water pipe. Add 7 ft. (2.1 m) to allow for cleaning. Use V4in.
(6.35 mm) O.D. (outside diameter) copper tubing. Be sure
both ends of copper tubing are cut square.
5. Using a grounded drill, drill a V4in. hole in the cold water pipe
you have selected.
Before you move your refrigerator into its final location, it is
important to make sure you have the proper electrical
connection:
Recommended grounding method
A 115 Volt, 60 Hz., AC only 15 or 26 ampere fused, grounded
electrical supply is required. It is recommended that a separate
circuit serving only your refrigerator be provided. Use an outlet
that cannot be turned off by a switch. Do not use an
extension cord.
NOTE: Before performing any type of installation, cleaning, or
removing a light bulb, turn the control (Thermostat, Refrigerator
or Freezer Control depending on the model) to OFF and then
disconnect the refrigerator from the electrical source. When you
are finished, reconnect the refrigerator to the electrical source
and reset the control (Thermostat, Refrigerator or Freezer Control
depending on the model) to the desired setting.
Read all directions carefully before you begin.
IMPORTANT:
• If you turn the refrigerator on before the water line is
connected, turn the ice maker OFR
• All installations must meet local plumbing code requirements.
• Use copper tubing and check for leaks. Install copper tubing
only in areas where temperatures will remain above freezing.
Tools required: Standard screwdriver, V16in. and V2in. open-end
wrenches or two adjustable wrenches, V4in. nut driver and drill
bit, hand drill or electric drill (properly grounded).
NOTE: Your refrigerator dealer has a kit available with a 1/4in.
(6.36 mm) saddle-type shutoff valve, a union, and copper tubing.
Before purchasing, make sure a saddle-type valve complies with
your local plumbing codes. Do not use a piercing-type or _¢_ein.
(4.76 mm) saddle valve which reduces water flow and clogs more
easily.

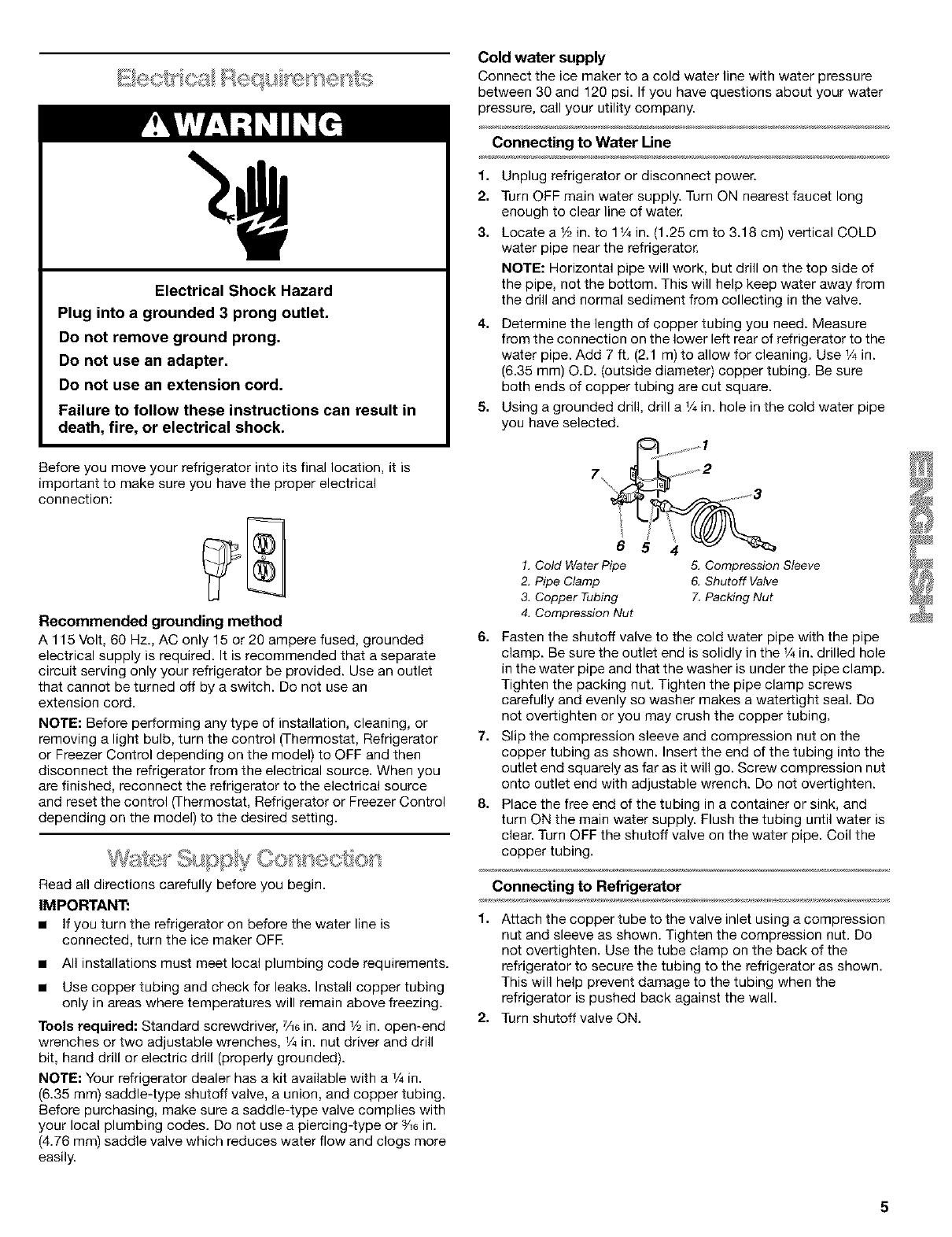

1. Cold Water Pipe
2. Pipe Clamp
3. Copper Tubing
4. Compression Nut
5. Compression Sleeve
&Shutoff Valve
7. Packing Nut
6. Fasten the shutoff valve to the cold water pipe with the pipe
clamp. Be sure the outlet end is solidly in the V4in. drilled hole
in the water pipe and that the washer is under the pipe clamp.
Tighten the packing nut. Tighten the pipe clamp screws
carefully and evenly so washer makes a watertight seal. Do
not overtighten or you may crush the copper tubing.
7. Slip the compression sleeve and compression nut on the
copper tubing as shown. Insert the end of the tubing into the
outlet end squarely as far as it will go. Screw compression nut
onto outlet end with adjustable wrench. Do not overtighten.
8. Place the free end of the tubing in a container or sink, and
turn ON the main water supply. Flush the tubing until water is
clear. Turn OFF the shutoff valve on the water pipe. Coil the
copper tubing.
Connecting to Refrigerator
1. Attach the copper tube to the valve inlet using a compression
nut and sleeve as shown. Tighten the compression nut. Do
not overtighten. Use the tube clamp on the back of the
refrigerator to secure the tubing to the refrigerator as shown.
This will help prevent damage to the tubing when the
refrigerator is pushed back against the wall.
2. Turn shutoff valve ON.
3. Checkforleaks.Tightenanyconnections(including
connectionsatthevalve)ornutsthatleak.
1. Tube Clamp
2. Copper Tubing
3. Compression Nut
4. Valve Inlet
4. The ice maker is equipped with a built-in water strainer. If
your water conditions require a second water strainer, install it
in the 1/4in. (6.35 ram) water line at either tube connection.
Obtain a water strainer from your nearest appliance dealer.
5. Plug in refrigerator or reconnect power.
...... '" DOOS
Tools needed: 5/16in. hex-head socket wrench, No. 2 Phillips
screwdriver, flat-head screwdriver, 5/16in. open-end wrench, flat 2
in. putty knife.
IMPORTANT:
• Before you begin, turn the refrigerator control OFF, unplug
refrigerator or disconnect power. Remove food and any
adjustable door or utility bins from doors.
• If you only want to remove and replace the doors, see the
"Door and Hinge Removal" and "Door and Hinge
Replacement" sections.

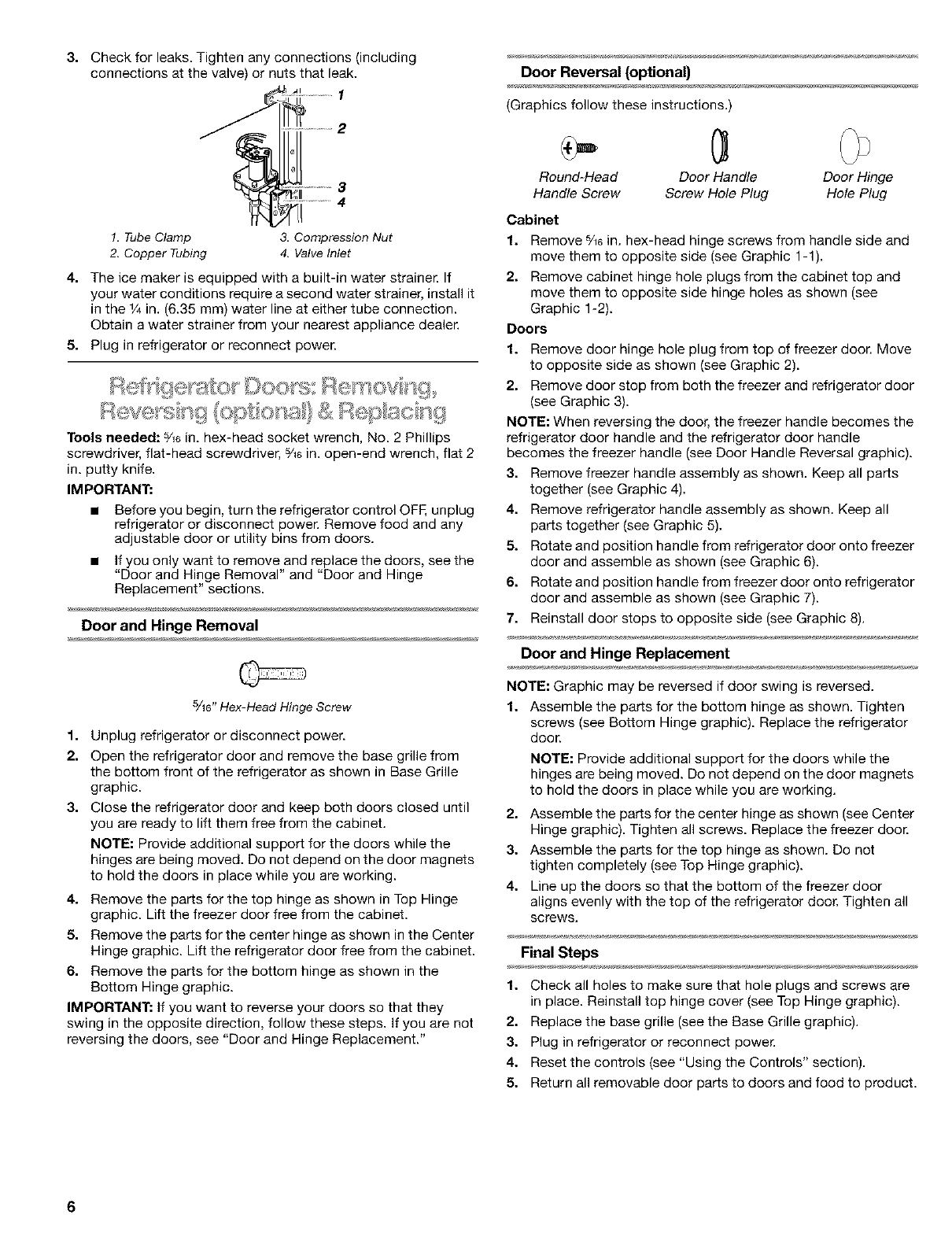

Door and Hinge Removal
5/16"Hex-Head Hinge Screw
1. Unplug refrigerator or disconnect power.
2. Open the refrigerator door and remove the base grille from
the bottom front of the refrigerator as shown in Base Grille
graphic.
3. Close the refrigerator door and keep both doors closed until
you are ready to lift them free from the cabinet.
NOTE: Provide additional support for the doors while the
hinges are being moved, Do not depend on the door magnets
to hold the doors in place while you are working.
4. Remove the parts for the top hinge as shown in Top Hinge
graphic. Lift the freezer door free from the cabinet.
5. Remove the parts for the center hinge as shown in the Center
Hinge graphic. Lift the refrigerator door free from the cabinet.
6. Remove the parts for the bottom hinge as shown in the
Bottom Hinge graphic.
IMPORTANT: If you want to reverse your doors so that they
swing in the opposite direction, follow these steps. If you are not
reversing the doors, see "Door and Hinge Replacement."
Door Reversal (optional)
(Graphics follow these instructions.)
Round-Head Door Handle Door Hinge
Handle Screw Screw Hole Plug Hole Plug
Cabinet
1. Remove %8 in. hex-head hinge screws from handle side and
move them to opposite side (see Graphic 1-1).
2. Remove cabinet hinge hole plugs from the cabinet top and
move them to opposite side hinge holes as shown (see
Graphic 1-2).
Doors
1. Remove door hinge hole plug from top of freezer door. Move
to opposite side as shown (see Graphic 2).
2. Remove door stop from both the freezer and refrigerator door
(see Graphic 3).
NOTE: When reversing the door, the freezer handle becomes the
refrigerator door handle and the refrigerator door handle
becomes the freezer handle (see Door Handle Reversal graphic).
3. Remove freezer handle assembly as shown. Keep all parts
together (see Graphic 4).
4. Remove refrigerator handle assembly as shown. Keep all
parts together (see Graphic 5).
5. Rotate and position handle from refrigerator door onto freezer
door and assemble as shown (see Graphic 6).
6. Rotate and position handle from freezer door onto refrigerator
door and assemble as shown (see Graphic 7).
7. Reinstall door stops to opposite side (see Graphic 8).
Door and Hinge Replacement
NOTE: Graphic may be reversed if door swing is reversed.
1. Assemble the parts for the bottom hinge as shown. Tighten
screws (see Bottom Hinge graphic). Replace the refrigerator
door.
NOTE: Provide additional support for the doors while the
hinges are being moved. Do not depend on the door magnets
to hold the doors in place while you are working.
2. Assemble the parts for the center hinge as shown (see Center
Hinge graphic). Tighten all screws. Replace the freezer door.
3. Assemble the parts for the top hinge as shown. Do not
tighten completely (see Top Hinge graphic).
4. Line up the doors so that the bottom of the freezer door
aligns evenly with the top of the refrigerator door. Tighten all
screws,
Final Steps
1o Check all holes to make sure that hole plugs and screws are
in place. Reinstall top hinge cover (see Top Hinge graphic).
2. Replace the base grille (see the Base Grille graphic).
3. Plug in refrigerator or reconnect power.
4. Reset the controls (see "Using the Controls" section).
5. Return all removable door parts to doors and food to product.
6

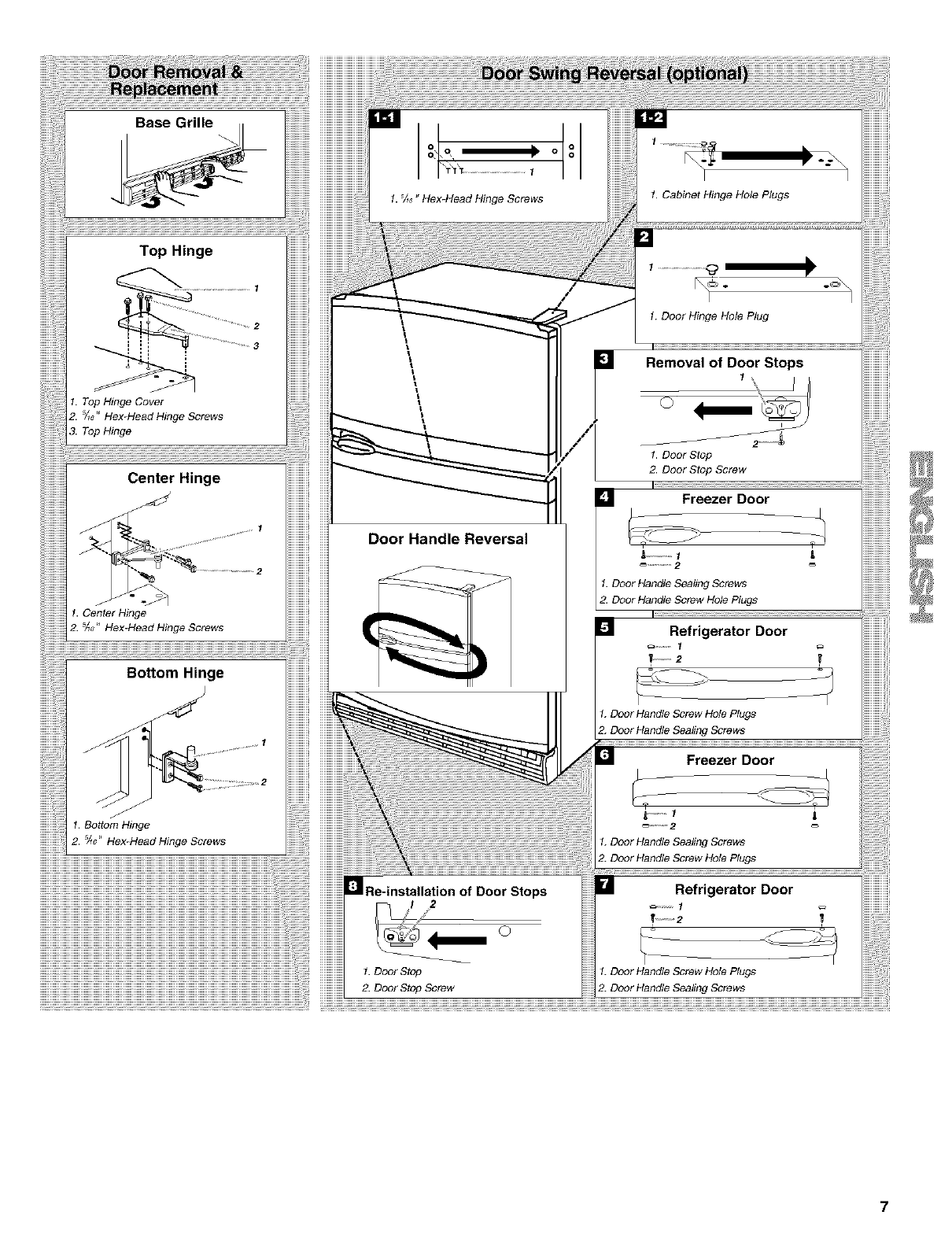

Top Hinge
Top Hinge Cover
s/_ ,, Hex-Head Hinge Screws
Top Hinge
Center Hinge
....... 2
1. Center Hinge
2. 5/_,, Hex-Head Hinge Screws
Bottom Hinge
1. Bottom Hinge
2. _G Hex-Head Hinge Screws
1. Cabinet Hinge Hole Plugs
\\
t\\
\
Door Handle Reversal
Re-installation of Door Stops
0
1. Door Stop
2. Door Stop Screw
1 Door Hinge Hole Plug
[]
Removal of DoorStops iiiiiiiiiiiiiii
iiiiiiiiiiiiiii
1. DoorStop iiiiiiiiiiiiiii;!!!i:i:i:i:ii
BDoorStopScrew iiiiiiiiiiiiiiiiiiiiiii:ii:iii
I_ i!i!i!i!i!i!i!i!i!i!i!i!ii
Freezer Door
1. Door Handle Sealing Screws
2. Door Handle Screw Hole Plugs
Refrigerator Door
_2
1. Door Handle Screw Hole Plugs
2. Door Handle Sealing Screws
Freezer Door
1. Door Handle Sealing Screws
2. Door Handle Screw Hole Plugs
Refrigerator Door
_2
1. Door Handle Screw Hole Plugs
2. Door Handle Sealing Screws

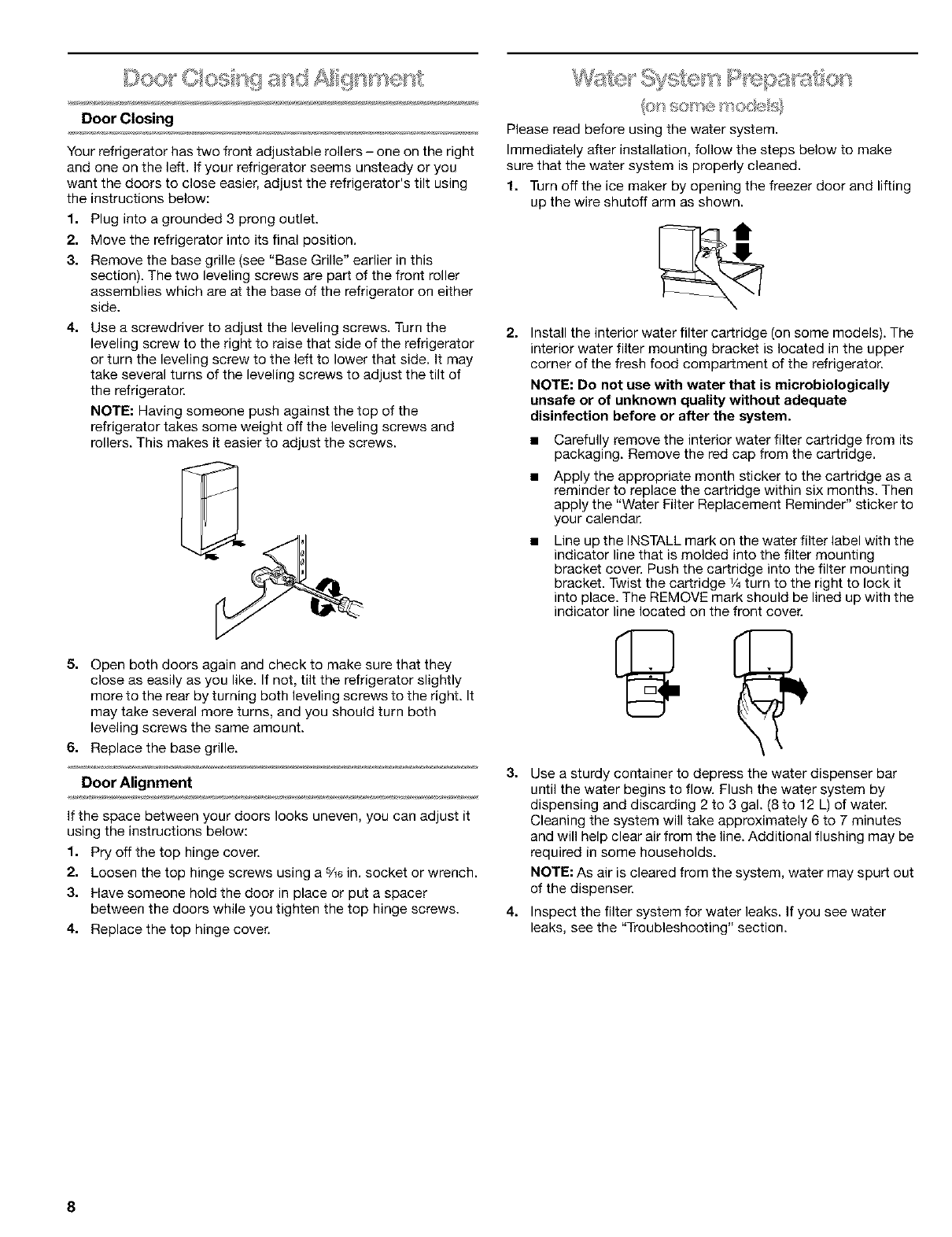

Door Closing Please read before using the water system.
Your refrigerator has two front adjustable rollers - one on the right
and one on the left. If your refrigerator seems unsteady or you
want the doors to close easier, adjust the refrigerator's tilt using
the instructions below:
1. Plug into a grounded 3 prong outlet.
2. Move the refrigerator into its final position.
3. Remove the base grille (see "Base Grille" earlier in this
section). The two leveling screws are part of the front roller
assemblies which are at the base of the refrigerator on either
side.
4. Use a screwdriver to adjust the leveling screws. Turn the
leveling screw to the right to raise that side of the refrigerator
or turn the leveling screw to the left to lower that side. It may
take several turns of the leveling screws to adjust the tilt of
the refrigerator.
NOTE: Having someone push against the top of the
refrigerator takes some weight oft the leveling screws and
rollers. This makes it easier to adjust the screws.
Immediately after installation, follow the steps below to make
sure that the water system is properly cleaned.
1. Turn oft the ice maker by opening the freezer door and lifting
up the wire shutoff arm as shown.
2. Install the interior water filter cartridge (on some models). The
interior water filter mounting bracket is located in the upper
corner of the fresh food compartment of the refrigerator.
NOTE: Do not use with water that is microbiologically
unsafe or of unknown quality without adequate
disinfection before or after the system.
• Carefully remove the interior water filter cartridge from its
packaging. Remove the red cap from the cartridge.
Apply the appropriate month sticker to the cartridge as a
reminder to replace the cartridge within six months. Then
apply the "Water Filter Replacement Reminder" sticker to
your calendar.
Line up the INSTALL mark on the water filter label with the
indicator line that is molded into the filter mounting
bracket cover. Push the cartridge into the filter mounting
bracket. Twist the cartridge Y4turn to the right to lock it
into place. The REMOVE mark should be lined up with the
indicator line located on the front cover.
5. Open both doors again and check to make sure that they
close as easily as you like. If not, tilt the refrigerator slightly
more to the rear by turning both leveling screws to the right. It
may take several more turns, and you should turn both
leveling screws the same amount.
6. Replace the base grille.
Door Alignment
If the space between your doors looks uneven, you can adjust it
using the instructions below:
1. Pry oft the top hinge cover.
2. Loosen the top hinge screws using a _/_6in. socket or wrench.
3. Have someone hold the door in place or put a spacer
between the doors while you tighten the top hinge screws. 4.
4. Replace the top hinge cover.
Use a sturdy container to depress the water dispenser bar
until the water begins to flow. Flush the water system by
dispensing and discarding 2 to 3 gal. (8to 12 L) of water.
Cleaning the system will take approximately 6 to 7 minutes
and will help clear air from the line. Additional flushing may be
required in some households.
NOTE: As air is cleared from the system, water may spurt out
of the dispenser.
Inspect the filter system for water leaks. If you see water
leaks, see the "Troubleshooting" section.
8

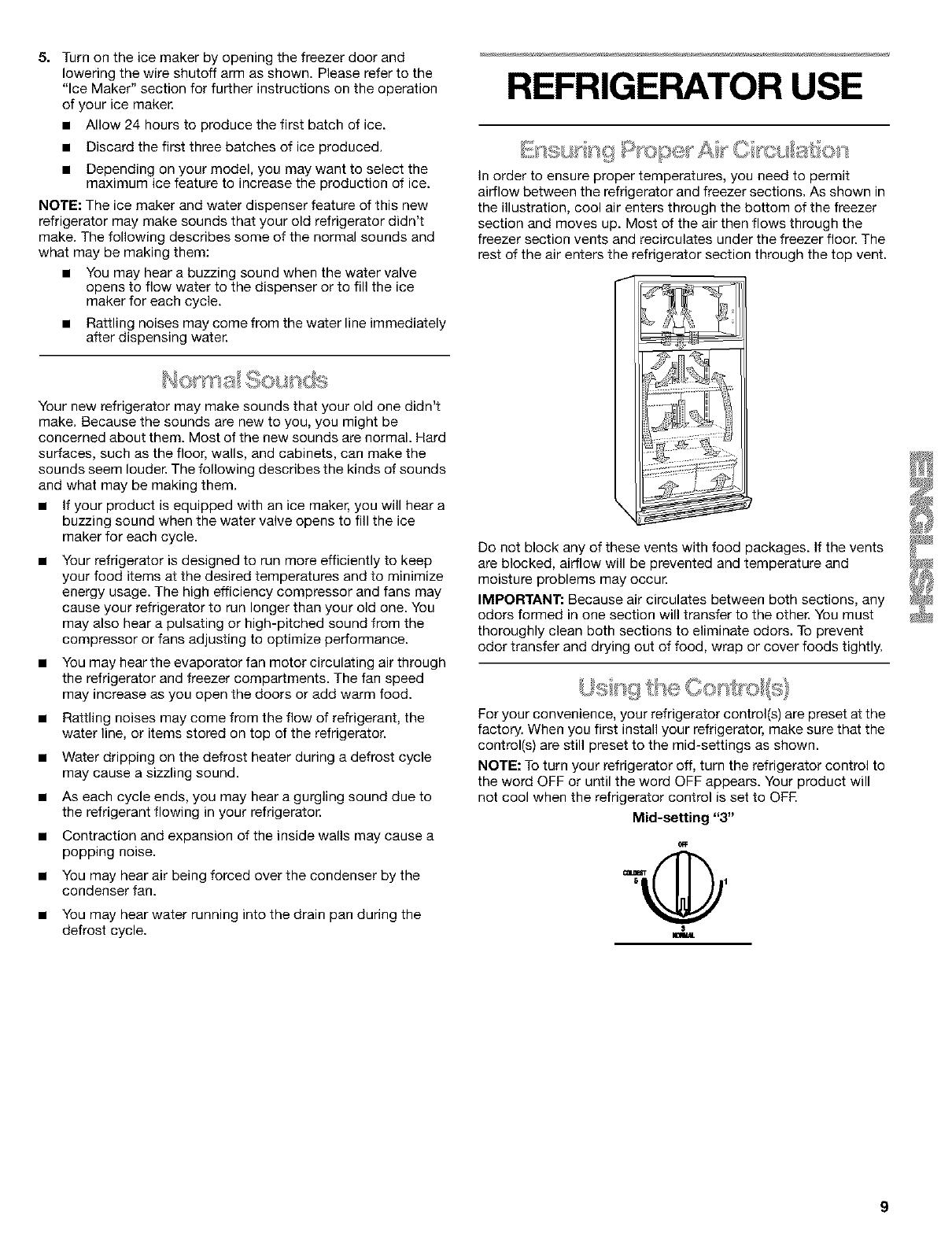

REFRIGERATOR USE
5. Turn on the ice maker by opening the freezer door and
lowering the wire shutoff arm as shown. Please refer to the
"Ice Maker" section for further instructions on the operation
of your ice maker.
• Allow 24 hours to produce the first batch of ice.
• Discard the first three batches of ice produced.
• Depending on your model, you may want to select the
maximum ice feature to increase the production of ice.
NOTE: The ice maker and water dispenser feature of this new
refrigerator may make sounds that your old refrigerator didn't
make. The following describes some of the normal sounds and
what may be making them:
• You may hear a buzzing sound when the water valve
opens to flow water to the dispenser or to fill the ice
maker for each cycle.
• Rattling noises may come from the water line immediately
after dispensing water.
Your new refrigerator may make sounds that your old one didn't
make. Because the sounds are new to you, you might be
concerned about them. Most of the new sounds are normal. Hard
surfaces, such as the floor, walls, and cabinets, can make the
sounds seem louder. The following describes the kinds of sounds
and what may be making them.
• If your product is equipped with an ice maker, you will hear a
buzzing sound when the water valve opens to fill the ice
maker for each cycle.
• Your refrigerator is designed to run more efficiently to keep
your food items at the desired temperatures and to minimize
energy usage. The high efficiency compressor and fans may
cause your refrigerator to run longer than your old one. You
may also hear a pulsating or high-pitched sound from the
compressor or fans adjusting to optimize performance.
• You may hear the evaporator fan motor circulating air through
the refrigerator and freezer compartments. The fan speed
may increase as you open the doors or add warm food.
• Rattling noises may come from the flow of refrigerant, the
water line, or items stored on top of the refrigerator.
• Water dripping on the defrost heater during a defrost cycle
may cause a sizzling sound.
• As each cycle ends, you may hear a gurgling sound due to
the refrigerant flowing in your refrigerator.
• Contraction and expansion of the inside walls may cause a
popping noise.
• You may hear air being forced over the condenser by the
condenser fan.
• You may hear water running into the drain pan during the
defrost cycle.
In order to ensure proper temperatures, you need to permit
airflow between the refrigerator and freezer sections. As shown in
the illustration, cool air enters through the bottom of the freezer
section and moves up. Most of the air then flows through the
freezer section vents and recirculates under the freezer floon The
rest of the air enters the refrigerator section through the top vent.
Do not block any of these vents with food packages. If the vents
are blocked, airflow will be prevented and temperature and
moisture problems may occur.
IMPORTANT: Because air circulates between both sections, any
odors formed in one section will transfer to the other. You must
thoroughly clean both sections to eliminate odors. To prevent
odor transfer and drying out of food, wrap or cover foods tightly.
For your convenience, your refrigerator contro((s) are preset at the
factory. When you first install your refrigerator, make sure that the
contro((s) are still preset to the mid-settings as shown.
NOTE: To turn your refrigerator off, turn the refrigerator control to
the word OFF or until the word OFF appears. Your product will
not cool when the refrigerator control is set to OFR
Mid-setting "3"
_F
Mid-setting "3"
0'=
JmB
Mid-setting "4"
IMPORTANT:
Give your refrigerator time to cool down completely before
adding food. It is best to wait 24 hours before you put food
into the refrigerator.
If you add food before the refrigerator has cooled completely,
your food may spoil. Adjusting the Refrigerator and Freezer
Controls to a higher (colder) than recommended setting will
not cool the compartments any faster.

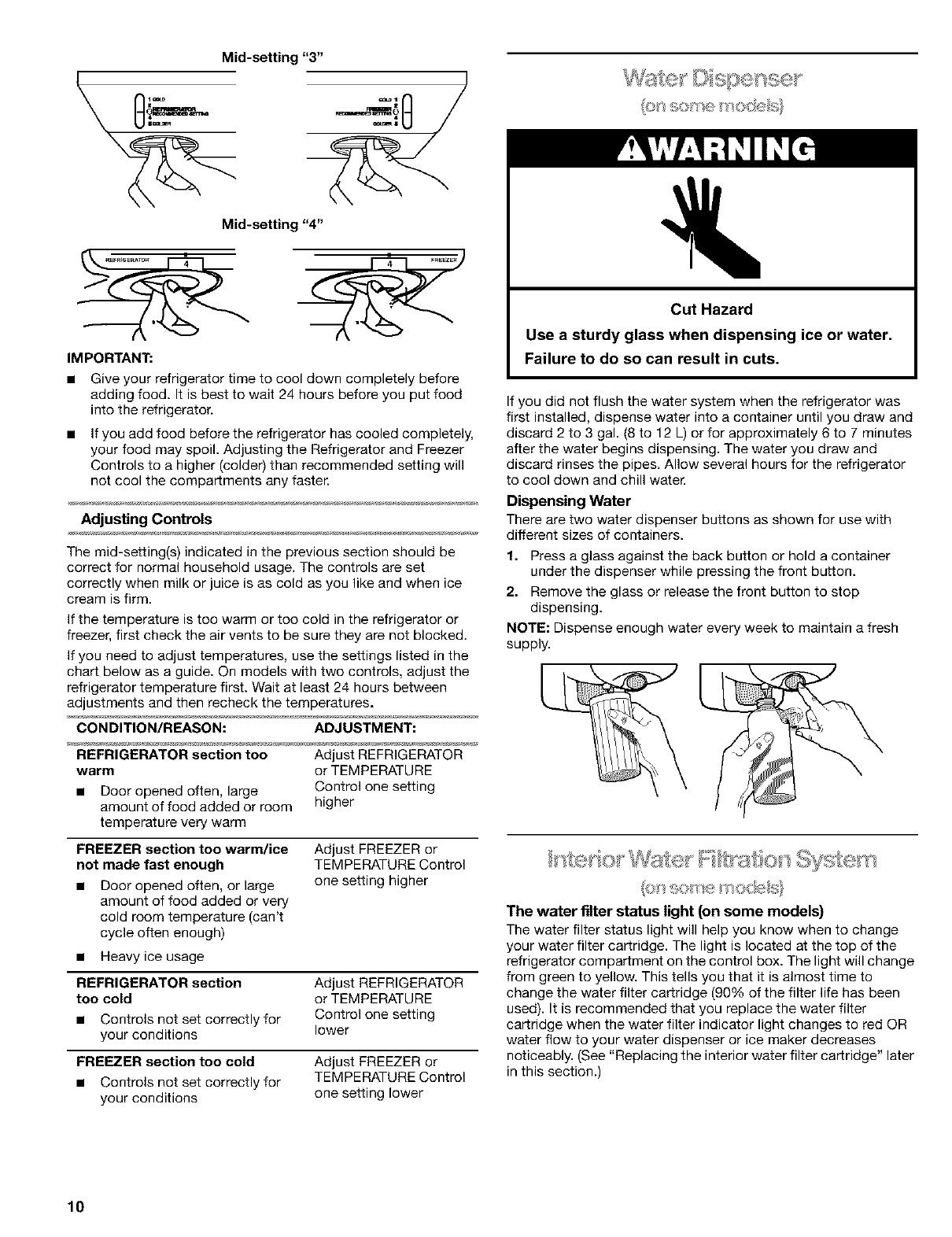

Adjusting Controls
The mid-setting(s) indicated in the previous section should be
correct for normal household usage• The controls are set
correctly when milk or juice is as cold as you like and when ice
cream is firm.
If the temperature is too warm or too cold in the refrigerator or
freezer, first check the air vents to be sure they are not blocked.
If you need to adjust temperatures, use the settings listed in the
chart below as a guide• On models with two controls, adjust the
refrigerator temperature first. Wait at least 24 hours between
adjustments and then recheck the temperatures.
CONDITION/REASON: ADJUSTMENT:
REFRIGERATOR section too Adjust REFRIGERATOR
warm or TEMPERATURE
• Door opened often, large Control one setting
amount of food added or room higher
temperature very warm
FREEZER section too warm/ice
not made fast enough
• Door opened often, or large
amount of food added or very
cold room temperature (can't
cycle often enough)
Adjust FREEZER or
TEMPERATURE Control
one setting higher
• Heavy ice usage
REFRIGERATOR section Adjust REFRIGERATOR
too cold or TEMPERATURE
• Controls not set correctly for Control one setting
your conditions lower
FREEZER section too cold Adjust FREEZER or
• Controls not set correctly for TEMPERATURE Control
your conditions one setting lower
Cut Hazard
Use a sturdy glass when dispensing ice or water.
Failure to do so can result in cuts.
If you did not flush the water system when the refrigerator was
first installed, dispense water into a container until you draw and
discard 2 to 3 gal. (8 to 12 L) or for approximately 6 to 7 minutes
after the water begins dispensing• The water you draw and
discard rinses the pipes• Allow several hours for the refrigerator
to cool down and chill water•
Dispensing Water
There are two water dispenser buttons as shown for use with
different sizes of containers.
1. Press a glass against the back button or hold a container
under the dispenser while pressing the front button.
2. Remove the glass or release the front button to stop
dispensing.
NOTE: Dispense enough water every week to maintain a fresh
supply.
\
The water filter status light (on some models)
The water filter status light will help you know when to change
your water filter cartridge. The light is located at the top of the
refrigerator compartment on the control box• The light will change
from green to yellow. This tells you that it is almost time to
change the water filter cartridge (90% of the filter life has been
used). It is recommended that you replace the water filter
cartridge when the water filter indicator light changes to red OR
water flow to your water dispenser or ice maker decreases
noticeably• (See "Replacing the interior water filter cartridge" later
in this section.)
10

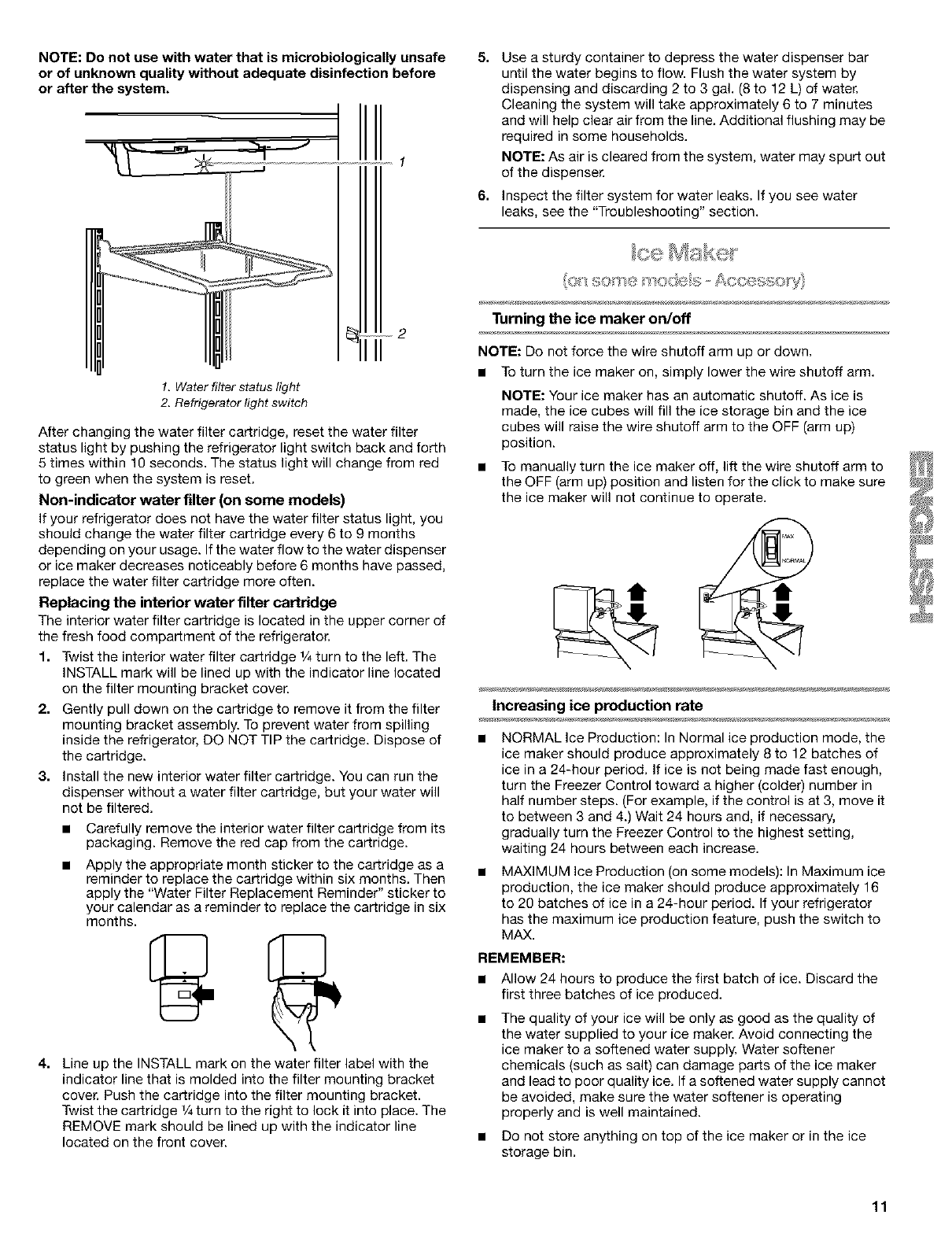

NOTE: Do not use with water that is microbiologically unsafe
or of unknown quality without adequate disinfection before
or after the system.
1
1. Water filter status light
2. Refrigerator light switch
After changing the water filter cartridge, reset the water filter
status light by pushing the refrigerator light switch back and forth
5 times within 10 seconds. The status light will change from red
to green when the system is reset.
Non-indicator water filter (on some models)
If your refrigerator does not have the water filter status light, you
should change the water filter cartridge every 6 to 9 months
depending on your usage. If the water flow to the water dispenser
or ice maker decreases noticeably before 6 months have passed,
replace the water filter cartridge more often.
Replacing the interior water filter cartridge
The interior water filter cartridge is located in the upper corner of
the fresh food compartment of the refrigerator.
f. Twist the interior water filter cartridge 1/4turn to the left. The
INSTALL mark will be lined up with the indicator line located
on the filter mounting bracket cover.
2. Gently pull down on the cartridge to remove it from the filter
mounting bracket assembly. To prevent water from spilling
inside the refrigerator, DO NOT TIP the cartridge. Dispose of
the cartridge.
3. Install the new interior water filter cartridge. You can run the
dispenser without a water filter cartridge, but your water will
not be filtered.
• Carefully remove the interior water filter cartridge from its
packaging. Remove the red cap from the cartridge.
Apply the appropriate month sticker to the cartridge as a
reminder to replace the cartridge within six months. Then
apply the "Water Filter Replacement Reminder" sticker to
your calendar as a reminder to replace the cartridge in six
months.
4. Line up the INSTALL mark on the water filter label with the
indicator line that is molded into the filter mounting bracket
cover. Push the cartridge into the filter mounting bracket.
Twist the cartridge 1/4turn to the right to lock it into place. The
REMOVE mark should be lined up with the indicator line
located on the front cover.
5.
6.
Use a sturdy container to depress the water dispenser bar
until the water begins to flow. Flush the water system by
dispensing and discarding 2 to 3 gal. (8 to 12 L) of water.
Cleaning the system will take approximately 6 to 7 minutes
and will help clear air from the line. Additional flushing may be
required in some households.
NOTE: As air is cleared from the system, water may spurt out
of the dispenser.
Inspect the filter system for water leaks. If you see water
leaks, see the "Troubleshooting" section.
Turning the ice maker on/off
NOTE: Do not force the wire shutoff arm up or down.
• To turn the ice maker on, simply lower the wire shutoff arm.
NOTE: Your ice maker has an automatic shutoff. As ice is
made, the ice cubes will fill the ice storage bin and the ice
cubes will raise the wire shutoff arm to the OFF (arm up)
position.
• To manually turn the ice maker off, lift the wire shutoff arm to
the OFF (arm up) position and listen for the click to make sure
the ice maker will not continue to operate.
Increasing ice production rate
NORMAL Ice Production: In Normal ice production mode, the
ice maker should produce approximately 8 to 12 batches of
ice in a 24-hour period. If ice is not being made fast enough,
turn the Freezer Control toward a higher (colder) number in
half number steps. (For example, if the control is at 3, move it
to between 3 and 4.) Wait 24 hours and, if necessary,
gradually turn the Freezer Control to the highest setting,
waiting 24 hours between each increase.
MAXIMUM Ice Production (on some models): In Maximum ice
production, the ice maker should produce approximately 16
to 20 batches of ice in a 24-hour period. If your refrigerator
has the maximum ice production feature, push the switch to
MAX.
REMEMBER:
• Allow 24 hours to produce the first batch of ice. Discard the
first three batches of ice produced.
The quality of your ice will be only as good as the quality of
the water supplied to your ice maker. Avoid connecting the
ice maker to a softened water supply. Water softener
chemicals (such as salt) can damage parts of the ice maker
and lead to poor quality ice. If a softened water supply cannot
be avoided, make sure the water softener is operating
properly and is well maintained.
• Do not store anything on top of the ice maker or in the ice
storage bin.
11

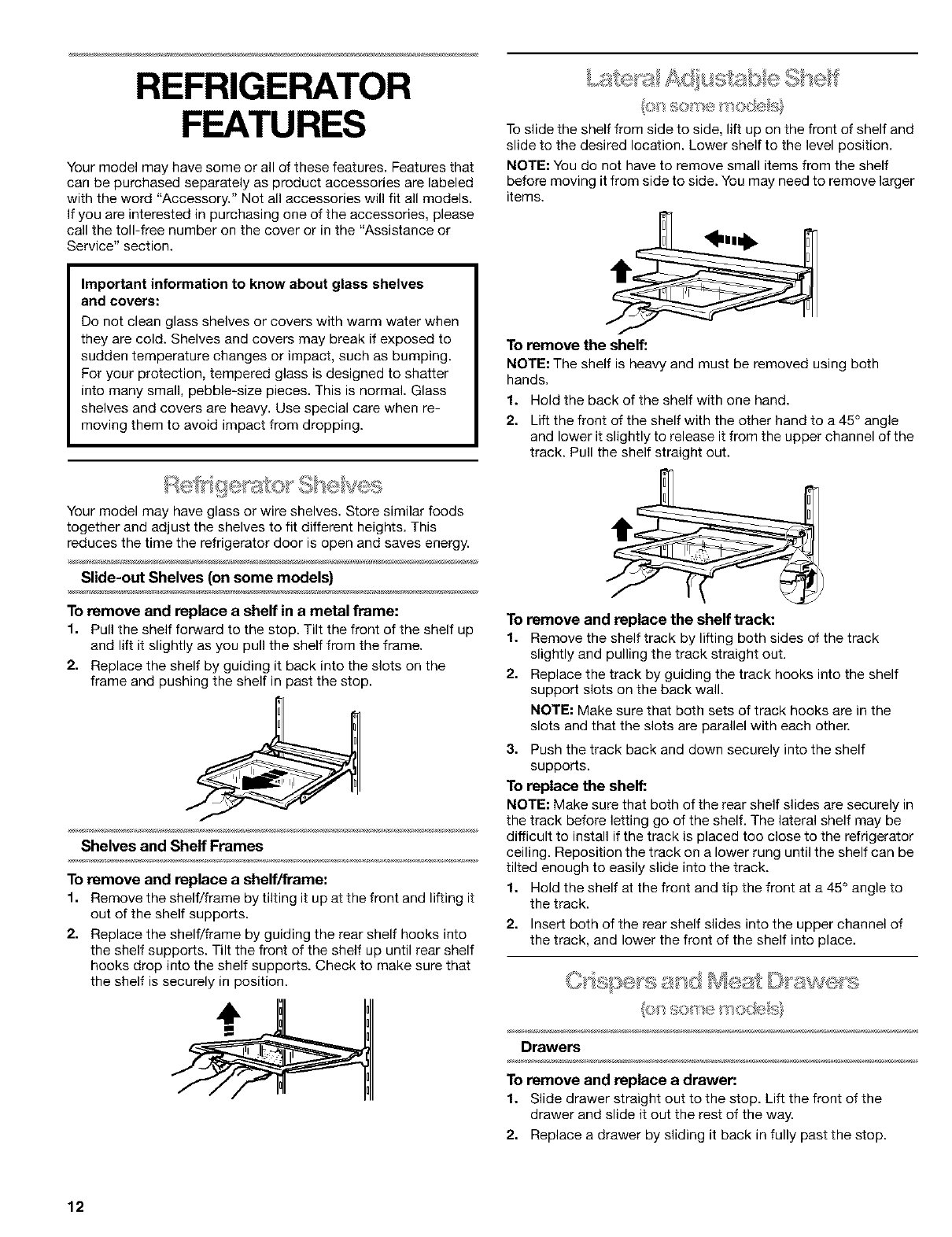

REFRIGERATOR
Your model may have some or all of these features. Features that
can be purchased separately as product accessories are labeled
with the word "Accessory." Not all accessories will fit all models.
If you are interested in purchasing one of the accessories, please
call the toll-free number on the cover or in the "Assistance or
Service" section.
To slide the shelf from side to side, lift up on the front of shelf and
slide to the desired location. Lower shelf to the level position.
NOTE: You do not have to remove small items from the shelf
before moving it from side to side. You may need to remove larger
items.
Important information to know about glass shelves
and covers:
Do not clean glass shelves or covers with warm water when
they are cold. Shelves and covers may break if exposed to
sudden temperature changes or impact, such as bumping.
For your protection, tempered glass is designed to shatter
into many small, pebble-size pieces. This is normal. Glass
shelves and covers are heavy. Use special care when re-
moving them to avoid impact from dropping.
To remove the shelf:.
NOTE: The shelf is heavy and must be removed using both
hands.
1. Hold the back of the shelf with one hand.
2. Lift the front of the shelf with the other hand to a 45 ° angle
and lower it slightly to release it from the upper channel of the
track. Pull the shelf straight out.
Your model may have glass or wire shelves. Store similar foods
together and adjust the shelves to fit different heights. This
reduces the time the refrigerator door is open and saves energy.
Slide-out Shelves (on some models)
To remove and replace a shelf in a metal frame:
1. Pull the shelf forward to the stop. Tilt the front of the shelf up
and lift it slightly as you pull the shelf from the frame.
2. Replace the shelf by guiding it back into the slots on the
frame and pushing the shelf in past the stop.
Shelves and Shelf Frames
To remove and replace a shelf/frame:
1. Remove the shelf/frame by tilting it up at the front and lifting it
out of the shelf supports.
2. Replace the shelf/frame by guiding the rear shelf hooks into
the shelf supports. Tilt the front of the shelf up until rear shelf
hooks drop into the shelf supports. Check to make sure that
the shelf is securely in position.
To remove and replace the shelf track:
1. Remove the shelf track by lifting both sides of the track
slightly and pulling the track straight out.
2. Replace the track by guiding the track hooks into the shelf
support slots on the back wall.
NOTE: Make sure that both sets of track hooks are in the
slots and that the slots are parallel with each other.
3. Push the track back and down securely into the shelf
supports.
To replace the shelf:.
NOTE: Make sure that both of the rear shelf slides are securely in
the track before letting go of the shelf. The lateral shelf may be
difficult to install if the track is placed too close to the refrigerator
ceiling. Reposition the track on a lower rung until the shelf can be
tilted enough to easily slide into the track.
1. Hold the shelf at the front and tip the front at a 45° angle to
the track.
2. Insert both of the rear shelf slides into the upper channel of
the track, and lower the front of the shelf into place.
Drawers
To remove and replace a drawer:.
1. Slide drawer straight out to the stop. Lift the front of the
drawer and slide it out the rest of the way.
2. Replace a drawer by sliding it back in fully past the stop.
12

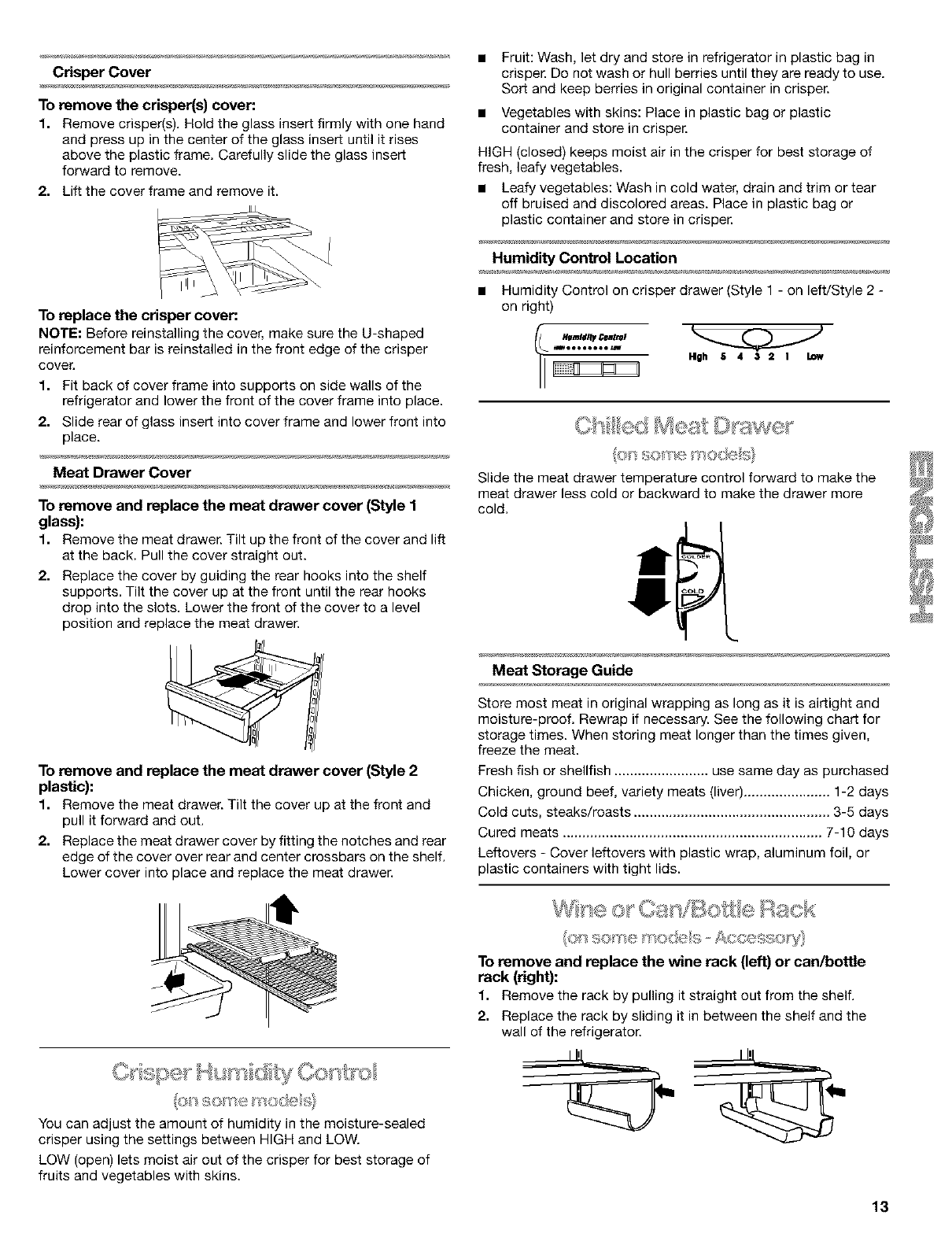

Crisper Cover
To remove the crisper(s) cover:.
1. Remove crisper(s). Hold the glass insert firmly with one hand
and press up in the center of the glass insert until it rises
above the plastic frame. Carefully slide the glass insert
forward to remove.
2. Lift the cover frame and remove it.
To replace the crisper cover.
NOTE: Before reinstalling the cover, make sure the U-shaped
reinforcement bar is reinstalled in the front edge of the crisper
cover,
1. Fit back of cover frame into supports on side walls of the
refrigerator and lower the front of the cover frame into place.
2. Slide rear of glass insert into cover frame and lower front into
place.
Meat Drawer Cover
To remove and replace the meat drawer cover (Style 1
glass):
1. Remove the meat drawer. Tilt up the front of the cover and lift
at the back. Pull the cover straight out.
2. Replace the cover by guiding the rear hooks into the shelf
supports. Tilt the cover up at the front until the rear hooks
drop into the slots. Lower the front of the cover to a level
position and replace the meat drawer.
To remove and replace the meat drawer cover (Style 2
plastic):
1. Remove the meat drawer. Tilt the cover up at the front and
pull it forward and out.
2. Replace the meat drawer cover by fitting the notches and rear
edge of the cover over rear and center crossbars on the shelf.
Lower cover into place and replace the meat drawer.
•Fruit: Wash, let dry and store in refrigerator in plastic bag in
crisper. Do not wash or hull berries until they are ready to use.
Sort and keep berries in original container in crisper.
• Vegetables with skins: Place in plastic bag or plastic
container and store in crisper.
HIGH (closed) keeps moist air in the crisper for best storage of
fresh, leafy vegetables.
• Leafy vegetables: Wash in cold water, drain and trim or tear
oft bruised and discolored areas. Place in plastic bag or
plastic container and store in crisper.
Humidity Control Location
• Humidity Control on crisper drawer (Style 1 - on left/Style 2 -
on right)
f<
Hob 54 3 2 I Low
Slide the meat drawer temperature control forward to make the
meat drawer less cold or backward to make the drawer more
cold.
Meat Storage Guide
Store most meat in original wrapping as long as it is airtight and
moisture-proof. Rewrap if necessary. See the following chart for
storage times. When storing meat longer than the times given,
freeze the meat.
Fresh fish or shellfish ........................ use same day as purchased
Chicken, ground beef, variety meats (liver)...................... 1-2 days
Cold cuts, steaks/roasts .................................................. 3-5 days
Cured meats .................................................................. 7-10 days
Leftovers - Cover leftovers with plastic wrap, aluminum foil, or
plastic containers with tight lids.
You can adjust the amount of humidity in the moisture-sealed
crisper using the settings between HIGH and LOW.
LOW (open) lets moist air out of the crisper for best storage of
fruits and vegetables with skins.
To remove and replace the wine rack (left) or can/bottle
rack (right):
1. Remove the rack by pulling it straight out from the shelf.
2. Replace the rack by sliding it in between the shelf and the
wall of the refrigerator.
13

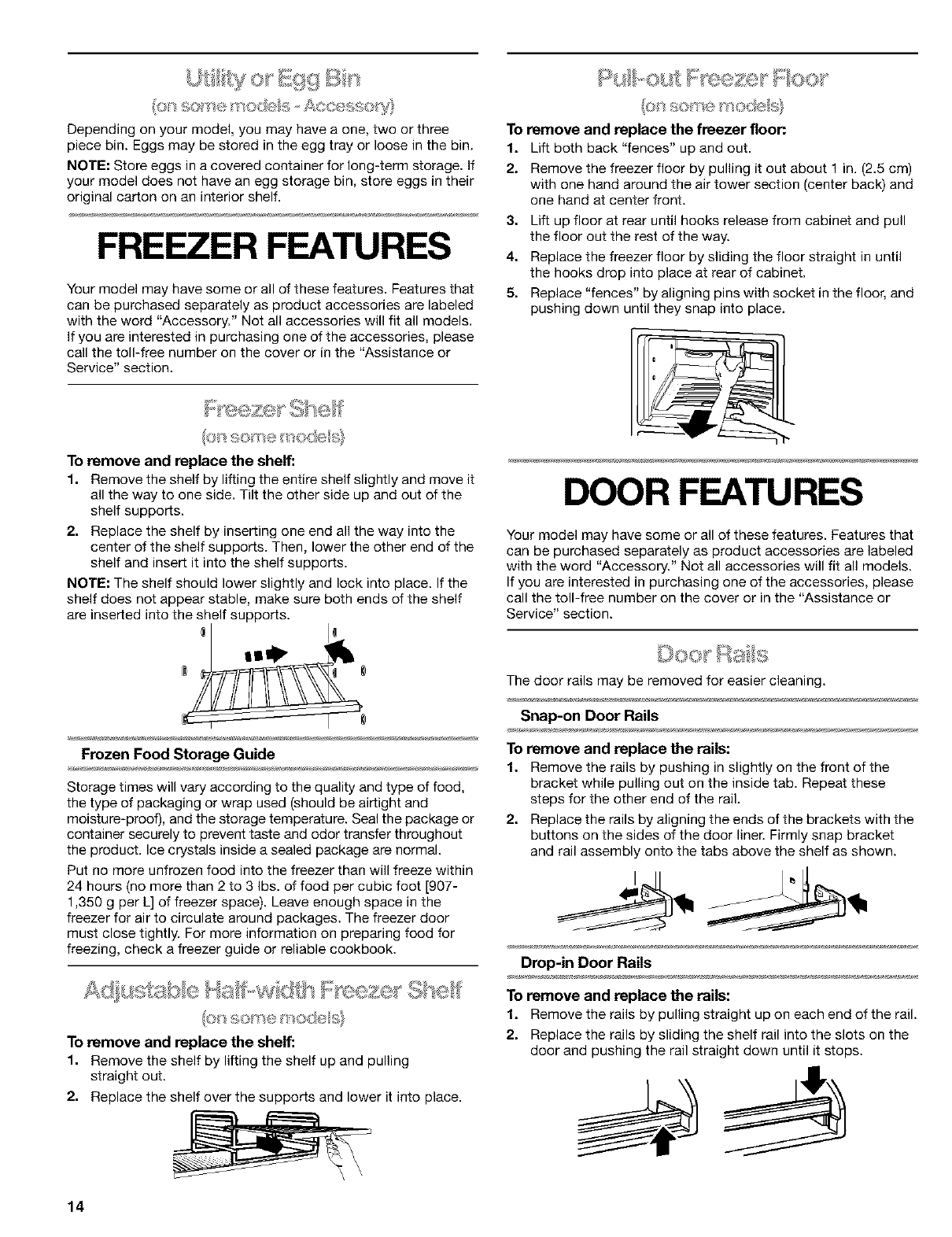

Depending on your model, you may have a one, two or three
piece bin. Eggs may be stored in the egg tray or loose in the bin.
NOTE: Store eggs in a covered container for long-term storage. If
your model does not have an egg storage bin, store eggs in their
original carton on an interior shelf.
Your model may have some or all of these features. Features that
can be purchased separately as product accessories are labeled
with the word "Accessory." Not all accessories will fit all models.
If you are interested in purchasing one of the accessories, please
call the toll-free number on the cover or in the "Assistance or
Service" section.
To remove and replace the shelf:.
1. Remove the shelf by lifting the entire shelf slightly and move it
all the way to one side. Tilt the other side up and out of the
shelf supports.
2. Replace the shelf by inserting one end all the way into the
center of the shelf supports. Then, lower the other end of the
shelf and insert it into the shelf supports.
NOTE: The shelf should lower slightly and lock into place. If the
shelf does not appear stable, make sure both ends of the shelf
are inserted into the shelf supports.
Frozen Food Storage Guide
Storage times will vary according to the quality and type of food,
the type of packaging or wrap used (should be airtight and
moisture-proof), and the storage temperature. Seal the package or
container securely to prevent taste and odor transfer throughout
the product. Ice crystals inside a sealed package are normal.
Put no more unfrozen food into the freezer than will freeze within
24 hours (no more than 2 to 3 Ibs. of food per cubic foot [907-
1,350 g per L] of freezer space). Leave enough space in the
freezer for air to circulate around packages. The freezer door
must close tightly. For more information on preparing food for
freezing, check a freezer guide or reliable cookbook.
To remove and replace the shelf:.
1. Remove the shelf by lifting the shelf up and pulling
straight out.
2. Replace the shelf over the supports and lower it into place.
To remove and replace the freezer floor:
1. Lift both back "fences" up and out.
2. Remove the freezer floor by pulling it out about 1 in. (2.5 cm)
with one hand around the air tower section (center back) and
one hand at center front.
3. Lift up floor at rear until hooks release from cabinet and pull
the floor out the rest of the way.
4. Replace the freezer floor by sliding the floor straight in until
the hooks drop into place at rear of cabinet.
5. Replace "fences" by aligning pins with socket in the floor, and
pushing down until they snap into place.
DOOR
Your model may have some or all of these features. Features that
can be purchased separately as product accessories are labeled
with the word "Accessory." Not all accessories will fit all models.
If you are interested in purchasing one of the accessories, please
call the toll-free number on the cover or in the "Assistance or
Service" section.
The door rails may be removed for easier cleaning.
Snap-on Door Rails
To remove and replace _e roils:
1. Remove the rails by pushing in slightly on the front of the
bracket while pulling out on the inside tab. Repeat these
steps for the other end of the rail.
2. Replace the rails by aligning the ends of the brackets with the
buttons on the sides of the door liner. Firmly snap bracket
and rail assembly onto the tabs above the shelf as shown.
Drop-in Door Rails
To remove and replace the roils:
1. Remove the rails by pulling straight up on each end of the rail.
2. Replace the rails by sliding the shelf rail into the slots on the
door and pushing the rail straight down until it stops.
14

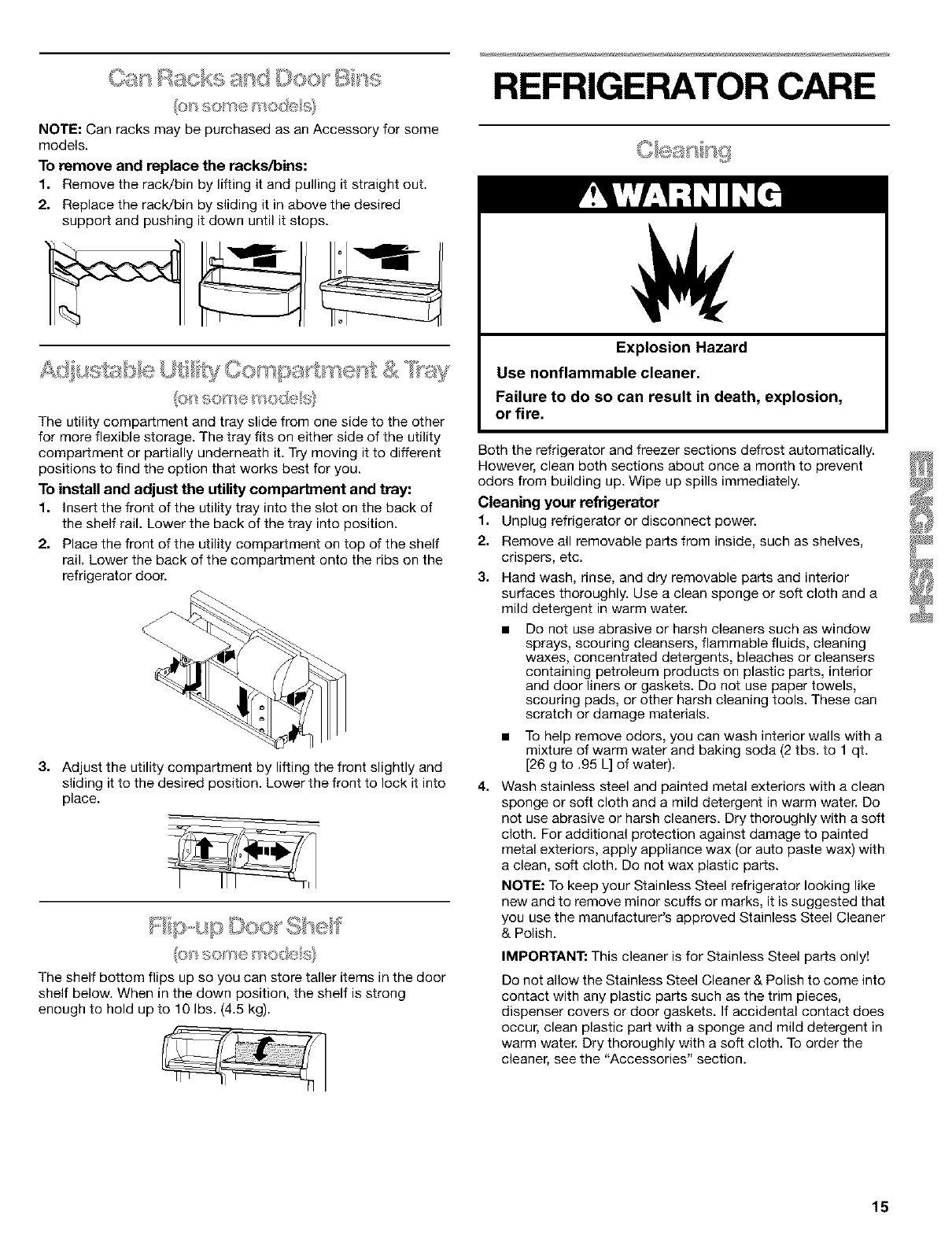

REFRIGERATOR CARE
NOTE: Can racks may be purchased as an Accessory for some
models.
To remove and replace the racks/bins:
1. Remove the rack/bin by lifting it and pulling it straight out.
2. Replace the rack/bin by sliding it in above the desired
support and pushing it down until it stops.
The utility compartment and tray slide from one side to the other
for more flexible storage. The tray fits on either side of the utility
compartment or partially underneath it. Try moving it to different
positions to find the option that works best for you.
To install and adjust the utility compartment and trey:
1. Insert the front of the utility tray into the slot on the back of
the shelf rail. Lower the back of the tray into position.
2. Place the front of the utility compartment on top of the shelf
rail. Lower the back of the compartment onto the ribs on the
refrigerator door.
3. Adjust the utility compartment by lifting the front slightly and
sliding it to the desired position. Lower the front to lock it into
place.
The shelf bottom flips up so you can store taller items in the door
shelf below. When in the down position, the shelf is strong
enough to hold up to 10 Ibs. (4.5 kg).
Explosion Hazard
Use nonflammable cleaner.
Failure to do so can result in death, explosion,
or fire.
Both the refrigerator and freezer sections defrost automatically.
However, clean both sections about once a month to prevent
odors from building up. Wipe up spills immediately.
Cleaning your refrigerator
1. Unplug refrigerator or disconnect power.
2. Remove all removable parts from inside, such as shelves,
crispers, etc.
3. Hand wash, rinse, and dry removable parts and interior
surfaces thoroughly. Use a clean sponge or soft cloth and a
mild detergent in warm water.
• Do not use abrasive or harsh cleaners such as window
sprays, scouring cleansers, flammable fluids, cleaning
waxes, concentrated detergents, bleaches or cleansers
containing petroleum products on plastic parts, interior
and door liners or gaskets. Do not use paper towels,
scouring pads, or other harsh cleaning tools. These can
scratch or damage materials.
• To help remove odors, you can wash interior walls with a
mixture of warm water and baking soda (2 tbs. to 1 qt.
[26 g to .95 L] of water).
4, Wash stainless steel and painted metal exteriors with a clean
sponge or soft cloth and a mild detergent in warm water. Do
not use abrasive or harsh cleaners. Dry thoroughly with a soft
cloth. For additional protection against damage to painted
metal exteriors, apply appliance wax (or auto paste wax) with
a clean, soft cloth. Do not wax plastic parts.
NOTE: To keep your Stainless Steel refrigerator looking like
new and to remove minor scuffs or marks, it is suggested that
you use the manufacturer's approved Stainless Steel Cleaner
& Polish.
IMPORTANT: This cleaner is for Stainless Steel parts only!
Do not allow the Stainless Steel Cleaner & Polish to come into
contact with any plastic parts such as the trim pieces,
dispenser covers or door gaskets. If accidental contact does
occur, clean plastic part with a sponge and mild detergent in
warm water. Dry thoroughly with a soft cloth. To order the
cleaner, see the "Accessories" section.
15

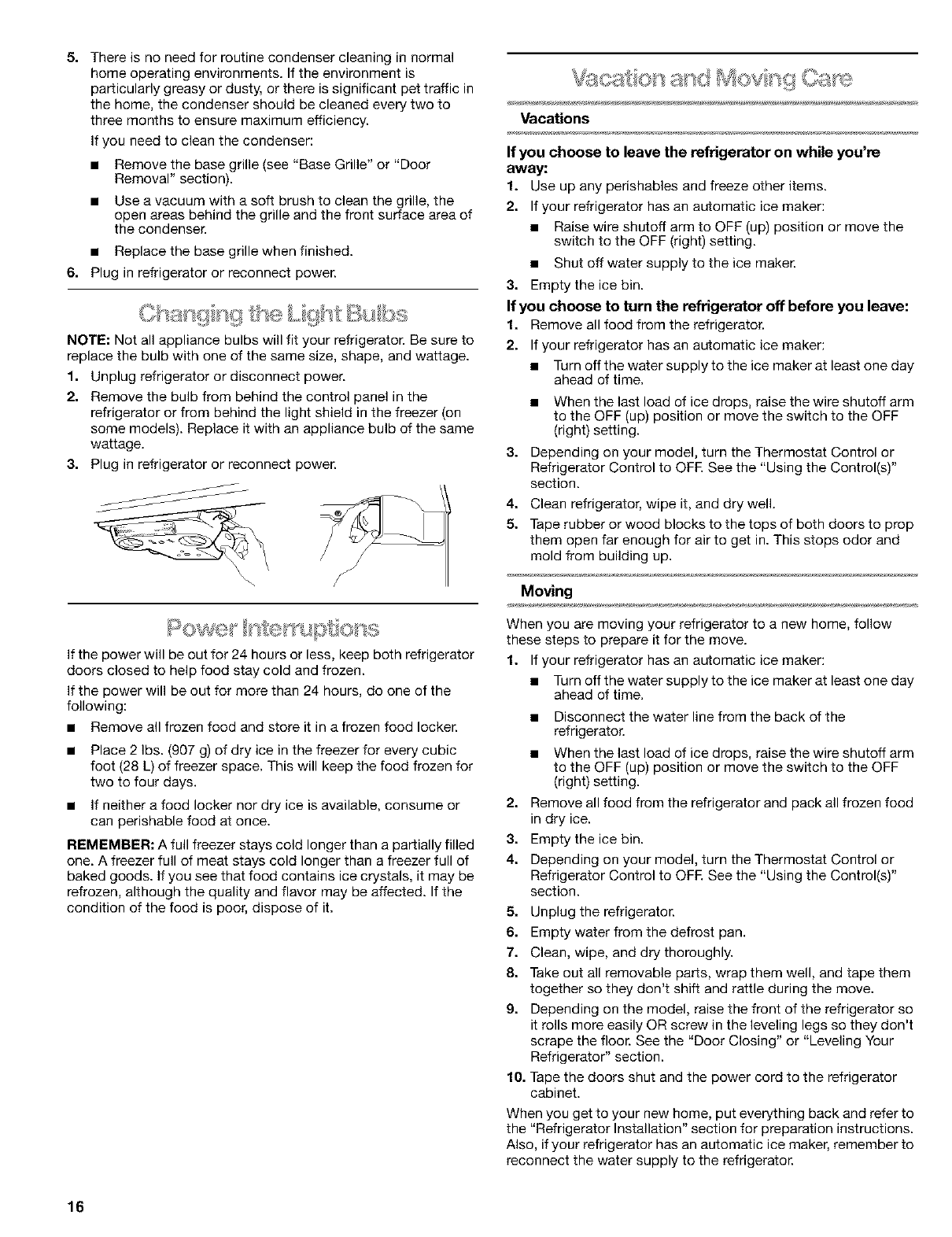

5. There is no need for routine condenser cleaning in normal
home operating environments. If the environment is
particularly greasy or dusty, or there is significant pet traffic in
the home, the condenser should be cleaned every two to
three months to ensure maximum efficiency.
If you need to clean the condenser:
• Remove the base grille (see "Base Grille" or "Door
Removal" section).
• Use a vacuum with a soft brush to clean the grille, the
open areas behind the grille and the front surface area of
the condenser.
• Replace the base grille when finished.
6. Plug in refrigerator or reconnect power.
NOTE: Not all appliance bulbs will fit your refrigerator. Be sure to
replace the bulb with one of the same size, shape, and wattage.
1. Unplug refrigerator or disconnect power.
2. Remove the bulb from behind the control panel in the
refrigerator or from behind the light shield in the freezer (on
some models). Replace it with an appliance bulb of the same
wattage.
3. Plug in refrigerator or reconnect power.
If the power will be out for 24 hours or less, keep both refrigerator
doors closed to help food stay cold and frozen.
If the power will be out for more than 24 hours, do one of the
following:
• Remove all frozen food and store it in a frozen food locker.
• Place 2 ibs. (907 g) of dry ice in the freezer for every cubic
foot (28 L) of freezer space. This will keep the food frozen for
two to four days.
• If neither a food locker nor dry ice is available, consume or
can perishable food at once.
REMEMBER: A full freezer stays cold longer than a partially filled
one. A freezer full of meat stays cold longer than a freezer full of
baked goods. If you see that food contains ice crystals, it may be
refrozen, although the quality and flavor may be affected. If the
condition of the food is poor, dispose of it.
Vacations
If you choose to leave the refrigerator on while you're
away:
1. Use up any perishables and freeze other items.
2. If your refrigerator has an automatic ice maker:
• Raise wire shutoff arm to OFF (up) position or move the
switch to the OFF (right) setting.
• Shut off water supply to the ice maker.
3. Empty the ice bin.
If you choose to turn the refrigerator off before you leave:
1. Remove all food from the refrigerator.
2. If your refrigerator has an automatic ice maker:
• Turn off the water supply to the ice maker at least one day
ahead of time.
• When the last load of ice drops, raise the wire shutoff arm
to the OFF (up) position or move the switch to the OFF
(right) setting.
3. Depending on your model, turn the Thermostat Control or
Refrigerator Control to OFE See the "Using the Control(s)"
section.
4. Clean refrigerator, wipe it, and dry well.
5. Tape rubber or wood blocks to the tops of both doors to prop
them open far enough for air to get in. This stops odor and
mold from building up.
Moving
When you are moving your refrigerator to a new home, follow
these steps to prepare it for the move.
1. If your refrigerator has an automatic ice maker:
• Turn off the water supply to the ice maker at least one day
ahead of time.
• Disconnect the water line from the back of the
refrigerator.
• When the last load of ice drops, raise the wire shutoff arm
to the OFF (up) position or move the switch to the OFF
(right) setting.
2. Remove all food from the refrigerator and pack all frozen food
in dry ice.
3. Empty the ice bin.
4. Depending on your model, turn the Thermostat Control or
Refrigerator Control to OFR See the "Using the Control(s)"
section.
5. Unplug the refrigerator.
6. Empty water from the defrost pan.
7. Clean, wipe, and dry thoroughly.
8. Take out all removable parts, wrap them well, and tape them
together so they don't shift and rattle during the move.
9. Depending on the model, raise the front of the refrigerator so
it rolls more easily OR screw in the leveling legs so they don't
scrape the floor. See the "Door Closing" or "Leveling Your
Refrigerator" section.
10. Tape the doors shut and the power cord to the refrigerator
cabinet.
When you get to your new home, put everything back and refer to
the "Refrigerator Installation" section for preparation instructions.
Also, if your refrigerator has an automatic ice maker, remember to
reconnect the water supply to the refrigerator.
16

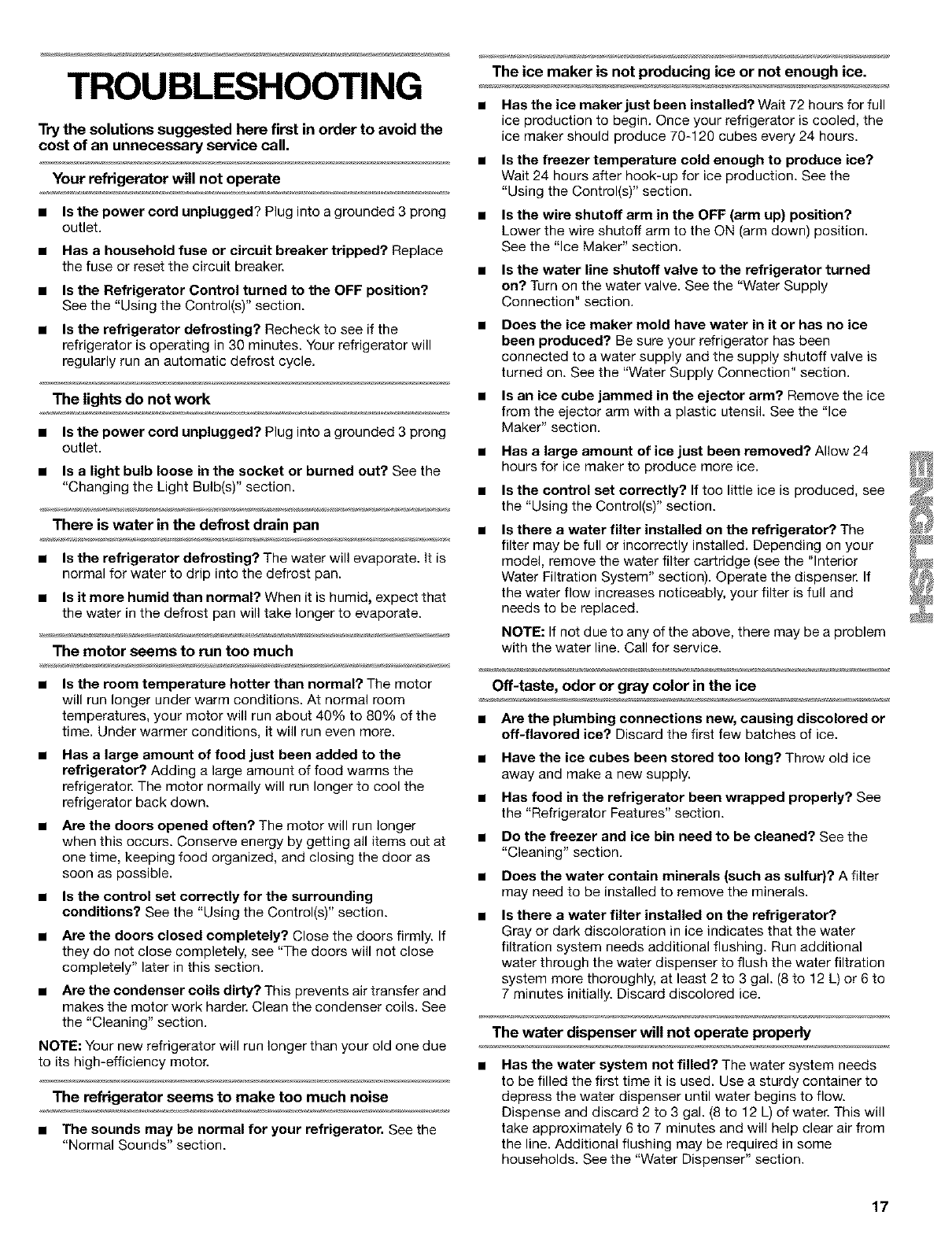

TROUBLESHOOTING
Try the solutions suggested hero first in order to avoid the
cost of an unnecessary service call.
Your refrigerator will not operate
•Is the power cord unplugged? Plug into a grounded 3 prong
outlet.
•Has a household fuse or circuit breaker tripped? Replace
the fuse or reset the circuit breaker.
•Is the Refrigerator Control turned to the OFF position?
See the "Using the Control(s)" section.
•Is the refrigerator defrosting? Recheck to see if the
refrigerator is operating in 30 minutes. Your refrigerator will
regularly run an automatic defrost cycle.
The lights do not work
•Is the power cord unplugged? Plug into a grounded 3 prong
outlet.
•Is a light bulb loose in the socket or burned out? See the
"Changing the Light Bulb(s)" section.
There is water in the defrost drain pan
•Is the refrigerator defrosting? The water will evaporate, it is
normal for water to drip into the defrost pan.
• Is it more humid than normal? When it is humid, expect that
the water in the defrost pan will take longer to evaporate.
The motor seems to run too much
•Is the room temperature hotter than normal? The motor
will run longer under warm conditions. At normal room
temperatures, your motor will run about 40% to 80% of the
time. Under warmer conditions, it will run even more.
•Has a large amount of food just been added to the
refrigerator?. Adding a large amount of food warms the
refrigerator. The motor normally will run longer to cool the
refrigerator back down.
•Are the doors opened often? The motor will run longer
when this occurs. Conserve energy by getting all items out at
one time, keeping food organized, and closing the door as
soon as possible.
•Is the control set correctly for the surrounding
conditions? See the "Using the Control(s)" section.
•Are the doors closed completely? Close the doors firmly. If
they do not close completely, see "The doors will not close
completely" later in this section.
•Are the condenser coils dirty? This prevents air transfer and
makes the motor work harder. Clean the condenser coils. See
the "Cleaning" section.
NOTE: Your new refrigerator will run longer than your old one due
to its high-efficiency motor.
The rofrigerator seems to make too much noise
•The sounds may be normal for your refrigerator. See the
"Normal Sounds" section.
The ice maker is not producing ice or not enough ice.
•Has the ice maker just been installed? Wait 72 hours for full
ice production to begin. Once your refrigerator is cooled, the
ice maker should produce 70-120 cubes every 24 hours.
•Is the freezer temperature cold enough to produce ice?
Wait 24 hours after hook-up for ice production. See the
"Using the Control(s)" section.
•Is the wire shutoff arm in the OFF (arm up) position?
Lower the wire shutoff arm to the ON (arm down) position.
See the "Ice Maker" section.
•Is the water line shutoff valve to the refrigerator turned
on? Turn on the water valve. See the "Water Supply
Connection" section.
Does the ice maker mold have water in it or has no ice
been produced? Be sure your refrigerator has been
connected to a water supply and the supply shutoff valve is
turned on. See the "Water Supply Connection" section.
•Is an ice cube jammed in the ejector arm? Remove the ice
from the ejector arm with a plastic utensil. See the "Ice
Maker" section.
Has a large amount of ice just been removed? Allow 24
hours for ice maker to produce more ice.
Is the control set correctly? If too little ice is produced, see
the "Using the Control(s)" section.
Is there a water filter installed on the refrigerator?. The
filter may be full or incorrectly installed. Depending on your
model, remove the water filter cartridge (see the "Interior
Water Filtration System" section). Operate the dispenser. If
the water flow increases noticeably, your filter is full and
needs to be replaced.
NOTE: If not due to any of the above, there may be a problem
with the water line. Call for service.
Off-taste, odor or gray color in the ice
•Are the plumbing connections new, causing discolored or
off-flavored ice? Discard the first few batches of ice.
Have the ice cubes been stored too long? Throw old ice
away and make a new supply.
Has food in the refrigerator been wrapped properly? See
the "Refrigerator Features" section.
Do the freezer and ice bin need to be cleaned? See the
"Cleaning" section.
Does the water contain minerals (such as sulfur)? A filter
may need to be installed to remove the minerals.
Is there a water filter installed on the refrigerator?.
Gray or dark discoloration in ice indicates that the water
filtration system needs additional flushing. Run additional
water through the water dispenser to flush the water filtration
system more thoroughly, at least 2 to 3 gal. (8 to 12 L) or 6 to
7 minutes initially. Discard discolored ice.
The water dispenser will not operate properly
Has the water system not filled? The water system needs
to be filled the first time it is used. Use a sturdy container to
depress the water dispenser until water begins to flow.
Dispense and discard 2 to 3 gal. (8 to 12 L) of water. This will
take approximately 6 to 7 minutes and will help clear air from
the line. Additional flushing may be required in some
households. See the "Water Dispenser" section.
17

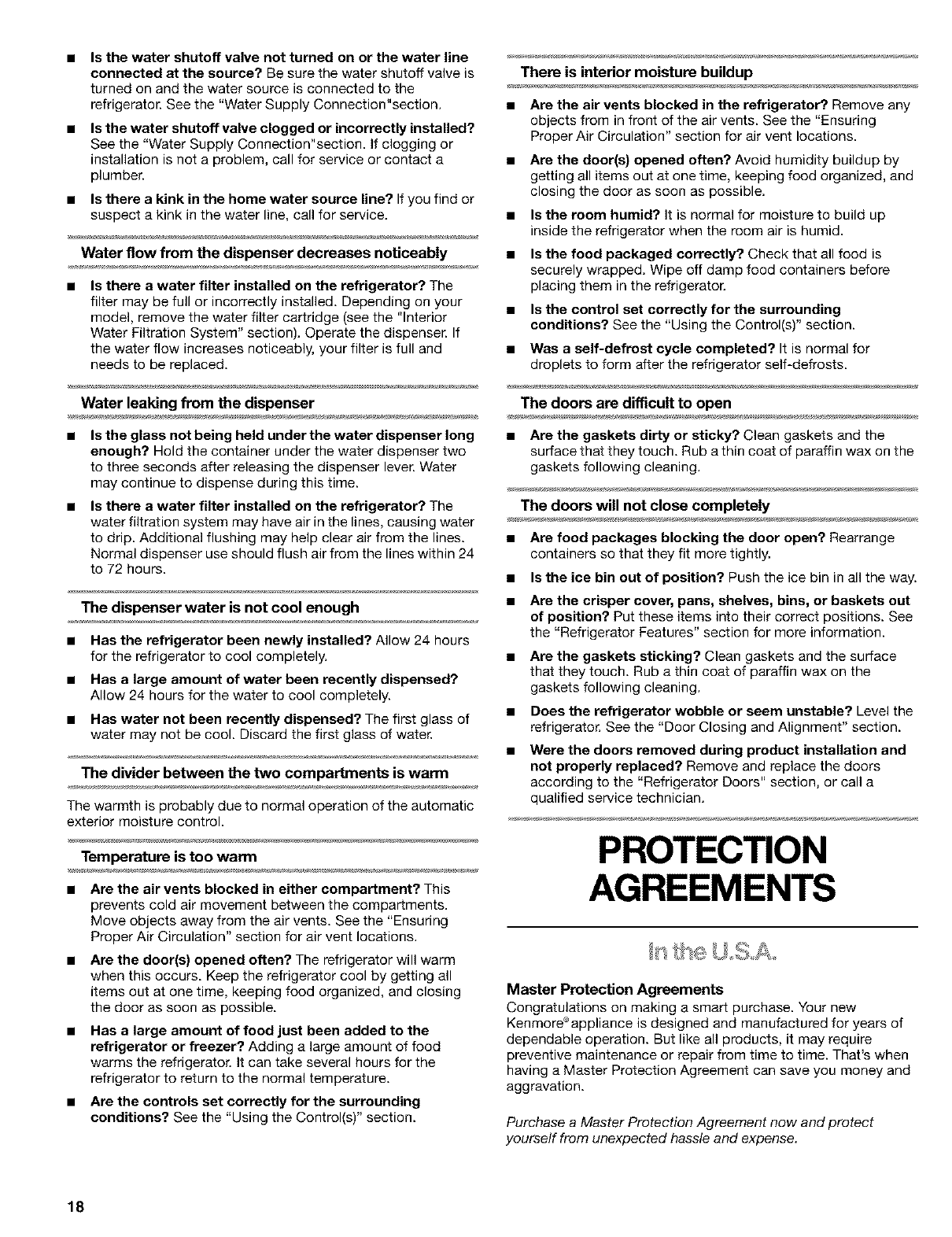

There is interior moisture buildup
Is the water shutoff valve not turned on or the water line
connected at the source? Be sure the water shutoff valve is
turned on and the water source is connected to the
refrigerator. See the "Water Supply Connection"section.
Is the water shutoff valve clogged or incorrectly installed?
See the "Water Supply Connection"section. If clogging or
installation is not a problem, call for service or contact a
plumber.
Is there a kink in the home water source line? If you find or
suspect a kink in the water line, call for service.
Water flow from the dispenser decreases noticeably
Is there a water filter installed on the refrigerator?. The
filter may be full or incorrectly installed. Depending on your
model, remove the water filter cartridge (see the "Interior
Water Filtration System" section). Operate the dispenser. If
the water flow increases noticeably, your filter is full and
needs to be replaced.
•Are the air vents blocked in the refrigerator?. Remove any
objects from in front of the air vents. See the "Ensuring
Proper Air Circulation" section for air vent locations.
Are the door(s) opened often? Avoid humidity buildup by
getting all items out at one time, keeping food organized, and
closing the door as soon as possible.
Is the room humid? It is normal for moisture to build up
inside the refrigerator when the room air is humid.
Is the food packaged correctly? Check that all food is
securely wrapped. Wipe off damp food containers before
placing them in the refrigerator.
Is the control set correctly for the surrounding
conditions? See the "Using the Control(s)" section.
Was aself-defrost cycle completed? It is normal for
droplets to form after the refrigerator self-defrosts.
Water leaking from the dispenser The doors are difficult to open
Is the glass not being held under the water dispenser long
enough? Hold the container under the water dispenser two
to three seconds after releasing the dispenser lever. Water
may continue to dispense during this time.
Is there a water filter installed on the refrigerator?. The
water filtration system may have air in the lines, causing water
to drip. Additional flushing may help clear air from the lines.
Normal dispenser use should flush air from the lines within 24
to 72 hours.
•Are the gaskets dirty or sticky? Clean gaskets and the
surface that they touch. Rub a thin coat of paraffin wax on the
gaskets following cleaning.
The doors will not close completely
•Are food packages blocking the door open? Rearrange
containers so that they fit more tightly.
The dispenser water is not cool enough •
•Has the refrigerator been newly installed? Allow 24 hours
for the refrigerator to cool completely. •
•Has a large amount of water been recently dispensed?
Allow 24 hours for the water to cool completely.
• Has water not been recently dispensed? The first glass of
water may not be cool. Discard the first glass of water.
The divider between the two compartments is warm
The warmth is probably due to normal operation of the automatic
exterior moisture control.
Temperature is too warm
Are the air vents blocked in either compartment? This
prevents cold air movement between the compartments.
Move objects away from the air vents. See the "Ensuring
Proper Air Circulation" section for air vent locations.
Are the door(s) opened often? The refrigerator will warm
when this occurs. Keep the refrigerator cool by getting all
items out at one time, keeping food organized, and closing
the door as soon as possible.
Has a large amount of food just been added to the
refrigerator or freezer? Adding a large amount of food
warms the refrigerator. It can take several hours for the
refrigerator to return to the normal temperature.
Are the controls set correctly for the surrounding
conditions? See the "Using the Control(s)" section.
Is the ice bin out of position? Push the ice bin in all the way.
Are the crisper cover, pans, shelves, bins, or baskets out
of position? Put these items into their correct positions. See
the "Refrigerator Features" section for more information.
Are the gaskets sticking? Clean gaskets and the surface
that they touch. Rub a thin coat of paraffin wax on the
gaskets following cleaning.
Does the refrigerator wobble or seem unstable? Level the
refrigerator. See the "Door Closing and Alignment" section.
Were the doors removed during product installation and
not properly replaced? Remove and replace the doors
according to the "Refrigerator Doors" section, or call a
qualified service technician.
PROTECTION
AGREEMENTS
Master Protection Agreements
Congratulations on making a smart purchase. Your new
Kenmore ®appliance is designed and manufactured for years of
dependable operation. But like all products, it may require
preventive maintenance or repair from time to time. That's when
having a Master Protection Agreement can save you money and
aggravation.
Purchase a Master Protection Agreement now and protect
yourself from unexpected hassle and expense.
18

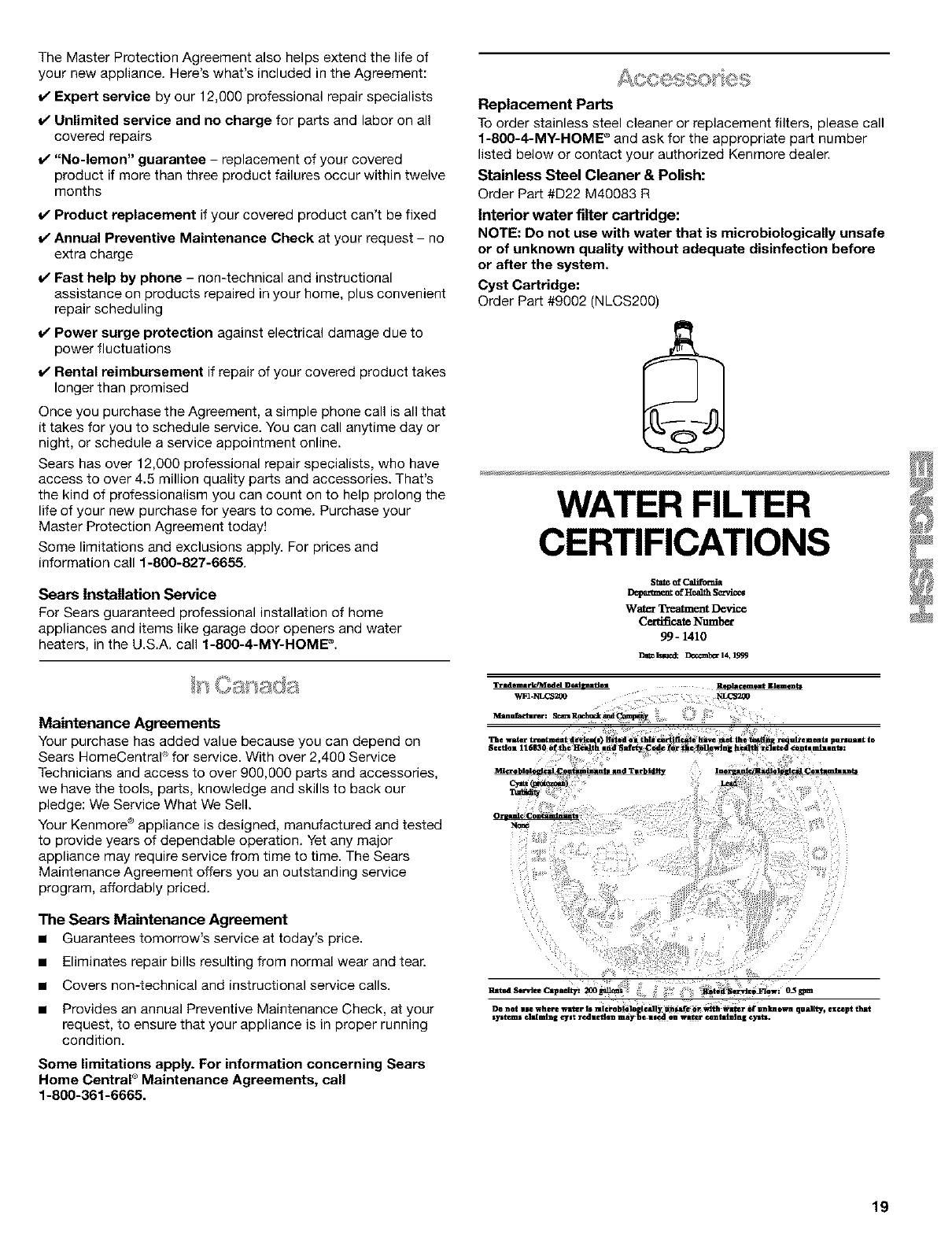

The Master Protection Agreement also helps extend the life of
your new appliance. Here's what's included in the Agreement:
v" Expert service by our 12,000 professional repair specialists
v" Unlimited service and no charge for parts and labor on all
covered repairs
v" "No-lemon" guarantee - replacement of your covered
product if more than three product failures occur within twelve
months
v" Product replacement if your covered product can't be fixed
v" Annual Preventive Maintenance Check at your request - no
extra charge
v" Fast help by phone - non-technical and instructional
assistance on products repaired in your home, plus convenient
repair scheduling
v" Power surge protection against electrical damage due to
power fluctuations
v" Rental reimbursement if repair of your covered product takes
longer than promised
Once you purchase the Agreement, a simple phone call is all that
it takes for you to schedule service. You can call anytime day or
night, or schedule a service appointment online.
Sears has over 12,000 professional repair specialists, who have
access to over 4.5 million quality parts and accessories. That's
the kind of professionalism you can count on to help prolong the
life of your new purchase for years to come. Purchase your
Master Protection Agreement today!
Some limitations and exclusions apply. For prices and
information call 1-800-827-6655.
Sears Installation Service
For Sears guaranteed professional installation of home
appliances and items like garage door openers and water
heaters, in the U.S.A. call f-8OO-4-MY-HOME ®.
Maintenance Agreements
Your purchase has added value because you can depend on
Sears HomeCentraf _for service. With over 2,409 Service
Technicians and access to over 900,000 parts and accessories,
we have the tools, parts, knowledge and skills to back our
pledge: We Service What We Sell.
Your Kenmore ®appliance is designed, manufactured and tested
to provide years of dependable operation. Yet any major
appliance may require service from time to time. The Sears
Maintenance Agreement offers you an outstanding service
program, affordably priced.
The Sears Maintenance Agreement
• Guarantees tomorrow's service at today's price.
• Eliminates repair bills resulting from normal wear and tear.
• Covers non-technical and instructional service calls.
• Provides an annual Preventive Maintenance Check, at your
request, to ensure that your appliance is in proper running
condition.
Some limitations apply. For information concerning Sears
Home Central ®Maintenance Agreements, call
1-800-361-6665.
Replacement Parts
To order stainless steel cleaner or replacement filters, please call
1-800-4-MY-HOME ®and ask for the appropriate part number
listed below or contact your authorized Kenmore dealer.
Stainless Steel Cleaner &Polish:
Order Part #D22 M40083 R
Interior water filter cartridge:
NOTE: Do not use with water that is microbiologically unsafe
or of unknown quality without adequate disinfection before
or after the system.
Cyst Cartridge:
Order Part #9002 (NLCS200)
WATER FILTER
CERTIFICATIONS
S_ of _difornia
l_0_anc_ of H_t]th Scl_c_
Wat_ TreatmentDevice
CertificateNumber
99- 1410
Tradmlrk/M_l_l DMJntfl01 Reo]_eemeut Elements
WPI-lqIX_200 IqLCS200
lWiauJ_ehtrert Sm Rocl_z_t lind _y
The w_er tree_ment de_m) li_zd oll th(m cerflfl¢=t_ hsve met the t_1_R requfrementm pursu_tt to
Section 116830 of th® E_J4th end lstfety Ce_de _r the (DHowing he,thee]seed _,omteminsntu=
_croJdote_esl _oo(_m[n,nt mand Turbidity ]no_o]etflc81 Co=tamtuu_s
Rnted Servtee Ctp_ity: 200_Uons Rste_S_rvicel_low: 0_m_
DO not use where wuter l_ ruler obiolo lewdly unsafe _r with wuter of unknown quality, except that
|_ all[rains _y|t redueflon my _¢ uged on wtter eont Jdu]n| cysts,
19
PRODUCT DATA
Cyst Interior Water Filtration System Model WFI-NLCS200/NLCS200
Tested and certified by NSF International against ANSI/NSF Standard
42 for the reduction of Chlorine (Class I) Taste and Odor and against
ANS/NSF Standard 53 or the reduct on of Lead, Cysts and Turb d ty.
Capacity: 200 gallons (757 liters),
Service flow rate: 0.5 GPM (189 L/min.) @60 psi
Substance Reduction U.S. EPA Average Maximum Average Minimum % Average % NSF Test
Aesthetic Effects MCL Influent Effluent Effluent Reduction Reduction Number
Chlorine Taste/Odor N/A 1.9 mg/L N/A 0.06 mg/L N/A 97% 994707
Particulate N/A 198,667/mL* N/A 45/mL N/A 99.96% 994711
Contaminant U.S. EPA Average Maximum Average Minimum %Average %NSF Test
Reduction MCL Influent Effluent Effluent Reduction Reduction Number
Cyst 99.95%** 157,750/mL 55/mL 1.0/mL 99.9987% 99.9996% 994719
Turbidity N/A 26 NTU 0.5 NTU 0.1 NTU 98.9% 99.5% 994719
Lead: @ pH 6.5 0.015 mg/L 0.160 mg/L*** 0.011 mg/L 0.091 mg/L 93.5% 99.4% 994708
Lead: @ pH 8.5 0.015 mg/L 0.158 mg/L*** 0.011 mg/L 0.091 mg/L 92.1% 99.3% 994709
• It is essential that operational, maintenance, and filter
replacement requirements be carried out for this product to
perform as advertised.
• Model NLCS20O Change the cartridge at least every 6-9
months. Use replacement cartridge NLCS290, part# 9002.
2002 suggested retail price of $39.95 U.S.A./S49.95 Canada.
Prices are subject to change without notice.
• The product is for cold water use only.
Do not use with water that is microbiologically unsafe or
of unknown quality without adequate disinfection before
or after the system. Systems certified for cyst reduction
may be used on disinfected water that may contain
filterable cysts.
• Refer to the front cover or "Assistance or Service" section for
the Manufacturer's name, address and telephone number.
• Refer to the "Warranty" section for the Manufacturer's limited
warranty.
Application GuidelinesP_/ater Supply Parameters
Water Supply City or Well
Water Pressure 39 - 120 psi (207 - 827 kPa)
Water Temperature 33° - 190°F (0.6° - 37.8 ° C)
* Test requirement is at least 100,000 particles/ml of AC Fine Test Dust.
** Cyst performance is % reduction based on NSF Standard 53.
*** Test requirement is 0.15 mg/L ± 10%. These contaminants are not necessarily in your water supply. Performance may vary based on local water
conditions.
® NSF is a registered trademark of NSF International.
2O
........i_i;ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii:ii!!!i
i1111111111111iJ YourHome iiiiiiiiiiiiii
For repair-in your home-of all major brand appliances,
lawn and garden equipment, or heating and cooling systems,
no matter who made it, no matter who sold it!
For the replacement parts, accessories and
owner's manuals that you need to do-it-yourself.
For Sears professional installationof home appliances
and items like garage door openers and water heaters.
1-800-4-MY-HOME ®(1-800-469-4663)
Call anytime, day or night(U.S.A. and Canada)
oom***--r.o.
ourHome
For repair of carry-in items like vacuums, lawn equipment,
and electronics, call or go on-line for the locationof your nearest
Sears Parts & Repair Center.
1-800-488-1222
Call anytime, day or night (U.S.A. only)
,,_n,w#.sears.corn
To purchase a protection agreement (U.S.A.)
or maintenance agreement (Canada)on a product sewiced by Sears:
1-800-827-6655 (U.S.A.) 1-800-361-8685 (Canada)
iiiiiiiiiiiii_i
Para pedir servicio de reparaci6n
adomicilio, ypara ordenar piezas:
1-888-SU-HOGAR _
(1-888-784-6427)
Au Canada pour service en frangais:
I"800"LE'FOYER Mc
(1-800-533-6937)
www.sears.ca
2225403
@Sears, Roebuck and Co.
_Registered Trademark /TMTrademark /SMservice Mark of Sears, Roebuck and Co.
TM , . SM ,
_Marca Registrada /Marca de Fabnca /Marca de Servtcio de Sears, Roebuck and Co.
TM SM
@Marque de commerce d_pos_e /Marque de commerce/ Marque de service de Sears, Roebuck and Co.
10/02
Printed in U.S.A.
Impreso en EE. UU.
Imprim_ aux E.-U.

Navigation menu
