Owner's Manual and

Installation Instructions

Two-Speed

AUTOMATIC WASHERS

IMPORTANT:

Read and follow all safety

and operating instructions

before first use of this product.

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

Sears Canada Inc., Toronto, Ontario, Canada MSB 2B8

www.sears.com

www.sears.ca

8312820 PRINTED IN U.S.A. 11/99

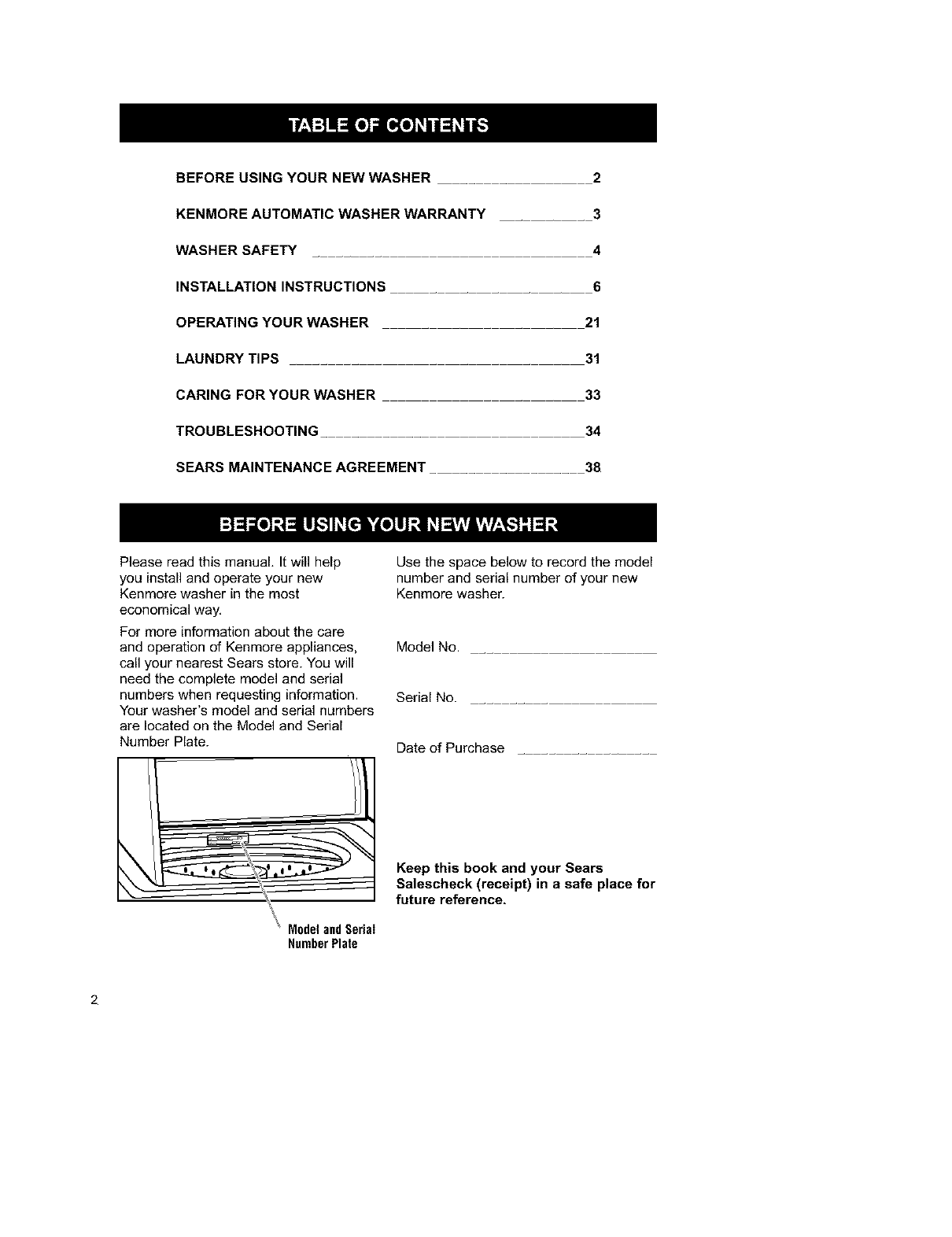

BEFORE USING YOUR NEW WASHER 2

KENMORE AUTOMATIC WASHER WARRANTY 3

WASHER SAFETY ..... 4

INSTALLATION INSTRUCTIONS ..... 6

OPERATING YOUR WASHER ..... 21

LAUNDRY TIPS ........... 31

CARING FOR YOUR WASHER _ _ _ 33

TROUBLESHOOTING ........ 34

SEARS MAINTENANCE AGREEMENT 38

Please read this manual. It will help

you install and operate your new

Kenmore washer in the most

economical way.

For more information about the care

and operation of Kenmore appliances,

call your nearest Sears store. You will

need the complete model and serial

numbers when requesting information.

Your washer's model and serial numbers

are located on the Model and Serial

Number Plate.

\_\ ModelandSerial

NumberPlate

Use the space below to record the model

number and serial number of your new

Kenmore washer.

Model No. __

Serial No.

Date of Purchase

Keep this book and your Sears

Salescheck (receipt) in asafe place for

future reference,

Limited Lifetime Warranty on

White Porcelain Basket

For the lifetime of the washer from the

date of purchase, Sears will replace the

white porcelain wash basket if it chips

or rusts due to defective material or

workmanship, After the first year, you

will be charged for labor.

Limited 10-Year Warranty on

Plastic Tub*

For the second through tenth year from

the date of purchase, Sears will replace

the plastic tub if it is defective in

material or workmanship. After the first

year, you will be charged for labor.

Limited 5-Year Warranty on

Gearcase Parts*

For the second through fifth year from

the date of purchase, Sears will replace

any gearcase parts that are defective in

material or workmanship. After the first

year, you will be charged for labor.

Full 1-Year Warranty on

"Spreckle" Porcelain Basket

For one year from the date of

purchase, when this washer is installed

and operated according to the instruc-

tions that come with it, Sears will

replace the "spreckle" (speckled sur-

face) porcelain wash basket if it chips

or rusts due to defective material or

workmanship.

Full 1-Year Warranty on

Mechanical and Electrical parts

For one year from the date of purchase,

when this washer is installed and

operated according to the instructions

that come with it, Sears will repair or

replace any of its mechanical or electrical

parts if they are defective in material or

workmanship.

Warranty Restriction

If this washer is operated for any

purpose other than private family use,

all warranty coverage is restricted to 90

days from the date of purchase.

Warranty Service

Warranty service is available by

contacting your nearest Sears Service

Center in the United States or Canada.

This warranty applies only while this

washer is used in the United States or

Canada.

This warranty gives you specific legal

rights and you may also have other rights

that vary from state to state or province to

province.

Sears, Roebuck and Co.,

Dept 817WA,

Hoffman Estates, IL 60179

Sears Canada Inc.,

Toronto, Ontario,

Canada M5B 2B8

* In Canada a different warranty may apply.

in the U.S., for Sears warranty information

or to contact a Sears Service Center, call

1-80O-4-MY-HQME" (1-890-469-4663). In

Canada, calI 1-877-533-6937.

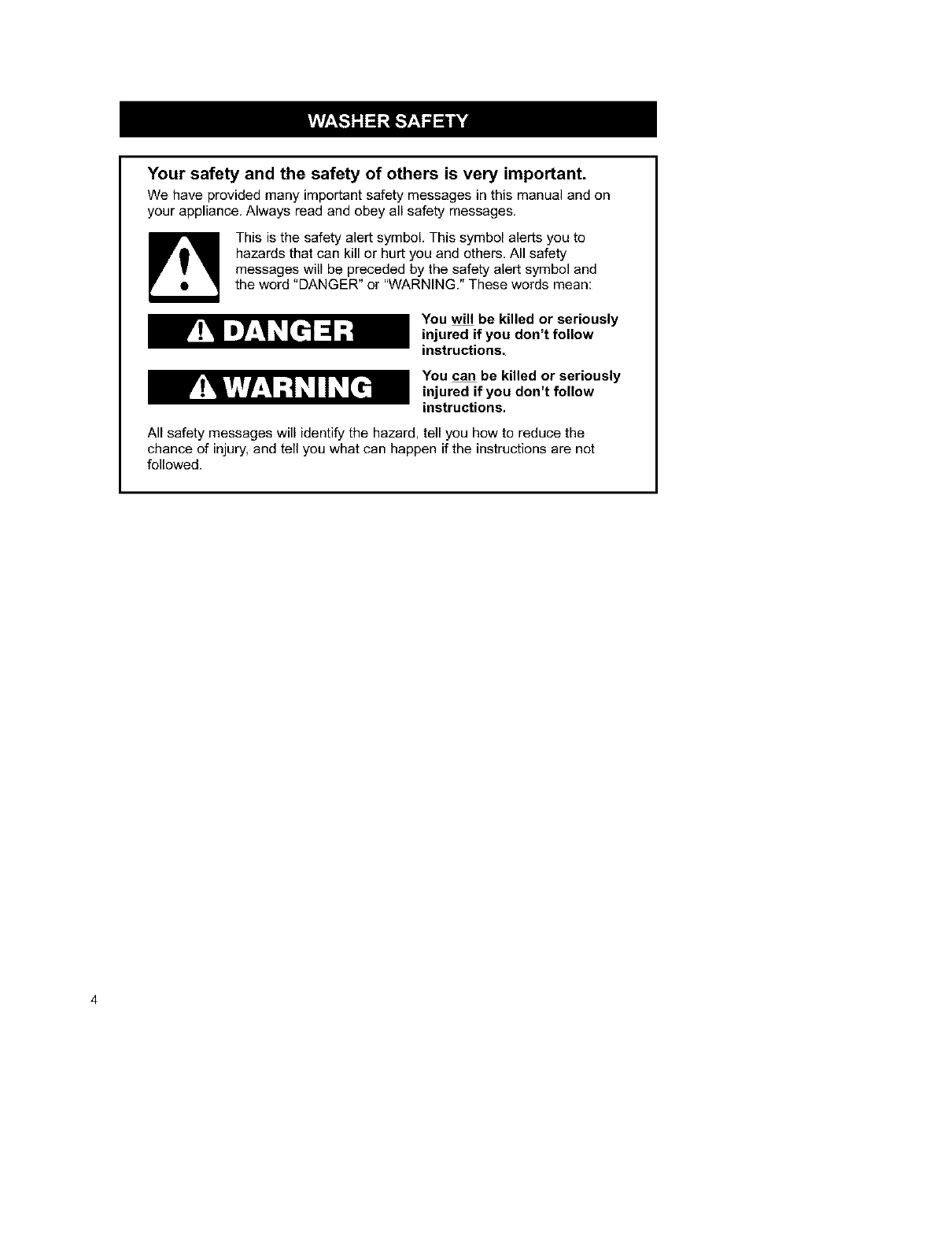

Your safety and the safety of others is very important.

We have provided many important safety messages in this manual and on

your appliance. Always read and obey all safety messages.

This is the safety alert symbol. This symbol alerts you to

hazards that can kill or hurt you and others. All safety

messages will be preceded by the safety alert symbol and

the word "DANGER" or "WARNING." These words mean:

You will be killed or seriously

injured if you don't follow

instructions.

You can be killed or seriously

injured if you don't follow

instructions.

All safety messages will identify the hazard, tell you how to reduce the

chance of injury, and tell you what can happen if the instructions are not

followed.

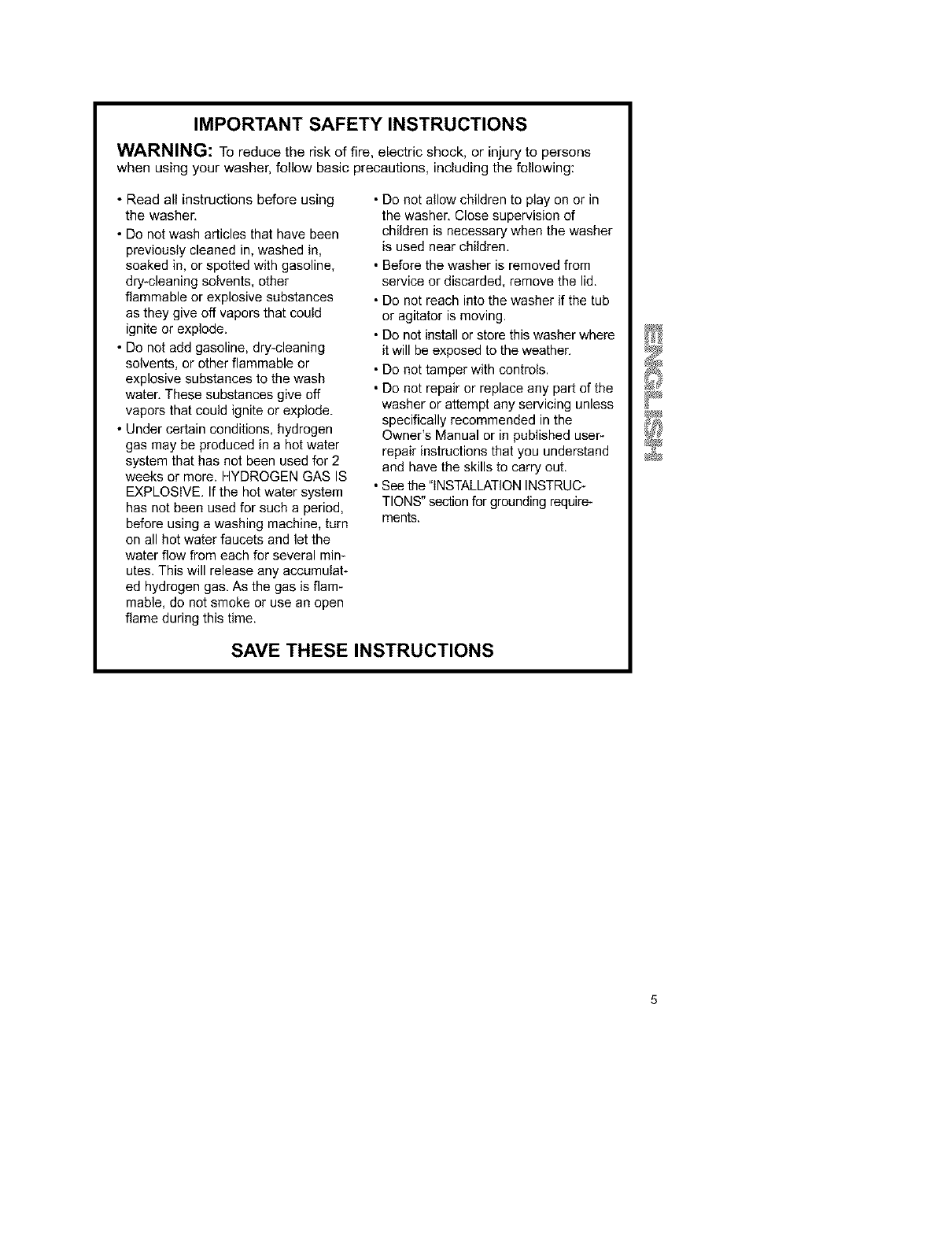

IMPORTANT SAFETY INSTRUCTIONS

WARNING: To reduce the risk of fire, electric shock, or injury to persons

when using your washer, follow basic precautions, including the following:

•Read all instructions before using

the washer,

• Do not wash articles that have been

previously cleaned in, washed in,

soaked in, or spotted with gasoline,

dry-cleaning solvents, other

flammable or explosive substances

as they give off vapors that could

ignite or explode.

• Do not add gasoline, dry-cleaning

solvents, or other flammable or

explosive substances to the wash

water. These substances give off

vapors that could ignite or explode.

• Under certain conditions, hydrogen

gas may be produced in a hot water

system that has not been used for 2

weeks or more. HYDROGEN GAS IS

EXPLOSIVE. If the hot water system

has not been used for such a period,

before using a washing machine, turn

on all hot water faucets and let the

water flow from each for several min-

utes. This will release any accumulat-

ed hydrogen gas. As the gas is flam-

mable, do not smoke or use an open

flame during this time.

• Do not allow children to play on or in

the washer. Close supervision of

children is necessary when the washer

is used near children.

• Before the washer is removed from

service or discarded, remove the lid.

• Do not reach into the washer if the tub

or agitator is moving.

• Do not install or store this washer where

it will be exposed to the weather.

• Do not tamper with controls.

• Do not repair or replace any part of the

washer or attempt any servicing unless

specifically recommended in the

Owner's Manual or in published user-

repair instructions that you understand

and have the skills to carry out.

• See the "iNSTALLATiON INSTRUC-

TIONS" section for grounding require-

ments.

SAVE THESE INSTRUCTIONS

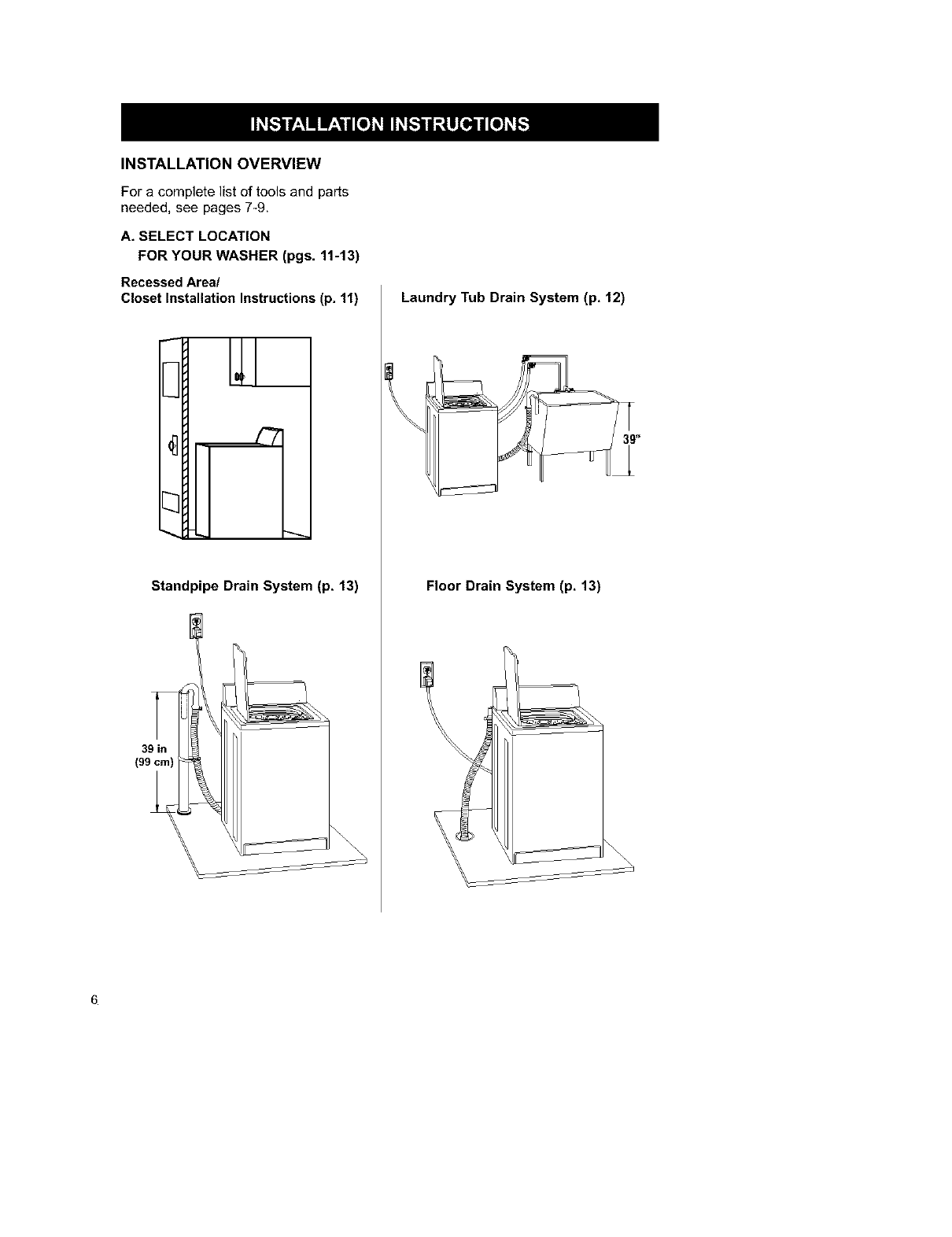

INSTALLATION OVERVIEW

For a complete list of tools and parts

needed, see pages 7-9.

A. SELECT LOCATION

FOR YOUR WASHER (pgs. 11-13)

Recessed Areal

Closet Installation Instructions (p. 11)

-_J

Standpipe Drain System (p, 13)

39 in

{99 cm)

Laundry Tub Drain System (p, 12)

Floor Drain System (p, 13)

B.REMOVESHIPPINGSTRAP(p.14)

ToolsNeeded:

Scissors Flashlight (optional

depending on installation)

C. CONNECT DRAIN HOSE (pgs. 15-16)

UNS_IST

Tools Needed: Parts Supplied:

Pliers that open

to 1 9he in (3.95 cm)

Flashlight (optional

depending on installation)

1 yellow, single-wire

hose clamp (top of

drain hose)

1 silver, double-

wire hose clamp

(bottom of drain

hose)

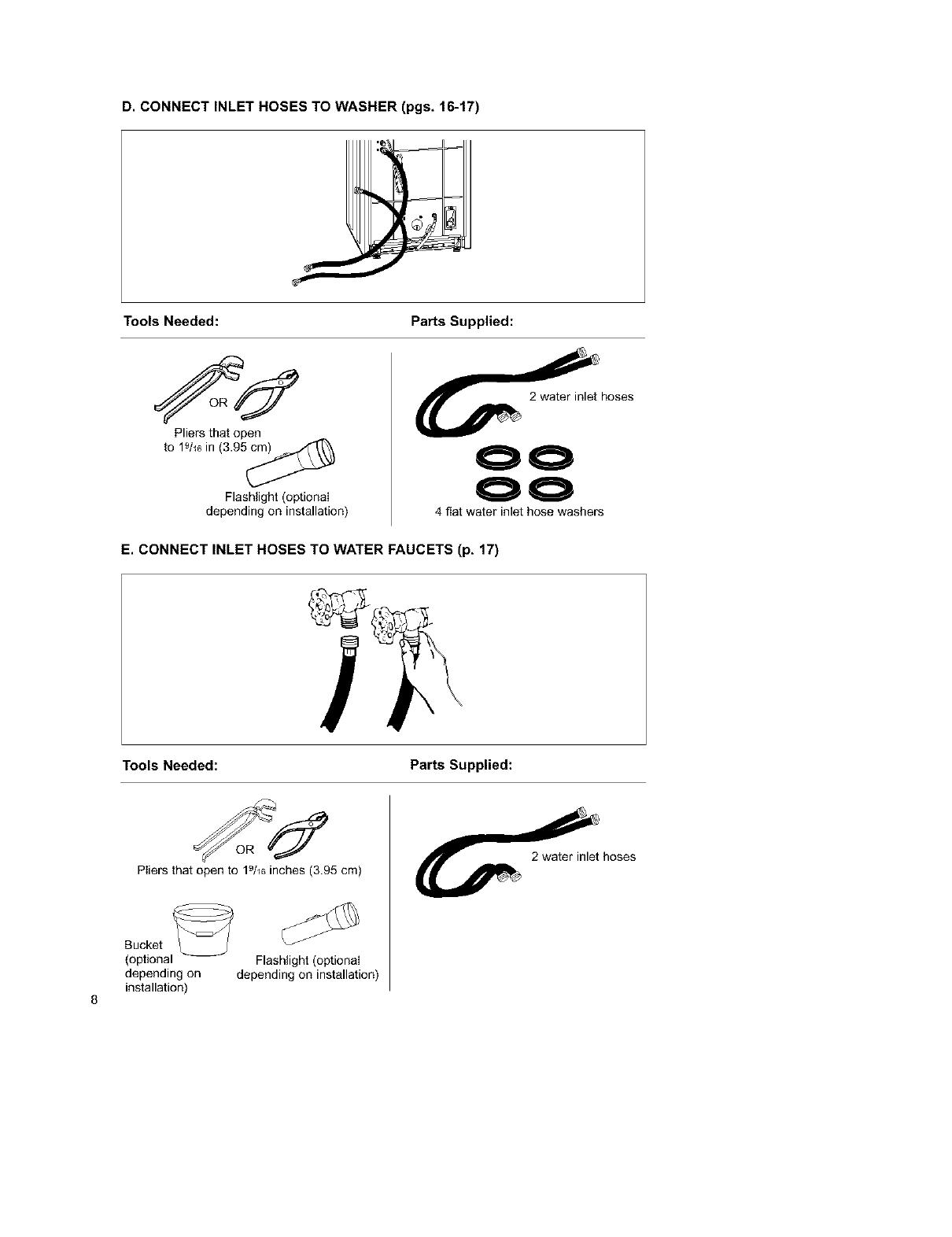

D. CONNECT INLET HOSES TO WASHER (pgs. 16-17)

Tools Needed: Parts Supplied:

Pliers that open

to 19/IGin (3.95_

Flashlight (optionaI

depending on installation)

2 water inlet hoses

4 fiat water inlet hose washers

E. CONNECT INLET HOSES TO WATER FAUCETS (p. 17)

Tools Needed: Parts Supplied:

Piiers that open to 1 /_Ginches (3.95 cm)

Bucket

(optional Flashlight (optionaI

depending on depending on installation)

installation)

2 water inlet hoses

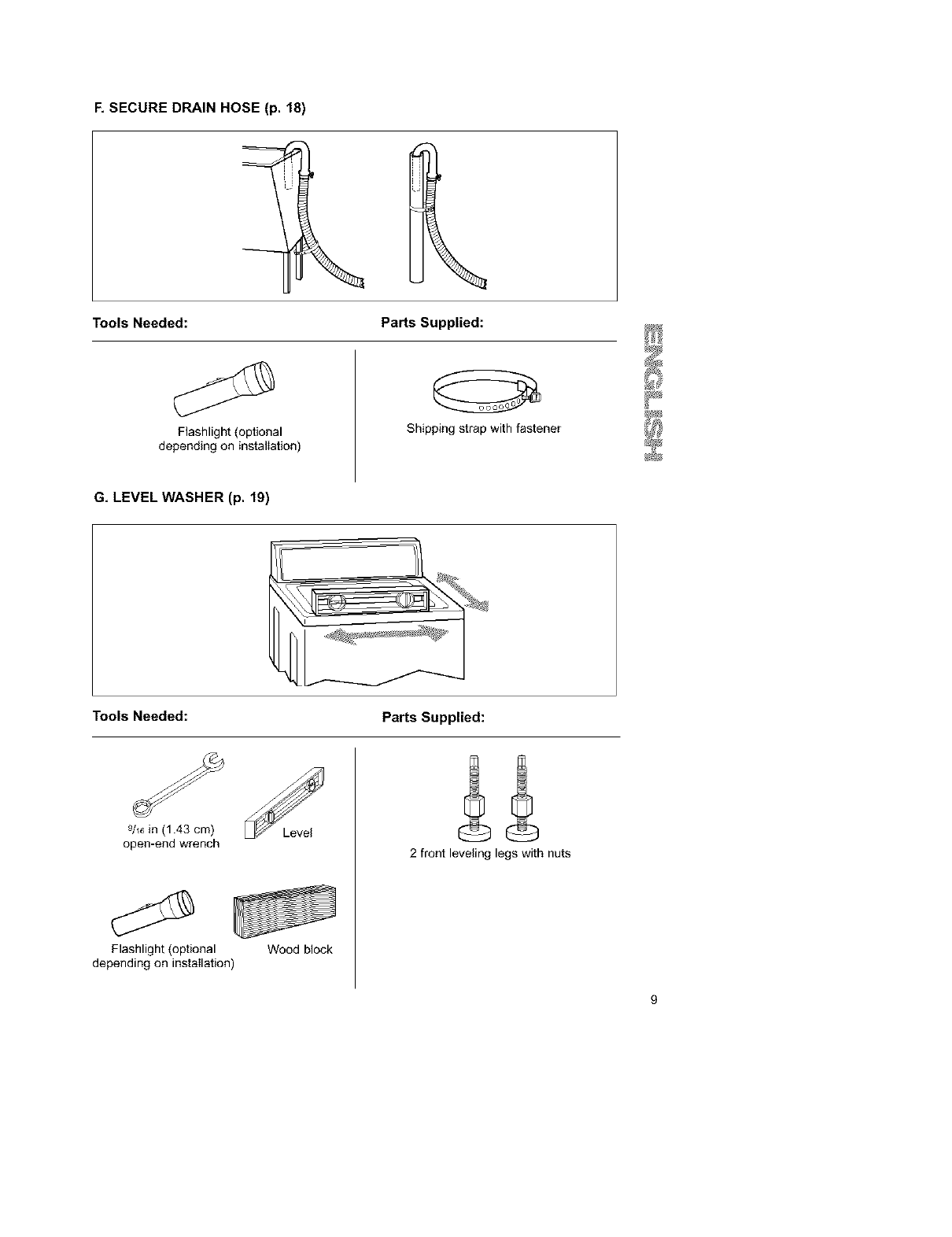

F, SECURE DRAIN HOSE (p. 18)

Tools Needed: Parts Supplied:

Flashlight (optional

depending on installation)

Shipping strap with fastener

G, LEVEL WASHER (p. 19)

Tools Needed: Parts Supplied:

9/_6in (1.43 cm)

open-end wrench

Flashlight (optional

depending on installation)

Wood block

2 front leveling legs with nuts

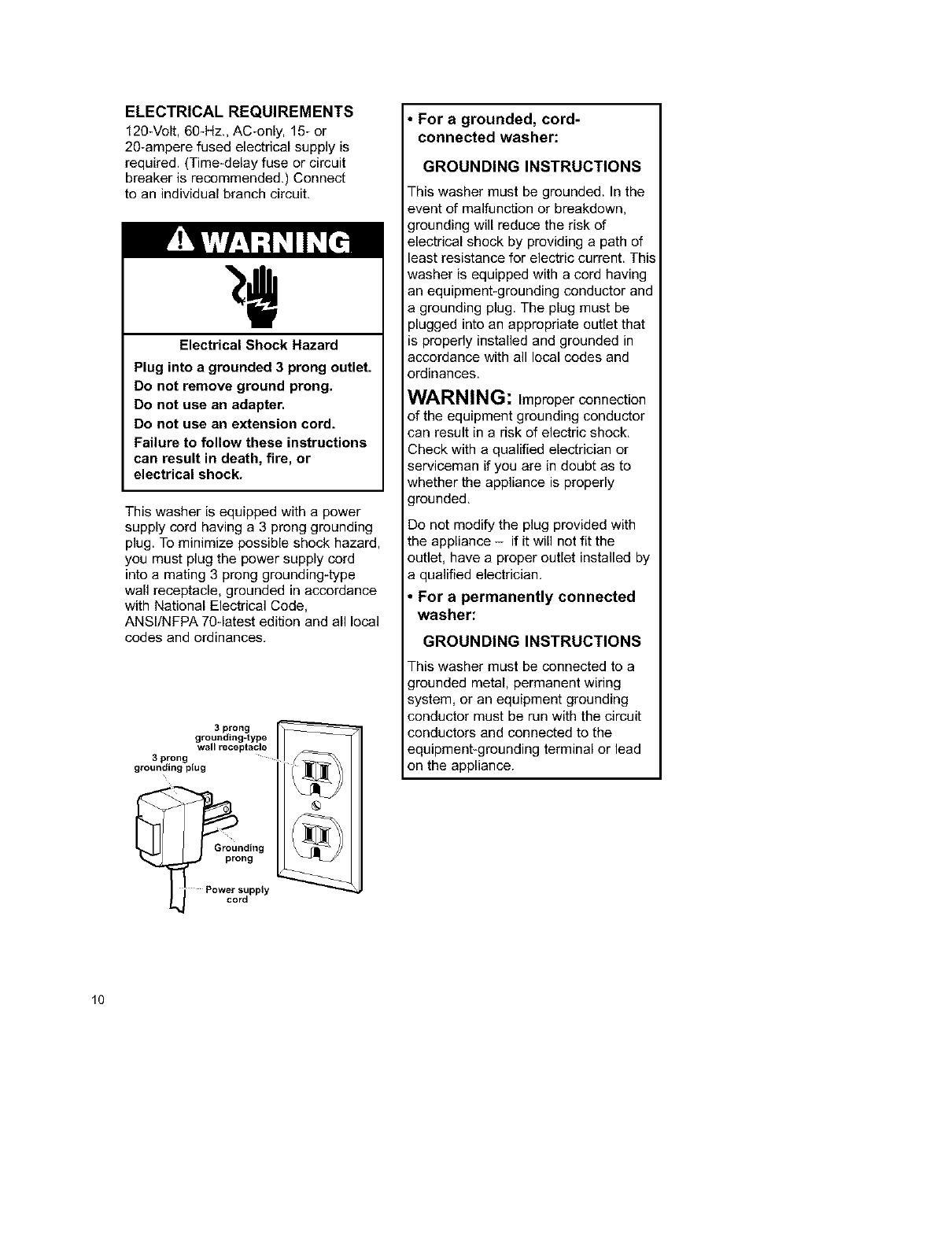

ELECTRICAL REQUIREMENTS

120-Volt, 60-Hz., AC-only, 15- or

20-ampere fused electrical supply is

required. (Time-delay fuse or circuit

breaker is recommended.) Connect

to an individual branch circuit.

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions

can result in death, fire, or

electrical shock.

This washer is equipped with a power

supply cord having a 3 prong grounding

plug. To minimize possible shock hazard,

you must plug the power supply cord

into a mating 3 prong grounding-type

wall receptacle, grounded in accordance

with National Electrical Code,

ANSI/NFPA 70-latest edition and all local

codes and ordinances.

3 prong

grounding4ype

wall receptacle

3 prong

grounding plug

\ im N

Grounding \ II //

Power supply

cord

For a grounded, cord-

connected washer:

GROUNDING INSTRUCTIONS

-his washer must be grounded. In the

event of malfunction or breakdown,

grounding will reduce the risk of

electrical shock by providing a path of

least resistance for electric current. This

washer is equipped with a cord having

an equipment-grounding conductor and

a grounding plug. The plug must be

plugged into an appropriate outlet that

is properly installed and grounded in

accordance with all local codes and

ordinances.

WARNING: Improper connection

of the equipment grounding conductor

can result in a risk of electric shock,

Check with a qualified electrician or

serviceman if you are in doubt as to

whether the appliance is properly

grounded,

Do not modify the plug provided with

the appliance - if it will not fit the

outlet, have a proper outlet installed by

a qualified electrician,

For a permanently connected

washer:

GROUNDING INSTRUCTIONS

-his washer must be connected to a

grounded metal, permanent wiring

system, or an equipment grounding

conductor must be run with the circuit

conductors and connected to the

equipment-grounding terminal or lead

on the appliance.

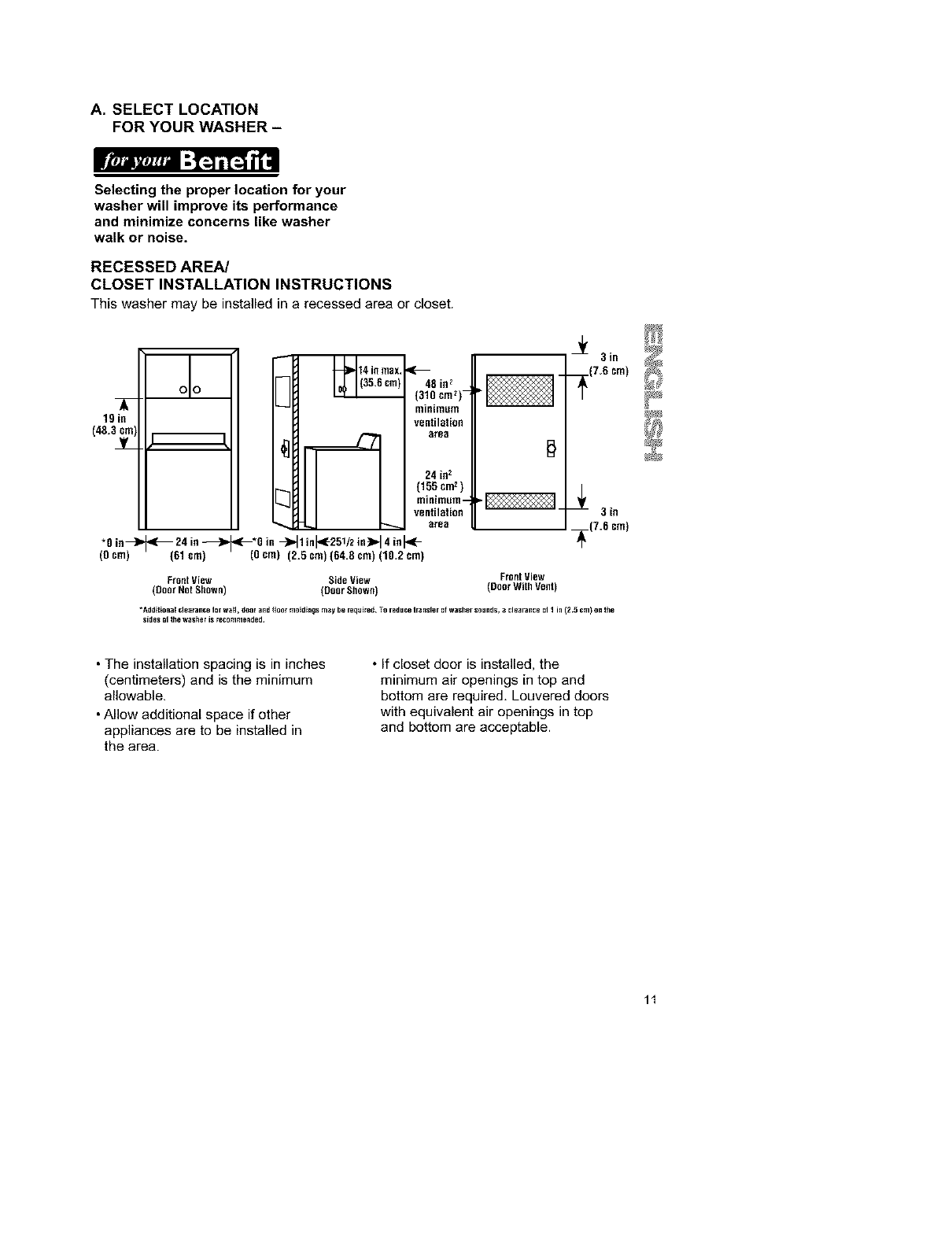

A. SELECT LOCATION

FOR YOUR WASHER -

Selecting the proper location for your

washer will improve its performance

and minimize concerns like washer

walk or noise,

RECESSED AREA/

CLOSET INSTALLATION INSTRUCTIONS

This washer may be installed in a recessed area or closet.

3[-

1gin

(48.3cm}

*Oin--)"

(Ocm)

24in --)"_--* Oin -)'11 in_251/2 in_4in_-

(61 cm} (Ocm} (2,5cm)(64.8 cm) (10.2cm)

48in2

mlnlmufn

ventilation

area

24 in_

(155cm2)

minimum-

ventilation

area

3in

_(76 cm)

3 in

__(7.6 cnl)

FrontView Side View FrontView

(Door Not Shown) (Door Shown) (DoorWith Vent)

*Addinonal cle_zranceIor wail, door and floor moldings may be required To reduce Iransler of washer sounds, aclearance ol 1 in (2 5 cm) on the

sides nl the washer is recommended¸

•The installation spacing is in inches

(centimeters) and is the minimum

allowable.

•Allow additional space if other

appliances are to be installed in

the area.

•If closet door is installed, the

minimum air openings in top and

bottom are required. Louvered doors

with equivalent air openings in top

and bottom are acceptable.

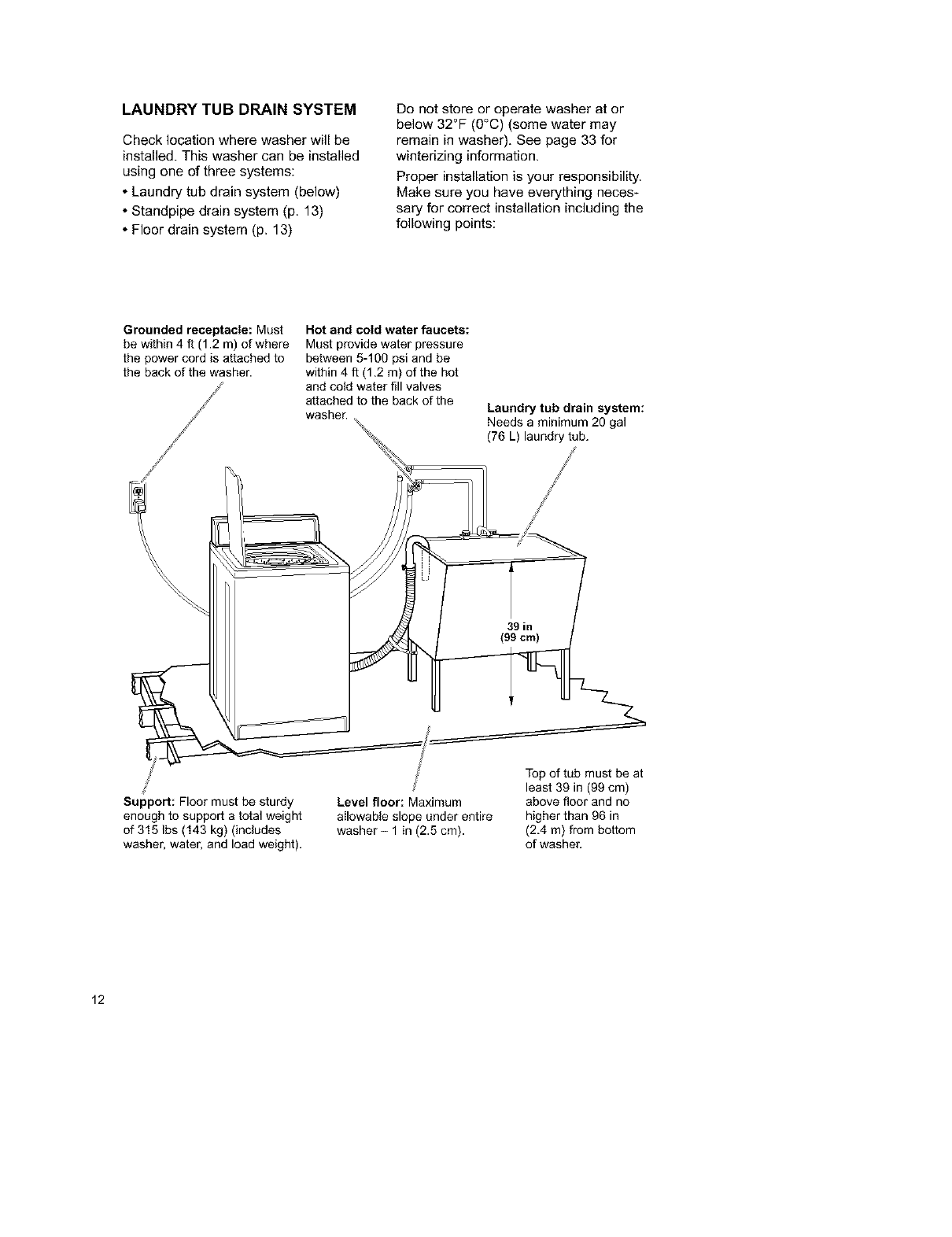

LAUNDRY TUB DRAIN SYSTEM

Check location where washer will be

installed. This washer can be installed

using one of three systems:

• Laundry tub drain system (below)

• Standpipe drain system (p. 13)

• Floor drain system (p. 13)

Do not store or operate washer at or

below 32°F (0°C) (some water may

remain in washer), See page 33 for

winterizing information.

Proper installation is your responsibility.

Make sure you have everything neces-

sary for correct installation including the

following points:

Grounded receptacle: Must Hot and cold water faucets:

be within 4 ft (1.2 m) of where Must provide water" pressure

the power cord is attached to between 5-100 psi and be

the back of the washer, within 4 ft (1.2 m) of the hot

and cold water fill valves

J/ attached to the back of the .

Laundry tub dra n system

washer . .

//' " _ Needs a minimum 20 gal

%% (76 L) laundry tub.

2p must be at

least 39 in (99 cm)

Support: Floor must be sturdy Level floor: Maximum above floor and no

enough to support a total weight allowable slope under entire higher than 96 in

of 315 Ibs (143 kg) (includes washer- 1 in (2.5 cm). (2.4 m) from bottom

washer, water, and load weight), of washer.

ALTERNATE LOCATIONS -

STANDPIPE AND FLOOR DRAIN SYSTEMS

Siphon break: Must be purchased

39 in

(99 cm)

Standpipe drain system: Needs a 2-in

(5 cm) minimum diameter standpipe with

minimum carry-away capacity of 17 gal (64 L)

per minute. Top of standpipe must be at least

39 in (99 cm) above floor and no higher than

96 in (2.4 m) from bottom of washer.

Floor drain system: Requires a siphon

break, see chart below. A minimum

carry-away capacity of 17 gal (64 L) per

minute is required.

If you have: You will need to buy:

Laundry tub or standpipe

taller than 96 in (2,4 m)

1 in (2,5 cm) diameter

standpipe

Overhead sewer

Sump pump system

(if not already available)

2 in (5 cm) diameter to 1 in (2.5 cm) diameter

standpipe adapter, Part No. 3363920

Standard 20 gal (76 L), 39 in (99 cm) tall drain

tub or utility sink and sump pump (available

from local plumbing suppliers)

Floor drain Siphon break, Part No, 285320;

additional drain hose, Part No, 3357090;

and Connector Kit, Part No. 285442

Parts listed are available from your local Sears store or Sears Service Center'.In the United

States, call 1-800-366-PART(1-800-366-7278). In Canada, call 1-877-533-6937.

B. REMOVE SHIPPING STRAP

Removing the shipping strap is

necessary for smooth operation.

If the shipping strap is not removed,

the washer will make excessive noise,

STEP 2. Pull firmly to remove the end

of the shipping strap that remains

pinned to the back of the washer. This

will release the rear selfqeveling legs.

To prevent floor damage, set washer

onto cardboard before moving across

floor. Move washer close to its final

location.

STEP 1. Do not cut yellow strap. Pull

yellow strap firmly, until completely

removed from washer. Depending on

your model, there should be either two

or three cotter pins on the end of the

shipping strap when it is pulled out of

the washer. The electrical plug is

attached to this shipping strap.

Electricalplug

Shippingstrap

STEP 3. Cut the shipping strap about

16 in (40 cm) from plug end. Look for

the words "CUT HERE," Discard end

with the cotter pins. Slide remainder

of shipping strap from the electrical

plug. You will use this to secure the

drain hose.

©O

PULL

C. CONNECTDRAINHOSE

Proper connection of the drain hose

will protect your floors from damage

due to water leakage.

STEP 1. To prevent the drain hose from

coming off or leaking, it must be installed

per the following instructions:

IMPORTANT: To ensure proper installa-

tion, this procedure must be followed

exactly.

a. Wet the inside of the straight end of the

drain hose with tap water. DO NOT

USE ANY OTHER LUBRICANT.

b. Squeeze ears of silver, double-wire

clamp with pliers to open. Place clamp

over the straight end of the drain hose

V4in (6 ram) from the end.

c, Open clamp. Twist hose back and forth

while pushing down onto drain

connector at the bottom of the washer,

Continue until hose contacts the ribbed

stop on the cabinet.

rTWIST

AND

PUSH

d. Place clamp over area marked

"CLAMR" Release clamp.

(6_mi_n)_Drain Hose\

¼in

(6 ram)

If you have: You will need to buy:

Drain hose that is too short Drain hose, Part No. 388423 and

hose kit, Part No. 285442

Drain hose that is too long Hose kit, Part No. 285442

A problem with lint clogging your drain Drain protector, Part No. 367031

Parts listed are available from your local Sears store or Sears Service Center. In the United

States, calI 1-800-366-PART (1-800-366-7278). in Canada, calI 1-877-533-6937.

For standpipe or laundry tub drain

systems:

STEP 2. Open yellow, single-wire clamp

with pliers and slide over hooked end

of drain hose to secure the rubber and

corrugated sections together.

fHookedEnd

_jy DrainHose

STEP 3. Put hooked end of drain hose

into laundry tub or standpipe. Check

for proper length of drain hose. Rotate

hook to eliminate kinks.

To prevent drain water from going back

into the washer:

•Do not straighten hooked end of drain

hose and force excess drain hose into

standpipe.

• Do not lay excess drain hose in bottom

of laundry tub.

D. CONNECT INLET HOSES

TO WASHER

Proper connection of your inlet hoses

will allow hot and cold water to enter

your washer properly. It also helps

prevent water damage due to leaks.

NOTE: Replace inlet hoses after five

years of use to reduce the risk of hose

failure. Periodically inspect and replace

inlet hoses if bulges, kinks, cuts, wear,

or leaks are found. When replacing

your inlet hoses, mark the date of

replacement on the label with a

permanent marker.

STEP 1. Insert one new, fiat washer (from

the parts bag) into each end of

the inlet hoses. Check that washers

are firmly seated in couplings.

COUPLING WASHER

pliers. Screw on coupling by hand. Make

an additional two-thirds turn with pliers to

tighten coupling. DO NOT OVER-

TIGHTEN; this could damage the valves.

STEP 2. Attach the hose with the red E. CONNECT INLET HOSES

coupling to the hot water (bottom) inlet TO WATER FAUCETS

valve, Attaching the red coupling first

makes it easier to tighten connection with STEP 1, Make sure washer basket is

empty. Run water through both faucets

into a bucket or laundry tub to get rid of

particles in the water lines that might

clog hoses. Determine which faucet is

hot and which is cold. Mark the hot

water faucet.

Hot

Water

Inlet

Valve

Cold Water

STEP 3. Attach the hose with the blue

coupling to the cold water (top) inlet

valve. Screw on coupling by hand. Make

an additional two-thirds turn with pliers to

tighten coupling. DO NOT OVER-

TIGHTEN; this could damage valves.

STEP 2. Attach the hose with the red

coupling to the hot water faucet, Screw

on coupling by hand. Make an additional

two-thirds turn with pliers to tighten

coupling, DO NOT OVERTIGHTEN;

this could damage the coupling.

STEP 3. Attach the hose with the blue

coupling to the cold water faucet,

Screw on coupling by hand, Make an

additional two-thirds turn with pliers to

tighten coupling. DO NOT OVER-

TIGHTEN; this could damage the

coupling.

STEP 4. Turn on water faucets and

check for leaks. A small amount of water

may enter the washer. You will drain this

later.

If you have: You will need to buy:

Water faucets beyond the 2 longer water fill hoses:

reach of water fill hoses 6 ft (1,8 m), Part No. 76314

10 ft (3.0 m), Part No. 350008

Parts listed are available from your local Sears store or Sears Service Center. In the United

States, call 1-800-366-PART (1-800-366-7278). In Canada, call 1-877-533-6937.

F. SECURE DRAIN HOSE

Securing the drain hose properly will

protect your floors from damage due

to water leakage,

STEP 1. Move washer to its final

location.

If the water faucets and drain standpipe

are recessed, put hooked end of drain

hose in standpipe, Tightly wrap the

shipping strap around the drain hose

and water inlet hoses (not the handles

or stems). Push fastener into the

nearest hole in the shipping strap.

STEP 2. Locate the remaining piece

of shipping strap (not the end with the

cotter pins) from STEP 3 of "REMOVE

SHIPPING STRAR" Use it to wrap the

drain hose together with the laundry tub

or standpipe, Push fastener into the

nearest hole in the shipping strap.

Fastener

G. LEVEL WASHER

Leveling your washer properly pre-

vents excessive noise and vibration,

To install front legs:

STEP 1. Prop front of washer up about

4 in (10,2 cm). Use a wood block or

another object that will support the

weight of the washer. If washer was

placed against a wall, move the washer

out slightly before tipping it up.

STEP 2, With one of the legs in hand,

screw lock nut onto leg _ in (9.5 mm)

from top of leg base. This is the

recommended initial setting.

STEP 3. Screw leg into washer base by

hand until nut reaches washer base.

Repeat for other leg.

STEP 5. Move washer to its final

location.

STEP 6. Tilt washer forward until rear

of washer is at least 3 in (7,6 cm) off

floor. You may hear the self-adjusting

rear legs click into place. Lower washer

to floor. Check levelness of the washer

by placing a level on top of the washer,

first side-to-side; then front4o-back,

STEP 7. If washer is not level, prop

up the front of the washer and adjust

the legs up or down as necessary.

Lower washer and reset self-adjusting

rear legs (as in Step 6), Repeat Step 7

until the washer is level.

STEP 8. When washer is in its final

location and level, use a 9h6-in

(1,43 mm) open-end wrench to turn

nuts on front legs tightly against washer

cabinet. If nuts are not tight against

washer cabinet, the washer may vibrate.

STEP 4. Tilt washer backward until

front of washer is off the wood block.

Remove wood block. Gently lower

washer to floor.

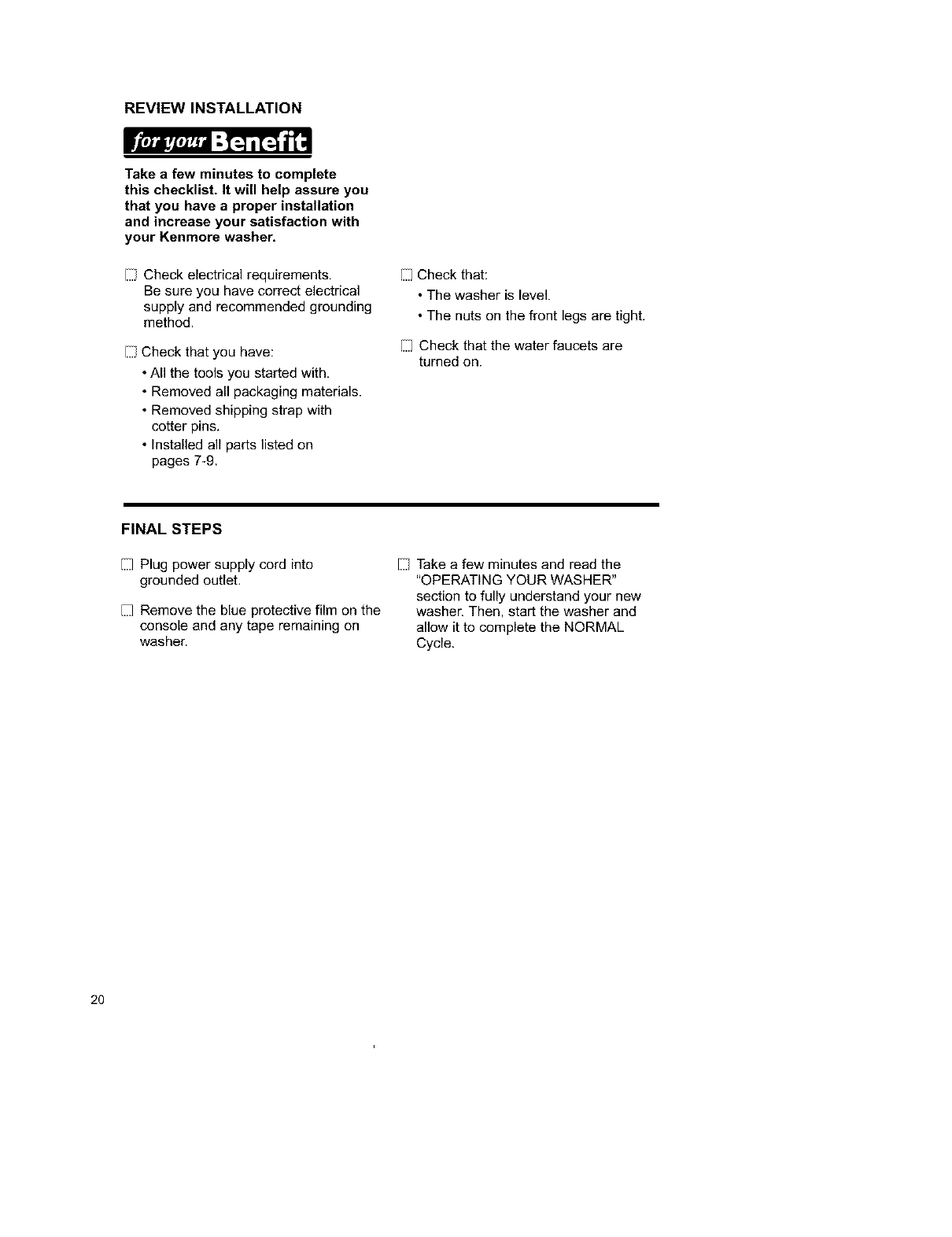

REVIEW INSTALLATION

Take a few minutes to complete

this checklist. It will help assure you

that you have a proper installation

and increase your satisfaction with

your Kenmore washer,

Check electrical requirements,

Be sure you have correct electrical

supply and recommended grounding

method.

Check that you have:

• All the tools you started with,

• Removed all packaging materials.

• Removed shipping strap with

cotter pins.

• Installed all parts listed on

pages 7-9.

[ Check that:

• The washer is level.

• The nuts on the front legs are tight.

[ Check that the water faucets are

turned on.

FINAL STEPS

[ Plug power supply cord into

grounded outlet.

[ Remove the blue protective film on the

console and any tape remaining on

washer.

I Take a few minutes and read the

"OPERATING YOUR WASHER"

section to fully understand your new

washer, Then, start the washer and

allow it to complete the NORMAL

Cycle.

To get the maximum cleaning and

fabric care from your washer, please

read and follow these instructions.

NOTE: The drawings in this section show

the basic features of all models covered

by this manual. Refer to the supplied

"Feature Sheet" for your washer's

particular features.

LID INSTRUCTIONS

These instructions are found under the

lid of your washer.

Fire Hazard

Never place items in the washer

that are dampened with gasoline

or other flammable fluids.

No washer can completely

remove oil.

Do not dry anything that has

ever had any type of oil on it

(including cooking oils).

Doing so can result in death,

explosion, or fire,

f]_.,_;f*_|llA_[t"i.yl[t'[tS3.'fl[f]lv/

DISPENSER Add measured liquid chlorine bleach to the

dispenser, 5 min. after the washer cycle starts for

best wash performance.

Do not use POWDERED BLEACH IN THIS

DISPENSER.

Add measured fabric softener to the agitator

mounted dispenser.

Add measured detergent to the washer basket.

1. SELECT & ADJUST Make the selections for these washer controls:

(some washers may not have all of these controls)

• WATER LEVEL Adjust to load size.

• WASH /RINSE TEMP ....... Use AUTO TEMP selections for best wash

performance.

• SPEEDS Adjust to fabric type being washed.

k'li_ri_/:]'J IJ_J/fl 'I n

HEAVYDUTY

_[_ REGULAR

'_ PERMPRESS

I_ DELICATE

HANDWASH

DENIMS, TOWELS; ••• HOT WASH

EXTRABtBTY • • WARM WASH

COTTONS =COLDWASH

SYNTHETICS /_ ANY BLEACH

NON-CHLORINE

KNITS ,_ BLEACH

LINGERIE _DO NOT BLEACH

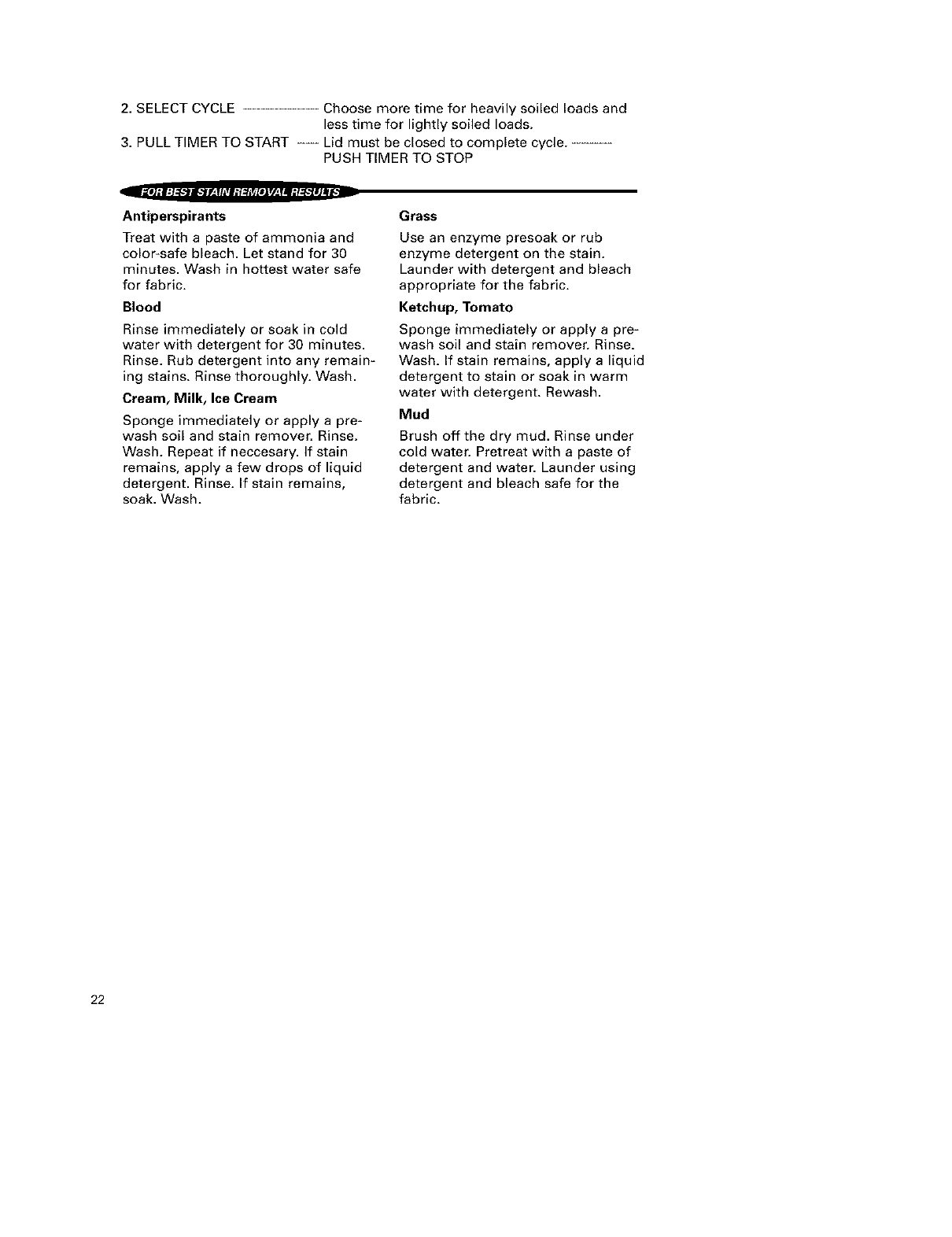

2. SELECT CYCLE Choose more time for heavily soiled loads and

less time for lightly soiled loads.

3. PULL TIMER TO START ..... Lid must be closed to complete cycle. -........

PUSH TIMER TO STOP

Antiperspirants

Treat with a paste of ammonia and

color-safe bleach. Let stand for 30

minutes. Wash in hottest water safe

for fabric.

Grass

Use an enzyme presoak or rub

enzyme detergent on the stain.

Launder with detergent and bleach

appropriate for the fabric.

Blood Ketchup, Tomato

Rinse immediately or soak in cold

water with detergent for 30 minutes.

Rinse. Rub detergent into any remain-

ing stains. Rinse thoroughly. Wash.

Cream, Milk, Ice Cream

Sponge immediately or apply a pre-

wash soil and stain remover. Rinse.

Wash. Repeat if neccesary. If stain

remains, apply a few drops of liquid

detergent. Rinse. If stain remains,

soak. Wash.

Sponge immediately or apply a pre-

wash soil and stain remover. Rinse.

Wash. If stain remains, apply a liquid

detergent to stain or soak in warm

water with detergent. Rewash.

Mud

Brush offthe dry mud. Rinse under

cold water. Pretreat with a paste of

detergent and water. Launder using

detergent and bleach safe for the

fabric.

STARTING WASHER

STEP 1. Add measured detergent

directly into washer basket, Then place

aload of sorted clothes in the washer.

STEP 2. (OPTIONAL STEP) If desired,

add measured liquid chlorine bleach to

the liquid bleach dispenser; (details on

page 29).

STEP 3. (OPTIONAL STEP) If desired,

add measured liquid fabric softener to

the fabric softener dispenser (if avail-

able); (details on page 30).

STEP 4. Close washer lid.

STEP 5. Set WATER LEVEL Control O

based on the size of your wash load

(details on page 24).

STEP 6. Set the WATER TEMPERA-

TURE Control O (details on page 24).

STEP 7. Set RINSE OPTIONS Control

(if available); (details on page 27).

STEP 8. Push the Cycle Selector Control

(Timer) knob (_ in and turn to the right.

Set cycle and time according to the type

of fabric in the load (details on page 25).

STEP 9. Pull the Cycle Selector Control

(Timer) knob (_ out, The dial will rotate

as the cycle progresses. The knob will

not rotate.

STOPPING/RESTARTING

WASHER

• To stop the washer at any time, push

the Cycle Selector Control (Timer)

knob 1_ in.

• Pull the knob out to restart.

WATI-R LEVF_ WATI-R TEMPERATURE

ff M_2__

L__Q PER_NE_T PRESS I_ _ _

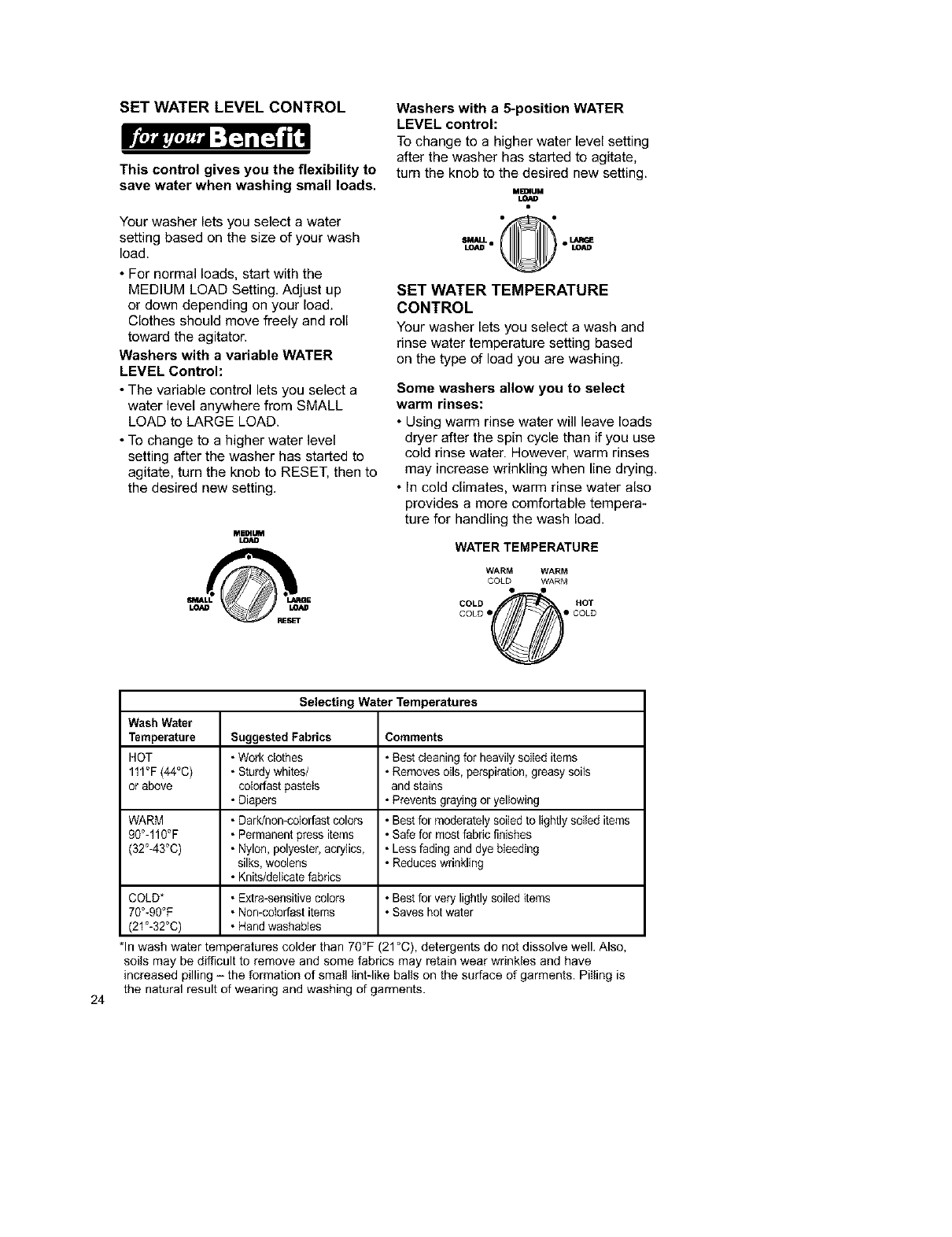

SET WATER LEVEL CONTROL

IF+r,,jji+t,,`+++,.""'[q a[q _"

This control gives you the flexibility to

save water when washing small loads.

Your washer lets you select a water

setting based on the size of your wash

load.

• For normal loads, start with the

MEDIUM LOAD Setting. Adjust up

or down depending on your load.

Clothes should move freely and roll

toward the agitator.

Washers with avariable WATER

LEVEL Control:

•The variable control lets you select a

water level anywhere from SMALL

LOAD to LARGE LOAD.

• To change to a higher water level

setting after the washer has started to

agitate, turn the knob to RESET, then to

the desired new setting.

MEmUM

LOAD

Washers with a 5-position WATER

LEVEL control:

Tochange to a higher water level setting

after the washer has started to agitate,

turn the knob to the desired new setting.

M_IUM

SET WATER TEMPERATURE

CONTROL

Your washer lets you select a wash and

rinse water temperature setting based

on the type of load you are washing.

Some washers allow you to select

warm rinses:

•Using warm rinse water will leave loads

dryer after the spin cycle than if you use

cold rinse water. However, warm rinses

may increase wrinkling when line drying.

• In cold climates, warm rinse water also

provides a more comfortable tempera-

ture for handling the wash load.

WATER TEMPERATURE

WARM WARM

COLD WARM

Selecting Water Temperatures

Wash Water

Temperature Suggested Fabrics Comments

HOT • Work clothes • Best cleaning for heavily soiIed items

111°F (44°C) • Sturdy whites] • Removes oils, perspiration, greasy soils

or above colorfast pasteis and stains

• Diapers • Prevents graying or yellowing

WARM • Dark/non-colorfast colors • Best for moderately soiled to lightly soiled items

90°-110°F • Permanent press items • Safe for most fabnc finishes

(32°-43°C) • Nylon, polyester, acrylics, • Less fading and dye bleeding

silks, woolens • Reduces wrinkling

• Knits]delicate fabrics

COLD* • Extra-sensitive colors • Best for very lightly soiled items

70°-90°F • Non-coIorfast items • Saves hot water

(21°-320C) • Hand washabies

• In wash water ten ,eratures colder than 70°F (21°C), detergents do not dissolve well. Also,

soils may be difficult to remove and some fabrics may retain wear wrinkles and have

increased pilling - the formation of small lint-like balls on the surface of garments. Piiling is

the natural result of wearing and washing of garments.

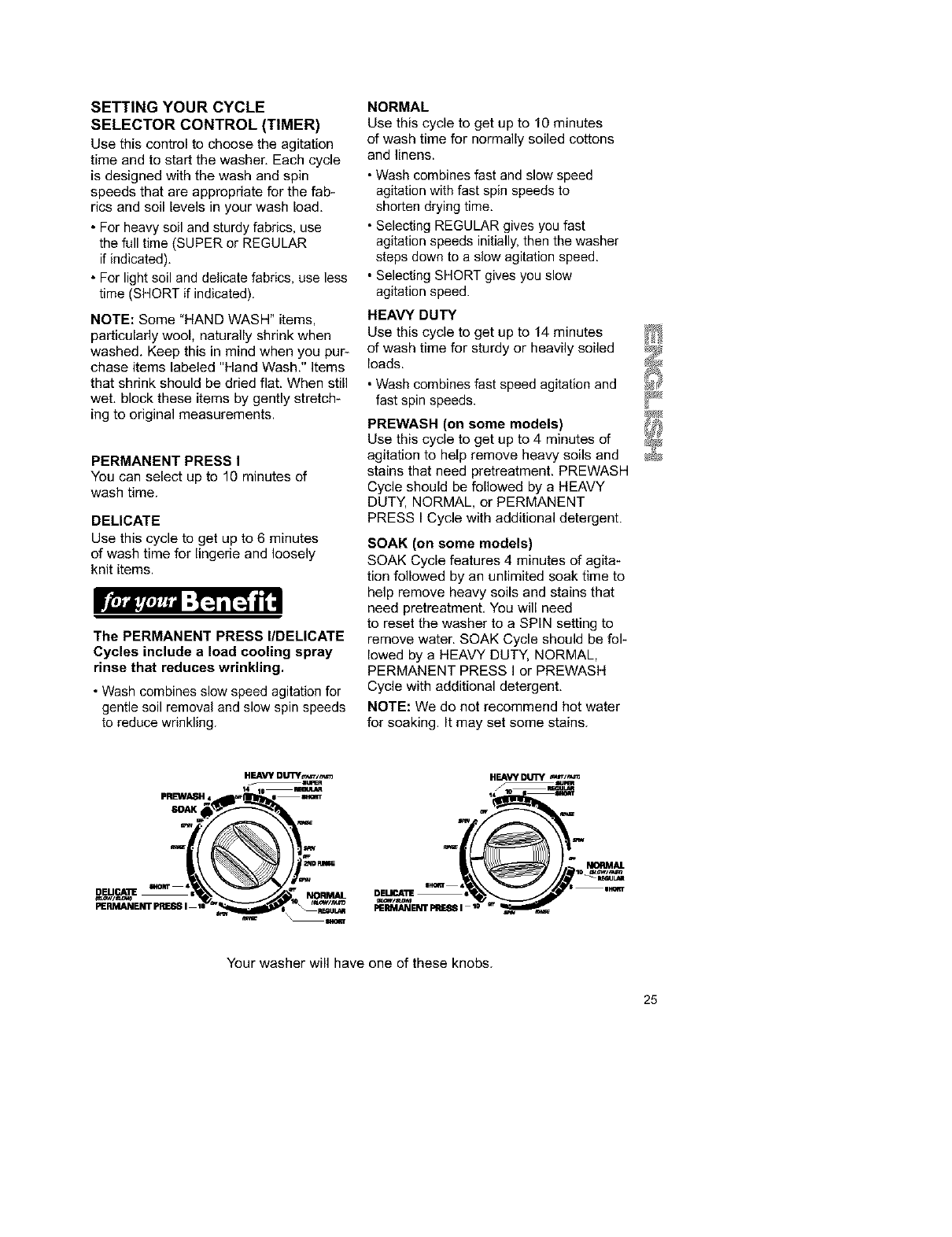

SETTING YOUR CYCLE

SELECTOR CONTROL (TIMER)

Use this control to choose the agitation

time and to start the washer. Each cycle

is designed with the wash and spin

speeds that are appropriate for the fab-

rics and soil levels in your wash load.

• For heavy soil and sturdy fabrics, use

the full time (SUPER or REGULAR

if indicated).

• For light soil and delicate fabrics, use less

time (SHORT if indicated).

NOTE: Some "HAND WASH" items,

particularly wool, naturally shrink when

washed. Keep this in mind when you pur-

chase items labeled "Hand Wash." Items

that shrink should be dried flat. When still

wet. block these items by gently stretch-

ing to original measurements.

PERMANENT PRESS I

You can select up to 10 minutes of

wash time.

DELICATE

Use this cycle to get up to 6 minutes

of wash time for lingerie and loosely

knit items.

The PERMANENT PRESS I/DELICATE

Cycles include aload cooling spray

rinse that reduces wrinkling.

• Wash combines slow speed agitation for

gentle soil removal and slow spin speeds

to reduce wrinkling.

NORMAL

Use this cycle to get up to 10 minutes

of wash time for normally soiled cottons

and linens.

• Wash combines fast and slow speed

agitation with fast spin speeds to

shorten drying time.

• Selecting REGULAR gives you fast

agitation speeds initially, then the washer

steps down to a slow agitation speed.

• Selecting SHORT gives you slow

agitation speed.

HEAVY DUTY

Use this cycle to get up to 14 minutes

of wash time for sturdy or heavily soiled

loads.

• Wash combines fast speed agitation and

fast spin speeds.

PREWASH (on some models)

Use this cycle to get up to 4 minutes of

agitation to help remove heavy soils and

stains that need pretreatment. PREWASH

Cycle should be followed by aHEAVY

DUTY, NORMAL, or PERMANENT

PRESS I Cycle with additional detergent.

SOAK (on some models)

SOAK Cycle features 4 minutes of agita-

tion followed by an unlimited soak time to

help remove heavy soils and stains that

need pretreatment, You will need

to reset the washer to a SPIN setting to

remove water. SOAK Cycle should be fol-

lowed by a HEAVY DUTY, NORMAL,

PERMANENT PRESS I or PREWASH

Cycle with additional detergent,

NOTE: We do not recommend hot water

for soaking. It may set some stains.

HEAVY DUTY_y_

_lumR HEAVY DU_t _/_r_

_NORMAL

Your washer will have one of these knobs.

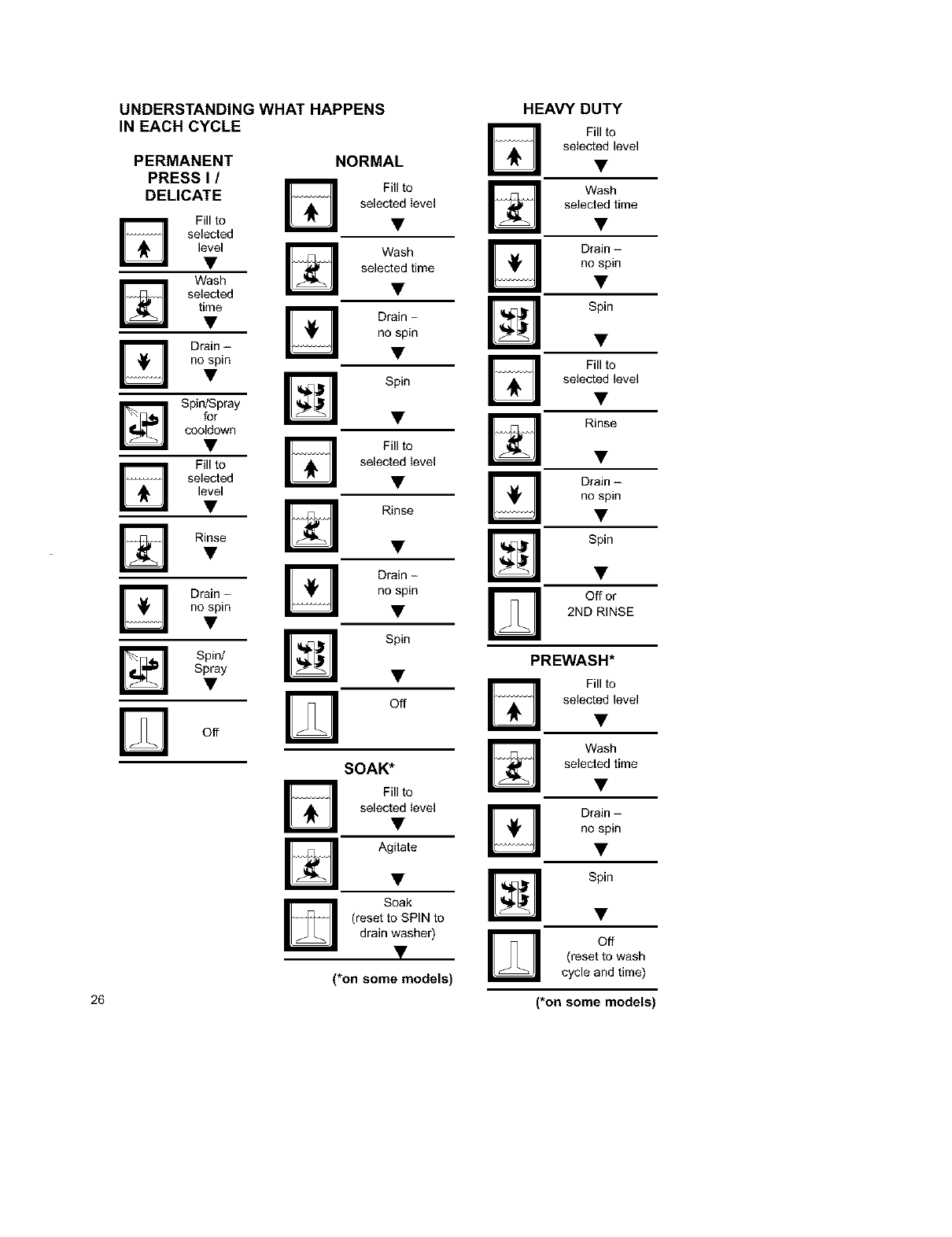

UNDERSTANDING WHAT HAPPENS

IN EACH CYCLE

PERMANENT

PRESS I /_Fillto

DELICATE W selectedlevel

Fill to •

_ selected

level Wash

• selected time

Wash

selected •

time

• Drain -

no spin

_ Drain -

no spin •

• Spin

Spin/Spray

for •

cooldown

• _ Fill to

Fill to selected level

selected •

level

• Rinse

Rinse

Drain -

Drain -no spin

no spin •

Spin/

Spray

Off

NORMAL

Spin

Off

SOAK*

Fill to

selected level

Agitate

Soak

(reset to SPIN to

drain washer)

(*on some models)

HEAVY DUTY

IZIselected level

Wash

selected time

IZI Drain-

no spin

Spin

Fi,,to

selected level

Rinse

IZI Drain-

no spin

Spin

PREWASH*

Fill to

selected level

Wash

selected time

Drain -

no spin

Spin

Off

(reset to wash

cycle and time)

26 (*on some models)

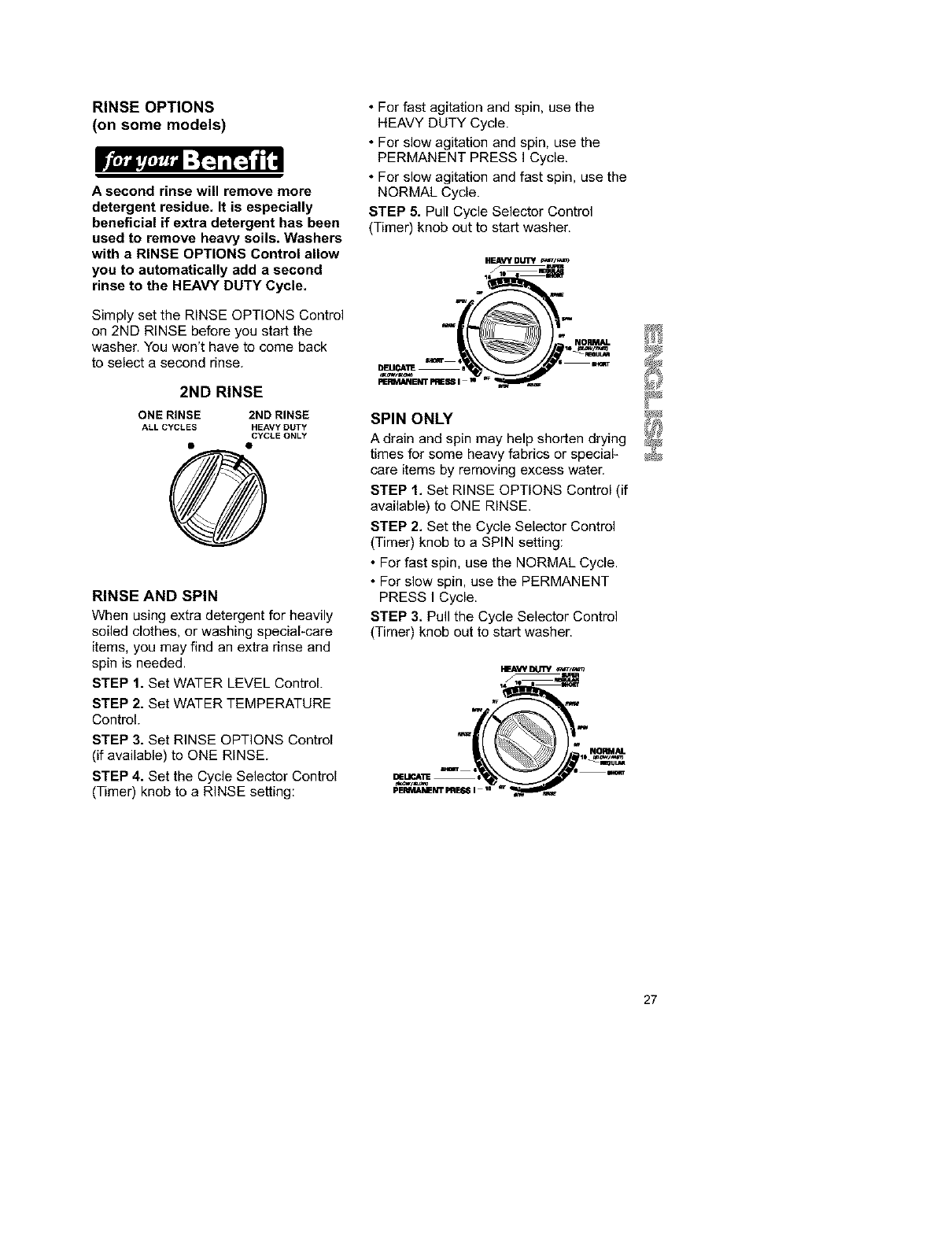

RINSE OPTIONS

(on some models)

A second rinse will remove more

detergent residue. It is especially

beneficial if extra detergent has been

used to remove heavy soils. Washers

with a RINSE OPTIONS Control allow

you to automatically add a second

rinse to the HEAVY DUTY Cycle.

Simply set the RINSE OPTIONS Control

on 2ND RINSE before you start the

washer. You won't have to come back

to select a second rinse.

2ND RINSE

ONE RINSE 2ND RINSE

ALL CYCLES HEAVY DUTY

CYCLE ONLY

RINSE AND SPIN

When using extra detergent for heavily

soiled clothes, or washing special-care

items, you may find an extra rinse and

spin is needed.

STEP 1. Set WATER LEVEL Control.

STEP 2. Set WATER TEMPERATURE

Control.

STEP 3. Set RINSE OPTIONS Control

(if available) to ONE RINSE.

STEP 4. Set the Cycle Selector Control

(Timer) knob to a RINSE setting:

• For fast agitation and spin, use the

HEAVY DUTY Cycle.

• For slow agitation and spin, use the

PERMANENT PRESS I Cycle.

• For slow agitation and fast spin, use the

NORMAL Cycle.

STEP 5. Pull Cycle Selector Control

(Timer) knob out to start washer.

llr_kVY DUT_ _iw,_

REN_N_IENT PRESlSI w

SPIN ONLY

A drain and spin may help shorten drying

times for some heavy fabrics or special-

care items by removing excess water.

STEP 1. Set RINSE OPTIONS Control (if

available) to ONE RINSE.

STEP 2. Set the Cycle Selector Control

(Timer) knob to a SPIN setting:

• For fast spin, use the NORMAL Cycle.

• For slow spin, use the PERMANENT

PRESS I Cycle.

STEP 3. Pull the Cycle Selector Control

(Timer) knob out to start washer.

_w mJ_t

pERMANENT filES61 1:

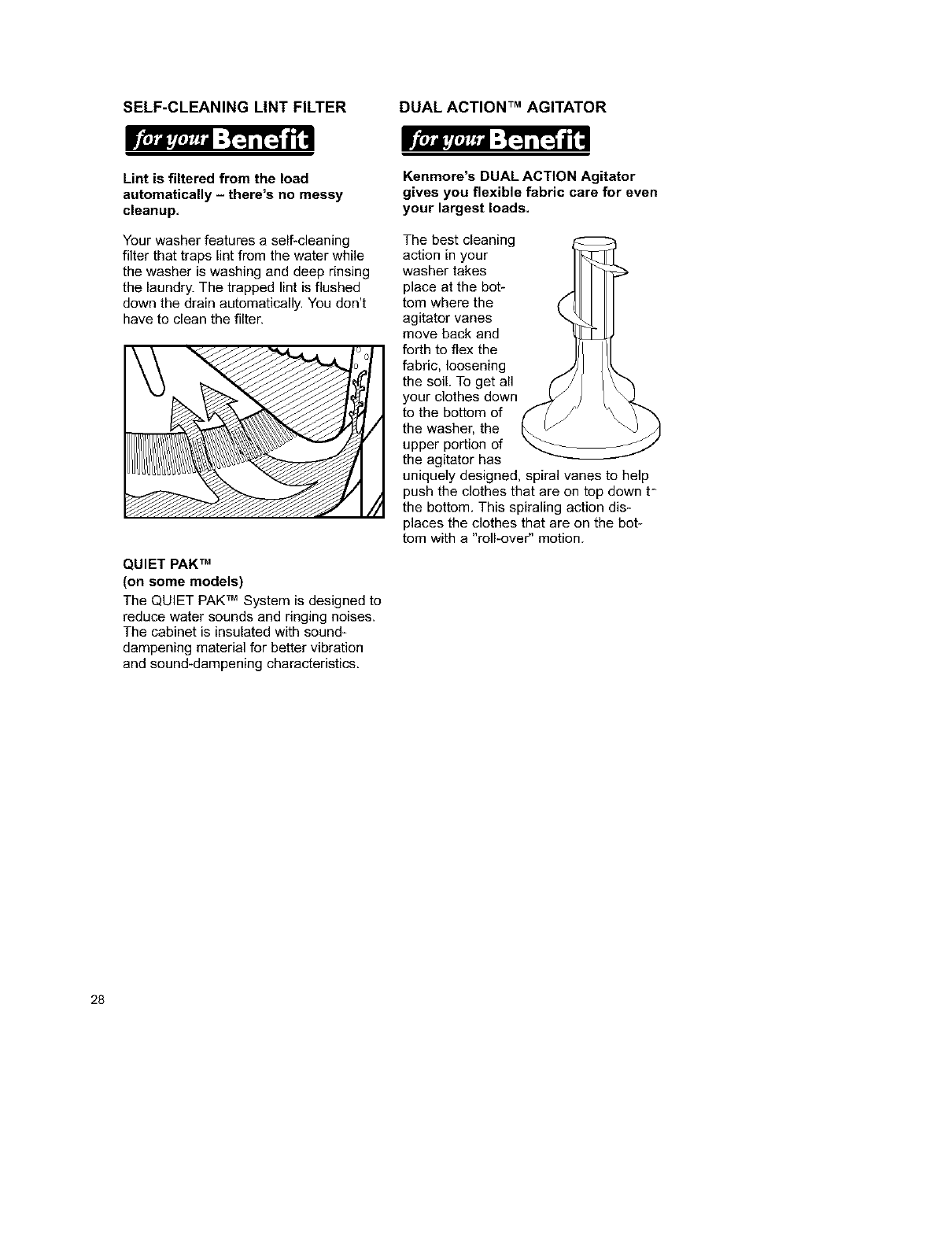

SELF-CLEANING LINT FILTER DUAL ACTION TM AGITATOR

WIoJ,i,_,J_,, :Iv] i[_i ii "=

Lint is filtered from the load

automatically - there's no messy

cleanup,

Your washer features a self*cleaning

filter that traps lint from the water while

the washer is washing and deep rinsing

the laundry. The trapped lint is flushed

down the drain automatically. You don't

have to clean the filter.

QUIET PAKTM

(on some models)

The QUIET PAKTM System is designed to

reduce water sounds and ringing noises.

The cabinet is insulated with sound-

dampening material for better vibration

and sound-dampening characteristics.

.Iftosi,i,J,_si :I_ I[_-I if"

Kenmore's DUAL ACTION Agitator

gives you flexible fabric care for even

your largest loads.

The best cleaning

action in your

washer takes

place at the bot-

tom where the

agitator vanes

move back and

forth to flex the

fabric, loosening

the soil. To get all

your clothes down

to the bottom of

the washer, the

upper portion of

the agitator has

uniquely designed, spiral vanes to help

push the clothes that are on top down t-

the bottom. This spiraling action dis-

places the clothes that are on the bot*

tom with a"roll-over" motion.

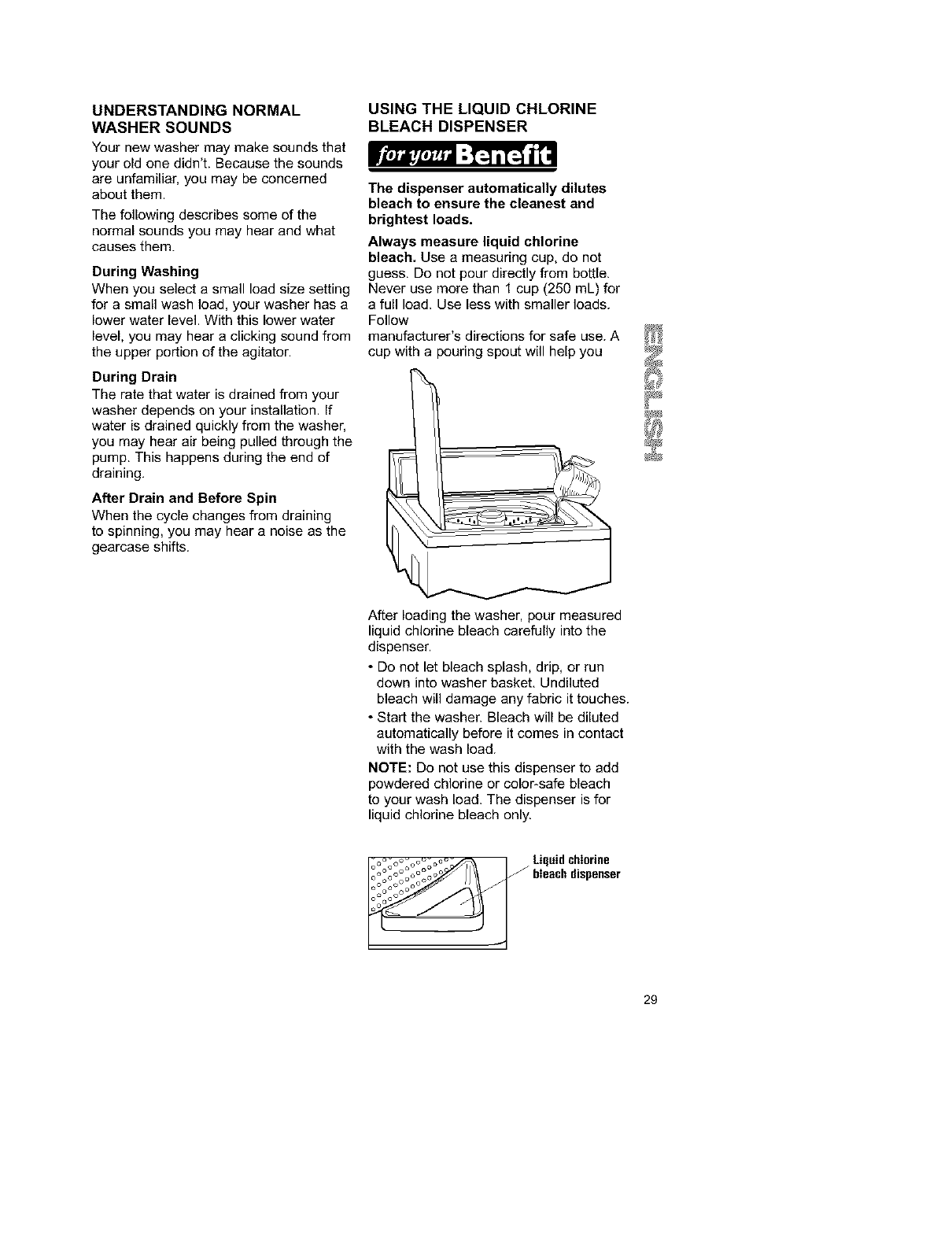

UNDERSTANDING NORMAL

WASHER SOUNDS

Your new washer may make sounds that

your old one didn't. Because the sounds

are unfamiliar, you may be concerned

about them.

The following describes some of the

normal sounds you may hear and what

causes them.

During Washing

When you select a small load size setting

for a small wash load, your washer has a

lower water level. With this lower water

level, you may hear a clicking sound from

the upper portion of the agitator.

During Drain

The rate that water is drained from your

washer depends on your installation. If

water is drained quickly from the washer,

you may hear air being pulled through the

pump. This happens during the end of

draining.

After Drain and Before Spin

When the cycle changes from draining

to spinning, you may hear a noise as the

gearcase shifts.

USING THE LIQUID CHLORINE

BLEACH DISPENSER

The dispenser automatically dilutes

bleach to ensure the cleanest and

brightest loads.

Always measure liquid chlorine

bleach. Use a measuring cup, do not

guess. Do not pour directly from bottle.

Never use more than 1 cup (250 mL) for

a full load. Use less with smaller loads.

manufacturer's directions for safe use. A

cup with apouring spout will help you

After loading the washer, pour measured

liquid chlorine bleach carefully into the

dispenser.

•Do not let bleach splash, drip, or run

down into washer basket. Undiluted

bleach will damage any fabric it touches.

• Start the washer. Bleach will be diluted

automatically before it comes in contact

with the wash load.

NOTE: Do not use this dispenser to add

powdered chlorine or color-safe bleach

to your wash load. The dispenser is for

liquid chlorine bleach only.

IoOoOoo_ oO_/_, I Liquidchlorine

oooo oo oo c' o

Io oO°oO°o_7 Ill/ _J_ bleachdispenser

oooo o o o°

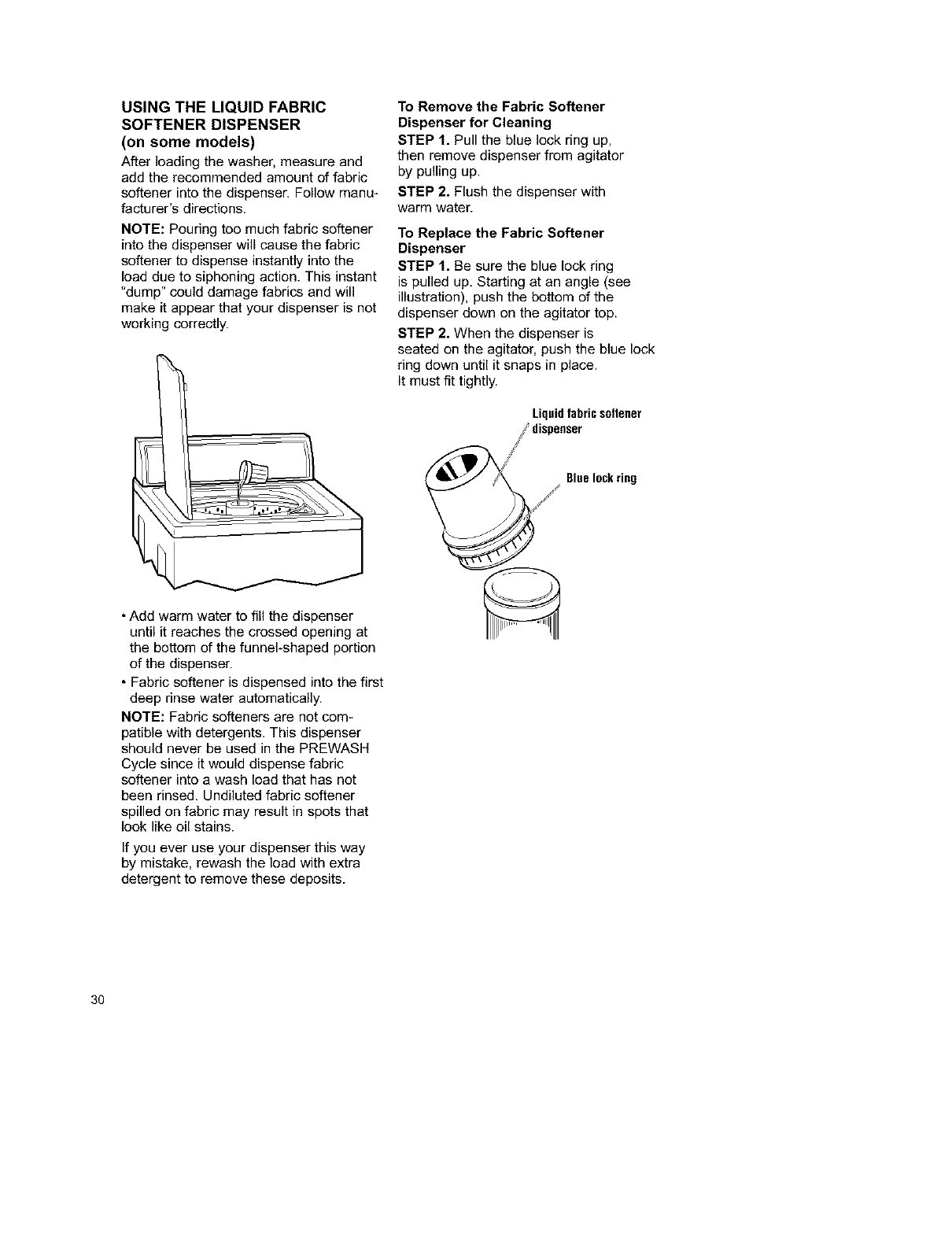

USING THE LIQUID FABRIC

SOFTENER DISPENSER

(on some models)

After loading the washer, measure and

add the recommended amount of fabric

softener into the dispenser. Follow manu-

facturer's directions.

NOTE: Pouring too much fabric softener

into the dispenser will cause the fabric

softener to dispense instantly into the

load due to siphoning action. This instant

"dump" could damage fabrics and will

make it appear that your dispenser is not

working correctly.

To Remove the Fabric Softener

Dispenser for Cleaning

STEP 1. Pull the blue lock ring up,

then remove dispenser from agitator

by pulling up,

STEP 2. Flush the dispenser with

warm water.

To Replace the Fabric Softener

Dispenser

STEP 1. Be sure the blue lock ring

is pulled up. Starting at an angle (see

illustration), push the bottom of the

dispenser down on the agitator top,

STEP 2. When the dispenser is

seated on the agitator, push the blue lock

ring down until it snaps in place.

It must fit tightly.

Liquid fabricsoftener

•Add warm water to fill the dispenser

until it reaches the crossed opening at

the bottom of the funnel-shaped portion

of the dispenser.

• Fabric softener is dispensed into the first

deep rinse water automatically.

NOTE: Fabric softeners are not com-

patible with detergents. This dispenser

should never be used in the PREWASH

Cycle since it would dispense fabric

softener into a wash load that has not

been rinsed. Undiluted fabric softener

spilled on fabric may result in spots that

look like oil stains.

If you ever use your dispenser this way

by mistake, rewash the load with extra

detergent to remove these deposits.

Bluelockring

PREPARING CLOTHES

FOR WASHING

Wi+°j+'++++°j++""?_ i[_ 11"

Follow these recommendations

to help you prolong the life of

your garments.

•Close zippers, snaps, and hooks to

avoid snagging other items. Remove

pins, buckles, and other hard objects

to avoid scratching the washer interior.

Remove non-washable trim and

ornaments.

• Empty pockets and turn them

inside out.

•Turn down cuffs, brush away lint

and dirt.

•Turn synthetic knits inside out to

avoid pilling.

• Tie strings and sashes so they will

not tangle.

• Mend tears, loose hems, and seams.

• Treat spots and stains.

• Stained or wet garments should be

washed promptly for best results.

SORTING

•Separate heavily soiled items from light-

ly soiled ones, even if they

would normally be washed together.

Separate lint givers (towels, chenille)

from lint takers (corduroy, synthetics,

permanent press). When possible,

turn lint givers inside out.

• Separate dark colors from light colors,

colorfast items from non-colorfast items.

•Sort by fabric and construction

(sturdy cottons, knits, delicate items).

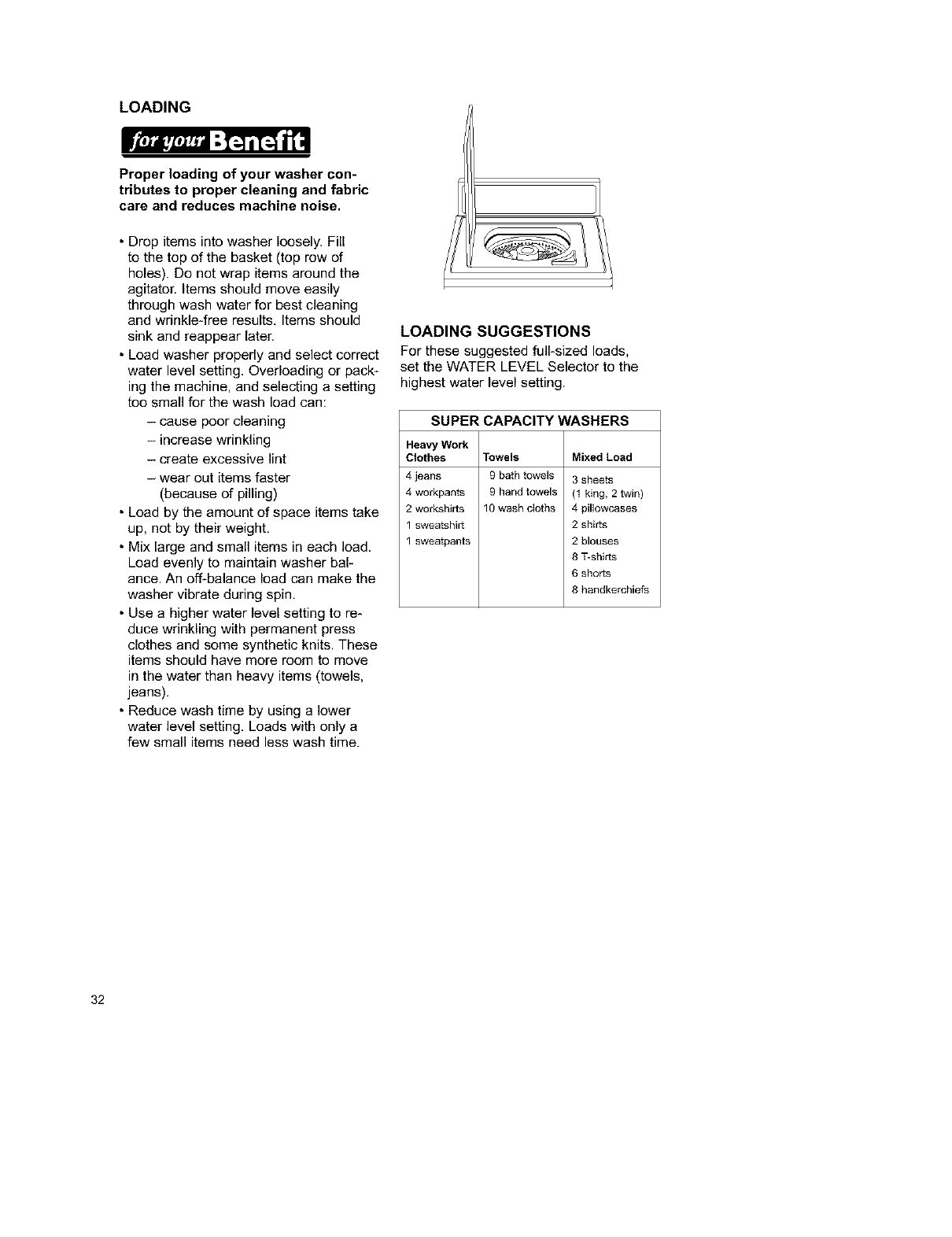

Proper loading of your washer con-

tributes to proper cleaning and fabric

care and reduces machine noise.

•Drop items into washer loosely. Fill

to the top of the basket (top row of

holes). Do not wrap items around the

agitator. Items should move easily

through wash water for best cleaning

and wrinkle4ree results. Items should

sink and reappear later.

• Load washer properly and select correct

water level setting. Overloading or pack-

ing the machine, and selecting asetting

too small for the wash load can:

- cause poor cleaning

- increase wrinkling

- create excessive lint

- wear out items faster

(because of pilling)

• Load by the amount of space items take

up, not by their weight.

• Mix large and small items in each load.

Load evenly to maintain washer bal-

ance. An off-balance load can make the

washer vibrate during spin.

• Use a higher water level setting to re*

duce wrinkling with permanent press

clothes and some synthetic knits. These

items should have more room to move

in the water than heavy items (towels,

jeans).

• Reduce wash time by using a lower

water level setting. Loads with only a

few small items need less wash time.

LOADING SUGGESTIONS

For these suggested full-sized loads,

set the WATER LEVEL Selector to the

highest water level setting.

SUPER CAPACITY WASHERS

Mixed Load

Heavy Work

Clothes

4jeans

4 workpants

2 workshJr[s

1 sweatshirt

1 sweatpants

Towels

9 bath towels

9 hand towels

10 wash cloths

3 sheets

(1 king, 2 twin)

4 pillowcases

2 shirts

2 blouses

8 T-shirts

6 shorts

8 handkerchiefs

CLEANING YOUR WASHER

Exterior

Wipe up detergent, bleach, and other

spills with a soft, damp cloth or sponge

as they occur. Occasionally wipe the out-

side of the washer to keep it looking like

new,

Do not put sharp or metal objects in your

washer. They can damage the finish.

Check all pockets for pins, clips, money,

bolts, nuts, etc, Do not lay these objects

on your washer after emptying pockets.

Interior

Clean interior with 1 cup (250 mL) of

chlorine bleach mixed with 2 cups (500

mL) of detergent. Run washer through a

complete cycle using hot water. Repeat

process if necessary.

NOTE: Remove hard water deposits

using only cleaners labeled as washer

safe.

WATER INLET HOSES

Replace inlet hoses after five years of

use to reduce the risk of hose failure. Pe-

riodically inspect and replace inlet hoses

if bulges, kinks, cuts, wear or leaks are

found. When replacing your inlet hoses,

mark the date of replacement on the

label with apermanent marker.

WINTER STORAGE

OR MOVING CARE

Install and store your washer where it will

not freeze. Because some water may

stay in the hoses and pump, freezing can

damage your washer, If storing or moving

your washer during freezing weather,

winterize it.

To winterize washer:

1. Shut off both water faucets,

2, Disconnect and drain water inlet

hoses,

3. Put 1 qt (1 L) of R,V.-type antifreeze

in the basket.

4. Run washer on a SPIN setting for

about 30 seconds to mix the

anti-freeze and water, Some of the

mixture will pump out while the

washer spins,

5. Unplug the power supply cord.

To use washer again:

1. Flush water pipes and hoses,

2, Reconnect water inlet hoses.

3. Turn on both water faucets.

4. Reconnect power supply cord.

5. Run the washer through a complete

cycle with 1 cup (250 mL) of detergent

to clean out antifreeze.

NON-USE OR VACATION CARE

Operate your washer only when you

are at home. If you will be on vacation or

not using your washer for an extended

period of time, you should:

•Unplug the power supply cord or turn

off electrical power to the washer.

• Turn off the water supply to the washer.

This helps avoid accidental flooding

(due to a water pressure surge) while

you are away.

Most laundering problems are easily solved if you understand the cause.

Check these lists for common laundry and washer problems. If you need

further assistance, see the back cover.

Problem Possible Cause Solution

Washer Leaks Household plumbing is leaking. Repair plumbing.

Inlet hoses not tight. Tighten hoses (see "Installation

Instructions,"Sections D & E).

Inlet hose washers not Reseat washers (see "Installation

properly seated. Instructions,"Section D).

Drain hose not propedy Clamp drain hose (see "Installation

clamped or is off. Instructions,"Section C).

Drain is clogged. Remove drain clogs. Sink, standpipe,

or floor drain must be able to handle

17 gaI (64 L) of water per minute.

Tub moved forward during Ensure tub is centered before

unloading, causing water to starting washer.

deflect off tub ring.

Unit not level causing water Ensure front feet are installed and

to deflect off tub ring. nuts are tightened. Levelwasher.

Reset rear legs (see "installation

Instructions,"Section G).

Load is unbalanced. Spray Redistribute the load.

rinses are deflecting off load.

Washer is overloaded. Fills or Reduce load size.

spray rinses are deflecting off

load.

Won't Drain/ Drain hose is kinked or Straighten or unplug hose (see

Won't Spin/ clogged. "Installation Instructions," Section C).

Wet Loads Correct operation of After awash or rinse, the washer will

neutral drain, drain without spinning. After draining,

the spinning begins.

Lid is open. Close the lid.

Drain hose is more than Lower drain hose (see "Installation

96 in (2.4 m) above floor. Instructions,"Section A).

Too much detergent - Use less detergent.

excessive sudsing.

Wrong cycle for load Choose a cycle with a higher spin

being washed, speed (see "Operating Your

Washer").

Problem Possible Cause Solution

Won't Drain/ Low voltage or using Check electrical source or call

Won't Spin/ an extension cord. electrician. Do not use extension

Wet Loads cords.

(cont,) Cold rinses. Cold rinses leave loads wetter than

warm rinses. This is normal.

Continues Drain hose is less than Raise the drain hose (see

to Fill/ 39 in (99 cm) above floor. "Installation Instructions,"Section A).

Continues

to Drain/ Drain hose fits tightly into Adjust drain hose for loose fit

Cycle Stuck standpipe. (see "Installation Instructions,"

Section C).

Drain hose taped into Do not seal off drain hose with tape.

standpipe. The drain hose needs an air gap.

Washer Makes Load is unbalanced. Redistribute load.

Noise Washer is not level. Level washer. Reset rear legs

Rear leveling legs not set. (see "Installation Instructions,"

Section G).

Nuts on front feet not tight. Tighten nuts (see "Installation

Instructions," Section G).

Yellow shipping strap with Remove strap with cotter pins

cotter pins not completely (see "Installation Instructions,"

removed. Section B),

Floor not strong enough Relocate washer (see "Installation

to support washer. Instructions," Section A).

Gears engaging after drain This is normal.

and before spin.

Upper part of agitator dicks This is normal.

during wash.

Won't Water inlet valve Clean screens.

Fill/Won't screens are plugged.

Rinse/Won't

Agitate/ Water is turned off. Turn on water.

Wrong Hot and cold hoses are Reverse hoses (see "Installation

Temperature reversed. Instructions," Sections D & E).

Inlet hose is kinked. Straighten hoses.

Timer dial is not lined up. Turn timer knob to the right slightly

and pull to start.

Power cord not plugged in. Plug in power cord.

Problem Possible Cause Solution

Machine Power cord not plugged in. Plug in power cord.

Stops No power at plug. Check electrical source or call

electrician.

Fuse blown or circuit Replace fuse or reset circuit breaker.

breaker open. if problem continues, call electrician.

Using an extension cord. Do not use extension cords.

Timer is not Iined up. Turn timer to the right slightly

and pull to start.

Timer knob not puIled out. Set and pull out knob.

Machine is overloaded. Wash smalIer loads.

Agitator Not The top of the agitator moves This is normal.

Working only in one direction.

The top of the agitator is Ioose. This is normal.

Water Level The top of the agitator is much This is normal.

Too Low/Not higher than the highest water

Completely Ievel.This creates a perception

Filling of the washer not being full.

Tub is Tub pulled forward when Ensure tub is centered before

Crooked unloading, starting washer.

Tub moves. This is normal.

Unit not level. Ensure front feet are installed and

nuts are tightened. LeveI washer.

Reset rear legs (see "lnstaIlation

Instructions," Section G).

Lint on Load Improper sorting. Sort lint givers from lint takers

and by color.

Ovedoading. Lint can be trapped in load if

ovedoaded, Wash smaller Ioads.

Paper or tissue in pockets. Clean out pockets before washing.

Not enough detergent. Use enough detergent to

hold lint in water.

Detergent not dissolving. Use wash water warmer than

Water temperatures Iower 70°F (21°C).

than 70°F (21°C).

Problem Possible Cause Solution

Tearing Overloading. Improper Loads should move freely during

use of washer, wash. Wash smaller loads or

increase water level

Improper use of chlorine Do not pour chlorine bleach directly

bleach. Undiluted bleach on Ioad. Wipe up bleach spills.

will damage fabrics.

Sharp items not removed Clean out pockets before washing.

from pockets; fasteners Zip zippers before washing.

not fastened.

Items damaged before Mend rips and broken threads in

washing, seams before washing.

Stains on Improper use of fabric Dilute fabric softener and add to

Load softener in washer or dryer, deep rinse only.

Iron in water (rust). Install an iron filter.

Under use of detergent causing Use enough detergent to remove

soil to be redeposited, soil and hoId it in suspension.

Dye transfer due to not Sort dark clothing from whites

sorting loads properly, and lights.

Dye transfer due to not Unload the washer as soon as

unloading washer promptly, it stops.

Load is Not removing Ioad promptly. Unload the washer as soon as it

Wrinkled stops.

Wrong cycle for fabrics Use cold rinses and cycles with slow

being washed, spin speeds to reduce wrinkling.

Overloading. Loads should move freely daring

wash. Wash smalIer loads.

Hoses reversed. Reverse hoses (see "Installation

Instructions," Sections D & E).

Load is Overloading. Loads should move freely daring

Tangled/ wash. Wash smalIer loads.

Twisted Clothes wrapped around Do notwrap items around agitator

agitator, when loadingwasher.

Clogged Not diluting softener. Dilute fabric softener in dispenser.

Dispensers/

Bleach Use of color-safe bleach in Add color-safe bleach directly to the

Leaking/ chlorine bleach dispenser, basket. Do not use chlorine bIeach

Bleach on dispenser.

Wrong Loads Improper use of chlorine bleach. Always measure bleach before

adding to the dispenser. Carefully

pour into the dispenser. Wipe up

bleach spills.

KENMORE WASHERS

"We Service What We Sell" is our assurance you can depend on Sears for service.

Your Kenmore appliance has added value when you consider that Sears has service

units nationwide, staffed with professional technicians trained on all appliances Sears

sells. They have the knowledge and skills, tools, parts and equipment to ensure our

pledge to you that "We Service What We Sell."

Maintain the value of your purchase with a Sears Maintenance Agreement. Kenmere

appliances are designed, manufactured and tested for years of dependable operation.

Yet any major appliance may require service from time to time. The Sears Maintenance

Agreement offers you an outstanding service program for your product.

The Sears Maintenance Agreement

• Is your way to buy tomorrow's service at today's prices.

• Eliminates repair bills resulting from normal use.

• Allows for as many service calls as required,

• Provides an annual Preventive Maintenance Check at your request to keep your

Kenmore appliance in proper running condition.

For more information, call

1-800-827-6655 (USA) or

1-877-533-6937 (Canada)

For in-home major brand repair service:

Call 24 hours a day, 7 days a week

1-800-4-MY-HOME" (1-800-469-4663)

Para pedlr servlclo de raparacl6n - 1400-676-5811

Au Canada pour tout le service - 1-877-LE-FOYER" (1-877-533-6937)

For the repair or replacement parts you need:

Call 6 a.m. - 11 p.m. CST, 7 days a week

ParlsDirect TM

1-800-366-PART (1-800-366-7278)

www.seam.cor_l_rlsdlmct

Para ordenar piezas - 1-800-659-7084

For a Sears Service Center location in your area:

Call 24 hours a day, 7 days aweek

1-800-488-1222

For a Sears Maintenance Agreement purchase or inquiry:

Call 7 a.m. - 5 p.m. CST, Monday - Saturday

1-800-827-6655

Kenmore 11020642990 User Manual WASHER Manuals And Guides L0305253

KENMORE Residential Washers Manual L0305253 KENMORE Residential Washers Owner's Manual, KENMORE Residential Washers installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
