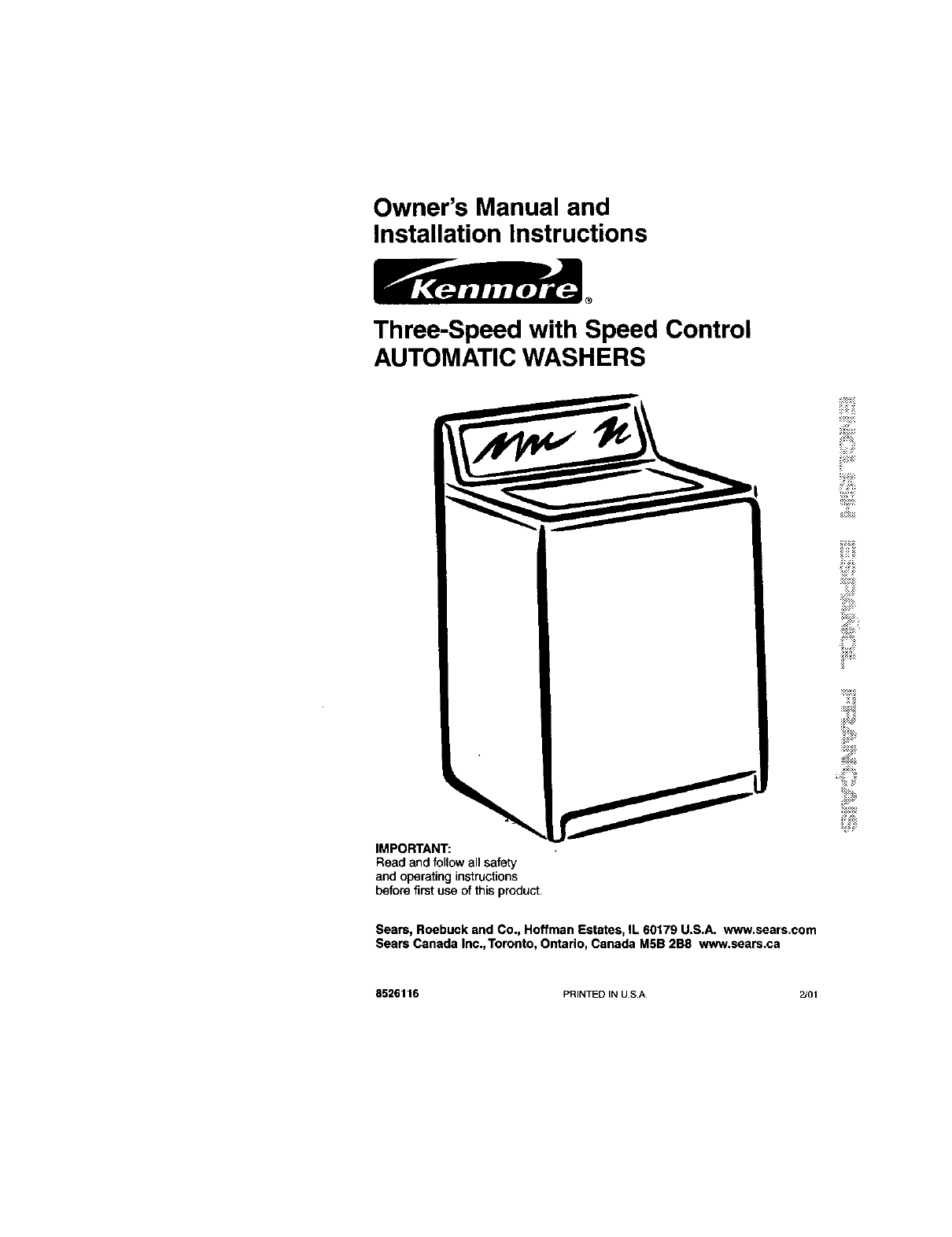

Owner's Manual and

Installation Instructions

Three-Speed with Speed Control

AUTOMATIC WASHERS

IMPORTANT:

Read and follow all safety

and operating instructions

before first use of this product.

iii_i_!:'ii

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A. www.sears.com

Sears Canada Inc.,Toronto, Ontario, Canada M5B 2B8 www.sears.ca

8526116 PRINTED IN USA 2/01

BEFORE USING YOUR NEW WASHER

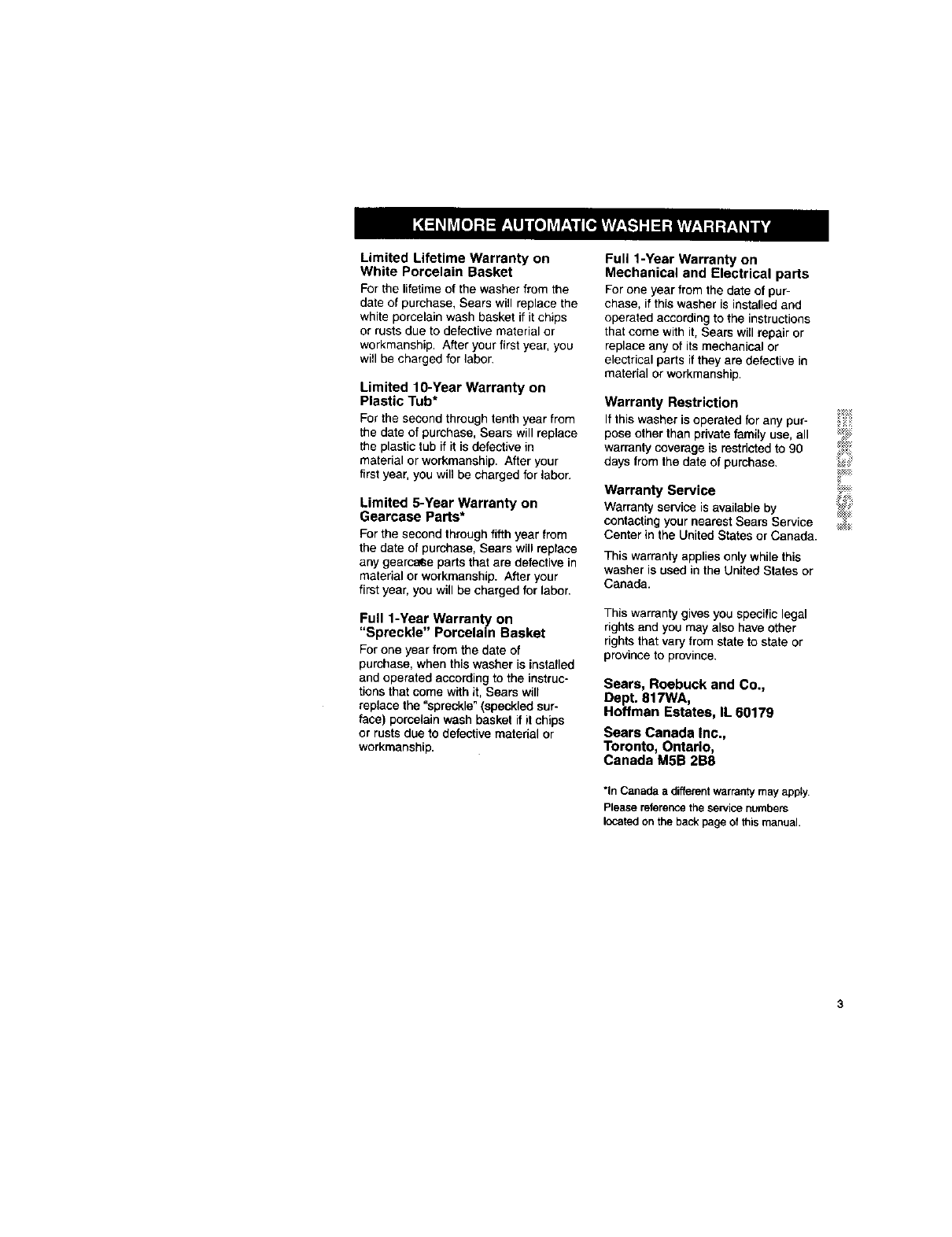

KENMORE AUTOMATIC WASHER WARRANTY

WASHER SAFETY

INSTALLATION REQUIREMENTS

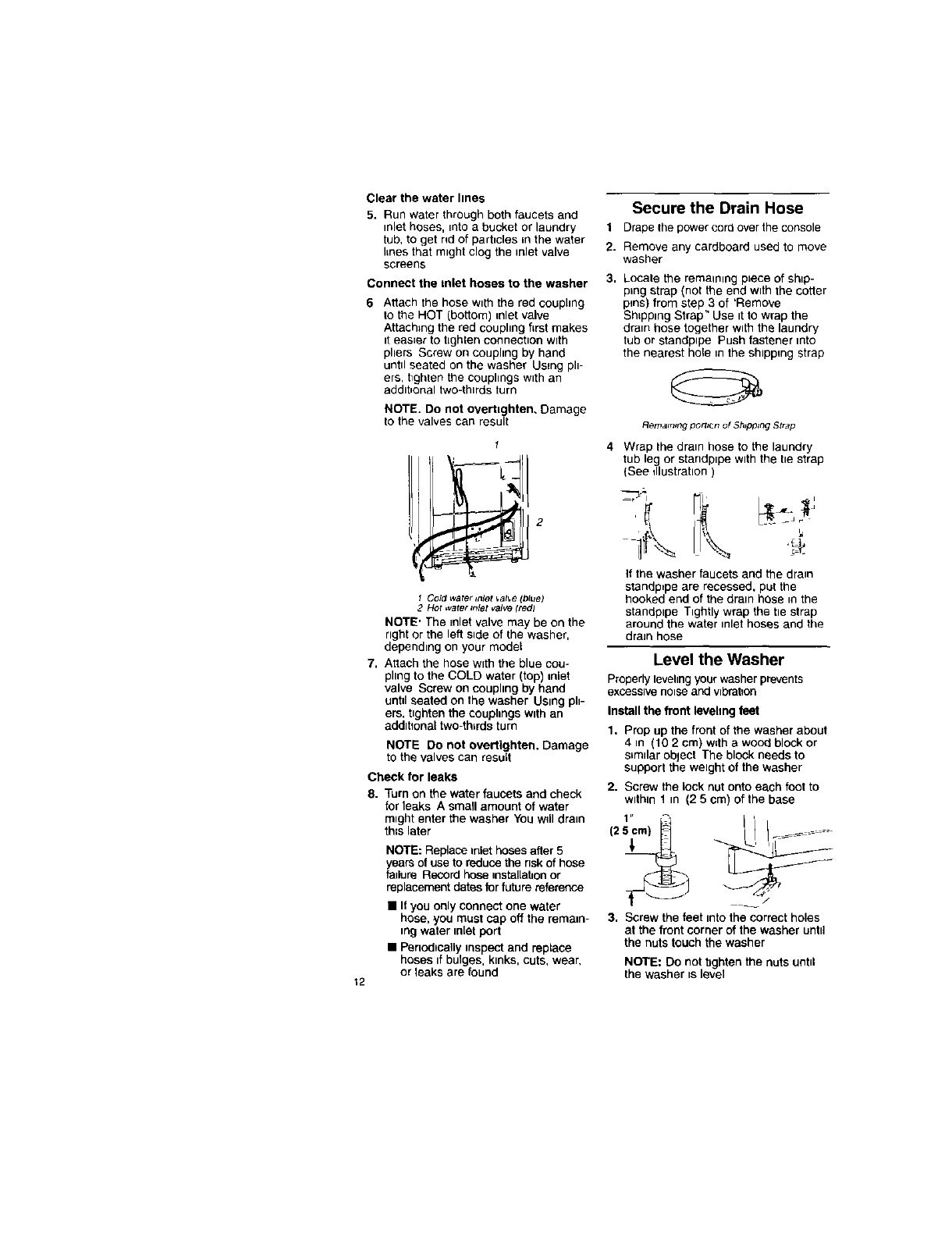

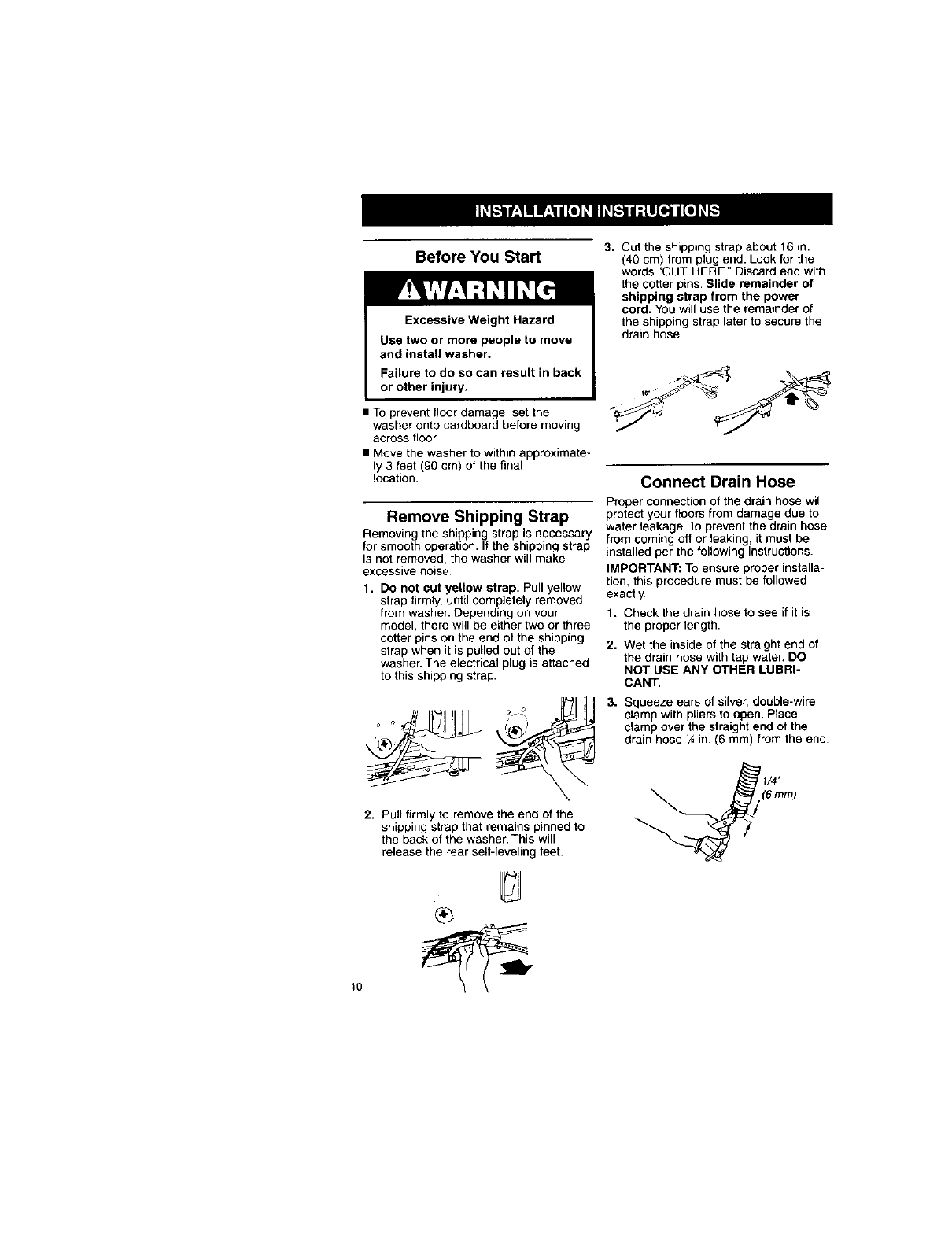

INSTALLATION INSTRUCTIONS

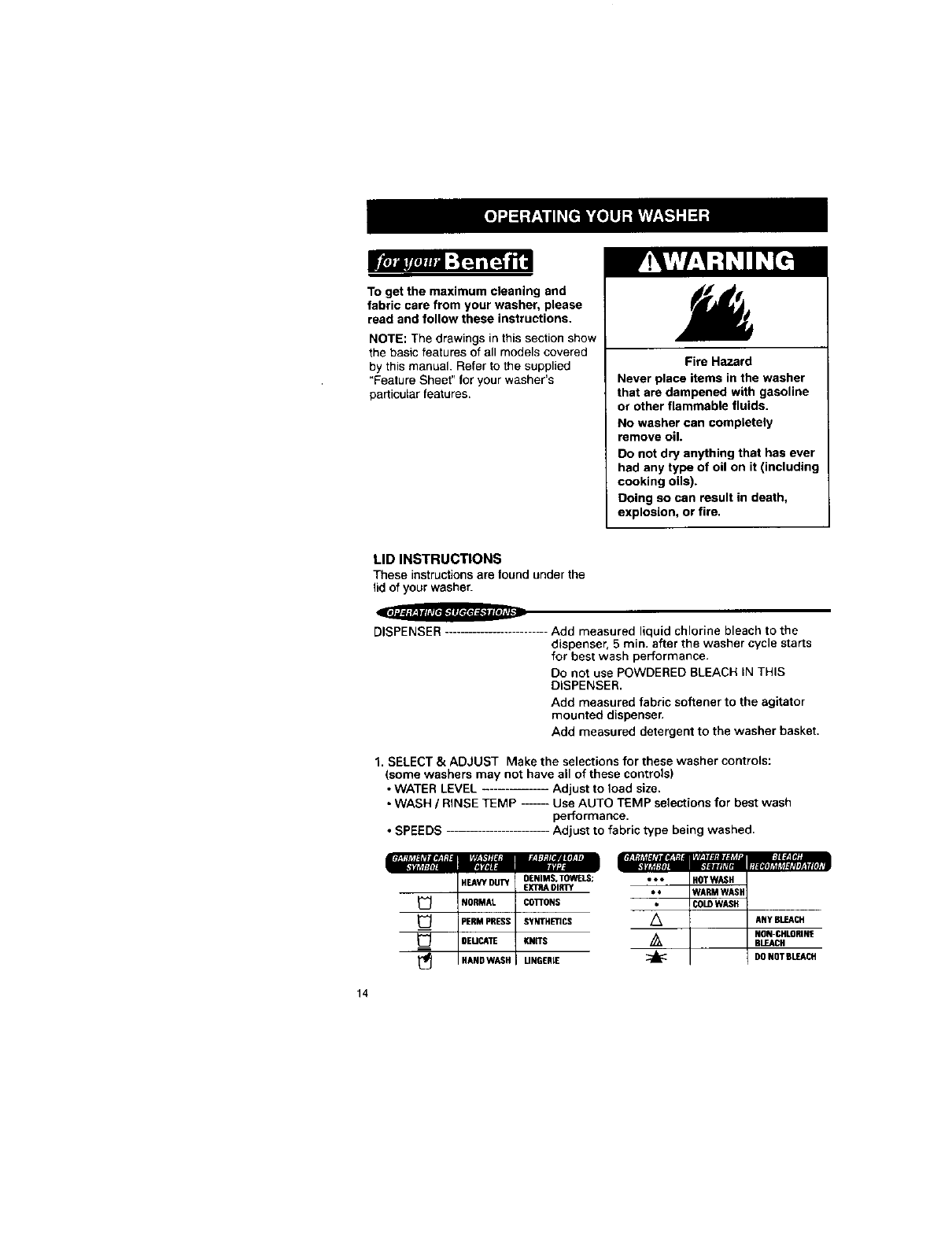

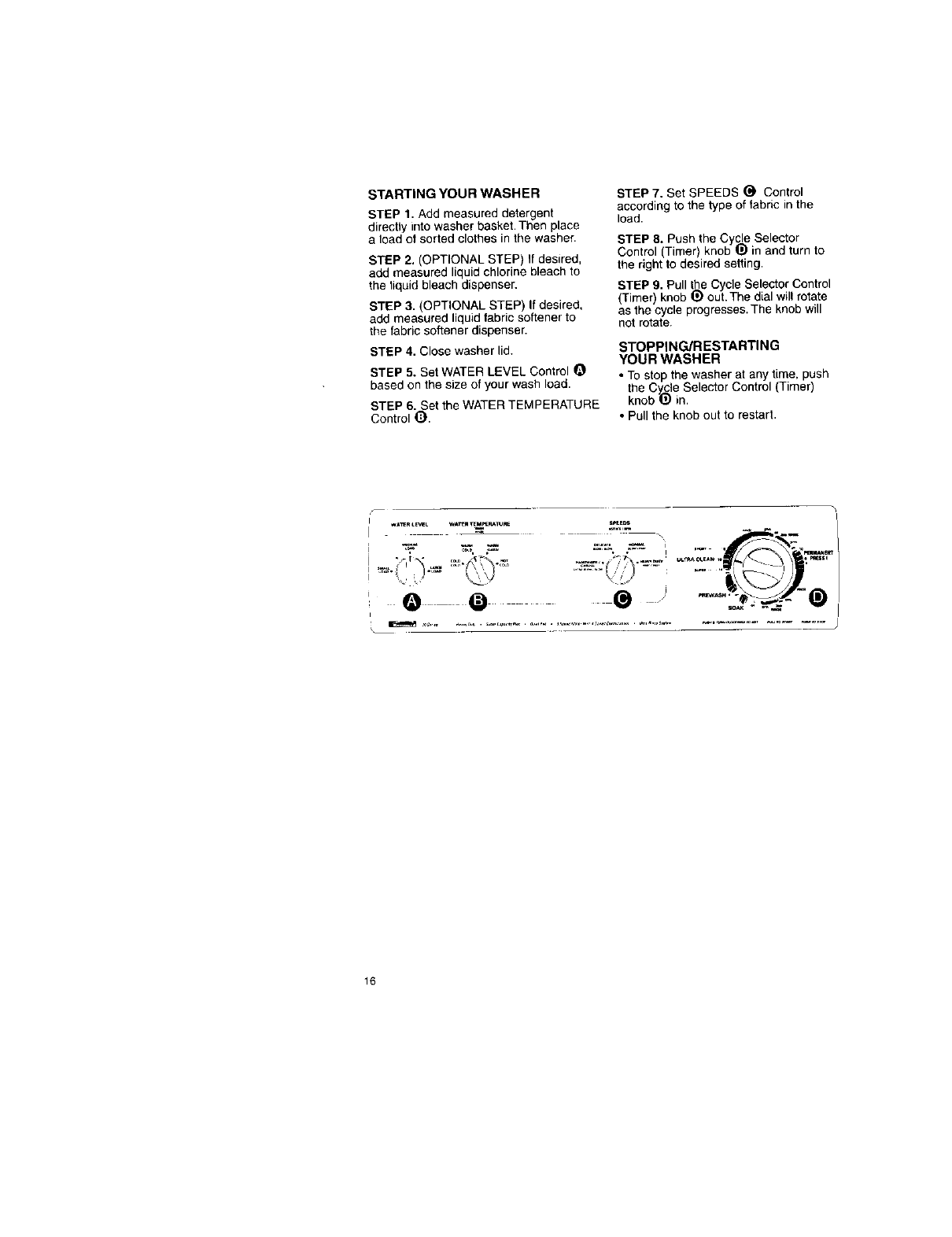

OPERATING YOUR WASHER

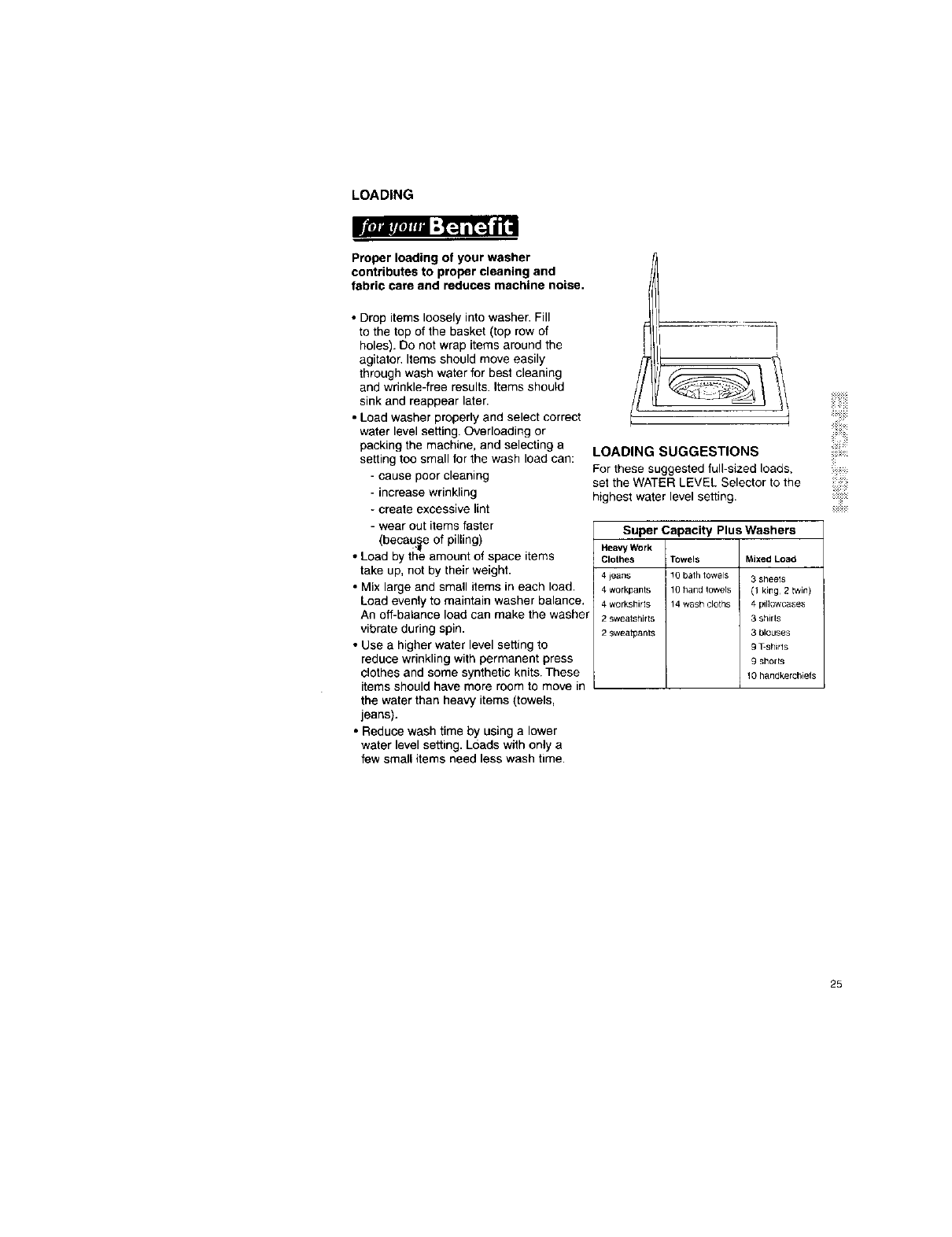

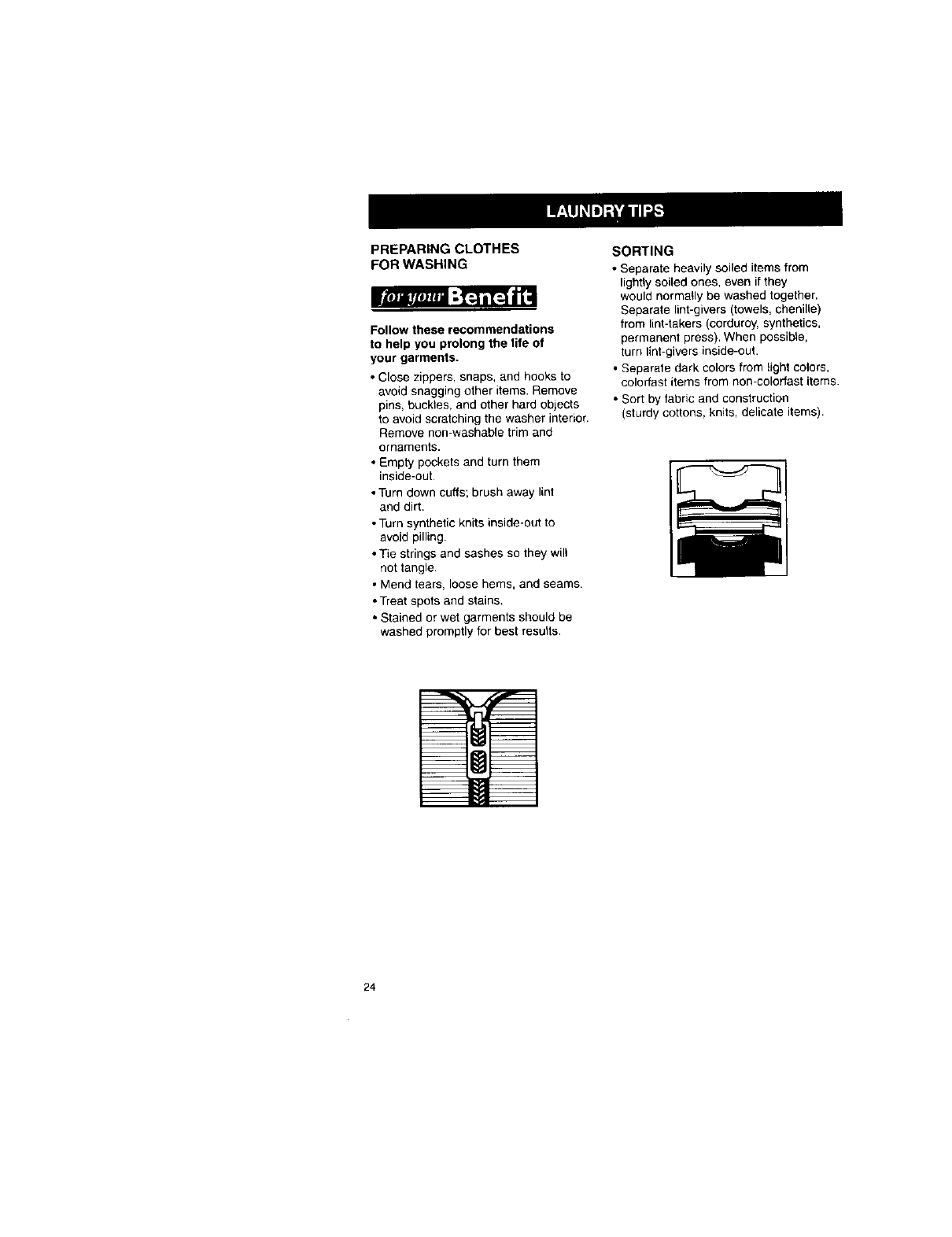

LAUNDRY TIPS

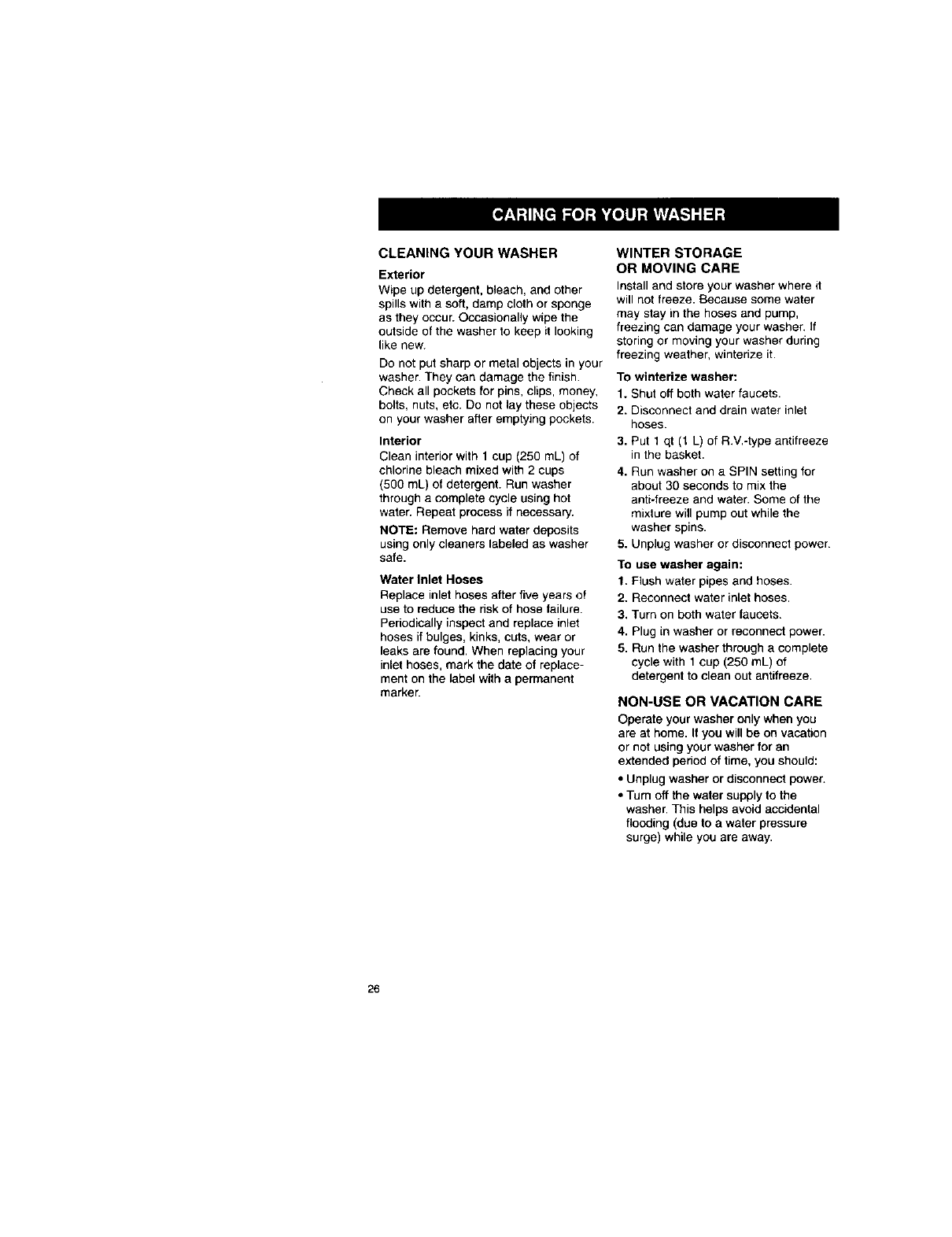

CARING FOR YOUR WASHER

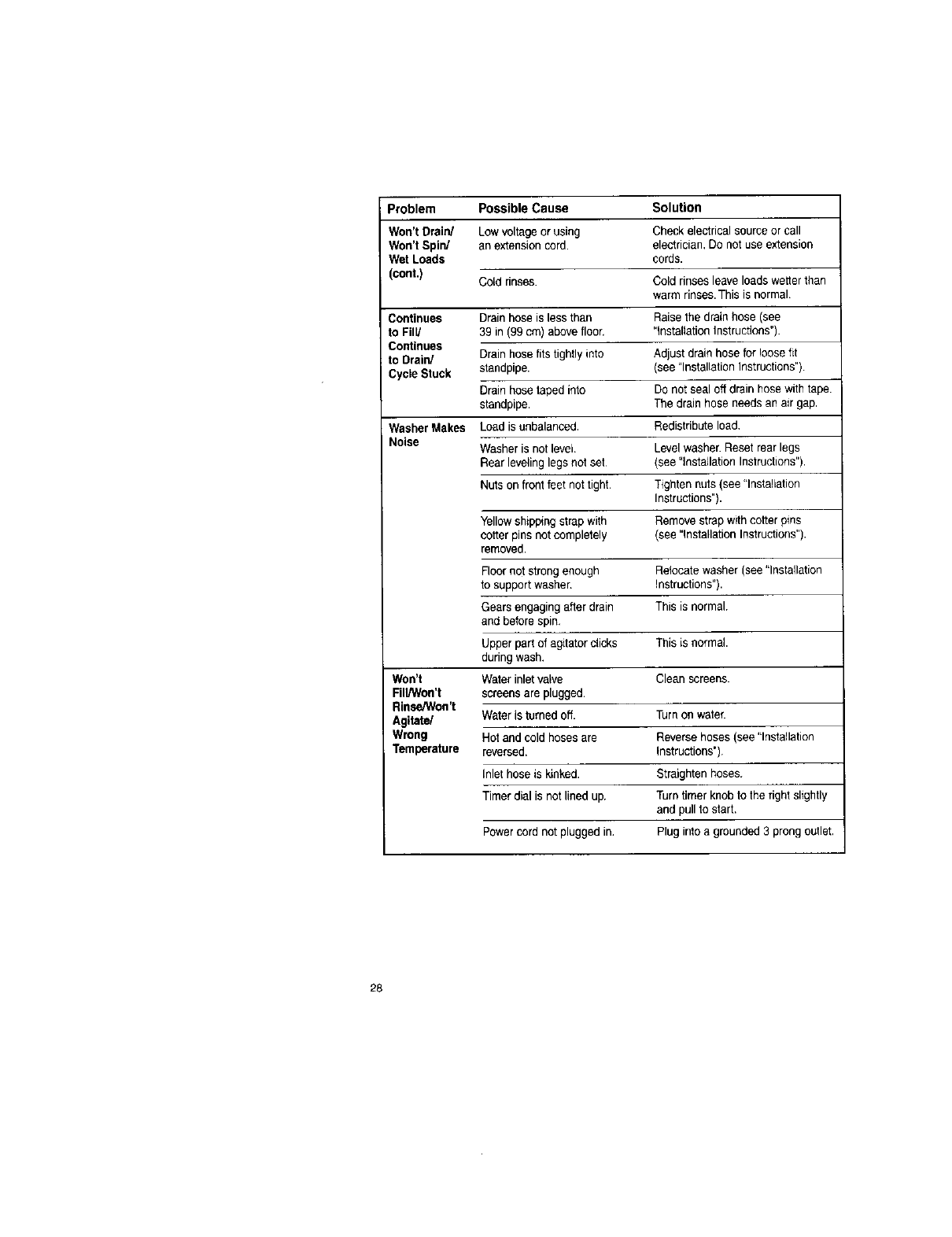

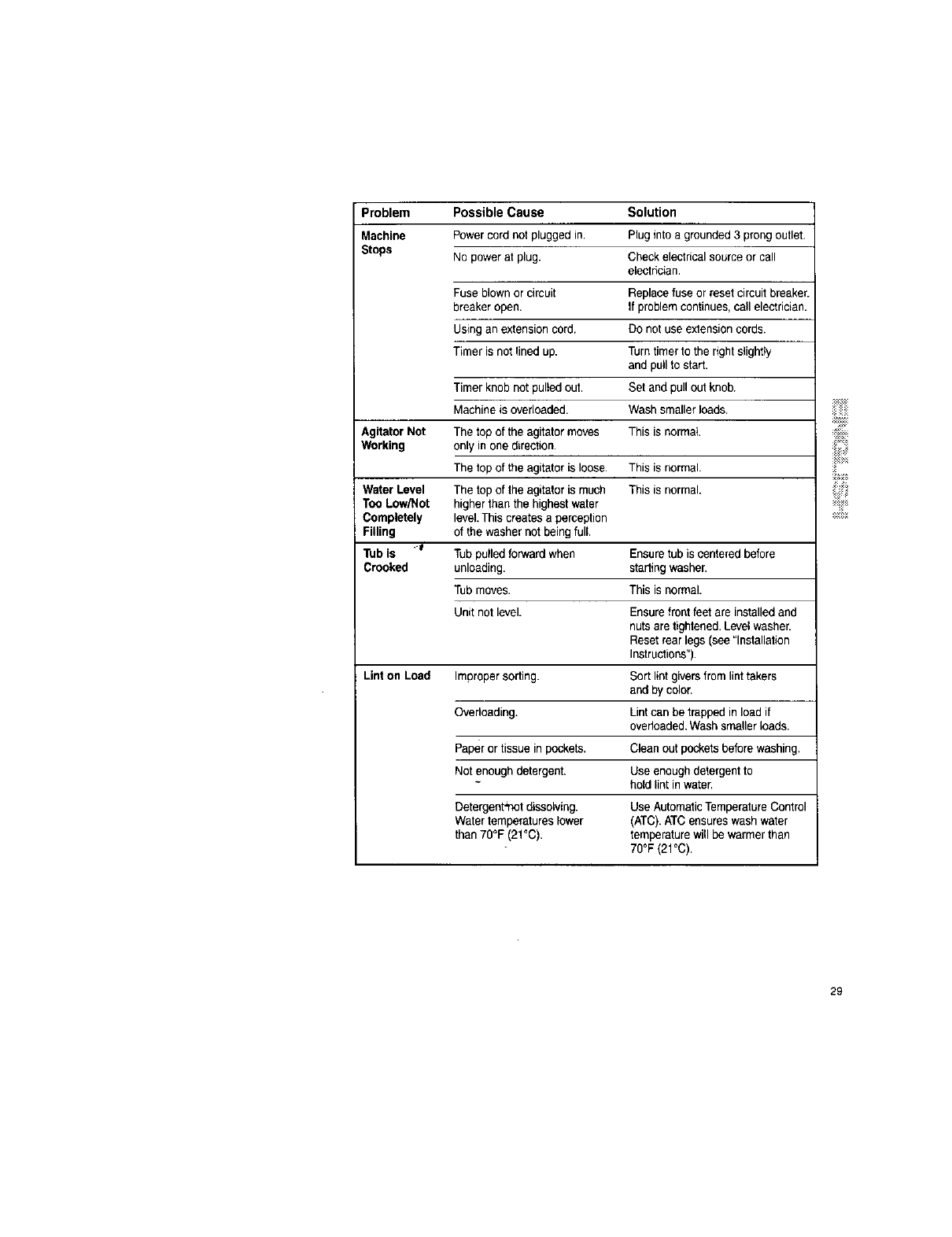

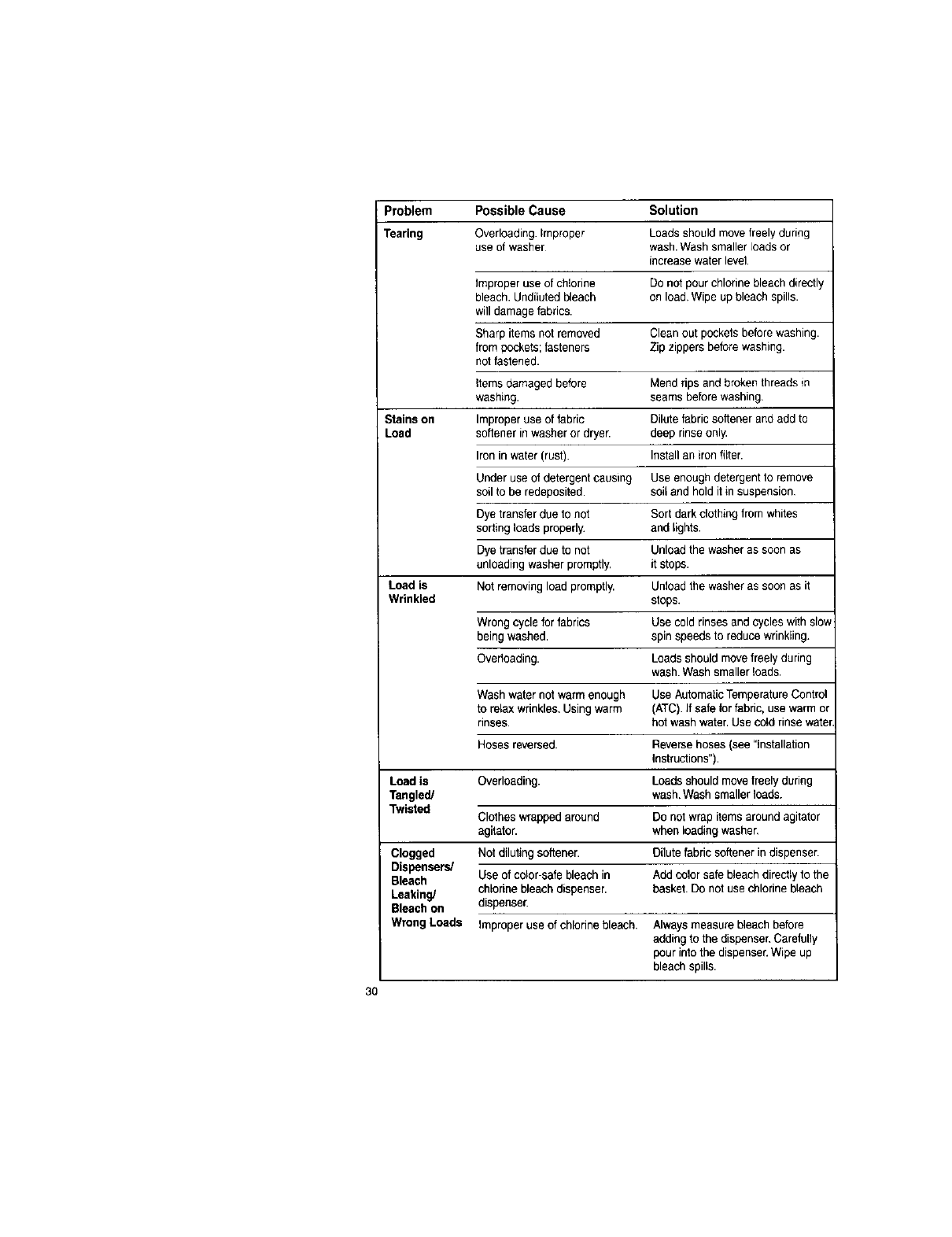

TROUBLESHOOTING

WE SERVICE WHAT WE SELL

Please read this manual. It will help you

install and operate your new Kenmore

washer in the most economical way.

For more information about the care

and operation of Kenmore appliances call

your nearest Sears store. You will need

the complete model and serial

numbers when requesting information.

Your washer's model and serial numbers

are located on the Model and Serial

Number Plate.

•ModelandSerial

HumberPlate

Use the space below to record the model

number and serial number of your new

Kenmore Washer.

Model NO.

Serial No.

Date of Purchase

Keep this book and your Sears

Salescheck (receipt) in a safe

place for future reference,

LimitedLifetime Warranty on

White Porcelain Basket

For the lifetime of the washer from the

date of purchase, Sears will replace the

white porcelain wash basket if it chips

or rusts due to defective material or

workmanship. After your first year, you

will be charged for labor.

Limited 1O-Year Warranty on

Plastic Tub*

For the second through tenth year from

the date of purchase, Sears will replace

the plastic tub if it is defective in

material or workmanship. After your

first year, you will be charged for labor.

Limited 5-Year Warranty on

Gearcase Parts*

For the second through fifth year from

the date of purchase, Sears will replace

any gearea_e parts that are detective in

material or workmanship. After your

first year, you will be charged for labor,

Full 1-Year Warranty on

"Spreckle" Porcelain Basket

For one year from the date of

purchase, when this washer is installed

and operated according to the instruc-

tions that come with it, Sears will

replace the "spreckle" (speckled sur-

face) porcelain wash basket if it chips

or rusts due to defective material or

workmanship.

Full 1-Year Warranty on

Mechanical and Electrical parts

For one year from the date of pur-

chase, if this washer is installed and

operated according to the instructions

that come with it, Sears will repair or

replace any of its mechanical or

electrical parts if they are defective in

material or workmanship,

Warranty Restriction

If this washer is operated for any put-!i!i: I"

pose other than private family use, all

warranty coverage is restricted to 90 ii:i_i

days from the date of purchase. _::_:_

Warranty Service :_j_:

Warranty service is available by :i.

contacting your nearest Sears Service :_

Center in the United States or Canada.

This warranty applies only while this

washer is used in the United States or

Canada.

This warranty gives you specific legal

rights and you may also have other

rights that vary from state to state or

province to province.

Sears, Roebuck and Co.,

Dept. 817WA,

Hoffman Estates, IL 60179

Sears Canada Inc.,

Toronto, Ontario,

Canada M5B 2B8

*In Canada a different warranty may apply.

Please reference the service numbers

located on the back page of this manual.

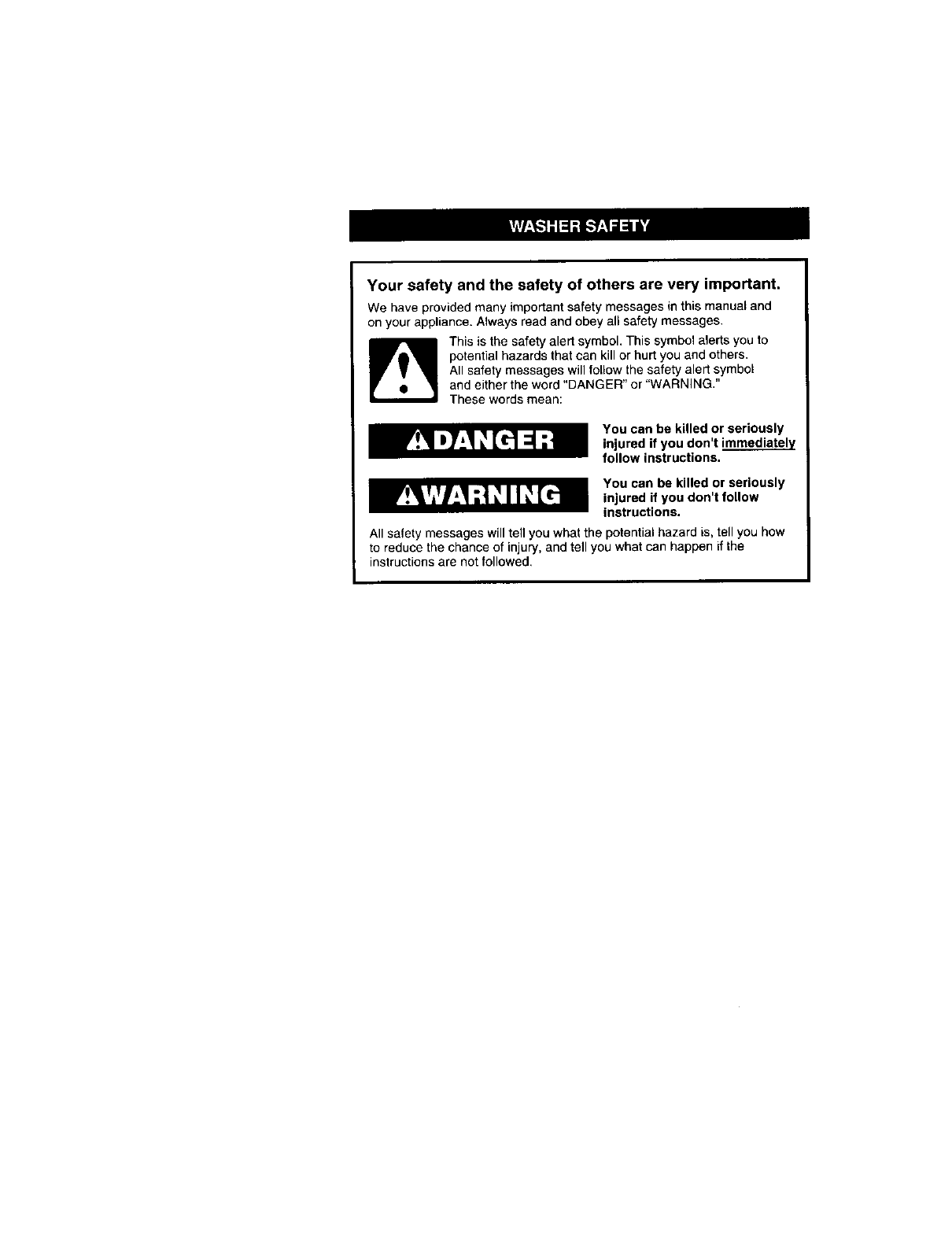

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and

on your appliance. Always read and obey all safety messages.

This is the safety alert symbol. This symbol alerts you to

potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol

and either the word "DANGER" or "WARNING."

These words mean:

You can be killed or seriously

injured if you don't immediately

follow instructions.

You can be killed or seriously

injured if you don't follow

instructions.

All safety messages will tell you what the potential hazard is, tell you how

to reduce the chance of injury, and tell you what can happen if the

instructions are not followed.

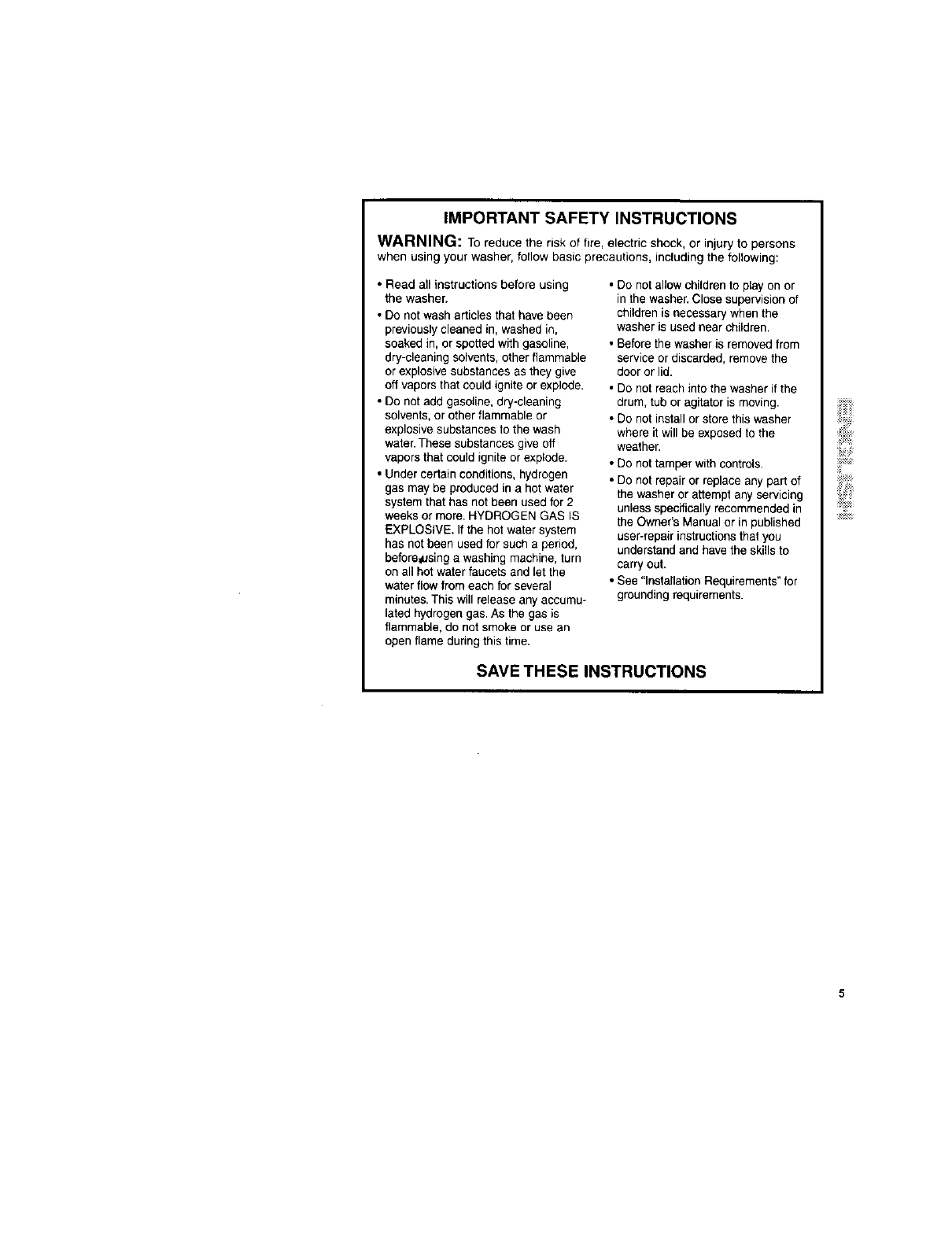

IMPORTANT SAFETY INSTRUCTIONS

WARNING: To reduce the risk of fire, electric shock, or injury to persons

when using your washer, follow basic precautions, including the following:

• Read all instructions before using

the washer.

• Do not wash articles that have been

previously cleaned in, washed in,

soaked in, or spotted with gasoline,

dry-cleaning solvents, other flammable

or explosive substances as they give

off vapors that could ignite or explode.

• Do not add gasoline, dry-cleaning

solvents, or other flammable or

explosivesubstances to the wash

water. These substances give off

vapors that could ignite or explode,

•Under cedein conditions, hydrogen

gas may be produced in a hot water

systemthat has not been used for 2

weeks or more. HYDROGEN GAS IS

EXPLOS{VE. If tb_ hot water system

has not been used for such a period,

before_sing a washing machine, turn

on all hot water faucets and let the

water flow from each for several

minutes. This will release any accumu-

lated hydrogen gas. As the gas is

flammable, do not smoke or use an

open flame during this time.

• Do not allow children to play on or

in the washer. Close supervision of

children is necessary when the

washer is used near children.

• Before the washer is removed from

service or discarded, remove the

door or lid.

• Do not reach into the washer if the

drum, tub or agitator is moving.

• Do not install or store this washer

where it will be exposed to the

weather.

• Do not tamper with controls,

• De net repair o_ replace a_y part of

the washer or attempt any servicing

unless specifically recommended in

the Owner's Manual or in published

user-repai[ instructions that you

understand and have the skills to

carry out.

• See "Installation Requirements" for

grounding requirements.

SAVE THESE INSTRUCTIONS

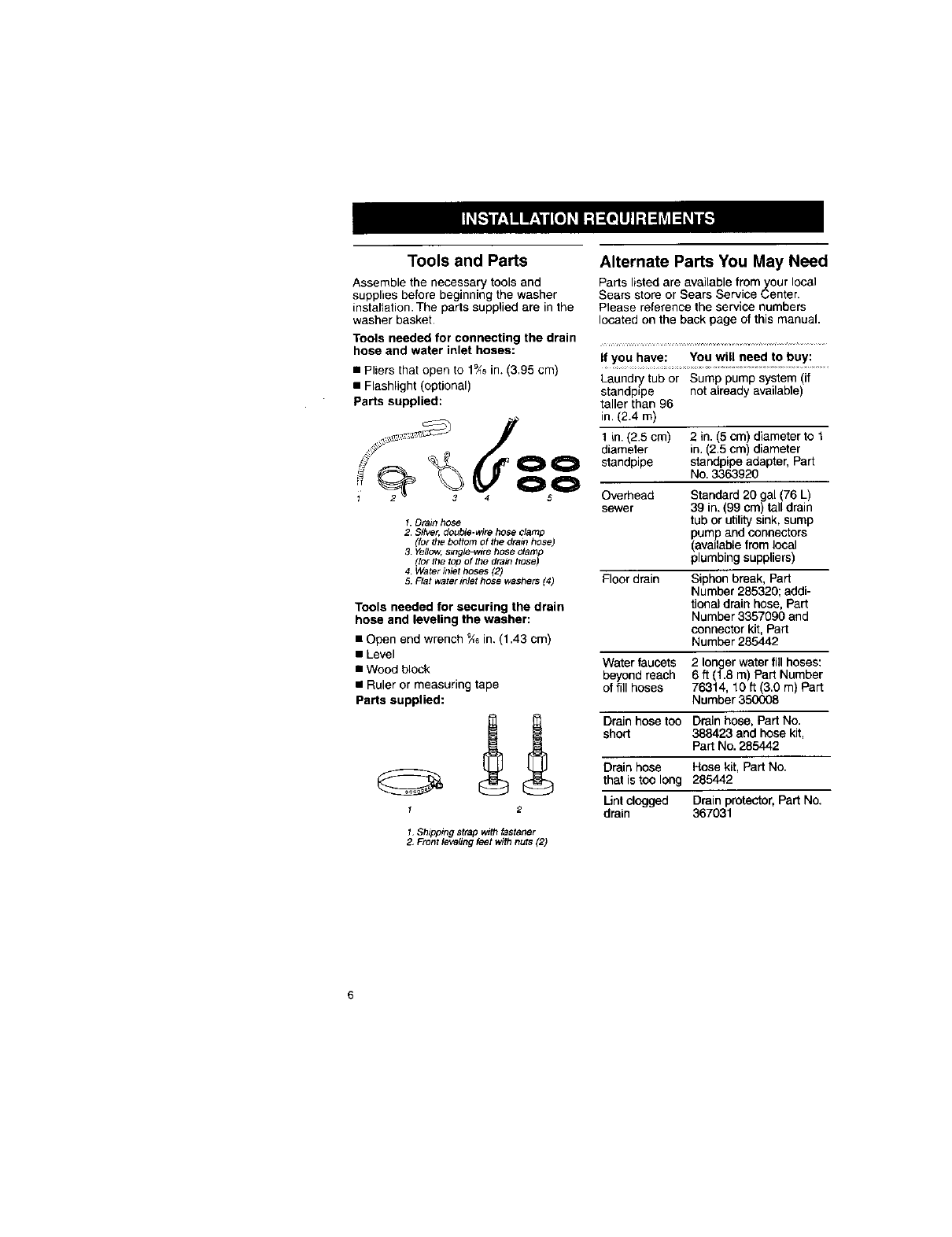

Tools and Parts

Assemble the necessary tools and

supplies before beginning the washer

installation. The parts supplied are in the

washer basket

Tools needed for connecting the drain

hose and water inlet hoses:

• Pliers that open to 1_6 in. (3.95 cm)

• Flashlight (optional)

Parts supplied;

1. Dratn hose

2 Silve& doubla-wire hose clamp

(for the bottom of the dratn hose)

3 Yellow4 single-wire hose clamp

(for the top of the drain hose)

4 Water lalat hoses (2)

5. Flat water ynlat hose washers (4)

Tools needed for securing the drain

hose and leveling the washer:

•Open end wrench _6 in, (1,43 cm)

•Level

• Wood block

• Ruler or measuring tape

Parts supplied:

1 Shipping strap wtth fastener

2Front leveling feet with nuts (2)

Alternate Parts You May Need

Parts listed are available from your local

Sears store or Sears Service Center.

Please reference the service numbers

located on the back page of this manual.

If you have: You will need to buy:

Laundry tub or Sump pump system (if

standpipe not already available)

taller than 96

in. (2.4 m)

1 in. (2.5 cm) 2 in. (5 cm) diameter to 1

diameter in. (2,5 cm) diameter

standpipe standpipe adapter, Part

No. 3363920

Overhead Standard 20 gal (76 L)

sewer 39 in. (99 cm) tall drain

tub or utility sink, sump

pump and connectors

(available from local

plumbing suppliers)

Floor drain Siphon break, Part

Number 285320; addi-

tional drain hose, Part

Number 3357090 and

connector kit, Part

Number 285442

Water faucets 2 longer water fill hoses:

beyond reach 6 ft (1.8 m) Part Number

of fill hoses 76314, 10 ft (3.0 m) Part

Number 350008

Drain hose too Drain hose, Part No.

short 388423 and hose kit,

Part No. 285442

Drain hose Hose kit, Part No.

that is too long 285442

Lint clogged Drain protector, Part No.

drain 367031

Location Requirements

Selecting the proper location for your

washer improves performance and mini-

mizes noise and possible washer "walk."

Your washer can be installed in a base-

ment, laundry room, closet, or recessed

area, (See "Drain System.")

Proper installation is your responsibility.

You will need:

• A water heater set to deliver 120"F

(49"C) water to the washer.

• A grounded electrical outlet located

within 4 ft (1.2 m) of where the power

cord is attached to the back of the

washer. (See "Electrical Requirements.")

• Hot and cold water faucets located

within 4 fl (1.2 m) of the hot and cold

water fill valves, and water pressure of

5-100 psi (34.5-689.6 kPa). Washers

with triple dispensers require 20-100 psi

(138.0-689.6 kPa) for best performance.

• A _eve_|_oor with a maximum slope of

1 in. (2.5 cm) under entire washer.

Installing the washer on carpeting is not

recomme_lded.

• A sturdy floor to support the washer

weight (washer, water and load) of 315

Ibs (143 kgs).

Do not store or operate your washer in

temperatures at or below 32"F (0"C).

Some water can remain in the washer and

can cause damage in low temperatures.

See "Washer Care" for winterizing infor-

mation.

Recessed area or closet installation

The dimensions shown are for the rec-

ommended spacing allowed, except the

closet door ventilation openings. The

dimensions shown for the closet door

ventilation openings are the minimum

required.

I 2

1. Front VieW

2 Side view

3. C_oset d,_or with ranis

• Additional spacing should be consid-

ered for ease of installation and ser-

vicing.

• Additional clearances may be required

for wall, door and floor moldings.

• Additional spacing of 1 in. (2.5 cm) on

all sides of the washer is recommend-

ed to reduce noise transfer.

• If a closet door is installed, the mini-

mum air openings in the top and bot-

tom of the door are required. Louvered

doors with air openings in the top and

bottom are acceptable.

• Companion appliance spacing should

also be considered.

Drain System

The washer can be installed using the

standpipe drain system (floor or wall), the

laundry tub drain system, or the floor

drain system, Select the drain hose instal-

lation method you need. (See "Alternate

Parts You May Need:')

Floor drain system (view 2)

The floor drain system requires a siphon

break that may be purchased separately.

(See "Alternate Parts You May Need.")

The siphon break must be a minimum of

28 in. (71 cm) from the bottom of the

washer, Additional hoses might be

needed,

Electrical Requirements

1 2

Standpipe drain system -wall or floor

(view 1 & 2)

The standpipe drain requires a minimum

diameter standpipe of 2 in. (5 cm). The

minimum carry-away capacity can be no

less than 17 gal (64 L) per minute. A 2 in.

(5 em) diameter to 1in. (2.5 cm) diameter

standpipe adapter kit is available. (See

"Alternate Parts You May Need,")

The top of the standpipe must be at least

39 in. (99 cm) high and no higher than 96

in, (2.4 m) from the bottom of the washer.

_:7_= _=

Laundry tub drain system (view 1)

The laundry tub needs a minimum 20 gal

(76 L) capacity.The top of the laundry tub

must be at least 39 in. (99 cm) above the

floor and no higher than 96 in. (2.4 m) from

the bottom of the washer,

Electrical Shock Hazard

Plug into a grounded

3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these '

instructions can result in

death, fire, or electrical shock.

• A 120-volt, 60-Hz., AC-only, 15- or 20-

ampere, fused electrical supply is

required. Time-delay luse or circuit

breaker is recommended. It is recom-

mended that a separate circuit serving

only this appliance be provided.

• This washer is equipped with a power

supply cord having a 3 prong ground

plug.

• Tominimizepossibleshockhazard,the

cordmustbepluggedintoamating,3

prong,ground-typeoutlet,groundedin

accordancewithlocalcodesandordi-

nances.Ifamatingoutletisnotavail-

able,itisthepersonalresponsibilityand

obligationofthecustomertohavethe

properlygroundedoutletinstalledbya

qualifiedelectrician.

• Ifcodespermitandaseparateground

wireisused,itisrecommendedthata

qualifiedelectriciandeterminethatthe

groundpathisadequate,

• Donotgroundtoagaspipe.

•Checkwithaqualifiedelectricianifyou

arenotsurethewasherisproperly

grounded.

• Donothaveafuseintheneutralor

groundcircuit.

13 prong grounding plug

2 3 prong grounding-type outlet

3 Ground prong

4 Power supply cord

GROUNDING

INSTRUCTIONS

For a grounded, cord-connected

washer:

This washer must be grounded. In the

event of a malfunction or breakdown,

grounding will reduce the risk of

electrical shock by providing a path ot

least resistance for electric current. This

washer is equipped with a cord having

an equipment-grounding conductor and

a grounding plug.The plug must be

plugged into an appropriate outlet that

is properly installed and grounded in

accordance with all local codes and

ordinances.

WARNING: Improper connection of

the equipment-grounding conductor can

result in a risk of electric shock. Check

with a qualified electrician or service-

man if you are in doubt as to whether

the appliance is properly grounded.

Do not modify the plug provided with

the appliance - if it will not fit the outlel

have a proper outlet installed by a

qualified electrician.

For apermanently connected

washer:

This washer must be connected to a

grounded metal, permanent wiring

system, or an equipment grounding

conductor must be run with the circuit

conductors and connected to the

equipment-grounding terminal or lead

on the appliance.

iiiiiiii i

Before You Start

Excessive Weight Hazard

Use two or more people to move

and install washer.

Failure to do so can result in back

or other injury.

• To prevent floor damage, set the

washer onto cardboard before moving

across floor

• Move the washer to within approximate-

ly 3 feet (90 cm) of the final

location.

Remove Shipping Strap

Removing the shipping strap is necessary

for smooth operation. If the shipping strap

is not removed, the washer will make

excessive noise

1. Do not cut yellow strap. Pull yellow

strap firmly, until completely removed

from washer. Depending on your

model, there will be either two or three

cotter pins on the end of the shipping

strap when it is pulled out of the

washer. The electrical plug is attached

to this shipping strap.

2. Pull firmly to remove the end of the

shipping strap that remains pinned to

the back of the washer. This will

release the rear self-leveling feet.

3. Cut the shipping strap about 16 in.

(40 cm) from plug end. Look for the

words "CUT HERE." Discard end with

the cotter pins. Slide remainder of

shipping strap from the power

cord. You will use the remainder of

the shipping strap later to secure the

drain hose

Connect Drain Hose

Proper connection of the drain hose will

protect your floors from damage due to

water leakage. To prevent the drain hose

from coming off or leaking, it must be

installed per the following instructions.

IMPORTANT: To ensure proper installa-

tion, this procedure must be followed

exactly

1. Check the drain hose to see if it is

the proper length.

2. Wet the inside of the straight end of

the drain hose with tap water. DO

NOT USE ANY OTHER LUBRI-

CANT.

3. Squeeze ears of silver, double-wire

clamp with pliers to open. Place

clamp over the straight end of the

drain hose ¼ in. (6 mm) from the end.

4.Openclamp.Twisthosebackand

forthwhilepushingclownontodrain

connectoratthebottomofthewash-

er.Continueuntilhosecontactsthe

ribbedstoponthecabinet

5. Place clamp over area marked

"CLAMR" Release clamp.

1/4"

(6 ram)

I, Drain Hose

2..(_lamp

Ribbed Stop

4. Cabinet

For standpipe or laundry tub drain

systems:

1. Open yellow, single-wire clamp with

pliers and slide over hooked end of

drain hose to secure the rubber and

corrugated sections together.

1. Hookedend -

2. Drainhose

2. Put hooked end of drain4_oce into

laundry tub or standpipe. Rotate hook

to eliminate kinks.

To prevent drain water from going

back into the washer:

•Do not straighten hooked end of drain

hose. Do not force excess drain hose

into standpipe. Hose should be

secure, but loose enough to provide a

gap of air.

•Do not lay excess drain hose in bottom

of laundry tub.

• For floor drain installation, see kit num-

ber required under "Alternate Parts You

May Need."

Connect the Inlet Hoses

1. Insert new flat washers (supplied) into !

each end of the inlet hoses. Firmly _::::_::

seat the washers in the couplings.

::::::

I 2

ICouphng

2Washer

Connect the inlet hoses to the water

faucets

Make sure the washer basket is empty.

2. Attach the hose with the red coupling

to the hot water faucet. Screw on cou-

pling by hand until seated on the

washer.

3. Attach the hose with the blue coupling

to the cold water faucet. Screw on

coupling by hand until seated on the

washer.

4. Using pliers, tighten the couplings with

an additional two-thirds turn.

NOTE: Do not overtighten. Damage

to the valves can result,

Clearthewaterhnes

5.Run water through both faucets and

inlet hoses, into a bucket or laundry

tub, to get rid of part=cles in the water

lines that might clog the inlet valve

screens

Connect the inlet hoses to the washer

6Attach the hose with the red coupling

to the HOT (bottom) inlet valve

Attach=ng the red coupling first makes

it eas=er to tighten connection with

pliers Screw on coupling by hand

until seated on the washer Using pli-

ers, t_ghten the couplings with an

additional two-thirds turn

NOTE. Do not overt=ghten, Damage

to the valves can result

'_L

I Coldwaterinlet_al_eIblue)

2 Hot watertnlet valve(redl

NOTE' The inlet valve may be on the

right or the left side of the washer,

depending on your model

7. Attach the hose with the blue cou-

pling to the COLD water (tap) inlet

valve Screw on coupling by hand

untd seated on the washer Using ph-

ers, tighten the couplings with an

additional two-thirds turn

NOTE Do not overtighten. Damage

to the valves can result

Check for leaks

8. Turn on the water faucets and check

for leaks A small amount of water

might enter the washer You will drain

th=slater

NOTE: Replace inlet hoses after 5

years of use to reduce the nsk of hose

failure Record hose mstallahon or

replacement dates for future reference

• If you only connect one water

hose, you must cap off the rema=n-

ing water inlet port

• Periodically inspect and replace

hoses if bulges, kinks, cuts, wear,

or leaks are found

Secure the Drain Hose

1Drape Ihe power cord over the console

2. Remove any cardboard used to move

washer

Locate the remaining pLece of ship-

ping strap (not the end with the cotter

pins) from step 3 of 'Remove

Shtpplng Strap" Use It to wrap the

dram hose together with the laundry

tub or standpipe Push fastener into

the nearest hole in the shipping strap

Remaining por{_cnof Sh,pptngStrap

Wrap the dram hose to the laundry

tub leg or standpipe with the lie strap

ft the washer faucets and the dra_n

standp=pe are recessed, put the

hooked end of the drain hose in the

standpipe Tightly wrap the tie strap

around the water inlet hoses and the

dra=n hose

LeveltheWasher

Properly levehngyour washer prevents

excessive noise and wbrat_on

Install the front levehng feet

1, Prop up the front of the washer about

4m(10 2 cm) with awood block or

s_mdar object The block needs to

support the weight of the washer

2. Screw the lock nut onto each foot to

within 1 in (2 5 cm) of the base

3. Screw the feet into the correct holes

at the front corner of the washer until

the nuts touch the washer

NOTE: Do not tighten the nuts until

the washer is level

(See Illustration )

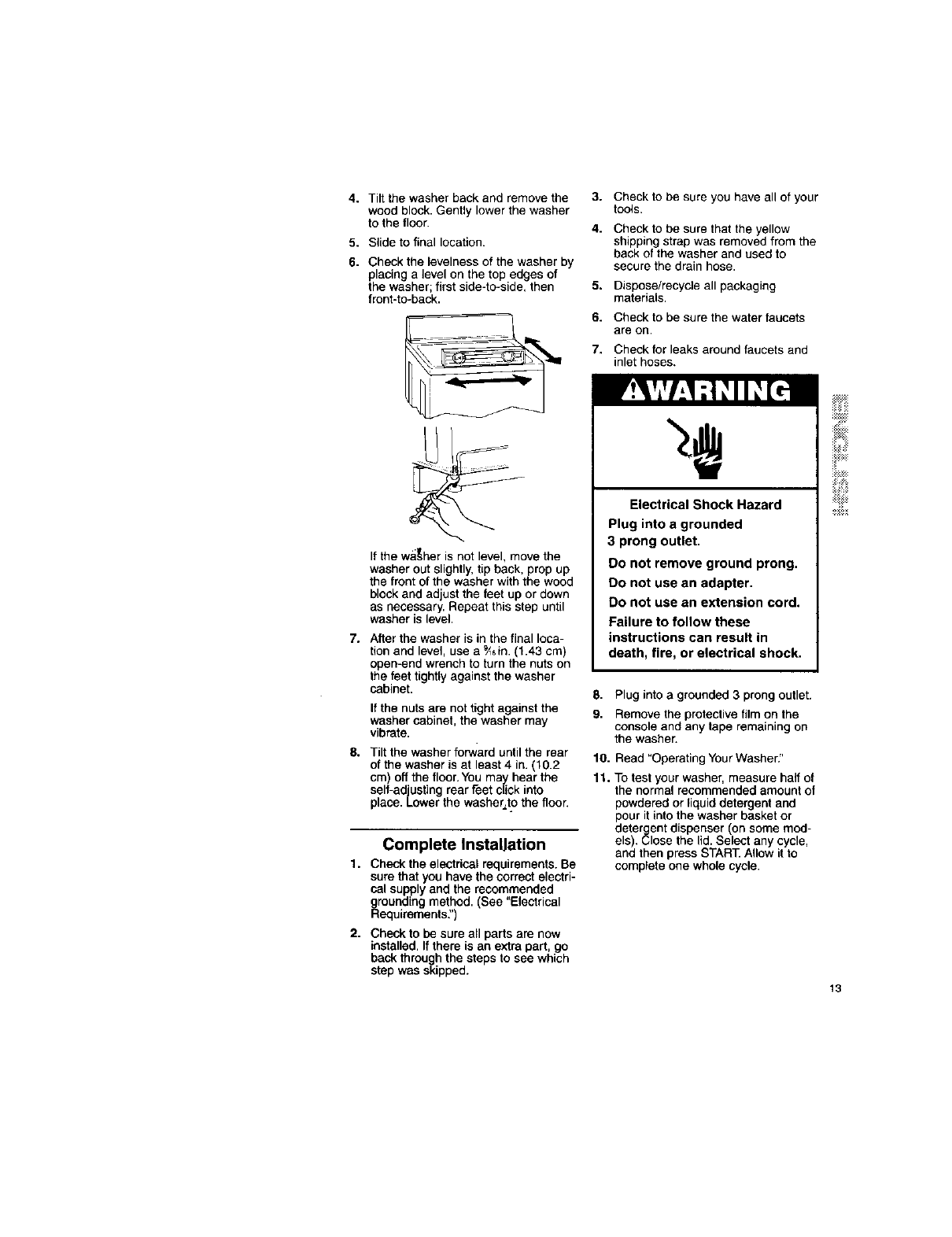

4. Tilt the washer back and remove the 3.

wood block. Gently lower the washer

to the floor. 4.

5. Slide to final location.

6. Check the levelness of the washer by

placing a level on the top edges of

the washer; first side-to-side, then

front-to-back.

If the washer is not level, move the

washer out slightly, tip back, prop up

the front of the washer with the wood

block and adjust the feet up or down

as necessary. Repeat this step until

washer is level,

7. After the washer is in the final loca-

tion and level, use a _6in. (1.43 cm)

open-end wrench to turn the nuts on

the feet tightly against the washer

cabinet.

If the nuts are not tight against the

washer cabinet, the washer may

vibrate.

8. Tilt tbe washer fo_ard until the rear

of the washer is at least 4 in. (10.2

cm) off the floor.You may hear the

self-adjusting rear feet click into

place. Lower the washer to the floor.

Complete Installation

1. Check the electrical requirements. Be

sure that you have the correct electri-

cal supply and the recommended

grounding method. (See "Electrical

Requirements:')

2. Check to be sure all parts are now

installed. If there is an extra part, go

back through the steps to see which

step was skipped.

Check to be sure you have all of your

tools.

Check to be sure that the yellow

shipping strap was removed from the

back of the washer and used to

secure the drain hose.

Dispose/recycle all packaging

materials.

Check to be sure the water faucets

are on.

Check for leaks around faucets and

inlet hoses.

Electrical Shock Hazard

Plug into a grounded

3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these

instructions can result in

death, fire, or electrical shock.

8. Plug into a grounded 3 prong outlet.

9. Remove the protective film on the

console and any tape remaining on

the washer.

10. Read "Operating Your Washer."

11. To test your washer, measure half of

the normal recommended amount of

powdered or liquid detergent and

pour it into the washer basket or

detergent dispenser (on some mod-

els). Close the lid. Select any cycle,

and then press START. Allow it to

complete one whole cycle.

ii! !i;ill

To get the maximum cleaning and

fabric care from your washer, please

read and follow these instructions.

NOTE: The drawings in this section show

the basic features of all models covered

by this manual. Refer to the supplied

"Feature Sheet" for your washer's

particular features.

Fire Hazard

Never place items in the washer

that are dampened with gasoline

or other flammable fluids.

No washer can completely

remove oil.

DO not dry anything that has ever

had any type of oil on it (including

cooking oils).

Doing so can result in death,

explosion, or fire.

LID INSTRUCTIONS

These instructionsare foundunder the

lid of your washer.

DISPENSER Add measured liquid chlorine bleach to the

dispenser, 5 rain. after the washer cycle starts

for best wash performance.

Do not use POWDERED BLEACH IN THIS

DISPENSER.

Add measured fabric softener to the agitator

mounted dispenser.

Add measured detergent to the washer basket,

1. SELECT & ADJUST Make the selections for these washer controls:

(some washers may not have all of these controls)

• WATER LEVEL .......... Adjust to load size.

•WASH /RINSE TEMP ....... Use AUTO TEMP selections for best wash

performance.

• SPEEDS Adjust to fabric type being washed.

i_,,_t,,f ,r,#l

HEAVYDUTY

NORMAL

'___ PERMPRESS

]OEUCATEHANDWASH

I_rtl:llMFl|l_rri

DENIMS, TOWIELS;

EXTRAOlfiTY

CO'ITONS

SYNTHETICS

KNITS

UNG[RLE

ANY BLEACH

NON-CHLORIN_

BLEACH

DONOT BLEACH

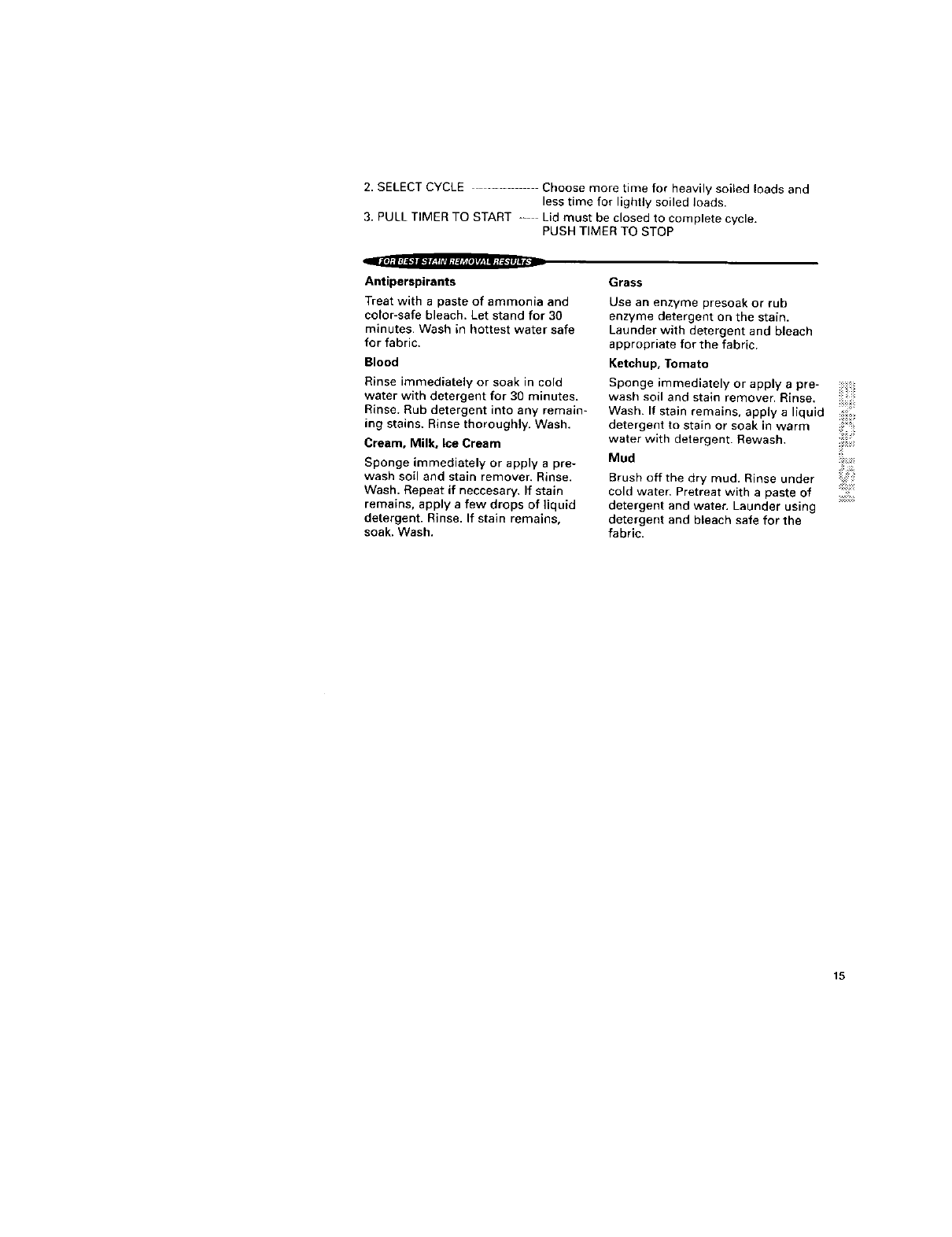

2. SELECT CYCLE ............. Choose more time for heavily soiled loads and

less time for lightly soiled loads.

3. PULL TIMER TO START - Lid must be closed to complete cycle.

PUSH TIMER TO STOP

Antiperspirants

Treat with a paste of ammonia and

color-safe bleach. Let stand for 30

minutes. Wash in hottest water safe

for fabric.

Blood

Rinse immediately or soak in cold

water with detergent for 30 minutes.

Rinse. Rub detergent into any remain -

ing stains. Rinse thoroughly. Wash.

Cream, Milk, Ice Cream

Sponge immediately or apply a pro-

wash soil and stain remover. Rinse.

Wash. Repeat if neccesery, If stain

remains, apply afew drops of liquid

detergent. Rinse. If stain remains,

soak. Wash.

Grass

Use an enzyme presoak or rub

enzyme detergent on the stain.

Launder with detergent and bleach

appropriate for the fabric.

Ketchup, Tomato

Sponge immediately or apply apro-

wash soil and stain remover, Rinse. _:':_::

Wash. If stain remains, apply a liquid

detergent to stain or soak in warm

water with detergent. Rewash.

Mud

Brush off the dry mud, Rinse under ::

cold water, Pretreat with a paste of :.

detergent and water. Launder using

detergent and b_each safe for the

fabric.

STARTING YOUR WASHER

STEP 1. Add measured detergent

directly into washer basket• Then place

a load of sorted clothes in the washer•

STEP 2. (OPTIONAL STEP) If desired,

add measured liquid chlorine bleach to

the liquid bleach dispenser.

STEP 3. (OPTIONAL STEP) If desired,

add measured liquid fabric softener to

the fabric softener dispenser.

STEP 4. Close washer lid.

STEP 5. Set WATER LEVEL Control Q

based on the size of your wash load.

STEP 6. Set the WATER TEMPERATURE

Control _).

STEP 7. Set SPEEDS (_ Control

according to the type of fabric in the

load.

STEP 8. Push the Cycle Selector

Control (Timer) knob _) in and turn to

the right to desired setting.

STEP 9. Pull the Cycle Selector Control

(Timer) knob _) out.The dial will rotate

as the cycle progresses. The knob will

not rotate.

STOPPING/RESTARTING

YOUR WASHER

•To stop the washer at any time, push

the Cycle Selector Control (Timer)

knob _) in.

• Pull the knob out to restart•

WA_R LEWL WA_ _M_ S_E_

_ M _ _,T, _ II

_L __! 1"

O 0 ®-"

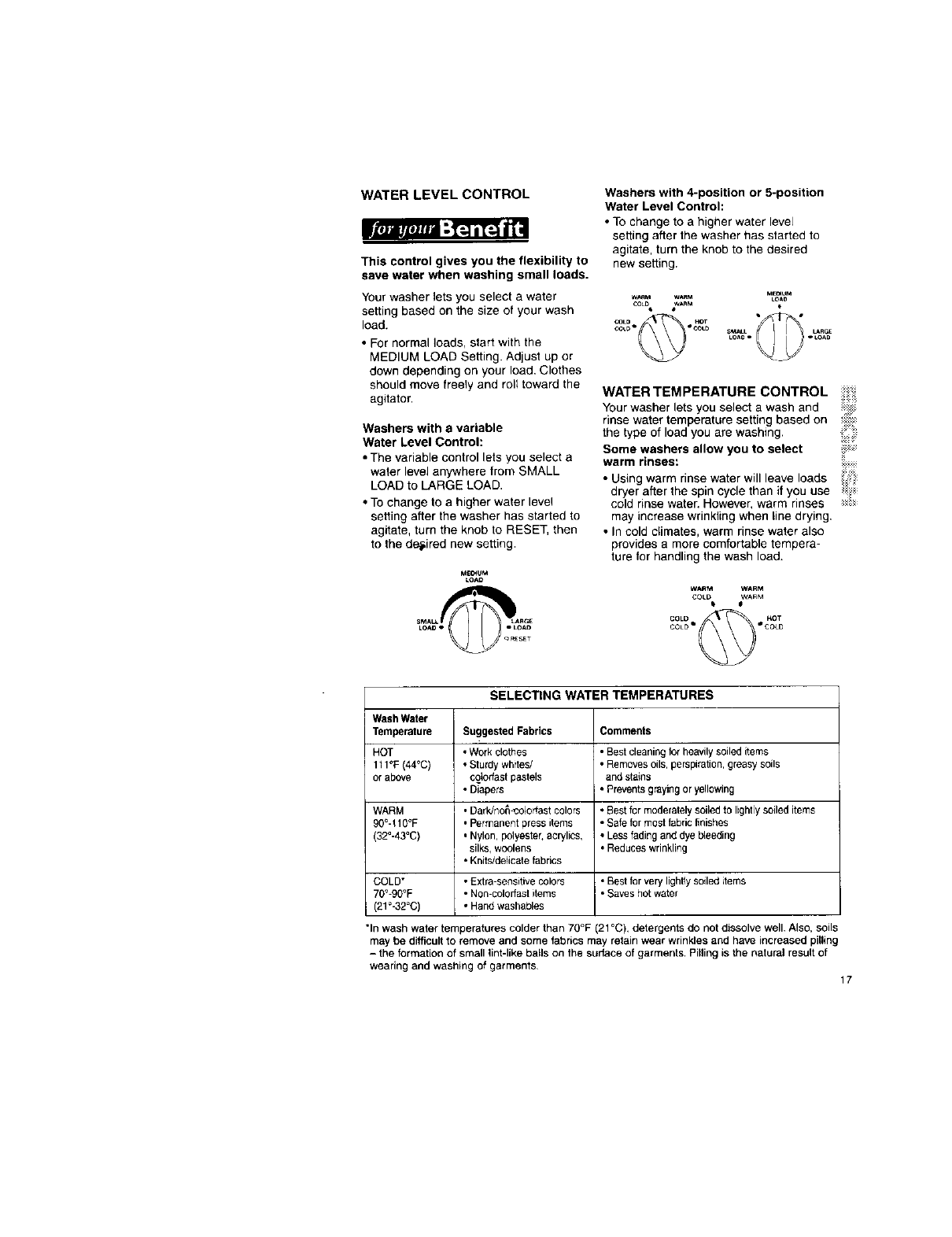

WATER LEVEL CONTROL

This control gives you the flexibility to

save water when washing small loads.

Your washer lets you select a water

setting based on the size of your wash

load.

•For normal loads, start with the

MEDIUM LOAD Setting. Adjust up or

down depending on your load. Clothes

should move freely and roll toward the

agitator.

Washers with a variable

Water Level Control:

• The variable control lets you select a

water level anywhere from SMALL

LOAD to LARGE LOAD.

•To change to e higher water level

setting after the washer has started to

agitate, turn the knob to RESET, then

to the desired new setting.

ME_UM

LOAO

Washers with 4-position or 5-position

Water Level Control:

•To change to a higher water level

setting after the washer has started to

agitate, turn the knob to the desired

new setting.

w_,.M

COLD

•

COLD _ _r

COL_ Q _eOtO S_I_L U_RaE

LOAO o o L_O

WATER TEMPERATURE CONTROL

Your washer lets you select a wash and ::_:_:

rinse water temperature setting based on :.ii::

the type of load you are washing.

Some washers allow you to select

warm rinses:

•Using warm rinse water will leave loads i;:.:i:

dryer after the spin cycle than if you use i::::.:.

cold rinse water. However, warm rinses _:_:.:_:

may increase wrinkling when line drying.

•In cold climates, warm rinse water also

provides amore comfortable tempera-

ture for handling the wash load,

WARM WARM

COLD eWARM

SELECTING WATER TEMPERATURES

Wash Water

Temperature Suggested Fabrics Comments

HOT •Work clothes • Best cleaning for heavily soiled items

111°F (44°C) •Sturdy whites/ • Removes oils, perspiration, greasy soils

or above cgiorfastpastels and stains

• Diapers i • Prevents graying or yellowing

WARM •DarkJno_-_colorfastcolors • Best for moderately soiled to lightly soiled items

90°-t 10°F • Permanent press items •Safe for most fabric knishes

(32°-43°C) •Nylon, polyesteh acrylics, • Less fading and dye I_eeding

silks, woolens • Reduces wrinkling

• Knits/delicate fabrics

COLD* • Extra-sensitive colors • Best for very lightly soiled items

70°-90°F •Non-colorfast items • Saves hot water

(21°-32°C) • Hand washables

*In wash water temperatures colder than 7O°F (21 °C), detergents do not dissolve well. Also, soils

may be difficult to remove and some fabrics may retain wear wrinkles and have increased pilling

- the formation of small knt-like balls on the surface of garments. Piking is the natural result of

wearing and washing of garments

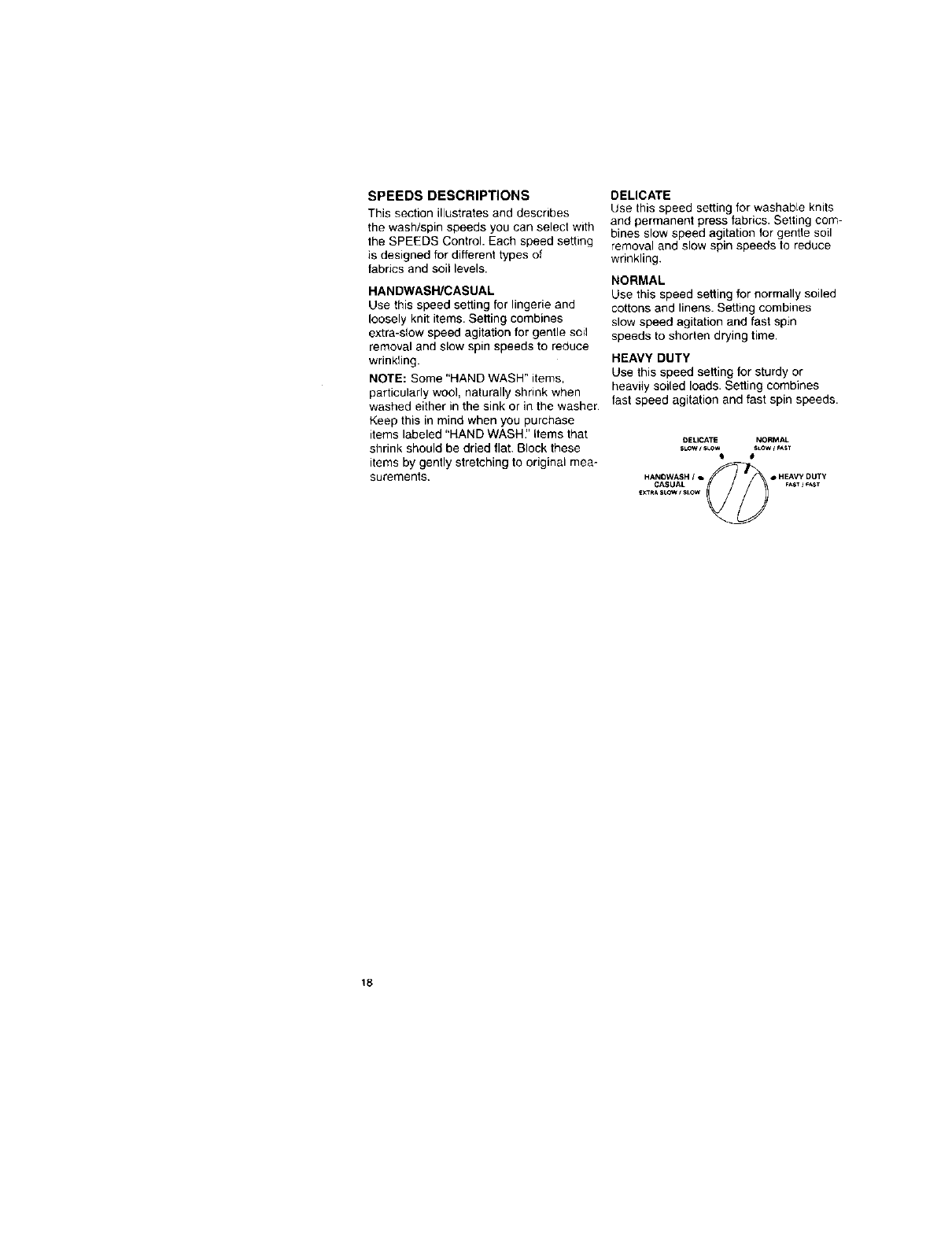

SPEEDS DESCRIPTIONS

This section illustrates and describes

the wash/spin speeds you can select with

the SPEEDS Control. Each speed setting

is designed for different types of

fabrics and soil levels.

HANDWASH/CASUAL

Use this speed setting for lingerie and

loosely knit items. Setting combines

extra-slow speed agitation for gentle soil

removal and slow spin speeds to reduce

wrinkling.

NOTE: Some "HAND WASH" items,

particularly wool, naturally shrink when

washed either in the sink or in the washer

Keep this in mind when you purchase

items labeled "HAND WASH." Items that

shrink should be dried flat. Block these

items by gently stretching to original mea-

surements.

DELICATE

Use this speed setting for washable knits

and permanent press fabrics. Setting com-

bines slow speed agitation for gentle soil

removal and slow spin speeds to reduce

wrinkling.

NORMAL

Use this speed setting for normally soiled

cottons and linens. Setting combines

slow speed agitation and fast spin

speeds to shorten drying time.

HEAVY DUTY

Use this speed setting for sturdy or

heavily soiled loads. Setting combines

fast speed agitation and fast spin speeds.

OELICATE NORMAL

SLOWis_.ow SLOW r FAS_

HANOWASH I'b _ • HEAVY DUT_t

CASUAL _ FAST IFAST

_XT_A SLOW/SLOW

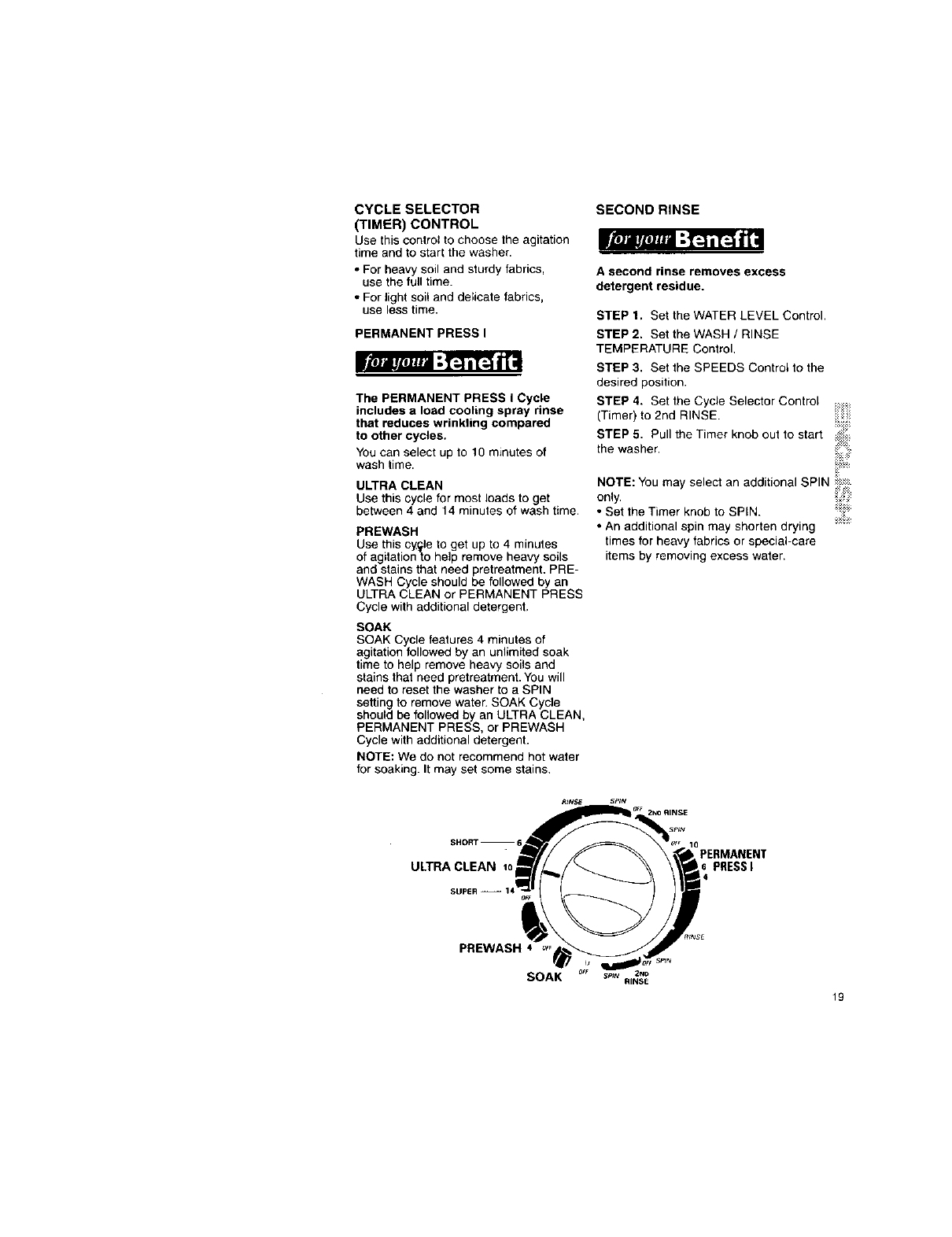

CYCLE SELECTOR

(TIMER) CONTROL

Use this contro_ to choose the agitation

time and to start the washer.

• For heavy soil and sturdy fabrics,

use the full time.

•For light soi! and delicate fabrics,

use less time.

PERMANENT PRESS I

Vjm zFJ111 ttl

The PERMANENT PRESS I Cycle

includes a load cooling spray rinse

that reduces wrinkling compared

to other cycles.

You can select up to 10 minutes of

wash time.

ULTRA CLEAN

Use this cycle for most loads to get

between 4 and 14 minutes of wash time.

PREWASH

Use this cycle to get up to 4 minutes

of agitationto help remove heavy soils

and stains that need pretreatment. PRE-

WASH Cycle should be followed by an

ULTRA CLEAN or PERMANENT PRESS

Cycle with additional detergent.

SOAK

SOAK Cycle features 4 minutes of

agitation followed by an unlimited soak

time to help remove heavy soils and

stains that need pretreatment. You will

need to reset the washer to a SPIN

setting to remove water. SOAK Cycle

should be followed by an ULTRA CLEAN,

PERMANENT PRESS, or PREWASH

Cycle with additional detergent.

NOTE: We do not recommend hot water

for soaking. It may set some stains.

RIN$E

SECOND RINSE

A second rinse removes excess

detergent residue.

STEP 1. Set the WATER LEVEL Control.

STEP 2. Set the WASH /RINSE

TEMPERATURE Control,

STEP 3. Set the SPEEDS Control to the

desired position.

STEP 4. Set the Cycle Selector Control

(Timer) to 2nd RINSE.

STEP 5. Pullthe Timer knob out tostart i!;ii::

thewaaher. Z;,I

NOTE: You may select an additional SPIN !::!::_i:

only.

• Set the Timer knob to SPIN. ":':i_:':

•An additional spin may shorten drying _::

times for heavy fabrics or special-care

items by removing excess water.

SHORT

ULTRA CLEAN PERMANENT

PRESSI

PREWASH 4

SOAK o,, z.o

RINSE

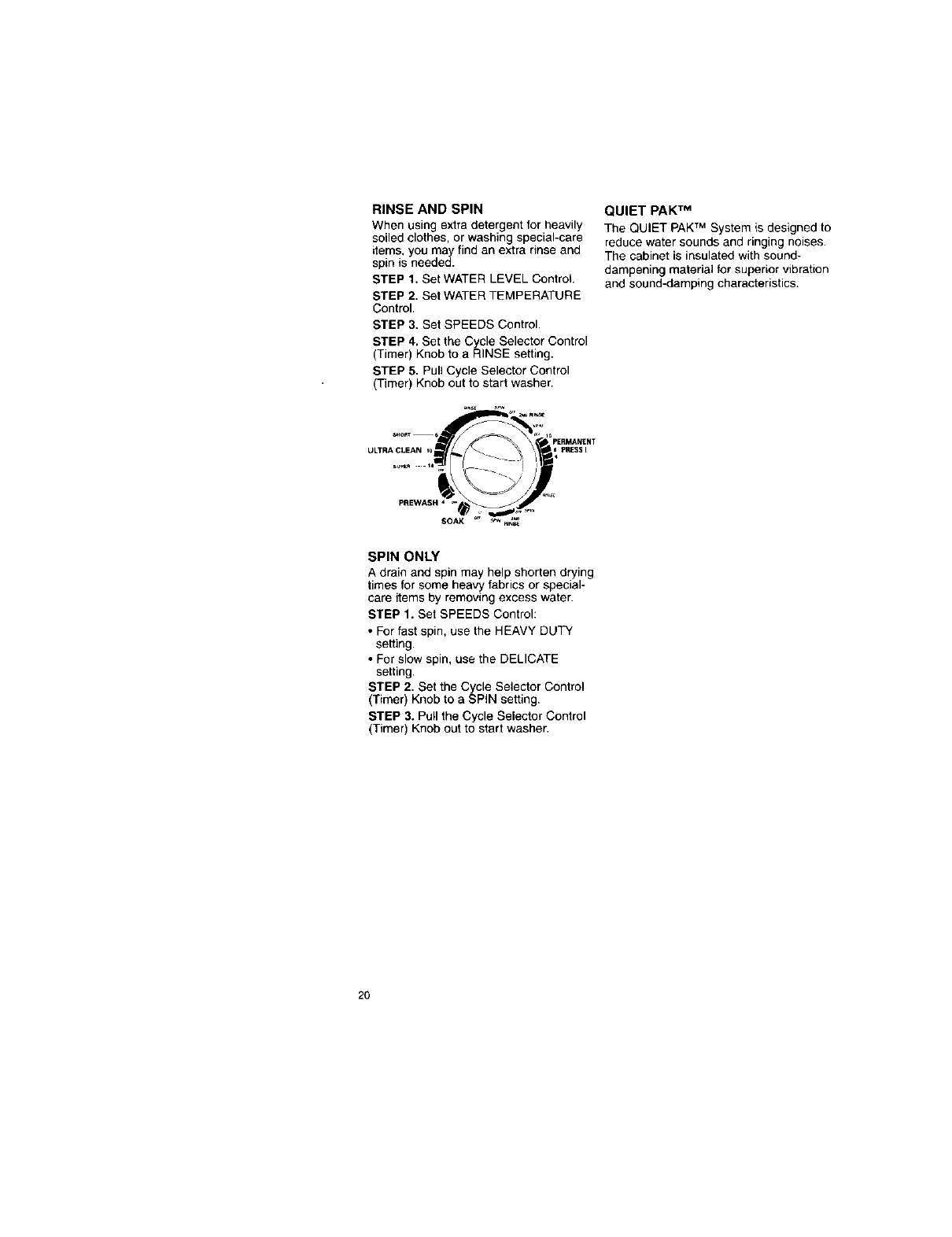

RINSE AND SPIN

When using extra detergent for heavily

soiled clothes, or washing special-care

items, you may find an extra rinse and

spin is needed.

STEP 1, Set WATER LEVEL Control.

STEP 2. Set WATER TEMPERATURE

Control.

STEP 3. Set SPEEDS Control.

STEP 4. Set the Cycle Selector Control

(Timer) Knob to a RINSE setting.

STEP 5. Pull Cycle Selector Control

(Timer) Knob out to start washer.

QUIET PAK TM

The QUIET PAK TM System is designed to

reduce water sounds and ringing noises.

The cabinet is insulated with sound-

dampening material for superior vibration

and sound-damping characteristics.

ULTRA CLEAN

SPIN ONLY

A drain and spin may help shorten drying

times for some heavy fabrics or special-

care items by removing excess water.

STEP 1. Set SPEEDS Control:

• For fast spin, use the HEAVY DUTY

setting.

• For slow spin, use the DELICATE

setting.

STEP 2. Set the Cycle Selector Control

(Timer) Knob to a SPIN setting.

STEP 3. Pull the Cycle Selector Control

(Timer) Knob out to start washer.

TRIPLE ACTION AGITATOR USING THE LIQUID CHLORINE

BLEACH DISPENSER

Kenmore's Triple Action Agitator gives

you flexible fabric care for even your

largest loads.

The best cleaning action in your washer

takes place at the bottom where the

agitator vanes move back and forth to flex

the fabric, loosening the soil TO get all your

clothes down to the bottom of the washer,

the upper portion of the agitator has

uniquely designed, spiral vanes to help

push the ClOthes that are on top down to

the bottom. This spiraling action displaces

the clothes that are on the bottom with a

"roll-over" motion.

UNDERSTANDING NORMAL

WASHER SOUNDS

Your new washer may make sounds

that your old one didn't. Because the

sounds are unfamiliar, you may be

concerned about them.

The following describes some of the

normal sounds you may hear and what

causes them.

Automatically dilutes bleach to

ensure the cleanest and brightest

loads.

Always measure liquid chlorine bleach.

Use a measuring cup, do not guess. Do

not pour directly from bottle. Never use

more than 1 cup (250 mL) for a full load.

Use less with smaller loads. Follow manu-

facturer's directions for safe use. A cup :.:

with a pouring spout will help ;::

you avoid spilling.

'I III

,\ 'i

During Washing

When you select a small load size setting

for asmall wash load, your washer has a • Start the washer. Bleach will be diluted

lower water level. WitR this lower water automatically before it comes in contact

After loading the washer, pour measured

liquid chlorine bleach carefully into the

dispenser.

• Do not let bleach splash, drip, or run

down into washer basket. Undiluted

bleach will damage any fabric it touches.

with the wash load.

NOTE: Do not use this dispenser to add

powdered chlorine or color-safe bleach

to your wash load. The dispenser is for

liquid chlorine bleach only.

iLiquid chlorine

bleach dispenser

level, you may hear a clicking sound from

the upper portion of the agltator.

During Drain

The rate that water is drained from your

washer depends on your installation. If

water is drained quickly from the washer,

you may hear air being pulled through

the pump This happens during the end of

draining.

After Drain and Before Spin

When the cycle changes from draining

to spinning, you may hear a noise as the

geamase shifts.

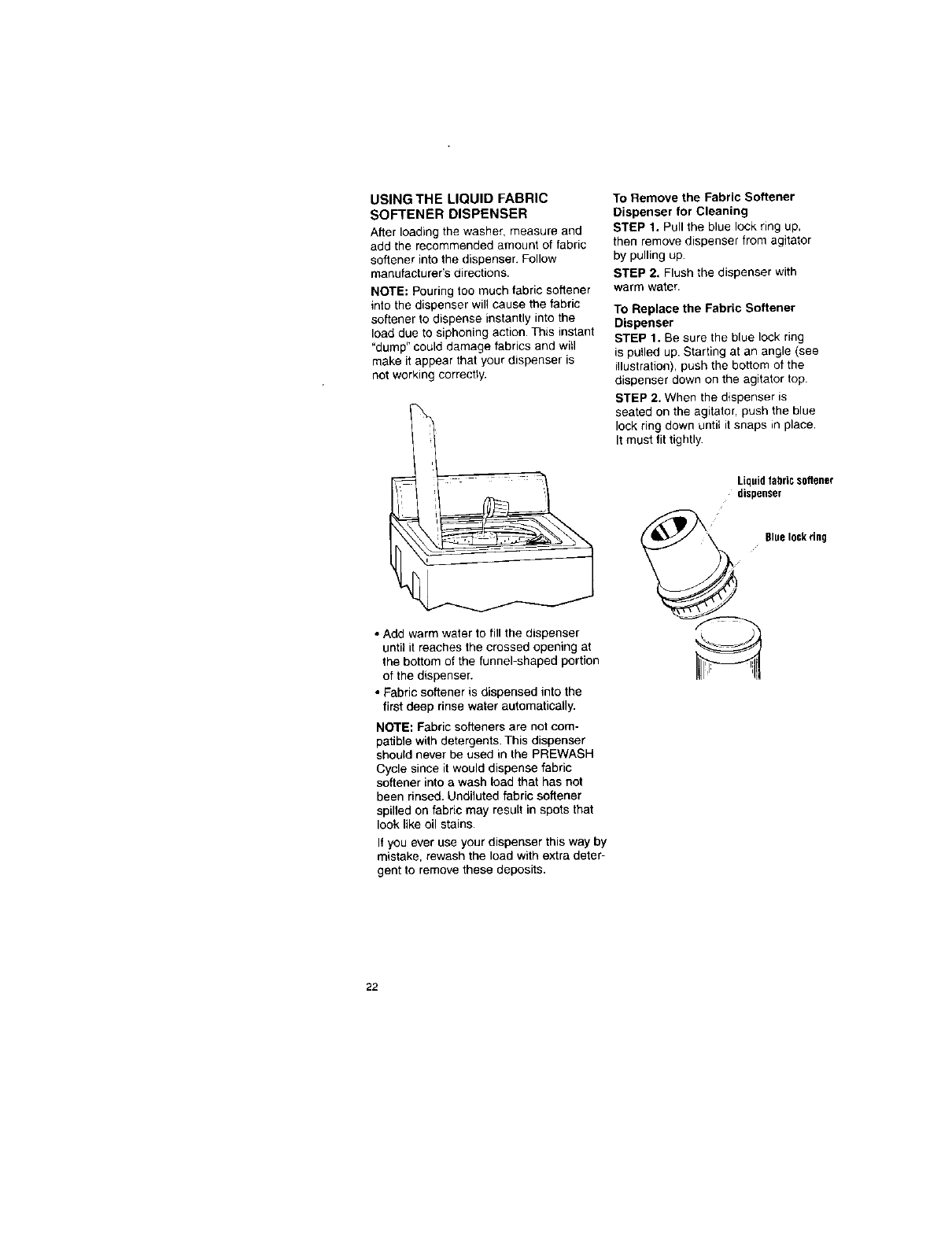

USING THE LIQUID FABRIC

SOFTENER DISPENSER

After toading the washer, measure and

add the recommended amount of fabric

softener into the dispenser. Follow

manufacturer's directions.

NOTE: Pouring too much fabric softener

into the dispenser will cause the fabric

softener to dispense instantly into the

load due to siphoning action. This instant

"dump" could damage fabrics and wilt

make it appear that your dispenser is

not working correctly.

To Remove the Fabric Softener

Dispenser for Cleaning

STEP 1. Pull the blue lock ring up,

then remove dispenser from agitator

by pulling up

STEP 2. Flush the dispenser with

warm water.

TO Replace the Fabric Softener

Dispenser

STEP 1. Be sure the blue lock ring

is pulled up. Starting at an angle (see

illustration), push the bottom of the

dispenser down on the agitator top.

STEP 2. When the dispenser is

seated on the agitator, push the blue

lock ring down untit it snaps in place.

It must fit tightly.

Liquid fabric =oltener

dispenser

• Add warm water to fill the dispenser

until it reaches the crossed opening at

the bottom of the funnel-shaped portion

of the dispenser.

•Fabric softener is dispensed into the

first deep rinse water automatically.

NOTE= Fabric softeners are not com-

patible with detergents. This dispenser

shoutd never be used in the PREWASH

Cycle since it would dispense fabric

softener into a wash load that has not

been rinsed. Undiluted fabric softener

spilled on fabric may result in spots that

look like oil stains.

If you ever use your dispenser this way by

mistake, rewash the load with extra deter-

gent to remove these deposits.

Blue lock ring

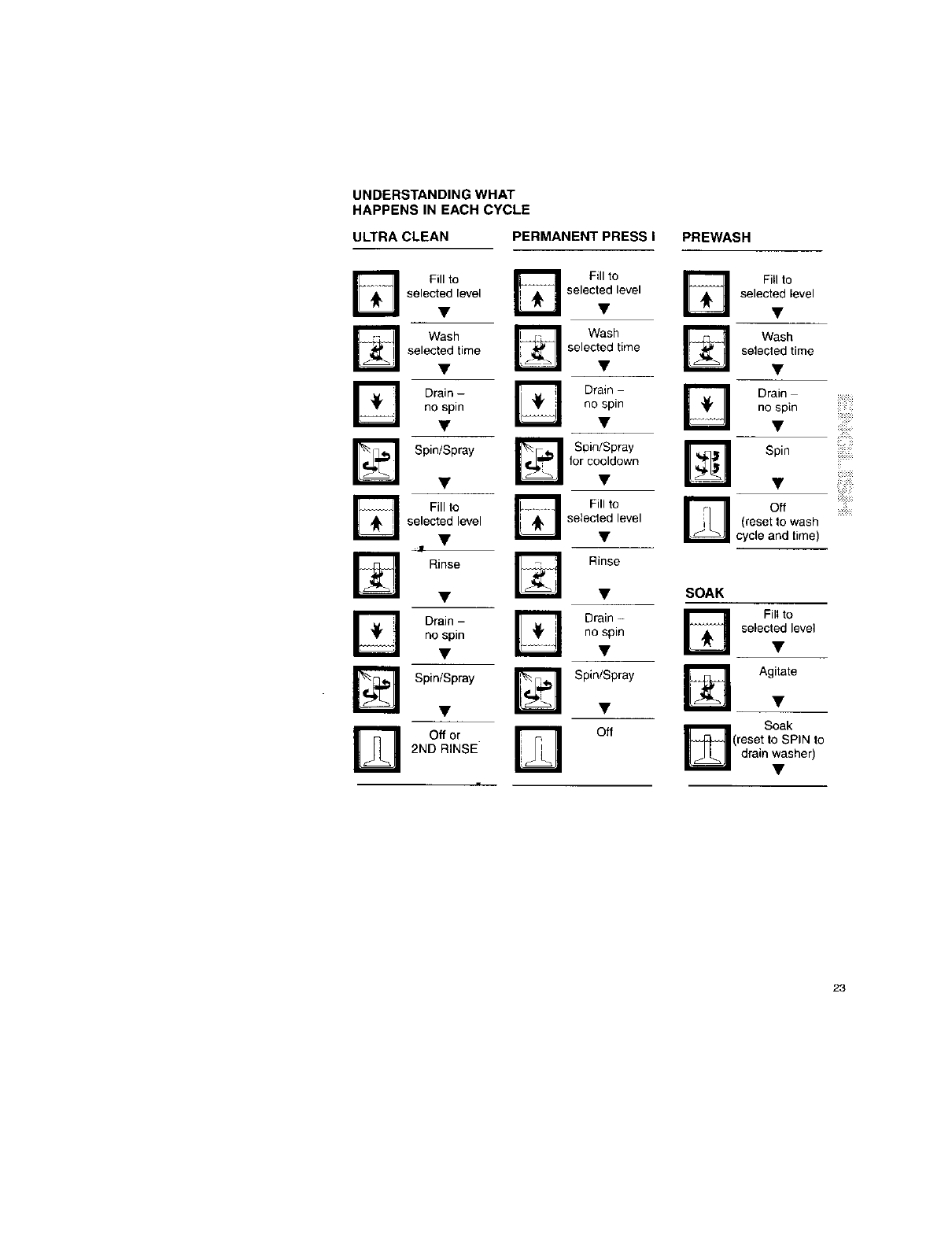

UNDERSTANDING WHAT

HAPPENS IN EACH CYCLE

ULTRA CLEAN PERMANENT PRESSI PREWASH

Fill to _ Fill to r_ Fill to

selectedlevel selectedlevel selectedlevel

_ Wash _ Wash _ wash

selected time selected time selected time

_ Drain- _ Drain- _ Drain

no spin no spin no spin

Spin/Spray

Fill to

selected level

Rinse

Drain -

no spin

_ Spin/Spray

Off or

2ND RINSE

D Spin/Spray Spin : :

for cooldown

Fill to Off ........

selected level (reset to wash _:::

• cycle and time)

Rinse SOAK

Drain - _ Fill to

no spin selected level

Spin/Spray El Agitate

Off _ (resetS°_klN to

I1 11 drain washer)

PREPARING CLOTHES

FOR WASHING

rj : '31t tD'

Follow these recommendations

to help you prolong the life of

your garments.

• Close zippers, snaps, and hooks to

avoid snagging other items. Remove

pins, buckles, and other hard objects

to avoid scratching the washer interior.

Remove non-washable trim and

ornaments.

• Empty pockets and turn them

inside-out

• Turn down cuffs; brush away lint

and dirt.

• Turn synthetic knits inside-out to

avoid pilling.

• Tie strings and sashes so they will

not tangle

• Mend tears, loose hems, and seams.

• Treat spots and stains.

• Stained or wet garments should be

washed promptly for best results.

SORTING

• Separate heavily soiled items from

lightly soiled ones, even if they

would norma,y be washed together.

Separate lint-givers (towels, chenille)

from lint-takers (corduroy, synthetics,

permanent press). When possible,

turn lint-givers inside-out.

• Separate dark colors from light colors,

colorfast items from non-colorfast items.

• Sort by fabric and construction

(sturdy cottons, knits, delicate items).

Proper loading of your washer

contributes to proper cleaning and

fabric care and reduces machine noise.

•Drop items loosely into washer. Fill

to the top of the basket (top row of

holes). DO not wrap items around the

agitator. Items should move easily

through wash water for best cleaning

and wrinkle-free results. Items should

sink and reappear later.

• Load washer properly and select correct

water level setting. Overloading or

packing the machine, and selecting a

setting too small for the wash load can:

- cause poor cleaning

- increase wrinkling

-create excessive lint

- wear out items faster

(becau[_e of pilling)

• Load by the amount of space items

take up, not by their weight.

•Mix large and small items in each load.

Load evenly to maintain washer balance,

An off-balance load can make the washer

vibrate during spin.

• Use a higher water level setting to

reduce wrinkling with permanent press

clothes and some synthetic knits. These

items should have more room to move in

the water than heavy items (towels,

jeans).

• Reduce wash time by using a lower

water level setting. Loads with only a

few small items need less wash time.

LOADING SUGGESTIONS

For these suggested full-sized loads,

set the WATER LEVEL Selector to the

highest water level setting.

Super Capacity Plus Washers

Heaw Work

Clothes Towels Mixed Load

4 ieans 10 bath towels 3 sheets

4workpants 10 hand towels (1 king 2 twin)

4workshirts 14 wash cloths 4 pillowcases

2 sweatshJrts 3 shirts

2 sweatpants 3 blouses

9 T-shirts

9 shorts

10 handkerchiefs

CLEANING YOUR WASHER

Exterior

Wipe up detergent, bleach, and other

spills with a soft, damp cloth or sponge

as they occur. Occasionally wipe the

outside of the washer to keep it looking

like new.

Do not put sharp or metal objects in your

washer. They can damage the finish

Check all pockets for pins, clips, money,

bolts, nuts, etc. Do not lay these objects

on your washer after emptying pockets.

Interior

Clean interior with 1 cup (250 mL) of

chlorine bleach mixed with 2 cups

(500 mL) of detergent. Run washer

through a complete cycle using hot

water. Repeat process if necessary.

NOTE: Remove hard water deposits

using only cleaners labeled as washer

safe.

Water Inlet Hoses

Replace inlet hoses after five years of

use to reduce the risk of hose failure.

Periodically inspect and replace inlet

hoses if bulges, kinks, cuts, wear or

leaks are found. When replacing your

inlet hoses, mark the date of replace-

ment on the label with a permanent

marker.

WINTER STORAGE

OR MOVING CARE

Install and store your washer where it

will notfreeze. Because some water

may stay in the hoses and pump,

freezing can damage your washer. If

storing or moving your washer during

freezing weather, winterize it.

TO winterize washer:

1. Shut off both water faucets.

2. Disconnect and drain water inlet

hoses.

3. Put 1 qt (1 L) of R.V.-type antifreeze

in the basket.

4. Run washer on a SPIN setting for

about 30 seconds to mix the

anti-freeze and water. Some of the

mixture will pump out while the

washer spins.

5. Unplug washer or disconnect power.

To use washer again:

t. Flush water pipes and hoses.

2. Reconnect water inlet hoses.

3. Turn on both water faucets.

4. Plug in washer or reconnect power.

5. Run the washer through a complete

cycle with 1 cup (250 mL) of

detergent to clean out antifreeze.

NON-USE OR VACATION CARE

Operate your washer only when you

are at home. If you will be on vacation

or not using your washer for an

extended period of time, you should:

• Unplug washer or disconnect power.

• Turn off the water supply to the

washer. This helps avoid accidental

flooding (due to a water pressure

surge) while you are away.

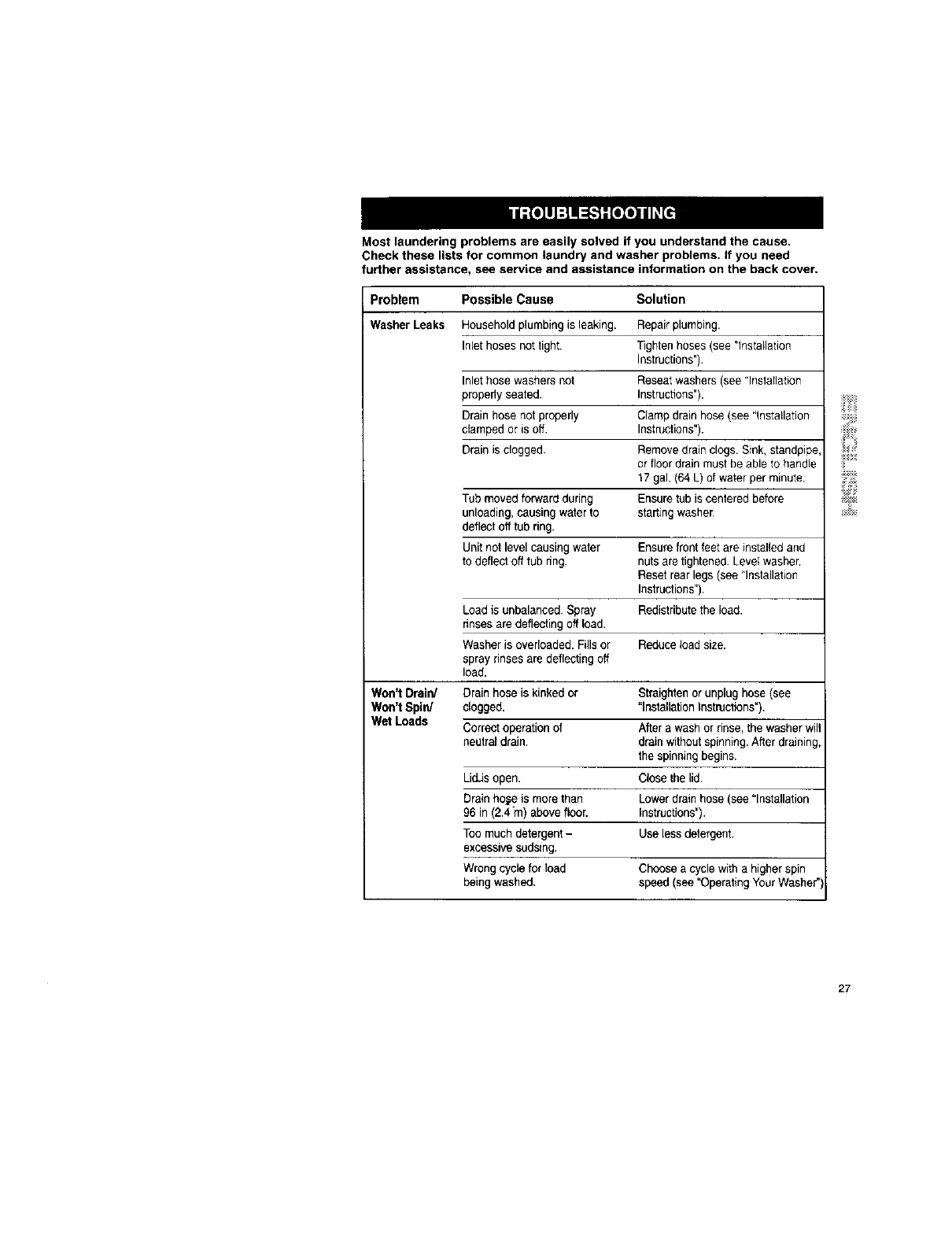

Most laundering problems are easily solved if you understand the cause.

Check these lists for common laundry and washer problems. If you need

further assistance, see service and assistance information on the back cover.

Problem Possible Cause Solution

Washer Leaks Household plumbing is leaking. Repairplumbing.

Inlet hoses not tight. "Sghtenhoses (see "Installation

Instructions")

Inlet hose washers not Reseat washers (see "lnstaElation

properly seated. Instructions").

Drain hose not properly Clamp drain hose (see 'Installation

clamped or is oft. Instructions").

Drain is clogged. Remove drain clogs. Sink, standpipe,

or floor drain must be able to handle

17 gal. (64 L) of water per minute.

Tub moved forward during Ensure tub is centered before

unloading, causing waterto starting washer,

deflect oft tub ring.

Unit not level causing water Ensure front feet are installed and

to deflect oft tub ring. nuts are tightened. Level washer.

Reset rear legs (see"Installation

Instructions")

Load is unbalanced. Spray Redistribute the load

hnses are deflecting off load.

Washer is overloaded. Fills or Reduce load size.

spray rinses are deflecting off

load.

Won't Drain/ Drain hose is kinked or Straighten or unplug hose (see

Won't Spin/ clogged. "Installation Instructions').

Wet Loads Correctoperationof Aftera washor bnse, the washerwill

neutral drain, drain withoutspinning. After draininc

the spinningbegins.

LidJsopen. Close the lid.

Drainho}e is morethan Lowerdrainhose (see "Installation

96 in (2.4-rn)above floor. Instructions").

Too much detergent - Use lessdetergent.

excessivesudsing.

Wrongcyclefor load Choose a cyclewitha higherspin

beingwashed, speed (see"Operating YourWasher"

Problem Possible Cause Solution

Won't Drain/ Low voltageor using Check electrical source or call

Won't Spin/ an extension cord. electrician, Do not use extension

Wet Loads cords.

(cont.) Cold rinses. Cold rinses leave loadswetterthan

warm rinses.Thisis normal

Continues Drain hoseis less than Raisethe drainhose (see

tO FiW 39 in (99 cm) above floor. "_nstallationInstructions").

Continues

to Drain/ Drain hose fits tightly into Adjust drain hose for loose tit

Cycle Stuck standpipe. (see "Installation instructions")

Drain hose taped into Do not seal off drain hose with tape.

standpipe. The drain hose needs an air gap

Washer Makes Load is unbalanced. Redistribute load,

Noise Washer is not level Level washer. Reset rear legs

Rear leveling legs not set (see 'Installation Instructions").

Nuts on front feet net tight. Tightennuts (see "Installation

Instructions").

Yellowshipping strap with Remove strap with cotter pins

cotter pins not completely (see "Installation Instructions").

removed.

Floornot strong enough Relocate washer (see "Installation

to support washer, Instructions").

Gears engaging after drain This is normal

and before spin,

Upper part of agitator cticks This is normal.

during wash.

Won't Water inlet valve Clean screens.

RII/Won't screens are plugged.

Rinse/Won't

Agitate/ Wateris turned oft. Turnon water.

Wrong Hot and coldhosesare Reversehoses(see "Installation

Temperature reversed. Instructions').

Inlethose is kinked. Straighten hoses.

Timer dial is not lined up. Turn timer knob to the right slightly

and pull to start.

Powercord not plugged in, Plug into a grounded 3 prong outlet,

Problem Possible Cause Solution

Machine Power cord not plugged in. Plug into a grounded 3 prong outlet,

Stops No power at plug. Check electrical source or call

electrician.

Fuse blown or circuit Replace fuse or reset circuit breaker.

breaker open. if problem continues, call electrician.

Using an extension cord. DOnot use extension cords.

Timer is not lined up. Turn timer to the right slightly

and pull to start.

Timer knob not pul_edout. Set and pull out knob.

Machine is overloaded. Wash smaller loads.

Agitator Not The top of the agitator moves This is normal.

Working only in one direction.

The topof the agitator is loose. This is normal

Water Level The topof the agitator is much This is normal.

Too Low/Not higher than the highest water

Completely level.This creates a perception

Filling of the washernotbeing full.

Tub is -t Tub puffedforward when Ensure tub is centered before

Crooked unloading, starting washer.

Tub moves. This is normal.

Unit not level. Ensure front feet are installed and

nuts are tightened.Level washer.

Reset rear legs (see "Installation

Instructions").

Lint on Load Improper sorting. Sort lint givers from lint takers

and by color.

Overloading. Lint can be trapped in load if

overloaded. Wash smaller loads.

Paper or tissue in pockets. Clean out pockets before washing.

Not enough detergent. Use enough detergent to

hold lint in water.

Detergent'not dissolving. Use AutomaticTemperature Control

Water temperatures lower (ATC).ATC ensures wash water

than 70°F (21°C). temperature will be warmer than

7O°F(21°C).

iii"i !:i i

Problem Possible Cause Solution

Tearing Overloading. improper Loadsshouldmovefreely during

use of washer wash.Wash smaller loads or

increase water level

improper use of chlorine DOnot pour chlorine bleach directly

bleach. Undiluted bleach on load. Wipe up bleach spills.

will damage fabrics.

Sharp items not removed Clean outpockets before washing.

from pockets;fasteners Zip zippers before washing.

not fastened.

itemsdamaged before Mend rips and broken threads in

washing, seams before washing.

Stains on Improper use of fabric Dilute fabricsoftener and add te

Load softener in washeror dryer, deep rinse only.

Iron in water (rust). Install an ironfilter.

Under use of detergent causing Use enough detergent to remove

soil to be redeposited, soil and hold it in suspension

Dye transfer due to not Sort dark clothing from whites

sorting loads properly, and lights.

Dye transfer due to not Unload the washer as soon as

unloading washer promptly, it stops.

Load is Not removing load promptly. Unloadthe washer as soon as it

Wrinkled stops.

Wrongcycleforfabrics Use coldrinsesand cycleswithslov,

being washed, spin speeds to reduce wrinkling.

Overloading. Loadsshould movefreely during

wash.Wash smaller!oads,

Washwater notwarmenough Use AutomaLicTemperatureControl

to relaxwrinkles.Usingwarm (ATC).If safe for fabric, use warmor

rinses, hot wash water.Use cold rinse water.

Hoses reversed. Reversehoses (see "installation

instructions").

Load is Overloading. Leads should move freely during

Tangled/ wash,Wash smaller loads.

Twisted Clothes wrapped around Do not wrap items around agitator

agitator, when loading washer,

Clogged Not diluting softener. Dilute fabric softener in dispenser.

Dispensers/

Bleach Use of color-safebleachin Add colorsafebleachdirectly to the

chlodnebleachdispenser, basket. DOnot use chlorinebleach

Leaking/ dispenser.

Bleach on

Wrong Loads Improperuseof chlorine bleach, Alwaysmeasure bleach before

adding to the dispenser, Carefully

pour into the dispenser,Wipe up

bleach spills.

WE SERVICE WHAT WE SELL

Your purchase has added value because you can depend on Sears Home Central _,

for service. With over 12,000 trained repair specialists and access to over 4.2

million parts and accessories, we have the tools, parts, knowledge and skills to

ensure our pledge: We Service What We Sell.

Sears Maintenance Agreements

Your Kenmore appliance is designed, manufactured and tested to provide years of

dependable operation. Yet any major appliance may require service from time to

time, The Sears Maintenance Agreement offers you an outstanding service pro-

gram, affordably priced.

The Sears Maintenance Agreement

• Is your way to buy tomorrow's service at today's pnce.

•Eliminates repair bills resulting from normal wear and tear.

•Provides for non-technical and instructional assistance.

•Even if you don't need repairs, provides an annual Preventive Maintenance

Check, at your request, to ensure that your appliance is in proper running

condition.

Some lim.!_ations apply. For more information, call 1-800-827-6655.

For information concerning Sears Canada Maintenance Agreements,

call 1-800-361-6665

ili!ili

iiii!i!ii

_ii!iii!_!i

no matter who made it, no matter who sold it!

1-800-4-MY-HOME ® Anytime,dayornight

(1-800-469-4663) (U.S.A. and Canada)

www,sears.com www,sears,ca

For repairof carry-in products like vacuums, lawn equipment,

and electronics, call for the location of your nearest

Sears Parts and Repair Center.

1-800-488-1222 Anytime,dayorn_ght(U,S.A.only)

i:ii!ilI www.sears.corn iii

_iSfill ............................................. i!:!i!i!_il

Forthe replacement pads, accessonesand owner's manuals

that you need to do-it-yourself,call Sears PartsDirect_!

1-800-366-PART 6am 11 p m CST, 7 days a week

(1-800-366-7278) (U.SA. onty)

www.sear s.com/partsdirect

To purchaseorinquireabouta Sears Service Agreement

orSears MaintenanceAgreement:

1-800-827-6655 (USA) 1-800-361-6665 (Canada)

7am-5p.mCST, Mon.-Sat 9a.m 8pm EST, M F, 4pmSat

Para pedirserv'_o de repotadona Au Canada pourserviceen fr_is:

demi_lio, ypara crdenari:_ezas: 1-800-LE-FOYER uc

1-888-SU-HOGAR _(1-800-533÷6937) !iiZi;!ii_

(1-SSS-784-6427} _.sears.ca

[SEARS]

LHomeCentral® J..........................................................................

Kenmore 11022722100 User Manual WASHER Manuals And Guides L0303321

KENMORE Residential Washers Manual L0303321 KENMORE Residential Washers Owner's Manual, KENMORE Residential Washers installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
