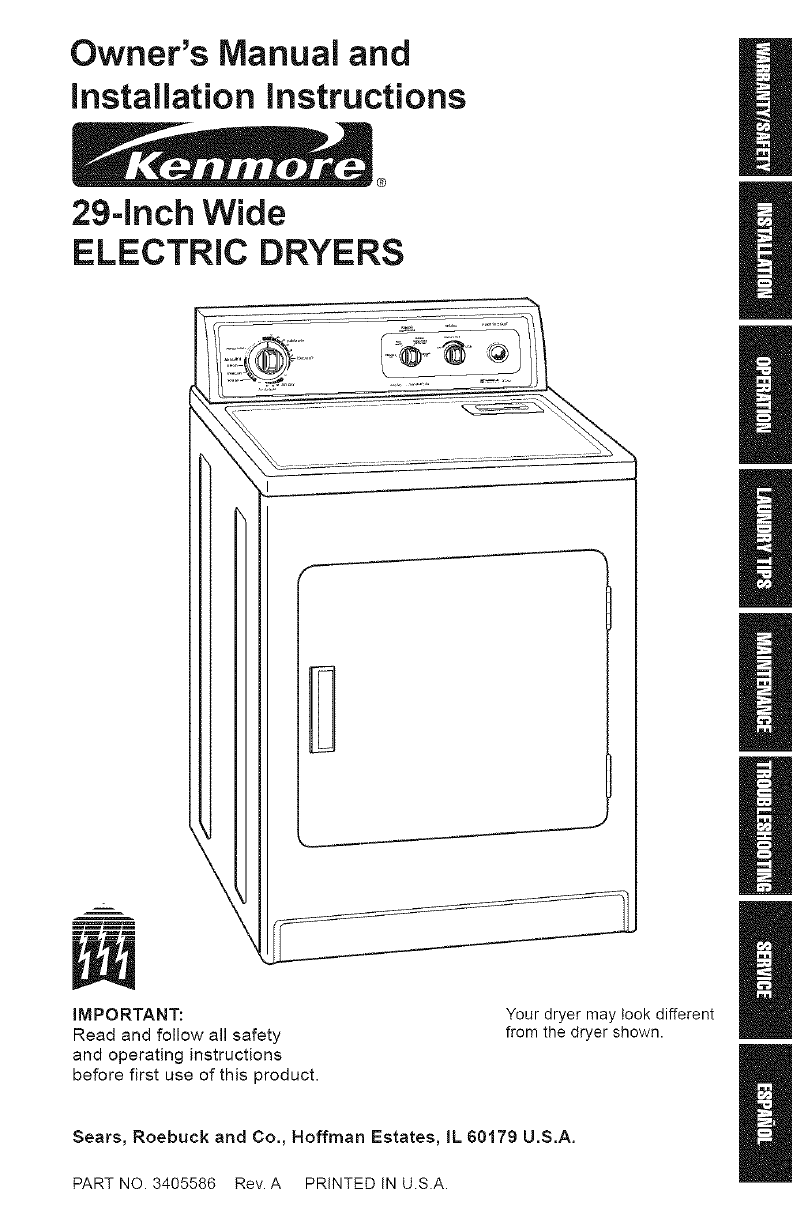

Owner's Manual and

instal lation instructions

29-inch Wide

ELECTRIC DRYERS

m rm. m rl

IMPORTANT:

Read and follow all safety

and operating instructions

before first use of this product.

Your dryer may took different

from the dryer shown.

Sears, Roebuck and Co., Hoffrnan Estates, IL 60179 U.S.A.

PART NO 3405586 Rev A PRINTED IN U.SA

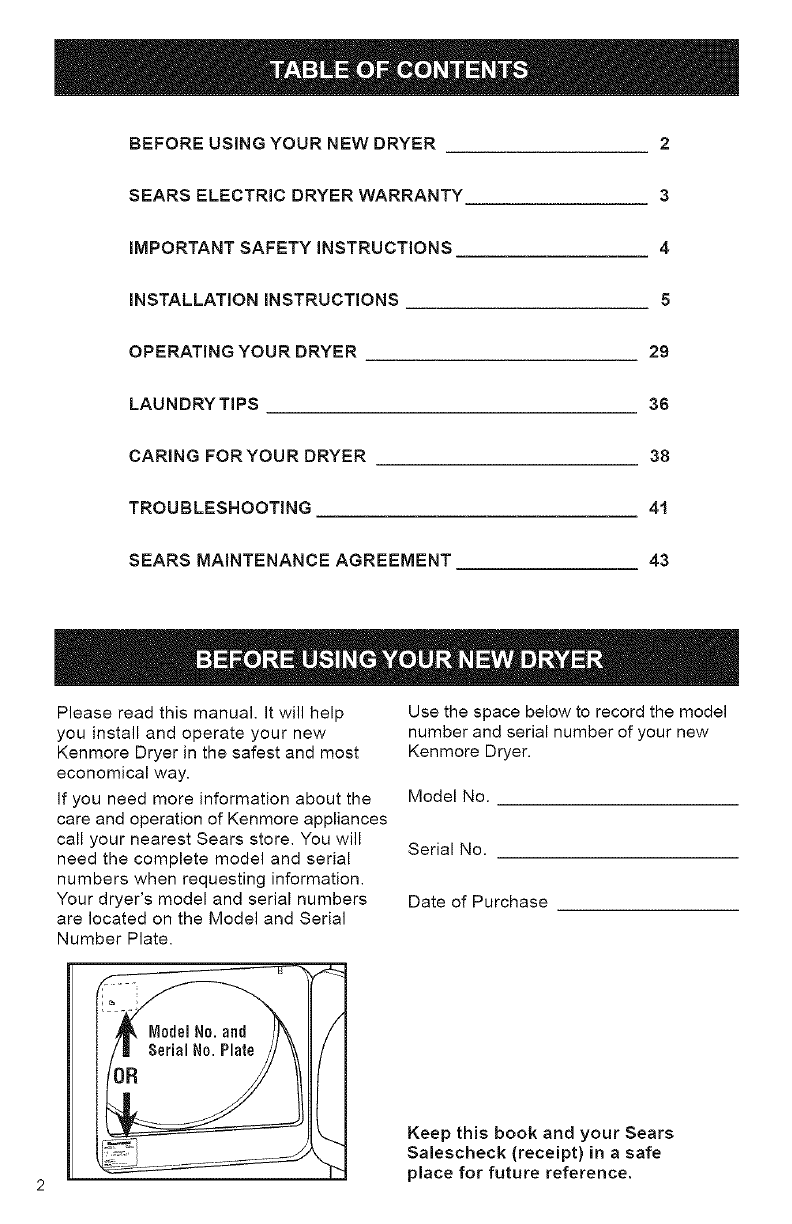

BEFORE USING YOUR NEW DRYER

SEARS ELECTRIC DRYER WARRANTY

IMPORTANT SAFETY iNSTRUCTIONS

INSTALLATION INSTRUCTIONS

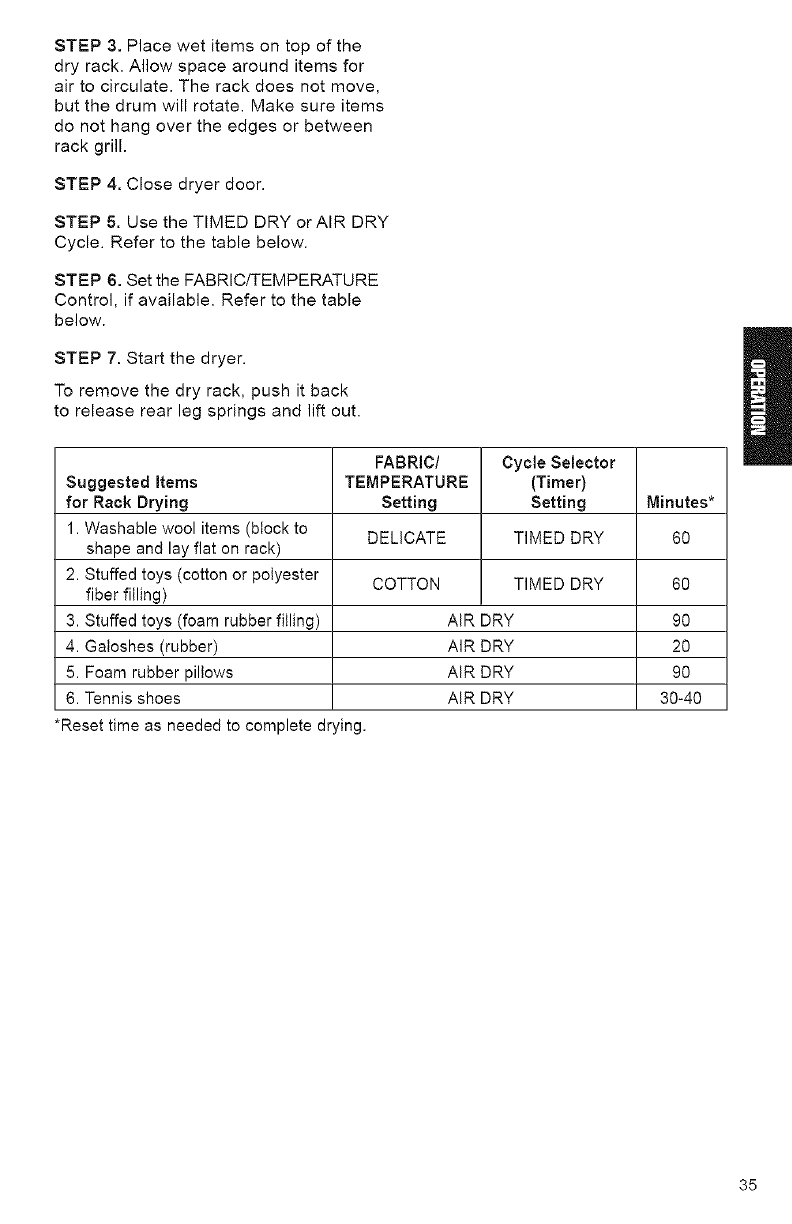

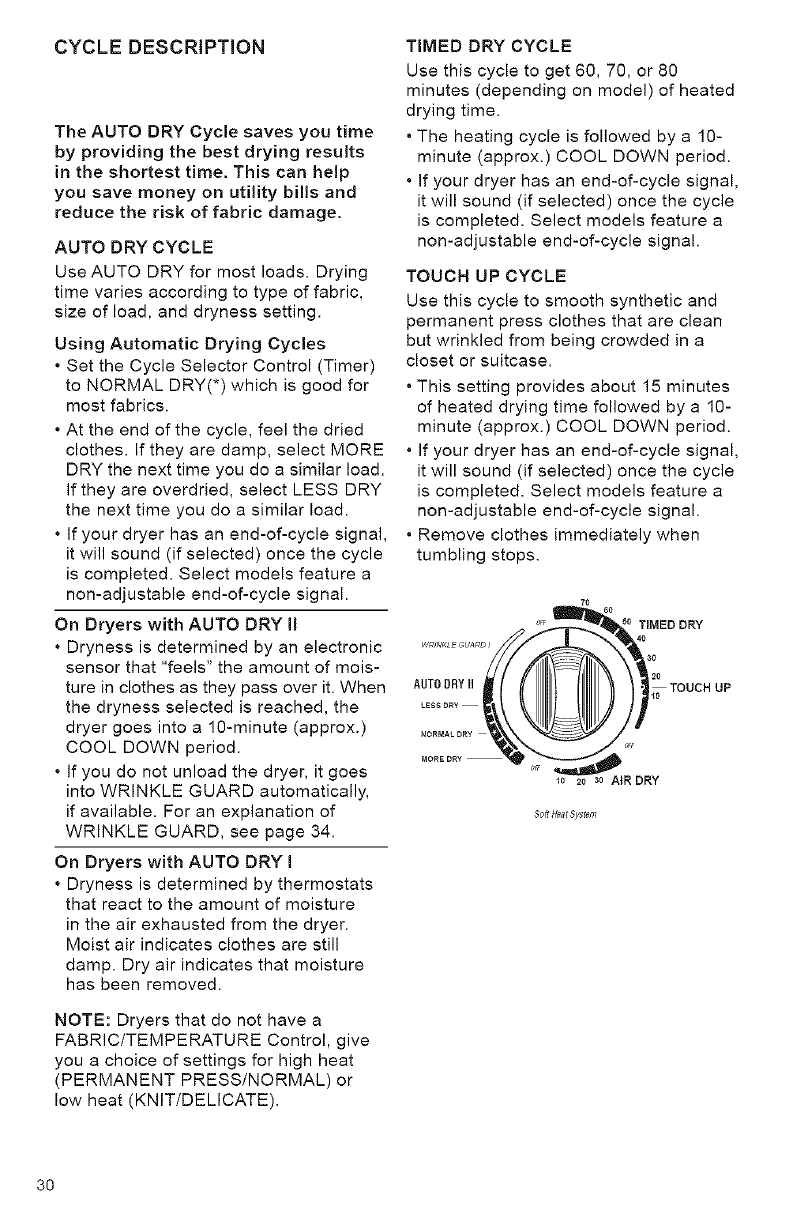

OPERATING YOUR DRYER

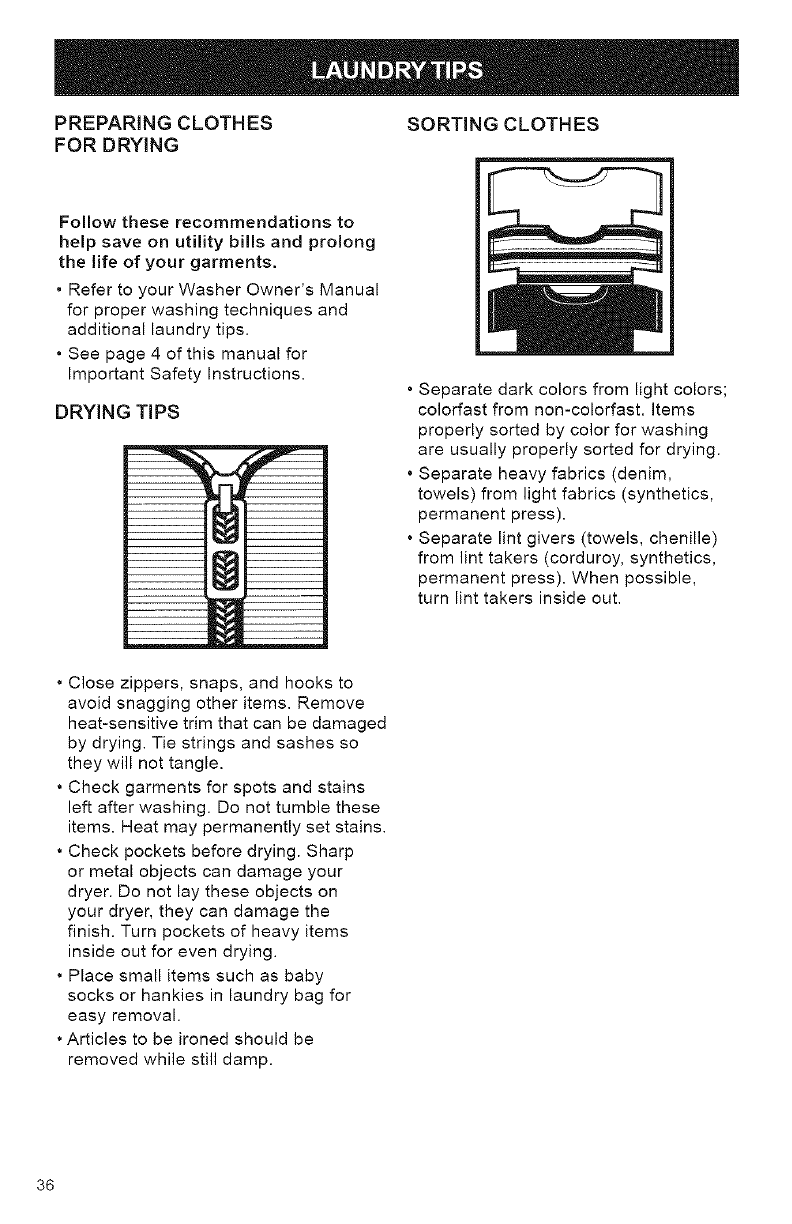

LAUNDRY TiPS

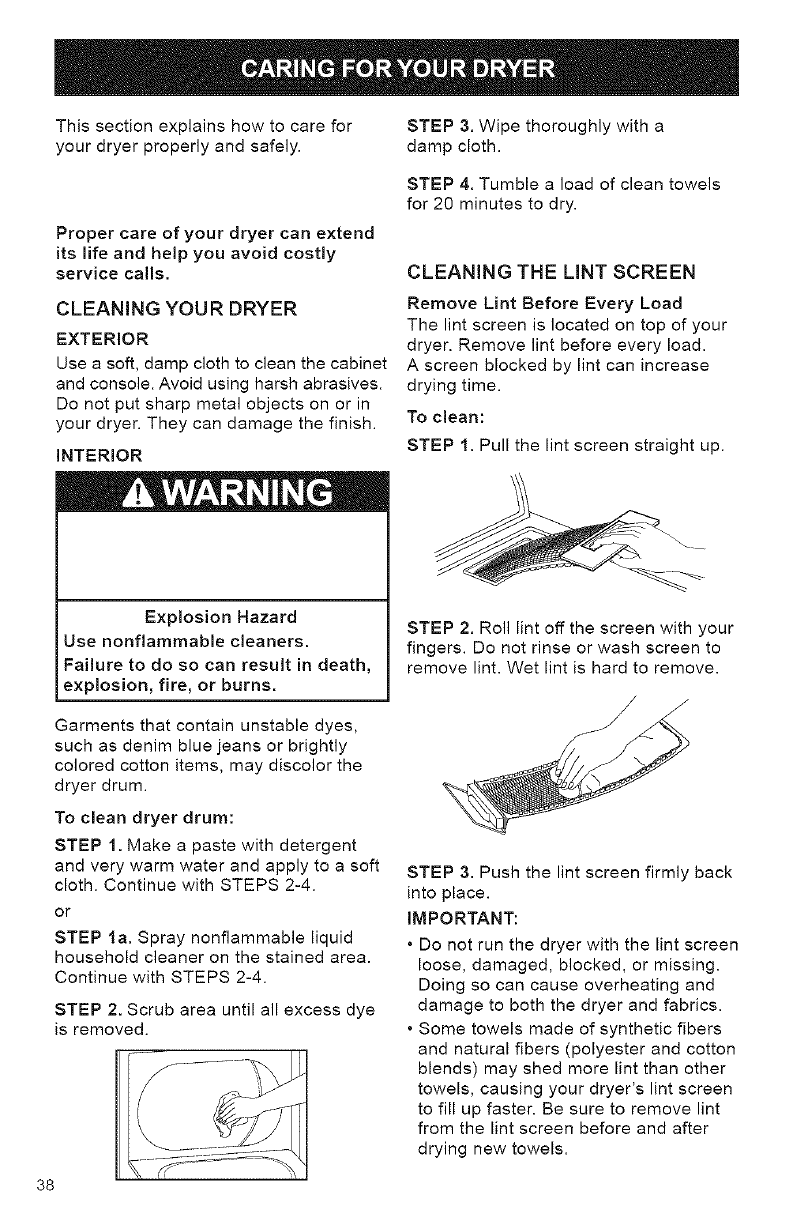

CARING FORYOUR DRYER

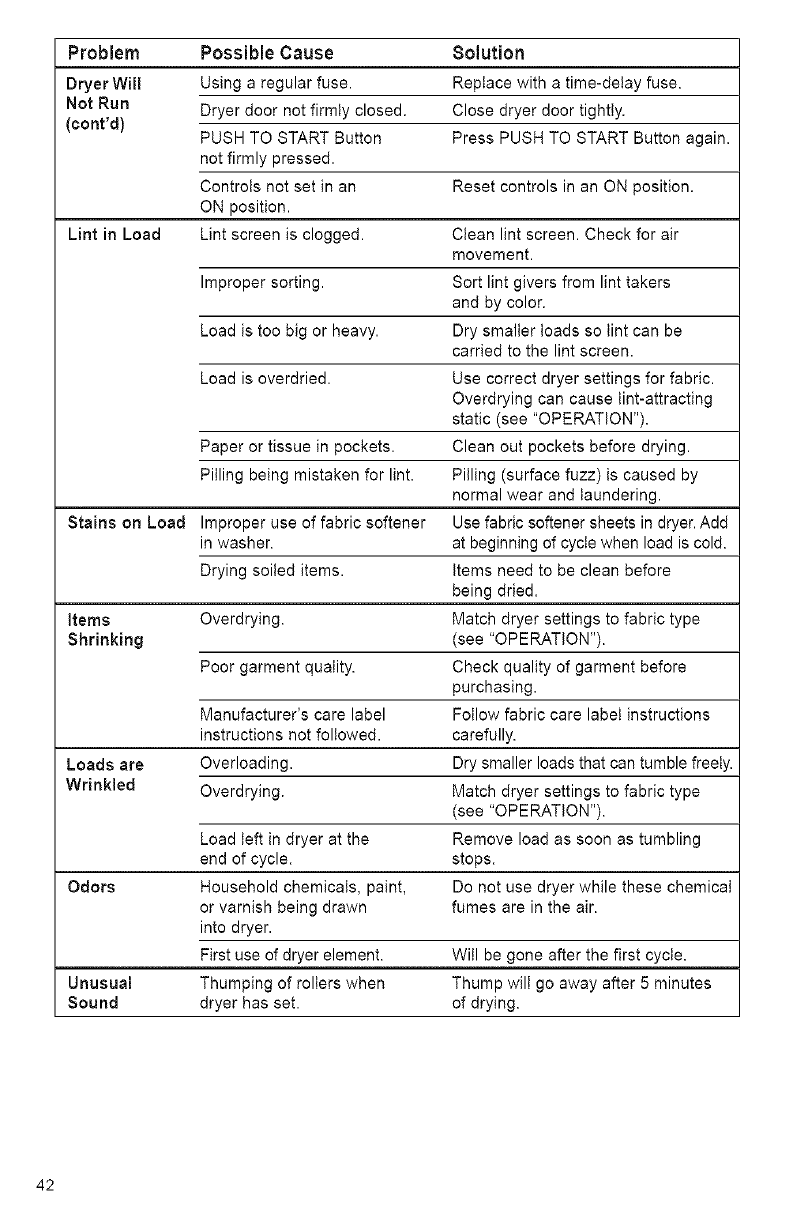

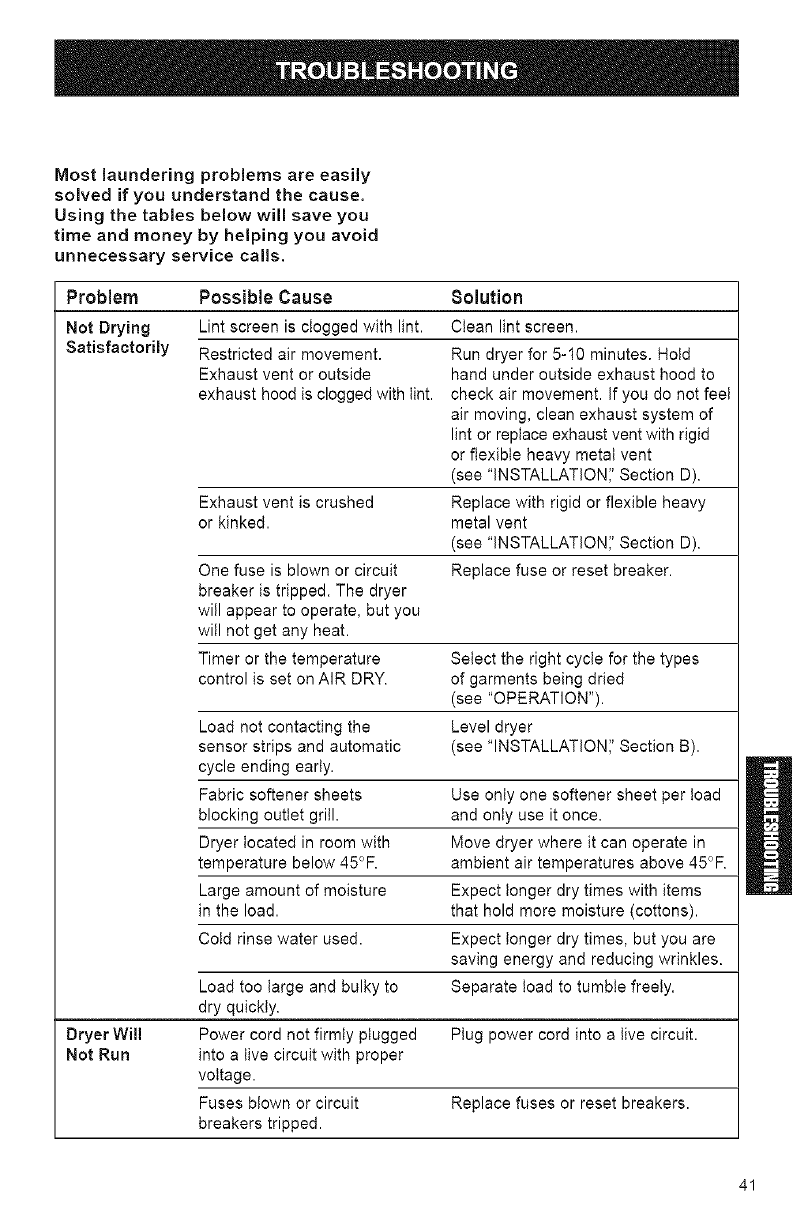

TROUBLESHOOTING

SEARS MAINTENANCE AGREEMENT

Please read this manual. It will help

you install and operate your new

Kenmore Dryer in the safest and most

economical way.

If you need more information about the

care and operation of Kenmore appliances

call your nearest Sears store. You will

need the complete model and serial

numbers when requesting information.

Your dryer's model and serial numbers

are located on the Model and Serial

Number Plate.

Use the space below to record the model

number and serial number of your new

Kenmore Dryer.

Model No.

Serial No.

Date of Purchase

Keep this book and your Sears

Salescheck (receipt} in a safe

place for future reference.

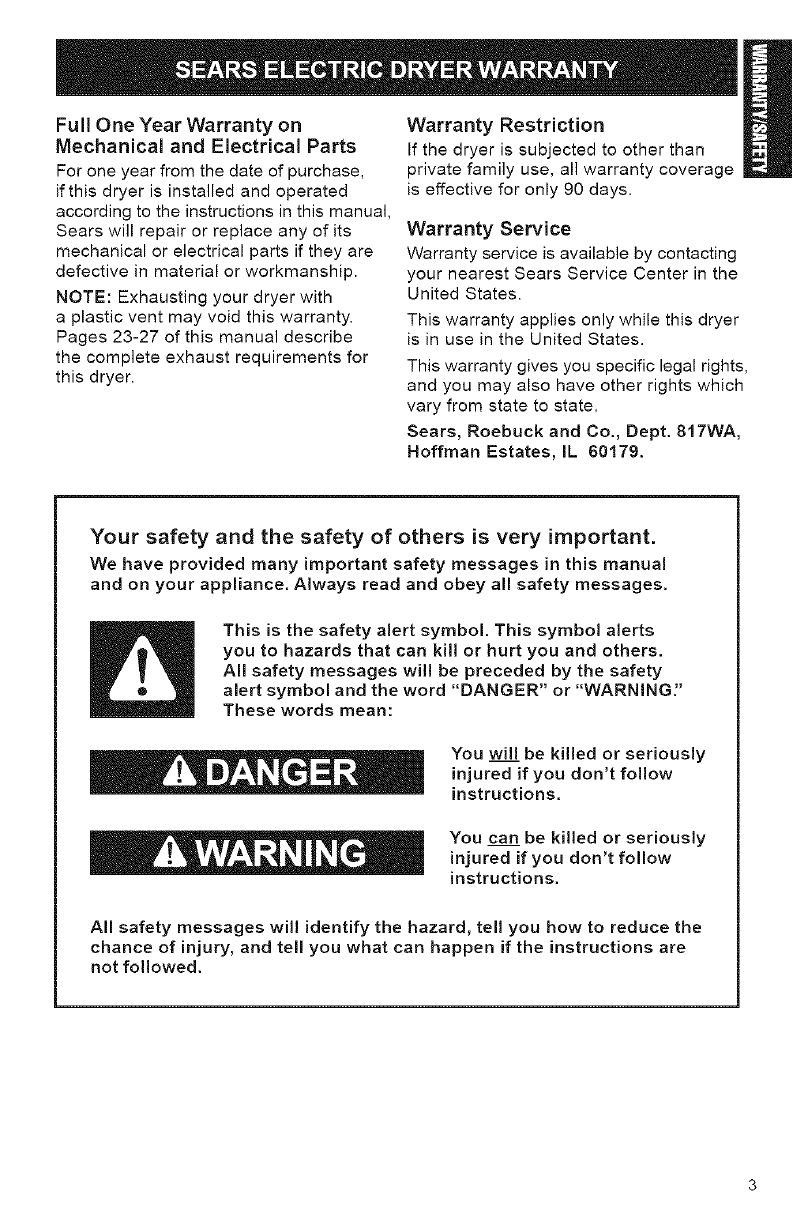

Full One Year Warranty on Warranty Restriction

Mechanical and Electrical Parts If the dryer is subjected to other than

For one year from the date of purchase, private family use, all warranty coverage

if this dryer is installed and operated

according to the instructions in this manual,

Sears will repair or replace any of its

mechanical or electrical parts if they are

defective in material or workmanship.

NOTE: Exhausting your dryer with

a plastic vent may void this warranty.

Pages 23-27 of this manual describe

the complete exhaust requirements for

this dryer.

is effective for only 90 days.

Warranty Service

Warranty service is available by contacting

your nearest Sears Service Center in the

United States.

This warranty applies only while this dryer

is in use in the United States.

This warranty gives you specific legal rights,

and you may also have other rights which

vary from state to state.

Sears, Roebuck and Co., Dept. 817WA,

Hoffrnan Estates, IL 60179.

Your safety and the safety of others is very important.

We have provided many important safety messages in this manual

and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol. This symbol alerts

you to hazards that can kil! or hurt you and others.

All safety messages will be preceded by the safety

alert symbol and the word "DANGER" or "WARNING;'

These words mean:

You will be killed or seriously

injured if you don't follow

instructions.

You can be killed or seriously

injured if you don't follow

instructions.

All safety messages will identify the hazard, tell you how to reduce the

chance of injury, and tell you what can happen if the instructions are

not followed.

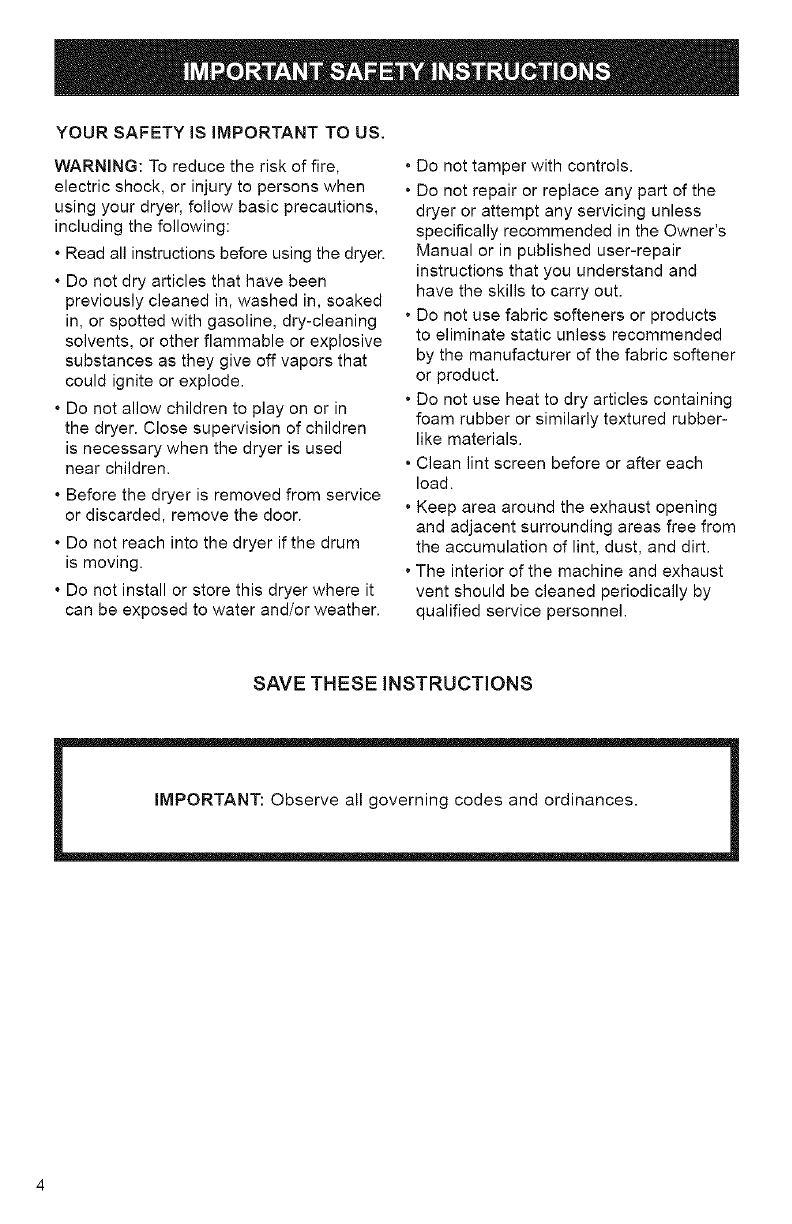

YOUR SAFETY iS IMPORTANT TO US.

WARNING: To reduce the risk of fire,

electric shock, or injury to persons when

using your dryer, follow basic precautions,

including the following:

• Read all instructions before using the dryer.

• Do not dry articles that have been

previously cleaned in, washed in, soaked

in, or spotted with gasoline, dry-cleaning

solvents, or other flammable or explosive

substances as they give off vapors that

could ignite or explode.

• Do not allow children to play on or in

the dryer. Close supervision of children

is necessary when the dryer is used

near children.

• Before the dryer is removed from service

or discarded, remove the door.

• Do not reach into the dryer if the drum

is moving.

• Do not install or store this dryer where it

can be exposed to water and/or weather.

•Do not tamper with controls.

• Do not repair or replace any part of the

dryer or attempt any servicing unless

specifically recommended in the Owner's

Manual or in published user-repair

instructions that you understand and

have the skills to carry out.

• Do not use fabric softeners or products

to eliminate static unless recommended

by the manufacturer of the fabric softener

or product.

• Do not use heat to dry articles containing

foam rubber or similarly textured rubber-

like materials.

• Clean lint screen before or after each

load.

• Keep area around the exhaust opening

and adjacent surrounding areas free from

the accumulation of lint, dust, and dirt.

• The interior of the machine and exhaust

vent should be cleaned periodically by

qualified service personnel.

SAVE THESE INSTRUCTIONS

IMPORTANT: Observe all governing codes and ordinances.

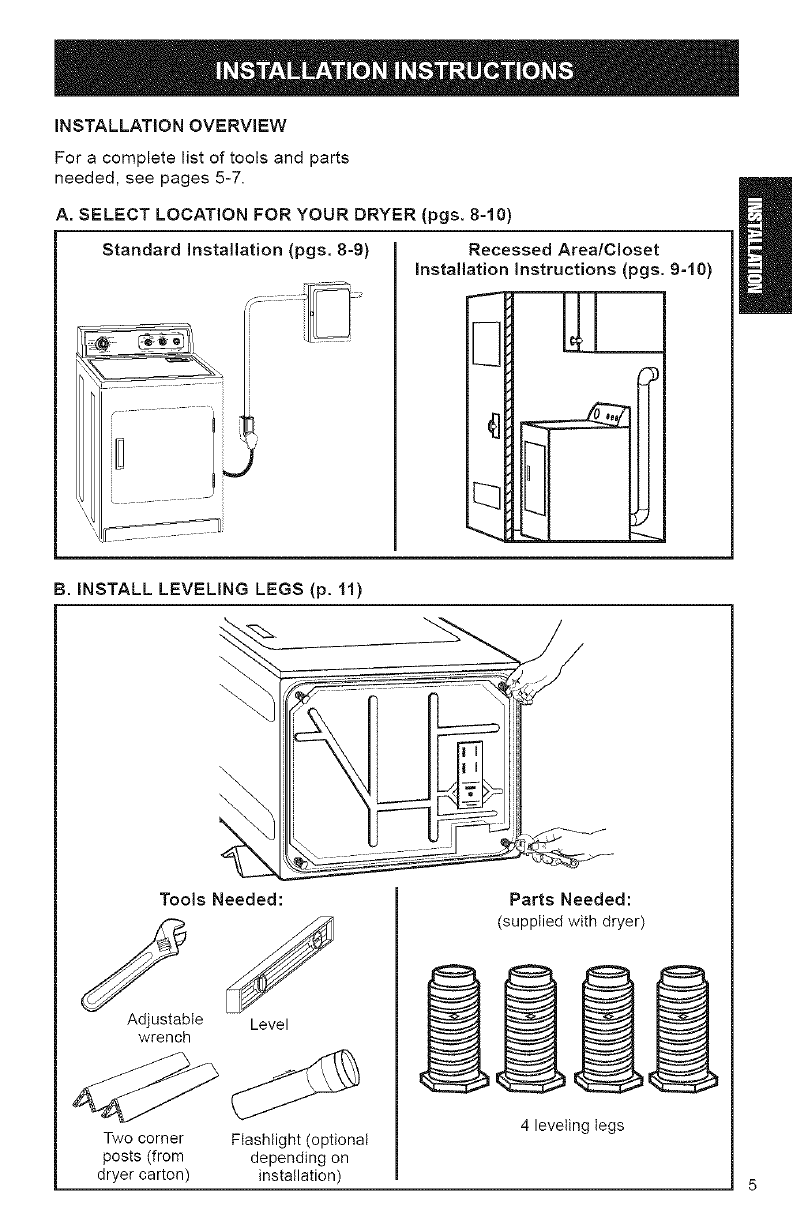

INSTALLATION OVERVIEW

For a complete list of tools and parts

needed, see pages 5-7.

A. SELECT LOCATION FOR YOUR DRYER (pgs. 8-10)

Standard Installation (pgs. 8-9) Recessed Area/C!oset

Installation Instructions (pgs. 9-10)

B. INSTALL LEVELING LEGS (p. 11)

Tools Needed:

Adjustable Level

wrench

Two corner Flashlight (optional

posts (from depending on

dryer carton) installation)

Parts Needed:

(supplied with dryer)

4 leveling legs

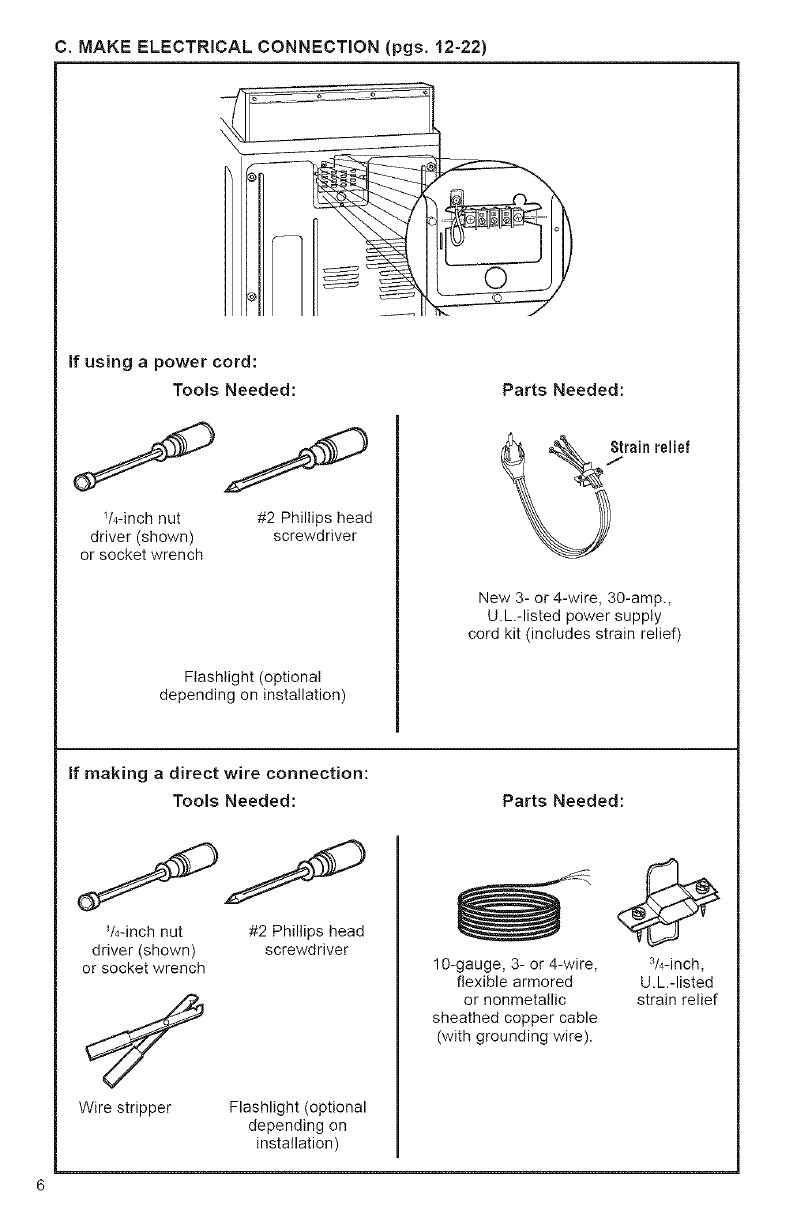

C.MAKE ELECTRICAL CONNECTION (pgs. 12-22)

If using apower cord:

Tools Needed:

_/4-inch nut #2 Phillips head

driver (shown) screwdriver

or socket wrench

Flashlight (optional

depending on installation)

Parts Needed:

New 3- or 4-wire, 30-amp.,

U.L.-listed power supply

cord kit (includes strain relief)

If making a direct wire connection:

Tools Needed:

_/4-inch nut #2 Phillips head

driver (shown) screwdriver

or socket wrench

Wire stripper Flashlight (optional

depending on

installation)

Parts Needed:

lO-gauge, 3- or 4-wire,

flexible armored

or nonmetallic

sheathed copper cable

(with grounding wire).

3/4-inch,

U.L.-listed

strain relief

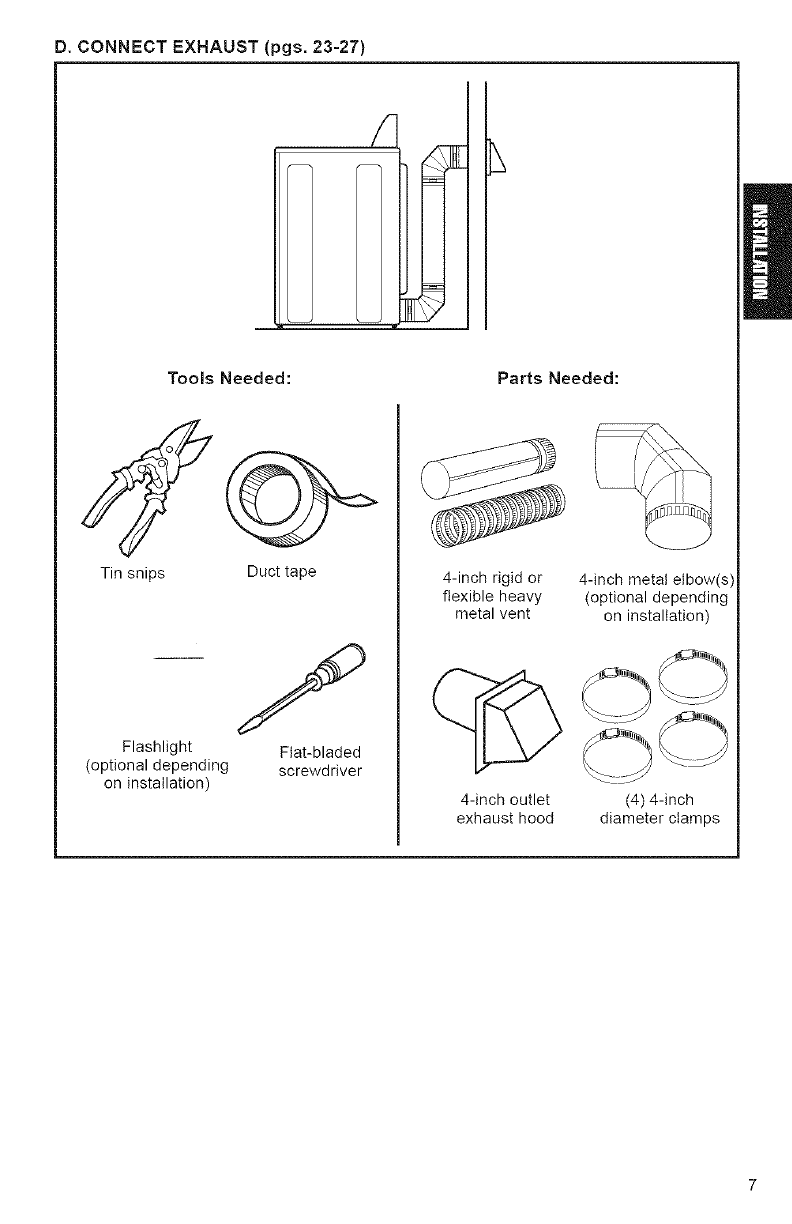

D.CONNECTEXHAUST (pgs. 23-27)

Tools Needed: Parts Needed:

Tin snips

Flashlight

(optional depending

on installation)

Duct tape

fFiat-bladed

screwdriver

4-inch rigid or

flexible heavy

metal vent

4-inch outlet

exhaust hood

4-inch metal elbow(s)

(optional depending

on installation)

(4) 4-inch

diameter clamps

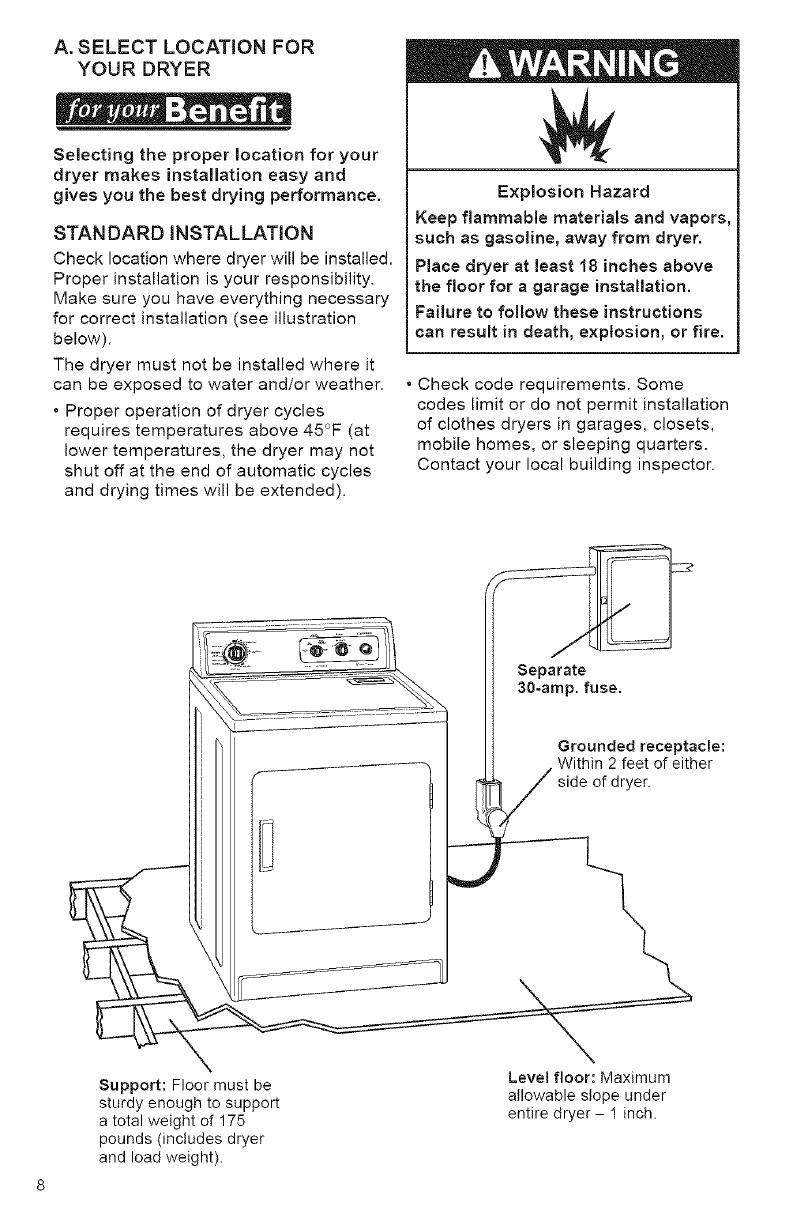

A. SELECT LOCATION FOR

YOUR DRYER

Selecting the proper location for your

dryer makes installation easy and

gives you the best drying performance.

STANDARD INSTALLATION

Check location where dryer will be installed.

Proper installation is your responsibility.

Make sure you have everything necessary

for correct installation (see illustration

below).

The dryer must not be installed where it

can be exposed to water and/or weather.

•Proper operation of dryer cycles

requires temperatures above 45°F (at

lower temperatures, the dryer may not

shut off at the end of automatic cycles

and drying times will be extended).

Explosion Hazard

Keep flammable materials and vapors,

such as gasoline, away from dryer.

Place dryer at least 18 inches above

the floor for a garage installation.

Failure to follow these instructions

can result in death, explosion, or fire.

• Check code requirements. Some

codes limit or do not permit installation

of clothes dryers in garages, closets,

mobile homes, or sleeping quarters.

Contact your local building inspector.

Support: Floor must be

sturdy enough to support

a total weight of 175

pounds (includes dryer

and load weight).

30-amp. fuse.

X Level floor: Maximum

allowable slope under

entire dryer - 1 inch.

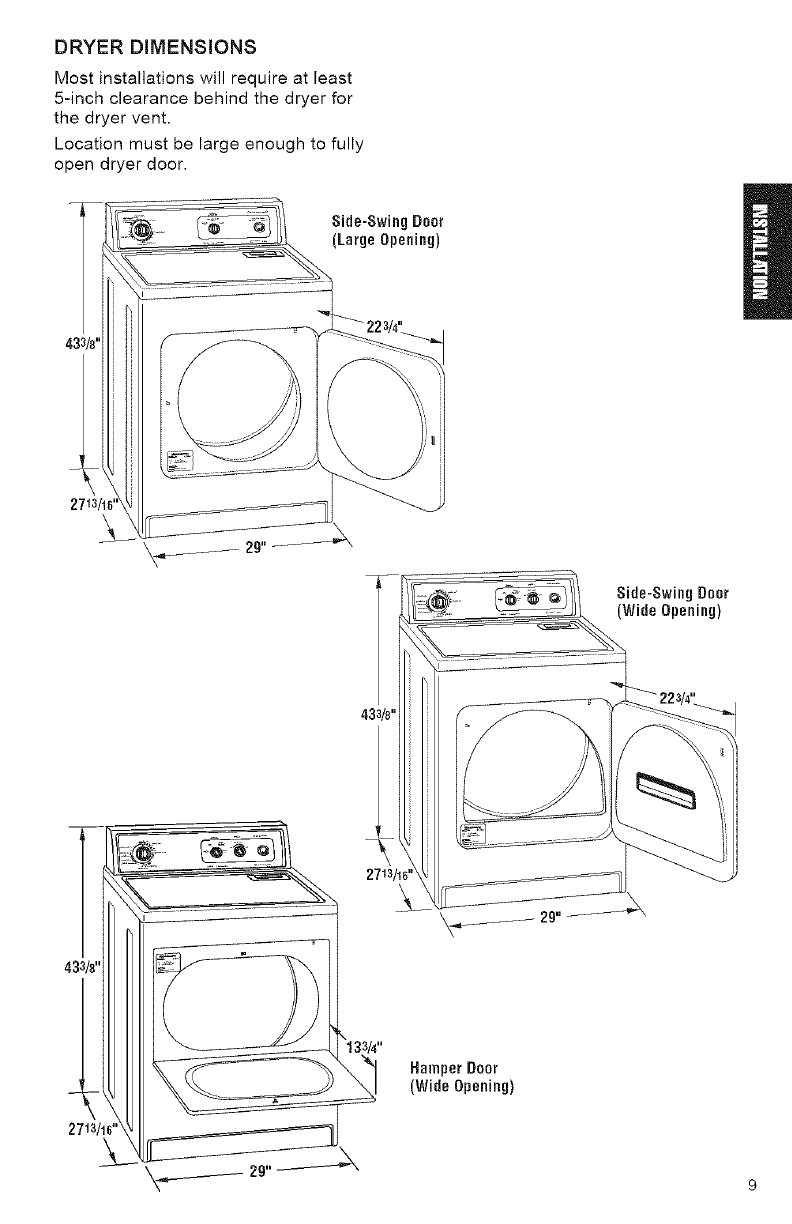

DRYERDIMENSIONS

Mostinstallationswillrequireatleast

5-inchclearancebehindthedryerfor

thedryervent.

Locationmustbelargeenoughtofully

opendryerdoor.

Side-SwingDoor

(LargeOpening)

2713

Side-SwingDoor

(WideOpening)

2713/16'

Hamper Door

(Wide Opening)

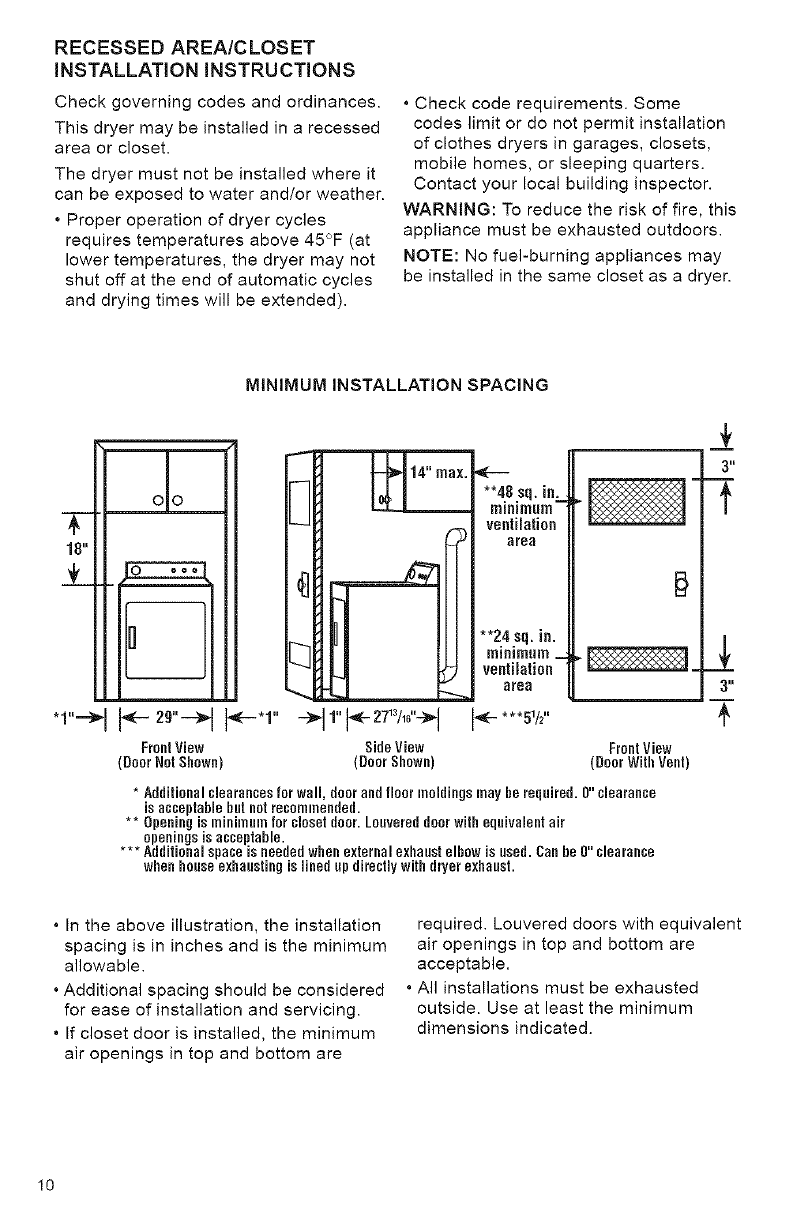

RECESSED AREA/CLOSET

iNSTALLATiON iNSTRUCTiONS

Check governing codes and ordinances.

This dryer may be installed in a recessed

area or closet.

The dryer must not be installed where it

can be exposed to water and/or weather.

* Proper operation of dryer cycles

requires temperatures above 45°F (at

lower temperatures, the dryer may not

shut off at the end of automatic cycles

and drying times will be extended).

* Check code requirements. Some

codes limit or do not permit installation

of clothes dryers in garages, closets,

mobile homes, or sleeping quarters.

Contact your local building inspector.

WARNING: To reduce the risk of fire, this

appliance must be exhausted outdoors.

NOTE: No fuel-burning appliances may

be installed in the same closet as a dryer.

MINIMUM INSTALLATION SPACING

I I÷ 29"-H F-.1,,

FrontView Side View

(DoorNot Shown) (Door Shown)

**a.8.sq. in:_

r,,lIfll I_ nil}

ventilation

area

**24 sq. in.

minimum

ventilatien

area

_J:

FrontView

(Door WithVent)

*Additionalclearancesfor wall, doorandfloor moldings mayhe required. 0" clearance

is acceptablehnt notrecornmended.

** Openingis minirnnmforclosetdoor.Lonvereddoorwithequivalent air

openingsisacceptable.

*** Additional space is neededwhenexternal exhaustelbow is used.Can be 0" clearance

whenhouseexhaustingis linedupdirectly withdryerexhaust.

* In the above illustration, the installation

spacing is in inches and is the minimum

allowable.

* Additional spacing should be considered

for ease of installation and servicing.

* If closet door is installed, the minimum

air openings in top and bottom are

required. Louvered doors with equivalent

air openings in top and bottom are

acceptable.

* All installations must be exhausted

outside. Use at least the minimum

dimensions indicated.

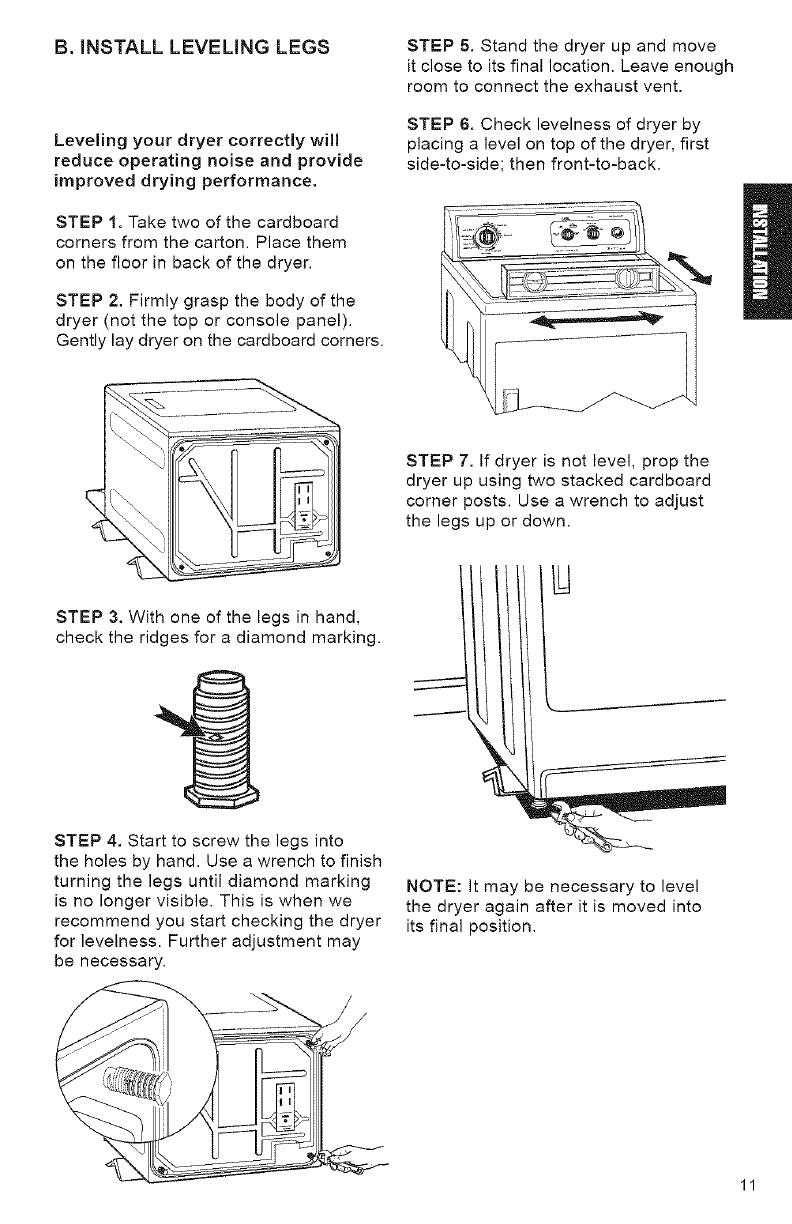

B. iNSTALL LEVELING LEGS

Leveling your dryer correctly will

reduce operating noise and provide

improved drying performance.

STEP 1. Take two of the cardboard

corners from the carton. Place them

on the floor in back of the dryer.

STEP 2. Firmly grasp the body of the

dryer (not the top or console panel).

Gently lay dryer on the cardboard corners.

STEP 5. Stand the dryer up and move

it close to its final location. Leave enough

room to connect the exhaust vent.

STEP 6. Check levelness of dryer by

placing a level on top of the dryer, first

side-to-side; then front-to-back.

STEP 3. With one of the legs in hand,

check the ridges for a diamond marking.

STEP 4. Start to screw the legs into

the holes by hand. Use a wrench to finish

turning the legs until diamond marking

is no longer visible. This is when we

recommend you start checking the dryer

for levelness. Further adjustment may

be necessary.

STEP 7. If dryer is not level, prop the

dryer up using two stacked cardboard

corner posts. Use a wrench to adjust

the legs up or down.

NOTE: It may be necessary to level

the dryer again after it is moved into

its final position.

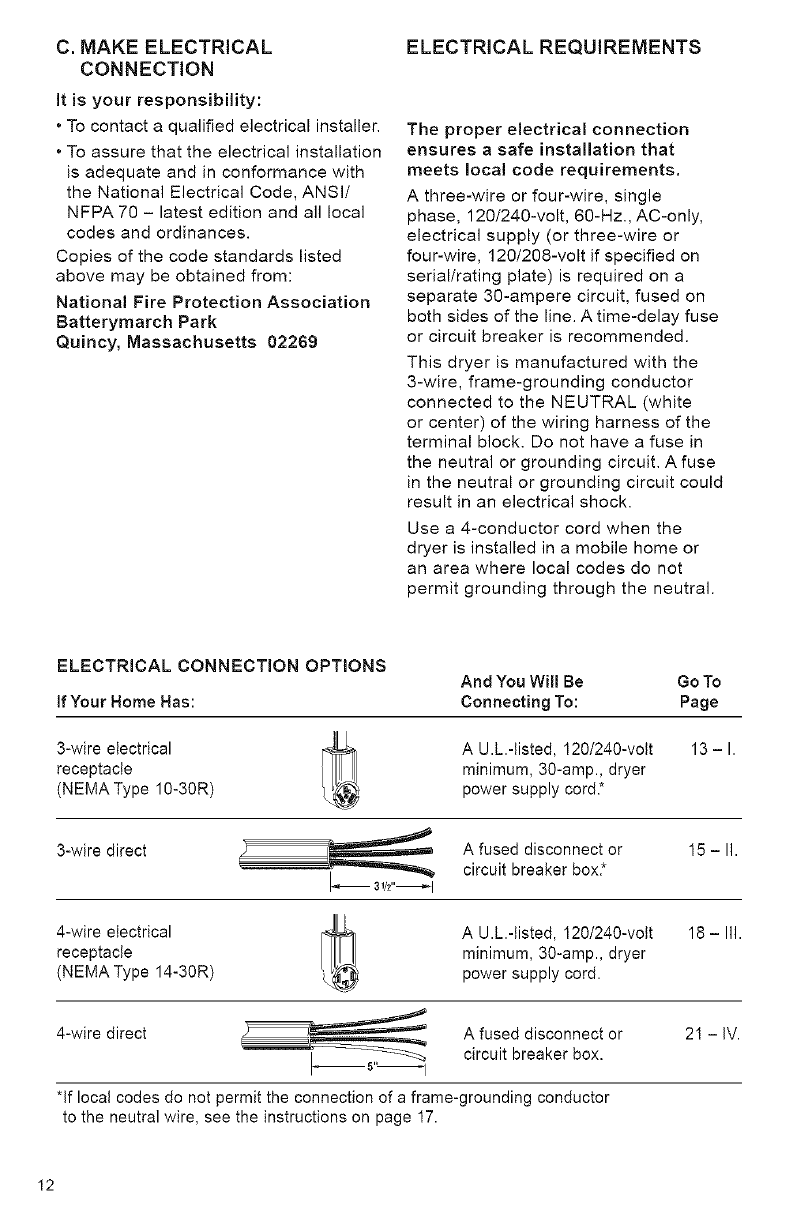

C,MAKE ELECTRICAL

CONNECTION

It is your responsibility:

• To contact a qualified electrical installer.

• To assure that the electrical installation

is adequate and in conformance with

the National Electrical Code, ANSI/

NFPA 70 - latest edition and all local

codes and ordinances.

Copies of the code standards listed

above may be obtained from:

National Fire Protection Association

Batterymarch Park

Quincy, Massachusetts 02269

ELECTRICAL REQUIREMENTS

The proper electrical connection

ensures a safe installation that

meets local code requirements.

A three-wire or four-wire, single

phase, 120/240-volt, 60-Hz., AC-only,

electrical supply (or three-wire or

four-wire, 120/208-volt if specified on

serial/rating plate) is required on a

separate 30-ampere circuit, fused on

both sides of the line. A time-delay fuse

or circuit breaker is recommended.

This dryer is manufactured with the

3-wire, frame-grounding conductor

connected to the NEUTRAL (white

or center) of the wiring harness of the

terminal block. Do not have a fuse in

the neutral or grounding circuit. A fuse

in the neutral or grounding circuit could

result in an electrical shock.

Use a 4-conductor cord when the

dryer is installed in a mobile home or

an area where local codes do not

permit grounding through the neutral.

ELECTRICAL CONNECTION OPTIONS

If Your Home Has:

And You Will Be Go To

Connecting To: Page

3-wire electrical

receptacle

(NEMA Type 10-30R)

A U.L.-tisted, 120/240-volt

minimum, 30-amp., dryer

power supply cord.*

13-1.

3-wire direct A fused disconnect or 15 - II.

3,h"_l circuit breaker box*

4-wire electrical

receptacle

(NEMA Type 14-30R)

A U.L.-listed, 120/240-volt

minimum, 30-amp., dryer

power supply cord.

18 - Ill.

4-wire direct A fused disconnect or 21 - IV.

I_5" I circuit breaker box.

*if local codes do not permit the connection of a frame-grounding conductor

to the neutral wire, see the instructions on page 17.

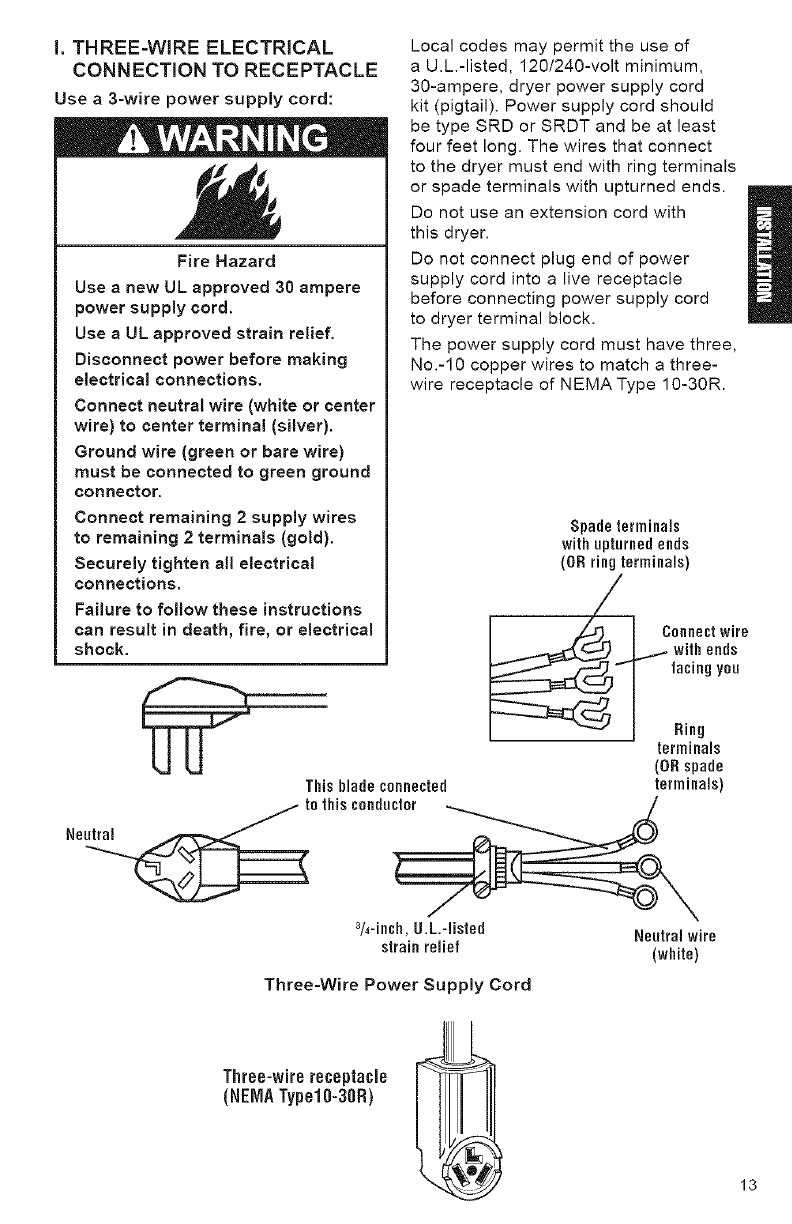

i. THREE-WIRE ELECTRICAL

CONNECTION TO RECEPTACLE

Use a 3-wire power supply cord:

Fire Hazard

Use a new UL approved 30 ampere

power supply cord.

Use a UL approved strain relief.

Disconnect power before making

electrical connections.

Connect neutral wire (white or center

wire) to center terminal (silver).

Ground wire (green or bare wire)

must be connected to green ground

connector.

Connect remaining 2supply wires

to remaining 2 terminals (gold).

Securely tighten all electrical

connections.

Failure to follow these instructions

can result in death, fire, or electrical

shock,

This blade connected

_te this conductor

Local codes may permit the use of

a U.L.-listed, 120/240-volt minimum,

30-ampere, dryer power supply cord

kit (pigtail). Power supply cord should

be type SRD or SRDT and be at least

four feet long. The wires that connect

to the dryer must end with ring terminals

or spade terminals with upturned ends.

Do not use an extension cord with

this dryer.

Do not connect plug end of power

supply cord into a live receptacle

before connecting power supply cord

to dryer terminal block.

The power supply cord must have three,

No.-10 copper wires to match a three-

wire receptacle of NEMAType 10-30R.

Spade terminals

with upturned ends

(OR ring terminals)

terminals

(0R spade

terminals)

%-inch,U.L.-listed

strain relief

Three=Wire Power Supply Cord

Neutral wire

(white)

Three-wirereceptacle

(NEIVlATypel0-30R)

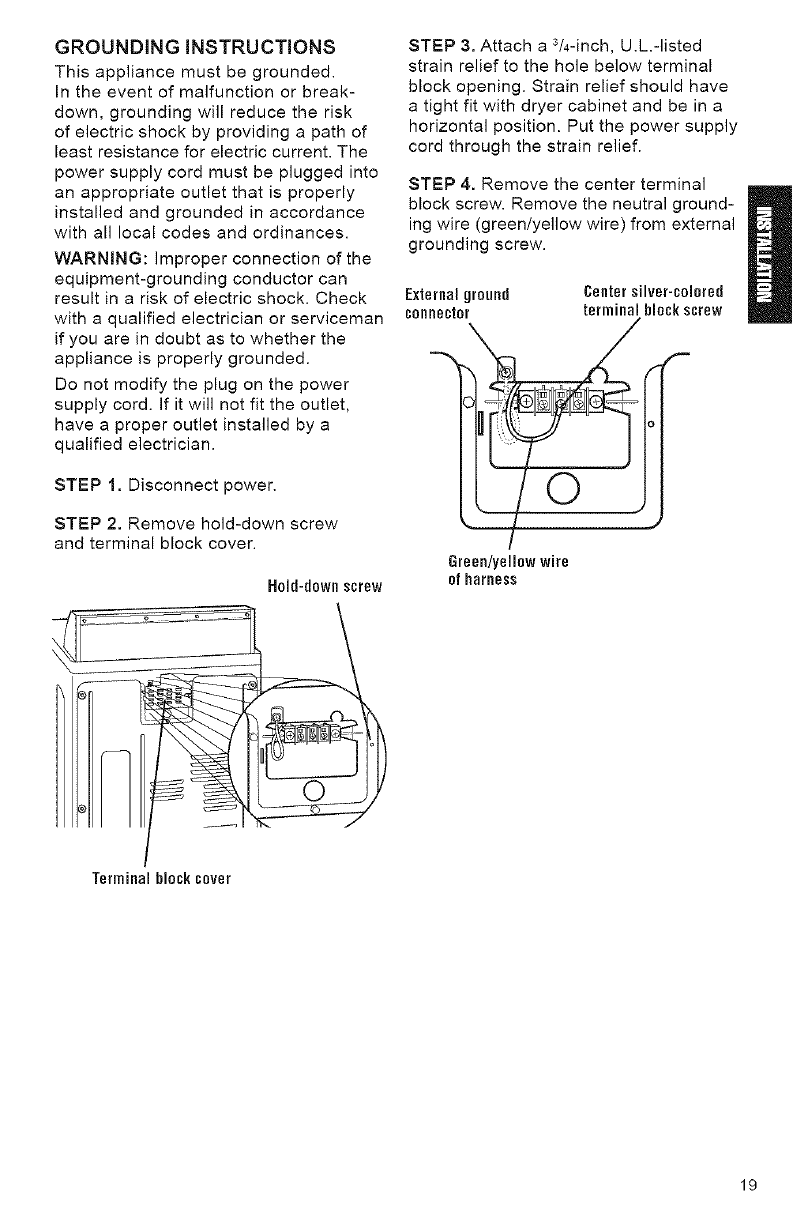

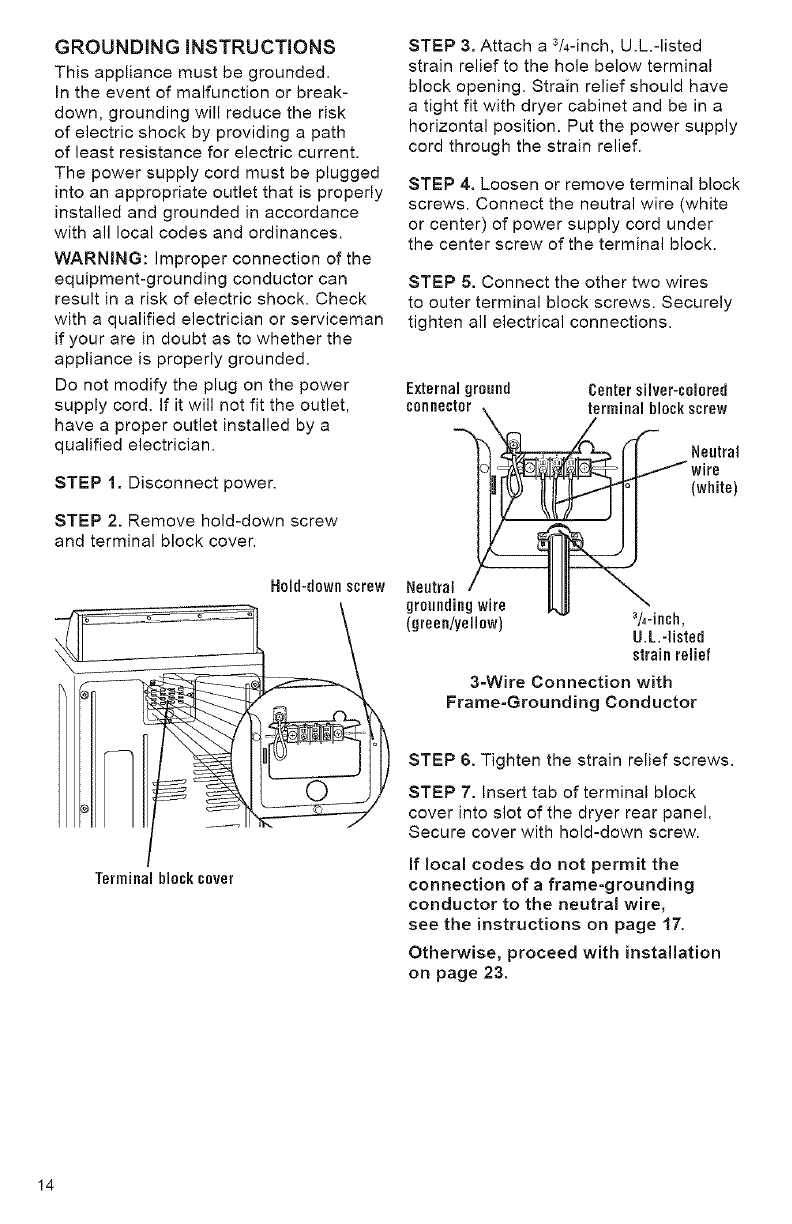

GROUNDINGINSTRUCTIONS

Thisappliancemustbegrounded.

Intheevent of malfunction or break-

down, grounding will reduce the risk

of electric shock by providing a path

of least resistance for electric current.

The power supply cord must be plugged

into an appropriate outlet that is properly

installed and grounded in accordance

with all local codes and ordinances.

WARNING: improper connection of the

equipment-grounding conductor can

result in a risk of electric shock. Check

with a qualified electrician or serviceman

if your are in doubt as to whether the

appliance is properly grounded.

Do not modify the plug on the power

supply cord. If it will not fit the outlet,

have a proper outlet installed by a

qualified electrician.

STEP 1. Disconnect power.

STEP 2. Remove hold-down screw

and terminal block cover.

H01d-d0wnscrew

Terminalblosk sever

STEP 3. Attach a 3/4-inch, U.L.-listed

strain relief to the hole below terminal

block opening. Strain relief should have

a tight fit with dryer cabinet and be in a

horizontal position. Put the power supply

cord through the strain relief.

STEP 4. Loosen or remove terminal block

screws. Connect the neutral wire (white

or center) of power supply cord under

the center screw of the terminal block.

STEP 5. Connect the other two wires

to outer terminal block screws. Securely

tighten all electrical connections.

External ground Center silver-colored

connector _ 2rminal blockscrew

(white)

Neutral /III \

grounding wire _ "-

(green/yellow) 3/4-inch,

U.L.-listed

strain relief

3=Wire Connection with

Frame-Grounding Conductor

STEP 6. Tighten the strain relief screws.

STEP 7. Insert tab of terminal block

cover into slot of the dryer rear panel.

Secure cover with hold-down screw.

If local codes do not permit the

connection of a frame=grounding

conductor to the neutral wire,

see the instructions on page 17.

Otherwise, proceed with installation

on page 23.

II. THREE-WIRE ELECTRICAL

CONNECTION (DIRECT WIRE)

Prepare cable as directed:

Fire Hazard

Use 10 gauge solid copper wire.

Use a UL approved strain relief.

Disconnect power before making

electrical connections.

Connect neutral wire (white or center

wire) to center terminal (silver).

Ground wire (green or bare wire)

must be connected to green ground

connector.

Connect remaining 2 supply wires

to remaining 2terminals (gold).

Securely tighten all electrical

connections.

Failure to follow these instructions

can result in death, fire, or electrical

shock.

The dryer can be connected directly to

fused disconnect or circuit breaker box

with three-wire, flexible armored or non-

metallic sheathed copper cable (with

grounding wire). All current-carrying wires

must be insulated.

A conduit connector must be installed at

junction box. Allow four feet of slack in the

line so dryer can be moved if servicing

is ever necessary.

GROUNDING iNSTRUCTIONS

This appliance must be connected to

a grounded metal, permanent wiring

system; or an equipment-grounding

conductor must be run with the circuit

conductors and connected to the

equipment-grounding terminal or

lead on the appliance.

STEP 1. Disconnect power.

STEP la. Strip 31/2 inches of outer

covering from end of cable. If using

3-wire cable with grounding wire, cut

the bare wire even with outer covering.

STEP lb. Cut 1 inch of insulation from

the end of each insulated wire. Shape the

end of each wire into a "U" shaped hook.

STEP2.Removehold-downscrewand

terminalblockcover.

H01d-d0wnscrew

Terminalblock cover

STEP 3. Attach a 3/4-inch, U.L.-listed

strain relief to the hole below terminal

block opening. Strain relief should have

a tight fit with dryer cabinet and be in a

horizontal position. Put the direct wire

cable through the strain relief.

STEP 4. Loosen or remove terminal block

screws. Connect the neutral wire (white

or center) of direct wire cable under the

center screw of the terminal block.

STEP 4a. Place the hook-shaped end

of the wire over the terminal block screw.

The open side of the hook should face

to the right. Squeeze hook end of wire

together to form a loop.

STEP 5. Connect the other two wires

to outer terminal block screws using the

same method(s) described in STEP 4a.

Securely tighten all electrical connections.

STEP 6. Tighten the strain relief screws.

STEP 7. Insert tab of terminal block

cover into slot of the dryer rear panel.

Secure cover with hold-down screw.

If local codes do not permit the

connection of a frame-grounding

conductor to the neutral wire,

see the instructions on page 17.

Otherwise, proceed with installation

on page 23.

External ground

connector

Centersilver-colored

block screw

Neutral wire

(white)

Neutralgro0nding

wire(green/yellow) 3/4-inch,&L-listed

strainrelief

3-Wire Connection with Direct Wire

and Frame=Grounding Conductor

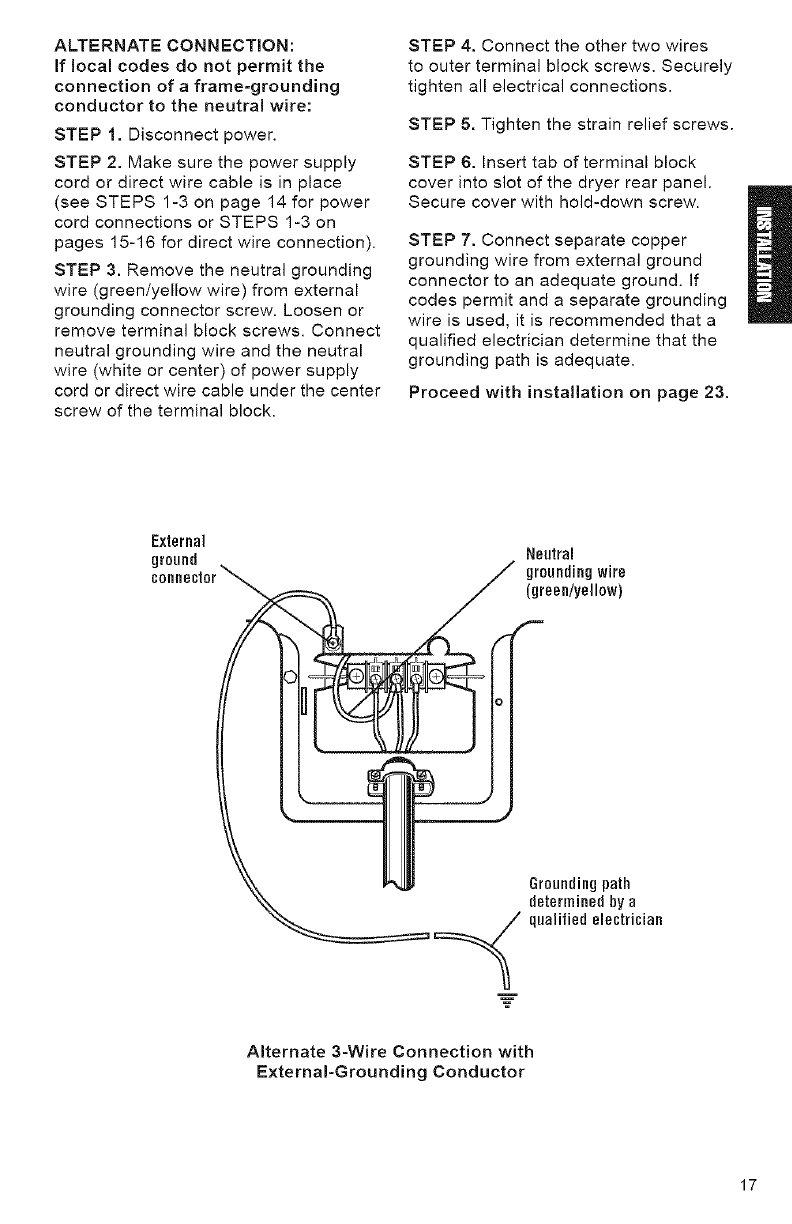

ALTERNATECONNECTION:

Iflocalcodesdonotpermitthe

connectionofaframe-grounding

conductortotheneutralwire:

STEP1.Disconnectpower.

STEP2.Makesurethepowersupply

cordordirectwire cable is in place

(see STEPS 1-3 on page 14 for power

cord connections or STEPS 1-3 on

pages 15-16 for direct wire connection).

STEP 3. Remove the neutral grounding

wire (green/yellow wire) from external

grounding connector screw. Loosen or

remove terminal block screws. Connect

neutral grounding wire and the neutral

wire (white or center) of power supply

cord or direct wire cable under the center

screw of the terminal block.

STEP 4. Connect the other two wires

to outer terminal block screws. Securely

tighten all electrical connections.

STEP 5. Tighten the strain relief screws.

STEP 6. Insert tab of terminal block

cover into slot of the dryer rear panel.

Secure cover with hold-down screw.

STEP 7. Connect separate copper

grounding wire from external ground

connector to an adequate ground. If

codes permit and a separate grounding

wire is used, it is recommended that a

qualified electrician determine that the

grounding path is adequate.

Proceed with installation on page 23.

External

ground Neutral

gr0unding wire

(green/yell0w)

Groundingpath

determined by a

qualified electrician

Alternate 3=Wire Connection with

External-Grounding Conductor

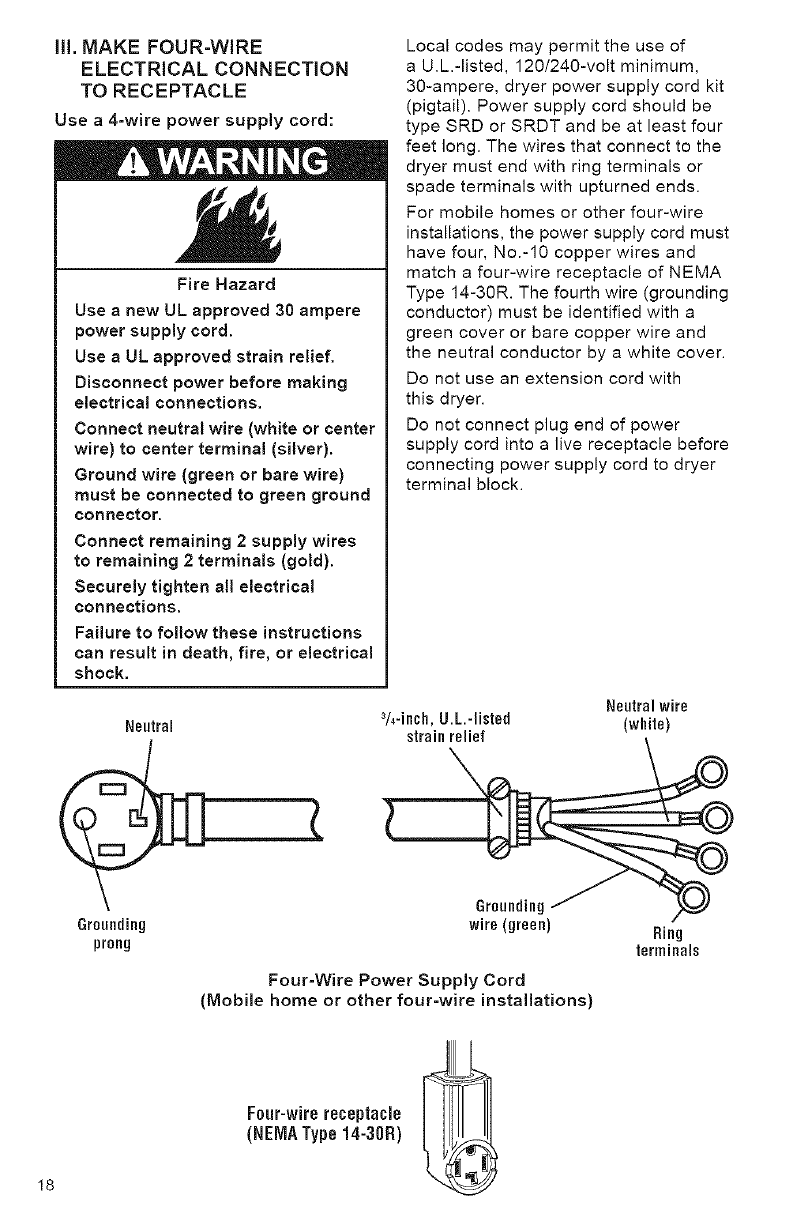

Ill. MAKE FOUR-WIRE

ELECTRICAL CONNECTION

TO RECEPTACLE

Use a 4-wire power supply cord:

Fire Hazard

Use a new UL approved 30 ampere

power supply cord.

Use a UL approved strain relief.

Disconnect power before making

electrical connections.

Connect neutral wire (white or center

wire) to center terminal (silver).

Ground wire (green or bare wire)

must be connected to green ground

connector.

Connect remaining 2supply wires

to remaining 2terminals (gold).

Securely tighten all electrical

connections.

Failure to follow these instructions

can result in death, fire, or electrical

shock.

Local codes may permit the use of

a U.L.-listed, 120/240-volt minimum,

30-ampere, dryer power supply cord kit

(pigtail). Power supply cord should be

type SRD or SRDT and be at least four

feet long. The wires that connect to the

dryer must end with ring terminals or

spade terminals with upturned ends.

For mobile homes or other four-wire

installations, the power supply cord must

have four, No.-10 copper wires and

match a four-wire receptacle of NEMA

Type 14-30R. The fourth wire (grounding

conductor) must be identified with a

green cover or bare copper wire and

the neutral conductor by a white cover.

Do not use an extension cord with

this dryer.

Do not connect plug end of power

supply cord into a live receptacle before

connecting power supply cord to dryer

terminal block.

Neutral

Grounding

prong

Neutralwire

3/4-inch,U.L.-listed (white)

strainrelief

Grounding

wire (green)

Four-Wire Power Supply Cord

(Mobile home or other four-wire installations)

Ring

terminals

Four-wire receptacle

(NEMAType 14-30R)

GROUNDING INSTRUCTIONS

This appliance must be grounded.

In the event of malfunction or break-

down, grounding will reduce the risk

of electric shock by providing a path of

least resistance for electric current. The

power supply cord must be plugged into

an appropriate outlet that is properly

installed and grounded in accordance

with all local codes and ordinances.

WARNING: Improper connection of the

equipment-grounding conductor can

result in a risk of electric shock. Check

with a qualified electrician or serviceman

if you are in doubt as to whether the

appliance is properly grounded.

Do not modify the plug on the power

supply cord. If it will not fit the outlet,

have a proper outlet installed by a

qualified electrician.

STEP 1. Disconnect power.

STEP 2. Remove hold-down screw

and terminal block cover.

H01d-d0wnscrew

STEP 3. Attach a 3/4-inch, U.L.-listed

strain relief to the hole below terminal

block opening. Strain relief should have

a tight fit with dryer cabinet and be in a

horizontal position. Put the power supply

cord through the strain relief.

STEP 4. Remove the center terminal

block screw. Remove the neutral ground-

ing wire (green/yellow wire) from external

grounding screw.

External ground

connector

Green/yellow wire

of harness

Centersilver-colored

terminal block screw

Terminalblock cover

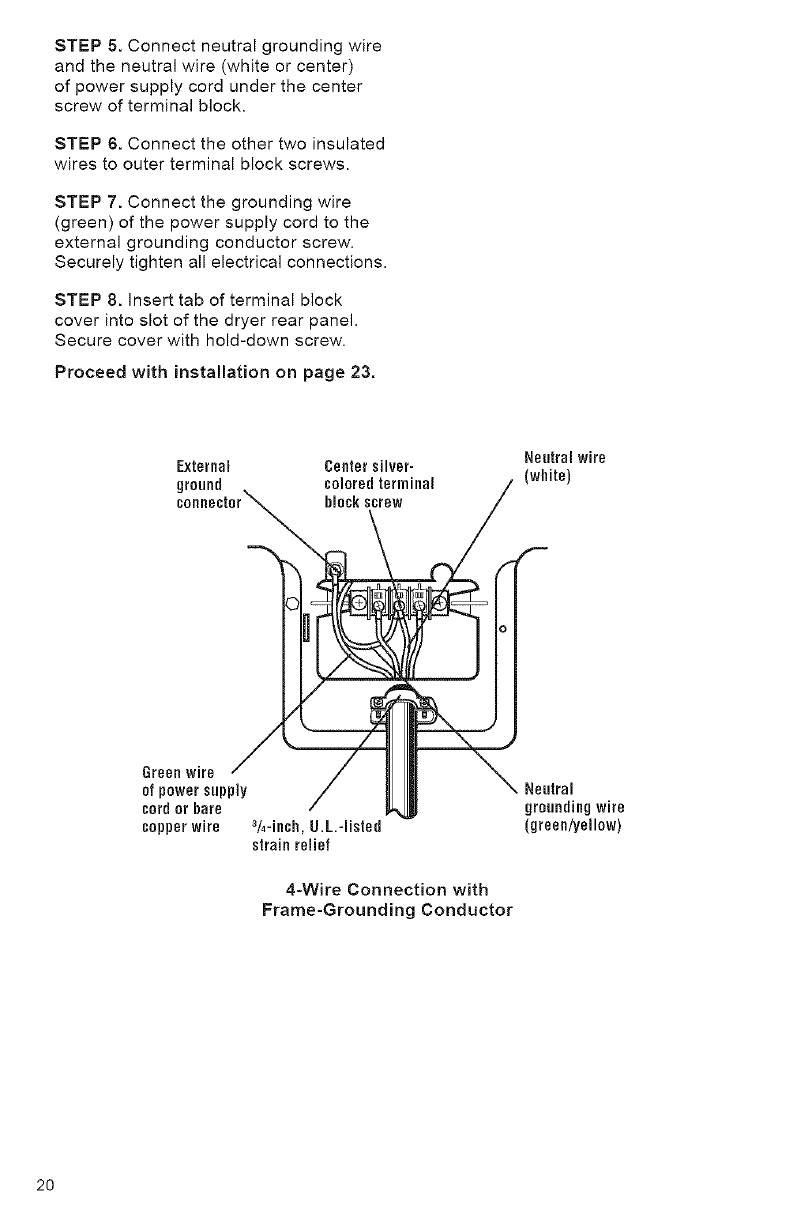

STEP5.Connectneutralgroundingwire

andtheneutralwire(whiteorcenter)

ofpowersupplycordunderthecenter

screwofterminalblock.

STEP6.Connecttheothertwoinsulated

wirestoouterterminalblockscrews.

STEP7.Connectthegroundingwire

(green)ofthepowersupplycordtothe

externalgroundingconductorscrew.

Securelytightenallelectricalconnections.

STEP8.Inserttabofterminalblock

coverintoslotofthedryerrearpanel.

Securecoverwithhold-downscrew.

Proceed with installation on page 23,

External Centersilver-

ground coloredterminal

block screw

Neutral wire

(white)

Greenwire /

of power supply

cordor bare

copperwire 3/4-inch,U.L.-listed

strain relief

,. Neutral

groundingwire

(green/yell0w)

4-Wire Connection with

Frame-Grounding Conductor

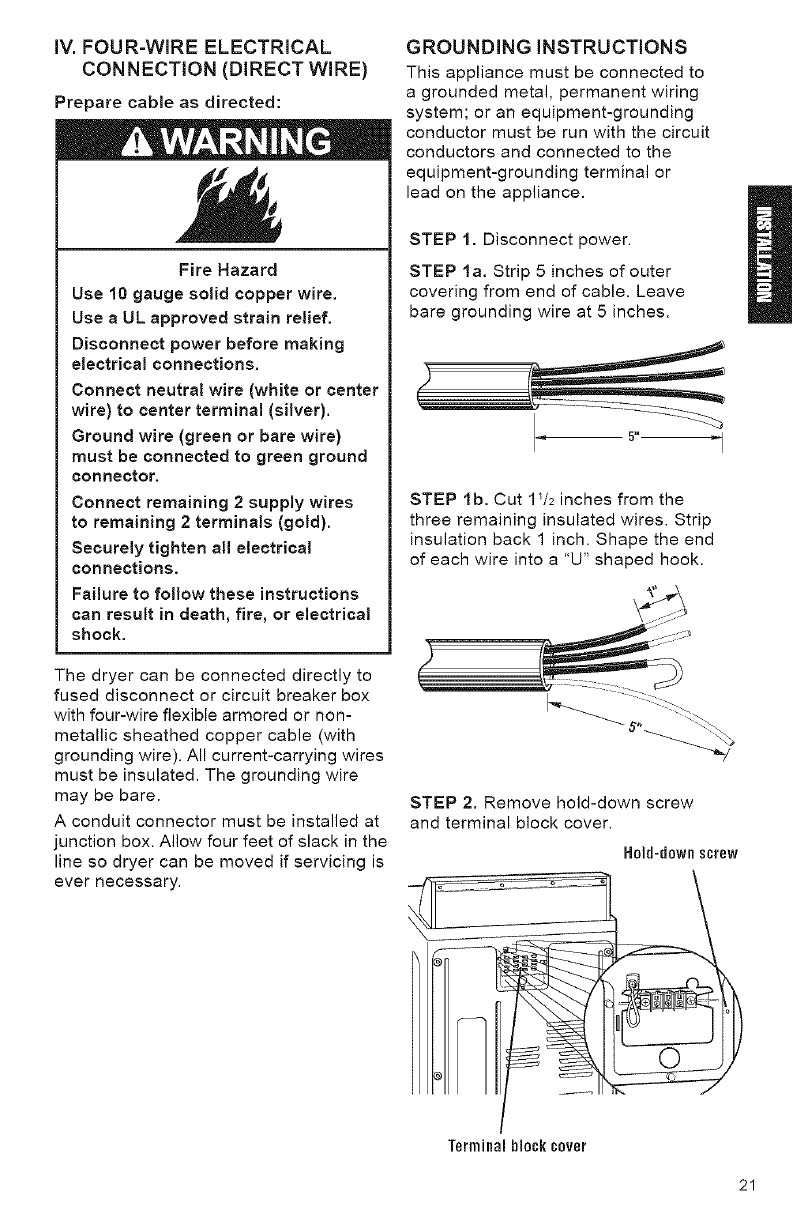

IV. FOUR-WIRE ELECTRICAL

CONNECTION (DIRECT WIRE)

Prepare cable as directed:

Fire Hazard

Use 10 gauge solid copper wire,

Use a UL approved strain relief,

Disconnect power before making

electrical connections.

Connect neutral wire (white or center

wire) to center terminal (silver).

Ground wire (green or bare wire)

must be connected to green ground

connector.

Connect remaining 2supply wires

to remaining 2terminals (gold).

Securely tighten all electrical

connections,

Failure to follow these instructions

can result in death, fire, or electrical

shock,

The dryer can be connected directly to

fused disconnect or circuit breaker box

with four-wire flexible armored or non-

metallic sheathed copper cable (with

grounding wire). All current-carrying wires

must be insulated. The grounding wire

may be bare.

A conduit connector must be installed at

junction box. Allow four feet of slack in the

line so dryer can be moved if servicing is

ever necessary.

GROUNDING INSTRUCTIONS

This appliance must be connected to

a grounded metal, permanent wiring

system; or an equipment-grounding

conductor must be run with the circuit

conductors and connected to the

equipment-grounding terminal or

lead on the appliance.

STEP 1. Disconnect power.

STEP la. Strip 5 inches of outer

covering from end of cable. Leave

bare grounding wire at 5 inches.

5"_ I

STEP lb. Cut 11/2 inches from the

three remaining insulated wires. Strip

insulation back 1 inch. Shape the end

of each wire into a "U" shaped hook.

STEP 2. Remove hold-down screw

and terminal block cover.

H01d-d0wnscrew

Terminal block cover

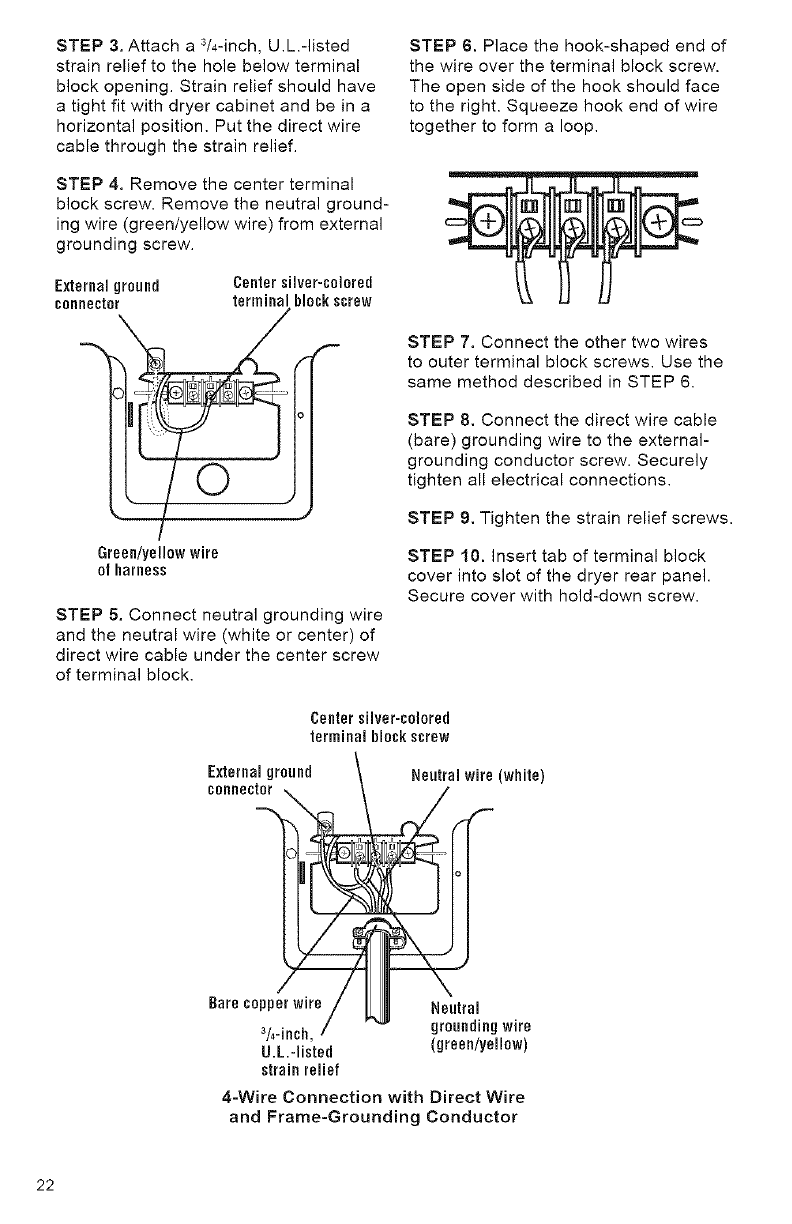

STEP 3. Attach a 3/4-inch, U.L.-listed

strain relief to the hole below terminal

block opening. Strain relief should have

a tight fit with dryer cabinet and be in a

horizontal position. Put the direct wire

cable through the strain relief.

STEP 4. Remove the center terminal

block screw. Remove the neutral ground-

ing wire (green/yellow wire) from external

grounding screw.

External ground

connecter

Centersilver-colored

terminalblockscrew

Green/yell0w wire

0! harness

STEP 5. Connect neutral grounding wire

and the neutral wire (white or center) of

direct wire cable under the center screw

of terminal block.

STEP 6. Place the hook-shaped end of

the wire over the terminal block screw.

The open side of the hook should face

to the right. Squeeze hook end of wire

together to form a loop.

STEP 7. Connect the other two wires

to outer terminal block screws. Use the

same method described in STEP 6.

STEP 8. Connect the direct wire cable

(bare) grounding wire to the external-

grounding conductor screw. Securely

tighten all electrical connections.

STEP 9. Tighten the strain relief screws.

STEP 10. Insert tab of terminal block

cover into slot of the dryer rear panel.

Secure cover with hold-down screw.

Centersilver-colored

terminalblock screw

External ground Neutral wire (white)

connecter

8are copper wire Neutral

3/4.inch, grounding wire

U.L.-listed (green/yell0w)

strain relief

4=Wire Connection with Direct Wire

and Frame-Grounding Conductor

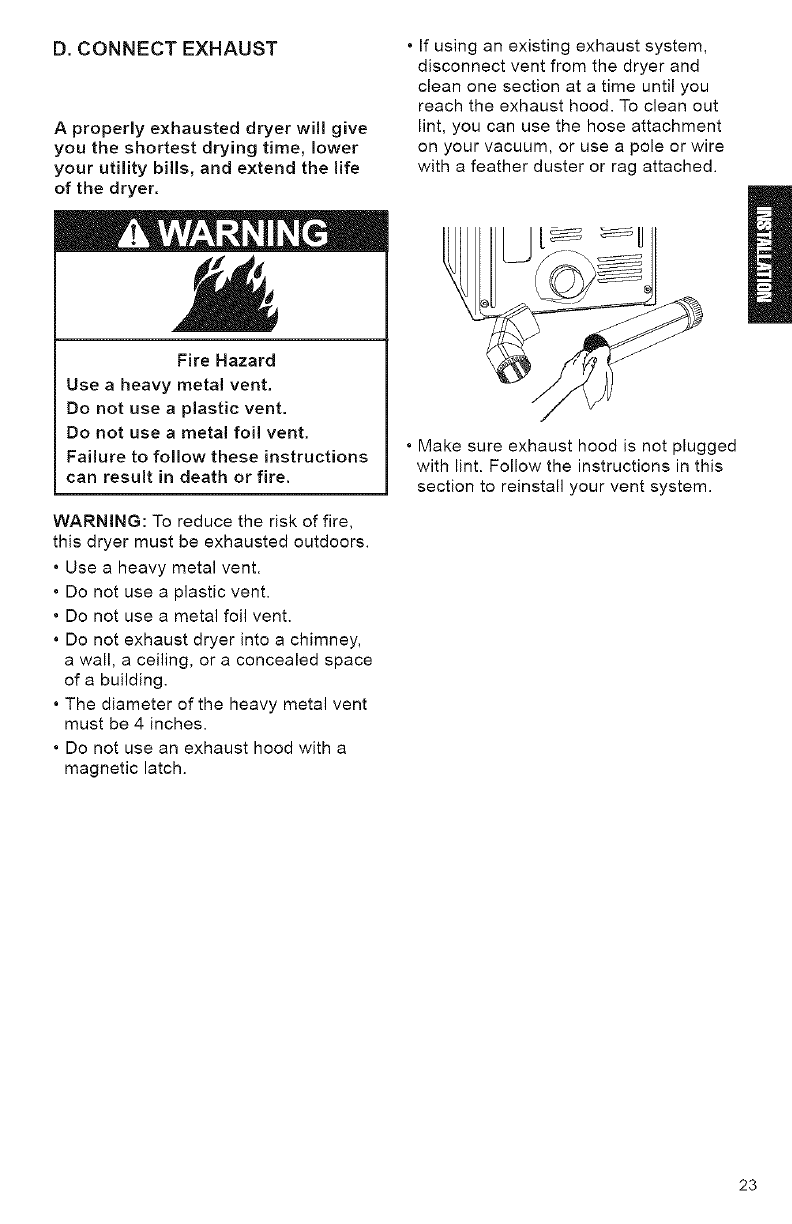

D. CONNECTEXHAUST

A properly exhausted dryer will give

you the shortest drying time, lower

your utility bills, and extend the life

of the dryer.

Fire Hazard

Use a heavy metal vent.

Do not use a plastic vent.

Do not use a metal foil vent.

Failure to follow these instructions

can result in death or fire.

WARNING: To reduce the risk of fire,

this dryer must be exhausted outdoors.

• Use a heavy metal vent.

• Do not use a plastic vent.

• Do not use a metal foil vent.

• Do not exhaust dryer into a chimney,

a wall, a ceiling, or a concealed space

of a building.

• The diameter of the heavy metal vent

must be 4 inches.

• Do not use an exhaust hood with a

magnetic latch.

• If using an existing exhaust system,

disconnect vent from the dryer and

clean one section at a time until you

reach the exhaust hood. To clean out

lint, you can use the hose attachment

on your vacuum, or use a pole or wire

with a feather duster or rag attached.

• Make sure exhaust hood is not plugged

with lint. Follow the instructions in this

section to reinstall your vent system.

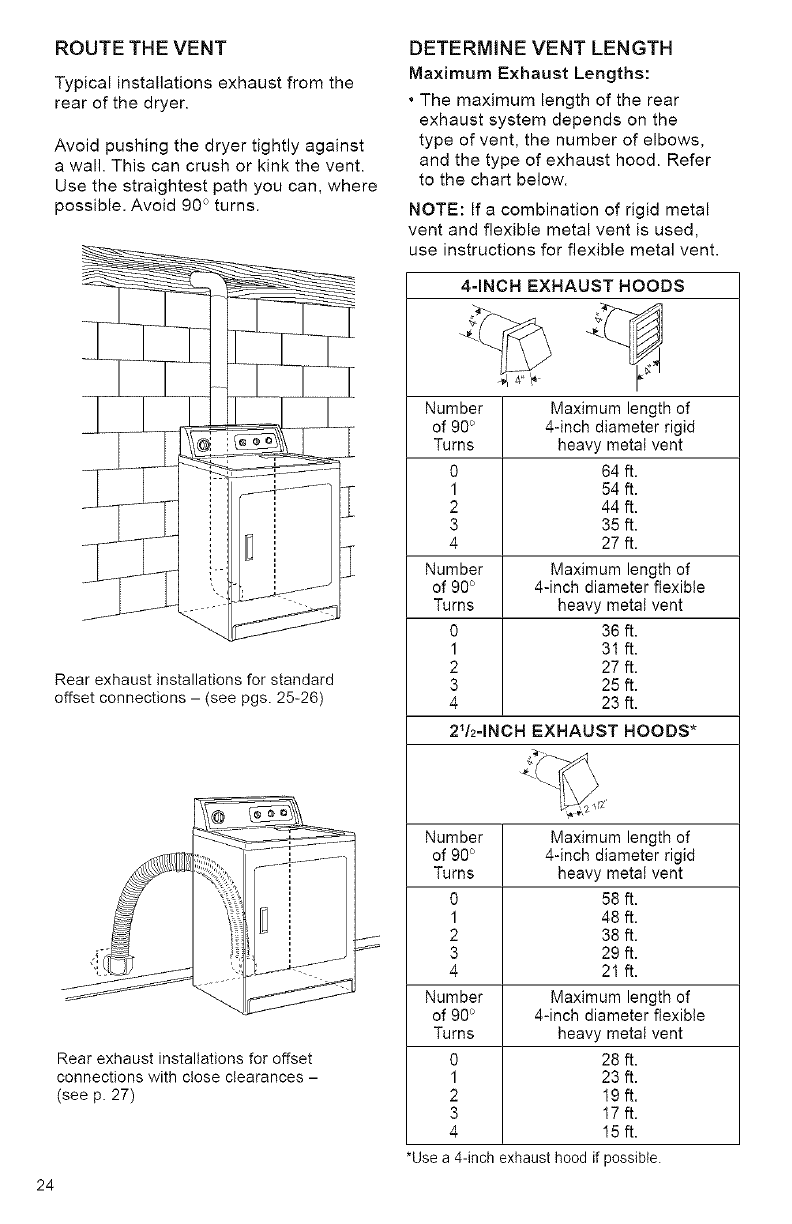

ROUTE THE VENT

Typical installations exhaust from the

rear of the dryer.

Avoid pushing the dryer tightly against

a wall. This can crush or kink the vent.

Use the straightest path you can, where

possible. Avoid 90 ° turns.

Rear exhaust installations for standard

offset connections - (see pgs. 25-26)

Rear exhaust installations for offset

connections with close clearances -

(see p. 27)

DETERMINE VENT LENGTH

Maximum Exhaust Lengths:

• The maximum length of the rear

exhaust system depends on the

type of vent, the number of elbows,

and the type of exhaust hood. Refer

to the chart below.

NOTE: If a combination of rigid metal

vent and flexible metal vent is used,

use instructions for flexible metal vent.

4-INCH EXHAUST HOODS

Number Maximum length of

of 90 ° 4-inch diameter rigid

Turns heavy metal vent

0 64 ft.

1 54 ft.

2 44 ft.

3 35 ft.

4 27ft.

Number Maximum length of

of 900 4-inch diameter flexible

Turns heavy metal vent

0 36 ft.

1 31 ft.

2 27 ft.

3 25ft.

4 23ft.

21/2-INCH EXHAUST HOODS*

Number Maximum length of

of 900 4-inch diameter rigid

Turns heavy metal vent

0 58 ft.

1 48ft.

2 38 ft.

3 29ft.

4 21ft.

Number Maximum length of

of 900 4-inch diameter flexible

Turns heavy metal vent

O 28ft.

1 23ft.

2 19ft.

3 17ft.

4 15ft.

*Use a 4-inch exhaust hood if possible.

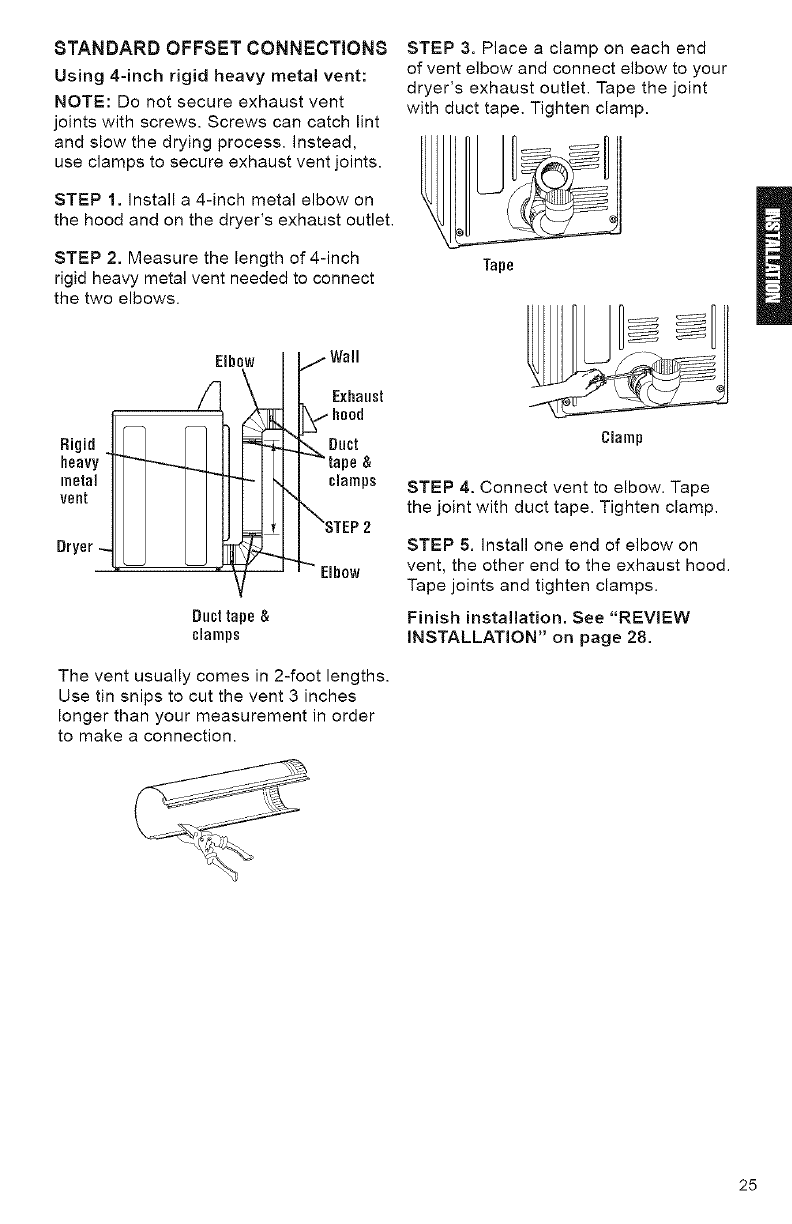

STANDARDOFFSETCONNECTIONS

Using4-inchrigidheavymetalvent:

NOTE:Donotsecureexhaust vent

joints with screws. Screws can catch lint

and slow the drying process, instead,

use clamps to secure exhaust vent joints.

STEP 1. Install a 4-inch metal elbow on

the hood and on the dryer's exhaust outlet.

STEP 2. Measure the length of 4-inch

rigid heavy metal vent needed to connect

the two elbows.

STEP 3. Place a clamp on each end

of vent elbow and connect elbow to your

dryer's exhaust outlet. Tape the joint

with duct tape. Tighten clamp.

Tape

Rigid .

heavy

metal

vent

Dryer_

Elbow _Wall

Exhaust

_,- hoed

_Duct

tape &

clamps

_STEP 2

_" Elbaw

Ducttape &

clamps

The vent usually comes in 2-foot lengths.

Use tin snips to cut the vent 3 inches

longer than your measurement in order

to make a connection.

Clamp

STEP 4. Connect vent to elbow. Tape

the joint with duct tape. Tighten clamp.

STEP 5. install one end of elbow on

vent, the other end to the exhaust hood.

Tape joints and tighten clamps.

Finish installation, See "REVIEW

iNSTALLATiON" on page 28.

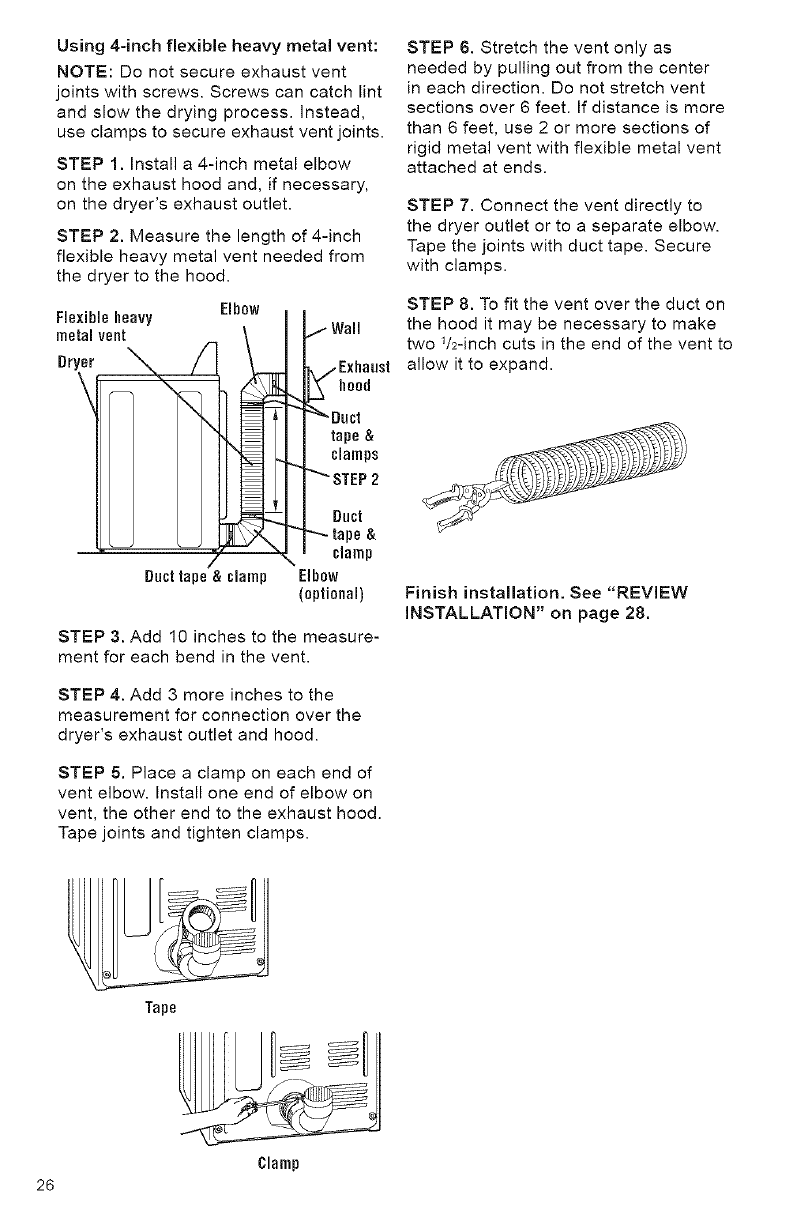

Using4-inchflexibleheavymetalvent:

NOTE:Donotsecureexhaust vent

joints with screws. Screws can catch lint

and slow the drying process, instead,

use clamps to secure exhaust vent joints.

STEP 1. Install a 4-inch metal elbow

on the exhaust hood and, if necessary,

on the dryer's exhaust outlet.

STEP 2. Measure the length of 4-inch

flexible heavy metal vent needed from

the dryer to the hood.

Elbow

Flexible heavy

metal vent

Duct tape clamp

.--Wall

/Exhaust

_, heed

=_"Duct

tape &

clamps

"_ STEP2

Duct

tape &

clamp

EIbaw

(optional)

STEP 3. Add 10 inches to the measure-

ment for each bend in the vent.

STEP 4. Add 3 more inches to the

measurement for connection over the

dryer's exhaust outlet and hood.

STEP 5. Place a clamp on each end of

vent elbow. Install one end of elbow on

vent, the other end to the exhaust hood.

Tape joints and tighten clamps.

STEP 6. Stretch the vent only as

needed by pulling out from the center

in each direction. Do not stretch vent

sections over 6 feet. If distance is more

than 6 feet, use 2 or more sections of

rigid metal vent with flexible metal vent

attached at ends.

STEP 7. Connect the vent directly to

the dryer outlet or to a separate elbow.

Tape the joints with duct tape. Secure

with clamps.

STEP 8. To fit the vent over the duct on

the hood it may be necessary to make

two 1/2-inch cuts in the end of the vent to

allow it to expand.

Finish installation. See "REVIEW

INSTALLATION" on page 28,

Tape

Clamp

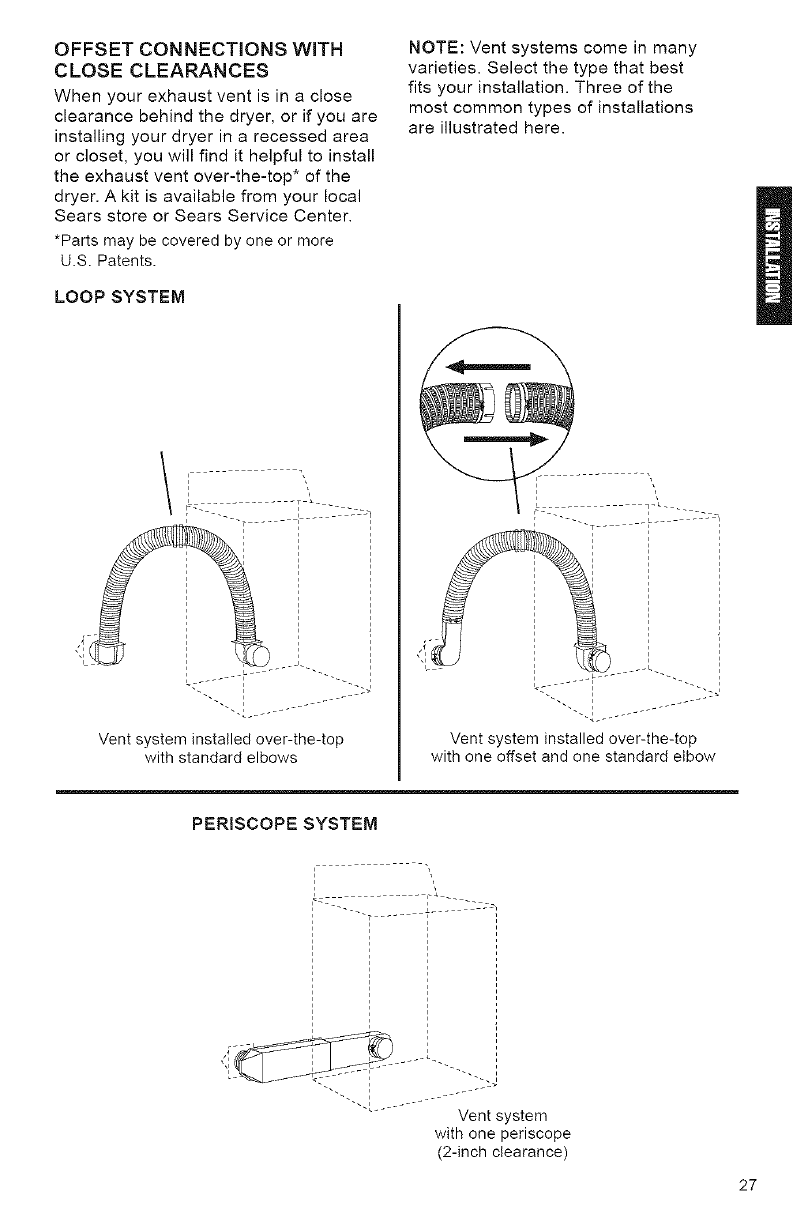

OFFSETCONNECTIONSWITH

CLOSECLEARANCES

Whenyourexhaust vent is in aclose

clearance behind the dryer, or if you are

installing your dryer in a recessed area

or closet, you will find it helpful to install

the exhaust vent over-the-top* of the

dryer. A kit is available from your local

Sears store or Sears Service Center.

*Parts may be covered by one or more

U.S. Patents.

LOOP SYSTEM

NOTE: Vent systems come in many

varieties. Select the type that best

fits your installation. Three of the

most common types of installations

are illustrated here.

Vent system installed over-the-top

with standard elbows Vent system installed over-the-top

with one offset and one standard elbow

PERISCOPE SYSTEM

[ ",,

Vent system

with one periscope

(2-inch clearance)

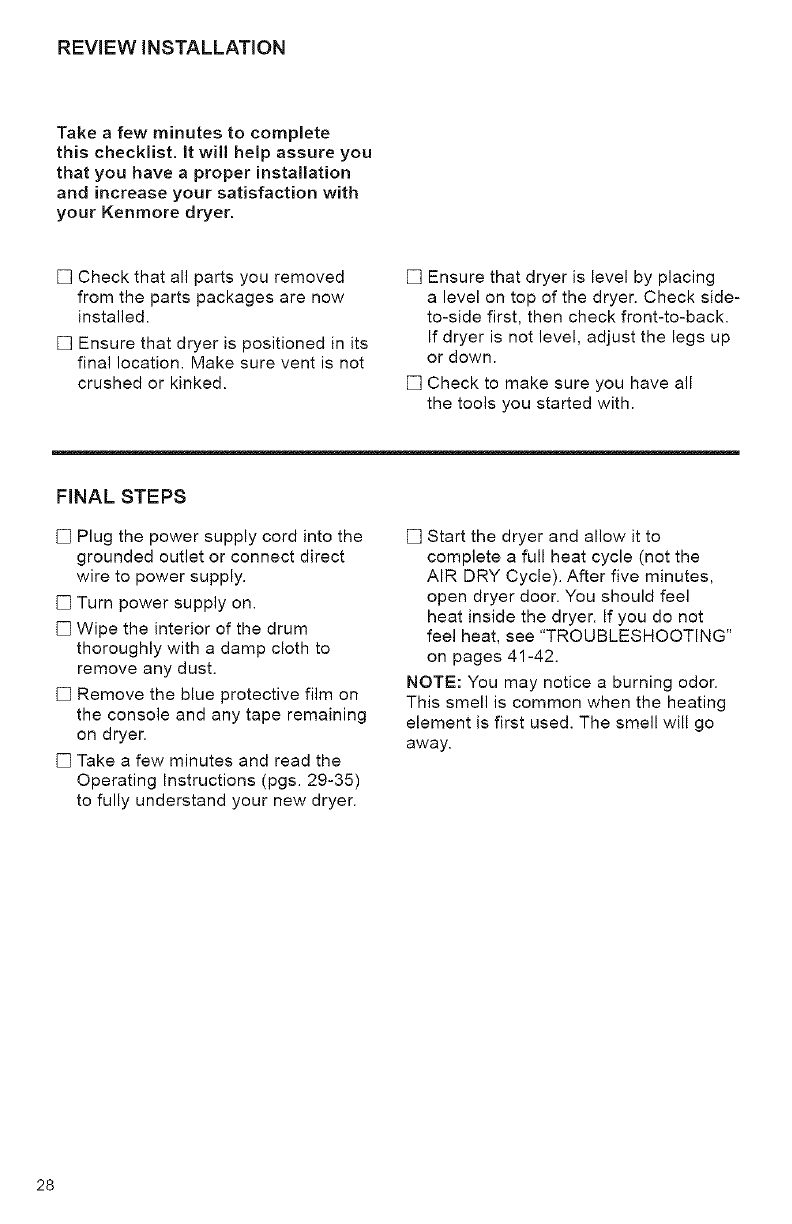

REVIEW INSTALLATION

Take afew minutes to complete

this checklist. It wil! help assure you

that you have a proper installation

and increase your satisfaction with

your Kenmore dryer,

[] Check that all parts you removed

from the parts packages are now

installed.

[] Ensure that dryer is positioned in its

final location. Make sure vent is not

crushed or kinked.

[] Ensure that dryer is level by placing

a level on top of the dryer. Check side-

to-side first, then check front-to-back.

If dryer is not level, adjust the legs up

or down.

[] Check to make sure you have all

the tools you started with.

FINAL STEPS

[] Plug the power supply cord into the

grounded outlet or connect direct

wire to power supply.

[] Turn power supply on.

[] Wipe the interior of the drum

thoroughly with a damp cloth to

remove any dust.

[] Remove the blue protective film on

the console and any tape remaining

on dryer.

[] Take a few minutes and read the

Operating Instructions (pgs. 29-35)

to fully understand your new dryer.

[] Start the dryer and allow it to

complete a full heat cycle (not the

AIR DRY Cycle). After five minutes,

open dryer door. You should feel

heat inside the dryer. If you do not

feel heat, see "TROUBLESHOOTING"

on pages 41-42.

NOTE: You may notice a burning odor.

This smell is common when the heating

element is first used. The smell will go

away.

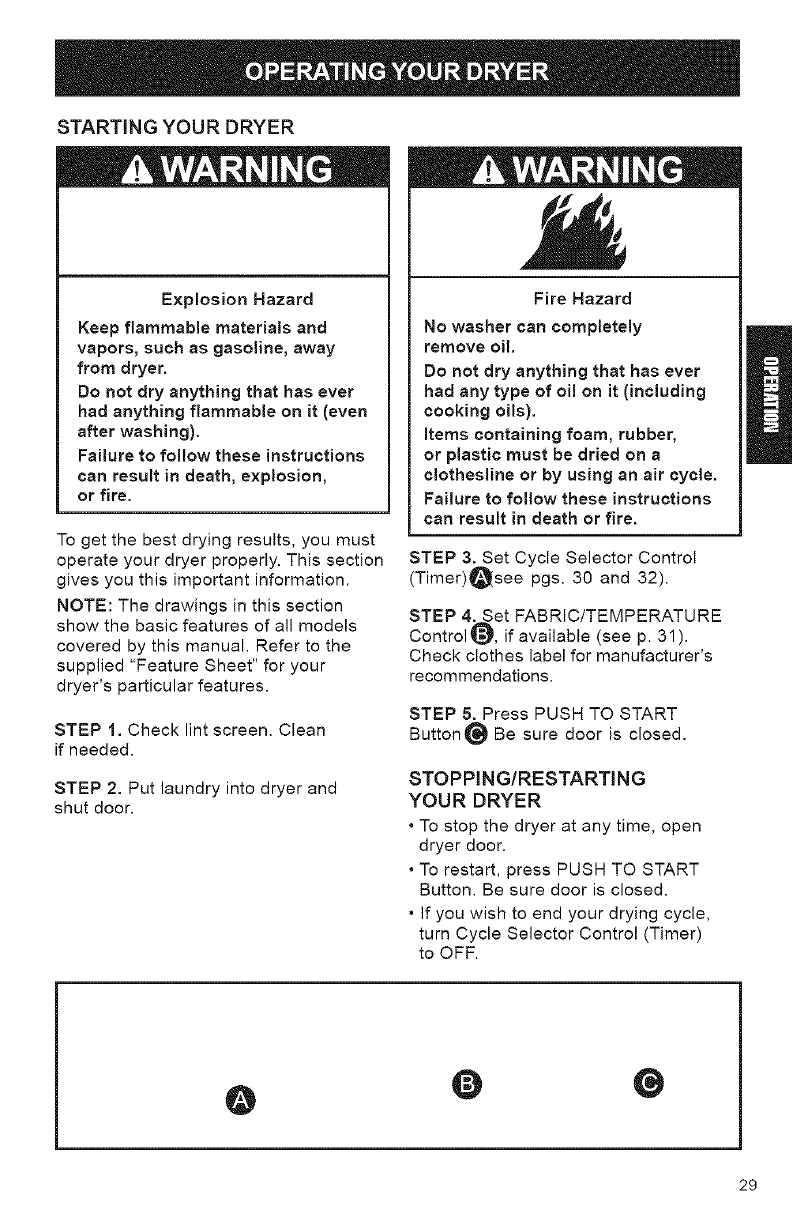

STARTING YOUR DRYER

Explosion Hazard

Keep flammable materials and

vapors, such as gasoline, away

from dryer.

Do not dry anything that has ever

had anything flammable on it (even

after washing).

Failure to follow these instructions

can result in death, explosion,

or fire,

To get the best drying results, you must

operate your dryer properly. This section

gives you this important information.

NOTE: The drawings in this section

show the basic features of all models

covered by this manual. Refer to the

supplied "Feature Sheet" for your

dryer's particular features.

STEP 1. Check lint screen. Clean

if needed.

STEP 2. Put laundry into dryer and

shut door.

Fire Hazard

No washer can completely

remove oil,

Do not dry anything that has ever

had any type of oil on it (including

cooking oils),

items containing foam, rubber,

or plastic must be dried on a

clothesline or by using an air cycle.

Failure to follow these instructions

can result in death or fire.

STEP 3. Set Cycle Selector Control

(Timer)_see pgs. 30 and 32).

STEP 4. Set FABRIC/TEMPERATURE

Control_, if available (see p. 31 ).

Check clothes label for manufacturer's

recommendations.

STEP 5. Press PUSH TO START

Button_ Be sure door is closed.

STOPPING/RESTARTING

YOUR DRYER

• To stop the dryer at any time, open

dryer door.

• To restart, press PUSH TO START

Button. Be sure door is closed.

• If you wish to end your drying cycle,

turn Cycle Selector Control (Timer)

to OFF.

O@ O

CYCLE DESCRIPTION

The AUTO DRY Cycle saves you time

by providing the best drying results

in the shortest time. This can help

you save money on utility bills and

reduce the risk of fabric damage.

AUTO DRY CYCLE

Use AUTO DRY for most loads. Drying

time varies according to type of fabric,

size of load, and dryness setting.

Using Automatic Drying Cycles

• Set the Cycle Selector Control (Timer)

to NORMAL DRY(*) which is good for

most fabrics.

• At the end of the cycle, feel the dried

clothes. If they are damp, select MORE

DRY the next time you do a similar load.

If they are overdried, select LESS DRY

the next time you do a similar load.

• If your dryer has an end-of-cycle signal,

it will sound (if selected) once the cycle

is completed. Select models feature a

non-adjustable end-of-cycle signal.

On Dryers with AUTO DRY II

• Dryness is determined by an electronic

sensor that "feels" the amount of mois-

ture in clothes as they pass over it. When

the dryness selected is reached, the

dryer goes into a 10-minute (approx.)

COOL DOWN period.

• If you do not unload the dryer, it goes

into WRINKLE GUARD automatically,

if available. For an explanation of

WRINKLE GUARD, see page 34.

On Dryers with AUTO DRY I

• Dryness is determined by thermostats

that react to the amount of moisture

in the air exhausted from the dryer.

Moist air indicates clothes are still

damp. Dry air indicates that moisture

has been removed.

NOTE: Dryers that do not have a

FABRIC/TEMPERATURE Control, give

you a choice of settings for high heat

(PERMANENT PRESS/NORMAL) or

low heat (KNIT/DELICATE).

TIMED DRY CYCLE

Use this cycle to get 60, 70, or 80

minutes (depending on model) of heated

drying time.

• The heating cycle is followed by a 10-

minute (approx.) COOL DOWN period.

• If your dryer has an end-of-cycle signal,

it will sound (if selected) once the cycle

is completed. Select models feature a

non-adjustable end-of-cycle signal.

TOUCH UP CYCLE

Use this cycle to smooth synthetic and

permanent press clothes that are clean

but wrinkled from being crowded in a

closet or suitcase.

• This setting provides about 15 minutes

of heated drying time followed by a 10-

minute (approx.) COOL DOWN period.

• If your dryer has an end-of-cycle signal,

it will sound (if selected) once the cycle

is completed. Select models feature a

non-adjustable end-of-cycle signal.

• Remove clothes immediately when

tumbling stops.

o TIMED DRY

WRINKLE GUARD / 30

III 4111 q°'

_0 20 30 AIR DRY

Soft HeatSystem

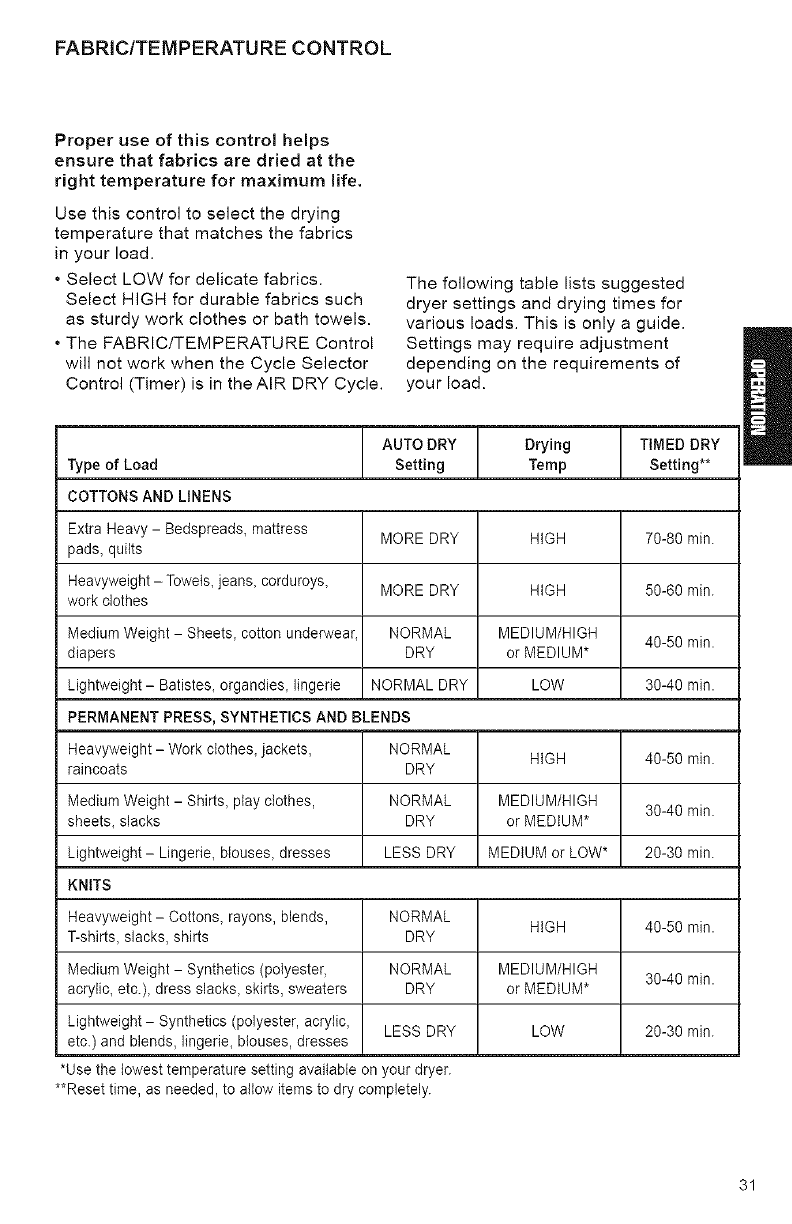

FABRIC/TEMPERATURE CONTROL

Proper use of this control helps

ensure that fabrics are dried at the

right temperature for maximum life.

Use this control to select the drying

temperature that matches the fabrics

in your load.

• Select LOW for delicate fabrics.

Select HIGH for durable fabrics such

as sturdy work clothes or bath towels.

• The FABRIC/TEMPERATURE Control

will not work when the Cycle Selector

Control (Timer) is in the AIR DRY Cycle.

The following table lists suggested

dryer settings and drying times for

various loads. This is only a guide.

Settings may require adjustment

depending on the requirements of

your load.

AUTO DRY Drying TIMED DRY

Type of Load Setting Temp Setting**

COTTONS AND LINENS

Extra Heavy - Bedspreads, mattress MORE DRY HIGH 70-80 min.

pads, quilts

Heavyweight- Towels, jeans, corduroys, MORE DRY HIGH 50-60 min.

work clothes

Medium Weight - Sheets, cotton underwear NORMAL MEDIUM/HIGH 40-50 min.

diapers DRY or MEDIUM*

Lightweight - Batistes, organdies, lingerie NORMAL DRY LOW 30-40 min.

PERMANENT PRESS, SYNTHETICS AND BLENDS

Heavyweight - Work clothes, jackets, NORMAL HIGH 40-50 min.

raincoats DRY

Medium Weight - Shirts, play clothes, NORMAL MEDIUM/HIGH 30-40 min.

sheets, slacks DRY or MEDIUM*

Lightweight - Lingerie, blouses, dresses LESS DRY MEDIUM or LOW* 20-30 min.

KNITS

Heavyweight - Cottons, rayons, blends, NORMAL HIGH 40-50 min.

T-shirts, slacks, shirts DRY

NORMAL MEDIUM/HIGH 30-40 min.

DRY or MEDIUM*

LOW 20-30 min.

Medium Weight - Synthetics (polyester,

acrylic, etc.), dress slacks, skirts, sweaters

Lightweight - Synthetics (polyester, acrylic, LESS DRY

etc.) and blends, lingerie, blouses, dresses

*Use the lowest temperature setting available on your dryer.

**Reset time, as needed, to allow items to dry completely.

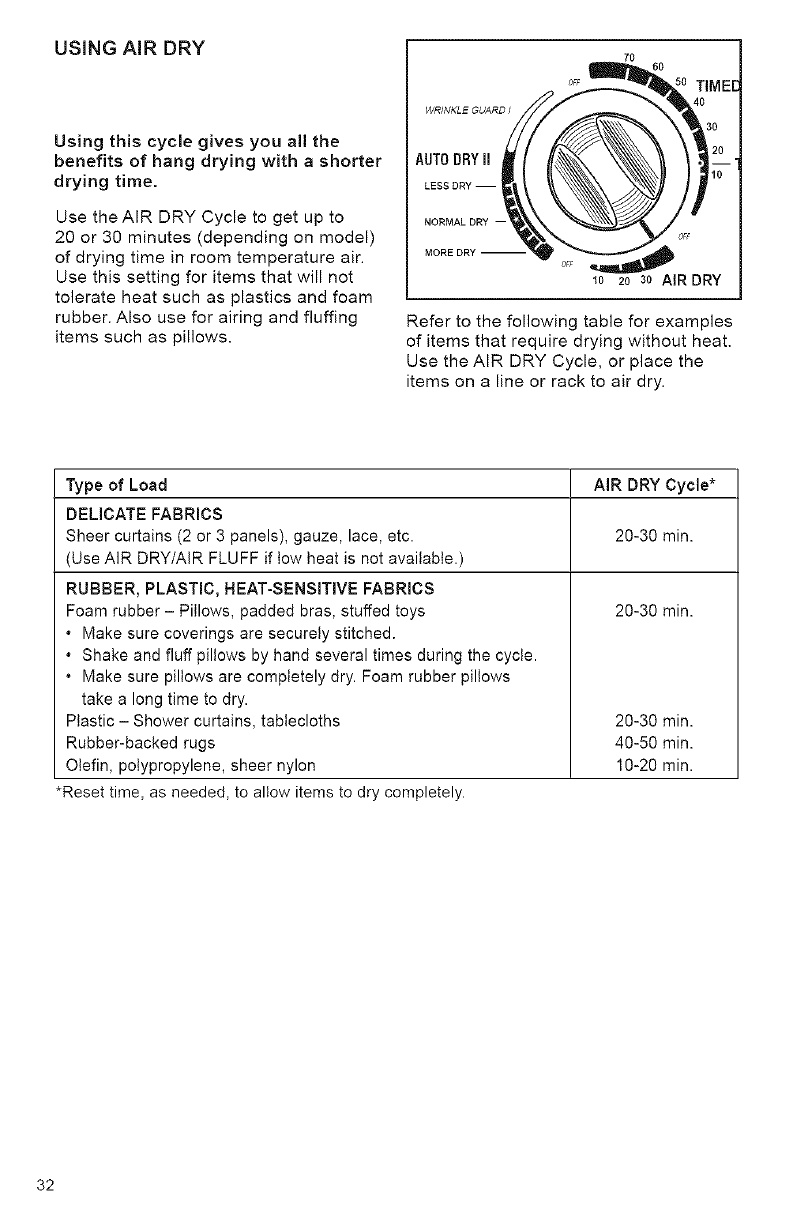

USING AiR DRY

Using this cycle gives you al! the

benefits of hang drying with a shorter

drying time.

Use the AIR DRY Cycle to get up to

20 or 30 minutes (depending on model)

of drying time in room temperature air.

Use this setting for items that will not

tolerate heat such as plastics and foam

rubber. Also use for airing and fluffing

items such as pillows.

WRINKLE GUARD /

AUTO DRY II

CL-_

MORE DRY --

o> _50 TIMEE

°1]-7

10 20 30 AiR DRY

Refer to the following table for examples

of items that require drying without heat.

Use the AIR DRY Cycle, or place the

items on a line or rack to air dry.

Type of Load

DELICATE FABRICS

Sheer curtains (2 or 3 panels), gauze, lace, etc.

(Use AIR DRY/AIR FLUFF if tow heat is not available.)

RUBBER, PLASTIC, HEAT-SENSITIVE FABRICS

Foam rubber - Pillows, padded bras, stuffed toys

• Make sure coverings are securely stitched.

• Shake and fluff pillows by hand several times during the cycle.

•Make sure pillows are completely dry. Foam rubber pillows

take a long time to dry.

Plastic - Shower curtains, tablecloths

Rubber-backed rugs

Otefin, potypropylene, sheer nylon

• Reset time, as needed, to allow items to dry completely.

AIR DRY Cycle*

20-30 min.

20-30 rain.

40-50 rain.

10-20 min

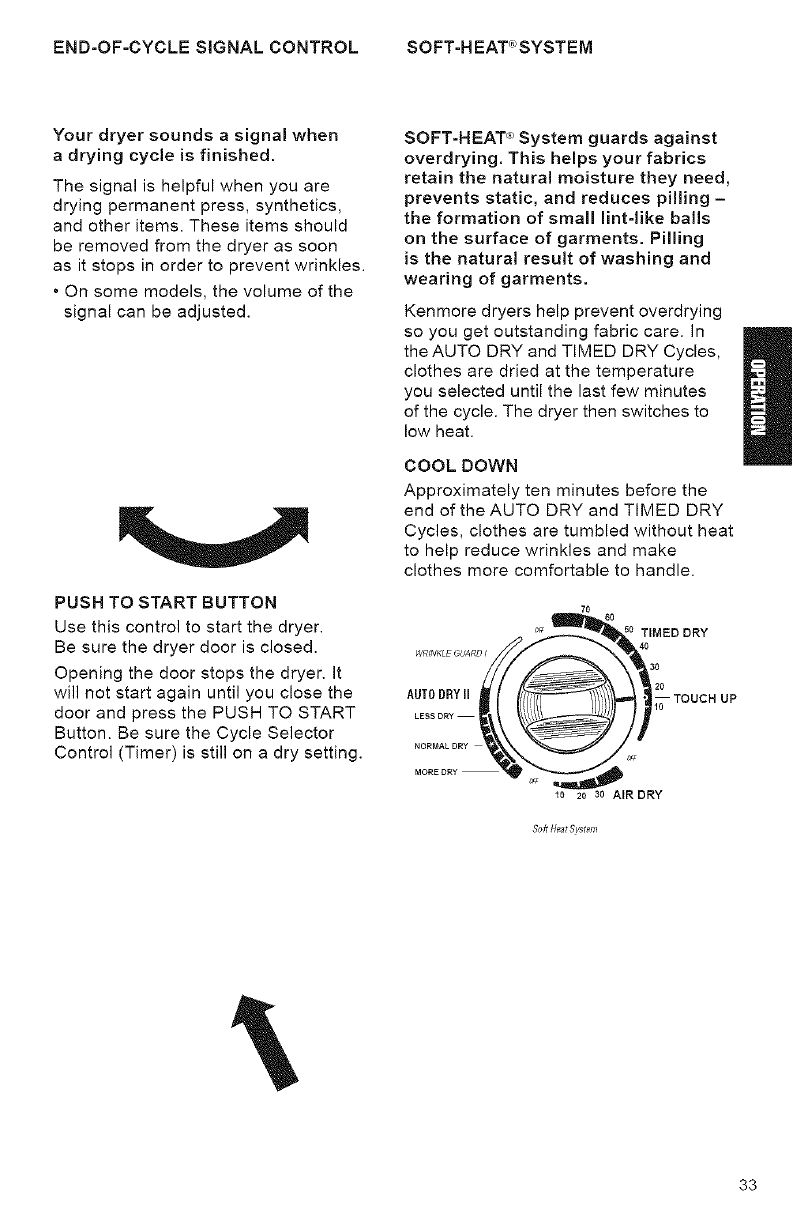

END-OF-CYCLE SIGNAL CONTROL SOFT-HEAT_"_SYSTEM

Your dryer sounds a signal when

a drying cycle is finished.

The signal is helpful when you are

drying permanent press, synthetics,

and other items. These items should

be removed from the dryer as soon

as it stops in order to prevent wrinkles.

• On some models, the volume of the

signal can be adjusted.

PUSH TO START BUTTON

Use this control to start the dryer.

Be sure the dryer door is closed.

Opening the door stops the dryer, it

will not start again until you close the

door and press the PUSH TO START

Button. Be sure the Cycle Selector

Control (Timer) is still on a dry setting.

SOFT-HEAT _">System guards against

overdrying. This helps your fabrics

retain the natural moisture they need,

prevents static, and reduces pilling -

the formation of small lint-like balls

on the surface of garments. Pilling

is the natural result of washing and

wearing of garments.

Kenmore dryers help prevent overdrying

so you get outstanding fabric care. in

the AUTO DRY and TIMED DRY Cycles,

clothes are dried at the temperature

you selected until the last few minutes

of the cycle. The dryer then switches to

low heat.

COOL DOWN

Approximately ten minutes before the

end of the AUTO DRY and TIMED DRY

Cycles, clothes are tumbled without heat

to help reduce wrinkles and make

clothes more comfortable to handle.

WRINKLE GUARD I TIMED

DRY

AUTODRYII

......... TOOCHLESSORY °P

10 20 a0 AIR DRY

Soft H¢_t System

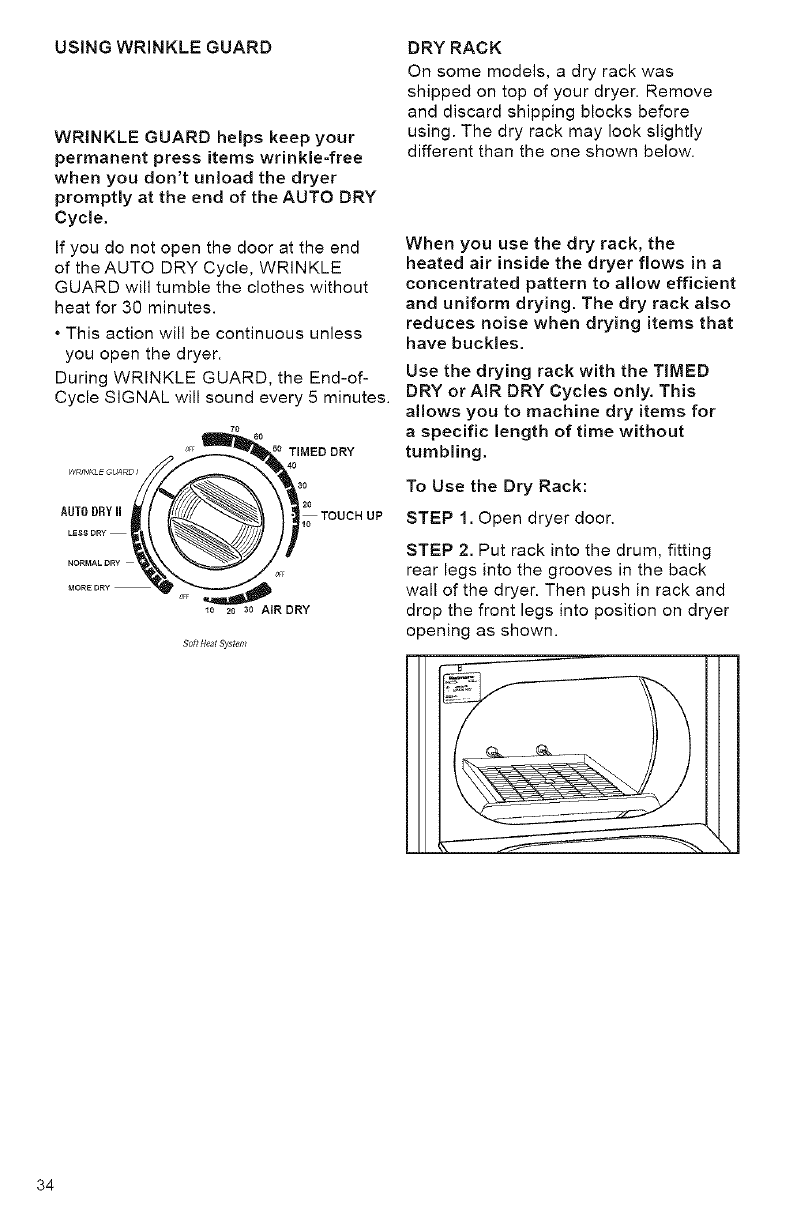

USING WRINKLE GUARD

WRINKLE GUARD helps keep your

permanent press items wrinkle-free

when you don't unload the dryer

promptly at the end of the AUTO DRY

Cycle.

If you do not open the door at the end

of the AUTO DRY Cycle, WRINKLE

GUARD will tumble the clothes without

heat for 30 minutes.

•This action will be continuous unless

you open the dryer.

During WRINKLE GUARD, the End-of-

Cycle SIGNAL will sound every 5 minutes.

0_F_ 0 TIMED DRY

WRINKLE GUARD I

AUTO DRY gTOUCH UP

LESS DRY

1o 2o 3o AIR DRY

Soft He_,tS;_tcm

DRY RACK

On some models, a dry rack was

shipped on top of your dryer. Remove

and discard shipping blocks before

using. The dry rack may look slightly

different than the one shown below.

When you use the dry rack, the

heated air inside the dryer flows in a

concentrated pattern to allow efficient

and uniform drying. The dry rack also

reduces noise when drying items that

have buckles.

Use the drying rack with the TIMED

DRY orAIR DRY Cycles only. This

al!ows you to machine dry items for

a specific length of time without

tumbling.

To Use the Dry Rack:

STEP 1. Open dryer door.

STEP 2. Put rack into the drum, fitting

rear legs into the grooves in the back

wall of the dryer. Then push in rack and

drop the front legs into position on dryer

opening as shown.

STEP3.Placewetitemsontopofthe

dryrack.Allowspacearounditemsfor

airtocirculate.Therackdoesnotmove,

butthedrumwillrotate.Makesureitems

donothangovertheedgesorbetween

rackgrill.

STEP 4. Close dryer door.

STEP 5. Use the TIMED DRY orAIR DRY

Cycle. Refer to the table below.

STEP 6. Set the FABRIC/TEMPERATURE

Control, if available. Refer to the table

below.

STEP 7. Start the dryer.

To remove the dry rack, push it back

to release rear leg springs and lift out.

Suggested items

for Rack Drying

1. Washable wool items (block to

shape and lay flat on rack)

2. Stuffed toys (cotton or polyester

fiber filling)

3. Stuffed toys (foam rubber filling)

4. Galoshes (rubber)

5. Foam rubber pillows

6. Tennis shoes

*Reset time as needed to complete drying.

FABRIC/

TEMPERATURE

Setting

DELICATE

COTTON

AIR DRY

Cycle Selector

(Timer)

Setting

TIMED DRY

Minutes*

30-40

PREPARING CLOTHES SORTING CLOTHES

FOR DRYING

Follow these recommendations to

help save on utility bills and prolong

the life of your garments.

• Refer to your Washer Owner's Manual

for proper washing techniques and

additional laundry tips.

• See page 4 of this manual for

Important Safety Instructions.

DRYING TIPS

• Separate dark colors from light colors;

colorfast from non-colorfast. Items

properly sorted by color for washing

are usually properly sorted for drying.

• Separate heavy fabrics (denim,

towels) from light fabrics (synthetics,

permanent press).

• Separate lint givers (towels, chenille)

from lint takers (corduroy, synthetics,

permanent press). When possible,

turn lint takers inside out.

• Close zippers, snaps, and hooks to

avoid snagging other items. Remove

heat-sensitive trim that can be damaged

by drying. Tie strings and sashes so

they will not tangle.

• Check garments for spots and stains

left after washing. Do not tumble these

items. Heat may permanently set stains.

• Check pockets before drying. Sharp

or metal objects can damage your

dryer. Do not lay these objects on

your dryer, they can damage the

finish. Turn pockets of heavy items

inside out for even drying.

• Place small items such as baby

socks or hankies in laundry bag for

easy removal.

• Articles to be ironed should be

removed while still damp.

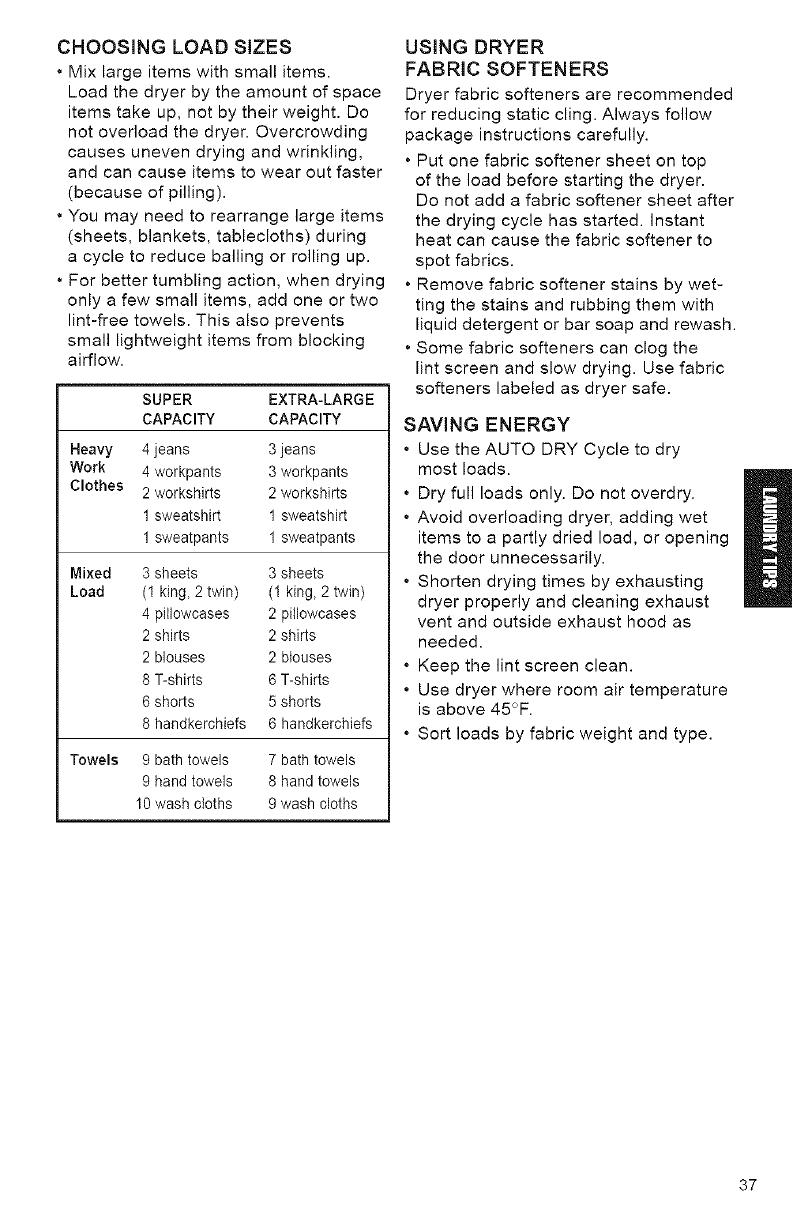

CHOOSINGLOADSIZES

•Mixlargeitemswith small items.

Load the dryer by the amount of space

items take up, not by their weight. Do

not overload the dryer. Overcrowding

causes uneven drying and wrinkling,

and can cause items to wear out faster

(because of pilling).

• You may need to rearrange large items

(sheets, blankets, tablecloths) during

acycle to reduce bailing or rolling up.

• For better tumbling action, when drying

only a few small items, add one or two

lint-free towels. This also prevents

small lightweight items from blocking

airflow.

SUPER EXTRA-LARGE

CAPACITY CAPACITY

Heavy 4 jeans 3 jeans

Work 4 workpants 3 workpants

Clothes 2 workshirts 2 workshirts

1 sweatshirt 1 sweatshirt

1 sweatpants 1 sweatpants

Mixed 3 sheets 3 sheets

Load (1 king, 2 twin) (1 king, 2 twin)

4 pillowcases 2 pillowcases

2 shirts 2 shirts

2 blouses 2 blouses

8 T-shirts 6 T-shirts

6 shorts 5 shorts

8 handkerchiefs 6 handkerchiefs

Towels 9 bath towels 7 bath towels

9 hand towels 8 hand towels

10 wash cloths 9 wash cloths

USING DRYER

FABRIC SOFTENERS

Dryer fabric softeners are recommended

for reducing static cling. Always follow

package instructions carefully.

• Put one fabric softener sheet on top

of the load before starting the dryer.

Do not add a fabric softener sheet after

the drying cycle has started. Instant

heat can cause the fabric softener to

spot fabrics.

• Remove fabric softener stains by wet-

ting the stains and rubbing them with

liquid detergent or bar soap and rewash.

• Some fabric softeners can clog the

lint screen and slow drying. Use fabric

softeners labeled as dryer safe.

SAVING ENERGY

•Use the AUTO DRY Cycle to dry

most loads.

•Dry full loads only. Do not overdry.

•Avoid overloading dryer, adding wet

items to a partly dried load, or opening

the door unnecessarily.

•Shorten drying times by exhausting

dryer properly and cleaning exhaust

vent and outside exhaust hood as

needed.

•Keep the lint screen clean.

•Use dryer where room air temperature

is above 45°F.

•Sort loads by fabric weight and type.

This section explains how to care for

your dryer properly and safely.

Proper care of your dryer can extend

its life and help you avoid costly

service calls.

CLEANING YOUR DRYER

EXTERIOR

Use a soft, darnp cloth to clean the cabinet

and console. Avoid using harsh abrasives.

Do not put sharp metal objects on or in

your dryer. They can damage the finish.

INTERIOR

STEP 3. Wipe thoroughly with a

damp cloth.

STEP 4. Tumble a load of clean towels

for 20 minutes to dry.

CLEANING THE LINT SCREEN

Remove Lint Before Every Load

The lint screen is located on top of your

dryer. Remove lint before every load.

A screen blocked by lint can increase

drying time.

To clean:

STEP 1. Pull the lint screen straight up.

Explosion Hazard

Use nonflammable cleaners.

Failure to do so can result in death,

explosion, fire, or burns.

Garments that contain unstable dyes,

such as denim blue jeans or brightly

colored cotton items, may discolor the

dryer drum.

To clean dryer drum:

STEP 1. Make a paste with detergent

and very warm water and apply to a soft

cloth. Continue with STEPS 2-4.

STEP la. Spray nonflammable liquid

household cleaner on the stained area.

Continue with STEPS 2-4.

STEP 2. Scrub area until all excess dye

is removed.

STEP 2. Roll lint off the screen with your

fingers. Do not rinse or wash screen to

remove lint. Wet lint is hard to remove.

STEP 3. Push the lint screen firmly back

into place.

IMPORTANT:

• Do not run the dryer with the lint screen

loose, damaged, blocked, or missing.

Doing so can cause overheating and

damage to both the dryer and fabrics.

• Some towels made of synthetic fibers

and natural fibers (polyester and cotton

blends) may shed more lint than other

towels, causing your dryer's lint screen

to fill up faster. Be sure to remove lint

from the lint screen before and after

drying new towels.

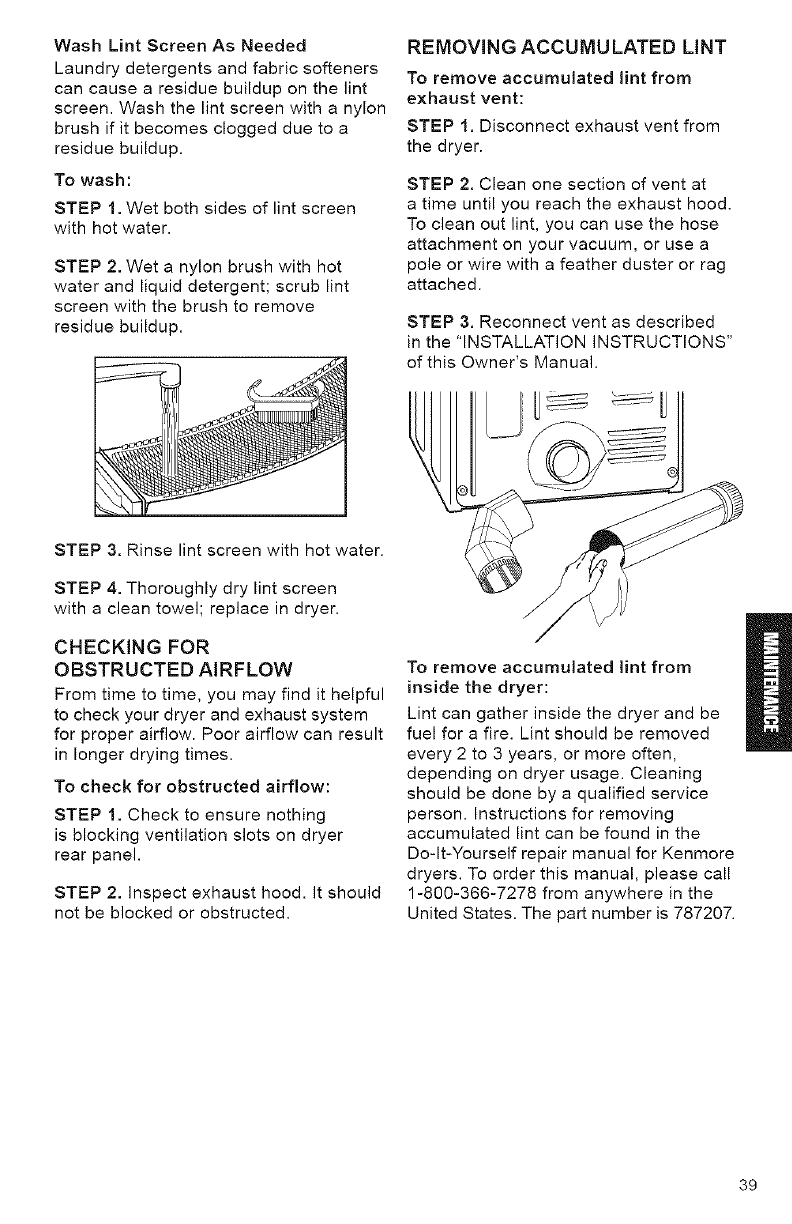

WashLintScreenAsNeeded

Laundrydetergentsandfabricsofteners

cancausearesiduebuilduponthelint

screen.Washthelintscreenwithanylon

brushifit becomescloggedduetoa

residuebuildup.

Towash:

STEP1.Wetbothsidesoflintscreen

withhotwater.

STEP2.Wetanylonbrushwithhot

waterandliquiddetergent;scrublint

screenwiththebrushtoremove

residuebuildup.

STEP3.Rinselintscreenwithhotwater.

STEP4.Thoroughlydrylintscreen

withacleantowel;replaceindryer.

CHECKINGFOR

OBSTRUCTEDAIRFLOW

Fromtimetotime,youmayfindithelpful

tocheckyourdryerandexhaust system

for proper airflow. Poor airflow can result

in longer drying times.

To check for obstructed airflow:

STEP 1. Check to ensure nothing

is blocking ventilation slots on dryer

rear panel.

STEP 2. Inspect exhaust hood. It should

not be blocked or obstructed.

REMOVING ACCUMULATED LINT

To remove accumulated lint from

exhaust vent:

STEP 1. Disconnect exhaust vent from

the dryer.

STEP 2. Clean one section of vent at

a time until you reach the exhaust hood.

To clean out lint, you can use the hose

attachment on your vacuum, or use a

pole or wire with a feather duster or rag

attached.

STEP 3. Reconnect vent as described

in the "INSTALLATION INSTRUCTIONS"

of this Owner's Manual.

To remove accumulated lint from

inside the dryer:

Lint can gather inside the dryer and be

fuel for a fire. Lint should be removed

every 2 to 3 years, or more often,

depending on dryer usage. Cleaning

should be done by a qualified service

person. Instructions for removing

accumulated lint can be found in the

Do-It-Yourself repair manual for Kenmore

dryers. To order this manual, please call

1-800-366-7278 from anywhere in the

United States. The part number is 787207.

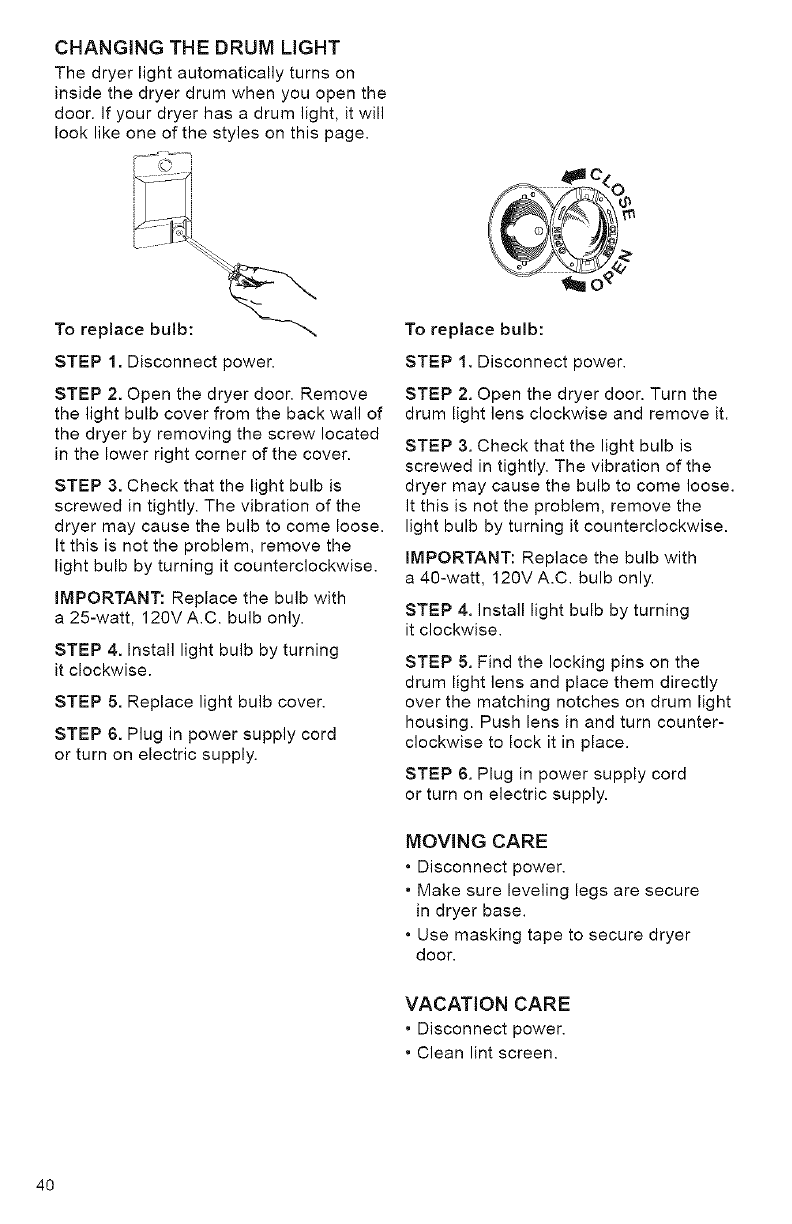

CHANGINGTHEDRUMLIGHT

The dryer light automatically turns on

inside the dryer drum when you open the

door. if your dryer has a drum light, it will

look like one of the styles on this page.

To replace bulb:

STEP 1. Disconnect power.

STEP 2. Open the dryer door. Remove

the light bulb cover from the back wall of

the dryer by removing the screw located

in the lower right corner of the cover.

STEP 3. Check that the light bulb is

screwed in tightly. The vibration of the

dryer may cause the bulb to come loose.

It this is not the problem, remove the

light bulb by turning it counterclockwise.

IMPORTANT: Replace the bulb with

a 25-watt, 120V A.C. bulb only.

STEP 4. Install light bulb by turning

it clockwise.

STEP 5. Replace light bulb cover.

STEP 6. Plug in power supply cord

or turn on electric supply.

To replace bulb:

STEP 1. Disconnect power.

STEP 2. Open the dryer door. Turn the

drum light lens clockwise and remove it.

STEP 3. Check that the light bulb is

screwed in tightly. The vibration of the

dryer may cause the bulb to come loose.

It this is not the problem, remove the

light bulb by turning it counterclockwise.

IMPORTANT: Replace the bulb with

a 4g-watt, 120V A.C. bulb only.

STEP 4. Install light bulb by turning

it clockwise.

STEP 5. Find the locking pins on the

drum light lens and place them directly

over the matching notches on drum light

housing. Push lens in and turn counter-

clockwise to lock it in place.

STEP 6. Plug in power supply cord

or turn on electric supply.

MOVING CARE

•Disconnect power.

•Make sure leveling legs are secure

in dryer base.

•Use masking tape to secure dryer

door.

VACATION CARE

• Disconnect power.

• Clean lint screen.

Most laundering problems are easily

solved if you understand the cause.

Using the tables below will save you

time and money by helping you avoid

unnecessary service calls.

Problem

Not Drying

Satisfactorily

8olution

Clean lint screen.

Run dryer for 5-10 minutes. Hold

hand under outside exhaust hood to

check air movement. If you do not feel

air moving, clean exhaust system of

lint or replace exhaust vent with rigid

or flexible heavy metal vent

(see "INSTALLATION',' Section D).

Exhaust vent is crushed Replace with rigid or flexible heavy

or kinked, metal vent

(see "INSTALLATION',' Section D).

One fuse is blown or circuit Replace fuse or reset breaker.

breaker is tripped. The dryer

will appear to operate, but you

will not get any heat.

Timer or the temperature Select the right cycle for the types

control is set on AIR DRY. of garments being dried

(see "OPERATION").

Load not contacting the Level dryer

sensor strips and automatic (see "INSTALLATION',' Section B).

cycle ending early.

Fabric softener sheets Use only one softener sheet per toad

blocking outlet grill, and only use it once.

Dryer located in room with Move dryer where it can operate in

temperature below 45°F. ambient air temperatures above 45°F.

Large amount of moisture Expect longer dry times with items

in the load. that hold more moisture (cottons).

Cold rinse water used. Expect longer dry times, but you are

saving energy and reducing wrinkles.

Load too large and bulky to Separate toad to tumble freely.

dry quickly.

Dryer Wil! Power cord not firmly plugged Plug power cord into a live circuit.

Not Run into a live circuit with proper

voltage.

Fuses blown or circuit Replace fuses or reset breakers.

breakers tripped.

Possible Cause

Lint screen is clogged with lint.

Restricted air movement.

Exhaust vent or outside

exhaust hood is clogged with tint.

Problern Possible Cause 8olution

Dryer Will Using a regular fuse. Replace with a time-delay fuse.

Not Run Dryer door not firmly closed. Close dryer door tightly.

(cont'd) PUSH TO START Button Press PUSH TO START Button again.

not firmly pressed.

Controls not set in an Reset controls in an ON position.

ON position.

Lint in Load Lint screen is clogged. Clean lint screen. Check for air

movement.

Improper sorting. Sort lint givers from lint takers

and by color.

Load is too big or heavy. Dry smaller loads so lint can be

carried to the lint screen.

Load is overdried. Use correct dryer settings for fabric.

Overdrying can cause lint-attracting

static (see "OPERATION").

Paper or tissue in pockets. Clean out pockets before drying.

Pilling being mistaken for lint. Pilling (surface fuzz) is caused by

normal wear and laundering.

Stains on Load Improper use of fabric softener Use fabric softener sheets in dryer. Add

in washer, at beginning of cycle when load is cold.

Drying soiled items. Items need to be clean before

being dried.

Items Overdrying. Match dryer settings to fabric type

Shrinking (see "OPERATION").

Poor garment quality. Check quality of garment before

purchasing.

Manufacturer's care label Follow fabric care label instructions

instructions not followed, carefully.

Loads are Overloading. Dry smaller loads that can tumble freely.

Wrinkled Overdrying. Match dryer settings to fabric type

(see "OPERATION").

Load left in dryer at the Remove load as soon as tumbling

end of cycle, stops.

Odors Household chemicals, paint, Do not use dryer while these chemical

or varnish being drawn fumes are in the air.

into dryer.

First use of dryer element. Will be gone after the first cycle.

Unusual Thumping of rollers when Thump will go away after 5 minutes

Sound dryer has set. of drying.

KENMOREDRYERS

"WeServiceWhatWeSel!"isour

assurancethatyoucandependonSears

forservice.YourKenmoreElectricDryer

hasadded value when you consider

that Sears has service units nationwide,

staffed with professional technicians

trained on all appliances Sears sells. They

have the knowledge and skills, tools,

parts, and equipment to ensure our pledge

to you that "We Service What We Sell'.'

Sears Maintenance Agreement

Maintain the value of your Kenmore

Electric Dryer with a Sears Maintenance

Agreement. Kenmore Electric Dryers

are designed, manufactured, and tested

for years of dependable operation. Yet,

any appliance may require service from

time to time. The Sears Maintenance

Agreement offers you an outstanding

service program for your Kenmore

Electric Dryer.

The Sears Maintenance Agreement

•Is your way to buy tomorrow's

service at today's prices.

•Eliminates repair bills resulting

from normal use.

• Allows for as many service calls

as required.

• Provides an annual Preventive

Maintenance Check at your request

to keep your dryer in proper running

condition,

For more information,

call 1-800-827-6655.

For the repair or replacement partsyou

need delivered directlyto your home

Call 7 am -7 pro, 7 days a week

1-800=366=PART

(1-800-366-7278)

For in-home major brandrepair service

Call 24 hours a day, 7 days a week

1-800-4-REPAIR

(1-800-473-7247)

For the locationof a Sears Parts and

Repair Center in yourarea

Call 24 hours a day, 7 days a week

1-800-488-1222

For informationan purchasinga Sears

Maintenance Agreementor to inquire

about an existing Agreement

Call 9 am -5 pm, Monday- Saturday

1-800-827-6655

When requestingservice or ordering

parts, always give the following

information:

•ProductName • Part Name

•Model Number • Part Number

America'sRepairSpecialists

Kenmore 11060202990 User Manual ELECTRIC DRYER Manuals And Guides LR707390

KENMORE Residential Dryer Manual LR707390 KENMORE Residential Dryer Owner's Manual, KENMORE Residential Dryer installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
