KENMORE EXTRA LARGE CAPACITY CLOTHES DRYER
EVEN. HEAT
AUTOMOISTURESENI_INGPLUS
TIMED DRY
FABRIC CARE WRINKLE GUARD SIGNAL
_IEMpIERATURE BI
_f'_ lEND OF CYCLE
C_SUAL SOFT
mNORMAl. /OFF ON
L_A D_JCJLTE F4ERMPf_
_@_@ @LO
•@•
PUSH TO START
HnWDu _*Ex_retargeCapsciW *OuietPek
Stock Nos. 60882 (Elec.) & 70882 (Gas)
Stock Nos. 60887 (Elec.) & 70887 (Gas)
Features -
Become familiar with all features before using
your dryer. Refer to the "OPERATION" section
of your Owner's Manual for feature details.
0Cycle Selector Control
('rfmer)
• EVENHEATTM withAuto
Moisture Sensing Plus
•TIMED DRY
•TOUCH UP
O5 FABRIC CARE/
Temperaturesettings for
additionalclothingcare
WRINKLE GUARD_Ill
to reduce wrinkling
End-of-Cycle SIGNAL
(adjustable tone)
Q PUSH TO START
Button
3977516A
6/99
Lint Screen
0Model and Serial No.
Plate
Drum Light
Reversible Large
Side-Swing Door (see
below for reversing
instructions)
AdditionalFeatures
•Extra Large Capacity
for your large loads
•QUIET PAKTM Insulation
for extra-quiet operation
Your dryer has features that may vary from those described In
your Owner's Manual. These features are illustrated and
described on this sheet. Refer to the "OPERATION" section of
your Owner's Manual for general operating Instructions.
EVENHEATTM with Auto The EVENHEATTM drying
Moisture Sensing Plus cycle systemusesa solid-statesensor
to preventthe largevariationsin
dryingtemperatures that occurin
mostotherdryers.More consis-
Proper use of the EVENHEATTM tent,even heat ineverycycle
with Auto Moisture Sensing resultsin betterfabric care by
Plus cycle will dry your clothes shorteningdryingtimesand by
faster and at lower tempera- maintaininglowerdrying
tures with less shrinking and temperatures.
fading.
This cycle takes the guesswork out
of drying. Dryness is determined by
an electronic sensor that "feels" the
amount of moisture in clothes as
they pass over it. Once the cycle
starts, the sensor automatically
adjusts the drying time based on
the size of the load and the types
of fabric being dried. As a result,
clothes dry faster and you get more
precise drying temperatures.

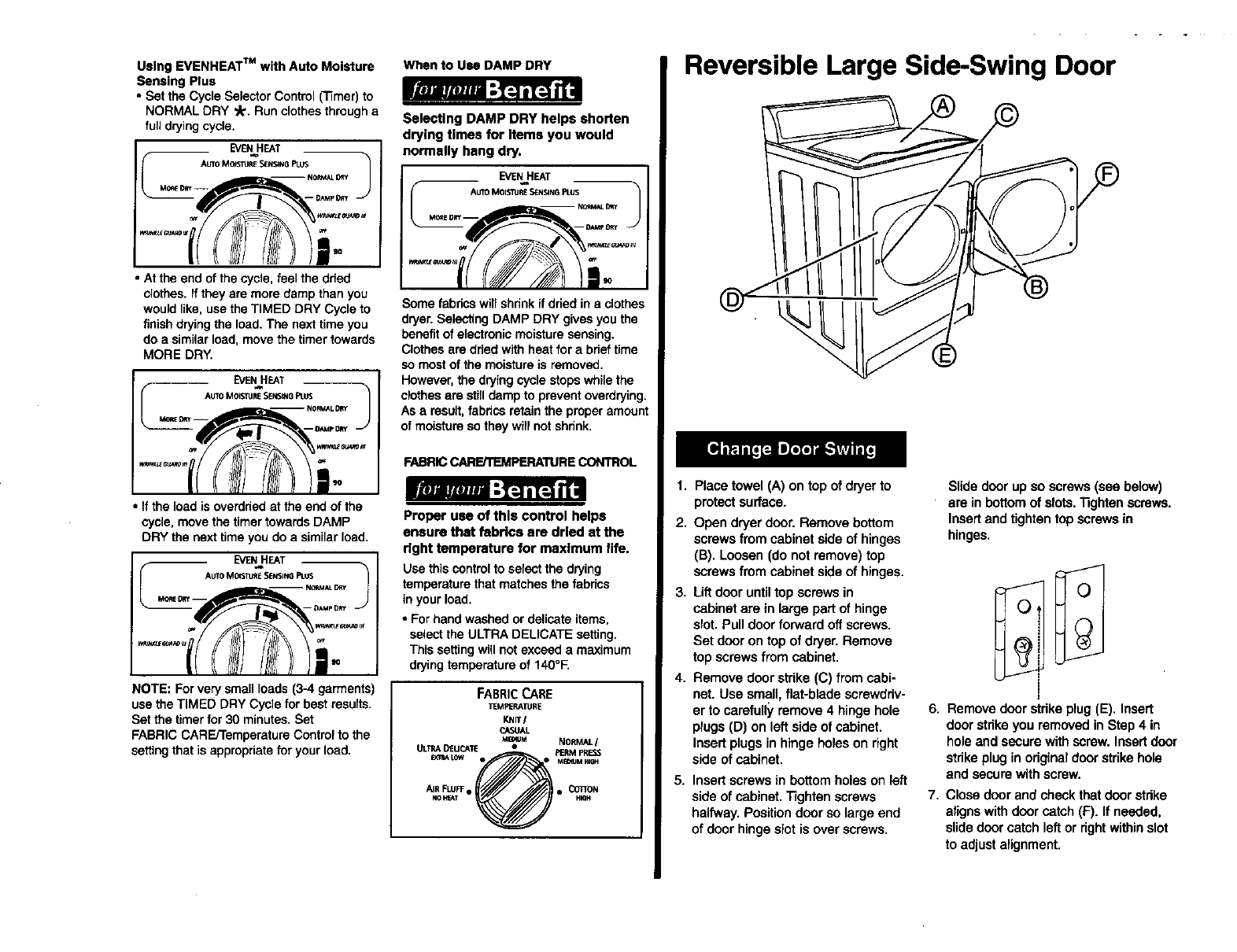

UsingEVENHEATTM with Auto Moisture
Sensing Plus
• Set the Cycle Selector Control (Timer) to
NORMAL DRY _I€. Run clothes through a
full drying cycle.
EVENHEAT
Ir
.....
At the end of the cycle, feel thedried
clothes.Ifthey are more damp than you
wouldlike, usethe TIMED DRY Cycleto
finishdryingthe load. The next timeyou
doa similarload,movethe timertowards
MORE DR_
EVENHEAT
- )
AUTOMOISTURESENSINGPI.II5
mNORMALDRY
Imma
• If the load is overdded at the end of the
cycle, move the timer towards DAMP
DRY the next time you do a similar load.
NOTE: For very small loads (3-4 garments)
use the TIMED DRY Cycle for best results.
Set the timer for 30 minutes. Set
FABRIC CARF_Jl"emperatureControl to the
setting that is appropriate for your load.
When to Use DAMP DRY
Selecting DAMP DRY helps shorten
drying times for Items you would
normally hang dry.
EVENHEAT
-- N_M_ DIW
.... Ii.
Some fabdcs will shnnk if dried in a clothes
dryer. Selecting DAMP DRY gives you the
benefit of electronic moisture sensing.
Clothes are dried with heat for abdef time
so most of the moisture is removed.
However, the drying cycle stops while the
clothes are still damp to prevent overdrying.
As aresult, fabdcs retain the proper amount
of moisture so they will not shnnk.
FABRIC CARE/TEMPERATURE CONTFIOL
Proper use of this control helps
ensure that fabrics are dried at the
right temperature for maximum life.
Use this control to select the drying
temperature that matches the fabrics
in your load.
• For hand washed or delicate items,
select the ULTRA DELICATE setting.
This setting will not exceed a maximum
drying temperature of 140°1:.
FABRICCARE
TEMFIERATURE
KNrrl
CASUAL
ULTRADEUCATE "--"_'M NORMAL/
_PIERMPRE_:_
LOW • • MEIIqUMHIGH
AIR FLUFTe •C01TON
NO h'_T HmH
Reversible Large Side-Swing Door
1. Place towel (A) on top of dryer to
protectsurface.
2. Open dryer door. Remove bottom
screwsfrom cabinet side of hinges
(B). Loosen (do not remove) top
screwsfrom cabinet side of hinges.
3. Liftdoor untiltop screws in
cabinet are in large part of hinge
slot. Pull door forward off screws.
Set door on top of dryer. Remove
top screws from cabinet.
4. Remove door strike (C) from cabi-
net. Use small, flat-blade screwdriv-
er to carefully remove 4 hinge hole
plugs (D) on left side of cabinet.
Insert plugs in hinge holes on right
side of cabinet.
5. Insert screws in bottom holes on left
side of cabinet. Tighten screws
halfway. Position door so large end
of door hinge slot is over screws,
Slide door upso screws (see below)
are in bottomof slots."13ghtenscrews.
Insertand tighten top screws in
hinges.
6. Remove doorstrike plug (E). Insert
door strikeyou removed in Step 4 in
hole and secure withscrew. Insertdoor
strikeplug in odginal door strike hole
and secure with screw.
7. Close door and check that door stdke
alignswithdoor catch (F). If needed,
slidedoor catch leftor rightwithinslot
to adjust alignment.
