Owner's Manual and
installation instructions
®
29-inch Wide
GAS DRYERS
I
J
lmwB
Your dryer may took different
IMPORTANT: from the dryer shown.
Read and follow all safety
and operating instructions
before first use of this product.
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
PART NO. 3405587 Rev. A PRINTED IN U.S.A.

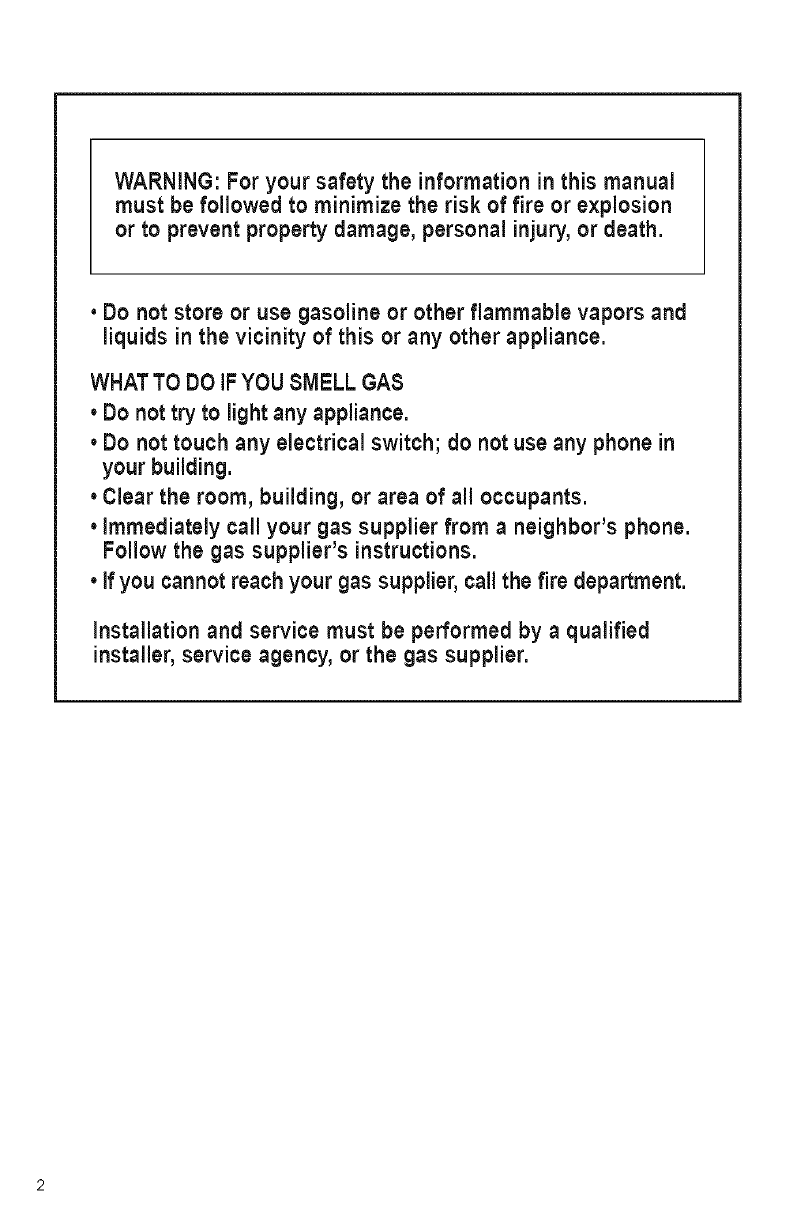

WARNING: For your safety the information in this manual
must be followed to minimize the risk of fire or explosion
or to prevent property damage, personal injury, or death.
•Do not store or use gasoline or other flammable vapors and
liquids in the vicinity of this or any other appliance.
WHATTO DO iFYOU SMELL GAS
•Do not try to light any appliance.
•Do not touch any electrical switch; do notuse any phone in
your building.
•Clear the room, building, or area of all occupants.
•immediately call your gas supplier from aneighbor's phone.
Follow the gas supplier's instructions.
• if you cannot reach your gas supplier, callthe fire department.
installation and service must be performed by aqualified
installer, service agency, or the gas supplier.

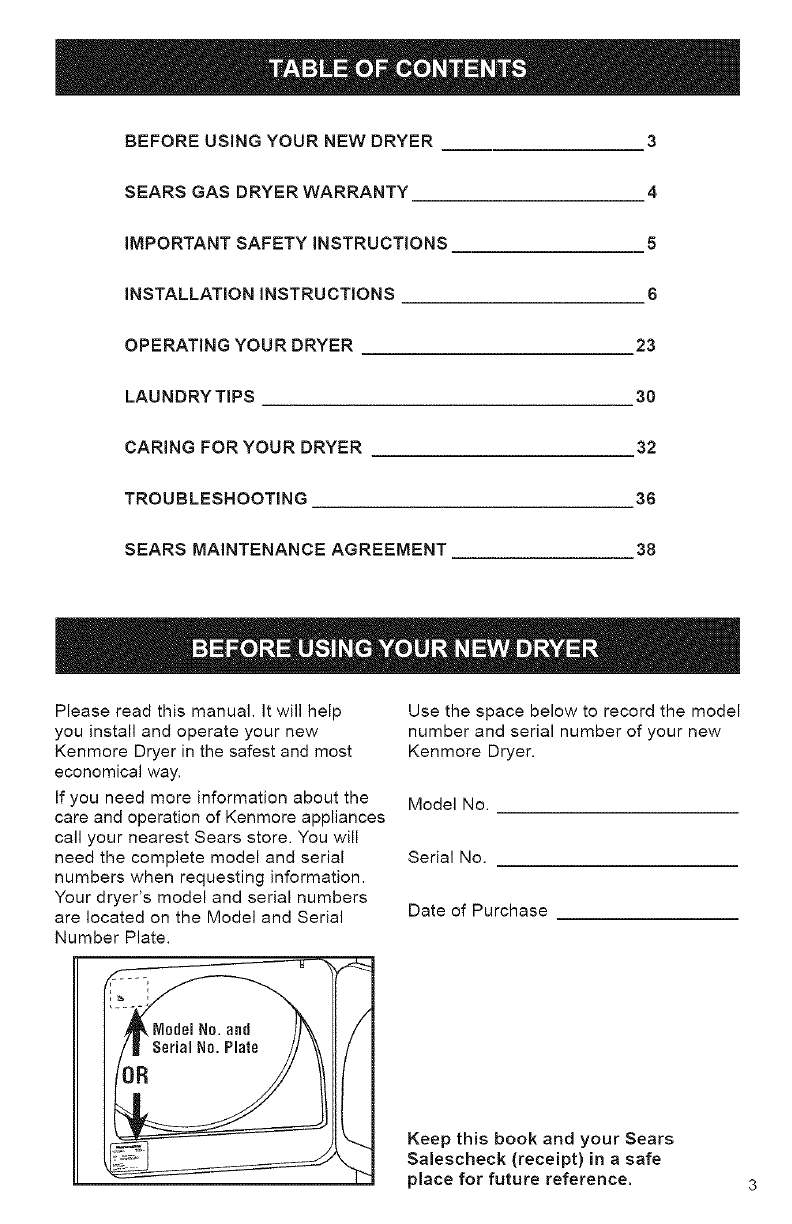

BEFORE USING YOUR NEW DRYER 3
SEARS GAS DRYER WARRANTY 4
iMPORTANT SAFETY iNSTRUCTiONS 5
iNSTALLATION iNSTRUCTiONS 6

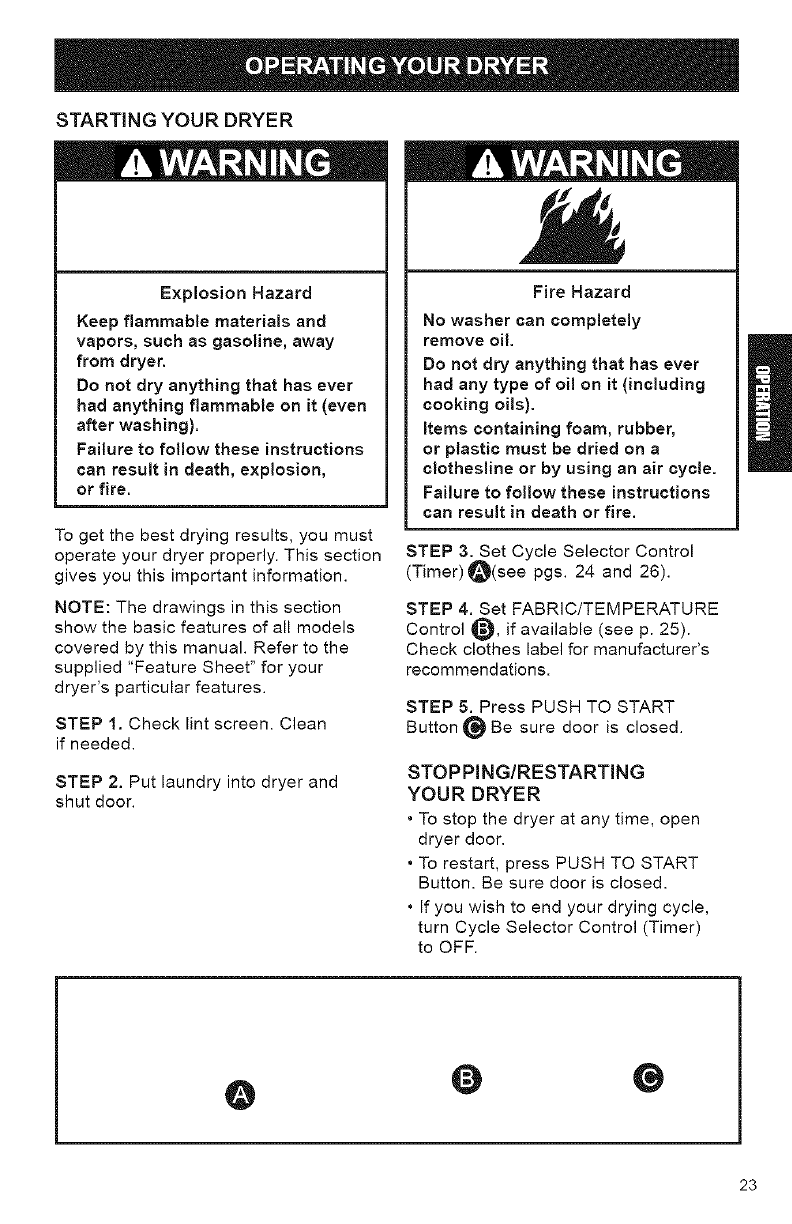

OPERATING YOUR DRYER 23
LAUNDRY TIPS 30
CARING FOR YOUR DRYER 32

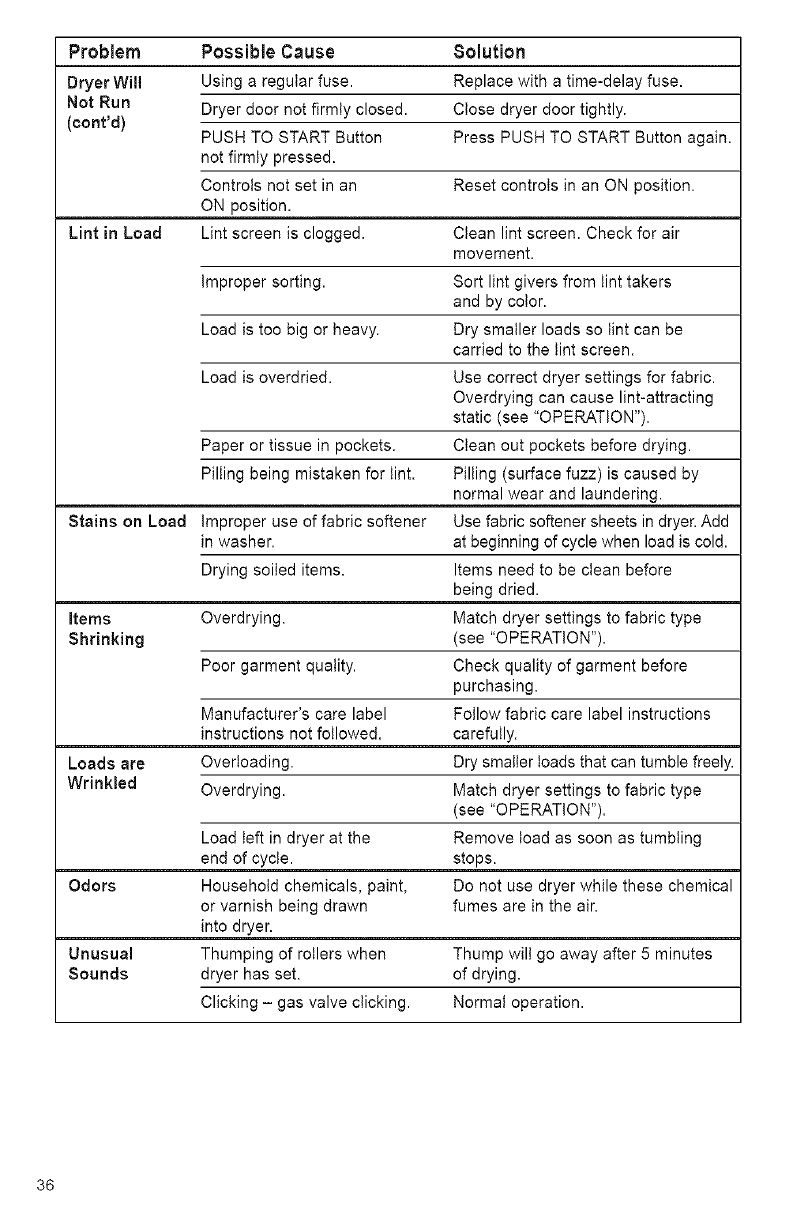

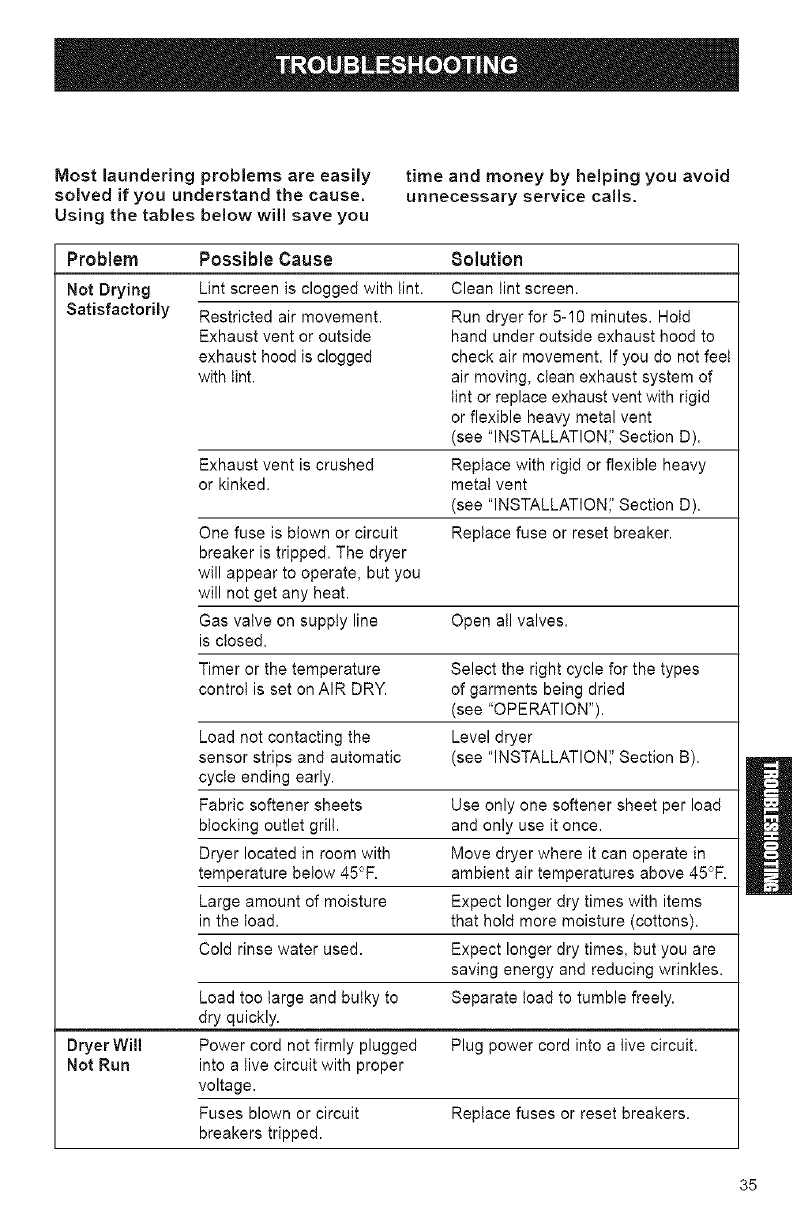

TROUBLESHOOTING 36

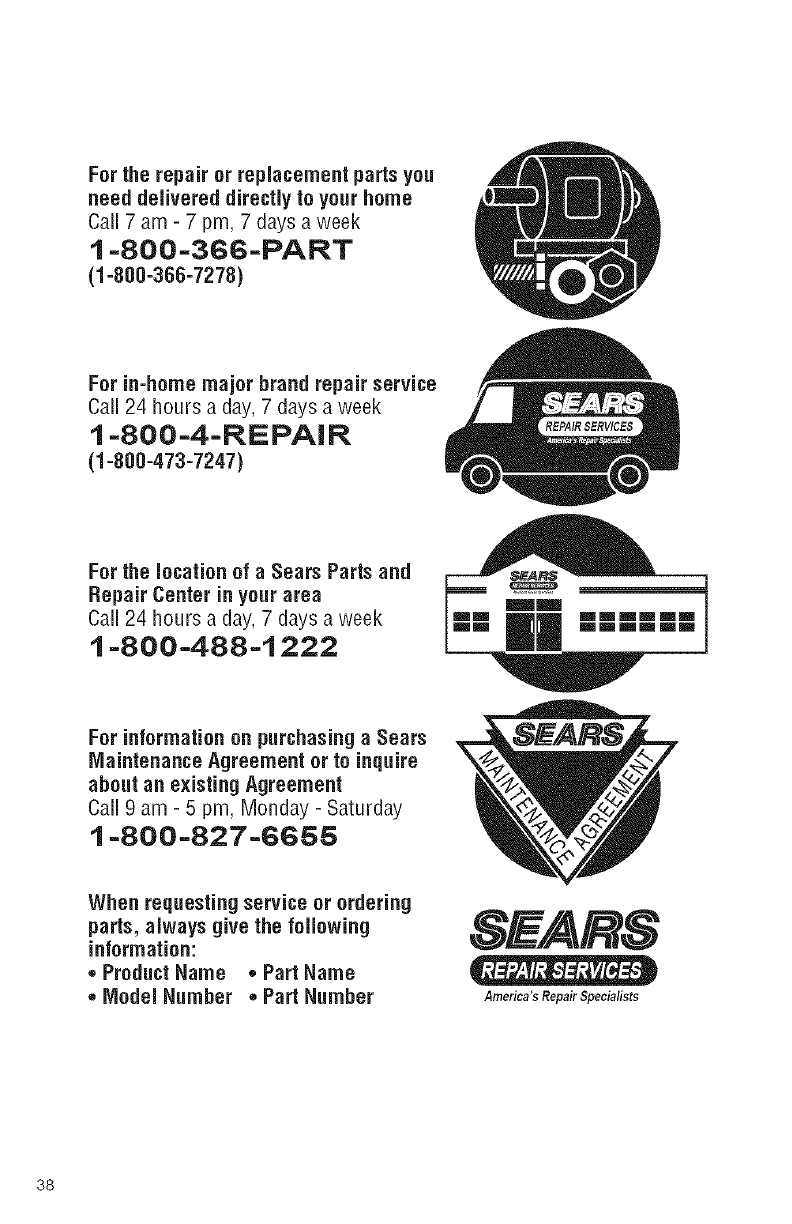

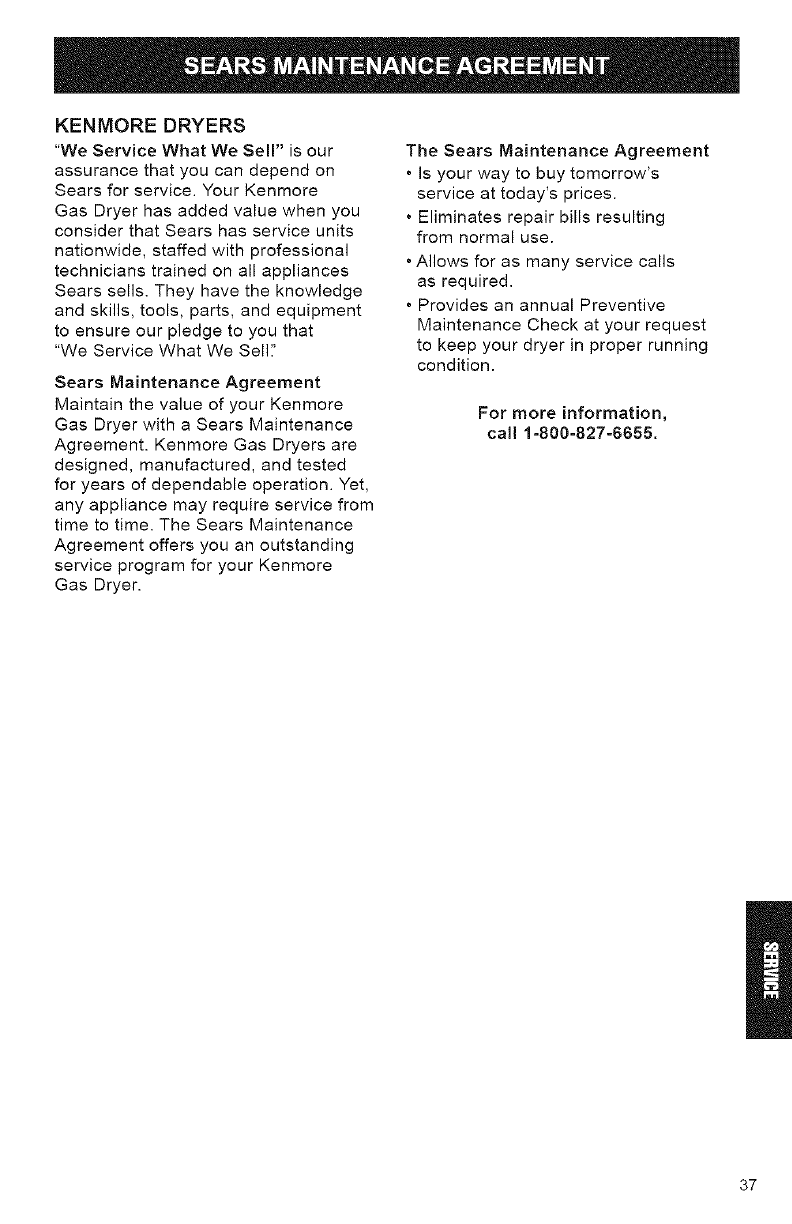

SEARS MAINTENANCE AGREEMENT 38
Please read this manual. It will help
you install and operate your new
Kenmore Dryer in the safest and most
economical way.
If you need more information about the
care and operation of Kenmore appliances
call your nearest Sears store. You will
need the complete model and serial
numbers when requesting information.
Your dryer's model and serial numbers
are located on the Model and Serial
Number Plate.
Use the space below to record the model
number and serial number of your new
Kenmore Dryer.
Model No.
Serial No.
Date of Purchase
Keep this book and your Sears
Salescheck (receipt) in a safe
place for future reference.
FullOneYearWarranty on
Mechanical and Electrical Parts
For one year from the date of purchase,
if this dryer is installed and operated
according to the instructions in this manual,
Sears will repair or replace any of its
mechanical or electrical parts if they are
defective in material or workmanship.
NOTE: Exhausting your dryer with
a plastic vent may void this warranty.
Pages 17-21 of this manual describe
the complete exhaust requirements
for this dryer.
Warranty Restriction
If the dryer is subjected to other than
private family use, all warranty coverage
is effective for only 90 days.
Warranty Service
Warranty service is available by contacting
your nearest Sears Service Center in the
United States.
This warranty applies only while this dryer
is in use in the United States.
This warranty gives you specific legal rights,
and you may also have other rights which
vary from state to state.
Sears, Roebuck and Co., Dept. 817WA,
Hoffman Estates, IL 60179.
Your safety and the safety of others is very important.
We have provided many important safety messages in this manual
and on your appliance. Always read and obey all safety messages.
This is the safety alert symbol. This symbol alerts
you to hazards that can kil! or hurt you and others.
All safety messages will be preceded by the safety
alert symbol and the word "DANGER" or "WARNING:'
These words mean:
You will be killed or seriously
injured if you don't follow
-- instructions.
You can be killed or seriously
injured if you don't follow
-- instructions.
Al! safety messages will identify the hazard, tell you how to reduce the
chance of injury, and tell you what can happen if the instructions are
not followed.

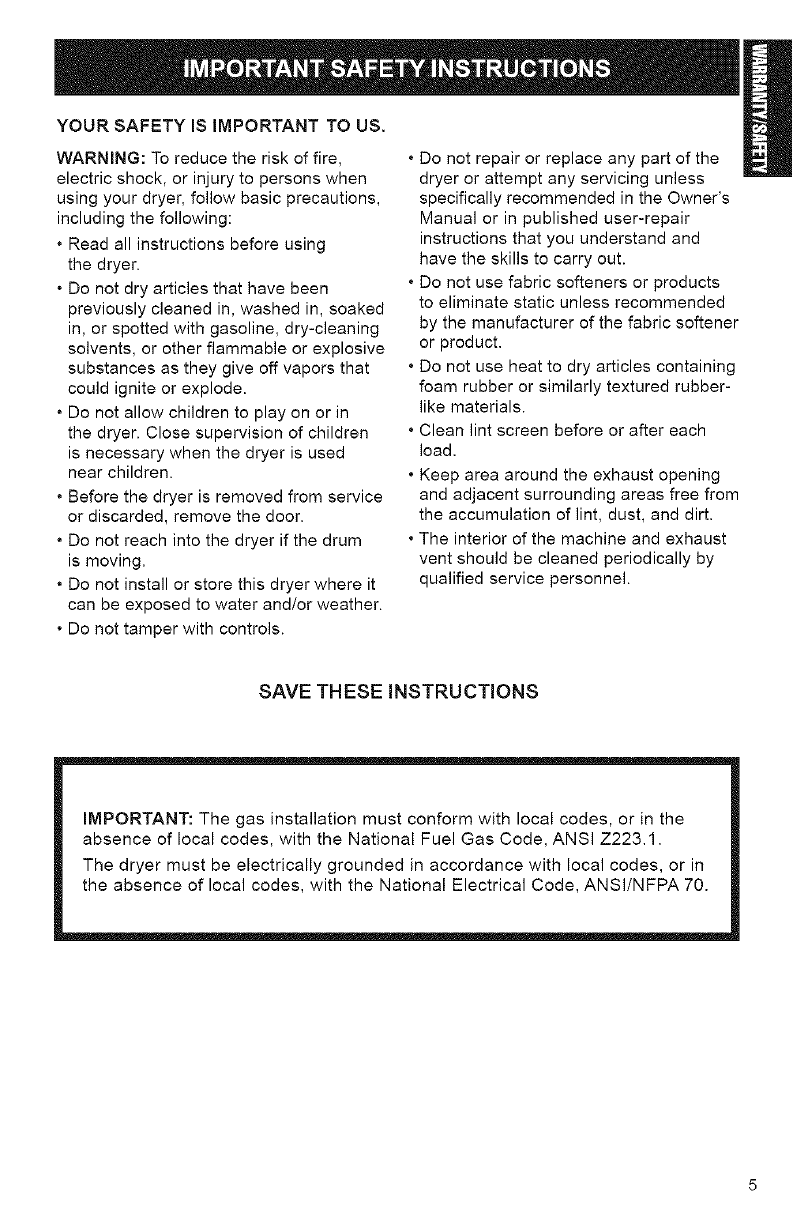

YOUR SAFETY IS IMPORTANT TO US.
WARNING: To reduce the risk of fire,
electric shock, or injury to persons when
using your dryer, follow basic precautions,
including the following:
* Read all instructions before using
the dryer.
. Do not dry articles that have been
previously cleaned in, washed in, soaked
in, or spotted with gasoline, dry-cleaning
solvents, or other flammable or explosive
substances as they give off vapors that
could ignite or explode.
* Do not allow children to play on or in
the dryer. Close supervision of children
is necessary when the dryer is used
near children.
* Before the dryer is removed from service
or discarded, remove the door.
* Do not reach into the dryer if the drum
is moving.
* Do not install or store this dryer where it
can be exposed to water and/or weather.
. Do not tamper with controls.
• Do not repair or replace any part of the
dryer or attempt any servicing unless
specifically recommended in the Owner's
Manual or in published user-repair
instructions that you understand and
have the skills to carry out.
• Do not use fabric softeners or products
to eliminate static unless recommended
by the manufacturer of the fabric softener
or product.
• Do not use heat to dry articles containing
foam rubber or similarly textured rubber-
like materials.
• Clean lint screen before or after each
load.
• Keep area around the exhaust opening
and adjacent surrounding areas free from
the accumulation of lint, dust, and dirt.
• The interior of the machine and exhaust
vent should be cleaned periodically by
qualified service personnel.
SAVE THESE iNSTRUCTiONS
IMPORTANT: The gas installation must conform with local codes, or in the
absence of local codes, with the National Fuel Gas Code, ANSI Z223.1.
The dryer must be electrically grounded in accordance with local codes, or in
the absence of local codes, with the National Electrical Code, ANSI/NFPA 70.

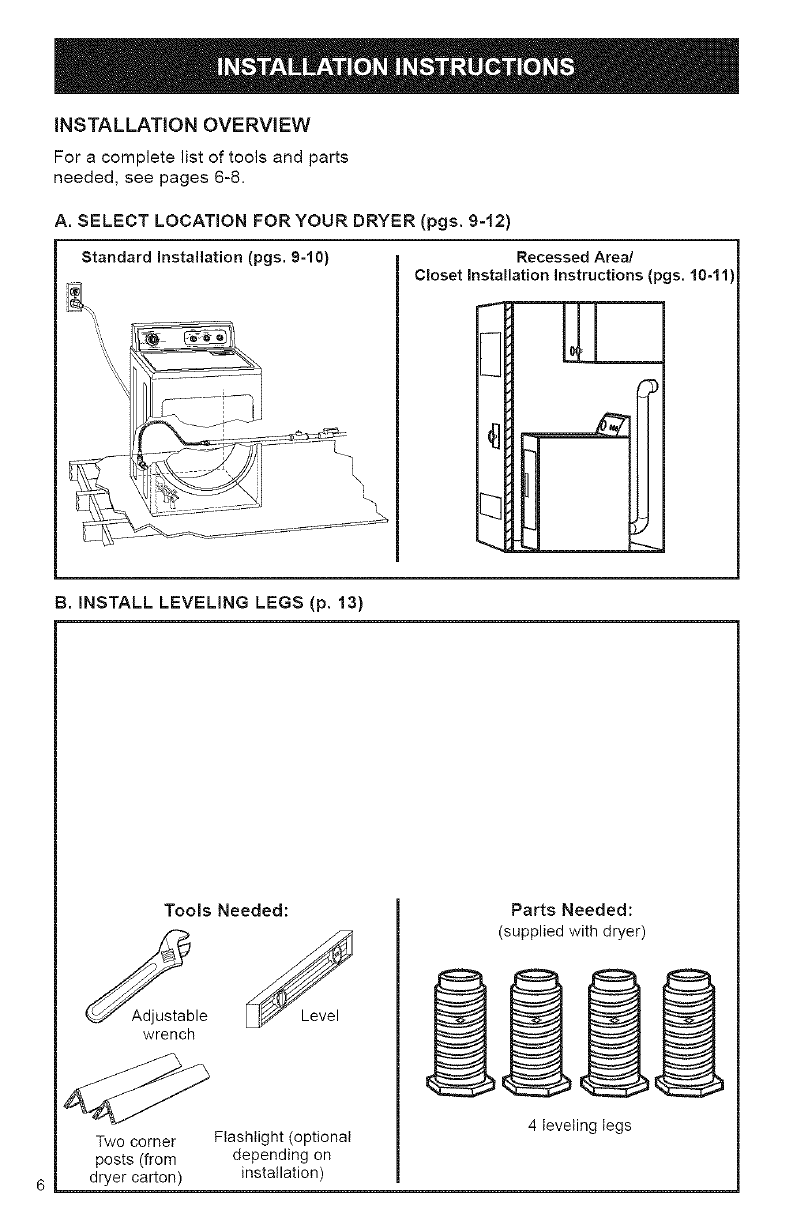

INSTALLATION OVERVIEW
For acomplete list of tools and parts
needed, see pages 6-8.
A. SELECT LOCATION FOR YOUR DRYER (pgs. 9-12)
Standard Installation (pgs. 9-10)
\
Recessed Areal
Closet Installation Instructions (pgs. 10-11)
Q

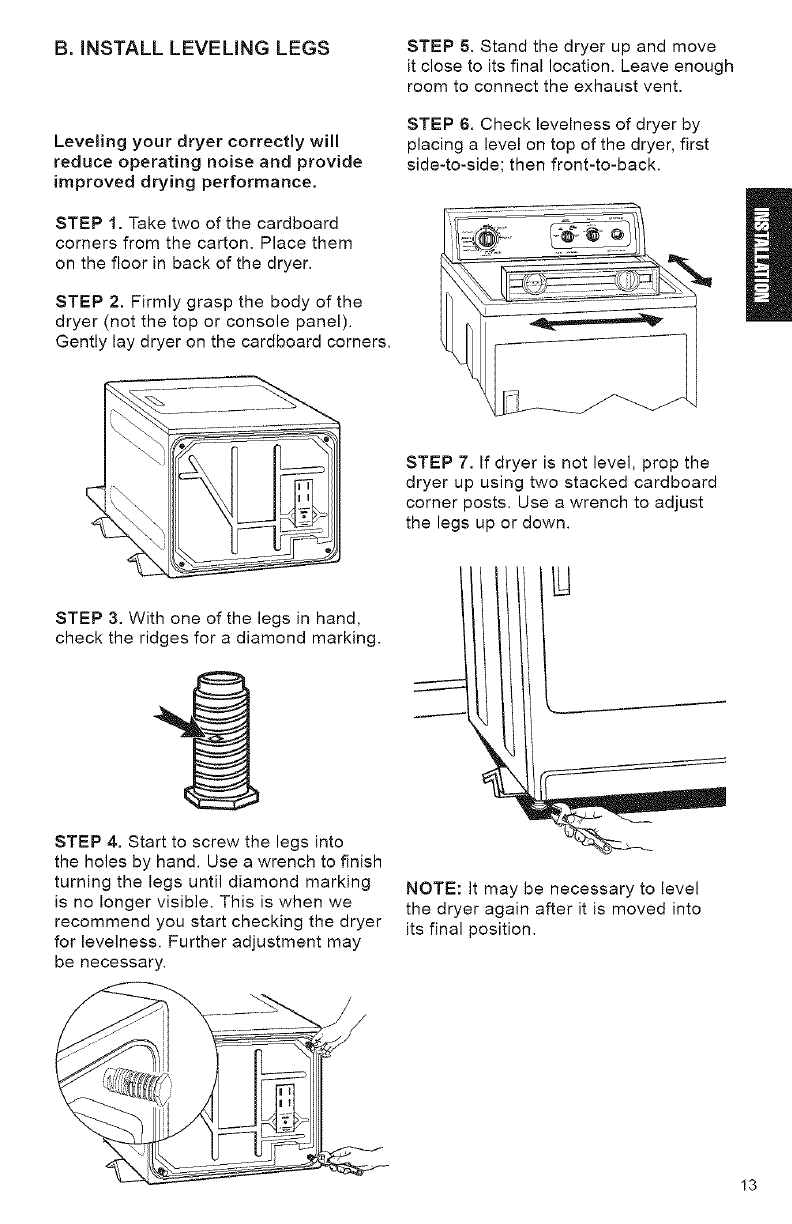

B. INSTALL LEVELING LEGS (p. 13)
Tools Needed:
Adjustable _Level
wrench
Two corner Flashlight (optional
posts (from depending on
dryer carton) installation)
Parts Needed:
(supplied with dryer)
4 leveling legs

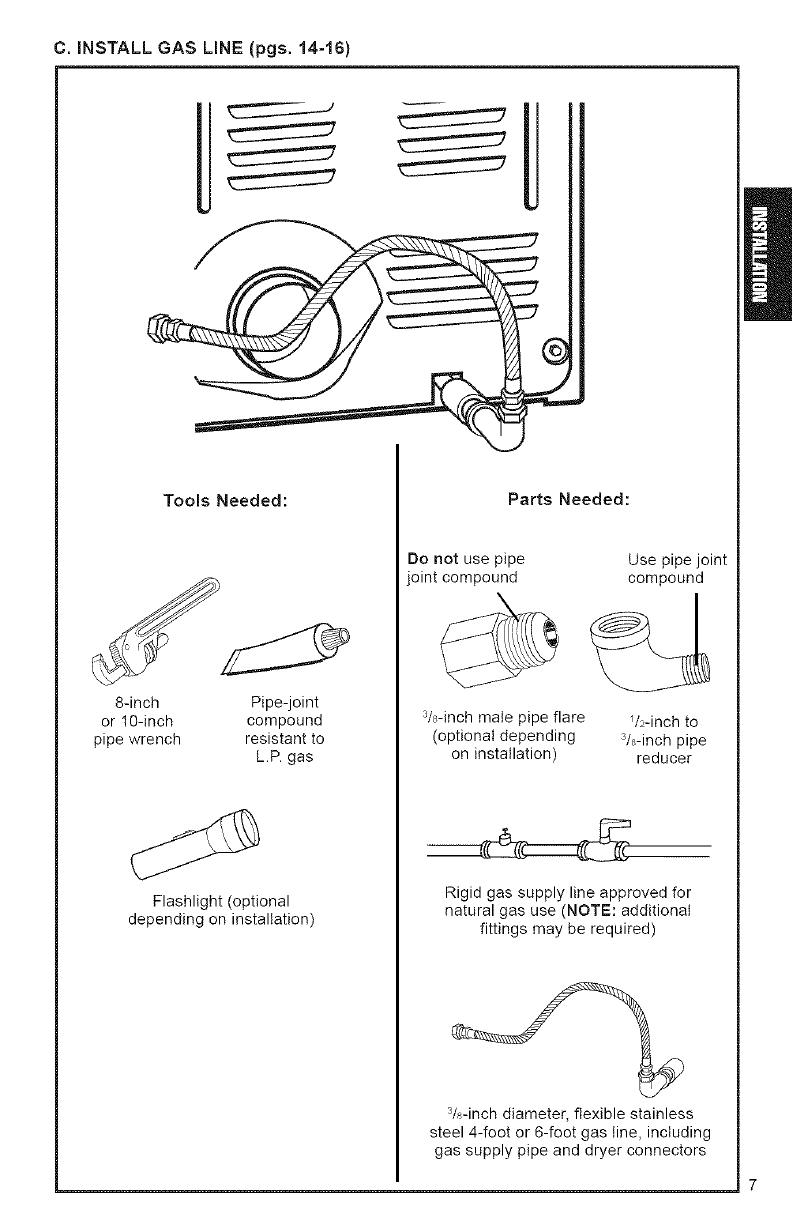

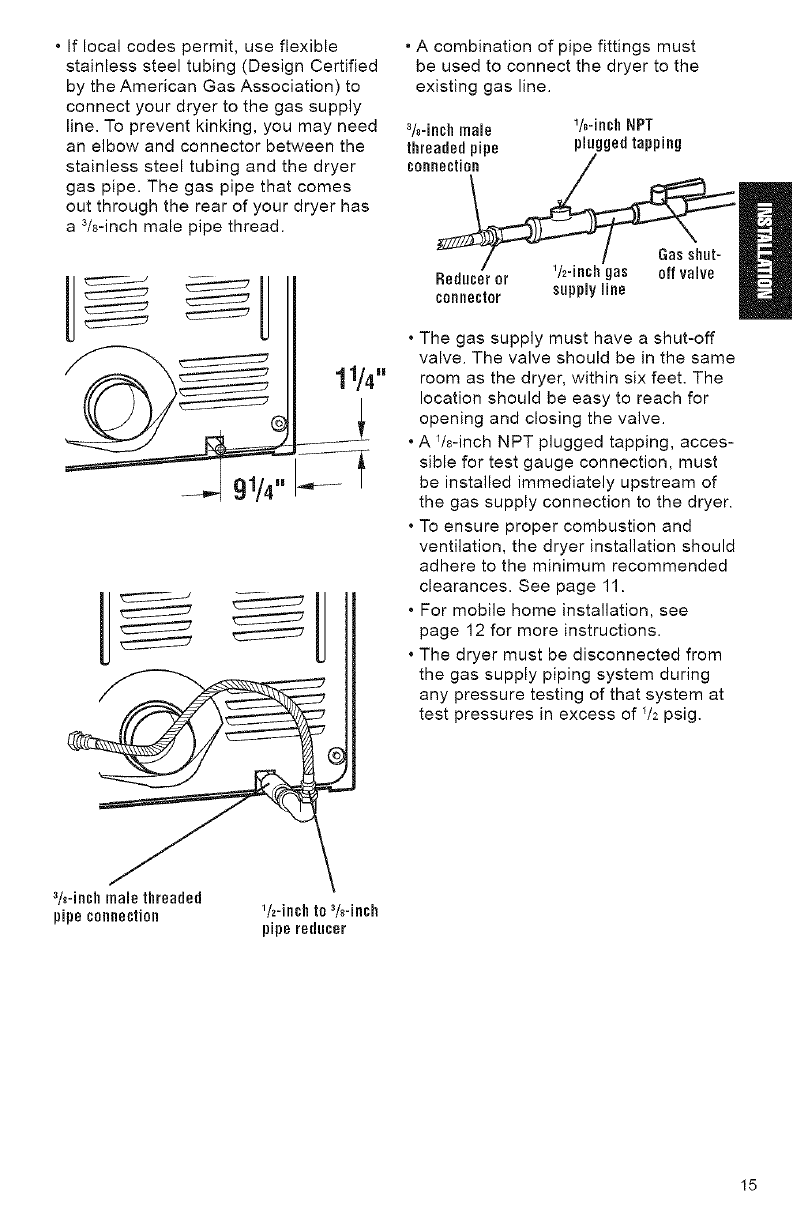

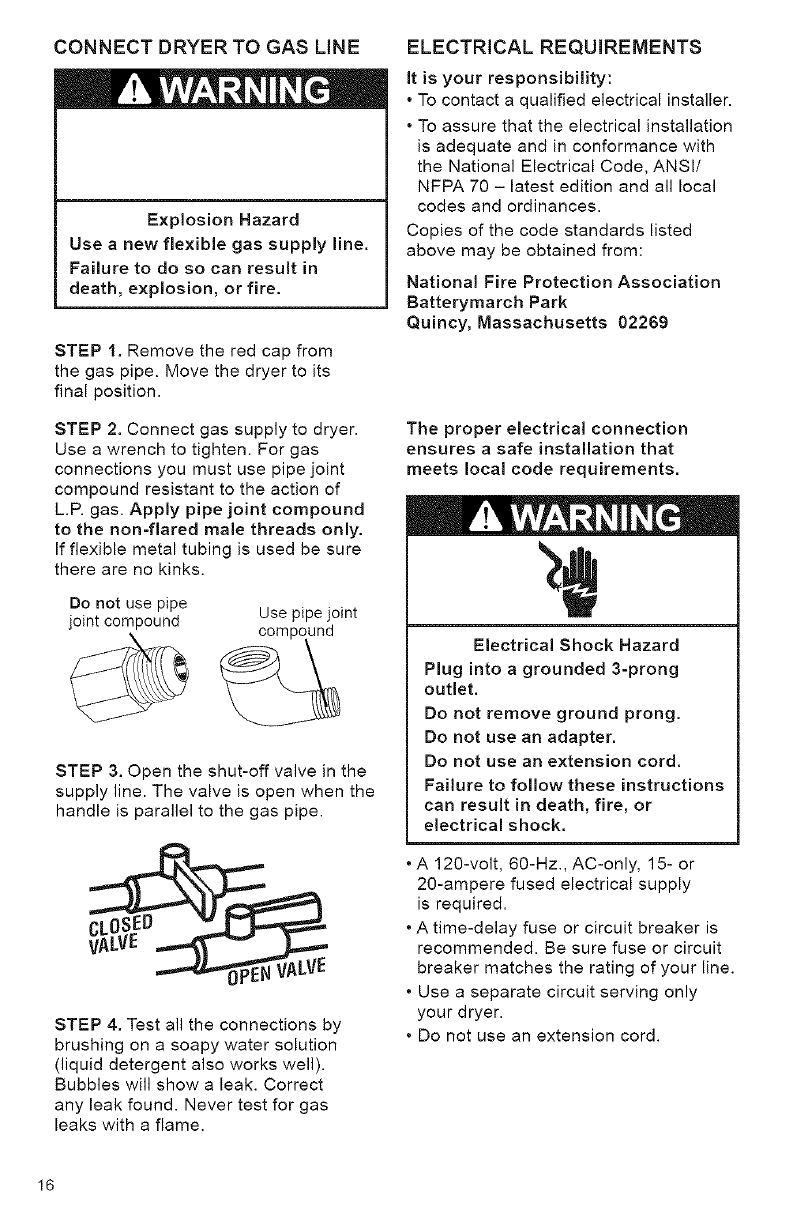

C, INSTALL GAS LINE (pgs. 14-16)
@
J
Tools Needed:
8-inch Pipe-joint
or 10-inch compound
pipe wrench resistant to
L.P. gas
Flashlight (optional
depending on installation)
Parts Needed:
Do not use pipe
joint compound Use pipe joint
compound
3/s-inch male pipe flare V2-inch to
(optional depending 3/8-inch pipe
on installation) reducer
Rigid gas supply line approved for
natural gas use (NOTE: additional
fittings may be required)
3/s-inch diameter, flexible stainless
steel 4-foot or 6-foot gas line, including
gas supply pipe and dryer connectors

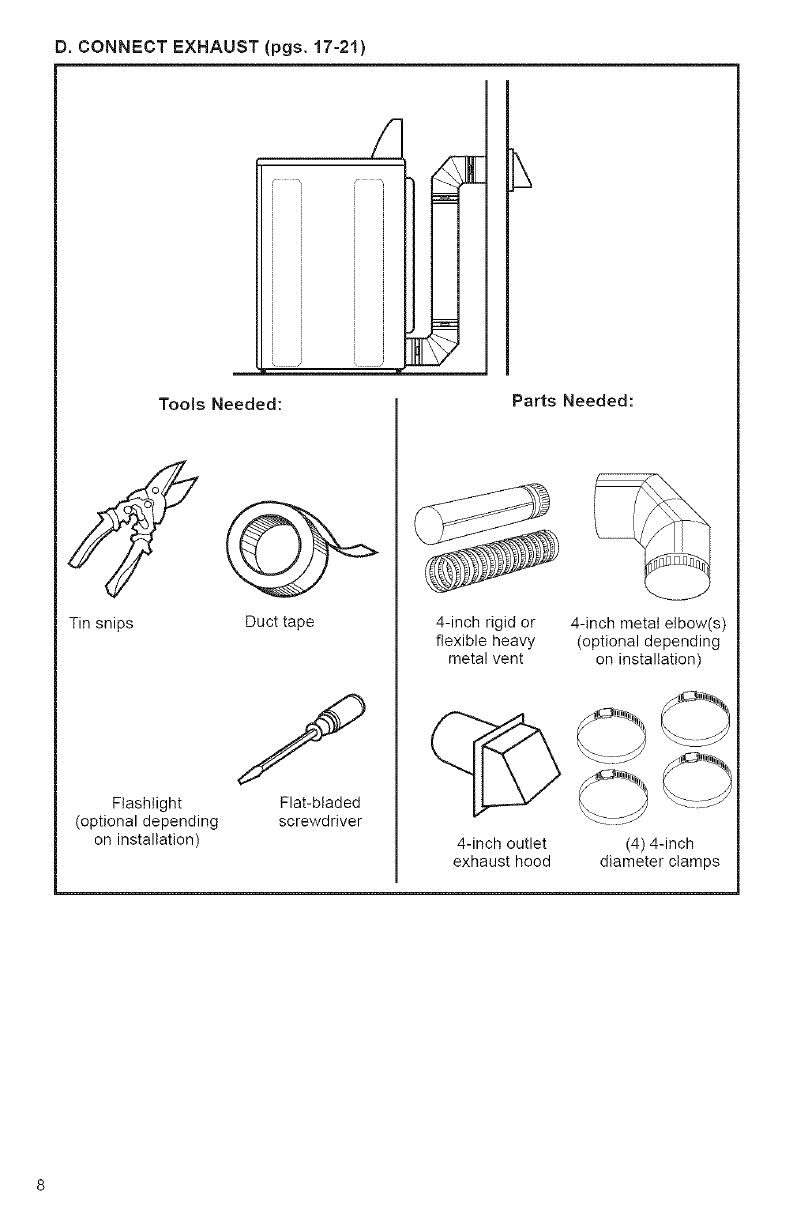

D. CONNECT EXHAUST (pgs. 17-21)
m I_B
Tools Needed:
Tin snips Duct tape
Flashlight
(optional depending
on installation)
Flat-bladed
screwdriver
Parts Needed:
4-inch rigid or
flexible heavy
metal vent
4-inch outlet
exhaust hood
4-inch metal elbow(s)
(optional depending
on installation)
Od>
© db
(4) 4-inch
diameter clamps
A. 8ELECT LOCATION FOR
YOUR DRYER
Selecting the proper location for your
dryer makes installation easy and
gives you the best drying performance,
8TANDARD IN8TALLATION
Check location where dryer will be installed.
Proper installation is your responsibility.
Make sure you have everything necessary
for correct installation (see illustration
below).
The dryer must not be installed where it
can be exposed to water and/or weather.
•Proper operation of dryer cycles
requires temperatures above 45°F (at
lower temperatures, the dryer may not
shut off at the end of automatic cycles
and drying times will be extended).
•Use at least the minimum installation
spacings described on page 11. This will
ensure you have an adequate clearance
for service and proper operation including
flow of combustion and ventilation air,
and that you have a sufficient distance
from combustible construction.
Explosion Hazard
Keep flammable materials and vapors,
such as gasoline, away from dryer.
Place dryer at least 18 inches above
the floor for a garage installation.
Failure to follow these instructions
can result in death, explosion, or fire.
• Be sure your location allows for a
proper exhaust installation. A gas dryer
must be exhausted to the outdoors.
See pages 17-21 for complete exhaust
requirements.
• Check code requirements. Some
codes limit or do not permit installation
of clothes dryers in garages, closets,
mobile homes, or sleeping quarters.
Contact your local building inspector.
Grounded receptacle:
Within 2 feet of either
side of dryer.
I--6 Ft. Max.--
Rigid gas supply line:
Approved for natural
gas use.
J
Shut-off valve:
No further than
6 feet away from
dryer.
Support: Floor must be sturdy
enough to support a total weight
of 175 pounds (includes dryer and
load weight).
Level floor: Maximum
allowable slope under
entire dryer - 1 inch.

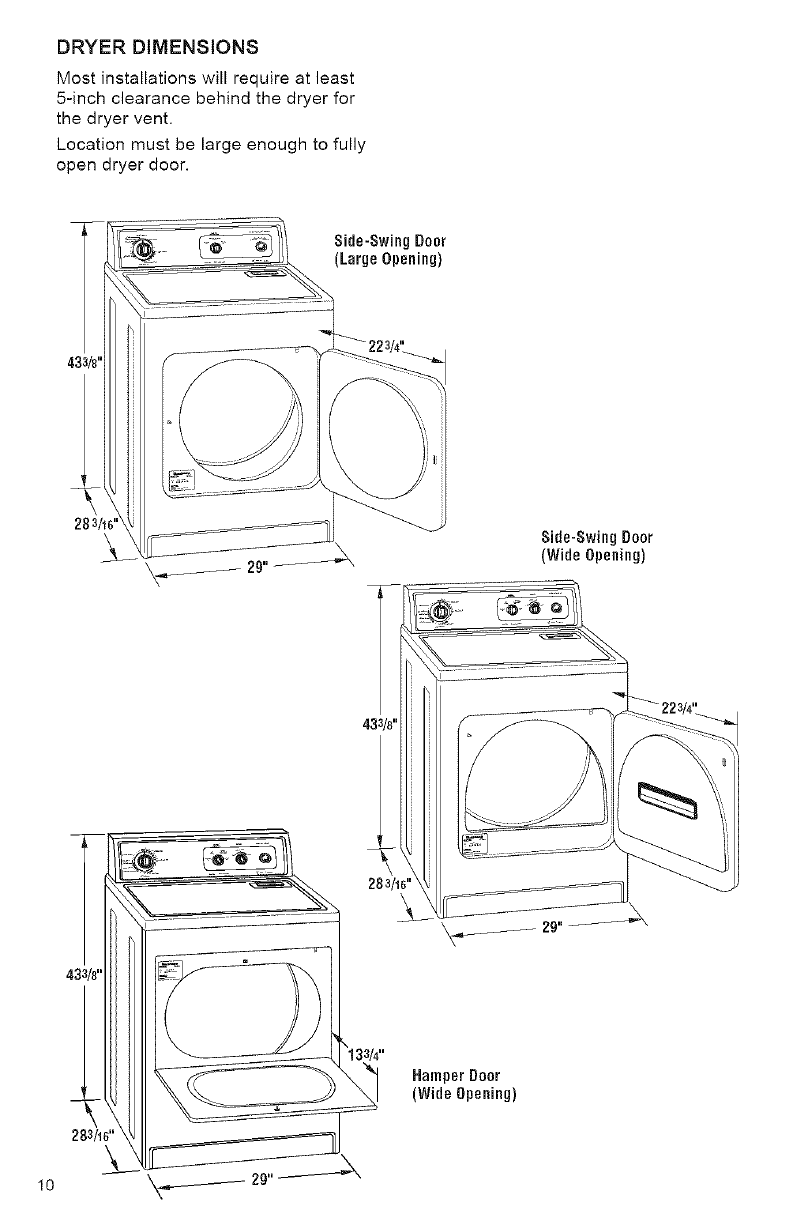

DRYERDIMENSIONS
Most installations will require at least
5-inch clearance behind the dryer for
the dryer vent.
Location must be large enough to fully
open dryer door.
Side-Swing Doer
(Large Opening)
Side-SwingDoor
(WideOpening)
HamperDoor
(WideOpening)
RECESSED AREA/CLOSET
INSTALLATION INSTRUCTIONS
Check governing codes and ordinances.
This dryer may be installed in a recessed
area or closet.
The dryer must not be installed where it
will be exposed to water and/or weather.
* Proper operation of dryer cycles
requires temperatures above 45°F (at
lower temperatures, the dryer may not
shut off at the end of automatic cycles
and drying times will be extended).
* Use at least the minimum installation
spacings described below. This will
ensure you have an adequate clearance
for service and proper operation including
flow of combustion and ventilation air,
and that you have a sufficient distance
from combustible construction.
* Be sure your location allows for a
proper exhaust installation. A gas dryer
must be exhausted to the outdoors.
See pages 17-21 for complete exhaust
requirements.
* Check code requirements. Some
codes limit or do not permit installation
of clothes dryers in garages, closets,
mobile homes, or sleeping quarters.
Contact your local building inspector.
NOTE: No fuel-burning appliances may
be installed in the same closet as a dryer.
MINIMUM INSTALLATION SPACING
minimum
ventilation
al'ea
**24 sq. in.
minimum
ventilation
81'ea
F-29"- 't F-*I" ÷11"1<-28'/,0" ''
FrontView SideView
(DoorNot Shown) (DoorShown) FrontView
(DoorWithVent)
* Additional clearancesforwall, doorand floor moldingsmayberequired.O"clearance
is acceptablebutnotrecommended.
** Openingisminimumfor closetdoor.Lonvereddoorwith equivalentair
openingsis acceptable.
*** Additional apaceis neededwhenexternal exhaustelbow isused. CanbeO"clearance
whenhouseexhausting islinedupdirectlywith dryerexhaust.
J:
3"
f
3"
T
• In the above illustration, the installation
spacing is in inches and is the minimum
allowable.
• Additional spacing should be considered
for ease of installation and servicing.
• If closet door is installed, the minimum
air openings in top and bottom are
required. Louvered doors with equivalent
air openings in top and bottom are
acceptable.
* All installations must be exhausted
outside. Use at least the minimum
dimensions indicated.
I1

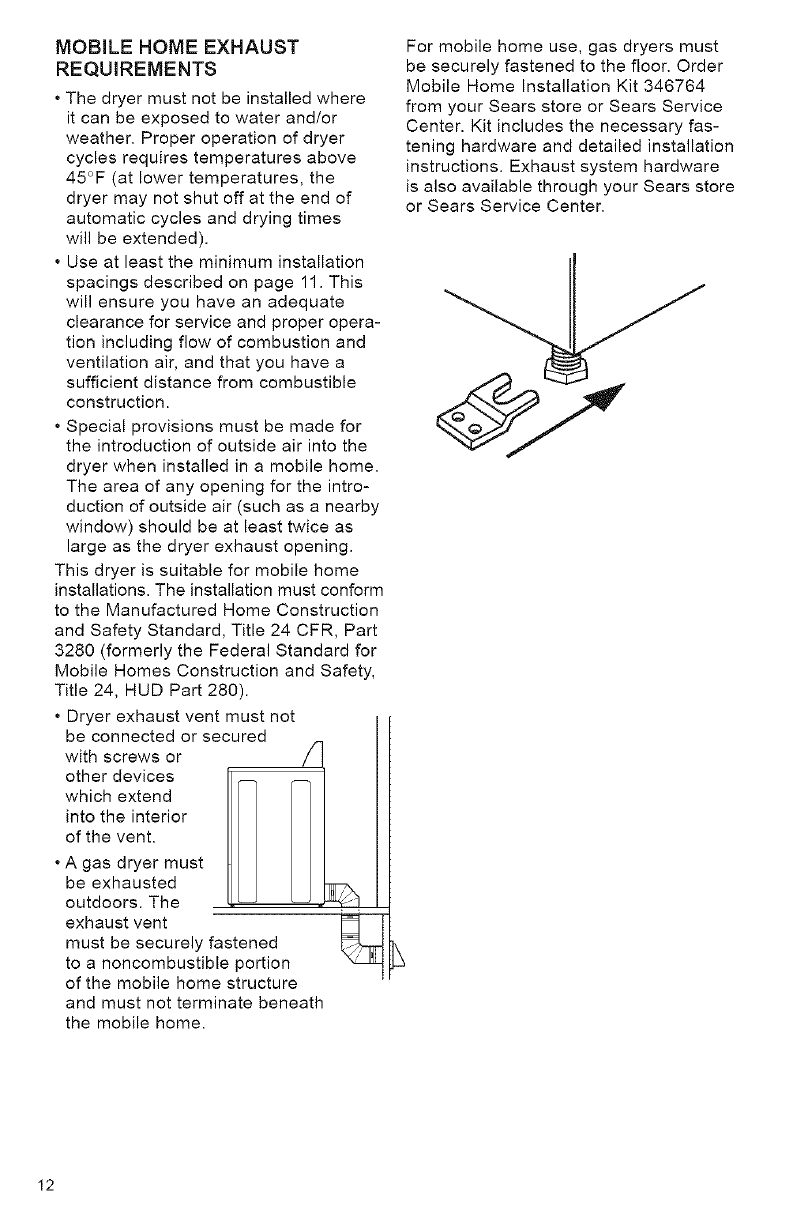

MOBILE HOME EXHAUST
REQUIREMENTS
• The dryer must not be installed where
it can be exposed to water and/or
weather. Proper operation of dryer
cycles requires temperatures above
45°F (at lower temperatures, the
dryer may not shut off at the end of
automatic cycles and drying times
will be extended).
• Use at least the minimum installation
spacings described on page 11. This
will ensure you have an adequate
clearance for service and proper opera-
tion including flow of combustion and
ventilation air, and that you have a
sufficient distance from combustible
construction.
• Special provisions must be made for
the introduction of outside air into the
dryer when installed in a mobile home.
The area of any opening for the intro-
duction of outside air (such as a nearby
window) should be at least twice as
large as the dryer exhaust opening.
This dryer is suitable for mobile home
installations. The installation must conform
to the Manufactured Home Construction
and Safety Standard, Title 24 CFR, Part
3280 (formerly the Federal Standard for
Mobile Homes Construction and Safety,
Title 24, HUD Part 280).
• Dryer exhaust vent must not
be connected or secured
with screws or //I
other devices
which extend I11
intotheinterior I
ofthevent / I
• A gas dryer must _ _ /
be exhausted _ _ _
outdoors. The _._ _ ._4/_!
exhaust vent
must be securely fastened
to a noncombustible portion
of the mobile home structure
and must not terminate beneath
the mobile home.
For mobile home use, gas dryers must
be securely fastened to the floor. Order
Mobile Home Installation Kit 346764
from your Sears store or Sears Service
Center. Kit includes the necessary fas-
tening hardware and detailed installation
instructions. Exhaust system hardware
is also available through your Sears store
or Sears Service Center.
I2
B. iNSTALL LEVELING LEGS
Leveling your dryer correctly will
reduce operating noise and provide
improved drying performance.
STEP 1. Take two of the cardboard
corners from the carton. Place them
on the floor in back of the dryer.
STEP 2. Firmly grasp the body of the
dryer (not the top or console panel).
Gently lay dryer on the cardboard corners.
STEP 5. Stand the dryer up and move
it close to its final location. Leave enough
room to connect the exhaust vent.
STEP 6. Check levelness of dryer by
placing a level on top of the dryer, first
side-to-side; then front-to-back.
STEP 3. With one of the legs in hand,
check the ridges for a diamond marking.
STEP 4. Start to screw the legs into
the holes by hand. Use a wrench to finish
turning the legs until diamond marking
is no longer visible. This is when we
recommend you start checking the dryer
for levelness. Further adjustment may
be necessary.
STEP 7. If dryer is not level, prop the
dryer up using two stacked cardboard
corner posts. Use a wrench to adjust
the legs up or down.
NOTE: It may be necessary to level
the dryer again after it is moved into
its final position.
I3

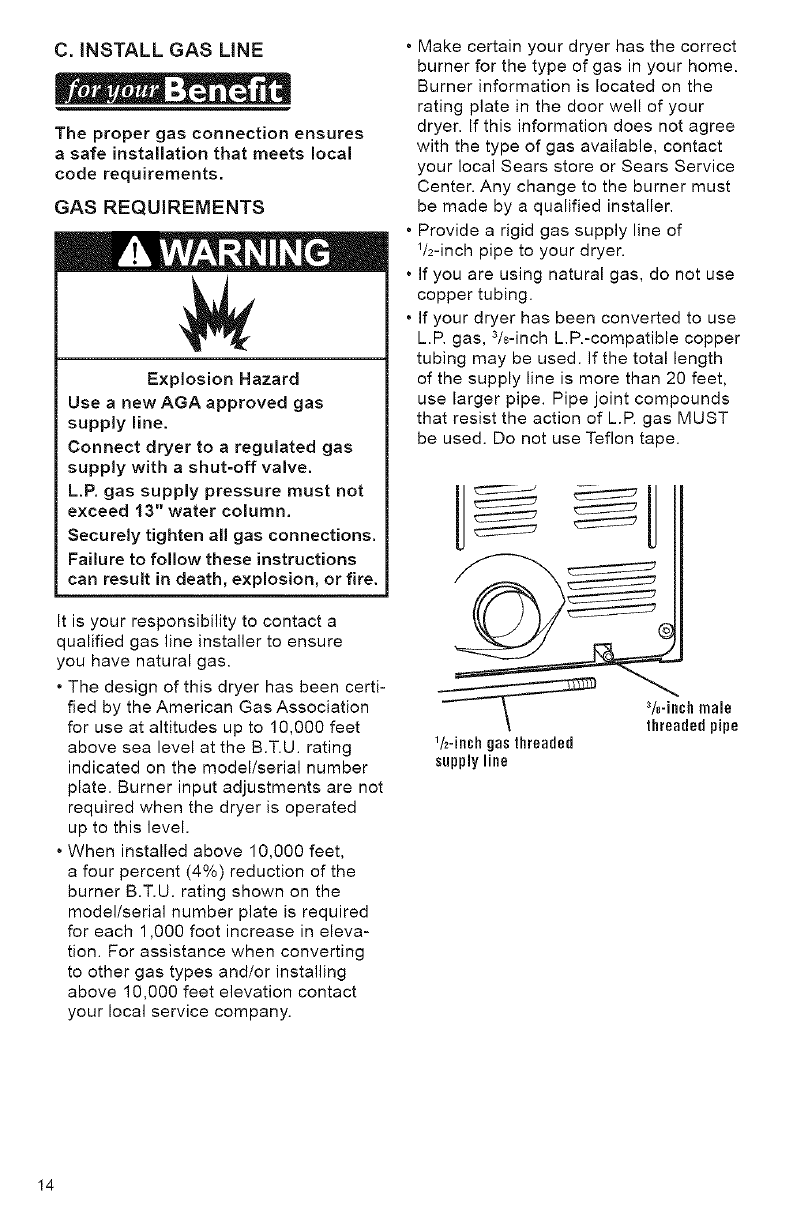

C. INSTALL GAS LiNE
The proper gas connection ensures
asafe installation that meets local
code requirements,
GAS REQUIREMENTS
Explosion Hazard
Use a new AGA approved gas
supply line.
Connect dryer to a regulated gas
supply with a shut=off valve.
L.P. gas supply pressure must not
exceed 13" water column.
Securely tighten all gas connections.
Failure to follow these instructions
can result in death, explosion, or fire.
It is your responsibility to contact a
qualified gas line installer to ensure
you have natural gas.
• The design of this dryer has been certi-
fied by the American Gas Association
for use at altitudes up to 10,000 feet
above sea level at the B.T.U. rating
indicated on the model/serial number
plate. Burner input adjustments are not
required when the dryer is operated
up to this level.
• When installed above 10,000 feet,
a four percent (4%) reduction of the
burner B.T.U. rating shown on the
model/serial number plate is required
for each 1,000 foot increase in eleva-
tion. For assistance when converting
to other gas types and/or installing
above 10,000 feet elevation contact
your local service company.
• Make certain your dryer has the correct
burner for the type of gas in your home.
Burner information is located on the
rating plate in the door well of your
dryer. If this information does not agree
with the type of gas available, contact
your local Sears store or Sears Service
Center. Any change to the burner must
be made by a qualified installer.
• Provide a rigid gas supply line of
1/2-inch pipe to your dryer.
• If you are using natural gas, do not use
copper tubing.
• If your dryer has been converted to use
L.R gas, 3/8-inch L.P.-compatible copper
tubing may be used. If the total length
of the supply line is more than 20 feet,
use larger pipe. Pipe joint compounds
that resist the action of L.R gas MUST
be used. Do not use Teflon tape.
1/2-inch gas threaded
supply line
3/8-inchmale
threadedpipe
I4
*If local codes permit, use flexible
stainless steel tubing (Design Certified
by the American Gas Association) to
connect your dryer to the gas supply
line. To prevent kinking, you may need
an elbow and connector between the
stainless steel tubing and the dryer
gas pipe. The gas pipe that comes
out through the rear of your dryer has
a 3/8-inch male pipe thread.
U
* A combination of pipe fittings must
be used to connect the dryer to the
existing gas line.
3/8-inch male l/B-inch HPT
threaded pipe pluggedtapping
connection
Gas shut-
Reducer or 1/2-inch gas off valve
connector supply line
* The gas supply must have a shut-off
valve. The valve should be in the same
room as the dryer, within six feet. The
location should be easy to reach for
opening and closing the valve.
*A 1/8-inch NPT plugged tapping, acces-
sible for test gauge connection, must
be installed immediately upstream of
the gas supply connection to the dryer.
* To ensure proper combustion and
ventilation, the dryer installation should
adhere to the minimum recommended
clearances. See page 11.
* For mobile home installation, see
page 12 for more instructions.
* The dryer must be disconnected from
the gas supply piping system during
any pressure testing of that system at
test pressures in excess of 1/2 psig.
3/8-inch male threaded
pipe connection 1/2-inch to 3/g-inch
pipe reducer
I5
CONNECT DRYER TO GAS LINE
Explosion Hazard
Use a new flexible gas supply line.
Failure to do so can result in
death, explosion, or fire,
STEP 1. Remove the red cap from
the gas pipe. Move the dryer to its
final position.
STEP 2. Connect gas supply to dryer.
Use a wrench to tighten. For gas
connections you must use pipe joint
compound resistant to the action of
LP. gas. Apply pipe joint compound
to the non-flared male threads only.
If flexible metal tubing is used be sure
there are no kinks.
Do not use pipe Use pipe joint
joint compound compound
STEP 3. Open the shut-off valve in the
supply line. The valve is open when the
handle is parallel to the gas pipe.
STEP 4. Test all the connections by
brushing on a soapy water solution
(liquid detergent also works well).
Bubbles will show a leak. Correct
any leak found. Never test for gas
leaks with a flame.
ELECTRICAL REQUIREMENTS
It is your responsibility:
• To contact a qualified electrical installer.
• To assure that the electrical installation
is adequate and in conformance with
the National Electrical Code, ANSI/
NFPA 70 - latest edition and all local
codes and ordinances.
Copies of the code standards listed
above may be obtained from:
National Fire Protection Association
Batterymarch Park
Quincy, Massachusetts 02269
The proper electrical connection
ensures a safe installation that
meets local code requirements.
Electrica! Shock Hazard
Plug into a grounded 3=prong
outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions
can result in death, fire, or
electrical shock.
• A 120-volt, 60-Hz., AC-only, 15- or
20-ampere fused electrical supply
is required.
• A time-delay fuse or circuit breaker is
recommended. Be sure fuse or circuit
breaker matches the rating of your line.
• Use a separate circuit serving only
your dryer.
• Do not use an extension cord.
I6

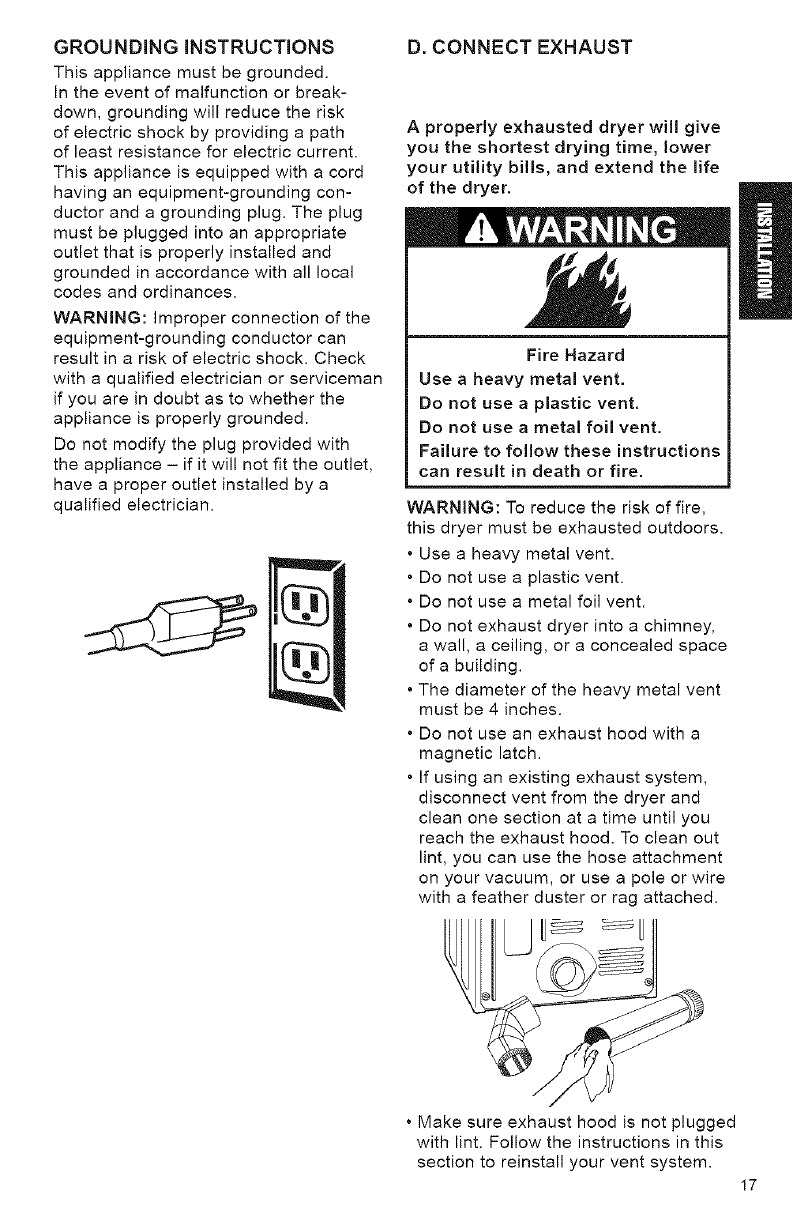

GROUNDINGINSTRUCTIONS
Thisappliancemustbegrounded.
Intheeventofmalfunctionorbreak-
down,groundingwillreducetherisk
ofelectricshockbyprovidingapath
ofleastresistanceforelectriccurrent.
Thisapplianceisequippedwithacord
havinganequipment-groundingcon-
ductorandagroundingplug.Theplug
mustbepluggedintoanappropriate
outletthatisproperlyinstalledand
groundedinaccordancewithalllocal
codesandordinances.
WARNING:Improperconnectionofthe
equipment-groundingconductorcan
resultinariskofelectricshock.Check
withaqualifiedelectricianorserviceman
ifyouareindoubtastowhetherthe
applianceisproperlygrounded.
Donotmodifytheplugprovidedwith
theappliance- ifitwillnotfittheoutlet,
haveaproperoutletinstalledbya
qualifiedelectrician.
D. CONNECTEXHAUST
A properly exhausted dryer will give
you the shortest drying time, lower
your utility bills, and extend the life
of the dryer.
Fire Hazard
Use a heavy metal vent.
Do not use a plastic vent.
Do not use a metal foil vent.
Failure to follow these instructions
can result in death or fire.
WARNING: To reduce the risk of fire,
this dryer must be exhausted outdoors.
• Use a heavy metal vent.
• Do not use a plastic vent.
• Do not use a metal foil vent.
•Do not exhaust dryer into a chimney,
a wall, a ceiling, or a concealed space
of a building.
• The diameter of the heavy metal vent
must be 4 inches.
•Do not use an exhaust hood with a
magnetic latch.
• If using an existing exhaust system,
disconnect vent from the dryer and
clean one section at a time until you
reach the exhaust hood. To clean out
lint, you can use the hose attachment
on your vacuum, or use a pole or wire
with a feather duster or rag attached.
• Make sure exhaust hood is not plugged
with lint. Follow the instructions in this
section to reinstall your vent system.
I7
ROUTETHEVENT
Typical installations exhaust from the
rear of the dryer.
Avoid pushing the dryer tightly against
a wall. This can crush or kink the vent.
Use the straightest path you can, where
possible. Avoid 90 ° turns.
Rear exhaust installations for standard offset
connections - (see pgs. I9-20)
Rear exhaust installations for offset
connections with close clearances -
(see p. 21)
I8
DETERMINE VENT LENGTH
Maximum Exhaust Lengths:
• The maximum length of the rear
exhaust system depends on the
type of vent, the number of elbows,
and the type of exhaust hood. Refer
to the chart below.
NOTE: If a combination of rigid metal
vent and flexible metal vent is used,
use instructions for flexible metal vent.
4-iNCH EXHAUST HOODS
._. -<
Number Maximum length of
of 90 ° 4-inch diameter rigid
Turns heavy metal vent
0 64 ft.
1 54 ft.
2 44 if,
3 35 ft.
4 27 ft.
Number Maximum length of
of 90 ° 4-inch diameter flexible
Turns heavy metal vent
0 36 ft,
1 31 ft.
2 27 ft,
3 25 ft,
4 23 ft.
21/2-INCH EXHAUST HOODS*
Number Maximum length of
of 90 ° 4-inch diameter rigid
Turns heavy metal vent
0 58 ft,
1 48 ft,
2 38 ft,
3 29 ft,
4 21 ft.
Number Maximum length of
of 90 ° 4-inch diameter flexible
Turns heavy metal vent
0 28 ft.
1 23 ft,
2 19ft,
3 17ft,
4 15ft.
*Use a 4-inch exhaust hood if possible.

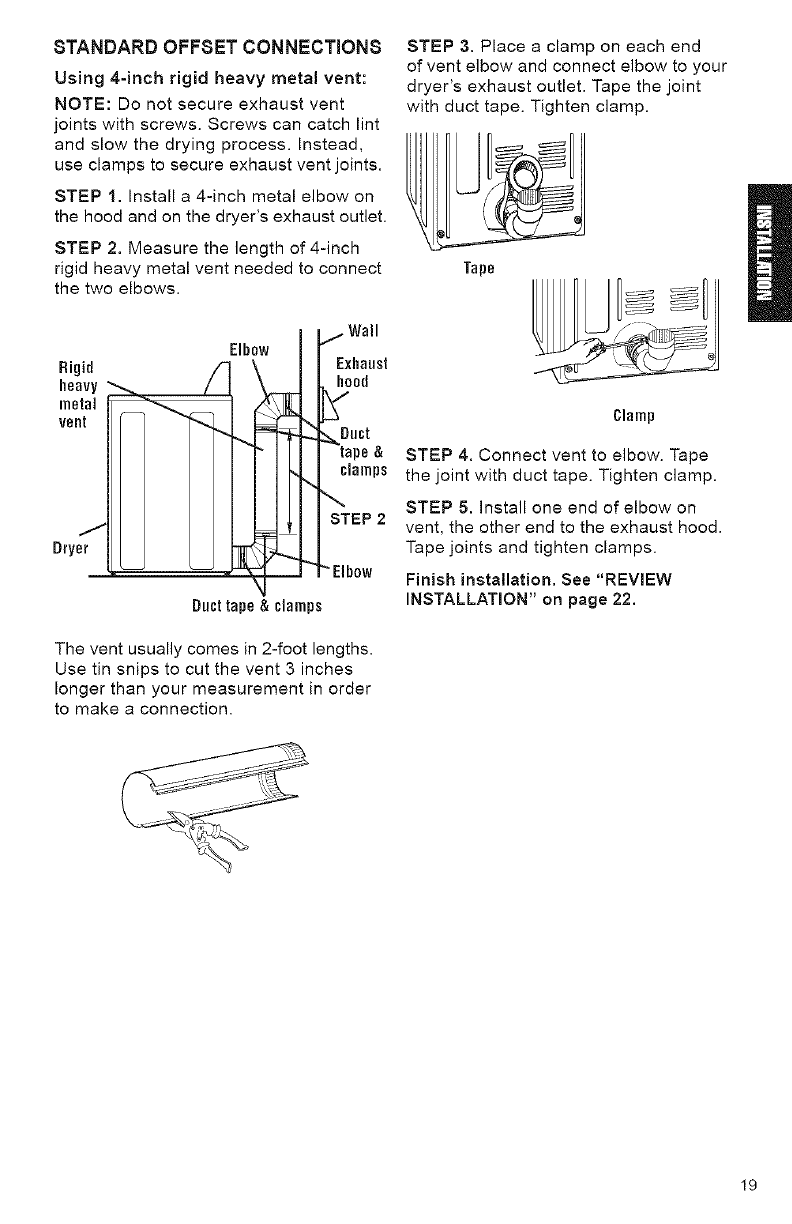

STANDARDOFFSETCONNECTIONS
Using 4-inch rigid heavy metal vent:
NOTE: Do not secure exhaust vent
joints with screws. Screws can catch lint
and slow the drying process. Instead,
use clamps to secure exhaust vent joints.
STEP 1. Install a 4-inch metal elbow on
the hood and on the dryer's exhaust outlet.
STEP 2. Measure the length of 4-inch
rigid heavy metal vent needed to connect
the two elbows.
Rigid
heavy
metal
vent
Elbow •Wall
Exhaust
hood
Dryer
STEP 2
"Elbow
Ducttape & clamps
The vent usually comes in 2-foot lengths.
Use tin snips to cut the vent 3 inches
longer than your measurement in order
to make a connection.
STEP 3. Place a clamp on each end
of vent elbow and connect elbow to your
dryer's exhaust outlet. Tape the joint
with duct tape. Tighten clamp.
Tape
Clamp
STEP 4. Connect vent to elbow. Tape
the joint with duct tape. Tighten clamp.
STEP 5. Install one end of elbow on
vent, the other end to the exhaust hood.
Tape joints and tighten clamps.
Finish installation, See "REVIEW
INSTALLATION" on page 22,
I9

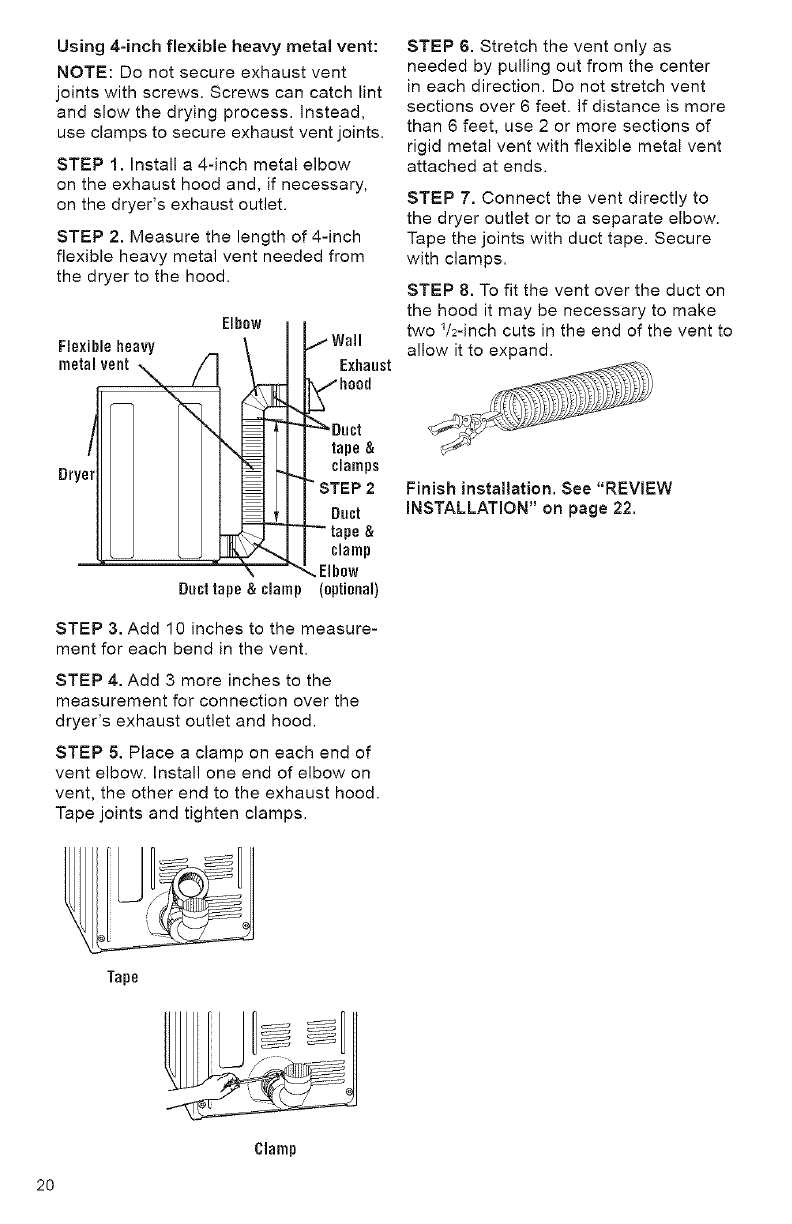

Using4-inchflexibleheavymetalvent:
NOTE:Donotsecureexhaustvent
jointswithscrews.Screwscancatchlint
andslowthedryingprocess,instead,
useclampstosecureexhaust vent joints.
STEP 1. install a 4-inch metal elbow
on the exhaust hood and, if necessary,
on the dryer's exhaust outlet.
STEP 2. Measure the length of 4-inch
flexible heavy metal vent needed from
the dryer to the hood.
Flexibleheavy
\
Elbow
Exhaust
STEP 6. Stretch the vent only as
needed by pulling out from the center
in each direction. Do not stretch vent
sections over 6 feet. If distance is more
than 6 feet, use 2 or more sections of
rigid metal vent with flexible metal vent
attached at ends.
STEP 7. Connect the vent directly to
the dryer outlet or to a separate elbow.
Tape the joints with duct tape. Secure
with clamps.
STEP 8. To fit the vent over the duct on
the hood it may be necessary to make
two 1/2-inch cuts in the end of the vent to
allow it to expand.
tape&
clamps
STEP 2
Duct&
¢lamp
Elbow
Daottape&clamp (optional)
STEP 3. Add 10 inches to the measure-
ment for each bend in the vent.
STEP 4. Add 3 more inches to the
measurement for connection over the
dryer's exhaust outlet and hood.
STEP 5. Place a clamp on each end of
vent elbow. Install one end of elbow on
vent, the other end to the exhaust hood.
Tape joints and tighten clamps.
Tape
Finish installation. See "REVIEW
INSTALLATION" on page 22.
20
Clamp

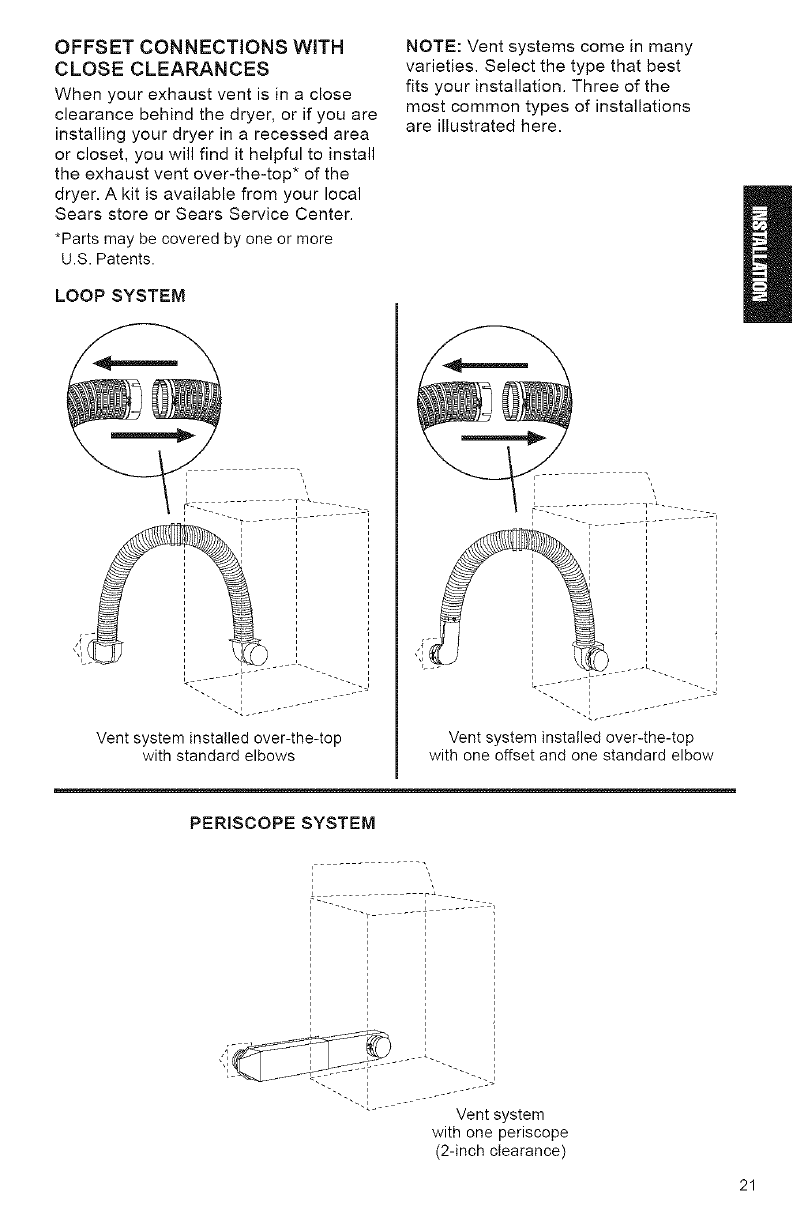

OFFSET CONNECTIONS WITH
CLOSE CLEARANCES
When your exhaust vent is in a close
clearance behind the dryer, or if you are
installing your dryer in a recessed area
or closet, you will find it helpful to install
the exhaust vent over-the-top* of the
dryer. A kit is available from your local
Sears store or Sears Service Center.
*Parts may be covered by one or more
U.S. Patents.
LOOP SYSTEM
NOTE: Vent systems come in many
varieties. Select the type that best
fits your installation. Three of the
most common types of installations
are illustrated here.
Vent system installed over-the-top
with standard elbows
"_ ..... [ "'---_ :
Vent system installed over-the-top
with one offset and one standard elbow
PERISCOPE SYSTEM
Vent system
with one periscope
(2-inch clearance)
21

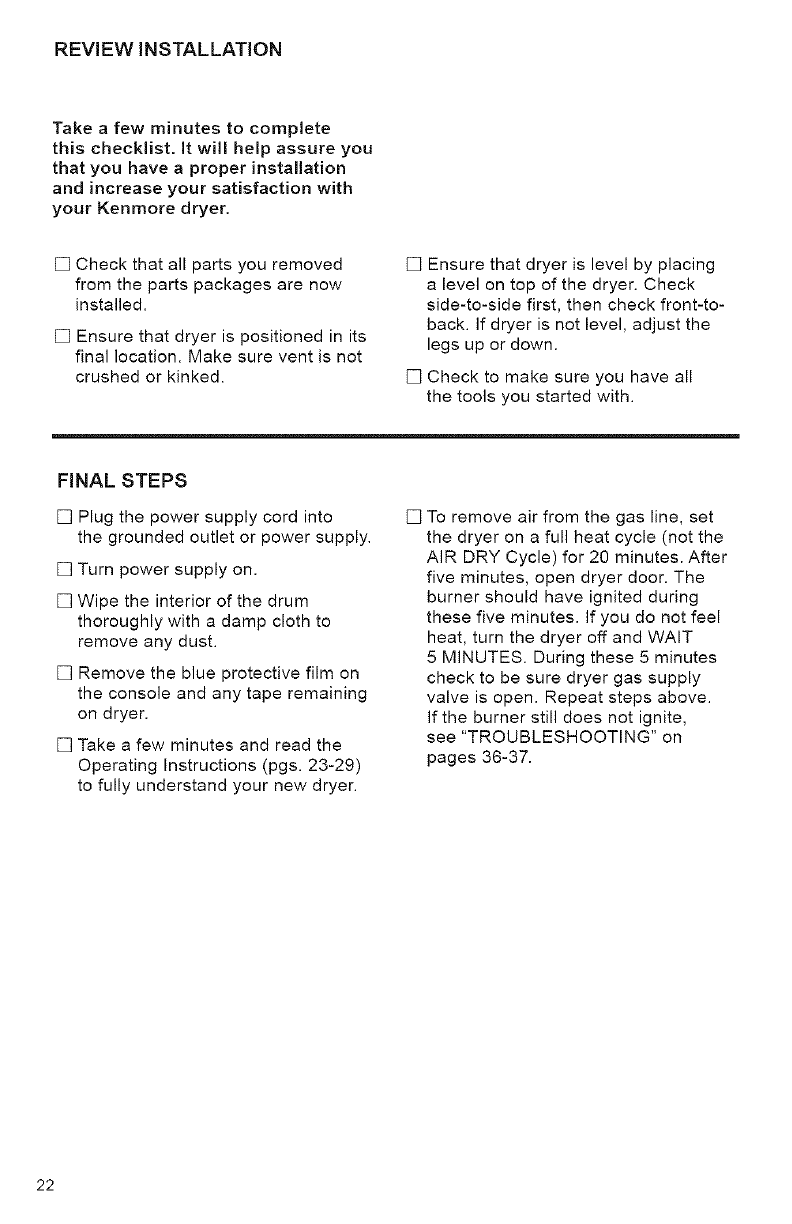

REVIEW INSTALLATION
Take a few minutes to complete
this checklist. It will help assure you
that you have a proper installation
and increase your satisfaction with
your Kenmore dryer.
[] Check that all parts you removed
from the parts packages are now
installed.
[] Ensure that dryer is positioned in its
final location. Make sure vent is not
crushed or kinked.
[] Ensure that dryer is level by placing
a level on top of the dryer. Check
side-to-side first, then check front-to-
back. If dryer is not level, adjust the
legs up or down.
[] Check to make sure you have all
the tools you started with.
FINAL STEPS
[] Plug the power supply cord into
the grounded outlet or power supply.
[] Turn power supply on.
[] Wipe the interior of the drum
thoroughly with a damp cloth to
remove any dust.
[] Remove the blue protective film on
the console and any tape remaining
on dryer.
[] Take a few minutes and read the
Operating Instructions (pgs. 23-29)
to fully understand your new dryer.
[] To remove air from the gas line, set
the dryer on a full heat cycle (not the
AIR DRY Cycle) for 20 minutes. After
five minutes, open dryer door. The
burner should have ignited during
these five minutes. If you do not feel
heat, turn the dryer off and WAIT
5 MINUTES. During these 5 minutes
check to be sure dryer gas supply
valve is open. Repeat steps above.
If the burner still does not ignite,
see "TROUBLESHOOTING" on
pages 36-37.
22
STARTING YOUR DRYER
Explosion Hazard
Keep flammable materials and
vapors, such as gasoline, away
from dryer.
Do not dry anything that has ever
had anything flammable on it (even
after washing).
Failure to follow these instructions
can result in death, explosion,
or fire.
To get the best drying results, you must
operate your dryer properly. This section
gives you this important information.
NOTE: The drawings in this section
show the basic features of all models
covered by this manual. Refer to the
supplied "Feature Sheet" for your
dryer's particular features.
STEP 1. Check lint screen. Clean
if needed.
STEP 2. Put laundry into dryer and
shut door.
Fire Hazard
No washer can completely
remove oil.
Do not dry anything that has ever
had any type of oil on it (including
cooking oils),
Items containing foam, rubber,
or plastic must be dried on a
clothesline or by using an air cycle.
Failure to follow these instruotions
can result in death or fire.
STEP 3. Set Cycle Selector Control
(Timer) O(see pgs. 24 and 26).
STEP 4. Set FABRIC/TEMPERATURE
Control _, if available (see p. 25).
Check clothes label for manufacturer's
recommendations.
STEP 5. Press PUSH TO START
Button _ Be sure door is closed.
STOPPING/RESTARTING
YOUR DRYER
• To stop the dryer at any time, open
dryer door.
• To restart, press PUSH TO START
Button. Be sure door is closed.
• If you wish to end your drying cycle,
turn Cycle Selector Control (Timer)
to OFF.
O@ G
23

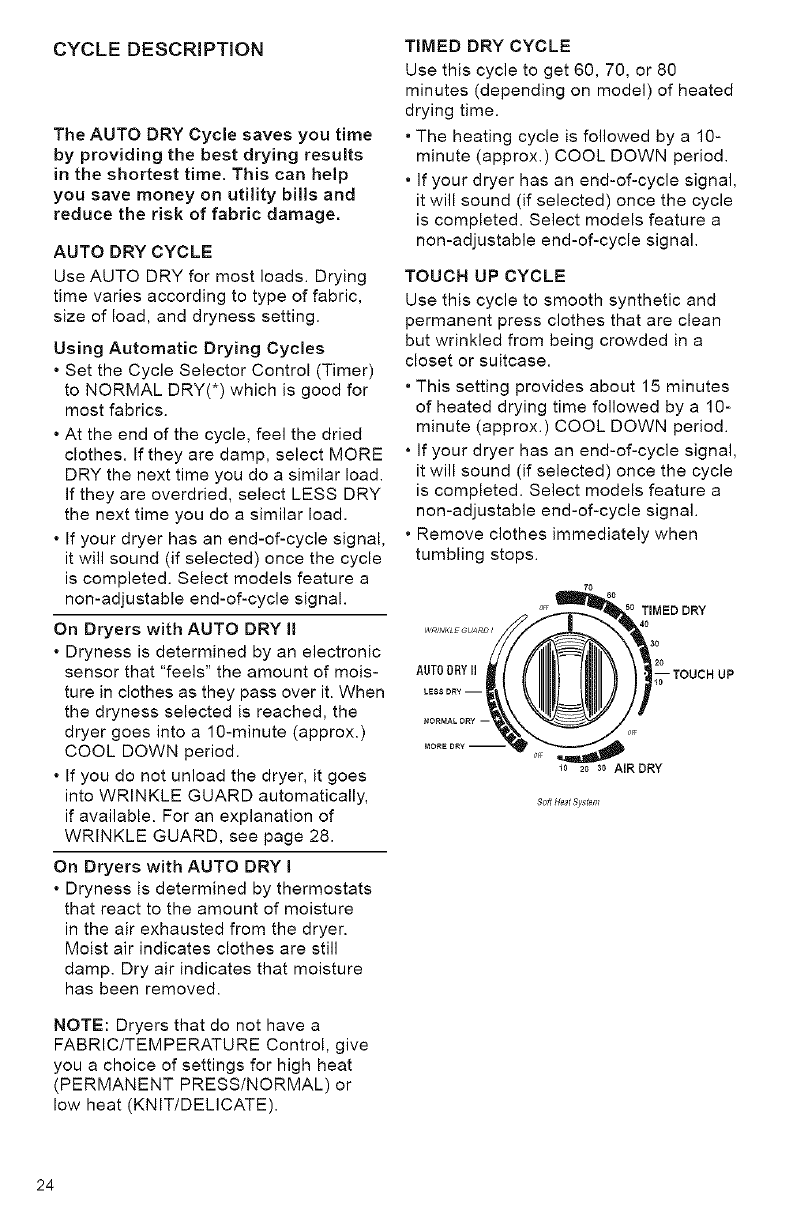

CYCLE DESCRIPTION
The AUTO DRY Cycle saves you time
by providing the best drying results
in the shortest time. This can help
you save money on utility bills and
reduce the risk of fabric damage.
AUTO DRY CYCLE
Use AUTO DRY for most loads. Drying
time varies according to type of fabric,
size of load, and dryness setting.
Using Automatic Drying Cycles
• Set the Cycle Selector Control (Timer)
to NORMAL DRY(*) which is good for
most fabrics.
• At the end of the cycle, feel the dried
clothes. If they are damp, select MORE
DRY the next time you do asimilar load.
if they are overdried, select LESS DRY
the next time you do a similar load.
• If your dryer has an end-of-cycle signal,
it will sound (if selected) once the cycle
is completed. Select models feature a
non-adjustable end-of-cycle signal.
On Dryers with AUTO DRY II
• Dryness is determined by an electronic
sensor that "feels" the amount of mois-
ture in clothes as they pass over it. When
the dryness selected is reached, the
dryer goes into a 10-minute (approx.)
COOL DOWN period.
• If you do not unload the dryer, it goes
into WRINKLE GUARD automatically,
if available. For an explanation of
WRINKLE GUARD, see page 28.
On Dryers with AUTO DRY I
• Dryness is determined by thermostats
that react to the amount of moisture
in the air exhausted from the dryer.
Moist air indicates clothes are still
damp. Dry air indicates that moisture
has been removed.
NOTE: Dryers that do not have a
FABRIC/TEMPERATURE Control, give
you a choice of settings for high heat
(PERMANENT PRESS/NORMAL) or
low heat (KNIT/DELICATE).
TIMED DRY CYCLE
Use this cycle to get 60, 70, or 80
minutes (depending on model) of heated
drying time.
•The heating cycle is followed by a 1g-
minute (approx.) COOL DOWN period.
•If your dryer has an end-of-cycle signal,
it will sound (if selected) once the cycle
is completed. Select models feature a
non-adjustable end-of-cycle signal.
TOUCH UP CYCLE
Use this cycle to smooth synthetic and
permanent press clothes that are clean
but wrinkled from being crowded in a
closet or suitcase.
• This setting provides about 15 minutes
of heated drying time followed by a 10-
minute (approx.) COOL DOWN period.
• If your dryer has an end-of-cycle signal,
it will sound (if selected) once the cycle
is completed. Select models feature a
non-adjustable end-of-cycle signal.
• Remove clothes immediately when
tumbling stops.
7O
TIMED DRY
AUTODBYII - TOUCH UP
io 2o 3o AIR DRY
SoflHeatSystem
24

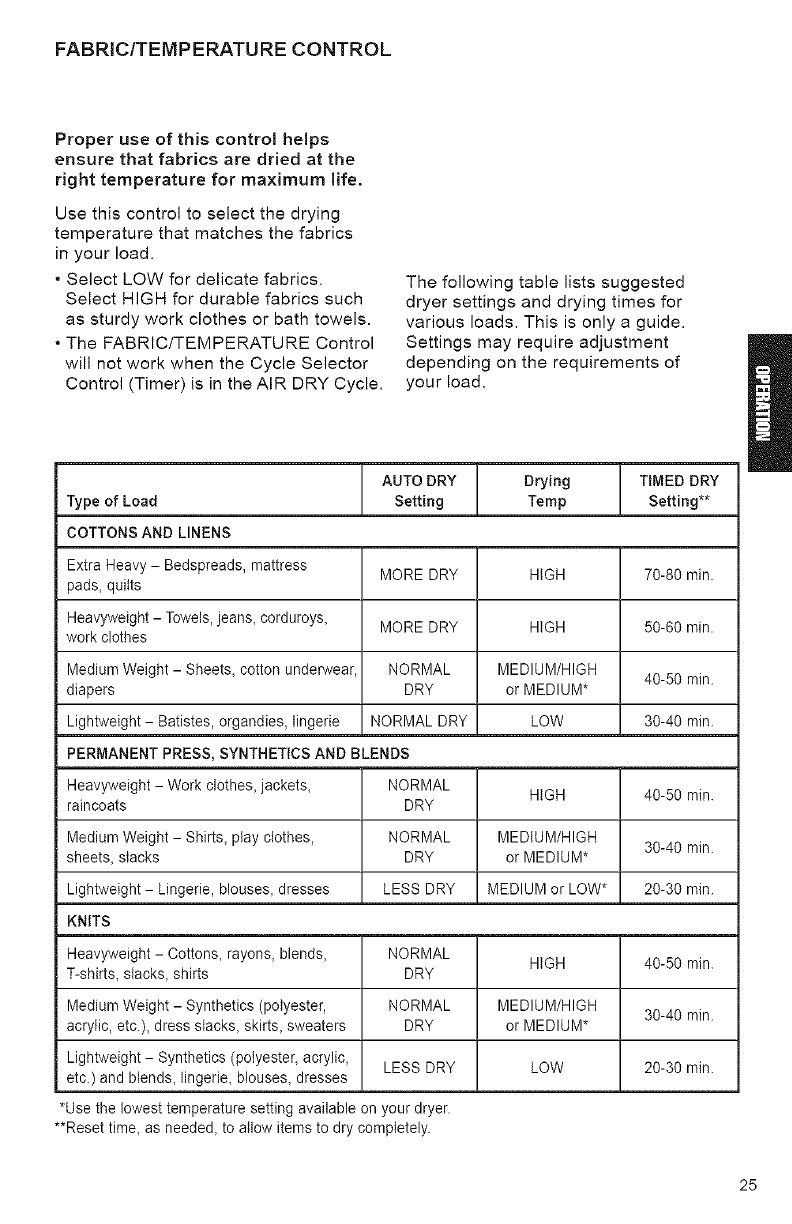

FABRICfTEMPERATURE CONTROL
Proper use of this contro! helps
ensure that fabrics are dried at the
right temperature for maximum !ife.
Use this control to select the drying
temperature that matches the fabrics
in your load.
• Select LOW for delicate fabrics.
Select HIGH for durable fabrics such
as sturdy work clothes or bath towels.
• The FABRIC/TEMPERATURE Control
will not work when the Cycle Selector
Control (Timer) is in the AIR DRY Cycle.
The following table lists suggested
dryer settings and drying times for
various loads. This is only a guide.
Settings may require adjustment
depending on the requirements of
your load.
AUTO DRY Drying TIMED DRY
Type of Load Setting Temp Setting**
COTTONS AND LINENS
Extra Heavy - Bedspreads, mattress MORE DRY HiGH 70-80 rain.
pads, quilts
Heavyweight - Towels, jeans, corduroys, MORE DRY HiGH 50-60 min.
work clothes
Medium Weight - Sheets, cotton underwear, NORMAL MEDIUM/HIGH 40-50 min.
diapers DRY or MEDIUM*
Lightweight - Batistes, organdies, lingerie NORMAL DRY LOW 30-40 min.
PERMANENT PRESS, SYNTHETICS AND BLENDS
Heavyweight - Work clothes, jackets, NORMAL HIGH 40-50 rain.
raincoats DRY
Medium Weight - Shirts, play clothes, NORMAL MEDIUM/HIGH 30-40 rain.
sheets_ slacks DRY or MEDIUM*
Lightweight - Lingerie, blouses, dresses LESS DRY MEDIUM or LOW* 20-30 min.
KNITS
Heavyweight - Cottons, rayons, blends, NORMAL HIGH 40-50 rain.
T-shirts, slacks, shirts DRY
NORMAL MEDIUM/HIGH 30-40 rain.
DRY or MEDIUM*
LOW 20-30 min.
Medium Weight - Synthetics (polyester,
acrylic, etc.), dress slacks, skirts, sweaters
Lightweight - Synthetics (polyester, acrylic, LESS DRY
etc.) and blends, lingerie, blouses, dresses
*Use the lowest temperature setting available on your dryer.
**Reset time_as needed_to allow items to dry completely.
25

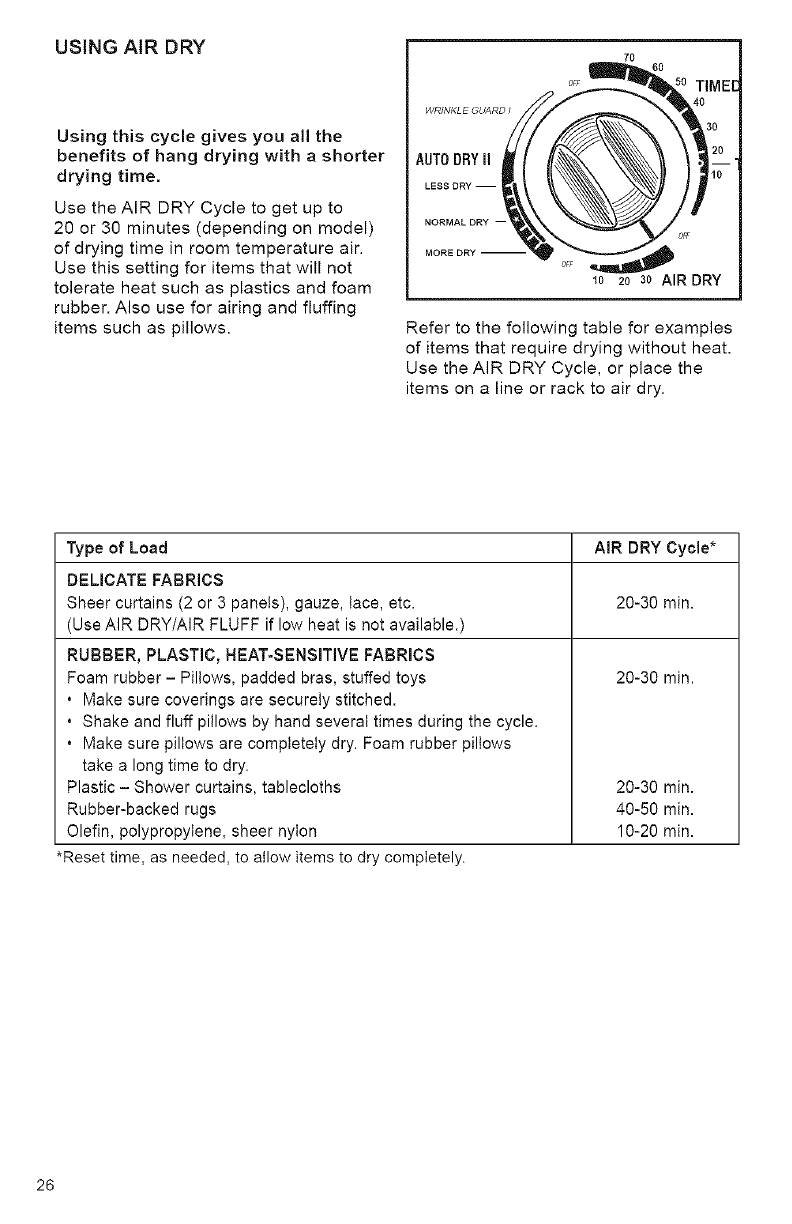

USING AiR DRY
Using this cycle gives you a!! the
benefits of hang drying with a shorter
drying time.
Use the AIR DRY Cycle to get up to
20 or 30 minutes (depending on model)
of drying time in room temperature air.
Use this setting for items that will not
tolerate heat such as plastics and foam
rubber. Also use for airing and fluffing
items such as pillows.
WRINKLE GUARD I
AUTO DRY II
CL!
MORE DRY --
70
OFF_'_S0 TIME£
_7
10 20 30 AIR DRY
Refer to the following table for examples
of items that require drying without heat.
Use the AIR DRY Cycle, or place the
items on a line or rack to air dry.
Type of Load
DELICATE FABRICS
Sheer curtains (2 or 3 panels), gauze, lace, etc.
(Use AIR DRY/AIR FLUFF if low heat is not available.)
RUBBER, PLASTIC, HEAT-SENSITWE FABRICS
Foam rubber - Pillows, padded bras, stuffed toys
, Make sure coverings are securely stitched.
, Shake and fluff pillows by hand several times during the cycle.
, Make sure pillows are completely dry. Foam rubber pillows
take a long time to dry.
Plastic - Shower curtains, tablecloths
Rubber-backed rugs
Olefin, polypropytene, sheer nylon
*Reset time, as needed, to allow items to dry completely.
AIR DRY Cycle*
20-30 min.
20-30 min.
20-30 min.
40-50 min.
10-20 min.
26

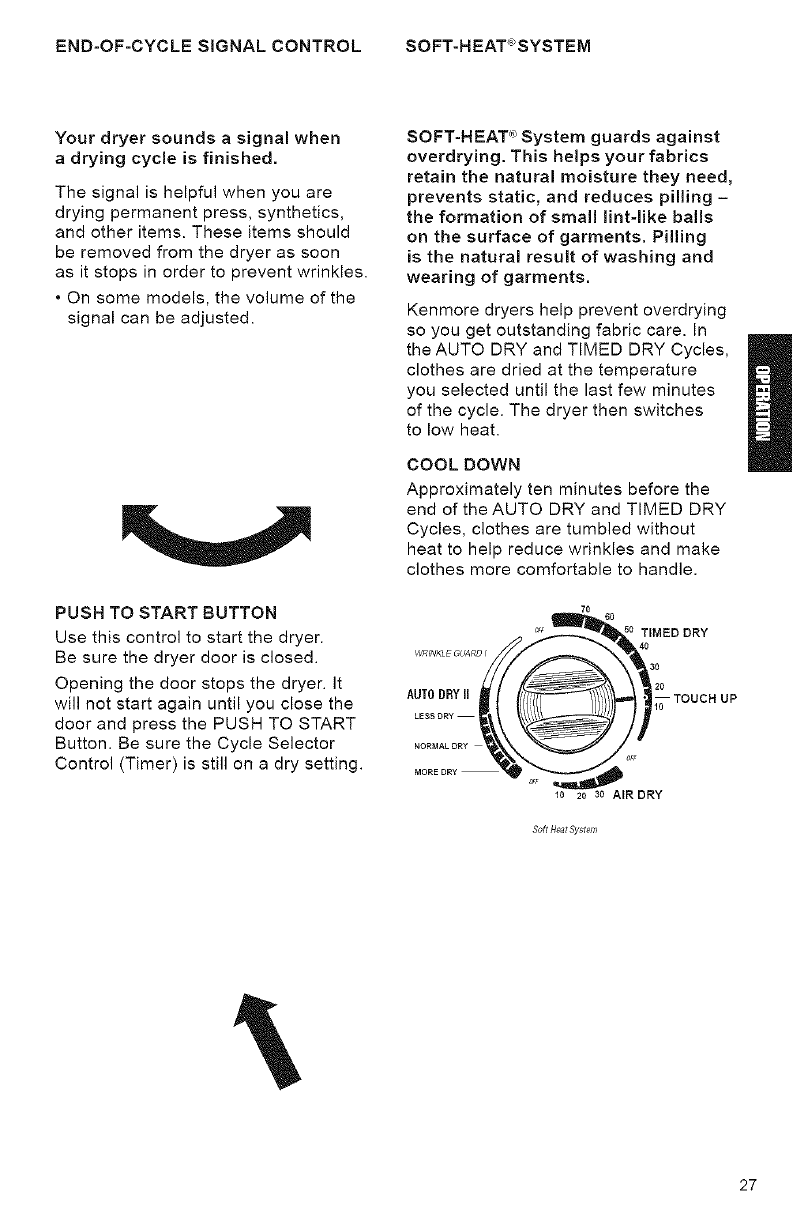

END-OF-CYCLE SIGNAL CONTROL SOFT-HEAT<_>SYSTEM
Your dryer sounds a signal when
adrying cycle is finished.
The signal is helpful when you are
drying permanent press, synthetics,
and other items. These items should
be removed from the dryer as soon
as it stops in order to prevent wrinkles.
• On some models, the volume of the
signal can be adjusted.
PUSH TO START BUTTON
Use this control to start the dryer.
Be sure the dryer door is closed.
Opening the door stops the dryer. It
will not start again until you close the
door and press the PUSH TO START
Button. Be sure the Cycle Selector
Control (Timer) is still on a dry setting.
SOFT-HEAT <_System guards against
overdrying. This helps your fabrics
retain the natural moisture they need,
prevents static, and reduces pilling -
the formation of small lint-like balls
on the surface of garments. Pilling
is the natural result of washing and
wearing of garments.
Kenmore dryers help prevent overdrying
so you get outstanding fabric care. In
the AUTO DRY and TIMED DRY Cycles,
clothes are dried at the temperature
you selected until the last few minutes
of the cycle. The dryer then switches
to low heat.
COOL DOWN
Approximately ten minutes before the
end of the AUTO DRY and TIMED DRY
Cycles, clothes are tumbled without
heat to help reduce wrinkles and make
clothes more comfortable to handle.
70
_ 5o TIMED DRY
WRCNKLE GUARD [
30
AUTODRYII
TOUCHUPLESSDRY _l&_ _7 ///
Io 20 ao AIR DRY
Suft Heat System
27

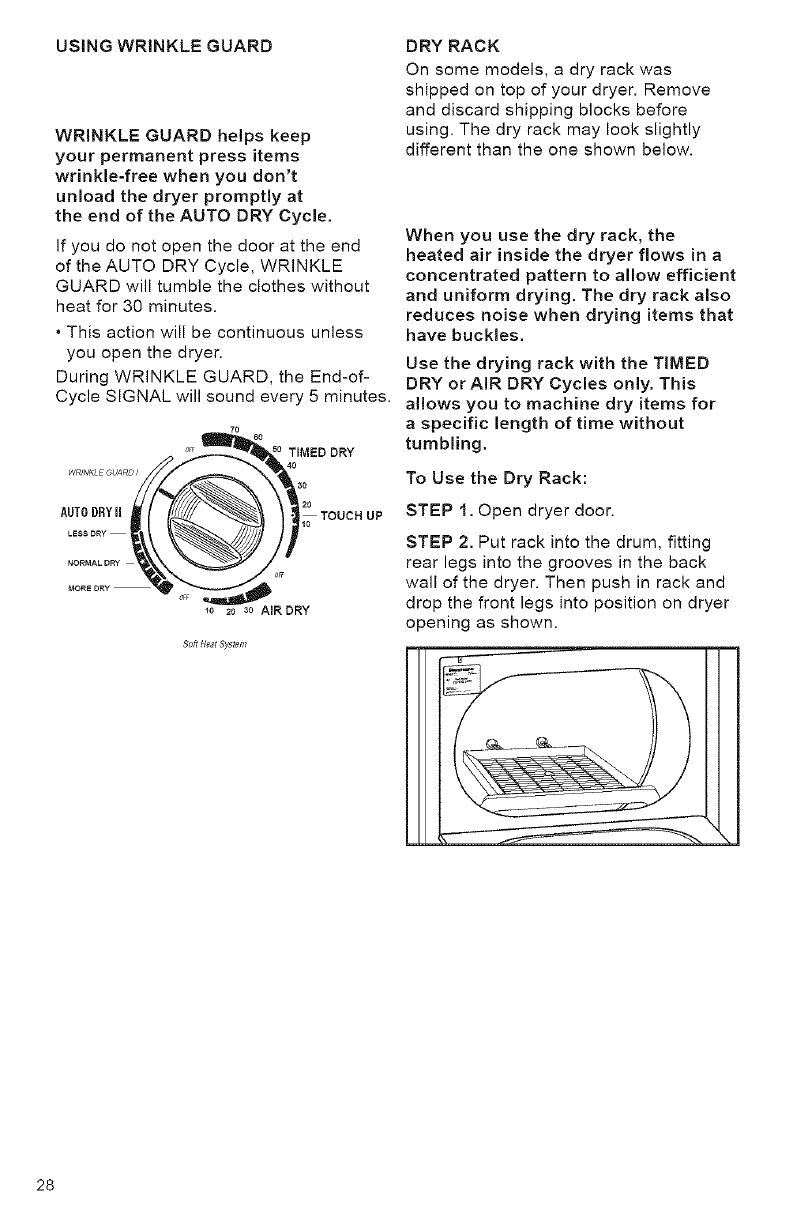

USING WRINKLE GUARD
WRINKLE GUARD helps keep
your permanent press items
wrinkle-free when you don't
unload the dryer promptly at
the end of the AUTO DRY Cycle.
If you do not open the door at the end
of the AUTO DRY Cycle, WRINKLE
GUARD will tumble the clothes without
heat for 30 minutes.
• This action will be continuous unless
you open the dryer.
During WRINKLE GUARD, the End-of-
Cycle SIGNAL will sound every 5 minutes.
7O
O_F_ 0 4T0_MED DRY
WRINKLEGUARDI3O
LESS DRY /'
10 20 3o AIR DRY
SoflH¢at_tem
DRY RACK
On some models, a dry rack was
shipped on top of your dryer. Remove
and discard shipping blocks before
using. The dry rack may look slightly
different than the one shown below.
When you use the dry rack, the
heated air inside the dryer flows in a
concentrated pattern to allow efficient
and uniform drying. The dry rack also
reduces noise when drying items that
have buckles.
Use the drying rack with the TIMED
DRY orAIR DRY Cycles only. This
al!ows you to machine dry items for
a specific length of time without
tumbling.
To Use the Dry Rack:
STEP 1. Open dryer door.
STEP 2. Put rack into the drum, fitting
rear legs into the grooves in the back
wall of the dryer. Then push in rack and
drop the front legs into position on dryer
opening as shown.
28
STEP3.Placewetitemsontopofthe
dryrack.Allowspacearounditemsfor
airtocirculate.Therackdoesnotmove,
butthedrumwillrotate.Makesureitems
donothangovertheedgesorbetween
rackgrill.
STEP4.Closedryerdoor.
STEP5.UsetheTIMEDDRYorAIRDRY
Cycle.Refertothetablebelow.
STEP6.SettheFABRIC/TEMPERATURE
Control,ifavailable.Refertothetable
below.
STEP7.Startthedryer.
Toremovethedryrack,pushitback
toreleaserearlegspringsandliftout.
Suggesteditems
forRack Drying
1. Washable wool items (block to
shape and lay flat on rack)
2. Stuffed toys (cotton or polyester
fiber filling)
3. Stuffed toys (foam rubber filling)
4. Galoshes (rubber)
5. Foam rubber pillows
6. Tennis shoes
*Reset time as needed to complete drying.
FABRIC/ Cycle Selector
TEMPERATURE (Timer)
Setting Setting Minutes*
DELICATE TIMED DRY 60
COTTON TIMED DRY 60
AIR DRY 90
AIR DRY 20
AIR DRY 90
AIR DRY 30-40
29

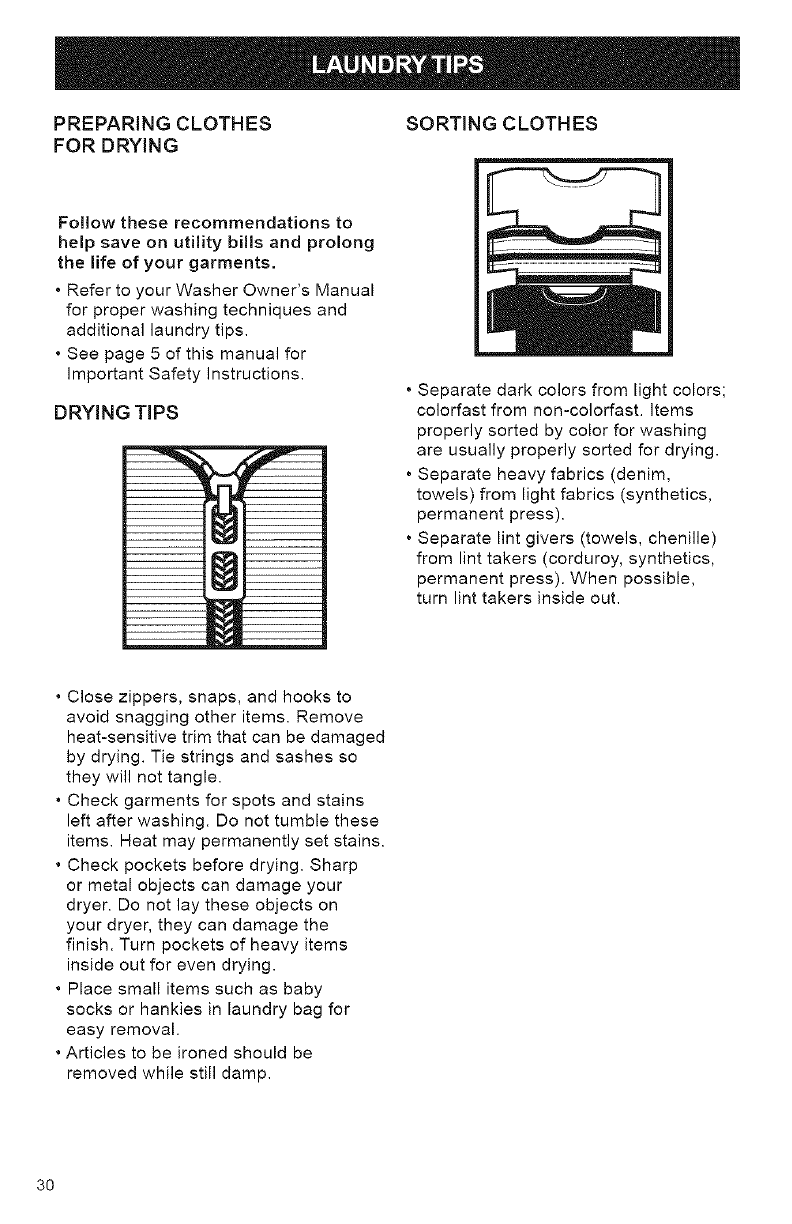

PREPARING CLOTHES SORTING CLOTHES
FOR DRYING
Follow these recommendations to
help save on utility bills and prolong
the life of your garments,
• Refer to your Washer Owner's Manual
for proper washing techniques and
additional laundry tips.
• See page 5 of this manual for
Important Safety Instructions.
DRYING TIPS • Separate dark colors from light colors;
colorfast from non-colorfast. Items
properly sorted by color for washing
are usually properly sorted for drying.
• Separate heavy fabrics (denim,
towels) from light fabrics (synthetics,
permanent press).
• Separate lint givers (towels, chenille)
from lint takers (corduroy, synthetics,
permanent press). When possible,
turn lint takers inside out.
• Close zippers, snaps, and hooks to
avoid snagging other items. Remove
heat-sensitive trim that can be damaged
by drying. Tie strings and sashes so
they will not tangle.
• Check garments for spots and stains
left after washing. Do not tumble these
items. Heat may permanently set stains.
• Check pockets before drying. Sharp
or metal objects can damage your
dryer. Do not lay these objects on
your dryer, they can damage the
finish. Turn pockets of heavy items
inside out for even drying.
• Place small items such as baby
socks or hankies in laundry bag for
easy removal.
• Articles to be ironed should be
removed while still damp.
30

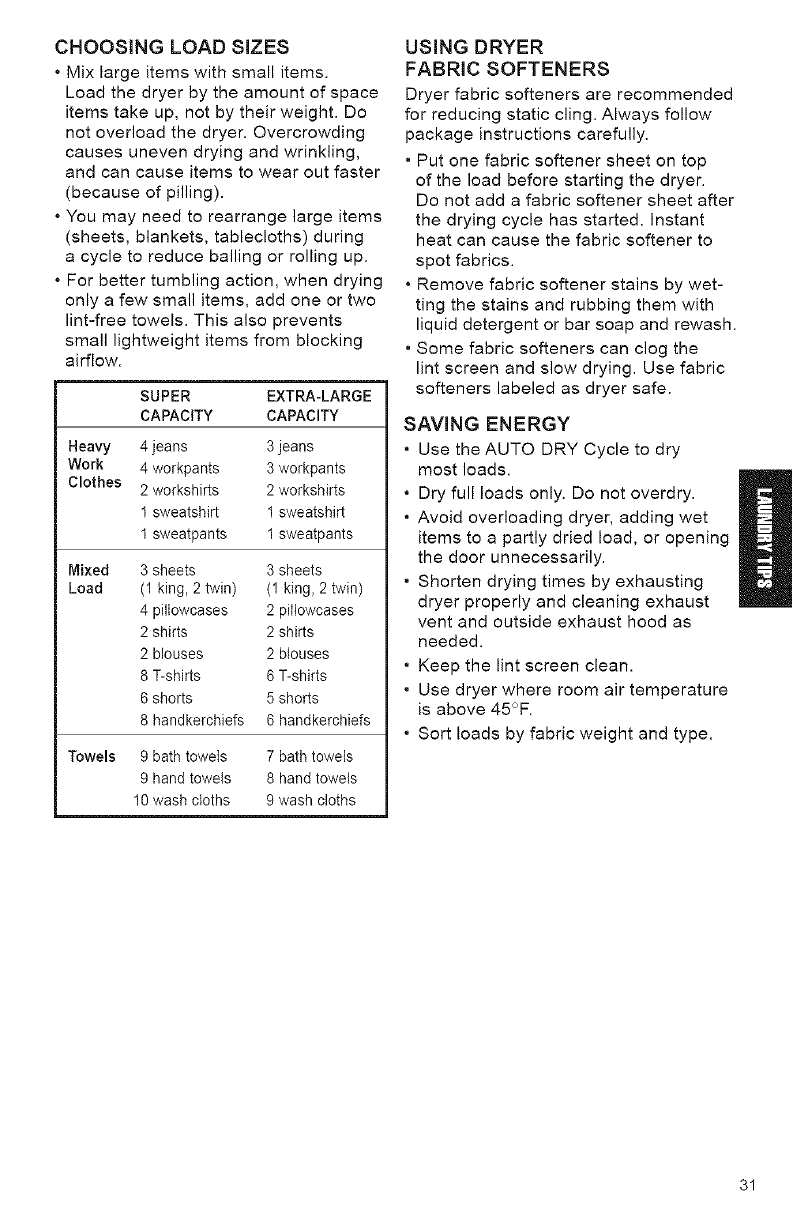

CHOOSINGLOADSIZES
•Mixlargeitemswithsmallitems.
Loadthedryerbytheamountofspace
itemstakeup,notbytheirweight.Do
notoverloadthedryer.Overcrowding
causesunevendryingand wrinkling,
and can cause items to wear out faster
(because of pilling).
• You may need to rearrange large items
(sheets, blankets, tablecloths) during
a cycle to reduce bailing or rolling up.
• For better tumbling action, when drying
only a few small items, add one or two
lint-free towels. This also prevents
small lightweight items from blocking
airflow.
SUPER EXTRA-LARGE
CAPACITY CAPACITY
Heavy 4 jeans 3 jeans
Work 4 workpants 3 workpants
Clothes 2 workshirts 2 workshirts
1 sweatshirt 1 sweatshirt
1 sweatpants 1 sweatpants
Mixed 3 sheets 3 sheets
Load (1 king, 2 twin) (1 king, 2 twin)
4 pillowcases 2 pillowcases
2 shirts 2 shirts
2 blouses 2 blouses
8 T-shirts 6 T-shirts
6 shorts 5 shorts
8 handkerchiefs 6 handkerchiefs
Towels 9 bath towels 7 bath towels
9 hand towels 8 hand towels
10 wash cloths 9 wash cloths
USING DRYER
FABRIC SOFTENERS
Dryer fabric softeners are recommended
for reducing static cling. Always follow
package instructions carefully.
• Put one fabric softener sheet on top
of the load before starting the dryer.
Do not add a fabric softener sheet after
the drying cycle has started. Instant
heat can cause the fabric softener to
spot fabrics.
• Remove fabric softener stains by wet-
ting the stains and rubbing them with
liquid detergent or bar soap and rewash.
• Some fabric softeners can clog the
lint screen and slow drying. Use fabric
softeners labeled as dryer safe.
SAVING ENERGY
• Use the AUTO DRY Cycle to dry
most loads.
• Dry full loads only. Do not overdry.
• Avoid overloading dryer, adding wet
items to a partly dried load, or opening
the door unnecessarily.
• Shorten drying times by exhausting
dryer properly and cleaning exhaust
vent and outside exhaust hood as
needed.
• Keep the lint screen clean.
• Use dryer where room air temperature
is above 45°F.
• Sort loads by fabric weight and type.
31
This section explains how to care for
your dryer properly and safely.
Proper care of your dryer can extend
its life and help you avoid costly
service calls.
CLEANING YOUR DRYER
EXTERIOR
Use a soft,damp clothto clean the cabinet
and console. Avoid using harsh abrasives.
Do not put sharp metal objects on or in
your dryer. They can damage the finish.
INTERIOR
Explosion Hazard
Use nonflammable cleaners.
Failure to do so can result in death,
explosion, fire, or burns.
Garments that contain unstable dyes,
such as denim blue jeans or brightly
colored cotton items, may discolor the
dryer drum.
To clean dryer drum:
STEP 1. Make a paste with detergent
and very warm water and apply to a soft
cloth. Continue with STEPS 2-4.
or
STEP la. Spray nonflammable liquid
household cleaner on the stained area.
Continue with STEPS 2-4.
STEP 2. Scrub area until all excess dye
is removed.
STEP 3. Wipe thoroughly with a damp
cloth.
STEP 4. Tumble a load of clean towels
for 20 minutes to dry.
CLEANING THE LINT SCREEN
Remove Lint Before Every Load
The lint screen is located on top of
your dryer. Clean it before every load.
A screen blocked by lint can increase
drying time.
To clean:
STEP 1. Pull the lint screen straight up.
STEP 2. Roll lint off the screen with your
fingers. Do not rinse or wash screen to
remove lint. Wet lint is hard to remove.
STEP 3. Push the lint screen firmly back
into place.
IMPORTANT:
• Do not run the dryer with the lint screen
loose, damaged, blocked, or missing.
Doing so can cause overheating and
damage to both the dryer and fabrics.
• Some towels made of synthetic fibers
and natural fibers (polyester and cotton
blends) may shed more lint than other
towels, causing your dryer's lint screen
to fill up faster. Be sure to remove lint
from the lint screen before and after
drying new towels.
32

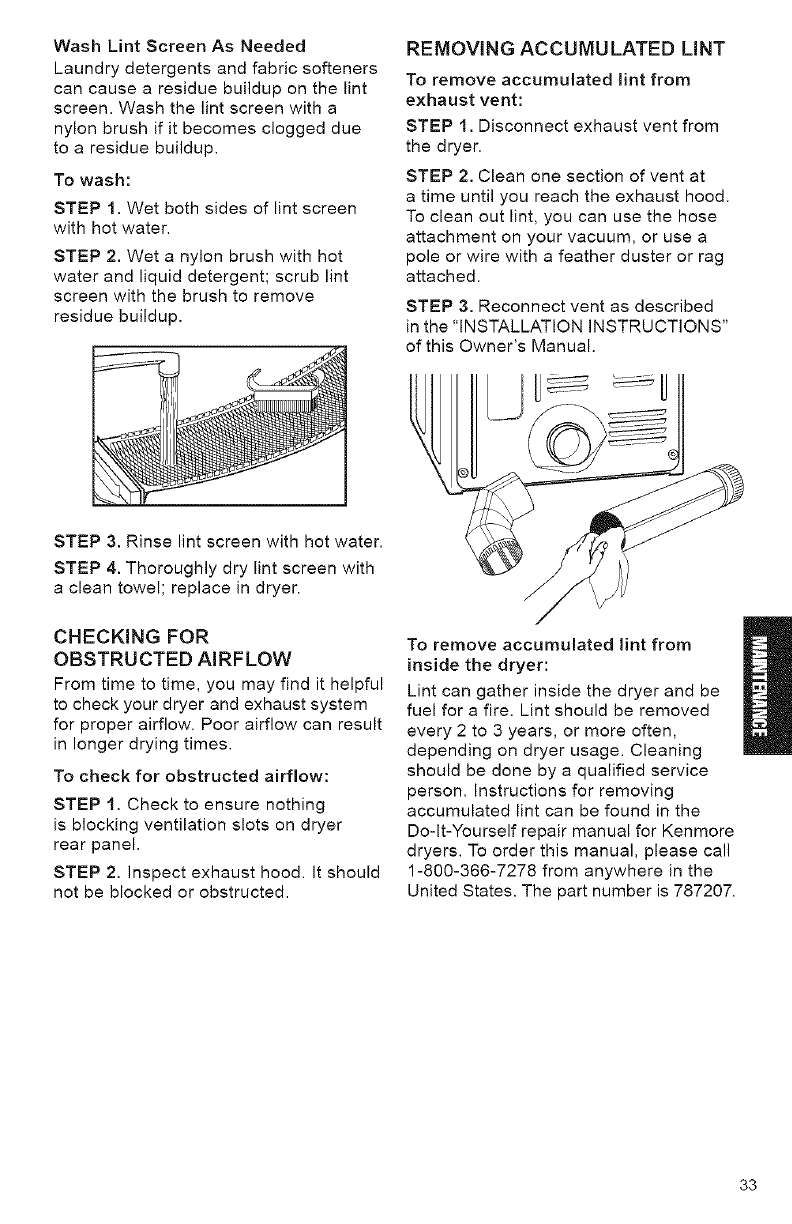

WashLintScreenAsNeeded
Laundrydetergentsandfabricsofteners
cancausearesiduebuilduponthelint
screen,Washthelintscreenwitha
nylonbrushifitbecomescloggeddue
toaresiduebuildup.
Towash:
STEP1.Wetbothsidesoflintscreen
withhotwater.
STEP2.Wetanylonbrushwithhot
waterandliquiddetergent;scrublint
screenwiththebrushtoremove
residuebuildup,
STEP3.Rinselintscreenwithhotwater.
STEP4.Thoroughlydrylintscreenwith
acleantowel;replaceindryer.
CHECKINGFOR
OBSTRUCTEDAIRFLOW
Fromtimetotime,youmayfindithelpful
tocheckyourdryerandexhaust system
for proper airflow. Poor airflow can result
in longer drying times.
To check for obstructed airflow:
STEP 1. Check to ensure nothing
is blocking ventilation slots on dryer
rear panel.
STEP 2. inspect exhaust hood. It should
not be blocked or obstructed.
REMOVING ACCUMULATED LINT
To remove accumulated lint from
exhaust vent:
STEP 1. Disconnect exhaust vent from
the dryer.
STEP 2. Clean one section of vent at
a time until you reach the exhaust hood.
To clean out lint, you can use the hose
attachment on your vacuum, or use a
pole or wire with a feather duster or rag
attached.
STEP 3. Reconnect vent as described
in the "INSTALLATION INSTRUCTIONS"
of this Owner's Manual.
U
To remove accumulated lint from
inside the dryer:
Lint can gather inside the dryer and be
fuel for a fire. Lint should be removed
every 2 to 3 years, or more often,
depending on dryer usage. Cleaning
should be done by a qualified service
person. Instructions for removing
accumulated lint can be found in the
Do-It-Yourself repair manual for Kenmore
dryers. To order this manual, please call
1-800-366-7278 from anywhere in the
United States. The part number is 787207.
33

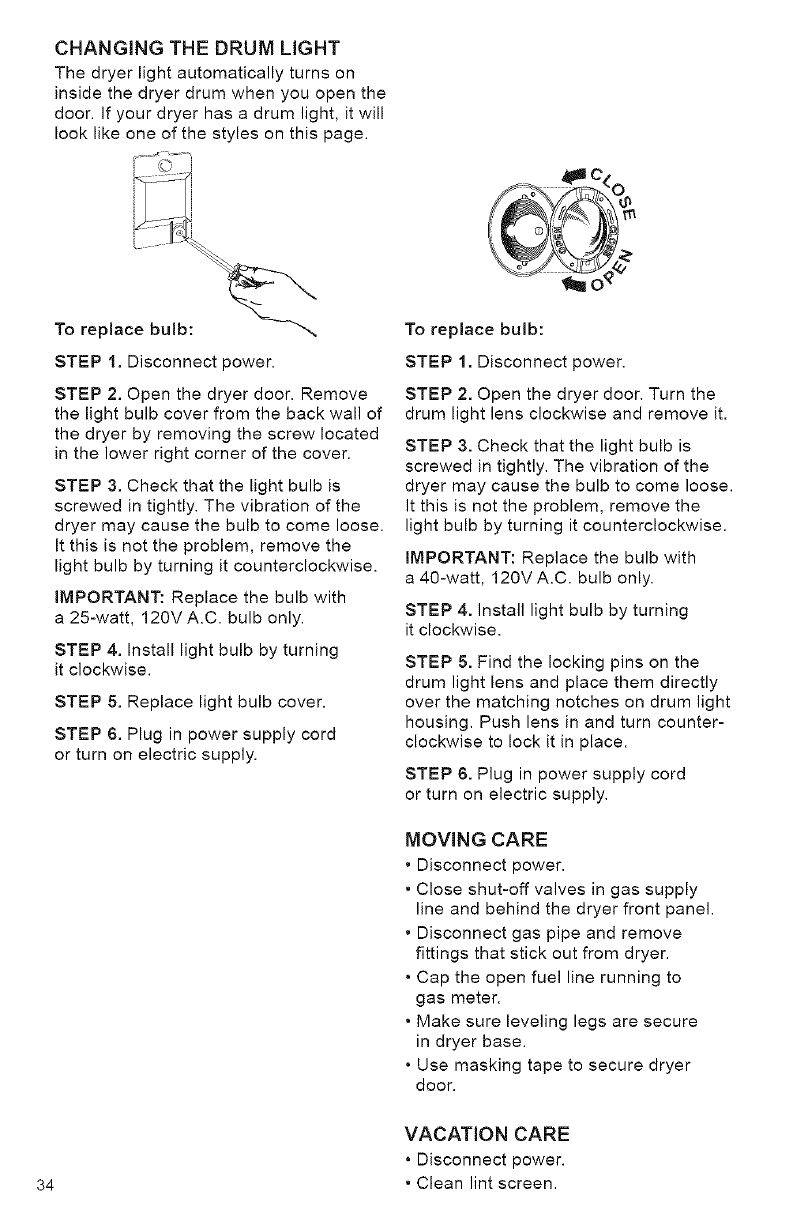

CHANGINGTHEDRUMLIGHT
The dryer light automatically turns on
inside the dryer drum when you open the
door. If your dryer has a drum light, it will
look like one of the styles on this page.
To replace bulb:
STEP 1. Disconnect power.
STEP 2. Open the dryer door. Remove
the light bulb cover from the back wall of
the dryer by removing the screw located
in the lower right corner of the cover.
STEP 3. Check that the light bulb is
screwed in tightly. The vibration of the
dryer may cause the bulb to come loose.
It this is not the problem, remove the
light bulb by turning it counterclockwise.
IMPORTANT: Replace the bulb with
a 25-watt, 120V A.C. bulb only.
STEP 4. Install light bulb by turning
it clockwise.
STEP 5. Replace light bulb cover.
STEP 6. Plug in power supply cord
or turn on electric supply.
34
To replace bulb:
STEP 1. Disconnect power.
STEP 2. Open the dryer door. Turn the
drum light lens clockwise and remove it.
STEP 3. Check that the light bulb is
screwed in tightly. The vibration of the
dryer may cause the bulb to come loose.
It this is not the problem, remove the
light bulb by turning it counterclockwise.
IMPORTANT: Replace the bulb with
a 40-watt, 120V A.C. bulb only.
STEP 4. install light bulb by turning
it clockwise.
STEP 5. Find the locking pins on the
drum light lens and place them directly
over the matching notches on drum light
housing. Push lens in and turn counter-
clockwise to lock it in place.
STEP 6. Plug in power supply cord
or turn on electric supply.
MOVING CARE
•Disconnect power.
•Close shut-off valves in gas supply
line and behind the dryer front panel.
• Disconnect gas pipe and remove
fittings that stick out from dryer.
• Cap the open fuel line running to
gas meter.
• Make sure leveling legs are secure
in dryer base.
• Use masking tape to secure dryer
door.
VACATION CARE
• Disconnect power.
• Clean lint screen.
Most laundering problems are easily time and money by helping you avoid
solved if you understand the cause, unnecessary service calls.
Using the tables below will save you
Problem
Not Drying
Satisfactorily
8olution
Clean tint screen.
Run dryer for 5-10 minutes. Hold
hand under outside exhaust hood to
check air movement. If you do not feet
air moving, clean exhaust system of
tint or replace exhaust vent with rigid
or flexible heavy metal vent
(see "INSTALLATION',' Section D).
Exhaust vent is crushed Replace with rigid or flexible heavy
or kinked, metal vent
(see "INSTALLATION',' Section D).
One fuse is blown or circuit Replace fuse or reset breaker.
breaker is tripped. The dryer
will appear to operate, but you
will not get any heat.
Gas valve on supply line Open all valves.
is closed.
Timer or the temperature Select the right cycle for the types
control is set on AIR DRY. of garments being dried
(see "OPERATION").
Load not contacting the Level dryer
sensor strips and automatic (see "INSTALLATION',' Section B).
cycle ending early.
Fabric softener sheets Use only one softener sheet per load
blocking outlet grill, and only use it once.
Dryer located in room with Move dryer where it can operate in
temperature below 45°F. ambient air temperatures above 45°F.
Large amount of moisture Expect longer dry times with items
in the toad. that hold more moisture (cottons).
Cold rinse water used. Expect longer dry times, but you are
saving energy and reducing wrinkles.
Load too large and bulky to Separate toad to tumble freely.
dry quickly.
Dryer Will Power cord not firmly plugged Plug power cord into a live circuit.
Not Run into a live circuit with proper
voltage.
Fuses blown or circuit Replace fuses or reset breakers.
breakers tripped.
Possible Cause
Lint screen is clogged with tint.
Restricted air movement.
Exhaust vent or outside
exhaust hood is clogged
with tint.
35
Problem Possible Cause 8olution
Dryer Will Using a regular fuse. Replace with a time-delay fuse.
Not Run Dryer door not firmly closed. Close dryer door tightly.
(cont'd) PUSH TO START Button Press PUSH TO START Button again.
not firmly pressed.
Controls not set in an Reset controls in an ON position.
ON position.
Lint in Load Lint screen is clogged. Ctean lint screen. Check for air
movement.
Improper sorting. Sort lint givers from tint takers
and by color.
Load is too big or heavy. Dry smaller loads so tint can be
carried to the tint screen.
Load is overdried. Use correct dryer settings for fabric.
Overdrying can cause lint-attracting
static (see "OPERATION").
Paper or tissue in pockets. Clean out pockets before drying.
Pilling being mistaken for tint. Pilling (surface fuzz) is caused by
normal wear and laundering.
Stains on Load Improper use of fabric softener Use fabric softener sheets in dryer. Add
in washer, at beginning of cycle when load is cold.
Drying soiled items. Items need to be clean before
being dried.
Items Overdrying. Match dryer settings to fabric type
Shrinking (see "OPERATION").
Poor garment quality. Check quality of garment before
purchasing.
Manufacturer's care label Fotlow fabric care label instructions
instructions not followed, carefully.
Loads are Overloading. Dry smatter loads that can tumble freely.
Wrinkled Overdrying. Match dryer settings to fabric type
(see "OPERATION").
Load teft in dryer at the Remove toad as soon as tumbling
end of cycte, stops.
Odors Household chemicals, paint, Do not use dryer while these chemical
or varnish being drawn fumes are in the air.
into dryer.
Unusual Thumping of rollers when Thump wilt go away after 5 minutes
Sounds dryer has set. of drying.
Clicking - gas valve clicking. Normal operation.
36
KENMOREDRYERS
"WeServiceWhatWeSell"isour
assurancethatyoucandependon
Searsforservice.YourKenmore
GasDryerhasaddedvaluewhenyou
considerthatSearshasserviceunits
nationwide,staffedwithprofessional
technicianstrainedonallappliances
Searssells.Theyhavetheknowledge
andskills,tools,parts,andequipment
toensureourpledgetoyouthat
"WeServiceWhatWeSell:'
SearsMaintenance Agreement
Maintain the value of your Kenmore
Gas Dryer with a Sears Maintenance
Agreement. Kenmore Gas Dryers are
designed, manufactured, and tested
for years of dependable operation. Yet,
any appliance may require service from
time to time. The Sears Maintenance
Agreement offers you an outstanding
service program for your Kenmore
Gas Dryer.
The Sears Maintenance Agreement
• is your way to buy tomorrow's
service at today's prices.
• Eliminates repair bills resulting
from normal use.
• Allows for as many service calls
as required.
• Provides an annual Preventive
Maintenance Check at your request
to keep your dryer in proper running
condition.
For more information,
call 1-800-827-6655,
37
For the repair or replacement parts you
need delivered directly to your home
Call 7 am - 7 pro, 7 days a week
1=800=366-PART
(1-8g0-366-7278)
For in-home major brand repair service
Call 24 hours a day, 7 days a week
1-8OO-4-RE PAl R
(1-8g0-473-7247)
For the location of a Sears Parts and
Repair Center in your area
Call 24 hours a day, 7 days a week
1-800-488-1222
For information on purchasing a Sears
Maintenance Agreement or to inquire
about an existing Agreement
Call 9 am - 5 prn, Monday -Saturday
1-800-82"7-6655
When requesting service or ordering
parts, always give the following
information:
• Product Name • Part Name
•Model Number • Part Number
38
America's RepairSpecialists
