Owner's Manual
Manual Del Propietario
Vacuum Cleaner
Aspiradora
Model, Modelo 116.36922
116.36923
IMPORTANT
Before returning this product-
For reptacement,,parts, please contact:
Sears Parts and Repair Center
(1-800-488-1222)
Anytime, day or night
(U..SoA.only)
For an_e, please contact:
Vacuum Cleaner Help Line
(1-877-531-7321)
7:30am-4:00pm EST, M-F
(UoSA.. and Canada)
CAUTION:
Read and follow all
safety and operating
instructions before first
use of this product.
CUIDADO:
Lea y sigue todas las
instrucciones de peraci6n
y seguridad antes del uso
de este producto.
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
www.sears,com
Part No. COIZCSN40UOO-KCO1ZCSNZOUO
Printed in Mexico
lmpreso en Mexico

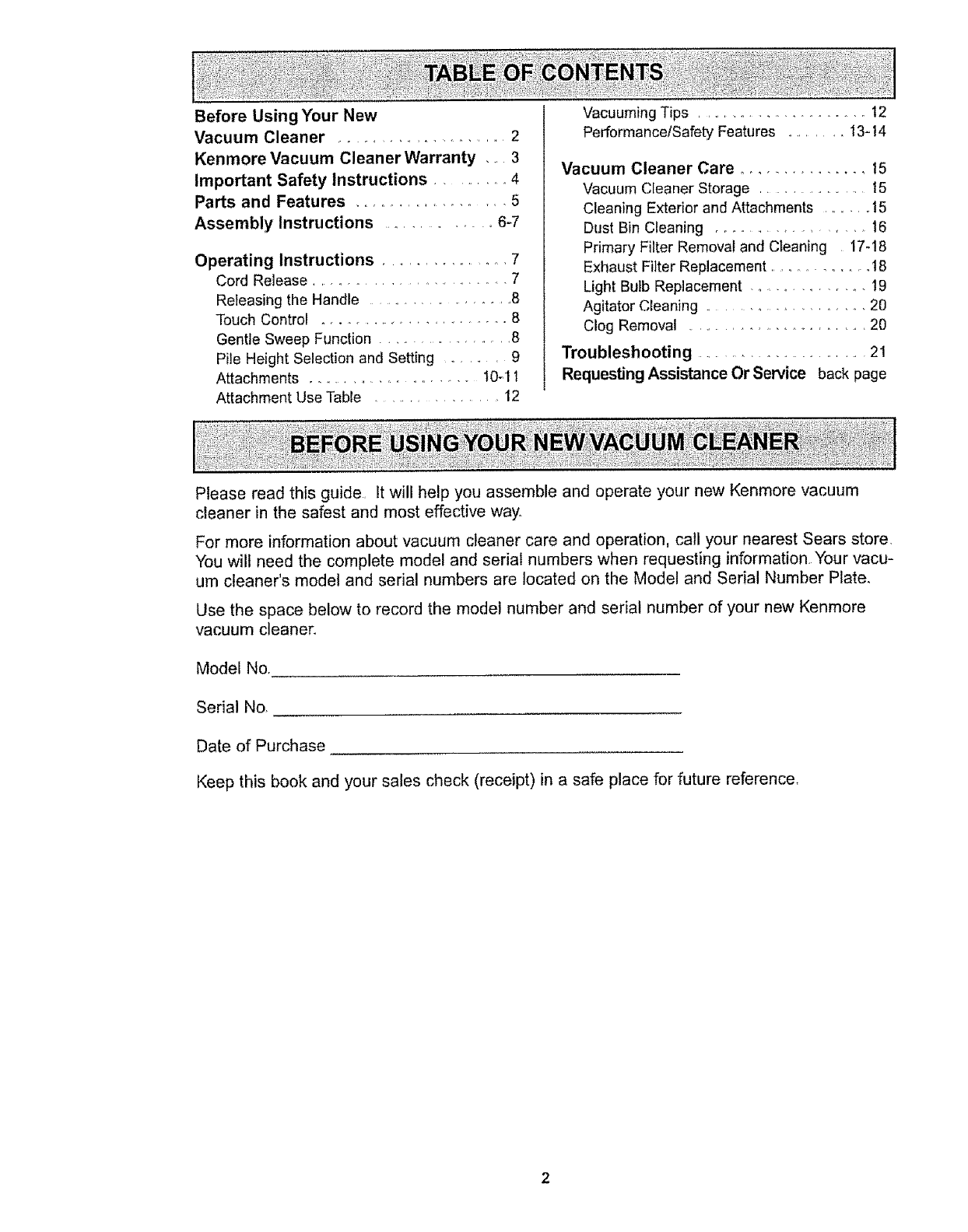

Before Using Your New
Vacuum Cleaner .......................... 2
Kenmore Vacuum Cleaner Warranty .... 3
Important Safety Instructions ......... 4
Parts and Features ................. 5
Assembly Instructions .............. 6-7
Operating Instructions ................. 7
Cord Release ............................ 7
Releasing the Handle ...................... 8
Touch Control ......................... 8
Gentle Sweep Function .................... 8

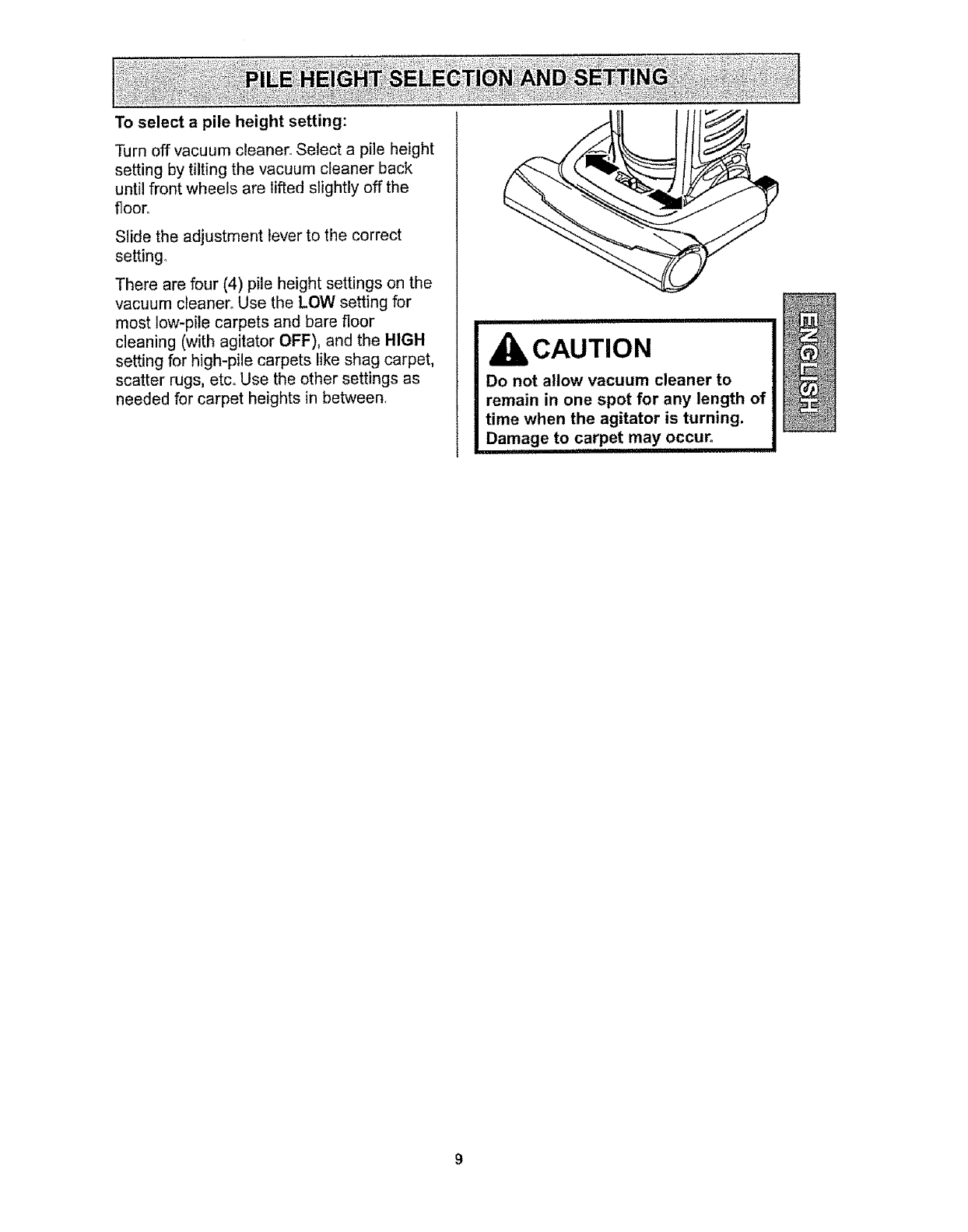

Pile Height Selection and Setting ......... 9

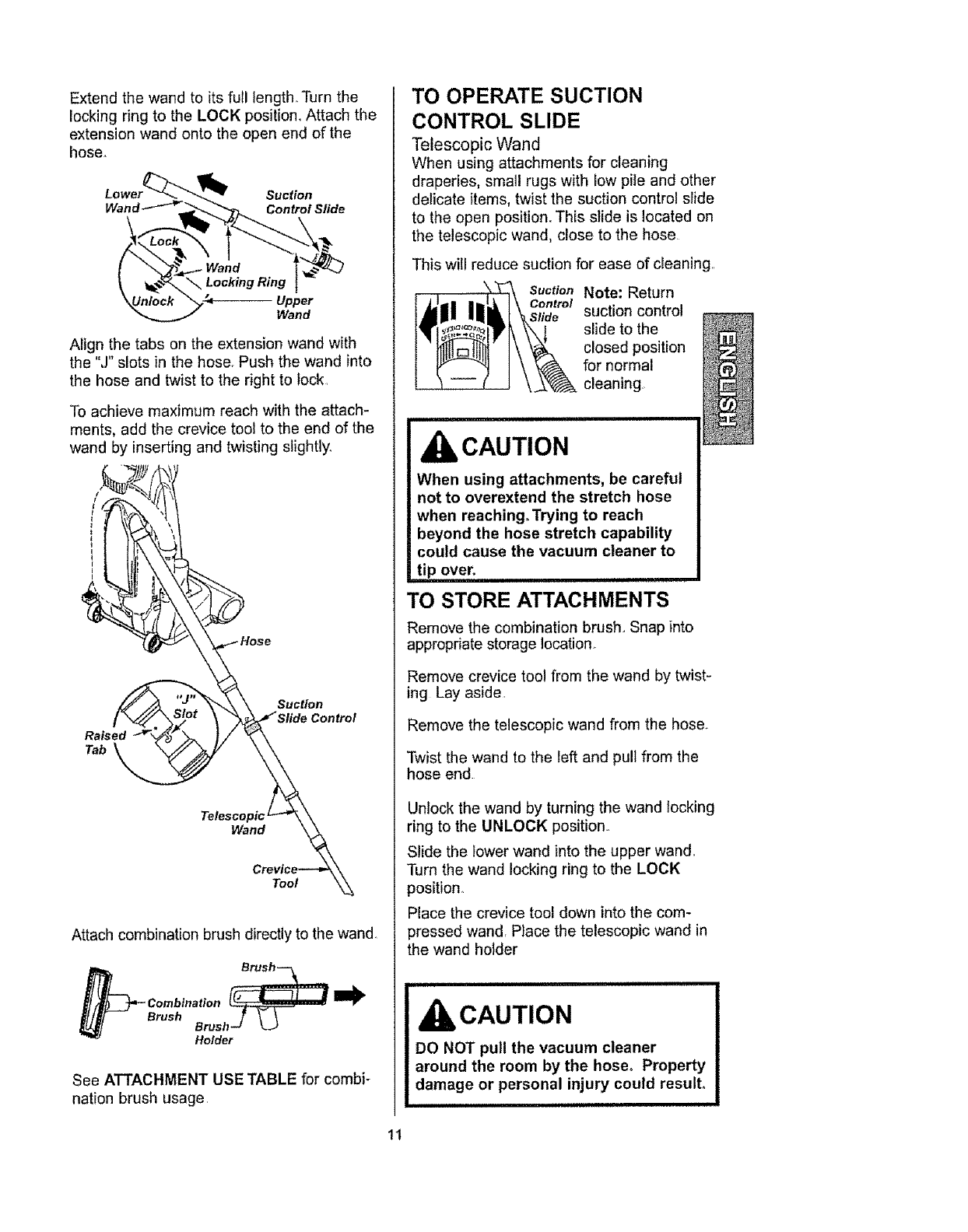

Attachments ....................... 10-I 1
Attachment Use Table ................. 12
Vacuuming Tips ........................ t2

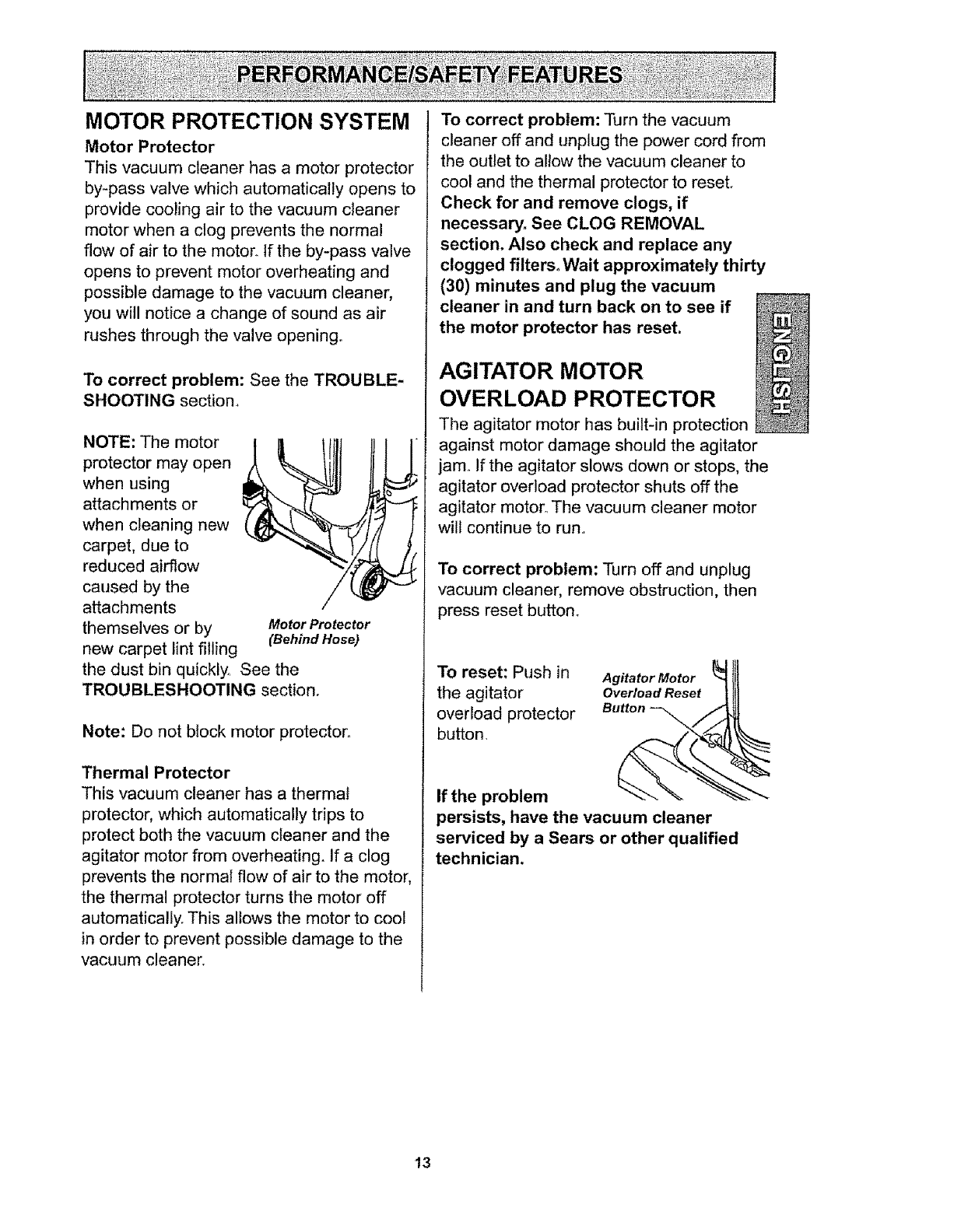

Performance/Safety Features .......... 13-14

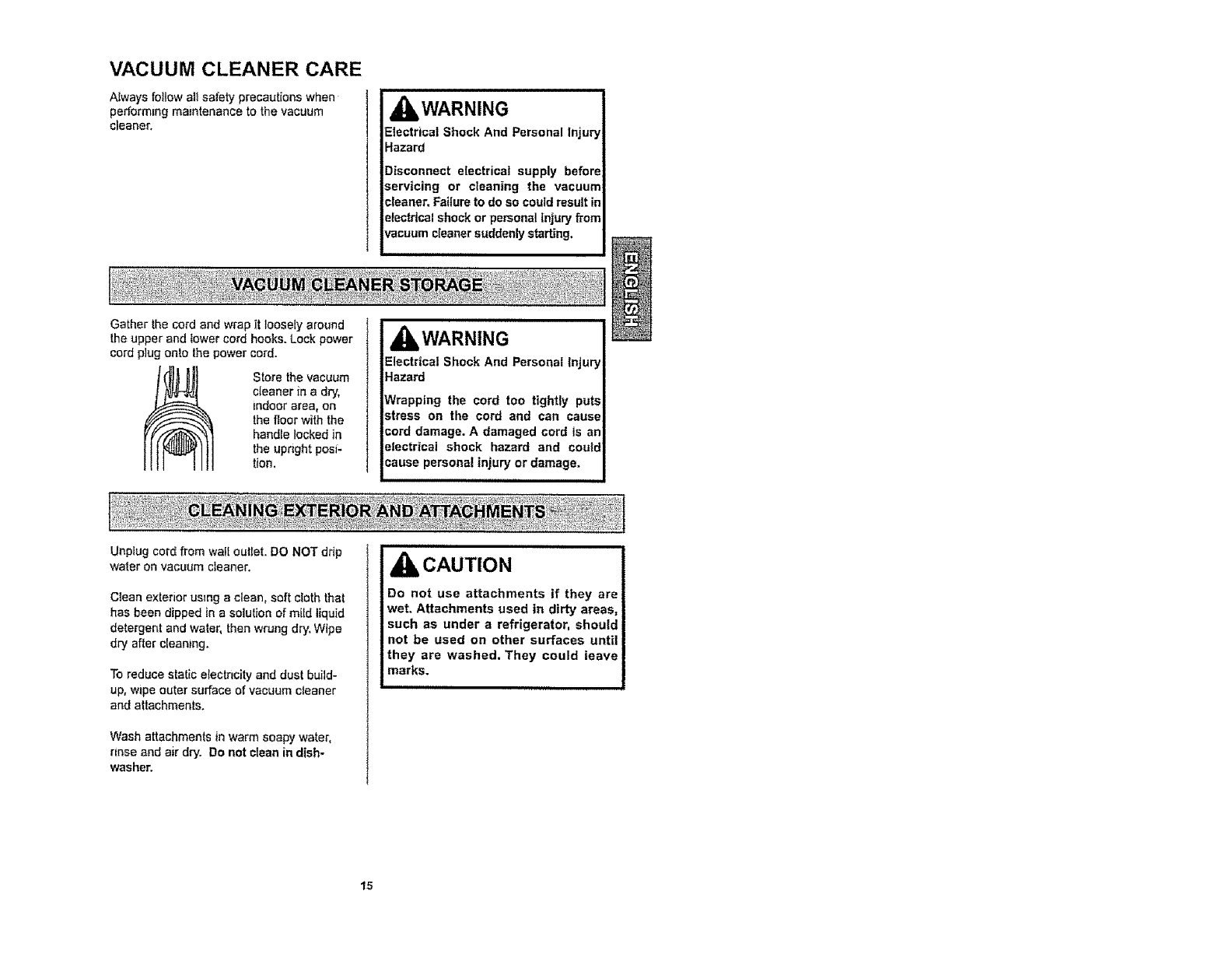

Vacuum Cleaner Care ............... t5
Vacuum Cleaner Storage ................ t5
Cleaning Exterior and Attachments ........ 15
Dust Bin Cleaning ................... 16
Primary Filter Removal and Cleaning 17-18

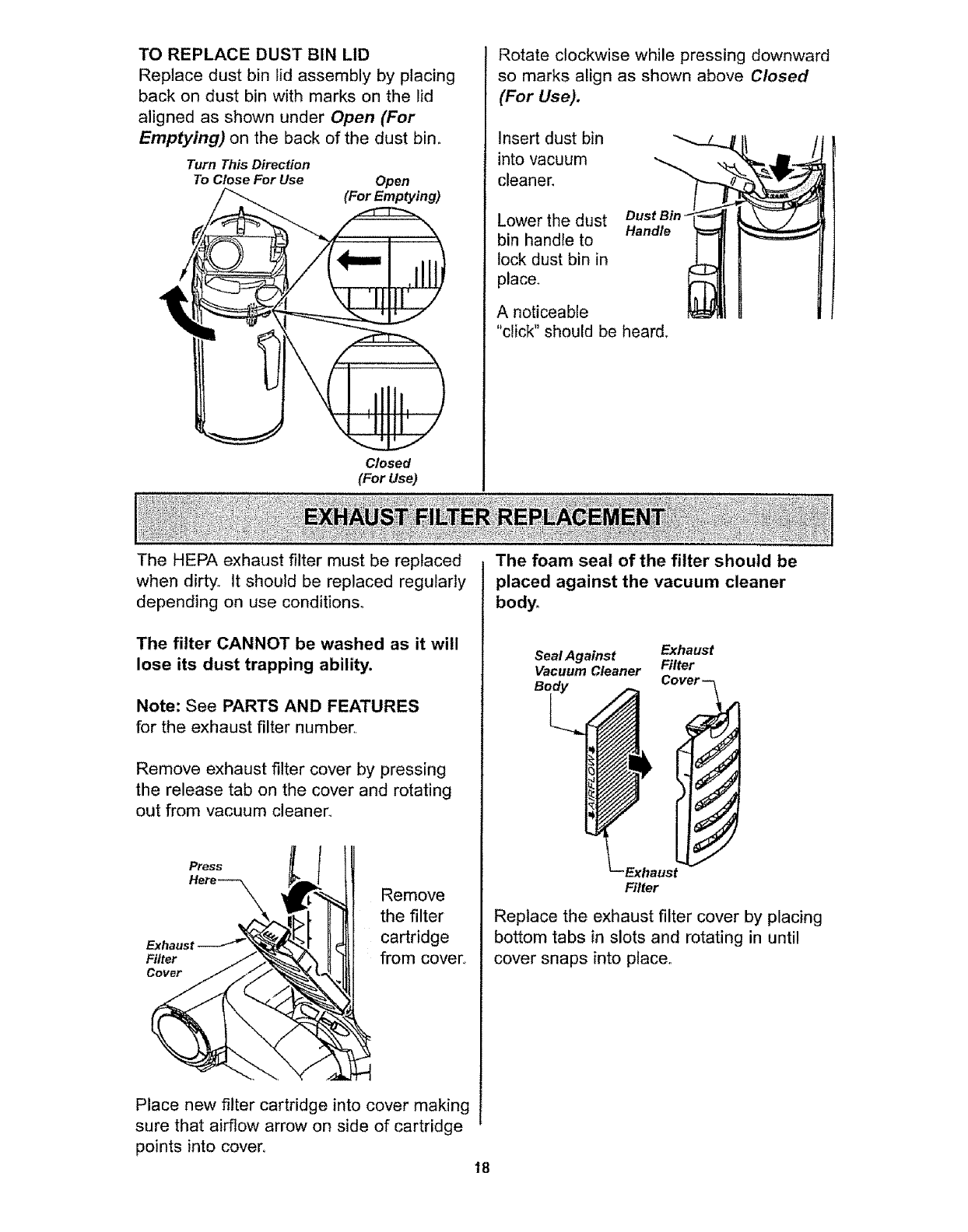

Exhaust Filter Replacement ................. t8

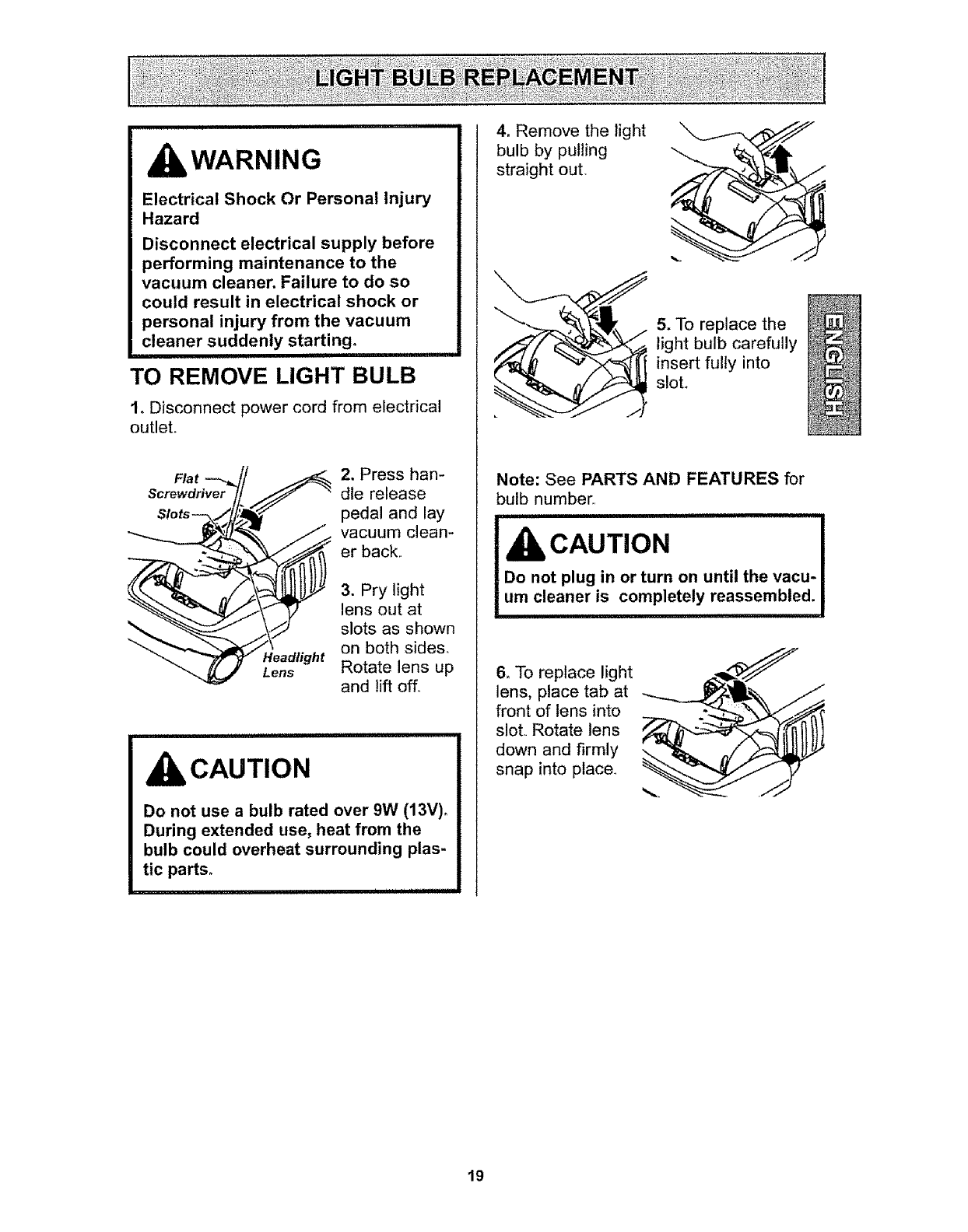

Light Bulb Replacement ................ 19
Agitator Cleaning ................... 20
Clog Removal ......................... 20

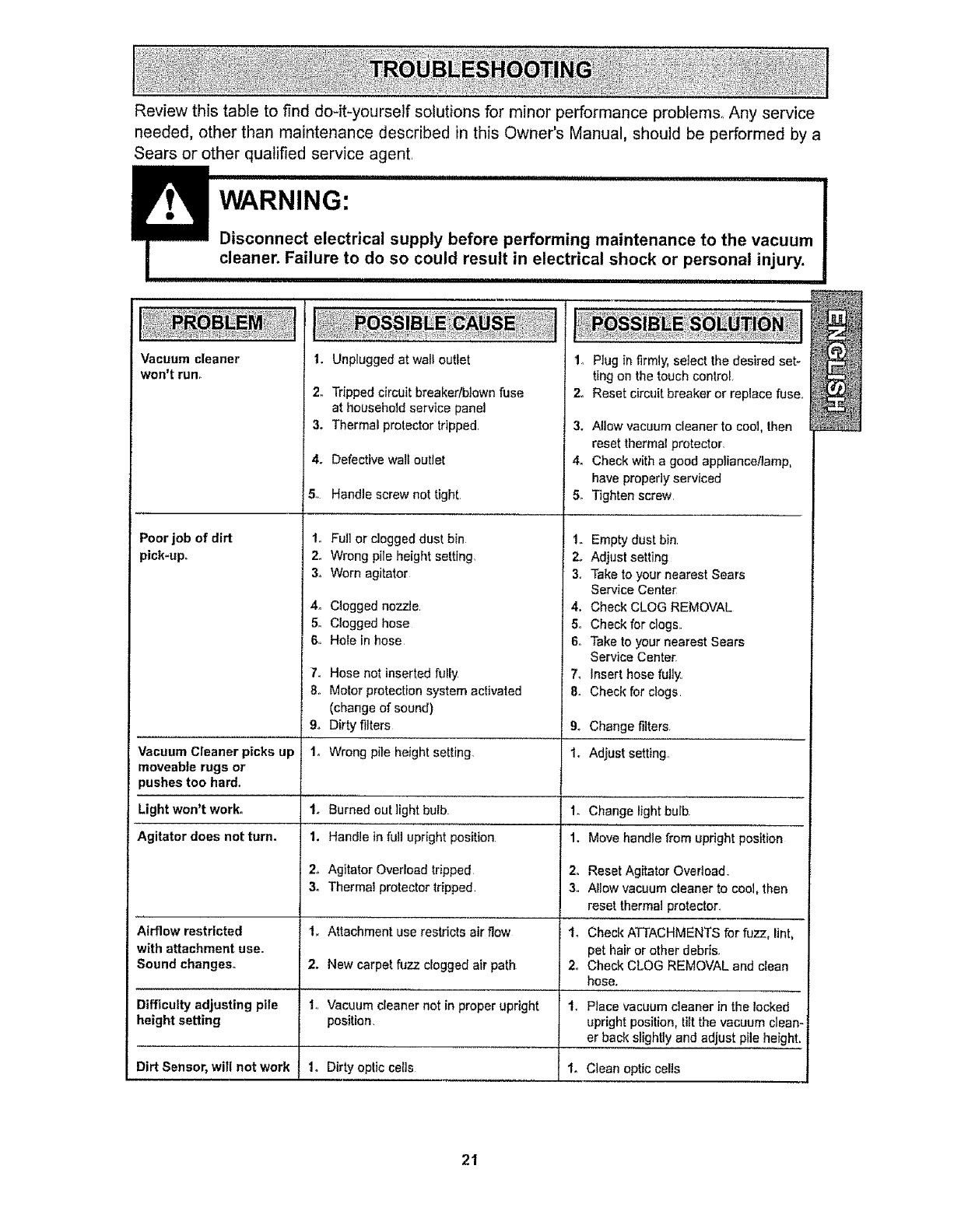

Troubleshooting .......................... 2!
Requesting Assistance Or Service back page
Please read this guide It will help you assemble and operate your new Kenmore vacuum
cleaner in the safest and most effective way.
For more information about vacuum cleaner care and operation, call your nearest Sears store,
You will need the complete model and serial numbers when requesting information, Your vacu-
um cleaner's model and serial numbers are located on the Model and Serial Number Plate,
Use the space below to record the model number and serial number of your new Kenmore
vacuum cleaner.
Model No,
Serial No,
Date of Purchase
Keep this book and your sales check (receipt) in a safe place for future reference,
2
One Year Limited Warranty
When assembled, operated and maintained according to all instructions supplied with
the product, if this vacuum cleaner fails due to a defect in material or workmanship within
one year from the date of purchase, return it to any Sears store, Sears Parts & Repair
Center or other Kenmore outlet for free repair.
If this vacuum cleaner is used for other than private family purposes, this warranty
applies for only 90 days from the date of purchase°
This warranty covers only defects in material and workmanship. Sears will NOT
pay for:
1. Expendable items that can wear out from normal use, including but not limited to
filters, belts, light bulbs, and bags.
2. A service technician to instruct the user in correct product assembly, operation or
maintenance..
3o A service technician to clean or maintain this product..
4.. Damage to or failure of this product if it is not assembled, operated or maintained
according to all instructions supplied with the product.
5. Damage to or failure of this product resulting from accident, abuse, misuse or use for
other than its intended purpose°
6.. Damage to or failure of this product caused by the use of detergents, cleaners,
chemicals or utensils other than those recommended in all instructions supplied with
the product.
7. Damage to or failure of parts or systems resulting from unauthorized modifications
made to this product
Disclaimer of implied warranties; limitation of remedies
Customer's sole and exclusive remedy under this limited warranty shall be product repair
as provided herein. Implied warranties, including warranties of merchantability or fitness
for a particular purpose, are limited to one year or the shortest period allowed by taw..
Sears shall not be liable for incidental or consequential damages. Some states and
provinces do not allow the exclusion or limitation of incidental or consequential damages,
or limitations on the duration of implied warranties of merchantability or fitness, so these
exclusions or limitations may not apply to you.
This warranty applies only while this vacuum cleaner is used in the United States and
Canad&
This warranty gives you specific legal rights, and you may also have other rights which
vary from state to state.
Sears, Roebuck and Co., Hoffman Estates, IL 60179
Sears Canada Inc.,Toronto, Ontario, Canada M5B 2B8

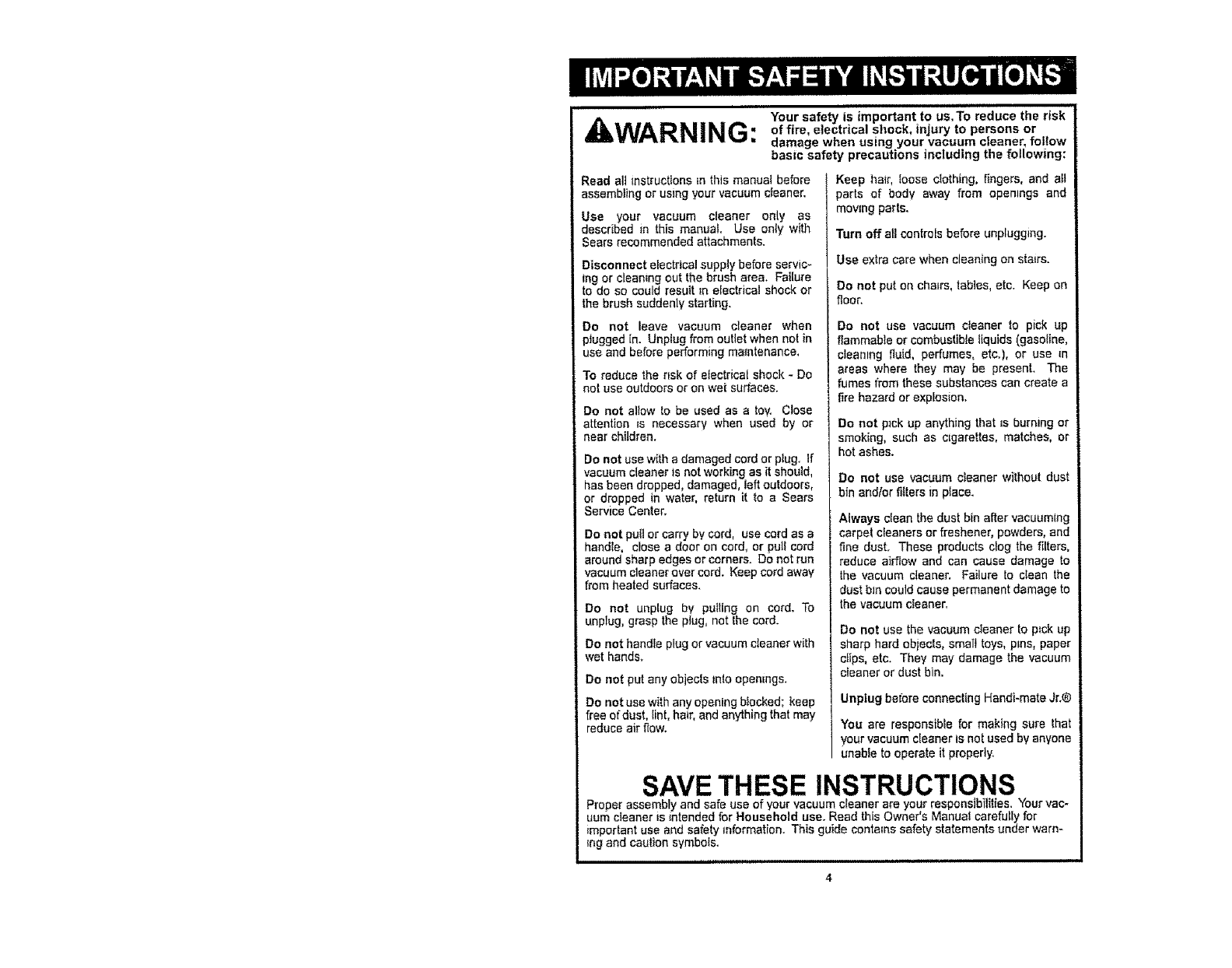

ILWARNING: Your safety is important to us, To reduce the risk
of fire, electrical shock, injury to persons or
damage when using your vacuum cleaner, follow
basic safety precautions including the following:
Read all instructions =nthis manual before
assembling or using your vacuum cleaner.
Use your vacuum cleaner only as
described in tHs manual. Use only with
Sears recommended attachments.
Disconnect e_ectrical supply before servic_
mg or cleaning out the brush area, Failure
to do so could result m electrical shock or
the brush suddenly starting.
Do not leave vacuum cleaner when
plugged [n. Unplug from outlet when not in
use and before performing malntenance,
To reduce the risk of electrical shock -Do
not use outdoors or on wet surfaces.
Do not allow to be used as atoy. Close
attention _s necessary when used by or
near children.
Do not use with a damaged cordor plug. If
vacuum cleaner is not working as it should,
has been dropped, damaged, left outdoors,
or dropped in water, return it to a Sears
Service Center.
Do not putl or carry by cord, use cord as a
handle, close a door on cord, or pull cord
around sharp edges or corners. Do not run
vacuum cleaner over cord. Keep cord away
from heated surfaces.
Do not unplug by pulling on cord. To
unplug, grasp the plug, not the cord.
Do not handle plug or vacuum c_eaner with
wet hands.
Do not put any objecls into opemngs.
Do not use with any opening b_ocked; keep
free of dust, Iint, hair, and anything that may
reduce air flow.
Keep ham loose clothing, fingers, and eli
)arts of body away from openings and
moving parts,
Turn off all controls before unplugging.
Use extra care when cleaning on stairs.
Do not put on chairs, tables, etc. Keep on
]our.
Do not use vacuum cleaner to pick up
flammable or combustible liquids (gasoline,
cleaning fluid, perfumes, etc.), or use m
areas where they may be present. The
fumes from these substances can create a
fire hazard or explosion,
Do not pick up anything that is burning or
smoking, such as cigarettes, matches, or
hot ashes.
Do not use vacuum cleaner without dust
bin andtor fitters in place.
Always clean the dust bin after vacuuming
carpet cleaners or freshener, powders, and
fine dust. These products clog the filters,
reduce allow and can cause damage to
lhe vacuum cleaner. Failure to clean the
dust bin could cause permanent damage to
the vacuum cleaner.
Do not use the vacuum cleaner to p_ckup
sharp hard objects, small toys, pros, paper
ctips, etc. They may damage the vacuum
cleaner or dust bin.
Unplug before connecting Handi-mate Jro®
You are responsible for making sure that
your vacuum cieaner is not used by anyone
unabie to eperate it properly,
SAVE THESE INSTRUCTIONS
Proper assembly and safe use of your vacuum cleaner are your responsibilifies. Your vac-
uum cteaner is intended for Household use. Read this Owner's Manual carefully for
important use and safety reformation. This guide contains safety statements under warn-
ing and caution symbots.
It is important to know your vacuum cleaner's parts and features to assure its proper and safe
use. Review these before using your vacuum cleaner.
Object Style No. Part No. Part No.
in USA in Canada
Headlight Bulb .... 20-5248 .....
Exhaust Filter EF-I 20_86889 20-40324
Primary Filter DCF_2 20-82912 20-40335
Touch
Contro!
Upper Cord Hook
Brush
Carrying
Handle
UpperHose
Hook
Extension
D_t
Sensor
Dust Bin
Release
Handle
'Bh_
Filter Cover
(Filter Inside)
LFurniture
Guard
Release Nozzle
Pedal
Extension Hose
Release Lever
Motor Protector
(Behind Hose)
Wand Holder
= == =HH=HH ,,,,,,,,,,,,,,,,,,,,,,,,,,

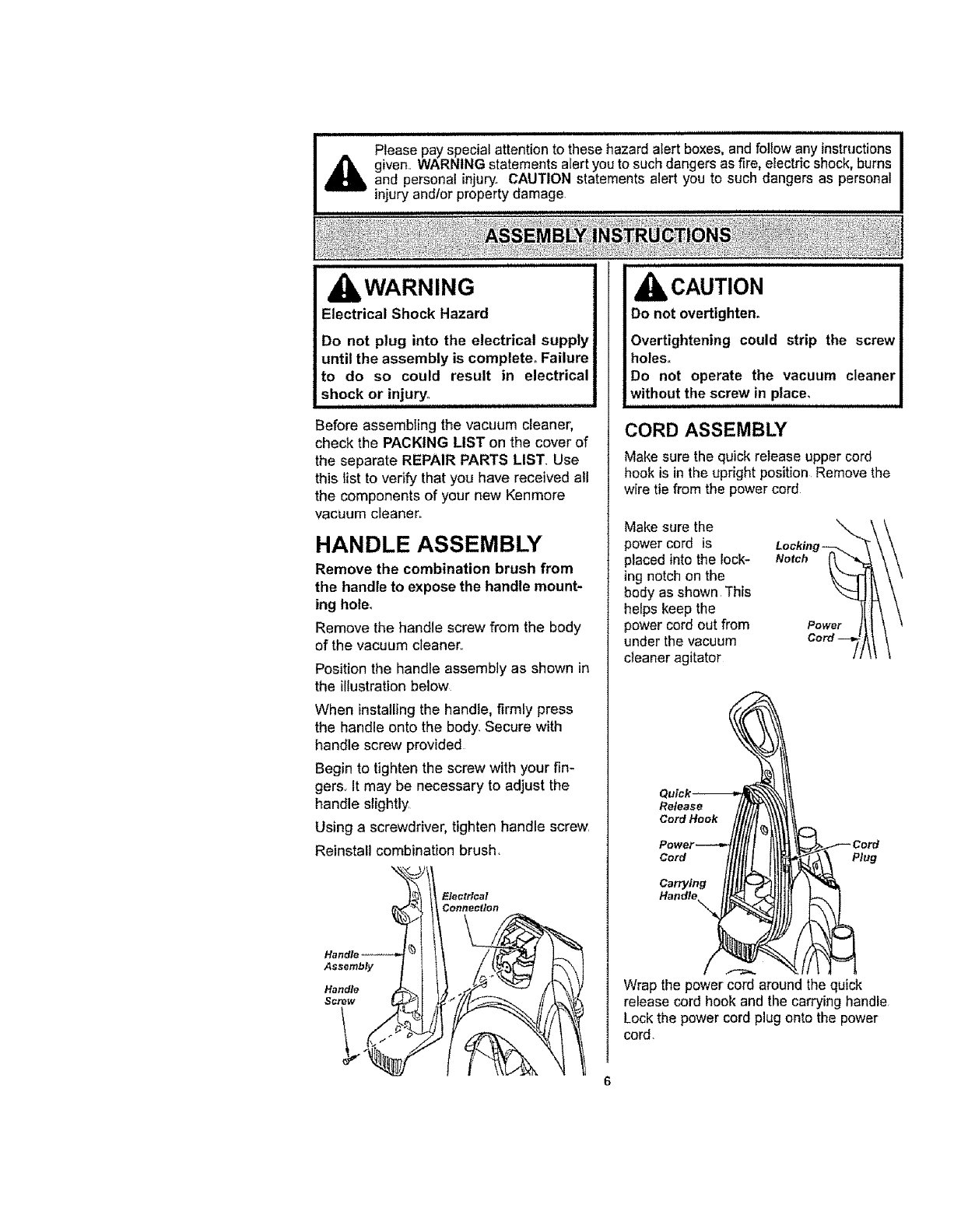

Please pay special attention to these hazard alert boxes,and follow any instructions
_b given_ WARNING statements alert you to such dangers as fire, electric shock, burnsand personal injury. CAUTION statements alert you to such dangers as personal
injury andfor property damage.
Before assembling the vacuum cleaner,
check the PACKING LIST on the cover of
the separate REPAIR PARTS LIST. Use
this list to verify that you have received atl
the components of your new Kenmore
vacuum cleaner.
HANDLE ASSEMBLY
Remove the combination brush from
the handle to expose the handle mount-
ing holeo
Remove the handle screw from the body
of the vacuum cleaner..
Position the handle assembly as shown in
the illustration below
When installingthe handle, firmly press
the handle onto the body. Secure with
handle screw provided
Begin to tighten the screw with your fin-
gers.rIt may be necessary to adjust the
handle slightly
Using a screwdriver, tighten handle screw.
Reinstall combination brush,
Assembly
Hand/e
Screw
Electrical
Connection
CORD ASSEMBLY
Make sure the quick release upper cord
hook is in the upright position Remove the
wire tie from the power cord
Make sure the
power cord is
placed into the lock-
ing notch on the
body as shown This
helps keep the
power cord out from
under the vacuum
cleaner agitator
Power !_ I
c°r' 1
_._F Cord
_<" Plug
Wrap the power cord around the quick
release cord hook and the carrying handle.
Lock the powercord plug onto the power
cord.

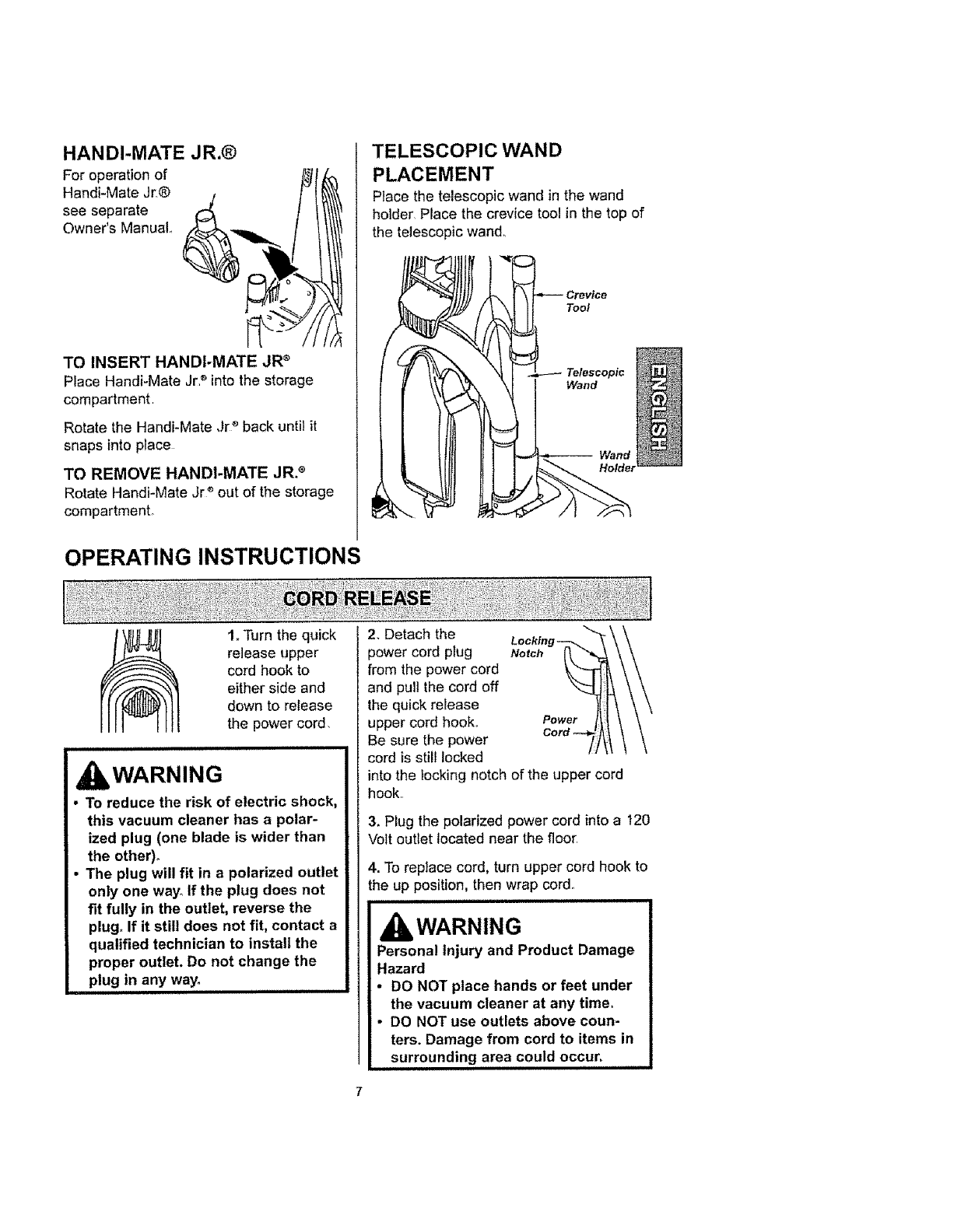

HANDI-MATE JR.®
For operationof
Handi-Mate Jr®
see separate
Owner's Manual,,
TO INSERT HANDI-MATE JR _
Place Handi-Mate Jr,®into the storage
compartment
Rotate the Handi-Mate Jr ® back until it
snaps into place
TO REMOVE HANDI-MATE JR. _
Rotate Handi-Mate Jr ®out of the storage
compartment
TELESCOPIC WAND
PLACEMENT
Place the telescopic wand in the wand
holder Place the crevice tool in the top of
the telescopic wand_
Too/
OPERATING INSTRUCTIONS
1. Turn the quick
release upper
cord hook to
either side and
down to release
the power cord
WARNING
• To reduce the risk of electric shock,
this vacuum cleaner has a polar-
ized plug (one blade is wider than
the other)_
•The plug will fit in a polarized outlet
only one way° If the plug does not
fit fully in the outlet, reverse the
plugoIf it still does not fit, contact a
qualified technician to install the
proper outlet. Do not change the
plug in any way. i= HHHH
2. Detach the
power cord plug Notch
from the power cord
and pull the cord off
the quick release
upper cord hook° Power
Be sure the power
cord is still locked
into the locking notch of the upper cord
hook,,
3. Plug the polarized power cord into a 120
Volt outlet located near the floor,
4. To replace cord, turn upper cord hook to
the up position, then wrap cord,,
WARNING
Personal Injury and Product Damage
Hazard
•DO NOT place hands or feet under
the vacuum cleaner at any time.
• DO NOT use outlets above coun-
ters. Damage from cord to items in
surrounding area could occur,

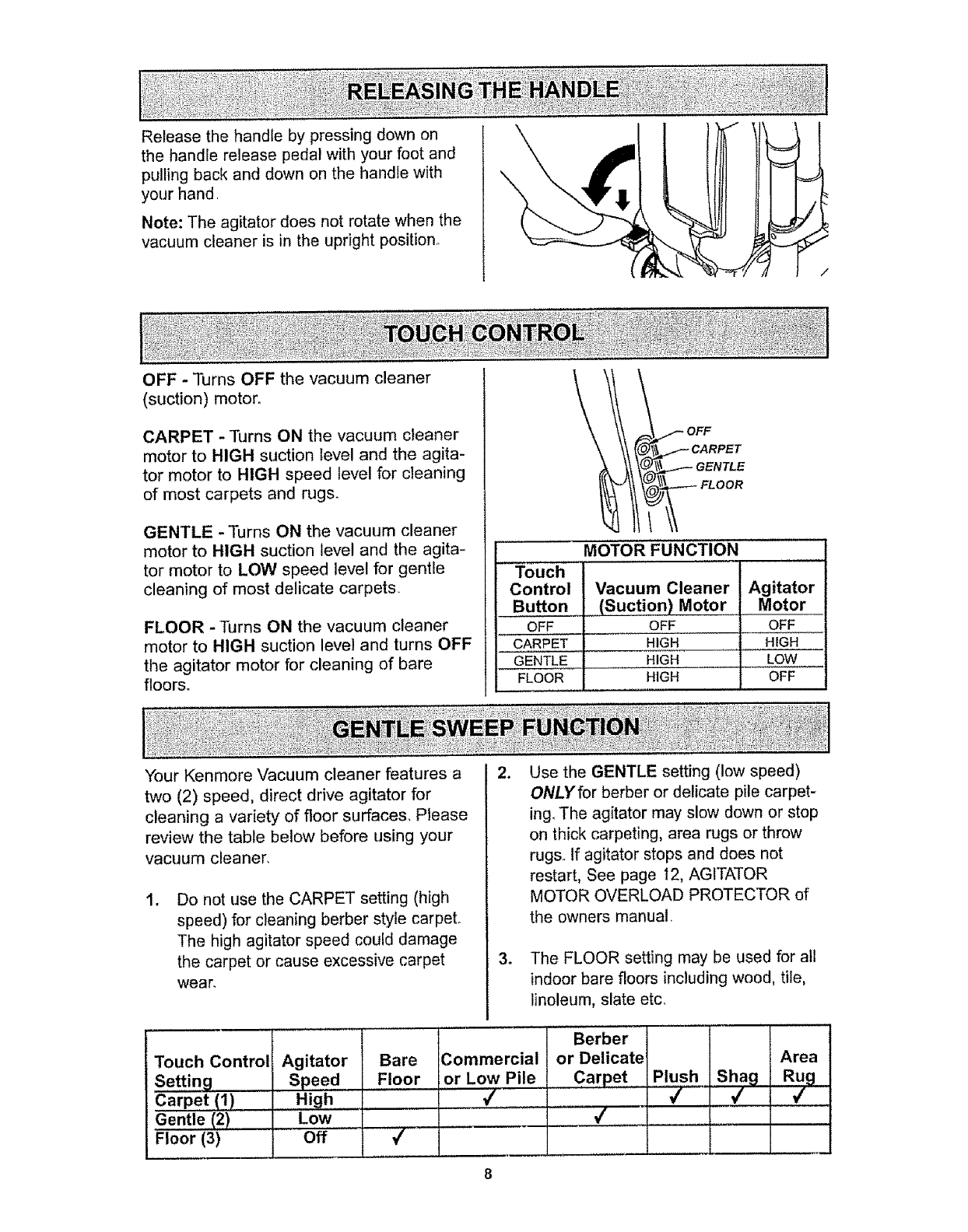

Release the handle by pressing down on
the handle release pedal with your foot and
pulling back and down on the handle with
your hand.
Note: The agitator does not rotate when the
vacuum cleaner is in the upright position.
OFF -Turns OFF the vacuum cleaner
(suction) motor.
\
CARPET - Turns ON the vacuum cleaner
motor to HIGH suction level and the agita-
tor motor to HIGH speed level for cleaning
of most carpets and rugs.
GENTLE - Turns ON the vacuum cleaner
motor to HIGH suction level and the agita-
tor motor to LOW speed level for gentle
cleaning of most delicate carpets.
FLOOR -Turns ON the vacuum cleaner
motor to HIGH suction level and turns OFF
the agitator motor for cleaning of bare
floors.
Touch
Control
Button
OFF
CARPET
GENTLE
FLOOR
___O;;RPET
MOTOR FUNCTION .....
Vacuum Cleaner
(Suction) Motor
OFF
HIGH
HIGH
HIGH
Agitator
Motor
OFF
HIGH
LOW
OFF
Your Kenmore Vacuum cleaner features a
two (2) speed, direct drive agitator for
cleaning a variety of floor surfaces, Please
review the table below before using your
vacuum cleaner.
,Do not use the CARPET setting (high
speed) for cleaning berber style carpet.
The high agitator speed could damage
the carpet or cause excessive carpet
wear.
2,
34
Touch Control
,Setting
Carpet (1)
Gentle (2)
Floor (3)
Agitator
Speed
............High
Low
Off
Bare
Floor
Commercial
or Low Pile
Use the GENTLE setting (low speed)
ONLYfor berber or delicate pile carpet-
ing. The agitator may slow down or stop
on thick carpeting, area rugs or throw
rugs. If agitator stops and does not
restart, See page 12, AGITATOR
MOTOR OVERLOAD PROTECTOR of
the owners manual.
The FLOOR setting may be used for alt
indoor bare floors including wood, tile,
linoleum, slate etc,
Berber
or Delicate
Plush
Toselecta pile heightsetting:
Turn off vacuum cleaner, Select a pile height
setting by tilting the vacuum cleaner back
until front wheels are lifted slightly off the
floor,,
Slide the adjustment lever to the correct
setting_
There are four (4) pile height settings on the
vacuum cleaner_ Use the LOW setting for
most low-pile carpets and bare floor
cleaning (with agitator OFF), and the HIGH
setting for high-pile carpets like shag carpet,
scatter rugs, etco Use the other settings as
needed for carpet heights in between,
CAUTION
Do not allow vacuum cleaner to
remain in one spot for any length of
time when the agitator is turning.
Damage to carpet may occur°
............ i
Combination
Brush
Carrying _
Handle "_ f _
Extension
Hose i • I
Extension Hose
Release Lever
Wand
TO USE ATTACHMENTS
Remove the lower end of the extension
hose from the wand holder by grasping the
hose collar, twisting, and pulling straight up
Rotate the extension hose release lever
down if maximum reach is needed.
Note: The motor protector may open when
using attachments or when cleaning new
carpet, due to reduced airflow caused by the
attachments themselves or caused by new
carpet lint filling the dust bin quickly. See
the TROUBLESHOOTING section..
, WARNING
Electrical Shock And Personal Injury
Hazard_
Disconnect electrical supply before ser-
vicing or cleaning the vacuum cleaner.
Failure to do so could result in electrical
shock or personal injury from vacuum
cleaner suddenly starting,
TELESCOPIC WAND WITH
SUCTION CONTROL SLIDE
1, Remove the lower end of the extension
hose from the wand holder by grasping
the hose collar, twisting, and pulting
straight up
2oRemove the telescopic wand from the
wand holder
3,.Remove the crevice tool from its storage
position in the wand. Turn the locking ring
to the UNLOCK position
Wand
1. Hose
Collar
-- Wand
Holder
10
Extend the wand to its full length_ Turn the
locking ring to the LOCK position° Attach the
extension wand onto the open end of the
hose_
Suction
Upper
Wand
Align the tabs on the extension wand with
the "J" slots in the hose. Push the wand into
the hose and twist to the right to lock.
To achieve maximum reach with the attach-
ments, add the crevice tool to the end of the
wand by inserting and twisting slightly.
Raised
Tab
Suction
Control
Wand
Tool
Attach combination brush directly to the wand.
B,-,,sh--,
Coob,no,,on
Brush 2c ' 12J
See ATTACHMENT USE TABLE for combi-
nation brush usage.
TO OPERATE SUCTION
CONTROL SLIDE
Telescopic Wand
When using attachments for cleaning
draperies, small rugs with low pile and other
delicate items, twist the suction control slide
to the open position. This slide is located on
the telescopic wand, close to the hose
This will reduce suction for ease of cleaning..
Suction Note: Return
Control
Slide suction control
slide to the
closed position
for normal
cleaning
CAUTION
When using attachments, be careful
not to overextend the stretch hose
when reaching.Trying to reach
beyond the hose stretch capability
could cause the vacuum cleaner to
tip over.
TO STORE ATTACHMENTS
Remove the combination brush, Snap into
appropriate storage location.
Remove crevice tool from the wand by twist-
ing Lay aside
Remove the telescopic wand from the hose.
Twist the wand to the left and pull from the
hose end
Unlock the wand by turning the wand locking
ring to the UNLOCK position
Slide the lower wand into the upper wand..
Turn the wand locking ring to the LOCK
position.
Place the crevice tool down into the com-
pressed wandr Place the telescopic wand in
the wand holder
CAUTION
DO NOT pull the vacuum cleaner
around the room by the hose° Property
damage or personal injury could result°
11

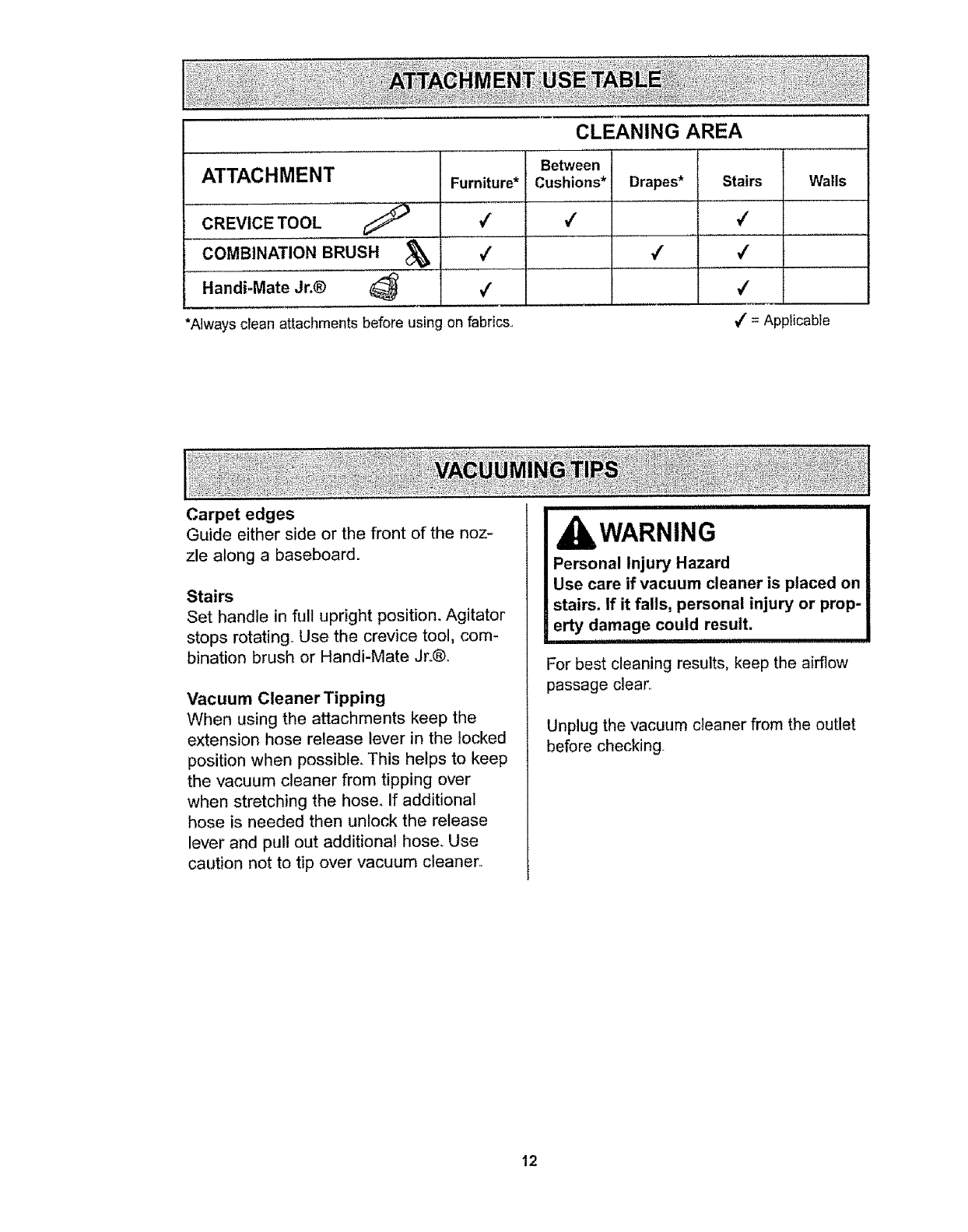

CLEANING AREA
ATTACHMENT
CREVIcE'TooL 9
COMBINATION BRUSH
Handi-Mate Jr.®
Furniture*
v"
4
Between
Cushions*
4
Drapes* Wails
Stairs
4
4
4
4
*Always clean attachments before using on fabriCS.r t(=Applicable
Carpet edges
Guide either side or the front of the noz-
zle along a baseboard.
Stairs
Set handle in full upright position. Agitator
stops rotating,, Use the crevice tool, com-
bination brush or Handi-Mate Jr.®.
Vacuum Cleaner Tipping
When using the attachments keep the
extension hose release lever in the locked
position when possible° This helps to keep
the vacuum cleaner from tipping over
when stretching the hose_ If additional
hose is needed then unlock the release
lever and pull out additional hose. Use
caution not to tip over vacuum cleaner,.
i iiiiiii iiiiiii i iiii
WARNING
Personal Injury Hazard
Use care if vacuum cleaner is placed on
stairs. If it falls, personal injury or prop-
erty damage could result.
For best cleaning results, keep the airflow
passage clear,,
Unplug the vacuum cleaner from the outlet
before checking,
12
MOTOR PROTECTION SYSTEM
Motor Protector
This vacuum cleaner has a motor protector
by-pass valve which automatically opens to
provide cooling air to the vacuum cleaner
motor when a clog prevents the normal
flow of air to the motor, tf the by-pass valve
opens to prevent motor overheating and
possible damage to the vacuum cleaner,
you will notice a change of sound as air
rushes through the valve opening.
To correct problem: See the TROUBLE-
SHOOTING section.,
NOTE: The motor
protector may open
when using
attachments or
when cleaning new
carpet, due to
reduced airflow
caused by the
attachments
themselves or by Motor Protector
new carpet lint filling (Behind Hose)
the dust bin quickly,, See the
TROUBLESHOOTING section_
Note: Do not block motor protector°
Thermal Protector
This vacuum cleaner has a thermal
protector, which automatically trips to
protect both the vacuum cleaner and the
agitator motor from overheating, if a clog
prevents the normal flow of air to the motor,
the thermal protector turns the motor off
automatically, This allows the motor to cool
in order to prevent possible damage to the
vacuum cleaner,
To correct problem: Turn the vacuum
cleaner off and unplug the power cord from
the outlet to allow the vacuum cleaner to
cool and the thermal protector to reset.
Check for and remove clogs, if
necessary, See CLOG REMOVAL
section, Also check and replace any
clogged filters, Wait approximately thirty
(30) minutes and plug the vacuum
cleaner in and turn back on to see if
the motor protector has reset.
AGITATOR MOTOR
OVERLOAD PROTECTOR
The agitator motor has built-in protection
against motor damage should the agitator
jam,, If the agitator slows down or stops, the
agitator overload protector shuts off the
agitator motor,, The vacuum cleaner motor
will continue to run,,
To correct problem: Turn off and unplug
vacuum cleaner, remove obstruction, then
press reset button°
To reset: Push in
the agitator
overload protector
button,
If the problem
Agitator Motor
OveHoad Reset
Button
persists, have the vacuum cleaner
serviced by aSears or other qualified
technician.
13

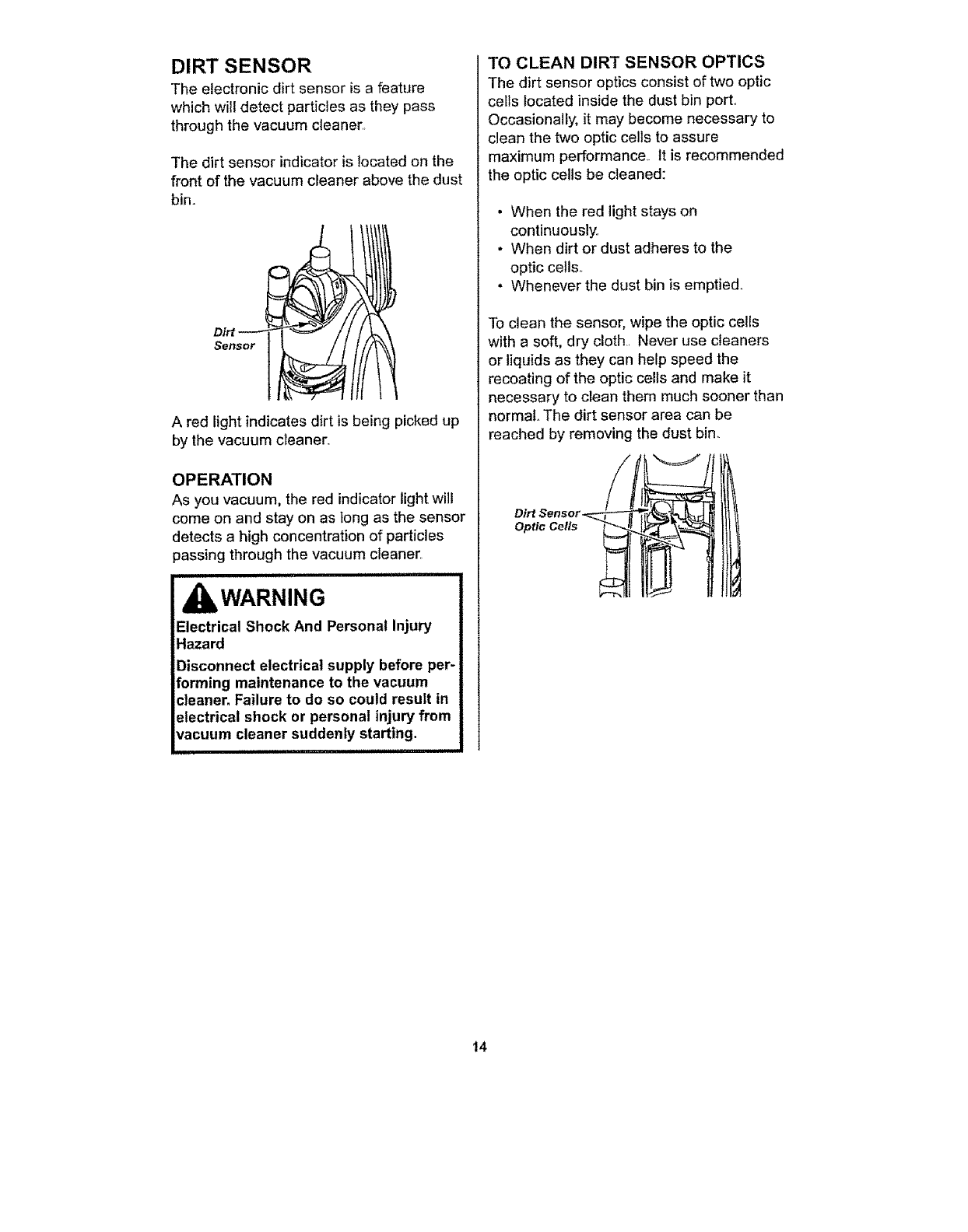

DIRT SENSOR
The electronic dirt sensor is a feature
which will detect particles as they pass
through the vacuum cleaner,,
The dirt sensor indicator is located on the
front of the vacuum cleaner above the dust
bin.
Dirt_
Sensor
A red light indicates dirt is being picked up
by the vacuum cleaner.
OPERATION
As you vacuum, the red indicator light will
come on and stay on as Iong as the sensor
detects a high concentration of particles
passing through the vacuum cleaner.
i i i iii, ii1,1,ii iiiii
kWARNING
Electrical Shock And Personal Injury
Hazard
Disconnect electrical supply before per-
forming maintenance to the vacuum
cleaner. Failure to do so could result in
electrical shock or personal injury from
vacuum cleaner suddenly starting.
nn n innn,ul
TO CLEAN DIRT SENSOR OPTICS
The dirt sensor optics consist of two optic
cells located inside the dust bin port.,
Occasionally, it may become necessary to
clean the two optic cells to assure
maximum performance.. It is recommended
the optic cells be cleaned:
•When the red light stays on
continuously.
, When dirt or dust adheres to the
optic cells.
, Whenever the dust bin is emptie&
To clean the sensor, wipe the optic cells
with a soft, dry cloth.. Never use cleaners
or liquids as they can help speed the
recoating of the optic celis and make it
necessary to clean them much sooner than
normal. The dirt sensor area can be
reached by removing the dust bin.
Optic Cells
14
VACUUM CLEANER CARE
AJways follow alt safety precautions when
performing maintenance to the vacuum
cleaner. WARNING
Electrical Shock And Personal Injury
Hazard
Disconnect electrical supply before
servicing or clean+ng the vacuum
cleaner. Failure to do so could result in
electrical shock or personal injury from
vacuum cleaner suddenly starting,
Gather the cord and wrap it loosely around
the upper and lower cord hooks. Lock power
cord plug onto the power cord.
Store the vacuum
cleaner _n adry,
indoor area, on
the floor with the
handle locked in
the upright pota-
tion+
- IbWARNING
Electrical Shock And Personal Injury
Hazard
Wrapping the cord too tightly puts
stress on the cord and can cause
cord damage. A damaged cord is an
electrical shock hazard and could
cause personal injuryor damage.
Unplug cord from wall outlet. DO NOT drip
water on vacuum cleaner+
Clean extenor umng aclean, soft cloth that
has been dipped in a solution of mild liquid
detergent and water, then wrung dry. Wipe
dry after clean+ng.
To reduce static etectricity and dust build-
up, wipe outer surface of vacuum cleaner
and attachments.
Wash attachments in warm soapy water,
nnse and air dry. Do not clean in dish-
washer.
CAUTION
Do not use attachments if they are
wet. Attachments used in dirty areas,
such as under a refrigerator, should
not be used on other surfaces until
they are washed, They could ieave
marks.
15
,1111 ii i, iiiiiiii iii
WARNING
Always unplug power cord from elec-
trical outlet before performing any ser-
vice on vacuum cleaner.
......................... i

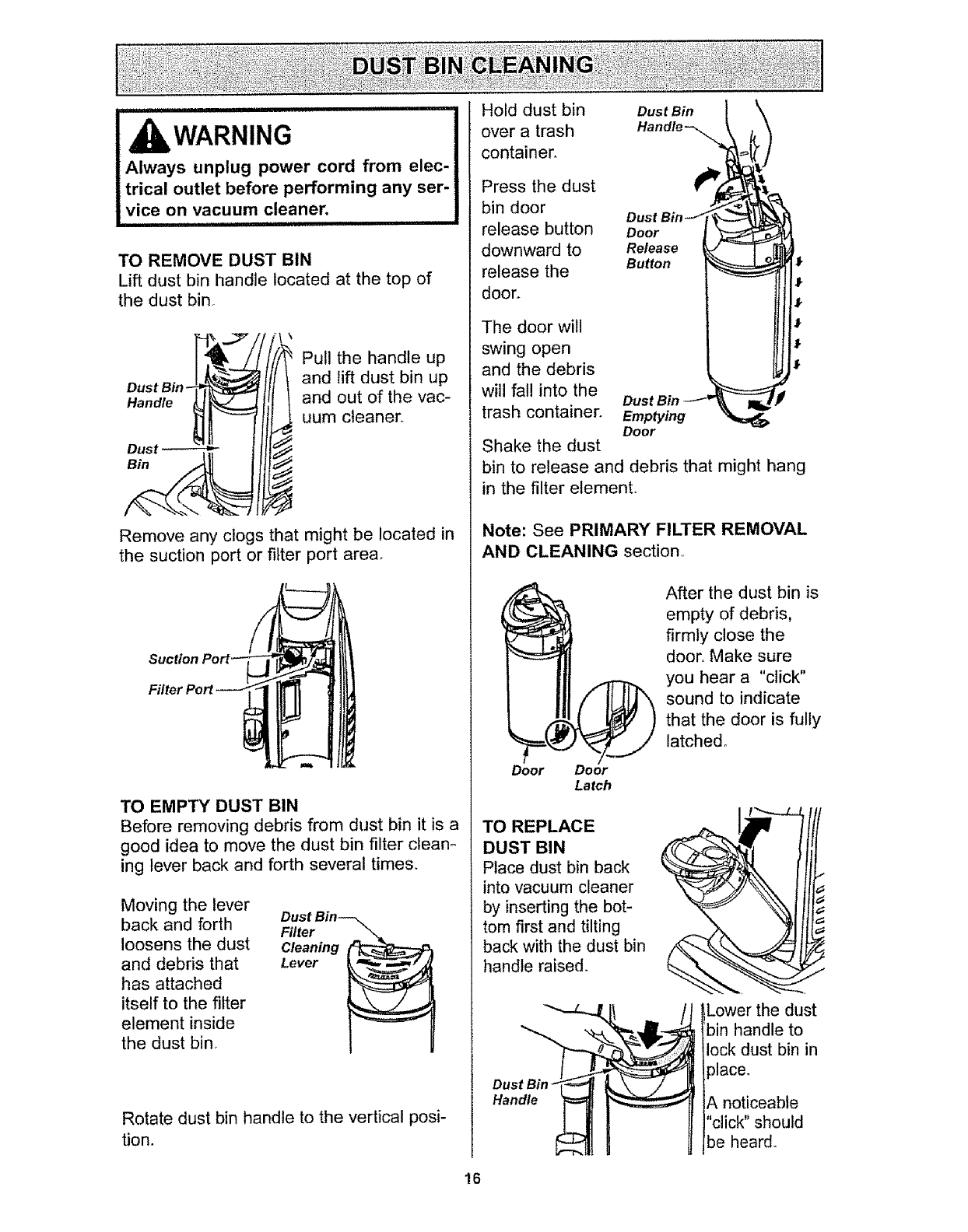

TO REMOVE DUST BIN
Lift dust bin handle located at the top of
the dust bin
Dust _
Bin
Pull the handle up
and lift dust bin up
and out of the vac-
uum cleaner,.
Remove any clogs that might be located in
the suction port or filter port area.
Suet_
TO EMPTY DUST BIN
Before removing debris from dust bin it is a
good idea to move the dust bin filter clean-
ing lever back and forth several times.
Moving the lever
back and forth
loosens the dust
and debris that
has attached
itself to the filter
element inside
the dust bin,
Dust BM--_.
Filter "_
Cleaning
Lever
Rotate dust bin handle to the vertical posi-
tion.
Hold dust bin
over a trash
container.
Press the dust
bin door
release button
downward to
release the
door.
The door will
swing open
and the debris
will fall into the
trash container.
Dust Bin
Handle -_
Dust Bin -1
Door
Release
Button
Shake the dust
Dust Bin
Emptying
Door
bin to release and debris that might hang
in the filter element.
Note: See PRIMARY FILTER REMOVAL
AND CLEANING section..
Door Door
Latch
After the dust bin is
empty of debris,
firmly close the
door., Make sure
you hear a "click"
sound to indicate
that the door is fully
latched°
TO REPLACE
DUST BIN
Place dust bin back
into vacuum cleaner
by inserting the bot-
tom first and tilting
back with the dust bin
handle raised.
Handle
Lower the dust
bin handle to
lock dust bin in
)lace.
noticeable
"click" should
be heard.
16
IbWARNING
Electrical Shock And Personal Injury
Hazard
Unplug power cord from electrical out-
let. Do not operate the vacuum cleaner
without the primary or exhaust filters. Be
sure the filters are properly installed to
prevent motor failure and or electrical
shock°

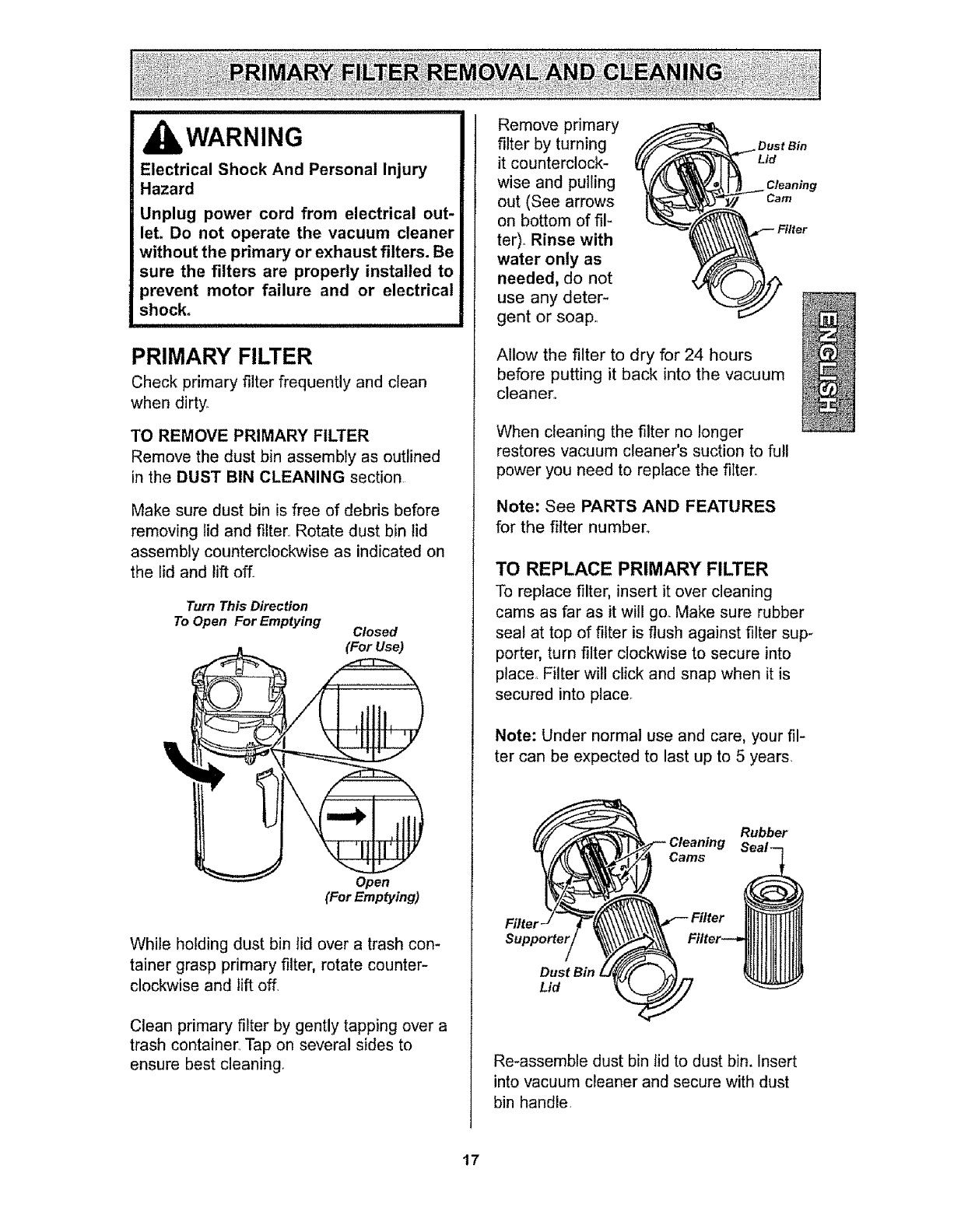

PRIMARY FILTER
Check primary filter frequently and clean
when dirty,.
TO REMOVE PRIMARY FILTER
Remove the dust bin assembly as outlined
in the DUST BIN CLEANING section.
Make sure dust bin is free of debris before
removing lid and filter.. Rotate dust bin lid
assembly counterclockwise as indicated on
the lid and lift off.
Turn This Direction
To Open For Emptying Closed
(For Use)
Open
(For Emptying)
While holding dust bin lid over a trash con-
tainer grasp primary filter, rotate counter-
clockwise and lift off,
Clean primary filter by gently tapping over a
trash container_ Tap on several sides to
ensure best cleaning.
Remove primary
filter by turning
it counterclock-
wise and pulling
out (See arrows
on bottom of fil-
ter),, Rinse with
water only as
needed, do not
use any deter-
gent or soap,,
Dust Bin
Lid
Cam
Allow the filter to dry for 24 hours
before putting it back into the vacuum
cleaner°
When cleaning the filter no longer
restores vacuum cleaner's suction to full
power you need to replace the filter.
Note: See PARTS AND FEATURES
for the filter number_
TO REPLACE PRIMARY FILTER
To replace filter, insert it over cleaning
cams as far as it will go. Make sure rubber
seal at top of filter is flush against filter sup-
porter, turn filter clockwise to secure into
place° Filter will click and snap when it is
secured into place.
Note: Under normal use and care, your fil-
ter can be expected to last up to 5 years.
Supporter
Dust Bin
Lid
Cams
Rubber
Re-assemble dust bin lid to dust bin, Insert
into vacuum cleaner and secure with dust
bin handle.
17
TO REPLACE DUST BIN LID
Replace dust bin lid assembly by placing
back on dust bin with marks on the lid
aligned as shown under Open (For
Emptying) on the back of the dust bin.
Turn This Direction
To Close For Use Open
(For Emptying)
Closed
(For Use)
Rotate clockwise while pressing downward
so marks align as shown above Closed
(For Use).
Insert dust bin
into vacuum
cleaner_
Lower the dust Handle
bin handle to
lock dust bin in
place.
A noticeable
"click" should be heard,
The HEPA exhaust filter must be replaced
when dirty_ It should be replaced regularly
depending on use conditions.
The filter CANNOT be washed as it will
lose its dust trapping ability.
Note: See PARTS AND FEATURES
for the exhaust filter number,.
Remove exhaust filter cover by pressing
the release tab on the cover and rotating
out from vacuum cleaner.
Exhaust
Filter
Cover
Remove
the filter
cartridge
from cover.,
Place new filter cartridge into cover making
sure that airflow arrow on side of cartridge
points into cover,,
The foam seal of the filter should be
placed against the vacuum cleaner
body.
Seal Against Exhaust
Vacuum Cleaner Filter
Body
Filter
Replace the exhaust filter cover by placing
bottom tabs in slots and rotating in until
cover snaps into place,,
18
,WARNING
Electrical Shock Or Personal Injury
Hazard
Disconnect electrical supply before
performing maintenance to the
vacuum cleaner. Failure to do so
could result in electrical shock or
personal injury from the vacuum
cleaner suddenly starting.
j i HIIII ii1!
TO REMOVE LIGHT BULB
1. Disconnect power cord from electrical
outlet.
F/at
Screwdriver
Stots_
Headlight
Lens
2. Press han-
dle release
pedal and lay
vacuum clean-
er back,.
3. Pry light
lens out at
slots as shown
on both sides,,
Rotate lens up
and lift off.
IbCAUTION
Do not use a bulb rated over 9W (13V)0
During extended use, heat from the
bulb could overheat surrounding plas-
tic parts_
4, Remove the light
bulb by pulling
straight ouL
5. To replace the
light bulb carefully
insert fully into
sloto
Note: See PARTS AND FEATURES for
bulb number.,
i ii i1,11
IAC*OT,O.
| Do not plug in or turn on until the vacu-
lure cleaner is completely reassembled.
6. To replace light
lens, place tab at
front of lens into
slot,. Rotate lens
down and firmly
snap into place.
19

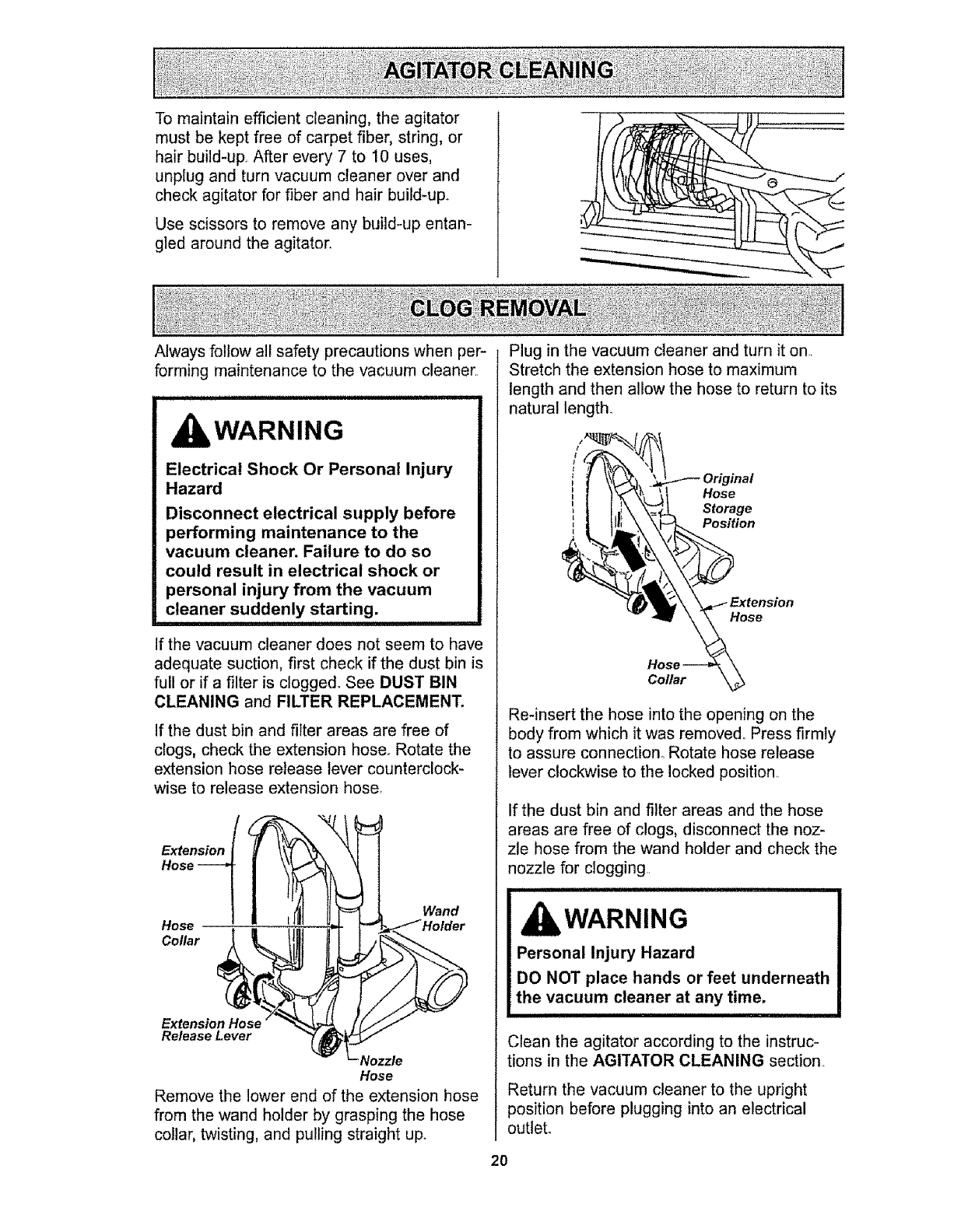

To maintain efficient cleaning, the agitator
must be kept free of carpet fiber, string, or
hair build-up After every 7 to 10 uses,
unplug and turn vacuum cleaner over and
check agitator for fiber and hair build-up,
Use scissors to remove any build-up entan-
gled around the agitator.
Always follow all safety precautions when per-
forming maintenance to the vacuum cleaner.
|WARNING
Electrical Shock Or Personal Injury
Hazard
Disconnect electrical supply before
performing maintenance to the
vacuum cleaner. Failure to do so
could result in electrical shock or
personal injury from the vacuum
cleaner suddenly starting.
If the vacuum cleaner does not seem to have
adequate suction, first check if the dust bin is
full or if a filter is clogged. See DUST BIN
CLEANING and FILTER REPLACEMENT.
If the dust bin and filter areas are free of
clogs, check the extension hose_ Rotate the
extension hose release lever counterclock-
wise to release extension hose.
_"'_._._-_Ho/der
Release Lever _, _Nozzte
Hose
Remove the lower end of the extension hose
from the wand holder by grasping the hose
collar, twisting, and pulling straight up.
Plug in the vacuum cleaner and turn it on.
Stretch the extension hose to maximum
length and then allow the hose to return to its
natural length..
Original
Hose
Storage
Position
Hose
Collar
Re-insert the hose into the opening on the
body from which it was removed. Press firmly
to assure connection. Rotate hose release
lever clockwise to the locked position.
If the dust bin and filter areas and the hose
areas are free of clogs, disconnect the noz-
zle hose from the wand holder and check the
nozzle for clogging..
IbWARNING
Personal Injury Hazard
DO NOT place hands or feet underneath
the vacuum cleaner at any time.
..
Clean the agitator according to the instruc-
tions in the AGITATOR CLEANING section.
Return the vacuum cleaner to the upright
position before plugging into an electrical
outlet.
20
Review this table to find do-it-yourself solutions for minor performance problems° Any service
needed, other than maintenance described in this Owner's Manual, should be performed by a
Sears or other qualified service agent,
I ..............................................
Vacuum cleaner
won't run_
Poor job of dirt
pick-upo
1.
2o
3.
4.
Unplugged at wail outlet 1_
Tripped circuit breaker/blown fuse 2.
at household service panel
Thermaf protector tripped 3.
Defective wall outlet 4.
Handle screw not tight 5,.
1. Full or clogged dust bin 1,.
2. Wrong pile height setting. 2,,
3o Worn agitator 3o
Plug in firmly, select the desired set-
ting on thetouchcontroi.
Reset circuit breaker or replace fuse,,
Allow vacuum cleaner to cool, then
reset thermal protector
Check with a good apptianceliamp,
have properly serviced
Tighten screw
Empty dust bin,
Adjust setting
Take to your nearest Sears
4,, Clogged nozzle
5. Clogged hose
6. Hole in hose
Service Center:
4. Check CLOG REMOVAL
5. Check for clogs,,
6. Take to your nearest Sears
Service Center
Vacuum Cleaner picks up
moveable rugs or
pushes too hard°
7. Hose not inserted fully 7.
8,. Motor protection system acfivated 8.
(change of sound)
9. Dirty filters 9.
1. Wrong pile height setting 1,r
Light won't work. 1. Burned out lightbulb
Agitator does not turn. 1. Handle in full upright position,
2. Agitator Overload tripped
3. Thermal protectortripped.
Airflow restricted i. Attachment use restricts air f!ow
with attachment use.
Sound changes,, 2. New carpet fuzz dogged air path
Difficulty adjusting pile 1,, Vacuum cleaner not in properupright
height setting position.
Dirt Sensor, will not work 1o Dirtyoplic ceils
Insert hose fully,
Check for clogs,
Change filters
Adjust setting,
1. Change light bulb.
1. Move handle from upright position
2. Reset Agitator Overload.
3. Allow vacuum cleaner to cool, then
reset thermal protector,
1. Check ATTACHMENTS for fuzz, lint,
pet hair or other debris.
2. Check CLOG REMOVAL and dean
hose.
t. Place vacuum cleaner in the locked
upright position, tilt the vacuum clean-
er back slightly and adjust pile height.
I_ Clean optic ce!is
21

Navigation menu
