Owner's Guide
Freezer
CAUTION:
Before using this freezer, read this
manual and follow all its Safety Rules
and Operating Instructions,
O
o
o
II
O
O
Safety
Installation
Operation
Maintenance
Troubleshooting
Espa_o!
Fran(;ais
Sears, Roebuck and Co,, Hoffman Estates, IL 60'179
Visit our Sears websIte: www.sears corn
Printed in the USA 216666800 (9905)

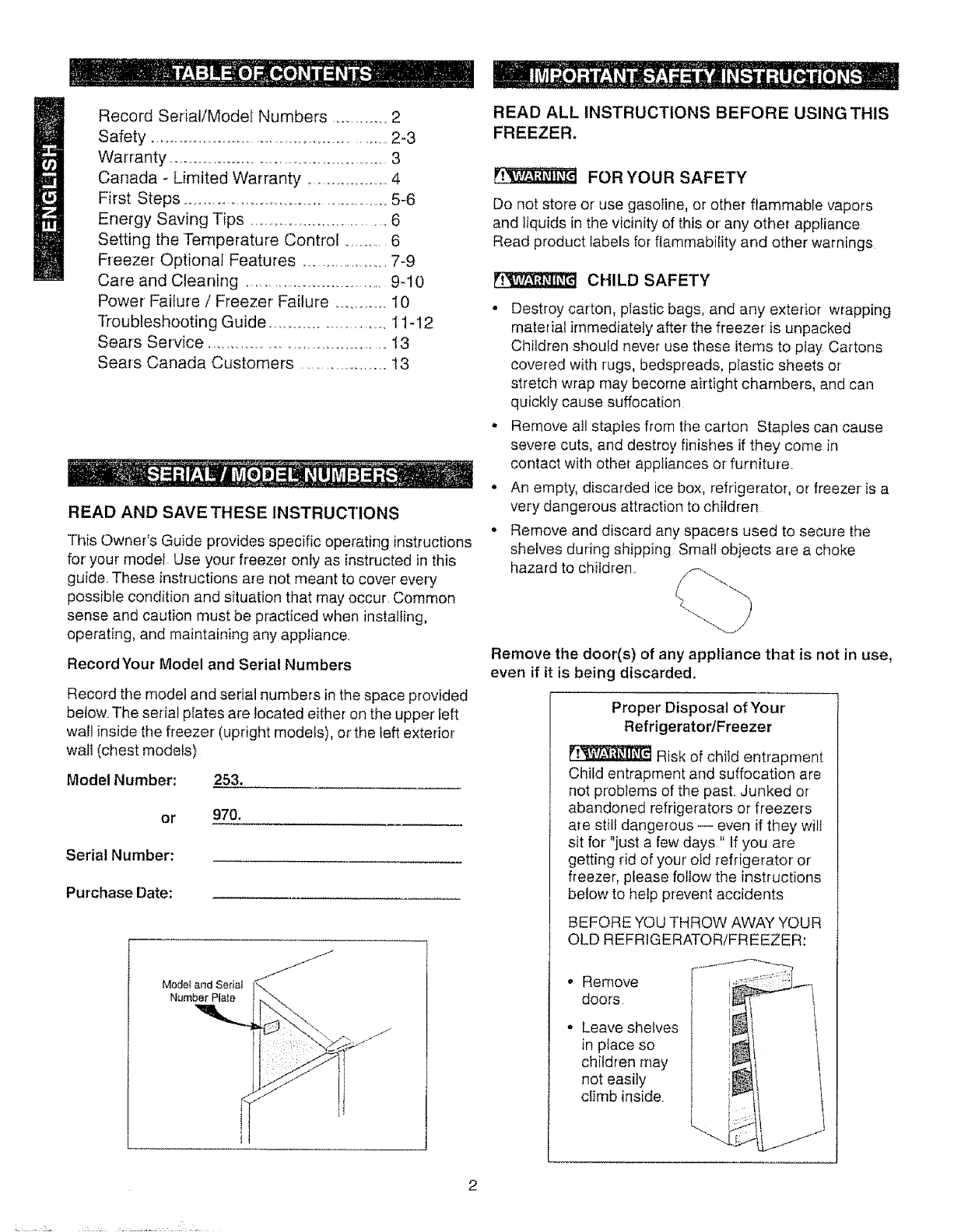

Record Serial/Model Numbers ................2
Safety .............................................................2-3
Warranty ....................................................... 3
Canada -Limited Warranty ................... 4
First Steps ................................................ 5-6

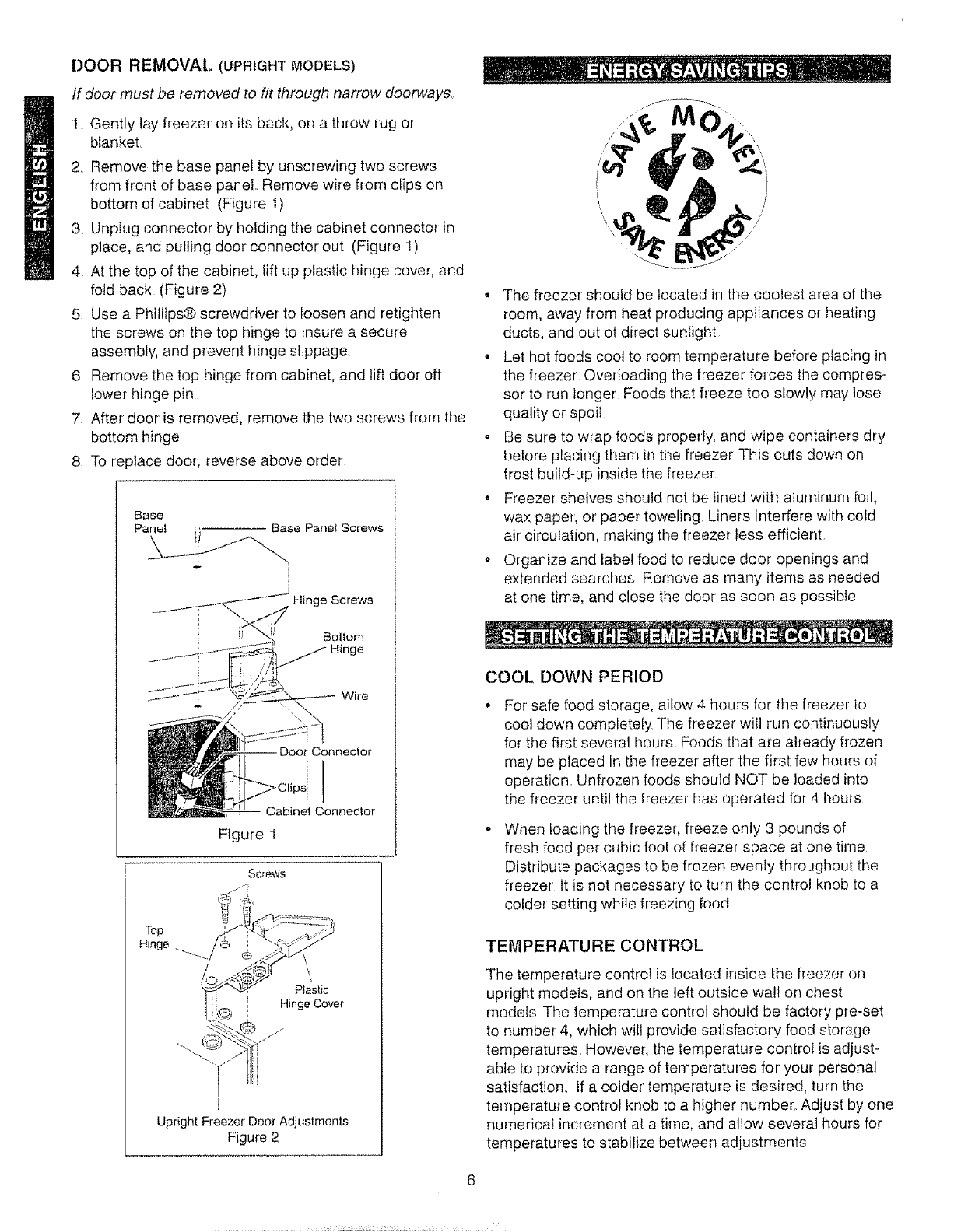

Energy Saving Tips ................................. 6
Setting the Temperature Control .............6

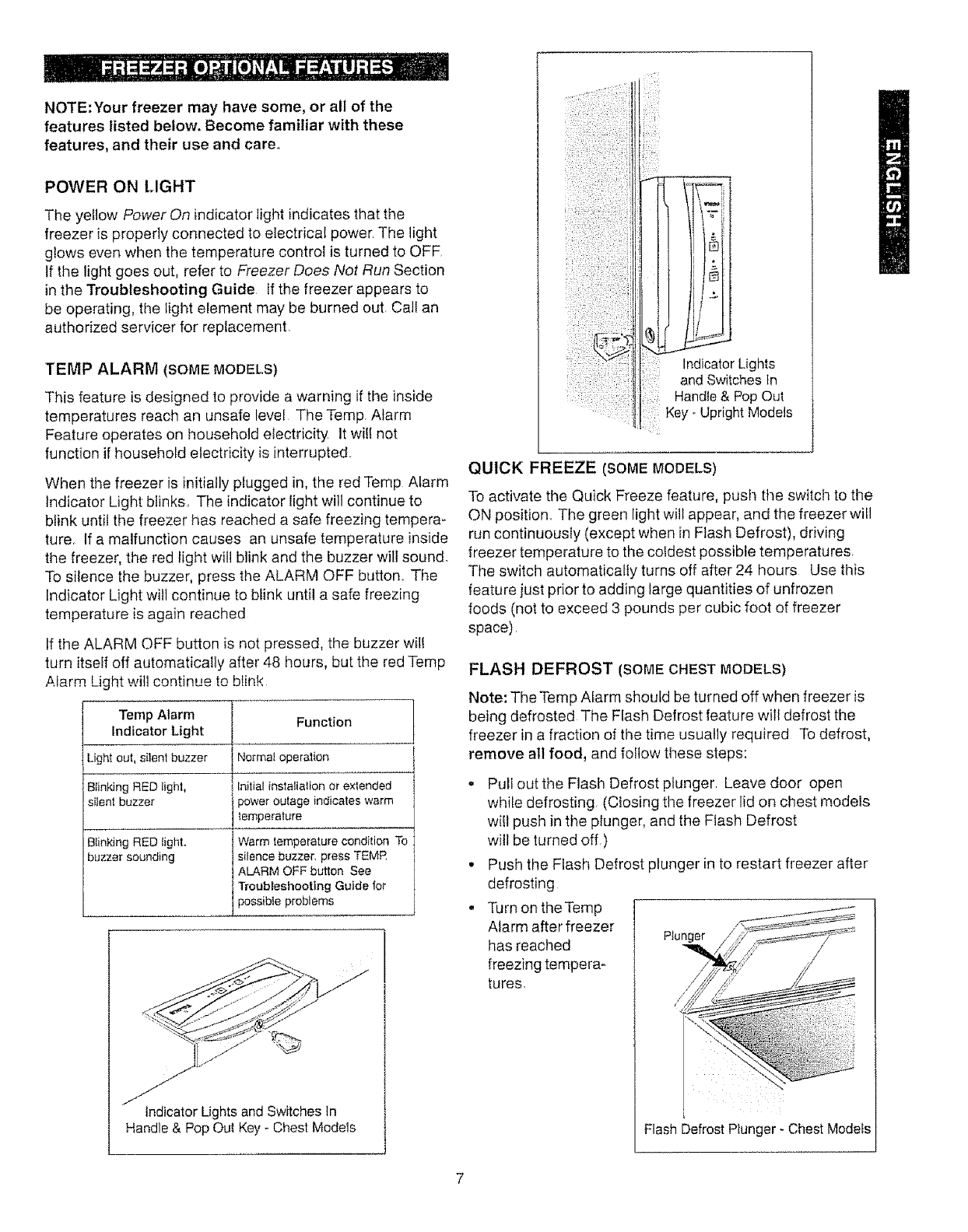

Freezer Optional Features ..................... 7-9

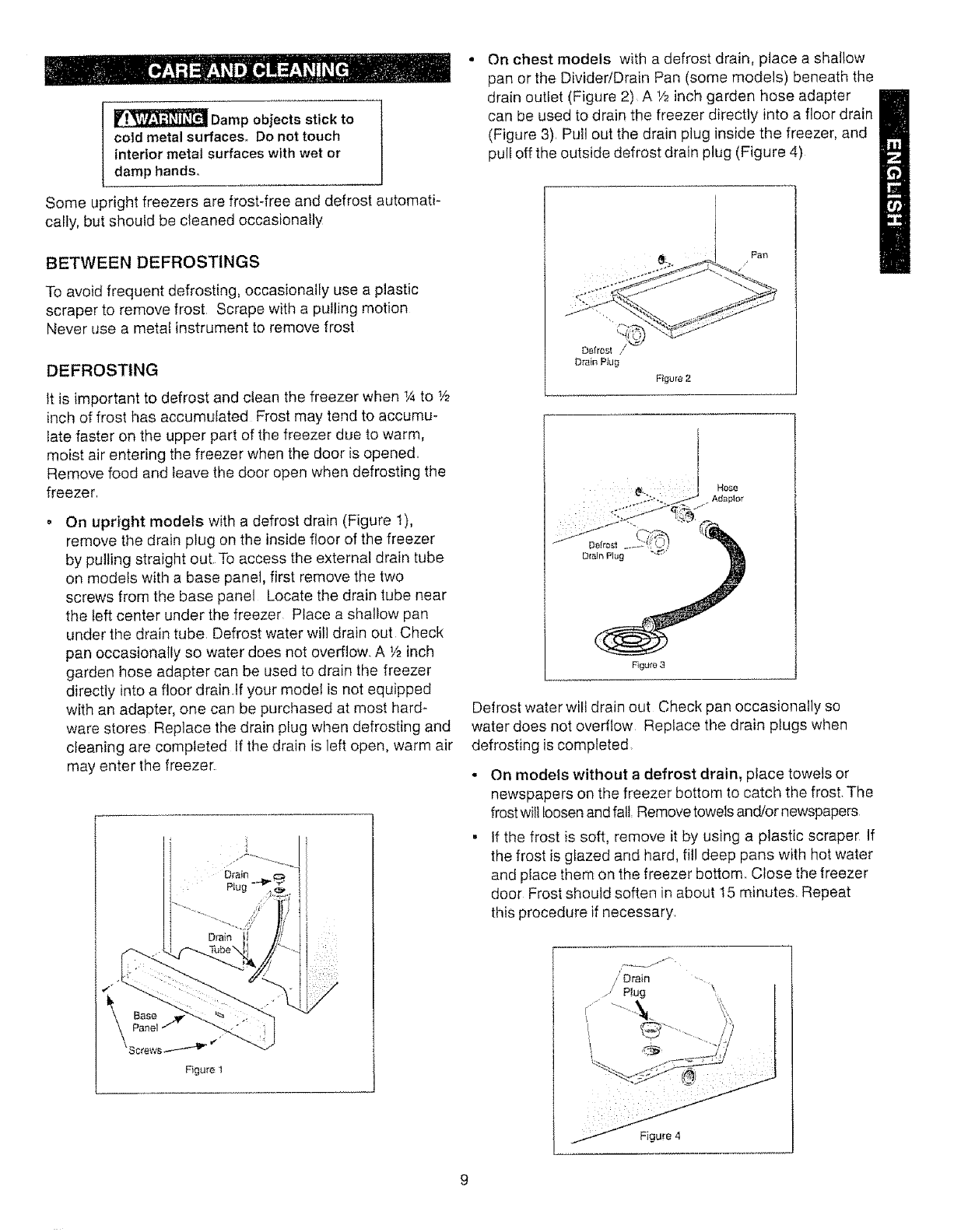

Care and Cleaning .............................. 9-10
Power Failure /Freezer Failure ........... 10

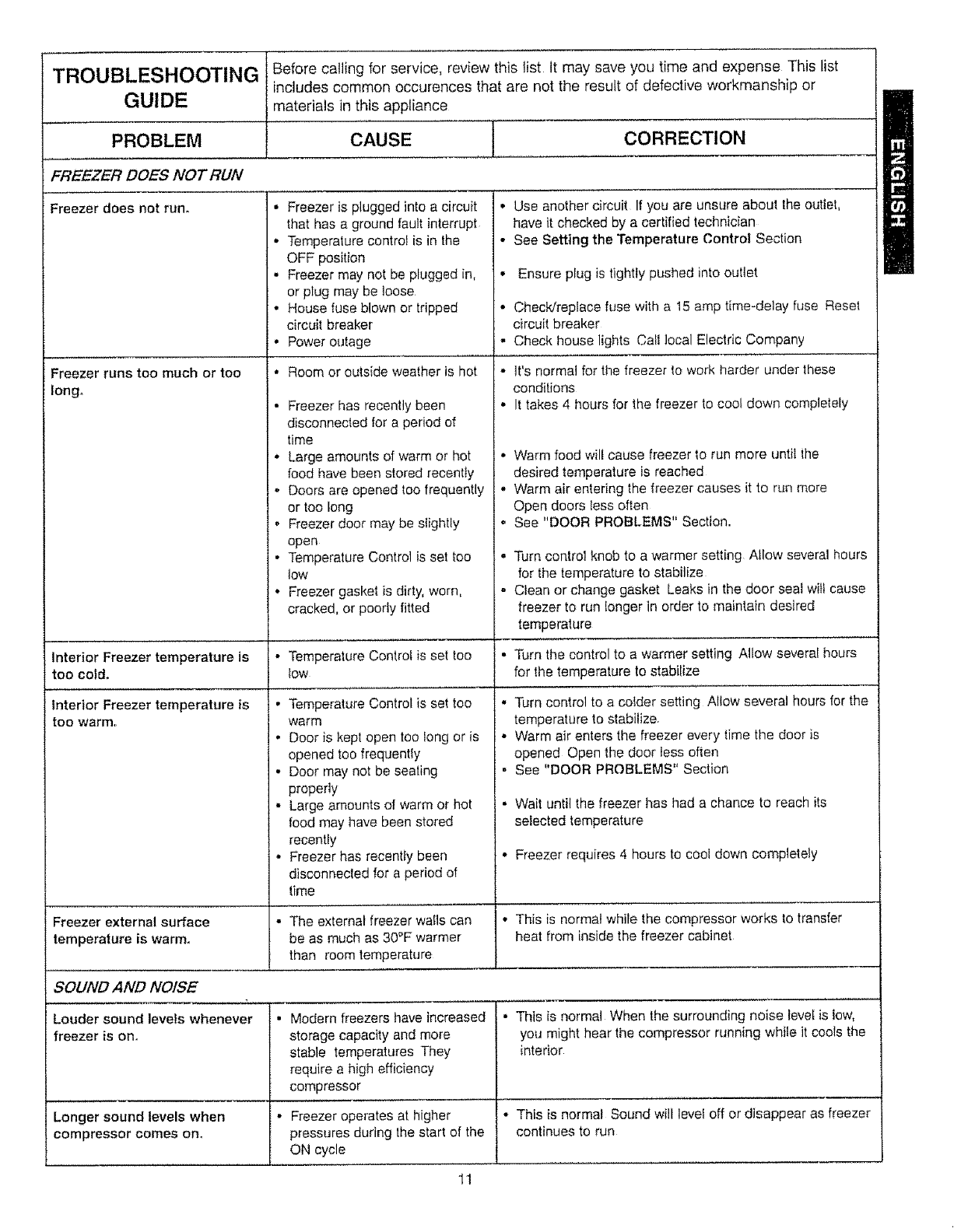

Troubleshooting Guide ............................. 11-12

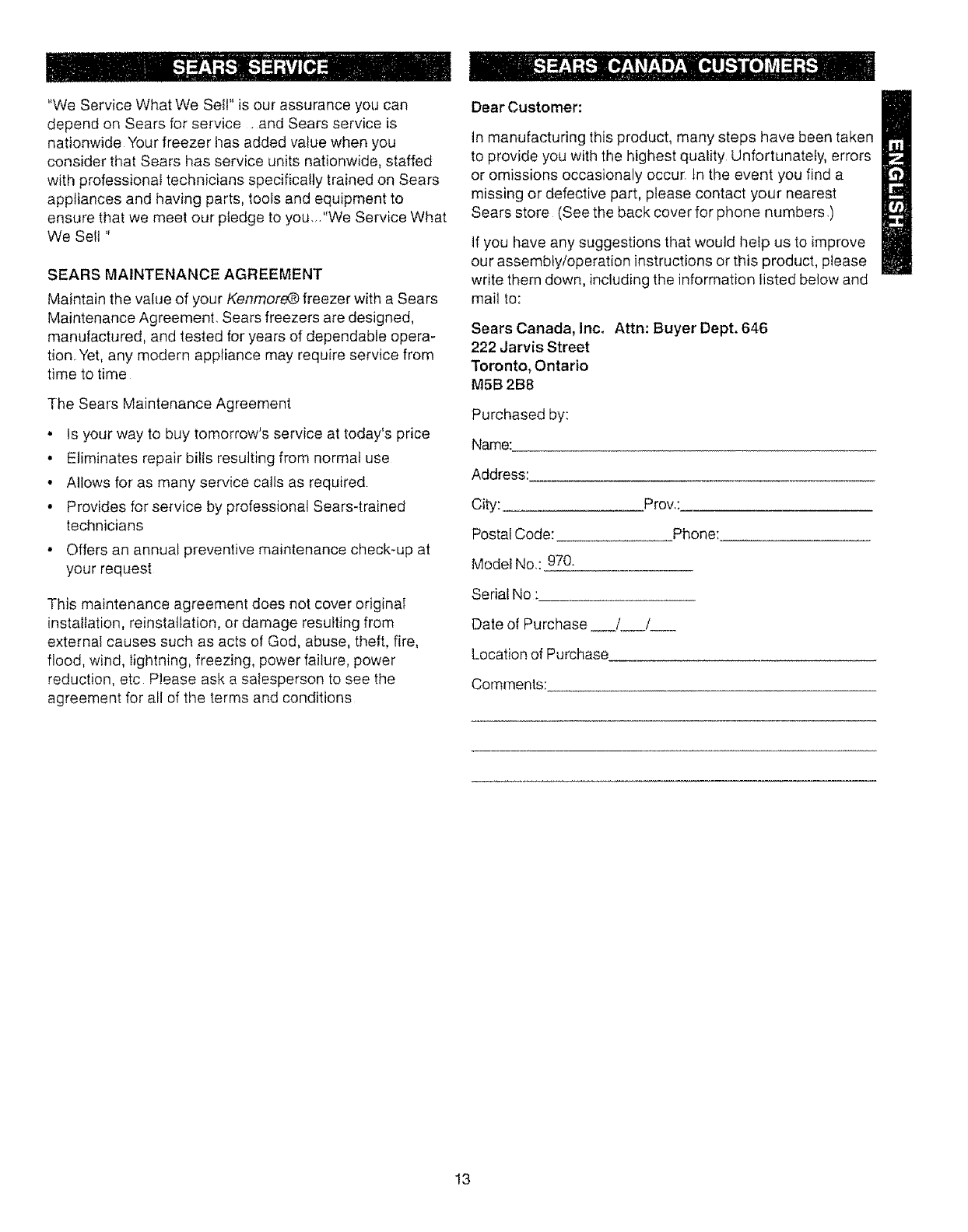

Sears Service ..................................... 13
Sears Canada Customers ....................... 13
READ AND SAVE THESE INSTRUCTIONS
This Owner's Guide provides specific operating instructions
for your model Use your freezer only as instructed in this
guide. These instructions are not meant to cover every
possible condition and situation that may occur Common
sense and caution must be practiced when installing,
operating, and maintaining any appliance
RecordYour Model and Serial Numbers
Record the model and serial numbers in the space provided
below The sedal plates are located either on the upper left
wall inside the freezer (upright models), or the left exterior
waft (chest models)
Model Number: 253.
or 970.
Serial Number:
Purchase Date:
Mode_and Serial
Number Plate
READ ALL INSTRUCTIONS BEFORE USING THIS
FREEZER.
FOR YOUR SAFETY
Do not store or use gasoline, or other flammable vapors
and liquids in the vicinity of this or any other appliance
Read product labels for flammability and other warnings
CHILD SAFETY
• Destroy carton, plastic bags, and any exterior wrapping
materiat immediately after the freezer is unpacked
Children should never use these items to play Cartons
covered with rugs, bedspreads, plastic sheets or
stretch wrap may become airtight chambers, and can
quickly cause suffocation
• Remove all staples from the carton Staples can cause
severe cuts, and destroy finishes if they come in
contact with other appliances or furniture.
• An empty, discarded ice box, refrigeratoq or freezer is a
very dangerous attraction to children
• Remove and discard any spacers used to secure the
shelves during shipping Small objects are a choke
hazard to chitdren_
Remove the door(s) of any appliance that is not in use,
even if it is being discarded.
Proper Disposal of Your
Refrigerator/Freezer
_._ Risk of child entrapment
Child entrapment and suffocation are
not problems of the pasL Junked or
abandoned refrigerators or freezers
are still dangerous -- even if they will
sit for "just a few days" If you are
getting rid of your old refrigerator or
freezer-, please follow the instructions
below to help prevent accidents
BEFORE YOU THROW AWAY YOUR
OLD REFRIGERATOR!FREEZER:
• Remove
doors.
, Leave shelves
in place so
children may
not easily
climb inside,
ELECTRICALINFORMATION
These guidelines must be followed to ensure that
safety mechanisms in the design of this freezer will
operate properly_
,Refer to the serial plate for correct electrical rating,
The power cord of the appliance is equipped with a
three-prong grounding plug for your protection against
shock hazards. It must be plugged directly into a prop-
erly grounded three- prong receptacle, protected with a
15 amp time delay fuse or circuit breaker The recep-
tacle must be installed in accordance with local codes
and ordinances Consult a qualified electrician Recep-
tacles protected by Ground Fault Circuit Interrupters
(GFIC) are NOT RECOMMENDED Do not use an
extension cord or adapter_plug.
• If voltage varies by 10% or more, freezer performance
may be affected Operating freezer with insufficient
power can damage the motor. Such damage is not
covered under the warranty, tf you suspect your house
hold voltage is high or low, consult your power company
for testing.
. To prevent the freezer from being turned off
accidentically, do not plug unit into an outlet controlled
by a wall switch or pull cord.
o Do not pinch, knot, or bend the cord in any manner
OTHER PRECAUTIONS
• Never unptug the freezer by pulling on the cord
Always grip the plug firmly, and pull straight out from
the receptacle.
NOTE: Turning the temperature controI to OFF turns off the
compressor, but does not disconnect the power to the light
bulb or other electrical components.
Avoid fire hazard or
electric shock Do not use an extension
cord or an adapter plug.. Do not remove
any prong from the power cord
Grounding type
wall receptacle
Do not, under any
circumstances,
cut, remove,
or bypass the
Power supply
cord with 3-prong
grounding plug
FULL ONE-YEAR WARRANTY ON FREEZER
For one year from the date of purchase, when this freezer
is operated and maintained according to the instructions
provided in this Owner's Guide, Sears will repair this freezer,
free of charge, if defective in material or workmanship
FULL FIVE-YEAR WARRANTY ON SEALED
REFRIGERATION SYSTEM
For five years from the date of purchase, when this freezer
is operated and maintained according to the instructions
provided in this Owner's Guide, Sears will repair the sealed
system (consisting of refrigerant,connecting tube, and
compressor), free of charge, if defective in material or
workmanship.
The above freezer warranty applies only to freezers which
are used for storage of food for private household purposes.
FOOD LOSS COVERAGE LIMITATION
If promptly reported to your nearest Sears store or Service
Center, Sears wilt reimburse you up to a total of $100.00
for the value of food, as verified by Sears, lost while stored
in the freezer when used for private household purposes
as a result of:
2,
Defects that occur during the first year following the date
of purchase
Failure of the sealed refrigeration system (including
refrigerant, connecting tubing, and compressor), due to
defects that occur dudng the second through fifth year
after purchase If freezer is used for other than private
household purposes, Sears wilt not be responsible for
any food loss. Food losses resulting from other than the
above stated defects, such as natural spoilage, power
interruption, inadequate power, manual disconnect of
power supply, fire damage, water damage, theft, etc.
are beyond our control and are not covered by Sears
Some states do not allow the exclusion or limitation of
incidental or consequential damages, so the above
limitation or exclusion may not apply to your This war-
ranty gives you specific legal rights, and you may have
other rights which vary from state to state
Warranty service is available by contacting the NEAREST
SEARS SERVICE CENTERIDEPARTMENT in the United
States See the back page of this manual
Sears, Roebuck and Co,
Depto 817WA
Hoffman Estates, IL 60179

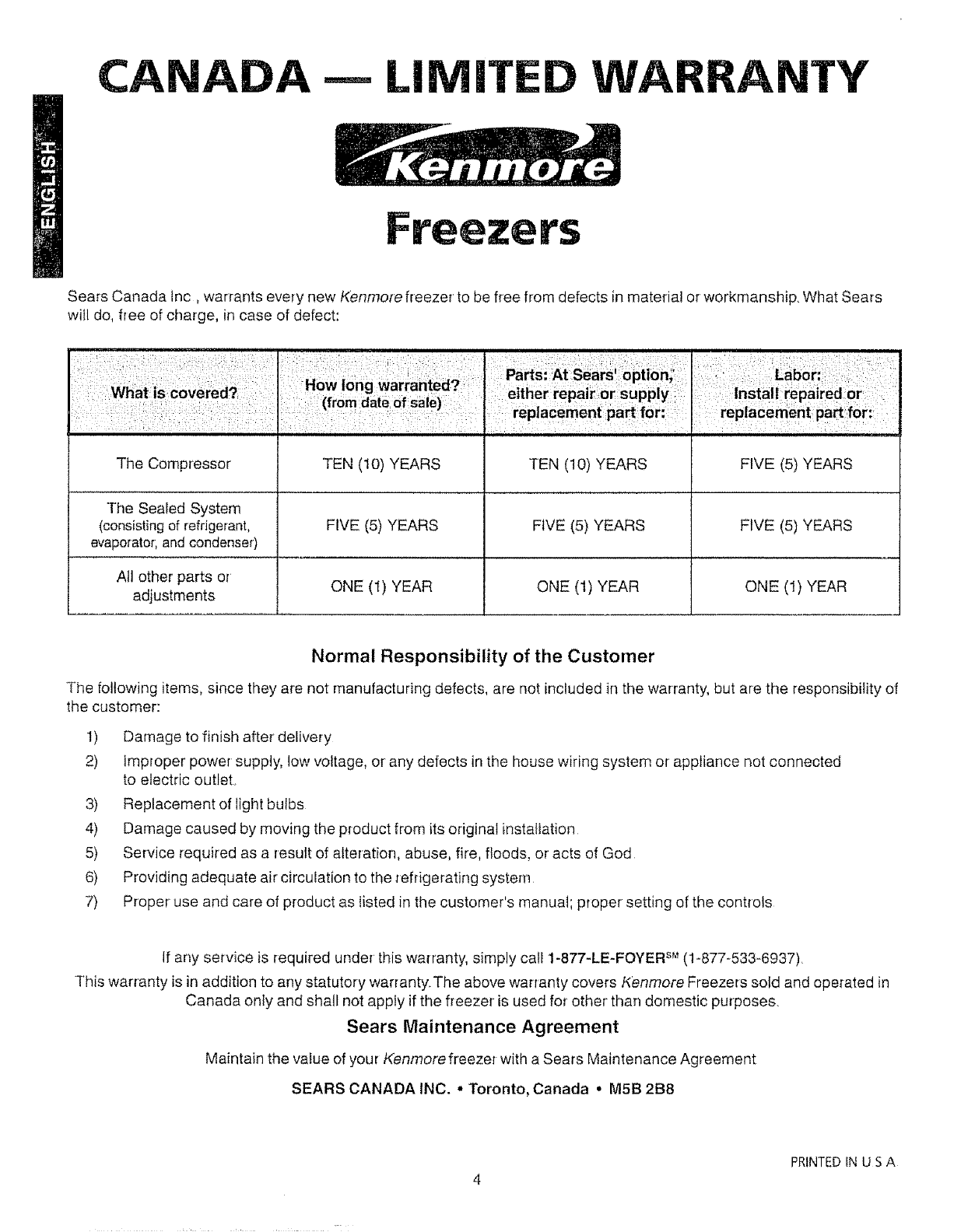

CANADA- LIMITED WARRANTY
Sears Canada Inc, warrants every new Kenmore freezer to be free from defects in material or workmanship, What Sears
will do, free of charge, in case of defect:
The Compressor TEN (10) YEARS TEN (10) YEARS FIVE (5) YEARS
The Sealed System
(consistingof refrigerant, FIVE (5) YEARS FIVE (5) YEARS FIVE (5) YEARS
evaporator;and condenser)
All other parts or
adjustments ONE (t) YEAR ONE (1) YEAR ONE (1) YEAR
Normal Responsibility of the Customer
The following items, since they are not manufacturing defects, are not included in the warranty, but are the responsibility of
the customer:
1) Damage to finish after delivery
2) Improper power supply, tow voltage, or any defects in the house wiring system or'appliance not connected
to electric outlet,
3) Replacement of light bulbs
4) Damage caused by moving the product from its original installation
5) Service required as a result of alteration, abuse, fire, floods, or acts of God
6) Providing adequate air circulation to the refrigerating system
7) Proper use and care of product as iisted in the customer's manual; proper' setting of the controls
tf any service is required under this warranty, simply call 1-877-LE-FOYER s_ (1-877-533_6937),
This warranty is in addition to any statutory warranty.The above warranty covers Kenmore Freezers sold and operated in
Canada only and shall not apply if the freezer is used for other than domestic purposes
Sears Maintenance Agreement
Maintain the value of your Kenmorefreezer with a Sears Maintenance Agreement
SEARS CANADA INC., Toronto, Canada • M5B 2B8
PRINTEDIN U S A

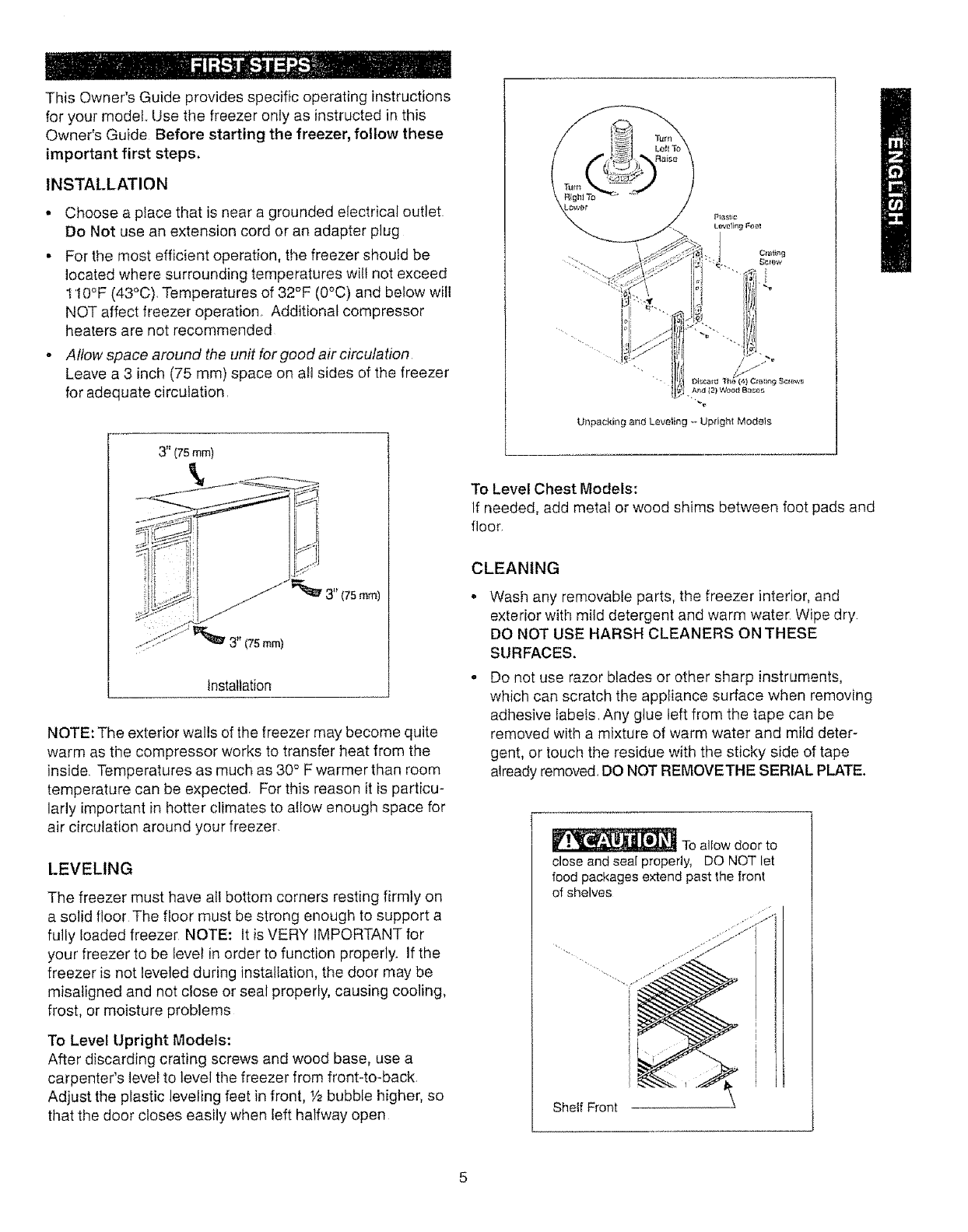

This Owner's Guide provides specific operating instructions
for your model.. Use the freezer only as instructed in this
Owner's Guide Before starting the freezer, follow these
important first steps,
INSTALLATION
• Choose a place that is near a grounded electrical outlet
Do Not use an extension cord or an adapter plug
• For the most efficient operation, the freezer should be
located where surrounding temperatures will not exceed
110°F (43°C). Temperatures of 32°F (0°C) and below will
NOT affect freezer operation. Additional compressor
heaters are not recommended
•Allow space around the unit for good air circulation
Leave a 3 inch (75 mm) space on al] sides of the freezer
for adequate circulation.
3" (75 ram)
3_(75mm)
Installation
NOTE: The exterior walls of the freezer may become quite
warm as the compressor works to transfer heat from the
inside. Temperatures as much as 30° F warmer than room
temperature can be expected. For this reason it is particu-
larly important in hotter climates to allow enough space for
air circulation around your freezer
LEVELING
The freezer must have alI bottom corners resting firmly on
a solid floor The floor must be strong enougil to support a
fully loaded freezer NOTE: It is VERY IMPORTANT for
your freezer to be level in order to function properly. If the
freezer is not leveled during installation, the door' may be
misaligned and not close or seal properly, causing cooling,
frost, or moisture problems
To Level Upright Models:
After discarding crating screws and wood base, use a
carpenter's level to level the freezer from front-to-back
Adjust the plastic leveling feet in front, !/2bubble higher, so
that the door closes easily when left halfway open
To Level Chest Models:
/f needed, add metal or wood shims between foot pads and
floor
CLEANING
Wash any removable parts, the freezer interior, and
exterior with mild detergent and warm water Wipe dry
DO NOT USE HARSH CLEANERS ON THESE
SURFACES,
Do not use razor blades or other sharp instruments,
which can scratch the appfiance surface when removing
adhesive labels Any glue left from the tape can be
removed with a mixture of warm water and mild deter-
gent, or touch the residue with the sticky side of tape
already removed, DO NOT REMOVETHE SERIAL PLATE.
_To allow door to
close and seal properly, DO NOT let
food packages extend past the front
of shelves
Shelf Front
DOOR REMOVAL (UPRIGHT MODELS)
If door must be removed to fit through narrow doorways,
1 Gently lay freezer on its back, on a throw rug or
blankeL
2, Remove the base panel by unscrewing two screws
from front of base panel. Remove wire from clips on
bottom of cabinet (Figure I)
3 Unplug connector by holding the cabinet connector in
piace, and pulling door connector out (Figure 1)
4 At the top of the cabinet, tift up plastic hinge cover, and
fold back (Figure 2)
5 Use a Phillips@ screwdriver to loosen and retighten
the screws on the top hinge to insure a secure
assembly, and prevent hinge slippage,
6 Remove the top hinge from cabinet, and lift door off
lower hinge pin
7 After door is removed, remove the two screws from the
bottom hinge
8 To replace door, reverse above order
Door Connector
Cabinet Connector
Figure 1
SCreWS
Top
Hinge -_
Plastic
Hinge Cover
Upright Freezer' Doo_ Adjustments
Figure 2
.The freezer should be located in the coolest area of the
room, away from heat producing appliances or heating
ducts, and out of direct sunlight
• Let hot foods coot to room temperature before ptacing in
the freezer Overloading the freezer forces the compres-
sor to run longer Foods that freeze too slowly may lose
quality or spoil
o Be sure to wrap foods properly, and wipe containers dry
before placing them in the freezer This cuts down on
frost build-up inside the freezer
•Freezer shelves should not be lined with aluminum foil,
wax paper, or paper toweling, Liners interfere with cold
air' circulation, making the freezer less efficient
o Organize and label food to reduce door openings and
extended searches Remove as many items as needed
at one time, and close the door as soon as possible
COOL DOWN PERIOD
For safe food storage, allow 4 hours for the freezer' to
cool down completely The freezer wilt run continuously
for the first several hours Foods that are already frozen
may be placed in the freezer' after the first few hours of
operation Unfrozen foods should NOT be loaded into
the freezer until the freezer has operated for 4 hours
When toading the freezer, freeze only 3 pounds of
fresh food per cubic foot of freezer space at one time
Distribute packages to be frozen evenly throughout the
freezer It is not necessary to turn the control knob to a
colder setting while freezing food
TEMPERATURE CONTROL
The temperature control is located inside the freezer on
upright models, and on the teft outside wall on chest
modets The temperature control should be factory pre-set
to number 4, which will provide satisfactory food storage
temperatures, However, the temperature control is adjust-
able to provide a range of temperatures for your personal
satisfaction_ If a colder temperature is desired, turn the
temperature control knob to a higher number Adjust by one
numerical increment at a time, and allow several hours for
temperatures to stabilize between adjustments
NOTE:Yourfreezermayhavesome,or all of the
features listed below. Become familiar with these
features, and their use and care.
POWER ON LIGHT
The yellow Power On indicator light indicates that the
freezer is properly connected to electrical power The light
glows even when the temperature control is turned to OFF
If the light goes out, refer to Freezer Does Not Run Section
in the Troubleshooting Guide ff the freezer appears to
be operating, the light element may be burned out. Call an
authorized servicer for replacement.
TEMP ALARM (SOME MODELS)
This feature is designed to provide a warning if the inside
temperatures reach an unsafe level The Temp. Alarm
Feature operates on household electricity It wilt not
function if household electricity is interrupted.
When the freezer is initially plugged in, the red Temp Alarm
Indicator Light blinks. The indicator light will continue to
blink until the freezer has reached a safe freezing tempera-
ture. If a malfunction causes an unsafe temperature inside
the freezer, the red light will blink and the buzzer will sound.
To silence the buzzer, press the ALARM OFF button.. The
Indicator Light will continue to blink until a safe freezing
temperature is again reached
If tile ALARM OFF button is not pressed, the buzzer will
turn itself off automatically after 48 hours, but the red Temp
Alarm Light will continue to blink
Temp Alarm l
Indicator Light IFunction
Light out,silentbuzzer Normaloperation
Blink]ng RED Iight, Initial instaltalien or extended
silent buzzer power oulage indicates warm
lemperature
Btinking RED light. Warm temperature condition To
buzzer sounding silence buzzer, press TEMR
ALARM OFF button See
Troubleshooting Guide for
possible problems
indicator Lights and Switches in
Handle & Pop Ou! Key - Chest Modets
Indicator Lights
and Switches In
Handle& Pop Out
Key -Upright Models
QUlCK FREEZE (SOME MODELS)
To activate the Quick Freeze feature, push the switch to tlne
ON position,, The green light will appear, and the freezer wilt
run continuously (except when in Flash Defrost), driving
freezer temperature to the coldest possible temperatures
The switch automatically turns off after 24 hours Use this
feature just prior to adding large quantities of unfrozen
foods (not to exceed 3 pounds per cubic foot of freezer
space),
FLASH DEFROST (SOME CHEST MODELS)
Note: TheTemp Alarm shoufd be turned off when freezer is
being defrosted The Flash Defrost feature will defrost the
freezer in a fraction of the time usually required To defrost,
remove all food, and follow these steps:
oPull out the Flash Defrost plunger Leave door open
while defrosting. (Closing the freezer lid on chest models
wilt push in the plunger, and the Flash Defrost
will be turned off)
, Push the Flash Defrost plunger in to restart freezer after
defrosting
, Turn on theTemp
Alarm after freezer
has reached Plunger
freezing tempera- /
tures.
Flash DefrostPlunger -Chest Models

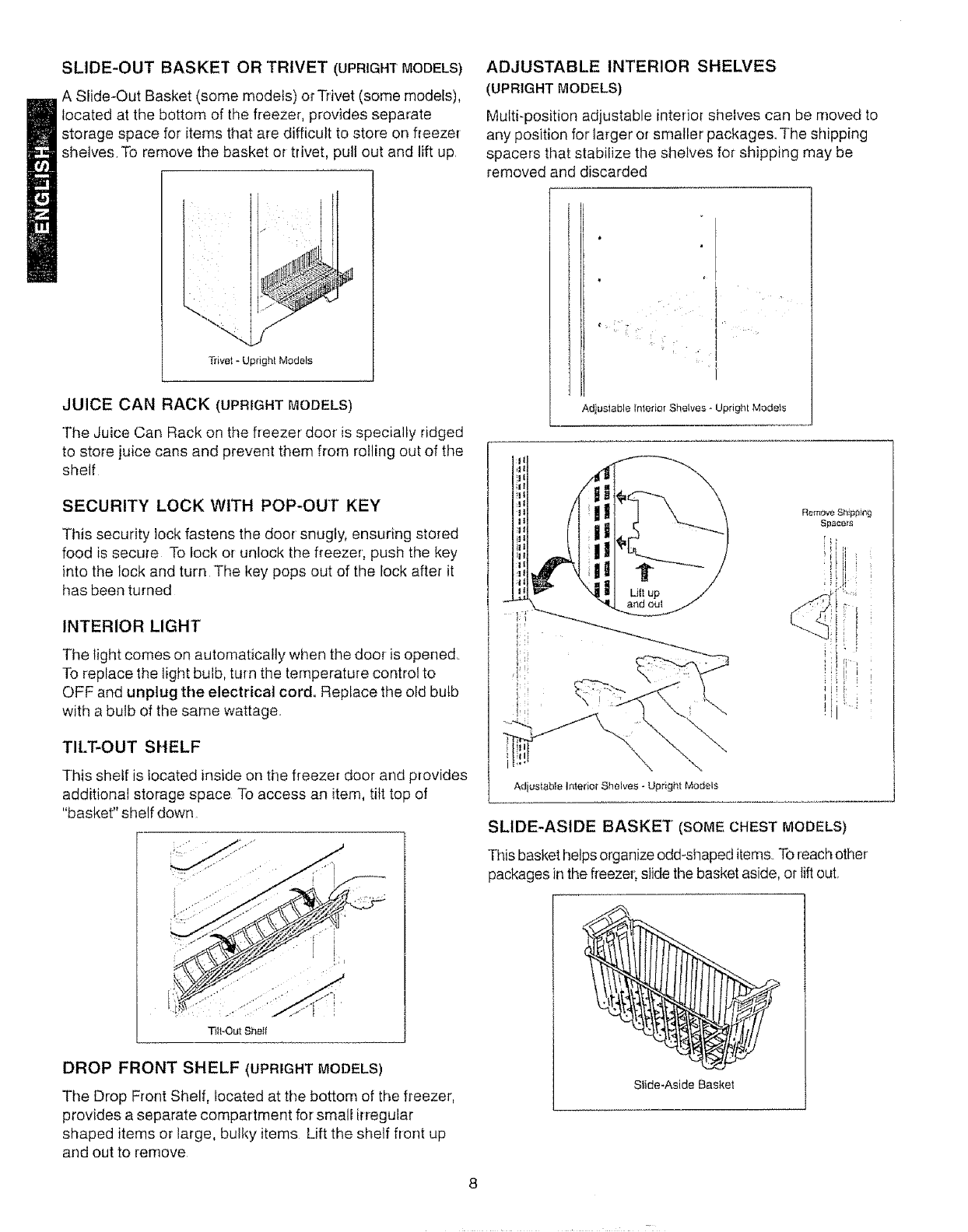

SLIDE-OUTBASKETOR']'RIVET(UPRIGHTMODELS)
ASlide-OutBasket(somemodels)orTrivet(somemodels),
locatedatthebottomofthefreezer,providesseparate
storagespaceforitemsthataredifficulttostoreonfleeze_
shelves,Toremovethebasketortrivet,pulloutandliftup,
Trivet - Upright Models
JUICE CAN RACK (UPRIGHT MODELS)
The Juice Can Rack on the freezer door is specially ridged
to store juice cans and prevent them from rolling out of the
shelf
SECURITY LOCK WITH POP-OUT KEY
This security lock fastens the door snugly, ensuring stored
food is secure To lock or unlock the freezer, push the key
into the lock and turn The key pops out of the lock after it
has been turned
INTERIOR LIGHT
The tight comes on automatically when the doo_ is opened,.
To replace the light bulb, turn the temperature control to
OFF and unplug the electrical cord, Replace the old bulb
with a bulb of the same wattage,
TILT-OUT SHELF
This shelf is located inside on the fleeze_ door and p_ovides
additional storage space To access an item, tilt top of
"basket" shelf down
T_ft.Out SheIf
DROP FRONT SHELF (UPRIGHT MODELS)
The Drop Front Shelf, located at the bottom of the freezer,
provides a separate compartment for small irregular
shaped items or large, bulky items Lift the shelf front up
and out to remove
ADJUSTABLE INTERIOR SHELVES
(UPRIGHT MODELS)
Multi-position adjustable interior shelves can be moved to
any position for larger or smaller packages. The shipping
spacers that stabilize the shelves for shipping may be
removed and discarded
1
Adiusiable ff'derier Shelves *Upright Models
Adjustab!e Interior Shelves -Upright Models
Remove Ship0in 9
Sp_,Ce_
iii ri
ii ii
I!IF
SLIDE-ASIDE BASKET (SOME CHEST MODELS)
This basket helps organize odd-shaped item& To reach other
packages in the freezeq slide the basket aside, or liftout
Slide-Aside Basket
Damp objects stick to
cold metal surfaces° Do not touch
interior metal surfaces with wet or
damp hands.
Some upright freezers are frost-free and defrost automati-
cally, but shouid be cleaned occasionally
BETWEEN DEFROSTINGS
To avoid frequent defrosting, occasionally use a plastic
scraper to remove frost Scrape with a pulling motion
Never use a metal instrument to remove frost
DEFROSTING
tt is important to defrost and ciean the freezer when _Ato V2
inch of frost has accumulated Frost may tend to accumu-
late faster on the upper part of the freezer due to warm,
moist air entering the freezer when the door is opened..
Remove food and leave the door open when defrosting the
freezer.
On upright models with a defrost drain (Figure 1),
remove the drain plug on the inside floor of the freezer
by pulling straight out. To access the external drain tube
on models with a base panel, first remove the two
screws from the base panel Locate the drain tube near
the left center under the freezer Place a shallow pan
under the drain tube. Defrost water will drain out Check
pan occasionally so water does not overflow. A _,_inch
garden hose adapter can be used to drain the freezer
directly into a floor drain.If your model is not equipped
with an adapter, one can be purchased at most hard-
ware stores Replace the drain plug when defrosting and
cleaning are completed If the drain is left open, warm air
may enter the freezer.
Figure 1
On chest models with a defrost drain, place a shallow
pan or the Divider/Drain Pan (some models) beneath the
drain outfet (Figure 2)A Y2inch garden hose adapter
can be used to drain the freezer directly into a floor drain
(Figure 3), Pull out the drain plug inside the freezer, and
pull off the outside defrost drain plug (Figure 4)
Hose
Rgure 3
Defrost water will drain out Check pan occasionally so
water does not overflow Replace the drain plugs when
defrosting is completed
On models without a defrost drain, place towels or
newspapers on the freezer bottom to catch the frost. The
frost wiftloosen and fall. Remove towels and/or newspapers
If the frost is soft, remove it by using a plastic scraper If
the frost is glazed and hard, fill deep pans with hot water
and place them on the freezer bottom Close the freezer
door Frost should soften in about 15 minutes. Repeat
this procedure if necessary
CLEANINGTHEINSIDE
Afterdefrosting,washinsidesurfacesofthefreezerwitha
solutionoftwotablespoonsofbakingsodainonequart
(t,!36litres)warmwaterRinseanddryWringexcess
wateroutofthespongeorclothwhencleaningin thearea
ofthecontrols,oranyelectricalparts
Washtheremovablepartsanddoorbasketwiththebaking
sodasolutionmentionedabove,ormilddetergentand
warmwaterRinseanddry Neverusemetallicscouring
pads,brushes,abrasivecleaner's,oralkalinesolutionson
anysurfaceDonotwashremovablepartsina dishwasher
CLEANINGTHEOUTSIDE
Washthecabinetwithwarmwaterandmildliquiddeter-
gentRinsewelIandwipedrywithacleansoftcloth,
Replacepartsandfood
_!_ Ifieavingthe freezer
door open while on vacation, make
certain that children cannot get into
the freezer and become entrapped.
NOTE: Do not open freezer door
unnecessarily if freezer is off for
several hours=
Ifapower' failure occurs, frozen foods will stay frozen for
at least 24 hours if the freezer is kept closed. If the power
failure continues, pack seven or eight pounds of dry ice into
the freezer every 24 hours Look in the Yellow Pages under
Dry Ice, Dairies, or lee Cream Manufacturers for local dry
ice suppliers Always wear gloves and use caution when
handling dry ice
If the freezer has stopped operating, see Freezer Does
Not Run in the Troubleshooting Guide, tf you cannot
solve the problem, call an authorized servicer immediately
If the freezer remains off for several hours, follow the
directions above for the use of dry ice during a power
failure If necessary, take the food to a local locker plant
until the freezer is ready fo operate, Look in the Yellow
Pages under Frozen Food Locker Plants
VACATION AND MOVING TIPS
ShortVacations:
Leave the freezer' operating during vacations of less
than three weeks
Long Vacations:
If the freezer wilt not be used for several months:
.Remove all food and unplug the power cord
• Clean and dry the interior thoroughly
• Leave the freezer door open slightly, blocking it open if
necessary, to prevent odor and mold growth,.
Moving: When moving the freezer, follow these guidelines
to prevent damage:
. Disconnect the power cord plug from the wall outlet
• Remove foods, then defrost, and clean the freezer
•Secure a!l loose items such as base panel, baskets, and
shelves by taping them securely in place to prevent
damage,
•tn the moving vehicle, secure freezer in an upright
position to prevent movement Also p_otect outside of
freezer with a blanket, or similar item
10
TROUBLESHOOTING Before calling for service, review this list It may save you time and expense This list
includes common occurences that are not the result of defective workmanship or
GUIDE materials in this appliance
PROBLEM CAUSE CORRECTION
FREEZER DOES NOT RUN
Freezer does not run.
Freezer runs too much or too
tong.
Freezer is plugged into a circuit
that has a ground fault interrupt
Temperature control is in the
OFF position
Freezer may not be plugged in,
or plug may be loose
House fuse blown or tripped
circuit breaker
Power outage
Room or outside weather is hot
o
e
o
o
• Freezer has recently been
disconnected for a period of
time
• Large amounts of warm or hot
food have been stored recentty
,, Doors are opened too frequently
or too long
o Freezer door may be slightly
open
• Temperature Control is set too
tow
• Freezer gasket is dirty, worn,
cracked, or poorly fitted
• Use another circuit If you are unsure about the cutter,
have it checked by a certified technician
• See Setting the Temperature Control Section
• Ensure plug is tightly pushed into outlet
m
o
ChecWreplace fuse with e 15 amp time-delay fuse Rese_
circuit breaker
Check house lights Call local Electric Company
it's normal for the freezer to work harder under these
conditions
It takes 4 hours for the freezer to cool down completely
• Warm food will cause freezer to run more until ihe
desired temperature is reached
• Warm air entering the freezer causes it to run more
Open doors tess often
• See "DOOR PROBLEMS" Section,
o
o
Turn control knob to a warmer setting Allow several hours
for the temperature to stabilize
Clean or change gasket Leaks in the door seai wilt cause
freezer to run longer in order to maintain desired
temperature
Interior Freezer temperature is • Temperature Control is set too • Turn the control to a warmer setting Allow several hours
too cold. low for the temperature to stabilize
Interior Freezer temperature is
too warm,,
Freezer external surface
temperature is warm.
SOUND AND NOISE
Louder sound levels whenever
freezer is on.
Longer sound levels when
compressor comes on.
• Temperature Control is set too
warm
• Door is kept open too tong or is
opened too frequently
,, Door may not be seating
properly
,, Large amounts of warm or hot
food may have been stored
recently
° Freezer has recently been
disconnected for a period of
time
The external freezer walls can
be as muctl as 30°F warmer
than room temperature
• Turn control to a colder setting Allow several hours for the
temperature to stabilize.
° Warm air enters the freezer every time the door is
opened Open the door less often
, See "DOOR PROBLEMS" Section
• Wait until the freezer has had a chance to reach its
seiected temperature
-Freezer requires 4 hours to cool down completely
• This is normal while the compressor works to transfer
heat from inside the freezer cabinet
Modern freezers have increased
storage capacity and more
stable temperatures They
require a high efficiency
compressor
Freezer operates at higher
pressures during the start of the
ON cycle
• This is normal When the surrounding noise levet is iow,
you might hear the compressor running while it cools the
interior
• This is normal Sound will levef off or disappear as freezer
continues to run
11
l
PROBLEM _ CAUSE CORRECTION
SOUND AND NOISE (Conto)
Popping or cracking sound • Metal parts undergo expansion • This is normal Sound wilt level off or disappear as freezer
when compressor comes ono and contraction, as in hot water continues to run
pipes
Bubbling or gurgling sound, ° Refrigerant (used to coo! • This is normal
like water boiling° freezer) is circulating throughout
the system
Vibrating or rattling noise, • Freezer-is not level It rocks on
the floor when it is moved
s_ightiy
• Floor is uneven or weak.
Freezer rocks on floor when it is
moved slightly.
', Freezer is touching the wall,
• Level the unit Refer to "Leveling" in the First Steps
Section
• Ensure floor can adequately support freezer Level the
freezer by putting wood or metal shims under part of the
freezer
° Relevel the freezer or move freezer slightly Refer to
"Leveling" in the First Steps Section
WATER/MOISTURE/FROST INSIDE FREEZER
Moisture forms on inside
freezer walls.
*Weather is hot and humid,
which increases internal rate of
frost build-up
, Door may not be seating
properly,
- Door is kept open too long, or is
opened too frequently
• This is normal
• See "DOOR PROBLEMS" Section
• Open the door less often
WATER/MOISTURE/FROST OUTSIDE FREEZER
Moisture forms on ouside of • Door may not be seating ° See "DOOR PROBLEMS" Section
freezer, property, causing the cold air
from inside the freezer to meet
warm moist air from outside
ODOR IN FREEZER
Odors in freezer' f. Interior needs to be cleaned ° CIean interior with sponge, warm water, and baking soda
• Foods with strong odors are in * Cover the food tightly
the freezer
DOOR PROBLEMS
Door will not ctose, • Freezer is not teve] it rocks on
the floor when it is moved
slightly
• Floor is uneven or weak
Freezer rocks on floor when it is
moved slightly
o This condition can force the cabinet out of square and
misalign the door Refer to "Leveling" in the First Steps
Section
• Level the floor by using wood or metal shims under the
I freezer or brace floor supporting the freezer
.I
LIGHT BULB IS NOT ON
Light bulb is not on. • Light butb is burned out • FofIow directions under "interior Light" in the Freezer
Features Section
o No electric current is reaching ,, See "FREEZER DOES NOT RUN" Section
the freezer
12
"WeServiceWhatWeSell"isourassuranceyoucan
dependonSearsforservice, andSearsserviceis
nationwide"Yourfreezeriqasaddedvaluewhenyou
considerthatSearshasserviceunitsnationwide,staffed
withprofessionaltechniciansspecificallytrainedonSears
appliancesandhavingparts,toolsandequipmentto
ensurethatwemeetourpledgetoyou "WeServiceWhat
WeSell"
SEARSMAINTENANCEAGREEMENT
MaintainthevalueofyourKenmor_ freezer with a Sears
Maintenance Agreement, Sears freezers are designed,
manufactured, and tested for years of dependable opera-
tion,,Yet, any modern appliance may require service from
time to time
The Sears Maintenance Agreement
" ts your way to buy tomorrow's service at today's price
• Eliminates repair bills resulting from normal use
° Allows for as many service calls as required.
° Provides for service by professional Sears-trained
technicians
° Offers an annual preventive maintenance check-up at
your request
This maintenance agreement does not cover original
installation, reinstatlation, or damage resulting from
external causes such as acts of God, abuse, theft, fire,
flood, wind, lightning, freezing, power failure, power
reduction, etc Please ask a salesperson to see the
agreement for all of tlne terms and conditions
Dear Customer:
In manufacturing this product, many steps have been taken
to provide you with the highest quatity Unfortunately, errors
or omissions occasionaly occur in the event you find a
missing or defective part, please contact your nearest
Sears store (See the back cover for phone numbers 1)
If you have any suggestions that would help us to improve
our assembly/operation instructions or this product, please
write them down, including the information listed below and
mail to:
Sears Canada, Inc, Attn: Buyer Dept, 646
222 Jarvis Street
Toronto, Ontario
M5B 2B8
Purchased by:
Name:
Address:
City: Prov.:
Postal Code: Phone:
Model No,: 970.
Seriat No :
Date of Purchase / /
Location of Purchase
Comments:
13
in U.S.A. or Canada
for in-home major brand repair service:
Call 24 hours a day, 7 days a week
1-800-4-MY-H O ME'M(1-800-469-4663)
Para pedir servicio de reparacion a domicillio 1-800-676-5811
Au Canada pour tout le service- 1-877-LE-FOYER sM(1-877-533-6937)
For the repair or replacement parts you need:
Call 6 a.m. - I1 p.m CST, 7 days a week
PartsDirect
1=800-368-PART (1-800-366-7278)
www°sears.com/partsdirect
Para ordenar piezas con entrega a domicilio - 1-800-659-7084
For the location of a Sears Servk;e Center in your area:
Call 24 hours a day, 7 days a week
1-800-488-1222
To purchase or inquire about a Sears Maintenance Agreement:
Call 7 a.m. - 5 p.m. CST, Monday - Saturday
1-800-827-6655
i i ,i,, ,,,11J,,,i ,i,l,l,lli,J,,,i

Navigation menu
