Use & Care Guide

Manual de Uso y Cuidado

Guide d_utilisation et d_entretien

English /Espa_ol /FrancFais

Models/Modelos/Mod_les: 253.7031 _<

,_'_:z Color numbe_3 n0mero de colo_3 le num@o de couleur

Dobl

Inf@r ur

P/N 242285101 (1211)

Sears Brands Management Corporation

Hoffman Estates, IL 60179 U.S.A.

www.kenmore.com

www.sears.com

Sears Canada Inc.

Toronto, Ontario, Canada M5B 2C3

www.sears.ca

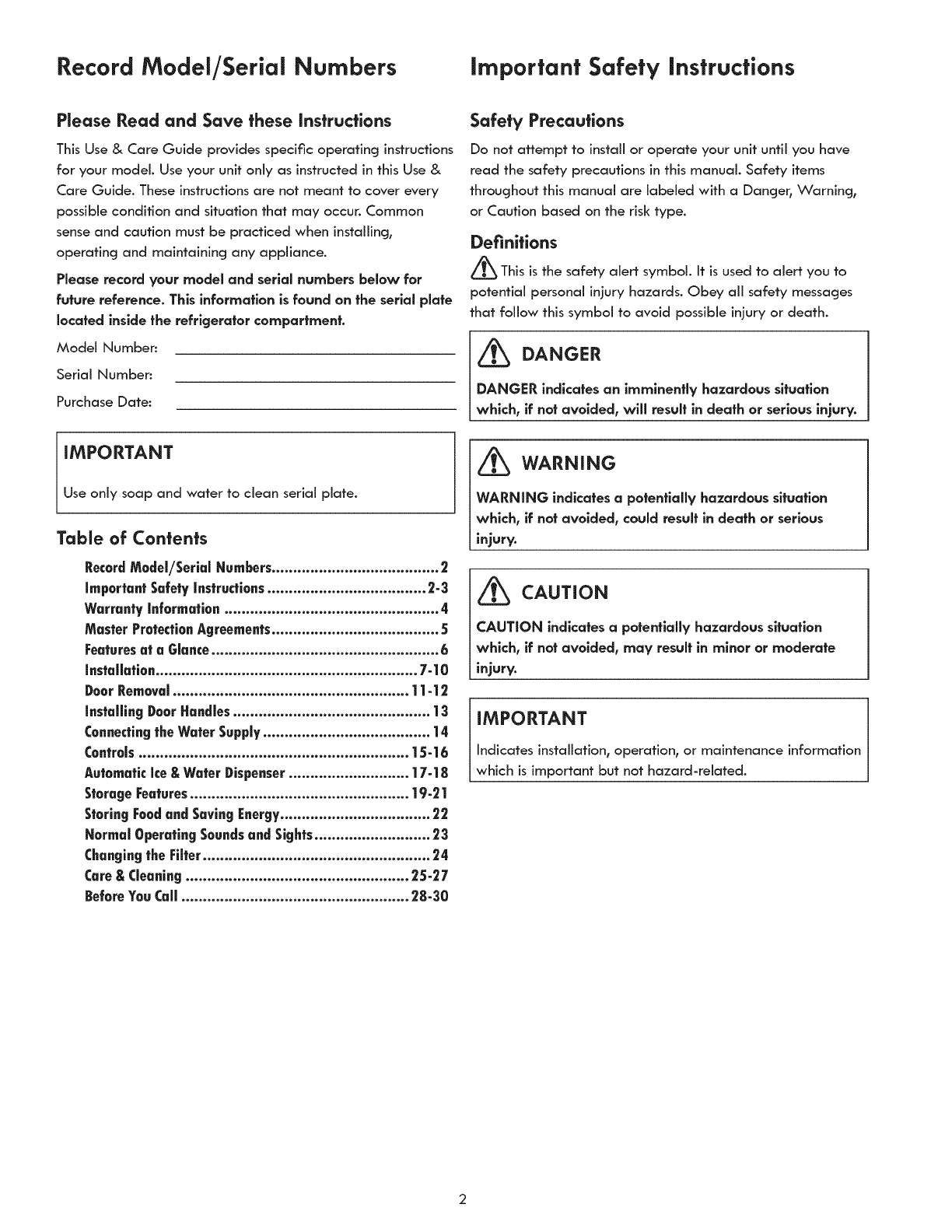

Record Model/Serial Numbers important Safety instructions

Please Read and Save these Instructions

This Use & Core Guide provides specific operating instructions

for your model. Use your unit only as instructed in this Use &

Care Guide. These instructions ore not meant to cover every

possible condition and situation that may occur. Common

sense and caution must be practiced when installing,

operating and maintaining any appliance.

Please record your model and serial numbers below for

future reference. This information is found an the serial plate

located inside the refrigerator compartment.

Model Number:

Serial Number..

Purchase Date:

IMPORTANT

Use only soap and water to cleon serial plate.

Table of Contents

RecordModel/Serial Numbers....................................... 2

Important Safetyinstructions..................................... 2-3

Warranty information.................................................. 4

Master ProtectionAgreements....................................... 5

Featuresat a Glance..................................................... 6

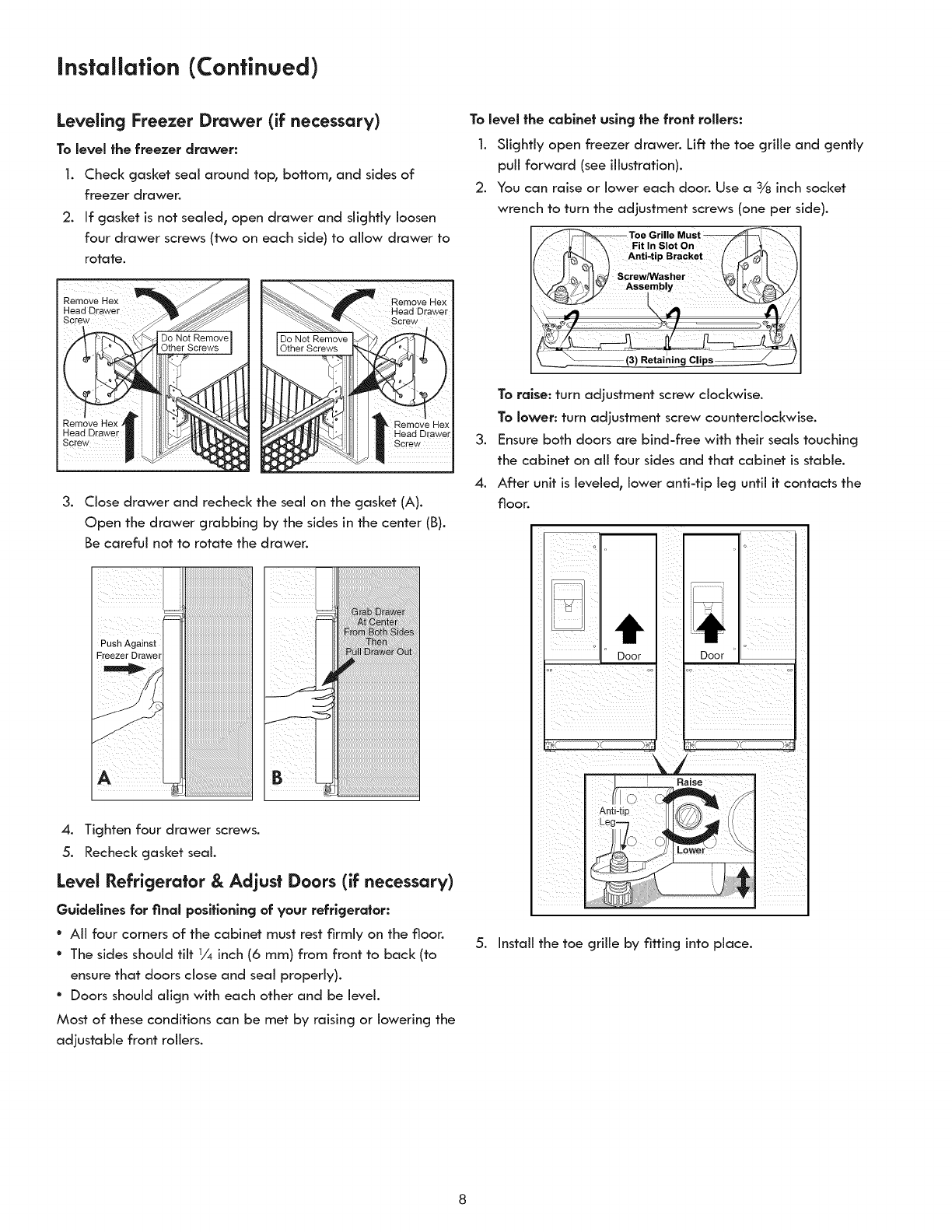

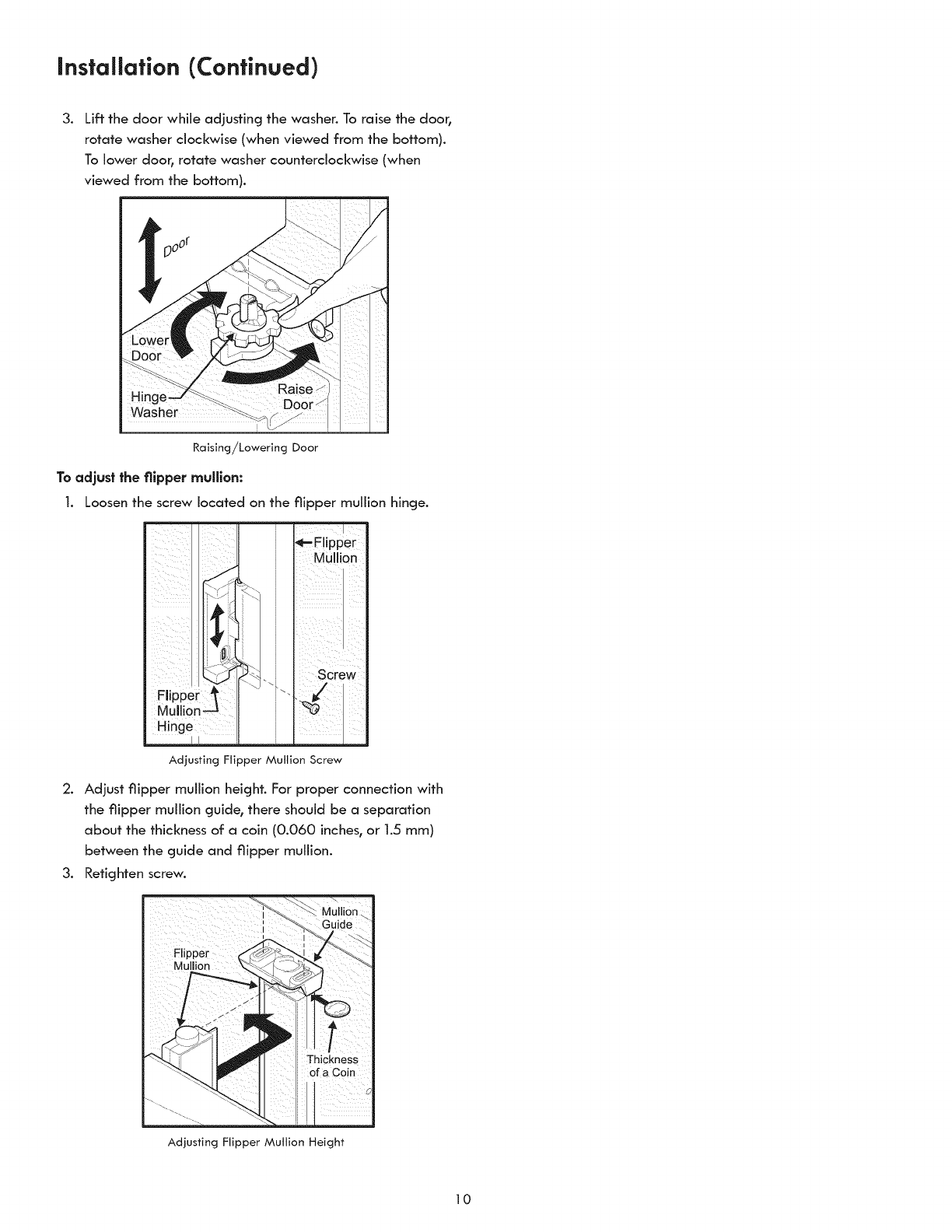

Installation ............................................................. 7-10

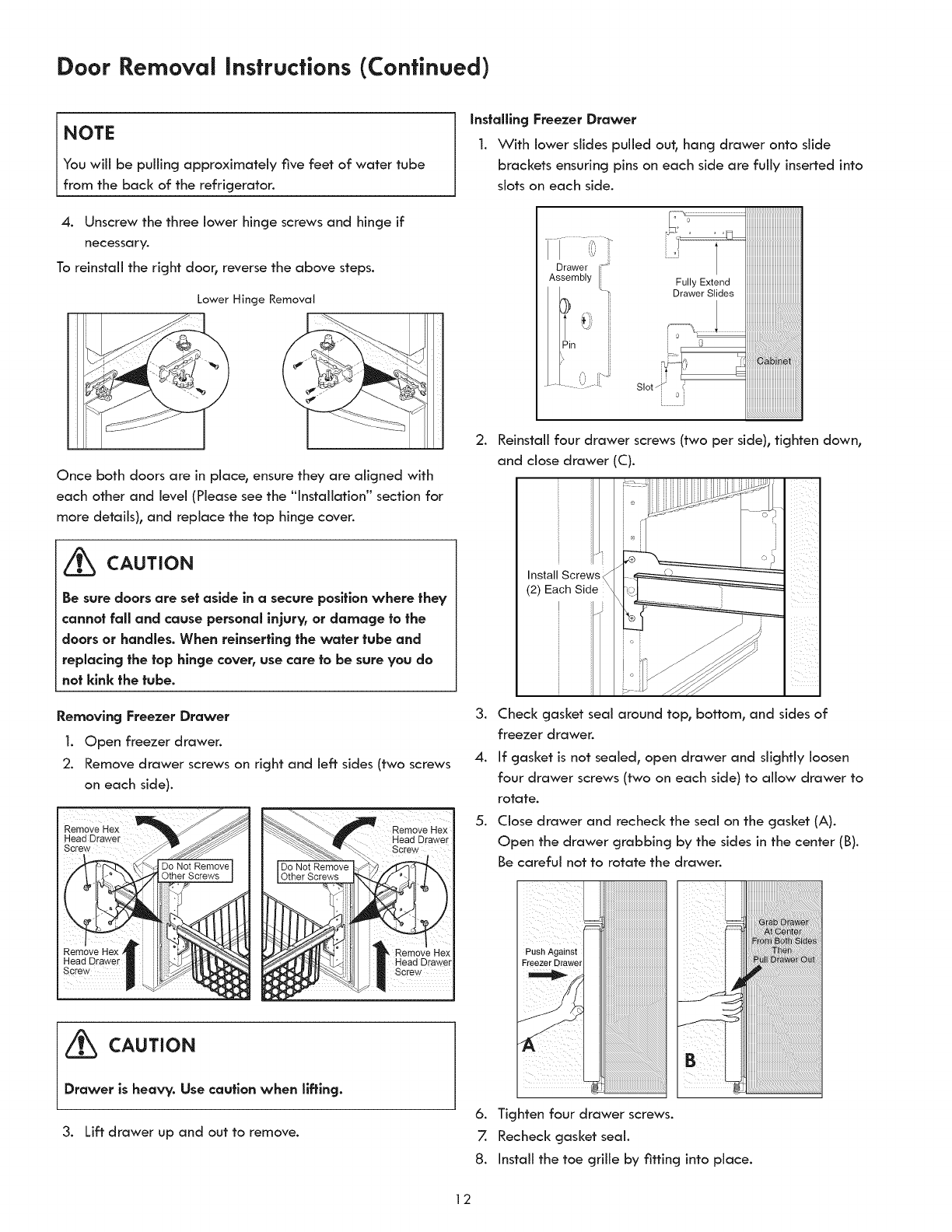

DoorRemoval....................................................... 11-12

Installing DoorHandles.............................................. 13

Connectingthe WaterSupply....................................... 14

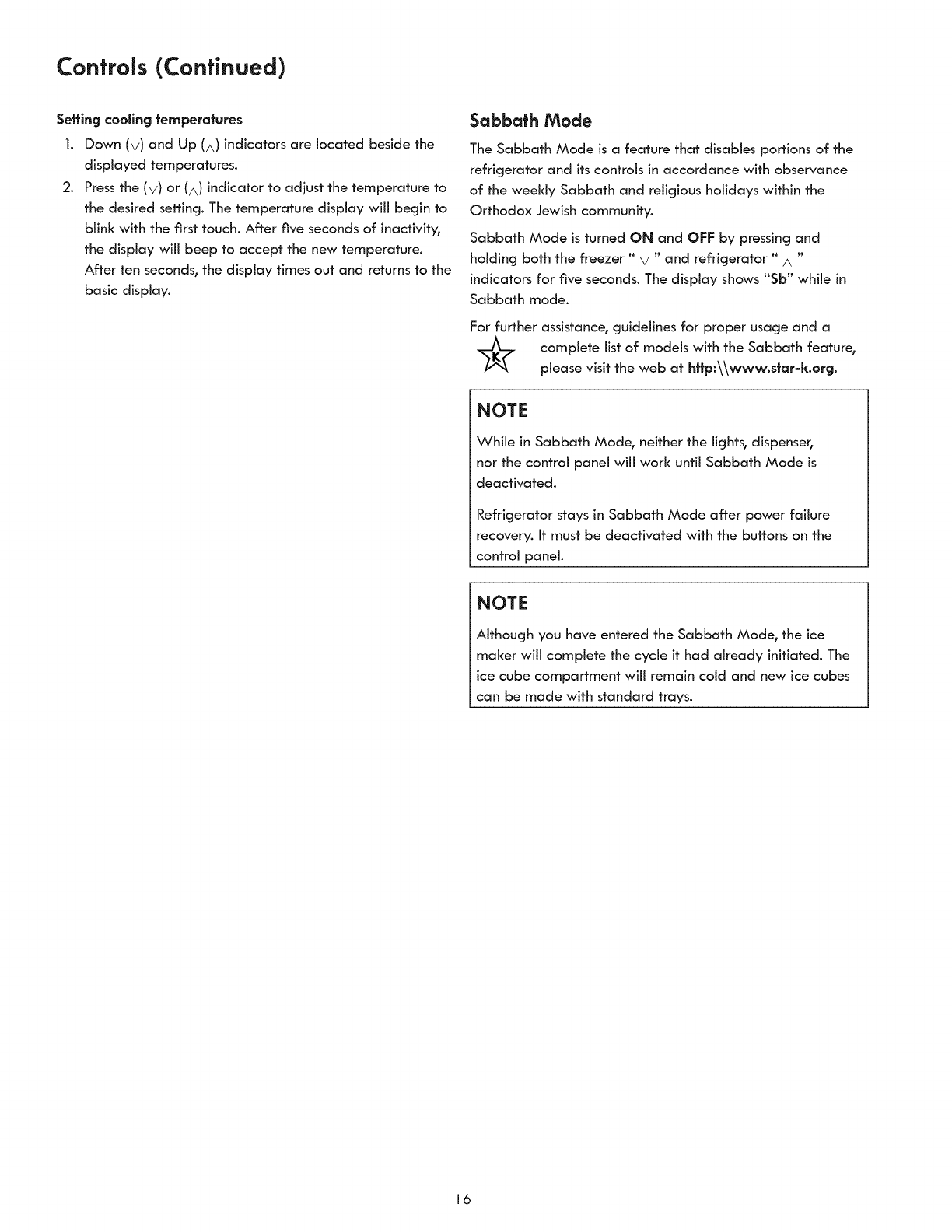

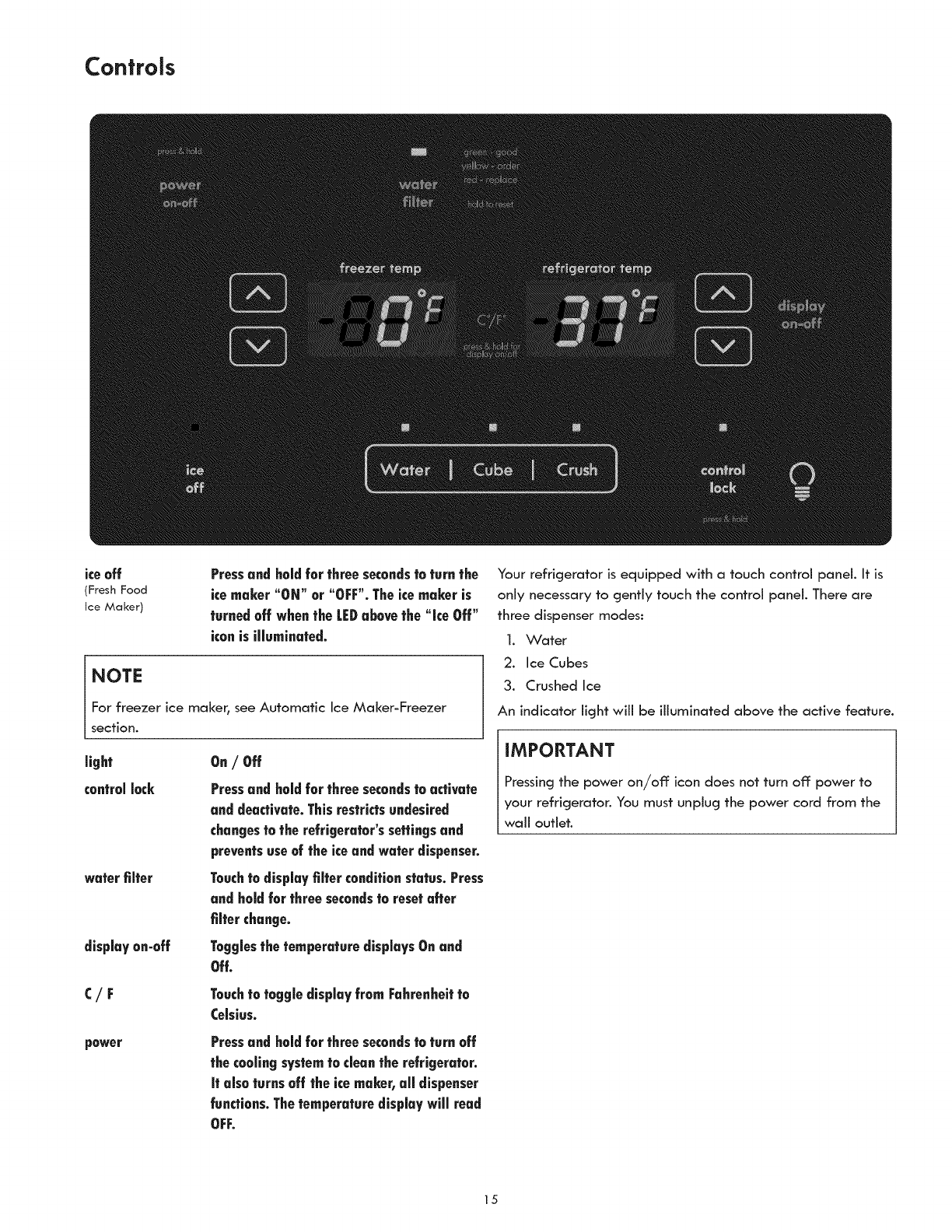

Controls ............................................................... 15-16

AutomaticIce& Water Dispenser............................ 17-18

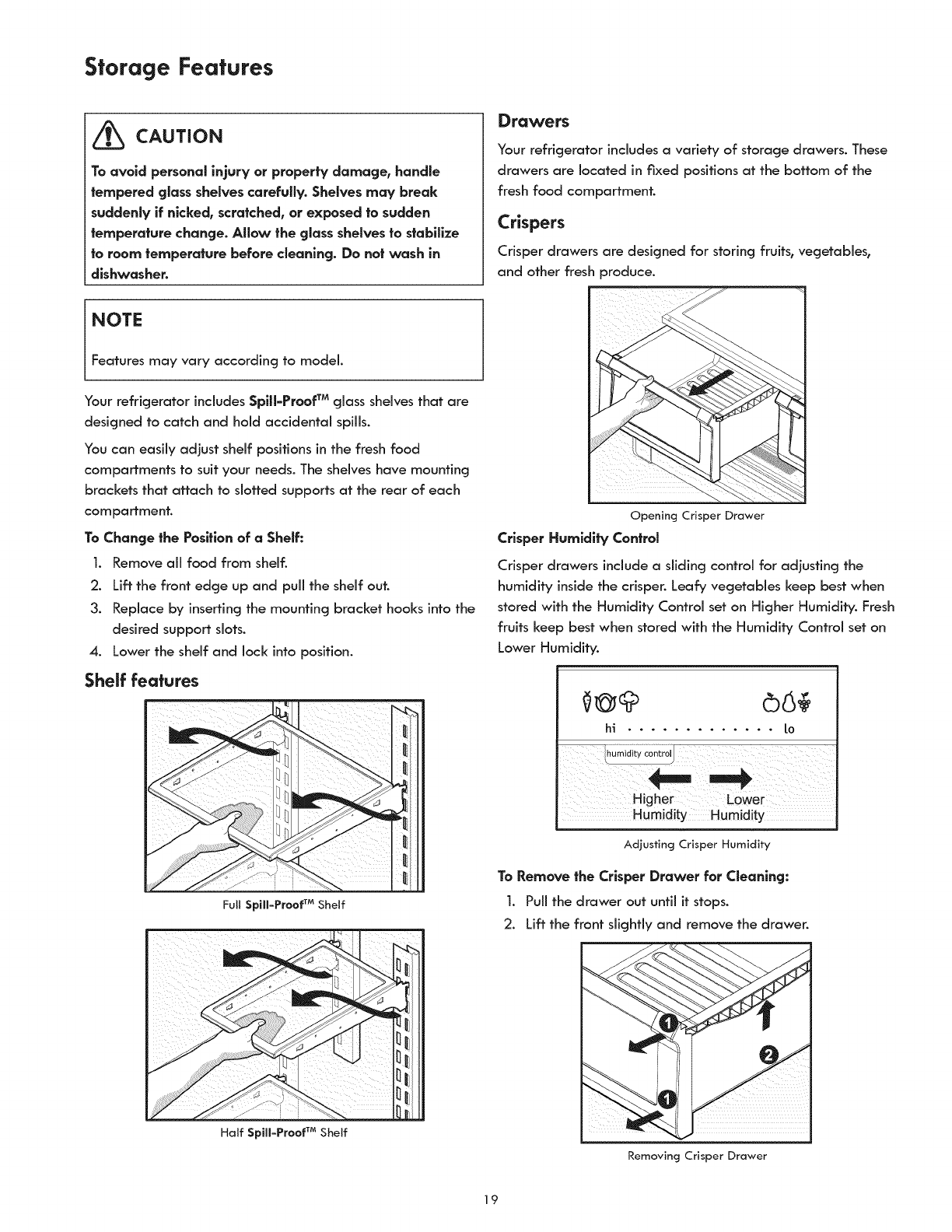

Storage Features................................................... 19-21

StoringFoodandSavingl_nergy................................... 22

Normal OperatingSoundsand Sights........................... 23

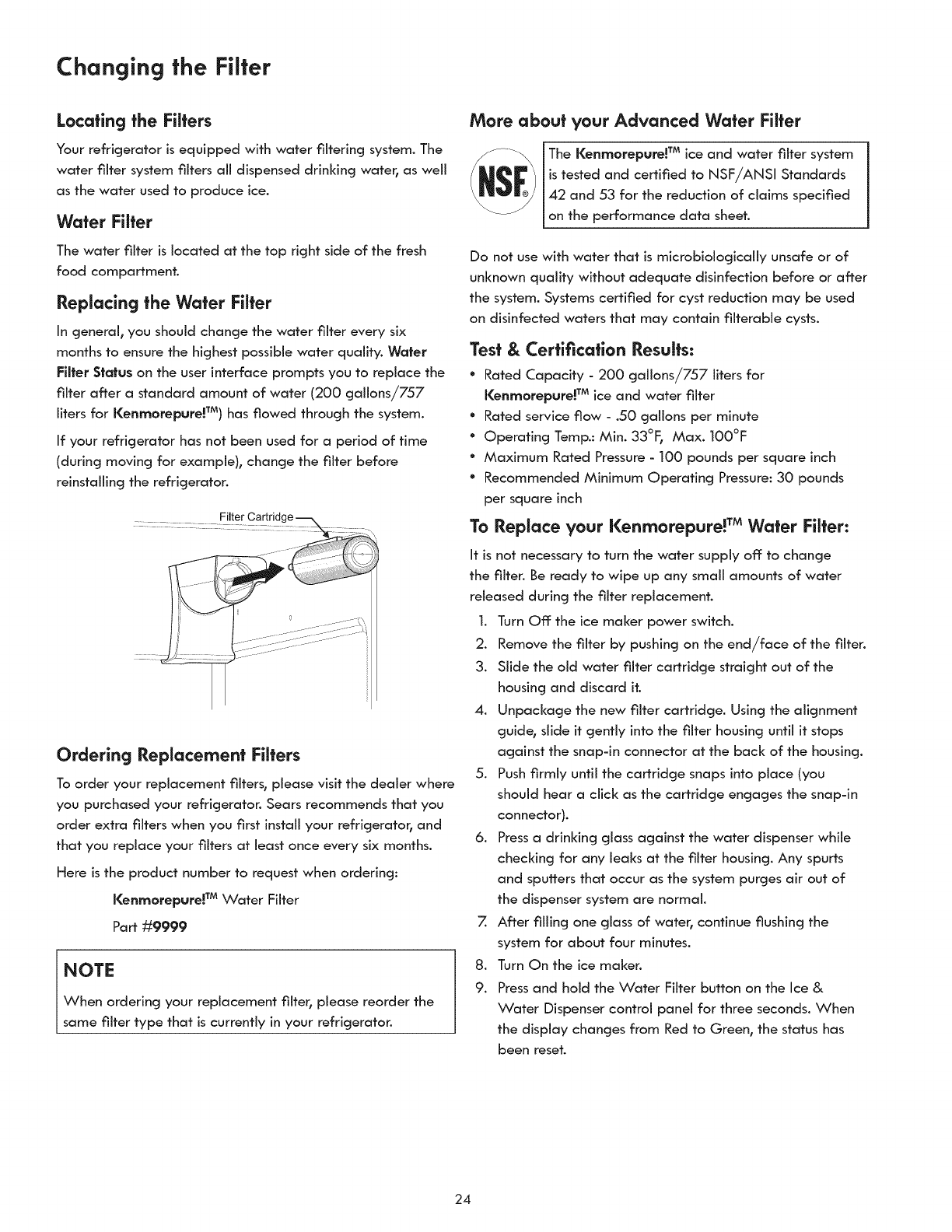

Changingthe Filter..................................................... 24

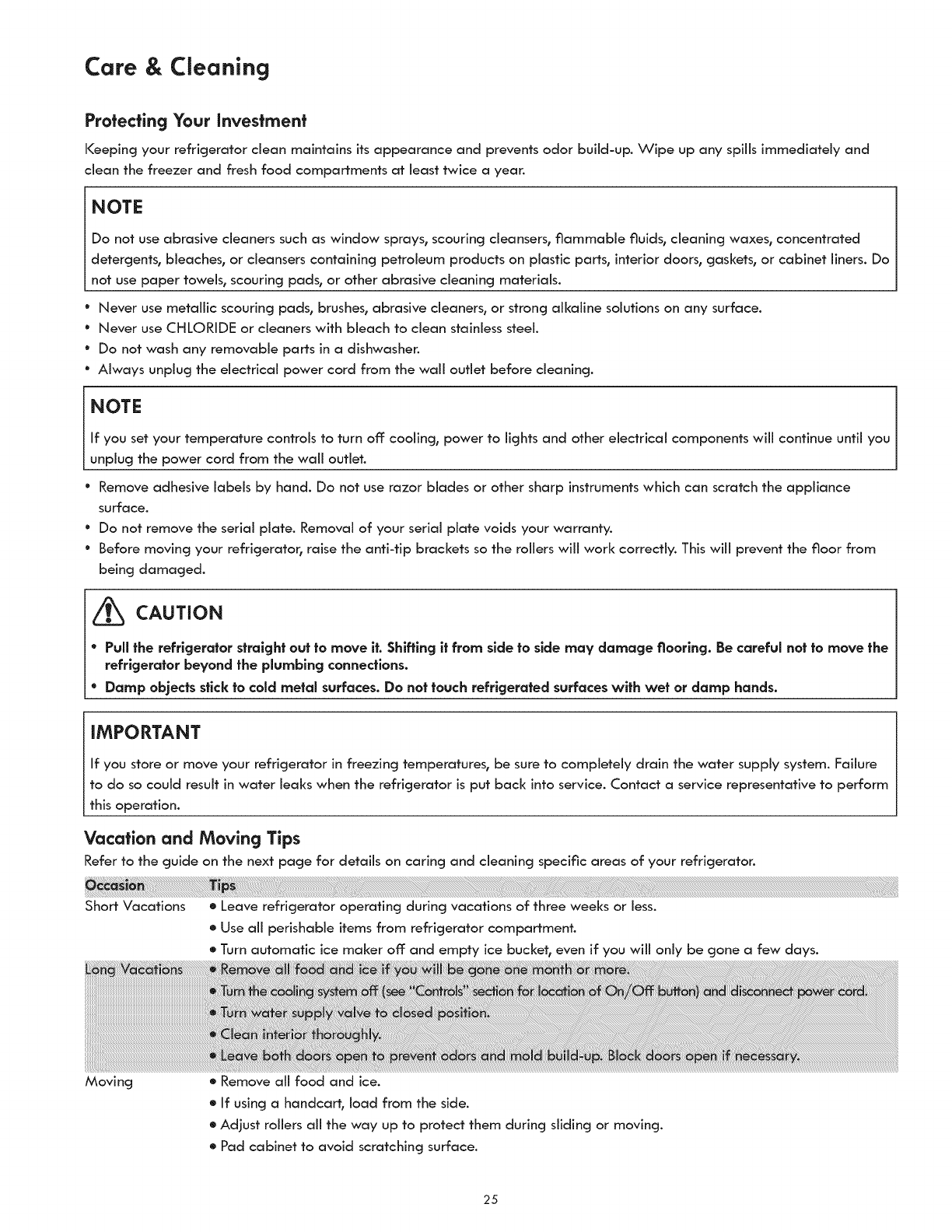

Care& Cleaning .................................................... 25-27

BeforeYouCall ..................................................... 28-30

Safety Precautions

Do not attempt to install or operate your unit until you have

read the safety precautions in this manual. Safety items

throughout this manual ore labeled with o Danger, Warning,

or Caution based on the risk type.

Definitions

_This is the safety alert symbol. It is used to alert you to

potential personal injury hazards. Obey oil safety messages

that follow this symbol to avoid possible injury or death.

_DANGER

DANGER indicates an imminently hazardous situation

which, if not avoided, will result in death or serious injury.

_WARNING

WARNING indicates apotentially hazardous situation

which, if not avoided, could result in death or serious

injury.

_CAUTION

CAUTION indicates apotentially hazardous situation

which, if not avoided, may result in minor or moderate

injury.

IMPORTANT

Indicates installation, operation, or maintenance information

which is important but not hazard-related.

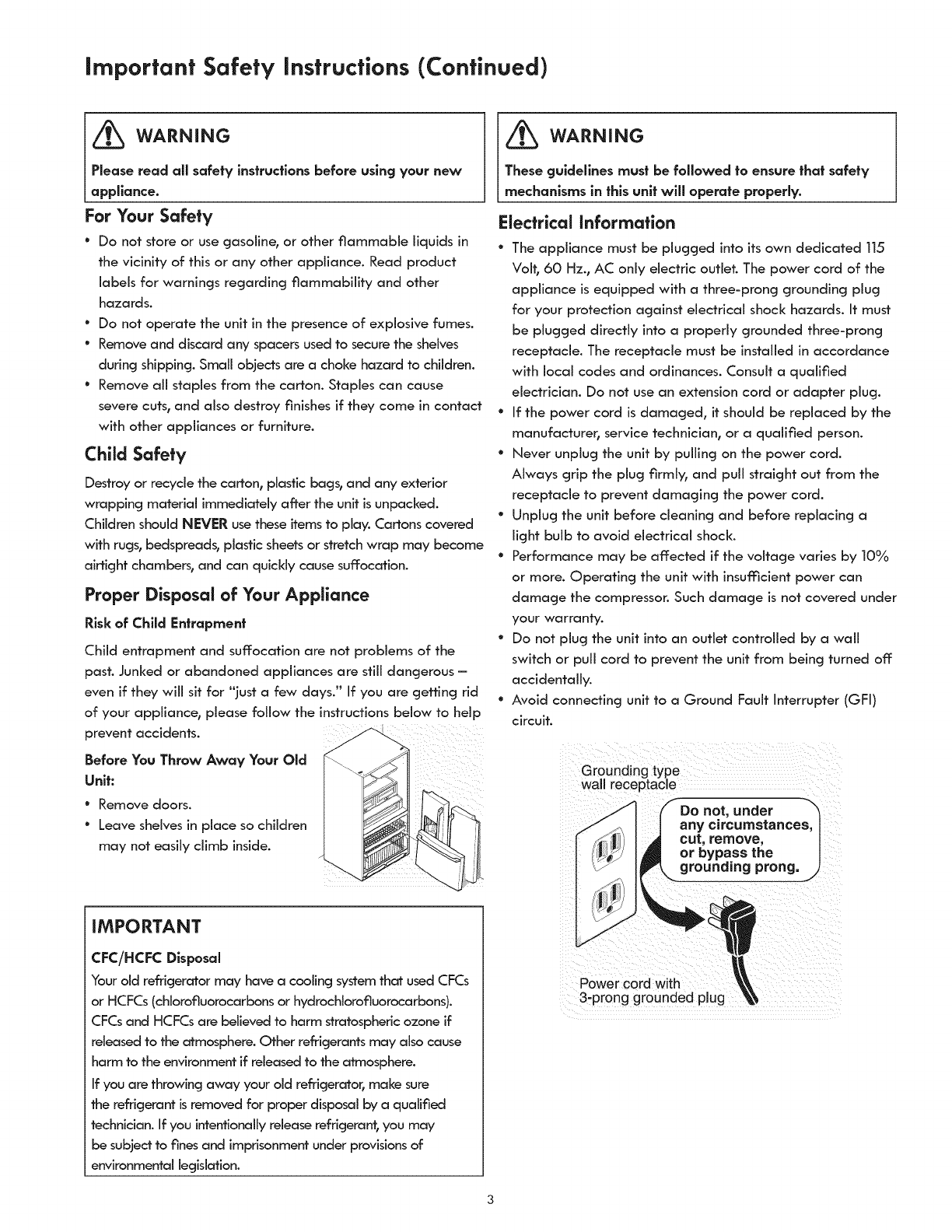

important Safety instructions (Continued)

WARNING

Please read all safety instructions before using your new

appliance.

For Your Safety

°Do not store or use gasoline, or other flammable liquids in

the vicinity of this or any other appliance. Read product

labels for warnings regarding flammability and other

hazards.

°Do not operate the unit in the presence of explosive fumes.

°Remove and discard any spacers used to secure the shelves

during shipping. Small objects are a choke hazard to children.

°Remove all staples from the carton. Staples can cause

severe cuts, and also destroy finishes if they come in contact

with other appliances or furniture.

Child Safety

Destroy or recycle the carton, plastic bags, and any exterior

wrapping material immediately after the unit isunpacked.

Children should NEVER usethese items to play. Cartons covered

with rugs, bedspreads, plastic sheets or stretch wrap may become

airtight chambers, and can quickly cause suffocation.

Proper Disposal of Your Appliance

Risk of Child Entrapment

Child entrapment and suffocation are not problems of the

past. Junked or abandoned appliances are still dangerous =

even if they will sit for "just a few days." If you are getting rid

of your appliance, please follow the instructions below to help

prevent accidents.

Before You Throw Away Your Old

Unit:

*Remove doors.

°Leave shelves in place so children

may not easily climb inside.

IMPORTANT

CFC/HCFC Disposal

Your old refrigerator may have a cooling system that used CFCs

or HCFCs (chlorofluorocarbons or hydrochlorofluorocarbons).

CFCs and HCFCs are believed to harm stratospheric ozone if

released to the atmosphere. Other refrigerants may also cause

harm to the environment if released to the atmosphere.

If you are throwing away your old refrigerator, make sure

the refrigerant isremoved for proper disposal by a qualified

technician. If you intentionallyrelease refrigerant, you may

be subject to fines and imprisonmentunder provisions of

environmental legislation.

WARNING

These guidelines must be followed to ensure that safety

mechanisms in fhls unlf will operate properly.

Electrical Information

°The appliance must be plugged into its own dedicated 115

Volt, 60 Hz., AC only electric outlet. The power cord of the

appliance is equipped with a three-prong grounding plug

for your protection against electrical shock hazards. It must

be plugged directly into a properly grounded three-prong

receptacle. The receptacle must be installed in accordance

with local codes and ordinances. Consult a qualified

electrician. Do not use an extension cord or adapter plug.

°If the power cord is damaged, it should be replaced by the

manufacturer, service technician, or a qualified person.

°Never unplug the unit by pulling on the power cord.

Always grip the plug firmly, and pull straight out from the

receptacle to prevent damaging the power cord.

°Unplug the unit before cleaning and before replacing a

light bulb to avoid electrical shod<.

°Performance may be affected if the voltage varies by 10%

or more. Operating the unit with insumcient power can

damage the compressor. Such damage is not covered under

your warranty.

°Do not plug the unit into an outlet controlled by a wall

switch or pull cord to prevent the unit from being turned off

accidentally.

*Avoid connecting unit to a Ground Fault Interrupter (GFI)

circuit.

Grounding type

wall receptacle

/Do not, under "_

any circumstances, I

cut_ remove_

or bypass the

grounding prong, j

Power cord with

3-prong grounded plug

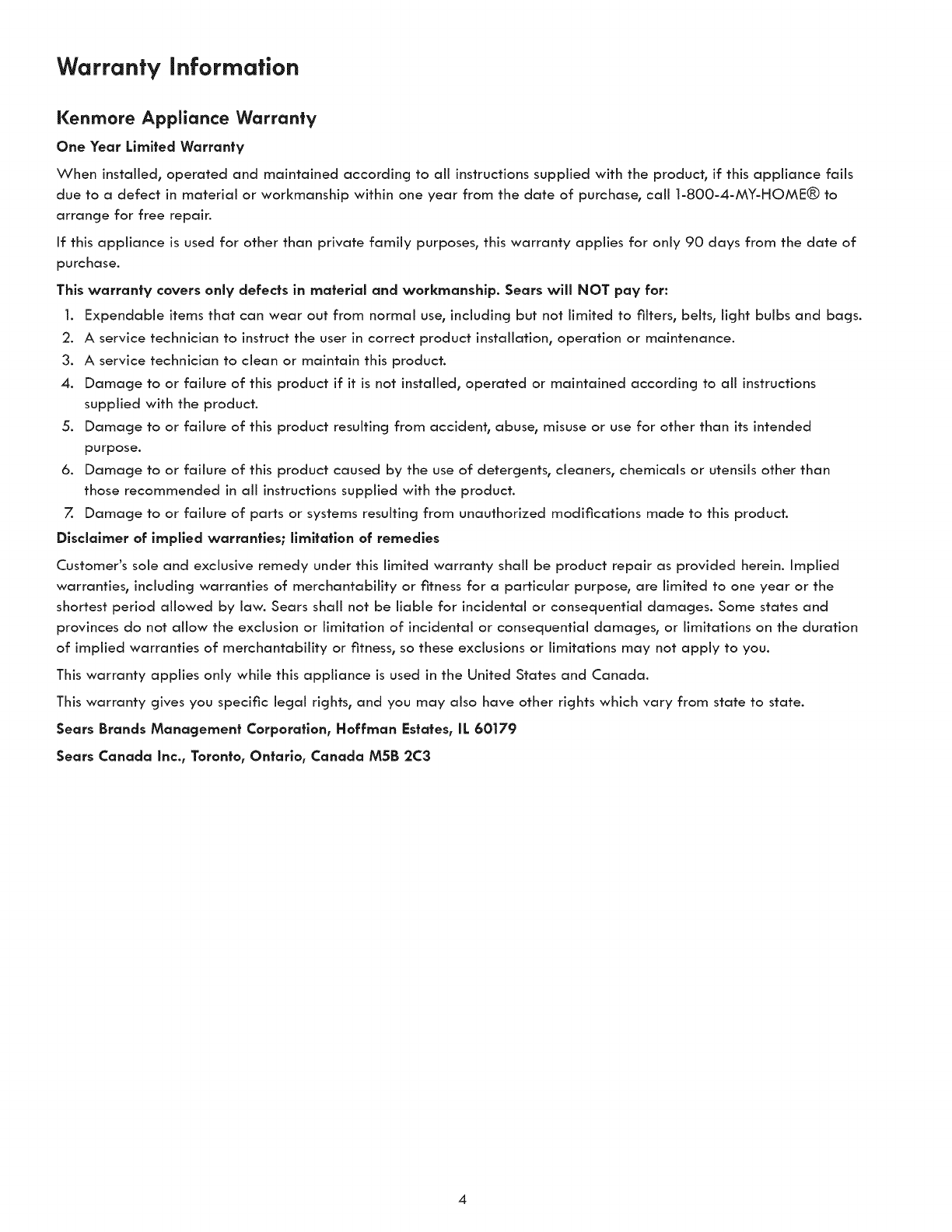

Warranty information

Kenmore Appliance Warranty

One Year Limited Warranty

When installed, operated and maintained according to all instructions supplied with the product, if this appliance fails

due to a defect in material or workmanship within one year from the date of purchase, cali 1-800-4-MY-HOME® to

arrange for free repain

If this appliance is used for other than private family purposes, this warranty applies for only 90 days from the date of

purchase.

This warranty covers only defects in material and workmanship. Sears will NOT pay for:

1. Expendable items that can wear out from normal use, including but not limited to filters, belts, light bulbs and bags.

2. A service technician to instruct the user in correct product installation, operation or maintenance.

3. A service technician to clean or maintain this product.

4. Damage to or failure of this product if it is not installed, operated or maintained according to all instructions

supplied with the product.

5. Damage to or failure of this product resulting from accident, abuse, misuse or use for other than its intended

purpose.

6. Damage to or failure of this product caused by the use of detergents, cleaners, chemicals or utensils other than

those recommended in all instructions supplied with the product.

7. Damage to or failure of parts or systems resulting from unauthorized modifications made to this product.

Disclaimer of implied warranties; limitation of remedies

Customer's sole and exclusive remedy under this limited warranty shall be product repair as provided herein. Implied

warranties, including warranties of merchantability or fitness for a particular purpose, are limited to one year or the

shortest period allowed by law. Sears shall not be liable for incidental or consequential damages. Some states and

provinces do not allow the exclusion or limitation of incidental or consequential damages, or limitations on the duration

of implied warranties of merchantability or fitness, so these exclusions or limitations may not apply to you.

This warranty applies only while this appliance is used in the United States and Canada.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Sears Brands Management Corporation, Hoffman Estates, IL 60179

Sears Canada Inc., Toronto, Ontario, Canada MSB 2C3

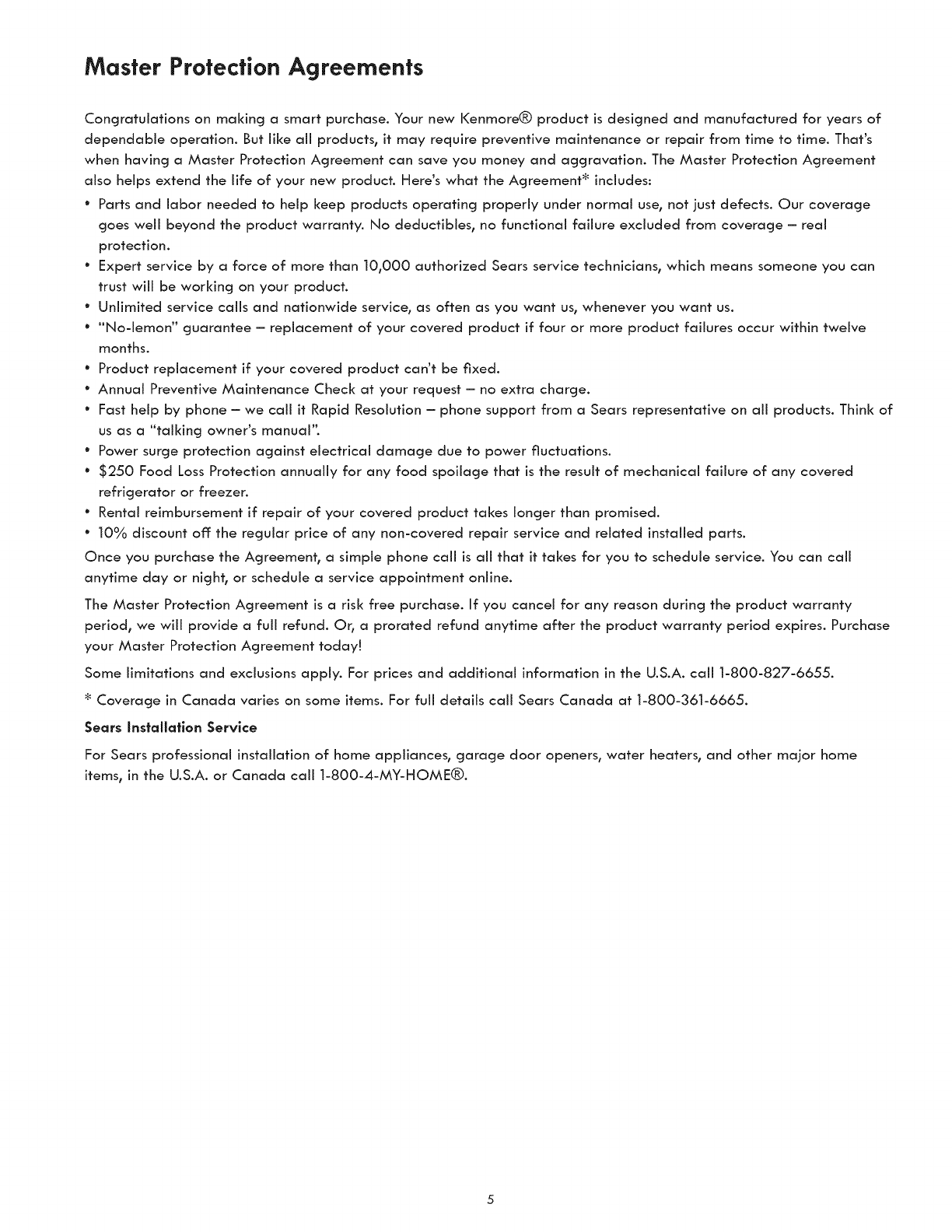

Master Protection Agreements

Congratulations on making a smart purchase. Your new KenmoreO product is designed and manufactured for years of

dependable operation. But like aii products, it may require preventive maintenance or repair from time to time. That's

when having a Master Protection Agreement can save you money and aggravation. The Master Protection Agreement

also helps extend the life of your new product. Here's what the Acjreement _ includes:

° Parts and labor needed to help keep products operating properly under normal use, not just defects. Our coverage

goes weii beyond the product warranty. No deductibles, no functional failure excluded from coverage - real

protection.

° Expert service by a force of more than 10,000 authorized Sears service technicians, which means someone you can

trust wiii be workincj on your product.

° Unlimited service calls and nationwide service, as often as you want us, whenever you want us.

° "Nodemon" guarantee - replacement of your covered product if four or more product failures occur within twelve

months.

° Product replacement if your covered product can't be fixed.

° Annual Preventive Maintenance Check at your request - no extra charge.

° Fast help by phone - we caii it Rapid Resolution - phone support from a Sears representative on aii products. Think of

us as a "talking owner's manuai'L

° Power surge protection against electrical damage due to power fluctuations.

° $250 Food Loss Protection annually for any food spoilacje that is the result of mechanical failure of any covered

refrigerator or freezer.

° Rental reimbursement if repair of your covered product takes ioncjer than promised.

° 10% discount off: the regular price of any non-covered repair service and related installed parts.

Once you purchase the Agreement, a simple phone caii is aii that it takes for you to schedule service. You can caii

anytime day or nicjhh or schedule a service appointment online.

The Master Protection Agreement is a risk free purchase. If you cancel for any reason during the product warranty

period, we wiii provide a fuji refund. Or, a prorated refund anytime after the product warranty period expires. Purchase

your Master Protection Agreement today!

Some limitations and exclusions apply. For prices and additional information in the U.S.A. caii 1-800-827-6655.

Coverage in Canada varies on some items. For fuji details caii Sears Canada at 1-800-361-6665.

Sears InstaHatlon Service

For Sears professional installation of home appliances, garage door openers, water heaters, and other major home

items, in the U.S.A. or Canada caii 1-800-4-MY-HOME®.

Features at a Glance

_Features may vary according to model

Spill-Proof

Shelves

Crisper

Drawer

Dell

Drawer

Ice Bin *Fresh Food

Ice Maker Flipper Guide

*Incandescent Light

Water Filter Dairy Compartment

m Spill-Proof ®

Shelves

Flipper

Mullion

Crisper

Drawer

_J_ -- *Door

Bin

Adjustable

Hinges

Freezer

Toe Grille

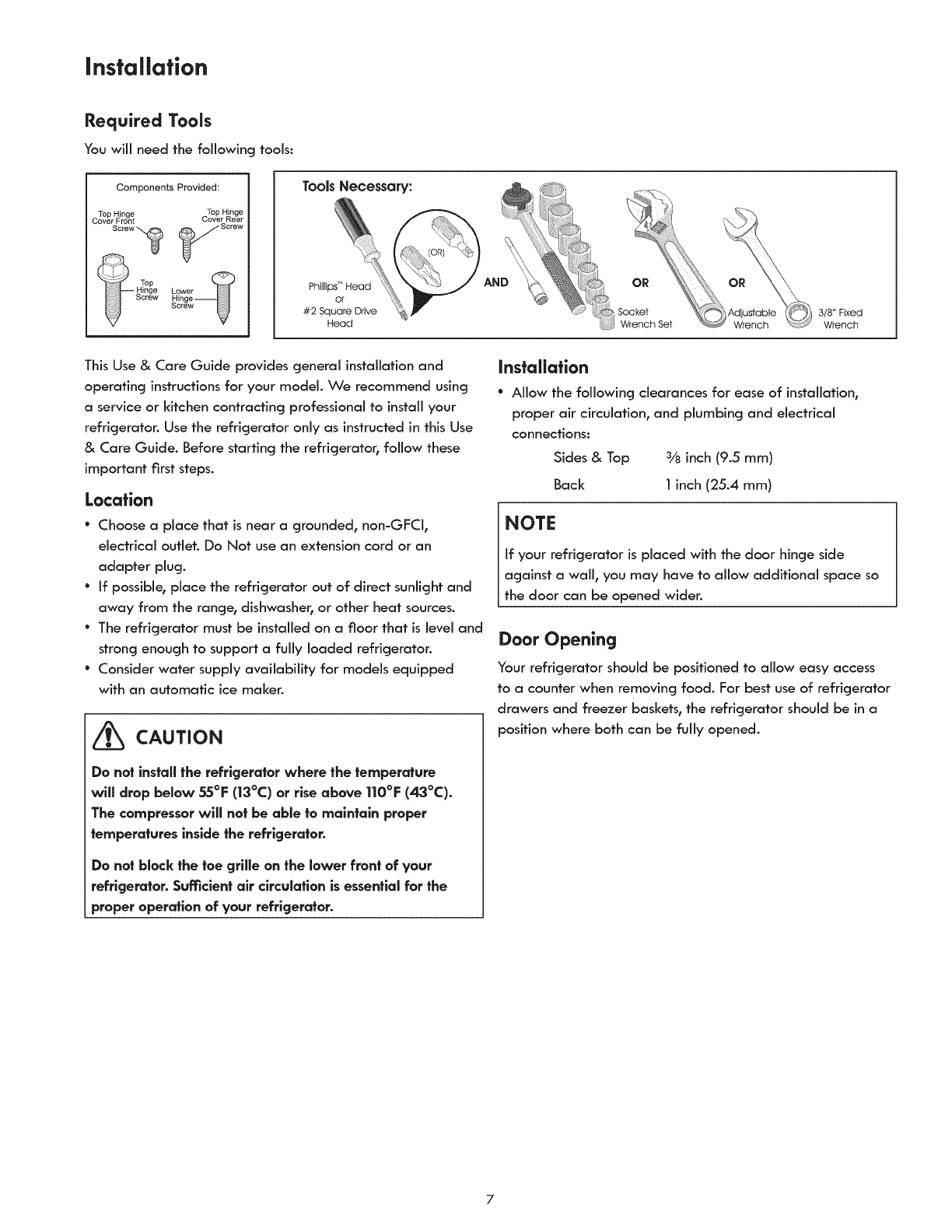

Installation

Required Tools

You will need the following tools:

Components Provided:

Top Hinge Top Hinge

Cover Front Cover Rear

_ Screw

s.... S_?eoe

Tools Necessary:

Phillip

#2 Square Drive

Head 3/8" Fixed

Wrench

This Use & Care Guide provides general installation and

operating instructions for your model. We recommend using

a service or kitchen contracting professional to install your

refrigerator. Use the refrigerator only as instructed in this Use

& Care Guide. Before starting the refrigerator_ follow these

important first steps.

Location

*Choose a place that is near a grounded_ non-OFCI,

electrical outlet. Do Not use an extension cord or an

adapter plug.

* If possible, place the refrigerator out of direct sunlight and

away from the ranger dishwasher_ or other heat sources.

*The refrigerator must be installed on a floor that is level and

strong enough to support a fully loaded refrigerator.

* Consider water supply availability for models equipped

with an automatic ice maker.

CAUTION

Do no| install lhe refrigerator where the temperature

will drop below 55°F (13°C) or rise above 110°F (43°C).

The compressor will not be able to maintain proper

temperatures inside the refrigerator.

Do not block the toe grille on the lower front of your

refrigerator. Sumclent air circulation is essential for the

proper operation of your refrigerator.

Installation

•Allow the following clearances for ease of installation_

proper air circulation_ and plumbing and electrical

connections:

Sides & Top 3/8inch (9.5 mm)

Back 1 inch (25.4 mm)

NOTE

If your refrigerator is placed with the door hinge side

against a wall_ you may have to allow additional space so

the door can be opened wider.

Door Opening

Your refrigerator should be positioned to allow easy access

to a counter when removing food. For best use of refrigerator

drawers and freezer baskets_ the refrigerator should be in a

position where both can be fully opened.

Installation (Continued)

Leveling Freezer Drawer (if necessary)

To level the freezer drawer:

]. Check gasket seal around top, bottom, and sides of

freezer drawer.

2. If gasket is not sealed, open drawer and slightly loosen

four drawer screws (two on each side) to allow drawer to

rotate.

_ "_. _ " Remove Hex

s eadwD!a er

_'_, _- -2 i

I Do Not Remove _'_ _----_-'_-.

m Head Drawer

_ i Screw

"fq

3. Close drawer and recheck the seal on the gasket (A).

Open the drawer grabbing by the sides in the center (B).

Be careful not to rotate the drawer.

Push Against

Freezer Drawer

4. Tighten four drawer screws.

5. Recheck gasket seal.

Level Refrigerator & Adjust Doors (if necessary)

Guidelines for final positioning of your refrigerator:

°All four corners of the cabinet must rest firmly on the floor.

°The sides should tilt 1/4inch (6 mm) from front to back (to

ensure that doors close and seal properly).

°Doors should align with each other and be level.

Most of these conditions can be met by raising or lowering the

adjustable front rollers.

To level the cabinet using the front rollers:

1. Slightly open freezer drawer. Lift the toe grille and gently

pull forward (see illustration).

2. You can raise or lower each door. Use a 3/8inch socket

wrench to turn the adjustment screws (one per side).

To raise: turn adjustment screw clockwise.

To lower: turn adjustment screw counterclockwise.

Ensure both doors are bind=free with their seals touching

the cabinet on all four sides and that cabinet is stable.

After unit is leveled, lower anti-tip leg until it contacts the

fioor.

o o

Door

= --

Door

5. Install the toe grille by fitting into place.

Installation (Continued)

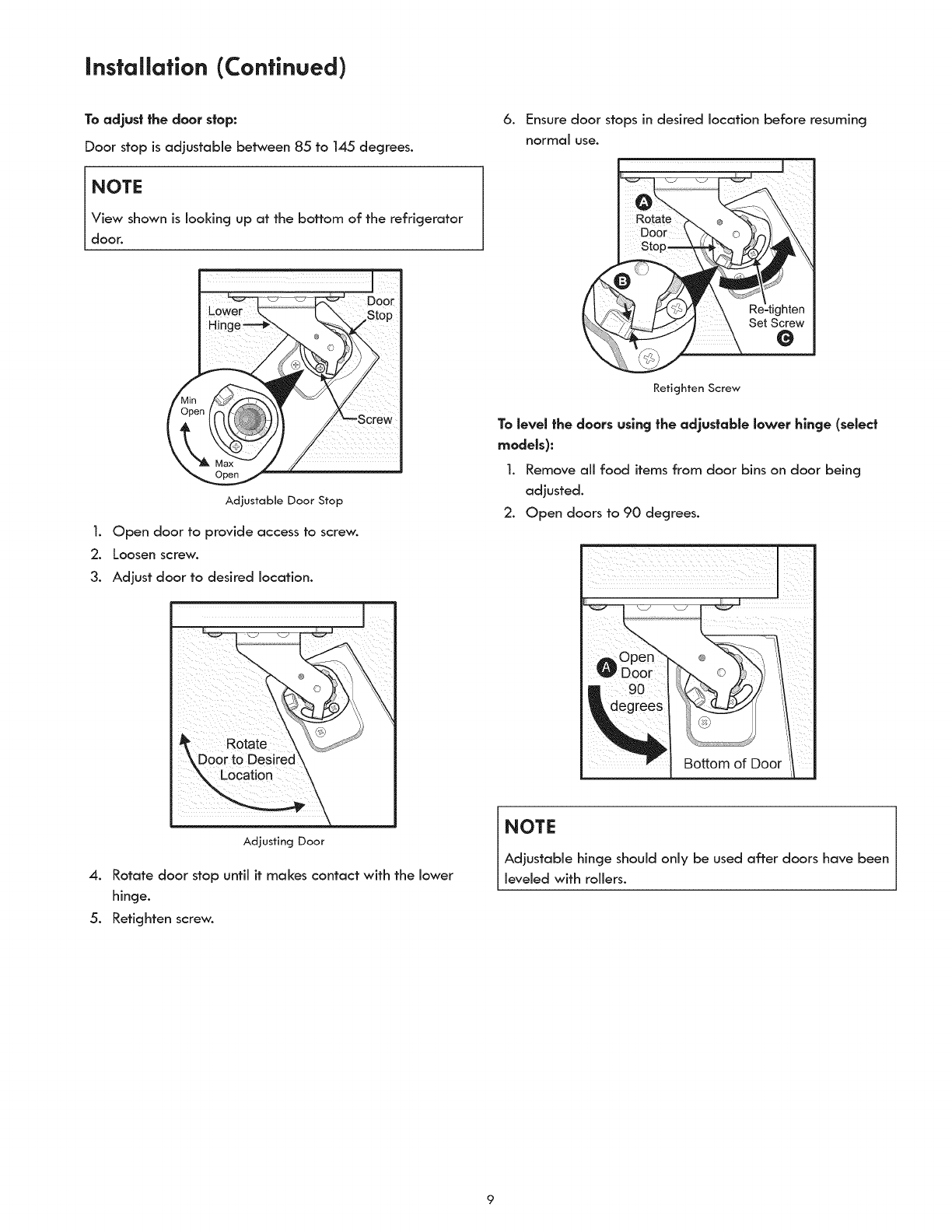

To adjust the door stop:

Door stop is adjustable between 85 to 145 degrees.

NOTE

View shown is looking up at the bottom of the refrigerator

door.

/op00

Adjustable Door Stop

1. Open door to provide access to screw.

2. Loosen screw.

3. Adjust door to desired location.

6. Ensure door stops in desired location before resuming

normal use.

Set Screw

Reficjhten Screw

To level the doors using the adjustable lower hinge (select

models):

1. Remove all food items from door bins on door being

adjusted.

2. Open doors to 90 degrees.

Bottom of Door

Adjustincj Door

4. Rotate door stop until it makes contact with the lower

hinge.

5. Refighten screw.

NOTE

Adjustable hinge should only be used after doors have been

leveled with rollers.

Installation (Continued)

poor

Lift the door while adjusting the washer. To raise the door,

rotate washer clockwise (when viewed from the bottom).

To lower door, rotate washer counterclockwise (when

viewed from the bottom). /

Raising/Lowering Door

To adjust the flipper mulllon:

1. Loosen the screw located on the flipper mullion hinge.

i i i

ill _ii

FliPPe_

Mu ion_

Hinge

i i i

Adjusting Flipper Mullion Screw

,_--Flipper

.Adjust flipper mullion height. For proper connection with

the flipper mullion guide, there should be a separation

about the thickness of a coin (0.060 inches, or 1.5 mm)

between the guide and flipper mullion.

3. Retighten screw.

Adjusting Flipper Mullion Height

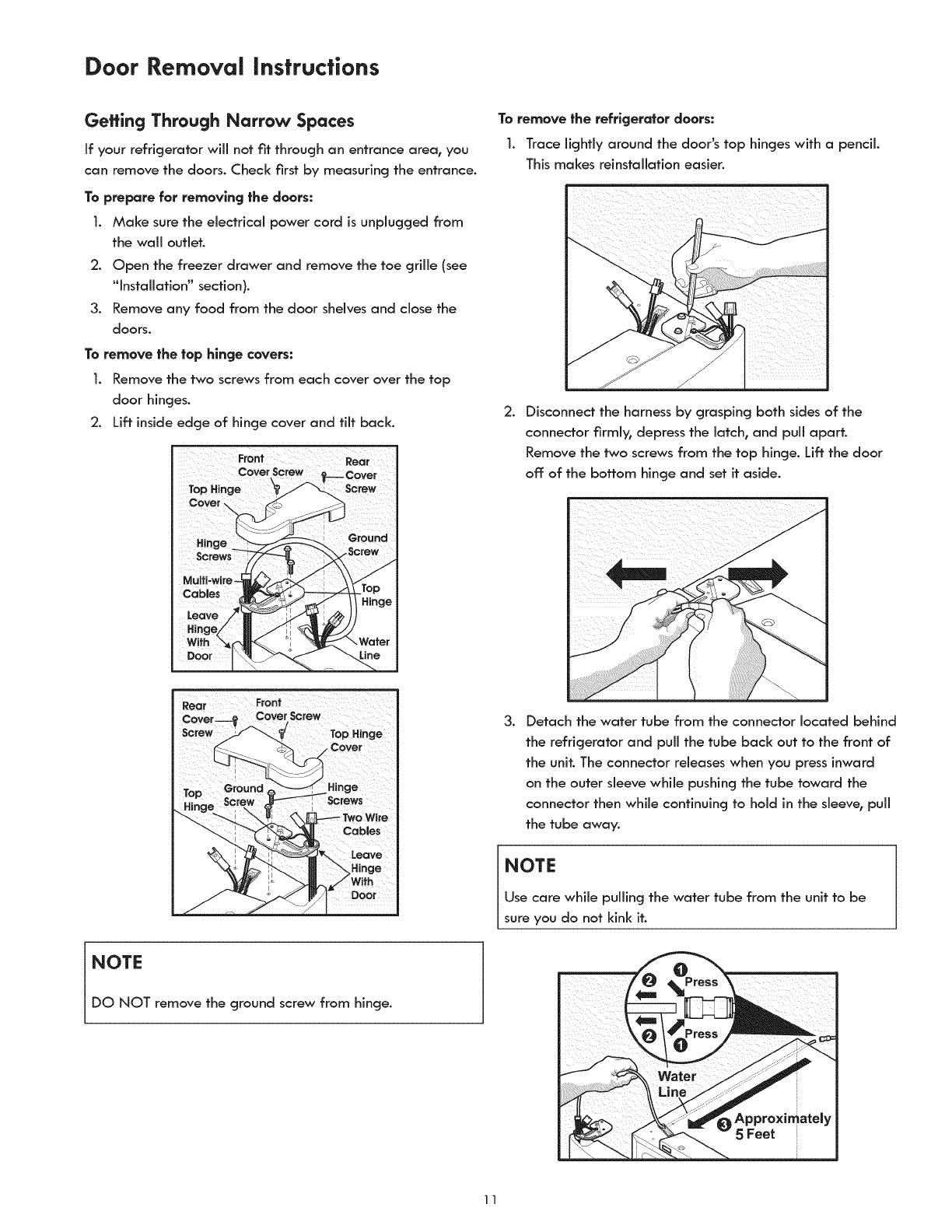

Door Removal instructions

Getting Through Narrow Spaces

If your refrigerator will not fit through an entrance area_ you

can remove the doors. Check first by measuring the entrance.

To prepare for removing the doors:

1. Make sure the electrical power cord is unplugged from

the wall outlet.

2. Open the freezer drawer and remove the toe grille (see

"Installation" section).

3. Remove any food from the door shelves and close the

doors.

To remove the top hinge covers:

1. Remove the two screws from each cover over the top

door hinges.

2. Lift inside edge of hinge cover and tilt back.

Rear ,CoverScrew

NOTE

DO NOT remove the ground screw from hinge.

To remove the refrigerator doors:

1. Trace lightly around the door's top hinges with a pencil.

This makes reinstallation easier.

.Disconnect the harness by grasping both sides of the

connector firmly, depress the Jatch_ and pull apart.

Remove the two screws from the top hinge. Lift the door

off: of the bottom hinge and set it aside.

.Detach the water tube from the connector located behind

the refrigerator and pull the tube back out to the front of

the unit. The connector releases when you press inward

on the outer sleeve while pushing the tube toward the

connector then while continuing to hold in the sJeeve_pull

the tube away.

NOTE

Use care while pulling the water tube from the unit to be

sure you do not kink it.

5Feet

Door Removal instructions (Continued)

NOTE

You wiii be pulling approximately five feet of water tube

from the back of the refrigerator.

4. Unscrew the three lower hinge screws and hinge if

necessary,

To reinstall the right door, reverse the above steps.

Lower Hinge Removal

Once both doors are in place, ensure they are aligned with

each other and level (Please see the "Installation" section for

more details), and replace the top hinge cover.

_CAUTION

Be sure doors are set aside in asecure position where they

cannot fall and cause personal injury, or damage to the

doors or handles. When relnserfing the water tube and

replacing the top hinge cover, use care to be sure you do

not kink the tube.

Removing Freezer Drawer

1. Open freezer drawer.

2. Remove drawer screws on right and left sides (two screws

on each side).

Remove Hex

Head Drawer

Remove Hex

Head Drawer

Screw

_CAUTION

Drawer is heavy. Use caution when lifting.

3. Lift drawer up and out to remove.

Installlng Freezer Drawer

1. With lower slides pulled out, hang drawer onto slide

brackets ensuring pins on each side are fully inserted into

slots on each side.

Drawer {_

Assembly

_ i.................................................._iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii¸

Fully Extend

Drawer Slides

_iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiB_

Sl°tz ,_ iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

!..................._ iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

.Reinstall four drawer screws (two per side), tighten down,

and close drawer (C).

Install Screws

(2) Each Side

Check gasket seal around top, bottom, and sides of

freezer drawer.

If gasket is not sealed, open drawer and slightly loosen

four drawer screws (two on each side) to allow drawer to

rotate.

Close drawer and recheck the seal on the gasket (A).

Open the drawer grabbing by the sides in the center (B).

Be careful not to rotate the drawer.

_i i i i

il ii _ i

Push Against

Freezer Drawer

A ¸

ii iii

ii'i_ili!i!iiii!i!i!i

6. Tighten four drawer screws.

7. Recheck gasket seal.

8. Install the toe grille by fitting into place.

Installing Door Handles

Door Hancfle Mounting instructions

CAUTION

Wear gloves and safety goggles. Use ex|rerne CAUTION when installing these handles. The rounded end of the handles

may be sharp.

1. Remove handles from carton and any other protective packaging.

2. Position fresh food handle end over upper and lower pre-instaiied shoulder bolts (A) that are fastened into the doors

ensuring the holes for the set screws are facing towards the opposite door.

3. While holding handle firmly against door° fasten upper and lower Alien set screws (B) with supplied Alien wrench.

4. Repeat steps two and three to install opposite handle. Ensure the holes for the set screws are facing towards the first door.

5. Position freezer handle end over left and right pre-instaiied handle mounts that are fastened to the door° ensuring the holes

for the set screws are facing down.

6. While holding handle firmly against door° loosely tighten far right Alien set screw (B) with supplied Alien wrench until there

is no gap between handle and door.

7. Still holding the handle firmly to the door, firmly tighten far left Alien set screw (B) with supplied Alien wrench.

8. Return to the far right Alien set screw (B) and firmly tighten with supplied Alien wrench.

NOTE

Aii set screws should be tightened so that the screw is below the surface of the handle. The handles should be drawn tight to

freezer and refrigerator doors with no gaps. Opening the opposite door while tightening the Alien screw makes installation

easier.

The door handle may loosen over time. If this happens, tighten the set screws on the handles.

Mounting Refrigerator Handles Mounting Freezer Handles

Connecting the Water Supply

WARNING

To avoid electric shock, which can cause death or severe

personal injury, disconnect the refrigerator from elecfrlcal

power before connecting awafer supply llne fo the

refrigerator.

_CAUTION

To Avoid Property Damage:

* Copper or StainlessSteel braided tubing is recommended

for the wafer supply llne. Wafer supply tubing made of IA

inch plastic is not recommended to be used. Plastictubing

greaffy increases the potential for wafer leaks, and the

manufacturer will not be responsible for any damage if

plastic fublng is used for the supply line.

* DO NOT install wafer supply tubing in areas where

temperatures fall below freezing.

* Chemicals from a malfunctioning softener can damage

the ice maker, if the ice maker is connected fo soft

wafer, ensure fhaf the softener is malnfalned and

working properly.

iMPORTANT

Ensure that your water supply line connections comply with

all local plumbing codes.

Before installing The Wafer Supply Line, You Will Need:

•Basic Tools: adjustable wrench, flat-blade screwdriver, and

Phllllps TM screwdriver

°Access to a household cold water line with water pressure

between 30 and 100 psi.

°A water supply line made of 1/4inch (6.4 mm) OD, copper

or stainless steel tubing. To determine the length of tubing

needed, measure the distance from the ice maker inlet

valve at the back of the refrigerator to your cold water

pipe. Then add approximately 7feet (2.1 meters), so the

refrigerator can be moved out for cleaning (as shown).

°A shutoff valve to connect the water supply line to your

household water system. DO NOT use a self-piercing type

shutoff valve.

°Do not reuse compression fitting or use thread seal tape.

°A compression nut and ferrule (sleeve) for connecting a

copper water supply line to the ice maker inlet valve.

NOTE

Check with your local building authority for

recommendations on water lines and associated materials

prior to installing your new refrigeraton

To Connect Wafer Supply Line To Ice Maker Inlet Valve

1. Disconnect refrigerator from electric power source.

2. Place end of water supply line into sink or bucket. Turn

ON water supply and flush supply line until water is clean

Turn OFF water supply at shutoff valve.

3. Remove plastic cap from water valve inlet and discard cap.

4. If you use copper tubing - Slide brass compression nut, then

ferrule (sleeve) onto water supply line. Pushwater supply

line into water valve inlet as far as it will go (1/4inch/6.4

mm). Slide ferrule (sleeve) into valve inlet and finger tighten

compression nut onto valve. Tighten another half turn with

awrench; DO NOT overtighten. See Figure 1.

If you use stainless steel tubing - The nut and ferrule are

already assembled on the tubing. Slide compression nut

onto valve inlet and finger tighten compression nut onto

valve. Tighten another half turn with a wrench; DO NOT

overtighten. See Figure 2.

5. With steel clamp and screw, secure water supply line

(copper tubing only) to rear panel of refrigerator as shown.

6. Coil excess water supply line (copper tubing only), about

21/2 turns, behind refrigerator as shown and arrange coils

so they do not vibrate or wear against any other surface.

7. Turn ON water supply at shutoff valve and tighten any

connections that leak.

8. Reconnect refrigerator to electrica! power source.

Plastic Water tubing

to ice Maker

_1 _bteel

_" Clamp

Brass

I_Nu rCompression

_ Ferrule

(Sleeve)

\ili X w_erv.Jv0

_//_ "%-" Bracket

_J _'-__:a _lVeVnlet

ter alve

g In ioo_ {o allow

mowng refrigerator out for cleaning,

Figure 1

_Steel

Plastic Water Tubing [_ Clamp

to ice Maker

I I

_3:_ I stonl

_Water Vak, e

///

/// -vo,ve,nl°

ater Valve

6ft. Stainless Steel water line

./_" from household water supply

Figure 2

IMPORTANT

After connecting the water supply, refer to "How to Prime

the Water Supply System" for important information about

priming an empty water supply system.

Your refrigerator's water supply system includes several

tubing lines, a water fllter_ a water valve, and a water tank.

To ensure that your water dispenser works properly, this

system must be completely filled with water when your

refrigerator is first connected to the household water supply

line.

Controls

iceoff

(Fresh Food

Ice Maker)

Pressandholdfor threesecondsto turnthe

icemaker "ON" or "OFF".The icemakeris

turnedoff whenthe LEDabovethe "Ice Off"

iconis illuminated.

NOTE

For freezer ice maker_ see Automatic Ice Maker-Freezer

section.

light

controllock

water filter

displayon-off

c/F

power

On/Off

Pressandholdfor threesecondsto activate

and deactivate.Thisrestrictsundesired

changesto the refrigerator'ssettingsand

preventsuse of the iceand water dispenser.

Touchto displayfilter conditionstatus.Press

and how far threesecondsto resetafter

filter change.

Togglesthe temperaturedisplaysOnand

Off.

Touchto toggledisplayfromFahrenheitto

Celsius.

Pressand holdfar threesecondsto turn off

the coolingsystemto cleanthe refrigerator.

it alsoturnsoff the icemaker,all dispenser

functions.Thetemperaturedisplaywill read

OFF.

Your refrigerator is equipped with a touch control panel. It is

only necessary to gently touch the control panel. There are

three dispenser modes:

1. Water

2. Ice Cubes

3. Crushed Ice

An indicator light will be illuminated above the active feature.

IMPORTANT

Pressing the power on/off icon does not turn off power to

your refrigeraton Youmust unplug the power cord from the

wall outlet.

Controls (Continued)

Setting coollng temperatures

1. Down (v) and Up (A) indicators are located beside the

displayed temperatures.

2. Press the (v) or (A) indicator to adjust the temperature to

the desired setting. The temperature display will begin to

blink with the first touch. After five seconds of inactivity,

the display will beep to accept the new temperature.

After ten seconds, the display times out and returns to the

basic display.

Sabbath Mode

The Sabbath Mode is a feature that disables portions of the

refrigerator and its controls in accordance with observance

of the weekly Sabbath and religious holidays within the

Orthodox Jewish community.

Sabbath Mode is turned ON and OFF by pressing and

holding both the freezer " v " and refrigerator " A "

indicators for five seconds. The display shows "Sb" while in

Sabbath mode.

For further assistance, guidelines for proper usage and a

complete list of models with the Sabbath feature,

please visit the web at http:\\www.star-k.org.

NOTE

While in Sabbath Mode, neither the lights, dispenser,

nor the control panel will work until Sabbath Mode is

deactivated.

Refrigerator stays in Sabbath Mode after power failure

recovery. It must be deactivated with the buttons on the

control panel.

NOTE

Although you have entered the Sabbath Mode, the ice

maker wiii complete the cycle it had already initiated. The

ice cube compartment wiii remain cold and new ice cubes

can be made with standard trays.

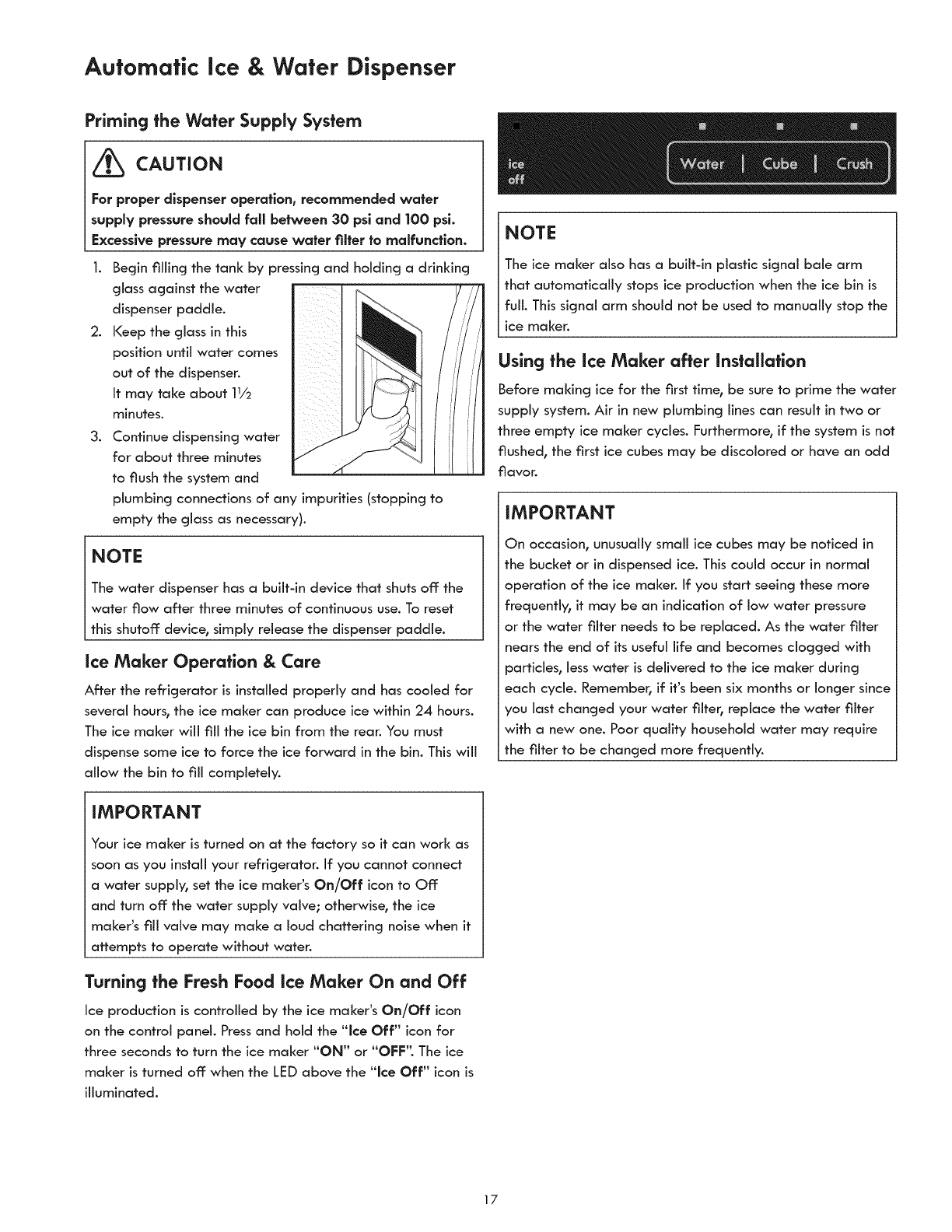

Automatic ice & Water Dispenser

Priming the Water Supply System

_CAUTION

For proper dispenser operation, recommended water

supply pressure should fall between 30 psl and 100 psi.

Excessive pressure may cause wafer filter fo malfunction.

1. Begin filling the tank by pressing and holding a drinking

glass against the water

dispenser paddle.

2. Keep the glass in this

position until water comes

out of the dispenser.

It may take about 11/2

minutes.

3. Continue dispensing water

for about three minutes

to flush the system and

plumbing connections of any impurities (stopping to

empty the glass as necessary).

NOTE

The water dispenser has a Built-in device that shuts off: the

water flow after three minutes of continuous use. To reset

this shutoff: device, simply release the dispenser paddle.

Ice Maker Operation & Care

After the refrigerator is installed properly and has cooled for

several hours, the ice maker can produce ice within 24 hours.

The ice maker will fill the ice bin from the rear. You must

dispense some ice to force the ice forward in the bin. This will

allow the bin to flil completely.

IMPORTANT

Your ice maker is turned on at the factory so it can work as

soon as you install your refrigeraton If you cannot connect

a water supply, set the ice maker's On/Off icon to Off:

and turn off: the water supply valve; otherwise, the ice

maker's fill valve may make a loud chattering noise when it

attempts to operate without water.

Turning the Fresh Food Ice Maker On and Off

Ice production is controlled by the ice maker's On/Off icon

on the control panel. Press and hold the "Ice Off" icon for

three seconds to turn the ice maker "ON" or "OFF". The ice

maker is turned off: when the LED above the "Ice Off" icon is

illuminated.

NOTE

The ice maker also has a built-in plastic signal bale arm

that automatically stops ice production when the ice bin is

full. This signal arm should not be used to manually stop the

ice maker.

Using the Ice Maker after InstallaEon

Before making ice for the first time, be sure to prime the water

supply system. Air in new plumbing lines can result in two or

three empty ice maker cycles. Furthermore, if the system is not

flushed, the first ice cubes may be discolored or have an odd

flavor.

IMPORTANT

On occasion, unusually small ice cubes may be noticed in

the bucket or in dispensed ice. This could occur in normal

operation of the ice maker. If you start seeing these more

frequently, it may be an indication of low water pressure

or the water filter needs to be replaced. As the water filter

nears the end of its useful life and becomes clogged with

particles, less water is delivered to the ice maker during

each cycle. Remember, if it's been six months or longer since

you last changed your water filter, replace the water filter

with a new one. Poor quality household water may require

the filter to be changed more frequently.

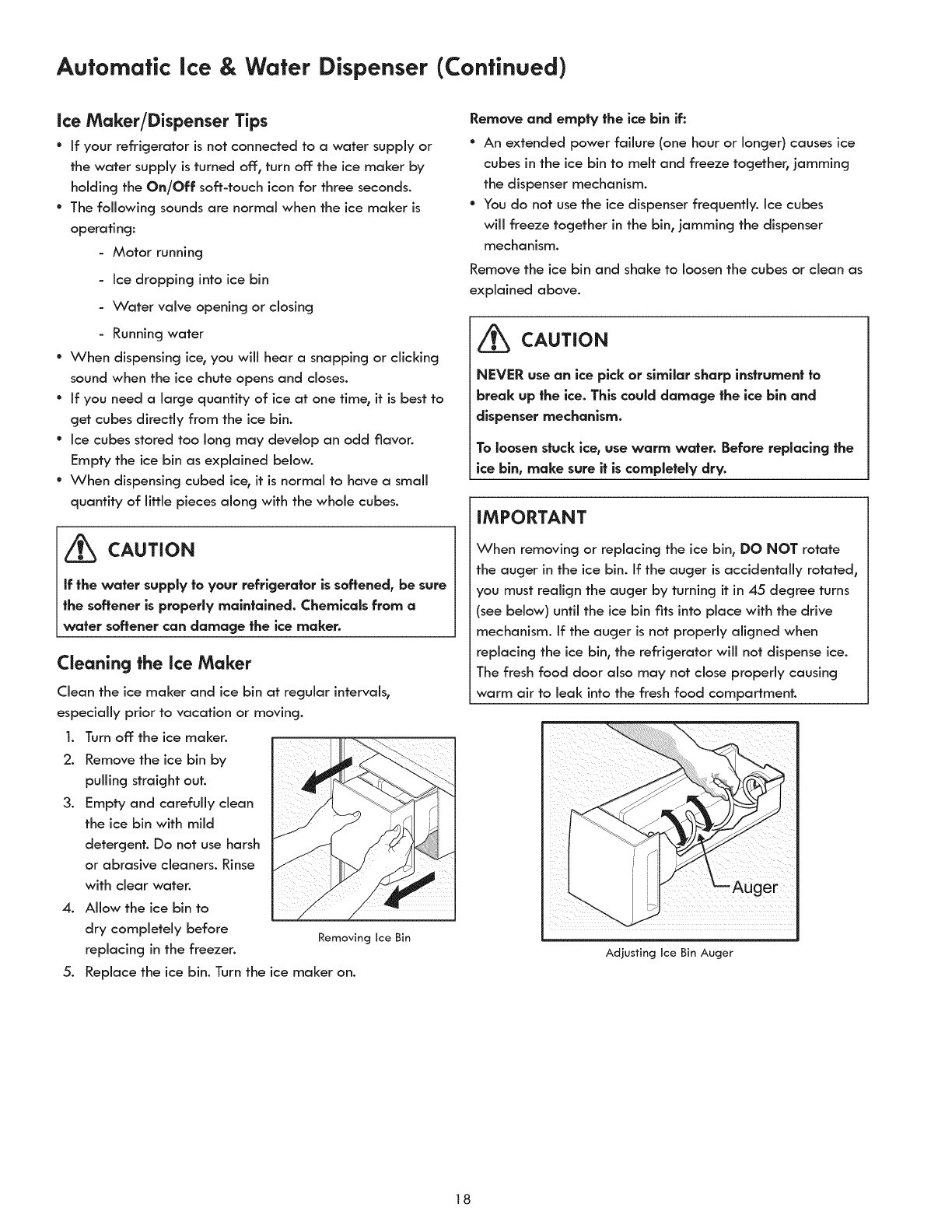

Automatic ice & Water Dispenser (Continued)

ice Maker/Dispenser Tips

*If your refrigerator is not connected to a water supply or

the water supply is turned of]:, turn of]: the ice maker by

holding the On/Off soft-touch icon for three seconds.

*The following sounds are normal when the ice maker is

operating:

- Motor running

Ice dropping into ice bin

- Water valve opening or closing

- Running water

When dispensing ice, you wiii hear a snapping or clicking

sound when the ice chute opens and closes.

*If you need a large quantity of ice at one time, it is best to

get cubes directly from the ice bin.

* Ice cubes stored too long may develop an odd flavor.

Empty the ice bin as explained below.

* When dispensing cubed ice, it is normal to have a small

quantity of little pieces along with the whole cubes.

CAUTION

if the water supply |o your refrigerator is softened, be sure

the softener is properly maintained. Chemicals from a

water softener can damage the ice maker.

Cleaning the ice Maker

Clean the ice maker and ice bin at regular intervals,

especially prior to vacation or moving.

1. Turn off the ice maker.

2. Remove the ice bin by

pulling straight out.

3. Empty and carefully clean

the ice bin with mild

detergent. Do not use harsh

or abrasive cleaners. Rinse

with clear water.

4. Allow the ice bin to

dry completely before

replacing in the freezer. Removing Ice Bin

5. Replace the ice bin. Turn the ice maker on.

Remove and empty the ice bin if:

*An extended power failure (one hour or longer) causes ice

cubes in the ice bin to melt and freeze together, jamming

the dispenser mechanism.

You do not use the ice dispenser frequently. Ice cubes

wiii freeze together in the bin, jamming the dispenser

mechanism.

Remove the ice bin and shake to loosen the cubes or clean as

explained above.

CAUTION

NEVER use an ice pick or similar sharp instrument to

break up the ice. This could damage the ice bin and

dispenser mechanism.

To loosen stuck ice, use warm water. Before replacing the

ice bin, make sure it is completely dry.

iMPORTANT

When removing or replacing the ice bin, DO NOT rotate

the auger in the ice bin. If the auger is accidentally rotated,

you must realign the auger by turning it in 45 degree turns

(see below) until the ice bin fits into place with the drive

mechanism. If the auger is not properly aligned when

replacing the ice bin, the refrigerator wiii not dispense ice.

The fresh food door also may not close properly causing

warm air to leak into the fresh food compartment.

Adjusting Ice Bin Auger

Storage Features

CAUTION

To avoid personal injury or property damage, handle

tempered glass shelves carefully. Shelves may break

suddenly if nicked, scratched, or exposed to sudden

temperature change. Allow the glass shelves to stabilize

to room temperature before cleaning. Do not wash in

dishwasher.

Drawers

Your refrigerator includes a variety of storage drawers. These

drawers are located in fixed positions at the bottom of the

fresh food compartment.

Crispers

Crisper drawers are designed for storing fruits_ vegetables_

and other fresh produce.

NOTE

Features may vary according to model.

Your refrigerator includes Spill=ProofTM glass shelves that are

designed to catch and hold accidental spills.

You can easily adjust shelf positions in the fresh food

compartments to suit your needs, The shelves have mounting

brackets that attach to slotted supports at the rear of each

compartment.

To Change the Position of a Shelf:

1. Remove aii food from shelf.

2. Lift the front edge up and puii the shelf out.

3. Replace by inserting the mounting bracket hooks into the

desired support slots.

4. Lower the shelf and lock into position.

Shelf features

Full Splll=Proof TM Shelf

Half Spill=Proof Shelf

Opening Crisper Drawer

Crisper Humidity Control

Crisper drawers include a sliding control for adjusting the

humidity inside the crisper. Leafy vegetables keep best when

stored with the Humidity Control set on Higher Humidity. Fresh

fruits keep best when stored with the Humidity Control set on

Lower Humidity.

hi ............. [0

'gh Lower

Humidity Humidity

Adjusting Crisper Humidity

To Remove the Crisper Drawer for Cleaning:

1. Pull the drawer out until it stops.

2. Lift the front slightly and remove the drawer.

Removing Crisper Drawer

Storage Features (Continued)

Dell Drawer

Ideal for storage of dell meats and cheese.

Doors

Storage Bins

The doors to your fresh food compartment use a system of

modular storage bins. All of these bins are removable for easy

cleaning. Some of them have fixed positions, while others can

be adjusted to your needs.

Door bins are ideal for storing jars, bottles, cans, and

large drink containers. They also enable quick selection of

frequently used items.

To change the position of an adjustable door bin:

1. Remove aii food from door bin.

2. Grip the bin firmly with both hands and lift it upward.

3. Remove the bin.

4. Place the bin just above desired position.

5. Lower the bin onto supports until !ocked in place.

Adjustable Door Bin

lii;_

Accessories (varies by model)

Dairy Compartment

Use the dairy compartment, at the top of the fresh food

compartment door, for short-term storage of cheese, spreads,

or butter. The dairy compartment is designed to be warmer

than the open area and includes a lift-up cover and a dairy

divider (select models).

iill _ i_ ii

Dairy Compartment

Freezer Features (varies by model)

Retainer

Clips

Stabilizer B_

Two Freezer Baskets

To Remove Upper Basket

1. Remove aii items from basket.

2. Remove basket by pulling baskets out to their full

extension and lift out.

Removing Upper Basket

To reinstall upper basket, position basket onto the retainer

clips making sure the front of the basket rests in the retainer

clips on the stabilizer bar.

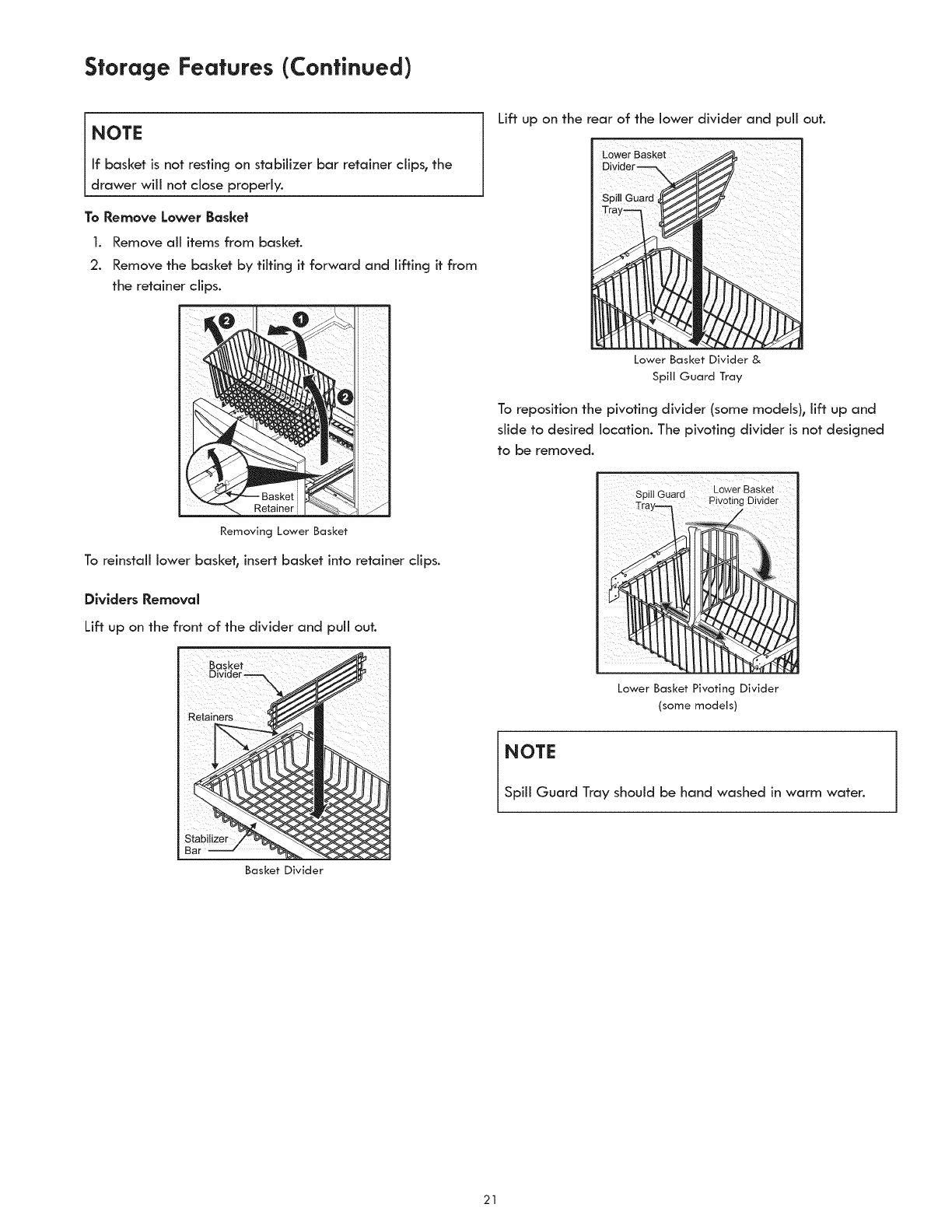

Storage Features (Continued)

NOTE

If basket is not resting on stabilizer bar retainer clips, the

drawer wiil not close properly.

To Remove Lower Basket

1. Remove aii items from basket.

2. Remove the basket by tilting it forward and lifting it from

the retainer clips.

Retainer i

Removing Lower Basket

i iill_

i__ii!

:i II_ ii

To reinstall lower baske hinsert basket into retainer clips.

Dividers Removal

Lift up on the front of the divider and pull out.

Divider

Retainers

Basket Divider

Lift up on the rear of the lower divider and pull out.

Lawer Basket

Lower Basket Divider &

Spill Guard Tray

To reposition the pivoting divider (some models), lift up and

slide to desired location. The pivoting divider is not designed

to be removed,

Siii G ar \ Lower Basket

pUa ....

Pivoting Dwtder

Lower Basket Pivoting Divider

(some models)

NOTE

Spill Guard Tray should be hand washed in warm water.

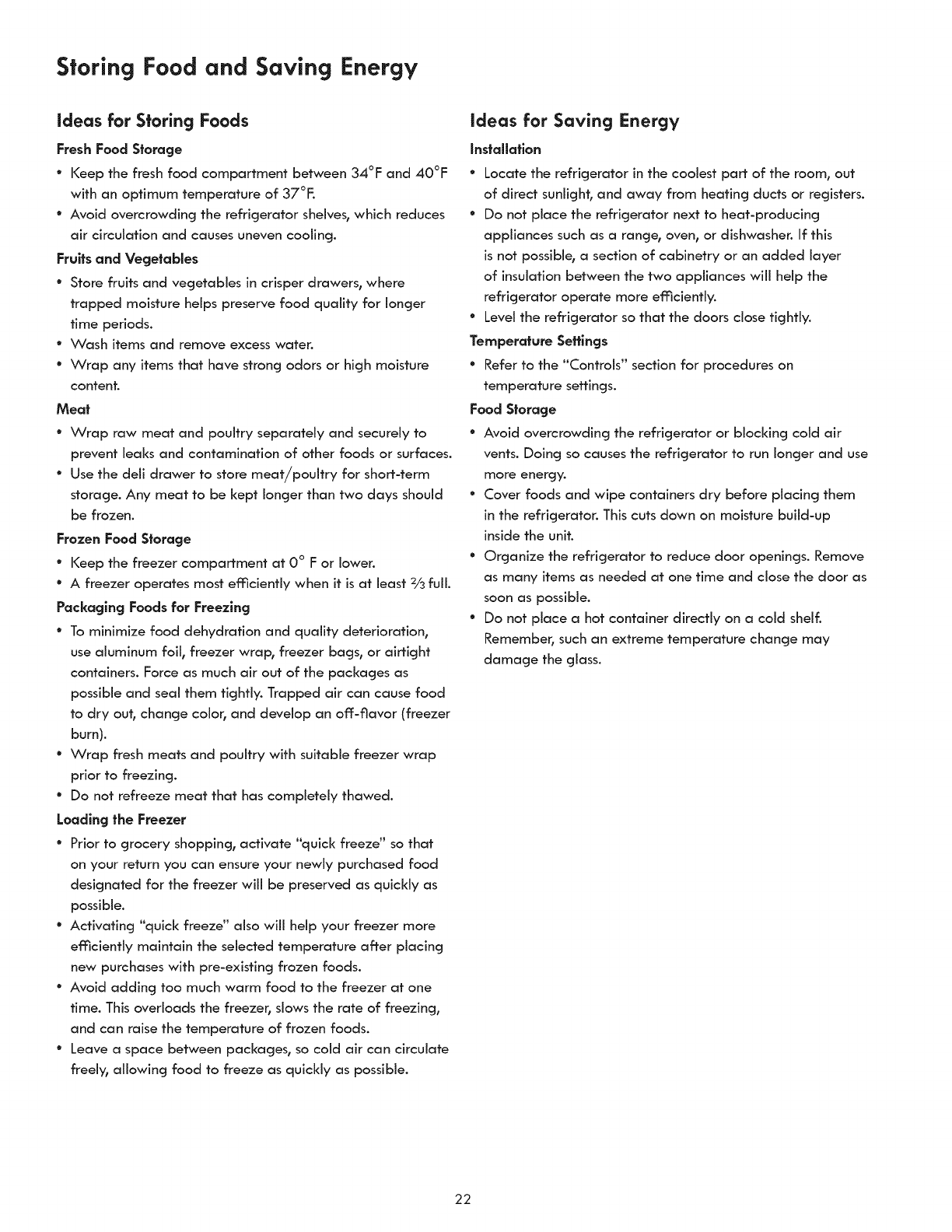

Storing Food and Saving Energy

ideas for Storing Foods

Fresh Food Storage

°Keep the fresh food compartment between 34°F and 40°F

with an optimum temperature of 37°F.

°Avoid overcrowding the refrigerator shelves, which reduces

air circulation and causes uneven cooling.

Fruits and Vegetables

°Store fruits and vegetables in crisper drawers, where

trapped moisture helps preserve food quality for longer

time periods.

• Wash items and remove excess water.

°Wrap any items that have strong odors or high moisture

content.

Meat

°Wrap raw meat and poultry separately and securely to

prevent leaks and contamination of other foods or surfaces.

°Use the dell drawer to store meat/poultry for short-term

storage. Any meat to be kept longer than two days should

be frozen.

Frozen Food Storage

°Keep the freezer compartment at 0 ° F or lower.

°A freezer operates most emcienfly when it is at least 2/3full.

Packaging Foods for Freezing

°To minimize food dehydration and quality deterioration,

use aluminum foil, freezer wrap, freezer bags, or airtight

containers. Force as much air out of the packages as

possible and seal them tightly. Trapped air can cause food

to dry ouh change color, and develop an off-flavor (freezer

burn).

°Wrap fresh meats and poultry with suitable freezer wrap

prior to freezing.

°Do not refreeze meat that has completely thawed.

Loading the Freezer

°Prior to grocery shopping, activate "quick freeze" so that

on your return you can ensure your newly purchased food

designated for the freezer will be preserved as quickly as

possible.

°Activating "quick freeze" also will help your freezer more

emciently maintain the selected temperature after placing

new purchases with pre-existing frozen foods.

°Avoid adding too much warm food to the freezer at one

time. This overloads the freezer, slows the rate of freezing,

and can raise the temperature of frozen foods.

°Leave a space between packages, so cold air can circulate

freely, allowing food to freeze as quickly as possible.

Ideas for Saving |:nergy

Installation

°Locate the refrigerator in the coolest part of the room, out

of direct sunlight, and away from heating ducts or registers.

°Do not place the refrigerator next to heat-producing

appliances such as a range, oven, or dishwasher. If this

is not possible, a section of cabinetry or an added layer

of insulation between the two appliances will help the

refrigerator operate more efflcientJy.

°Level the refrigerator so that the doors close tightly.

Temperature Settings

°Refer to the "Controls" section for procedures on

temperature settings.

Food Storage

°Avoid overcrowding the refrigerator or blocking cold air

vents. Doing so causes the refrigerator to run longer and use

more energy.

°Cover foods and wipe containers dry before placing them

in the refrigerator. This cuts down on moisture build-up

inside the unit.

°Organize the refrigerator to reduce door openings. Remove

as many items as needed at one time and dose the door as

soon as possible.

*Do not place a hot container directly on a cold shelf.

Remember, such an extreme temperature change may

damage the glass.

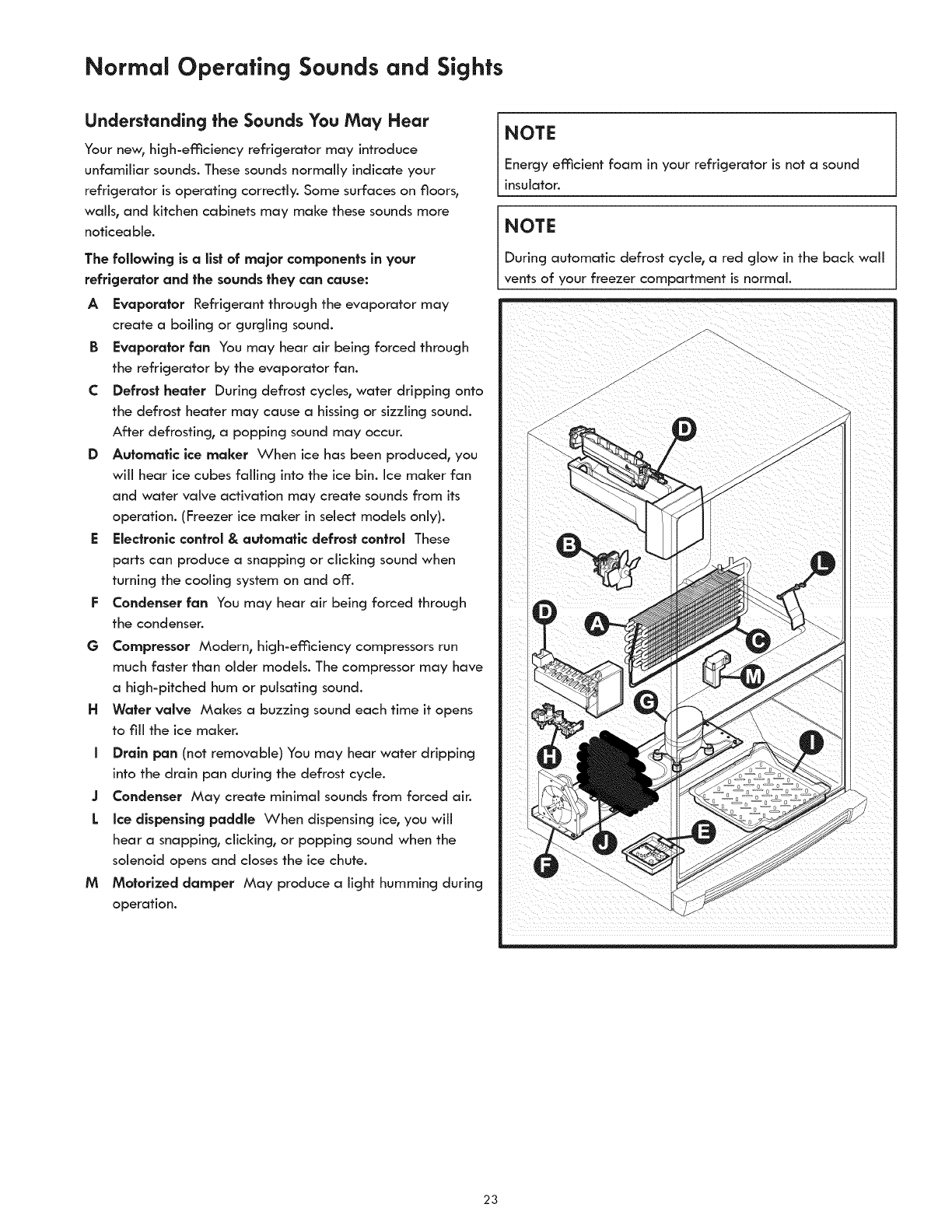

Normal Operating Sounds and Sights

Understanding the Sounds You May Hear

Your new_ high-efflciency refrigerator may introduce

unfamiliar sounds. These sounds normally indicate your

refrigerator is operating correctly. Some surfaces on floors,

wails, and kitchen cabinets may make these sounds more

noticeable.

The following is allst of major components in your

refrigerator and the sounds they can cause:

A Evaporator Refrigerant through the evaporator may

create a boiling or gurgling sound.

B Evaporator fan You may hear air being forced through

the refrigerator by the evaporator fan.

C Defrost heater During defrost cycles, water dripping onto

the defrost heater may cause a hissing or sizzling sound.

After defrosting, a popping sound may occur.

D Automatic ice maker When ice has been produced, you

will hear ice cubes falling into the ice bin. Ice maker fan

and water valve activation may create sounds from its

operation. (Freezer ice maker in select models only).

E Electronlc control & automatic defrost control These

parts can produce a snapping or clicking sound when

turning the cooling system on and off:.

FCondenser fan You may hear air being forced through

the condenser.

GCompressor Modern, high-emciency compressors run

much faster than older models. The compressor may have

a high-pitched hum or pulsating sound.

HWater valve Makes a buzzing sound each time it opens

to fill the ice maker.

I Drain pan (not removable) You may hear water dripping

into the drain pan during the defrost cycle.

JCondenser May create minimal sounds from forced air.

L Ice dispensing paddle When dispensing ice, you will

hear a snapping, clicking, or popping sound when the

solenoid opens and closes the ice chute.

MMotorized damper May produce a light humming during

operation.

NOTE

Energy eflficient foam in your refrigerator is not a sound

insulaton

NOTE

During automatic defrost cycle, a red glow in the back wall

vents of your freezer compartment is normal.

/. k

Changing the Filter

Locating the Filters

Your refrigerator is equipped with water filtering system. The

water filter system filters all dispensed drinking water, as well

as the water used to produce ice.

Water Filter

The water filter is located at the top right side of the fresh

food compartment.

Replacing the Water Filter

In general, you should change the water filter every six

months to ensure the highest possible water quality. Wa|er

Filler S|alus on the user interface prompts you to replace the

filter after a standard amount of water (200 gallons/757

liters for Kenmorepure! TM) has flowed through the system.

If your refrigerator has not been used for a period of time

(during moving for example), change the filter before

reinstalling the refrigerator.

Ordering Replacement Filters

To order your replacement filters, please visit the dealer where

you purchased your refrigeraton Sears recommends that you

order extra filters when you first install your refrigerator, and

that you replace your filters at least once every six months.

Here is the product number to request when ordering:

Kenmorepure! TM Water Filter

Part #9999

NOTE

When ordering your replacement filter, please reorder the

same filter type that is currently in your refrigerator.

More about your Advanced Water Filter

NS__ee he Kenmorepure! TM ice and water filter system

is tested and certified to NSF/ANSI Standards

42 and 53 for the reduction of claims specified

|on the performance data sheet.

Do not use with water that is microbiologicaiiy unsafe or of

unknown quality without adequate disinfection before or after

the system. Systems certified for cyst reduction may be used

on disinfected waters that may contain filterable cysts.

Test & Certification Results:

*Rated Capacity - 200 gallons/757 liters for

Kenmorepure! TM ice and water filter

*Rated service flow - .50 gallons per minute

*Operating Temp.:/Vqn. 33°F, Max. 100°F

*Maximum Rated Pressure - 100 pounds per square inch

*Recommended Minimum Operating Pressure: 30 pounds

per square inch

To Replace your KenmorepureF M Water Fiffer:

It is not necessary to turn the water supply off to change

the filten Be ready to wipe up any small amounts of water

released during the filter replacement.

1. Turn Off the ice maker power switch.

2. Remove the filter by pushing on the end/face of the filten

3. Slide the old water filter cartridge straight out of the

housing and discard it.

4. Unpackage the new filter cartridge. Using the alignment

guide, slide it gently into the filter housing until it stops

against the snap-in connector at the back of the housing.

5. Pushfirmly until the cartridge snaps into place (you

should hear a click as the cartridge engages the snap-in

connector).

6. Press a drinking gloss ogoinst the woter dispenser while

checking for any leaks at the filter housing. Any spurts

and sputters that occur as the system purges air out of

the dispenser system are normal.

7. After filling one glass of water, continue flushing the

system for about four minutes.

8. Turn On the ice maken

9. Press and hold the Water Filter button on the Ice &

Water Dispenser control panel for three seconds. When

the display changes from Red to Green, the status has

been reset.

Care & Cleaning

Protecting Your Investment

Keeping your refrigerator clean maintains its appearance and prevents odor build-up. Wipe up any spills immediately and

clean the freezer and fresh food compartments at least twice a year.

NOTE

Do not use abrasive cleaners such as window sprays, scouring cleansers, flammable fluids, cleaning waxes, concentrated

detergents, bleaches, or cleansers containing petroleum products on plastic parts, interior doors, gaskets, or cabinet liners. Do

not use paper towels, scouring pads, or other abrasive cleaning materials.

°Never use metallic scouring pads, brushes, abrasive cleaners, or strong alkaline solutions on any surface.

°Never use CHLORIDE or cleaners with bleach to clean stainless steel.

°Do not wash any removable parts in a dishwasher.

°Always unplug the electrical power cord from the wail outlet before cleaning.

NOTE

If you set your temperature controls to turn off cooling, power to lights and other electrical components will continue until you

unplug the power cord from the wall outlet.

°Remove adhesive labels by hand. Do not use razor blades or other sharp instruments which can scratch the appliance

surface.

*Do not remove the serial plate. Removal of your serial plate voids your warranty.

°Before moving your refrigerator, raise the anti-tip brackets so the rollers will work correctly. Thiswill prevent the floor from

being damaged.

_CAUTION

*Puff the refrigerator straight out to move it. Shifting it from side to side may damage flooring. Be careful not to move the

refrigerator beyond the plumblng connections.

* Damp objects stick to cold metal surfaces. Do not touch refrigerated surfaces with wet or damp hands.

iMPORTANT

If you store or move your refrigerator in freezing temperatures, be sure to completely drain the water supply system. Failure

to do so could result in water leaks when the refrigerator is put back into service. Contact a service representative to perform

this operation.

Vacation and Moving Tips

Refer to the guide on the next page for details on caring and cleaning specific areas of your refrigerator.

Short Vacations ® Leave refrigerator operating during vacations of three weeks or less.

®Use aii perishable items from refrigerator compartment.

*Turn automatic ice maker off and empty ice buckeh even if you will only be gone a few days.

Moving o Remove all food and ice.

o If using a handcart, load from the side.

o Adjust rollers aii the way up to protect them during sliding or moving.

o Pad cabinet to avoid scratching surface.

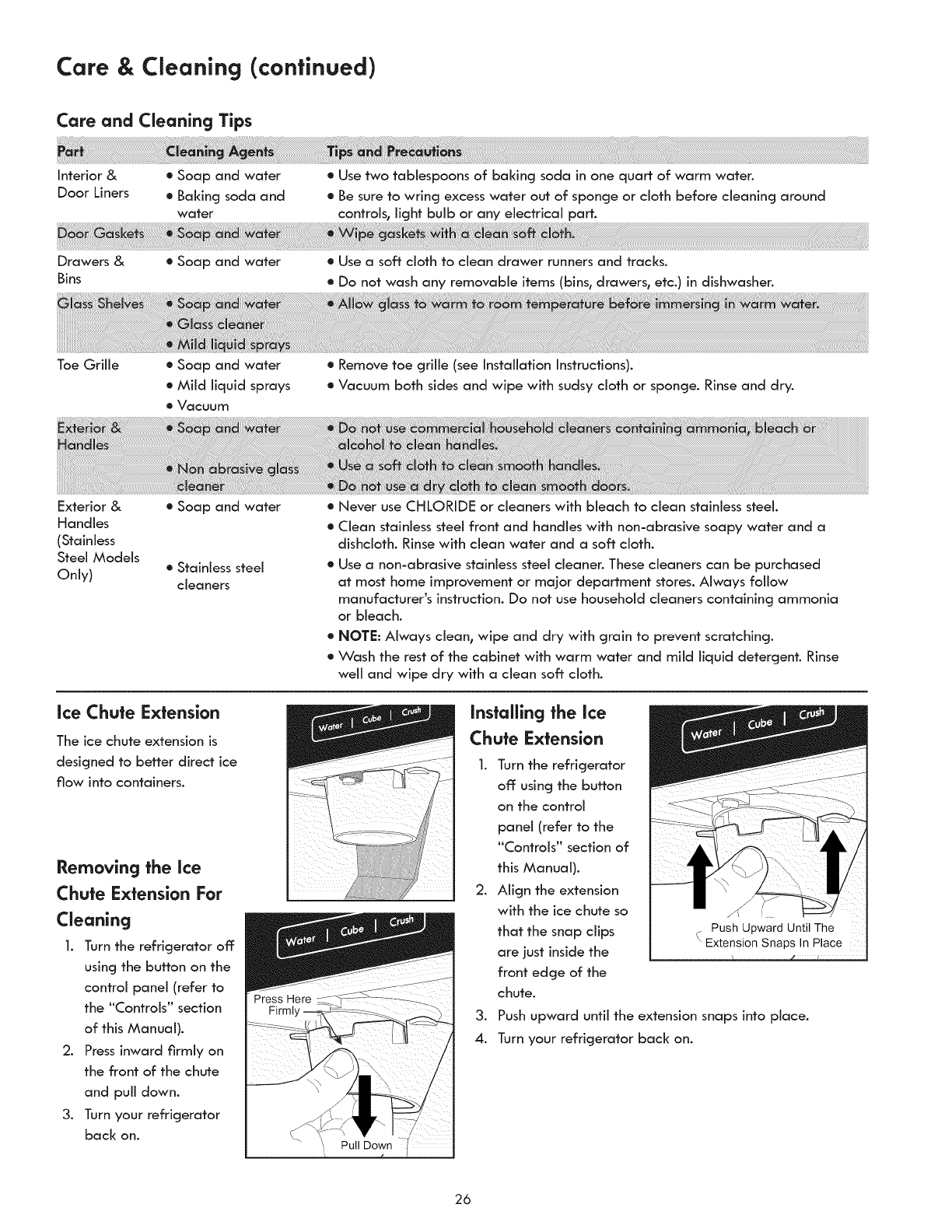

Care & Cleaning (continued)

Care and Cleaning Tips

Interior & ® Soap and water

Door Liners • Baking soda and

water

®Use two tablespoons of baking soda in one quart of warm water.

• Be sure to wring excess water out of sponge or cloth before cleaning around

controls, light bulb or any electrical part.

Drawers & ® Soap and water

Bins

• Use a soft cloth to clean drawer runners and tracks.

o Do not wash any removable items (bins, drawers, etc.) in dishwasher.

Toe Grille • Soap and water

• Mild liquid sprays

• Vacuum

• Remove toe grille (see Installation Instructions).

®Vacuum both sides and wipe with sudsy cloth or sponge. Rinse and dry.

Exterior & o Soap and water

Handles

(Stainless

Steel Models

Only) o Stainless steel

cleaners

o Never use CHLORIDE or cleaners with bleach to clean stainless steel.

eClean stainless steel front and handles with non-abrasive soapy water and a

dishcloth. Rinse with clean water and a soft cloth.

eUse a non-abrasive stainless steel cleanen These cleaners can be purchased

at most home improvement or major department stores. Always follow

manufacturer's instruction. Do not use household cleaners containing ammonia

or bleach.

o NOTE: Always clean, wipe and dry with grain to prevent scratching.

o Wash the rest of the cabinet with warm water and mild liquid detergent. Rinse

weii and wipe dry with a clean soft cloth.

Ice Chute Extension

The ice chute extension is

designed to better direct ice

flow into containers.

Removing the Ice

Chute Extension For

Cleaning

1. Turn the refrigerator of]:

using the button on the

control panel (refer to

the "Controls" section

of this Manual).

2. Press inward firmly on

the front of the chute

and puil down.

3. Turn your refrigerator

back on. Pull Down

Installing the Ice

Chute Extension

1. Turn the refrigerator

off using the button

on the control

panel (refer to the

"Controls" section of

this Manual).

2. Align the extension

with the ice chute so

that the snap clips

are just inside the

front edge of the

chute.

3. Push upward until the extension snaps into place.

4. Turn your refrigerator back on.

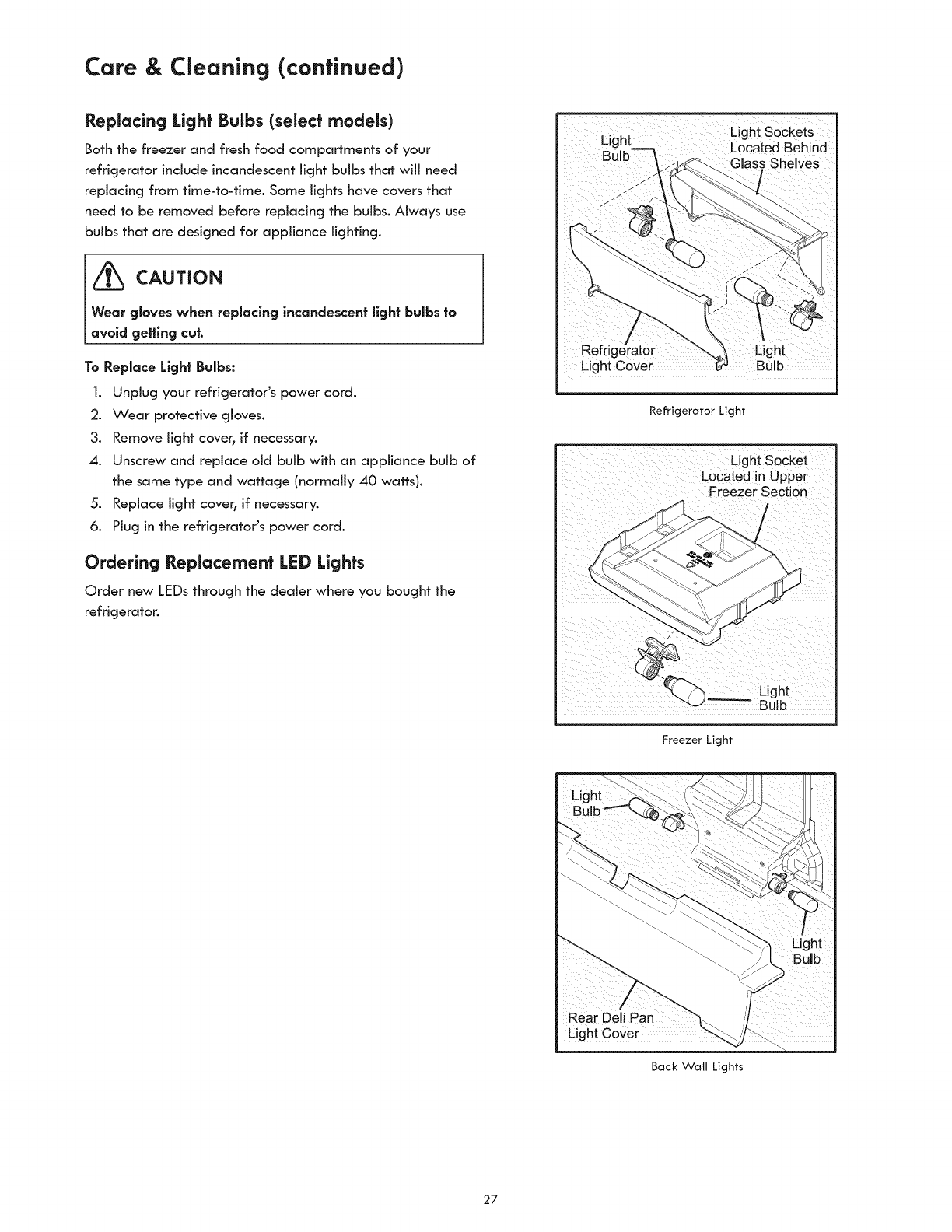

Care & Cleaning (continued)

Replacing Light Bulbs (select models)

Both the freezer and fresh food compartments of your

refrigerator include incandescent light bulbs that will need

replacing from time-to-time. Some lights have covers that

need to be removed before replacing the bulbs. Always use

bulbs that are designed for appliance lighting.

_CAUTION

Wear gloves when replacing incandescent light bulbs to

avoid getting cut.

To Replace Ughf Bulbs:

1. Unplug your refrigerator's power cord.

2. Wear protective gloves.

3. Remove light cover, if necessary.

4. Unscrew and replace old bulb with an appliance bulb of

the same type and wattage (normally 40 watts).

5. Replace light cover, if necessary.

6. Hug in the refrigerator's power cord.

Ordering Replacement LED Lights

Order new LEDs through the dealer where you bought the

refrigerator.

i: ii Eight sockets

LIgRt

Bull Located Behind

Refrigerator Light

Light sOCket

Located in Upper

Freezer Sect on I

Freezer Light

Back Wall Lights

Before You Call

CONCERN j POTENTIAL CAUSE iCOMMON SOLUTION

AUTOMATIC ICE MAKER

°Ice maker is turned off. °Ice maker is not

making any ice.

Ice maker is not

making enough ice.

Refrigerator is not connected to

water line or water valve is not

open.

The water supply line is kinked.

"The water filter is not seated

properly.

• The water filter may be clogged

with foreign material.

• Freezer ice maker wire signal

arm is being held up by an item

not allowing it to go in the on or

down position.

e Ice maker is producing less ice

than you expect.

*The water filter may be clogged

with foreign material.

*The water supply line is kinked.

*Saddle valve on cold water

pipe is clogged or restricted by

foreign material.

*Heavy tra_ic, opening or closing

of the doors excessively.

"Freezer control is set too warm

(freezer ice maker).

Freezer ice maker will • Ice maker wire signal arm

not stop making ice is being held down by some

(select models), package in the freezer that has

fallen against the ice maker.

ice cubes are freezing *ice cubes are not being Used

together, frequently en0ugh or interruption

Of power for prolonged time:

H" Ice cubes are hollow (shells of

ice With Water inside), The hOlloW

cubes break open in the bi n and

leak their Water onto existing ice,

Which causes it to freeze together.

Turn on ice maker. For the fresh food ice maker, press and hold

the "Ice Off" button for three seconds until the indicator light

is off. For the freezer ice maker, lower the wire signal arm.

Connect the unit to the household water supply and

ensure the water valve is open.

" Ensure that the supply line does not kink when the

refrigerator is pushed into place against the wail.

*Remove and re-install the water filten Be sure to push the

filter firmly so that you hear it loci< solidly into position.

" If water dispenses slowly or not at all, or if the filter is six

months old or older, it should be replaced.

oMove any item or frozen ice cubes that may block the

signal arm from being in the on or down position. See

Automatic Ice Maker-Freezer section in manual.

*The fresh food and freezer ice makers will each produce

approximately 2.5 pounds of ice every 24 hours

depending on usage conditions.

"tf water dispenses slower than normal, or if the filter is six

months old or older, it should be replaced.

" Ensure that the supply line does not kink when the

refrigerator is pushed into place against the wall

*Turn off household water line valve Remove valve Ensure

that valve is not a self piercing saddle valve Clean valve

Replace valve if necessary

Press Fast Freeze to temporarily increase ice production

rate.

*Set freezer control to colder setting to improve

performance of the ice maker (freezer ice maker). Allow

24 hours for temperature to stabilize.

°Move any item or frozen ice cubes that may block the

signal arm from being in the off or upward position. See

Automatic Ice Maker-Freezer section in manual.

*Remove ice Container and discard icel ]he ice maker will

produce fresh Supply. Ice Should be used at least t_ice

weekly to keep the Cubes separated,

*This generally occurs When the ice maker does not get

enough Water. ThisiSUsUallythe result Of a clogged water

filter or restricted water SUpply.Replace the water filter and

if the Condition still occurs check for a Saddle Valve, water

valve not turned On a!l the Way or kinked Water supply line.

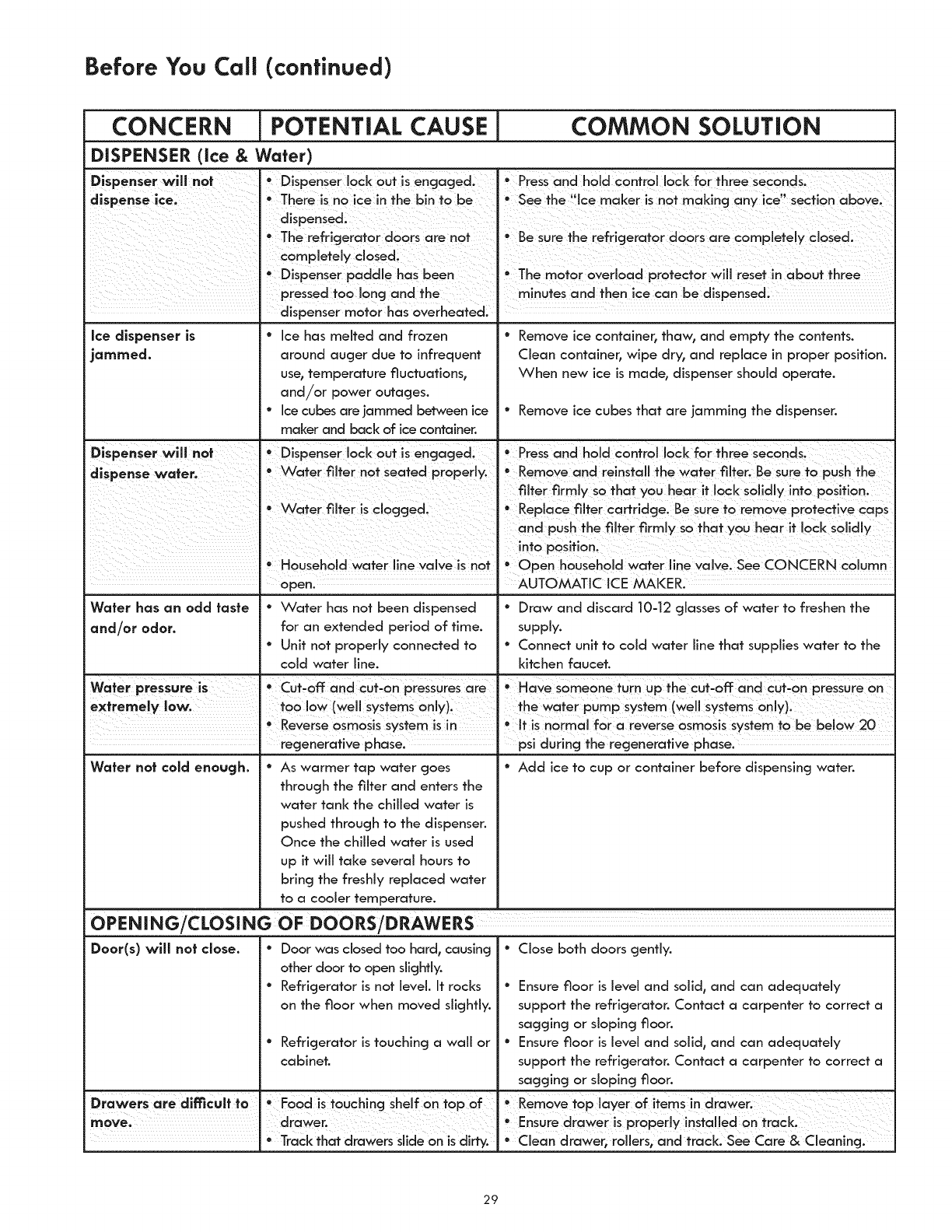

Before You Call (continued)

CONCERN lPOTENTIAL CAUSE ICOMMON SOLUTION

DISPENSER (ice & Water)

Dispenser wiff * Dispenser lock 0uf is engaged.

dlspense ice. , There is no icein the bin f0be

dispensedi

•Dispenser paddle has

* PreSsand hold Control lock for three seconds'

*Seethe _!tce maker isnot making any ice' Section ab0ve,

Be sure the refdgeraf0r doors are completely closed:

* The motor overload protector Will reset in about three

_ressed too long and the minutes and then ice can be dispensedi

dispenser motor has overheated:

Ice dispenser is * Ice has melted and frozen * Remove ice container, thaw, and empty the contents.

jammed, around auger due to infrequent Clean container, wipe dry, and replace in proper position.

use, temperature fluctuations, When new ice is made, dispenser should operate.

and/or power outages.

° Ice cubes are jammed between ice ° Remove ice cubes that are jamming the dispenser.

maker and back of ice container.

Dispenser Will n0f D!spenser !oc k out engaged; I *PreSS a nd hold control 10Ck _or three sec0nds I

*Remove and reinstall the wafer filter. Be sure fo push the

fllter firmly so that yOUhear it lock sOlidly into position.

Replace filter cartridgel Be sure to remove protective Caps

and push the filter flrmly so that yOU hear it lack solidly

into position'

* Open household wate r line valve. See CONCERN column

open. AUTOMATIC ICE MAKER,

Wafer has an odd taste * Water has not been dispensed * Draw and discard 10-12 glasses of water to freshen the

and/or odor. for an extended period of time. supply.

* Unit not properly connected to * Connect unit to cold wafer line that supplies wafer to the

cold wafer line. kitchen faucet.

Wafer pressure Js * Cut,off and cut,on pressures are *Have someone turn up the cut,off and cut,on pressure on

extremely I tOO low (well SYstems Only): fhe ware i pump System (Well systemi Only)I

* Reverse osmosis system is in * It isnormal fora reverse osmosis system tO be below 20

' regenerative phase, psi during the regenerative phase.

Wafer not cold enough. * As warmer fop water goes * Add ice to cup or container before dispensing water.

through the filter and enters the

water tank the chilled water is

pushed through to the dispenser.

Once the chilled water is used

up it wiJJtake several hours to

bring the freshly replaced water

to a cooler temperature.

OPENING/CLInG OF DOORS/DRAWERS

Door(s) will not close. * Door was closed too hard, causing * Close both doors gently.

Drawers are dlmCulfto

move.

other door to open slightly.

* Refrigerator is not level. It rocks

on the floor when moved slightly.

* Refrigerator is touching a wall or

cabinet.

'FOod istouching Shelf On fop of

drawer.

* Track that drawers slide on is dirty.

*Ensure floor is level and solid, and can adequately

support the refrigerator. Contact a carpenter to correct a

sagging or sloping floor.

° Ensure floor is level and solid, and can adequately

support the refrigerator. Contact a carpenter to correct a

sagging or sloping floor.

* Remove top layer of items in drawer.

*Ensure drawer isproperly installed on track,

* clean drawer, rollers, and track: See Care& Cleaning'

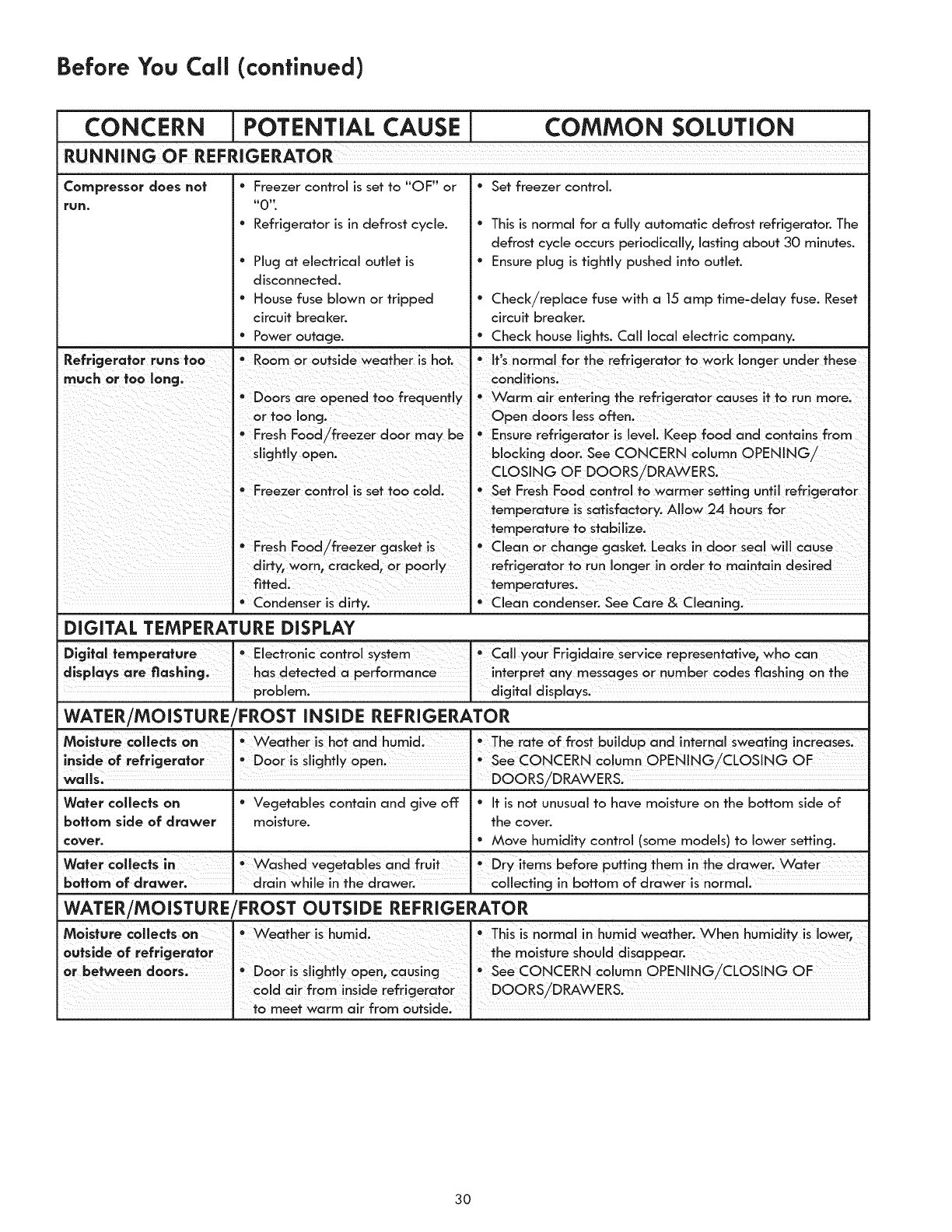

Before You Call (continued)

__CONCERN lPOT_ENTIAL CAUSE ICOMMON SOLUTION

RUNNING OF REFRIGERATOR

Compressor does not

run.

Refrigerator runs too

much or too Jong.

"Freezer control is set to "OF" or

"0".

•Refrigerator is in defrost cycle.

*Hug at electrical outlet is

disconnected.

"House fuse blown or tripped

circuit bred ken

*Power outage.

"Room or outside weather is hot.

*Doors are opened too frequently

or too long.

"Fresh Food/freezer door may be

slightly open.

• Freezer control is set too cold.

I"Fresh Food/freezer gasket is

dirty, worn, cracked, or poorly

fitted.

"Set freezer control.

•This is normal for a fully automatic defrost refrigerator. The

defrost cycle occurs periodically, lasting about 30 minutes.

° Ensure plug is tightly pushed into outlet.

"Check/replace fuse with a 15 amp time-delay fuse. Reset

circuit breaker.

* Check house lights. Carl local electric company.

"It's normal for the refrigerator to work longer under these

conditions.

"Warm air entering the refrigerator causes it to run more.

Open doors less often.

* Ensurerefrigerator is level. Keep food and contains from

blocking door. See CONCERN column OPENING/

CLOSING OF DOORS!DRAWERS.

"Set Fresh Food control to warmer setting until refrigerator

temperature is satisfactory. Allow 24 hours for

temperature to stabilize.

"Clean or change gasket. Leaks in door seal will cause

refrigerator to run longer in order to maintain desired

temperatures.

"Condenser is dirty. •Clean condenser. See Care & Cleaning.

DIGITAL TEMPERATURE DISPLAY

Digffal temp_ rature aHyOU rFdgida!re ser/!c e iepresentafive, wh0c an

d!splays are flashlng i terpret any messages or"number codes flashing on the

igital displays.

WATER/MOISTURE/FROST INSIDE REFRIGERATOR

Moisture collects on, weather is hot and hUmidi •The rate of frOst buildup and internal sweating increasesl

inside of refrigerator " Door is slightly open. ' • See CONCERN column OPENING/CLOSING OF

walls. DOORS/DRAWERS,

Water collects on

bottom side of drawer

cover.

Wafer collects i"

bottom of drawer'

*Vegetables contain and give off

moisture.

*WaShed VegetableS and fruit

drain While in the drawer.

*It is not unusual to have moisture on the bottom side of

the cover.

" Move humidity control (some models) to lower setting.

"DrY items before putt!ng them in the dra_er.

collecting in bottom of drawer is normal.

WATER/MOISTURE/FROST OUTSIDE REFRIGERATOR

I the moisture

or between doors; D0or is slightly 0pen, causing "See CONCERN co!umn OPErqlNG!CLOSING OF

DOORS!DRAWERS,

J to meet warm air from outside. J

Kenmore 25370313214 User Manual REFRIGERATOR Manuals And Guides 1308283L

Navigation menu

Versions of this User Manual:

Views

Navigation
