Comb" "
ModeBs:363.62702,363.62709
BEFORE YOU BEGIN
Read dtese instructions completely and carefully.
.IMPORTANT - Savethese
instructions for' local inspector's use
° IMPORTANT - Observeall
governing codes and ordinances,
o Note to Installer - Be sure to leave these
instructions with the Consumer
°Note to Consumer - Keep these
instructions fbr future reference,
•Skill level - Installation of this appliance requires
basic mechanical and electrical skills
• Proper installation is the responsibility of the installer,
• Product failure due to improper installation is not
covered under the Warranty,,
READ CAREFULLY.
KEEP THESE INSTRUCTIONS.
installation instructions

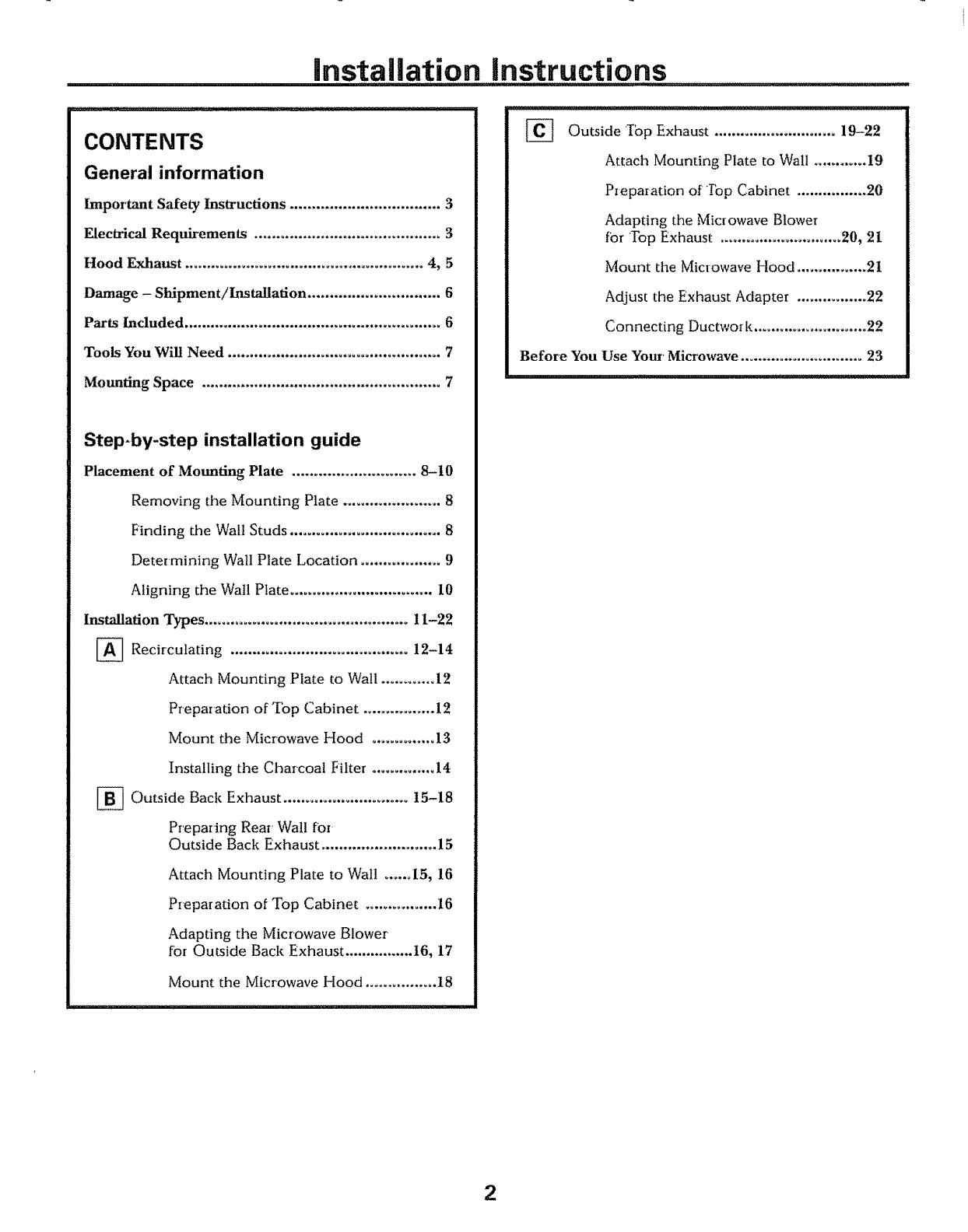

CONTENTS
General information
Important Safety Instructions .................................. 3
Electrical Requirements .......................................... 3
Hood Exhaust ...................................................... 4, 5
Damage - Shipment/Installation .............................. 6
Parts Included .......................................................... 6
Tools You Wilt Need ................................................ 7
Mounting Space ...................................................... 7
Step-by-step installation guide
Placement of Mounting Plate ............................ 8-10
Removing the Mounting Plate ...................... 8
Finding the Wall Studs .................................. 8

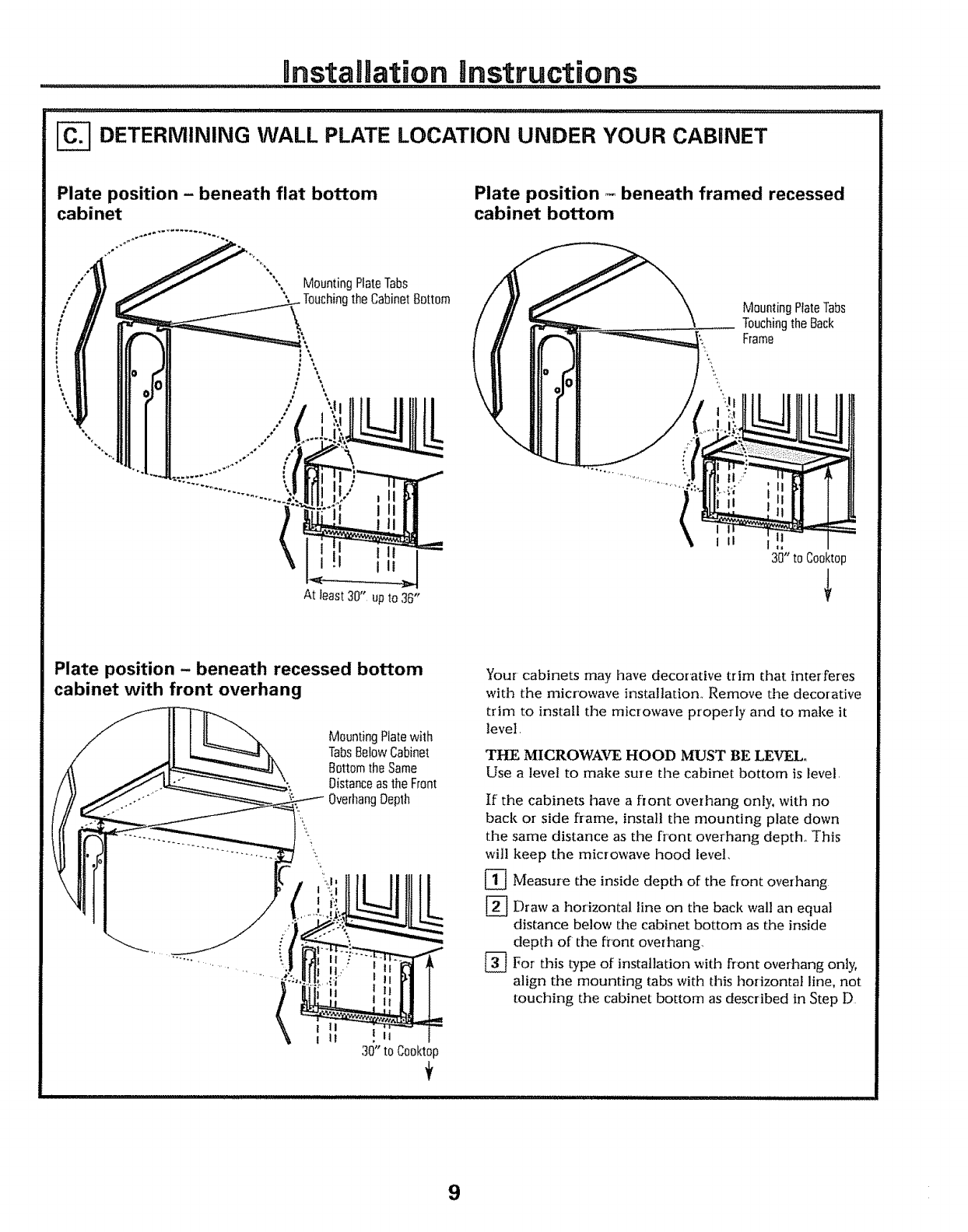

Determining Wall Plate Location .................. 9

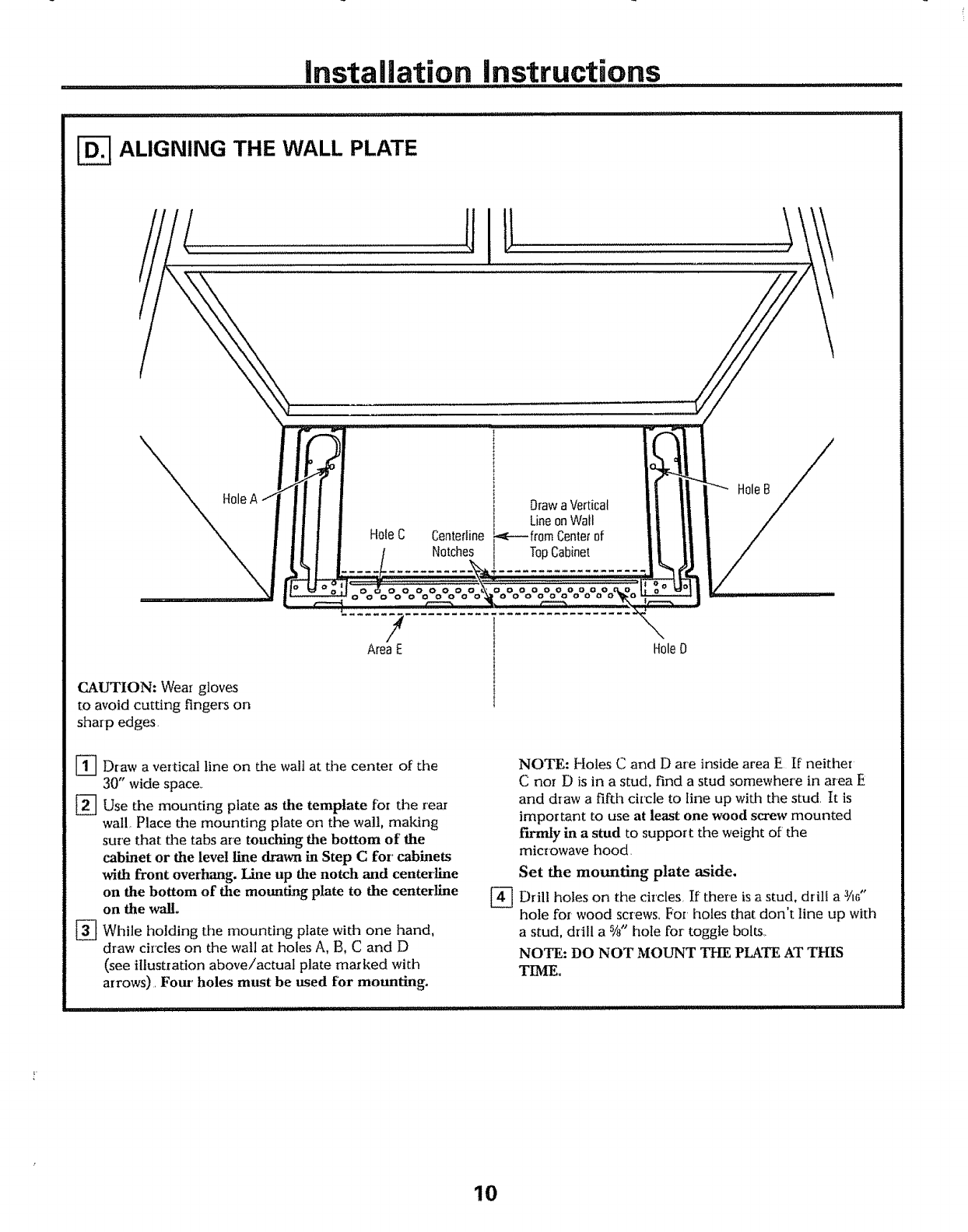

Aligning the Wall Plate ................................ 10

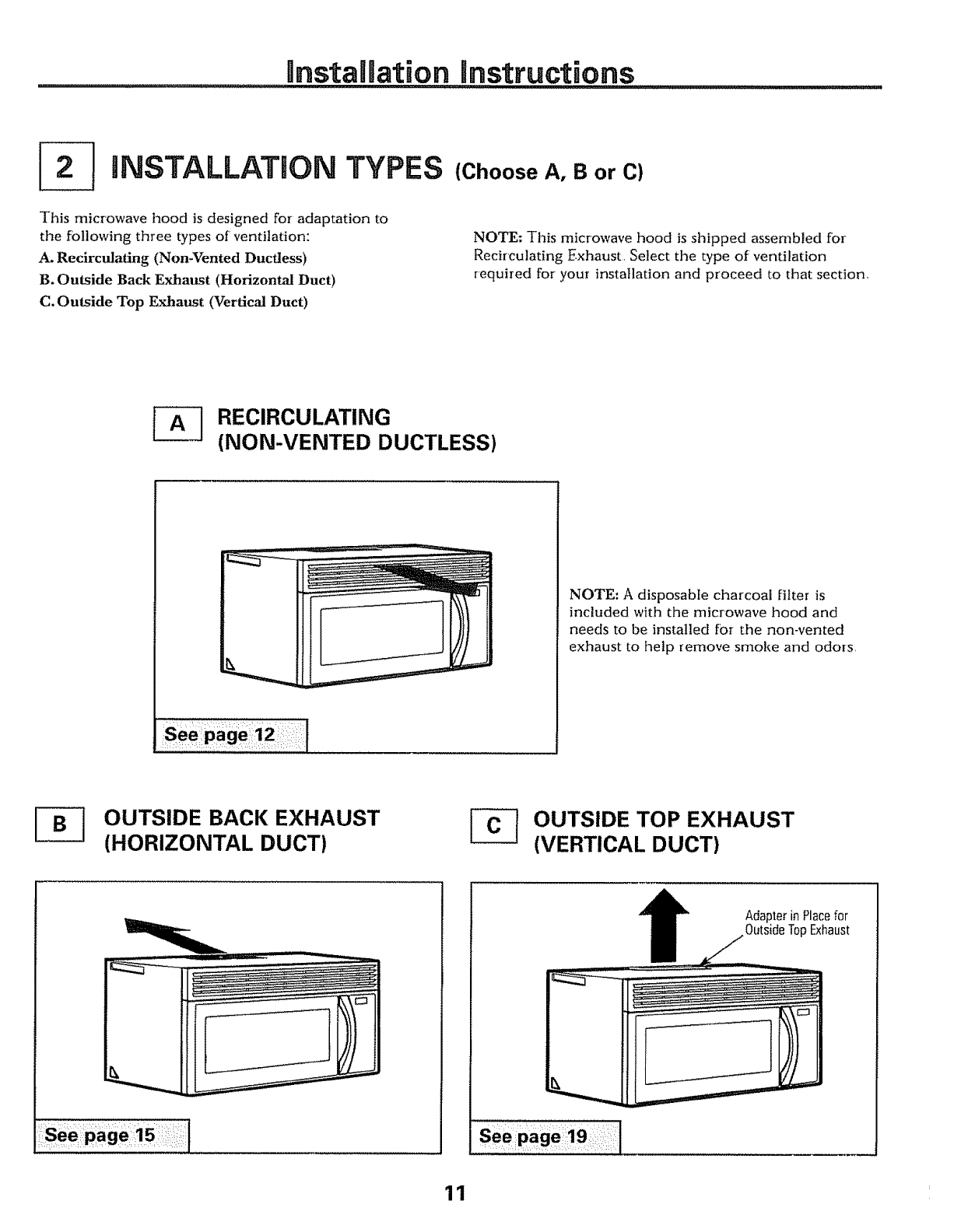

Installation Types .............................................. 11-22

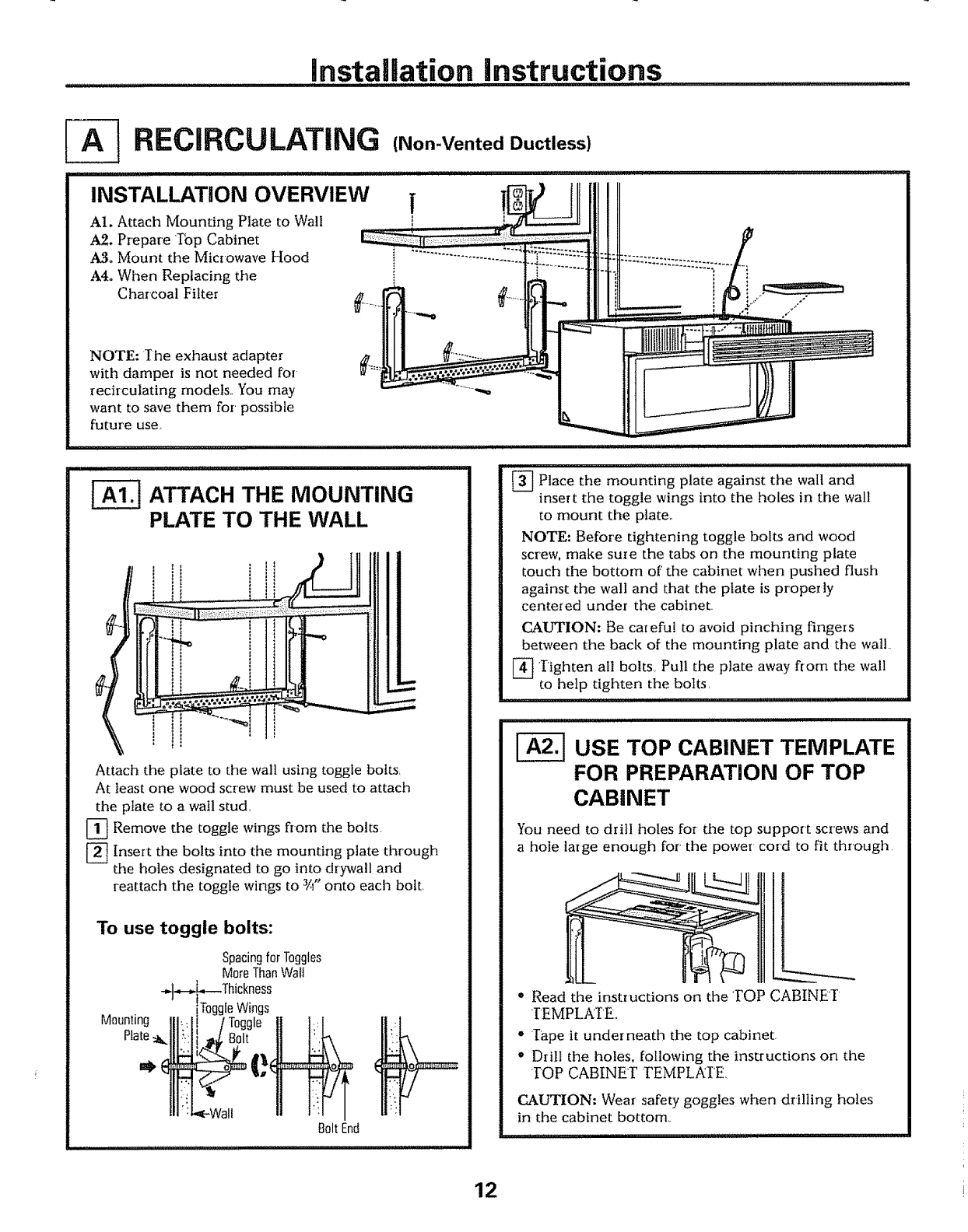

[_] Recircutating ........................................ 12-14
Attach Mounting Plate to Wall ............ 12
Preparation of Top Cabinet ................ 12

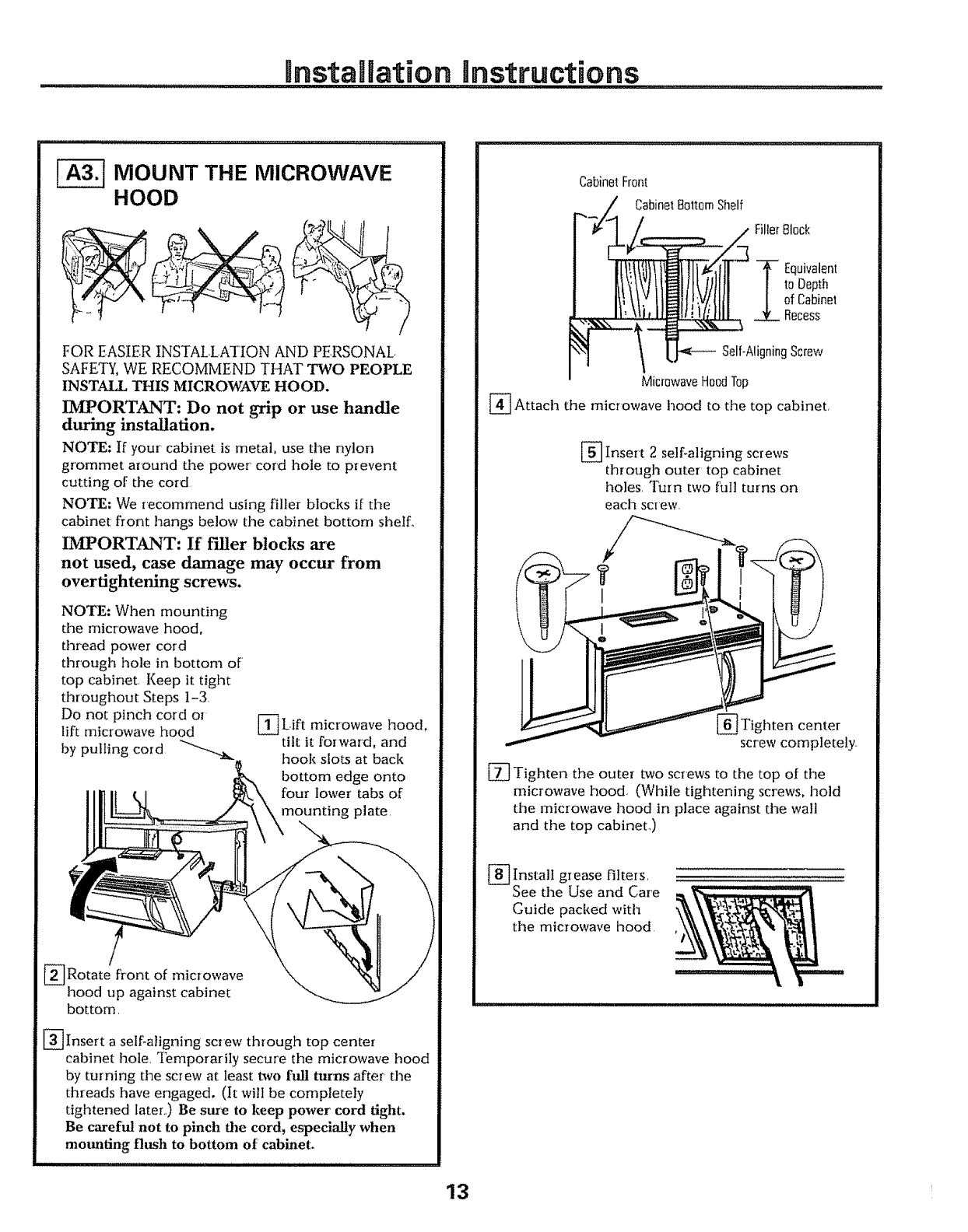

Mount the Microwave Hood .............. 13

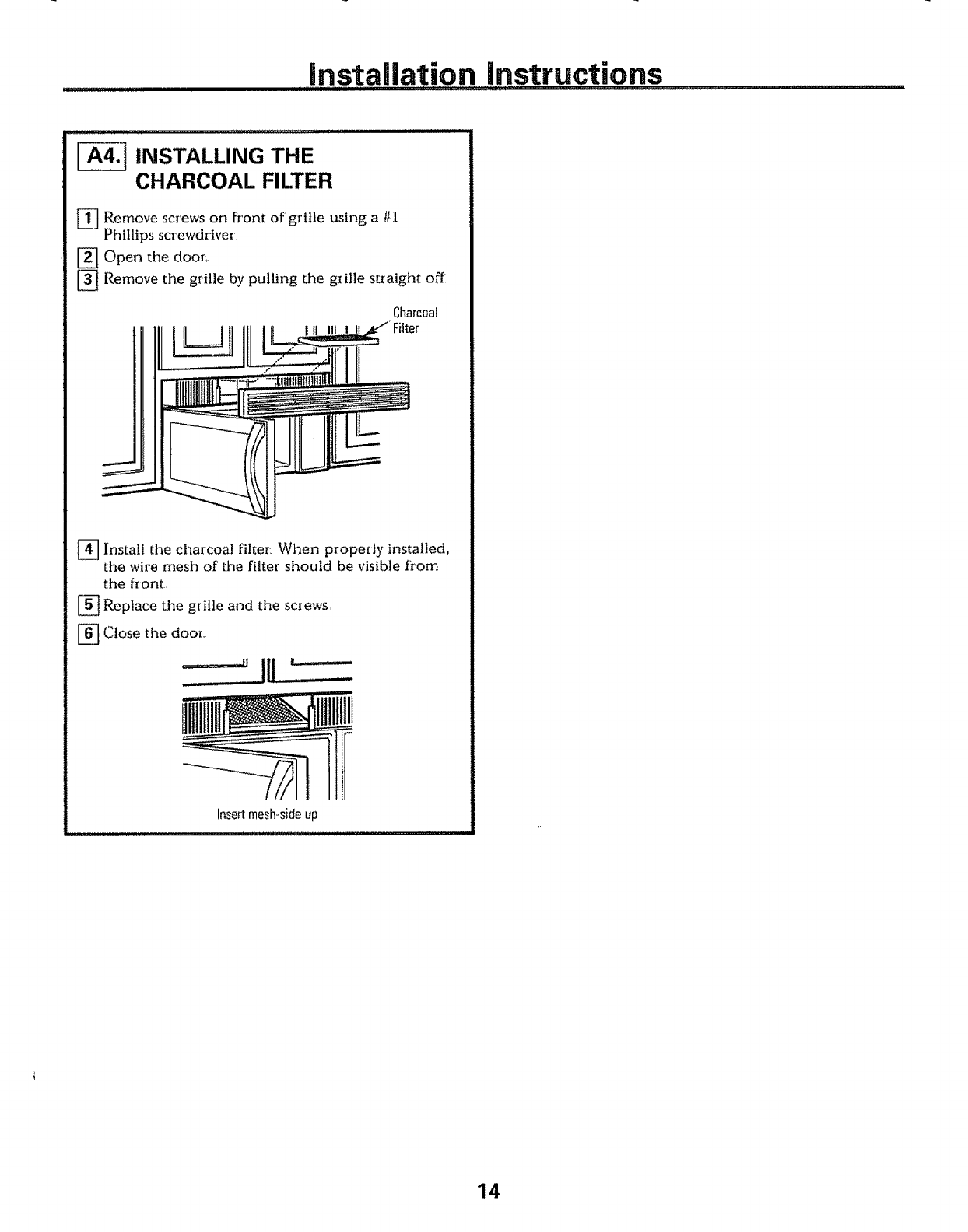

Installing the Charcoal Filter .............. 14

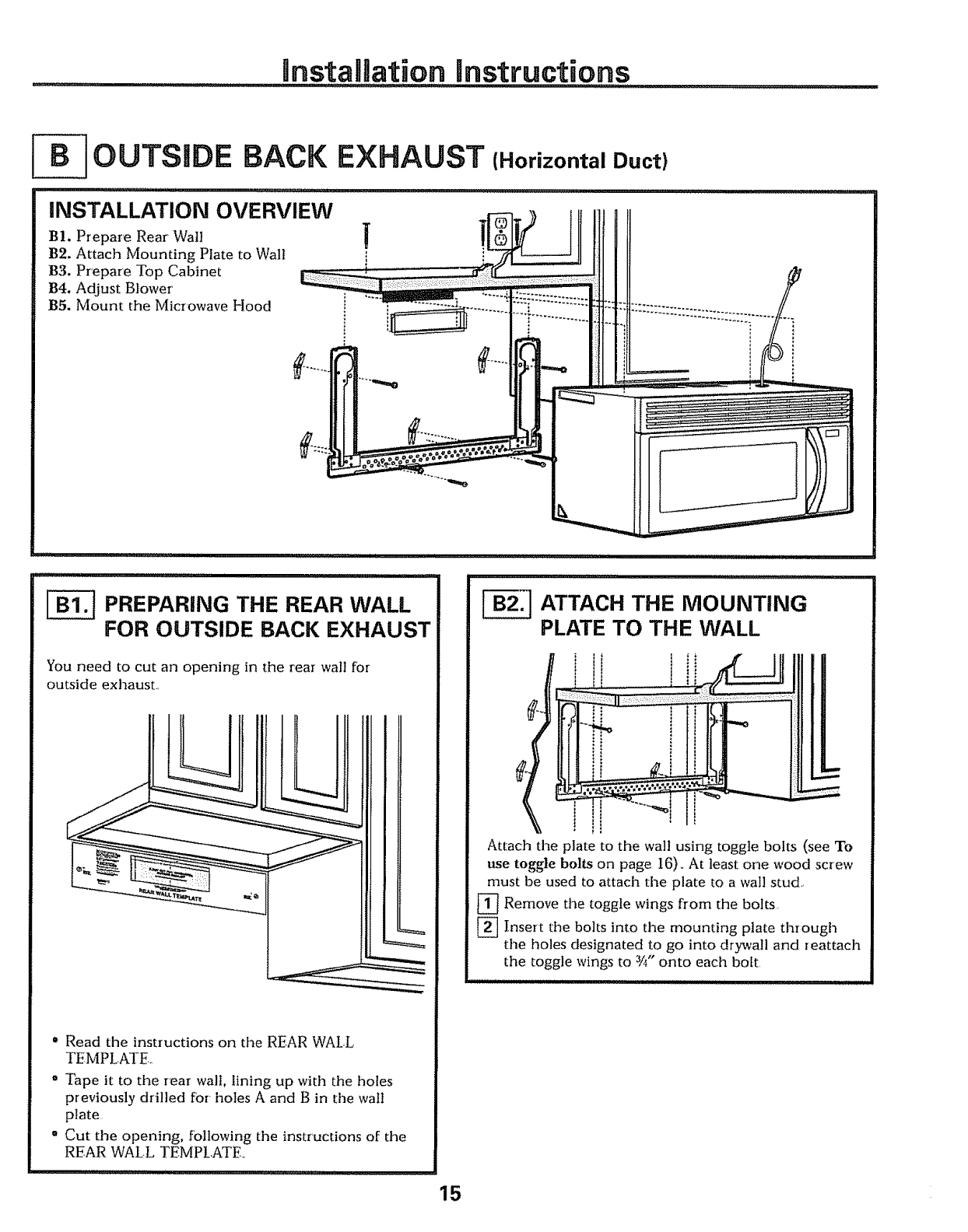

_] Outside Back Exhaust 15-18
Preparing Rear Wall for
Outside Back Exhaust .......................... 15
Attach Mounting Plate to Wall ...... 15, 16
Preparation of Top Cabinet ................ 16

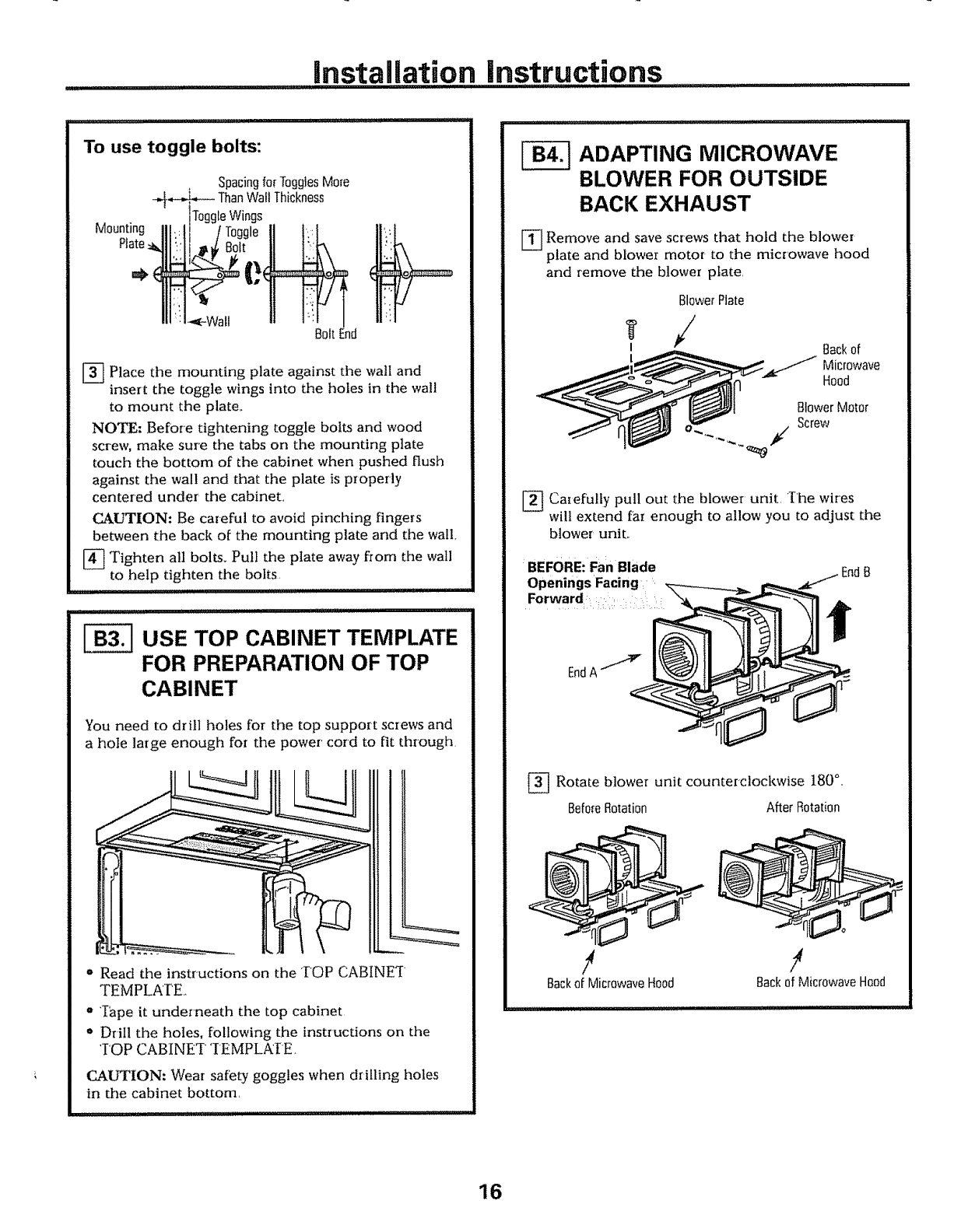

Adapting the Microwave Blower

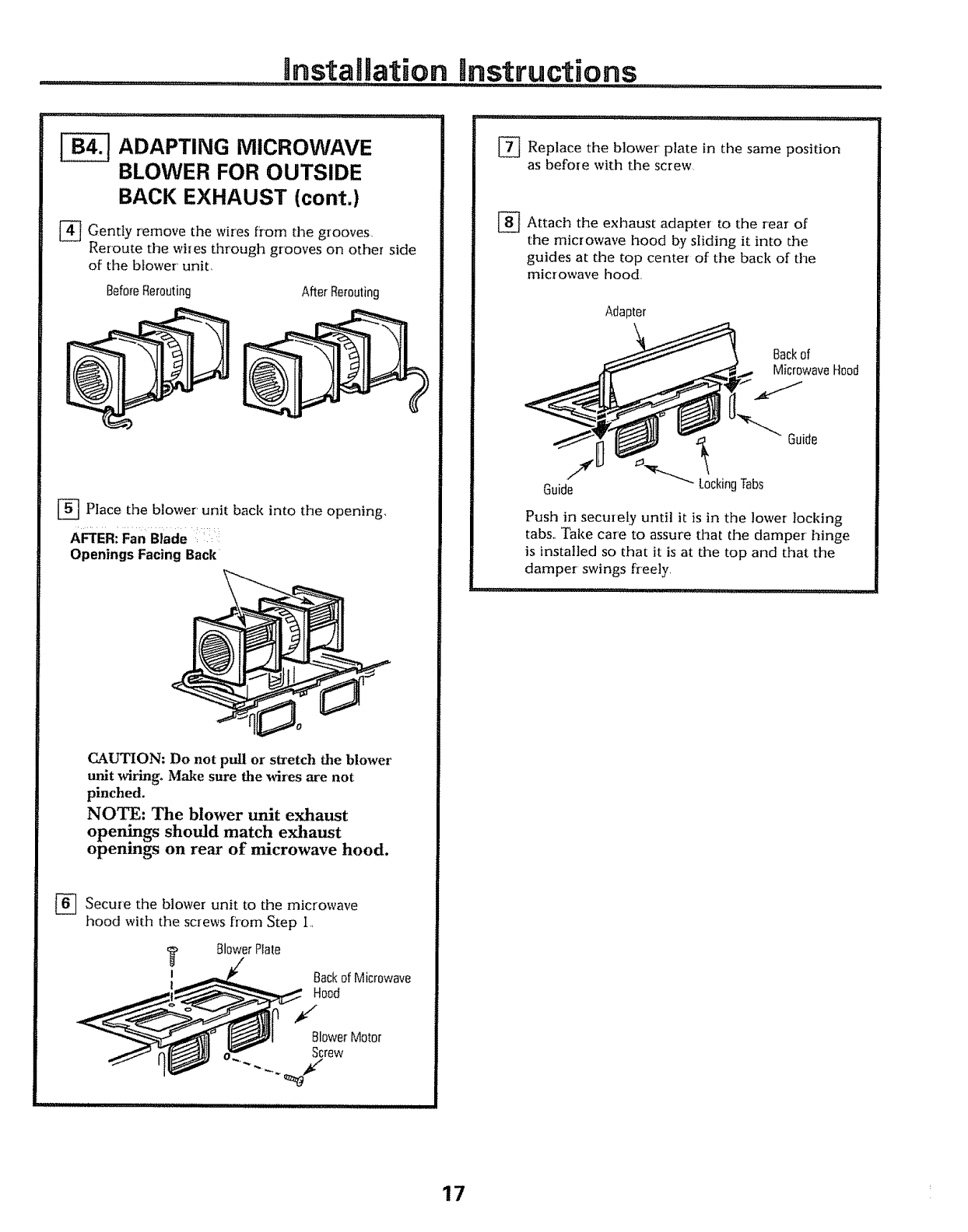

for Outside Back Exhaust ................ 16, 17

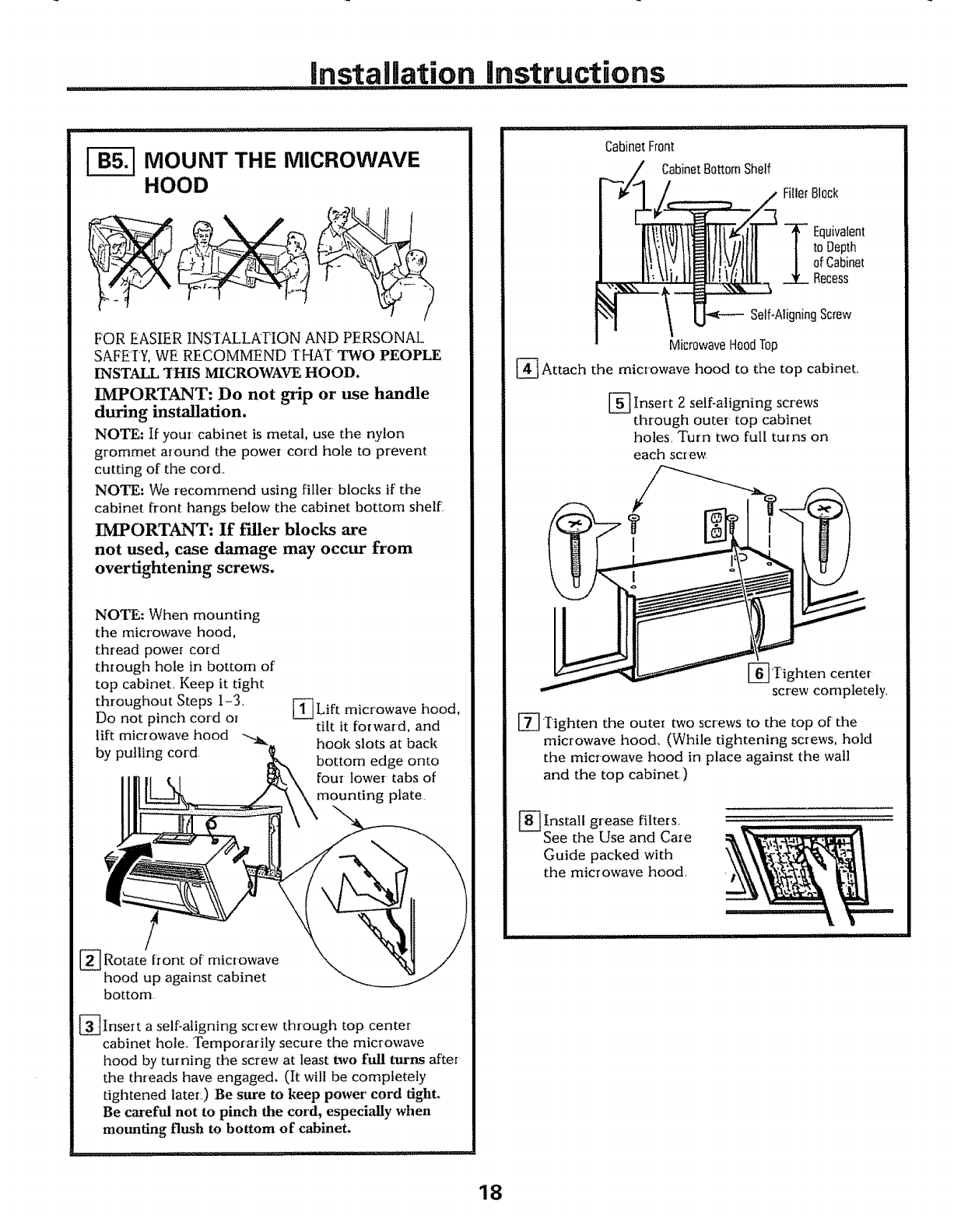

Mount the Microwave Hood ................ 18
[_ Tbp Exhaust ............................ 19-22
Outside

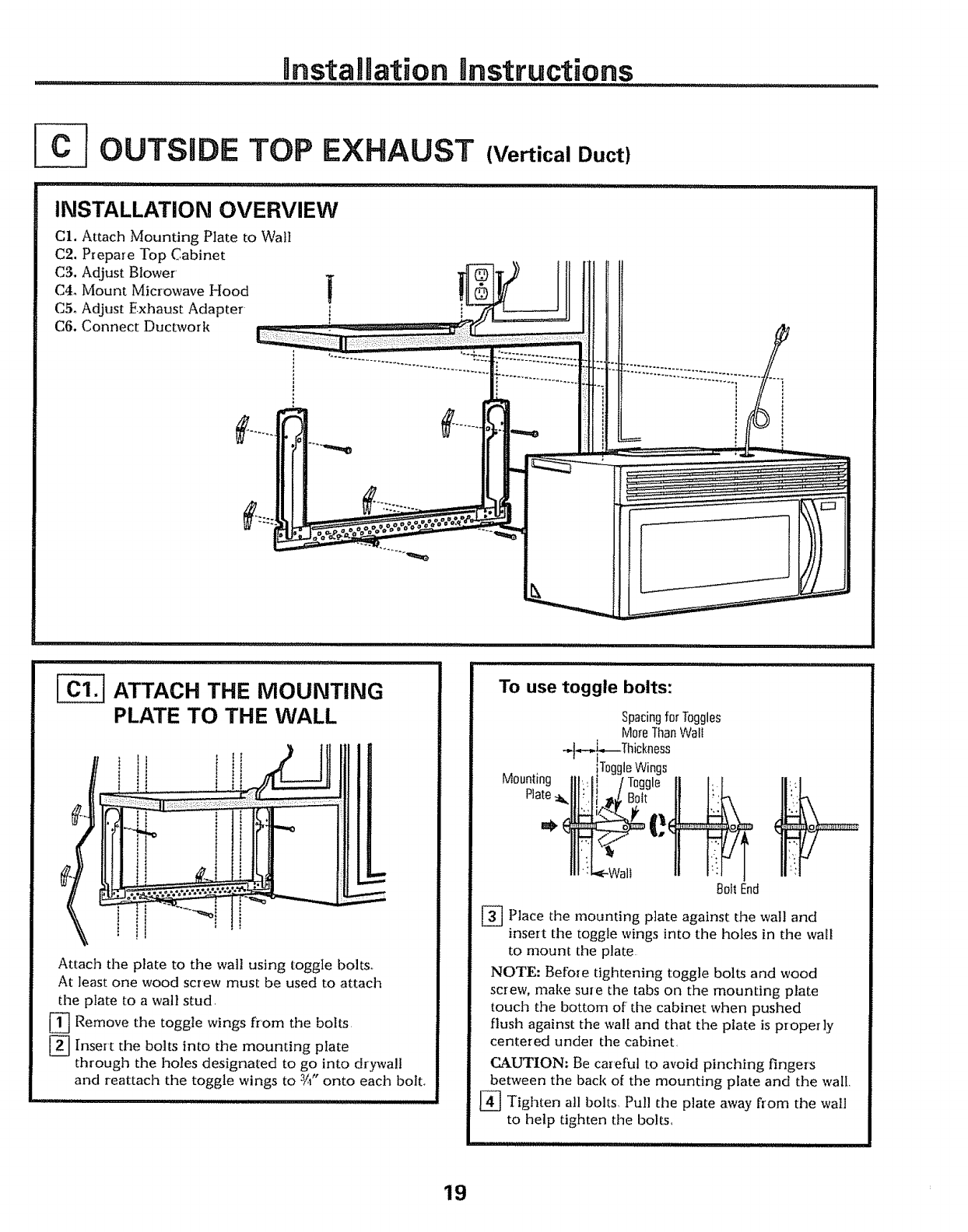

Attach Mounting Plate to Wall ............ 19

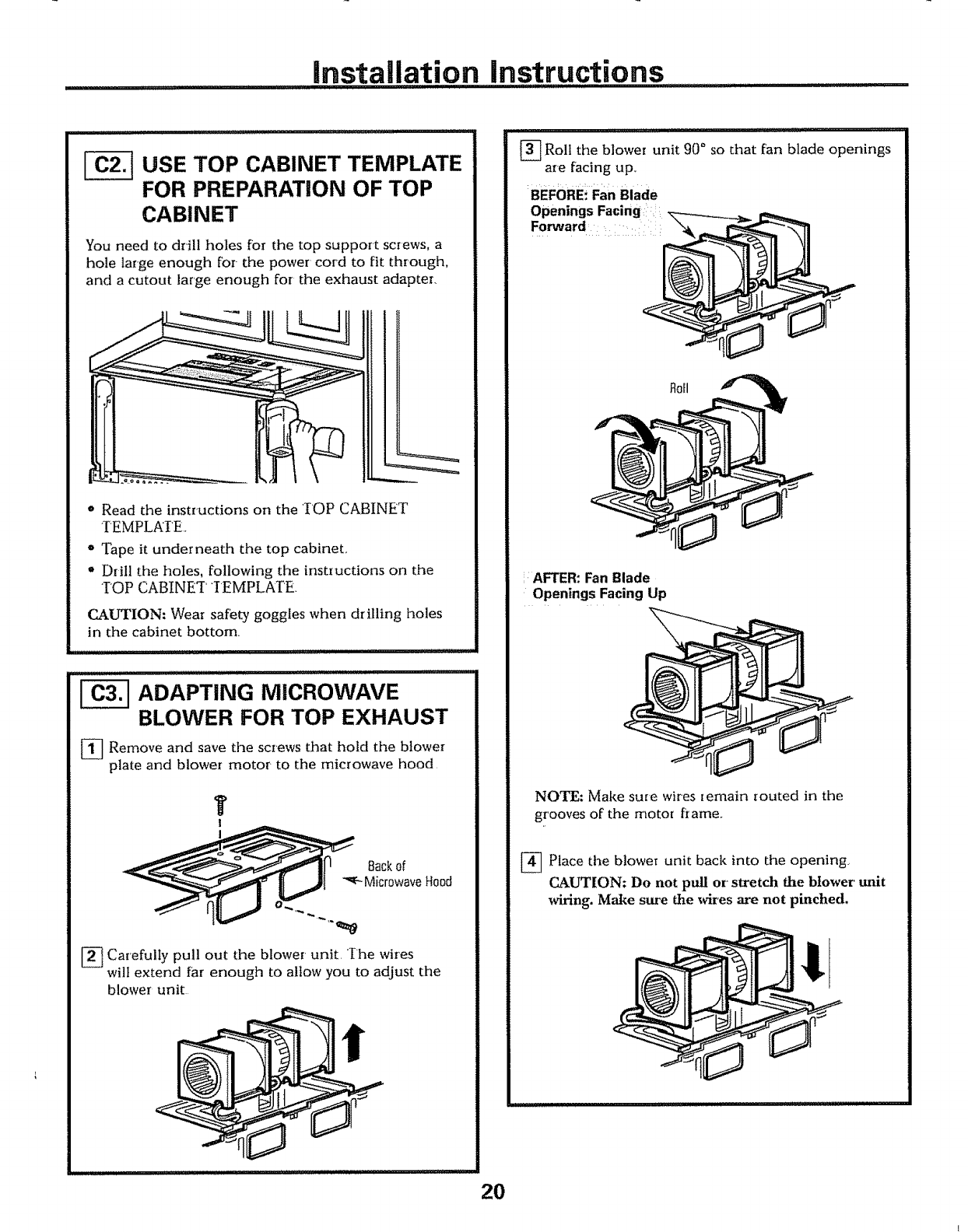

Prepalation of !bp Cabinet ................ 20
Adapting the Microwave Blower

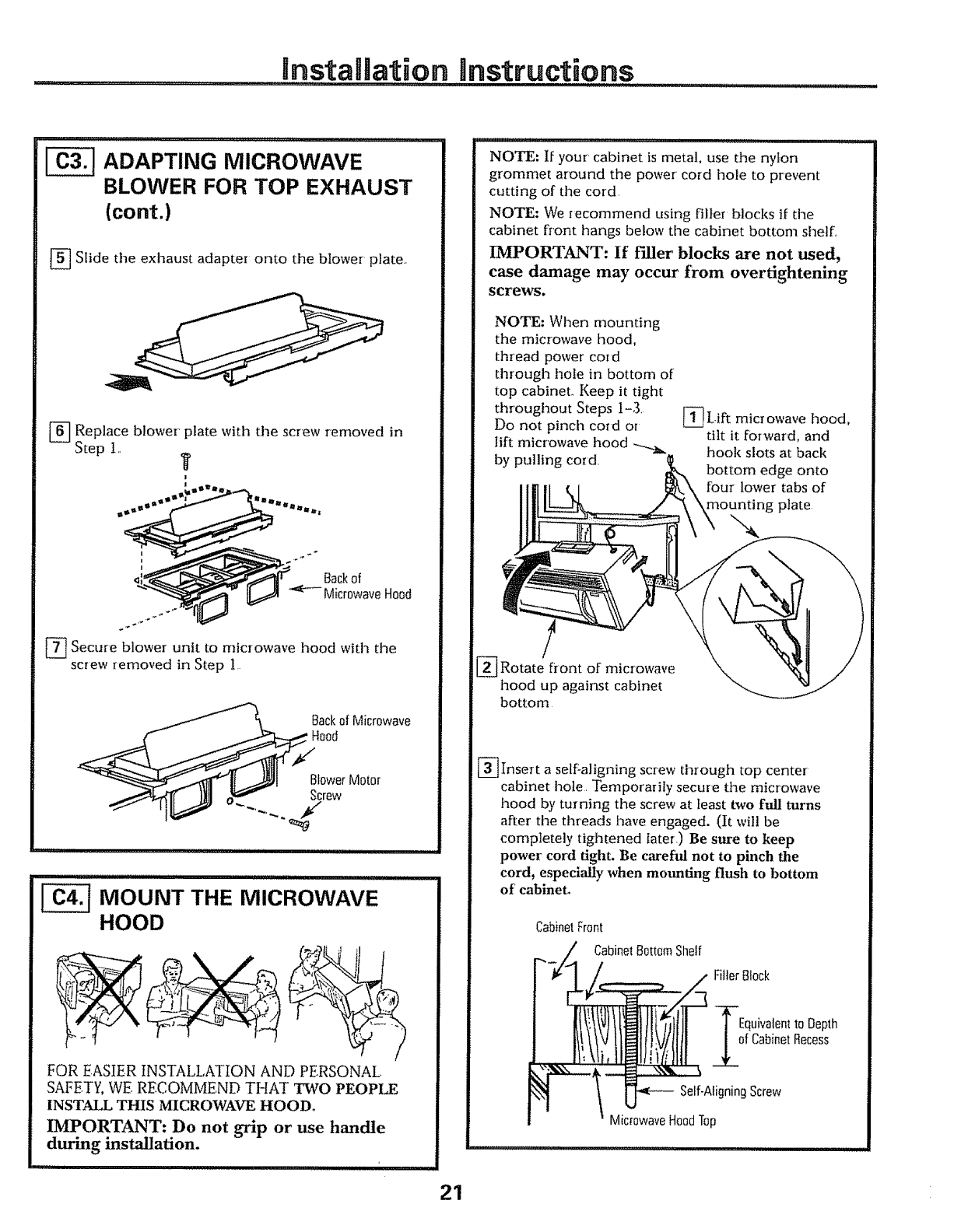

for Fop Exhaust ............................ 20, 21
Mount the Microwave Hood ................ 2t

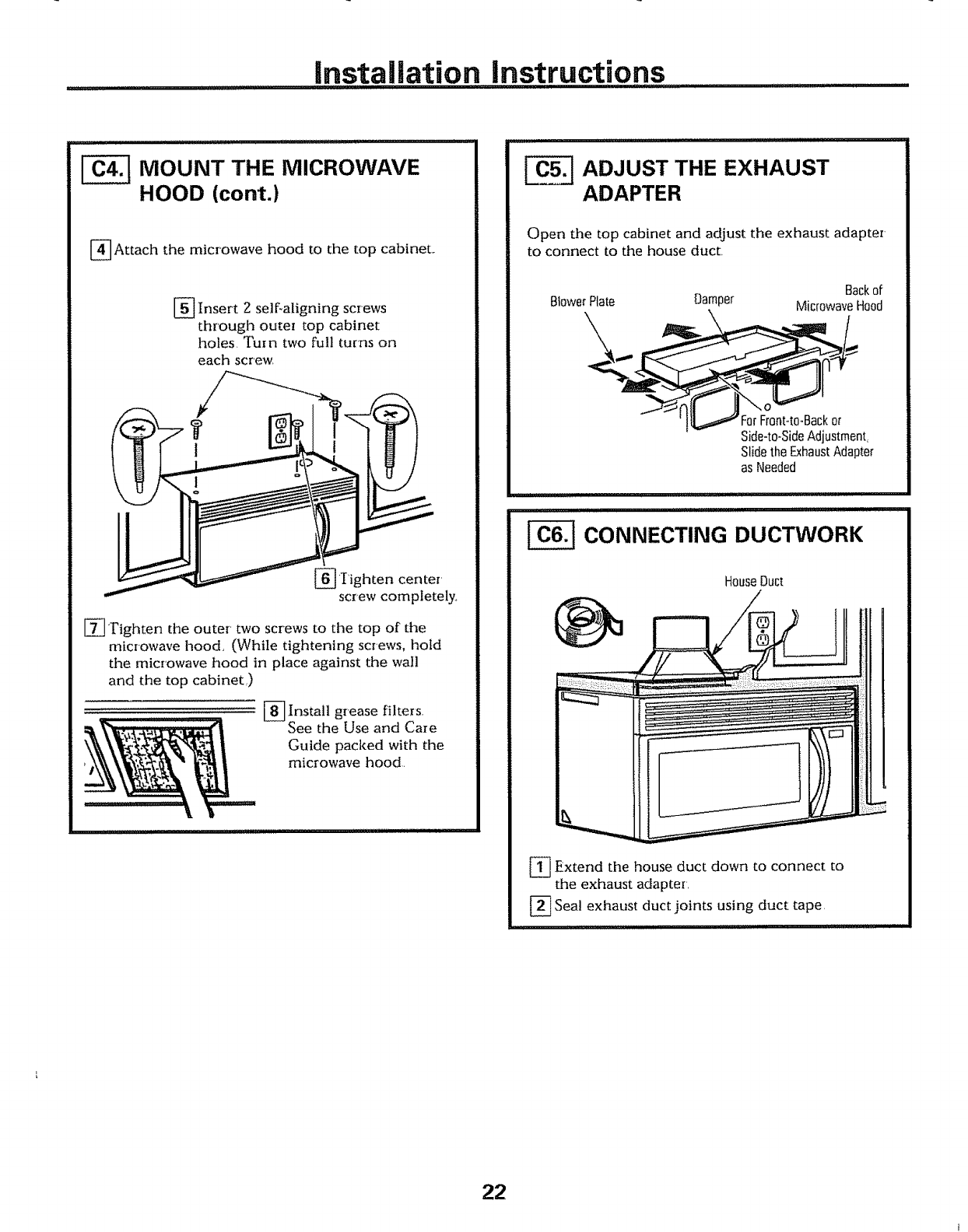

AdJust the Exhaust Adapter ................ 22
Connecting Ductwor k .......................... 22

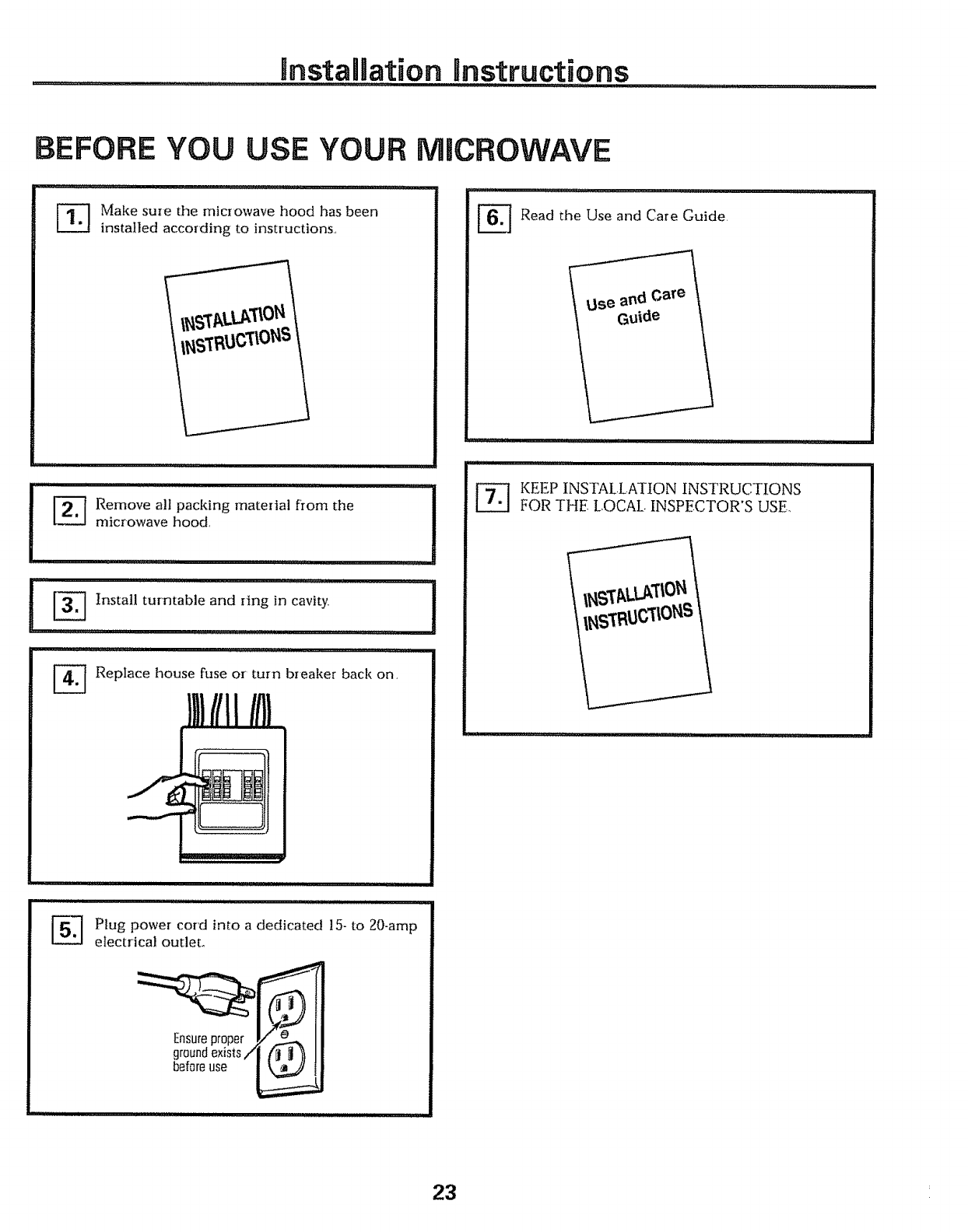

Before You Use Yore Microwave ............................ 23
2
, , Installation instructions ........................................................................................................................................

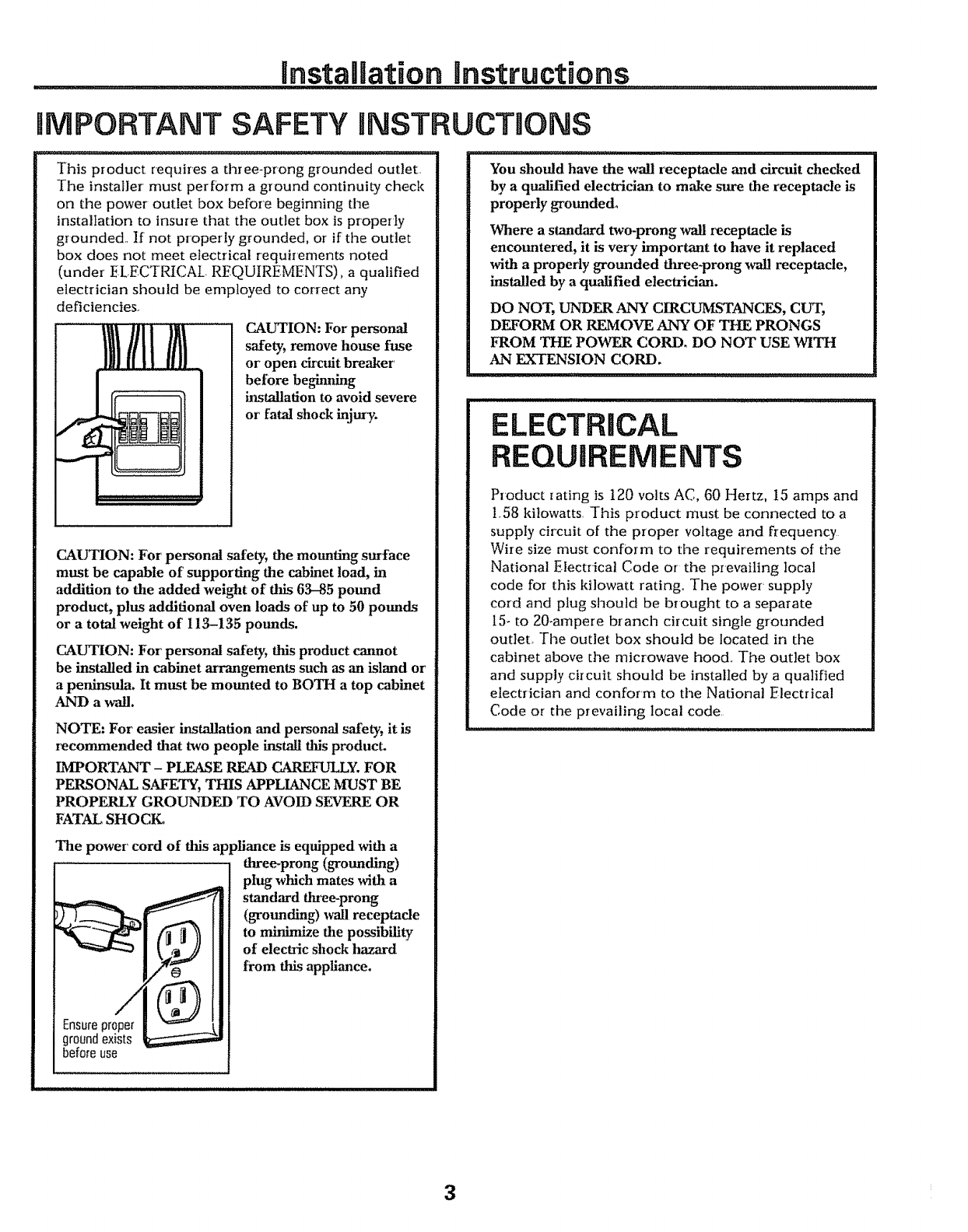

mMPORTANT SAFETY INSTRUCTmONS
This product requires a three-prong grounded outlet.
The installer must perform a ground continuity check
on the power outlet box before beginning tl3e
installation to insure that the outlet box is properly
grounded. If not properly grounded, or if the outlet
box does not meet electrical requirements noted
(under ELECTRICAL REQUIREMENTS), a qualified
electrician should be employed to correct any
deficiencies.
CAUTION: For personal
safety, remove house fuse
or open circuit breaker
before beglrmhag
installation to avoid severe
or fatal shock injury.
CAUTION: For personal safety, the mounting surface
mnst be capable of supporting the cabinet load, in
addition to the added weight of thls 63--85 pound
product, plus additional oven loads of up to 50 pounds
or a total weight of 113--135 pounds.
CAUTION: For personal safety, this product cannot
be installed in cabinet arrangements such as an island or
apeninsula. It must be mounted to BOTH a top cabinet
AND a wall.
NOTE: For easier installation and personal safety, it is
recommended that two people install this product.
IMPORTANT - PLEASE READ CAREFULLY. FOR
PERSONAL SAFETY, THIS APPLIANCE MUST BE
PROPERLY GROUNDED TO AVOID SEVERE OR
FATAL, SHO CIL
The power cord of this appliance is equipped with a
three-prong (grounding)
pIug which mates with a
standard threc_prong
(grounding) wall receptacle
to rednimize the possibility
of electric shock hazard
from tiffs appliance.
Ensureproper
groundexists
before use
You should have the wall receptacle and circuit checked
by a qualified electrician to make sure the receptacle is
properly grounded.
Where a standard two-prong wall receptacle is
encountered, it is very important to have it replaced
with a properly grounded three-prong wall receptacle,
installed by a qualified electrician.
DO NOT, UNDER ANY CIRCUMSTANCES, CUT,
DEFORM OR REMOVE ANY OF THE PRONGS
FROM THE POWER CORD. DO NOT USE WITH
AN EXTENSION CORD.
ELECTRICAL
REQUIREMENTS
Product rating is 120 volts AC, 60 Hertz, 15 amps and
!. 58 ldlowatts This product must be connected to a
supply circuit of the proper voltage and frequency
Wire size must conform to the requirements of the
National Electrica! Code or the prevailing local
code for this kilowatt rating,, The power' supply
cord and plug should be brought to a separate
15- to 20-ampere branch circuit single grounded
outlet,, The outlet box should be located in the
cabinet above the microwave hood,, The outlet box
and supply circuit should be installed by a qualified
electrician and conform to the National Electrical
Code or the prevailing local code.
3
installation instructions

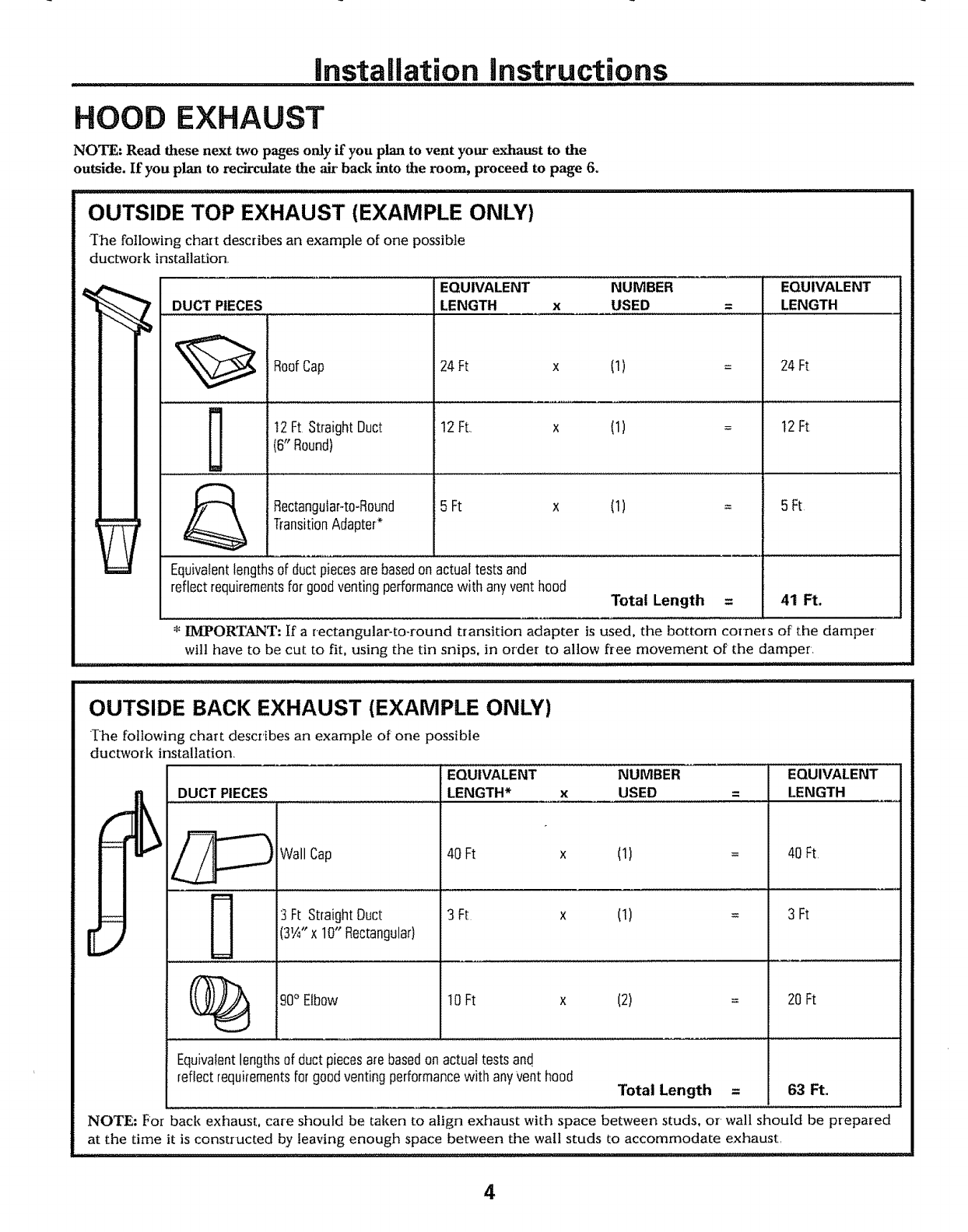

HOOD EXHAUST
NOTE: Read these next two pages only ff you plan to vent your exhaust to the
outside. If you plan to recircutate the air' back into the room, proceed to page 6.
OUTSIDE TOP EXHAUST (EXAMPLE ONLY)
The following chart describes an example of one possible
ductwor k installation,
EQUIVALENT NUMBER EQUIVALENT
DUCT PIECES LENGTH x USED = LENGTH
D
RoofCap
t2 Ft StraightDuct
(6" Round)
Rectangular-to-Round
TransitionAdapter*
24 Ft x (1)
12Ft, x (1)
5 Ft x (1)
Equivalentlengthsof ductpiecesarebasedon actualtestsand
reflectrequirementsfor goodventingperformancewith anyventhood Total Length =
24Ft
12Ft
5Ft
41 Ft.
* IMPORTANT: If a rectangular-to-round transition adapter is used, the bottom cornets of' the damper
will have to be cut to fit, using the tin snips, in order to allow fi-ee movement of the damper.
OUTSIDE BACK EXHAUST (EXAMPLE ONLY)
The following chart describes an example of one possible
duetwork installation_
EQUIVALENT NUMBER EQUIVALENT
DUCT PIECES LENGTH* xUSED = LENGTH
B
Wall Cap
3Ft StraightDuct
(31A" x 10" Rectangular)
90°Elbow
40 Ft x (1)
3 Ft x (1)
10 Ft x (2)
Equivalentlengthsof ductpiecesarebasedon actualtestsand
reflectrequirementsfor goodventingperformancewith anyvent hood Total Length =
40Ft
3 Ft
20Ft
63 Ft.
NOTE: For back exhaust, care should be taken to align exhaust with space between studs, or wall should be prepared
at the time it is constructed by leaving enough space between the wall studs to accommodate exhaust,
iiH,ii,l,n,ll,i
4
.......................................................................................Installation instructions

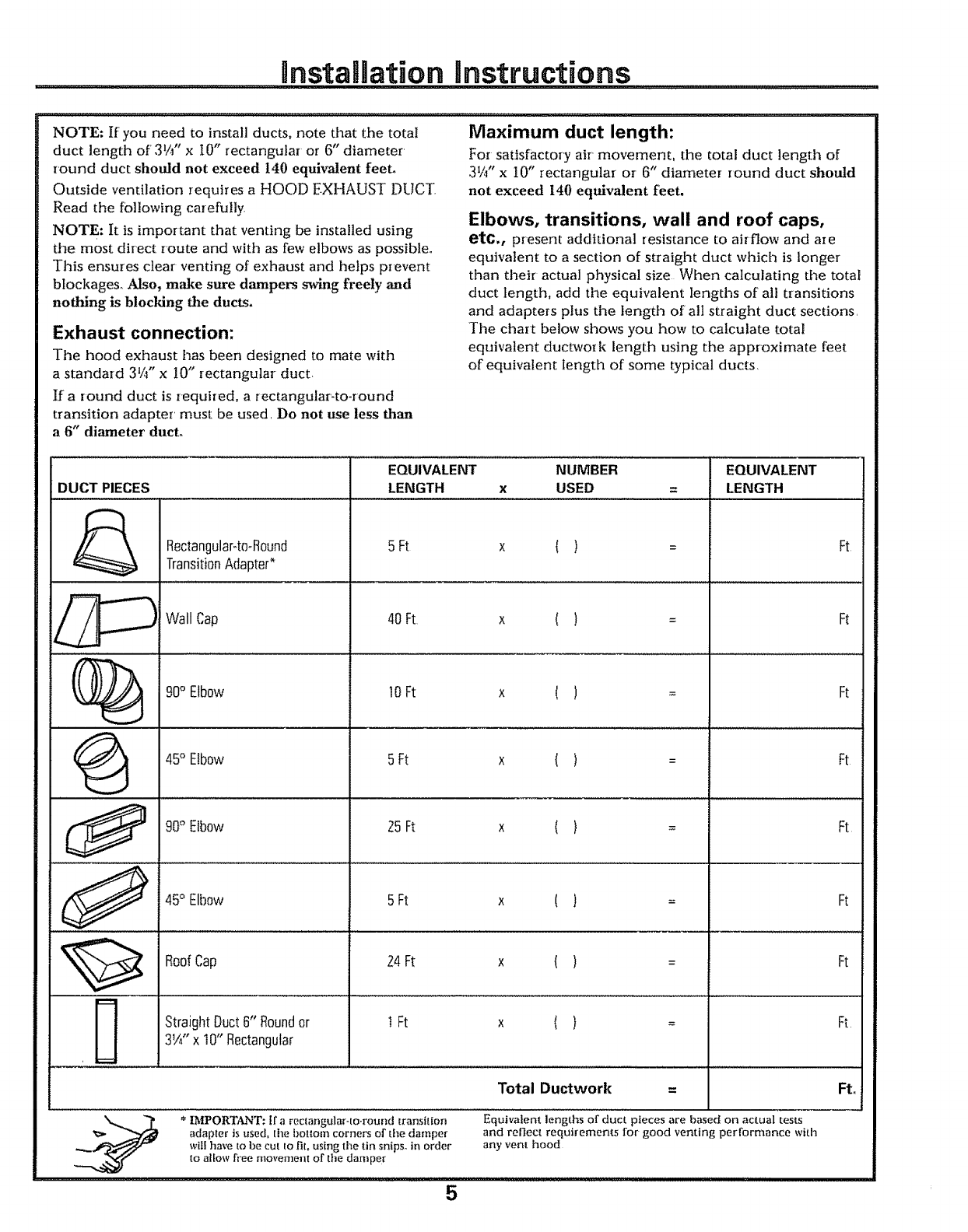

NOTE: If you need to install ducts, note that the total
duct length of' 3W' x t0" rectangular or 6" diameter'
round duct should not exceed 140 equivalent feet°
Outside ventilation requires a HOOD EXHAUST DLtCT
Read the following carefully.
NOTE: It is important that venting be installed using
the most direct route and with as few elbows as possible.
This ensures clear venting of exhaust and helps prevent
blockages° Also, make sure dampers _,dng freely ,and
nothing is blocking the ducts.
Exhaust connection:
The hood exhaust has been designed to mate with
a standard 3i/t" x 10" rectangular duct,
If a round duct is required, a rectangular_to-round
transition adapter' must be used. Do not use less than
a 6" diameter duct,
Maximum duct length:
For satisfactory air movement, the total duct length of
3I/1" x I0" rectangular or 6" diameter round duct should
not exceed 140 equivalent feet.
Elbows, transitions, wall and roof caps,
etc., present additional resistance to airflow and are
equivalent to a section of straight duct which is longer
than their actual physical size When calculating the total
duct length, add the equivalent lengths of all transitions
and adapters plus the length of' all straight duct sections.
The chart below shows you how to calculate total
equivalent ductwor k length using the approximate feet
of equivalent length of some typical ducts,
EQUIVALENT NUMBER
DUCT PIECES LENGTH x USED =
Rectangular4o-Round 5 Ft
TransitionAdapter*
_ Wall Cap 40Ft
........... I ................
(_ 90°Elbow 10Ft x ( )
45° Elbow 5Ft x ( )
90°Elbow 25Ft x ( ) =
J 45° Elbow 5Ft x ( )
RoofCap 24 Ft x ( )
w
EQUIVALENT
LENGTH
x { ) = Ft
x ( ) = Ft
= Ft
=Ft
Ft
= Ft
= Ft
StraightDuct6" Roundor t Ft x ( ) = Ft
3Vg'x 10"Rectangular
Total Ductwork = Ft, :,
Q"7 *rMPORTANT:lr a rectangular-to-round transition Equivalent lengths or duct pieces are based on actual tests
_ adapter is used, the botto_n corners of the damper and reflect reqmrements for good venting performance with
....__ *viii have to be cut to fit, using the tin snips, in order any vent hood
..,..__," to allow free movement of the damper
5
installation instructions

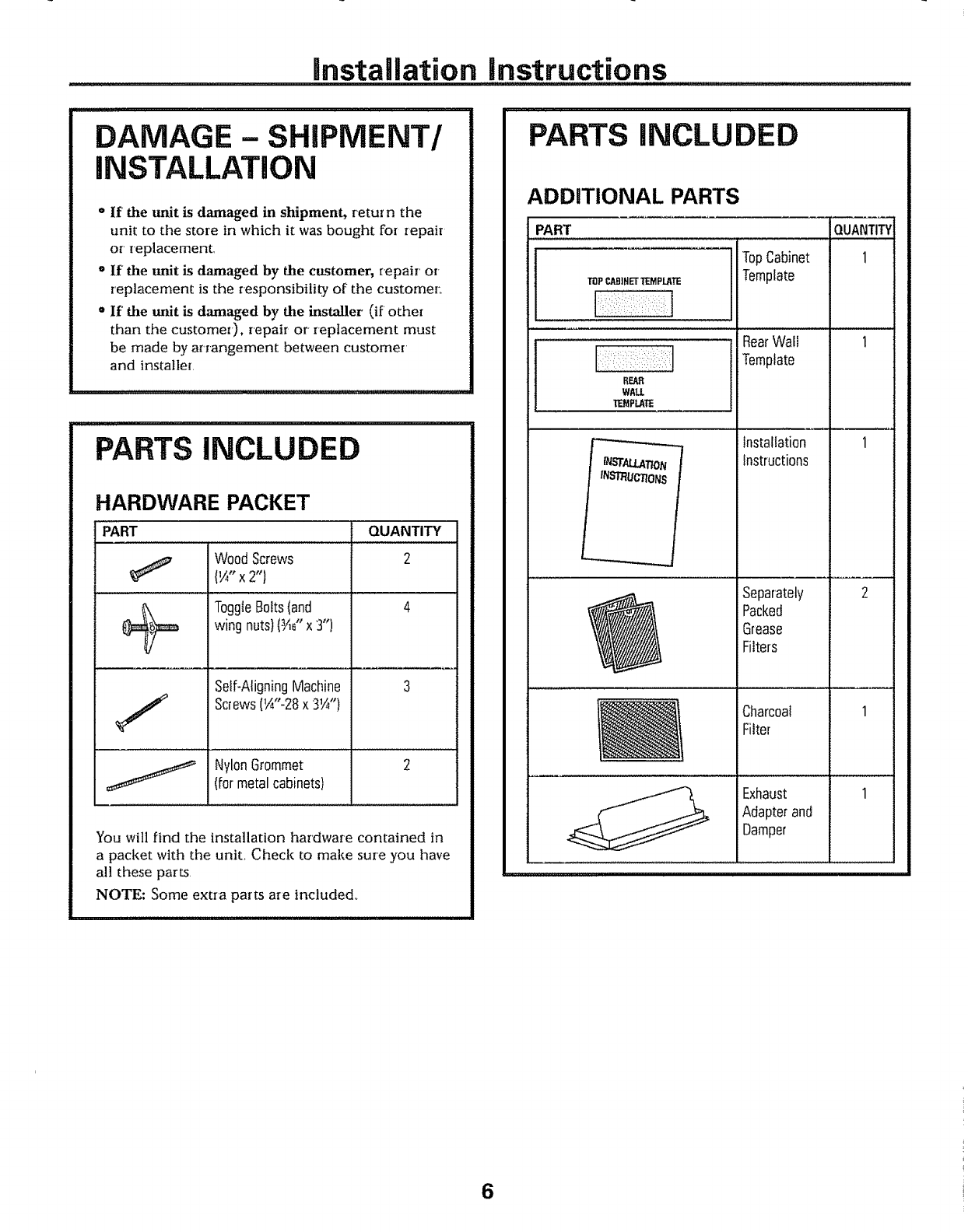

DAMAGE -SHIPMENT/
iNSTALLATiON
• If the unit is damaged in shipment, return the
unit to the store in which it was bought for repair
or' replacement,
•If the unit is damaged by the customer, repair or
replacement is the responsibility of the customer:
• If the unit is damaged by the installer (if other
than the customer), repair or replacement must
be made by arrangement between customer
and installer.
PARTS INCLUDED
HARDWARE PACKET
PART QUANTITY
Wood Screws 2
(¼"x 2")
_._s_ Toggle Bolts (and 4
• wing nuts)(_" x 3")
Self-Aligning Machine 3
j Screws (W'-28 x 3¼")
Nylon Grommet 2
(for metal cabinets)
You wilt find the installation hardware contained in
a packet with the uniL Check to make sure you have
all these parts.
NOTE; Some extra parts are included,,
PARTS iNCLUDED
ADDITIONAL PARTS
PART
TOPCABINET TEMPLATE
TopCabinet 1
Template
Rear Wall 1
Template
REAR
WAU.
TEMPLATE
Installation 1
Instructions
Separately 2
!_ Packed
Grease
Filters
_l / Charcoal 1
Filter
Exhaust 1
Adapter and
Damper
6

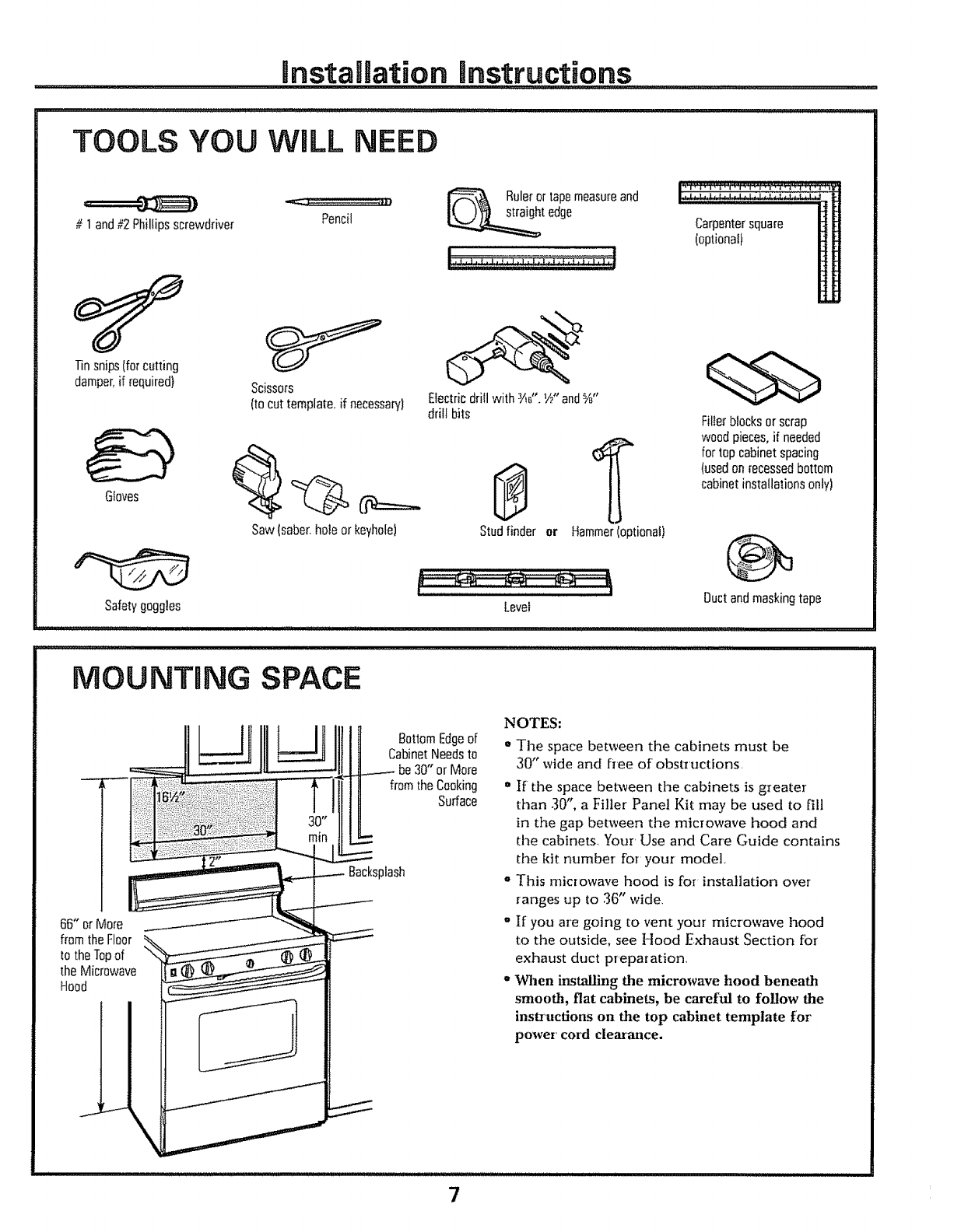

TOOLS YOU
mnstallation mnstructions
iiiiiiif!lll!,,!,ll!f!!llll '_7""'iiiiii ,,iiiii1!!1! i I!I,LI,I ,111 ,!!lllP, l,i, I ,
WiLL NEED
#1and#2 Phillipsscrewdriver Pencil
Ruleror tapemeasureand
t edge Carpentersquare
(optional)
Tinsnips(for cutting
damper,,if required)
G!oves
Scissors
(tocuttemplate,if necessary)
Saw(saber,holeorkeyhole)
Eiec[ricdrill with ¥_6".W' and%"
drill bits
Studfinder or Hammer(optional}
Fillerblocksor scrap
weedpieces,if needed
for top cabinet spacing
(usedonrecessedbottom
cabinetinstallations only)
Safetygoggles
MOUNTING SPACE
Ductandmaskingtape
Level
IU I,LII,,I,I ,i,1,1UI ,i !
installation instructions ......................................

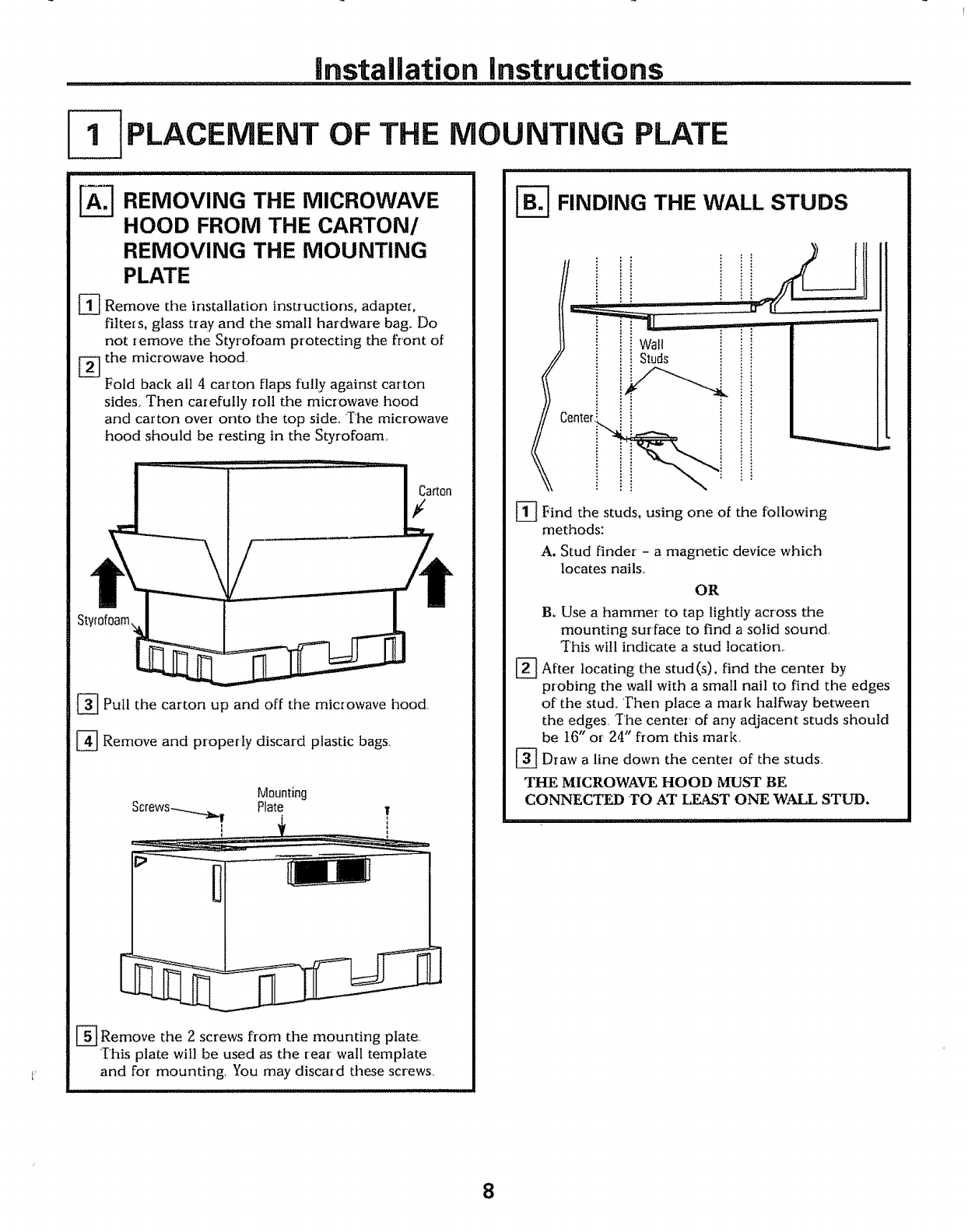

PLACEMENT OF THE
%REMOVING THE MICROWAVE
HOOD FROM THE CARTON/
REMOVING THE MOUNTING
PLATE
[]Remove the installation instructions, adapter,
fiRe[s, glass tray and the small hardware bag. Do
not iemove the Styrofoam protecting the front of
[_] the microwave hood.
Fold back all 4 carton flaps fully against carton
sides, Then carefully roll the microwave hood
and carton over onto the top side., The microwave
hood should be resting in the Styrofoam,
[]Pull the carton up and off the microwave hood,
[_] Remove and properly discard plastic bags,
Mounting
Plate !
[-_ Remove the 2 screws from the mounting plate,
This plate will be used as the rear wall template
and for mounting, You may discard these screws,
MOUNTING PLATE
_] FINDING THE WALL STUDS
[_ Find the studs, using one of the following
methods:
A. Stud finder -a magnetic device which
locates nails,.
OR
B, Use a hammer' to tap lightly across the
mounting surface to find a solid sound,
This will indicate a stud location,.
[_ After locating the stud(s), find the center by
probing the wall with a small nail to find the edges
of' the stud. ]?hen place a mark halfway between
the edges, "[he center of any adjacent studs should
be 16" or 24" from this mart<,
[_ Draw a line down the center of the studs_
THE MICROWAVE HOOD MUST BE
CONNECTED TO AT LEAST ONE WALL STUD.
8
installation instructions
DETERMINING WALL PLATE LOCATION UNDER YOUR CABINET
Plate position - beneath flat bottom
cabinet
*%,%
", MountingPlateTabs
" _theCabinetBottom
olOl
,11
III
III
At least30" upto36"
Plate position _beneath framed recessed
cabinet bottom
MountingPlateTabs
Touchingthe Back
Frame
\
III
30" to Cooktop
Plate position - beneath recessed bottom
cabinet with front overhang
MountingPlatewith
TabsBelowCabinet
Bottomthe Same
Distanceas the Front
OverhangDepth
I II
I II 30" to Cooktop
Your cabinets may have decorative trim that interferes
with the microwave installation, Remove the decorative
trim to install the microwave properly and to make it
level,
THE MICROWAVE HOOD MUST BE LEVEL,
Use a level to make sure the cabinet bottom is level.
If the cabinets have a front overhang only, with no
back or side frame, install the mounting plate down
the same distance as the h'ont overhang depth_ This
will keep the microwave hood level.
_ Measure the inside depth of the front overhang
[_] Draw a horizontal line on the back wall an equal
distance below the cabinet bottom as the inside
depth of the front overhang.
_] For this type of installation with front overhang only,
align the mounting tabs with this horizontal line, not
touching the cabinet bottom as described in Step D
9
Installation instructions
[_ ALIGNING THE WALL PLATE
.........l
............. : : ..... IIII iii i [ILILIIiii
Draw a Vertical
||iJ Lineon Wall
! ! ! ! .oleC C_.terlino_f.-o_ Ceote,of
||!|INotches TopCabinet
_'0 o_,_oo.-.-.o.-.-._ooooooO.O.OoOo.oO.._o
CAUTION: Wear gloves
to avoid cutting finger's on
sharp edges.
Area E ! H01eD
I
t
[1-_ Draw a vertica! line on the walt at the center o[ the
30" wide space,.
[_] Use the mounting plate as the template for tile rear
wall, Place the mounting plate on the wall, making
sure that dae tabs are touching the bottom of the
cabinet or the level line drawn in Step C for cabinets
with front overhang. Line up the notch and centerline
on the bottom of the mortaring plate to the eenterline
on the wall
[_ While holding the mounting plate with one hand,
draw circles on the wall at holes A, B, C and D
(see illustration above/actual plate marked with
arrows), Four holes must be used for mounting.
[]
NOTE: Holes C and D are inside area E tf neitiaer
C nor Dis in a stud, find a stud somewhere in area E
and draw a fifth circle to tine up with the stud, tt is
important to use at least one wood screw mounted
Frrmly in astud to support the weight of the
microwave hood,
Set the mounting plate aside.
Drill holes on the circles If there is a stud, drill a 3/16"
hole for wood screws_ For holes that don't line up with
a stud, dr_ll a 5/8" hole ['or toggle bolts_
NOTE: DO NOT MOUNT THE PLATE AT THIS
TIME.
10
Instaimation instructions
aNSTALLATION TYPES
This microwave hood is designed for adaptation to
the following three types of ventilation:
A. Recirculating (Non-Vented Ductless)
B. Outside Back Exhaust (Horizontal Duct)
C. Outside Top Exhaust (Vertical Duct)
(Choose A, B or C)
NOTE: This microwave hood is shipped assembled for
Recirculating Exhaust. Select the type of ventilation
required for your installation and proceed to that section,
_RECIRCULATING
(NON-VENTED DUCTLESS)
NOTE: A disposable charcoal filter is
included with the microwave hood and
needs to be installed for the non-vented
exhaust to help remove smoke and odors,
[_ UTSIDE BACK EXHAUST
(HORIZONTAL DUCT) [_ OUTSIDE TOP EXHAUST
(VERTICAL DUCT)
Adapterin Placefor
Exhaust
11
Installation instructions
RECIRCULATING (Non-Vented Ductless)
INSTALLATION OVERVIEW
AI. Attach Mounting Plate to Wall
A2. Prepare Tbp Cabinet
A..3°Mount the Microwave Hood
A4° When Replacing the
Charcoal Filter ]
NOTE: The exhaust adapter
with damper is not needed fox
recirculating models,, You may
want to save them for possible
future use,
ATTACH THE MOUNTING
PLATE TO THE WALL
Attach the plate to the wall using toggle bolts,
At least one wood screw must be used to attach
the plate to a wall stud,
_ Remove the toggle wings from the bolts
[_ nsert the bolts into the mounting plate through
the holes designated to go into drywall and
reattach the toggle wings to 3Z1"onto each bolt,
To use toggle bolts:
Spacingfor Toggles
More ThanWall
Thickness
leWings
Plate:_
BoltEnd
iiiiiiii .i, i I .................. ii Jill
N lace the mounting plate against the wall and
insert the toggle wings into the holes in the wall
to mount the plate,,
NOTE= Before tightening toggle bolts and wood
screw, make sure the tabs on the mounting plate
touch the bottom of the cabinet when pushed flush
against the wall and that the plate is properly
centered under the cabinet,
O.UTION: Be carefu! to avoid pinching fingers
between the back of the mounting plate and the wall.
[_] Tighten all bolts_ Pull the plate away from the wall
to help tighten the bolts
USE TOP CABINET TEMPLATE
FOR PREPARATION OF TOP
CABINET
You need to drill holes for the top support screws and
a hole large enough for the power cord to fit through,
L_
* Read the instructions on the TOP CABINET
rEMPLA:IE,.
* 1ape it underneath the top cabinet.
o Drill the holes, following the instructions on the
roP CABINEF TEMPLAIE
CAUTION: Wear safety goggles when drilling holes
in the cabinet bottom
................... ]
12
mnstallation instructions
MOUNT THE MICROWAVE
HOOD
FOR EASIER INSTALLATION AND PERSONAL.
SAFETY, WE RECOMMEND THAT TWO PEOPLE
INSTALL THIS MICROWAVE HOOD.
IMPORTANT: Do not grip or use handle
during installation.
NOTE: If your cabinet is metal, use the nylon
grommet around the power cord hole to prevent
cutting of the cord
NOTE: We recommend using filler blocks if the
cabinet front hangs below the cabinet bottom shell
IMPORTANT: If filler blocks are
not used, case damage may occur from
overtightening screws.
NOTE: When mounting
the microwave hood,
thread power cord
through hole in bottom of'
top cabinet. Keep it tight
throughout Steps 1-3
Do not pinch cord or
lift microwave hood
by pulling cord
[]Lift microwave hood,
tilt it forward, and
hook slots at back
bottom edge onto
four lower tabs of
mounting plate,
/
[_Rotate front of microwave
hood up against cabinet
bottom.
[_Insert a self-aligning screw through top center
cabinet hole. Temporarily secure the microwave hood
by turning the screw at least two full turns after the
threads have engaged, (It wilt be completely
tightened later..) Be sure to keep power cord tight,
Be careful not to pinch dm cord, especially when
mounting flush to bottom of cabinet.
CabinetFront
Cabinet8ottornShelf
Filler81ock
T quivalent
to Depth
of Cabinet
Recess
Self-AligningScrew
MicrewaveHoodTop
{_ Attach the microwave hood to the top cabinet.
[_ insert 2 self-aligning screws
through outer top cabinet
holes Turn two full turns on
each screw.
{_Tighten center
screw completely
[_ Tighten the outer two screws to the top of the
microwave hood. (While tightening screws, hold
the microwave hood in place against the wall
and the top cabinet.)
[_] Install grease filters,
See the Use and Care
Guide packed with
the microwave hood
13
Installation instructions .........
........ i ..... i,i i,i ill ill ii I,,L
INSTALLING THE
CHARCOAL FILTER
[] Remove screws on fr'ont of' grille using a #1
Phillips screwdriver.
[_ Open the door_
[_ Remove the grille by pulling the grille straight off
Charcoal
Install the charcoal filter. When properly installed,
the wire mesh of' the filter should be visible ['tom
the f}onL
[_ Replace the grille and the screws.
[] Close the dooL
Insertmesh-sideup
14
Installation instructions,
OUTSIDE BACK EXHAUST (Horizontal Duct)
iNSTALLATION OVERVIEW
B1. Prepare Rear Walt
B2. Attach Mounting Plate to Wall
B3. Prepare Top Cabinet
B4. Adjust Blower
BS. Mount the Microwave Hood
iir_vl,ll_Vlilul i i i i
PREPARING THE REAR WALL
FOR OUTSIDE BACK EXHAUST
You need to cut an opening in the rear wall for
outside exhaust
" Read the instructions on the REAR WALL
TEMPLATE.
o Tape it to the rear wall, lining up with the t_otes
previously drilled for holes A and B in the wall
plate
" Cut the opening, following the instructions of the
REAR WALL TEMPt.ATE.
ATTACH THE MOUNTING
PLATE TO THE WALL
i I
,i
Attach the plate to the wall using toggle bolts (see To
use toggle bolts on page 16).. At least one wood screw
must be used to attach the plate to a wal! stud.
[_ Remove the toggle wings from the bolts.
[]Insert the bolts into the mounting plate througll
the holes designated to go into drywal! and reattach
the toggle wings to aS_"onto each bolt.
15
installation instructions ........
To use toggle bolts:
Mounting
Plate
Spacingfor TogglesMore
-_,_ ThanWaltThickness
ToggleWings
BoltFnd
[_] Place the mounting plate against the wall and
insert the toggle wings into the holes in the wall
to mount the plate.
NOTE: Before tightening toggle bolts and wood
screw, make sure the tabs on the mounting plate
touch the bottom of the cabinet when pushed flush
against the wall and that the plate is properiy
centered under the cabinet,
CA17rION: Be careful to avoid pinching fingers
between the back of the mounting plate and the wall,
Tighten all bolts_ Pull the plate away from the wall
to help tighten the bolts.
[_ USE TOP CABINET TEMPLATE
FOR PREPARATION OF TOP
CABINET
You need to drill holes for the top support screws and
a hole large enough for the power' cord to fit through
" Read the instructions on the I'OP CABINE_[ '
TEMPLATE,
='Iape it underneath the top cabinet
o Drill the holes, following the instructions on the
TOP CABINET 'IEMPLikIE,
GAIYEION: Wear safety goggles when drilling holes
in the cabinet bottom,
ADAPTING MICROWAVE
BLOWER FOR OUTSIDE
BACK EXHAUST
[_ Remove and save screws that hold the blowe_
plate and blower motor to the microwave hood
and remove the blower plate,
BlowerPlate
Backof
Microwave
Hood
BlowerMotor
Screw
[2_ Carefully pull out tile blower unit, The wires
will extend far enough to allow you to adjust the
blower unit,,
BEFORE: Fan Blade
Openings Facing ....
EndA "_
!
[_ Rotate blower unit counterclockwise 180°,,
BeforeRotation AfterRotation
/ /
Backof MicrowaveHood Backof Microwave Hood
16
Unsta!Uation mnstructions
E_ ADAPTING MICROWAVE
BLOWER FOR OUTSIDE
BACK EXHAUST (cont.)
Gently remove the wires from the grooves,
Reroute the wires through grooves on other side
of the blower" unit,
BeforeRerooting After Rerouting
[_3 Place the blower unit back into the opening,
AFTER:Fan Blade :
Openings Facing Back
CAUTION: Do not ptdl or stretch the blower
unit wiring° Make sure file wires are not
pinched.
NOTE: The blower unit exhaust
openings should match exhaust
openmgs on rear of microwave hood.
[_] Secure the blower unit to the microwave
hood with the screws from Step L
I
I
BlowerRate
BackofMicrowave
Hood
J
8lowerMotor
Screw
_ Replacethe blower plate in the same position
asbefore witln tile screw,
[_] Attach the exhaust adapter to the rear of
the microwave hood by sliding it into the
guides at the top center of the back of the
microwave hood
Adapter
Backof
MicrowaveHood
Guide
_"'_, LockingTabs
Guide
Push in securely unti! it is in the lower locking
tabs,, Take care to assure that the damper hinge
is installed so that it is at the top and that the
damper swings freely
17
instal!ation instructions
I_ MOUNT THE MICROWAVE
HOOD
FOR EASIER INSTALLATION AND PERSONAL
SAFETY, WE RECOMMEND THAI TWO PEOPLE
INSTALL "II-IIS MICROWAVE HOOD.
IMPORTANT; Do not _'ip or use handle
during installation.
NOTE: If your cabinet is metal, use the nylon
grommet around the power cord hole to prevent
cutting of' the cord.
NOTE: We recommend using filler blocks if the
cabinet front hangs below the cabinet bottom shel£
IMPORTANT; If filler blocks are
not used, case damage may occur from
overfightening screws.
NOTE: When mounting
the microwave hood,
thread power cord
thiough hole in bottom of
top cabinet, Keep it tight
throughout Steps 1-3,
Do not pinch cord or
lift microwave hood
by pulling cord
[_Lift microwave hood,
tilt it forward, and
hook slots at back
bottom edge onto
four lower tabs of
mounting plate.
/
[_ Rotate front of microwave
hood up against cabinet
bottom
[]Insert a self:aligning screw through top center
cabinet hole_ Temporarily secure the microwave
hood by turning the screw at least two full turns after
the threads have engaged. (It wil! be completely
tightened later:,) Be sure to keep power cord tight°
Be careful not to pinch the cord, especially when
mounting flush to bottom o£ cabinet.
CabinetFron_
_Z CabinetBottomShelf FillerBlock
/ II/!t_11!1_1IIITK',_ T Equivalent
to Deplh
/ !II IINII}!JIIIIII
1_ ,\_oo,,. ._.t_Rec_SSscrew
...." :L,0°,00
MicrowaveHoodTop
{_ Attach the microwave hood to the top cabinet,
_Insert 2 self:aligning screws
through outer top cabinet
holes, Turn two full turns on
each screw.
[_'l-'ighten center
screw completely.
[_ Tighten the outer two screws to the top of' the
microwave hood. (While tightening screws, hold
the microwave hood in place against the wall
and the top cabinet.)
[_ Install grease filters.
See the Use and Ca,e
Guide packed with
the microwave hood.
18
insta!lation Bnstructions i il,_lll,pl_l t ,,_ ....I,,,I,I,D,III ii, ii iiii 'H ii i
OUTSIDE TOP EXHAUST (Vertical Duct)
II,IIII,II,I,,MI,,II,,, ii I I IR!!!II!II III'II'!II 'IIII II ,,!!L,,!II ,IL,,LI ,!iii I !,l,l,,j ,IIIL !
INSTALLATION OVERVIEW
C1. Attach Mounting Plate to Walt
C2. Prepare Top Cabinet
C3, Adjust Blower
C4o Mount Microwave Hood
C5. Adjust Exhaust Adapter
C6. Connect Ductwork
I
I
I
.......................it. ii i_,lUlUUl_li_ iii, :lll,,u,:1 i,i,l,,,,lU,u ,
ATTACH THE MOUNTING
PLATE TO THE WALL
I;
Attach the plate to the wall using toggle bolts,
At least one wood screw must be used to attach
the plate to a wall stud
[_ Remove the toggle wings from the bolts
[_] insert the bolts into the mounting plate
through the holes designated to go into drDva!l
and reattach the toggle wings to 3A"onto each bolt.
To use toggle bolts:
Spacingfor Toggles
MoreThanWalE
-,.!._-_.J_--.Thickness
IToggleWings
Mounting II1':1_ /T0ggle II I..I
Plate_ll[;Jl _. Bolt It /;:b,
_llM___ ....
III" :I_--WalI U [':t [
BoltEnd
[_ Place the mounting plate against the wall and
insert the toggle wings into the holes in the wall
to mount the plate
NOTE: Before tightening toggle bolts and wood
screw, make sure the tabs on the mounting plate
touch the bottom of' the cabinet when pushed
flush against the wall and that the plate is proper ]y
centered under the cabinet.
CAUTION: Be carefial to avoid pinching fingers
between the back or the mounting plate and the wall.
1_] Tighten all bolts. Pull the plate away from the wall
to help tighten the bolts,
19
......................instail,,ation instructions ........................
USE TOP CABINET TEMPLATE
FOR PREPARATION OF TOP
CABINET
You need to drill holes for the top support screws, a
hole large enough fbr- the power cord to fit through,
and a cutout large enough for the exhaust adapter.
"Read the insUuctions on the TOP CABINET
TEMPL_tTE,,
" Tape it underneath the top cabinet,
o Drill the holes, following the instructions on the
%OP CABINET IEMPLATE
CAUTION: Wear safety goggles when drilling holes
in the cabinet bottom.
ADAPTING MICROWAVE
BLOWER FOR TOP EXHAUST
IT] Remove and save the screws that hold the blower
plate and blower motor to the microwave hood,
1r
!
-"'_.-_ _,J_ '_-"Microwav8Hood
[_ Carefully pull out the blower unit, ]7he wires
wilt extend fm enough to allow you to adjust the
blower unit
!
[_] Roll the blower unit 90° so that fan blade openings
are facing up.
BEFOREi Fan Blade
Openings Facing: ::
Forward
AFTER: Fan Blade
Openings Facing Up
NOTE: Make su[e wires iemain [outed in the
grooves of the motor flame,.
_] lace the blower unit back into the opening
C_UTION: Do not pull or stretch the blower' unit
wiring. Make sure the wires are not pinched.
1
2O
Installation instructions
:ul_, ,u,,i,,,,u, u,, i , u:,mrml , , ,,u .................
[_ ADAPTING MICROWAVE
BLOWER FOR TOP EXHAUST
(cont.)
[]Slide the exhaust adapter onto the bIower plate,
[_ Replace blower' plate with the screw removed in
Step !.. ?
i
Backof
MicrowaveHoed
[_ Secure blower unit to microwave hood with the
screw removed in Step 1.
Backof Microwave
Hood
BlowerMotor
Screw
1_ MOUNT THE MICROWAVE
HOOD
FOR EASIER INSTALLATION AND PERSONAL,
SAFETY, WE RECOMMEND THAT TWO PEOPLE
INSTALL THIS MICROWAVE HOOD.
IMPORTANT: Do not grip or use handle
during installation.
21
Z: "lll'l"j
installation Instructions
I-_ MOUNT THE MICROWAVE
HOOD (cont.)
_] Attach the microwave hood to the top cabinet,.
N Insert 2 self-aligning screws
through outer top cabinet
holes Turn two full turns on
each screw
N Tighten center
screw completely°
[_] Tighten the outer two screws to the top of the
microwave hood, (While tightening screws, hold
the microwave hood in place against the wail
and the top cabinet.)
N nstall grease filters,
See the Use and Care
Guide packed with the
microwave hood.
ADJUST THE EXHAUST
ADAPTER
Open the top cabinet and adjust the exhaust adapter
to connect to the house duct.
Backof
BtowerPlate Damper MicrowaveHood
Side-to*SideAdjustment
SlidetheExhaustAdapter
as Needed
uii iiilUlUUlll
CONNECTING DUCTWORK
HouseDuct
]Extend the house duct down to connect to
the exhaust adapter,
[_ Seal exhaust duct joints using duct tape
22
Installation Instructions
BEFORE YOU USE YOUR
[_ Make sure the microwave hood has been
installed according to instructions,
I
I_S_RUcllO_S
/
,,_,,,]....... i iiimlu ii ii i ......._,,,:_,,,,,i,1111
[_ emove all pacldng material from the
microwave hood,
K,,Jrll,ll _ _i i1 L'U_I''_ _llI I I
Install turntable and r'ing in cavity,
[_ Replace house fuse or turn b[eaker back on,
II'1!III!IIIIIIIIIIIIII I II I I I IIIIIIIUlUl III I I I I I II
Plug power cord into a dedicated !5- to 20-amp
electrica! outlet.
Ensureproper
groundex+sts,,i
before use
MmCBOWAVE
Read the Use and Care Guide
............ iiii i.........................
,,N,,,ll ,i.............
KEEP INSTA[.LATION INSTRUCTIONS
FOR THE LOCAL INSPECTOR'S USE
J
J
23

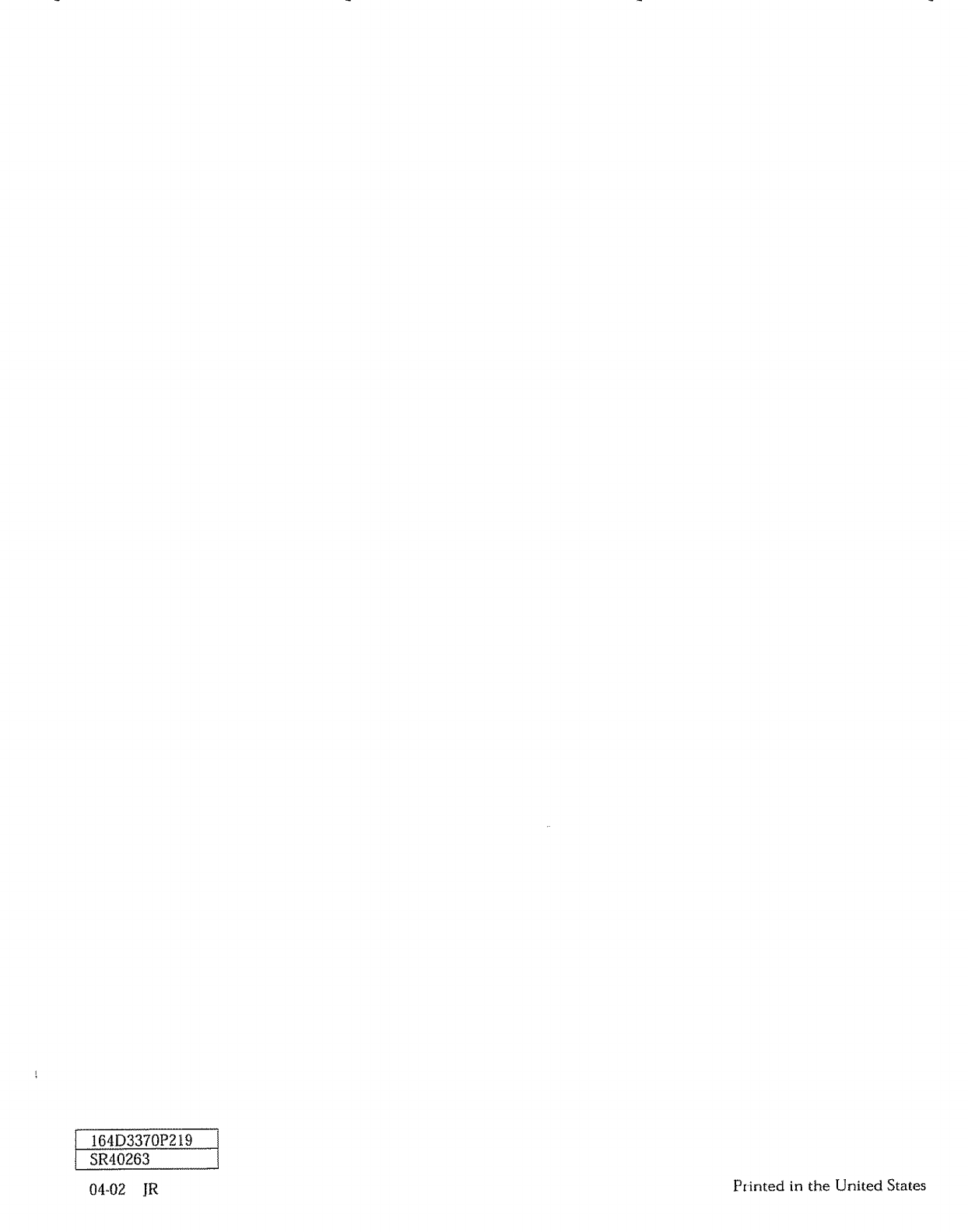

_ 164D3370P219 i
SR40263 !
04-02 JR Printed in the United States
