SERVICE MANUAL
SEWING MACHINE MODEL
385.19001890
NOVEMBER,1998

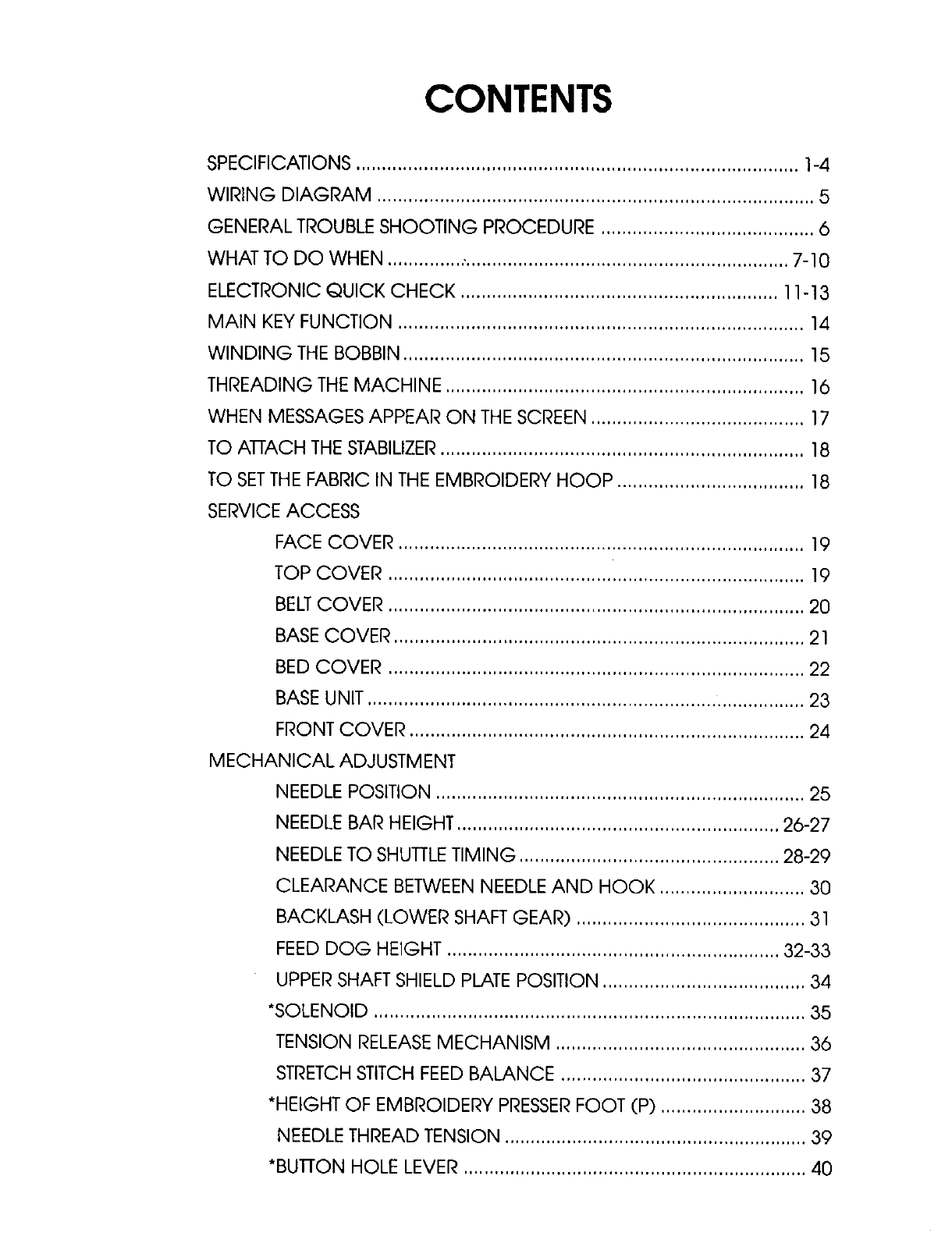

CONTENTS
SPECIFICATIONS .....................................................................................I-4
WIRING DIAGRAM ....................................................................................5
GENERAL TROUBLE SHOOTING PROCEDURE .........................................6
WHAT TO DO WHEN ...............,..............................................................7-10

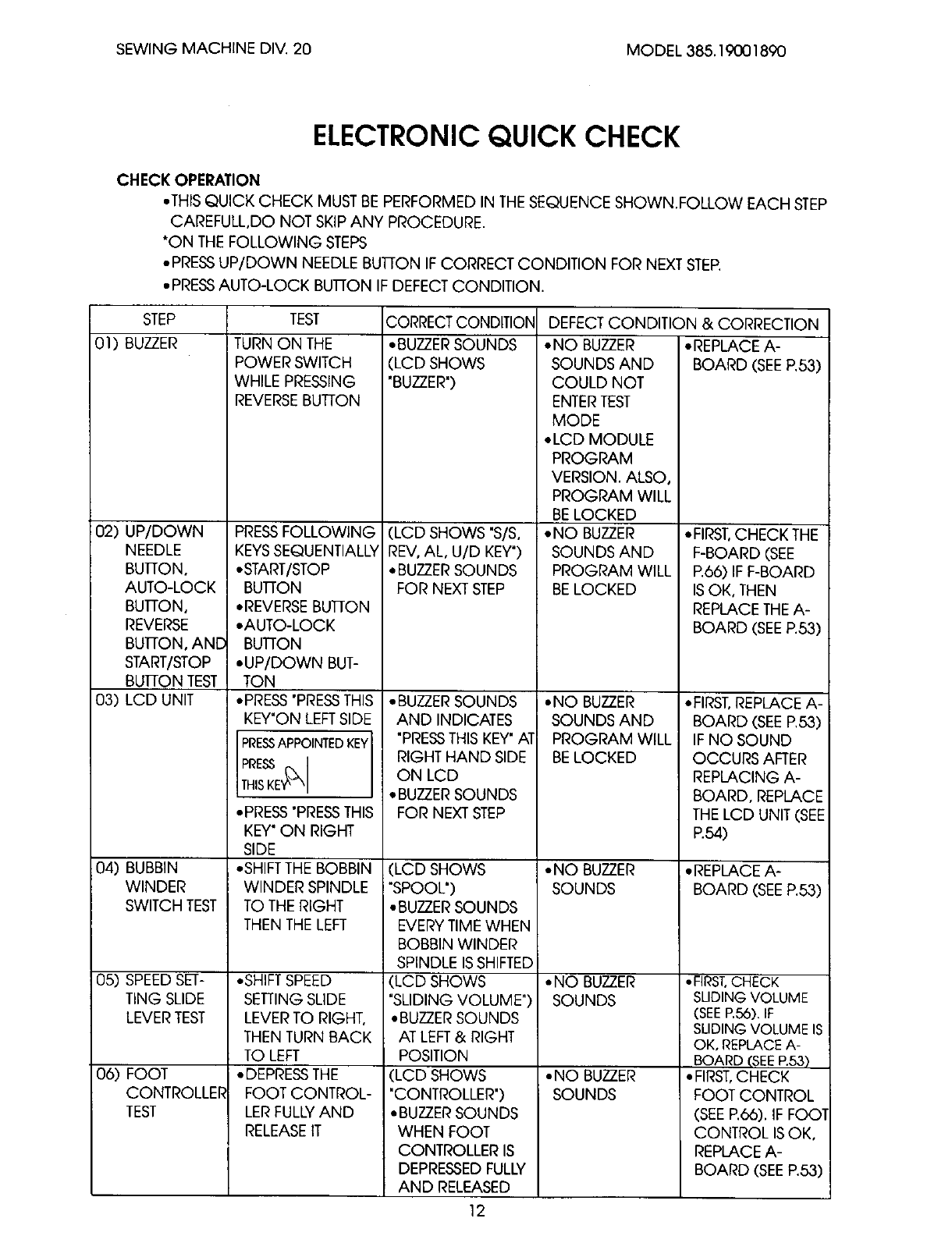

ELECTRONIC QUICK CHECK .............................................................11-13
MAIN KEY FUNCTION ..............................................................................14
WINDING THE BOBBIN .............................................................................15

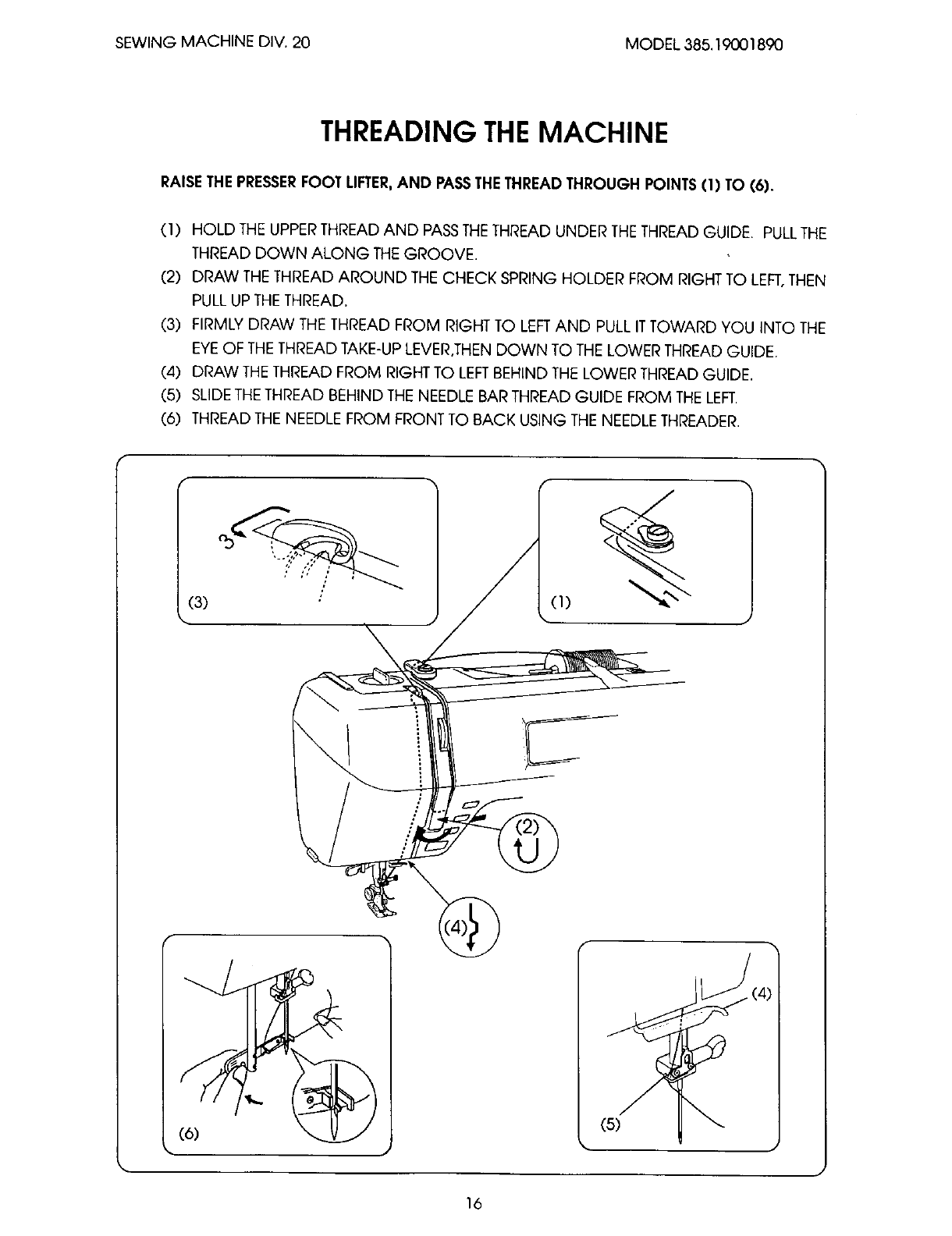

THREADING THE MACHINE .....................................................................16

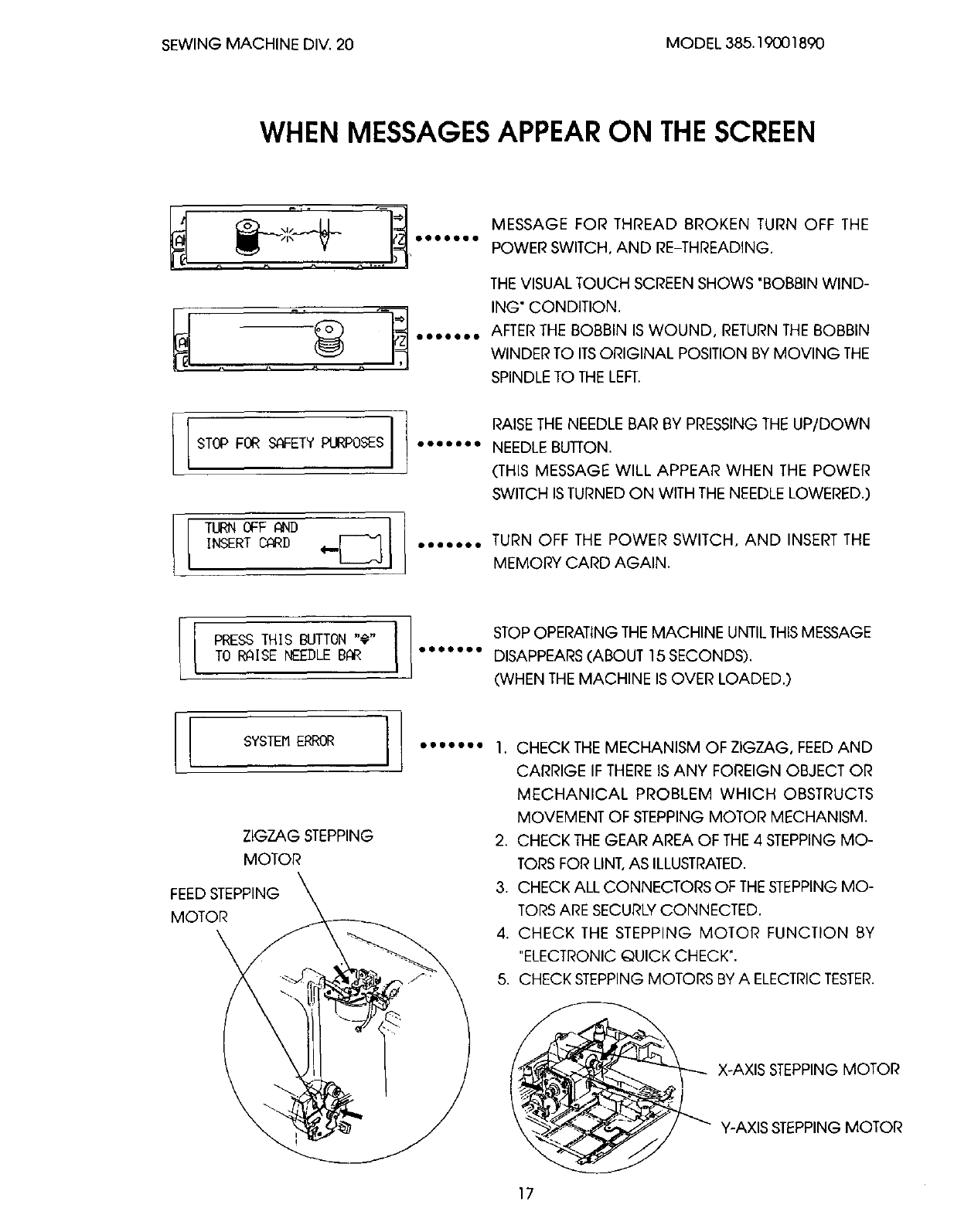

WHEN MESSAGES APPEAR ON THE SCREEN .........................................17
TO ATrACH THE STABILIZER......................................................................18
TO SETTHE FABRIC INTHE EMBROIDERY HOOP ....................................18

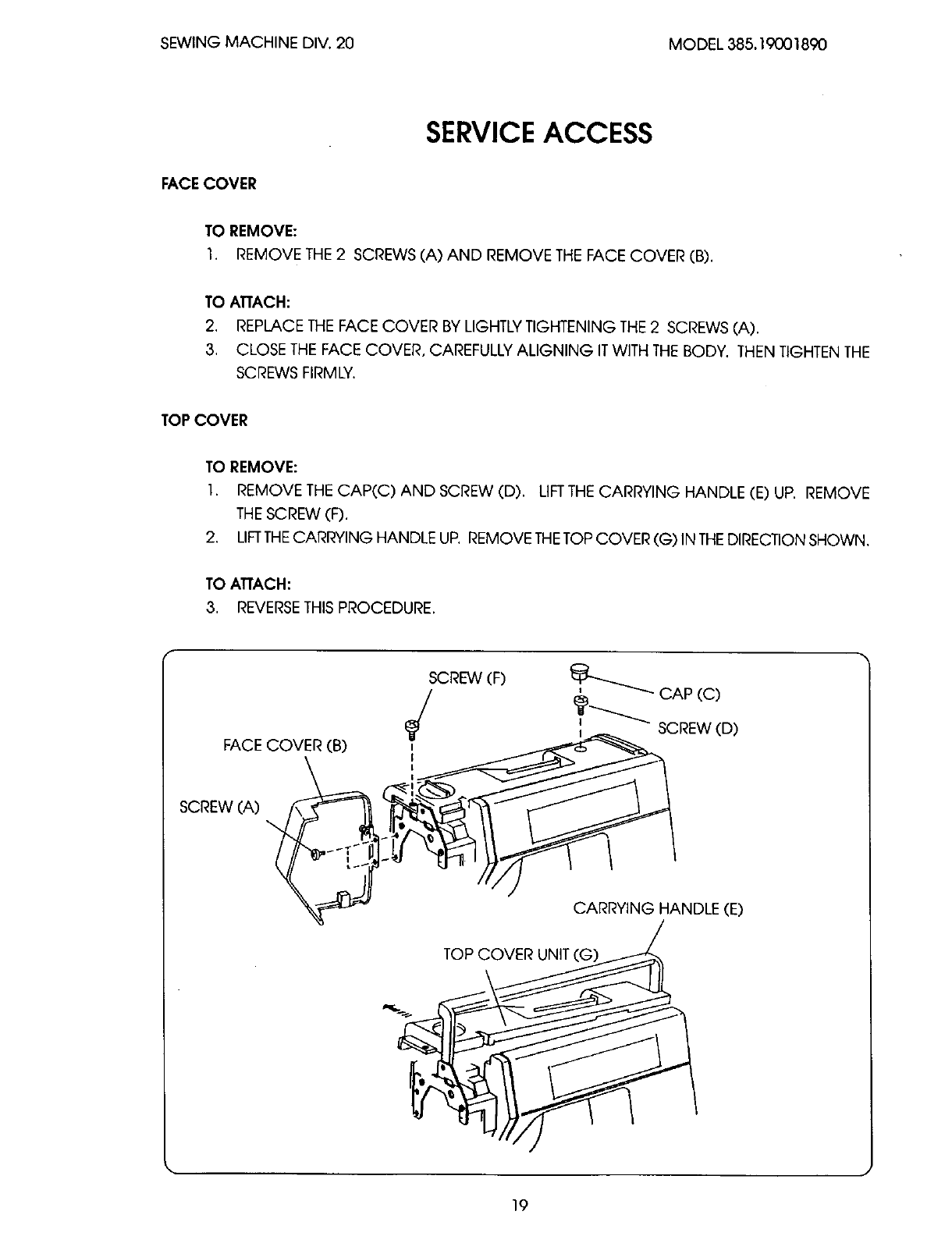

SERVICE ACCESS
FACE COVER ..............................................................................19
TOP COVER ................................................................................19

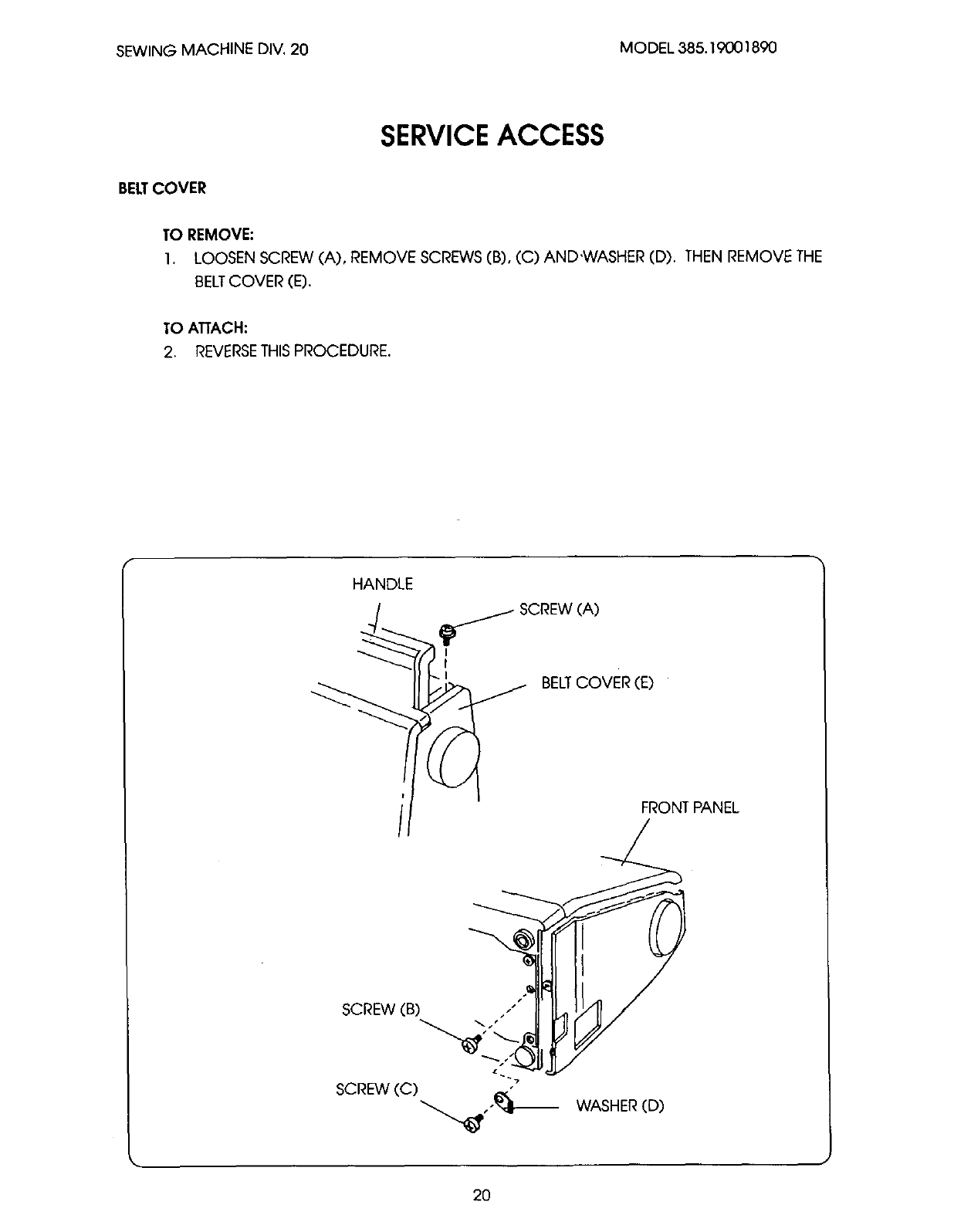

BELTCOVER ................................................................................20

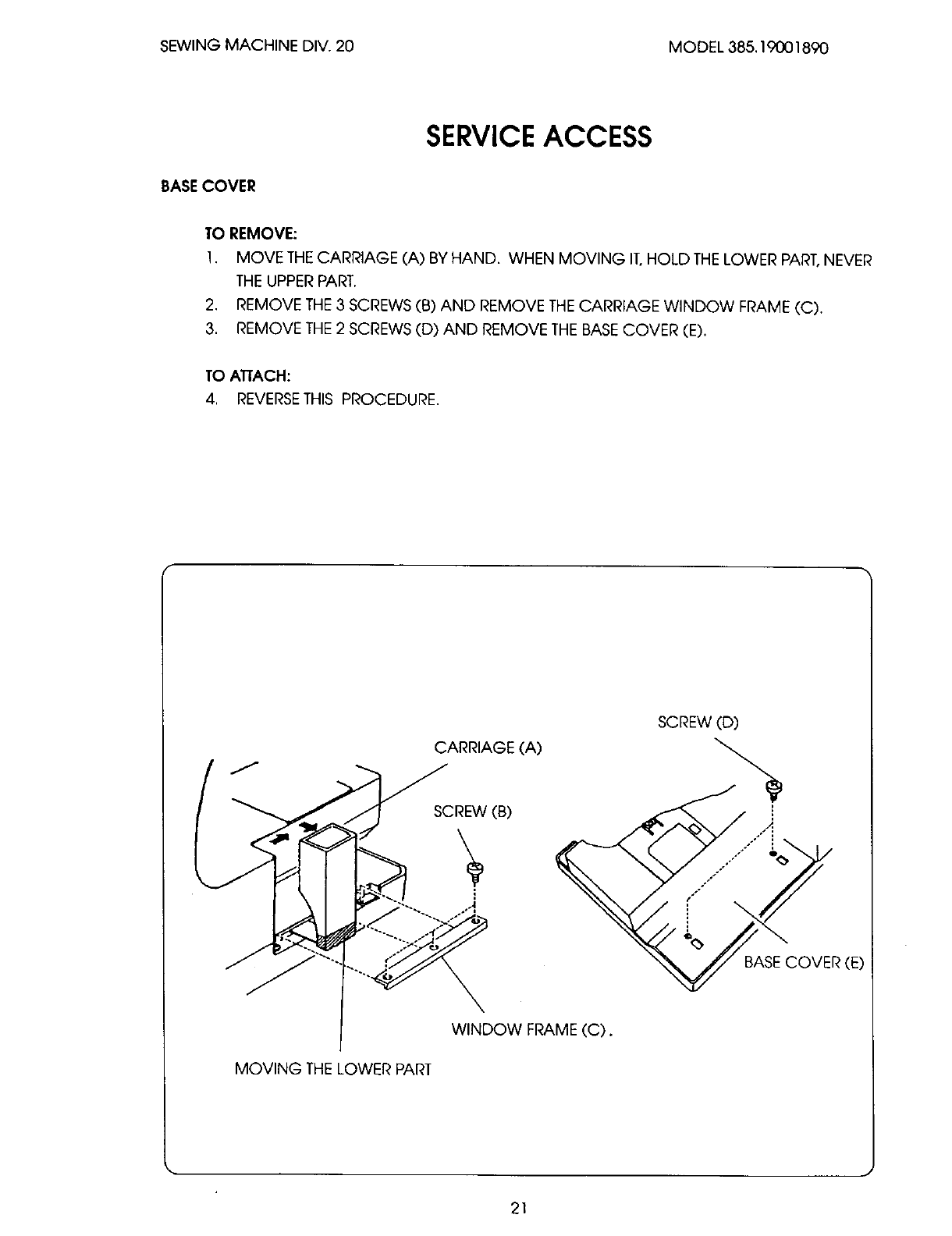

BASE COVER ...............................................................................21
BED COVER ................................................................................22
BASE UNIT ....................................................................................23
FRONT COVER ............................................................................24
MECHANICAL ADJUSTMENT
NEEDLE POSITION .......................................................................25
NEEDLE BAR HEIGHT ..............................................................26-27

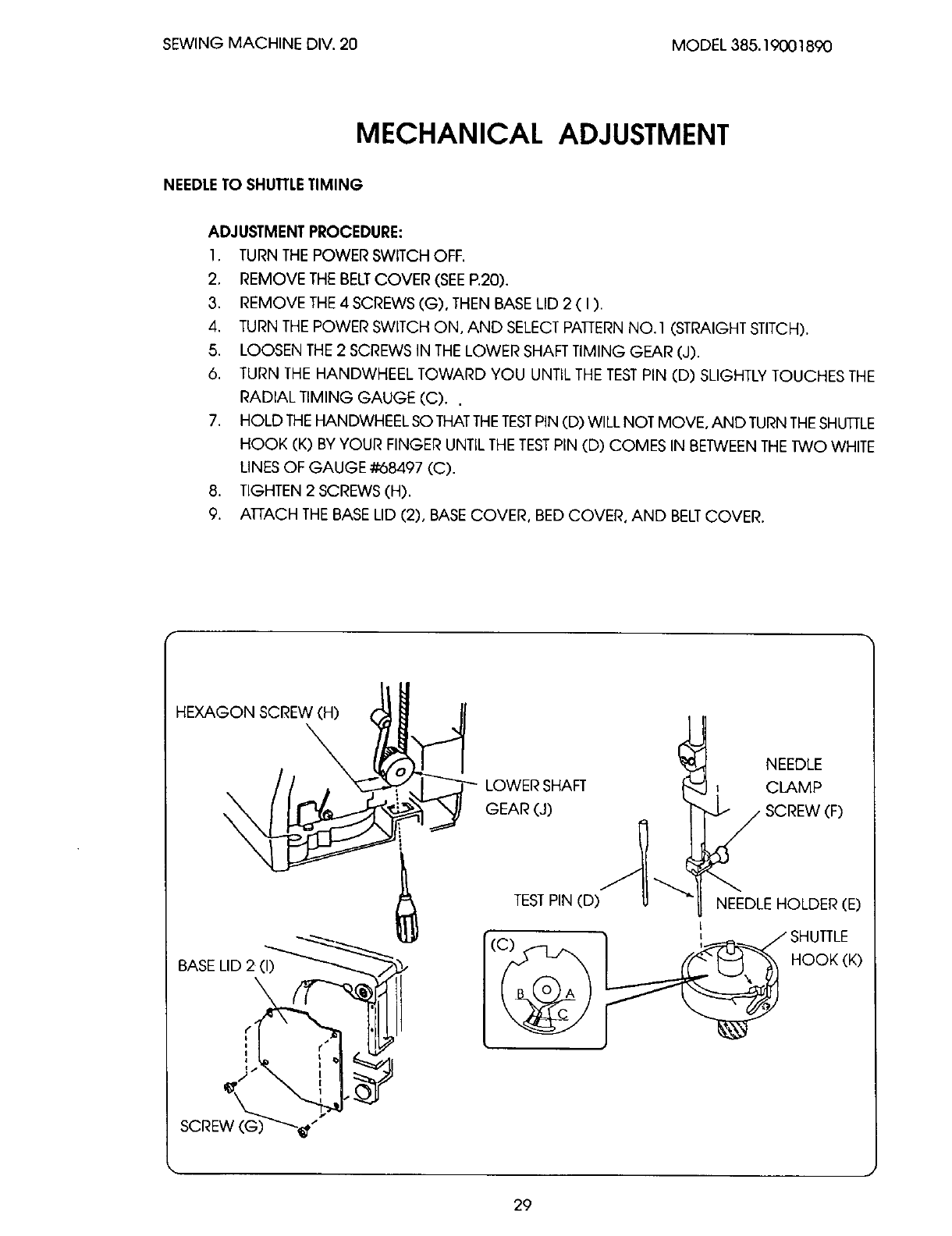

NEEDLE TO SHUTTLE TIMING ..................................................28-29
CLEARANCE BETWEEN NEEDLE AND HOOK ............................30
BACKLASH (LOWER SHAFT GEAR) ............................................31
FEED DOG HEIGHT ................................................................32-33
UPPER SHAFT SHIELD PLATE POSITION .......................................34
*SOLENOID ...................................................................................35

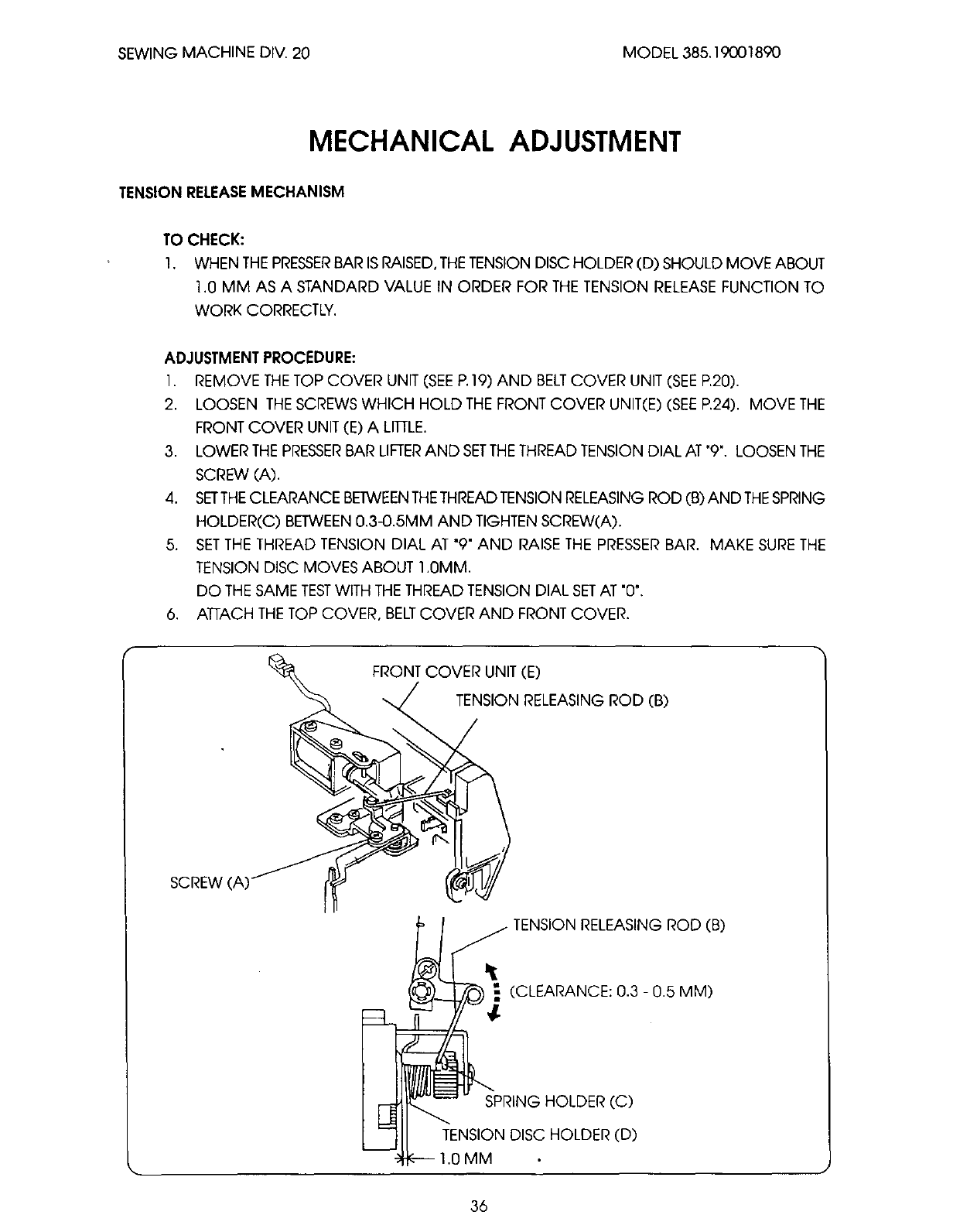

TENSION RELEASE MECHANISM ................................................36

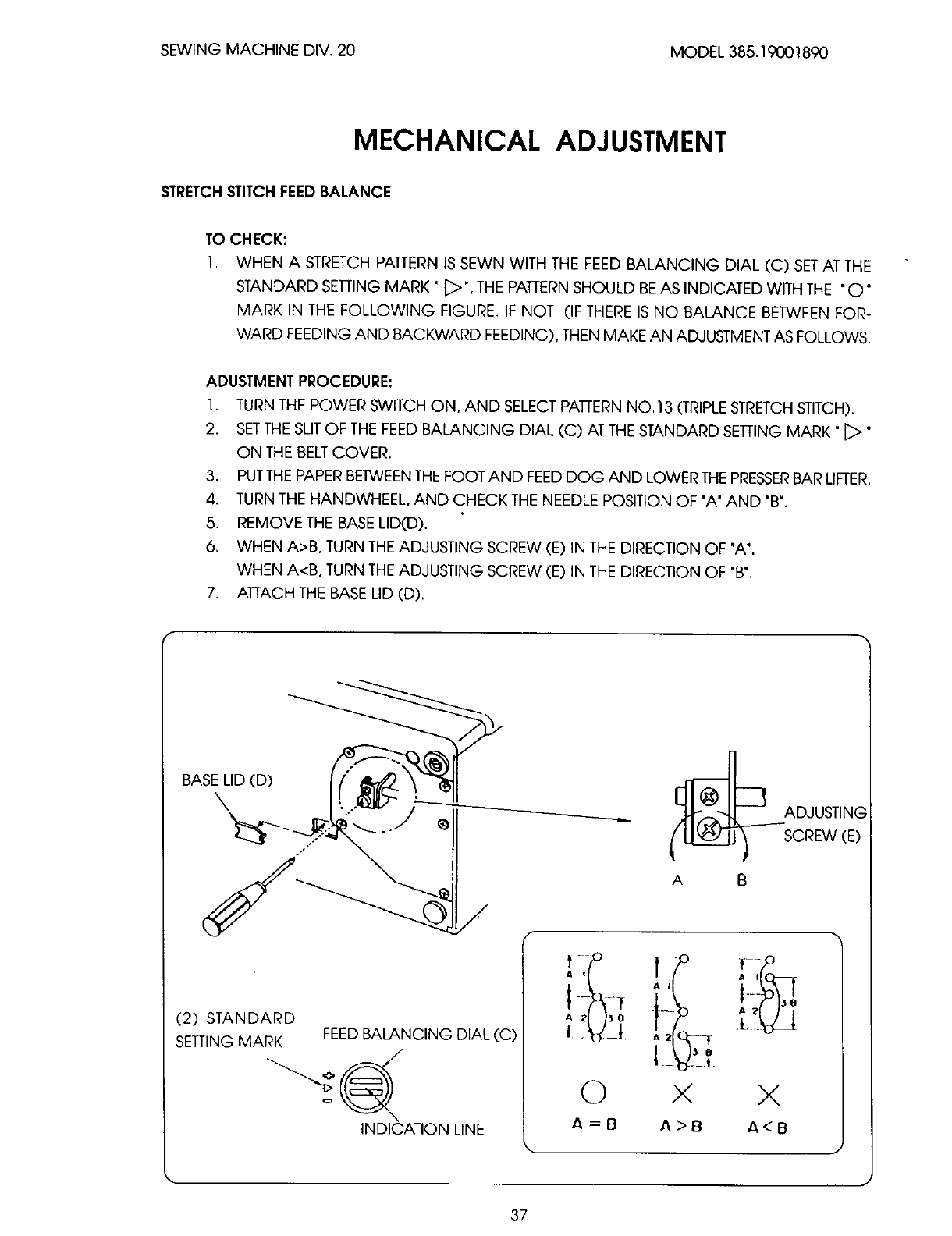

STRETCH STITCH FEED BALANCE ...............................................37
*HEIGHT OF EMBROIDERY PRESSER FOOT (P)............................38
NEEDLE THREAD TENSION ..........................................................39

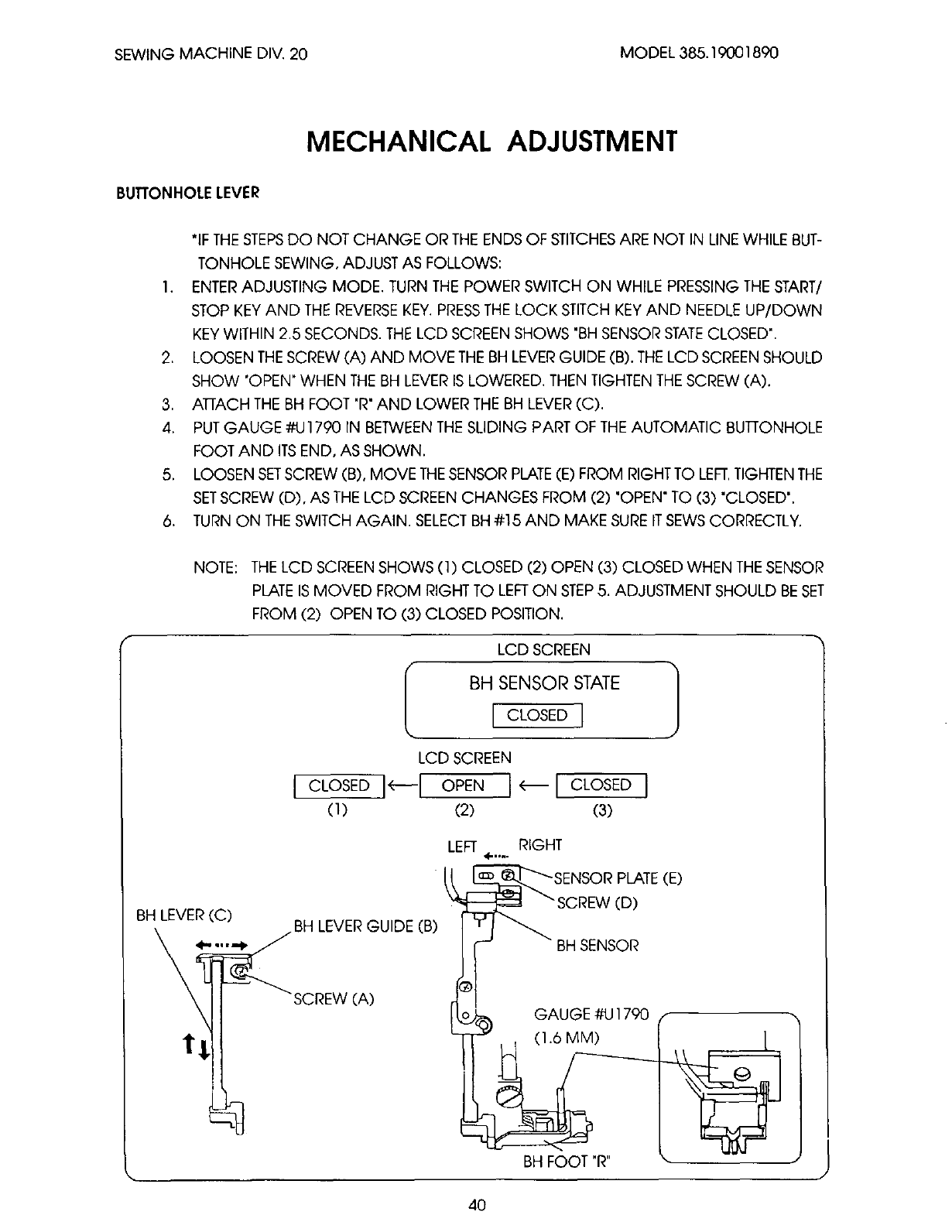

*BUI-rONHOLE LEVER ..................................................................40
PRESSER BAR HEIGHT AND ALIGNMENT ................................... 41
OVER LOAD (1), (2) ............................................................... 42-43

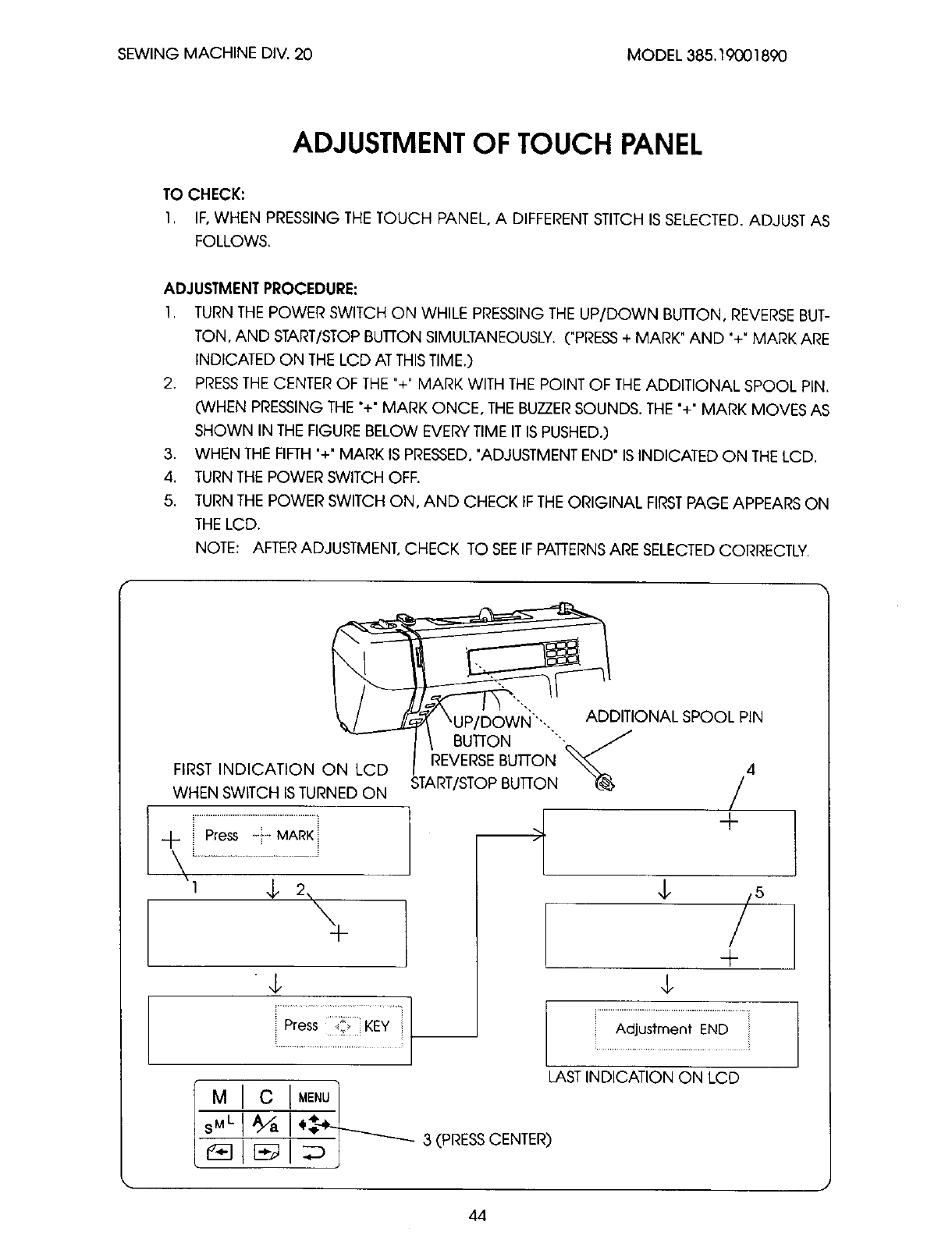

*ADJUSTMENT OF TOUCH PANEL ............... ............................................ 44

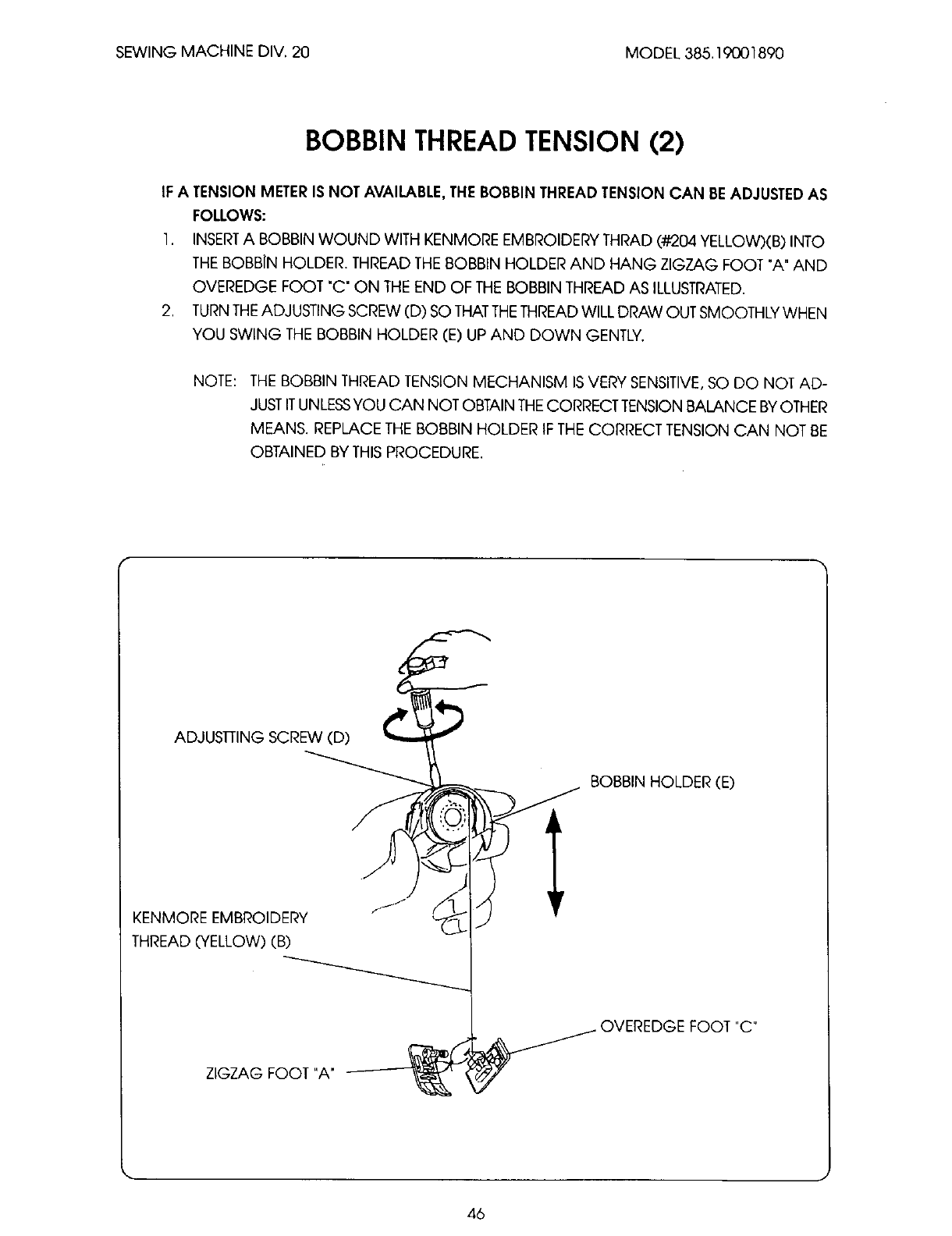

*BOBBIN THREAD TENSION (1),(2) ..................................................... 45-46
PART REMOVAL AND REPLACEMENT
NEEDLE THREAD TENSION UNIT .................................................. 47
FEED DOG ................................................................................... 48
THREADER PLATE ......................................................................... 49
C-BOARD UNIT AND FUSE.......................................................... 50
TRANSFORMER ........................................................................... 51
MACHINE SOCKET UNIT ............................................................. 52
A-BOARD UNIT ............................................................................ 53
LCD UNIT ..................................................................................... 54
F-BOARD UNIT ............................................................................. 55
SLIDE VOLUME UNIT .................................................................... 56
DC MOTOR UNIT AND BELTTENSION ........................................ 57
*CARRIAGE PLATE COVER UNIT .................................................. 58

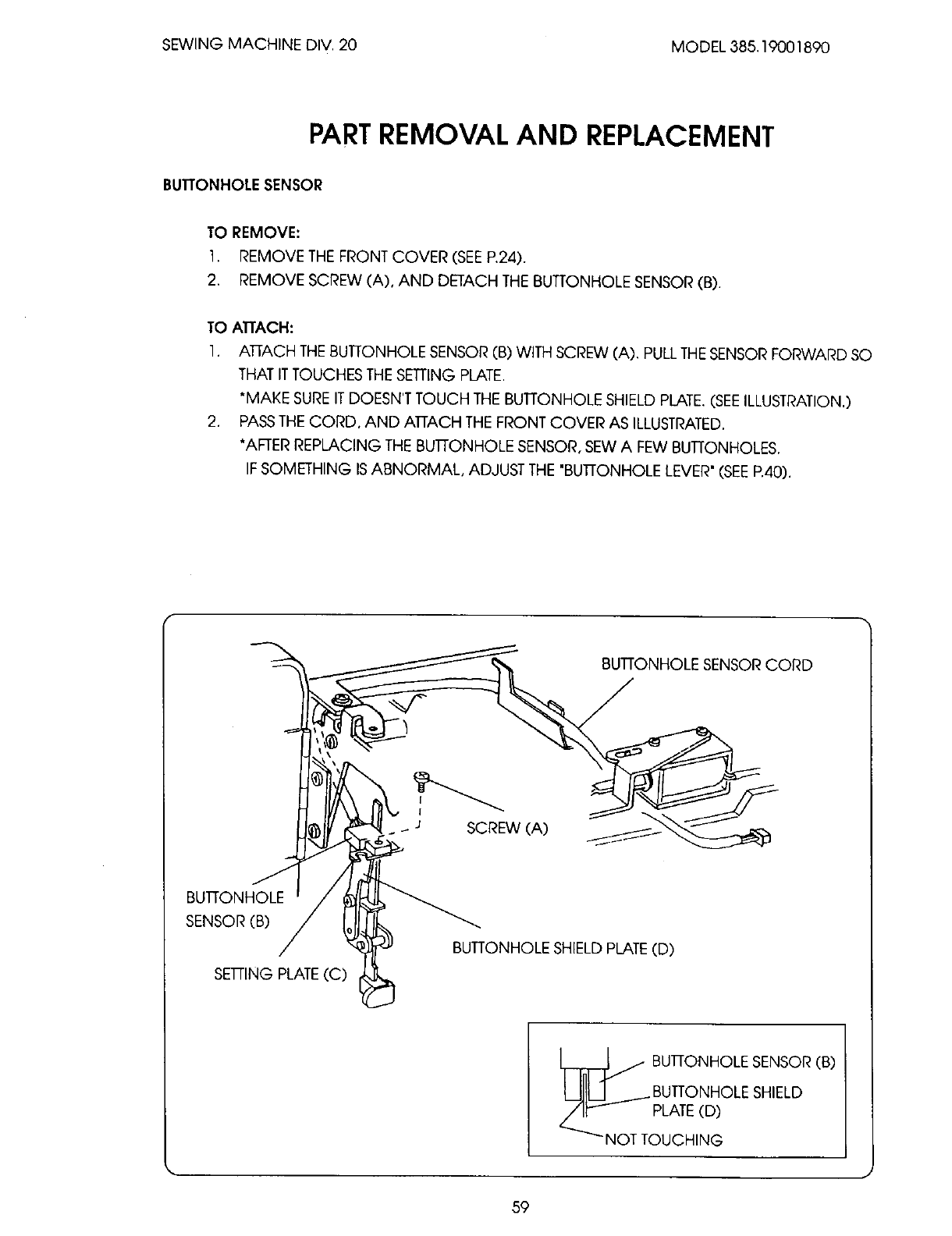

*BUI-IONHOLE SENSOR ................................................................ 59

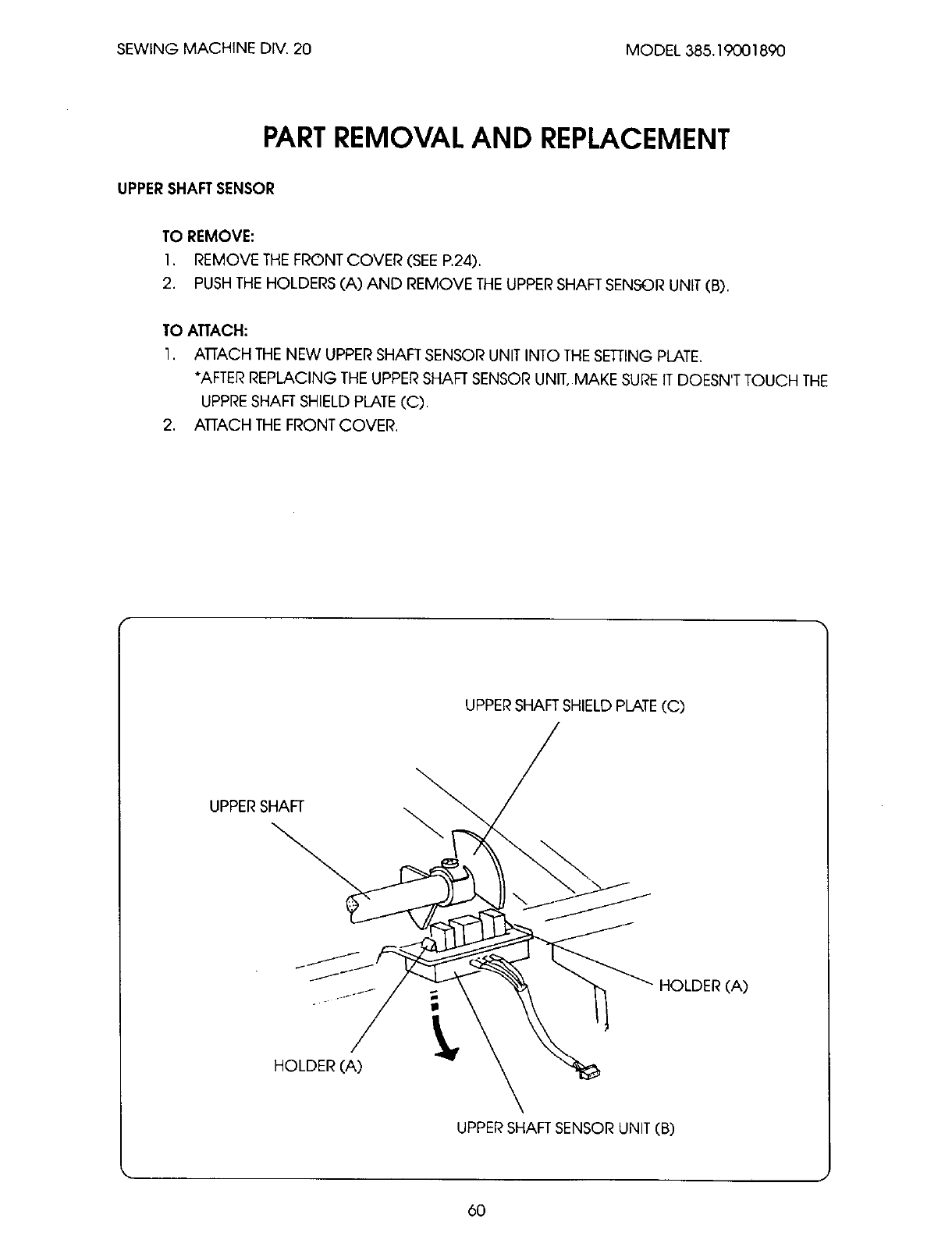

*UPPER SHAFT SENSOR ................................................................. 60
*ZIGZAG STEPPING MOTOR ........................................................ 61

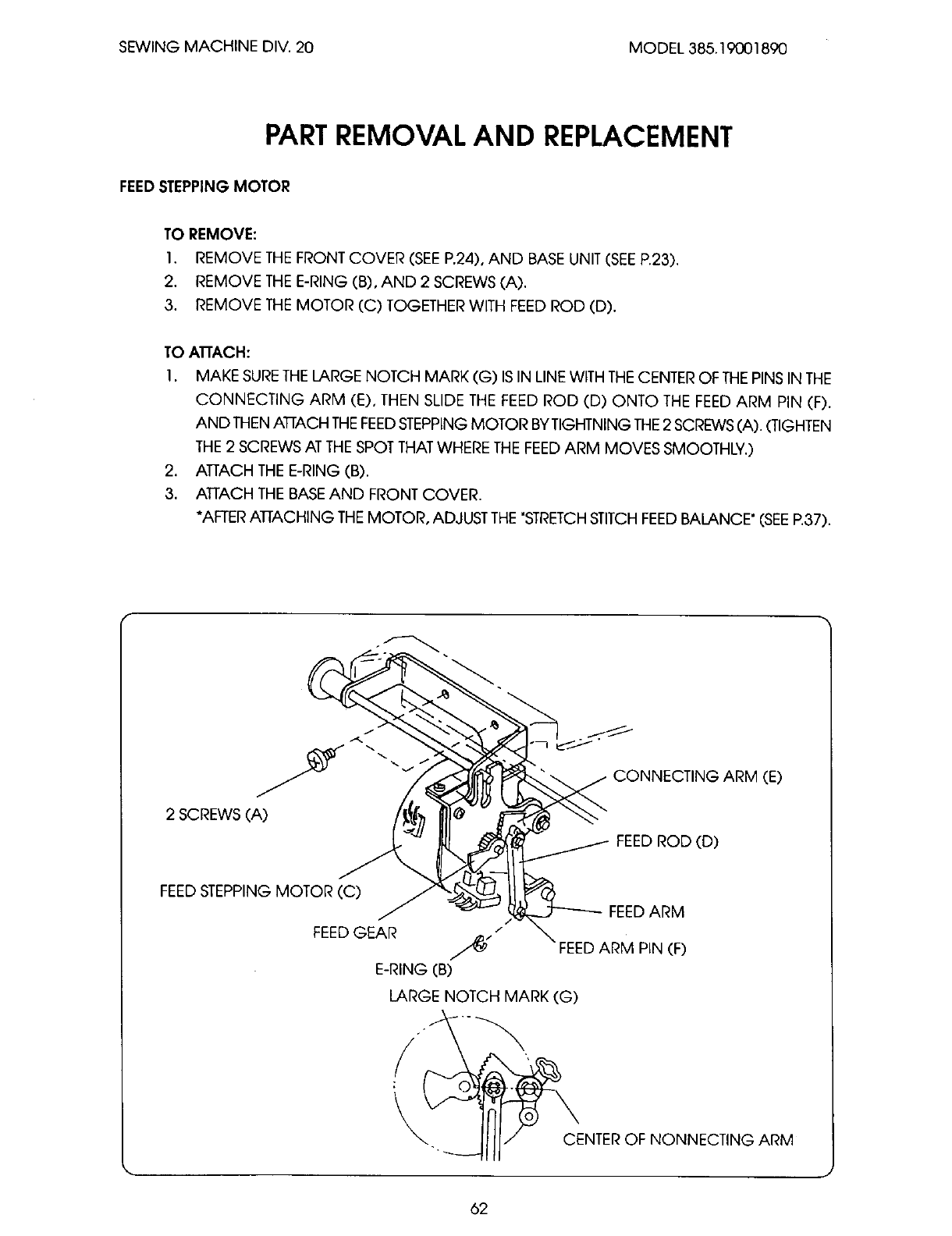

*FEED STEPPING MOTOR ............................................................. 62

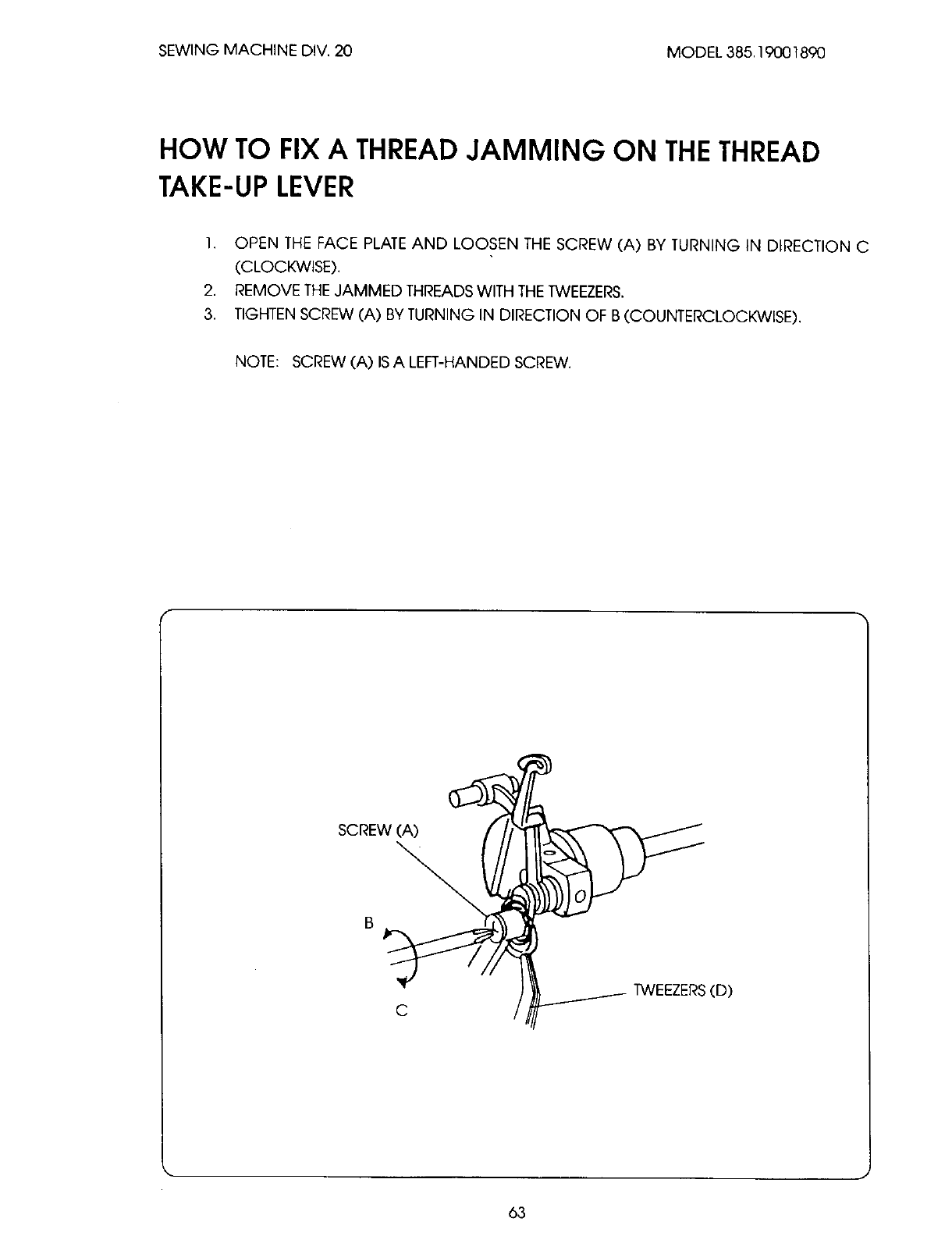

*HOW 1O FIXA THREAD JAMMING ON THETHREAD TAKE-UP LEVER............. 63
CHECKING ELECTRONIC PARTS

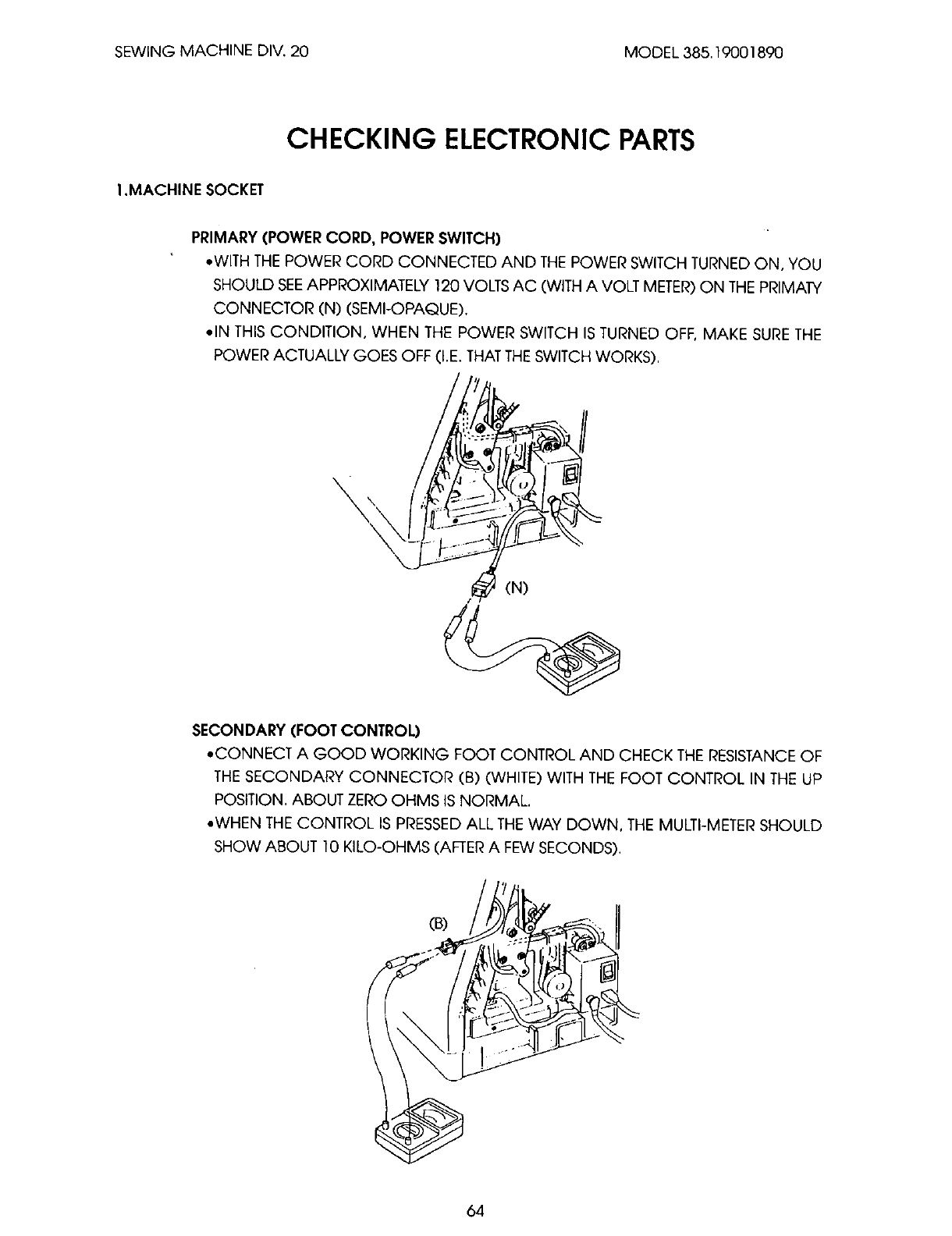

*MACHINE SOCKET ...................................................................... 64
*C-BOARD .................................................................................... 65
*F-BOARD UNIT ............................................................................. 66

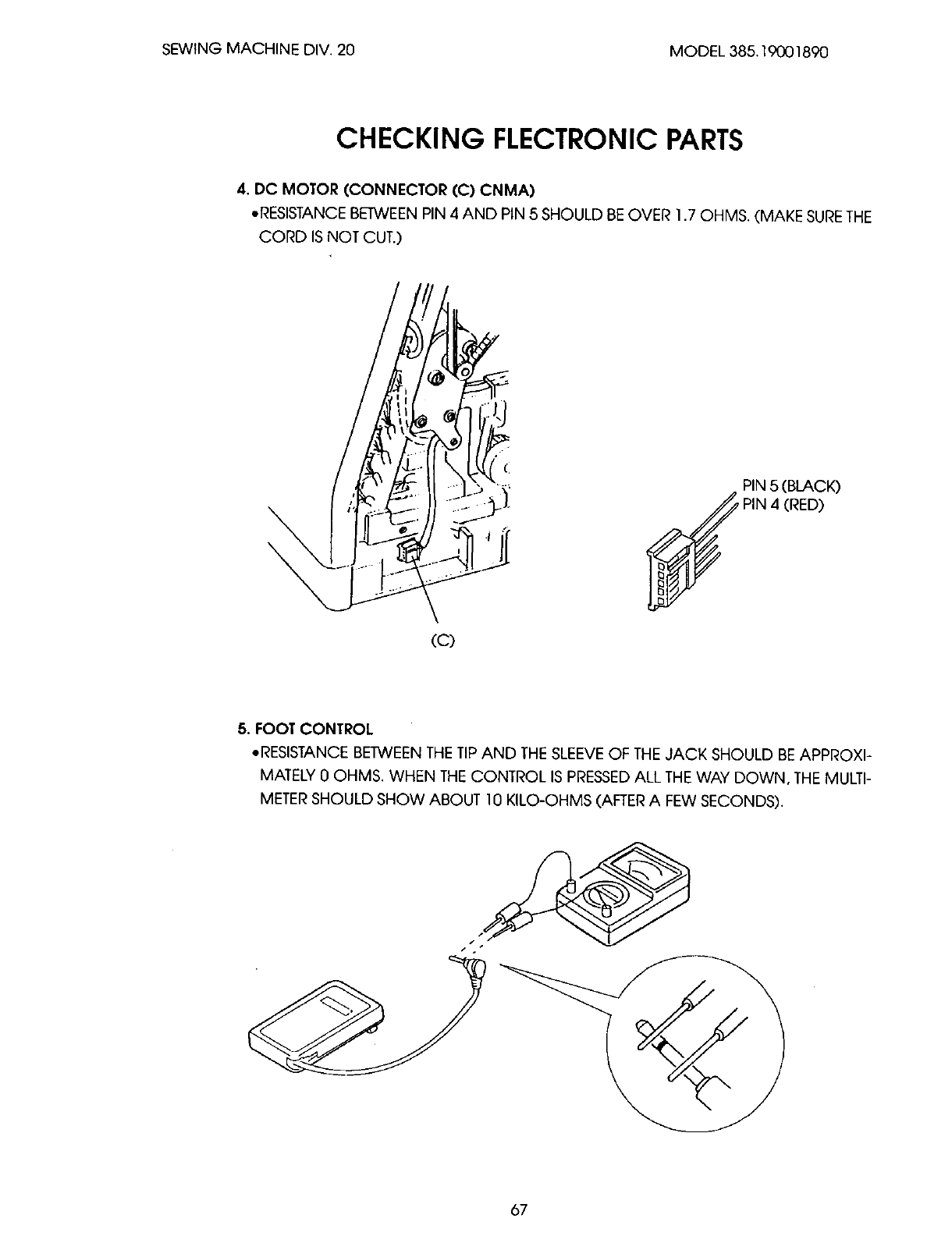

*DC MOTOR ................................................................................. 67
*FOOT CONTROL ........... : ............................................................. 68

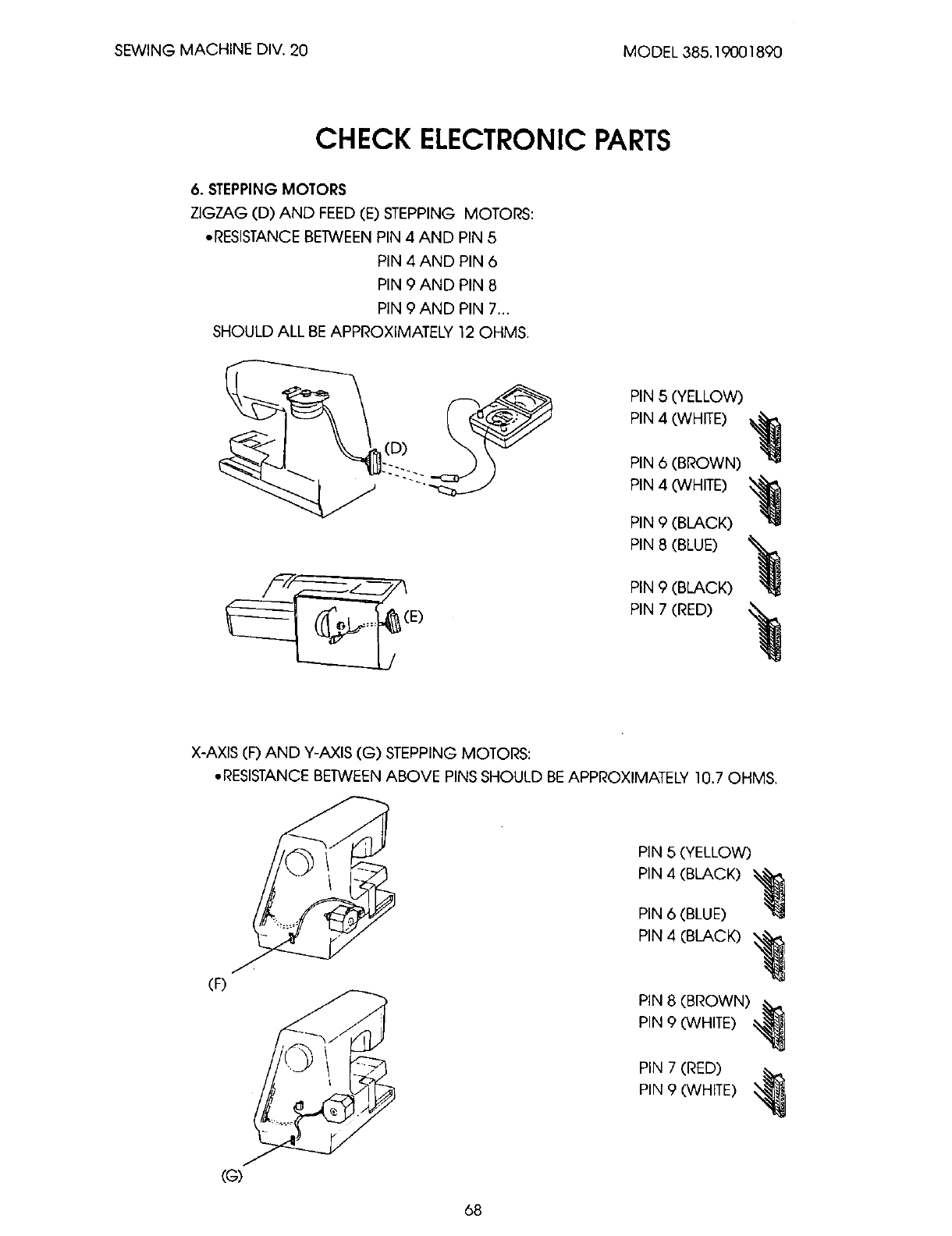

*STEPPING MOTORS ..................................................................... 69

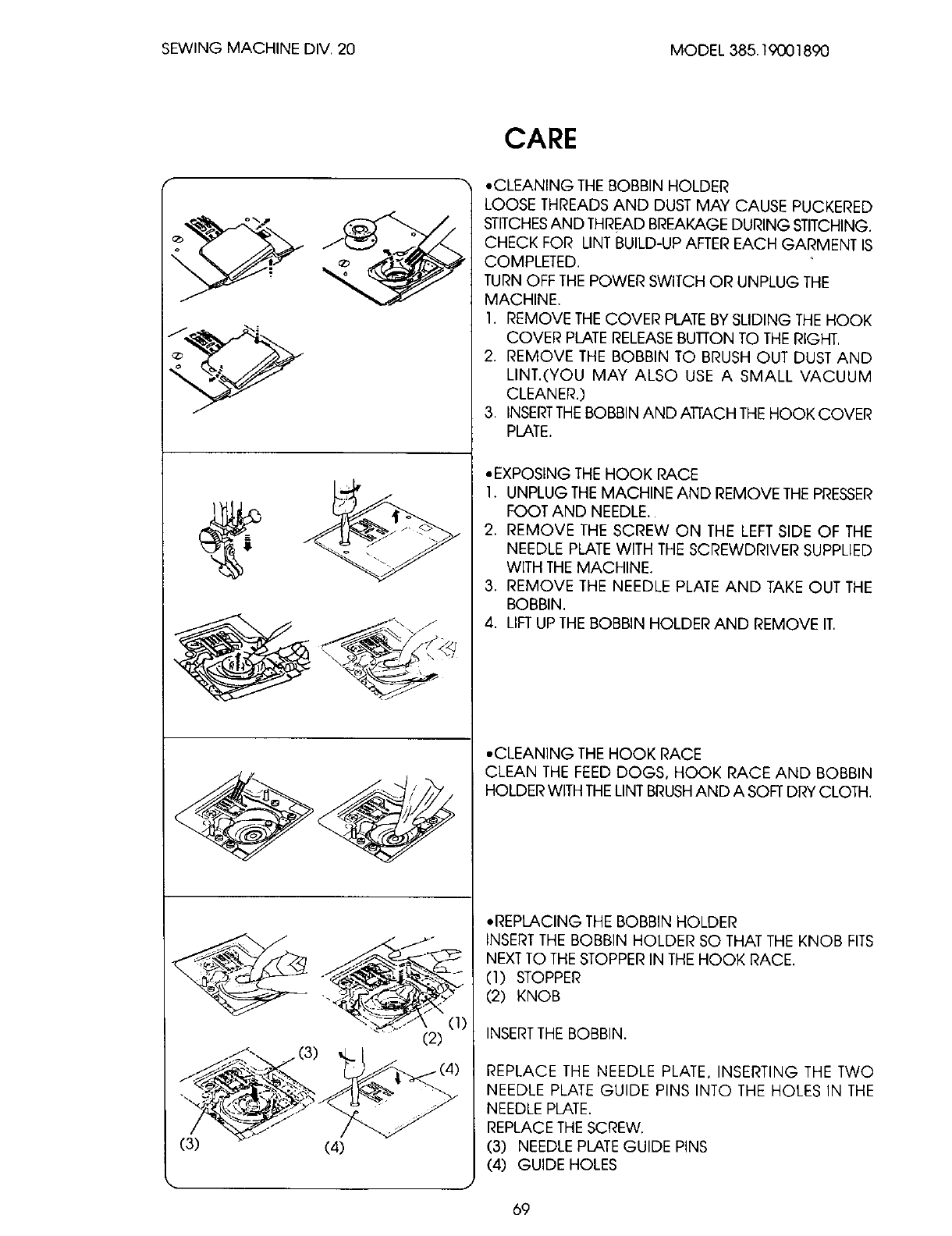

CARE ..................................................................................................... 69
OILING .................................................................................................... 70

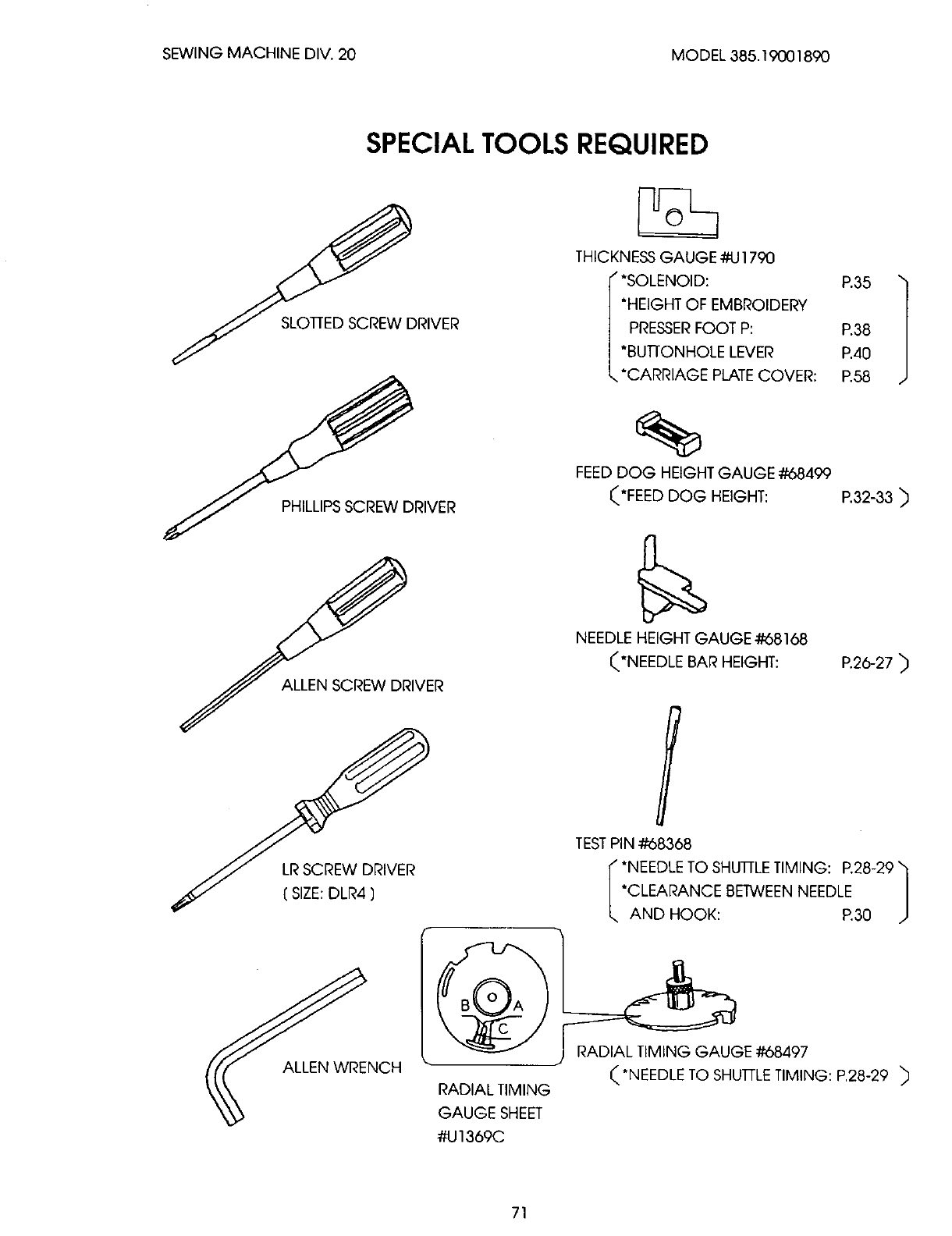

SPECIAL TOOLS REQUIRED ................................................................... 71
*NEW ITEM
SEWING MACHIN E DIV. 20 MODEL 385.19001890

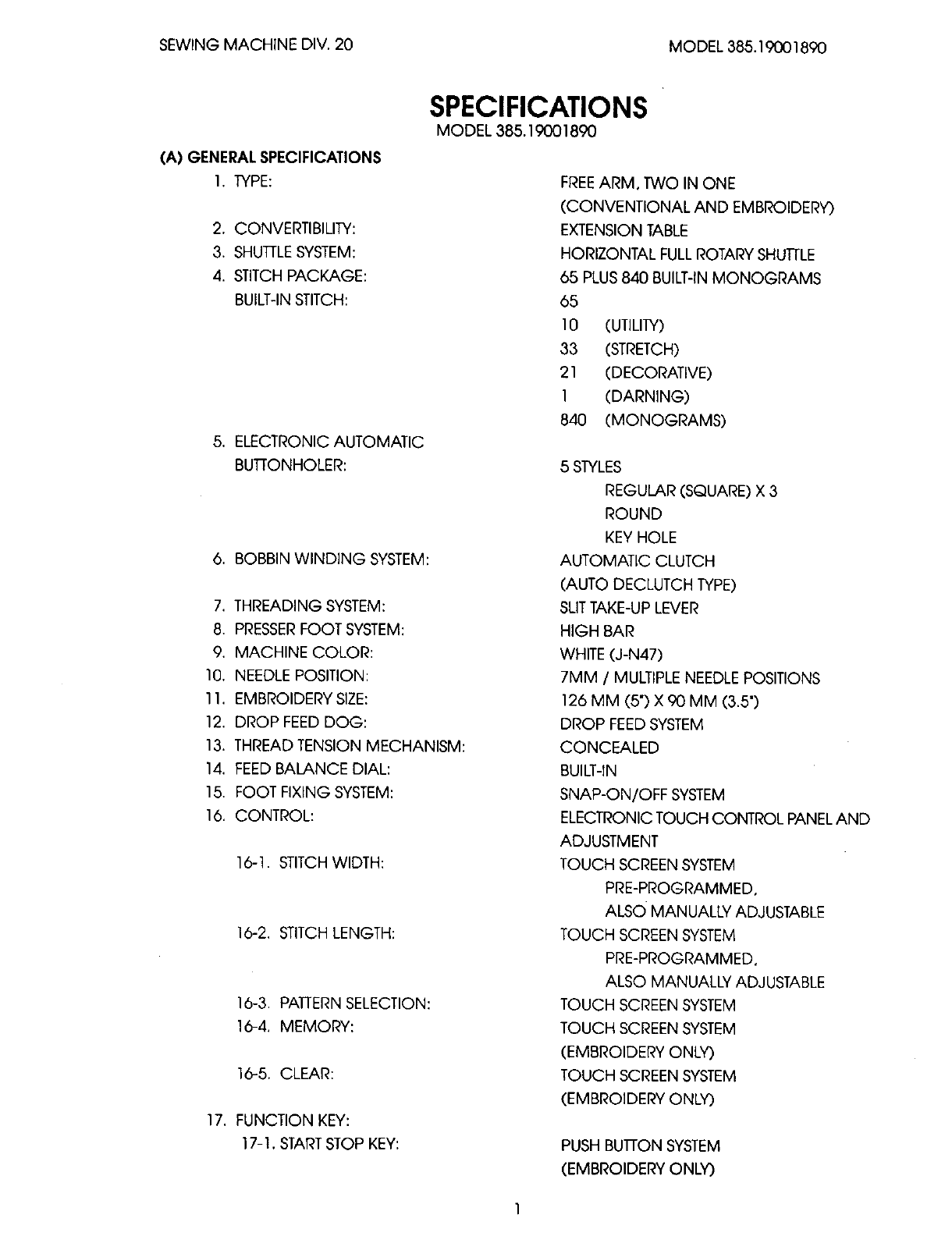

(A) GENERAL SPECIFICATIONS
I. TYPE:
2. CONVERTIBILITY:
3. SHUTTLESYSTEM:
4. STITCH PACKAGE:
BUILT-IN STITCH:
5. ELECTRONIC AUTOMATIC
BUI-rONHOLER:
6. BOBBIN WINDING SYSTEM:
7. THREADING SYSTEM:
8. PRESSERFOOT SYSTEM:
9. MACHINE COLOR:
10. NEEDLE POSITION:
11. EMBROIDERY SIZE:
12. DROP FEED DOG:
13. THREAD TENSION MECHANISM:
14. FEED BALANCE DIAL:
15. FOOT FIXING SYSTEM:
16. CONTROL:
16-1. STITCH WIDTH:
16-2. STITCH LENGTH:
16-3. PAl-tERN SELECTION:
16-4. MEMORY:
16-5. CLEAR:
17. FUNCTION KEY:
17-t. STARTSTOP KEY:
SPECIFICATIONS
MODEL 385.19001890
FREEARM, TWO IN ONE
(CONVENTIONAL AND EMBROIDERY)
EXTENSION TABLE
HORIZONTAL FULLROTARY SHU_LE
65 PLUS 840 BUILT-INMONOGRAMS
65
10 (UTILITY)
33 (STRETCH)
21 (DECORATIVE)
1 (DARNING)
840 (MONOGRAMS)
5 STYLES
REGULAR (SQUARE) X 3
ROUND
KEY HOLE
AUTOMATLC CLUTCH
(AUTO DECLUTCH TYPE)
SLITTAKE-UP LEVER
HIGH BAR
WHITE (J-N47)
7MM /MULTIPLENEEDLE POSITIONS
126 MM (5") X 90 MM (3.5")
DROP FEED SYSTEM
CONCEALED
BUILT-IN
SNAP-ON/OFF SYSTEM
ELECTRONIC TOUCH CONTROL PANEL AND
ADJUSTMENT
TOUCH SCREEN SYSTEM
PRE-PROGRAMMED,
ALSO MANUALLY ADJUSTABLE
TOUCH SCREEN SYSTEM
PRE-PROGRAMMED,
ALSO MANUALLY ADJUSTABLE
TOUCH SCREEN SYSTEM
TOUCH SCREEN SYSTEM
(EMBROIDERY ONLY)
TOUCH SCREEN SYSTEM
(EMBROIDERY ONLY)
PUSH BU_ON SYSTEM
(EMBROIDERY ONLY)
SE'WlNGMACHINEDIV.20 MODEL385.19001890

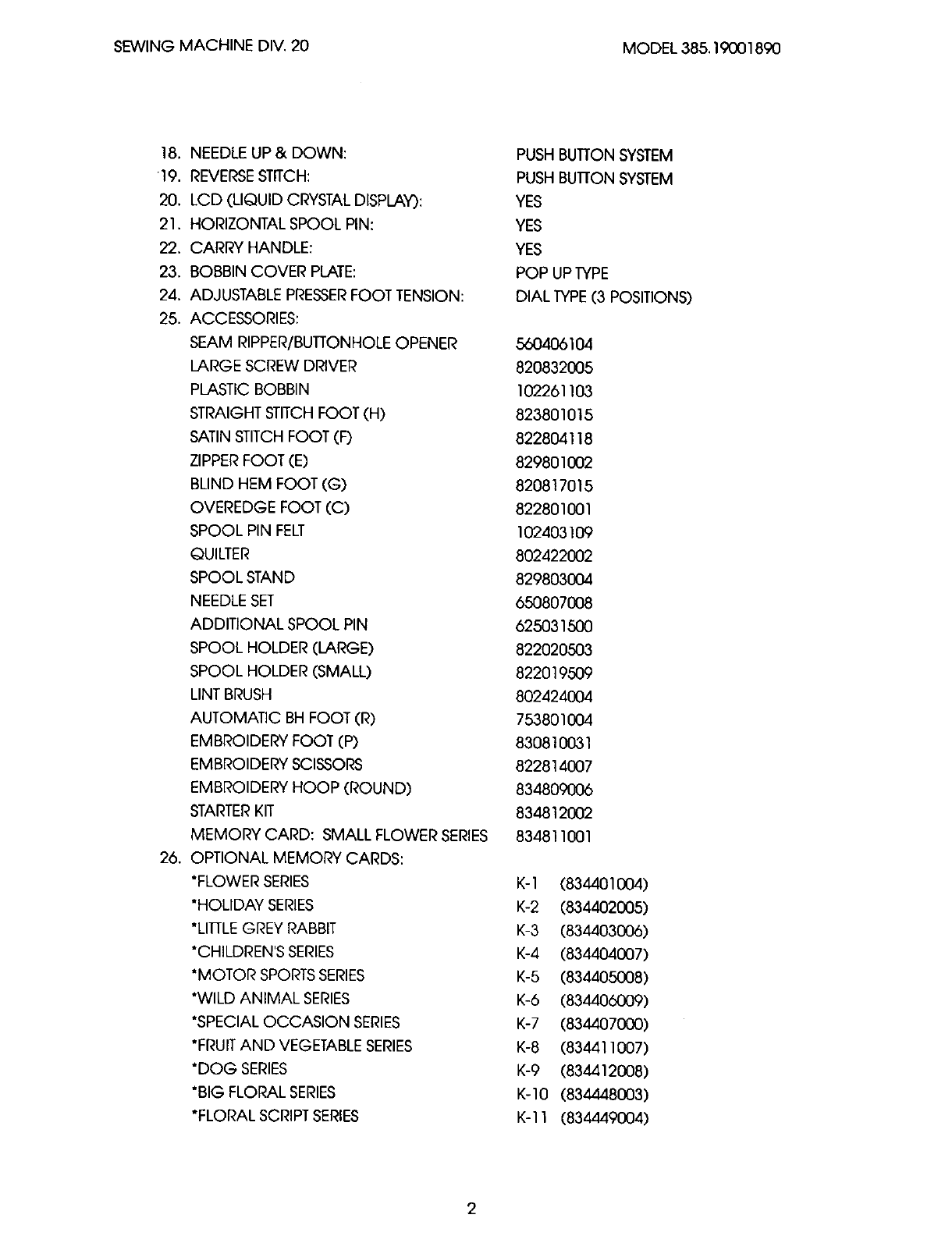

18. NEEDLE UP & DOWN:
19. REVERSESTITCH:
20. LCD (LIQUID CRYSTAL DISPLAY):
21. HORIZONTAL SPOOL PIN:
22. CARRY HANDLE:
23. BOBBIN COVER PLATE:
24. ADJUSTABLE PRESSERFOOT TENSION:
25. ACCESSORIES:
SEAM RIPPER/BUTTONHOLE OPENER
LARGE SCREW DRIVER
PLASTIC BOBBIN
STRAIGHT STITCH FOOT (H)
SATIN STITCH FOOT (F)
ZIPPER FOOT (E)
BLIND HEM FOOT (G)
OVEREDGE FOOT (C)
SPOOL PIN FELT
QUILTER
SPOOL STAND
NEEDLE SET
ADDITIONAL SPOOL PIN
SPOOL HOLDER (LARGE)
SPOOL HOLDER (SMALL)
LINT BRUSH
AUTOMATIC BH FOOT (R)
EMBROIDERY FOOT (P)
EMBROIDERY SCISSORS
EMBROIDERY HOOP (ROUND)
STARTERKIT
MEMORY CARD: SMALL FLOWER SERIES
26. OPTIONAL MEMORY CARDS:
*FLOWER SERIES
*HOLIDAY SERIES
*LITTLEGREY RABBIT
*CHILDREN'S SERIES
*MOTOR SPORTSSERIES
*WILD ANIMAL SERIES
*SPECIAL OCCASION SERIES
*FRUITAND VEGETABLE SERIES
*DOG SERIES
*BIG FLORAL SERIES
*FLORAL SCRIPTSERIES
PUSH BUTTONSYSTEM
PUSH BUTTONSYSTEM
YES
YES
YES
POP UP TYPE
DIAL TYPE (3 POSITIONS)
56O4O61O4
820832005
102261103
823801015
822804118
829801002
820817015
822801001
102403109
802422002
829803004
650807008
625031500
822020503
822019509
802424004
753801004
830810031
822814007
834809006
834812002
834811001
K-1 (834401004)
K-2 (834402005)
K-3 (834403006)
K-4 (834404007)
K-5 (834405008)
K-6 (834406009)
K-7 (834407000)
K-8 (834411007)
K-9 (834412008)
K-10 (834448003)
K-11 (834449004)
SEWINGMACHINEDIV.20 MODEL385.19001890

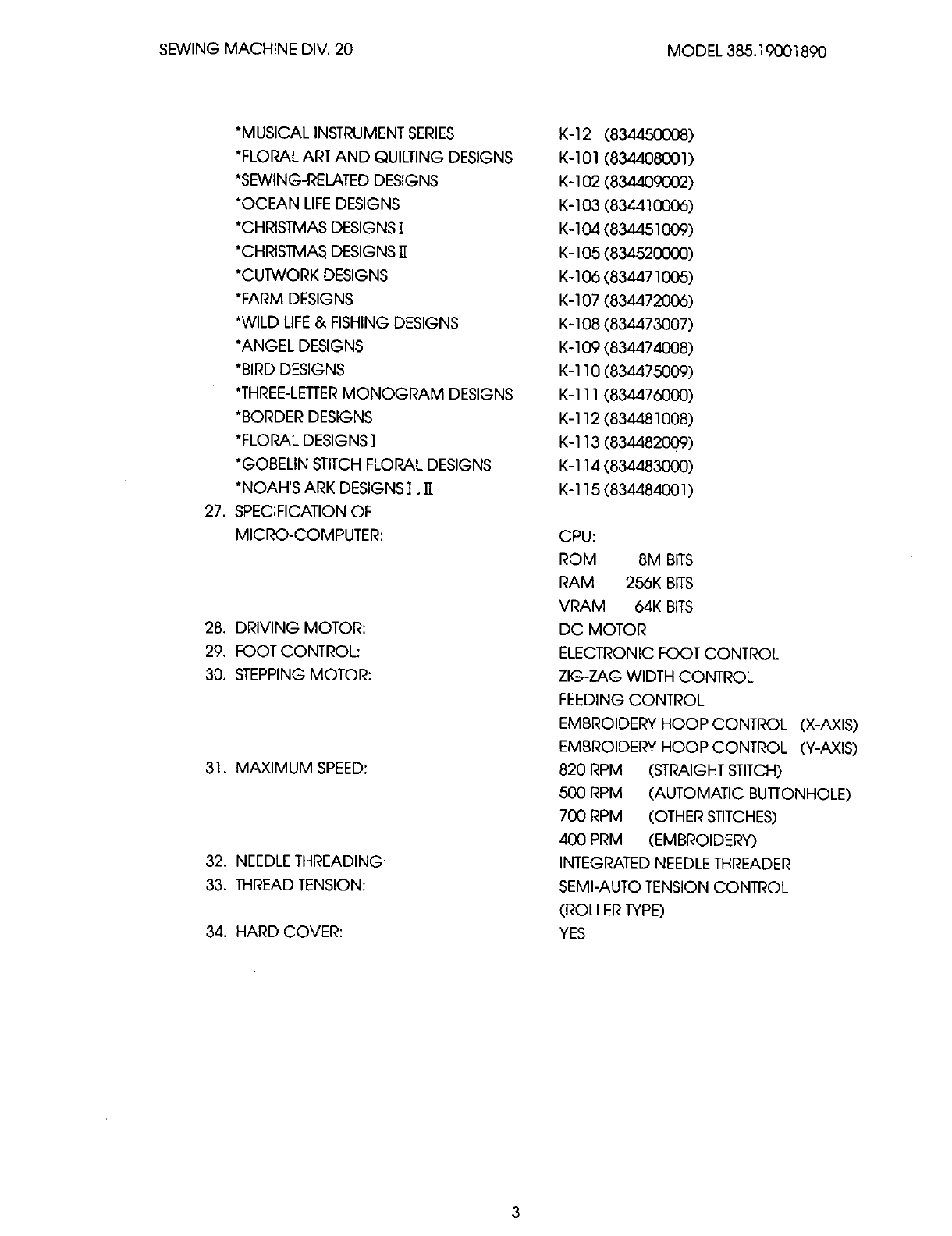

27.
*MUSICAL INSTRUMENTSERIES
*FLORAL ART AND QUILTING DESIGNS
*SEWING-RELATED DESIGNS
*OCEAN LIFEDESIGNS
*CHRISTMAS DESIGNS I
*CHRISTMAS DESIGNS 1I
*CUIWORK DESIGNS
*FARM DESIGNS
*WILD LIFE& FISHING DESIGNS
*ANGEL DESIGNS
*BIRD DESIGNS
*THREE-LETTERMONOGRAM DESIGNS
*BORDER DESIGNS
*FLORAL DESIGNS ]
*GOBELIN STITCH FLORAL DESIGNS
*NOAH'S ARK DESIGNS ], 11"
SPECIFICATION OF
MICRO-COMPUTER:
28. DRIVING MOTOR:
29. FOOT CONTROL:
30. STEPPING MOTOR:
31. MAXIMUM SPEED:
32. NEEDLE THREADING:
33. THREAD TENSION:
34, HARD COVER:
K-12 (8344500O8
K-101 (834408001
K-102 (834409002
K-103 (834410006
K-104 (834451009
K-105 (834520000
K-106 (834471005
K-107 (834472006
K-108 (834473007
K-109 (834474008
K-110 (834475009
K-111 (834476000
K-112 (834481008
K-113 (834482009
K-114 (834483000
K-115 (834484001
CPU:
ROM 8M BITS
RAM 256K BITS
VRAM 64K BITS
DC MOTOR
ELECTRONIC FOOT CONTROL
ZlG-ZAG WIDTH CONTROL
FEEDING CONTROL
EMBROIDERY HOOP CONTROL (X-AXIS)
EMBROIDERY HOOP CONTROL (Y-AXIS)
820 RPM (STRAIGHT STITCH)
500 RPM (AUTOMATIC BUI-rONHOLE)
700 RPM (OTHER STITCHES)
400 PRM (EMBROIDERY)
INTEGRATED NEEDLE THREADER
SEMI-AUTO TENSION CONTROL
(ROLLER TYPE)
YES
3
SEWING MACHINE DIV. 20 MODEL 385.19001890

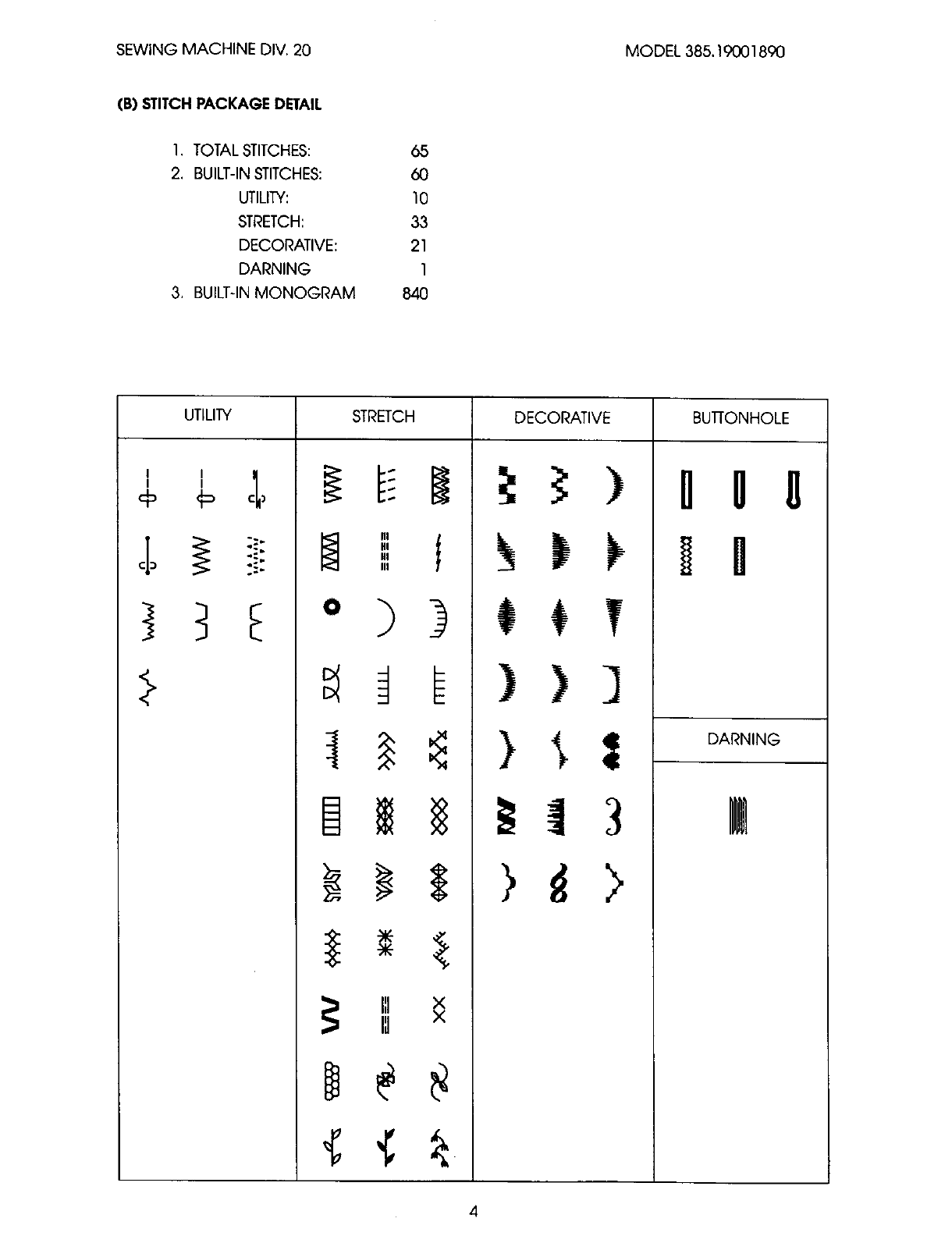

(B) STITCH PACKAGE DETAIL
1. TOTAL STITCHES: 65
2. BUILT-IN STITCHES: 60
UTILITY: 10
STRETCH: 33
DECORATIVE: 21
DARNING 1
3. BUILT-IN MONOGRAM 840
UTILITY STRETCH DECORATIVE
' I 4
O
El
L7
HI
Hi
HI
Ill
I
III
lU
) l
E )
X
X
_:) n
i !, l
IT
)1
3
:>
BUTi'ONHOLE
0 0
g
DARNING
I
4
SEWING MACHINE DIV. 20 MODEL 385.19001890

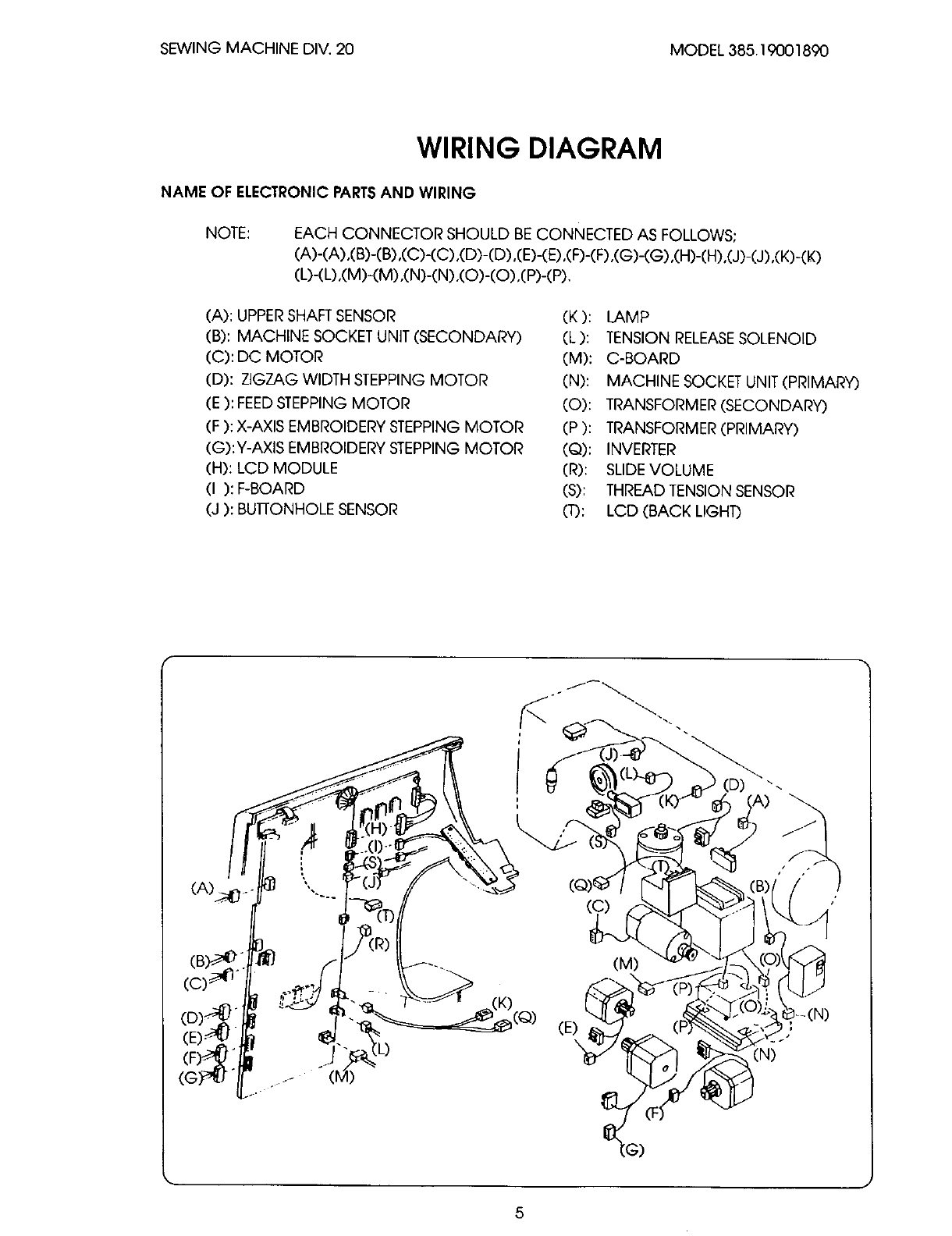

WIRING DIAGRAM
NAME OF ELECTRONIC PARTSAND WIRING
NOTE: EACH CONNECTOR SHOULD BE CONNECTED AS FOLLOWS;
(A)-(A),(B)-(B),(C)-(C),(D)-(D),(E)-(E),(F)-(F),(G)-(G),(H)-(H),(J)-(J),(K)-(K)
(L)-(L),(M)-(M),(N)-(N),(O)-(O),(P)-(P).
(A): UPPERSHAFT SENSOR
(B): MACHINE SOCKET UNIT (SECONDARY)
(C): DC MOTOR
(D): ZIGZAG WIDTH STEPPING MOTOR
(E): FEEDSTEPPING MOTOR
(F): X-AXIS EMBROIDERY STEPPING MOTOR
(G):Y-AXIS EMBROIDERY STEPPING MOTOR
(H): LCD MODULE
(I): F-BOARD
(J): BuYrONHOLE SENSOR
(K): LAMP
(L): TENSION RELEASESOLENOID
(M): C-BOARD
(N): MACHINE SOCKET UNIT (PRIMARY)
(O): TRANSFORMER (SECONDARY)
(P): TRANSFORMER (PRIMARY)
(Q): INVERTER
(R): SLIDE VOLUME
(S): THREAD TENSION SENSOR
(T): LCD (BACK LIGHT)
(N)
5
SEWING MACHINE DIV. 20 MODEL 385. ] 9001890

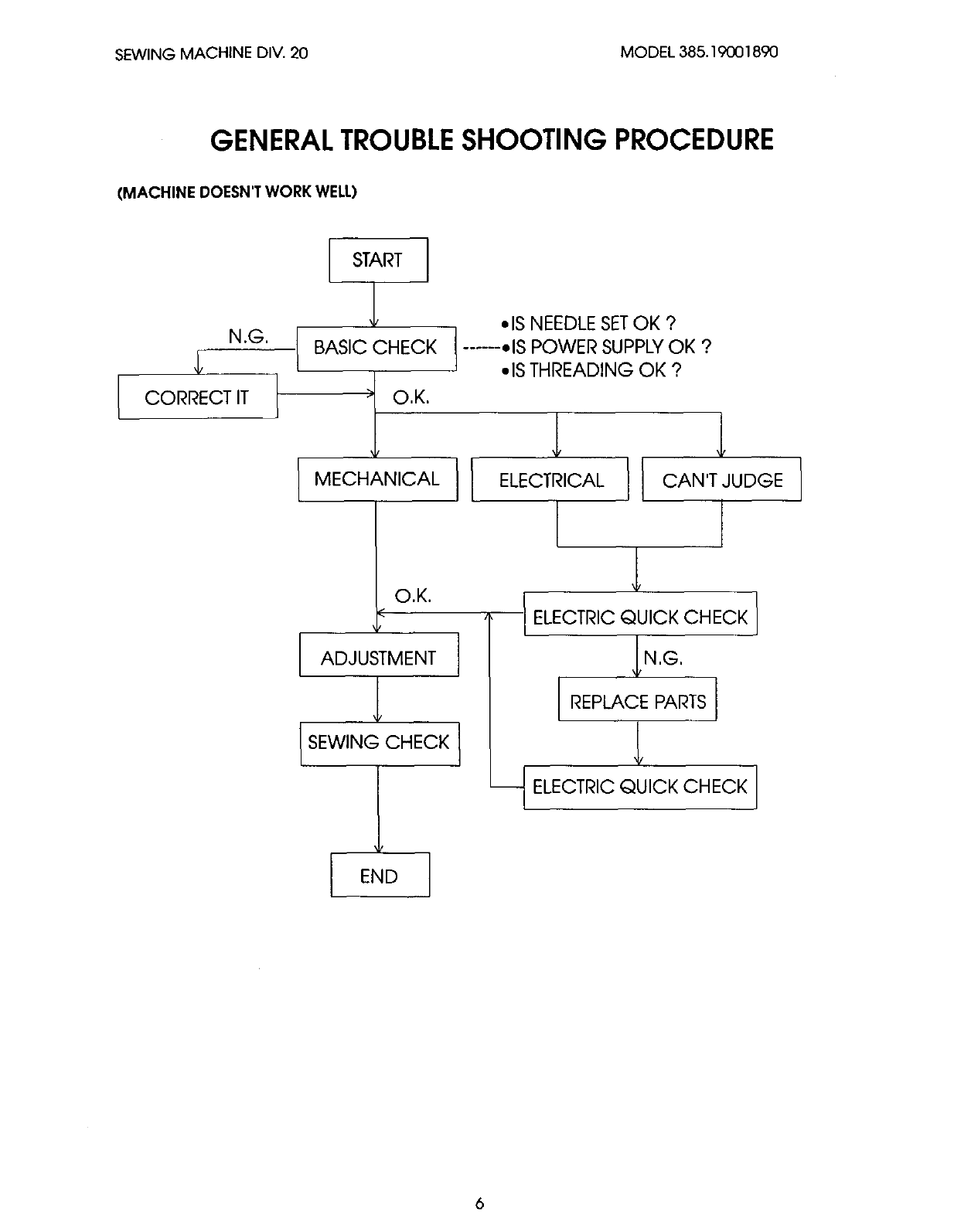

GENERALTROUBLESHOOTING PROCEDURE
(MACHINE OOESN"TWORK WELL)
CORRECT IT
START
BASIC CHECK
>10'K'
MECHANICAL
*IS NEEDLESETOK ?
O,K.
(
_t
ADJUSTMENT
SEWING CHECK I
...... *IS POWER SUPPLY OK ?
*IS THREADING OK ?
} } ELECTRICAL } } CAN'TJUDGE
l END
ELECTRIC QUICK CHECK
_N.G,
REPLACE PARTS
ELECTRIC QUICK CHECK
6
SEWING MACHINE DIV. 20 MODEL 385.19001890

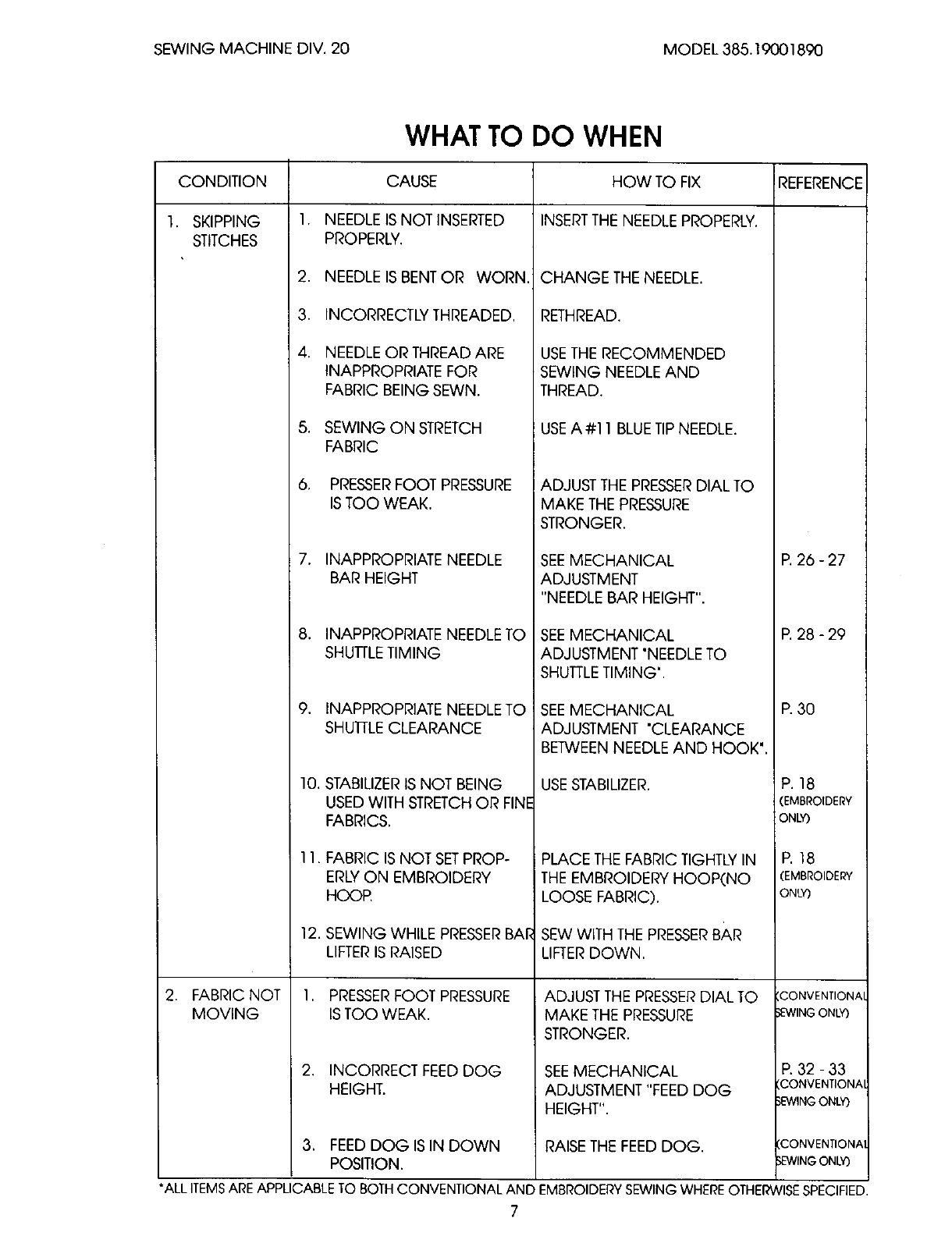

WHAT TO DO WHEN
CONDITION HOW TO FIX REFERENCE
1, INSERTTHE NEEDLE PROPERLY.
1. SKIPPING
STITCHES
2. FABRIC NOT
MOVING
CAUSE
NEEDLE IS NOT INSERTED
PROPERLY.
2. NEEDLE IS BENTOR WORN.
3. INCORRECTLY THREADED,
4. NEEDLE ORTHREAD ARE
INAPPROPRIATE FOR
FABRIC BEING SEWN.
5, SEWING ON STRETCH
FABRIC
6, PRESSERFOOT PRESSURE
IS TOO WEAK.
7. INAPPROPRIATE NEEDLE
BAR HEIGHT
8. INAPPROPRIATE NEEDLE TO
SHUI-rLE TIMING
9. INAPPROPRIATE NEEDLE TO
SHUYi-LECLEARANCE
10. STABILIZERIS NOT BEING
USED WITH STRETCHOR FINE
FABRICS.
11. FABRIC IS NOT SETPROP-
ERLYON EMBROIDERY
HOOP.
12. SEWING WHILE PRESSERBAr,
LIFTERIS RAISED
,
.
PRESSERFOOT PRESSURE
ISTOO WEAK.
INCORRECT FEED DOG
HEIGHT.
3. FEED DOG IS IN DOWN
POSITION.
*ALL ITEMSAREAPPLICABLETO BOTHCONVENTIONALAND
7
CHANGE THENEEDLE.
RETHREAD.
USETHE RECOMMENDED
SEWING NEEDLE AND
THREAD,
USEA#11 BLUETIPNEEDLE.
ADJUST THE PRESSERDIAL TO
MAKE THE PRESSURE
STRONGER.
SEEMECHANICAL
ADJUSTMENT
"NEEDLE BAR HEIGHT".
SEEMECHANICAL
ADJUSTMENT "NEEDLETO
SHUTTLETIMING".
SEEMECHANICAL
ADJUSTMENT "CLEARANCE
BETWEEN NEEDLE AND HOOK".
USESTABILIZER.
PLACE THE FABRIC TIGHTLYIN
THE EMBROIDERY HOOP(NO
LOOSE FABRIC),
SEW WITH THE PRESSERBAR
LIFTERDOWN,
ADJUST THE PRESSERDIAL TO
MAKE THE PRESSURE
STRONGER.
SEEMECHANICAL
ADJUSTMENT "FEED DOG
HEIGHT".
RAISE THE FEED DOG.
P. 26 - 27
P. 28 -29
R 30
P. 18
(EMBROIDERY
ONLY)
E18
[EMBROIDERY
ONLY)
CONVENTIONA
_'_VINGONLY)
P. 32 - 33
CONVENTIONA
•"_/ING ONLY)
CONVENTIONA
EWING ONLY)
EMBROIDERY SEWING WHERE OTHERWISE SPECIFIED.
SEWING MACHINE DIV. 20 MODEL 385.19001890

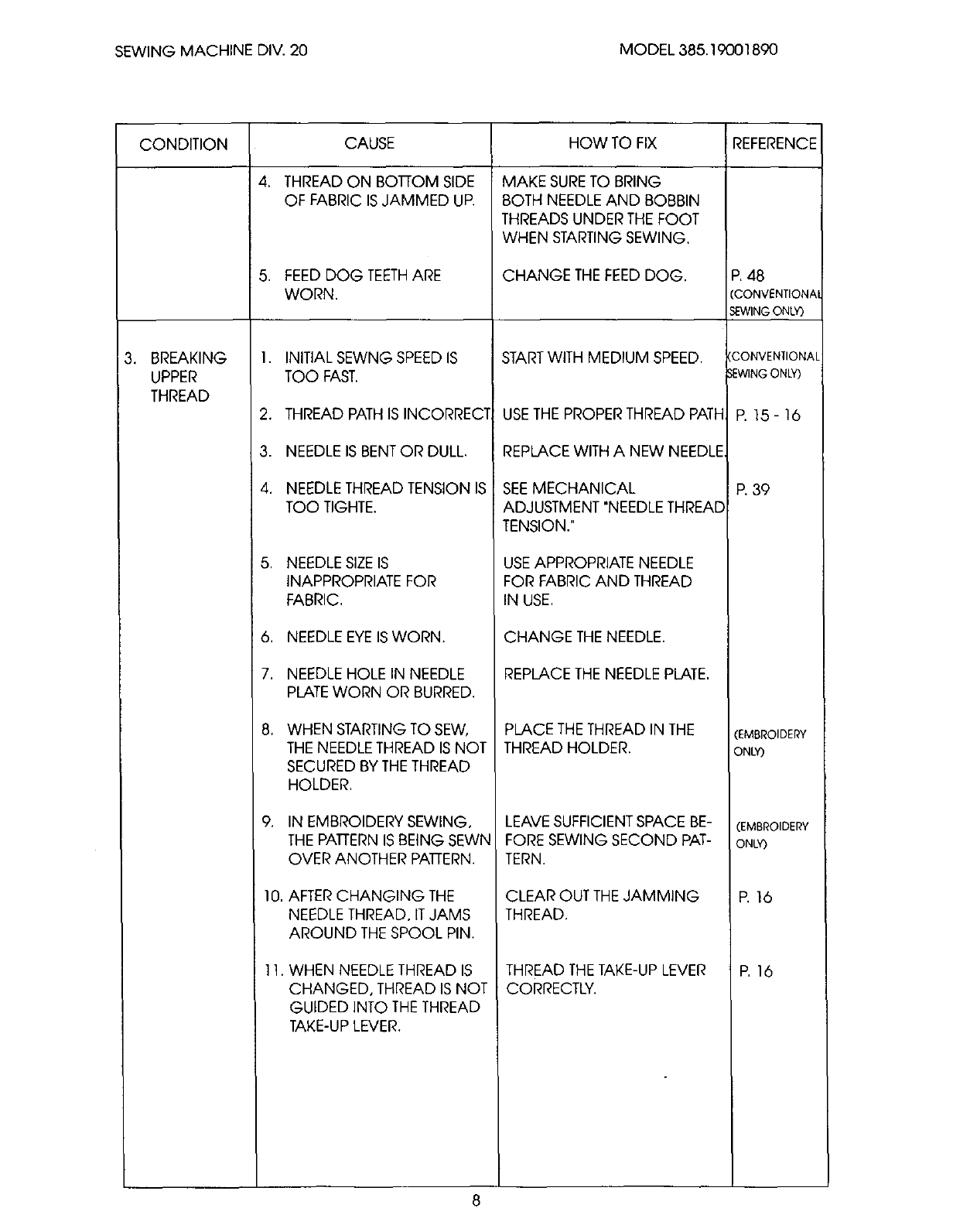

CONDITION HOW TO FIX REFERENCE
3. BREAKING
UPPER
THREAD
CAUSE
4. THREAD ON BO1-POM SIDE
OF FABRIC ISJAMMED UP.
5. FEED DOG TEETHARE
WORN.
1. INITIAL SEWNG SPEED IS
TOO FAST.
2. THREAD PATHIS INCORRECT
3. NEEDLE IS BENTOR DULL.
4. NEEDLE THREAD TENSION IS
TOO TIGHTE.
5, NEEDLE SIZEIS
INAPPROPRIATE FOR
FABRIC,
6, NEEDLE EYEIS WORN.
7. NEEDLE HOLE IN NEEDLE
PLATEWORN OR BURRED.
+WHEN STARTING TO SEW,
THE NEEDLE THREAD IS NOT
SECURED BY THE THREAD
HOLDER,
9. IN EMBROIDERY SEWING,
THEPATrERN IS BEING SEWN
OVER ANOTHER PAl-FERN.
10, AFTER CHANGING THE
NEEDLE THREAD, ITJAMS
AROUND THESPOOL PIN.
11. WHEN NEEDLE THREAD IS
CHANGED, THREAD IS NOT
GUIDED INTO THETHREAD
TAKE-UP LEVER.
MAKE SURETO BRING
BOTH NEEDLE AND BOBBIN
THREADS UNDER THE FOOT
WHEN STARTING SEWING.
CHANGE THEFEED DOG.
STARTWITH MEDIUM SPEED.
USETHE PROPER THREAD PATH
REPLACE WITH A NEW NEEDLE
SEEMECHANICAL
ADJUSTMENT "NEEDLE THREAD
TENSION."
USE APPROPRIATE NEEDLE
FOR FABRIC AND THREAD
IN USE,
CHANGE THE NEEDLE.
REPLACE THE NEEDLE PLATE.
PLACE THETHREAD IN THE
THREAD HOLDER.
LEAVE SUFFICIENTSPACE BE-
FORE SEWING SECOND PAT-
TERN.
CLEAR OUT THEJAMMING
THREAD,
THREAD THETAKE-UP LEVER
CORRECTLY.
P. 48
(CONVENTIONAl
SEWING ONLY)
CONVENTIONAL
IEWlNG ONLY)
R 15-16
R 39
(EMBROIDERY
ONLY)
EMBROIDERY
ONLY)
R16
P, 16
SEWINGMACHINEDIV.20 MODEL385.19001890
CONDITION
4, BREAKING
BOBBIN
THREAD

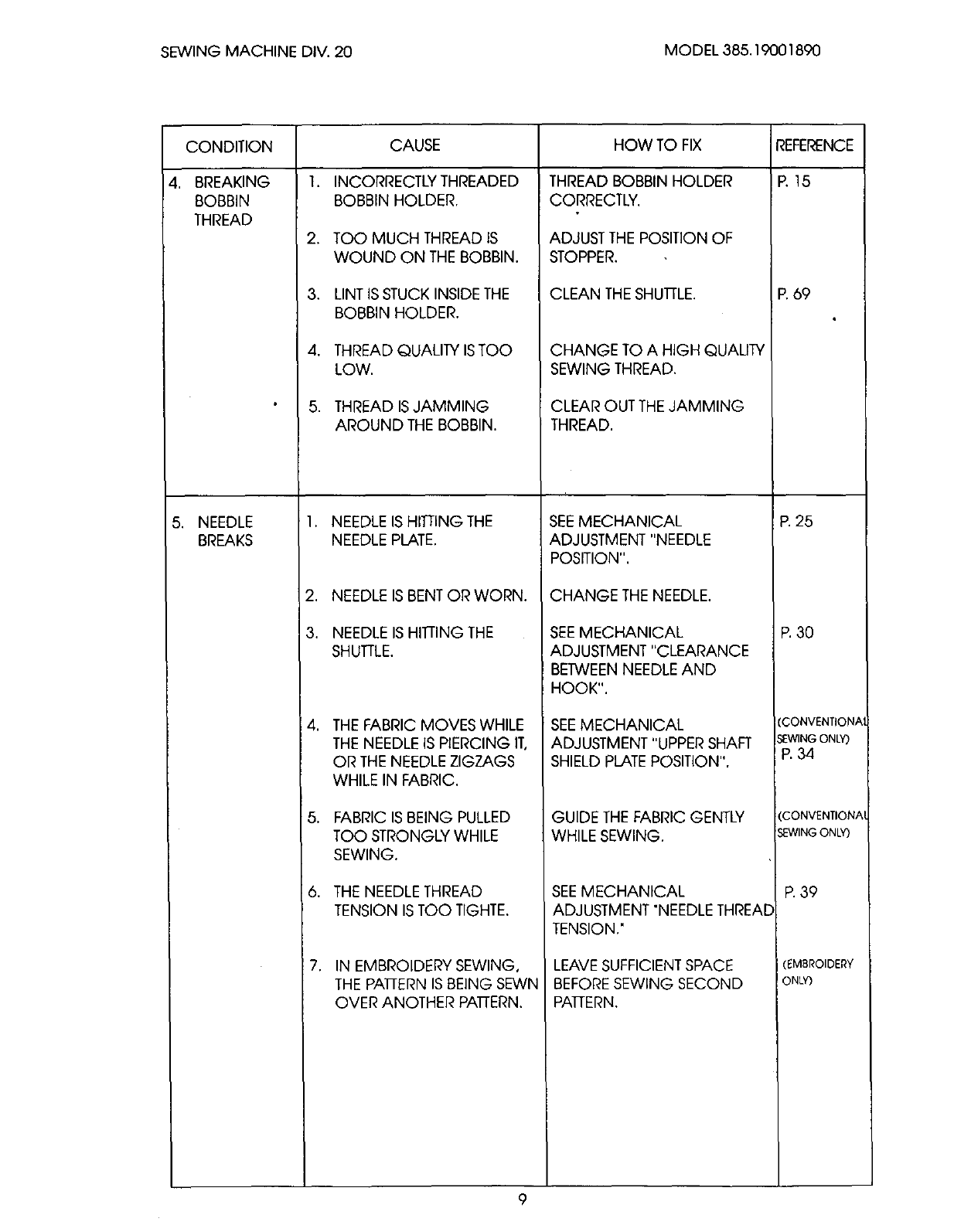

5. NEEDLE
BREAKS
CAUSE
1. INCORRECTLYTHREADED
BOBBINHOLDER,
2. TOOMUCHTHREADIS
WOUNDONTHEBOBBIN.
3. LINTISSTUCKINSIDETHE
BOBBINHOLDER.
4. THREADQUALITYISTOO
LOW.
5. THREADISJAMMING
AROUNDTHEBOBBIN.
1. NEEDLEISHITTINGTHE
NEEDLEPLATE.
2. NEEDLEISBENTORWORN.
3. NEEDLEISHITTINGTHE
SHUTTLE.
.
,
.
17.
THE FABRIC MOVES WHILE
THE NEEDLE IS PIERCING IT,
OR THE NEEDLE ZIGZAGS
WHILE IN FABRIC.
FABRIC IS BEING PULLED
TOO STRONGLY WHILE
SEWING.
THE NEEDLE THREAD
TENSION IS TOO TIGHTE.
IN EMBROIDERY SEWING,
THE PATTERNIS BEING SEWN
OVER ANOTHER PATTERN.
HOW TO FIX
THREAD BOBBIN HOLDER
CORRECTLY.
ADJUST THE POSITION OF
STOPPER.
CLEAN THE SHUTTLE.
CHANGE TO A HIGH QUALITY
SEWING THREAD.
CLEAR OUT THEJAMMING
THREAD.
SEEMECHANICAL
ADJUSTMENT "NEEDLE
POSITION".
CHANGE THE NEEDLE.
SEEMECHANICAL
ADJUSTMENT "CLEARANCE
BETWEEN NEEDLE AND
HOOK".
' SEEMECHANICAL
ADJUSTMENT "UPPER SHAFT
SHIELD PLATE POSITION".
GUIDE THE FABRIC GENTLY
WHILE SEWING.
SEEMECHANICAL
ADJUSTMENT "NEEDLE THREAD
TENSION,'
LEAVE SUFFICIENTSPACE
BEFORE SEWING SECOND
PAI_ERN.
REFERENCE
P. 15
E 69
P. 25
P. 30
:CONVENTIONA
_'WING ONLY)
P. 34
CONVENTIONA
EWINGONLY)
P. 39
(EMBROIDERY
ONLY)
9

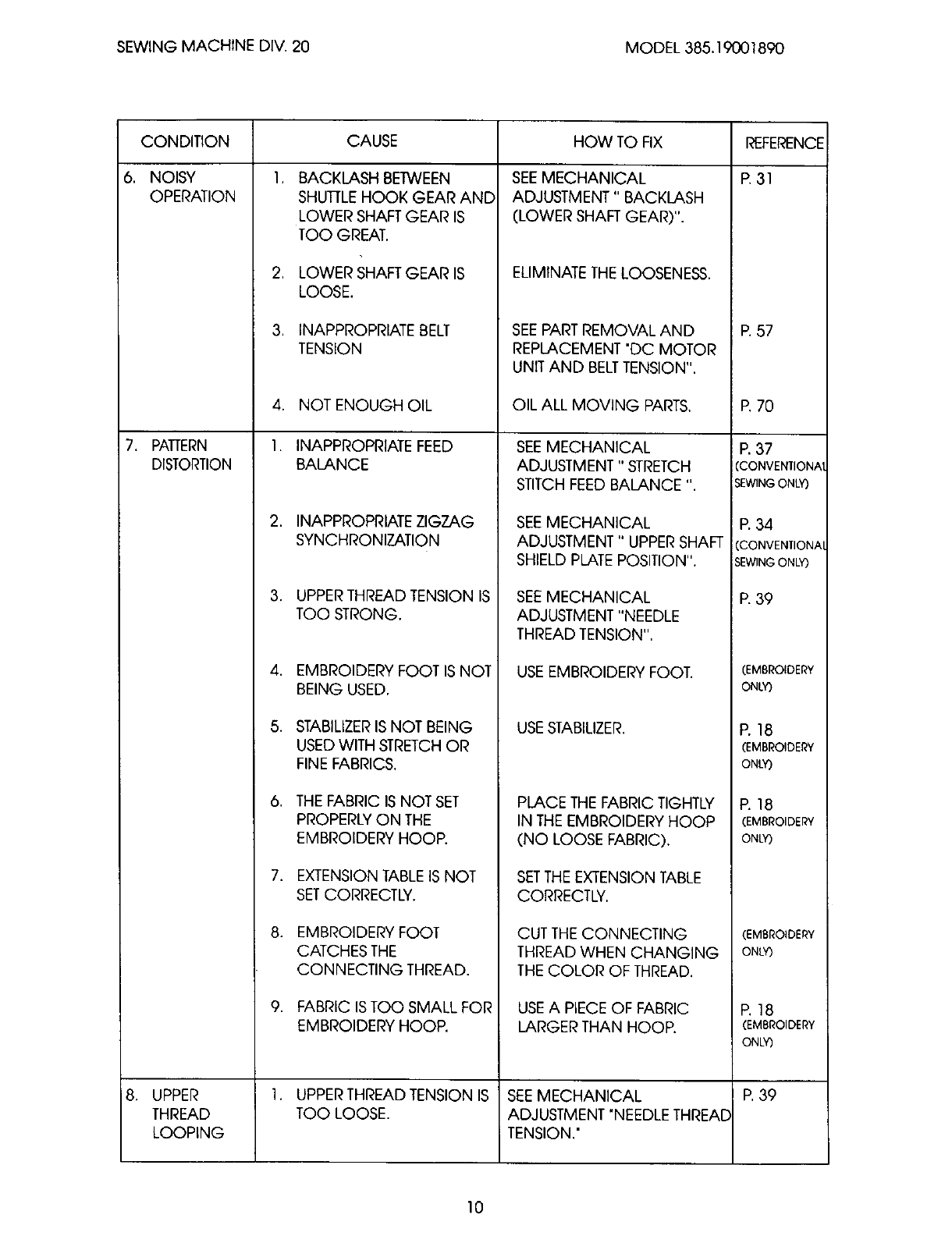

SEWING MACHINE DIV. 20 MODEL 385.19001890
CONDITION
6. NOISY
OPERATION
7. PAI"[ERN
DISTORTION
8. UPPER
THREAD
LOOPING
CAUSE HOW TO FIX REFERENCE
1. E 31
,
3,
BACKLASH BE[WEEN
SHUI_LE HOOK GEAR AND
LOWER SHAFT GEAR IS
TOO GREAT.
LOWER SHAFT GEAR IS
LOOSE.
INAPPROPRIATE BELT
TENSION
4. NOT ENOUGH OIL
1. INAPPROPRIATE FEED
BALANCE
.
,
.
5.
.
.
8.
.
.
INAPPROPRIATE ZIGZAG
SYNCHRONIZATION
UPPERTHREAD TENSION IS
TOO STRONG.
EMBROIDERY FOOT IS NOT
BEING USED.
STABILIZERIS NOT BEING
USED WITH STRETCHOR
FINE FABRICS.
THE FABRIC IS NOT SET
PROPERLYON THE
EMBROIDERY HOOP.
EXTENSION TABLEIS NOT
SETCORRECTLY.
EMBROIDERY FOOT
CATCHES THE
CONNECTING THREAD.
FABRIC IS TOO SMALL FOR
EMBROIDERY HOOP.
UPPERTHREAD TENSION IS
TOO LOOSE.
SEEMECHANICAL
ADJUSTMENT '" BACKLASH
(LOWER SHAFT GEAR)".
ELIMINATE THE LOOSENESS.
SEEPART REMOVAL AND
REPLACEMENT "DC MOTOR
UNIT AND BELTTENSION'".
OIL ALL MOVING PARTS.
SEEMECHANICAL
ADJUSTMENT " STRETCH
STITCH FEED BALANCE ".
SEEMECHANICAL
ADJUSTMENT " UPPERSHAFT
SHIELD PLATE POSITION'".
SEEMECHANICAL
ADJUSTMENT "NEEDLE
THREAD TENSION",
USE EMBROIDERY FOOT.
USE STABILIZER.
PLACE THE FABRIC TIGHTLY
IN THE EMBROIDERY HOOP
(NO LOOSE FABRIC).
SETTHE EXTENSION TABLE
CORRECTLY.
CUT THECONNECTING
THREAD WHEN CHANGING
THE COLOR OF THREAD.
USEA PIECE OF FABRIC
LARGER THAN HOOP.
SEEMECHANICAL
ADJUSTMENT "NEEDLE THREAE
TENSION."
P. 57
P. 7O
P. 37
[CONVENTIONA
SEWINGONLY)
R 34
(CONVENTIONA
BEING ONLY)
R 39
(EMBROIDERY
ONlY)
R18
(EMBROIDERY
ONLY)
R18
(EMBROIDERY
ONLY)
(EMBROIDERY
ON{Y)
R18
(EMBROIDERY
ONLY)
P, 39
10
SEWING MACHINE DIV. 20 MODEL 385.19001890

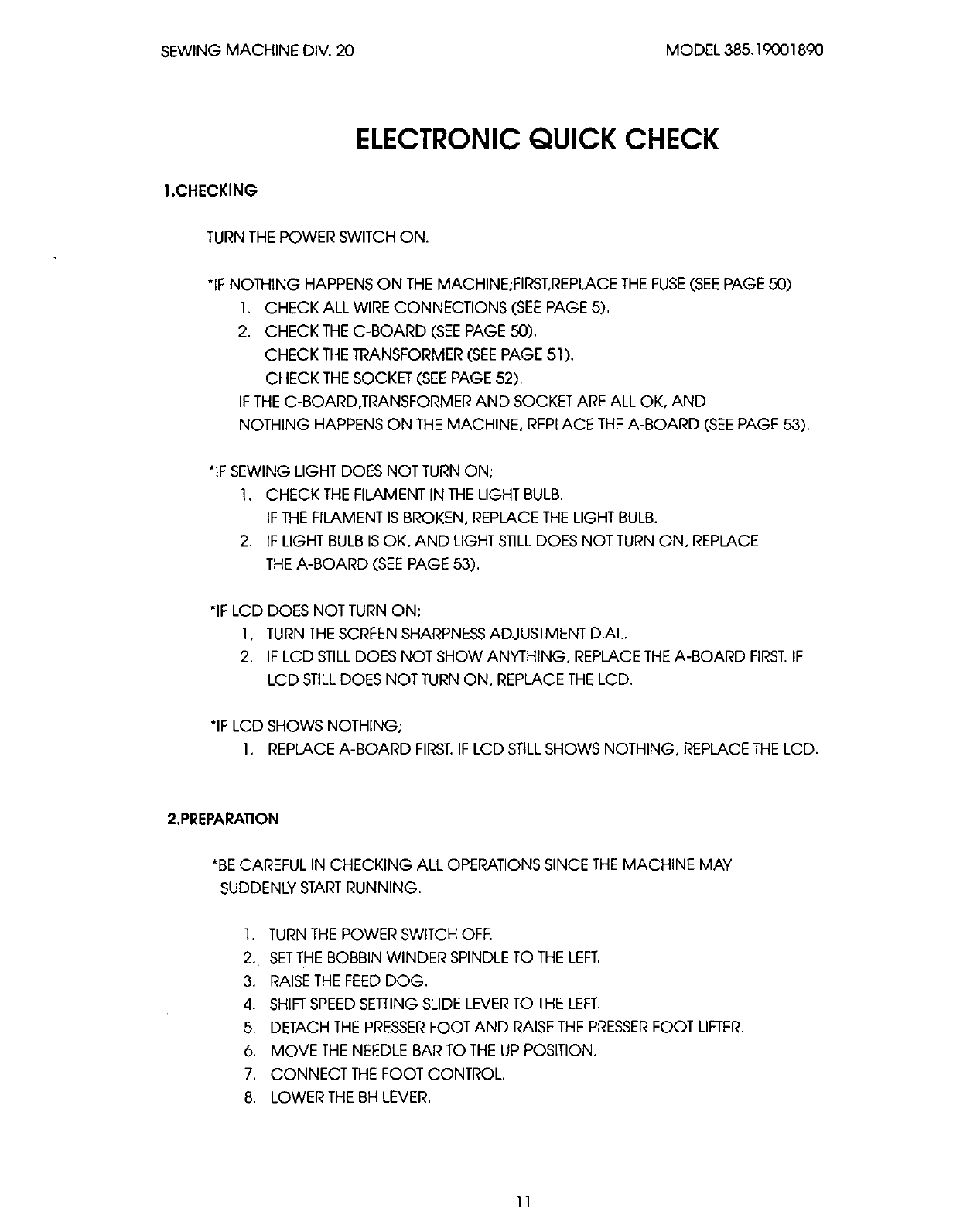

ELECTRONICQUICK CHECK
I.CHECKING
TURN THE POWER SWITCH ON.
*IF NOTHING HAPPENS ON THE MACHINE;FIRST, REPLACE THE FUSE(SEE PAGE 50)
1. CHECK ALL WIRE CONNECTIONS (SEE PAGE 5),
2. CHECK THE C-BOARD (SEEPAGE 50).
CHECK THETRANSFORMER (SEEPAGE 51).
CHECK THE SOCKET (SEEPAGE 52),
IF THEC-BOARD,TRANSFORMER AND SOCKET ARE ALL OK, AND
NOTHING HAPPENS ON THE MACHINE, REPLACE THEA-BOARD (SEEPAGE 53).
*IF SEWING LIGHT DOES NOT TURN ON;
1. CHECK THEFILAMENT IN THE LIGHT BULB.
IFTHE FILAMENT IS BROKEN, REPLACE THE LIGHT BULB.
2. IF LIGHT BULB IS OK, AND LIGHT STILLDOES NOT TURN ON, REPLACE
THEA-BOARD (SEE PAGE 53).
*IF LCD DOES NOT TURN ON;
1, TURN THESCREEN SHARPNESS ADJUSTMENT DIAL.
2. IF LCD STILLDOES NOT SHOW ANYTHING, REPLACE THEA-BOARD FIRST.IF
LCD STILLDOES NOT TURN ON, REPLACE THELCD.
*IF LCD SHOWS NOTHING;
1. REPLACE A-BOARD FIRST.IF LCD STILLSHOWS NOTHING, REPLACE THE LCD.
2.PREPARATION
_BECAREFUL IN CHECKING ALL OPERATIONS SINCE THEMACHINE MAY
SUDDENLY STARTRUNNING,
1. TURN THE POWER SWITCH OFF,
2. SETTHE BOBBIN WINDER SPINDLE TO THE LEFT,
3. RAISE THE FEED DOG.
4. SHIFTSPEED SETTINGSLIDE LEVER TO THE LEFT.
5. DETACH THE PRESSERFOOTAND RAISE THE PRESSERFOOT LIFTER.
6. MOVE THE NEEDLE BAR TO THE UP POSITION.
7, CONNECT THEFOOT CONTROL.
8. LOWERTHE BH LEVER,
11
SEWING MACHINE DIV. 20 MODEL 385.19001890
ELECTRONICQUICK CHECK
CHECK OPERATION
*THIS QUICK CHECK MUST BE PERFORMED IN THESEQUENCE SHOWN.FOLLOW EACH STEP
CAREFULL,DO NOT SKIP ANY PROCEDURE.
*ON THE FOLLOWING STEPS
.PRESS UP/DOWN NEEDLE BuYroN IF CORRECT CONDITION FOR NEXTSTEP.
.PRESS AUTO-LOCK BUTTON IF DEFECT CONDITION.
STEP
01) BUZZER
02) UP/DOWN
NEEDLE
BuYroN,
AUTO-LOCK
BUTTON,
REVERSE
BuYroN, AND
START/STOP
BUI_ON TEST
03) LCD UNIT
04) BUBBIN
WINDER
SWITCH TEST
05) SPEED SET-
TiNG SLIDE
LEVERTEST
06) FOOT
CONTROLLEi_
TEST
TEST
TURN ON THE
POWER SWITCH
WHILE PRESSING
REVERSEBU_ON
CORRECTCONDITION
• BUZZERSOUNDS
(LCD SHOWS
PRESSFOLLOWING
KEYSSEQUENTIALLY
•START/STOP
BuYroN
• REVERSEBUYTON
•AUTO-LOCK
BUTTON
• UP/DOWN BUT-
TON
•PRESS"PRESSTHIS
KEY"ON LEFTSIDE
PRESSAPPOINTEDKEY
PRESS
THISKEY_'_
•PRESS*PRESSTHIS
KEY" ON RIGHT
SIDE
•SHIFTTHE BOBBIN
WINDER SPINDLE
TO THERIGHT
THEN THE LEFT
*SHIFT SPEED
SETTINGSLIDE
LEVER TO RIGHT,
THEN TURN BACK
TO LEFT
• DEPRESSTHE
FOOT CONTROL-
LER FULLYAND
RELEASEtT
"BUZZER")
(LCD SHOWS "S/S,
REV, AL, U/D KEY")
• BUZZERSOUNDS
FOR NEXTSTEP
• BUZZERSOUN DS
AND INDICATES
"PRESSTHIS KEY"AT
RIGHT HAND SIDE
ON LCD
•BUZZERSOUNDS
FOR NEXT STEP
(LCD SHOWS
"SPOOL')
*BUZZER SOUNDS
EVERYTIME WHEN
BOBBIN WINDER
SPINDLE ISSHIFTED
(LCD SHOWS
"SLIDING VOLUME")
*BUZZER SOUNDS
AT LEFT& RIGHT
POSITION
(LCD SHOWS
"CONTROLLER")
• BUZZERSOUNDS
WHEN FOOT
CONTROLLER IS
DEPRESSEDFULLY
AND RELEASED
DEFECT CONDITION & CORRECTION
•NO BUZZER
SOUNDS AND
COULD NOT
ENTERTEST
MODE
oLCD MODULE
PROGRAM
VERSION. ALSO,
PROGRAM WILL
BELOCKED
• NO BUZZER
SOUNDS AND
PROGRAM WILL
BELOCKED
• NO BUZZER
SOUNDS AND
PROGRAM WILL
BELOCKED
•NO BUZZER
SOUNDS
• NO BUZZER
SOUNDS
•NO BUZZER
SOUNDS
• REPLACE A-
BOARD (SEEP.53)
• FIRST,CHECK THE
F-BOARD (SEE
P.66) IF F-BOARD
ISOK, THEN
REPLACE THE A-
BOARD (SEEP.53)
•FIRST,REPLACE A-
BOARD (SEEP.53)
IF NO SOUND
OCCURS AFTER
REPLACING A-
BOARD, REPLACE
THE LCD UNIT (SEE
P.54)
• REPLACE A-
BOARD (SEEP.53)
•FIRST,CHECK
SLIDING VOLUME
(SEE P.56). IF
SLIDING VOLUME IS
OK, REPLACE A-
BOARD (SEEP.53)
• FIRST,CHECK
FOOT CONTROL
(SEE P.66). IF FOOT
CONTROL IS OK,
REPLACE A-
BOARD (SEE P.53)
12

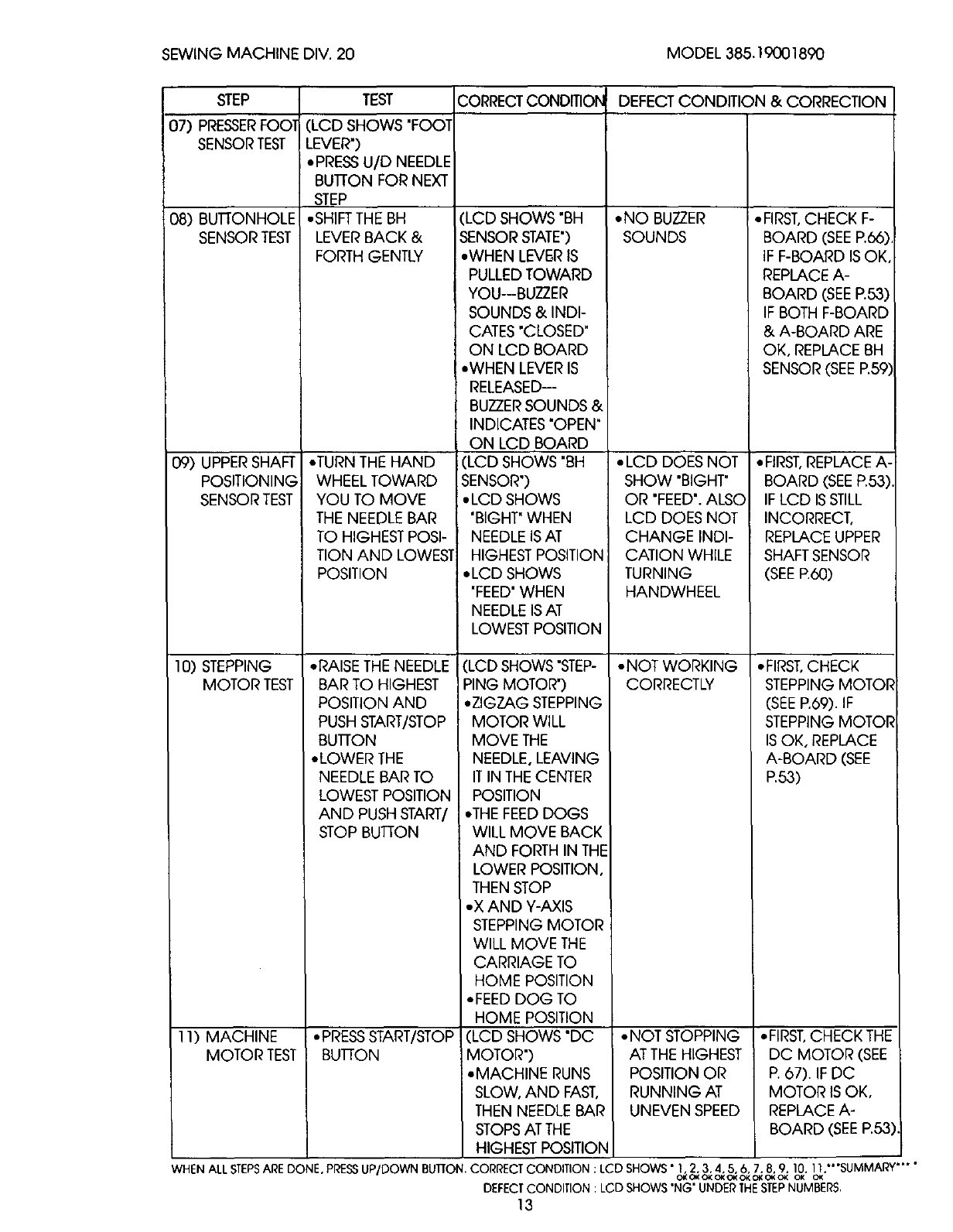

SEWING MACHINE DIV. 20 MODEL 385.19001890
STEP
07) PRESSER F-OO"
SENSOR TEST
08) BUITONHOLE
SENSOR TEST
09) UPPERSHAFT
POSITIONING
SENSOR TEST
10) STEPPING
MOTOR TEST
11) MACHINE
MOTOR TEST
TEST
(LCD SHOWS "FOOl
LEVER')
• PRESSU/D NEEDLE
BUTTON FOR NEXT
STEP
• SHIFTTHE BH
LEVER BACK &
FORTH GENTLY
• TURN THE HAND
WHEEL TOWARD
YOU TO MOVE
THE NEEDLE BAR
TO HIGHEST POSI-
TION AND LOWEST
POSITION
•RAISE THE NEEDLE
BAR TO HIGHEST
POSITION AND
PUSH START/STOP
BUTrON
•LOWER THE
NEEDLE BAR TO
LOWEST POSITION
AND PUSH START/
STOP BUTTON
• PRESSSTART/STOP
BU1-FON
CORRECTCONDmOB DEFECT CONDITION & CORRECTION
(LCD SHOWS "BH
SENSOR STATE')
•WHEN LEVBR IS
PULLEDTOWARD
YOU--BUZZER
SOUNDS & INDI-
CATES "CLOSED"
ON LCD BOARD
• WHEN LEVER IS
RELEASED--
BUZZERSOUNDS &
INDICATES "OPEN"
ON LCD BOARD
(LCD SHOWS "BH
SENSOR")
• LCD SHOWS
"BIGHT" WHEN
NEEDLE IS AT
HIGHEST POSITION
• LCD SHOWS
"FEED"WHEN
NEEDLE ISAT
LOWEST POSITION
•NO BUZZER
SOUNDS
• LCD DOES NOT
SHOW "BIGHT"
OR "FEED". ALSO
LCD DOES NOT
CHANGE INDI-
CATION WHILE
TURNING
HANDWHEEL
• NOT WORKING
CORRECTLY
•NOT STOPPING
AT THE HIGHEST
POSITION OR
RUNNING AT
UNEVEN SPEED
•FIRST,CHECK F-
BOARD (SEEP.66)
IF F-BOARD ISOK,
REPLACE A-
BOARD (SEEP.53)
IF BOTH F-BOARD
& A-BOARD ARE
OK, REPLACE BH
SENSOR (SEEP.59]
• FIRST,REPLACE A-
BOARD (SEEP.53)
IF LCD ISSTILL
INCORRECT,
REPLACE UPPER
SHAFT SENSOR
(SEEP.60)
• FIRST,CHECK
STEPPING MOTOR
(SEEP.69). IF
STEPPING MOTOR
ISOK, REPLACE
A-BOARD (SEE
P.53)
(LCD SHOWS "STEP-
PING MOTOR')
• ZIGZAG STEPPING
MOTOR WILL
MOVE THE
NEEDLE, LEAVING
IT IN THECENTER
POSITION
• THE FEED DOGS
WILL MOVE BACK
AND FORTH IN THE
LOWER POSITION,
THEN STOP
• X AND Y-AXIS
STEPPING MOTOR
WILL MOVE THE
CARRIAGE TO
HOME POSITION
• FEED DOG TO
HOME POSITION
(LCD SHOWS "DC
MOTOR")
• MACHINE RUNS
SLOW, AND FAST,
THEN NEEDLE BAR
STOPSAT THE
HIGHEST POSITION
• FIRST,CHECK THE
DC MOTOR (SEE
P. 67). IF DC
MOTOR IS OK,
REPLACE A-
BOARD (SEEP.53)
WHEN ALL STEPSARE DONE. PRESS UP/DOWN BUTTON. CORRECT CONDITION :LCD SHOWS" 1,2,3,4,5,6,7.8,9.10._.*""SUMMARY ....
OK OK OK OKOK OK O_ OK OK OK
DEFECT CONDITION : LCD SHOWS "NG" UNDER THESTEP NUMBEr_.
13
SEWING MACHINE DIV. 20 MODEL 385.19001890

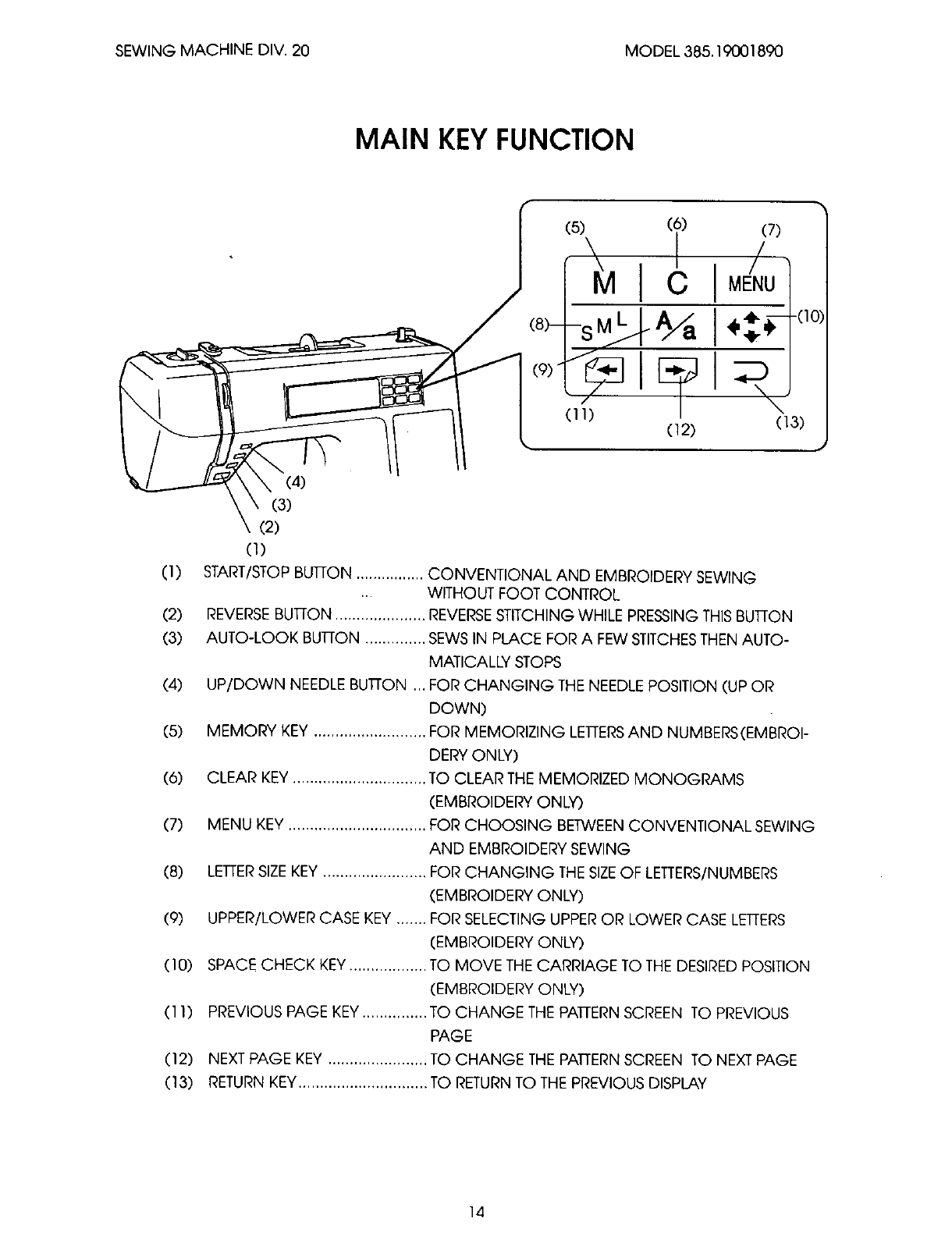

MAIN KEY FUNCTION
/_ (5) (6) (7)
1c I. u
(1)
(1) START/STOP BUTTON ................ CONVENTIONAL AND EMBROIDERY SEWrNG
.. WITHOUT FOOT CONTROL
(2) REVERSEBU_QN ..................... REVERSESTITCHING WHILE PREYING THISBUI_QN
(3) AUTO-LOOK BUNON .............. SEWS IN PLACE FOR A FEW STITCHESTHEN AUTO-
MATICALLY STOPS
(4) UP/DOWN NEEDLE BUTrON .,. FOR CHANGING THE NEEDLE POSITION (UP OR
DOWN)
(5) MEMORY KEY .......................... FOR MEMORIZING LETFERSAND NUMBERS(EMBROI-
DERY ONLY)
(6) CLEAR KEY ............................... TO CLEAR THE MEMORIZED MONOGRAMS
(EMBROIDERY ONLY)
(7) MENU KEY ................................ FOR CHOOSING BETWEENCONVENTIONAL SEWING
AND EMBROIDERY SEWING
(8) LEI-FERSIZEKEY ........................ FOR CHANGING THESIZEOF LETTERS/NUMBERS
(EMBROIDERY ONLY)
(9) UPPER/LOWER CASE KEY ....... FOR SELECTING UPPER OR LOWER CASE LETTERS
(EMBROIDERY ONLY)
(10) SPACE CHECK KEY .................. TO MOVE THE CARRIAGE TO THEDESIRED POSITION
(EMBROIDERY ONLY)
(11) PREVIOUS PAGE KEY............... TO CHANGE THE PATrERN SCREEN TO PREVIOUS
PAGE
(12) NEXT PAGE KEY ....................... TO CHANGE THE PATTERNSCREEN TO NEXTPAGE
(13) RETURN KEY.............................. TO RETURNTO THE PREVIOUS DISPLAY
14
SEWINGMACHINEDIV.20 MODEL385.19001890

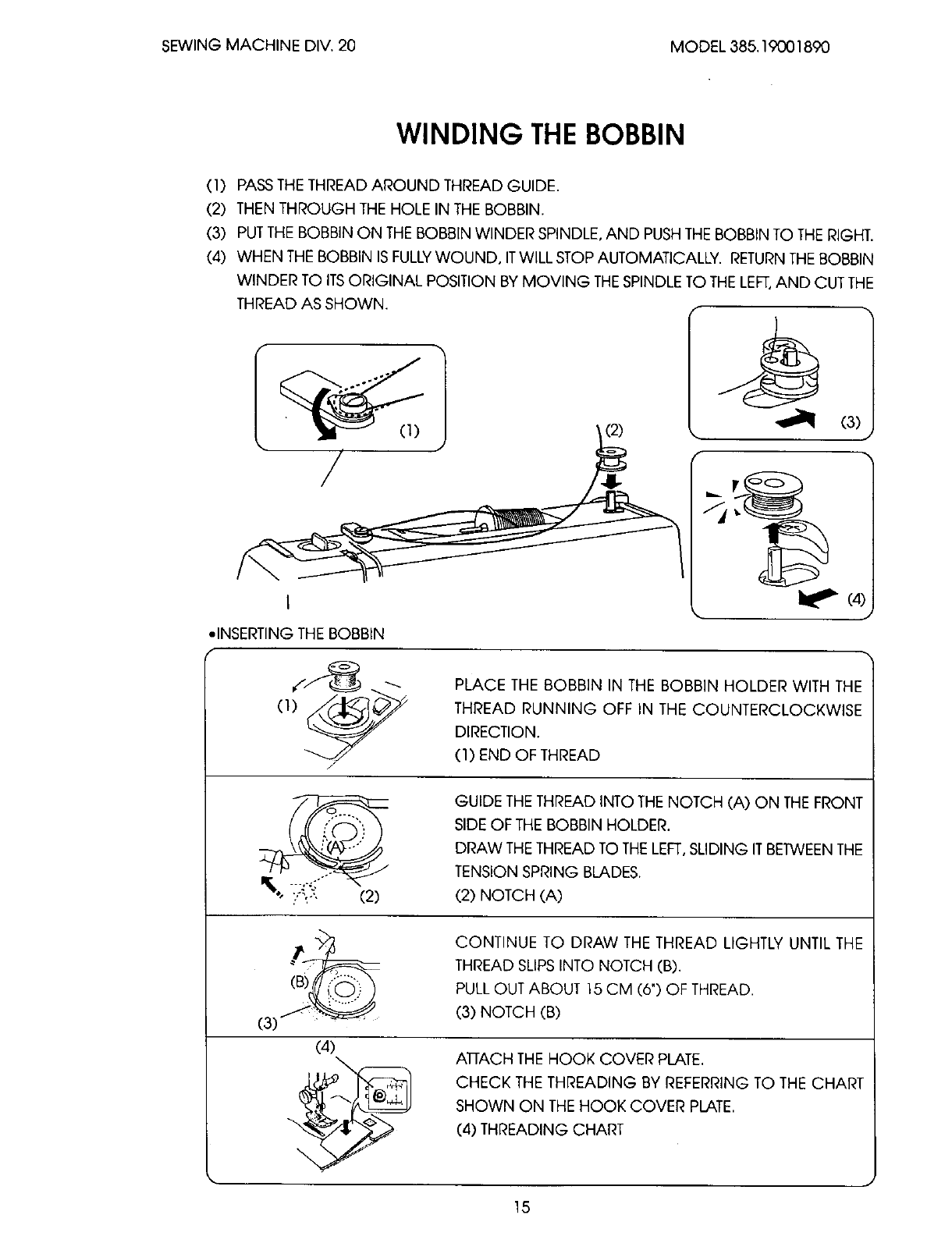

WINDING THEBOBBIN
(1) PASSTHE THREAD AROUND THREAD GUIDE.
(2) THEN THROUGH THE HOLE IN THE BOBBIN.
(3) PUTTHE BOBBIN ON THE BOBBIN WINDER SPINDLE, AND PUSHTHE BOBBIN TO THE RIGHT.
(4) WHEN THE BOBBIN IS FULLYWOUND, ITWILL STOP AUTOMATICALLY. RETURNTHEBOBBIN
WINDER TO ITSORIGINAL POSITION BY MOVING THESPINDLE TO THELEFT,AND CUT THE
THREAD AS SHOWN.
/
I
•INSERTING THE BOBBIN
(2)
(1)
PLACE THE BOBBIN IN THE BOBBIN HOLDER WITH THE
THREAD RUNNING OFF IN THE COUNTERCLOCKWISE
DIRECTION.
(1) END OF THREAD
• (2)
GUIDE THETHREAD INTO THE NOTCH (A) ON THE FRONT
SIDE OF THE BOBBIN HOLDER.
DRAW THETHREAD TO THELEFT,SLIDING ITBEIWEEN THE
TENSION SPRING BLADES,
(2) NOTCH (A)
CONTINUE TO DRAW THE THREAD LIGHTLY UNTIL THE
THREAD SLIPSINTO NOTCH (B).
PULL OUT ABOUT 15 CM (6") OF THREAD.
(3) NOTCH (B)
(4) ATTACH THE HOOK COVER PLATE.
CHECK THE THREADING BY REFERRING TO THE CHART
SHOWN ON THE HOOK COVER PLATE,
(4) THREADING CHART
15
SEWING MACHINE DIV. 20 MODEL 385.19001890
THREADING THEMACHINE
RAISE THEPRESSERFOOT LIFTER,AND PASSTHETHREAD THROUGH POINTS (I) TO (6).
(1) HOLD THE UPPERTHREAD AND PASSTHETHREAD UNDER THETHREAD GUIDE. PULL THE
THREAD DOWN ALONG THEGROOVE.
(2) DRAW THE THREAD AROUND THE CHECK SPRING HOLDER FROM RIGHT TO LEFT,THEN
PULL UP THE THREAD.
(3) FIRMLY DRAW THE THREAD FROM RIGHT TO LEFTAND PULL ITTOWARD YOU INTO THE
EYEOF THE THREAD TAKE-UP LEVER,THEN DOWN TO THE LOWER THREAD GUIDE.
(4) DRAW THETHREAD FROM RIGHT TO LEFTBEHIND THE LOWER THREAD GUIDE.
(5) SLIDETHETHREAD BEHIND THE NEEDLE BAR THREAD GUIDE FROM THELEFT.
(6) THREAD THE NEEDLE FROM FRONT TO BACK USING THE NEEDLE THREADER.
(3) ; (1)
(6) (5)
16
(4)
J
J
SEWING MACHINE DIV. 20 MODEL 385.19001890
WHEN MESSAGESAPPEARON THESCREEN
MESSAGE FOR THREAD BROKEN TURN OFF THE
POWER SWITCH, AND RE-THREADING.
THEVISUAL TOUCH SCREEN SHOWS 'BOBBIN WIND-
ING" CONDITION.
AFTER THE BOBBIN IS WOUND, RETURN THE BOBBIN
WINDER TO ITSORIGINAL POSITION BY MOVING THE
SPINDLE TO THE LEFT.
STOPFOR SAFETYPURPOSES
INSERTCPRD €..=
OOOOOOO
0000000
RAISE THE NEEDLE BAR BY PRESSING THE UP/DOWN
NEEDLE BUTTON.
(THIS MESSAGE WILL APPEAR WHEN THE POWER
SWITCH IS TURNED ON WITH THENEEDLE LOWERED.)
TURN OFF THE POWER SWITCH, AND INSERT THE
MEMORY CARD AGAIN.
PRESS THIS BUTTON "@"
TO RAISE NEEDLE BPR I STOP OPERATING THEMACHINE UNTILTHISMESSAGE
•" "•" •" DISAPPEARS (ABOUT 15 SECONDS).
(WHEN THE MACHINE IS OVER LOADED.)
SYSTEM ERROR
ZIGZAG STEPPING
MOTOR
FEED STEPPING
MOTOR
\
I*°'**°° 1.
.
3.
4.
5.
CHECK THE MECHANISM OF ZIGZAG, FEED AND
CARRIGE IF THERE IS ANY FOREIGN OBJECT OR
MECHANICAL PROBLEM WHICH OBSTRUCTS
MOVEMENT OF STEPPING MOTOR MECHANISM.
CHECK THE GEAR AREA OF THE4 STEPPING MO-
TORS FOR LINT,AS ILLUSTRATED.
CHECK ALL CONNECTORS OF THESTEPPING MO-
TORSARE SECURLY CONNECTED.
CHECK THE STEPPING MOTOR FUNCTION BY
"ELECTRONIC QUICK CHECK".
CHECK STEPPING MOTORS BYA ELECTRICTESTER.
@ -AXIS STEPPING MOTOR
Y-AXIS STEPPING MOTOR
17
SEWINGMACHINEDIV.20 MODEL385.19001890

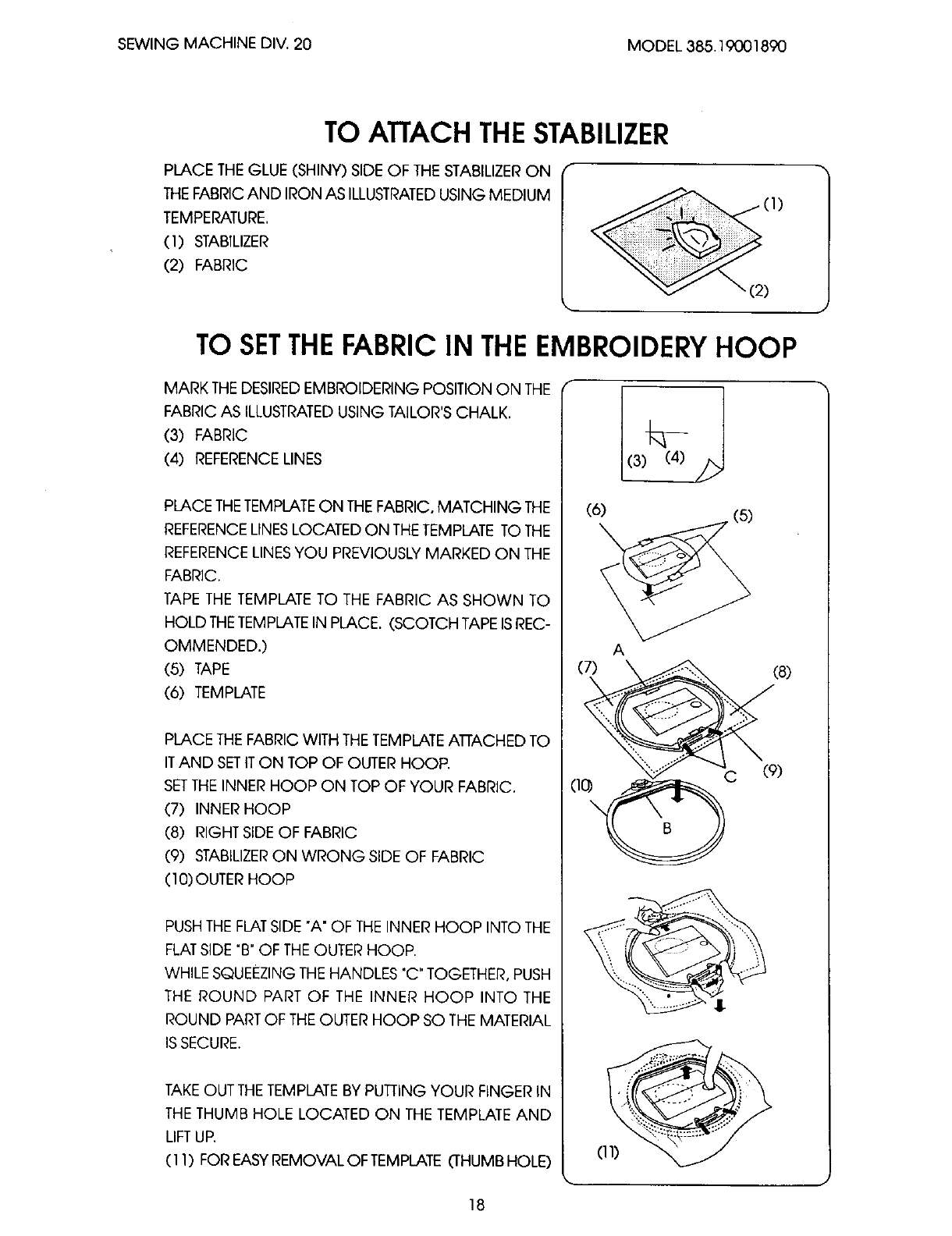

TO ATTACH THE STABILIZER
PLACE THE GLUE (SHINY) SIDE OF THE STABILIZERON
THEFABRIC AND IRON AS ILLUSTRATEDUSING MEDIUM
TEMPERATURE,
(1) STABILIZER
(2) FABRIC I
TO SETTHEFABRICIN THEEMBROIDERYHOOP
MARK THEDESIREDEMBROIDERING POSITION ON THE
FABRIC AS ILLUSTRATEDUSING TAILOR'S CHALK.
(3) FABRIC
(4) REFERENCELINES
PLACE THETEMPLATEON THEFABRIC, MATCHING THE
REFERENCELINESLOCATED ON THETEMPLATE TO THE
REFERENCE LINESYOU PREVIOUSLY MARKED ON THE
FABRIC.
TAPE THE TEMPLATE TO THE FABRIC AS SHOWN TO
HOLD THETEMPLATEIN PLACE. (SCOTCH TAPE ISREC-
OMMENDED.)
(5) TAPE
(6) TEMPLATE
PLACE THE FABRIC WITH THETEMPLATE ATTACHED TO
ITAND SETITON TOP OF OUTER HOOP.
SETTHE INNER HOOP ON TOP OF YOUR FABRIC.
(7) INNER HOOP
(8) RIGHT SIDE OF FABRIC
(9) STABILIZERON WRONG SIDE OF FABRIC
(10) OUTER HOOP
PUSHTHEFLATSIDE "A" OF THEINNER HOOP INTO THE
FLATSIDE "B" OF THE OUTER HOOP.
WHILE SQUEEZING THE HANDLES "C" TOGETHER, PUSH
THE ROUND PART OF THE INNER HOOP INTO THE
ROUND PARTOF THEOUTER HOOP SO THEMATERIAL
ISSECURE.
TAKE OUT THETEMPLATEBY PU_ING YOUR FINGER IN
THE THUMB HOLE LOCATED ON THE TEMPLATE AND
LIFTUP.
(11) FOR EASYREMOVAL OF TEMPLATE (THUMBHOLE)
(6) (5)
A
(_(8)
(10)_C (9)
(11)
18
SDA/ING MACHINE DIV. 20 MODEL 385.19001890
SERVICEACCESS
FACE COVER
TO REMOVE:
1. REMOVE THE 2 SCRE"WS(A) AND REMOVE THE FACE COVER (B).
TO ATTACH:
2. REPLACE THE FACE COVER BY LIGHTLYTIGHTENING THE2 SCREWS (A).
3. CLOSE THE FACE COVER, CAREFULLY ALIGNING ITWITH THE BODY. THEN TIGHTEN THE
SCREWS FIRMLY.
TOP COVER
TO REMOVE:
1. REMOVE THE CAP(C) AND SCREW (D). LIFTTHE CARRYING HANDLE (E) UP. REMOVE
THE SCREW (F).
2. LIFTTHECARRYING HANDLE UP. REMOVE THETOP COVER (G) IN THEDIRECTION SHOWN.
TO ATTACH:
3, REVERSETHIS PROCEDURE.
FACE COVER (B)
SCREW (A)
SC REW (F)
CARRYING HANDLE (E)
TOP COVER UNIT (G)
19
SEWING MACHINE DIV. 20 MODEL 385. ] 900 ] 890
SERVICEACCESS
BELTCOVER
TO REMOVE:
1. LOOSEN SCREW (A), REMOVE SCREWS (B), (C) AND'WASHER (D). THEN REMOVE THE
BELTCOVER (E).
TO ATTACH:
2. REVERSETHIS PROCEDURE.
HANDLE
_._- SCREW (A)
BELTcovER (E)
FRONT PANEL
SCREW (B) ..
SCREW (C) ;"
WASHER(D)
2O
SEWING MACHINE DIV. 20 MODEL 385.19001890
BASECOVER
TO REMOVE:
I.
2.
3.
SERVICEACCESS
MOVE THE CARRIAGE (A) BY HAND, WHEN MOVING IT,HOLD THE LOWER PART, NEVER
THE UPPERPART.
REMOVE THE 3 SCREWS (B) AND REMOVE THE CARRIAGE WINDOW FRAME (C).
REMOVE THE 2 SCREWS (D) AND REMOVE THE BASE COVER (E).
TO ATTACH:
4, REVERSETHIS PROCEDURE.
CARRIAGE (A)
SCREW (B)
SCREW (D)
BASE COVER (E
WINDOW FRAME (C).
MOVING THE LOWER PART
21
SEWINGMACHINEDIV.20 MODEL385.19001890

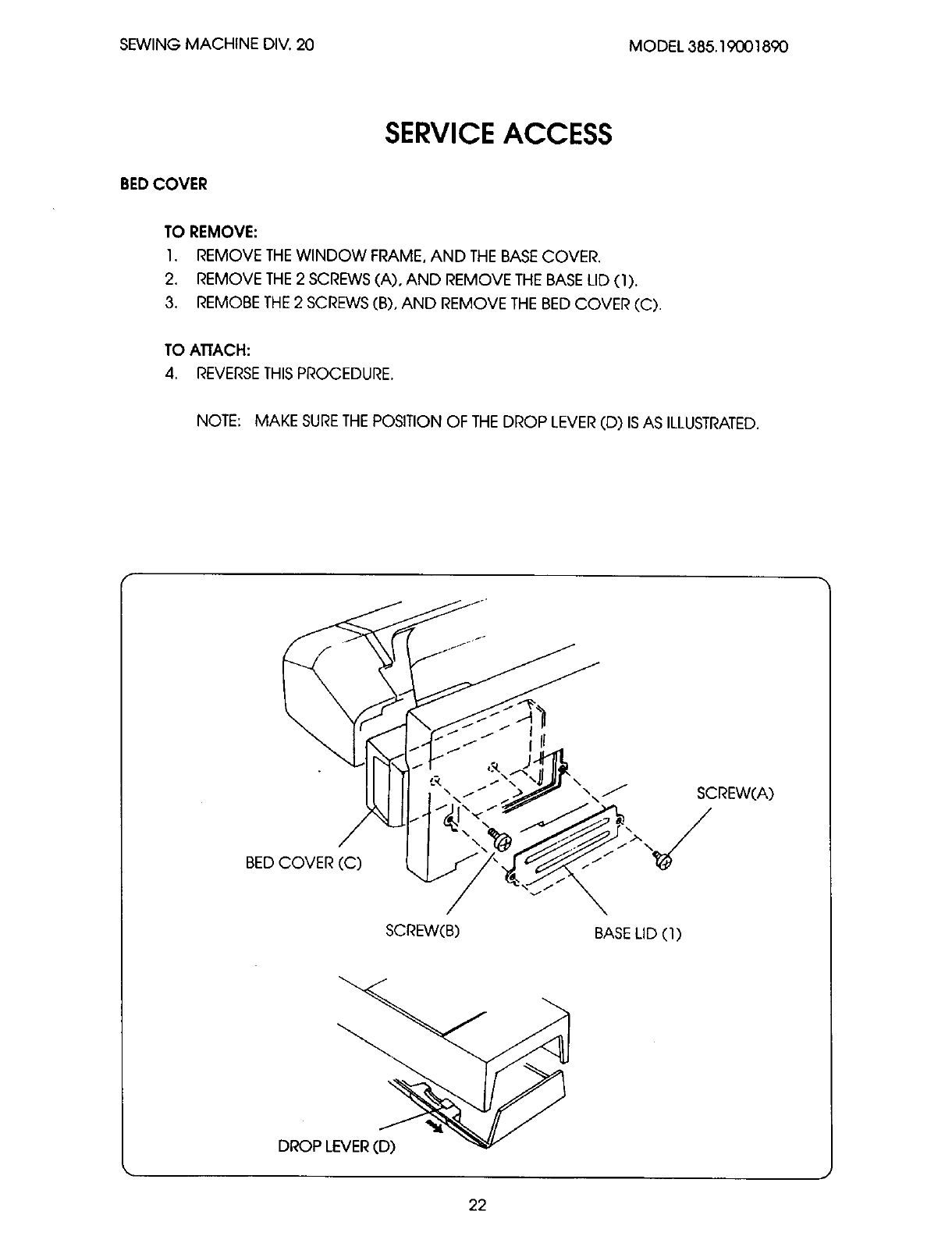

BEDCOVER
TO REMOVE:
1.
2.
3.
SERVICEACCESS
REMOVE THEWINDOW FRAME, AND THE BASE COVER.
REMOVE THE2 SCREWS (A), AND REMOVE THE BASE LID (1).
REMOBE THE2 SCREWS (B), AND REMOVE THE BED COVER (C).
TO ATTACH:
4, REVERSETHISPROCEDURE.
NOTE: MAKE SURETHE POSITION OF THE DROP LEVER (D) ISAS ILLUSTRATED.
BED COVER (C)
I II
J SCREW(A)
SCREW(B) BASE LID (1)
DROP LEVER (D)
22
SDNINGMACHINEDIV.20 MODEL385.19001890

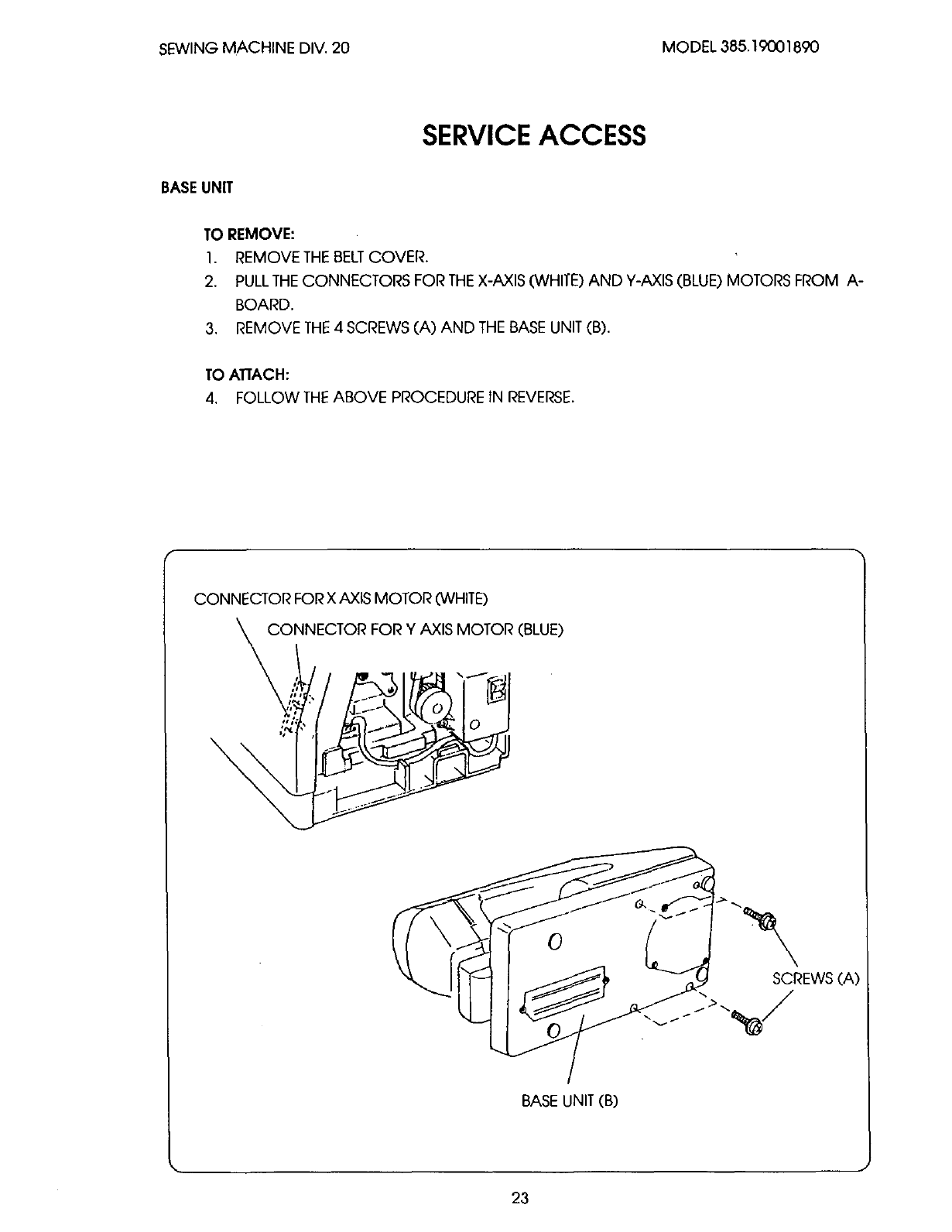

SERVICE ACCESS
BASEUNIT
TO REMOVE:
1. REMOVE THE BELTCOVER.
2. PULL THECONNECTORS FOR THEX-AXIS (WHITE) AND Y-AXIS (BLUE) MOTORS FROM A-
BOARD.
3. REMOVE THE 4 SCREWS (A) AND THE BASE UNIT (B).
TO ATTACH:
4. FOLLOW THEABOVE PROCEDURE tN REVERSE.
CONNECTOR FOR X AXIS MOTOR (WHITE)
CO, NNECTOR FOR Y AXIS MOTOR (BLUE)
/
SCREWS (A)
BASE UNIT (B)
23
SEWING MACHINE DIV. 20 MODEL 385.19001890

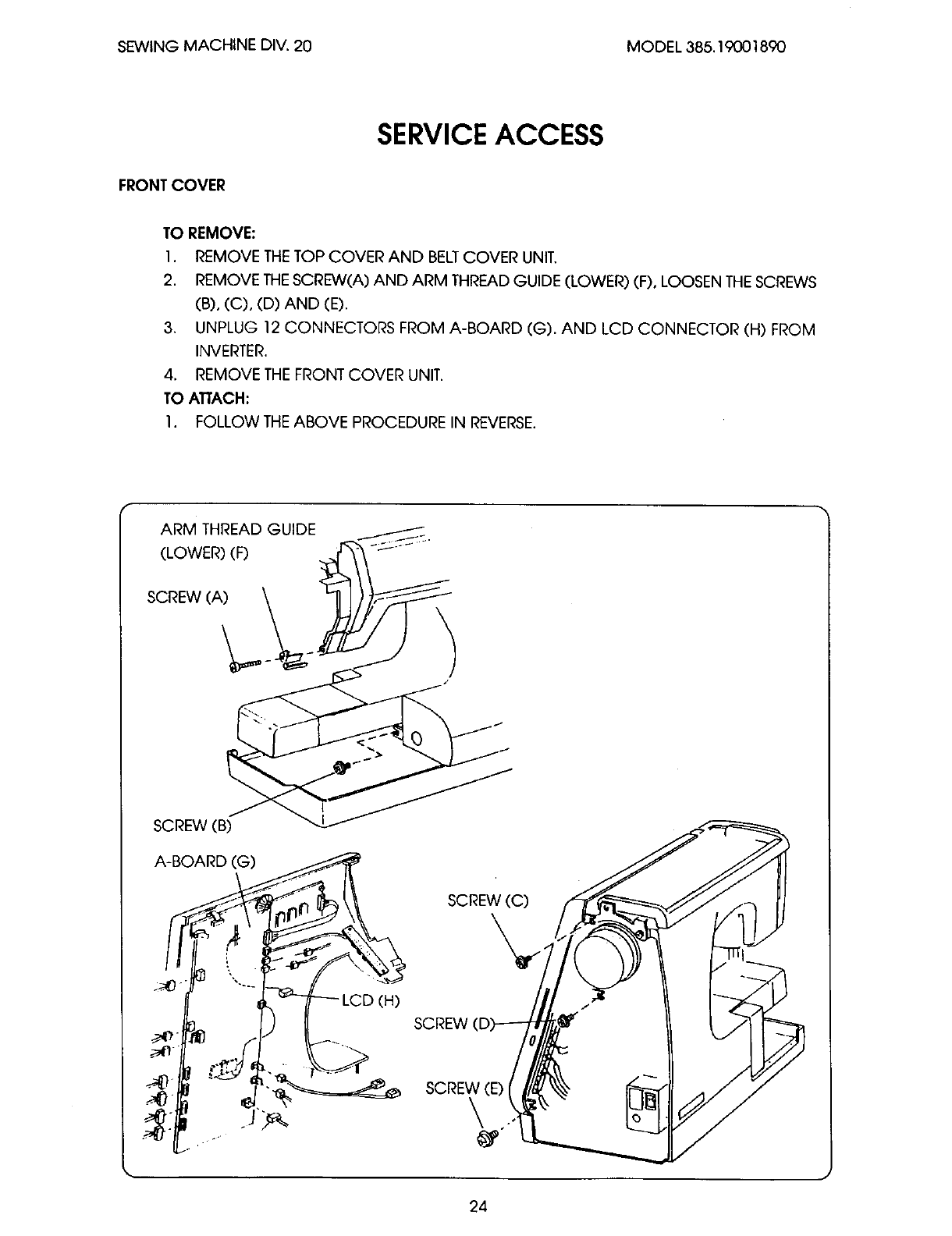

SERVICEACCESS
FRONT COVER
TO REMOVE:
1. REMOVE THETOP COVER AND BELTCOVER UNIT.
2. REMOVE THESCREW(A) AND ARM THREAD GUIDE (LOWER) (F), LOOSEN THESCREWS
(B), (C), (D) AND (E).
3. UNPLUG 12 CONNECTORS FROM A-BOARD (G). AND LCD CONNECTOR (H) FROM
INVERTER.
4. REMOVE THE FRONT COVER UNIT.
TO ATTACH:
1. FOLLOW THE ABOVE PROCEDURE IN REVERSE.
ARM THREAD GUIDE
(LOWER) (F)
SCREW (A)
SCREW (B)
SCREW (C)
SCREW
SCREW (E)
24
SEWINGMACHINEDIV.20 MODEL385.19001890

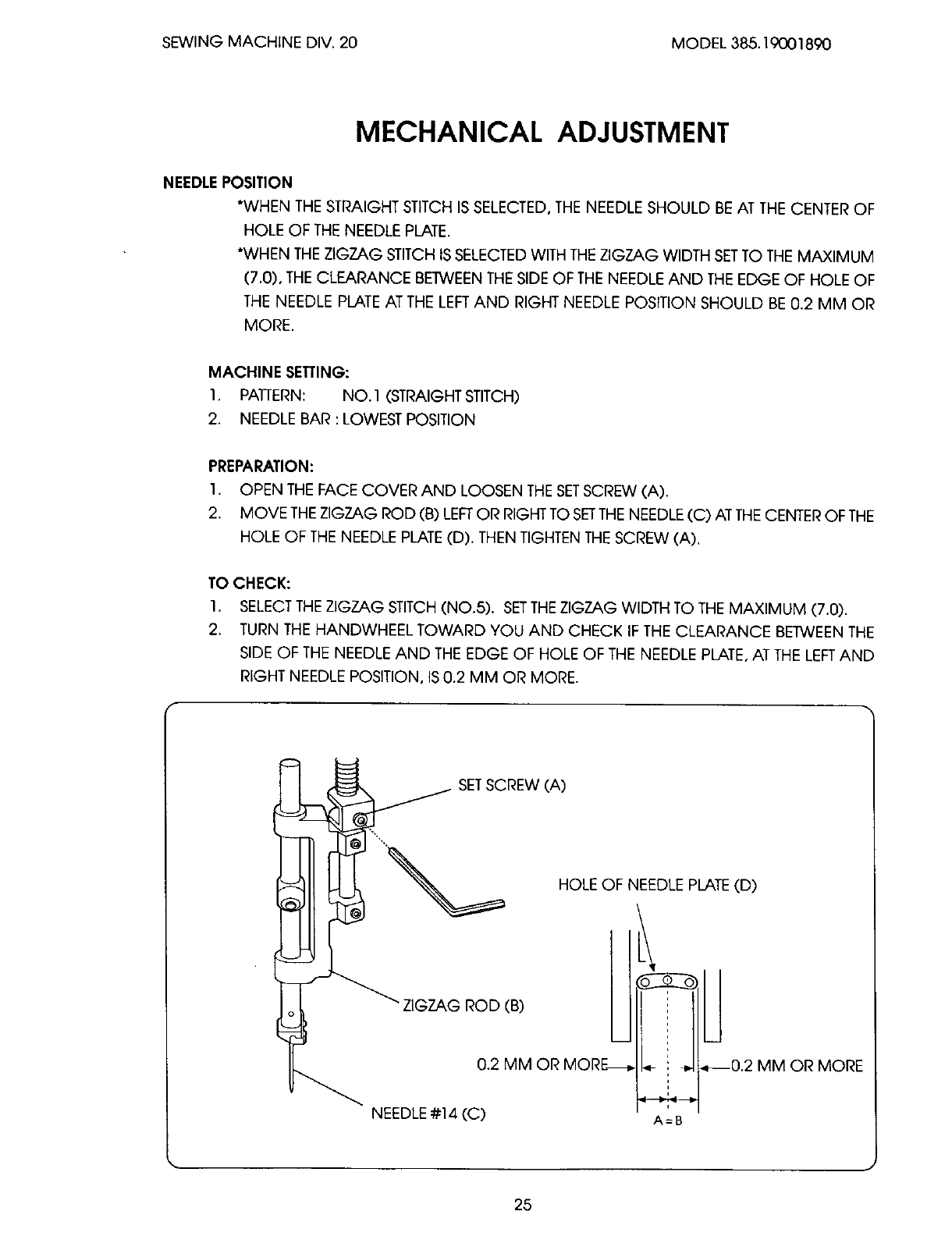

MECHANICAL ADJUSTMENT
NEEDLE POSITION
*WHEN THE STRAIGHT STITCH IS SELECTED, THE NEEDLE SHOULD BE AT THE CENTER OF
HOLE OF THE NEEDLE PLATE.
*WHEN THE ZIGZAG STITCHIS SELECTED WITH THEZIGZAG WIDTH SETTO THE MAXIMUM
(7.0), THE CLEARANCE BETWEEN THESIDE OF THENEEDLE AND THE EDGE OF HOLE OF
THE NEEDLE PLATE AT THE LEFTAND RIGHT NEEDLE POSITION SHOULD BE 0.2 MM OR
MORE.
MACHINE SETTING:
1. PATTERN: NO.1 (STRAIGHT STITCH)
2. NEEDLE BAR : LOWEST POSITION
PREPARATION:
1. OPEN THE FACE COVER AND LOOSEN THESETSCREW (A).
2. MOVE THEZIGZAG ROD (B) LEFTOR RIGHT TO SETTHE NEEDLE(C) AT THECENTEROF THE
HOLE OF THE NEEDLE PLATE(D). THEN TIGHTEN THE SCREW (A),
TO CHECK:
1. SELECTTHE ZIGZAG STITCH(NO.5). SETTHEZIGZAG WIDTH TO THE MAXIMUM (7.0).
2. TURN THE HANDWHEEL TOWARD YOU AND CHECK IF THE CLEARANCE BETWEEN THE
SIDE OF THE NEEDLE AND THE EDGE OF HOLE OF THE NEEDLE PLATE, AT THE LEFTAND
RIGHT NEEDLE POSITION, IS 0.2 MM OR MORE.
SETSCREW (A)
HOLE OF NEEDLE PLATE(D)
NEEDLE#14 (C)
ZIGZAG ROD (B) I1 i I
0.2 MM OR MORE_t_ i _1
A=B
_0.2 MM OR
MORE
25
SEWING MACHINE DIV. 20 MODEL 385.19001890
MECHANICAL ADJUSTMENT
NEEDLE BAR HEIGHT
MACHINE SETTING:
I. PAI-rERN: NO.I (STRAIGHT STITCH)
2. TURN THE POWER SWITCH OFF.
PREPARATION:

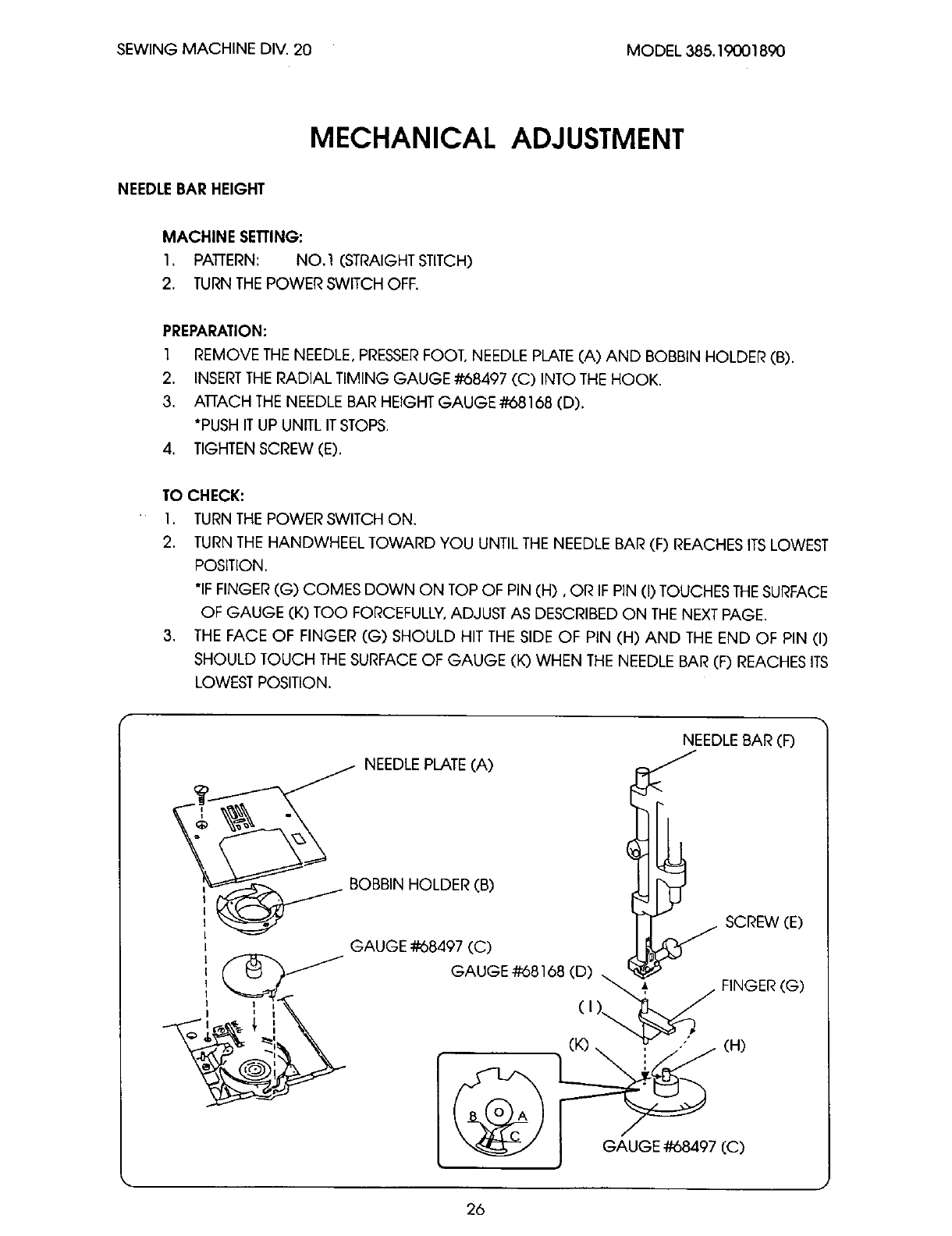

1 REMOVE THE NEEDLE, PRESSERFOOT, NEEDLE PLATE(A) AND BOBBIN HOLDER (B).
2. INSERTTHE RADIAL TIMING GAUGE #68497 (C) INTO THE HOOK.
3. AI-rACH THE NEEDLE BAR HEIGHT GAUGE#68168 (D).
*PUSH ITUP UNITL ITSTOPS.
4. TIGHTEN SCREW (E).
TO CHECK:
1. TURN THE POWER SWITCH ON.
2. TURN THE HANDWHEEL TOWARD YOU UNTIL THE NEEDLE BAR (F) REACHES ITSLOWEST
POSITION.
*IF FINGER (G) COMES DOWN ON TOP OF PIN (H), OR IF PIN (I) TOUCHES THESURFACE
OF GAUGE (K) TOO FORCEFULLY,ADJUST AS DESCRIBED ON THE NEXTPAGE.
3. THE FACE OF FINGER (G) SHOULD HIT THE SIDE OF PIN (H) AND THE END OF PIN (I)
SHOULD TOUCH THE SURFACE OF GAUGE (K) WHEN THE NEEDLE BAR (F) REACHES ITS
LOWEST POSITION.
26
SEWING MACHINE DIV. 20 MODEL 385.19001890
MECHANICAL ADJUSTMENT

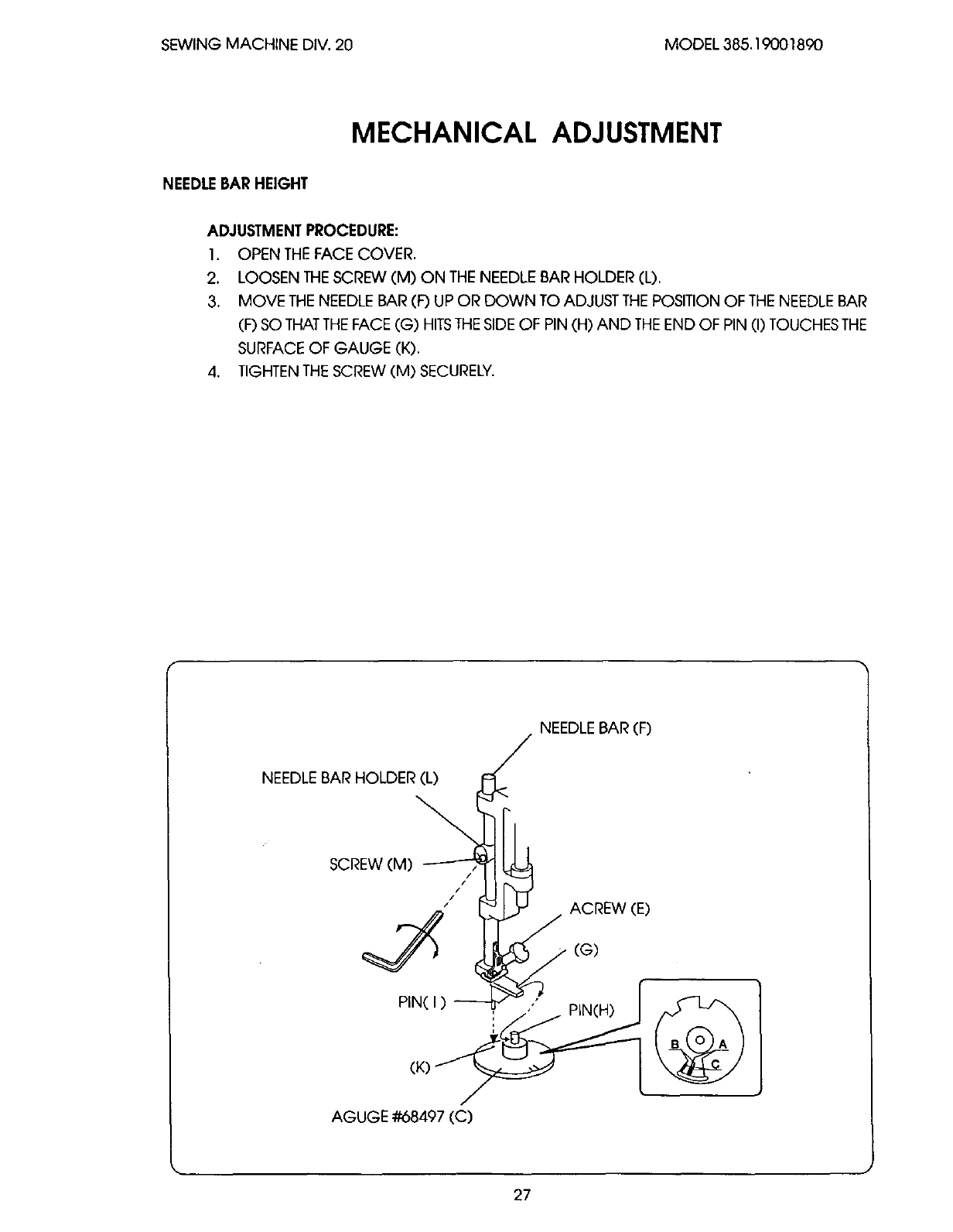

NEEDLEBAR HEIGHT
ADJUSTMENT PROCEDURE:
1. OPENTHE FACE COVER.
2. LOOSEN THESCREW (M) ON THE NEEDLE BAR HOLDER (L).
3. MOVE THE NEEDLE BAR (F) UP OR DOWN TO ADJUST THEPOSITION OF THE NEEDLE BAR
(F) SO THATTHEFACE (G) HITSTHESIDE OF PIN (H) AND THEEND OF PIN (I) TOUCHES THE
SURFACE OF GAUGE (K).
4. TIGHTEN THE SCREW (M) SECURELY.
NEEDLE BAR (F)
/
NEEDLE BAR HOLDER J
SCR
J ACREW (E)
(G)
(K)_
AGUGE #68497 (C)
27
SEWING MACHINE DtV. 20 MODEL 385.19001890
MECHANICAL ADJUSTMENT

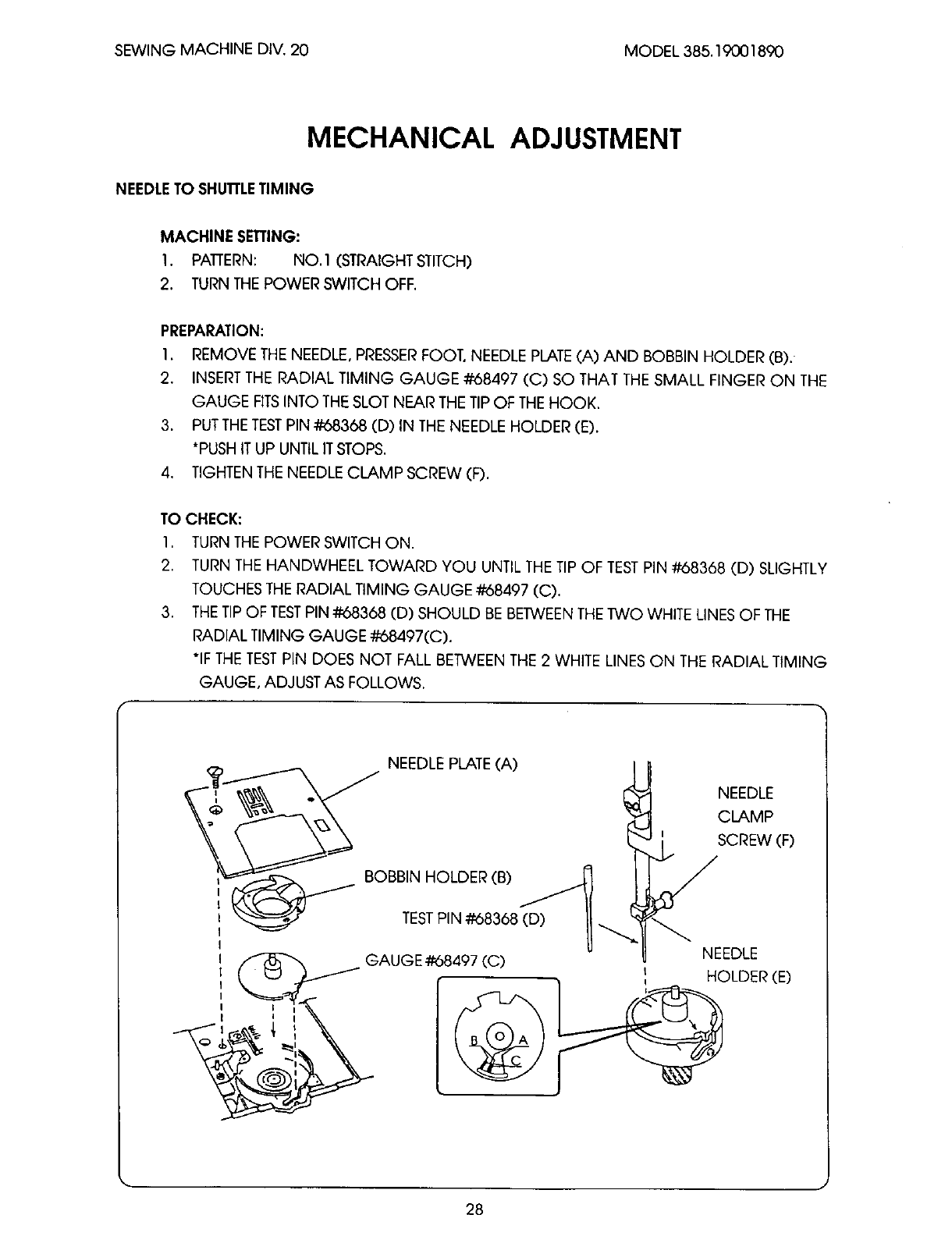

NEEDLETO SHUTrLETIMING
MACHINE SETTING:
I. PAI-rERN: NO.I (STRAIGHT STITCH)
2. TURN THE POWER SWITCH OFF.
PREPARATION:
I. REMOVE THE NEEDLE, PRESSER FOOT, NEEDLE PLATE (A)AND BOBBIN HOLDER (B).-
2. INSERT THE RADIAL TIMING GAUGE #68497 (C) SO THAT THE SMALL FINGER ON THE
GAUGE FITSINTO THE SLOT NEAR THE TIPOF THE HOOK.
3. PUT THE TESTPIN#68368 (D)IN THE NEEDLE HOLDER (E).
*PUSH ITUP UNTILITSTOPS.
4. TIGHTEN THE NEEDLE CLAMP SCREW (F).
TO CHECK:
1, TURN THEPOWER SWITCH ON.
2, TURN THE HANDWHEEL TOWARD YOU UNTIL THE TIP OF TESTPIN #68368 (D) SLIGHTLY
TOUCHES THE RADIAL TIMING GAUGE #68497 (C).
3. THETIPOF TESTPIN #68368 (D) SHOULD BE BETWEENTHETWO WHITE LINESOF THE
RADIAL TIMING GAUGE _58497(C).
*IF THE TESTPIN DOES NOT FALL BETWEEN THE 2 WHITE LINES ON THE RADIAL TIMING
GAUGE, ADJUST AS FOLLOWS.
NEEDLE PLATE(A)
NEEDLE
CLAMP
i SCREW (F)
BOBBIN HOLDER (B)
_J
TESTPIN #68368 (D)
GAUGE #68497 (C) NEEDLE
HOLDER (E)
28
SEWING MACHINE DIV. 20 MODEL 385.19001890
MECHANICAL ADJUSTMENT
NEEDLETO SHUITLETIMING
ADJUSTMENT PROCEDURE:
I. TURN THEPOWER SWITCH OFF.
2. REMOVE THE BELTCOVER (SEEP.20).
3. REMOVE THE4 SCREWS (G), THEN BASE LID 2 ( I ).
4. TURN THEPOWER SWITCH ON, AND SELECTPATTERNNO.1 (STRAIGHT STITCH).
5. LOOSEN THE 2 SCREWS IN THE LOWER SHAFTTIMING GEAR (J).
6. TURN THE HANDWHEEL TOWARD YOU UNTIL THE TESTPIN (D) SLIGHTLY TOUCHES THE
RADIAL TIMING GAUGE (C)..
7. HOLD THEHANDWHEEL SO THATTHETESTPIN (D) WILL NOT MOVE, AND TURN THESHUT[LE
HOOK (K) BY YOUR FINGER UNTIL THETESTPIN (D) COMES IN BETWEENTHE TWO WHITE
LINESOF GAUGE #68497 (C).
8. TIGHTEN 2 SCREWS (H).
9. ATTACH THE BASE LID (2), BASE COVER, BED COVER, AND BELTCOVER.
HEXAGON SCREW (H)
\
BASE LID 2(I)
NEEDLE
LOWER SHAFT _ i CLAMP
TESTPIN (D) _ NEEDLE HOLDER (E)
•1 ; _/SHUTTLE
(C_ _ HOOK (K)
SCREW
29
SEWING MACHINE DIV. 20 MODEL 385.19001890

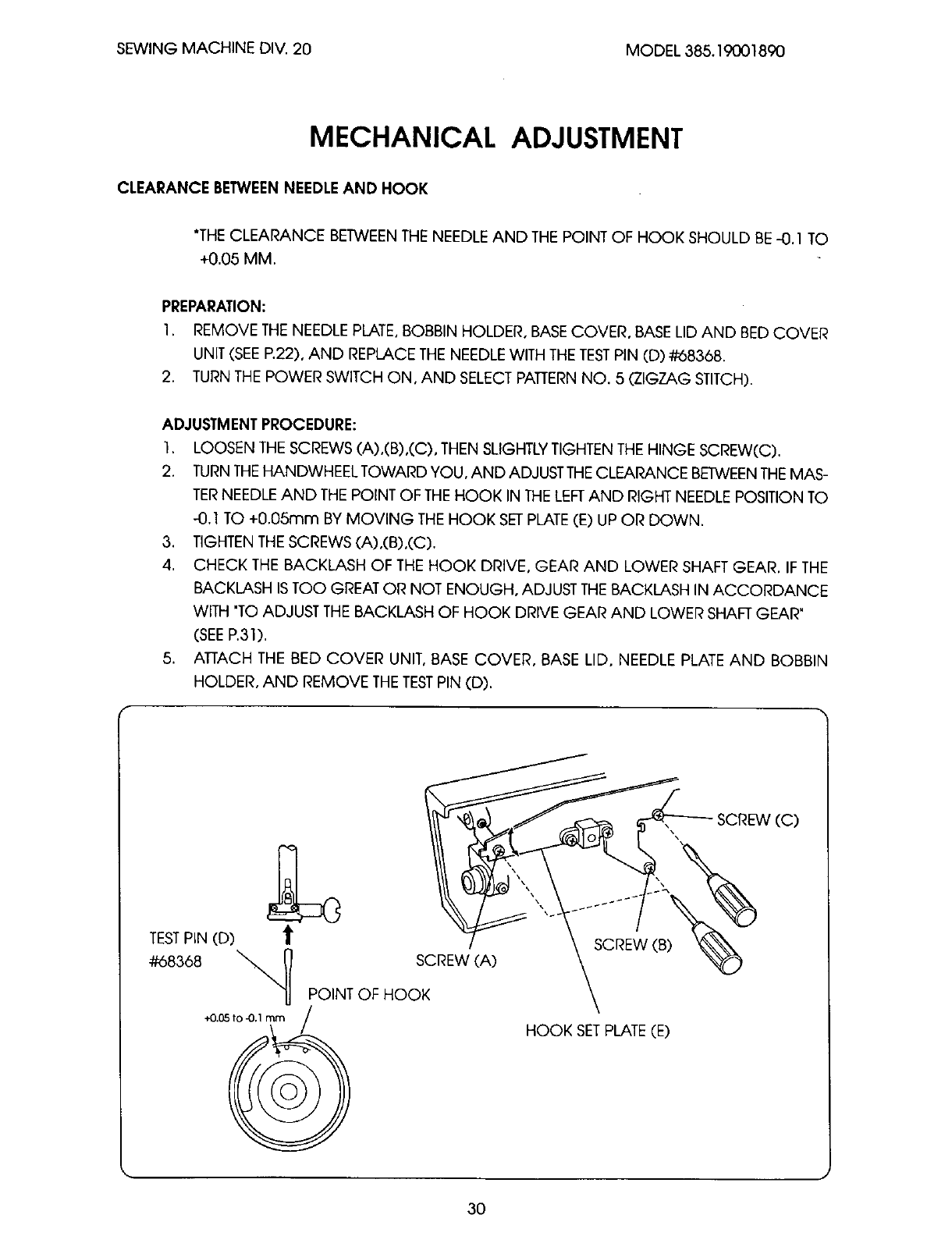

MECHANICAL ADJUSTMENT
CLEARANCE BETWEENNEEDLEAND HOOK
*THE CLEARANCE BETWEEN THE NEEDLE AND THE POINT OF HOOK SHOULD BE -0.1 TO
+0.05 MM.
PREPARATION:
1. REMOVE THE NEEDLE PLATE,BOBBIN HOLDER, BASE COVER, BASE LID AND BED COVER
UNIT(SEE P.22), AND REPLACE THE NEEDLE WITH THETESTPIN (D) #68368.
2. TURN THE POWER SWITCH ON, AND SELECT PATTERNNO. 5 (ZIGZAG STITCH).
ADJUSTMENT PROCEDURE:
1. LOOSEN THE SCREWS (A),(B),(C), THEN SLIGHTLYTIGHTEN THE HINGE SCREW(C).
2. TURNTHEHANDWHEEL TOWARD YOU, AND ADJUSTTHECLEARANCE BETWEENTHEMAS-
TERNEEDLE AND THE POINT OF THEHOOK IN THELEFTAND RIGHT NEEDLE POSITION TO
-0.1 TO +0.05mm BY MOVING THE HOOK SETPLATE(E) UP OR DOWN.
3. TIGHTEN THE SCREWS(A),(B),(C).
4, CHECK THE BACKLASH OF THE HOOK DRIVE, GEAR AND LOWER SHAFT GEAR. IFTHE
BACKLASH IS TOO GREAT OR NOT ENOUGH, ADJUST THEBACKLASH IN ACCORDANCE
WITH 'TO ADJUST THE BACKLASH OF HOOK DRIVE GEAR AND LOWER SHAFT GEAR"
(SEEP.31),
5. ATTACH THE BED COVER UNIT, BASE COVER, BASE LID, NEEDLE PLATE AND BOBBIN
HOLDER, AND REMOVE THE TESTPIN (D).
SCREW (C)
TESTPIN (D)_ _
#68368 S
POINT OF HOOK
+0.05 to 43.I mm HOOK SETPLATE (E)
3O
SEWING MACHINE DIV. 20 MODEL 385.19001890
MECHANICAL ADJUSTMENT

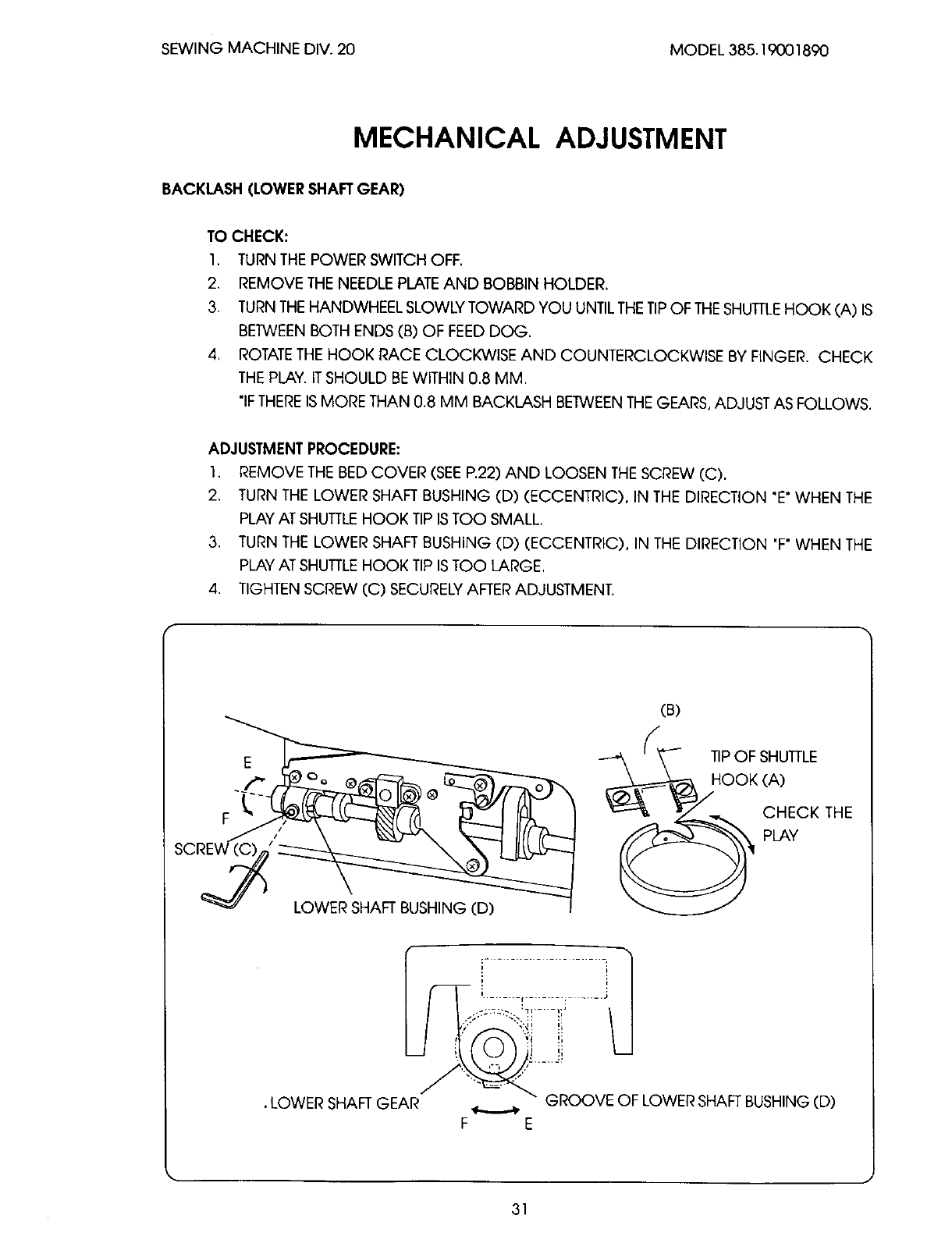

BACKLASH (LOWER SHAFTGEAR)
TO CHECK:
1. TURN THE POWER SWITCH OFF.
2. REMOVE THE NEEDLE PLATE AND BOBBIN HOLDER.
3. TURNTHE HANDWHEEL SLOWLY TOWARD YOU UNTILTHETIPOF THESHUTI'LEHOOK (A) IS
BETWEEN BOTH ENDS (B) OF FEED DOG.
4, ROTATETHEHOOK RACE CLOCKWISE AND COUNTERCLOCKWISE BY FINGER. CHECK
THEPLAY. iTSHOULD BEWITHIN 0.8 MM.
"IFTHEREISMORE THAN 0.8 MM BACKLASH BEIWEEN THEGEARS, ADJUST AS FOLLOWS.
ADJUSTMENT PROCEDURE:
1. REMOVE THE BED COVER (SEEP.22) AND LOOSEN THE SCREW (C).
2. TURN THE LOWER SHAFT BUSHING (D) (ECCENTRIC), IN THE DIRECTION "E" WHEN THE
PLAY AT SHUTTLEHOOK TIP ISTOO SMALL.
3. TURN THE LOWER SHAFT BUSHING (D) (ECCENTRIC), IN THE DIRECTION "F" WHEN THE
PLAY AT SHUTTLEHOOK TIP ISTOO LARGE,
4. TIGHTEN SCREW (C) SECURELYAFTER ADJUSTMENT.
F
--_v_, LOWER SHAFT BUSHING (D) I
(B)
TIPOF SHUTI-LE
HOOK (A)
CHECK THE
PLAY
•LOWER SHAFT GEAR GROOVE OF LOWER SHAFT BUSHING (D)
F E
31
SEWINGMACHINEDIV.20 MODEL385.19001890
MECHANICAL ADJUSTMENT

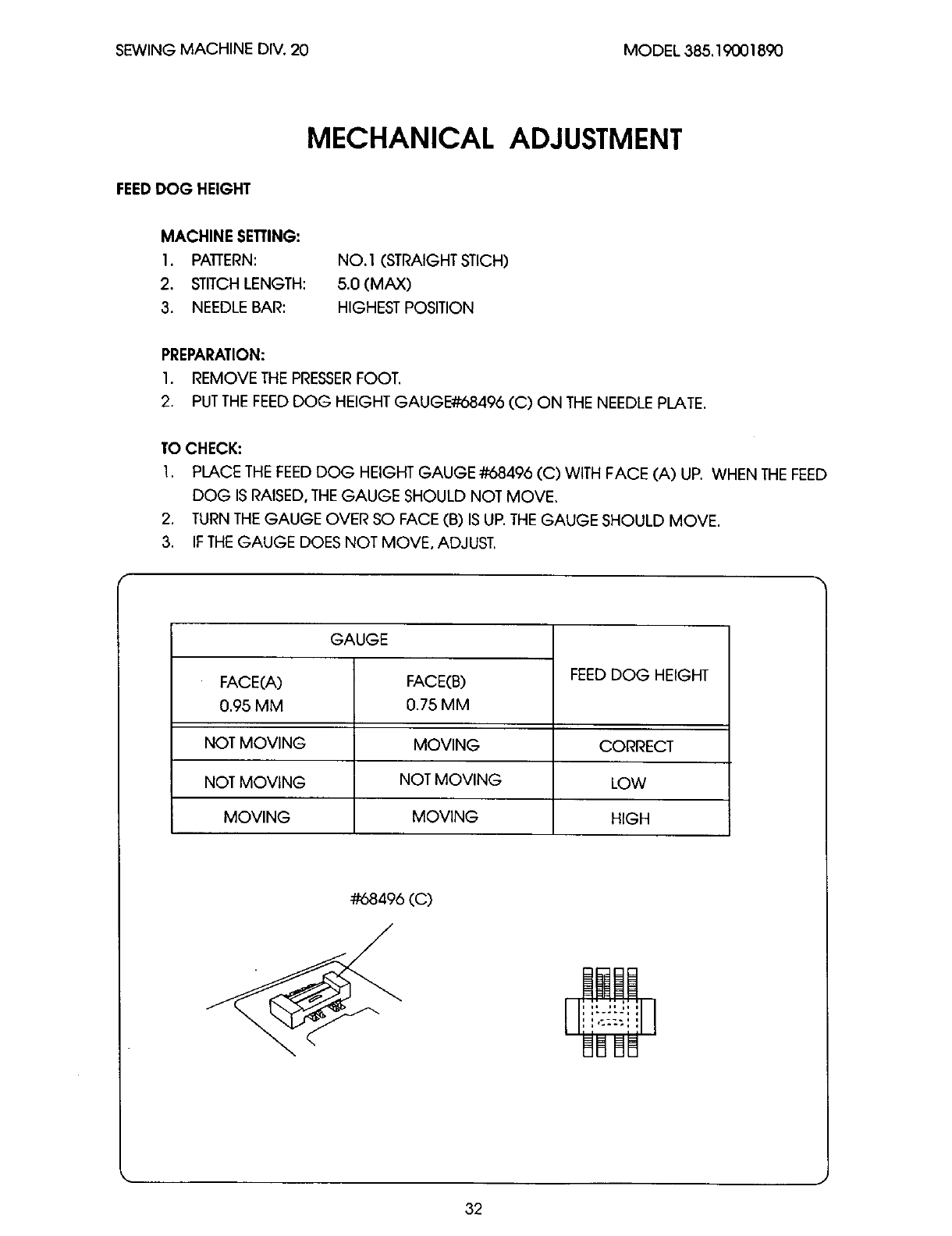

FEEDDOG HEIGHT
MACHINE SE'I'rlNG:
I. PATIERN:
2. STITCH LENGTH:
3. NEEDLE BAR:
NO. 1 (STRAIGHT STICH)
5.0 (MAX)
HIGHEST POSITION
PREPARATION:
1. REMOVE THE PRESSERFOOT.
2. PUTTHE FEEDDOG HEIGHT GAUGD_3496 (C) ON THE NEEDLE PLATE.
TO CHECK:
I. PLACE THE FEED DOG HEIGHT GAUGE #68496 (C) WITH FACE (A) UP. WHEN THE FEED
DOG ISRAISED,THE GAUGE SHOULD NOT MOVE,
2. TURN THE GAUGE OVER SO FACE (B)ISUP.THE GAUGE SHOULD MOVE.
3. IFTHE GAUGE DOES NOT MOVE, ADJUST,
FACE(A)
0.95 MM
NOT MOVING
NOT MOVING
MOVING
GAUGE
FACE(B)
0.75 MM
MOVING
NOT MOVING
MOVING
FEED DOG HEIGHT
CORRECT
LOW
HIGH
#68496 (C)
32
SEWING MACHINE DIV. 20 MODEL 385.19001890

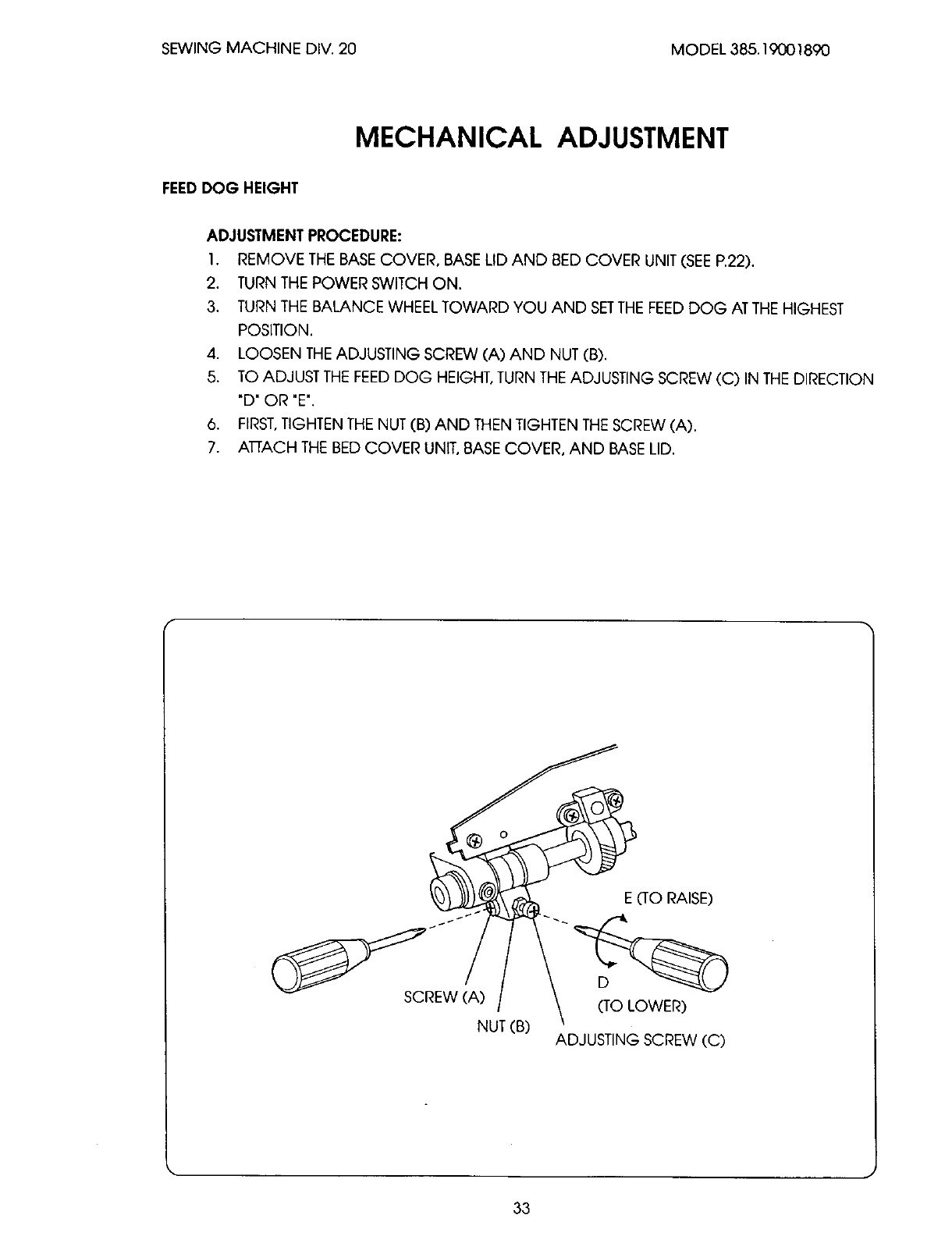

MECHANICAL ADJUSTMENT
FEEDDOG HEIGHT
ADJUSTMENT PROCEDURE:
1. REMOVE THEBASE COVER, BASE LID AND BED COVER UNIT (SEE P.22).
2. TURN THE POWER SWITCH ON.
3. TURN THE BALANCE WHEEL TOWARD YOU AND SETTHEFEED DOG AT THEHIGHEST
POSITION.
4. LOOSEN THEADJUSTING SCREW (A) AND NUT (B).
5. TO ADJUST THE FEEDDOG HEIGHT, TURN THE ADJUSTING SCREW (C) IN THE DIRECTION
"D"OR "E".
6. FIRST,TIGHTEN THE NUT (B) AND THEN TIGHTEN THESCREW (A).
7. ATrACH THE BED COVER UNIT, BASE COVER, AND BASE LID.
SCREW (A)
NUT (B)
E (TO RAISE)
(TO LOWER)
ADJUSTING SCREW (C)
33
SEWING MACHINE DIV. 20 MODEL 385.19001890
MECHANICAL ADJUSTMENT

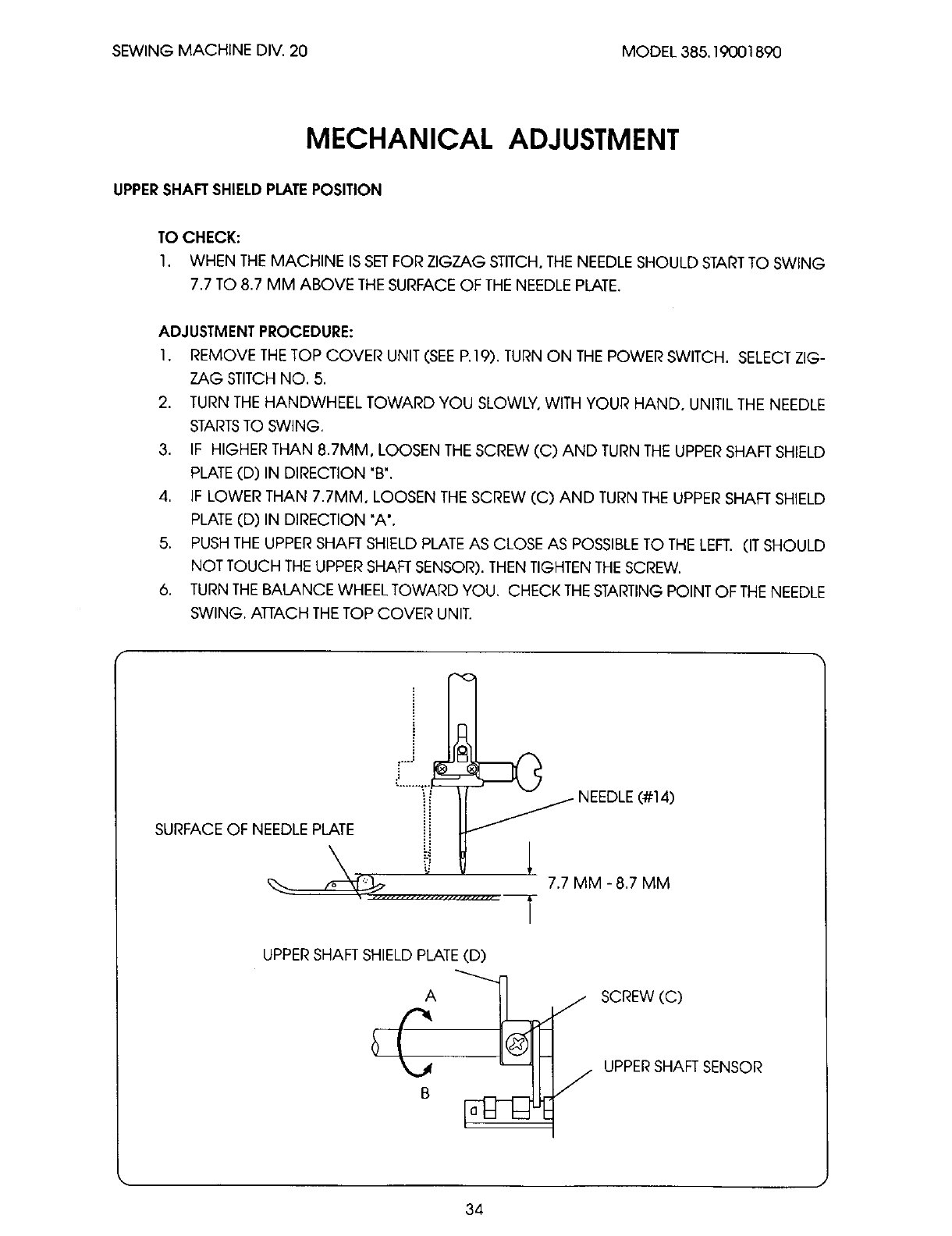

UPPERSHAFT SHIELD PLATEPOSITION
TO CHECK:
1. WHEN THEMACHINE IS SET FOR ZIGZAG STITCH, THE NEEDLE SHOULD STARTTO SWING
7.7 TO 8.7 MM ABOVE THE SURFACE OF THENEEDLE PLATE.
ADJUSTMENT PROCEDURE:
1. REMOVE THE TOP COVER UNIT (SEE P.19). TURN ON THE POWER SWITCH. SELECTZIG-
ZAG STITCH NO. 5.
2. TURN THE HANDWHEEL TOWARD YOU SLOWLY, WITH YOUR HAND, UNITIL THE NEEDLE
STARTSTO SWING,
3. IF HIGHER THAN 8.7MM, LOOSEN THESCREW (C) AND TURN THE UPPER SHAFT SHIELD
PLATE(D) IN DIRECTION "B".
4, IF LOWER THAN 7.7MM, LOOSEN THE SCREW (C) AND TURN THE UPPER SHAFT SHIELD
PLATE (D) IN DIRECTION "A".
5. PUSH THE UPPER SHAFT SHIELD PLATE AS CLOSE AS POSSIBLE TO THE LEFT. (IT SHOULD
NOT TOUCH THE UPPER SHAFT SENSOR). THEN TIGHTEN THESCREW.
6. TURN THEBALANCE WHEEL TOWARD YOU. CHECK THESTARTING POINT OF THENEEDLE
SWING. A1TACH THETOP COVER UNIT.
SURFACE OF NEEDLE PLATE
(#14)
7.7 MM - 8,7 MM
UPPERSHAFT SHIELD PLATE (D)
B
j SCREW (C)
UPPERSHAFT SENSOR
/
34
SEWINGMACHINEDIV.20 MODEL385."19001890
MECHANICAL ADJUSTMENT

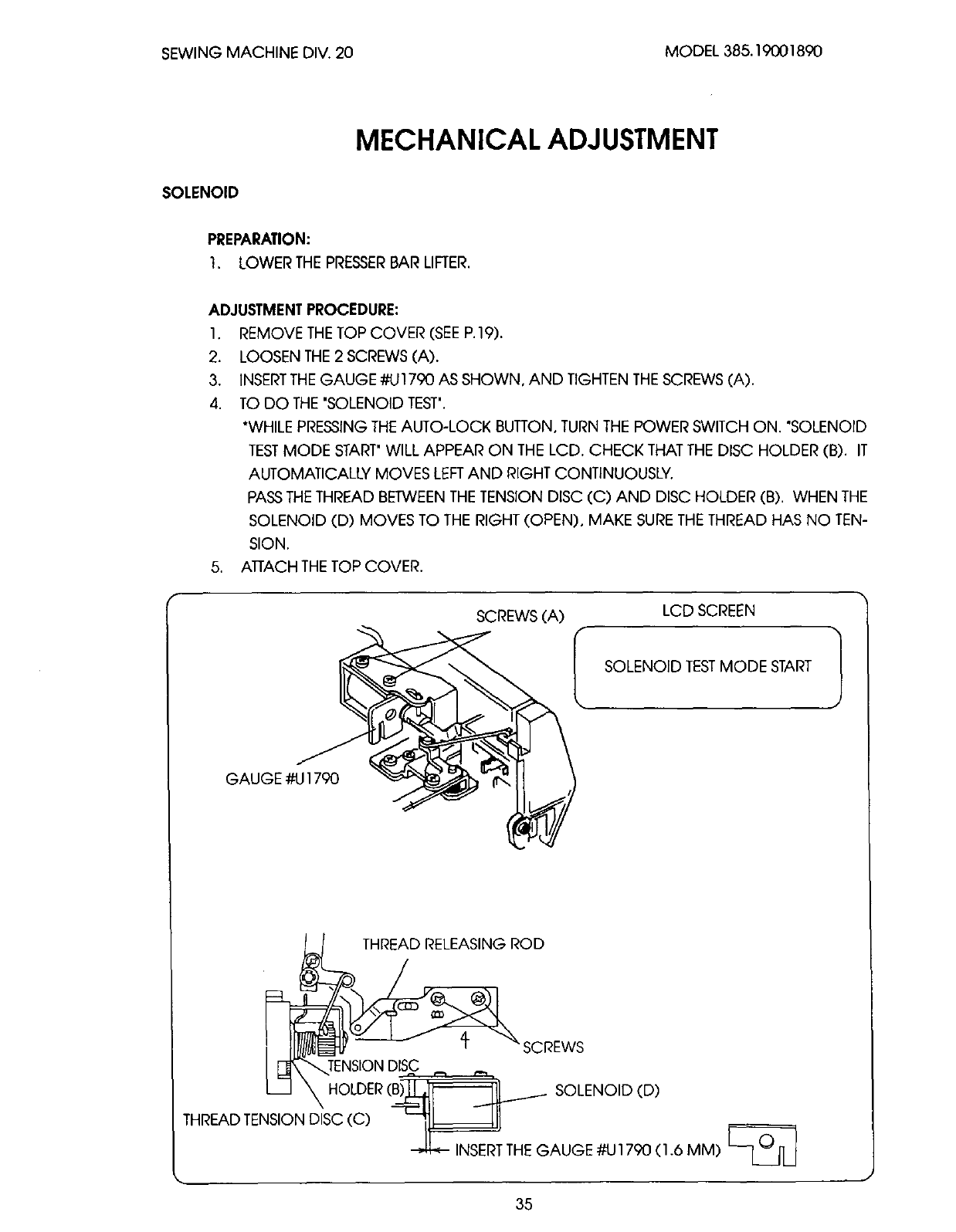

SOLENOID
PREPARATION:
1. LOWER THE PRESSERBAR LIFTER.
ADJUSTMENT PROCEDURE:
I. REMOVE THE TOP COVER (SEEP.19).
2. LOOSEN THE 2 SCREWS (A).
3. INSERTTHE GAUGE #U1790 AS SHOWN, AND TIGHTEN THE SCREWS (A).
4. TO DO THE "SOLENOID TEST".
*WHILE PRESSING THE AUTO-LOCK BUTTON, TURN THE POWER SWITCH ON. "SOLENOrD
TEST MODE START"WILL APPEAR ON THE LCD. CHECK THAT THE DISC HOLDER (B).IT
AUTOMATICALLY MOVES LEFTAND RIGHT CONTINUOUSLY.
PASS THE THREAD BETWEEN THE TENSION DISC (C) AND DISC HOLDER (B),WHEN THE
SOLENOID (D) MOVES TO THE RIGHT (OPEN), MAKE SURE THE THREAD HAS NO TEN-
SION.
5. AITACH THE TOP COVER.
SCREWS (A) LCD SCREEN
SOLENOID TESTMODE START
GAUGE #U 1790
THREAD RELEASING ROD
_- SCREWS
",,,,,,TENSIONDISC _
HOLDER(_ SOLENOID (D)
THREAD TENSION DISC (C)
INSERTTHE GAUGE #U1790 (1.6 MM)
35
• J
SEWING MACHINE DIV. 20 MODEL 385.19001890
MECHANICAL ADJUSTMENT
TENSION RELEASEMECHANISM
TO CHECK:
I. WHEN THE PRESSER BAR ISRAISED,THE TENSION DISC HOLDER (D)SHOULD MOVE ABOUT
1.0MM AS A STANDARD VALUE IN ORDER FOR THE TENSION RELEASE FUNCTION TO
WORK CORRECTLY.
ADJUSTMENT PROCEDURE:
I. REMOVE THE TOP COVER UNIT (SEEP.19)AND BELTCOVER UNIT (SEE P.20).
2. LOOSEN THE SCREWS WHICH HOLD THE FRONT COVER UNIT(E)(SEE P.24).MOVE THE
FRONT COVER UNIT(E)A LITTLE.
3. LOWER THE PRESSER BAR LIFTERAND SETTHE THREAD TENSION DIAL AT "9".LOOSEN THE
SCREW (A).
4. SETTHE CLEARANCE BETWEEN THE THREAD TENSION RELEASING ROD (13)AND THE SPRING
HOLDER(C) BETWEEN 0.3_).5MM AND TIGHTEN SCREW(A).
5. SET THE THREAD TENSION DIAL AT "9"AND RAISE THE PRESSER BAR. MAKE SURE THE
TENSION DISC MOVES ABOUT 1.0MM.
DO THE SAME TESTWITH THE THREAD TENSION DIAL SETAT "0".
6. ATTACH THE TOP COVER, BELTCOVER AND FRONT COVER.
FRONT COVER UNIT (E)
TENSION RELEASING ROD (B)
SCREW (A)
3..
rt
TENSION RELEASING ROD (B)
(CLEARANCE: 0.3 - 0.5 MM)
ING HOLDER (C)
TENSION DISC HOLDER (D)
1.0 MM
36
SEWING MACHINE DIV. 20 MODEL 385.19001890
MECHANICAL ADJUSTMENT
STRETCHSTITCH FEED BALANCE
TO CHECK:
1. WHEN A STRETCH PATTERNIS SEWN WITH THE FEED BALANCING DIAL (C) SETAT THE
STANDARD SETTINGMARK " [_>", THE PATTERNSHOULD BEAS INDICATED WITH THE "0"
MARK IN THE FOLLOWING FIGURE. IF NOT (IF THERE IS NO BALANCE BETWEEN FOR-
WARD FEEDING AND BACKWARD FEEDING), THEN MAKE AN ADJUSTMENT AS FOLLOWS:
ADUSTMENT PROCEDURE:
1. TURN THE POWER SWITCH ON, AND SELECTPATTERNNO,13 (TRIPLESTRETCHSTITCH).
2. SETTHE SLITOF THEFEED BALANCING DIAL (C) AT THE STANDARD SETTING MARK • [_"
ON THE BELTCOVER.
3. PUTTHEPAPER BETWEENTHEFOOT AND FEEDDOG AND LOWER THEPRESSERBAR LIFTER.
4. TURN THE HANDWHEEL, AND CHECK THE NEEDLE POSITION OF "A" AND "B".
5. REMOVE THE BASE LID(D).
6, WHEN A>B, TURN THEADJUSTING SCREW (E) IN THEDIRECTION OF "A".
WHEN A<B, TURN THEADJUSTING SCREW (E) IN THEDIRECTION OF "B".
7. ATTACH THE BASE LID (D),
BASE LID (D)
/
AcDJUSTIN(
REW (E)
A B
(2) STANDARD
SETTING MARK FEEDBALANCING DIAL (C)
INDICATION LINE
©× ×
A=B A>8 A<B
37
SEWING MACHINE DIV. 20 MODEL 385.19001890
MECHANICAL ADJUSTMENT

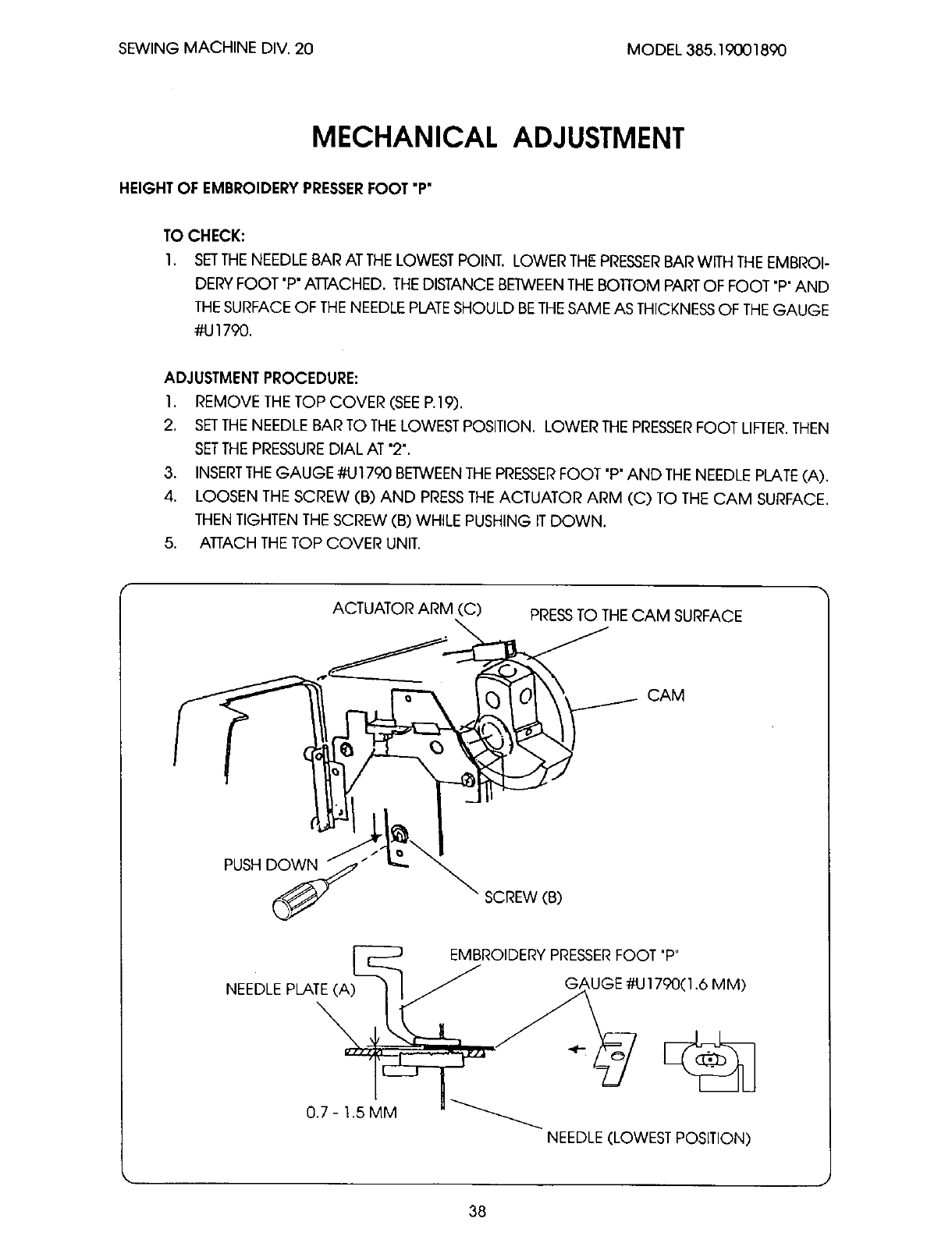

HEIGHT OF EMBROIDERY PRESSERFOOT "P"
TO CHECK:
1. SETTHE NEEDLE BAR AT THE LOWESTPOINT. LOWER THEPRESSERBAR WITH THEEMBROI-
DERYFOOT "P" ATTACHED. THEDISTANCE B_EEN THE BO1TOM PARTOF FOOT "P" AND
THESURFACE OF THENEEDLE PLATESHOULD BETHESAME AS THICKNESSOF THEGAUGE
#U1790.
ADJUSTMENT PROCEDURE:
1. REMOVE THE TOP COVER (SEEP.19).
2, SETTHENEEDLE BAR TO THE LOWEST POSITION. LOWER THE PRESSERFOOT LIFTER.THEN
SETTHE PRESSUREDIAL AT "2".
3. INSERTTHEGAUGE #U 1790 BETWEENTHEPRESSERFOOT "P"AND THE NEEDLE PLATE (A).
4. LOOSEN THE SCREW (B) AND PRESSTHE ACTUATOR ARM (C) TO THE CAM SURFACE.
THEN TIGHTEN THE SCREW (B) WHILE PUSHING ITDOWN.
5. A1-FACH THETOP COVER UNIT.
ACTUATOR ARM (C) PRESSTO THE CAM SURFACE
CAM
PUSHD(_
NEEDLE PLATE (A)
SCREW (B)
EMBROIDERY PRESSERFOOT "P"
GAUGE #U 1790(1.6 M M)
NEEDLE (LOWEST POSITION)
38

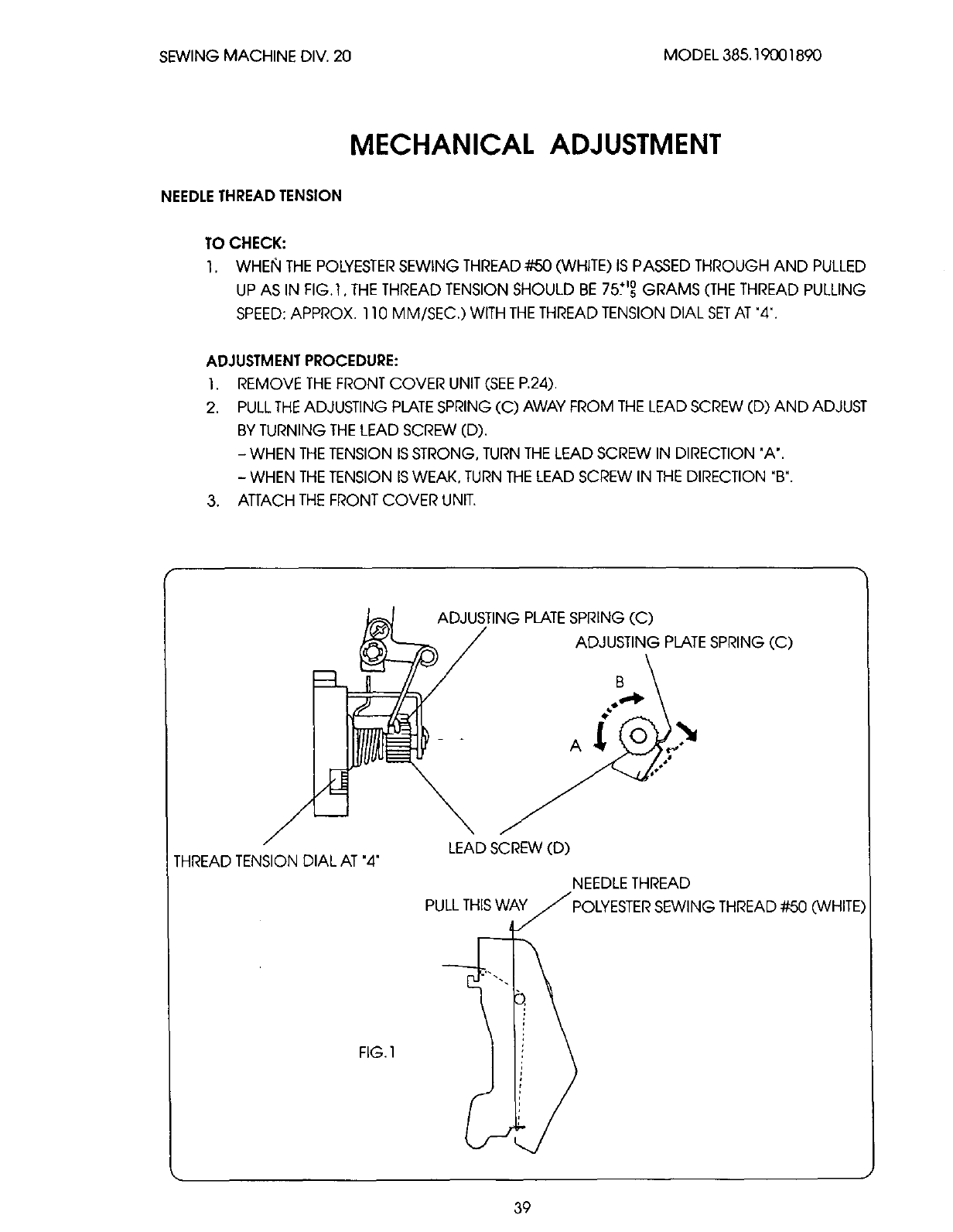

SEWING MACHINE DIV. 20 MODEL 385.19001890
MECHANICAL ADJUSTMENT
NEEDLETHREAD TENSION
TO CHECK:
1. WHEN THE POLYESTERSEWING THREAD _ (WHITE) IS PASSED THROUGH AND PULLED
UP AS IN FIG.l, THE THREAD TENSION SHOULD BE 75_"l° GRAMS (THE THREAD PULLING
SPEED:APPROX. 110 MM/SEC.) WITH THETHREAD TENSION DIAL SETAT "4".
ADJUSTMENT PROCEDURE:
I. REMOVE THE FRONT COVER UNIT (SEEP.24).
2. PULL THE ADJUSTING PLATE SPRING (C) AWAY FROM THE LEAD SCREW (D)AND ADJUST
BY TURNING THE LEAD SCREW (D).
- WHEN THE TENSION ISSTRONG, TURN THE LEAD SCREW IN DIRECTION "A".
- WHEN THE TENSION ISWEAK, TURN THE LEAD SCREW INTHE DIRECTION "B".
3. ATTACH THE FRONT COVER UNIT.
ZL
/-
THREADTENSION DIAL AT "4"
FIG. 1
ADJUSTING PLATESPRING (C)
ADJUSTING PLATE SPRING (C)
LEAD SCREW (D)
NEEDLE THREAD
P OLYESTERSEWING THREAD #50 (WHITE)
39
SEWtNG MACHINE DIV. 20 MODEL 385.19001890
MECHANICAL ADJUSTMENT
BUTTONHOLE LEVER
*IF THE STEPSDO NOT CHANGE OR THE ENDS OF STITCHESARE NOT IN LINE WHILE BUT-
TONHOLE SEWING, ADJUST AS FOLLOWS:
1. ENTER ADJUSTING MODE. TURN THE POWER SWITCH ON WHILE PRESSING THE START/
STOP KEY AND THE REVERSEKEY. PRESSTHE LOCK STITCH KEY AND NEEDLE UP/DOWN
KEY WITHIN 2.5 SECONDS. THE LCD SCREEN SHOWS "BH SENSOR STATECLOSED".
2, LOOSEN THESCREW (A) AND MOVE THE BH LEVERGUIDE (B). THELCD SCREEN SHOULD
SHOW 'OPEN" WHEN THE BH LEVER ISLOWERED. THEN TIGHTEN THESCREW (A).
3, ATrACH THE BH FOOT "R"AND LOWER THE BH LEVER (C).
4. PUTGAUGE #U 1790 IN BEIWEEN THE SLIDING PART OF THE AUTOMATIC BUTPONHOLE
FOOT AND ITSEND, AS SHOWN.
5. LOOSEN SETSCREW (B), MOVE THESENSOR PLATE(E) FROM RIGHTTO LEFT,TIGHTEN THE
SETSCREW (D), AS THE LCD SCREEN CHANGES FROM (2) "OPEN" TO (3) "CLOSED'.
6. TURN ON THESWITCH AGAIN. SELECTBH #15 AND MAKE SUREITSEWS CORRECTLY.
NOTE: THE LCD SCREEN SHOWS (1) CLOSED (2) OPEN (3) CLOSED WHEN THE SENSOR
PLATEIS MOVED FROM RIGHT TO LEFTON STEP5. ADJUSTMENT SHOULD BESET
FROM (2) OPEN TO (3) CLOSED POSITION.
ICLOSED
(1)
LCD SCREEN
I BH SENSOR STATE 1
[CLOSED 1
LCD SCREEN
I+--[ OPEN] CLOSEDI
(2) (3)
LEFT RIGHT
(E)
BH LEVER (C) BH LEVER GUIDE (B)
(D)
BH SENSOR
t
SCREW (A) GAUGE #U 1790
(1.6 MM)
BH FOOT "R"
4O

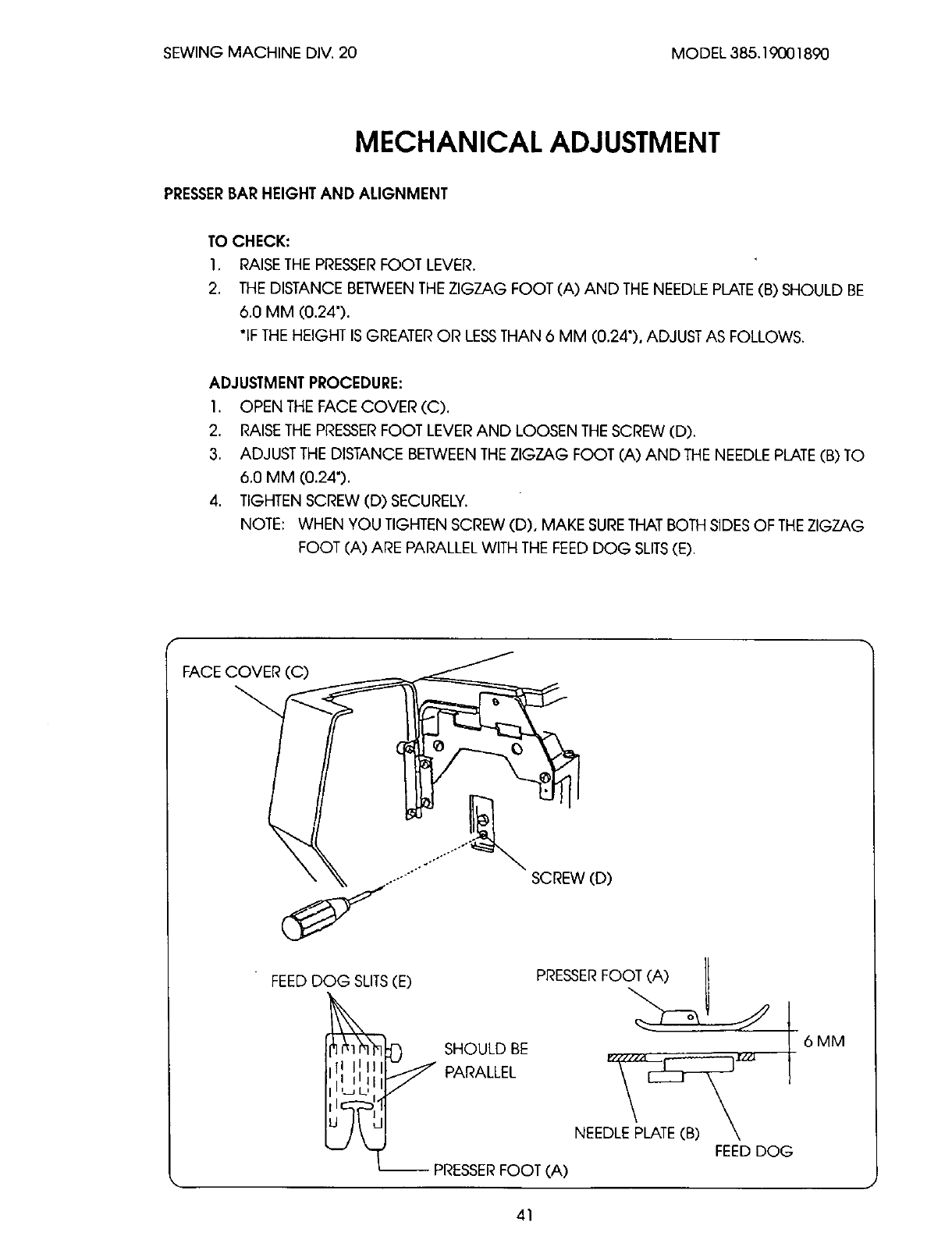

SEWING MACHINE DIV. 20 MODEL 385.19001890
MECHANICAL ADJUSTMENT
PRESSERBAR HEIGHT AND ALIGNMENT
TO CHECK:
I. RAISE THE PRESSER FOOT LEVER.
2. THE DISTANCE BETWEEN THE ZIGZAG FOOT (A)AND THE NEEDLE PLATE (B)SHOULD BE
6.0 MM (0.24').
*IF THE HEIGHT ISGREATER OR LESSTHAN 6 MM (0.24"), ADJUST AS FOLLOWS.
ADJUSTMENT PROCEDURE:
I. OPEN THE FACE COVER (C).
2. RAISETHE PRESSER FOOT LEVER AND LOOSEN THE SCREW (D).
3, ADJUST THE DISTANCE BETWEEN THE ZIGZAG FOOT (A)AND THE NEEDLE PLATE (B)TO
6.0 MM (0.24").
4. TIGHTEN SCREW (D) SECURELY.
NOTE: WHEN YOU TIGHTEN SCREW (D), MAKE SURETHAT BOTH SIDESOF THEZIGZAG
FOOT (A) ARE PARALLEL WITH THE FEED DOG SLITS(E).
FACE COVER (C)
SCREW (D)
FEED DOG SLITS(E)
SHOULD BE
PRESSERFOOT (A)
NEEDLE PLATE(B)
41
FEED DOG
6MM

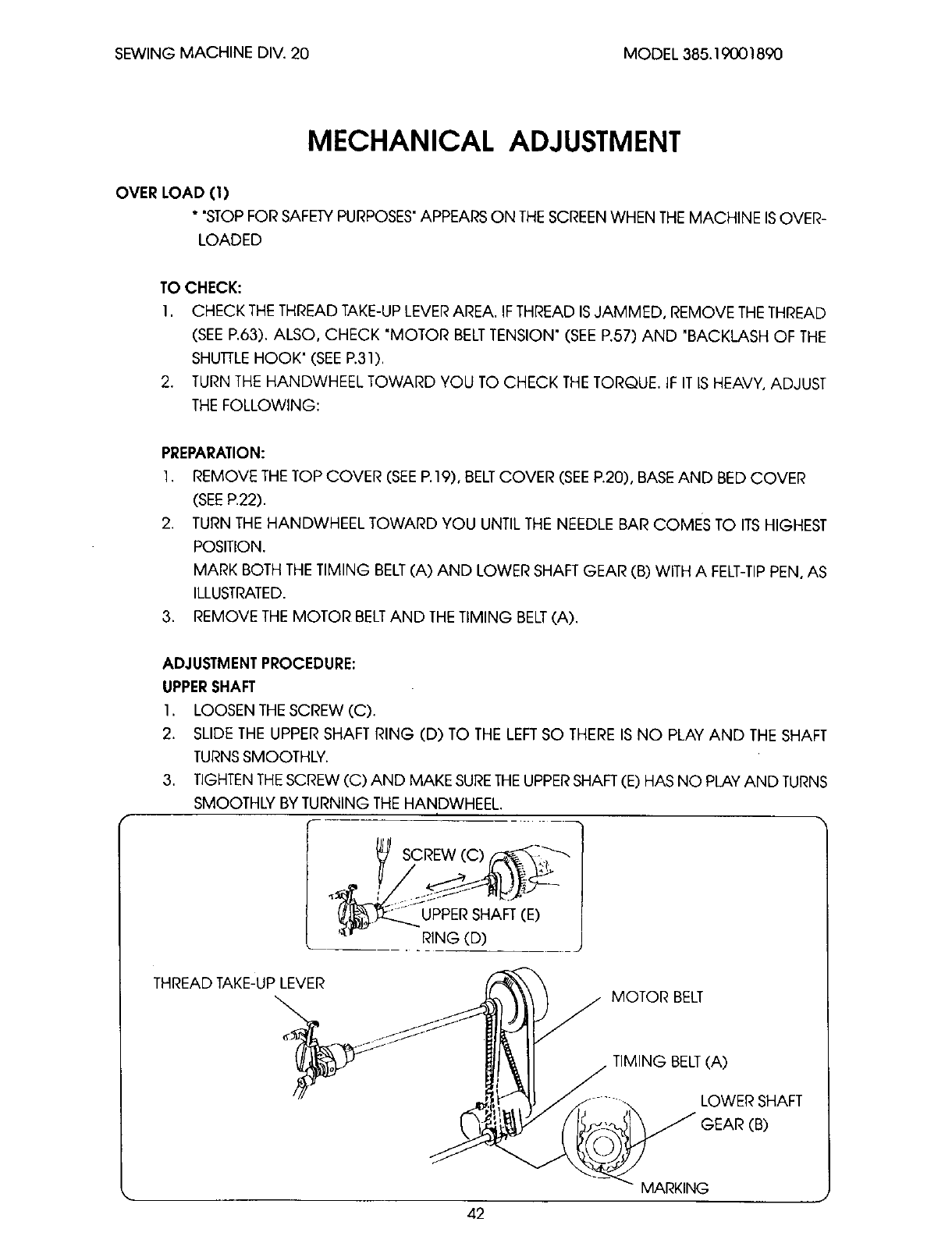

SEWINGMACHINEDIV.20 MODEL385.19001890
MECHANICAL ADJUSTMENT
OVER LOAD (i)
* "STOP FOR SAFETYPURPOSES"APPEARS ON THESCREEN WHEN THEMACHINE ISOVER-
LOADED
TO CHECK:
1, CHECK THETHREAD TAKE-UP LEVER AREA. IFTHREAD ISJAMMED, REMOVE THETHREAD
(SEE P.63). ALSO, CHECK "MOTOR BELTTENSION" (SEE P.57) AND "BACKLASH OF THE
SHUTi'LEHOOK" (SEE P.31),
2. TURN THE HANDWHEEL TOWARD YOU TO CHECK THE TORQUE. IF IT IS HEAVY, ADJUST
THEFOLLOWING:
PREPARATION:
1. REMOVE THETOP COVER (SEE P.19), BELTCOVER (SEEP.20), BASE AND BED COVER
(SEEP.22).
2. TURN THE HANDWHEEL TOWARD YOU UNTIL THE NEEDLE BAR COMES TO ITSHIGHEST
POSITION.
MARK BOTH THETIMING BELT(A) AND LOWER SHAFT GEAR (B) WITH A FELT-TIPPEN, AS
ILLUSTRATED.
3. REMOVE THE MOTOR BELTAND THETIMING BELT(A),
ADJUSTMENT PROCEDURE:
UPPERSHAFT
I. LOOSEN THE SCREW (C).
2. SLIDE THE UPPER SHAFT RING (D) TO THE LEFTSO THERE IS NO PLAY AND THE SHAFT
TURNSSMOOTHLY.
3. TIGHTENTHESCREW (C) AND MAKE SURETHEUPPERSHAFT (E) HAS NO PLAY AND TURNS
SMOOTHLY BY TURNING THE HANDWHEEL.
SCREW (C)
THREAD TAKE-UP LEVER
UPPERSHAFT (E)
RING (D)
MOTOR BELT
TIMING BELT(A)
LOWER SHAFT
GEAR (B)
42
MARKING

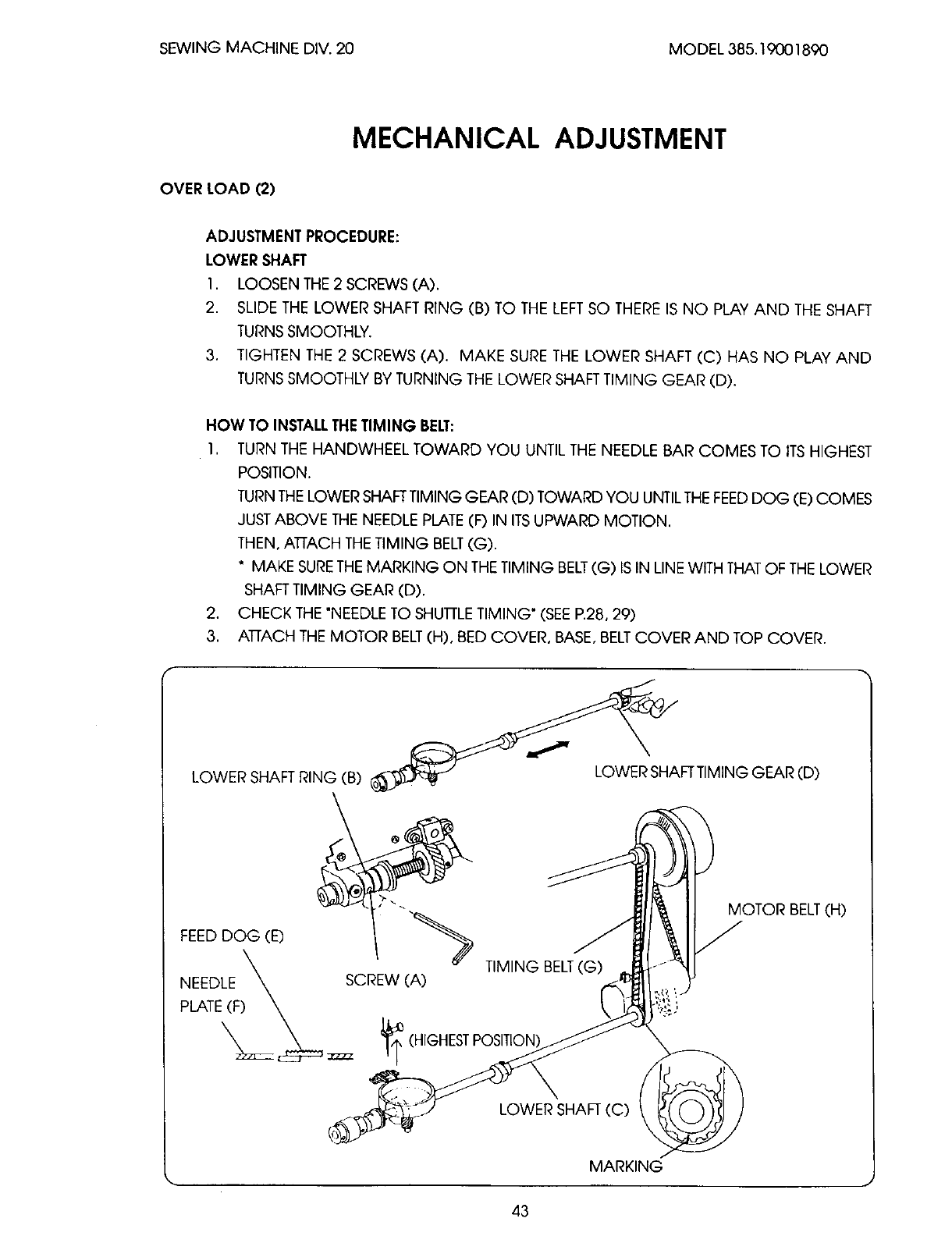

SEWING MACHINE DIV. 20 MODEL 385.19001890
MECHANICAL ADJUSTMENT
OVER LOAD (2)
ADJUSTMENT PROCEDURE:
LOWER SHAFT
I. LOOSEN THE2 SCREWS (A).
2. SLIDE THE LOWER SHAFT RING (B) TO THE LEFTSO THERE IS NO PLAY AND THE SHAFT
TURNS SMOOTHLY.
3. TIGHTEN THE 2 SCREWS (A). MAKE SURE THE LOWER SHAFT (C) HAS NO PLAY AND
TURNSSMOOTHLY BY TURNING THE LOWER SHAFTTIMING GEAR (D).
HOW TO INSTALLTHETIMING BELT:
1, TURN THE HANDWHEEL TOWARD YOU UNTIL THE NEEDLE BAR COMES TO ITSHIGHEST
POSITION.
TURNTHELOWER SHAFTTIMING GEAR (D) TOWARD YOU UNTILTHEFEEDDOG (E) COMES
JUST ABOVE THE NEEDLE PLATE (F) IN ITSUPWARD MOTION.
THEN, ATTACH THETIMING BELT(G).
* MAKE SURETHEMARKING ON THETIMING BELT(G) IS IN LINE WITHTHAT OF THE LOWER
SHAFT TIMING GEAR (D).
2. CHECK THE "NEEDLE TO SHU_LE TIMING" (SEEP.28, 29)
3, AYrACH THE MOTOR BELT(H), BED COVER, BASE, BELTCOVER AND TOP COVER.
LOWER SHAFT RING (B)
Z
LOWER SHAFTTIMING GEAR (D)
FEED DOG (E) "_
NEEDLE _ SCREW (A)
PLATE(F) _
TIMING BELT(G)
MOTOR BELT(H)
LOWER SHAFT (C)
MARKING
43
SEWING MACHINE DIV. 20 MODEL 385.19001890
ADJUSTMENTOF TOUCH PANEL
TO CHECK:
1, IF, WHEN PRESSING THE TOUCH PANEL, A DIFFERENT STITCH IS SELECTED. ADJUST AS
FOLLOWS.
ADJUSTMENT PROCEDURE:
1. TURN THE POWER SWITCH ON WHILE PRESSING THE UP/DOWN BUTTON, REVERSEBUT-
TON, AND START/STOP BUTTON SIMULTANEOUSLY. ("PRESS+ MARK" AND "+" MARK ARE
INDICATED ON THE LCD AT THIS TIME.)
2. PRESSTHE CENTER OF THE "+" MARK WITH THE POINT OF THE ADDITIONAL SPOOL PIN.
(WHEN PRESSING THE "+" MARK ONCE, THE BUZZERSOUNDS. THE "+" MARK MOVES AS
SHOWN IN THE FIGURE BELOW EVERY TIME IT IS PUSHED.)
3. WHEN THE FIFTH"+" MARK IS PRESSED,"ADJUSTMENT END" ISINDICATED ON THE LCD,
4. TURN THE POWER SWITCH OFF.
5. TURN THE POWER SWITCH ON, AND CHECK IF THEORIGINAL FIRSTPAGE APPEARS ON
THE LCD.
NOTE: AFTERADJUSTMENT, CHECK TO SEEIF PAl-FERNSARE SELECTEDCORRECTLY,
_ _DITIONAL SPOOL PIN
BUIrON ""_x J
REVERSEBU ON
START/STOP BUT[ON f.._,
FIRST INDICATION ON LCD
\1
WHEN SWITCH ISTURNED ON
Press .-._..-.MARKi
$
Press _ KEY i
MIoI"E"u/
4
/
+
÷
Adjustment END
LAST INDICATION ON LCD
3 (PRESSCENTER)
44

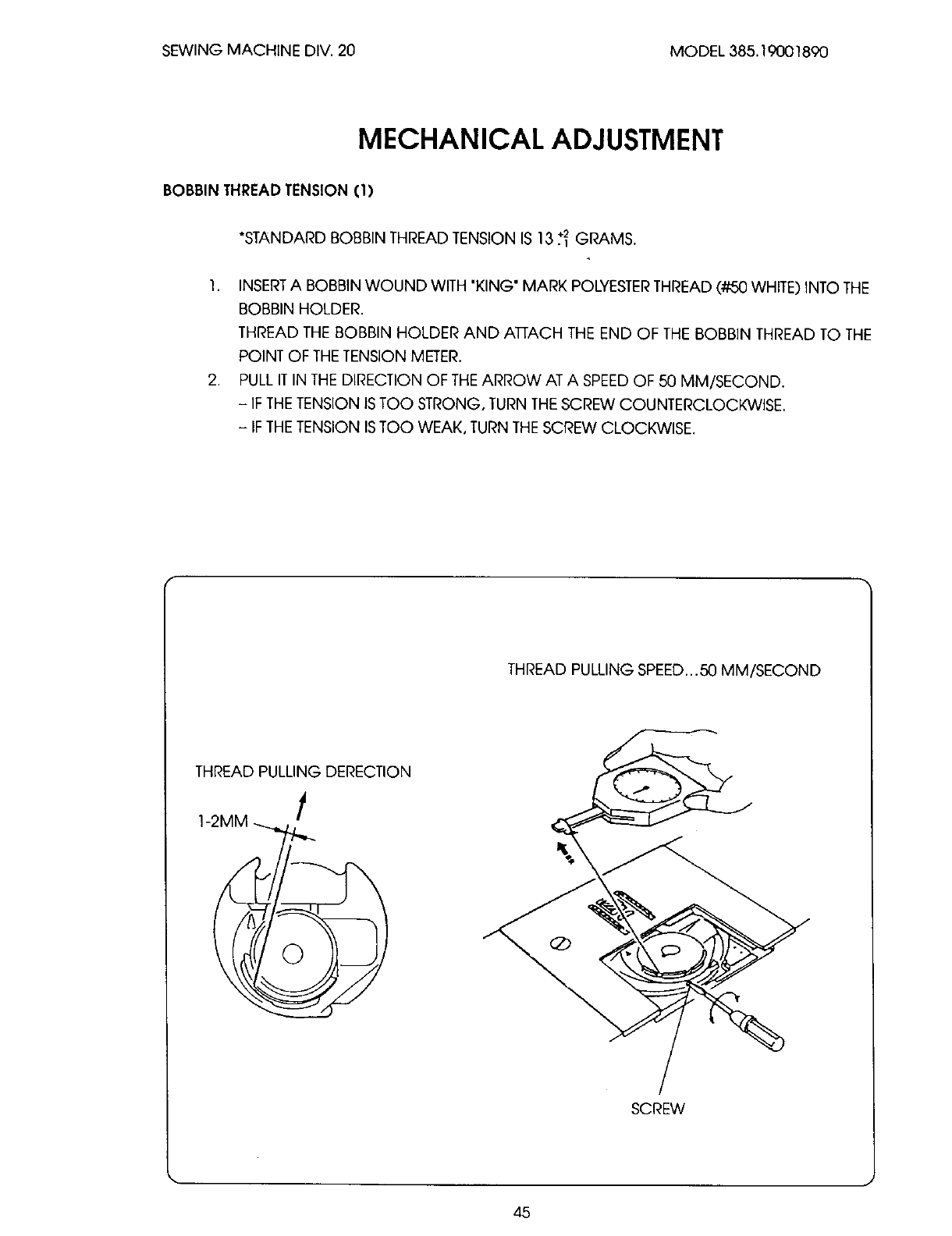

SEWING MACHINE DIV. 20 MODEL 385.19001890
MECHANICAL ADJUSTMENT
BOBBIN THREAD TENSION (I)
*STANDARD BOBBIN THREAD TENSION IS 13 __ GRAMS.
1. INSERTA BOBBIN WOUND WITH "KING" MARK POLYESTERTHREAD (#50 WHITE) INTO THE
BOBBIN HOLDER.
THREAD THE BOBBIN HOLDER AND AT[ACH THE END OF THE BOBBIN THREAD TO THE
POINT OF THETENSION METER.
2. PULL ITIN THE DIRECTION OF THEARROW AT A SPEED OF 50 MM/SECOND.
- IFTHE TENSION IS TOO STRONG, TURN THESCREW COUNTERCLOCKWISE,
- IFTHE TENSION IS TOO WEAK, TURN THE SCREW CLOCKWISE.
THREAD PULLING SPEED...50 MM/SECOND
THREAD PULLING DERECTION
1-2MM 1
SCREW
45
SEWINGMACHINEDIV.20 MODEL385,19001890
BOBBIN THREAD TENSION (2)
IF A TENSION METER IS NOT AVAILABLE,THEBOBBIN THREAD TENSION CAN BE ADJUSTEDAS
FOLLOWS:
1. INSERTA BOBBIN WOUND WITH KENMORE EMBROIDERY THRAD (#204 YELLOW)(B) INTO
THEBOBBIN HOLDER. THREAD THE BOBBIN HOLDER AND HANG ZIGZAG FOOT "A" AND
OVEREDGE FOOT "C" ON THE END OF THE BOBBIN THREAD AS ILLUSTRATED.
2, TURNTHEADJUSTING SCREW (D) SO THATTHETHREAD WILL DRAW OUT SMOOTHLY WHEN
YOU SWING THE BOBBIN HOLDER (E) UP AND DOWN GENTLY.
NOTE: THE BOBBIN THREAD TENSION MECHANISM ISVERY SENSITIVE,SO DO NOT AD-
JUSTITUNLESSYOU CAN NOT OBTAIN THECORRECT TENSIONBALANCE BYOTHER
MEANS. REPLACE THE BOBBIN HOLDER IF THE CORRECT TENSION CAN NOT BE
OBTAINED BYTHIS PROCEDURE.
ADJUSI_ING SCREW (D)
KENMORE EMBROIDERY
THREAD (YELLOW) (B)
ZIGZAG FOOT "A"
BOBBIN HOLDER (E)
.__/OVEREDGE FOOT "C"
46

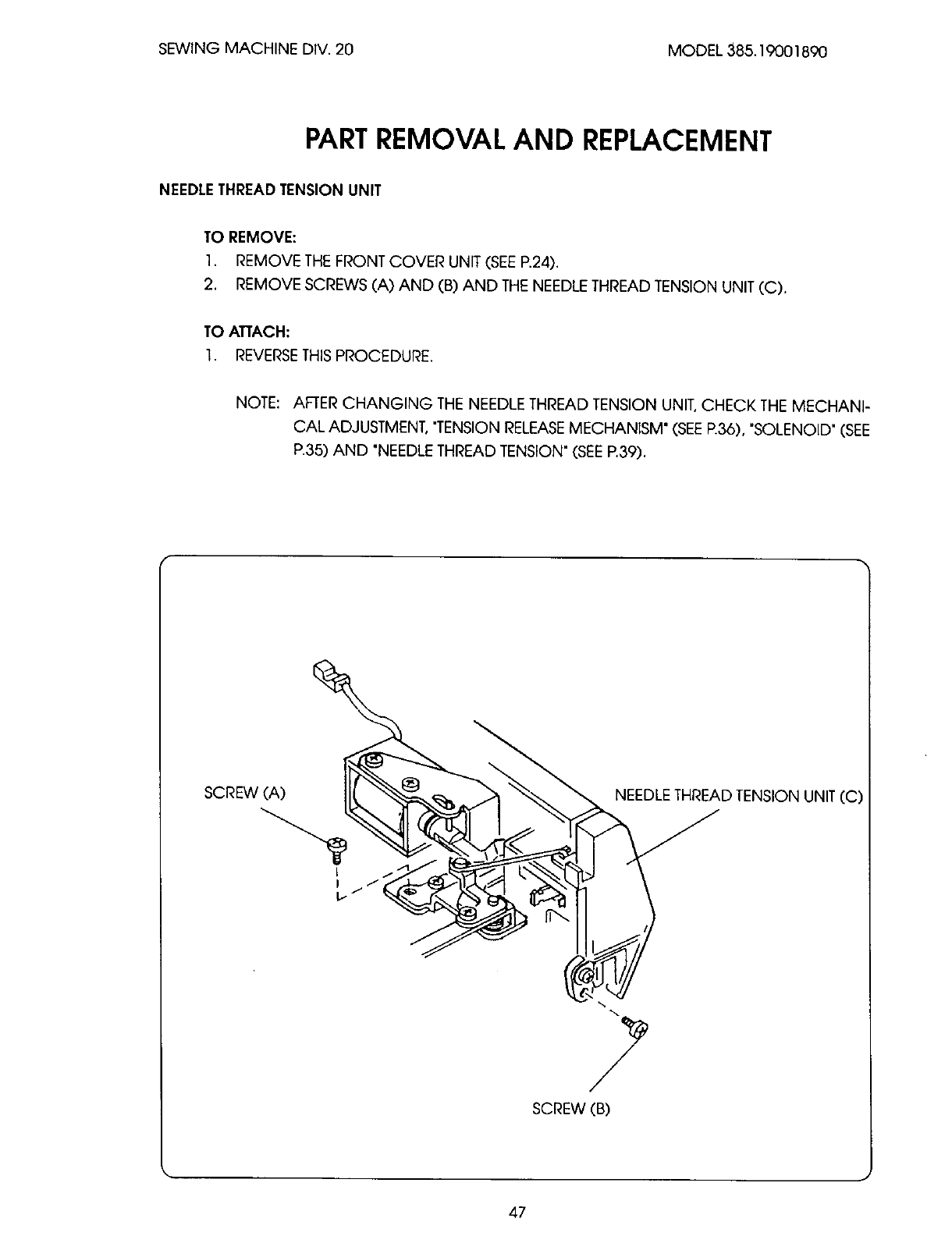

SEWING MACHINE DIV. 20 MODEL 385.19001890
PARTREMOVALAND REPLACEMENT
NEEDLETHREAD TENSION UNIT
TO REMOVE:
1. REMOVE THE FRONT COVER UNIT (SEEP.24).
2. REMOVE SCREWS (A) AND (B) AND THE NEEDLE THREAD TENSION UNIT (C).
TO ATTACH:
1. REVERSETHIS PROCEDURE.
NOTE: AFTER CHANGING THE NEEDLE THREAD TENSION UNIT, CHECK THE MECHANI-
CAL ADJUSTMENT, "TENSION RELEASEMECHANISM" (SEE P.36), "SOLENOID" (SEE
P.35) AND "NEEDLE THREAD TENSION" (SEE P.39).
SCREW (A)
L
THREAD TENSION UNIT (C)
SCREW (B)
47
SEWING MACHINE DIV. 20 MODEL 385.19001890
PARTREMOVAL AND REPLACEMENT

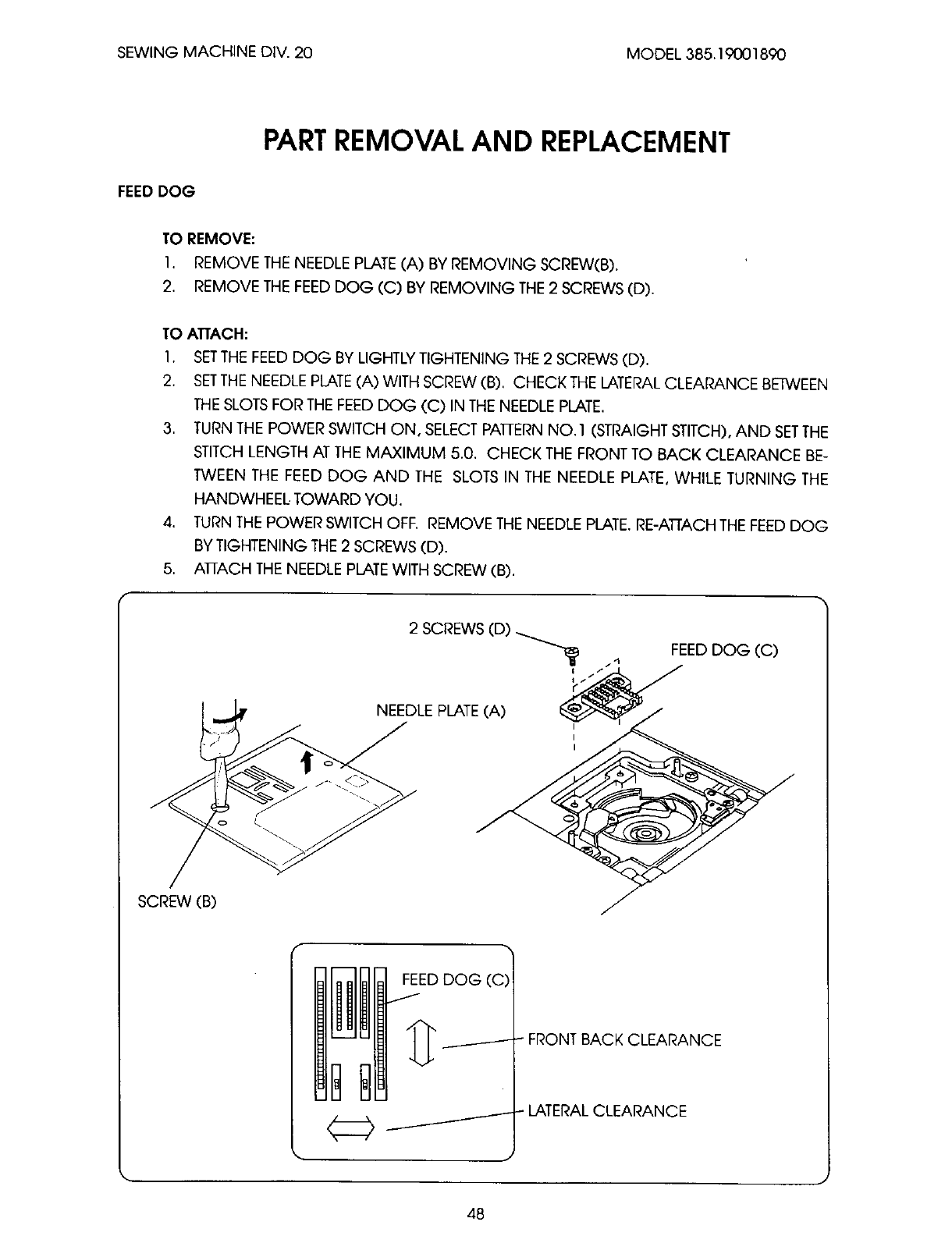

FEED DOG
TO REMOVE:
1. REMOVE THE NEEDLE PLATE (A) BY REMOVING SCREW(B).
2. REMOVE THE FEEDDOG (C) BY REMOVING THE2 SCREWS (D).
TO ATrACH:
I. SETTHE FEED DOG BY LIGHTLY TIGHTENING THE 2 SCREWS (D).
2. SETTHE NEEDLE PLATE (A)WITH SCREW (B),CHECK THE LATERAL CLEARANCE BETWEEN
THE SLOTS FOR THE FEED DOG (C) INTHE NEEDLE PLATE.
3, TURN THE POWER SWITCH ON, SELECT PAITERN NO.I (STRAIGHT STITCH),AND SET THE
STITCH LENGTH AT THE MAXIMUM 5.0. CHECK THE FRONT TO BACK CLEARANCE BE-
TWEEN THE FEED DOG AND THE SLOTS IN THE NEEDLE PLATE, WHILE TURNING THE
HANDWHEEL TOWARD YOU.
4. TURN THE POWER SWITCH OFF. REMOVE THE NEEDLE PLATE.RE-AITACH THE FEED DOG
BY TIGHTENING THE 2 SCREWS (D).
5. AYrACH THE NEEDLE PLATE WITH SCREW (B).
2 SCREWS (D) FEED DOG (C)
NEEDLE PLATE(A)
I
I
I
SCREW (B)
FEED DOG (C)
J
- FRONT BACK CLEARANCE
-LATERAL CLEARANCE
48

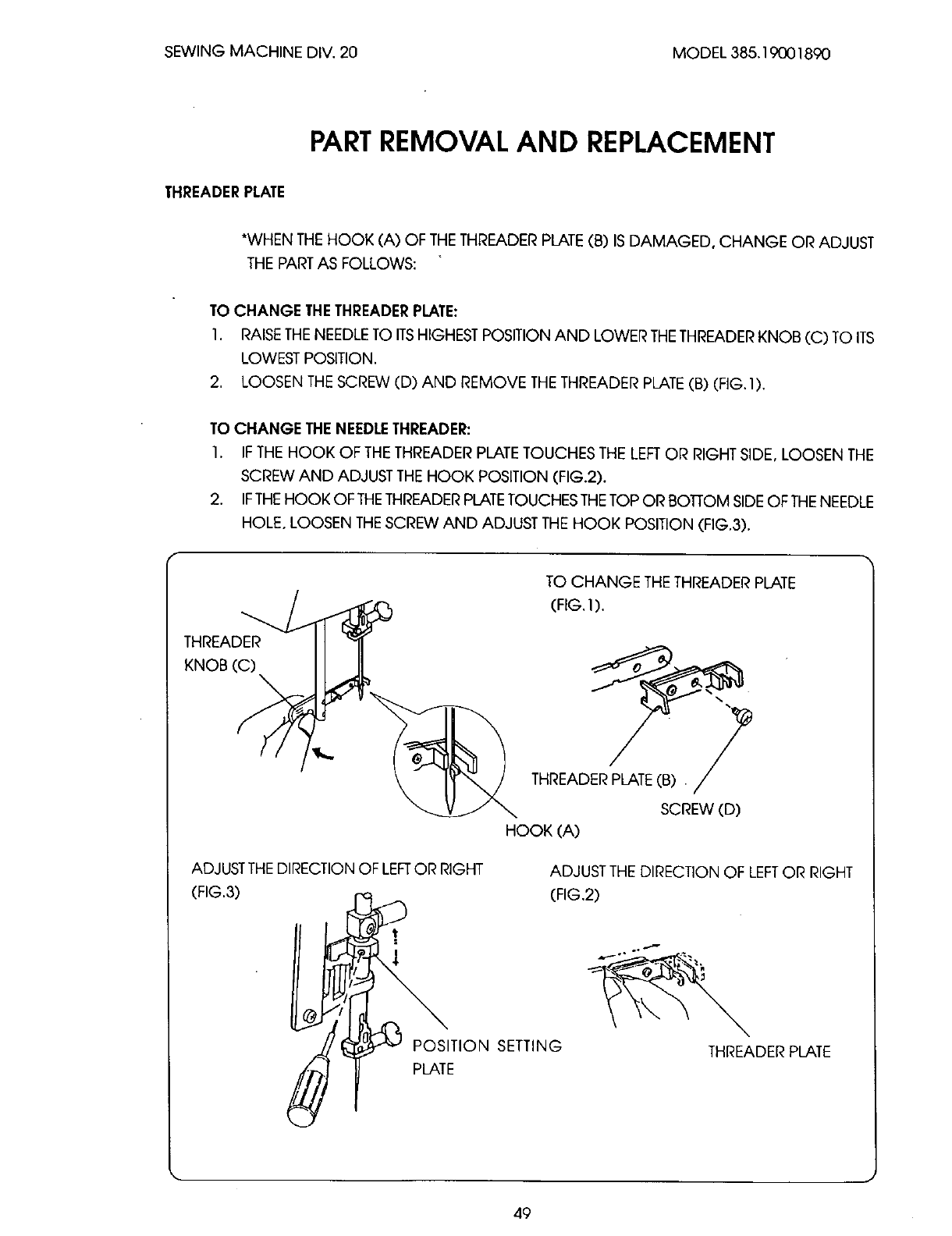

SEWING MACHIN EDIV. 20 MODEL 385.19001890
PARTREMOVALAND REPLACEMENT
THREADERPLATE
*WHEN THEHOOK (A) OF THETHREADER PLATE(8) IS DAMAGED, CHANGE OR ADJUST
THE PARTAS FOLLOWS:
TO CHANGE THETHREADERPLATE:
1. RAISETHENEEDLETO ITSHIGHEST POSITION AND LOWER THETHREADER KNOB (C) TO ITS
LOWEST POSITION.
2, LOOSEN THE SCREW (D) AND REMOVE THETHREADER PLATE(B) (FIG.l).
TO CHANGE THE NEEDLETHREADER:
1. IFTHE HOOK OF THETHREADER PLATE TOUCHES THE LEFTOR RIGHT SIDE, LOOSEN THE
SCREW AND ADJUST THEHOOK POSITION (FIG.2).
2. IFTHEHOOK OF THETHREADERPLATETOUCHES THETOP OR BOTTOM SIDEOF THENEEDLE
HOLE, LOOSEN THESCREW AND ADJUST THE HOOK POSITION (FIG.3).
THREADER
KNOB (C)
TO CHANGE THE THREADER PLATE
(FIG. l).
THREADER PLATE(B)
SCREW (D)
HOOK(_
ADJUSTTHEDIRECTION OF LEFTOR RIGHT
(FIG.3)
ADJUST THE DIRECTION OF LEFTOR RIGHT
(FIG.2)
POSITION SETTING
PLATE
THREADER PLATE
49

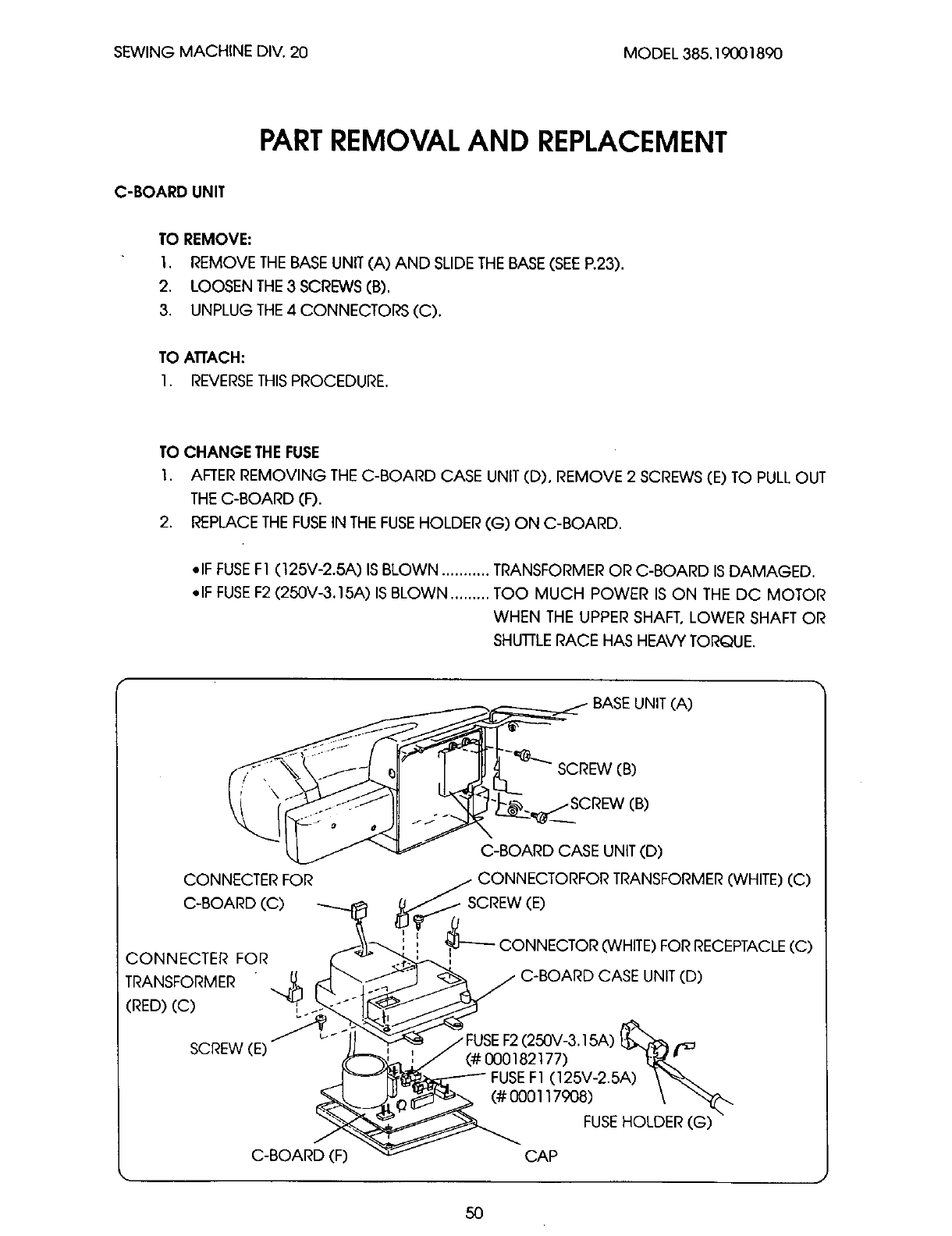

SI=nA/ING MACHINE DIV. 20 MODEL 385.19001890
C-BOARD UNIT
TO REMOVE:
I.
2.
3.
PARTREMOVALAND REPLACEMENT
REMOVE THE BASE UNIT (A) AND SLIDE THE BASE (SEEP.23).
LOOSEN THE3 SCREWS (B).
UNPLUG THE4 CONNECTORS (C).
TO ATTACH:
1. REVERSETHISPROCEDURE.
TO CHANGE THE FUSE
1. AFTER REMOVING THE C-BOARD CASE UNIT (D), REMOVE 2 SCRE'WS(E) TO PULL OUT
THEC-BOARD (F).
2. REPLACE THE FUSEIN THE FUSEHOLDER (G) ON C-BOARD.
•IFFUSEF1 (125V-2.5A) IS BLOWN ........... TRANSFORMER OR C-BOARD IS DAMAGED.
• IFFUSEF2 (250V-3.15A) IS BLOWN ......... TOO MUCH POWER IS ON THE DC MOTOR
WHEN THE UPPER SHAFT, LOWER SHAFT OR
SHUI-rLE RACE HAS HEAVY TORQUE.
BASE UNIT (A)
CONNECTER FOR
C-BOARD (C)
CONNECTER FOR
TRANSFORMER
(RED) (C)
SCREW (E)
C-BOARD (F)
SCREW (B)
(B)
C-BOARD CASE UNIT (D)
CONNECTORFOR TRANSFORMER (WHITE) (C)
SCREW (E)
(WHITE) FOR RECEPTACLE(C)
CASE UNIT (D)
r_
F2 (250V-3.15A) _/._
(#000182177)
FUSEF1 (125V-2.5A) \_:,,,,
_000117908) \
FUSEHOLDER (G)
CAP
50

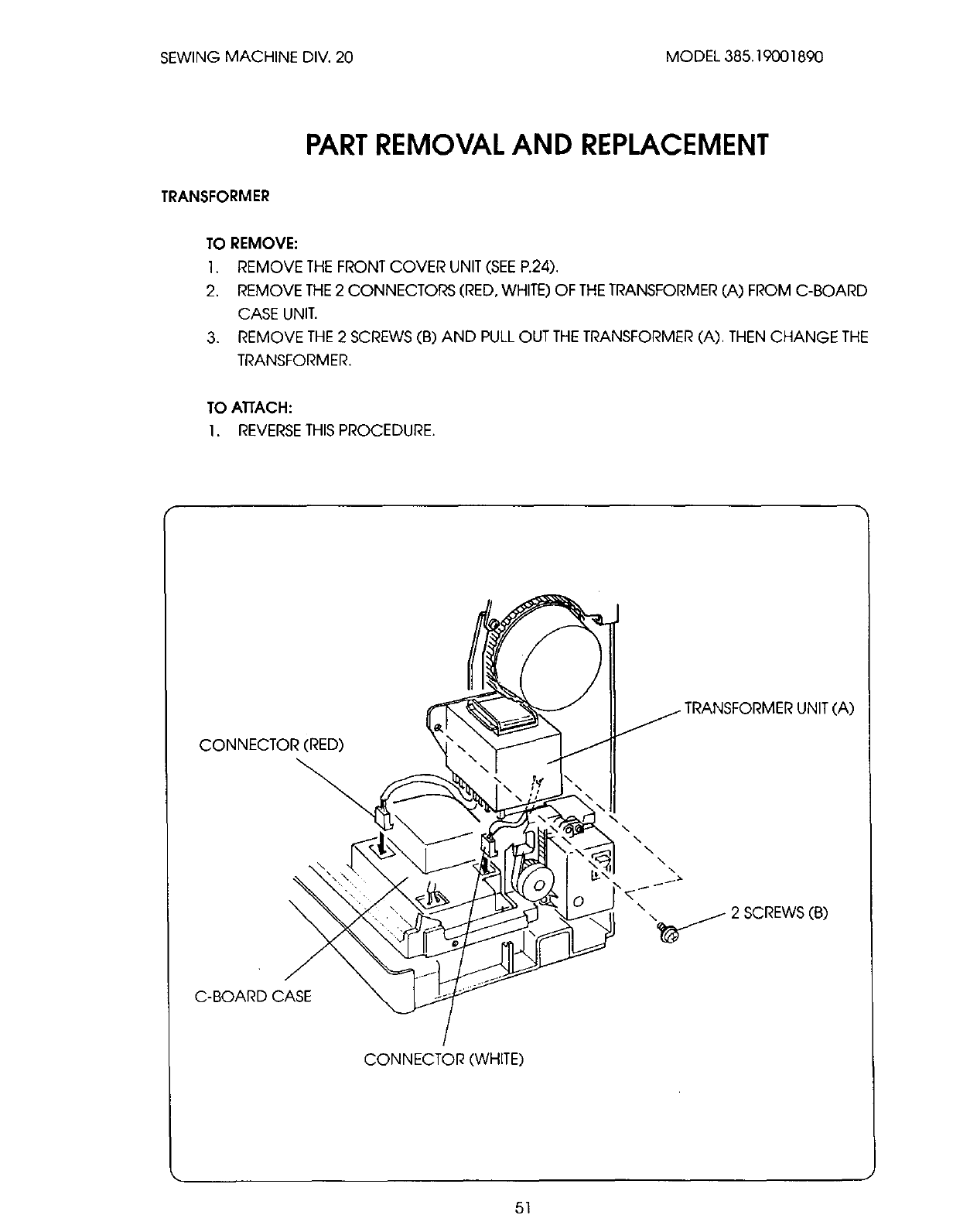

SEWING MACHINE DIV. 20 MODEL 385.19001890
PARTREMOVALAND REPLACEMENT
TRANSFORMER
TO REMOVE:
1. REMOVE THE FRONT COVER UNIT (SEE P.24).
2. REMOVE THE2 CONNECTORS (RED, WHITE) OF THETRANSFORMER (A) FROM C-BOARD
CASE UNIT.
3. REMOVE THE 2 SCREWS (B) AND PULL OUT THETRANSFORMER (A), THEN CHANGE THE
TRANSFORMER.
TO ATTACH:
I. REVERSE THISPROCEDURE.
CONNECTOR (RED)
\
\\
\\\
\
-,_1/2 SCREWS (B)
[A)
C-BOARD CASE
CONNECTOR (WHITE)
51

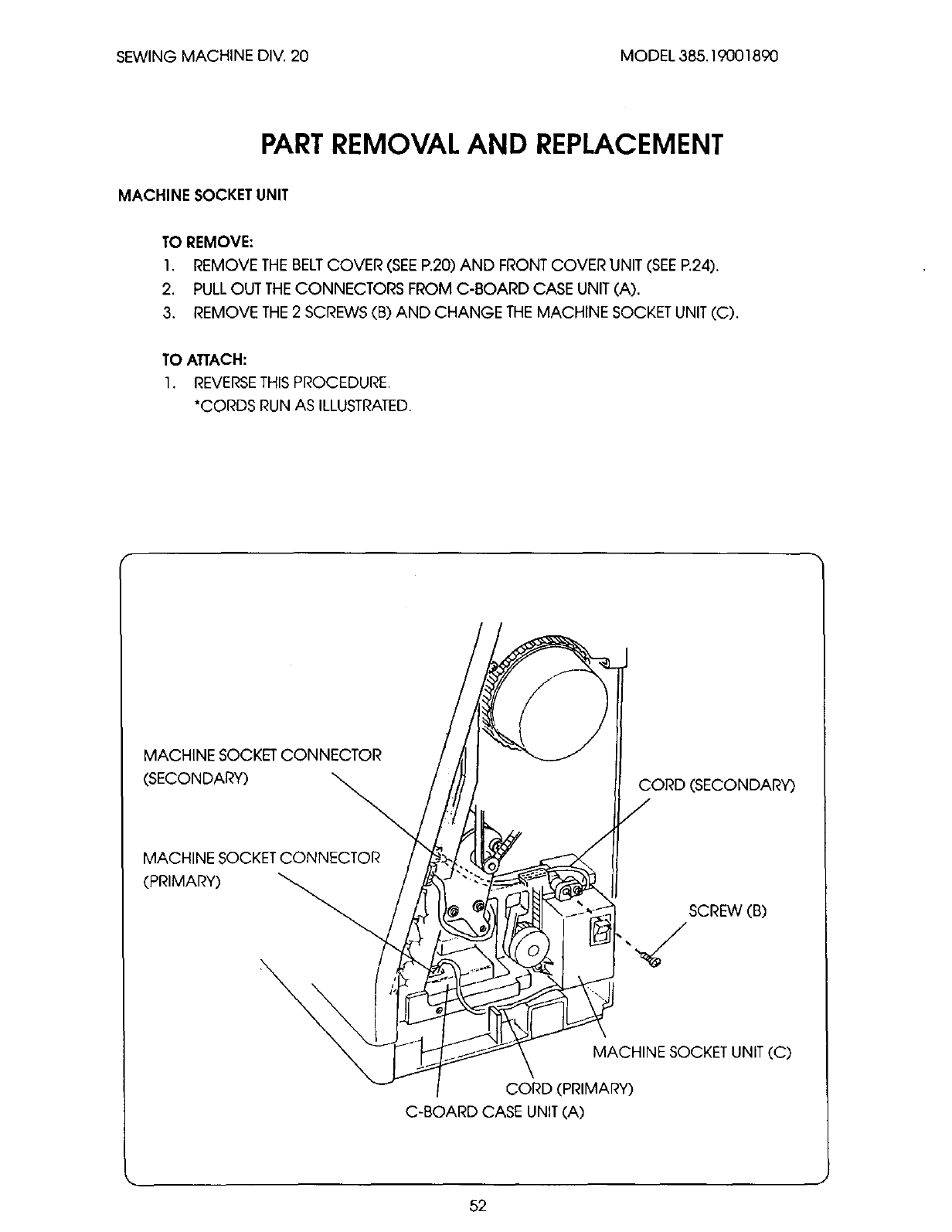

SEWING MACHINE DIV. 20 MODEL 385.19001890
PARTREMOVAL AND REPLACEMENT
MACHINE SOCKET UNIT
TO REMOVE:
1. REMOVE THE BELTCOVER (SEEP.20) AND FRONT COVER UNIT (SEE P.24).
2. PULL OUT THE CONNECTORS FROM C-BOARD CASE UNIT (A).
3. REMOVE THE 2 SCREWS (B) AND CHANGE THE MACHINE SOCKET UNIT (C).
TO AI'TACH:
1. REVERSETHIS PROCEDURE.
*CORDS RUN AS ILLUSTRATED.
MACHINE SOCKET CONNECTOR
(SECONDARY) CORD (SECONDARY)
MACHINE SOCKET CONNECTOR
(PRIMARY)
SCREW (B)
\
MACHINE SOCKET UNIT (C)
CORD (PRIMARY)
C-BOARD CASE UNIT(A)
52

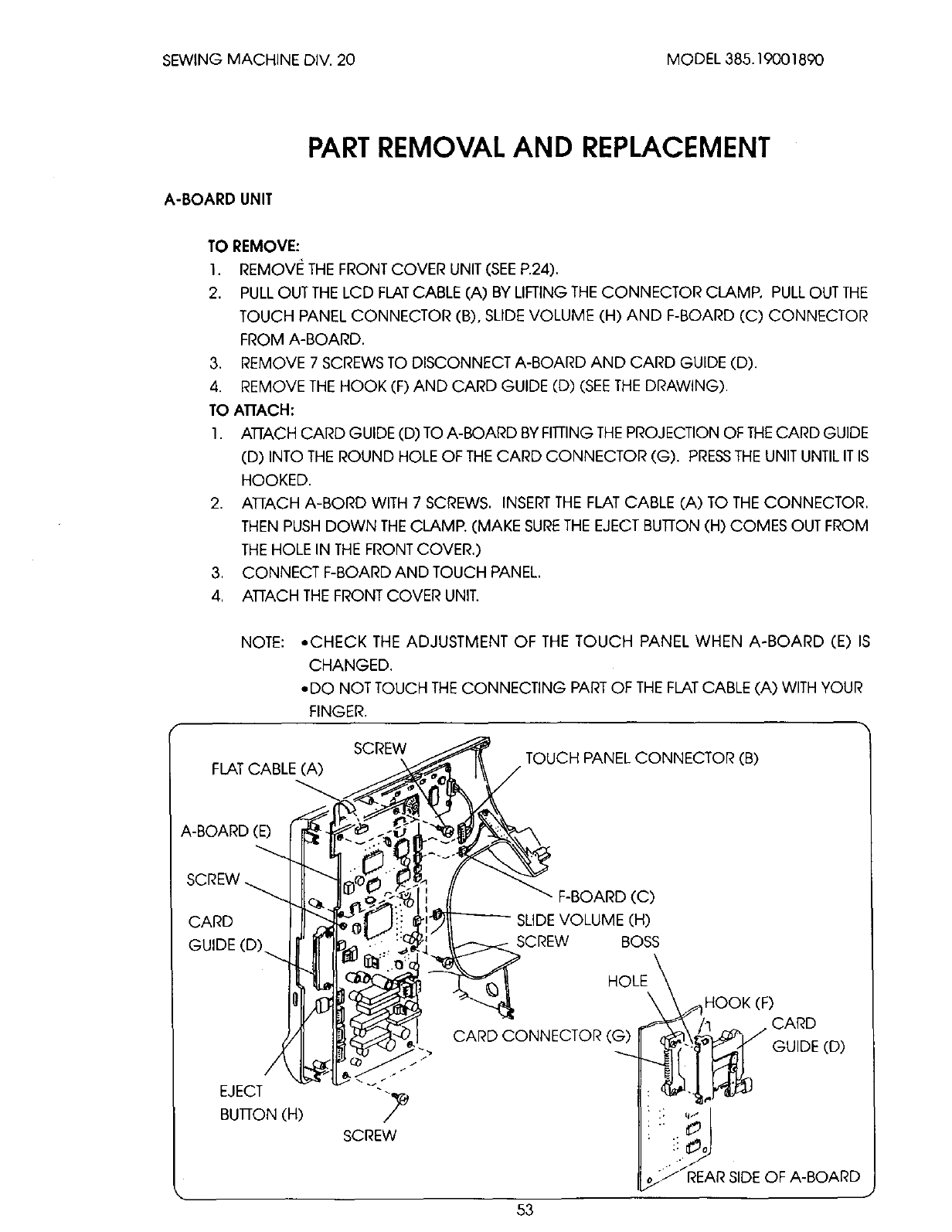

SEWING MACHINE DIV. 20 MODEL 385.19001890
PARTREMOVAL AND REPLACEMENT
A-BOARD UNIT
TO REMOVE:
1. REMOV!e THE FRONT COVER UNIT (SEEP.24).
2. PULL OUT THE LCD FLATCABLE (A) BY LIFTING THE CONNECTOR CLAMP, PULL OUT THE
TOUCH PANEL CONNECTOR (B), SLIDE VOLUME (H) AND F-BOARD (C) CONNECTOR
FROM A-BOARD.
3. REMOVE 7 SCREWS TO DISCONNECT A-BOARD AND CARD GUIDE (D).
4. REMOVE THE HOOK (F) AND CARD GUIDE (D) (SEETHE DRAWING).
TO ATTACH:
1. ATrACH CARD GUIDE (D) TO A-BOARD BY FITTINGTHEPROJECTION OF THECARD GUIDE
(D) INTO THE ROUND HOLE OF THECARD CONNECTOR (G). PRESSTHE UNIT UNTIL ITIS
HOOKED.
2. ATTACH A-BORD WITH 7 SCREWS. INSERTTHE FLAT CABLE (A) TO THE CONNECTOR,
THEN PUSH DOWN THECLAMP. (MAKE SURETHE EJECT BUIION (H) COMES OUT FROM
THE HOLE IN THE FRONT COVER.)
3, CONNECT F-BOARD AND TOUCH PANEL.
4, ATTACH THE FRONT COVER UNIT.
NOTE: ,,CHECK THE ADJUSTMENT OF THE TOUCH PANEL WHEN A-BOARD (E) IS
CHANGED.
*DO NOT TOUCH THECONNECTING PART OF THE FLATCABLE (A) WITH YOUR
FINGER,
IA FLATCABLE (A) SCREW --_ _ TOUCH PANEL CONNECTOR (B) i
-8OARD E) -::
SCREW _
/ GUIDE (b)_ J_" _'7_,_ ". "=_,[ /_ SCREW BOSS /
__" kL_< .-"
iBUrtON(H) 7 :: ,- i|
| SCREW " "_oJ /
J
53
SEWINGMACHINEDIV.20 MODEL385.19001890

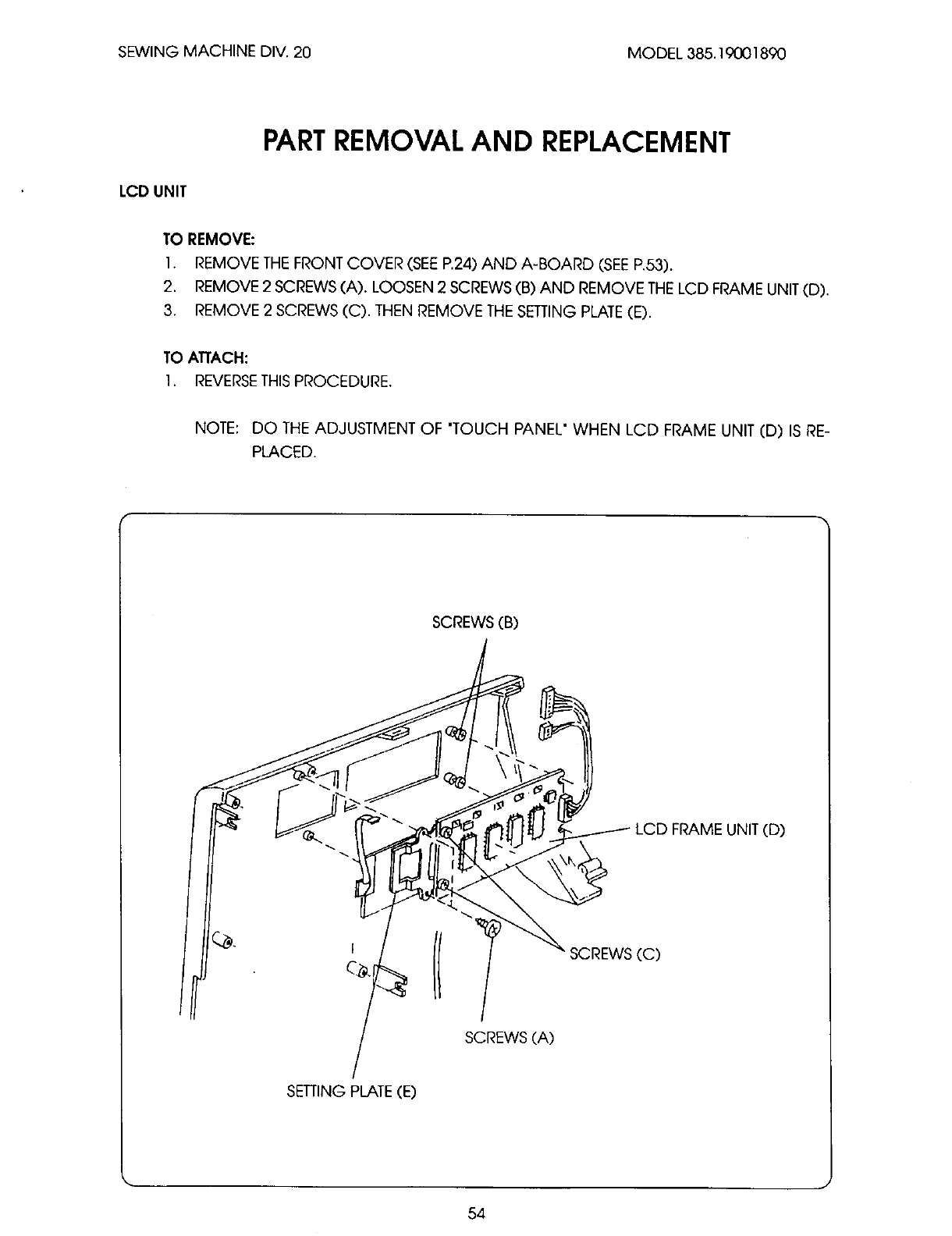

LCD UNIT
TO REMOVE:
I.
2.
3.
PARTREMOVAL AND REPLACEMENT
REMOVE THE FRONT COVER (SEEP.24) AND A-BOARD (SEE P.53).
REMOVE 2 SCREWS (A). LOOSEN 2 SCREWS (B) AND REMOVE THELCD FRAME UNIT (D).
REMOVE 2 SCREWS (C). THEN REMOVE THESETTING PLATE (E).
TO ATTACH:
I. REVERSE THISPROCEDURE.
NOTE: DO THE ADJUSTMENT OF "TOUCH PANEL* WHEN LCD FRAME UNIT (D) IS RE-
PLACED.
SCREWS (B)
UNIT(D)
SETTING PLATE (E)
SCREWS (A)
SCREWS (C)
54

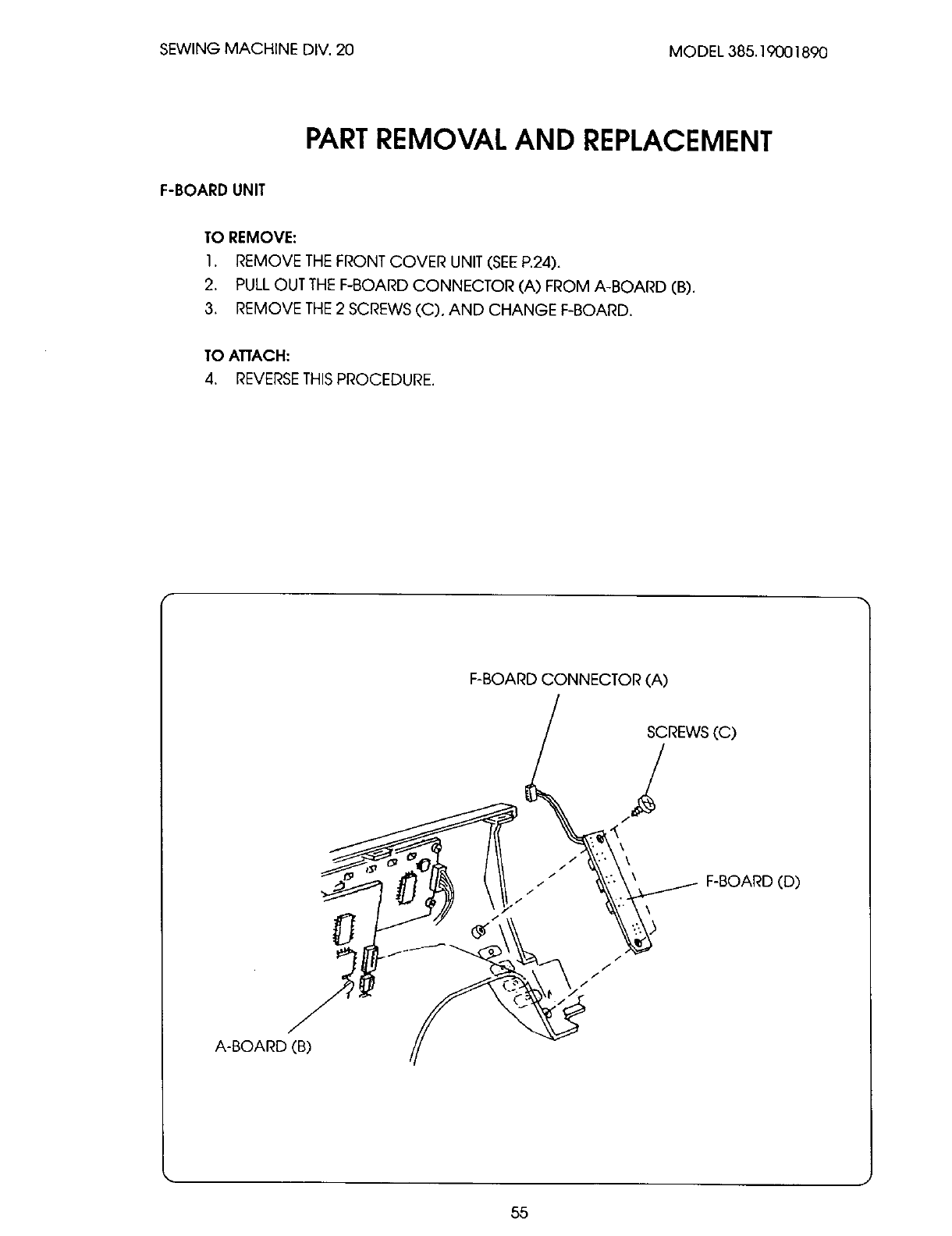

SEWINGMACHINEDIV.20 MODEL385.19001890
PARTREMOVAL AND REPLACEMENT
F-BOARD UNIT
TO REMOVE:
I. REMOVE THE FRONT COVER UNIT (SEEP.24).
2. PULL OUT THE F-BOARD CONNECTOR (A)FROM A-BOARD (B).
3. REMOVE THE 2 SCREWS (C),AND CHANGE F-BOARD.
TO ATTACH:
4. REVERSE THISPROCEDURE.
A-BOARD (B)
F-BOARD CONNECTOR (A)
SCREWS (C)
l
F-BOARD (D)
55
SEWING MACHINE DIV. 20 MODEL 385.19001890
PARTREMOVALAND REPLACEMENT

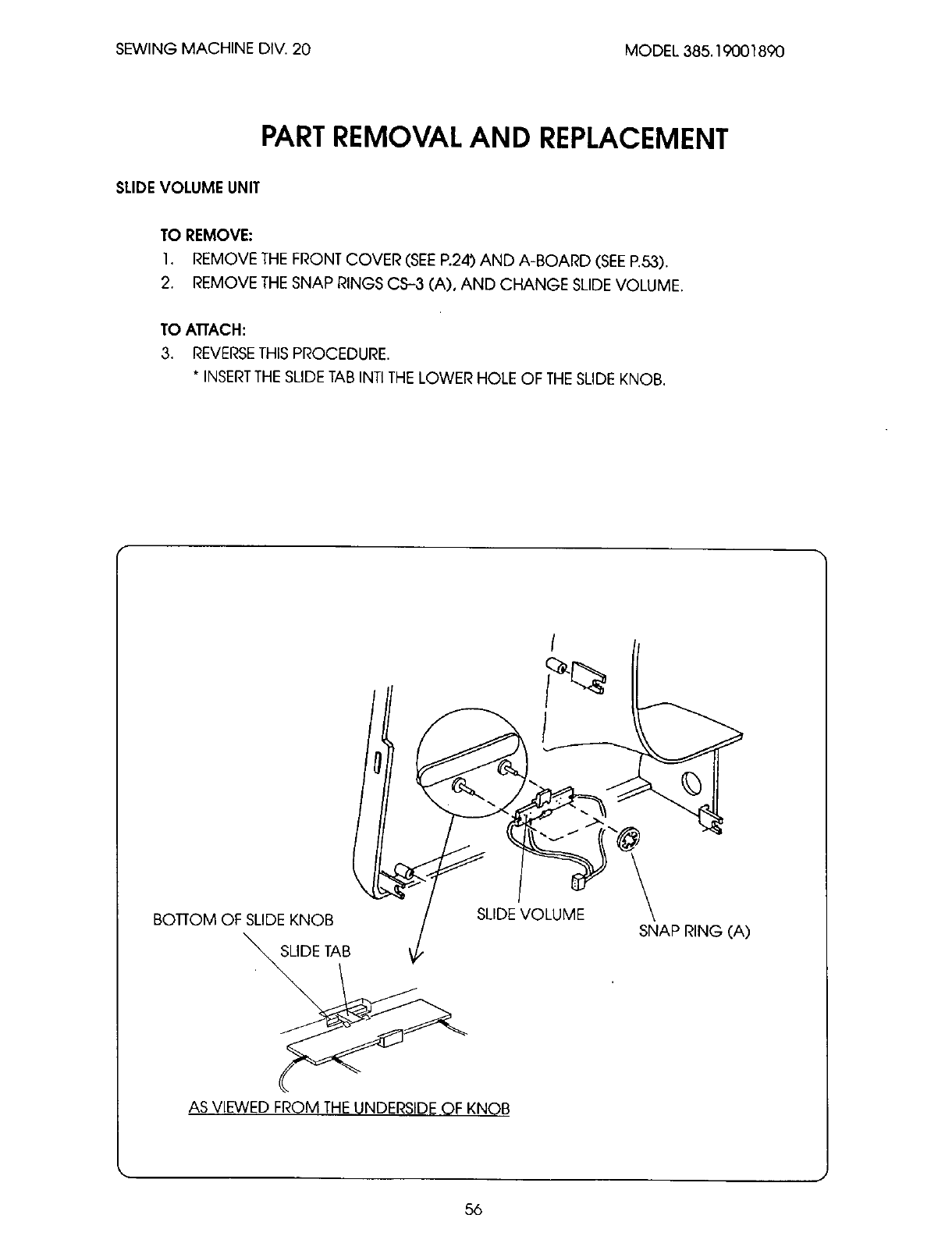

SLIDE VOLUME UNIT
TO REMOVE:
1. REMOVE THE FRONT COVER (SEE P.24) AND A-BOARD (SEEP.53).
2. REMOVE THE SNAP RINGS CS-3 (A), AND CHANGE SLIDE VOLUME.
TO ATTACH:
3. REVERSETHIS PROCEDURE.
* INSERTTHESLIDE TAB INTITHE LOWER HOLE OF THESLIDE KNOB.
BOTTOM OF SLIDE KNOB
AS VIEWED FROM THE UNDERSIDE OF KNOB
SLIDEVOLUME \
SNAP RING (A)
56
SEWINGMACHINEDIV.20 MODEL385.19001890
PARTREMOVALAND REPLACEMENT

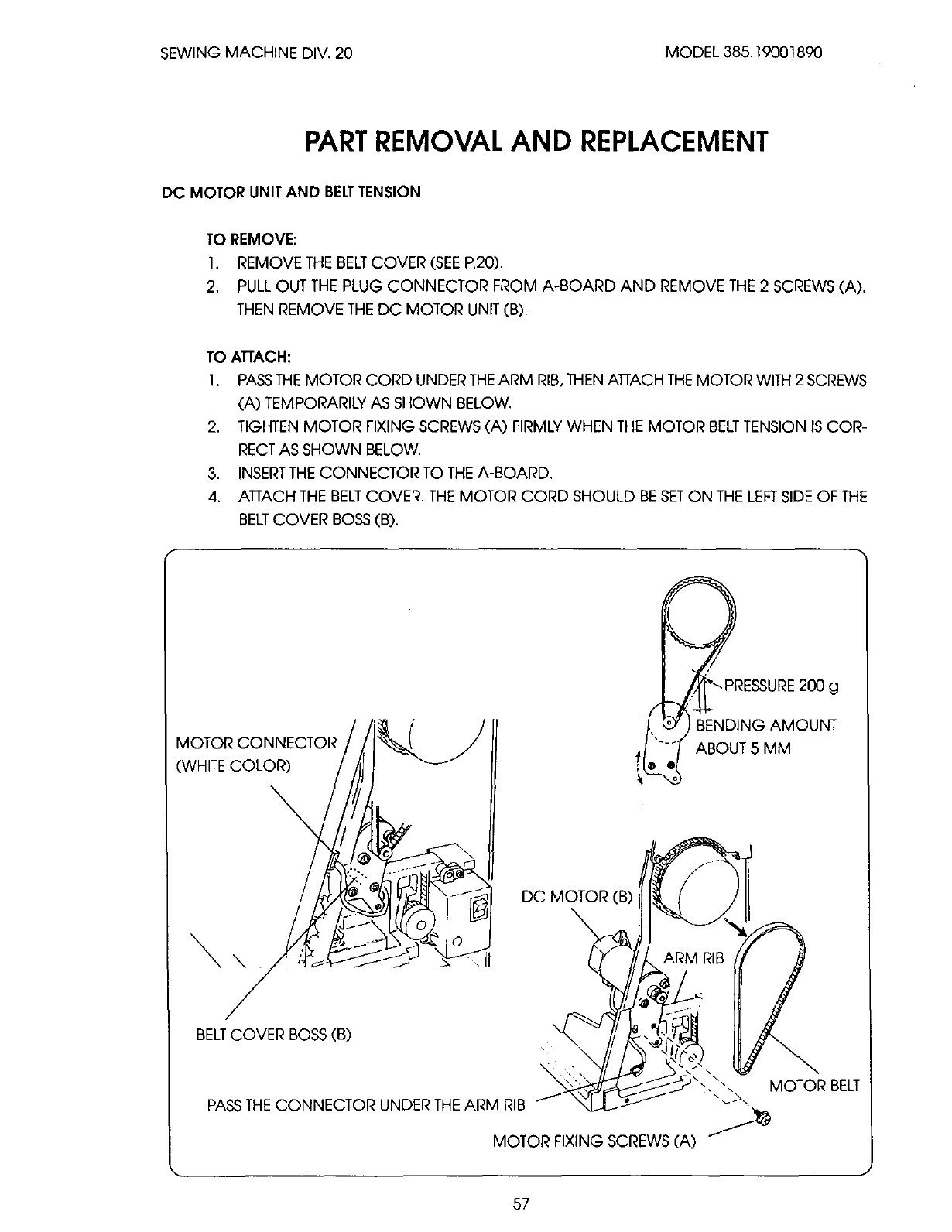

DC MOTOR UNIT AND BELTTENSION
TO REMOVE:
1. REMOVE THE BELTCOVER (SEEP.20).
2. PULL OUT THE PLUG CONNECTOR FROM A-BOARD AND REMOVE THE 2 SCREWS (A).
THEN REMOVE THE DC MOTOR UNIT (B).
TO ATTACH:
1. PASSTHEMOTOR CORD UNDER THEARM RIB, THEN ATrACH THEMOTOR WITH 2 SCREWS
(A) TEMPORARILY AS SHOWN BELOW.
2. TIGHTEN MOTOR FIXING SCREWS (A) FIRMLY WHEN THE MOTOR BELTTENSION IS COR-
RECT AS SHOWN BELOW.
3. INSERTTHE CONNECTOR TO THEA-BOARD.
4. ATTACH THE BELTCOVER. THE MOTOR CORD SHOULD BESETON THE LEFTSIDE OF THE
BELTCOVER BOSS (B).
V1OTORCONNECTOR
(WHITE COLOR)
\
"_ PRESSURE200 g
BENDING AMOUNT
ABOUT 5 MM
DC MOTOR (B)
\
BELTCOVER BOSS (B)
", MOTOR BELT
PASSTHE CONNECTOR UNDER THE ARM RIB "'_\
MOTOR FIXING SCREWS (A) "
57

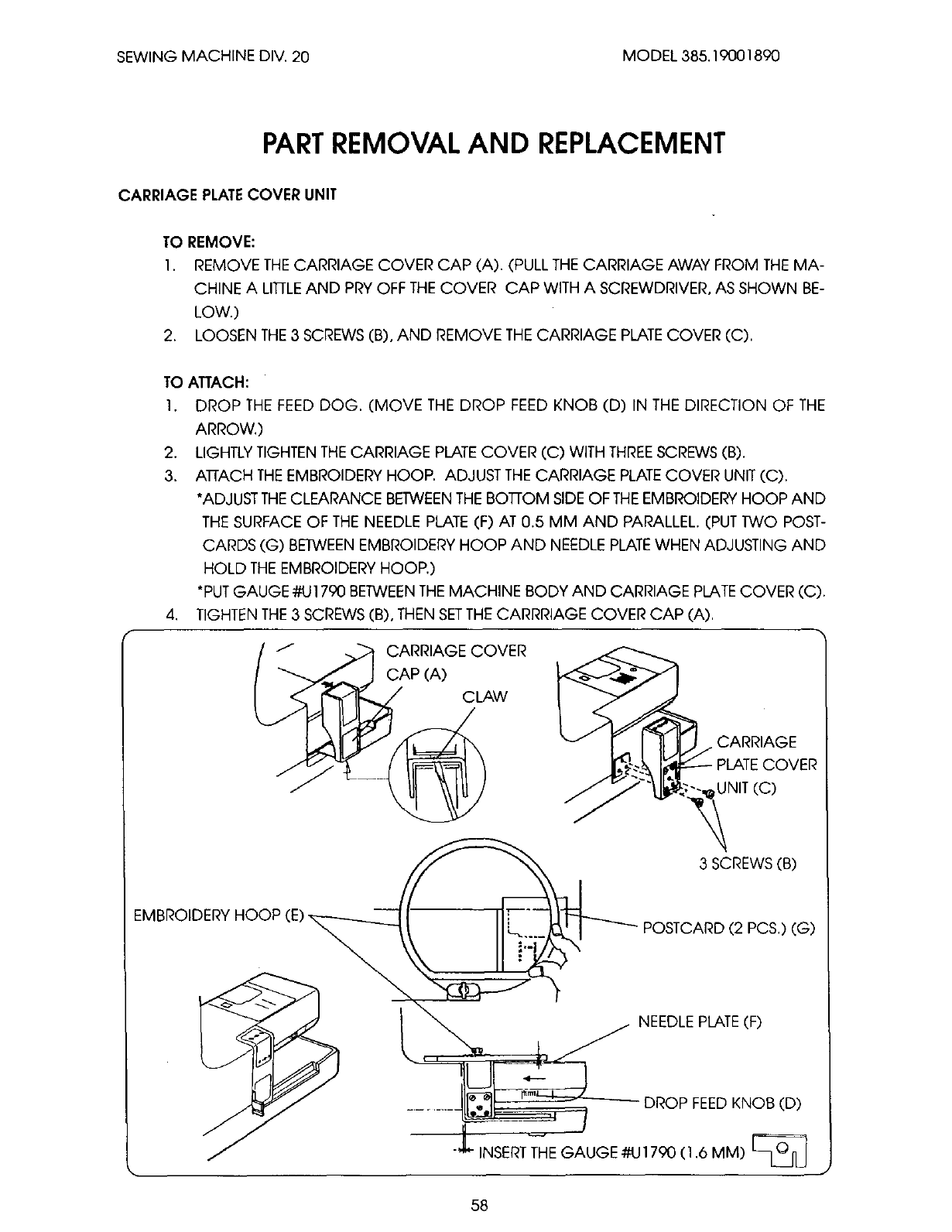

SEWING MACHINE DIM 20 MODEL 385.19001890
PARTREMOVAL AND REPLACEMENT
CARRIAGE PLATECOVER UNIT
TO REMOVE:
1. REMOVE THE CARRIAGE COVER CAP (A). (PULL THECARRIAGE AWAY FROM THE MA-
CHINE A LIT[LE AND PRY OFF THE COVER CAP WITH A SCREWDRIVER, AS SHOWN BE-
LOW.)
2. LOOSEN THE 3 SCREWS (B), AND REMOVE THE CARRIAGE PLATE COVER (C),
TO ATTACH:
1. DROP THE FEED DOG. (MOVE THE DROP FEED KNOB (D) IN THE DIRECTION OF THE
ARROW.)
2. LIGHTLY TIGHTEN THECARRIAGE PLATE COVER (C) WITH THREESCREWS (B).
3. AI-I'ACH THEEMBROIDERY HOOP. ADJUST THE CARRIAGE PLATECOVER UNIT (C).
*ADJUST THECLEARANCE BETWEENTHE BoYroM SIDE OF THEEMBROIDERY HOOP AND
THE SURFACE OF THE NEEDLE PLATE (F) AT 0.5 MM AND PARALLEL. (PUT TWO POST-
CARDS (G) BETWEEN EMBROIDERY HOOP AND NEEDLE PLATEWHEN ADJUSTING AND
HOLD THEEMBROIDERY HOOP.)
*PUT GAUGE _J1790 BETWEENTHE MACHINE BODY AND CARRIAGE PLATE COVER (C).
4. TIGHTEN THE3 SCREWS (B), THENSETTHE CARRRIAGE COVER CAP (A),
CARRIAGE COVER
CAP (A)
CLAW
EMBROIDERY HOOP (E)
_._- "_:_NIT (C)
3 SCREWS (B)
_ POSTCARD (2 PCS,) (G)
NEEDLE PLATE(F)
- DROP FEED KNOB (D)
INSERTTHEGAUGE #U1790 (1.6 M M)
58
SEWING MACHINE DIV. 20 MODEL 385.19001890
PARTREMOVAL AND REPLACEMENT
BUTTONHOLE SENSOR
TO REMOVE:
1. REMOVE THE FRONT COVER (SEE P.24).
2. REMOVE SCREW (A), AND DETACH THE BUTTONHOLE SENSOR (B).
TO ATTACH:
1. AI_ACH THE BUI-FONHOLE SENSOR (B) WITH SCREW (A). PULLTHE SENSORFORWARD SO
THAT ITTOUCHES THE SETTING PLATE.
*MAKE SUREITDOESN'T TOUCH THE BUTTONHOLE SHIELD PLATE.(SEEILLUSTRATION,)
2. PASSTHE CORD, AND ATTACH THE FRONT COVER AS ILLUSTRATED.
*AFTER REPLACING THE BUTTONHOLE SENSOR, SEW A FEW BUTTONHOLES.
IFSOMETHING ISABNORMAL, ADJUST THE "BUI"fONHOLE LEVER" (SEEP.40).
BUTTONHOLE SENSOR CORD
- J SCREW (A)
BUTTONHOLE
SENSOR (B)
SEllING PLATE(C)
BUTTONHOLE SHIELD PLATE(D)
_NOT ToBUTTONHOLESENSOR (B)
BUTTONHOLE SHIELD
PLATE(D)
UCHING
59
SEWING MACHINE DIV. 20 MODEL 385.19001890
PARTREMOVAL AND REPLACEMENT
UPPERSHAFTSENSOR
TO REMOVE:
1. REMOVE THE FRONT COVER (SEEP.24).
2. PUSH THE HOLDERS (A) AND REMOVE THEUPPERSHAFT SENSOR UNIT (B).
TO ATTACH:
1. ATTACH THE NEW UPPER SHAFT SENSOR UNIT INTO THESETTING PLATE.
*AFTER REPLACING THE UPPER SHAFT SENSOR UNIT, MAKE SUREIT DOESN'T TOUCH THE
UPPRESHAFT SHIELD PLATE(C).
2. ATTACH THE FRONT COVER.
UPPERSHAFTSHIELD PLATE (C)
UPPERSHAFT
HOLDER (A)
(A)
UPPERSHAFTSENSOR UNIT (B)
6O

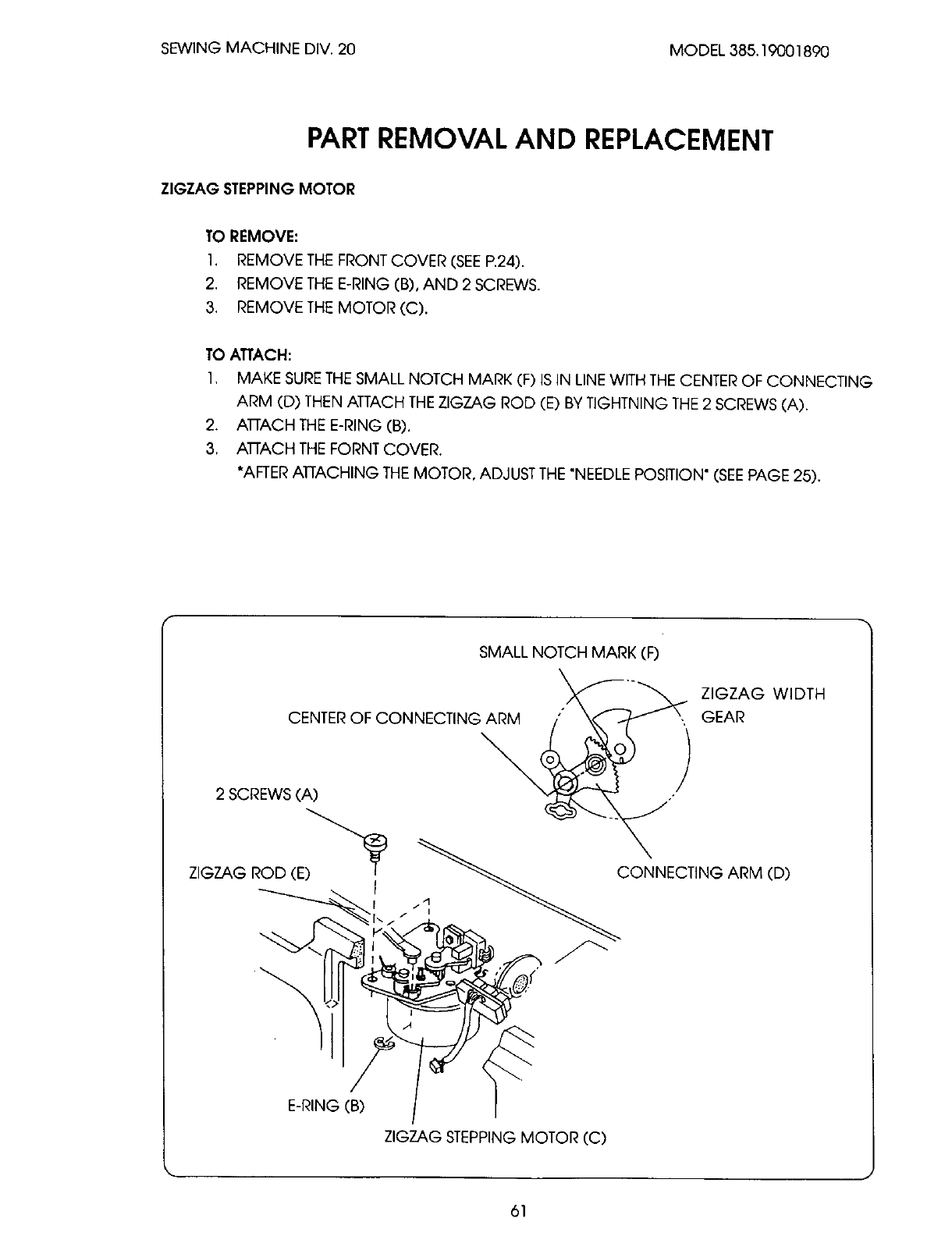

SEWING MACHINE DIV. 20 MODEL 385.19001890
PARTREMOVAL AND REPLACEMENT
ZIGZAG STEPPING MOTOR
TO REMOVE:
1. REMOVE THE FRONT COVER (SEEP.24).
2. REMOVE THE E-RING (B), AND 2 SCREWS.
3. REMOVE THE MOTOR (C).
TO ATTACH:
1. MAKE SURETHE SMALL NOTCH MARK (F) IS IN LINEWITH THECENTER OF CONNECTING
ARM (D) THEN ATTACH THEZIGZAG ROD (E) BYTIGHTNING THE 2 SCREWS (A).
2. ATTACH THE E-RING (B).
3, ATTACH THE FORNT COVER.
*AFTER ATTACHING THE MOTOR, ADJUST THE "NEEDLE POSITION" (SEEPAGE 25).
E-RING (B)
ZIGZAG STEPPING MOTOR (C)
61
SEVVING MACHINE DIV. 20 MODEL 385.19001890
PARTREMOVAL AND REPLACEMENT
FEEDSTEPPING MOTOR
TO REMOVE:
1. REMOVE THE FRONT COVER (SEE P.24), AND BASE UNIT (SEEP.23).
2. REMOVE THE E-RING (B), AND 2 SCREWS (A).
3. REMOVE THE MOTOR (C) TOGETHER WITH FEED ROD (D).
TO ATrACH:
1. MAKE SURETHELARGE NOTCH MARK (G) IS IN LINE WITHTHECENTER OF THE PINSIN THE
CONNECTING ARM (E), THEN SLIDE THE FEED ROD (D) ONTO THE FEEDARM PIN (F).
AND THENATTACH THEFEEDSTEPPING MOTOR BYTIGHTNING THE2 SCREWS(A). (TIGHTEN
THE2 SCREWS AT THE SPOTTHAT WHERE THE FEEDARM MOVES SMOOTHLY.)
2. AI-rACH THE E-RING (B).
3. AI-rACH THE BASEAND FRONT COVER.
*AFTERATTACHING THEMOTOR, ADJUST THE "STRETCHSTITCHFEEDBALANCE" (SEEP.37),
2 SCREWS (A)
CONNECTING ARM (E)
FEED ROD (D)
FEED STEPPING MOTOR (C)
FEED GEAR _p__ _
E-RING (B)
LARGE NOTCH MARK (G)
/
FEEDARM
PIN (F)
CENTER OF NONNECTING ARM
62
SEWING MACHINE DIV. 20 MODEL 385,19001890
HOW TO FIX ATHREADJAMMING ON THETHREAD
TAKE-UPLEVER
1. OPEN THE FACE PLATE AND LOOSEN THE SCREW (A) BY TURNING IN DIRECTION C
(CLOClGNtSE).
2. REMOVE THE JAMMED THREADS WITH THE TWEEZERS.
3. TIGHTEN SCREW (A) BY TURNING IN DIRECTION OF B(COUNTERCLOCKWISE).
NOTE: SCREW (A) IS A LEFT-HANDED SCREW.
(
SCREW (A)
C_I"WEEZERS(D)
63
SEWING MACHINE DIV. 20 MODEL 385.19001890
CHECKING ELECTRONIC PARTS
I.MACHINE SOCKET
PRIMARY (POWER CORD, POWER SWITCH)
*WITH THE POWER CORD CONNECTED AND THE POWER SWITCH TURNED ON, YOU
SHOULD SEEAPPROXIMATELY 120 VOLTS AC (WITH A VOLT METER) ON THE PRIMARY
CONNECTOR (N) (SEMI-OPAQUE).
,IN THIS CONDITION, WHEN THE POWER SWITCH IS TURNED OFF, MAKE SURE THE
POWER ACTUALLY GOES OFF (I.E. THATTHE SWITCH WORKS).
\
(N)
SECONDARY (FOOT CONTROL)
*CONNECT A GOOD WORKING FOOT CONTROL AND CHECK THE RESISTANCE OF
THE SECONDARY CONNECTOR (B) (WHITE) WITH THE FOOT CONTROL IN THE UP
POSITION. ABOUT ZERO OHMS IS NORMAL.
.WHEN THE CONTROL IS PRESSEDALL THE WAY DOWN, THE MULTI-METER SHOULD
SHOW ABOUT 10 KILO-OHMS (AFTER A FEW SECONDS).
(B)
64
SEWING MACHINE DIV. 20 MODEL 385.19001890
CHECKING ELECTRONICPARTS
2. C-BOARD
CONNECT THE TRANSFORMER TO C-BOARD AND TURN THE POWER SWITCH ON.
THE MULTI-METER SHOULD SHOW 35-42 VOLTS DC AT THE SECONDARY CONNECTOR
(M) (CNCA:BLUE).
C) 2
[ WIRING DIAGRAM ]
FI
CNCR 2.5A
Z_
CNCT I
CNCT2
F2
3.0A
J 2 IDBI CNC¢_
,_. t'
65

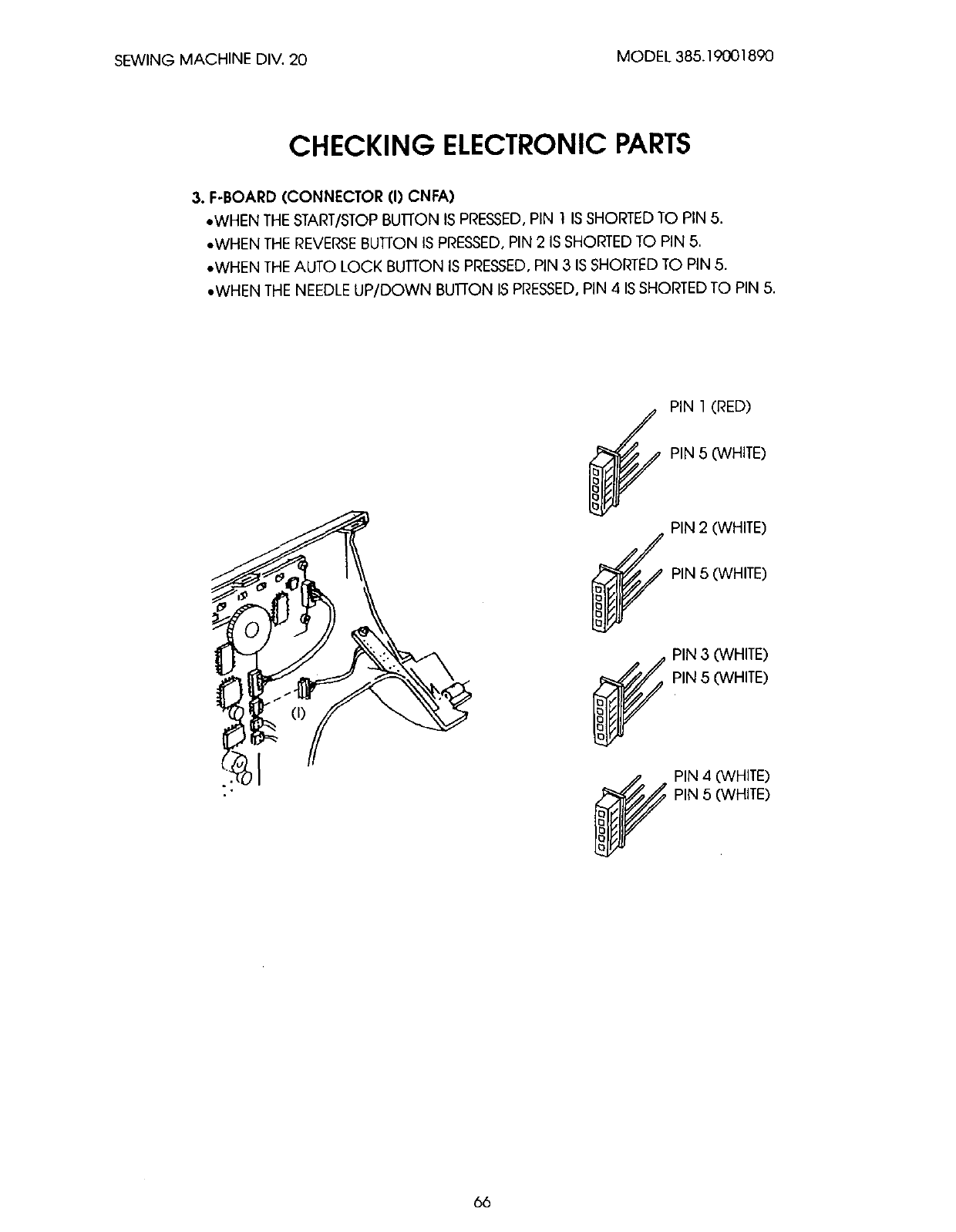

SEWING MACHINE DIV. 20 MODEL 385.19001890
CHECKING ELECTRONICPARTS
3.F'BOARD (CONNECTOR (I)CNFA)
*WHEN THE START/STOP BUTTON ISPRESSED, PIN I ISSHORTED TO PIN 5.
*WHEN THE REVERSE BUTrON ISPRESSED, PIN2 ISSHORTED TO PIN 5,
.WHEN THE AUTO LOCK BUTTON ISPRESSED, PIN 3 ISSHORTED TO PiN 5.
.WHEN THE NEEDLE UP/DOWN BUTTON ISPRESSED, PiN 4 ISSHORTED TO PIN 5.
PIN 1 (RED)
PIN 5 (WHITE)
PIN 2 (WHITE)
PIN 5 (WHITE)
PIN 3 (WHITE)
PIN 5 (WHITE)
PIN 4 (WHITE)
PIN 5 (WHITE)
66
SEWINGMACHINEDIV.20 MODEL385.19001890
CHECKING FLECTRONICPARTS
4. DC MOTOR (CONNECTOR (C) CNMA)
*RESISTANCE BETWEEN PIN 4 AND PIN 5 SHOULD BEOVER 1.7 OHMS. (MAKE SURETHE
CORD IS NOT CUT.)
\
(c)
PIN 5 (BLACK)
PIN 4 (RED)
5. FOOT CONTROL
*RESISTANCE BETWEEN THETIP AND THE SLEEVEOF THE JACK SHOULD BE APPROXI-
MATELY 0 OHMS. WHEN THE CONTROL IS PRESSEDALL THE WAY DOWN, THEMULTI-
METERSHOULD SHOW ABOUT 10 KILO-OHMS (AFTER A FEW SECONDS).
67
SEWING MACHINE DIV. 20 MODEL 385,19001890
CHECK ELECTRONIC PARTS
6. STEPPING MOTORS
ZIGZAG (D) AND FEED (E) STEPPING MOTORS:
•RESISTANCEBE1M/EENPIN 4AND PIN 5
PiN 4 AND PIN 6
PiN 9 AND PIN 8
PIN 9 AND PIN 7...
SHOULD ALL BEAPPROXIMATELY 12 OHMS.
(E)
PIN 5 (YELLOW)
PIN 4 (WHITE) ._
PIN 6 (BROWN)
PIN 4 (WHITE) ,_
PIN 9 (BLACK)
PIN 8 (BLUE)
PIN 9 (BLACK)
PIN 7 (RED)
X-AXIS (F) AND Y-AXIS (G) STEPPING MOTORS:
• RESISTANCEBETWEEN ABOVE PINS SHOULD BEAPPROXIMATELY 10.7 OHMS.
(F)
PIN 5 (YELLOW)
PIN 4 (BLACK) ._
PIN 6 (BLUE)
PIN 4 (BLACK) ._l
PIN 8 (BROWN)
PIN 9 (WHITE) _I
PiN 7 (RED)
PIN 9 (WHITE)
(G)
68
SEWING MACHINE DIV. 20 MODEL 385.19001890
CARE
(2)
_-,, , (3) _. /
(3) (4)
•CLEANING THEBOBBIN HOLDER
LOOSE THREADS AND DUST MAY CAUSE PUCKERED
STITCHESAND THREAD BREAKAGE DURING STITCHING.
CHECK FOR LINT BUILD-UP AFTER EACH GARMENT IS
COMPLETED.
TURN OFF THE POWER SWITCH OR UNPLUG THE
MACHINE.
1. REMOVE THE COVER PLATEBY SLIDING THE HOOK
COVER PLATE RELEASEBUI-rON TO THE RIGHT,
2. REMOVE THE BOBBIN TO BRUSH OUT DUST AND
LINT.(YOU MAY ALSO USE A SMALL VACUUM
CLEANER.)
3, INSERTTHEBOBBIN AND AFfACH THE HOOK COVER
PLATE.
•EXPOSING THE HOOK RACE
1. UNPLUG THEMACHINE AND REMOVE THE PRESSER
FOOT AND NEEDLE.
2. REMOVE THE SCREW ON THE LEFTSIDE OF THE
NEEDLE PLATE WITH THE SCREWDRIVER SUPPLIED
WITH THEMACHINE.
3. REMOVE THE NEEDLE PLATE AND TAKE OUT THE
BOBBIN.
4. LIFTUP THE BOBBIN HOLDER AND REMOVE IT,
•CLEANING THE HOOK RACE
CLEAN THE FEED DOGS, HOOK RACE AND BOBBIN
HOLDER WITHTHELINTBRUSHAND A SOFTDRYCLOTH.
•REPLACING THE BOBBIN HOLDER
INSERTTHE BOBBIN HOLDER SO THAT THE KNOB FITS
NEXTTO THESTOPPER IN THEHOOK RACE.
(1) STOPPER
(2) KNOB
INSERTTHE BOBBIN.
REPLACE THE NEEDLE PLATE, INSERTING THE TWO
NEEDLE PLATE GUIDE PINS INTO THE HOLES IN THE
NEEDLE PLATE.
REPLACE THESCREW.
(3) NEEDLE PLATEGUIDE PINS
(4) GUIDE HOLES
69

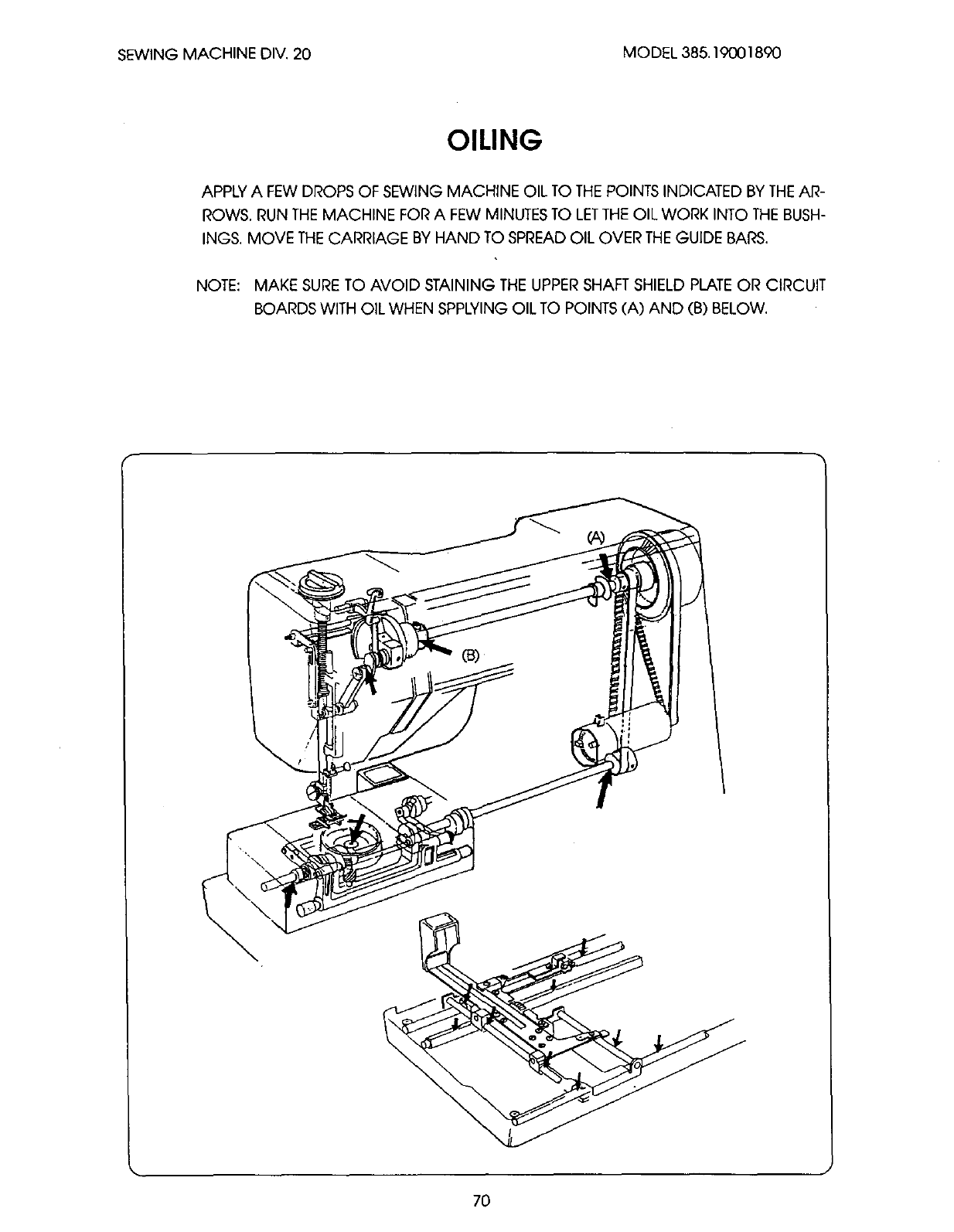

SEWING MACHINE DIV. 20 MODEL 385.19001890
OILING
APPLY A FEW DROPS OF SEWING MACHINE OIL TO THE POINTS INDICATED BY THE AR-
ROWS. RUN THE MACHINE FOR A FEW MINUTES TO LETTHE OIL WORK INTO THE BUSH-
INGS. MOVE THE CARRIAGE BY HAND TO SPREAD OIL OVER THEGUIDE BARS.
NOTE: MAKE SURE TO AVOID STAINING THE UPPER SHAFT SHIELD PLATE OR CIRCUIT
BOARDS WITH OIL WHEN SPPLYING OIL TO POINTS (A) AND (B) BELOW.
7O
SEWING MACHINE DIV. 20 MODEL 385.19001890
SPECIAL TOOLS REQUIRED
_DRIVER
THICKNESS GAUGE #LI 1790
*SOLENOID:
*HEIGHT OF EMBROIDERY
PRESSERFOOT P:
*BUTrONHOLE LEVER
*CARRIAGE PLATE COVER:
P.35
P.38
P,40
E58
PHILLIPSSCREW DRIVER
ALLEN SCREW DRIVER
__ [ SIZE:DLR4 ]
NCH
FEED DOG HEIGHT GAUGE #68499
(*FEED DOG HEIGHT: P.32-33
NEEDLE HEIGHT GAUGE _58168
(*NEEDLE BAR HEIGHT:
7
P.26-27 )
TESTPIN #68368
*NEEDLE TO SHUYrLETIMING: P.28-29"
*CLEARANCE BETWEEN NEEDLE
AND HOOK: P.30
(*NEEDLE TO SHUTTLETIMING: P,28-29 )
RADIAL TIMING
GAUGE SHEET
#U1369C
71

Navigation menu
