Use & Care Guide:

Manual de Uso y Cuidado

English /EFpafiol

Models, Modelos: 407.52702

l<enmore0

Dehumidifier

with ÷xterna pump

Deshurnidificador

con bornba e×terna

Sears Brands Management Corporation

Hoffman Estates,IL 60179 U.S.A.

www.sears.com

www.kenmore.com

PackageContents..........i.................iJ..i.._..2

Warranty ....................................................... 2

Safety Instructions ........................................ 3

Electrical Requirements ............................... 4

Removing Pump From Bucket ..................... 5

installation .................................................... 6

Key Features ................................................ 7

External Vertical Pump Kit.......................... 6,7

Control Panel .............................................. 8

Water Disposing Options ............................ 9

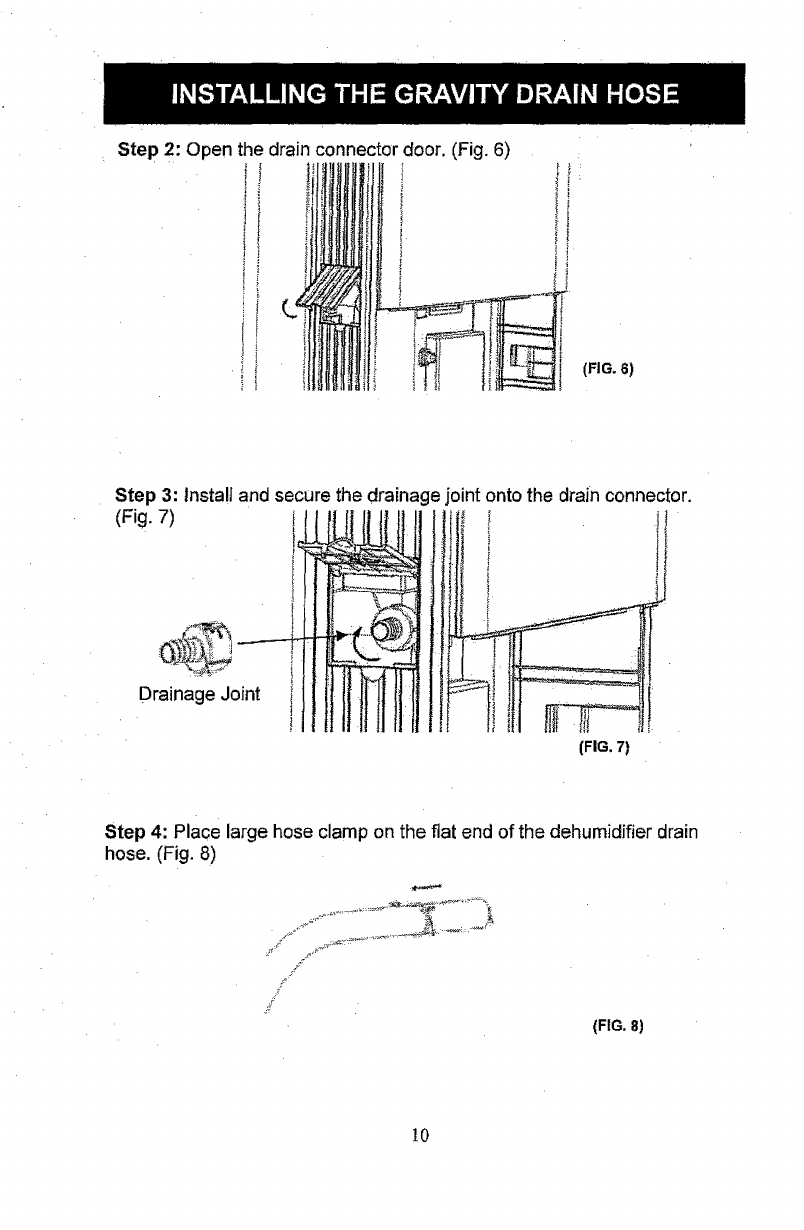

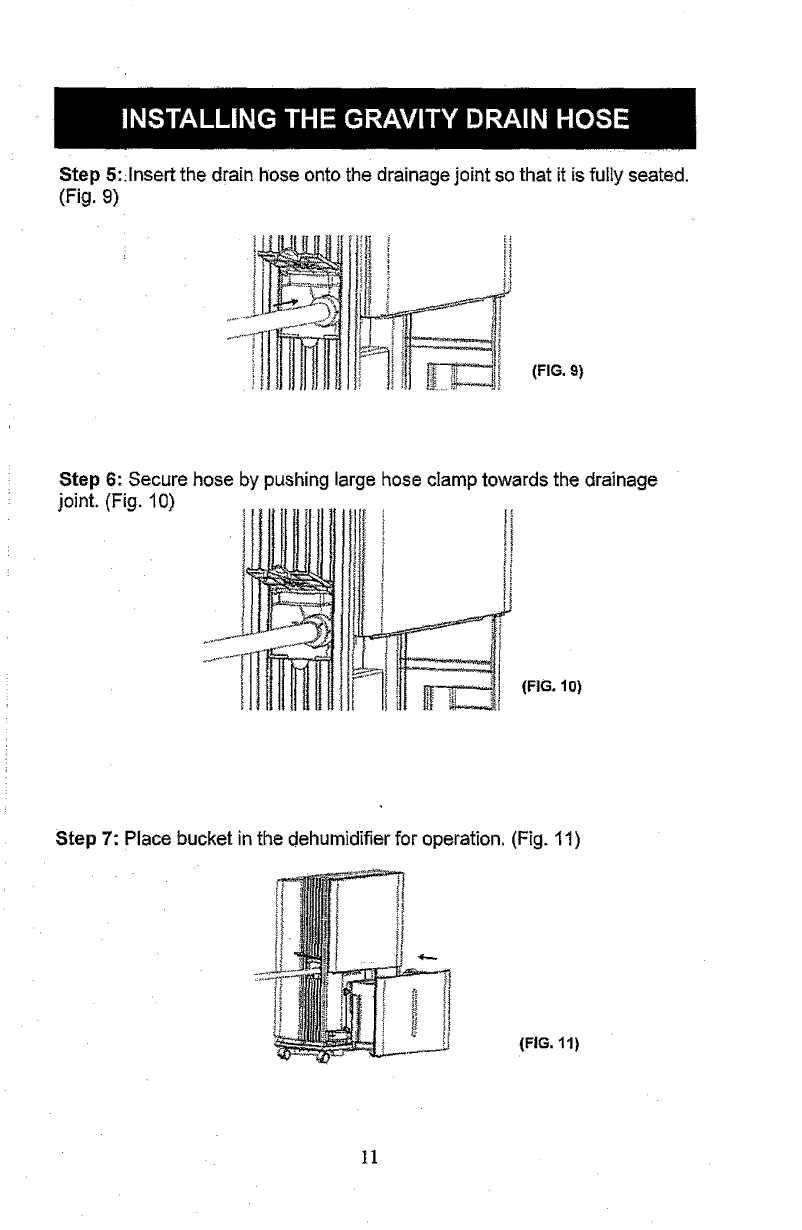

Installing the Gravity Drain H0se.i ........i/10,11

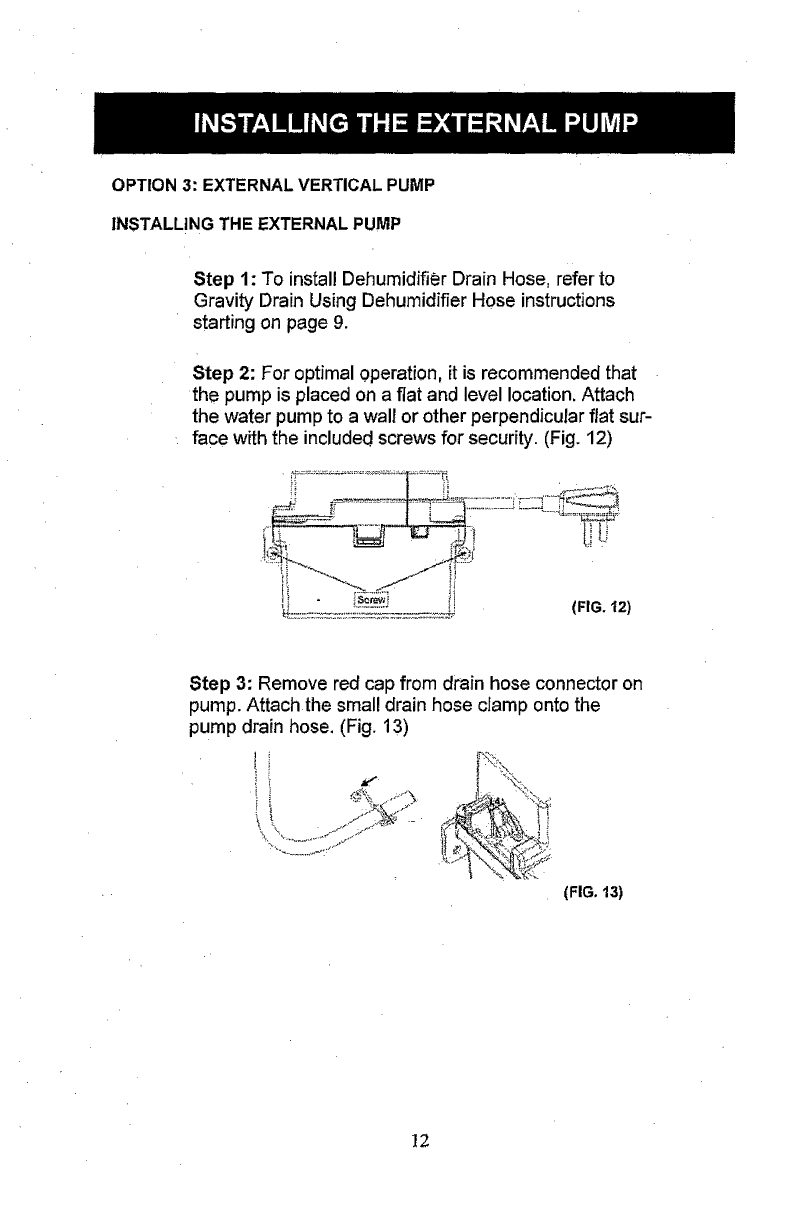

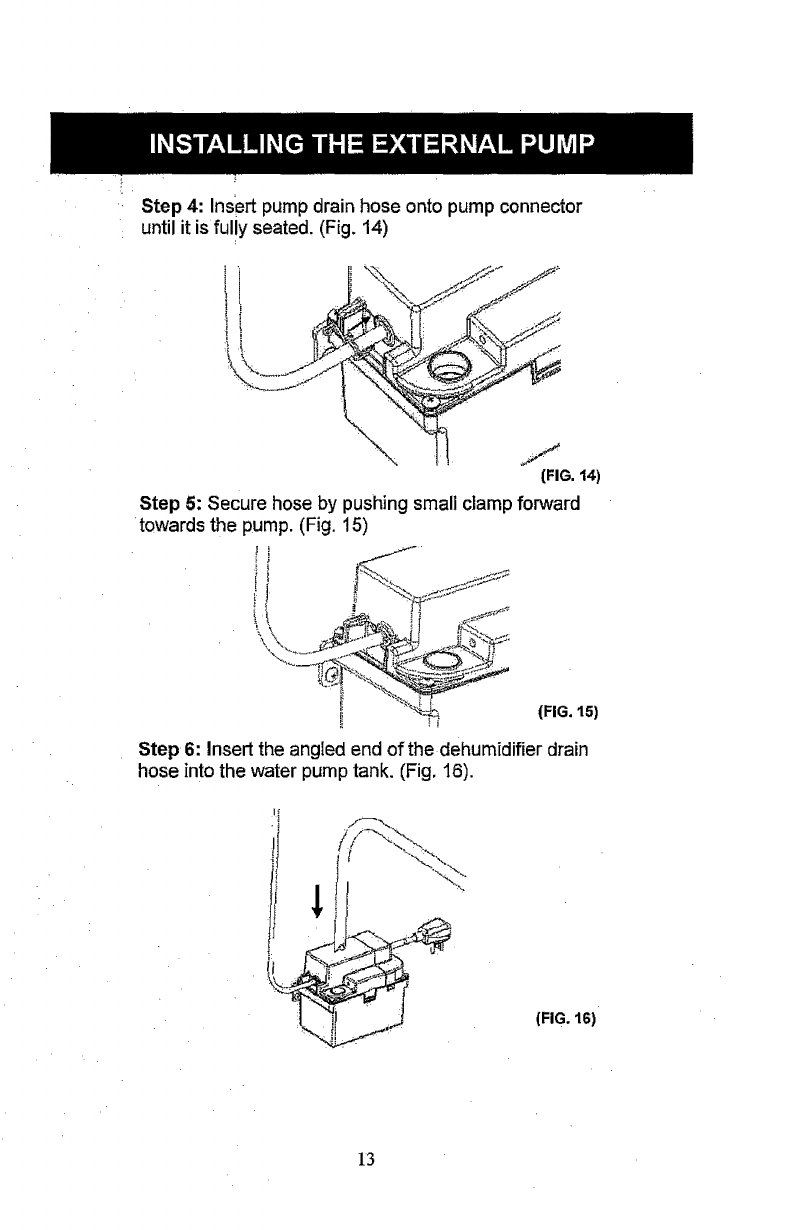

installing the External Pump ................. 12,13

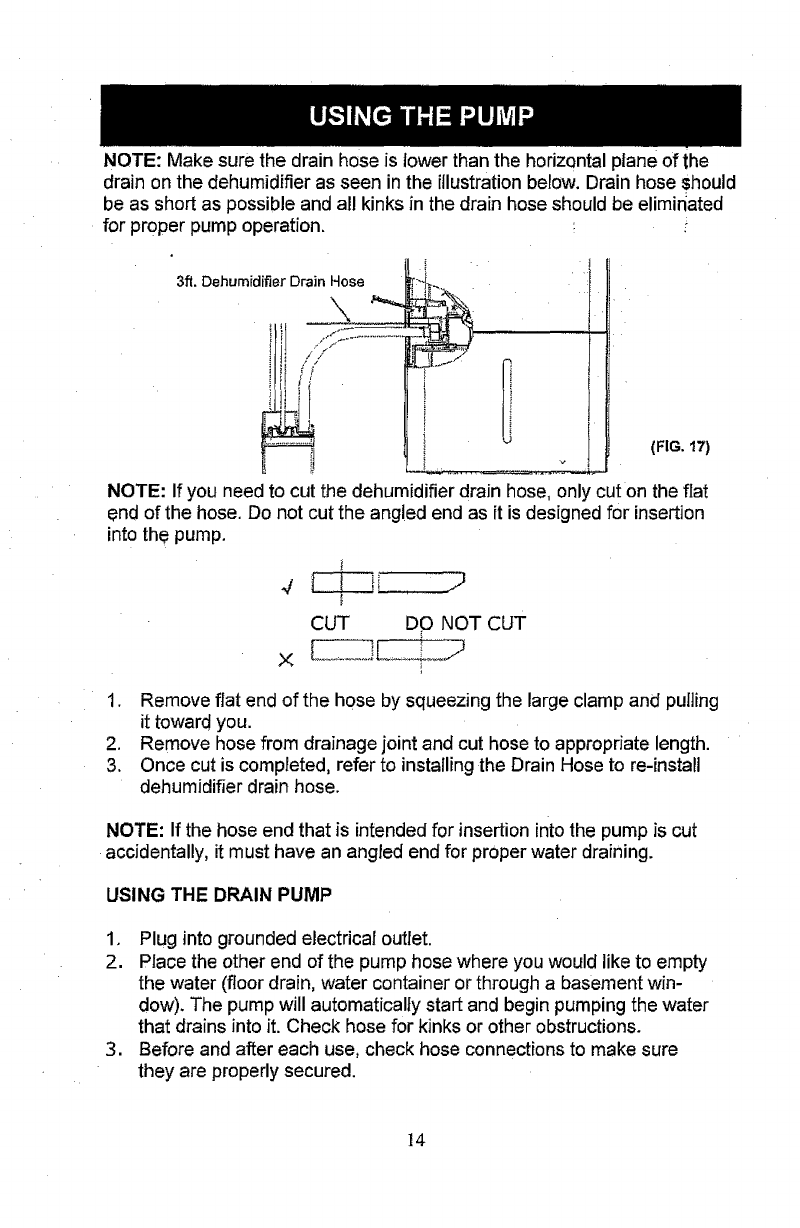

Using the Pump ........................................ 14

Care and Maintenance ............................ 15

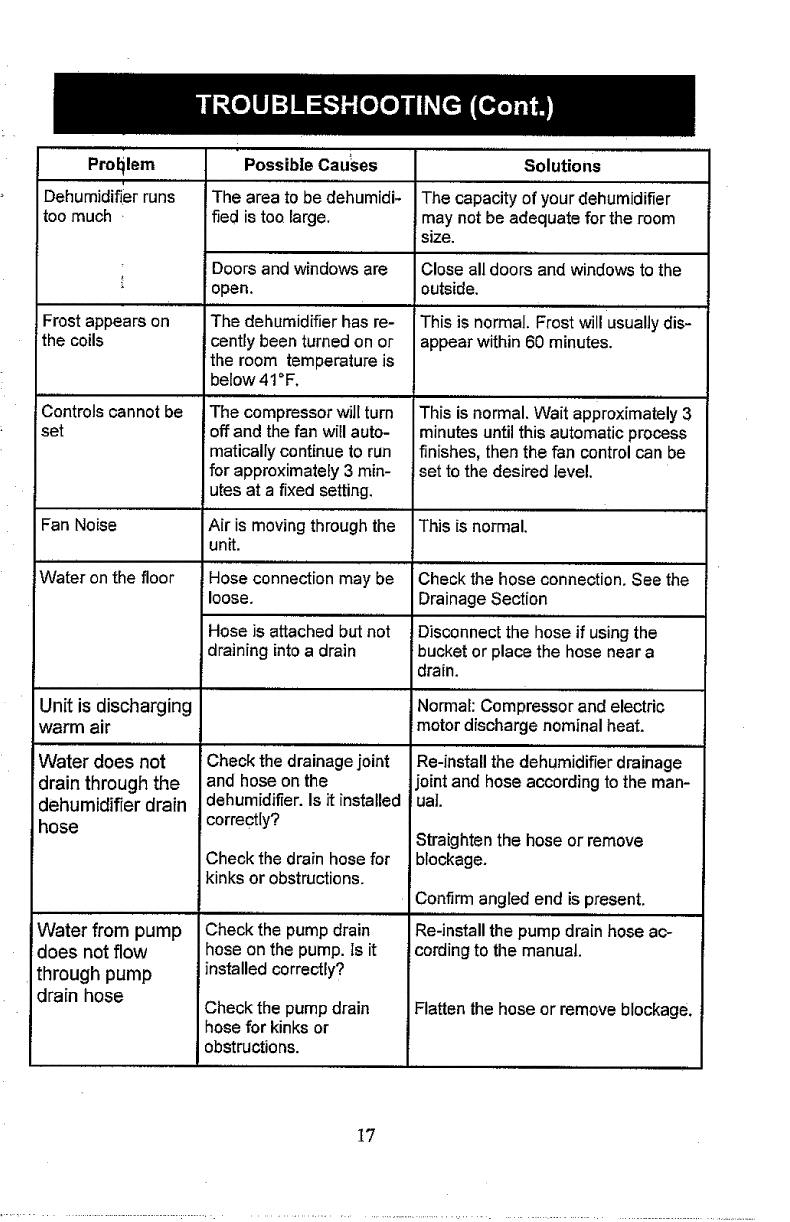

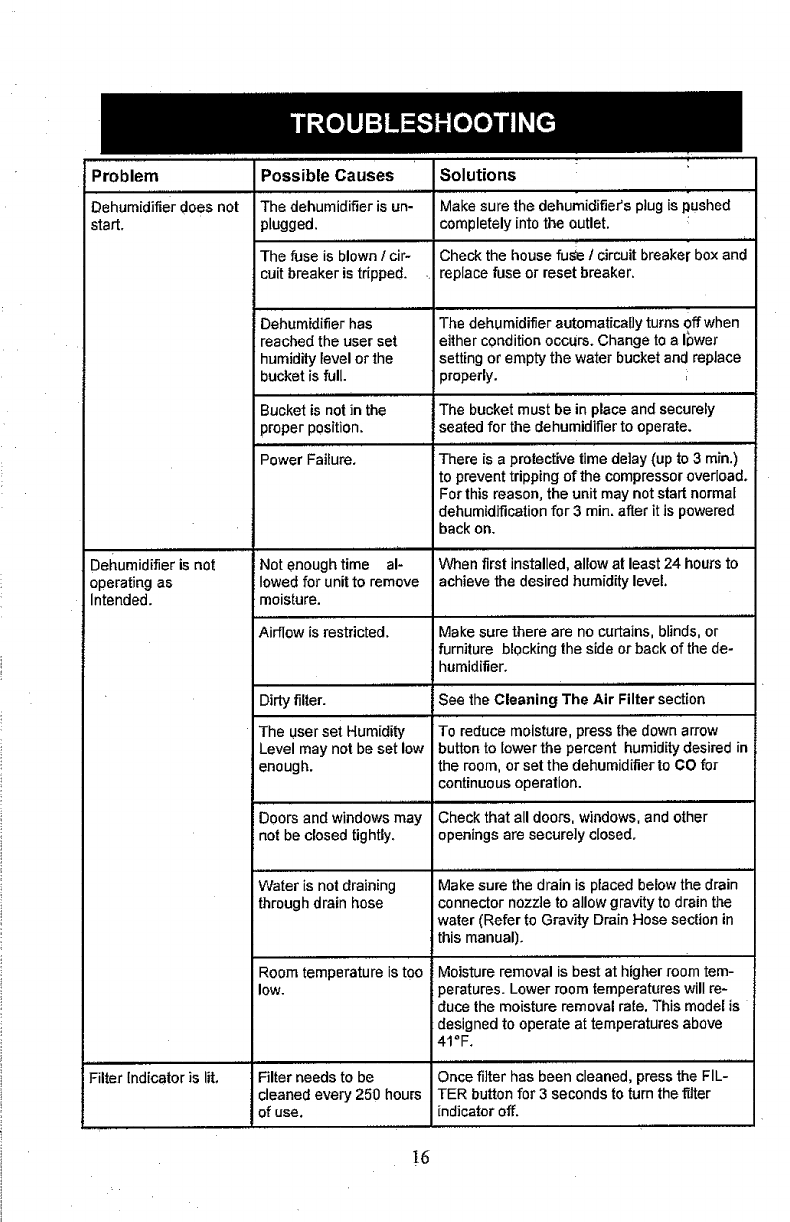

Troubleshooting ..................................... 16117

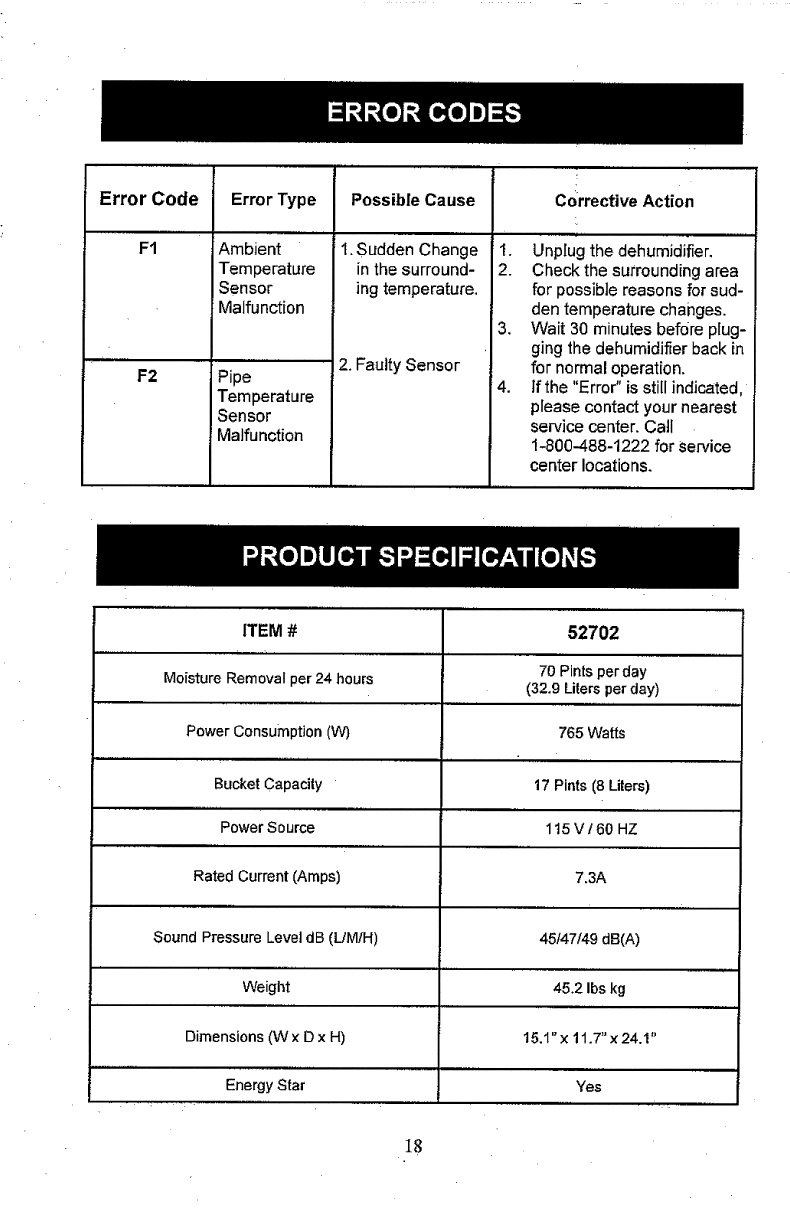

Error Codes ............................................ 18

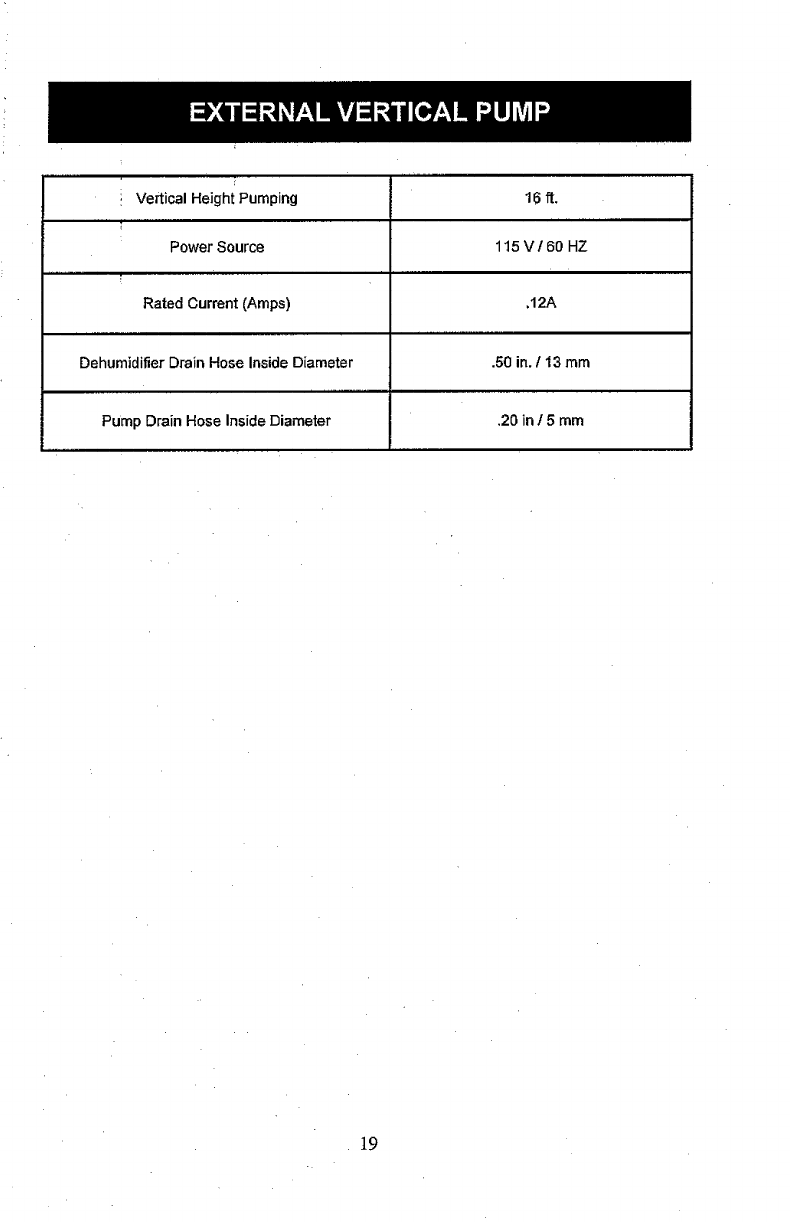

Product Specifications ........................ 18,19

Master Protection Agreements .................. 20

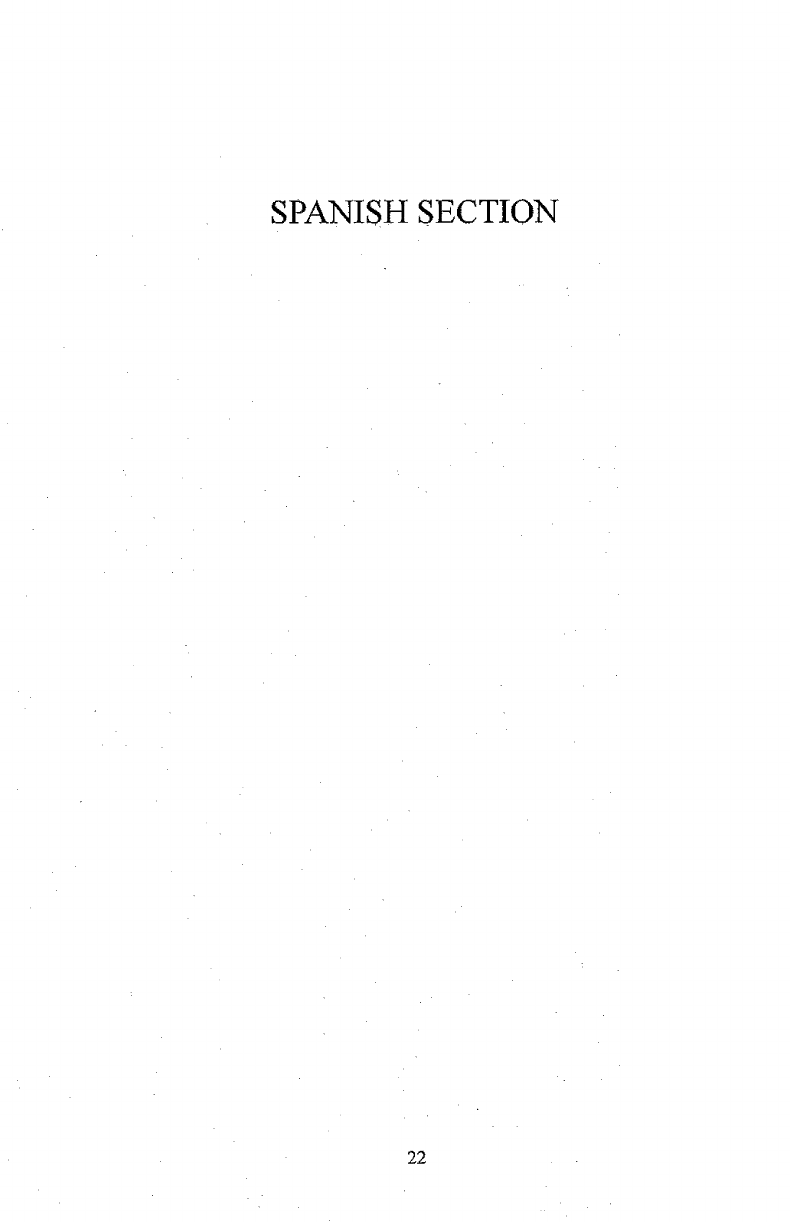

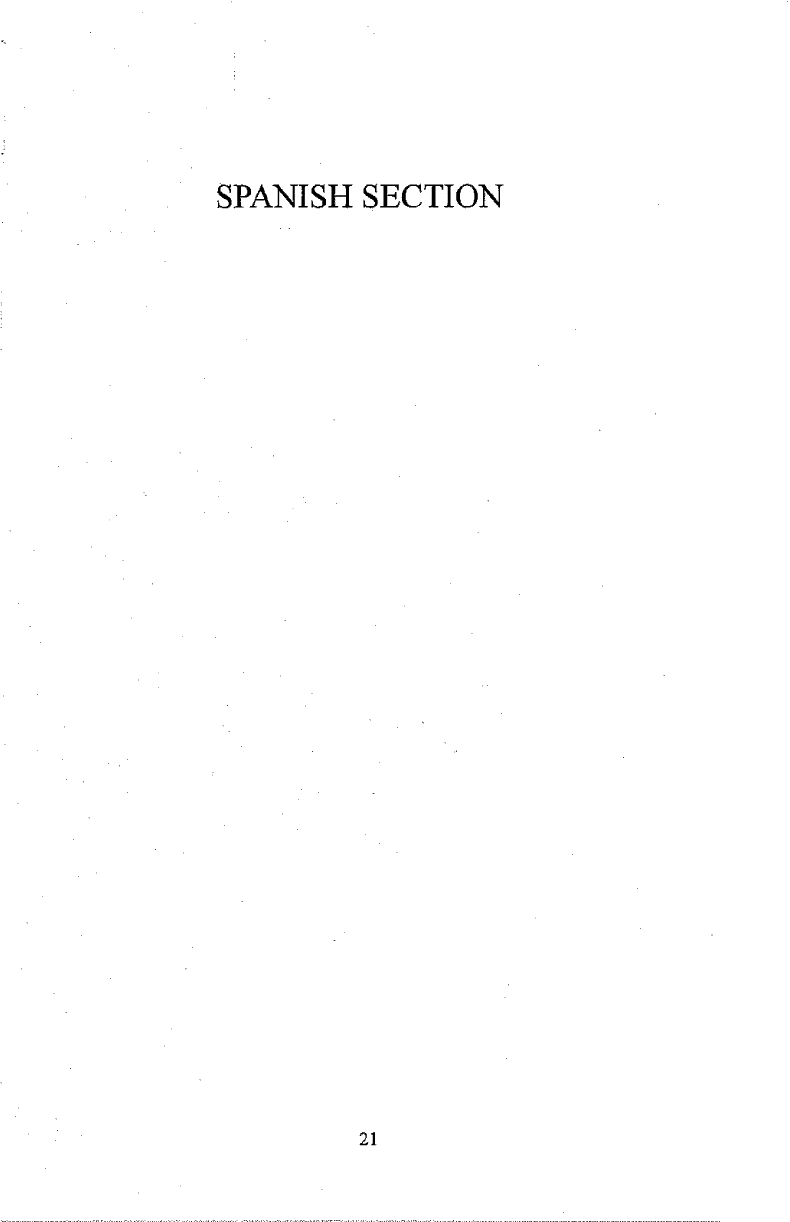

Spanish Section ....................................... 21

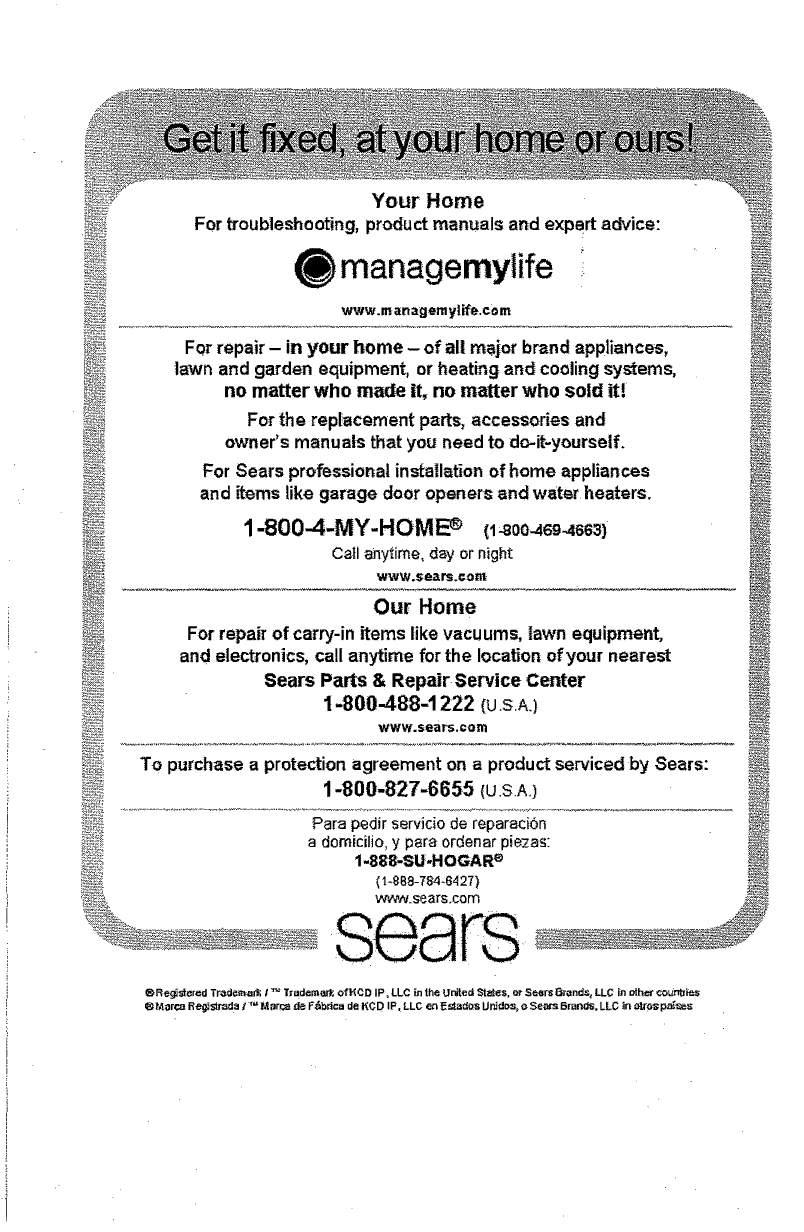

Sears Service ................................ Back Cover

•Kenmore Dehumidifier •External Vertical Pump *3 ft. Dehumidifier Drain Hose

•10 ft. Pump Drain Hose •Drain Joint, 2 Hose Clamps, 2 Screws •Use and Care

Kenmore Limited Warranty

When installed, operated and maintained according to all supplied instructions, if this appliance

fails due to a defect in material and workmanship within one year from the date of purchase,

carl 1-800-4-MY-HOME® to arrange for free repair.

If this appliance is ever used for other than private family purposes, this warranty applies for

only 90 days from the date of purchase.

This warranty covers only defects in material and workmanship. Warranty coverage

does NOT include:

1. Expendable items that can wear out from normal use, including but not limited t0 filters,

belts, light bulbs, and bags.

2. A service technician to instruct the user in correct product installation, operation or

maintenance.

3. A service technician to clean or maintain this product.

4. Damage to or failure of this product if it is not installed, operated or maintained accord-

ing to the all instructions supplied with the product.

5. Damage to or failure of this product resulting from accident, abuse, misuse or use for

other than its intended purpose.

6. Damage to or failure of this product caused by the use of detergents, cleaners, chemi-

cals or utensils other than those recommended in all instructions supplied with the product.

7. Damage to or failure of parts or systems resulting from unauthorized modifications

made to this product.

Disclaimer of implied warranties; limitation of remedies

Customer's sole and exclusive remedy under this limited warranty shall be product repair as

provided herein. Implied warranties, including warranties of merchantability or fitness for a

padicular purpose, are limited to one year or the shortest period allowed by law. Sears shall

not be liable for incidental or consequential damages. Some states and provinces do notallow

the exclusion or limitation of incidental or consequential damages, or limitation on the duration

of implied warranties of merchantability or fitness, so these exclusions or limitations may not

apply to you.

This warranty applies only while this appliance is used inthe United States.

This warranty gives you specific legal rights, and you may also have other rights which vary

from state to state.

Sears Brands Management Corporation, Hoffman Estates, IL 60179

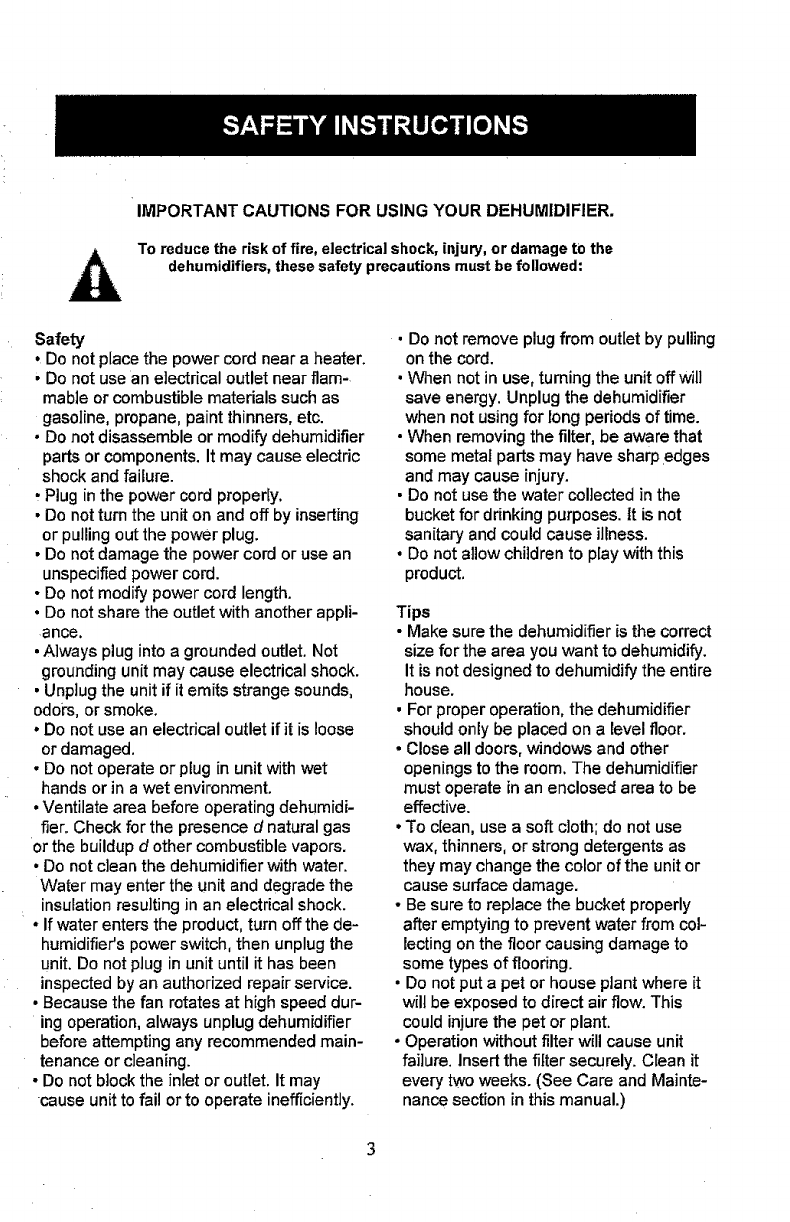

IMPORTANT CAUTIONS FOR USING YOUR DEHUMIDIFIER.

TO reduce the risk of fire, electrical shock, injury, or damage to the

dehumidifiers, these safety precautions must be followed:

Safety

• Do not place the power cord near a heater.

,Do not use an electrical outlet near flam-

mable or combustible materials such as

gasoline, propane, paint thinners, etc.

° Do not disassemble or modify dehumidifier

parts or components. It may cause electric

shock and failure.

•Plug in the power cord properly.

•Do not turn the unit on and off by inserting

or pulling out the power plug.

•Do not damage the power cord or use an

unspecified power cord.

•Do not modify power cord length.

•Do not share the outlet with another appli-

ance.

•Always plug into a grounded outlet. Not

grounding unit may cause electrical shock.

• Unplug the unit if it emits strange sounds,

odois, or smoke.

•Do not use an electrical outlet if it is loose

or damaged.

-Do not operate or plug in unit with wet

hands or in a wet environment.

•Ventilate area before operatingdehumidi-

fier. Check for the presence dnatural gas

or the buildup dother combustible vapors.

• Do not clean the dehumidifier with water.

Water may enter the unit and degrade the

insulation resulting in an electrical shock.

• If water enters the product, turn off the de-

humidifier's power switch, then unplug the

unit. Do not plug in unit until it has been

inspected by an authorized repair service.

• Because the fan rotates at high speed dur-

ing operation, always unplug dehumidifier

before attempting any recommended main-

tenance or cleaning.

•Do not block the inlet or outlet. It may

cause unit to fail or to operate inefficiently.

• Do not remove plug from outlet by pulling

on the cord.

• When not in use, turning the unit off will

save energy. Unplug the dehumidifier

when not using for long periods of time.

• When removing the filter, be aware that

some metal parts may have sharp edges

and may cause injury.

• Do not use the water collected in the

bucket for drinking purposes, tt is not

sanitary and could cause illness.

•Do not allow children to play with this

product.

Tips

• Make surethe dehumidifieris the correct

size for the area you want to dehumidify.

It is not designed to dehumidify the entire

house.

• For proper operation, the dehumidifier

should only be placed on alevel floor.

•Close all doors, windows and other

openings to the room. The dehumidifier

must operate in an enclosed area to be

effective.

•To clean, use a soft cloth; do not use

wax, thinners, or strong detergents as

they may change the color of the unit or

cause surface damage.

•Be sure to replace the bucket properly

after emptying to prevent water from col-

lecting on the floor causing damage to

some types of flooring.

• Do not put a pet or house plant where it

wilt be exposed to direct air flow. This

could injure the pet or plant.

• Operation without filter will cause unit

failure. Insert the filter securely. Clean it

every two weeks. (See Care and Mainte-

nance section in this manual.)

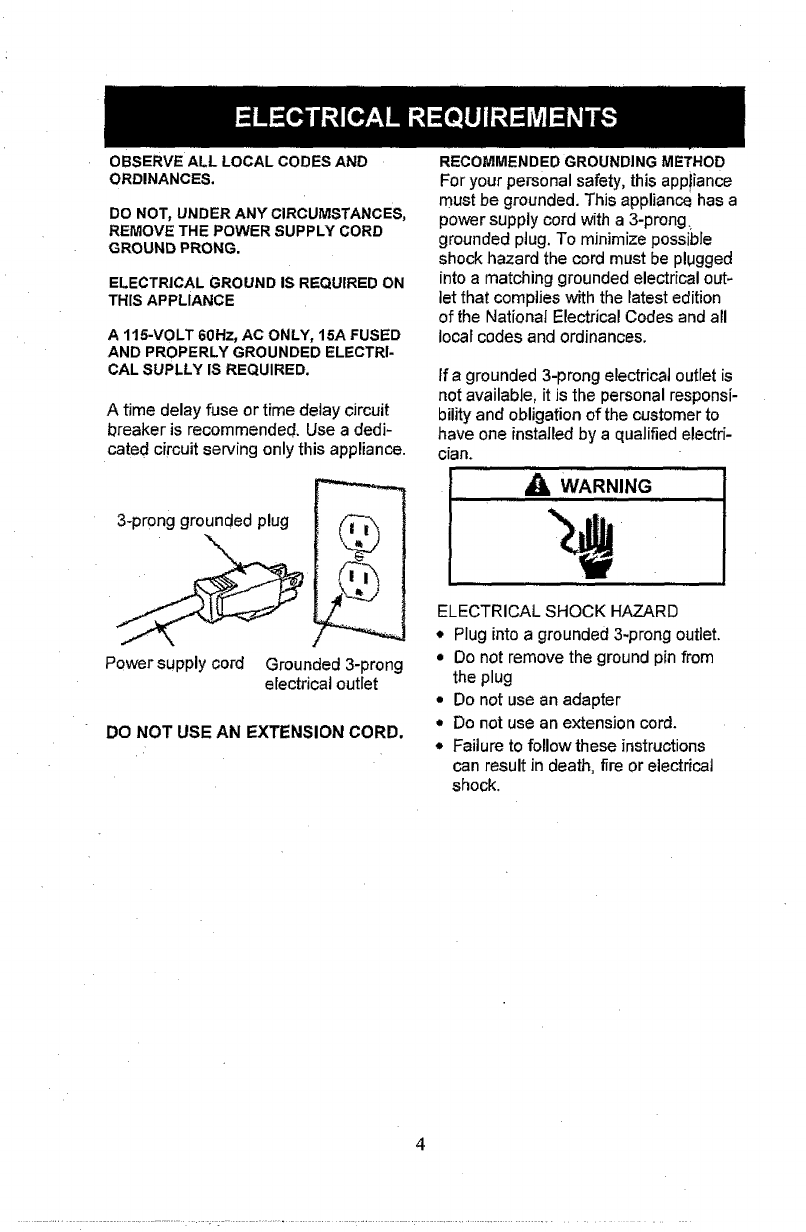

OBSERVE ALL LOCAL CODES AND

ORDINANCES.

DO NOT, UNDER ANY CIRCUMSTANCES,

REMOVE THE POWER SUPPLY CORD

GROUND PRONG.

ELECTRICAL GROUND IS REQUIRED ON

THIS APPLIANCE

A 1IS-VOLT 60Hz, AC ONLY, 15A FUSED

AND PROPERLY GROUNDED ELECTRI-

CAL SUPLLY IS REQUIRED.

A time delay fuse or time delay circuit

breaker is recommended. Use a dedi-

cated circuit serving only this appliance.

3-prong grounded plug

Power supply cord Grounded 3-prong

electrical outlet

DO NOT USE AN EXTENSION CORD.

RECOMMENDEDGROUNDINGMETHOD

Foryour personal safety, thisappiiance

must be grounded. This appliancehas a

power supply cord with a 3-prong:

grounded plug. To minimize possible

shock hazard the cord must be plugged

into a matching grounded electrical out-

let that complies with the latestedition

of the Nationat Electrical Codes and all

local codes and ordinances.

If a grounded 3-prong electrical outlet is

not available, itis the personal responsi-

bility and obligation of the customer to

have one installed by a qualified electri-

cian.

WARNING

ELECTRICAL SHOCK HAZARD

t Plug into a grounded 3-prong outlet.

•Do not remove the ground pin from

the plug

• Do not use an adapter

•Do not use an extension cord.

• Failure to follow these instructions

can result in death, fire or electrical

shock.

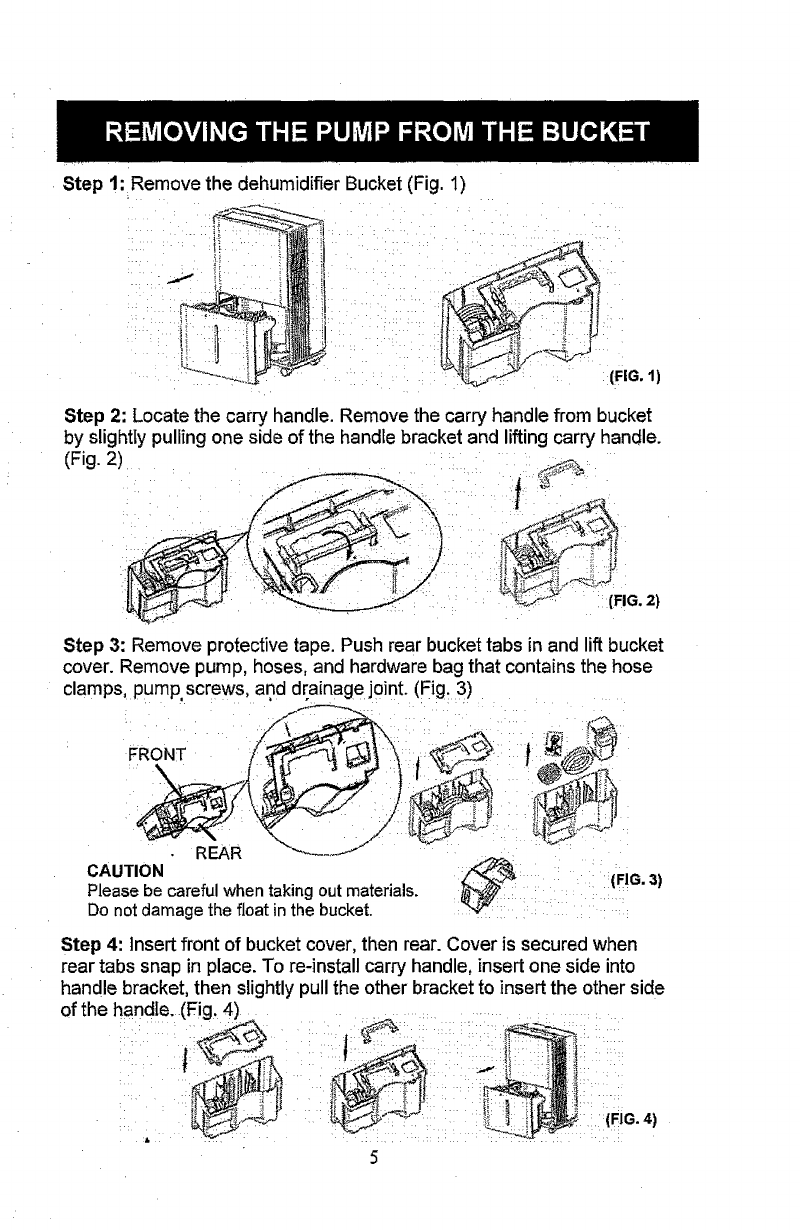

Step 1: Remove the dehumidifier Bucket (Fig. 1)

J ii i

• i

Step 2: Locate the carry handle. Remove the carry handle from bucket

by slightly pulling one side of the handle bracket and lifting carry handle.

(Fig. 2)

Step 3: Remove protective tape. Push rear bucket tabs in and lift bucket

cover. Remove pump, hoses, and hardware bag that contains the hose

clamps, PUmP screws and drainagej0int. (Eig; 3):

FRONT

REAR

CAUTION

Please becarefulwhentakingout materials.

Do notdamagethe floatin the bucket.

Step 4: Insert front of bucket cover, then rear. Cover is secured when

rear tabs snap in place. To re-install carry handle, insert one side into

handle bracket, then slightly pull the other bracket to insertthe other side

of the handle. (Fig. 4)

•Prior to installation, remove the pump

and accessories from the

dehumidifier bucket (see page 5).

•Install the dehumidifier on a level floor

strong enough to support the unit with

a full bucket of water.

•For best performance, allow at least

12-18 inches of airspace on all sides

of the unit for good air circulation.

Keep all outside doors, windows and

other openings closed when operat-

ing the dehumidifier. Humid outdoor

air will add to the unit's workload.

•Leave the dehumidifier in an Upright

position for 30 minutes before turning

On.

DEFROST OPERATION

The dehumidifier has abuilt-in defrost

control that senses frost buildup on the

evaporator coils.

During defrosting, the compressor will

automaticallyturn off; the fan wilt con-

tinue running to defrost the coils.

CHOOSING THE PROPER LOCATION

Use the dehumidifier:

•in the basemen t to help preveqt

moisture damage, i

• in the kitchen, laundry room, bath-

room, and spalexercise areas that

have excessive moisture.

• to prevent moisture damage any-

where books or valuables are stored.

• during construction or remodeling to

reduce drying time for drywall and

paint however check and clean filter

often.

AUTOMATIC SHUT OFF

• When the bucket is full, or when the

bucket is not in the proper position,

the Bucket Full indicator will light up

and you wilthear a ten second audi-

ble alarm. The unit will automatically

shut off.

• The bucket must be placed in the

proper position for the dehumidifier to

work. The Bucket Full light wilt stay

on and the dehumidifier will not run if

the bucket is not in the proper posi-

tion.

• The dehumidifier will shut off once the

desired humidity setting is reached

plus or minus 5% Relative Humidity

(RH).

_k WARNING

To reduce the risk of fire, electric shockor injuryto persons, read the important

SAFETY INSTRUCTIONS found on page 3 before operating thisappliance,

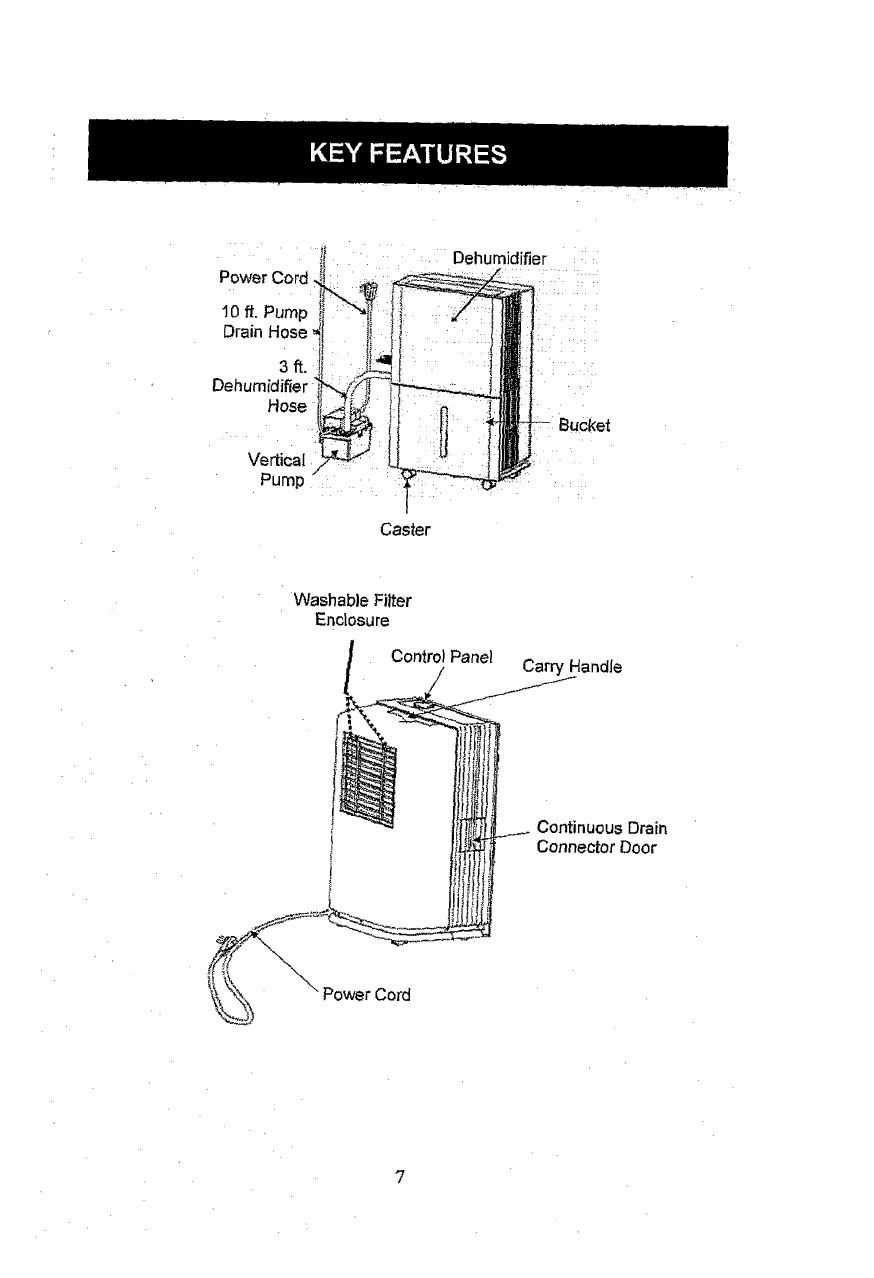

Power Cord.

10 ft. Pump

Drain Hose

3ft.

Dehumidifier

Hose

Vertical

Pump

Caster

Dehumidifier

Bucket

Washable Filter

Enclosure

Control Panel

/Carry Handle

Continuous Drain

Connector Door

Power Cord

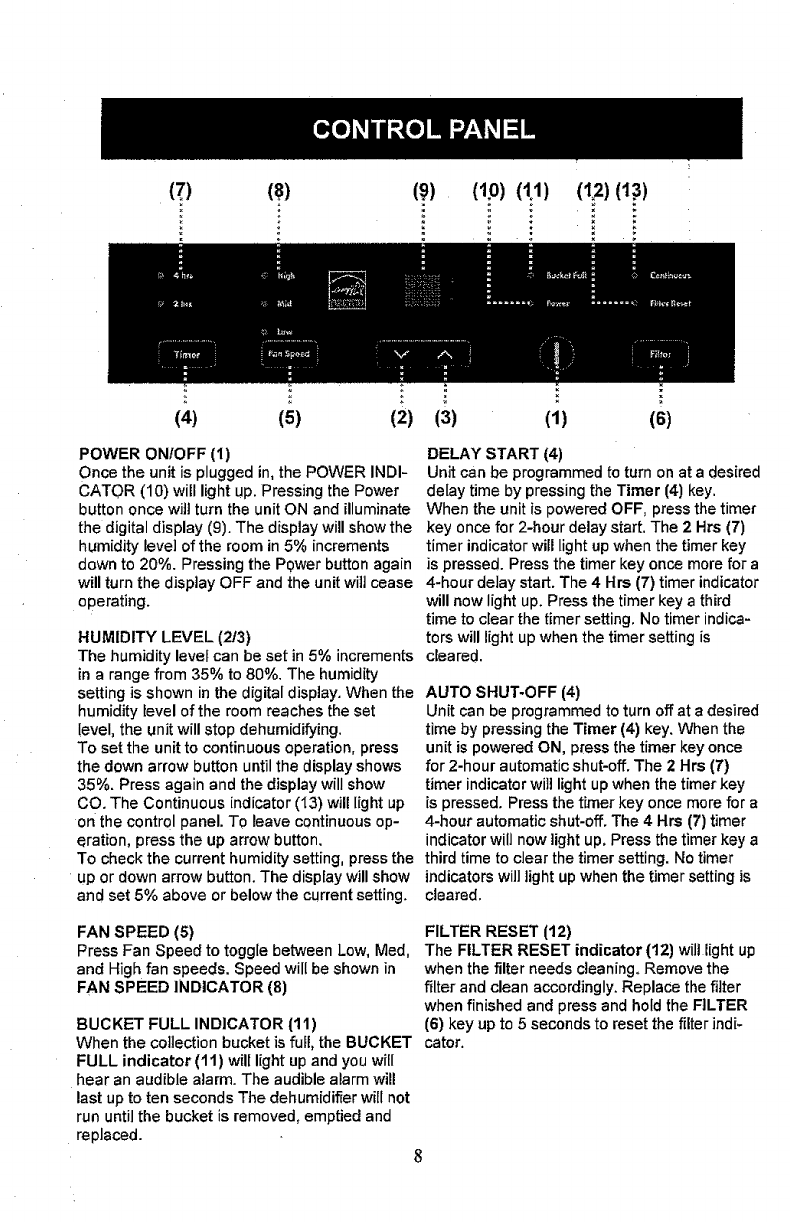

(_,) (t0) (tl) (1_2)(1.3)

(4) (5) (2)

POWER ONfOFF (1)

Once the unit is plugged in, the POWER INDI-

CATOR (10) will light UP. Pressing the Power

button once will turn the unit ON and illuminate

the digital display (9). The display will show the

humidity level of the room in 5% increments

down to 20%. Pressing the Power button again

will turn the display OFF and the unit will cease

operating.

HUMIDITY LEVEL (2t3)

The humidity level can be set in 5% increments

in a range from 35% to 80%. The humidity

setting is shown in the digital display. When the

humidity level of the room reaches the set

level, the unit will stop dehumidifying.

To set the unit to continuous operation, press

the down arrow button until the display shows

35%. Press again and the display will show

CO. The Continuous indicator (13) will light up

ort the control panel. To leave continuous op-

eration, press the up arrow button.

To check the current humidity setting, press the

up or down arrow button. The display will show

and set 5% above or below the current setting.

(3) (t) (6)

DELAY START (4)

Unit can be programmed to turn on at a desired

deiay time by pressing the Timer (4) key.

When the unit is powered OFF, press the timer

key once for 2-hour delay start. The 2Hrs (7)

timer indicator will light up when the timer key

is pressed. Press the timer key once more for a

4-hour delay start. The 4 Hrs (7) timer indicator

will now light up. Press the timer key a third

time to clear the timer setting. No timer indica-

tors will light up when the timer setting is

cleared.

AUTO SHUT-OFF (4)

Unit can be programmed to turn offat adesired

time by pressing the Timer (4) key. When the

unit is powered ON, press the timer key once

for 2-hour automatic shut-off. The 2Hrs (7)

timer indicator will light up when the timer key

is pressed. Press the timer key once more for a

4-hour automatic shut-off. The 4 Hrs (7) timer

indicator will now light up. Press the timer key a

third time to clear the timer setting. No timer

indicators will light up when the timer setting is

cleared.

FAN SPEED (5)

Press Fan Speed to toggle between Low, IVied,

and High fan speeds. Speed will be shown in

FAN SPEED INDICATOR (8)

BUCKET FULL INDICATOR (11)

When the collection bucket is full, the BUCKET

FULL indicator (11 ) will light up and you wi[I

hear an audible alarm. The audible alarm will

last up to ten seconds The dehumidifier will not

run until the bucket is removed, emptied and

replaced. 8

FILTER RESET (12)

The FILTER RESET indicator(12) will light up

when thefilter needs cleaning.Removethe

filterand cleanaccordingly, Replace thefilter

when finished andpressand holdthe FILTER

(6) key upto 5 seconds to resetthe filterindi-

cator.

OPTION 1: EMPTYING MANUALLY

1. Pull out the bucket, grasping the side handles. (Fig. 1)

2. Carry !he bucket by grasping the front corner of the bucket with one hand and the

back Qfthe bucket withthe other hand( Fig. 2)

3. Empty the bucket and replace the bucket in the dehumidifier. (Fig. 3)

NOTE: Dehumidifier will not work when the BU'CKET FULL indicator light is on or

without the bucket properly placed in position.

(Fig. 2) (Fig. 3)

OPTION 2: GRAVITY DRAIN HOSE

INSTALLING THE DRAIN HOSE

Step 1: Remove the bucket from the unit. (Fig. 5)

(FIG. 5)

Step 2: Open the drain connector door. (Fig. 6)

(FIG.S)

Step 3: Install and secure the draina

(Fig. 7)

Drainage Joint i

le joint onto the drain connector.

"ii

(FIG.7)

Step 4: Place large hose clamp on the flat end of the dehumidifier drain

hose, (Fig. 8)

(FIG. 8)

Step5::insert the drain hose onto the drainage joint so that it is fully seated.

(Fig. 9)

" _ri i il

(FIG. 9)

Step 6: Secure hose by pushing large hose clamp towards the drainage

joint. (Fig. 10)

(FIG, 10)

Step 7: Place bucket inthe dehumidifier for operation. (Fig. 11)

(FIG. 11)

OPTION 3: EXTERNAL VERTICAL PUMP

INSTALLING THE EXTERNAL PUMP

Step 1: To install Dehumidifier Drain Hose, refer to

Gravity Drain Using Dehumidifier Hose instructions

starting on page 9.

Step 2: For optimal operation, it is recommended that

the pump is placed on a flat and level location, Attach

the water pump to a wall or other perpendicular flat sur-

face with the included screws for security. (Fig. 12)

(FIG. 12)

Step 3: Remove red cap from drain hose connector on

pump. Attach the small drain hose clamp onto the

pump drain hose. (Fig. 13)

! _ x"*

_\ \, i j /J"

(FIG. 13)

Step4: Insert pump drain hose onto pump connector

until it is fully seated. (Fig. 14)

J(FIG. 14)

Step 5: Secure hose by pushing small clampforward

towards the pump. (Fig. 15)

_-_ (FIG. t5)

Step 6: Insert the angled end of the dehumidifierdrain

hose into the water pump tank. (Fig. 16).

(FIG. 16)

NOTE: Make sure the drain hose is lower than the horizental plane of the

drain on the dehumidifier as seen in the illustration below. Drain hose should

be as short as possible and all kinks in the drain hose should be eliminated

for proper pump operation. .

3ft. Dehumidifier Drain Hose

ili //

(FIG. 17)

NOTE: If you need to cut the dehumidifier drain hose, only cut on the flat

end of the hose. Do not cut the angled end as it is designed for insertion

into the pump.

[ l ii- J

CUT DO NOT CUT

t. Remove flat end of the hose by squeezing the large clamp and pulling

it toward you.

2. Remove hose from drainage joint and cut hose to appropriate length.

3. Once cut is completed, refer to installing the Drain Hose to re-install

dehumidifier drain hose.

NOTE: If the hose end that is intended for insertion into the pump is cut

accidentally, it must have an angled end for proper water draining.

USING THE DRAIN PUMP

1. Plug into grounded electrical outlet.

2. Place the other end of the pump hose where you would like to empty

the water (floor drain, water container or through a basement win-

dow). The pump will automatically start and begin pumping the water

that drains into it. Check hose for kinks or other obstructions.

3. Before and after each use, check hose connections to make sure

they are properly secured.

CLEANING THE AIR FILTER

After 250 hours of operation the FILTER

RESET. indicator wilt lightup to remind

you to clean and change the air filter.

It is recommended to periodically check

the filter for excess dirt even if the

FILTER RESET indicator is off.

I. To remove the air filter, press the two

filter tabs and pull the filter holder

away from the back of the unit.

2. Remove the filter and clean with

warm, soapy water. Rinse and allow

the filter to dry before placing back in

the unit.

3. Place the filter back into dehumidifier.

Plug unit back into outlet, power the

unit on and press and hold the FIL-

TER key up to 5 seconds on the con-

trol panel to reset the filter setting.

NOTE: DO NOT place the filter in a

dishwasher

CAUTION: DO NOT operate the dehu-

midifier without a filter. Doing so may

cause aunit failure.

_L WARNING

• Disconnect power supply cord from

receptacle before performingany

maintenance.

CLEANING THE EXTERIOR

Clean the cabinetand outside of pump

using a damp cloth and a mild deter-

gent. Do not use bleach or abrasives.

CONTROL PANEL

Wipe downthe controlpanelwith a dry

cloth.

CLEANING THE BUCKET

Every few weeks, clean the dehumidifier

bucket. Partially fill the bucket with

clean water and mild detergent. Swish

the mixture around in the bucket, empty

and rinse. Replace the bucket when

finished

NOTE: Do not place the bucket in a

dishwasher.

FILTER TABS

Problem

Dehumidifier does not

start.

Possible Causes Solutions

...... r

The dehumidifier is un- Make sure the dehumidifier'spiug is I_ushed

plugged, completely into the outlet.

,, ,,,,

Dehumidifier is not

operating as

Intended.

Filter Indicator is lit.

The fuse is blown Icir-

cuit breaker is tripped.

Dehumidifier has

reached the user set

humidity level or the

bucket is full.

Bucket is not in the

proper position.

Power Failure.

i Not enoughtime al-

lowed for unit to remove

,mou:;ture.

Airflow is restricted.

Dirty filter.

, ,,,,,,,,,,,,

The user set Humidity

Level may not be set low

enough.

,,, ,,,, ,,,,,,,,,,,,,

Doors and windows may

not be closed tightly.

Water is not draining

throughdrain hose

Room temperature is too

low.

Filter needs to be

cleaned every 250 hours

of use.

Check the house fuse Icircuit breaker box and

replace fuse or reset breaker.

The dehumidifier automatically turns offwhen

either condition occurs. Change to a I_wer

setting or empty the water bucket and replace

properly.

, ,,,,,,,,,

The bucket must be in place and securely

seated for the dehumidifier to operate.

..... ,, ,,,,,

There is a protective time delay (up to 3 min.)

to prevent tripping of the compressoroverload.

For this reason, the unit may notstart normal

dehumidification for 3min. after it is powered

back on.

,,, ,,,,

When first installed,allow at least24 hoursto

achieve the desired humiditylevel.

, ,, ,,,,,, .............

Make sure there are no curtains,blinds, or

furniture blocking the side or back of the de-

humidifier.

,, ,,,,,

See the Cleaning The Air Filter section

To reduce moisture, press the down arrow

button to lower the percent humidity desired in

the room, or set the dehumidifier to CO for

continuous operation.

Check that all doors, windows, and other

openings are securely closed.

,, ,,,,,,,,,,,,,.......

Make sure the drain is placed below the drain

connector nozzle to allow gravity to drain the

water (Refer to Gravity Drain Hose section in

this manual).

,, ,,,, ,,,,,.....

Moisture removal is best at higher room tem-

)eratures. Lower room temperatures willre-

duce the moisture removal rate. This model is

designed to operate at temperatures above

41°F.

,,, ,, ,,,,,,,,,, ...........

Once filter has been cleaned, press the FIL-

TER button for 3 seconds to turn the filter

indicator off.

Pro 'em

Dehumidifier runs

too much

Frost appears on

the coils

Controls cannot be

set

Fan Noise

,Water on the floor

Unit is discharging

warm air

Water does not

drain through the

dehumidifier drain

hose

Water from pump

does not flow

through pump

drain hose

Possible Cau'ses

..,, .H

The area to be dehumidi-

fied is too large.

Doors and windows are

open.

, ,,,,,,,,,,

The dehumidifier has re-

cently been turned on or

the room temperature is

below 41°F,

,,,,,,,,,

The compressor will turn

off and the fan will auto-

matically continue to run

for approximately 3 min-

utes at a fixed setting.

Air is moving through the

unit.

Hose connection may be

loose.

,,,,,,,,,,,,,,,,,,,,,

Hose is attached but not

draining into adrain

,,,,,,,,, ,

Check the drainage joint

and hose on the

dehumidifier. Is it installed

correctly?

Check the drain hose for

kinks or obstructions.

Check the pump drain

hose on the pump. Is it

installed correctly?

Check the pump drain

hose for kinks or

obstructions.

Solutions

The capacityof your dehumidifier

may not be adequate for the room

size.

Close all doors and windowsto the

outside.

This is normal. Frost will usually dis-

appear within 60 minutes.

This is normal. Wait approximately 3

minutes until this automatic process

finishes, then the fan controlcan be

set to the desired level.

This is normal.

,,,,,,,,,, .....

Check the hose connection. See the

Drainage Section

Disconnect the hose if using the

bucket or place the hose near a

drain.

...... ,,,,,,,

Normal: Compressor and electric

motor discharge nominal heat.

Re-install the dehumidifier drainage

joint and hose accordingto the man-

ual

Straighten the hose or remove

blockage.

Confirm angled end is present.

......... ,,, ,, ,, ,,

Re-installthe pump drain hose ac-

cording to the manual.

Flatten the hose or remove blockage.

Error Code

Error Type

Ambient

Temperature

Sensor

Malfunction

Pipe

Temperature

Sensor

Malfunction

Possible Cause

I. Sudden Change

in the surround-

ing temperature.

2. Faulty Sensor

Corrective Action

1. Unplug the dehumidifier.

2. Check the surrounding area

for possible reasons for sud-

den temperature changes.

3. Wait 30 minutes before plug-

ging the dehumidifier back in

for normal operation.

4. If the "Error" is still indicated,

please contactyour nearest

service center. CatI

1-800-488-1222 for Service

center locations.

ITEM # 52702

MoistureRemovalper24 hours 70 Pintsperday

(32.9Litersperday)

PowerConsumption(W) 765Watts

BucketCapacity 17Pints(8 Liters)

PowerSource 115V160 HZ

,...... ,,,,

Rated Current(Amps) 7.3A

Sound Pressure Level dB (L/M/H) 45t47/49 dB(A)

,, ,,, , ,,,,,,,,,,

Weight 45.2 Ibskg

Dimensions(Wx D x H) 15.1"x 11.7"x 24.1"

,,,,,,,,,,,,,,,, ,,,,,,,, ..... ,,,,,, .....

EnergyStar Yes

Vertical Height Pumping 16 ft,

Power Source 115 V !60 HZ

Rated Current (Amps) .t2A

, ,, ,,,,,,,,,,,,,,,,,,,,,, ..............

Dehumidifier Drain Hose Inside Diameter .50 in. t13 mm

, ,, ,,,,,,,,,,,,,,,,,,,,,,,,..................

Pump Drain Hose Inside Diameter ,20 in /5 mm

•]9

Master Protection Agreements

Congratulations on making a smart purchase. Your new Kenmore®product is de-

signed and manufactured for years of dependable operation. But like all products, it

may require preventive maintenance or repair from time to time. That's whenlhav-

ing a Master Protection Agreement can save you money and aggravation. The

Master Protection Agreement also helps extend the life of your new product. Here's

what the Agreement* includes:

[] Parts and labor not just for repairing defects, but to helplkeep products oper-

ating properly under normal use, Our coverage goes well beyond the prod-

uct warranty. No deductibles, no functional failure excluded from coverage--

real protection.

[] Expert service by aforce of more than 10,000 authorized Sears service

technicians, which means someone you can trustwillbe workingon your

product.

[] Unlimited service calls and nationwide service, as often as you want us,

whenever you want us.

t_ "No-lemon" guarantee - replacement of your covered product if four or more

product failures occur within twelve months.

[] Product replacement if your covered product can't be fixed.

Annual Preventive Maintenance Check at your request- no extra charge.

[] Fast help by phone - we call it Rapid Resolution - phone support from a

Sears representative on all products.Think of us as a "talking owner's man-

ual."

[] Power surge protection against electrical damage due to power fluctuations.

$250 Food Loss Protection annually for any food spoilage that is the result of

mechanical failure of any covered refrigerator or freezer.

[] Rental reimbursement if repair of your covered product takes longer than

promised.

[] 10% discount off the regular price of any non-covered repair service and re-

lated installed parts.

Once you purchase the Agreement, a simple phone call is all that it takes for you to

schedule service. You can call anytime day or night, or schedule aservice appoint-

ment online.

The Master Protection Agreement is arisk free purchase. If you cancel for any rea-

son during the product warranty period, we will provide a full refund. Or, aprorated

refund anytime after the product warranty period expires. Purchase your Master

Protection Agreement today[

Some limitations and exclusions apply. For prices and additional information

in the U.S.A. call 1-800-827-6655.

*Coverage in Canada varies on some items, For full details call Sears Can-

ada at 1-800-361-6665.

Sears Installation Service

For Sears professional installation of home appliances, garage door openers, water

heaters, and other major home items, inthe U.S.A. or Canada call 1-800-4-MY-

HOME®.

SPANISH SECTION

Your Home

For troubleshooting,productmanuals and expertadvice:

,managemylife

www.managemyltfe.com

For repair- in your home - of all major brandappliances,

lawn and garden equipment,orheating and coolingsystems,

no matter who made it, no matter who sold it!

For the replacement parts, accessories and

owner's manuals that you needto dmit-yourseif.

For Sears professionalinstallationof home appliances

and items like garage dooropenersand water heaters.

1-800-4-MY-HOME -_ (1_00.469-,=663)

Call anytime, day or night

www.se&rs.com

Our Home

For repair of carry-initems like vacuums, lawnequipment,

andelectronics,call anytimeforthe locationofyour nearest

Sears Parts & Repair Service Center

1-800-488-1222 (us.A.)

WWW.SeaPs.com

To purchasea protectionagreement on aproductservicedby Sears:

1-800-827-6655 (U.SA+)

Para pedir servido de reparation

a domicilio, ypara ordenar piezas:

1-888-SU-140GARe

(t+8_8-78A-6427)

www.sears+com

sears

®Re_stered T_d_--"_}; tv_ T_rad_m_ Of_CD IP •LLC in the Urge ctStates, or See+rs_rand,_<LLC in other co_h_s

Mar¢_ R_md,_ I+*_M aF_;_de FSb_icade.KC D IP, LLC _E_dos U_do=, oSe_'_ Brands. LLC _n _rc_,_p_s

Kenmore 40752702210 User Manual DEHUMIDIFIER Manuals And Guides 1203551L

Navigation menu

Versions of this User Manual:

Views

Navigation
