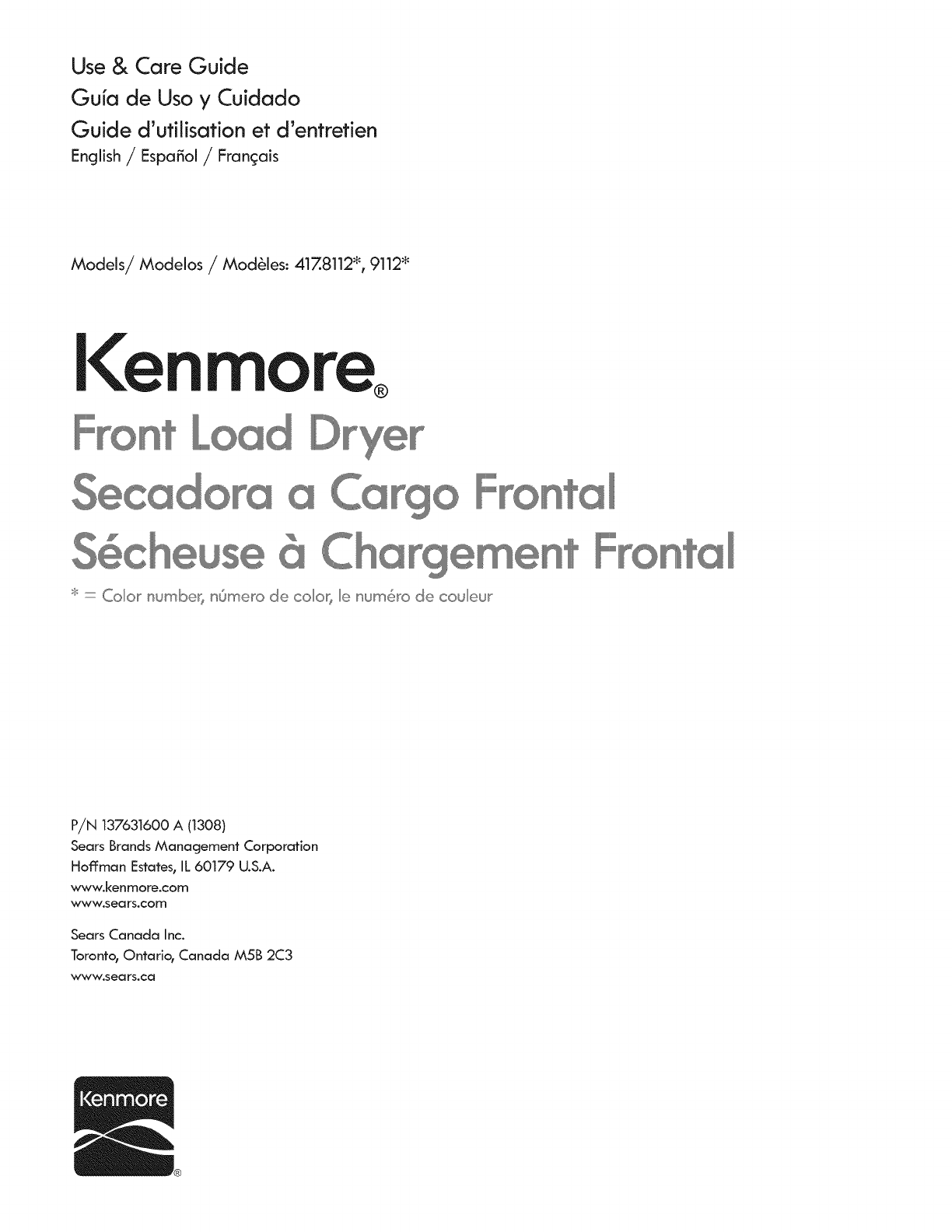

Use & Care Guide
Gufa de Usa y Cuidada
Guide d'utilisation et d'entrefien
English /Espa_ol /Franc;ais
Models/Modelos /Mod@les: 417.8112_ 9112_
®
'_:{'_:=Colornumber,nOmero de coloi¢lehum@to de couleur
P/N 137631600 A (1308)
Sears Brands Management Corporation
Hofl:man Estates, IL 60179 U.S.A.
w_vw.kenrnoreocom
WWW°sea rs.com
Sears Canada Inc.
Toronto, Ontario, Canada M5B 2C3
W_Vw.sea rs.ca
Record Model/Serial Numbers
The model and serial numbers of your washer are found on
the washer serial plate located on the inside of the door.
Record and retain these numbers.
Model Number
Serial Number
Purchase Date
For your safety the following information in
this manual must be followed to minimize the
risk of fire or explosion or to prevent property
damage, personal injury or death.
Do not store or use gasoline or other
flammable vapors and liquids in the vicinity
of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS:
*Do not try to light any appliance.
*Do not touch any electrical switch; do not
use any phone in your building.
"Clear the room, building or area of all
occupants.
ii * Immediately call your gas supplier from
ii a neighbor's phone. Follow the gas
ii supplier's instructions.
ii
* If you cannot reach your gas supplier, call
ii
the fire department.
ii
Installation and service must be performed
by a qualified installer, service agency or
Table of Contents
Important Safety Instructions ............................................ 2-4
Warranty /Protection Agreement ....................................... 5
Features .................................................................................... 6
Operating Instructions ...................................................... 7-12
Care and Cleaning ............................................................... 13
Solutions to Common Problems ..................................... 14-15
Espa_ol ................................................................................... 16
Franc;ais ................................................................................. 30
important Safety instructions
This Use and Care Guide provides general operating
instructions for your dryer. It also contains information
about features for several other models. Your dryer may
not have every feature included.
The instructions appearing in this Use and Care Guide are
not meant to cover every possible condition and situation
that may occur. Common sense and caution must be
practiced when installing, operating and maintaining any
appliance. Use the dryer only as instructed in this Use &
Care Guide.
Recognize safety symbols, words and
labels
Safety items throughout this manual are labeled with
a WARNING or CAUTION based on the risk type as
described below:
Definitions
This is the safety alert symbol. It is used to alert you
to potential personal injury hazards. Obey all safety
messages that follow this symbol to avoid possible injury or
death.
DANGER indicates an imminently hazardous situation
which! .o ded _ o ou. r¥:....
WARNING indicates a potentially hazardous situation
which, if not avoided, could result in death or serious
ii. •
injury.
CAUTION indicates a potentially hazardous situation
which, if not avoided, may result in minor or moderate
ii. •
injury.
IMPORTANT indicates installation, operation or
maintenance information which is important but not
hazard-related.
Save these instructions
for future reference.
Important Safety Instructions

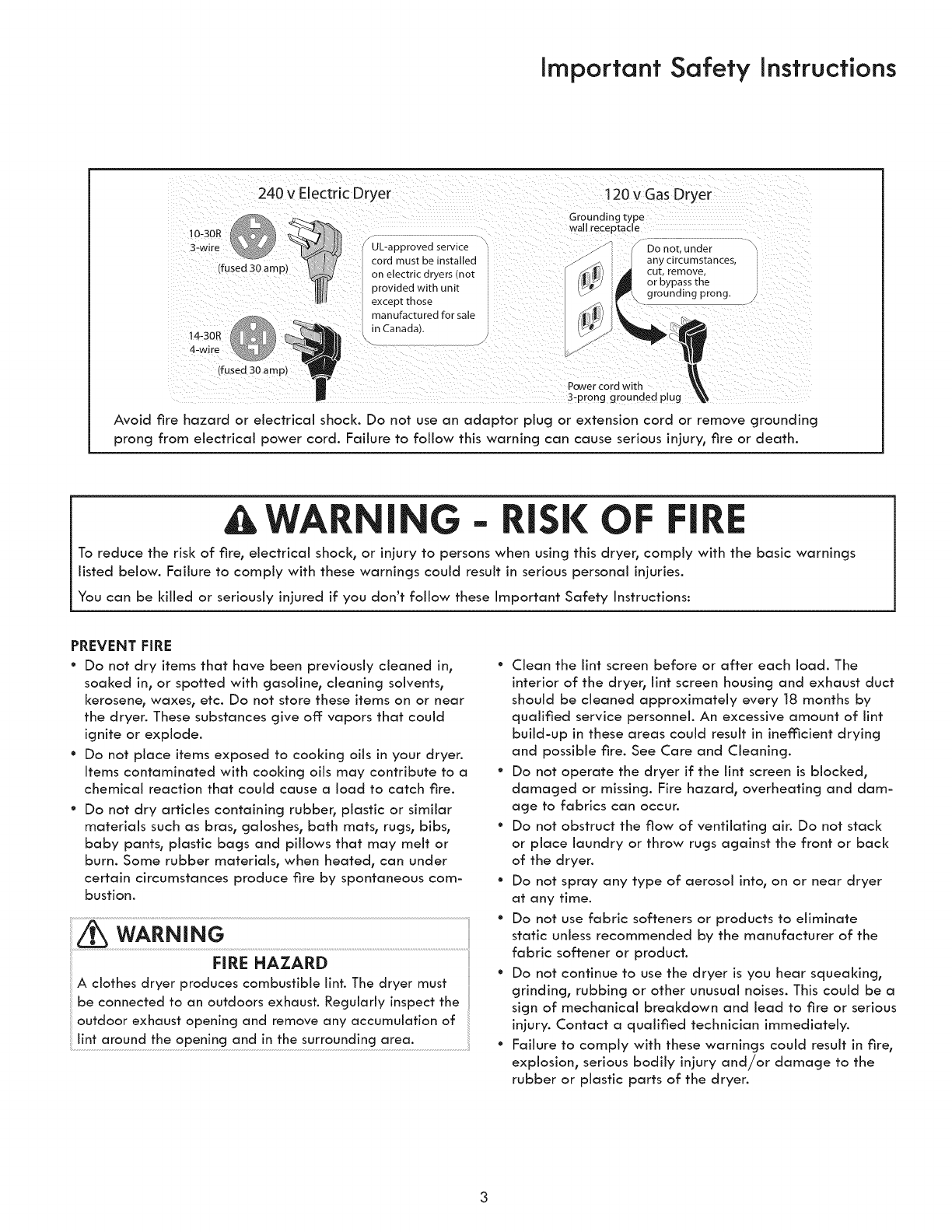

240 v Electric Dryer 120 v Gas Dryer
I0-30R
3 UL-approved service
cord must be installed
(fused 30 amp) on electric dryers (not
provided with unit
except those
manufactured for sale
in Canada..
14-30R | .
4-wire _-_J,._ _
(fused 30 amp) I
Grounding _ype
wall receptacle
Do no_. under
any circumstances
cut, remove,
or bypass the
grounding prong.
Power cord with
3-prong grounded plug
Avoid fire hazard or electrical shock. Do not use an adaptor plug or extension cord or remove grounding
prong from electrical power cord. Failure to follow this warning can cause serious injury, fire or death.
A I G- OF
To reduce the risk of fire, electrical shock, or injury to persons when using this dryer, comply with the basic warnings
listed below. Failure to comply with these warnings could result in serious personal injuries.
You can be killed or seriously injured if you don't follow these Important Safety Instructions:
PREVENT FIRE
* Do not dry items that have been previously cleaned in,
soaked in, or spotted with gasoline, cleaning solvents,
kerosene, waxes, etc. Do not store these items on or near
the dryer. These substances give off: vapors that could
ignite or explode.
*Do not place items exposed to cooking oils in your dryer.
Items contaminated with cooking oils may contribute to a
chemical reaction that could cause a load to catch fire.
*Do not dry articles containing rubber, plastic or similar
materials such as bras, galoshes, bath mats, rugs, bibs,
baby pants, plastic bags and pillows that may melt or
burn. Some rubber materials, when heated, can under
certain circumstances produce fire by spontaneous com-
bustion.
WARNING
A clothes dryer produces combustible lint. The dryer must
be connected to an outdoors exhaust. Regularly inspect the
outdoor exhaust opening and remove any accumulation of
lint around the opening and in the surrounding area.
"Clean the lint screen before or after each load. The
interior of the dryer, lint screen housing and exhaust duct
should be cleaned approximately every 18 months by
qualified service personnel. An excessive amount of lint
build-up in these areas could result in inemcient drying
and possible fire. See Care and Cleaning.
° Do not operate the dryer if the lint screen is blocked,
damaged or missing. Fire hazard, overheating and dam-
age to fabrics can occur.
° Do not obstruct the flow of ventilating air. Do not stack
or place laundry or throw rugs against the front or back
of the dryer.
• Do not spray any type of aerosol into, on or near dryer
at any time.
° Do not use fabric softeners or products to eliminate
static unless recommended by the manufacturer of the
fabric softener or product.
° Do not continue to use the dryer is you hear squeaking,
grinding, rubbing or other unusual noises. This could be a
sign of mechanical breakdown and lead to fire or serious
injury. Contact a qualified technician immediately.
° Failure to comply with these warnings could result in fire,
explosion, serious bodily injury and/or damage to the
rubber or plastic parts of the dryer.
important Safety instructions

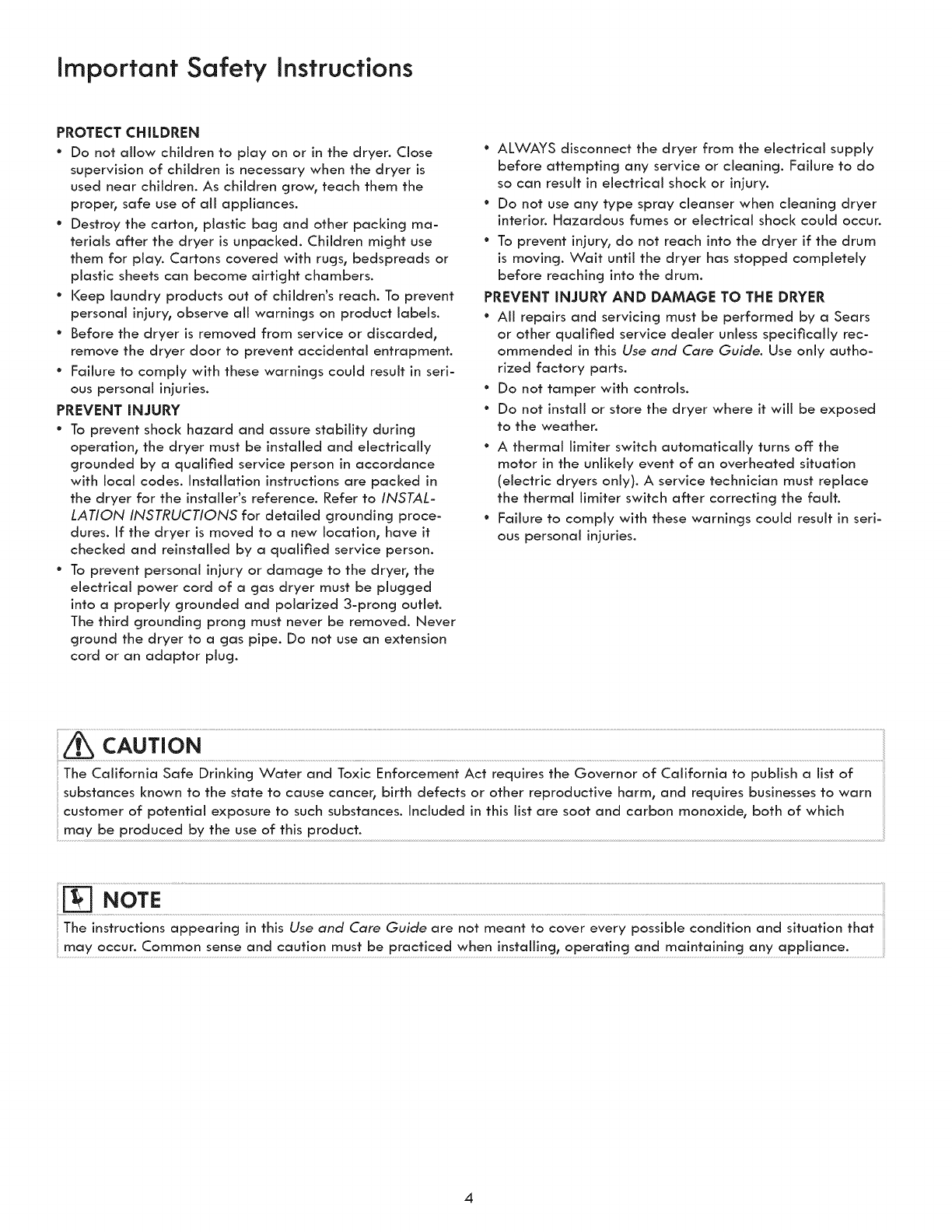

PROTECT CHILDREN
°Do not allow children to play on or in the dryer. Close
supervision of children is necessary when the dryer is
used near children. As children grow, teach them the
proper, safe use of aii appliances.
°Destroy the carton, plastic bag and other packing ma-
terials after the dryer is unpacked. Children might use
them for play. Cartons covered with rugs, bedspreads or
plastic sheets can become airtight chambers.
°Keep laundry products out of children's reach. To prevent
personal injury, observe aii warnings on product labels.
°Before the dryer is removed from service or discarded,
remove the dryer door to prevent accidental entrapment.
°Failure to comply with these warnings could result in seri-
ous personal injuries.
PREVENT INJURY
°To prevent shock hazard and assure stability during
operation, the dryer must be installed and electrically
grounded by a qualified service person in accordance
with local codes. Installation instructions are packed in
the dryer for the installer's reference. Refer to INSTAL-
LATION INSTRUCTIONS for detailed grounding proce-
dures. If the dryer is moved to a new location, have it
checked and reinstalled by a qualified service person.
°To prevent personal injury or damage to the dryer, the
electrical power cord of a gas dryer must be plugged
into a properly grounded and polarized 3-prong outlet.
The third grounding prong must never be removed. Never
ground the dryer to a gas pipe. Do not use an extension
cord or an adaptor plug.
°ALWAYS disconnect the dryer from the electrical supply
before attempting any service or cleaning. Failure to do
so can result in electrical shock or injury.
°Do not use any type spray cleanser when cleaning dryer
interior. Hazardous fumes or electrical shock could occur.
°To prevent injury, do not reach into the dryer if the drum
is moving. Wait until the dryer has stopped completely
before reaching into the drum.
PREVENT iNJURY AND DAMAGE TO THE DRYER
*All repairs and servicing must be performed by a Sears
or other qualified service dealer unless specifically rec-
ommended in this Use and Care Guide. Use only autho-
rized factory parts.
°Do not tamper with controls.
°Do not install or store the dryer where it wiii be exposed
to the weather.
°A thermal iimiter switch automatically turns off: the
motor in the unlikely event of an overheated situation
(electric dryers only). A service technician must replace
the thermal iimiter switch after correcting the fault.
°Failure to comply with these warnings could result in seri-
ous personal injuries.
The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of California to publish a list of
substances known to the state to cause cancer, birth defects or other reproductive harm, and requires businesses to warn
customer of potential exposure to such substances. Included in this list are soot and carbon monoxide, both of which
The instructions appearing in this Use and Care Guide are not meant to cover every possible condition and situation that
may occur. Common sense and caution must be practiced when installing, operating and maintaining any appliance.
4
Kenmore Appliance Warranty
One Year Limited Warranty
When installed, operated and maintained according to all
instructions supplied with the product, if this appliance fails due
to a defect in material or workmanship within one year from the
date of purchase, call 1-800-4-MY-HOME ® to arrange for free
repair.
If this appliance is used for other than private family purposes,
this warranty applies for only 90 days from the date of pur-
chase.
This warranty covers only defects in material and workman-
ship. Sears will NOT pay for:
1. Expendable items that can wear out from normal use,
including but not limited to filters, belts, light bulbs and bags.
2. A service technician to instruct the user in correct product
installation, operation or maintenance.
3. A service technician to clean or maintain this product.
4. Damage to or failure of this product if it is not installed,
operated or maintained according to all instructions supplied
with the product.
5. Damage to or failure of this product resulting from accident,
abuse, misuse or use for other than its intended purpose.
6. Damage to or failure of this product caused by the use of
detergents, cleaners, chemicals or utensils other than those
recommended in all instructions supplied with the product.
Z Damage to or failure of parts or systems resulting from
unauthorized modifications made to this product.
Disclaimer of implied warranties; limitation of remedies
Customer's sole and exclusive remedy under this limited warranty
shall be product repair as provided herein. Implied warranties,
including warranties of merchantability or fitness for a particular
purpose, are limited to one year or the shortest period allowed
by law. Sears shall not be liable for incidental or consequential
damages. Some states and provinces do not allow the exclusion
or limitation of incidental or consequential damages, or limita-
tions on the duration of implied warranties of merchantability or
fitness, so these exclusions or limitations may not apply to you.
This warranty applies only while this appliance is used in the
United States and Canada. _
This warranty gives you specific legal rights, and you may also
have other rights which vary from state to state.
In-home repair service is not available in all Canadian geo-
graphical areas, nor will this warranty cover user or servicer
travel and transportation expenses if this product is located in a
remote area (as defined by Sears Canada Inc.) where an autho-
rized servicer is not available.
Sears Brands Management Corporation, Hoffman Estates, IL
60179
Sears Canada inc., Toronto, Ontario, Canada MSB 2C3
Master Protection Agreements
Congratulations on making a smart purchase. Your new Ken-
more _ product is designed and manufactured for years of
dependable operation. But like all products, it may require
preventive maintenance or repair from time to time. That's when
having a Master Protection Agreement can save you money and
aggravation.
The Master Protection Agreement also helps extend the life of
your new product. Here's what the Agreement _includes:
*Parts and labor needed to help keep products operating
properly under normal use, not just defects. Our coverage
goes well beyond the product warranty. No deductibles, no
functional failure excluded from coverage - real protection.
*Expert service by a force of more than 10,000 authorized
Sears service technicians, which means someone you can
trust will be working on your product.
*Unlimited service calls and nationwide service, as often as
you want us, whenever you want us.
* "No-lemon" guarantee - replacement of your covered
product if four or more product failures occur within twelve
months.
*Product replacement if your covered product can not be
fixed.
*Annual Preventive Maintenance Check at your request - no
extra charge.
*Fast help by phone - we call it Rapid Resolution - phone
support from a Sears representative on all products. Think of
us as a "talking owner's manual".
*Power surge protection against electrical damage due to
power fluctuations.
*$250 Food Loss Protection annually for any food spoilage
that is the result of mechanical failure of any covered
refrigerator or freezer.
*Rental reimbursement if repair of your covered product takes
longer than promised.
*25% discount off the regular price of any non-covered repair
service and related installed parts.
Once you purchase the Agreement, a simple phone call is all
that it takes for you to schedule service. You can call anytime
day or night, or schedule a service appointment online.
The Master Protection Agreement is a risk free purchase. If you
cancel for any reason during the product warranty period, we
will provide a full refund. Or, a prorated refund anytime after
the product warranty period expires. Purchase your Master Pro-
tection Agreement today!
Some limitations and exclusions apply. For prices and additional
information in the U.S.A. call 1-800-827-6655.
Coverage in Canada varies on some items. For full details call
Sears Canada at 1-800-361-6665.
Sears Installation Service
For Sears professional installation of home appliances, garage
door openers, water heaters, and other maior home items, in the
U.S.A. or Canada call 1-800-4-MY-HOME _.
5
Featu res
Cycle Selector
Control Lock
Door Latch
Reversible Door
Door Strike
uty
Drying Rack*
Stacking Kit for Mounting on
Matching Washer __Not all models come with drying rack and
stacking kit from the factory. They may be
purchased as accessories.
Operating instructions
NorrnaH
BumkyI Bedding
Cclsual 30
6O
9O
@ Max
@ High ® Extra Dry @ Chime On
@ Medium ® Normal ® Chime Off
@ Low @ Low @ Wrinkle Guard On
@ Air Nuff @ Damp ® Wrinkle Guard Off
DRYING
COOL DOWN
WRINKLE GUARD
©o oO
SeJecl CANCEL
Dry Dry Options _ START
Temp Level _) PAUSE
This manual covers many models and not all cycles, options, or features listed are available on every model. Console shown
above for reference only. Your model may differ.
Cycle Selection
Turn the cycle selector in either direction to the cycle desired.
For best results
Follow the fabric care label instructions
on items to be dried.
To change the cycle once it has begun, press the CANCEL
button before selecting a new cycle. Just turning the cycle
selector knob to another selection will not change the cycle.
Auto Dry Cycles
Auto Dry cycles take the guesswork out of selecting the
correct drying time for each load. Moisture sensing bars at
the back of the dryer drum sense the moisture level of the
load as it tumbles through the heated air. With Auto Dry
cycles, the load will automatically be dried at the selected
temperature to the desired dryness level. Auto Dry cycles
save time and energy and protect fabrics.
The estimated drying time will be displayed for about 5
minutes. Then the outside of the display will light up in a
circular track to indicate the drying time is automatically
being determined by the sensors.
1. initial 2. calculating
When the load has reached the selected dryness level° it
will continue to tumble during a cool down period. This
helps reduce wrinkling and makes items easier to handle
during unloading.
Drying time varies depending on size and dampness of
load and fabric type. If the load is too small or almost dry,
the moisture sensing bars may not detect enough moisture
to continue the cycle and the cycle may end after a few
minutes. If this occurs, select a Timed Dry cycle.
Room temperature and humidity, type of installation and elec-
trical voltage or gas pressure can also affect drying time.
Bulky [ Bedding
Select this Auto Dry cycle to dry bedding and bulky
items such as comforters, blankets° sleeping bags and
parkas.
Normal
Select this Auto Dry cycle for cotton items.
Casual
Select this Auto Dry cycle for cottons and blends with a
no-iron finish.
Timed Dry Cycles
WARNING
FIRE HAZARD
To avoid fire hazard° do not use heat to dry items
containing feathers or down° foam rubber, plastics
similarly textured, rubber-like materials. Use the Timed
Dry cycle and the Air Dry setting.
To manually select the drying time for any load, turn
the knob to a numbered setting: 30, 60, or 90 minutes.
Actual drying time will be displayed.
Because this is not an Auto Dry cycle ryou will not be
able to select a dryness level. Moisture sensing bars are
not active and dryer will continue to heat throughout the
cycle until the final cool down period.
7
Operating instructions

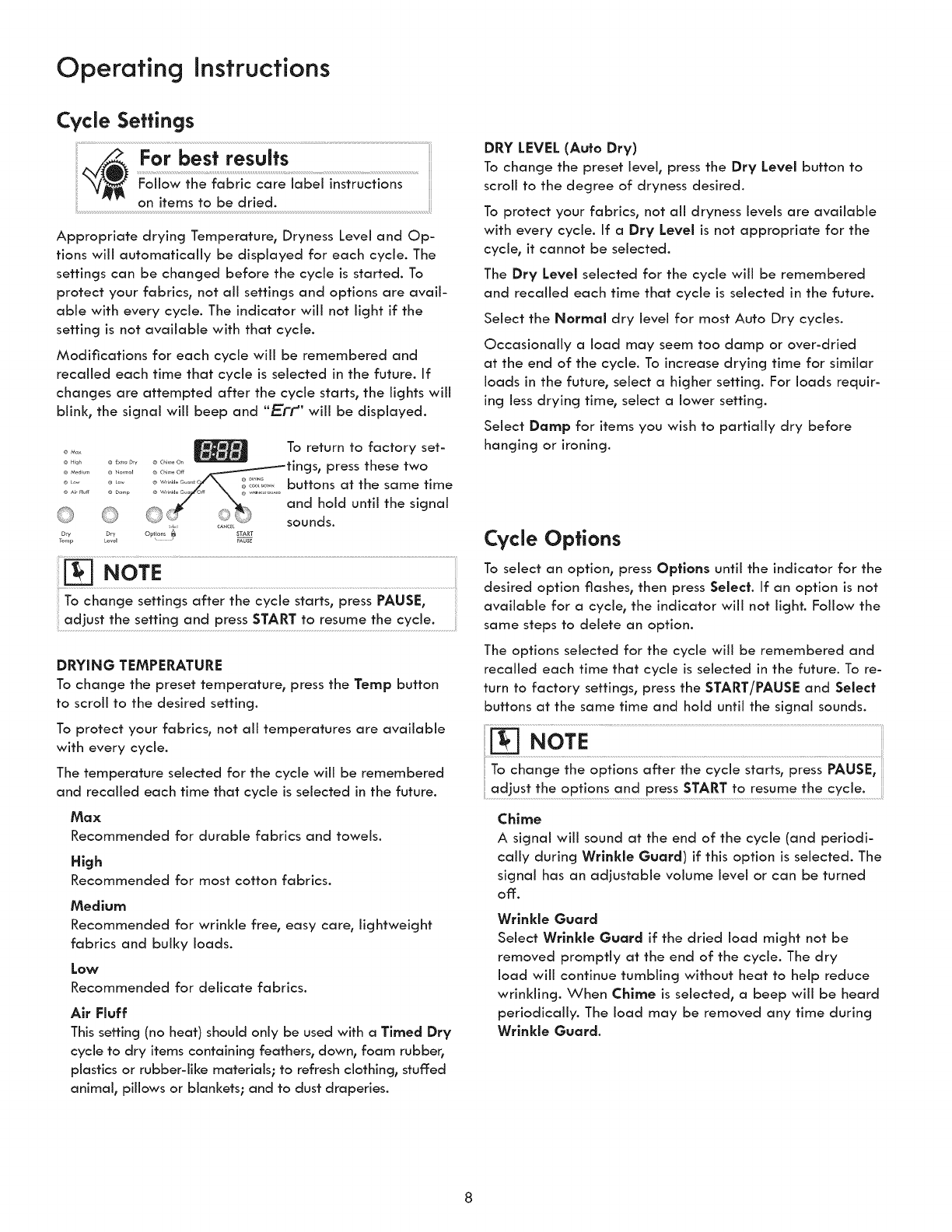

Cycle Settings
/ For best results
Follow the fabric care labei instructions
on items to be dried.
Appropriate drying Temperature, Dryness Level and Op-
tions wiii automatically be displayed for each cycle. The
settings can be changed before the cycle is started. To
protect your fabrics, not aii settings and options are avail-
able with every cycle. The indicator will not light if the
setting is not available with that cycle.
Modifications for each cycle wiii be remembered and
recalled each time that cycle is selected in the future. If
changes are attempted after the cycle starts, the lights wiii
blink, the signal will beep and "Err" will be displayed.
® High
® low
® A_rFlu_
To return to factory set-
_EN'_,o_'_,_i:'ilZo°__tings, press these two
................... y \ _T, .... buttons at the same time
.... and hold until the signal
sounds.
....... _ PAus_
To change settings after the cycle starts, press PAUSE,
adjust the setting and press START to resume the cycle.
DRYING TEMPERATURE
To change the preset temperature, press the Temp button
to scroll to the desired setting.
To protect your fabrics, not all temperatures are available
with every cycle.
The temperature selected for the cycle wiii be remembered
and recalled each time that cycle is selected in the future.
Max
Recommended for durable fabrics and towels.
High
Recommended for most cotton fabrics.
Medium
Recommended for wrinkle free, easy care, lightweight
fabrics and bulky loads.
Low
Recommended for delicate fabrics.
Air Fluff
This setting (no heat) should only be used with a Timed Dry
cycle to dry items containing feathers, down, foam rubber,
plastics or rubber-like materials; to refresh clothing, stuffed
animal, pillows or blankets; and to dust draperies.
DRY LEVEL (Auto Dry)
To change the preset level, press the Dry Level button to
scroll to the degree of dryness desired.
To protect your fabrics, not all dryness levels are available
with every cycle. If a Dry Level is not appropriate for the
cycle, it cannot be selected.
The Dry Level selected for the cycle will be remembered
and recalled each time that cycle is selected in the future.
Select the Normal dry level for most Auto Dry cycles.
Occasionally a load may seem too damp or over-dried
at the end of the cycle. To increase drying time for similar
loads in the future, select a higher setting. For loads requir-
ing less drying time, select a lower setting.
Select Damp for items you wish to partially dry before
hanging or ironing.
Cycle Options
To select an option, press Options until the indicator for the
desired option flashes, then press Select. If an option is not
available for a cycle, the indicator will not light. Follow the
same steps to delete an option.
The options selected for the cycle will be remembered and
recalled each time that cycle is selected in the future. To re-
turn to factory settings, press the START/PAUSE and Select
buttons at the same time and hold until the signal sounds.
To change the options after the cycle starts, press PAUSE,
adjust the options and press START to resume the cycle.
Chime
A signal will sound at the end of the cycle (and periodi-
cally during Wrinkle Guard) if this option is selected. The
signal has an adjustable volume level or can be turned
off.
Wrinkle Guard
Select Wrinkle Guard if the dried load might not be
removed promptly at the end of the cycle. The dry
load will continue tumbling without heat to help reduce
wrinkling. When Chime is selected, a beep will be heard
periodically. The load may be removed any time during
Wrlnkle Guard.
Operating Instructions
Dryer Settings Chart
o Mo_
o High @ Extra Dry @ CNme On
@ M.a_0m _ No,,,,ou ® c_i,,,_on
o Lo_ _ Low ® Wri_kU_G_ordO_ ® 0_l_
J
l._p -,AUSE
These Temperatures, Dryness levels and Options are available with the following cycles:
E
o
Z
r_
Temp
Max
High
Medium
Low
Air Fluff
v"
v"
v"
v"
Dry Level
Extra Dry
Normal
Low
Damp
v"
v"
v"
Options
Chime
Wrinkle Guard
•/= Available selections.
v" v" v"
= Cycle defaults. _ = Non-modifiable presets.
9
Operating instructions
Other Features

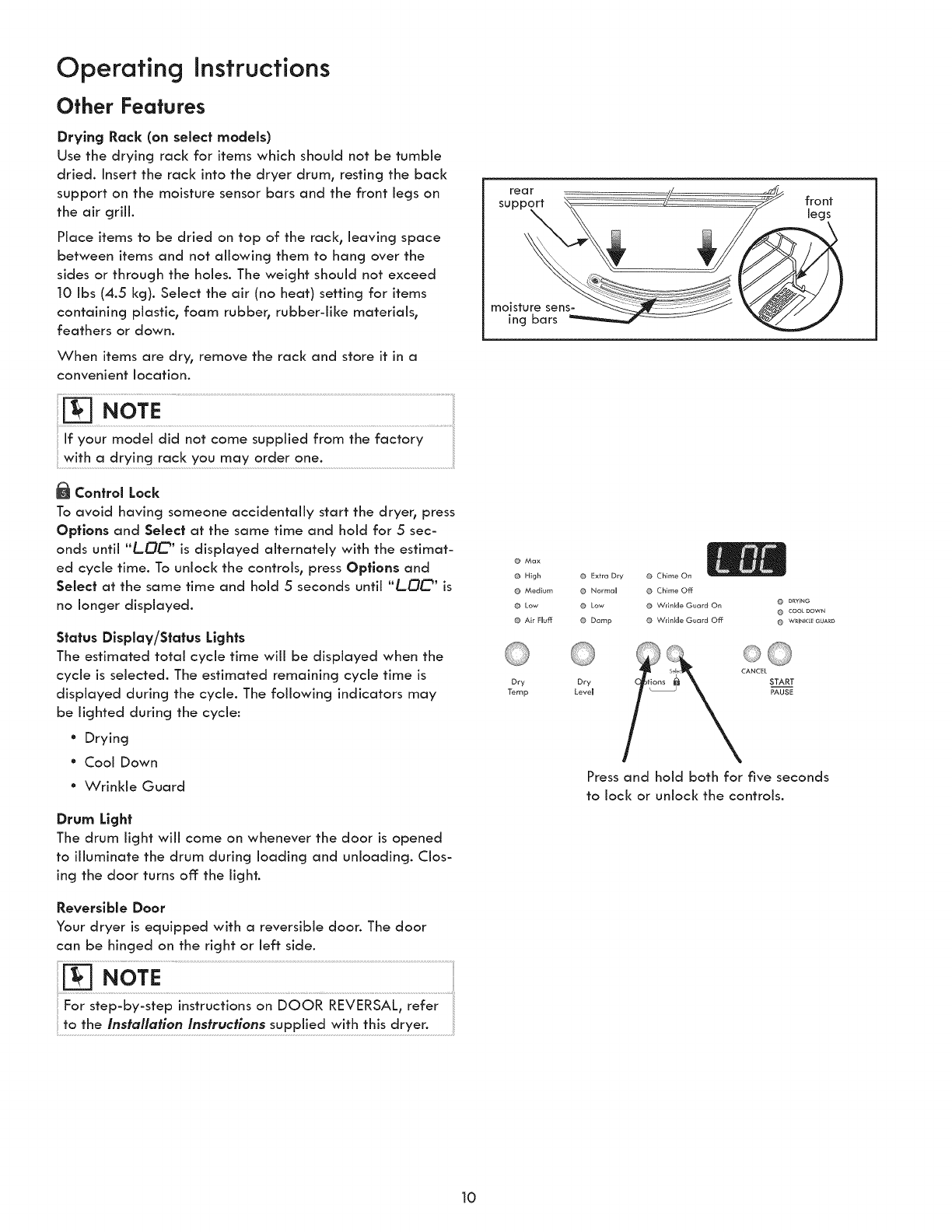

Drying Rock (on select models)
Use the drying rack for items which should not be tumble
dried. Insert the rack into the dryer drum, resting the back
support on the moisture sensor bars and the front legs on
the air grill.
Place items to be dried on top of the rack, leaving space
between items and not allowing them to hang over the
sides or through the holes. The weight should not exceed
10 ibs (4.5 kg). Select the air (no heat) setting for items
containing plastic, foam rubber, rubber-like materials,
feathers or down.
When items are dry, remove the rack and store it in a
convenient location.
rear
moisture sens-
ing bars
front
Jegs
If your model did not come supplied from the factory
with a drying rack you may order one.
Control Lock
To avoid having someone accidentally start the dryer, press
Options and Select at the same time and hold for 5 sec-
onds until "LOC' is displayed alternately with the estimat-
ed cycle time. To unlock the controls, press Options and
Select at the same time and hold 5 seconds until "/-O_' is
no longer displayed.
Status Disp[oy/Stotus Lights
The estimated total cycle time wiii be displayed when the
cycle is selected. The estimated remaining cycle time is
displayed during the cycle. The following indicators may
be lighted during the cycle:
• Drying
" Cool Down
• Wrinkle Guard
Drum Light
The drum light will come on whenever the door is opened
to illuminate the drum during loading and unloading. Clos-
ing the door turns off the light.
Reversible Door
Your dryer is equipped with a reversible door. The door
can be hinged on the right or left side.
@ Max
@ High
@ Medium
@ Low
@ Air FUuff
Dry
Temp
@ Extra Dry
@ NorrnaU
@ Low
@ Damp
@ Chirne On
@ Chime OfF
@ Wrinkle Guard On
@ WdnMe Guard Off
@ D_¥1NG
@ COOLaowN
@W_ENKLEGUAR_
Dry
Levem i
Press and hold both for five seconds
to loci< or unlock the controls.
For step-by-step instructions on DOOR REVERSAL, refer
to the installation instructions supplied with this dryen
10
Operating instructions
Operating Your Dryer
To reduce the risk of fire, electric shock or injury to
persons, read the IMPORTANT SAFETY INSTRUCTIONS
in this Use and Care Guide before operating your dryer.
Prepare load for drying.
°Dry items of similar fabric, weight and construction in
the same load.
°Separate dark items from light-colored items. Sepa-
rate items that shed lint from those that attract lint.
°Check for stains which may not have been removed
in washing. Repeat stain removal process and wash
again before drying. Dryer heat may permanently
set some stains.
°Place delicate or small
items in a mesh bag.
°Be sure buckles, but-
tons and trim are heat-
proof and won't dam-
age the drum finish.
Close zippers, button
buttons, fasten hooks
and Velcro®qike fasteners. Tie strings and sashes to
prevent snagging and tangling.
(Mesh bag not included.)
2 Check that the lint filter is
dean and in place.
3Load the dryer and dose
the door.
°Load items loosely. The average
wet load will fill the drum 1/3
to 1/2 full. Items need room to
tumble freely for even drying and less wrinkling.
°If desired, place a dryer fabric softener sheet on top
of the load at the beginning of the cycle.
°To save energy and time and avoid uneven drying
and wrinkling, do not overload the dryer.
°When drying large items, dry only two or three items
at a time. Fill out the load with small and medium
sized items.
°For delicate or very small loads, add two or three
similar items to improve tumbling action.
,4 Select the appropriate cycle and settings for
each load.
°Turn the cycle selector knob in either direction to
select the cycle desired.
°The estimated drying time for Auto Dry cycles or
the actual drying time for Timed Dry cycles will be
displayed.
°A suitable drying temperature, dryness level and
options will automatically be indicated for the cycle
selected. See the "Dryer Settings Chart" for more
details.
°To change the drying temperature and dryness level,
press the Temp or Dry Level buttons to scroll to the
desired settings.
*To select or delete an option, press Options; then,
while the indicator is blinking, press Select. The indi-
cator will light when the option has been selected. It
will no longer be lighted when the option has been
deleted.
°Adjustments made to a cycle will be remembered
and recalled each time that cycle is selected in the
future.
® M0x
® H_g.
o Mod_um
® Lo_
D,y
Te_,p
To return to factory set-
..........h o__ W
........ Ch:_: Otings, press these t o
®Lo_ ®w kBC _J ®
.......... i::_,,__:.0 buttons at the same time
....... _ "__, and hold until the signal
(_i:_) _ sounds
:_, CANCEL
Dry Opt_o,,s _ STA_:T
L_v_l ' eAUS_
5Start the cycle.
°Close the door and press START. The dryer will not
operate with the door open. "PRL.P will be displayed
as a reminder to close the door.
°To add or remove items when the dryer is running,
open the door. The dryer will stop when the door is
opened. Allow the drum to come to a complete stop
before reaching inside.
°Close the door and press START to resume the cycle.
*A signal will sound at the end of the cycle if the
Chime option has been selected.
6When the cycle ends, remove items immedi-
ately and hang or fold.
IMPORTANT
Clean the lint filter after every load.
Over-drying can cause wrinkles, shrinkage, lint, harshness
and a build up of static electricity.
11
Operating instructions
Normal Operating Sounds
You may or may not hear the following sounds from your
new dryer:
A. SUSPENSION ROLLERS The dryer drum is supported
by a set of suspension rollers. At times there may be a
thumping or rolling sound when the dryer starts. This may
happen if the dryer has not been in use for a period of
time, or after a heavy load has remained in the dryer
drum for an extended period, creating a temporary flat
spot on the edge of the roller. The noise should dissipate
as the dryer operates and any flat spots smooth out.
B. AIR FLOW SYSTEM Your dryer is equipped with a high
volume air handling system. In some installations there
may be some sounds associated with air movement
throughout the dryer, including the air duch blower, and
exhaust system. This is normal and can vary with load
size and type.
C. GAS VALVE (Gas models only.) The flow of gas is
controlled by electric solenoids. During operation there
may be a clicking sound as the valve opens and closes to
control the gas flow.
D. GAS BURNER (Gas models only.) When the burner is
operating, there may be sounds generated as the air flow
mixes with the gas flame. This noise is normal and will
only occur when the gas is ignited in the combustion tube.
Do not continue to use the dryer if you hear squeaking,
grinding, rubbing or other unusual noises. This could
be a sign of mechanical breakdown and lead to
fire or serious injury. Contact a qualified technician
immediately.
12
Care and Cleaning
RNING.....................................................................................................................................
FiREHAZARD
A clothes dryer produces combustible lint. The dryer
must be connected to an outdoors exhaust. Regularly
inspect the outdoor exhaust opening and remove
any accumulation of lint around the opening and in
the surrounding area.
MPORTANT
Clean the lint filter after every load.
iMPORTANT.........................................................................................................................
Do not store or place laundry products on top of
dryer at any time. They can damage the finish or
controls.
To reduce risk of fire or serious injury to persons or property,
comply with the basic warnings listed in the Important Safety
!nstruc!!on a nd thoS Jsted beiow: .........................................................................................................................................................................
• Before cleaning the dryer interior, unplug the electrical power
cord to avoid electrical shock hazards.
•Do not use any type of spray cleanser when cleaning the dry-
er interior. Hazardous fumes or electrical shock could occur.
iNSiDE
• Clean the lint filter after every load. Lint build-up on the filter
restricts air flow, which causes longer drying times. The filter
is located at the bottom of the door opening. Remove by
pulling straight up. Remove the lint and replace the filter.
° Occasionally a waxy build-up may form on the lint filter and/
or moisture sensing bars from using dryer-added fabric soft-
ener sheets. To remove this build-up, wash the filter and bars
with warm, soapy water. Dry the filter thoroughly and replace.
Do not operate the dryer without the lint filter in place.
• If the dryer drum becomes stained from noncolorfast fabrics,
clean the drum with a damp cloth and a mild liquid house-
hold cleanser. Remove cleanser residue before drying the next
load.
• Every 18 months an authorized servicer should clean the dryer
cabinet interior and exhaust duct. These areas can collect
lint and dust over time. An excessive amount of lint build-up
could result in inefficient drying and possible fire hazard.
OUTSIDE
• Clean the cabinet with mild soap and water. Never use harsh,
gritty or abrasive cleansers.
• If the cabinet becomes stained, clean with diluted chlorine
bleach (1 part bleach to 8 parts water). Rinse several times
with clear water.
• Remove glue residue remaining from tape or labels with a
mixture of warm water and mild detergent.
• When cleaning chrome parts use a window cleaner with am-
monia or mild soap and water.
• Before moving the dryer, place a strip of cardboard or thin
fiberboard under the front leveling legs to prevent damage to
the floor.
13

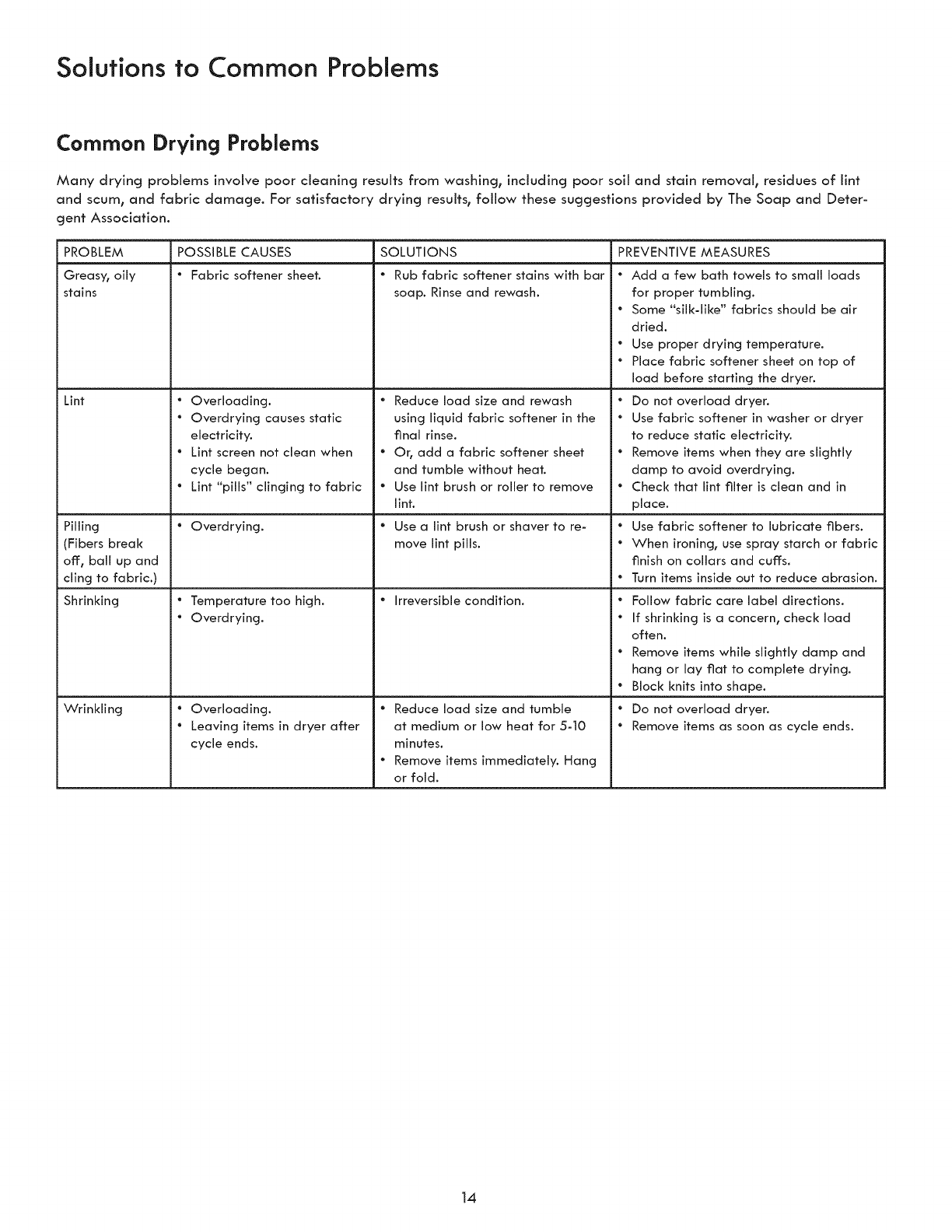

Solutions to Common Problems
Common Drying Problems
Many drying problems involve poor cleaning results from washin% including poor soil and stain removal_ residues of lint
and scum, and fabric damage. For satisfactory drying results0 follow these suggestions provided by The Soap and Deter-
gent Association.
PROBLEM
Greasy, oily
stains
Lint
Pilling
(Fibers break
off, ball up and
cling to fabric.)
Shrinking
Wrinkling
POSSIBLE CAUSES
*Fabric softener sheet.
*Overloading.
*Overdrying causes static
electricity.
*Lint screen not clean when
cycle began.
*Lint "pills" clinging to fabric
*Overdrying.
*Temperature too high.
" Overdrying.
*Overloading.
*Leaving items in dryer after
cycle ends.
SOLUTIONS
*Rub fabric softener stains with bar
soap. Rinse and rewash.
*Reduce load size and rewash
using liquid fabric softener in the
final rinse.
*Or, add a fabric softener sheet
and tumble without heat.
*Use lint brush or roller to remove
lint.
*Use a lint brush or shaver to re-
move lint pills.
*Irreversible condition.
*Reduce load size and tumble
at medium or low heat for 5-10
minutes.
*Remove items immediately. Hang
or fold.
PREVENTIVE MEASURES
*Add a few bath towels to small loads
for proper tumbling.
*Some "silk-like" fabrics should be air
dried.
*Use proper drying temperature.
*Place fabric softener sheet on top of
load before starting the dryer.
*Do not overload dryer.
*Use fabric softener in washer or dryer
to reduce static electricity.
*Remove items when they are slightly
damp to avoid overdrying.
*Check that lint filter is clean and in
place.
*Use fabric softener to lubricate fibers.
*When ironing, use spray starch or fabric
finish on collars and cuffs.
*Turn items inside out to reduce abrasion.
*Follow fabric care label directions.
"If shrinking is a concern, check load
often.
*Remove items while slightly damp and
hang or Jay fiat to complete drying.
*Block knits into shape.
*Do not overload dryer.
*Remove items as soon as cycle ends.
14

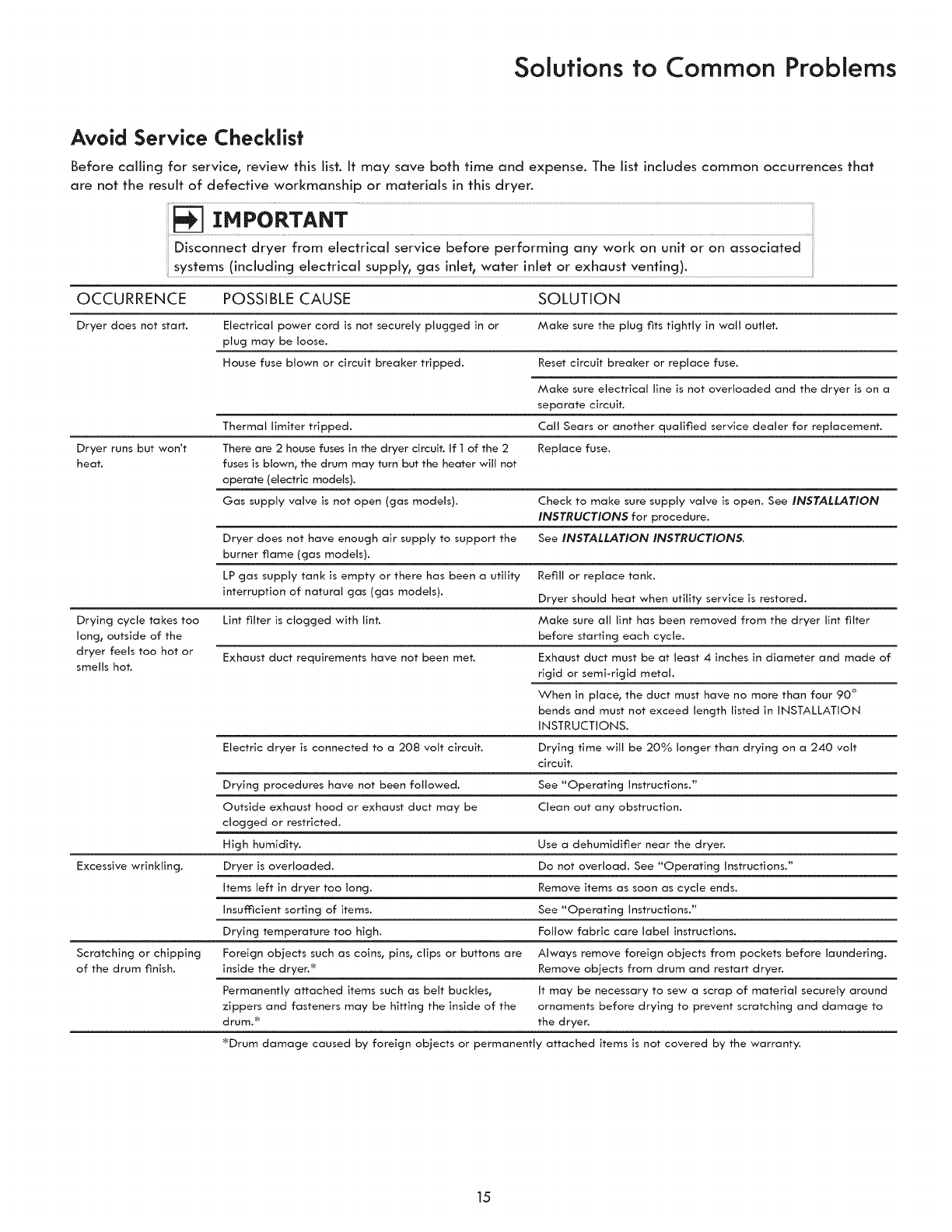

Solutions to Common Problems
Avoid Service ChecNist
Before calling for service_ review this list. It may save both time and expense. The list includes common occurrences that
are not the result of defective workmanship or materials in this dryer.
IMPORTANT ....................
Disconnect dryer from electrical service before performing any work on unit or on associated
systems (includincj electrical supply t gas inlet t water inlet or exhaust venting).
OCCURRENCE POSSIBLE CAUSE SOLUTION
Dryer does not start. Electrical power cord is not securely plugged in or Make sure the plug fits tightly in wall outlet.
plug may be loose.
House fuse blown or circuit breaker tripped. Reset circuit breaker or replace fuse.
Make sure electrical line is not overloaded and the dryer is on a
separate circuit.
Thermal limiter tripped. Call Sears or another qualified service dealer for replacement.
Dryer runs but won't There are 2 house fuses in the dryer circuit. If I of the 2 Replace fuse.
heat. fuses is blown, the drum may turn but the heater will not
operate (electric models).
Gas supply valve is not open (gas models). Check to make sure supply valve is open. See INSTALLATION
INSTRUCTION5 for procedure.
Dryer does not have enough air supply to support the See INSTALLATION INSTRUCTIONS.
burner flame (gas models).
LP gas supply tank is empty or there has been a utility Refill or replace tank.
interruption of natural gas (gas models). Dryer should heat when utility service is restored.
Drying cycle takes too Lint filter is clogged with lint. Make sure all lint has been removed from the dryer lint filter
Iong_ outside of the before starting each cycle.
dryer feels too hot or Exhaust duct requirements have not been met. Exhaust duct must be at least 4 inches in diameter and made of
smells hot. rigid or semi-rigid metal.
When in ptace_ the duct must have no more than four 90 °
bends and must not exceed length listed in INSTALLATION
INSTRUCTIONS.
Electric dryer is connected to a 208 volt circuit. Drying time will be 20% longer than drying on a 240 volt
circuit.
Drying procedures have not been followed. See "Operating Instructions."
Outside exhaust hood or exhaust duct may be Clean out any obstruction.
clogged or restricted.
High humidity. Use a dehumidifier near the dryer.
Excessive wrinkling. Dryer is overloaded. Do not overload. See "Operating Instructions."
Items left in dryer too long. Remove items as soon as cycle ends.
Insufficient sorting of items. See "Operating Instructions."
Drying temperature too high. Follow fabric care label instructions.
Scratching or chipping Foreign objects such as coins_ pins_ clips or buttons are Always remove foreign objects from pockets before laundering.
of the drum finish, inside the dryer. _ Remove objects from drum and restart dryer.
Permanently attached items such as belt bucktes_ It may be necessary to sew a scrap of material securely around
zippers and fasteners may be hitting the inside of the ornaments before drying to prevent scratching and damage to
drum. _ the dryer.
_Drum damage caused by foreign objects or permanently attached items is not covered by the warranty.
15
Your Home
For troubleshooting, product manuals and expert advice:
managemylife
www.managemylife.com
For repair - in your home - of all major brand appliances,
lawn and garden equipment, or heating and cooling systems,
no matter who made it, no matter who sold it!
For the replacement parts, accessories and
owner's manuals that you need to do-it-yourself.
For Sears professional installation of home appliances
and items like garage door openers and water heaters.
1-800-4-MY-HOME ® ( -8oo-469-4663)
Call anytime, day or night (U.S.A. and Canada)
www.sears.com www.sears.ca
Our Home
For repair of carry-in items like vacuums, lawn equipment,
and electronics, call anytime for the location of your nearest
Sears Parts & Repair Service Center
1-800-488-1222 (U.S.A.) 1-800-469-4663 (Canada)
www.sears.com www.sears.ca
To purchase a protection agreement on a product serviced by Sears:
1-800-827-6655 (U.S.A.) 1-800-361-6665 (Canada)
Para pedir servicio de reparaci6n
a domicilio, y para ordenar piezas:
1-888-SU-HOGAR ®
(1-888-784-6427)
www.sears.com
Au Canada pour service en frangais:
1-800-LE-FOYER Mc
(1-800-533-6937)
www.sears.ca
S@SFS
® Registered Trademark /TMTrademark of KCD IP, LLC in the United States, or Sears Brands, LLC in other countries
® Marca Registrada /TMMarca de Fabrica de KCD IP, LLC en Estados Unidos, o Sears Brands, LLC in otros paises
MCMarque de commerce /MDMarque depos6e de Sears Brands, LLC
