Owner's Manual
Manual del Propietario
®
ROOM AIR CONDITIONER
ACONDICIONADOR DE AIRE DE VENTANA
Model, Modelo 580.71121
Sears, Roebuck and Co., Hoffman Estates, IL 6qEWIg_et_
www.sears.com
TABLE OF CONTENTS ........................2
WARRANTY .............................................. 2
SAFETY ..................................................... 3
Important Safety Instructions ...................... 3
ELECTRICAL REQUIREMENTS .......4
INSTALLATION ........................................ 5
Installation Requirements ......................... 5
Installation ................................................ 6
How to Install ............................................ 6
Removal from Window ................................. 8
OPERATION ............................................. 9
How and Why ........................................... 9
Normal Sounds ........................................ 9
Capacity and Running Time ..................... 9

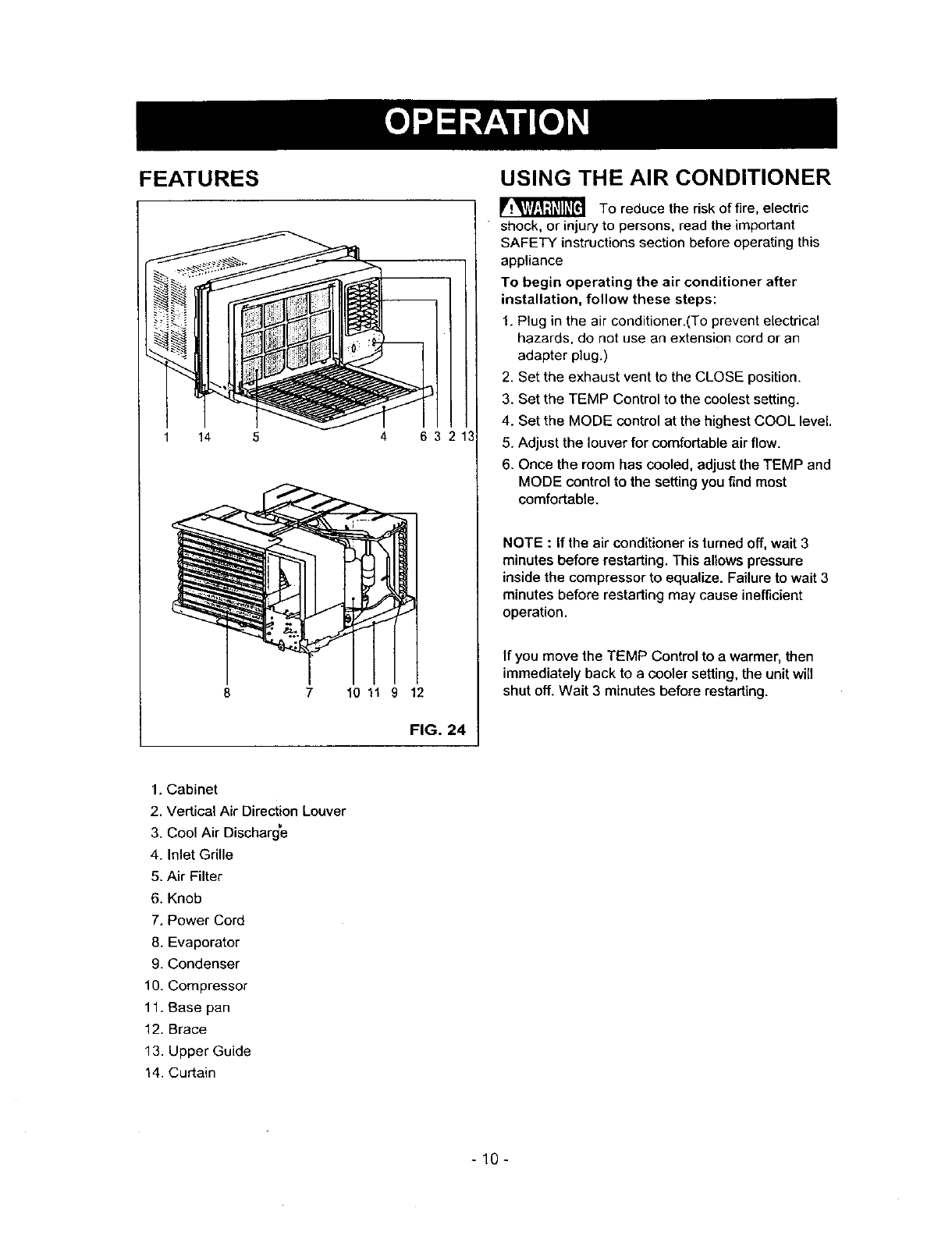

Features ................................................. 10
Using the Air Conditioner ....................... 10
Air Conditioner Features ........................ 11
MAINTENANCE ..................................... 12
Air Filter Cleaning ................................... 12
Air Conditioner Cleaning ........................ 12
How to Remove the Front Grille.................. 12
How to Replace the Front Grille ............. 12
TROUBLESHOOTING ......................... 13
Before Calling for Service ...................... 13

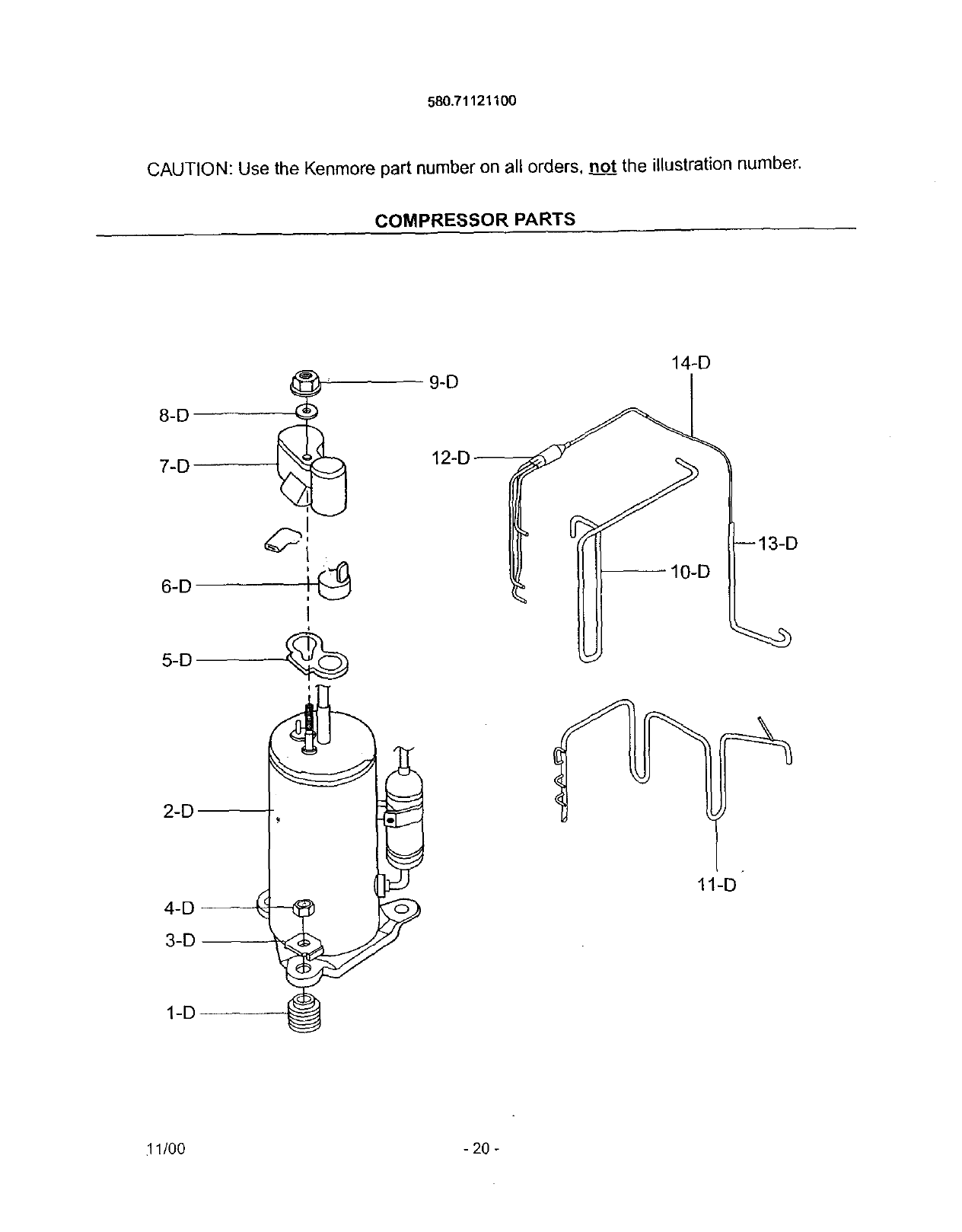

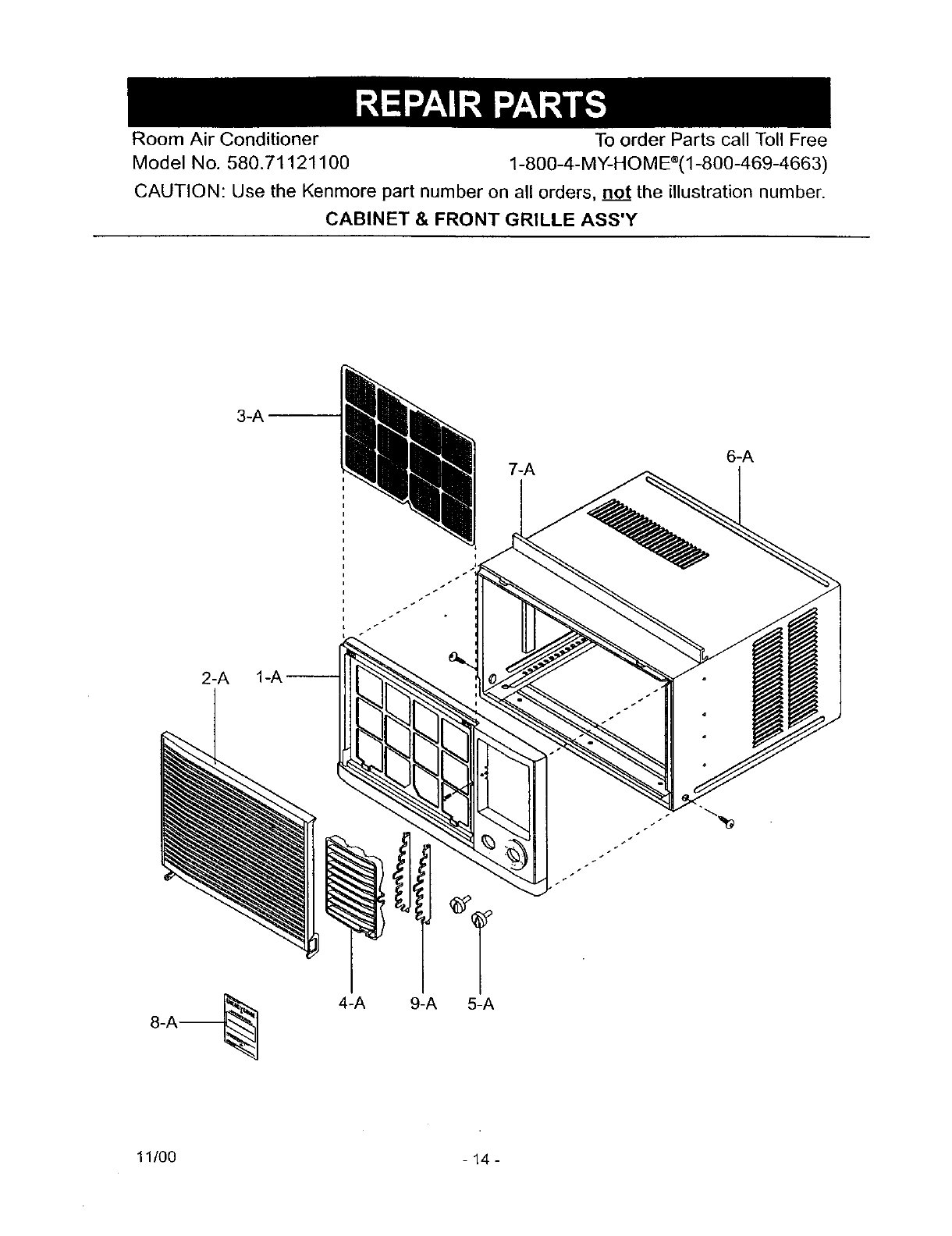

REPAIR PARTS ..................................... 14
ESPANOL ................................................ 24
SERVICE NUMBERS ............Back Cover
FULL ONE YEAR WARRANTY ON
ROOM AIR CONDITIONER
For one year from the'date of purchase, when this
air conditioner is operated and maintained for
normal room cooling according to instructions in this
owner's manual, Sears will repair this air
conditioner, free of charge, if defective in material or
workmanship.
FULL FIVE-YEAR WARRANTY ON
SEALED REFRIGERATION SYSTEM
For five years from the date of purchase, when this
air conditioner is operated and maintained for
normal room cooling according to instructions in this
owner's manual, Sears will repair the sealed
refrigeration system (consisting of refrigerant,
connecting tubing, and compressor), free of charge,
if defective in material or workmanship.
WARRANTY SERVICE IS AVAILABLE BY
CONTACTING THE NEAREST SEARS
SERVICE CENTER IN THE UNITED STATES.
Warranty coverage applies only to air conditioners
used for non-commercial, private household
purposes.
This warranty applies only while this product is in
use in the United States.
This warranty gives you specific legal rights, and
you may also have other right which vary from state
to state.
Sears, Roebuck and Co., D/817WA,
Hoffman Estates, IL 60179 U.S.A.
-2-
IMPORTANT SAFETY INSTRUCTIONS
The safety instructions betow wilt tell you how to use your room air conditioner to avoid harm to yourself or
damage to your ROOM AIR CONDITIONER.
FOR YOUR SAFETY
Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any other
appliance. Read product labels for flammability and
other warnings.
_ PREVENT ACCIDENTS
To reduce the risk of fire, electrical shock, or injury
to persons when using your air conditioner, follow
basic precautions, including the following:
• Be sure the electrical service is adequate for the
model you have chosen.
• If the air conditioner is to be installed in a window,
you will probably want to clean both sides of the
glass first. If the window is a triple-track type with a
screen panel included, you may want to remove
the screen completely before installation.
• Be sure the air conditioner has been securely and
correctly installed according to the separate
installation instructions provided with this manual.
Save this manual and installation instructions for
possible future use in removing or reinstalling this
unit.
•When handling the air conditioner, be careful to
avoid cuts from sharp metal fins on front and rear
coils.
ELECTRICAL INFORMATION
The complete electrical rating of your new room air
conditioner is stated on the serial plate. Refer to the
rating when checking the electrical requirements.
• Be sure the air conditioner is propedy grounded.
To minimize shock and fire hazards, proper
grounding is important. The power cord is
equipped with a three-prong grounding plug for
protection against shock hazards.
• Your air conditioner must be plugged into a
properly grounded wall receptacle. If the wall
receptacle you intend to use is not adequately
grounded or protected by a time delay fuse or
circuit breaker, have a qualified electrician install
the proper receptacle.
•Do not run air conditioner with outside protective
cover in place. This could result in mechanical
damage within the air conditioner.
• Do not use an extension cord or an adapter
plug.
_ Avoid fire hazard or electric shock.
Do not use an extension cord or an adapter plug.
Do not remove any prong from the power cord.
Grounding type
wall rece Do not under any /
circumstances cut, !
remove, or bypass
the grounding prong
from this plug.
Power supply cord
with 3-prong _,_
grounding plug \\
ENERGY SAVINGIDEAS
• The capacity of the room air conditioner must fit
the room size for efficient and satisfactory
operation.
• Install the room air conditioner on the shady side
of your home. Awindow that faces north is best
because itis shaded most of the day.
•Do not block air flow inside with blinds, curtains, or
furniture, or outside with shrubs, enclosures, or
other buildings.
• Close the floor and wall registers and the fireplace
damper so cool air does not escape up the
chimney and into the duct work.
• Keep blinds and drapes in other windows closed
during the sunniest part of the day.
• Clean the air filter as recommended in the
MAINTENANCE section of this manual.
• Proper insulation and weather stripping in your
home will help keep warm air out and cool air in.
• External house shading with trees, plants or
awnings will help reduce the air conditioner's work
load.
• Operate heat producing appliances such as
ranges, washers, dryers, and dishwashers during
the coolest part of the day.
/
-3-

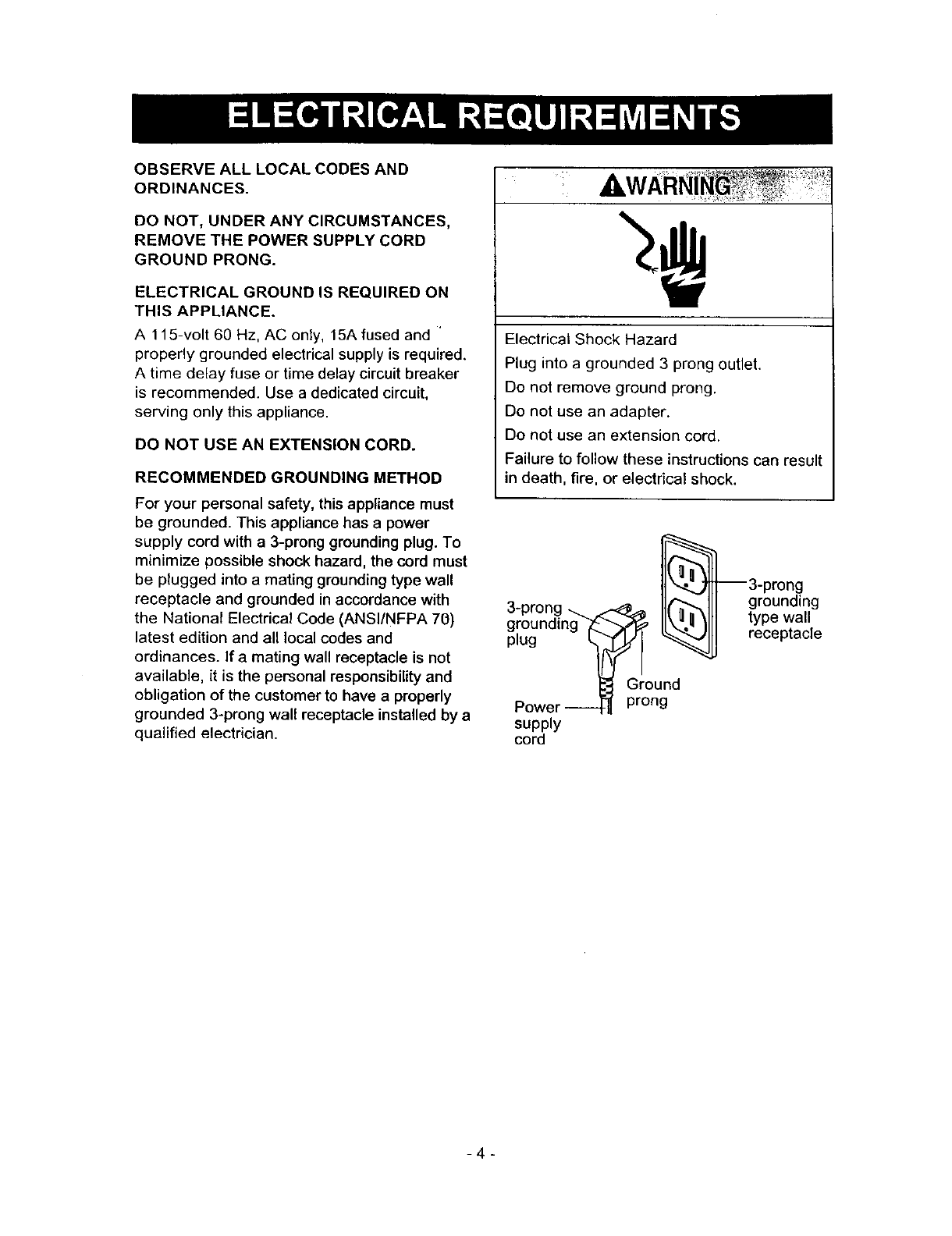

OBSERVE ALL LOCAL CODES AND
ORDINANCES.
DO NOT, UNDER ANY CIRCUMSTANCES,
REMOVE THE POWER SUPPLY CORD
GROUND PRONG.
ELECTRICAL GROUND IS REQUIRED ON
THIS APPLIANCE.
A 115-volt 60 Hz, AC only, 15A fused and
properly grounded electrical supply is required.
A time delay fuse or time delay circuit breaker
is recommended. Use a dedicated circuit,
serving only this appliance.
DO NOT USE AN EXTENSION CORD.
RECOMMENDED GROUNDING METHOD
For your personal safety, this appliance must
be grounded. This appliance has a power
supply cord with a 3-prong grounding plug. To
minimize possible shock hazard, the cord must
be plugged into a mating grounding type wall
receptacle and grounded in accordance with
the National Electrical Code (ANSI/NFPA 70)
latest edition and all local codes and
ordinances. If a mating wall receptacle is not
available, it is the personal responsibility and
obligation of the customer to have a properly
grounded 3-prong wall receptacle installed by a
qualified electrician.
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result
in death, fire, or electrical shock.
]_3-prong
tlr--._ lit grounding
,_-prong .-_ -.-._ III r, _ III .,,
grounding' II\=.l 111 type wall.
plug _'_[ _recep,acle
Ground
Power _ prong
supply
cord
-4-
INSTALLATION REQUIREMENTS
Your air conditioner will install into standard double
hung windows with actual clear opening widths of
27 to 39 inches (686mm to 990mm) (FIG. 1).
Lower sash must open sufficiently to allow a clear
vertical opening of 16 inches (406ram). Side louvers
and the rear of the air conditioner must have clear
air space to allow enough airflow through the
condenser for heat removal. The rear of the unit
must be outdoors, not inside a building or garage.
t-f- "t°39"--I1
'°ne'<,l'll/--Wind°w
•-°'set
,'_._- Sill
_, 1 l,._, Exterior
,n,o,,o,wS"'.J ?: F,G.,
ELECTRICAL SERVICE
Check your available electrical service. The power
supply available must be the same as that shown
on the unit nameplate (found on right side of cabinet).
All models are equipped with a 3-prong service plug
to provide proper service and safe positive
grounding. Do not change plug in any way. Do not
use an adapter plug. If your present wall outlet does
not match your plug, call a qualified electdcian to
make the necessary corrections.
SAVE CARTON and this OWNER'S MANUAL for
future reference. The carton is the best way to store
unit during winter or when not in use.
INSTALLATION HARDWARE
FIG. 2
ITEM NAME OF PARTS Q'TY
A SIDE CURTAIN 2
B SILL SUPPORT 2
CBOLT 2
DLOCK NUT 2
E SCREW: 25/64" 13
F SCREW: 5/8" 3
G SCREW: 5/8" 5
H FOAM SEAL 1
I FOAM STRIP 1
J L BRACKET 1
/
To avoid risk of personal injury, property damage,
or product damage due to the weight of this
device and sharp edges that may be exposed:
• Air conditioners covered in this manual pose an
excessive weight hazard. Two or more people
are needed to move and install the unit.
To prevent injury or strain, use proper lifting and
carrying techniques when moving unit.
• Carefully inspect location where air conditioner
will be installed. Be sure it will support the
weight of the unit over an extended pedor of
time.
• Handle air conditioner with care. Wear
protective gloves whenever lifting or carrying the
unit. AVOID the sharp metal fins of front and
rear coils.
• Make sure air conditioner does not fall during
installation,
REQUIRED TOOLS:
•Tight Fitting gloves
•Standard screwdriver
•Phillips screwdriver
•Pliers
• Sharp knife
• 3/8-inch open end wrench or adjustable wrench
• 1/4-inch hex socket and ratcher
• Tape measure
• Electric drill
• 1/4-inch drill bit
INSTALLATION
Pick a location which wilt allow you to blow the cold
air into the area you want. Windows used for
installation must be strong enough to support the
weight of the air conditioner, Good installation with
special attention to the proper position of the unit
will lessen the chance that service will be needed.
When cooling more than one room, installation
location is very important since cold air will not turn
corners. To cool your rooms, cold air must be blown
from the air conditioner in a straight path.
HOW TO INSTALL
_1 Remove the screws which fasten the cabinet at
both sides and at the back. Save side screws.
Discard back screws.
FIG. 3
IE_ Slide the unit out of the cabinet by gripping the
base pan handle and pull forward while bracing the
cabinet.
FIG. 4
_"Tcut the FOAM STRIP (ITEM I) to fit the
underside of the window sash. Peel off the backing
and attach the FOAM STRIP as shown in Fig. 5.
_] Insert the side curtain (ITEM A) into the upper
guide and lower guide of the air conditioner, Fasten
the curtains to the unit with screws (ITEM E).
FIG. 6
_J Open the window. Mark a line on center of the
window inner sill (or desired air conditioner location).
Carefully place the cabinet on the window inner sill
and align the center mark on the angle front with the
center fine marked in the window inner sill.
Windowstool
Lowerguide FIG. 7
r_Pull the bottom window sash down behind the
upper guide until they meet.
NOTE: Do not pull the window sash down so tightly
that the movement of side curtain is restricted.
Wir_ow sash
Cabinet
ITEM A
FIG. 8
i_ Loosely assemble the silt supports using the
parts in FIG. 9.
FIG. 5
INDOOR_ _ OUTDOOR
I MB
C_.._ ''_'_ _'nTEM D
ITEM FIG. 9
-6-
_r_ select the position that will place the sill
supports near the outermost point on sill (FIG. 10).
Attach the sill supports to the cabinet track hole
closest to the selected position using screw ITEM E.
mEME
_'] Place the sill supports with the cabinet on the
window sill's selected position.
_l"_J The cabinet should be installed with a very slight
tilt (about 1/4") downward toward the outside (FIG. 11).
Adjust the bolts and the nuts of sill supports to level
the cabinet.
FIG. 11
_1 Attach the cabinet to the inner sill by driving the
screws (ITEM F) through the front lower guide into
the window inner sill. (FIG. 12)
Track
_Lower Guide
ITEM F
ITEMB FIG. 12
_"_ Pull each side curtain fully to each side of
window opening. Attach each side curtain to the
window sash using screws (ITEM G). (FIG. 13)
]
• ITEMG I
1
LI.L]_--,"__t" FIG. 13
_J Attach the L bracket (ITEM J) with screw
(iTEM G). (FIG. 14)
-7-
ITEM J
FIG. 14
[] DRAINAGE
Be sure to insert the drain pipe into base pan before
installation.
The air conditioner must be installed with aslight tilt
to the outside for proper water drainage.
The air conditioner will drain the excess condensed
water through the drain pipe. (FIG. 15)
_.._ BASEPANREAR
DRAIN_
_ j//////.," / ,,'/,,"//,.'/_
/
BASEPANBoTroM FIG, 15
_J Slide the air conditioner into the cabinet. (FIG. 16)
CAUTION: For security purposes, reinstall side screws
tou removed in step 1.
/Cord
S_-ew
Screw FIG. 16
_JCut the foam seal (ITEM H) to the proper
length and insert between the upper window sash
and the lower window sash. (FIG. 17)
FIG. 17
_r'_ The vent control handle must be straightened
before the decorative front is attached.
Pull down part ® to align with part _.
Part
r_
FIG. 18

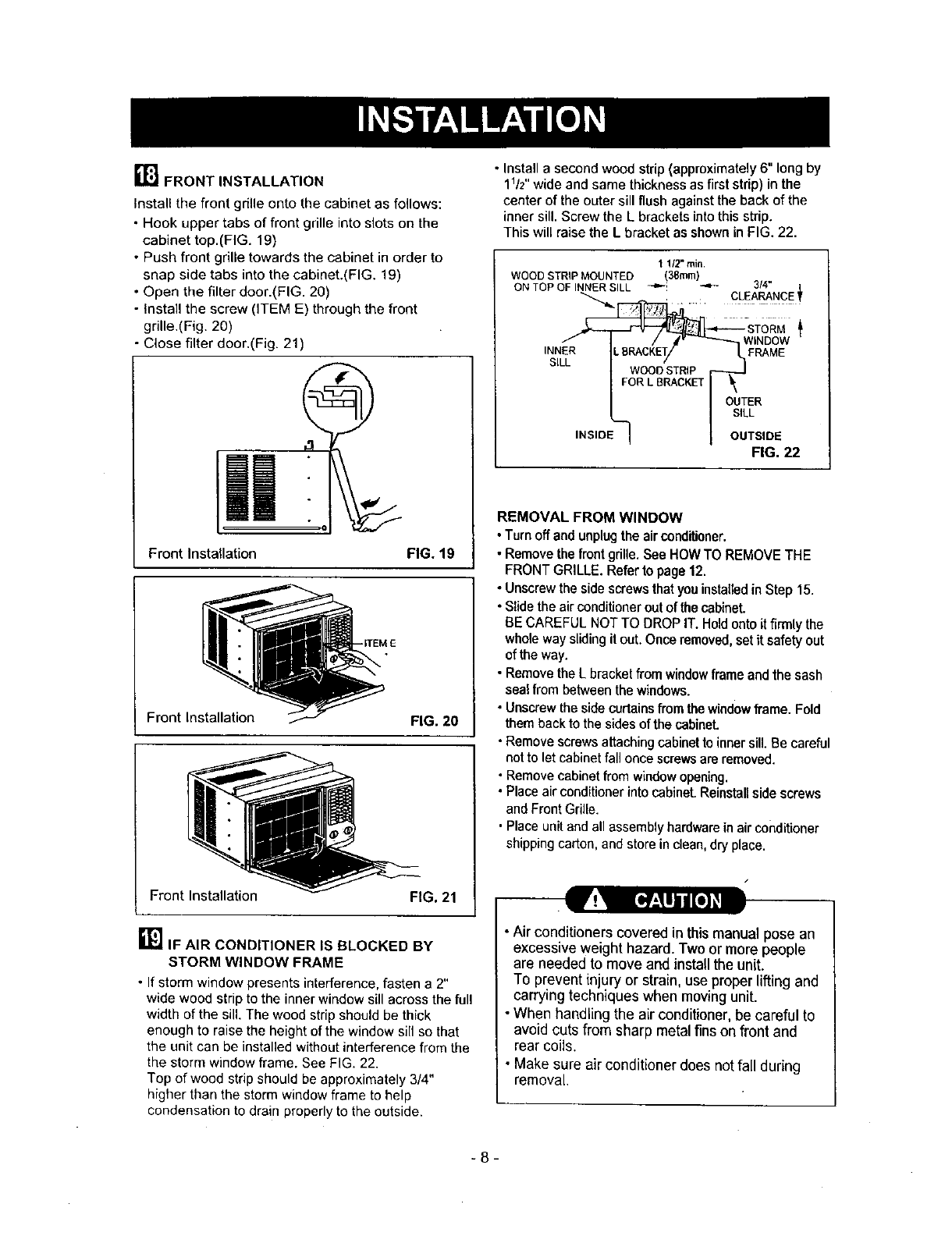

_J FRONT INSTALLATION
Install the front grille onto the cabinet as follows:
•Hook upper tabs of front grille into slots on the
cabinet top.(FIG. 19)
• Push front grille towards the cabinet in order to
snap side tabs into the cabinet.(FIG. 19)
• Open the filter door.(FIG. 20)
• Install the screw (ITEM E) through the front
grille.(Fig. 20)
• Close filter door.(Fig. 21)
Front Installation FIG. 19
Front Installation FIG. 20
Front Installation FIG, 21
_"11F AIR CONDITIONER IS BLOCKED BY
STORM WINDOW FRAME
• If storm window presents interference, fasten a 2"
wide wood strip to the inner window sill across the full
width of the sill. The wood strip should be thick
enough to raise the height of the window sill so that
the unit can be installed without interference from the
the storm window frame. See FIG. 22.
Top of wood strip should be approximately 3/4"
higher than the storm window frame to help
condensation to drain properly to the outside.
• Install a second wood strip (approximately 6" long by
11/2" wide and same thickness as first strip) in the
center of the outer sill flush against the back of the
inner sill. Screw the L brackets into this strip.
This will raise the L bracket as shown in FIG. 22.
1 1/2" rain.
WOOD STRIP MOUNTED (38ram)
ON TOP OF INNER SILL --='-I _ 314"
.... CLEA NCE
_- STORM
WINDOW _
FIG. 22
REMOVAL FROM WINDOW
• Turn off and unplugthe air conditioner.
• Removethe front grille. See HOW TO REMOVE THE
FRONT GRILLE. Refer to page 12.
•Unscrewthe sidescrewsthat youinstalledin Step 15.
•Slide the air conditionerout of the cabinet.
BE CAREFUL NOT TO DROP IT. Holdonto itfirmly the
whole way slidingit out. Once removed, set it safety out
of theway.
•Remove the L bracketfrom windowframe and the sash
seal from between thewindows.
•Unscrewthe sidecurtainsfrom thewindowframe. Fold
themback to the sides of the cabinet.
•Remove screwsattachingcabinet to innersill. Be careful
notto let cabinetfall once screwsare removed.
•Remove cabinetfrom windowopening.
•Place air conditionerintocabinet.Reinstallside screws
and Front Grille.
• Place unit and all assemblyhardware in air conditioner
shipping carton, and store in clean, dry place.
• Air conditioners covered in this manual pose an
excessive weight hazard. Two or more people
are needed to move and install the unit.
To prevent injury or strain, use proper lifting and
carrying techniques when moving unit.
•When handling the air conditioner, be careful to
avoid cuts from sharp metal fins on front and
rear coils.
• Make sure air conditioner does not fall during
removal.
-8-
HOW AND WHY
Your room air conditioner provides the following
functions to make hot weather living more
comfortable:
° Cools and circulates room air.
•Lowers humidity by removing excess moisture.
• Filters out summertime dust, dirt, and some
airborne impurities.
The air conditioner performs these functions by'
drawing room air through a filter which traps dust
and dirt particles. The air then passes over a
cooling coil which refrigerates the air and removes
excess moisture. The same air is then returned to
the room- cooler, drier, and cleaner. Moisture
removed from the room air is carried to the outside
and evaporated.
Your air conditioner is designed to be easy to
operate and to provide plenty of cooling power.
NORMAL SOUNDS FIG.23
Aside from the regular fan motor and compressor
sounds coming from your air conditioner, you wi!l
once in a while hear a pinging sound. This is the
result of moisture being picked up from the air in the
room and thrown against the air conditioner's fan.
This is normal and should not be cause for concern.
Also, do not be alarmed if you hear a slight hissing
or gurgling sound coming from your air conditioner
after it is off. These are normal coolant noises.
iompressor
The modern high efficiency
compressor may have ahigh
pitched hum or pulsating
noise that cycles on and off.
-Unit Vibration
The unit may vibrate
and make noise
because of poor wall
or window construction.
You may hear
droplets of water
hitting the condenser
causing a pinging or
clicking sound,
Fan
You may hear air
movement from
the fan.
FIG. 23
I
CAPACITY AND RUNNING TIME
Proper unit size is important in deciding the desired
comfort for the area y*ouwant to coot. An undersized
unit will not have the capability to cool, leaving the
area uncomfortably warm. The proper size is
determined by the number of square feet in the area
to be cooled, indoor and outdoor temperature and
humidity. An oversized unit will cool, but not
dehumidify, leaving the area cool and damp.
Whenever the heat or humidity load is above normal
the air conditioner must run longer and more often to
keep the desired temperature you have selected,
Under heavy heat load conditions the air conditioner
may need to run constantly to keep the temperature
you want.
At times using the MED FAN setting to circulate the
room air may make it comfortable even though the
air is not being cooled. This will decrease your cost
of use.
-9-
FEATURES
1 14 5 4 6 3 21."
8 10 11 9 12
FIG. 24
USING THE AIR CONDITIONER
To reduce the risk of fire, electric
shock, or injury to persons, read the important
SAFETY instructions section before operating this
appliance
To begin operating the air conditioner after
installation, follow these steps:
1. Plug in the air conditioner.(To prevent electrical
hazards, do not use an extension cord or an
adapter plug.)
2. Set the exhaust vent to the CLOSE position.
3. Set the TEMP Control to the coolest setting.
4. Set the MODE control at the highest COOL level.
5. Adjust the louver for comfortable air flow.
6. Once the room has cooled, adjust the TEMP and
MODE control to the setting you t_nd most
comfortable,
NOTE : If the air conditioner is turned off, wait 3
minutes before restarting. This allows pressure
inside the compressor to equalize. Failure to wait 3
minutes before restarting may cause inefficient
operation.
If you move the TEMP Control to a warmer, then
immediately back to a cooler setting, the unit will
shut off. Wait 3 minutes before restarting.
1. Cabinet
2. Vertical Air Direction Louver
3. Cool Air Discharge
4. Inlet Grille
5. Air Filter
6. Knob
7, Power Cord
8. Evaporator
9. Condenser
10. Compressor
11. Base pan
12. Brace
13. Upper Guide
14. Curtain
-10-
AIR CONDITIONER FEATURES
The controls featured in this manual are
representative of the many models available. Your
model may look slightly different.
OFF
3e 4. °6 o7 MEO " HiGH
_ FAN ° "COOL2••8 o_
LOW MED
FAN OOL
LOW COOL
TEMP MODE
FIG. 25
TEMP
The thermostat will automatically control the
temperature of the room. Select ahigher number for
lower room temperature. The temperature is selected
by turning the TEMP knob to the desired position.
The 5or 6 position is a normal setting for average
conditions.
MODE
OFF :
MED FAN :
LOW FAN :
HIGH COOL :
MED COOL :
LOW COOL :
Turns the air conditioner off.
Medium fan speed operation without
cooling.
Low fan speed operation without
cooling.
Cooling with the high fan speed
operation.
Cooling with the medium fan speed
operation.
Cooling with the low fan speed
operation.
HORIZONTAL AIR DIRECTION CONTROL
The horizontal air direction is adjusted by moving
the vertical louvers right and left with your fingertips.
(FIG. 26)
VENT CONTROL
The Vent Control allows the air conditioner to either
recirculate inside air (CLOSE) or exhaust air to the
outside (OPEN). (FIG. 27)
• The CLOSE position is used when maximum
cooling is desired. It may also be used for air
recirculation without cooling when the air
conditioner is set in the FAN position.
• The OPEN position removes stale air from the
room and exhausts it to the outside, Fresh air is
drawn into the room through normal air passages
found in homes.
•The OPEN or CLOSE position can be used with
any fan selection.
PULL OPEN IPUSH CLOSE FIG. 27
VERTICAL AIR DIRECTION CONTROL
The vertical air direction is adjusted by moving the
horizontal louvers up and down with your fingertips.
(FIG. 28)
FIG. 28
FIG. 26
-11 -
AIR FILTER CLEANING
The Air Filter will become dirty as it removes dust
from the inside air. It should be washed at least
every 2 weeks. If the Air Filter remains full of dust,
the air flow will decrease and the cooling capacity
will be reduced, possibly damaging the unit.
-Pull the inlet grille forward, grasping both tabs, and
pull out the air filter• (FIG. 29)
•Wash the Air Filter under the faucet with warm
water• Be sure to shake off all the water before
replacing the filter. (FIG. 30),
FIG. 29
FIG, 30
HOW TO REMOVE THE FRONT
GRILLE
• Remove the TEMP knob and the MODE knob by
pulling.
• Open the inlet grille downward.
• Remove the screw securing the Front Grille.
• Push the grille up from the bottom and pull the top
of the grille away from the case to lift the top tabs
out of their slots.
Inlet Grille
I . _ Front Grige
mFIG. 32
AIR CONDITIONER CLEANING
Clean the front grille and inlet grille by wiping with a
cloth dampened Kna mild detergent solution.
The cabinet may be washed with mild soap or
detergent and lukewarm water, then polished with
liquid appliance wax.
To ensure continued peak efficiency, the condenser
coils (weather side at unit) should be checked
periodically and cleaned if they become clogged
with soot or dirt from the atmosphere• Brush or
vacuum exterior coils to remove debris from fins.
FIG. 31
HOW TO REPLACE THE
FRONT GRILLE
Attach the front grille to the cabinet by inserting the
tabs on the grille into the tabs on the front of the
cabinet• Push the grille in until it snaps into place•
-12-
BEFORE CALLING FOR SERVICE
Check the following list to be sure a service call is really necessary. A quick reference to this manual may
help you avoid an unneeded service call.
THE AIR CONDITIONER WILL NOT OPERATE
Check if... Then...
Wall Pfu9disconnected.
House fuse blown or circuit breaker thpped.
MODE selector is OFF position.
Unit was turned off and then on ton quickly,
TEMP Control set warmer than room temperature.
Push PfuQfirmly intowall outlet.
Replace fuse with lime delay type or reset circuit breaker.
Turn MODE selector to the desired COOL setting.
Turn unit off and wait 3 minutes before restartin9.
Turn TEMP Control clockwise to a cooler setting (higher number).
AIR FROM UNIT DOES NOT FEEL COLD ENOUGH.
Check if... Then...
MODEselectorinLOWCOOLposition.
TEMPControlset ton warm(lowernumber).
Roomtemperaturebelow70°F(21°C).
Temperaturesensingtubetouchingcoldceil,
locatedbehindair filter.
Tumselectorto HIGHCOOLposition
TumTEMPConli'olclockwiseto a co_ersettin9.
Conlin9 maynotoccuruntilroomtemperaturerisesabove70°F(21°C).
Straightentubeawayfromcoil.
Airfiltermaybedirty.
TEMPControlset ton coldfor night-ltrnecooling.
THEAIRCONDITIONERCOOUNG,BUTROOMISTOOWARM- ICEFORMINGONCOOUNGCOILBEHINDINLETGRILLE.
Check if... Then...
Outdoortemperaturebelow70°F(21°C). Todefrostthecoil,setselectortoFANpesit_on."l_en,turnTEMPcontrol
counterclockwiseto a warmerse_n9.
Cleanfilter.RefertoMaintenancesectionof ownersmanual.To defrost,
setseleolorto FANposition.
Todefrostthecoil,setselectortoaFANposition.Then,settheMODE
controlatFANpositionor"High_ withtheTEMPconlmltoa warmerposilion.
THEAIRCONDmONERCOOUNG,BUTROOM18TOOWARM- NOICEFORMINGONCOOUNGCOILBEHINDINLETGRILLE.
Check if...
Dirtyairfilter- air restricted.
TEMPControleattonwarm.
Frontof unitis blockedby drapes,blinds,fumiture,
etc.Air distributionis restricted.
Doors,windows,{L_:Jistere,etc.open.Coldair escapes.
Unitrecenfiytumedoninhotroom.
Then...
Cleanairfilter.RefertoMaintenancesectionofowner'smanual.
"rumTEMPcontroldodw,.isetoa coolersetting(highernumber).
Clearblockageinfrontofunit.
Closedoors,windows,registers,etc.,
Allowadditionalfirnetoremovestoredbeatfremwalls,ceiling,floor,andfumiture.
THE AIR CONDITIONER TURNS ON AND OFF RAPIDLY.
Check if... Then...
I OutsidetemperatureisextremelyhoL I SetMODEonHIGHspeedtobringairpastoonlingcoitsfaster.
NOISE WHEN UNIT_IS COOLING.
Check if...
I Sound of tan hNng water - moisture removal syst_n.
Windowvibration- poorinstallation.
Then...
IThisisnormalwhenhumidityishigh.Closedonrs,windows,audregisfers.
Referto installationinsli,_Jclionsor checkwith installer.
WATER DRIPPING INSIDE WHEN UNIT IS COOLING.
Check if... Then...
ITheaircondiltonerisimpropedyinsta!led. I ]]ltaironnditionerslighfiytotheoutsidetoallowwaterdrainage.Refertoinstallationinstructionsor checkwithinstaller.
WATER DRIPPING OUTSIDE WHEN UNIT IS COOLING.
Check if... Then...
I The unit is removing large quantities of moisturetromhumidronm. IThisis normaldudngexcessivelyhumiddays.
I
I
I
I
-13-
Room Air Conditioner To order Parts call Toll Free
Model No. 580.71121100 1-800-4-MY-HOME®(1-800-469-4663)
CAUTION: Use the Kenmore part number on all orders, not the illustration number.
CABINET & FRONT GRILLE ASS'Y
2-A
3-A
11/00 - 14 -
580.71121100
CAUTION: Use the Kenmore part number on all orders, not the illustration number.
CABINET & FRONT GRILLE ASS'Y
POS. NO PART NO DESCRIPTION
1 - A 3530AR1534A FRONT GRILLE
2-A 3530AR1535A INLET GRILLE
3-A 5231AR1152A AIR FILTER ASS'Y
4 - A 5990AR2974A VANE
5 - A 4941AR7134B KNOB ASS'Y
6 - A 3091AR2286N CABINET ASS'Y
7 - A 4974AR3262E UPPER GUIDE
8 - A 3850A20046L LABEL, ENERGY
9 - A 4758AR7211A LOUVER
*3828A20049N MANUAL OWNER'S
# = Functional Parts
* = Non-illustrated Parts
- 15 - 11/00
580.71121100
CAUTION: Use the Kenmore part number on all orders, no_ttthe illustration number.
CONTROL BOX ASS'Y
5-B 6-B
1-B
10-B
11/00 - 16 -
580.71121100
CAUTION: Use the Kenmore part number on all orders, not the illustration number.
CONTROL BOX ASS'Y
POS. NO PART NO DESCRIPTION
1- B 4994AR1494D
2-B # 0CZZA20001M
3-B 4H00442F
4-B # 2H00677S
5-B # 2H01109L
6-B # 2H00598E
7- B 4H01762A
8-B 3550AR7032A
9-B 6631AR3843B
10-B 6631AR2687A
CONTROLBOX
CAPACITOR
CAPACITOR CLAMP
POWER CORD ASS'Y
THERMOSTAT
ROTARY SWITCH
HOLDER PC
COVER, CONTROLBOX
CONNECTOR ASS'Y
CONNECTOR ASS'Y
#=Functional Parts
*=Non-illustrated Parts
- 17 - 11/00
580.71121100
CAUTION: Use the Kenmore part number on all orders, no__tthe illustration number.
AIR HANDLING & CYCLE PARTS
13-C
10-C
12-C 14-C
2-C i 20-C
11-C
18-C
10-C
19-C
15-C
Y;_c
16-C
1-C
11/00 - 18 -
580.71121100
CAUTION: Use the Kenmore part number on all orders, not: the illustration number.
AIR HANDLING & CYCLE PARTS
POS. NO PART NO DESCRIPTION
1 - C 3041A20012R BASE PAN WELD ASS'Y
2 - C 5238A20001A AIR GUIDE
3 - C 4948A10005A ORIFICE
4 - C 4900AR7024A VENTILATION DAMPER
5 - C 4960A20005A MOTOR MOUNT
6 - C # 4681A20027H MOTOR ASS'Y
7 - C 3072A20001A SCROLL
8 - C # 5900A20002B FAN, TURBO
9 - C # 5900AR 1173A FAN
10 - C 3H02932B CLAMP SPRING
11 - C 4998AR1496A SHROUD
12 - C 4800A10001A BRACE
13-C # 5421AR2910E EVAPORATOR ASS'Y
14-C # 5403AR2921A CONDENSER ASS'Y
15 - C 4H02023A DRAIN RUBBER
16 - C 4H01029D WASHER RUBBER
17 - C 3H02773A DRAIN PIPE
18 - C 4790A20022A BARRIER
19 - C 5040AR4254A RUBBER
20 - C 3530AR2688D REAR WtRE GRILLE
# = Functional Parts
* = Non-illustrated Parts
- 19 - 11/00
580,71121100
CAUTION: Use the Kenmore part number on all orders, no.__ttthe illustration number.
COMPRESSOR PARTS
8-D )
7_°
_-o !_
I
5-D _
2-D
4-D --_
3_°
1_o _t
9-D
12-D
14-D
--13-D
11-[
11/00 - 20 -
580.71121100
CAUTION: Use the Kenmore part number on all orders, no__ttthe illustration number.
COMPRESSOR PARTS
POS. NO PART NO DESCRIPTION
1-D 4H00982C
2- D # 2520UKPC2CA
3- D 4H01811C
4- D 1NHA0801206
5-D 4986U-L001G
6-D # 6750U-L029A
7- D 3550U-L004A
8-D 4H01058A
9- D 4H00947A
10-D 5211AR2930A
11-D 5211A20228A
12-D 5211A20131D
13-D 5211AR7059B
14-D 5211A20020S
ISOLATOR, COMP
COMPRESSOR
BRACKET, WASHER
HEXAGON NUTS
GASKET
OVERLOAD PROTECTOR
TERMINAL COVER
GASKET NUT
TERMINAL COVER NUT
TUBE ASS'Y DISCHARGE
TUBE ASS'Y SUCTION
TUBE ASS'Y EVAPORATOR
TUBE ASS'Y CONNECTOR
TUBE ASS'Y CAPILLARY
# = Functional Parts
* = Non-illustrated Parts
-21- 11/00
580.71121100
CAUTION: Use the Kenmore part number on all orders, not the illustration number,
INSTALLATION KIT ASS'Y
o
11/00
580.71121100
CAUTION: Use the Kenmore part number on all orders, not the illustration number.
INSTALLATION KIT ASS'Y
POS. NO PART NO DESCRIPTION
1 - E 4959h, R3402C SIDE CURTAIN ASS'Y
2 - E 4959AR3402D SIDE CURTAIN ASS'Y
3 - E 4810AR3240A SILL SUPPORT BRACKET
4 - E 1BHD1004006 BOLT
5 - E 1NHC1000006 NUT
6 - E 4H01785B L BRACKET
# = Functional Parts
* = Non-illustrated Parts
- 23 - 11/00

Navigation menu
