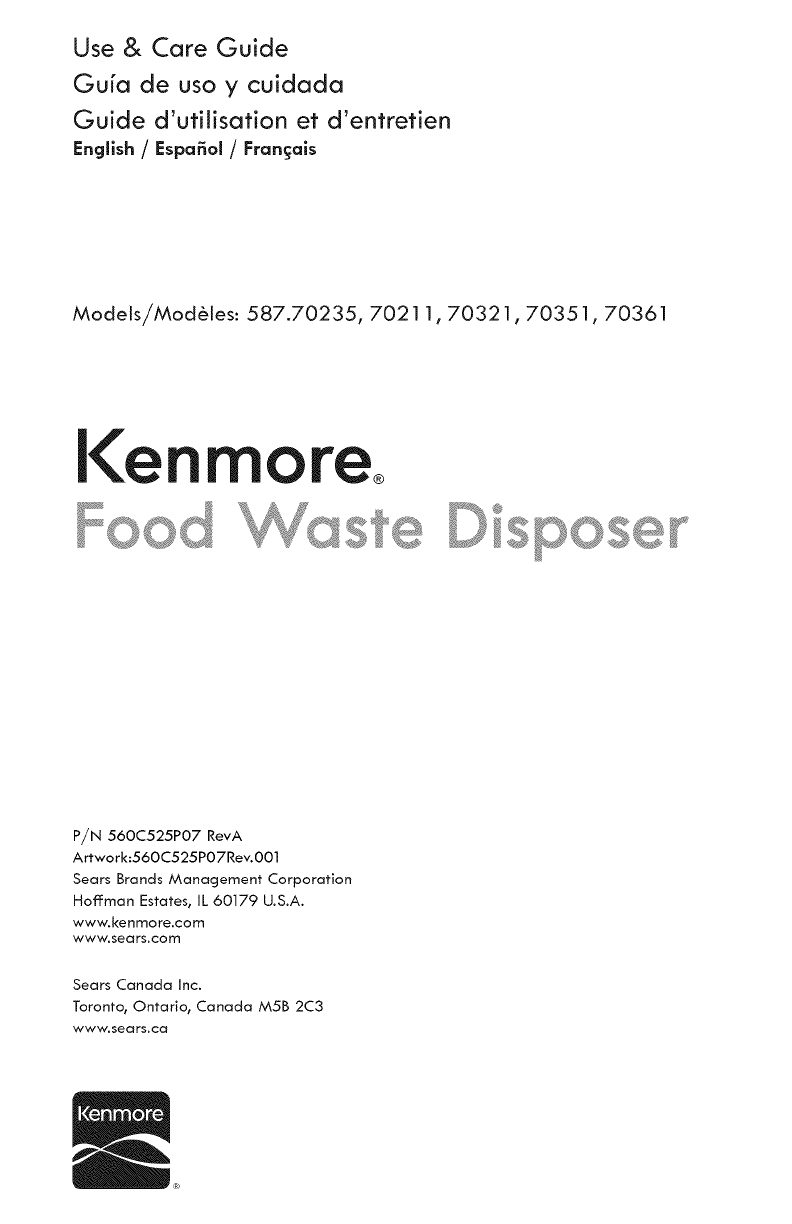

Use & Care Guide

Gufa de uso y cuidada

Guide d'uti[isafion et d'entrefien

English /Espa_ol /Fran<}als

Models/ModUles: 587.70235, 7021 l, 7032 l, 7035 l, 70361

P/N 560C525P07 RevA

Artwork:560C525 PO7Rev.001

Sears Brands Management Corporation

Hoffman Estates, IL 60179 U.S.A.

www.kenmore.com

www.sears.com

Sears Canada Inc.

Toronto, Ontario, Canada M5B 2C3

www.sears.ca

Record Model/Serial

Numbers

Product Record

Bill of sale, sales slip, cancelled check

or other purchase record should be kept

to verify the original purchase date for

warranty purposes.

Model Number: _

Serial Number: _

Purchase Date:

_Above information appears on the label

affixed to bottom of the disposer, For

your convenience, write down the model

and serial numbers prior to installation.

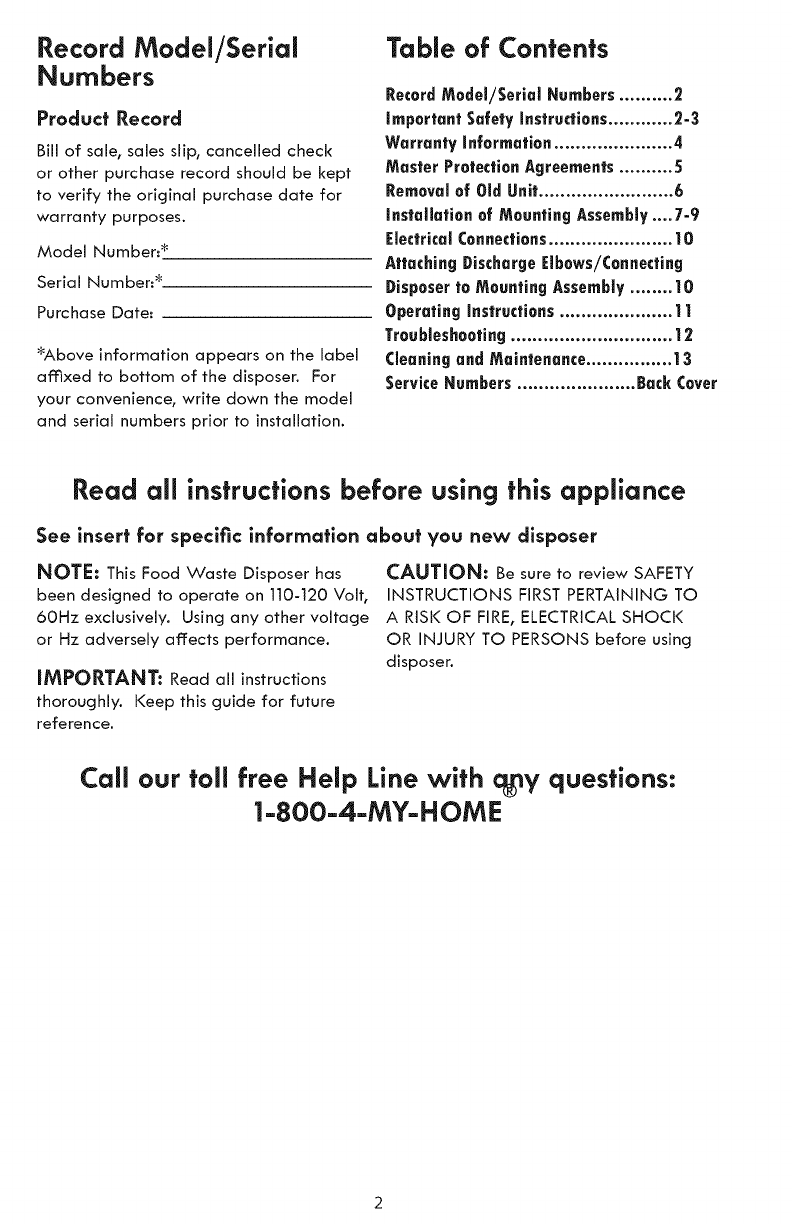

Table of Contents

RecordModel/Serial Numbers .......... 2

Important Safety Instructions............ 2-3

Warranty Information...................... 4

Master ProtectionAgreements.......... 5

Removal of Old Unit......................... 6

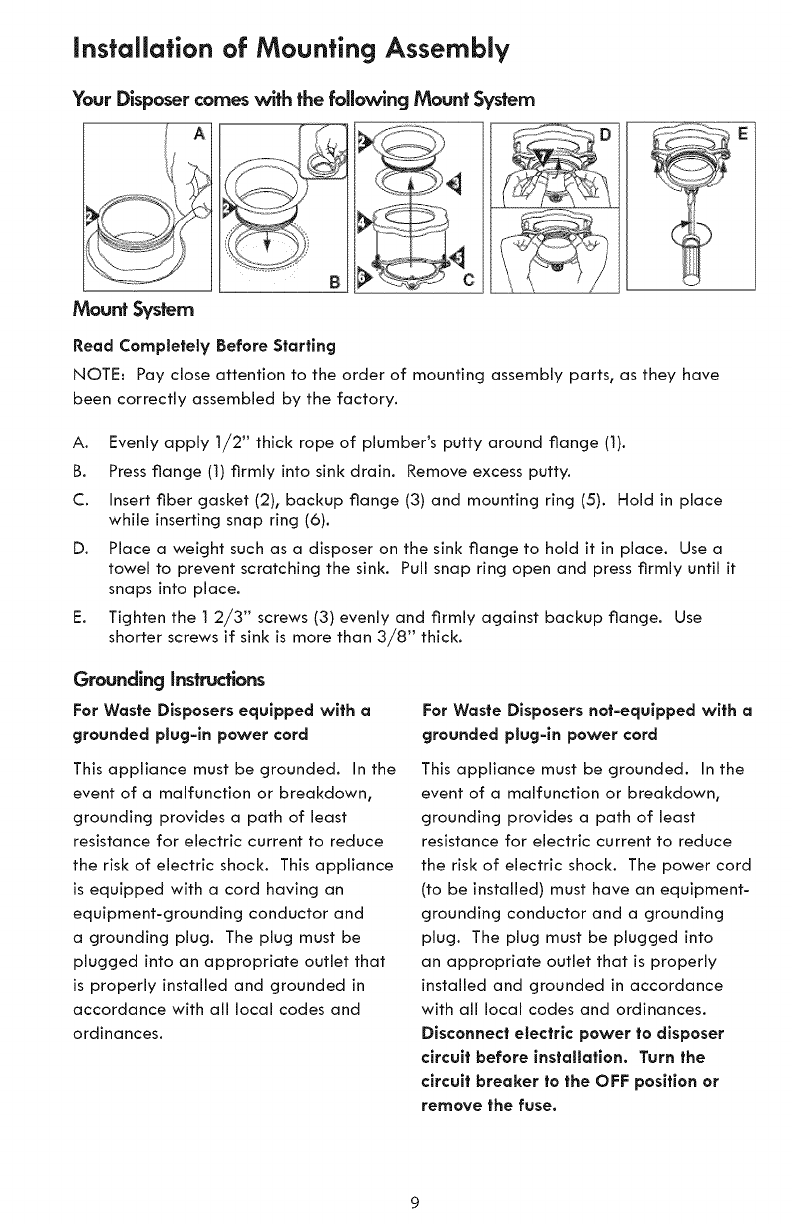

Installation of Mounting Assembly.... 7-9

ElectricalConnections ....................... 10

Attaching DischargeElbows/Connecting

Disposer to Mounting Assembly........ 10

Operating Instructions..................... | 1

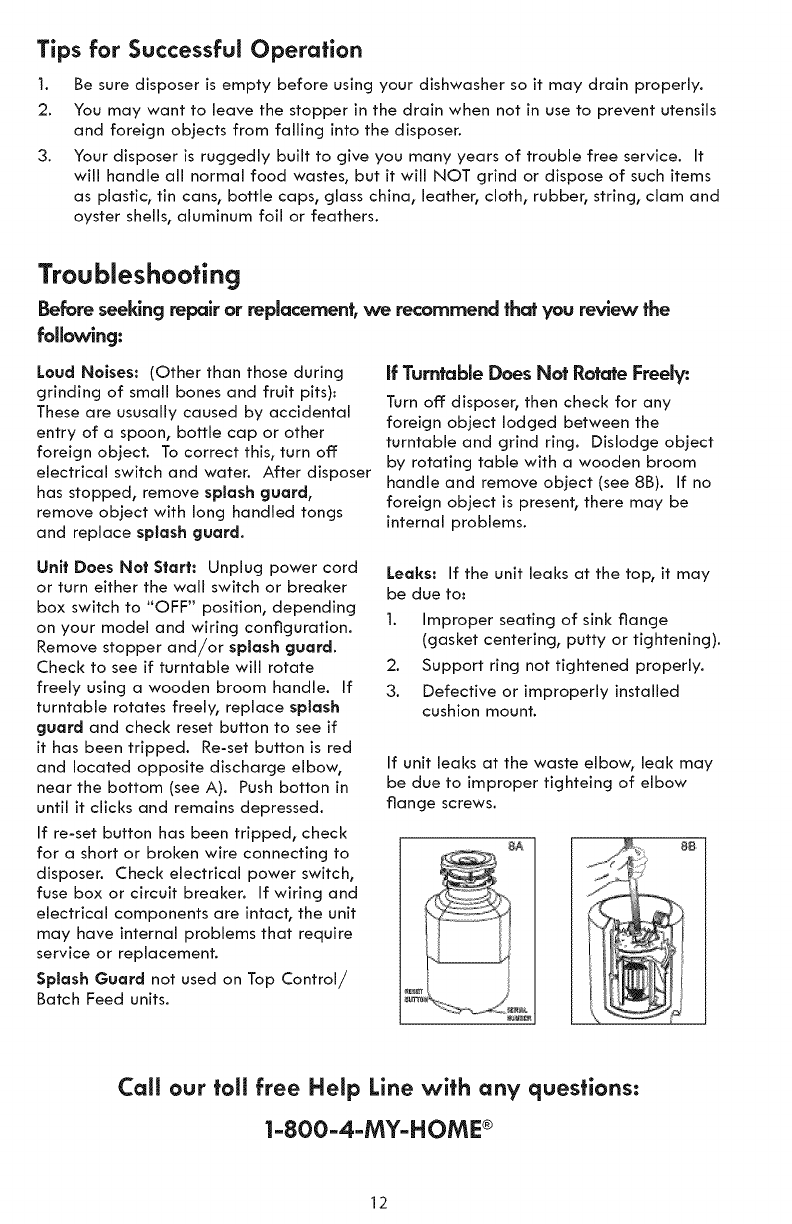

Troubleshooting.............................. 12

Cleaning and Maintenance ................ | 3

Service Numbers ...................... BackCover

Read all instructions before using this appliance

See insert for specific information about you new disposer

NOTE: This Food Waste Disposer has

been designed to operate on 110-120 Volt,

60Hz exclusively. Using any other voltage

or Hz adversely affects performance.

IMPORTANT: Read all instructions

thoroughly. Keep this guide for future

reference.

CAUTION: Be sure to review SAFETY

INSTRUCTIONS FIRST PERTAINING TO

A RISK OF FIRE, ELECTRICAL SHOCK

OR INJURY TO PERSONS before using

disposer.

Call our toll free Help Line with c_y questions:

I-8OO-4-MY-FIOME

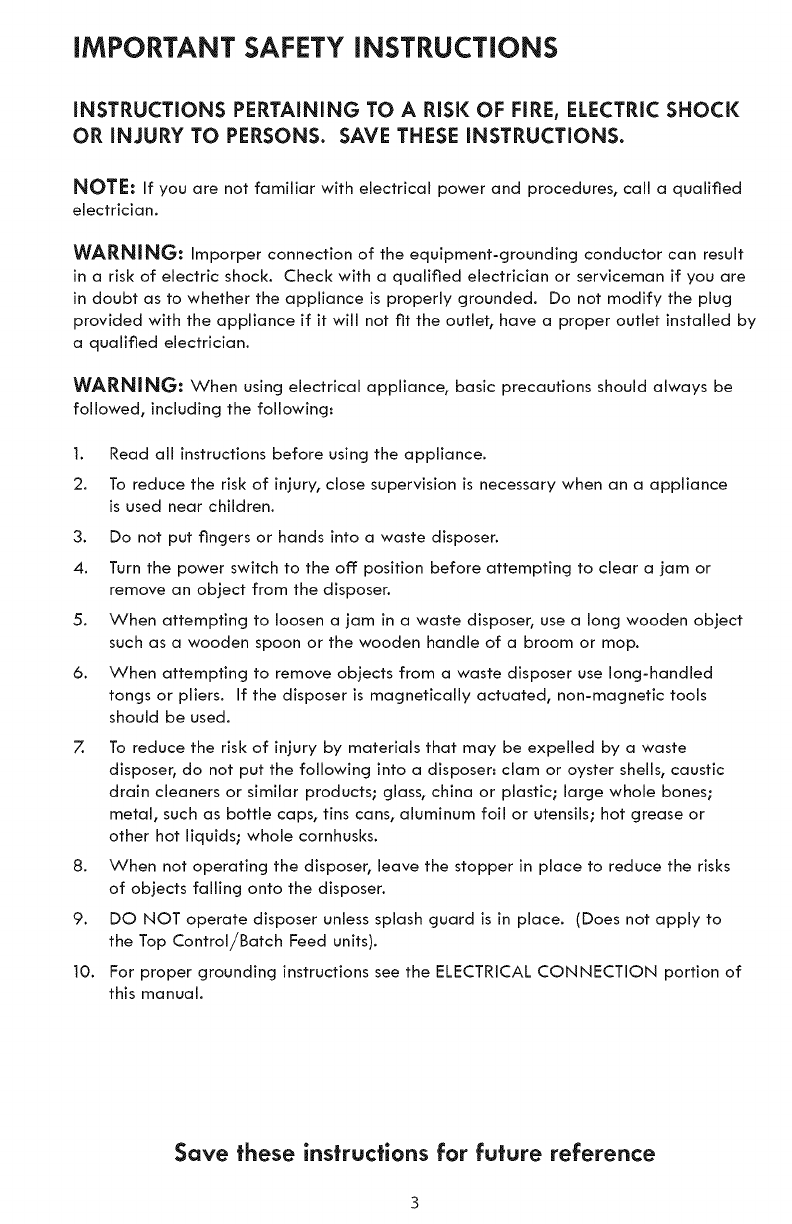

iMPORTANT SAFETY iNSTRUCTiONS

iNSTRUCTiONS PERTAiNiNG TO A RISK OF FIRE, ELECTRIC SHOCK

OR iNJURY TO PERSONS. SAVE THESE iNSTRUCTiONS.

NOTE: If you are not familiar with electrical power and procedures, call a qualified

electrician.

WARNING: Imporper connection of the equipment-grounding conductor can result

in a risk of electric shock. Check with a qualified electrician or serviceman if you are

in doubt as to whether the appliance is properly grounded. Do not modify the plug

provided with the appliance if it will not fit the outlet, have a proper outlet installed by

a qualified electrician.

WARNING: When using electrical appliance, basic precautions should always be

followed, including the following:

10.

Read all instructions before using the appliance.

To reduce the risk of injury, close supervision is necessary when an a appliance

is used near children.

Do not put fingers or hands into a waste disposer.

Turn the power switch to the off position before attempting to clear a jam or

remove an object from the disposer.

When attempting to loosen a jam in a waste disposer, use a long wooden object

such as a wooden spoon or the wooden handle of a broom or mop.

When attempting to remove obiects from a waste disposer use long-handled

tongs or pliers. If the disposer is magnetically actuated, non-magnetic tools

should be used.

To reduce the risk of injury by materials that may be expelled by a waste

disposer, do not put the following into a disposer= clam or oyster shells, caustic

drain cleaners or similar products; glass, china or plastic; large whole bones;

metal, such as bottle caps, tins cans, aluminum foil or utensils; hot grease or

other hot liquids; whole cornhusks.

When not operating the disposer, leave the stopper in place to reduce the risks

of objects falling onto the disposer.

DO NOT operate disposer unless splash guard is in place. (Does not apply to

the Top Control/Batch Feed units).

For proper grounding instructions see the ELECTRICAL CONNECTION portion of

this manual.

Save fhese instructions for future reference

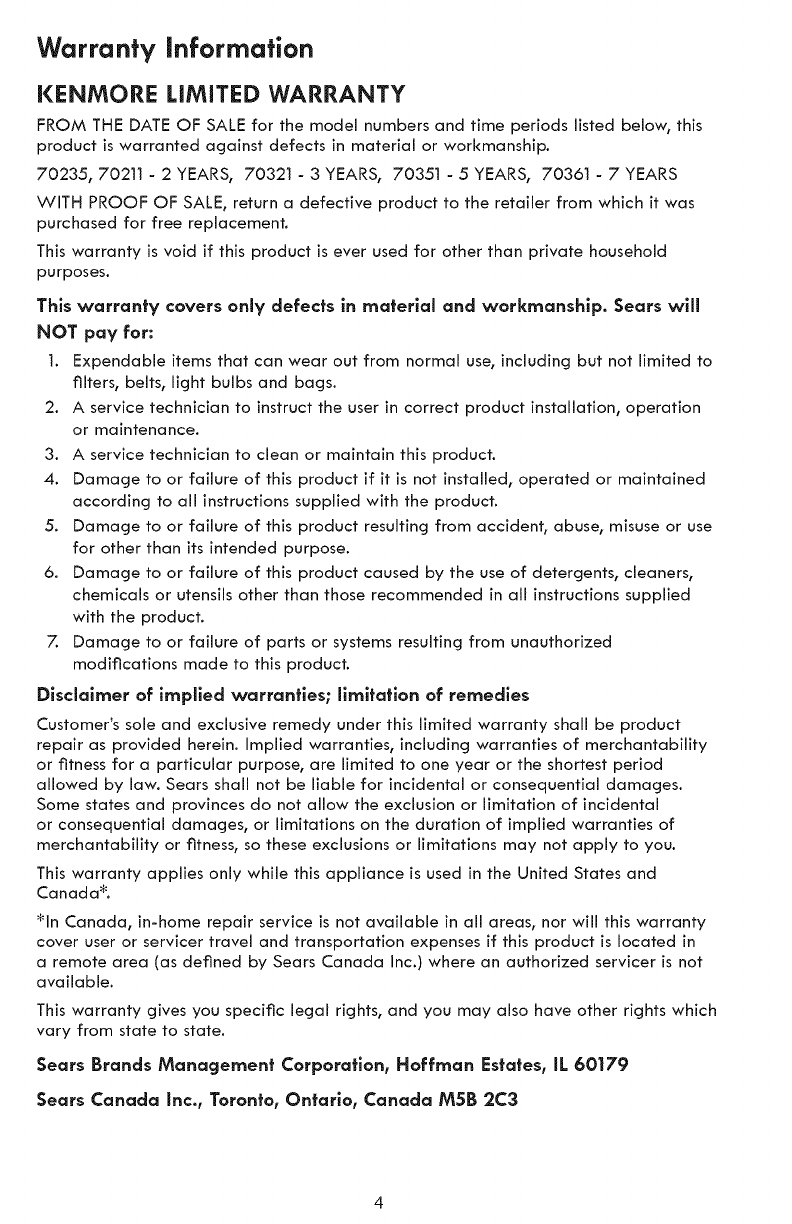

Warranty InFormation

KENMORE LiMiTED WARRANTY

FROM THE DATE OF SALE for the model numbers and time periods listed below, this

product is warranted against defects in material or workmanship.

70235, 70211 - 2 YEARS, 70321 - 3 YEARS, 70351 - 5YEARS, 70361 - 7 YEARS

WITH PROOF OF SALE, return a defective product to the retailer from which it was

purchased for free replacement.

This warranty is void if this product is ever used for other than private household

purposes.

This warranty covers only defects in materlal and workmanship. Sears will

NOT pay for:

1. Expendable items that can wear out from normal use, including but not limited to

filters, belts, light bulbs and bags.

2. A service technician to instruct the user in correct product installation, operation

or maintenance.

3. A service technician to clean or maintain this product.

4. Damage to or failure of this product if it is not installed, operated or maintained

according to all instructions supplied with the product.

5. Damage to or failure of this product resulting from accident, abuse, misuse or use

for other than its intended purpose.

6. Damage to or failure of this product caused by the use of detergents, cleaners,

chemicals or utensils other than those recommended in all instructions supplied

with the product.

7. Damage to or failure of parts or systems resulting from unauthorized

modifications made to this product.

Disclaimer of implied warranties; llmltatlon of remedies

Customer's sole and exclusive remedy under this limited warranty shall be product

repair as provided herein. Implied warranties, including warranties of merchantability

or fitness for a particular purpose, are limited to one year or the shortest period

allowed by law. Sears shall not be liable for incidental or consequential damages.

Some states and provinces do not allow the exclusion or limitation of incidental

or consequential damages, or limitations on the duration of implied warranties of

merchantability or fitness, so these exclusions or limitations may not apply to you.

This warranty applies only while this appliance is used in the United States and

Canada _'.

_In Canada, in-home repair service is not available in all areas, nor will this warranty

cover user or servicer travel and transportation expenses if this product is located in

a remote area (as defined by Sears Canada inc.) where an authorized servicer is not

availabie.

This warranty gives you specific legal rights, and you may also have other rights which

vary from state to state.

Sears Brands Management Corporation, Hoffman Estates, IL 60179

Sears Canada inc., Toronto, Ontario, Canada MSB 2C3

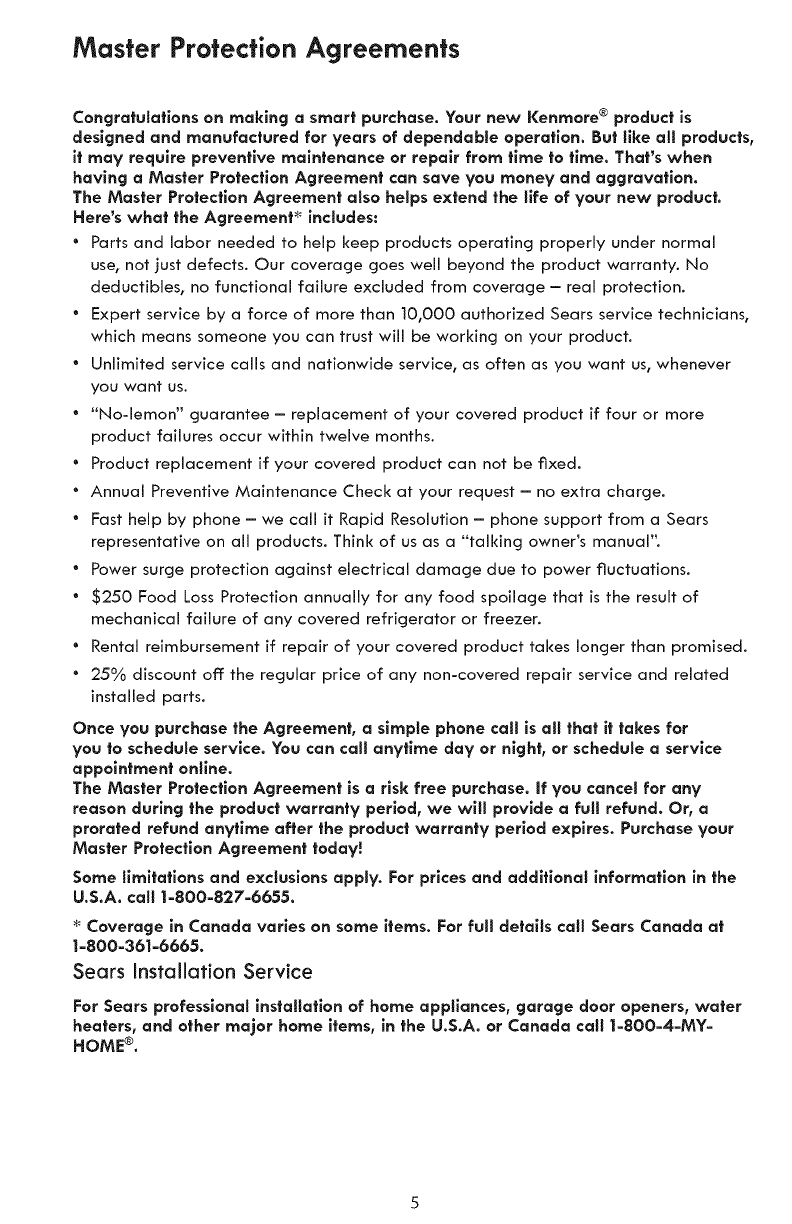

Master Protection Agreements

Congratulations on making asmart purchase. Your new I(enmore ®product is

designed and manufactured for years of dependable operation. But like all products,

it may require preventive maintenance or repair from time to time. That's when

having a Master Protection Agreement can save you money and aggravation.

The Master Protection Agreement also helps extend the life of your new product.

Here's what the Agreement _includes:

*Parts and labor needed to help keep products operating properly under normal

use, not just defects. Our coverage goes well beyond the product warranty. No

deductibles, no functional failure excluded from coverage - real protection.

*Expert service by a force of more than 10,000 authorized Sears service technicians,

which means someone you can trust will be working on your product.

*Unlimited service calls and nationwide service, as often as you want us, whenever

you want us.

*"No-lemon" guarantee - replacement of your covered product if four or more

product failures occur within twelve months.

*Product replacement if your covered product can not be fixed.

*Annual Preventive Maintenance Check at your request - no extra charge.

*Fast help by phone - we call it Rapid Resolution - phone support from a Sears

representative on all products. Think of us as a °'talking owner's manual".

*Power surge protection against electrical damage due to power fluctuations.

*$250 Food Loss Protection annually for any food spoilage that is the result of

mechanical failure of any covered refrigerator or freezer.

*Rental reimbursement if repair of your covered product takes longer than promised.

*25% discount off: the regular price of any non-covered repair service and related

installed parts.

Once you purchase the Agreement, a simple phone call is all that it takes for

you to schedule service. You can call anytime day or night, or schedule a service

appointment online.

The Master Protection Agreement is arisk free purchase. If you cancel for any

reason during the product warranty period, we will provide a full refund. Or, a

prorated refund anytime after the product warranty period expires. Purchase your

Master Protection Agreement today!

Some limitations and exclusions apply. For prices and additional information in the

U.S.A. call 1-800-827-6655.

Coverage in Canada varies on some items. For full details call Sears Canada at

1-800-361-6665.

Sears Installation Service

For Sears professional installation of home appliances, garage door openers, water

heaters, and other major home items, in the U.S.A. or Canada call 1-800-4-MY=

HOME ®.

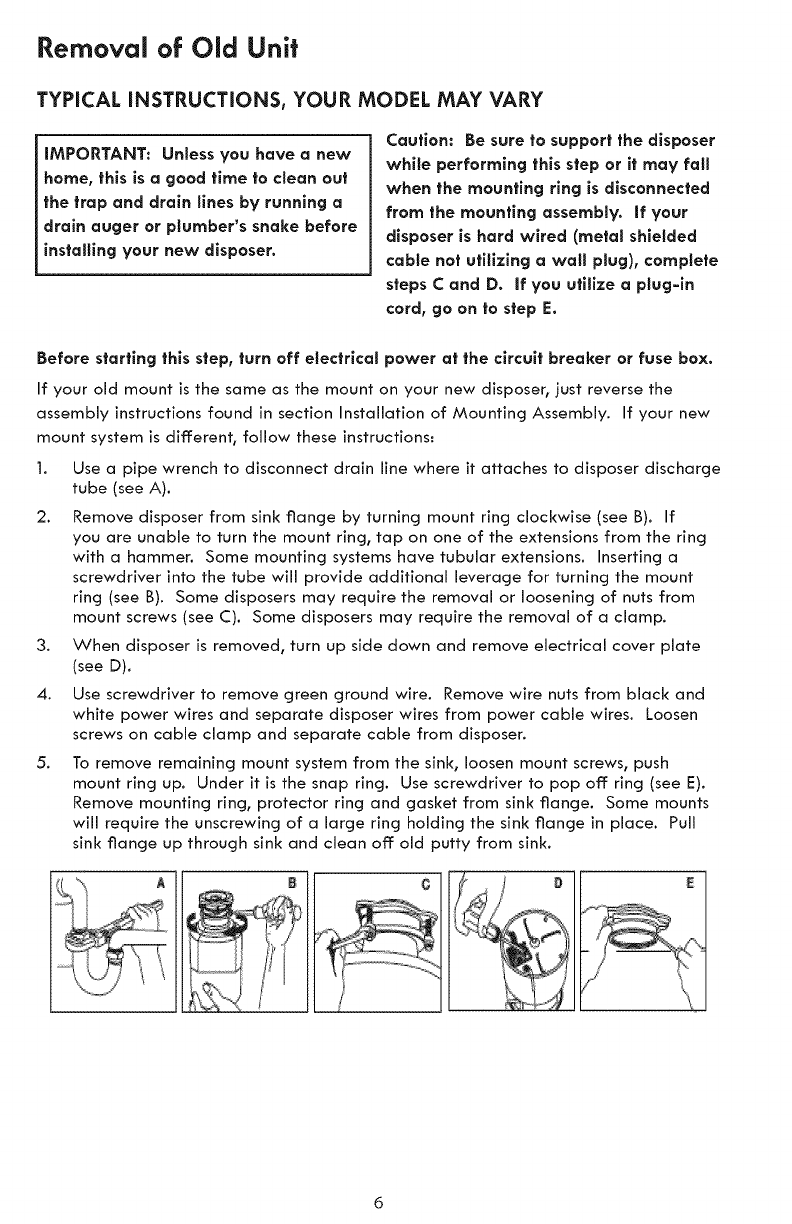

Removal of Old Unit

TYPICAL iNSTRUCTiONS, YOUR MODEL MAY VARY

iMPORTANT: Unless you have anew

home, this is a good time to clean out

the trap and drain lines by running a

drain auger or plumber's snake before

installing your new disposer.

Caution: Be sure to support the disposer

while performing this step or it may fall

when the mounting ring is disconnected

from the mounting assembly, if your

disposer is hard wired (metal shielded

cable not utilizing awall plug), complete

steps C and D. If you utilize a plug=in

cord, go on to step E.

Before starting this step, turn off electrical power at the circuit breaker or fuse box.

If your old mount is the same as the mount on your new disposer, just reverse the

assembly instructions found in section Installation of Mounting Assembly. If your new

mount system is different, follow these instructions..

1. Use a pipe wrench to disconnect drain line where it attaches to disposer discharge

tube (see A).

2. Remove disposer from sink flange by turning mount ring clockwise (see B). If

you are unable to turn the mount ring, tap on one of the extensions from the ring

with a hammer. Some mounting systems have tubular extensions. Inserting a

screwdriver into the tube will provide additional leverage for turning the mount

ring (see B). Some disposers may require the removal or loosening of nuts from

mount screws (see C). Some disposers may require the removal of a clamp.

3. When disposer is removed, turn up side down and remove electrical cover plate

(see D).

4. Use screwdriver to remove green ground wire. Remove wire nuts from black and

white power wires and separate disposer wires from power cable wires. Loosen

screws on cable clamp and separate cable from disposer.

5. To remove remaining mount system from the sink, loosen mount screws, push

mount ring up. Under it is the snap ring. Use screwdriver to pop off ring (see E).

Remove mounting ring, protector ring and gasket from sink flange. Some mounts

will require the unscrewing of a large ring holding the sink flange in place. Pull

sink flange up through sink and clean off old putty from sink.

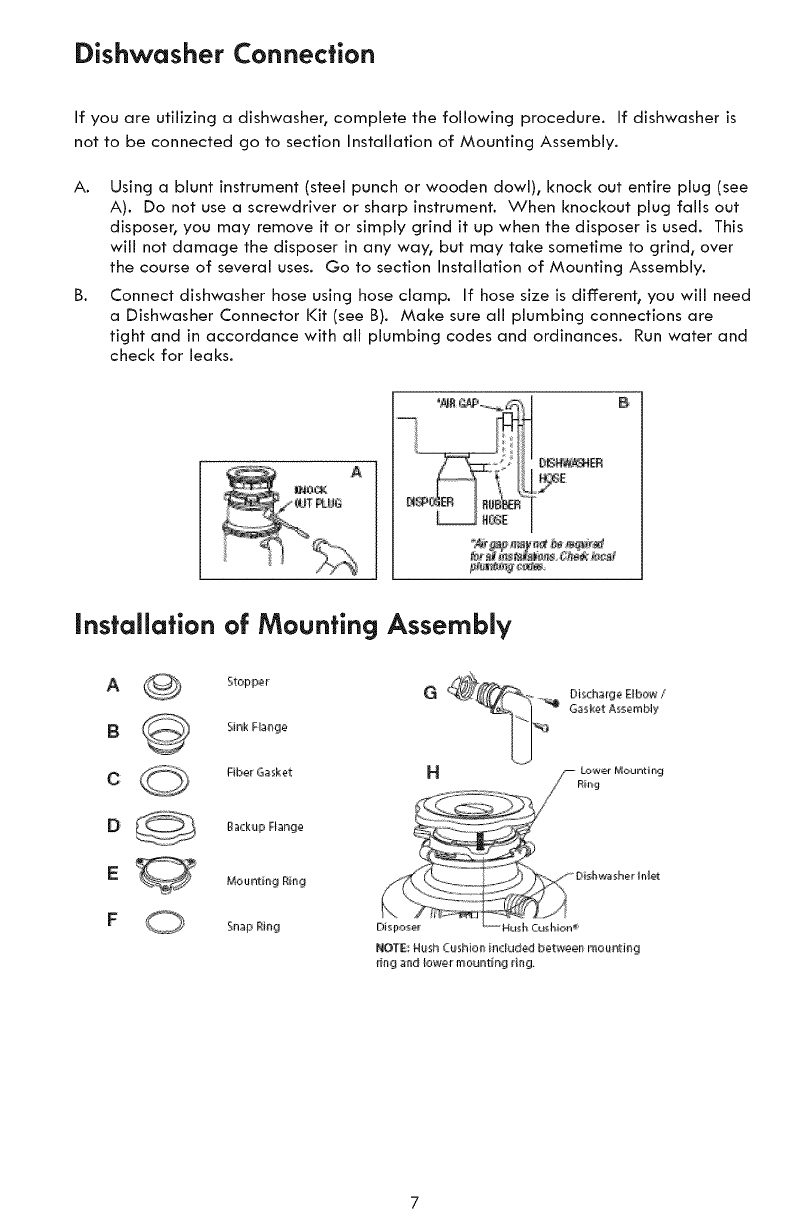

Dishwasher Connection

If you are utilizing a dishwasher, complete the following procedure. If dishwasher is

not to be connected go to section Installation of Mounting Assembly.

A. Using a blunt instrument (steel punch or wooden dowl), knock out entire plug (see

A). Do not use a screwdriver or sharp instrument. When knockout plug falls out

disposer, you may remove it or simply grind it up when the disposer is used. This

will not damage the disposer in any way, but may take sometime to grind, over

the course of several uses. Go to section Installation of Mounting Assembly.

B. Connect dishwasher hose using hose clamp. If hose size is different, you will need

a Dishwasher Connector Kit (see B). Make sure all plumbing connections are

tight and in accordance with all plumbing codes and ordinances. Run water and

check for leaks.

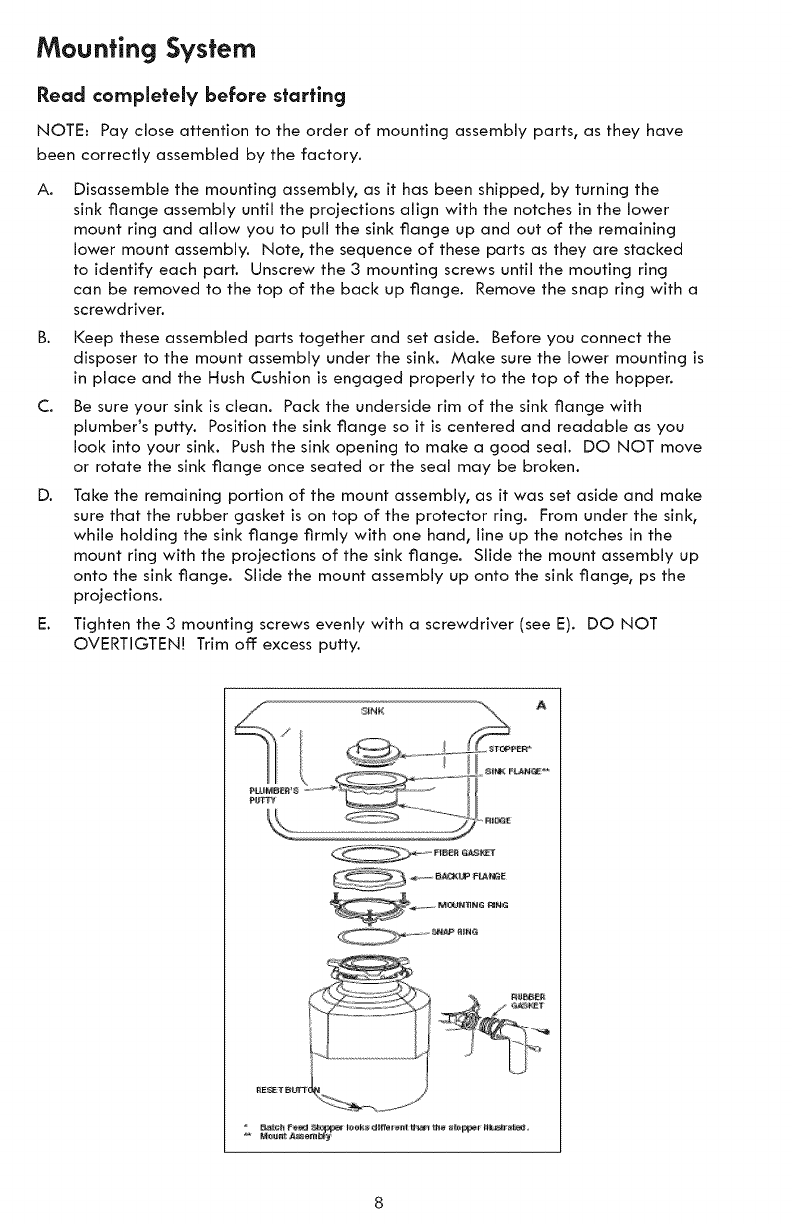

Installation of Mounting Assembly

Mounting System

Read completely before starting

NOTE: Pay close attention to the order of mounting assembly parts, as they have

been correctly assembled by the factory.

A. Disassemble the mounting assembly, as it has been shipped, by turning the

sink flange assembly until the projections align with the notches in the lower

mount ring and allow you to pull the sink flange up and out of the remaining

lower mount assembly. Note, the sequence of these parts as they are stacked

to identify each part. Unscrew the 3 mounting screws until the mouting ring

can be removed to the top of the back up flange. Remove the snap ring with a

screwdriver.

B. Keep these assembled parts together and set aside. Before you connect the

disposer to the mount assembly under the sink. Make sure the lower mounting is

in place and the Hush Cushion is engaged properly to the top of the hopper.

C. Be sure your sink is clean. Pack the underside rim of the sink flange with

plumber's putty. Position the sink flange so it is centered and readable as you

look into your sink. Push the sink opening to make a good seal. DO NOT move

or rotate the sink flange once seated or the seal may be broken.

D. Take the remaining portion of the mount assembly, as it was set aside and make

sure that the rubber gasket is on top of the protector ring. From under the sink,

while holding the sink flange firmly with one hand, line up the notches in the

mount ring with the projections of the sink flange. Slide the mount assembly up

onto the sink flange. Slide the mount assembly up onto the sink flange, ps the

projections.

E. Tighten the 3 mounting screws evenly with a screwdriver (see E). DO NOT

OVERTIGTEN! Trim off excess putty.

i;,_ IIZIIII_ _ _i_ .... __ j_

M_unt _em_

Installation of Mounting Assembly

Your Disposercomes with the foBowlngMount System

Mount System

Read Completely Before Starting

'\ x/

NOTE: Pay close attention to the order of mounting assembly parts, as they have

been correctly assembled by the factory.

A. Evenly apply 1/2" thick rope of plumber% putty around flange (1).

B. Press flange (1) firmly into sink drain. Remove excess putty.

C. Insert fiber gasket (2), backup flange (3) and mounting ring (5). Hold in place

while inserting snap ring (6).

D. Place a weight such as a disposer on the sink flange to hold it in place. Use a

towel to prevent scratching the sink. Pull snap ring open and press firmly until it

snaps into place.

E. Tighten the 1 2/3" screws (3) evenly and firmly against backup flange. Use

shorter screws if sink is more than 3/8" thick.

Grounding instructions

For Waste Disposers eguipped with a

grounded plug-in power cord

This appliance must be grounded. In the

event of a malfunction or breakdown,

grounding provides a path of least

resistance for electric current to reduce

the risk of electric shock. This appliance

is equipped with a cord having an

equipment-grounding conductor and

a grounding plug. The plug must be

plugged into an appropriate outlet that

is properly installed and grounded in

accordance with all local codes and

ordinances.

For Waste Disposers not-eguipped with o

grounded plug-in power cord

This appliance must be grounded. In the

event of a malfunction or breakdown,

grounding provides a path of least

resistance for electric current to reduce

the risk of electric shock. The power cord

(to be installed) must have an equipment-

grounding conductor and a grounding

plug. The plug must be plugged into

an appropriate outlet that is properly

installed and grounded in accordance

with all local codes and ordinances.

Disconnect electric power to disposer

circuit before installation. Turn the

circuit breaker to the OFF position or

remove the fuse.

Electrical Connections

Connect disposer to 110-120 Volt, 60Hz

AC current only.

If plug-in cord is used, use a three prong

plug (see A). Ground wire should be

attached to the ground screw in the

bottom of the end bell (see B).

Use a cable clamp strain relief connector

where power cord enter the disposer (see

C).

Tra_;_lea_coHnected_othisbla_!e A

Attaching

Mount Assembly

A. Connect waste elbow to the disposer (see

A), proceed to set B and C then connect

bottom of the elbow by tightening the slip

nut (see D). If you are connecting to a

dishwasher, return to section (B) page 7.

If not, make sure all plumbing connections

are tight and in accordance with all

plumbing codes and ordinances Run

water and check for leaks.

Wiring Disposer Directly to House

Current

This appliance must be connected to a

grounded, metal permanent wiring system or

an equipment grounding conductor must be

ran with the circuit conductors and connected

to the equipment-grounding terminator or lead

on the appliance.

A. If you use BX cable:

1. Install cable connector in hole.

2. Connect white wire to white lead of

disposer.

3. Connect black.

4. Connect bare groud.

If BX cable is not used, provide a separate

ground wire to nearest cold water metal pipe

or other suitable ground, using the screw in

the bottom of the end bell for the ground wire

(see C).

B. If your power supply does not include a

ground wire, you must provide one unless

metal cable is used. Attach a copper wire

securely to disposer ground screw and attach

other end of wire to a metal cold water pipe.

Use only UL approved ground clamp. If

plastic pipe is used in your home, a qualified

electrician should install a proper gound.

Discharge Elbow/Connecting

Hang disposer by aligning 3 mounting

tabs with slide-up ramps on mounting

ring.

Turn mounting ring until all 3 mounting

tabs lock over the rides on the slide-up

Disposer to

NU_H LC_t#ER

CU_HIONl_,4otl_iTl[t6

D ¸

ramps.

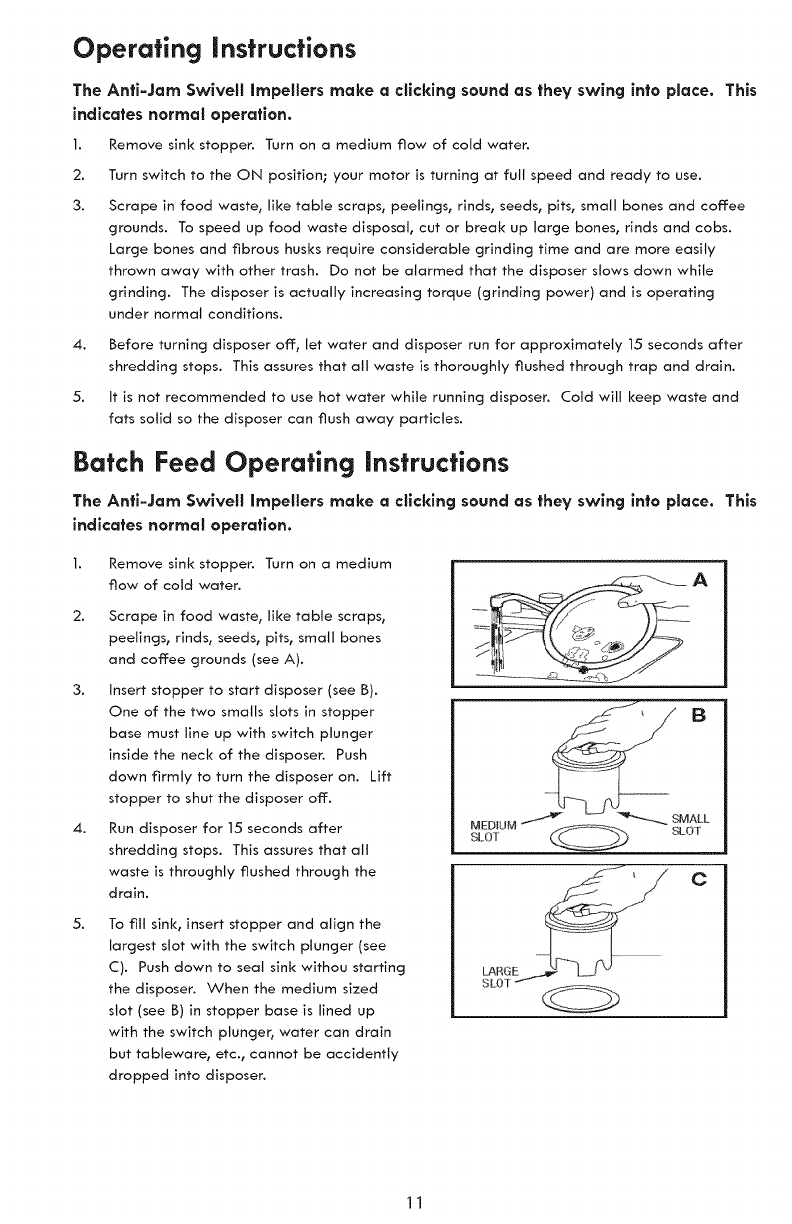

Operating instructions

The Anti-Jam Swiveli Impellers make a clicking sound as they swing into place. This

indicates normal operation.

1. Remove sink stopper. Turn on a medium flow of cold water.

2. Turn switch to the ON position; your motor is turning at full speed and ready to use.

3. Scrape in food waste, like table scraps, peelings, rinds, seeds, pits, small bones and coffee

grounds. To speed up food waste disposal, cut or break up large bones, rinds and cobs.

Large bones and fibrous husks require considerable grinding time and are more easily

thrown away with other trash. Do not be alarmed that the disposer slows down while

grinding. The disposer is actually increasing torque (grinding power) and is operating

under normal conditions.

4. Before turning disposer off, let water and disposer run for approximately 15 seconds after

shredding stops. This assures that all waste is thoroughly flushed through trap and drain.

5. It is not recommended to use hot water while running disposer. Cold will keep waste and

fats solid so the disposer can flush away particles.

Batch Feed Operating instructions

The Anti-Jam Swiveli Impellers make aclicking sound as they swing into place. This

indicates normal operation.

Remove sink stopper. Turn on a medium

fiow of cold water.

Scrape in food waste, like table scraps,

peelings, rinds, seeds, pits, small bones

and coffee grounds (see A).

3. Insert stopper to start disposer (see B).

One of the two smalls slots in stopper

base must line up with switch plunger

inside the neck of the disposer. Push

down firmly to turn the disposer on. Lift

stopper to shut the disposer off.

4. Run disposer for 15 seconds after

shredding stops. This assures that all

waste is throughly flushed through the

drain.

5. To fill sink, insert stopper and align the

largest slot with the switch plunger (see

C). Push down to seat sink withou starting

the disposer. When the medium sized

slot (see B) in stopper base is lined up

with the switch plunger, water can drain

but tableware, etc., cannot be accidentty

dropped into disposer.

Tips for Successful Operation

1. Be sure disposer is empty before using your dishwasher so it may drain properly.

2. You may want to leave the stopper in the drain when not in use to prevent utensils

and foreign objects from falling into the disposer.

3. Your disposer is ruggedly built to give you many years of trouble free service. It

will handle all normal food wastes, but it will NOT grind or dispose of such items

as plastic, tin cans, bottle caps, glass china, leather, cloth, rubber, string, clam and

oyster shells, aluminum foil or feathers.

Troubleshoofincj

Before seeking repair or replacement, we recommend that you review the

followlng:

Loud Noises: (Other than those during

grinding of small bones and fruit pits)..

These are ususally caused by accidental

entry of a spoon, bottle cap or other

foreign object. To correct this, turn off

electrical switch and water. After disposer

has stopped, remove splash guard,

remove object with long handled tongs

and replace splash guard.

if Turntable Does Not Rotate Freely:

Turn off disposer, then check for any

foreign object lodged between the

turntable and grind ring. Dislodge object

by rotating table with a wooden broom

handle and remove object (see 8B). If no

foreign object is present, there may be

internal problems.

Unit Does Not Start: Unplug power cord

or turn either the wall switch or breaker

box switch to "OFF" position, depending

on your model and wiring configuration.

Remove stopper and/or splash guard.

Check to see if turntable will rotate

freely using a wooden broom handle. If

turntable rotates freely, replace splash

guard and check reset button to see if

it has been tripped. Re=set button is red

and located opposite discharge elbow,

near the bottom (see A). Push botton in

until it clicks and remains depressed.

If re-set button has been tripped, check

for a short or broken wire connecting to

disposer. Check electrical power switch,

fuse box or circuit breaker. If wiring and

electrical components are intact, the unit

may have internal problems that require

service or replacement.

Splash Guard not used on Top Control/

Batch Feed units.

Leaks: If the unit leaks at the top, it may

be due to:

1. Improper seating of sink flange

(gasket centering, putty or tightening).

2. Support ring not tightened properly.

3. Defective or improperly installed

cushion mount.

If unit leaks at the waste elbow, leak may

be due to improper tighteing of elbow

flange screws.

Call our toll free Help Line with any questions:

1-800-4-MY-HOME ®

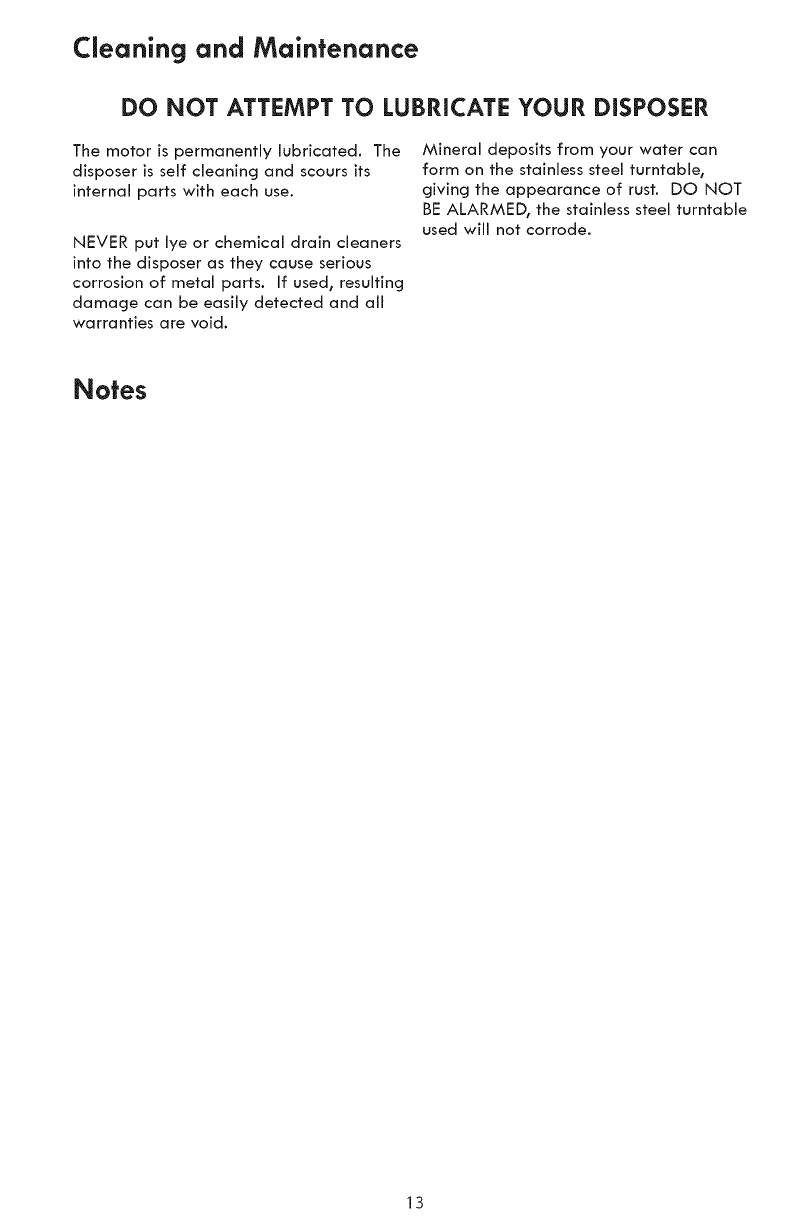

Cleaning and Maintenance

DO NOT ATTEMPT TO LUBRICATE YOUR DISPOSER

The motor is permanently lubricated. The

disposer is self cleaning and scours its

internal parts with each use.

NEVER put lye or chemical drain cleaners

into the disposer as they cause serious

corrosion of metal parts. If used, resulting

damage can be easily detected and all

warranties are void.

Mineral deposits from your water can

form on the stainless steel turntable,

giving the appearance of rust. DO NOT

BE ALARMED, the stainless steel turntable

used will not corrode.

Notes

Your Home

For troubleshooting, product manuals and expert advice:

www.managemylife.com

For repair - in your home - of all major brand appliances,

lawn and garden equipment, or heating and cooling systems,

no matter who made it, no matter who sold it !

For the replacement parts, accessories and

owner's manuals that you need to do-it-yourself.

For Sears professional installation of home appliances

and items like garage door openers and water heaters.

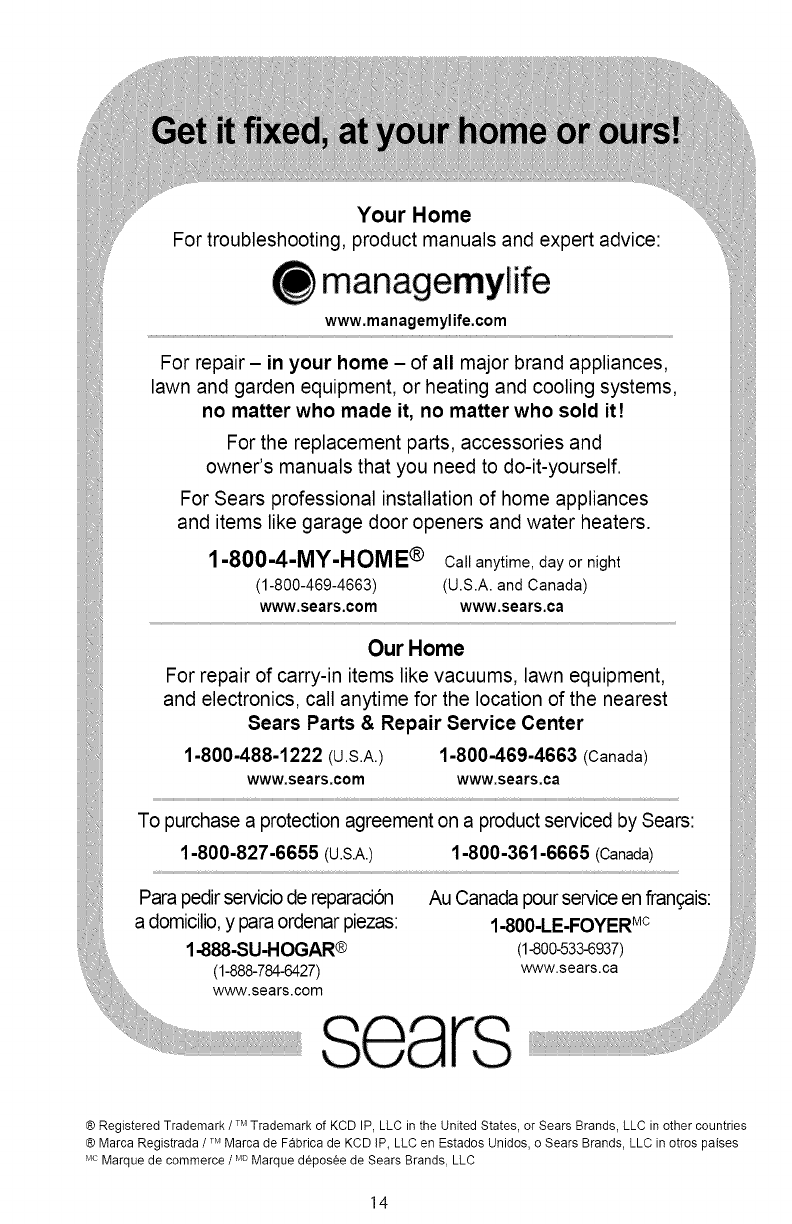

1-800-4-MY-HOME ®Call anytime, day or night

(1-800-469-4663) (U.S.A. and Canada)

www.sears.com www.sears.ca .......

ourHome

For repair of carry-in items like vacuums, lawn equipment,

and electronics, call anytime for the location of the nearest

Sears Parts & Repair Service Center

1-8oo-488-1222/usA!1-8oo-469-4663/Canada!

www.sears.com www.sears.ca

To purchase a protection agreement on a product serviced by Sears:

1"800"827"6655 (U.S.A.) 1"800"361"6665 (Canada)

Pars pedirserviciode reparaci6n Au Canada pourserviceen fran(_ais:

a domicilio,y pars ordenar piezas: 1.800.LE.FOYERMC

1-888-SU-HOGAR ® (1-800-533-6937) i :

(1-888-784-6427) www.sears.ca ....

[: www.sears.com

sears

® Registered Trademark /Trademark of KCD IP, LLC in the United States, or Sears Brands, LLC in other countries

® Marca Registrada /Marca de Fabrica de KCD IP, LLC en Estados Unidos, o Sears Brands, LLCin otros paises

Mc Marque de commerce /Marque deposde de Sears Brands, LLC

Kenmore 58770211410 User Manual GARBAGE DISPOSER Manuals And Guides 1410207L

Navigation menu

Versions of this User Manual:

Views

Navigation
