Kenmore 59665232400 User Manual REFRIGERATOR Manuals And Guides L0407466
KENMORE Bottom Mount Refrigerator Manual L0407466 KENMORE Bottom Mount Refrigerator Owner's Manual, KENMORE Bottom Mount Refrigerator installation guides
User Manual: Kenmore 59665232400 59665232400 KENMORE KENMORE REFRIGERATOR - Manuals and Guides View the owners manual for your KENMORE KENMORE REFRIGERATOR #59665232400. Home:Kitchen Appliance Parts:Kenmore Parts:Kenmore KENMORE REFRIGERATOR Manual
Open the PDF directly: View PDF
.
Page Count: 29
®
Bottom Freezer Refrigerator
use& _ureGuide
Refrigerador con congelador inferior
Guiudeus0yCu_dud00p_o31
RGfrigGrateur _compartiment congGlateur infGrieur
Guided°u_H_su_one_d°÷n_re_ienopu_e60
\
596.65232400,
596.65934400,
596.75239400,
596.65234400,
596.65939400,
596.75932400,
596.65239400,
596.75232400,
596.75934400,
596.65932400,
596.75234400,
596.75939400,
PaR No, 12828110
Form No. A/03/04
Sears, Roebuck and Co,, Hoffman Estates. IL 60179 U.S.A,
Sears Canada. Inc., Toronto, Ontario. Canada M5B 2B8
www.seat s.com
Au Canada. www.sears.ca
Litho U.S.A.
Jnstalmation ................................................... 7-12
Location Reinstallation of the Doors
Measuring the Opening Door Reversal
Transporting Your Refrigerator Handles
Leveling Connecting the Water Supply

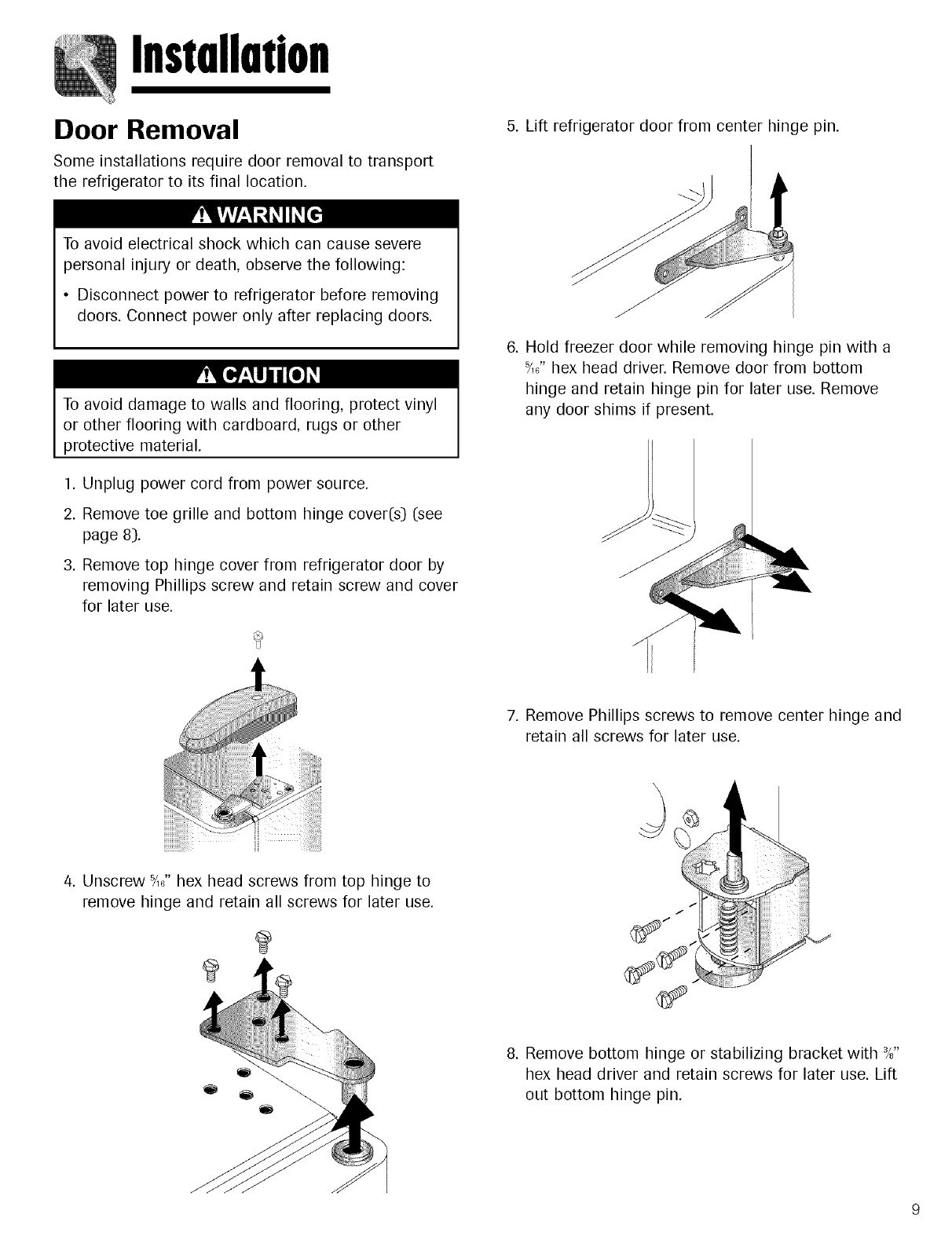

Door Removal

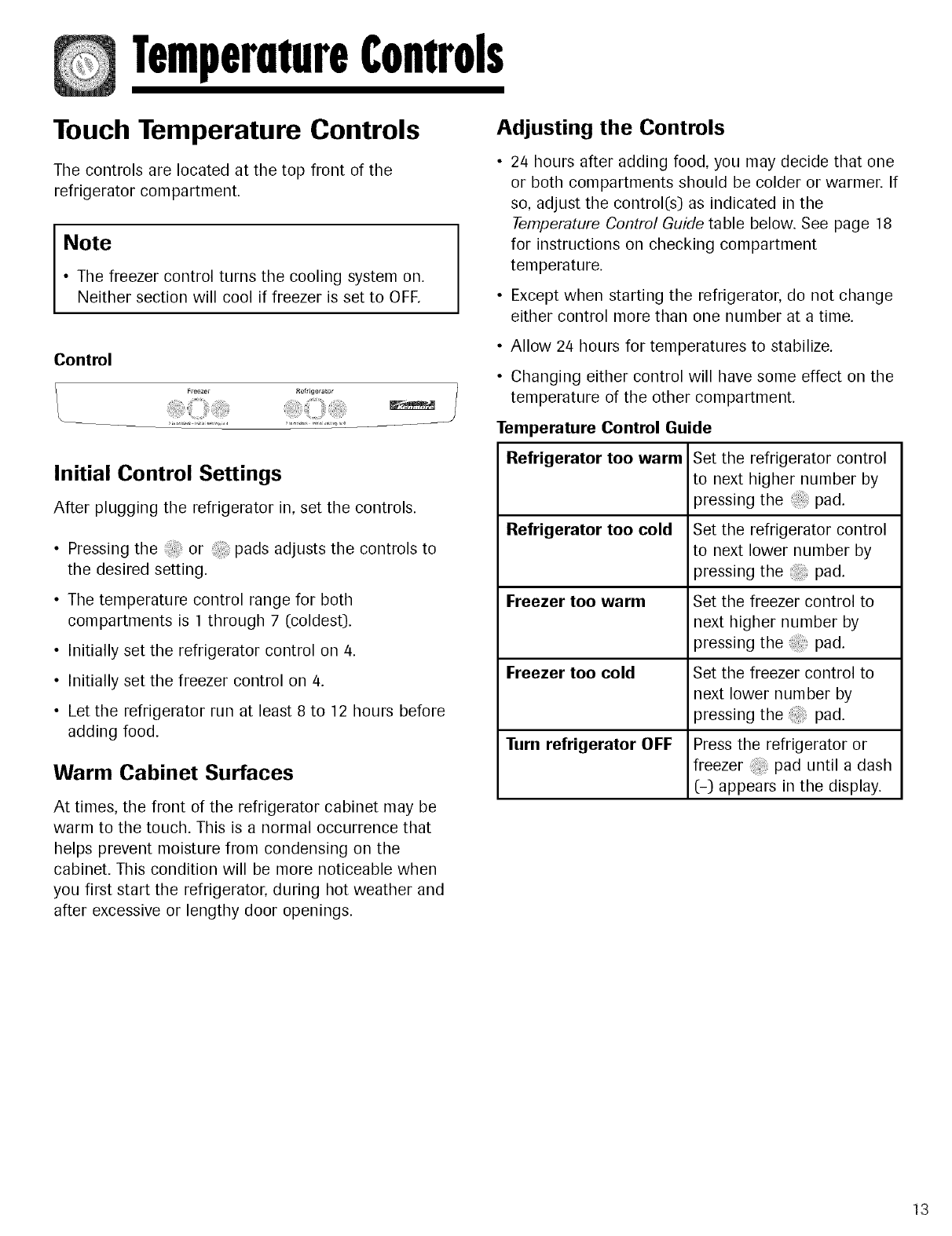

Temperature Controls ............................................ 13
Touch Temperature Controls

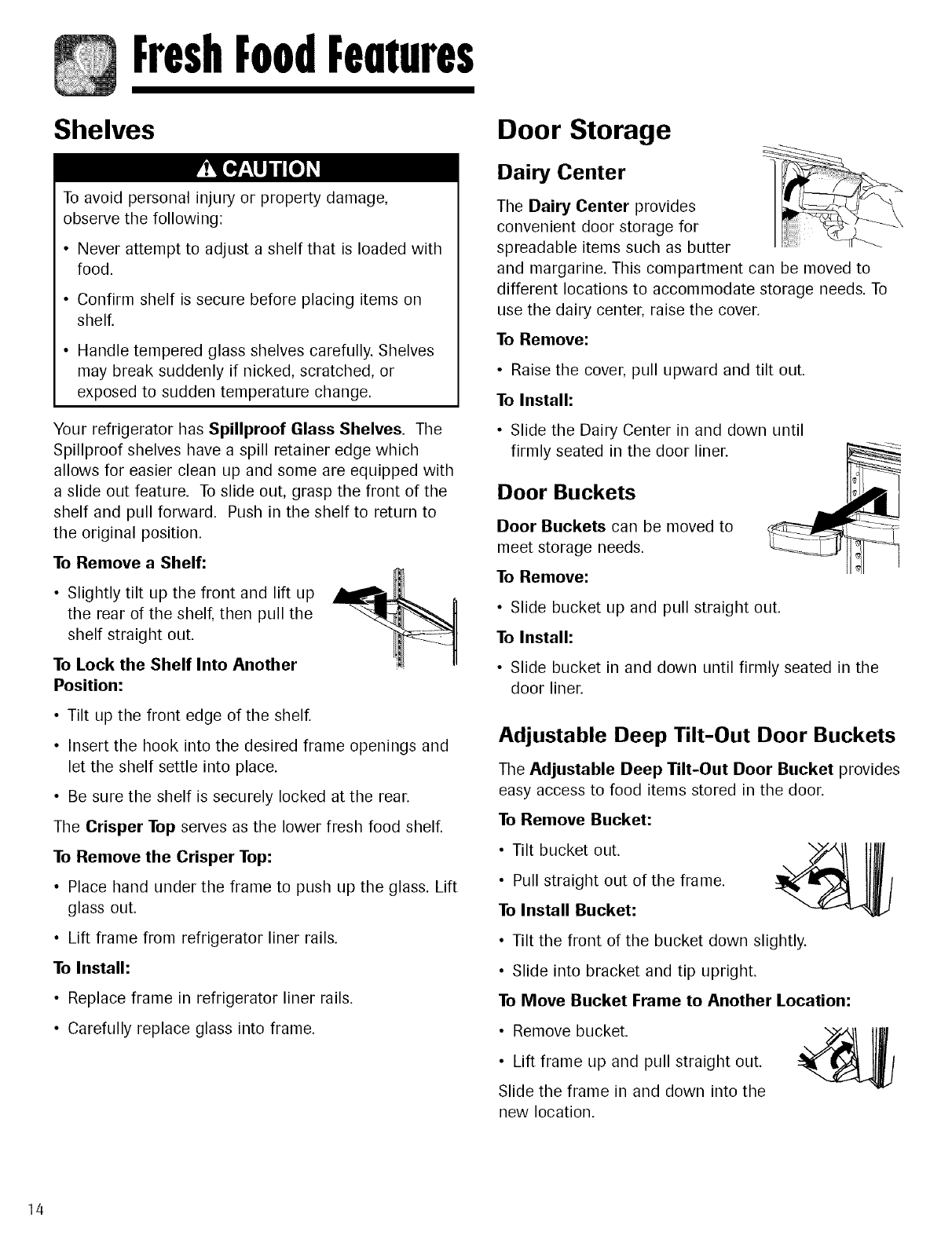

Fresh Food Features ........................................... 14-15
Shelves
Door Storage
Storage Drawers

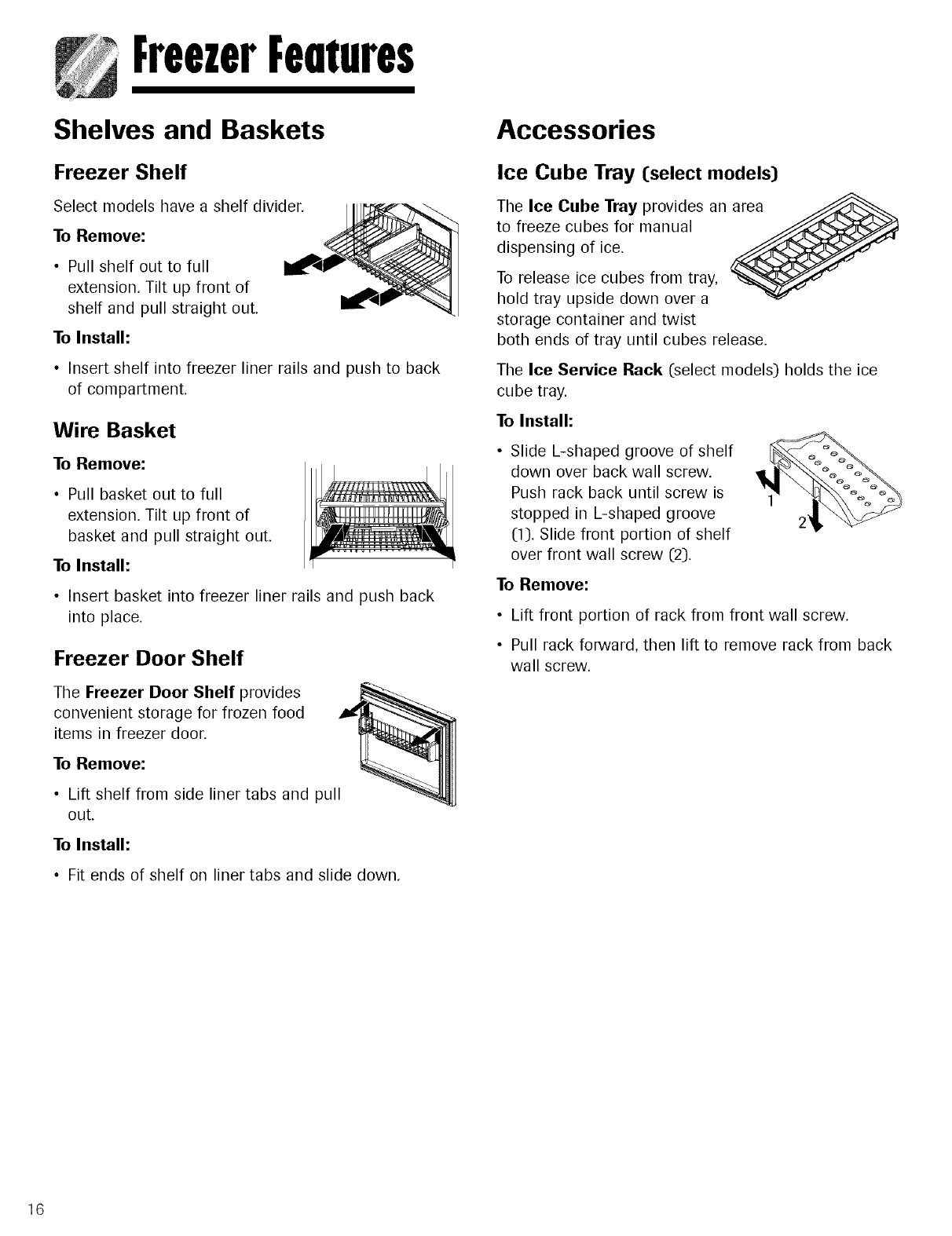

Freezer Features ................................................. 16
Shelves and Baskets
Accessories

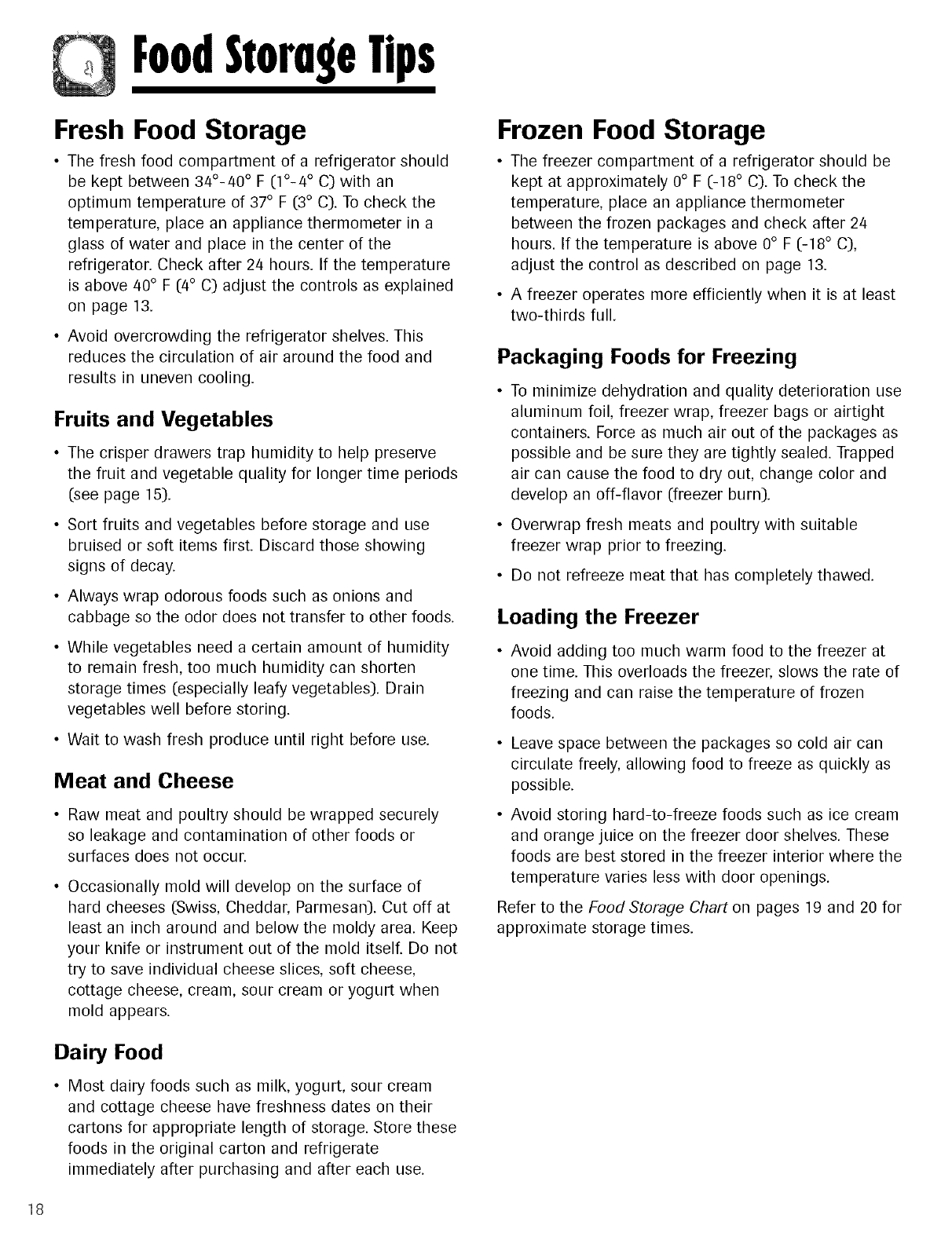

Food Storage Tips
Fresh Food Storage
Frozen Food Storage

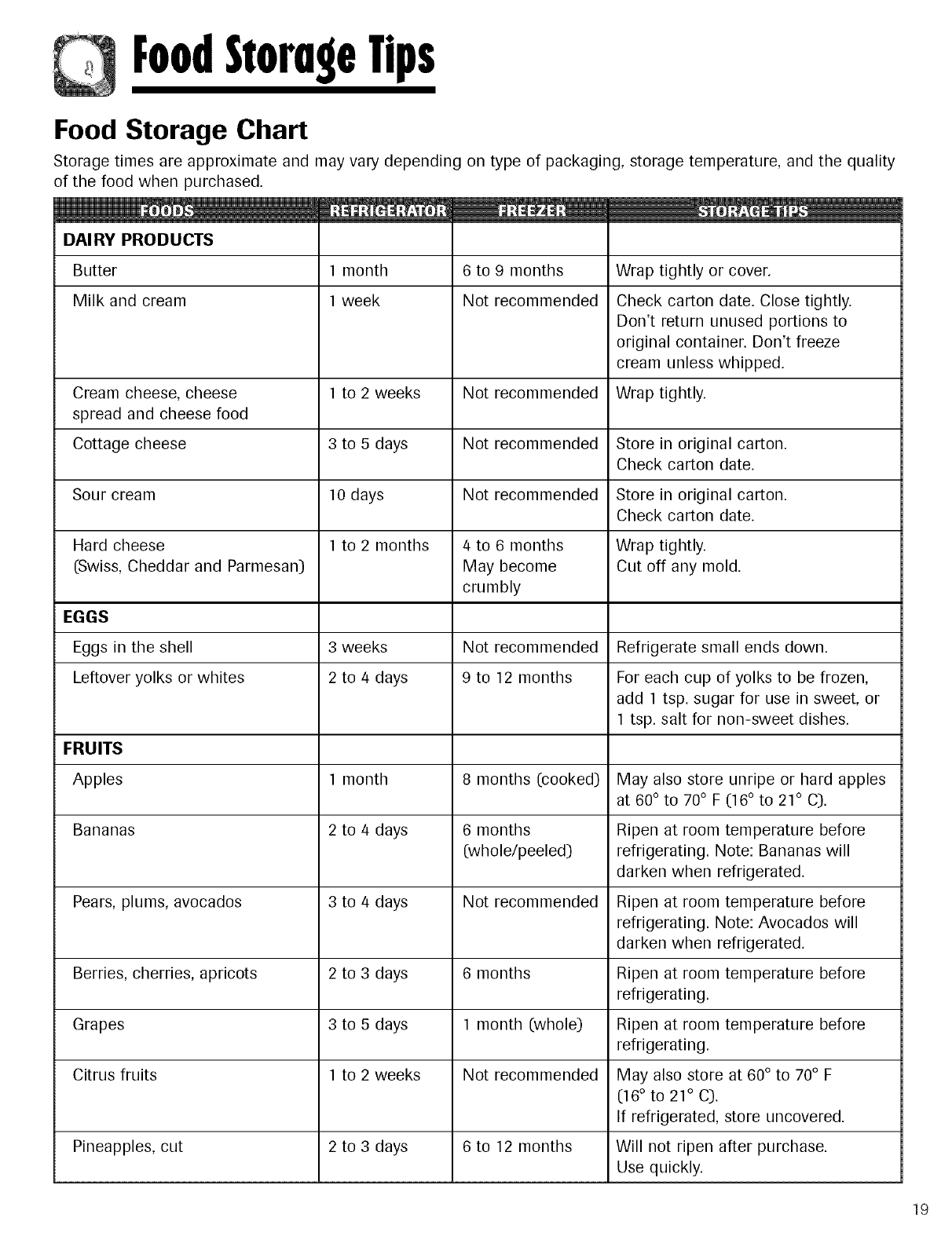

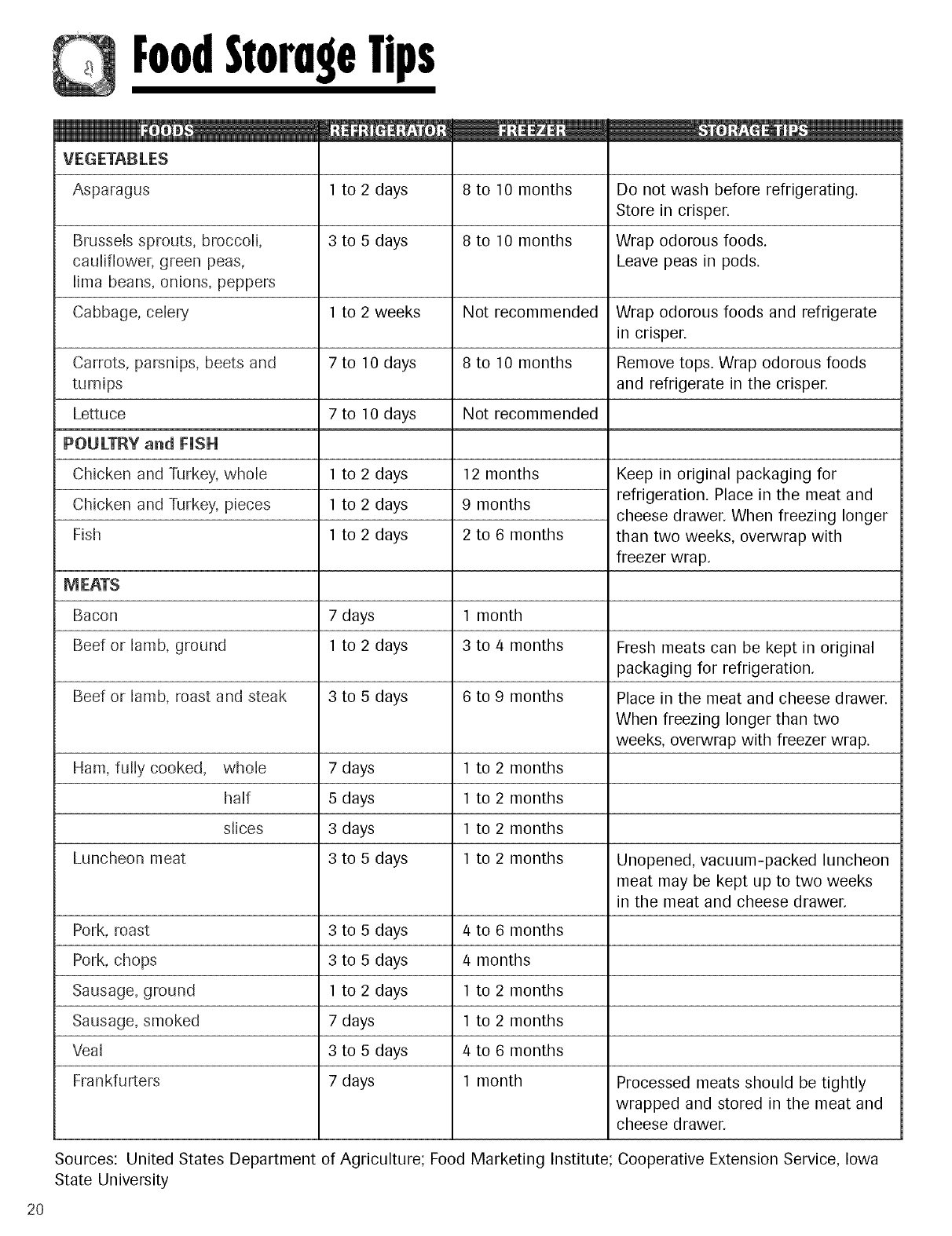

Food Storage Chart
............................................ 18-20
Care and Cleaning ............................................ 21-24
Refrigerator Cleaning Chart Replacing Light Bulbs
Removing Odors From Refrigerator Preparing for Vacation
Energy Saving Tips Preparing to Move

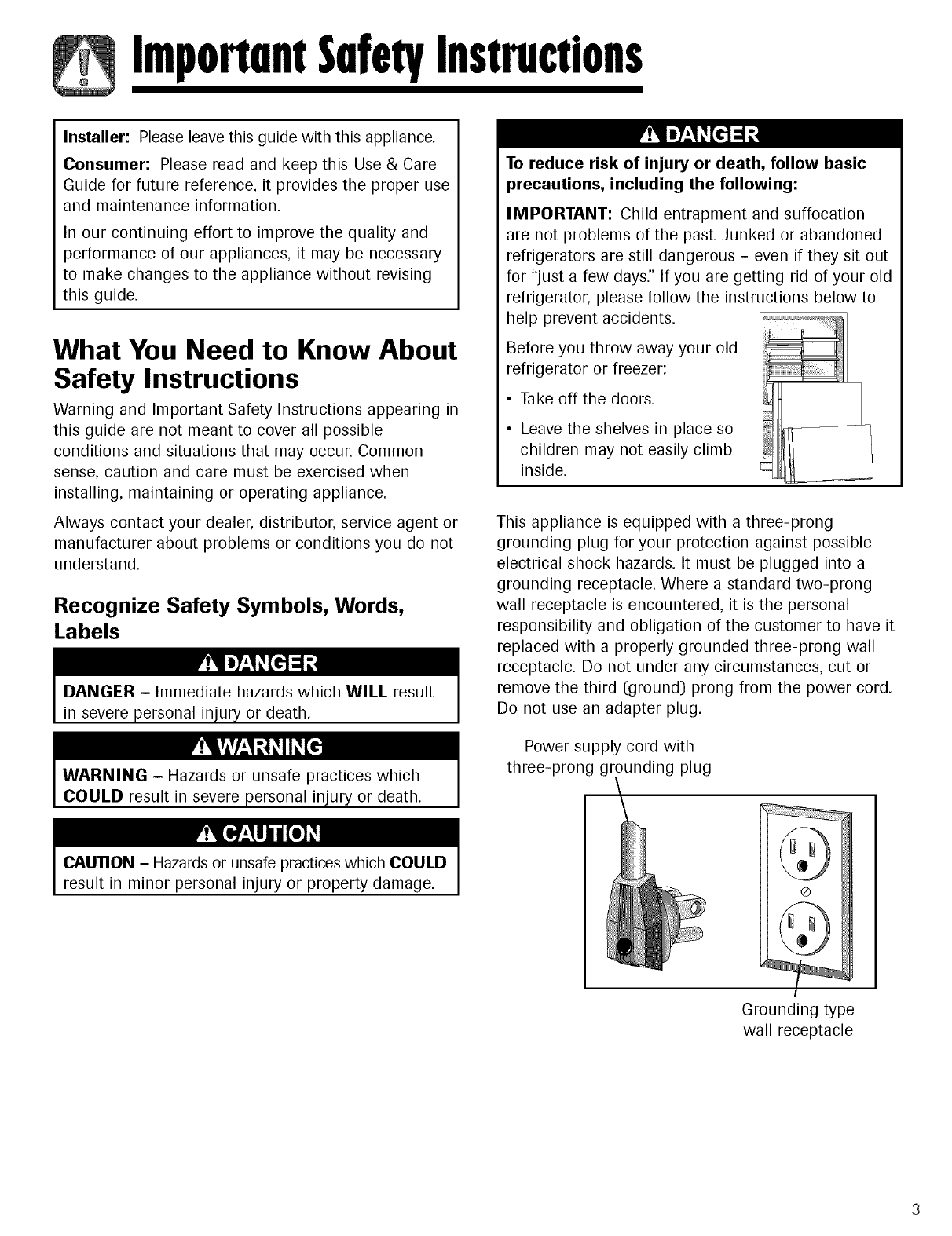

ImportnntSnfetyInstructions
Installer: Please leave this guide with this appliance.
Consumer: Please read and keep this Use & Care
Guide for future reference, it provides the proper use
and maintenance information.
In our continuing effort to improve the quality and
performance of our appliances, it may be necessary
to make changes to the appliance without revising
this guide.
What You Need to Know About
Safety Instructions
Warning and Important Safety Instructions appearing in
this guide are not meant to cover all possible
conditions and situations that may occur. Common
sense, caution and care must be exercised when
installing, maintaining or operating appliance.
Always contact your dealer, distributor, service agent or
manufacturer about problems or conditions you do not
understand.
Recognize Safety Symbols, Words,
Labels
DANGER - Immediate hazards which WILL result
in severe personal injury or death.
WARNING - Hazards or unsafe practices which
COULD result in severe personal injury or death.
To reduce risk of injury or death, follow basic
precautions, including the following:
IMPORTANT: Child entrapment and suffocation
are not problems of the past. Junked or abandoned
refrigerators are still dangerous - even if they sit out
for "just a few days." If you are getting rid of your old
refrigerator, please follow the instructions below to
help prevent accidents.
Before you throw away your old
refrigerator or freezer:
•Take off the doors.
• Leave the shelves in place so
children may not easily climb
inside.
This appliance is equipped with a three-prong
grounding plug for your protection against possible
electrical shock hazards. It must be plugged into a
grounding receptacle. Where a standard two-prong
wall receptacle is encountered, it is the personal
responsibility and obligation of the customer to have it
replaced with a properly grounded three-prong wall
receptacle. Do not under any circumstances, cut or
remove the third (ground) prong from the power cord.
Do not use an adapter plug.
Power supply cord with
three-prong grounding plug
CAUTION - Hazards or unsafe practices which COULD
result in minor personal injury or property damage.
Grounding type
wall receptacle
ImportnntSnfetyInstructions
To reduce risk of fire, electric shock, serious
injury or death when using your refrigerator,
follow these basic precautions, including the 13,
following:
1. Read all instructions before using the refrigerator.
2. Observe all local codes and ordinances. 14.
3. Be sure to follow grounding instructions.
4. Check with a qualified electrician if you are not
sure this appliance is properly grounded.
5_ Do not ground to a gas line_ 15_
6. Do not ground to a cold-water pipe.
7. Refrigerator is designed to operate on a separate
115 volt, 15 amp., 60 cycle line.
8. Do not modify plug on power cord. If plug does 16.
not fit electrical outlet, have proper outlet installed
by a qualified electrician. 17.
9_ Do not use a two-prong adapter, extension cord
or power strip. 18.
10_ Do not remove warning tag from power cord.
11_ Do not tamper with refrigerator controls. 19_
12_ Do not service or replace any part of refrigerator
unless specifically recommended in Use & Care 20_
Guide or published user-repair instructions. Do
not attempt service if instructions are not under-
stood or if they are beyond personal skill bvek
Always disconnect refrigerator from electrical
supply before attempting any service. Disconnect
power cord by grasping the plug, not the cord.
Install refrigerator according to Installation
Instructions. All connections for water, electrical
power and grounding must comply with local
codes and be made by licensed personnel when
req uired.
Keep your refrigerator in good condition. Bumping
or dropping refrigerator can damage refrigerator
or cause refrigerator to malfunction or leak. If
damage occurs, have refrigerator checked by
qualified service technician.
Replace worn power cords and/or loose plugs.
Always read and follow manufacturer's storage
and ideal environment instructions for items being
stored in refrigerator.
Your refrigerator should not be operated in the
presence of explosive fumes.
Children should not climb, hang or stand on any
part of the refrigerator.
Clean up spills or water leakage associated with
water installation.
SAVE TH ESE I NSTRUCTIONS
Harranty
Warranty
Full One Year Warranty on Refrigerator
For one year from the date of purchase, when this
refrigerator is operated and maintained according to
instructions attached to or furnished with it, Sears will
repair it, free of charge, if defective in material or
workmanship.
The ice and water filter cartridge is an extendable part,
which Sears will only replace free of charge for 30 days
from date of purchase, if defective in material or
workmanship.
Full Five Year Warranty on Sealed
Refrigeration System
For five years from the date of purchase, when this
refrigerator is operated and maintained according to
instructions attached to or furnished with it, Sears will
repair the sealed system (consisting of refrigerant,
connecting tubing and compressor moto0 free of
charge, if defective in material or workmanship.
The above warranty coverage applies only to
refrigerators which are used for storage of food for
private household purposes. It excludes original
Kenmore ice and water filter cartridges, which Sears
will replace, free of charge, for only 30 days from the
date of purchase, if defective in material or
workmanship.
Warranty service is available by contacting Sears at
1-800-4-MY-HOME "_0-800-469-4663).
This warranty applies only while this product is in use
in the United States.
This warranty gives you specific legal rights, and you
may also have other rights, which vary from state to
state.
Sears, Roebuck and Co.
Dept. 817WA
Hoffman Estates, IL 60179
Reverse Osmosis Water Systems
• Some Reverse Osmosis home water systems cause
low water pressure. Low water pressure can affect
the water and ice dispensing system by causing
small or hollow ice cubes and slow water flow
from the dispenser. Service problems related to the
home's Reverse Osmosis water system are not
covered by the warranty.
Product Record
In the space below record the model and serial
numbers and purchase date of your refrigerator. You
will find the model and serial number sticker inside the
refrigerator section on the left wall.
Model Number: 596.
Serial Number:
Purchase Date:
Keep this booklet and your Sears sales receipt in
a safe place for future reference.
ProtectionAgreements
in the U.S.A.
Master Protection Agreements
Congratulations on making a smart purchase. Your new
Kenmore :_product is designed and manufactured for
years of dependable operation. But like all products, it
may require preventive maintenance or repair from
time to time. That's when having a Master Protection
Agreement can save you money and aggravation.
Purchase a Master Protection Agreement now and
protect yourseff from unexpected hassle and expense.
The Master Protection Agreement also helps extend
the life of your new product. Here's what's included in
the Agreement:
E_Expert service by our 12,000 professional repair
specialists
dUnlimited service and no charge for parts and
labor on all covered repairs
d"Noqemon" guarantee - replacement of your
covered product if four or more product failures
occur within twelve months
Product replacement if your covered product can't
be fixed
dAnnual Preventive Maintenance Check at your
request - no extra charge
dFast help by phone - phone support from a Sears
technician on products requiring in-home repair, plus
convenient repair scheduling
dPower surge protection against electrical damage
due to power fluctuations
E_Rental reimbursement if repair of your covered
product takes longer than promised
Once you purchase the Agreement, a simple phone
call is all that it takes for you to schedule service. You
can call anytime day or night, or schedule a service
appointment online.
Sears has over 12,000 professional repair specialists,
who have access to over 4.5 million quality parts and
accessories. That's the kind of professionalism you
can count on to help prolong the life of your new
purchase for years to come. Purchase your Master
Protection Agreement today!
Some limitations and exclusions apply, For prices
and additional information, call 1-800-827-8855,
Sears Installation Service
For Sears professional installation of home appliances,
garage door openers, water heaters, and other major
home items, in the U.S.A. call 1-800-4-MY-HOME _
(1-800-/469-4663).
In Canada
Maintenance Agreements
Your purchase has added value because you can
depend on Sears HomeCentraP for service. With over
2,400 Service Technicians and more than a million
parts and accessories, we have the tools, parts,
knowledge and skills to back our pledge: We Service
What We Sell.
Your Kenmore _ product is designed, manufactured and
tested to provide years of dependable operation. But
like all products, it may require service from time to
time. The Sears Maintenance Agreement offers you an
outstanding service program, affordably priced.
Sears Maintenance Agreement
• Is your way to buy tomorrow's service at today's price
• Eliminates repair bills resulting from normal wear and
tear
• Provides phone support from a Sears technician on
products requiring in-home repair
• Even if you don't need repairs, provides an annual
Preventive Maintenance Check, at your request, to
ensure that your product is in proper running
condition
Some limitations apply. For information about
Sears Canada Maintenance Agreements, call
1-800-361-6665
Installation
Your refrigerator was packed carefully for shipment.
Remove and discard shelf packaging and tape. Do not
remove the serial plate.
Location
• Do not install refrigerator near oven, radiator or other
heat source. If not possible, shield refrigerator with
cabinet material.
• Do not install where temperature falls below 55° F
(13° C) or rises above 110° F (43° C). Malfunction
may occur at this temperature.
Measuring the Opening
When installing your refrigerator, measure carefully.
Allow '/2" space at top and '//' space behind the
machine compartment cover (located in the rea0 for
proper air circulation.
Subflooring or floor coverings (i.e. carpet, tile, wood
floors, rugs) may make your opening smaller than
anticipated.
Some clearance may be gained by using the leveling
procedure under Leveling.
Important: If refrigerator is to be installed into a
recess where the top of the refrigerator is completely
covered, use distance from floor to top of hinge cap to
verify proper clearance.
Transporting Your Refrigerator
• NEVER transport refrigerator on its side. If an
upright position is not possible, lay refrigerator on its
back. Allow refrigerator to sit upright for
approximately 30 minutes before plugging it in to
assure oil returns to the compressor. Plugging the
refrigerator in immediately may cause damage to
internal parts.
• Use an appliance dolly when moving refrigerator.
ALWAYS truck refrigerator from its side or
back-NEVER from its front.
Protect outside finish of refrigerator during transport
by wrapping cabinet in blankets or inserting padding
between the refrigerator and dolly.
Secure refrigerator to dolly firmly with straps or
bungee cords. Thread straps through handles when
possible. Do not overtighten. Overtightening
restraints may dent or damage outside finish.
Installation
To protect property and refrigerator from damage,
observe the following:
Protect vinyl or other flooring with cardboard, rugs,
or other protective material
Do not use power tools when performing leveling
procedure.
To enhance the appearance and maintain performance,
the refrigerator should be level.
Note
• Complete any required door reversal, panel
installation and/or a water supply connection,
before leveling.
Materials Needed
•%" hex head driver
•Carpenter's level
1. Remove toe grille.
• Grasp firmly and pull outward to unclip.
i
!
i
J
2. Remove bottom hinge cover(s).
• Place the eraser end of a pencil or similar blunt
tool in the cover notch.
Notch
• Use slight pressure to pry the cover loose.
• Continue to maintain downward pressure to the
notched side of the cover while swinging it off.
3. Using hex head driver, turn the front adjustment
screws (A) on each side to raise or lower the front
of the refrigerator.
B B
Using the carpenter's level, make sure front of
refrigerator is Y4"(6 ram) or Y2bubble higher than
back of refrigerator and that the refrigerator is level
from side to side.
Turn stabilizing legs (B) clockwise until firmly
against floor.
Replace hinge cover(s).
• Position cover into the outer edge of the hinge.
• Swing the cover toward the cabinet and snap it
into place.
7. Replace the toe grille.
Note
• For proper reinstallation, ensure the "top" marking
on the interior of the toe grille is oriented correctly.
• Align the toe grille mounting clips with the lower
cabinet slots.
• Push the toe grille firmly until it snaps into place.
Installation
Door Removal
Some installations require door removal to transport
the refrigerator to its final location.
5. Lift refrigerator door from center hinge pin.
To avoid electrical shock which can cause severe
personal injury or death, observe the following:
• Disconnect power to refrigerator before removing
doors. Connect power only after replacing doors.
To avoid damage to walls and flooring, protect vinyl
or other flooring with cardboard, rugs or other
protective material.
1. Unplug power cord from power source.
2. Remove toe grille and bottom hinge cover(s) (see
page 8).
3. Remove top hinge cover from refrigerator door by
removing Phillips screw and retain screw and cover
for later use.
6. Hold freezer door while remowng hinge pin with a
5/,6"hex head driver. Remove door from bottom
hinge and retain hinge pin for later use. Remove
any door shims if present.
J.
4. Unscrew F,6"hex head screws from top hinge to
remove hinge and retain all screws for later use.
7. Remove Phillips screws to remove center hinge and
retain all screws for later use.
8. Remove bottom hinge or stabilizing bracket with 3/;,
hex head driver and retain screws for later use. Lift
out bottom hinge pin.
Installation
Reinstallation of the Door
1. Install hinge assemblies:
• Install top hinge loosely with 5/,,, hex head
so rews.
• Install center hinge with Phillips screws.
• Install bottom hinge with 3/8"hex head screws.
2. Insert bottom hinge pin.
• Locate bottom hinge hole closest to
outside edge of cabinet, and insert
bottom hinge pin. Replace any door
shims, if present.
3. Place hinge side of freezer door on
.
.
bottom hinge pin and hold freezer
door upright while installing center
hinge pin with %_"hex head driver.
• Replace any applicable door shims.
• Make sure the hinge pin is installed tightly.
Place hinge side of refrigerator
door on center hinge pin.
While holding refrigerator door
upright, tighten down top hinge
with _/,8"hex head driver and
replace hinge cover.
Door Reversal
In some installations, reversing the door swing allows
for more convenient access to stored items. Both
doors can be reversed.
1. Remove door(s) (see page 9).
2. Transfer cabinet plugs and cabinet screws to
opposite side of cabinet.
• Remove cabinet plugs with flat
blade of screwdriver tip wrapped
in masking tape.
• Remove center mullion screws
with 5/,,, hex head screwdriver.
• Remove bottom mullion screws
with 3/;, hex head driver.
To avoid possible injury and damage to property:
• Place doors on a nonabrasive surface protected by
towels or rugs while working directly on doors.
3, Transfer door stops from bottom edge of fresh food
door and freezer door, if applicable, to opposite
side of door edge.
Use a Phillips screwdriver
for removal and installation.
4. Install handles (see page 11).
5. Reinstall the door(s).
10
Installation
Handles
If not installed, the handle is located in the interior of
the fresh food section.
Remove and discard handle packaging and tape.
Fresh Food Handles
Standard Front Mount Handle
Materials Needed
•Phillips screwdriver
• 5/,6"hex head driver
To Install:
1. Remove '/4" hex head screws from
door face with hex head driver, and
Phillips screw from top of door.
• If reversing door, remove door
plugs from opposite side of door and insert in
screw holes.
2. Align handle holes with screw holes on Iil_
door face and secure with two door face
screws from step 1.
3. Locate handle trim in literature pack
and install over top and bottom of
handle, as illustrated.
• Secure top handle trim with remaining
screw removed in step 1.
• Snap bottom trim over bottom portion
of handle.
To Remove:
1. Remove top handle trim by removing
top handle screw.
• Retain trim and screw for later
replacement.
2. Pry bottom handle trim from handle with
screwdriver flat blade wrapped in
masking tape.
• Retain trim for later replacement.
3. Remove two hex head screws.
• Retain screws for later replacement.
Freezer Handle
Materials Needed
• Phillips screwdriver
To Install:
1. Install handle by fastening with
screws removed from edge of door.
• If reversing freezer door, remove
door plugs from top edge of door
and insert into screw holes.
To Remove:
1. Remove handle screws with Phillips
screwdriver and retain screws for
later use.
11
Installation
Connecting the Water Supply
(select models}
To reduce the risk of injury or death, follow
basic precautions, including the following:
Read all instructions before installing ice maker.
Do not attempt installation if instructions are not
understood or if they are beyond personal skill
level.
Observe all local codes and ordinances.
Do not service ice maker unless specifically
recommended in Use & Care Guide or published
user-repair instructions.
Disconnect power to refrigerator before installing
ice maker.
Water damage due to an improper water
connection may cause mold/mildew growth. Clean
up spills or leakage immediately!
Materials Needed
• '/4" outer diameter flexible copper tubing
• Shut-off valve (requires a '/_" hole to be drilled into
water supply line before valve attachment)
• Adjustable wrench
• '/_" hex nut driver
Notes
• You should only use copper tubing for installation.
Plastic is less durable and can cause leakage.
• Add 8' to tubing length needed to reach water
supply for creation of service loop
Create service loop with copper
tubing (minimum 2' diameter).
Avoid kinks in the copper tubing
when bending the service loop.
Remove plastic cap from water valve inlet
port.
2' diameter
minimum
To avoid property damage or possible injury,
follow basic precautions, including the
following:
• Consult a plumber to connect W' O.D. copper
tubing to household plumbing to assure
compliance with local codes and ordinances.
• Confirm water pressure to water valve is between
35 and 100 pounds per square inch.
Do not use a self-piercing, or _,6"saddle valve.
Both reduce water flow and can become clogged
over time, and may cause leaks if repair is
attempted.
• Tighten nuts by hand to prevent cross threading.
Finish tightening nuts with pliers and wrenches.
Do not overtighten.
• Wait two to three hours before placing refrigerator
into final position to check and correct any water
leaks. Recheck for leaks after 24 hours.
• Verify the copper tubing under the sleeve is
smooth and free from defects. Do not reuse an old
sleeve.
Place brass nut (A) and sleeve (B)
on copper tube end as illustrated.
Reminder: Do not use an old
sleeve.
4. Place end of copper tubing into water
valve inlet port. Shape tubing slightly. Do /4_
not kink - so that tubing feeds straight ° r
into inlet port. °_t_
5. Slide brass nut over sleeve and screw nut
into inlet port. Tighten nut with wrench.
Important: Do not overtighten. Cross
threading may occur.
6. Pull on tubing to confirm connection is
secure. Connect tubing to frame with
water tubing clamp (C) and turn on
water supply. Check for leaks and
correct if necessary.
7. Monitor water connection for 24 hours. Correct
leaks, if necessary.
12
TemperatureControls
Touch Temperature Controls
The controls are located at the top front of the
refrigerator compartment.
Note
•The freezer control turns the cooling system on.
Neither section will cool if freezer is set to OFE
Adjusting the Controls
24 hours after adding food, you may decide that one
or both compartments should be colder or warmer. If
so, adjust the control(s) as indicated in the
Temperature Control Guide table below. See page 18
for instructions on checking compartment
temperature.
• Except when starting the refrigerator, do not change
either control more than one number at a time.
Control
Freezer Refrigerator
Initial Control Settings
After plugging the refrigerator in, set the controls.
• Pressing the @ or @ pads adjusts the controls to
the desired setting.
• The temperature control range for both
compartments is 1 through 7 (coldest).
• Initially set the refrigerator control on 4.
• Initially set the freezer control on 4.
• Let the refrigerator run at least 8 to 12 hours before
adding food.
Warm Cabinet Surfaces
At times, the front of the refrigerator cabinet may be
warm to the touch. This is a normal occurrence that
helps prevent moisture from condensing on the
cabinet. This condition will be more noticeable when
you first start the refrigerator, during hot weather and
after excessive or lengthy door openings.
• Allow 24 hours for temperatures to stabilize.
• Changing either control will have some effect on the
temperature of the other compartment.
Temperature Control Guide
Refrigerator too warm
Refrigerator too cold
Freezer too warm
Freezer too cold
Turn refrigerator OFF
Set the refrigerator control
to next higher number by
pressing the @ pad.
Set the refrigerator control
to next lower number by
pressing the @ pad.
Set the freezer control to
next higher number by
pressing the @ pad.
Set the freezer control to
next lower number by
pressing the @ pad.
Press the refrigerator or
freezer @ pad until a dash
(-) appears in the display.
13
FreshFoodFemures
Shelves
To avoid personal injury or property damage,
observe the following:
• Never attempt to adjust a shelf that is loaded with
food.
• Confirm shelf is secure before placing items on
shelf.
• Handle tempered glass shelves carefully. Shelves
may break suddenly if nicked, scratched, or
exposed to sudden temperature change.
Your refrigerator has Spillproof Glass Shelves. The
Spillproof shelves have a spill retainer edge which
allows for easier clean up and some are equipped with
a slide out feature. To slide out, grasp the front of the
shelf and pull forward. Push in the shelf to return to
the original position.
To Remove a Shelf:
• Slightly tilt up the front and lift up __ _
the rear of the shelf, then pull the
shelf straight out.
To Lock the Shelf into Another ,:
Position:
• Tilt up the front edge of the shelf.
• Insert the hook into the desired frame openings and
let the shelf settle into place.
• Be sure the shelf is securely locked at the rear.
The Crisper Top serves as the lower fresh food shelf.
To Remove the Crisper Top:
• Place hand under the frame to push up the glass. Lift
glass out.
• Lift frame from refrigerator liner rails.
To Install:
• Replace frame in refrigerator liner rails.
• Carefully replace glass into frame.
Door Storage
Dairy Center
The Dairy Center provides
convenient door storage for
spreadable items such as butter
and margarine. This compartment can be moved to
different locations to accommodate storage needs. To
use the dairy center, raise the cover.
To Remove:
• Raise the cover, pull upward and tilt out.
To Install:
• Slide the Dairy Center in and down until
firmly seated in the door liner.
Door Buckets
Door Buckets can be moved to
meet storage needs.
To Remove:
• Slide bucket up and pull straight out.
To Install:
• Slide bucket in and down until firmly seated in the
door liner.
Adjustable Deep Tilt-Out Door Buckets
The Adjustable Deep Tilt-Out Door Bucket provides
easy access to food items stored in the door.
To Remove Bucket:
• Tilt bucket out.
• Pull straight out of the frame.
To Install Bucket:
• Tilt the front of the bucket down slightly.
• Slide into bracket and tip upright.
To Move Bucket Frame to Another Location:
• Remove bucket.
• Lift frame up and pull straight out.
Slide the frame in and down into the
new location.
14
FreshFoodFeatures
Full-width Door Shelf
Full-width Door Shelf removes for easy cleaning.
To Remove:
• Slide shelf up and pull straight out.
To install:
• Slide shelf in and down until firmly seated in the door
liner.
Storage Drawers
Snack Drawer
The Snack Drawer can be used for
storage of miscellaneous items or
extra produce.
To Remove:
• Pull drawer out to full extension. Tilt up front
of drawer and pull straight out.
To install:
• Insert drawer into frame rails and push back into
place.
Crisper Drawers
The Crisper Drawers provide a higher humidity
environment for fresh fruit and vegetable storage.
Controls
The Crisper Controls regulate the amount of humidity
in the crisper drawer. Slide the control toward the LOW
setting for produce with outer skins. Slide the control
toward the HIGH setting for leafy produce.
Humidity
H/GH ® ® ® ® • ® ® LOW
To Remove:
• Pull drawer out to full extension. Tilt up front of
drawer and pull straight out.
To install:
• Insert drawer into frame rails and push back into
place.
Note
• For best results, keep the crisper drawers tightly
closed.
15
FreezerFeatures
Shelves and Baskets
Freezer Shelf
Select models have a shelf divider.
To Remove:
•Pull shelf out to full
extension. Tilt up front of
shelf and pull straight out.
To Install:
•Insert shelf into freezer liner rails and push to back
of compartment.
Wire Basket
To Remove:
•Pull basket out to full
extension. Tilt up front of
basket and pull straight out.
To Install:
•Insert basket into freezer liner rails and push back
into place.
Freezer Door Shelf
The Freezer Door Shelf provides
convenient storage for frozen food
items in freezer door.
To Remove:
•Lift shelf from side liner tabs and pull
out.
To Install:
•Fit ends of shelf on liner tabs and slide down.
Accessories
Ice Cube Tray [select models)
The Ice Cube Tray provides an area
to freeze cubes for manual
dispensing of ice.
To release ice cubes from tray,
hold tray upside down over a
storage container and twist
both ends of tray until cubes release.
The Ice Service Rack (select models) holds the ice
cube tray.
To Install:
• Slide L-shaped groove of shelf
down over back wall screw.
Push rack back until screw is
stopped in L-shaped groove
(1). Slide front portion of shelf
over front wall screw (2).
To Remove:
• Lift front portion of rack from front wall screw.
• Pull rack forward, then lift to remove rack from back
wall screw.
16
m
Automatic Ice Maker
Cselect models)
Select models have a factory installed ice maker.
Connect the ice maker to the water supply as
instructed on page 12. Proper water flow and a level
refrigerator are essential for optimal ice maker
performance.
Operating Instructions
•Confirm ice bin is in place and ice maker arm is
down.
• After freezer section reaches
between 0° to 2° F (-18 ° to -17 ° C),
ice maker fills with water and
begins operating. You will have a
complete harvest of ice
approximately every three hours.
• Allow approximately 24 hours after installation to
receive first harvest of ice.
• Discard ice created within first 12 hours of operation
to assure system is flushed of impurities.
• Stop ice production by raising ice maker arm until
click is heard.
• Ice maker will remain in the off position until arm is
pushed down.
• The first one or two batches will probably contain
undersized and irregular cubes because of air in the
supply line.
• When the ice cubes are ejected it is normal for
several cubes to be joined together at the ends. They
can easily be broken apart. The ice maker will
continue to make ice until the supply of ice cubes
raises the sensor arm, shutting the ice maker off.
• Certain sounds may accompany the various cycles of
the ice maker. The motor may have a slight hum, the
cubes will rattle as they fall into an empty storage
pan and the water valve may click or "buzz"
occasionally.
• If the ice is not used frequently, the ice cubes will
become cloudy, shrink, stick together and taste stale.
Empty the ice storage bin periodically and wash it in
lukewarm water. Be sure to dry the bin thoroughly
before replacing it.
Beverages and foods should not be placed in the ice
storage bin for quick chilling. These items can block
the sensor arm, causing the ice maker to
malfunction.
• Turn off (arm up) the ice maker when the water
supply is to be shut off for several hours.
To Remove the Ice Bin:
• Pull it forward, away from the ice maker. To avoid the
ice maker dumping ice while the bin is removed, turn
the ice maker off by raising the sensor arm.
To Install the Ice Bin:
• Reverse the above procedure. Turn the ice maker on
by lowering the sensor arm.
To avoid personal injury or property damage,
observe the following:
• Do not place fingers or hands on the automatic ice
making mechanism while the refrigerator is
plugged in. This will help protect you from possible
injury. It will also prevent interference with moving
parts of the ejector mechanism and the heating
element that releases the cubes.
• Under certain rare circumstances, ice cubes may
be discolored, usually appearing with a green-
bluish hue. The cause of this unusual discoloration
can be a combination of factors such as certain
characteristics of local waters, household
plumbing and the accumulation of copper salts in
an inactive water supply line which feeds the ice
maker. Continued consumption of such discolored
ice cubes may be injurious to health. If such
discoloration is observed, discard the ice cubes
and contact your dealer to purchase and install a
water line filter.
• Water damage due to improper water connection
may cause mold/mildew growth.
• Clean up water and ice spills to avoid personal
injury and to prevent mold/mildew growth.
17
18
FoodStorugeTips
Fresh Food Storage
•The fresh food compartment of a refrigerator should
be kept between 340-40 ° F (1°-4 ° C) with an
optimum temperature of 37° F (3° C). To check the
temperature, place an appliance thermometer in a
glass of water and place in the center of the
refrigerator. Check after 24 hours. If the temperature
is above 40° F (4° C) adjust the controls as explained
on page 13.
• Avoid overcrowding the refrigerator shelves. This
reduces the circulation of air around the food and
results in uneven cooling.
Fruits and Vegetables
• The crisper drawers trap humidity to help preserve
the fruit and vegetable quality for longer time periods
(see page 15).
• Sort fruits and vegetables before storage and use
bruised or soft items first. Discard those showing
signs of decay.
• Always wrap odorous foods such as onions and
cabbage so the odor does not transfer to other foods.
• While vegetables need a certain amount of humidity
to remain fresh, too much humidity can shorten
storage times (especially leafy vegetables). Drain
vegetables well before storing.
• Wait to wash fresh produce until right before use.
Meat and Cheese
• Raw meat and poultry should be wrapped securely
so leakage and contamination of other foods or
surfaces does not occur.
• Occasionally mold will develop on the surface of
hard cheeses (Swiss, Cheddar, Parmesan). Cut off at
least an inch around and below the moldy area. Keep
your knife or instrument out of the mold itself. Do not
try to save individual cheese slices, soft cheese,
cottage cheese, cream, sour cream or yogurt when
mold appears.
Dairy Food
• Most dairy foods such as milk, yogurt, sour cream
and cottage cheese have freshness dates on their
cartons for appropriate length of storage. Store these
foods in the original carton and refrigerate
immediately after purchasing and after each use.
Frozen Food Storage
• The freezer compartment of a refrigerator should be
kept at approximately 0° F (-18 ° C). To check the
temperature, place an appliance thermometer
between the frozen packages and check after 2/4
hours. If the temperature is above 0° F (-18 ° C),
adjust the control as described on page 13.
• A freezer operates more efficiently when it is at least
two-thirds full.
Packaging Foods for Freezing
To minimize dehydration and quality deterioration use
aluminum foil, freezer wrap, freezer bags or airtight
containers. Force as much air out of the packages as
possible and be sure they are tightly sealed. Trapped
air can cause the food to dry out, change color and
develop an off-flavor (freezer burn).
• Overwrap fresh meats and poultry with suitable
freezer wrap prior to freezing.
• Do not refreeze meat that has completely thawed.
Loading the Freezer
Avoid adding too much warm food to the freezer at
one time. This overloads the freezer, slows the rate of
freezing and can raise the temperature of frozen
foods.
• Leave space between the packages so cold air can
circulate freely, allowing food to freeze as quickly as
possible.
Avoid storing hard-to-freeze foods such as ice cream
and orange juice on the freezer door shelves. These
foods are best stored in the freezer interior where the
temperature varies less with door openings.
Refer to the Food Storage Chart on pages 19 and 20 for
approximate storage times.
FoodStorageTips
Food Storage Chart
Storage times are approximate and may vary depending on type of packaging, storage temperature, and the quality
of the food when purchased.
_[JIWlD_
DAI RY PRODUCTS
Butter 1 month 6 to 9 months Wrap tightly or cover.
Milk and cream 1 week Not recommended Check carton date. Close tightly.
Don't return unused portions to
original container. Don't freeze
cream unless whipped.
Cream cheese, cheese 1 to 2 weeks Not recommended Wrap tightly.
spread and cheese food
Cottage cheese 3 to 5 days Not recommended Store in original carton.
Check carton date.
Sour cream 10 days Not recommended Store in original carton.
Check carton date.
Hard cheese 1 to 2 months 4 to 6 months Wrap tightly.
(Swiss, Cheddar and Parmesan) May become Cut off any mold.
crumbly
EGGS
Eggs in the shell 3 weeks Not recommended Refrigerate small ends down.
Leftover yolks or whites 2 to/4 days 9 to 12 months For each cup of yolks to be frozen,
add 1 tsp. sugar for use in sweet, or
1 tsp. salt for non-sweet dishes.
FRUITS
Apples 1 month 8 months (cooked) May also store unripe or hard apples
at 60° to 70° F (16° to 21° (3).
Bananas 2 to/4 days 6 months Ripen at room temperature before
(whole/peeled) refrigerating. Note: Bananas will
darken when refrigerated.
Pears, plums, avocados 3 to/4 days Not recommended Ripen at room temperature before
refrigerating. Note: Avocados will
darken when refrigerated.
Berries, cherries, apricots 2 to 3 days 6 months Ripen at room temperature before
refrigerating.
Grapes 3 to 5 days 1 month (whole) Ripen at room temperature before
refrigerating.
Citrus fruits 1 to 2 weeks Not recommended May also store at 60° to 70° F
06 ° to 21° C).
If refrigerated, store uncovered.
Pineapples, cut 2 to 3 days 6 to 12 months Will not ripen after purchase.
Use quickly.
19
FoodStorugeTips
2O
VEGETABEES
Asparagus 1 to 2 days 8 to 10 months Do not wash before refrigerating.
Store in crisper.
Brussels sprouts, broccoli, 3 to 5 days 8 to 10 months Wrap odorous foods.
cauliflower, green peas, Leave peas in pods.
lima beans, onions, peppers
Cabbage, celery 1 to 2 weeks Not recommended Wrap odorous foods and refrigerate
in crisper.
7 to 10 days 8 to 10 months Remove tops. Wrap odorous foods
and refrigerate in the crisper.
7 to 10 days Not recommended
Carrots, parsnips, beets and
turnips
Lettuce
POUETRY and FUSH
Chicken and Turkey, whole
Chicken and Turkey, pieces
Fish
I to 2 days
I to 2 days
I to 2 days
12 months
9 months
2 to 6 months
Keep in original packaging for
refrigeration. Place in the meat and
cheese drawer. When freezing longer
than two weeks, overwrap with
freezer wrap.
M EATS
Bacon 7 days 1 month
Beef or lamb, ground 1 to 2 days 3 to 4 months Fresh meats can be kept in original
packaging for refrigeration.
Beef or lamb, roast and steak 3 to 5 days 6 to 9 months Place in the meat and cheese drawer.
When freezing longer than two
weeks, overwrap with freezer wrap.
Ham, fully cooked, whole 7 days 1 to 2 months
half 5 days 1 to 2 months
slices 3 days 1 to 2 months
Luncheon meat 3 to 5 days 1 to 2 months Unopened, vacuum-packed luncheon
meat may be kept up to two weeks
in the meat and cheese drawer.
Pork, roast 3 to 5 days 4 to 6 months
Pork, chops 3 to 5 days 4 months
Sausage, ground 1 to 2 days 1 to 2 months
Sausage, smoked 7 days 1 to 2 months
Veal 3 to 5 days 4 to 6 months
Frankfurters 7 days 1 month Processed meats should be tightly
wrapped and stored in the meat and
cheese drawer.
Sources: United States Department of Agriculture; Food Marketing Institute; Cooperative Extension Service, Iowa
State University
andCleaning
To avoid electrical shock which can cause severe
personal injury or death, disconnect power to
refrigerator before cleaning. After cleaning, connect
power.
To avoid personal injury or property damage,
observe the following:
•Read and follow manufacturer's directions for all
cleaning products.
• Do not place buckets, shelves or accessories in
dishwasher. Cracking or warping of accessories
may result.
Refrigerator Cleaning Chart
Textured Doors
and Exterior
Cabinet Interior
Door Gaskets
Condenser Coil
Remove base grille to access.
Condenser Fan Outlet Grille
See back of refrigerator.
Accessories
Shelves, buckets,
drawers, etc.
Abrasive or harsh cleaners
Ammonia
Chlorine bleach
Concentrated detergents or
solvents
Metal or plastic-textured
scouring pads
Abrasive or harsh cleaners
Metal or plastic-textured
scouring pads
Anything other than a
vacuum cleaner
A dishwasher
Use 4 tablespoons of baking soda dissolved in
1 quart (1 liter) warm soapy water.
Rinse surfaces with clean warm water and dry
immediately to avoid water spots.
Use warm, soapy water and a soft, clean cloth
or sponge.
Use a vacuum cleaner hose nozzle.
Use a vacuum cleaner hose nozzle with brush
attachment.
Follow removal and installation instructions
from appropriate feature section.
Allow accessories to adjust to room
tern peratu re.
Dilute mild detergent and use a soft clean cloth
or sponge for cleaning.
Use a plastic bristle brush to get into crevices.
Rinse surfaces with clean warm water.
Dry glass and clear items immediately to avoid
spots.
21
andCleaning
Removing Odors From
Refrigerator
To avoid electrical shock which can cause severe
personal injury or death, disconnect power to
refrigerator before cleaning. After cleaning,
reconnect power.
1. Remove all food and turn the refrigerator OFF.
2. Disconnect power to the refrigerator.
3. Clean the walls, floor, ceiling of cabinet interior,
drawers, shelves and gaskets according to the
instructions on page 21.
4. Dilute mild detergent and brush solution into
crevices using a plastic bristle brush. Let stand for
5 minutes. Rinse surfaces with warm water. Dry
surfaces with a soft, clean cloth.
5. Wash and dry all bottles, containers and jars.
Discard spoiled or expired items.
6. Wrap or store odor-causing foods in tightly sealed
containers to prevent recurring odors.
7. Reconnect power to refrigerator and return food to
refrigerator.
8. Allow the refrigerator to cool.
9. After 24 hours, check if odor has been eliminated.
If odor is still present:
1. Remove drawers and place on top shelf of
refrigerator.
2. Pack refrigerator and freezer sections - including
doors - with crumpled sheets of black and white
newspaper.
3. Place charcoal briquettes randomly on crumpled
newspaper in both freezer and refrigerator
compartments.
4. Close doors and let stand 24 to 48 hours.
Energy Saving Tips
• Avoid overcrowding refrigerator shelves.
Overcrowding reduces air circulation around food
and causes refrigerator to run longer.
• Avoid adding too much warm food to refrigerator at
one time. This overloads compartments and slows
rate of cooling.
• Do not use aluminum foil, wax paper, or paper
toweling as shelf liners. This decreases air flow and
causes refrigerator to run less efficiently.
• A freezer that is two-thirds full runs most efficiently.
Locate refrigerator in coolest part of room. Avoid
areas of direct sunlight, or near heating ducts,
registers or other heat producing appliances. If this is
not possible, isolate exterior by using a section of
cabinet or an added layer of insulation.
• Clean door gaskets every three months according to
cleaning instructions. This will assure that door seals
properly and refrigerator runs efficiently.
• Take time to organize items in refrigerator to reduce
time that door is open.
• Be sure your doors are closing securely by leveling
refrigerator as instructed in your installation
instructions.
• Clean condenser coils as indicated in the cleaning
instructions every three months. This will increase
energy efficiency and cooling performance.
22
andCleaning
Replacing Light Bulbs
To avoid electrical shock which can cause severe
personal injury or death, disconnect power to
refrigerator before replacing light bulb. After
replacing light bulb, reconnect power.
To avoid personal injury or property damage,
observe the following:
• Allow light bulb to cool.
• Wear gloves when replacing light bulb.
Fresh Food Section
(style of light shield varies)
1. Slide clear light shield
toward back of
compartment to release
from light assembly.
2. Remove light bulbs.
3. Replace with appliance
bulbs no greater than 40 watts.
4. Replace light bulb cover by inserting tabs on light
shield into liner holes on each side of light
assembly. Slide shield toward front of refrigerator
until it locks into place. Do not force shield beyond
locking point. Doing so may damage light shield.
Freezer (style of light shield varies)
1. Reach behind the light
cover.
With firm pressure, press
forward on the notches at
the back of the cover and
pull down. The cover will
open from the back.
3. Remove the cover.
.
5.
Remove light bulb.
Replace bulb with
appliance bulb no
greater than 40 watts.
Insert front tabs of light
cover into slots in freezer
liner and snap rear
portion over light
assembly until rear tab
engages.
23
andCleaning
Preparing for Vacation
For short vacations or absences (three months or
less):
1. Remove all perishables.
2. If no one will be checking in on the refrigerator
during your absence, remove all frozen items also.
3. Since your refrigerator has an automatic ice maker:
• Shut off the water supply to the ice maker at
least one day ahead of time.
• After the last load of ice drops, raise the wire
shut off arm to the OFF position.
• Empty the ice bin.
4. If the room temperature will drop below 55° F
(13° C), follow the instructions for longer absences.
For long vacations, absences (more than three
months) OR if the room temperature will drop
below 55 ° F (13 ° C):
1. Remove food
2. Since your refrigerator has an automatic ice maker:
• Shut off the water supply to the ice maker at
least one day ahead of time.
• After the last load of ice drops, raise the wire
shut off arm to the OFF position.
• Empty the ice bin
3. Turn the freezer control to OFF.
4. Unplug the refrigerator.
5. Thoroughly clean the interior of both compartments
with a baking soda solution and a clean soft cloth
(four tablespoons of baking soda in one quart of
warm water).
6. Dry thoroughly.
7. Leave the doors open to prevent the formation of
mold and mildew.
Upon your return:
After a short vacation or absence:
• Reconnect the water supply and turn on supply valve
(see page 12).
• Monitor water connection for 24 hours and correct
leaks if necessary.
• Restart the ice maker by lowering the ice maker arm.
• Discard at least the first three ice harvests.
After a long vacation or absence:
• If your refrigerator has an automatic ice maker,
reconnect the water supply and turn on supply valve
(see page 12).
• Plug the refrigerator back in and reset controls (see
page 13).
• Monitor water connection for 24 hours and correct
leaks, if necessary.
• Restart the ice maker by lowering the ice maker arm.
Discard ice produced within the first 12 hours (at
least the first three harvests).
Preparing to move:
• Follow the above instructions for long
vacations/absences, through step 7.
• Secure all loose items such as shelves and drawers
by taping them securely in place to prevent damage.
• Tape the doors shut.
• Use an appliance dolly when moving the refrigerator.
Always truck the refrigerator from its side or back
- never from its front.
• Be sure the refrigerator stays in an upright position
during moving.
24
Opermin9Sounds
_Jm
Improvements in refrigeration design may produce sounds in your new refrigerator that are different or were not
present in an older model. These improvements were made to create a refrigerator that is better at preserving food,
is more energy efficient, and is quieter overall. Because new refrigerators run quieter, sounds may be detected that
were present in older refrigerators, but were masked by higher sound levels. Many of these sounds are normal.
Please note that the surfaces adjacent to a refrigerator, such as hard walls, floors and cabinetry may make these
sounds seem even louder. The following are some of the normal sounds that may be noticed in a new refrigerator.
Clicking Freezer control (A) clicks when starting or
stopping compressor.
• Motorized device (B) sounds like an electric
clock and snaps in and out.
Air rushing or • Freezer fan (C) and condenser fan (D) make
whirring this noise while operating.
Gurgling or • Evaporator (E) and heat exchanger (F)
boiling sound refrigerant makes this noise when flowing.
Thumping • Ice cubes from ice maker (select models) drop
into ice bucket (G).
Vibrating noise • Compressor (H) makes a pulsating sound
while running.
• Refrigerator is not level.
Buzzing • Ice maker water valve (I) hookup (select
models) buzzes when ice maker fills with
water.
• Normal operation
• Normal operation
• Normal operation
• Normal operation
• Normal operation
• Normal operation
• See page 8 for details on how to level
your refrigerator.
• Normal operation
Humming • Ice maker (J) is in the 'on' position without • Stop sound by raising ice maker arm
water connection, to OFF position (see page 17).
• Compressor (H) can make a high-pitched hum • Normal operation
while operating.
Hissing or • Defrost heater (K) hisses, sizzles or pops when • Normal operation
popping operational.
25
Troubleshooting
Freezer control and
lights are on, but
compressor is not
operating
•Normal operation.
Wait 40 minutes to see if refrigerator restarts.
Crisper drawer • See page 13 to adjust controls.
temperature is too
warm
Refrigerator does
not operate
Refrigerator still
won't operate
Food temperature
is too cold
Food temperature
is too warm
• Refrigerator is in defrost mode.
• Refrigerator control settings are too
low.
• Refrigerator is not plugged in. •
• Control is not on. •
• Fuse is blown, or circuit breaker needs •
to be reset.
• Power outage has occurred. •
• Refrigerator is malfunctioning. •
• Condenser coils are dirty. •
• Refrigerator or freezer controls are set •
too high.
• Door is not closing properly. •
• Controls need to be adjusted. •
• Condenser coils are dirty. •
• Rear air grille is blocked. •
• Door has been opened frequently, or •
has been opened for long periods of
time.
• Food has recently been added. •
• Compartment is dirty or has odor- •
causing food.
• Check gaskets for proper seal. •
• Humidity levels are high. •
• Controls require adjustment. •
Plug in refrigerator.
See page 13 to adjust your controls.
Replace any blown fuses.
Check circuit breaker and reset, if necessary.
Call local power company listing to report outage.
Unplug refrigerator and transfer food to another
refrigerator. If another refrigerator is not available,
place dry ice in freezer section to preserve food.
Warranty does not cover food loss.
Contact service for assistance.
Clean according to the chart on page 21.
See page 13 to adjust your controls.
Refrigerator is not level. See page 8 for details on
how to level your refrigerator.
Check gaskets for proper seal. Clean, if necessary,
according to the chart on page 21.
Check for internal obstructions that are keeping
door from closing properly O.e.improperly closed
drawers, ice buckets, oversized or improperly stored
containers, etc.]
See page 13 to adjust your controls.
Clean according to the chart on page 21.
Check the positioning of food items in refrigerator to
make sure grille is not blocked. Rear air grilles are
located under crisper drawers.
Reduce time door is open. Organize food items
efficiently to assure door is open for as short a time
as possible.
Allow time for recently added food to reach
refrigerator or freezer temperature.
Refrigerator has Clean according to instructions on page 21.
an odor
Water droplets Clean according to the chart on page 21.
form on outside
of refrigerator Hot, humid weather can increase condensation.
See page 13 to adjust your controls.
26
Waterdropletsform
oninside of
Refrigerator or ice
maker makes
unfamiliar sounds
or seems too loud
Crisper drawers
do not close freely
Refrigerator runs
too freqaentmy
• Humidity levels are high or door has
been been opened frequently.
• Check gaskets for proper seal.
• Normal operation.
• Contents of drawer, or positioning of
items in the surrounding compartment
could be obstructing drawer.
• Drawer is not in proper position.
• Refrigerator is not level.
• Drawer channels are dirty or need
treatment.
• Doors [lave beer] opened frequently or
for long periods of time.
• Humidity or heat in surrounding area
is high.
• Food has recently been added.
• Refrigerator is exposed to heat by
environment or by appliances nearby.
• Condenser coils are dirty.
• Controls need to be adjusted.
• Door is not closing properly.
• Normal Operation
• See page 13 to adjust your controls.
• Reduce time door is open.
Organize food items efficiently to assure door is
open for as short a time as possible.
• Clean, if necessary, according to the chart on page
21.
•See page 1Z
• Reposition food items and containers to avoid
interference with tile drawers.
• See page 15 for proper drawer placement.
• See page 8 for details on [low to level your
refrigerator.
• Clean drawer channels with warm, soapy water.
Rinse and dry thoroughly.
• Apply a thin layer of petroleum jelly to drawer
channels.
• Reduce time door is open.
• Organize food items efficiently to assure door is
open for as short a time as possible.
• Allow interior environment to adjust for period the
door has been opened.
• Normal operation.
Allow time for recently added food to reach
refrigerator or freezer temperature.
Evaluate your refrigerator's environment.
Refrigerator may need to be moved to run more
efficiently.
Clean, if necessary, according to the chart on page
21.
See page 13 to adjust your controls.
• Refrigerator is not level. See page 8 for details on
how to level your refrigerator.
• Check gaskets for proper seal.
• Clean, if necessary, according to the chart on page
21.
Check for internal obstructions that are keeping
door from closing properly O.e.improperly closed
drawers, ice buckets, oversized or improperly stored
containers, etc.)
See Operating Sounds on page 25.
27
Troubleshooting
Ice
Refrigerator is
leaking water
(ce forms in inlet
tube to ice maker
Water flow is
slower than normal
• Plastic tubing was used to complete
water connection.
• Improper saddle valve was installed.
• Water pressure is too low.
• Freezer temperature is too high.
• Water pressure is too low.
• Improper saddle valve was installed.
• Copper tubing has kinks.
The manufacturer recommends using copper tubing
for installation. Plastic is less durable and can cause
leakage. Sears is not responsible for property
damage due to improper installation or water
connection.
Check water connection procedure (see page 12).
Self-piercing and 3/,_..saddle valves cause low water
pressure and may clog the line over time. Sears is
not responsible for property damage due to
improper installation or water connection.
• Water pressure must be between 35 to 100 pounds
per square inch to function properly.
• Adjust freezer control (see page 13). Freezer is
recommended to be approximately 0° F (-18° C).
Water pressure must be between 35 to 100 pounds
per square inch to function properly. A minimum
pressure of 35 pounds per square inch is
recommended for refrigerators with water filters.
Check water connection procedure in your
Installation Instructions. Self-piercing and 3/_..saddle
valves cause low water pressure and may clog the
line over time. Sears is not responsible for
property damage due to improper installation
or water connection. Open water valve
completely and check for leaks.
• Turn off water supply and remove kinks. If kinks
cannot be removed, replace tubing.
28
................. Your Home
................. iiiiiiiiiiiiiiiiii
For repair-in your home-of all major brand appliances,
lawn and garden equipment, or heating and cooling systems,
no matter who made it, no matter who sold it!
For the replacement parts, accessories and
owner's manuals that you need to do-it-yourself.
For Sears professional installation of home appliances
and items like garage door openers and water heaters.
1-800-4-MY-HOM E®(1-800-469-4663)
Call anytime, day or night (U.S.A. and Canada)
www.sears.corn www.sears.ca
ourHome ..................
For repair of carry-in items like vacuums, lawn equipment,
.... and electronics, call or go on-line for the location of your nearest
Sears Parts .& Repair Center.
18004881222
Call anytime, day or night (U.S.A. only)
www.sears.com
To purchase a protection agreement (U.S.A.) or
maintenance agreement (Canada)on a product serviced by Sears: CCC::
CCC::
1-800-827-6655 (U.S.A.) 1-800-361-6665 (Canada)
Pard pedir servicio de reparaciCn Au Canada pour service en frangais:
a domicilio, y pard ordenar piezas: 1.800.LE.FOYERMO
1-888-SU-HOGARSM (1-800-533-6937)
(1-888-784-6427) www.sears.ca
S AR6
®Registered Trademark /TMTrademark /SMService Mark of Sears, Roebuck and Co.
®Marca Registrada /TMMarca de Fabrica /SMMarca de Servicio de Sears, Roebuck and Co.
MCMarque de commerce /MDMarque dCposee de Sears, Roebuck and Co. © Sears, Roebuck and Co.
