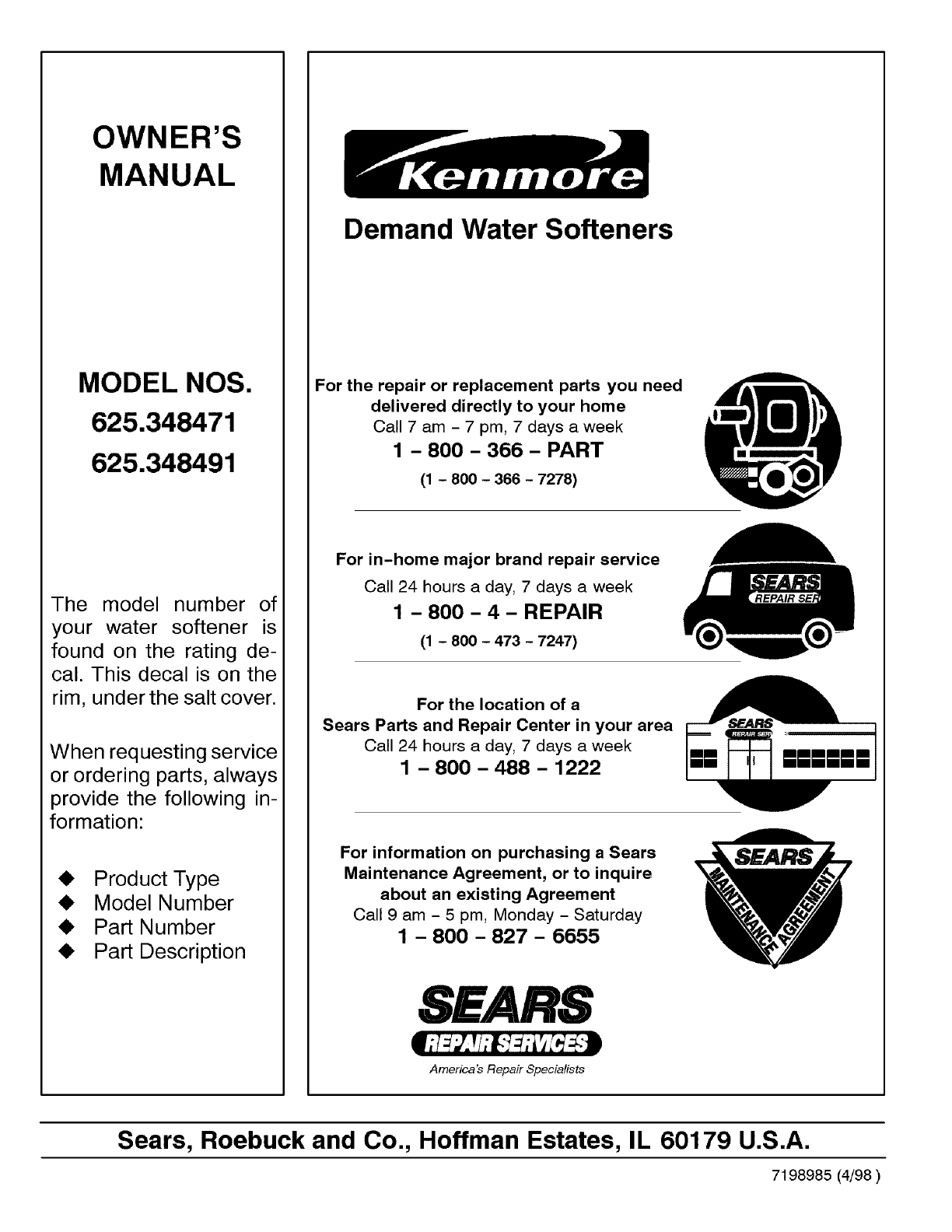

OWNER'S

MANUAL

MODEL NOS.

625.348471

625.348491

Caution:

Read and Follow

All Safety Rules and

Operating Instructions

Before First Use of

This Product.

If you have questions when

installing, operating or main-

taining your softener, and

when setting the timer, call

this toll-free number...

1-800-426-9345

SAVE THIS MANUAL

Demand Water Softeners

Warranty

Start Up /Setting Timer

How It Works

Care Of

Specifications

Repair Parts

Use plastic bag and tie provided, to hang manuals nearby

the softener for future reference.

Sears, Roebuck and Co., Hoffman Estates, IL 60179 USA

PRINTED IN U.S.A.

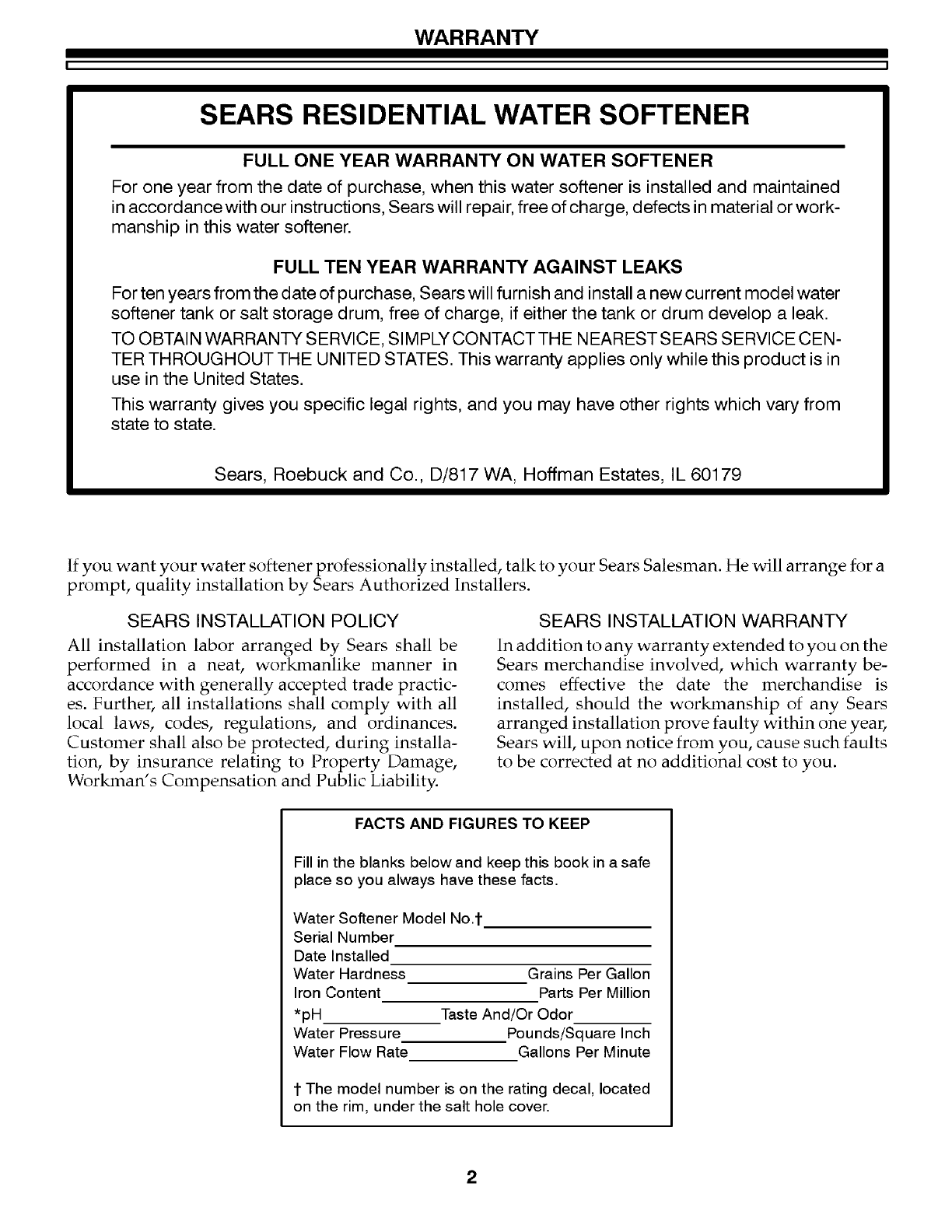

WARRANTY

I I

SEARS RESIDENTIAL WATER SOFTENER

FULL ONE YEAR WARRANTY ON WATER SOFTENER

For one year from the date of purchase, when this water softener is installed and maintained

in accordance with our instructions, Sears will repair, free of charge, defects in material or work-

manship in this water softener.

FULL TEN YEAR WARRANTY AGAINST LEAKS

For ten years from the date of purchase, Sears will furnish and install a new current model water

softener tank or salt storage drum, free of charge, if either the tank or drum develop a leak.

TO OBTAIN WARRANTY SERVICE, SIMPLY CONTACT THE N EAREST SEARS SERVICE CEN-

TER THROUGHOUT THE UNITED STATES. This warranty applies only while this product is in

use in the United States.

This warranty gives you specific legal rights, and you may have other rights which vary from

state to state.

Sears, Roebuck and Co., D/817 WA, Hoffman Estates, IL 60179

If you want your water softener professionally installed, talk to your Sears Salesman. He will arrange for a

prompt, quality installation by Sears Authorized Installers.

SEARS INSTALLATION POLICY

All installation labor arranged by Sears shall be

performed in a neat, workmanlike manner in

accordance with generally accepted trade practic-

es. Further, all installations shall comply with all

local laws, codes, regulations, and ordinances.

Customer shall also be protected, during installa-

tion, by insurance relating to Property Damage,

Workman's Compensation and Public Liability.

SEARS INSTALLATION WARRANTY

In addition to any warranty extended to you on the

Sears merchandise involved, which warranty be-

comes effective the date the merchandise is

installed, should the workmanship of any Sears

arranged installation prove faulty within one year,

Sears will, upon notice from you, cause such faults

to be corrected at no additional cost to you.

FACTS AND FIGURES TO KEEP

Fill in the blanks below and keep this book in a safe

place so you always have these facts.

Water Softener Model No.t

Serial Number

Date Installed

Water Hardness

Iron Content

*pH

Water Pressure

Water Flow Rate

Grains Per Gallon

Parts Per Million

Taste And/Or Odor

Pounds!Square Inch

Gallons Per Minute

t The model number is on the rating decal, located

on the rim, under the salt hole cover.

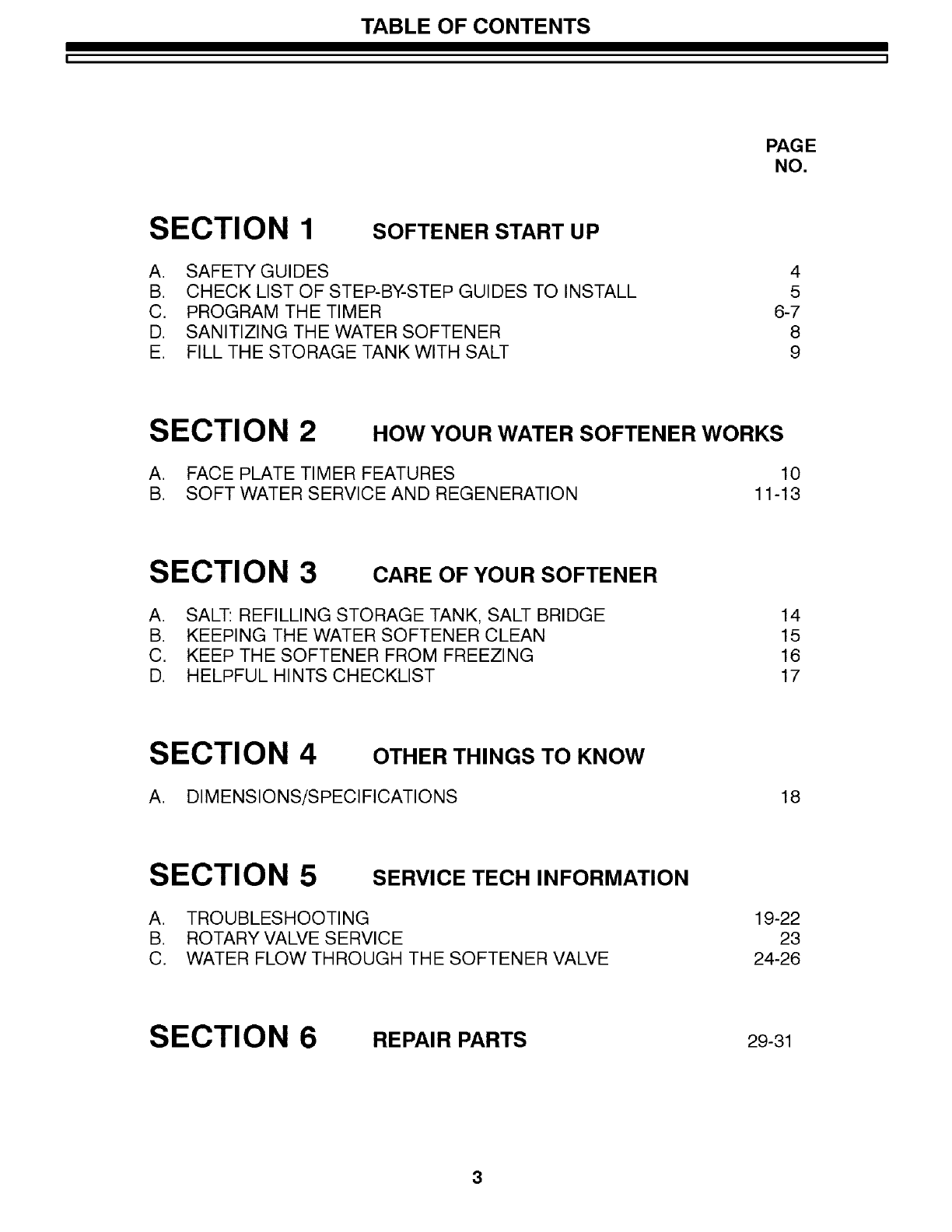

TABLE OF CONTENTS

I I

PAGE

NO.

SECTION 1 SOFTENER START UP

A. SAFETY GUIDES

B. CHECK LIST OF STEP-BY-STEP GUIDES TO INSTALL

C. PROGRAM THE TIMER

D. SANITIZING THE WATER SOFTENER

E. FILL THE STORAGE TANK WITH SALT

6-7

SECTION 2 HOW YOUR WATER SOFTENER WORKS

A. FACE PLATE TIMER FEATURES 10

B. SOFT WATER SERVICE AND REGENERATION 11-13

SECTION 3 CARE OF YOUR SOFTENER

A. SALT: REFILLING STORAGE TANK, SALT BRIDGE

B. KEEPING THE WATER SOFTENER CLEAN

C. KEEP THE SOFTENER FROM FREEZING

D. HELPFUL HINTS CHECKLIST

SECTION 4 OTHER THINGS TO KNOW

A. DIMENSIONS/SPECIFICATIONS 18

SECTION 5 SERVICE TECH INFORMATION

A. TROUBLESHOOTING

B. ROTARY VALVE SERVICE

C. WATER FLOW THROUGH THE SOFTENER VALVE

19-22

24-26

SECTION 6 REPAIRPARTS 29-31

SECTION 1 WATERSOFTENERSTART-UP

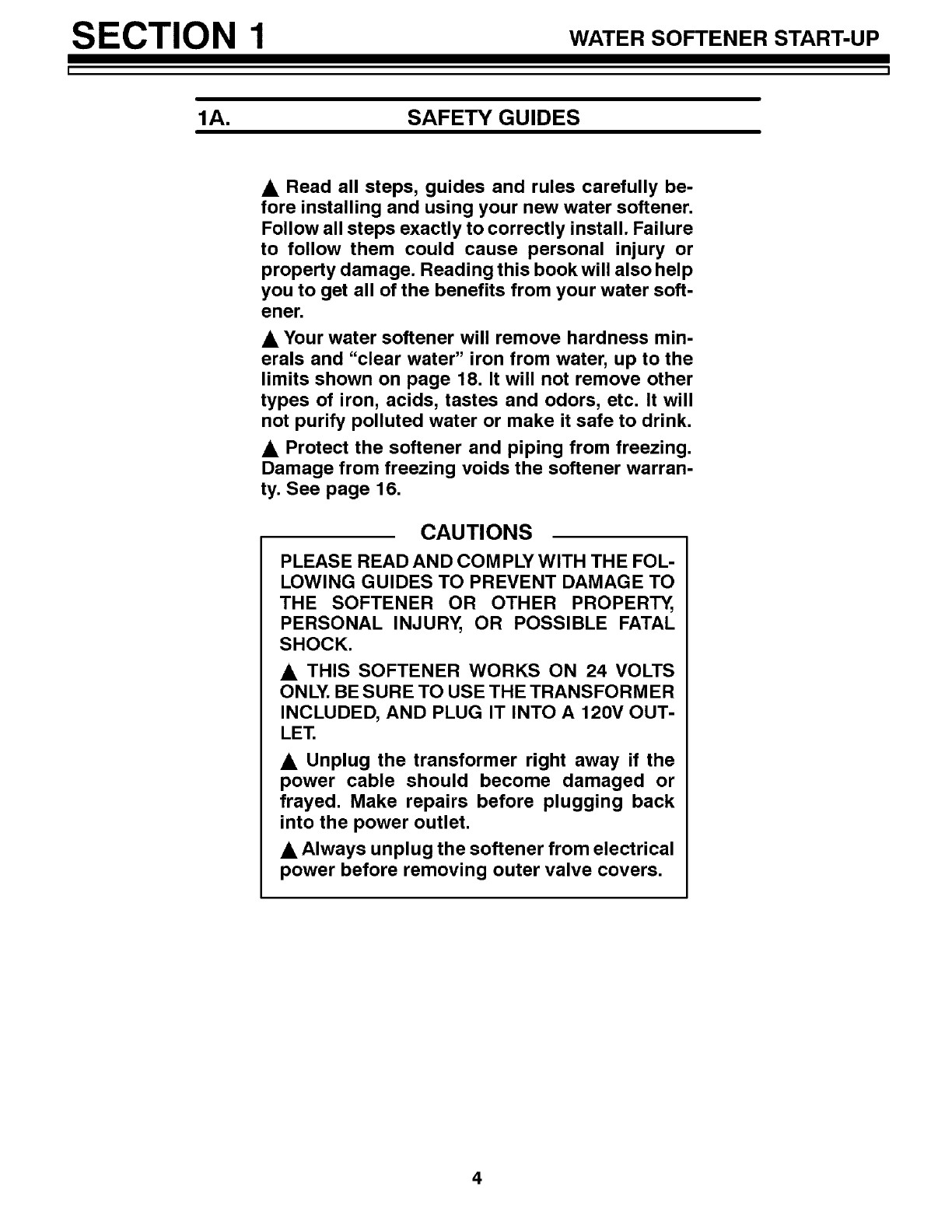

1A. SAFETY GUIDES

•Read all steps, guides and rules carefully be-

fore installing and using your new water softener.

Follow all steps exactly to correctly install. Failure

to follow them could cause personal injury or

property damage. Reading this book will also help

you to get all of the benefits from your water soft-

ener.

•Your water softener will remove hardness min-

erals and "clear water" iron from water, up to the

limits shown on page 18. It will not remove other

types of iron, acids, tastes and odors, etc. It will

not purify polluted water or make it safe to drink.

•Protect the softener and piping from freezing.

Damage from freezing voids the softener warran-

ty. See page 16.

CAUTIONS

PLEASE READ AND COM PLY WITH THE FOL-

LOWING GUIDES TO PREVENT DAMAGE TO

THE SOFTENER OR OTHER PROPERTY,

PERSONAL INJURY, OR POSSIBLE FATAL

SHOCK.

•THIS SOFTENER WORKS ON 24 VOLTS

ONLY. BE SURE TO USE THE TRANSFORMER

INCLUDED, AND PLUG IT INTO A 120V OUT-

LET.

•Unplug the transformer right away if the

power cable should become damaged or

frayed. Make repairs before plugging back

into the power outlet.

•Always unplug the softener from electrical

power before removing outer valve covers.

SECTION 1 WATERSOFTENERSTART-UP

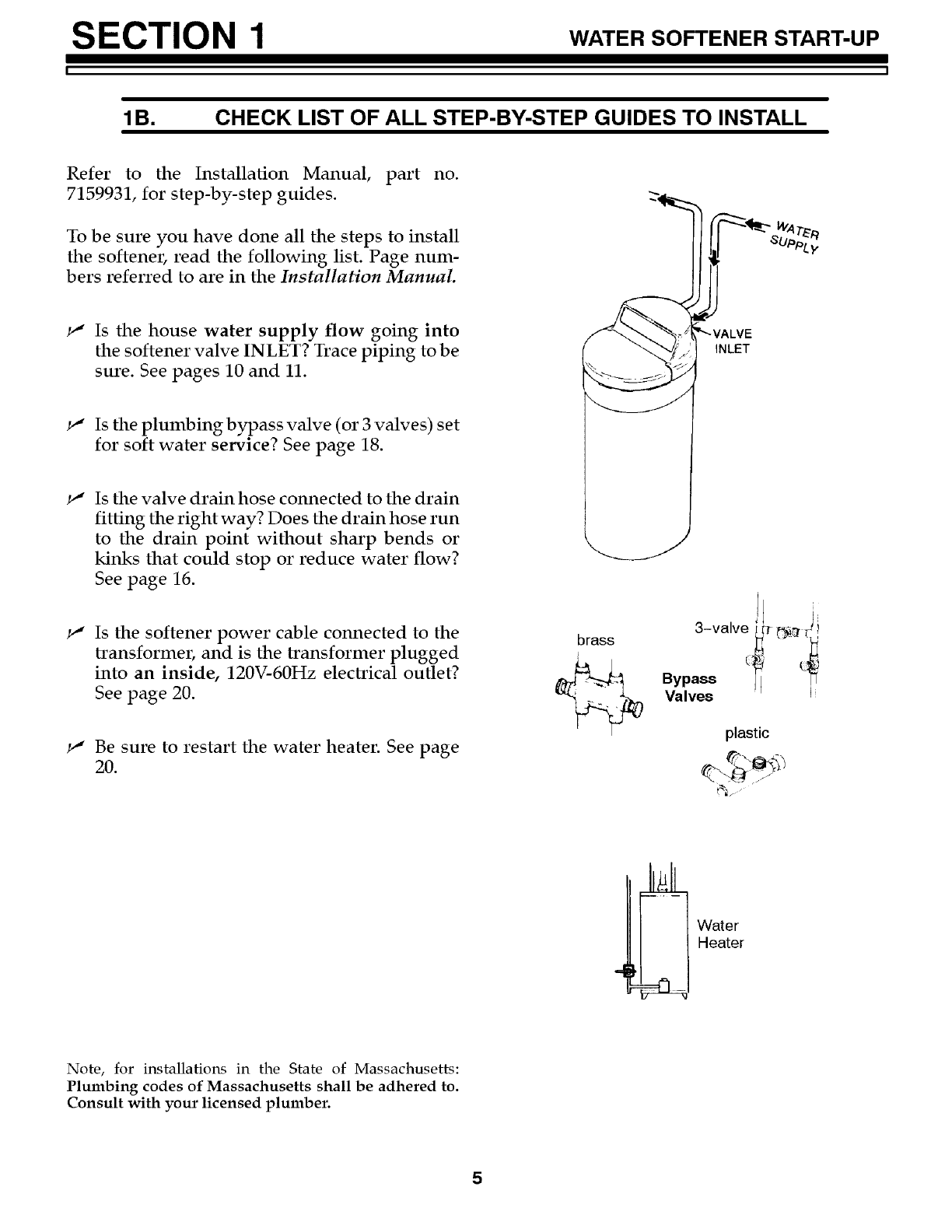

lB. CHECK LIST OF ALL STEP-BY-STEP GUIDES TO INSTALL

Refer to the Installation Manual, part no.

7159931, for step-by-step guides. -"_1:_

To be sure you have done all the steps to install

the softener, read the following list. Page num-

bers referred to are in the Installation Manual.

Is the house water supply flow going into

the softener valve INLET? Trace piping to be

sure. See pages 10 and 11.

Is the plumbing bypass valve (or 3 valves) set

for soft water service? See page 18.

Is the valve drain hose connected to tile drain

fitting the right way? Does the drain hose run

to tile drain point without sharp bends or

kinks tllat could stop or reduce water flow?

See page 16.

Is tile softener power cable connected to the

transformel; and is the transformer plugged

into an inside, 120V-60Hz electrical outlet?

See page 20.

Be sure to restart the water heater. See page

20.

brass

INLET

-valve _F _r

plastic

_ Water

Heater

-4

Note, for installations in the State of Massachusetts:

Plumbing codes of Massachusetts shall be adhered to.

Consult with your licensed plumber.

SECTION 1 WATER SOFTENER START-UP

1C. PROGRAM THE TIMER

Sears Water Line

for Customer Assistance

1-800-426-9345

display

UP button DOWN button

RECHARGE TONIGHT

ON/OFF-HOLD button

(Recharge Tonight-Now)

Demand Water Softener

SELECT button

When the transformer is plugged in, a model

code shows in the face plate display for the first

few seconds. The model code for your water

softener is SR22, as shown in the following

drawing. The model code is followed by a test

number (example: $3.0). After the test number,

12:00 AM begins to flash. PRESENT TIME and

RECHARGE TONIGHT show at the bottom of

the display.

[CODE

pF p_l_ IE

Model Nos.

625.348471

625.348491

I530 I

I .............I

.',oo.'." .'! .=......

PRESENT TIME

you to use another button. For example, in

setting the hardness (step 2), the beeper sounds

repeatedly when the display reaches i using the

DOWN button, or the highest hardness setting

using the UP button.

1. SET PRESENT TIME OF DAY:

NOTE:

If the words PRESENT TIME do not show in the

displa)_ press the SELECT button (FIG. 1) until

they do.

• Press the _JP!DOWN _outtons to set the

present time. Press LT to move the display

ahead; press DOWN to move the time backward.

NOTE:

If SR - - is flashing in the display; press the UI_

button (FIG. 1) until SR22 shows, as needed for

your model. Be sure to set the correct code.

Then, press the SELECT button to display the

flashing 12:00 AM. If other than SR22 shows,

when the transformer is first plugged in, please

see page 17 to reset.

SOUND "BEEPER": A "beeper" sounds while

pressing buttons for timer set-up. One beep

signals a change in the face plate displa)a

Repeated beeps means the timer will not accept a

change from the button you have pressed, telling

If the present time is between [

noon and midnight, be sure PM :_'_:!_":',_,

shovcvs. PRESENT TIME

If the present time is between I':':"",.,,::_o_.,,0_,,,o='"',''"

midnight and noon, be sure AM PRESEN_T,ME

shows.

NOTE:

Each press of the UP or DOWN buttons changes

the time by i minute. Pressing and holding the

buttons changes the time 32 minutes each se-

cond.

SECTION 1 WATER SOFTENER START-UP

1C. PROGRAM THE TIMER

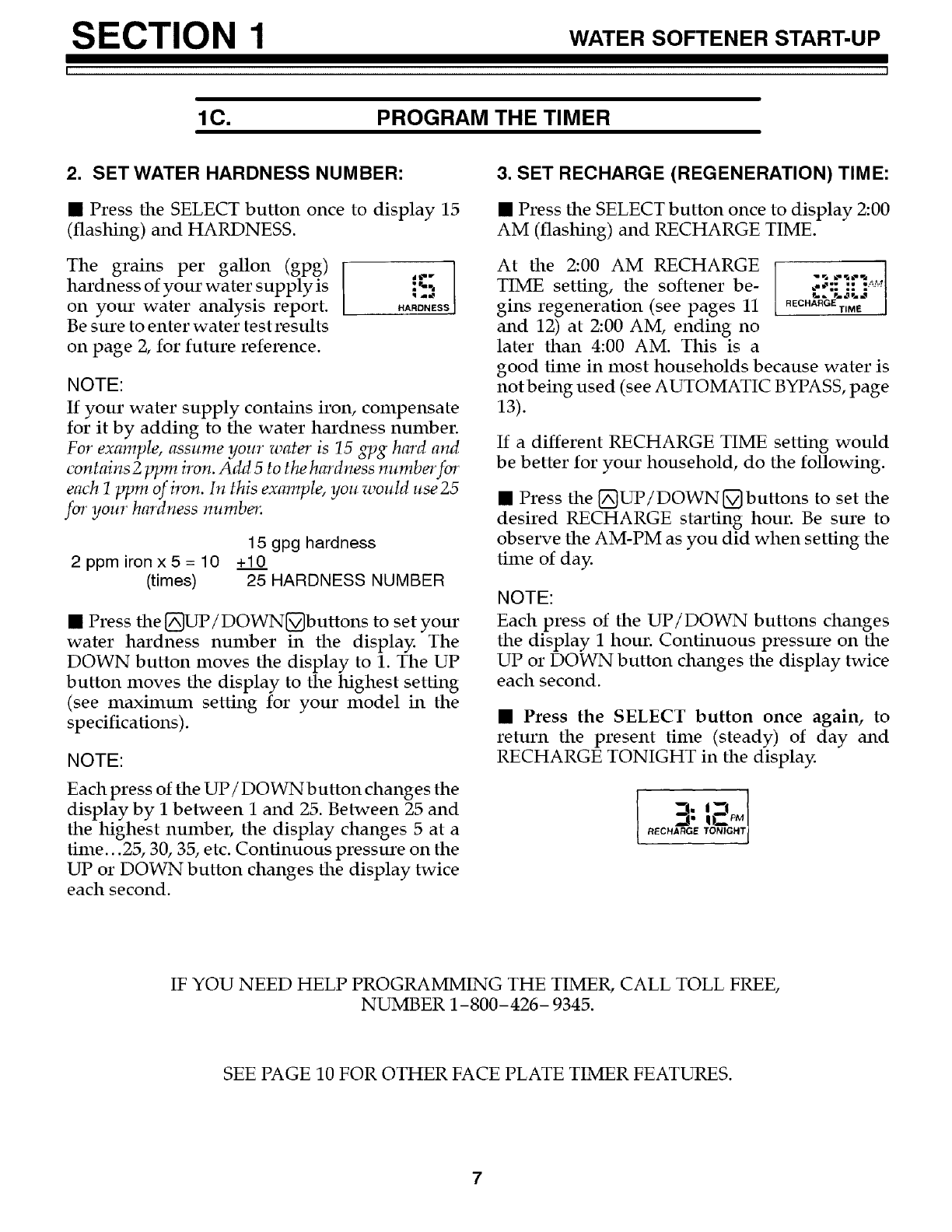

2. SET WATER HARDNESS NUMBER:

• Press the SELECT button once to display 15

(flashing) and HARDNESS.

The grains per gallon (gpg) I

hardness of your water supplyis I !_''_

on your water analysis report. HARDNESS

Be sure to enter water test results

on page 2, for future reference.

NOTE:

If your water supply contains iron, compensate

for it by adding to the water hardness number.

For example, assume your water is 15 gpg hard and

contains 2ppm iron. Add 5 to the hardness number for

each I ppm of iron. In this example, you would use 25

for your hardness number.

15 gpg hardness

2ppmironx5=lO +10

(times) 25 HARDNESS NUMBER

• Press the _UPiDOWN_buttons to set your

water hardness number in the displaj4 The

DOWN button moves the display to 1. The UP

button moves the display to the highest setting

(see maximum setting for your model in the

specifications).

NOTE:

Each press of the UP/DOWNbutton changes the

display by I between i and 25. Between 25 and

the highest numbel; the display changes 5 at a

time...25, 30, 35, etc. Continuous pressure on the

UP or DOWN button changes the display twice

each second.

3. SET RECHARGE (REGENERATION) TIME:

• Press the SELECT button once to display 2:00

AM (flashing) and RECHARGE TIME.

At the 2:00 AM RECHARGE -o, ,-,°-,

TIME setting, the softener be- - •.... _,:

gins regeneration (see pages 11 REC"ARG%,M_

and 12) at 2:00 AM, ending no

later than 4:00 AM. This is a

good time in most households because water is

notbeing used (see AUTOMATIC BYPASS, page

13).

If a different RECHARGE TIME setting would

be better for your household, do the following.

• Press the @LT!DOWN@buttons to set the

desired RECHARGE starting hour. Be sure to

observe the AM-PM as you did when setting the

time of daj4

NOTE:

Each press of the UP/DOWN buttons changes

the display 1 hour. Continuous pressure on the

UP or DOWN button changes the display twice

each second.

• Press the SELECT button once again, to

return the present time (steady) of day and

RECHARGE TONIGHT in the displa)a

IF YOU NEED HELP PROGRAMMING THE TIMER, CALL TOLL FREE,

NUMBER 1-800-426- 9345.

SEE PAGE 10 FOR OTHER FACE PLATE TIMER FEATURES.

SECTION 1 WATERSOFTENERSTART-UP

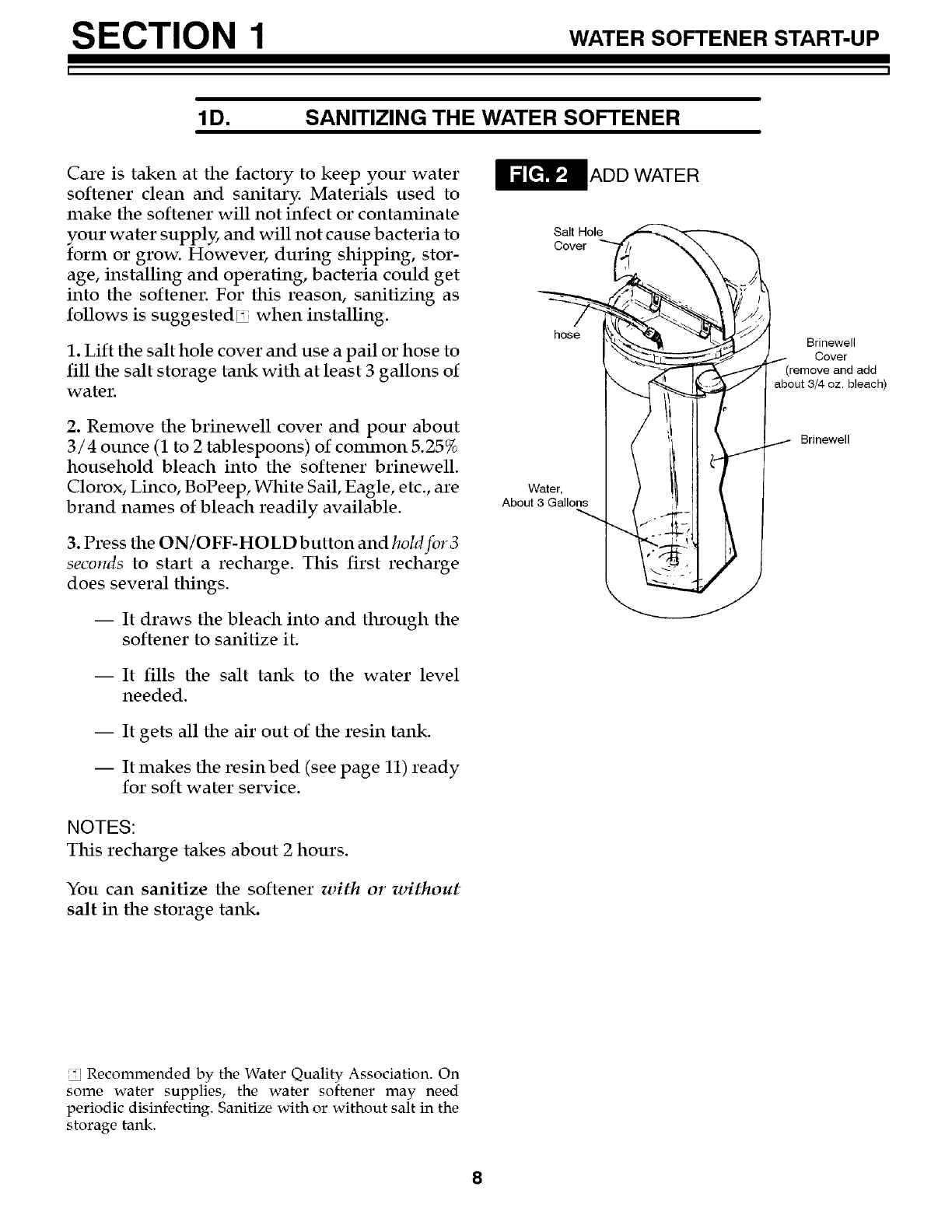

1D. SANITIZING THE WATER SOFTENER

Care is taken at the factory to keep your water

softener clean and sanitary: Materials used to

make the softener will not infect or contaminate

your water supply; and will not cause bacteria to

form or grow. However, during shipping, stor-

age, installing and operating, bacteria could get

into the softener. For this reason, sanitizing as

follows is suggested when installing.

1. Lift the salt hole cover and use a pail or hose to

fill the salt storage tank with at least 3 gallons of

water.

2. Remove the brinewell cover and pour about

3/4 ounce (1 to 2 tablespoons) of common 5.25%

household bleach into the softener brinewell.

Clorox, Linco, BoPeep, White Sail, Eagle, etc., are

brand names of bleach readily available.

3. Press the ON/OFF-HOLD button and holdfor3

seconds to start a recharge. This first recharge

does several things.

-- It draws the bleach into and through the

softener to sanitize it.

Salt Hole

Cover

-- It fills the salt tank to the water level

needed.

-- It gets all the air out of the resin tank.

-- It makes the resin bed (see page 11) ready

for soft water service.

NOTES:

This recharge takes about 2 hours.

You can sanitize the softener with or without

salt in the storage tank.

ADD WATER

hose

Water,

About 3 Gallons

Brinewell

Cover

(remove and add

about 3/4 oz. bleach)

Brinewell

Recommended by the Water Quality Association. On

some water supplies, the water softener may need

periodic disinfecting. Sanitize with or without salt in the

storage tank.

SECTION 1 WATERSOFTENERSTART-UP

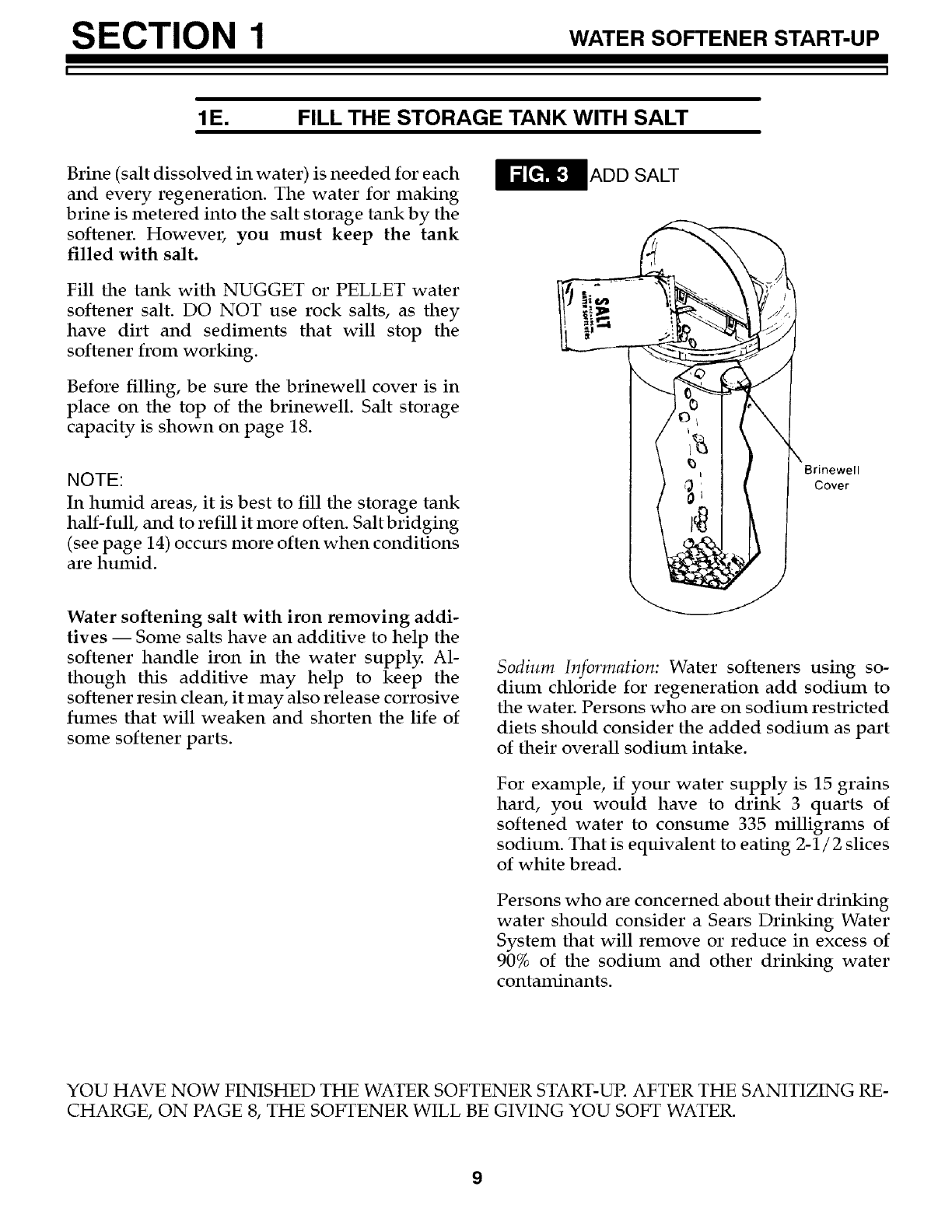

1E. FILL THE STORAGE TANK WITH SALT

Brine (salt dissolved in water) is needed for each

and every regeneration. The water for making

brine is metered into the salt storage tank by the

softener. Howevel, you must keep the tank

filled with salt.

Fill the tank with NUGGET or PELLET water

softener salt. DO NOT use rock salts, as they

have dirt and sediments that will stop the

softener from working.

Before filling, be sure the brinewell cover is in

place on the top of the brinewell. Salt storage

capacity is shown on page 18.

NOTE:

In humid areas, it is best to fill the storage tank

half-full, and to refill it more often. Salt bridging

(see page 14) occurs more often when conditions

are humid.

Water softening salt with iron removing addi-

tives -- Some salts have an additive to help the

softener handle iron in the water supply. Al-

though this additive may help to keep the

softener resin clean, it may also release corrosive

fumes that will weaken and shorten the life of

some softener parts.

ADD SALT

\Brinewell

Cover

Sodium Information: Water softeners using so-

dium chloride for regeneration add sodium to

the water. Persons who are on sodium restricted

diets should consider the added sodium as part

of their overall sodium intake.

For example, if your water supply is 15 grains

hard, you would have to drink 3 quarts of

softened water to consume 335 milligrams of

sodium. That is equivalent to eating 2-1/2 slices

of white bread.

Persons who are concerned about their drinking

water should consider a Sears Drinking Water

System that will remove or reduce in excess of

90% of the sodium and other drinking water

contaminants.

YOU HAVE NOW FINISHED THE WATER SOFTENER START-LT. AFTER THE SANITIZING RE-

CHARGE, ON PAGE 8, THE SOFTENER WILL BE GIVING YOU SOFT WATER.

SECTION 2 HOWYOURWATERSO ENERWORKS

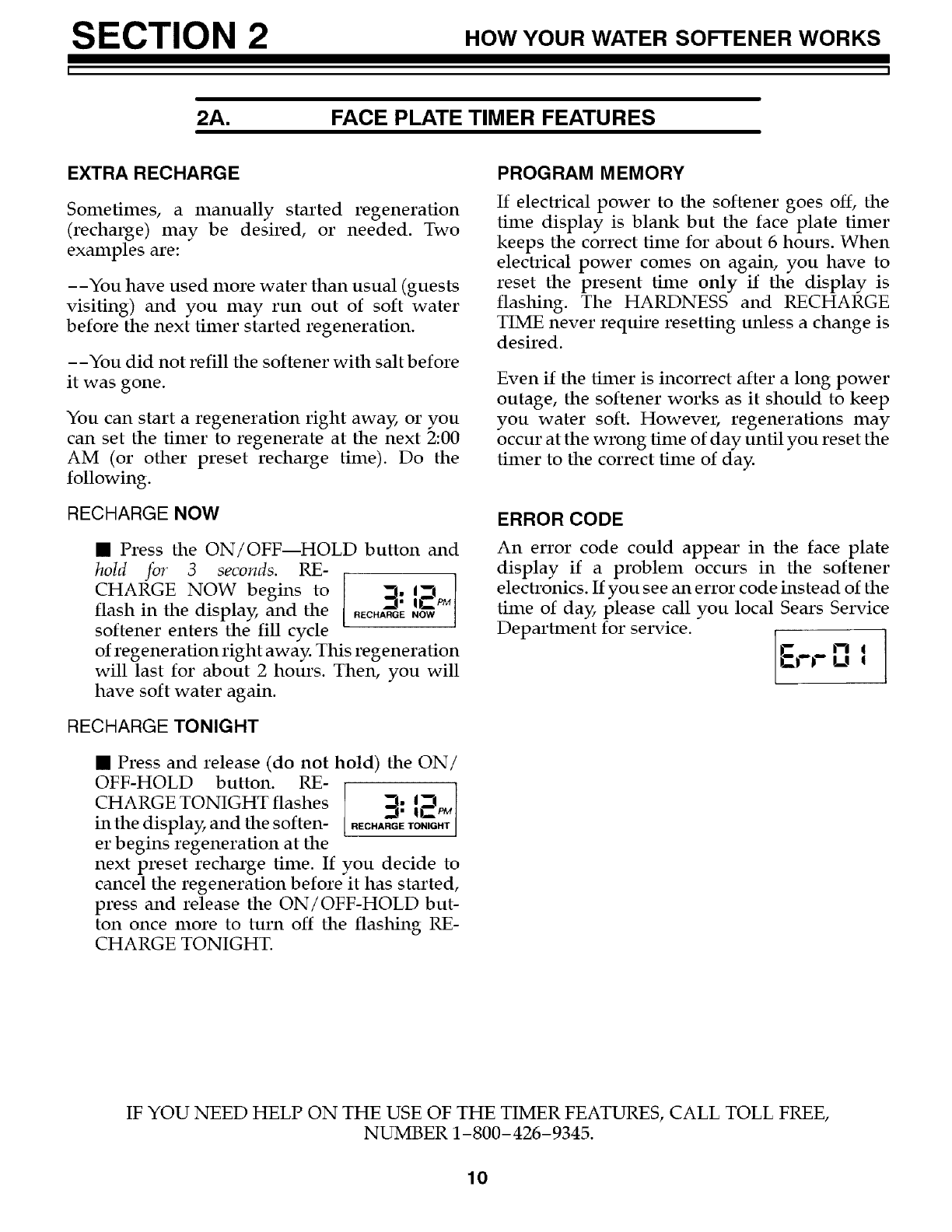

2A. FACE PLATE TIMER FEATURES

EXTRA RECHARGE

Sometimes, a manually started regeneration

(recharge) may be desired, or needed. Two

examples are:

--You have used more water than usual (guests

visiting) and you may run out of soft water

before the next timer started regeneration.

--You did not refill the softener with salt before

it was gone.

You can start a regeneration right awa_ or you

can set the timer to regenerate at the next 2:00

AM (or other preset recharge time). Do the

following.

RECHARGE NOW

• Press the ON/OFF---HOLD button and

hold for 3 seconds. RE- [ I_'ZI I

CHARGE NOW begins to ._" I_=_

flash in the displa_ and the I "EC"ARGENOW

softener enters the fill cycle

of regeneration right away. This regeneration

will last for about 2 hours. Then, you will

have soft water again.

RECHARGE TONIGHT

• Press and release (do not hold) the ON/

OFF-HOLD button. RE-

CHARGE TONIGHT flashes _.. J_-q l

in the displa_ and the soften- RECHARGETONIGHT

er begins regeneration at the

next preset recharge time. If you decide to

cancel the regeneration before it has started,

press and release the ON/OFF-HOLD but-

ton once more to turn off the flashing RE-

CHARGE TONIGHT.

PROGRAM MEMORY

If electrical power to the softener goes off, the

time display is blank but the face plate timer

keeps the correct time for about 6 hours. When

electrical power comes on again, you have to

reset the present time only if the display is

flashing. The HARDNESS and RECHARGE

TIME never require resetting unless a change is

desired.

Even if the timer is incorrect after a long power

outage, the softener works as it should to keep

you water soft. Howevel; regenerations may

occur at the wrong time of day until you reset the

timer to the correct time of day.

ERROR CODE

An error code could appear in the face plate

display if a problem occurs in the softener

electronics. If you see an error code instead of the

time of da_ please call you local Sears Service

Department for service. E,-,-D

IF YOU NEED HELP ON THE USE OF THE TIMER FEATURES, CALL TOLL FREE,

NUMBER 1-800-426-9345.

SECTION 2 MowYOURWATERSOFTENERWORKS

2B. SOFTWATER SERVICE AND REGENERATION

SERVICE

When the softener is giving you soft watel, it is

called "Service". During service, hard water

comes from the house main water pipe into the

softener. Inside the softener resin tank is a bed

made up of thousands of tiny; plastic resin beads

(FIG. 4). As hard water passes tlu'ough the bed,

each bead attracts and holds the hardness

minerals. This is called ion-exchanging. It is

much like a magnet attracting and holding

metals. Water without the hardness minerals

(soft water) flows out of the softener and into the

house soft water pipes.

After a period of time, the resin beads become

coated with hardness minerals and they have to

be cleaned. This cleaning is called regeneration

or recharge. Regeneration is started at 2:00 a.m.

by the electronic timer (see page 13). It takes

place in 5 stages or cycles. These are:

[] FILL [] BACKWASH

[] BRINING [] FAST RINSE

r_l BRINE RINSE

WATER FLOW THROUGH THE

SOFTENER IN SERVICE

salt storage

tank (salt

not shown) ''-_

brine valve\

soft water

OUT hard water

resin tank

resin bed

REGENERATION

[] FILL: Salt, dissolved in watel, is called

brine. Brine is needed to clean the hardness

minerals from the resin beads. To make the brine,

water flows into the salt storage area during the

fill stage as shown in FIG. 5. Fill cycle length

depends on how much soft water making

capacity you have used since the last regenera-

tion. As you use more watel, fill time increases so

more brine is made. The greater amount of brine

cleans more hardness minerals from the resin

bed.

WATER FLOW THROUGH THE

SOFTENER IN FILL

soft water hard water

o°zt !'"

salt storage

tank

brine valve

fill water

]]]]]]i]]

iiiiiiiii

ilJ

SECTION 2 Mow'touRWATERSOFTENERWORKS

2B. SOFT WATER SERVICE AND REGENERATION

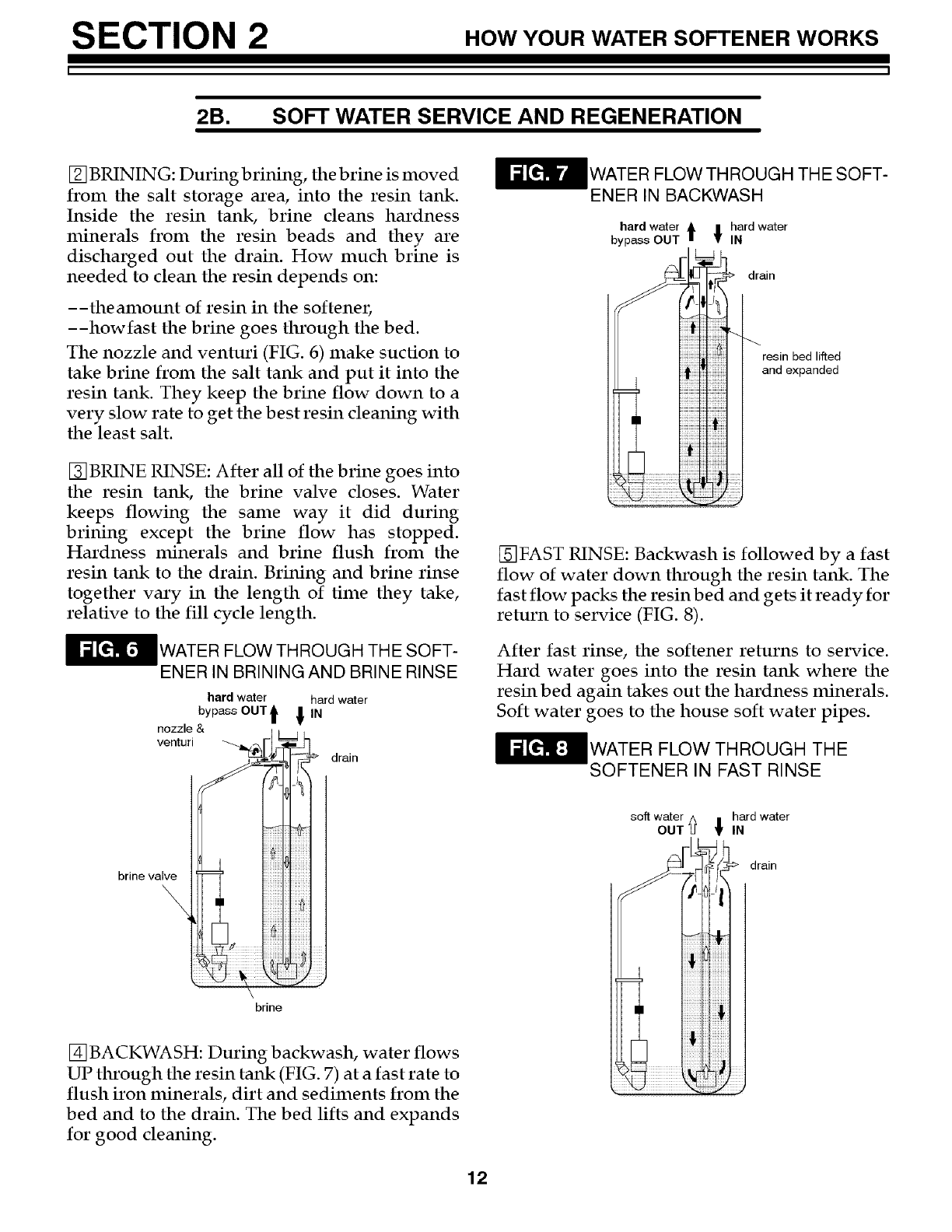

[] BRINING: During brining, the brine is moved

from the salt storage area, into the resin tank.

Inside the resin tank, brine cleans hardness

minerals from the resin beads and they are

discharged out the drain. How much brine is

needed to clean the resin depends on:

--the amount of resin in the softener,

--howfast the brine goes through the bed.

The nozzle and venturi (FIG. 6) make suction to

take brine from the salt tank and put it into the

resin tank. They keep the brine flow down to a

very slow rate to get the best resin cleaning with

the least salt.

[3_BRINE RINSE: After all of the brine goes into

the resin tank, the brine valve closes. Water

keeps flowing the same way it did during

brining except the brine flow has stopped.

Hardness minerals and brine flush from the

resin tank to the drain. Brining and brine rinse

together vary in the length of time they take,

relative to the fill cycle length.

WATER FLOW THROUGH THE SOFT-

ENER IN BRINING AND BRINE RINSE

hard water

bypass OUT t

nozzle &

venturi

brine valve

hard water

fIN

,/ drain

brine

[_BACKWASH: During backwash, water flows

UP through the resin tank (FIG. 7) at a fast rate to

flush iron minerals, dirt and sediments from the

bed and to the drain. The bed lifts and expands

for good cleaning.

WATER FLOW THROUGH THE SOFT-

ENER IN BACKWASH

hard water t ! hard water

bypass OUT IN

drain

resin bed lifted

and expanded

[]FAST RINSE: Backwash is followed by a fast

flow of water down through the resin tank. The

fast flow packs the resin bed and gets it ready for

return to service (FIG. 8).

After fast rinse, the softener returns to service.

Hard water goes into the resin tank where the

resin bed again takes out the hardness minerals.

Soft water goes to the house soft water pipes.

WATER FLOW THROUGH THE

SOFTENER IN FAST RINSE

soft water A hard water

OUT U I IN

drain

SECTION 2 HOWYOURWATERSOFTENERWORKS

! I

2B. SOFT WATER SERVICE AND REGENERATION

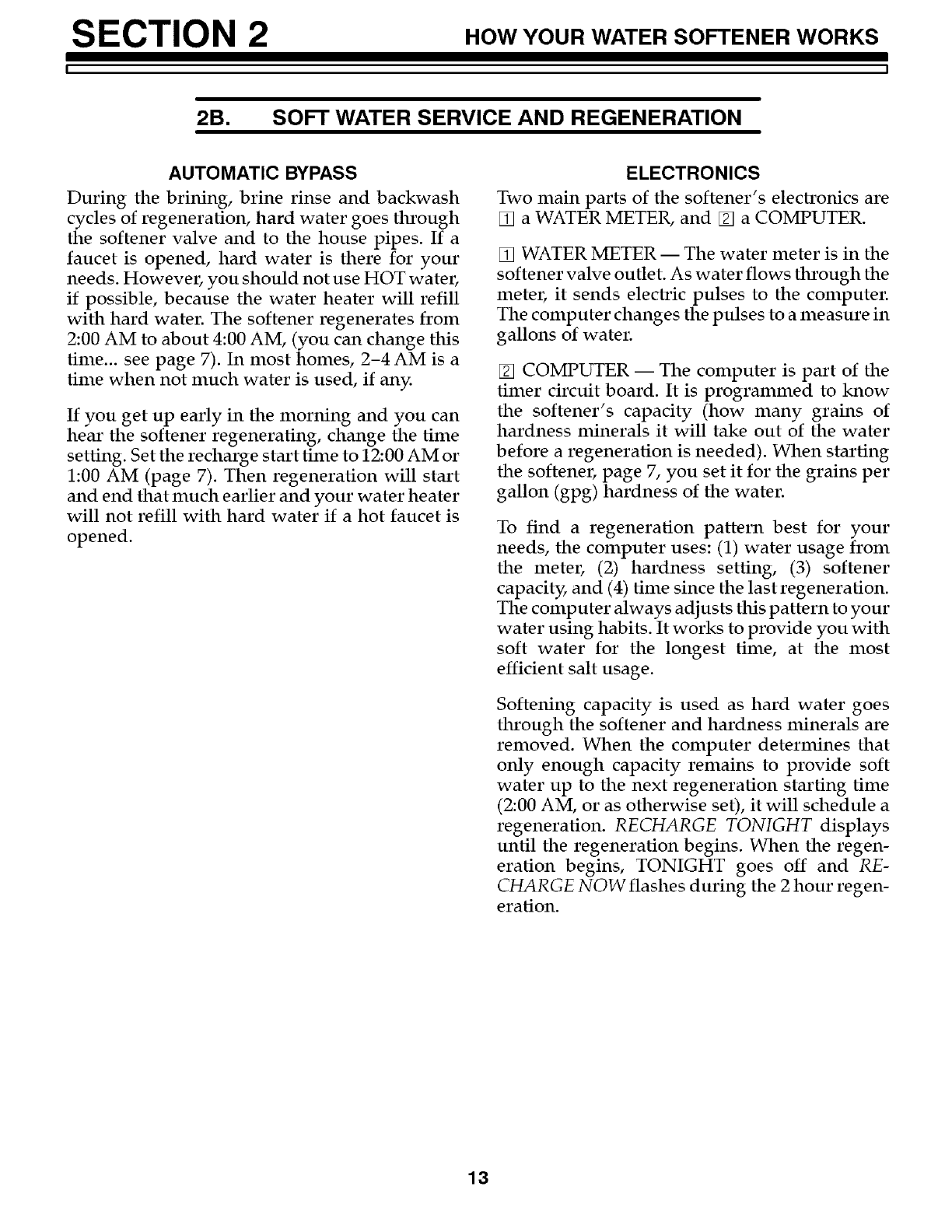

AUTOMATIC BYPASS

During the brining, brine rinse and backwash

cycles of regeneration, hard water goes through

the softener valve and to the house pipes. If a

faucet is opened, hard water is there for your

needs. However, you should not use HOT water,

if possible, because the water heater will refill

with hard water. The softener regenerates from

2:00 AM to about 4:00 AM, (you can change this

time.., see page 7). In most homes, 2-4 AM is a

time when not much water is used, if any.

If you get up early in tile morning and you can

hear the softener regenerating, change the time

setting. Set the recharge start time to 12:00 AM or

1:00 AM (page 7). Then regeneration will start

and end tllat much earlier and your water heater

will not refill with hard water if a hot faucet is

opened.

ELECTRONICS

Two main parts of the softener's electronics are

[] a WATER METER, and [] a COMPUTER.

[] WATER METER -- The water meter is in the

softener valve outlet. As water flows through the

meter, it sends electric pulses to the computer.

The computer changes tile pulses to a measure in

gallons of water.

[] COMPUTER -- The computer is part of the

timer circuit board. It is programmed to know

the softener's capacity (how many grains of

hardness minerals it will take out of the water

before a regeneration is needed). When starting

the softener, page 7, you set it for the grains per

gallon (gpg) hardness of tile water.

To find a regeneration pattern best for your

needs, the computer uses: (1) water usage from

the mete1; (2) hardness setting, (3) softener

capacity, and (4) time since the last regeneration.

The computer always adjusts this pattern to your

water using habits. It works to provide you with

soft water for the longest time, at the most

efficient salt usage.

Softening capacity is used as hard water goes

through the softener and hardness minerals are

removed. When tile computer determines that

only enough capacity remains to provide soft

water up to the next regeneration starting time

(2:00 AM, or as otherwise set), it will schedule a

regeneration. RECHARGE TONIGHT displays

until the regeneration begins. When the regen-

eration begins, TONIGHT goes off and RE-

CHARGE NOW flashes during the 2 hour regen-

eration.

SECTION 3CAREOFYOURSOFTENER

I I

3A. SALT...REFILLING STORAGE TANK/BREAKING A SALT BRIDGE

WHEN TO REFILL WITH SALT: Check the salt

level a few weeks after you install the softener

and every week after that. Refill when the

storage tank is about 1/3 full. Never let the

softener use all the salt before refilling. Without

salt, you will soon have hard water.

IMPORTANT:

You will have aloss in softening capacity and

may get partly hard water if less than 10 inches

of salt is in the storage tank.

PLEASE SEE PAGE 9 FOR SALT FILLING DIRECTIONS .

SALT BRIDGE

Sometimes, a hard crust or salt bridge forms in

the salt storage tank. It is usually caused by high

humidity or the wrong kind of salt. When the salt

bridges, an empty space forms between the

water and salt. Then salt will not dissolve (melt)

in the water to make brine. Without brine, the

resin bed does not regenerate and you will have

hard water.

If the storage tank is full of salt, it is hard to tell if

you have a salt bridge. Salt is loose on top, but the

bridge is under it. The following is the best way

to check for a salt bridge.

Salt should be loose all the way to the bottom of

the tank. Hold a broom handle, or like tool, up to

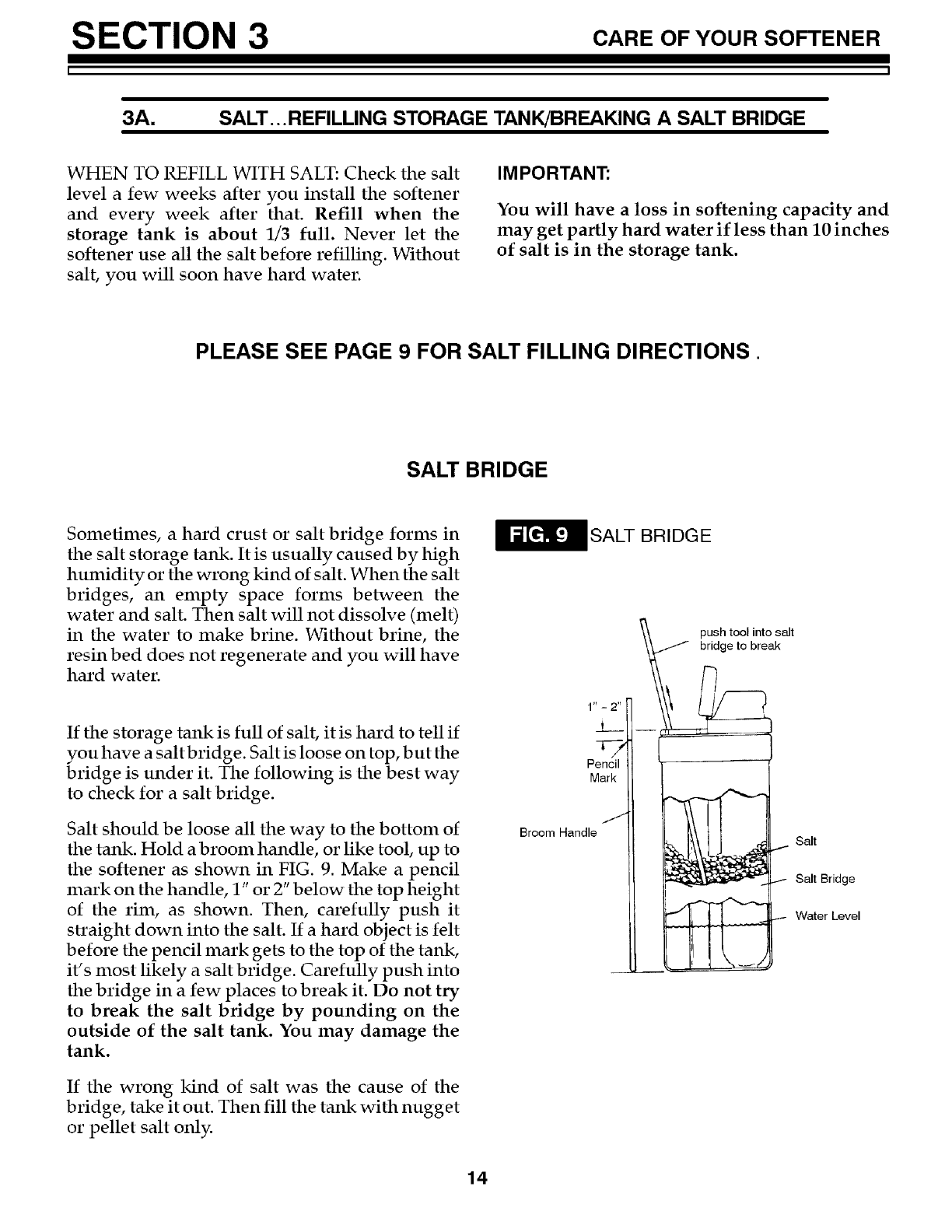

the softener as shown in FIG. 9. Make a pencil

mark on the handle, 1" or 2" below the top height

of the rim, as shown. Then, carefully push it

straight down into the salt. If a hard object is felt

before the pencil mark gets to the top of the tank,

it's most likely a salt bridge. Carefully push into

the bridge in a few places to break it. Do not try

to break the salt bridge by pounding on the

outside of the salt tank. You may damage the

tank.

If the wrong kind of salt was the cause of the

bridge, take it out. Then fill the tank with nugget

or pellet salt only.

SALT BRIDGE

push tool into salt

bridge to break

Pencil

Mark

Broom Handle Salt

Salt Bridge

Water Level

SECTION 3 CAREOrYOURSOFTENER

3B. KEEPING THE WATER SOFTENER CLEAN

COVERS

To keep your new Sears water softener looking

nice, apply a coat of paste wax and repeat once a

year. When dusty, wipe it witll a damp cloth to

keep it sparkling.

NOTE:

Never use cleaners having ammonia or abra-

sives. They may scratch and dull the surface.

NOZZLE AND VENTURI

A clean nozzle and venturi (FIG. 10) is a must for

tile softener to work right. This small unit moves

brine from the salt storage tank to the resin tank

during regeneration. If it becomes plugged with

sand, silt, dirt, etc., the softener will not work

and you will get hard water.

To get to the nozzle and venturi, remove the

softener top cover. Be sure the softener is in

service cycle (no water pressure at nozzle and

venturi). Then, holding the housing tightly with

1 hand, turn the cap off. Do not lose the large

o-ring seal. Lift out the screen support and

screen, then the nozzle and venturi. Wash and

rinse tlle parts in warm water until clean. If

needed, use a small brush to remove iron or dirt.

Also check and clean tile gasket.

Carefully replace all parts in the correct order.

Lubricate the o-ring seal with silicone grease or

Vaseline and place in position. Install and

tighten tile cap, by hand only. Do not over-

tighten and break the cap or housing.

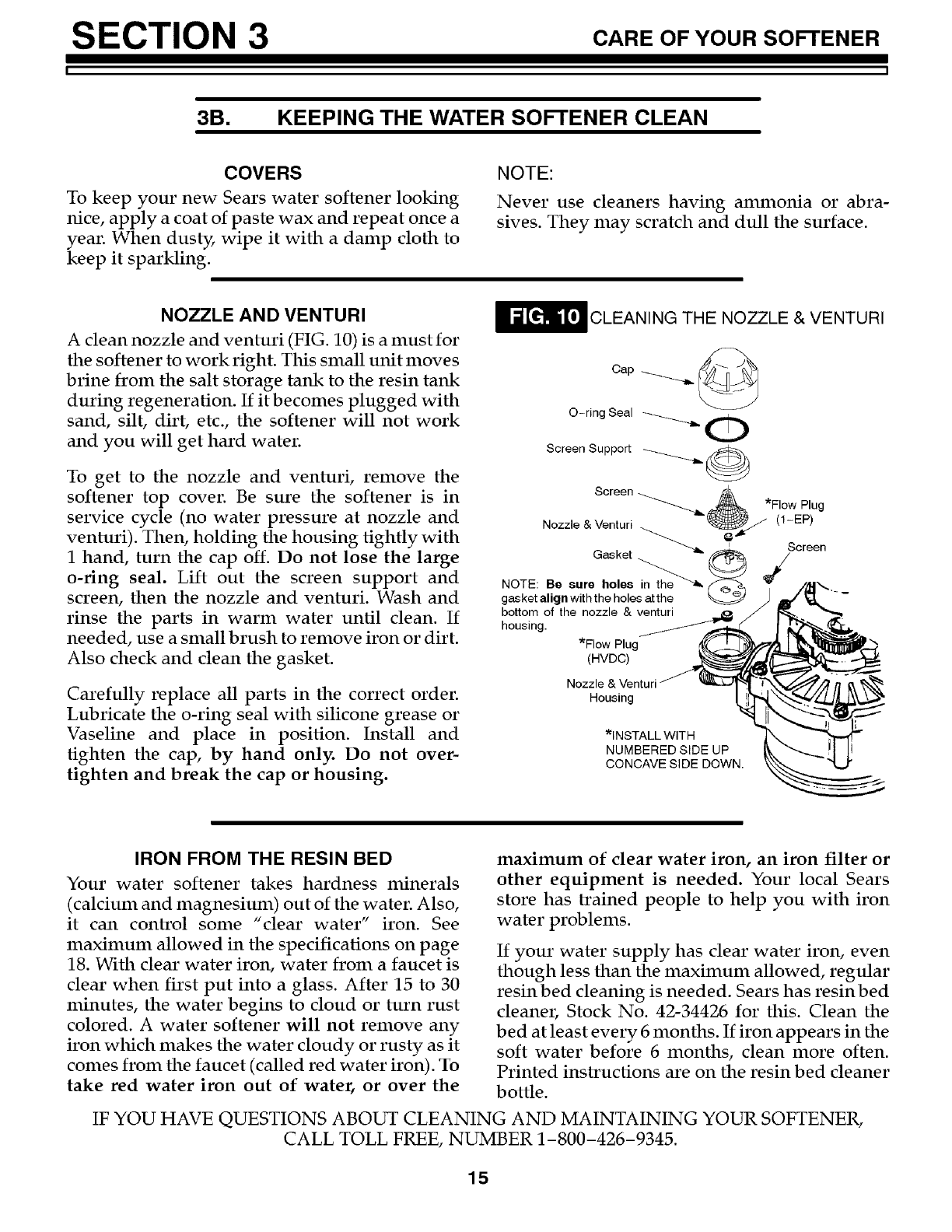

CLEANING THE NOZZLE & VENTURI

Cap _.__._.

O-ring Seal -_____.__

Screen Support -_________

Screen

Nozzle & Venturi

Gasket _/'__

NOT eE_aB;n _tr_t h:_ oe_esl_ _

bottom of the nozzle & venturi

housing.

*Flow Plug

(HVDC)

Nozzle & Venturi

Housing

*Flow Plug

(t-EP)

Screen

*INSTALL WITH

NUMBERED SIDE UP

CONCAVE SIDE DOWN.

IRON FROM THE RESIN BED

Your water softener takes hardness minerals

(calcium and magnesium) out of tile water. Also,

it can control some "clear water" iron. See

maximum allowed in tile specifications on page

18. With clear water iron, water from a faucet is

clear when first put into a glass. After 15 to 30

minutes, the water begins to cloud or turn rust

colored. A water softener will not remove any

iron which makes the water cloudy or rusty as it

comes from the faucet (called red water iron). To

take red water iron out of water, or over the

maximum of clear water iron, an iron filter or

other equipment is needed. Your local Sears

store has trained people to help you with iron

water problems.

If your water supply has clear water iron, even

tllough less than the maximum allowed, regular

resinbed cleaning is needed. Sears has resinbed

cleanel; Stock No. 42-34426 for tiffs. Clean the

bed at least every 6 months. If iron appears in the

soft water before 6 months, clean more often.

Printed instructions are on the resin bed cleaner

bottle.

IF YOU HAVE QUESTIONS ABOUT CLEANING AND MAINTAINING YOUR SOFTENER,

CALL TOLL FREE, NUMBER 1-800-426-9345.

SECTION 3 CAREOF','OURSOFTE.ER

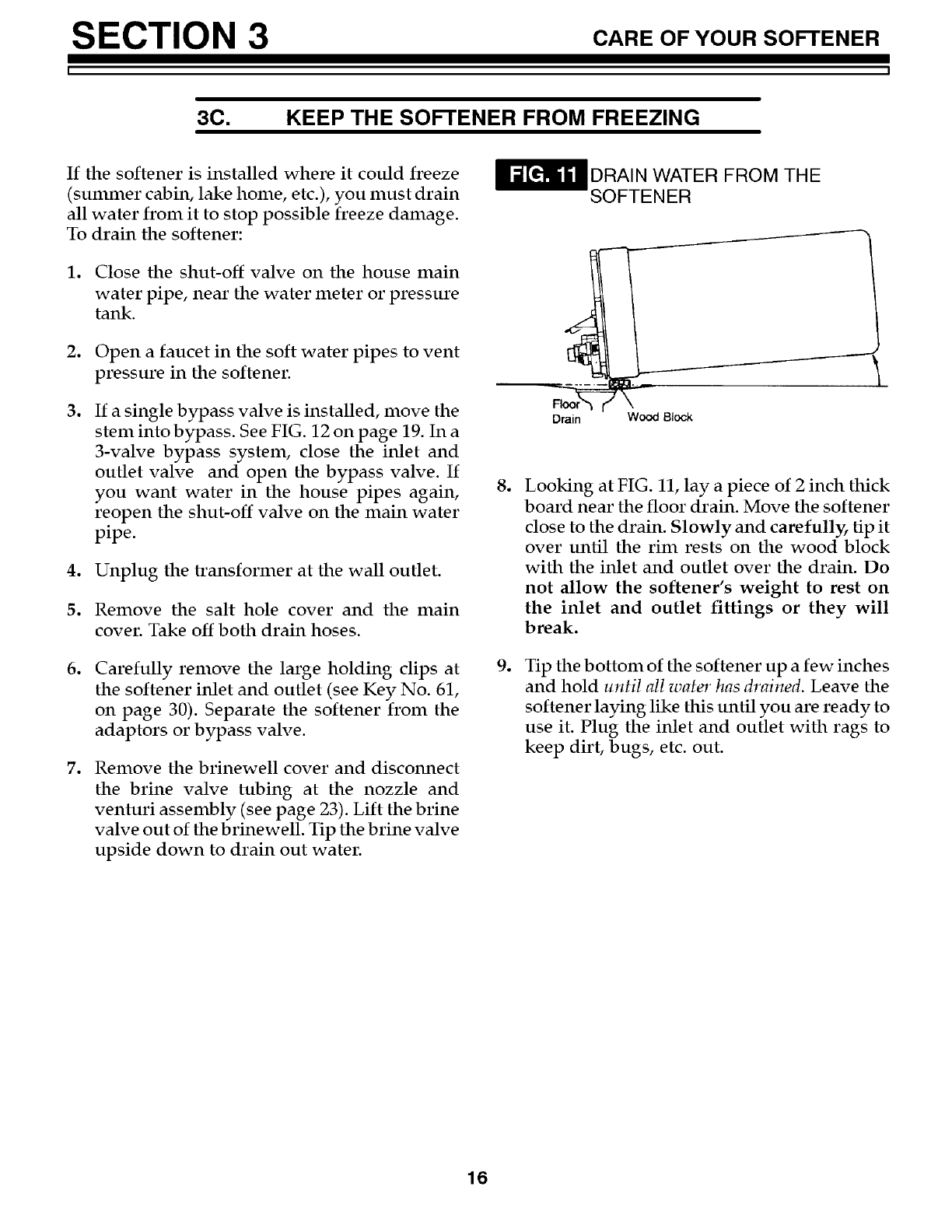

30. KEEP THE SOFTENER FROM FREEZING

If tlle softener is installed where it could freeze

(summer cabin, lake home, etc.), you must drain

all water from it to stop possible freeze damage.

To drain tlle softener:

1. Close the shut-off valve on tlle house main

water pipe, near the water meter or pressure

tank.

Open a faucet in the soft water pipes to vent

pressure in the softener.

If a single bypass valve is installed, move the

stem into bypass. See FIG. 12 on page 19. In a

3-valve bypass system, close the inlet and

outlet valve and open the bypass valve. If

you want water in the house pipes again,

reopen the shut-off valve on tlle main water

pipe.

Unplug tile transformer at the wall outlet.

Remove the salt hole cover and the main

cover. Take off both drain hoses.

Carefully remove the large holding clips at

the softener inlet and outlet (see Key No. 61,

on page 30). Separate the softener from the

adaptors or bypass valve.

Remove the brinewell cover and disconnect

the brine valve tubing at the nozzle and

venturi assembly (see page 23). Lift the brine

valve out of tlle brinewell. Tip the brine valve

upside down to drain out water.

DRAIN WATER FROM THE

SOFTENER

Drain Wood Block

Looking at FIG. 11, lay a piece of 2 inch thick

board near the floor drain. Move the softener

close to the drain. Slowly and carefully, tip it

over until the rim rests on tlle wood block

with the inlet and outlet over the drain. Do

not allow the softener's weight to rest on

the inlet and outlet fittings or they will

break.

Tip the bottom of the softener up a few inches

and hold until all water has drained. Leave the

softener laying like tllis until you are ready to

use it. Plug the inlet and outlet with rags to

keep dirt, bugs, etc. out.

SECTION 3 CAREOFYOURSOFTENER

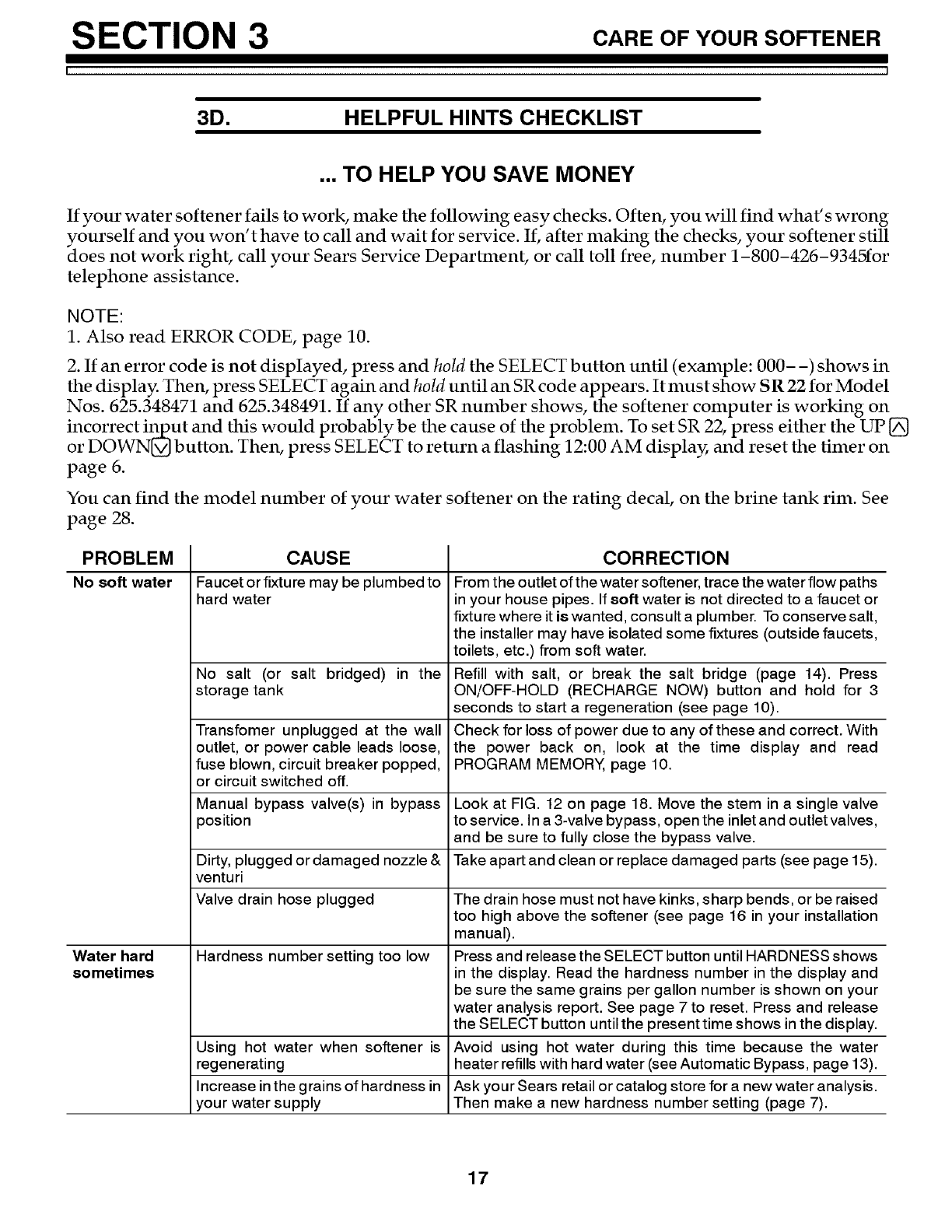

3D. HELPFUL HINTS CHECKLIST

... TO HELP YOU SAVE MONEY

If your water softener fails to work, make the following easy checks. Often, you will find what's wrong

yourself and you won't have to call and wait for service. If, after making the checks, your softener still

does not work right, call your Sears Service Department, or call toll free, number 1-800-426-9345for

telephone assistance.

NOTE:

1. Also read ERROR CODE, page 10.

2. If an error code is not dispIayed, press and hold the SELECT button until (example: 000- -) shows in

the display. Then, press SELECT again and hold until an SR code appears. It must show SR 22 for Model

Nos. 625.348471 and 625.348491. If any other SR number shows, the softener computer is working on

incorrect input and this would probably be the cause of the problem. To set SR 22, press either the UP

or DOWN[y_] button. Then, press SELECT to return a flashing 12:00 AM displa_ and reset the timer on

page 6.

You can find the model number of your water softener on the rating decal, on the brine tank rim. See

page 28.

PROBLEM

No soft water

Water hard

sometimes

CAUSE CORRECTION

Faucet or fixture may be plumbed to From the outlet of the water softener, trace the water flow paths

hard water inyour house pipes. If soft water is not directed to a faucet or

fixture where it is wanted, consult a plumber. Toconserve salt,

the installer may have isolated some fixtures (outside faucets,

toilets, etc.) from soft water.

No salt (or salt bridged) in the Refill with salt, or break the salt bridge (page 14). Press

storage tank ON/OFF-HOLD (RECHARGE NOW) button and hold for 3

seconds to start a regeneration (see page 10).

Transfomer unplugged at the wall Check for loss of power due to any ofthese and correct. With

outlet, or power cable leads loose, the power back on, look at the time display and read

fuse blown, circuit breaker popped, PROGRAM MEMORY, page 10.

or circuit switched off.

Manual bypass valve(s) in bypass Look at FIG. 12 on page 18. Move the stem in a single valve

)osition to service. In a 3-valve bypass, open the inlet and outlet valves,

and be sure to fully close the bypass valve.

Dirty, plugged or damaged nozzle & Take apart and clean or replace damaged parts (see page 15).

venturi

Valve drain hose plugged The drain hose must not have kinks, sharp bends, or be raised

too high above the softener (see page 16 in your installation

manual).

Hardness number setting too low Press and release the SELECT button until HARDNESS shows

in the display. Read the hardness number in the display and

be sure the same grains per gallon number is shown on your

water analysis report. See page 7 to reset. Press and release

the SELECT button until the present time shows in the display.

Using hot water when softener is Avoid using hot water during this time because the water

regenerating heater refills with hard water (see Automatic Bypass, page 13).

Increase in the grains of hardness in Ask your Sears retail or catalog store for a new water analysis.

your water supply Then make a new hardness number setting (page 7).

SECTION 4 OT.ERT.INGSTOK.OW

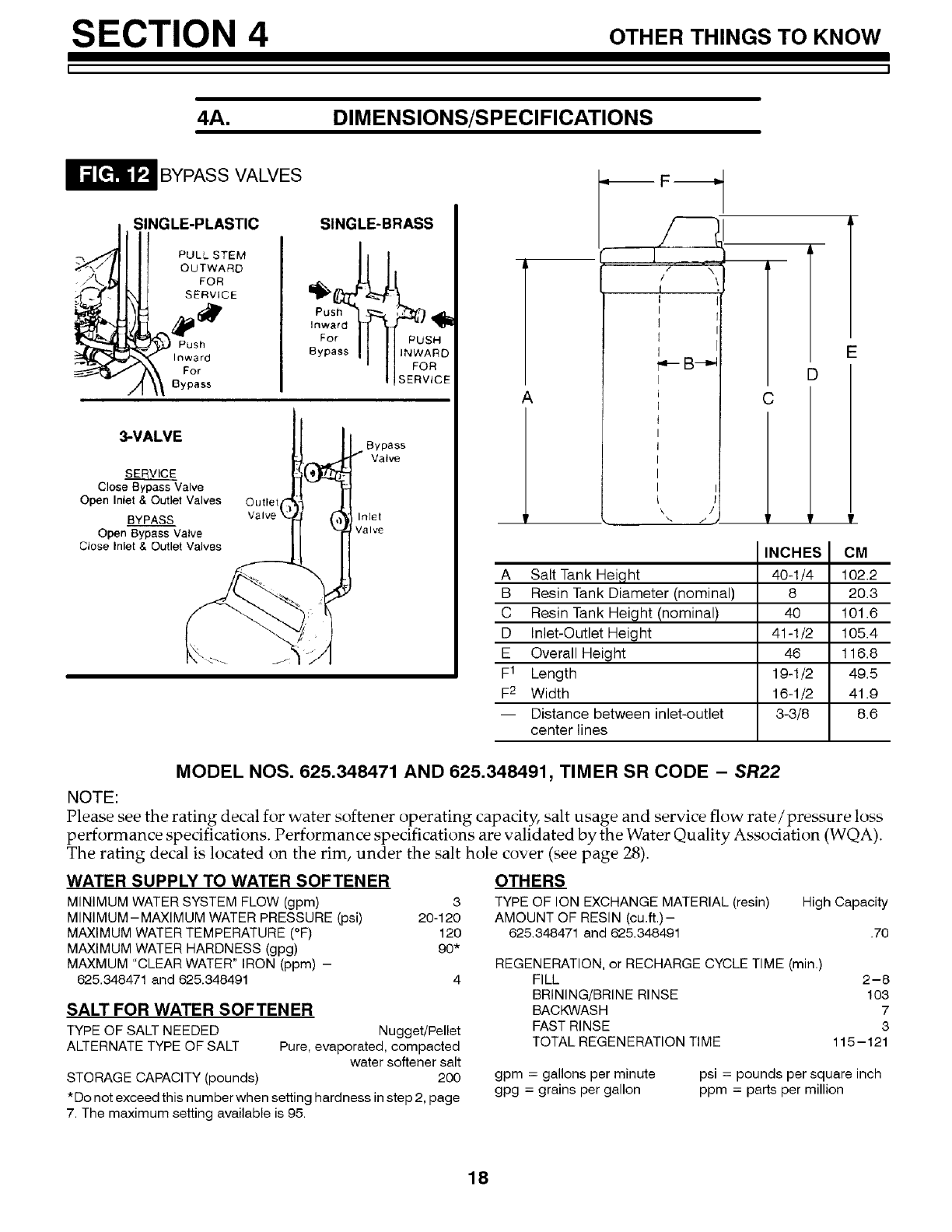

4A. DIMENSIONS/SPECIFICATIONS

BYPASS VALVES

SINGLE-PLASTIC SINGLE-BRASS

PULL STEM

OUTWARD

FOR

SERVICE

Push

Inward

For

Bypass

Inward

For

Bypass

3-VALVE

SERVICE

CloseBypass Valve

Open Inlet& OutletValves

BYPASS

Open Bypass Valve

Close Inlet& OutletValves

!_ Bypass

Valve

Outlei

Valve _ Inlet

Valve

] --..__.__..__.__.__

L_ m

r T

A Salt Tank Heiqht

B Resin Tank Diameter (nominal)

C Resin Tank Height (nominal)

D Inlet-Outlet Height

E Overall Height

F1 Length

F2 Width

-- Distance between inlet-outlet

center lines

INCHES

4O- 1/4

41-1/2

19-1/2

16-1/2

3-3/8

102.2

20.3

101.6

105.4

116.8

49.5

41.9

8.6

MODEL NOS. 625.348471 AND 625.348491, TIMER SR CODE -SR22

NOTE:

Please see the rating decal for water softener operating capacity, salt usage and service How rate/pressure loss

performance specifications. Performance specifications are validated by the Water Quality Assodation (WQA).

The rating decal is located on the rim, under the salt hole cover (see page 28).

WATER SUPPLY TO WATER SOFTENER

MINIMUM WATER SYSTEM FLOW (gpm) 3

MINIMUM-MAXIMUM WATER PRESSURE (psi) 20-120

MAXIMUM WATER TEMPERATURE (°F) 120

MAXIMUM WATER HARDNESS (gpg) 90*

MAXMUM "CLEAR WATER" IRON (ppm) -

625.348471 and 625.348491 4

SALT FOR WATER SOFTENER

TYPE OF SALT NEEDED Nugget/Pellet

ALTERNATE TYPE OF SALT Pure, evaporated, compacted

water softener salt

STORAGE CAPACITY (pounds) 200

*Do not exceed this number when setting hardness instep 2, page

7. The maximum setting available is 95.

OTHERS

TYPE OF ION EXCHANGE MATERIAL (resin)

AMOUNT OF RESIN (cu.ft.)-

625.348471 and 625.348491

High Capacity

.70

REGENERATION, or RECHARGE CYCLE TIME (min.)

FILL 2-8

BRINING/BRINE RINSE 103

BACKWASH 7

FAST RINSE 3

TOTAL REGENERATION TIME 115-121

gpm = gallons per minute

gpg = grains per gallon

psi = pounds per square inch

ppm = parts per million

SECTION SERVICETECH.INFORMATION

5A. TROUBLESHOOTING

Keep this manual with your water softener. If repairs are needed, the service technician must have the

information on the following pages. For telephone assistance, call toll free, 1-800-426-9345.

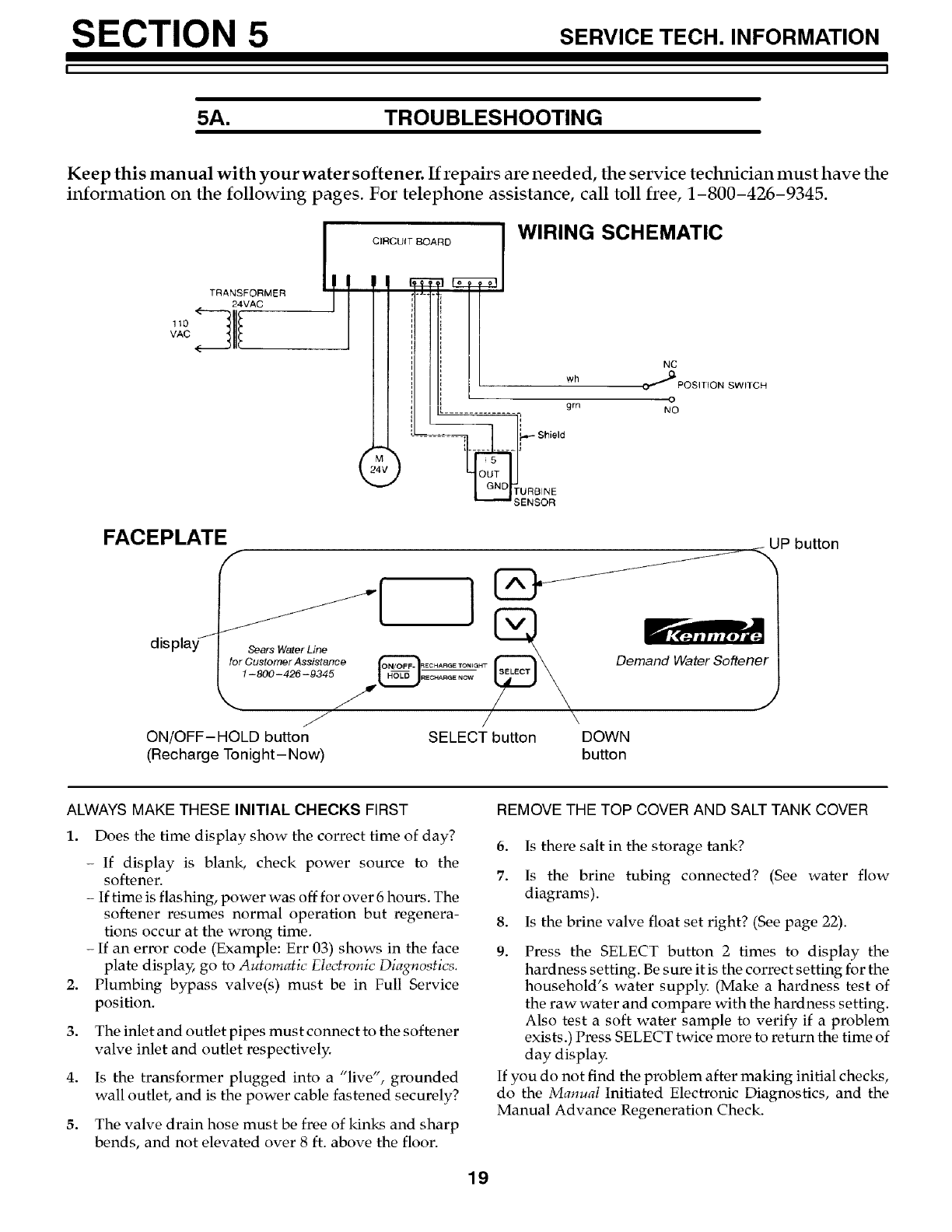

TRANSFORMER

24VAC

VAC

II!

IO,.CO,:BO*ROp,WIRINGSCHEIITIC

......... i grn

S 'o'0

FACEPLATE

display-_

ON/OFF-HOLD button SELECT button

(Recharge Tonight-Now)

/ UP button

Demand Water Softener

DOWN

button

ALWAYS MAKE THESE INITIAL CHECKS FIRST

1. Does the time display show the correct time of day?

-If display is blank, check power source to the

softener.

- If time is flashing, power was off for over 6 hours. The

softener resumes normal operation but regenera-

tions occur at the wrong time.

- If an error code (Example: Err 03) shows in the face

plate displa_ go to Automatic Electronic Diagnostics.

Plumbing bypass valve(s) must be in Full Service

position.

The inlet and outlet pipes must connect to the softener

valve inlet and outlet respectively:

Is the transformer plugged into a "live", grounded

wall outlet, and is the power cable fastened securely?

The valve drain hose must be free of kinks and sharp

bends, and not elevated over 8 ft. above the floor.

REMOVE THE TOP COVER AND SALT TANK COVER

6. Is there salt in the storage tank?

7. Is the brine tubing connected? (See water flow

diagrams).

8. Is the brine valve float set right? (See page 22).

9. Press the SELECT button 2 times to display the

hardness setting. Be sure it is the correct setting for the

household's water supply. (Make a hardness test of

the raw water and compare with the hardness setting.

Also test a soft water sample to verify if a problem

exists.) Press SELECT twice more to return the time of

day display.

If you do not find the problem after making initial checks,

do the Manual Initiated Electronic Diagnostics, and the

Manual Advance Regeneration Check.

SECTION SERVICETECH.INFORMATION

5A. TROUBLESHOOTING

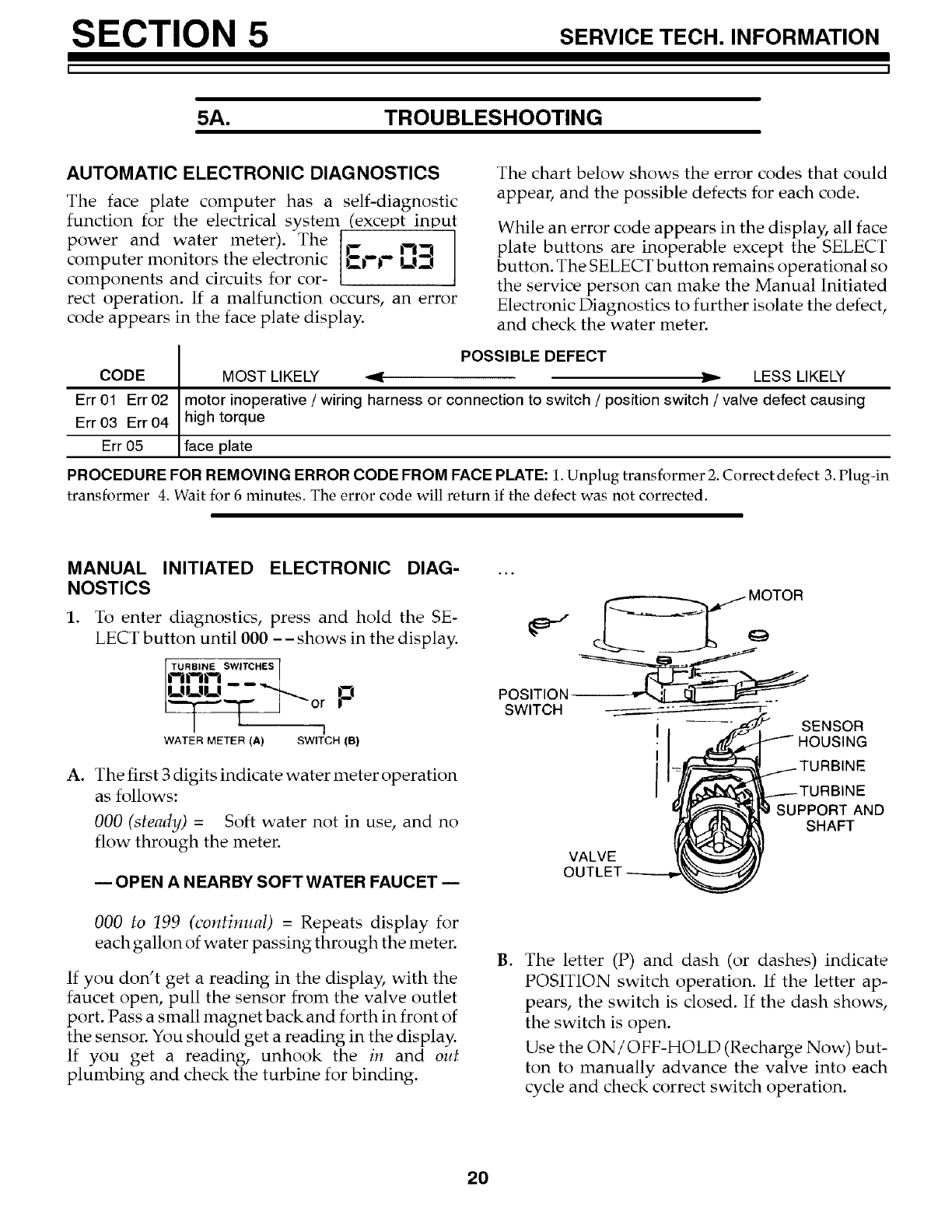

AUTOMATIC ELECTRONIC DIAGNOSTICS

The face plate computer has a self-diagnostic

function for the electrical system (except input

power and water meter). The _...,, I"13

computer monitors the electronic _7__ _ t..q_

components and circuits for cor-

rect operation. If a malfunction occurs, an error

code appears in the face plate display.

The chart below shows the error codes that could

appear, and the possible defects for each code.

While an error code appears in the display, all face

plate buttons are inoperable except the SELECT

button. The SELECT button remains operational so

the service person can make the Manual initiated

Electronic Diagnostics to further isolate the defect,

and check the water meter.

CODE

Err 01 Err 02

Err 03 Err 04

Err 05

POSSIBLE DEFECT

MOST LIKELY _"_. }l- LESS LIKELY

motor inoperative /wiring harness or connection to switch /position switch /valve defect causing

high torque

face plate

PROCEDURE FOR REMOVING ERROR CODE FROM FACE PLATE: 1. Unplug transformer 2. Correct defect 3. Plug-in

transformer 4. Wait for 6 minutes. The error code will return if the defect was not corrected.

MANUAL INITIATED ELECTRONIC DIAG-

NOSTICS

1. To enter diagnostics, press and hold the SE-

LECT button until 000 - - shows in the display.

_"'_" _'_or P

WATER METER (A) SWITCH (B)

A. The first 3 digits indicate water meter operation

as follows:

000 (steady) = Soft water not in use, and no

flow through the meter.

m OPEN ANEARBY SOFT WATER FAUCET

000 to 199 (continual) = Repeats display for

each gallon of water passing through the meter.

If you don't get a reading in the display, with the

faucet open, pull the sensor from the valve outlet

port. Pass a small magnet back and forth in front of

the sensor. You should get a reading in the display.

If you get a reading, unhook the in and out

plumbing and check the turbine for binding.

_ MOTOR

POSITION

SWITCH

VALVE

OUTL

SENSOR

HOUSING

/TURBINE

.--TURBINE

SUPPORT AND

SHAFT

B° The letter (P) and dash (or dashes) indicate

POSITION switch operation, if the letter ap-

pears, the switch is dosed. If the dash shows,

the switch is open.

Use the ON/OFF-HOLD (Recharge Now) but-

ton to manually advance the valve into each

cycle and check correct switch operation.

SECTION SERVICETECH.INFORMATION

5A. TROUBLESHOOTING

CORRECT

SWITCH

DISPLAYS VALVE CYCLE STATUS

Valve in service, fill, brining, back-

wash or fast rinse position

Valve rotating from one position to

-p another

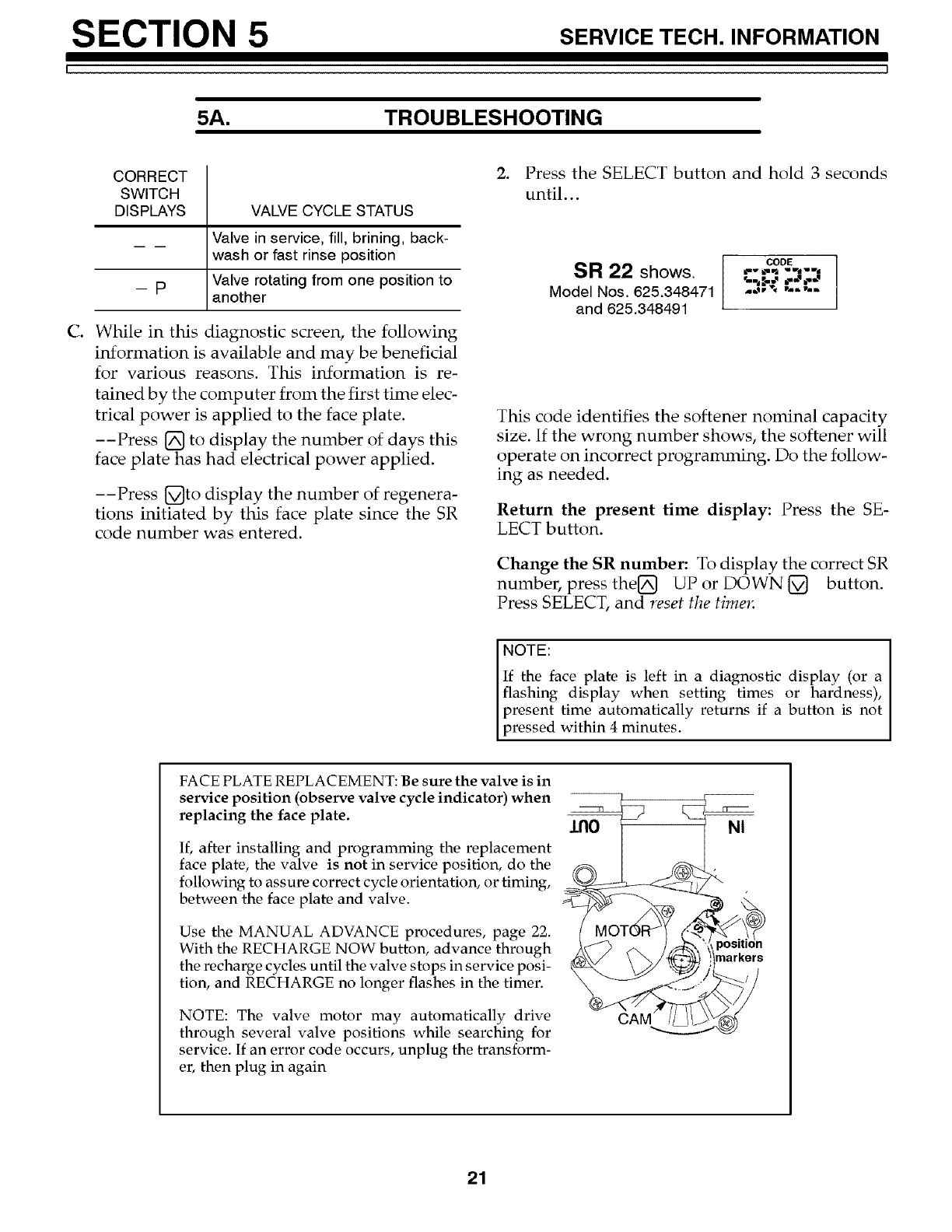

C. While in this diagnostic screen, the following

information is available and may be beneficial

for various reasons. This information is re-

tained by the computer from the first time elec-

trical power is applied to the face plate.

--Press [] to display the number of days this

face plate has had electrical power applied.

--Press []to display the number of regenera-

tions initiated by this face plate since the SR

code number was entered.

2. Press the SELECT button and hold 3 seconds

until...

SR 22 shows.

Model Nos. 625.348471

and 625.348491 CODE ]

This code identifies the softener nominal capadty

size. if the wrong number shows, the softener will

operate on incorrect programming. Do the follow-

ing as needed.

Return the present time display: Press the SE-

LECT button.

Change the SR number: To display the correct SR

number, press the[] UP or DOWN [ button.

Press SELECT, and reset the timer.

NOTE:

If the face plate is left in a diagnostic display (or a

flashing display when setting times or hardness),

present time automatically returns if a button is not

pressed within 4 minutes.

FACE PLATE REPLACEMENT: Be sure the valve is in

service position (observe valve cycle indicator) when

replacing the face plate.

If, after installing and programming the replacement

face plate, the valve is not in service position, do the

following to assure correct cycle orientation, or timing,

between the face plate and valve.

Use the MANUAL ADVANCE procedures, page 29..

With the RECHARGE NOW button, advance through

the recharge cycles until the valve stops in service posi-

tion, and RECHARGE no longer flashes in the timer.

NOTE: The valve motor may automatically drive

through several valve positions while searching for

service. If an error code occurs, unplug the transform-

er, then plug in again

Ino NI

SECTIO N SERVICETECH.IN ORMATIO.

5A. TROUBLESHOOTING

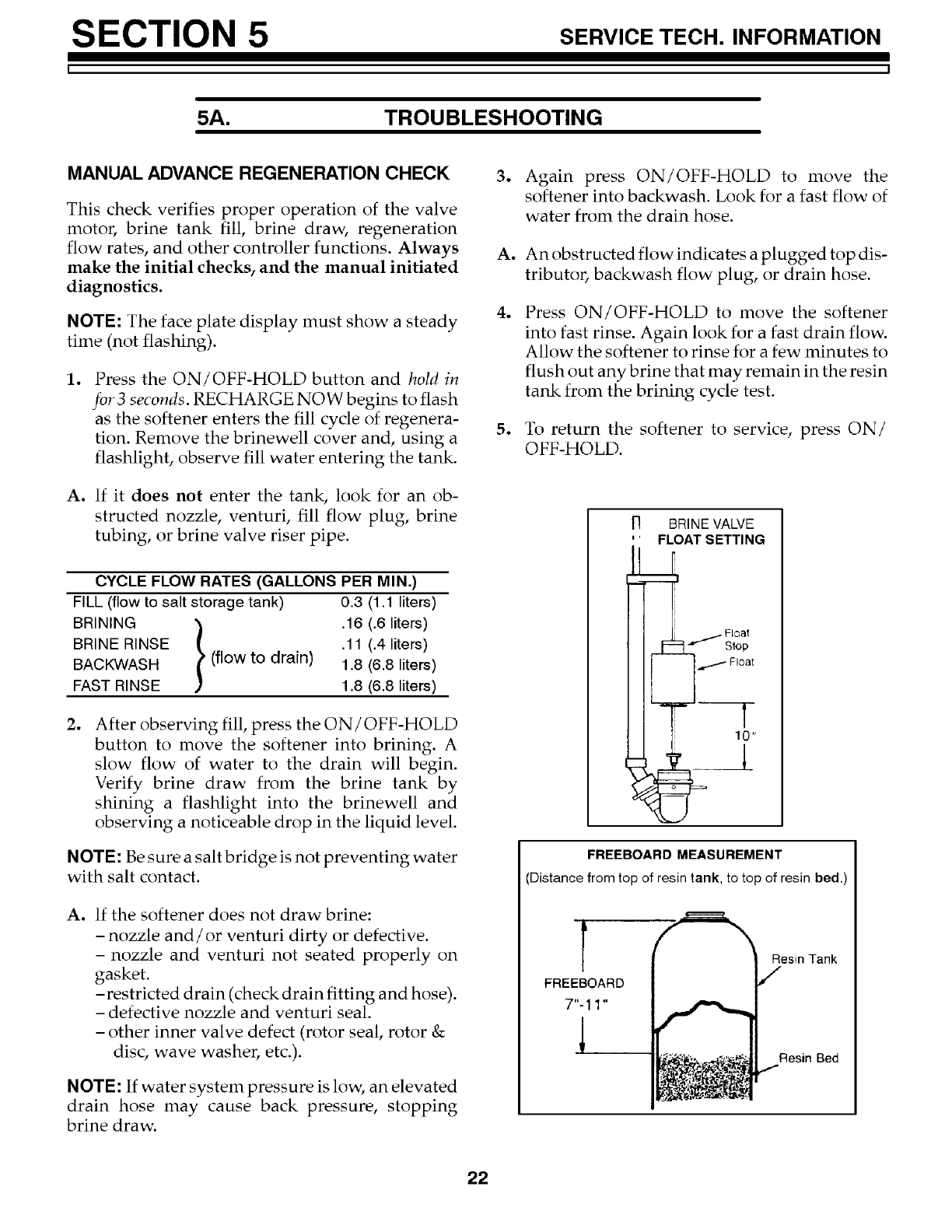

MANUAL ADVANCE REGENERATION CHECK 3.

This check verifies proper operation of the valve

motor, brine tank fill, brine draw; regeneration

flow rates, and other controller functions. Always

make the initial checks, and the manual initiated

diagnostics.

NOTE: The face plate display must show a steady

time (not flashing).

,Press the ON/OFF-HOLD button and hold in

jbr 3 seconds. RECHARGE NOW begins to flash

as the softener enters the fill cycle of regenera-

tion. Remove the brinewell cover and, using a

flashlight, observe fill water entering the tank.

A. if it does not enter the tank, look for an ob-

structed nozzle, venturi, fill flow plug, brine

tubing, or brine valve riser pipe.

CYCLE FLOW RATES (GALLONS PER MIN.)

FILL (flow to salt storage tank)

BRINING }

BRINE RINSE

BACKWASH (flow to drain)

FAST RINSE

0.3 (1.1 liters)

.16 (.6 liters)

.11 (.4 liters)

1.8 (6.8 liters)

,After observing fill, press the ON/OFF-HOLD

button to move the softener into brining. A

slow flow of water to the drain will begin.

Verify brine draw from the brine tank by

shining a flashlight into the brinewell and

observing a noticeable drop in the liquid level.

NOTE: Be sure a salt bridge is not preventing water

with salt contact.

A. if the softener does not draw brine:

-nozzle and/or venturi dirty or defective.

- nozzle and venturi not seated properly on

gasket.

-restricted drain (check drain fitting and hose).

- defective nozzle and venturi seal.

- other inner valve defect (rotor seal, rotor &

disc, wave washer, etc.).

NOTE: If water system pressure is low; an elevated

drain hose may cause back pressure, stopping

brine draw.

Again press ON/OFF-HOLD to move the

softener into backwash. Look for a fast flow of

water from the drain hose.

An obstructed flow indicates a plugged top dis-

tributor, backwash flow plug, or drain hose.

Press ON/OFF-HOLD to move the softener

into fast rinse. Again look for a fast drain flow.

Allow the softener to rinse for a few minutes to

flush out any brine that may remain in the resin

tank from the brining cycle test.

To return the softener to service, press ON/

OFF-HOLD.

[1 BRINE VALVE

FLOAT SETTING

/Float

FREEBOARD MEASUREMENT

(Distance from top of resin tank, to top of resin bed.)

FREEBOARD

7"-11"

Resin Tank

Resin Bed

SECTION SERVICETECH.INFORMATION

5B. ROTARY VALVE SERVICE

Before working on the valve, turn off the water

supply and disconnect from electrical power.

TO RELIEVE PRESSURE

-3 VALVE BYPASS: Close the inlet valve and open

a soft water faucet. Then close the outlet valve and

open the bypass valve.

-SEARS SPECIAL BYPASS: Slide the bypass valve

stem to bypass position. Loosen the 3 hex head

screws (see A in drawing) toward the backside of

the valve to allow pressure water to bleed out.

Catch the water with a rag.

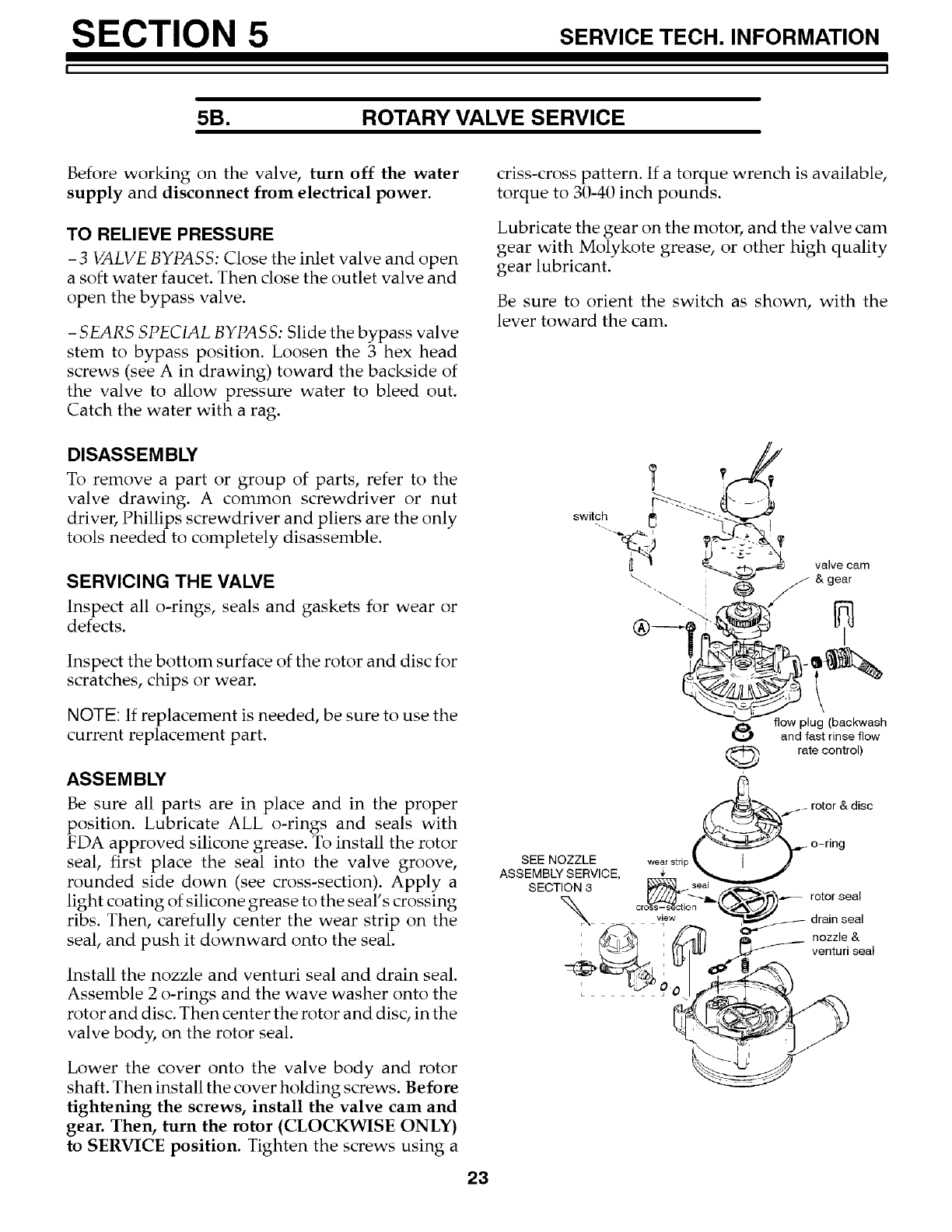

DISASSEM BLY

To remove a part or group of parts, refer to the

valve drawing. A common screwdriver or nut

driver, Phillips screwdriver and pliers are the only

tools needed to completely disassemble.

SERVICING THE VALVE

Inspect all o-rings, seals and gaskets for wear or

defects.

Inspect the bottom surface of the rotor and disc for

scratches, chips or wear.

NOTE: If replacement is needed, be sure to use the

current replacement part.

ASSEMBLY

Be sure all parts are in place and in the proper

position. Lubricate ALL o-rings and seals with

FDA approved silicone grease. To install the rotor

seal, first place the seal into the valve groove,

rounded side down (see cross-section). Apply a

light coating of silicone grease to the seal's crossing

ribs. Then, carefully center the wear strip on the

seal, and push it downward onto the seal.

Install the nozzle and venturi seal and drain seal.

Assemble 2 o-rings and the wave washer onto the

rotor and disc. Then center the rotor and disc, in the

valve body, on the rotor seal.

Lower the cover onto the valve body and rotor

shaft. Then install the cover holding screws. Before

tightening the screws, install the valve cam and

gear. Then, turn the rotor (CLOCKWISE ONLY)

to SERVICE position. Tighten the screws using a

criss-cross pattern. If a torque wrench is available,

torque to 30-40 inch pounds.

Lubricate the gear on the motor, and the valve cam

gear with Molykote grease, or other high quality

gear lubricant.

Be sure to orient the switch as shown, with the

lever toward the cam.

switch _:" -_'"

valve cam

_.. /_-" &gear

@-i

flow plug (backwash

_' and fast rinse flow

rate control)

rotor & disc

SEE NOZZLE wear strip ¶

ASSEMBLY SERVICE,

SECTION 3

_ ,,!ow

o-ring

rotor seal

drain seal

nozzle &

venturi seal

SECTION SERVICETECH.INFORMATION

5C. WATER FLOW THROUGH THE SOFTENER VALVE

SERVICE CYCLE

from Valve Inlet

(hard water)

To Valve Outlet

(soft water)

bottom distributor

top distributor

resin tank POSITION

__SWITCH

Hard water enters the valve inlet port. Internal valve porting routes the

water down and out the top distributor, into the resin tank. Hard water is

softened as it passes through the resin bed, then enters the bottom

distributor. Soft water flows back into the valve and out the valve outlet, to

the house soft water pipes.

FILL CYCLE

position switch

venturi valve cam

rotor & disc

fill flow

plug

fill water

(soft)

from Valve Inlet

(hard water)

distributor

ToValve Outlet

(soft water) _ {

bottom distributor __C_::b_¢

resin tank POSITION

__SWITCH

To begin a regeneration, the electroic timer energizes the circuit to the valve

motor. The valve motor rotates the rotor and disc and the valve cam until the

position switch lever drops, to open the motor circuit and position the valve in

FILL. As the rotor and disc rotates, the port opens for SOFT water fill through

the venturi. Fill flow continues to the brine valve, and into the salt storage

tank. Soft water is still available to the house lines.

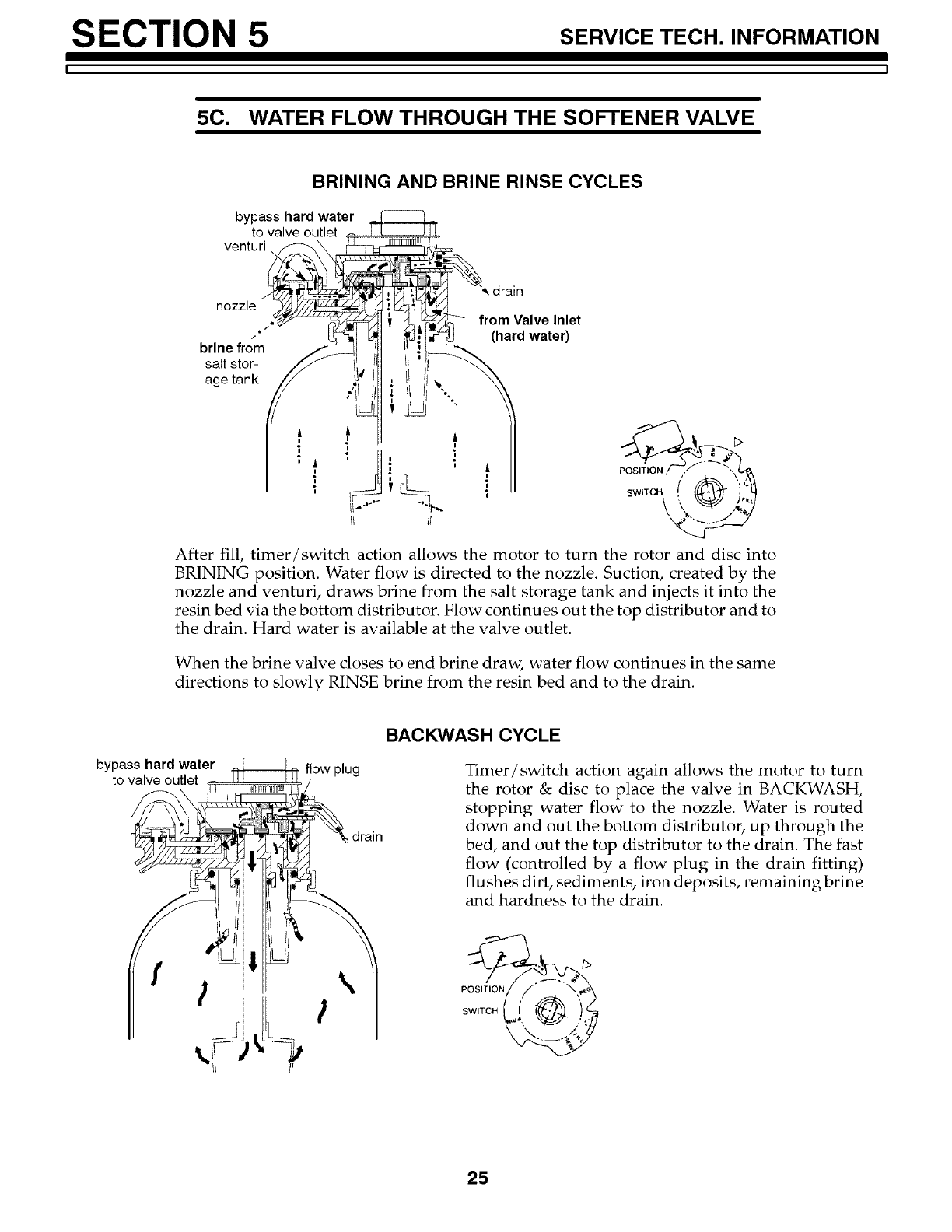

SECTION SERVICETECH.INFORMATION

5C. WATER FLOW THROUGH THE SOFTENER VALVE

BRINING AND BRINE RINSE CYCLES

bypass hard water

to valve outlet

venturi

nozzle

t J"

brine from

salt stor-

age tank

from Valve Inlet

(hard water)

POSITION

After fill, timer/switch action allows the motor to turn the rotor and disc into

BRINING position. Water flow is directed to the nozzle. Suction, created by the

nozzle and venturi, draws brine from the salt storage tank and injects it into the

resin bed via the bottom distributor. Flow continues out the top distributor and to

the drain. Hard water is available at the valve outlet.

When the brine valve closes to end brine draw, water flow continues in the same

directions to slowly RINSE brine from the resin bed and to the drain.

bypass hard water

to valve outlet flow plug

BACKWASH CYCLE

drain

Timer/switch action again allows the motor to turn

the rotor & disc to place the valve in BACKWASH,

stopping water flow to the nozzle. Water is routed

down and out the bottom distributor, up through the

bed, and out the top distributor to the drain. The fast

flow (controlled by a flow plug in the drain fitting)

flushes dirt, sediments, iron deposits, remaining brine

and hardness to the drain.

SWITCH

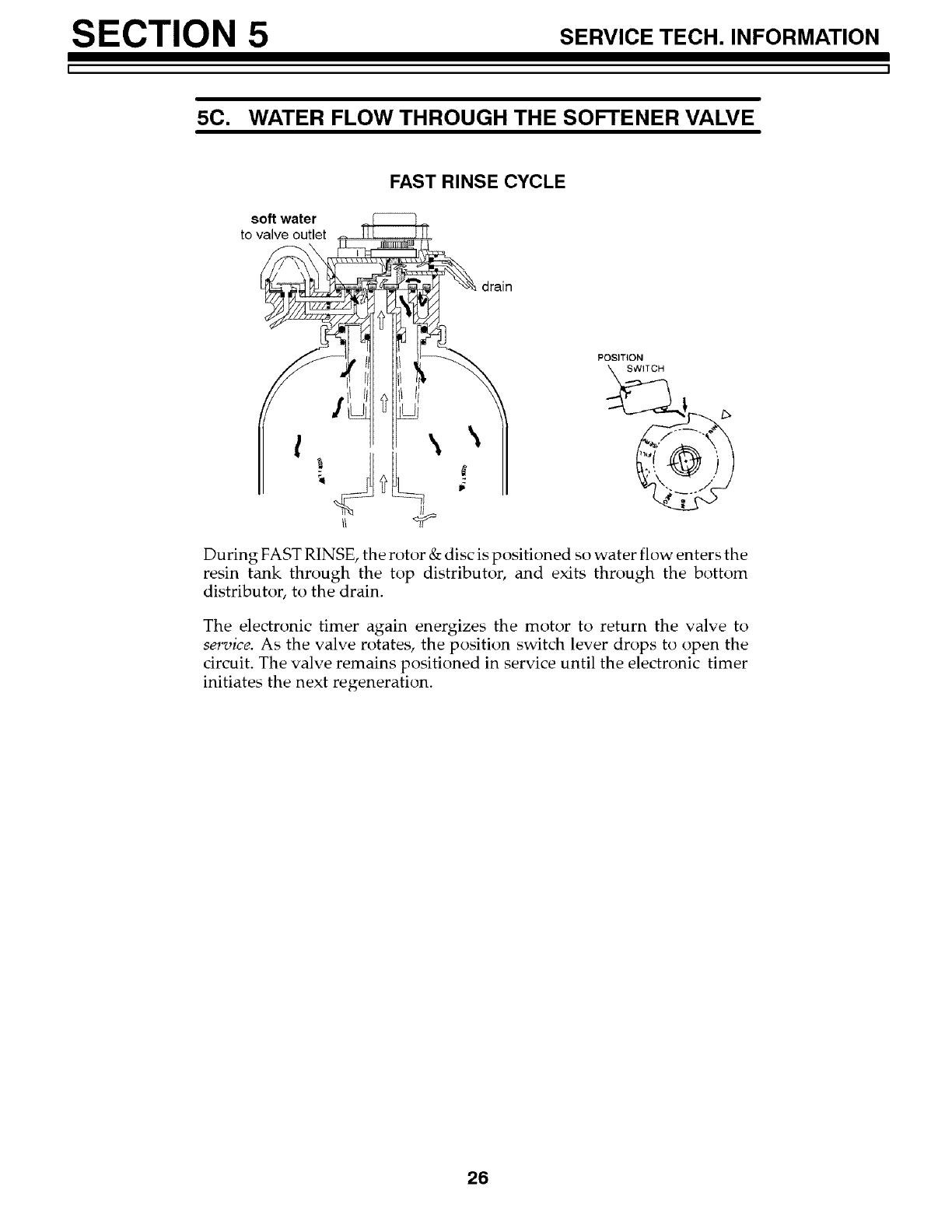

SECTION SERVICETECH.INFORMATION

5C. WATER FLOW THROUGH THE SOFTENER VALVE

soft water

to valve outlet

FAST RINSE CYCLE

drain

POSITION

During FAST RINSE, the rotor & disc is positioned so water flow enters the

resin tank through the top distributor, and exits through the bottom

distributor, to the drain.

The electronic timer again energizes the motor to return the valve to

selvice. As the valve rotates, the position switch lever drops to open the

circuit. The valve remains positioned in service until the electronic timer

initiates the next regeneration.

SECTION SERVICETECH.INFORMATION

I I

NOTES

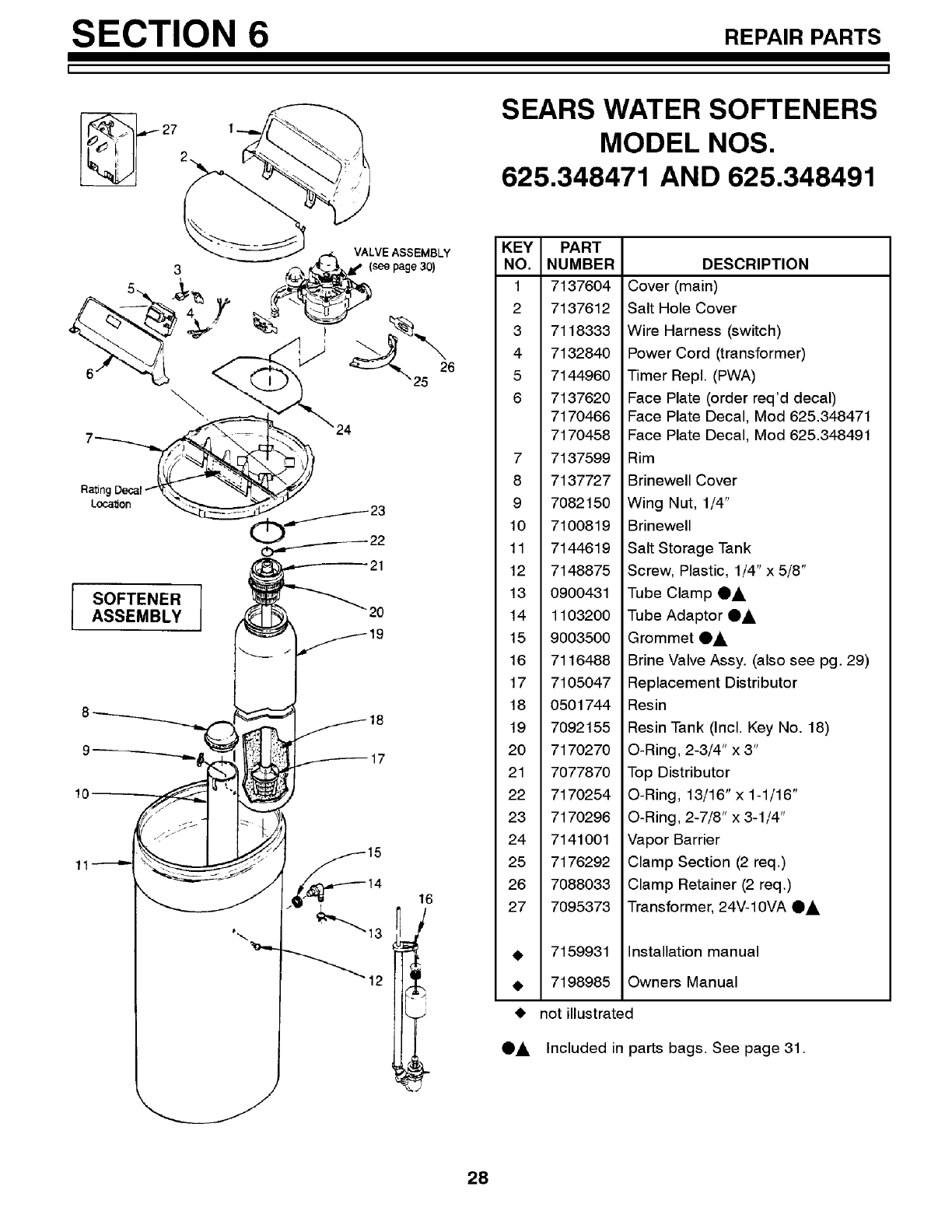

SECTION 6 REPAIRPARTS

I I

SEARS WATER SOFTENERS

MODEL NOS.

625.348471 AND 625.348491

VALVE ASSEMBLY

(seepage30)

KEY PART

NO. NUMBER

1 7137604

2 7137612

3 7118333

4 7132840

5 7144960

6 7137620

7170466

7170458

7 7137599

8 7137727

9 7082150

10 7100819

11 7144619

12 7148875

13 0900431

14 1103200

15 9003500

16 7116488

17 7105047

18 0501744

19 7092155

20 7170270

21 7077870

22 7170254

23 7170296

24 7141001

25 7176292

26 7088033

7095373

Ra_ng

LocaSon

SOFTENER [ASSEMBLY 2O

7159931

7198985

DESCRIPTION

Cover (main)

Salt Hole Cover

Wire Harness (switch)

Power Cord (transformer)

Timer Repl. (PWA)

Face Plate (order req'd decal)

Face Plate Decal, Mod 625.346471

Face Plate Decal, Mod 625.346491

Rim

Brinewell Cover

Wing Nut, 1/4"

Brinewell

Salt Storage Tank

Screw, Plastic, 1/4" x 5/8"

Tube Clamp OA

Tube Adaptor Ok

Grommet 0_,

Brine Valve Assy. (also see pg. 29)

Replacement Distributor

Resin

Resin Tank (Incl. Key No. 18)

O-Ring, 2-3/4" x 3"

Top Distributor

O-Ring, 13/16" x 1-1/16"

O-Ring, 2-7/8" x 3-1/4"

Vapor Barrier

Clamp Section (2 req.)

Clamp Retainer (2 req.)

Transformer, 24V-1OVA OA,

Installation manual

Owners Manual

not illustrated

Included in parts bags. See page 31.

SECTION 6 REPAIRPARTS

47--_

BRINE VALVE

ASSEMBLY

SEARS WATER SOFTENERS

MODEL NOS.

625.348471 AND 625.348491

KEY PART

NO. NUMBER

30 7168647

31 0513860

32 7097202

33 0516947

34 7093216

35 7092278

36 7170288

37 0516211

38 0516924

39 7116713

40 7092252

41 7080653

42 7131365

43 7094979

44 7092294

45 7176161

46 7095470

47 7113016

48 7171349

49 7112997

OA Included

DESCRIPTION

Ceramic Weight

Float Stop

Float (Includes Key No. 33)

Float Seal

Float Rod & Stem

Guide Cap

O-Ring 15/16 x 1-3/16

Seal

Retainer, Bottom Seal

Clip

Brine Valve Body

Clip

Screen

Insert

Retaining Ring

O-Ring, 5/16 x 9/16

Brine Tube

Tubing Assy. (Incl. Key Nos. 43, 44

& 45)

Cone Screen

Ground Clamp Kit OA

in parts bag. See page 31.

INLET - OUTLET /

GROUNDING CLAMPS

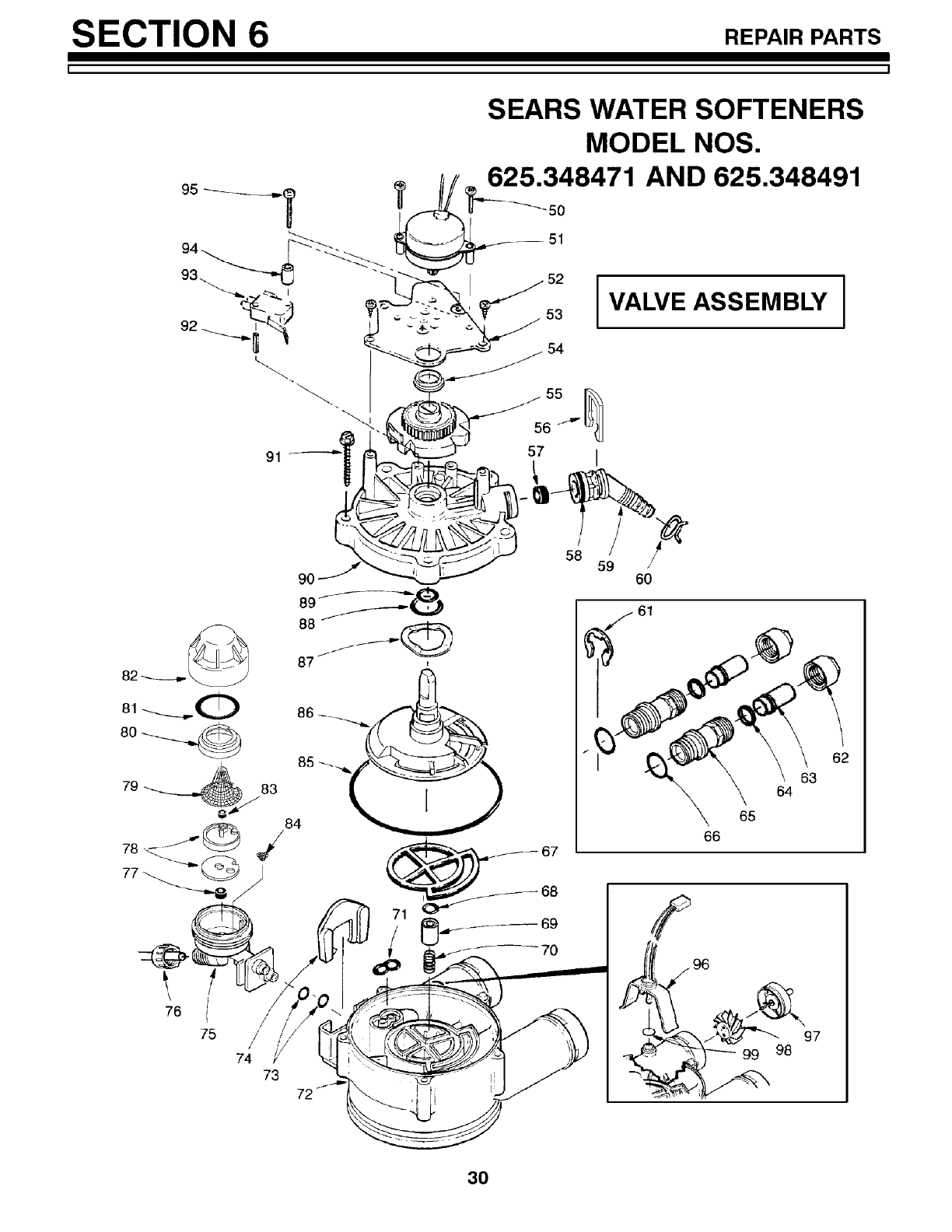

SECTION 6 REPAIRPARTS

I I

SEARS WATER SOFTENERS

MODEL NOS.

625.348471 AND 625.348491

91 57 I

VALVE ASSEMBLY

76 i/

75 /

58 59 /,

\63

f__96

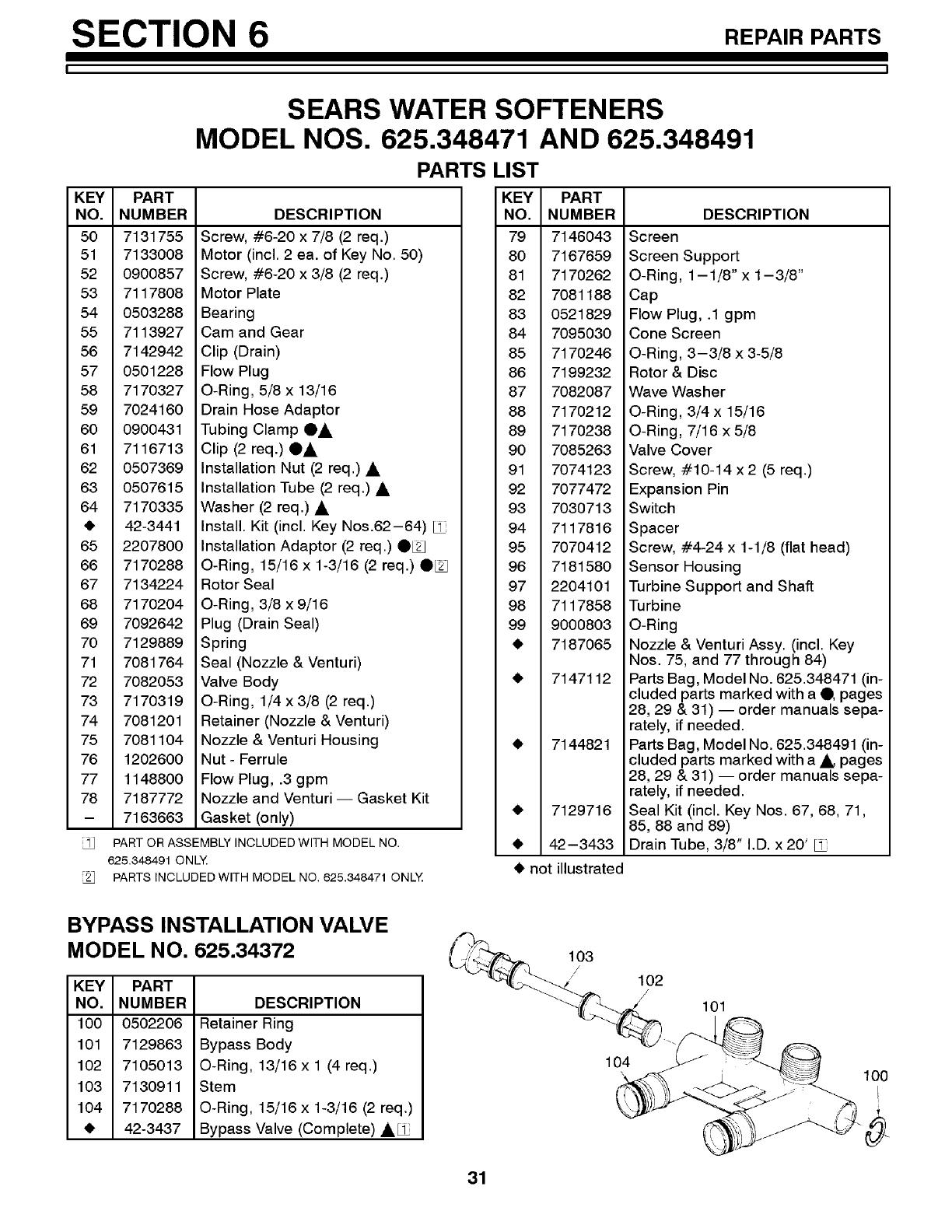

SECTION 6 REPAIRPARTS

KEY PART

NO. NUMBER

50 7131755

51 7133008

52 0900857

53 7117808

54 0503288

55 7113927

56 7142942

57 0501228

58 7170327

59 7024160

60 0900431

61 7116713

62 0507369

63 0507615

64 7170335

42-3441

65 2207800

66 7170288

67 7134224

68 7170204

69 7092642

70 7129889

71 7081764

72 7082053

73 7170319

74 7081201

75 7081104

76 1202600

77 1148800

78 7187772

- 7163663

SEARS WATER SOFTENERS

MODEL NOS. 625.348471 AND 625.348491

PARTS LIST

DESCRIPTION

Screw, #6-20 x 7/8 (2 req.)

Motor (incl. 2 ea. of Key No. 50)

Screw, #6-20 x 3/8 (2 req.)

Motor Plate

Bearing

Cam and Gear

Clip (Drain)

Flow Plug

O-Ring, 5/8 x 13/16

Drain Hose Adaptor

Tubing Clamp Ok

Clip (2 req.) OA

Installation Nut (2 req.) •

Installation Tube (2 req.) •

Washer (2 req.) •

Install. Kit (incl. Key Nos.62-64)

Installation Adaptor (2 req.) O_

O-Ring, 15/16 x 1-3/16 (2 req.) O_

Rotor Seal

O-Ring, 3/8 x 9/16

Plug (Drain Seal)

Spring

Seal (Nozzle & Venturi)

Valve Body

O-Ring, 1/4 x 3/8 (2 req.)

Retainer (Nozzle & Venturi)

Nozzle & Venturi Housing

Nut- Ferrule

Flow Plug, .3 gpm

Nozzle and Venturi -- Gasket Kit

Gasket (only)

PART OR ASSEMBLY INCLUDED WITH MODEL NO.

625.348491 ONLY

PARTS INCLUDED WITH MODEL NO. 625.348471 ONLY.

KEY PART

NO. NUMBER

79 7146043

80 7167659

81 7170262

82 7081188

83 0521829

84 7095030

85 7170246

86 7199232

87 7082087

88 7170212

89 7170238

90 7085263

91 7074123

92 7077472

93 7030713

94 7117816

95 7070412

96 7181580

97 2204101

98 7117858

99 9000803

7187065

7147112

7144821

7129716

42-3433

notillustmted

DESCRIPTION

Screen

Screen Support

O-Ring, 1-1/8" x 1-3/8"

Cap

Flow Plug, .1 gpm

Cone Screen

O-Ring, 3-3/8 x 3-5/8

Rotor & Disc

Wave Washer

O-Ring, 3/4 x 15/16

O-Ring, 7/16 x 5/8

Valve Cover

Screw, #10-14 x 2 (5 req.)

Expansion Pin

Switch

Spacer

Screw, #4-24 x 1-1/8 (flat head)

Sensor Housing

Turbine Support and Shaft

Turbine

O-Ring

Nozzle & Venturi Assy. (incl. Key

Nos. 75, and 77 through 84)

Parts Bag, Model No. 625.348471 (in-

cluded parts marked with a Q, pages

28, 29 & 31) -- order manuals sepa-

rately, if needed.

Parts Bag, Model No. 625.348491 (in-

cluded parts marked with a A, pages

28, 29 & 31) -- order manuals sepa-

rately, if needed.

Seal Kit (incl. Key Nos. 67, 68, 71,

85, 88 and 89)

Drain Tube, 3/8" I.D. x 20'

BYPASS INSTALLATION VALVE

MODEL NO. 625.34372

KEY PART

NO. NUMBER

100 0502206

101 7129863

102 7105013

103 7130911

104 7170288

42-3437

DESCRIPTION

Retainer Ring

Bypass Body

O-Ring, 13/16 x 1 (4 req.)

Stem

O-Ring, 15/16 x 1-3/16 (2 req.)

Bypass Valve (Complete) •_

103

104

102

101

OWNER'S

MANUAL

MODEL NOS.

625.348471

625.348491

The model number of

your water softener is

found on the rating de-

cal. This decal is on the

rim, under the salt cover.

When requesting service

or ordering parts, always

provide the following in-

formation:

Product Type

Model Number

Part Number

Part Description

Demand Water Softeners

For the repair or replacement parts you need

delivered directly to your home

Call 7am -7pm, 7days a week

1 - 800 - 366 - PART

(1 - 800 - 366 - 7278)

For in-home major brand repair service

Call 24 hours a day, 7 days a week

1 - 800 - 4 - REPAIR

(1 -800 - 473 - 7247)

For the location of a

Sears Parts and Repair Center in your area

Call 24 hours a day, 7 days a week

1 - 800 - 488 - 1222

For information on purchasing a Sears

Maintenance Agreement, or to inquire

about an existing Agreement

Call 9 am - 5 pm, Monday - Saturday

1 - 800 - 827 - 6655

SEARS

America's Repair Specialists

=8=8==

SEARS

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

7198985 (4/98)

Kenmore 625348471 User Manual DEMAND WATER SOFTENER Manuals And Guides L0709207

KENMORE Water softener Manual L0709207 KENMORE Water softener Owner's Manual, KENMORE Water softener installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
