Microwave

Use & Ca,re Guide

Hood Combination

Combinacion Microondas

Guia de uso y cuidado

Models/Modelos 721.80042

721.80044

Campana

721.80049

721.80043

MFL39431002 Sears, Roebuck and Co., Hoffman Estates, IL 60179 www.sears.com

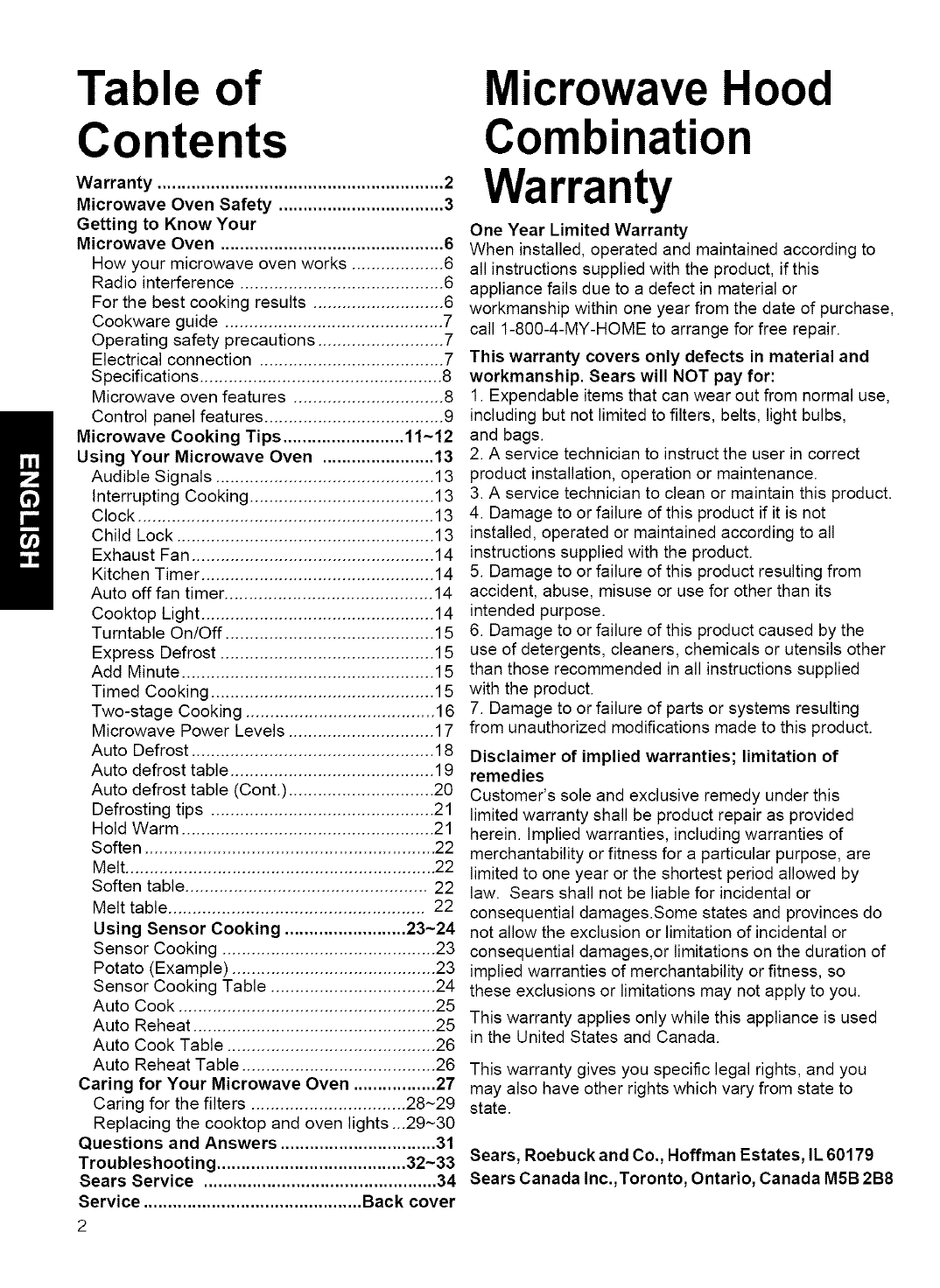

Table of

Contents

Warranty ........................................................... 2

Microwave Oven Safety .................................. 3

Getting to Know Your

Microwave Oven .............................................. 6

How your microwave oven works ................... 6

Radio interference .......................................... 6

For the best cooking results ........................... 6

Cookware guide ............................................. 7

Operating safety precautions .......................... 7

Electrical connection ...................................... 7

Specifications .................................................. 8

Microwave oven features ............................... 8

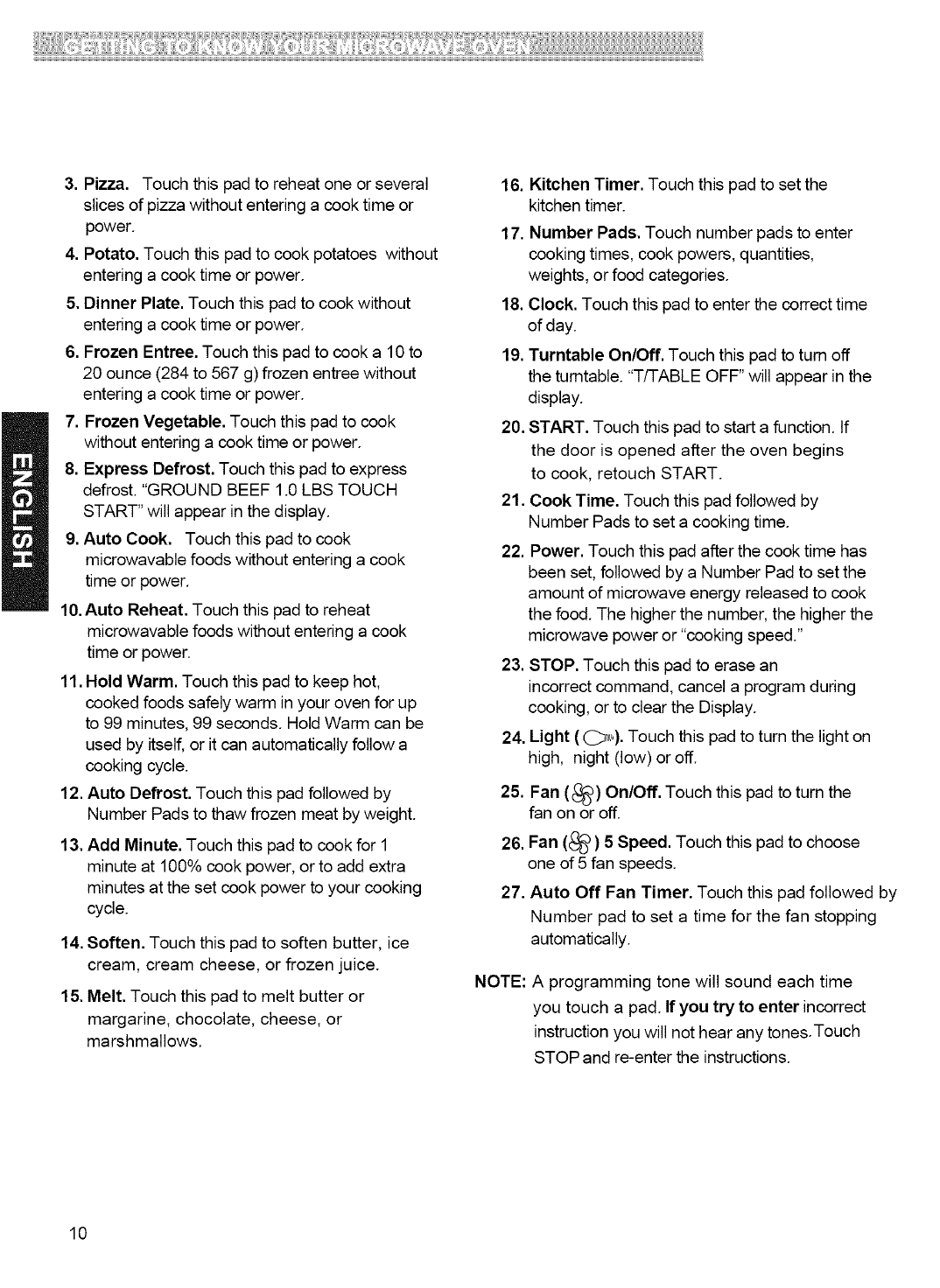

Control panel features ..................................... 9

Microwave Cooking Tips ......................... 11-12

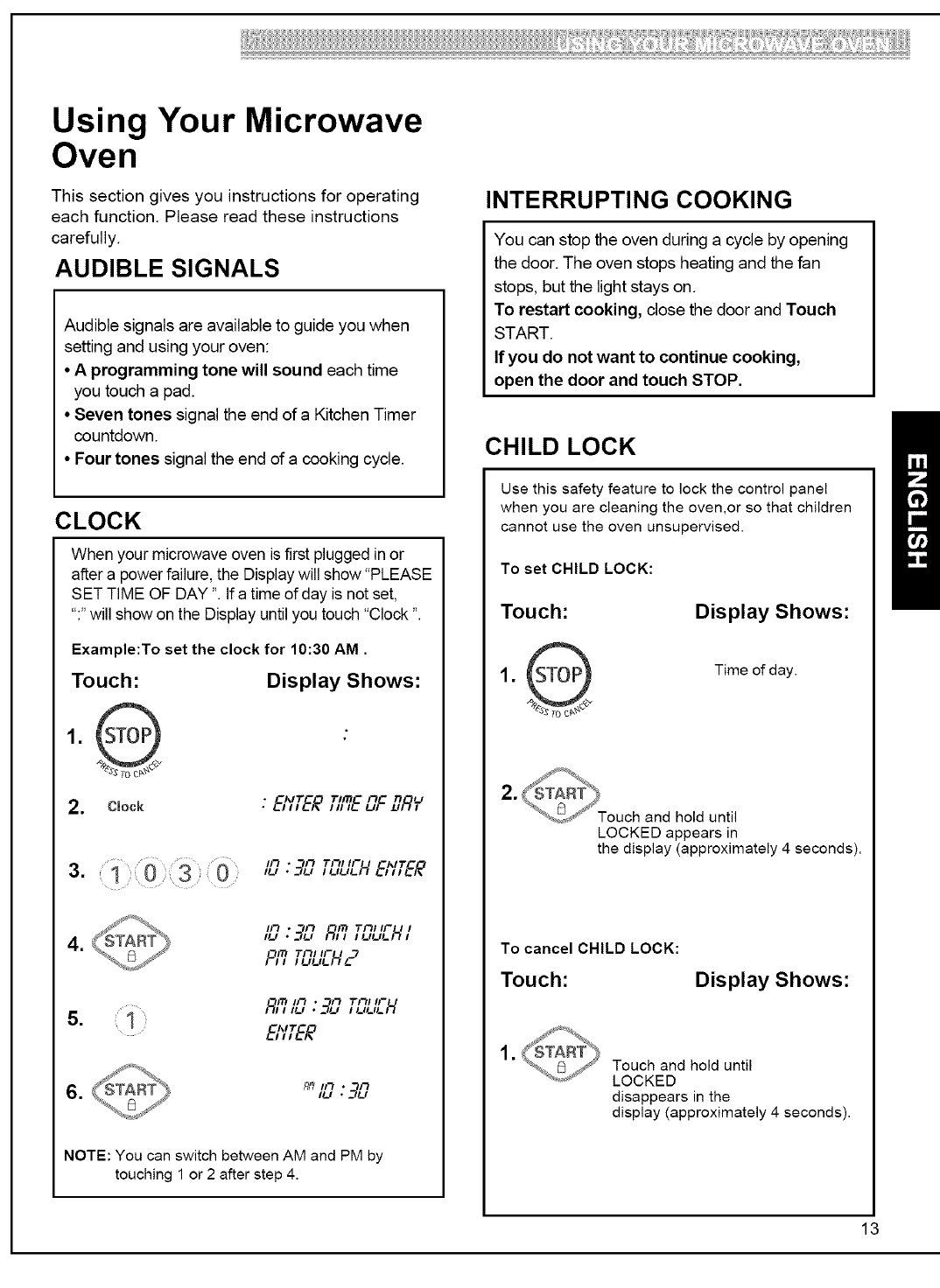

Using Your Microwave Oven ....................... 13

Audible Signals ............................................. 13

Interrupting Cooking ...................................... 13

Clock ............................................................. 13

Child Lock ..................................................... 13

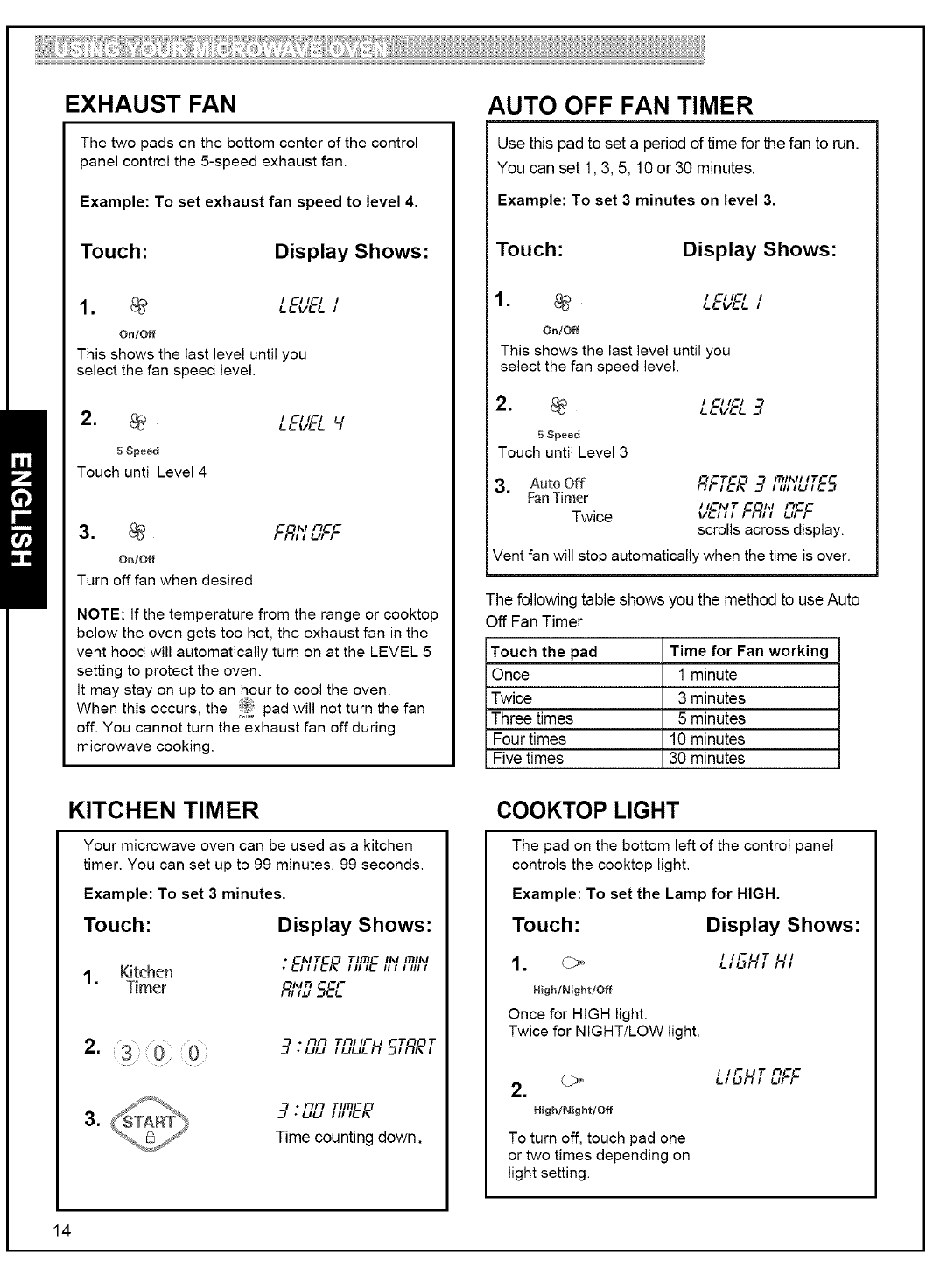

Exhaust Fan .................................................. 14

Kitchen Timer ................................................ 14

Auto offfan timer ........................................... 14

Cooktop Light ................................................ 14

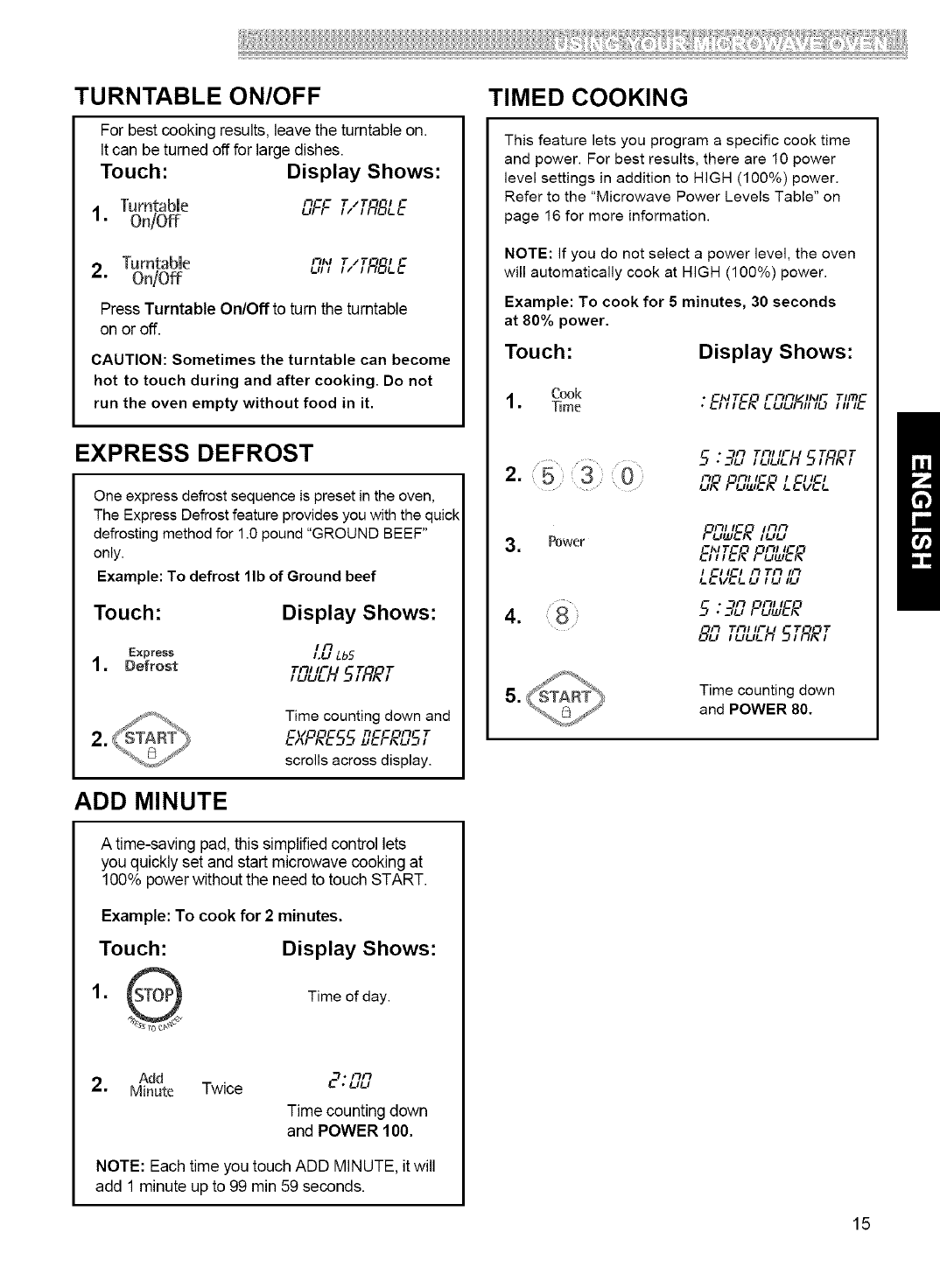

Turntable On/Off ........................................... 15

Express Defrost ............................................ 15

Add Minute .................................................... 15

Timed Cooking .............................................. 15

Two-stage Cooking ....................................... 16

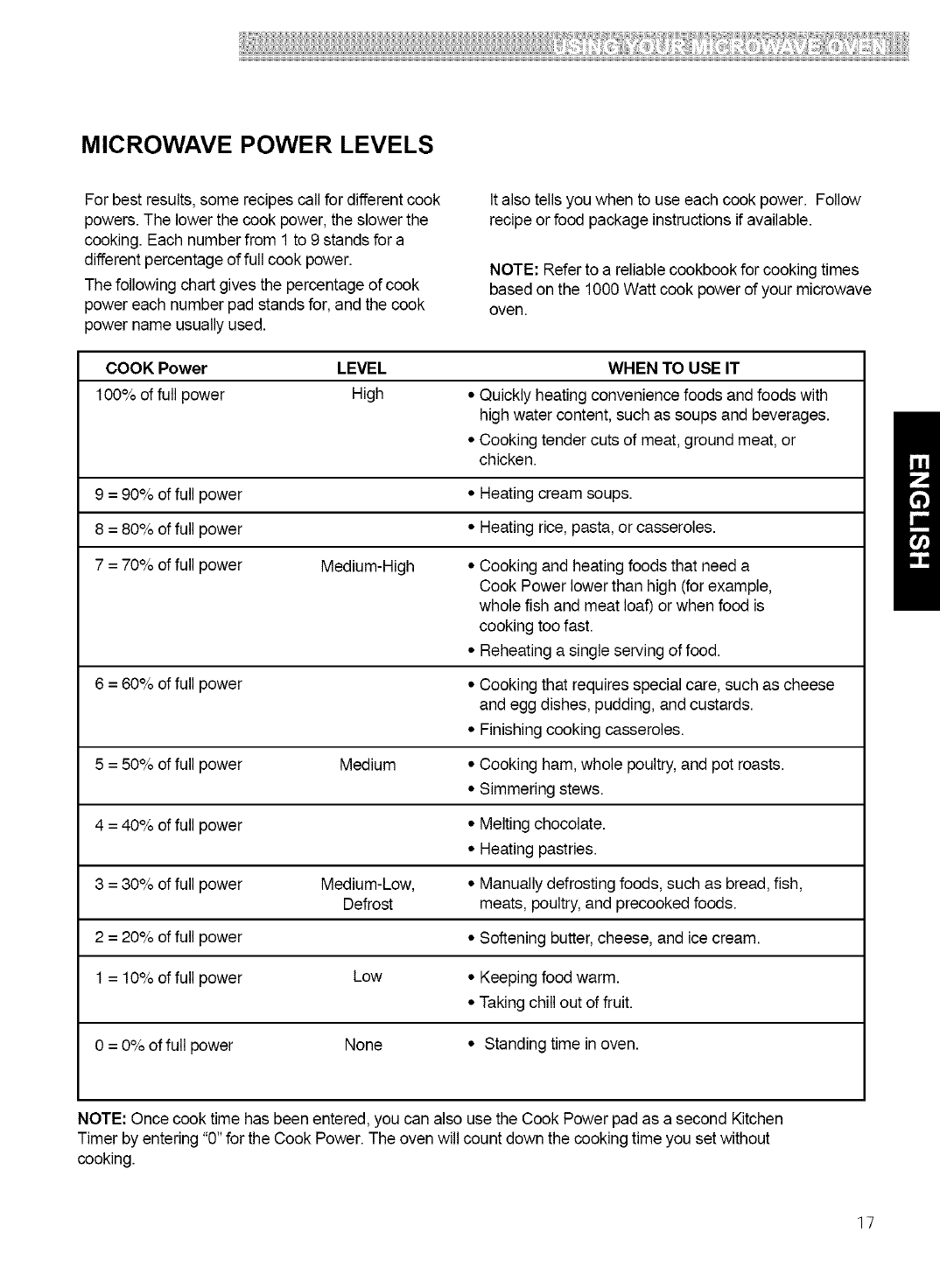

Microwave Power Levels .............................. 17

Auto Defrost .................................................. 18

Auto defrost table .......................................... 19

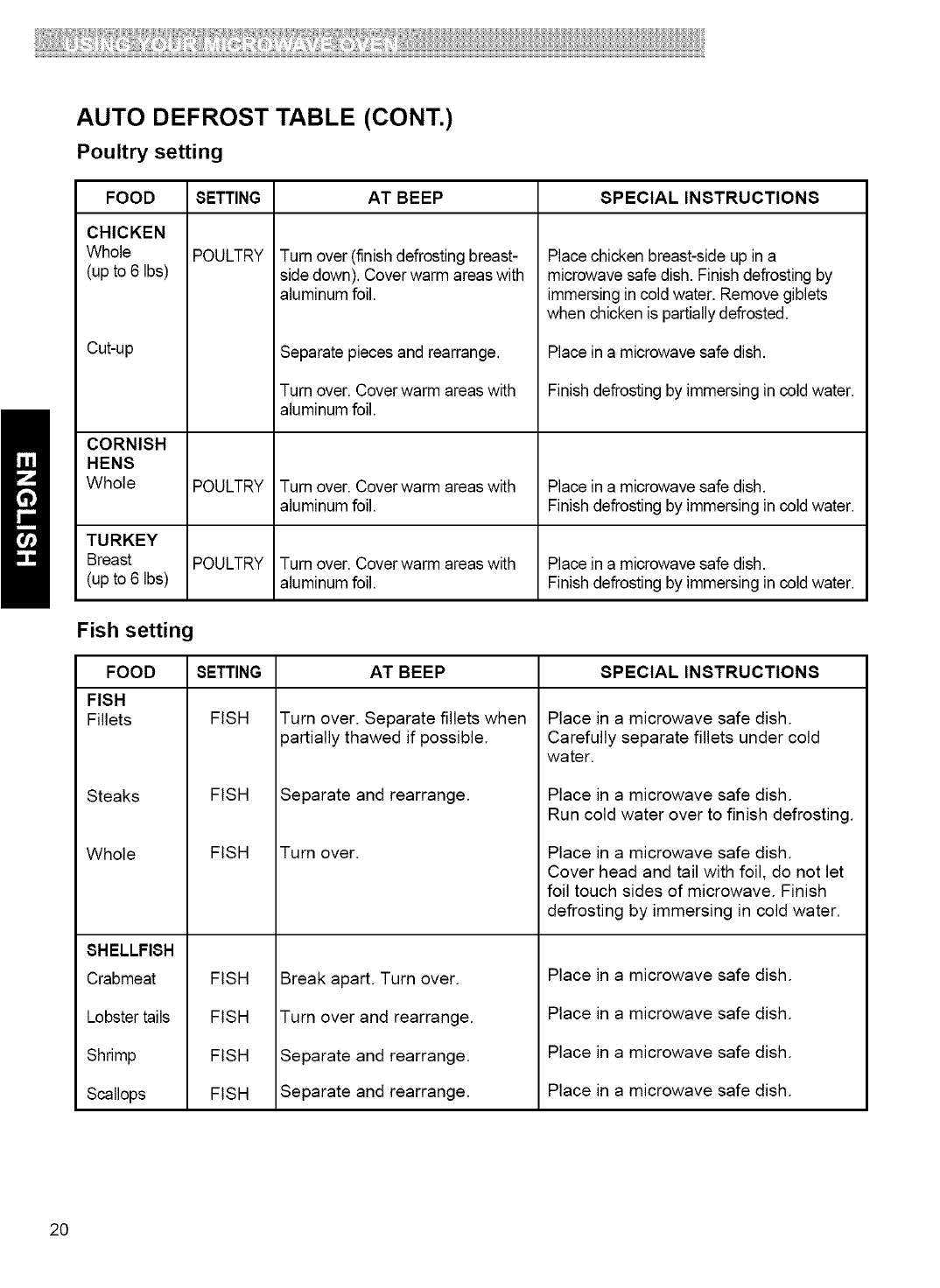

Auto defrost table (Cont.) .............................. 20

Defrosting tips .............................................. 21

Hold Warm .................................................... 21

Soften ............................................................ 22

Melt ................................................................ 22

Soften table .................................................. 22

Melt table ..................................................... 22

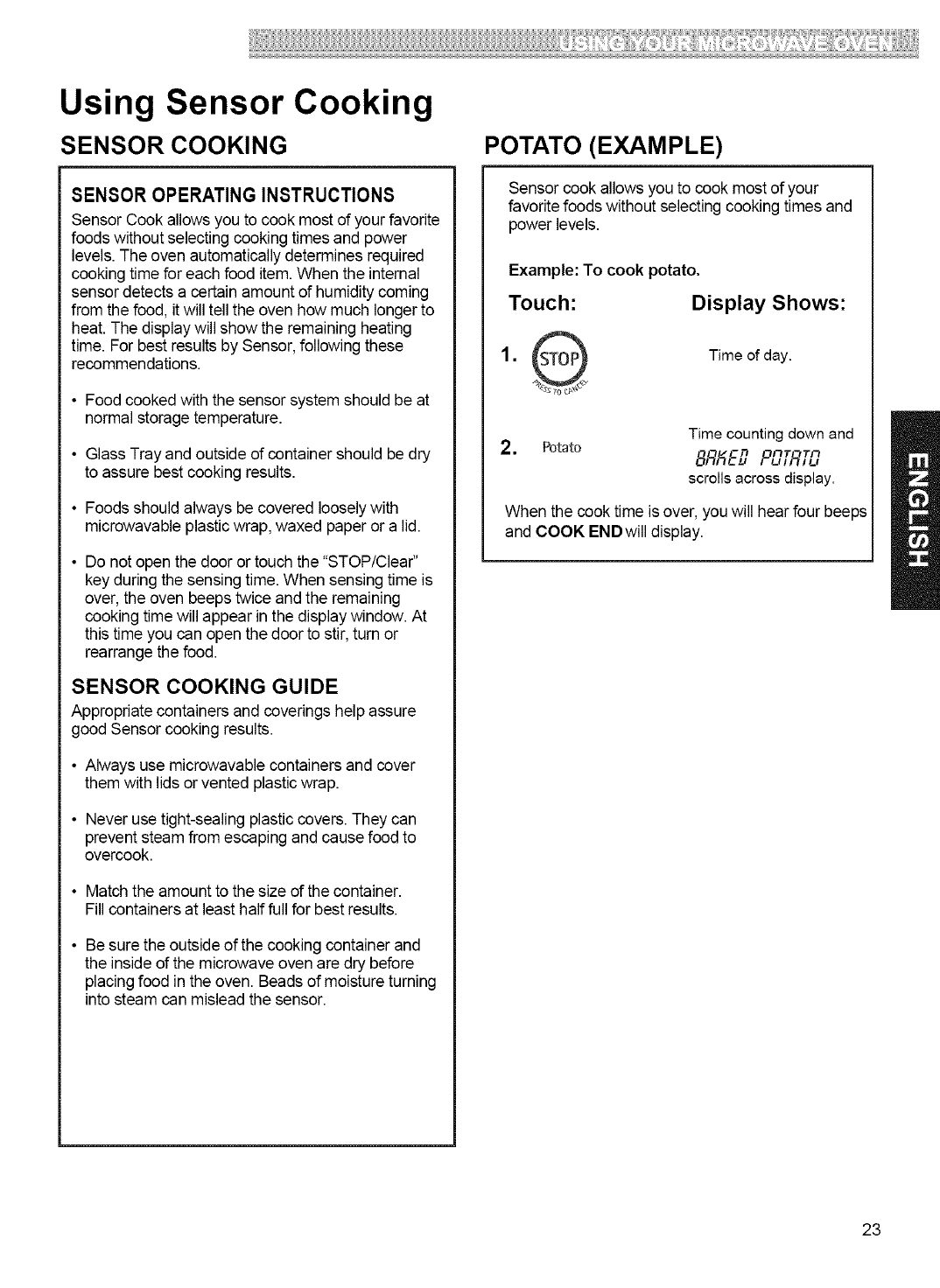

Using Sensor Cooking ......................... 23-24

Sensor Cooking ............................................ 23

Potato (Example) .......................................... 23

Sensor Cooking Table .................................. 24

Auto Cook ..................................................... 25

Auto Reheat .................................................. 25

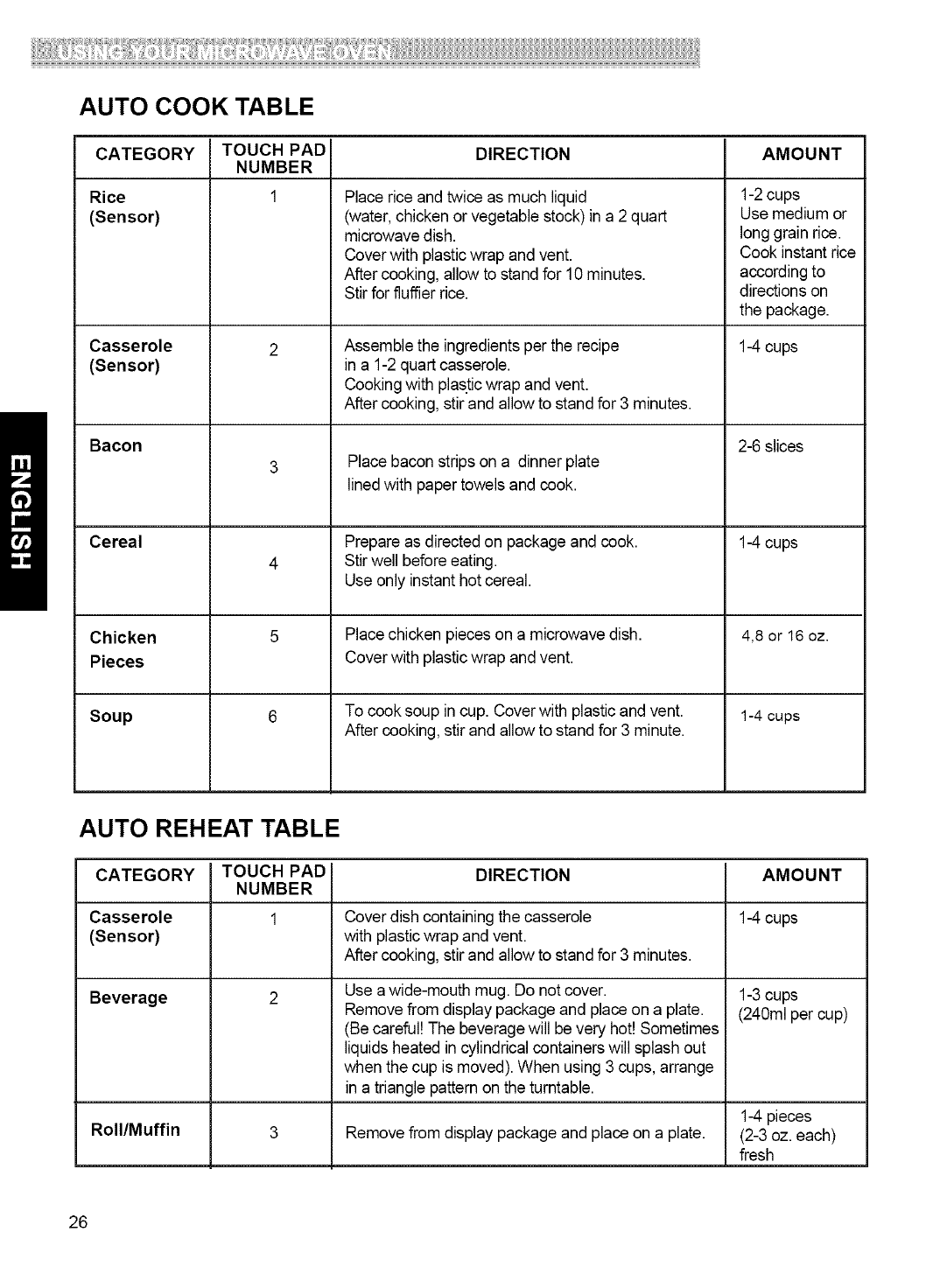

Auto Cook Table ........................................... 26

Auto Reheat Table ........................................ 26

Caring for Your Microwave Oven ................. 27

Caring for the filters ................................ 28~29

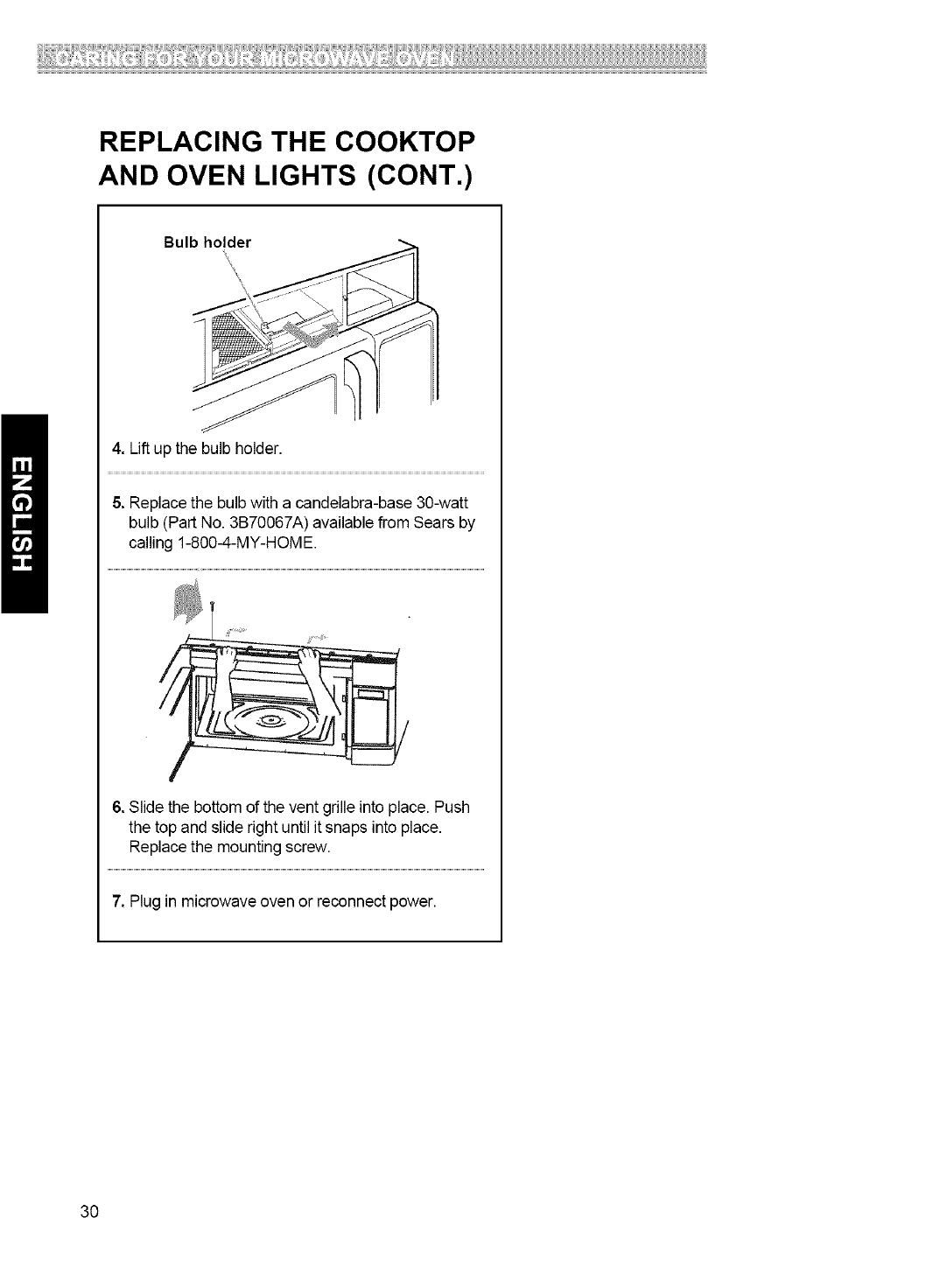

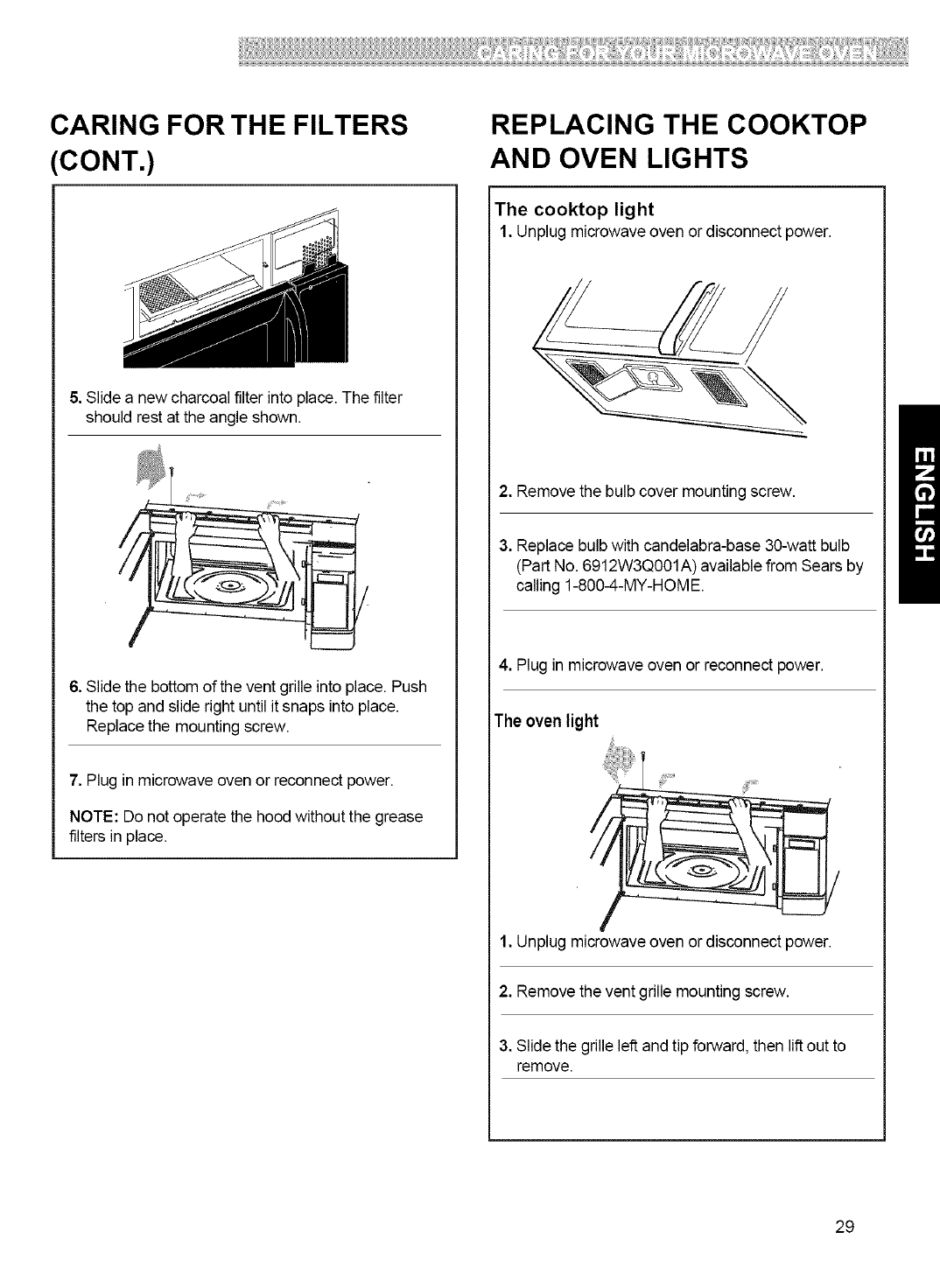

Replacing the cooktop and oven lights ...29~30

Questions and Answers ................................ 31

Troubleshooting ....................................... 32-33

Sears Service ................................................ 34

Service ............................................. Back cover

MicrowaveHood

Combination

Warranty

One Year Limited Warranty

When installed,operated and maintained according to

all instructions supplied with the product, if this

appliance fails due to adefect in material or

workmanship within one year from the date of purchase,

call 1-800-4-MY-HOME to arrange for free repair.

This warranty covers only defects in material and

workmanship. Sears will NOT pay for:

1. Expendable items that can wear out from normal use,

including but not limited to filters, belts, light bulbs,

and bags.

2. A service technician to instruct the user in correct

product installation, operation or maintenance.

3. A service technician to clean or maintain this product.

4. Damage to or failure of this product if it is not

installed, operated or maintained according to all

instructions supplied with the product.

5. Damage to or failure of this product resulting from

accident, abuse, misuse or use for other than its

intended purpose.

6. Damage to or failure of this product caused by the

use of detergents, cleaners, chemicals or utensils other

than those recommended in all instructions supplied

with the product.

7. Damage to or failure of parts or systems resulting

from unauthorized modifications made to this product.

Disclaimer of implied warranties; limitation of

remedies

Customer's sole and exclusive remedy under this

limited warranty shall be product repair as provided

herein. Implied warranties, including warranties of

merchantability or fitness for a particular purpose, are

limited to one year or the shortest period allowed by

law. Sears shall not be liable for incidental or

consequential damages.Some states and provinces do

not allow the exclusion or limitation of incidental or

consequential damages,or limitations on the duration of

implied warranties of merchantability or fitness, so

these exclusions or limitations may not apply to you.

This warranty applies only while this appliance is used

in the United States and Canada.

This warranty gives you specific legal rights, and you

may also have other rights which vary from state to

state.

Sears, Roebuck and Co., Hoffman Estates, IL 60179

Sears Canada Inc.,Toronto, Ontario, Canada M5B 2B8

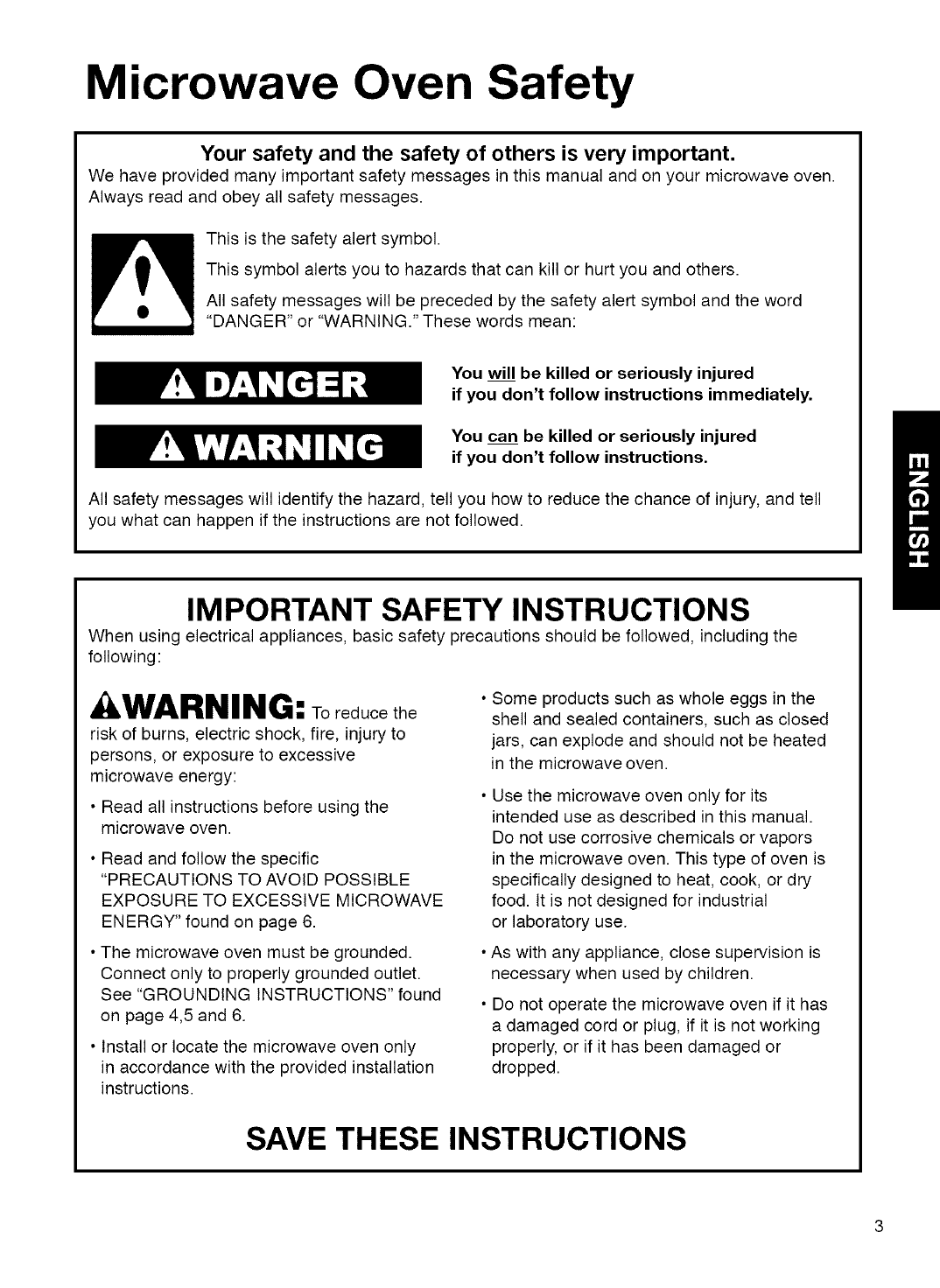

Microwave Oven Safety

Your safety and the safety of others is very important.

We have provided many important safety messages in this manual and on your microwave oven.

Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to hazards that can kill or hurt you and others.

All safety messages will be preceded by the safety alert symbol and the word

"DANGER" or "WARNING." These words mean:

You will be killed or seriously injured

if you don't follow instructions immediately.

You can be killed or seriously injured

if you don't follow instructions.

All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell

you what can happen if the instructions are not followed.

IMPORTANT SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should be followed, including the

following:

a, WARNING: Toreducethe

risk of burns, electric shock, fire, injury to

persons, or exposure to excessive

microwave energy:

• Read all instructions before using the

microwave oven.

• Read and follow the specific

"PRECAUTIONS TO AVOID POSSIBLE

EXPOSURE TO EXCESSIVE MICROWAVE

ENERGY" found on page 6.

• The microwave oven must be grounded.

Connect only to properly grounded outlet.

See "GROUNDING INSTRUCTIONS" found

on page 4,5 and 6.

• Install or locate the microwave oven only

in accordance with the provided installation

instructions.

• Some products such as whole eggs in the

shell and sealed containers, such as closed

jars, can explode and should not be heated

in the microwave oven.

• Use the microwave oven only for its

intended use as described in this manual.

Do not use corrosive chemicals or vapors

in the microwave oven. This type of oven is

specifically designed to heat, cook, or dry

food. It is not designed for industrial

or laboratory use.

• As with any appliance, close supervision is

necessary when used by children.

• Do not operate the microwave oven if it has

a damaged cord or plug, if it is not working

properly, or if it has been damaged or

dropped.

SAVE THESE INSTRUCTIONS

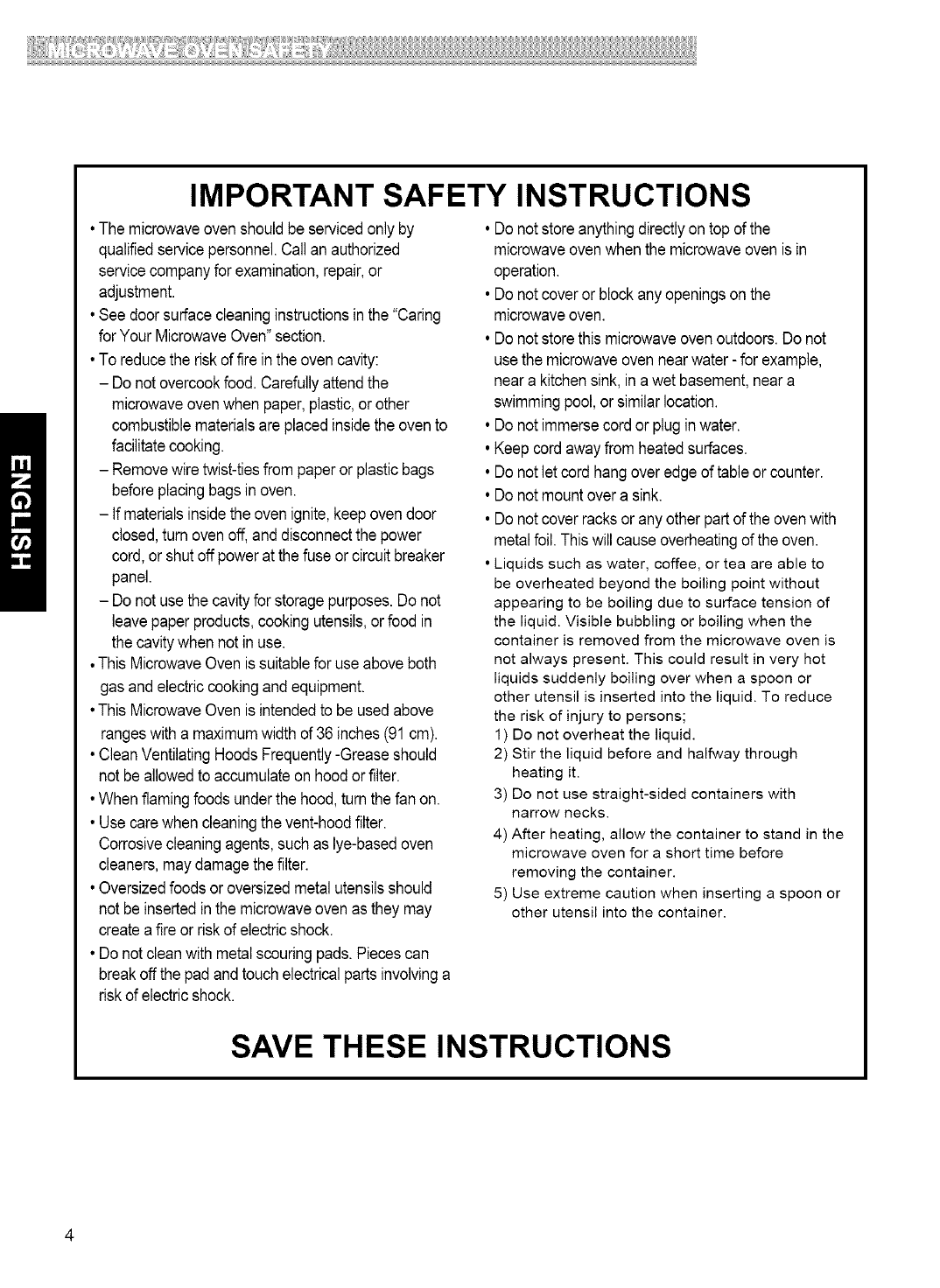

IMPORTANT SAFETY INSTRUCTIONS

• The microwaveoven shouldbe servicedonly by

qualifiedservicepersonnel.Call an authorized

servicecompanyfor examination,repair,or

adjustment.

• See doorsurfacecleaninginstructionsinthe "Caring

for Your MicrowaveOven"section.

• To reducethe riskof fire in theoven cavity:

- Do not overcookfood. Carefullyattendthe

microwaveovenwhen paper, plastic,orother

combustiblematerialsareplaced insidethe ovento

facilitatecooking.

- Removewire twist-tiesfrom paperor plasticbags

beforeplacingbags inoven.

- If materialsinsidethe oven ignite,keep oven door

closed,turn ovenoff, anddisconnectthe power

cord,or shutoffpower at the fuseor circuitbreaker

panel.

- Do not use the cavityfor storagepurposes.Do not

leavepaperproducts,cookingutensils,orfood in

the cavitywhen not in use.

• ThisMicrowaveOven is suitablefor use above both

gas and electriccookingandequipment.

• ThisMicrowaveOven is intendedto be usedabove

rangeswith a maximumwidthof 36inches(91 cm).

• CleanVentilatingHoods Frequently-Greaseshould

not be allowedto accumulateon hoodorfilter.

• When flamingfoodsunderthe hood, turnthe fan on.

• Usecarewhen cleaningthe vent-hoodfilter.

Corrosivecleaningagents,such as lye-basedoven

cleaners,maydamagethe filter.

• Oversizedfoods oroversizedmetalutensilsshould

not be insertedin the microwaveoven as theymay

createafire or riskof electricshock.

• Donot clean withmetalscouringpads.Piecescan

break offthe pad andtouchelectricalparts involvinga

riskof electricshock.

• Do not store anything directly on top of the

microwave oven when the microwave oven is in

operation.

• Do not cover or block any openings on the

microwave oven.

• Do not store this microwave oven outdoors. Do not

use the microwave oven near water - for example,

near a kitchen sink, in a wet basement, near a

swimming pool, or similar location.

• Do not immerse cord or plug in water.

• Keep cord away from heated surfaces.

• Do not let cord hang over edge of table or counter.

• Do not mount over a sink.

• Do not cover racks or any other part of the oven with

metal foil. This will cause overheating of the oven.

• Liquids such as water, coffee, or tea are able to

be overheated beyond the boiling point without

appearing to be boiling due to surface tension of

the liquid. Visible bubbling or boiling when the

container is removed from the microwave oven is

not always present. This could result in very hot

liquids suddenly boiling over when a spoon or

other utensil is inserted into the liquid. To reduce

the risk of injury to persons;

1) Do not overheat the liquid.

2) Stir the liquid before and halfway through

heating it.

3) Do not use straight-sided containers with

narrow necks.

4) After heating, allow the container to stand in the

microwave oven for a short time before

removing the container.

5) Use extreme caution when inserting a spoon or

other utensil into the container.

SAVE THESE INSTRUCTIONS

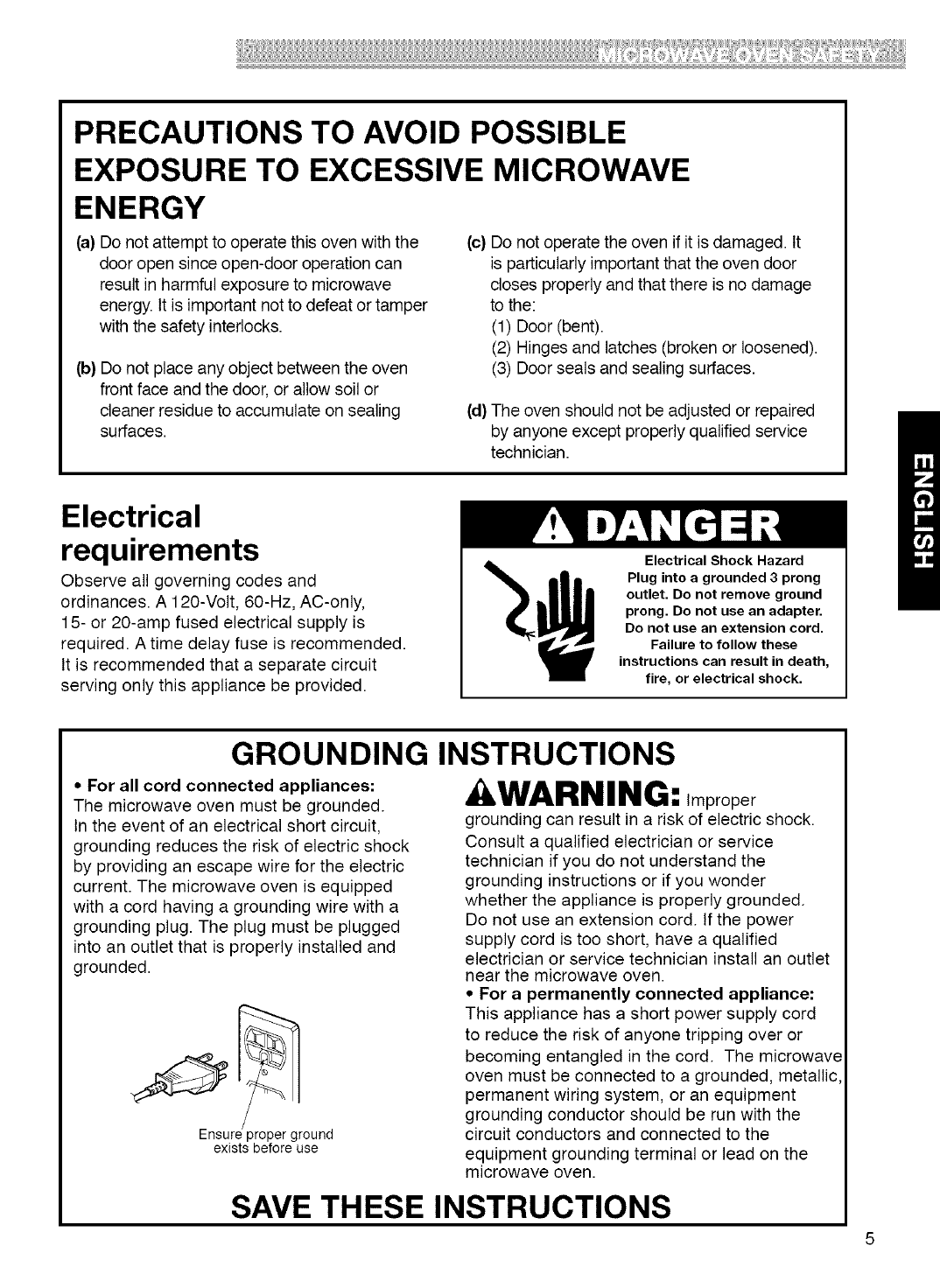

PRECAUTIONS TO AVOID POSSIBLE

EXPOSURE TO EXCESSIVE MICROWAVE

ENERGY

(a) Do not attempt to operate this oven withthe

door open since open-door operation can

result in harmful exposure to microwave

energy. It is important not to defeat or tamper

with the safety interlocks.

(b) Do not place any object between the oven

front face and the door, or allow soil or

cleaner residue to accumulate on sealing

surfaces.

is particularly important that the oven door

closes properly and that there is no damage

to the:

(1) Door (bent).

(2) Hinges and latches (broken or loosened).

(3) Door seals and sealing surfaces.

(d) The oven should not be adjusted or repaired

by anyone except properly qualified service

technician.

Electrical

requirements

Observe all governing codes and

ordinances. A 120-Volt, 60-Hz, AC-only,

15- or 20-amp fused electrical supply is

required. A time delay fuse is recommended.

It is recommended that a separate circuit

serving only this appliance be provided.

Electrical Shock Hazard

Plug into a grounded 3 prong

outlet. Do not remove ground

prong. Do not use an adapter.

Do not use an extension cord.

Failure to follow these

instructions can result in death,

fire, or electrical shock.

GROUNDING INSTRUCTIONS

•For all cord connected appliances:

The microwave oven must be grounded.

In the event of an electrical short circuit,

grounding reduces the risk of electric shock

by providing an escape wire for the electric

current. The microwave oven is equipped

with a cord having a grounding wire with a

grounding plug. The plug must be plugged

into an outlet that is properly installed and

grounded.

Ensure/proper ground

exists before use

kWARNING: Improper

grounding can result in a risk of electric shock.

Consult a qualified electrician or service

technician if you do not understand the

grounding instructions or if you wonder

whether the appliance is properly grounded.

Do not use an extension cord. If the power

supply cord is too short, have a qualified

electrician or service technician install an outlet

near the microwave oven.

• For a permanently connected appliance:

This appliance has a short power supply cord

to reduce the risk of anyone tripping over or

becoming entangled in the cord. The microwave

oven must be connected to a grounded, metallic,

permanent wiring system, or an equipment

grounding conductor should be run with the

circuit conductors and connected to the

equipment grounding terminal or lead on the

microwave oven.

SAVE THESE INSTRUCTIONS

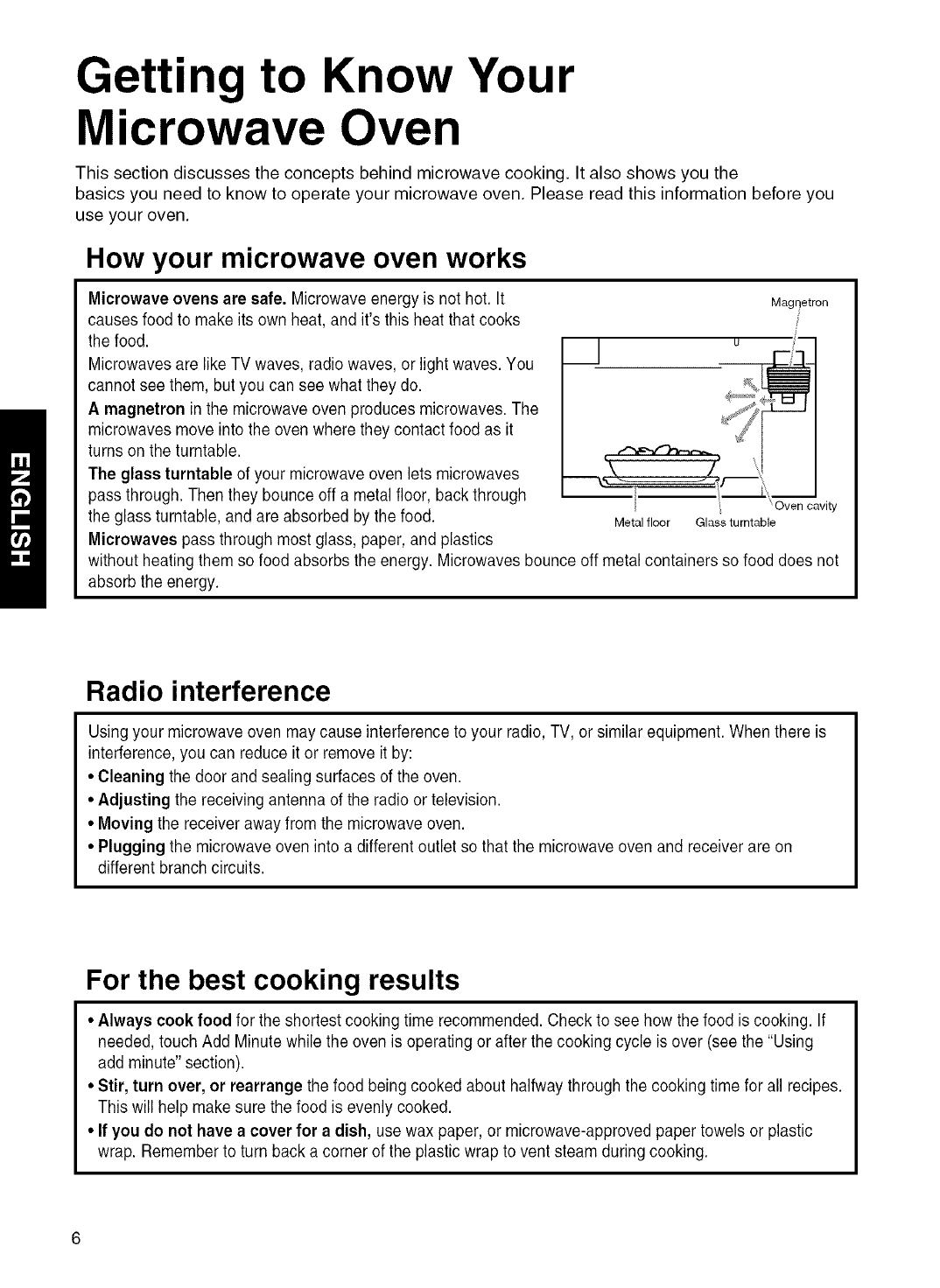

Gettin to Know Your

Microwave Oven

This section discusses the concepts behind microwave cooking. It also shows you the

basics you need to know to operate your microwave oven. Please read this information before you

use your oven.

How your microwave oven works

Microwave ovens are safe. Microwave energy is not hot. It Magnetron

causes food to make its own heat, and it's this heat that cooks

the food.

Microwaves are like TV waves, radio waves, or light waves. You

cannot see them, but you can see what they do.

A magnetron in the microwave oven produces microwaves. The

microwaves move into the oven where they contact food as it

turns on the turntable.

The glass turntable of your microwave oven lets microwaves

pass through. Then they bounce off a metal floor, back through oven cavity

the glass turntable, and are absorbed by the food. Metalfloor Glassturntable

Microwaves pass through most glass, paper, and plastics

without heating them so food absorbs the energy. Microwaves bounce off metal containers so food does not

absorb the energy.

Radio interference

Using your microwave oven may cause interference to your radio, TV, or similar equipment. When there is

interference, you can reduce it or remove it by:

• Cleaning the door and sealing surfaces of the oven.

• Adjusting the receiving antenna of the radio or television.

• Moving the receiver away from the microwave oven.

• Plugging the microwave oven into a different outlet so that the microwave oven and receiver are on

different branch circuits.

For the best cooking results

•Always cook food for the shortest cooking time recommended. Check to see how the food is cooking. If

needed, touch Add Minute while the oven is operating or after the cooking cycle is over (see the "Using

add minute" section).

• Stir, turn over, or rearrange the food being cooked about halfway through the cooking time for all recipes.

This will help make sure the food is evenly cooked.

• If you do not have a cover for a dish, use wax paper, or microwave-approved paper towels or plastic

wrap. Remember to turn back a corner of the plastic wrap to vent steam during cooking.

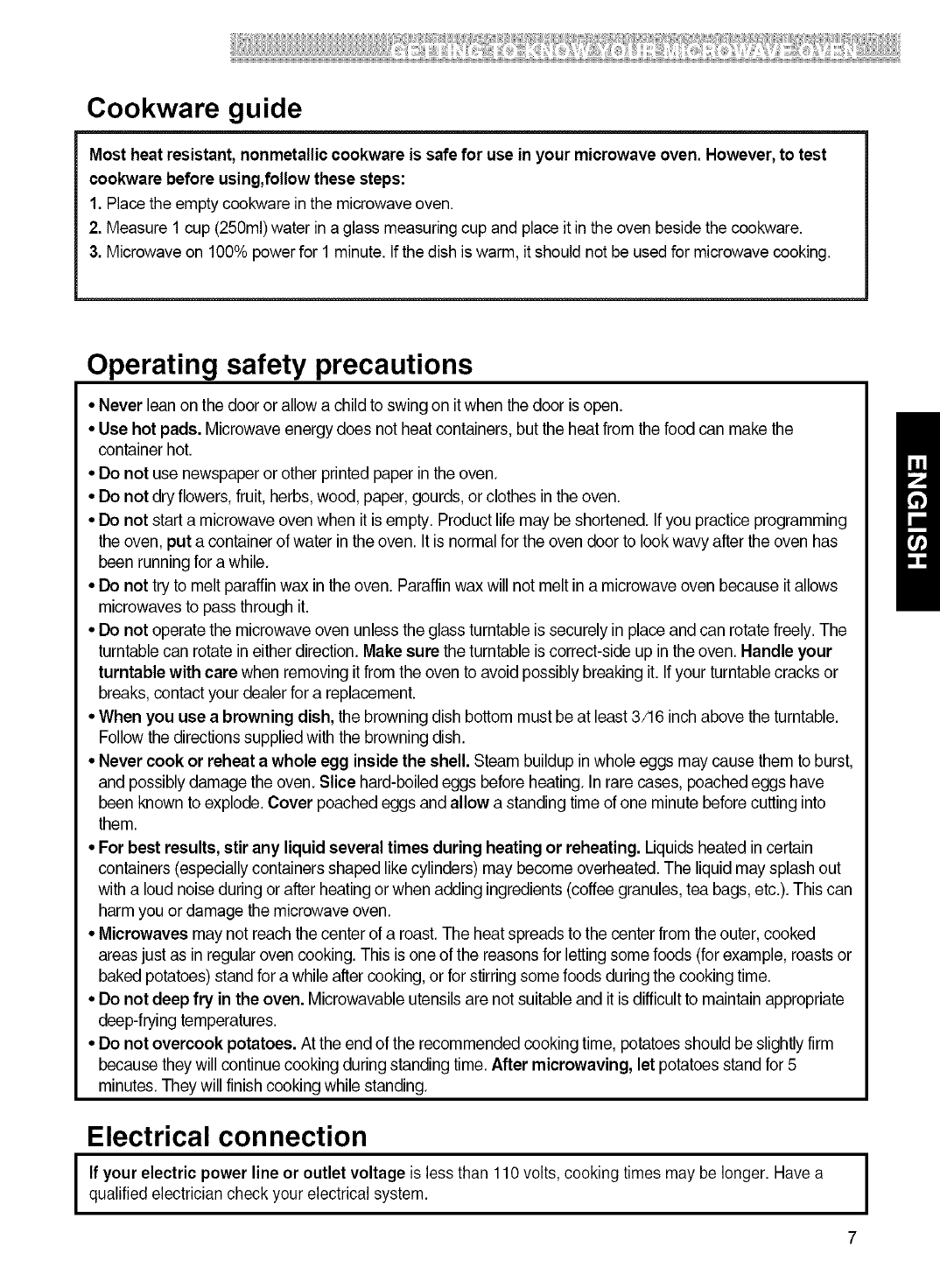

Cookware guide

Most heat resistant, nonmetallic cookware is safe for use in your microwave oven. However, to test

cookware before using,follow these steps:

1. Place the empty cookware in the microwave oven.

2. Measure 1cup (250ml) water ina glass measuring cup and place it in the oven beside the cookware.

3. Microwave on 100% power for 1 minute. If the dish is warm, it should not be used for microwave cooking.

Operating safety precautions

•Never lean on the door or allow a child to swing on it when the door is open.

• Use hot pads. Microwave energy does not heat containers, but the heat from the food can make the

container hot.

• Do not use newspaper or other printed paper inthe oven.

• Do not dry flowers, fruit, herbs, wood, paper, gourds, or clothes in the oven.

• Do not start a microwave oven when it is empty. Product life may be shortened. Ifyou practice programming

the oven, put a container of water in the oven. Itis normal for the oven door to look wavy after the oven has

been runningfor a while.

• Do not try to melt paraffin wax in the oven. Paraffin wax will not melt in a microwave oven because it allows

microwaves to pass through it.

• Do not operate the microwave oven unless the glass turntable is securely in place and can rotate freely. The

turntable can rotate in either direction. Make sure the turntable is correct-side up in the oven. Handle your

turntable with care when removing it from the oven to avoid possibly breaking it. If your turntablecracks or

breaks, contact your dealer for a replacement.

• When you use a browning dish, the browning dish bottom must be at least 3/16 inch above the turntable.

Followthe directions supplied with the browning dish.

• Never cook or reheat a whole egg inside the shell. Steam buildup in whole eggs may cause them to burst,

and possibly damage the oven. Slice hard-boiled eggs before heating. In rare cases, poached eggs have

been known to explode. Cover poached eggs and allow a standing time of one minute before cutting into

them.

•For best results, stir any liquid several times during heating or reheating. Liquids heated in certain

containers (especially containers shaped like cylinders) may become overheated. The liquid may splash out

with a loud noise during or after heating or when adding ingredients (coffee granules, tea bags, etc.). This can

harm you or damage the microwave oven.

•Microwaves may not reach the center of a roast. The heat spreads to the center from the outer, cooked

areas just as in regular oven cooking. This is one of the reasons for letting some foods (for example, roasts or

baked potatoes) stand for a while after cooking, or for stirring some foods during the cooking time.

• Do not deep fry in the oven. Microwavable utensils are not suitable and it is difficultto maintain appropriate

deep-frying temperatures.

• Do not overcook potatoes. At the end of the recommended cooking time, potatoes should be slightly firm

because they will continue cooking during standing time. After microwaving, let potatoes stand for 5

minutes. They will finish cooking while standing.

Electrical connection

I If your electric power line or outlet voltage is less than 110 volts, cooking times may be longer. Have a

qualified electrician check your electrical system. I

:I:17!,III!IIII!7!!7!!Liiii!!!ii:ii l!i:i,liiiiii iiii::!!i:il;;!i ii !ii ili117! ili!iii!!!iiiillliilliil

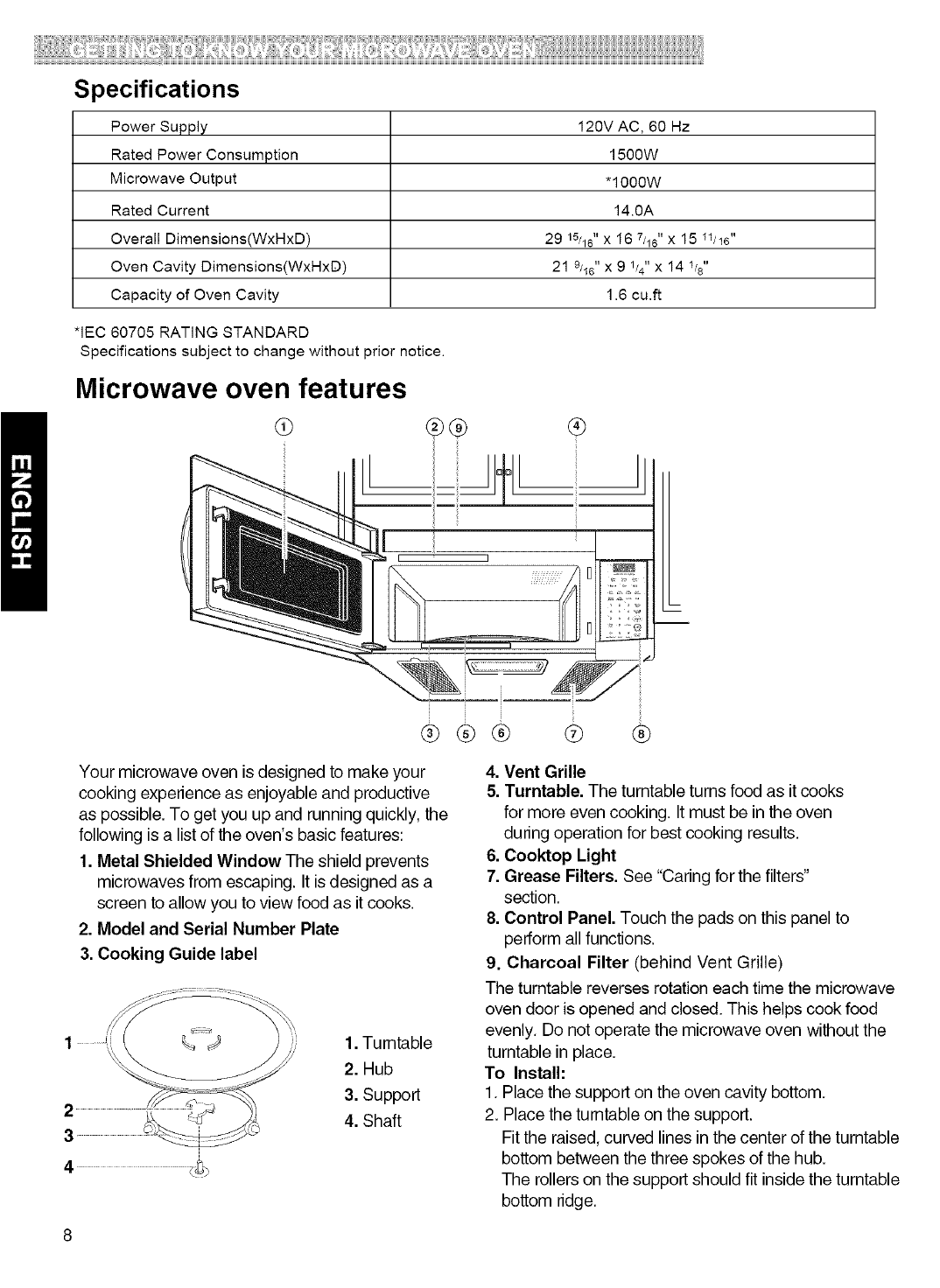

Specifications

Power Supply

Rated Power Consumption

Microwave Output

Rated Current

Overall Dimensions(WxHxD)

Oven Cavity Dimensions(WxHxD)

Capacity of Oven Cavity

*IEC 60705 RATING STANDARD

Specifications subject to change without prior notice.

Microwave oven features

120V AC, 60 Hz

1500W

*1000W

14.0A

29 15/16" x 16 7/16" X 15 11/I6"

21 9/I6" x 9 1/4" x 14 1/8"

1.6 cu.ft

®®® ® ®

Your microwave oven is designed to make your

cooking experience as enjoyable and productive

as possible. To get you up and running quickly, the

following is a list of the oven's basic features:

1. Metal Shielded Window The shield prevents

microwaves from escaping. It is designed as a

screen to allow you to view food as it cooks.

2. Model and Serial Number Plate

1. Turntable

2. Hub

3. Support

4. Shaft

3. Cooking Guide label

4. Vent Grille

5. Turntable. The turntable turns food as it cooks

for more even cooking. It must be in the oven

during operation for best cooking results.

6. Cooktop Light

7. Grease Filters. See "Caring for the filters"

section,

8. Control Panel. Touch the pads on this panel to

perform all functions.

9. Charcoal Filter (behind Vent Grille)

The turntable reverses rotation each time the microwave

oven door is opened and closed, This helps cook food

evenly, Do not operate the microwave oven without the

turntable in place.

To Install:

1, Place the support on the oven cavity bottom,

2. Place the turntable on the support.

Fit the raised, curved lines in the center of the turntable

bottom between the three spokes of the hub.

The rollers on the support should fit inside the turntable

bottom ridge.

i!iiiii!iiii_!ii!ii!!!!!!!!!!!!!!!!!!!!!!!!!_ii:!!ii!!X_iii!ijXi_ii7ii_!!!}:iiiiii;iii:i_!i!i_i_!!!;;_::_!!_!_i_i::_!_ii!_i_i_!;_i_!_:_!!_i_S:_!!:_!!ii ;ii!i_!i:i_iii!!!!!!!!iil

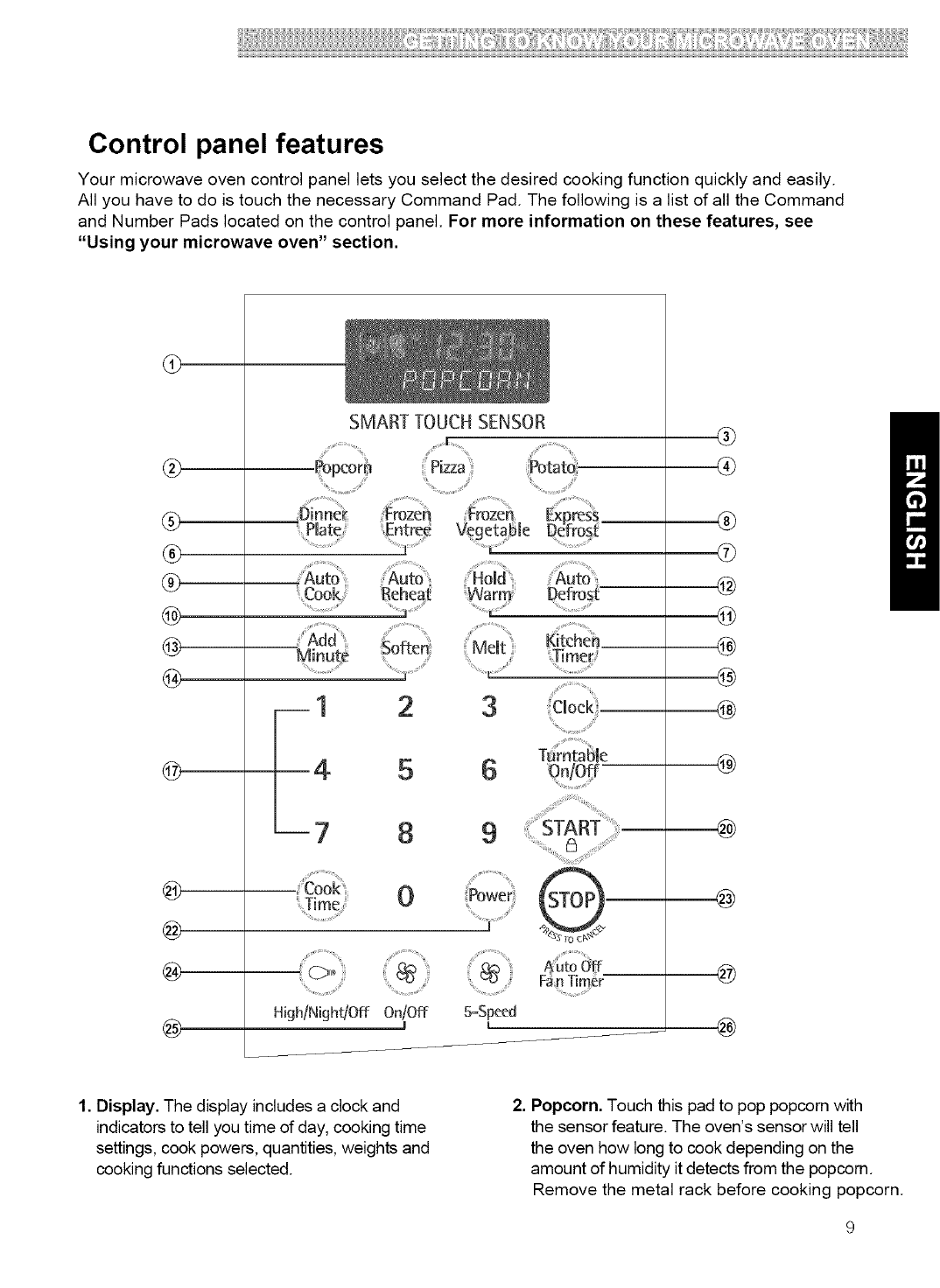

Control panel features

Your microwave oven control panel lets you select the desired cooking function quickly and easily.

All you have to do is touch the necessary Command Pad. The following is a list of all the Command

and Number Pads located on the control panel. For more information on these features, see

"Using your microwave oven" section.

SMART TOUCHSENSOR

Defrost

Kitche_

Time_

1. Display. The display includes a clock and

indicators to tell you time of day, cooking time

settings, cook powers, quantities, weights and

cooking functions selected.

2. Popcorn. Touch this pad to pop popcorn with

the sensor feature. The oven's sensor will tell

the oven how long to cook depending on the

amount of humidity it detects from the popcorn.

Remove the metal rack before cooking popcorn.

i!iiiii!iiii !i!!!ii!!!!i!lii iiii!ii iiiiiiiiiiiiiiiiiiiiiiiiiill !!!iiiiiii!! ililiiii!!iiii:i:ii!!iiii!iilii!!!!!ii!iiiiiii!i!iii!i!!iiiiii:!iiii!i!i!iii!ii i!!!!iiIii

3. Pizza. Touch this pad to reheat one or several

slices of pizza without entering a cook time or

power.

4. Potato. Touch this pad to cook potatoes without

entering a cook time or power.

5. Dinner Plate. Touch this pad to cook without

entering a cook time or power.

6. Frozen Entree. Touch this pad to cook a 10 to

20 ounce (284 to 567 g) frozen entree without

entering a cook time or power.

7. Frozen Vegetable. Touch this pad to cook

without entering a cook time or power.

8. Express Defrost. Touch this pad to express

defrost. "GROUND BEEF 1.0 LBS TOUCH

START" will appear in the display.

9. Auto Cook. Touch this pad to cook

microwavable foods without entering a cook

time or power.

10. Auto Reheat. Touch this pad to reheat

microwavable foods without entering a cook

time or power.

11. Hold Warm. Touch this pad to keep hot,

cooked foods safely warm in your oven for up

to 99 minutes, 99 seconds. Hold Warm can be

used by itself, or it can automatically follow a

cooking cycle.

12. Auto Defrost. Touch this pad followed by

Number Pads to thaw frozen meat by weight.

13. Add Minute. Touch this pad to cook for 1

minute at 100% cook power, or to add extra

minutes at the set cook power to your cooking

cycle.

14. Soften. Touch this pad to soften butter, ice

cream, cream cheese, or frozen juice.

15. Melt. Touch this pad to melt butter or

margarine, chocolate, cheese, or

marshmallows.

16. Kitchen Timer. Touch this pad to set the

kitchen timer.

17. Number Pads. Touch number pads to enter

cooking times, cook powers, quantities,

weights, or food categories.

18. Clock. Touch this pad to enter the correct time

of day.

19. Turntable On/Off. Touch this pad to turn off

the turntable. "T/TABLE OFF" will appear in the

display.

20. START. Touch this pad to start a function. If

the door is opened after the oven begins

to cook, retouch START.

21. Cook Time. Touch this pad followed by

Number Pads to set a cooking time.

22. Power. Touch this pad after the cook time has

been set, followed by a Number Pad to set the

amount of microwave energy released to cook

the food. The higher the number, the higher the

microwave power or "cooking speed."

23. STOP. Touch this pad to erase an

incorrect command, cancel a program during

cooking, or to clear the Display.

24. Light (O_,). Touch this pad to turn the light on

high, night (low) or off.

25.

26.

27.

Fan (_) On/Off. Touch this pad to turn the

fan on or off.

Fan (_) 5 Speed. Touch this pad to choose

one of 5 fan speeds.

Auto Off Fan Timer. Touch this pad followed by

Number pad to set a time for the fan stopping

automatically.

NOTE: A programming tone will sound each time

you touch a pad. If you try to enter incorrect

instruction you will not hear any tones. Touch

STOP and re-enter the instructions.

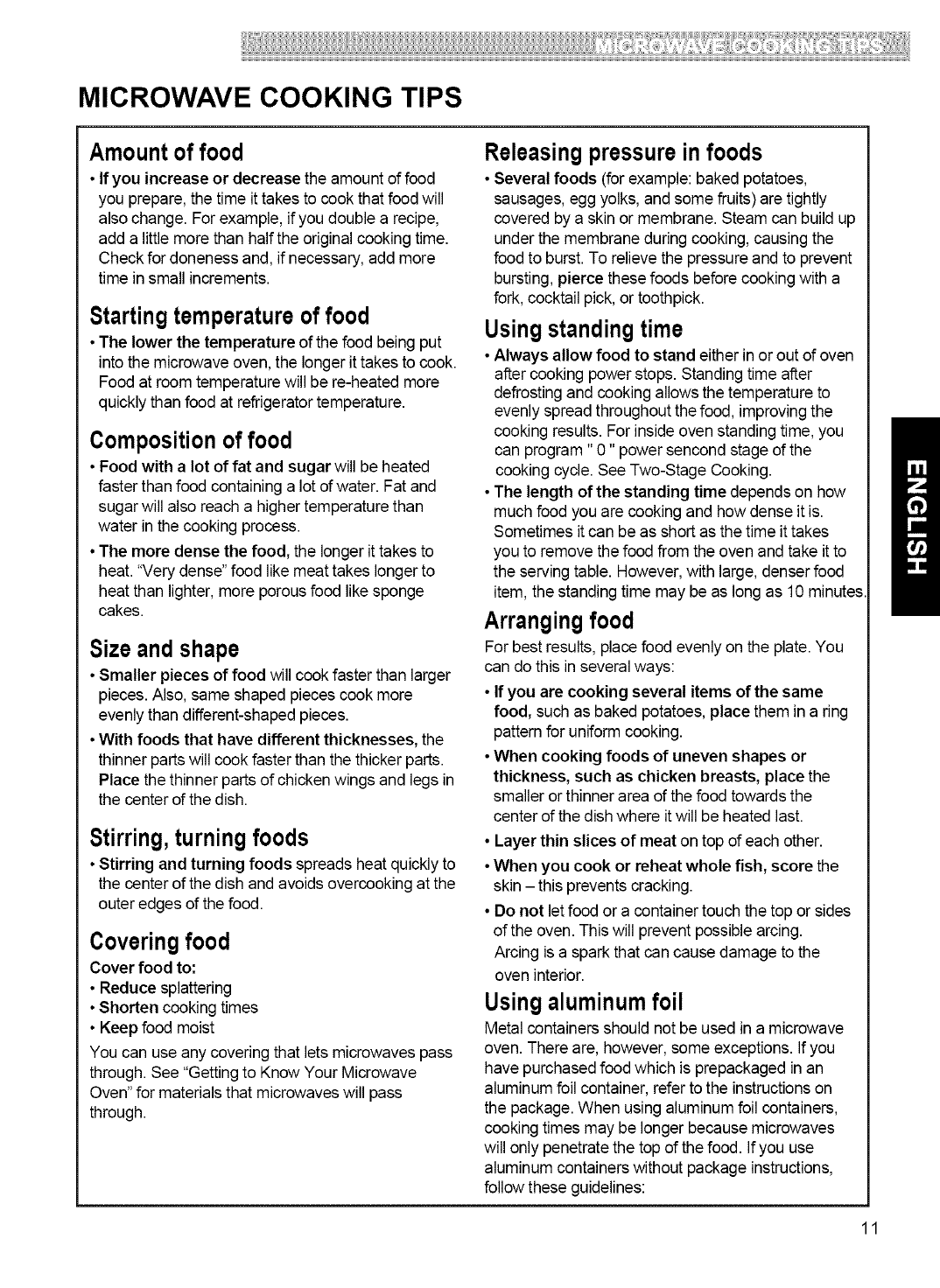

MICROWAVE COOKING TIPS

Amount of food

•Ifyou increase or decrease the amount of food

you prepare, the time it takes to cook that food will

also change. For example, if you double a recipe,

add a little more than half the original cooking time.

Check for doneness and, if necessary, add more

time insmall increments.

Starting temperature of food

• The lower the temperature of the food being put

into the microwave oven, the longer it takes to cook.

Food at room temperature will be re-heated more

quickly than food at refrigerator temperature.

Composition of food

• Food with a lot of fat and sugar will be heated

faster than food containing a lot of water. Fat and

sugar will also reach a highertemperature than

water in the cooking process.

• The more dense the food, the longer it takes to

heat. "Very dense" food like meat takes longer to

heat than lighter, more porous food like sponge

cakes.

Size and shape

• Smaller pieces of food will cook faster than larger

pieces. Also, same shaped pieces cook more

evenly than different-shaped pieces.

• With foods that have different thicknesses, the

thinner partswill cook faster than the thicker parts.

Place the thinner partsof chicken wings and legs in

the center of the dish.

Stirring, turning foods

•Stirring and turning foods spreadsheat quicklyto

the center of the dish and avoids overcooking at the

outer edges of the food.

Covering food

Cover food to:

•Reduce splattering

•Shorten cooking times

•Keepfood moist

You can use any covering that lets microwaves pass

through. See "Getting to Know Your Microwave

Oven" for materials that microwaves will pass

through.

Releasing pressure in foods

•Several foods (forexample:baked potatoes,

sausages, egg yolks, and some fruits) are tightly

covered by a skin or membrane. Steam can build up

under the membrane during cooking, causing the

food to burst. To relieve the pressureand to prevent

bursting, pierce these foods before cooking with a

fork, cocktail pick, or toothpick.

Using standing time

• Always allow food to stand either in or out of oven

after cooking power stops. Standing time after

defrosting and cooking allows the temperature to

evenly spread throughout the food, improving the

cooking results. For inside oven standing time, you

can program "0" power sencond stage of the

cooking cycle. See Two-Stage Cooking.

• The length of the standing time depends on how

much food you are cooking and how dense it is.

Sometimes it can be as short as the time it takes

you to remove the food from the oven and take it to

the serving table. However,with large, denser food

item, the standing time may be as long as 10 minutes.

Arranging food

For best results, place food evenly on the plate. You

can do this in several ways:

• If you are cooking several items of the same

food, such as baked potatoes, place them in a ring

pattern for uniform cooking.

• When cooking foods of uneven shapes or

thickness, such as chicken breasts, place the

smaller or thinner area of the food towards the

center of the dish where it will be heated last.

• Layer thin slices of meat on top of each other.

• When you cook or reheat whole fish, score the

skin - this prevents cracking.

• Do not let food or a container touch the top or sides

of the oven. This will prevent possible arcing.

Arcing is a spark that can cause damage to the

oven interior.

Using aluminum foil

Metal containers should not be used in a microwave

oven. There are, however, some exceptions. If you

have purchased food which is prepackaged in an

aluminum foil container, refer to the instructionson

the package. When using aluminum foil containers,

cooking times may be longer because microwaves

will only penetrate the top of the food. If you use

aluminum containers without package instructions,

follow these guidelines:

;ii!!;i;!!!;_iii!!;iii!_i_ii!_'ii!!!!_!!!iii!!!i!!!i!!iii!i!!!i_'i_!i:ii!_iii!_i'!i_ii!i'i_i'i!i!i!!!i_i'i'i_!!!!iiiiiiiiilii!iiiliii!!iii!!_!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

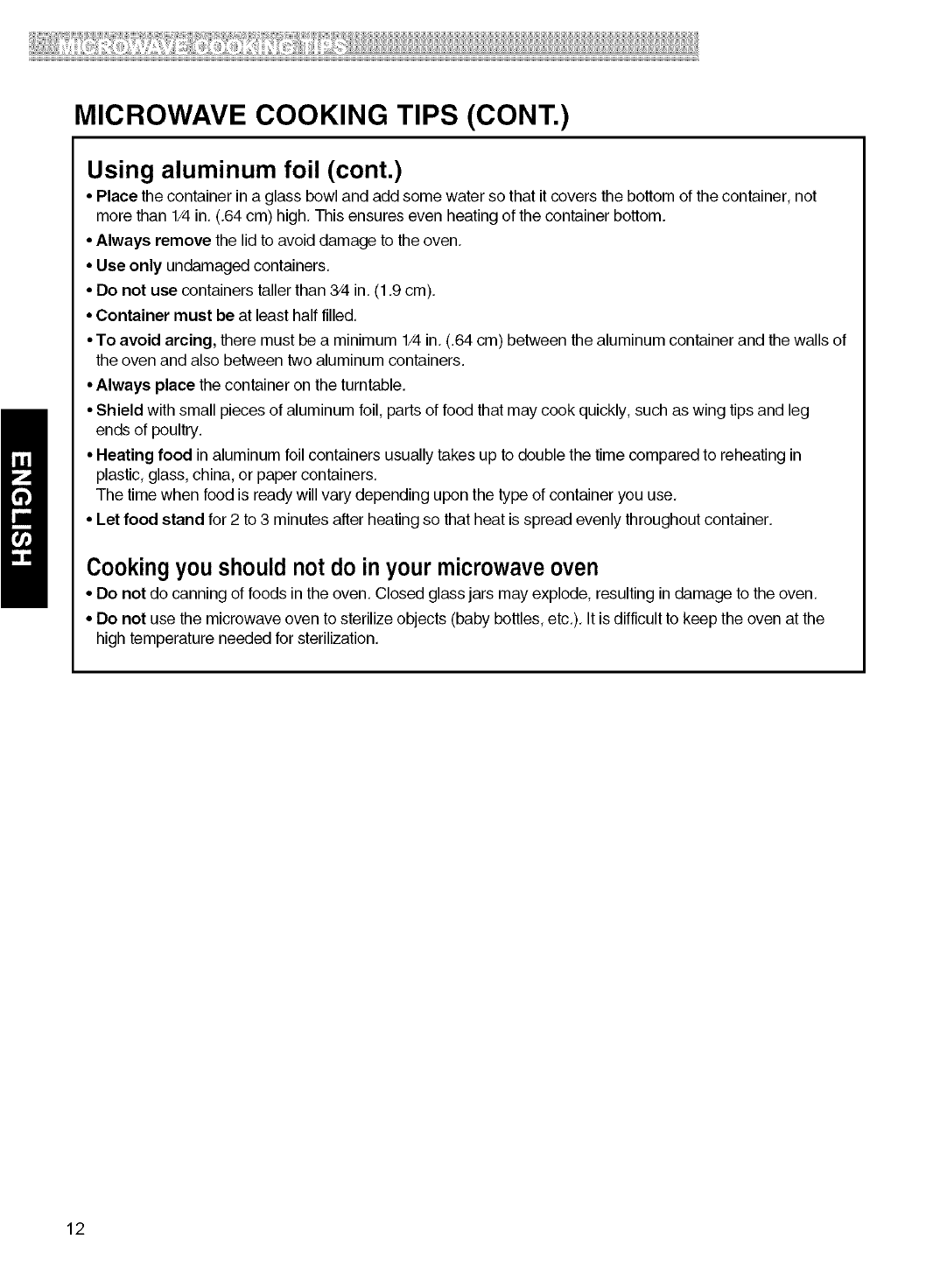

MICROWAVE COOKING TIPS (CONT.)

Using aluminum foil (cont.)

•Place the container in a glass bowl and add some water so that it covers the bottom of the container, not

more than 1/4in, (.64 cm) high, This ensures even heating of the container bottom.

• Always remove the lid to avoid damage to the oven,

• Use only undamaged containers,

• Do not use containers taller than 3/4 in. (1.9 cm),

• Container must be at least half filled,

• To avoid arcing, there must be a minimum 1/4in, (.64 cm) between the aluminum container and the walls of

the oven and also between two aluminum containers.

• Always place the container on the turntable,

• Shield with small pieces of aluminum foil, parts of food that may cook quickly, such as wing tips and leg

ends of poultry.

•Heating food in aluminum foil containers usually takes up to double the time compared to reheating in

plastic,glass, china, or paper containers,

The time when food is ready will vary depending upon the type of container you use,

• Let food stand for 2 to 3 minutes after heating so that heat is spread evenly throughout container.

Cooking you should not do in your microwave oven

•Do not do canning of foods in the oven, Closed glassjars may explode, resulting in damage to the oven,

• Do not use the microwave oven to sterilize objects (baby bottles, etc,), It is difficultto keep the oven at the

high temperature needed for sterilization,

Using Your Microwave

Oven

This section gives you instructions for operating

each function. Please read these instructions

carefully.

AUDIBLE SIGNALS

Audible signals are available to guide you when

setting and using your oven:

•A programming tone will sound each time

you toucha pad.

•Seven tones signal the end efa Kitchen Timer

countdown.

•Four tones signal the end of a cooking cycle.

CLOCK

When your microwave oven is first plugged in or

after a power failure, the Display will show "PLEASE

SET TIME OF DAY ". If a time of day is not set,

":" will show on the Display until you touch "Clock ".

Example:To set the clock for 10:30 AM.

Touch: Display Shows:

ss ro c_'_

•MT Tim n nsj

2. clock b,,ER ,,,,E uF _'R,

3. 0ll"_ * l"_

I!-' •__£1 TI'_I II- I,_,_,_ E,",'TEP,

,,_•,_ T,_,,,-,,

,_, •_qbRR ,_,_,_ ,

4. PR Tn,,,- ,

Itj/_t/_ _&-

"_IT) ll"_ * l"_

_ll 11.., • --_J ITI-III.JI..'I..ll-_'_'

5. EflTER

6. _ in. ,_

NOTE: You can switch between AM and PM by

touching 1 or 2 after step 4.

INTERRUPTING COOKING

You can stop the oven during a cycle by opening

the door. The oven stops heating and the fan

stops, but the light stays on.

To restart cooking, close the door and Touch

START.

If you do not want to continue cooking,

open the door and touch STOP.

CHILD LOCK

Use this safety feature to lock the control panel

when you are cleaning the oven,or so that children

cannot use the oven unsupervised.

To set CHILD LOCK:

Touch: Display Shows:

1. _ Time of day.

"_/_V_'d4"_ssToc_,_

and hold until

LOCKED appears in

the display (approximately 4 seconds).

To cancel CHILD LOCK:

Touch: Display Shows:

,Touch and hold until

LOCKED

disappears in the

display (approximately 4 seconds).

EXHAUST FAN

The two pads on the bottom center of the control

panel control the 5-speed exhaust fan.

Example: To set exhaust fan speed to level 4.

Touch: Display Shows:

1. 8_ ,c,,c,

L./- t//- L. /

On/Off

This shows the last level until you

select the fan speed level.

5 Speed

Touch until Level 4

iCJ _l

L./- t//- L. &//

3. _FRh' L_r_c

On/Off

Turn off fan when desired

NOTE: If the temperature from the range or cooktop

below the oven gets too hot, the exhaust fan in the

vent hood will automatically turn on at the LEVEL 5

setting to protect the oven.

It may stay on up to an hour to cool the oven.

When this occurs, the 0_o pad will not turn the fan

off. You cannot turn the exhaust fan off during

microwave cooking.

KITCHEN TIMER

Your microwave oven can be used as a kitchen

timer. You can set up to 99 minutes, 99 seconds.

Example: To set 3 minutes.

Touch: Display Shows:

III I_ IT)ll_l

1. Kitchen : EI;'TEP,T,m-II;',,,,

Timer Rl'_n_SEE

* Fh'_ -T "30 T

IUt_lt_

2. 3 :, 6 _-7.uu m,,i-i

3. dJSTART

%_,,_ j_ Time counting down.

AUTO OFF FAN TIMER

Use this pad to set a periodof time for the fan to run.

You can set 1,3, 5, 10or 30 minutes.

Example: To set 3 minutes on level 3.

Touch: Display Shows:

1, _/el,el

L.G t/GL. /

On/Off

This shows the last level until you

select the fan speed level.

2. _, c,,c, _q

5 Speed

Touch until Level 3

,,,,u,E5

3. AutoOff flFTE,__qm,,i,,T--

FanTirner

Twice v_.,,, FI3,, L'TFF

scrolls across display.

Vent fan will stop automatically when the time is over.

The following table shows you the method to use Auto

Off Fan Timer

Touch the pad Time for Fan working

Once 1 minute

Twice 3 minutes

Three times 5 minutes

Four times 10 minutes

Fivetimes 30 minutes

COOKTOP LIGHT

The pad on the bottom left of the control panel

controls the cooktop light.

Example: To set the Lamp for HIGH.

Touch:

1. c>

High/Night!Off

Once for HIGH light.

Twice for NIGHT/LOW light.

Display Shows:

, ,i- ,_ H/

= _

High/Night/Off

To turn off, touch pad one

or two times depending on

light setting.

I If- IT

_,_._H,OFF

i!iii !!!! i :iiii ill!!

TURNTABLE ON/OFF

For best cooking results, leave the turntable on.

It can be turned off for large dishes.

Touch: Display Shows:

Turntable qFF T/ TRSLE

1. On/Off

Turntable nJ,_

2. On/0ff ,.,,, T/TRSLE

Press Turntable On/Off to turn the turntable

on or off.

CAUTION: Sometimes the turntable can become

hot to touch during and after cooking. Do not

run the oven empty without food in it.

EXPRESS DEFROST

One express defrost sequence is preset in the oven,

The Express Defrost feature provides you with the quick

defrosting method for 1.0 pound "GROUND BEEF"

only.

Example: To defrost lib of Ground beef

Touch: Display Shows:

E×press In "aS

1. Defrost JUUL._SI_J

Tit/IF T T

Time counting down and

-v7`3--- n--`3,`3-T

scrolls across display.

TIMED COOKING

This feature lets you program a specific cook time

and power. For best results, there are 10 power

level settings in addition to HIGH (100%) power.

Refer to the "Microwave Power Levels Table" on

page 16 for more information.

NOTE: If you do not select a power level, the oven

will automatically cook at HIGH (100%) power.

Example: To cook for 5minutes, 30 seconds

at 80% power.

Touch: Display Shows:

Cook

1. Time :-I_1T - "3 I-1"31"3Ill,IF

_111 _ I-!.J!.Jr_lll 1!.3 ITIIT)III_-

3, Power

•/`3 -T`3`3T

5.__J TI`31 II- I

/`31_`3 `3/`31 1-1_`3 I -I I-I

`3/`31 1-0 it`3t`3

E/;'TE,?`3'`3"-`3

, -,r, n T,`3.`3

_&;E__, ,_,,_,

" '`3F_.,_,;5_

4. 5. _-?/,`3n,,-`3

L-?L7T,`3,,-,

Time counting down

and POWER 80.

ADD MINUTE

A time-saving pad, this simplified control lets

you quickly set and start microwave cooking at

100% power without the need to touch START.

Example: To cook for 2 minutes.

Touch: Display Shows:

1, _'_O_ Time of day.

*/`3t`3

Add _. uu

2, Minute Twice

Time counting down

and POWER 100.

NOTE: Each time you touch ADD MINUTE, it will

add 1 minute up to 99 min 59 seconds.

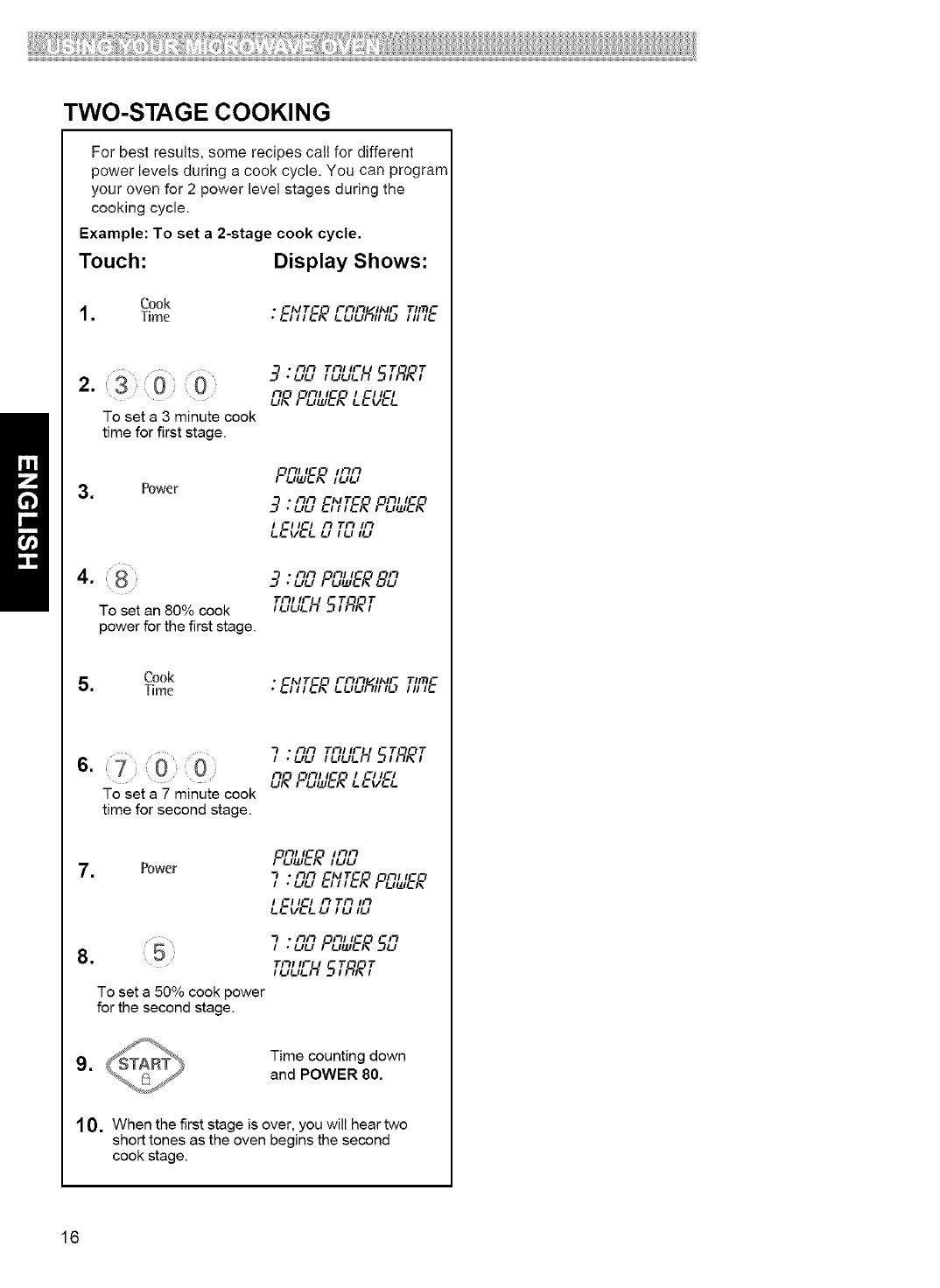

TWO-STAGE COOKING

For best results, some recipes call for different

power levels during a cook cycle. You can program

your oven for 2 power level stages during the

cooking cycle.

Example: To set a2-stage cook cycle.

Touch: Display Shows:

Cook

1. Time : BYTEP,-,-,n.,,,,,-LUU_ll I/-_ ITH7)III_-

2. ,::3 0 0 :

To set a 3 minute cook

time for first stage.

3, Power

4. :ii8•:

To set an 80% cook

power for the first stage.

3 . (.7(.7 Tf31 IF I -T'30T•/_I/_I Iuu/-iL_ _1/'_1\ I

,'_O "3£311-'31 -1 I-1

/-,l\ F/-u/,_ /_E_/_/_

"3£31 I -O iFh'_

3*Fh'_ -hiT- "l "3£311-0•UU _111 _ F/-,II,'_I,

I-,l-I 1-1T,"I l,-I

/-_V_/- UIU I/-,

°l"il"i --II--II I-- --I l"i

9. uu F/-,_,E_8b

TI'31 IF I

,/_,/_,/_7-I5TRET

5, Cook

Time /_UUr/'I'III I/_] TIIT) -: B;'TEE'-'_'_""-,, ,E

* I_I'3 TI31 IF I -T'_OT

o6. : 0 7 •/_,/_,

I'-I _'-II'-II I-- _ ICI I1_1

/_,_ /i/_,U.,E_ /_/-t//-/_

To set a 7 minute cook

time for second stage.

7. Power "3£31I-O /Fh'_

//Ul/l_l\ IUU

* I-II-I -hi T-0

•/-i/-,b,, E,, F/_,_,E_'_"- _

,-,_-, nT,-,,n

/_EVE/_/_,,/_,,/_,

•uu /iuUJ_l\ /_E_U

8. 5Tf_l II- I

,/_,/_,/_7-I5TRET

To set a 50 Vocook power

for the second stage.

9, Time counting down

and POWER 80.

1 0. When the first stage is over, you will hear two

short tones as the oven begins the second

cook stage.

MICROWAVE POWER LEVELS

For best results, some recipes call for different cook

powers. The lower the cook power, the slower the

cooking. Each number from 1 to 9 stands for a

different percentage of full cook power.

The following chart gives the percentage of cook

power each number pad stands for, and the cook

power name usually used.

Italso tells you when to use each cook power. Follow

recipe or food package instructions if available.

NOTE: Referto a reliablecookbook for cooking times

based on the 1000 Watt cook power of your microwave

oven.

COOK Power LEVEL WHEN TO USE IT

100% of full power High • Quickly heating convenience foods and foods with

high water content, such as soups and beverages.

• Cooking tender cuts of meat, ground meat, or

chicken.

9 = 90% of full power • Heating cream soups.

8 = 80% of full power • Heating rice, pasta, or casseroles.

7 = 70% of full power Medium-High • Cooking and heating foods that need a

Cook Power lower than high (for example,

whole fish and meat loaf) or when food is

cooking too fast.

• Reheating a single serving of food.

6 = 60% of full power • Cooking that requires special care, such as cheese

and egg dishes, pudding, and custards.

• Finishing cooking casseroles.

5 = 50% of full power Medium • Cooking ham, whole poultry, and pot roasts.

• Simmering stews.

4 = 40% of full power • Melting chocolate.

• Heating pastries.

3 = 30% of full power Medium-Low, • Manually defrosting foods, such as bread, fish,

Defrost meats, poultry,and precooked foods.

2 = 20% of full power • Softening butter,cheese, and ice cream.

1= 10% of full power Low • Keeping food warm.

• Takingchill out of fruit.

0 = 0% of full power None • Standing time in oven.

NOTE: Once cook time has been entered, you can also use the Cook Power pad as a second Kitchen

Timer by entering "0" for the Cook Power. The oven will count down the cooking time you set without

cooking.

i! 2i! i2 ii: : i i ;i!12! iiili::: 211111!!::

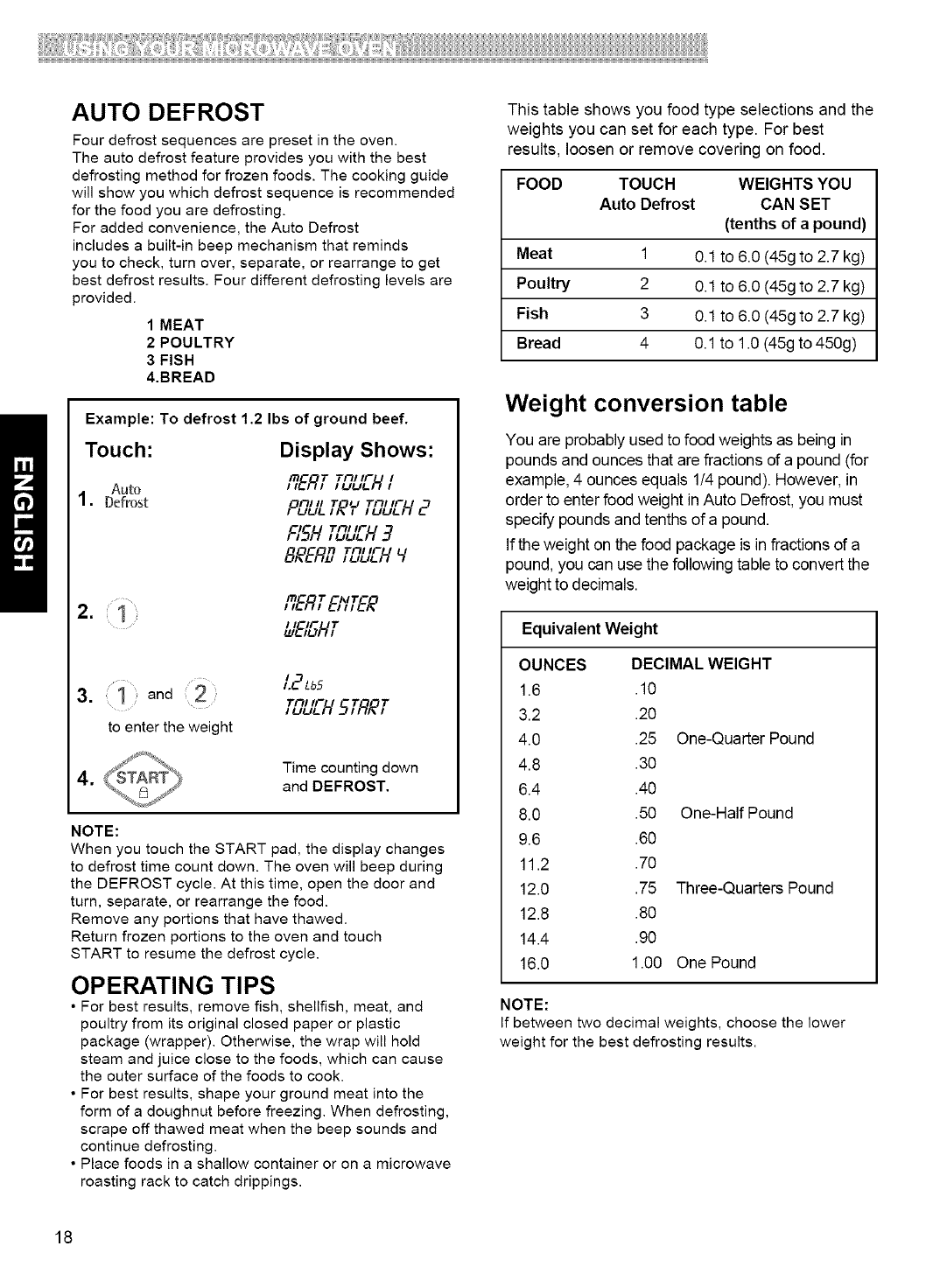

AUTO DEFROST

Four defrost sequences are preset in the oven.

The auto defrost feature provides you with the best

defrosting method for frozen foods. The cooking guide

will show you which defrost sequence is recommended

for the food you are defrosting.

For added convenience, the Auto Defrost

includes a built-in beep mechanism that reminds

you to check, turn over, separate, or rearrange to get

best defrost results. Four different defrosting levels are

provided.

1 MEAT

2 POULTRY

3 FISH

4.BREAD

Auto

1. Defrost

Example: To defrost 1.2 Ibs of ground beef.

Touch: Display Shows:

I?,ERTT_,,,- ,

IUUL. H I

POb"TRY_gb_H2

FISHTOb;SH9

8RERBTOUEH_I

2. ;#,ERTEh'TER

&'EISHT

,and :2 L2,_,s

Tnl If"

,_u_.H5TRRT

to enter the weight

Time counting down

4, and DEFROST.

NOTE:

When you touch the START pad, the display changes

to defrost time count down. The oven will beep during

the DEFROST cycle. At this time, open the door and

turn, separate, or rearrange the food.

Remove any portions that have thawed.

Return frozen portions to the oven and touch

START to resume the defrost cycle.

OPERATING TIPS

• For best results, remove fish, shellfish, meat, and

poultry from its original closed paper or plastic

package (wrapper). Otherwise, the wrap will hold

steam and juice close to the foods, which can cause

the outer surface of the foods to cook.

• For best results, shape your ground meat into the

form of a doughnut before freezing. When defrosting,

scrape off thawed meat when the beep sounds and

continue defrosting.

• Place foods in a shallow container or on a microwave

roasting rack to catch drippings.

This table shows you food type selections and the

weights you can set for each type. For best

results, loosen or remove covering on food.

FOOD TOUCH WEIGHTS YOU

Auto Defrost CAN SET

(tenths of a pound)

Meat 1 0.1 to 6.0 (45g to 2.7 kg)

Poultry 2 0.1 to 6.0 (45g to 2.7 kg)

Fish 3 0.1 to 6.0 (45g to 2.7 kg)

Bread 4 0.1 to 1.0 (45g to 450g)

Weight conversion table

You are probably used to food weights as being in

pounds and ounces that are fractions of a pound (for

example, 4 ounces equals 1/4 pound). However, in

order to enter food weight in Auto Defrost, you must

specify pounds and tenths of a pound.

If the weight on the food package is in fractions of a

pound, you can use the following table to convert the

weight to decimals.

Equivalent Weight

OUNCES DECIMAL WEIGHT

1.6 .10

3.2 .20

4.0 .25

4.8 .30

6.4 .40

8.0 .50

9.6 .60

11.2 .70

12.0 .75

12.8 .80

14.4 .90

16.0 1.00

One-Quarter Pound

One-Half Pound

Three-Quarters Pound

One Pound

NOTE:

If between two decimal weights, choose the lower

weight for the best defrosting results.

ii 2!2111:1!!!ii!!!iiiii!!i!22 i

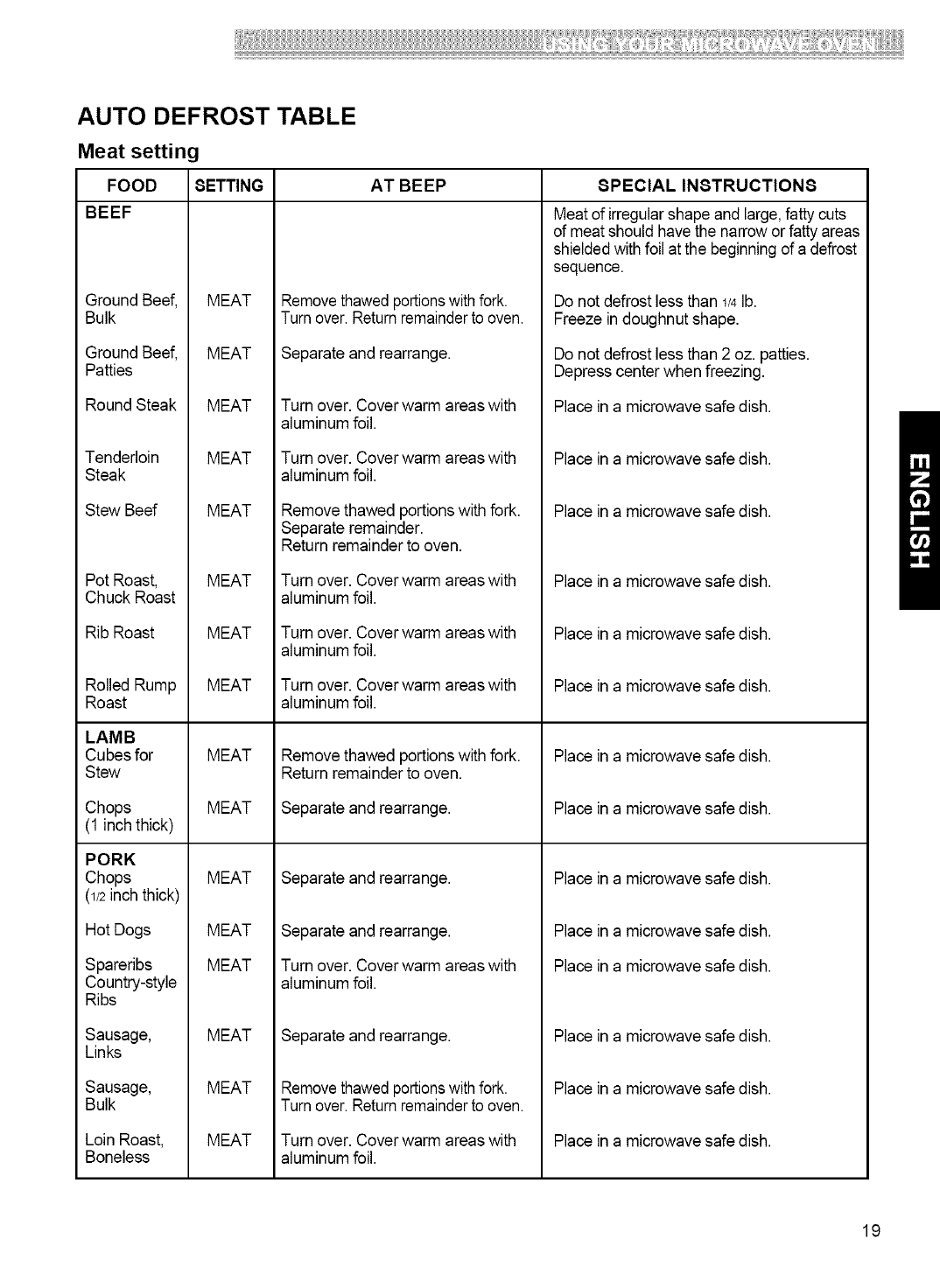

AUTO DEFROST TABLE

Meat setting

FOOD SETTING AT BEEP

BEEF

Ground Beef,

Bulk

Ground Beef,

Patties

Round Steak

Tenderloin

Steak

Stew Beef

Pot Roast,

Chuck Roast

Rib Roast

Rolled Rump

Roast

LAMB

Cubes for

Stew

Chops

(1 inch thick)

PORK

Chops

(1/2inch thick)

Hot Dogs

Spareribs

Country-style

Ribs

Sausage,

Links

Sausage,

Bulk

Loin Roast,

Boneless

MEAT

Removethawedportionswithfork.

Turn over.Returnremainderto oven.

Separate and rearrange.

Turn over. Cover warm areas with

aluminum foil.

Turn over. Cover warm areas with

aluminum foil.

Remove thawed portions with fork.

Separate remainder.

Return remainder to oven.

Turn over. Cover warm areas with

aluminum foil.

Turn over. Cover warm areas with

aluminum foil.

Turn over. Cover warm areas with

aluminum foil.

Remove thawed portions with fork.

Return remainder to oven.

Separate and rearrange.

Turn over. Cover warm areas with

aluminum foil.

Separate and rearrange.

Removethawedportionswithfork.

Turn over.Returnremainderto oven.

Turn over. Cover warm areas with

aluminum foil.

SPECIAL INSTRUCTION8

Meat of irregularshape and large,fatty cuts

of meatshould have the narrow or fattyareas

shielded withfoil at the beginningof a defrost

sequence.

Do not defrost less than 1/4lb.

Freeze indoughnut shape.

Do not defrost less than 2 oz. patties.

Depress center when freezing.

Place in a microwave safe dish.

AUTO DEFROST TABLE (CONT.)

Poultry setting

FOOD SETTING AT BEEP SPECIAL INSTRUCTIONS

CHICKEN

Whole

(up to 6 Ibs)

Cutup

POULTRY Turn over (finishdefrosting breast-

side down). Cover warm areas with

aluminum foil.

Separate pieces and rearrange.

Turn over. Cover warm areas with

aluminum foil.

Place chicken breast-side up in a

microwave safe dish. Finish defrosting by

immersing in cold water. Remove giblets

when chicken is partiallydefrosted.

Place in a microwave safe dish.

Finish defrosting by immersing in cold water.

CORNISH

HENS

Whole POULTRY Turn over. Cover warm areas with Place in a microwave safe dish.

aluminum foil. Finish defrosting by immersing in cold water.

TURKEY

Breast POULTRY Turn over. Cover warm areas with Place in a microwave safe dish.

(up to 6 Ibs) aluminum foil. Finish defrosting by immersing in cold water.

Fish setting

FOOD SETTING SPECIAL INSTRUCTIONS

FISH

Fillets FISH

Steaks

Whole

SHELLFISH

Crabmeat

Lobster tails

Shrimp

Scallops

FISH

AT BEEP

Turn over. Separate fillets when

partially thawed if possible.

Separate and rearrange.

FISH Turn over.

FISH

Break apart. Turn over.

Turn over and rearrange.

Separate and rearrange.

Place in a microwave safe dish.

Carefully separate fillets under cold

water.

Place in a microwave safe dish.

Run cold water over to finish defrosting.

Place in a microwave safe dish.

Cover head and tail with foil, do not let

foil touch sides of microwave. Finish

defrosting by immersing in cold water.

Place in a microwave safe dish.

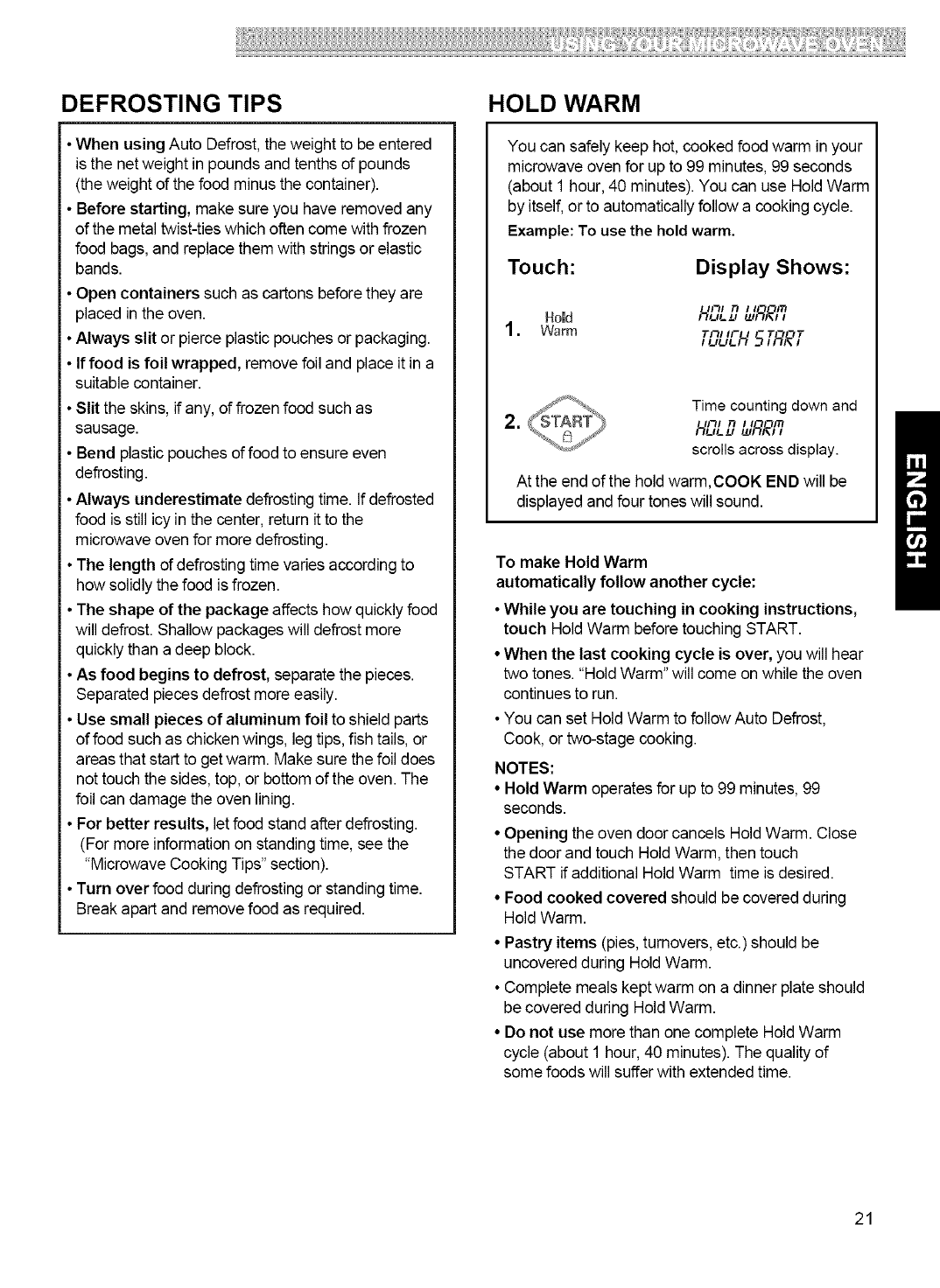

DEFROSTING TIPS HOLD WARM

• When using Auto Defrost, the weight to be entered

is the net weight in pounds and tenths of pounds

(the weight of the food minus the container).

• Before starting, make sure you have removed any

of the metal twist-tieswhich often come with frozen

food bags, and replace them with strings or elastic

bands.

•Open containers such as cartons before they are

placed in the oven.

• Always slit or pierce plastic pouches or packaging.

• If food is foil wrapped, remove foil and place it in a

suitable container.

• Slit the skins, if any, of frozen food such as

sausage.

• Bend plastic pouches of food to ensure even

defrosting.

• Always underestimate defrosting time. If defrosted

food is still icy in the center, return it to the

microwave oven for more defrosting.

• The length of defrosting time varies accordingto

how solidly the food is frozen.

• The shape of the package affects how quickly food

will defrost. Shallow packages will defrost more

quickly than a deep block.

• As food begins to defrost, separate the pieces.

Separated pieces defrost more easily.

• Use small pieces of aluminum foil to shield parts

of food such as chicken wings, legtips, fish tails, or

areas that start to get warm. Make sure the foil does

not touch the sides, top, or bottom of the oven. The

foil can damage the oven lining.

• For better results, let food stand after defrosting.

(For more information on standing time, see the

"Microwave Cooking Tips" section).

• Turn over food during defrosting or standing time.

Break apart and removefood as required.

You can safely keep hot, cooked food warm in your

microwave oven for up to 99 minutes, 99 seconds

(about 1 hour, 40 minutes). You can use Hold Warm

by itself, or to automatically follow a cooking cycle.

Example: To use the hold warm.

Touch: Display Shows:

t£31 _3 !!"3"317)

1Warm zJ'_J.- i -z'_O T

IL/L/L }'_•__,F;,,,

•

Time counting down and

scrolls across display.

At the end of the hold warm,COOK END will be

displayed and four tones will sound.

To make Hold Warm

automatically follow another cycle:

• While you are touching in cooking instructions,

touch Hold Warm before touching START.

• When the last cooking cycle is over, you will hear

two tones. "Hold Warm" will come on while the oven

continues to run.

• You can set Hold Warm to follow Auto Defrost,

Cook, or two-stage cooking.

NOTES:

• Hold Warm operates for up to 99 minutes, 99

seconds.

• Opening the oven door cancels Hold Warm. Close

the door and touch Hold Warm, then touch

START if additional Hold Warm time is desired.

• Food cooked covered should be covered during

Hold Warm.

• Pastry items (pies,turnovers, etc.)should be

uncovered during Hold Warm.

• Complete meals kept warm on a dinner plate should

be covered during Hold Warm.

• Do not use more than one complete Hold Warm

cycle (about 1 hour, 40 minutes). The qualityof

some foods will suffer with extended time.

ii iiiiii!iii!!'i !2¸'¸!iliHii2111111!! ! !!!2121 iiii !!ii:!ii:i!!!ii!!

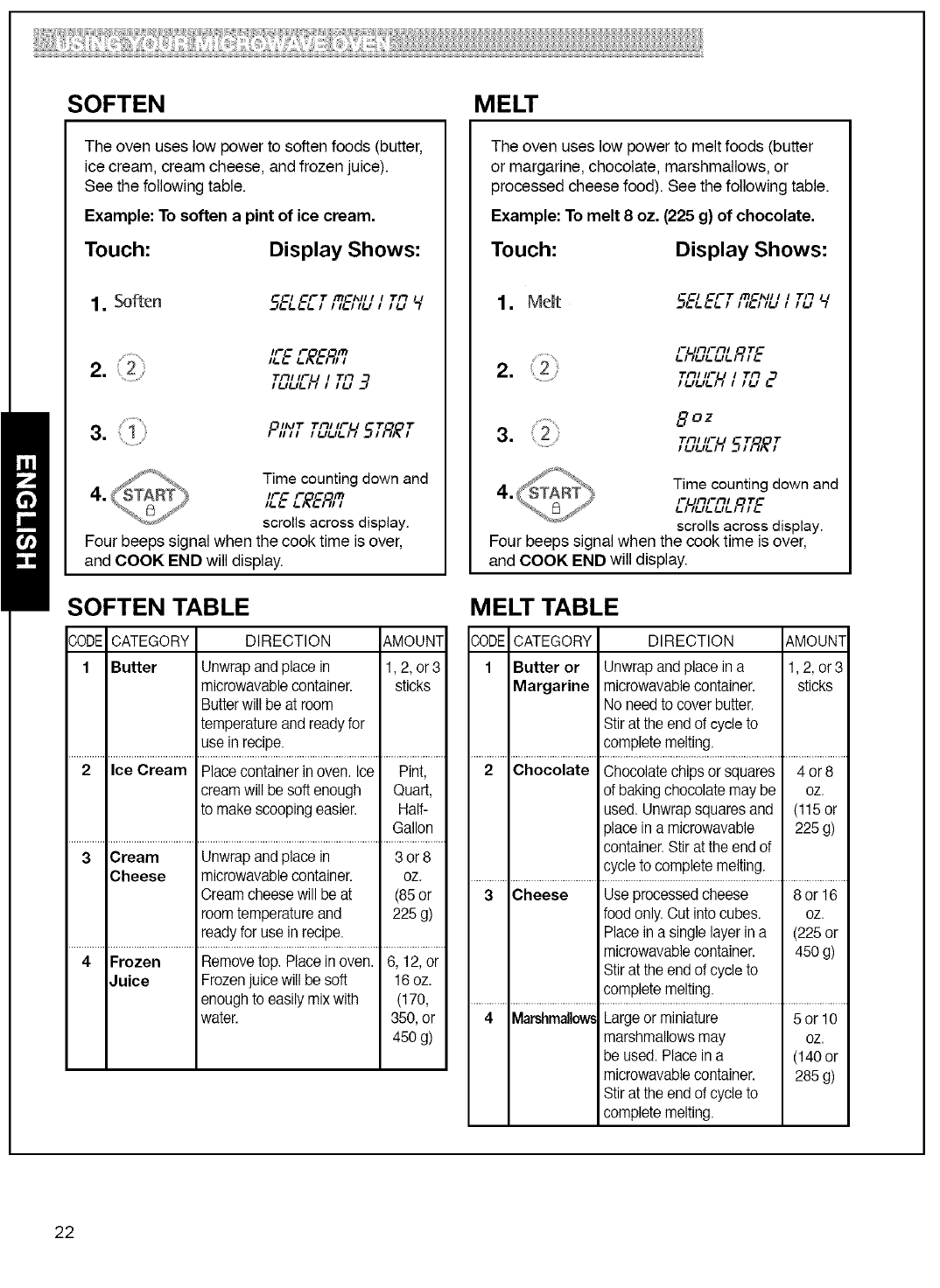

SOFTEN MELT

The oven uses low power to soften foods (butter,

ice cream, cream cheese, and frozen juice).

See the following table.

Example: To soften a pint of ice cream.

Touch: Display Shows:

1. Soften _1 _FT ITI_I',II I I TFI II

-_L_.L / II_.IILI I ILl "1

IFC F Cm

............ ,_ J_'b_,

2. :, Till IFU I Tit

s. "_ll_lT TIIl IFU 7" T

Time counting down and

IEED_£_l

scrolls across display.

Four beeps signal when the cook time is over,

and COOK END will display.

SOFTEN TABLE

CODECATEGORY DIRECTION AMOUNT

1 Butter Unwrap and place in 1, 2, or 3

microwavable container, sticks

Butter will be at room

temperature and ready for

use in recipe.

2 Ice Cream Place container in oven. Ice Pint,

cream will be soft enough Quart,

to make scooping easier. Half-

Gallon

3 Cream Unwrap and place in 3 or 8

Cheese microwavable container, oz.

Cream cheese will be at (85 or

room temperature and 225 g)

ready for use in recipe.

4 Frozen Remove top. Place in oven. 6, 12, or

Juice Frozen juice will be soft 16 oz.

enough to easily mix with (t 70,

water. 350, or

450 g)

The oven uses low power to melt foods (butter

or margarine, chocolate, marshmallows, or

processed cheese food). See the following table.

Example: To melt 8 oz. (225 g) of chocolate.

Touch: Display Shows:

1. Melt _l CFT l_l_ll I I

-_LL.L/ IlL.liLt I Tit

FI.JilFill t_l TC

2, 2 } Till IFU I Tit ,._

............. _OZ

3. ; 2Till IFU T T

Time counting down and

DY2,E2,L,gTE

scrolls across display.

Four beeps signal when the cook time is over,

and COOK END will display.

MELT TABLE

CODECATEGORY DIRECTION AMOUNT

1 Butter or Unwrap and place in a 1, 2, or 3

Margarine microwavable container, sticks

No need to cover butter.

Stir at the end of cycle to

complete melting.

2 Chocolate Chocolate chips or squares 4 or 8

of baking chocolate may be oz.

used. Unwrap squares and (115 or

place in a microwavable 225 g)

container. Stir at the end of

cycle to complete melting.

3 Cheese Use processed cheese 8 or 16

food only. Cut into cubes, oz.

Place in a single layer in a (225 or

microwavable container. 450 g)

Stir at the end of cycle to

complete melting.

4 Marshmallows Large or miniature 5 or 10

marshmallows may oz.

be used. Place in a (140 or

microwavable container. 285 g)

Stir at the end of cycle to

complete melting.

Using Sensor Cooking

SENSOR COOKING

SENSOR OPERATING INSTRUCTIONS

Sensor Cook allows you to cook most of your favorite

foods without selecting cooking times and power

levels. The oven automatically determines required

cooking time for each food item. When the internal

sensor detects a certain amount of humidity coming

from the food, it will tell the oven how much longer to

heat. The display will show the remaining heating

time. For best results by Sensor, following these

recommendations.

• Food cooked with the sensor system should be at

normal storage temperature.

• Glass Tray and outside of container should be dry

to assure best cooking results.

• Foods should always be covered looselywith

microwavable plastic wrap, waxed paper or a lid.

• Do not open the door or touch the "STOP/Clear"

key during the sensing time. When sensing time is

over, the oven beeps twice and the remaining

cooking time will appear in the display window. At

this time you can open the door to stir, turn or

rearrange the food.

SENSOR COOKING GUIDE

Appropriate containers and coverings help assure

good Sensor cooking results.

• Always use microwavable containers and cover

them with lids or vented plasticwrap.

• Never use tight-sealing plastic covers. They can

prevent steam from escaping and cause food to

overcook.

• Matchthe amount to the size of the container.

Fill containers at least half full for best results.

• Be sure the outside of the cooking container and

the inside of the microwave oven are dry before

placing food in the oven. Beads of moisture turning

into steam can mislead the sensor.

POTATO (EXAMPLE)

Sensor cook allows you to cook most of your

favorite foods without selecting cooking times and

power levels.

Example: To cook potato.

Touch: Display Shows:

1. _Time of day.

2, Potato Time counting down and

81-TF,E_ PLTTflIL7

scrolls across display.

When the cook time is over, you will hear four beeps

and COOK ENDwill display.

i!i ii!!'_"!i!?ii!!"t!!_il_!iiii_i_iJJ!i;ii_iiiiii_'J!ii'_iiii!i"!i!:'!_lli/!",i:'_'ii"lii_'i!!_iiiiii_}"_i_!!!_i:i!!!_iiiI!!I:i_!i,i!_Jii,_!iii:!_iiii¸'_!iiii"!ii,i,i,i:iiiiii!!_iii_!_i¸,__jil"iii_il_"i!"_iiii!!iii!i!ii!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!_I

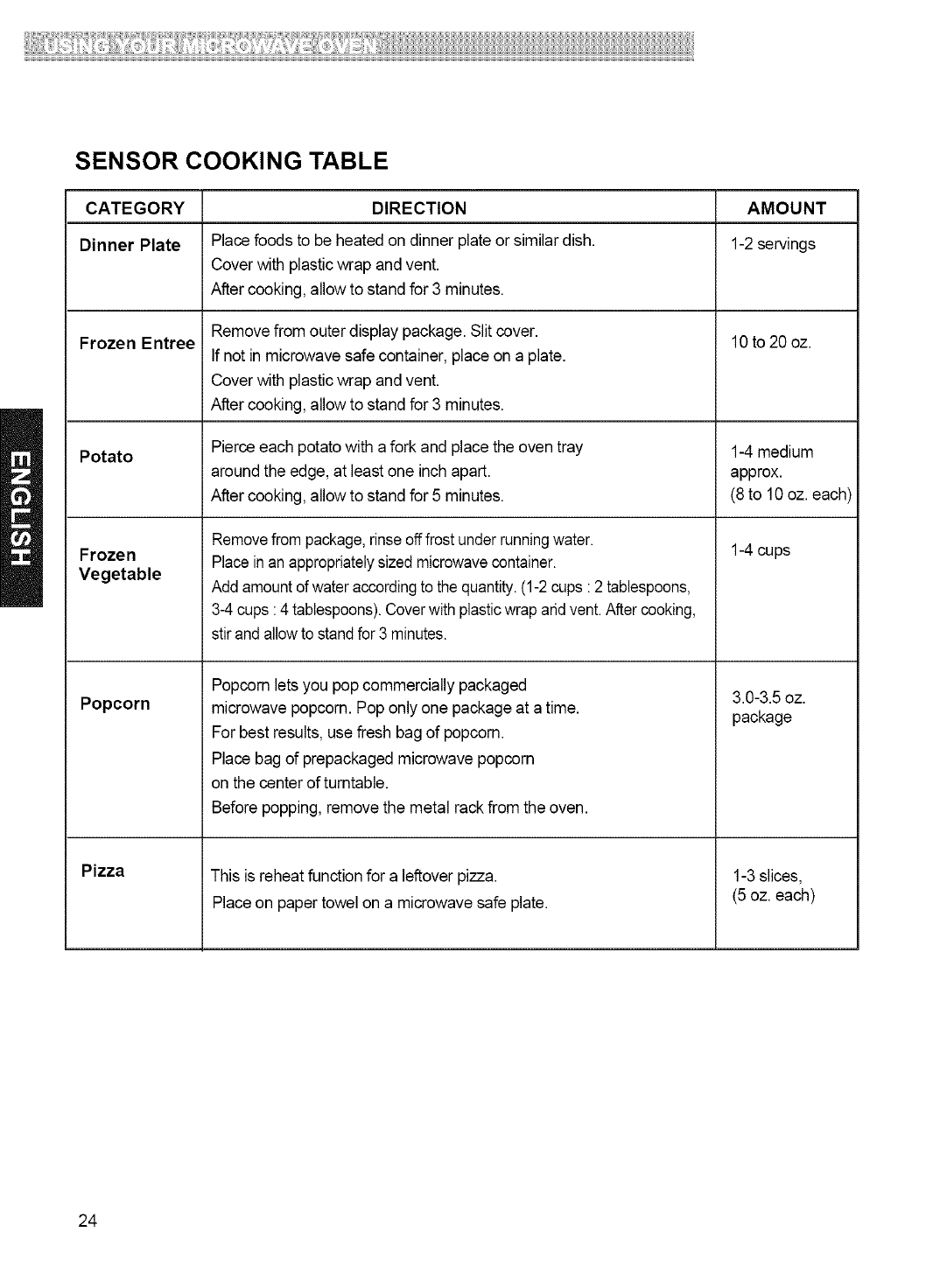

SENSOR COOKING TABLE

CATEGORY

Rice

(Sensor)

Casserole

(Sensor)

Bacon

Place rice and twice as much liquid

(water, chicken or vegetable stock) in a 2 quart

microwave dish.

Coverwith plastic wrap and vent.

After cooking, allow to stand for 10minutes.

Stir for fluffier rice.

Assemble the ingredientsper the recipe

in a 1-2quart casserole.

Cookingwith plasidcwrap and vent.

After cooking, stir and allow to stand for 3 minutes.

Place bacon strips on a dinner plate

linedwith paper towels and cook.

1-2 cups

Use medium or

long grain rice.

Cook instant rice

accordingto

directions on

the package.

1-4cups

2-6 slices

Cereal Prepare as directed on package and cook. 1-4cups

4 Stir well before eating.

Use only instant hot cereal.

Chicken 5 Place chicken pieces on a microwave dish. 4,8 or 16 oz.

Pieces Cover with plastic wrap and vent.

Soup 6 To cook soup incup. Cover with plastic and vent. 1-4 cups

After cooking, stir and allow to stand for 3 minute.

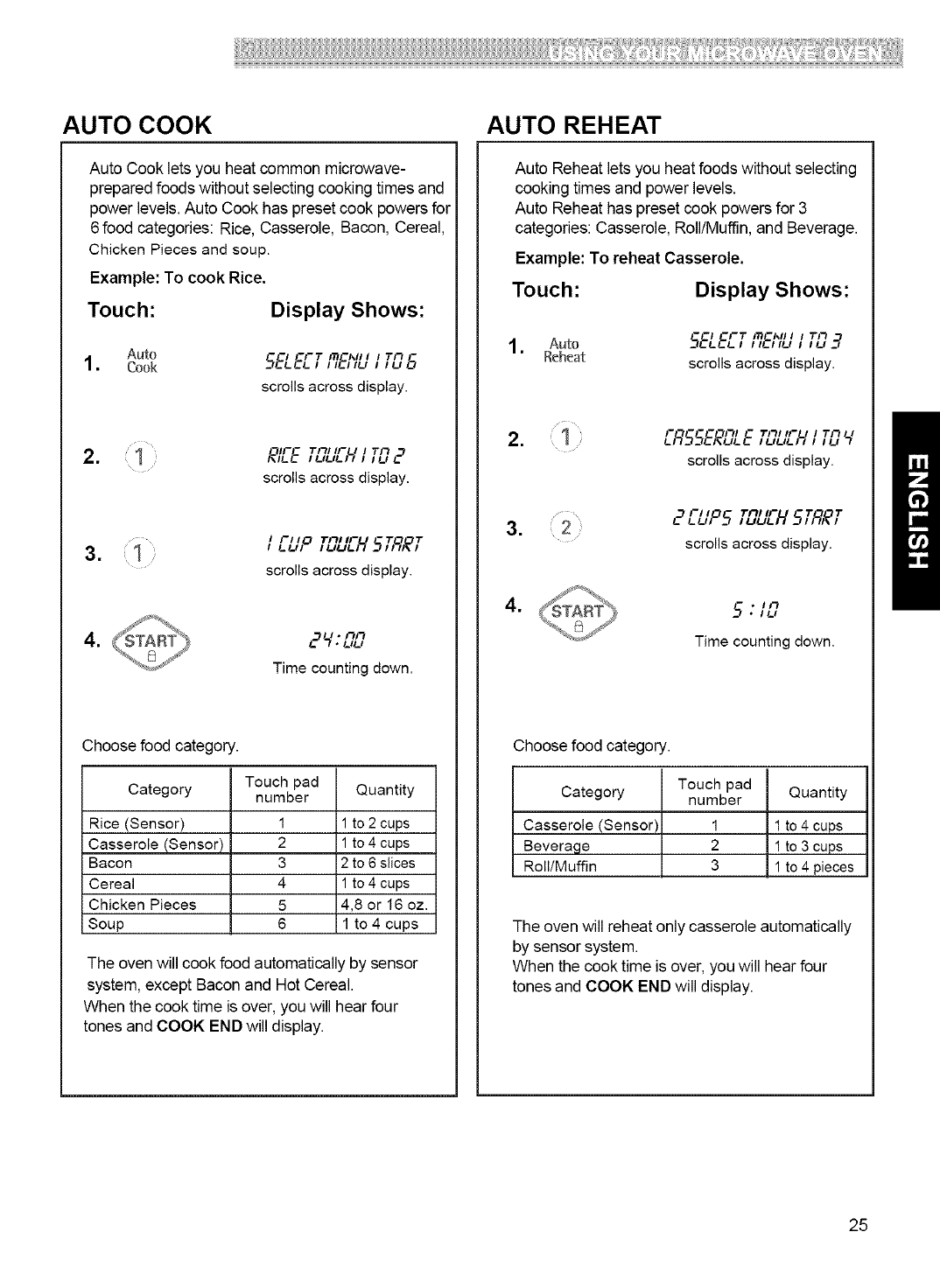

AUTO REHEAT TABLE

CATEGORY TOUCH PAD DIRECTION AMOUNT

NUMBER

Casserole 1 Cover dish containing the casserole 1-4cups

(Sensor) with plastic wrap and vent.

After cooking, stir and allow to stand for 3 minutes.

Beverage 2 1-3cups

(240ml per cup)

Use a wide-mouth mug. Do not cover.

Remove from display package and place on a plate.

(Be careful! The beverage will be very hot! Sometimes

liquids heated in cylindrical containers will splash out

when the cup is moved). When using 3 cups, arrange

in a triangle pattern on the turntable.

1-4 pieces

Roll/Muffin 3 Remove from display package and place on a plate. (2-3 oz. each)

fresh

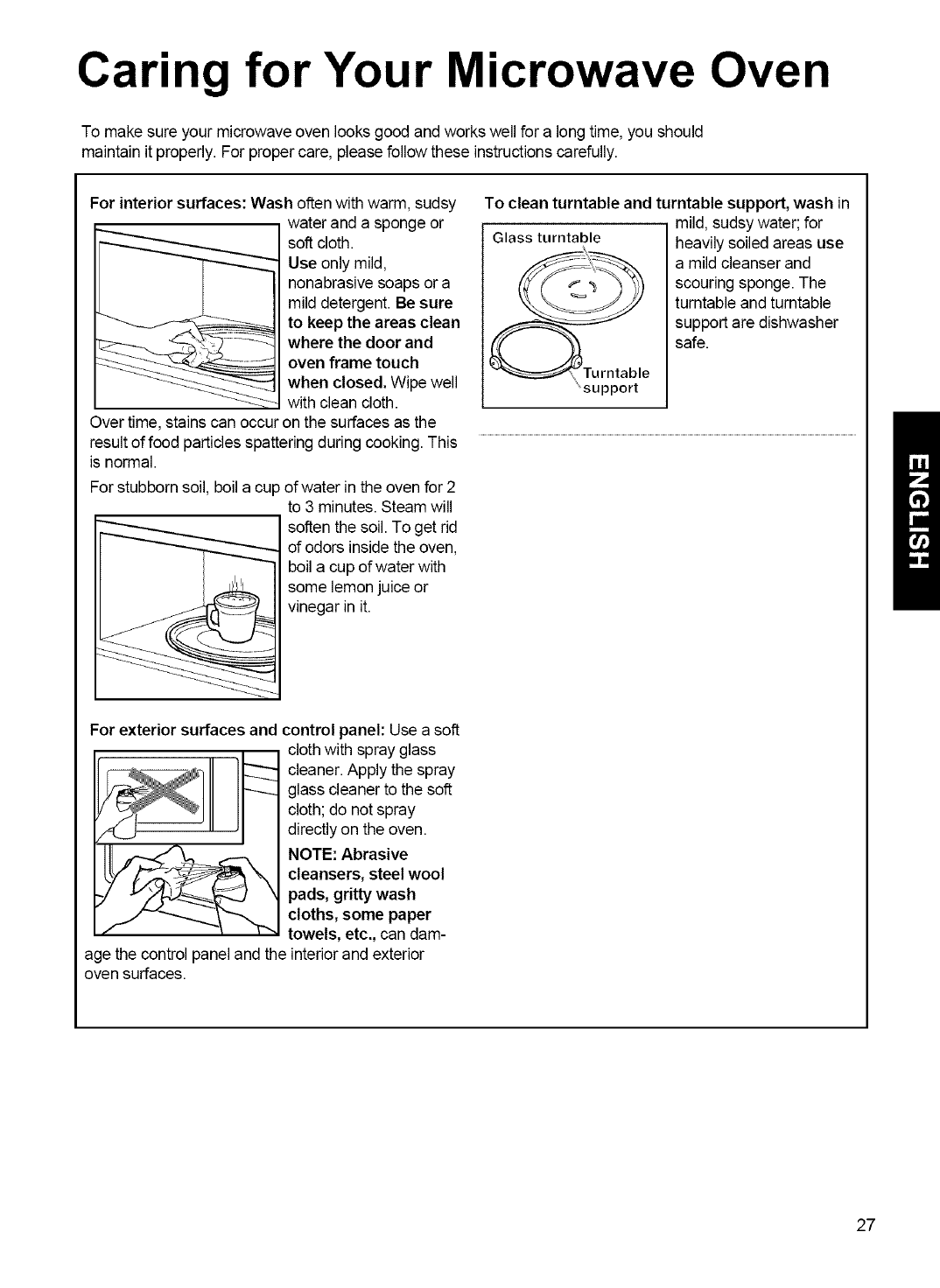

Caring for Your Microwave Oven

To make sure your microwave oven looks good and works well for a longtime, you should

maintain it properly. For proper care, please follow these instructions carefully.

For interior surfaces: Wash often with warm, sudsy

water and a sponge or

soft cloth.

Use only mild,

nonabrasivesoaps or a

mild detergent. Be sure

to keep the areas clean

where the door and

oven frame touch

when closed. Wipe well

with clean cloth.

Over time, stains can occur on the surfaces as the

result of food particles spattering during cooking. This

is normal.

For stubborn soil, boil a cup of water in the oven for 2

to 3 minutes. Steam will

soften the soil. To get rid

of odors inside the oven,

boila cup of water with

some lemon juice or

vinegar in it.

To clean turntable and turntable support, wash in

mild, sudsy water; for

Glass turntable heavily soiled areas use

a mild cleanser and

scouring sponge. The

turntable and turntable

support are dishwasher

safe.

\support

For exterior surfaces and

age the control panel and the

oven surfaces.

control panel: Use a soft

cloth with spray glass

cleaner. Apply the spray

glass cleaner to the soft

cloth; do not spray

directly on the oven.

NOTE: Abrasive

cleansers, steel wool

pads, gritty wash

cloths, some paper

towels, etc., can dam-

interior and exterior

i!iiU_ii!Siiii!!i_i!i;ili!_!!iiiiii!iiii!iiliii_iiiil!i:_i!!iiiii:iiii!i:ii!i!i_i!i:ii!i_!i!ii__ii!!!i,ii!ii!!!!i;t::_ili!!ii!iiiiiiiliiiii_i!i_!i_iiiiii!i;;i;:i!!i:i!ii:_i!!i!iii_i:'!!ii!!_ii:!!ii::i!!_ii_!!!iiilli!i_!'_':lii!!!iliill!!!!;:iiii!iljiii! i!ll i!ll i!ll i!ll i!ll !

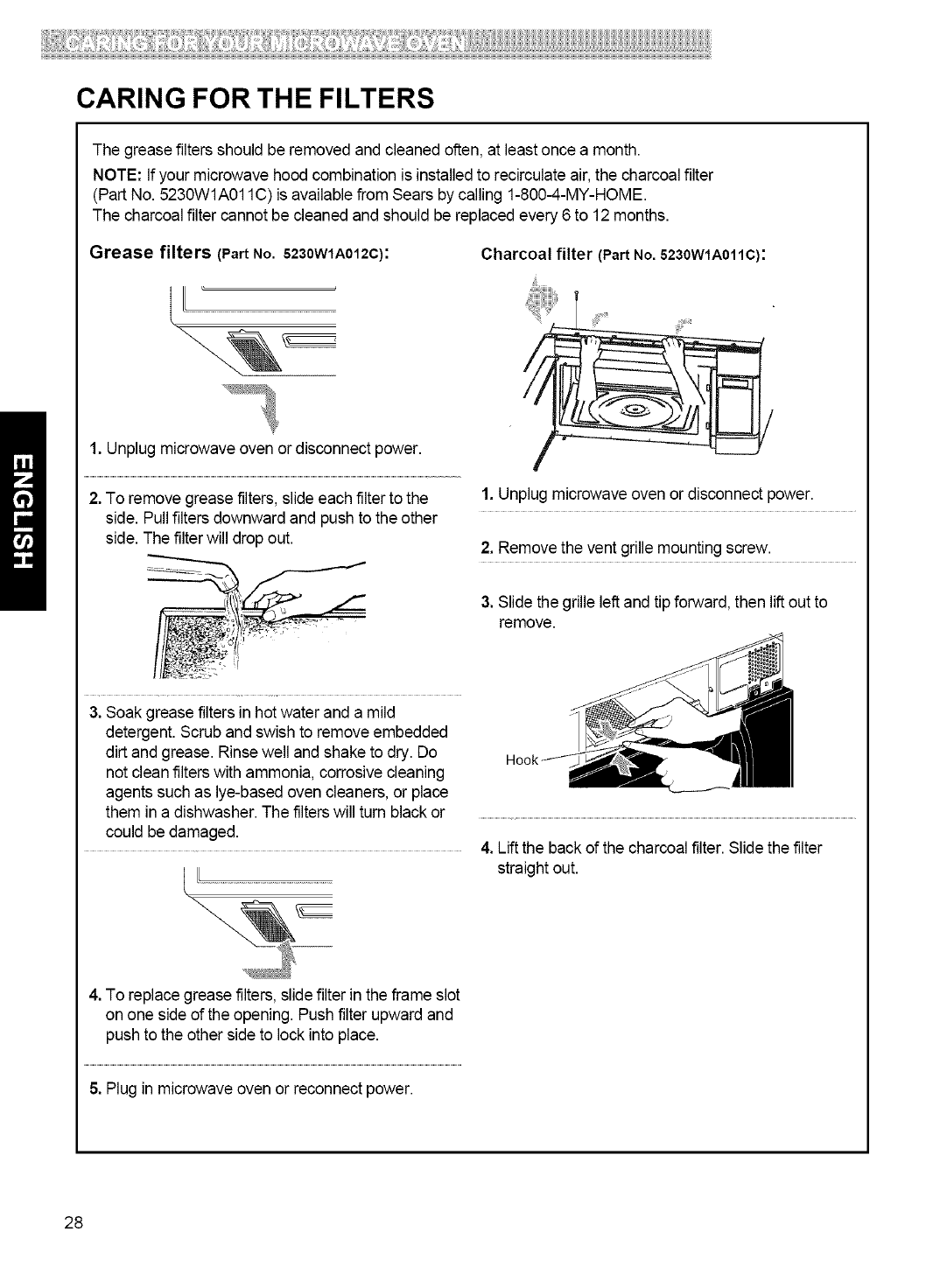

CARING FOR THE FILTERS

The grease filters should be removed and cleaned often, at least once a month.

NOTE: If your microwave hood combination is installed to recirculate air, the charcoal filter

(Part No. 5230W1A011C) is available from Sears by calling 1-800-4-MY-HOME.

The charcoal filter cannot be cleaned and should be replaced every 6 to 12 months.

Grease filters (Part No. 5230W1A012C): Charcoal filter (Part No. 5230W1A011C):

1. Unplug microwave oven or disconnect power.

2. To remove grease filters, slide each filter to the

side. Pullfilters downward and push to the other

side. The filter will drop out.

1. Unplug microwave oven or disconnect power.

2. Remove the vent grille mounting screw.

3. Slide the grille leftand tip forward, then lift out to

remove.

3. Soak grease filters in hot water and a mild

detergent. Scrub and swish to remove embedded

dirt and grease. Rinsewell and shake to dry. Do

not clean filters with ammonia, corrosive cleaning

agents such as lye-based oven cleaners, or place

them in a dishwasher. The filters will turn black or

could be damaged. 4. Lift the back of the charcoal filter. Slidethe filter

straight out.

4. To replace grease filters, slide filter in the frame slot

on one side of the opening. Push filter upward and

push to the other side to lock into place.

5. Plug in microwave oven or reconnect power.

_!!!!_! !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!'ii_!!i:i_:!!_!!!i!ii_iii!!!iiiii!:i_ii_iiiiiill_ili:iii!i!!l!illii,i_iiiiiiiiiiii!!iii_ii_ilz!iii_iiiii!ili!!_i!1!1!11111!!!i:!:iiiii_i__!!;i_iiii!!ii_iiiiiiilii!!i!!_i!___I_i!i'i!!iiilii!iii!ii!!iiiiii!!ii!!!iiiilli!i!iiiilii_iii!i!i!i_il:!iiii_!iilliii!!!iiiiiiiiiii!i_

CARING FOR THE FILTERS

(CONT.)

5. Slide a new charcoal filter into place. The filter

should rest at the angle shown.

_i¸¸¸'¸¸_i_¸

6. Slide the bottom of the vent grille into place. Push

the top and slide right until it snaps into place.

Replace the mounting screw.

7. Plug in microwave oven or reconnect power.

NOTE: Do not operate the hood without the grease

filters in place.

REPLACING THE COOKTOP

AND OVEN LIGHTS

The cooktop light

1. Unplug microwave oven or disconnect power.

2. Remove the bulb cover mounting screw.

3. Replace bulb with candelabra-base 30-watt bulb

(Part No. 6912W3Q001A)available from Sears by

calling 1-800-4-MY-HOME.

4. Plug in microwave oven or reconnect power.

The oven light

1. Unplug microwave oven or disconnect power.

2. Remove the vent grille mounting screw.

3. Slide the grille left and tip forward, then liftout to

remove.

REPLACING THE COOKTOP

AND OVEN LIGHTS (CONT.)

Bulb holder

4. Lift up the bulb holder.

5. Replace the bulb with a candelabra-base 30-watt

bulb (Part No. 3B70067A) available from Sears by

calling 1-800-4-MY-HOME.

_. i_¸'¸¸_¸¸

6. Slide the bottom of the vent grille into place. Push

the top and slide right until it snaps into place.

Replace the mounting screw.

7. Plug in microwave oven or reconnect power.

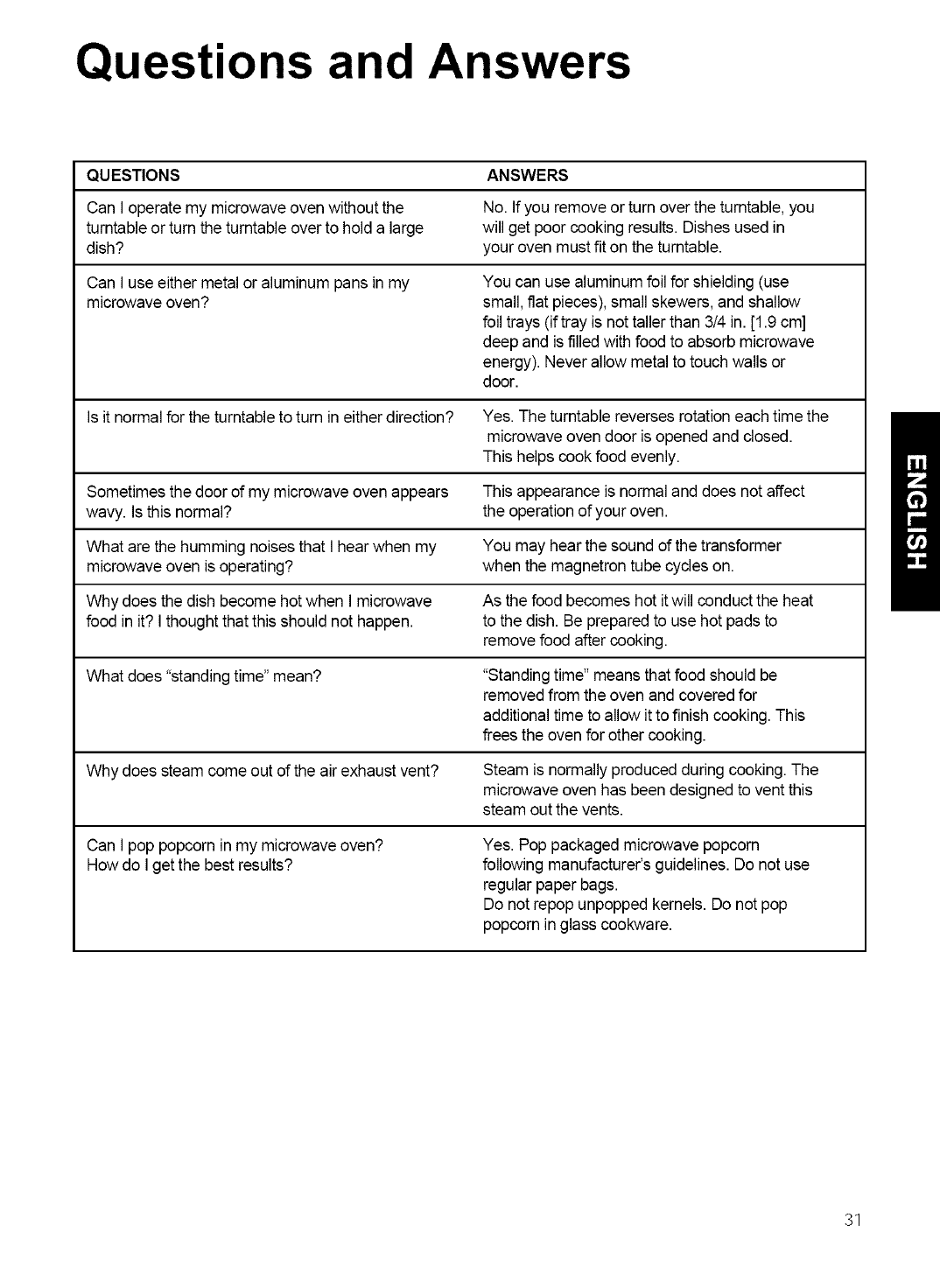

Questions and Answers

QUESTIONS ANSWERS

Can I operate my microwave oven without the No. Ifyou remove or turn over the turntable, you

turntable or turn the turntable over to hold a large will get poor cooking results. Dishes used in

dish? your oven must fit on the turntable.

Can I use either metal or aluminum pans in my

microwave oven? You can use aluminum foil for shielding (use

small, flat pieces), small skewers, and shallow

foil trays (if tray is not taller than 3/4 in. [1.9 cm]

deep and is filled with food to absorb microwave

energy). Never allow metal to touch walls or

door.

Is it normal for the turntable to turn in either direction? Yes. The turntable reverses rotation each time the

microwave oven door is opened and closed.

This helps cook food evenly.

Sometimes the door of my microwave oven appears This appearance is normal and does not affect

wavy. Is this normal? the operation of your oven.

What are the humming noises that I hear when my You may hear the sound of the transformer

microwave oven is operating? when the magnetron tube cycles on.

Why does the dish become hot when I microwave As the food becomes hot itwill conduct the heat

food in it? I thought that this should not happen, to the dish. Be prepared to use hot pads to

remove food after cooking.

What does "standingtime" mean? "Standingtime" means that food should be

removed from the oven and covered for

additional time to allow it to finish cooking. This

frees the oven for other cooking.

Why does steam come out of the air exhaust vent? Steam is normally produced during cooking. The

microwave oven has been designed to vent this

steam out the vents.

Can I pop popcorn in my microwave oven? Yes. Pop packaged microwave popcorn

Howdo I get the best results? following manufacturer's guidelines. Do not use

regular paper bags.

Do not repop unpopped kernels. Do not pop

popcorn in glass cookware.

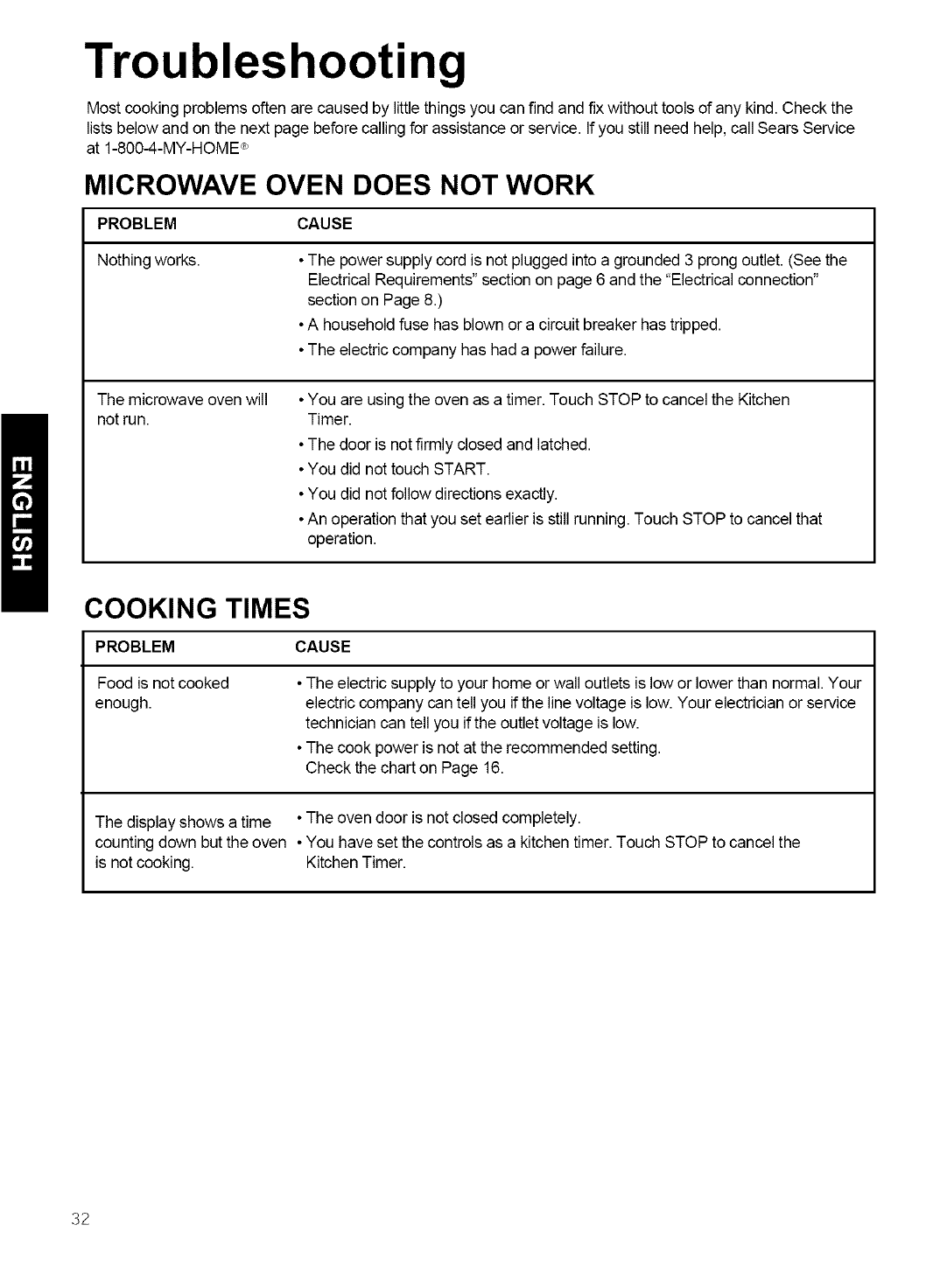

Troubleshooting

Most cooking problems often are caused by littlethings you can find and fix without tools of any kind. Check the

lists below and on the next page before calling for assistance or service. If you still need help, call Sears Service

at 1-800-4-MY-HOME_>

MICROWAVE OVEN DOES NOT WORK

PROBLEM CAUSE

Nothing works. •The power supply cord is not plugged into a grounded 3 prong outlet. (See the

Electrical Requirements" section on page 6 and the "Electrical connection"

section on Page 8.)

•A household fuse has blown or a circuit breaker has tripped.

•The electric company has had a power failure.

The microwave oven will

not run. •You are using the oven as a timer. Touch STOP to cancel the Kitchen

Timer.

•The door is not firmly closed and latched.

•You did not touch START.

•You did not follow directions exactly.

•An operation that you set earlier is still running. Touch STOP to cancel that

operation.

COOKING TIMES

PROBLEM CAUSE

Food is not cooked

enough. • The electric supply to your home or wall outlets is low or lower than normal. Your

electric company can tell you if the line voltage is low. Your electrician or service

technician can tell you if the outlet voltage is low.

• The cook power is not at the recommended setting.

Check the chart on Page 16.

The display shows a time • The oven door is not closed completely.

counting down but the oven • You have set the controls as a kitchen timer. Touch STOP to cancel the

is not cooking. Kitchen Timer.

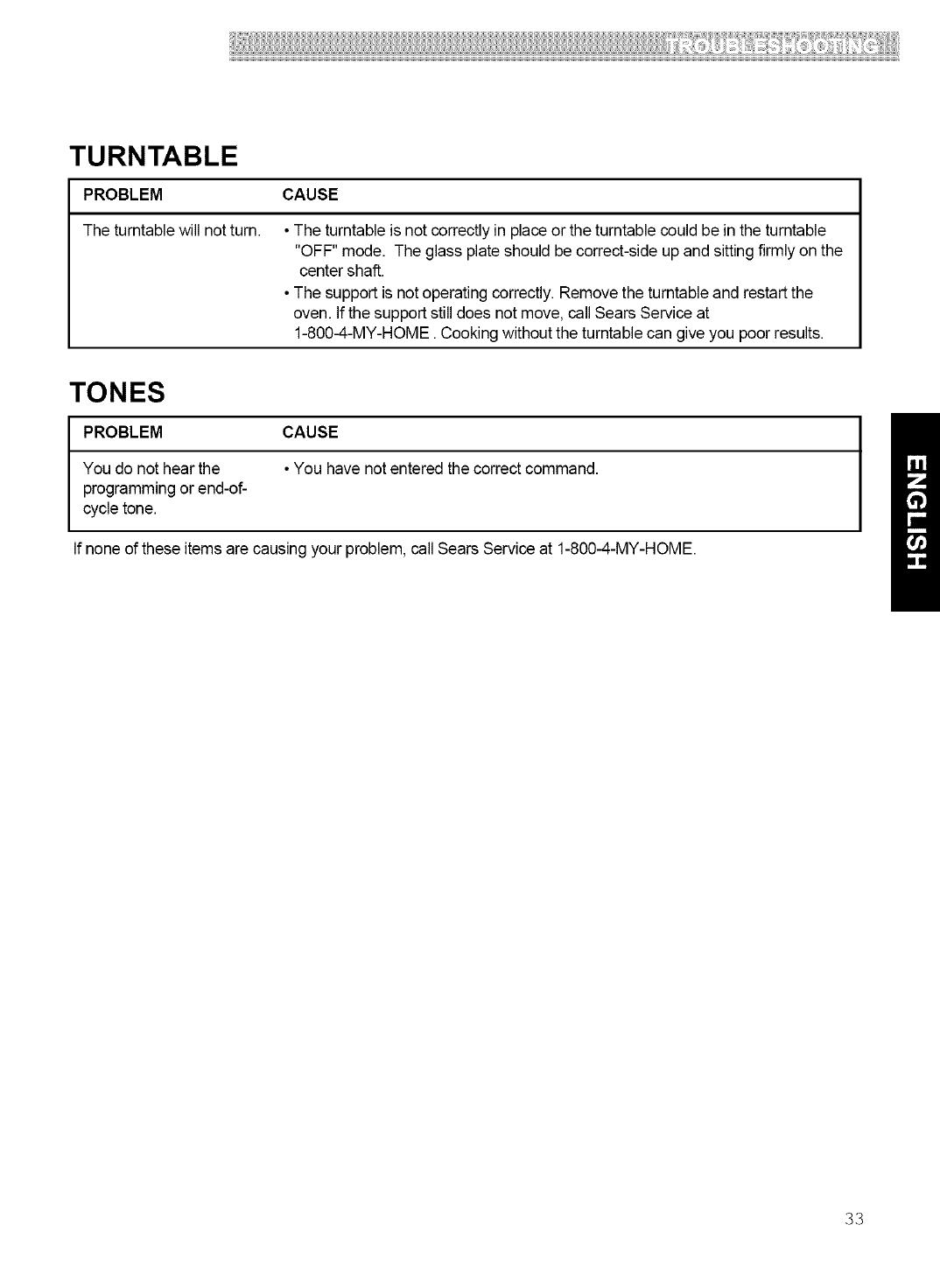

TURNTABLE

PROBLEM CAUSE

The turntable will not turn. • The turntable is not correctly in place or the turntable could be in the turntable

"OFF" mode. The glass plate should be correct-side up and sitting firmly on the

center shaft.

• The support is not operating correctly. Remove the turntable and restart the

oven. If the support still does not move, call Sears Service at

1-800-4-MY-HOME. Cooking without the turntable can give you poor results.

TONES

PROBLEM CAUSE

You do not hear the • You have not entered the correct command.

programming or end-of-

cycle tone.

If none of these items are causing your problem, call Sears Service at 1-800-4-MY-HOME.

Sears Service

Master Protection Agreement

Congratulations on making a smart purchase.

Your new Kenmore ®product is designed and manufactured for years of dependable operation.

But like all products, it may require preventive maintenance or repair from time to time.

The Master Protection Agreement also helps extend the life of your new product. Here's what the

Agreement* includes:

Parts and labor needed to help keep products operating properly under normal use, not just

defects. Our coverage goes well beyond the product warranty. No deductibles, no functional

failure excluded from coverage - real protection.

1_ Expert service by a force of more than 10,000 authorized 8ears service technicians, which

means someone you can trust will be working on your product.

I_i Unlimited service calls and nationwide service, as often as you want us, whenever you want us.

F-ti "No-lemon" guarantee - replacement of your covered product if four or more product failures

occur within twelve months.

Product replacement if your covered product can't be fixed.

Annual Preventive Maintenance Check at your request - no extra charge.

Fast help by phone - we call it Rapid Resolution - phone support from a Sears representativeon all

products. Think of us as a "talking owner's manual."

Power surge protection against electrical damage due to power fluctuations.

r71 $250 Food Loss Protection annually for any food spoilage that is the result of mechanical failure of

any covered refrigerator or freezer.

F1 Rental reimbursement if repair of your covered product takes longer than promised.

10% discount off the regular price of any noncovered repair service and related installed parts.

Once you purchase the Agreement, a simple phone call is all that it takes for you to schedule service.

You can call anytime day or night, or schedule a service appointment online.

The MasterProtectionAgreementis a riskfree purchase.Ifyou can-celfor any reasonduringthe productwarranty

period,we will providea full refundor a proratedrefund anytimeafterthe productwarranty periodexpires.

Purchaseyour MasterProtectionAgreementtoday!

Some limitations and exclusions apply. For prices and additional information in the U.S.A. call

1-800-827-6655.

*Coverage in Canada varies on some items. For

full details call Sears Canada at 1-800-361-6665.

Sears Installation Service

For Sears professional installation of home appliances, garage door openers, water heaters, and

other major home items, in the U.S.A. or Canada call

1-800-4-MY-HOME.

Your Home

For repair - in your home - of all major brand appliances,

lawn and garden equipment, or heating and cooling systems,

no matter who made it, no matter who sold it!

For the replacement parts, accessories and

owner's manuals that you need to do-it-yourself.

For Sears professional installation of home appliances

and items like garage door openers and water heaters.

1-800-4-MY-HOME ® (1-800-469-4663)

Call anytime, day or night (U.S.A. and Canada)

www.sears.com www.sears.ca

For expert home solutions advice: www.managemyhome.com

Our Home

For repair of carry-in items like vacuums, lawn equipment,

and electronics, call or go on-line for the location of your nearest

Sears Parts & Repair Service Center

1-800-488-1222 (U.S.A.) 1-800-469-4663 (Canada)

Call anytime, day or night

www.sears.com www.sears.ca

To purchase aprotection agreement on a product serviced by Sears:

1-800-827-6655 (U.S.A.) 1-800-361-6665 (Canada)

Para pedir servicio de reparaci6n Au Canada pour service en fran_ais:

a domicilio, y para ordenar piezas: 1-800-LE-FOYER Mc

1-888-SU-HOGAR ® (1-800-533-6937)

(1-888-784-6427) www.sears.ca

SeSLrS

® Registered Trademark /TMTrademark /' Service Mark of Sears Brands, LLC

TM SM

® Marca Registrada /' Marca de F_brica /' Marca de Servicio de Sears Brands, LLC

_1cMarque de commerce /Marque d_pos_e de Sears Brands, LLC ® Sears Brands, LLC

Kenmore 72180042700 User Manual MICROWAVE OVEN Manuals And Guides L0801475

KENMORE Microwave/Hood Combo Manual L0801475 KENMORE Microwave/Hood Combo Owner's Manual, KENMORE Microwave/Hood Combo installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
