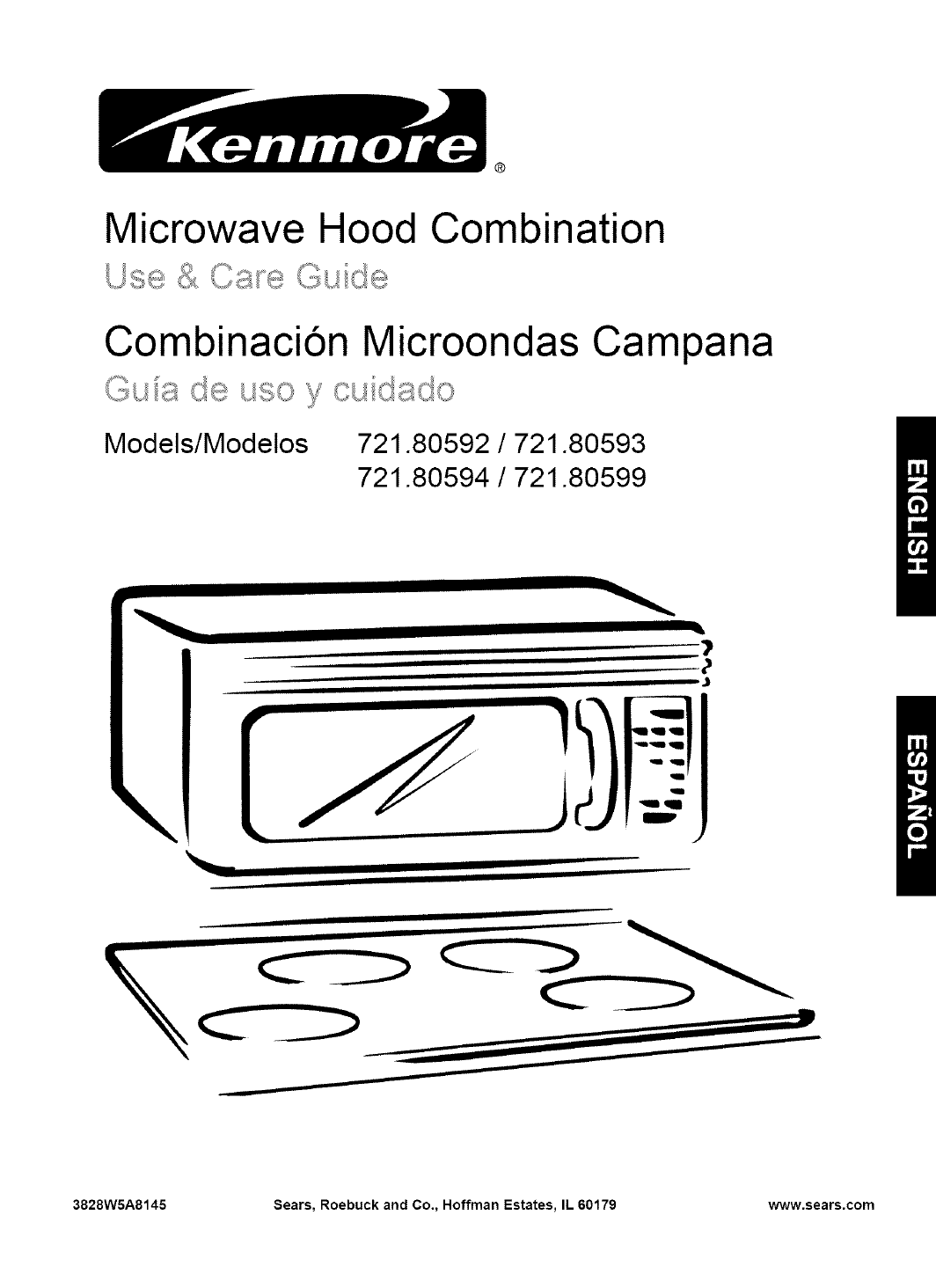

Microwave Hood

Combination

Combinaci6n Microondas Campana

Models/Modelos 721.80592/721.80593

721.80594/721.80599

3828W6A8146 Sears, Roebuck and Co., Hoffman Estates, IL 60179 www.sears.com

Table of

Contents

Warranty ........................................................... 2

Sears Service .................................................. 3

Microwave Oven Safety .................................. 4

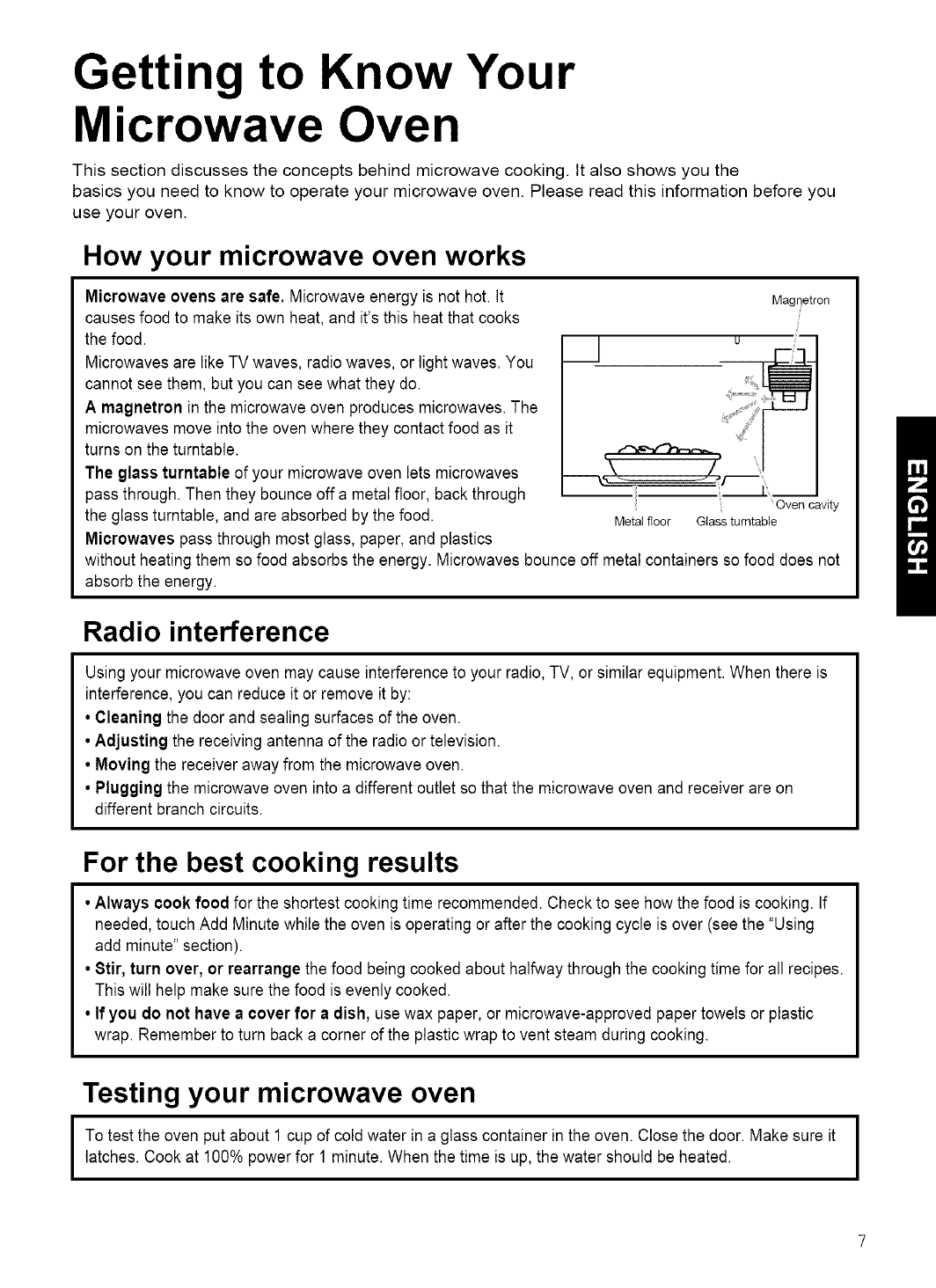

Getting to Know Your

Microwave Oven .............................................. 7

How your microwave oven works ................... 7

Radio interference .......................................... 7

For the best cooking results ........................... 7

Testing your microwave oven ......................... 7

Testing your dinnerware or cookware ............ 8

Operating safety precautions .......................... 8

Electrical connection ...................................... 8

Microwave oven features ............................... 9

Control panel features ................................... 10

Using Your Microwave Oven ....................... 12

Audible Signals ............................................. 12

Interrupting Cooking ...................................... 12

Clock ............................................................. 12

Child Lock ..................................................... 12

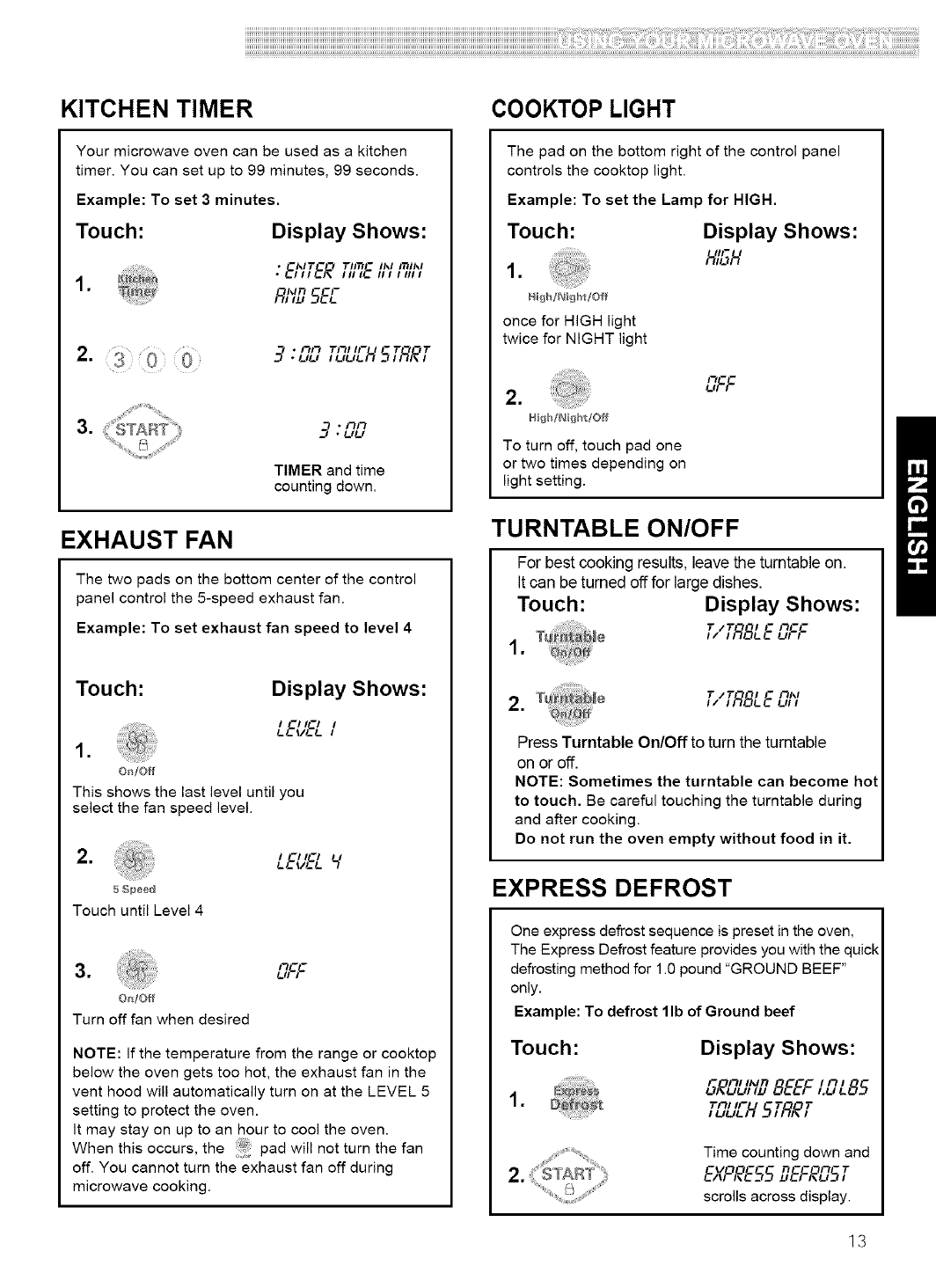

Kitchen Timer ................................................ 13

Exhaust Fan .................................................. 13

Cooktop Light ................................................ 13

Turntable On/Off ........................................... 13

Express Defrost ............................................ 13

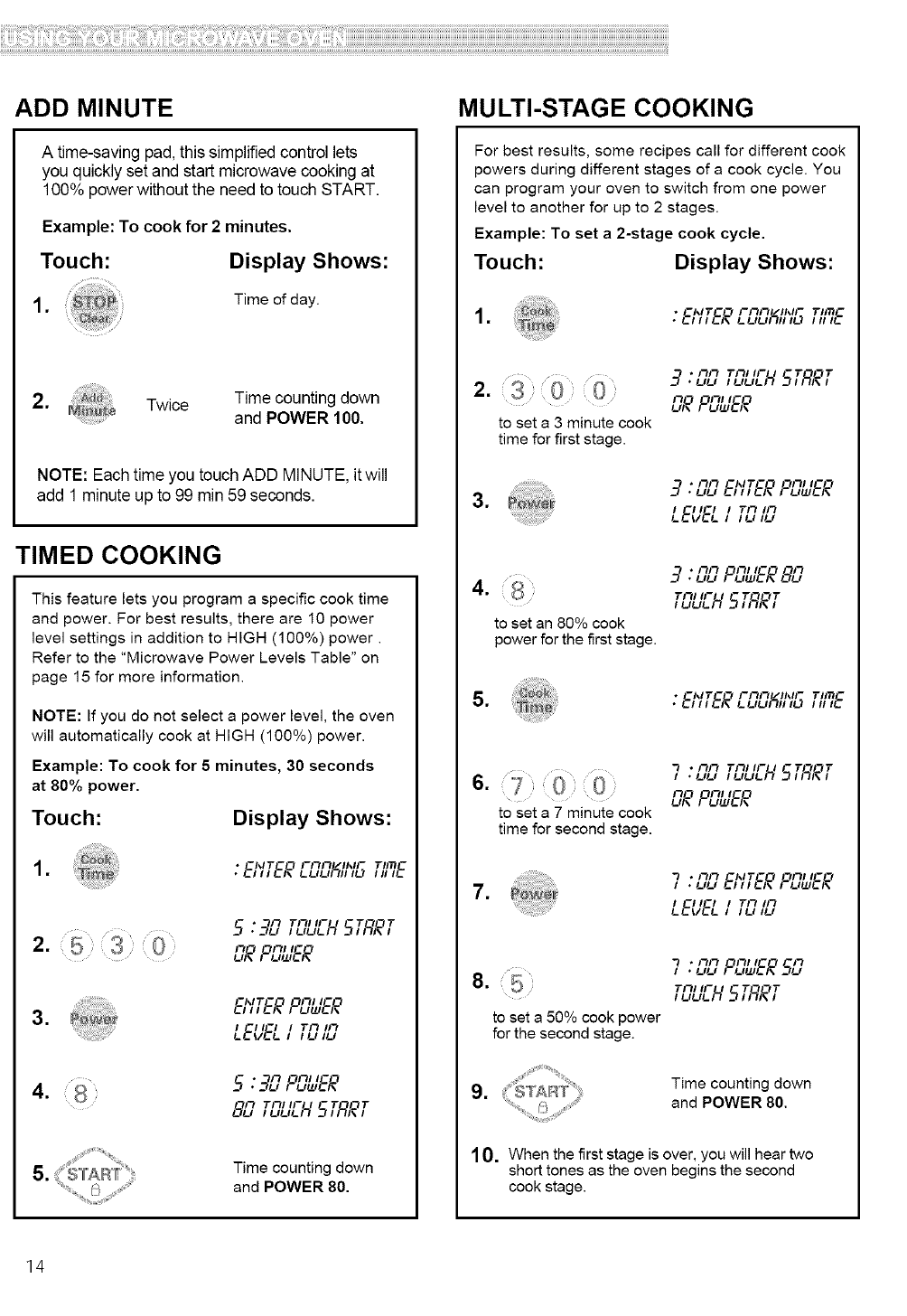

Add Minute .................................................... 14

Timed Cooking .............................................. 14

Multi-stage Cooking ...................................... 14

Microwave Power Levels .............................. 15

Auto Defrost .................................................. 16

Auto defrost table .......................................... 17

Auto defrost table (Cont.) .............................. 18

Defrosting tips .............................................. 19

Hold Warm .................................................... 19

Using Sensor Cooking ......................... 20-21

Sensor Cooking ............................................ 20

Potato (Example) .......................................... 20

More/Less ..................................................... 20

Sensor Cooking Table .................................. 21

Auto Cook ..................................................... 22

Auto Reheat .................................................. 22

Auto Cook Table ........................................... 23

Auto Reheat Table ........................................ 23

Caring for Your Microwave Oven ................. 24

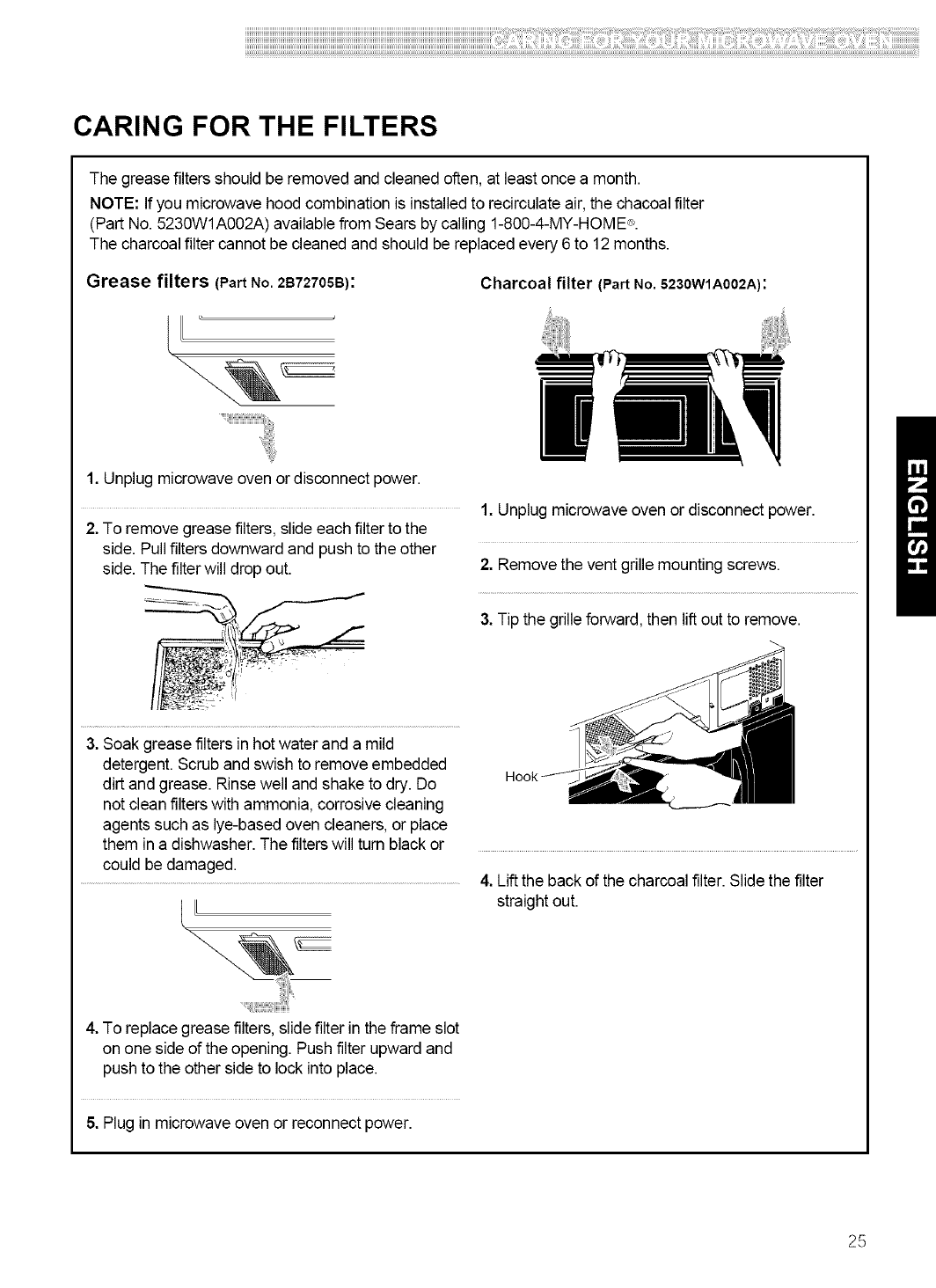

Caring for the filters ................................ 25~26

Replacing the cooktop and oven lights ...26~27

Microwave Cooking Tips ......................... 28-29

Questions and Answers ................................ 30

Troubleshooting ....................................... 31-32

Service ............................................. Back cover

MicrowaveHood

Combination

Warranty

FULL ONE-YEAR WARRANTY ON

MICROWAVE HOOD COMBINATION

For one year from the date of purchase, if this

Kenmore Microwave Hood Combination fails due to

a defect in material or workmanship, Sears will

repair it free of charge.

FULL FIVE-YEAR WARRANTY ON THE

MAGNETRON

For five years from the date of purchase, ifthe

magnetron in this Kenmore Microwave Hood

Combination fails due to a defect in material or

workmanship, Sears will repair it free of charge.

The above warranty coverage applies only to

Microwave Hood Combinations which are used for

private household purposes.

WARRANTY SERVICE 18AVAILABLE BY

8IMPLY CONTACTING SEAR8 SERVICE AT

1-800-4-MY-HOME _

This warranty applies only while this product is in

use in the United States.

This warranty gives you specific legal rights, and

you may also have other rights which vary from

state to state.

8ears, Roebuck and Co.,

Dept. 817WA,

Hoffman Estates, IL 60179

For service call:

1-800-4-MY-HOME _

(1-800-469-4663)

Please record your model's information.

Whenever you call to request service for your

appliance, you need to know your complete model

number and serial number. You can find this

information on the model and serial number

label/plate at the upper side of cavity front in your

Microwave oven. Also, record the other information

shown below.

Model Number

Serial Number

Purchase Date

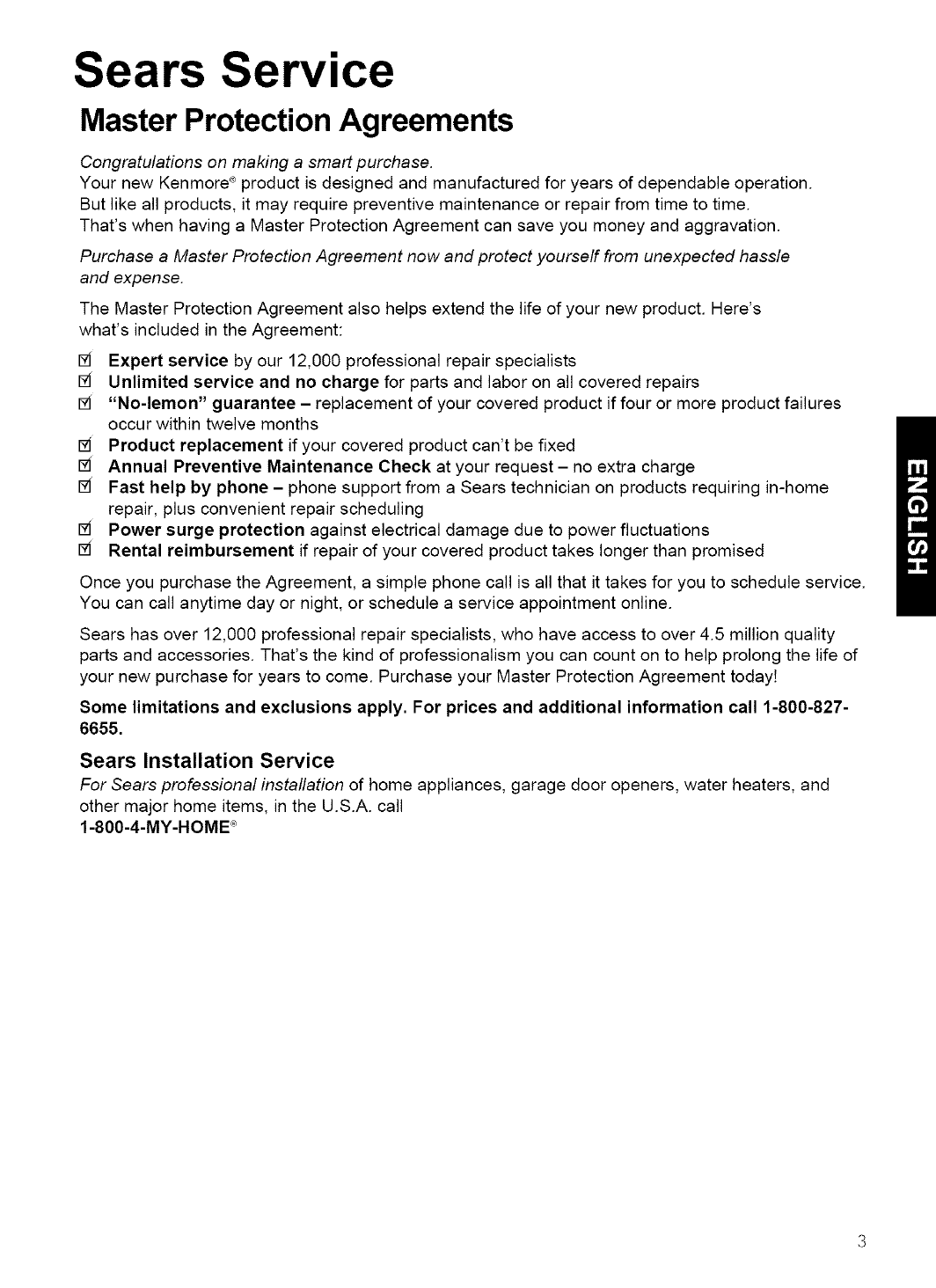

Sears Service

Master Protection Agreements

Congratulations on making a smart purchase.

Your new Kenmore ®product is designed and manufactured for years of dependable operation.

But like all products, it may require preventive maintenance or repair from time to time.

That's when having a Master Protection Agreement can save you money and aggravation.

Purchase a Master Protection Agreement now and protect yourself from unexpected hassle

and expense.

The Master Protection Agreement also helps extend the life of your new product. Here's

what's included in the Agreement:

Expert service by our 12,000 professional repair specialists

[_ Unlimited service and no charge for parts and labor on all covered repairs

"No-lemon" guarantee - replacement of your covered product if four or more product failures

occur within twelve months

I_1 Product replacement if your covered product can't be fixed

Annual Preventive Maintenance Check at your request - no extra charge

[_ Fast help by phone - phone support from a Sears technician on products requiring in-home

repair, plus convenient repair scheduling

1_ Power surge protection against electrical damage due to power fluctuations

1_ Rental reimbursement if repair of your covered product takes longer than promised

Once you purchase the Agreement, a simple phone call is all that it takes for you to schedule service.

You can call anytime day or night, or schedule a service appointment online.

Sears has over 12,000 professional repair specialists, who have access to over 4.5 million quality

parts and accessories. That's the kind of professionalism you can count on to help prolong the life of

your new purchase for years to come. Purchase your Master Protection Agreement today!

Some limitations and exclusions apply. For prices and additional information call 1-800-827-

6655.

Sears Installation Service

For Sears professional installation of home appliances, garage door openers, water heaters, and

other major home items, in the U.S.A. call

1-800-4-MY-HOME _

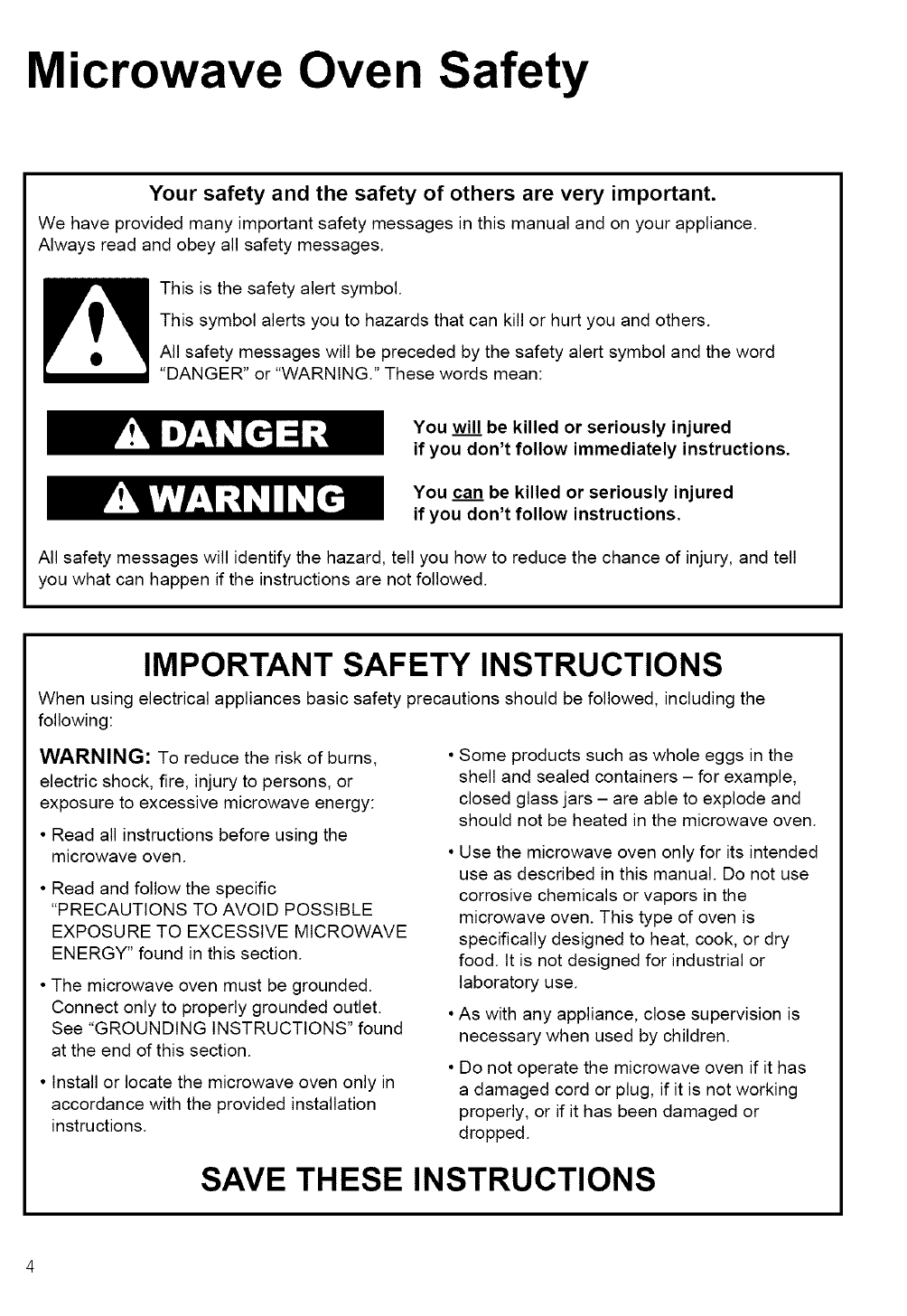

Microwave Oven Safety

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance.

Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to hazards that can kill or hurt you and others.

All safety messages will be preceded by the safety alert symbol and the word

"DANGER" or "WARNING." These words mean:

You will be killed or seriously injured

if you don't follow immediately instructions.

You can be killed or seriously injured

if you don't follow instructions.

All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell

you what can happen if the instructions are not followed.

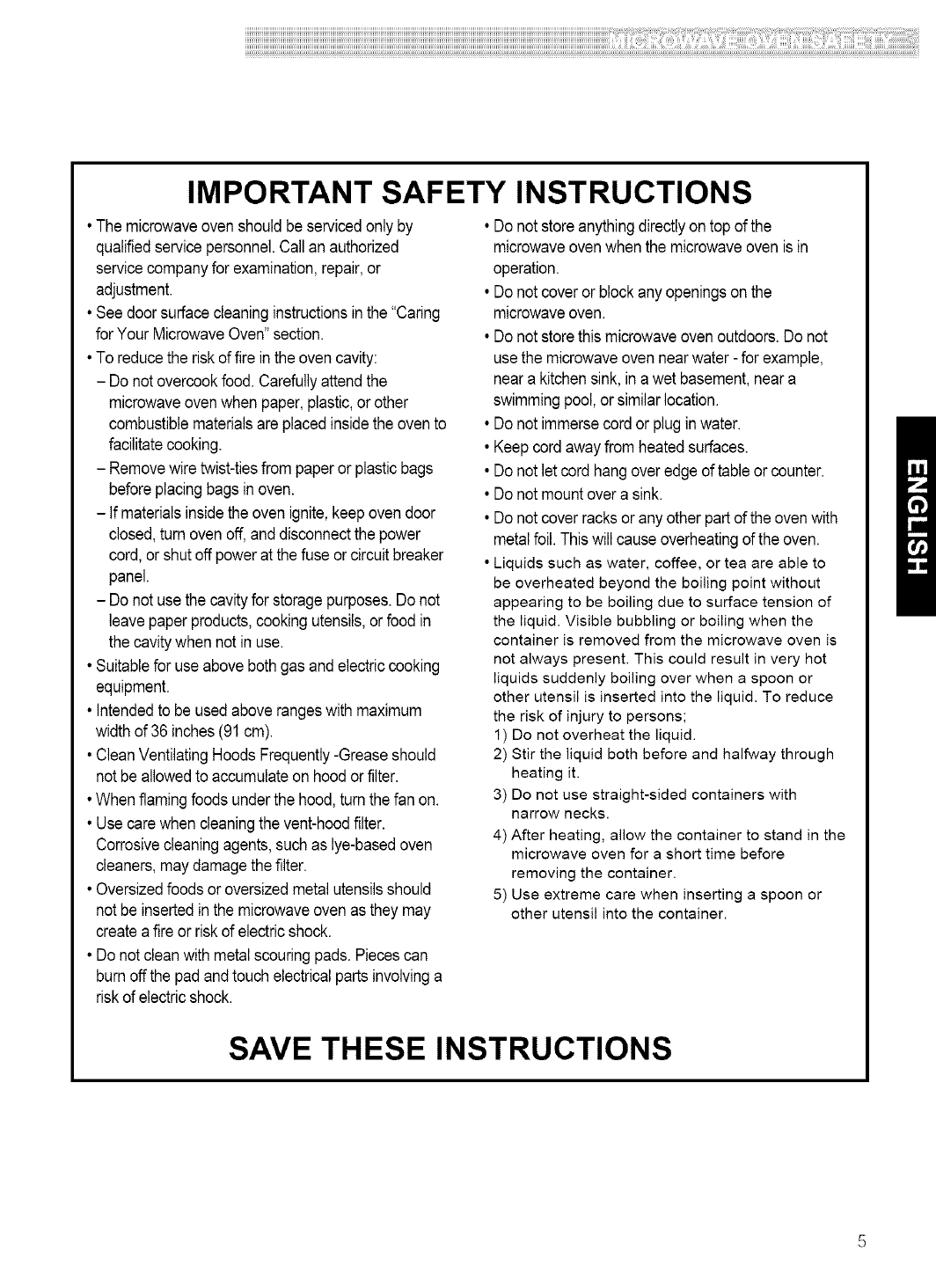

IMPORTANT SAFETY INSTRUCTIONS

When using electrical appliances basic safety precautions should be followed, including the

following:

WARNING: To reduce the risk of burns,

electric shock, fire, injury to persons, or

exposure to excessive microwave energy:

• Read all instructions before using the

microwave oven.

• Read and follow the specific

"PRECAUTIONS TO AVOID POSSIBLE

EXPOSURE TO EXCESSIVE MICROWAVE

ENERGY" found in this section.

• The microwave oven must be grounded.

Connect only to properly grounded outlet.

See "GROUNDING INSTRUCTIONS" found

at the end of this section.

• Install or locate the microwave oven only in

accordance with the provided installation

instructions.

Some products such as whole eggs in the

shell and sealed containers - for example,

closed glass jars - are able to explode and

should not be heated in the microwave oven.

• Use the microwave oven only for its intended

use as described in this manual. Do not use

corrosive chemicals or vapors in the

microwave oven. This type of oven is

specifically designed to heat, cook, or dry

food. It is not designed for industrial or

laboratory use.

• As with any appliance, close supervision is

necessary when used by children.

• Do not operate the microwave oven if it has

a damaged cord or plug, if it is not working

properly, or if it has been damaged or

dropped.

SAVE THESE INSTRUCTIONS

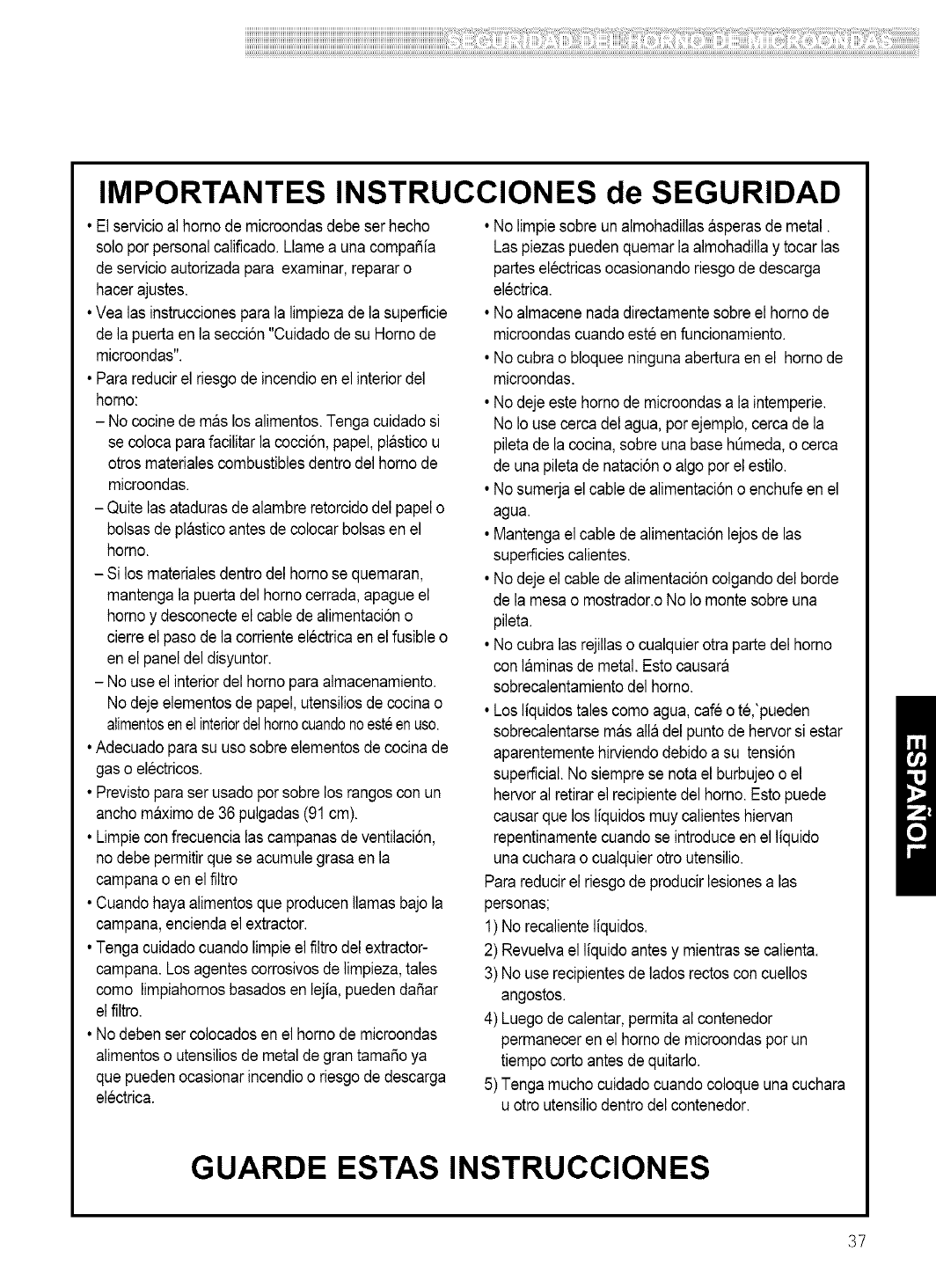

IMPORTANT SAFETY INSTRUCTIONS

• The microwaveoven shouldbe servicedonly by

qualifiedservicepersonnel.Call an authorized

servicecompanyfor examination,repair,or

adjustment.

• See doorsurfacecleaninginstructionsinthe "Caring

for Your MicrowaveOven"section.

• To reducethe riskof fire in theoven cavity:

- Do not overcookfood. Carefullyattendthe

microwaveovenwhen paper, plastic,orother

combustiblematerialsareplaced insidethe ovento

facilitatecooking.

- Removewire twist-tiesfrom paperor plasticbags

beforeplacingbags inoven.

- If materialsinsidethe oven ignite,keep oven door

closed,turn oven off, anddisconnectthe power

cord,or shutoffpowerat thefuseor circuitbreaker

panel.

- Do not use the cavityfor storagepurposes.Do not

leavepaperproducts,cookingutensils,orfood in

the cavitywhen not in use.

• Suitablefor use above bothgas and electriccooking

equipment.

• Intendedto be usedabove rangeswithmaximum

widthof 36inches(91cm).

• CleanVentilatingHoods Frequently-Greaseshould

not be allowedto accumulateon hoodorfilter.

• When flamingfoodsunderthe hood, turnthe fan on.

• Usecarewhen cleaningthe vent-hoodfilter.

Corrosivecleaningagents,such as lye-basedoven

cleaners,maydamagethe filter.

• Oversizedfoods oroversizedmetalutensilsshould

not be insertedin the microwaveoven as theymay

createafire or riskof electricshock.

• Donot clean withmetalscouringpads.Piecescan

burnoff the pad andtouchelectricalpartsinvolvinga

riskof electricshock.

• Do not store anything directly on top of the

microwave oven when the microwave oven is in

operation.

• Do not cover or block any openings on the

microwave oven.

• Do not store this microwave oven outdoors. Do not

use the microwave oven near water - for example,

near a kitchen sink, in a wet basement, near a

swimming pool, or similar location.

• Do not immerse cord or plug in water.

• Keep cord away from heated surfaces.

• Do not let cord hang over edge of table or counter.

• Do not mount over a sink.

• Do not cover racks or any other part of the oven with

metal foil. This will cause overheating of the oven.

• Liquids such as water, coffee, or tea are able to

be overheated beyond the boiling point without

appearing to be boiling due to surface tension of

the liquid. Visible bubbling or boiling when the

container is removed from the microwave oven is

not always present. This could result in very hot

liquids suddenly boiling over when a spoon or

other utensil is inserted into the liquid. To reduce

the risk of injury to persons;

1) Do not overheat the liquid.

2) Stir the liquid both before and halfway through

heating it.

3) Do not use straight-sided containers with

narrow necks.

4) After heating, allow the container to stand in the

microwave oven for a short time before

removing the container.

5) Use extreme care when inserting a spoon or

other utensil into the container.

SAVE THESE INSTRUCTIONS

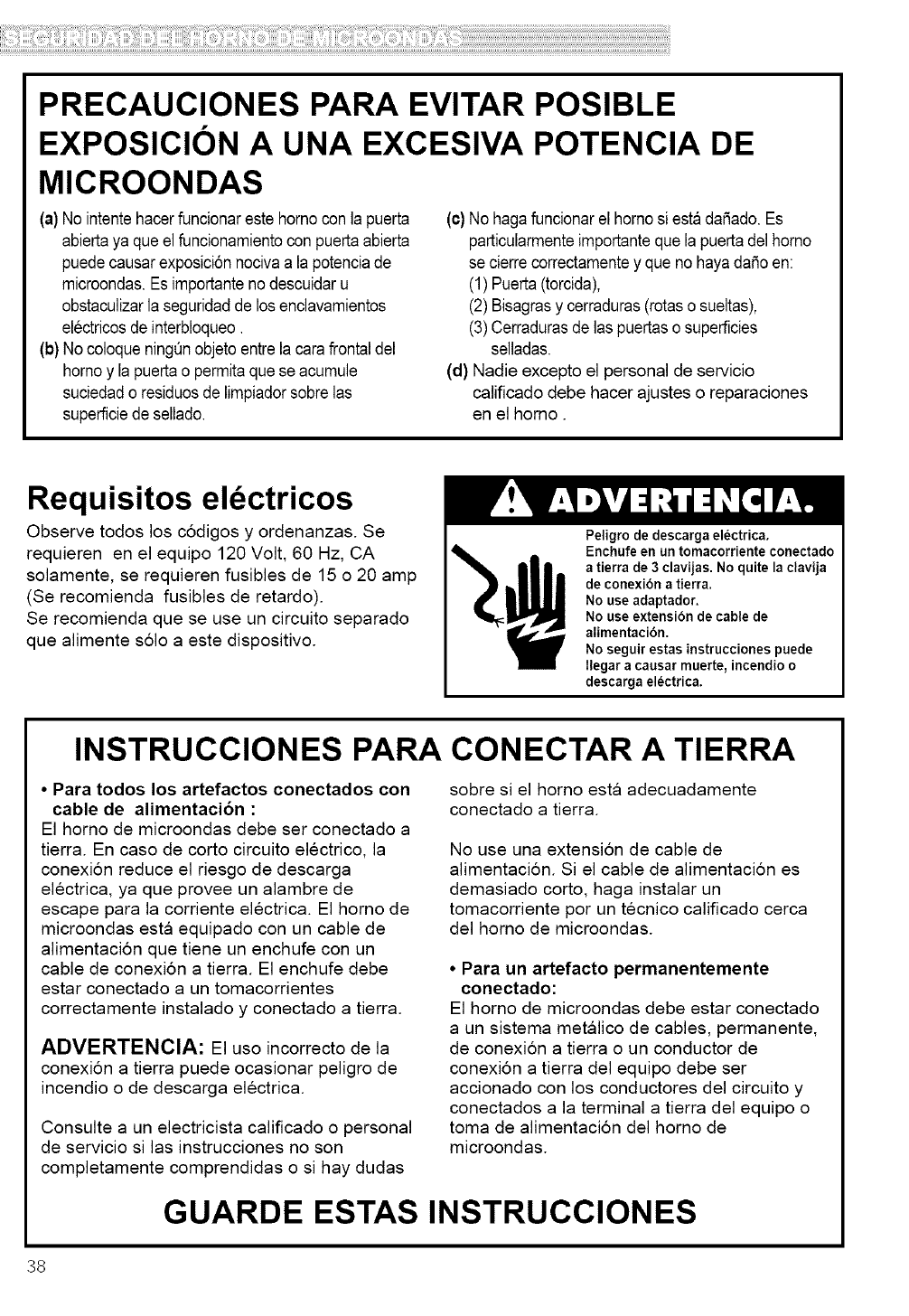

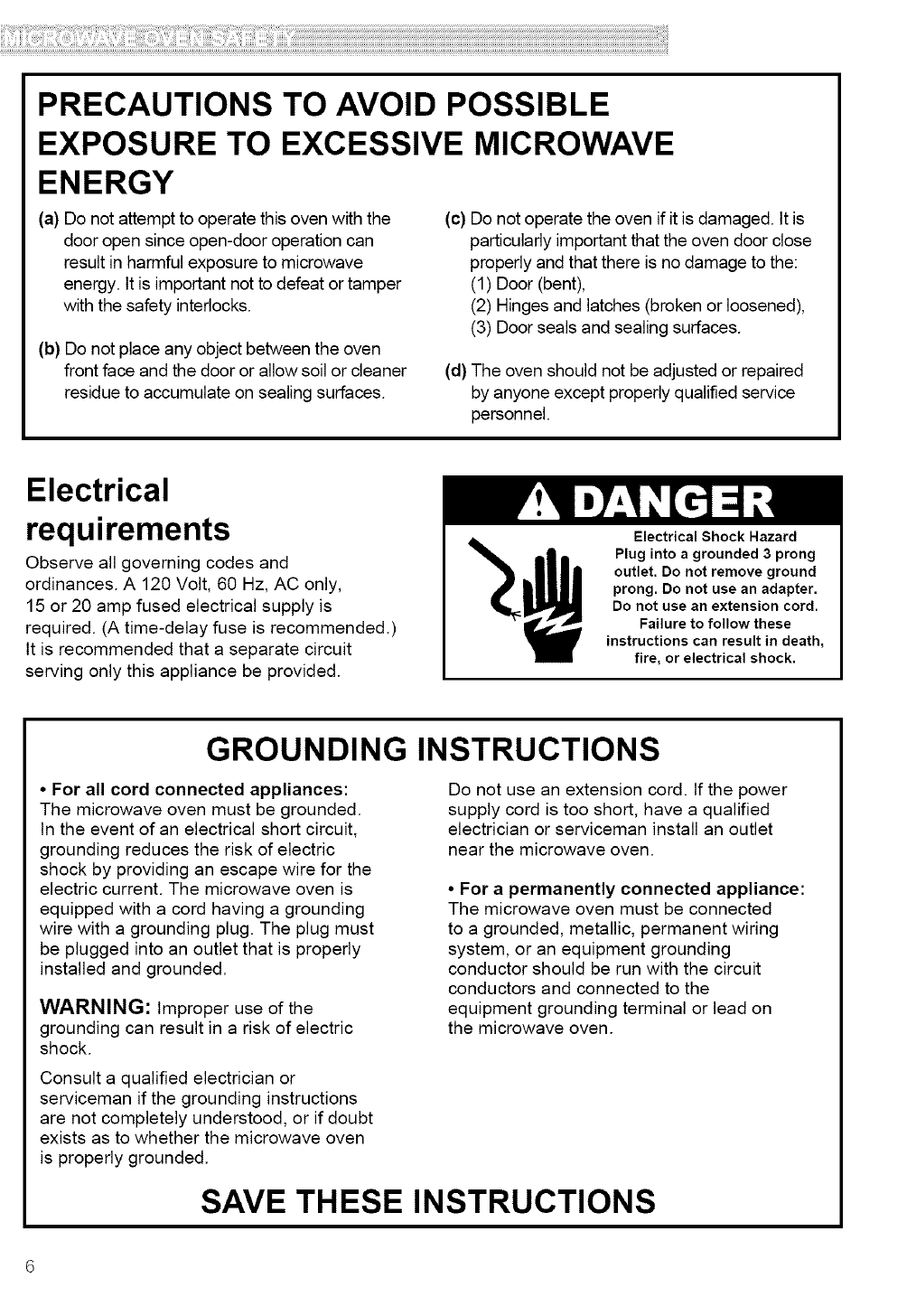

PRECAUTIONS TO AVOID POSSIBLE

EXPOSURE TO EXCESSIVE MICROWAVE

ENERGY

(a) Do not attempt to operate this oven with the

door open since open-door operation can

result in harmful exposure to microwave

energy. It is important not to defeat or tamper

with the safety interlocks.

(b) Do not place any object between the oven

front face and the door or allow soil or cleaner

residue to accumulate on sealing surfaces.

(c)

(d)

Do not operate the oven if it is damaged, tt is

particularly important that the oven door close

properly and that there is no damage to the:

(1) Door (bent),

(2) Hinges and latches (broken or loosened),

(3) Door seals and sealing surfaces.

The oven should not be adjusted or repaired

by anyone except properly qualified service

personnel.

Electrical

requirements

Observe all governing codes and

ordinances. A 120 Volt, 60 Hz, AC only,

15 or 20 amp fused electrical supply is

required. (A time-delay fuse is recommended.)

It is recommended that a separate circuit

serving only this appliance be provided.

Electrical Shock Hazard

Plug into agrounded 3 prong

outlet. Do not remove ground

prong. Do not use an adapter.

Do not use an extension cord.

Failure to follow these

instructions can result in death,

fire, or electrical shock,

GROUNDING INSTRUCTIONS

•For all cord connected appliances:

The microwave oven must be grounded.

In the event of an electrical short circuit,

grounding reduces the risk of electric

shock by providing an escape wire for the

electric current. The microwave oven is

equipped with a cord having a grounding

wire with a grounding plug. The plug must

be plugged into an outlet that is properly

installed and grounded.

WARNING: Improper use of the

grounding can result in a risk of electric

shock.

Do not use an extension cord. tf the power

supply cord is too short, have a qualified

electrician or serviceman install an outlet

near the microwave oven.

•For a permanently connected appliance:

The microwave oven must be connected

to a grounded, metallic, permanent wiring

system, or an equipment grounding

conductor should be run with the circuit

conductors and connected to the

equipment grounding terminal or lead on

the microwave oven.

Consult a qualified electrician or

serviceman if the grounding instructions

are not completely understood, or if doubt

exists as to whether the microwave oven

is properly grounded.

SAVE THESE INSTRUCTIONS

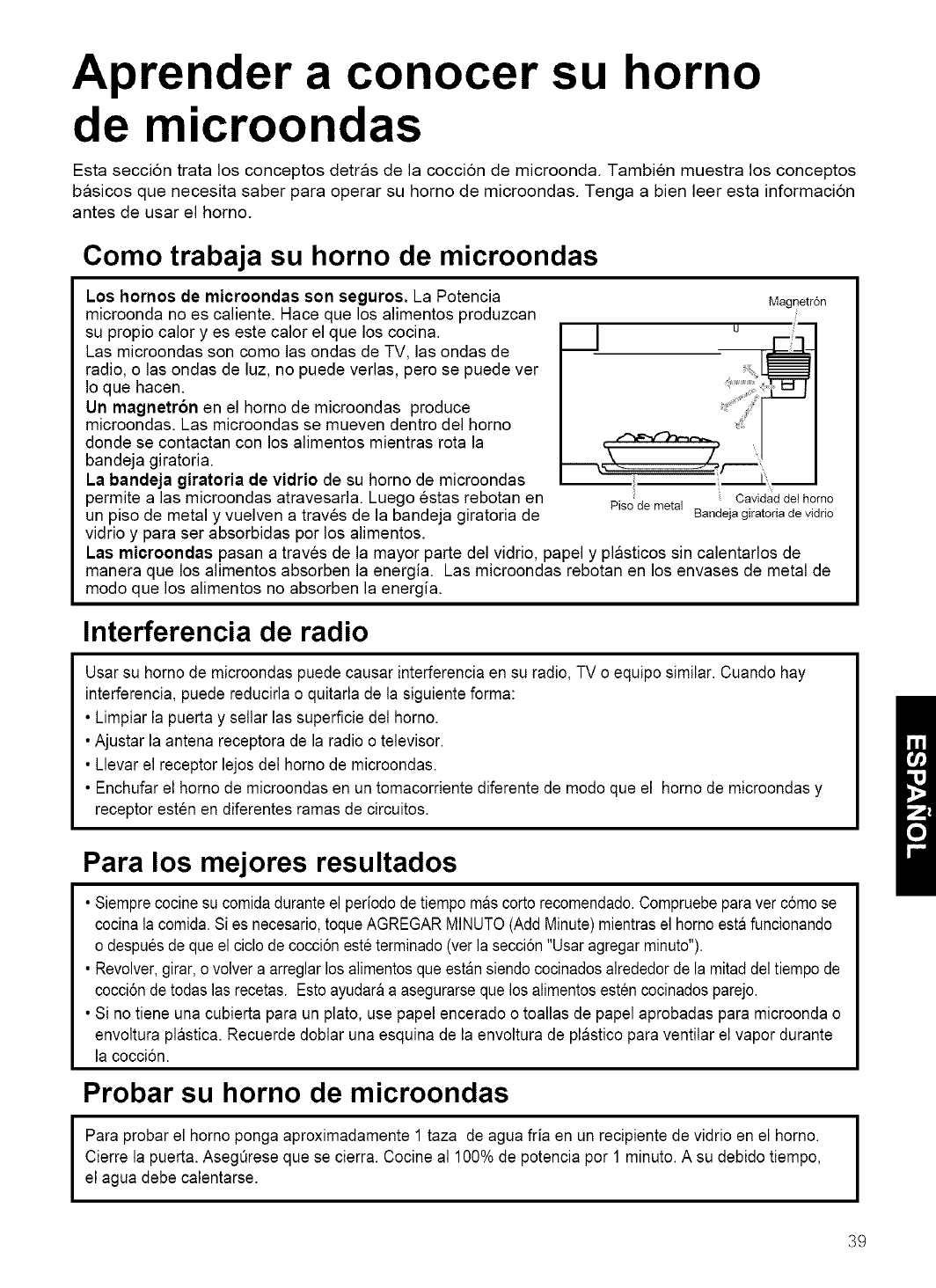

Getting to Know Your

Microwave Oven

This section discusses the concepts behind microwave cooking. It also shows you the

basics you need to know to operate your microwave oven. Please read this information before you

use your oven.

How your microwave oven works

Microwave ovens are safe. Microwave energy is not hot. It

causes food to make its own heat, and it's this heat that cooks

the food.

Microwaves are like TV waves, radio waves, or light waves. You

cannot see them, but you can see what they do.

A magnetron in the microwave oven produces microwaves. The

microwaves move intothe oven where they contact food as it

turns on the turntable.

The glass turntable of your microwave oven lets microwaves

pass through. Then they bounce off a metal floor, back through

the glass turntable, and are absorbed by the food.

Microwaves pass through most glass, paper, and plastics

Magnetron

_iiiill

t Oven cavity

Metal floor Glass turntable

without heating them so food absorbs the energy. Microwaves bounce off metal containers so food does not

absorb the energy.

Radio interference

Using your microwave oven may cause interference to your radio, TV, or similar equipment. When there is

interference, you can reduce it or remove it by:

•Cleaning the door and sealing surfaces of the oven.

• Adjusting the receiving antenna of the radio or television.

•Moving the receiver away from the microwave oven.

•Plugging the microwave oven into a different outlet so that the microwave oven and receiver are on

different branch circuits.

For the best cooking results

•Always cook food for the shortest cooking time recommended. Check to see how the food is cooking. If

needed, touch Add Minute while the oven is operating or after the cooking cycle is over (see the "Using

add minute" section).

• Stir, turn over, or rearrange the food being cooked about halfway through the cooking time for all recipes.

This will help make sure the food is evenly cooked.

• If you do not have a cover for a dish, use wax paper, or microwave-approved paper towels or plastic

wrap. Remember to turn back a corner of the plastic wrap to vent steam during cooking.

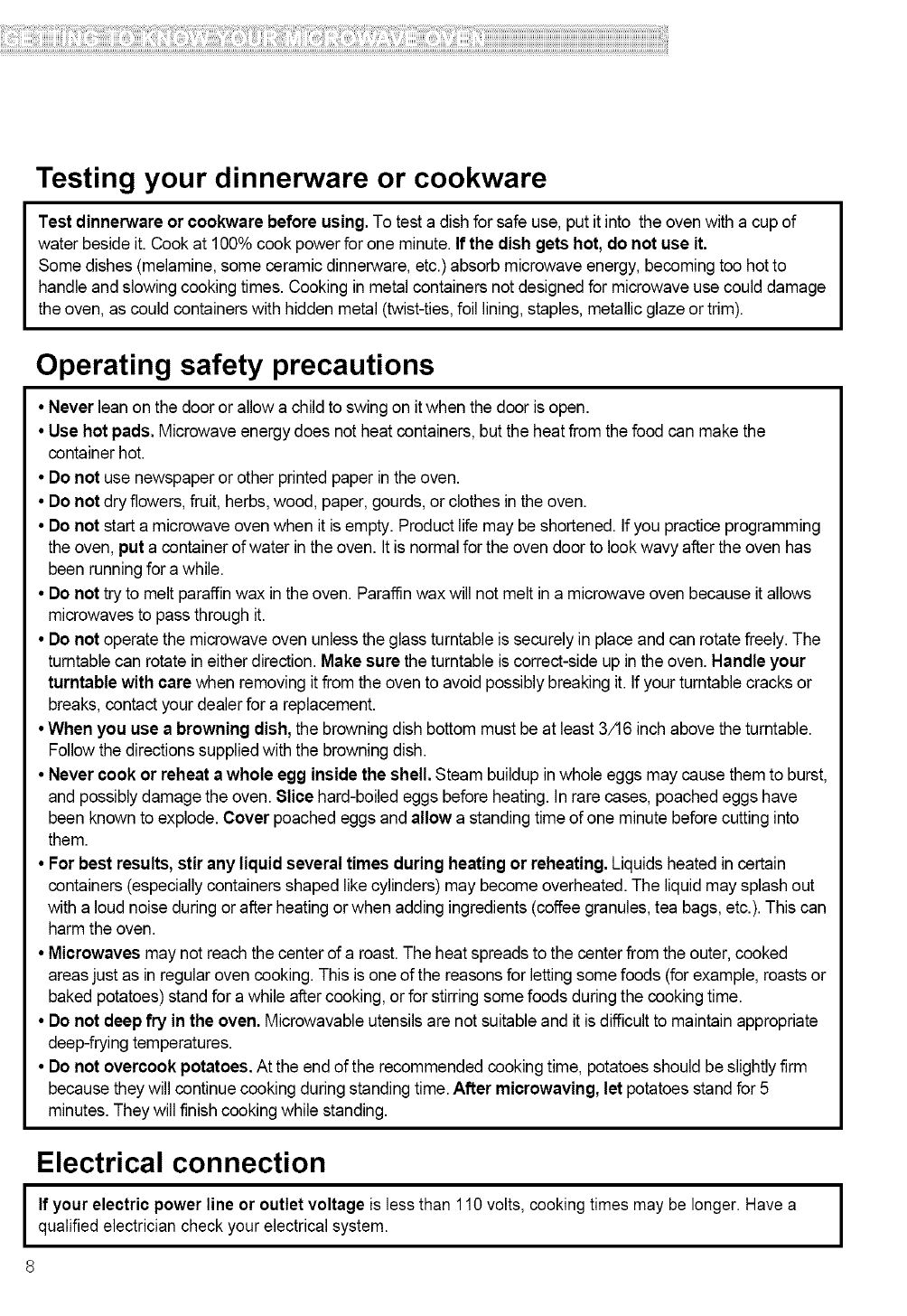

Testing your microwave oven

I To test the oven put about 1 cup of cold water in a glass container in the oven. Close the door. Make sure it

latches. Cook at 100% power for 1 minute. When the time is up, the water should be heated.

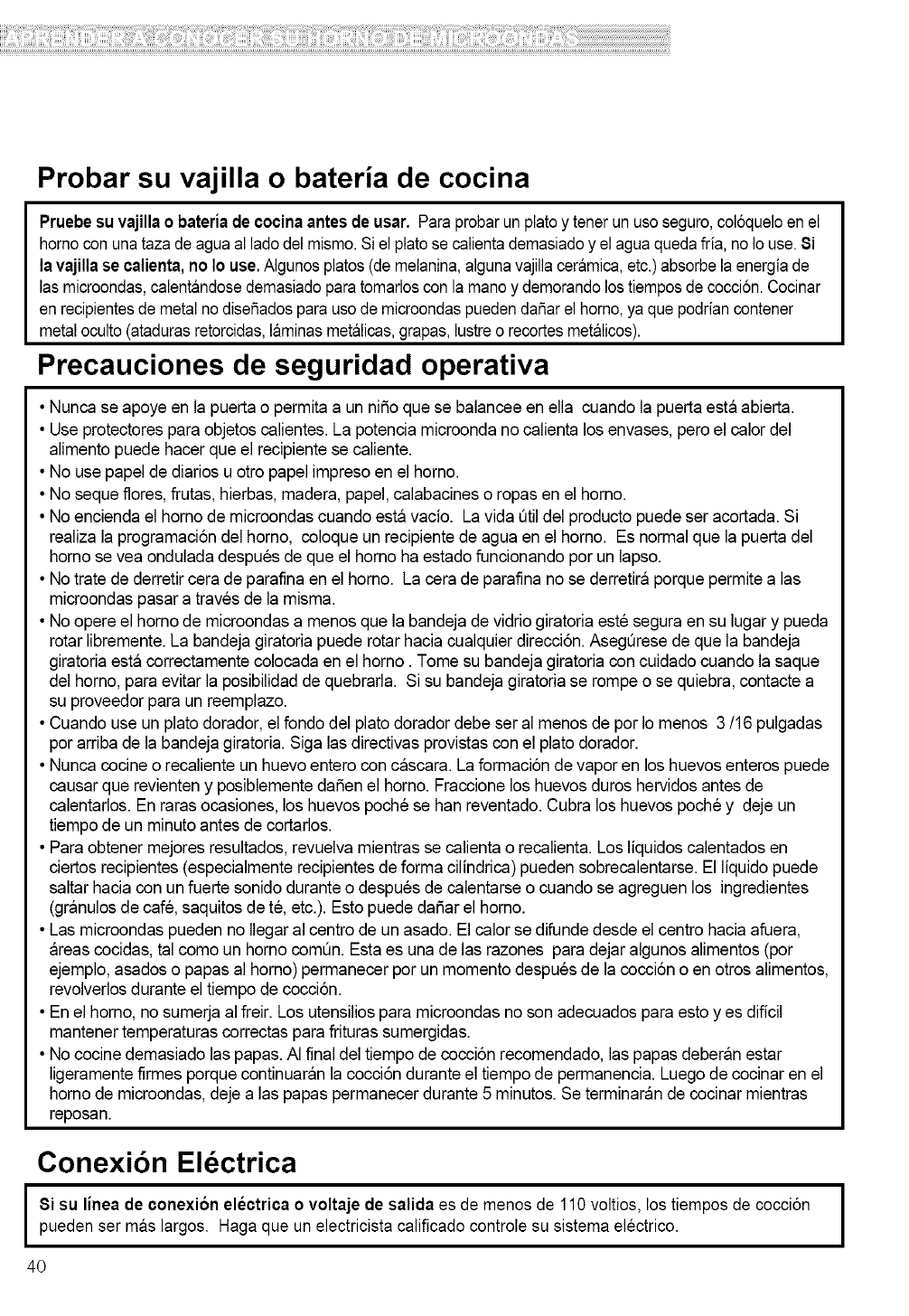

Testing your dinnerware or cookware

Test dinnerware or cookware before using. To test a dish for safe use, put it into the oven witha cup of

waterbeside it. Cook at 100% cook power for one minute. If the dish gets hot, do not use it.

Some dishes (melamine, some ceramic dinnerware, etc.) absorb microwave energy, becoming too hot to

handle and slowing cooking times. Cooking in metal containers not designed for microwave use could damage

the oven, as could containers withhidden metal (twist-ties, foil lining, staples, metallic glaze or trim).

Operating safety precautions

• Never lean on the door or allow a child to swing on it when the door is open.

• Use hot pads. Microwave energy does not heat containers, but the heat from the food can make the

container hot.

• Do not use newspaper or other printed paper in the oven.

• Do not dry flowers, fruit, herbs, wood, paper, gourds, or clothes in the oven.

• Do not start a microwave oven when it is empty. Product life may be shortened. If you practice programming

the oven, put a container of water inthe oven. It is normal for the oven door to look wavy after the oven has

been runningfor a while.

• Do not try to melt paraffinwax in the oven. Paraffinwax will not melt in a microwave oven because it allows

microwaves to pass through it.

• Do not operate the microwave oven unless the glass turntable is securely in place and can rotate freely. The

turntable can rotate in either direction. Make sure the turntable is correct-side up in the oven. Handle your

turntable with care when removing it from the oven to avoid possibly breaking it. If your turntable cracks or

breaks, contact your dealer for a replacement.

• When you use abrowning dish, the browning dish bottom must be at least 3/16 inch above the turntable.

Follow the directions supplied with the browning dish.

• Never cook or reheat awhole egg inside the shell. Steam buildup inwhole eggs may cause themto burst,

and possibly damage the oven. 81ice hard-boiled eggs before heating. In rare cases, poached eggs have

been known to explode. Cover poached eggs and allow a standing time of one minute before cutting into

them.

•For best results, stir any liquid several times during heating or reheating. Liquids heated in certain

containers (especially containers shaped like cylinders) may become overheated. The liquid may splash out

with a loud noise during or after heating or when adding ingredients (coffee granules,tea bags, etc.).This can

harm the oven.

•Microwaves may not reach the center of a roast. The heatspreads to the center from the outer, cooked

areas just as in regular oven cooking. This is one of the reasons for letting some foods (for example, roasts or

baked potatoes) stand for a while after cooking, or for stirringsome foods during the cooking time.

• Do not deep fry in the oven. Microwavable utensils are not suitable and it is difficult to maintain appropriate

deep-frying temperatures.

• Do not over¢ook potatoes, At the end of the recommended cookingtime, potatoes should be slightly firm

because they will continue cooking during standing time. After microwaving, let potatoes stand for 5

minutes.They will finish cooking while standing.

Electrical connection

I If your electric power line or outlet voltage is less than 110 volts, cooking times may be longer. Have a

qualified electrician check your electrical system.

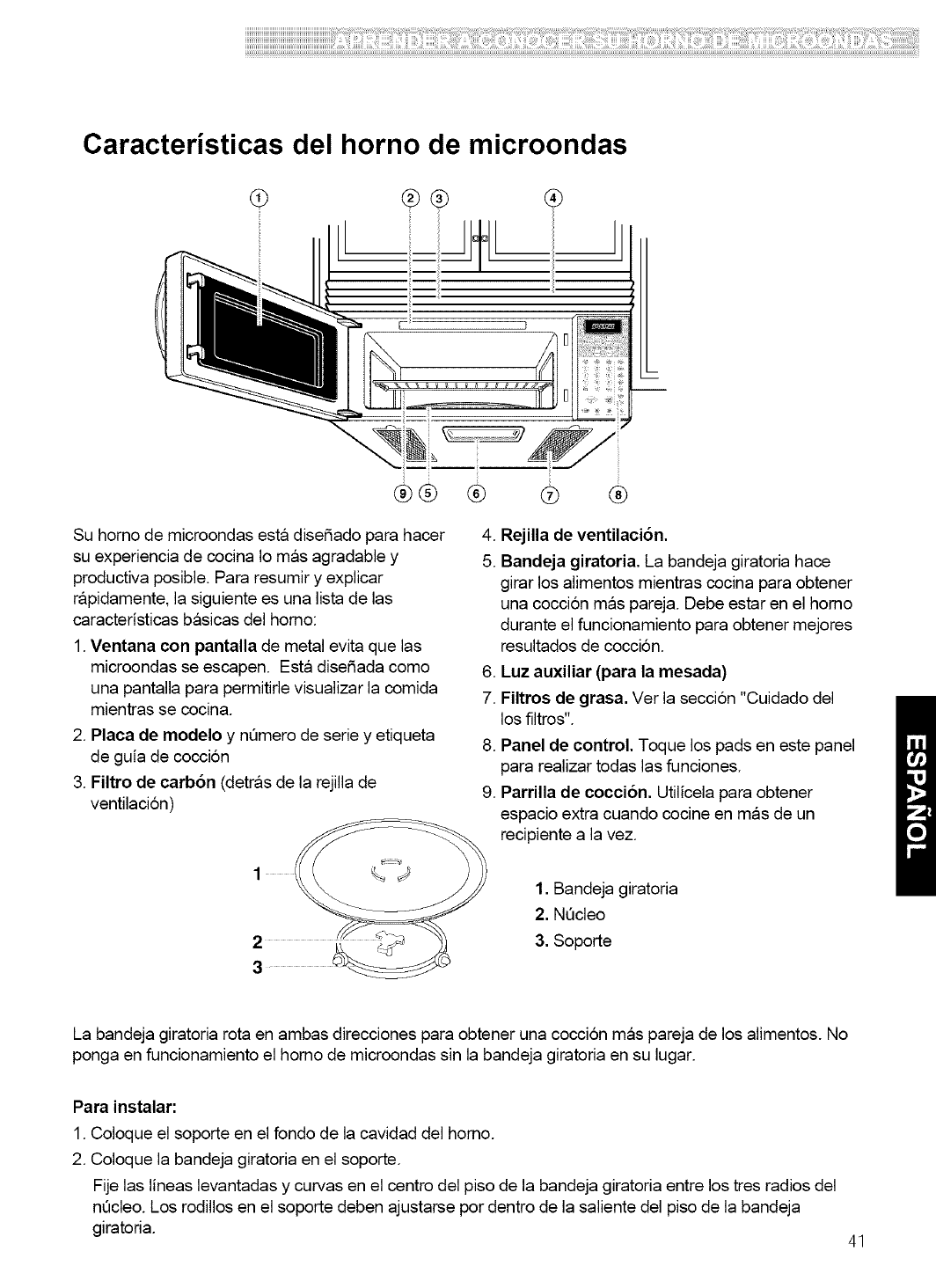

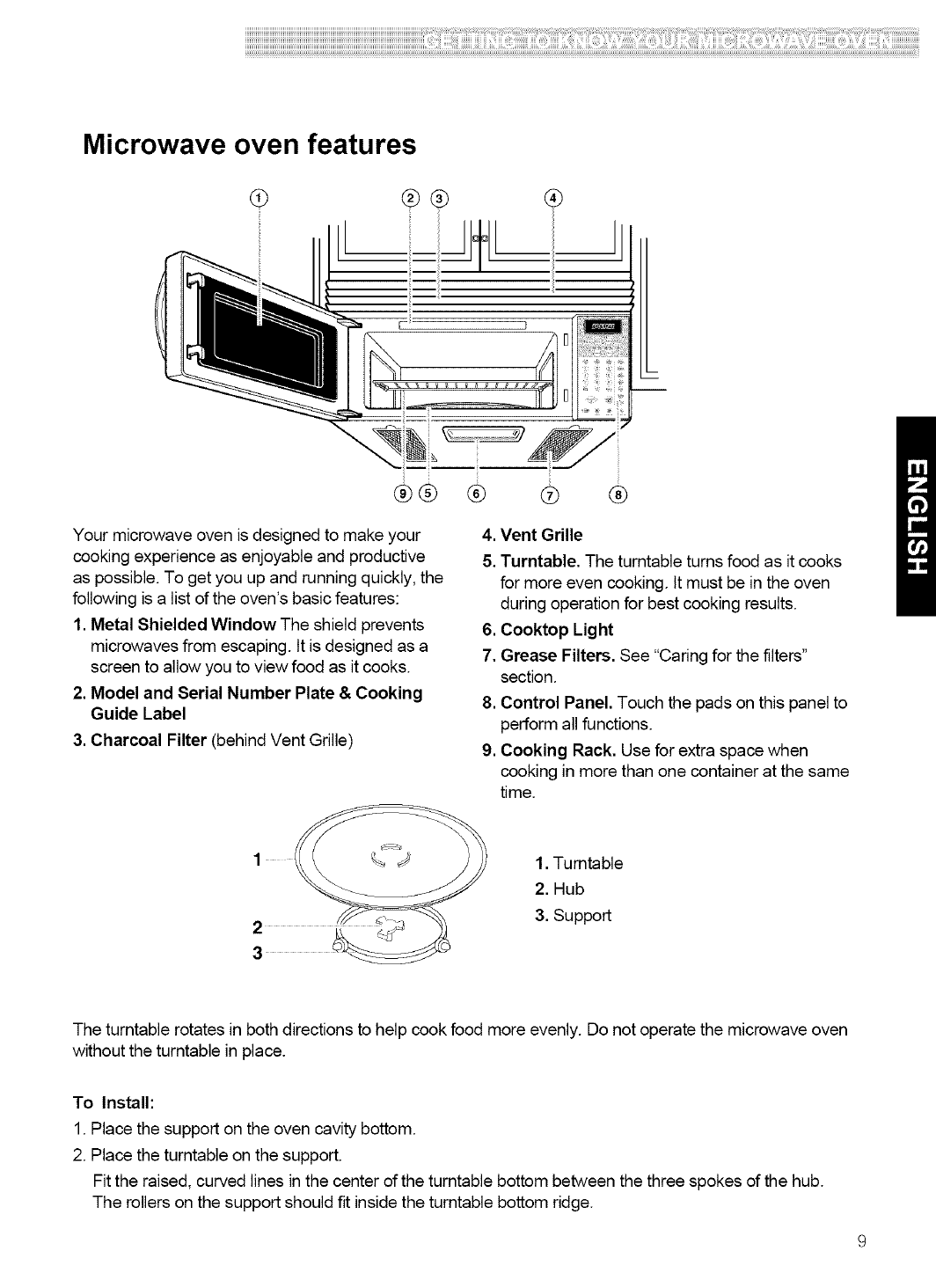

Microwave oven features

®®

Your microwave oven is designed to make your

cooking experience as enjoyable and productive

as possible. To get you up and running quickly, the

following is a list of the oven's basic features:

1. Metal Shielded Window The shield prevents

microwaves from escaping, tt is designed as a

screen to allow you to view food as it cooks.

2. Model and Serial Number Plate & Cooking

Guide Label

3. Charcoal Filter (behind Vent Grille)

® Q ®

4. Vent Grille

5. Turntable. The turntable turns food as it cooks

for more even cooking. It must be in the oven

during operation for best cooking results.

6. Cooktop Light

7. Grease Filters. See "Caring for the filters"

section.

8. Control Panel. Touch the pads on this panel to

perform all functions.

9. Cooking Rack. Use for extra space when

cooking in more than one container at the same

time.

1. Turntable

2. Hub

3. Support

The turntable rotates in both directions to help cook food more evenly. Do not operate the microwave oven

without the turntable in place.

To Install:

1. Place the support on the oven cavity bottom.

2. Place the turntable on the support.

Fit the raised, curved lines in the center of the turntable bottom between the three spokes of the hub.

The rollers on the support should fit inside the turntable bottom ridge.

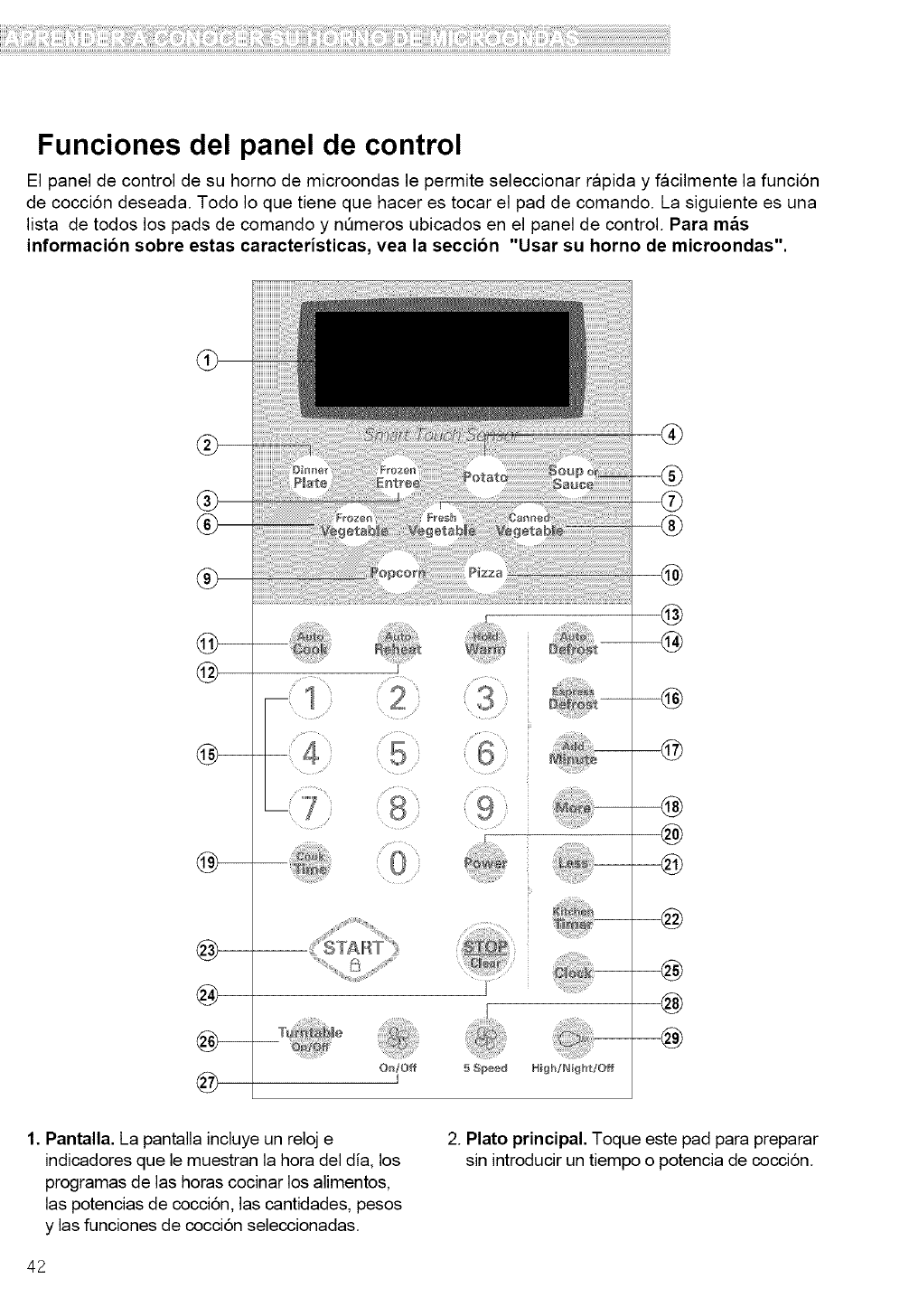

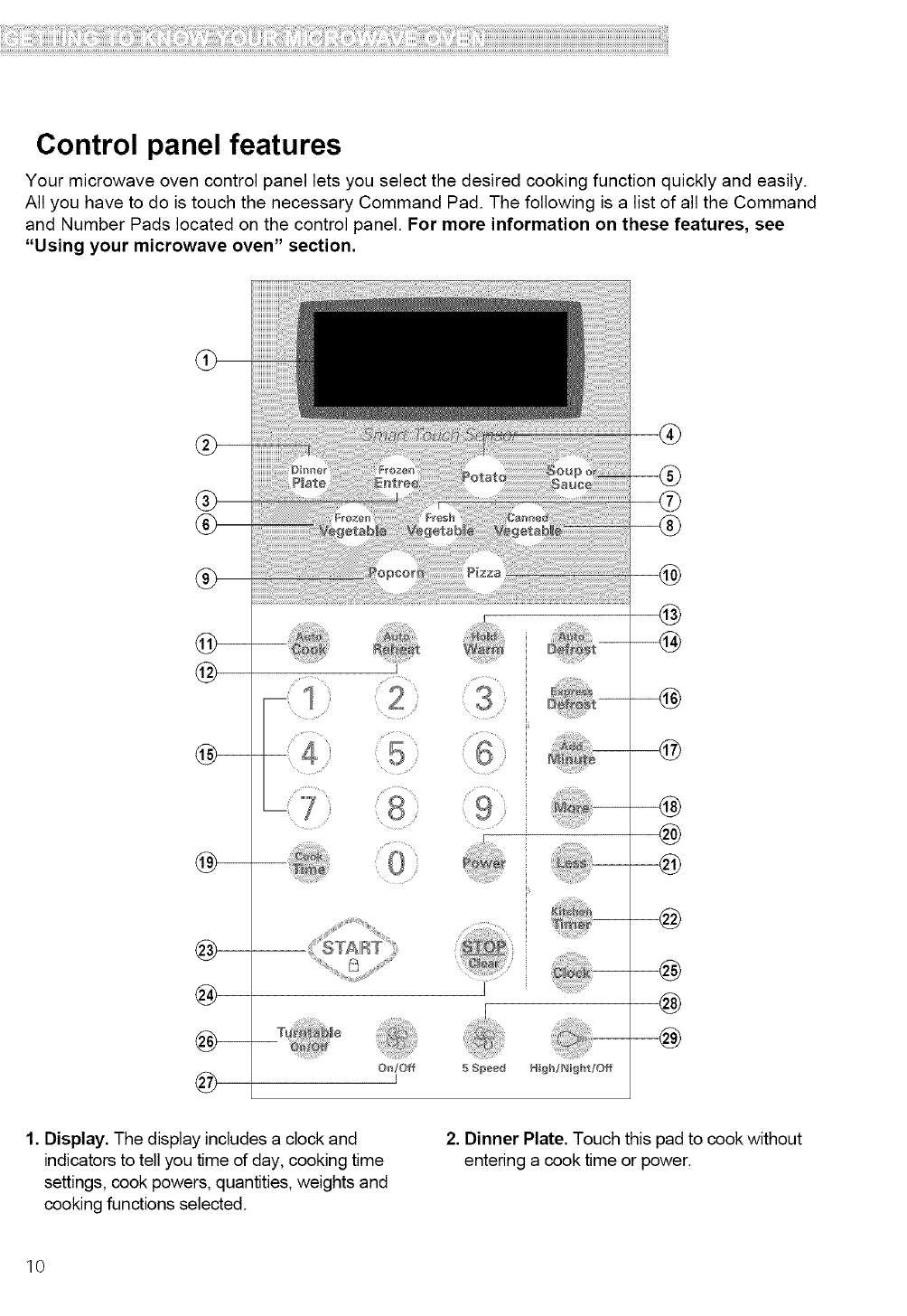

Control panel features

Your microwave oven control panel lets you select the desired cooking function quickly and easily.

All you have to do is touch the necessary Command Pad. The following is a list of all the Command

and Number Pads located on the control panel. For more information on these features, see

"Using your microwave oven" section.

@__

7 <i_;

....,,i_. _j ._i,1_¸¸

On/Off

5 S#ee# H#_ h/Nig_:_t/Off

--@

--©

--@

1. Display. The display includes a clock and

indicators to tell you time of day, cooking time

settings, cook powers, quantities, weights and

cooking functions selected.

2. Dinner Plate. Touch this pad to cook without

entering a cook time or power.

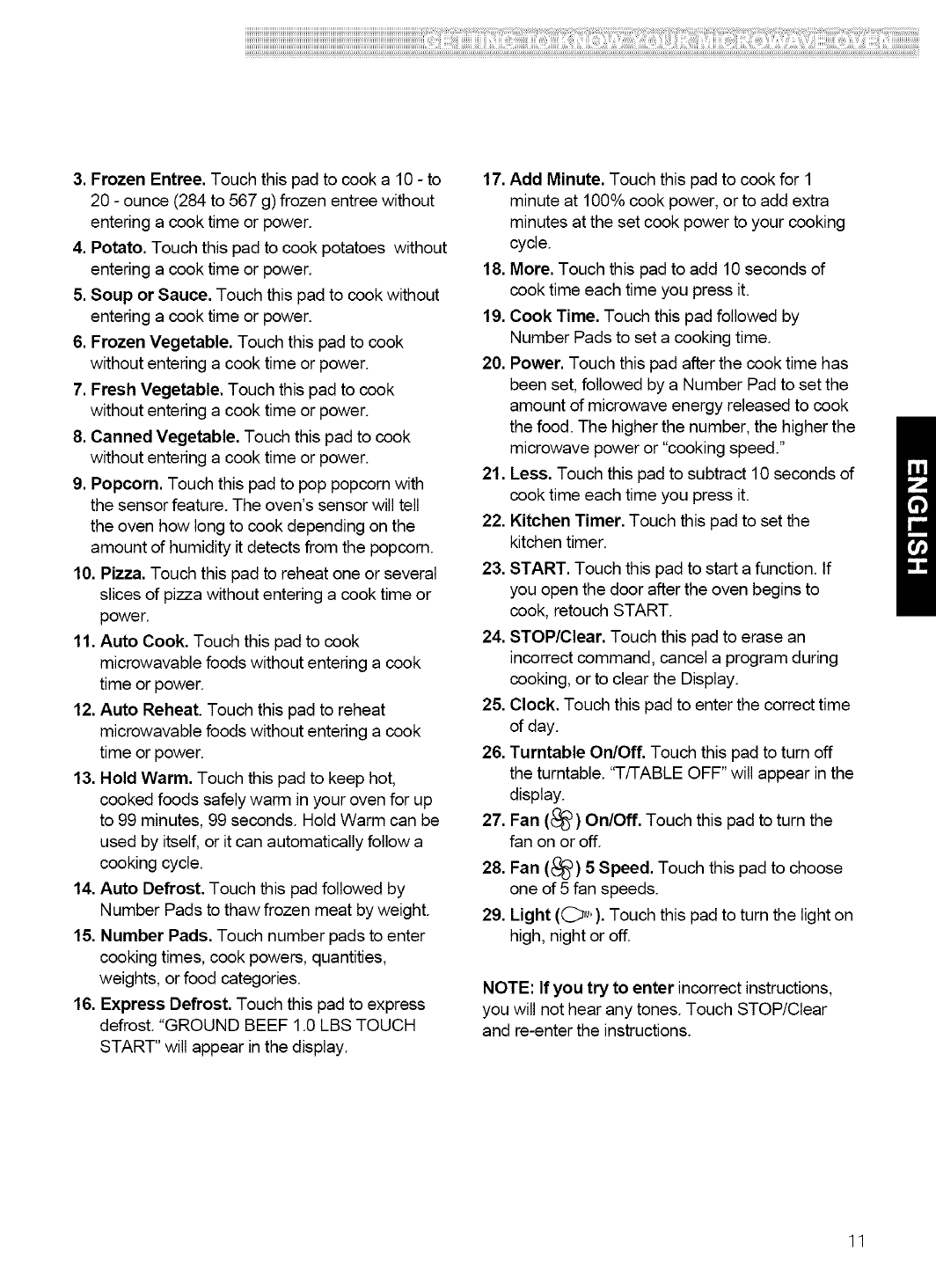

3.FrozenEntree.Touchthispadtocooka 10- to

20- ounce(284to567g)frozenentree without

entering a cook time or power.

4. Potato. Touch this pad to cook potatoes without

entering a cook time or power.

5. Soup or Sauce. Touch this pad to cook without

entering a cook time or power.

6. Frozen Vegetable. Touch this pad to cook

without entering a cook time or power.

7. Fresh Vegetable. Touch this pad to cook

without entering a cook time or power.

8. Canned Vegetable. Touch this pad to cook

without entering a cook time or power.

9. Popcorn. Touch this pad to pop popcorn with

the sensor feature. The oven's sensor will tell

the oven how long to cook depending on the

amount of humidity it detects from the popcorn.

10. Pizza. Touch this pad to reheat one or several

slices of pizza without entering a cook time or

power.

11. Auto Cook. Touch this pad to cook

microwavable foods without entering a cook

time or power.

12. Auto Reheat. Touch this pad to reheat

microwavable foods without entering a cook

time or power.

13. Hold Warm. Touch this pad to keep hot,

cooked foods safely warm in your oven for up

to 99 minutes, 99 seconds. Hold Warm can be

used by itself, or it can automatically follow a

cooking cycle.

14. Auto Defrost. Touch this pad followed by

Number Pads to thaw frozen meat by weight.

15. Number Pads. Touch number pads to enter

cooking times, cook powers, quantities,

weights, or food categories.

16. Express Defrost. Touch this pad to express

defrost. "GROUND BEEF 1.0 LBS TOUCH

START" will appear in the display.

17. Add Minute. Touch this pad to cook for 1

minute at 100% cook power, or to add extra

minutes at the set cook power to your cooking

cycle.

18. More. Touch this pad to add 10 seconds of

cook time each time you press it.

19. Cook Time. Touch this pad followed by

Number Pads to set a cooking time.

20. Power. Touch this pad after the cook time has

been set, followed by a Number Pad to set the

amount of microwave energy released to cook

the food. The higher the number, the higher the

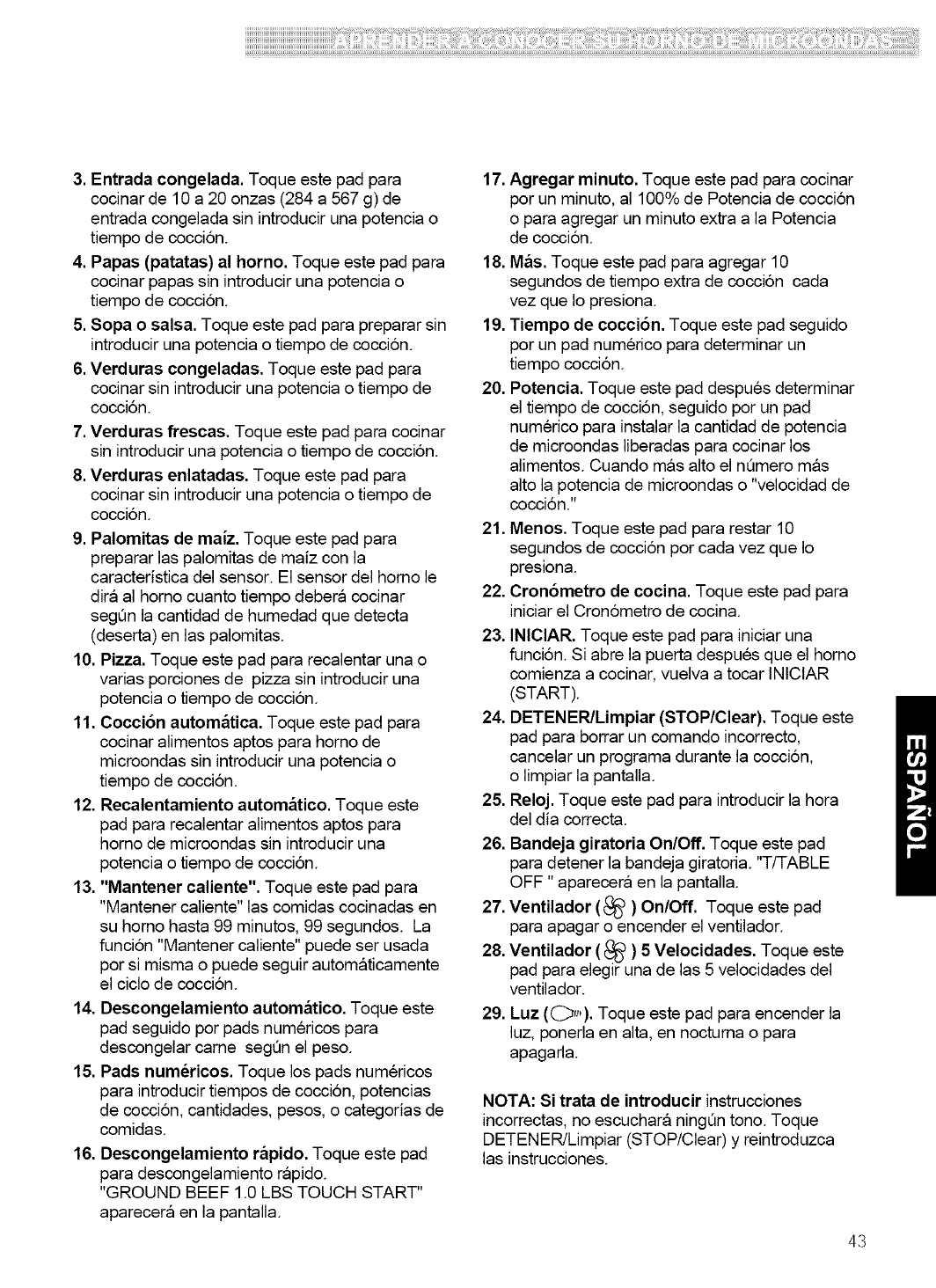

microwave power or "cooking speed."

21. Less. Touch this pad to subtract 10 seconds of

cook time each time you press it.

22. Kitchen Timer. Touch this pad to set the

kitchen timer.

23. START. Touch this pad to start a function. If

you open the door after the oven begins to

cook, retouch START.

24. STOP/Clear. Touch this pad to erase an

incorrect command, cancel a program during

cooking, or to clear the Display.

25. Clock. Touch this pad to enter the correct time

of day.

26. Turntable On/Off. Touch this pad to turn off

the turntable. "T/TABLE OFF" will appear in the

display.

27. Fan (_) On/Off. Touch this pad to turn the

fan on or off.

28. Fan (_) 5Speed. Touch this pad to choose

one of 5 fan speeds.

29. Light ((_'_). Touch this pad to turn the light on

high, night or off.

NOTE: If you try to enter incorrect instructions,

you will not hear any tones. Touch STOP/Clear

and re-enter the instructions.

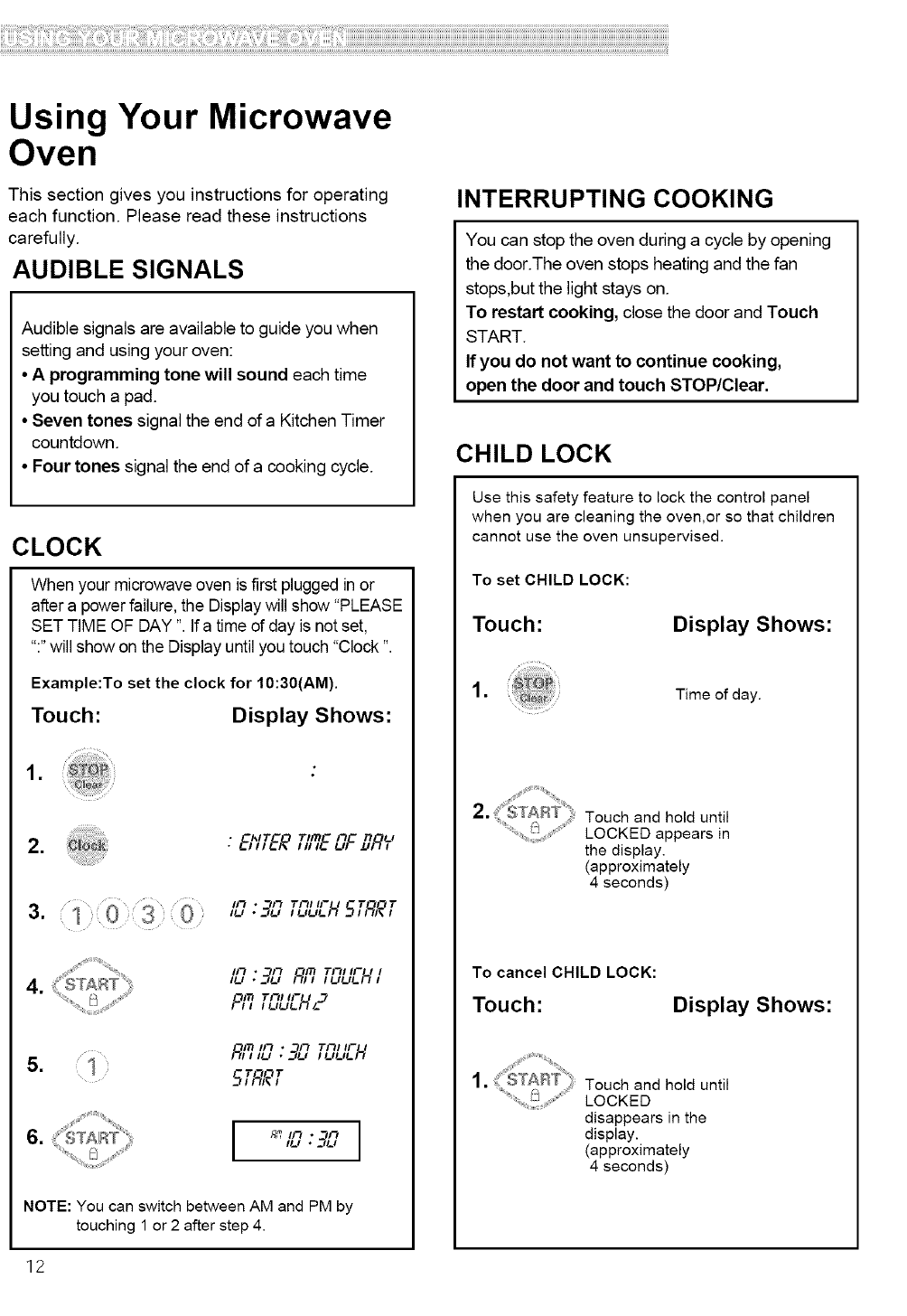

Using Your Microwave

Oven

This section gives you instructions for operating

each function. Please read these instructions

carefully.

AUDIBLE SIGNALS

Audible signals are available to guide you when

setting and using your oven:

•A programming tone will sound each time

you touch a pad.

•Seven tones signal the end era Kitchen Timer

countdown.

•Four tones signal the end of a cookingcycle.

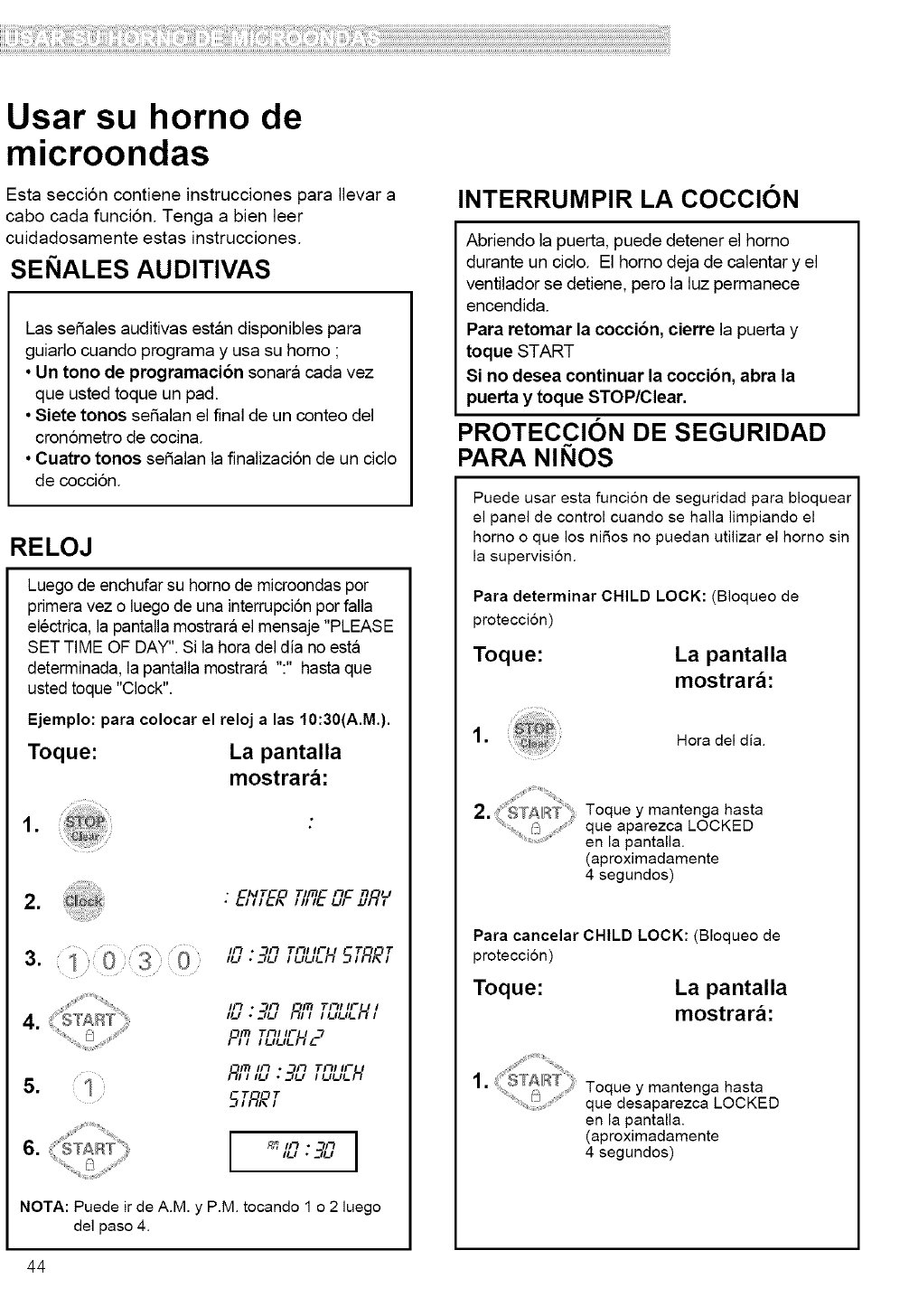

CLOCK

When your microwave oven is first plugged in or

after a power failure, the Displaywill show "PLEASE

SET TIME OF DAY ". If a time of day isnot set,

":"will show on the Display until you touch "Clock ".

Example:To set the clock for 10:30(AM).

Touch: Display Shows:

1•Cle_

=•Tlfn n _U

EI'ITER,,,E _F_'R,

0 " ",=,=,=n

4. I1"_ •I'_ TI'_I II- II

PR T,_,,- ,

-IITt ll"i * I_

}_l lll_l * _?[.l ITI-III-II-II.._'_II-l

5. -T'30T

6. !_"STA_i:_"% IR_ II--I * I"l

II_l * __[.I I

NOTE: You can switch between AM and PM by

touching 1 or 2 after step 4.

INTERRUPTING COOKING

You can stop the oven during a cycle by opening

the door.The oven stops heating and the fan

stops,but the light stays on.

To restart cooking, close the door and Touch

START.

If you do not want to continue cooking,

open the door and touch STOP/Clear.

CHILD LOCK

Use this safety feature to lock the control panel

when you are cleaning the oven,or so that children

cannot use the oven unsupervised.

To set CHILD LOCK:

Touch: Display Shows:

Time of day.

Touch and hold until

LOCKED appears in

the display.

(approximately

4 seconds)

To cancel CHILD LOCK:

Touch: Display Shows:

Touch and hold until

LOCKED

disappears in the

display.

(approximately

4 seconds)

ii!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!iiiii!iiili!ii!iiiili!ii!ililliii!ii!if!filliiiiii!iiiiii!i!iilliiiiilli!ii:iiiii!!ii!iiiiiii!ii!ii!iiii!!il!ii!ii!ii!ii!ii!ii!ililiili!illi!iiiiiiiiiiliil!iiiiii!ii!!ii!i!!ii!iliiiiiilii!iiiiii!!i!!i!!if!illiii!iii!iiiii!iiiiii!iii!ii!i!!i!!i!!i!!ii!iliiiiiill!illiiliilliiiiiiiillii!ii!iiiiiii!ii!i!!i!ii!ii!ii!i!!iliiii!ii!ii!iiiiili!if!ii!iiiiiii!ii!ii!ii!iiiiiiiiiii!if!iilliiii!ii!iliii!iiiiiiii!iiiiiiiiii!ii!iiii!ii!iilillii!ii!i!iiliiiiii!ii!iiiiiiiiii!iiiiiiliiililii!il!ii!ii!iii!i!i!ii!iii!il!ii!ii!ii!ii!iiiiii!!ilfilliiiii!ii!iiiiiiiiii!if!illii!iili!i!i!i!iiii!iiiiiiliiiii!ii!iiiiii!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!i!iili

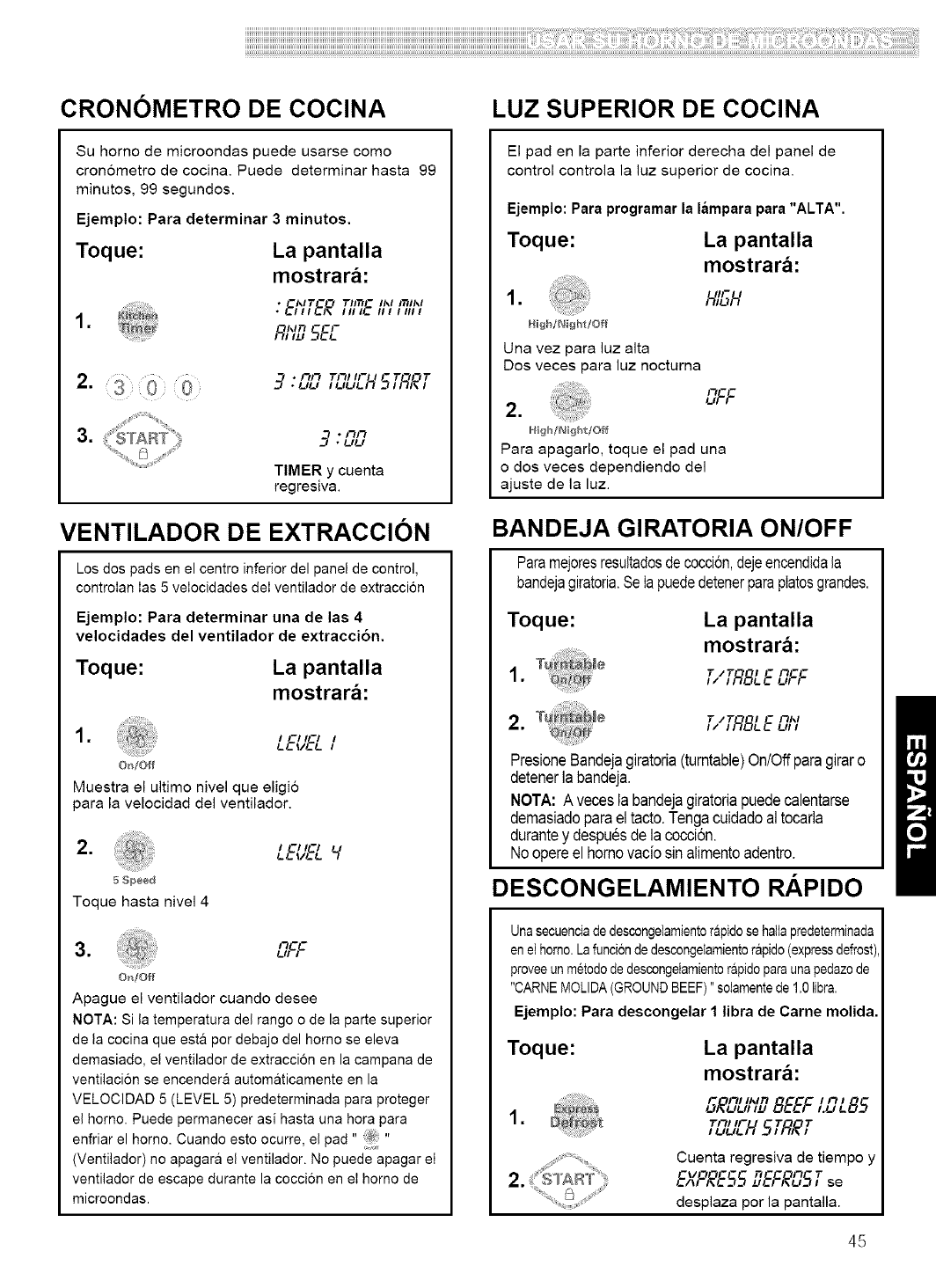

KITCHEN TIMER

Your microwave oven can be used as a kitchen

timer. You can set up to 99 minutes, 99 seconds.

Example: To set 3 minutes.

Touch: Display Shows:

: EI;'TEP,T,m- II;' m,,,I II I_ IIII I

2. 3 :: 0 _0

*Fh'_

__ *I_II_I TI'_I II- I -T"_")T

3" UU

TIMER and time

counting down.

EXHAUST FAN

The two pads on the bottom center of the control

panel control the 5-speed exhaust fan.

Example: To set exhaust fan speed to level 4

Touch: Display Shows:

LEI_ELI

On/Off

This shows the last level until you

select the fan speed level.

5 Speed

Touch until Level 4

,C, IC,

L./- V/- L. L/I

3. ,_cc

I_II I

O_/Off

Turn off fan when desired

NOTE: If the temperature from the range or cooktop

below the oven gets too hot, the exhaust fan in the

vent hood will automatically turn on at the LEVEL 5

setting to protect the oven.

It may stay on up to an hour to cool the oven.

When this occurs, the ,!_,, pad will not turn the fan

off. You cannot turn the exhaust fan off during

microwave cooking.

COOKTOP LIGHT

The pad on the bottom right of the control panel

controls the cooktop light.

Example: To set the Lamp for HIGH.

Touch:

High/Night/Off

once for HIGH light

twice for NIGHT light

Display Shows:

h'SH

High/Night/Off

To turn off, touch pad one

or two times depending on

light setting.

OFF

TURNTABLE ON/OFF

For best cooking results, leave the turntable on.

Itcan be turned off for large dishes.

Touch: Display Shows:

T_;_ o ,,'",/_&E"__' -u,,'_"

Press Turntable On/Off to turn the turntable

on or off.

NOTE: Sometimes the turntable can become hot

to touch. Be careful touching the turntable during

and after cooking.

Do not run the oven empty without food in it.

EXPRESS DEFROST

One express defrost sequence is preset in the oven,

The Express Defrost feature provides you with the quick

defrosting method for 1.0 pound "GROUND BEEF"

only.

Example: To defrost lib of Ground beef

Touch: Display Shows:

/- F'#I I/_/n I/_ I

_, ,_ BEEF,._L85

1. ,uu_.H5,RB,

TI'_I Ir T T

Time counting down and

-v_--- _--_,_-_

scrolls across display.

ADD MINUTE

A time-saving pad, this simplified control lets

you quickly set and start microwave cooking at

100% power without the need to touch START.

Example: To cook for 2 minutes.

Touch: Display Shows:

1. Time of day.

,Twice Time counting down

and POWER 100.

NOTE: Each time you touch ADD MINUTE, it will

add 1 minute up to 99 min 59 seconds.

TIMED COOKING

This feature lets you program a specific cook time

and power. For best results, there are 10 power

level settings in addition to HIGH (100%) power.

Refer to the "Microwave Power Levels Table" on

page 15 for more information.

NOTE: If you do not select a power level, the oven

will automatically cook at HIGH (100%) power.

Example: To cook for 5 minutes, 30 seconds

at 80% power.

Touch: Display Shows:

,: B;'TEP,-,-,n.,,,,,-I-UU'IdlIII I1_'1 ITIITIIII_-

2. 53 0

•/-t

,_ ._?_,rn, ,- -r_arIt_flJt_h /__1 i_1\ i

L,I\ Fu.,_

-hit - "l -I1-111 - "l

3. , -,r, , Tn,n

_.&,,_., ,_.,,_,

*I'_ "_1"_1 I-- "l

4. 8 5._qL,F.,_,EF.

5. Time counting down

',, ;t ,,, and POWER 80.

MULTI-STAGE COOKING

For best results, some recipes call for different cook

powers during different stages of a cook cycle. You

can program your oven to switch from one power

level to another for up to 2 stages.

Example: To set a 2-stage cook cycle.

Touch: Display Shows:

,*-I_IT --0 I--I"11"1 711_11--

•E,,, E,__uu_1, ,_ ,r'm,rE-

2. ; 3 0 0

to set a 3 minute cook

time for first stage.

___ *I'll"l TI'_I II-•_.,_.,,_,_,_H5TRET

1"30 "h'_l1-0

Ul, FL,_,_I,

3. I'TI'T -hlT-'l --I1--11I----t•_,_,b,, E_ F_I_,E_

,-,,-, Tn,n

.&/E. I,u ,u

4. i_

to set an 80% cook

power for the first stage.

9"'_'_"_n,,-_ _,_•_,_,F_.I,,_ 8_,

TI_,,I- - T'_'."

,.i.1.H 5,,_,

,*-I_IT -- "_ I--I--I1--1711_11--

•EI II E_ k. UU_III 11,21IT'171111_-

6. 7' 0 ::'

to set a 7 minute cook

time for second stage.

7.nn _1_,.-i -T_

•_,_,,.i.1._ 5, I_,

I-I -I -I1-111 -- -t

_.1_F_.I_,E_

.I'_1"_ -I_IT -- "l _1"_11 -- "l

•_.,_.,E,,, EF,F_I_,'EF.

,-,,-, Tn,n

.&/E. I,u ,u

8. 5

to set a 50 Vocook power

for the second stage.

7 "'_'_ _1_,,-_ -n•.,., F.I_;_ 5.,

_1_,,-i-T_

,.i.i.;ff 5,/_,

,Time counting down

and POWER 80.

10, When the first stage is over, you will hear two

short tones as the oven begins the second

cook stage.

ii!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!iiiii!iiili!ii!iiiili!ii!ililliii!ii!if!filliiiiii!iiiiii!i!iilliiiiilli!iiiiiiii!!ii!iiiiiii!ii!ii!iiii!!il!ii!ii!ii!ii!ii!ii!ililiili!illi!iiiiiiiiiiliil!iiiiii!ii!!ii!i!!ii!iliiiiiilii!iiiiii!!i!!i!!if!illiii!iii!iiiii!iiiiii!iii!ii!i!!i!!i!!i!!ii!iliiiiiill!illiiliilliiiiiiiillii!ii!iiiiiii!ii!i!!i!ii!ii!ii!i!!iliiii!ii!ii!iiiiili!if!ii!iiiiiii!ii!ii!ii!iiiiiiiiiii!if!iilliiii!ii!iliii!iiiiiiii!iiiiiiiiii!ii!iiii!ii!iilillii!ii!i!iiliiiiii!ii!iiiiiiiiii!iiiiiiliiililii!il!ii!ii!iii!i!i!ii!iii!il!ii!ii!ii!ii!iiiiii!!ilfilliiiii!ii!iiiiiiiiii!if!illii!iili!i!i!i!iiii!iiiiiiliiiii!ii!iiiiii!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!i!iili

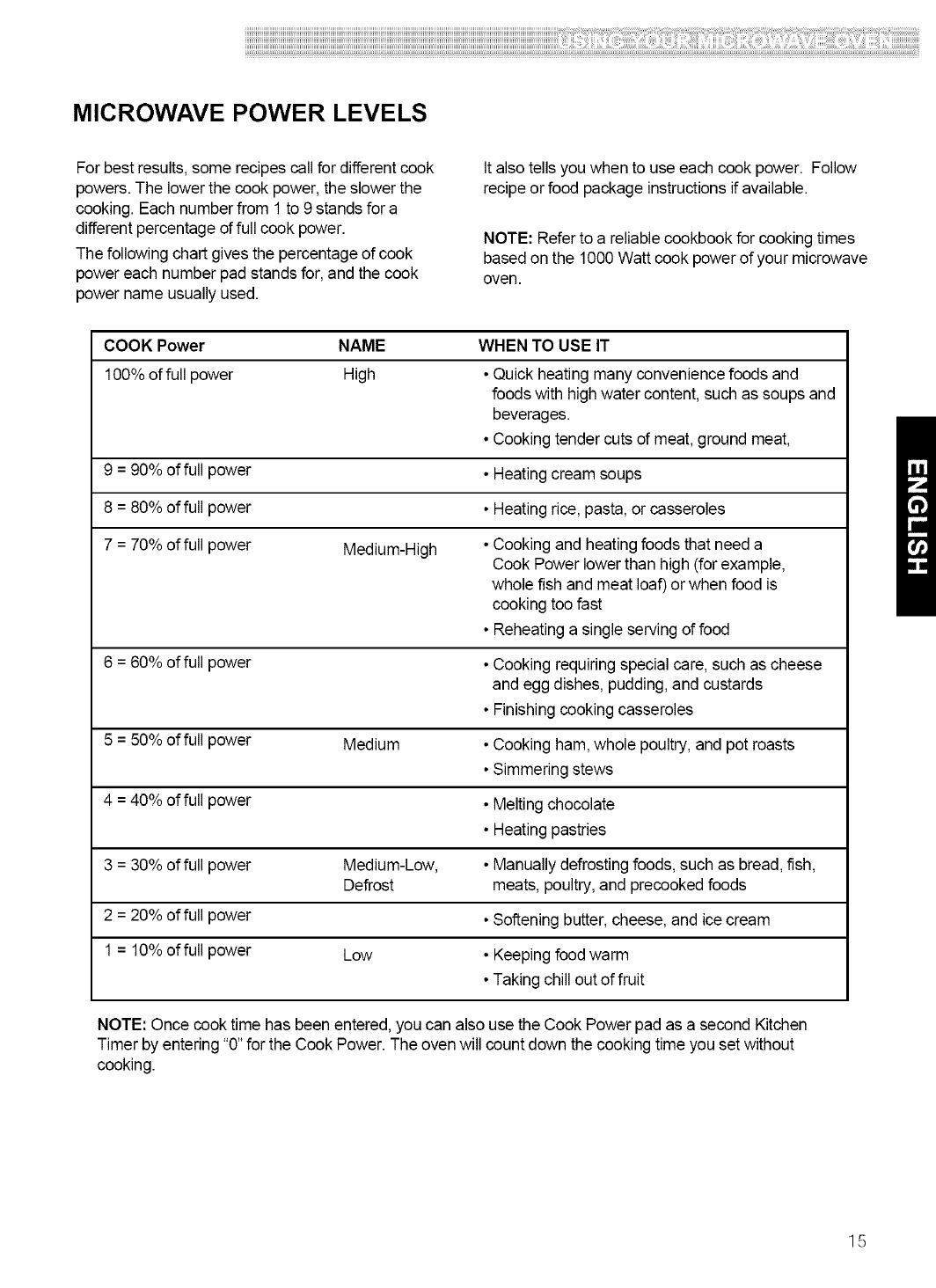

MICROWAVE POWER LEVELS

For best results, some recipes call for different cook

powers. The lower the cook power, the slower the

cooking. Each number from 1 to 9 stands for a

different percentage of full cook power.

The following chart gives the percentage of cook

power each number pad stands for, and the cook

power name usually used.

Italso tells you when to use each cook power. Follow

recipe or food package instructions if available.

NOTE: Refer to a reliablecookbook for cooking times

based on the 1000 Watt cook power of your microwave

oven.

COOK Power NAME

100% of full power High

9 = 90% of full power

8 = 80% of full power

7 = 70% of full power Medium-High

6 = 60% of full power

5 = 50% of full power Medium

4 = 40% of full power

3 = 30% of full power Medium-Low,

Defrost

2 = 20% of full power

1 = 10%of full power Low

WHEN TO USE IT

• Quick heating many convenience foods and

foods with high water content, such as soups and

beverages.

• Cooking tender cuts of meat, ground meat,

• Heating cream soups

• Heating rice, pasta, or casseroles

• Cooking and heating foods that need a

Cook Power lower than high (for example,

whole fish and meat loaf) or when food is

cooking too fast

• Reheating a single serving of food

• Cooking requiring special care, such as cheese

and egg dishes, pudding, and custards

• Finishing cooking casseroles

• Cooking ham, whole poultry,and pot roasts

• Simmering stews

• Melting chocolate

• Heating pastries

• Manually defrosting foods, such as bread, fish,

meats, poultry, and precooked foods

• Softening butter, cheese, and ice cream

• Keeping food warm

• Taking chill out of fruit

NOTE: Once cook time has been entered, you can also use the Cook Power pad as a second Kitchen

Timer by entering "0"for the Cook Power. The oven will count down the cooking time you set without

cooking.

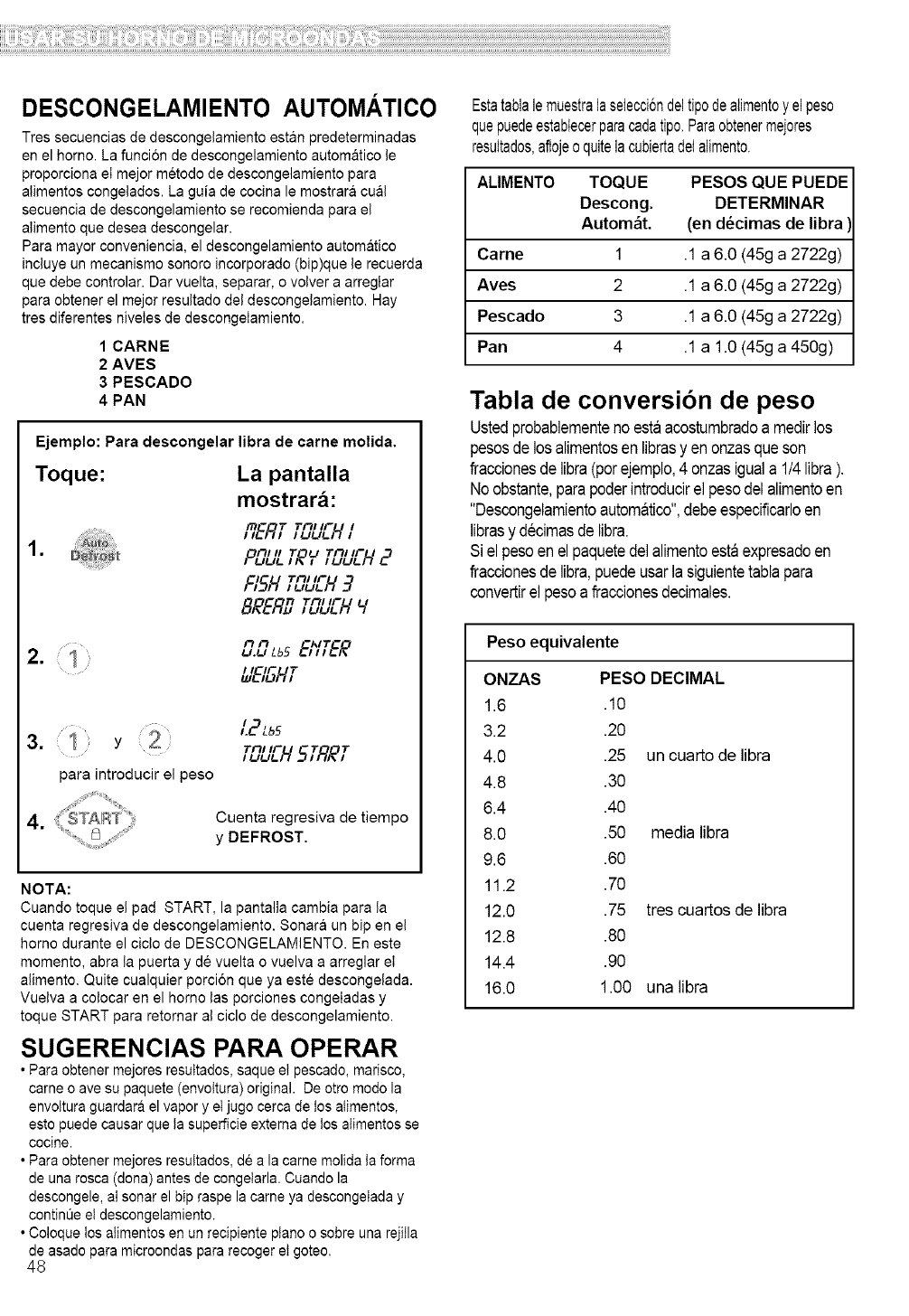

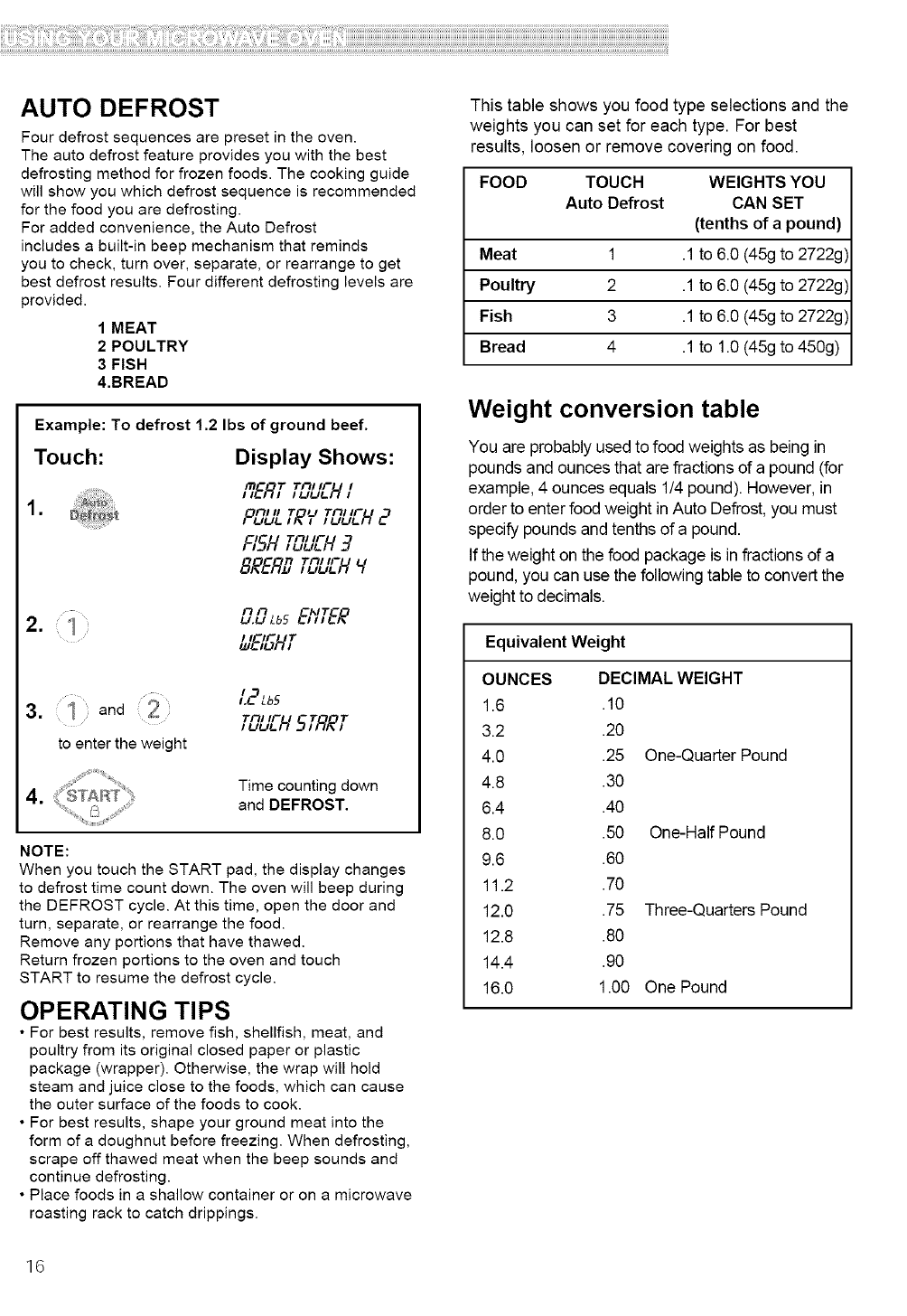

AUTO DEFROST

Four defrost sequences are preset in the oven.

The auto defrost feature provides you with the best

defrosting method for frozen foods. The cooking guide

will show you which defrost sequence is recommended

for the food you are defrosting.

For added convenience, the Auto Defrost

includes a built-in beep mechanism that reminds

you to check, turn over, separate, or rearrange to get

best defrost results. Four different defrosting levels are

provided.

1 MEAT

2 POULTRY

3 FISH

4.BREAD

Example: To defrost 1.2 Ibs of ground beef.

Touch: Display Shows:

I?ERTTn,,,- ,

1. POu_.,P,,,_H 2

nl Ii T U Tnl IF

/ Tnl IF

F_SH,uuEH9

8RERDTnb'Eh'

nn_

2. : 1 u.u _b5EflTER

&'EISHT

3. 1and 2 [_Zb5

Till IF

,uu_.H5TRRT

to enter the weight

Time counting down

4, and DEFROST.

NOTE:

When you touch the START pad, the display changes

to defrost time count down. The oven will beep during

the DEFROST cycle. At this time, open the door and

turn, separate, or rearrange the food.

Remove any portions that have thawed.

Return frozen portions to the oven and touch

START to resume the defrost cycle.

OPERATING TIPS

• For best results, remove fish, shellfish, meat, and

poultry from its original closed paper or plastic

package (wrapper). Otherwise, the wrap will hold

steam and juice close to the foods, which can cause

the outer surface of the foods to cook.

• For best results, shape your ground meat into the

form of a doughnut before freezing. When defrosting,

scrape off thawed meat when the beep sounds and

continue defrosting.

• Place foods in a shallow container or on a microwave

roasting rack to catch drippings.

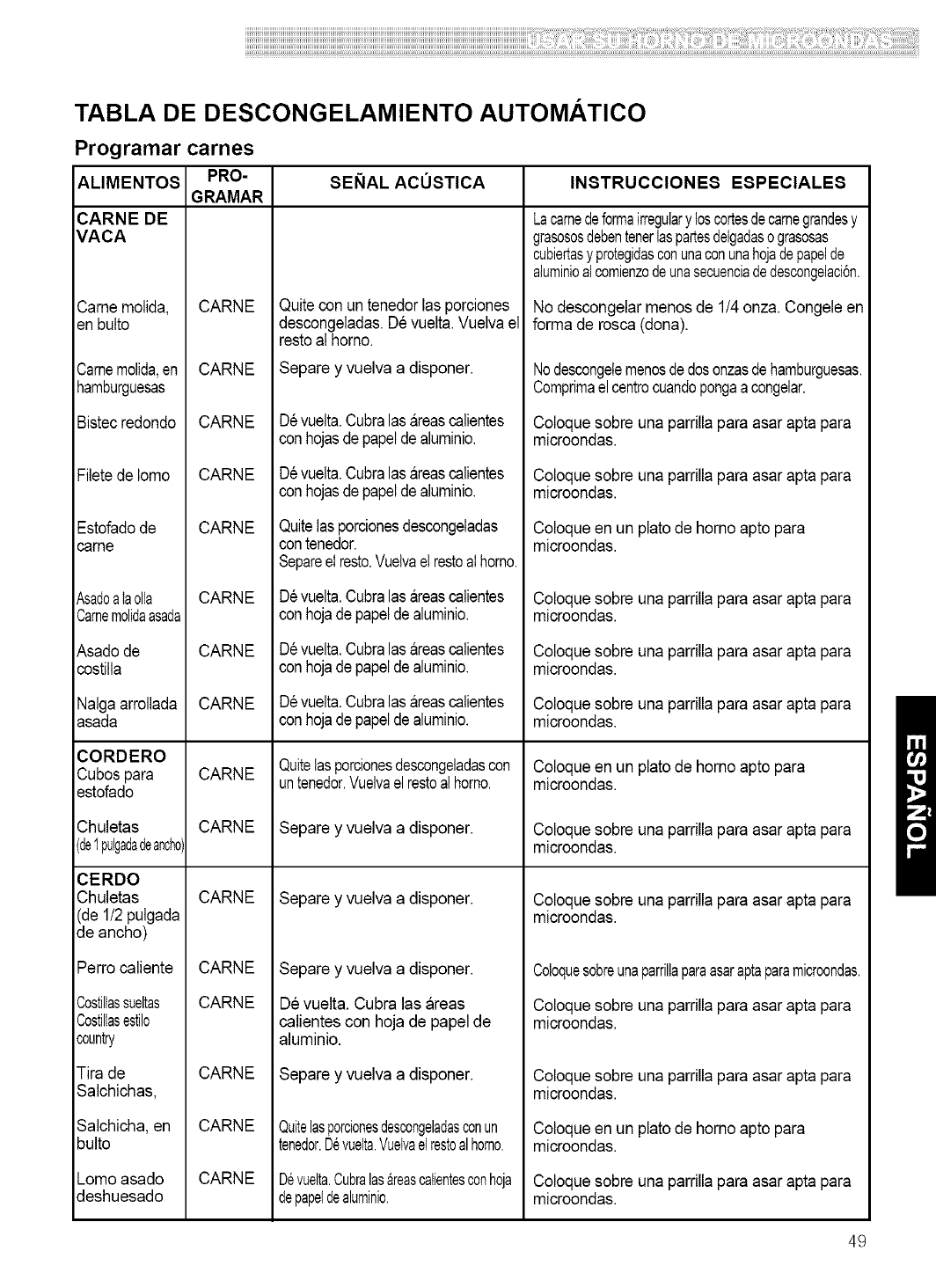

This table shows you food type selections and the

weights you can set for each type. For best

results, loosen or remove covering on food.

FOOD TOUCH WEIGHTS YOU

Auto Defrost CAN SET

(tenths of a pound)

Meat 1 .1 to 6.0 (45gto 2722g)

Poultry 2 .1 to 6.0 (45gto 2722g)

Fish 3 .1 to 6.0 (45gto 2722g)

Bread 4 .1 to 1.0 (45gto 450g)

Weight conversion table

You are probably used to food weights as being in

pounds and ounces that are fractions of a pound (for

example, 4 ounces equals 1/4 pound). However, in

order to enter food weight in Auto Defrost, you must

specify pounds and tenths of a pound.

Ifthe weight on the food package is infractions of a

pound, you can use the following table to convert the

weight to decimals.

Equivalent Weight

OUNCES

1.6

3.2

4.0

4.8

6.4

8.0

9.6

11.2

12.0

12.8

14.4

16.0

DECIMAL WEIGHT

.10

.20

.25 One-Quarter Pound

.30

.40

.50 One-Half Pound

.60

.70

.75

.80

.90

1.00 One Pound

Three-Quarters Pound

ii!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!iiiii!iiili!ii!iiiili!ii!ililliii!ii!if!filliiiiii!iiiiii!i!iilliiiiilli!iiiiiiii!!ii!iiiiiii!ii!ii!iiii!!il!ii!ii!ii!ii!ii!ii!ililiili!illi!iiiiiiiiiiliil!iiiiii!ii!!ii!i!!ii!iliiiiiilii!iiiiii!!i!!i!!if!illiii!iii!iiiii!iiiiii!iii!ii!i!!i!!i!!i!!ii!iliiiiiill!illiiliilliiiiiiiillii!ii!iiiiiii!ii!i!!i!ii!ii!ii!i!!iliiii!ii!ii!iiiiili!if!ii!iiiiiii!ii!ii!ii!iiiiiiiiiii!if!iilliiii!ii!iliii!iiiiiiii!iiiiiiiiii!ii!iiii!ii!iilillii!ii!i!iiliiiiii!ii!iiiiiiiiii!iiiiiiliiililii!il!ii!ii!iii!i!i!ii!iii!il!ii!ii!ii!ii!iiiiii!!ilfilliiiii!ii!iiiiiiiiii!if!illii!iili!i!i!i!iiii!iiiiiiliiiii!ii!iiiiii!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!i!iili

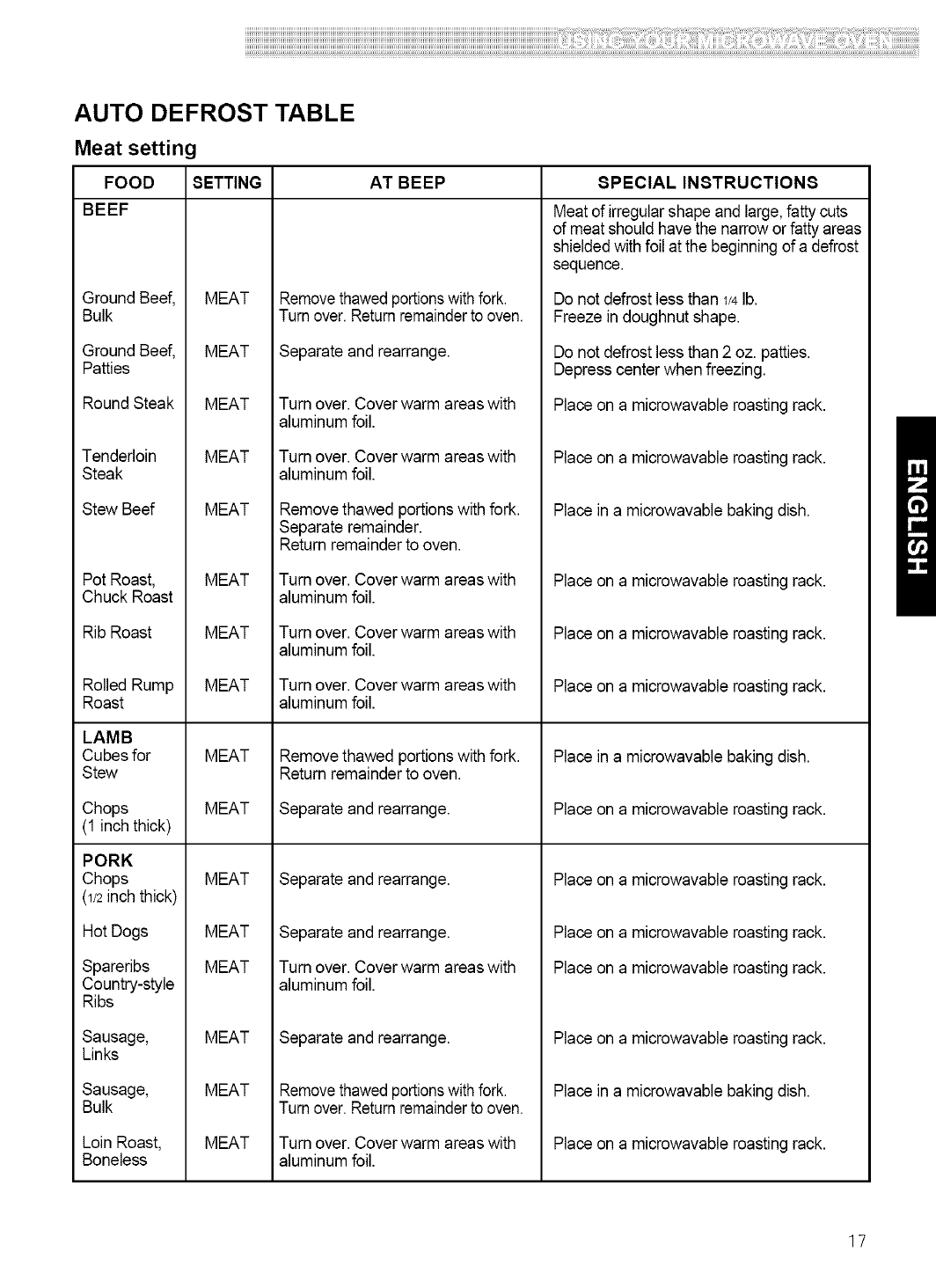

AUTO DEFROST TABLE

Meat setting

FOOD SETTING AT BEEP

BEEF

Ground Beef,

Bulk

Ground Beef,

Patties

Round Steak

Tenderloin

Steak

Stew Beef

Pot Roast,

Chuck Roast

Rib Roast

Rolled Rump

Roast

LAMB

Cubes for

Stew

Chops

(1 inch thick)

PORK

Chops

(1/2inch thick)

Hot Dogs

Spareribs

Country-style

Ribs

Sausage,

Links

Sausage,

Bulk

Loin Roast,

Boneless

MEAT

Removethawedportionswithfork.

Turn over.Returnremainderto oven.

Separate and rearrange.

Turn over. Cover warm areas with

aluminum foil.

Turn over. Cover warm areas with

aluminum foil.

Remove thawed portions with fork.

Separate remainder.

Return remainder to oven.

Turn over. Cover warm areas with

aluminum foil.

Turn over. Cover warm areas with

aluminum foil.

Turn over. Cover warm areas with

aluminum foil.

Remove thawed portions with fork.

Return remainder to oven.

Separate and rearrange.

Turn over. Cover warm areas with

aluminum foil.

Separate and rearrange.

Removethawedportionswithfork.

Turn over.Returnremainderto oven.

Turn over. Cover warm areas with

aluminum foil.

SPECIAL INSTRUCTION8

Meat of irregularshape and large,fatty cuts

of meatshould have the narrow orfatty areas

shielded withfoil at the beginningof a defrost

sequence.

Do not defrost less than 1/4lb.

Freeze indoughnut shape.

Do not defrost less than 2 oz. patties.

Depress center when freezing.

Place on a microwavable roasting rack.

Place in a microwavable baking dish.

Place on a microwavable roasting rack.

Place in a microwavable baking dish.

Place on a microwavable roasting rack.

Place in a microwavable baking dish.

Place on a microwavable roasting rack.

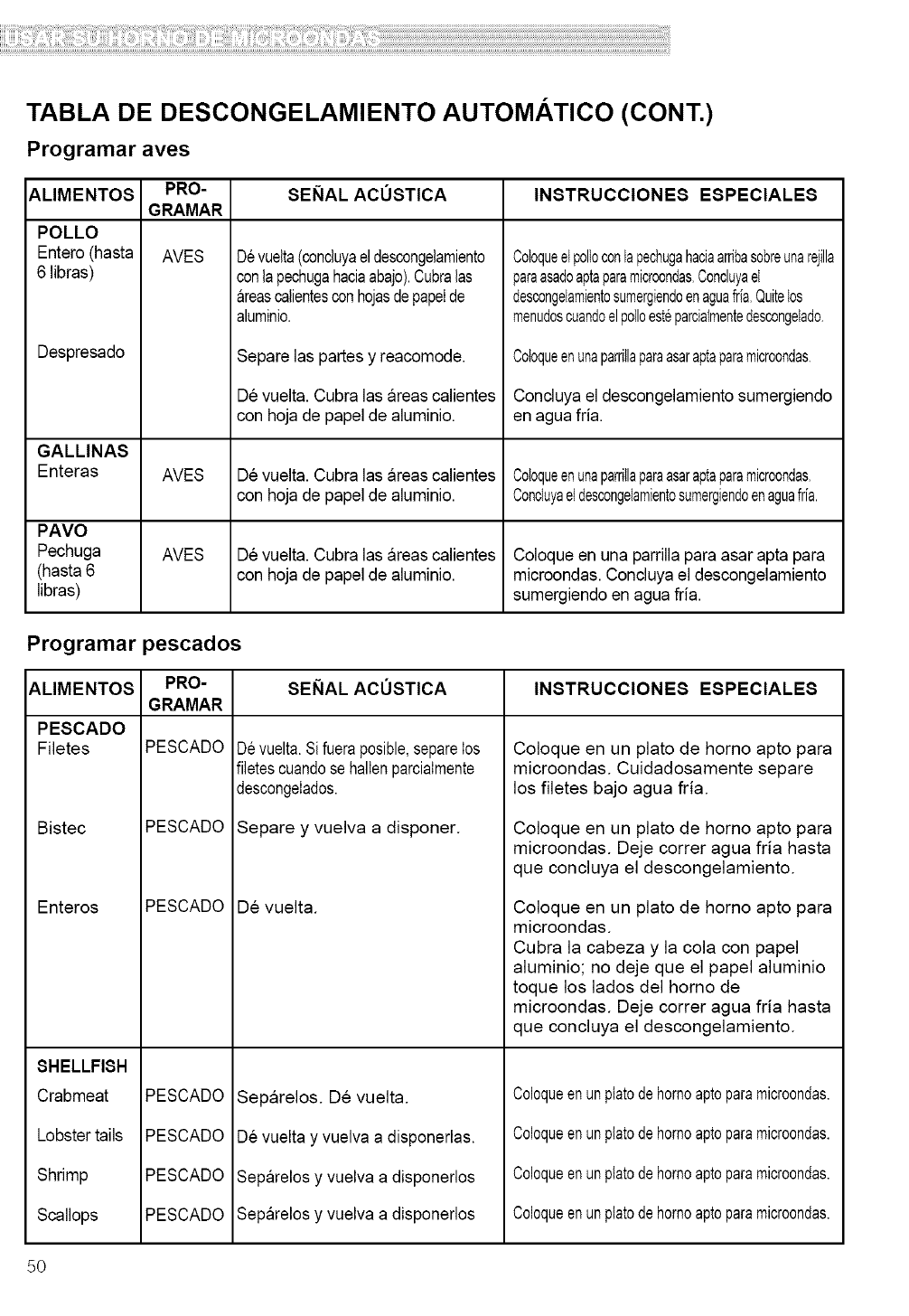

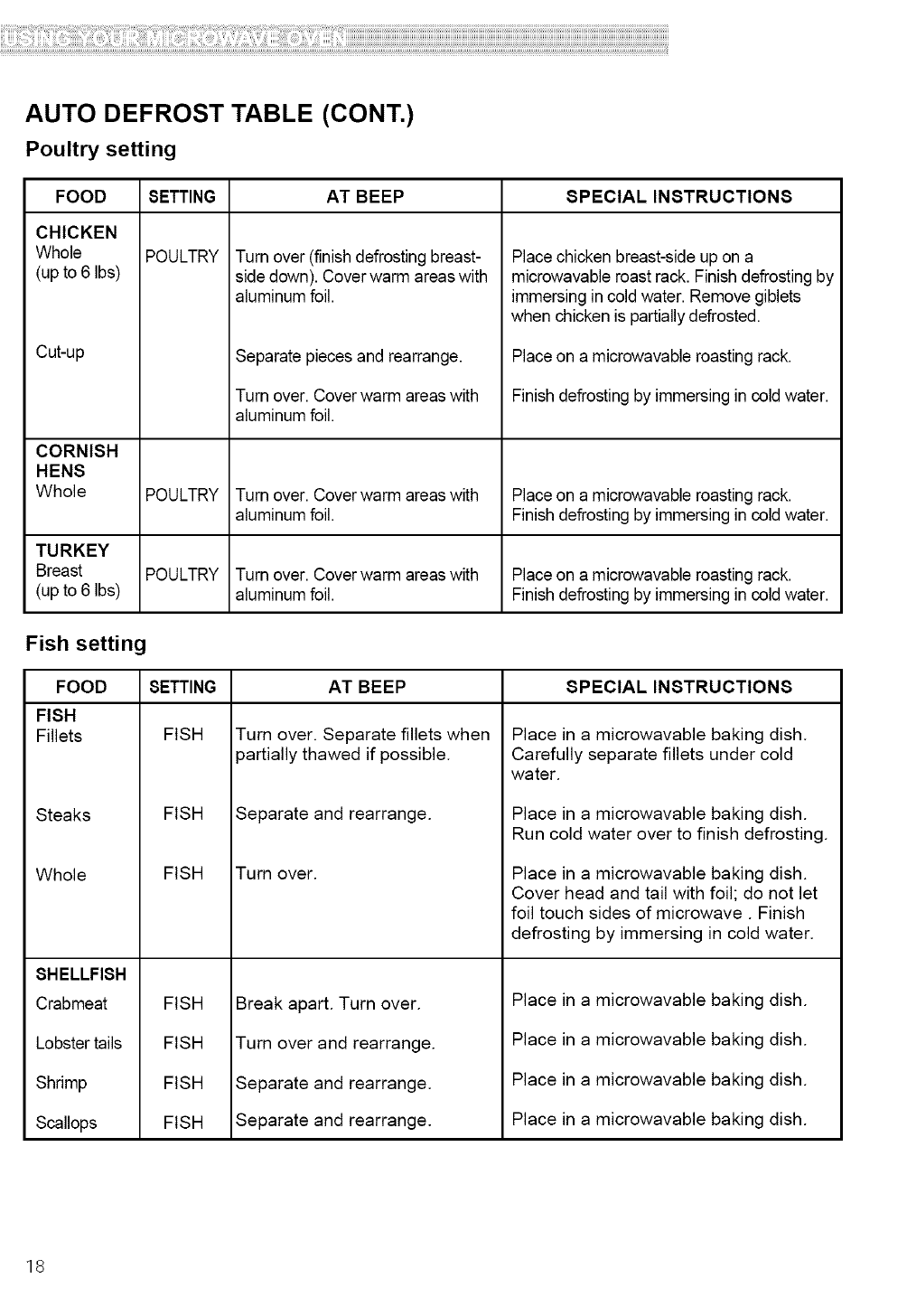

AUTO DEFROST TABLE (CONT.)

Poultry setting

FOOD SETTING AT BEEP SPECIAL INSTRUCTIONS

CHICKEN

Whole

(up to 6 Ibs)

Cutup

POULTRY Turn over (finishdefrosting breast-

side down). Cover warm areas with

aluminum foil.

Separate pieces and rearrange.

Turn over. Cover warm areas with

aluminum foil.

Place chicken breast-side up on a

microwavable roast rack. Finishdefrosting by

immersing in cold water. Remove giblets

when chicken is partiallydefrosted.

Place on a microwavable roasting rack.

Finish defrosting by immersing in cold water.

CORNISH

HENS

Whole POULTRY Turn over. Cover warm areas with Place on a microwavable roasting rack.

aluminum foil. Finish defrosting by immersing in cold water.

TURKEY

Breast POULTRY Turn over. Cover warm areas with Place on a microwavable roasting rack.

(up to 6 Ibs) aluminum foil. Finish defrosting by immersing in cold water.

Fish setting

FOOD SETTING SPECIAL INSTRUCTIONS

FISH

Fillets FISH

Steaks

Whole

SHELLFISH

Crabmeat

Lobster tails

Shrimp

Scallops

FISH

AT BEEP

Turn over. Separate fillets when

partially thawed if possible.

Separate and rearrange.

FISH Turn over.

FISH

Break apart. Turn over.

Turn over and rearrange.

Separate and rearrange.

Place in a microwavable baking dish.

Carefully separate fillets under cold

water.

Place in a microwavable baking dish.

Run cold water over to finish defrosting.

Place in a microwavable baking dish.

Cover head and tail with foil; do not let

foil touch sides of microwave. Finish

defrosting by immersing in cold water.

Place in a microwavable baking dish.

ii!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!iiiii!iiili!ii!iiiili!ii!ililliii!ii!if!filliiiiii!iiiiii!i!iilliiiiilli!iiiiiiii!!ii!iiiiiii!ii!ii!iiii!!il!ii!ii!ii!ii!ii!ii!ililiili!illi!iiiiiiiiiiliil!iiiiii!ii!!ii!i!!ii!iliiiiiilii!iiiiii!!i!!i!!if!illiii!iii!iiiii!iiiiii!iii!ii!i!!i!!i!!i!!ii!iliiiiiill!illiiliilliiiiiiiillii!ii!iiiiiii!ii!i!!i!ii!ii!ii!i!!iliiii!ii!ii!iiiiili!if!ii!iiiiiii!ii!ii!ii!iiiiiiiiiii!if!iilliiii!ii!iliii!iiiiiiii!iiiiiiiiii!ii!iiii!ii!iilillii!ii!i!iiliiiiii!ii!iiiiiiiiii!iiiiiiliiililii!il!ii!ii!iii!i!i!ii!iii!il!ii!ii!ii!ii!iiiiii!!ilfilliiiii!ii!iiiiiiiiii!if!illii!iili!i!i!i!iiii!iiiiiiliiiii!ii!iiiiii!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!i!iili

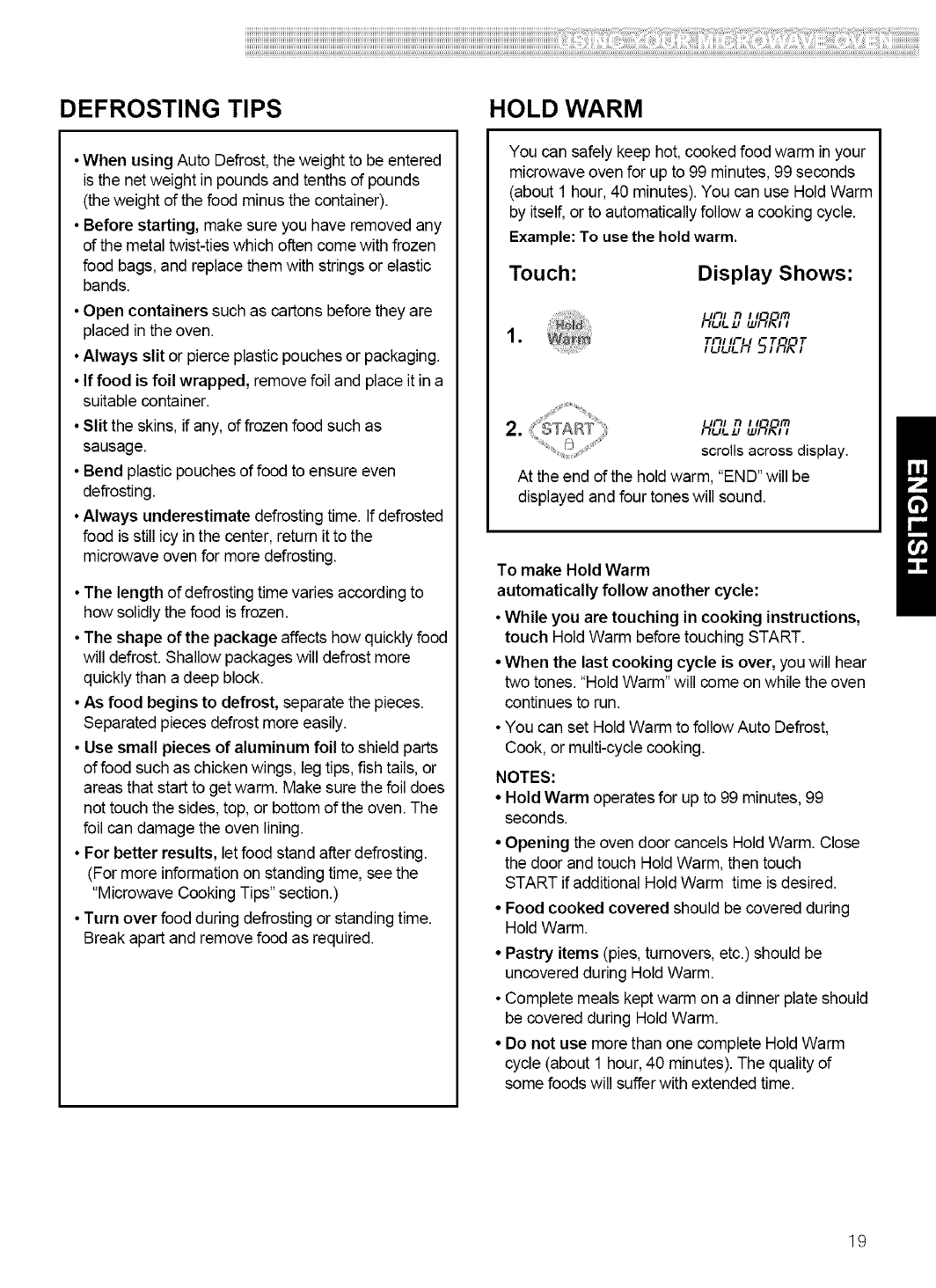

DEFROSTING TIPS

•When using Auto Defrost, the weight to be entered

is the net weight in pounds and tenths of pounds

(the weight of the food minus the container).

• Before starting, make sure you have removed any

of the metal twist-tieswhich often come with frozen

food bags, and replace them with strings or elastic

bands.

•Open containers such as cartons before they are

placed in the oven.

• Always slit or pierce plastic pouches or packaging.

• If food is foil wrapped, remove foil and place it in a

suitable container.

• Slit the skins, if any, of frozen food such as

sausage.

• Bend plastic pouches of food to ensure even

defrosting.

• Always underestimate defrosting time. If defrosted

food is still icy in the center, return it to the

microwave oven for more defrosting.

• The length of defrosting time varies accordingto

how solidly the food is frozen.

• The shape of the package affects how quickly food

will defrost. Shallow packages will defrost more

quickly than a deep block.

• As food begins to defrost, separate the pieces.

Separated pieces defrost more easily.

• Use small pieces of aluminum foil to shield parts

of food such as chicken wings, legtips, fish tails, or

areas that start to get warm. Make sure the foil does

not touch the sides, top, or bottom of the oven. The

foil can damage the oven lining.

• For better results, let food stand after defrosting.

(For more information on standing time, see the

"Microwave Cooking Tips" section.)

• Turn over food during defrosting or standing time.

Break apart and remove food as required.

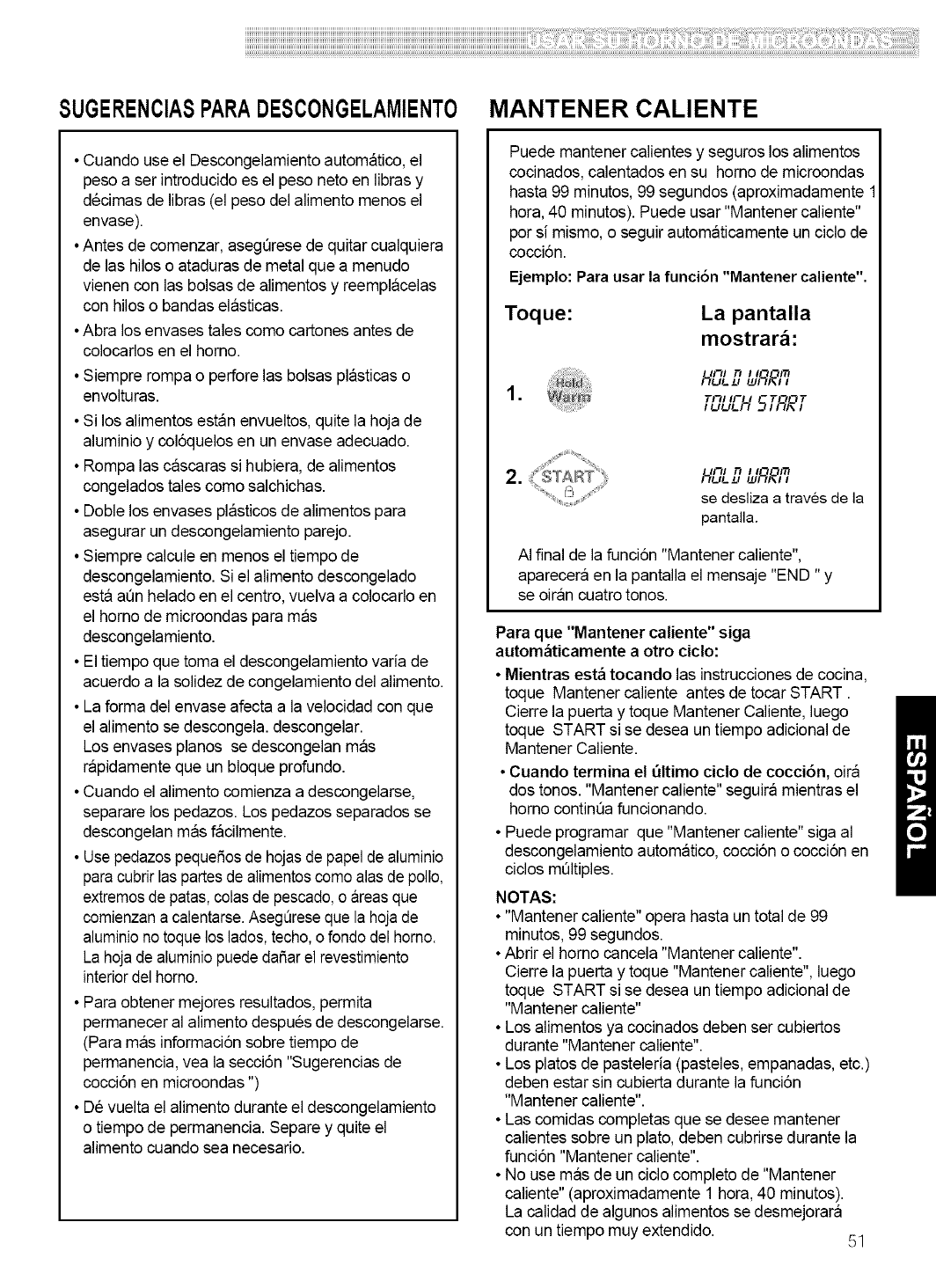

HOLD WARM

You can safely keep hot, cooked food warm in your

microwave oven for up to 99 minutes, 99 seconds

(about 1 hour, 40 minutes). You can use Hold Warm

by itself, or to automatically follow a cooking cycle.

Example: To use the hold warm.

Touch: Display Shows:

1£31 R

/'_1,,.11_.LI II1_'_111I-I -117)

1. T,-H I,- , -T-i"3T

,,_,o

2. H.,._,_,_,,''__'_

scrolls across display.

At the end of the hold warm, "END" will be

displayed and four tones will sound.

To make Hold Warm

automatically follow another cycle:

• While you are touching in cooking instructions,

touch Hold Warm before touching START.

• When the last cooking cycle is over, you will hear

two tones. "HoldWarm" will come on while the oven

continues to run.

• You can set Hold Warm to follow Auto Defrost,

Cook, or multi-cycle cooking.

NOTES:

• Hold Warm operates for up to 99 minutes,99

seconds.

• Opening the oven door cancels Hold Warm. Close

the door and touch Hold Warm, then touch

START if additional Hold Warm time is desired.

• Food cooked covered should be covered during

Hold Warm.

• Pastry items (pies,turnovers, etc.) should be

uncovered during Hold Warm.

• Complete meals kept warm on a dinner plate should

be covered during Hold Warm.

• Do not use more than one complete Hold Warm

cycle (about 1 hour, 40 minutes). The quality of

some foods will suffer with extended time.

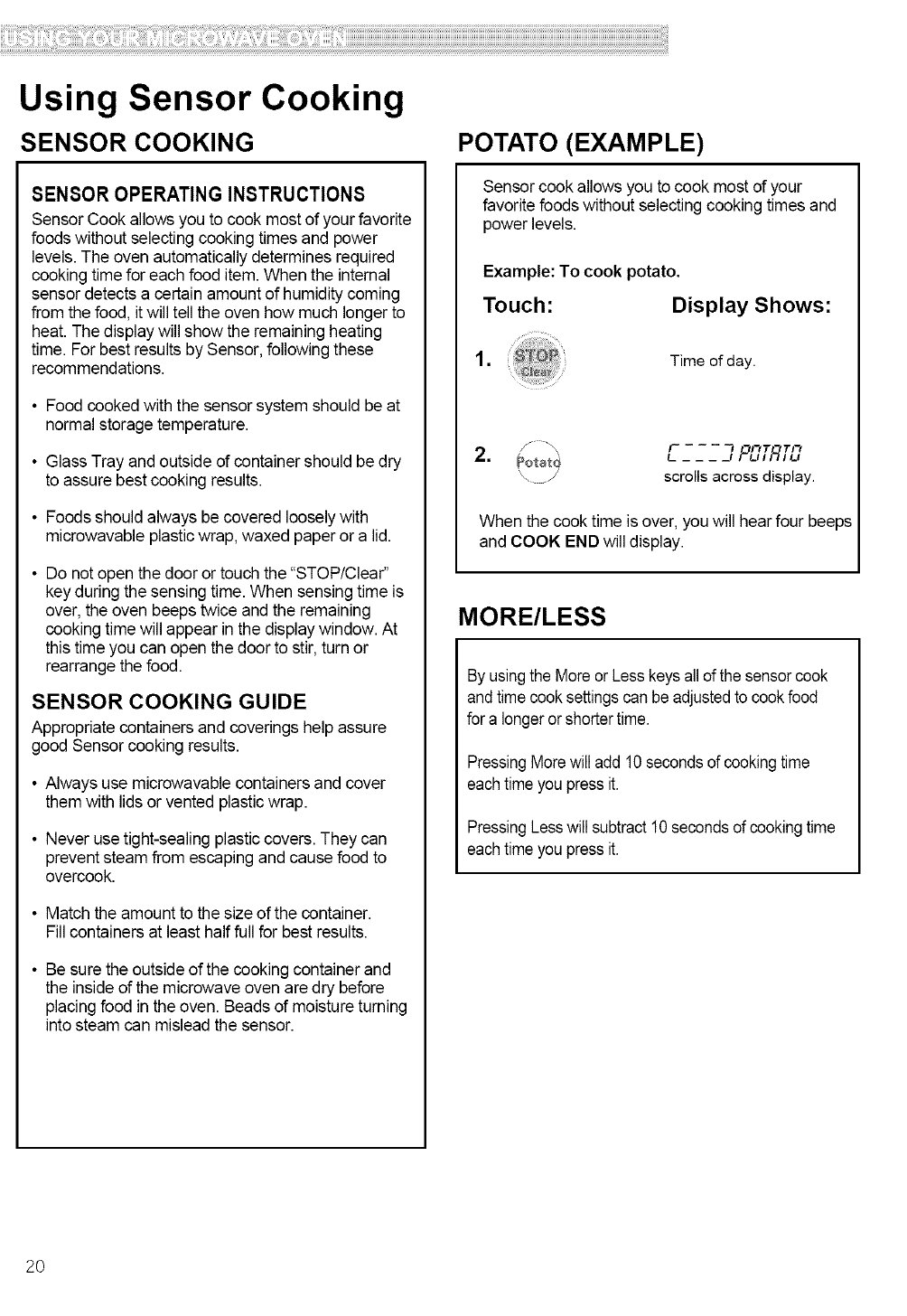

Using Sensor Cooking

SENSOR COOKING POTATO (EXAMPLE)

SENSOR OPERATING INSTRUCTIONS

Sensor Cook allows you to cook most of your favorite

foods without selecting cooking times and power

levels. The oven automatically determines required

cooking time for each food item. When the internal

sensor detects a certain amount of humidity coming

from the food, it will tell the oven how much longer to

heat. The display will show the remaining heating

time. For best results by Sensor, following these

recommendations.

• Food cooked with the sensor system should be at

normal storage temperature.

• Glass Tray and outside of container should be dry

to assure best cooking results.

• Foods should always be covered loosely with

microwavable plastic wrap, waxed paper or a lid.

• Do not open the door or touch the "STOP/Clear"

key during the sensing time. When sensing time is

over, the oven beeps twice and the remaining

cooking time will appear in the display window. At

this time you can open the door to stir, turn or

rearrange the food.

SENSOR COOKING GUIDE

Appropriate containers and coverings help assure

good Sensor cooking results.

• Always use microwavable containers and cover

them with lids or vented plastic wrap.

• Never use tight-sealing plastic covers. They can

prevent steam from escaping and cause food to

overcook.

• Match the amount to the size of the container.

Fill containers at least half full for best results.

• Be sure the outside of the cooking container and

the inside of the microwave oven are dry before

placing food inthe oven. Beads of moisture turning

into steam can misleadthe sensor.

Sensor cook allows you to cook most of your

favorite foods without selecting cooking times and

power levels.

Example: To cook potato.

Touch: Display Shows:

1. Time of day.

2. f.... "_ L'31"3TOTI'3

..... .I FU I I! I u

scrolls across display.

When the cook time is over, you will hear four beeps

and COOK END will display.

MORE/LESS

By usingthe More or Lesskeys allof the sensorcook

and timecooksettingscan beadjustedto cookfood

for a longeror shortertime.

PressingMorewill add 10secondsof cookingtime

each timeyou pressit.

PressingLesswill subtract10 secondsof cookingtime

each timeyou pressit.

ii!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!iiiii!iiili!ii!iiiili!ii!ililliii!ii!if!filliiiiii!iiiiii!i!iilliiiiilli!iiiiiiii!!ii!iiiiiii!ii!ii!iiii!!il!ii!ii!ii!ii!ii!ii!ililiili!illi!iiiiiiiiiiliil!iiiiii!ii!!ii!i!!ii!iliiiiiilii!iiiiii!!i!!i!!if!illiii!iii!iiiii!iiiiii!iii!ii!i!!i!!i!!i!!ii!iliiiiiill!illiiliilliiiiiiiillii!ii!iiiiiii!ii!i!!i!ii!ii!ii!i!!iliiii!ii!ii!iiiiili!if!ii!iiiiiii!ii!ii!ii!iiiiiiiiiii!if!iilliiii!ii!iliii!iiiiiiii!iiiiiiiiii!ii!iiii!ii!iilillii!ii!i!iiliiiiii!ii!iiiiiiiiii!iiiiiiliiililii!il!ii!ii!iii!i!i!ii!iii!il!ii!ii!ii!ii!iiiiii!!ilfilliiiii!ii!iiiiiiiiii!if!illii!iili!i!i!i!iiii!iiiiiiliiiii!ii!iiiiii!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!i!iili

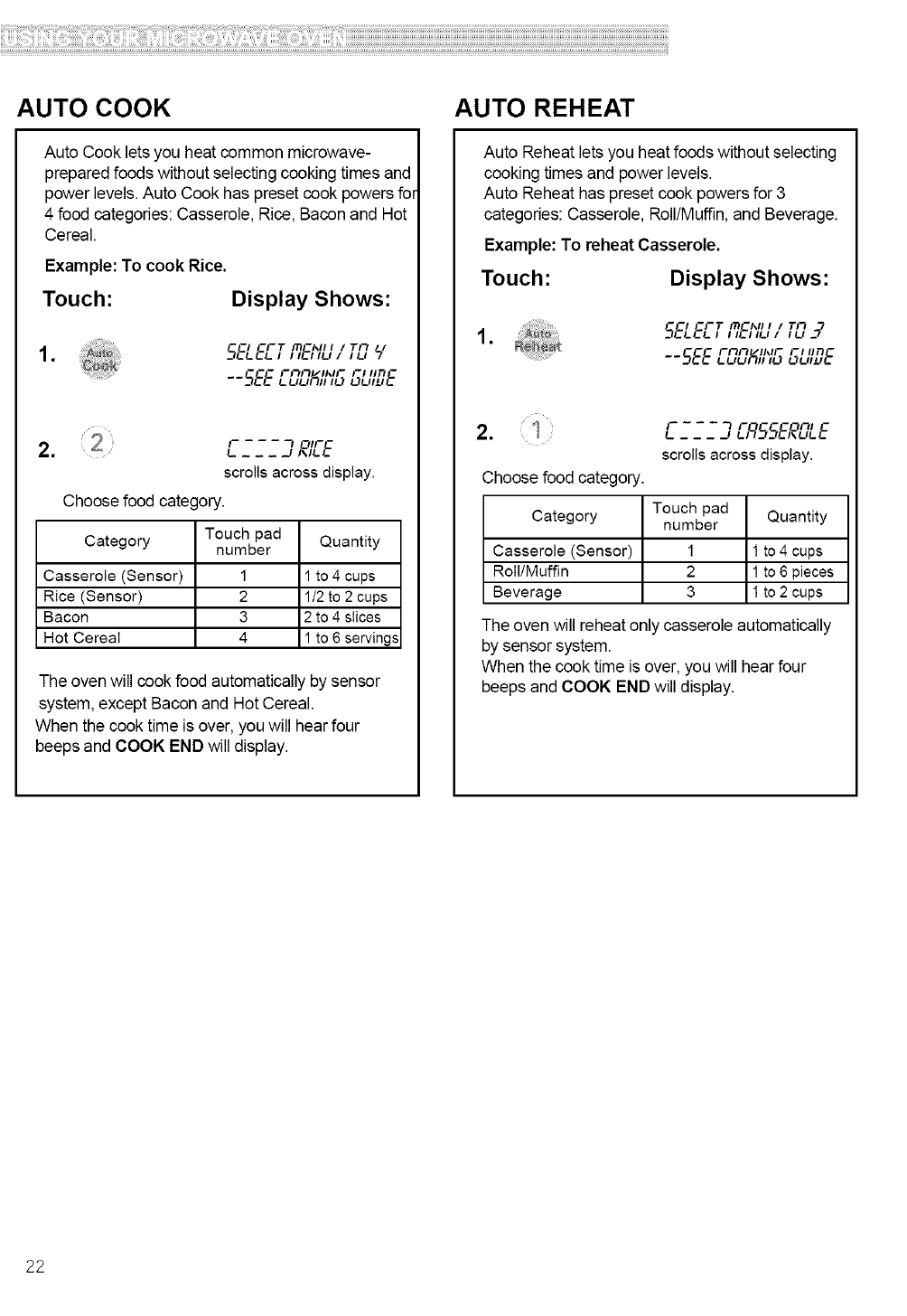

SENSOR COOKING TABLE

Category

Casserole (Sensor)

Roll/Muffin

Beverage

/- .... )F"_ - - -Oral -

_____ _, _.;%SE,,u_.E

scrolls across display.

Touch pad Quantity

number

1 1 to 4 cups

2 1 to 6 pieces

3 1 to 2 cups

The oven will reheat only casserole automatically

by sensor system.

When the cook time is over, you will hear four

beeps and COOK END will display.

ii!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!iiiii!iiili!ii!iiiili!ii!ililliii!ii!if!filliiiiii!iiiiii!i!iilliiiiilli!iiiiiiii!!ii!iiiiiii!ii!ii!iiii!!il!ii!ii!ii!ii!ii!ii!ililiili!illi!iiiiiiiiiiliil!iiiiii!ii!!ii!i!!ii!iliiiiiilii!iiiiii!!i!!i!!if!illiii!iii!iiiii!iiiiii!iii!ii!i!!i!!i!!i!!ii!iliiiiiill!illiiliilliiiiiiiillii!ii!iiiiiii!ii!i!!i!ii!ii!ii!i!!iliiii!ii!ii!iiiiili!if!ii!iiiiiii!ii!ii!ii!iiiiiiiiiii!if!iilliiii!ii!iliii!iiiiiiii!iiiiiiiiii!ii!iiii!ii!iilillii!ii!i!iiliiiiii!ii!iiiiiiiiii!iiiiiiliiililii!il!ii!ii!iii!i!i!ii!iii!il!ii!ii!ii!ii!iii_ili!!ilfilliiiii!ii!iiiiiiiiii!if!illii!iili!i!i!i!iiii!iiiiiiliiiii!ii!iiiiii!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!i!iili

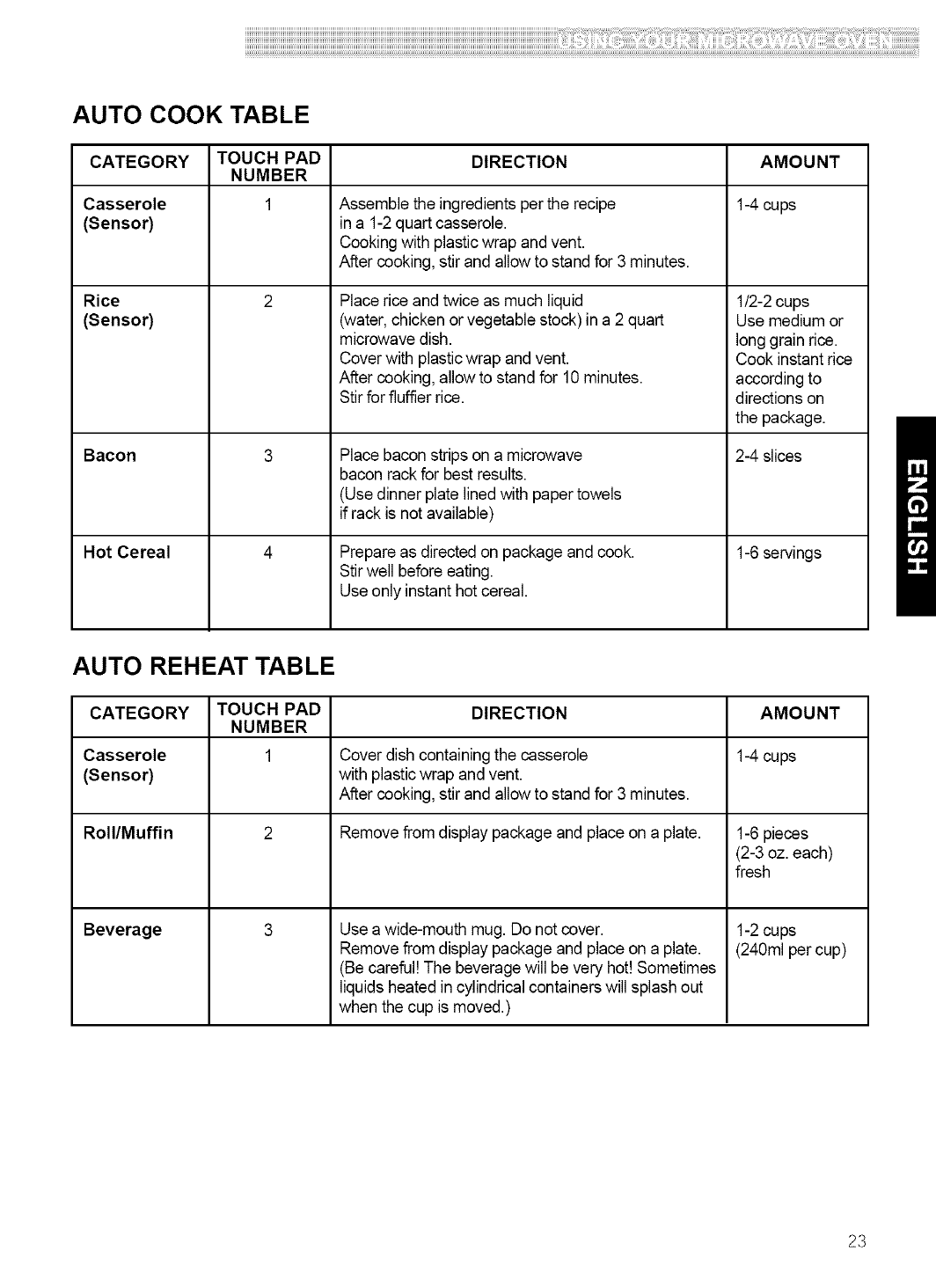

AUTO COOK TABLE

CATEGORY TOUCH PAD DIRECTION AMOUNT

NUMBER

Casserole 1 Assemble the ingredients per the recipe 1-4cups

(Sensor) in a 1-2quart casserole.

Cooking with plastic wrap and vent.

After cooking, stir and allow to stand for 3 minutes.

Rice 2

(Sensor)

Bacon

Place rice and twice as much liquid

(water, chicken or vegetable stock) in a 2 quart

microwave dish.

Cover with plastic wrap and vent.

After cooking, allow to stand for 10 minutes.

Stir for fluffier rice.

Place bacon strips on a microwave

bacon rack for best results.

(Use dinner plate lined with paper towels

if rack is not available)

1/2-2cups

Use medium or

long grain rice.

Cook instant rice

according to

directions on

the package.

2-4 slices

Hot Cereal 4 Prepare as directed on package and cook. 1-6servings

Stir well before eating.

Use only instant hot cereal.

AUTO REHEAT TABLE

CATEGORY TOUCH PAD DIRECTION AMOUNT

NUMBER

Casserole 1 Cover dish containingthe casserole 1-4cups

(Sensor) with plastic wrap and vent.

After cooking, stir and allow to stand for 3 minutes.

Roll/Muffin 2 Remove from display package and place on a plate. 1-6 pieces

(2-3 oz. each)

fresh

Beverage 3 1-2cups

(240ml per cup)

Use a wide-mouth mug. Do not cover.

Remove from display package and place on a plate.

(Be careful! The beverage will be very hot! Sometimes

liquids heated in cylindrical containers will splash out

when the cup is moved.)

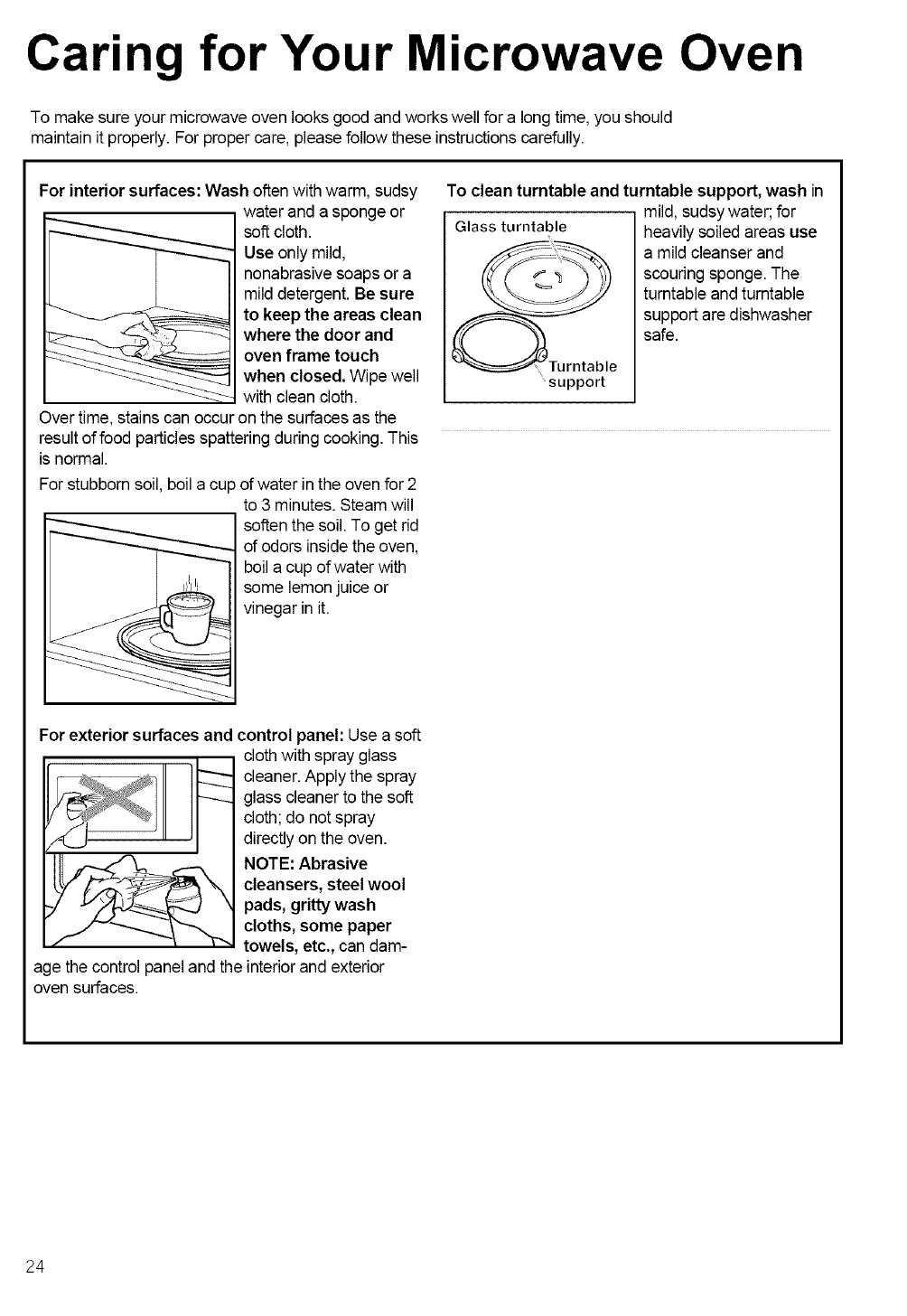

Caring for Your Microwave Oven

To make sure your microwave oven looks good and works well for a long time, you should

maintain it properly. For proper care, please follow these instructions carefully.

For interior surfaces: Wash often with warm, sudsy

water and a sponge or

soft cloth.

Use only mild,

nonabrasive soaps or a

mild detergent. Be sure

to keep the areas clean

where the door and

oven frame touch

when closed. Wipe well

with clean cloth.

Over time, stains can occur on the surfaces as the

result of food particles spattering during cooking. This

is normal.

For stubborn soil, boila cup of water in the oven for 2

to 3 minutes. Steam will

soften the soil. To get rid

of odors inside the oven,

boil a cup of water with

some lemon juice or

vinegar in it.

To clean turntable and turntable support,wash in

mild, sudsy water; for

Glass turntable heavily soiled areas use

a mild cleanser and

scouring sponge. The

turntable and turntable

support are dishwasher

safe.

_support

For exterior surfaces and control panel: Use a soft

clothwith spray glass

cleaner.Apply the spray

glass cleaner to the soft

cloth; do not spray

directly on the oven.

NOTE: Abrasive

cleansers, steel wool

pads, gritty wash

cloths, some paper

towels, etc., can dam-

age the control panel and the interior and exterior

oven surfaces.

CARING FOR THE FILTERS

The grease filters should be removed and cleaned often, at least once a month.

NOTE: Ifyou microwave hood combination is installedto recirculate air, the chacoal filter

(Part No. 5230W1A002A) available from Sears by calling 1-800-4-MY-HOME_.

The charcoalfilter cannot be cleaned and should be replaced every 6 to 12 months.

Grease filters (Part No. 2B72705B): Charcoal filter (Part No. 5230W1A002A):

1. Unplug microwave ovenor disconnect power.

1. Unplug microwave oven or disconnect power.

2. To remove grease filters, slide each filter to the

side. Pullfilters downward and push to the other

side. The filter will drop out.

..........

2. Remove the vent grille mounting screws.

3. Tip the grilleforward, then lift out to remove.

3. Soak grease filters in hot water and a mild

detergent. Scrub and swish to remove embedded

dirt and grease. Rinsewell and shake to dry. Do

not clean filters with ammonia, corrosive cleaning

agents such as lye-based oven cleaners, or place

them in a dishwasher. The filters will turn black or

could be damaged.

.....................................................................................................................................................................................................................................................4. Lift the back of the charcoal filter. Slidethe filter

IlL straight out.

4. To replace grease filters, slide filter in the frame slot

on one side of the opening. Push filter upward and

push to the other side to lock into place.

5. Plug in microwave oven or reconnect power.

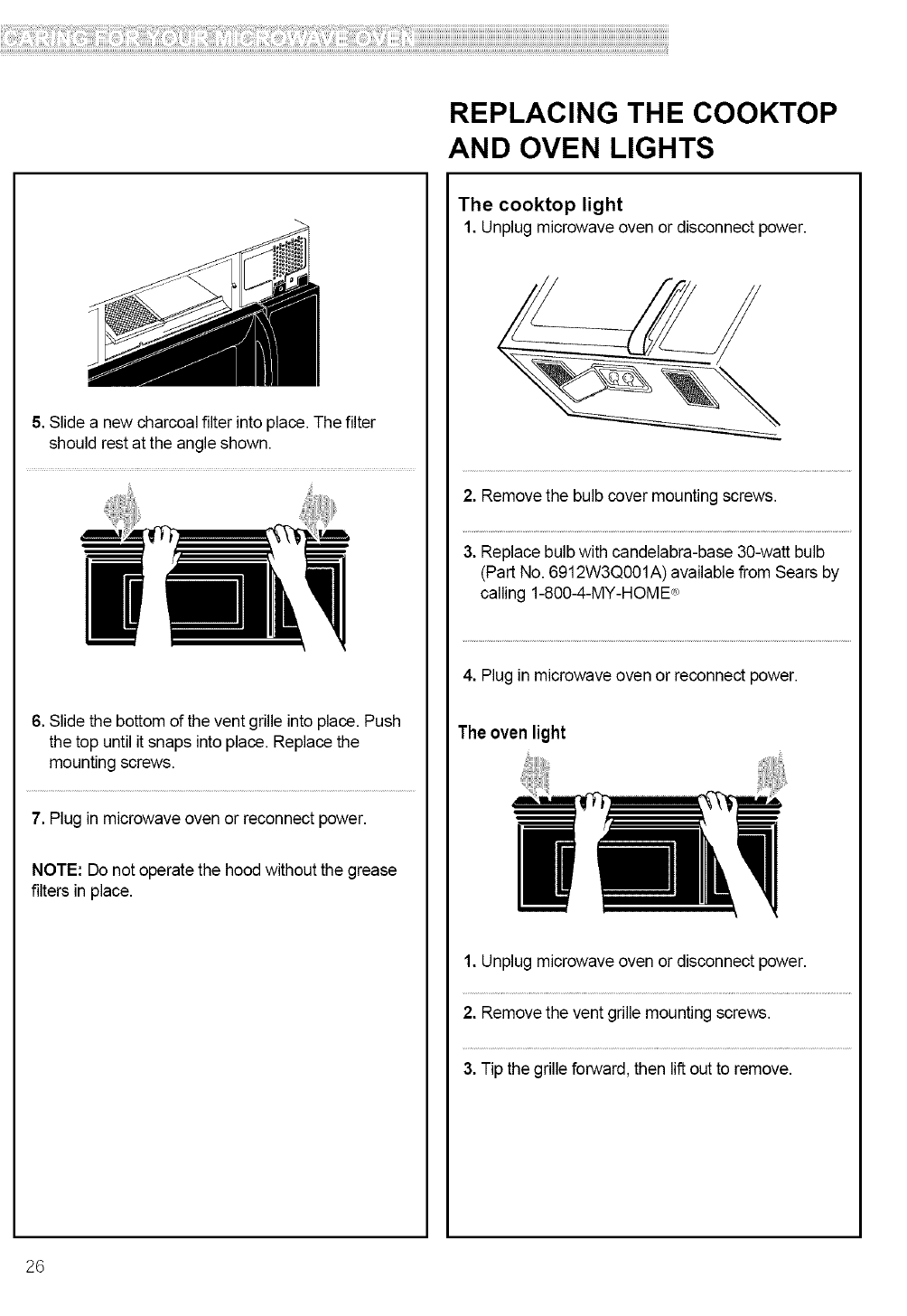

REPLACING THE COOKTOP

AND OVEN LIGHTS

5. Slide a new charcoal filter into place. The filter

should rest at the angle shown.

6. Slide the bottom of the vent grille into place. Push

the top until it snaps into place. Replace the

mounting screws.

7. Plug in microwave oven or reconnect power.

NOTE: Do not operate the hood without the grease

filters in place.

The cooktop light

1. Unplug microwave oven or disconnect power.

2. Remove the bulb cover mounting screws.

3. Replace bulb with candelabra-base 30-watt bulb

(Part No. 6912W3Q001A) available from Sears by

calling 1-800-4-MY-HOME_

4. Plug in microwave oven or reconnect power.

The oven light

1. Unplug microwave oven or disconnect power.

2. Remove the vent grille mounting screws.

3. Tip the grille forward, then lift out to remove.

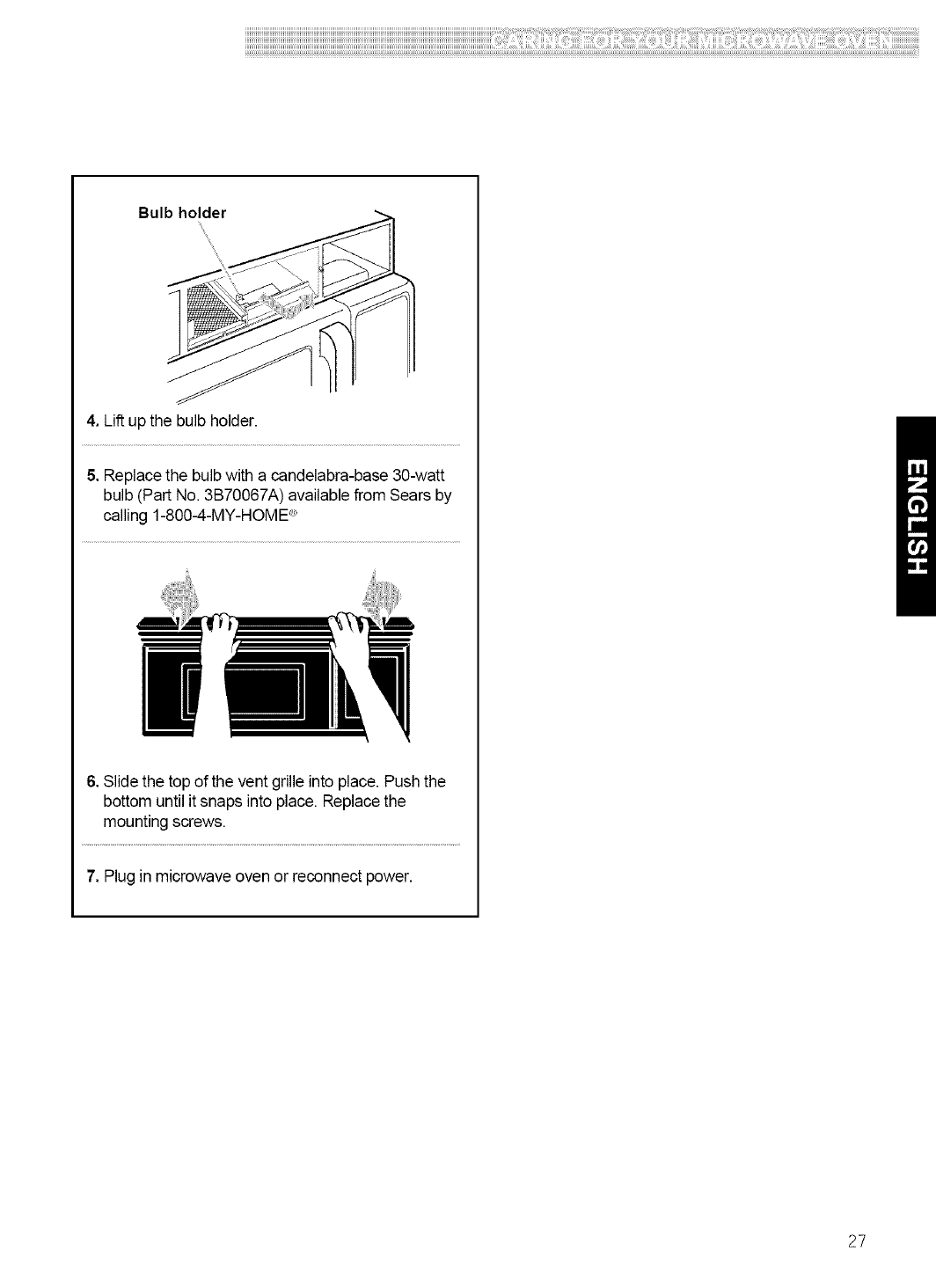

Bulb holder

\\\

4. Lift up the bulb holder.

5. Replace the bulb with a candelabra-base 30-watt

bulb (Part No. 3B70067A) available from Sears by

calling 1-800-4-MY-HOME®

6. Slidethe top of the vent grille into place. Push the

bottom until it snaps into place. Replace the

mounting screws.

7. Plug in microwave oven or reconnect power.

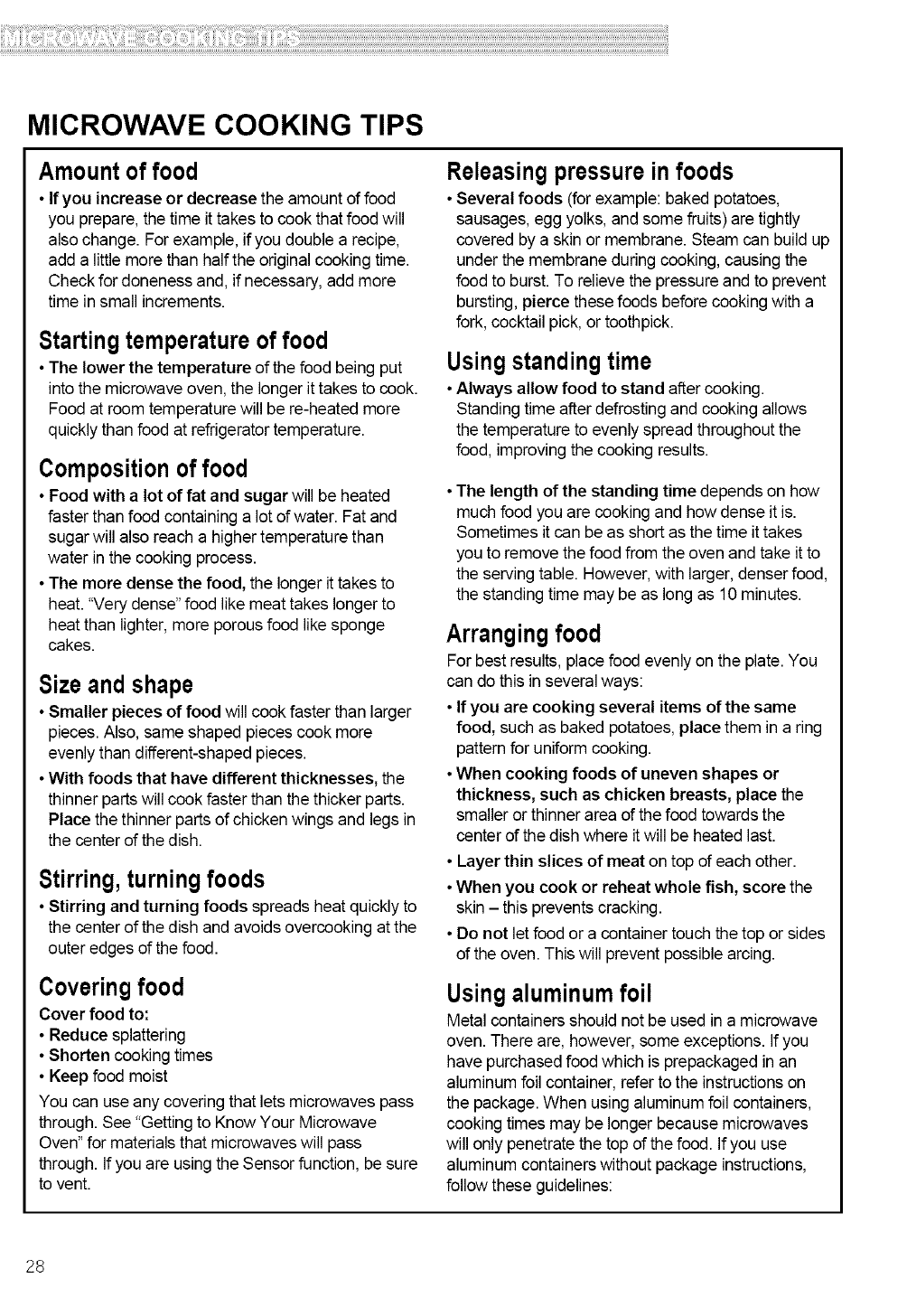

MICROWAVE COOKING TIPS

Amount of food

•If you increase or decrease the amount of food

you prepare, the time it takes to cook thatfood will

also change. For example, if you double a recipe,

add a little more than half the original cooking time.

Check for doneness and, if necessary, add more

time in small increments.

Starting temperature of food

• The lower the temperature of the food being put

into the microwave oven, the longer it takes to cook.

Food at room temperature will be re-heated more

quickly than food at refrigeratortemperature.

Composition of food

•Food with a lot of fat and sugar will be heated

faster than food containing a lot of water. Fat and

sugar will also reach a higher temperature than

water in the cooking process.

• The more dense the food, the longer it takes to

heat."Very dense" food like meat takes longer to

heat than lighter, more porous food like sponge

cakes.

Size and shape

• Smaller pieces of food will cook faster than larger

pieces. Also, same shaped pieces cook more

evenly than different-shaped pieces.

• With foods that have different thicknesses, the

thinner parts will cook faster than the thicker parts.

Place the thinner parts of chicken wings and legs in

the center of the dish.

Stirring, turning foods

• Stirring and turning foods spreads heat quickly to

the center of the dish and avoids overcooking at the

outer edges of the food.

Covering food

Cover food to:

• Reduce splattering

• Shorten cooking times

• Keep food moist

You can use any covering that lets microwaves pass

through. See "Gettingto Know Your Microwave

Oven" for materials that microwaves will pass

through. Ifyou are using the Sensor function, be sure

to vent.

Releasing pressure in foods

• Several foods (for example: baked potatoes,

sausages, egg yolks, and some fruits) are tightly

covered by a skin or membrane. Steam can build up

under the membrane during cooking, causing the

food to burst. To relieve the pressure and to prevent

bursting, pierce these foods before cooking with a

fork, cocktail pick, or toothpick.

Using standing time

•Always allow food to stand after cooking.

Standing time after defrosting and cooking allows

the temperature to evenly spread throughout the

food, improvingthe cooking results.

•The length of the standing time depends on how

much food you are cooking and how dense it is.

Sometimes it can be as short as the time it takes

you to remove the food from the oven and take it to

the serving table. However,with larger, denser food,

the standing time may be as long as 10 minutes.

Arranging food

For best results, place food evenly on the plate. You

can do this in severalways:

•If you are cooking several items of the same

food, such as baked potatoes, place them in a ring

patternfor uniform cooking.

• When cooking foods of uneven shapes or

thickness, such as chicken breasts, place the

smaller or thinner area of the food towards the

center of the dish where it will be heated last.

• Layer thin slices of meat on top of each other.

• When you cook or reheat whole fish, score the

skin - this prevents cracking.

• Do not let food or a container touch the top or sides

of the oven. This will prevent possiblearcing.

Using aluminum foil

Metal containers should not be used in a microwave

oven. There are, however, some exceptions. If you

have purchased food which is prepackaged in an

aluminum foil container, refer to the instructions on

the package. When using aluminum foil containers,

cooking times may be longer because microwaves

will only penetratethe top of the food. If you use

aluminum containers without package instructions,

follow these guidelines:

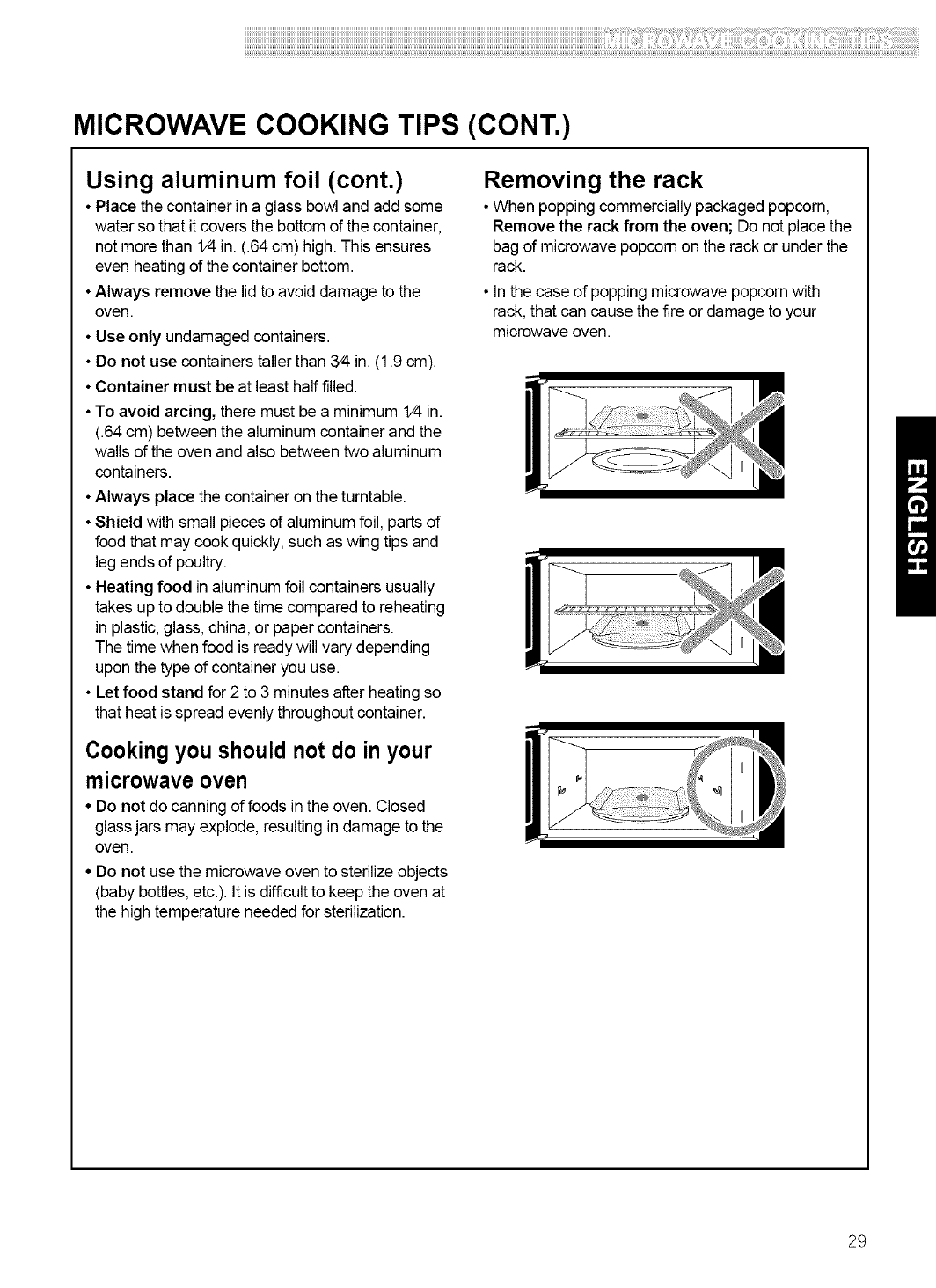

MICROWAVE COOKING TIPS (CONT.)

Using aluminum foil (cont.)

•Place the container in a glass bowl and add some

water so that it covers the bottom of the container,

not more than !/4 in. (.64 cm) high. This ensures

even heating of the container bottom.

• Always remove the lid to avoid damage to the

oven.

• Use only undamaged containers.

• Do not use containers taller than 3/4 in. (1.9 cm).

• Container must be at least half filled.

• To avoid arcing, there must be a minimum 1/4in.

(.64 cm) between the aluminum containerand the

walls of the oven and also between two aluminum

containers.

• Always place the container on the turntable.

• Shield with small pieces of aluminum foil, parts of

food that may cook quickly, such as wing tips and

leg ends of poultry.

• Heating food in aluminum foil containers usually

takes up to double the time compared to reheating

in plastic, glass, china, or paper containers.

The time when food is ready will vary depending

upon the type of container you use.

• Let food stand for 2 to 3 minutes after heating so

that heat is spread evenly throughout container.

Cooking you should not do in your

microwave oven

•Do notdo canning offoods inthe oven.Closed

glassjars may explode, resulting indamage to the

oven.

• Do not use the microwave oven to sterilize objects

(baby bottles,etc.). It is difficult to keep the oven at

the high temperature needed for sterilization.

Removing the rack

• When popping commercially packaged popcorn,

Remove the rack from the oven; Do not place the

bag of microwave popcorn on the rack or under the

rack.

• In the case of popping microwave popcorn with

rack, that can cause the fire or damage to your

microwave oven.

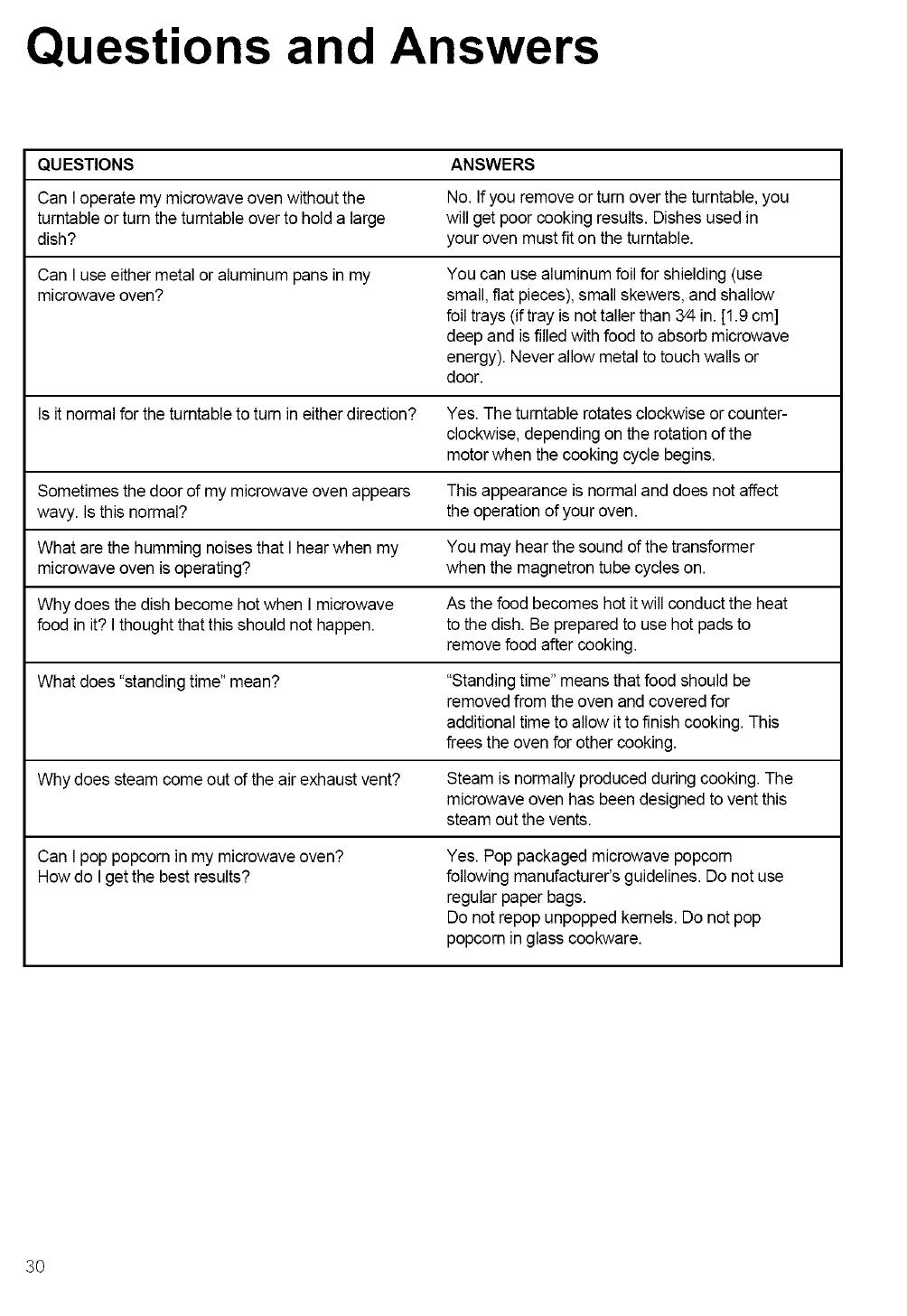

Questions and Answers

QUESTIONS ANSWERS

Can I operate my microwave oven without the No. If you remove or turn over the turntable, you

turntable or turn the turntable over to hold a large will get poor cooking results. Dishes used in

dish? your oven must fit on the turntable.

Can I use either metal or aluminum pans in my

microwave oven? You can use aluminum foil for shielding (use

small, flat pieces), small skewers, and shallow

foil trays (if tray is not taller than 3/4in. [1.9 cm]

deep and is filled with food to absorb microwave

energy). Never allow metalto touch walls or

door.

Is it normal for the turntable to turn in either direction? Yes. The turntable rotates clockwise or counter-

clockwise, depending on the rotationof the

motor when the cooking cycle begins.

Sometimes the door of my microwave oven appears This appearance is normal and does not affect

wavy. Is this normal? the operation of your oven.

What are the humming noises that I hear when my You may hear the sound of the transformer

microwave oven is operating? when the magnetron tube cycles on.

Why does the dish become hot when I microwave As the food becomes hot it will conduct the heat

food in it? I thought that this should not happen, to the dish. Be prepared to use hot pads to

remove food after cooking.

What does "standingtime" mean? "Standingtime" means that food should be

removed from the oven and covered for

additional time to allow it to finish cooking. This

frees the oven for other cooking.

Why does steam come out of the air exhaust vent? Steam is normally produced during cooking. The

microwave oven has been designed to vent this

steam out the vents.

Can I pop popcorn in my microwave oven? Yes. Pop packaged microwave popcorn

How do I get the best results? following manufacturer's guidelines. Do not use

regular paper bags.

Do not repop unpopped kernels. Do not pop

popcorn in glass cookware.

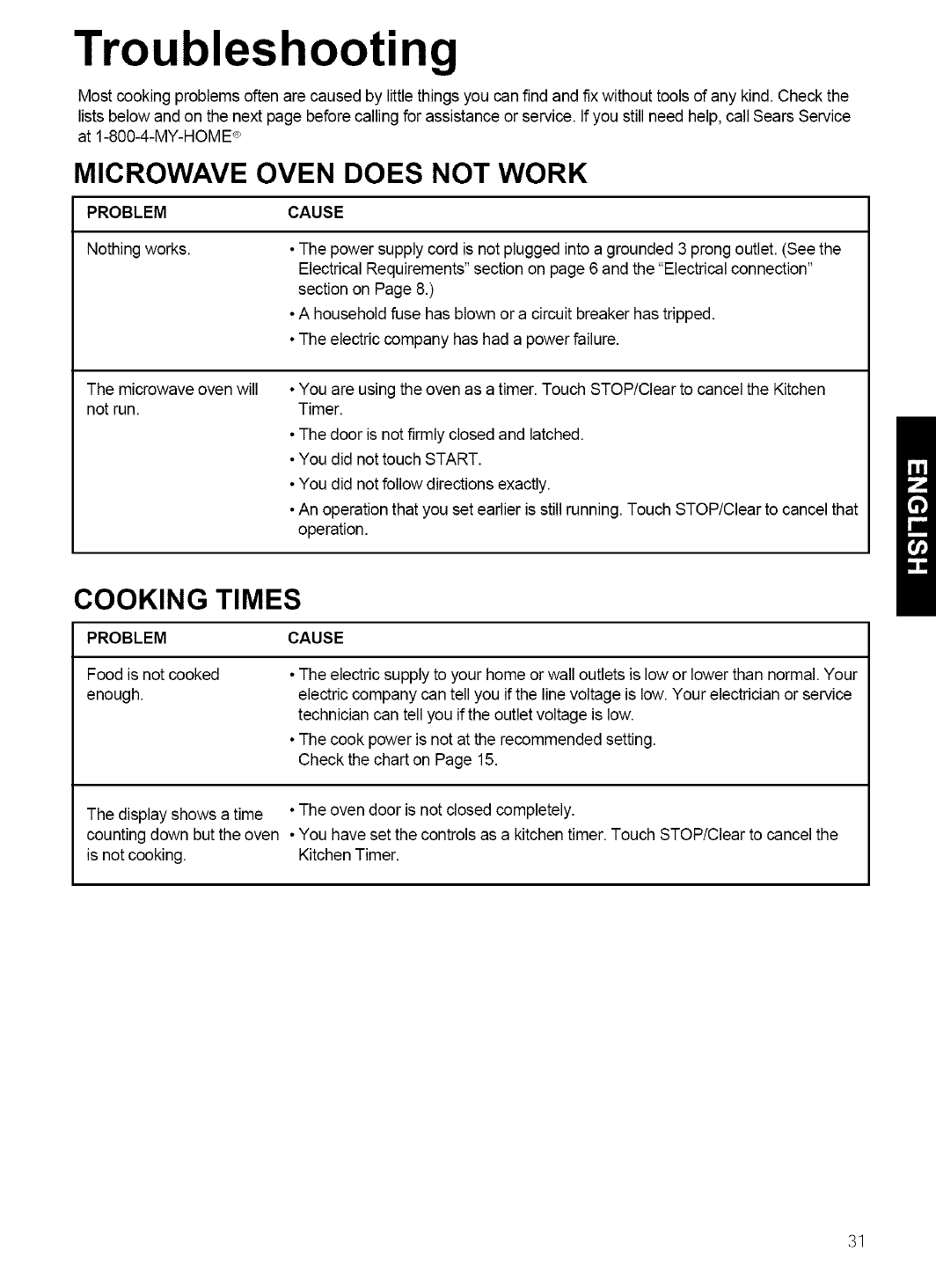

Troubleshooting

Most cooking problems often are caused by littlethings you can find and fix without tools of any kind. Check the

lists below and on the next page before calling for assistance or service. Ifyou still need help, call Sears Service

at 1-800-4-MY-HOME_

MICROWAVE OVEN DOES NOT WORK

PROBLEM CAUSE

Nothing works. • The powersupply cord is not plugged into a grounded 3 prong outlet. (See the

Electrical Requirements" section on page 6 and the "Electrical connection"

section on Page 8.)

• A household fuse has blown or a circuit breaker hastripped.

• The electric company has had a power failure.

The microwave oven will

not run. • You are using the oven as a timer. Touch STOP/Clear to cancel the Kitchen

Timer.

• The door is not firmly closed and latched.

• You did not touch START.

• You did not follow directions exactly.

• An operation that you set earlier is stillrunning. Touch STOP/Clear to cancel that

operation.

COOKING TIMES

PROBLEM CAUSE

Food is not cooked

enough.

• The electric supply to your home or wall outlets is low or lower than normal. Your

electric company can tell you if the line voltage is low. Your electrician or service

technician can tell you if the outletvoltage is low.

• The cook power is not at the recommended setting.

Check the chart on Page 15.

The display shows a time • The oven door is not closed completely.

counting down but the oven • You have set the controls as a kitchen timer. Touch STOP/Clear to cancel the

is not cooking. KitchenTimer.

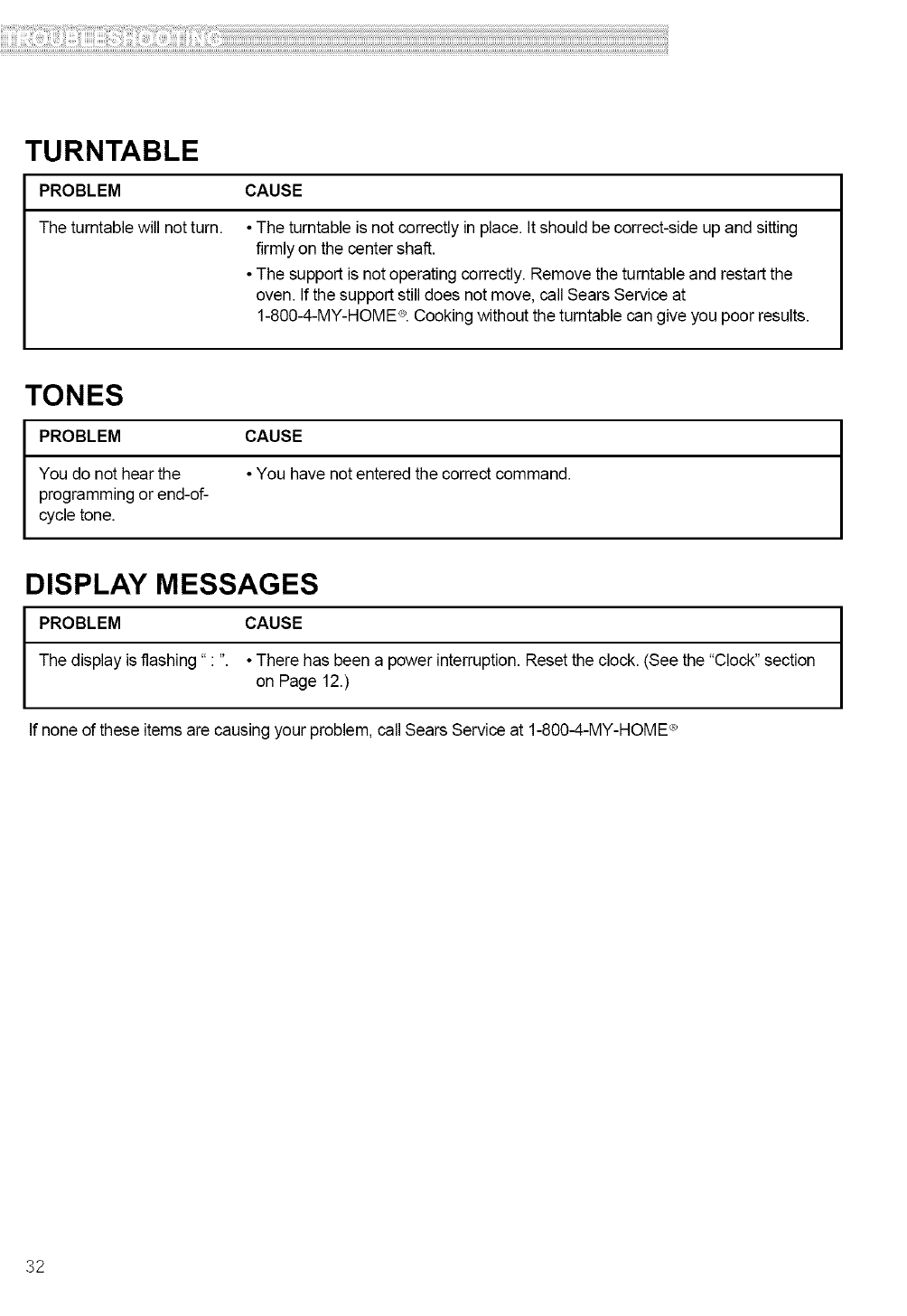

TURNTABLE

PROBLEM CAUSE

The turntable will not turn. • The turntable is not correctly in place. Itshould be correct-side up and sitting

firmly on the center shaft.

• The support is not operating correctly. Remove the turntable and restart the

oven. If the support still does not move, call Sears Service at

1-800-4-MY-HOME®.Cooking without the turntable can give you poor results.

TONES

PROBLEM CAUSE

You do not hear the • You have not entered the correct command.

programming or end-of-

cycle tone.

DISPLAY MESSAGES

PROBLEM CAUSE

The display is flashing" : ". • There has been a power interruption. Reset the clock. (See the "Clock" section

on Page 12.)

If none of these items are causing your problem, call Sears Service at 1-800-4-MY-HOME®

Contenidos Garantia en

Combinacibn

Garantia .......................................................... 34

Servicio Sears ................................................ 35

Seguridad del horno de microondas ........... 36

Aprender a conocer su horno

de microondas ............................................... 39

Como trabaja su homo de microondas ........... 39

Interferencia de radio ...................................... 39

Para los mejores resultados ........................... 39

Probar su homo de microondas ...................... 39

Probar su vajilla o bateria de cocina ............... 40

Precauciones de seguridad operativa ............ 40

Conexi6n electrica ......................................... 40

Caracteristicas del homo de microondas ......41

Funciones del panel de control ....................... 42

Usar su homo de microondas ...................... 44

SeSales audibles ........................................... 44

Interrumpir la cocci6n ..................................... 44

Reloj ................................................................ 44

Protecci6n de seguridad para niSos ............... 44

Cron6metro de cocina ..................................... 45

Ventilador de extracci6n ................................. 45

Luz superior de cocina .................................... 45

Bandeja Giratoria On/Off ................................ 45

Descongelamiento rapido ............................. 45

Agregar minuto ............................................... 46

Cocci6n cronometrada .................................... 46

Cocci6n en etapas mQItiples ........................... 46

Niveles de potencia de microonda .................. 47

Descongelamiento automatico ...................... 48

Tabla de Descongelamiento Automatico ........49

Tabla de Descongelamiento Automatico (cont.)..... 50

Sugerencias para descongelar ....................... 51

"Mantener caliente". ........................................ 51

Usar sensor de coccion .......................... 52-53

Sensor de cocci6n .......................................... 52

Papas (Ejemplo) ............................................. 52

Mas/Menos ..................................................... 52

Cuadro de Cocci6n del sensor ........................ 53

Cuadro de Palomitas de Maiz &

Pizza de Sensor .............................................. 53

Luz superior de cocina

Cocci6n Automatica ........................................ 54

Recalentamiento Automatico .......................... 54

Cuadro de Cocci6n Automatica ...................... 55

Cuadro de Recalentamiento Automatico ........ 55

Cuidar su homo de microondas .................. 56

Cuidado de los filtros ............................... 57~58

Reemplazar las luces de la parte

superior y del homo .................................. 58~59

Sugerencias para la cocina en

su microonda ........................................... 60-61

Preguntas y respuestas ............................... 62

Solucion de problemas ........................... 63-64

Servicio ....................................... tapa posterior

GARANTJA TOTAL DE LA COMBINACION

EN LA CAM PANA DE SU MICROONDA

POR UN ANO COMPLETO

Durante un a_o a partir de la fecha de compra, siesta

combinaci6n en la campana de su microonda

Kenmore tiene un fallo debido a defecto en el material

o en la mano de obra, Sears Io repara sin cargo.

GARANTJA TOTAL DE CINCO ANOS

SOBRE EL MAGNETRON

Durantecincoargosa partirde lafechade compra,si el

magnetr6nde estacombinaci6nen la campanadesu

microondaKenmoretiene unfallo debidoa defectoen el

materialo en la manode obra, Searsla reparasin cargo.

La cobertura de la garantia mencionada arriba se

aplica solamente a la combinaci6n en la campana de

su microonda que se usa s61oen casas particulares.

EL 8ERVICIO DE GARANTJA ESTA DISPONIBLE

CONTAOTANDO 81MPLEMENTE AL 8ERVICIO

8EAR8 A 1-800-4-MY-HOME%

Esta garantia se aplica s61o mientras este producto

esta en uso en los EE.UU.

Esta garantia le da a usted derechos legales

especMcos que varian de estado en estado.

8ears, Roebuck y Co.,

Dept. 817WA,

Hoffman Estates, IL 60179

Por Ilamado de servicio:

1-800-4-MY-HOME ®

8M (1-800-469-4663)

Tenga a bien registrar la informacion de su

modelo.

En el momento en que ustedIlame para recibir un

servicio para su producto, necesitara saber el

nQmero del modelo y el nQmero serial completo.

Puede encontrar esta informaci6nen la

placa/etiqueta del nQmero serial y del modelo en el

lado superior de la cavidad frontal en su homo de

microondas. Tambien, registre las otras

informaciones mostradas abajo.

N_mero de modelo

N_mero de serie

Fecha de compra

Servicio Sears

Acuerdos Maestros de proteccion

Feficitaciones por haber hecho una compra inteligente

Su nuevo producto Kenmore ®esta dise_ado y fabricado para a_os de operaci6n segura.

Pero como todo producto, puede necesitar mantenimiento preventivo o reparaciones cada cierto

tiempo. Es alli cuando el tener un Acuerdo Maestro de protecci6n le puede ahorrar dinero o evitar

que la falla empeore.

Adquiera un Acuerdo Maestro de proteccion ahora y resguardese de cualquier molestia o gastos

inesperados.

El Contrato de Proteccion Maestro ayuda tambien extender la vida de su nuevo producto. Estas son

los aspectos incluidos en el Contrato :

I_1 8ervicio experto, Ilevado a cabo por cualquiera de nuestros 12.000 profesionales especialistas en

reparaciones.

Servicio ilimitado y sin cargo alguno, por las piezas o por el trabajo en toda las reparaciones

cubiertas por el Acuerdo.

I_ Garantia de "No-Lemon" - cambio de su producto cubierto si ocurre mas de cuatro o mas fallas

al producto dentro de doce primeros meses.

I_i Reemplazo del producto si su este asegurado no puede arreglarse.

I_1 Control anual de mantenimiento preventivo a pedido suyo sin cargo extra.

Et Ayuda rapida via telefonico -Soporte telef6nico de un tecnico de Sears sobre los productos que

se requiere de reparaci6n en casa, mas la programaci6n conveniente de servicio.

r_ Proteccion contra sobrecarga electrica, por dafios electricos causados por fiuctuaciones de

corriente.

5_ Reembolso de alquiler si la reparaci6n del producto asegurado toma mas tiempo de Io

prometido.

Una vez que ha comprado el Acuerdo, una simple Ilamada telef6nica es todo Io que le tomara para

agendar un servicio. Puede Ilamar a cualquier hora del dia o de la noche o hacer un compromiso de

atenci6n por telefono.

Sears tiene mas de 12,000 profesionales especialistas en reparaciones que tienen acceso a mas de

4.5 millones de piezas de calidad y accesorios. Esa es la clase de profesionalismo con la que puede

usted contar para ayudar a prolongar la vida de su nueva adquisicion en los afios por venir.

iSuscriba ya un Acuerdo Maestro de protecci6n!

Se aplican algunas limitaciones yexclusiones. Por precios einformaci6n adicional Ilame al 1-

800-827-6655.

Servicio de instalacibn Sears

Para la instalaci6n profesional de Sears de los aparatos del hogar, dispositivos de apertura de la

puerta del garaje, calentadores de agua, y otros items principales del hogar, Ilame en los Estados

Unidos a 1-800-4-MY-HOME ®.

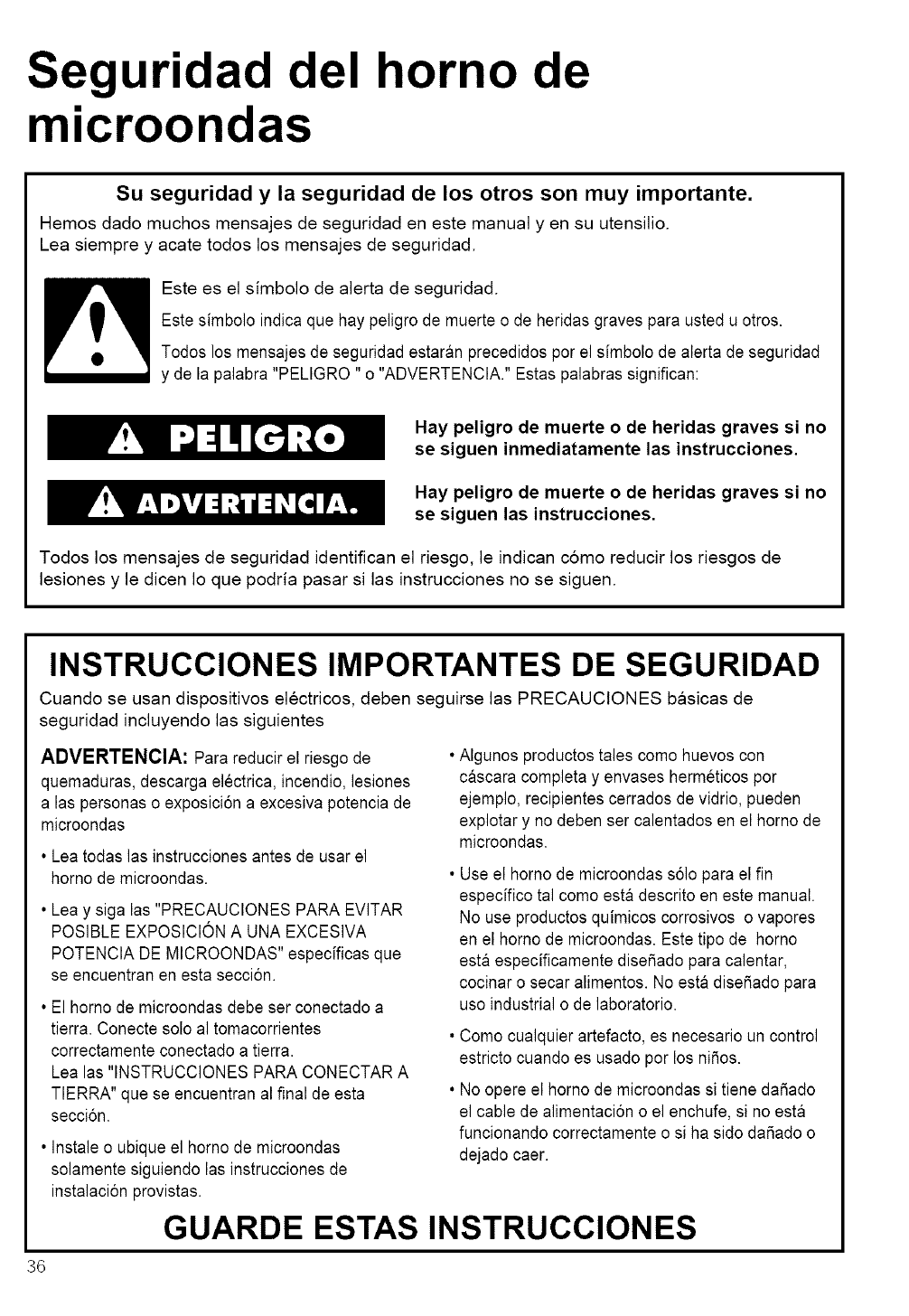

Seguridad del horno de

microondas

Su seguridad y la seguridad de los otros son muy importante.

Hemos dado muchos mensajes de seguridad en este manual yen su utensilio.

Lea siempre y acate todos los mensajes de seguridad.

Este es el simbolo de alerta de seguridad.

Este simbolo indica que hay peligro de muerte o de heridas graves para usted u otros.

Todos los mensajes de seguridad estaran precedidos por el simbolo de alerta de seguridad

y de la palabra "PELIGRO" o "ADVERTENCIA." Estas palabras significan:

Hay peligro de muerte o de heridas graves si no

se siguen inmediatamente las instrucciones.

Hay peligro de muerte o de heridas graves si no

se siguen las instrucciones.

Todos los mensajes de seguridad identifican el riesgo, le indican c6mo reducir los riesgos de

lesiones y le dicen Io que podria pasar si las instrucciones no se siguen.

INSTRUCCIONES IMPORTANTES DE SEGURIDAD

Cuando se usan dispositivos electricos, deben seguirse las PRECAUCIONES basicas de

seguridad incluyendo las siguientes

ADVERTENCIA: Para reducir el riesgo de

quemaduras, descarga electrica, incendio, lesiones

alas personas o exposici6n a excesiva potencia de

microondas

• Lea todas las instrucciones antes de usar el

homo de microondas.

• Lea y siga las "PRECAUCIONES PARA EVITAR

POSIBLE EXPOSIClON A UNA EXCESIVA

POTENClA DE MICROONDAS" especificas que

se encuentran en esta secci6n.

• El homo de microondas debe ser conectado a

tierra. Conecte solo al tomacorrientes

correctamente conectado a tierra.

Lea las "INSTRUCCIONES PARA CONECTAR A

TIERRA" que se encuentran al final de esta

secci6n.

• Instale o ubique el homo de microondas

solamente siguiendo las instrucciones de

instalaci6n provistas.

•Algunos productos tales como huevos con

cascara completa y envases hermeticos por

ejemplo, recipientes cerrados de vidrio, pueden

explotar y no deben ser calentados en el horno de

microondas.

• Use el homo de microondas s61opara el fin

especifico tal como esta descrito en este manual.

No use productos quimicos corrosivos o vapores

en el homo de microondas. Este tipo de homo

esta especificamente disefiado para calentar,

cocinar o secar alimentos. No esta diser_adopara

uso industrial o de laboratorio.

• Como cualquier artefacto, es necesario un control

estricto cuando es usado por los niSos.

• No opere el horno de microondas si tiene daSado

el cable de alimentaci6n o el enchufe, si no esta

funcionando correctamente o si ha sido daSado o

dejado caer.

GUARDE ESTAS INSTRUCCIONES

IMPORTANTES INSTRUCCIONES de SEGURIDAD

• Elservicioalhomo de microondasdebe ser hecho

solo porpersonalcalificado.Llamea una compaSia

de servicioautorizadapara examinar,repararo

hacer ajustes.

• Vea las instruccionespara lalimpiezade la superficie

de la puertaen lasecci6n"Cuidadode su Homode

microondas".

• Parareducirel riesgode incendioen el interiordel

homo:

- No cocinede m&slosalimentos.Tenga cuidadosi

se colocaparafacilitarla cocci6n,papel,pl&sticou

otrosmaterialescombustiblesdentrodel homo de

microondas.

- Quitelas atadurasde alambreretorcidodel papelo

bolsasde plasticoantesde colocarbolsasenel

homo.

- Silos materialesdentro del homose quemaran,

mantengala puertadel homocerrada,apagueel

homoy desconecteel cablede alimentaci6no

cierreel pasode la corrienteelectricaen elfusibleo

enel paneldel disyuntor.

- No use el interiordel hornoparaalmacenamiento.

No dejeelementosde papel,utensiliosde cocinao

alimentosenetinteriordelhomocuandonoesteenuso.

• Adecuadoparasu usosobre elementosdecocinade

gas o electricos.

• Previstoparaser usado porsobre los rangoscon un

ancho maximode 36pulgadas(91 cm).

• Limpiecon frecuencialas campanasde ventilaci6n,

no debepermitirque se acumulegrasaen la

campanao enel filtro

• Cuandohaya alimentosqueproducenllamasbajola

campana,enciendaelextractor.

• Tenga cuidadocuandolimpieel filtrodelextractor-

campana.Los agentescorrosivosde limpieza,tales

como limpiahornosbasadosenlejia, puedendar_ar

el filtro.

• Nodebenser colocadosen el homode microondas

alimentoso utensiliosde metalde gran tamaSoya

que puedenocasionarincendioo riesgode descarga

electrica.

• No limpiesobre un almohadillas&sperasdemetal.

Las piezaspuedenquemarlaalmohadillay tocarlas

parteselectricasocasionandoriesgode descarga

electrica.

• No almacenenadadirectamentesobre el homode

microondascuando esteenfuncionamiento.

• No cubra o bloqueeningunaaberturaenel homode

microondas.

• No deje estehomo de microondasa la intemperie.

No Iouse cercadel agua,por ejemplo,cercade la

piletade la cocina,sobre unabase hQmeda,o cerca

de una piletade nataci6no algopor elestilo.

• Nosumerjaelcable de alimentaci6noenchufeen el

agua.

• Mantengael cable dealimentaci6nlejos de las

superficiescalientes.

• No deje elcable de alimentaci6ncolgandodel borde

de la mesao mostrador.oNo Iomontesobre una

pileta.

• No cubra las rejillaso cualquierotra partedel homo

con I&minasde metal.Estocausara

sobrecalentamientodel homo.

• Los liquidostalescomo agua,cafeo t&'pueden

sobrecalentarsemasaliadel puntode hervorsi estar

aparentementehirviendodebidoa su tensi6n

superficial.No siemprese nota el burbujeoo el

hervoral retirarel recipientedelhomo. Estopuede

causarquelos liquidosmuycalienteshiervan

repentinamentecuando se introduceenel liquido

una cucharao cualquierotroutensilio.

Parareducirel riesgode producirlesionesalas

personas;

1) No recalienteliquidos.

2) Revuelvael liquidoantesy mientrasse calienta.

3) No use recipientesde ladosrectoscon cuellos

angostos.

4) Luegodecalentar,permitaal contenedor

permaneceren el homo de microondasporun

tiempocortoantesde quitarlo.

5)Tenga muchocuidadocuandocoloque unacuchara

u otro utensiliodentro delcontenedor.

GUARDE ESTAS INSTRUCCIONES

PRECAUCIONES PARA EVITAR POSIBLE

EXPOSICION A UNA EXCESIVA POTENCIA DE

MICROONDAS

(a)No intentehacerfuncionareste homocon lapuerta

abiertaya que elfuncionamientocon puerta abierta

puedecausarexposici6nnocivaa la potenciade

microondas.Es importanteno descuidaru

obstaculizarla seguridadde los endavamientos

electricosde interbloqueo.

(b) No coloqueningQnobjeto entrela cara frontaldel

homoy la puertao permitaque se acumule

suciedado residuosde limpiadorsobre las

superficiedesellado.

(c)No hagafuncionarel homosiesta daSado.Es

particularmenteimportanteque lapuertadel homo

se cierre correctamentey queno haya daSoen:

(1) Puerta(torcida),

(2) Bisagrasy cerraduras(rotaso sueltas),

(3) Cerradurasde las puertaso superficies

selladas.

(d) Nadie excepto el personal de servicio

calificado debe hacer ajustes o reparaciones

en el homo.

Requisitos electricos

Observe todos los c6digos y ordenanzas. Se

requieren en el equipo 120 Volt, 60 Hz, CA

solamente, se requieren fusibles de 15 o 20 amp

(Se recomienda fusibles de retardo).

Se recomienda que se use un circuito separado

que alimente s61o a este dispositivo.

Peligro de descarga electrica,

Enchufe en un tomacorriente conectado

atierra de 3 clavijas. No quite la clavija

de conexion a tierra.

No use adaptador.

No use extension de cable de

alimentaci6n.

No seguir estas instrucciones puede

Ilegar a causar muerte, incendio o

descarga electrica.

INSTRUCCIONES PARA CONECTAR ATIERRA

•Para todos los artefactos conectados con

cable de alimentacion :

El homo de microondas debe ser conectado a

tierra. En caso de corto circuito electrico, la

conexi6n reduce el riesgo de descarga

electrica, ya que provee un alambre de

escape para la corriente electrica. El homo de

microondas esta equipado con un cable de

alimentaci6n que tiene un enchufe con un

cable de conexi6n a tierra. El enchufe debe

estar conectado a un tomacorrientes

correctamente instalado y conectado a tierra.

ADVERTENCIA: El uso incorrecto de la

conexi6n a tierra puede ocasionar peligro de

incendio o de descarga electrica.

Consulte a un electricista calificado o personal

de servicio si las instrucciones no son

completamente comprendidas o si hay dudas

sobre si el homo esta adecuadamente

conectado a tierra.

No use una extensi6n de cable de

alimentacion. Si el cable de alimentacion es

demasiado corto, haga instalar un

tomacorriente por un tecnico calificado cerca

del homo de microondas.

•Para un artefacto permanentemente

conectado:

El homo de microondas debe estar conectado

a un sistema metalico de cables, permanente,

de conexion a tierra o un conductor de

conexi6n a tierra del equipo debe ser

accionado con los conductores del circuito y

conectados a la terminal a tierra del equipo o

toma de alimentaci6n del homo de

microondas.

GUARDE ESTAS INSTRUCCIONES

Aprender a conocer su

de microondas horno

Esta secci6n trata los conceptos detras de la coccion de microonda. Tambien muestra los conceptos

basicos que necesita saber para operar su homo de microondas. Tenga a bien leer esta informacion

antes de usar el horno.

Como trabaja su horno de microondas

Los hornos de microondas son seguros. La Potencia

microonda no es caliente. Hace que los alimentosproduzcan

su propio calory es este calor el que los cocina.

Las microondas son como las ondas de TV, las ondas de

radio, olas ondas de luz, no puede verlas, pero se puede ver

Io que hacen.

Un magnetron en el homo de microondas produce

microondas. Las microondas se mueven dentro del homo

donde se contactan con los alimentos mientras rota la

bandeja giratoria.

La bandeja giratoria de vidrio de su homo de microondas

permite alas microondas atravesarla. Luego estas rebotan en

un piso de metal y vuelven a traves de la bandeja giratoria de

vidrio y para ser absorbidas por los alimentos.

Magnetr6n

Piso de metal Cavidad det homo

Bandeja giratoria de vidrio

Las microondas pasan a traves de la mayor parte del vidrio, papel y plasticos sin calentarlos de

manera que los alimentos absorben la energia. Las microondas rebotan en los envases de metal de

modo que los alimentos no absorben la energia.

Interferencia de radio

Usar su horno de microondas puede causar interferencia en su radio, TV o equipo similar. Cuando hay

interferencia, puede reducirla o quitarla de la siguiente forma:

• Limpiar la puerta y sellar las superficie del homo.

• Ajustar la antena receptora de la radio o televisor.

• Llevar el receptor lejos del homo de microondas.

• Enchufar el homo de microondas en un tomacorriente diferente de modo que el homo de microondas y

receptor esten en diferentes ramas de circuitos.

Para los mejores resultados

• Siemprecocinesu comidaduranteel periodode tiempomascorto recomendado.Compruebeparaver c6mose

cocinala comida.Si es necesario,toque AGREGARMINUTO(AddMinute)mientrasel homo estafuncionando

o despuesde que el ciclode cocci6nesteterminado(ver lasecci6n "Usaragregarminuto").

• Revolver,girar, ovolver a arreglarlos alimentosque estansiendococinadosalrededorde la mitaddel tiempode

cocci6nde todaslas recetas. Estoayudaraa asegurarsequelos alimentosestencocinadosparejo.

• Si no tiene una cubierta para un plato, use papel encerado o toallas de papel aprobadas para microonda o

envoltura pl&stica. Recuerde doblar una esquina de la envoltura de pDstico para ventilar el vapor durante

la cocci6n.

Probar su horno de microondas

I Para probar el homo ponga aproximadamente 1taza de agua fria en un recipiente de vidrio en el horno.

Cierre la puerta. AsegQreseque se cierra. Cocine a1100% de potencia por 1 minuto. A su debido tiempo,

el agua debe calentarse.

Probar su vajilla o bateria de cocina

Pruebesu vajilla o bateriade cocinaantes de usar. Paraprobarun platoy tenerun uso seguro,col6queloen el

homo con unatazade aguaal ladodel mismo.Siel plato se calientademasiadoy elagua quedafria, no Io use.8i

lavajilla se ¢alienta,no Io use. AIgunosplatos(demelanin& algunavajillaceramica,etc.)absorbela energiade

las microondas,calentandosedemasiadoparatomarloscon la manoy demorandolos tiemposde cocci6n.Cocinar

en recipientesde metalno diser_adosparauso de microondaspuedendar_arel homo,ya que podriancontener

metaloculto(atadurasretorcidas,laminasmetalicas,grapas,lustreo recortesmetalicos).

Precauciones de seguridad operativa

• Nunca se apoye en la puerta o permita a un niSoque se balancee en ella cuando la puerta esta abierta.

• Use protectores para objetos calientes. La potencia microonda no calienta los envases, pero el calor del

alimento puede hacer que el recipiente se caliente.

• No use papel de diarios u otro papel impreso en el horno.

• No seque fiores, frutas, hierbas, madera, papel, calabacines o ropas en el homo.

• No encienda el horno de microondas cuando esta vacio. La vida Qtildel producto puede ser acortada. Si

realiza la programaci6n del homo, coloque un recipiente de agua en el horno. Es normal que la puerta del

horno se vea ondulada despues de que el horno ha estado funcionando por un lapso.

• No trate de derretir cera de parafina en el horno. La cera de parafina no se derretira porque permite alas

microondas pasar a traves de la misma.

• No opere el horno de microondas a menos que la bandeja de vidrio giratoriaeste segura en su lugar y pueda

rotar libremente. La bandeja giratoria puede rotarhacia cualquier direcci6n. Asegerese de que la bandeja

giratoria esta correctamente colocada en el horno. Tome su bandeja giratoria con cuidado cuando la saque

del horno, para evitar la posibilidad de quebrarla. Si su bandeja giratoria se rompe o se quiebra, contacte a

su proveedor para un reemplazo.

• Cuando use un plato dorador, elrondo del plato dorador debe ser al menos de por Io menos 3/16 pulgadas

por arriba de la bandeja giratoria. Siga las directivas provistas con el plato dorador.

• Nunca cocine o recaliente un huevo entero con cascara. La formaci6n de vapor en los huevos enteros puede

causar que revienten y posiblemente daSen el horno. Fracoione los huevos duros hervidos antes de

calentarlos. En raras ocasiones, los huevos poche se han reventado. Cubra los huevos poche y deje un

tiempo de un minuto antes de cortarlos.

• Para obtener mejores resultados,revuelva mientras se calienta o recalienta. Los liquidos calentados en

ciertos recipientes (especialmente recipientes de forma cilindrica) pueden sobrecalentarse. El liquido puede

saltar hacia con unfuerte sonido durante o despues de calentarse o cuando se agreguen los ingredientes

(granulos de caf& saquitos de t& etc.). Esto puede daSar el horno.

• Las microondas pueden no Ilegaral centro de un asado. Elcalor se difunde desde el centro hacia afuera,

areas cocidas, tal como un horno comen. Esta es una de las razones para dejar algunos alimentos (por

ejemplo, asados o papas al homo) permanecer por un momento despues de la cocoi6no en otros alimentos,

revolverlos durante el tiempo de cocci6n.

• En el homo, no sumerja al freir. Los utensilios para microondas no son adecuados para esto yes dificil

mantener temperaturas correctas para frituras sumergidas.

• No cocine demasiado las papas. AI final del tiempo de cocoi6n recomendado, las papas deberan estar

ligeramente firmes porque continuaran la cocci6n durante el tiempo de permanencia. Luego de cocinar en el

horno de microondas, deje a las papas permanecer durante 5 minutos. Se terminaran de cocinar mientras

reposan.

Conexibn Electrica

8i su linea de conexion electrica o voltaje de salida es de menos de 110voltios, los tiempos de cocci6n

pueden ser mas largos. Haga que un electricista calificado controle su sistema electrico.

Caracteristicas del horno de microondas

®®

Su horno de microondas esta disefiado para hacer

su experiencia de cocina Io mas agradable y

productiva posible. Para resumir y explicar

rapidamente, la siguiente es una lista de las

caracteristicas basicas del homo:

1. Ventana con pantalla de metal evita que las

microondas se escapen. Esta disefiada como

una pantalla para permitirle visualizar la comida

mientras se cocina.

2. Placa de modelo y nQmero de serie y etiqueta

de guia de coccion

3. Filtro de carb6n (detras de la rejilla de

ventilacion)

4. Rejilla de ventilacion.

5. Bandeja giratoria. La bandeja giratoria hace

girar los alimentos mientras cocina para obtener

una coccion mas pareja. Debe estar en el homo

durante el funcionamiento para obtener mejores

resultados de coccion.

6. Luz auxiliar (para la mesada)

7. Filtros de grasa. Vet la seccion "Cuidadodel

los filtros".

8. Panel de control. Toque los pads en este panel

para realizar todas las funciones.

9. Parrilla de coccion. Utilicela para obtener

espacio extra cuando cocine en mas de un

recipiente a la vez.

1. Bandeja giratoria

2. NQcleo

3. Soporte

La bandeja giratoria rota en ambas direcciones para obtener una coccion mas pareja de los alimentos. No

ponga en funcionamiento el homo de microondas sin la bandeja giratoria en su lugar.

Para instalar:

1. Coloque el soporte en el fondo de la cavidad del homo.

2. Coloque la bandeja giratoria en el soporte.

Fije las lineas levantadas y curvas en el centro del piso de la bandeja giratoria entre los tres radios del

nQcleo. Los rodillos en el soporte deben ajustarse pot dentro de la saliente del piso de la bandeja

giratoria. 41

Funciones del panel de control

El panel de control de su horno de microondas le permite seleccionar rapida y facilmente la funci6n

de coccion deseada. Todo Io que tiene que hacer es tocar el pad de comando. La siguiente es una

lista de todos los pads de comando y nQmeros ubicados en el panel de control. Para m&s

informacion sobre estas caracteristicas, yea la seccion "Usar su horno de microondas".

, ...... s' "",

112}

:i5 }

..... {8}

0 :

On/Off

(9 }

5 S#ee# N#gh/Nig_:_t/Off

--@

1. Pantalla. La pantalla incluye un reloj e

indicadores que le muestran la hora del dia, los

programas de las horas cocinar los alimentos,

las potencias de coccion, las cantidades, pesos

y las funciones de coccion seleccionadas.

2. Plato principal. Toque este pad para preparar

sin introducir un tiempo o potencia de cocci6n.

3. Entrada congelada. Toque este pad para

cocinar de 10 a 20 onzas (284 a 567 g) de

entrada congelada sin introducir una potencia o

tiempo de cocci6n.

4. Papas (patatas) al homo. Toque este pad para

cocinar papas sin introducir una potencia o

tiempo de cocci6n.

5. Sopa o salsa. Toque este pad para preparar sin

introducir una potencia o tiempo de cocci6n.

6. Verduras congeladas. Toque este pad para

cocinar sin introducir una potencia o tiempo de

cocci6n.

7. Verduras frescas. Toque este pad para cocinar

sin introducir una potencia o tiempo de cocci6n.

8. Verduras enlatadas. Toque este pad para

cocinar sin introducir una potencia o tiempo de

cocci6n.

9. Palomitas de maiz. Toque este pad para

preparar las palomitas de maiz con la

caracteristica del sensor. El sensor del homo le

dira al homo cuanto tiempo debera cocinar

segQn la cantidad de humedad que detecta

(deserta) en las palomitas.

10. Pizza. Toque este pad para recalentar una o

varias porciones de pizza sin introducir una

potencia o tiempo de coccion.

11. Cocci6n autom&tica. Toque este pad para

cocinar alimentos aptos para homo de

microondas sin introducir una potencia o

tiempo de coccion.

12. Recalentamiento autom&tico. Toque este

pad para recalentar alimentos aptos para

homo de microondas sin introducir una

potencia o tiempo de cocci6n.

13. "Mantener caliente". Toque este pad para

"Mantener caliente" las comidas cocinadas en

su homo hasta 99 minutos, 99 segundos. La

funcion "Mantener caliente" puede ser usada

por si misma o puede seguir automaticamente

el ciclo de cocci6n.

14. Descongelamiento autom&tico. Toque este

pad seguido por pads numericos para

descongelar came segQn el peso.

15. Pads numericos. Toque los pads numericos

para introducir tiempos de cocci6n, potencias

de coccion, cantidades, pesos, o categorias de

comidas.

16. Descongelamiento rapido. Toque este pad

para descongelamiento rapido.

"GROUND BEEF 1.0 LBS TOUCH START"

aparecera en la pantalla.

17. Agregar minuto. Toque este pad para cocinar

por un minuto, a1100% de Potencia de coccion

o para agregar un minuto extra a la Potencia

de coccion.

18. Mas. Toque este pad para agregar 10

segundos de tiempo extra de coccion cada

vez que Io presiona.

19. Tiempo de coccion. Toque este pad seguido

por un pad numerico para determinar un

tiempo coccion.

20. Potencia. Toque este pad despues determinar

el tiempo de coccion, seguido por un pad

numerico para instalar la cantidad de potencia

de microondas liberadas para cocinar los

alimentos. Cuando mas alto el nQmero mas

alto la potencia de microondas o "velocidad de

cocci6n."

21. Menos. Toque este pad para restar 10

segundos de cocci6n por cada vez que Io

presiona.

22. Cron6metro de cocina. Toque este pad para

iniciar el Cron6metro de cocina.

23. INICIAR. Toque este pad para iniciar una

funcion. Si abre la puerta despues que el homo

comienza a cocinar, vuelva a tocar INICIAR

(START).

24. DETENER/Limpiar (STOP/Clear). Toque este

pad para borrar un comando incorrecto,

cancelar un programa durante la coccion,

o limpiar la pantalla.

25. Reloj. Toque este pad para introducir la hora

del dia correcta.

26. Bandeja giratoria On/Off. Toque este pad

para detener la bandeja giratoria. "T/TABLE

OFF "aparecera en la pantalla.

27. Ventilador (_) On/Off. Toque este pad

para apagar o encender el ventilador.

28. Ventilador (_) 5 Velocidades. Toque este

pad para elegir una de las 5 velocidades del

ventilador.

29. Luz ((_'_). Toque este pad para encender la

luz, ponerla en alta, en noctuma o para

apagarla.

NOTA: Si trata de introducir instrucciones

incorrectas, no escuchara ningQn tono. Toque

DETENER/Limpiar (STOP/Clear) y reintroduzca

las instrucciones.

Usar su horno de

microondas

Esta secci6n contiene instrucciones para Ilevar a

cabo cada funci6n. Tenga a bien leer

cuidadosamente estas instrucciones.

SENALES AUDITIVAS

Las seSales auditivas estan disponibles para

guiarlo cuando programa y usa su homo ;

• Un tono de programacion sonata cada vez

que usted toque un pad.

• Siete tonos seSalan el final de un conteo del

cron6metro de cocina.

• Cuatro tonos se5alan la finalizaci6n de un ciclo

de cocci6n.

RELOJ

Luego de enchufar su horno de microondas por

primera vez o luego de una interrupci6n por falla

electrica, la pantalla mostrara el mensaje "PLEASE

SET TIME OF DAY". Si la hora del dia no esta

determinada, la pantalla mostrara ":" hasta que

usted toque "Clock".

Ejemplo: para colocar el reloj a las 10:30(A.M.).

Toque: La pantalla

mostrar&:

=B,,ER ,,,E SF,.;R,

O _ #3 *13 -T'30T

3. 1 3 0 ,u ._#[.,Tn,,,- ,

II_ ° I_ TIll ll- I I

4. ,u •_#[.,RR ,_.,_.,_.1t,

('] P/_ ITJ'_JUUL_IJ-I L-7

"3/7_ //3 * /3

I_,,_,•_qb_T'_'_,_,_,-/_,

5. ;1 STRUT

NOTA: Puede ir de A.M. y P.M. tocando 1 o 2 luego

del paso 4.

INTERRUMPIR LA COCClON

Abriendo la puerta, puede detener el homo

durante un ciclo. El homo deja de calentar y el

ventilador se detiene, pero la luz permanece

encendida.

Para retomar la coccion, cierre la puerta y

toque START

Si no desea continuar la coccion, abra la

puerta y toque STOP/Clear.

PROTECCION DE SEGURIDAD

PARA NINOS

Puede usar esta funcion de seguridad para bloquear

el panel de control cuando se halla limpiando el

homo o que los niSos no puedan utilizar el homo sin

la supervision.

Para determinar CHILD LOCK: (BIoqueo de

proteccion)

Toque:

La pantalla

mostrar_:

Hora del dia.

Toque y mantenga hasta

que aparezca LOCKED

en la pantalla.

(aproximadamente

4 segundos)

Para cancelar CHILD LOCK: (Bloqueo de

proteccion)

Toque: La pantalla

mostrar&:

Toque y mantenga hasta

que desaparezca LOCKED

en la pantalla.

(aproximadamente

4 segundos)

CRONOMETRO DE COClNA LUZ SUPERIOR DE COClNA

Su homo de microondas puede usarse como

cronometro de cocina. Puede determinar hasta 99

minutos, 99 segundos.

Ejemplo: Para determinar 3 minutos.

Toque: La pantalla

mostrar_:

: EIVTEP.T,m-IIVm,,.,I II I_ I III I

1. "INn - -I-

F_,,. 5&.

2. 3 0 0 9.uu m,,,-,-r_r

TIMER y cuenta

regresiva.

VENTILADOR DE EXTRACClON

Los dos pads en el centro inferior del panel de control,

controlan Ias 5 velocidades deI ventilador de extraccion

Ejemplo: Para determinar una de las 4

velocidades del ventilador de extracci6n.

Toque: La pantalla

mostrar_:

1. /o ,o

L/- V/- L/

OrdOff

Muestra el ultimo nivel que eligi6

para la velocidad del ventilador.

5 Speed

Toque hasta nivel 4

/ C/10

3. mcc

IJl I

O_/Off

Apague el ventilador cuando desee

NOTA: Si la temperatura del rango o de la parte superior

de la cocina que esta por debajo del homo se eleva

demasiado, el ventilador de extraccion en la campana de

ventilacion se encendera automaticamente en la

VELOCIDAD 5 (LEVEL 5) predeterminada para proteger

el homo. Puede permanecer asi hasta una hora para

enfriar el homo. Cuando esto ocurre, el pad " "

(Ventilador) no apagara el ventilador. No puede apagar ei

ventilador de escape durante la coccion en ei homo de

microondas.

El pad en la parte inferior derecha del panel de

control controla la luz superior de cocina.

Ejemplo: Para programar la I&mparapara "ALTA".

Toque: La pantalla

mostrar&:

Una vez para luz alta

Dos veces para luz nocturna

High/Night/Off

h_'L_H

OFF

Para apagarlo, toque el pad una

o dos veces dependiendo del

ajuste de la luz.

BANDEJA GIRATORIA ON/OFF

Paramejoresresultadosdecoccion,dejeencendidala

bandejagiratoria.SeIapuededetenerparaplatosgrandes.

Toque: La pantalla

mostrar&:

2. ,, ,/_E u,,

PresioneBandejagiratoria(turntable)On/Offparagiraro

detener la bandeja.

NOTA: A veces la bandejagiratoriapuedecalentarse

demasiado para el tacto. Tenga cuidado al tocada

durante y despuesde la cocci6n.

No opere el homo vacio sin alimento adentro.

DESCONGELAMIENTO RAPIDO

Una secuenciade descongelamientorapidose halla predeterminada

en el homo. Lafuncion de descongelamientorapido(express defrost),

provee un metodode descongeIamientorapido para una pedazo de

"CARNEMOLIDA (GROUNDBEEF)" soiamentede 1.0libra.

Ejemplo: Para descongelar I libra de Came molida.

Toque: La pantalla

mostrar&:

L_ nl iMn i n i

R&, ,. BEEF,._,.85

1. ,uu_.H5,RE,

TRI IF T T

Cuenta regresiva de tiempo y

-,,_--- _--_,_-_

E,_F_55 ,EF_uS, se

desplaza pot la pantalla.

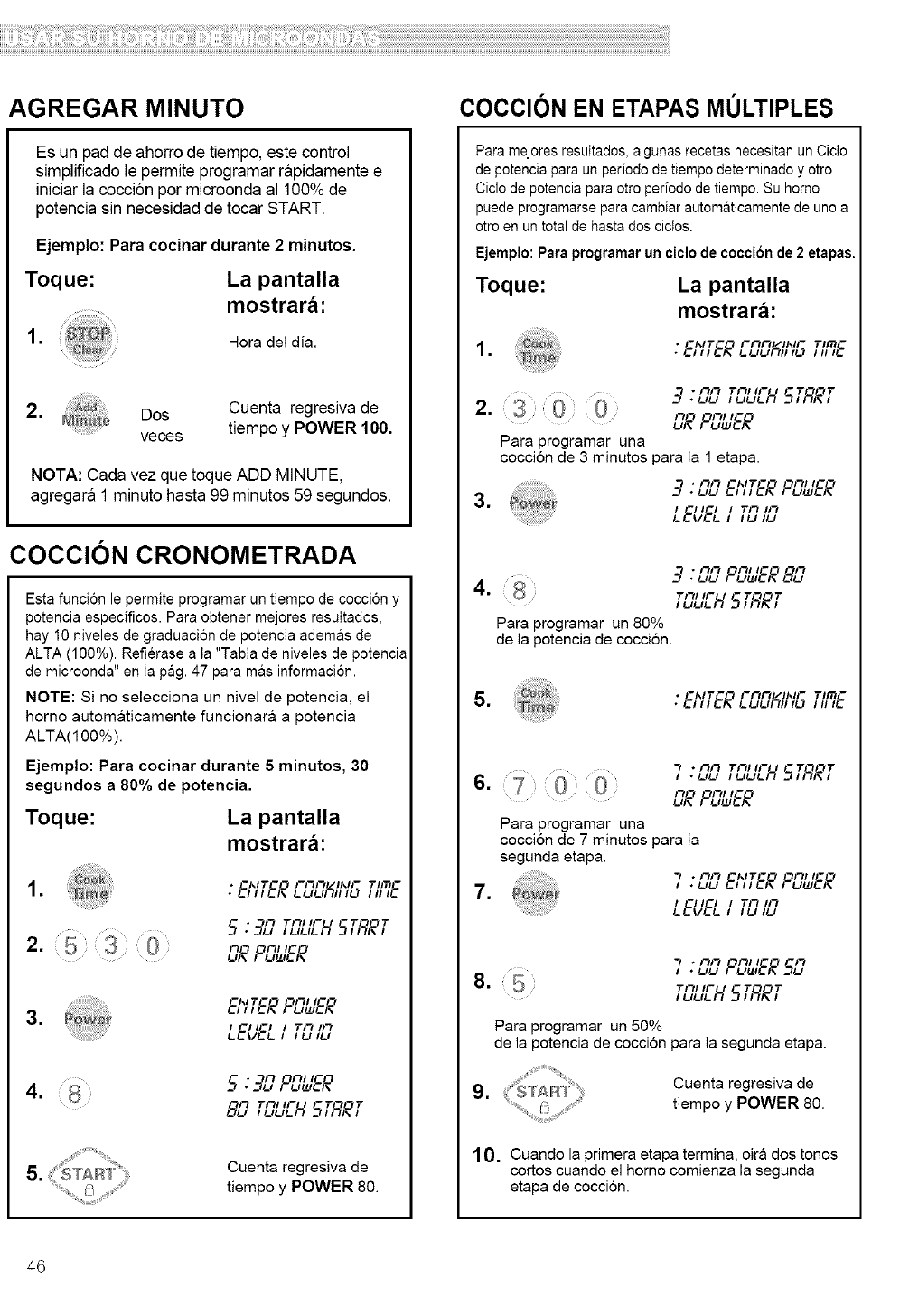

AGREGAR MINUTO

Es un pad de ahorro de tiempo, este control

simplificado le permite programar rapidamente e

iniciar la cocci6n por microonda a1100% de

potencia sin necesidad de tocar START.

Ejemplo: Para cocinar durante 2 minutos.

Toque: La pantalla

mostrar&:

1. .... Hora del d ia.

,Dos

veces

Cuenta regresiva de

tiempo y POWER 100.

NOTA: Cada vez que toque ADD MINUTE,

agregara 1 minuto hasta 99 minutos 59 segundos.

COCClON CRONOMETRADA

Esta funcion le permite programar un tiempo de cocci6n y

potencia especificos. Para obtener mejores resuitados,

hay 10 niveles de graduacion de potencia ademas de

ALTA (100%). Refierase a la "Tabia de niveles de potencia

de microonda" en Ia pag. 47 para mas informaci6n.

NOTE: Si no selecciona un nivel de potencia, el

homo automaticamente funcionar& a potencia

ALTA(100%).

Ejemplo: Para cocinar durante 5 minutos, 30

segundos a 80% de potencia.

Toque: La pantalla

mostrar&:

-I_.IT - -1 I-I-11-1/II_.II-

B, EE/-/-,/-,_,,/-_,T'm,,f-

*/") -T-10T

I/-,/-,/-H 51 i_i\ i

t30 -1131I-O

u,, Fu=,f,,

-'_J T-- -1 -11--11 '-- -1

,-,I-, T,-1,-1

/-fvf/- I,/-,,.,

./-1

5. __£1 -11-1,,--1F/-,6EF,

B[.7 rn, ,- I-r-10r

Cuenta regresiva de

tiempo y POWER 80.

COCClON EN ETAPAS MULTIPLES

Para mejores resuitados, algunas recetas necesitan un Cido

de potencia para un periodo de tiempo determinado y otro

Ciclo de potencia para otro periodo de tiempo. Su horno

puede programarse para cambiar automaticamente de uno a

otro en un total de hasta dos cicIos.

Ejemplo: Para programar un ciclo de cocci6n de 2 etapas.

Toque: La pantalla

mostrar&:

,-hit -- -1 I--I--I1--1/'h'F

fl ' l f_ /- /-'/-'/'_II '/-' IT'IT)II'f-

* 1-11-1 TI-1, II- l

•/_I/_I , uu/-_'_

3 0 : 0 95TRRT

Para programar una

cocci6n de 3 minutos para la 1 etapa.

3• 1-11-1 -hiT--1 -11-1,, ---1•uu f,,, f_ Fu_,f_

3. ,-,,-, Tn.-1

/-f_,'f/- I,u ,u

•,-1,-1-1,-1,,--1_,-1

•UU

4. 8 -q

T,-1,,- - T-1-1;-

,uu/-H 5,,_F,,

Para programar un 80%

de la potencia de cocci6n.

,-hit -- -1 I--I-11-1/ll_.ll-

fill f_ /-/-'/-'f_llll 1/-'I ITIITIIIIf-

7*1-11-1 TI-1III- I -T-l-IT

•/-,/-,,/-,/-,/-_5,/:_F,,

6. 7 0 0 ,-1-1-1,-1,,--1

Para programar una

cocci6n de 7 minutos para la

segunda etapa.

* 1-11-1 -I_IT -- -1 -11-11, -- -1

f,,, EF,Fu6EF,

• UU

7. 7

,-,,-, Tn.-1

/-f_,'f/- I,u ,u

8. 5

Para programar un 50%

de la potencia de cocci6n

7 "'-1'-1-1'-1"--1-'-1•/-,/-,Fu6EF,£,

TL?UL-H5TRET

para la segunda etapa.

Cuenta regresiva de

tiempo y POWER 80.

10. Cuando la primera etapa termina, oir& dos tonos

cortos cuando el homo comienza la segunda

etapa de cocci6n.

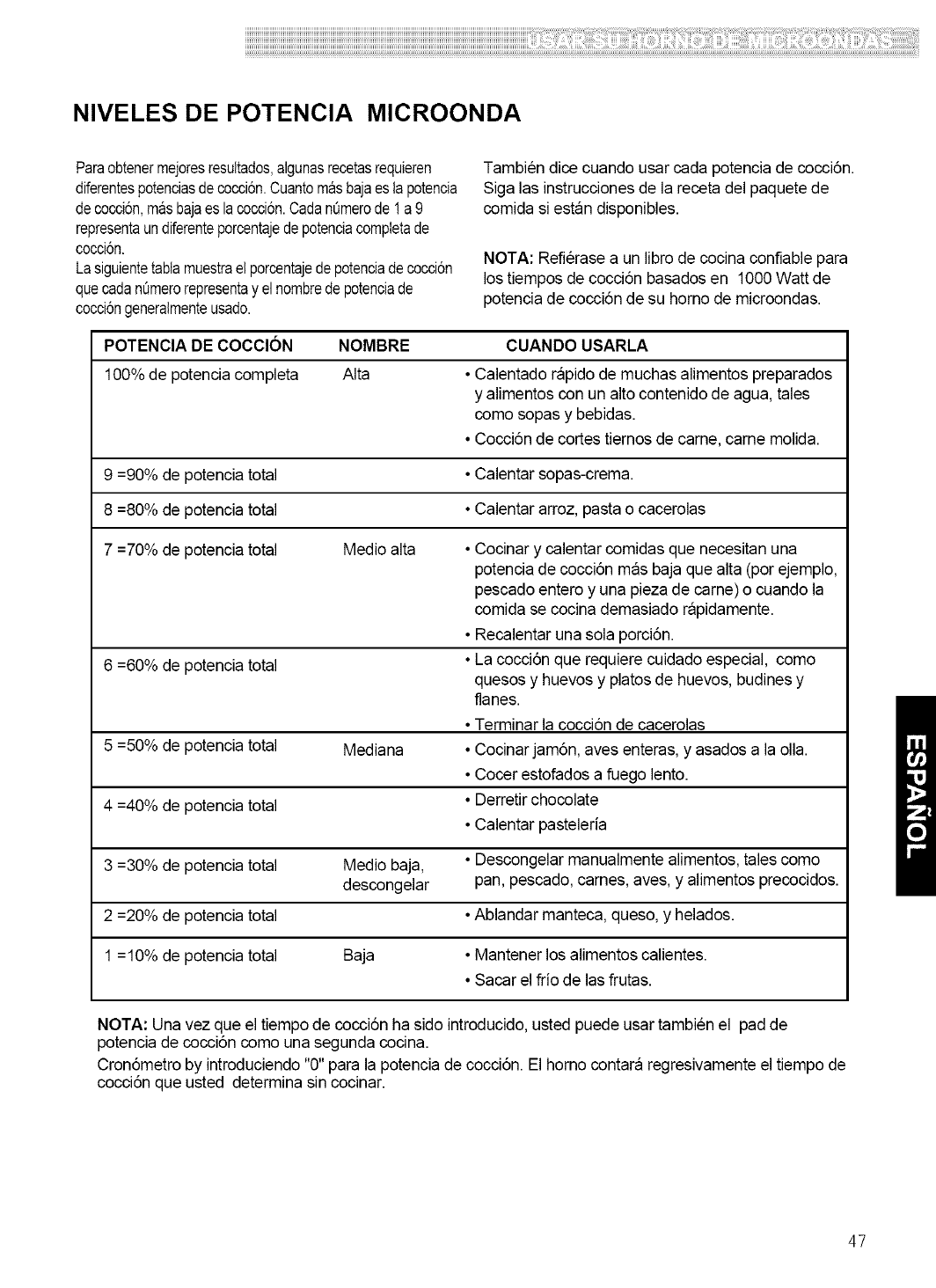

NIVELES DE POTENClA MICROONDA

Paraobtenermejoresresultados,algunasrecetasrequieren

diferentespotenciasdecocci6n.Cuantomasbajaeslapotencia

decocci6n,masbajaes lacocci6n.Cadant3merode1a 9

representaundiferenteporcentajedepotenciacompIetade

cocci6n.

Lasiguientetablamuestraeiporcentajedepotenciadecocci6n

quecadan_merorepresentay elnombredepotenciade

cocci6ngeneralmenteusado.

Tambien dice cuando usar cada potencia de cocci6n.

Siga las instrucciones de la receta del paquete de

comida si estan disponibles.

NOTA: Refierase a un libro de cocina confiable para

los tiempos de cocci6n basados en 1000 Watt de

potenciade cocci6n de su homo de microondas.

POTENCIA DE COCClON NOMBRE CUANDO USARLA

100% de potencia completa Alta • Calentado rapido de muchas alimentos preparados

y alimentos con un alto contenido de agua, tales

como sopas y bebidas.

• Cocci6nde cortes tiernos de came, came molida.

9 =90% de potencia total • Calentar sopas-crema.

8 =80% de potencia total • Calentar arroz, pasta o cacerolas

7 =70% de potencia total Medio alta • Cocinar y calentar comidas que necesitan una

potenciade cocci6n mas baja que alta (por ejemplo,

pescado entero y una pieza de came) o cuando la

comida se cocina demasiado rapidamente.

• Recalentar una sola porci6n.

6 =60% de potencia total • La cocci6n que requiere cuidado especial, como

quesos y huevos y platos de huevos, budines y

flanes.

• Terminar la cocci6n de cacerolas

5 =50% de potencia total Mediana • Cocinarjam6n, aves enteras, y asados a la olla.

• Cocer estofados a fuego lento.

4 =40% de potencia total • Derretirchocolate

• Calentar pasteleria

3 =30% de potencia total Medio baja, • Descongelar manualmente alimentos, tales como

descongelar pan,pescado, carnes, aves, y alimentos precocidos.

2 =20% de potencia total • Ablandar manteca, queso, y helados.

1 =10% de potencia total Baja • Mantener los alimentos calientes.

• Sacar el frio de las frutas.

NOTA: Una vez que el tiempo de cocci6n ha sido introducido, usted puede usar tambien el pad de

potencia de cocci6n como una segunda cocina.

Cron6metro by introduciendo "0" para la potencia de cocci6n. El homo contara regresivamente el tiempo de

cocci6n que usted determina sin cocinar.

DESCONGELAMIENTO AUTOMATICO

Tres secuencias de descongelamiento estan predeterminadas

en el homo. La funcion de descongelamiento automatico le

proporciona eI mejor metodo de descongelamiento para

alimentos congelados. La guia de cocina le mostrara cual

secuencia de descongelamiento se recomienda para el

alimento que desea descongelar.

Para mayor conveniencia, el descongelamiento automatico

incluye un mecanismo sonoro incorporado (bip)que le recuerda

que debe controlar. Dar vuelta, separar, o volver a arreglar

para obtener el mejor resultado del descongelamiento. Hay

tres diferentes niveles de descongelamiento.

I CARNE

2 AVES

3 PESCADO

4 PAN

Ejemplo: Para descongelar libra de came molida.

Toque: La pantalla

mostrara:

TIll IF I

#ERT, uu_H,

POULTE',-'TOL#_-HE

F,SH TOb;EH9

8EERBTOLIEH

2. 1 _._ .bs EHTER

3. Iy 2 LELb5

TFII IF" T T

para introducir el peso

,Cuenta regresiva de tiempo

y DEFROST.

NOTA:

Cuando toque el pad START, la pantalla cambia para la

cuenta regresiva de descongelamiento. Sonata un bip en el

homo durante el ciclo de DESCONGELAMIENTO. En este

momento, abra la puerta y de vuelta o vuelva aarreglar eI

alimento. Quite cualquier porcion que ya este descongelada.

Vuelva a colocar en el homo las porciones congeladas y

toque START para retomar al ciclo de descongelamiento.

SUGERENCIAS PARA OPERAR

• Para obtener mejores resuttados, saque el pescado, marisco,

came o ave su paquete (envoItura) original. De otro modo la

envottura guardara el vapor y et jugo cerca de los atimentos,

esto puede causar que ta superficie externa de los atimentos se

cocine.

• Para obtener mejores resuItados, de a la came molida Ia forma

de una rosca (dona) antes de congetarla. Cuando la

descongele, aI sonar el bip raspe la came ya descongeIada y

contint]e et descongelamiento.

• Coloque los aIimentos en un recipiente piano o sobre una rejiIla

de asado para microondas para recoger et goteo.

Estatablalemuestralasetecci6ndeltipodeatimentoy elpeso

quepuedeestabtecerparacadatipo.Paraobtenermejores

resuttados,aflojeoquitelacubiertadelalimento.

ALIMENTO TOQUE PESOS QUE PUEDE

Descong. DETERMINAR

Autom&t. (en d_cimas de libra

Carne 1 .1 a 6.0 (45g a 2722g)

Ayes 2 .1 a 6.0 (45g a 2722g)

Pescado 3 .1 a 6.0 (45g a 2722g)

Pan 4 .1 a 1.0 (45g a 450g)

Tabla de conversion de peso

Usted probablemente no esta acostumbrado a medir los

pesos de los alimentos en libras yen onzas que son

fracciones de libra (porejemplo,4 onzas iguala 1/4 libra ).

No obstante, para poder introducir el peso del alimento en

"Descongelamiento automatico", debe especificarlo en

libras y decimas de libra.

Si el peso en el paquete del alimento esta expresado en

fracciones de libra, puede usar la siguiente tabla para

convertir el peso a fracciones decimales.

Peso equivalente

ONZAS

1.6

3.2

4.0

4.8

6.4

8.0

9.6

11.2

12.0

12.8

14.4

16.0

PESO DECIMAL

.10

.20

.25 un cuarto de libra

.30

.40

.50 media libra

.60

.70

.75 tres cuartos de libra

.80

.90

1.00 una libra

TABLA DE DESCONGELAMIENTO AUTOMATICO

Programar carnes

ALIMENTOS PRO-

CARNE DE

VACA

Carne molida, CARNE

en bulto

Camemolida,en CARNE

hamburguesas

Bistecredondo CARNE

Filetede Iomo CARNE

Estofadode CARNE

carne

AsadoaIaolla CARNE

Camemolidaasada

Asado de CARNE

costilla

Nalgaarrollada CARNE

asada

CORDERO

Cubospara CARNE

estofado

Chuletas CARNE

(de1pulgadadeanch0

CERDO

Chuletas CARNE

(de 1/2 pulgada

de ancho)

Perrocaliente CARNE

Costillassueltas CARNE

Costillasestilo

country

Tira de CARNE

Salchichas,

Salchicha, en CARNE

bulto

Lomo asado CARNE

deshuesado

SENAL ACOSTICA INSTRUCCIONES ESPECIALES

GRAMAR

Quite con untenedor las porciones

descongeladas.De vuelta.Vuelvael

restoal homo.

Separe y vuelva a disponer.

De vuelta.Cubralasareascalientes

conhojasde papelde aluminio.

De vuelta.Cubralasareascalientes

conhojasde papelde aluminio.

Quitelasporcionesdescongeladas

contenedor.

Separeelresto.VuelvaetrestoaIhomo.

De vuelta.Cubralasareascalientes

conhojade papelde aluminio.

De vuelta.Cubralasareascalientes

conhojade papelde aluminio.

De vuelta.Cubralasareascalientes

conhojade papelde aluminio.

Quitelasporcionesdescongeladascon

untenedor.Vuelvaelrestoalhomo.

Separe y vuelva a disponer.

De vuelta. Cubra las areas

calientes con hoja de papelde

aluminio.

Separe y vuelva a disponer.

Quitelasporcionesdescongeladasconun

tenedor.Devuetta.Vuelvaelrestoalhomo.

Devuelta.Cubralas&reascatientesconhoja

depapetdealuminio.

Lacamedeformairregulary loscortesdecamegrandesy

grasososdebentenertasparesdelgadasograsosas

cubiertasyprotegidasconunaconunahojadepapelde

aluminioalcomienzodeunasecuenciadedescongelaci6n.

No descongelar menosde 1/4 onza. Congele en

forma de rosca (dona).

Nodescongetemenosdedosonzasdehamburguesas.

Comprimaelcentrecuandopongaacongelar.
