f
READ AND
SAVE THESE
INSTRUCTIONS
SF..AIRIS
OWner'S
Model No.
758.144115
FOR YOUR
READ
ALL mNSTRUCTIONS
CAREFULLY
QUIETCOMFORT
WHOLE HOUSE
HUMIDHFIER
11 Gallon Output with
Digita_ Readout
• Operating _nstructions
• Parts List
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
Part No. SP6520 Printed in Canada

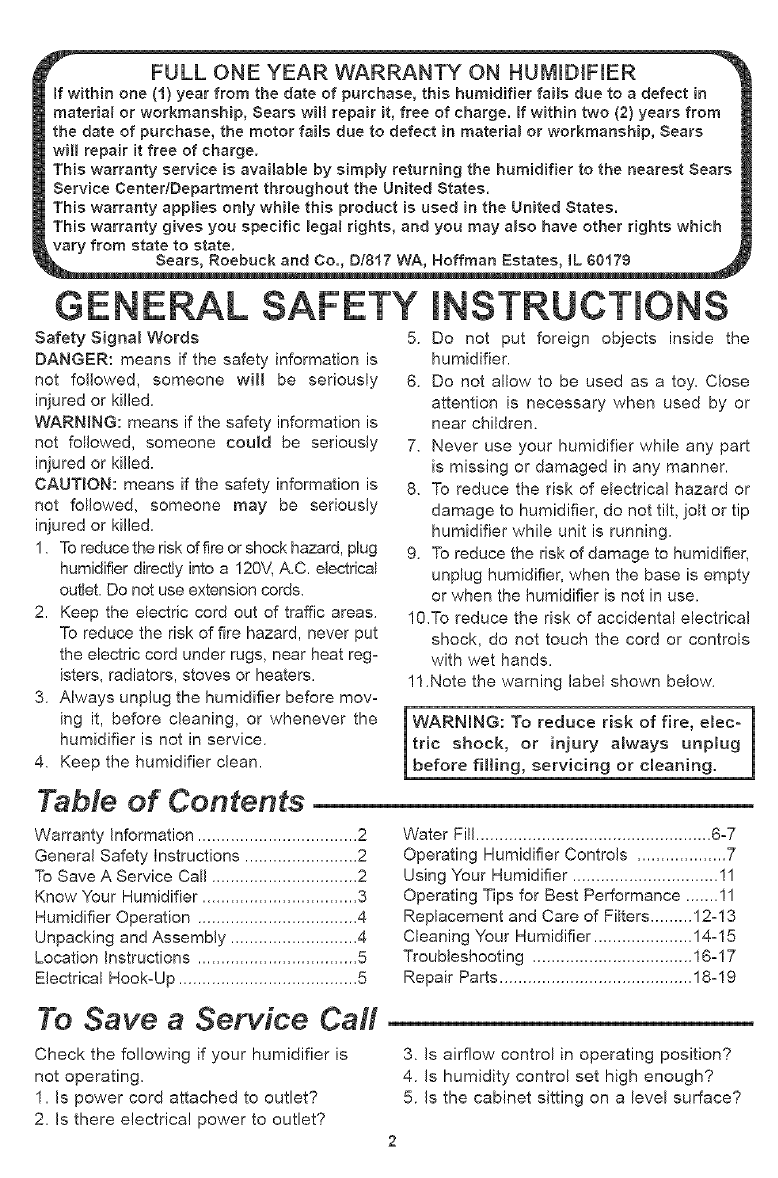

FULL ONE YEAR WARRANTY ON HUMmDmFIER
_f within one (1) year from the date of purchase, this humidifier falls due to a defect in
material or workmanship, Sears will repair it, free of charge. If within two (2} years from
the date of purchase, the motor fails due to defect in materia_ or workmanship, Sears
witl repair it free of charge.
This warranty service is available by simply returning the humidifier to the nearest Sears
Service Center/Department throughout the United States.
This warranty applies only while this product is used in the United States.
This warranty gives you specific _egal rights, and you may also have other rights which
vary from state to state.
Sears Roebuck and Co. D1817 Hoffman Estates IL 60179
GENERAL SAFETY
Safety Signal Words 5.
DANGER: means if the safety information is
not followed, someone will be seriously 6.
injured or killed.
WARNING: means if the safety information is
not followed, someone could be seriously 7.
injured or killed.
CAUTION: means if the safety information is 8.
not followed, someone may be seriously
injured or killed.
1. To reduce the risk of fire or shock hazard, plug 9.
humidifier directly into a !20V, A.C. electrical
outlet. Do not use extension cords.
2. Keep the electric cord out of traffic areas.
To reduce the risk of fire hazard, never put
the electric cord under rugs, near heat reg=
isters, radiators, stoves or heaters.
3. Always unplug the humidifier before mov=
ing it, before cleaning, or whenever the
humidifier is not in service.
4. Keep the humidifier clean.
Table of Contents
Warranty Information .................................. 2
General Safety instructions ........................ 2
To Save A Service Call ............................... 2
Know Your Humidifier ................................. 3
Humidifier Operation .................................. 4
Unpacking and Assembly ........................... 4
Location Instructions .................................. 5
Electrical Hook=Up ...................................... 5
iNSTRUCTiONS
Do not put foreign objects inside the
humidifier.
Do not allow to be used as a toy. Close
attention is necessary when used by or
near children.
Never use your humidifier while any part
is missing or damaged in any manner.
To reduce the risk of electrical hazard or
damage to humidifier, do not tilt, jolt or tip
humidifier while unit is running.
To reduce the risk of damage to humidifier,
unplug humidifier, when the base is empty
or when the humidifier is not in use.
1O.To reduce the risk of accidental electrical
shock, do not touch the cord or controls
with wet hands.
11.Note the warning label shown below.
_
WARNING: To reduce risk of fire, elec-
l tNc shock, or injury always unplug
|before filling, servicing or cleaning.
Water Fill .................................................. 6-7
Operating Humidifier Controls ................... 7
Using Your Humidifier ............................... !1
Operating Tips for Best Performance ....... !1
Replacement and Care of Filters ......... 12=13
Cleaning Your Humidifier ..................... 14=15
Troubleshooting .................................. 16=17
Repair Parts ......................................... 18=19
To Save a Service Calt
Check the following if your humidifier is 3_ Is airflow control in operating position?
not operating. 4. Is humidity control set high enough?
1. Is power cord attached to outlet? 5. Is the cabinet sitting on a level surface?
2. Is there electrical power to outlet?
2

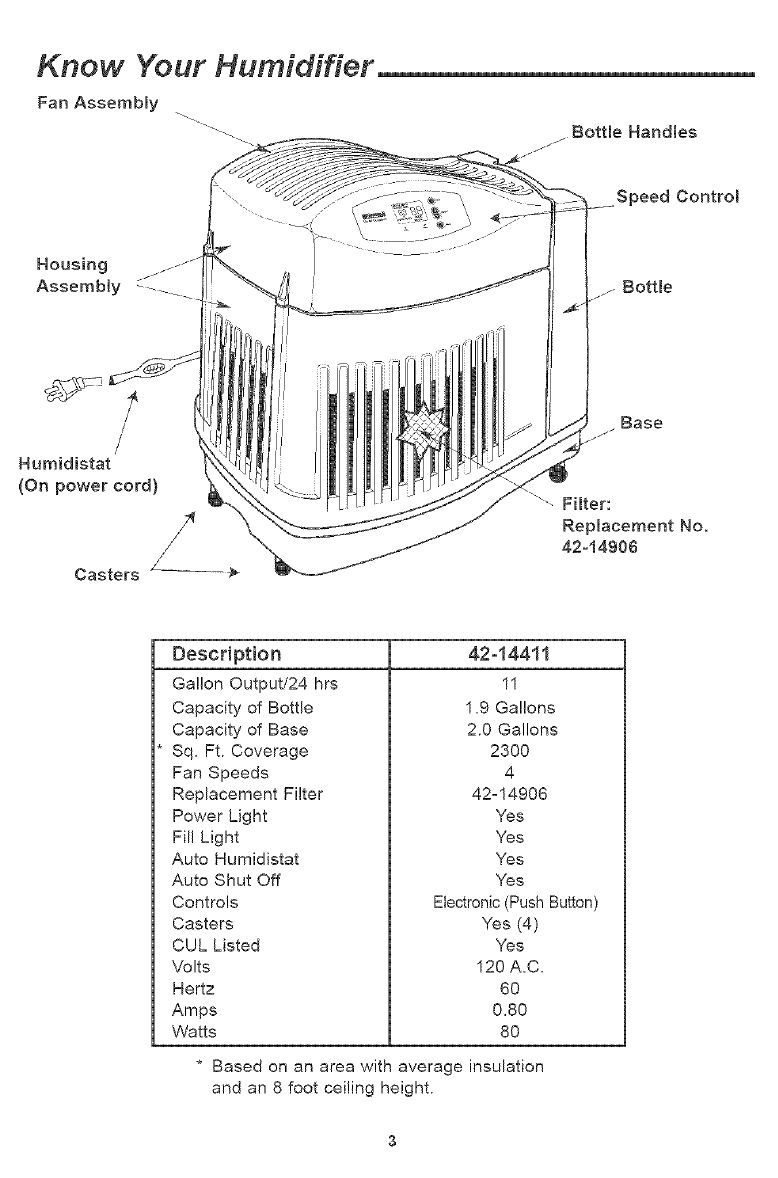

Know Your Humidifier
Fan Assembly
Bottle Handles
Speed Controm
Casters
Base
Description
Ga!lon Output/24 hrs
Capacity of Bottle
Capacity of Base
Sq. Ft. Coverage
Fan Speeds
Replacement Filter
Power Light
Fill Light
Auto Humidistat
42-14411
11
1,9 Gal!ons
2.0 Gallons
2300
4
42:14906
Yes
Yes
Yes
Auto Shut Off
Controls
Casters
CUL Listed
Volts
Hertz
Amps
Watts
Yes
Electronic (Push Button)
Yes (4)
Yes
120 A,C.
60
0,80
80
* Based on an area with average insulation
and an 8 foot ceiling height.

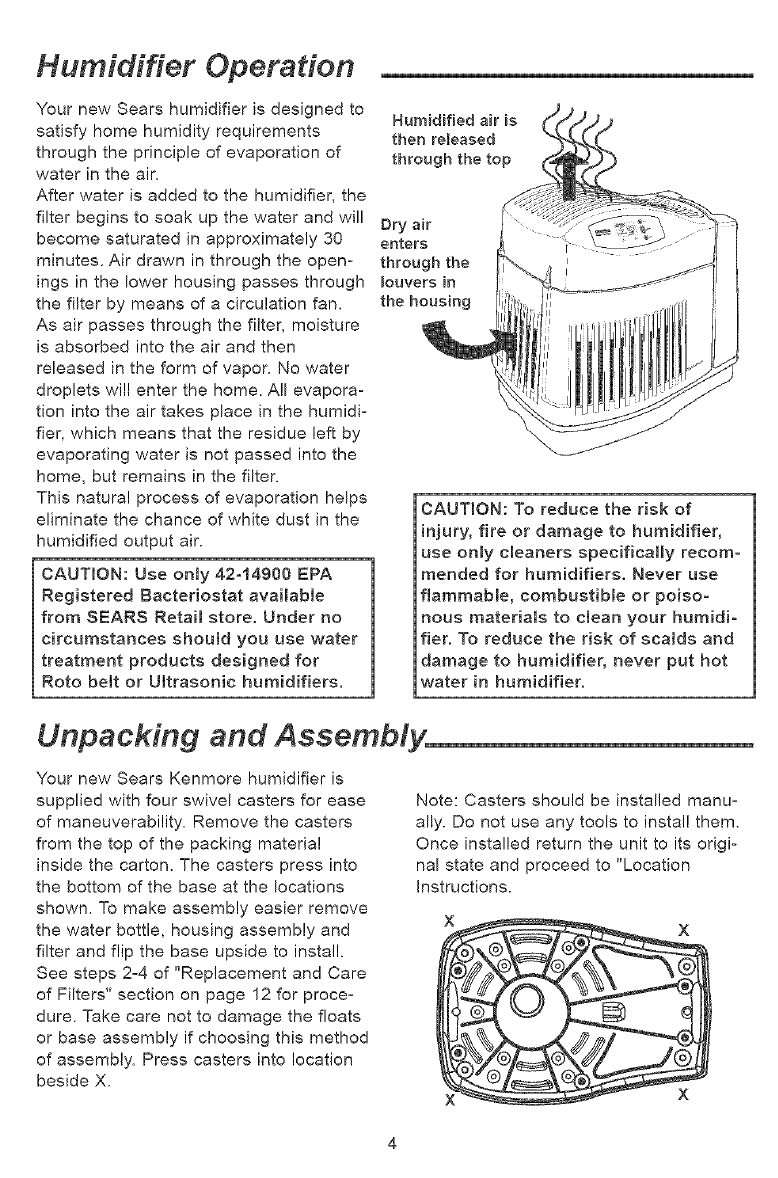

Humidifier Operation __
Your new Sears humidifier is designed to Humidified air is
satisfy home humidity requirements then reteased
through the principle of evaporation of through the top
water in the air.
After water is added to the humidifier, the
filter begins to soak up the water and will Dry air
become saturated in approximately 30 enters
minutes. Air drawn in through the open- through the
ings in the lower housing passes through _ouvers in
the filter by means of a circulation fan. the housing
As air passes through the filter, moisture
is absorbed into the air and then
released in the form of vapor. No water
droplets will enter the home. All evapora-
tion into the air takes place in the humidi-
fier, which means that the residue left by
evaporating water is not passed into the
home, but remains in the filter.
This natural process of evaporation helps
eliminate the chance of white dust in the
humidified output air.
CAUTmON: Use onJy 42°14900 EPA
Registered Bacteriostat availabJe
from SEARS Retail store. Under no
circumstances should you use water
treatment products designed for
Roto belt or Ultrasonic humidifiers.
CAUTmON: To reduce the risk of
injury, fire or damage to humidifier,
use only cleaners specifically recom-
mended for humidifiers. Never use
flammable, combustible or poiso-
nous materials to cJean your humidi-
fier. To reduce the risk of scalds and
damage to humidifier, never put hot
water in humidifier.
Unpacking and Assemb
Your new Sears Kenmore humidifier is
supplied with four swivel casters for ease
of maneuverability. Remove the casters
from the top of the packing materia!
inside the carton. The casters press into
the bottom of the base at the locations
shown. To make assembly easier remove
the water bottle, housing assembly and
filter and flip the base upside to install.
See steps 2-4 of "Replacement and Care
of Filters" section on page 12 for proce-
dure. Take care not to damage the floats
or base assembly if choosing this method
of assembly. Press casters into location
beside X.
Note: Casters should be installed manu-
ally. Do not use any tools to install them.
Once installed return the unit to its origi-
nal state and proceed to "Location
Instructions.

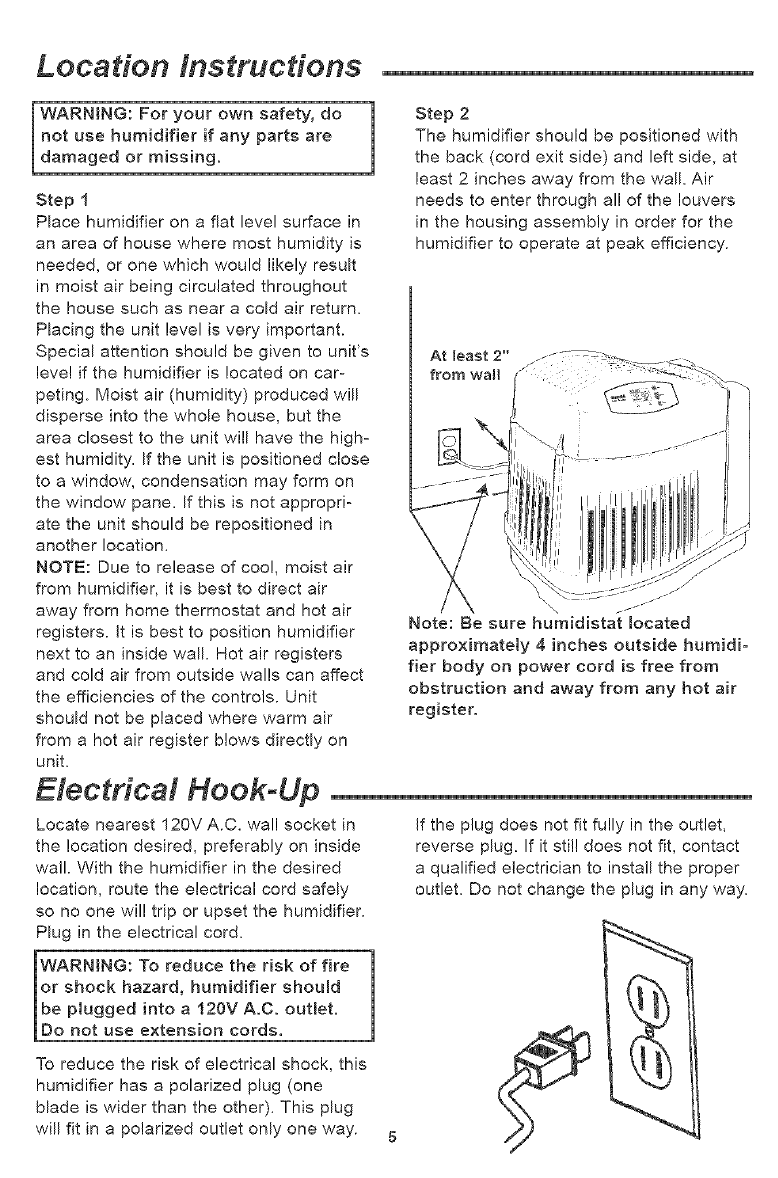

Location Instructions --
iWARNING: For your own safety, do
not use humidifier if any parts are
_damaged or mss ng.
Step 1
Place humidifier on a flat level surface in
an area of house where most humidity is
needed, or one which would likely result
in moist air being circulated throughout
the house such as near a cold air return.
Placing the unit level is very important.
Special attention should be given to unit's
level if the humidifier is located on car-
peting. Moist air (humidity) produced will
disperse into the whole house, but the
area closest to the unit will have the high°
est humidity. If the unit is positioned close
to a window, condensation may form on
the window pane. If this is not appropri-
ate the unit should be repositioned in
another location.
NOTE: Due to release of coo!, moist air
from humidifier, it is best to direct air
away from home thermostat and hot air
registers. It is best to position humidifier
next to an inside wall. Hot air registers
and cold air from outside walls can affect
the efficiencies of the controls. Unit
should not be placed where warm air
from a hot air register blows directly on
unit.
l Step 2
The humidifier should be positioned with
the back (cord exit side) and left side, at
least 2 inches away from the wall Air
needs to enter through all of the louvers
in the housing assembly in order for the
humidifier to operate at peak efficiency.
\
"\\_\
Note: Be sure humidistat located
approximately 4 inches outside humidi-
fier body on power cord is free from
obstruction and away from any hot air
register.
Electrical Hook-Up
Locate nearest 120V A.C. wall socket in
the location desired, preferably on inside
wall. With the humidifier in the desired
location, route the electrical cord safely
so no one wil! trip or upset the humidifier.
Plug in the electrical cord.
WARNING: To reduce the risk of fire ]
1
or shock hazard, humidifier shoumd
be plugged into a 120V A.C. outlet.
Do not use extens on cords.
To reduce the risk of electrical shock, this
humidifier has a polarized plug (one
blade is wider than the other). This plug
will fit in a polarized outlet only one way.
If the plug does not fit fully in the outlet,
reverse plug. If it still does not fit, contact
a qualified electrician to install the proper
outlet. Do not change the plug in any way.

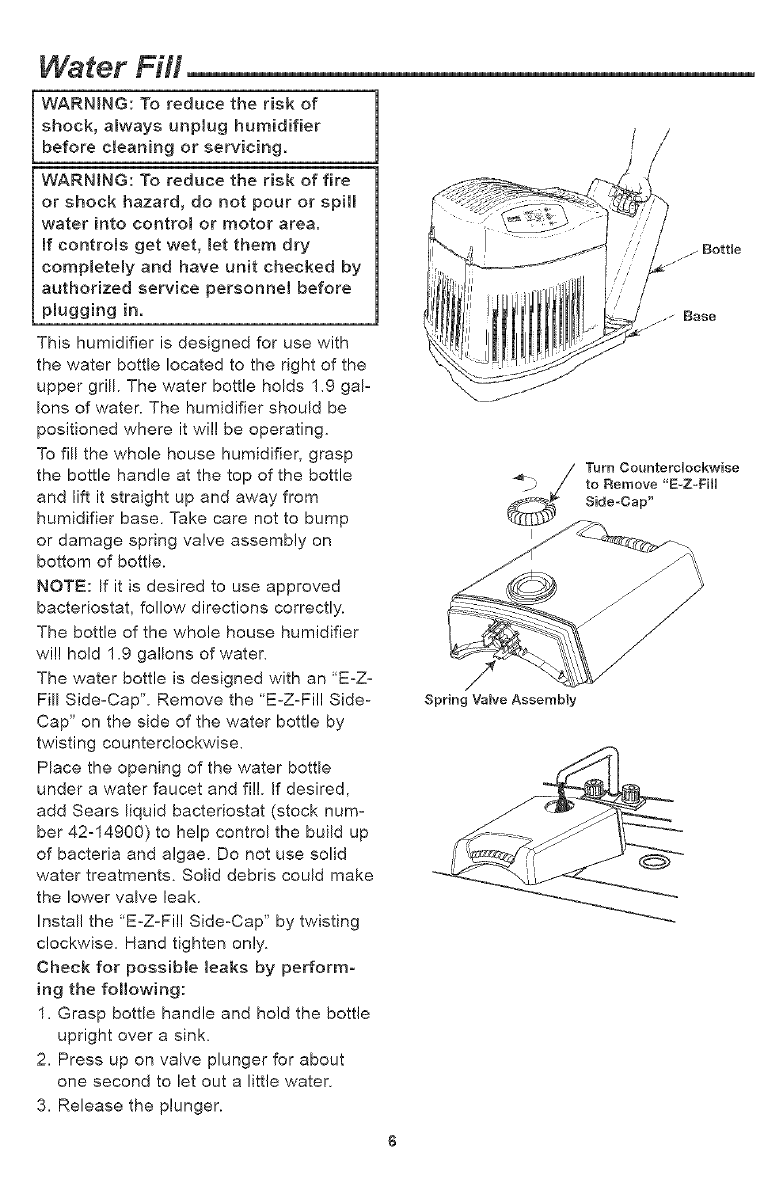

Water Fill
WARNING: To reduce the risk of
shock, always unplug humidifier
before cleaning or servicing.
WARNING: To reduce the risk of fire
or shock hazard, do not pour or spH[
water into control or motor area.
If controls get wet, let them dry
comp[etemy and have unit checked by
authorized service personnel before
plugging in.
This humidifier is designed for use with
the water bottle located to the right of the
upper grill. The water bottle holds 1,9 gal-
lons of water. The humidifier should be
positioned where it will be operating,
To fill the whole house humidifier, grasp
the bottle handle at the top of the bottle
and lift it straight up and away from
humidifier base. Take care not to bump
or damage spring valve assembly on
bottom of bottle.
NOTE: If it is desired to use approved
bacteriostat, follow directions correctly.
The bottle of the whole house humidifier
will hold 1.9 gallons of water,
The water bottle is designed with an 'E-Z-
Fill Side-Cap". Remove the 'E-Z-Fill Side-
Cap" on the side of the water bottle by
twisting counterclockwise,
Place the opening of the water bottle
under a water faucet and fill. If desired,
add Sears liquid bacteriostat (stock num-
ber 42-14900) to help control the build up
of bacteria and algae, Do not use solid
water treatments, Solid debris could make
the lower valve leak.
Install the ' E-Z-Fill Side-Cap" by twisting
clockwise, Hand tighten only,
Check for possible leaks by perform°
ing the following:
1, Grasp bottle handle and hold the bottle
upright over a sink.
2, Press up on valve plunger for about
one second to let out a little water.
3, Release the plunger.
Spring Valve Assembly
/ /
Z
,'_ l _ Bottle
/
.- Base
4. Listen for air bubbles. Look for leaks
around the ' E-Z-Fill Side-Cap" and
valve plunger.
5. If you hear air bubbles or see leaks,
retighten the "E-Z-Fill Side-Cap" and
repeat steps 1-4.
Wipe off excess water from the bottle.
Position the water bottle back into the
humidifier base to the right of the grille.
The "E-Z-Fill Side-Cap" must be facing
outward. When positioned properly, the
plunger will open and water will flow into
the base. The base will hold the entire
contents of the water bottle. Allow up to
one minute for the water to flow into the
base. Once the bottle is empty, remove it
and refill it as mentioned earlier. Return it
to the right side of the grille. The humidifi-
er is now filled to capacity.
The water bottle may be filled at anytime
as necessary during operation. To benefit
from less frequent filling let the humidifier
exhaust both the water from the bottle
and base before filling.
The unit is now ready for operation.
BottBe
Base
Operating Humidifier Controls
The operating controls of your Kenmore
Quiet Comfort whole house humidifier
are located towards the front of the
humidifier.
Familiarize yourself with the controls.
Reference the diagram of the control
area for the correct nomenclature used in
this manual.
ROOM humidity reading between 25% -
95% will be displayed. A flashing 25 dis-
play indicates that the room humidity is
less than 25 %.
Digital Display
To Operate the Controls
Power Button /Light
When the unit is plugged in and the
power button is pressed once the red
power light will come on. The power light
will stay on until the power button is
pressed again turning the unit off or until
the unit is unplugged.
Digital Display
The digital display will also show readouts
when the unit is turned on. Initially there
is a slight delay while the electronics cali-
brate. Two bars (- -) flash during this
time. Once calibration is complete a
Refill On
Light Light
Note: The default settings at initial start-
up are WHSPER fan speed and 65%
SET humidity. After desired settings are
selected by the user, they remain as
defaults as long as the unit remains
plugged in and there is no power interrup-
tion. If the unit is unplugged the original
default settings are employed.
Operating Humidifier Controls (cont'd)
Speed Button
This humidifier is equipped with a 4=
speed fan contro!, Each push of the
speed button advances the mode through
the settings of WHSPER, NIGH, MEDIo
UM and LOW. The selected setting is dis=
played on the digital readout. The higher
the setting, the faster water is evaporated
and released into the air.
WHSPER is the quietest setting and is
provided for conditions that do not require
a rapid evaporation rate,
Humidity Control
The +/- buttons allows you to adjust the
humidity to suit your needs. This humidi-
fier wil! automatically cycle on and off as
required to maintain the selected setting.
The readout displays both actual (ROOM)
and desired (SET) humidity percentage
(%) settings. The ROOM reading is the
larger display of the two, The ROOM
readout is displayed in 1% increments
and has a range of 25% to 95%. If the
room humidity level is equal to or less
than 25% the display will show a flashing
25.
:_"u_-'_'_ Humidity
,u.,: l: Bo,,o.,
The SET readout has a range of 30% to
65% and is adjusted in increments of 5%,
Each press of the
(+) button increases the setting by 5%
and conversely each press of the ( =)
button decreases the setting by 5%, A
SET point of 65% operates the humidifier
continuously regardless of the ROOM
reading.
The humidistat that senses the readings
is located on the power cord. insure that it
is free from obstruction,
Constal_t Or, Setting
Operating Humidifier Controls (cont'd)

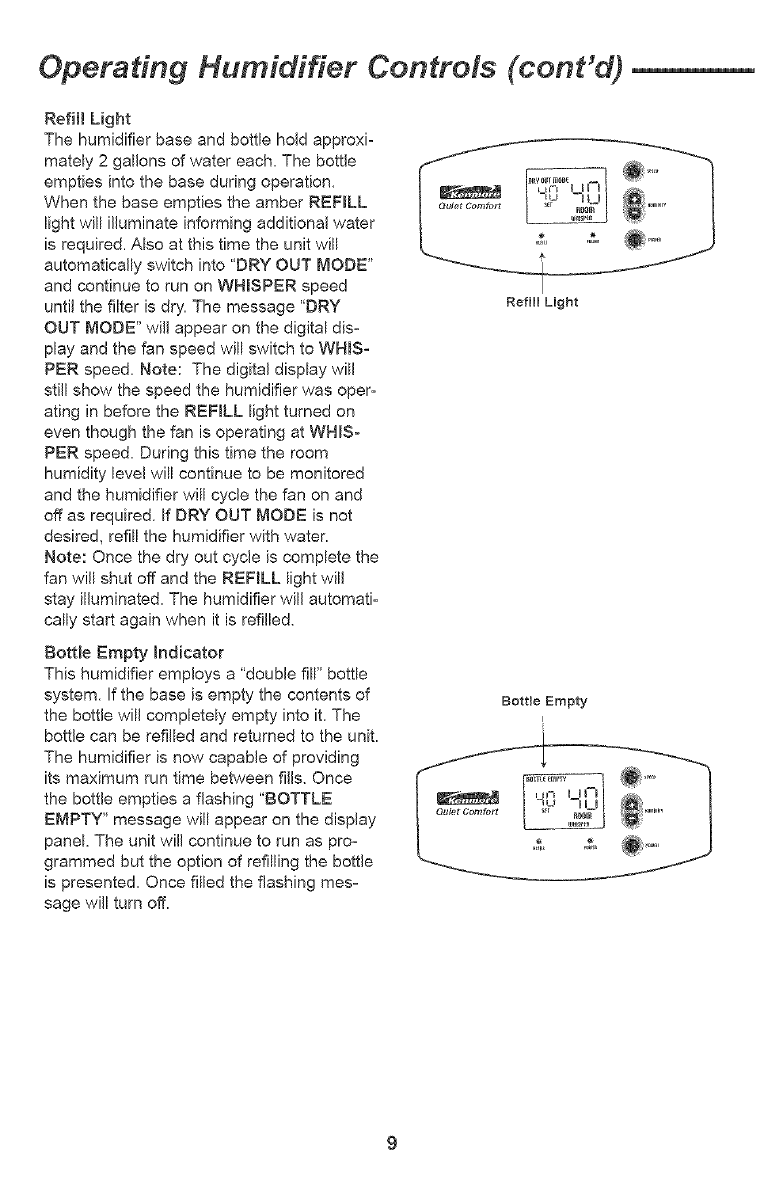

Refill Light
The humidifier base and bottle hold approxi_
mately 2 gallons of water each. The bottle
empties into the base during operation.
When the base empties the amber REFILL
light will illuminate informing additional water
is required. Also at this time the unit will
automatically switch into "DRY OUT MODE"
and continue to run on WNmSPER speed
until the filter is dry. The message "DRY
OUT MODE" will appear on the digital dis-
play and the fan speed will switch to WNmSo
PER speed. Note: The digital display will
still show the speed the humidifier was oper_
ating in before the REFILL light turned on
even though the fan is operating at WHISo
PER speed. During this time the room
humidity level will continue to be monitored
and the humidifier will cycle the fan on and
off as required. If DRY OUT MODE is not
desired, refill the humidifier with water.
Note: Once the dry out cycle is complete the
fan will shut off and the REFILL light will
stay illuminated. The humidifier will automati-
cally start again when it is refilled.
Bottle Empty hdicator
This humidifier employs a "double fill" bottle
system. If the base is empty the contents of
the bottle will completely empty into it. The
bottle can be refilled and returned to the unit.
The humidifier is now capable of providing
its maximum run time between fills. Once
the bottle empties a flashing "BOTTLE
EMPTY" message will appear on the display
panel. The unit will continue to run as pro-
grammed but the option of refilling the bottle
is presented. Once filled the flashing mes-
sage will turn off.
Refill Light
Humidifier Operations
Check Fi_ter Indicator
The ability of any humidifier to efficiently sup-
ply humidity output reIies heavily on the condi-
tion of the filter.As the filter loads with trapped
impurities found in water it gradually loses its
wicking capability. When tNs happens mois-
ture output is red_._cedand the humidifier has
to work longer to satisfy the selected setting.
When such a condition occurs, a flashing
"CHECK FILTER" message wilt be displayed.
If the condition persists for more then 24 hours
shut off the humidifier,disconnect the power
and check the condition of the filter.
If a buildup of deposits and severe discol-
oration is evident replace the filter to restore
maximum efficiency,
i
Check Filter
Numidistat
The humidistat located on the power cord
senses the percentage of humidity in the
air. It causes the humidifier to cycle on
and off to maintain the selected humidity
SET point. The fan will turn on if the
'ROOM" reading falls 3% below the SET
point and wil! continue to run the humidifi-
er until a reading of 1% above the SET
point is achieve& At this point the fan will
stop. The fan will remain off until the
ROOM reading falls 3% below the SET
point again.
Dry Out Mode
When both the water bottle and the base
are empty the amber REFILL light will
illuminate and the humidifier will automat°
ically switch into DRY OUT MODE The
message DRY OUT MODE will appear on
the digital display and the fan speed will
automatically switch to WHISPER speed.
Note: The digital display will show the
speed the humidifier was operating in
before the REFILL light turned on even
though the fan is operating on WHISPER
speed. During this time the humidifier will
continue to cycle the fan on and off as
required until the filter is completely dry
thus producing no moisture output. Once
dry, the fan will shut off leaving you with a
Note: Be sure humidistat located approxi-
mately 4 inches outside humidifier body
on power cord is free from obstruction
and away from any hot air register.
Dry Out Mode
10
Note: Fan automatically switches to
"WHISPER" speed during "DRY OUT MODE"
Display wH_ still show programmed speed.
i.e: HiGH
dry humidifier that is less prone to mold
and mildew growth. The amber Refill light
will be illuminated and the humidifier is
ready for cleaning or refilling as desired.
Using Your Humidifier
1. Place the humidifier where you intend
to run it and be sure it is plugged in
and full of water.
2. Press the POWER button once to turn
the humidifier on. The red power light
will illuminate.
The fan wi!l immediately operate on
WHISPER speed and the SET humidity
percentage will read 65 on the digRal dis-
play.
NOTE: Humidifier fan should operate at
initial start up. If it does not, refer to the
'Trouble Shooting" section on page 16 of
this manual.
3. Wait a few seconds while the humidifier
takes a ROOM humidity reading.
During this time two bars (- -) will flash
on the display.
4. Once a ROOM reading has registered
proceed to adjust the desired humidity
percentage by pressing the + or -
button. It will change the desired SET
humidity level in increments of 5%.
If the room reading is a flashing 25, the
humidity level is low. A SET point of 30% -
40% is recommended but there may be
conditions that require a different setting.
Depending on your particular environment
it could take 24 hours and in some cases
desired humidity. It may take several fill-
ings to bring the ROOM humidity level up
to the SET point. A faster fan speed will
accomplish this quicker. Once established
adjust the fan speed to suit your needs.
IMPORTANT: Water damage may result if
condensation starts to form on windows
or wails. Humidity SET point should be
lowered until condensation no longer
forms.
5 If the humidifier stops running and the
amber Refill light is not illuminated, the
humidity leve! is at the normal require°
merits for that SET point. The table
below shows recommended indoor
humidity levels as it relates to outdoor
temperatures.
When Outdoor
Temperature is:
-10°F
0°F
10°F
20°F & above
Recommended
hdoor Relative
Humidity is:
20%
25%
30%
35%
longer for the humidifier to reach your
Operating Tips for Best Performance
1. Position the humidifier next to an
inside wal! at least 2 inches from the
wall and away from any heat regis-
ters.
2. Do not restrict airflow from entering or
exiting the humidifier.
3. Use 42-14900 EPA approved bacterio-
stat (available at your local Sears
store) to retard bacteria growth that
may cause odors and may be harmful
to your health.
4. Regular cleaning as instructed in
"Cleaning Your Humidifier" section of
this manual is recommended.
5. Replace the evaporative wicking filter
at least once per humidification sea-
son or more depending on water con-
ditions in your area.
6. Ensure humidistat located on power
cord is free from any obstruction and
is away from heating vents or other
sources of heat.
11
Replacement and Care of Filters
WARNBNG: To reduce the risk of
shock or injury from moving parts,
always unplug humidifier before
removing or replacing any parts.
CAUTION: To help retard bacteria
growth and keep maximum efficieno
cy, the fimter should be replaced at
[east once per season, or more often
under hard water conditions. Use
Sears recommended replacement
filter.
To replace the filter in your Kenmore
Quiet Comfort Whole House humidifier,
follow the instructions below.
Unplug humidifier.
Before removing the filters, we recom-
mend moving the humidifier to an
area where floor coverings are not
susceptible to water damage. (i.e.
kitchen or bath areas,)
Remove the water bottle and set aside.
Be sure not to bump or damage the
lower spring valve,
Grasp the housing assembly and lift
straight up and away from the base
and set aside, The filter is now acces-
sible.
4, Take note of the filter position.
Remove the filter and dispose of prop-
erly. You may want to clean the base
at this time, See the "Cleaning Your
Humidifier" section of this manual.
Grasp
Housing
AssemMy
Securely ...... .
and Lift OFF
FHter
12
Replacement and Care of Filters (continued)
5, Install a new filter (42_14906) into the
base. Coil the filter and position it
between the uprights in the bottom of
the base, The start and finish of the coil
should be captured at the centre of
the base (see diagram) and the filter
should be resting on the floor of
the base,
Base Uprights
_se
6, Return the housing assembly to the top
of the base. Return the water bottle to
the right of the housing assembly and
reposition the humidifier to its operating
position,
7, The humidifier is now ready to be filled
for operation.
. Align housing
/_ assembly
bottom with
top of base
and reposition
securely,
Return bottle
to right side of
humidifier.
13

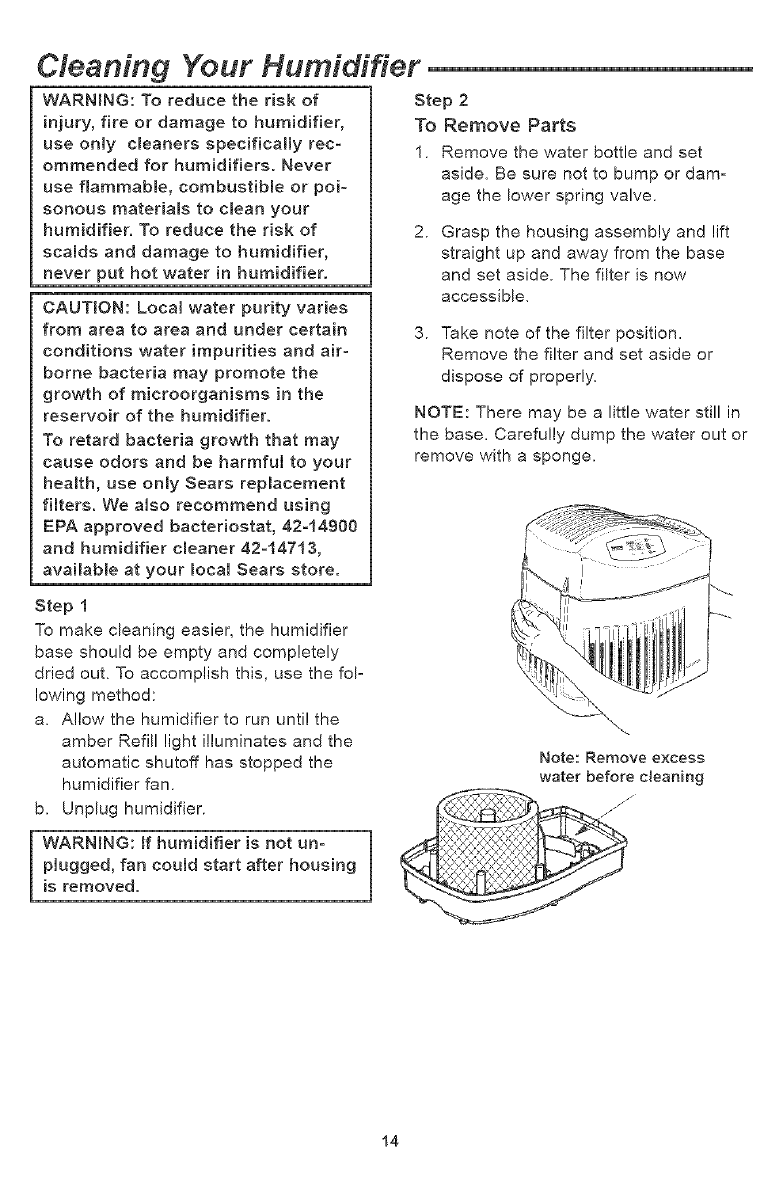

Cleaning Your Humidifier
WARNING: To reduce the risk of
injury, fire or damage to humidifier,
use only cleaners specifically rec-
ommended for humidifiers. Never
use fmammabme, combustible or poio
sonous materials to clean your
humidifier. To reduce the risk of
scalds and damage to humidifier,
never put hot water in humidifier.
CAUTION: Local water purity varies
from area to area and under certain
conditions water impurities and air-
borne bacteria may promote the
growth of microorganisms in the
reservoir of the humidifier.
To retard bacteria growth that may
cause odors and be harmful to your
health, use only Sears replacement
filters. We also recommend using
EPA approved bacteNostat, 42°14900
and humidifier cleaner 42°14713,
avaimabie at your local Sears store.
Step 2
To Remove Parts
1. Remove the water bottle and set
aside. Be sure not to bump or dam-
age the lower spring valve.
Grasp the housing assembly and lift
straight up and away from the base
and set aside. The filter is now
accessible.
3. Take note of the filter position.
Remove the filter and set aside or
dispose of properly.
NOTE: There may be a little water still in
the base, Carefully dump the water out or
remove with a sponge.
Step 1
To make cleaning easier, the humidifier
base should be empty and completely
dried ouL To accomplish this, use the fol-
lowing method:
a. Allow the humidifier to run until the
amber Refill light illuminates and the
automatic shutoff has stopped the
humidifier fan.
b. Unplug humidifier.
Note: Remove excess
water before cleaning
WARNING: ff humidifier is not uno
plugged, fan could start after housing
is removed.
14
Cleaning of Humidifier (continued)
Step 3
Bi-WeeHy Maintenance
Removing Scale
1. Fill the humidifier base ,with one 8 oz.
cup of undiluted white vinegar. Let
solution stay 20 minutes.
2. Clean all interior surfaces with a soft
brush. Dampen a soft cloth with undi-
luted white vinegar and wipe out the
base to remove scale.
3. Rinse thoroughly with clean warm
water to remove scale and cleaning
solution.
Disinfecting Base
1. Pour 1 gallon of water and 1 teaspoon
chlorine bleach into the base. Let
solution stay for 20 minutes, carefully
swishing every few minutes. Wet all
surfaces normally exposed to water.
2. Empty base after 20 minutes. Rinse
with water until bleach smell is gone.
Allow unit to dry out completely.
NOTE: The water bottle should be
cleaned in the same manner as the base.
Rinse thoroughly with clean water after al!
steps are complete.
End of Season Maintenance
1. Follow "Bi=Weekly Maintenance"
instructions at end of humidification
season.
2. Remove filter and dispose of properly.
3. Let humidifier dry completely before
storing. Do not store with water inside
base or bottle.
4. Store in cool, dry location.
5. Install a new filter in clean humidifier
before next season begins.
Note: ' Bi-Weekly Maintenance" is
also recommended if you do not plan
to run the humidifier for one week or
more.
Position start and
finish of coiUed filter
er of base.
Step 4
RepBacing Parts
1. Install a new filter (42=14906) or the
filter previously set aside if it is in
good condition into the base. Coil the
filter and position it between the
uprights in the bottom of the base.
The start and finish of the coil should
be captured in the centre of the base
(see diagram) and the filter should be
resting on the floor of the base.
2. Return the housing assembly to the
top of the base. Return the water bot=
tie to the right of the housing assem=
bly and reposition the humidifier to its
operating position.
3. The humidifier is now ready to be
filled for operation.
AUign housing
* assembly
bottom with
top of base
and repesition
secureUy,
15
Troubleshooting
Probable Cause Remedy
Trouble
Red power tight and digital • No Power. • Check 120 volt power source.
display not illuminated. • Power button has not been • Press power button once to
depressed, turn on.
Fan not operating (Red power • ROOM humidity tevet is 1% • Raise SET humidity tevel if
light and digital display is or more above SET humidity desired.
illuminated), level.
Fan running continuously. • SET humidity level is 65%.
• ROOM humidity tevel is 3%
or more below SET humidity
tevet.
• Humidifier under size for
requirements.
Poor evaporation of water. • CHECK FILTER message • Change to a fresh new
flashing, filter.
Bottle empties completely. This is normal for initial filling. • Refill for maximum run time.
Bottle continues to empty • Air is entering water bottle. • Ensure filt cap is tightened
after initial filling, securely.
• Ensure gasket on fill cap is
in place.
• Check for leak in water bottle.
Bottle not emptying. • Spring Valve Assembly
damaged or missing post
in bottom of base.
• Base full of water.
• A SET humidity percentage
of 65% operates fan
continuously. Adjust SET
tevet between 30% - 60%.
• Continue to run until desired
humidity tevel is achieved.
This may take up to 48 hours
initially.
• This unit is designed to satisfy
an area up to 2,300 sq. ft.
• Check orientation of bottle.
Reposition so that spring
valve on bottom of bottle is
depressed by post in bottom
of base.
• The base will hold the con-
tents of water bottle (2.0 gal-
lons). Continue to run
humidifier to deplete water
from base.
CAUTmON: Use only 42°14900 EPA Registered Bacteriostat available from Sears
RetaH store.
Use of other water treatment products may damage the filter component.
Under no circumstances should you use water treatment products designed for
Roto belt or Ultrasonic humidifiers.
16
Troubleshooting
Trouble Probable Cause Remedy
Dispiay blinks or fan moves • Normal •No action required.
stightty when humidifier is
plugged in.
"CHECK FILTER" message • Humidistat on power cord is • Move power cord away from
does not appear even when ill- being heated, any source of heat or obstruc-
ter is dirty or humidifier perfor- tion.
mance is clearly reduced.
Fan operating stower than • Humidifier in "DRY OUT • Humidifier automatically
speed registered on digital dis- MODE". switches fan speed to "WHIS-
play. PER" when 'DRY OUT
MODE" message is displayed.
°Filter not dry.Humidifier not shutting off dur-
ing "DRY OUT MODE".
• During "DRY OUT MODE" the
humidifier wilt continue to run
on "WHISPER" speed as
required for up to 2 hours or
until the filter is completely
dry.
CAUTmON: Use only 42°14900 EPA Registered Bacteriostat available from Sears
Retail store.
Use of other water treatment products may damage the filter component.
Under no circumstances should you use water treatment products designed for
Roto belt or Ultrasonic humidifiers,
17
Repair Parts
Parts List for Sears Humidifier
Mode_ No. 758.144115
17 Iy
\
16
18
Repair Parts
Parts List for Sears Humidifier
Mode_ No. 758.144115
AN_ays order by part number -Not by key number
Key No Part No. Description
1 830487 Housing, Upper
2 829825 *Assembly, Control
3 829821 *Blade, Fan
4 829819 • Motor
5 828854 Switch, Micro
6 830489 Housing, Lower
7 42=14906 i Filter
8 829815 Screw, Pan Hd. Ty. AB #6 x 1/2 SS
9 830496 Support, Filter
10 829813 Float, Bottle
11 829816 Float, Reservoir
12 830484 Base
13 829812 Casters (Includes 4)
14 830537 Bottle, includes Key # 15
15 824690-2 Cap, Fill
16 829805 Screw, Pan Hd. Trx Hi=Lo #6 x 3/4
17 830587 Cap, Screw
18 SP6520 Owner's Manual (not shown)
* Standard Hardware Item = May be purchased Ioca!ly
1" Stock item - May be secured through the Hardware Department of most Sears retail
stores.
19

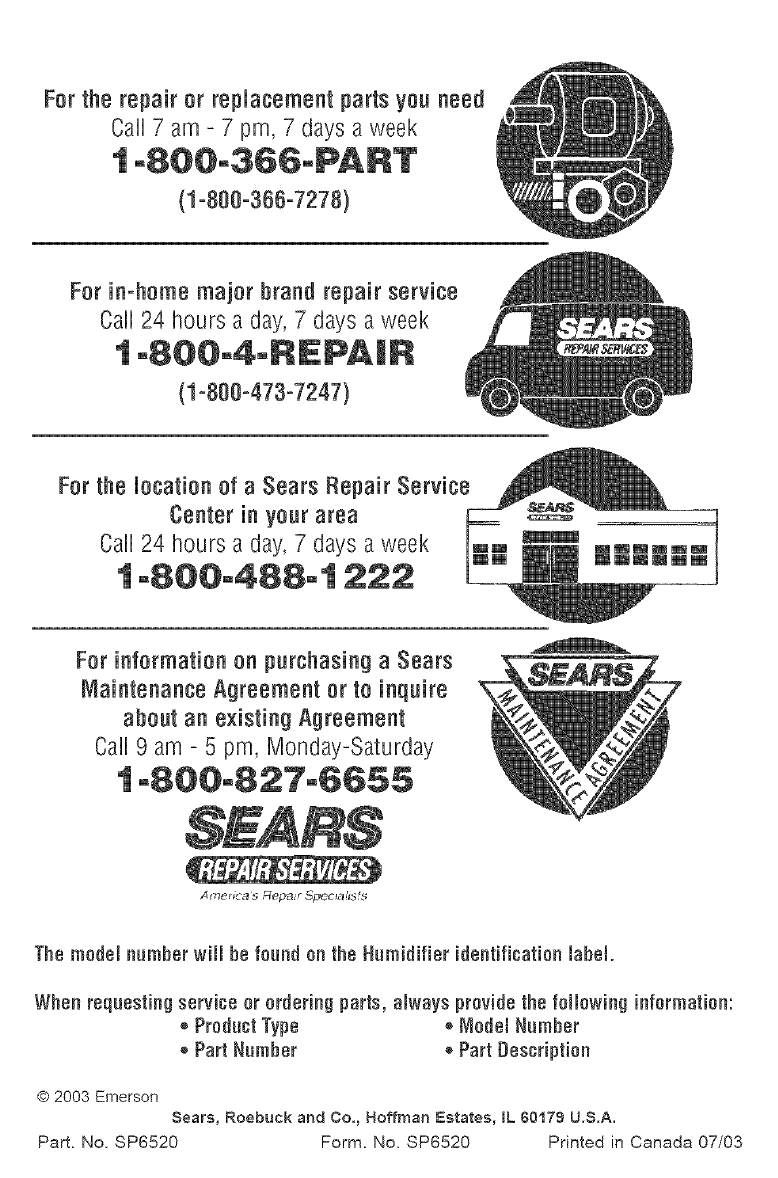

For the repair or replacement parts you need
Call 7 am - 7 pro, 7 days a week
1-S00-366-PART
{1-800-366-7278)
For in-home major brand repair service
Call 24 hours a day, 7 days a week
1-S00-4-REPAIR
(1-800-473-7247)
For the location of a Sears Repair Sewice
Center in your area
Call 24 hours a day, 7 days a week
1-800-488-1 222
Fer infermatien en purchasing a Sears
Maintenance Agreement erte inquire
abeut an existing Agreement
Call 9 am - 5 pro, Monday-Saturday
1-800-827-6655
Atr_er_cas Nep_ir Spc2cl,'_tI._S
The medel number will be found onthe Numidifier identificatienlabel,
When requesting service er erdering parts, always provide the fellewing information:
ProductType _ Model Number
Part Number _ Part Descriptien
@ 2003 Emerson
Sears, Roebuck and Co., Hofrman Estates, IL 60179 U.S.A.
Part. No. SP6520 Form. No. SP6520 Printed in Canada 07/03

Navigation menu
