ELECTRIC RANGE

Use & Care Guide

//f

ESTUFA ELECTRICA

Manual del Usuario

Model Nos.

790.92320 790.95324

790.92321 790.95329

790.92322 790.95420

790.92324 790.95421

790.92420 790.95422

790.92421 790.95423

790.92422 790.95424

790.92423 790.95429

790.92424 790.95680

790.92429 790.95681

790.92680 790.95682

790.92681 790.95683

790.92682 790.95684

790.92683 790.95689

790.92684 790.95882

790.95320 790.95884

790.95321 790.95889

790.95322

Sears Roebuck and Co., Hoffman Estates, IL 60179 U.S.A. PIN 316257928 (0302)

www.sears.com

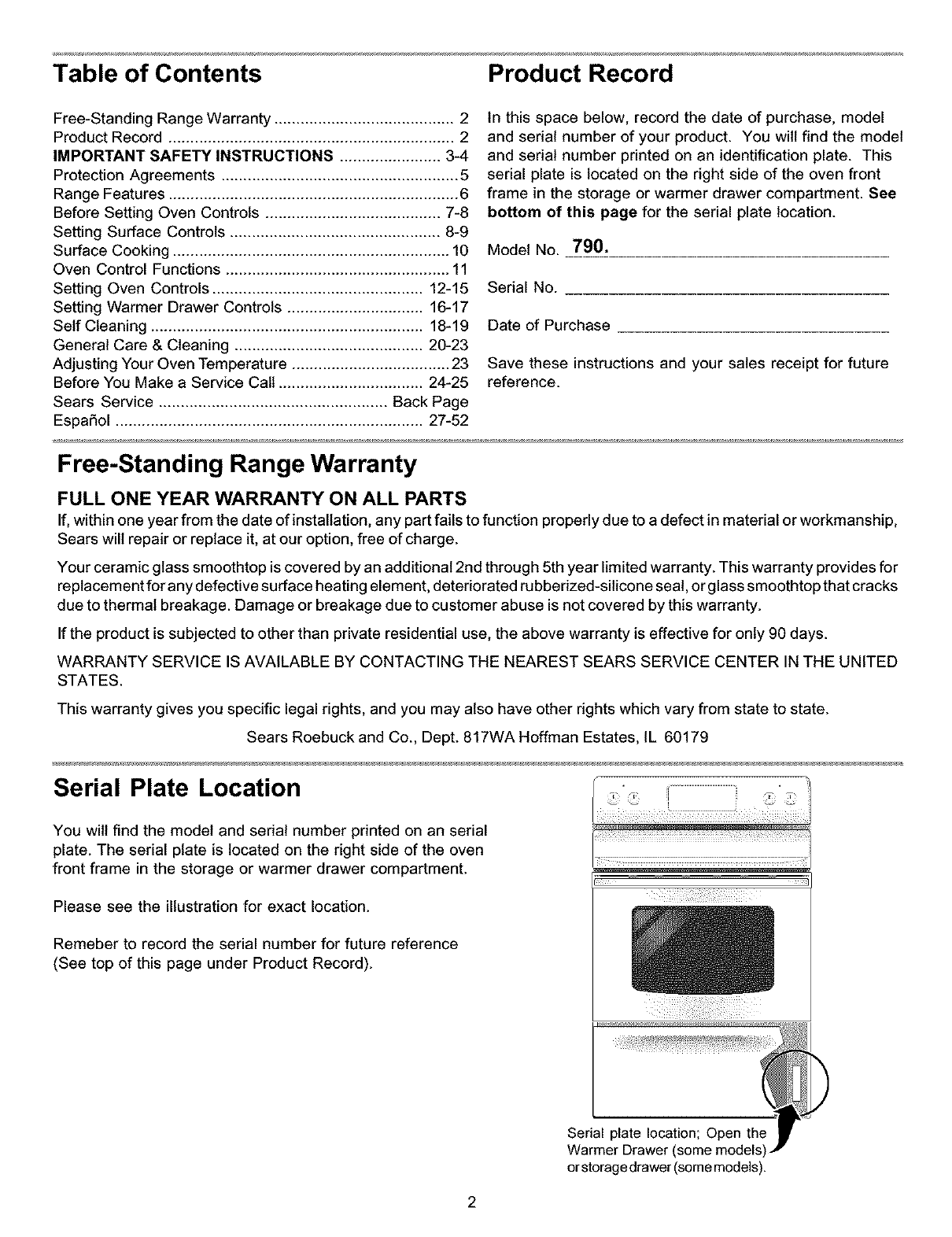

Table of Contents Product Record

Free-Standing Range Warranty ......................................... 2

Product Record ................................................................. 2

IMPORTANT SAFETY INSTRUCTIONS ....................... 3-4

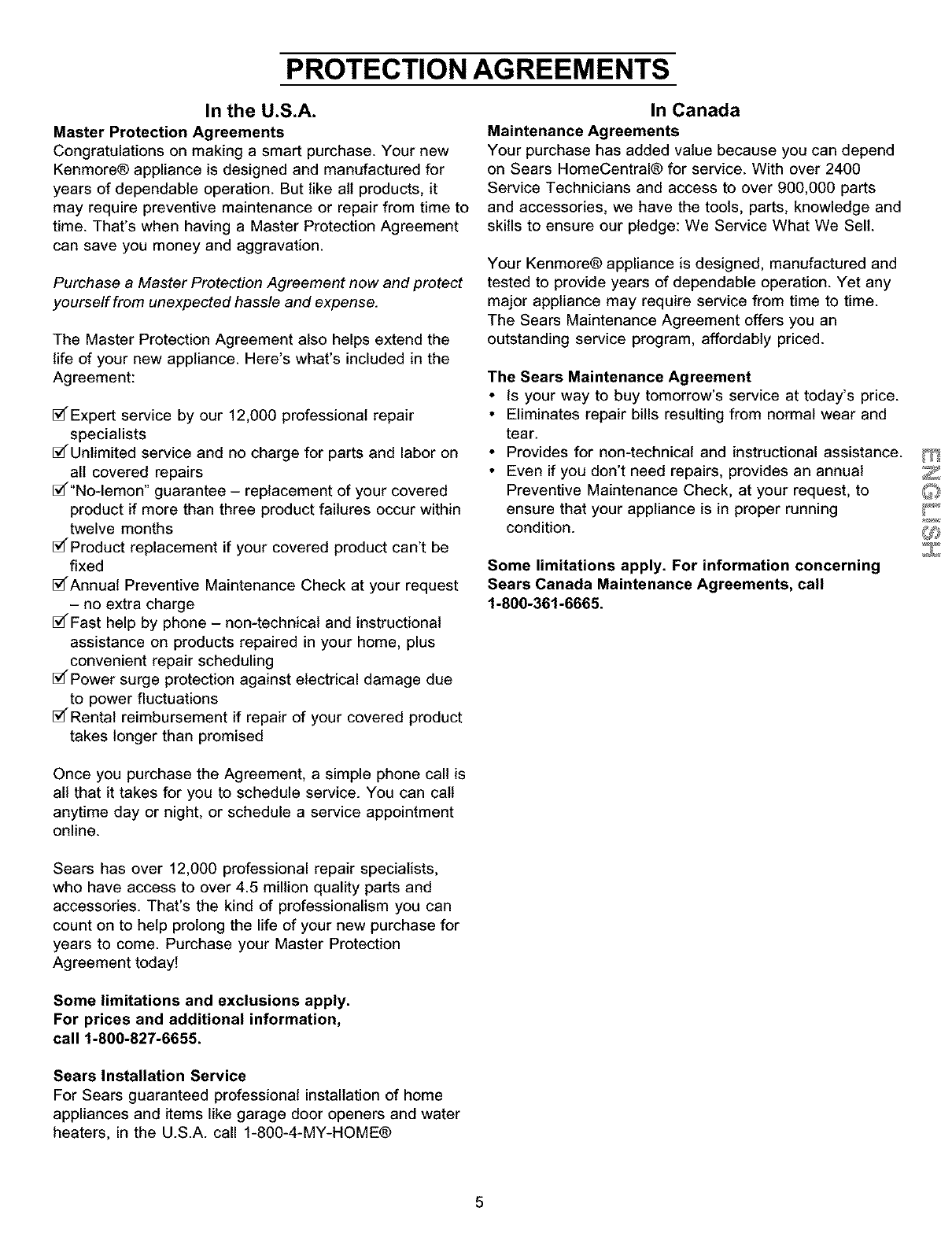

Protection Agreements ...................................................... 5

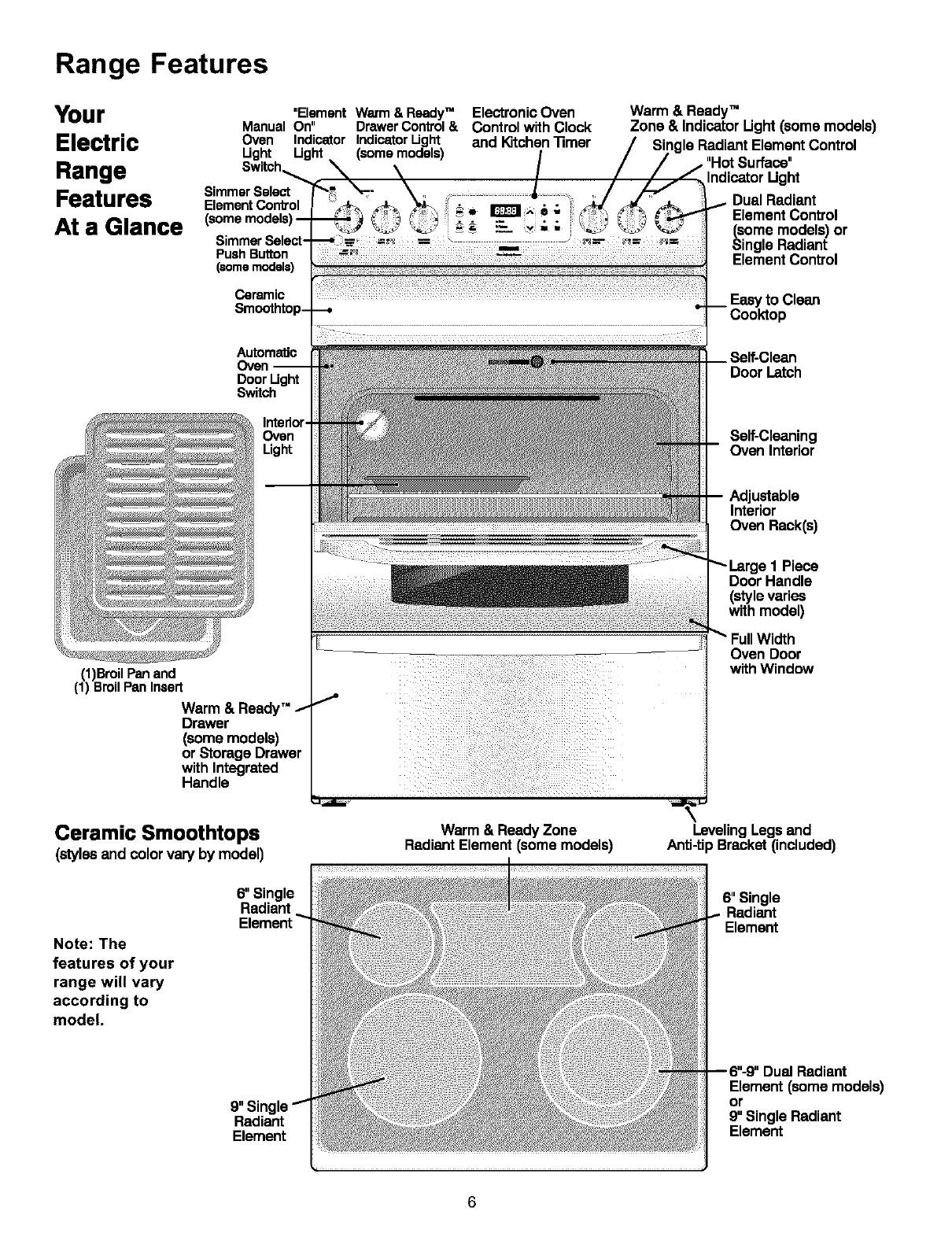

Range Features .................................................................. 6

Before Setting Oven Controls ........................................ 7-8

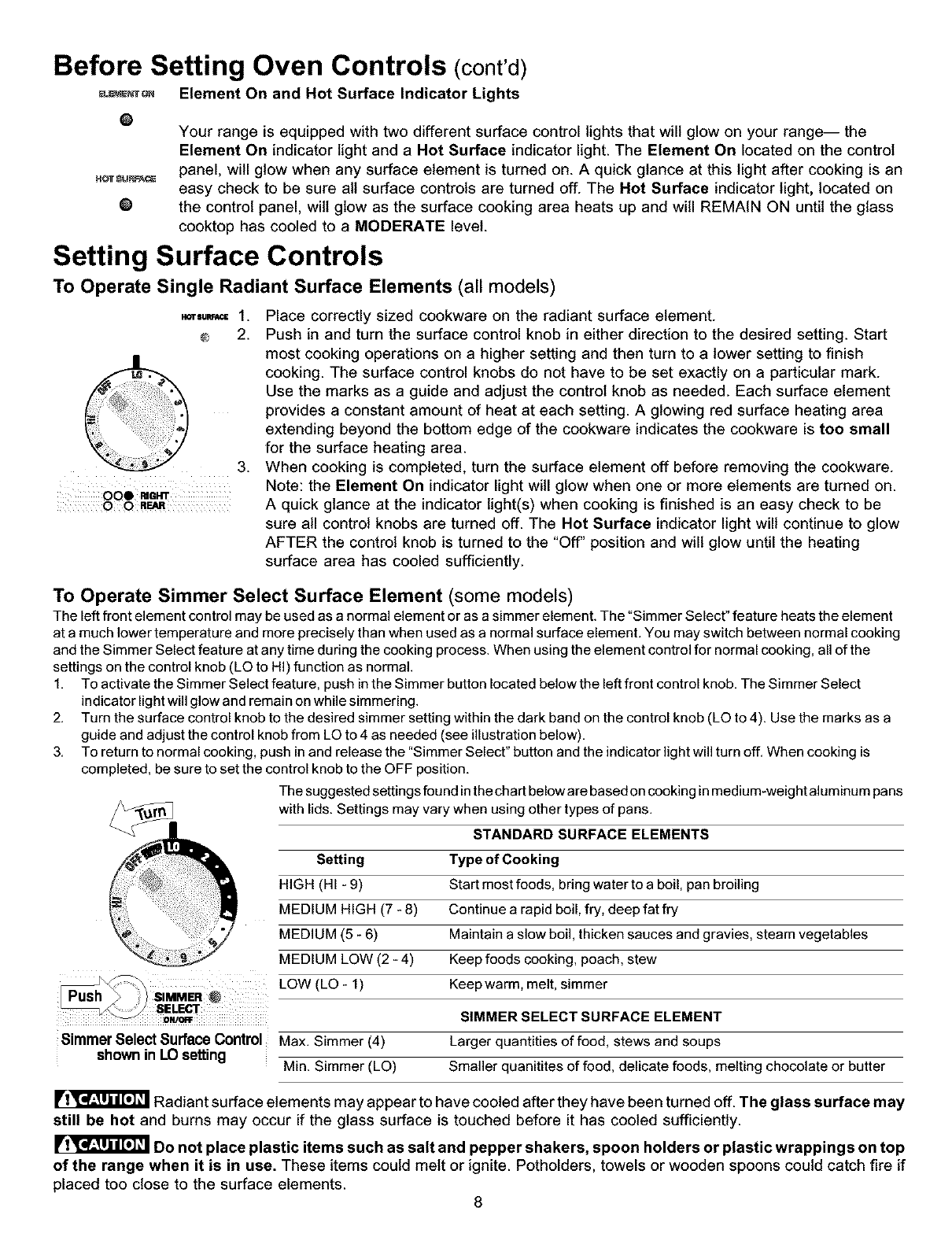

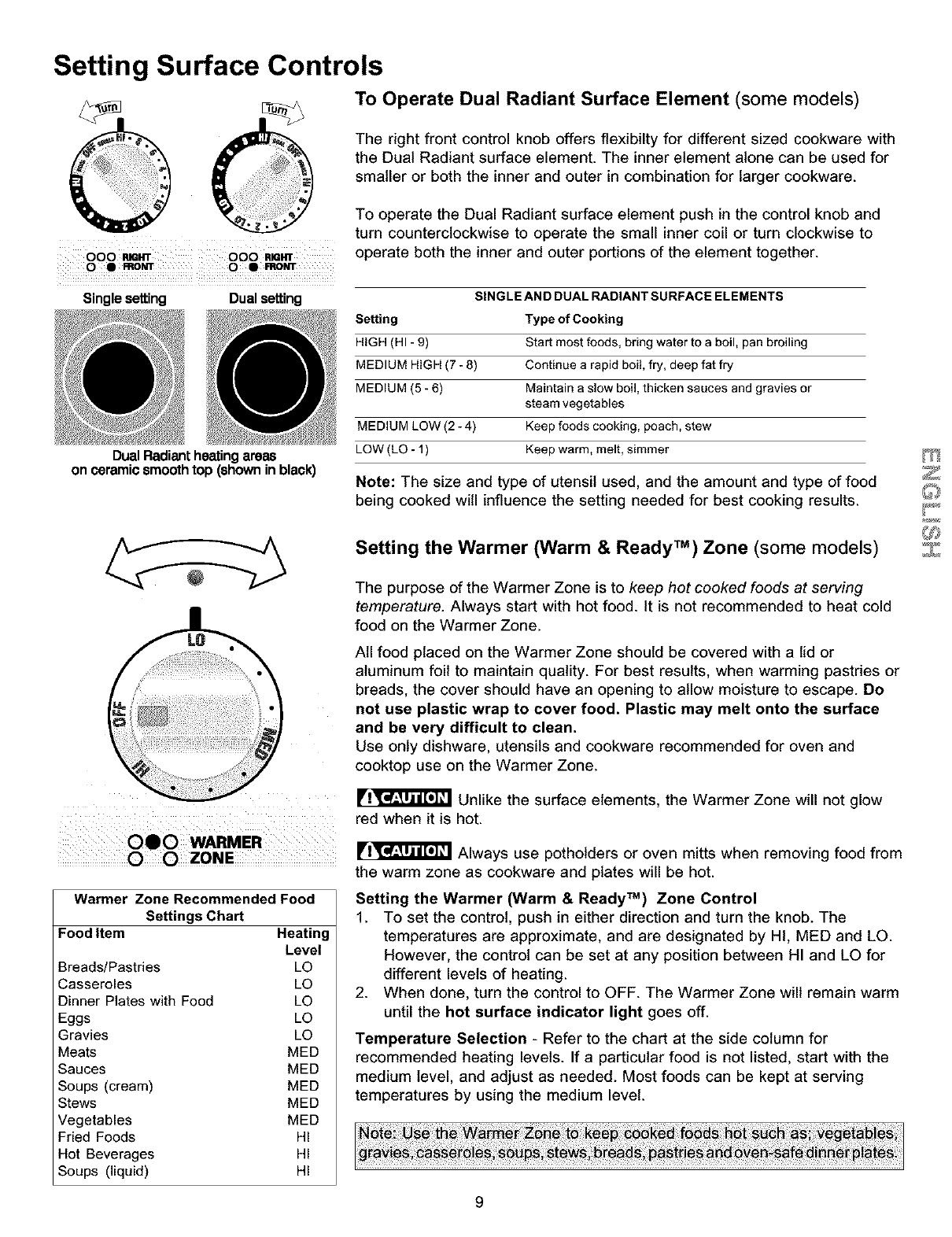

Setting Surface Controls ................................................ 8-9

Surface Cooking ............................................................... 10

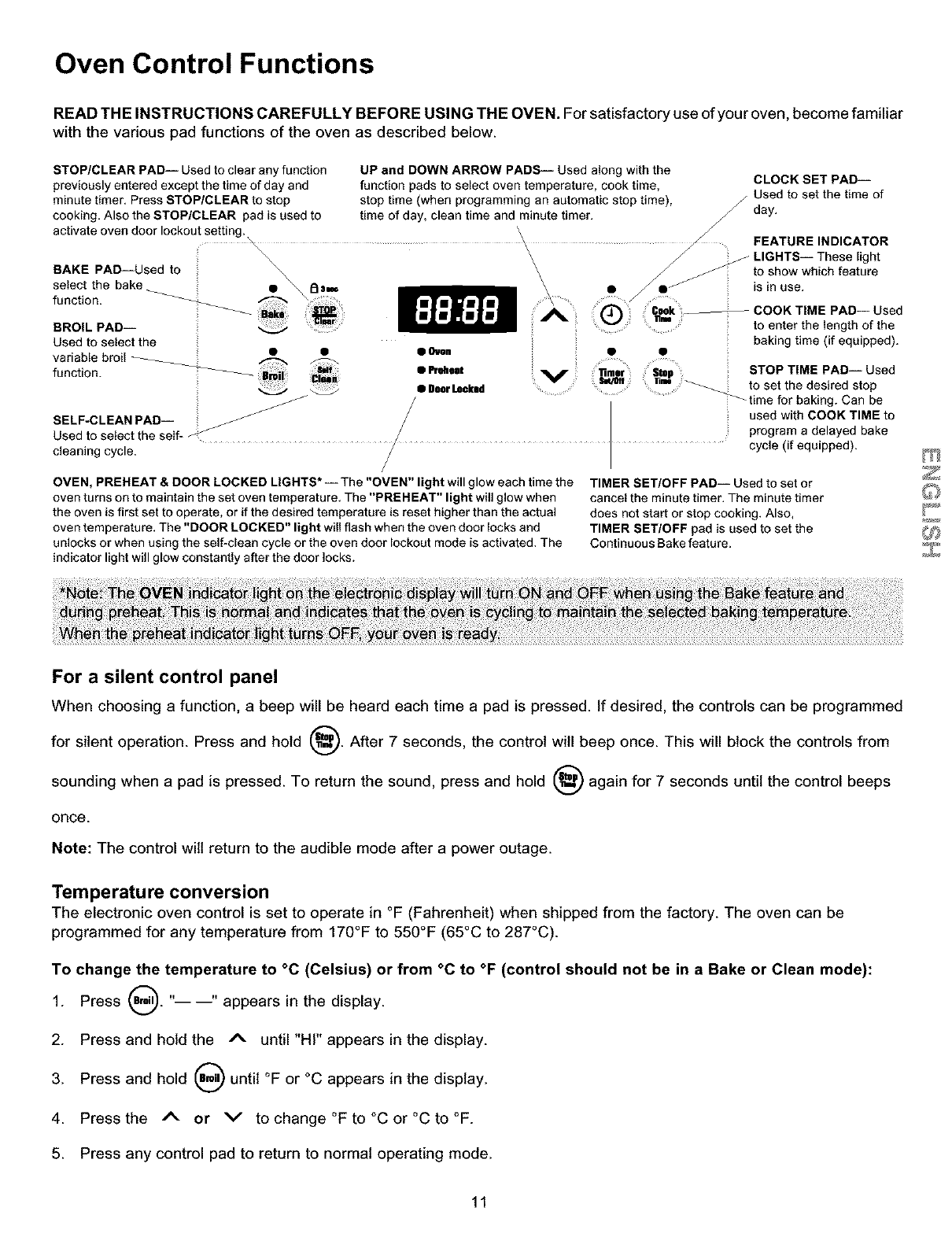

Oven Control Functions ................................................... 11

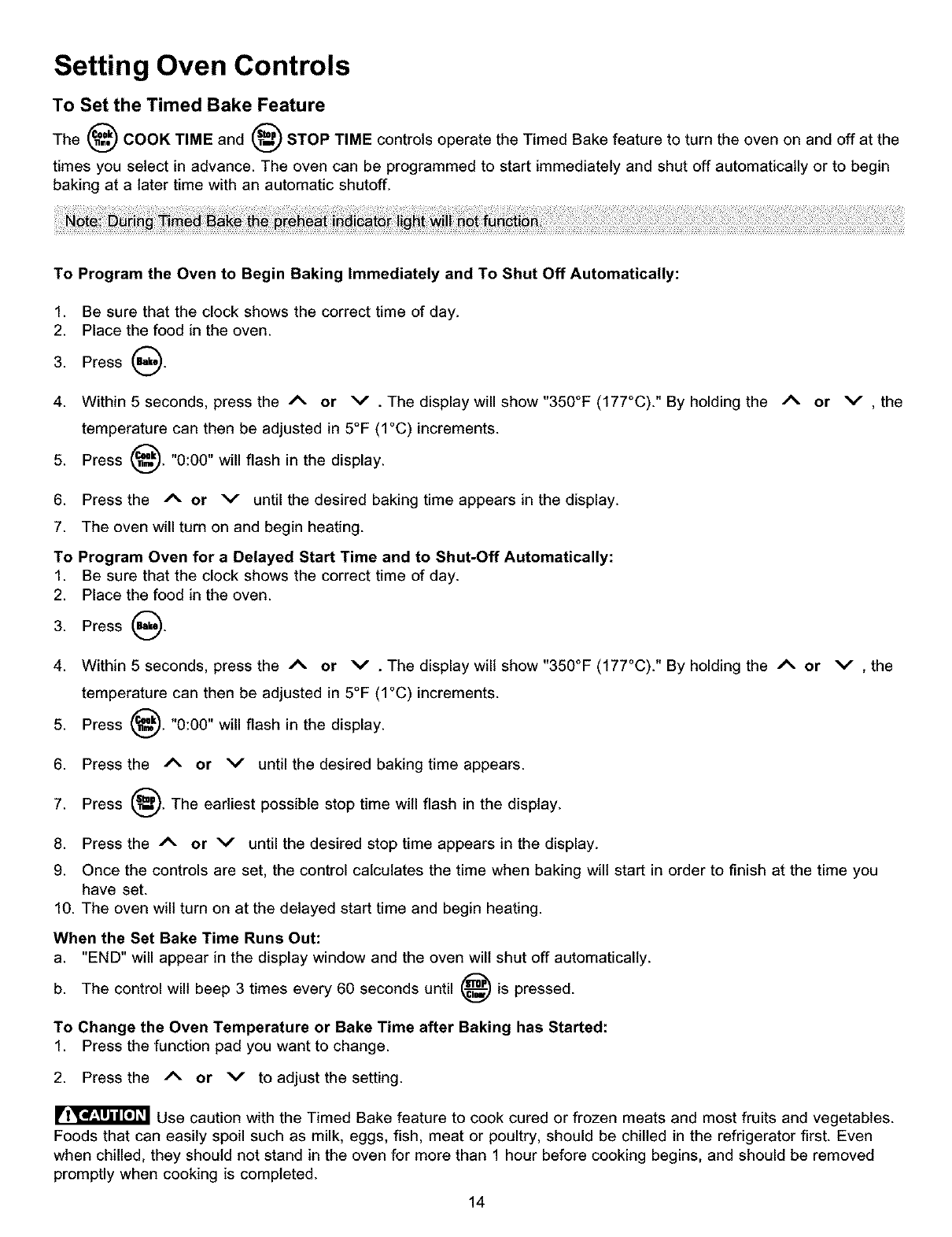

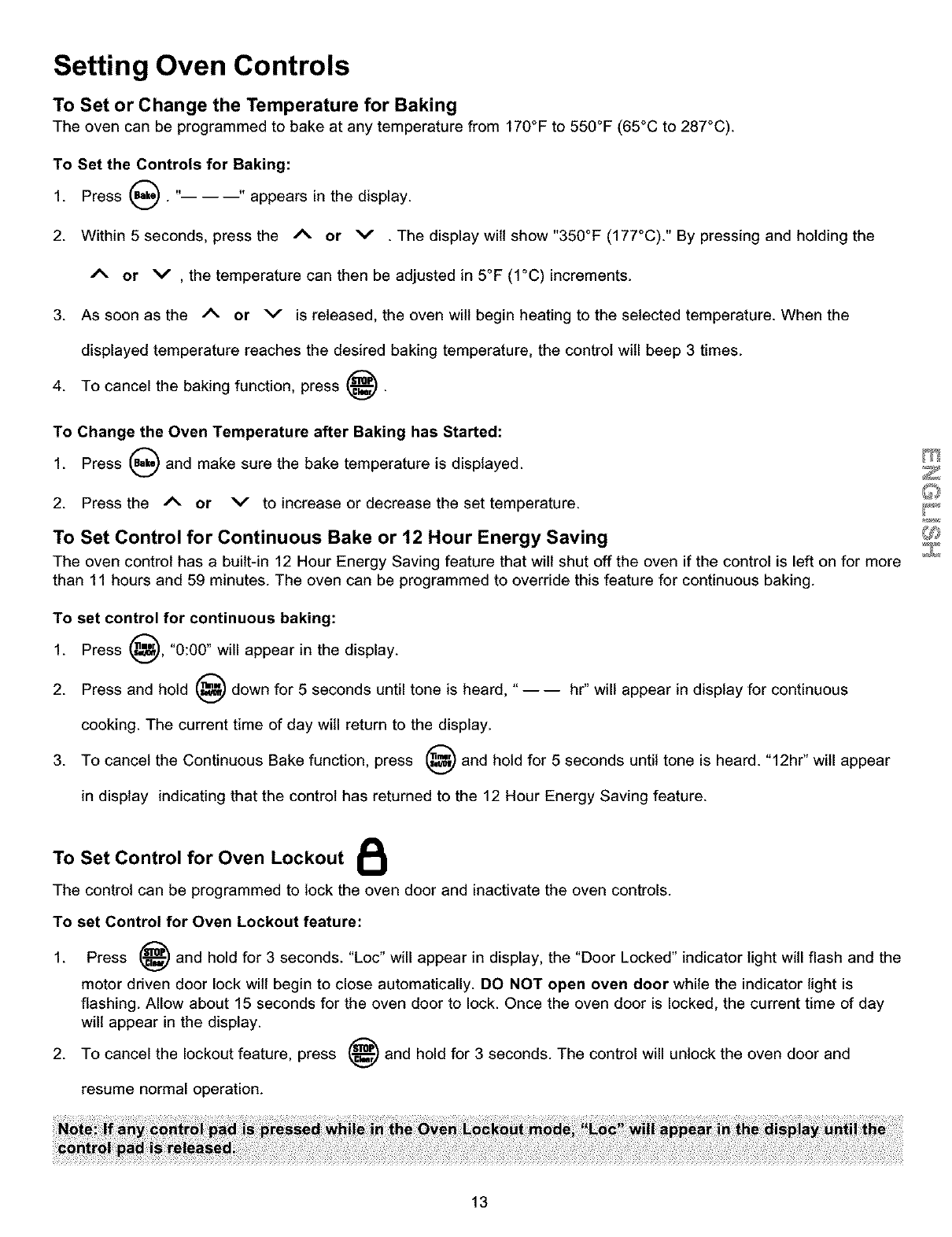

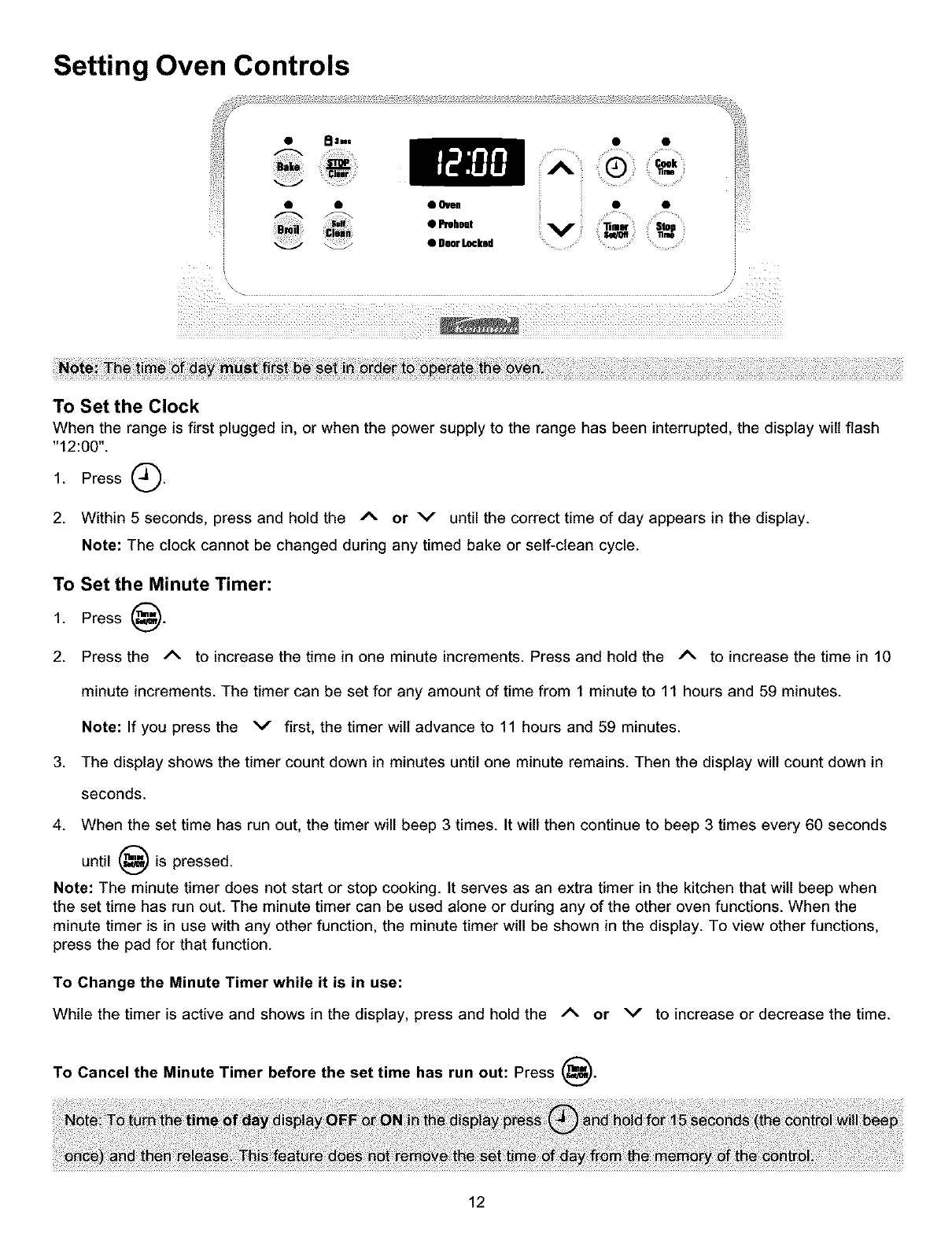

Setting Oven Controls ................................................ 12-15

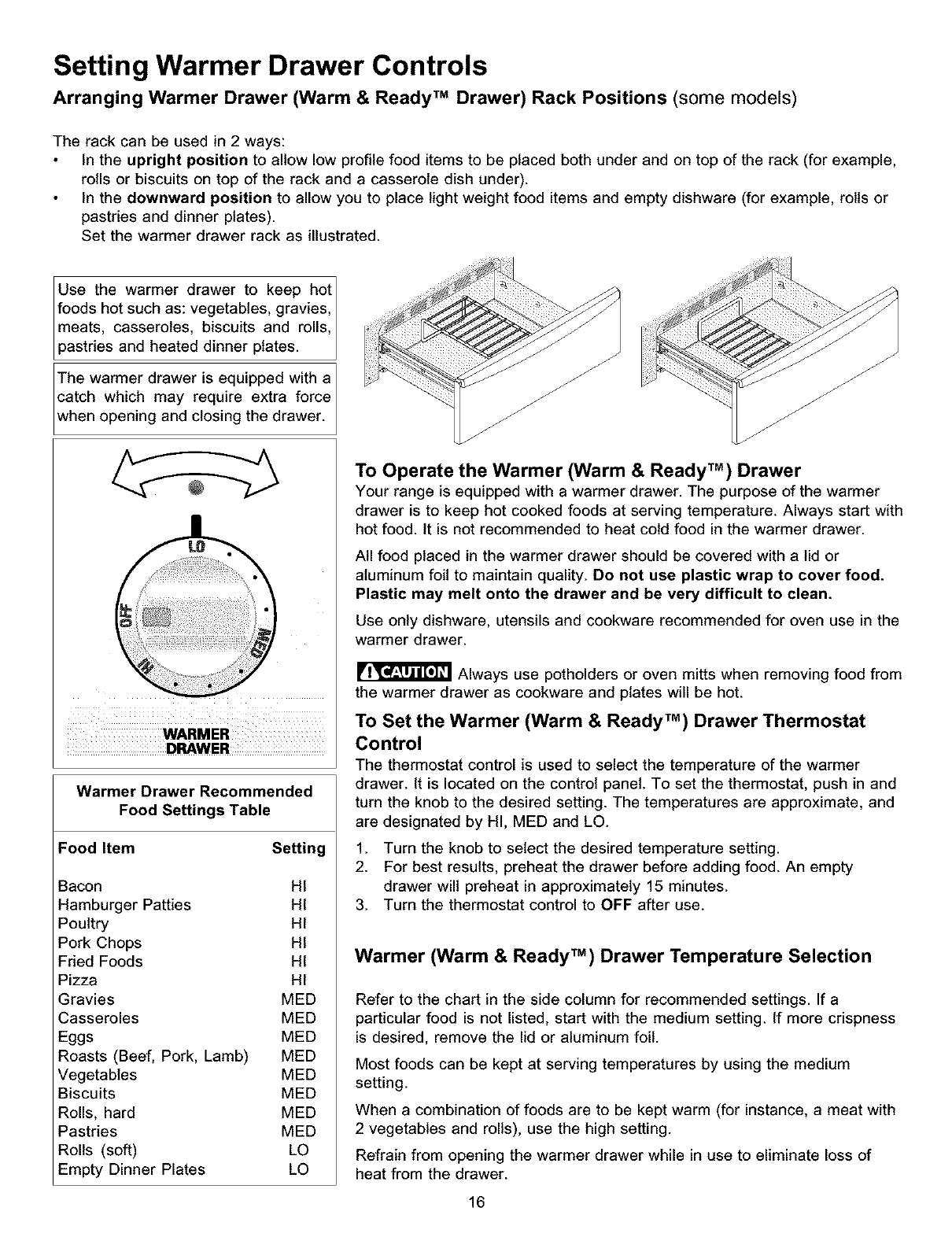

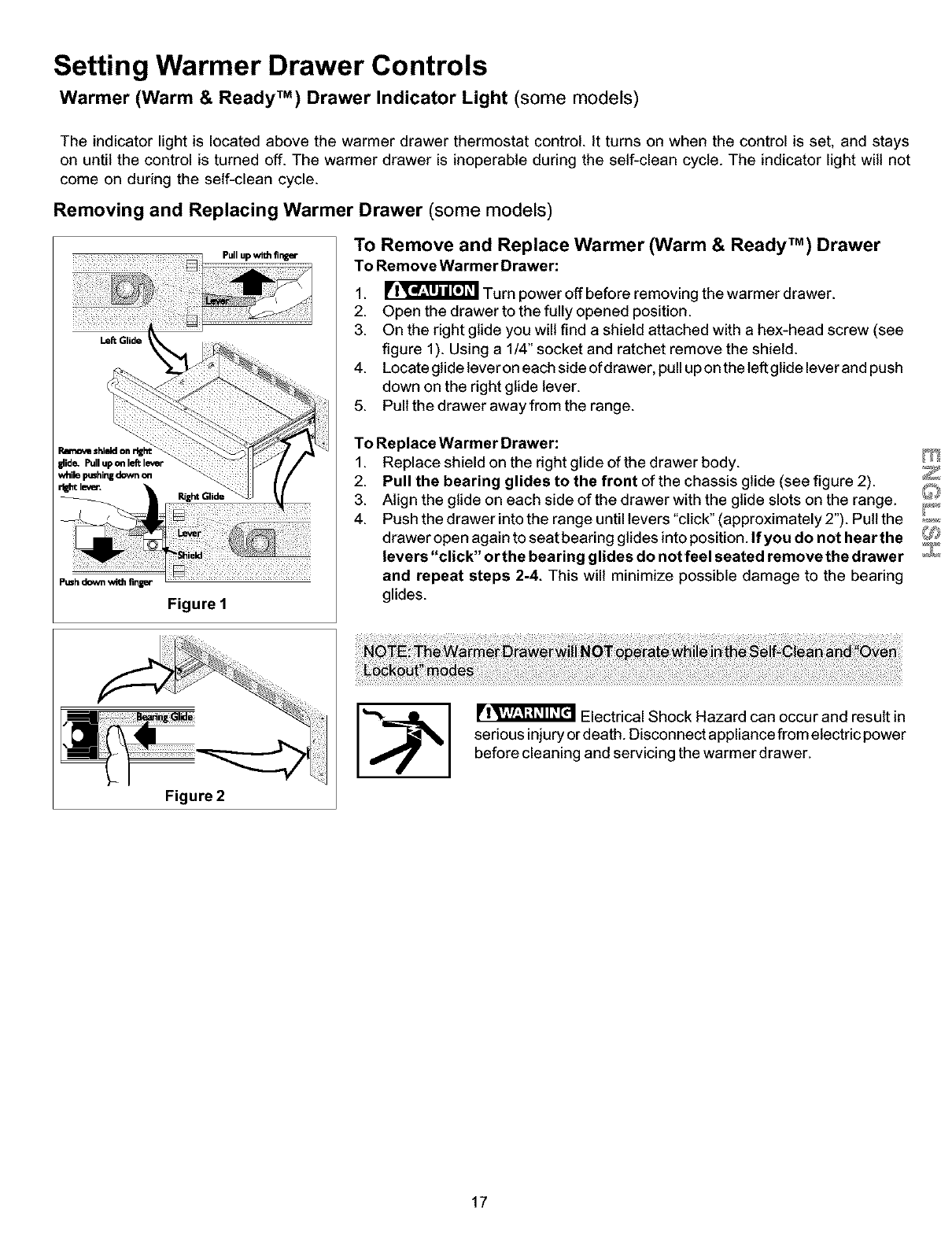

Setting Warmer Drawer Controls ............................... 16-17

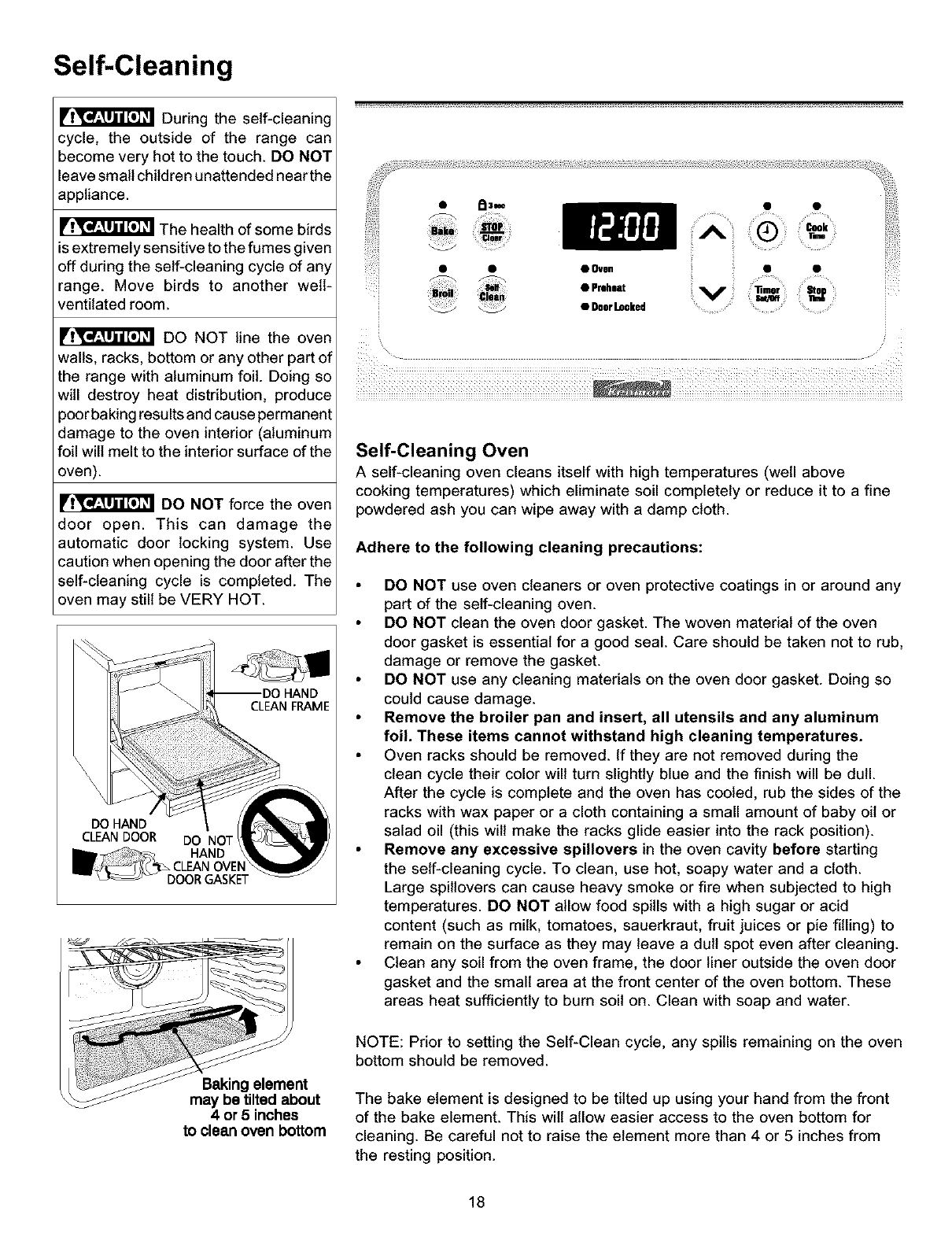

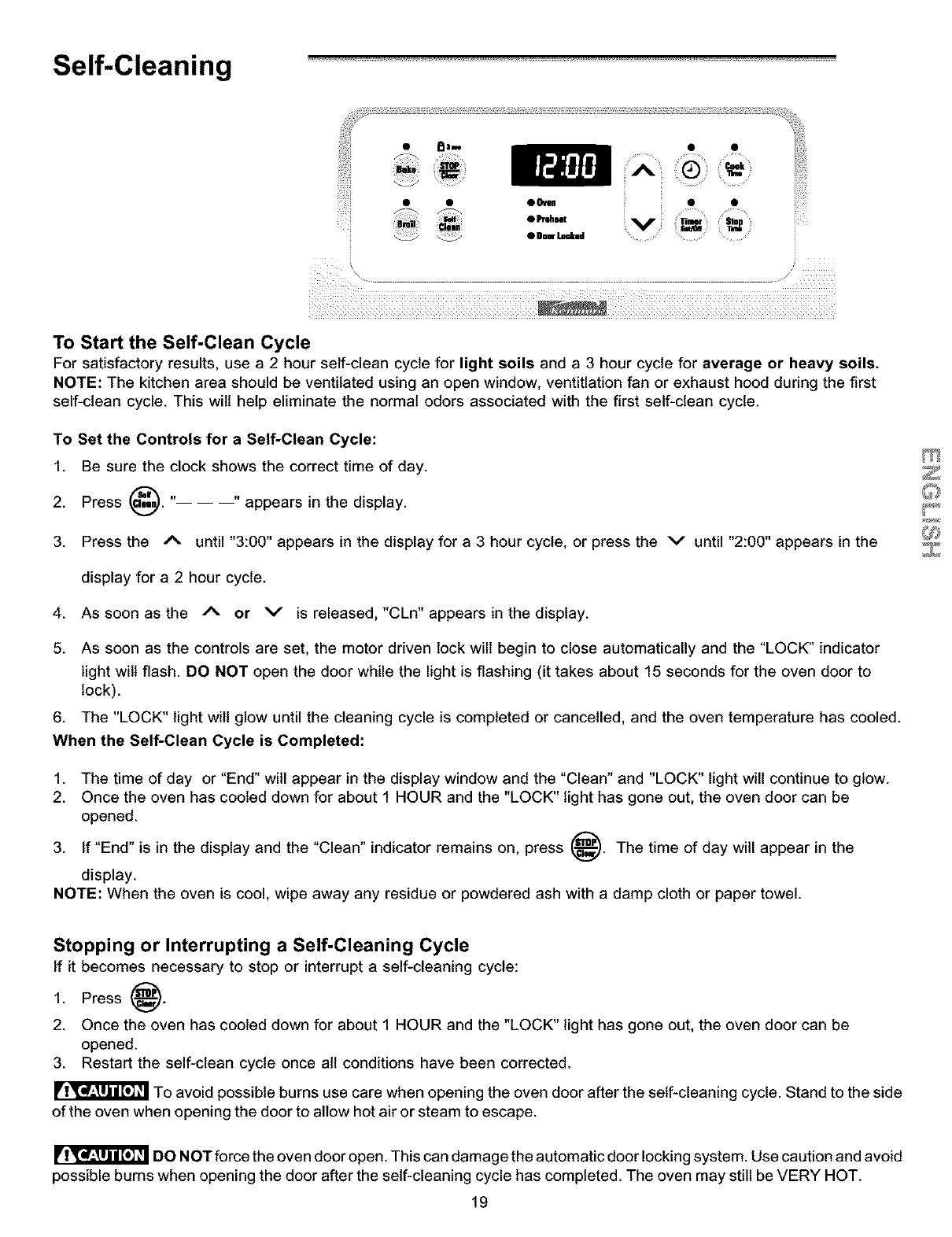

Self Cleaning .............................................................. 18-19

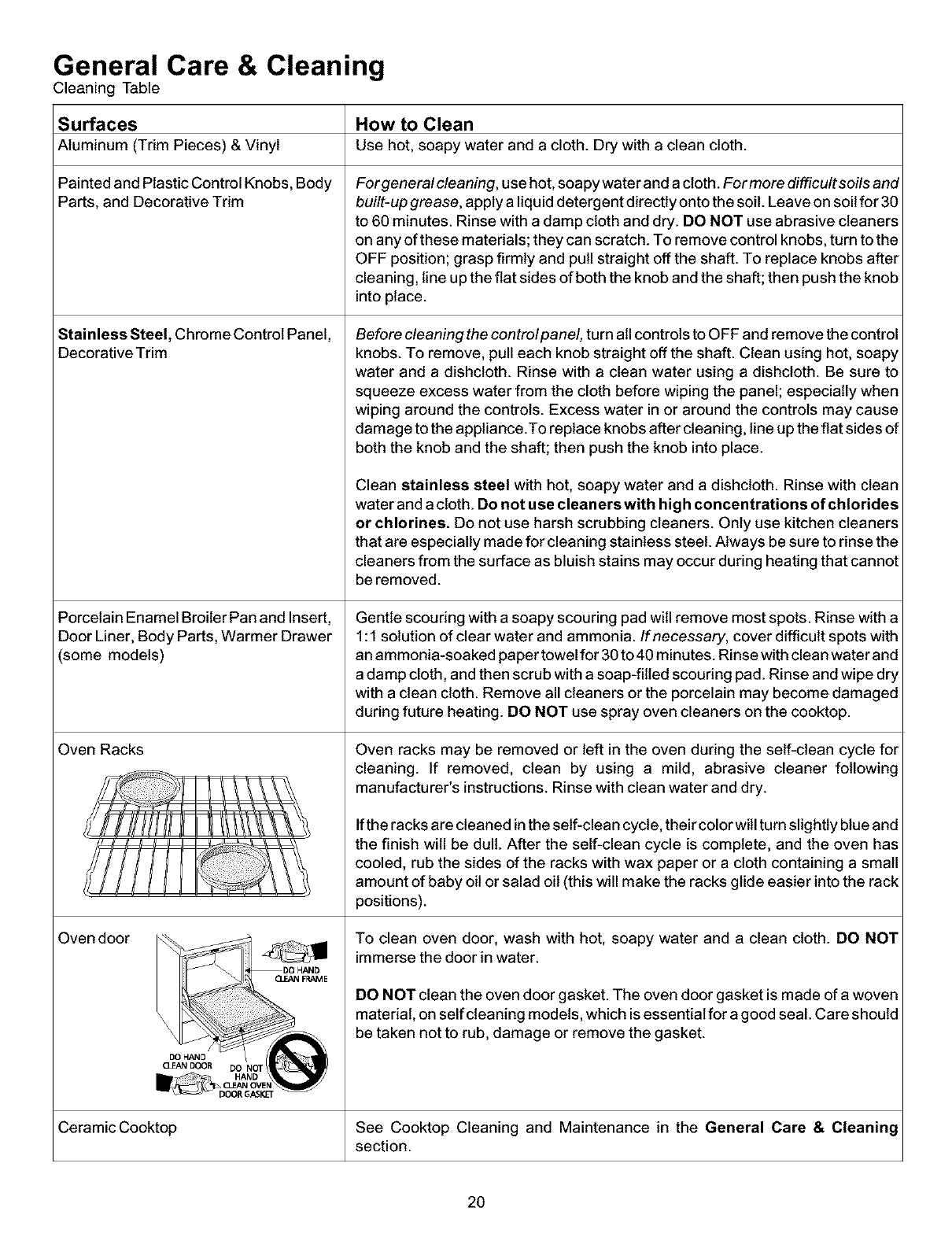

General Care & Cleaning ........................................... 20-23

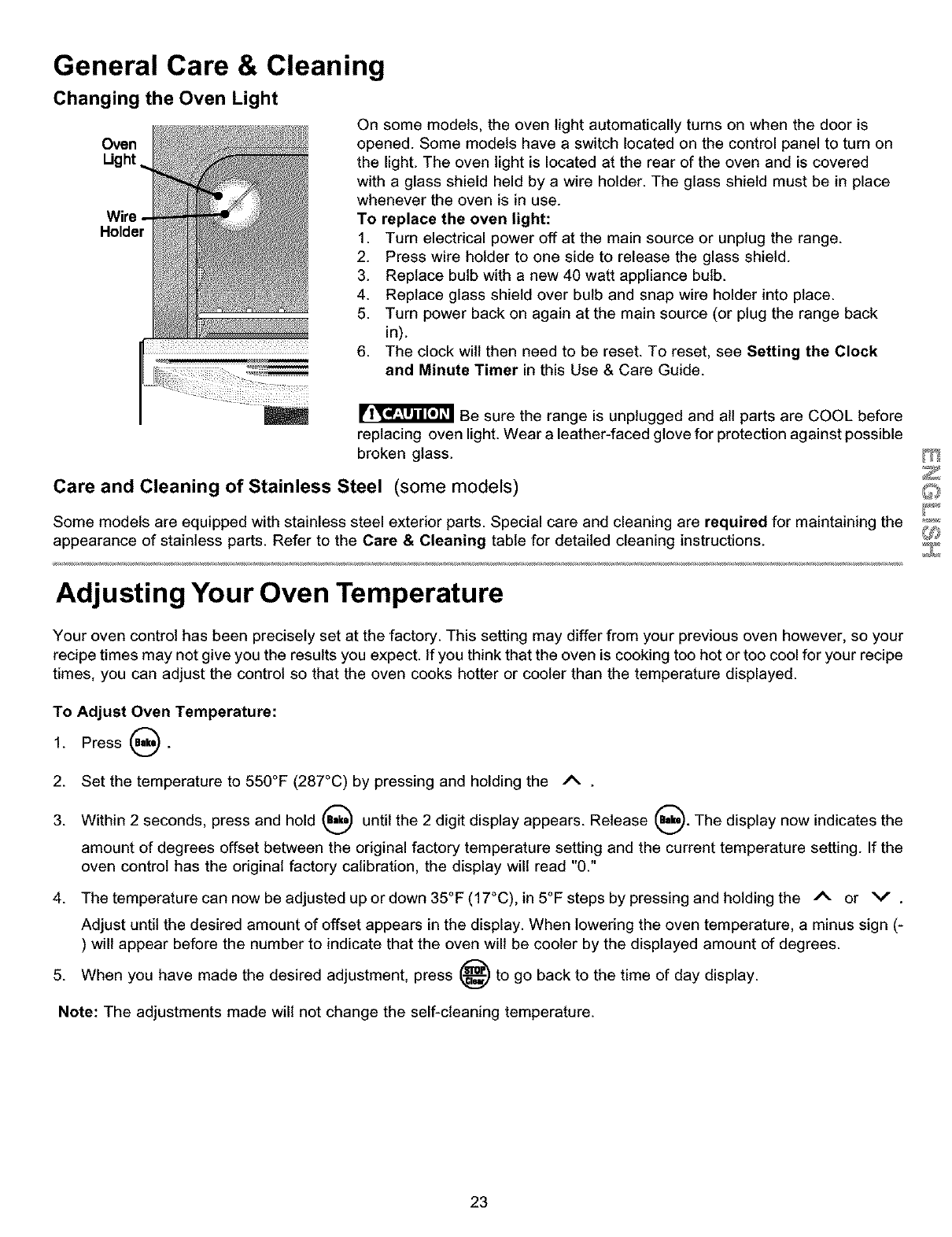

Adjusting Your Oven Temperature .................................... 23

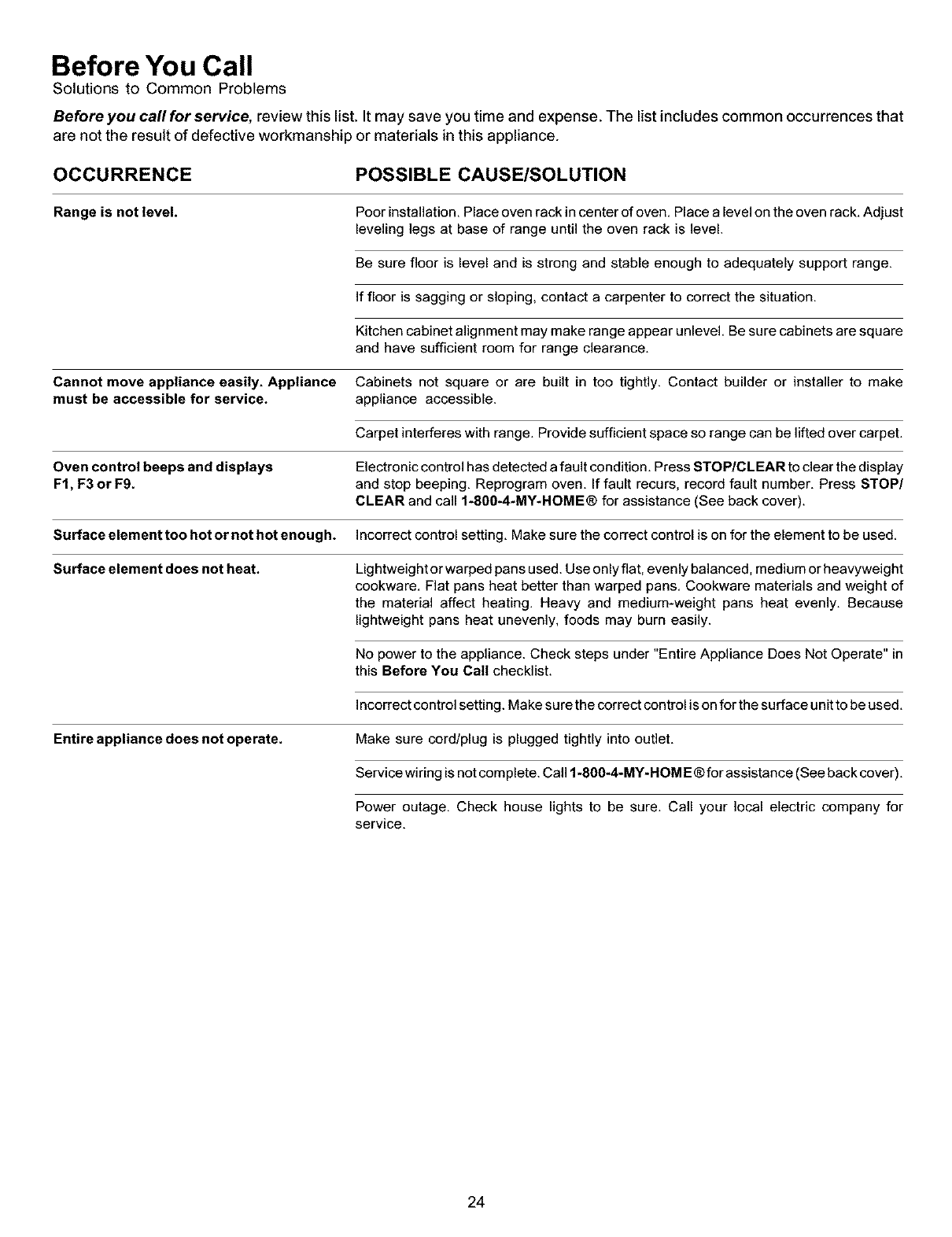

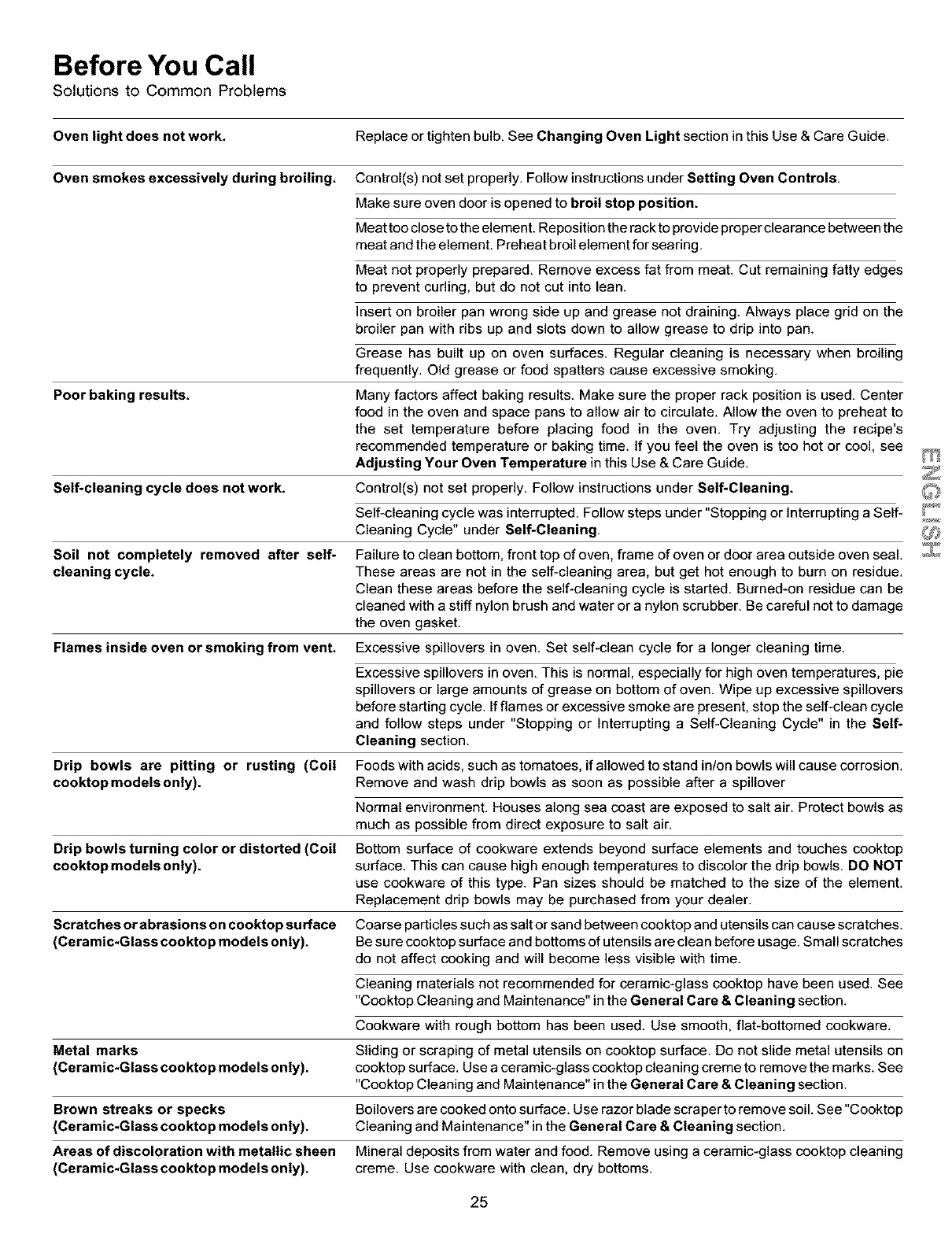

Before You Make a Service Call ................................. 24-25

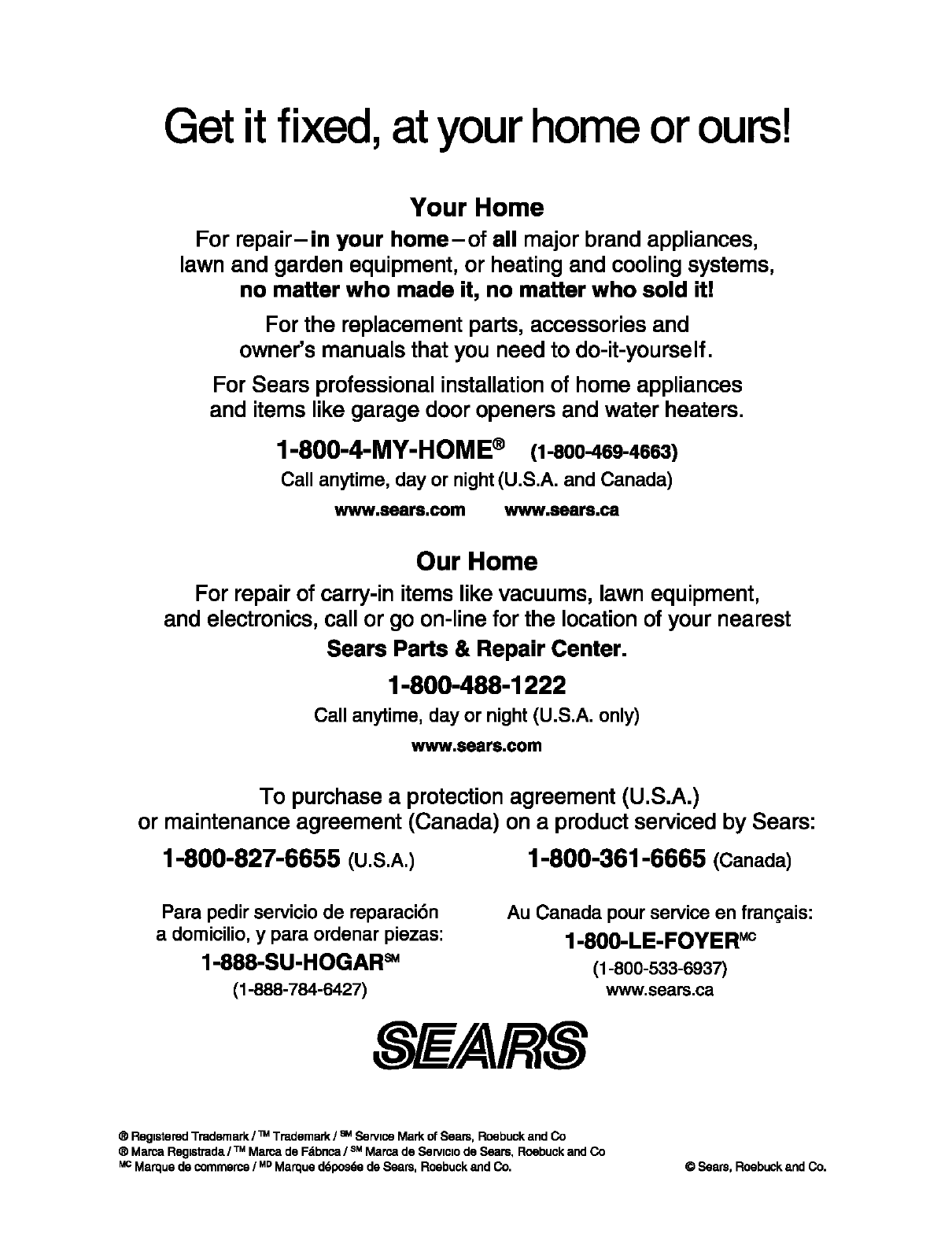

Sears Service .................................................... Back Page

EspaSol ...................................................................... 27-52

Free-Standing Range Warranty

In this space below, record the date of purchase, model

and serial number of your product. You wilt find the model

and serial number printed on an identification plate. This

serial plate is located on the right side of the oven front

frame in the storage or warmer drawer compartment. See

bottom of this page for the serial plate location.

Model No. 790,

Serial No ..................................

Date of Purchase

Save these instructions and your sales receipt for future

reference.

FULL ONE YEAR WARRANTY ON ALL PARTS

If,within one year from the date of installation, any partfails to function properly due to adefect in material orworkmanship,

Sears will repair or replace it, at our option, free of charge.

Your ceramic glass smoothtop is covered by an additional 2nd through 5th year limited warranty. This warranty provides for

replacement for any defective surface heating element, deteriorated rubberized-silicone seal, or glass smoothtop that cracks

due to thermal breakage. Damage or breakage due to customer abuse is not covered by this warranty.

If the product is subjected to other than private residential use, the above warranty is effective for only 90 days.

WARRANTY SERVICE IS AVAILABLE BY CONTACTING THE NEAREST SEARS SERVICE CENTER IN THE UNITED

STATES.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Sears Roebuck and Co., Dept. 817WA Hoffman Estates, IL 60179

Serial Plate Location

You wilt find the model and serial number printed on an serial

plate. The serial plate is located on the right side of the oven

front frame in the storage or warmer drawer compartment.

Please see the illustration for exact location.

Remeber to record the serial number for future reference

(See top of this page under Product Record).

Serial plate location; Open the

Warmer Drawer (some models).

or storage drawer (some models).

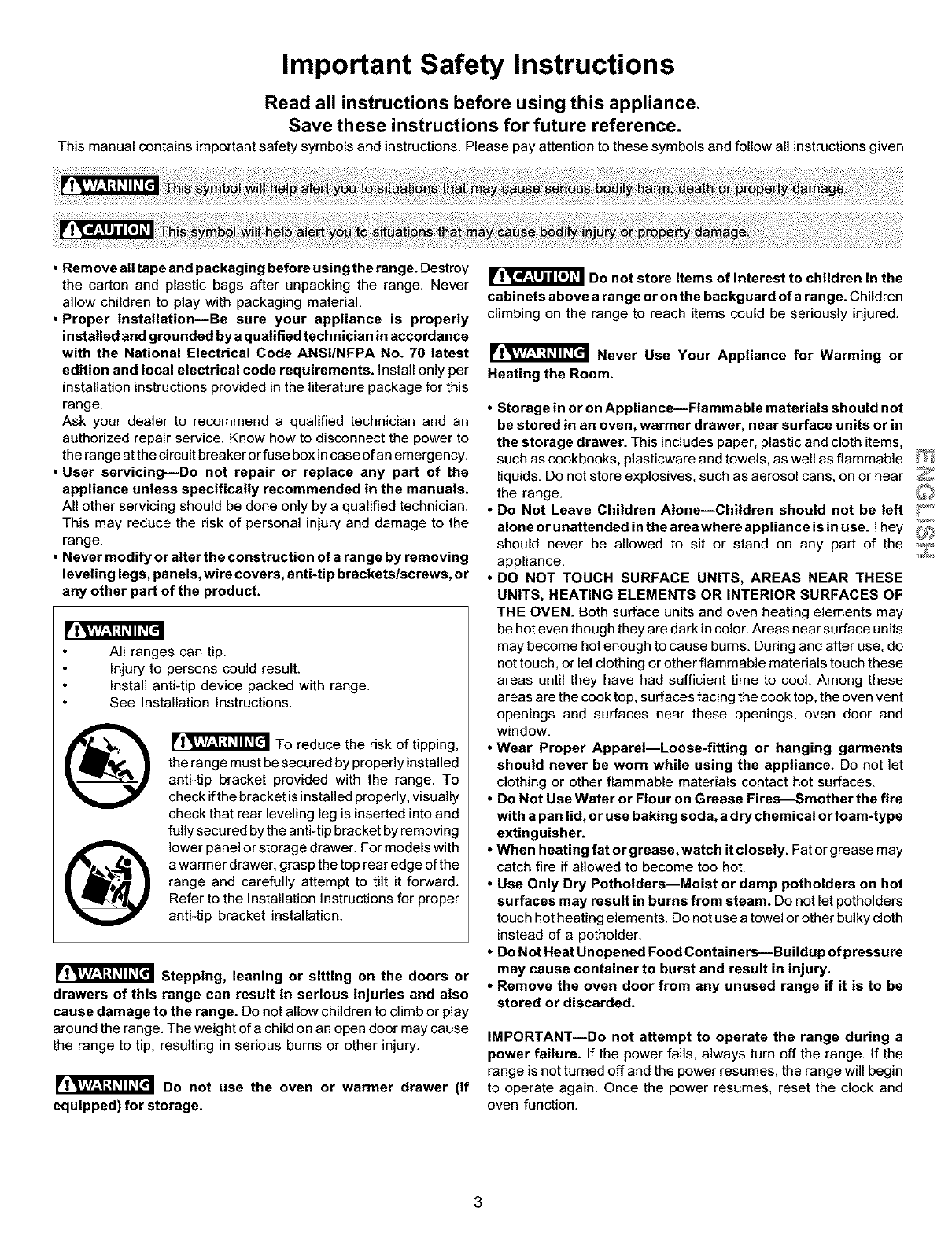

Important Safety Instructions

Read all instructions before using this appliance.

Save these instructions for future reference.

This manual contains important safety symbols and instructions. Please pay attention to these symbols and follow all instructions given.

• Remove all tape and packaging before using the range. Destroy

the carton and plastic bags after unpacking the range. Never

allow children to play with packaging material.

•Proper Installation]Be sure your appliance is properly

installed and grounded by a qualified technician in accordance

with the National Electrical Code ANSI/NFPA No. 70 latest

edition and local electrical code requirements. Install only per

installation instructions provided in the literature package for this

range.

Ask your dealer to recommend a qualified technician and an

authorized repair service. Know how to disconnect the power to

the range at the circuit breaker orfuse box in case of an emergency.

•User servicing--Do not repair or replace any part of the

appliance unless specifically recommended in the manuals.

All other servicing should be done only by a qualified technician.

This may reduce the risk of personal injury and damage to the

range.

• Never modify or alter the construction of arange by removing

leveling legs, panels,wire covers, anti-tip bracketslscrews, or

any other part of the product.

All ranges can tip.

Injury to persons could result.

Install anti-tip device packed with range.

See installation Instructions.

_!_iW-'I:I_II_[L1 TO reduce the risk of tipping,

the range must be secured by properly installed

anti-tip bracket provided with the range. To

check ifthe bracket isinstalled properly, visually

check that rear leveling leg is inserted into and

fully secured by the anti-tip bracket by removing

lower panel or storage drawer. For models with

a warmer drawer, grasp the top rear edge of the

range and carefully attempt to tilt it forward.

Refer to the Installation instructions for proper

antFtip bracket installation.

r!,',V-'1:t,'ll_[qStepping, leaning or sitting on the doors or

drawers of this range can result in serious injuries and also

cause damage to the range. Do not allow children to climb or play

around the range. The weight of achild on an open door may cause

the range to tip, resulting in serious burns or other injury.

FIVJV_'I:I_II_[ell DO not use the oven or warmer drawer (if

equipped) for storage.

r_!_,l,_,_l Do not store items of interest to children in the

cabinets above a range or on the backguard of a range. Children

climbing on the range to reach items could be seriously injured.

Never Use Your Appliance for Warming or

Heating the Room.

•Storage in or on Appliance]Flammable materials should not

be stored in an oven, warmer drawer, near surface units or in

the storage drawer. This includes paper, plastic and cloth items,

such as cookbooks, plasticware and towels, as well as flammable

liquids. Do not store explosives, such as aerosol cans, on or near _

the range.

•Do Not Leave Children Alone--Children should not be left V_*_

alone or unattended in the areawhere appliance ]sin use.They _

should never be allowed to sit or stand on any part of the

appliance.

• DO NOT TOUCH SURFACE UNITS, AREAS NEAR THESE

UNITS, HEATING ELEMENTS OR INTERIOR SURFACES OF

THE OVEN. Both surface units and oven heating elements may

be hot even though they are dark in color. Areas near surface units

may become hot enough to cause burns. During and after use, do

not touch, or let clothing or other flammable materials touch these

areas until they have had sufficient time to cool. Among these

areas are the cook top, surfaces facing the cook top, the oven vent

openings and surfaces near these openings, oven door and

window.

•Wear Proper Apparel--Loose-fitting or hanging garments

should never be worn while using the appliance. Do not let

clothing or other flammable materials contact hot surfaces.

• Do Not Use Water or Flour on Grease Fires--Smother the fire

with a pan lid, or use baking soda, adry chemical or foam-type

extinguisher.

• When heating fat or grease, watch it closely. Fat or grease may

catch fire if allowed to become too hot.

• Use Only Dry Potholders--Moist or damp pothelders on hot

surfaces may result in burns from steam. Do not let potholders

touch hot heating elements. Do not use a towel or other bulky cloth

instead of apotholder.

• Do Not Heat Unopened Food Containers--Buildup of pressure

may cause container to burst and result in injury.

•Remove the oven door from any unused range if it is to be

stored or discarded.

IMPORTANT]Do not attempt to operate the range during a

power failure. If the power fails, always turn off the range. If the

range is not turned off and the power resumes, the range will begin

to operate again. Once the power resumes, reset the clock and

oven function.

3

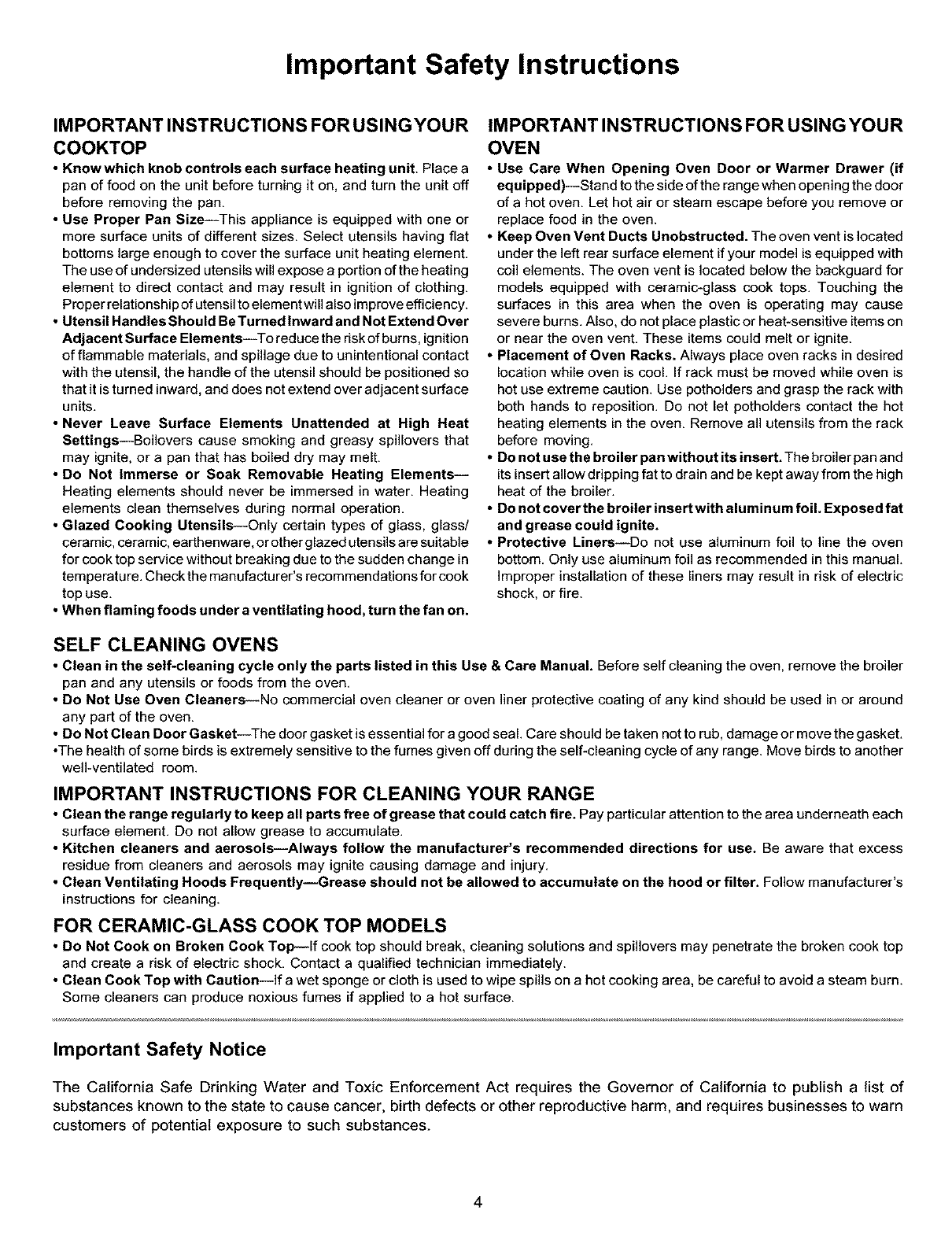

Important Safety Instructions

IMPORTANT INSTRUCTIONS FOR USING YOUR

COOKTOP

•Know which knob controls each surface heating unit, Place a

pan of food on the unit before turning it on, and turn the unit off

before removing the pan.

• Use Proper Pan Size--This appliance is equipped with one or

more surface units of different sizes. Select utensils having flat

bottoms large enough to cover the surface unit heating element.

The use of undersized utensils will expose aportion of the heating

element to direct contact and may result in ignition of clothing.

Proper relationship of utensil to element will also improve efficiency.

• Utensil Handles Should Be Turned Inward and Not Extend Over

Adjacent Surface Elements--To reduce the risk of burns, ignition

of flammable materials, and spillage due to unintentional contact

with the utensil, the handle of the utensil should be positioned so

that it is turned inward, and does not extend over adjacent surface

units.

• Never Leave Surface Elements Unattended at High Heat

Settings--Boilovers cause smoking and greasy spillovers that

may ignite, or a pan that has boiled dry may melt.

•Do Not Immerse or Soak Removable Heating Elements i

Heating elements should never be immersed in water. Heating

elements clean themselves during normal operation.

• Glazed Cooking Utensils--Only certain types of glass, glass/

ceramic, ceramic, earthenware, or other glazed utensils are suitable

for cook top service without breaking due to the sudden change in

temperature. Checkthe manufacturer's recommendations for cook

top use.

• When flaming foods under aventilating hood, turn the fan on.

IMPORTANT INSTRUCTIONS FOR USING YOUR

OVEN

•Use Care When Opening Oven Door or Warmer Drawer (if

equipped)--Stand to the side of the range when opening the door

of a hot oven, Let hot air or steam escape before you remove or

replace food in the oven,

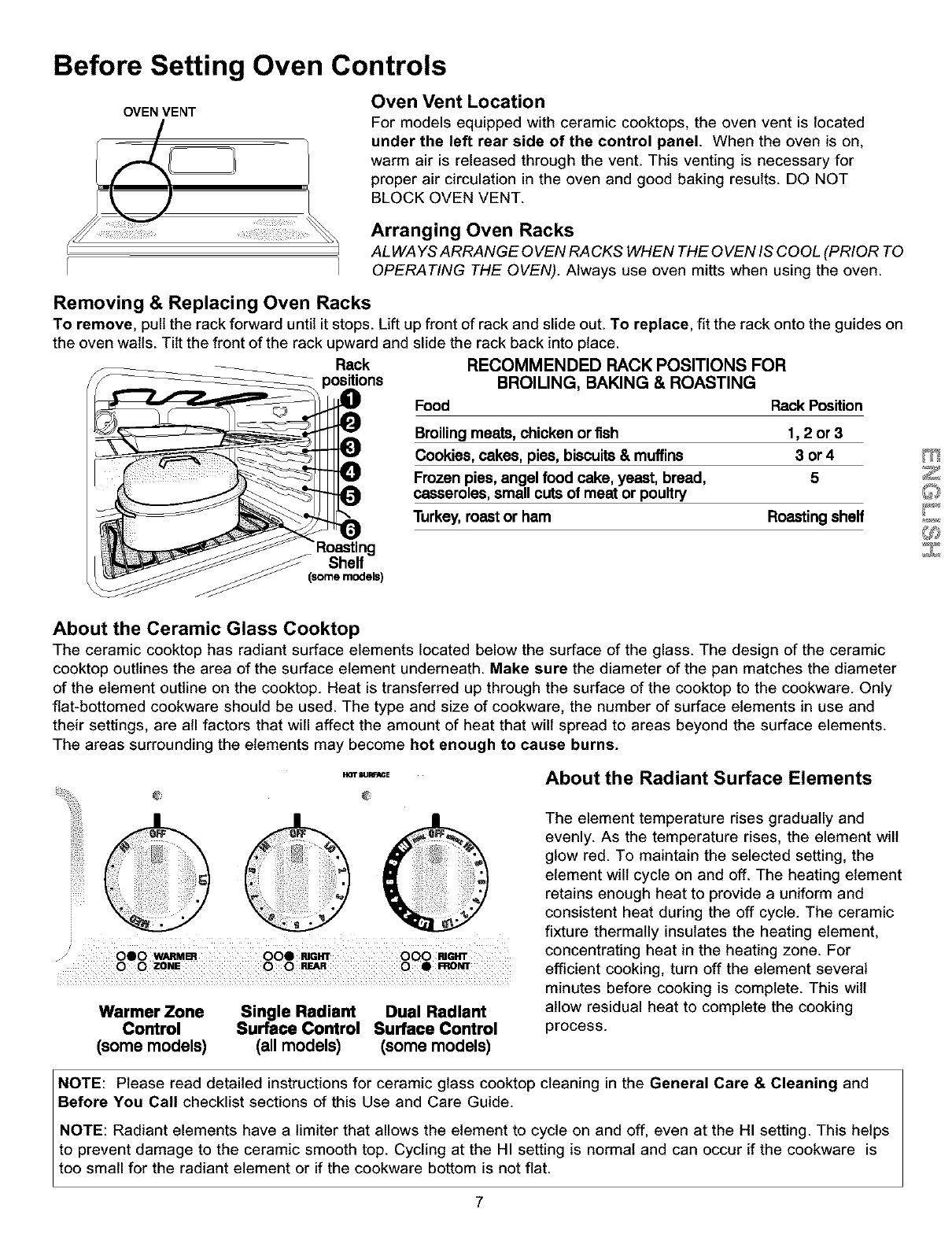

•Keep Oven Vent Ducts Unobstructed. The oven vent is located

under the left rear surface element if your model is equipped with

coil elements, The oven vent is located below the backguard for

models equipped with ceramic-glass cook tops. Touching the

surfaces in this area when the oven is operating may cause

severe burns. Also, do not place plastic or heat-sensitive items on

or near the oven vent. These items could melt or ignite.

• Placement of Oven Racks. Always place oven racks in desired

location while oven is cool. If rack must be moved while oven is

hot use extreme caution. Use potholders and grasp the rack with

both hands to reposition. Do not let potholders contact the hot

heating elements in the oven. Remove all utensils from the rack

before moving.

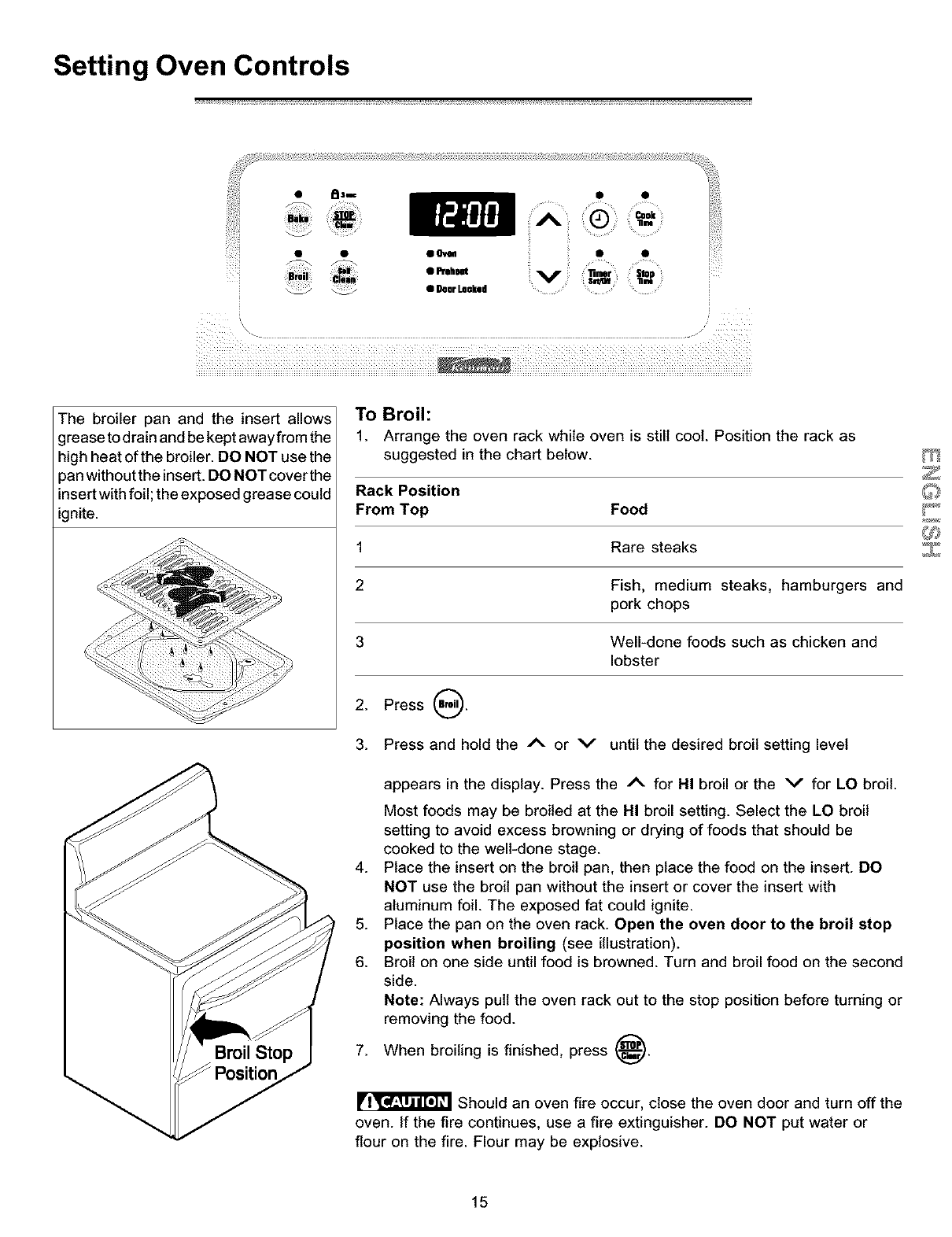

• Do not use the broiler pan without its insert. The broiler pan and

its insert allow dripping fat to drain and be kept away from the high

heat of the broiler.

• Do not cover the broiler insert with aluminum foil. Exposed fat

and grease could ignite.

• Protective Liners--Do not use aluminum foil to line the oven

bottom. Only use aluminum foil as recommended in this manual.

improper installation of these liners may result in risk of electric

shock, or fire.

SELF CLEANING OVENS

•Clean in the self*cleaning cycle only the parts listed in this Use & Care Manual. Before self cleaning the oven, remove the broiler

pan and any utensils or foods from the oven,

•Do Not Use Oven Cleaners--No commercial oven cleaner or oven liner protective coating of any kind should be used in or around

any part of the oven.

• Do Not Clean Door Gasket--The door gasket is essential for a good seal. Care should be taken not to rub, damage or move the gasket.

*The health of some birds is extremely sensitive to the fumes given off during the self-cleaning cycle of any range. Move birds to another

well-ventilated room.

IMPORTANT INSTRUCTIONS FOR CLEANING YOUR RANGE

•Clean the range regularly to keep all parts free of grease that could catch fire. Pay particular attention to the area underneath each

surface element. Do not allow grease to accumulate.

•Kitchen cleaners and aerosols--Always follow the manufacturer's recommended directions for use. Be aware that excess

residue from cleaners and aerosols may ignite causing damage and injury.

• Clean Ventilating Hoods Frequently--Grease should not be allowed to accumulate on the hood or filter. Follow manufacturer's

instructions for cleaning.

FOR CERAMIC-GLASS COOK TOP MODELS

•Do Not Cook on Broken Cook Top--If cook top should break, cleaning solutions and spiliovers may penetrate the broken cook top

and create a risk of electric shock. Contact a qualified technician immediately.

• Clean Cook Top with Caution--If a wet sponge or cloth is used to wipe spills on a hot cooking area, be careful to avoid a steam burn.

Some cleaners can produce noxious fumes if applied to a hot surface.

Important Safety Notice

The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of California to publish a list of

substances known to the state to cause cancer, birth defects or other reproductive harm, and requires businesses to warn

customers of potential exposure to such substances.

4

PROTECTION AGREEMENTS

In the U.S.A.

Master Protection Agreements

Congratulations on making a smart purchase. Your new

Kenmore® appliance is designed and manufactured for

years of dependable operation. But like all products, it

may require preventive maintenance or repair from time to

time. That's when having a Master Protection Agreement

can save you money and aggravation.

Purchase a Master Protection Agreement now and protect

yourself from unexpected hassle and expense.

The Master Protection Agreement also helps extend the

life of your new appliance. Here's what's included in the

Agreement:

_Expert service by our 12,000 professional repair

specialists

5i_'Unlimited service and no charge for parts and labor on

all covered repairs

5i_'"No-lemon" guarantee - replacement of your covered

product if more than three product failures occur within

twelve months

5_Product replacement if your covered product can't be

fixed

_Annual Preventive Maintenance Check at your request

- no extra charge

_Fast help by phone -non-technical and instructional

assistance on products repaired in your home, plus

convenient repair scheduling

_Power surge protection against electrical damage due

to power fluctuations

_Rental reimbursement if repair of your covered product

takes longer than promised

In Canada

Maintenance Agreements

Your purchase has added value because you can depend

on Sears HomeCentral® for service. With over 2400

Service Technicians and access to over 900,000 parts

and accessories, we have the tools, parts, knowledge and

skills to ensure our pledge: We Service What We Sell.

Your Kenmore® appliance is designed, manufactured and

tested to provide years of dependable operation. Yet any

major appliance may require service from time to time.

The Sears Maintenance Agreement offers you an

outstanding service program, affordably priced.

The Sears Maintenance Agreement

• is your way to buy tomorrow's service at today's price.

• Eliminates repair bills resulting from normal wear and

tear.

• Provides for non-technical and instructional assistance.

• Even if you don't need repairs, provides an annual

Preventive Maintenance Check, at your request, to

ensure that your appliance is in proper running

condition.

Some limitations apply. For information concerning

Sears Canada Maintenance Agreements, call

1-800-361-6665.

Once you purchase the Agreement, a simple phone call is

all that it takes for you to schedule service. You can call

anytime day or night, or schedule a service appointment

online.

Sears has over 12,000 professional repair specialists,

who have access to over 4.5 million quality parts and

accessories. That's the kind of professionalism you can

count on to help prolong the life of your new purchase for

years to come. Purchase your Master Protection

Agreement today!

Some limitations and exclusions apply.

For prices and additional information,

call 1-800-827-6655.

Sears Installation Service

For Sears guaranteed professional installation of home

appliances and items like garage door openers and water

heaters, in the U.S.A. call 1-800-4-MY-HOME®

r

5

Range Features

Your

Electric

Range

Features

At a Glance Simmer Select-

Push Button

(somemodels)

"Element Warm& ReadyTM ElectronicOven Warm & Ready"

ManualOn" DrawerControl& Controlwith Clock Zone & IndicatorLight(some models)

Oven Indicator IndicatorLight and K]tchan"l]mer /Single RadiantElementControl

Light Light (somemodels) / / ""Hot Surface"

Swtch_ ,_ X_ _/ / !.,F'_ IndicatorUght

S mmarSsact r_'_ _ \ • _ /

EementContm _ _ _ _ .._.. _ : ,; _/ _ _ _ ,_ Dual Radiant

tsomemodels_--_'_ _ _;_ F_ _ _ m _ a ElementControl

'_ _ _,J _ :=--- -' ;' _J,_ __J _ (some models) or

SingleRadiant

ElementControl

Ceramic

Smoothtop-

Autom_c

Oven --

Door Light

Switch

Oven

Light

(1)BroilPanand

(1)BroilPanInsert

Warm & ReadyTM I

Drawer

(some models)

or Storage Drawer

with Integrated

Handle

_ Easyto Clean

Cooktop

Door Latch

Self-Cleaning

Oven Interior

ustable

Interior

Oven Rack(s)

1 Piece

Door Handle

(stylevaries

with model)

Oven Door

with Window

Ceramic Smoothtops

(stylesand colorvary by model)

Warm & ReadyZone

RadiantElement (some models) LevelingLegsand

Anti-tipBracket(included)

6"Single

Radiant 6"Single

Radiant

Element

Note: The

features of your

range will vary

according to

model.

9"Sin

Radiant

Element

Element (some models)

or

9"Single Radiant

Element

Before Setting Oven Controls

OVEN VENT Oven Vent Location

For models equipped with ceramic cooktops, the oven vent is located

under the left rear side of the control panel. When the oven is on,

warm air is released through the vent. This venting is necessary for

proper air circulation in the oven and good baking results. DO NOT

BLOCK OVEN VENT.

Arranging Oven Racks

AL WAYS ARRANGE OVEN RACKS WHEN THE OVEN IS COOL (PRIOR TO

OPERATING THE OVEN). Always use oven mitts when using the oven.

Removing & Replacing Oven Racks

To remove, pullthe rack forward until it stops. Lift up front of rack and slide out. To replace, fit the rack onto the guides on

the oven walls. Tilt the front of the rack upward and slide the rack back into place.

Rack RECOMMENDED RACK POSITIONS FOR

BROILING, BAKING & ROASTING

Food Rack Position

Broiling meats, chicken or fish 1,2 or 3

Cookies, cakes, pies, biscuits& muffins 3 or 4

Frozen pies, angel food cake, yeast, bread, 5

casseroles, small cuts of meat or poultry

Turkey,roast or ham Roasting shelf

Shelf

(some models)

About the Ceramic Glass Cooktop

The ceramic cooktop has radiant surface elements located below the surface of the glass. The design of the ceramic

cooktop outlines the area of the surface element underneath. Make sure the diameter of the pan matches the diameter

of the element outline on the cooktop. Heat is transferred up through the surface of the cooktop to the cookware. Only

fiat-bottomed cookware should be used. The type and size of cookware, the number of surface elements in use and

their settings, are all factors that will affect the amount of heat that will spread to areas beyond the surface elements.

The areas surrounding the elements may become hot enough to cause burns.

NOT _F_I_E

/oeo W_Mm 00_ RIGHT 000 RIGHT

00ZONE OREAR O

Single Radiant Dual Radiant

Surface Control Surface Control

(all models) (some models)

Warmer Zone

Control

(some models)

About the Radiant Surface Elements

The element temperature rises gradually and

evenly. As the temperature rises, the element will

glow red. To maintain the selected setting, the

element will cycle on and off. The heating element

retains enough heat to provide a uniform and

consistent heat during the off cycle. The ceramic

fixture thermally insulates the heating element,

concentrating heat in the heating zone. For

efficient cooking, turn off the element several

minutes before cooking is complete. This wilt

allow residual heat to complete the cooking

process.

NOTE: Please read detailed instructions for ceramic glass cooktop cleaning in the General Care & Cleaning and

Before You Call checklist sections of this Use and Care Guide.

NOTE: Radiant elements have a limiter that allows the element to cycle on and off, even at the HI setting. This helps

to prevent damage to the ceramic smooth top. Cycling at the HI setting is normal and can occur if the cookware is

too small for the radiant element or if the cookware bottom is not flat.

7

Before Setting Oven Controls (cont'd)

_Element On and Hot Surface Indicator Lights

O

N_ 8U_

e

Your range is equipped with two different surface control lights that will glow on your range-- the

Element On indicator light and a Hot Surface indicator light. The Element On located on the control

panel, will glow when any surface element is turned on. A quick glance at this light after cooking is an

easy check to be sure ait surface controls are turned off. The Hot Surface indicator light, located on

the control panel, wilt glow as the surface cooking area heats up and will REMAIN ON until the glass

cooktop has cooled to a MODERATE level.

Setting Surface Controls

To Operate Single Radiant Surface Elements (all models)

NOTIWRFACE 1.

® 2.

00 Rr_,R

Place correctly sized cookware on the radiant surface element.

Push in and turn the surface control knob in either direction to the desired setting. Start

most cooking operations on a higher setting and then turn to a lower setting to finish

cooking. The surface control knobs do not have to be set exactly on a particular mark.

Use the marks as a guide and adjust the control knob as needed. Each surface element

provides a constant amount of heat at each setting. A glowing red surface heating area

extending beyond the bottom edge of the cookware indicates the cookware is too small

for the surface heating area.

When cooking is completed, turn the surface element off before removing the cookware.

Note: the Element On indicator light will glow when one or more elements are turned on.

A quick glance at the indicator light(s) when cooking is finished is an easy check to be

sure all control knobs are turned off. The Hot Surface indicator light will continue to glow

AFTER the control knob is turned to the "Off" position and will glow until the heating

surface area has cooled sufficiently.

To Operate Simmer Select Surface Element (some models)

The left front element control may be used as a normal element or as asimmer element, The "Simmer Select" feature heatsthe element

at a much lower temperature and more precisely than when used as a normal surface element, You mayswitch between normal cooking

and the Simmer Select feature at any time during the cooking process, When using the element control for normal cooking, all of the

settings on the control knob (LO to HI) function as normal,

1, To activate the Simmer Select feature, push inthe Simmer button located below the leftfront control knob, The Simmer Select

indicator light will glow and remain on while simmering,

2, Turn the surface control knob to the desired simmer setting within the dark band on the control knob (LO to 4), Use the marks as a

guide and adjust the control knob from LO to 4 as needed (see illustration below),

3, To return to normal cooking, push inand release the "Simmer Select" button and the indicator light will turn off, When cooking is

completed, be sure to set the control knob to the OFF position,

The suggested settings found in the chart below are based on cooking in medium-weight aluminum pans

with lids, Settings may vary when using other types of pans,

STANDARD SURFACE ELEMENTS

Setting Type of Cooking

HIGH (HI - 9) Start most foods, bring water to a boil, pan broiling

MEDIUM HIGH (7 - 8) Continue a rapid boil, fry, deep fat fry

MEDIUM (5 - 6) Maintain a slow boil, thicken sauces and gravies, steam vegetables

MEDIUM LOW (2 - 4) Keep foods cooking, poach, stew

LOW (LO - 1) Keepwarm, melt, simmer

Simmer Select Surface Control Max, Simmer (4)

shown in LO setting Min, Simmer (LO)

SIMMER SELECT SURFACE ELEMENT

Larger quantities of food, stews and soups

Smaller quanitites of food, delicate foods, melting chocolate or butter

Radiant surface elements may appear to have cooled after they have been turned off. The glass surface may

still be hot and burns may occur if the glass surface is touched before it has cooled sufficiently.

Do not place plastic items such as salt and pepper shakers, spoon holders or plastic wrappings on top

of the range when it is in use. These items could melt or ignite. Potholders, towels or wooden spoons could catch fire if

placed too close to the surface elements. 8

Setting Surface Controls

To Operate Dual Radiant Surface Element (some models)

The right front control knob offers flexibilty for different sized cookware with

the Dual Radiant surface element. The inner element alone can be used for

smaller or both the inner and outer in combination for larger cookware.

To operate the Dual Radiant surface element push in the control knob and

turn counterclockwise to operate the small inner coil or turn clockwise to

o0o meriT OOO operate both the inner and outer portions of the element together.

O0 mONT OQFRONT

Singlesetting Dualsetting SINGLE AND DUAL RADIANT SURFACE ELEMENTS

Setting Type of Cooking

HIGH (HI - 9) Start most foods, bring water to a boil, pan broiling

MEDIUM HIGH (7 - 8) Continue a rapid boil, fry, deep fat fry

MEDIUM (5 - 6) Maintain a slow boil, thicken sauces and gravies or

steam vegetables

MEDIUM LOW (2 - 4) Keep foods cooking, poach, stew

DualRadiantheating areas

onceramicsmoothtop (shown inblack)

LOW(LO -1) Keep warm, melt, simmer

Note: The size and type of utensil used, and the amount and type of food

being cooked will influence the setting needed for best cooking results.

Setting the Warmer (Warm & Ready TM) Zone (some models)

000 WARMER

0 0 ZONE

Warmer Zone Recommended Food

Settings Chart

Food Item Heating

Level

Breads/Pastries LO

Casseroles LO

Dinner Plates with Food LO

Eggs LO

Gravies LO

Meats MED

Sauces MED

Soups (cream) MED

Stews MED

Vegetables MED

Fried Foods HI

Hot Beverages HI

Soups (liquid) HI

The purpose of the Warmer Zone is to keep hot cooked foods at serving

temperature. Always start with hot food. It is not recommended to heat cold

food on the Warmer Zone.

All food placed on the Warmer Zone should be covered with a lid or

aluminum foil to maintain quality. For best results, when warming pastries or

breads, the cover should have an opening to allow moisture to escape. Do

not use plastic wrap to cover food. Plastic may melt onto the surface

and be very difficult to clean.

Use only dishware, utensils and cookware recommended for oven and

cooktop use on the Warmer Zone.

Unlike the surface elements, the Warmer Zone will not glow

red when it is hot.

Always use pothoiders or oven mitts when removing food from

the warm zone as cookware and plates will be hot.

Setting the Warmer (Warm & Ready TM) Zone Control

1. To set the control, push in either direction and turn the knob. The

temperatures are approximate, and are designated by HI, MED and LO.

However, the control can be set at any position between HI and LO for

different levels of heating.

2. When done, turn the control to OFF. The Warmer Zone will remain warm

until the hot surface indicator light goes off.

Temperature Selection - Refer to the chart at the side column for

recommended heating levels. If a particular food is not listed, start with the

medium level, and adjust as needed. Most foods can be kept at serving

temperatures by using the medium level.

9

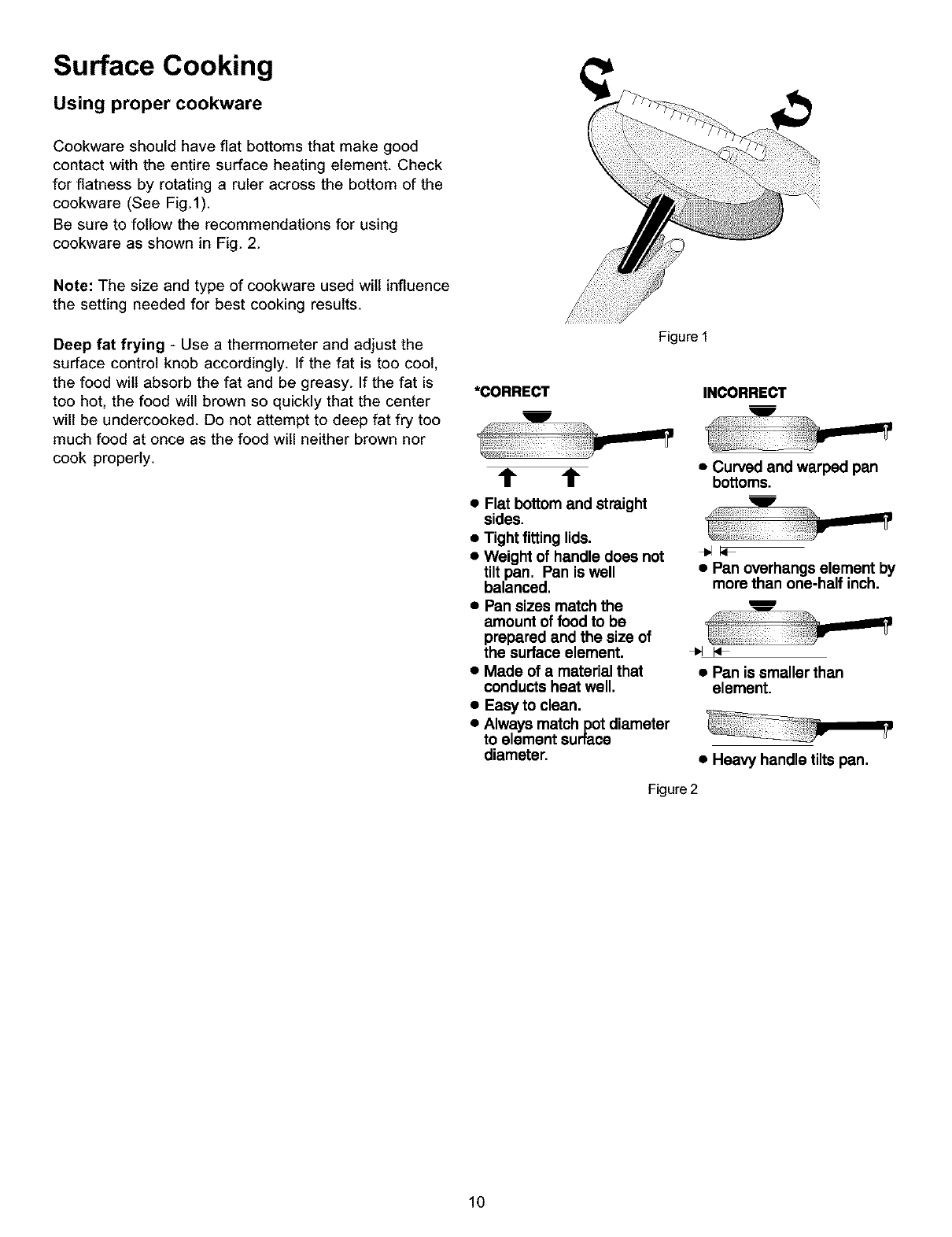

Surface Cooking

Using proper cookware

Cookware should have flat bottoms that make good

contact with the entire surface heating element. Check

for flatness by rotating a ruler across the bottom of the

cookware (See Fig.l).

Be sure to follow the recommendations for using

cookware as shown in Fig. 2.

Note: The size and type of cookware used wilt influence

the setting needed for best cooking results.

Deep fat frying - Use a thermometer and adjust the

surface control knob accordingly. If the fat is too cool,

the food wilt absorb the fat and be greasy. If the fat is

too hot, the food will brown so quickly that the center

will be undercooked. Do not attempt to deep fat fry too

much food at once as the food will neither brown nor

cook properly.

Figure 1

*CORRECT

t 1=

•Flat bottom and straight

sides.

•Tight fitting lids.

•Weight of handle does not

tilt pan. Pan is well

balanced.

•Pan sizes match the

amount of food to be

prepared and the size of

the surface element.

•Made of a material that

conducts heat well.

•Easy to clean.

• Always match pot diameter

to element surface

diameter.

INCORRECT

U

•Curved and warped pan

bottoms.

U

•Pan overhangs element by

more than one-half inch.

m

•Pan is smaller than

element.

•Heavy handle tilts pan.

Figure 2

10

Oven Control Functions

READ THE INSTRUCTIONS CAREFULLY BEFORE USING THE OVEN. For satisfactory use of your oven, become familiar

with the various pad functions of the oven as described below.

STOP/CLEAR PAD-- Used to clear any function UP and DOWN ARROW PADS-- Used along with the

previously entered except the time of day and function pads to select oven temperature, cook time, CLOCK SET PAD--

Used to set the time of

minute timer. Press STOP/CLEAR to stop stop time (when programming an automatic stop time), day.

cooking. Also the STOP/CLEAR pad is used to time of day, clean time and minute timer. /

J

activate oven door lockout setting. \

FEATURE INDICATOR

\LIGHTS= These light

BAKE PAD--Used to _ \ to show which feature

select the bake__ •is in use.

function. _-

BROIL PAD--

Used to select the

variable broil _ • • • _n

function. _

J • DoorLooked

SELF-CLEAN PAD--

Used to select the self-

cleaning cycle.

/

OVEN, PREHEAT & DOOR LOCKED LIGHTS* -- The "OVEN" light will glow each time the

oven turns on to maintain the set oven temperature. The "PREHEAT" light will glow when

the oven is first set to operate, or if the desired temperature is reset higher than the actual

oven temperature. The "DOOR LOCKED" light will flash when the oven door locks and

unlocks or when using the self-clean cycle or the oven door lockout mode is activated. The

indicator light will glow constantly after the door locks.

;_Cook COOK TIME PAD-- Used

11J ;

......... to enter the ength of the

baking time (if equipped).

V11met Stop STOP TIME PAD-- Used

...... _ to set the desired stop

_time for baking. Can be

used with COOK TIME to

program a delayed bake

cycle (if equipped).

TIMER SET/OFF PAD-- Used to set or

cancel the minute timer. The minute timer

does not start or stop cooking. Also,

TIMER SET/OFF pad is used to set the

Continuous Bake feature.

For a silent control panel

When choosing a function, abeep will be heard each time a pad is pressed. If desired, the controls can be programmed

for silent operation. Press and hold @. After 7seconds, the control will beep once. This will block the controls from

sounding when a pad is pressed. To return the sound, press and hold @again for 7 seconds until the control beeps

once.

Note: The control wilt return to the audible mode after a power outage.

Temperature conversion

The electronic oven control is set to operate in °F (Fahrenheit) when shipped from the factory. The oven can be

programmed for any temperature from 170°F to 550°F (65°C to 287°C).

To change the temperature to °C (Celsius) or from °C to °F (control should not be in a Bake or Clean mode):

1. Press _. " " appears in the display.

2. Press and hold the /_ until "HI" appears in the display.

3. Press and hold _) until °F or °C appears in the display.

4. Press the A or V to change °F to°Cor°Cto°F.

5. Press any control pad to return to normal operating mode.

11

Setting Oven Controls

8|uii

AGC_k

• • Oven • •

• V li= ,o

•Door Locked

To Set the Clock

When the range is first plugged in, or when the power supply to the range has been interrupted, the display wilt flash

"12:00".

1. Press Q.

2. Within 5 seconds, press and hold the A or v until the correct time of day appears in the display.

Note: The clock cannot be changed during any timed bake or self-clean cycle.

To Set the Minute Timer:

1. Press @.

2. Press the ,A, to increase the time in one minute increments. Press and hold the #_, to increase the time in 10

minute increments. The timer can be set for any amount of time from 1 minute to 11 hours and 59 minutes.

Note: If you press the v first, the timer will advance to 11 hours and 59 minutes.

3. The display shows the timer count down in minutes until one minute remains. Then the display will count down in

seconds.

4. When the set time has run out, the timer will beep 3 times. It will then continue to beep 3 times every 60 seconds

until @ is pressed.

Note: The minute timer does not start or stop cooking, it serves as an extra timer in the kitchen that will beep when

the set time has run out. The minute timer can be used alone or during any of the other oven functions. When the

minute timer is in use with any other function, the minute timer will be shown in the display. To view other functions,

press the pad for that function.

To Change the Minute Timer while it is in use:

While the timer is active and shows in the display, press and hold the _ or v to increase or decrease the time.

To Cancel the Minute Timer before the set time has run out: Press @.

12

Setting Oven Controls

To Set or Change the Temperature for Baking

The oven can be programmed to bake at any temperature from 170°F to 550°F (65°C to 287°C).

To Set the Controls for Baking:

1. Press _. " "appears in the display.

2. Within 5 seconds, press the A or v . The display wilt show "350°F (177°C). '' By pressing and holding the

or v , the temperature can then be adjusted in 5°F (1°C) increments.

3. As soon as the I_. or v is released, the oven wilt begin heating to the selected temperature. When the

displayed temperature reaches the desired baking temperature, the control will beep 3 times.

4. To cancel the baking function, press _.

To Change the Oven Temperature after Baking has Started:

1. Press n,_ and make sure the bake temperature is displayed.

2. Press the A or v to increase or decrease the set temperature.

To Set Control for Continuous Bake or 12 Hour Energy Saving

The oven control has a built-in 12 Hour Energy Saving feature that will shut off the oven if the control is left on for more

than 11 hours and 59 minutes. The oven can be programmed to override this feature for continuous baking.

To set control for continuous baking:

1. Press _, "0:00" will appear in the display.

2. Press and hold (_) down for 5 seconds until tone is heard, "-- -- hr" will appear in display for continuous

cooking. The current time of day will return to the display.

3. To cancel the Continuous Bake function, press (_) and hold for 5 seconds until tone is heard. "12hr" will appear

in display indicating that the control has returned to the 12 Hour Energy Saving feature.

To Set Control for Oven Lockout

The control can be programmed to lock the oven door and inactivate the oven controls.

To set Control for Oven Lockout feature:

1. Press _ and hold for 3 seconds. "Loc" will appear in display, the "Door Locked" indicator light will flash and the

motor driven door lock wilt begin to close automatically. DO NOT open oven door while the indicator light is

flashing. Allow about 15 seconds for the oven door to lock. Once the oven door is locked, the current time of day

will appear in the display.

2. To cancel the lockout feature, press _ and hold for 3 seconds. The control will unlock the oven door and

resume normal operation.

13

Setting Oven Controls

To Set the Timed Bake Feature

The _ COOK TIME and _ STOP TIME controls operate the Timed Bake feature to turn the oven on and off at the

times you select in advance. The oven can be programmed to start immediately and shut off automatically or to begin

baking at a later time with an automatic shutoff.

To Program the Oven to Begin Baking Immediately and To Shut Off Automatically:

1. Be sure that the clock shows the correct time of day.

2. Place the food in the oven.

3. Press (_.

4. Within 5 seconds, press the A or v . The display will show"350°F (177°C)." By holding the A or v , the

temperature can then be adjusted in 5°F (1°C) increments.

5. Press (_). "0:00" will flash in the display.

6. Press the /_, or v until the desired baking time appears in the display.

7. The oven will turn on and begin heating.

To Program Oven for aDelayed Start Time and to Shut-Off Automatically:

1. Be sure that the clock shows the correct time of day.

2. Place the food in the oven.

3. Press @.

4. Within 5 seconds, press the _ or v .The display will show "350°F (177°C)." By holding the _ or v , the

temperature can then be adjusted in 5°F (1°C) increments.

5. Press (_). "0:00" will flash in the display.

6. Press the A or v until the desired baking time appears.

7. Press (_). The earliest possible stop time will flash in the display.

8. Press the A. or v until the desired stop time appears in the display.

9. Once the controls are set, the control calculates the time when baking will start in order to finish at the time you

have set.

10. The oven will turn on at the delayed start time and begin heating.

When the Set Bake Time Runs Out:

a. "END" will appear in the display window and the oven will shut off automatically.

b. The control will beep 3 times every 60 seconds until _ is pressed.

To Change the Oven Temperature or Bake Time after Baking has Started:

1. Press the function pad you want to change.

2. Press the /_- or v to adjust the setting.

Use caution with the Timed Bake feature to cook cured or frozen meats and most fruits and vegetables.

Foods that can easily spoil such as milk, eggs, fish, meat or poultry, should be chilled in the refrigerator first. Even

when chilled, they should not stand in the oven for more than 1 hour before cooking begins, and should be removed

promptly when cooking is completed.

14

Setting Oven Controls

i•DoorLecked

The broiler pan and the insert allows

grease to drain and be kept awayfrom the

high heat of the broiler. DO NOT use the

pan without the insert. DO NOT cover the

insert with foil; the exposed grease could

ignite.

To Broil:

1. Arrange the oven rack while oven is still cool. Position the rack as

suggested in the chart below.

Rack Position

From Top Food

1Rare steaks

2 Fish, medium steaks, hamburgers and

pork chops

3 Well-done foods such as chicken and

lobster

2. Press _.

3. Press and hold the /% or v until the desired broil setting level

appears in the display. Press the A. for HI broil or the v for LO broil.

Most foods may be broiled at the HI broil setting. Select the LO broil

setting to avoid excess browning or drying of foods that should be

cooked to the well-done stage.

4. Place the insert on the broil pan, then place the food on the insert. DO

NOT use the broil pan without the insert or cover the insert with

aluminum foil. The exposed fat could ignite.

5. Place the pan on the oven rack. Open the oven door to the broil stop

position when broiling (see illustration).

6. Broil on one side until food is browned. Turn and broil food on the second

side.

Note: Always pull the oven rack out to the stop position before turning or

removing the food.

7. When broiling is finished, press =_=,P.

Should an oven fire occur, close the oven door and turn off the

oven. If the fire continues, use a fire extinguisher. DO NOT put water or

flour on the fire. Flour may be explosive.

15

Setting Warmer Drawer Controls

Arranging Warmer Drawer (Warm & Ready TM Drawer) Rack Positions (some models)

The rack can be used in 2 ways:

In the upright position to allow low profile food items to be placed both under and on top of the rack (for example,

rolls or biscuits on top of the rack and a casserole dish under).

In the downward position to allow you to place light weight food items and empty dishware (for example, rolls or

pastries and dinner plates).

Set the warmer drawer rack as illustrated.

Use the warmer drawer to keep hot

foods hot such as: vegetables, gravies,

meats, casseroles, biscuits and rolls,

)astries and heated dinner plates.

The warmer drawer is equipped with a

catch which may require extra force

when opening and closing the drawer.

DRAWER

Warmer Drawer Recommended

Food Settings Table

Food Item Setting

Bacon HI

Hamburger Patties HI

Poultry HI

Pork Chops HI

Fried Foods HI

Pizza HI

Gravies MED

Casseroles MED

Eggs MED

Roasts (Beef, Pork, Lamb) MED

Vegetables MED

Biscuits MED

Rolls, hard MED

Pastries MED

Roils (soft) LO

Empty Dinner Plates LO

To Operate the Warmer (Warm & Ready TM) Drawer

Your range is equipped with a warmer drawer. The purpose of the warmer

drawer is to keep hot cooked foods at serving temperature. Always start with

hot food. It is not recommended to heat cold food in the warmer drawer.

Atl food placed in the warmer drawer should be covered with a lid or

aluminum foil to maintain quality. Do not use plastic wrap to cover food.

Plastic may melt onto the drawer and be very difficult to clean.

Use only dishware, utensils and cookware recommended for oven use in the

warmer drawer.

Always use potholders or oven mitts when removing food from

the warmer drawer as cookware and plates will be hot.

TO Set the Warmer (Warm & Ready TM) Drawer Thermostat

Control

The thermostat control is used to select the temperature of the warmer

drawer. It is located on the control panel. To set the thermostat, push in and

turn the knob to the desired setting. The temperatures are approximate, and

are designated by HI, MED and LO.

1. Turn the knob to select the desired temperature setting.

2. For best results, preheat the drawer before adding food. An empty

drawer will preheat in approximately 15 minutes.

3. Turn the thermostat control to OFF after use.

Warmer (Warm & Ready TM) Drawer Temperature Selection

Refer to the chart in the side column for recommended settings. If a

particular food is not listed, start with the medium setting. If more crispness

is desired, remove the lid or aluminum foil.

Most foods can be kept at serving temperatures by using the medium

setting.

When a combination of foods are to be kept warm (for instance, a meat with

2 vegetables and rolls), use the high setting.

Refrain from opening the warmer drawer while in use to eliminate loss of

heat from the drawer.

16

Setting Warmer Drawer Controls

Warmer (Warm & Ready TM) Drawer Indicator Light (some models)

The indicator light is located above the warmer drawer thermostat control. It turns on when the control is set, and stays

on until the control is turned off. The warmer drawer is inoperable during the self-clean cycle. The indicator light wilt not

come on during the self-clean cycle.

Removing and Replacing Warmer Drawer (some models)

Le_ Glide

shliddon rf_l

glide. Pullupon le_ levgr

while pushingdownor1

rlzht lever.

Push down with finpr

Pullupwith finger

Figure I

To Remove and Replace Warmer (Warm & Ready TM) Drawer

To Remove Warmer Drawer:

1. _ Turn power off before removing the warmer drawer.

2. Open the drawer to the fully opened position.

3. On the right glide you will find a shield attached with a hex-head screw (see

figure 1). Using a 1/4" socket and ratchet remove the shield.

4. Locate glide lever on each side ofdrawer, pull up on the left glide lever and push

down on the right glide lever.

5. Pull the drawer away from the range.

To Replace Warmer Drawer:

1. Replace shield on the right glide of the drawer body.

2. Pull the bearing glides to the front of the chassis glide (see figure 2).

3. Align the glide on each side of the drawer with the glide slots on the range.

4. Push the drawer into the range untillevers "click" (approximately 2"). Pull the

drawer open again to seat bearing glides into position. If you do not hear the

levers "click" or the bearing glides do not feel seated remove the drawe r

and repeat steps 2-4. This will minimize possible damage to the bearing

glides.

Figure 2

_'=_ _'IVA'L'I;t_II_[cl Electrical Shock Hazard can occur and result in

serious injury or death. Disconnect appliance from electric power

before cleaning and servicing the warmer drawer.

17

Self-Cleaning

During the self-cleaning

cycle, the outside of the range can

become very hot to the touch. DO NOT

leave small children unattended nearthe

appliance.

The health of some birds

is extremely sensitive to the fumes given

off during the self-cleaning cycle of any

range. Move birds to another well-

ventilated room.

DO NOT line the oven

walls, racks, bottom or any other part of

the range with aluminum foil. Doing so

will destroy heat distribution, produce

poor baking results and cause permanent

damage to the oven interior (aluminum

foil will melt to the interior surface of the

oven).

DO NOT force the oven

door open. This can damage the

automatic door locking system. Use

caution when opening the door after the

self-cleaning cycle is completed. The

oven may still be VERY HOT.

CLEAN FRAME

DO HAND

CLEANDOOR DO NOT

HAND

CLEANOVE

OORGASKET

Baking element

may be tilted about

4or 5 inches

to clean oven bottom

OOven • •

•Prohoat V _1_ _a_

O Doorl_cke_

\

Self-Cleaning Oven

A self-cleaning oven cleans itself with high temperatures (well above

cooking temperatures) which eliminate soil completely or reduce it to a fine

powdered ash you can wipe away with a damp cloth.

Adhere to the following cleaning precautions:

DO NOT use oven cleaners or oven protective coatings in or around any

part of the self-cleaning oven.

DO NOT clean the oven door gasket. The woven material of the oven

door gasket is essential for a good seal. Care should be taken not to rub,

damage or remove the gasket.

DO NOT use any cleaning materials on the oven door gasket. Doing so

could cause damage.

Remove the broiler pan and insert, all utensils and any aluminum

foil. These items cannot withstand high cleaning temperatures.

Oven racks should be removed. If they are not removed during the

clean cycle their color will turn slightly blue and the finish will be dull.

After the cycle is complete and the oven has cooled, rub the sides of the

racks with wax paper or a cloth containing a small amount of baby oil or

salad oil (this wilt make the racks glide easier into the rack position).

Remove any excessive spUlovers in the oven cavity before starting

the self-cleaning cycle. To clean, use hot, soapy water and a cloth.

Large spiltovers can cause heavy smoke or fire when subjected to high

temperatures. DO NOT allow food spills with a high sugar or acid

content (such as milk, tomatoes, sauerkraut, fruit juices or pie filling) to

remain on the surface as they may leave a dull spot even after cleaning.

Clean any soil from the oven frame, the door liner outside the oven door

gasket and the small area at the front center of the oven bottom. These

areas heat sufficiently to bum soil on. Clean with soap and water.

NOTE: Prior to setting the Self-Clean cycle, any spills remaining on the oven

bottom should be removed.

The bake element is designed to be tilted up using your hand from the front

of the bake element. This wilt allow easier access to the oven bottom for

cleaning. Be careful not to raise the element more than 4 or 5 inches from

the resting position.

18

Self-Cleaning

• • OOvon • •

O_hml

0 DaafLocked

To Start the Self-Clean Cycle

For satisfactory results, use a 2 hour self-clean cycle for light soils and a 3 hour cycle for average or heavy soils.

NOTE: The kitchen area should be ventilated using an open window, ventitlation fan or exhaust hood during the first

self-clean cycle. This wilt help eliminate the normal odors associated with the first self-clean cycle.

To Set the Controls for a Self-Clean Cycle:

1. Be sure the clock shows the correct time of day.

2. Press _. " "appears in the display.

3. Press the /_, until "3:00" appears in the display for a 3 hour cycle, or press the v until "2:00" appears in the

display for a 2 hour cycle.

4. As soon as the A or v is released, "CLn" appears in the display.

5. As soon as the controls are set, the motor driven lock will begin to close automatically and the "LOCK" indicator

light wilt flash. DO NOT open the door while the light is flashing (it takes about 15 seconds for the oven door to

lock).

6. The "LOCK" light will glow until the cleaning cycle is completed or cancelled, and the oven temperature has cooled.

When the Self-Clean Cycle is Completed:

1. The time of day or "End" will appear in the display window and the "Clean" and "LOCK" light will continue to glow.

2. Once the oven has cooled down for about 1 HOUR and the "LOCK" light has gone out, the oven door can be

opened.

3. If "End" is in the display and the "Clean" indicator remains on, press @. The time of day will appear in the

display.

NOTE: When the oven is cool, wipe away any residue or powdered ash with a damp cloth or paper towel.

Stopping or Interrupting a Self-Cleaning Cycle

If it becomes necessary to stop or interrupt a self-cleaning cycle:

1. Press @.

2. Once the oven has cooled down for about 1 HOUR and the "LOCK" light has gone out, the oven door can be

opened.

3. Restart the self-clean cycle once all conditions have been corrected.

To avoid possible burns use care when opening the oven door after the self-cleaning cycle. Stand to the side

of the oven when opening the door to allow hot air or steam to escape.

DO NOT force the oven door open. This can damage the automatic door locking system. Use caution and avoid

possible burns when opening the door after the self-cleaning cycle has completed. The oven may still be VERY HOT.

19

General Care & Cleaning

Cleaning Table

Surfaces How to Clean

Aluminum (Trim Pieces) & Vinyl Use hot, soapy water and a cloth. Dry with a clean cloth.

Painted and Plastic Control Knobs, Body

Parts, and Decorative Trim

Stainless Steel, Chrome Control Panel,

Decorative Trim

Porcelain Enamel Broiler Pan and Insert,

Door Liner, Body Parts, Warmer Drawer

(some models)

Oven Racks

Oven door

Forgeneralcleaning, use hot, soapy water and a cloth. Formore difficultsoils and

built-up grease, apply a liquid detergent directly onto the soil. Leave on soil for 30

to 60 minutes. Rinse with a damp cloth and dry. DO NOT use abrasive cleaners

on any of these materials; they can scratch. To remove control knobs, turn to the

OFF position; grasp firmly and pull straight off the shaft. To replace knobs after

cleaning, line up the fiat sides of both the knob and the shaft; then push the knob

into place.

Before cleaning the controlpanel, turn all controls to OFF and remove the control

knobs. To remove, pull each knob straight off the shaft. Clean using hot, soapy

water and a dishcloth. Rinse with a clean water using a dishcloth. Be sure to

squeeze excess water from the cloth before wiping the panel; especially when

wiping around the controls. Excess water in or around the controls may cause

damage to the appliance .To replace knobs after cleaning, line up the fiat sides of

both the knob and the shaft; then push the knob into place.

Clean stainless steel with hot, soapy water and a dishcloth. Rinse with clean

water and a cloth. Do not use cleaners with high concentrations of chlorides

or chlorines. Do not use harsh scrubbing cleaners. Only use kitchen cleaners

that are especially made for cleaning stainless steel. Always be sure to rinse the

cleaners from the surface as bluish stains may occur during heating that cannot

be removed.

Gentle scouring with a soapy scouring pad will remove most spots. Rinse with a

1: 1solution of clear water and ammonia. If necessary, cover difficult spots with

an ammonia-soaked paper towel for 30 to 40 minutes. Rinse with clean water and

a damp cloth, and then scrub with a soap-filled scouring pad. Rinse and wipe dry

with a clean cloth. Remove all cleaners or the porcelain may become damaged

during future heating. DO NOT use spray oven cleaners on the cooktop.

Oven racks may be removed or left in the oven during the self-clean cycle for

cleaning. If removed, clean by using a mild, abrasive cleaner following

manufacturer's instructions. Rinse with clean water and dry.

Ifthe racks are cleaned in the self-clean cycle, their color will turn slightly blue and

the finish will be dull. After the self-clean cycle is complete, and the oven has

cooled, rub the sides of the racks with wax paper or a cloth containing a small

amount of baby oil or salad oil (this will make the racks glide easier into the rack

positions).

To clean oven door, wash with hot, soapy water and a clean cloth. DO NOT

immerse the door in water.

DO NOT clean the oven door gasket. The oven door gasket is made of a woven

material, on self cleaning models, which is essential for a good seal. Care should

be taken not to rub, damage or remove the gasket.

CeramicCooktop See Cooktop Cleaning and Maintenance in the General Care & Cleaning

section.

2O

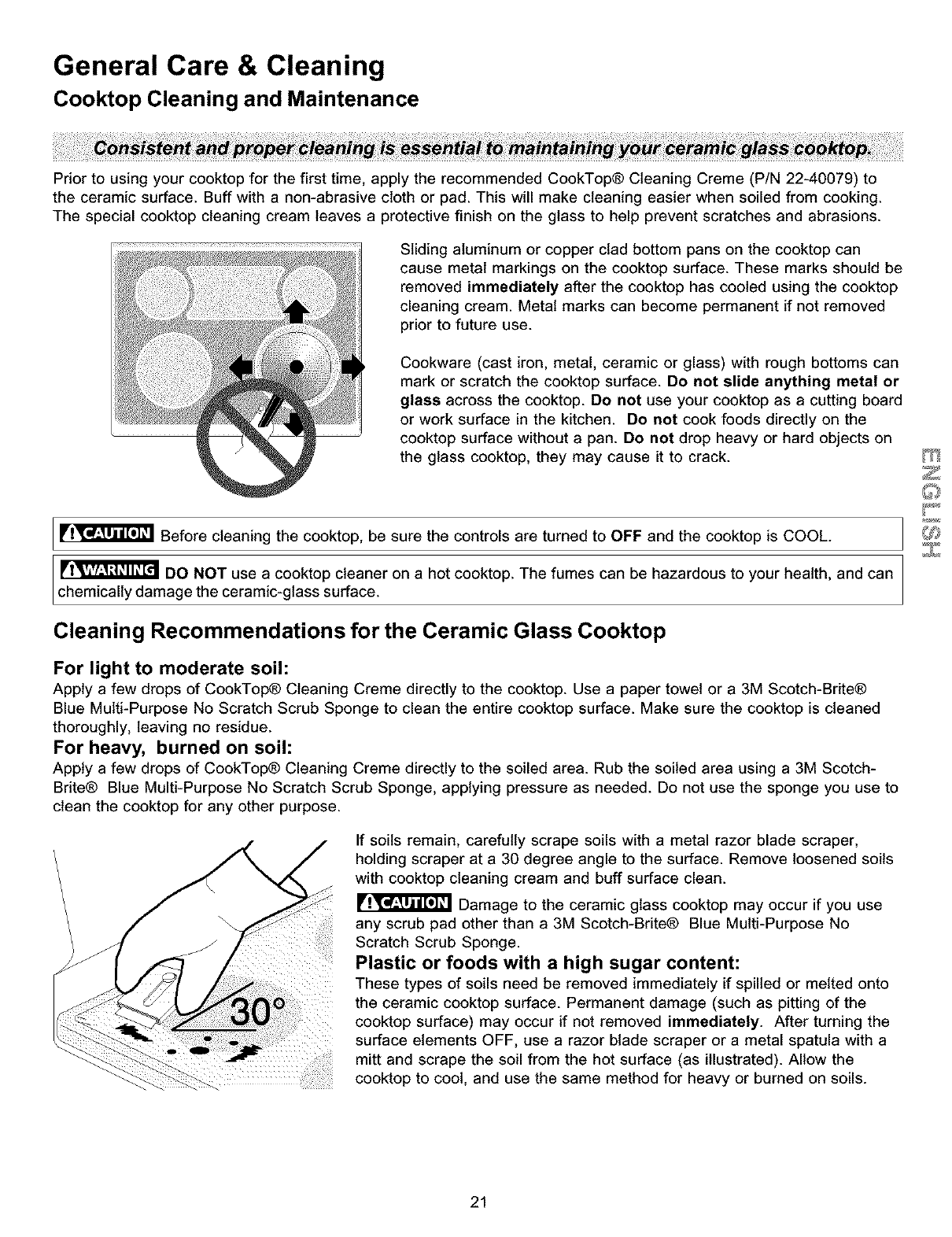

General Care & Cleaning

Cooktop Cleaning and Maintenance

Prior to using your cooktop for the first time, apply the recommended CookTop® Cleaning Creme (P/N 22-40079) to

the ceramic surface. Buff with a non-abrasive cloth or pad. This will make cleaning easier when soiled from cooking.

The special cooktop cleaning cream leaves a protective finish on the glass to help prevent scratches and abrasions.

Sliding aluminum or copper clad bottom pans on the cooktop can

cause metal markings on the cooktop surface. These marks should be

removed immediately after the cooktop has cooled using the cooktop

cleaning cream. Metal marks can become permanent if not removed

prior to future use.

Cookware (cast iron, metal, ceramic or glass) with rough bottoms can

mark or scratch the cooktop surface. Do not slide anything metal or

glass across the cooktop. Do not use your cooktop as a cutting board

or work surface in the kitchen. Do not cook foods directly on the

cooktop surface without a pan. Do not drop heavy or hard objects on

the glass cooktop, they may cause it to crack.

[Ir_[=_'_ITjT_'_ Before cleaning the cooktop, be sure the controls are turned to OFF and the cooktop is COOL.

_'|v£h_1:t#ll_[_ll DO NOT use a cooktop cleaner on a hot cooktop. The fumes can be hazardous to your health, and can

chemically damage the ceramic-glass surface.

Cleaning Recommendations for the Ceramic Glass Cooktop

For light to moderate soil:

Apply a few drops of CookTop® Cleaning Creme directly to the cooktop. Use a paper towel or a 3M Scotch-Brite®

Blue Multi-Purpose No Scratch Scrub Sponge to clean the entire cooktop surface. Make sure the cooktop is cleaned

thoroughly, leaving no residue.

For heavy, burned on soil:

Apply a few drops of CookTop® Cleaning Creme directly to the soiled area. Rub the soiled area using a 3M Scotch-

Brite® Blue Multi-Purpose No Scratch Scrub Sponge, applying pressure as needed. Do not use the sponge you use to

clean the cooktop for any other purpose.

If soils remain, carefully scrape soils with a metal razor blade scraper,

holding scraper at a 30 degree angle to the surface. Remove loosened soils

with cooktop cleaning cream and buff surface clean.

[Ir_["_'_I'_jT_'_ Damage to the ceramic glass cooktop may occur if you use

any scrub pad other than a 3M Scotch-Brite® Blue Multi-Purpose No

Scratch Scrub Sponge.

Plastic or foods with a high sugar content:

These types of soils need be removed immediately if spilled or melted onto

the ceramic cooktop surface. Permanent damage (such as pitting of the

cooktop surface) may occur if not removed immediately. After turning the

surface elements OFF, use a razor blade scraper or a metal spatula with a

mitt and scrape the soil from the hot surface (as illustrated). Allow the

cooktop to cool, and use the same method for heavy or burned on soils.

r

21

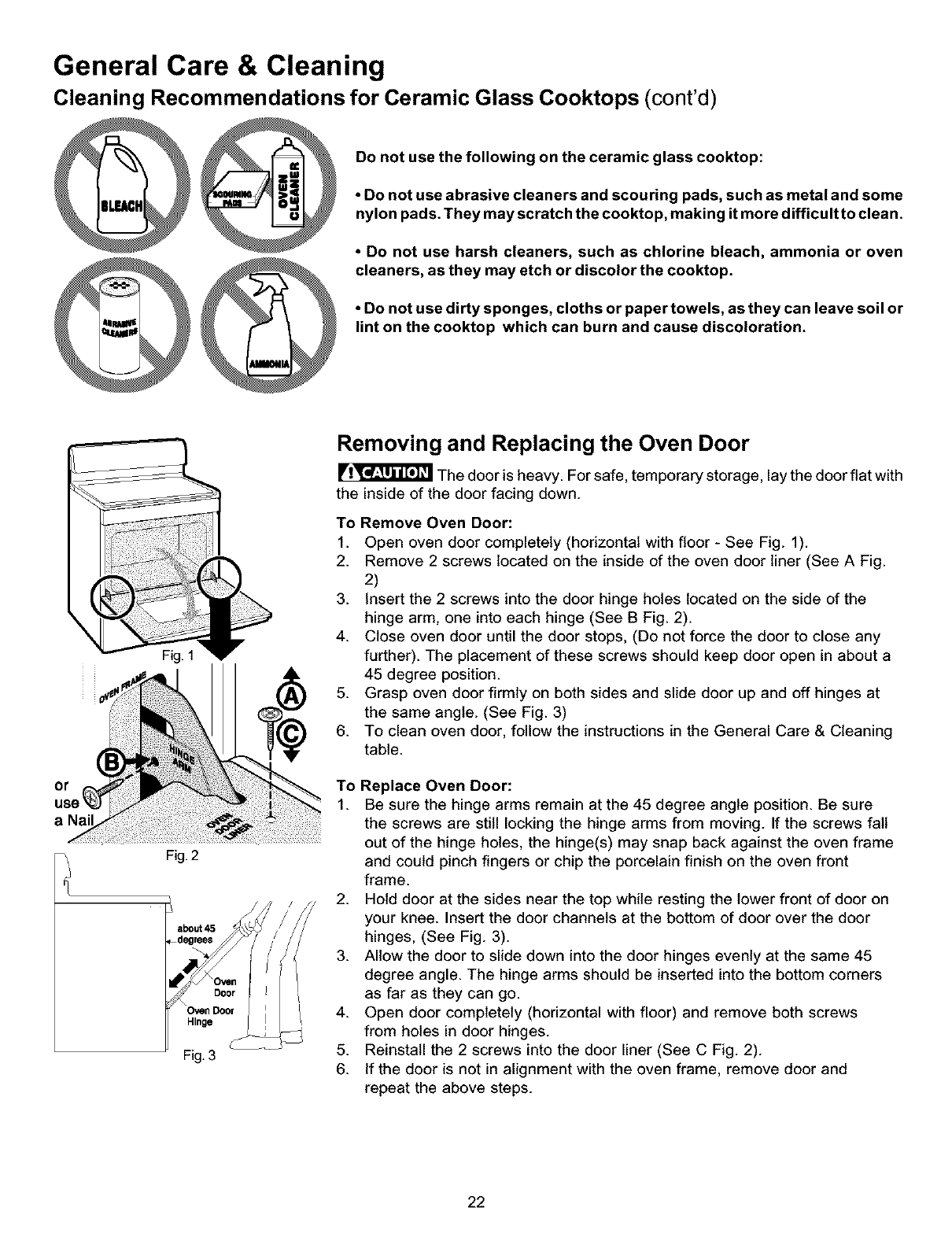

General Care & Cleaning

Cleaning Recommendations for Ceramic Glass Cooktops (cont'd)

Do not use the following on the ceramic glass cooktop:

• Do not use abrasive cleaners and scouring pads, such as metal and some

nylon pads. They may scratch the cooktop, making it more difficult to clean.

•Do not use harsh cleaners, such as chlorine bleach, ammonia or oven

cleaners, as they may etch or discolor the cooktop.

•Do not use dirty sponges, cloths or paper towels, as they can leave soil or

lint on the cooktop which can burn and cause discoloration.

Fig. 1

or

a Na

Fig. 2

about 45

Hinge

Fig, 3

Removing and Replacing the Oven Door

_1_ The door is heavy. For safe, temporary storage, lay the door flat with

the inside of the door facing down.

To Remove Oven Door:

1. Open oven door completely (horizontal with floor -See Fig. 1).

2. Remove 2 screws located on the inside of the oven door liner (See A Fig.

2)

3. Insert the 2 screws into the door hinge holes located on the side of the

hinge arm, one into each hinge (See B Fig. 2).

4. Close oven door until the door stops, (Do not force the door to close any

further). The placement of these screws should keep door open in about a

45 degree position.

5. Grasp oven door firmly on both sides and slide door up and off hinges at

the same angle. (See Fig. 3)

6. To clean oven door, follow the instructions in the General Care & Cleaning

table.

To Replace Oven Door:

1. Be sure the hinge arms remain at the 45 degree angle position. Be sure

the screws are still locking the hinge arms from moving. If the screws fall

out of the hinge holes, the hinge(s) may snap back against the oven frame

and could pinch fingers or chip the porcelain finish on the oven front

frame.

2. Hold door at the sides near the top while resting the lower front of door on

your knee. Insert the door channels at the bottom of door over the door

hinges, (See Fig. 3).

3. Allow the door to slide down into the door hinges evenly at the same 45

degree angle. The hinge arms should be inserted into the bottom corners

as far as they can go.

4. Open door completely (horizontal with floor) and remove both screws

from holes in door hinges.

5. Reinstall the 2 screws into the door liner (See C Fig. 2).

6. If the door is not in alignment with the oven frame, remove door and

repeat the above steps.

22

General Care & Cleaning

Changing the Oven Light

On some models, the oven light automatically turns on when the door is

opened. Some models have a switch located on the control panel to turn on

the light. The oven light is located at the rear of the oven and is covered

with a glass shield held by a wire holder. The glass shield must be in place

whenever the oven is in use.

To replace the oven light:

1. Turn electrical power off at the main source or unplug the range.

2. Press wire holder to one side to release the glass shield.

3. Replace bulb with a new 40 watt appliance bulb.

4. Replace glass shield over bulb and snap wire holder into place.

5. Turn power back on again at the main source (or plug the range back

in).

6. The clock wilt then need to be reset. To reset, see Setting the Clock

and Minute Timer in this Use & Care Guide.

Oven

Ught

Wire

Holdel

Be sure the range is unplugged and all parts are COOL before

replacing oven light. Wear a leather-faced glove for protection against possible

broken glass.

Care and Cleaning of Stainless Steel (some models)

Some models are equipped with stainless steel exterior parts. Special care and cleaning are required for maintaining the _'_

appearance of stainless parts. Refer to the Care & Cleaning table for detailed cleaning instructions.

Adjusting Your Oven Temperature

Your oven control has been precisely set at the factory. This setting may differ from your previous oven however, so your

recipe times may not give you the results you expect. If you think that the oven is cooking too hot or too cool for your recipe

times, you can adjust the control so that the oven cooks hotter or cooler than the temperature displayed.

To Adjust Oven Temperature:

1. Press (_.

2. Set the temperature to 550°F (287°C) by pressing and holding the /_

3. Within 2 seconds, press and hold _ until the 2 digit display appears. Release (_,). The display now indicates the

amount of degrees offset between the original factory temperature setting and the current temperature setting. If the

oven control has the original factory calibration, the display will read "0."

4. The temperature can now be adjusted up or down 35°F (17°C), in 5°F steps by pressing and holding the A. or v .

Adjust until the desired amount of offset appears in the display. When lowering the oven temperature, a minus sign (-

) will appear before the number to indicate that the oven will be cooler by the displayed amount of degrees.

5. When you have made the desired adjustment, press _ to go back to the time of day display.

Note: The adjustments made will not change the self-cleaning temperature.

23

Before You Call

Solutions to Common Problems

Before you call for service, review this list. It may save you time and expense. The list includes common occurrences that

are not the result of defective workmanship or materials in this appliance.

OCCURRENCE

Range is not level.

Cannot move appliance easily. Appliance

must be accessible for service.

Oven control beeps and displays

F1, F3 or F9.

Surface element too hot or not hot enough.

Surface element does not heat.

Entire appliance does not operate.

POSSIBLE CAUSE/SOLUTION

Poor installation. Place oven rack in center of oven. Place alevel on the oven rack. Adjust

leveling legs at base of range until the oven rack is level.

Be sure floor is level and is strong and stable enough to adequately support range.

if floor is sagging or sloping, contact a carpenter to correct the situation.

Kitchen cabinet alignment may make range appear unlevel. Be sure cabinets are square

and have sufficient room for range clearance.

Cabinets not square or are built in too tightly. Contact builder or installer to make

appliance accessible.

Carpet interferes with range. Provide sufficient space so range can be lifted over carpet.

Electronic control has detected a fault condition. Press STOP/CLEAR to clear the display

and stop beeping. Reprogram oven. If fault recurs, record fault number. Press STOP/

CLEAR and call 1-800-4-MY-HOME® for assistance (See back cover).

Incorrect control setting. Make sure the correct control is on for the element to be used.

Lightweight or warped pans used. Use only flat, evenly balanced, medium or heavyweight

cookware. Flat pans heat better than warped pans. Cookware materials and weight of

the material affect heating. Heavy and medium-weight pans heat evenly. Because

lightweight pans heat unevenly, foods may burn easily.

No power to the appliance. Check steps under "Entire Appliance Does Not Operate" in

this Before You Call checklist.

Incorrect control setting. Make sure the correct control is on for the surface unit to be used.

Make sure cord/plug is plugged tightly into outlet.

Service wiring is not complete. Call I*800-4-MY*HOM E® for assistance (See back cover).

Power outage. Check house lights to be sure. Call your local electric company for

service.

24

Before You Call

Solutions to Common Problems

Oven light does not work. Replace or tighten bulb. See Changing Oven Light section in this Use & Care Guide.

Oven smokes excessively during broiling. Control(s) not set properly. Follow instructions under Setting Oven Controls,

Make sure oven door is opened to broil stop position.

Meat too close to the element. Reposition the rack to provide proper clearance between the

meat and the element. Preheat broil element for searing.

Meat not properly prepared. Remove excess fat from meat. Cut remaining fatty edges

to prevent curling, but do not cut into lean.

Insert on broiler pan wrong side up and grease not draining. Always place grid on the

broiler pan with ribs up and slots down to allow grease to drip into pan.

Grease has built up on oven surfaces. Regular cleaning is necessary when broiling

frequently. Old grease or food spatters cause excessive smoking.

Poor baking results. Many factors affect baking results. Make sure the proper rack position is used. Center

food in the oven and space pans to allow air to circulate. Allow the oven to preheat to

the set temperature before placing food in the oven. Try adjusting the recipe's

recommended temperature or baking time. If you feel the oven is too hot or cool, see

Adjusting Your Oven Temperature in this Use & Care Guide.

Self-cleaning cycle does not work. Control(s) not set properly. Follow instructions under Self-Cleaning.

Self-cleaning cycle was interrupted. Follow steps under"Stopping or Interrupting a Self- /_'_

Cleaning Cycle" under Self-Cleaning.

Soil not completely removed after self-

cleaning cycle.

Failure to clean bottom, front top of oven, frame of oven or door area outside oven seal.

These areas are not in the self-cleaning area, but get hot enough to burn on residue.

Clean these areas before the self-cleaning cycle is started. Burned-on residue can be

cleaned with a stiff nylon brush and water or a nylon scrubber. Be careful not to damage

the oven gasket.

Flames inside oven or smoking from vent. Excessive spillovers in oven. Set self-clean cycle for a longer cleaning time.

Excessive spillovers in oven. This is normal, especially for high oven temperatures, pie

spillovers or large amounts of grease on bottom of oven. Wipe up excessive spillovers

before starting cycle. If flames or excessive smoke are present, stop the self-clean cycle

and follow steps under "Stopping or Interrupting a Self-Cleaning Cycle" in the Self-

Cleaning section.

Drip bowls are pitting or rusting (Coil Foods with acids, such as tomatoes, if allowed to stand in/on bowls will cause corrosion.

cooktopmodelsonly). Remove and wash drip bowls as soon as possible after a spillover

Normal environment. Houses along sea coast are exposed to salt air. Protect bowls as

much as possible from direct exposure to salt air.

Drip bowls turning color or distorted (Coil Bottom surface of cookware extends beyond surface elements and touches cooktop

cooktopmodelsonly), surface. This can cause high enough temperatures to discolor the drip bowls. DO NOT

use cookware of this type. Pan sizes should be matched to the size of the element.

Replacement drip bowls may be purchased from your dealer.

Scratches or abrasions on cooktop surface Coarse particles such as salt or sand between cooktop and utensils can cause scratches.

(Ceramic-Glass cooktop models only). Be sure cooktop surface and bottoms of utensils are clean before usage. Small scratches

do not affect cooking and will become less visible with time.

Cleaning materials not recommended for ceramic-glass cooktop have been used. See

"Cooktop Cleaning and Maintenance" in the General Care & Cleaning section.

Cookware with rough bottom has been used. Use smooth, flat-bottomed cookware.

Metal marks

(Ceramic-Glass cooktop models only).

Sliding or scraping of metal utensils on cooktop surface. Do not slide metal utensils on

cooktop surface. Use a ceramic-glass cooktop cleaning creme to remove the marks. See

"Cooktop Cleaning and Maintenance" in the General Care & Cleaning section.

Brown streaks or specks Boilovers are cooked onto surface. Use razor blade scraper to remove soil. See"Cooktop

(Ceramic-Glass cooktop models only). Cleaning and Maintenance" in the General Care & Cleaning section.

Areas of discoloration with metallic sheen Mineral deposits from water and food. Remove using a ceramic-glass cooktop cleaning

(Ceramic-Glass cooktop models only), creme. Use cookware with clean, dry bottoms.

25

Get it fixed, at your home or ours!

Your Home

For repair-in your home-of all major brand appliances,

lawn and garden equipment, or heating and cooling systems,

no matter who made it, no matter who sold it!

For the replacement parts, accessories and

owner's manuals that you need to do-it-yourself,

For Sears professional installationof home appliances

and items like garage door openers and water heaters,

1-800-4-MY-HOME ®(1-800-469-4663)

Call anytime, day or night (U.S.A. and Canada)

www.sears.com www.sears.ca

Our Home

For repair of carry-in items like vacuums, lawn equipment,

and electronics, call or go on-line for the locationof your nearest

Sears Parts & Repair Center.

1-800-488-1222

Call anytime, day or night (U,S,A, only)

www,sears,com

To purchase aprotection agreement (U.S.A.)

or maintenance agreement (Canada) on a product serviced by Sears:

1-800-827-6655 (U.S,A.) 1-800-361-6665 (Canada)

Para pedir servicio de reparaci6n

adomicilio, y para ordenar piezas:

1-888-SU-HOGAR s"

(1-888-784-6427)

Au Canada pour service en fran(;ais:

1-800-LE-FOYER Mc

(1-800-533-6937)

www.sears.ca

E/A/RS

3M 8M

®Registered Trademark /Trademark /Service Mark of Sears, Roebuck and Co

TM SM

®Marca Regmrada /Marca de Fdbnca /Mama de Servicio de Sears, Roebuck and Co

MC MD

Marque de commerce /Marque d6pos6e de Sears. Roebuck and Co. © Sears, Roebuck and CO.
