ELECTRIC SELF-CLEANING RANGE
Use & Care Guide
ESTUFA ELECTRICA AUTOLIMPIANTE
Manual del usuario
m
p-
1"11
t_
!
Sears Roebuck and Co., Hoffman Estates, IL 60179 U.S.A. P/N 316000967 (0001)
www,sears.com

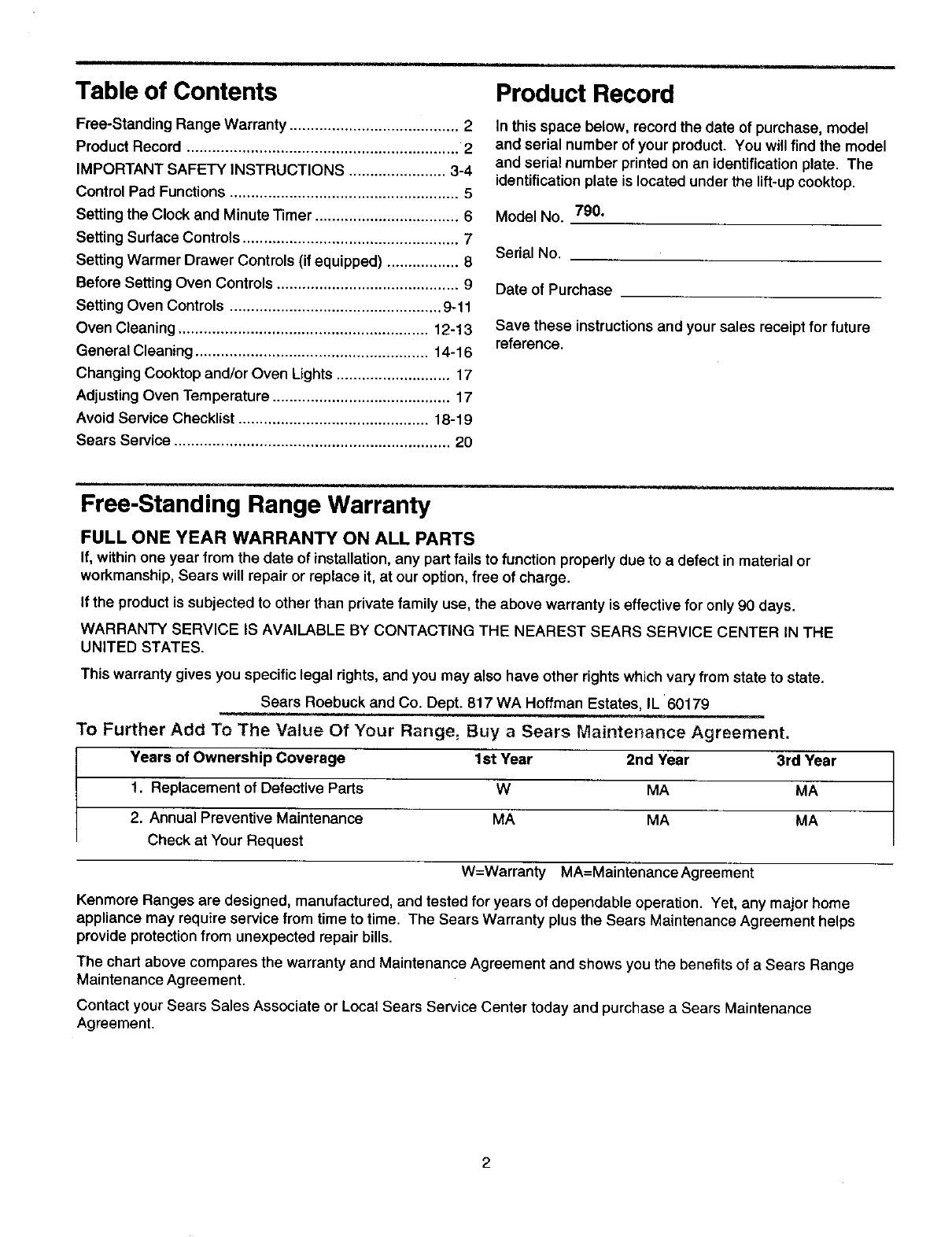

Table of Contents
Free-Standing Range Warranty ........................................ 2
Product Record ................................................................ 2
IMPORTANT SAFETY INSTRUCTIONS ....................... 3-4

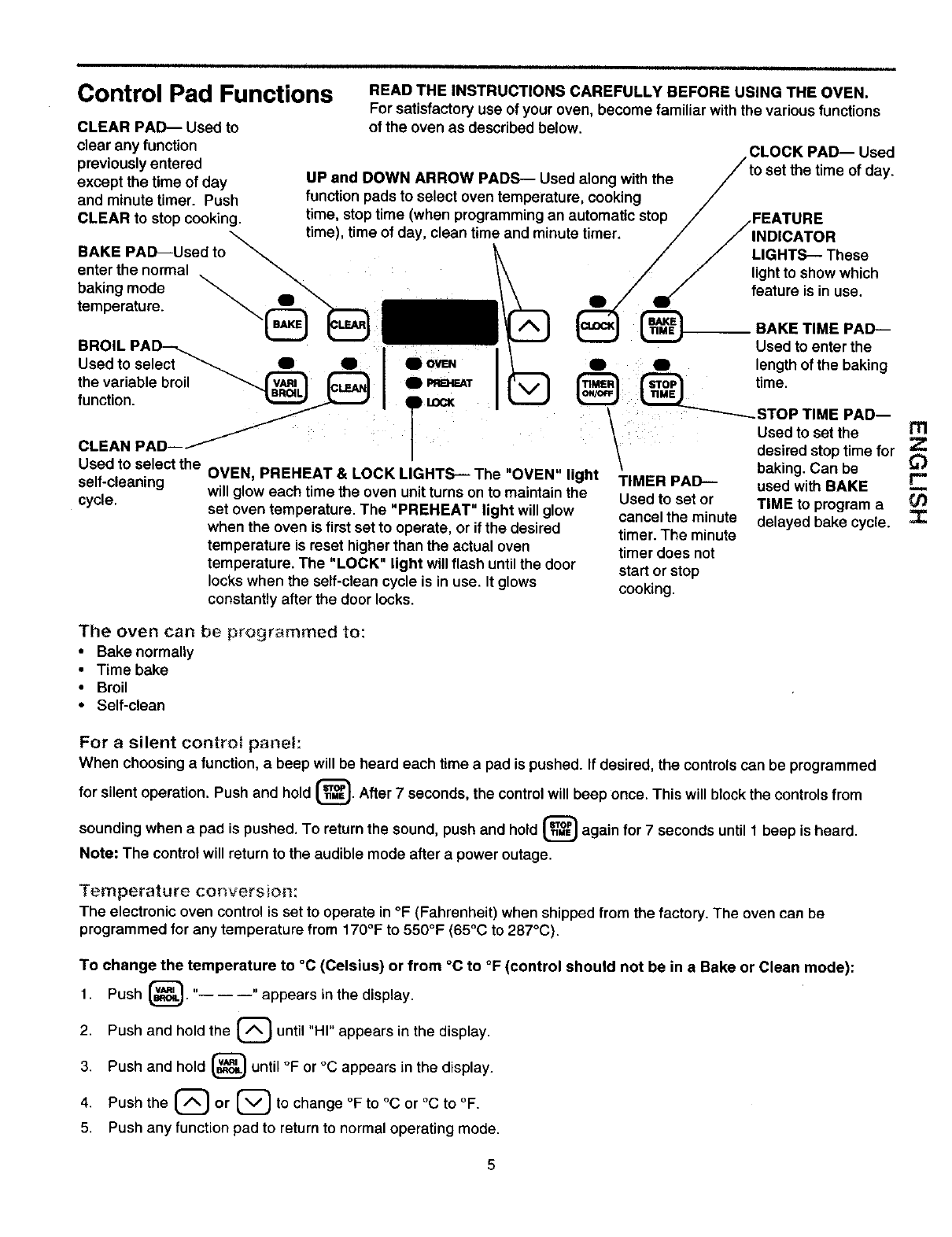

Control Pad Functions ...................................................... 5

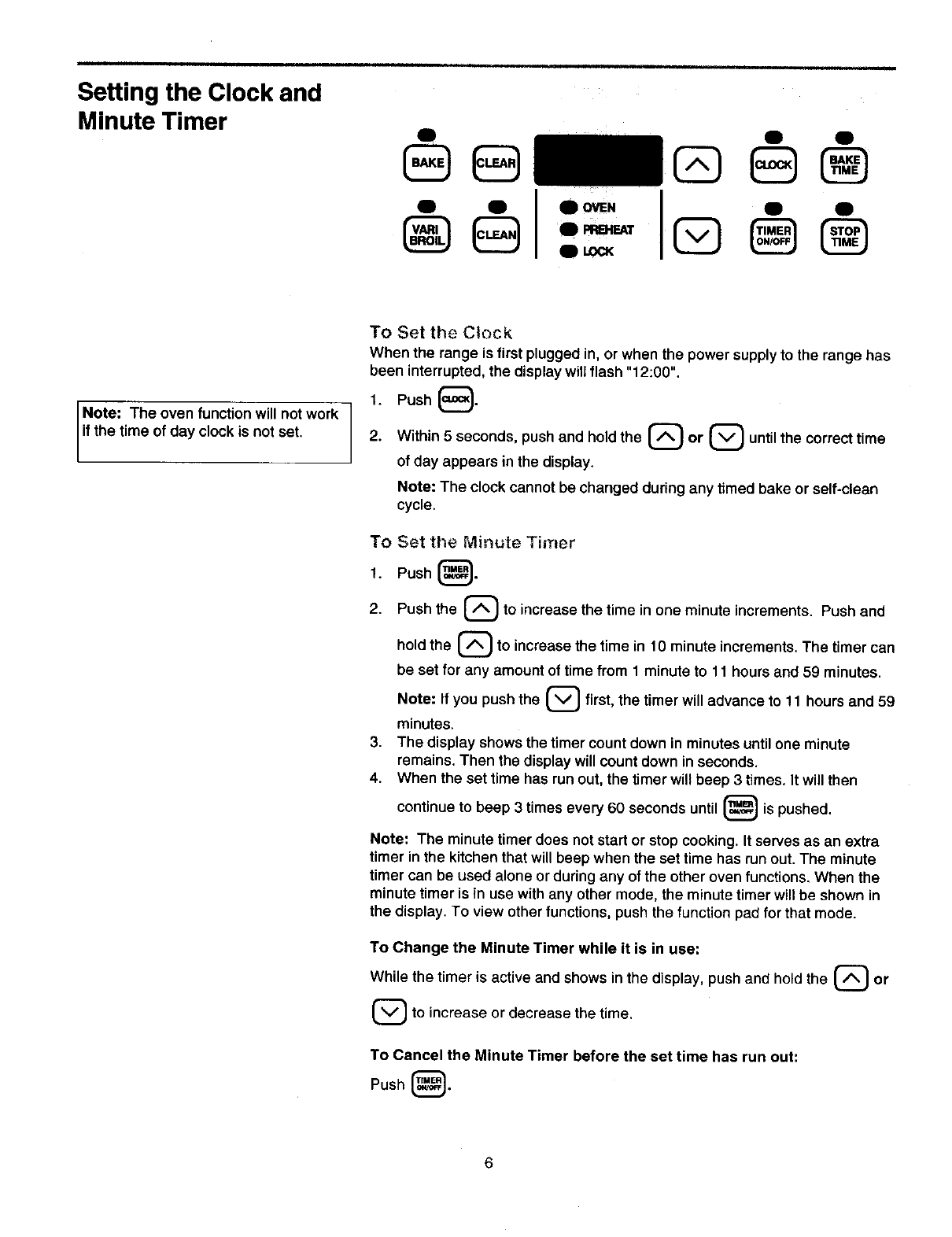

Setting the Clock and Minute 33mer .................................. 6

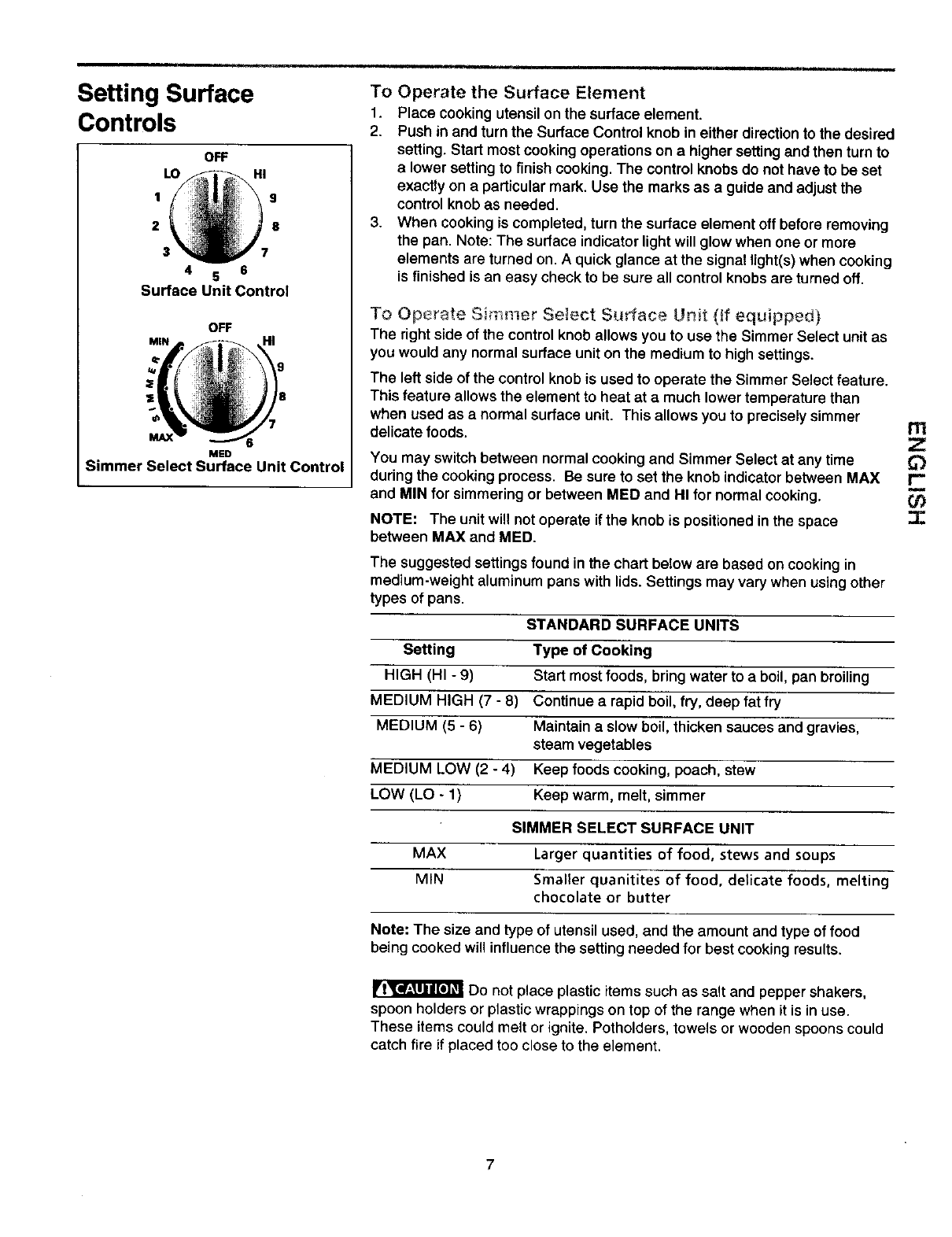

Setting Surface Controls ................................................... 7

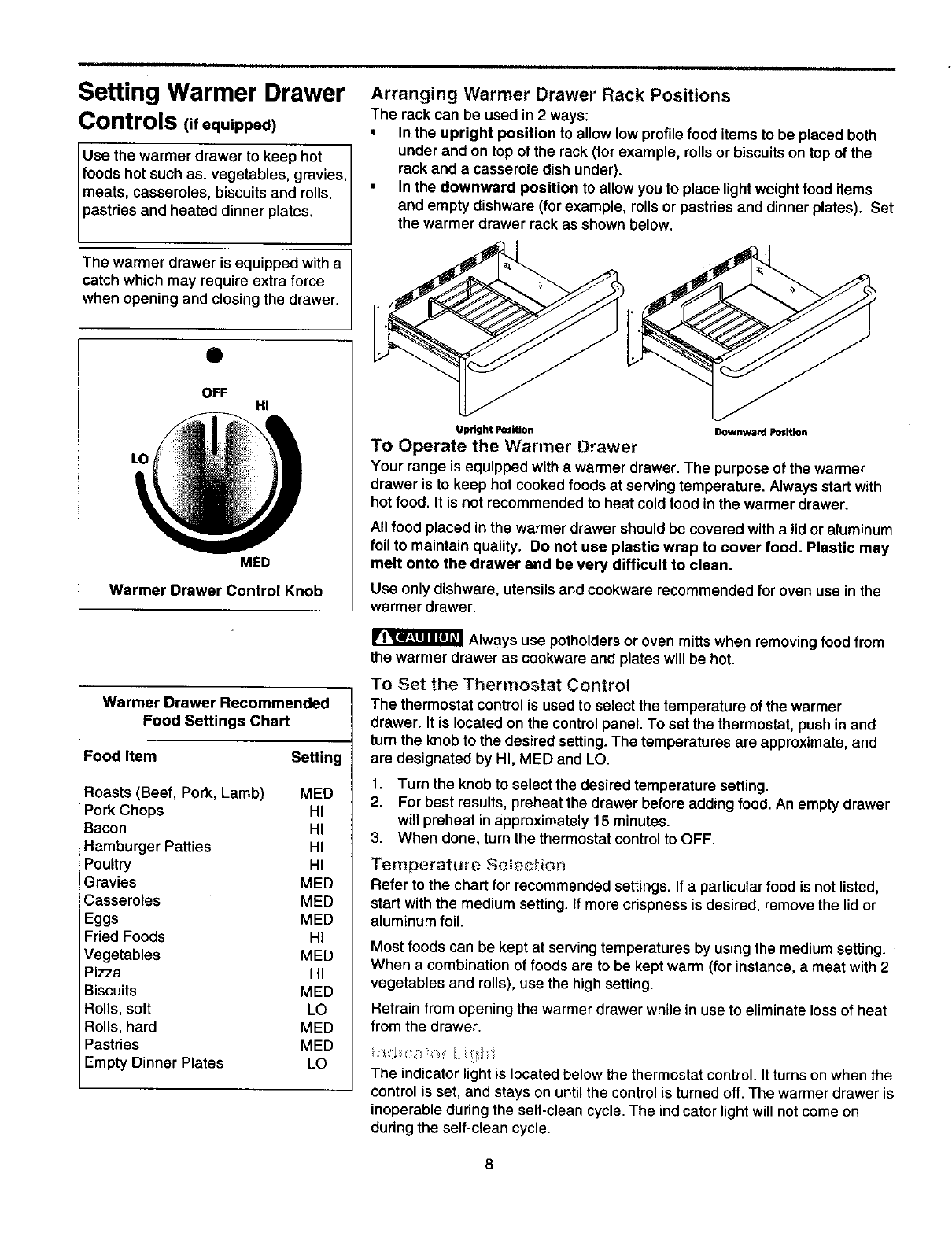

Setting Warmer Drawer Controls (if equipped) ................. 8

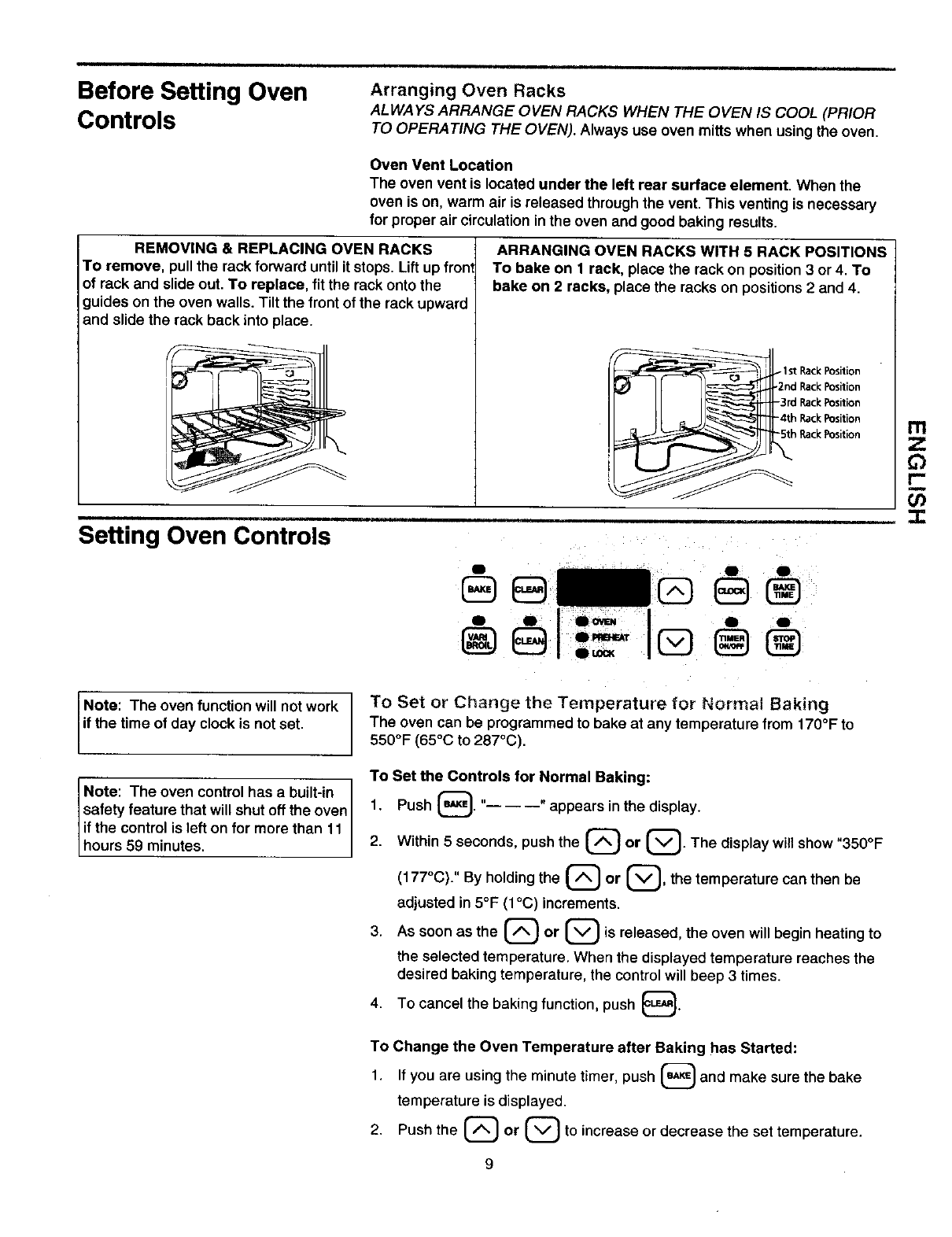

Before Setting Oven Controls ........................................... 9

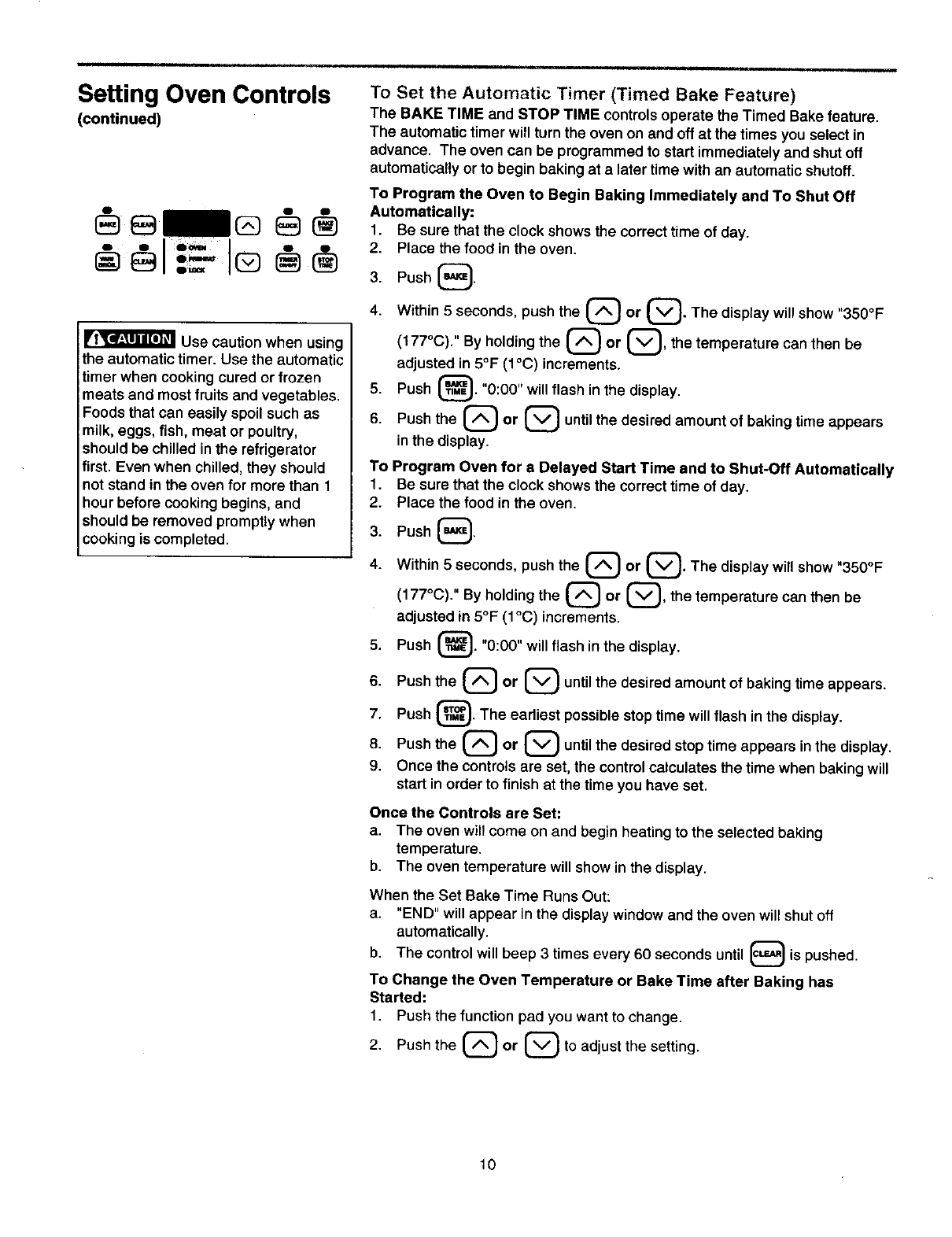

Setting Oven Controls .................................................. 9-11

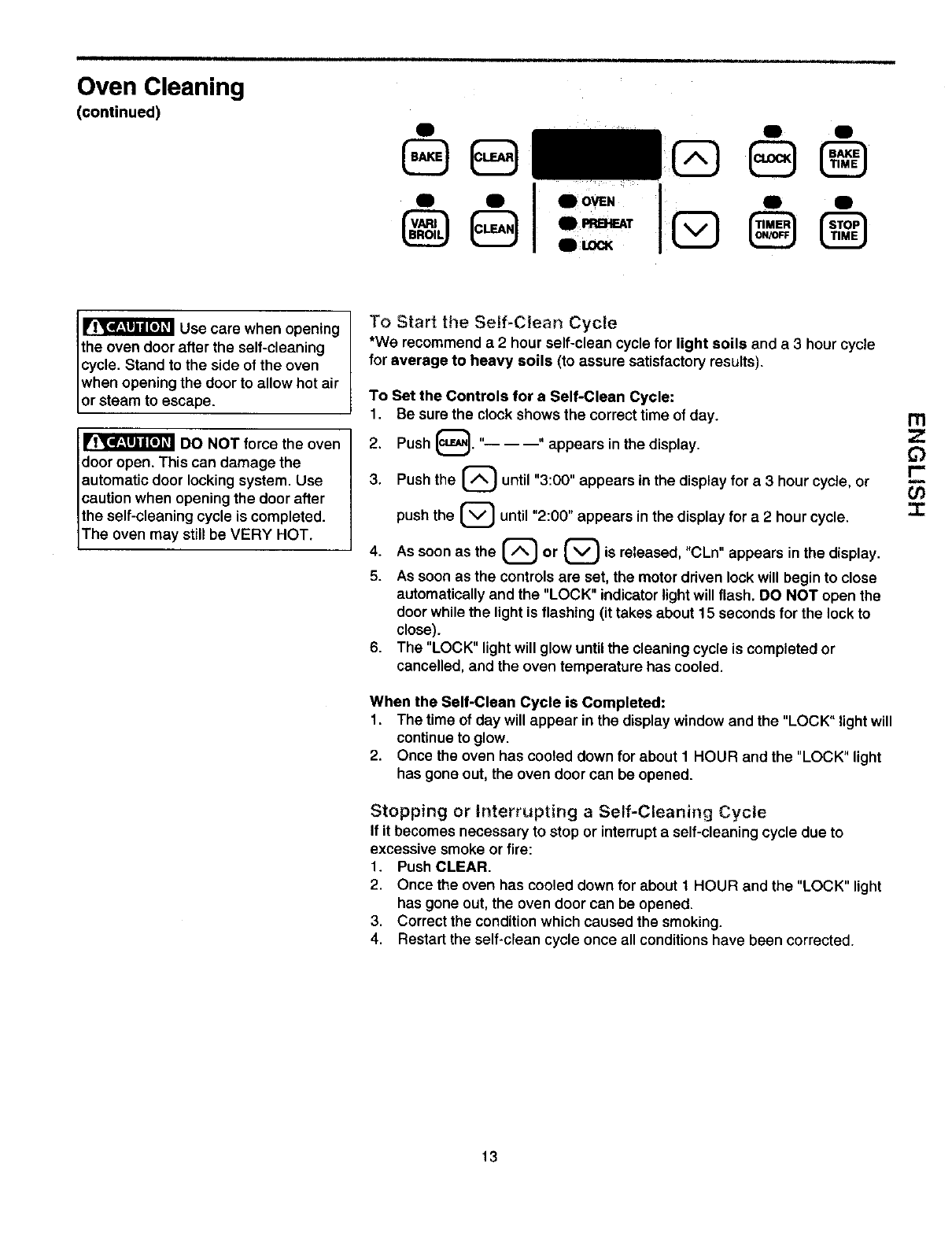

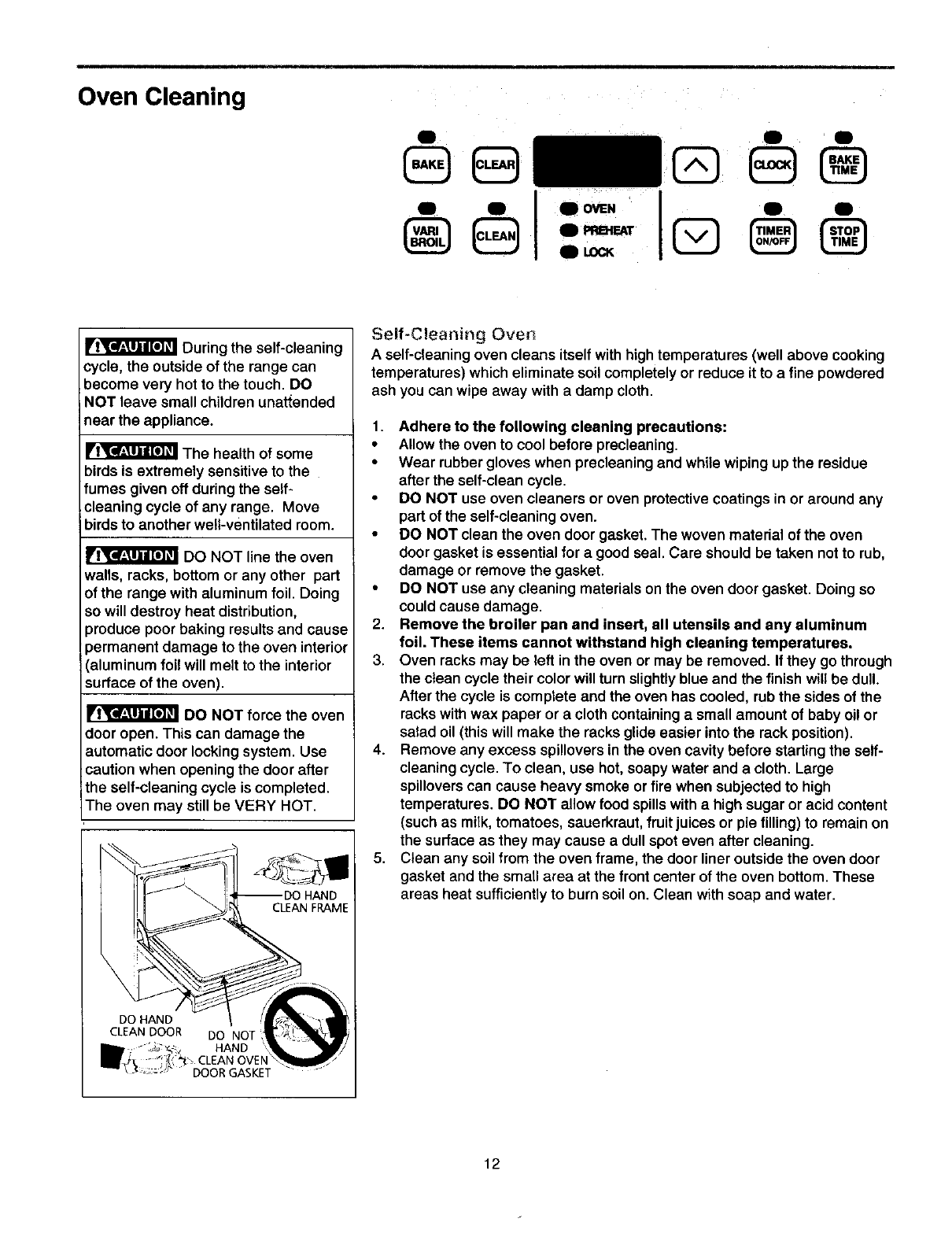

Oven Cleaning ........................................................... 12-13

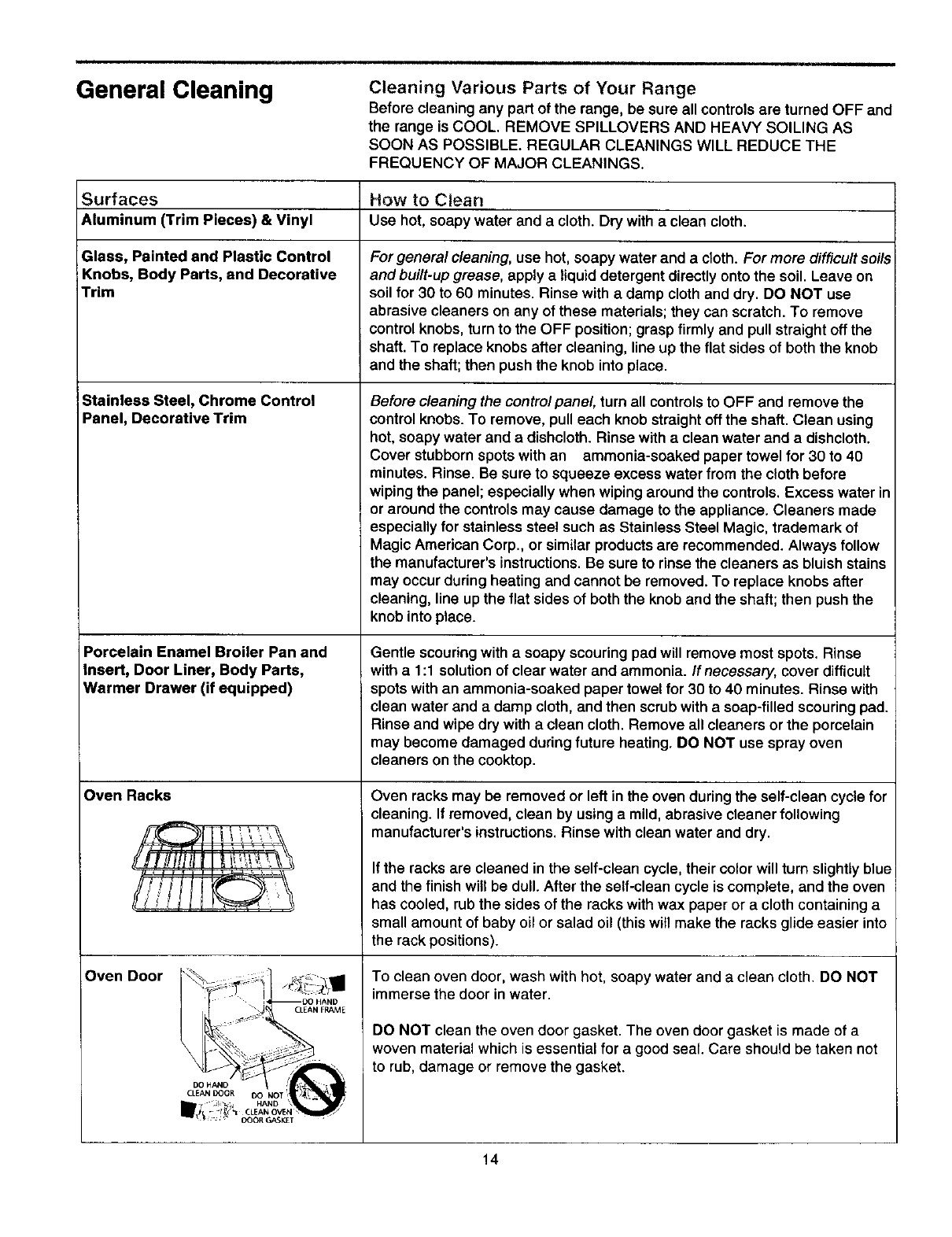

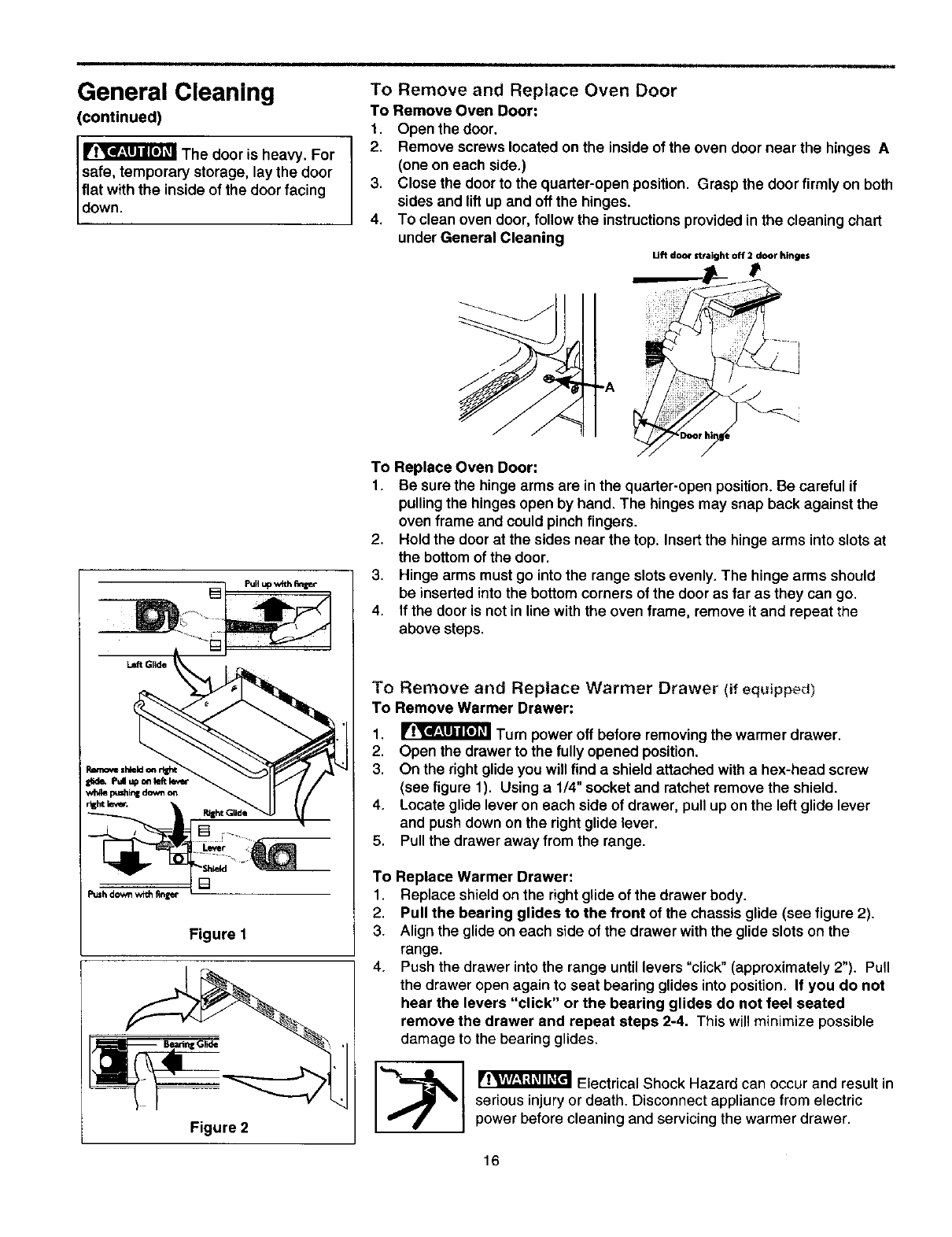

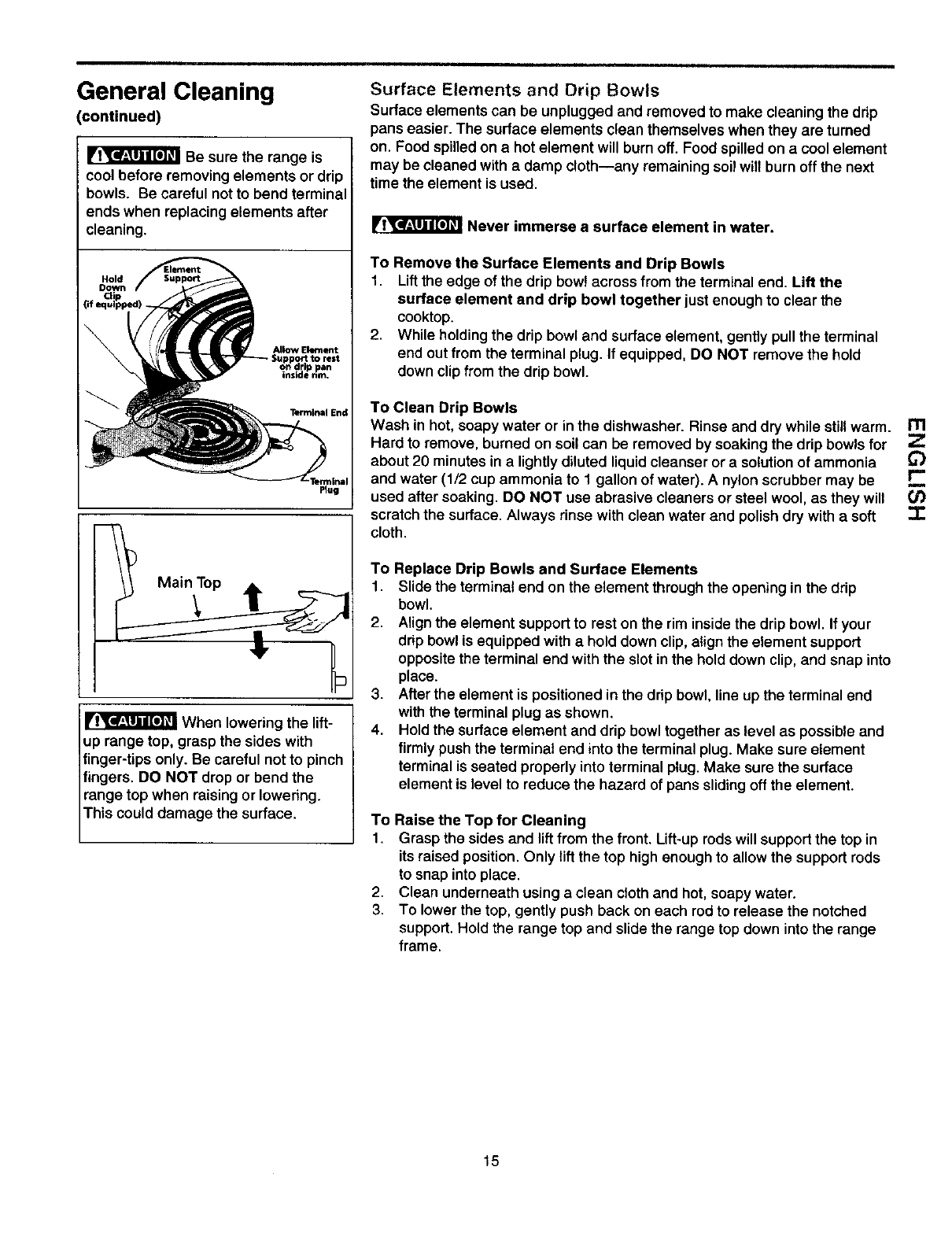

General Cleaning ....................................................... 14-16

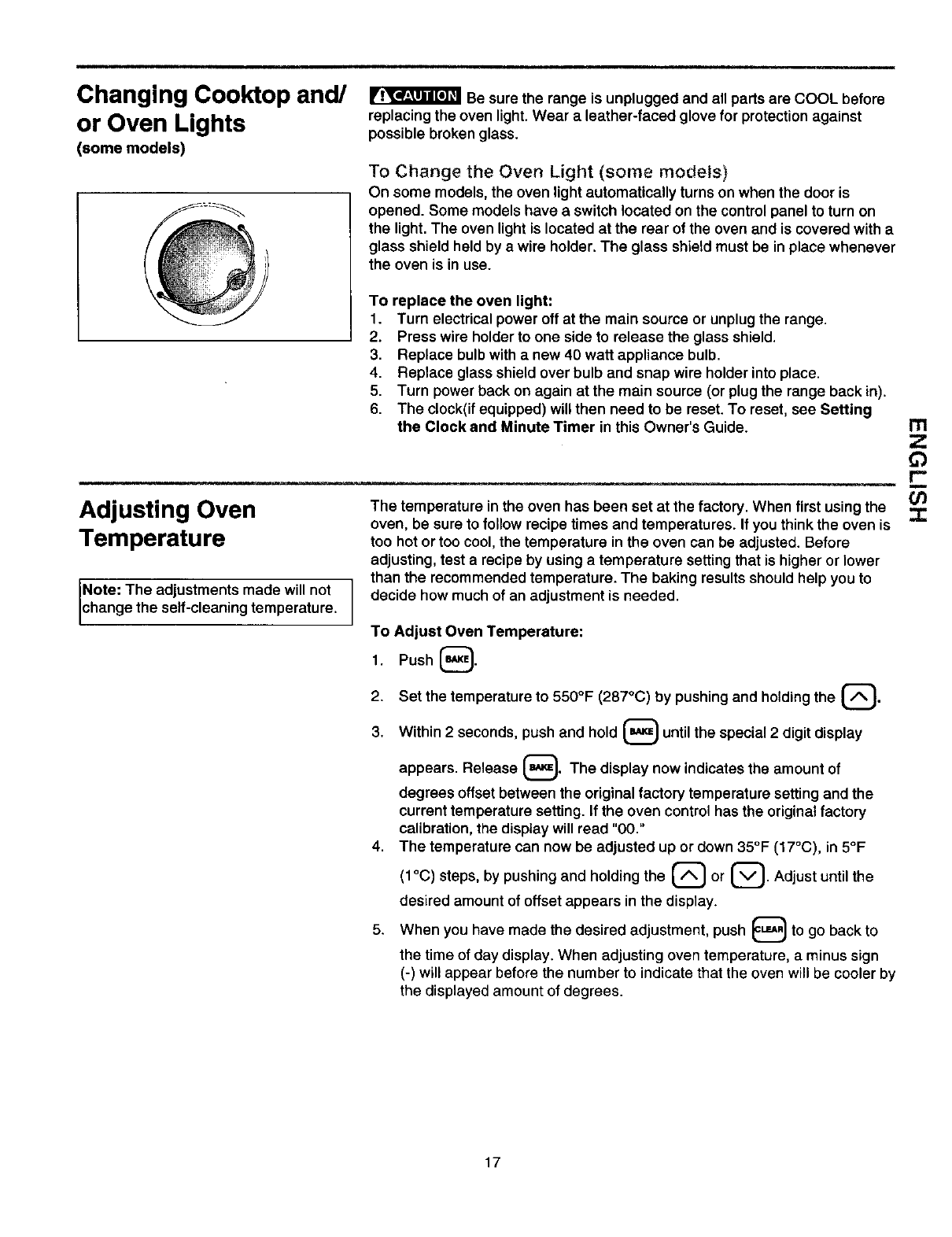

Changing Cooktop and/or Oven Lights ........................... 17
Adjusting Oven Temperature .......................................... 17

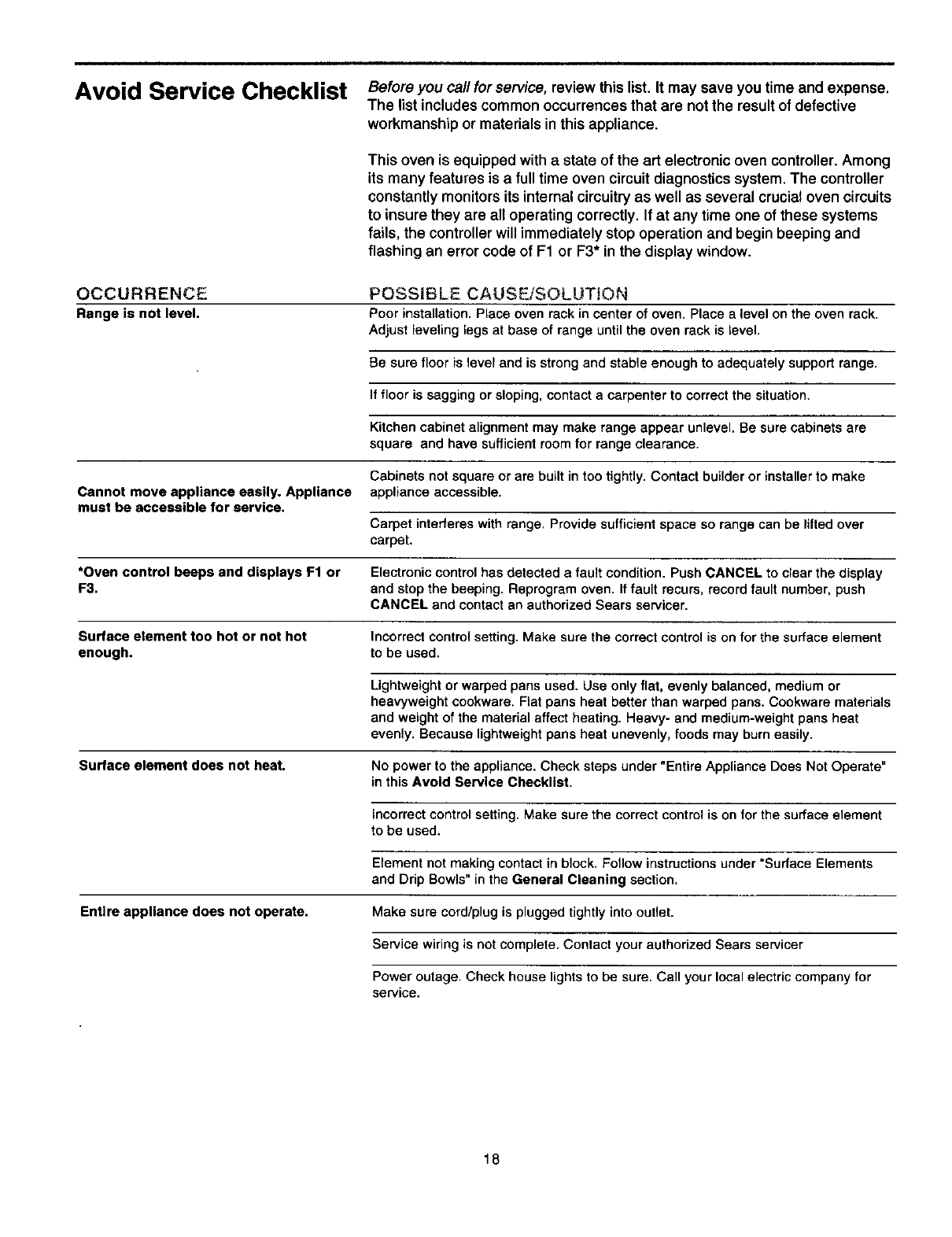

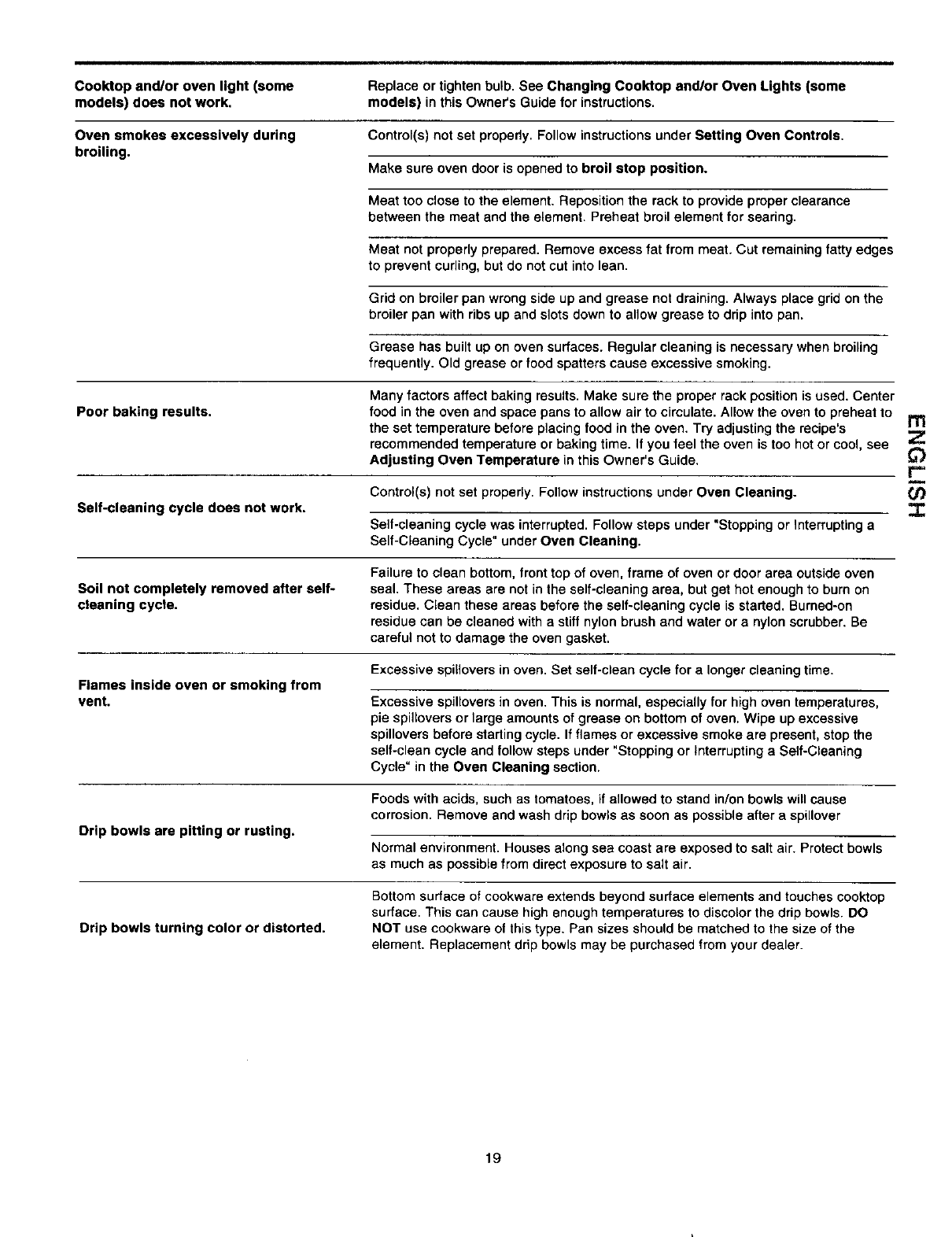

Avoid Service Checklist ............................................. 18-19

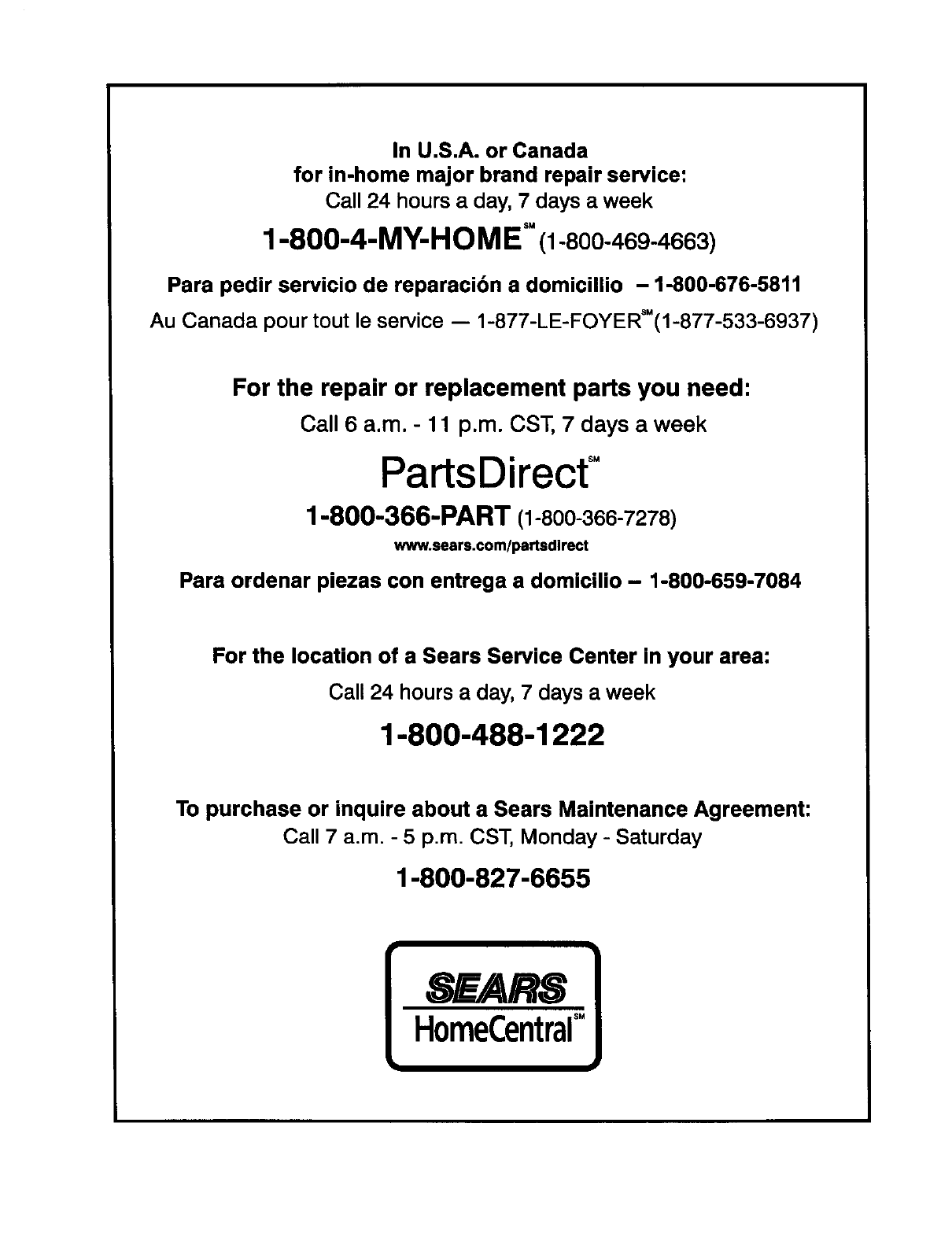

Sears Service ................................................................. 20
Product Record
In this space below, record the date of purchase, model
and serial number of your product. You will find the model
and serial number printed on an identification plate. The
identification plate is located under the lift-up cooktop.
Model No. 790.
Serial No.
Date of Purchase
Save these instructions and your sales receipt for future
reference.
Free-Standing Range Warranty
FULL ONE YEAR WARRANTY ON ALL PARTS
If, within one year from the date of installation,any part fails to function properly due to a defect in material or
workmanship, Sears will repair or replace it, at our option,free of charge.
If the product issubjected to other than private family use, the above warranty iseffectivefor only 90 days.
WARRANTY SERVICE IS AVAILABLE BY CONTACTING THE NEAREST SEARS SERVICE CENTER IN THE
UNITED STATES.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
Sears Roebuck and Co. Dept. 817 WA Hoffman Estates, IL 60179
_,,,, , , ,
To Further Add To The Value Of Your Range, Buy aSears Maintenance Agreement.
Years of Ownership Coverage 1st Year 2nd Year 3rd Year
1. Replacement of Defective Parts W MA MA
2. Annual Preventive Maintenance MA MA MA
Check at Your Request
W=Warranty MA=Maintenance Agreement
Kenmore Ranges are designed, manufactured, and tested for years of dependable operation. Yet, any major home
appliance may require service from time to time. The Sears Warranty plus the Sears Maintenance Agreement helps
provide protectionfrom unexpected repair bills.
The chartabove compares the warranty and Maintenance Agreement and shows you the benefitsof a Sears Range
Maintenance Agreement.
Contact your Sears Sales Associate or Local Sears Service Center today and purchase a Sears Maintenance
Agreement.

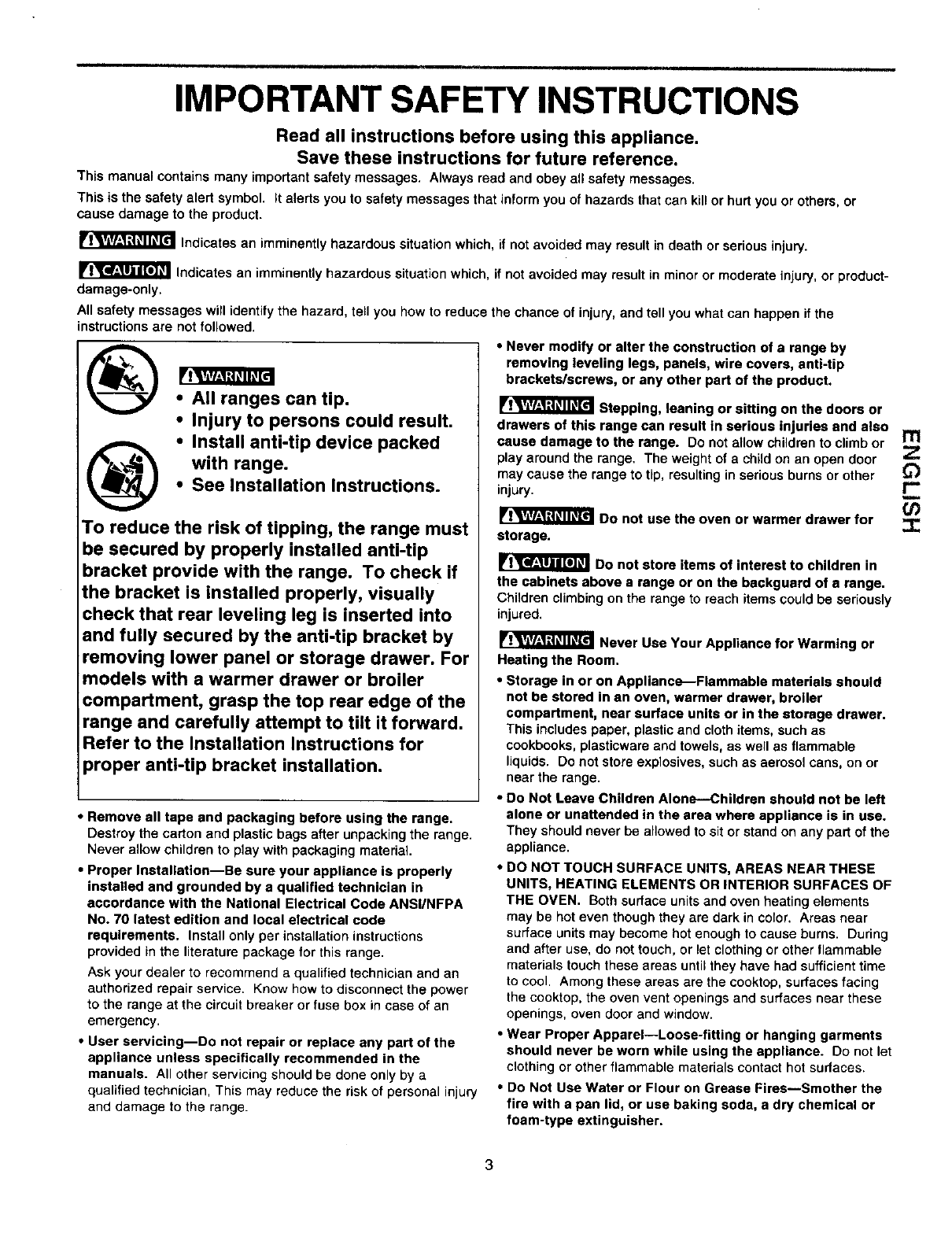

IMPORTANT SAFETY INSTRUCTIONS
Read all instructions before using this appliance.
Save these instructions for future reference.
This manual contains many important safety messages. Always read and obey all safety messages.
This is the safety alert symbol. It alerts you to safety messages that inform you of hazards that can kill or hurt you or others, or
cause damage to the product.
Indicates an imminently hazardous situation which, if not avoided may result in death or serious injury.
Indicates an imminently hazardous situation which, if not avoided may result in minor or moderate injury, or product-
damage-only.
All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell you what can happen if the
instructions are not followed.
®
®•All ranges can tip.
•Injury to persons could result.
•Install anti-tip device packed
with range.
•See Installation Instructions.
To reduce the risk of tipping, the range must
be secured by properly installed anti-tip
bracket provide with the range. To check if
the bracket is installed properly, visually
check that rear leveling leg is inserted into
and fully secured by the anti-tip bracket by
removing lower panel or storage drawer. For
models with a warmer drawer or broiler
compartment, grasp the top rear edge of the
range and carefully attempt to tilt it forward.
Refer to the Installation Instructions for
proper anti-tip bracket installation.
• Remove all tape and packaging before using the range.
Destroy the carton and plastic bags after unpacking the range.
Never allow children to play with packaging material
•Proper Installation--Be sure your appliance is properly
installed and grounded by a qualified technician in
accordance with the National Electrical Code ANSI/NFPA
No. 70 latest edition and local electrical code
requirements. Install only per installation instructions
provided in the literature package for this range.
Ask your dealer to recommend aqualified technician and an
authorized repair service. Know how to disconnect the power
to the range at the circuit breaker or fuse box in case of an
emergency.
• User servicing--Do not repair or replace any part of the
appliance unless specifically recommended in the
manuals. All other servicing should be done only by a
qualified technician, This may reduce the risk of personal injury
and damage to the range.
•Never modify or alter the construction of a range by
removing leveling legs, panels, wire covers, anti-tip
brackets/screws, or any other part of the product.
FI "viv/-'q:loll_[€ll stepping, leaning or sitting on the doors or
drawers of this range can result in serious injuries and also
cause damage to the range. Do not allow children to climb or
play around the range, The weight of a child on an open door
may cause the range to tip, resulting in serious burns or other
injury.
Do not use the oven or warmer drawer for
storage.
Do not store items of interest to children in
the cabinets above a range or on the backguard of a range.
Children climbing on the range to reach items could be seriously
injured,
rlwl.,l:_ll_[_ Never Use Your Appliance for Warming or
Heating the Room.
•Storage in or on Appliance--Flammable materials should
not be stored in an oven, warmer drawer, broiler
compartment, near surface units or in the storage drawer.
This includes paper, plastic and cloth items, such as
cookbooks, plasticware and towels, as well as flammable
liquids. Do not store explosives, such as aerosol cans, on or
near the range.
• Do Not Leave Children Alone--Children should not be left
alone or unattended in the area where appliance is in use.
They should never be allowed to sit or stand on any part of the
appliance.
•DO NOT TOUCH SURFACE UNITS, AREAS NEAR THESE
UNITS, HEATING ELEMENTS OR INTERIOR SURFACES OF
THE OVEN. Both surface units and oven heating elements
may be hot even though they are dark in color, Areas near
surface units may become hot enough to cause burns. During
and after use, do not touch, or let clothing or other flammable
materials touch these areas until they have had sufficient time
to cool. Among these areas are the cooktop, surfaces facing
the cooktop, the oven vent openings and surfaces near these
openings, oven door and window.
•Wear Proper Apparel--Loose-fitting or hanging garments
should never be worn while using the appliance. Do not let
clothing or other flammable materials contact hot surfaces.
•Do Not Use Water or Flour on Grease Fires--Smother the
fire with a pan lid, or use baking soda, a dry chemical or
foam-type extinguisher.
Ill
Z
r-

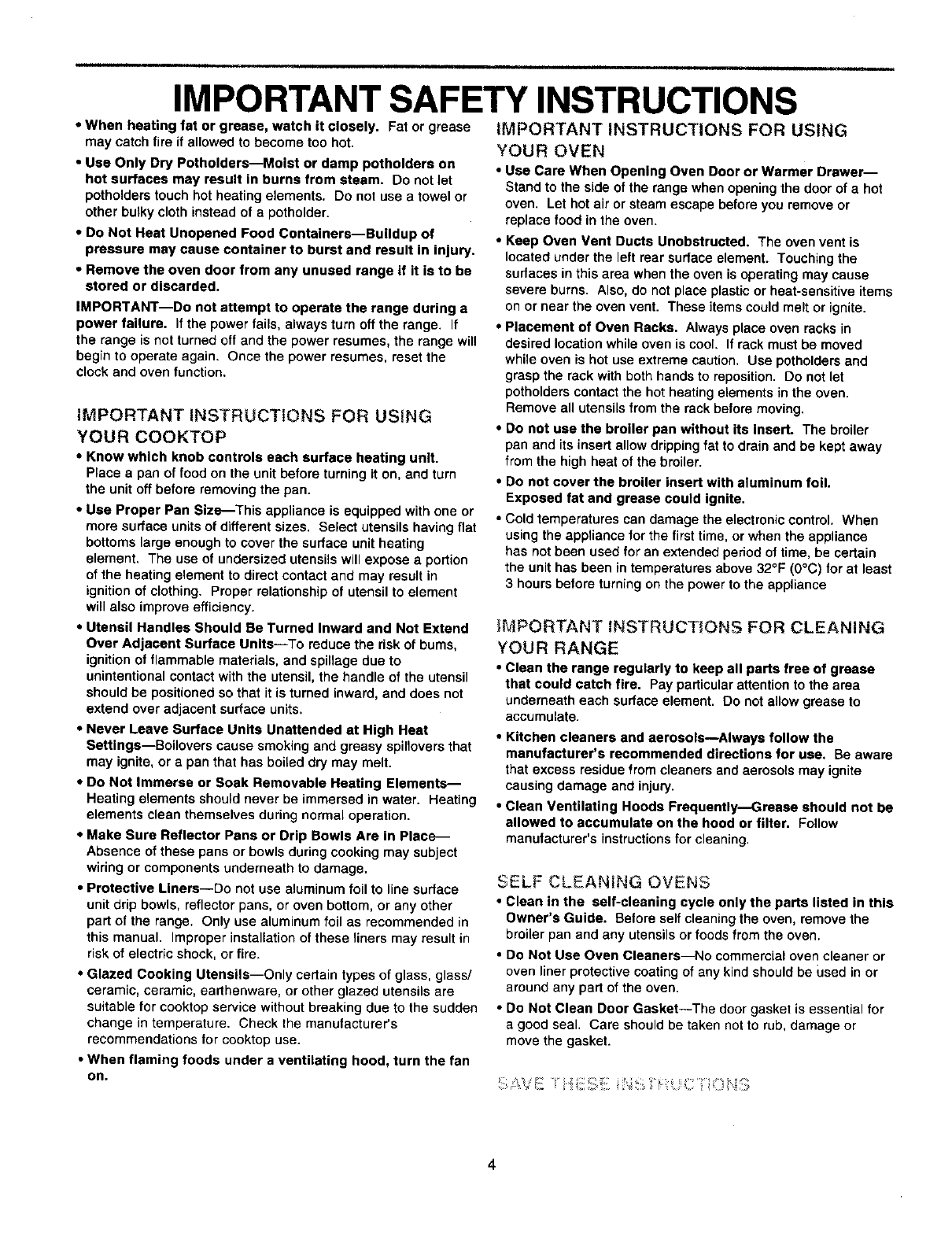

IMPORTANT SAFETY INSTRUCTIONS
• When heating fat or grease, watch it closely. Fat or grease
may catch fire if allowed to become too hot.
• Use Only Dry Potholders--Moist or damp potholders on
hot surfaces may result in burns from steam. Do not let
potholders touch hot heating elements. Do not use a towel or
other bulky cloth instead of apotholder.
•Do Not Heat Unopened Food Containers---Buildup of
pressure may cause container to burst and result in injury.
•Remove the oven door from any unused range if it is to be
stored or discarded.
IMPORTANT--Do not attempt to operate the range during a
power failure. If the power fails, always turn off the range. If
the range is not turned off and the power resumes, the range will
begin to operate again. Once the power resumes, reset the
clock and oven function.
IMPORTANT INSTRUCTIONS FOR USING
YOUR COOKTOP
•Know which knob controls each surface heating unit.
Place a pan of food on the unit before turning it on, and turn
the unit off before removing the pan.
•Use Proper Pan Size--This appliance is equipped with one or
more surface units of different sizes. Select utensils having flat
bottoms large enough to cover the surface unit heating
element. The use of undersized utensils will expose a portion
of the heating element to direct contact and may result in
ignitionof clothing. Proper relationship of utensil to element
will also improve efficiency.
•Utensil Handles Should Be Turned Inward and Not Extend
Over Adjacent Surface Units--To reduce the risk of bums,
ignitionof flammable materials, and spillage due to
unintentional contact with the utensil, the handle of the utensil
should be positioned so that it isturned inward, and does not
extend over adjacent surface units.
•Never Leave Surface Units Unattended at High Heat
Settings--Boilovers cause smoking and greasy spillovers that
may ignite, or a pan that has boiled dry may melt.
•Do Not Immerse or Soak Removable Heating Elements--
Heating elements should never be immersed in water. Heating
elements clean themselves during normal operation.
•Make Sure Reflector Pans or Drip Bowls Are in Place--
Absence of these pans or bowls during cooking may subject
wiring or components underneath to damage.
•Protective Liners--Do not use aluminum foil to line surface
unit drip bowls, reflector pans, or oven bottom, or any other
part of the range. Only use aluminum foil as recommended in
this manual. Improper installation of these liners may result in
risk of electric shock, or fire.
•Glazed Cooking Utensils--Only certain types of glass, glass/
ceramic, ceramic, earthenware, or other glazed utensils are
suitable for cooktop service without breaking due to the sudden
change in temperature. Check the manufacturer's
recommendations for cooktop use.
• When flaming foods under a ventilating hood, turn the fan
on.
IMPORTANT INSTRUCTIONS FOR USING
YOUR OVEN
•Use Care When Opening Oven Door or Warmer Drawer--
Stand to the side of the range when opening the door of a hot
oven. Let hot air or steam escape before you remove or
replace food in the oven.
• Keep Oven Vent Ducts Unobstructed. The oven vent is
located under the left rear surface element. Touching the
surfaces in this area when the oven is operating may cause
severe burns. Also, do not place plastic or heat-sensitive items
on or near the oven vent. These items could melt or ignite.
•Placement of Oven Racks. Always place oven racks in
desired location while oven is cool. If rack must be moved
while oven is hot use extreme caution. Use potholders and
grasp the rack with both hands to reposition. Do not let
potholders contact the hot heating elements in the oven.
Remove all utensils from the rack before moving.

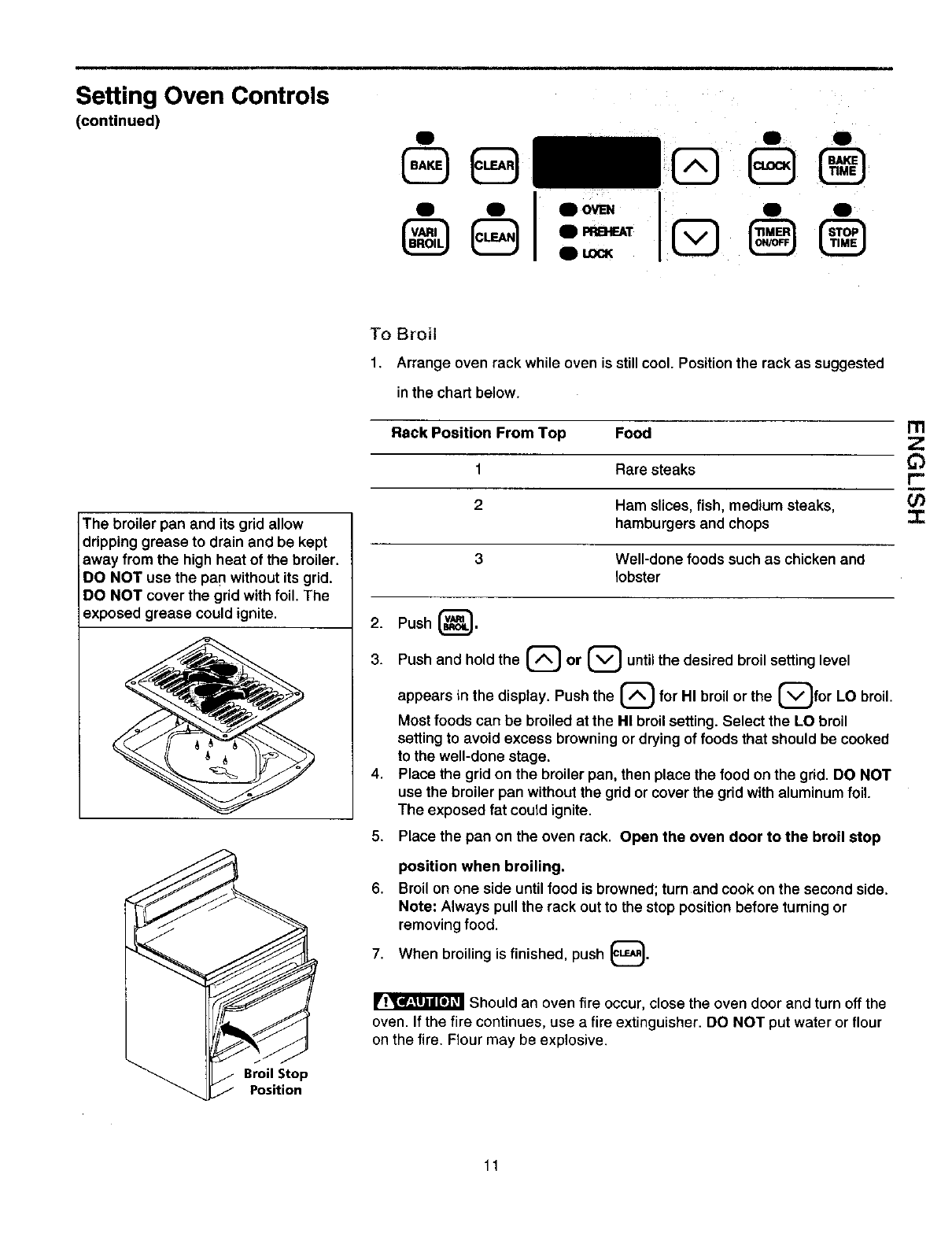

•Do not use the broiler pan without its Insert. The broiler
pan and its insert allow dripping fat to drain and be kept away
from the high heat of the broiler.
•Do not cover the broiler insert with aluminum foil.
Exposed fat and grease could ignite.
• Cold temperatures can damage the electronic control. When
using the appliance for the first time, or when the appliance
has not been used for an extended pedod of time, be certain
the unit has been in temperatures above 32°F (0°C) for at least
3 hours before turning on the power to the appliance
I_4PORTANT INSTRUCTIONS FOR CLEANING
YOUR RANGE
•Clean the range regularly to keep all parts free of grease
that could catch fire. Pay particular attention to the area
underneath each surface element. Do not allow grease to
accumulate.
•Kitchen cleaners and aerosols--Always follow the
manufacturer's recommended directions for use. Be aware
that excess residue from cleaners and aerosols may ignite
causing damage and injury.
•Clean Ventilating Hoods Frequently---Grease should not be
allowed to accumulate on the hood or filter. Follow
manufacturer's instructionsfor cleaning.
SELF CLEANING OVENS
•Clean in the self-cleaning cycle only the parts listed in this
Owner's Guide. Before self cleaning the oven, remove the
broiler pan and any utensils or foods from the oven.
•Do Not Use Oven Cleaners--No commercial oven cleaner or
oven liner protective coating of any kind should be _Jsedin or
around any part of the oven.
•Do Not Clean Door Gasket--The doorgasket is essential for
agood seal. Care should be taken not to rub, damage or
move the gasket.
AV _._ } {::Sf:: !:;. ;: i{}_' S
4
BROILPAD_
Used to select _ O • • owJ_
the variable broil _ "_ _ O R_B_EAT
function. __
CLEAN PAD--_
Used to enter the
Used to select the OVEN, PREHEAT & LOCK LIGHTS-- The "OVEN" light TIMER PAD--
self-cleaning
cycle, will glow each time the oven unit turns on to maintain the
set oven temperature. The "PREHEAT" light will glow
when the oven is first set to operate, or if the desired
temperature is reset higher than the actual oven
temperature. The "LOCK" light willflash until the door
locks when the self-clean cycle is in use. It glows
constantly after the door locks.
• I length of the baking
tlme
_STOP TIME PAD--
Used to set the m
desired stop time for Z
baking. Can be _')
used with BAKE I
TIME to program a ?J_
delayed bake cycle. I
Used to set or
cancel the minute
timer. The minute
timer does not
start or stop
cooking.
The oven can be programmed to:
•Bake normally
• Time bake
• Broil
• Self-clean
For asilent control panel:
When choosing a function, a beep will be heard each time a pad is pushed. If desired, the controls can be programmed
operation. Push and hold []. After 7 seconds, the control will beep once. This will block the controls from
n
for silent
sounding when a pad is pushed. To return the sound, push and hold [] again for 7 seconds until 1 beep is heard.
Note: The control will return to the audible mode after a power outage.
Temperature conversions:
The electronic oven control is set to operate in °F (Fahrenheit) when shipped from the factory, The oven can be
programmed for any temperature from 170°F to 550°F (65°C to 287°C).
To change the temperature to °C (Celsius) or from °C to °F (control should not be in a Bake or Clean mode):
1. Push (_. " "appears in the display.
2. Push and hold the {_ until "HI" appears in the display.
3. Push and hold _ until °F or °C appears in the display.
4. Push the _) or _ to change °F to °C or °C to °F.
5. Push any function pad to return to normal operating mode.
5
Setting the Clock and
Minute Timer Qe@
. i I
@@ .== Q@®
Note: The oven function will not work
f the t me of day clock is not set,
To Set the Clock
When the range is first plugged in, or when the power supply to the range has
been interrupted, the display will flash "12:00".
1. Push _.
seconds, push and holdthe [] or (_ until the correct time
2. Within 5
of day appears in the display.
Note: The clock cannot be changed during any timed bake or self-clean
cycle.
To Set the Minute Timer
1. Push _.
2. Push the [] to increase the time in one minute increments. Push and
3,
4.
hold the _ to increase the time in 10 minute increments. The timer can
be set for any amount of time from 1 minute to 11 hours and 59 minutes.
you push the (_ first, the timer will advance to 11 hours and 59
Note: If
minutes.
The display shows the timer count down in minutes until one minute
remains. Then the display will count down in seconds.
When the set time has run out, the timer will beep 3 times. It will then
beep 3 times every 60 seconds until _ is pushed.
continue to
Note: The minute timer does not start or stop cooking. It serves as an extra
timer in the kitchen that will beep when the set time has run out. The minute
timer can be used alone or during any of the other oven functions. When the
minute timer is in use with any other mode, the minute timer will be shown in
the display. To view other functions, push the function pad for that mode.
To Change the Minute Timer while it is in use:
While the timer is active and shows in the display, push and hold the [] or
(_to increase or decrease the time.
To Cancel the Minute Timer before the set time has run out:
Push @.
6
Setting Surface
Controls
OFF
LO _HI
, s
4 5 6
Surface Unit Control
OFF
MIN HI
S
MED
Simmer Select Surface Unit Control
To Operate the Surface Element
1. Place cooking utensil on the surface element.
2. Push in and turn the Surface Control knob in either direction to the desired
setting. Start most cooking operations on a higher setting and then turn to
a lower setting to finish cooking. The control knobs do not have to be set
exactly on a particular mark. Use the marks as a guide and adjust the
control knob as needed.
3. When cooking is completed, turn the surface element off before removing
the pan. Note: The surface indicator light will glow when one or more
elements are turned on. A quick glance at the signal light(s) when cooking
is finished is an easy check to be sure all control knobs are turned off.
To Operate Sin_mer Select Surface Unit (if equipped)
The right side of the control knob allows you to use the Simmer Select unit as
you would any normal surface unit on the medium to high settings.
The left side of the control knob is used to operate the Simmer Select feature.
This feature allows the element to heat at a much lower temperature than
when used as a normal surface unit. This allows you to precisely simmer
delicate foods.
You may switch between normal cooking and Simmer Select at any time
during the cooking process. Be sure to set the knob indicator between MAX
and MIN for simmering or between MED and HI for normal cooking.
NOTE= The unit will not operate if the knob is positioned in the space
between MAX and MED.
The suggested settings found in the chart below are based on cooking in
medium-weight aluminum pans with lids. Settings may vary when using other
types of pans.
STANDARD SURFACE UNITS
Setting Type of Cooking
HIGH (HI - 9) Start most foods, bring water to aboil, pan broiling
MEDIUM HIGH (7 - 8) Continue a rapidboil, fry, deep fat fry
MEDIUM (5 - 6) Maintain a slow boil, thicken sauces and gravies,
steam vegetables
MEDIUM LOW (2 - 4) Keep foods cooking, poach, stew
LOW (LO - 1) Keep warm, melt, simmer
SIMMER SELECT SURFACE UNIT
MAX Larger quantities of food, stews and soups
MIN Smaller quanitites of food, delicate foods, melting
chocolate or butter
Note: The size and type of utensil used, and the amount and type of food
being cooked will influence the setting needed for best cooking results.
Do not place plastic items such as salt and pepper shakers,
spoon holders or plastic wrappings on top of the range when it is in use.
These items could melt or ignite. Potholders, towels or wooden spoons could
catch fire if placed too close to the element.
131
Z
C)
r'-
-r-
Setting Warmer Drawer
Controls ofequipped)
IUse warmer drawer to keep hot ]
the
foods hot such as: vegetables, gravies,I
meats, casseroles, biscuitsand rolls,
pastries and heated d nner pates.
The warmer drawer is equipped with a
catch which may require extra force
when opening and closing the drawer.
Arranging Warmer Drawer Rack Positions
The rack can be used in 2 ways:
•In the upright position to allow low profile food items to be placed both
under and on top of the rack (for example, rolls or biscuits on top of the
rack and a casserole dish under).
•In the downward position to allow you to place light weight food items
and empty dishware (for example, rolls or pastries and dinner plates). Set
the warmer drawer rack as shown below.
O
OFF HI
LO
MED
Warmer Drawer Control Knob
Warmer Drawer Recommended
Food Settings Chart
Food Item Setting
Roasts (Beef, Pork, Lamb) MED
Pork Chops HI
Bacon HI
Hamburger Patties HI
Poultry HI
Gravies MED
Casseroles MED
Eggs MED
Fried Foods HI
Vegetables MED
Pizza HI
Biscuits MED
Rolls, soft LO
Rolls, hard MED
Pastries MED
Empty Dinner Plates LO
Upright Position Downward Position
To Operate the Warmer Drawer
Your range is equipped with a warmer drawer. The purpose of the warmer
drawer is to keep hot cooked foods at serving temperature. Always start with
hot food. It is not recommended to heat cold food in the warmer drawer.
All food placed in the warmer drawer should be covered with a lid or aluminum
foil to maintain quality. Do not use plastic wrap to cover food. Plastic may
melt onto the drawer and be very difficult to clean.
Use only dishware, utensils and cookware recommended for oven use in the
warmer drawer.
Always use potholders or oven mitts when removing food from
the warmer drawer as cookware and plates will be hot.
To Set the Thermostat Control
The thermostat control is used to select the temperature of the warmer
drawer. It is located on the control panel. To set the thermostat, push in and
turn the knob to the desired setting. The temperatures are approximate, and
are designated by HI, MED and LO.
1. Turn the knob to select the desired temperature setting.
2. For best results, preheat the drawer before adding food. An empty drawer
will preheat in approximately 15 minutes.
3. When done, turn the thermostat control to OFF.
Temperature Selectio_
Refer to the chart for recommended settings. If a particular food is not listed,
start with the medium setting. If more crispness is desired, remove the lid or
aluminum foil.
Most foods can be kept at serving temperatures by using the medium setting.
When a combination of foods are to be kept warm (for instance, a meat with 2
vegetables and rolls), use the high setting.
Refrain from opening the warmer drawer while in use to eliminate loss of heat
from the drawer.
The indicator light is located below the thermostat control. It turns on when the
control is set, and stays on until the control is turned off. The warmer drawer is
inoperable during the self-clean cycle. The indicator light will not come on
during the self-clean cycle.
Before Setting Oven
Controls
Arranging Oven Racks
ALWAYS ARRANGE OVEN RACKS WHEN THE OVEN IS COOL (PRIOR
TO OPERATING THE OVEN). Always use oven mitts when usingthe oven.
Oven Vent Location
The oven vent is located under the left rear surface element. When the
oven is on, warm air is released through the vent. This venting is necessary
for proper air circulation inthe oven and good baking results.
REMOVING & REPLACING OVEN RACKS
To remove, pullthe rack forward untilit stops. Liftup finn'
of rack and slide out. To replace, fit the rack onto the
guides on the oven walls. Tilt the front of the rack upward
and slide the rack back into place.
ARRANGING OVEN RACKS WITH 5 RACK POSITIONS
To bake on 1 rack, place the rack on position3 or 4. To
bake on 2 racks, place the racks on positions2and 4.
____-_ 1st Pack Position
o 2 00 :i:iio
4th Rack Position
,1,1r1
Setting Oven Controls
I
C/>
I
Note: The oven function will not work
if the time of day clock is not set.
Note: The oven control has a built-in
safety feature that will shut off the oven
if the control is left on for more than 11
hours 59 minutes.
To Set or Change the Temperature for Normal Baking
The oven can be programmed to bake at any temperature from 170°F to
550°F (65°C to 287°C).
To Set the Controls for Normal Baking:
1. Push {_. "-- -- --" appears in the display.
2. Within 5 seconds, push the (_ or (_. The display will show "350°F
(177°C)." By holding the (_ or _, the temperature can then be
adjusted in 5°F (1°C) increments.
3. As soon as the (_ or _is released, the oven will begin heatingto
the selected temperature. When the displayed temperature reaches the
desired baking temperature, the control will beep 3 times.
4. To cancel the baking function, push [].
To Change the Oven Temperature after Baking has Started:
you are using the minute timer, push _and make sure the bake
1. It
temperature is displayed.
the (_ or (_ to increase or decrease the set temperature.
2. Push
i,, ,, , , _ II i,iii i,,,,11 i
Setting Oven Controls
(continued)
Use caution when using
the automatic timer. Use the automatic
timer when cooking cured or frozen
meats and most fruits and vegetables.
Foods that can easily spoil such as
milk, eggs, fish, meat or poultry,
should be chilled in the refrigerator
first. Even when chilled, they should
not stand in the oven for more than 1
hour before cooking begins, and
should be removed promptly when
cooking is completed.
To Set the Automatic Timer (Timed Bake Feature)
The BAKE TIME and STOP TIME controls operate the Timed Bake feature.
The automatic timer will turn the oven on and off at the times you select in
advance. The oven can be programmed to start immediately and shut off
automatically or to begin baking at a later time with an automatic shutoff.
To Program the Oven to Begin Baking Immediately and To Shut Off
Automatically:
1, Be sure that the clockshows the correct time of day.
2. Place the food in the oven.
3. Push [_.
4. Within 5 seconds, push the (_ or (_. The display will show "350°F
(177°C). " By holding the _ or (_, the temperature can then be
adjusted in 5°F (1°C) increments.
5. Push _. "0:00" will flash in the display,
6. Push the _ or _ until the desired amount of baking time appears
in the display.
To Program Oven for a Delayed Start Time end to Shut-Off Automatically
1. Be sure that the clock shows the correct time of day.
2. Place the food in the oven,
3. Push (_.
4. Within 5 seconds, push the (_ or (_. The display will show "350°F
(177°C). " By holding the (_ or (_, the temperature can then be
adjusted in 5°F (1°C) increments.
5. Push _. "0:00" will flash in the display.
B. Push the _ or _ until the desired amount of baking time appears.
7. Push 8' The earliest possible stop time will flash in the display.
8. Push the (_ or {_ until the desired stop time appears in the display.
9. Once the controls are set, the control calculates the time when baking will
start in order to finish at the time you have set.
Once the Controls are Set:
a. The oven wil) come on and begin heating to the selected baking
temperature.
b. The oven temperature will show in the display.
When the Set Bake Time Runs Out:
a. "END" will appear in the display window and the oven will shut off
automatically.
b. The control will beep 3 times every 60 seconds until _ is pushed.
To Change the Oven Temperature or Bake Time after Baking has
Started:
1. Push the function pad you want to change.
2. Push the _ or _ to adjust the setting.
10
Setting Oven Controls
(continued)
The broiler pan and its grid allow
dripping grease to drain and be kept
away from the high heat of the broiler.
DO NOT use the pan without its grid.
DO NOT cover the grid with foil. The
exposed grease could ignite.
Broil Stop
Position
To Broil
1. Arrange oven rack while oven is still cool. Position the rack as suggested
in the chart below.
Rack Position From Top Food
1 Rare steaks
2 Ham slices, fish, medium steaks,
hamburgers and chops
3 Well-done foods such as chicken and
lobster
2.
3.
4.
5.
6.
7,
Push [].
Push and hold the (_ or (_ until the desired broil setting level
appears in the display. Push the _ for HI broil or the L._for LO broil.
Most foods can be broiled at the HI broil setting. Select the LO broil
setting to avoid excess browning or drying of foods that should be cooked
to the well-done stage.
Place the grid on the broiler pan, then place the food on the grid. DO NOT
use the broiler pan without the grid or cover the grid with aluminum foil.
The exposed fat could ignite.
Place the pan on the oven rack. Open the oven door to the broil stop
position when broiling.
Broil on one side until food is browned; turnand cook on the second side.
Note: Always pull the rack out to the stop position before turning or
removing food.
When broiling is finished, push _.
Should an oven fire occur, close the oven door and turn off the
oven. If the fire continues, use a fire extinguisher. DO NOT put water or flour
on the fire. Flour may be exptosive.
Ill
Z
r-
I
11
Oven Cleaning
I I •
I ILO
During the self-cleaning
cycle, the Outsideof the range can
become very hot to the touch. DO
NOT leave small children unattended
near the appliance.
The health of some
birds is extremely sensitive to the
fumes given off during the self-
cleaning cycle of any range. Move
birds to another well-ventilated room.
!1_ DO NOT line the oven
walls, racks, bottom or any other part
of the range with aluminum foil. Doing
so will destroy heat distribution,
produce poor baking results and cause
permanent damage to the oven interior
(aluminum foil will melt to the interior
surface of the oven).
DO NOT force the oven
door open. This can damage the
automatic door locking system. Use
caution when opening the door after
the self-cleaning cycle is completed.
The oven may still be VERY HOT.
CLEAN FRAME
Self-Cleaning Oven
A self-cleaning oven cleans itself with high temperatures (well above cooking
temperatures) which eliminate soil completely or reduce it to a fine powdered
ash you can wipe away with a damp cloth.
1. Adhere to the following cleaning precautions:
•Allowthe oven to cool before precleaning.
•Wear rubbergloves when precleaning and while wiping up the residue
after the self-clean cycle.
•DO NOT use oven cleaners or oven protectivecoatings in or around any
part of the self-cleaning oven.
•DO NOT clean the oven door gasket. The woven matedal of the oven
door gasket is essential for a good seal, Care should be taken notto rub,
damage or remove the gasket,
•DO NOT use any cleaning materials onthe oven door gasket. Doing so
could cause damage.
2. Remove the broiler pan and insert, all utensils and any aluminum
foil. These items cannot withstand high cleaning temperatures.
3, Oven racks may be left in the oven or may be removed. If they go through
the clean cycle their colorwill turn slightlyblue and the finishwill be dull.
After the cycle is complete and the oven has cooled, rub the sides of the
racks withwax paper or a cloth containinga small amount of baby oil or
salad oil (this will make the racks glide easier into the rack position).
4. Remove any excess spilloversin the oven cavity before startingthe self-
cleaning cycle. To clean, use hot, soapy water and a cloth. Large
spilloverscan cause heavy smoke or fire when subjectedto high
temperatures. DO NOT allow food spillswith a high sugar or acid content
(such as milk, tomatoes, sauerkraut, fruit juices or pie filling)to remain on
the surface as they may cause a dull spot even after cleaning.
5. Clean any soil from the oven frame, the door liner outside the oven door
gasket and the small area at the frontcenter of the oven bottom.These
areas heat sufficientlyto burnsoil on. Clean with soap and water.
12
Oven Cleaning
(continued) • • O O
• o oow., •
o,.,-_,.Q @
O,.oc.
Use care when opening
the oven door after the self-cleaning
cycle. Stand to the side of the oven
when opening the door to allow hot air
or steam to escape.
DO NOT force the oven
door open. This can damage the
automatic door locking system. Use
caution when opening the door after
the self-cleaning cycle is completed.
The oven may still be VERY HOT.
To Start the Self-Clean Cycle
*we recommend a 2 hour self-clean cycle for light soils and a 3 hour cycle
for average to heavy soils (to assure satisfactory results).
To Set the Controls for a Self-Clean Cycle:
1. Be sure the clock shows the correct time of day.
Push []." "appears in the display.
I
2.
3. Push the _ until "3:00" appears in the display for a 3 hour cycle, or
push the [] until "2:00" appears in the display for a 2 hour cycle.
4. As soon as the L_ or L_ is released, "CLn" appears in the display.
5. As soon as the controls are set, the motor driven lock will begin to close
automatically and the "LOCK" indicator light will flash. DO NOT open the
door while the light is flashing (it takes about 15 seconds for the lock to
close).
6. The "LOCK" light will glow until the cleaning cycle is completed or
cancelled, and the oven temperature has cooled.
When the Self-Clean Cycle is Completed:
1. The time of day will appear in the display windowand the "LOCK" light will
continueto glow.
2. Once the oven has cooled down for about 1 HOUR and the "LOCK" light
has gone out, the oven door can be opened.
Stopping or |nterrupting a Self-Cleaning Cycle
If it becomes necessary to stop or interrupt a self-cleaning cycle due to
excessive smoke or fire:
1. Push CLEAR.
2. Once the oven has cooled down for about 1 HOUR and the "LOCK" light
has gone out, the oven door can be opened.
3. Correct the condition which caused the smoking.
4. Restart the self-clean cycle once all conditions have been corrected.
Ill
Z
O
r-
I
13
General Cleaning Cleaning Various Parts of Your Range
Before cleaning any part of the range, be sure all controls are turned OFF and
the range is COOL. REMOVE SPILLOVERS AND HEAVY SOILING AS
SOON AS POSSIBLE. REGULAR CLEANINGS WILL REDUCE THE
FREQUENCY OF MAJOR CLEANINGS.
Surfaces How to Clean
Aluminum (Trim Pieces) &Vinyl Use hot, soapy water and a cloth. Dry with a clean cloth.
Glass, Painted and Plastic Control
iKnobs, Body Parts, and Decorative
Trim
Stainless Steel, Chrome Control
Panel, Decorative Trim
Porcelain Enamel Broiler Pan and
Insert, Door Liner, Body Parts,
Warmer Drawer (if equipped)
Oven Racks
Oven Door
:. --DO HAND
i ",J! CLEAN FRAME
CLEAN DOOR DO NOT '_
-_ HAND , /
_,,_" "t_" CLEANOVE_
izDOOR _I¢_T "
For general cleaning, use hot, soapy water and a cloth.For more difficult soils
and built-up grease, apply a liquiddetergent directly onto the soil. Leave on
soil for 30 to 60 minutes. Rinse with a damp cloth and dry. DO NOT use
abrasive cleaners on any of these materials; they can scratch. To remove
control knobs, turn to the OFF position; grasp firmly and pull straight off the
shaft. To replace knobs after cleaning, line up the flat sides of both the knob
and the shaft; then push the knob into place.
Before cleaning the contrelpanel, turn all controlsto OFF and remove the
control knobs. To remove, pull each knob straight off the shaft. Clean using
hot, soapy water and a dishcloth. Rinse with a clean water and a dishcloth.
Cover stubborn spots with an ammonia-soaked paper towel for 30 to 40
minutes. Rinse. Be sure to squeeze excess water from the cloth before
wiping the panel; especially when wiping around the controls. Excess water in
or around the controls may cause damage to the appliance. Cleaners made
especially for stainless steel such as Stainless Steel Magic, trademark of
Magic American Corp., or similar products are recommended. Always follow
the manufacturer's instructions.Be sure to rinse the cleaners as bluish stains
may occur during heating and cannot be removed. To replace knobs after
cleaning, line up the flat sides of both the knob and the shaft; then push the
knob into place.
Gentle scouring with a soapy scouring pad will remove most spots. Rinse
with a 1:1 solution of clear water and ammonia. If necessary, cover difficult
spots with an ammonia-soaked paper towel for 30 to 40 minutes. Rinse with
clean water and a damp cloth, and then scrub with a soap-filled scouring pad.
Rinse and wipe dry with a clean cloth. Remove all cleaners or the porcelain
may become damaged during future heating. DO NOT use spray oven
cleaners on the cooktop.
Oven racks may be removed or left in the oven during the self-clean cycle for
cleaning. If removed, clean by using a mild, abrasive cleaner following
manufacturer's instructions. Rinse with clean water and dry.
If the racks are cleaned in the self-clean cycle, their color will turn slightly blue
and the finish wilt be dull. After the self-clean cycle is complete, and the oven
has cooled, rub the sides of the racks with wax paper or a cloth containing a
small amount of baby oil or salad oil (this will make the racks glide easier into
the rack positions).
To clean oven door, wash with hot, soapy water and a clean cloth. DO NOT
immerse the door in water.
DO NOT clean the oven door gasket. The oven door gasket is made of a
woven material which is essential for a good seal. Care should be taken not
to rub, damage or remove the gasket.
14
General Cleaning
(continued)
Be sure the range is
cool before removing elements or drip
bowls. Be careful not to bend terminal
ends when replacing elements after
cleaning.
Allow Element
Plug
Main Top
I1_ When lowering the lift-
up range top, grasp the sides with
finger-tips only. Be careful not to pinch
fingers. DO NOT drop or bend the
range top when raising or lowering.
This could damage the surface,
Surface Elements and Drip Bowls
Surface elements can be unplugged and removed to make cleaning the drip
pans easier. The surface elements clean themselves when they are turned
on, Food spilled on a hot element will burn off. Food spilled on a cool element
may be cleaned with a damp cloth--any remaining soilwill burn off the next
time the element is used.
Never immerse a surface element in water.
To Remove the Surface Elements and Drip Bowls
1. Lift the edge of the drip bow! across from the terminal end. Lift the
surface element and drip bowl together just enough to clear the
cooktop.
2. While holding the drip bowl and surface element, gently pull the terminal
end out from the terminal plug. If equipped, DO NOT remove the hold
down clip from the drip bowl.
To Clean Drip Bowls
Wash in hot, soapy water or in the dishwasher. Rinse and dry while still warm. I'TI
Hard to remove, burned on soil can be removed by soakingthe dripbowlsfor Z
about 20 minutes in alightlydiluted liquidcleanser ora solutionof ammonia
and water (1/2 cup ammonia to 1 gallon of water). A nylon scrubber may be r-
used after soaking. DO NOT use abrasive cleaners or steel wool, as they will
scratch the surface. Always rinse with clean water and polish dry with a soft "1"
cloth,
To Replace Drip Bowls and Surface Elements
1. Slide the terminal end on the element throughthe opening inthe drip
bowl.
2. Alignthe element support to rest on the rim insidethe drip bowl. If your
dripbowl is equipped with a hold down clip, alignthe element support
oppositethe terminal end with the slot inthe hold down clip, and snap into
place.
3. After the element is positioned inthe drip bowl, line up the terminal end
withthe terminal plug as shown,
4. Hold the surface element and drip bowl together as level as possible and
firmlypush the terminal end into the terminal plug. Make sure element
terminal is seated properly into terminal plug. Make surethe surface
element is level to reduce the hazard of pans slidingoff the element.
To Raise the Top for Cleaning
1. Grasp the sides and lift from the front. Lift-uprods will supportthe top in
its raised position.Only liftthe top high enough to allow the support rods
to snap into place.
2. Clean underneath using a clean cloth and hot, soapy water.
3. To lower the top, gently push back on each rod to release the notched
support.Hold the range top and slide the range top down intothe range
frame.
15
General Cleaning
(continued)
The dooris heavy. For
safe, temporary storage, lay the door
flat with the inside of the doorfacing
down.
To Remove and Replace Oven Door
To Remove Oven Door:
1. Open the door.
2. Remove screws located on the insideof the oven door near the hinges A
(one on each side.)
3. Close the door to the quarter-open position. Grasp the door firmly on both
sides and liftup and off the hinges.
4. To clean oven door, followthe instructionsprovided inthe cleaning chart
underGeneral Cleaning
Uft door straight off 2 door hinges
-A
Figure 1
Figure 2
To Replace Oven Door:
1. Be sure the hinge arms are inthe quarter-open position. Be careful if
pullingthe hinges open by hand. The hinges may snap back against the
oven frame and could pinchfingers.
2. Hold the door at the sides near the top, Insert the hinge arms into slots at
the bottom of the door,
3. Hinge arms must go into the range slots evenly. The hinge arms should
be inserted into the bottom corners of the door as far as they can go,
4. If the door is not in line with the oven frame, remove it and repeat the
above steps,
To Remove and Replace Warmer Drawer (if equipped)
To Remove Warmer Drawer:
1. !r_P4_l'j"_1_ Turn power off before removing the warmer drawer.
2. Open the drawer to the fully opened position.
3. On the right glide you will find a shield attached with a hex-head screw
(see figure 1). Using a 1/4" socket and ratchet remove the shield.
4. Locate glide lever on each side of drawer, pull up on the left glide lever
and push down on the right glide lever.
5. Pull the drawer away from the range.
To Replace Warmer Drawer:
1. Replace shield on the rightglide of the drawer body.
2, Pull the bearing glides to the front of the chassis glide (see figure 2).
3. Alignthe glideon each side of the drawer withthe glide slots on the
range.
4. Push the drawer into the range untillevers "click" (approximately2"). Pull
the drawer open again to seat bearing glides into position, If you do not
hear the levers "click" or the bearing glides do not feel seated
remove the drawer and repeat steps 2-4. This will minimize possible
damage to the bearing glides.
_!Vlvf_,l:lOll_[Cll Electrical Shock Hazard can occur and result in
serious injury or death. Disconnect appliance from electric
power before cleaning and servicing the warmer drawer.
16
Changing Cooktop and/
or Oven Lights
(some models)
Be sure the range is unplugged and all parts are COOL before
replacing the oven light. Wear a leather-faced glove for protection against
possible broken glass.
To Change the Oven Light (some models)
On some models, the oven light automatically turns on when the door is
opened. Some models have a switch located on the control panel to turn on
the light. The oven light is located at the rear of the oven and is covered with a
glass shield held by a wire holder. The glass shield must be in place whenever
the oven is in use.
To replace the oven light:
1. Turn electricalpower off at the main source or unplug the range.
2. Press wire holderto one side to release the glass shield.
3. Replace bulbwith a new 40 watt appliance bulb.
4. Replace glass shield over bulb and snap wire holder into place.
5. Turn power back on again at the main source (or plug the range back in).
6. The clock(if equipped) will then need to be reset. To reset, see Setting
the Clock and Minute Timer inthis Owner's Guide. FI3
Note: The adjustments made will not
change the se f-cleaning temperature.
r-
C/3
Adjusting Oven The temperature in the oven has been set at the factory. When first usingthe I
oven, be sure to follow recipe times and temperatures. If you think the oven is
Temperature too hot ortoo cool, the temperature in the oven can be adjusted. Before
adjusting, test a recipe by using a temperature setting that is higher or lower
than the recommended temperature. The baking results should help you to
decide how much of an adjustment is needed.
To Adjust Oven Temperature:
1. Push (_.
2. Set the temperature to 550°F (287°C) by pushing and holding the _.
3. Within 2 seconds, push and hold _ until the special 2 digit display
4,
5.
appears. Release _ The display now indicates the amount of
degrees offset between the original factory temperature setting and the
current temperature setting. If the oven control has the original factory
calibration, the display will read "00."
The temperature can now be adjusted up or down 35°F (17°C), in 5°F
(1°C) steps, by pushing and holding the _ or _. Adjust until the
desired amount of offset appears in the display.
you have made the desired adjustment, push _ to go back to
When
the time of day display. When adjusting oven temperature, a minus sign
(-) will appear before the number to indicate that the oven will be cooler by
the displayed amount of degrees.
17
Avoid Service Checklist Before you carl for service, review this list. It may save you time and expense.
The list includes common occurrences that are not the result of defective
workmanship or materials in this appliance.
This oven is equipped withastate of the art electronic oven controller.Among
its many features is a full time oven circuit diagnostics system. The controller
constantly monitors its internal circuitry as well as several crucial oven circuits
to insure they are all operating correctly. If at any time one of these systems
fails, the controller will immediately stop operation and begin beeping and
flashing an error code of F1 or F3* in the display window.
OCCURRENCE
Range is not level.
POSSIBLE CAUSE/SOLUTiON
Poor installation. Place oven rack in center of oven. Place a level on the oven rack.
Adjust leveling legs at base of range until the oven rack is level.
Be sure floor is level and is strong and stable enough to adequately support range.
If floor is sagging or sloping, contact a carpenter to correct the situation.
Kitchen cabinet alignment may make range appear unlevel. Be sure cabinets are
square and have sufficient room for range clearance.
Cannot move appliance easily. Appliance
must be accessible for service.
Cabinets not square or are built in too tightly. Contact builder or installer to make
appliance accessible.
Carpet interferes with range, Provide sufficient space so range can be lifted over
carpet.
*Oven control beeps and displays F1 or Electronic control has detected a fault condition. Push CANCEL to clear the display
F3. and stop the beeping. Reprogram oven. If fault recurs, record fault number, push
CANCEL and contact an authorized Sears servicer.
Surface element too hot or not hot Incorrect control setting. Make sure the correct control is on for the surface element
enough, to be used.
Lightweight or warped pans used. Use only flat, evenly balanced, medium or
heavyweight cookware. Flat pans heat better than warped pans. Cookware materials
and weight of the material affect heating. Heavy- and medium-weight pans heat
evenly. Because lightweight pans heat unevenly, foods may burn easily.
Surface element does not heat. No power to the appliance. Check steps under "Entire Appliance Does Not Operate"
in this Avoid Service Checklist.
incorrect control setting. Make sure the correct control is on for the surface element
to be used.
Element not making contact in block. Follow instructions under "Surface Elements
and Drip Bowls" in the General Cleaning section.
Entire appliance does not operate. Make sure cord/plug is plugged tightly into outlet.
Service wiring is not complete. Contact your authorized Sears servicer
Power outage. Check house lights to be sure. Call your local electric company for
service.
18
Cooktop and/or oven light (some Replace or tighten bulb. See Changing Cooktop and/or Oven Lights (some
models) does not work. models) in this Owner's Guide for instructions.
Oven smokes excessively during Control(s) not set properly, Fallow instructions under Setting Oven Controls,
broiling.
Poor baking results.
Make sure oven door is opened to broil stop position.
Meat too close to the element. Reposition the rack to provide proper clearance
between the meat and the element. Preheat broil element for searing.
Meat not properly prepared. Remove excess fat from meat. Cut remaining fatty edges
to prevent curling, but do nat cut into lean.
Grid on broiler pan wrong side up and grease not draining. Always place grid on the
broiler pan with ribs up and slots down to allow grease to drip into pan.
Grease has built up on oven surfaces. Regular cleaning is necessary when broiling
frequently. Old grease or food spatters cause excessive smoking.
Many factors affect baking results. Make sure the proper rack position is used, Center
food in the oven and space pans to allow air to circulate. Allow the oven to preheat to
the set temperature before placing food in the oven. Try adjusting the recipe's
recommended temperature or baking time. If you feel the oven is too hot or cool, see
Adjusting Oven Temperature in this Owner's Guide.
Self-cleaning cycle does not work. Control(s) not set properly. Follow instructionsunder Oven Cleaning.
Self-cleaning cycle was interrupted. Follow steps under "Stopping or interrupting a
Self-Cleaning Cycle" under Oven Cleaning.
Soil not completely removed after self-
cleaning cycle.
Failure to clean bottom, fronttop of oven, frame of oven or door area outside oven
seal. These areas are not in the self-cleaning area, but get hot enough to burn on
residue. Clean these areas before the self-cleaning cycle is started. Burned-on
residue can be cleaned with a stiff nylon brush and water or a nylon scrubber. Be
careful not to damage the oven gasket.
Flames inside oven or smoking from
vent.
Excessive spillovers in oven. Set self-clean cycle for a longer cleaning time.
Excessive spillovers in oven. This is normal, especially for high oven temperatures,
pie spillovers or large amounts of grease on bottom of oven. Wipe up excessive
spillovers before starting cycle. If flames or excessive smoke are present, stop the
self-clean cycle and follow steps under "Stopping or Interrupting a Self-Cleaning
Cycle" in the Oven Cleaning section.
Drip bowls are pitting or rusting.
Foods with acids, such as tomatoes, if allowed to stand in/on bowls will cause
corrosion. Remove and wash drip bowls as soon as possible after a spillover
Normal environment. Houses along sea coast are exposed to salt air. Protect bowls
as much as possible from direct exposure to salt air.
Drip bowls turning color or distorted.
Bottom surface of cookware extends beyond surface elements and touches cooktop
surface. This can cause high enough temperatures to discolor the drip bowls. DO
NOT use cookware of this type. Pan sizes should be matched to the size of the
element. Replacement drip bowls may be purchased from your dealer.
I"11
Z
I
19
In U.S.A. or Canada
for in-home major brand repair service:
Call 24 hours a day, 7 days aweek
1-800-4- MY-HOME"(1-800-469-4663)
Para pedir servicio de reparaci6n a domicillio - 1-800-676-5811
Au Canada pour tout le service -- 1-877-LE-FOYER"(1-877-533-6937)
For the repair or replacement parts you need:
Call 6 a.m. -11 p.m. CST,7 daysa week
PartsDirect 'M
1-800-366-PART (1-800-366-7278)
www.sears.com/partsdlrect
Para ordenar piezas con entrega a domicilio - 1-800-659-7084
For the location of a Sears Service Center in your area:
Call 24 hours a day, 7 days a week
1-800-488-1222
To purchase or inquire about a Sears Maintenance Agreement:
Call 7a.m. -5 p.m. CST, Monday - Saturday
1-800-827-6655
