SIDE-BY-SIDE REFRIGERATOR

REFRIGERADOR DE DOS PUERTAS

RI_FRIGI_RATEUR COTE .A,COTE

Models /Modelos /ModUles

795.5102", 795.5101"

-k= color number, nOmero de color, num6ro de couleur

I-

Sears Brands Management Corp., Hoffman Estates, IL 60179 U.S.A. www.sears.com

R No.: MFL63288301

PrintedinMexico Sears Canada, Inc., Toronto, Ontario, Canada M5B 2B8 www.sears.ca

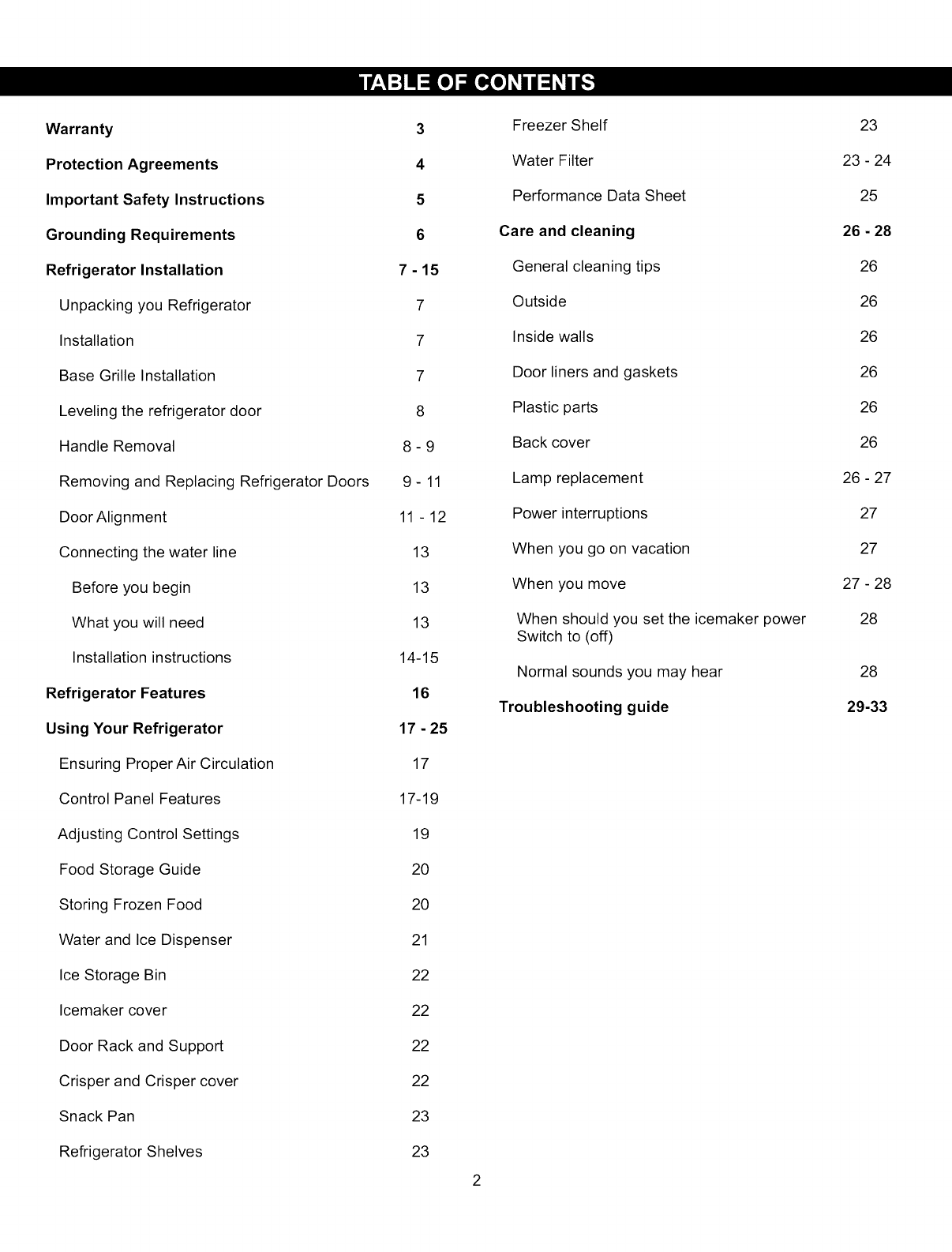

Warranty

Protection Agreements

Important Safety Instructions

Grounding Requirements

Refrigerator Installation

Unpacking you Refrigerator

Installation

Base Grille Installation

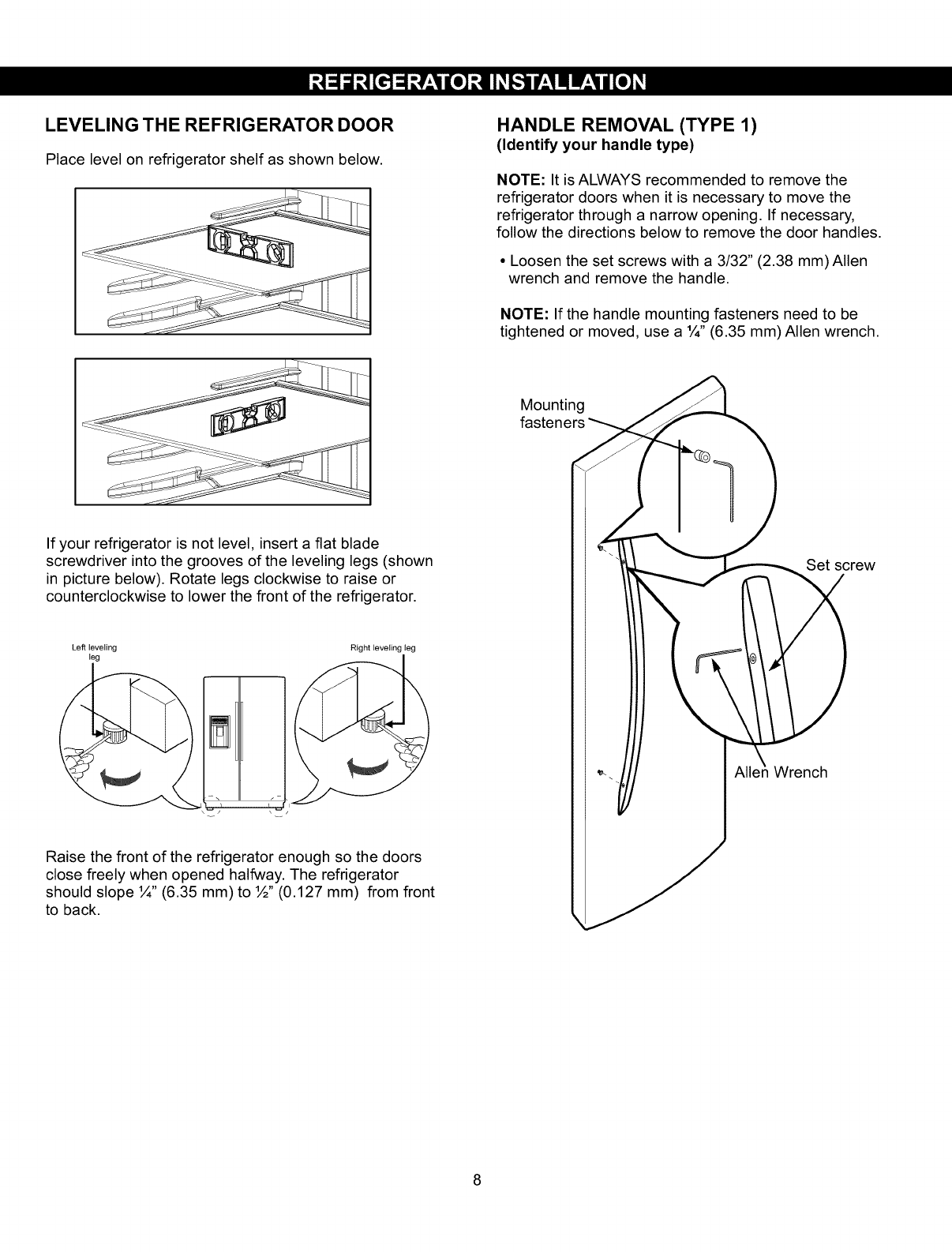

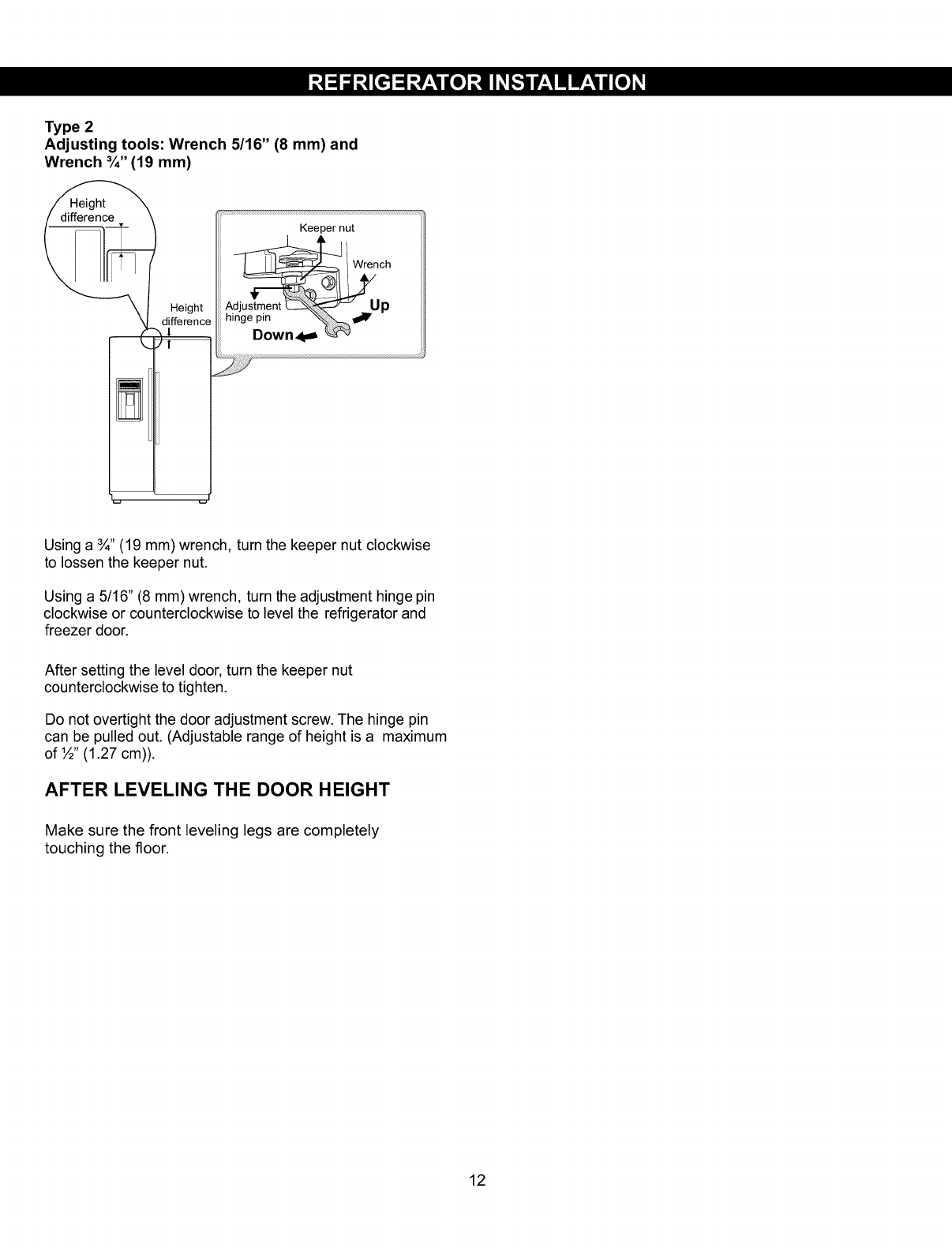

Leveling the refrigerator door

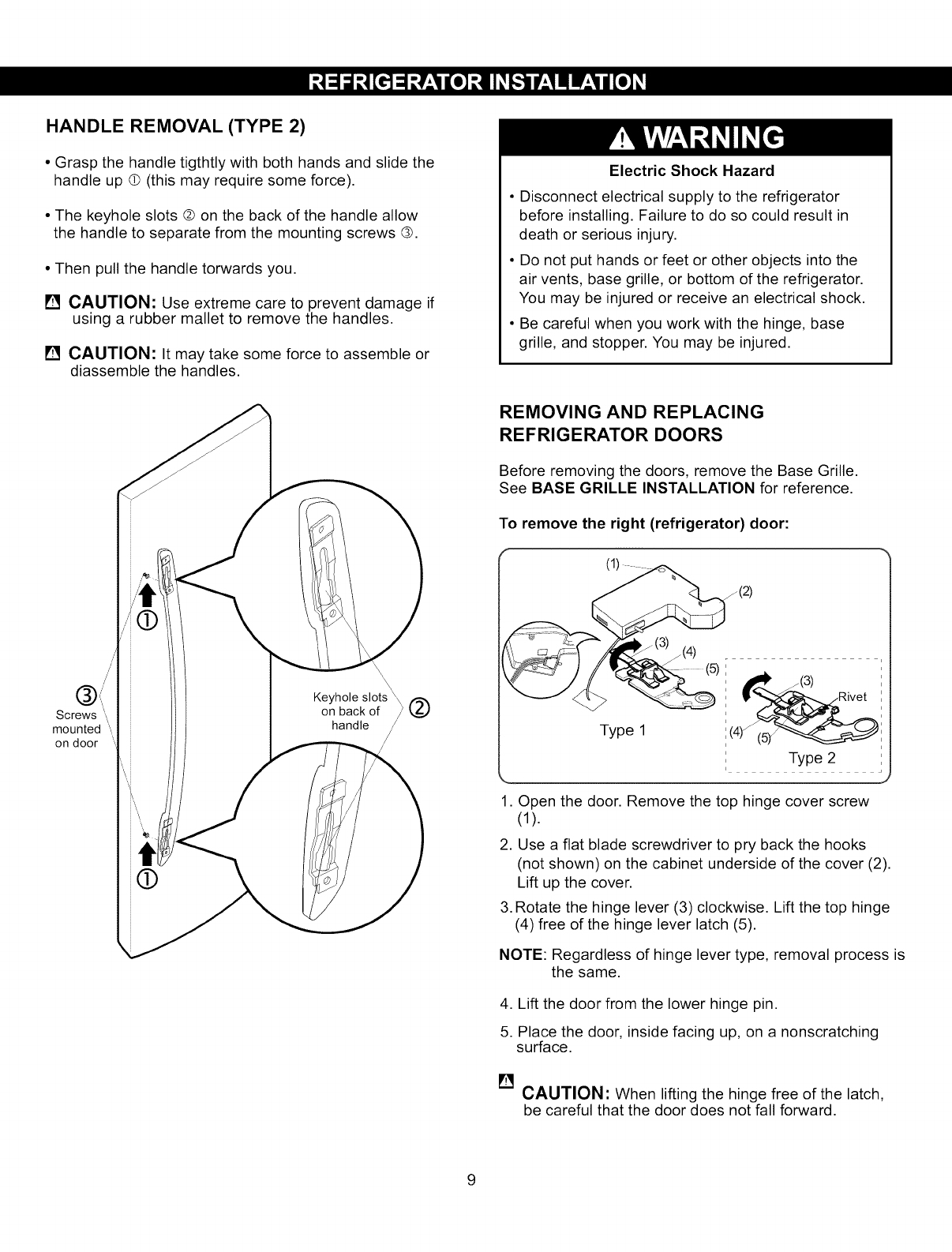

Handle Removal

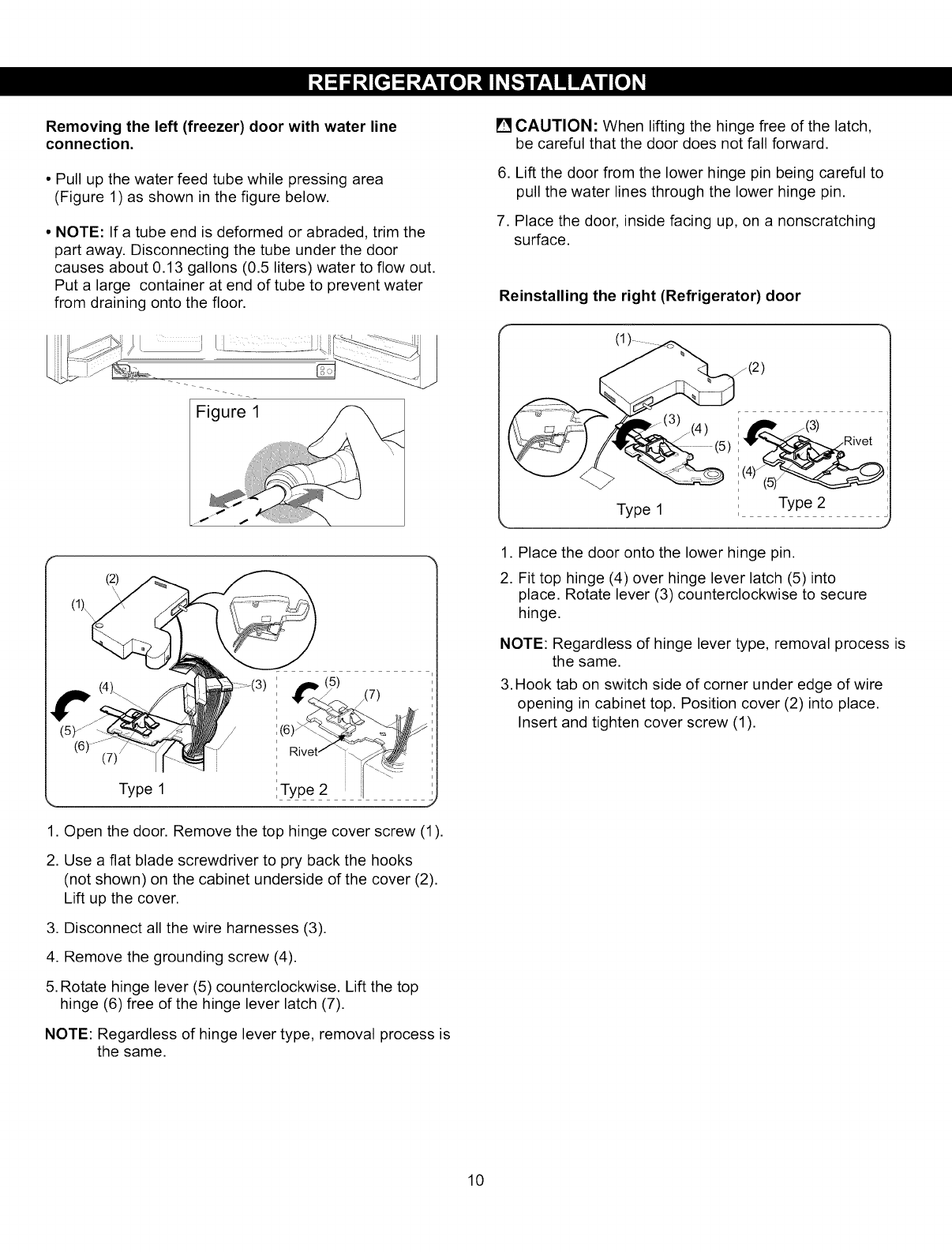

Removing and Replacing Refrigerator Doors

Door Alignment

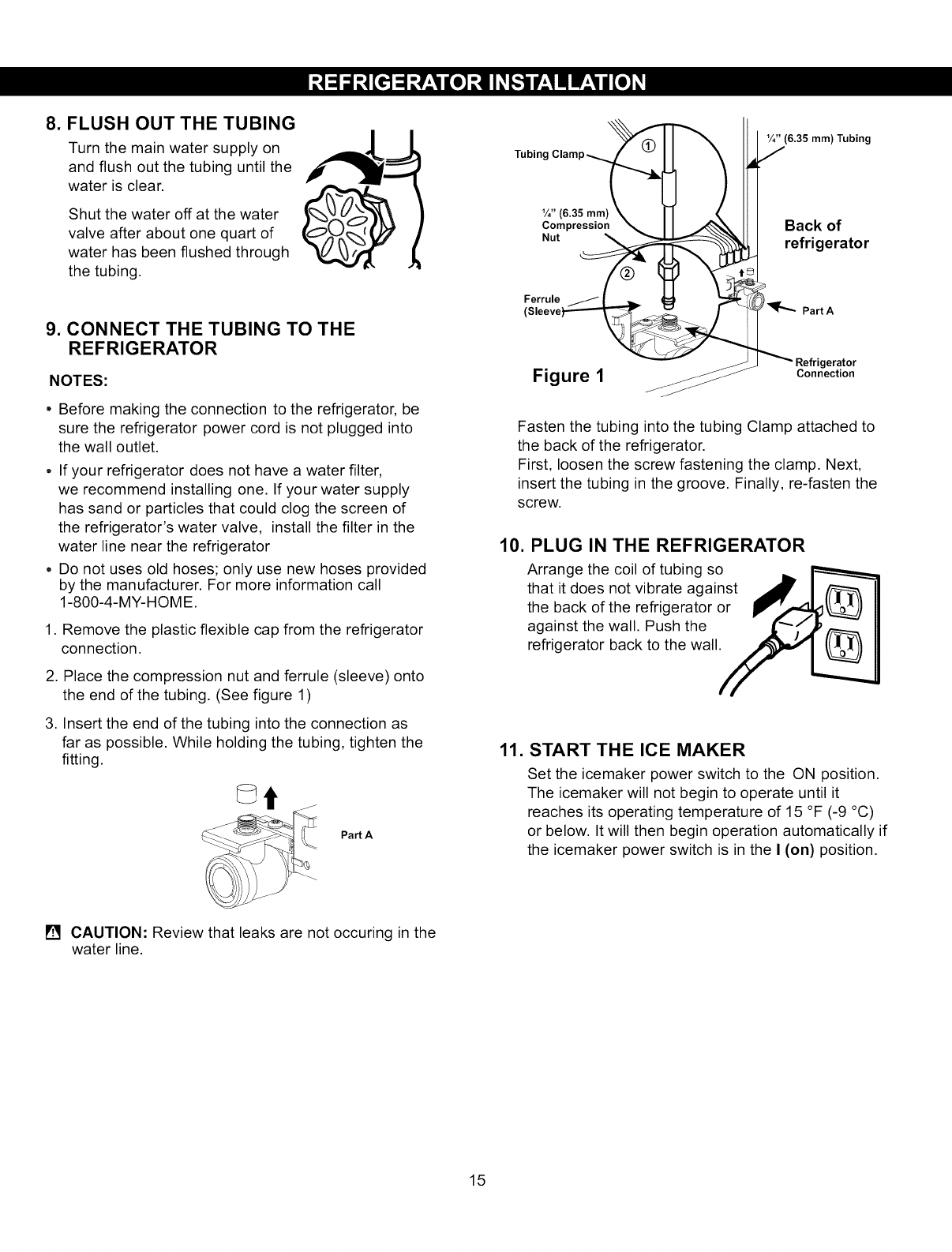

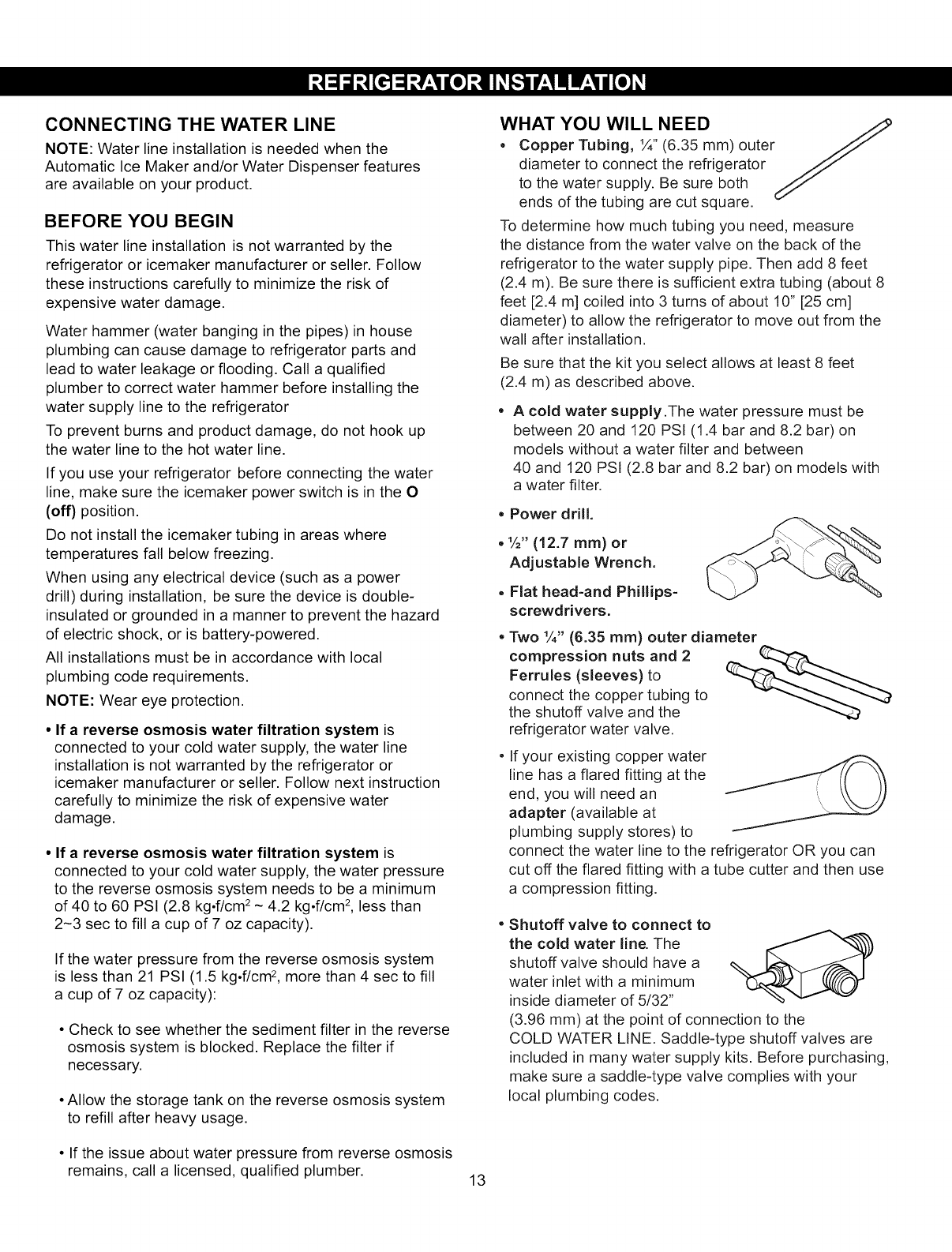

Connecting the water line

Before you begin

What you will need

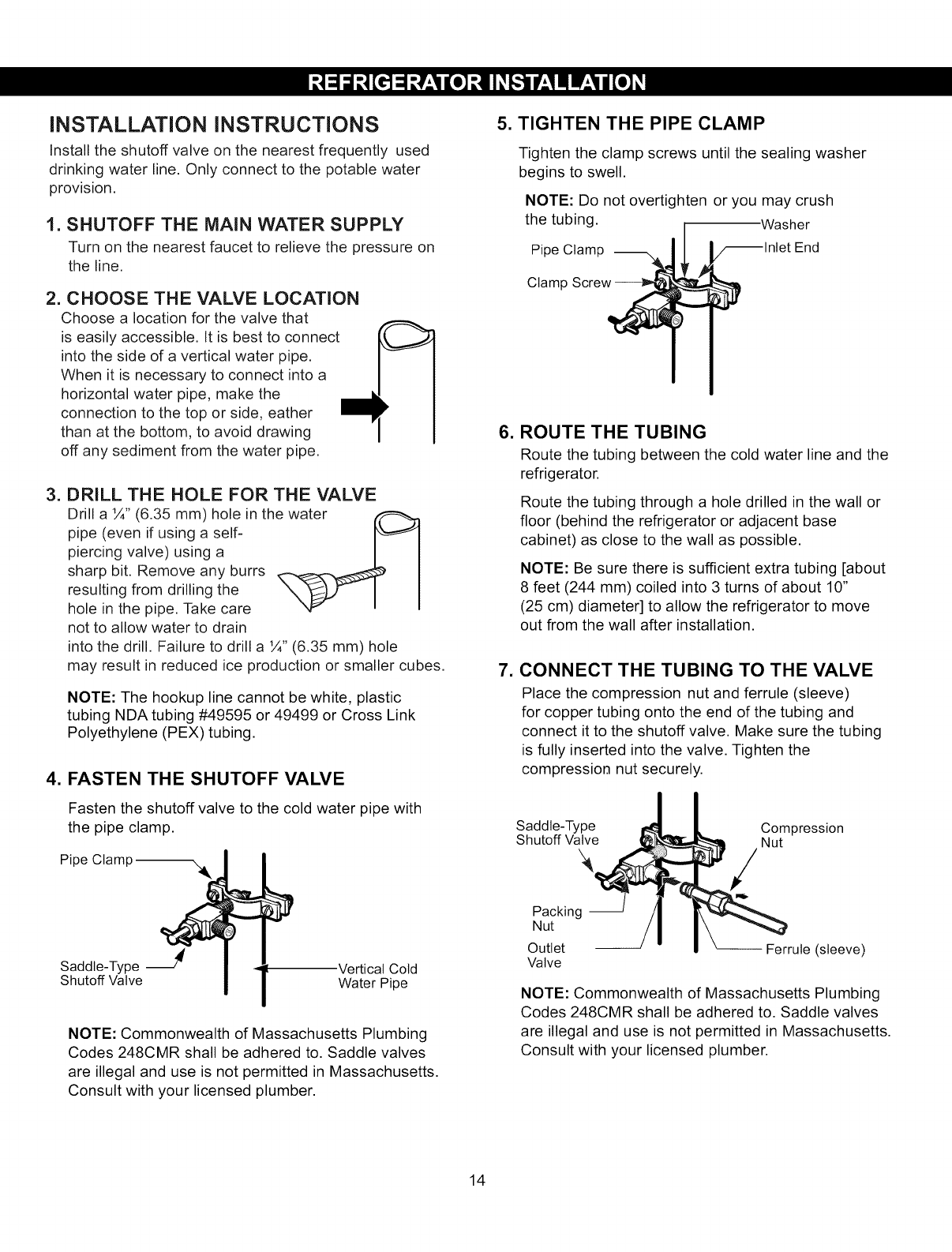

Installation instructions

Refrigerator Features

Using Your Refrigerator

Ensuring Proper Air Circulation

Control Panel Features

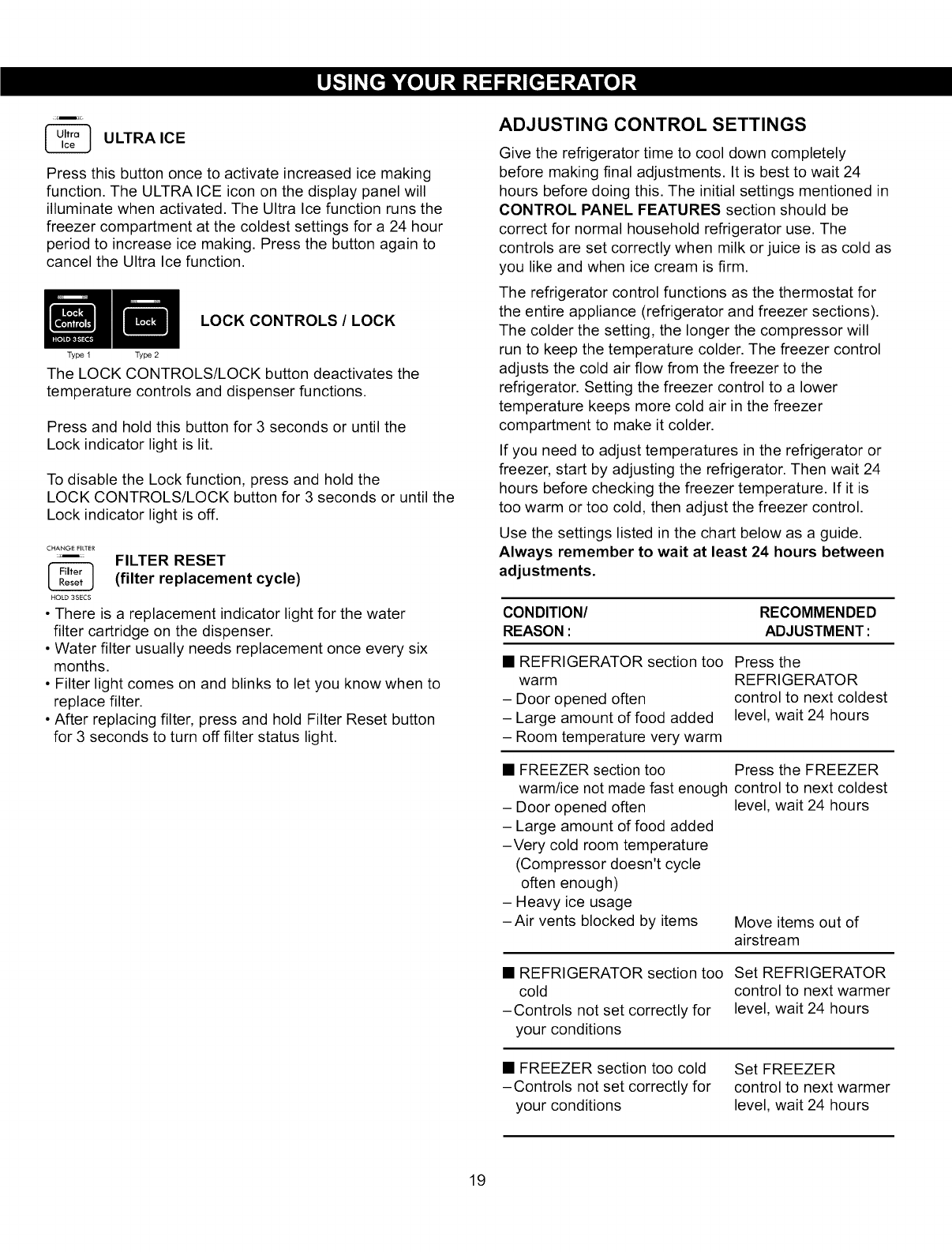

Adjusting Control Settings

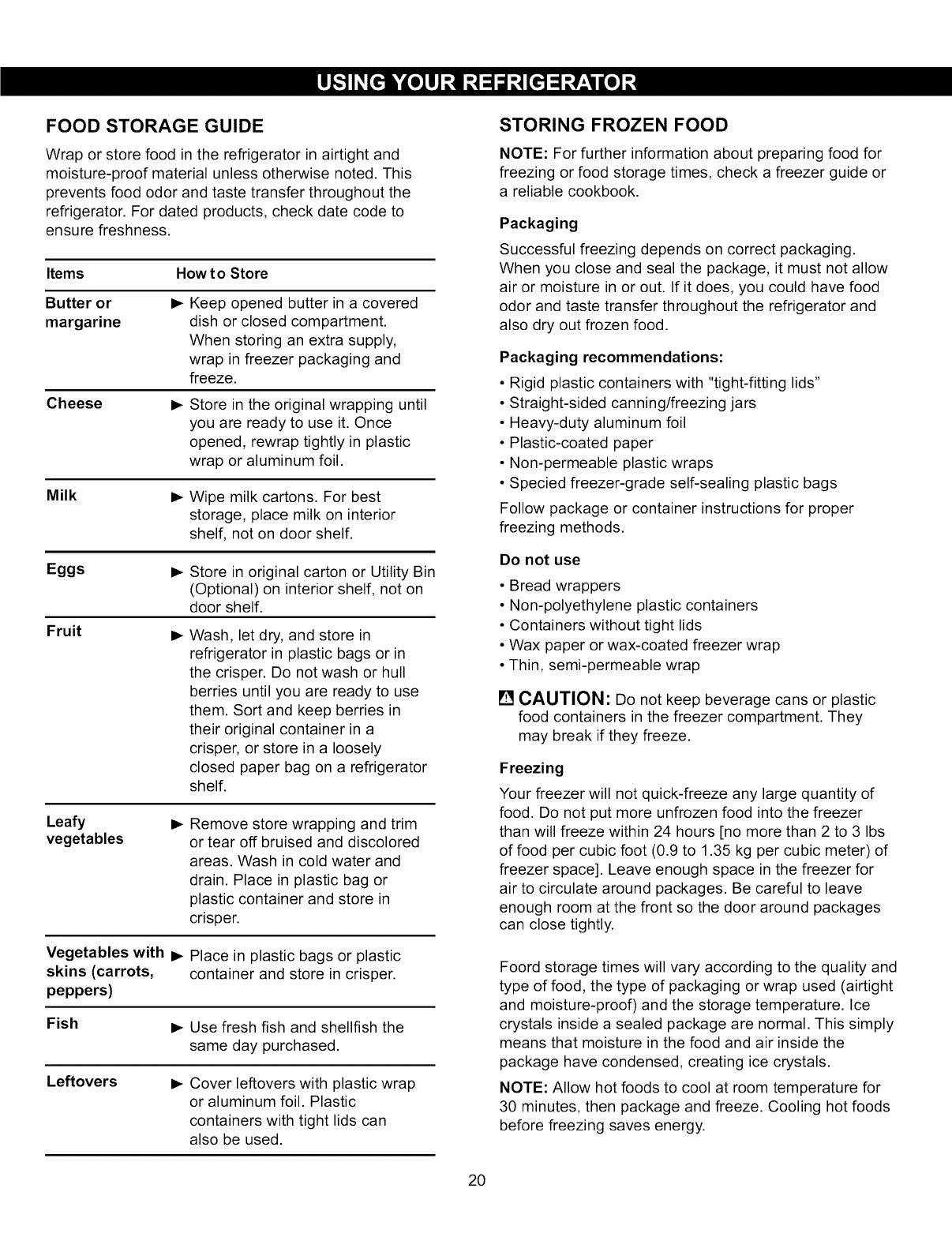

Food Storage Guide

Storing Frozen Food

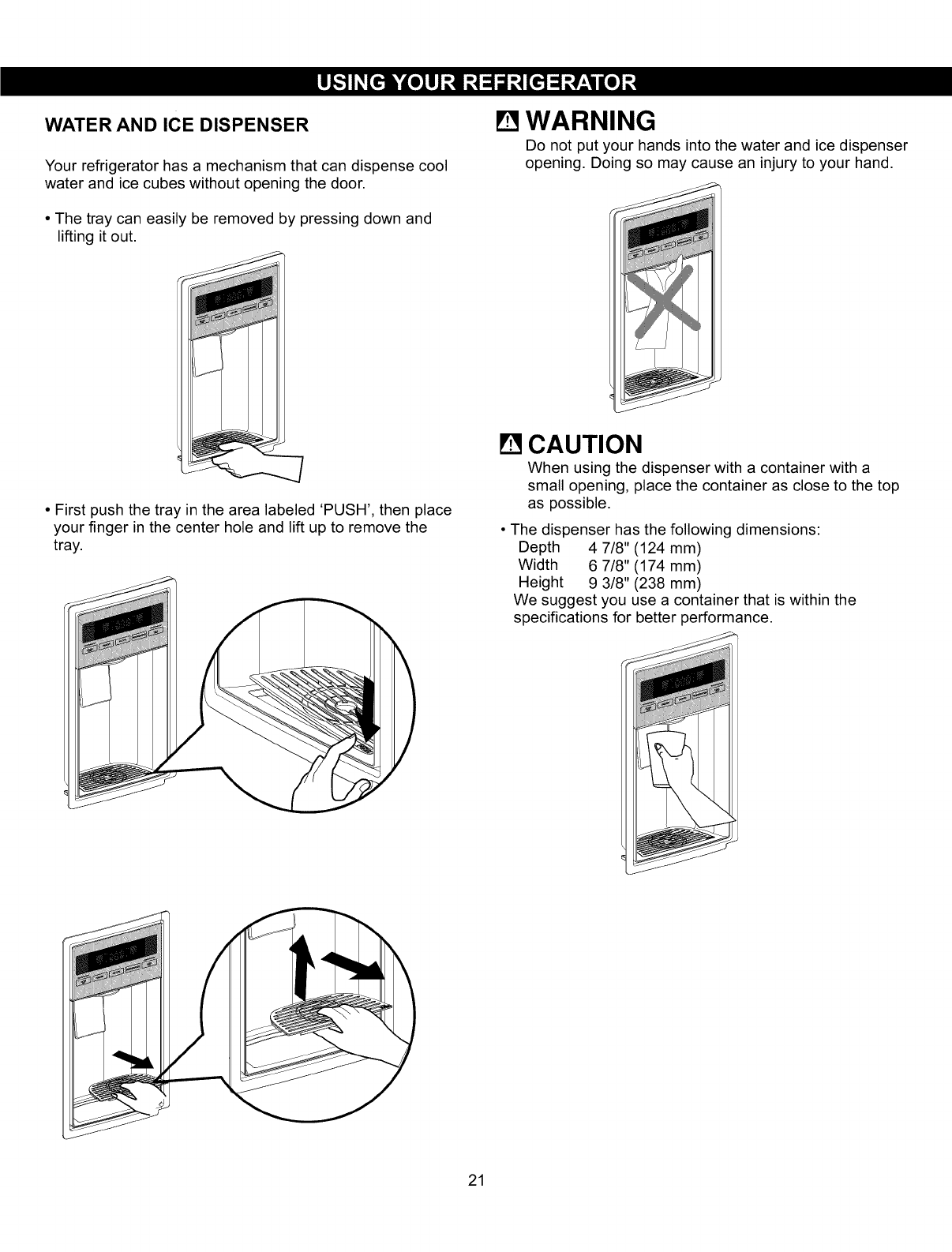

Water and Ice Dispenser

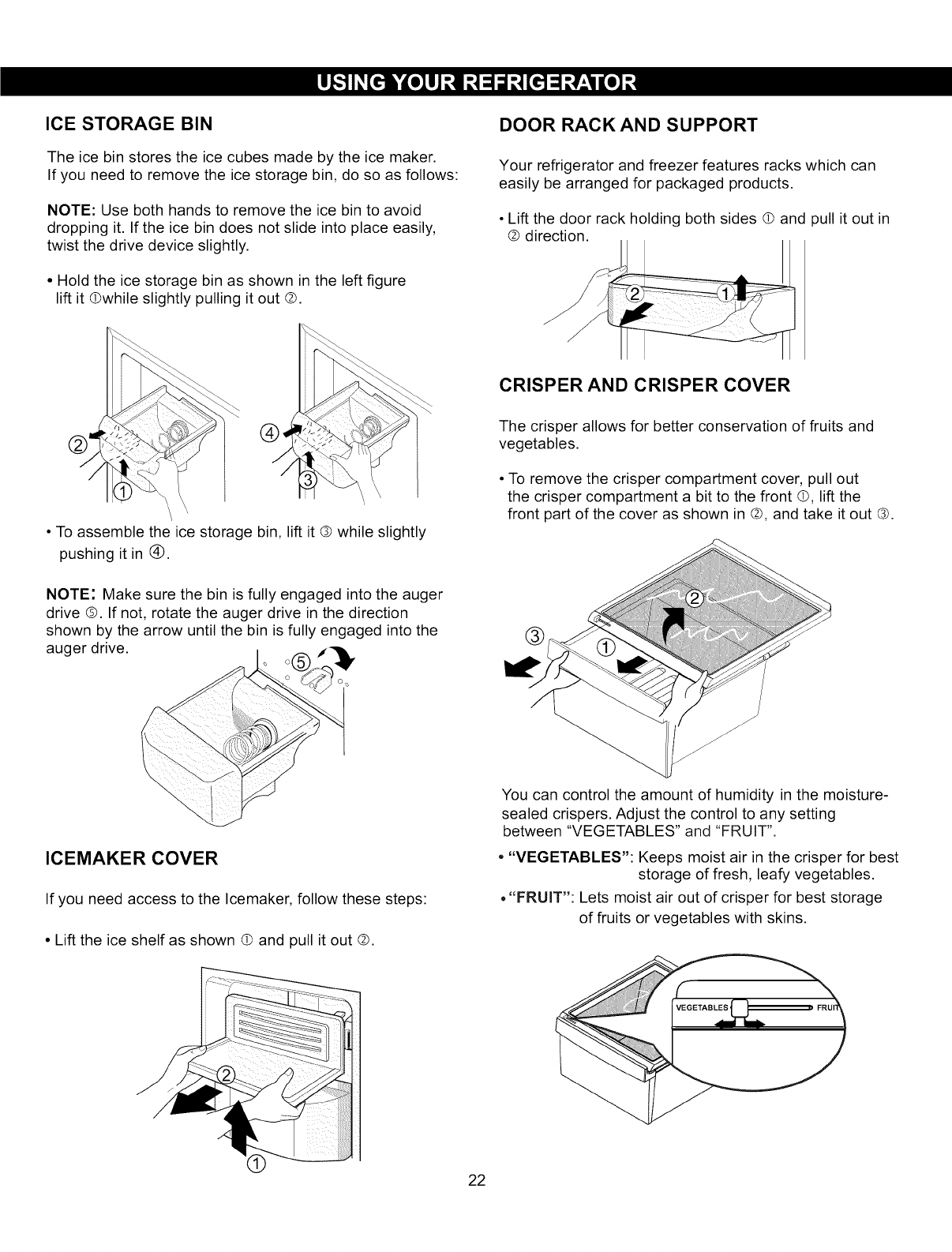

Ice Storage Bin

Icemaker cover

Door Rack and Support

Crisper and Crisper cover

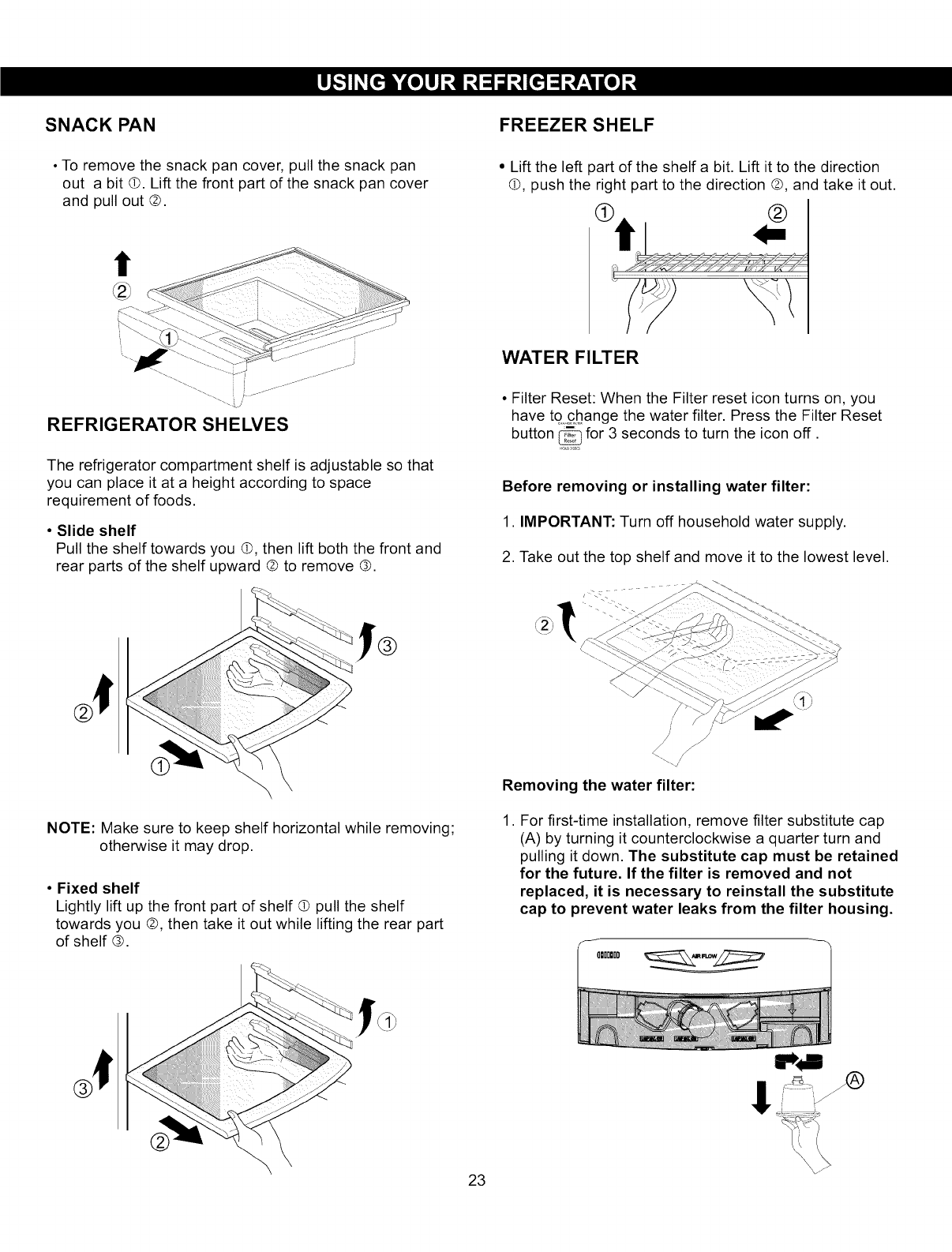

Snack Pan

Refrigerator Shelves

7-15

8-9

9-11

11 - 12

14-15

17 - 25

17-19

Freezer Shelf

Water Filter

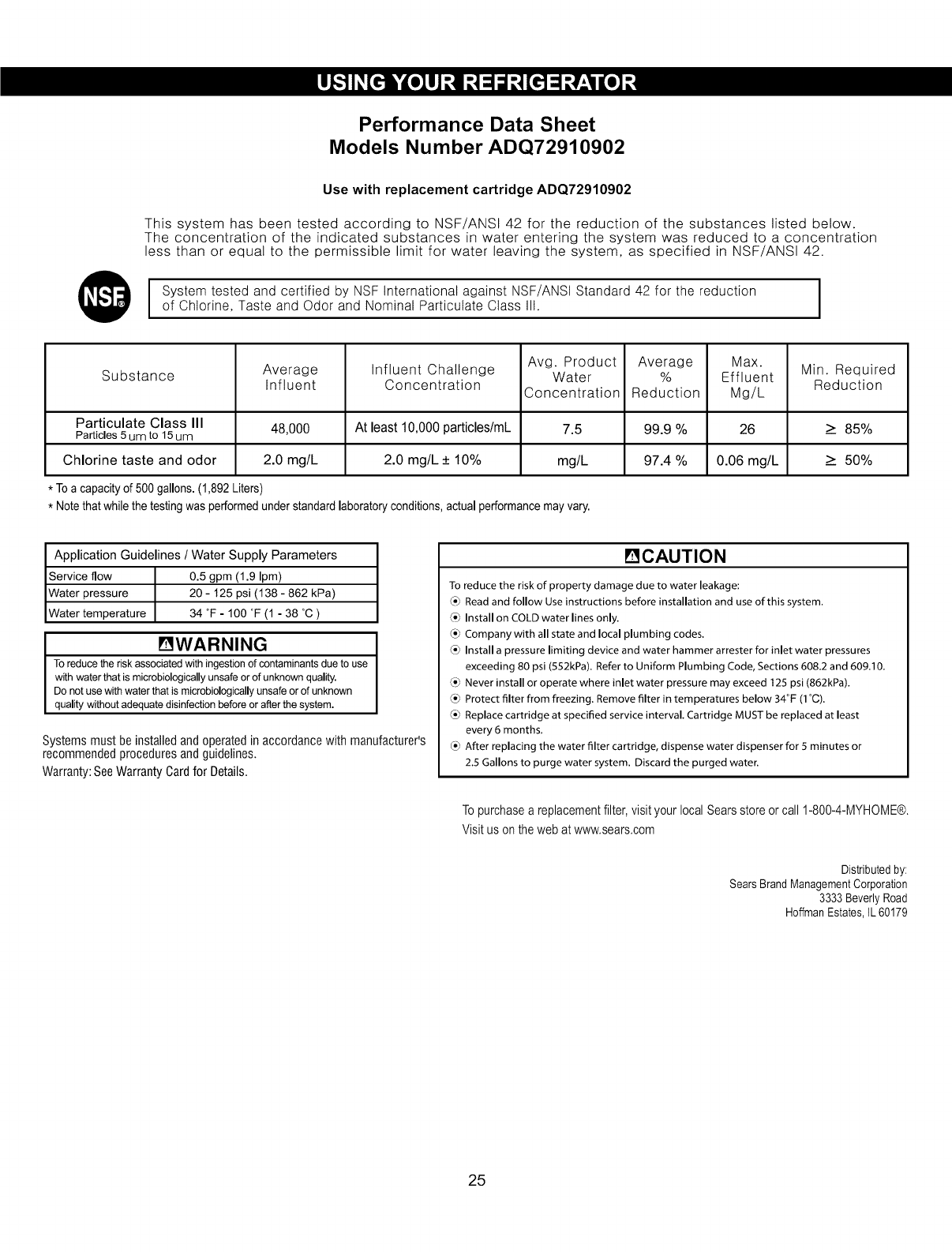

Performance Data Sheet

Care and cleaning

General cleaning tips

Outside

Inside walls

Door liners and gaskets

Plastic parts

Back cover

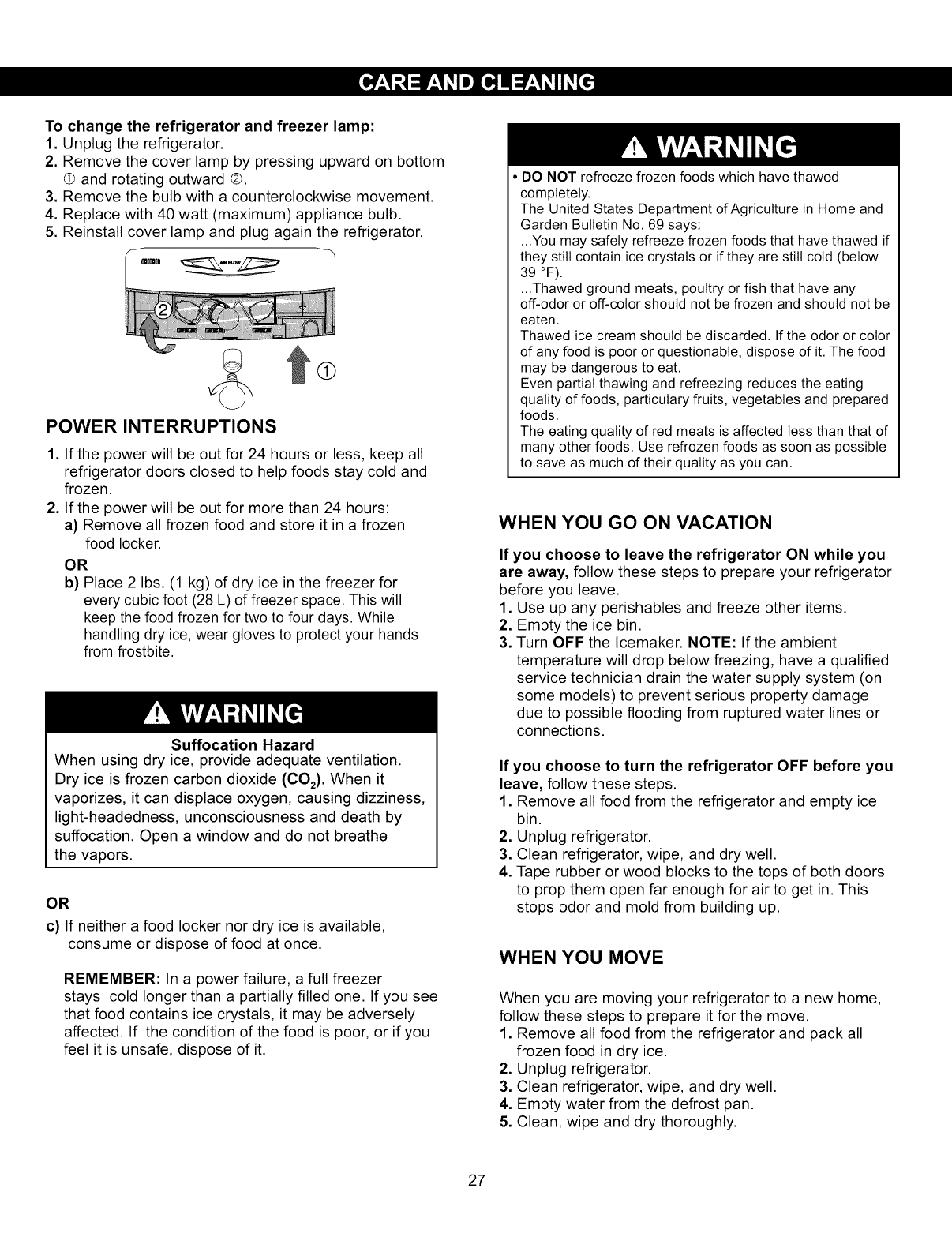

Lamp replacement

Power interruptions

When you go on vacation

When you move

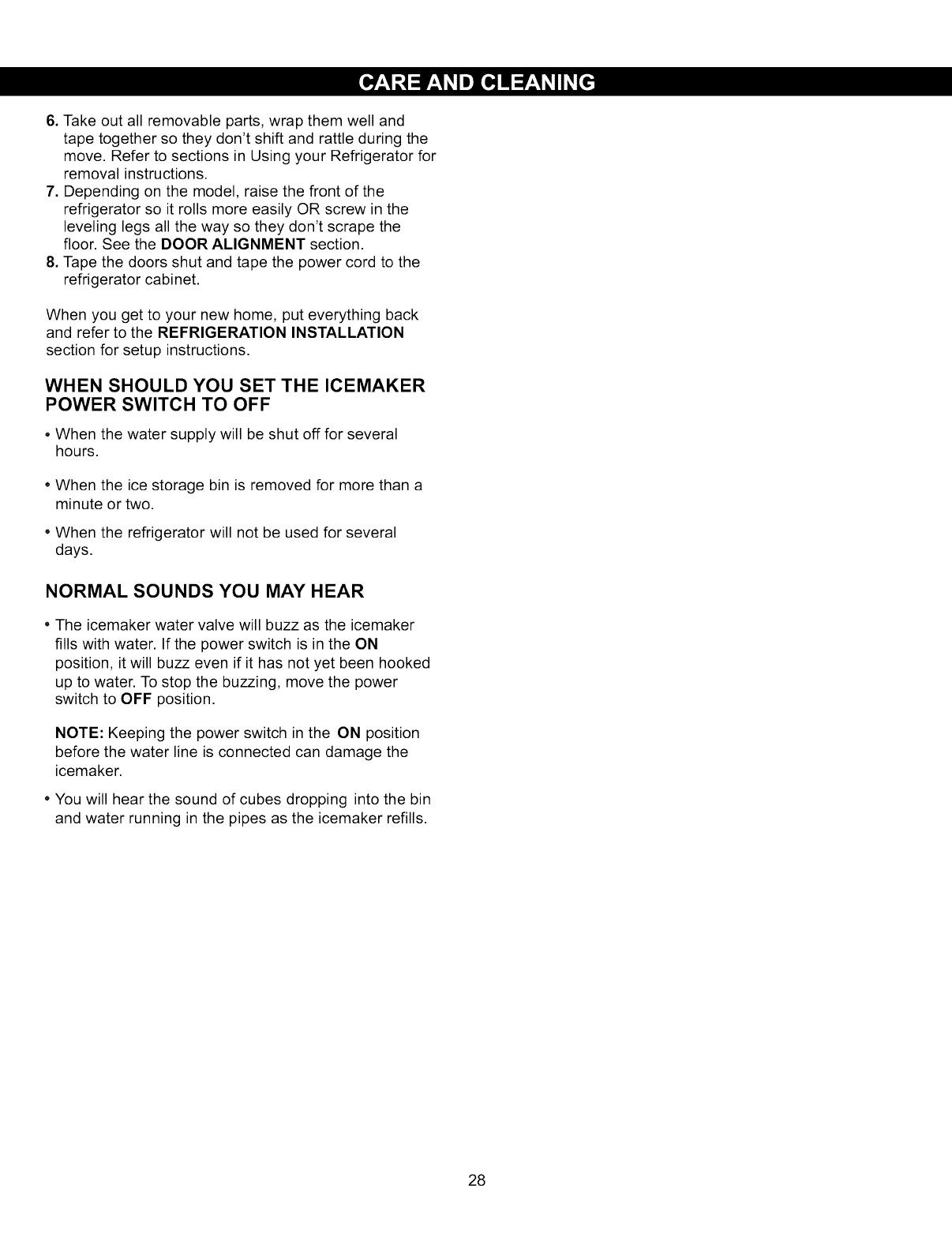

When should you set the icemaker power

Switch to (off)

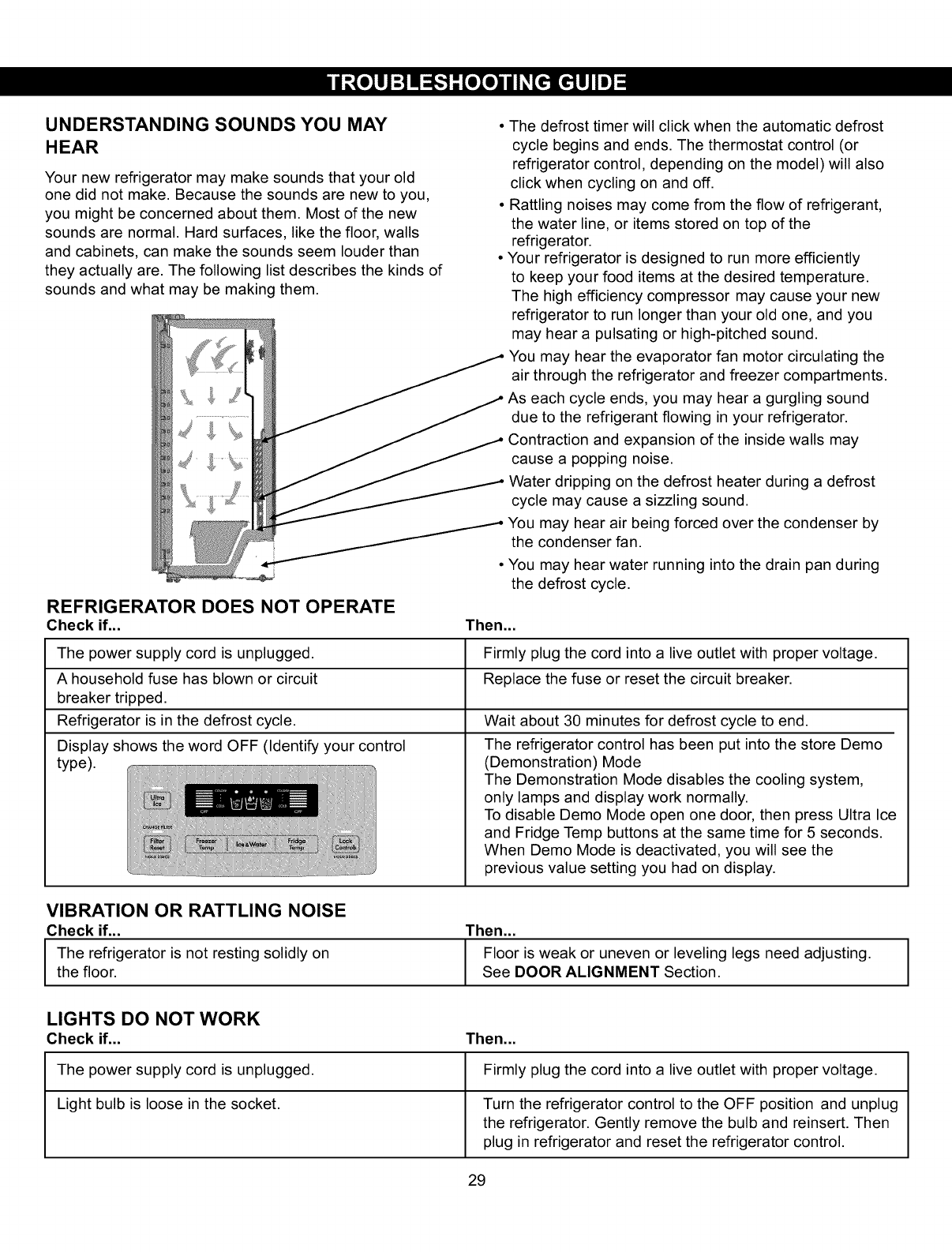

Normal sounds you may hear

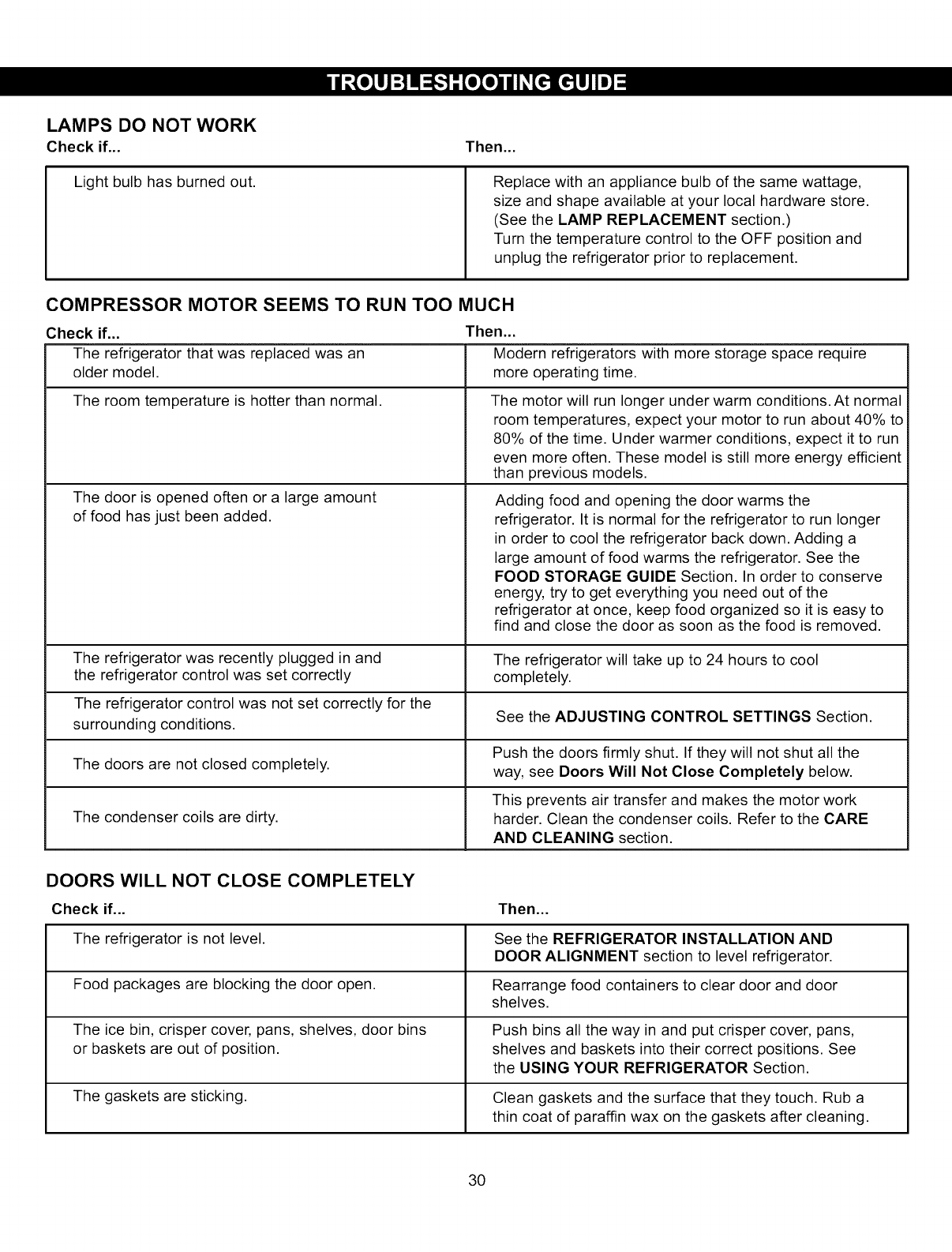

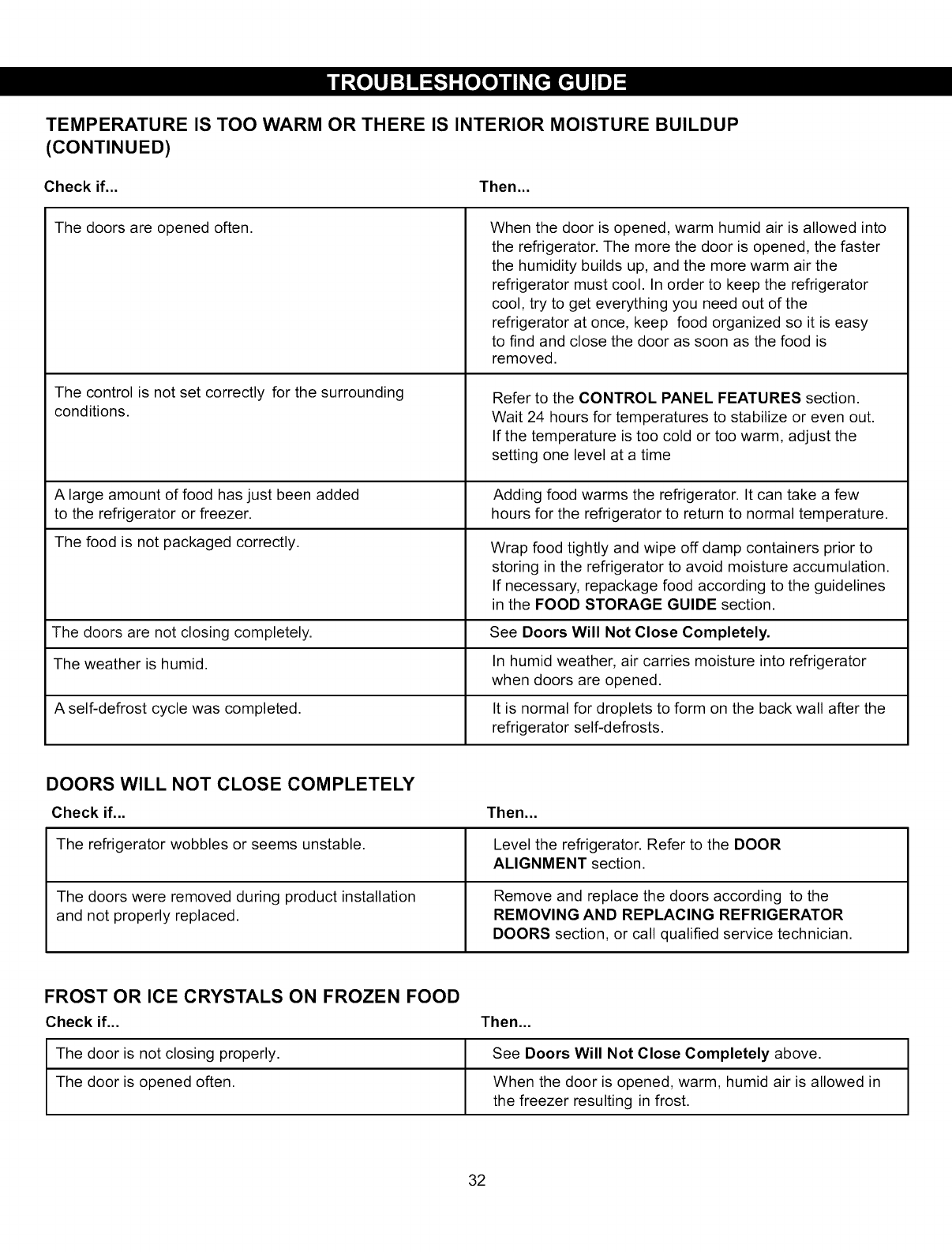

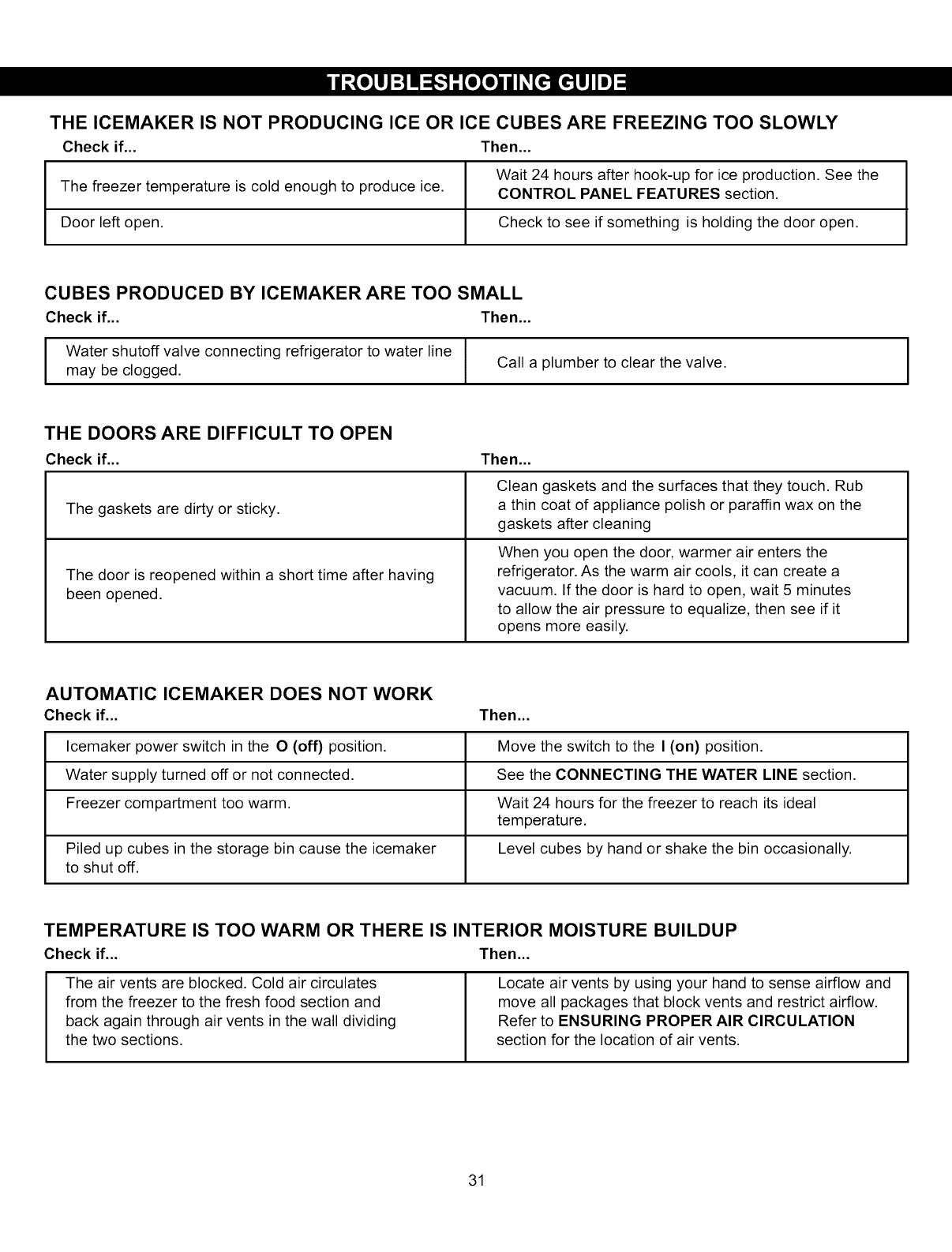

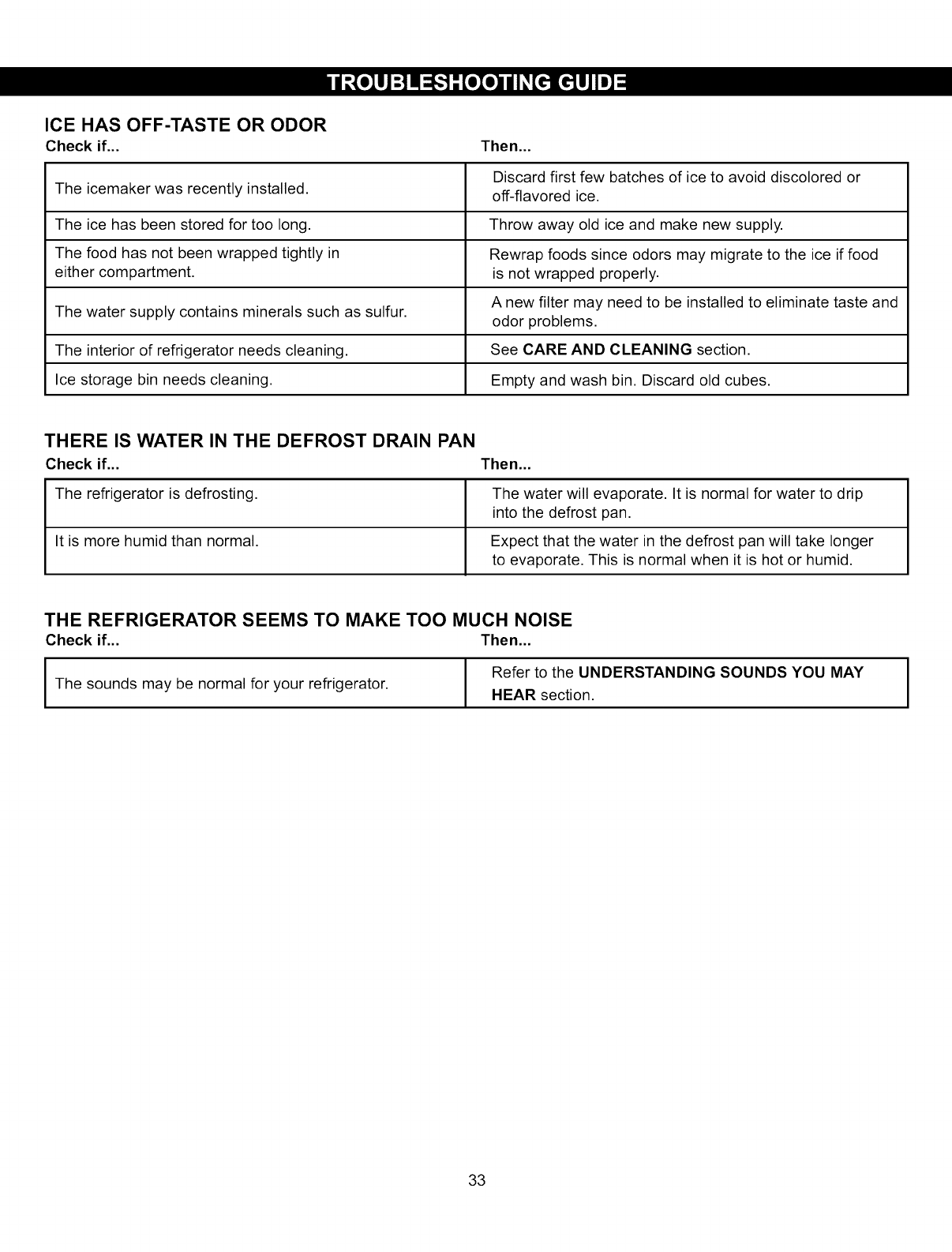

Troubleshooting guide

23 - 24

26 - 28

26 - 27

27 - 28

29-33

SIDE-BY-SIDE REFRIGERATOR

Kenmore Refrigerator Warranty

One Year Limited Warranty

When installed, operated and maintained according to all instructions supplied with the product, if this appliance fails due

to a defect in material or workmanship within one year from the date of purchase, call 1-800-4-MY-HOME (_"to arrange for

free repair.

If this appliance is used for other than private family purposes, this warranty applies for only 90 days from the date of

purchase.

This Warranty covers only defects in material and workmanship. Sears will NOT pay for:

1. Expendable items that can wear out from normal use, including but not limited to filters, belts, light bulbs, and bags.

2. A service technician to instruct the user in correct product installation, operation or maintenance.

3. A service technician to clean or maintain this product.

4. Damage to or failure of this product if it is not installed, operated or maintained according to all instructions supplied

with the product.

5. Damage to or failure of this product resulting from accident, abuse, misuse or use for other than its intended

with the product.

6. Damage to or failure of this product caused by the use of detergents, cleaners, chemicals or utensils other than

those recommended in all instructions supplied with the product.

7. Damage to or failure of parts or systems resulting from unauthorized modifications made to this product.

Disclaimer of implied warranties; limitation of remedies

Customer's sole and exclusive remedy under this limited warranty shall be product repair as provided herein. Implied

warranties, including warranties of merchantability or fitness for a particular purpose, are limited to one year or the

shortest period allowed by law. Sears shall not be liable for incidental or consequential damages. Some states and

provinces do not allow the exclusion or limitation of incidental or consequential damages, or limitations on the duration

or implied warranties of merchantability or fitnes, so these exclusions or limitation may not apply to you.

This warranty applies only while this appliance is used in the United States and Canada.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Sears Brands Management Corp., Hoffman Estates, IL 60179

Sears Canada, Inc., Toronto, Ontario, Canada M5B 2B8

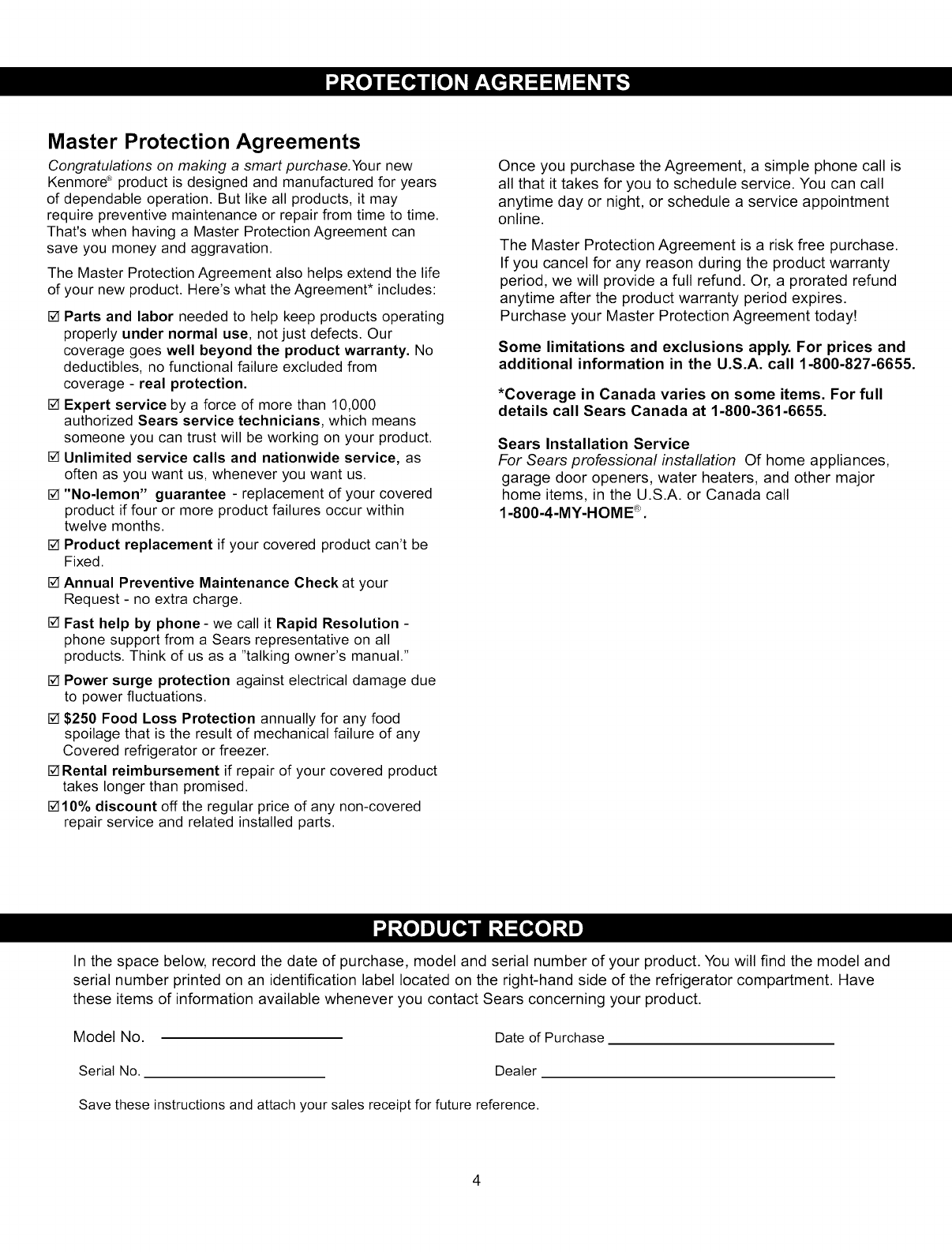

Master Protection Agreements

Congratulations on making a smart purchase.Your new

Kenmore _ product is designed and manufactured for years

of dependable operation. But like all products, it may

require preventive maintenance or repair from time to time.

That's when having a Master Protection Agreement can

save you money and aggravation.

The Master Protection Agreement also helps extend the life

of your new product. Here's what the Agreement* includes:

[] Parts and labor needed to help keep products operating

properly under normal use, not just defects. Our

coverage goes well beyond the product warranty. No

deductibles, no functional failure excluded from

coverage - real protection.

[] Expert service by a force of more than 10,000

authorized Sears service technicians, which means

someone you can trust will be working on your product.

[] Unlimited service calls and nationwide service, as

often as you want us, whenever you want us.

[] "No-lemon" guarantee - replacement of your covered

product if four or more product failures occur within

twelve months.

[] Product replacement if your covered product can't be

Fixed.

[] Annual Preventive Maintenance Check at your

Request - no extra charge.

[] Fast help by phone- we call it Rapid Resolution -

phone support from a Sears representative on all

products. Think of us as a "talking owner's manual."

[] Power surge protection against electrical damage due

to power fluctuations.

[] $250 Food Loss Protection annually for any food

spoilage that is the result of mechanical failure of any

Covered refrigerator or freezer.

[]Rental reimbursement if repair of your covered product

takes longer than promised.

[]10% discount off the regular price of any non-covered

repair service and related installed parts.

Once you purchase the Agreement, a simple phone call is

all that it takes for you to schedule service. You can call

anytime day or night, or schedule a service appointment

online.

The Master Protection Agreement is a risk free purchase.

If you cancel for any reason during the product warranty

period, we will provide a full refund. Or, a prorated refund

anytime after the product warranty period expires.

Purchase your Master Protection Agreement today!

Some limitations and exclusions apply. For prices and

additional information in the U.S.A. call 1-800-827-6655.

*Coverage in Canada varies on some items. For full

details call Sears Canada at 1-800-361-6655.

Sears Installation Service

For Sears professional installation Of home appliances,

garage door openers, water heaters, and other major

home items, in the U.S.A. or Canada call

1-800-4-MY-HOME Ce.

In the space below, record the date of purchase, model and serial number of your product. You will find the model and

serial number printed on an identification label located on the right-hand side of the refrigerator compartment. Have

these items of information available whenever you contact Sears concerning your product.

Model No. Date of Purchase

Serial No. Dealer

Save these instructions and attach your sales receiptfor future reference.

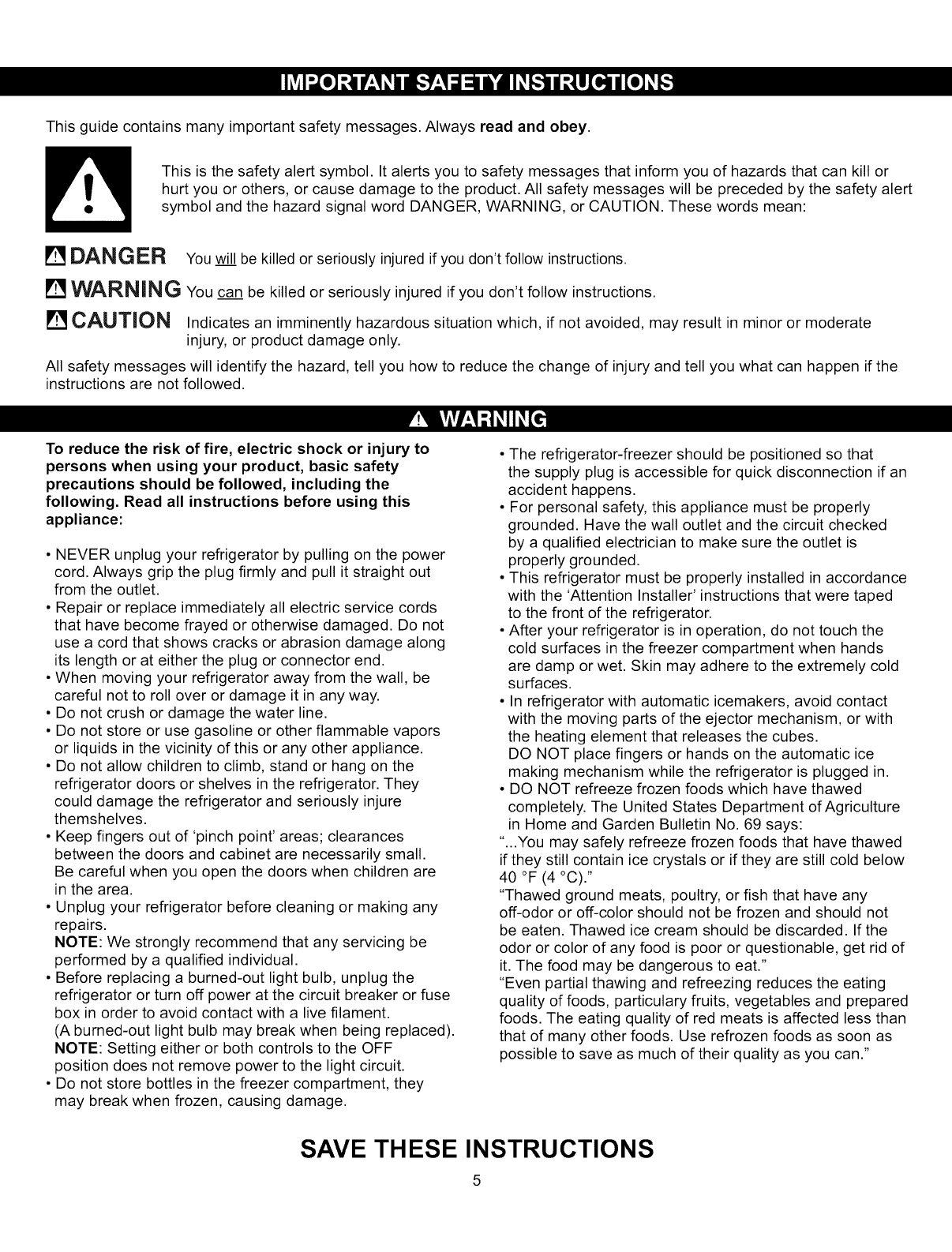

Thisguidecontainsmanyimportantsafetymessages.Alwaysreadandobey.

Thisisthesafetyalertsymbol.Italertsyoutosafetymessagesthatinformyouofhazardsthatcankillor

hurtyouorothers,orcausedamagetotheproduct.Allsafetymessageswillbeprecededbythesafetyalert

symbolandthehazardsignalwordDANGER,WARNING,orCAUTION.Thesewordsmean:

[] DANGER Youwillbekilledorseriouslyinjuredifyoudon'tfollowinstructions.

WARNING Youcan be killed or seriously injured if you don't follow instructions.

CAUTION Indicates an imminently hazardous situation which, if not avoided, may result in minor or moderate

injury, or product damage only.

All safety messages will identify the hazard, tell you how to reduce the change of injury and tell you what can happen if the

instructions are not followed.

kvAv/ d

To reduce the risk of fire, electric shock or injury to

persons when using your product, basic safety

precautions should be followed, including the

following. Read all instructions before using this

appliance:

• NEVER unplug your refrigerator by pulling on the power

cord. Always grip the plug firmly and pull it straight out

from the outlet.

• Repair or replace immediately all electric service cords

that have become frayed or otherwise damaged. Do not

use a cord that shows cracks or abrasion damage along

its length or at either the plug or connector end.

• When moving your refrigerator away from the wall, be

careful not to roll over or damage it in any way.

• Do not crush or damage the water line.

• Do not store or use gasoline or other flammable vapors

or liquids in the vicinity of this or any other appliance.

• Do not allow children to climb, stand or hang on the

refrigerator doors or shelves in the refrigerator. They

could damage the refrigerator and seriously injure

themshelves.

• Keep fingers out of 'pinch point' areas; clearances

between the doors and cabinet are necessarily small.

Be careful when you open the doors when children are

in the area.

• Unplug your refrigerator before cleaning or making any

repairs.

NOTE: We strongly recommend that any servicing be

performed by a qualified individual.

• Before replacing a burned-out light bulb, unplug the

refrigerator or turn off power at the circuit breaker or fuse

box in order to avoid contact with a live filament.

(A burned-out light bulb may break when being replaced).

NOTE: Setting either or both controls to the OFF

position does not remove power to the light circuit.

• Do not store bottles in the freezer compartment, they

may break when frozen, causing damage.

• The refrigerator-freezer should be positioned so that

the supply plug is accessible for quick disconnection if an

accident happens.

• For personal safety, this appliance must be properly

grounded. Have the wall outlet and the circuit checked

by a qualified electrician to make sure the outlet is

properly grounded.

• This refrigerator must be properly installed in accordance

with the 'Attention Installer' instructions that were taped

to the front of the refrigerator.

• After your refrigerator is in operation, do not touch the

cold surfaces in the freezer compartment when hands

are damp or wet. Skin may adhere to the extremely cold

surfaces.

• In refrigerator with automatic icemakers, avoid contact

with the moving parts of the ejector mechanism, or with

the heating element that releases the cubes.

DO NOT place fingers or hands on the automatic ice

making mechanism while the refrigerator is plugged in.

• DO NOT refreeze frozen foods which have thawed

completely. The United States Department of Agriculture

in Home and Garden Bulletin No. 69 says:

"...You may safely refreeze frozen foods that have thawed

if they still contain ice crystals or if they are still cold below

40 °F (4 °C)."

"Thawed ground meats, poultry, or fish that have any

off-odor or off-color should not be frozen and should not

be eaten. Thawed ice cream should be discarded. If the

odor or color of any food is poor or questionable, get rid of

it. The food may be dangerous to eat."

"Even partial thawing and refreezing reduces the eating

quality of foods, particulary fruits, vegetables and prepared

foods. The eating quality of red meats is affected less than

that of many other foods. Use refrozen foods as soon as

possible to save as much of their quality as you can."

SAVE THESE INSTRUCTIONS

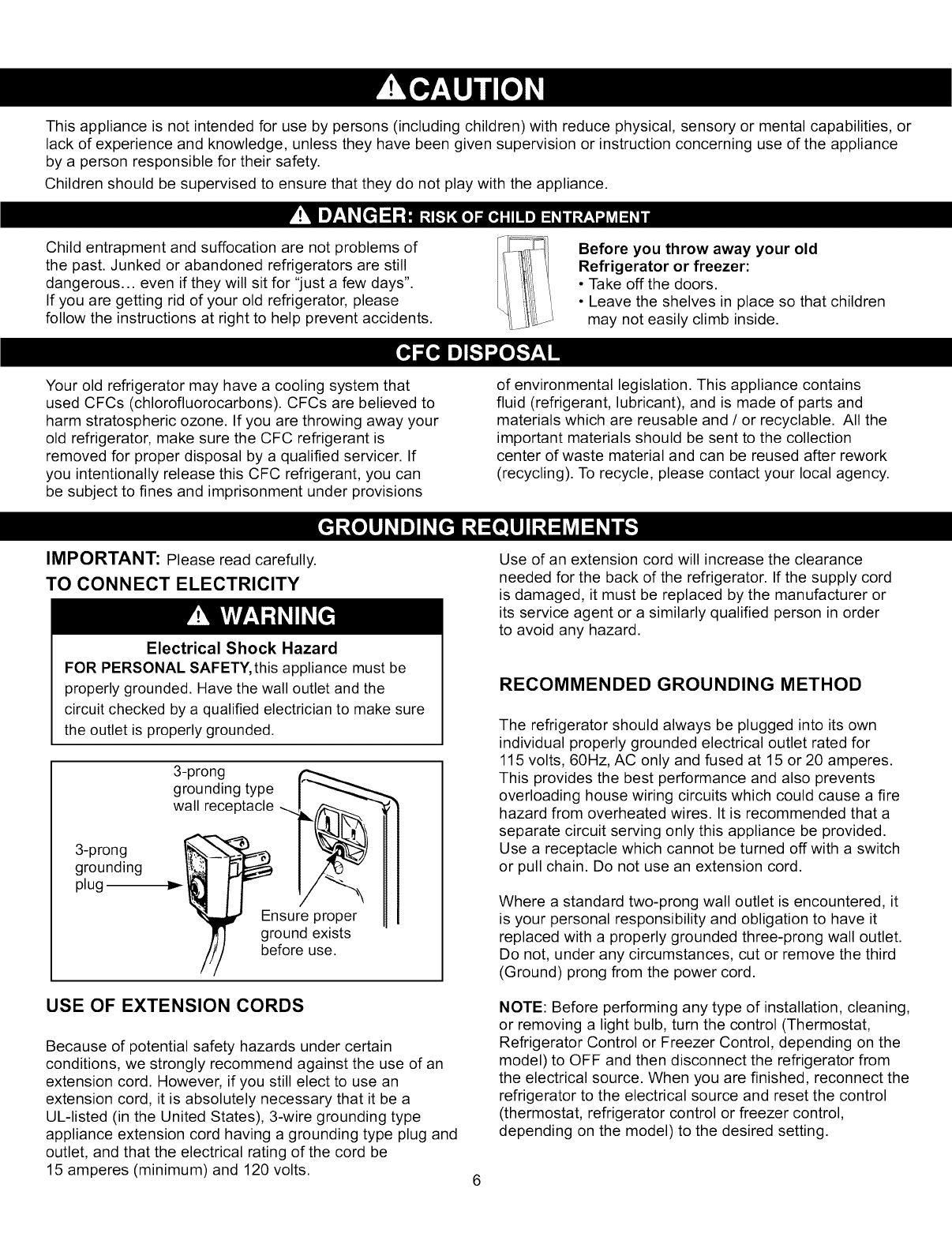

This appliance is not intended for use by persons (including children) with reduce physical, sensory or mental capabilities, or

lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance

by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

Child entrapment and suffocation are not problems of

the past. Junked or abandoned refrigerators are still

dangerous.., even if they will sit for "just a few days".

If you are getting rid of your old refrigerator, please

follow the instructions at right to help prevent accidents.

Before you throw away your old

Refrigerator or freezer:

• Take off the doors.

• Leave the shelves in place so that children

may not easily climb inside.

Your old refrigerator may have a cooling system that

used CFCs (chlorofiuorocarbons). CFCs are believed to

harm stratospheric ozone. If you are throwing away your

old refrigerator, make sure the CFC refrigerant is

removed for proper disposal by a qualified servicer. If

you intentionally release this CFC refrigerant, you can

be subject to fines and imprisonment under provisions

of environmental legislation. This appliance contains

fluid (refrigerant, lubricant), and is made of parts and

materials which are reusable and /or recyclable. All the

important materials should be sent to the collection

center of waste material and can be reused after rework

(recycling). To recycle, please contact your local agency.

IMPORTANT: Please read carefully.

TO CONNECT ELECTRICITY

Electrical Shock Hazard

FOR PERSONAL SAFETY, this appliance must be

properly grounded. Have the wall outlet and the

circuit checked by a qualified electrician to make sure

the outlet is properly grounded.

3-prong

grounding

plug

3-pronggrounding type

wall receptacle _

sure proper

,_] ground exists

/J before use.

USE OF EXTENSION CORDS

Because of potential safety hazards under certain

conditions, we strongly recommend against the use of an

extension cord. However, if you still elect to use an

extension cord, it is absolutely necessary that it be a

UL-listed (in the United States), 3-wire grounding type

appliance extension cord having a grounding type plug and

outlet, and that the electrical rating of the cord be

15 amperes (minimum) and 120 volts.

Use of an extension cord will increase the clearance

needed for the back of the refrigerator. If the supply cord

is damaged, it must be replaced by the manufacturer or

its service agent or a similarly qualified person in order

to avoid any hazard.

RECOMMENDED GROUNDING METHOD

The refrigerator should always be plugged into its own

individual properly grounded electrical outlet rated for

115 volts, 60Hz, AC only and fused at 15 or 20 amperes.

This provides the best performance and also prevents

overloading house wiring circuits which could cause a fire

hazard from overheated wires. It is recommended that a

separate circuit serving only this appliance be provided.

Use a receptacle which cannot be turned off with a switch

or pull chain. Do not use an extension cord.

Where a standard two-prong wall outlet is encountered, it

is your personal responsibility and obligation to have it

replaced with a properly grounded three-prong wall outlet.

Do not, under any circumstances, cut or remove the third

(Ground) prong from the power cord.

NOTE: Before performing any type of installation, cleaning,

or removing a light bulb, turn the control (Thermostat,

Refrigerator Control or Freezer Control, depending on the

model) to OFF and then disconnect the refrigerator from

the electrical source. When you are finished, reconnect the

refrigerator to the electrical source and reset the control

(thermostat, refrigerator control or freezer control,

depending on the model) to the desired setting.

Excessive Weight Hazard

Use two or more people to move and install the

refrigerator.

Failure to do so can result in back or other injury.

UNPACKING YOUR REFRIGERATOR

Remove tape and any temporary labels from your

refrigerator before using. Do not remove any warning

type labels or the model and serial number label.

To remove any remaining tape or glue, rub the area

briskly with your thumb. Tape or glue residue can also

be easily removed by rubbing a small amount of liquid

dish soap over the adhesive with your fingers. Wipe with

warm water and dry.

Do not use sharp instruments, rubbing alcohol,

flammable fluids or abrasive cleaners to remove tape or

glue. These products can damage the surface of your

refrigerator. For more information, see the Important

Safety Instructions section.

Refrigerator shelves are installed in the shipping

position.

Please reinstall shelves according to your individual

storage needs.

When Moving Your Refrigerator:

Your refrigerator is heavy When moving the

refrigerator for cleaning or service, be sure to protect

the floor. Always pull the refrigerator straight out when

moving it. Do not wiggle or walk the refrigerator when

trying to move it, as floor damage could occur.

Explosion Hazard

Keep flammable materials and vapors, such as

gasoline, away from refrigerator.

Failure to do so can result in death, explosion or fire.

INSTALLATION

1. Avoid placing unit near heat sources, direct sunlight or

moisture.

2. To minimize noise and vibration, the refrigerator

MUST be installed on a solidly constructed floor.

3. Carpeting and soft tile surfaces are not recommended.

4. NEVER install the refrigerator on a platform or a

weakly supported structure.

5. Install this appliance in an area where the

temperature is between 41 °F (5 °C) and 110 °F

(43 °C). If the temperature around the appliance is too

low or high, cooling ability may be adverseley affected.

NOTE: For proper air circulation, best cooling and

energy consumption results, maintain a minimum

distance of 2 inches (5.08cm) from adjacent items and

surfaces.

{

'2" (5.08 cm) 4" "_ 2" (5.08 cm) 4" "_ _" "2" (5.08 cm)

• Be careful when you work with hinge, base grille,

stopper, etc. You may be injured.

• Do not put hands or metal sticks into air vents, base

grille or bottom of the refrigerator. You may be injured

or receive an electrical shock.

BASE GRILLE INSTALLATION

To install or replace base grille:

1. Remove the 2 screws from the bottom front part of

refrigerator.

2. Place base grille into position and insert and tighten

screws.

To remove the base grille

1. Open the doors. (Refrigerator and Freezer)

2. Once doors are open, remove screws from base

grille. Remove base grille and set safely aside.

3. Reattach screws to the base of refrigerator.

LEVELING THE REFRIGERATOR DOOR

Place level on refrigerator shelf as shown below.

HANDLE REMOVAL (TYPE 1)

(Identify your handle type)

NOTE: It is ALWAYS recommended to remove the

refrigerator doors when it is necessary to move the

refrigerator through a narrow opening. If necessary,

follow the directions below to remove the door handles.

• Loosen the set screws with a 3/32" (2.38 mm) Allen

wrench and remove the handle.

NOTE: If the handle mounting fasteners need to be

tightened or moved, use a 'A" (6.35 mm) Allen wrench.

Mounting

fasteners

If your refrigerator is not level, insert a fiat blade

screwdriver into the grooves of the leveling legs (shown

in picture below). Rotate legs clockwise to raise or

counterclockwise to lower the front of the refrigerator.

Set screw

Left leveling Right leveling Ieg

leg

Wrench

Raise the front of the refrigerator enough so the doors

close freely when opened halfway. The refrigerator

should slope ¼" (6.35 mm) to ½" (0.127 mm) from front

to back.

HANDLE REMOVAL (TYPE 2)

•Grasp the handle tigthtlywith both hands and slide the

handle up (:b (this may require some force).

• The keyhole slots © on the back of the handle allow

the handle to separate from the mounting screws ®.

• Then pull the handle torwards you.

[] CAUTION: Use extreme care to prevent damage if

using a rubber mallet to remove the handles.

[] CAUTION: It may take some force to assemble or

diassemble the handles.

Electric Shock Hazard

• Disconnect electrical supply to the refrigerator

before installing. Failure to do so could result in

death or serious injury.

• Do not put hands or feet or other objects into the

air vents, base grille, or bottom of the refrigerator.

You may be injured or receive an electrical shock.

• Be careful when you work with the hinge, base

grille, and stopper. You may be injured.

REMOVING AND REPLACING

REFRIGERATOR DOORS

Before removing the doors, remove the Base Grille.

See BASE GRILLE INSTALLATION for reference.

To remove the right (refrigerator) door:

/(2)

mounted

on door

Keyho,es,ots®

on back of

handle /

/(4)

z(3)

Type 1

Type 2

i •

1. Open the door. Remove the top hinge cover screw

(1).

2. Use a flat blade screwdriver to pry back the hooks

(not shown) on the cabinet underside of the cover (2).

Lift up the cover.

3. Rotate the hinge lever (3) clockwise. Lift the top hinge

(4) free of the hinge lever latch (5).

NOTE: Regardless of hinge lever type, removal process is

the same.

4. Lift the door from the lower hinge pin.

5. Place the door, inside facing up, on a nonscratching

surface.

[] CAUTION" When lifting the hinge free of the latch,

be careful that the door does not fall forward.

Removing the left (freezer) door with water line

connection.

•Pull up the water feed tube while pressing area

(Figure 1) as shown in the figure below.

•NOTE: If a tube end is deformed or abraded, trim the

part away. Disconnecting the tube under the door

causes about 0.13 gallons (0.5 liters) water to flow out.

Put a large container at end of tube to prevent water

from draining onto the floor.

(2)

(1)\

[] CAUTION: When lifting the hinge free of the latch,

be careful that the door does not fall forward.

6. Lift the door from the lower hinge pin being careful to

pull the water lines through the lower hinge pin.

7. Place the door, inside facing up, on a nonscratching

surface.

Reinstalling the right (Refrigerator) door

/(2)

z(3)

Type 1

1. Place the door onto the lower hinge pin.

2. Fit top hinge (4) over hinge lever latch (5) into

place. Rotate lever (3) counterclockwise to secure

hinge.

NOTE: Regardless of hinge lever type, removal process is

the same.

3. Hook tab on switch side of corner under edge of wire

opening in cabinet top. Position cover (2) into place.

Insert and tighten cover screw (1).

1. Open the door. Remove the top hinge cover screw (1).

2. Use a fiat blade screwdriver to pry back the hooks

(not shown) on the cabinet underside of the cover (2).

Lift up the cover.

3. Disconnect all the wire harnesses (3).

4. Remove the grounding screw (4).

5. Rotate hinge lever (5) counterclockwise. Lift the top

hinge (6) free of the hinge lever latch (7).

NOTE: Regardless of hinge lever type, removal process is

the same.

Reinstalling the left (Freezer) door DOOR ALIGNMENT

Before adjust the doors, remove the base grille•

See BASE GRILLE INSTALLATION for reference•

First select your adjusting tool, it could vary•

Type 1

Adjusting tool: Flat blade screwdriver

If the freezer compartment door is lower than

the refrigerator compartment door, make them

level by inserting fiat blade screwdriver into the

groove of the left leveling leg and rotating it

clockwise.

1. Feed the water tubes through the lower hinge pin and

place the door onto the lower hinge pin.

2. Fit top hinge (6) over hinge lever latch (7) and into

place. Rotate lever (5) clockwise to secure hinge

NOTE: Regardless of hinge lever type, removal process is

the same.

3. Install the grounding screw (4) and connect all the

wire harnesses (3).

4. Hook tab on door switch side of cover (2) under edge

of wire opening in cabinet top. Position cover into

place. Insert and tighten cover screw (1).

5. Reconnect the water tubes by inserting the tubes into

the connectors.

Collet

Insert Line,--

Left leveling

leg Height

difference

If the freezer compartment door is higher than the

refrigerator compartment door, make them level by

inserting flat blade screwdriver into the groove of

the right leveling leg and rotating it clockwise.

Height

difference

Right leveling leg

__ /

Type 2

Adjusting tools: Wrench 5/16" (8 mm) and

Wrench ¾" (19 mm)

Height

difference

Keeper nut

Using a ¾" (19 mm) wrench, turn the keeper nut clockwise

to Iossen the keeper nut.

Using a 5/16" (8 mm) wrench, turn the adjustment hinge pin

clockwise or counterclockwise to level the refrigerator and

freezer door.

After setting the level door, turn the keeper nut

counterclockwise to tighten.

Do not overtight the door adjustment screw. The hinge pin

can be pulled out. (Adjustable range of height is a maximum

of ½" (1.27 cm)).

AFTER LEVELING THE DOOR HEIGHT

Make sure the front leveling legs are completely

touching the floor.

CONNECTING THE WATER LINE

NOTE: Water line installation is needed when the

Automatic Ice Maker and/or Water Dispenser features

are available on your product.

BEFORE YOU BEGIN

This water line installation is not warranted by the

refrigerator or icemaker manufacturer or seller. Follow

these instructions carefully to minimize the risk of

expensive water damage.

Water hammer (water banging in the pipes) in house

plumbing can cause damage to refrigerator parts and

lead to water leakage or flooding. Call a qualified

plumber to correct water hammer before installing the

water supply line to the refrigerator

To prevent burns and product damage, do not hook up

the water line to the hot water line.

If you use your refrigerator before connecting the water

line, make sure the icemaker power switch is in the O

(off) position.

Do not install the icemaker tubing in areas where

temperatures fall below freezing.

When using any electrical device (such as a power

drill) during installation, be sure the device is double-

insulated or grounded in a manner to prevent the hazard

of electric shock, or is battery-powered.

All installations must be in accordance with local

plumbing code requirements.

NOTE: Wear eye protection.

• If a reverse osmosis water filtration system is

connected to your cold water supply, the water line

installation is not warranted by the refrigerator or

icemaker manufacturer or seller. Follow next instruction

carefully to minimize the risk of expensive water

damage.

•If a reverse osmosis water filtration system is

connected to your cold water supply, the water pressure

to the reverse osmosis system needs to be a minimum

of 40 to 60 PSI (2.8 kg.f/cm 2- 4.2 kg.f/cm 2, less than

2-3 sec to fill a cup of 7 oz capacity).

If the water pressure from the reverse osmosis system

is less than 21 PSI (1.5 kg.f/cm 2, more than 4 sec to fill

a cup of 7 oz capacity):

• Check to see whether the sediment filter in the reverse

osmosis system is blocked. Replace the filter if

necessary.

• Allow the storage tank on the reverse osmosis system

to refill after heavy usage.

WHAT YOU WILL NEED

•Copper Tubing, 1/4"(6.35 mm) outer

diameter to connect the refrigerator JJ

to the water supply. Be sure both JJ

ends of the tubing are cut square.

To determine how much tubing you need, measure

the distance from the water valve on the back of the

refrigerator to the water supply pipe. Then add 8 feet

(2.4 m). Be sure there is sufficient extra tubing (about 8

feet [2.4 m] coiled into 3 turns of about 10" [25 cm]

diameter) to allow the refrigerator to move out from the

wall after installation.

Be sure that the kit you select allows at least 8 feet

(2.4 m) as described above.

•A cold water supply.The water pressure must be

between 20 and 120 PSI (1.4 bar and 8.2 bar) on

models without a water filter and between

40 and 120 PSI (2.8 bar and 8.2 bar) on models with

a water filter.

• Power drill.

•1/2"(12.7 ram) or

Adjustable Wrench.

•Flat head-and Phillips=

screwdrivers,

• Two 1/. (6.35 mm) outer diameter

compression nuts and 2

Ferrules (sleeves) to

connect the copper tubing to

the shutoff valve and the

refrigerator water valve.

°If your existing copper water

line has a flared fitting at the

end, you will need an

adapter (available at

plumbing supply stores) to

connect the water line to the refrigerator OR you can

cut off the flared fitting with a tube cutter and then use

a compression fitting.

•Shutoff valve to connect to

the cold water line. The ,._ _"_

shutoff valve should have a

water inlet with a minimum

inside diameter of 5/32"

(3.96 mm) at the point of connection to the

COLD WATER LINE. Saddle-type shutoff valves are

included in many water supply kits. Before purchasing,

make sure a saddle-type valve complies with your

local plumbing codes.

• If the issue about water pressure from reverse osmosis

remains, call a licensed, qualified plumber. 13

iNSTALLATiON iNSTRUCTiONS

Install the shutoff valve on the nearest frequently used

drinking water line. Only connect to the potable water

provision.

1. SHUTOFF THE MAIN WATER SUPPLY

Turn on the nearest faucet to relieve the pressure on

the line.

2. CHOOSE THE VALVE LOCATION

Choose a location for the valve that

is easily accessible. It is best to connect

into the side of a vertical water pipe.

When it is necessary to connect into a

horizontal water pipe, make the

connection to the top or side, eather

than at the bottom, to avoid drawing

off any sediment from the water pipe.

3. DRILL THE HOLE FOR THE VALVE

Drill a 1¼.(6.35 mm) hole in the water

pipe (even if using a self- _1

piercing valve) using a I I

sharp bit, Remove any burrs _ I

resulting from drilling the _ I I

hole in the pipe. Take care

not to allow water to drain

into the drill. Failure to drill a 1¼"(6.35 mm) hole

may result in reduced ice production or smaller cubes.

NOTE: The hookup line cannot be white, plastic

tubing NDA tubing #49595 or 49499 or Cross Link

Polyethylene (PEX) tubing.

4. FASTEN THE SHUTOFF VALVE

Fasten the shutoff valve to the cold water pipe with

the pipe clamp.

Pipe Clamp

Saddle-Type -_ .Vertical Cold

Shutoff Valve Water Pipe

NOTE: Commonwealth of Massachusetts Plumbing

Codes 248CMR shall be adhered to. Saddle valves

are illegal and use is not permitted in Massachusetts.

Consult with your licensed plumber.

5. TIGHTEN THE PIPE CLAMP

Tighten the clamp screws until the sealing washer

begins to swell,

NOTE: Do not overtighten or you may crush

the tubing. Washer

Pipe Clamp End

Clamp

6. ROUTE THE TUBING

Route the tubing between the cold water line and the

refrigerator.

Route the tubing through a hole drilled in the wall or

floor (behind the refrigerator or adjacent base

cabinet) as close to the wall as possible.

NOTE: Be sure there is sufficient extra tubing [about

8 feet (244 mm) coiled into 3 turns of about 10"

(25 cm) diameter] to allow the refrigerator to move

out from the wall after installation.

7. CONNECT THE TUBING TO THE VALVE

Place the compression nut and ferrule (sleeve)

for copper tubing onto the end of the tubing and

connect it to the shutoff valve. Make sure the tubing

is fully inserted into the valve. Tighten the

compression nut securely.

Saddle-Type

Shutoff Valve _!_

Packing

Nut

Outlet

Valve

Compression

/.ut

_rule (sleeve)

NOTE: Commonwealth of Massachusetts Plumbing

Codes 248CMR shall be adhered to. Saddle valves

are illegal and use is not permitted in Massachusetts.

Consult with your licensed plumber.

8. FLUSH OUT THE TUBING

Turn the main water supply on

and flush out the tubing until the

water is clear.

Shut the water off at the water

valve after about one quart of

water has been flushed through

the tubing.

9. CONNECT THE TUBING TO THE

REFRIGERATOR

/__ 1/4"(6.35 mm) Tubing

TubingClamp__ _ _

1/4"(6.35 mm) _. [[_[I [

Compression _II _,'%_X IIIBack of

Nut _ _-_ _---_\\'_._1_I refrigerator

r_l_U/ee__ _''_- Part A

1 _" Refrigerator

NOTES: Figure 1 Connection

-Before making the connection to the refrigerator, be

sure the refrigerator power cord is not plugged into

the wall outlet.

•If your refrigerator does not have a water filter,

we recommend installing one. If your water supply

has sand or particles that could clog the screen of

the refrigerator's water valve, install the filter in the

water line near the refrigerator

• Do not uses old hoses; only use new hoses provided

by the manufacturer. For more information call

1-800-4-MY-HOME.

1. Remove the plastic flexible cap from the refrigerator

connection.

Fasten the tubing into the tubing Clamp attached to

the back of the refrigerator.

First, loosen the screw fastening the clamp. Next,

insert the tubing in the groove. Finally, re-fasten the

screw.

10. PLUG IN THE REFRIGERATOR

Arrange the coil of tubing so

that it does not vibrate against

the back of the refrigerator or

against the wall. Push the

refrigerator back to the wall.

2. Place the compression nut and ferrule (sleeve) onto

the end of the tubing. (See figure 1)

3. Insert the end of the tubing into the connection as

far as possible. While holding the tubing, tighten the

fitting.

Part A

11. START THE ICE MAKER

Set the icemaker power switch to the ON position.

The icemaker will not begin to operate until it

reaches its operating temperature of 15 °F (-9 °C)

or below. It will then begin operation automatically if

the icemaker power switch is in the I (on) position.

[] CAUTION: Review that leaks are not occuring in the

water line.

Use this page to become more familiar with the parts and features. Page references are included for your

convenience.

Note: This guide covers several different models.The refrigerator you have purchased may have some or

all of the items listed below. The locations of the features shown below may not match your model.

OFreezer Door Rack

O utomatic Icemaker

The ice is produced in the icemaker

and sent to the dispenser,

O Freezer Lamp

O Freezer Shelf (With Deco/No Deco)

Orawer (Plastic/Wire)

OBase Grille

O Dairy Corner

For storage of dairy products

such as butter and cheese.

O Refrigerator Lamp

Owater Filter

ORefrigerator Shelf

Snack Pan

For storage of meat or fresh food.

1_I Refrigerator Door Rack (Plastic/Opaque)

OVegetable Drawer

ENSURING PROPER AIR CIRCULATION NEXT

In order to ensure proper temperatures, air must flow

between the refrigerator and freezer sections. As shown

in the illustration below, cool air enters through the

refrigerator of the freezer section and moves up. Most of

the air then flows through the freezer section vents and

recirculates under the freezer floor. The rest of the air

enters the refrigerator section through the top vent.

1. Clean your refrigerator thoroughly and wipe off dust

accumulated during shipping.

2. Install accessories such as ice cube bin, drawers,

shelves, etc., in their proper places. They are packed

together to prevent possible damage during shipment.

3. Let your refrigerator run for at least 2 or 3 hours

before putting food in it. Check the flow of cold air in

the freezer compartment to ensure proper cooling.

Your refrigerator is now ready for use.

CONTROL PANEL FEATURES

(Identify your Control type)

Press the button for the desired function to review and

select other settings.

Type 1

•Do not block any of these vents with food packages.

If the vents are blocked, airflow will be interruped and

temperature and moisture problems may occur.

IMPORTANT:

Because air circulates between both sections, any odors

formed in one section will transfer to the other. You must

thorougly clean both sections to eliminate odors.

To prevent odor transfer and drying out food, wrap or

cover foods tightly. (See the Food Storage Guide

section for details.)

Note: If you

close the

refrigerator door,

you may see the

freezer door may

open and close

again due to

pressure from

internal air flow.

Type 2

Refrigerator and Freezer controls

It's recommended to mantain the initial temperatures

setting (middle) by pressing Fridge Temp Graphic and

Freezer Temp Graphic.

NOTE: When changing control settings, wait 24 hours

before making additional adjustments. After 24 hours,

adjust the compartments temperatures as desired. The

more lit bars, the colder the refrigerator and freezer will

be. See Figure 1 for reference.

Figure 1

Display Off Mode

The display lights up and stays lit when the refrigerator

is plugged in for 20 seconds. All the display lights go

off except the dispenser icon selected (crush, water or

cube), and the display only lights when door is opened

or display button is pressed. The display will turn off 20

seconds after the door is closed or the display button is

pressed. You can change the display to always ON by

pressing the "Freezer Temp" and "Ultra Ice" buttons at

the same time for 5 seconds. A tone will sound indicating

that the display is ON ( Display Off Mode Deactivated).

To return to Display Off Mode, press the same two buttons

for 5 seconds.

Icemaker operation

When the refrigerator has been connected to the water

the icemaker will fill with water when it cools to freezing.

A newly-installed refrigerator may take 12 to 24 hours to

begin making ice cubes.

Throw away the first few batches of ice to allow the

water line to clear.

Be sure nothing interferes with the sweep of the feeler

arm.

When the bin fills to the level of the feeler arm, the

icemaker will stop producing ice.

It is normal for several cubes to be stuck together.

If ice is not used frequently, old ice cubes will become

cloudy, taste stale, and shrink.

Personal Injury Hazard

Avoid contact with the moving parts of the ejector

mechanism, or with the heating element that releases

the cubes. DO NOTplace fingers or hands on the

automatic icemaking mechanism while the refrigerator

is plugged in.

A newly-installed refrigerator may take

12 to 24 hours to begin making ice.

Power Switch

ON/OFF

Feeler Arm

The icemaker will produce 12 cubes per cycle,

approximately 140-150 cubes in a 24-hour period,

depending on freezer compartment temperature,

room temperature, number of door openings and other

operating conditions.

If the refrigerator is used before the water connection is

made to the icemaker, set the power switch to OFF.

11 ,c;_.woterI J ICE&WATER

(Identify your icon type)

You can select water or ice.

• Select Water, Crushed Ice or Cubed Ice by pressing

this button to the selection desired. The Water,

Crushed Ice or Cubed Ice icon will light up to indicate

selection.

Type 1 Type 2

Light the cubed ice lamp by pressing the

selection button. If you have type 1, the dot

on icon will be iluminated, but if you have

type 2, the icon will be iluminated.

Light the water lamp by pressing the selection

button. If you have type 1, the dot on icon

will be iluminated, but if you have type 2,

the icon will be iluminated.

Type 1 Type 2

Light the crushed ice lamp by pressing the

selection button. If you have type 1, the

dot on icon will be iluminated, but if you have

type 2, the icon will be iluminated.

To dispense water or ice, gently push your cup against

the dispenser pad.

NOTE: Hold your cup in place for a couple of seconds

after dispensing ice or water so the last few drops go in

your cup instead of on the floor.

Door Alarm

When either refrigerator or freezer door is left open for

more than 60 seconds, an alarm will sound 5 times at

30 seconds intervals to let you know the door is open.

Please contact the local service center if warning tone

continues to sound even after closing the door.

ULTRA ICE

Press this button once to activate increased ice making

function. The ULTRA ICE icon on the display panel will

illuminate when activated. The Ultra Ice function runs the

freezer compartment at the coldest settings for a 24 hour

period to increase ice making. Press the button again to

cancel the Ultra Ice function.

LOCK CONTROLS/LOCK

Type 1 Type 2

The LOCK CONTROLS/LOCK button deactivates the

temperature controls and dispenser functions.

Press and hold this button for 3 seconds or until the

Lock indicator light is lit.

To disable the Lock function, press and hold the

LOCK CONTROLS/LOCK button for 3 seconds or until the

Lock indicator light is off.

CHANGE FILTER FILTER RESET

(filter replacement cycle)

HOLD 3 SECS

• There is a replacement indicator light for the water

filter cartridge on the dispenser.

• Water filter usually needs replacement once every six

months.

° Filter light comes on and blinks to let you know when to

replace filter.

° After replacing filter, press and hold Filter Reset button

for 3 seconds to turn off filter status light.

ADJUSTING CONTROL SETTINGS

Give the refrigerator time to cool down completely

before making final adjustments. It is best to wait 24

hours before doing this. The initial settings mentioned in

CONTROL PANEL FEATURES section should be

correct for normal household refrigerator use. The

controls are set correctly when milk or juice is as cold as

you like and when ice cream is firm.

The refrigerator control functions as the thermostat for

the entire appliance (refrigerator and freezer sections).

The colder the setting, the longer the compressor will

run to keep the temperature colder. The freezer control

adjusts the cold air flow from the freezer to the

refrigerator. Setting the freezer control to a lower

temperature keeps more cold air in the freezer

compartment to make it colder.

If you need to adjust temperatures in the refrigerator or

freezer, start by adjusting the refrigerator. Then wait 24

hours before checking the freezer temperature. If it is

too warm or too cold, then adjust the freezer control.

Use the settings listed in the chart below as a guide.

Always remember to wait at least 24 hours between

adjustments.

CONDITION/ RECOMMENDED

REASON : ADJUSTMENT :

• REFRIGERATOR section too Press the

warm REFRIGERATOR

- Door opened often control to next coldest

- Large amount of food added level, wait 24 hours

- Room temperature very warm

- Door opened often

- Large amount of food added

-Very cold room temperature

(Compressor doesn't cycle

often enough)

- Heavy ice usage

-Air vents blocked by items

FREEZER section too Press the FREEZER

warm/ice not made fast enough control to next coldest

level, wait 24 hours

Move items out of

airstream

• REFRIGERATOR section too Set REFRIGERATOR

cold control to next warmer

-Controls not set correctly for level, wait 24 hours

your conditions

• FREEZER section too cold Set FREEZER

-Controls not set correctly for control to next warmer

your conditions level, wait 24 hours

FOOD STORAGE GUIDE

Wrap or store food in the refrigerator in airtight and

moisture-proof material unless otherwise noted. This

prevents food odor and taste transfer throughout the

refrigerator. For dated products, check date code to

ensure freshness.

Items How to Store

Butter or •

margarine

Cheese •

Keep opened butter in a covered

dish or closed compartment.

When storing an extra supply,

wrap in freezer packaging and

freeze.

Store in the original wrapping until

you are ready to use it. Once

opened, rewrap tightly in plastic

wrap or aluminum foil.

Milk • Wipe milk cartons. For best

storage, place milk on interior

shelf, not on door shelf.

Eggs

Fruit

• Store in original carton or Utility Bin

(Optional) on interior shelf, not on

door shelf.

Wash, let dry, and store in

refrigerator in plastic bags or in

the crisper. Do not wash or hull

berries until you are ready to use

them. Sort and keep berries in

their original container in a

crisper, or store in a loosely

closed paper bag on a refrigerator

shelf.

Leafy

vegetables Remove store wrapping and trim

or tear off bruised and discolored

areas. Wash in cold water and

drain. Place in plastic bag or

plastic container and store in

crisper.

Vegetables with • Place in plastic bags or plastic

skins (carrots, container and store in crisper.

peppers)

Fish • Use fresh fish and shellfish the

same day purchased.

Leftovers • Cover leftovers with plastic wrap

or aluminum foil. Plastic

containers with tight lids can

also be used.

STORING FROZEN FOOD

NOTE: For further information about preparing food for

freezing or food storage times, check a freezer guide or

a reliable cookbook.

Packaging

Successful freezing depends on correct packaging.

When you close and seal the package, it must not allow

air or moisture in or out. If it does, you could have food

odor and taste transfer throughout the refrigerator and

also dry out frozen food.

Packaging recommendations:

•Rigid plastic containers with "tight-fitting lids"

• Straight-sided canning/freezing jars

• Heavy-duty aluminum foil

• Plastic-coated paper

• Non-permeable plastic wraps

• Specied freezer-grade self-sealing plastic bags

Follow package or container instructions for proper

freezing methods.

Do not use

• Bread wrappers

• Non-polyethylene plastic containers

• Containers without tight lids

• Wax paper or wax-coated freezer wrap

• Thin, semi-permeable wrap

[] CAUTION: Do not keep beverage cans or plastic

food containers in the freezer compartment. They

may break if they freeze.

Freezing

Your freezer will not quick-freeze any large quantity of

food. Do not put more unfrozen food into the freezer

than will freeze within 24 hours [no more than 2 to 3 Ibs

of food per cubic foot (0.9 to 1.35 kg per cubic meter) of

freezer space]. Leave enough space in the freezer for

air to circulate around packages. Be careful to leave

enough room at the front so the door around packages

can close tightly.

Foord storage times will vary according to the quality and

type of food, the type of packaging or wrap used (airtight

and moisture-proof) and the storage temperature. Ice

crystals inside a sealed package are normal. This simply

means that moisture in the food and air inside the

package have condensed, creating ice crystals.

NOTE: Allow hot foods to cool at room temperature for

30 minutes, then package and freeze. Cooling hot foods

before freezing saves energy.

WATER AND ICE DISPENSER

Your refrigerator has a mechanism that can dispense cool

water and ice cubes without opening the door.

• The tray can easily be removed by pressing down and

lifting it out.

WARNING

Do not put your hands into the water and ice dispenser

opening. Doing so may cause an injury to your hand.

• First push the tray in the area labeled 'PUSH', then place

your finger in the center hole and lift up to remove the

tray.

CAUTION

When using the dispenser with a container with a

small opening, place the container as close to the top

as possible.

oThe dispenser has the following dimensions:

Depth 4 7/8" (124 mm)

Width 6 7/8" (174 mm)

Height 9 3/8" (238 mm)

We suggest you use a container that is within the

specifications for better performance.

ICE STORAGE BIN

The ice bin stores the ice cubes made by the ice maker.

If you need to remove the ice storage bin, do so as follows:

NOTE: Use both hands to remove the ice bin to avoid

dropping it. If the ice bin does not slide into place easily,

twist the drive device slightly.

• Hold the ice storage bin as shown in the left figure

lift it @while slightly pulling it out ©.

DOOR RACK AND SUPPORT

Your refrigerator and freezer features racks which can

easily be arranged for packaged products.

• Lift the door rack holding both sides (b and pull it out in

• To assemble the ice storage bin, lift it ® while slightly

pushing it in 0.

NOTE: Make sure the bin is fully engaged into the auger

drive @. If not, rotate the auger drive in the direction

shown by the arrow until the bin is fully engaged into the

auger drive.

ICEMAKER COVER

If you need access to the Icemaker, follow these steps:

• Lift the ice shelf as shown (b and pull it out ©.

CRISPER AND CRISPER COVER

The crisper allows for better conservation of fruits and

vegetables.

° To remove the crisper compartment cover, pull out

the crisper compartment a bit to the front @, lift the

front part of the cover as shown in ©, and take it out ®.

You can control the amount of humidity in the moisture-

sealed crispers. Adjust the control to any setting

between "VEGETABLES" and "FRUIT".

• "VEGETABLES": Keeps moist air in the crisper for best

storage of fresh, leafy vegetables.

• "FRUIT": Lets moist air out of crisper for best storage

of fruits or vegetables with skins.

SNACK PAN FREEZER SHELF

• To remove the snack pan cover, pull the snack pan

out a bit @. Lift the front part of the snack pan cover

and pull out ©.

• Lift the left part of the shelf a bit. Lift it to the direction

@, push the right part to the direction ©, and take it out.

@ @

REFRIGERATOR SHELVES

The refrigerator compartment shelf is adjustable so that

you can place it at a height according to space

requirement of foods.

•Slide shelf

Pull the shelf towards you @, then lift both the front and

rear parts of the shelf upward © to remove ®.

NOTE: Make sure to keep shelf horizontal while removing;

otherwise it may drop.

•Fixed shelf

Lightly lift up the front part of shelf @ pull the shelf

towards you ©, then take it out while lifting the rear part

of shelf ®.

WATER FILTER

° Filter Reset: When the Filter reset icon turns on, you

have to c,hange the water filter. Press the Filter Reset

button _ for 3 seconds to turn the icon off.

Before removing or installing water filter:

1. IMPORTANT: Turn off household water supply.

2. Take out the top shelf and move it to the lowest level.

'_z}_.....

Removing the water filter:

1. For first-time installation, remove filter substitute cap

(A) by turning it counterclockwise a quarter turn and

pulling it down. The substitute cap must be retained

for the future. If the filter is removed and not

replaced, it is necessary to reinstall the substitute

cap to prevent water leaks from the filter housing.

Installing the water filter

Remove red cap from the filter and insert the two

tabs on the filter tip into the two slots in the

refrigerator filter receptacle. You should feel the filter

entering completely. Turn the filter to the right a quarter

turn clockwise to lock it into place. The Lock symbol

will be lined up with the indicator arrow.

QgDgDDD

'\ j'

After installing water filter:

1. Replace the shelf to the initial position.

2. After installing filter, turn on household water supply.

3. Dispense 2.5 gallons (9.46 L) of water to purge the

system, depressing and releasing the dispenser button

(30 seconds ON, 60 seconds OFF). Open the

refrigerator door and check the shelf area for leaks.

To purchase replacement water filters, call

1-800-4-MY-HOME.

Performance Data Sheet

Models Number ADQ72910902

Use with replacement cartridge ADQ72910902

This system has been tested according to NSF/ANSI 42 for the reduction of the substances listed below.

The concentration of the indicated substances in water entering the system was reduced to a concentration

less than or equai to the permissible limit for water leaving the system, as specified in NSF/ANSI 42.

I System tested and certified by NSF International against NSF/ANSI Standard 42 for the reduction

Iof Chlorine, Taste and Odor and Nominal Particulate Class Ill.

Substance Average Influent Challenge Avg. Product Average Max. Min. Required

Water % Effluent

InfIuent Concentration Concentration Reduction Mg/L Reduction

Particulate Class III 48,000 At least 10,000 particles/mL 7.5 99.9 % 26 > 85%

Particles 5 urn to 15 um

Chlorine taste and odor 2.0 mg/L 2.0 mg/L + 10% mg/L 97.4 % 0.06 mg/L _>.50%

*Toa capacity of 500 gallons. (1,892 Liters)

* Note that while the testing was performed under standard laboratory conditions, actual performance may vary.

Application Guidelines /Water Supply Parameters

Service flow 0.5 gpm (1.9 Ipm)

Water pressure 20 - 125 psi (138 - 862 kPa)

Water temperature 34 °F - 100 °F (1 - 38 °C )

[WARNING

To reduce the risk associated with ingestion of contaminants due to use

with water that is microbiologically unsafe or of unknown quality.

Do not use with water that is microbiologically unsafe or of unknown

quality without adequate disinfection before or after the system.

Systems must be installed and operated in accordance with manufacturer's

recommended procedures and guidelines.

Warranty: See Warranty Card for Details.

[]CAUTION

To reduce the risk of property damage due to water leakage:

_,_Read and follow Use instructions before installation and use of this system.

(_'_Install on COLD water lines only.

Company with all state and local plumbing codes.

_'_ Install apressure limiting device and water hammer arrester for inlet water pressures

exceeding 80 psi (552kPa). Refer to Uniform Plumbing Code, Sections 608.2 and 609.10.

_o_Never install or operate where inlet water pressure may exceed t 25 psi (862kPa).

Protect filter from freezing. Remove filter in temperatures below 34°F (1°C).

Replace cartridge at specified service interval. Cartridge MUST be replaced at least

every 6 months.

After replacing the water filter cartridge, dispense water dispenser for 5 minutes or

2.5 Gallons to purge water system. Discard the purged water.

Topurchasea replacementfilter,visityour localSearsstoreorcall 1-800-4-MYHOME®.

Visitus on thewebat www.sears.com

Distributedby:

SearsBrand ManagementCorporation

3333 BeverlyRoad

HoffmanEstates, IL 60179

Explosion Hazard

Use non-flammable cleaner.

Failure to do so can result in death, explosion, or fire.

Both the refrigerator and freezer sections defrost

automatically. However, clean both sections about once

a month to prevent odors. Wipe up spills immediately.

DOOR LINERS AND GASKETS

Do not use cleaning waxes, concentrated detergent,

bleaches, or cleaners containing petroleum on plastic

refrigerator parts.

Use a clean sponge or soft cloth and a mild detergent in

warm water. Wash, rinse and dry all surfaces thoroughly.

PLASTIC PARTS (covers and panels)

Do not use window sprays, abrasive cleaners, or

flammable fluids. These can scratch or damage the

material. Use a clean sponge or soft cloth and a mild

detergent in warm water. Wash, rinse and dry all

surfaces thoroughly.

BACK COVER

GENERAL CLEANING TIPS

oUnplug refrigerator or disconnect power.

oRemove all removable parts, such as shelves,

crispers, etc. Refer to sections in Using Your

Refrigerator for removal instructions.

oUse a clean sponge or soft cloth and a mild detergent

in warm water. Do not use abrasive or harsh cleaners.

oHand wash, rinse and dry all surfaces thoroughly.

oPlug in refrigerator or reconnect power.

OUTSIDE

Waxing external painted metal surfaces helps provide rust

protection. Do not wax plastic parts. Wax painted metal

surfaces at least twice a year using appliance wax (or auto

paste wax). Apply wax with a dean, soft cloth.

Do not use wax stainless steel exteriors. Use a product

specially designed for polishing stainless steel

appliances, or clean with a soft cloth or clean sponge

and a mild detergent dissolved in warm water. Dry

thoroughly with a soft cloth.

NOTE: Avoid door surface contact with chemical

products that contain Phosphate or Chlorine.

INSIDE WALLS (allow freezer to warm up so

cloth will not stick)

To help remove odors, you can wash the inside of the

refrigerator with a mixture of baking soda and warm water.

Mix 2 tablespoons baking soda to 1 quart of water (26 g

soda to 1 liter water.) Be sure the baking soda is

completely dissolved so it does not scratch the surfaces of

the refrigerator.

ELECTRICAL SHOCK HAZARD

Before you begin, either unplug the refrigerator or

turn off power at the circuit breaker or fuse box.

Failure to do so could result in death or serious injury.

NOTE: Back cover should only be removed by a

qualified technician.

Clean the vents on the

back cover. Use a vacuum

cleaner with the brush

attachment, at least twice a

year to keep your

refrigerator working

efficiently.

LAMP REPLACEMENT

Electrical Shock Hazard

Before replacing a burned-out light bulb, either unplug

the refrigerator or turn off power at the circuit breaker

or fuse box.

NOTE: Not all appliance bulbs will fit your refrigerator

Be sure to replace the bulb with one of the same size,

shape and wattage.

To change the refrigerator and freezer lamp:

1. Unplug the refrigerator.

2. Remove the cover lamp by pressing upward on bottom

3. Remove the bulb with a counterclockwise movement.

4. Replace with 40 watt (maximum) appliance bulb.

5. Reinstall cover lamp and plug again the refrigerator.

POWER INTERRUPTIONS

1. If the power will be out for 24 hours or less, keep all

refrigerator doors closed to help foods stay cold and

frozen.

2. If the power will be out for more than 24 hours:

a) Remove all frozen food and store it in a frozen

food locker•

b) Place 2 Ibs. (1 kg) of dry ice in the freezer for

every cubic foot (28 L) of freezer space• This will

keep the food frozen for two to four days. While

handling dry ice, wear gloves to protect your hands

from frostbite•

Suffocation Hazard

When using dry ice, provide adequate ventilation.

Dry ice is frozen carbon dioxide (CO2). When it

vaporizes, it can displace oxygen, causing dizziness,

light-headedness, unconsciousness and death by

suffocation. Open a window and do not breathe

the vapors.

c) If neither a food locker nor dry ice is available,

consume or dispose of food at once.

REMEMBER: In a power failure, a full freezer

stays cold longer than a partially filled one. If you see

that food contains ice crystals, it may be adversely

affected. If the condition of the food is poor, or if you

feel it is unsafe, dispose of it.

• DO NOT refreeze frozen foods which have thawed

completely.

The United States Department of Agriculture in Home and

Garden Bulletin No. 69 says:

•..You may safely refreeze frozen foods that have thawed if

they still contain ice crystals or if they are still cold (below

39 °F).

...Thawed ground meats, poultry or fish that have any

off-odor or off-color should not be frozen and should not be

eaten.

Thawed ice cream should be discarded. If the odor or color

of any food is poor or questionable, dispose of it. The food

may be dangerous to eat.

Even partial thawing and refreezing reduces the eating

quality of foods, particulary fruits, vegetables and prepared

foods•

The eating quality of red meats is affected less than that of

many other foods• Use refrozen foods as soon as possible

to save as much of their quality as you can.

WHEN YOU GO ON VACATION

If you choose to leave the refrigerator ON while you

are away, follow these steps to prepare your refrigerator

before you leave.

1. Use up any perishables and freeze other items.

2. Empty the ice bin.

3. Turn OFF the Icemaker. NOTE: If the ambient

temperature will drop below freezing, have a qualified

service technician drain the water supply system (on

some models) to prevent serious property damage

due to possible flooding from ruptured water lines or

connections.

If you choose to turn the refrigerator OFF before you

leave, follow these steps.

1. Remove all food from the refrigerator and empty ice

bin.

2. Unplug refrigerator.

3. Clean refrigerator, wipe, and dry well.

4. Tape rubber or wood blocks to the tops of both doors

to prop them open far enough for air to get in. This

stops odor and mold from building up.

WHEN YOU MOVE

When you are moving your refrigerator to a new home,

follow these steps to prepare it for the move.

1. Remove all food from the refrigerator and pack all

frozen food in dry ice.

2. Unplug refrigerator.

3. Clean refrigerator, wipe, and dry well.

4. Empty water from the defrost pan.

5. Clean, wipe and dry thoroughly.

6.Takeoutall removableparts,wrapthemwelland

tapetogethersotheydon'tshiftandrattleduringthe

move.RefertosectionsinUsingyourRefrigeratorfor

removalinstructions.

7.Dependingonthemodel,raisethefrontofthe

refrigeratorsoit rollsmoreeasilyORscrewinthe

levelinglegsallthewaysotheydon'tscrapethe

floor.SeetheDOORALIGNMENTsection.

8.Tapethedoorsshutandtapethepowercordtothe

refrigeratorcabinet.

Whenyougettoyournewhome,puteverythingback

andrefertotheREFRIGERATIONINSTALLATION

sectionforsetupinstructions.

WHEN SHOULD YOU SET THE ICEMAKER

POWER SWITCH TO OFF

•When the water supply will be shut off for several

hours.

•When the ice storage bin is removed for more than a

minute or two.

" When the refrigerator will not be used for several

days.

NORMAL SOUNDS YOU MAY HEAR

The icemaker water valve will buzz as the icemaker

fills with water. If the power switch is in the ON

position, it will buzz even if it has not yet been hooked

up to water. To stop the buzzing, move the power

switch to OFF position.

NOTE: Keeping the power switch in the ON position

before the water line is connected can damage the

icemaker.

•You will hear the sound of cubes dropping into the bin

and water running in the pipes as the icemaker refills.

UNDERSTANDING SOUNDS YOU MAY

HEAR

Your new refrigerator may make sounds that your old

one did not make. Because the sounds are new to you,

you might be concerned about them. Most of the new

sounds are normal. Hard surfaces, like the floor, walls

and cabinets, can make the sounds seem louder than

they actually are. The following list describes the kinds of

sounds and what may be making them.

REFRIGERATOR DOES NOT OPERATE

Check if...

oThe defrost timer will click when the automatic defrost

cycle begins and ends. The thermostat control (or

refrigerator control, depending on the model)will also

click when cycling on and off.

o Rattling noises may come from the flow of refrigerant,

the water line, or items stored on top of the

refrigerator.

oYour refrigerator is designed to run more efficiently

to keep your food items at the desired temperature.

The high efficiency compressor may cause your new

refrigerator to run longer than your old one, and you

may hear a pulsating or high-pitched sound.

You may hear the evaporator fan motor circulating the

air through the refrigerator and freezer compartments.

As each cycle ends, you may hear a gurgling sound

due to the refrigerant flowing in your refrigerator.

Contraction and expansion of the inside walls may

cause a popping noise.

Water dripping on the defrost heater during a defrost

cycle may cause a sizzling sound.

You may hear air being forced over the condenser by

the condenser fan.

oYou may hear water running into the drain pan during

the defrost cycle.

Then...

Firmly plug the cord into a live outlet with proper voltage.

Replace the fuse or reset the circuit breaker.

The power supply cord is unplugged.

A household fuse has blown or circuit

breaker tripped.

Refrigerator is in the defrost cycle.

Display shows the word OFF (Identify your control

type).

Wait about 30 minutes for defrost cycle to end.

The refrigerator control has been put into the store Demo

(Demonstration) Mode

The Demonstration Mode disables the cooling system,

only lamps and display work normally.

To disable Demo Mode open one door, then press Ultra Ice

and Fridge Temp buttons at the same time for 5 seconds.

When Demo Mode is deactivated, you will see the

previous value setting you had on display.

VIBRATION OR RATTLING NOISE

Check if... Then...

The refrigerator is not resting solidly on Floor is weak or uneven or leveling legs need adjusting.

the floor. See DOOR ALIGNMENT Section.

LIGHTS DO NOT WORK

Check if... Then...

The power supply cord is unplugged. Firmly plug the cord into a live outlet with proper voltage.

Light bulb is loose in the socket. Turn the refrigerator control to the OFF position and unplug

the refrigerator. Gently remove the bulb and reinsert. Then

plug in refrigerator and reset the refrigerator control.

LAMPS DO NOT WORK

Check if... Then...

Light bulb has burned out. Replace with an appliance bulb of the same wattage,

size and shape available at your local hardware store.

(See the LAMP REPLACEMENT section.)

Turn the temperature control to the OFF position and

unplug the refrigerator prior to replacement.

COMPRESSOR MOTOR SEEMS TO RUN TOO MUCH

Check if... Then...

The refrigerator that was replaced was an Modern refrigerators with more storage space require

older model, more operating time.

The room temperature is hotter than normal.

The door is opened often or a large amount

of food has just been added.

The motor will run longer under warm conditions. At normal

room temperatures, expect your motor to run about 40% to

80% of the time. Under warmer conditions, expect it to run

even more often. These model is still more energy efficient

than previous models.

Adding food and opening the door warms the

refrigerator. It is normal for the refrigerator to run longer

in order to cool the refrigerator back down. Adding a

large amount of food warms the refrigerator. See the

FOOD STORAGE GUIDE Section. In order to conserve

energy, try to get everything you need out of the

refrigerator at once, keep food organized so it is easy to

find and close the door as soon as the food is removed.

The refrigerator was recently plugged in and The refrigerator will take up to 24 hours to cool

the refrigerator control was set correctly completely.

The refrigerator control was not set correctly for the

surrounding conditions. See the ADJUSTING CONTROL SETTINGS Section.

Push the doors firmly shut. If they will not shut all the

The doors are not closed completely, way, see Doors Will Not Close Completely below.

This prevents air transfer and makes the motor work

The condenser coils are dirty, harder. Clean the condenser coils. Refer to the CARE

AND CLEANING section.

DOORS WILL NOT CLOSE COMPLETELY

Check if... Then...

The refrigerator is not level. See the REFRIGERATOR INSTALLATION AND

DOOR ALIGNMENT section to level refrigerator.

Food packages are blocking the door open. Rearrange food containers to clear door and door

shelves.

The ice bin, crisper cover, pans, shelves, door bins Push bins all the way in and put crisper cover, pans,

or baskets are out of position, shelves and baskets into their correct positions. See

the USING YOUR REFRIGERATOR Section.

The gaskets are sticking. Clean gaskets and the surface that they touch. Rub a

thin coat of paraffin wax on the gaskets after cleaning.

THE ICEMAKER IS NOT PRODUCING ICE OR ICE CUBES ARE FREEZING TOO SLOWLY

Check if... Then...

Wait 24 hours after hook-up for ice production. See the

The freezer temperature is cold enough to produce ice. CONTROL PANEL FEATURES section.

Door left open. Check to see if something is holding the door open.

CUBES PRODUCED BY ICEMAKER ARE TOO SMALL

Check if... Then...

I Water shutoff valve connecting refrigerator to water linemay be clogged. Call a plumber to clear the valve.

THE DOORS ARE DIFFICULT TO OPEN

Check if...

The gaskets are dirty or sticky.

The door is reopened within a short time after having

been opened.

Then...

Clean gaskets and the surfaces that they touch. Rub

a thin coat of appliance polish or paraffin wax on the

gaskets after cleaning

When you open the door, warmer air enters the

refrigerator. As the warm air cools, it can create a

vacuum. If the door is hard to open, wait 5 minutes

to allow the air pressure to equalize, then see if it

opens more easily.

AUTOMATIC ICEMAKER DOES NOT WORK

Check if... Then...

Icemaker power switch in the O (off) position. Move the switch to the I (on) position.

Water supply turned off or not connected. See the CONNECTING THE WATER LINE section.

Freezer compartment too warm. Wait 24 hours for the freezer to reach its ideal

temperature.

Piled up cubes in the storage bin cause the icemaker Level cubes by hand or shake the bin occasionally.

to shut off.

TEMPERATURE IS TOO WARM OR THERE IS INTERIOR MOISTURE BUILDUP

Check if... Then...

The air vents are blocked. Cold air circulates

from the freezer to the fresh food section and

back again through air vents in the wall dividing

the two sections.

Locate air vents by using your hand to sense airflow and

move all packages that block vents and restrict airflow.

Refer to ENSURING PROPER AIR CIRCULATION

section for the location of air vents.

TEMPERATURE IS TOO WARM OR THERE IS INTERIOR MOISTURE BUILDUP

(CONTINUED)

Check if... Then...

The doors are opened often.

The control is not set correctly for the surrounding

conditions.

When the door is opened, warm humid air is allowed into

the refrigerator. The more the door is opened, the faster

the humidity builds up, and the more warm air the

refrigerator must cool. In order to keep the refrigerator

cool, try to get everything you need out of the

refrigerator at once, keep food organized so it is easy

to find and close the door as soon as the food is

removed.

Refer to the CONTROL PANEL FEATURES section.

Wait 24 hours for temperatures to stabilize or even out.

If the temperature is too cold or too warm, adjust the

setting one level at a time

A large amount of food has just been added Adding food warms the refrigerator. It can take a few

to the refrigerator or freezer, hours for the refrigerator to return to normal temperature.

The food is not packaged correctly. Wrap food tightly and wipe off damp containers prior to

storing in the refrigerator to avoid moisture accumulation.

If necessary, repackage food according to the guidelines

in the FOOD STORAGE GUIDE section.

The doors are not closing completely. See Doors Will Not Close Completely.

The weather is humid. In humid weather, air carries moisture into refrigerator

when doors are opened.

A self-defrost cycle was completed. It is normal for droplets to form on the back wall after the

refrigerator self-defrosts.

DOORS WILL NOT CLOSE COMPLETELY

Check if... Then...

The refrigerator wobbles or seems unstable. Level the refrigerator. Refer to the DOOR

ALIGNMENT section.

The doors were removed during product installation Remove and replace the doors according to the

and not properly replaced. REMOVING AND REPLACING REFRIGERATOR

DOORS section, or call qualified service technician.

FROST OR ICE CRYSTALS ON FROZEN FOOD

Check if...

The door is not closing properly.

The door is opened often.

Then...

See Doors Will Not Close Completely above.

When the door is opened, warm, humid air is allowed in

the freezer resulting in frost.

ICE HAS OFF-TASTE OR ODOR

Check if...

The icemaker was recently installed.

The ice has been stored for too long.

The food has not been wrapped tightly in

either compartment.

The water supply contains minerals such as sulfur.

The interior of refrigerator needs cleaning.

Ice storage bin needs cleaning.

Then...

Discard first few batches of ice to avoid discolored or

off-flavored ice.

Throw away old ice and make new supply.

Rewrap foods since odors may migrate to the ice if food

is not wrapped properly.

A new filter may need to be installed to eliminate taste and

odor problems.

See CARE AND CLEANING section.

Empty and wash bin. Discard old cubes.

THERE IS WATER IN THE DEFROST DRAIN PAN

Check if... Then...

The refrigerator is defrosting.

It is more humid than normal.

The water will evaporate. It is normal for water to drip

into the defrost pan.

Expect that the water in the defrost pan will take longer

to evaporate. This is normal when it is hot or humid.

THE REFRIGERATOR SEEMS TO MAKE TOO MUCH NOISE

Check if... Then...

I The sounds may be normal for your refrigerator.

Refer to the UNDERSTANDING SOUNDS YOU MAY

HEAR section.

iiiiiiiiiiiiiiiiiiiiiiiiii!:;¸¸

iiiiiiiiiiiiiiiiiiiiiiiiii

iiiiiiiiiiiiiiiiiiiiiiiii

Your Home

÷anag÷

www.managemyhome.com

For repair - in your home - of all major brand appliances,

lawn and garden equipment, or heating and cooling systems,

no matter who made it, no matter who sold it!

For the replacement parts, accessories and

owner's manuals that you need to do-it-yourself.

For Sears professional installation of home appliances

and items like garage door openers and water heaters.

1-800-4-MY-HOME ®Call anytime, day or night

(1-800-469-4663) (U.S.A. and Canada)

www.sears.com www.sears.ca

Our Home

For repair of carry-in items like vacuums, lawn equipment,

and electronics, call anytime for the location of the nearest

Sears Parts & Repair Service Center

1-800-488-1222 (U.S.A.) 1-800-469-4663 (Canada)

www.sears.com www.sears.ca

To purchase a protection agreement on a product serviced by Sears:

1-800-827-6655 (u.sA.) 1-800-361-6665 (Canada)

Para pedir servicio de reparaciSn

a domicilio, y para ordenar piezas:

1-888-SU-HOGAR®

":i:1:1:1:1:1:1:1:1:1:1:1:1:1:1::

iiiiiiiiiiiiiiiiiiiiiiiii

Au Canada pour service en franc...ais:

1-800-LE-FOYER Mc

® Registered Trademark /TMTrademark /SMService Mark of Sears Brands, LLC

® Marca Registrada /TMMarca de F_brica /SMMarca de Servicio de Sears Brands, LLC

MCMarque de commerce /MDMarque deposee de Sears Brands, LLC

Kenmore 79551012010 User Manual REFRIGERATOR Manuals And Guides L1003121

KENMORE Side by Side Refrigerator Manual L1003121 KENMORE Side by Side Refrigerator Owner's Manual, KENMORE Side by Side Refrigerator installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
