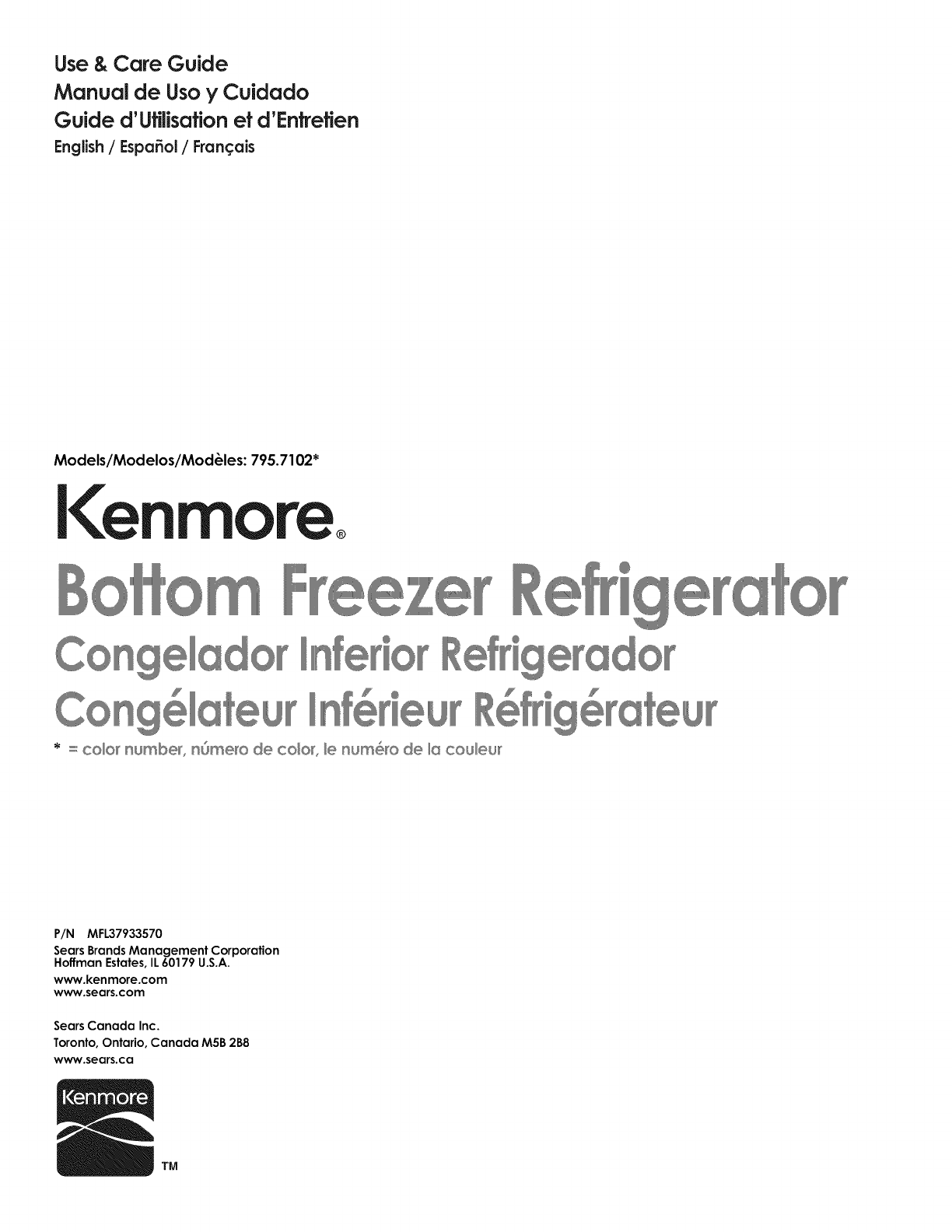

Use & Care Guide

Manual de Uso yCuidado

Guide d'Utilisationetd'Entretien

English /Espa_ol /Fran_:ais

Models/Modelos/Mod_les: 795.7102"

I<enmore

®

I °

* :::::cobr number_ nOmer_o de co_or_ _enum6r_o de _a cou_eur

P/N MFL37933570

Sears Brands Management Corporation

Hoffman Estates, IL 60179 U.S.A.

www.kenmore.com

www.sears.com

Sears Canada Inc.

Toronto, Ontario, Canada MSB 2B8

www.sears.ca

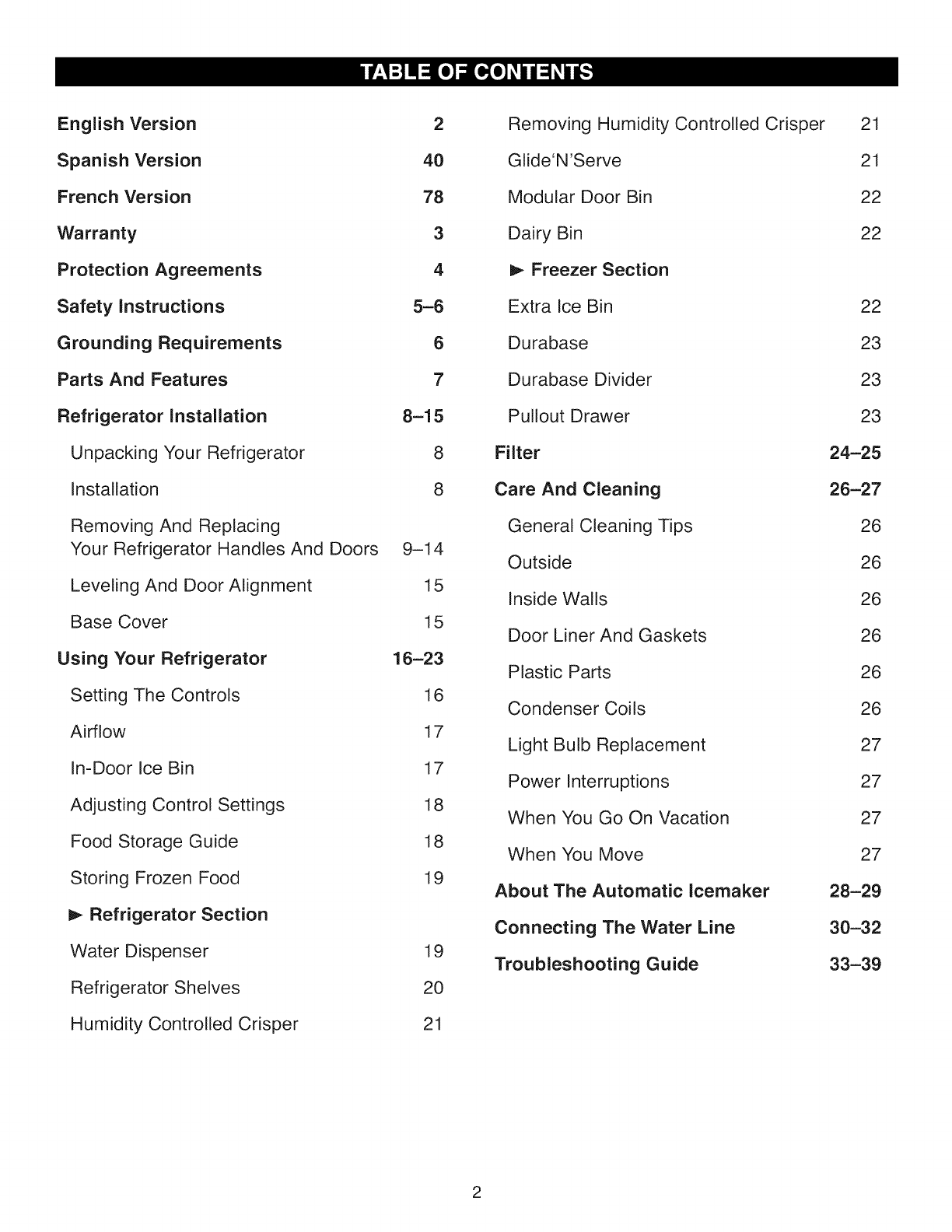

English Version 2

Spanish Version 40

French Version 78

Warranty 3

Protection Agreements 4

Safety Instructions 5-6

Grounding Requirements 6

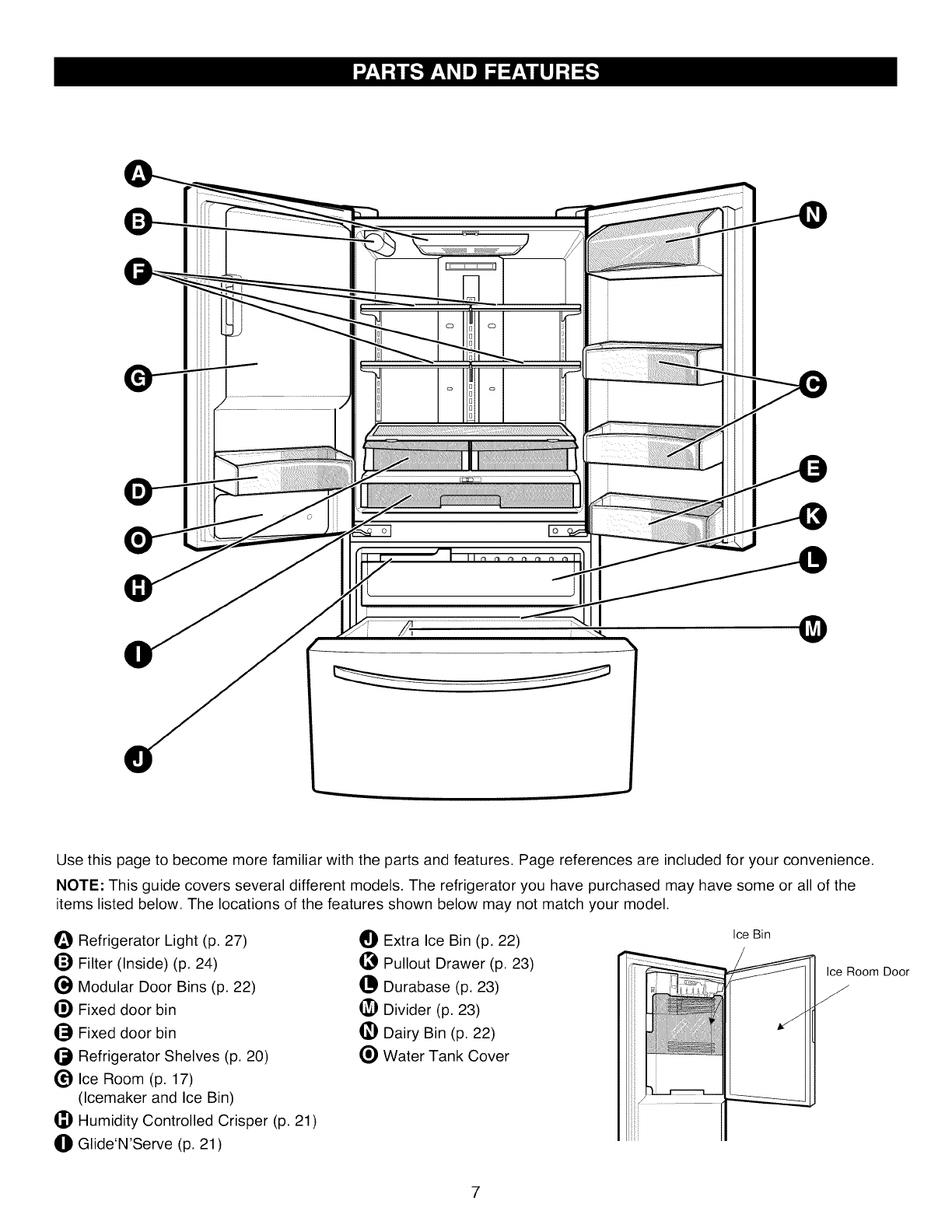

Parts And Features 7

Refrigerator Installation 8-15

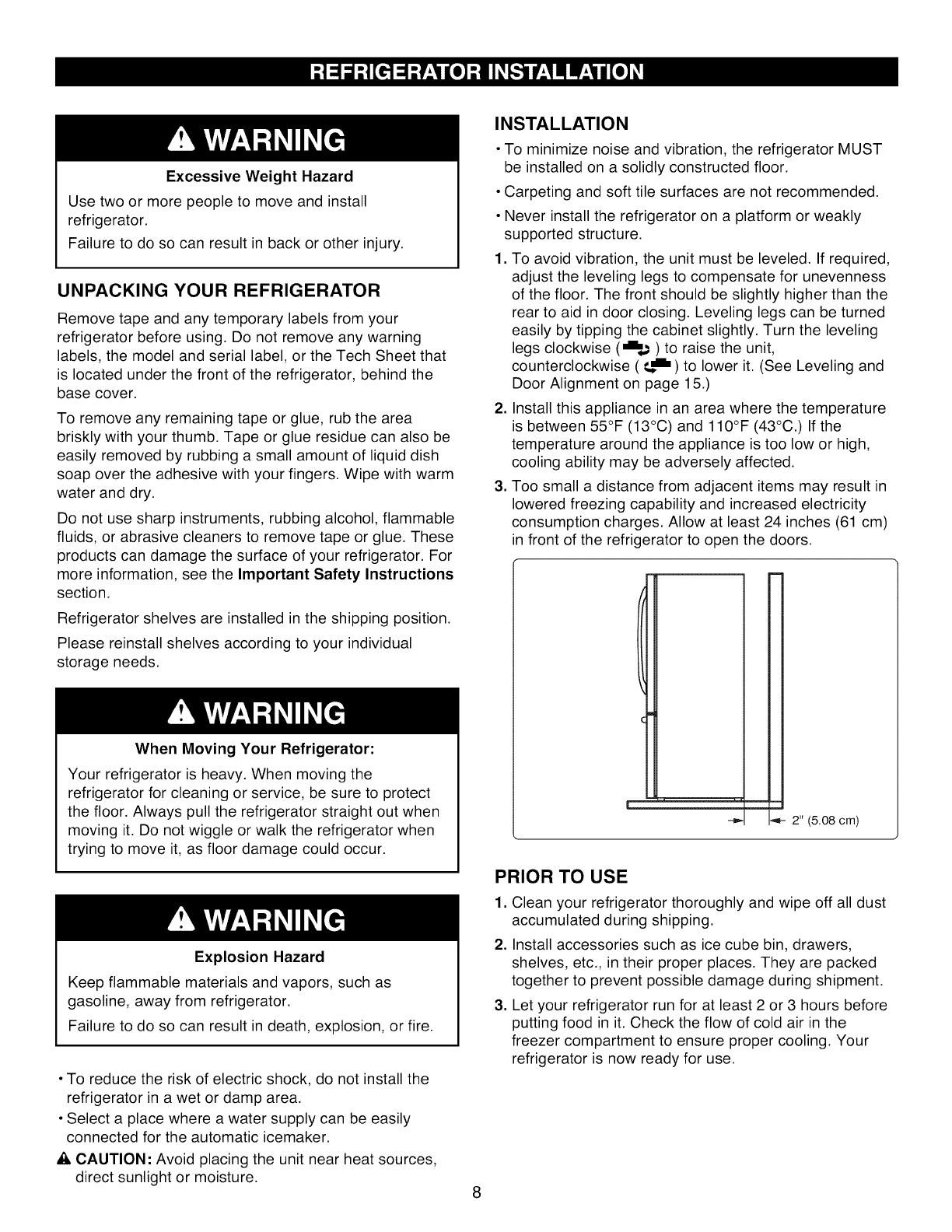

Unpacking Your Refrigerator 8

Installation 8

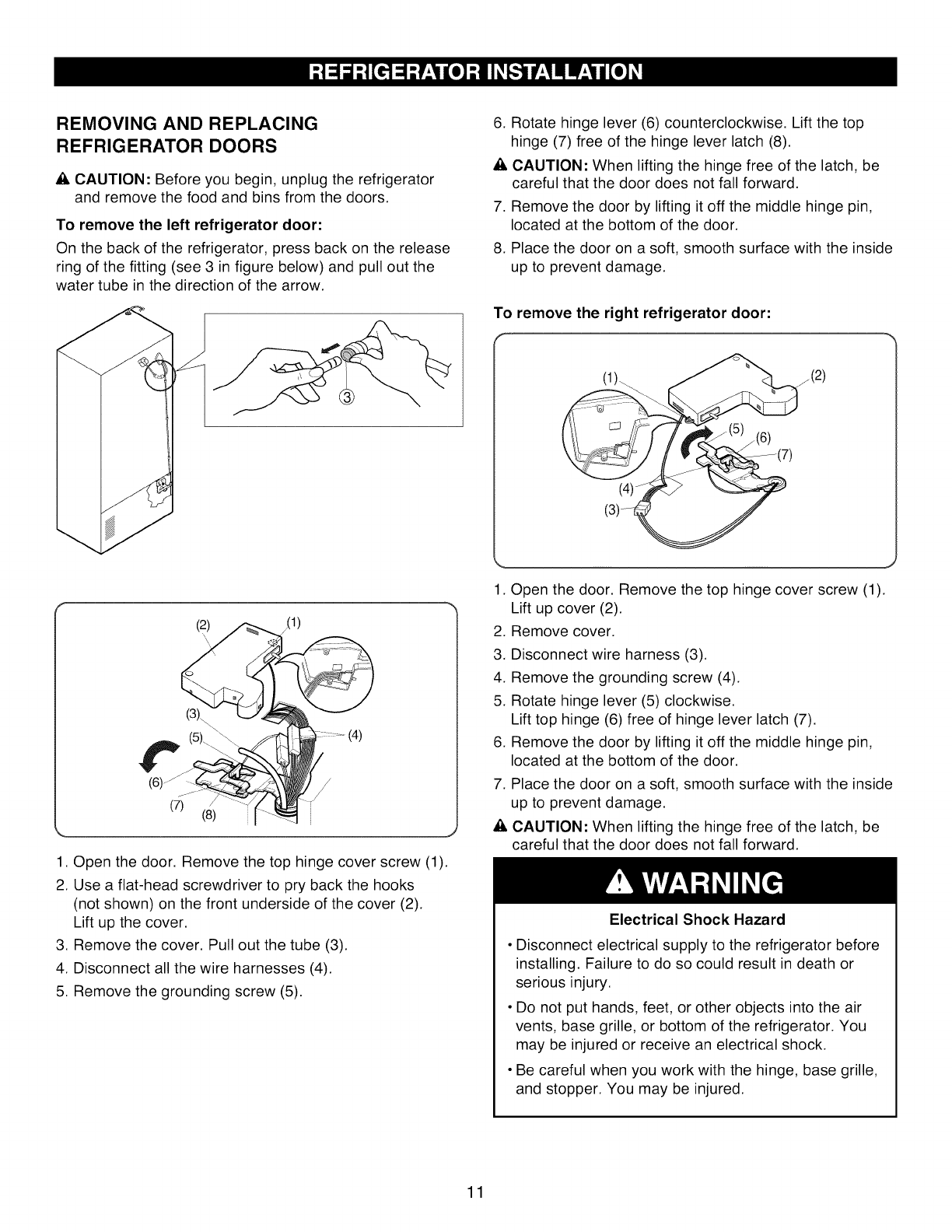

Removing And Replacing

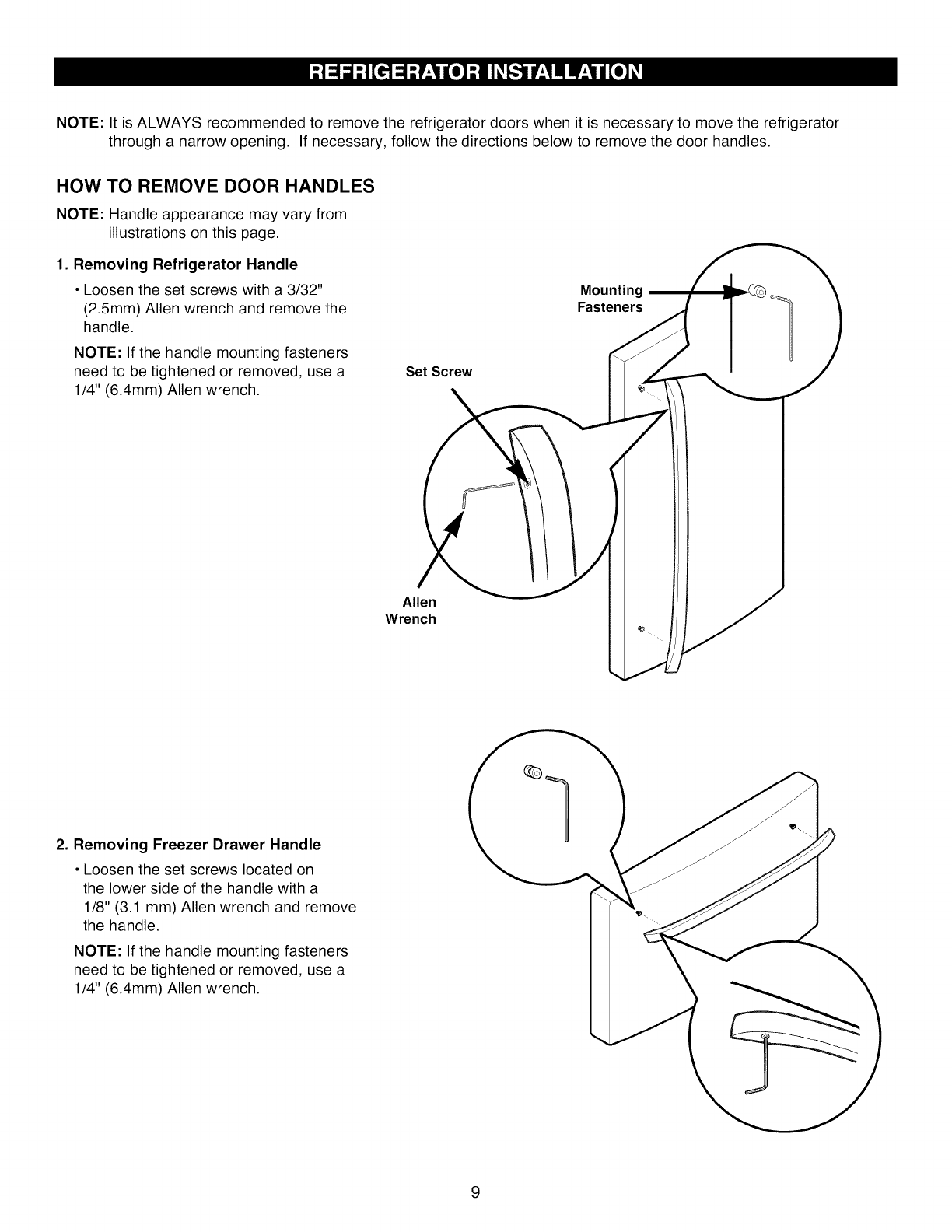

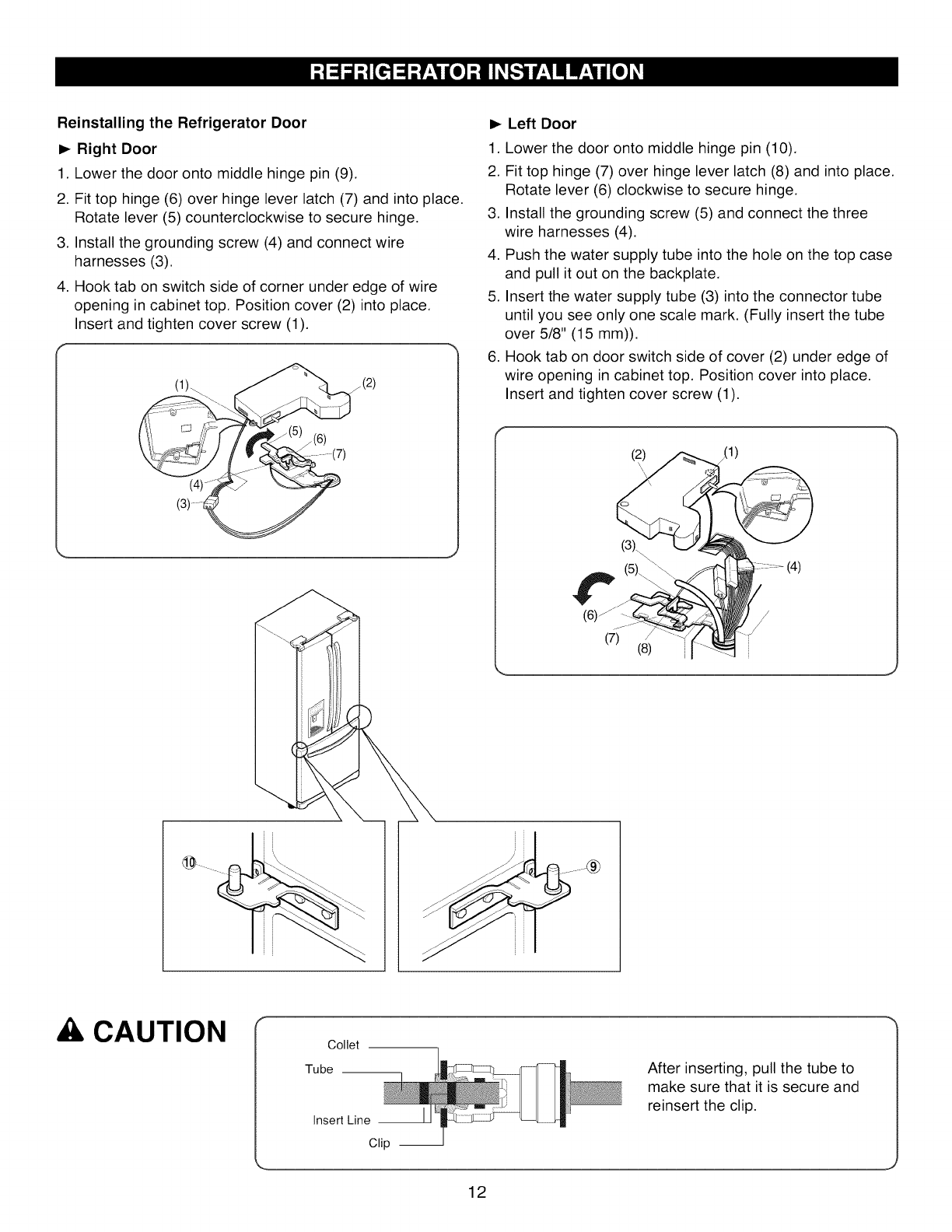

Your Refrigerator Handles And Doors 9-14

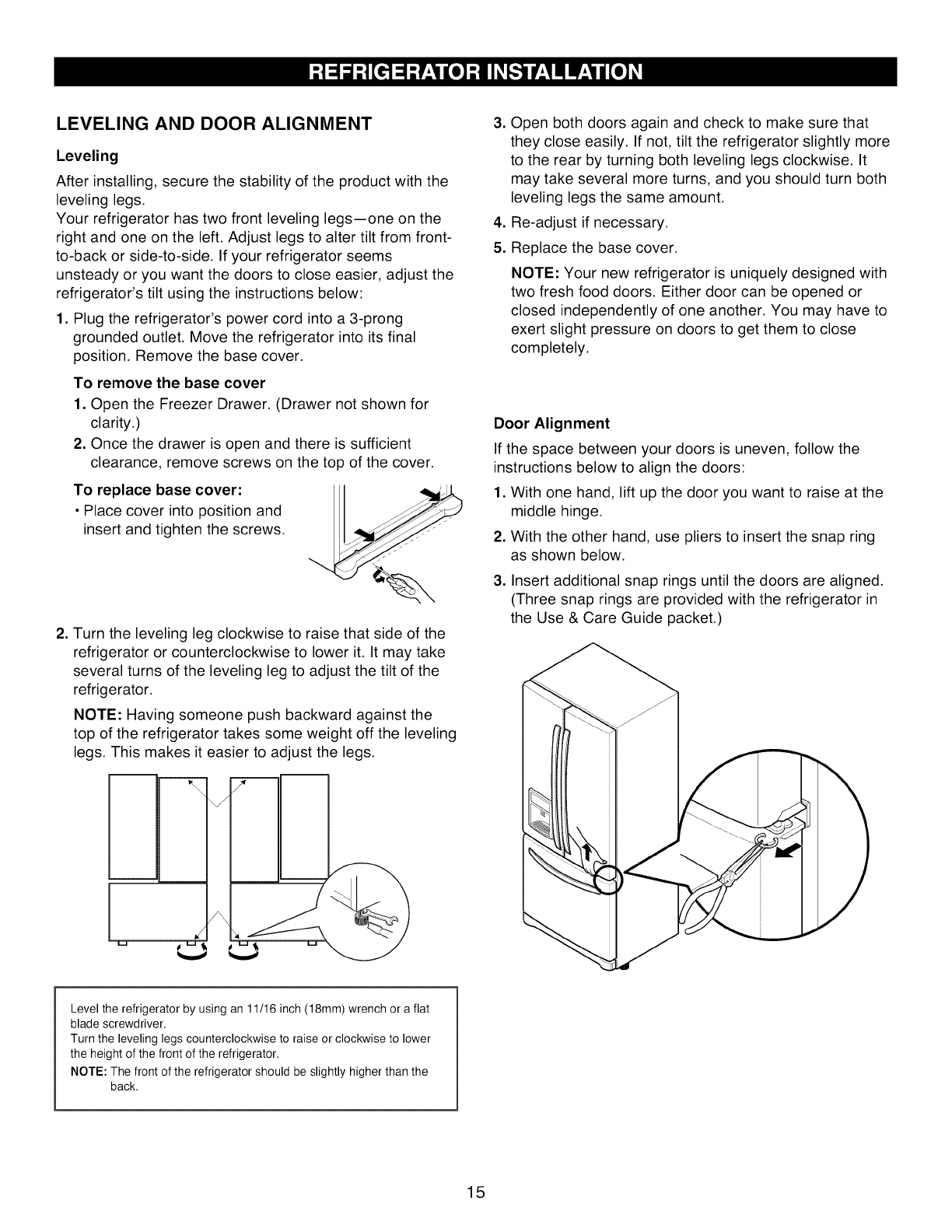

Leveling And Door Alignment 15

Base Cover 15

Using Your Refrigerator 16-23

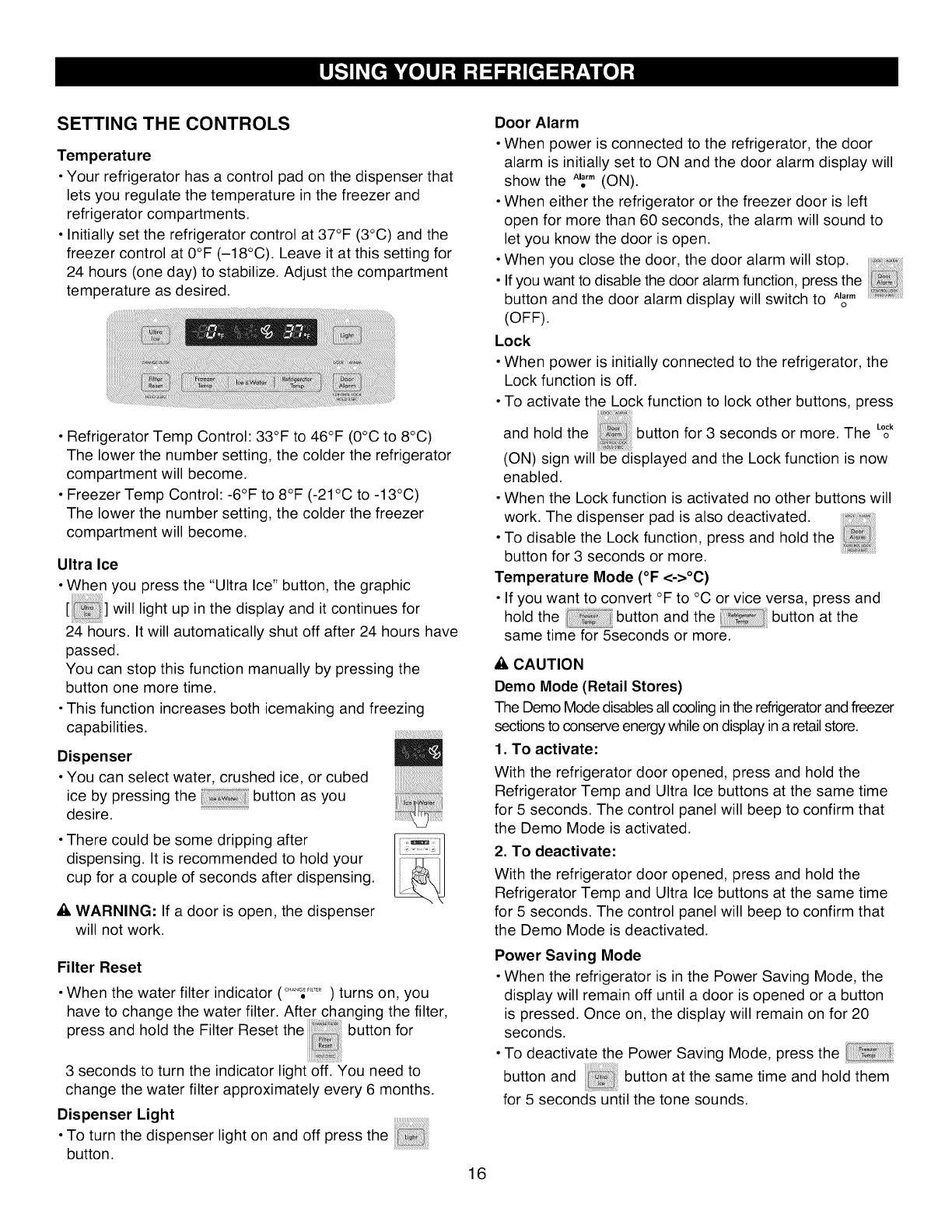

Setting The Controls 16

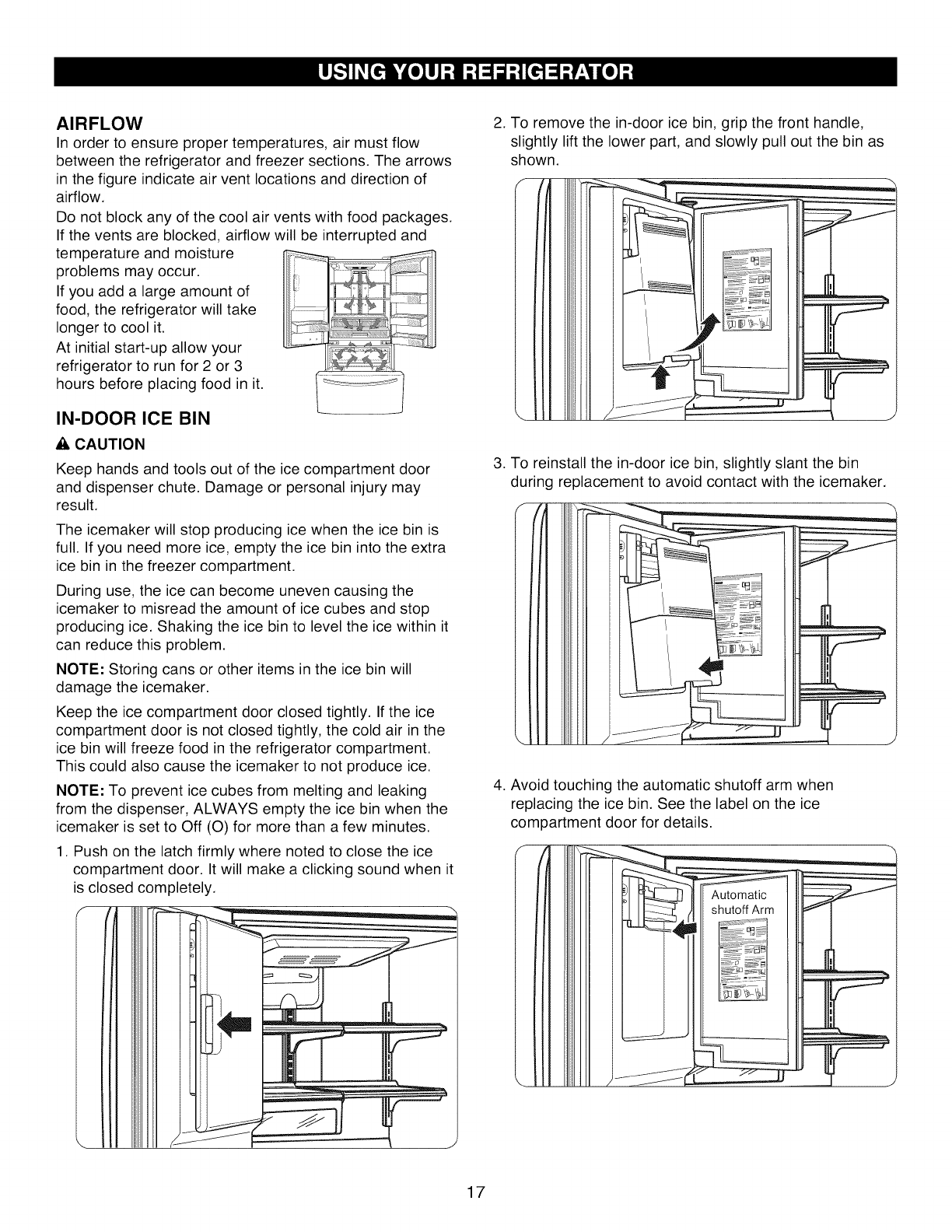

Airflow 17

In-Door Ice Bin 17

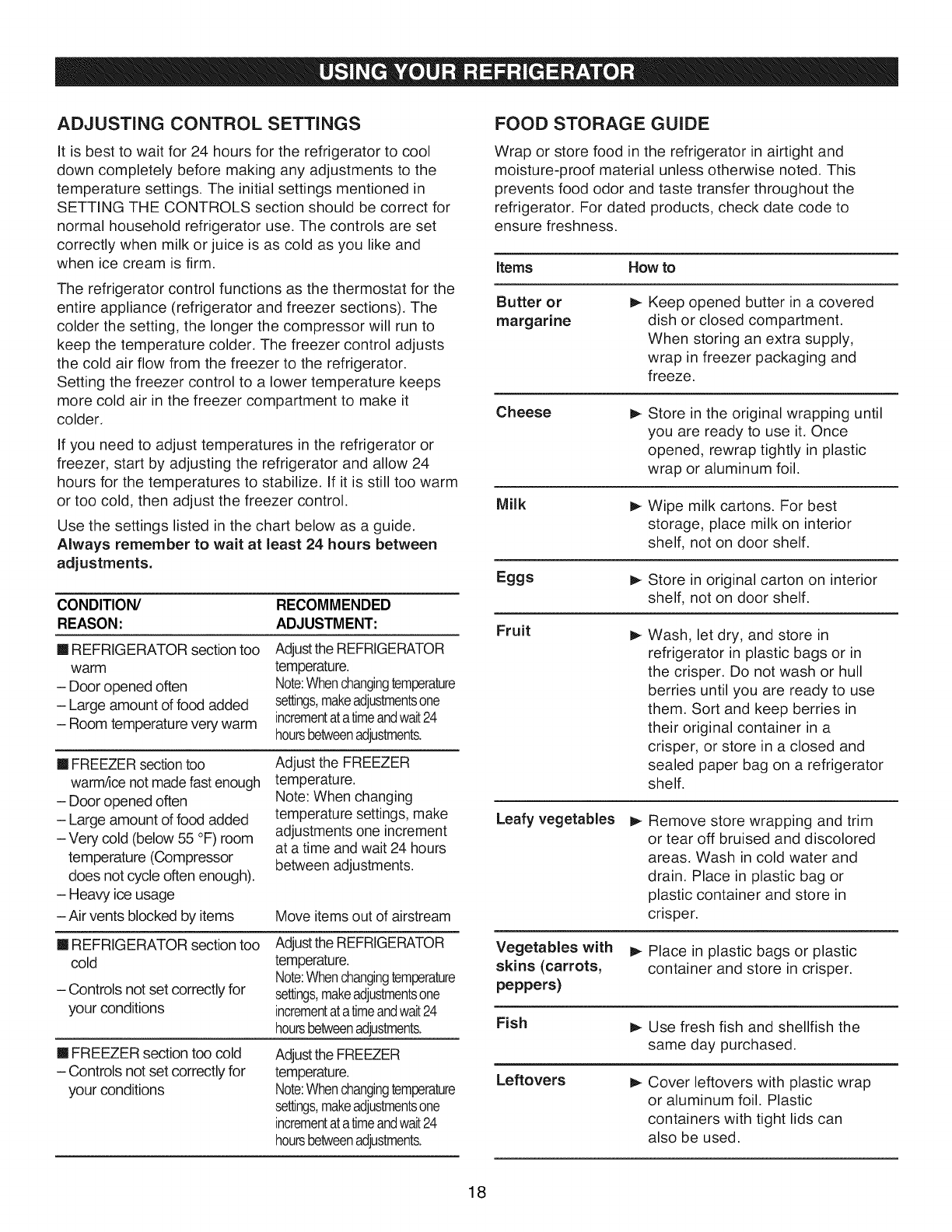

Adjusting Control Settings 18

Food Storage Guide 18

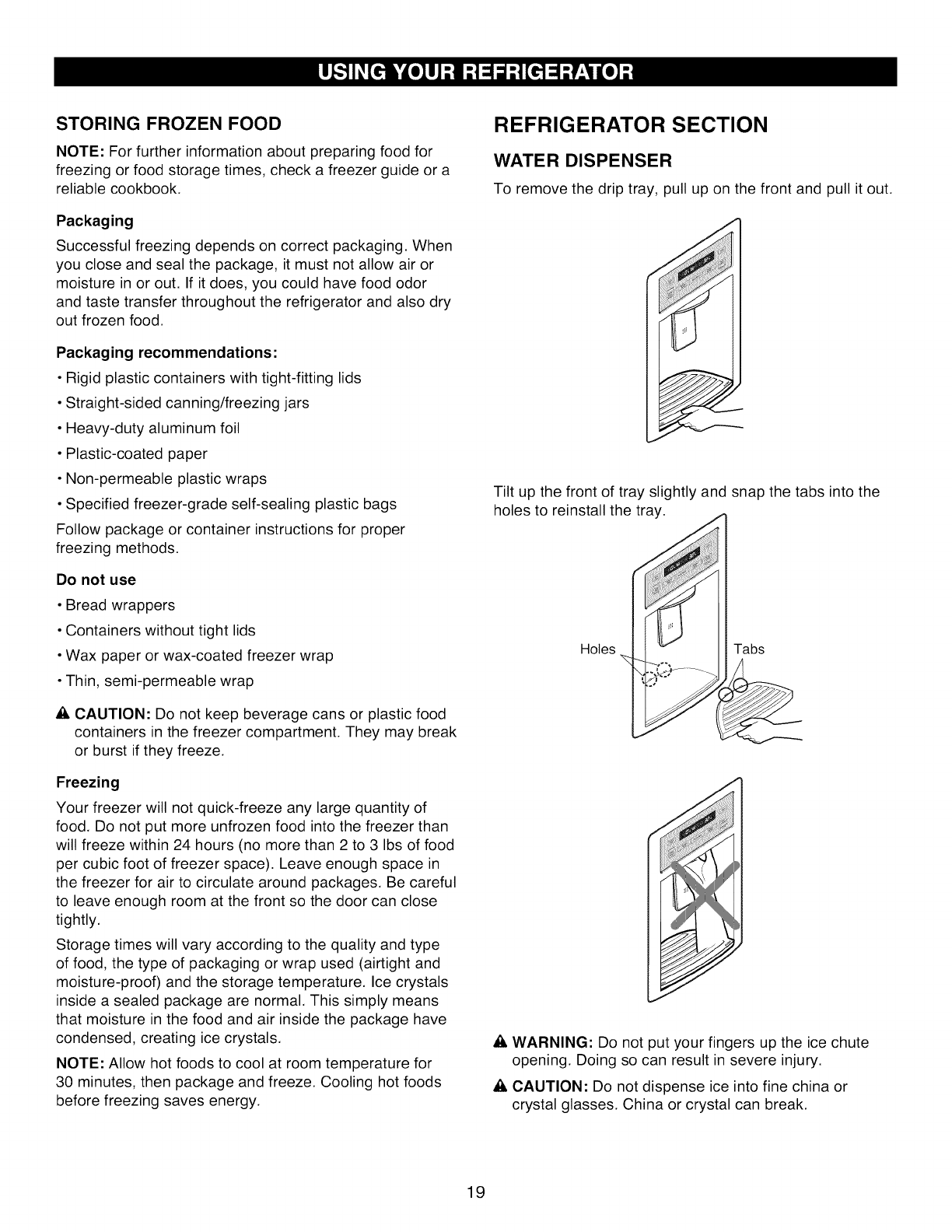

Storing Frozen Food 19

D,-Refrigerator Section

Water Dispenser 19

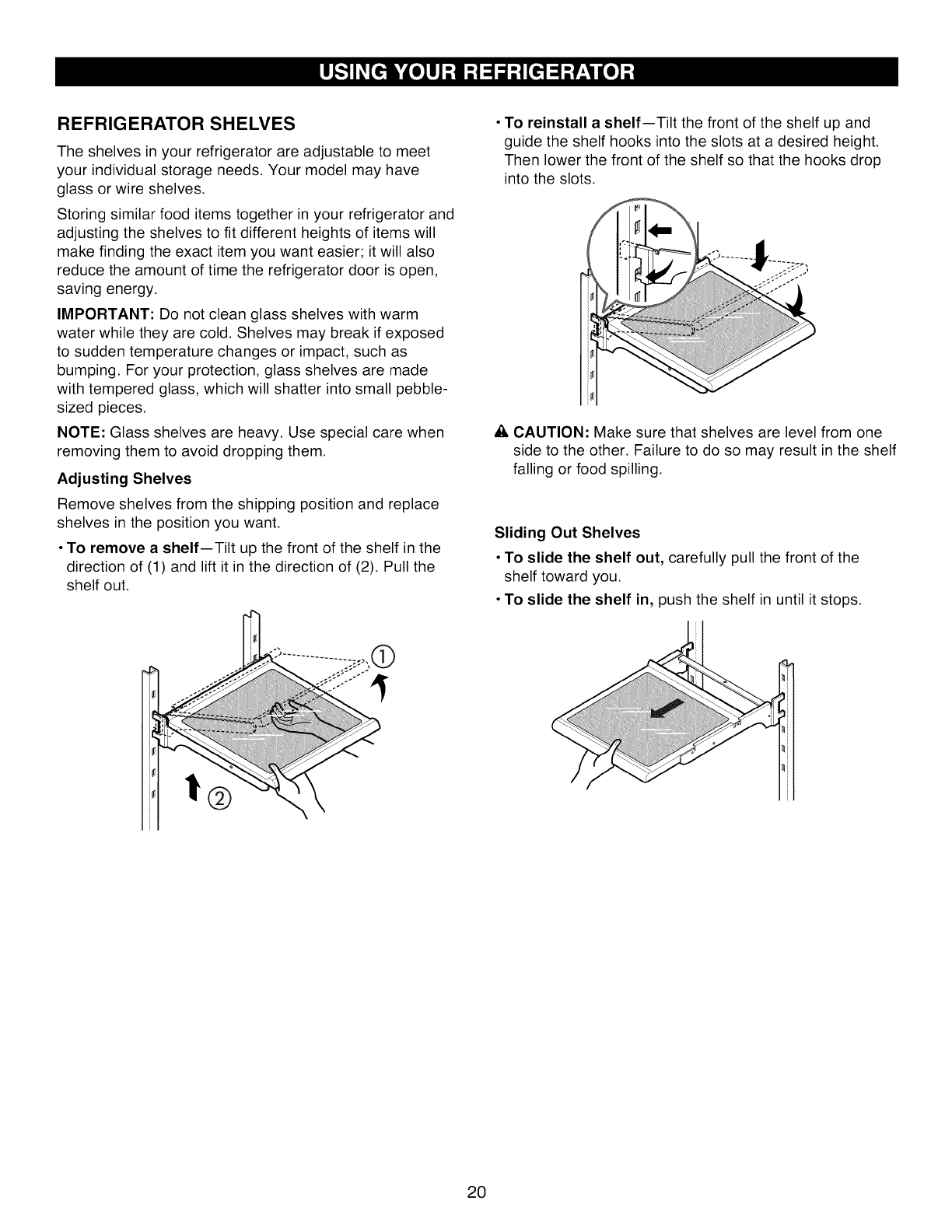

Refrigerator Shelves 20

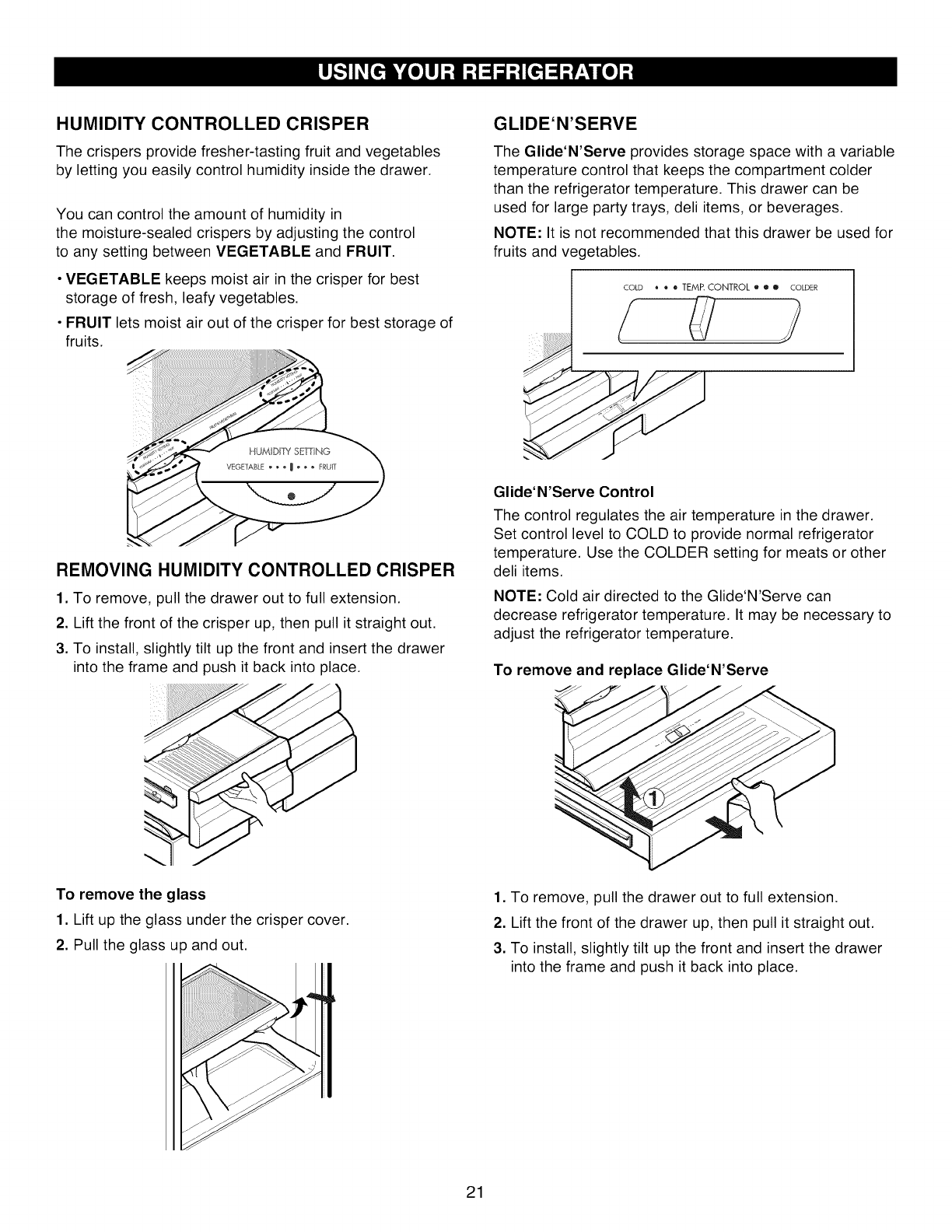

Humidity Controlled Crisper 21

Removing Humidity Controlled Crisper 21

Glide'N'Serve 21

Modular Door Bin 22

Dairy Bin 22

I_ Freezer Section

Extra Ice Bin 22

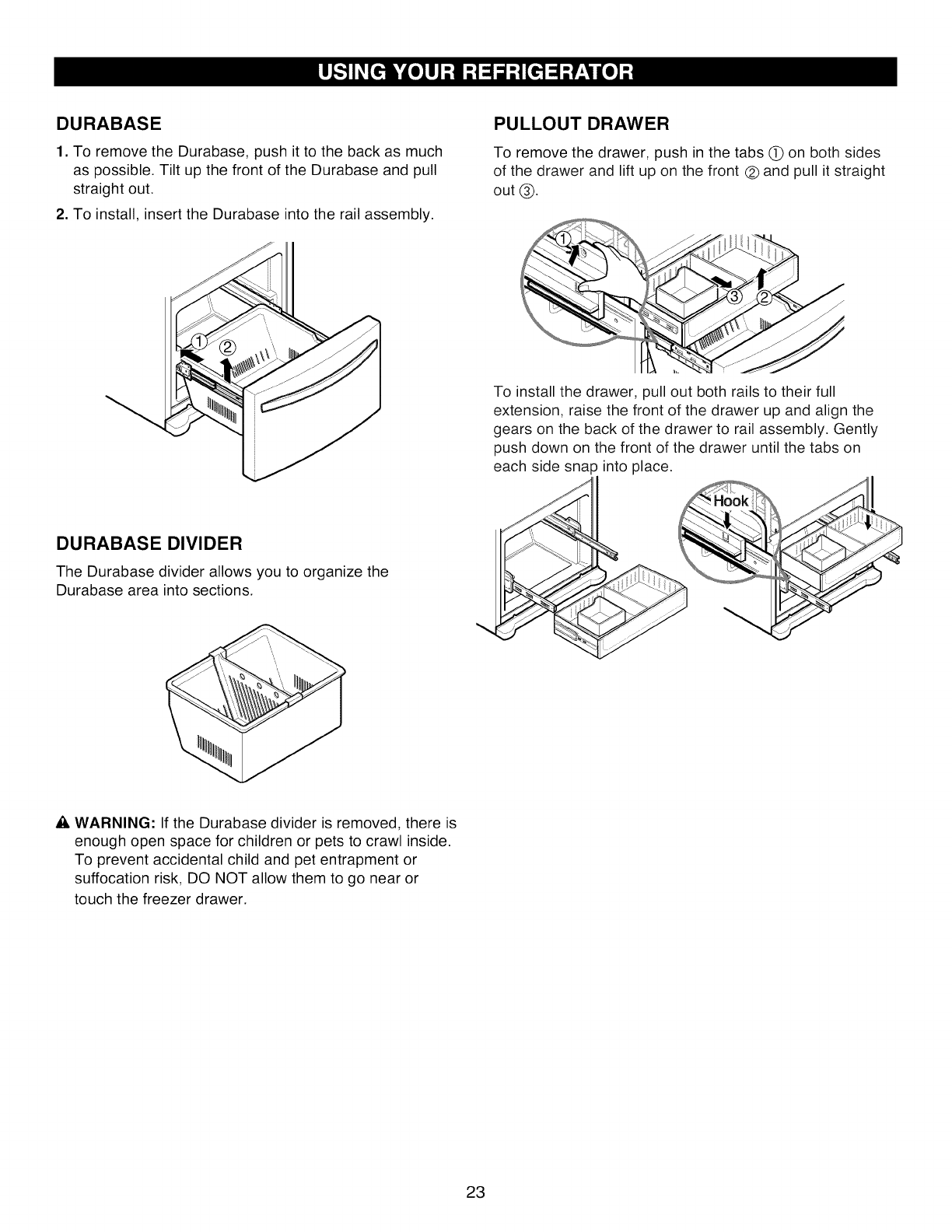

Durabase 23

Durabase Divider 23

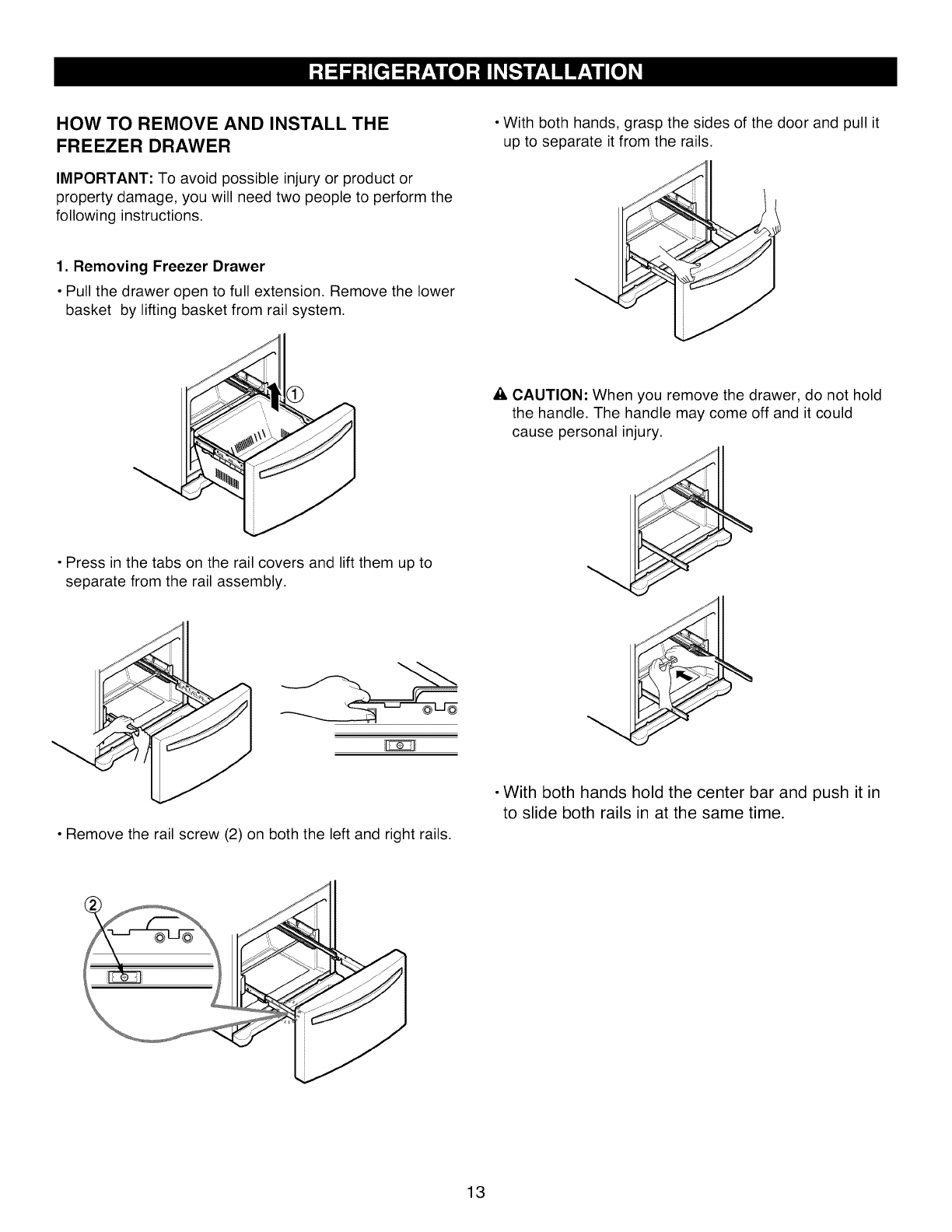

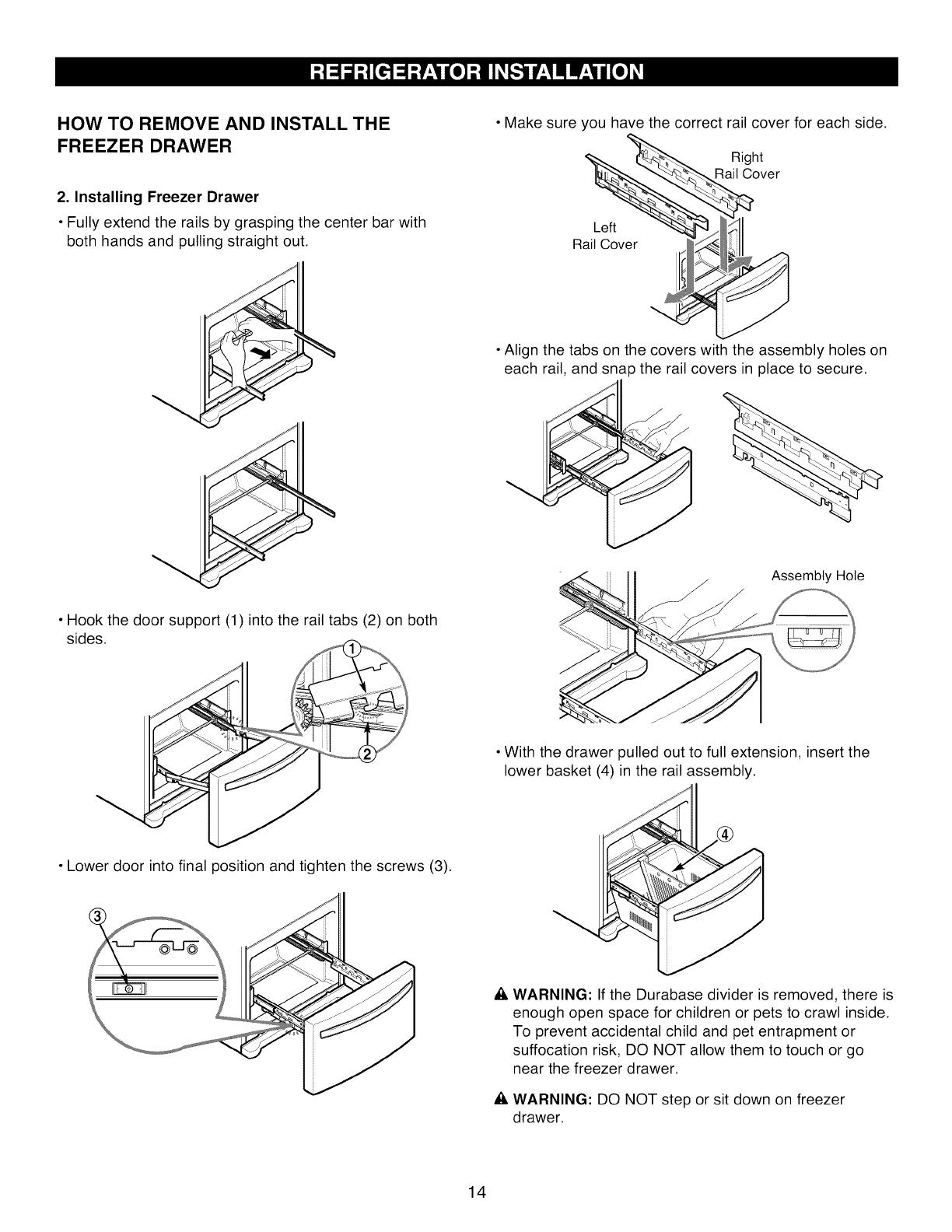

Pullout Drawer 23

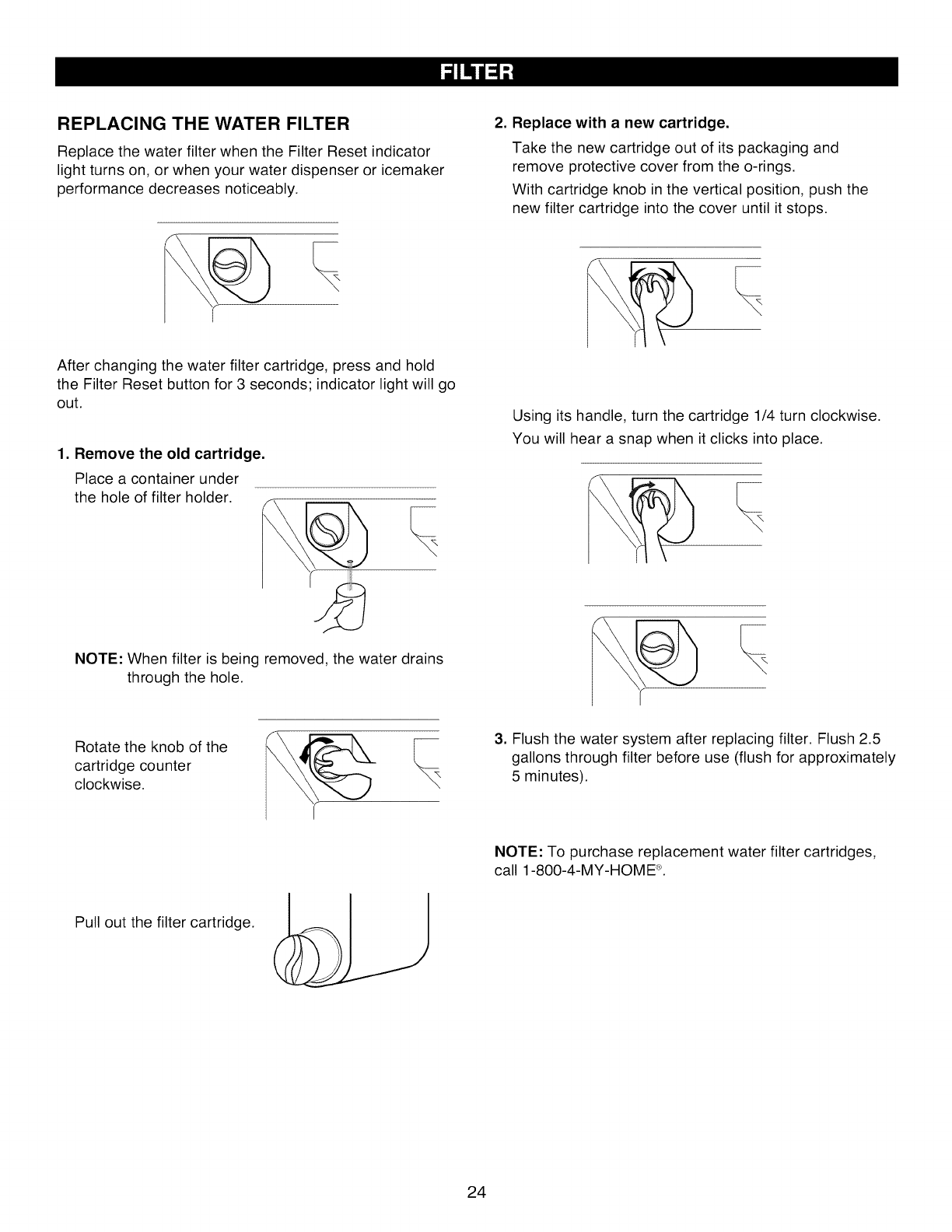

Filter 24-25

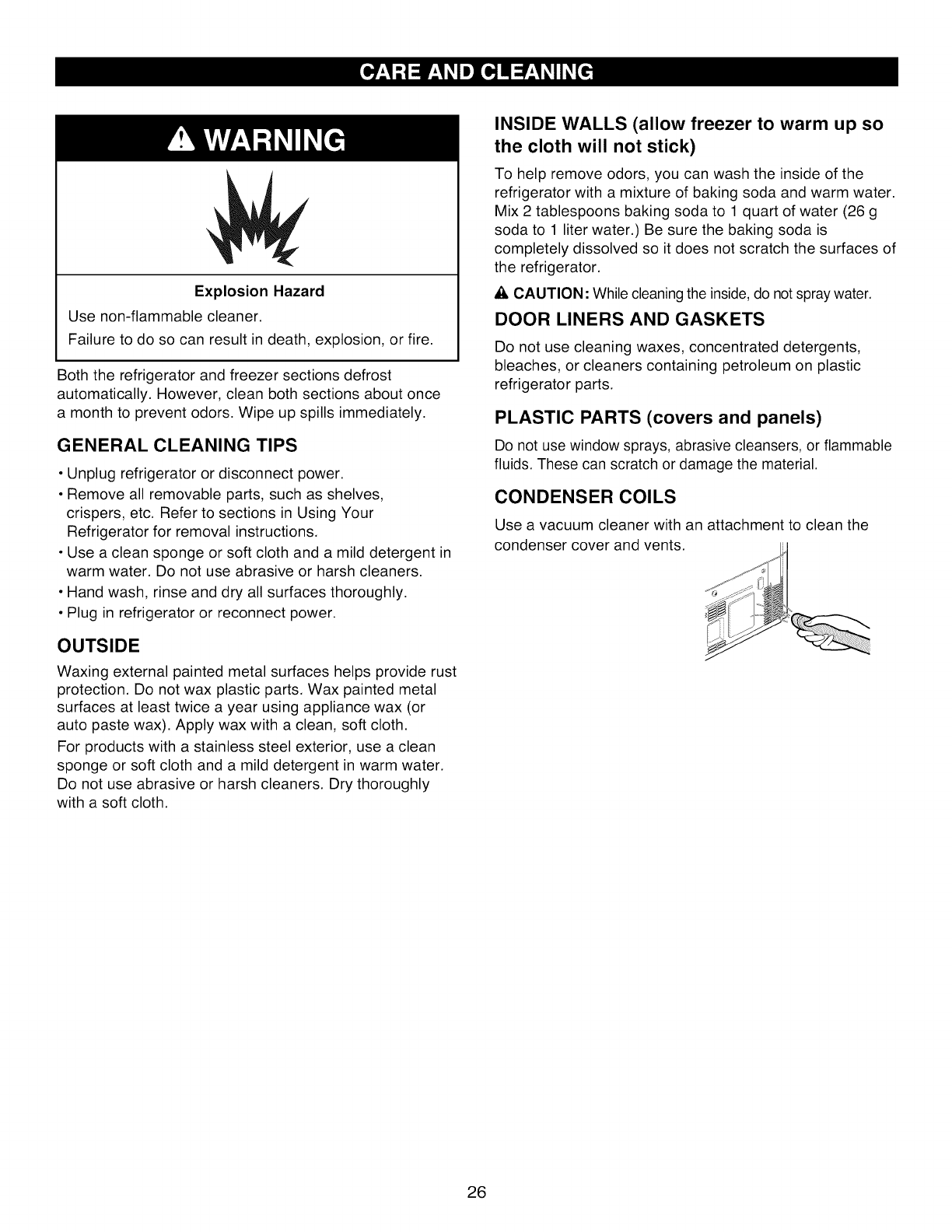

Care And Cleaning 26-27

General Cleaning Tips 26

Outside 26

Inside Walls 26

Door Liner And Gaskets 26

Plastic Parts 26

Condenser Coils 26

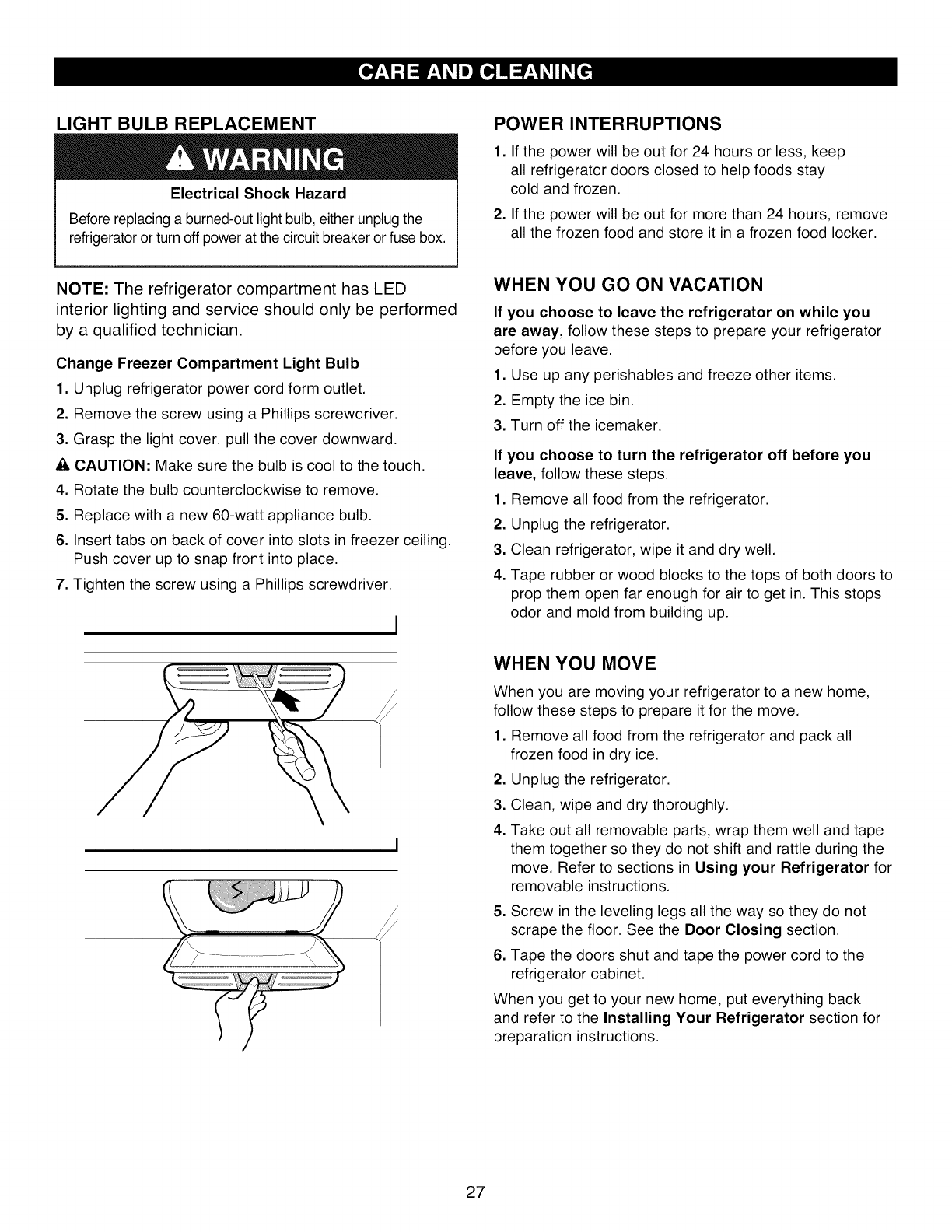

Light Bulb Replacement 27

Power Interruptions 27

When You Go On Vacation 27

When You Move 27

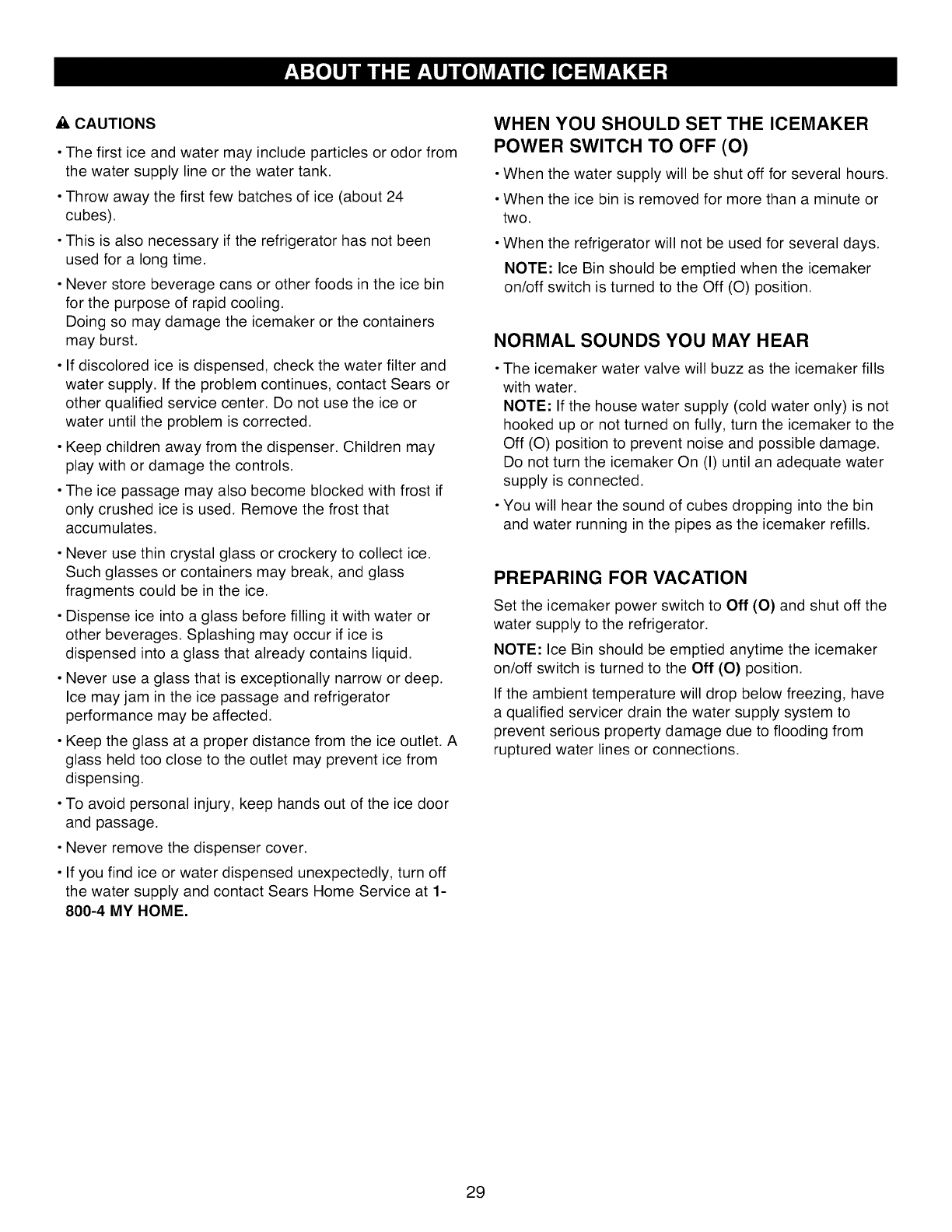

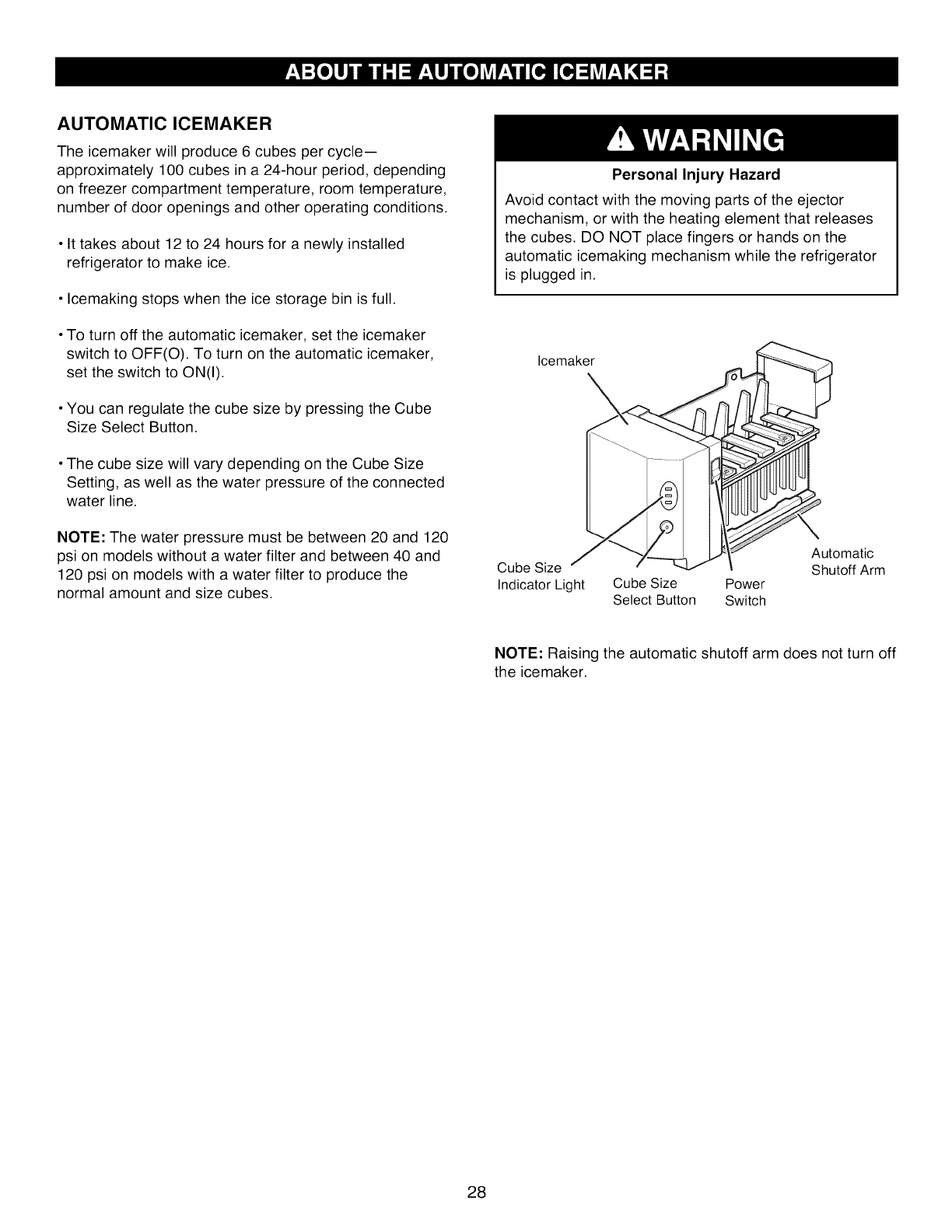

About The Automatic lcemaker 28-29

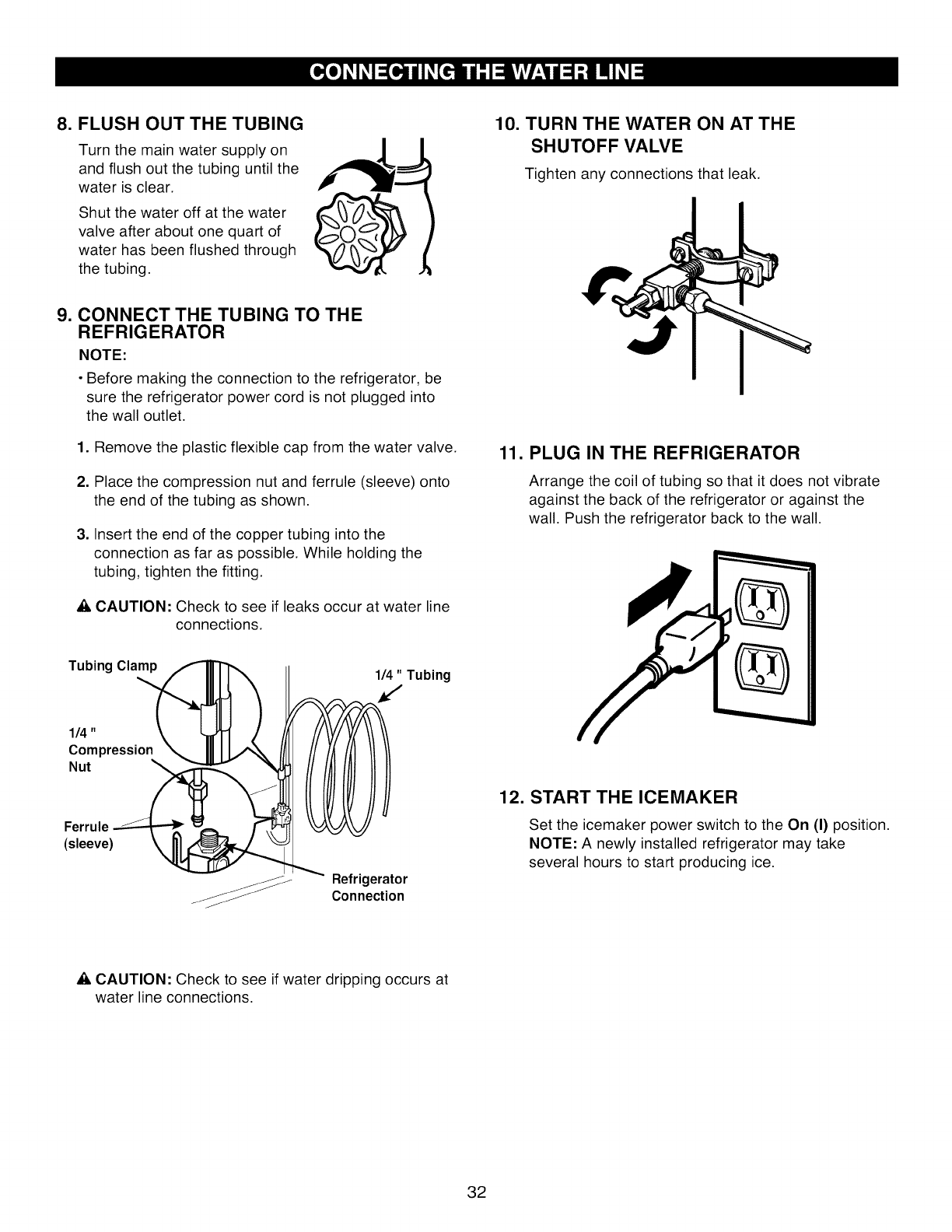

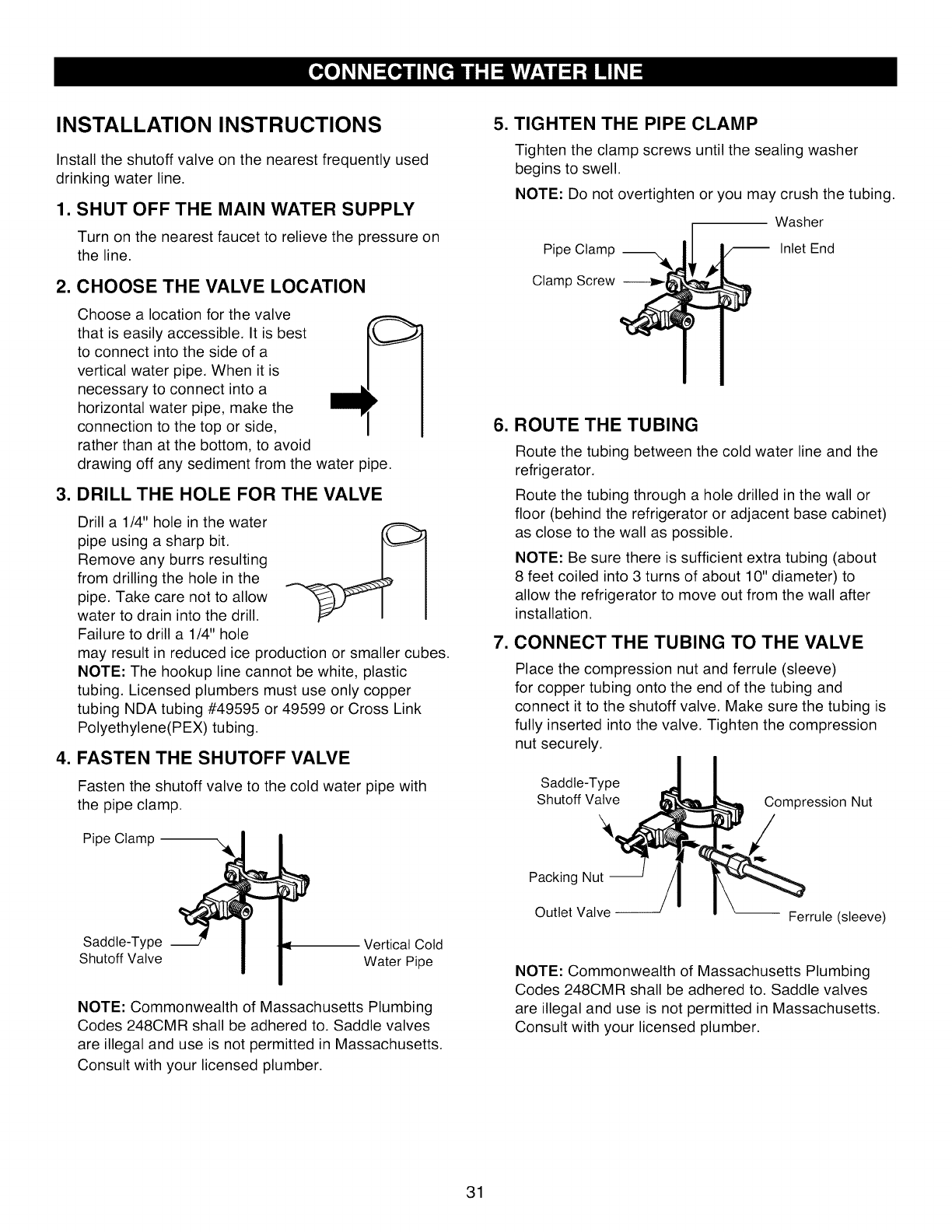

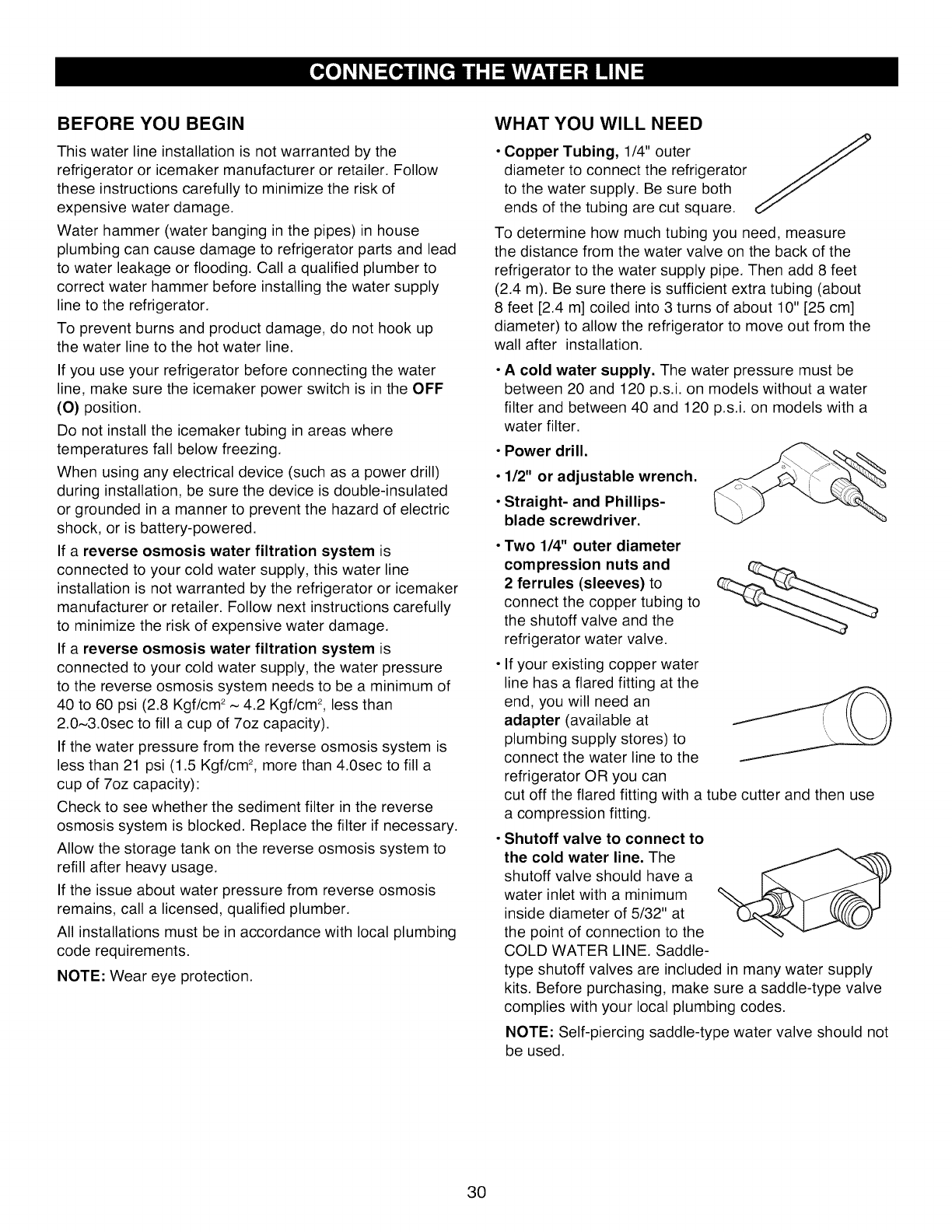

Connecting The Water Line 30-32

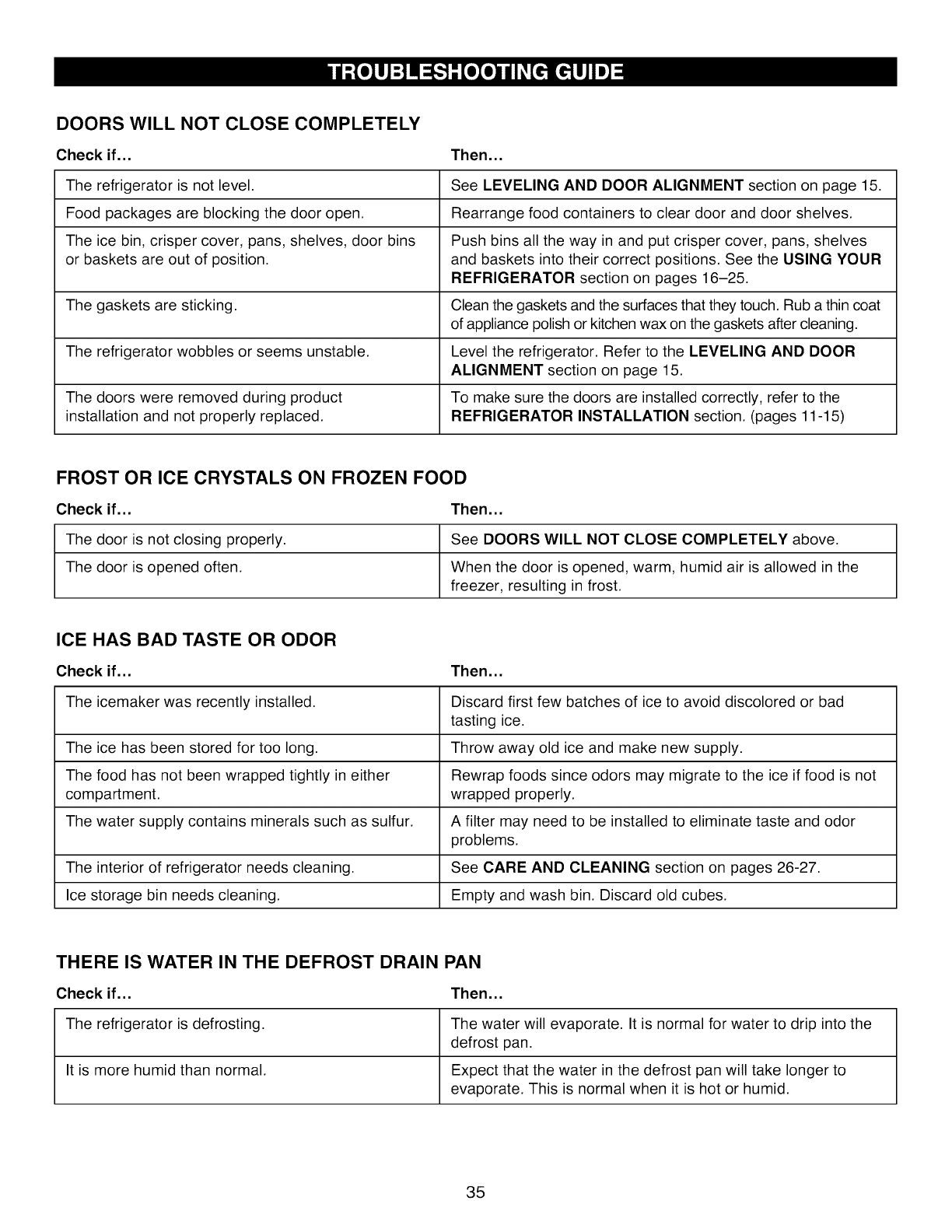

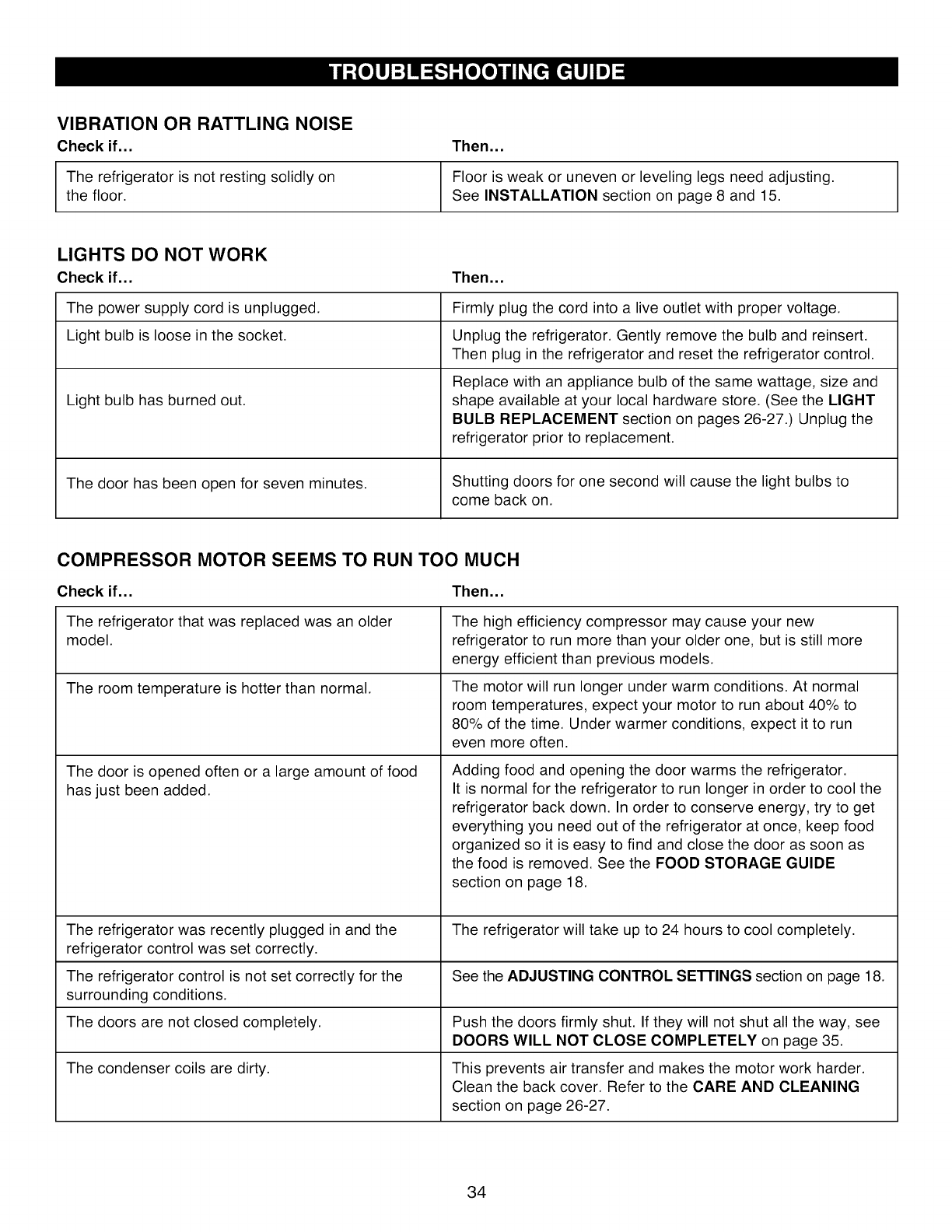

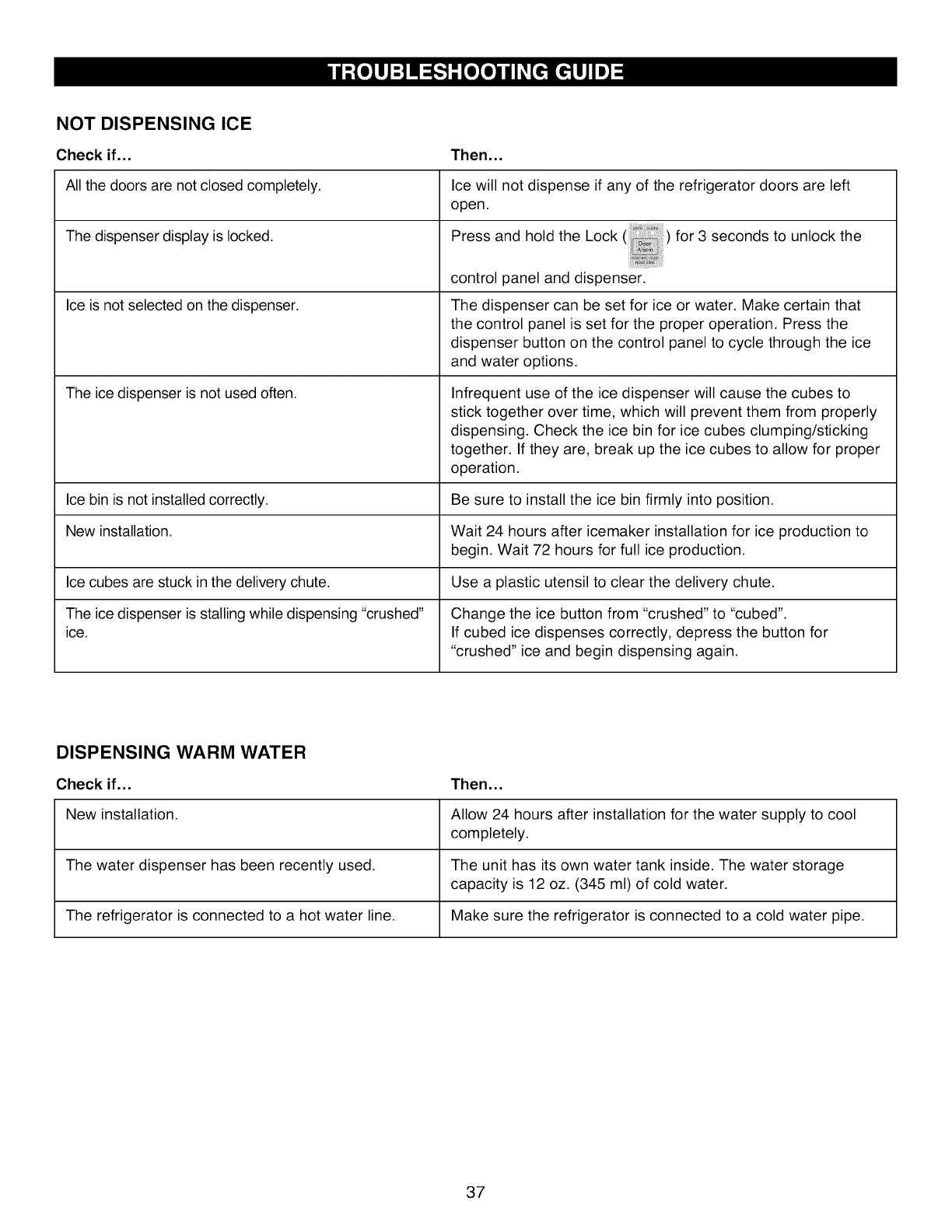

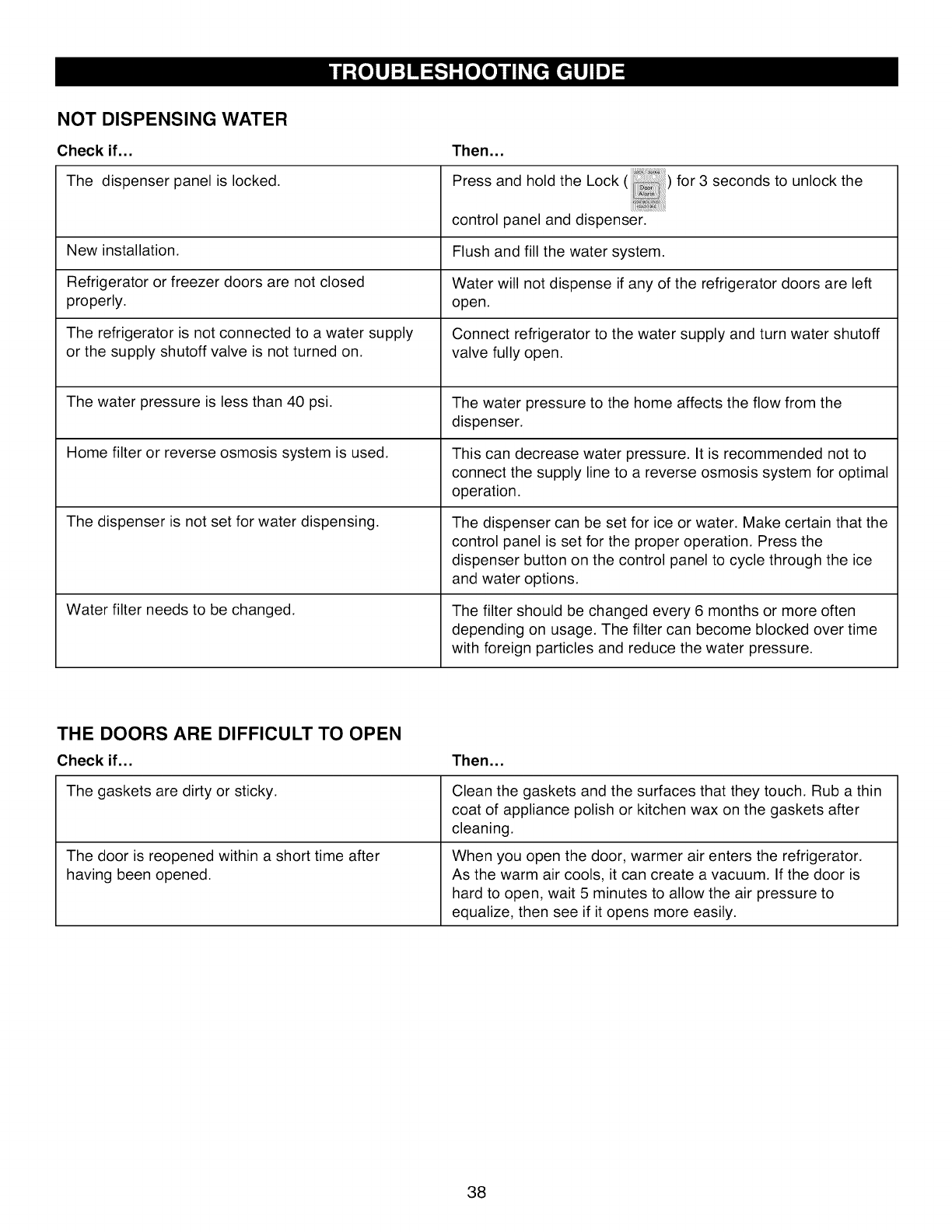

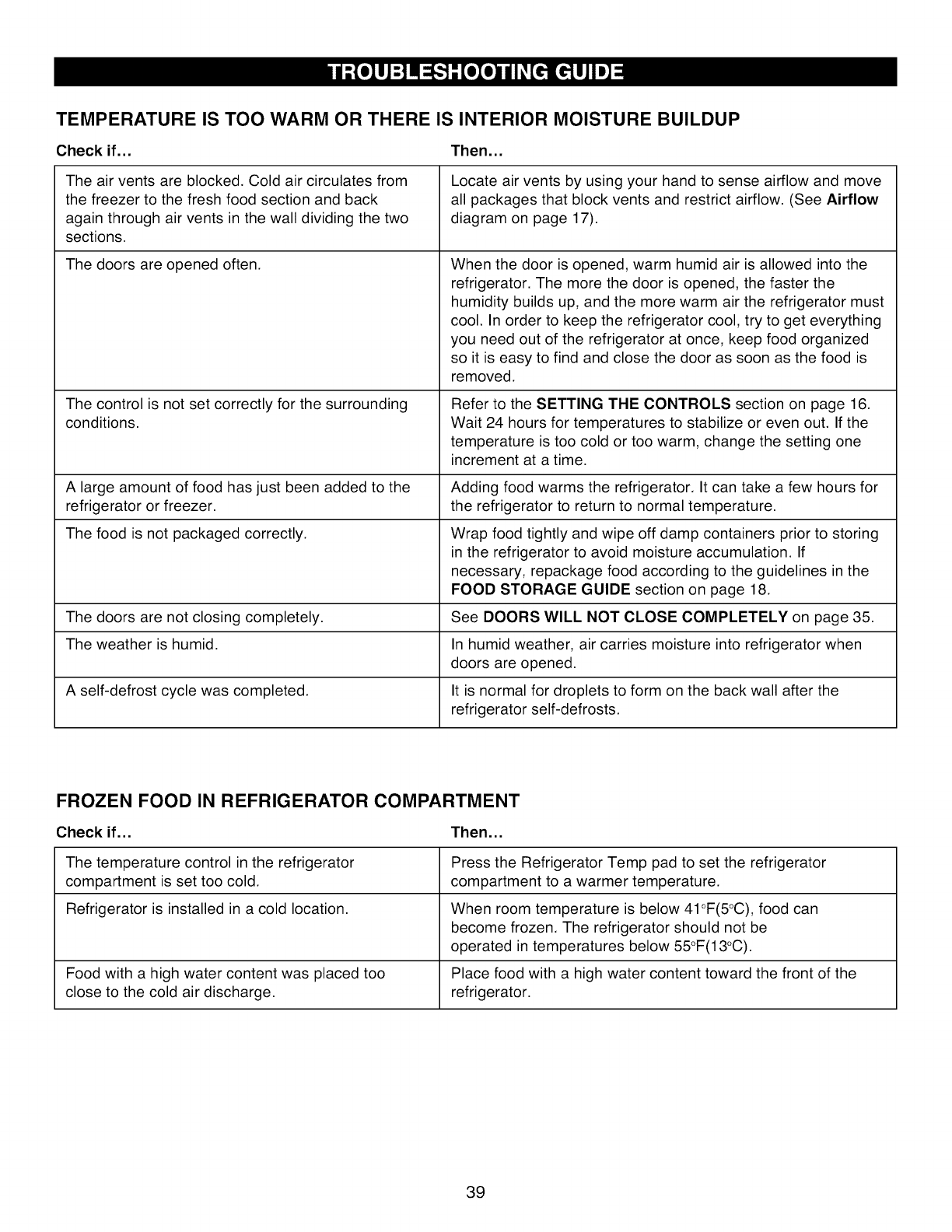

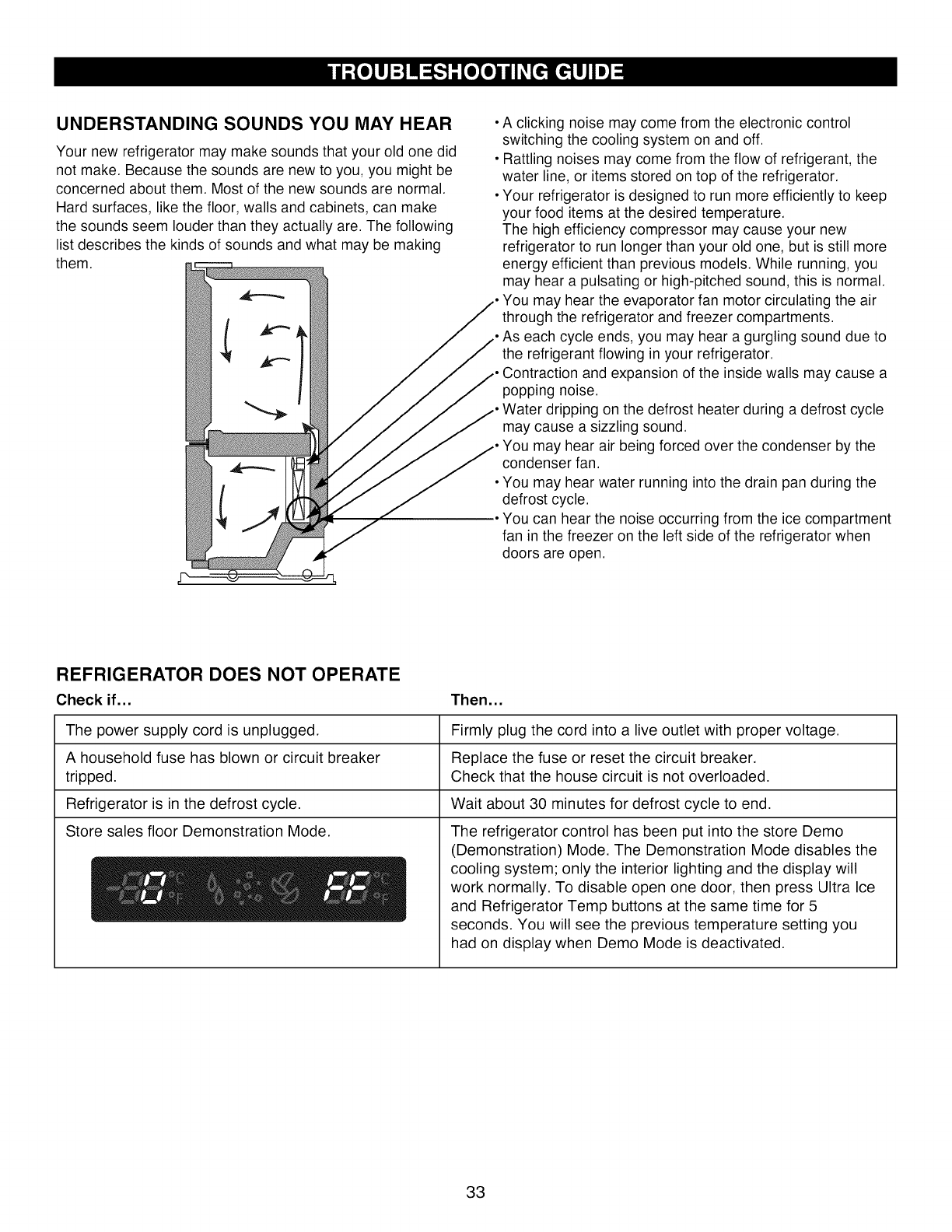

Troubleshooting Guide 33-39

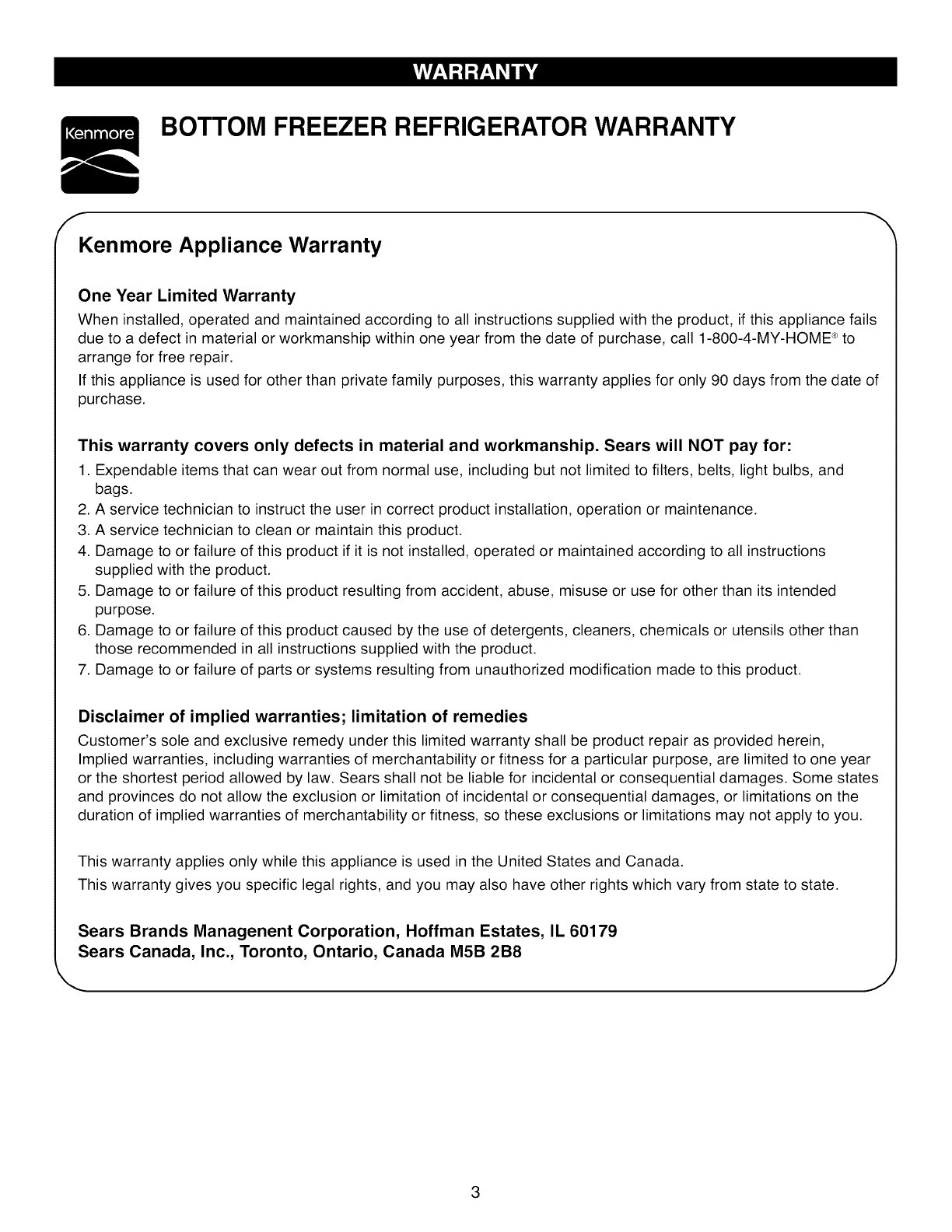

BOTTOM FREEZER REFRIGERATOR WARRANTY

f

Kenmore Appliance Warranty

One Year Limited Warranty

When installed, operated and maintained according to all instructions supplied with the product, if this appliance fails

due to a defect in material or workmanship within one year from the date of purchase, call 1-800-4-MY-HOME ®to

arrange for free repair.

If this appliance is used for other than private family purposes, this warranty applies for only 90 days from the date of

purchase.

This warranty covers only defects in material and workmanship. Sears will NOT pay for:

1. Expendable items that can wear out from normal use, including but not limited to filters, belts, light bulbs, and

bags.

2. A service technician to instruct the user in correct product installation, operation or maintenance.

3. A service technician to clean or maintain this product.

4. Damage to or failure of this product if it is not installed, operated or maintained according to all instructions

supplied with the product.

5. Damage to or failure of this product resulting from accident, abuse, misuse or use for other than its intended

purpose.

6. Damage to or failure of this product caused by the use of detergents, cleaners, chemicals or utensils other than

those recommended in all instructions supplied with the product.

7. Damage to or failure of parts or systems resulting from unauthorized modification made to this product.

Disclaimer of implied warranties; limitation of remedies

Customer's sole and exclusive remedy under this limited warranty shall be product repair as provided herein,

Implied warranties, including warranties of merchantability or fitness for a particular purpose, are limited to one year

or the shortest period allowed by law. Sears shall not be liable for incidental or consequential damages. Some states

and provinces do not allow the exclusion or limitation of incidental or consequential damages, or limitations on the

duration of implied warranties of merchantability or fitness, so these exclusions or limitations may not apply to you.

This warranty applies only while this appliance is used in the United States and Canada.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Sears Brands Managenent Corporation, Hoffman Estates, IL 60179

Sears Canada, Inc., Toronto, Ontario, Canada M5B 2B8

J

3

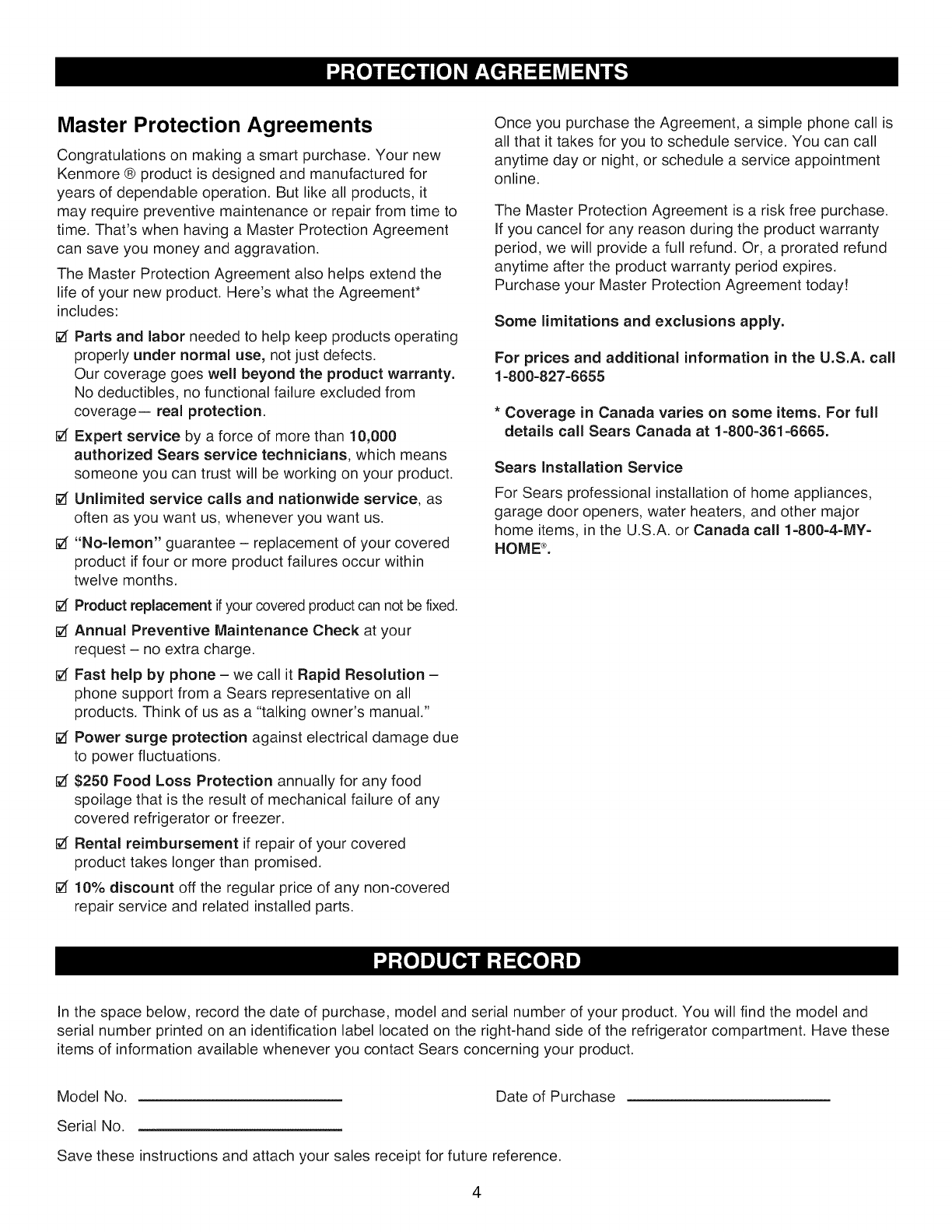

Master Protection Agreements

Congratulations on making a smart purchase. Your new

Kenmore ® product is designed and manufactured for

years of dependable operation. But like all products, it

may require preventive maintenance or repair from time to

time. That's when having a Master Protection Agreement

can save you money and aggravation.

The Master Protection Agreement also helps extend the

life of your new product. Here's what the Agreement*

includes:

I_ Parts and labor needed to help keep products operating

properly under normal use, not just defects.

Our coverage goes well beyond the product warranty.

No deductibles, no functional failure excluded from

coverage-- real protection.

I_ Expert service by a force of more than 10,000

authorized Sears service technicians, which means

someone you can trust will be working on your product.

I_ Unlimited service calls and nationwide service, as

often as you want us, whenever you want us.

"No-lemon" guarantee - replacement of your covered

product if four or more product failures occur within

twelve months.

I_ Product replacement if your covered productcan not be fixed.

1_ Annual Preventive Maintenance Check at your

request - no extra charge.

I_ Fast help by phone - we call it Rapid Resolution -

phone support from a Sears representative on all

products. Think of us as a "talking owner's manual."

[_ Power surge protection against electrical damage due

to power fluctuations.

$250 Food Loss Protection annually for any food

spoilage that is the result of mechanical failure of any

covered refrigerator or freezer.

I_ Rental reimbursement if repair of your covered

product takes longer than promised.

I_ 10% discount off the regular price of any non-covered

repair service and related installed parts.

Once you purchase the Agreement, a simple phone call is

all that it takes for you to schedule service. You can call

anytime day or night, or schedule a service appointment

online.

The Master Protection Agreement is a risk free purchase.

If you cancel for any reason during the product warranty

period, we will provide a full refund. Or, a prorated refund

anytime after the product warranty period expires.

Purchase your Master Protection Agreement today7

Some limitations and exclusions apply.

For prices and additional information in the U.S.A. call

1-800-827-6655

*Coverage in Canada varies on some items. For full

details call Sears Canada at 1-800-361-6665.

Sears Installation Service

For Sears professional installation of home appliances,

garage door openers, water heaters, and other major

home items, in the U.S.A. or Canada call 1-800-4-MY-

HOME ®.

In the space below, record the date of purchase, model and serial number of your product. You will find the model and

serial number printed on an identification label located on the right-hand side of the refrigerator compartment. Have these

items of information available whenever you contact Sears concerning your product.

Model No. Date of Purchase

Serial No.

Save these instructions and attach your sales receipt for future reference.

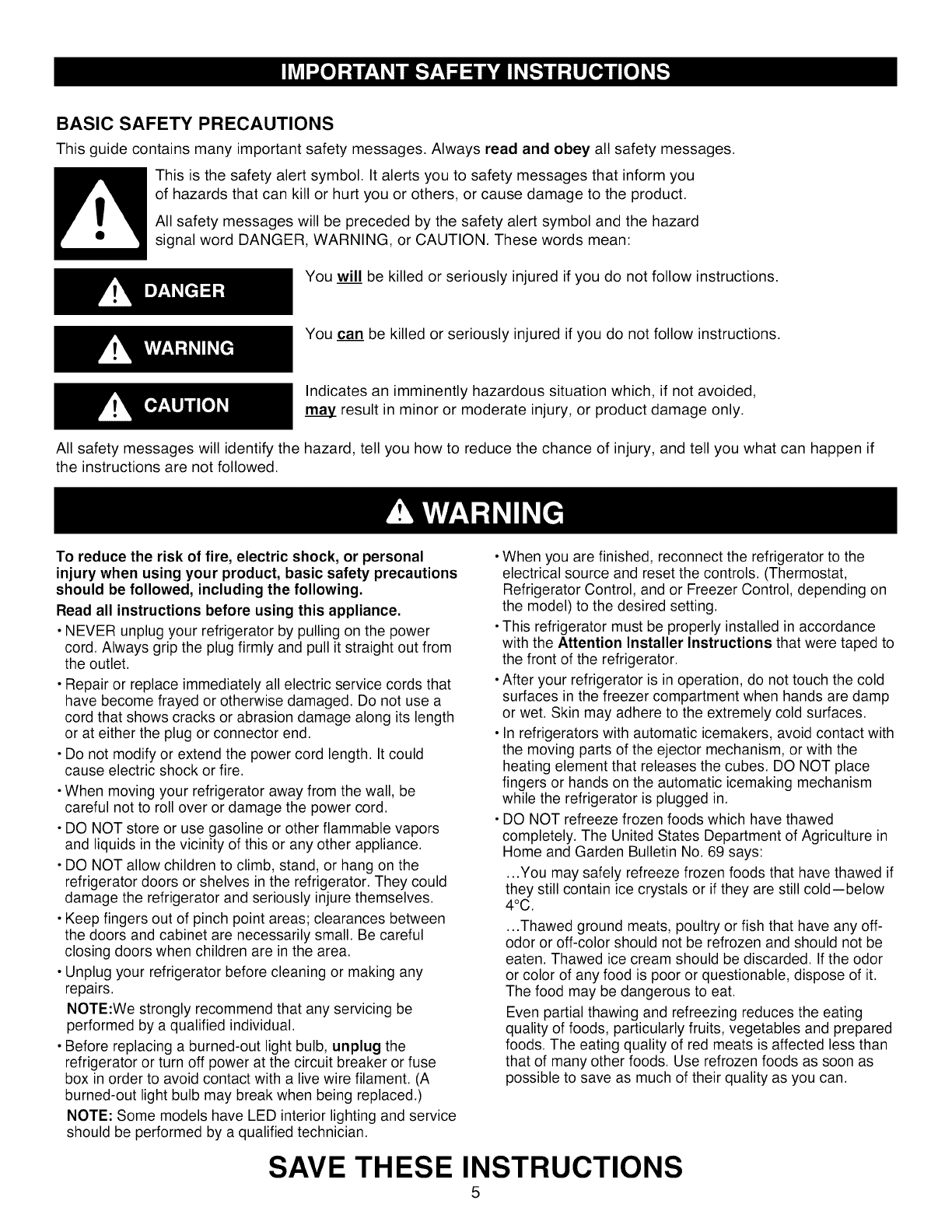

BASIC SAFETY PRECAUTIONS

This guide contains many important safety messages. Always read and obey all safety messages.

This is the safety alert symbol. It alerts you to safety messages that inform you

of hazards that can kill or hurt you or others, or cause damage to the product.

All safety messages will be preceded by the safety alert symbol and the hazard

signal word DANGER, WARNING, or CAUTION. These words mean:

You will be killed or seriously injured if you do not follow instructions.

You can be killed or seriously injured if you do not follow instructions.

Indicates an imminently hazardous situation which, if not avoided,

result in minor or moderate injury, or product damage only.

All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell you what can happen if

the instructions are not followed.

To reduce the risk of fire, electric shock, or personal

injury when using your product, basic safety precautions

should be followed, including the following.

Read all instructions before using this appliance.

• NEVER unplug your refrigerator by pulling on the power

cord. Always grip the plug firmly and pull it straight out from

the outlet.

• Repair or replace immediately all electric service cords that

have become frayed or otherwise damaged. Do not use a

cord that shows cracks or abrasion damage along its length

or at either the plug or connector end.

• Do not modify or extend the power cord length. It could

cause electric shock or fire.

•When moving your refrigerator away from the wall, be

careful not to roll over or damage the power cord.

• DO NOT store or use gasoline or other flammable vapors

and liquids in the vicinity of this or any other appliance.

• DO NOT allow children to climb, stand, or hang on the

refrigerator doors or shelves in the refrigerator. They could

damage the refrigerator and seriously injure themselves.

• Keep fingers out of pinch point areas; clearances between

the doors and cabinet are necessarily small. Be careful

closing doors when children are in the area.

• Unplug your refrigerator before cleaning or making any

repairs.

NOTE:We strongly recommend that any servicing be

performed by a qualified individual.

• Before replacing a burned-out light bulb, unplug the

refrigerator or turn off power at the circuit breaker or fuse

box in order to avoid contact with a live wire filament. (A

burned-out light bulb may break when being replaced.)

NOTE: Some models have LED interior lighting and service

should be performed by a qualified technician.

•When you are finished, reconnect the refrigerator to the

electrical source and reset the controls. (Thermostat,

Refrigerator Control, and or Freezer Control, depending on

the model) to the desired setting.

•This refrigerator must be properly installed in accordance

with the Attention Installer Instructions that were taped to

the front of the refrigerator.

•After your refrigerator is in operation, do not touch the cold

surfaces in the freezer compartment when hands are damp

or wet. Skin may adhere to the extremely cold surfaces.

• In refrigerators with automatic icemakers, avoid contact with

the moving parts of the ejector mechanism, or with the

heating element that releases the cubes. DO NOT place

fingers or hands on the automatic icemaking mechanism

while the refrigerator is plugged in.

• DO NOT refreeze frozen foods which have thawed

completely. The United States Department of Agriculture in

Home and Garden Bulletin No. 69 says:

...You may safely refreeze frozen foods that have thawed if

they still contain ice crystals or if they are still cold--below

4°C.

...Thawed ground meats, poultry or fish that have any off-

odor or off-color should not be refrozen and should not be

eaten. Thawed ice cream should be discarded. If the odor

or color of any food is poor or questionable, dispose of it.

The food may be dangerous to eat.

Even partial thawing and refreezing reduces the eating

quality of foods, particularly fruits, vegetables and prepared

foods. The eating quality of red meats is affected less than

that of many other foods. Use refrozen foods as soon as

possible to save as much of their quality as you can.

SAVE THESE INSTRUCTIONS

5

This appliance is not intended for use by persons

(including children) with reduced physical, sensory or

mental capabilities, or lack of experience and knowledge,

unless they have been given supervision or instruction

concerning use of the appliance by a person responsible

for their safety.

Children should be supervised to ensure that they do not

play with the appliance.

Junked or abandoned refrigerators are dangerous...even

if they will sit for just a few days. If you are getting rid of

your old refrigerator, please follow the instructions at right

to help prevent accidents (Child entrapment and

suffocation).

BEFORE YOU THROW AWAY

YOUR OLD REFRIGERATOR

OR FREEZER

• Take off the doors.

• Leave the shelves in place so that children

may not easily climb inside.

Your old refrigerator may have a cooling system that used

CFCs (chlorofluorocarbons). CFCs are believed to harm

stratospheric ozone.

If you are throwing away your old refrigerator, make sure

the CFC refrigerant is removed for proper disposal by a

qualified servicer. If you intentionally release this CFC

refrigerant, you can be subject to fines and imprisonment

under provisions of environmental legislation.

IMPORTANT: Please read carefully.

TO CONNECT ELECTRICITY

Electrical Shock Hazard

FOR PERSONAL SAFETY, this appliance must be

properly grounded, Have the wall outlet and the circuit

checked by a qualified electrician to make sure the

outlet is properly grounded.

3-prong

grounding

plug

3-prong

groundingtype

wall receptacle "-- _._

Ensureproper

groundexists

beforeuse.

RECOMMENDED GROUNDING METHOD

The refrigerator should always be plugged into its own

individual properly grounded electrical outlet rated for

115 Volts, 60 Hz, AC only, and fused at 15 or 20 amperes.

This provides the best performance and also prevents

overloading house wiring circuits which could cause a fire

hazard from overheated wires. It is recommended that a

separate circuit serving only this appliance be provided.

Use a receptacle which cannot be turned off with a switch

or pull chain. Do not use an extension cord.

Where a standard two-prong wall outlet is encountered,

it is your personal responsibility and obligation to have it

replaced with a properly grounded three-prong wall outlet.

Do not, under any circumstances, cut or remove the

third (ground) prong from the power cord.

Do not use an adapter plug.

NOTE: Before performing any type of installation,

cleaning, or removing a light bulb, disconnect the

refrigerator from the electrical source.

NOTE: Some models have LED interior lighting and

service should be performed by a qualified technician.

When you are are finished, reconnect the refrigerator to

the electrical source and reset the control (Thermostat,

Refrigerator Control, or Freezer Control, depending on the

model) to the desired setting.

USE OF EXTENSION CORDS

Because of potential safety hazards under certain

conditions, we strongly recommend against the use

of an extension cord. However, if you still elect to use

an extension cord, it is absolutely necessary that it be a

UL-listed (USA), 3-wire grounding type appliance

extension cord having a grounding type plug and outlet,

and that the electrical rating of the cord be 15 amperes

(minimum) and 120 volts.

Use of an extension cord will increase the clearance

needed for the back of the refrigerator.

Usethispageto becomemorefamiliarwiththepartsandfeatures.Pagereferencesareincludedforyourconvenience.

NOTE:Thisguidecoversseveraldifferentmodels.Therefrigeratoryouhavepurchasedmayhavesomeorallofthe

itemslistedbelow.Thelocationsofthefeaturesshownbelowmaynotmatchyourmodel.

Q RefrigeratorLight(p.27)

Filter(Inside)(p.24)

ModularDoorBins(p.22)

_) Fixeddoorbin

Fixeddoorbin

RefrigeratorShelves(p.20)

(_ IceRoom(p.17)

(IcemakerandIceBin)

_) HumidityControlledCrisper(p.21)

(0}Glide'N'Serve(p.21)

ExtraIceBin(p.22)

PulloutDrawer(p.23)

Durabase(p.23)

_) Divider(p.23)

_) DairyBin(p.22)

(_)WaterTankCover

Ice Bin

Ice Room Door

7

Excessive Weight Hazard

Use two or more people to move and install

refrigerator.

Failure to do so can result in back or other injury.

UNPACKING YOUR REFRIGERATOR

Remove tape and any temporary labels from your

refrigerator before using. Do not remove any warning

labels, the model and serial label, or the Tech Sheet that

is located under the front of the refrigerator, behind the

base cover.

To remove any remaining tape or glue, rub the area

briskly with your thumb. Tape or glue residue can also be

easily removed by rubbing a small amount of liquid dish

soap over the adhesive with your fingers. Wipe with warm

water and dry.

Do not use sharp instruments, rubbing alcohol, flammable

fluids, or abrasive cleaners to remove tape or glue. These

products can damage the surface of your refrigerator. For

more information, see the Important Safety Instructions

section.

Refrigerator shelves are installed in the shipping position.

Please reinstall shelves according to your individual

storage needs.

When Moving Your Refrigerator:

Your refrigerator is heavy. When moving the

refrigerator for cleaning or service, be sure to protect

the floor. Always pull the refrigerator straight out when

moving it. Do not wiggle or walk the refrigerator when

trying to move it, as floor damage could occur.

Explosion Hazard

Keep flammable materials and vapors, such as

gasoline, away from refrigerator.

Failure to do so can result in death, explosion, or fire.

• To reduce the risk of electric shock, do not install the

refrigerator in a wet or damp area.

• Select a place where a water supply can be easily

connected for the automatic icemaker.

&CAUTION: Avoid placing the unit near heat sources,

direct sunlight or moisture.

INSTALLATION

• To minimize noise and vibration, the refrigerator MUST

be installed on a solidly constructed floor.

• Carpeting and soft tile surfaces are not recommended.

• Never install the refrigerator on a platform or weakly

supported structure.

1. To avoid vibration, the unit must be leveled. If required,

adjust the leveling legs to compensate for unevenness

of the floor. The front should be slightly higher than the

rear to aid in door closing. Leveling legs can be turned

easily by tipping the cabinet slightly. Turn the leveling

legs clockwise ('_',,_) to raise the unit,

counterclockwise ( _'_" ) to lower it. (See Leveling and

Door Alignment on page 15.)

2. Install this appliance in an area where the temperature

is between 55°F (13°C) and 110°F (43°C.) If the

temperature around the appliance is too low or high,

cooling ability may be adversely affected.

3. Too small a distance from adjacent items may result in

lowered freezing capability and increased electricity

consumption charges. Allow at least 24 inches (61 cm)

in front of the refrigerator to open the doors.

RL J

_- 2" (5.08 cm)

PRIOR TO USE

1. Clean your refrigerator thoroughly and wipe off all dust

accumulated during shipping.

2. Install accessories such as ice cube bin, drawers,

shelves, etc., in their proper places. They are packed

together to prevent possible damage during shipment.

3. Let your refrigerator run for at least 2 or 3 hours before

putting food in it. Check the flow of cold air in the

freezer compartment to ensure proper cooling. Your

refrigerator is now ready for use.

NOTE:ItisALWAYSrecommendedto removetherefrigeratordoorswhenit isnecessaryto movetherefrigerator

througha narrowopening.Ifnecessary,followthedirectionsbelowtoremovethedoorhandles.

HOW TO REMOVE DOOR HANDLES

NOTE: Handle appearance may vary from

illustrations on this page.

1. Removing Refrigerator Handle

•Loosen the set screws with a 3/32"

(2.5mm) Allen wrench and remove the

handle.

NOTE: If the handle mounting fasteners

need to be tightened or removed, use a

1/4" (6.4mm) Allen wrench.

Set Screw

Mounting

Fasteners

Allen

Wrench

2. Removing Freezer Drawer Handle

• Loosen the set screws located on

the lower side of the handle with a

1/8" (3.1 mm) Allen wrench and remove

the handle.

NOTE: If the handle mounting fasteners

need to be tightened or removed, use a

1/4" (6.4mm) Allen wrench.

9

HOW TO REPLACE DOOR HANDLES

NOTE: Handle appearance may vary from

illustrations on this page.

1. Replacing Refrigerator Door Handle

•Place the handle on the door, fitting it over the

mounting fasteners and tighten the set screws with

a 3/32" (2.5mm) Allen wrench.

NOTE: If the handle mounting fasteners need to be

tightened or removed use a 1/4" (6.4mm) Allen

wrench.

Mounting

Fasteners

2. Replacing Freezer Drawer Handle

• Place the handle on the door, fitting it over the

mounting fasteners and tighten the set screws on

the bottom of the handle with a 1/8" (3.1 mm) Allen

wrench.

NOTE: If the handle mounting fasteners need to be

tightened or removed use a 1/4" Allen wrench.

10

REMOVING AND REPLACING

REFRIGERATOR DOORS

CAUTION: Before you begin, unplug the refrigerator

and remove the food and bins from the doors.

To remove the left refrigerator door:

On the back of the refrigerator, press back on the release

ring of the fitting (see 3 in figure below) and pull out the

water tube in the direction of the arrow.

(2) _1)

(3)_

/

(7) /

(8)

1. Open the door. Remove the top hinge cover screw (1).

2. Use a flat-head screwdriver to pry back the hooks

(not shown) on the front underside of the cover (2).

Lift up the cover.

3. Remove the cover. Pull out the tube (3).

4. Disconnect all the wire harnesses (4).

5. Remove the grounding screw (5).

.

A

7.

8.

Rotate hinge lever (6) counterclockwise. Lift the top

hinge (7) free of the hinge lever latch (8).

CAUTION: When lifting the hinge free of the latch, be

careful that the door does not fall forward,

Remove the door by lifting it off the middle hinge pin,

located at the bottom of the door.

Place the door on a soft, smooth surface with the inside

up to prevent damage.

To remove the right refrigerator door:

.

2.

3.

4.

5.

6.

7.

A

Open the door. Remove the top hinge cover screw (1).

Lift up cover (2).

Remove cover.

Disconnect wire harness (3).

Remove the grounding screw (4).

Rotate hinge lever (5) clockwise.

Lift top hinge (6) free of hinge lever latch (7).

Remove the door by lifting it off the middle hinge pin,

located at the bottom of the door.

Place the door on a soft, smooth surface with the inside

up to prevent damage.

CAUTION: When lifting the hinge free of the latch, be

careful that the door does not fall forward.

Electrical Shock Hazard

• Disconnect electrical supply to the refrigerator before

installing. Failure to do so could result in death or

serious injury.

• Do not put hands, feet, or other objects into the air

vents, base grille, or bottom of the refrigerator. You

may be injured or receive an electrical shock.

• Be careful when you work with the hinge, base grille,

and stopper. You may be injured.

11

Reinstalling the Refrigerator Door

I_ Right Door

1. Lower the door onto middle hinge pin (9).

2. Fit top hinge (6) over hinge lever latch (7) and into

Rotate lever (5) counterclockwise to secure hinge.

3. Install the grounding screw (4) and connect wire

harnesses (3).

4. Hook tab on switch side of corner under edge of wire

opening in cabinet top. Position cover (2) into place.

Insert and tighten cover screw (1).

31ace.

(2)

__7)

(3)(4)_

',_ j

Left Door

1. Lower the door onto middle hinge pin (10).

2. Fit top hinge (7) over hinge lever latch (8) and into place.

Rotate lever (6) clockwise to secure hinge.

3. Install the grounding screw (5) and connect the three

wire harnesses (4).

4. Push the water supply tube into the hole on the top case

and pull it out on the backplate.

5. Insert the water supply tube (3) into the connector tube

until you see only one scale mark. (Fully insert the tube

over 5/8" (15 mm)).

6. Hook tab on door switch side of cover (2) under edge of

wire opening in cabinet top. Position cover into place.

Insert and tighten cover screw (1).

(2) (1)

(3).

ACAUTION Collet

Tube

Insert Line

Clip --

After inserting, pull the tube to

make sure that it is secure and

reinsert the clip.

12

HOW TO REMOVE AND INSTALL THE

FREEZER DRAWER

IMPORTANT: To avoid possible injury or product or

property damage, you will need two people to perform the

following instructions.

1. Removing Freezer Drawer

• Pull the drawer open to full extension. Remove the lower

basket by lifting basket from rail system.

• With both hands, grasp the sides of the door and pull it

up to separate it from the rails.

• Press in the tabs on the rail covers and lift them up to

separate from the rail assembly.

• Remove the rail screw (2) on both the left and right rails.

_i, CAUTION: When you remove the drawer, do not hold

the handle. The handle may come off and it could

cause personal injury.

• With both hands hold the center bar and push it in

to slide both rails in at the same time.

13

HOW TO REMOVE AND INSTALL THE

FREEZER DRAWER

2. Installing Freezer Drawer

• Fully extend the rails by grasping the center bar with

both hands and pulling straight out.

• Hook the door support (1) into the rail tabs (2) on both

sides.

• Make sure you have the correct rail cover for each side.

Right

Rail Cover

• Align the tabs on the covers with the assembly holes on

each rail, and snap the rail covers in place to secure.

Assembly Hole

• With the drawer pulled out to full extension, insert the

lower basket (4) in the rail assembly.

• Lower door into final position and tighten the screws (3).

_i, WARNING: If the Durabase divider is removed, there is

enough open space for children or pets to crawl inside.

To prevent accidental child and pet entrapment or

suffocation risk, DO NOT allow them to touch or go

near the freezer drawer.

_i, WARNING: DO NOT step or sit down on freezer

drawer.

14

LEVELING AND DOOR ALIGNMENT

Leveling

After installing, secure the stability of the product with the

leveling legs.

Your refrigerator has two front leveling legs--one on the

right and one on the left. Adjust legs to alter tilt from front-

to-back or side-to-side. If your refrigerator seems

unsteady or you want the doors to close easier, adjust the

refrigerator's tilt using the instructions below:

1. Plug the refrigerator's power cord into a 3-prong

grounded outlet. Move the refrigerator into its final

position. Remove the base cover.

To remove the base cover

1. Open the Freezer Drawer. (Drawer not shown for

clarity.)

2. Once the drawer is open and there is sufficient

clearance, remove screws on the top of the cover.

To replace base cover:

• Place cover into position and

insert and tighten the screws.

2. Turn the leveling leg clockwise to raise that side of the

refrigerator or counterclockwise to lower it. It may take

several turns of the leveling leg to adjust the tilt of the

refrigerator.

NOTE: Having someone push backward against the

top of the refrigerator takes some weight off the leveling

legs. This makes it easier to adjust the legs.

_ #L-._ !

3. Open both doors again and check to make sure that

they close easily. If not, tilt the refrigerator slightly more

to the rear by turning both leveling legs clockwise. It

may take several more turns, and you should turn both

leveling legs the same amount.

4. Re-adjust if necessary.

5. Replace the base cover.

NOTE: Your new refrigerator is uniquely designed with

two fresh food doors. Either door can be opened or

closed independently of one another. You may have to

exert slight pressure on doors to get them to close

completely.

Door Alignment

If the space between your doors is uneven, follow the

instructions below to align the doors:

1. With one hand, lift up the door you want to raise at the

middle hinge.

2. With the other hand, use pliers to insert the snap ring

as shown below.

3. Insert additional snap rings until the doors are aligned.

(Three snap rings are provided with the refrigerator in

the Use & Care Guide packet.)

Level the refrigerator by using an 11/16 inch (18mm) wrench or a flat

blade screwdriver.

Turn the leveling legs counterclockwise to raise or clockwise to lower

the height of the front of the refrigerator.

NOTE: The front of the refrigerator should be slightly higher than the

back.

15

SETTING THE CONTROLS

Temperature

• Your refrigerator has a control pad on the dispenser that

lets you regulate the temperature in the freezer and

refrigerator compartments.

• Initially set the refrigerator control at 37°F (3°C) and the

freezer control at 0°F (-18°C). Leave it at this setting for

24 hours (one day) to stabilize. Adjust the compartment

temperature as desired.

• Refrigerator Temp Control: 33°F to 46°F (0°C to 8°C)

The lower the number setting, the colder the refrigerator

compartment will become.

• Freezer Temp Control: -6°F to 8°F (-21°C to -13°C)

The lower the number setting, the colder the freezer

compartment will become.

Ultra Ice

• When you press the "Ultra Ice" button, the graphic

r ,,; ] will light up in the display and it continues for

L: .Jtt, .I

24 hours. It will automatically shut off after 24 hours have

passed.

You can stop this function manually by pressing the

button one more time.

• This function increases both icemaking and freezing

capabilities.

Dispenser

• You can select water, crushed ice, or cubed

ice by pressing the button as you

desire.

• There could be some dripping after

dispensing. It is recommended to hold your

cup for a couple of seconds after dispensing.

_, WARNING: If a door is open, the dispenser

will not work.

Filter Reset

• When the water filter indicator (CHA._......) turns on, you

have to change the water filter. After changing the filter,

and hold the Filter Reset the button forpress

3 seconds to turn the indicator light off. You need to

change the water filter approximately every 6 months.

Dispenser Light

• To turn the dispenser light on and off press the ,.,_:_,_,i,i1

button.

16

Door Alarm

• When power is connected to the refrigerator, the door

alarm is initially set to ON and the door alarm display will

show the A,o,,,o(ON).

• When either the refrigerator or the freezer door is left

open for more than 60 seconds, the alarm will sound to

let you know the door is open.

• When you close the door, the door alarm will stop.

• If you want to disable the door alarm function, press the [_}0_..................

button and the door alarm display will switch to A'o=

(OFF).

Lock

• When power is initially connected to the refrigerator, the

Lock function is off.

• To activate the Lock function to lock other buttons, press

and hold the Lock

button for 3 seconds or more. The o

(ON) sign will be displayed and the Lock function is now

enabled.

• When the Lock function is activated no other buttons will

work. The dispenser pad is also deactivated.

• To disable the Lock function, press and hold the

button for 3 seconds or more.

Temperature Mode (°F <->°C)

• If you want to convert °F to °C or vice versa, press and

hold the button and the button at the

same time for 5seconds or more.

_, CAUTION

Demo Mode (Retail Stores)

The Demo Mode disablesall cooling inthe refrigeratorand freezer

sectionsto conserve energy while on display in a retailstore.

1. To activate:

With the refrigerator door opened, press and hold the

Refrigerator Temp and Ultra Ice buttons at the same time

for 5 seconds. The control panel will beep to confirm that

the Demo Mode is activated.

2. To deactivate:

With the refrigerator door opened, press and hold the

Refrigerator Temp and Ultra Ice buttons at the same time

for 5 seconds. The control panel will beep to confirm that

the Demo Mode is deactivated.

Power Saving Mode

• When the refrigerator is in the Power Saving Mode, the

display will remain off until a door is opened or a button

is pressed. Once on, the display will remain on for 20

seconds.

_,_;;,_o..............

• To deactivate the Power Saving Mode, press the

at same

button and button the time and hold them

for 5 seconds until the tone sounds.

AIRFLOW

In order to ensure proper temperatures, air must flow

between the refrigerator and freezer sections. The arrows

in the figure indicate air vent locations and direction of

airflow.

Do not block any of the cool air vents with food packages.

If the vents are blocked, airflow will be interrupted and

temperature and moisture

problems may occur.

If you add a large amount of

food, the refrigerator will take

longer to cool it.

At initial start-up allow your

refrigerator to run for 2 or 3

hours before placing food in it.

IN-DOOR ICE BIN

_, CAUTION

Keep hands and tools out of the ice compartment door

and dispenser chute. Damage or personal injury may

result.

The icemaker will stop producing ice when the ice bin is

full. If you need more ice, empty the ice bin into the extra

ice bin in the freezer compartment.

During use, the ice can become uneven causing the

icemaker to misread the amount of ice cubes and stop

producing ice. Shaking the ice bin to level the ice within it

can reduce this problem.

NOTE: Storing cans or other items in the ice bin will

damage the icemaker.

Keep the ice compartment door closed tightly. If the ice

compartment door is not closed tightly, the cold air in the

ice bin will freeze food in the refrigerator compartment.

This could also cause the icemaker to not produce ice.

NOTE: To prevent ice cubes from melting and leaking

from the dispenser, ALWAYS empty the ice bin when the

icemaker is set to Off (O) for more than a few minutes.

1. Push on the latch firmly where noted to close the ice

compartment door. It will make a clicking sound when it

is closed completely.

2. To remove the in-door ice bin, grip the front handle,

slightly lift the lower part, and slowly pull out the bin as

shown.

3. To reinstall the in-door ice bin, slightly slant the bin

during replacement to avoid contact with the icemaker.

4. Avoid touching the automatic shutoff arm when

replacing the ice bin. See the label on the ice

compartment door for details.

F

17

ADJUSTING CONTROL SETTINGS

It is best to wait for 24 hours for the refrigerator to cool

down completely before making any adjustments to the

temperature settings. The initial settings mentioned in

SETTING THE CONTROLS section should be correct for

normal household refrigerator use. The controls are set

correctly when milk or juice is as cold as you like and

when ice cream is firm.

The refrigerator control functions as the thermostat for the

entire appliance (refrigerator and freezer sections). The

colder the setting, the longer the compressor will run to

keep the temperature colder. The freezer control adjusts

the cold air flow from the freezer to the refrigerator.

Setting the freezer control to a lower temperature keeps

more cold air in the freezer compartment to make it

colder.

If you need to adjust temperatures in the refrigerator or

freezer, start by adjusting the refrigerator and allow 24

hours for the temperatures to stabilize. If it is still too warm

or too cold, then adjust the freezer control.

Use the settings listed in the chart below as a guide.

Always remember to wait at least 24 hours between

adjustments.

CONDITION/ RECOMMENDED

REASON: ADJUSTMENT:

[] REFRIGERATOR section too

warm

- Door opened often

- Large amount of food added

- Room temperature very warm

Adjustthe REFRIGERATOR

temperature.

Note:Whenchangingtemperature

settings,makeadjustmentsone

incrementatatimeandwait24

hoursbetweenadjustments.

[] FREEZER section too

warm/ice not made fast enough

- Door opened often

- Large amount of food added

- Very cold (below 55 °F) room

temperature (Compressor

does not cycle often enough).

- Heaw ice usage

- Air vents blocked by items

Adjust the FREEZER

temperature.

Note: When changing

temperature settings, make

adjustments one increment

at a time and wait 24 hours

between adjustments.

Move items out of airstream

[] REFRIGERATOR section too

cold

- Controls not set correctly for

your conditions

[] FREEZER section too cold

- Controls not set correctly for

your conditions

Adjustthe REFRIGERATOR

temperature.

Note:Whenchangingtemperature

settings,makeadjustmentsone

incrementatatimeandwait24

hoursbetweenadjustments.

Adjustthe FREEZER

temperature.

Note:Whenchangingtemperature

settings,makeadjustmentsone

incrementatatimeandwait24

hoursbetweenadjustments.

FOOD STORAGE GUIDE

Wrap or store food in the refrigerator in airtight and

moisture-proof material unless otherwise noted. This

prevents food odor and taste transfer throughout the

refrigerator. For dated products, check date code to

ensure freshness.

Items How to

Butter or

margarine

Keep opened butter in a covered

dish or closed compartment.

When storing an extra supply,

wrap in freezer packaging and

freeze.

Cheese Store in the original wrapping until

you are ready to use it. Once

opened, rewrap tightly in plastic

wrap or aluminum foil.

Milk Wipe milk cartons. For best

storage, place milk on interior

shelf, not on door shelf.

Eggs _ Store in original carton on interior

shelf, not on door shelf.

Fruit _ Wash, let dry, and store in

refrigerator in plastic bags or in

the crisper. Do not wash or hull

berries until you are ready to use

them. Sort and keep berries in

their original container in a

crisper, or store in a closed and

sealed paper bag on a refrigerator

shelf.

Leafy vegetables Remove store wrapping and trim

or tear off bruised and discolored

areas. Wash in cold water and

drain. Place in plastic bag or

plastic container and store in

crisper.

Vegetables with _ Place in plastic bags or plastic

skins (carrots, container and store in crisper.

peppers)

Fish Use fresh fish and shellfish the

same day purchased.

Leftovers Cover leftovers with plastic wrap

or aluminum foil. Plastic

containers with tight lids can

also be used.

18

STORING FROZEN FOOD

NOTE: For further information about preparing food for

freezing or food storage times, check a freezer guide or a

reliable cookbook.

Packaging

Successful freezing depends on correct packaging. When

you close and seal the package, it must not allow air or

moisture in or out. If it does, you could have food odor

and taste transfer throughout the refrigerator and also dry

out frozen food.

Packaging recommendations:

•Rigid plastic containers with tight-fitting lids

• Straight-sided canning/freezing jars

• Heavy-duty aluminum foil

• Plastic-coated paper

• Non-permeable plastic wraps

• Specified freezer-grade self-sealing plastic bags

Follow package or container instructions for proper

freezing methods.

Do not use

• Bread wrappers

• Containers without tight lids

• Wax paper or wax-coated freezer wrap

• Thin, semi-permeable wrap

_, CAUTION: Do not keep beverage cans or plastic food

containers in the freezer compartment. They may break

or burst if they freeze.

Freezing

Your freezer will not quick-freeze any large quantity of

food. Do not put more unfrozen food into the freezer than

will freeze within 24 hours (no more than 2 to 3 Ibs of food

per cubic foot of freezer space). Leave enough space in

the freezer for air to circulate around packages. Be careful

to leave enough room at the front so the door can close

tightly.

Storage times will vary according to the quality and type

of food, the type of packaging or wrap used (airtight and

moisture-proof) and the storage temperature. Ice crystals

inside a sealed package are normal. This simply means

that moisture in the food and air inside the package have

condensed, creating ice crystals.

NOTE: Allow hot foods to cool at room temperature for

30 minutes, then package and freeze. Cooling hot foods

before freezing saves energy.

REFRIGERATOR SECTION

WATER DISPENSER

To remove the drip tray, pull up on the front and pull it out.

Tilt up the front of tray slightly and snap the tabs into the

holes to reinstall the tray.

Holes Tabs

_, WARNING: Do not put your fingers up the ice chute

opening. Doing so can result in severe injury.

• , CAUTION: Do not dispense ice into fine china or

crystal glasses. China or crystal can break.

19

REFRIGERATOR SHELVES

The shelves in your refrigerator are adjustable to meet

your individual storage needs. Your model may have

glass or wire shelves.

Storing similar food items together in your refrigerator and

adjusting the shelves to fit different heights of items will

make finding the exact item you want easier; it will also

reduce the amount of time the refrigerator door is open,

saving energy.

IMPORTANT: Do not clean glass shelves with warm

water while they are cold. Shelves may break if exposed

to sudden temperature changes or impact, such as

bumping. For your protection, glass shelves are made

with tempered glass, which will shatter into small pebble-

sized pieces.

NOTE: Glass shelves are heavy. Use special care when

removing them to avoid dropping them.

Adjusting Shelves

Remove shelves from the shipping position and replace

shelves in the position you want.

• To remove a shelf--Tilt up the front of the shelf in the

direction of (1) and lift it in the direction of (2). Pull the

shelf out.

• To reinstall a shelf--Tilt the front of the shelf up and

guide the shelf hooks into the slots at a desired height.

Then lower the front of the shelf so that the hooks drop

into the slots.

_, CAUTION: Make sure that shelves are level from one

side to the other. Failure to do so may result in the shelf

falling or food spilling.

Sliding Out Shelves

• To slide the shelf out, carefully pull the front of the

shelf toward you.

• To slide the shelf in, push the shelf in until it stops.

2O

HUMIDITY CONTROLLED CRISPER

The crispers provide fresher-tasting fruit and vegetables

by letting you easily control humidity inside the drawer.

You can control the amount of humidity in

the moisture-sealed crispers by adjusting the control

to any setting between VEGETABLE and FRUIT.

• VEGETABLE keeps moist air in the crisper for best

storage of fresh, leafy vegetables.

• FRUIT lets moist air out of the crisper for best storage of

fruits.

C

REMOVING HUMIDITY CONTROLLED CRISPER

1. To remove, pull the drawer out to full extension.

2. Lift the front of the crisper up, then pull it straight out.

3. To install, slightly tilt up the front and insert the drawer

into the frame and push it back into place.

To remove the glass

1. Lift up the glass under the crisper cover.

2. Pull the glass up and out.

GLIDE'N'SERVE

The Glide'N'Serve provides storage space with a variable

temperature control that keeps the compartment colder

than the refrigerator temperature. This drawer can be

used for large party trays, delJ items, or beverages.

NOTE: It is not recommended that this drawer be used for

fruits and vegetables.

COLD • _ • TEMP.CONTROL ® ® • COLDER

Glide'N'Serve Control

The control regulates the air temperature in the drawer.

Set control level to COLD to provide normal refrigerator

temperature. Use the COLDER setting for meats or other

deli items.

NOTE: Cold air directed to the GlJde'N'Serve can

decrease refrigerator temperature. It may be necessary to

adjust the refrigerator temperature.

To remove and replace Glide'N'Serve

S

1. To remove, pull the drawer out to full extension.

2. Lift the front of the drawer up, then pull it straight out.

3. To install, slightly tilt up the front and insert the drawer

into the frame and push it back into place.

21

MODULAR DOOR BIN

The door bins are removable for easy cleaning and

adjusting.

1. To remove the bin, simply lift the bin up and pull straight

out.

2. To replace the bin, slide it in above the desired support

button and push down until it snaps into place.

DAIRY BIN

1. To remove the dairy bin, simply lift it and pull straight

out.

2. To replace the dairy bin, slide it into place and push

down until it stops.

FREEZER SECTION

EXTRA ICE BIN

1. To remove the ice bin from the upper drawer, pull out the

drawer as far as possible.

2. Gently lift and pull out the ice bin.

3. To install, pull out the drawer as much as possible and set

the ice bin in its correct position, then push in the drawer.

I DRAWER

Extra Ice Bin

NOTE: The dairy bin will only fit in the top space on the

right-hand door.

22

DURABASE

1. To remove the Durabase, push it to the back as much

as possible. Tilt up the front of the Durabase and pull

straight out.

2. To install, insert the Durabase into the rail assembly.

PULLOUT DRAWER

To remove the drawer, push in the tabs O on both sides

of the drawer and lift up on the front O and pull it straight

out @.

To install the drawer, pull out both rails to their full

extension, raise the front of the drawer up and align the

gears on the back of the drawer to rail assembly. Gently

push down on the front of the drawer until the tabs on

each side snap into place.

DURABASE DIVIDER

The Durabase divider allows you to organize the

Durabase area into sections.

_i, WARNING: If the Durabase divider is removed, there is

enough open space for children or pets to crawl inside.

To prevent accidental child and pet entrapment or

suffocation risk, DO NOT allow them to go near or

touch the freezer drawer.

23

REPLACING THE WATER FILTER

Replace the water filter when the Filter Reset indicator

light turns on, or when your water dispenser or icemaker

performance decreases noticeably.

\

2. Replace with a new cartridge.

Take the new cartridge out of its packaging and

remove protective cover from the o-rings.

With cartridge knob in the vertical position, push the

new filter cartridge into the cover until it stops.

After changing the water filter cartridge, press and hold

the Filter Reset button for 3 seconds; indicator light will go

out.

1. Remove the old cartridge.

Place a container under

the hole of filter holder.

\

NOTE: When filter is being removed, the water drains

through the hole.

Using its handle, turn the cartridge 1/4 turn clockwise.

You will hear a snap when it clicks into place.

\

Rotate the knob of the

cartridge counter

clockwise. \3. Flush the water system after replacing filter. Flush 2.5

gallons through filter before use (flush for approximately

5 minutes).

Pull out the filter cartridge.

NOTE: To purchase replacement water filter cartridges,

call 1-800-4-MY-HOME ®.

24

Performance Data Sheet For Model 5231JA2006A-S

Using Replacement Cartridge 5231JA2006A

This system has been tested according to NSF/ANSI Standard 42 for the reduction of the substances listed below. The

concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to

the permissible limit for water leaving the system as specified in NSF/ANSI Standard 42.

I ystem tested and certified by NSF International against NSF/ANSI Standard 42 for the reduction of Chlorine

Taste and Odor and Nominal Particulate Class I.

Capacity of 300 gallons (1,135 liters).

I

Note that while the testing was performed under standard laboratory conditions, actual performance may vary.

Contaminant

Reduction

Particulate

Class I Particle size:

>0.5 to < 1 um

Chlorinetaste and odor

Average

Infiuent

Infiuent Challenge Product Average NSF Reduction

concentration. Units apply Water % Requirements

to each row Reduction

Max.

Effluent

mg/L

Min.%

Reduction

5600000

1.9

At least 10,000 383333 93.2

particles/ml

2.0mg/L+_l0% 0.05 97.4

_>85%

_>50%

470000

0.05

91.6

97.4

NSF Test

511032-03

511031-03

Application Guidelines/Water Supply Parameters

Water pressure 30- 100 psi (207- 689 kPa)

Water temperature 33- 100°F (0.6 - 37.8°C)

Service flow 0.5 gpm (1.9 Ipm)

Do not use with water that is microbiologically

unsafe or of unknown quality without adequate

disinfection before or after the system.

Entire system (excluding disposable cartridge) is warranted

for a period of one year from date of purchase. Disposable

cartridges are warranted for defects in material and

workmanship only. Service life of disposable filter cartridges

varies with local water conditions and is thus not warranted.

Flush the refrigerator water system after replacing the water

filter cartridge. Flush 2.5 gallons through filter before use

(flush for approximately 5 minutes).

After replacing the cartridge, reset the water filter status

display and indicator light by pressing and holding the reset

button for 3 seconds.

Systems must be installed and operated in accordance with

manufacturer's recommended procedures and guidelines.

• , CAUTION: Change the filter cartridge at least every

six months.

IMPORTANT: Failure to follow installation, operation

and maintenance instructions will void warranty. See

warranty card for complete details.

To reduce risk of property damage due to water leakage:

• Read and follow Use Instructionsbefore installation and

use of this system.

• Install on COLD water lines only.

• Comply with all state and local plumbing codes.

• Never install or operate where inlet water pressure may

exceed 120 psi (827 kPa).

•Protect filter from freezing. Remove filter intemperatures

below 33°F (0.6°C).

• Replace cartridge at specified service interval.

Cartridge MUST be replacedat least every 6 months.

To purchase a replacement filter, visit your local Sears store

or call 1-800-4-MY-HOME ®.

Visit us on the web at www.sears, com

25

Explosion Hazard

Use non-flammable cleaner.

Failure to do so can result in death, explosion, or fire.

Both the refrigerator and freezer sections defrost

automatically. However, clean both sections about once

a month to prevent odors. Wipe up spills immediately.

GENERAL CLEANING TIPS

• Unplug refrigerator or disconnect power.

• Remove all removable parts, such as shelves,

crispers, etc. Refer to sections in Using Your

Refrigerator for removal instructions.

• Use a clean sponge or soft cloth and a mild detergent in

warm water. Do not use abrasive or harsh cleaners.

• Hand wash, rinse and dry all surfaces thoroughly.

• Plug in refrigerator or reconnect power.

OUTSIDE

Waxing external painted metal surfaces helps provide rust

protection. Do not wax plastic parts. Wax painted metal

surfaces at least twice a year using appliance wax (or

auto paste wax). Apply wax with a clean, soft cloth.

For products with a stainless steel exterior, use a clean

sponge or soft cloth and a mild detergent in warm water.

Do not use abrasive or harsh cleaners. Dry thoroughly

with a soft cloth.

INSIDE WALLS (allow freezer to warm up so

the cloth will not stick)

To help remove odors, you can wash the inside of the

refrigerator with a mixture of baking soda and warm water.

Mix 2 tablespoons baking soda to 1 quart of water (26 g

soda to 1 liter water.) Be sure the baking soda is

completely dissolved so it does not scratch the surfaces of

the refrigerator.

• , CAUTION: While cleaning the inside, do not spray water.

DOOR LINERS AND GASKETS

Do not use cleaning waxes, concentrated detergents,

bleaches, or cleaners containing petroleum on plastic

refrigerator parts.

PLASTIC PARTS (covers and panels)

Do not use window sprays, abrasive cleansers, or flammable

fluids. These can scratch or damage the material.

CONDENSER COILS

Use a vacuum cleaner with an attachment to clean the

condenser cover and vents.

26

LIGHT BULB REPLACEMENT

Electrical Shock Hazard

Before replacing a burned-out light bulb, either unplug the

refrigerator or turn off power at the circuit breaker or fuse box.

POWER INTERRUPTIONS

1. If the power will be out for 24 hours or less, keep

all refrigerator doors closed to help foods stay

cold and frozen.

2. If the power will be out for more than 24 hours, remove

all the frozen food and store it in a frozen food locker.

NOTE: The refrigerator compartment has LED

interior lighting and service should only be performed

by a qualified technician.

Change Freezer Compartment Light Bulb

1. Unplug refrigerator power cord form outlet.

2. Remove the screw using a Phillips screwdriver.

3. Grasp the light cover, pull the cover downward.

_, CAUTION: Make sure the bulb is cool to the touch.

4. Rotate the bulb counterclockwise to remove.

5. Replace with a new 60-watt appliance bulb.

6. Insert tabs on back of cover into slots in freezer ceiling.

Push cover up to snap front into place.

7. Tighten the screw using a Phillips screwdriver.

WHEN YOU GO ON VACATION

If you choose to leave the refrigerator on while you

are away, follow these steps to prepare your refrigerator

before you leave.

1. Use up any perishables and freeze other items.

2. Empty the ice bin.

3. Turn off the icemaker.

If you choose to turn the refrigerator off before you

leave, follow these steps.

1. Remove all food from the refrigerator.

2. Unplug the refrigerator.

3. Clean refrigerator, wipe it and dry well.

4. Tape rubber or wood blocks to the tops of both doors to

prop them open far enough for air to get in. This stops

odor and mold from building up.

WHEN YOU MOVE

When you are moving your refrigerator to a new home,

follow these steps to prepare it for the move.

1. Remove all food from the refrigerator and pack all

frozen food in dry ice.

2. Unplug the refrigerator.

3. Clean, wipe and dry thoroughly.

4. Take out all removable parts, wrap them well and tape

them together so they do not shift and rattle during the

move. Refer to sections in Using your Refrigerator for

removable instructions.

5. Screw in the leveling legs all the way so they do not

scrape the floor. See the Door Closing section.

6. Tape the doors shut and tape the power cord to the

refrigerator cabinet.

When you get to your new home, put everything back

and refer to the Installing Your Refrigerator section for

preparation instructions.

27

AUTOMATIC ICEMAKER

The icemaker will produce 6 cubes per cycle--

approximately 100 cubes in a 24-hour period, depending

on freezer compartment temperature, room temperature,

number of door openings and other operating conditions.

• It takes about 12 to 24 hours for a newly installed

refrigerator to make ice.

• Icemaking stops when the ice storage bin is full.

• To turn off the automatic icemaker, set the icemaker

switch to OFF(O). To turn on the automatic icemaker,

set the switch to ON(I).

• You can regulate the cube size by pressing the Cube

Size Select Button.

• The cube size will vary depending on the Cube Size

Setting, as well as the water pressure of the connected

water line.

NOTE: The water pressure must be between 20 and 120

psi on models without a water filter and between 40 and

120 psi on models with a water filter to produce the

normal amount and size cubes.

Personal Injury Hazard

Avoid contact with the moving parts of the ejector

mechanism, or with the heating element that releases

the cubes. DO NOT place fingers or hands on the

automatic icemaking mechanism while the refrigerator

is plugged in.

Icemaker

Cube Size

Indicator Light Cube Size Power

Select Button Switch

Automatic

Shutoff Arm

NOTE: Raising the automatic shutoff arm does not turn off

the icemaker.

28

_, CAUTIONS

•The first ice and water may include particles or odor from

the water supply line or the water tank.

• Throw away the first few batches of ice (about 24

cubes).

• This is also necessary if the refrigerator has not been

used for a long time.

• Never store beverage cans or other foods in the ice bin

for the purpose of rapid cooling.

Doing so may damage the icemaker or the containers

may burst.

• If discolored ice is dispensed, check the water filter and

water supply. If the problem continues, contact Sears or

other qualified service center. Do not use the ice or

water until the problem is corrected.

• Keep children away from the dispenser. Children may

play with or damage the controls.

• The ice passage may also become blocked with frost if

only crushed ice is used. Remove the frost that

accumulates.

• Never use thin crystal glass or crockery to collect ice.

Such glasses or containers may break, and glass

fragments could be in the ice.

• Dispense ice into a glass before filling it with water or

other beverages. Splashing may occur if ice is

dispensed into a glass that already contains liquid.

• Never use a glass that is exceptionally narrow or deep.

Ice may jam in the ice passage and refrigerator

performance may be affected.

• Keep the glass at a proper distance from the ice outlet. A

glass held too close to the outlet may prevent ice from

dispensing.

• To avoid personal injury, keep hands out of the ice door

and passage.

• Never remove the dispenser cover.

• If you find ice or water dispensed unexpectedly, turn off

the water supply and contact Sears Home Service at 1-

800-4 MY HOME.

WHEN YOU SHOULD SET THE ICEMAKER

POWER SWITCH TO OFF (O)

• When the water supply will be shut off for several hours.

• When the ice bin is removed for more than a minute or

two.

• When the refrigerator will not be used for several days.

NOTE: Ice Bin should be emptied when the icemaker

on/off switch is turned to the Off (O) position.

NORMAL SOUNDS YOU MAY HEAR

• The icemaker water valve will buzz as the icemaker fills

with water.

NOTE: If the house water supply (cold water only) is not

hooked up or not turned on fully, turn the icemaker to the

Off (O) position to prevent noise and possible damage.

Do not turn the icemaker On (I) until an adequate water

supply is connected.

• You will hear the sound of cubes dropping into the bin

and water running in the pipes as the icemaker refills.

PREPARING FOR VACATION

Set the icemaker power switch to Off (O) and shut off the

water supply to the refrigerator.

NOTE: Ice Bin should be emptied anytime the icemaker

on/off switch is turned to the Off (O) position.

If the ambient temperature will drop below freezing, have

a qualified servicer drain the water supply system to

prevent serious property damage due to flooding from

ruptured water lines or connections.

29

BEFORE YOU BEGIN

This water line installation is not warranted by the

refrigerator or icemaker manufacturer or retailer. Follow

these instructions carefully to minimize the risk of

expensive water damage.

Water hammer (water banging in the pipes) in house

plumbing can cause damage to refrigerator parts and lead

to water leakage or flooding. Call a qualified plumber to

correct water hammer before installing the water supply

line to the refrigerator.

To prevent burns and product damage, do not hook up

the water line to the hot water line.

If you use your refrigerator before connecting the water

line, make sure the icemaker power switch is in the OFF

(O) position.

Do not install the icemaker tubing in areas where

temperatures fall below freezing.

When using any electrical device (such as a power drill)

during installation, be sure the device is double-insulated

or grounded in a manner to prevent the hazard of electric

shock, or is battery-powered.

Ifareverse osmosis water filtration system is

connected to your cold water supply, this water line

installation is not warranted by the refrigerator or icemaker

manufacturer or retailer. Follow next instructions carefully

to minimize the risk of expensive water damage.

Ifareverse osmosis water filtration system is

connected to your cold water supply, the water pressure

to the reverse osmosis system needs to be a minimum of

40 to 60 psi (2.8 Kgf/cm 2~ 4.2 Kgf/cm 2, less than

2.0~3.0sec to fill a cup of 7oz capacity).

If the water pressure from the reverse osmosis system is

less than 21 psi (1.5 Kgf/cm 2, more than 4.0sec to fill a

cup of 7oz capacity):

Check to see whether the sediment filter in the reverse

osmosis system is blocked. Replace the filter if necessary.

Allow the storage tank on the reverse osmosis system to

refill after heavy usage.

If the issue about water pressure from reverse osmosis

remains, call a licensed, qualified plumber.

All installations must be in accordance with local plumbing

code requirements.

NOTE: Wear eye protection.

WHAT YOU WILL NEED

• Copper Tubing, 1/4" outer

diameter to connect the refrigerator

to the water supply. Be sure both

ends of the tubing are cut square.

To determine how much tubing you need, measure

the distance from the water valve on the back of the

refrigerator to the water supply pipe. Then add 8 feet

(2.4 m). Be sure there is sufficient extra tubing (about

8 feet [2.4 m] coiled into 3 turns of about 10" [25 cm]

diameter) to allow the refrigerator to move out from the

wall after installation.

•A cold water supply. The water pressure must be

between 20 and 120 p.s.i, on models without a water

filter and between 40 and 120 p.s.i, on models with a

water filter.

•Power drill.

•1/2" or adjustable wrench.

•Straight- and Phillips-

blade screwdriver.

• Two 1/4" outer diameter

compression nuts and

2ferrules (sleeves) to

connect the copper tubing to

the shutoff valve and the

refrigerator water valve.

• If your existing copper water

line has a flared fitting at the

end, you will need an

adapter (available at

plumbing supply stores) to

connect the water line to the

refrigerator OR you can

cut off the flared fitting with a tube cutter and then use

a compression fitting.

•Shutoff valve to connect to

the cold water line. The

shutoff valve should have a

water inlet with a minimum

inside diameter of 5/32" at

the point of connection to the

COLD WATER LINE. Saddle-

type shutoff valves are included in many water supply

kits. Before purchasing, make sure a saddle-type valve

complies with your local plumbing codes.

NOTE: Self-piercing saddle-type water valve should not

be used.

30

INSTALLATION INSTRUCTIONS

Install the shutoff valve on the nearest frequently used

drinking water line.

1. SHUT OFF THE MAIN WATER SUPPLY

Turn on the nearest faucet to relieve the pressure on

the line.

2. CHOOSE THE VALVE LOCATION

Choose a location for the valve

that is easily accessible. It is best

to connect into the side of a

vertical water pipe. When it is

necessary to connect into a

horizontal water pipe, make the

connection to the top or side,

rather than at the bottom, to avoid

drawing off any sediment from the water pipe.

3. DRILL THE HOLE FOR THE VALVE

Drill a 1/4" hole in the water

pipe using a sharp bit.

Remove any burrs resulting

from drilling the hole in the

pipe. Take care not to allow

water to drain into the drill.

Failure to drill a 1/4" hole

may result in reduced ice production or smaller cubes.

NOTE: The hookup line cannot be white, plastic

tubing. Licensed plumbers must use only copper

tubing NDA tubing #49595 or 49599 or Cross Link

Polyethylene(PEX) tubing.

4. FASTEN THE SHUTOFF VALVE

Fasten the shutoff valve to the cold water pipe with

the pipe clamp.

Pipe Clamp

Saddle-Type

Shutoff Valve Vertical Cold

Water Pipe

NOTE: Commonwealth of Massachusetts Plumbing

Codes 248CMR shall be adhered to. Saddle valves

are illegal and use is not permitted in Massachusetts.

Consult with your licensed plumber.

5. TIGHTEN THE PIPE CLAMP

Tighten the clamp screws until the sealing washer

begins to swell.

NOTE: Do not overtighten or you may crush the tubing.

Washer

Pipe Clamp __ Inlet End

Clamp Screw --

I

6. ROUTE THE TUBING

Route the tubing between the cold water line and the

refrigerator.

Route the tubing through a hole drilled in the wall or

floor (behind the refrigerator or adjacent base cabinet)

as close to the wall as possible.

NOTE: Be sure there is sufficient extra tubing (about

8 feet coiled into 3 turns of about 10" diameter) to

allow the refrigerator to move out from the wall after

installation.

7. CONNECT THE TUBING TO THE VALVE

Place the compression nut and ferrule (sleeve)

for copper tubing onto the end of the tubing and

connect it to the shutoff valve. Make sure the tubing is

fully inserted into the valve. Tighten the compression

nut securely.

Saddle-Type ,,_

Shutoff Valve _

Packing Nut _

Outlet Valve

h

_I ompression Nut

./

_ Ferrule (sleeve)

NOTE: Commonwealth of Massachusetts Plumbing

Codes 248CMR shall be adhered to. Saddle valves

are illegal and use is not permitted in Massachusetts.

Consult with your licensed plumber.

31

8. FLUSH OUT THE TUBING

Turn the main water supply on

and flush out the tubing until the

water is clear.

Shut the water off at the water

valve after about one quart of

water has been flushed through

the tubing.

10. TURN THE WATER ON AT THE

SHUTOFF VALVE

Tighten any connections that leak.

9. CONNECT THE TUBING TO THE

REFRIGERATOR

NOTE:

• Before making the connection to the refrigerator, be

sure the refrigerator power cord is not plugged into

the wall outlet.

1. Remove the plastic flexible cap from the water valve.

2. Place the compression nut and ferrule (sleeve) onto

the end of the tubing as shown.

3. Insert the end of the copper tubing into the

connection as far as possible. While holding the

tubing, tighten the fitting.

_, CAUTION: Check to see if leaks occur at water line

connections.

TubingCla_

1/4" \ /

Compression __ IIIIM' N

Nut _

1/4 " Tubing

l

(sleeve)

Refrigerator

Connection

11. PLUG IN THE REFRIGERATOR

Arrange the coil of tubing so that it does not vibrate

against the back of the refrigerator or against the

wall. Push the refrigerator back to the wall.

12. START THE ICEMAKER

Set the icemaker power switch to the On (I) position.

NOTE: A newly installed refrigerator may take

several hours to start producing ice.

_, CAUTION: Check to see if water dripping occurs at

water line connections.

32

UNDERSTANDING SOUNDS YOU MAY HEAR

Your new refrigerator may make sounds that your old one did

not make. Because the sounds are new to you, you might be

concerned about them. Most of the new sounds are normal.

Hard surfaces, like the floor, walls and cabinets, can make

the sounds seem louder than they actually are. The following

list describes the kinds of sounds and what may be making

them.

•A clicking noise may come from the electronic control

switching the cooling system on and off.

• Rattling noises may come from the flow of refrigerant, the

water line, or items stored on top of the refrigerator.

•Your refrigerator is designed to run more efficiently to keep

your food items at the desired temperature.

The high efficiency compressor may cause your new

refrigerator to run longer than your old one, but is still more

energy efficient than previous models. While running, you

may hear a pulsating or high-pitched sound, this is normal.

You may hear the evaporator fan motor circulating the air

through the refrigerator and freezer compartments.

As each cycle ends, you may hear a gurgling sound due to

the refrigerant flowing in your refrigerator.

Contraction and expansion of the inside walls may cause a

popping noise.

Water dripping on the defrost heater during a defrost cycle

may cause a sizzling sound.

You may hear air being forced over the condenser by the

condenser fan.

•You may hear water running into the drain pan during the

defrost cycle.

You can hear the noise occurring from the ice compartment

fan in the freezer on the left side of the refrigerator when

doors are open.

REFRIGERATOR DOES NOT OPERATE

Check if...

The power supply cord is unplugged.

A household fuse has blown or circuit breaker

tripped.

Refrigerator is in the defrost cycle.

Store sales floor Demonstration Mode.

Then..,

Firmly plug the cord into a live outlet with proper voltage.

Replace the fuse or reset the circuit breaker.

Check that the house circuit is not overloaded.

Wait about 30 minutes for defrost cycle to end.

The refrigerator control has been put into the store Demo

(Demonstration) Mode. The Demonstration Mode disables the

cooling system; only the interior lighting and the display will

work normally. To disable open one door, then press Ultra Ice

and Refrigerator Temp buttons at the same time for 5

seconds. You will see the previous temperature setting you

had on display when Demo Mode is deactivated.

33

VIBRATION OR RATTLING NOISE

Check if... Then...

The refrigerator is not resting solidly on Floor is weak or uneven or leveling legs need adjusting.

the floor. See INSTALLATION section on page 8 and 15.

LIGHTS DO NOT WORK

Check if... Then...

The power supply cord is unplugged. Firmly plug the cord into a live outlet with proper voltage.

Light bulb is loose in the socket. Unplug the refrigerator. Gently remove the bulb and reinsert.

Then plug in the refrigerator and reset the refrigerator control.

Light bulb has burned out.

The door has been open for seven minutes.

Replace with an appliance bulb of the same wattage, size and

shape available at your local hardware store. (See the LIGHT

BULB REPLACEMENT section on pages 26-27.) Unplug the

refrigerator prior to replacement.

Shutting doors for one second will cause the light bulbs to

come back on.

COMPRESSOR MOTOR SEEMS TO RUN TOO MUCH

Check if... Then...

The refrigerator that was replaced was an older

model.

The room temperature is hotter than normal.

The door is opened often or a large amount of food

has just been added.

The high efficiency compressor may cause your new

refrigerator to run more than your older one, but is still more

energy efficient than previous models.

The motor will run longer under warm conditions. At normal

room temperatures, expect your motor to run about 40% to

80% of the time. Under warmer conditions, expect it to run

even more often.

Adding food and opening the door warms the refrigerator.

It is normal for the refrigerator to run longer in order to cool the

refrigerator back down. In order to conserve energy, try to get

everything you need out of the refrigerator at once, keep food

organized so it is easy to find and close the door as soon as

the food is removed. See the FOOD STORAGE GUIDE

section on page 18.

The refrigerator was recently plugged in and the The refrigerator will take up to 24 hours to cool completely.

refrigerator control was set correctly.

The refrigerator control is not set correctly for the See the ADJUSTING CONTROL SE'B'INGS section on page 18.

surrounding conditions.

The doors are not closed completely. Push the doors firmly shut. If they will not shut all the way, see

DOORS WILL NOT CLOSE COMPLETELY on page 35.

The condenser coils are dirty. This prevents air transfer and makes the motor work harder.

Clean the back cover. Refer to the CARE AND CLEANING

section on page 26-27.

34

DOORS WILL NOT CLOSE COMPLETELY

Check if...

The refrigerator is not level.

Food packages are blocking the door open.

The ice bin, crisper cover, pans, shelves, door bins

or baskets are out of position.

The gaskets are sticking.

The refrigerator wobbles or seems unstable.

The doors were removed during product

installation and not properly replaced.

Then...

See LEVELING AND DOOR ALIGNMENT section on page 15.

Rearrange food containers to clear door and door shelves.

Push bins all the way in and put crisper cover, pans, shelves

and baskets into their correct positions. See the USING YOUR

REFRIGERATOR section on pages 16-25.

Clean the gaskets and the surfaces that they touch. Rub a thin coat

of appliance polish or kitchen wax on the gaskets after cleaning.

Level the refrigerator. Refer to the LEVELING AND DOOR

ALIGNMENT section on page 15.

To make sure the doors are installed correctly, refer to the

REFRIGERATOR INSTALLATION section. (pages 11-15)

FROST OR ICE CRYSTALS ON FROZEN FOOD

Check if... Then...

The door is not closing properly. See DOORS WILL NOT CLOSE COMPLETELY above.

The door is opened often. When the door is opened, warm, humid air is allowed in the

freezer, resulting in frost.

ICE HAS BAD TASTE OR ODOR

Check if... Then...

The icemaker was recently installed. Discard first few batches of ice to avoid discolored or bad

tasting ice.

The ice has been stored for too long. Throw away old ice and make new supply.

The food has not been wrapped tightly in either Rewrap foods since odors may migrate to the ice if food is not

compartment, wrapped properly.

The water supply contains minerals such as sulfur. A filter may need to be installed to eliminate taste and odor

problems.

The interior of refrigerator needs cleaning. See CARE AND CLEANING section on pages 26-27.

Ice storage bin needs cleaning. Empty and wash bin. Discard old cubes.

Check if...

The refrigerator is defrosting.

THERE IS WATER IN THE DEFROST DRAIN PAN

Then...

The water will evaporate. It is normal for water to drip into the

defrost pan.

It is more humid than normal. Expect that the water in the defrost pan will take longer to

evaporate. This is normal when it is hot or humid.

35

THE REFRIGERATOR SEEMS TO MAKE TOO MUCH NOISE

Check if... Then...

The sounds may be normal for your refrigerator. Refer to the UNDERSTANDING SOUNDS YOU MAY HEAR

section on page 33.

THE ICEMAKER IS NOT PRODUCING ICE OR NOT ENOUGH ICE

Check if... Then...

New installation.

The refrigerator is not connected to a water supply

or the supply shutoff valve is not turned on.

Reverse osmosis water filtration system is

connected to your cold water supply.

Kink in the water source line.

Large amount of ice recently has been removed.

The icemaker is not turned on.

The temperature setting for the freezer is too

warm.

The doors are opened often.

The doors are not closing properly.

The ice compartment door is not closing properly.

Wait 24 hours after icemaker installation for ice production to

begin. Wait 72 hours for full ice production.

Connect refrigerator to the water supply and turn water shutoff

valve fully open.

Reverse osmosis filtration systems can reduce the water

pressure below the minimum amount (40 psi) and result in

icemaker issues.

A kink in the line can reduce water flow. Straighten the water

source line.

Allow 24 hours for icemaker to produce more ice.

Locate the icemaker on/off switch and confirm it is in the On (I)

position.

Below 0°F is the recommended temperature for the freezer

compartment for normal ice production. If the freezer

temperature is warmer, ice production will be affected.

If the doors of the unit are opened often, the cold air will

escape which will prevent the unit from maintaining the set

temperature. Lowering the temperature can help, as well as

not opening the doors as frequently.

If the doors are not properly closed, ice production will be

affected.

If the ice compartment door is not properly closed, ice

production will be affected. Make sure ice compartment door is

closed for proper operation.

Ultra Ice is not selected. With this option, the cold air in the compartment is increased

as is ice production.

36

NOT DISPENSING ICE

Check if... Then...

All the doors are not closed completely.

The dispenser display is locked.

Ice is not selected on the dispenser.

The ice dispenser is not used often.

Ice will not dispense if any of the refrigerator doors are left

open.

Press and hold the Lock ) for 3 seconds to unlock the

control panel and dispenser.

The dispenser can be set for ice or water. Make certain that

the control panel is set for the proper operation. Press the

dispenser button on the control panel to cycle through the ice

and water options.

Infrequent use of the ice dispenser will cause the cubes to

stick together over time, which will prevent them from properly

dispensing. Check the ice bin for ice cubes clumping/sticking

together. If they are, break up the ice cubes to allow for proper

operation.

Ice bin is not installed correctly. Be sure to install the ice bin firmly into position.

New installation. Wait 24 hours after icemaker installation for ice production to

begin. Wait 72 hours for full ice production.

Ice cubes are stuck in the delivery chute. Use a plastic utensil to clear the delivery chute.

The ice dispenser is stalling while dispensing "crushed" Change the ice button from "crushed" to "cubed".

ice. If cubed ice dispenses correctly, depress the button for

"crushed" ice and begin dispensing again.

DISPENSING WARM WATER

Check if... Then...

New installation. Allow 24 hours after installation for the water supply to cool

completely.

The water dispenser has been recently used. The unit has its own water tank inside. The water storage

capacity is 12 oz. (345 ml) of cold water.

The refrigerator is connected to a hot water line. Make sure the refrigerator is connected to a cold water pipe.

37

NOT DISPENSING WATER

Check if...

The dispenser panel is locked.

New installation.

Refrigerator or freezer doors are not closed

properly.

The refrigerator is not connected to a water supply

or the supply shutoff valve is not turned on.

Then..,

_)

Press and hold the Lock ( _;_ii/ for 3 seconds to unlock the

control panel and dispenser.

Flush and fill the water system.

Water will not dispense if any of the refrigerator doors are left

open.

Connect refrigerator to the water supply and turn water shutoff

valve fully open.

The water pressure is less than 40 psi. The water pressure to the home affects the flow from the

dispenser.

Home filter or reverse osmosis system is used. This can decrease water pressure. It is recommended not to

connect the supply line to a reverse osmosis system for optimal

operation.

The dispenser is not set for water dispensing.

Water filter needs to be changed.

The dispenser can be set for ice or water. Make certain that the

control panel is set for the proper operation. Press the

dispenser button on the control panel to cycle through the ice

and water options.

The filter should be changed every 6 months or more often

depending on usage. The filter can become blocked over time

with foreign particles and reduce the water pressure.

THE DOORS ARE DIFFICULT TO OPEN

Check if...

The gaskets are dirty or sticky.

The door is reopened within a short time after

having been opened.

Then..,

Clean the gaskets and the surfaces that they touch. Rub a thin

coat of appliance polish or kitchen wax on the gaskets after

cleaning.

When you open the door, warmer air enters the refrigerator.

As the warm air cools, it can create a vacuum. If the door is

hard to open, wait 5 minutes to allow the air pressure to

equalize, then see if it opens more easily.

38

TEMPERATURE IS TOO WARM OR THERE IS INTERIOR MOISTURE BUILDUP

Check if... Then...

The air vents are blocked. Cold air circulates from

the freezer to the fresh food section and back

again through air vents in the wall dividing the two

sections.

The doors are opened often.

The control is not set correctly for the surrounding

conditions.

Locate air vents by using your hand to sense airflow and move

all packages that block vents and restrict airflow. (See Airflow

diagram on page 17).

When the door is opened, warm humid air is allowed into the

refrigerator. The more the door is opened, the faster the

humidity builds up, and the more warm air the refrigerator must

cool. In order to keep the refrigerator cool, try to get everything

you need out of the refrigerator at once, keep food organized

so it is easy to find and close the door as soon as the food is

removed.

Refer to the SETTING THE CONTROLS section on page 16.

Wait 24 hours for temperatures to stabilize or even out. If the

temperature is too cold or too warm, change the setting one

increment at a time.

A large amount of food has just been added to the Adding food warms the refrigerator. It can take a few hours for

refrigerator or freezer, the refrigerator to return to normal temperature.

The food is not packaged correctly. Wrap food tightly and wipe off damp containers prior to storing

in the refrigerator to avoid moisture accumulation. If

necessary, repackage food according to the guidelines in the

FOOD STORAGE GUIDE section on page 18.

The doors are not closing completely. See DOORS WILL NOT CLOSE COMPLETELY on page 35.

The weather is humid. In humid weather, air carries moisture into refrigerator when

doors are opened.

A self-defrost cycle was completed. It is normal for droplets to form on the back wall after the

refrigerator self-defrosts.

FROZEN FOOD IN REFRIGERATOR COMPARTMENT

Check if... Then...

The temperature control in the refrigerator Press the Refrigerator Temp pad to set the refrigerator

compartment is set too cold. compartment to a warmer temperature.

Refrigerator is installed in a cold location. When room temperature is below 41°F(5°C), food can

become frozen. The refrigerator should not be

operated in temperatures below 55°F(13°C).

Food with a high water content was placed too Place food with a high water content toward the front of the

close to the cold air discharge, refrigerator.

39

Your Home

For troubleshooting, product manuals and expert advice:

managemylife

www.managemylife.com

For repair - in your home - of all major brand appliances,

lawn and garden equipment, or heating and cooling systems,

no matter who made it, no matter who sold it!

For the replacement parts, accessories and

owner's manuals that you need to do-it=yourself.

For Sears professional installation of home appliances

and items like garage door openers and water heaters.

1-800-4-MY-HOME ® (1-8004694663)

Call anytime, day or night (U.S.A. and Canada)

www,sears,con3 www,sear's,ca

Our Home

For repair of carry-in items like vacuums, lawn equipment,

and electronics, call anytime for the location of your nearest

Sears Parts & Repair Service Center

1-800-488-1222 (U.S.A.) 1-800-469-4663 (Canada)

www,sears,corn www,sears.ca

To purchase a protection agreement on a product serviced by Sears:

1-800-827-6655 (U.S.A.)

Para pedir servicio de reparaci6n

a domicilio, y para ordenar piezas:

1-888-SU-HOGAR ®

(1-888-784-6427)

www.sears.com

1-800-361-6665 (Canada)

Au Canada pour service en frangais:

1-800-LE-FOYER Mc

(1-800-533-6937)

www.sears.ca

® Registered Trademark /TMTrademark of KCD IP, LLC in the United States, or Sears Brands, LLC in other countries

® Marca Registrada /TMMarca de Fabrica de KCD IP, LLC en Estados Unidos, o Sears Brands, LLC in otros paises

MCMarque de commerce /MDMarque d6pos6e de Sears Brands, LLC
