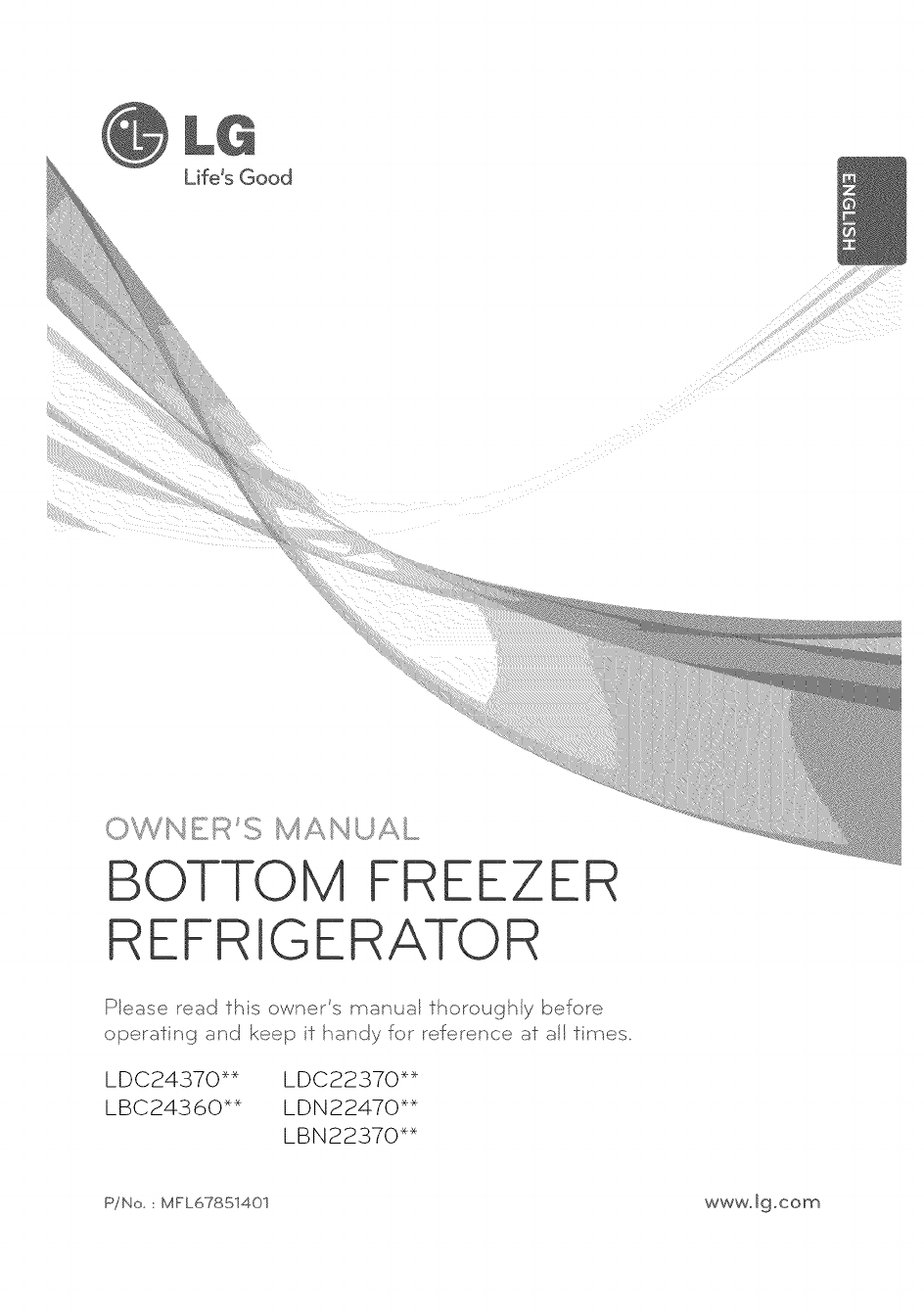

Life's Good

BOTTOM FREEZER

REFRIGERATOR

Please read this owner's manua thoroughly before

operating and keep if handy for reference at all times

LDC24370 _

LBC24360 _

LDC22370 _

LDN22470 _

LBN22370 _

P/No. : MFL6'7851401

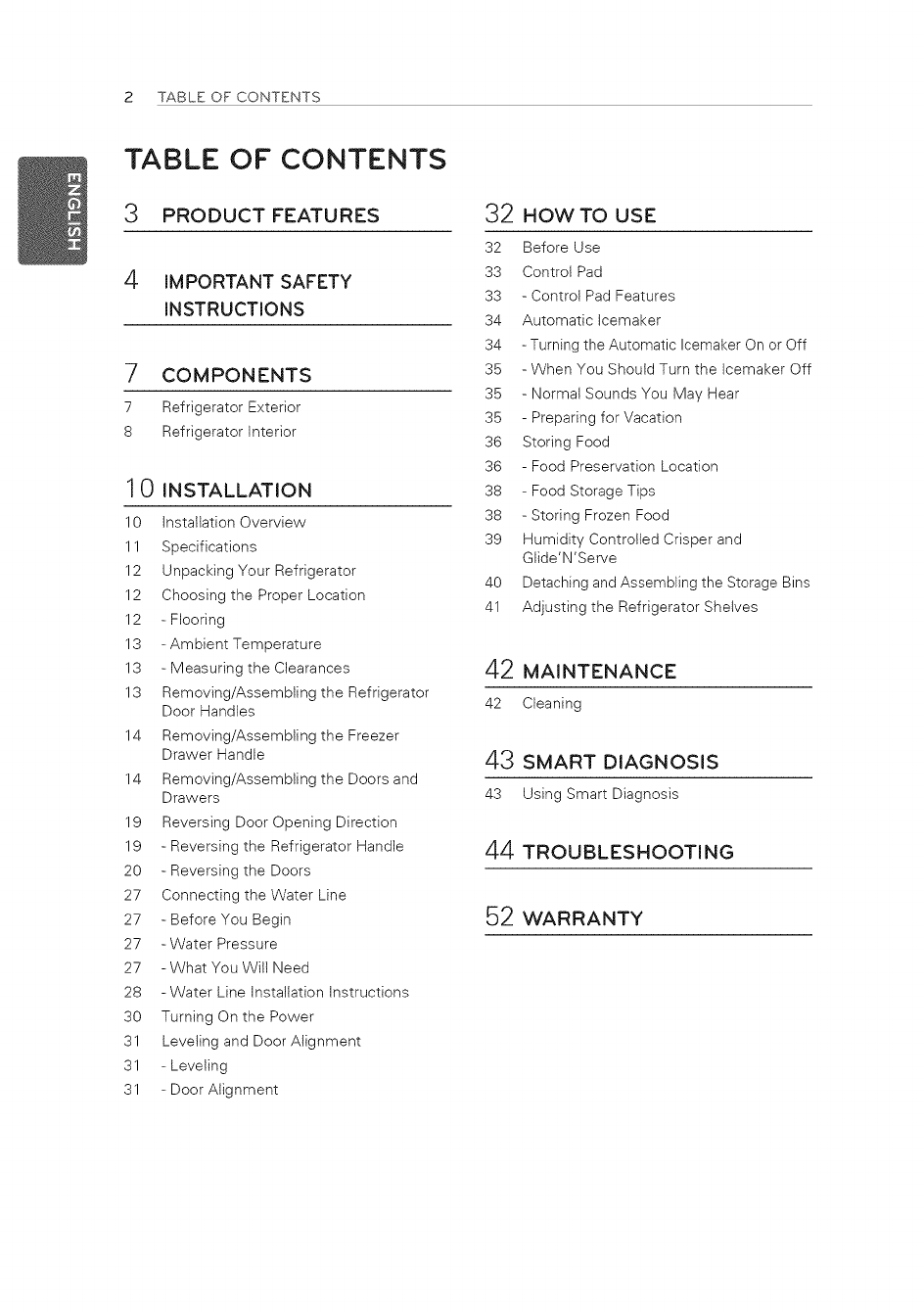

2 TABLEOFCONTENTS

TABLE OF CONTENTS

3 PRODUCT FEATURES

4IMPORTANT SAFETY

INSTRUCTIONS

7 COMPONENTS

7 Refrigerator Exterior

8 Refrigerator interior

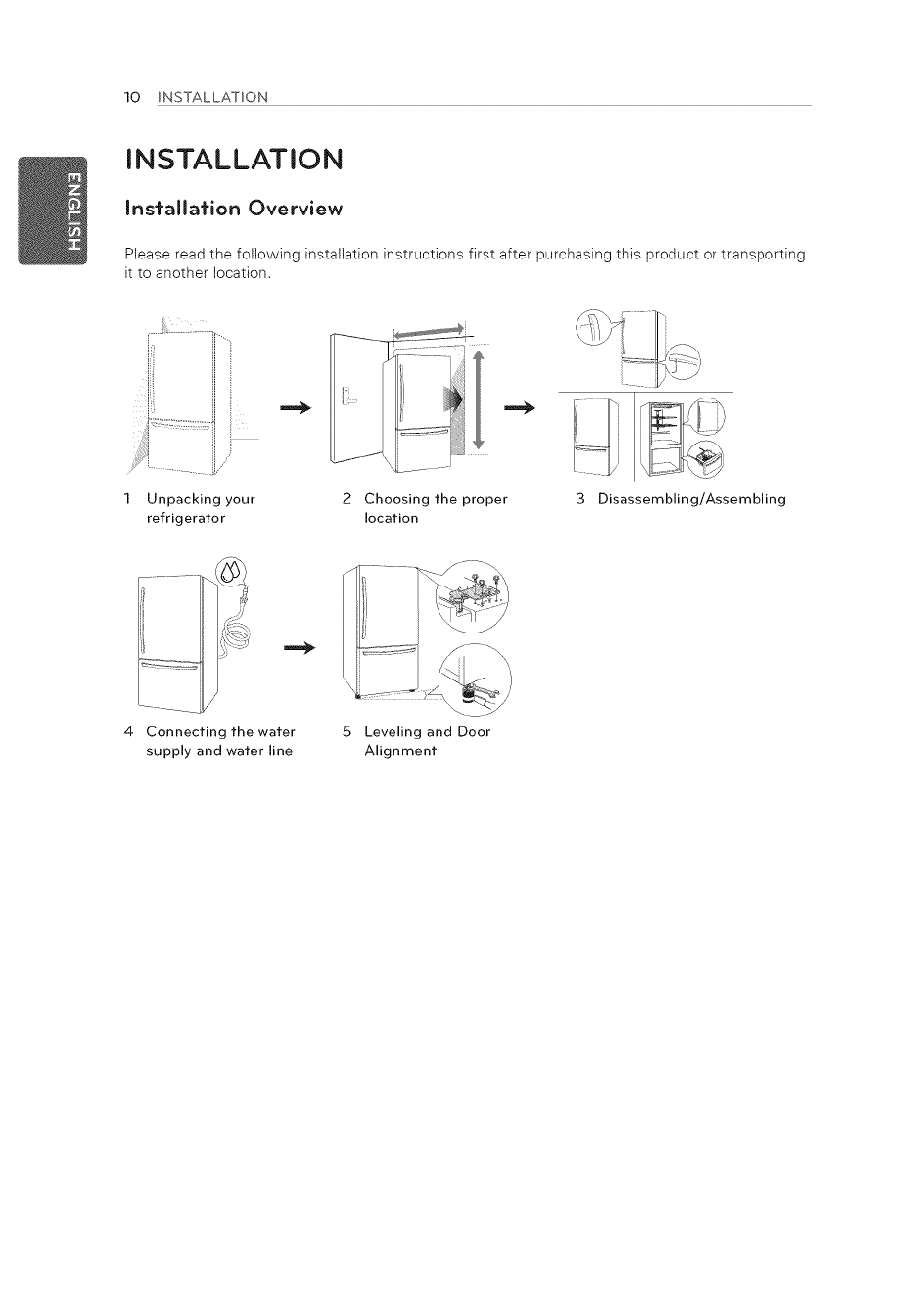

1 0 INSTALLATION

10 Installation Overview

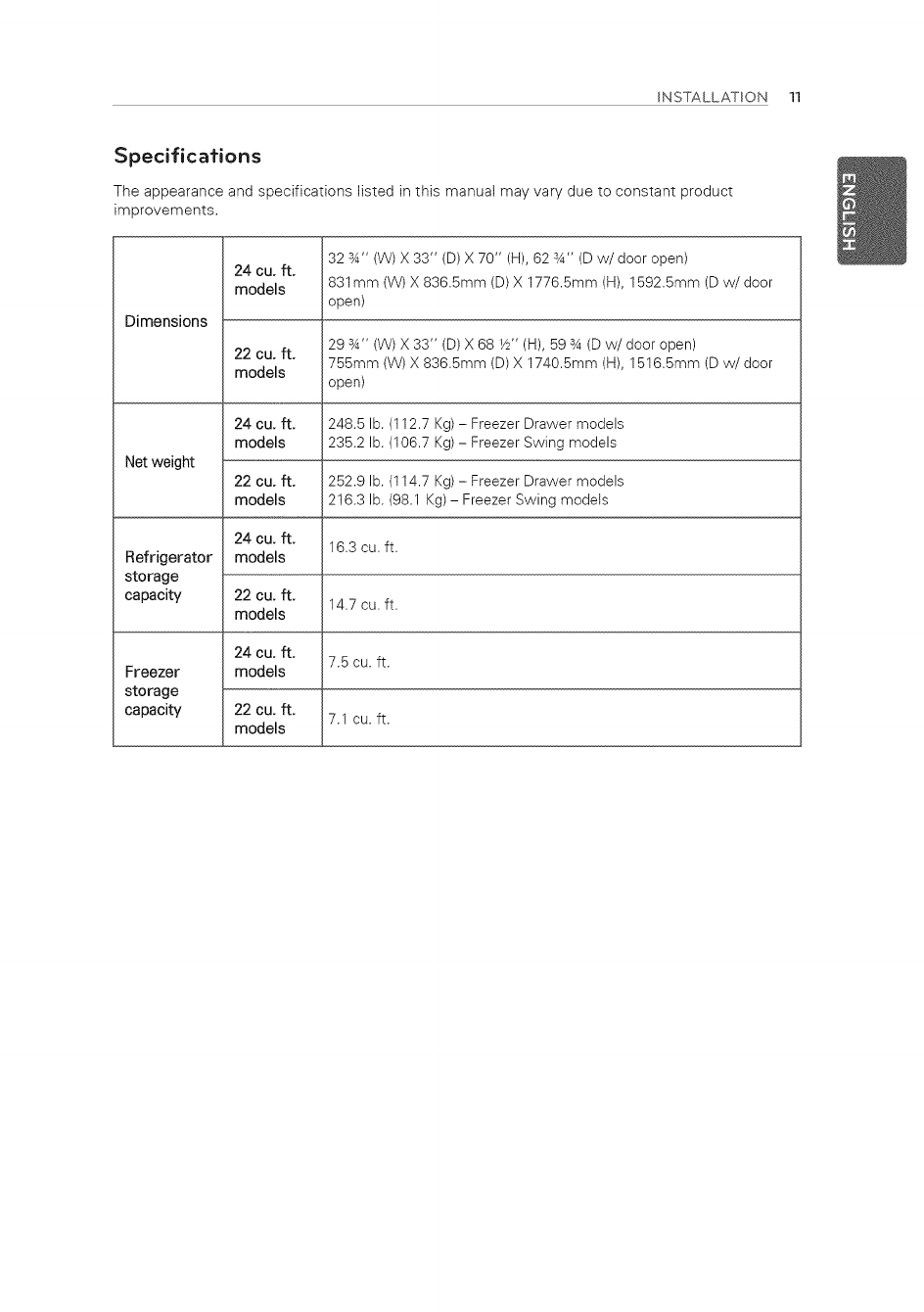

11 Specifications

12 Unpacking Your Refrigerator

12 Choosing the Proper Location

12 - Flooring

13 - Ambient Temperature

13 - Measuring the Clearances

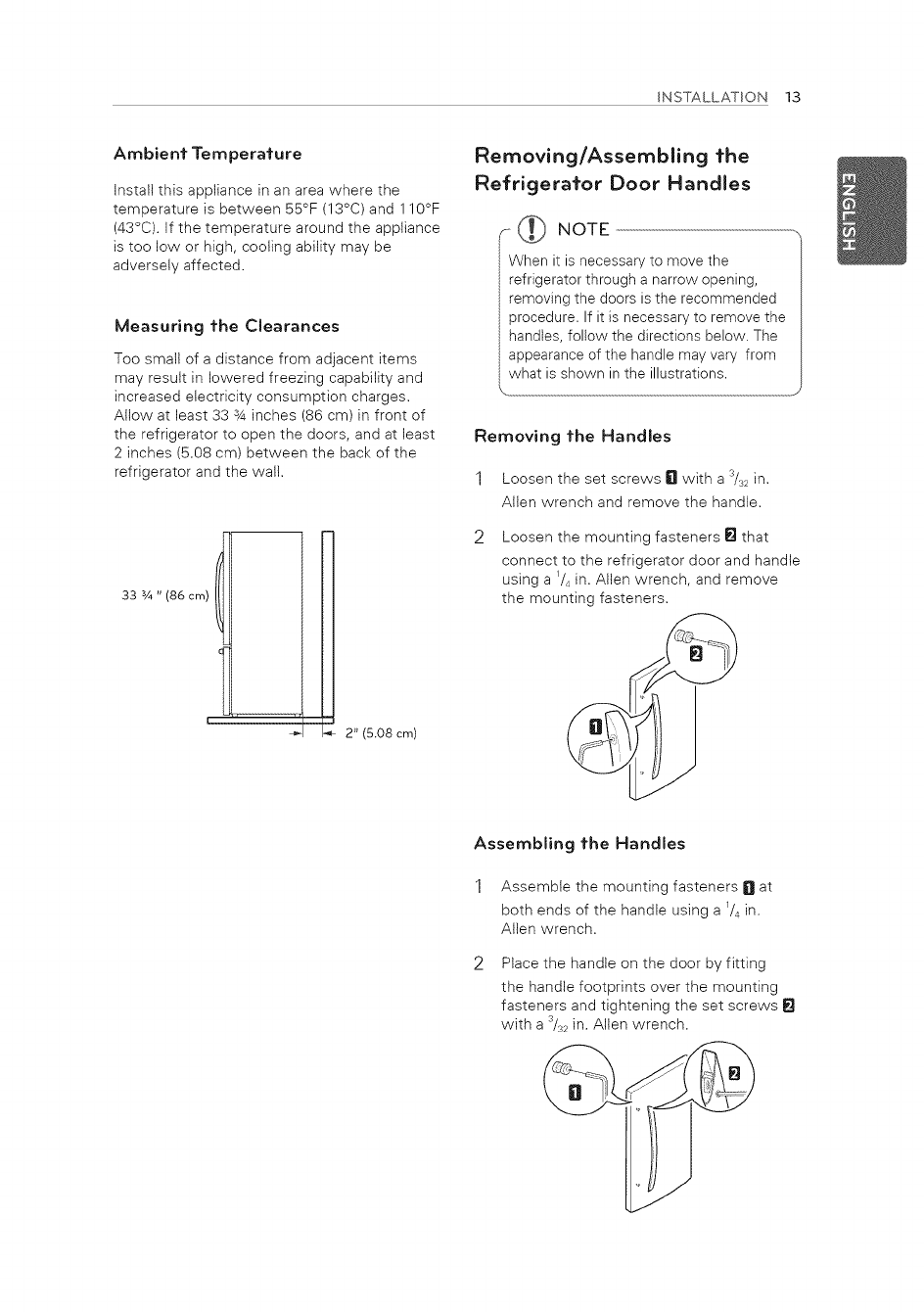

13 Removing/Assembling the Refrigerator

Door Handles

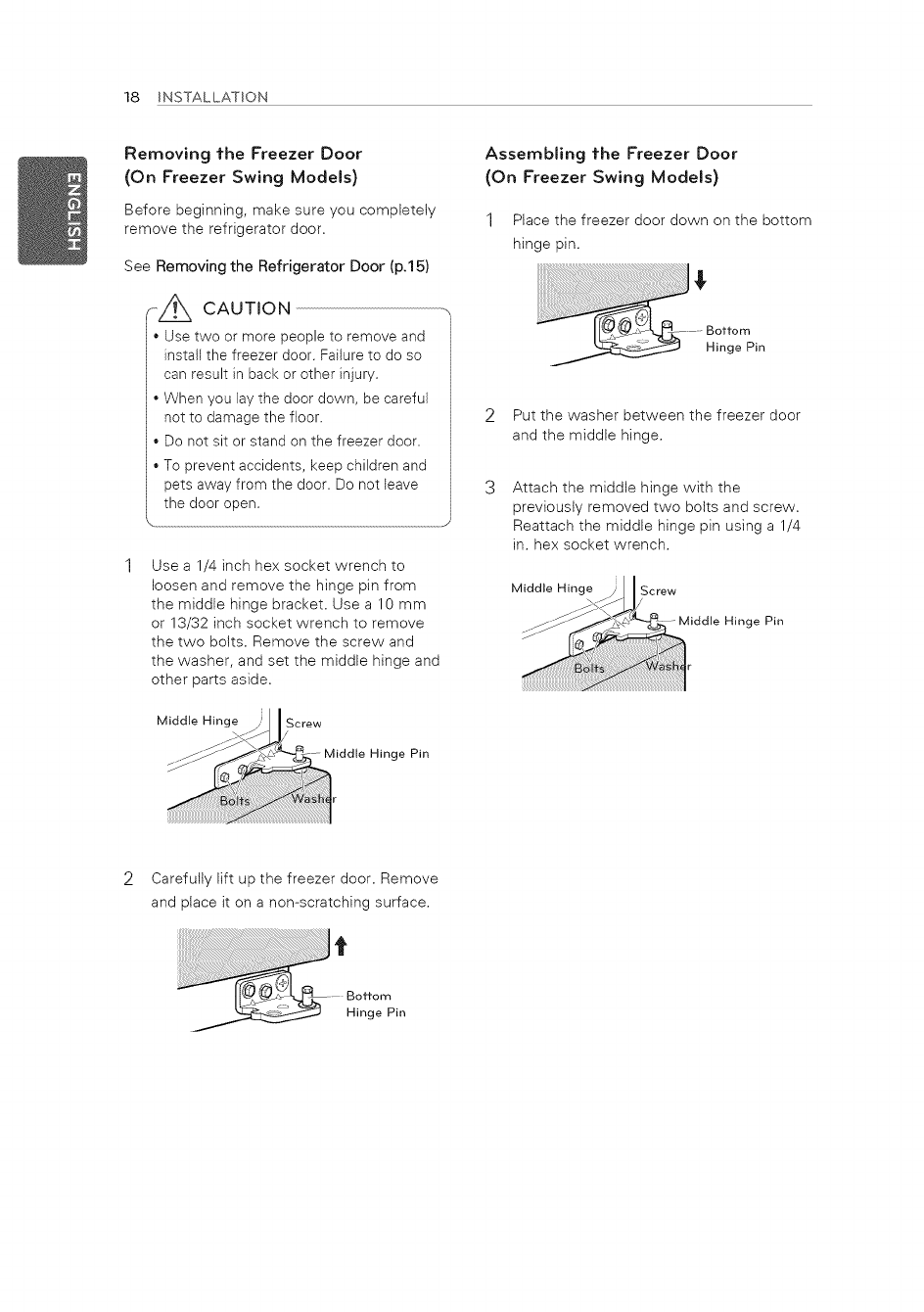

14 Removing/Assembling the Freezer

Drawer Handle

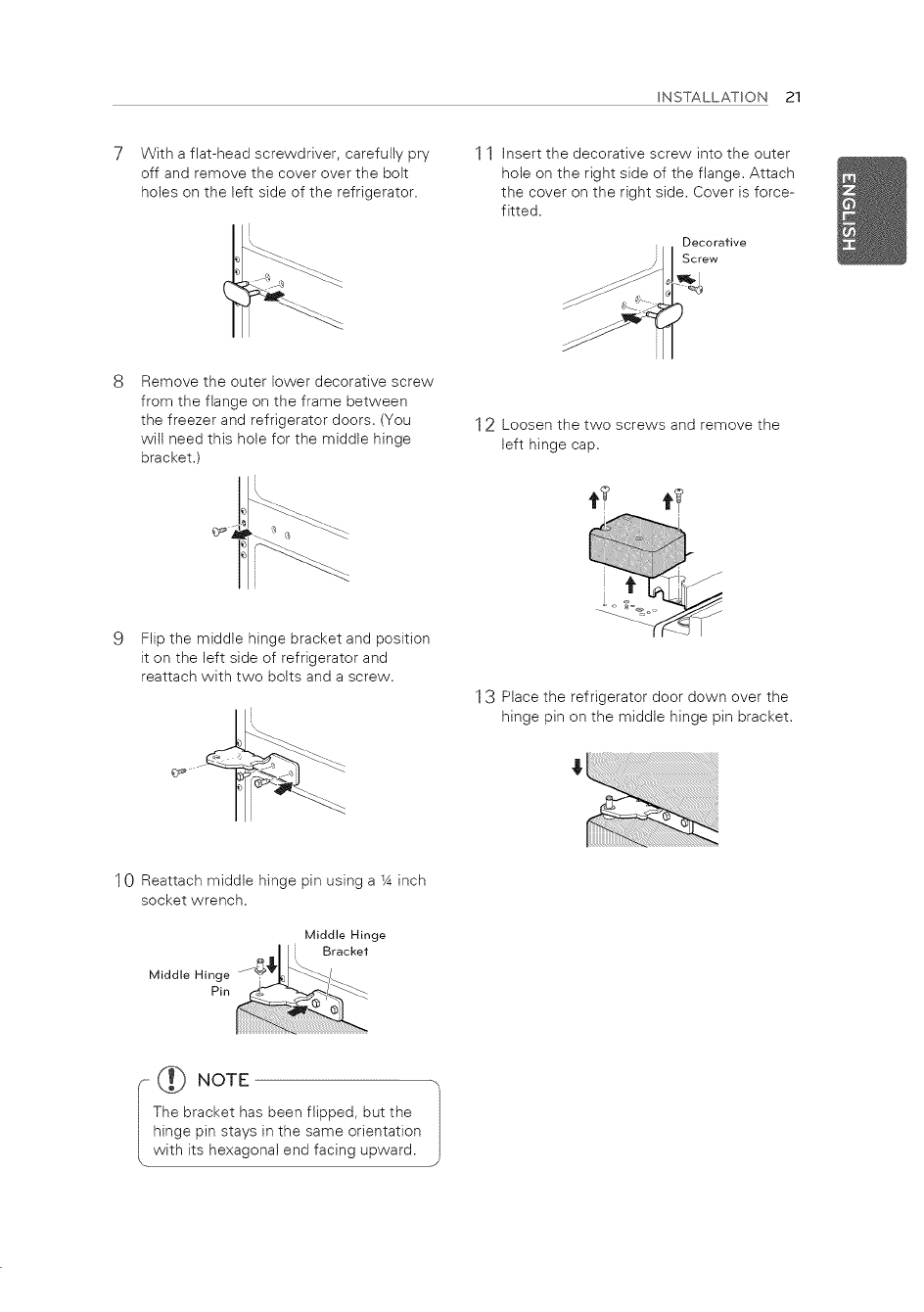

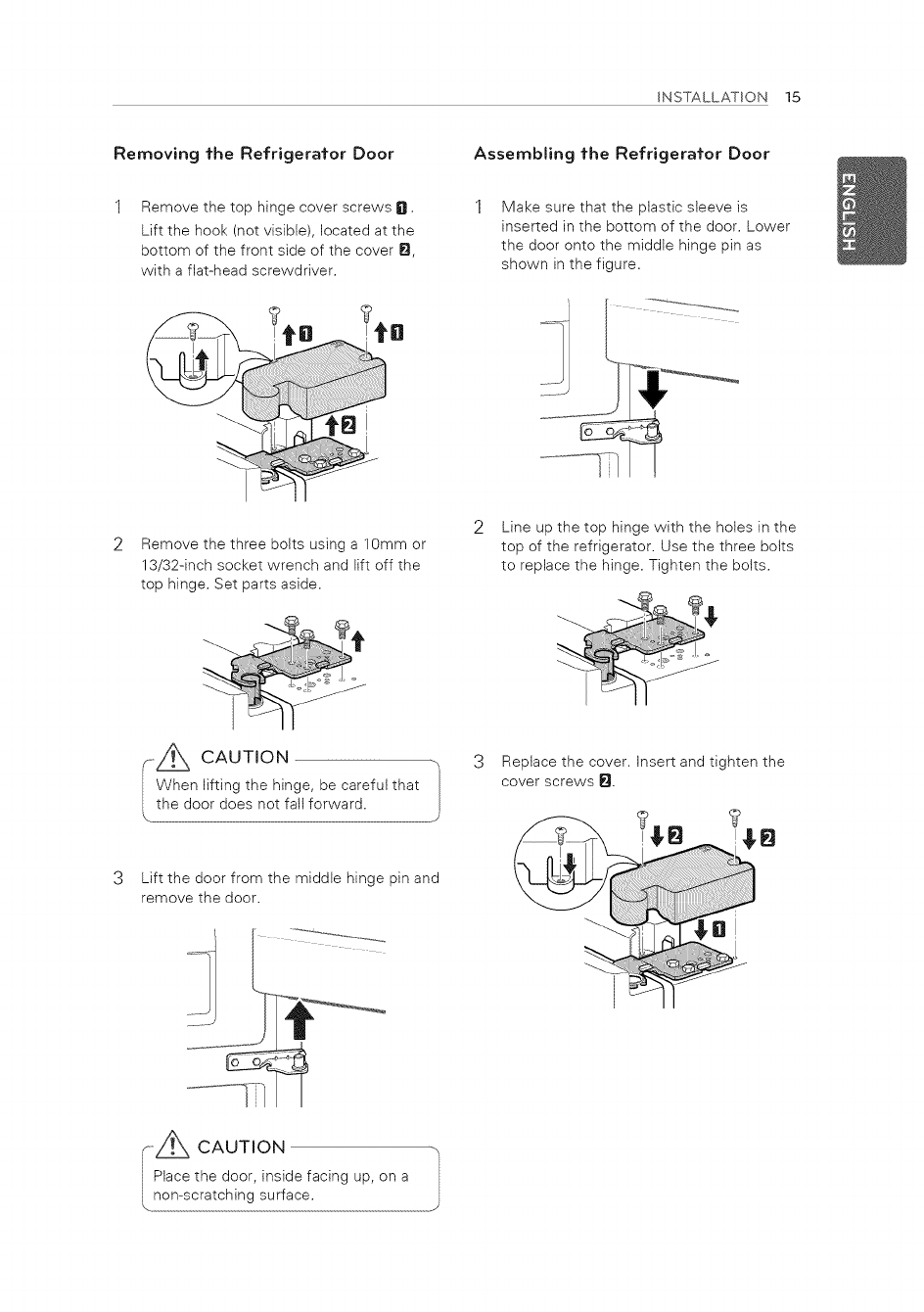

14 Removing/Assembling the Doors and

Drawers

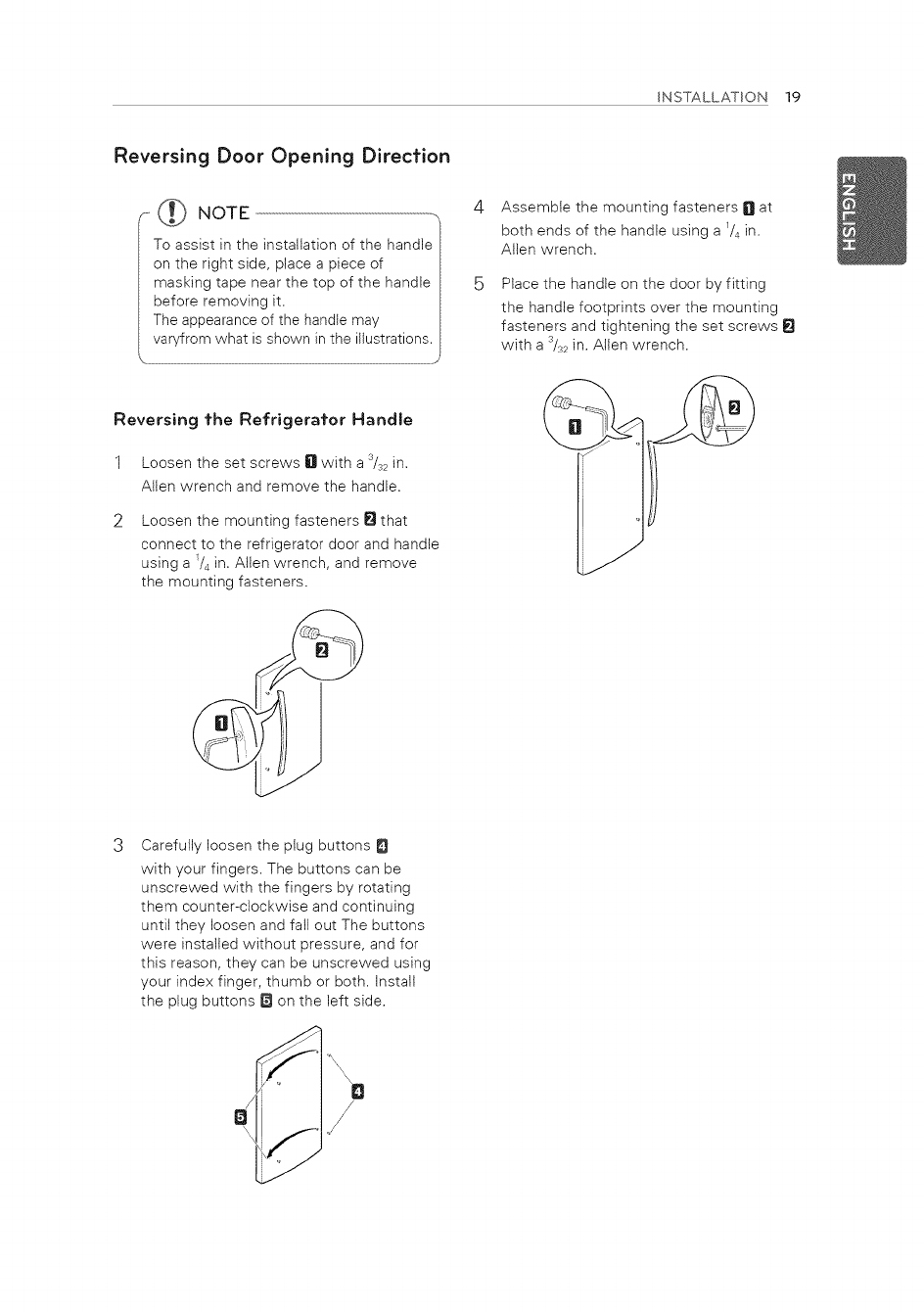

19 Reversing Door Opening Direction

19 - Reversing the Refrigerator Handle

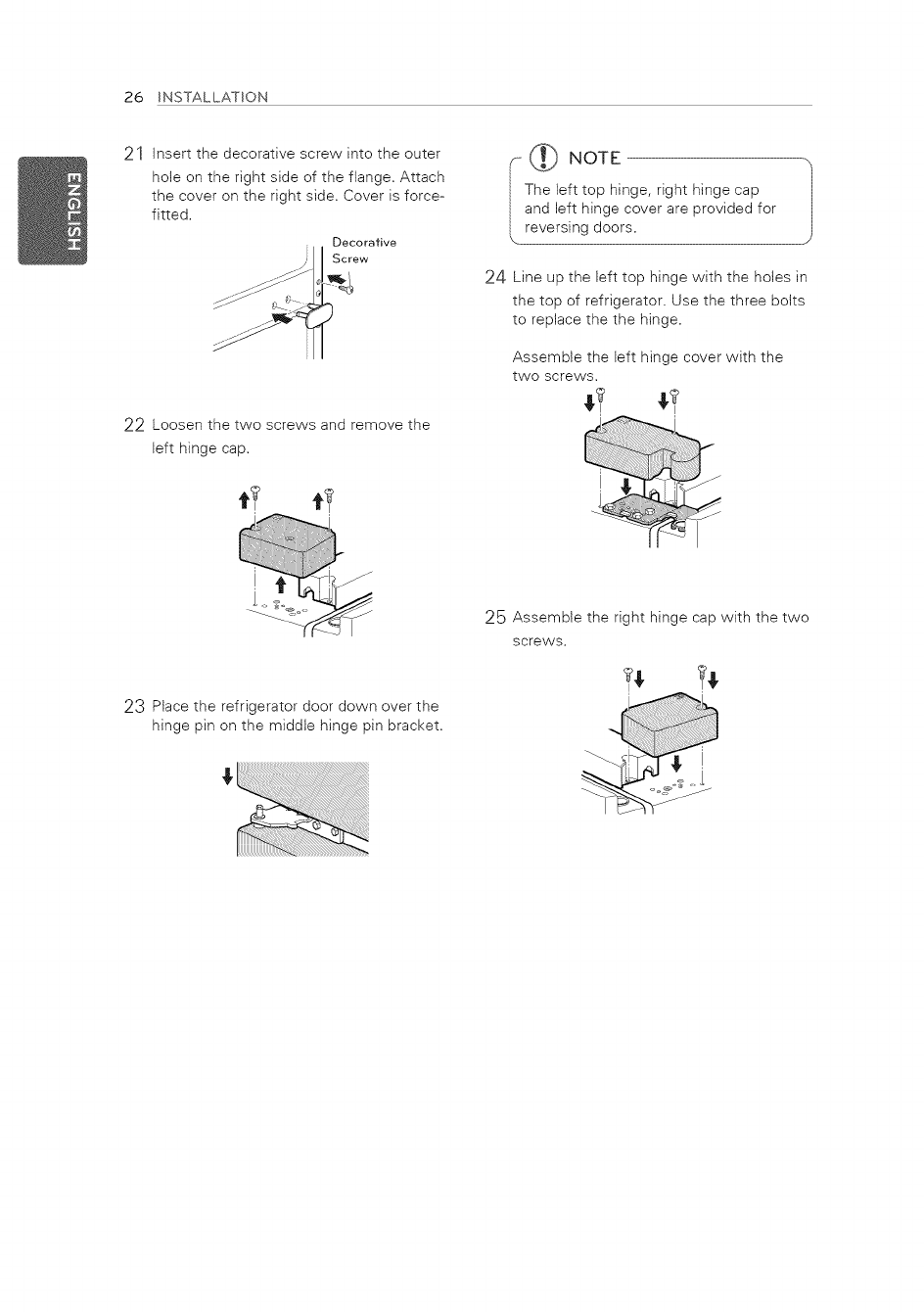

20 - Reversing the Doors

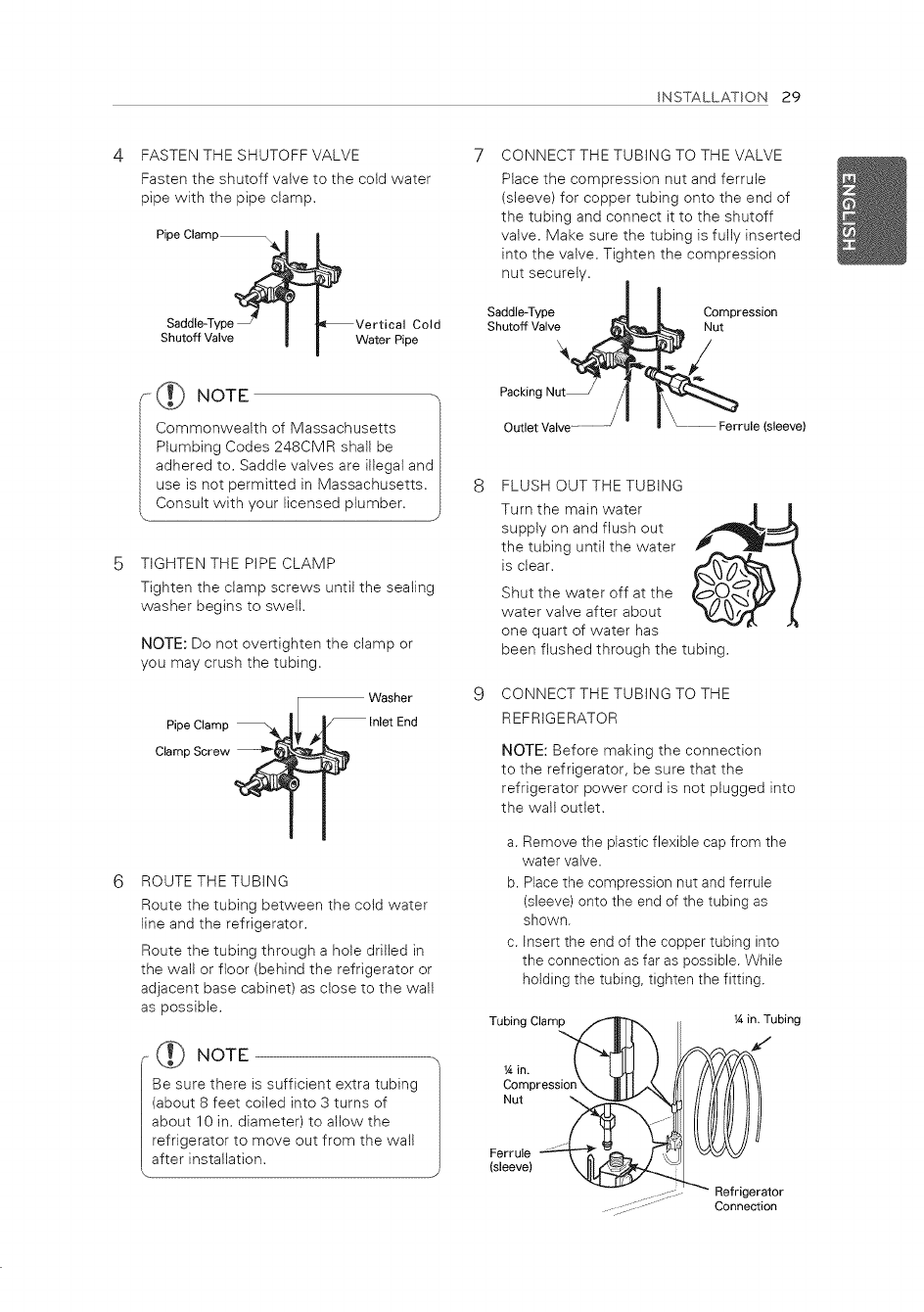

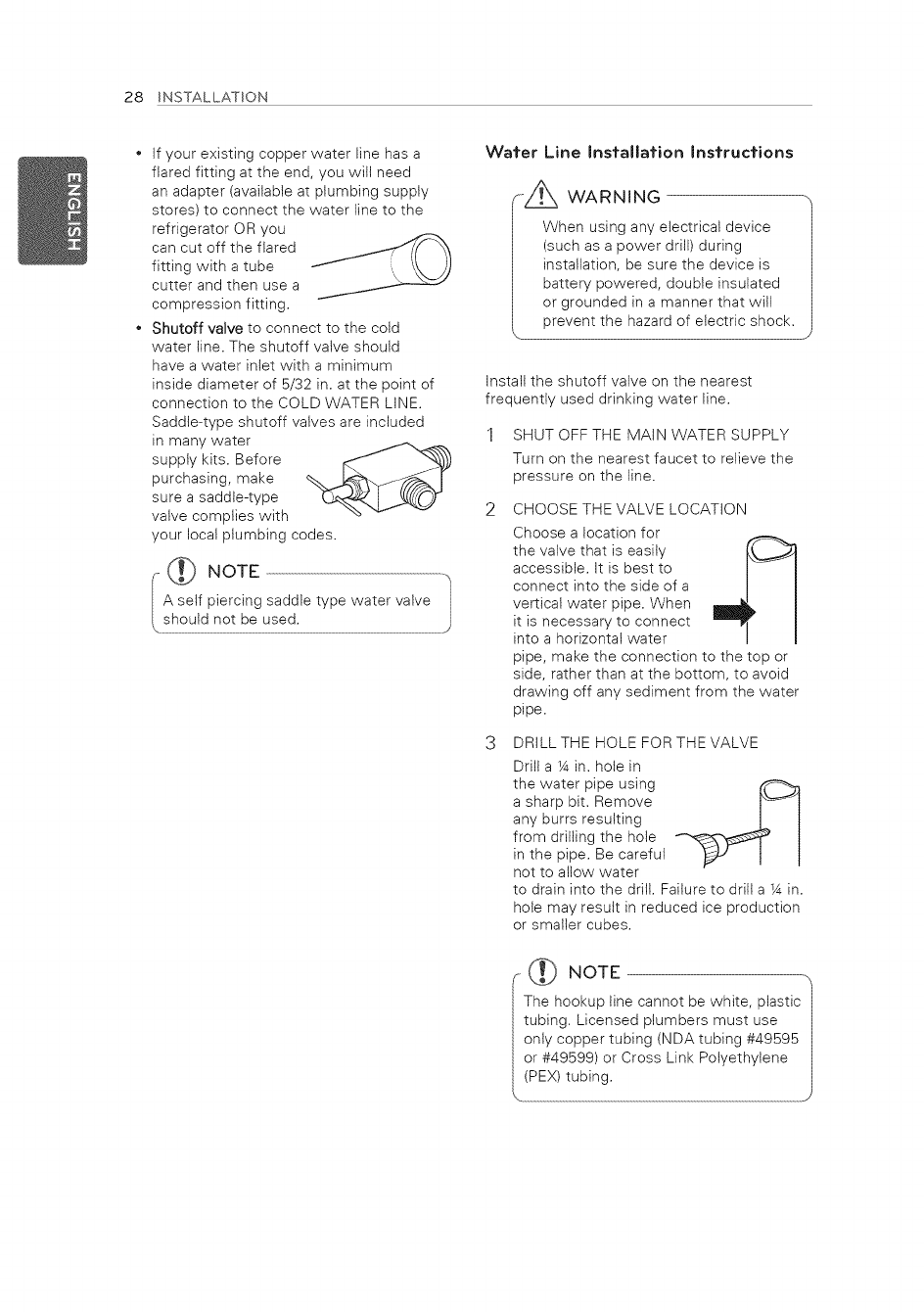

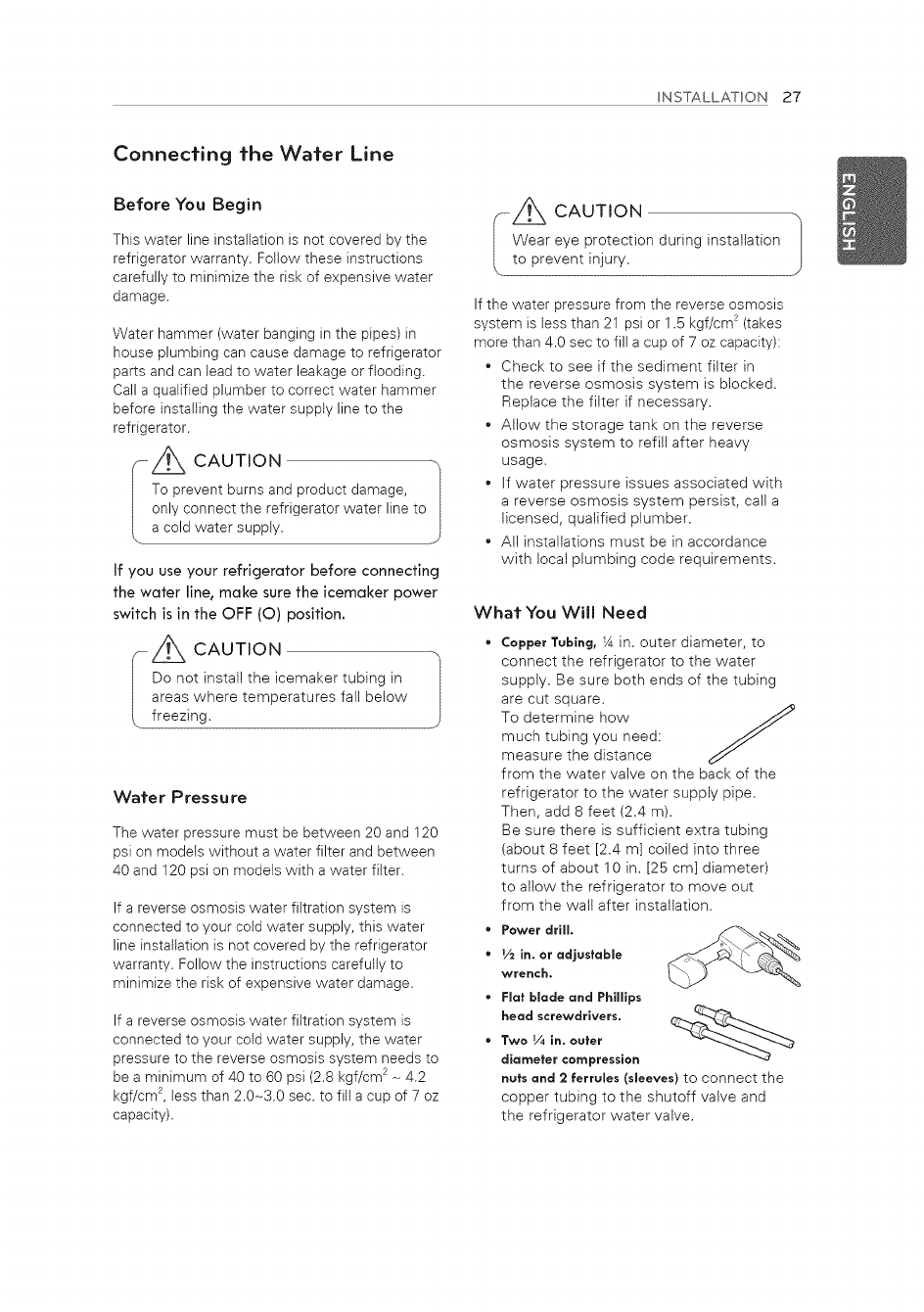

27 Connecting the Water Line

27 - Before You Begin

27 -Water Pressure

27 -What You Will Need

28 - Water Line Installation Instructions

30 Turning On the Power

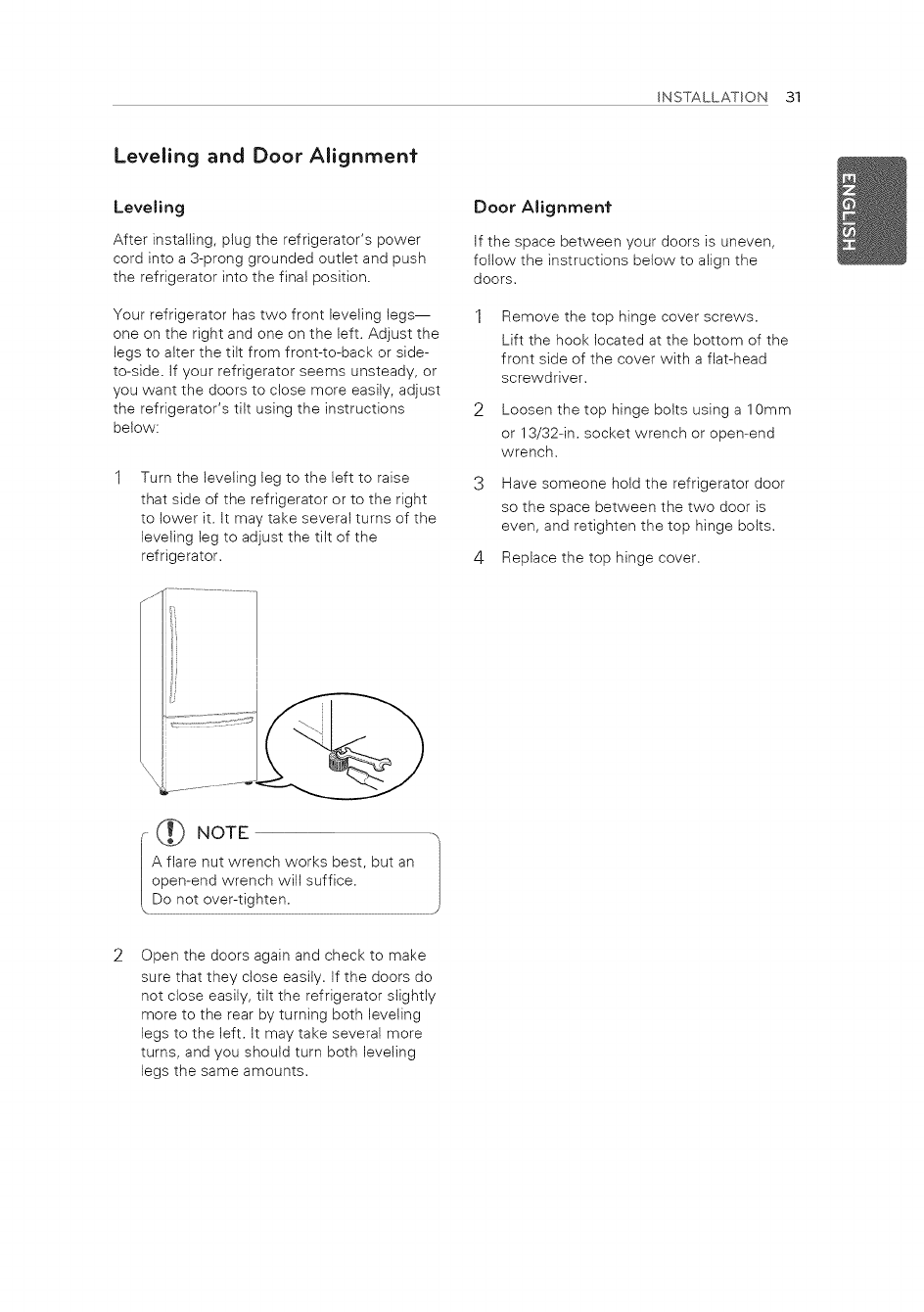

31 Leveling and Door Alignment

31 - Leveling

31 - Door Alignment

32 HOW TO USE

32 Before Use

33 Control Pad

33 - Control Pad Features

34 Automatic Icemaker

34 - Turning the Automatic Icemaker On or Off

35 - When You Should Turn the Icemaker Off

35 - Normal Sounds You May Hear

35 - Preparing for Vacation

36 Storing Food

36 - Food Preservation Location

38 - Food Storage Tips

38 - Storing Frozen Food

39 Humidity Controlled Crisper and

Glide'N'Serve

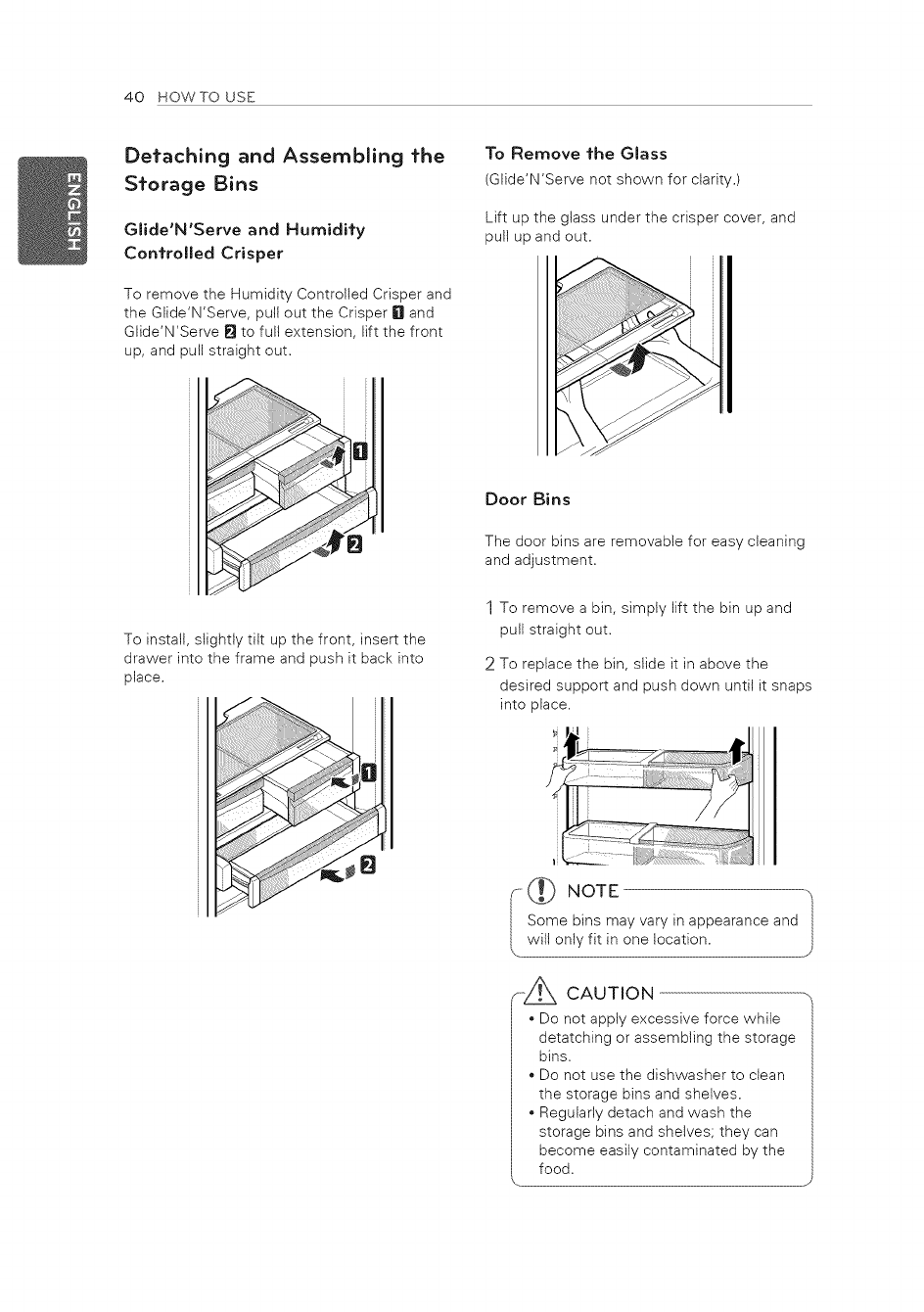

40 Detaching and Assembling the Storage Bins

41 Adjusting the Refrigerator Shelves

42 MAINTENANCE

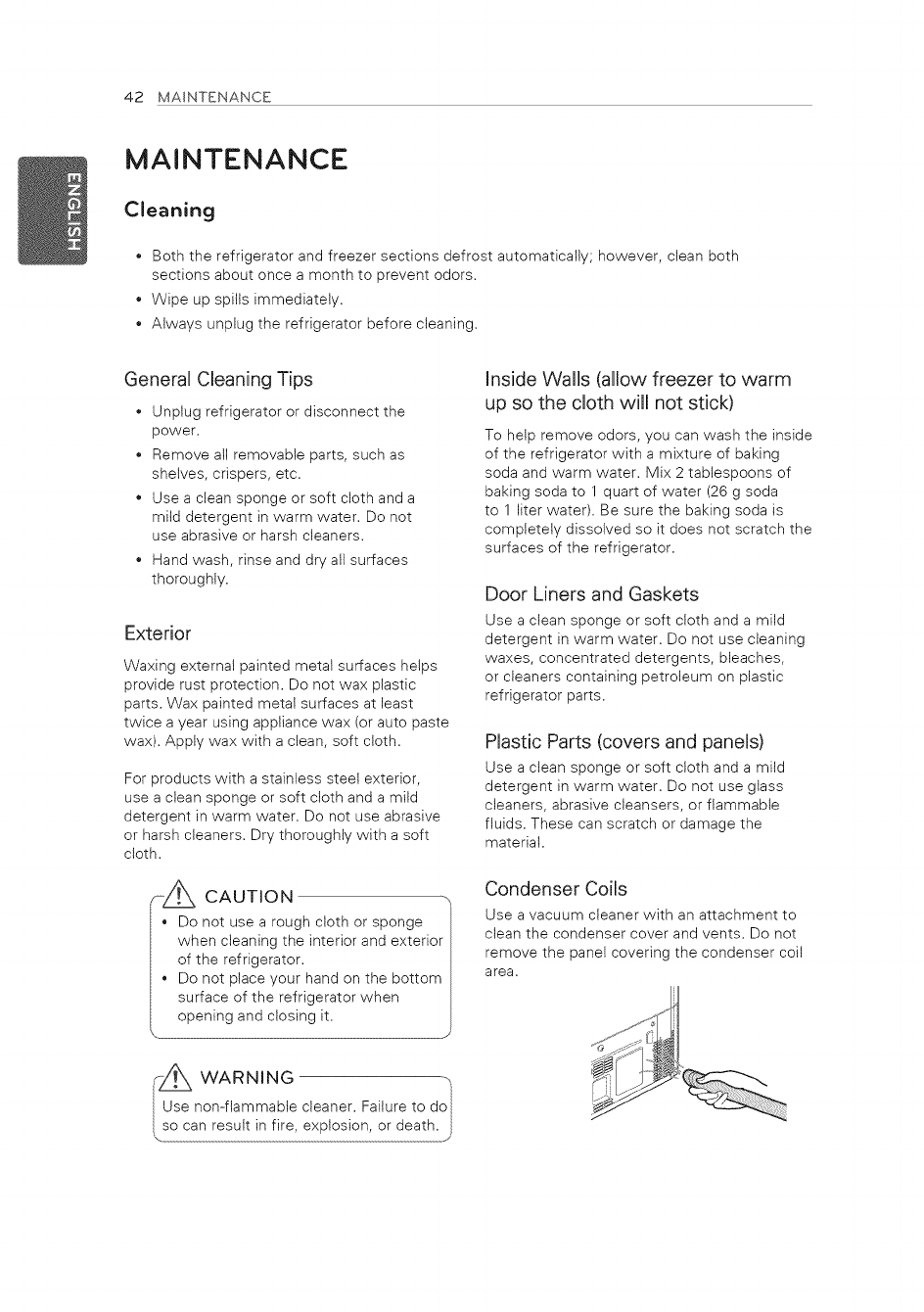

42 Cleaning

43 SMART DIAGNOSIS

43 Using Smart Diagnosis

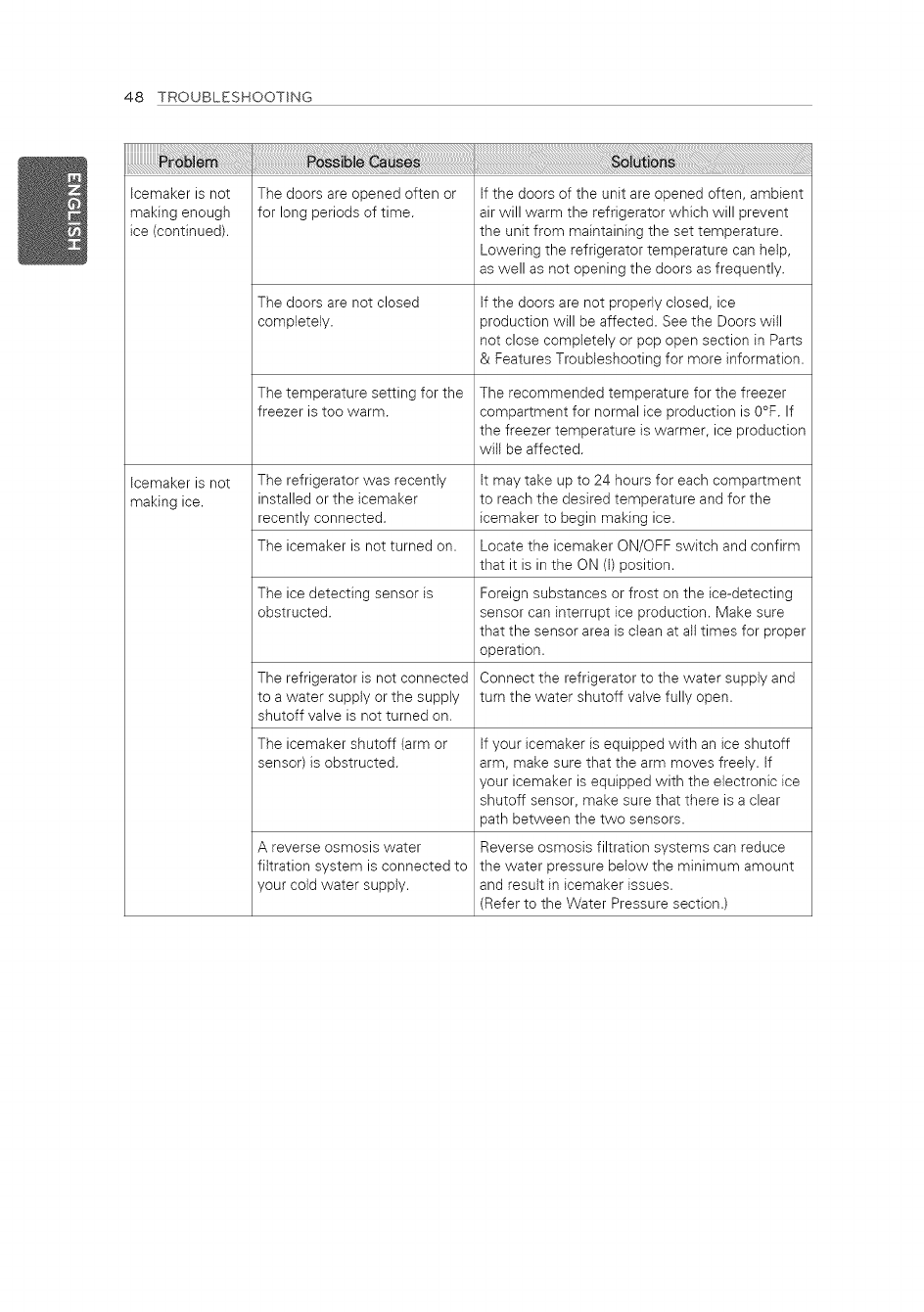

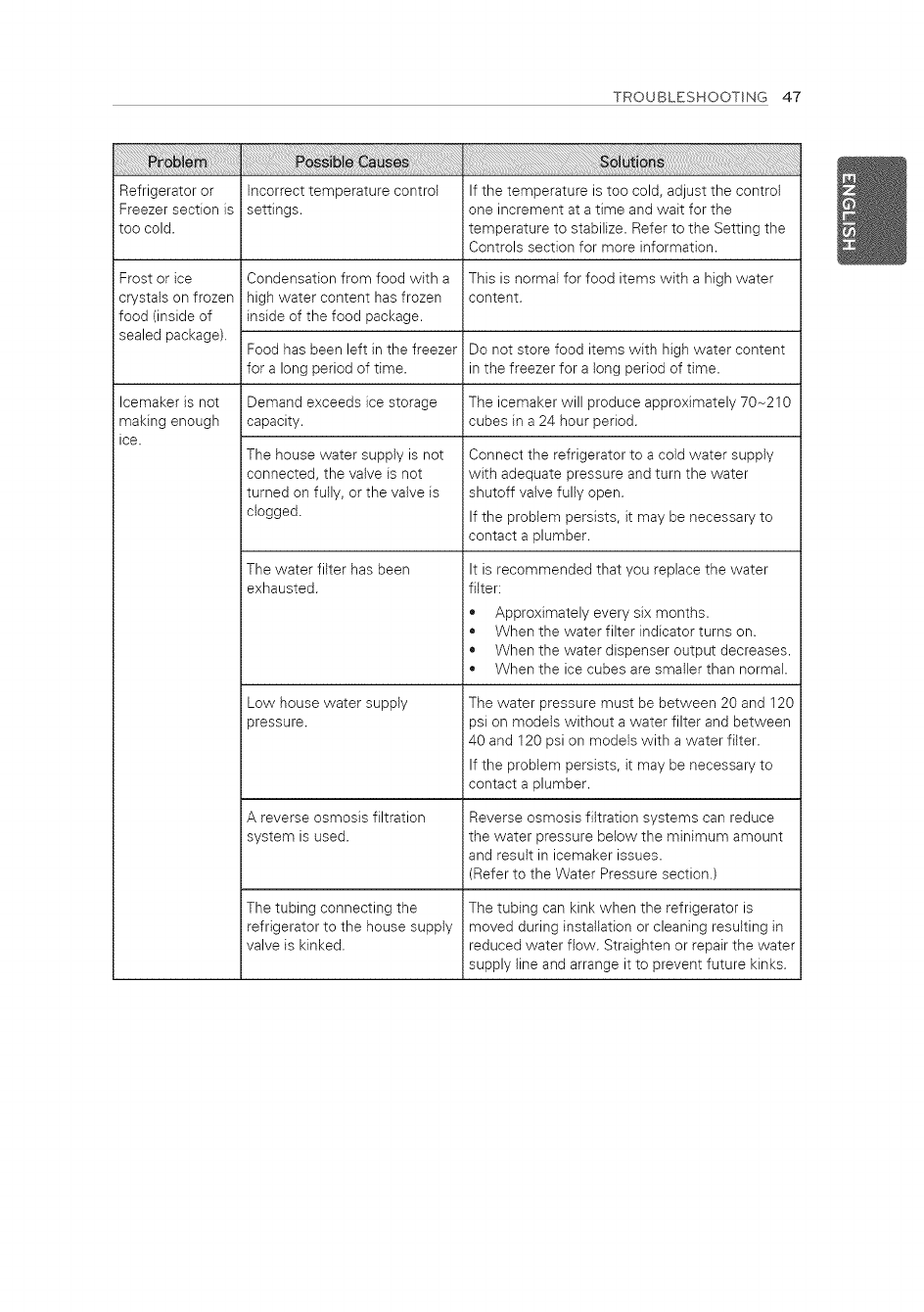

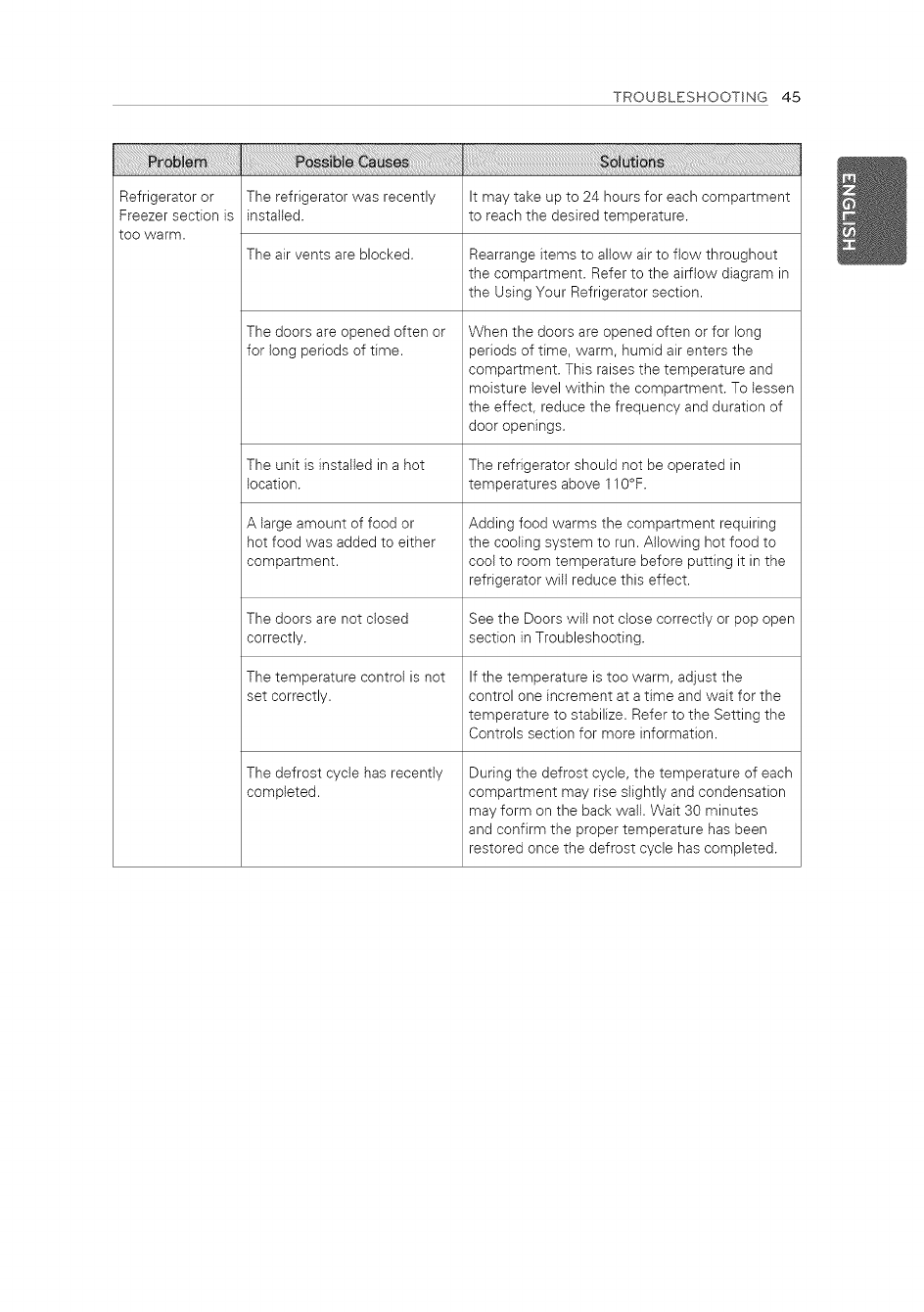

44 TROUBLESHOOTING

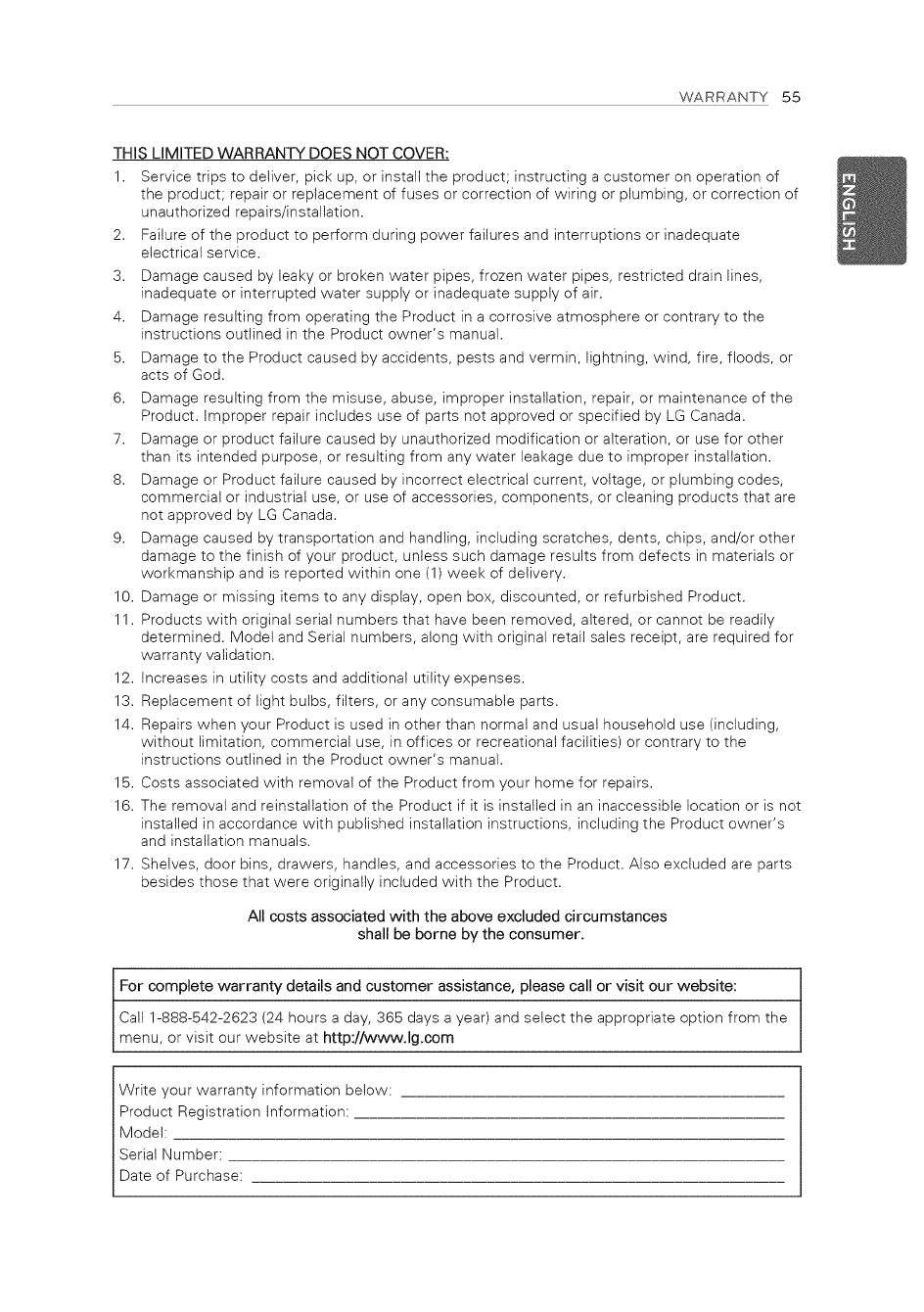

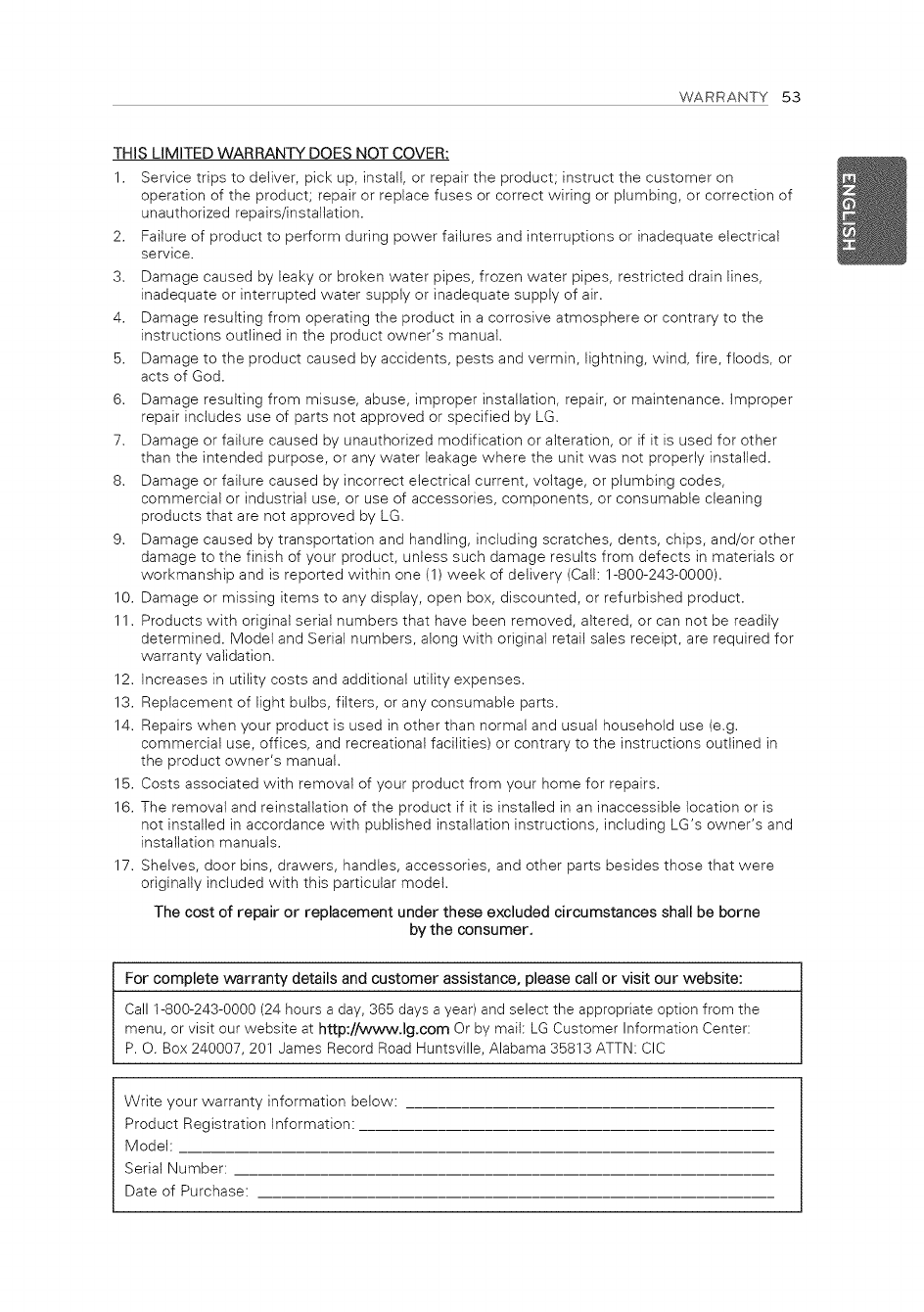

52 WARRANTY

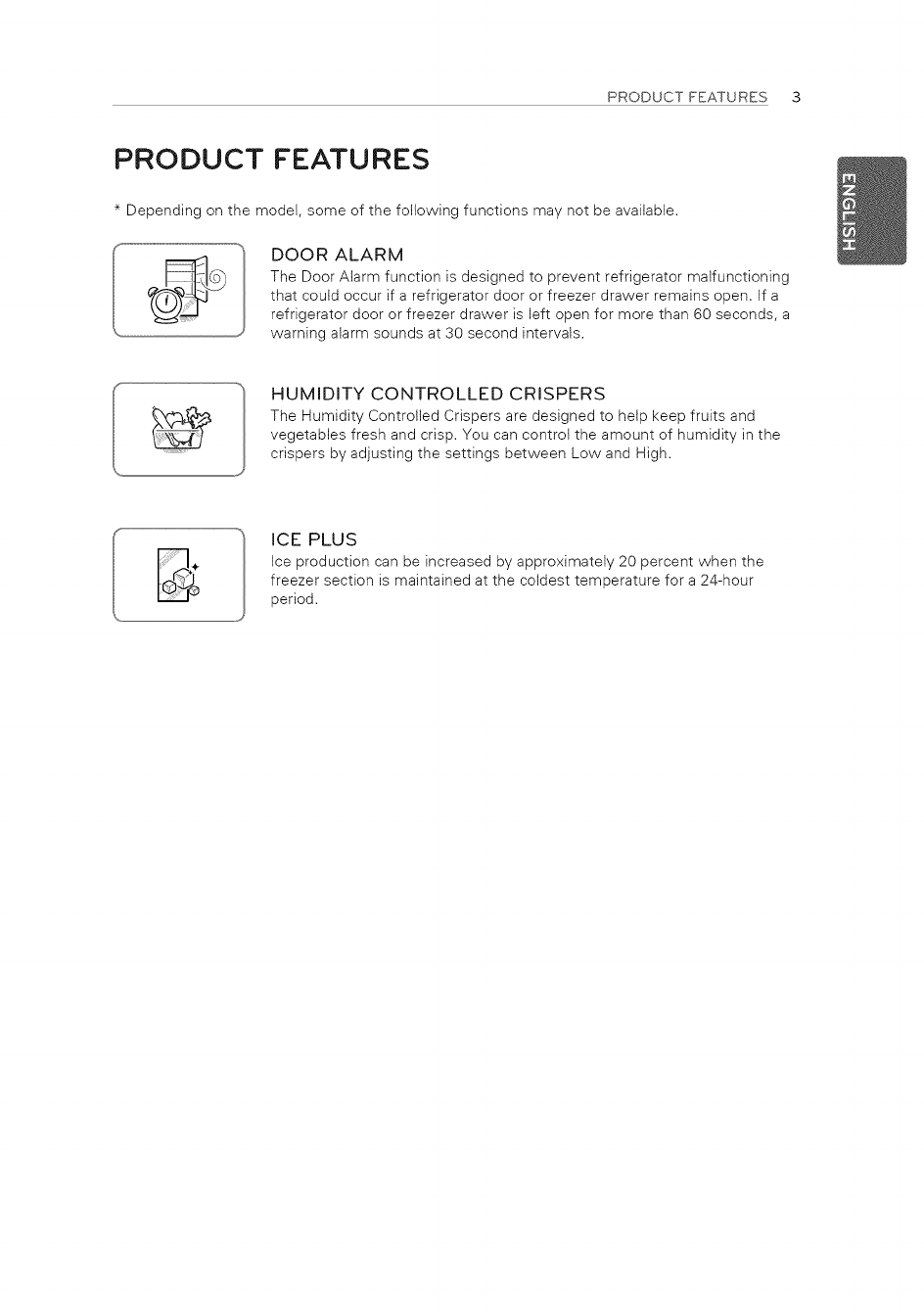

PRODUCT FEATURES 3

PRODUCT FEATURES

* Depending on the model, some of the following functions may not be available,

DOOR ALARM

The Door Alarm function is designed to prevent refrigerator malfunctioning

that could occur if a refrigerator door or freezer drawer remains open, If a

refrigerator door or freezer drawer is left open for more than 60 seconds, a

warning alarm sounds at 30 second intervals,

HUMIDITY CONTROLLED CRISPERS

The Humidity Controlled Crispers are designed to hetp keep fruits and

vegetables fresh and crisp, You can control the amount of humidity in the

crispers by adjusting the settings between Low and High,

ICE PLUS

Ice production can be increased by approximately 20 percent when the

freezer section is maintained at the coldest temperature for a 24-hour

period,

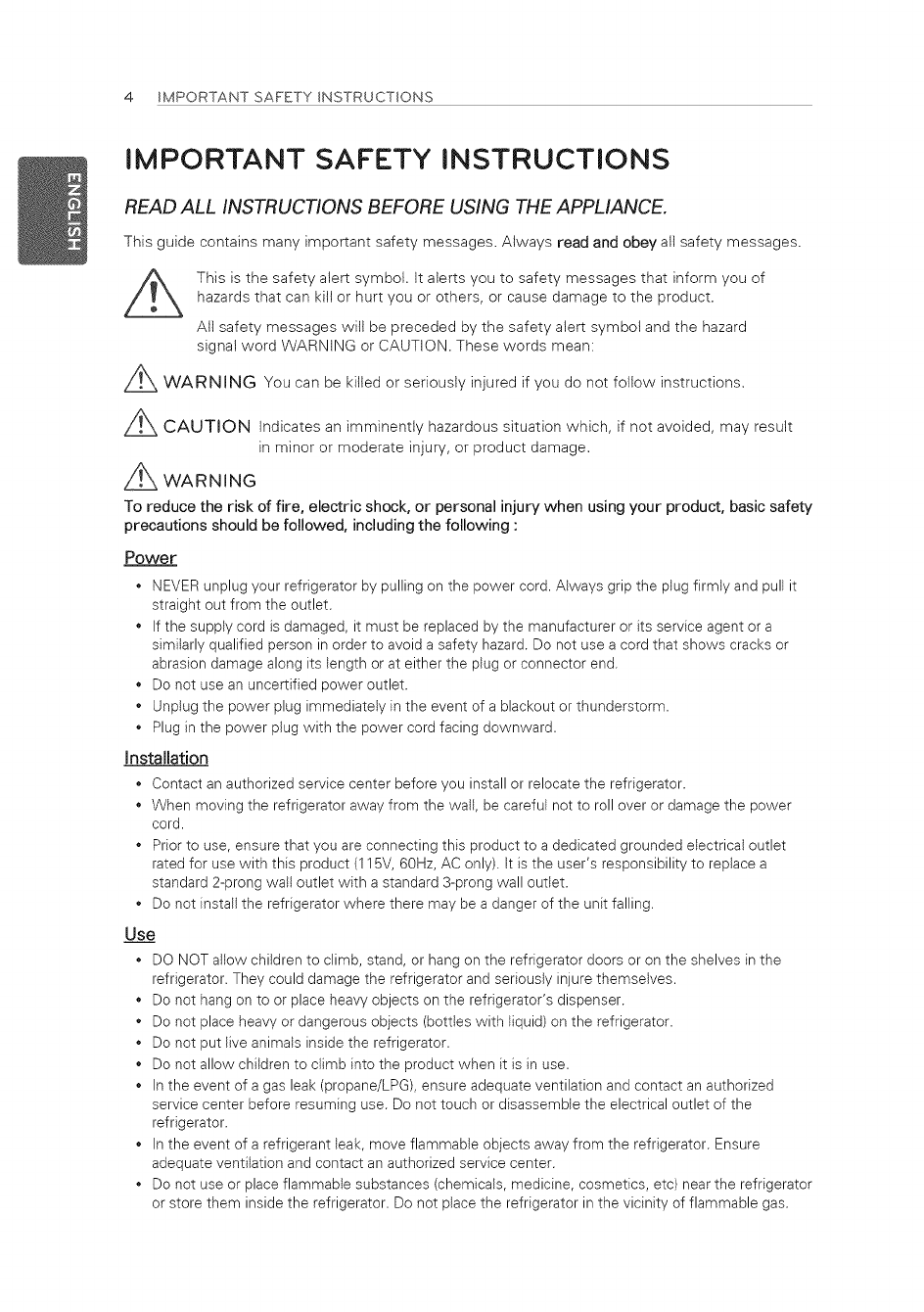

4 IMPORTANT SAFETY INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE.

This guide contains many important safety messages. Always read and obey all safety messages.

This is the safety alert symbol. It alerts you to safety messages that inform you of

hazards that can kill or hurt you or others, or cause damage to the product.

All safety messages will be preceded by the safety alert symbol and the hazard

signal word WARNING or CAUTION. These words mean:

Z_ WARNING You can be killed or seriously injured if you do not follow instructions.

Z_ CAUTION indicates an imminently hazardous situation which, if not avoided, may result

in minor or moderate injury, or product damage.

z_ WARNING

To reduce the risk of fire, electric shock, or personal injury when using your product, basic safety

precautions should be followed, including the following :

Power

• NEVER unplug your refrigerator by pulling on the power cord. Always grip the plug firmly and pun it

straight out from the outlet.

• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a

similarly qualified person in order to avoid a safety hazard. Do not use a cord that shows cracks or

abrasion damage along its length or at either the plug or connector end.

• Do not use an uncertified power outlet.

• Unplug the power plug immediately in the event of a blackout or thunderstorm.

° Plug in the power plug with the power cord facing downward.

Installation

• Contact an authorized service center before you install or relocate the refrigerator.

• When moving the refrigerator away from the wall, be careful not to roll over or damage the power

cord.

• Prior to use, ensure that you are connecting this product to a dedicated grounded electrical outlet

rated for use with this product (115V, 60Hz, AC only). It is the user's responsibility to replace a

standard 2-prong wall outlet with a standard 3-prong wall outlet.

• Do not install the refrigerator where there may be a danger of the unit falling.

Use

• DO NOT allow children to climb, stand, or hang on the refrigerator doors or on the shelves in the

refrigerator. They could damage the refrigerator and seriously injure themselves.

• Do not hang on to or place heavy objects on the refrigerator's dispenser.

• Do not place heavy or dangerous objects (bottles with liquid) on the refrigerator.

• Do not put live animals inside the refrigerator.

• Do not allow children to climb into the product when it is in use.

• In the event of a gas leak (propane/LPG), ensure adequate ventilation and contact an authorized

service center before resuming use. Do not touch or disassemble the electrical outlet of the

refrigerator.

• In the event of a refrigerant leak, move flammable objects away from the refrigerator. Ensure

adequate ventilation and contact an authorized service center.

• Do not use or place flammable substances (chemicals, medicine, cosmetics, etc) near the refrigerator

or store them inside the refrigerator. Do not place the refrigerator in the vicinity of flammable gas.

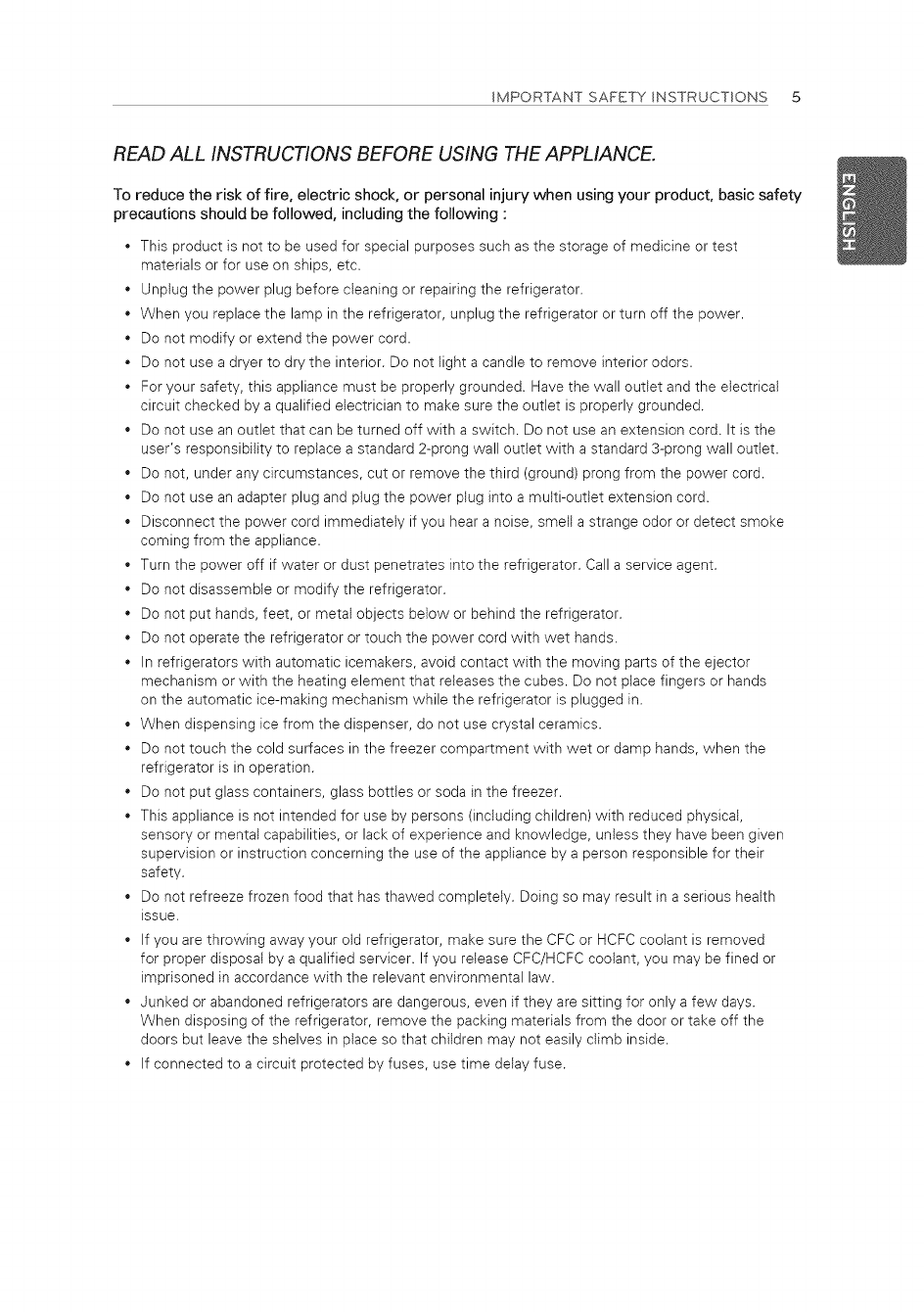

IMPORTANT SAFETY INSTRUCTIONS 5

READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE.

To reduce the risk of fire, electric shock, or personal injury when using your product, basic safety

precautions should be followed, including the following :

• This product is not to be used for special purposes such as the storage of medicine or test

materials or for use on ships, etc.

• Unplug the power plug before cleaning or repairing the refrigerator.

• When you replace the lamp in the refrigerator, unplug the refrigerator or turn off the power.

• Do not modify or extend the power cord.

• Do not use a dryer to dry the interior. Do not light a candle to remove interior odors.

• For your safety, this appliance must be properly grounded. Have the wall outlet and the electrical

circuit checked by a qualified electrician to make sure the outlet is properly grounded.

• Do not use an outlet that can be turned off with a switch. Do not use an extension cord. It is the

user's responsibility to replace a standard 2-prong wall outlet with a standard 3-prong wall outlet.

• Do not, under any circumstances, cut or remove the third (ground) prong from the power cord.

• Do not use an adapter plug and plug the power plug into a multi-outlet extension cord.

• Disconnect the power cord immediately if you hear a noise, smell a strange odor or detect smoke

coming from the appliance.

• Turn the power off if water or dust penetrates into the refrigerator. Call a service agent.

• Do not disassemble or modify the refrigerator.

• Do not put hands, feet, or metal objects below or behind the refrigerator.

• Do not operate the refrigerator or touch the power cord with wet hands.

• In refrigerators with automatic icemakers, avoid contact with the moving parts of the ejector

mechanism or with the heating element that releases the cubes. Do not place fingers or hands

on the automatic ice-making mechanism while the refrigerator is plugged in.

• When dispensing ice from the dispenser, do not use crystal ceramics.

• Do not touch the cold surfaces in the freezer compartment with wet or damp hands, when the

refrigerator is in operation.

• Do not put glass containers, glass bottles or soda in the freezer.

• This appliance is not intended for use by persons (including children) with reduced physical,

sensory or mental capabilities, or lack of experience and knowledge, unless they have been given

supervision or instruction concerning the use of the appliance by a person responsible for their

safety.

• Do not refreeze frozen food that has thawed completely. Doing so may result in a serious health

issue.

• If you are throwing away your old refrigerator, make sure the CFC or HCFC coolant is removed

for proper disposal by a qualified servicer. If you release CFC/HCFC coolant, you may be fined or

imprisoned in accordance with the relevant environmental law.

• Junked or abandoned refrigerators are dangerous, even if they are sitting for only a few days.

When disposing of the refrigerator, remove the packing materials from the door or take off the

doors but leave the shelves in place so that children may not easily climb inside.

• If connected to a circuit protected by fuses, use time delay fuse.

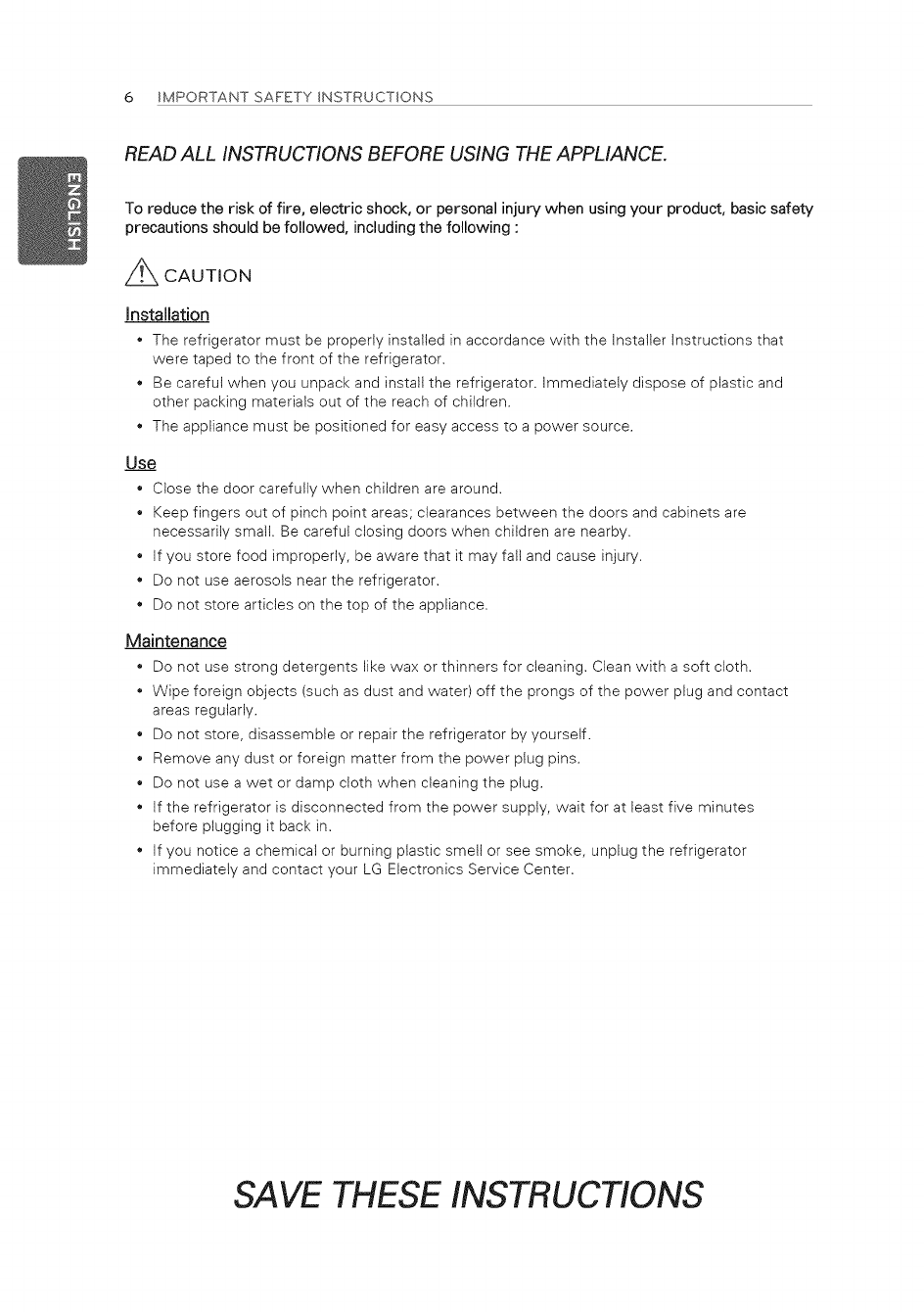

6 IMPORTANTSAFETYINSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE.

To reduce the risk of fire, electric shock, or personal injury when using your product, basic safety

precautions should be followed, including the following :

_ CAUTION

Installation

• The refrigerator must be properly installed in accordance with the Installer Instructions that

were taped to the front of the refrigerator.

• Be careful when you unpack and install the refrigerator. Immediately dispose of plastic and

other packing materials out of the reach of children.

• The appliance must be positioned for easy access to a power source.

Use

Close the door carefully when children are around.

Keep fingers out of pinch point areas; clearances between the doors and cabinets are

necessarily small. Be careful closing doors when children are nearby.

If you store food improperly, be aware that it may fan and cause injury.

Do not use aerosols near the refrigerator.

Do not store articles on the top of the appliance.

Maintenance

Do not use strong detergents like wax or thinners for cleaning. Clean with a soft cloth.

Wipe foreign objects (such as dust and water) off the prongs of the power plug and contact

areas regularly.

Do not store, disassemble or repair the refrigerator by yourself.

Remove any dust or foreign matter from the power plug pins.

Do not use a wet or damp cloth when cleaning the plug.

If the refrigerator is disconnected from the power supply, wait for at least five minutes

before plugging it back in.

If you notice a chemical or burning plastic smell or see smoke, unplug the refrigerator

immediately and contact your LG Electronics Service Center.

SAVE THESE INSTRUCTIONS

COMPONENTS 7

COMPONENTS

Use this page to become more familiar with the parts and features of your refrigerator.

Page references are included for your convenience.

*The appearance and specifications of the actual product may differ depending on the model.

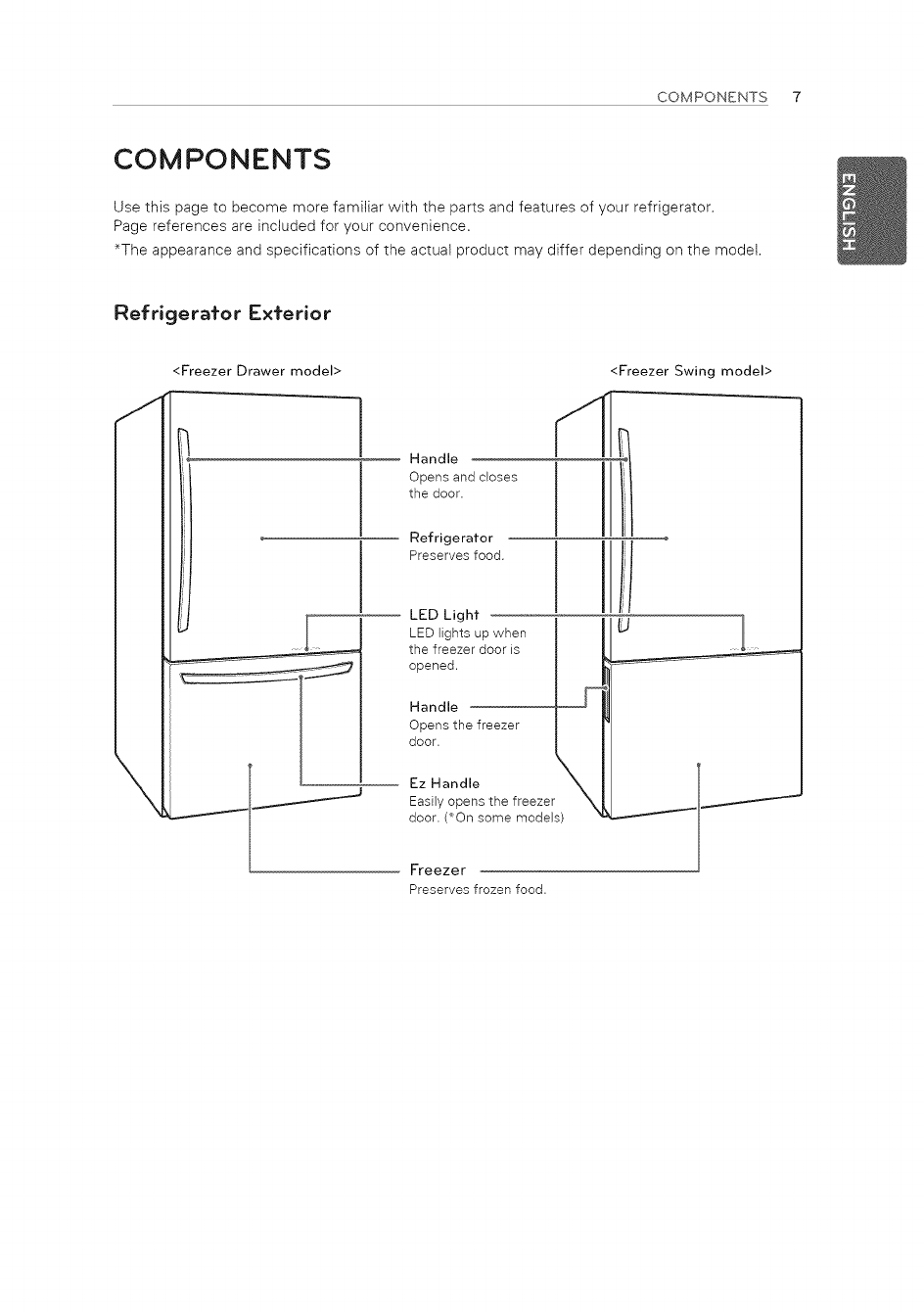

Refrigerafor Exferior

<Freezer Drawer model> 1Handle

Opens and closes

the door.

Refrigerator

Preserves food.

LED Light

LED lights up when

the freezer door is

opened.

Handle

Opens the freezer

door.

<Freezer Swing model>

Ez Handle

Easily opens the freezer

door. (×On some models)

Freezer

Preserves frozen food.

8 COMPONENTS

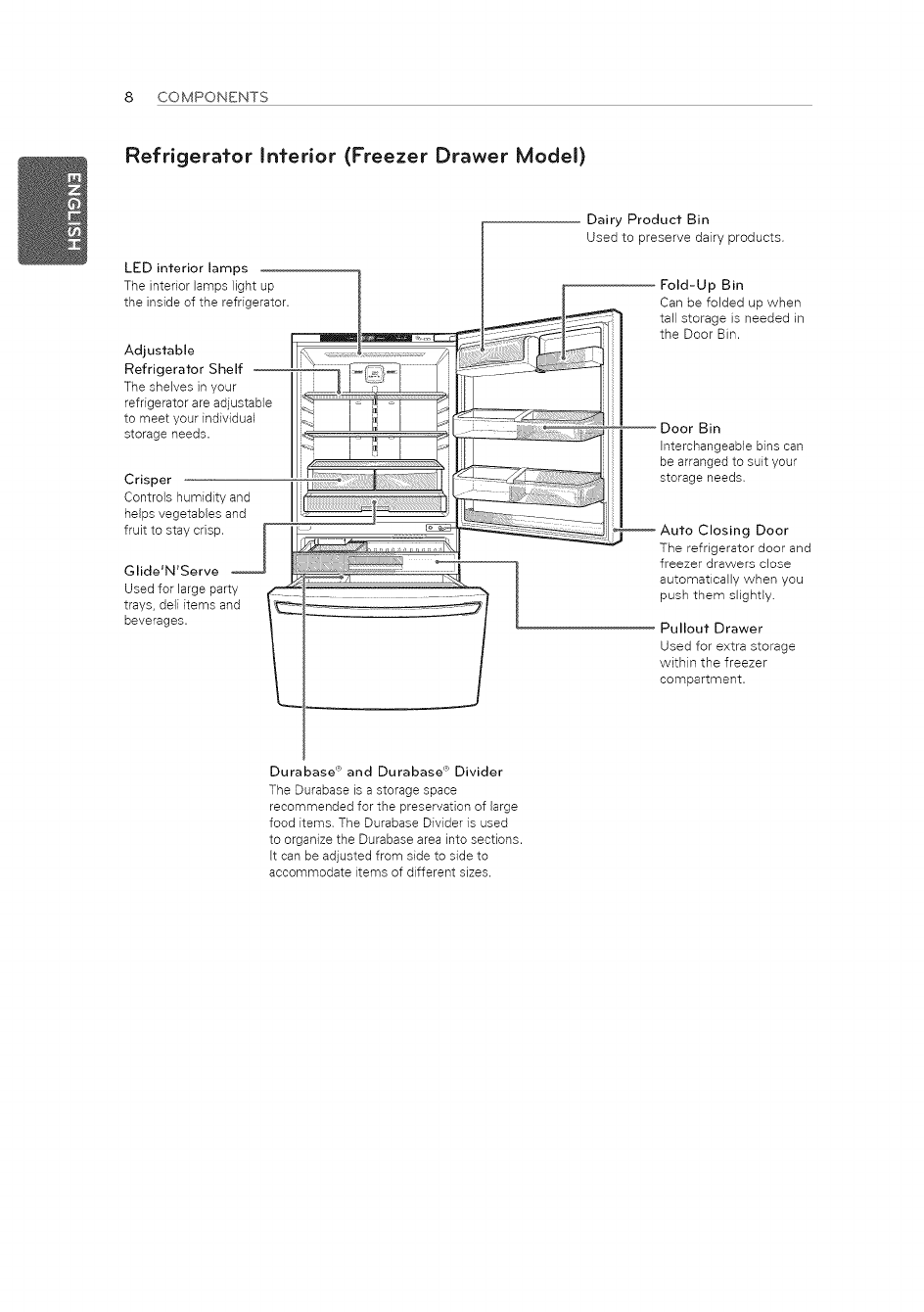

Refrigerafor Inferior (Freezer Drawer Model)

LED interior lamps

The interior lamps light up

the inside of the refrigerator.

Adjustable

Refrigerator Shelf

The shelves in your

refrigerator are adjustable

to meet your individual

storage needs.

Crisper

Controls humidity and

helps vegetables and

fruit to stay crisp.

Glide'N'Serve

Used for large party

trays, deli items and

beverages.

Dairy Product Bin

Used to preserve dairy products.

Fold-Up Bin

Can be folded up when

tall storage is needed in

the Door Bin.

Door Bin

Interchangeable bins can

be arranged to suit your

storage needs.

Auto Closing Door

The refrigerator door and

freezer drawers close

automatically when you

push them slightly.

Pullout Drawer

Used for extra storage

within the freezer

compartment.

Durabase <_and Durabase <_Divider

The Durabase is a storage space

recommended for the preservation of large

food items. The Durabase Divider is used

to organize the Durabase area into sections.

It can be adjusted from side to side to

accommodate items of different sizes.

COMPONENTS9

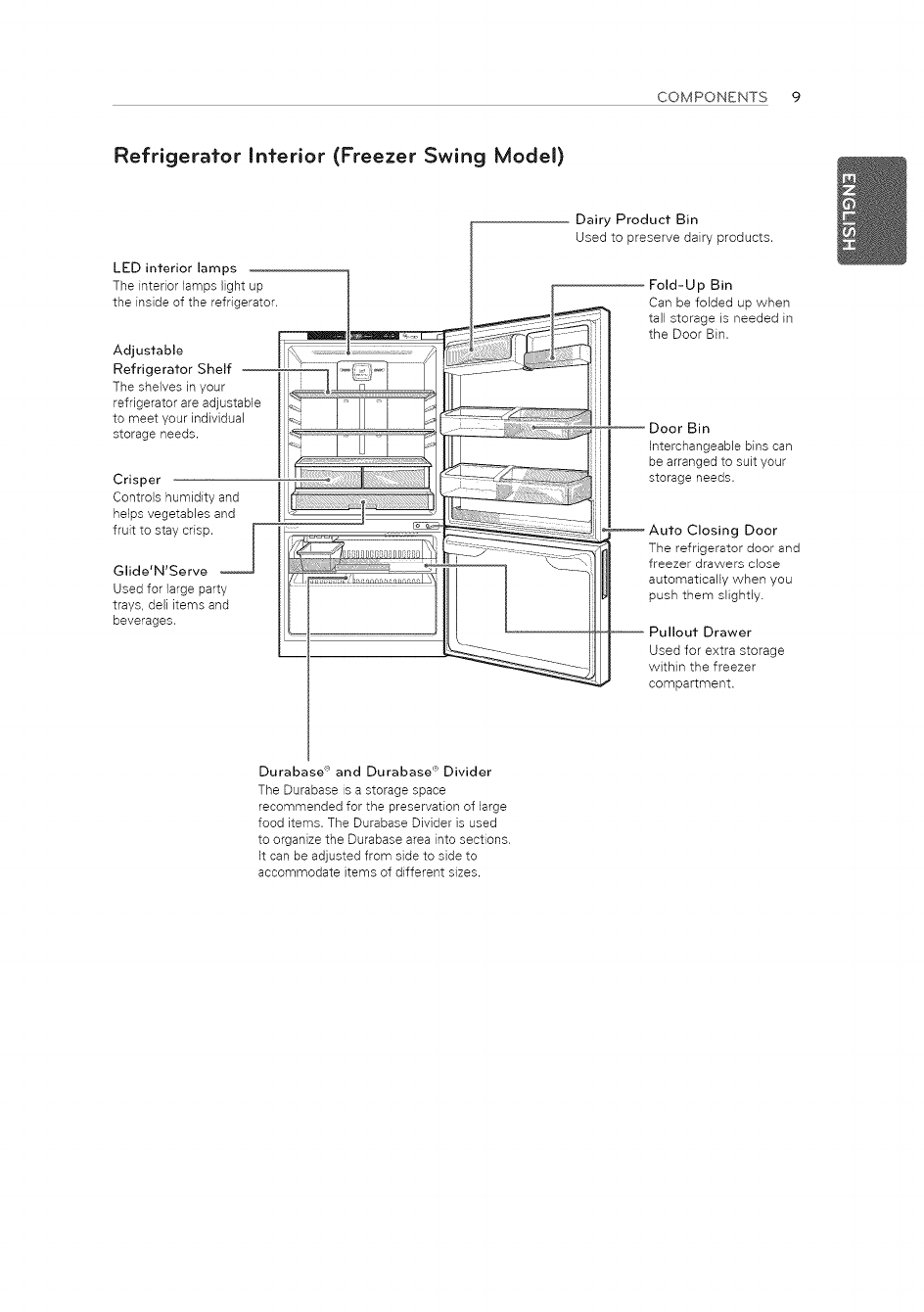

IRefrigerafor Inferior (Freezer Swing Model)

LED interior lamps

The interior lamps light up

the inside of the refrigerator.

Adjustable

Refrigerator Shelf

The shelves in your

refrigerator are adjustable

to meet your individual

storage needs.

Crisper

Controls humidity and

helps vegetables and

fruit to stay crisp.

Glide'N'Serve

Used for large party

trays, deli items and

beverages.

Dairy Product Bin

Used to preserve dairy products.

Fold-Up Bin

Can be folded up when

tall storage is needed in

the Door Bin.

Door Bin

Interchangeable bins can

be arranged to suit your

storage needs.

g Door

The refrigerator door and

freezer drawers close

automatically when you

push them slightly.

Drawer

Used for extra storage

within the freezer

compartment.

Durabase <_and Durabase <_Divider

The Durabase is a storage space

recommended for the preservation of large

food items. The Durabase Divider is used

to organize the Durabase area into sections.

It can be adjusted from side to side to

accommodate items of different sizes.

10 INSTALLATION

INSTALLATION

Insfallafion Overview

Please read the following installation instructions first after purchasing this product or transporting

it to another location.

1 Unpacking your 2 Choosing the proper 3 Disassembling/Assembling

refrigerator location

4 Connecting the water 5 Leveling and Door

supply and water line Alignment

INSTALLATION 11

Speci{icafions

The appearance and specifications listed in this manual may vary due to constant product

improvements.

32 3A" (W) X 33" (D) X 70" (H), 62 3/4"(D w/door open)

24 cu. ft.

models 831 mm (W) X 836.5mm (D) X 1776.5mm (H), 1592.5mm (D w/door

open)

Dimensions

29 3/4,,(W) X 33" (D) X 68 1/2"(H), 59 3/4(D w/door open)

22 cu. ft. 755mm (W) X 836.5mm (D) X 1740.5mm (H), 1516.5mm (D w/door

models open)

24 cu. ft. 248.5 lb. (t 12.7 Kg) - Freezer Drawer models

models 235.2 lb. (106.7 Kg) - Freezer Swing models

Net weight

22 cu. ft. 252.9 lb. (114.7 Kg) - Freezer Drawer models

models 216.3 lb. (98.1 Kg)- Freezer Swing models

24 cu. ft. 16.3 cu. ft.

Refrigerator models

storage

capacity 22 cu. ft. 14.7 cu. ft.

models

24 cu. ft. 7.5 cu. ft.

Freezer models

storage

capacity 22 cu. ft. 7.1 cu. ft.

models

12 INSTALLATION

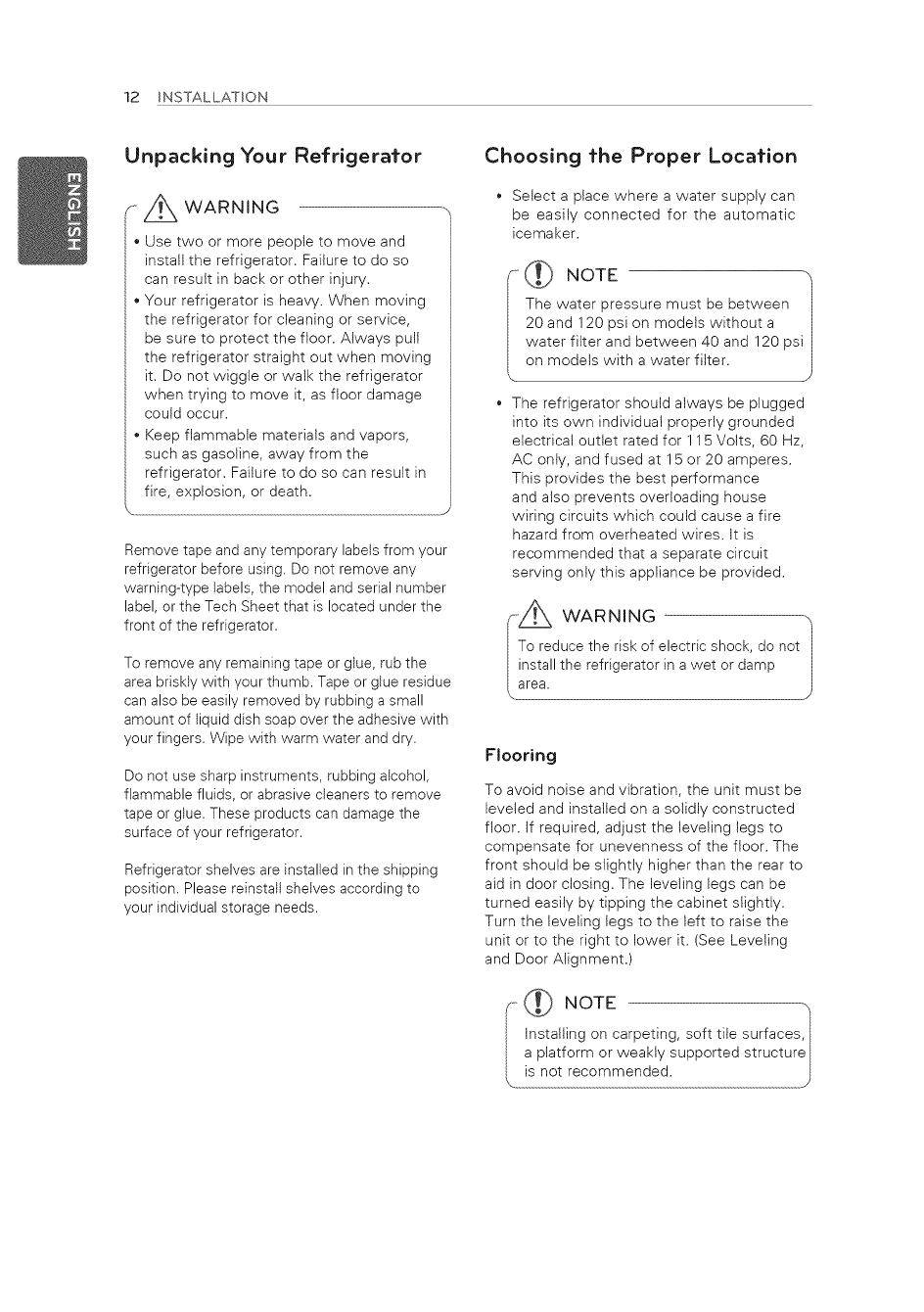

Unpacking Your Refrigerator

"Z_ WARNING

Use two or more people to move and

install the refrigerator. Failure to do so

can result in back or other injury.

Your refrigerator is heavy. When moving

the refrigerator for cleaning or service,

be sure to protect the floor. Always pull

the refrigerator straight out when moving

it. Do not wiggle or walk the refrigerator

when trying to move it, as floor damage

could occur.

Keep flammable materials and vapors,

such as gasoline, away from the

refrigerator. Failure to do so can result in

fire, explosion, or death.

Remove tape and any temporary labels from your

refrigerator before using. Do not remove any

warning-type labels, the model and serial number

label, or the Tech Sheet that is located under the

front of the refrigerator.

To remove any remaining tape or glue, rub the

area briskly with your thumb. Tape or glue residue

can also be easily removed by rubbing a small

amount of liquid dish soap over the adhesive with

your fingers. Wipe with warm water and dry.

Do not use sharp instruments, rubbing alcohol,

flammable fluids, or abrasive cleaners to remove

tape or glue. These products can damage the

surface of your refrigerator.

Refrigerator shelves are installed in the shipping

position. Please reinstall shelves according to

your individual storage needs.

Choosing the Proper Location

Select a place where a water supply can

be easily connected for the automatic

icemaker.

) NOTE

The water pressure must be between

20 and 120 psi on models without a

water filter and between 40 and 120 psi I

on models with a water filter, j

The refrigerator should always be plugged

into its own individual properly grounded

electrical outlet rated for 115 Volts, 60 Hz,

AC only, and fused at 15 or 20 amperes.

This provides the best performance

and also prevents overloading house

wiring circuits which could cause a fire

hazard from overheated wires. It is

recommended that a separate circuit

serving only this appliance be provided.

/ -T_I WARNING /

o reduce the risk of electric shock, do __i

install the refrigerator in a wet or damp

area.

Flooring

To avoid noise and vibration, the unit must be

leveled and installed on a solidly constructed

floor. If required, adjust the leveling legs to

compensate for unevenness of the floor. The

front should be slightly higher than the rear to

aid in door closing. The leveling legs can be

turned easily by tipping the cabinet slightly.

Turn the leveling legs to the left to raise the

unit or to the right to lower it. (See Leveling

and Door Alignment.)

NOTE

Installing on carpeting, soft tile surfaces

platform or weakly supported structur_

J

INSTALLATION 13

Ambient Temperature

Install this appliance in an area where the

temperature is between 55°F (13°C) and 110°F

(43°C). If the temperature around the appliance

is too low or high, cooling ability may be

adversely affected.

Measuring the Clearances

Too smatl of a distance from adjacent items

may result in lowered freezing capability and

increased electricity consumption charges.

Allow at least 33 3Ainches (86 cm) in front of

the refrigerator to open the doors, and at least

2 inches (5.08 cm) between the back of the

refrigerator and the wall.

33 sA " (86 cm)

-,_ 2" (5.08 cm)

Removing/Assembling the

Refrigerator Door Handles

F L_ NOTE

When it is necessary to move the

refrigerator through a narrow opening,

removing the doors is the recommended

procedure. If it is necessary to remove the

handles, follow the directions below. The

appearance of the handle may vary from

what is shown in the illustrations.

Removing the Handles

Loosen the set screws D with a 3/ in.

32

Allen wrench and remove the handle.

Loosen the mounting fasteners _ that

connect to the refrigerator door and handle

using a _/4in. Allen wrench, and remove

the mounting fasteners.

Assembling the Handles

1Assemble the mounting fasteners D at

both ends of the handle using a _/4in.

Allen wrench.

Place the handle on the door by fitting

the handle footprints over the mounting

fasteners and tightening the set screws

with a 3/_2in. Allen wrench.

14 INSTALLATION

Removing/Assembling fhe

Freezer Drawer Handle

(On Freezer Drawer Models)

Removing "the Handle

1Loosen the set screws 0 located on the

lower side of the handle with a/s in. Atlen

wrench and remove the handle.

Loosen the mounting fasteners _ that

connect to the __-_

freezer drawer

and handle

using a/4 in.

Allen wrench,

and remove

the mounting

fasteners.

Assembling "the Handle

1Assemble the mounting fasteners I! at

both ends of the handle using a 1/4in. Atlen

wrench.

Place the handle on the door by fitting

the handle

footprints over

the mounting

fasteners and

tightening the

set screws

with a/s in.

Allen wrench.

FZ_ WARNING

When assembling or disassembling the

handles:

*Grasp the handle tightly to avoid dropping it.

*Do not swing the handle into nearby people

or animals.

*Make sure that the bracket hole of the

handle fits properly into the stopper bolt of

the door. Assemble the set screws to fix

the handle into place.

*Make sure that there is not a gap between

the door and handle after assembling the

handle.

Removing/Assembling fhe

Doors and Drawers

When it is necessary to move the refrigerator

through a narrow opening, removing the doors

is the recommended procedure,

._//_ WARNING -._

• If your entrance door is tee narrow for the

refrigerator to pass through, remove the

refrigerator doors and move the refrigerator

sideways through the doorway.

• Use two or more people to remove and

install the refrigerator doors. Failure to do

so can result in back or other injury.

• Disconnect the electrical supply to the

refrigerator before installation. Failure to do

so could result in serious injury or death.

• Do not put hands, feet or other objects into

the air vents or bottom of the refrigerator.

You may be injured or receive an electrical

shock.

• Be careful when handling the hinge and

stopper. You may be injured.

• Remove food and bins before detaching the

doors and drawers.

INSTALLATION 15

Removing the Refrigerator Door Assernbling "the Refrigerator Door

Remove the top hinge cover screws O.

Lift the hook (not visible), located at the

bottom of the front side of the cover _,

with a flat-head screwdriver.

?

Make sure that the plastic sleeve is

inserted in the bottom of the door. Lower

the door onto the middle hinge pin as

shown in the figure.

Remove the three bolts using a 10mm or

13/32-inch socket wrench and lift off the

top hinge. Set parts aside.

2Line up the top hinge with the holes in the

top of the refrigerator. Use the three bolts

to replace the hinge. Tighten the bolts.

Z_ CAUTION

When lifting the hinge, be careful that

the door does not fall forward.

Lift the door from the middle hinge pin and

remove the door.

Replace the cover. Insert and tighten the

cover screws _.

? ?

.......................! aJ

i CAUTION "/

Place the door, inside facing up, on a

16 INSTALLATION

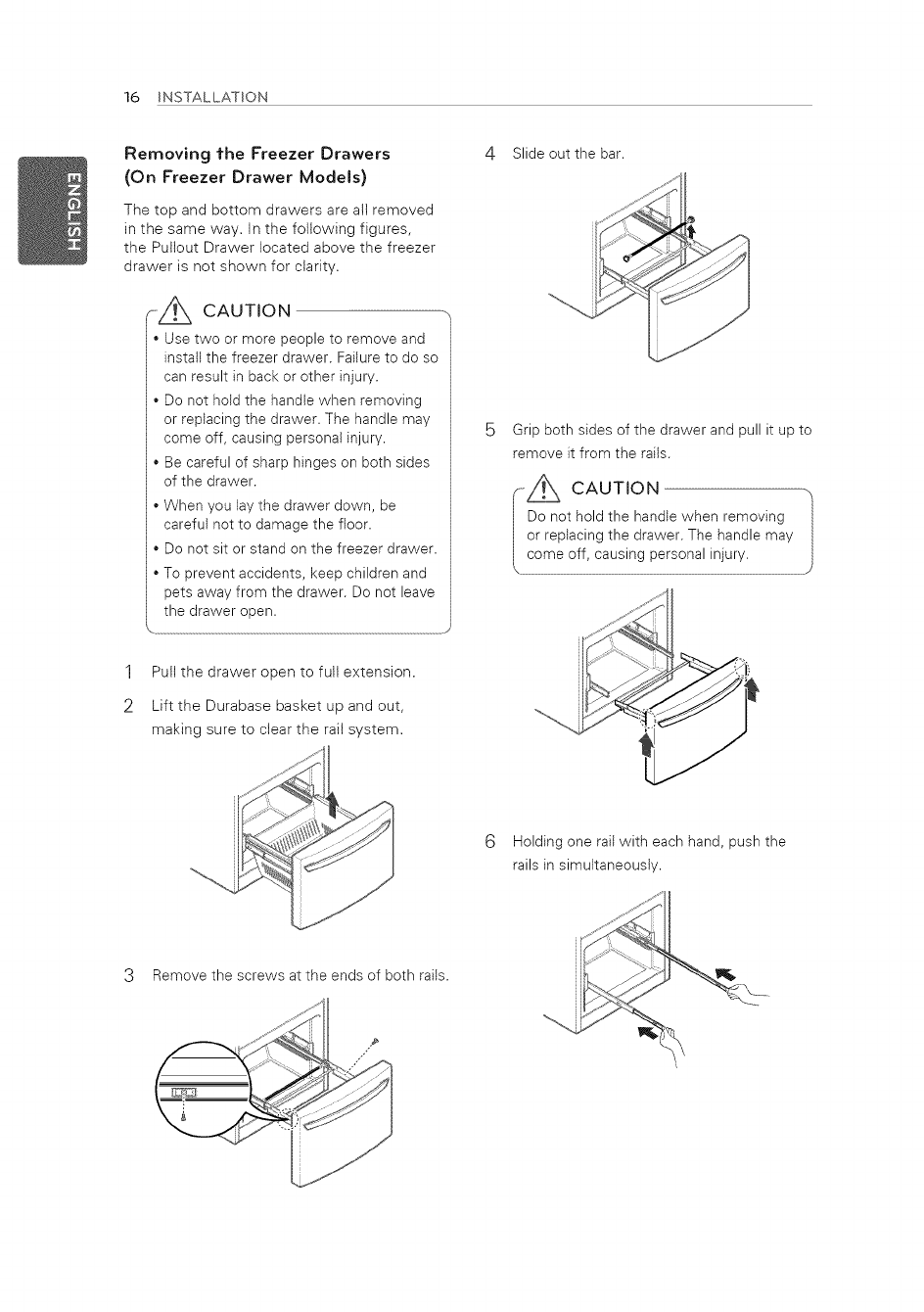

Removing fhe Freezer Drawers

(On Freezer Drawer Models)

The top and bottom drawers are all removed

in the same way. In the following figures,

the Pullout Drawer located above the freezer

drawer is not shown for clarity.

F-Z_ CAUTION

* Use two or more people to remove and

install the freezer drawer. Failure to do so

can result in back or other injury.

* Do not hold the handle when removing

or replacing the drawer. The handle may

come off, causing personal injury.

* Be careful of sharp hinges on both sides

of the drawer.

* When you lay the drawer down, be

careful not to damage the fleer.

Do not sit or stand on the freezer drawer.

* To prevent accidents, keep children and

pets away from the drawer. Do not leave

the drawer open.

1Pull the drawer open to full extension.

2Lift the Durabase basket up and out,

making sure to clear the rail system.

4Slide out the bar.

Grip both sides of the drawer and pull it up to

remove it from the rails.

Do not hold the handle when removing

or replacing the drawer. The handle may

come off, causing personal injury

6 Holding one rail with each hand, push the

rails in simultaneously.

:3 Remove the screws at the ends of both rails.

INSTALLATION 17

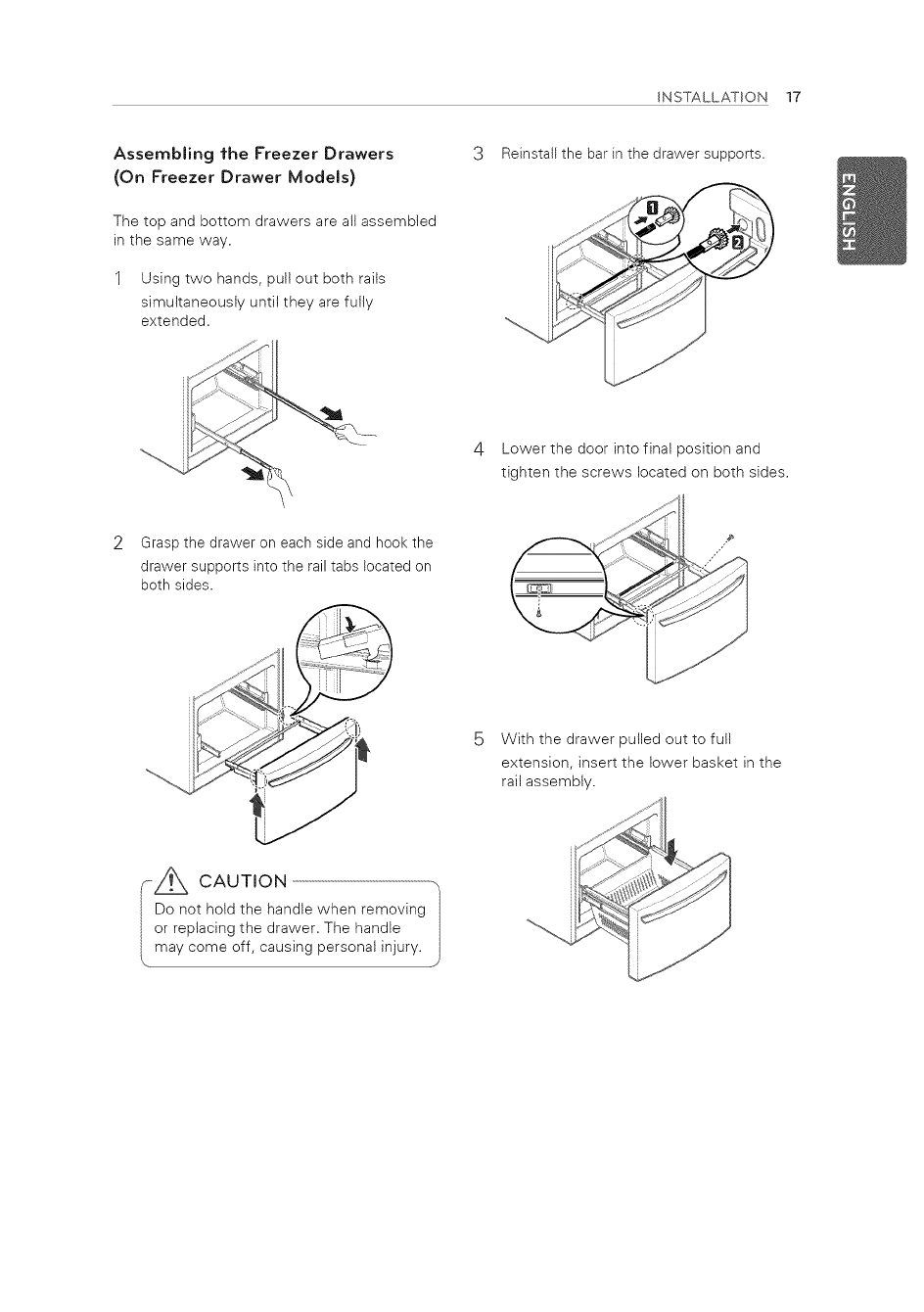

Assembling fhe Freezer Drawers

(On Freezer Drawer Models)

The top and bottom drawers are all assembled

in the same way.

1Using two hands, pull out both rails

simultaneously until they are fully

extended.

Reinstall the bar in the drawer supports.

4Lower the door into final position and

tighten the screws located on both sides.

2Grasp the drawer on each side and hook the

drawer supports into the rail tabs located on

both sides.

5 With the drawer pulled out to full

extension, insert the lower basket in the

rail assembly.

CAUTION

18 INSTALLATION

Removing 1"he Freezer Door

(On Freezer Swing Models)

Before beginning, make sure you completely

remove the refrigerator door.

See Removing the Refrigerator Door (p.15)

_//_ CAUTION

* Use two or more people to remove and

install the freezer door. Failure to do so

can result in back or other injury.

* When you lay the door down, be careful

not to damage the floor.

* Do not sit or stand on the freezer door.

* To prevent accidents, keep children and

pets away from the door. Do not leave

the door open.

\__

Use a 1/4 inch hex socket wrench to

loosen and remove the hinge pin from

the middle hinge bracket. Use a 10 mm

or 13/32 inch socket wrench to remove

the two bolts. Remove the screw and

the washer, and set the middle hinge and

other parts aside.

Middle Hinge ji_ I S ....

Mtddle

Hinge Pin

Assembling 1"he Freezer Door

(On Freezer Swing Models)

1Place the freezer door down on the bottom

hinge pin.

2Put the washer between the freezer door

and the middle hinge.

Attach the middle hinge with the

previously removed two bolts and screw.

Reattach the middle hinge pin using a 1/4

in. hex socket wrench.

Middle Hinge j_//S ....

iddle Hinge Pin

r

Carefully lift up the freezer door. Remove

and place it on a non-scratching surface.

f

Hinge Pin

INSTALLATION 19

Reversing Door Opening Direcfion

'_ NOTE -_

To assist in the installation of the handle

on the right side, place a piece of

masking tape near the top of the handle

before removing it.

The appearance of the handle may

Assemble the mounting fasteners D at

both ends of the handle using a 1/4in.

Allen wrench.

Place the handle on the door by fitting

the handle footprints over the mounting

fasteners and tightening the set screws

with a s/s2in. Allen wrench.

Reversing fhe Refrigerafor Handle

Loosen the set screws D with a s/s2in.

Allen wrench and remove the handle.

Loosen the mounting fasteners _ that

connect to the refrigerator door and handle

using a/4 in. Allen wrench, and remove

the mounting fasteners.

Carefully loosen the ptug buttons Q

with your fingers. The buttons can be

unscrewed with the fingers by rotating

them counter-clockwise and continuing

until they loosen and fall out The buttons

were installed without pressure, and for

this reason, they can be unscrewed using

your index finger, thumb or both. Install

the plug buttons Q on the left side.

20 INSTALLATION

Reversing fhe Doors

(On Freezer Drawer Models)

Remove the top hinge cover screws li].

Lift the hook (not visible), located at the

bottom of the front side of the cover _,

with a flat-head screwdriver.

Remove the four screws _, the hinge

pin insert Q and the hinge pin brackets

from the bottom right side of the door.

5 Reinstall the hinge pin brackets O, screws

Q and hinge pin insert _ on the bottom

left side of the door.

Using a 10mm or 13/32-inch socket

wrench, remove the three bolts and lift off

the top hinge. Set parts aside.

-Z_ CAUTION

When lifting the hinge, be careful that

the door does not fall forward. JJ

Lift the door from the middle hinge pin and

remove the door.

Use a 14inch hex socket wrench to loosen

the hinge pin D and remove. Remove the

two bolts _, the screw _ and the hinge _.

_ CAUTION

Placethe door, inside facing up, on a

INSTALLATION 21

With a flat-head screwdriver, carefully pry

off and remove the cover over the bolt

holes on the left side of the refrigerator.

11 insert the decorative screw into the outer

hole on the right side of the flange. Attach

the cover on the right side. Cover is force-

fitted.

Decorative

Screw

Remove the outer lower decorative screw

from the flange on the frame between

the freezer and refrigerator doors. (You

will need this hole for the middle hinge

bracket.)

12 Loosen the two screws and remove the

left hinge cap.

Flip the middle hinge bracket and position

it on the left side of refrigerator and

reattach with two bolts and a screw.

13 Ptace the refrigerator door down over the

hinge pin on the middle hinge pin bracket.

10 Reattach middle hinge pin using a _Ainch

socket wrench.

Middle Hinge

Bracket

Middle Hinge

Pin

(_ NOTE

The bracket has been flipped, but the

hinge pin stays in the same orientation

with its hexagonal end facing upward

22 INSTALLATION

_- _) NOTE

The left top hinge, right hinge cap

and left hinge cover are provided for

reversing doors.

X.__

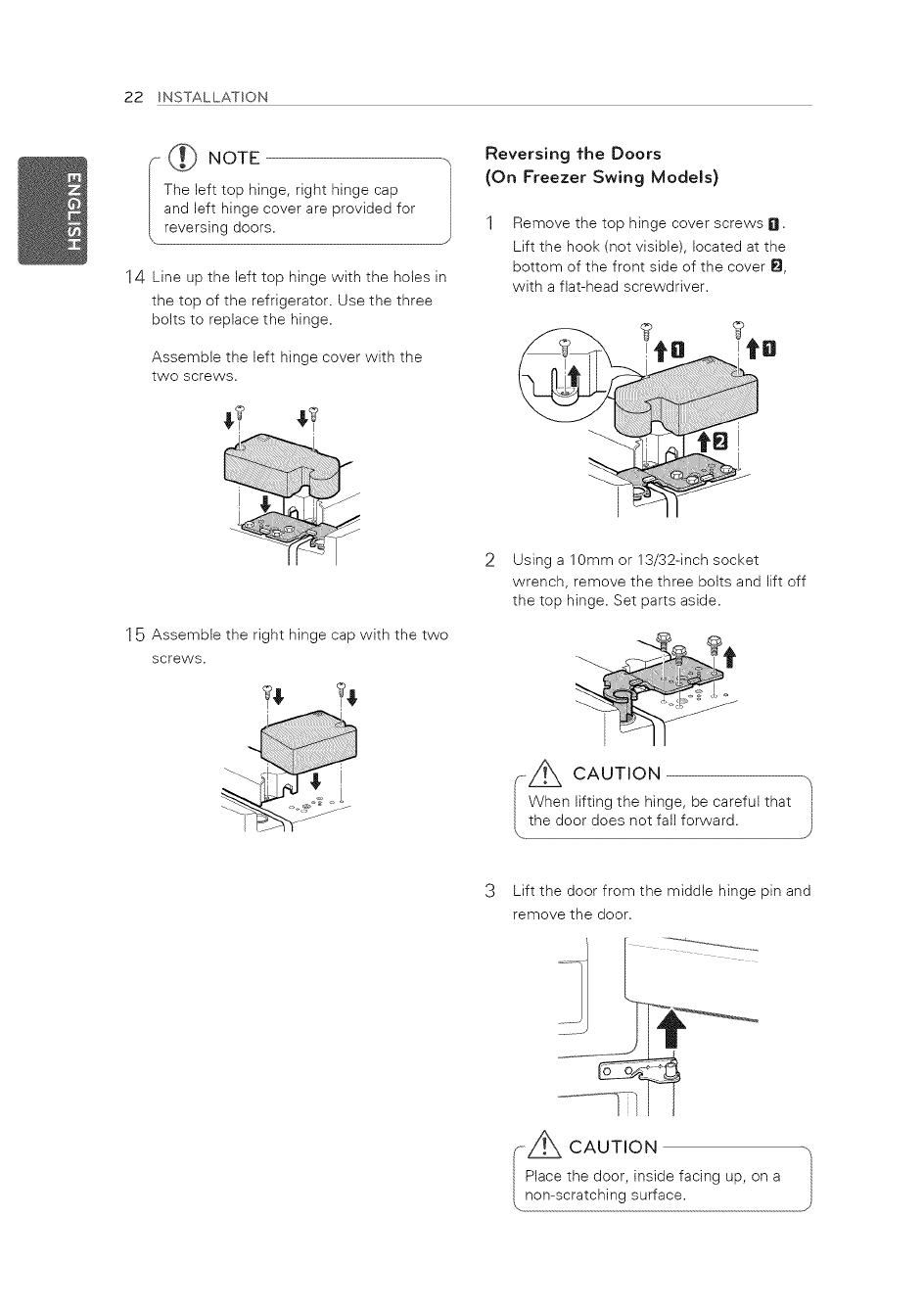

14 Line up the left top hinge with the holes in

the top of the refrigerator. Use the three

bolts to replace the hinge.

Assemble the left hinge cover with the

two screws.

Reversing the Doors

(On Freezer Swing Models)

Remove the top hinge cover screws I1"1.

Lift the hook (not visible), located at the

bottom of the front side of the cover E!,

with a flat-head screwdriver.

15 Assemble the right hinge cap with the two

screws.

2Using a 10ram or 13/32-inch socket

wrench, remove the three bolts and lift off

the top hinge. Set parts aside.

F-z_ CAUTION --,

When lifting the hinge, be careful that

:3 Lift the door from the middle hinge pin and

remove the door.

...._ CAUTION -o-

Place the door, inside facing up, on a

non-scratching surface.

INSTALLATION 23

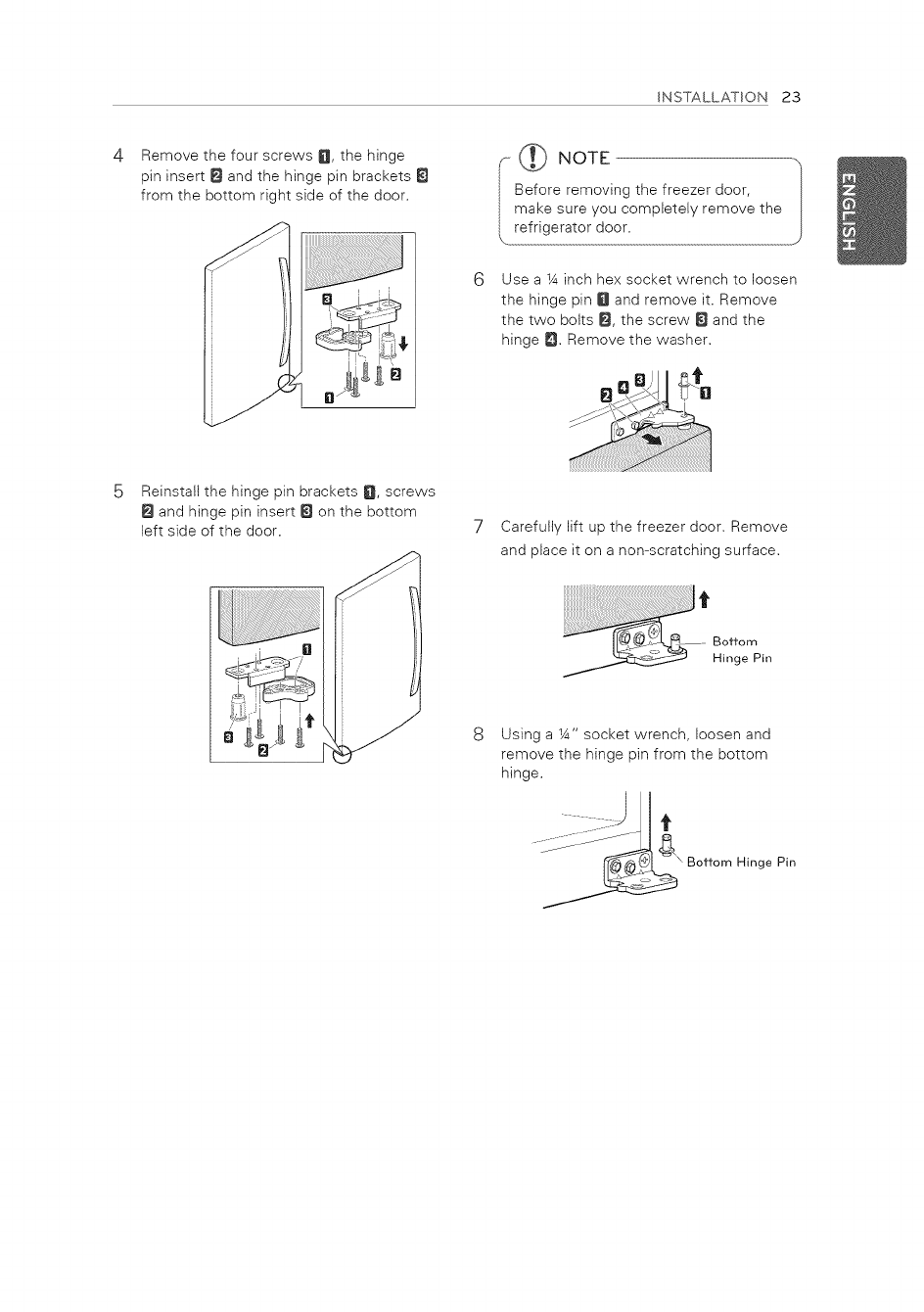

Remove the four screws 0, the hinge

pin insert 0 and the hinge pin brackets

from the bottom right side of the door.

([_ NOTE --,

Before removing the freezer door,

make sure you completely remove the

Use a _Ainch hex socket wrench to loosen

the hinge pin O and remove it. Remove

the two bolts _, the screw _ and the

hinge _. Remove the washer.

Reinstall the hinge pin brackets D, screws

8 and hinge pin insert Q on the bottom

left side of the door. 7 Carefully lift up the freezer door. Remove

and place it on a non-scratching surface.

Bottom

Hinge Pin

Using a _A" socket wrench, loosen and

remove the hinge pin from the bottom

hinge.

t

'_ Bottom Hinge Pin

24 INSTALLATION

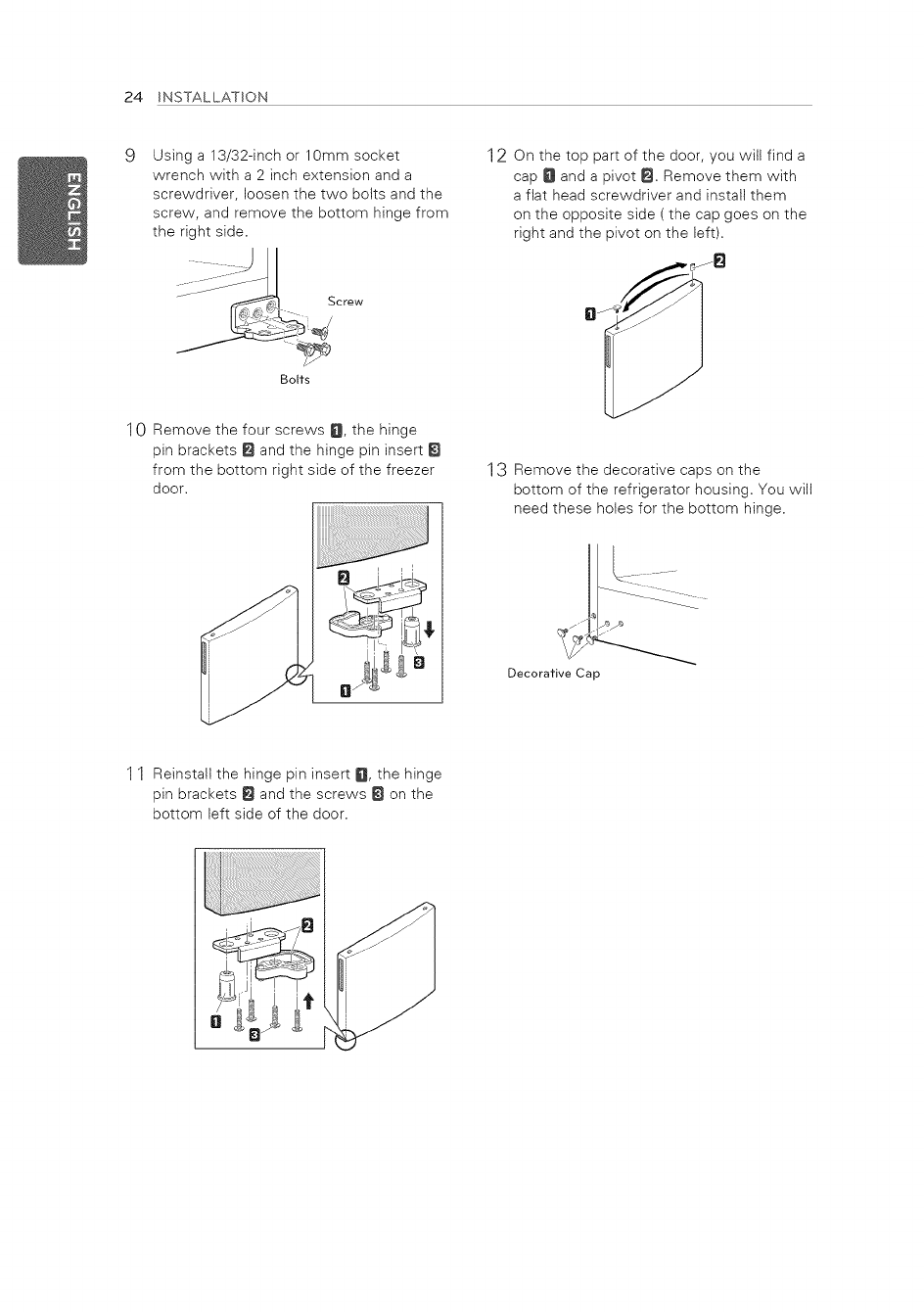

Using a 13/32-inch or 10mm socket

wrench with a 2 inch extension and a

screwdriver, loosen the two bolts and the

screw, and remove the bottom hinge from

the right side.

Screw

Bolts

10 Remove the four screws O, the hinge

pin brackets Q and the hinge pin insert

from the bottom right side of the freezer

door,

12 On the top part of the door, you will find a

cap O and a pivot _t Remove them with

a flat head screwdriver and install them

on the opposite side ( the cap goes on the

right and the pivot on the left).

13 Remove the decorative caps on the

bottom of the refrigerator housing. You will

need these holes for the bottom hinge.

Decorative Cap

11 Reinstall the hinge pin insert _, the hinge

pin brackets _ and the screws Q on the

bottom left side of the door.

INSTALLATION 25

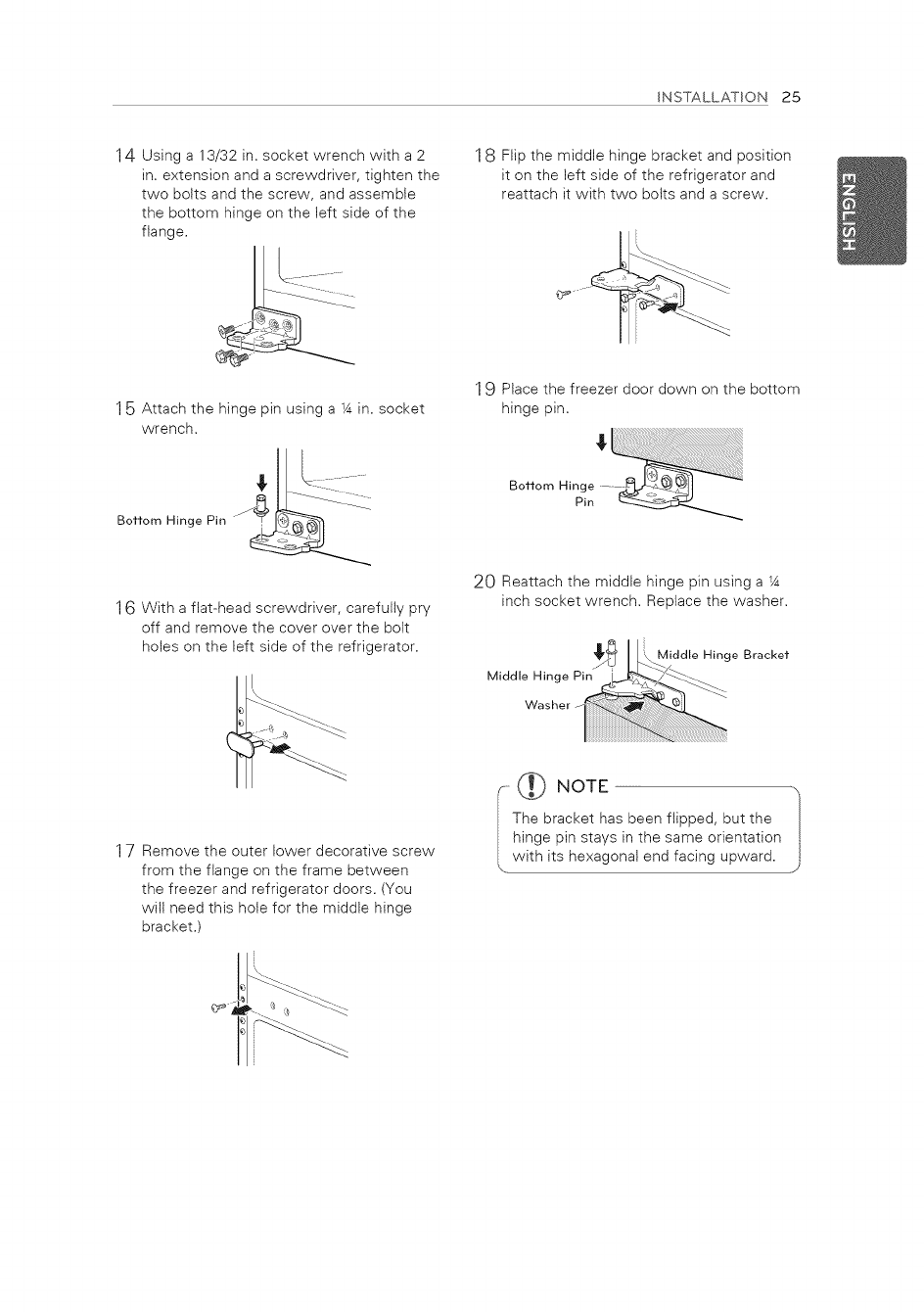

14 Using a 13/32 in. socket wrench with a 2

in. extension and a screwdriver, tighten the

two bolts and the screw, and assemble

the bottom hinge on the left side of the

flange.

15 Attach the hinge pin using a _Ain. socket

wrench.

Bottom Hinge Pin

16 With a flat-head screwdriver, carefully pry

off and remove the cover over the bolt

holes on the left side of the refrigerator.

18 Flip the middle hinge bracket and position

it on the left side of the refrigerator and

reattach it with two bolts and a screw.

X

19 Place the freezer door down on the bottom

hinge pin.

20 Reattach the middle hinge pin using a _A

inch socket wrench. Replace the washer.

Middle Hinge

Middle Hinge Brackef

17 Remove the outer lower decorative screw

from the flange on the frame between

the freezer and refrigerator doors. (You

will need this hole for the middle hinge

bracket.)

_ d_) NOTE

The bracket has been flipped, but the

hinge pin stays in the same orientation

with its hexagonal end facing upward

26 INSTALLATION

21 Insert the decorative screw into the outer

hole on the right side of the flange. Attach

the cover on the right side. Cover is force-

fitted.

Decorative

Screw

22 Loosen the two screws and remove the

left hinge cap.

-_) NOTE

The left top hinge, right hinge cap

and left hinge cover are provided for

reversing doors.

24 Line up the left top hinge with the holes in

the top of refrigerator. Use the three bolts

to replace the the hinge.

Assemble the left hinge cover with the

two screws.

23 Place the refrigerator door down over the

hinge pin on the middle hinge pin bracket.

25 Assemble the right hinge cap with the two

screws,

INSTALLATION 27

Connecting the Wafer Line

Before You Begin

This water line installation is not covered by the

refrigerator warranty. Follow these instructions

carefully to minimize the risk of expensive water

damage.

Water hammer (water banging in the pipes) in

house plumbing can cause damage to refrigerator

parts and can lead to water leakage or flooding.

Call a qualified plumber to correct water hammer

before installing the water supply line to the

refrigerator.

_ Z_ CAUTION

To prevent burns and product damage,

only connect the refrigerator water line to

a cold water supply.

If you use your refrigerator before connecting

the water line, make sure the icemaker power

switch is in the OFF (O) position.

-Z_ CAUTION -,

Do not install the icemaker tubing in

areas where temperatures fan below

. freezing

Water Pressure

The water pressure must be between 20 and 120

psi on models without a water filter and between

40 and 120 psi on models with a water filter.

If a reverse osmosis water filtration system is

connected to your cold water supply, this water

line installation is not covered by the refrigerator

warranty. Follow the instructions carefully to

minimize the risk of expensive water damage.

If a reverse osmosis water filtration system is

connected to your cold water supply, the water

pressure to the reverse osmosis system needs to

be a minimum of 40 to 60 psi (2.8 kgf/cm 2~ 4.2

kgf/cm 2, less than 2.0~3.0 sec. to fill a cup of 7 oz

capacity).

--Z_ CAUTION -_

Wear eye prc)tection during installation

If the water pressure from the reverse osmosis

system is less than 21 psi or 1.5 kgf/cm _ (takes

more than 4.0 sec to fill a cup of 7 oz capacity):

• Check to see if the sediment filter in

the reverse osmosis system is blocked.

Replace the filter if necessary.

• Allow the storage tank on the reverse

osmosis system to refill after heavy

usage.

• if water pressure issues associated with

a reverse osmosis system persist, can a

licensed, qualified plumber.

• All installations must be in accordance

with local plumbing code requirements.

What You Will Need

Copper Tubing, 1A in, outer diameter, to

connect the refrigerator to the water

supply. Be sure both ends of the tubing

are cut square.

To determine how JJ

much tubing you need:

measure the distance

from the water valve on the back of the

refrigerator to the water supply pipe.

Then, add 8 feet (2.4 m).

Be sure there is sufficient extra tubing

(about 8 feet [2.4 m] coiled into three

turns of about 10 in. [25 cm] diameter)

to allow the refrigerator to move out

from the wan after installation.

Powerdrill.

*1/2 in. or adjusfable

wrench.

. Flat blade and Phillips

heed screwdrivers.

* Two 1¼ in. outer

dlame_er compression

nu|s and 2ferrules (sleeves) to connect the

copper tubing to the shutoff valve and

the refrigerator water valve,

28 INSTALLATION

If your existing copper water line has a

flared fitting at the end, you will need

an adapter (available at plumbing supply

stores) to connect the water line to the

refrigerator OR you

can cut off the flared _,,_,,_/f _X

fitting with a tube

cutter and then use a

compression fitting.

Shutoff valve to connect to the cold

water line. The shutoff valve should

have a water inlet with a minimum

inside diameter of 5/32 in. at the point of

connection to the COLD WATER LINE.

Saddle-type shutoff valves are included

in many water

supply kits. Before

purchasing, make

sure a saddle-type

valve complies with

your local plumbing codes.

(,_) NOTE .....

A self piercing saddle type water valve J

)

Water Line InsfallafJon InsfrucfJons

Z_ WARNING

When using any electrical device

(such as a power drill) during

installation, be sure the device is

battery powered, double insulated

or grounded in a manner that will

prevent the hazard of electric shock.

Install the shutoff valve on the nearest

frequently used drinking water line.

SHUT OFF THE MAIN WATER SUPPLY

Turn on the nearest faucet to relieve the

pressure on the line.

2CHOOSE THE VALVE LOCATION

Choose a location for

the valve that is easily

accessible. It is best to

connect into the side of a

vertical water pipe. When

it is necessary to connect

into a horizontal water

pipe, make the connection to the top or

side, rather than at the bottom, to avoid

drawing off any sediment from the water

pipe.

3DRILLTHE HOLE FOR THE VALVE

Drill a _Ain. hole in

the water pipe using ('C"-_b_

a sharp bit. Remove

any burrs resulting

from drilling the hole

in the pipe. Be careful

not to allow water

to drain into the drill. Failure to drill a _Ain.

hole may result in reduced ice production

or smaller cubes.

,- _) NOTE ....................................

The hookup line cannot be white, plastic J

Jtubing. Licensed plumbers must use J

Jonly copper tubing (NDA tubing #49595 J

Jor #49599)or Cross Link Polyethylene J

INSTALLATION 29

FASTEN THE SHUTOFF VALVE

Fasten the shutoff valve to the cold water

pipe with the pipe clamp.

Pipe Clamp_

Saddle-Type _ _ _Vertical Cold

Shutoff Valve _ I Water Pipe

NOTE

Commonwealth of Massachusetts

Plumbing Codes 248CMR shall be

adhered to. Saddle valves are illegal and

use is not permitted in Massachusetts.

Consult with your licensed plumber.

TIGHTEN THE PIPE CLAMP

Tighten the clamp screws until the sealing

washer begins to swell.

NOTE: Do not overtighten the clamp or

you may crush the tubing.

ROUTE THE TUBING

Route the tubing between the cold water

line and the refrigerator.

Route the tubing through a hole drilled in

the wall or floor (behind the refrigerator or

adjacent base cabinet) as close to the wall

as possible.

CONNECT THE TUBING TO THE VALVE

Place the compression nut and ferrule

(sleeve) for copper tubing onto the end of

the tubing and connect it to the shutoff

valve. Make sure the tubing is fully inserted

into the valve. Tighten the compression

nut securely.

Saddle-Type

Shutoff Valve

Packing Nut "_

Outlet Valve ...........................J

Compression

Nut

\ ........................Ferrule (sleeve)

S FLUSH OUT THE TUBING

Turn the main water

supply on and flush out

the tubing until the water

is clear.

Shut the water off at the

water valve after about

one quart of water has

been flushed through the tubing.

CONNECT THE TUBING TO THE

REFRIGERATOR

NOTE: Before making the connection

to the refrigerator, be sure that the

refrigerator power cord is not plugged into

the wall outlet.

a. Remove the plastic flexible cap from the

water valve.

b. Place the compression nut and ferrule

(sleeve) onto the end of the tubing as

shown.

c. Insert the end of the copper tubing into

the connection as far as possible. While

holding the tubing, tighten the fitting.

Tubing Clamp 1A in. Tubing

Refrigerator

:: S: :::-::::::':::- Connection

Ferrule

(sleeve)

30 INSTALLATION

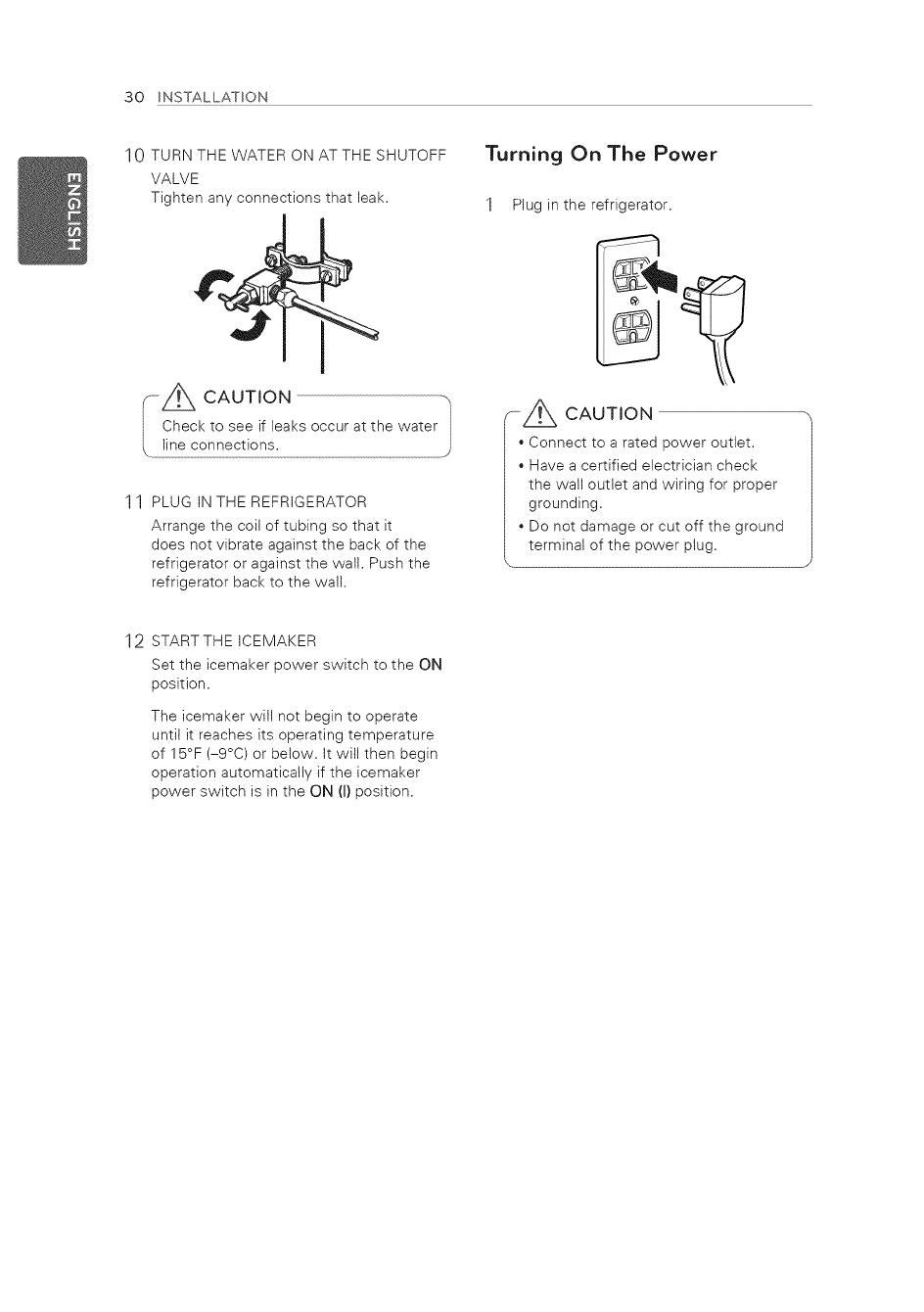

10 TURN THE WATER ON AT THE SHUTOFF

VALVE

Tighten any connections that leak.

_ Z_ CAUTION

Check tosee ifleaksoccur atthe water

lineconnections.

11 PLUG IN THE REFRIGERATOR

Arrange the coil of tubing so that it

does not vibrate against the back of the

refrigerator or against the waN, Push the

refrigerator back to the waN,

Turning On The Power

1Plug in the refrigerator.

_-Z_ CAUTION

Connect to a rated power outlet,

Have a certified electrician check

the wall outtet and wiring for proper

grounding.

Do not damage or cut off the ground

terminal of the power plug.

12 STARTTHE ICEMAKER

Set the icemaker power switch to the ON

position.

The icemaker wilt not begin to operate

until it reaches its operating temperature

of 15°F (-9°C) or below. It wilt then begin

operation automatically if the icemaker

power switch is in the ON (I) position.

INSTALLATION 31

Leveling and Door Alignmenf

Leveling

After installing, ptug the refrigerator's power

cord into a 3-prong grounded outlet and push

the refrigerator into the final position.

Your refrigerator has two front leveling legs--

one on the right and one on the left. Adjust the

legs to alter the tilt from front-to-back or side-

to-side. If your refrigerator seems unsteady, or

you want the doors to close more easily, adjust

the refrigerator's tilt using the instructions

below:

Turn the leveling leg to the left to raise

that side of the refrigerator or to the right

to lower it. It may take several turns of the

leveling leg to adjust the tilt of the

refrigerator.

Door Alignment

If the space between your doors is uneven,

follow the instructions below to align the

doors.

Remove the top hinge cover screws.

Lift the hook located at the bottom of the

front side of the cover with a flat-head

screwdriver.

Loosen the top hinge bolts using a 10mm

or 13/32-in. socket wrench or open-end

wrench.

3 Have someone hold the refrigerator door

so the space between the two door is

even, and retighten the top hinge bolts.

4Replace the top hinge cover.

_ NOTE

A flare nut wrench works best, but an

open-end wrench will suffice. J

Open the doors again and check to make

sure that they close easily. If the doors do

not close easily, tilt the refrigerator slightly

more to the rear by turning both leveling

legs to the left. It may take several more

turns, and you should turn both leveling

legs the same amounts.

32 HOWTO USE

HOW TO USE

Be{ore use

"D

....(, ))

Clean the refrigerator.

Clean your refrigerator thoroughly and wipe off all dust that accumulated during

shipping.

_----A CAUTION

I' Do not scratch the refrigerator with a sharp object or use a detergent that

/ contains alcohol, a flammable liquid or an abrasive when removing any tape

or adhesive from the refrigerator.

I* Do not peel off the model or serial number label or the technical information

{ on the rear surface of the refrigerator.

/i .OTE

Remove adhesive residue by wiping it off with your thumb or dish detergent.

Connect the power supply.

Check if the power supply is connected before use.

Read the "Turning On The Power" section.

Turn off the icemaker if the refrigerator is not yet connected to the

water supply.

Turn off the automatic icemaker and then plug the power plug of the refrigerator

into the grounded electric outlet.

* This is applicable only to certain models.

@CAUTION

unning the automatic icemaker before connecting it to the water

supply may cause the refrigerator to malfunction.

Wait for the refrigerator to cool.

Allow your refrigerator to run for at least two to three hours before putting food in

it. Check the flow of cold air in the freezer compartment to ensure proper cooling.

---A CAUTION

utting food in the refrigerator before it has cooled could cause the

food to spoil, or a bad odor could linger inside the refrigerator.

The refrigerator makes a loud noise after initial operation.

This is normal. The volume will decrease as the temperature lowers.

Open refrigerator doors and freezer drawers to ventilate the interior.

The inside of the refrigerator may smell like plastic at first. Remove any adhesive

tape from inside the refrigerator and open the refrigerator doors and the freezer

drawers for ventilation.

HOWTO USE 33

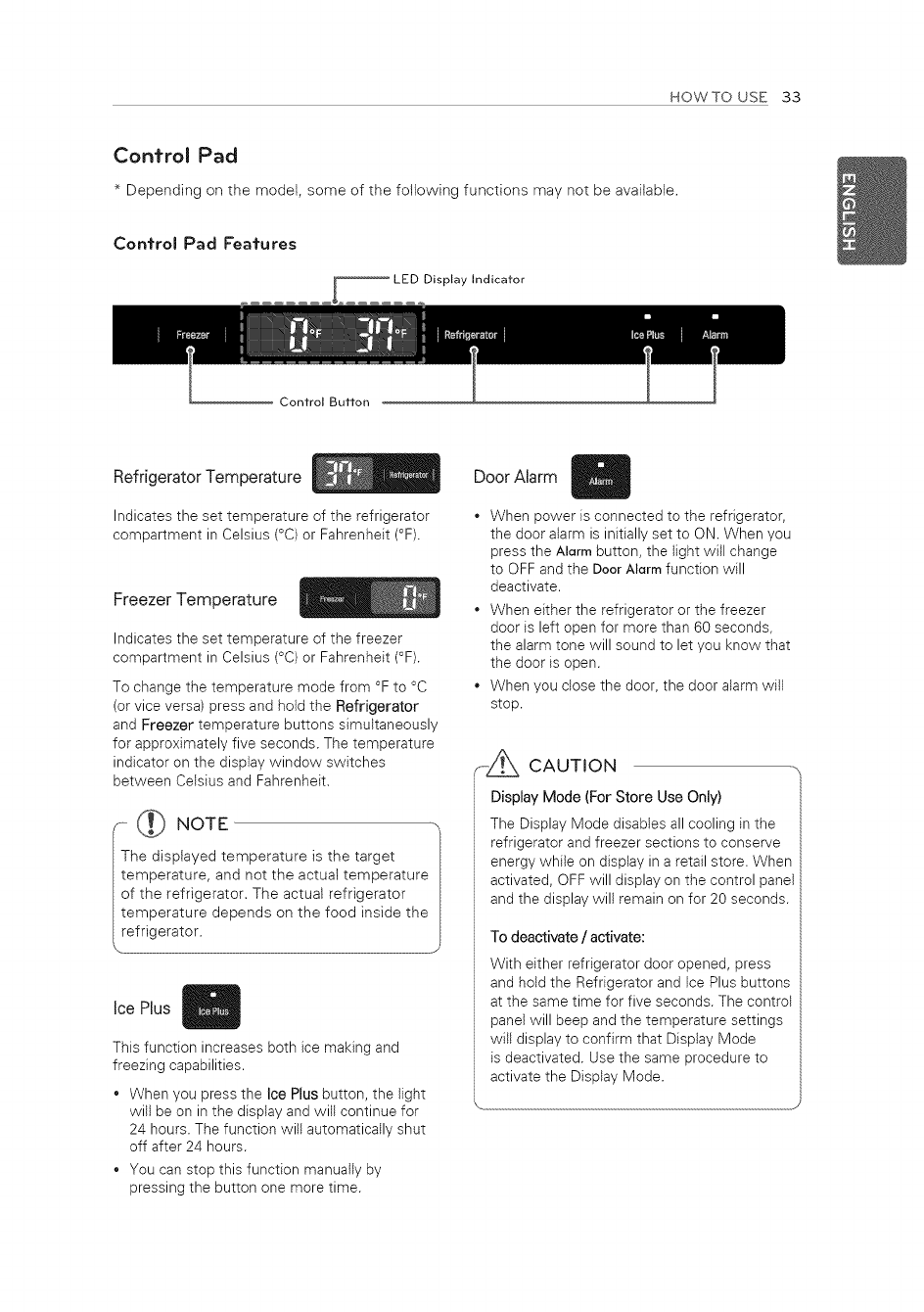

Confrol Pad

* Depending on the model, some of the following functions may not be available.

Control Pad Feafures

;play Indicator

Control Button

Refrigerator Temperature

Indicates the set temperature of the refrigerator

compartment in Celsius (°C) or Fahrenheit (°F).

Freezer Temperature

Indicates the set temperature of the freezer

compartment in Celsius (°C) or Fahrenheit (°F).

To change the temperature mode from °F to °C

(or vice versa) press and hold the Refrigerator

and Freezer temperature buttons simultaneously

for approximately five seconds. The temperature

indicator on the display window switches

between Celsius and Fahrenheit.

_,,} NOTE --,

The displayed temperature is the target

temperature, and not the actual temperature

of the refrigerator. The actual refrigerator

temperature depends on the food inside the

refrigerator.

Ice Plus

This function increases both ice making and

freezing capabilities.

* When you press the Ice Plus button, the light

will be on in the display and will continue for

24 hours. The function will automatically shut

off after 24 hours.

* You can stop this function manually by

pressing the button one more time.

Door Alarm

* When power is connected to the refrigerator,

the door alarm is initially set to ON. When you

press the Alarm button, the light will change

to OFF and the DoorAlarm function will

deactivate.

* When either the refrigerator or the freezer

door is left open for more than 60 seconds,

the alarm tone will sound to let you know that

the door is open.

* When you close the door, the door alarm will

stop.

"-Z_ CAUTION ....

Display Mode (For Store Use Only)

The Display Mode disables all cooling in the

refrigerator and freezer sections to conserve

energy while on display in a retail store. When

activated, OFF will display on the control panel

and the display will remain on for 20 seconds.

To deactivate /activate:

With either refrigerator door opened, press

and hold the Refrigerator and lce Plus buttons

at the same time for five seconds. The control

panel will beep and the temperature settings

will display to confirm that Display Mode

is deactivated. Use the same procedure to

activate the Display Mode.

34 HOWTO USE

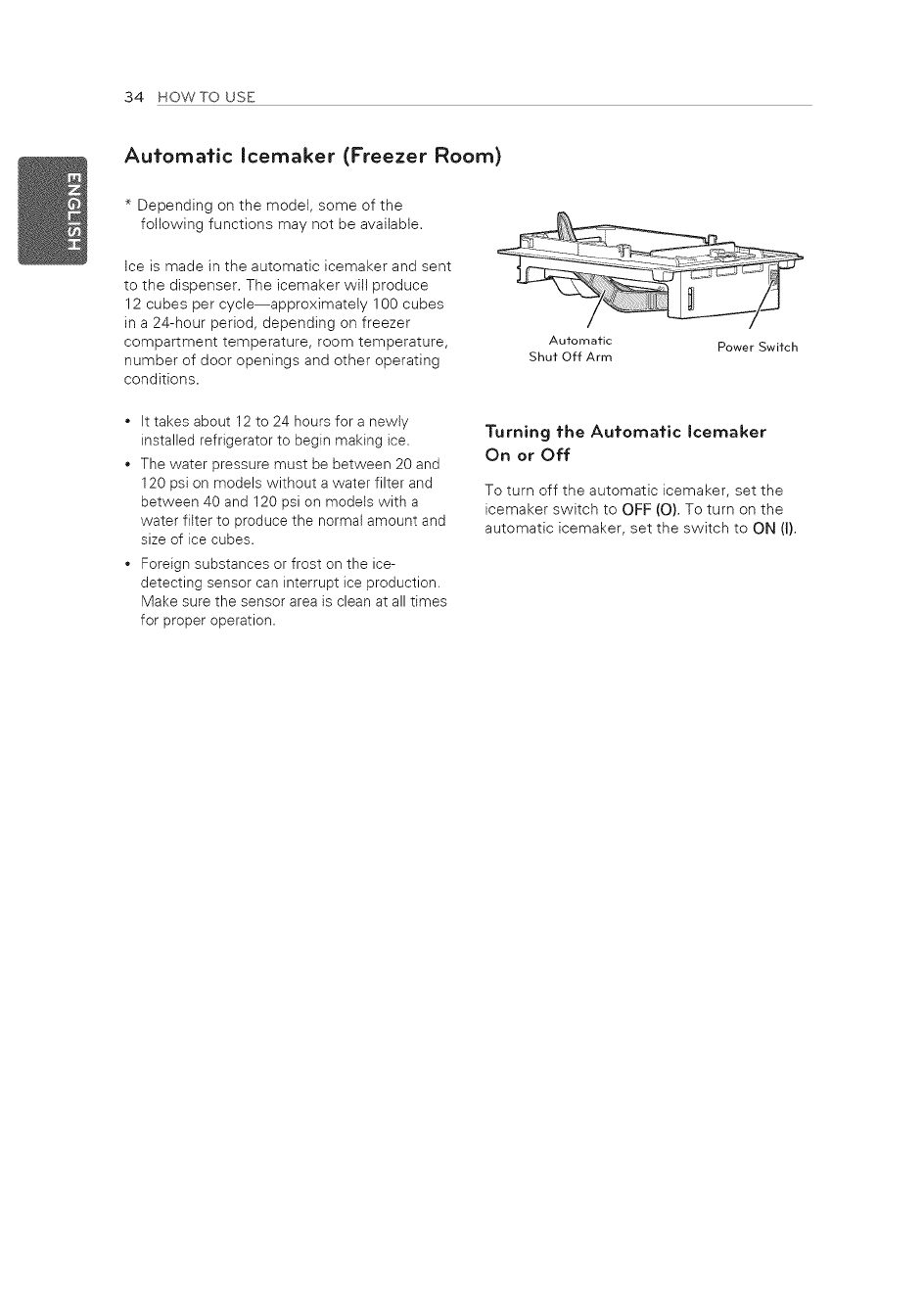

Automatic Icemaker (Freezer Room)

* Depending on the model, some of the

following functions may not be available.

Ice is made in the automatic icemaker and sent

to the dispenser. The icemaker will produce

12 cubes per cycle--approximately 100 cubes

in a 24-hour period, depending on freezer

compartment temperature, room temperature,

number of door openings and other operating

conditions.

•It takes about 12 to 24 hours for a newly

installed refrigerator to begin making ice.

•The water pressure must be between 20 and

120 psi on models without a water filter and

between 40 and 120 psi on models with a

water filter to produce the normal amount and

size of ice cubes.

•Foreign substances or frost on the ice-

detecting sensor can interrupt ice production.

Make sure the sensor area is clean at all times

for proper operation.

Automatic Power Switch

Shut Off Arm

Turning the Automatic Icemaker

On or Off

To turn off the automatic icemaker, set the

icemaker switch to OFF (O). To turn on the

automatic icemaker, set the switch to ON (I).

HOWTOUSE35

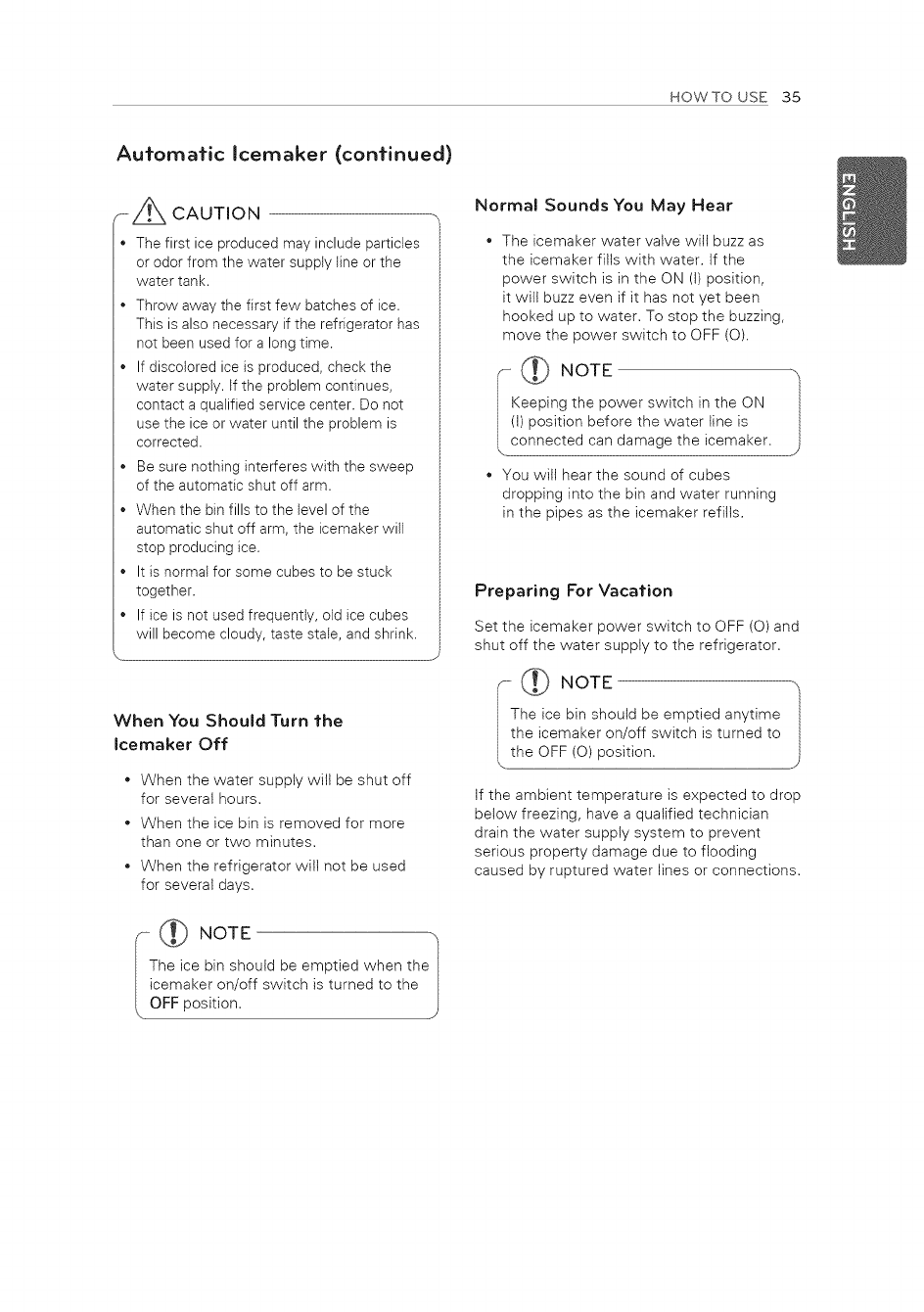

Aufomafic Icemaker (confinued)

"-Z_ CAUTION

* The first ice produced may include particles

or odor from the water supply line or the

water tank.

* Throw away the first few batches of ice.

This is also necessary if the refrigerator has

not been used for a long time.

* If discolored ice is produced, check the

water supply. If the problem continues,

contact a qualified service center. Do not

use the ice or water until the problem is

corrected.

* Be sure nothing interferes with the sweep

of the automatic shut off arm.

* When the bin fills to the level of the

automatic shut off arm, the icemaker will

stop producing ice.

* It is normal for some cubes to be stuck

together.

* If ice is not used frequently, old ice cubes

will become cloudy, taste stab, and shrink.

When You Should Turn 1"he

Icemaker Off

When the water supply will be shut off

for several hours.

When the ice bin is removed for more

than one or two minutes.

When the refrigerator will not be used

for several days.

Normal Sounds You May Hear

The icemaker water valve wilt buzz as

the icemaker filis with water. If the

power switch is in the ON (I) position,

it will buzz even if it has not yet been

hooked up to water. To stop the buzzing,

move the power switch to OFF (0).

Keeping the power switch in the ON

(I) position before the water line is

_. connected can damage the icemaker

• You will hear the sound of cubes

dropping into the bin and water running

in the pipes as the icemaker refills.

Preparing For Vacation

Set the icemaker power switch to OFF (0) and

shut off the water supply to the refrigerator.

_ _} NOTE

The ice bin should be emptied anytime

the icemaker on/off switch is turned to

the OFF (0) position.

If the ambient temperature is expected to drop

below freezing, have a qualified technician

drain the water supply system to prevent

serious property damage due to flooding

caused by ruptured water lines or connections.

NOTE -'/

he ice bin should be emptied when the I

cemaker on/off switch is turned to the

OFF position. _

36 HOWTO USE

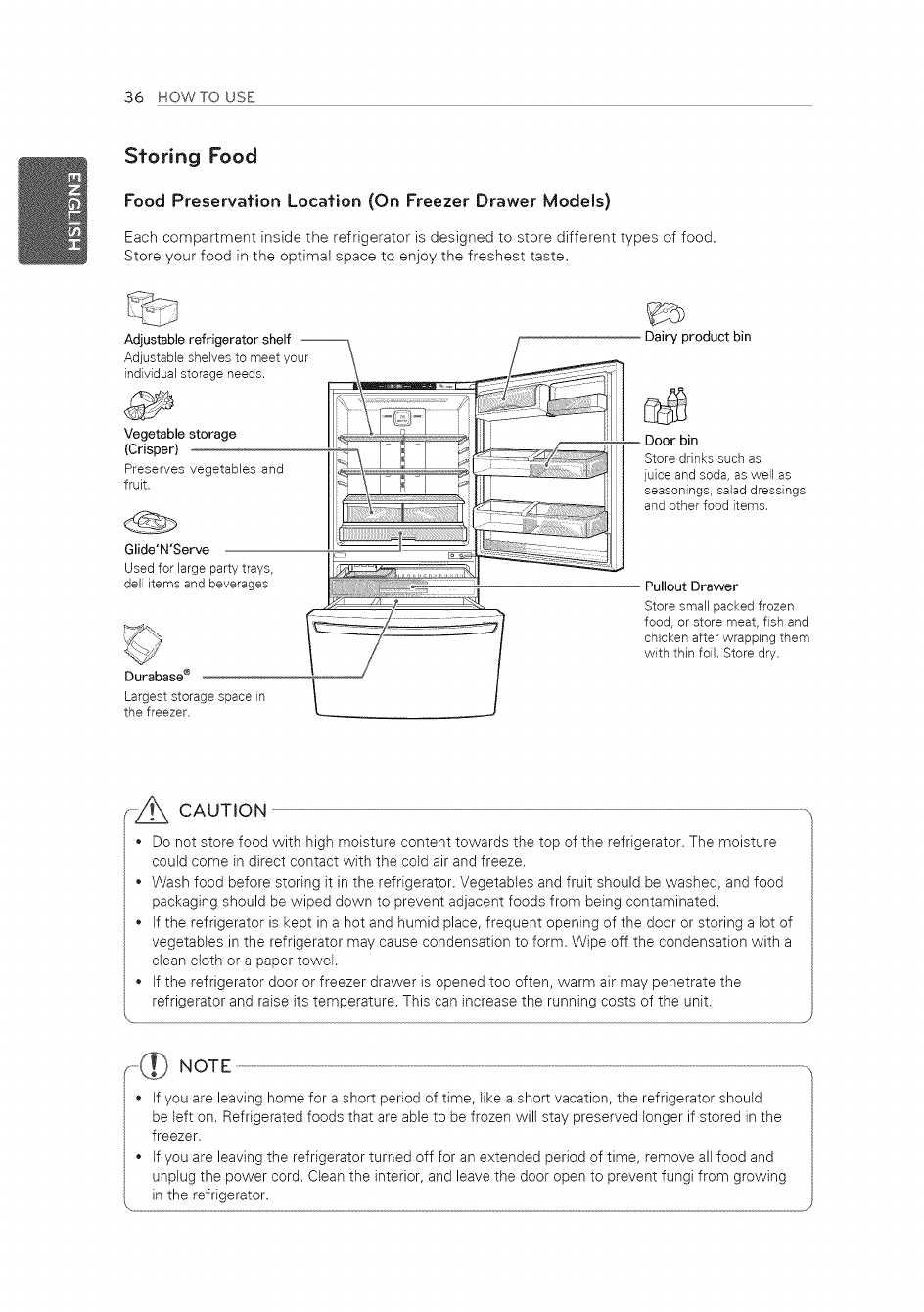

Storing Food

Food Preservation Location (On Freezer Drawer Models)

Each compartment inside the refrigerator is designed to store different types of food.

Store your food in the optimal space to enjoy the freshest taste.

Adjustable refrigerator shelf -- Dairy product bin

@

Door bin

Store drinks such as

juiceand soda,aswell as

seasonings,saladdressings

andother food items.

y_p T_

Durabase® in C

Largeststoragespace

the freezer.

Pullout Drawer

Store small packed frozen

food, or store meat, fish and

chicken after wrapping them

with thin foil. Store dry.

_-Z_ CAUTION

*Do not store food with high moisture content towards the top of the refrigerator. The moisture

could come in direct contact with the cold air and freeze.

*Wash food before storing it in the refrigerator. Vegetables and fruit should be washed, and food

packaging should be wiped down to prevent adjacent foods from being contaminated.

*If the refrigerator is kept in a hot and humid place, frequent opening of the door or storing a let of

vegetables in the refrigerator may cause condensation to form. Wipe off the condensation with a

clean cloth or a paper towel.

*If the refrigerator door or freezer drawer is opened tee often, warm air may penetrate the

refrigerator and raise its temperature. This can increase the running costs of the unit.

_----{!} NOTE

*If you are leaving home for a short period of time, like a short vacation, the refrigerator should

be left on. Refrigerated foods that are able to be frozen will stay preserved longer if stored in the

freezer.

If you are leaving the refrigerator turned off for an extended period of time, remove all food and

unplug the power cord. Clean the interior, and leave the door open to prevent fungi from growing

in the refrigerator.

HOWTO USE 37

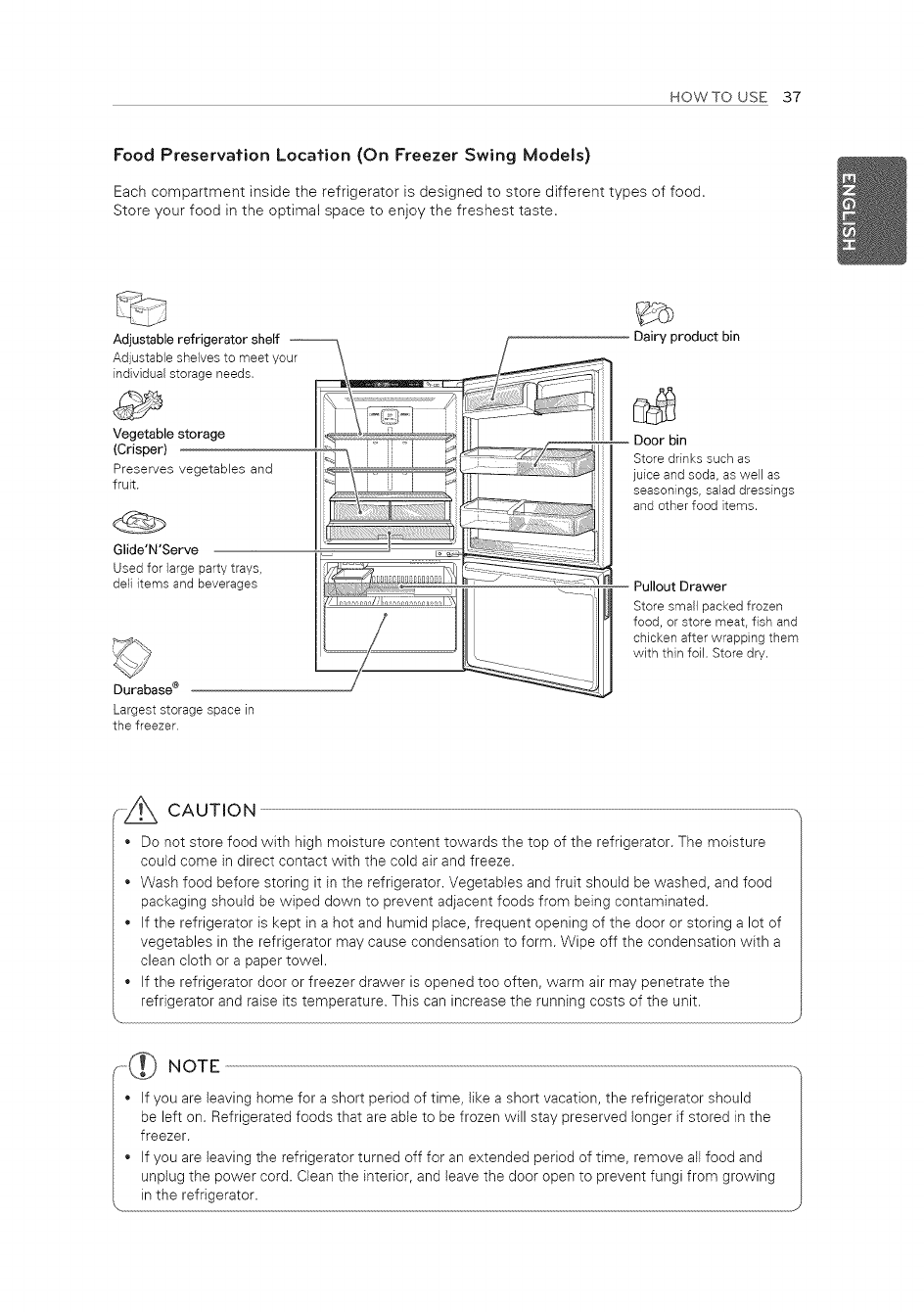

Food Preservation Location (On Freezer Swing Models)

Each compartment inside the refrigerator is designed to store different types of food.

Store your food in the optimal space to enjoy the freshest taste.

Adjustablerefrigerator shelf --

Adjustableshelvesto meet your

individualstorageneeds,

Vegetable storage

(Crisper)

Preserves vegetables and

fruit.

Glide'N'Serve

Usedfor largepartytrays,

deli items and beverages

Durabase ®

Largest storage space in

the freezer,

Dairy product bin

@

Door bin

Store drinks such as

juiceand soda,aswell as

seasonings,saladdressings

and otherfood items.

Pullout Drawer

Store small packed frozen

food, or store meat, fish and

chicken after wrapping them

with thin foil, Store dry.

"_Z_ CAUTION

• Do not store food with high moisture content towards the top of the refrigerator. The moisture

could come in direct contact with the cold air and freeze.

• Wash food before storing it in the refrigerator. Vegetables and fruit should be washed, and food

packaging should be wiped down to prevent adjacent foods from being contaminated.

• If the refrigerator is kept in a hot and humid place, frequent opening of the door or storing a lot of

vegetables in the refrigerator may cause condensation to form. Wipe off the condensation with a

clean cloth or a paper towel.

If the refrigerator door or freezer drawer is opened tee often, warm air may penetrate the

refrigerator and raise its temperature. This can increase the running costs of the unit.

_----_,_ NOTE

• If you are leaving home for a short period of time, like a short vacation, the refrigerator should

be left on. Refrigerated foods that are able to be frozen will stay preserved longer if stored in the

freezer.

• If you are leaving the refrigerator turned off for an extended period of time, remove all food and

unplug the power cord. Clean the interior, and leave the door open to prevent fungi from growing

in the refrigerator.

38 HOWTO USE

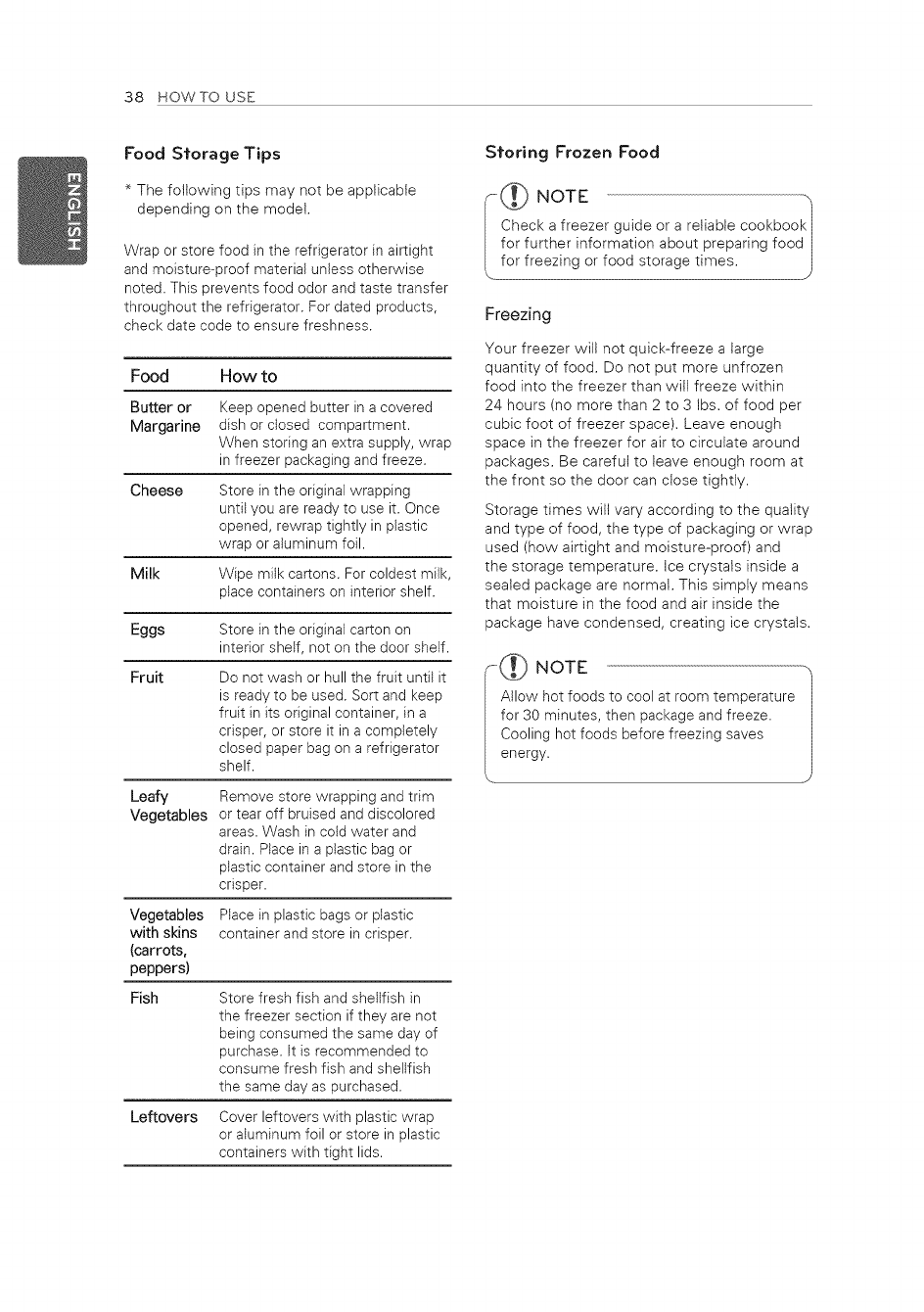

Food Storage Tips

The following tips may not be applicable

depending on the model.

Wrap or store food in the refrigerator in airtight

and moisture-proof material unless otherwise

noted. This prevents food odor and taste transfer

throughout the refrigerator. For dated products,

check date code to ensure freshness.

Food How to

Butter or Keep opened butter in a covered

Margarine dish or closed compartment.

When storing an extra supply, wrap

in freezer packaging and freeze.

Cheese Store in the original wrapping

until you are ready to use it. Once

opened, rewrap tightly in plastic

wrap or aluminum foil.

Milk Wipe milk cartons. For coldest milk,

place containers on interior shelf.

Eggs Store in the original carton on

interior shelf, not on the door shelf.

Fruit Do not wash or hull the fruit until it

is ready to be used. Sort and keep

fruit in its original container, in a

crisper, or store it in a completely

closed paper bag on a refrigerator

shelf.

Leafy

Vegetables

Vegetables

with skins

(carrots,

peppers)

Fish

Remove store wrapping and trim

or tear off bruised and discolored

areas. Wash in cold water and

drain. Place in a plastic bag or

plastic container and store in the

crisper.

Place in plastic bags or plastic

container and store in crisper.

Store fresh fish and shellfish in

the freezer section if they are not

being consumed the same day of

purchase, tt is recommended to

consume fresh fish and shellfish

the same day as purchased.

Leftovers Cover leftovers with plastic wrap

or aluminum foil or store in plastic

containers with tight lids.

Storing Frozen Food

NOTE -/

Check a freezer guide or a reliable cookbook I

for further information about preparing food I

for freezing or food storage times. J

Freezing

Your freezer will not quick-freeze a large

quantity of food. Do not put more unfrozen

food into the freezer than will freeze within

24 hours (no more than 2 to 3 Ibs. of food per

cubic foot of freezer space). Leave enough

space in the freezer for air to circulate around

packages. Be careful to leave enough room at

the front so the door can close tightly.

Storage times will vary according to the quality

and type of food, the type of packaging or wrap

used (how airtight and moisture-proof) and

the storage temperature. Ice crystals inside a

sealed package are normal. This simply means

that moisture in the food and air inside the

package have condensed, creating ice crystals.

"_} NOTE

Allow hot foods to cool at room temperature

for 30 minutes, then package and freeze.

Cooling hot foods before freezing saves

energy.

HOWTO USE 39

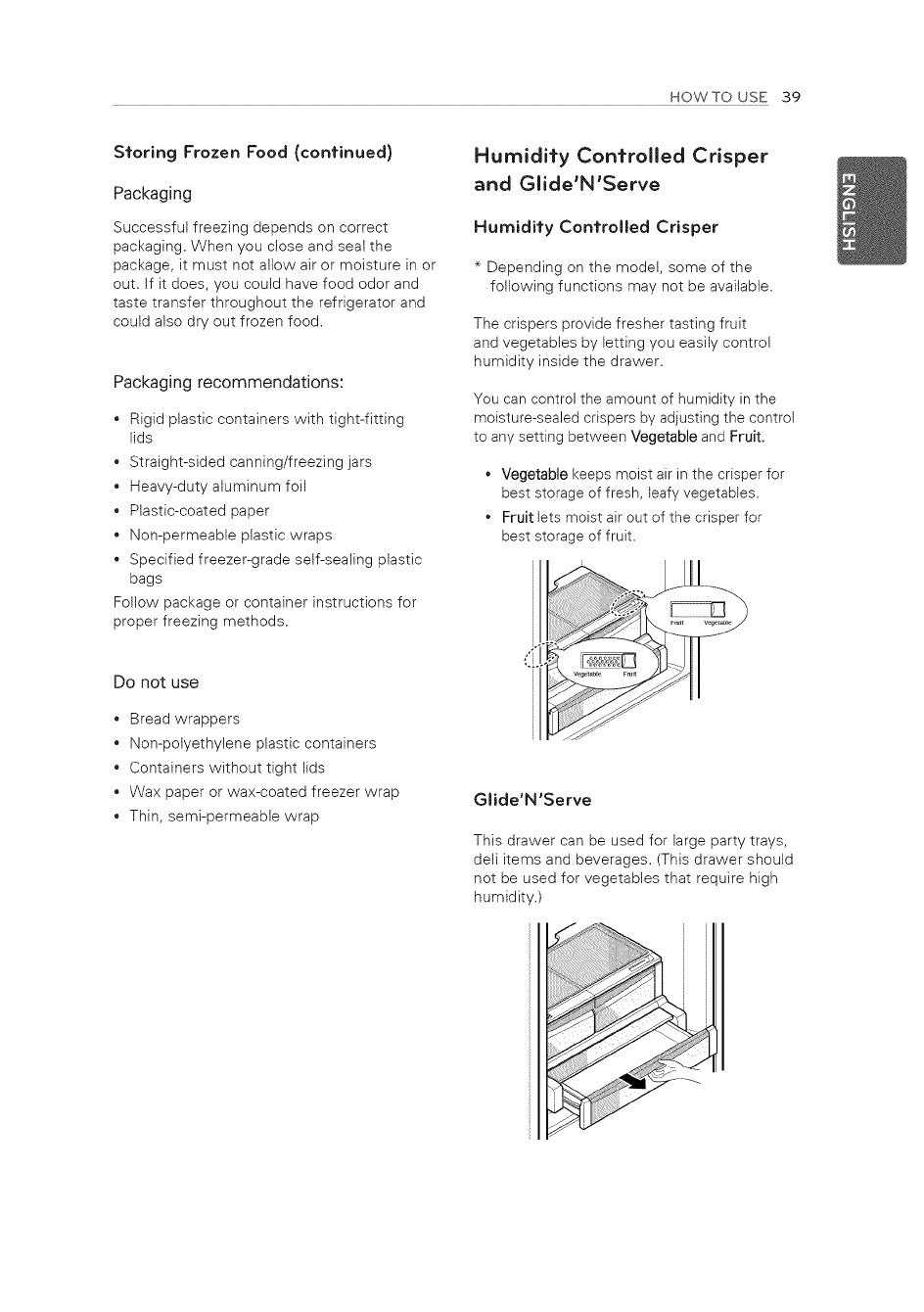

Storing Frozen Food (continued)

Packaging

Successful freezing depends on correct

packaging. When you close and seal the

package, it must not allow air or moisture in or

out. If it does, you could have food odor and

taste transfer throughout the refrigerator and

could also dry out frozen food.

Packaging recommendations:

• Rigid plastic containers with tight-fitting

lids

• Straight-sided canning/freezing jars

• Heavy-duty aluminum foil

• Plastic-coated paper

• Non-permeable plastic wraps

• Specified freezer-grade self-sealing plastic

bags

Follow package or container instructions for

proper freezing methods.

Humidify Confrolled Crisper

and Glide'N°Serve

Humidity Controlled Crisper

* Depending on the model, some of the

following functions may not be available.

The crispers provide fresher tasting fruit

and vegetables by letting you easily control

humidity inside the drawer.

You can control the amount of humidity in the

moisture-sealed crispers by adjusting the control

to any setting between Vegetable and Fruit.

• Vegetable keeps moist air in the crisper for

best storage of fresh, leafy vegetables.

• Fruit lets moist air out of the crisper for

best storage of fruit.

Do not use

* Bread wrappers

o Non-polyethylene plastic containers

* Containers without tight lids

* Wax paper or wax-coated freezer wrap

* Thin, semi-permeable wrap

GlJde'N'Serve

This drawer can be used for large party trays,

dell items and beverages. (This drawer should

not be used for vegetables that require high

humidity.)

40 HOWTO USE

Defaching and Assembling fhe

Sforage Bins

Glide'N'Serve and Humidify

Con*trolled Crisper

To remove the Humidity Controlled Crisper and

the Glide'N'Serve, pull out the Crisper D and

Glide'N'Serve _ to full extension lift the front

up, and pull straight out.

To Remove "the Glass

(Glide'N'Serve not shown for clarity.)

Lift up the glass under the crisper cover, and

pull up and out.

Ji

To install, slightly tilt up the front, insert the

drawer into the frame and push it back into

place.

Door Bins

The door bins are removable for easy cleaning

and adjustment.

1To remove a bin, simply lift the bin up and

pull straight out.

2To replace the bin, slide it in above the

desired support and push down until it snaps

into place.

,@ NOTE ]

Some bins may vary in appearance and

will only fit in one location.

k

rZ_ CAUTION

Do not apply excessive force while

detatching or assembling the storage

bins.

Do not use the dishwasher to clean

the storage bins and shelves.

Regularly detach and wash the

storage bins and shelves; they can

become easily contaminated by the

food.

HOWTOUSE41

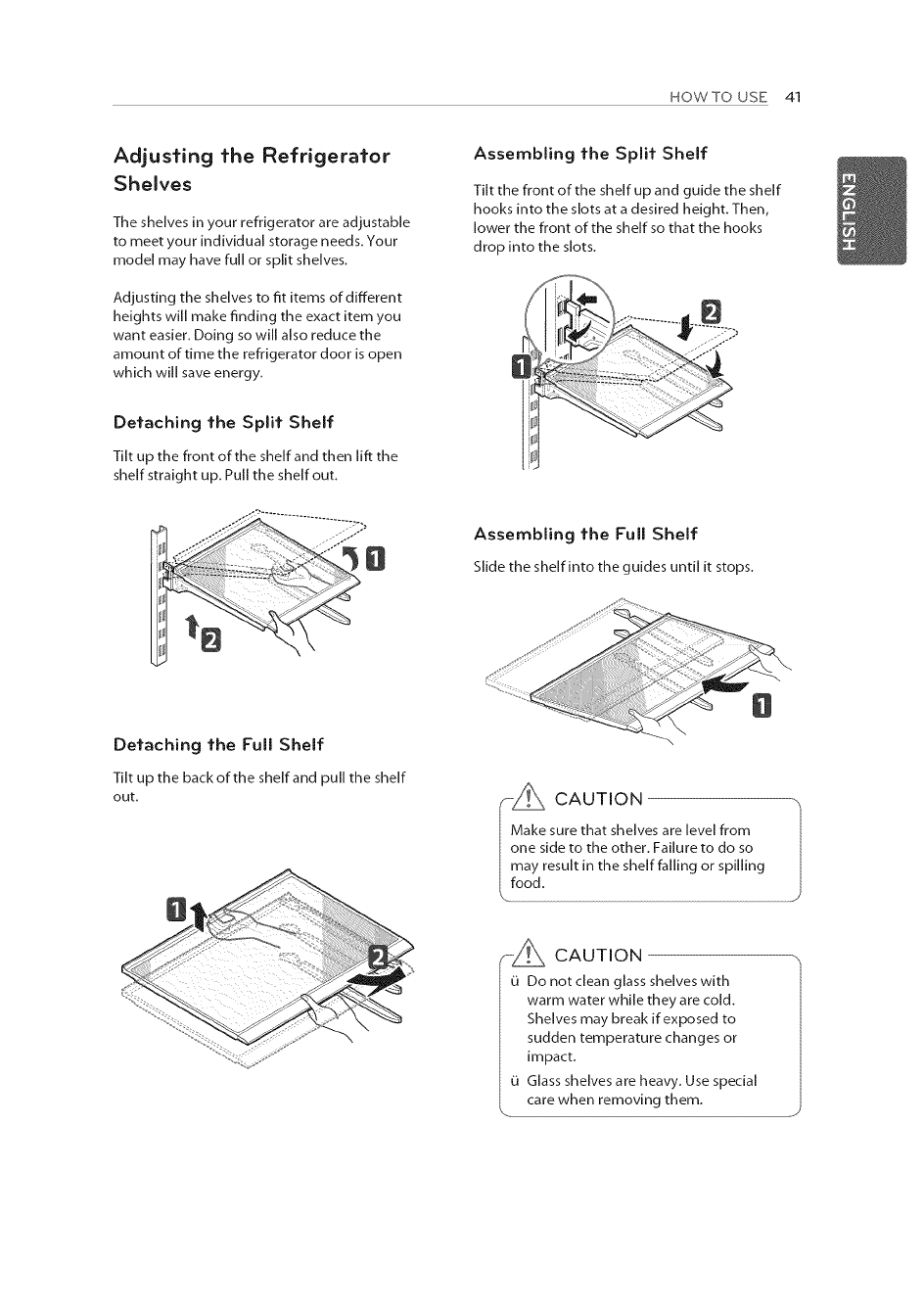

Adjusting the Refrigerator

Shelves

The shelves in your refrigerator are adjustable

to meet your individual storage needs. Your

model may have full or split shelves.

Adjusting the shelves to fit items of different

heights will make finding the exact item you

want easier. Doing so will also reduce the

amount of time the refrigerator door is open

which will save energy.

Detaching the Split Shelf

Tilt up the front of the shelf and then lift the

shelf straight up. Pull the shelf out.

Assembling the Split Shelf

Tilt the front of the shelf up and guide the shelf

hooks into the slots at a desired height. Then,

lower the front of the shelf so that the hooks

drop into the slots.

Assembling the Full Shelf

Slide the shelf into the guides until it stops.

Detaching the Full Shelf

Tilt up the back of the shelf and pull the shelf

out. CAUTION

ake sure that shelves are level from

ne side to the other. Failure to do so

ay result in the shelf falling or spilling

ood.

_--_\\, CAUTION

0 Do not clean glass shelves with

warm water while they are cold.

Shelves may break if exposed to

sudden temperature changes or

impact.

O Glass shelves are heavy. Use special

care when removing them.

42 MAINTENANCE

MAINTENANCE

Cleaning

Both the refrigerator and freezer sections defrost automatically; however, clean both

sections about once a month to prevent odors.

Wipe up spills immediately.

Always unplug the refrigerator before cleaning.

General Cleaning Tips

Unplug refrigerator or disconnect the

power.

Remove alt removable parts, such as

shelves, crispers, etc.

Use a clean sponge or soft cloth and a

mild detergent in warm water. Do not

use abrasive or harsh cleaners.

Hand wash, rinse and dry all surfaces

thoroughly.

Exterior

Waxing external painted metal surfaces helps

provide rust protection. Do not wax plastic

parts. Wax painted metat surfaces at least

twice a year using appliance wax (or auto paste

wax). Apply wax with a clean, soft cloth.

For products with a stainless steet exterior,

use a clean sponge or soft cloth and a mild

detergent in warm water. Do not use abrasive

or harsh cleaners. Dry thoroughly with a soft

cloth.

CAUTION /

Do not use a rough cloth or sponge

when cleaning the interior and exterior I

of the refrigerator.

* Do not place your hand on the bottom I

surface of the refrigerator when

opening and closing it.

inside Walls (allow freezer to warm

up so the cloth will not stick)

To help remove odors, you can wash the inside

of the refrigerator with a mixture of baking

soda and warm water. Mix 2 tablespoons of

baking soda to 1 quart of water (26 g soda

to 1 liter water). Be sure the baking soda is

completely dissolved so it does not scratch the

surfaces of the refrigerator.

Door Liners and Gaskets

Use a clean sponge or soft cloth and a mild

detergent in warm water. Do not use cleaning

waxes, concentrated detergents, bleaches,

or cleaners containing petroleum on plastic

refrigerator parts.

Plastic Parts (covers and panels)

Use a clean sponge or soft cloth and a mild

detergent in warm water. Do not use glass

cleaners, abrasive cleansers, or flammable

fluids. These can scratch or damage the

material.

Condenser Coils

Use a vacuum cleaner with an attachment to

clean the condenser cover and vents. Do not

remove the panet covering the condenser coil

area.

{_ WARNING -'/

se non-flammable cleaner. Failure to do I

o can result in fire, explosion, or death /

SMART DIAGNOSIS 43

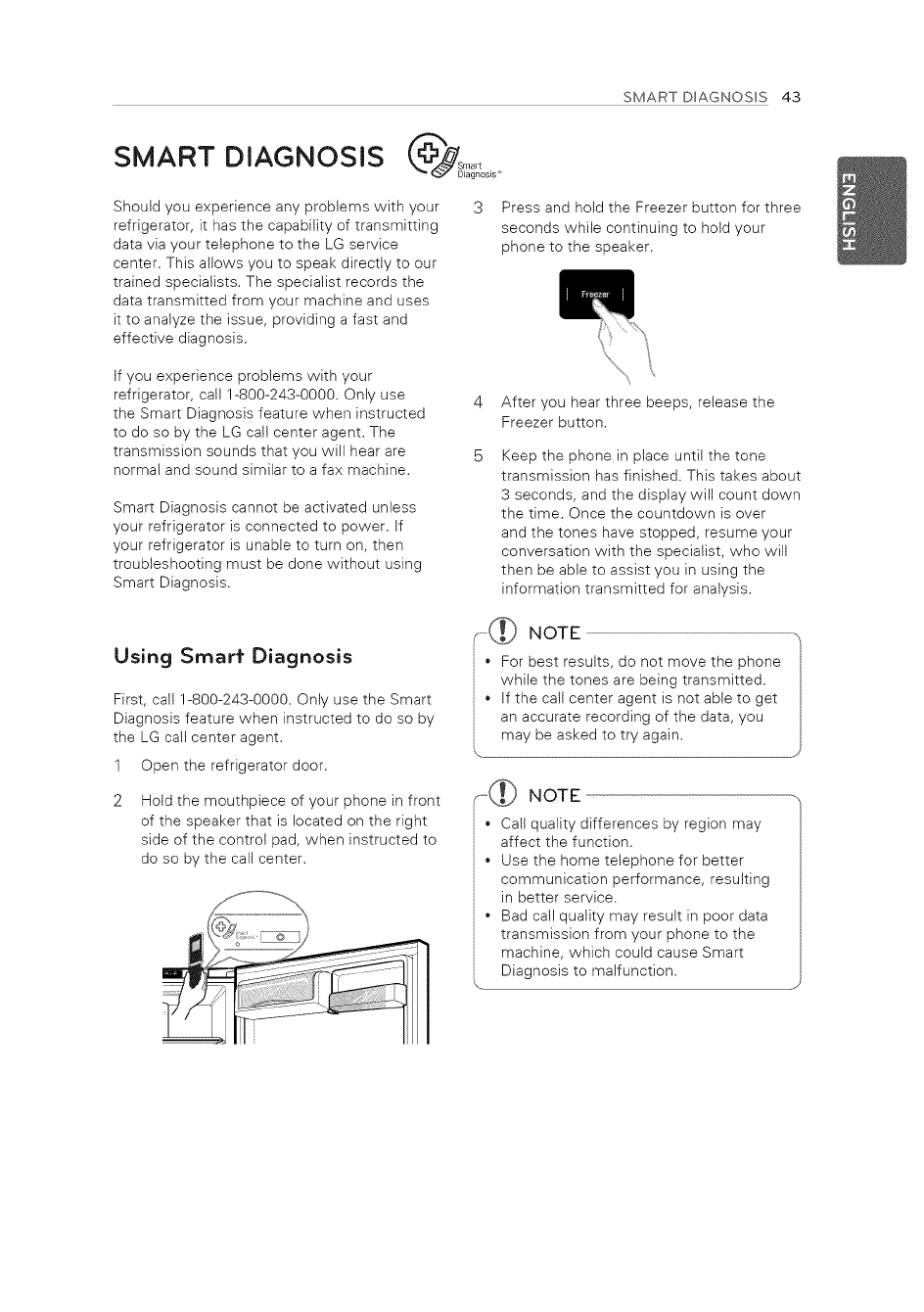

SMART DIAGNOSIS iagnosis '_

Should you experience any problems with your

refrigerator, it has the capability of transmitting

data via your telephone to the LG service

center. This allows you to speak directly to our

trained specialists. The specialist records the

data transmitted from your machine and uses

it to analyze the issue, providing a fast and

effective diagnosis.

If you experience problems with your

refrigerator, call 1-800-243-0000. Only use

the Smart Diagnosis feature when instructed

to do so by the LG call center agent. The

transmission sounds that you will hear are

normal and sound similar to a fax machine.

Smart Diagnosis cannot be activated unless

your refrigerator is connected to power. If

your refrigerator is unable to turn on, then

troubleshooting must be done without using

Smart Diagnosis.

3 Press and hold the Freezer button for three

seconds while continuing to hold your

phone to the speaker.

\

\

After you hear three beeps, release the

Freezer button.

Keep the phone in place until the tone

transmission has finished. This takes about

3 seconds, and the display will count down

the time. Once the countdown is over

and the tones have stopped, resume your

conversation with the specialist, who will

then be abte to assist you in using the

information transmitted for analysis.

Using Smart Diagnosis

First, call 1-800-243-0000. Only use the Smart

Diagnosis feature when instructed to do so by

the LG call center agent.

1 Open the refrigerator door.

Hold the mouthpiece of your phone in front

of the speaker that is located on the right

side of the controi pad, when instructed to

do so by the can center.

-_ NOTE

• For best results, do not move the phone

while the tones are being transmitted.

• If the call center agent is not able to get

an accurate recording of the data, you

may be asked to try again.

¢-(_ NOTE

• Call quality differences by region may

affect the function.

• Use the home telephone for better

communication performance, resulting

in better service.

• Bad call quality may result in poor data

transmission from your phone to the

machine, which could cause Smart

Diagnosis to malfunction.

44 TROUBLESHOOTING

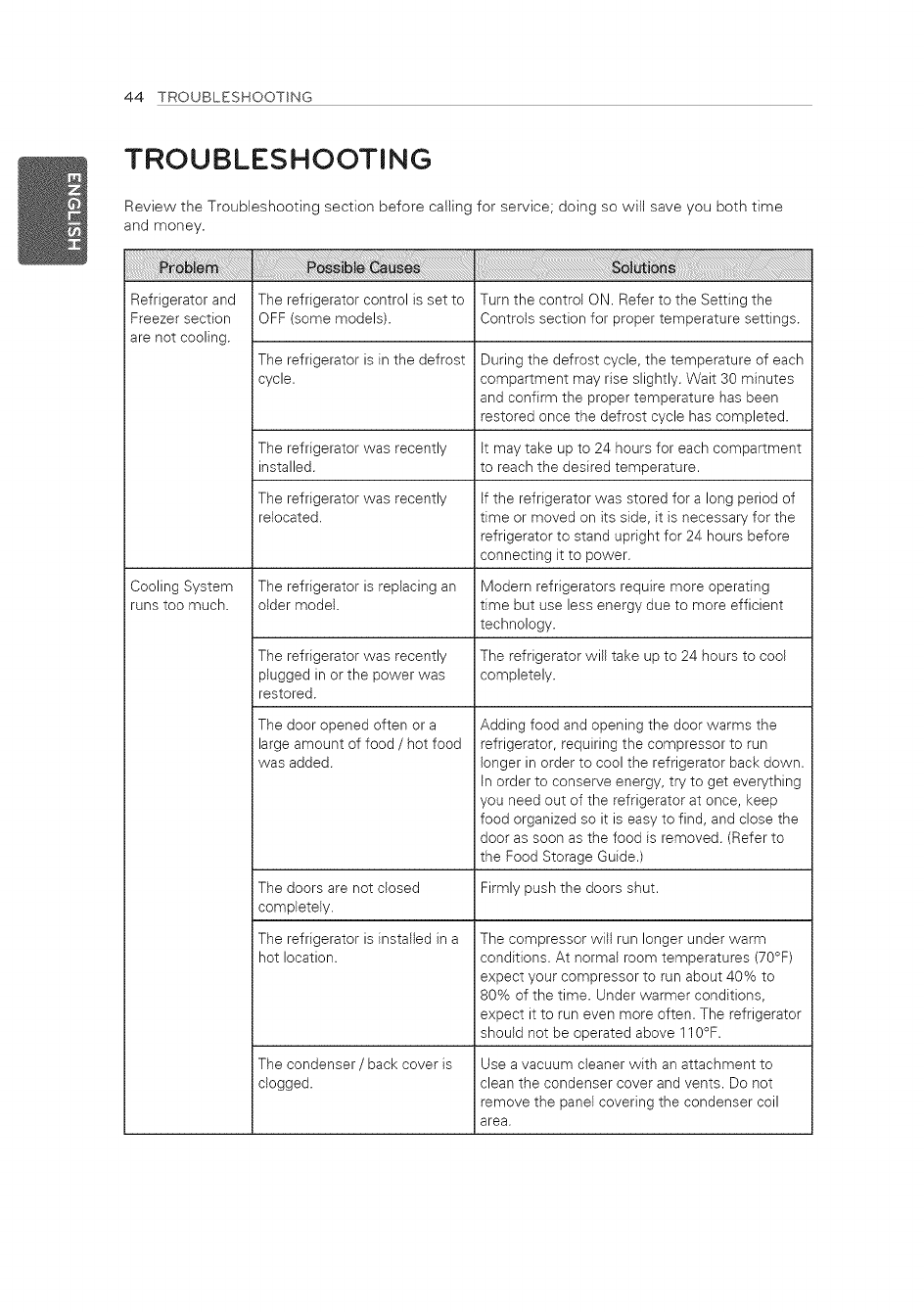

TROUBLESHOOTING

Review the Troubleshooting section before calling for service; doing so will save you both time

and money.

The refrigerator control is set to

OFF (some models).

Refrigerator and

Freezer section

are not cooling.

The refrigerator is in the defrost

cycle.

Turn the control ON. Refer to the Setting the

Controls section for proper temperature settings.

During the defrost cycle, the temperature of each

compartment may rise slightly. Wait 30 minutes

and confirm the proper temperature has been

restored once the defrost cycle has completed.

The refrigerator was recently It may take up to 24 hours for each compartment

installed, to reach the desired temperature.

The refrigerator was recently If the refrigerator was stored for a long period of

relocated, time or moved on its side, it is necessary for the

refrigerator to stand upright for 24 hours before

connecting it to power.

Cooling System The refrigerator is replacing an Modern refrigerators require more operating

runs too much. older model, time but use less energy due to more efficient

technology.

The refrigerator was recently The refrigerator will take up to 24 hours to cool

plugged in or the power was completely.

restored.

The door opened often or a

large amount of food /hot food

was added.

The doors are not dosed

completely.

The refrigerator is installed in a

hot location.

The condenser /back cover is

clogged.

Adding food and opening the door warms the

refrigerator, requiring the compressor to run

longer in order to cool the refrigerator back down.

In order to conserve energy, try to get everything

you need out of the refrigerator at once, keep

food organized so it is easy to find, and close the

door as soon as the food is removed. (Refer to

the Food Storage Guide.)

Firmly push the doors shut.

The compressor will run longer under warm

conditions. At normal room temperatures (70°F)

expect your compressor to run about 40% to

80% of the time. Under warmer conditions,

expect it to run even more often. The refrigerator

should not be operated above 110°F.

Use a vacuum cleaner with an attachment to

clean the condenser cover and vents. Do not

remove the panel covering the condenser coil

area.

TROUBLESHOOTING 45

Refrigerator or The refrigerator was recently It may take up to 24 hours for each compartment

Freezer section is installed, to reach the desired temperature.

too warm.

The air vents are blocked. Rearrange items to allow air to flow throughout

the compartment. Refer to the airflow diagram in

the Using Your Refrigerator section.

The doors are opened often or

for long periods of time.

The unit is installed in a hot

location.

A large amount of food or

hot food was added to either

compartment.

The doors are not closed

correctly.

The temperature control is not

set correctly.

The defrost cycle has recently

completed.

When the doors are opened often or for long

periods of time, warm, humid air enters the

compartment. This raises the temperature and

moisture level within the compartment. To lessen

the effect, reduce the frequency and duration of

door openings.

The refrigerator should not be operated in

temperatures above 1IO°F.

Adding food warms the compartment requiring

the cooling system to run. Allowing hot food to

cool to room temperature before putting it in the

refrigerator will reduce this effect.

See the Doors will not close correctly or pop open

section in Troubleshooting.

If the temperature is too warm, adjust the

control one increment at a time and wait for the

temperature to stabilize. Refer to the Setting the

Controls section for more information.

During the defrost cycle, the temperature of each

compartment may rise slightly and condensation

may form on the back wall. Wait 30 minutes

and confirm the proper temperature has been

restored once the defrost cycle has completed.

46 TROUBLESHOOTING

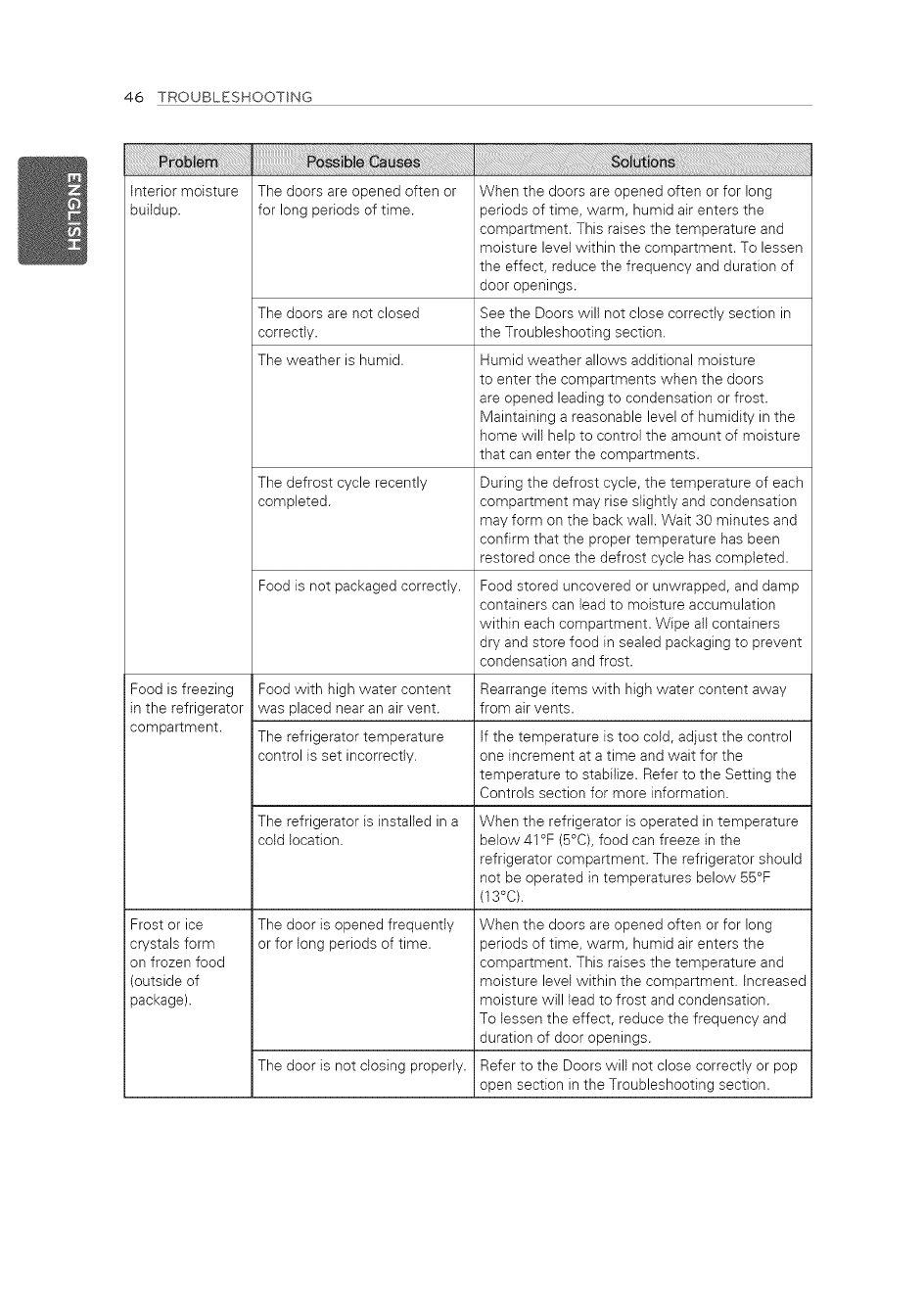

Interior moisture

buildup.

Food is freezing

in the refrigerator

compartment.

Frost or ice

crystals form

on frozen food

(outside of

package).

The doors are opened often or

for long periods of time.

The doors are not closed

correctly.

The weather is humid.

The defrost cycle recently

completed.

Food is not packaged correctly.

Food with high water content

was placed near an air vent.

The refrigerator temperature

control is set incorrectly.

The refrigerator is installed in a

cold location.

The door is opened frequently

or for long periods of time.

The door is not closing properly.

When the doors are opened often or for long

oeriods of time, warm, humid air enters the

compartment. This raises the temperature and

moisture level within the compartment. To lessen

the effect, reduce the frequency and duration of

door openings.

See the Doors will not close correctly section in

the Troubleshooting section.

Humid weather allows additional moisture

to enter the compartments when the doors

are opened leading to condensation or frost.

Maintaining a reasonable level of humidity in the

home will help to control the amount of moisture

that can enter the compartments.

During the defrost cycle, the temperature of each

compartment may rise slightly and condensation

may form on the back wall. Wait 30 minutes and

confirm that the proper temperature has been

restored once the defrost cycle has completed.

Food stored uncovered or unwrapped, and damp

containers can lead to moisture accumulation

within each compartment. Wipe all containers

dry and store food in sealed packaging to prevent

condensation and frost.

Rearrange items with high water content away

from air vents.

If the temperature is too cold, adjust the control

one increment at a time and wait for the

temperature to stabilize. Refer to the Setting the

Controls section for more information.

When the refrigerator is operated in temperature

below 41°F (5°C), food can freeze in the

refrigerator compartment. The refrigerator should

not be operated in temperatures below 55°F

(13°C).

When the doors are opened often or for long

aeriods of time, warm, humid air enters the

compartment. This raises the temperature and

moisture level within the compartment. Increased

moisture will lead to frost and condensation.

To lessen the effect, reduce the frequency and

duration of door openings.

Refer to the Doors win not close correctly or pop

open section in the Troubleshooting section.

TROUBLESHOOTING 47

Refrigerator or

Freezer section is

too cold.

Frost or ice

crystals on frozen

food (inside of

sealed package).

Icemaker is not

making enough

ice.

incorrect temperature control

settings.

Condensation from food with a

high water content has frozen

inside of the food package.

Food has been left in the freezer

for a long period of time.

Demand exceeds ice storage

capacity.

The house water supply is not

connected, the valve is not

turned on fully, or the valve is

clogged.

The water filter has been

exhausted.

Low house water supply

aressure.

A reverse osmosis filtration

system is used.

The tubing connecting the

refrigerator to the house supply

valve is kinked.

If the temperature is too cold, adjust the control

one increment at a time and wait for the

temperature to stabilize. Refer to the Setting the

Controls section for more information.

This is normal for food items with a high water

content.

Do not store food items with high water content

in the freezer for a long period of time.

The icemaker will produce approximately 70~210

cubes in a 24 hour period.

Connect the refrigerator to a cold water supply

with adequate pressure and turn the water

shutoff valve fully open.

If the problem persists, it may be necessary to

contact a plumber.

It is recommended that you replace the water

filter:

• Approximately every six months.

• When the water filter indicator turns on.

• When the water dispenser output decreases.

• When the ice cubes are smaller than normal.

The water pressure must be between 20 and 120

psi on models without a water filter and between

40 and 120 psi on models with a water filter.

If the problem persists, it may be necessary to

contact a plumber.

Reverse osmosis filtration systems can reduce

the water pressure below the minimum amount

and result in icemaker issues.

(Refer to the Water Pressure section.)

The tubing can kink when the refrigerator is

moved during insta%tion or cleaning resulting in

reduced water flow. Straighten or repair the water

supply line and arrange it to prevent future kinks.

48 TROUBLESHOOTING

Icemaker is not

making enough

ice (continued).

Icemaker is not

making ice.

The doors are opened often or

for long periods of time.

The doors are not closed

completely.

The temperature setting for the

freezer is too warm.

The refrigerator was recently

installed or the icemaker

recently connected.

The icemaker is not turned on.

The ice detecting sensor is

obstructed.

The refrigerator is not connected

to a water supply or the supply

shutoff valve is not turned on.

The icemaker shutoff (arm or

sensor) is obstructed.

A reverse osmosis water

filtration system is connected to

your cold water supply.

If the doors of the unit are opened often, ambient

air will warm the refrigerator which will prevent

the unit from maintaining the set temperature.

Lowering the refrigerator temperature can help,

as well as not opening the doors as frequently.

If the doors are not properly closed, ice

production will be affected. See the Doors will

not close completely or pop open section in Parts

& Features Troubleshooting for more information.

The recommended temperature for the freezer

compartment for normal ice production is O°F. If

the freezer temperature is warmer, ice production

will be affected.

It may take up to 24 hours for each compartment

to reach the desired temperature and for the

icemaker to begin making ice.

Locate the icemaker ON/OFF switch and confirm

that it is in the ON (1)position.

Foreign substances or frost on the ice-detecting

sensor can interrupt ice production. Make sure

that the sensor area is clean at all times for proper

operation.

Connect the refrigerator to the water supply and

turn the water shutoff valve fully open.

If your icemaker is equipped with an ice shutoff

arm, make sure that the arm moves freely. If

your icemaker is equipped with the electronic ice

shutoff sensor, make sure that there is a clear

9ath between the two sensors.

Reverse osmosis filtration systems can reduce

the water pressure below the minimum amount

and result in icemaker issues.

(Refer to the Water Pressure section.)

TROUBLESHOOTING 49

Ice has a bad

taste or odor.

Icemaker is

making too much

ice.

Clicking

The water supply contains

minerals such as sulfur.

The icemaker was recently

installed.

The ice has been stored for too

long.

The food has not been stored

properly in either compartment.

The interior of the refrigerator

needs to be cleaned.

The ice storage bin needs to be

cleaned.

The icemaker shutoff (arm/

sensor) is obstructed.

The defrost control will click

when the automatic defrost

cycle begins and ends.

The thermostat control (or

refrigerator control on some

models) will also click when

cycling on and off.

A water filter may need to be installed to

eliminate taste and odor problems.

NOTE: In some cases, a filter may not help. It

may not be possible to remove all minerals /odor

!taste in all water supplies.

Discard the first few batches of ice to avoid

discolored or bad tasting ice.

Ice that has been stored for too long will shrink,

become cloudy, and may develop a stale taste.

Throw away old ice and make a new supply.

Rewrap the food. Odors may migrate to the ice if

food is not wrapped properly.

See the Care and Cleaning section for more

information.

Empty and wash the bin (discard old cubes).

Make sure that the bin is completely dry before

reinstalling it.

Empty the ice bin. If your icemaker is equipped

with an ice shutoff arm, make sure that the arm

moves freely. If your icemaker is equipped with

the electronic ice shutoff sensor, make sure that

there is a clear path between the two sensors.

Reinstall the ice bin and wait 24 hours to confirm

proper operation.

Normal Operation

50 TROUBLESHOOTING

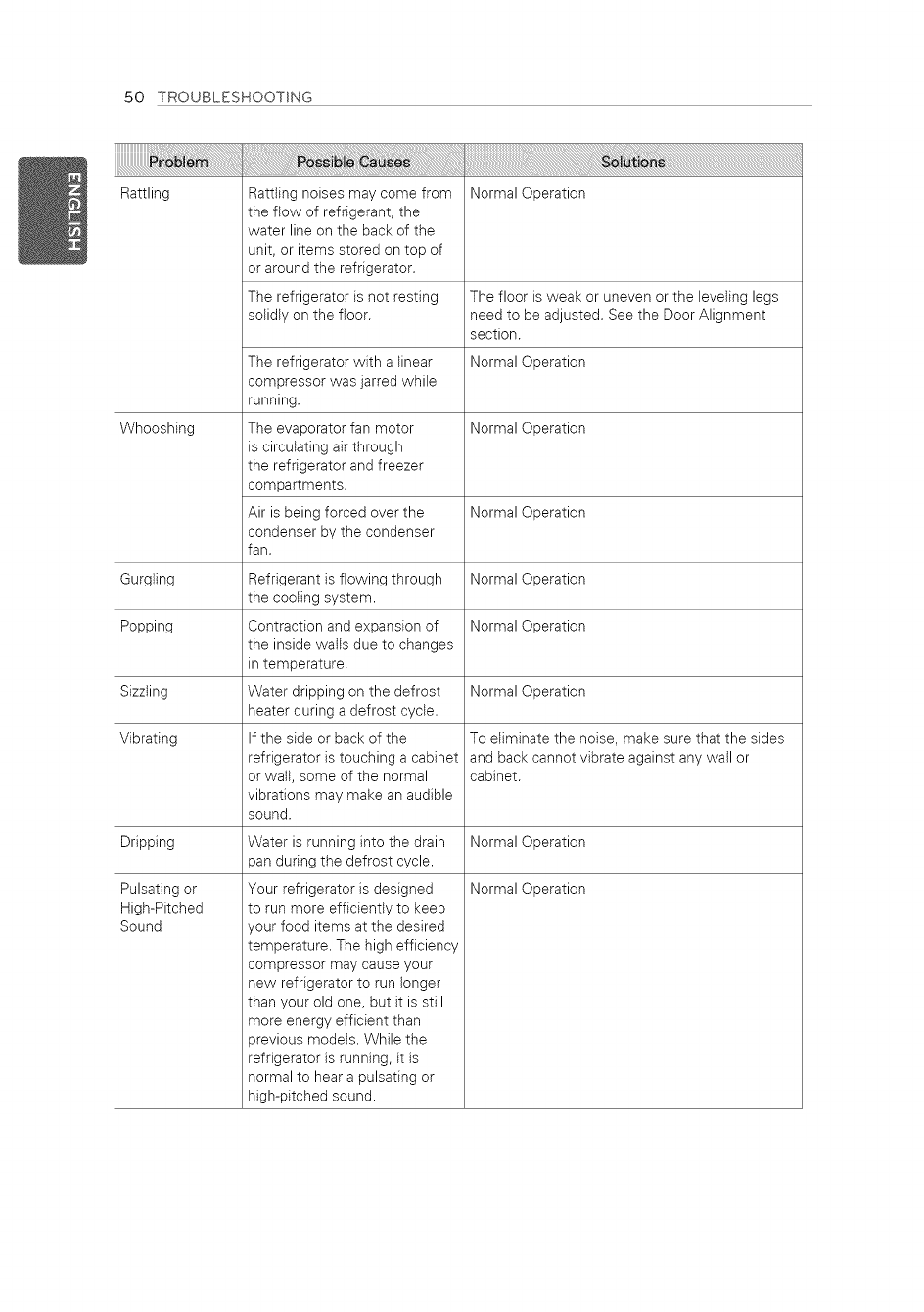

Rattling Rattling noises may come from Normal Operation

the flow of refrigerant, the

water line on the back of the

unit, or items stored on top of

or around the refrigerator.

The refrigerator is not resting The floor is weak or uneven or the leveling legs

solidly on the floor, need to be adjusted. See the Door Alignment

section.

The refrigerator with a linear Normal Operation

compressor was jarred while

running.

Whooshing The evaporator fan motor Normal Operation

is circulating air through

the refrigerator and freezer

compartments.

Air is being forced over the Normal Operation

condenser by the condenser

fan.

Gurgling Refrigerant is flowing through Normal Operation

the cooling system.

Popping Contraction and expansion of Normal Operation

the inside walls due to changes

in temperature.

Sizzling Water dripping on the defrost Normal Operation

heater during a defrost cycle.

Vibrating If the side or back of the To eliminate the noise, make sure that the sides

refrigerator is touching a cabinet and back cannot vibrate against any wall or

or wall, some of the normal cabinet.

vibrations may make an audible

sound.

Dripping Normal Operation

Normal OperationPulsating or

High-Pitched

Sound

Water is running into the drain

pan during the defrost cycle.

Your refrigerator is designed

to run more efficiently to keep

your food items at the desired

temperature. The high efficiency

compressor may cause your

new refrigerator to run longer

than your old one, but it is still

more energy efficient than

previous models. While the

refrigerator is running, it is

normal to hear a pulsating or

high-pitched sound.

TROUBLESHOOTING 51

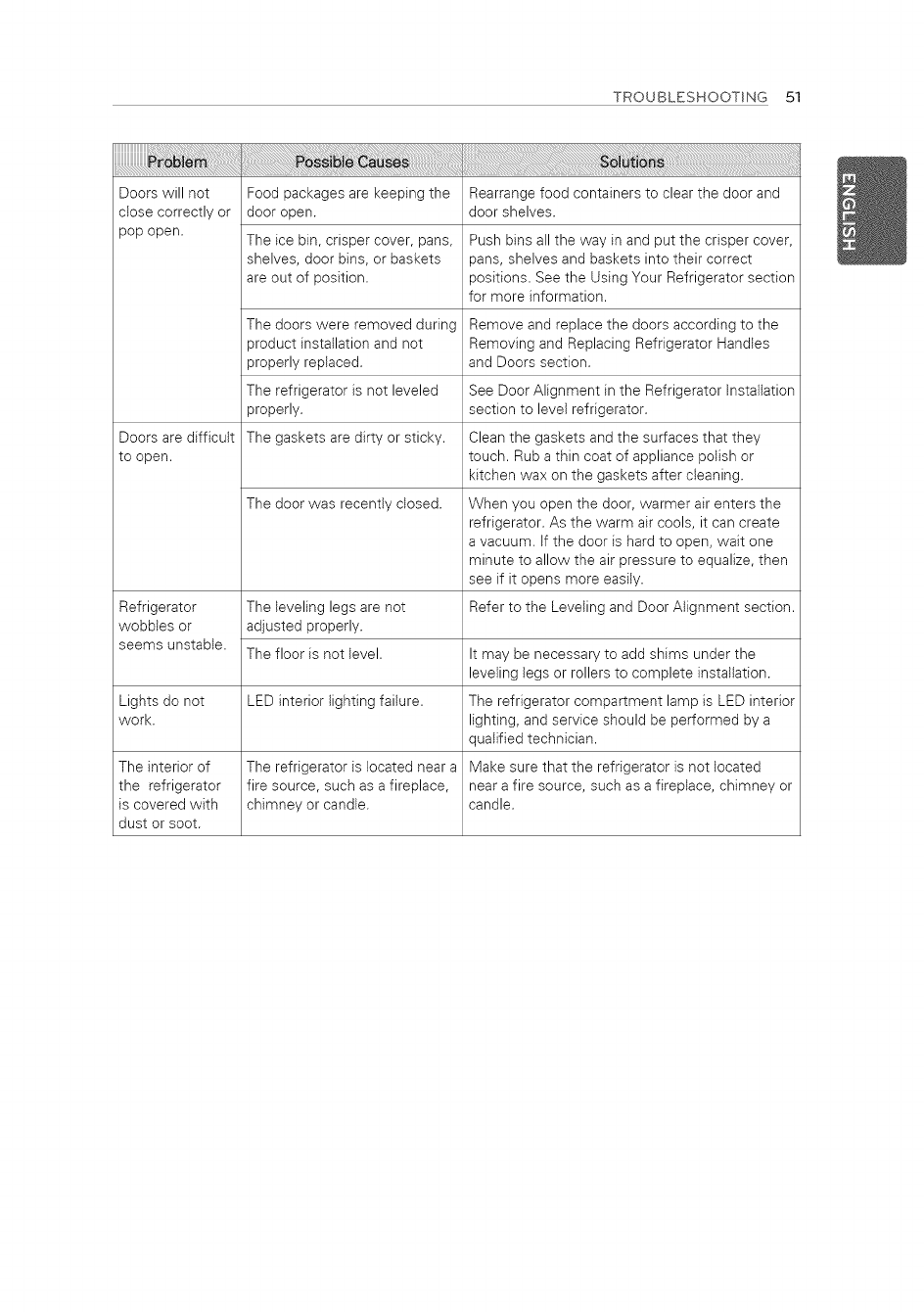

Doors will not Food packages are keeping the Rearrange food containers to clear the door and

close correctly or door open. door shelves.

pop open. The ice bin, crisper cover, pans, Push bins all the way in and put the crisper cover,

shelves, door bins, or baskets pans, shelves and baskets into their correct

are out of position, positions. See the Using Your Refrigerator section

for more information.

The doors were removed during Remove and replace the doors according to the

_roduct installation and not Removing and Replacing Refrigerator Handles

properly replaced, and Doors section.

The refrigerator is not leveled See Door Alignment in the Refrigerator Installation

properly, section to level refrigerator.

Doors are difficult The gaskets are dirty or sticky. Clean the gaskets and the surfaces that they

to open. touch. Rub a thin coat of appliance polish or

kitchen wax on the gaskets after cleaning.

The door was recently closed. When you open the door, warmer air enters the

refrigerator. As the warm air cools, it can create

a vacuum. If the door is hard to open, wait one

minute to allow the air pressure to equalize, then

see if it opens more easily.

Refrigerator The leveling legs are not Refer to the Leveling and Door Alignment section.

wobbles or adjusted properly.

seems unstable. The floor is not level. It may be necessary to add shims under the

leveling legs or rollers to complete installation.

Lights do not LED interior lighting failure. The refrigerator compartment lamp is LED interior

work. lighting, and service should be performed by a

qualified technician.

The interior of The refrigerator is located near a Make sure that the refrigerator is not located

the refrigerator fire source, such as a fireplace, near a fire source, such as a fireplace, chimney or

is covered with chimney or candle, candle.

dust or soot.

52 WARRANTY

WARRANTY (USA)

Should your LG Refrigerator ("Product") fail due to a defect in materials or workmanship under

normal home use, during the warranty period set forth below, LG will at its option repair or replace

the product. This limited warranty is valid only to the original retail purchaser of the product and

applies onty when purchased and used within the United States including U.S. Territories. Proof of

original retail purchase is required to obtain warranty service under this limited warranty.

WARRANTY PERIOD

Refrigerator

One (1) year from

the date of original

retail purchase

Parts and Labor

(internal/functional

parts only)

Sealed System

(Condenser, Dryer, Connecting Tube,

Refrigerant and Evaporator)

One (1) year from the

date of original retail

purchase

Parts and Labor

Seven (7) years from

the date of original

retail purchase

Parts only (Consumer

will be charged for

labor)

Linear Compressor

i Ten (10) years from the

date of original retail

i purchase

i Part only (Consumer will

i be charged for labor)

Noises associated with normal operation and failure to follow instructions found in the use and

care and installation guides or operating the unit in an unsuitable environment will not be covered

under this warranty.

1_ Replacement products and parts are warranted for the remaining portion of the original warranty

period or ninety (90) days, whichever is greater.

1_ Replacement products and parts may be new or remanufactured.

THIS WARRANTY IS IN LIEU OF ANY OTHER WARRANTY, EXPRESS OR IMPLIED,

INCLUDING WITHOUT LIMITATION, ANY WARRANTY OF MERCHANTABILITY OR FITNESS

FOR A PARTICULAR PURPOSE. TO THE EXTENT ANY IMPLIED WARRANTY IS REQUIRED

BY LAW, IT IS LIMITED IN DURATION TO THE EXPRESS WARRANTY PERIOD ABOVE.

NEITHER THE MANUFACTURER NOR ITS U.S. DISTRIBUTOR SHALL BE LIABLE FOR ANY

INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY

NATURE, INCLUDING WITHOUT LIMITATION, LOST REVENUES OR PROFITS, OR ANY

OTHER DAMAGE WHETHER BASED IN CONTRACT, TORT, OR OTHERWISE. Some states do

not allow the exclusion or limitation of incidental or consequential damages or limitations on how

long an implied warranty lasts, so the above exclusion or limitation may not apply to you. This

warranty gives you specific legal rights and you may also have other rights that vary from state

to state.

WARRANTY 53

THIS LIMITED WARRANTY DOES NOT COVER:

1. Service trips to deliver, pick up, install, or repair the product; instruct the customer on

operation of the product; repair or replace fuses or correct wiring or plumbing, or correction of

unauthorized repairs/insta%tion.

2. Failure of product to perform during power failures and interruptions or inadequate electrical

service.

3. Damage caused by leaky or broken water pipes, frozen water pipes, restricted drain lines,

inadequate or interrupted water supply or inadequate supply of air.

4. Damage resulting from operating the product in a corrosive atmosphere or contrary to the

instructions outlined in the product owner's manual.

5. Damage to the product caused by accidents, pests and vermin, lightning, wind, fire, floods, or

acts of God.

6. Damage resulting from misuse, abuse, improper installation, repair, or maintenance, improper

repair includes use of parts not approved or specified by LG.

7. Damage or failure caused by unauthorized modification or alteration, or if it is used for other

than the intended purpose, or any water leakage where the unit was not properly installed.

8. Damage or failure caused by incorrect electrical current, voltage, or plumbing codes,

commercial or industrial use, or use of accessories, components, or consumable cleaning

products that are not approved by LG.

9. Damage caused by transportation and handling, including scratches, dents, chips, and!or other

damage to the finish of your product, unless such damage results from defects in materials or

workmanship and is reported within one (1) week of delivery (Call: 1-800-243-0000).

10. Damage or missing items to any display, open box, discounted, or refurbished product.

11. Products with original serial numbers that have been removed, altered, or can not be readily

determined. Model and Serial numbers, along with original retail sales receipt, are required for

warranty validation.

12. Increases in utility costs and additional utility expenses.

13. Replacement of light bulbs, filters, or any consumable parts.

14. Repairs when your product is used in other than normal and usual household use (e.g.

commercial use, offices, and recreational facilities) or contrary to the instructions outlined in

the product owner's manual

15. Costs associated with removal of your product from your home for repairs.

16. The removal and reinstaltation of the product if it is installed in an inaccessible location or is

not installed in accordance with published installation instructions, including LG's owner's and

installation manuals.

17. Shelves, door bins, drawers, handles, accessories, and other parts besides those that were

originally included with this particular model.

The cost of repair or replacement under these excluded circumstances shall be borne

by the consumer.

For complete warranty details and customer assistance, please call or visit our website:

Call 1-800-243-0000 (24 hours a day, 365 days a year) and select the appropriate option from the

menu, or visit our website at http://www, lg,com Or by mail: LG Customer Information Center:

P. O. Box 240007, 201 James Record Road Huntsville, Alabama 35813 ATTN: CIC

Write your warranty information below:

Product Registration Information:

Model:

Serial Number:

Date of Purchase:

54 WARRANTY

WARRANTY (Canada)

WARRANTY: Should your LG Refrigerator ("Product") fail due to a defect in material or workmanship

under normal home use during the warranty period set forth below, LG Canada will at its option

repair or replace the Product upon receipt of proof of original retail purchase. This warranty is valid

only to the original retail purchaser of the product and applies only to a Product distributed in Canada

by LG Canada or an authorized Canadian distributor thereof. The warranty only applies to Products

located and used within Canada.

WARRANTY PERIOD: (Note: If the original date of purchase can not be verified,

the warranty will begin sixty (60) days from the date of manufacture)

Refrigerator/ Sealed System Linear Compressor

Freezer (Condenser, Dryer, Connecting Tube,

Refrigerant and Evaporator)

One (1) year from One (1) year from Seven (7) years from Ten (1O)years from the

the date of original the date of original the date of original date of original retail

retail purchase retail purchase retail purchase purchase

Parts and Labor Parts and Labor Parts only (Consumer Part only (Consumer will

(internal/functional will be charged for be charged for labor)

parts only) labor)

Noises associated with normal operation and failure to follow instructions found in the use and care

and insta%tion guides or operating the unit in an unsuitable environment will not be covered under

this warranty.

Replacement products and parts are warranted for the remaining portion of the original warranty

period or ninety (90) days, whichever is greater.

Replacement products and parts may be new or remanufactured.

LG Authorized Service Center warranties their repair work for thirty (30) days.

LG CANADA'S SOLE LIABILITY IS LIMITED TO THE WARRANTY SET OUT ABOVE. EXCEPT

AS EXPRESSLY PROVIDED ABOVE, LG CANADA MAKES NO AND HEREBY DISCLAIMS

ALL OTHER WARRANTIES AND CONDITIONS RESPECTING THE PRODUCT, WHETHER

EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OR

CONDITION OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, AND

NO REPRESENTATIONS SHALL BE BINDING ON LG CANADA. LG CANADA DOES NOT

AUTHORIZE ANY PERSON TO CREATE OR ASSUME FOR IT ANY OTHER WARRANTY

OBLIGATION OR LIABILITY IN CONNECTION WITH THE PRODUCT, TO THE EXTENT THAT

ANY WARRANTY OR CONDITION IS IMPLIED BY LAW, IT IS LIMITED TO THE EXPRESS

WARRANTY PERIOD ABOVE. LG CANADA, THE MANUFACTURER OR DISTRIBUTOR SHALL

NOT BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, SPECIAL, DIRECT OR INDIRECT

DAMAGES, LOSS OF GOODWILL, LOST PROFITS, PUNITIVE OR EXEMPLARY DAMAGES

OR ANY OTHER DAMAGE, WHETHER ARISING DIRECTLY OR INDIRECTLY FROM ANY

CONTRACTUAL BREACH, FUNDAMENTAL OR OTHERWISE, OR FROM ANY ACTS OR

OMISSIONS, TORT, OR OTHERWISE. This warranty gives you specific legal rights. You may

have other rights which may vary from province to province depending on applicable provincial

laws. Any term of this warranty that negates or varies any implied condition or warranty under

provincial law is severable where it conflicts with provincial law without affecting the remainder

of this warranty's terms.

WARRANTY 55

THIS LIMITED WARRANTY DOES NOT COVER:

1. Service trips to deliver, pick up, or install the product; instructing a customer on operation of

the product; repair or replacement of fuses or correction of wiring or plumbing, or correction of

unauthorized repairs/installation.

2. Failure of the product to perform during power failures and interruptions or inadequate

electrical service.

3. Damage caused by leaky or broken water pipes, frozen water pipes, restricted drain lines,

inadequate or interrupted water supply or inadequate supply of air.

4. Damage resulting from operating the Product in a corrosive atmosphere or contrary to the

instructions outlined in the Product owner's manual

5. Damage to the Product caused by accidents, pests and vermin, lightning, wind, fire, floods, or

acts of God.

6. Damage resulting from the misuse, abuse, improper insta%tion, repair, or maintenance of the

Product. improper repair includes use of parts not approved or specified by LG Canada.

7. Damage or product failure caused by unauthorized modification or alteration, or use for other

than its intended purpose, or resulting from any water leakage due to improper installation.

8. Damage or Product failure caused by incorrect electrical current, voltage, or plumbing codes,

commercial or industrial use, or use of accessories, components, or cleaning products that are

not approved by LG Canada.

9. Damage caused by transportation and handling, including scratches, dents, chips, and!or other

damage to the finish of your product, unless such damage results from defects in materials or

workmanship and is reported within one (1) week of delivery.

10. Damage or missing items to any display, open box, discounted, or refurbished Product.

11. Products with original serial numbers that have been removed, altered, or cannot be readily

determined. Model and Serial numbers, along with original retail sales receipt, are required for

warranty validation.

12. Increases in utility costs and additional utility expenses.

13. Replacement of light bulbs, filters, or any consumable parts.

14. Repairs when your Product is used in other than normal and usual household use (including,

without limitation, commercial use, in offices or recreational facilities) or contrary to the

instructions outlined in the Product owner's manual.

15. Costs associated with removal of the Product from your home for repairs.

16. The removal and reinstaltation of the Product if it is installed in an inaccessible location or is not

installed in accordance with published installation instructions, including the Product owner's

and installation manuals.

17. Shelves, door bins, drawers, handles, and accessories to the Product. Atso excluded are parts

besides those that were originally included with the Product.

All costs associated with the above excluded circumstances

shall be borne by the consumer,

For complete warranty details and customer assistance, please call or visit our website:

Call 1-888-542-2623 (24 hours a day, 365 days a year) and select the appropriate option from the

menu, or visit our website at http://www, lg.com

Write your warranty information below:

Product Registration Information:

Model: ......

Serial Number: __

Date of Purchase:

NOTES

NOTES

Life's Good

For inquires or corr_n_enfs,

visit www3g,com or c_:_ll;

1-800-243-0000 usA,o,,,_,,,_,,e_;_e_

1-888-865-3026 usA,Co,_............,, u,,÷

1-888-542-2623 CAN/,,_>/,,
