TOP FREEZER REFRIGERATOR

Use & Care Guide

REFRIGERADOR CON MONTAJE SUPERIOR

Guia para e_ Uso y Cuidado

REFRIGERATEUR SUPERPOSE

Guide d'utHisation et d'entretien m

Model(s):

795.73262300

795.73962300

795.73252300

795.73952300

795.73269300

795.73969300

795.73259300

795.73959300

795.73264300

795.73964300

795.73254300

795.73954300

795.73266300

795.73966300

795.73263300

795.73963300

3e2_oo_ Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S-A. www.sears.com

Printed in Mexico RevJ

English Version 2

Versl6n en espanol 31

Version fran;aise 59

Warranty (U,S,A,) 3

Master Protection Agreements (U,S,A,) 3

Safety Instructions 4-5

Grounding Requirements 5

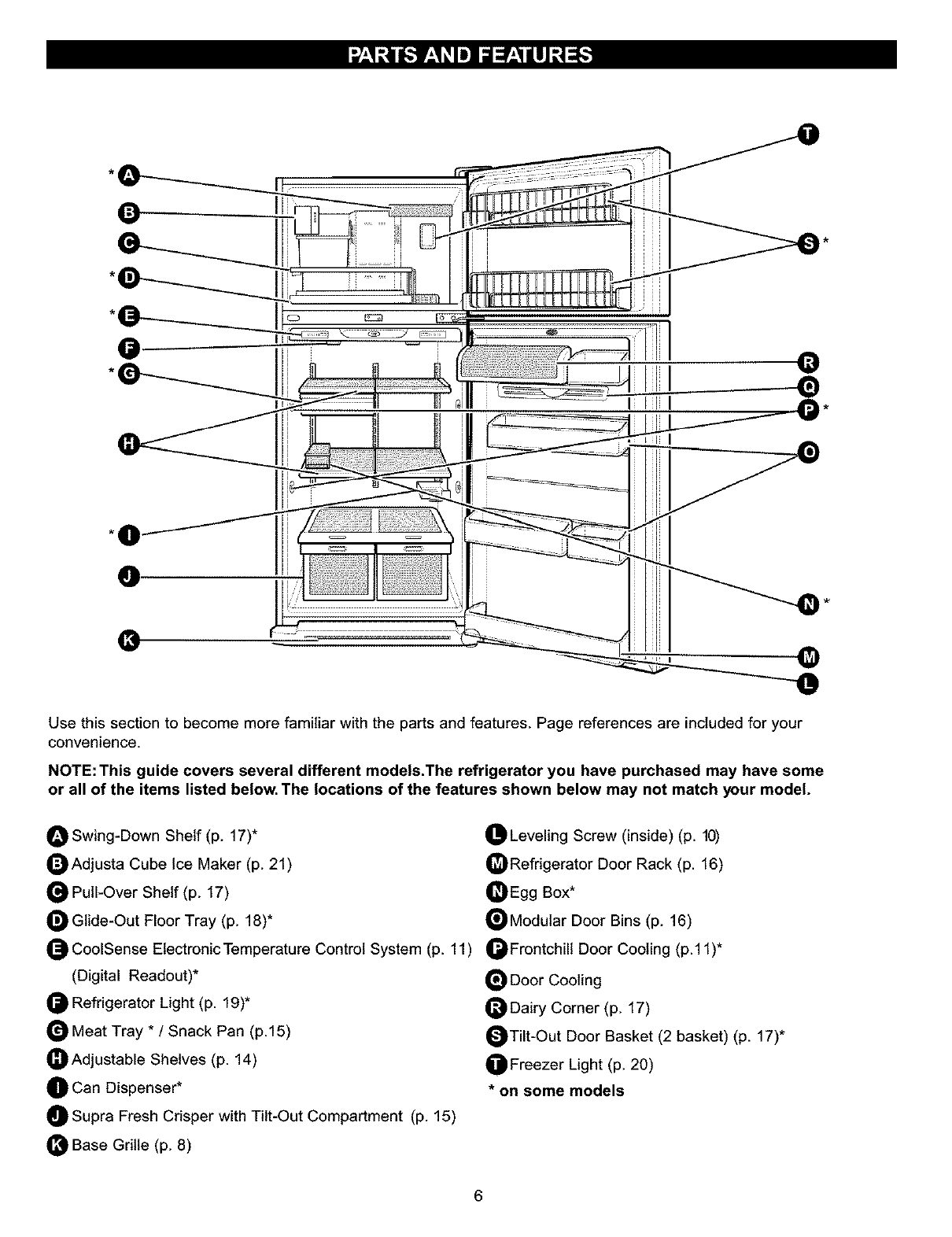

Parts and Features 6

Refrigerator Installation 7-10

Unpacking Your Refrigerator 7

Installation 7

Base Grille 7

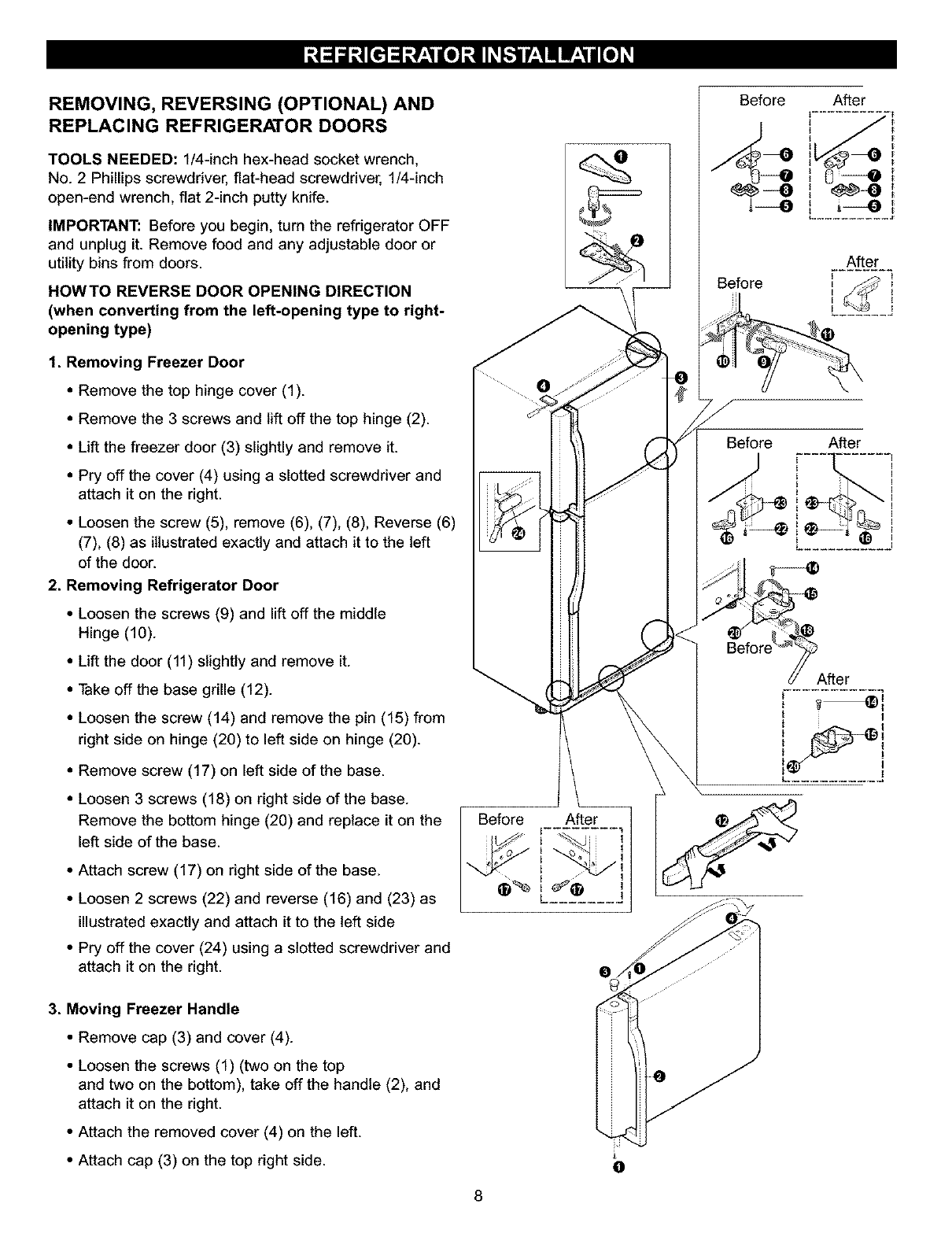

Removing, Reversing and Replacing

Your Refrigerator Doors 8-9

Door Closing and Alignment 10

Using Your Refrigerator 11-18

Ensuring Proper Air Circulation 11

Frontchill Door Cooling 11

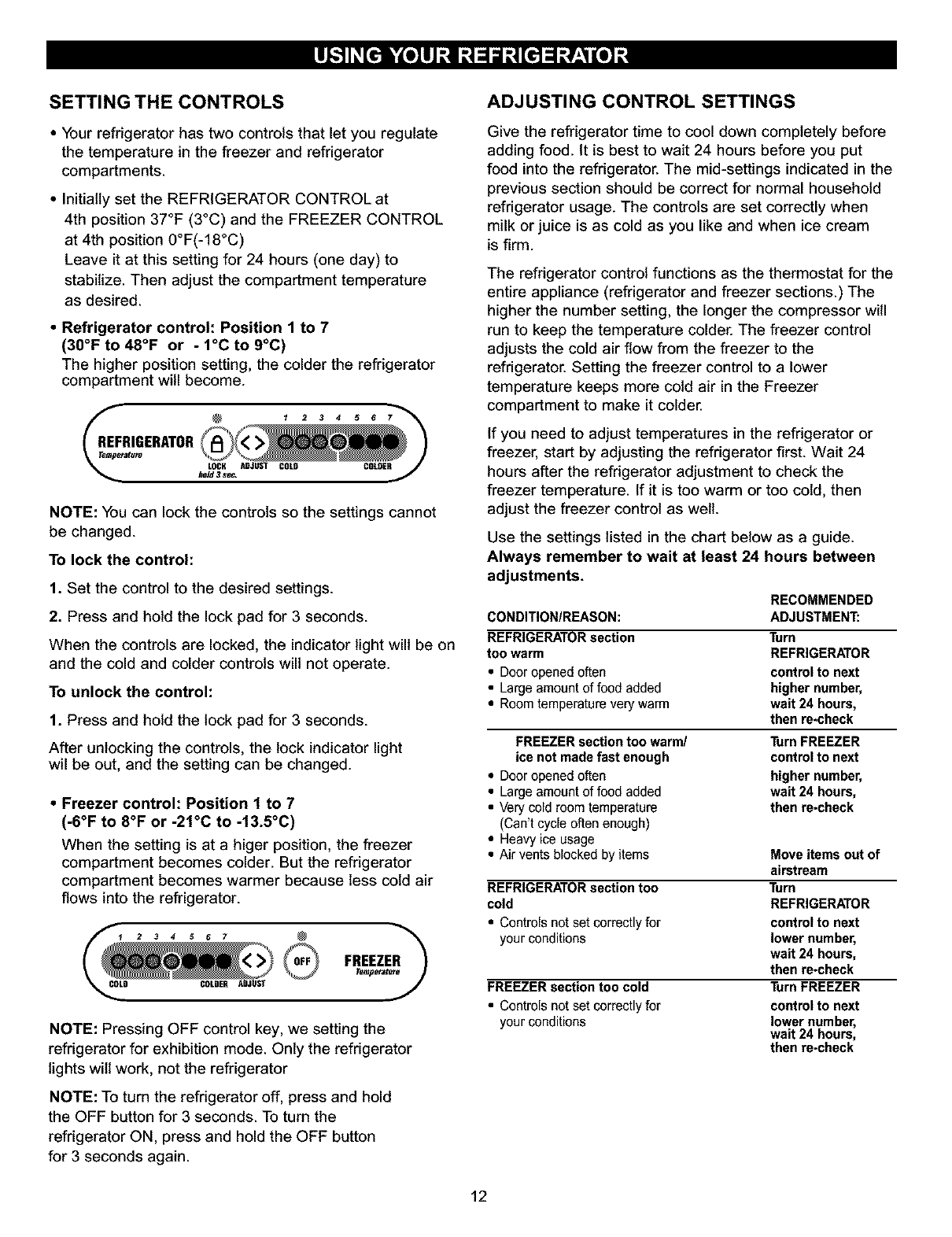

Setting the Controls 11-12

Adjusting Control Settings 12

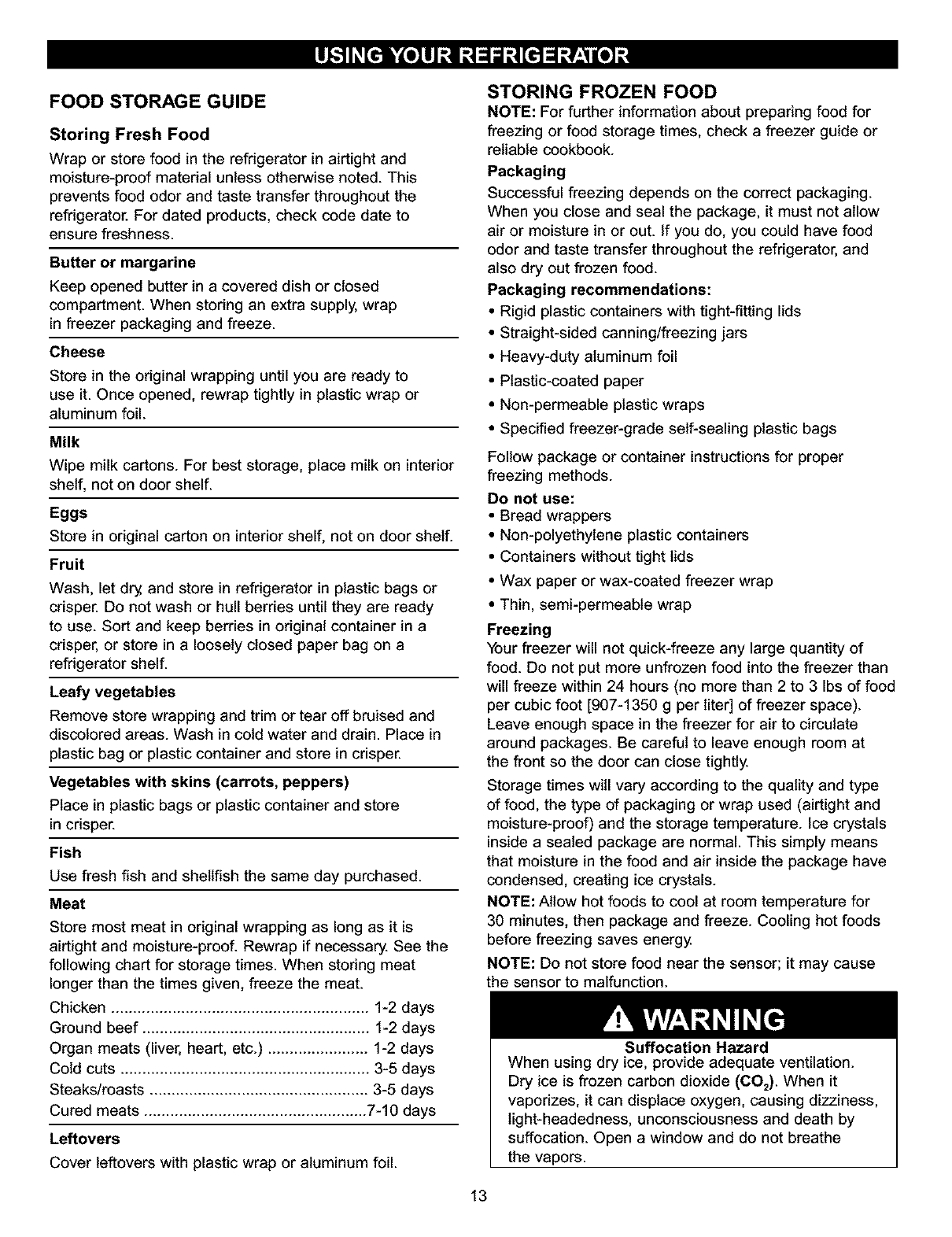

Food Storage Guide 13

Storing Frozen Food 13

Refrigerator Shelves 14

Meat Tray/Snack Pan 15

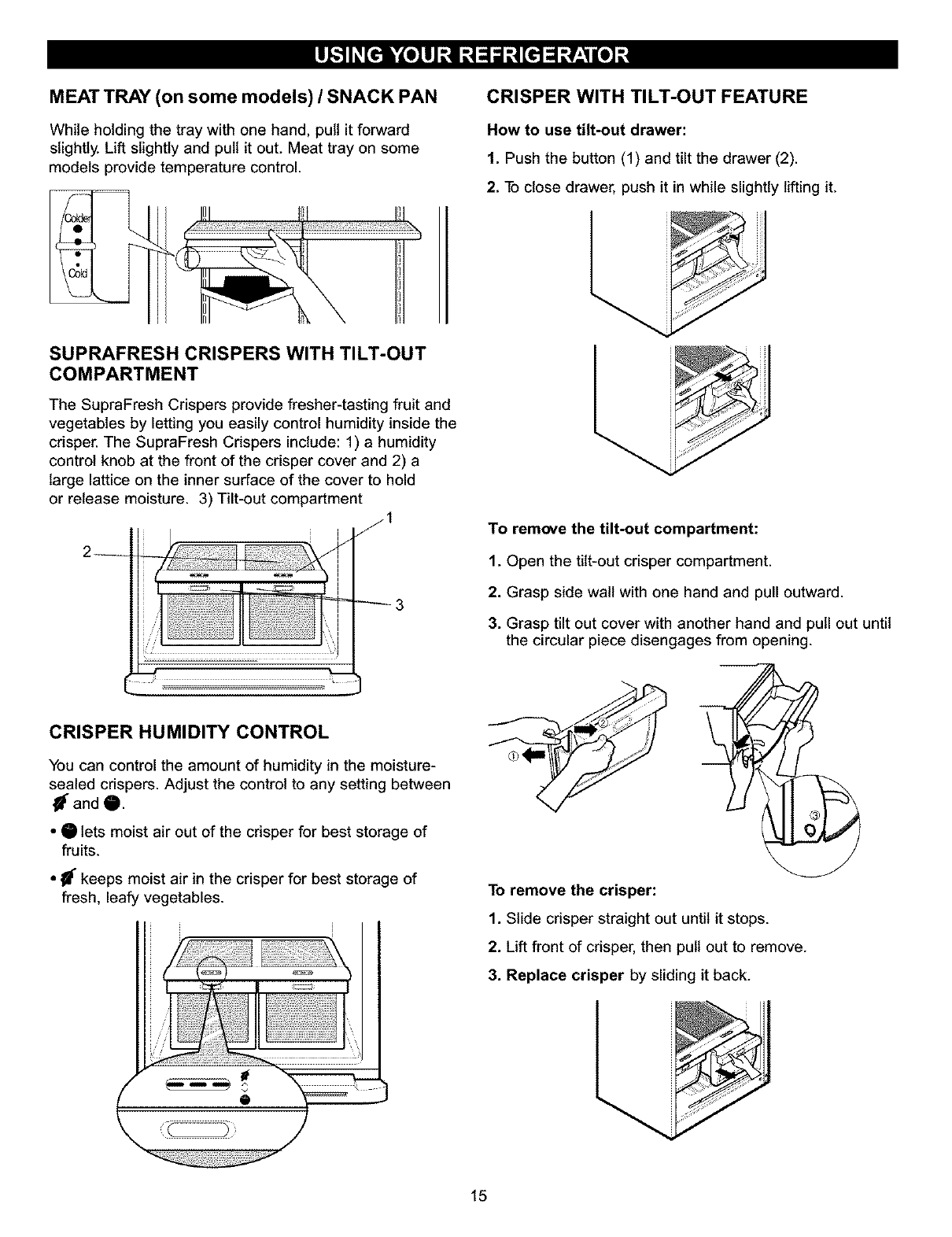

SupraFresh Crisper with Tilt-Out Compartment 15

Crisper Humidity Control 15

Crisper Tilt-Out Feature 15

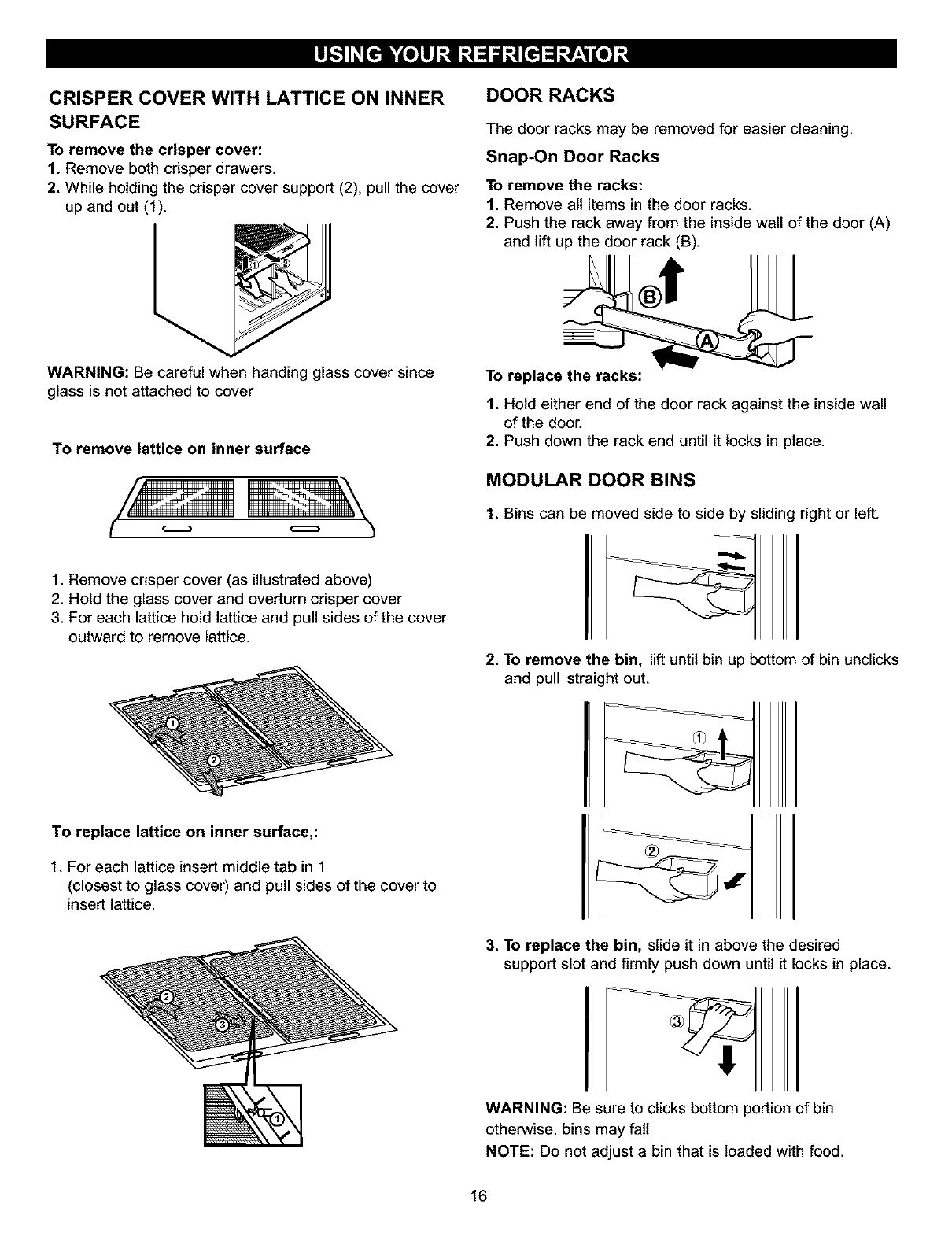

Crisper Cover whit lattice on inner surface 16

Door Racks 16

Modular Door Bins 16

Dairy Corner 17

Tilt-Out Door Baskets 17

Swing-Down Shelf 17

Pull-Over Shelf 17

Glide-Out Floor Tray 18

Ice Tray 18

Care and Cleaning 19-20

General Cleaning "13ps 19

Outside 19

Inside Walls 19

Door Liner and Gaskets 19

Plastic Parts 19

Condenser Coils 19

Light Bulb Replacement 19-20

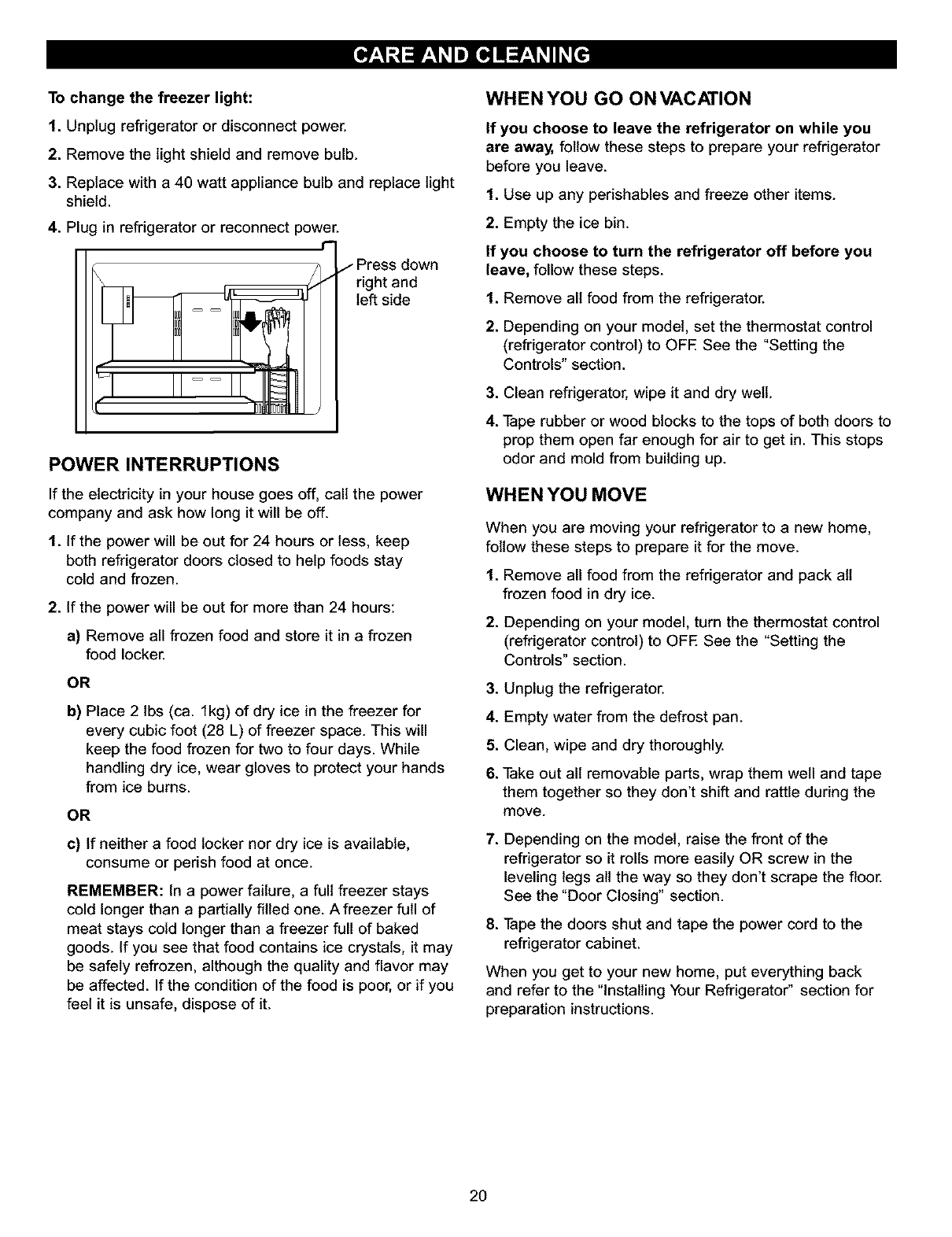

Power Interruptions 20

Vacation and Moving Care 20

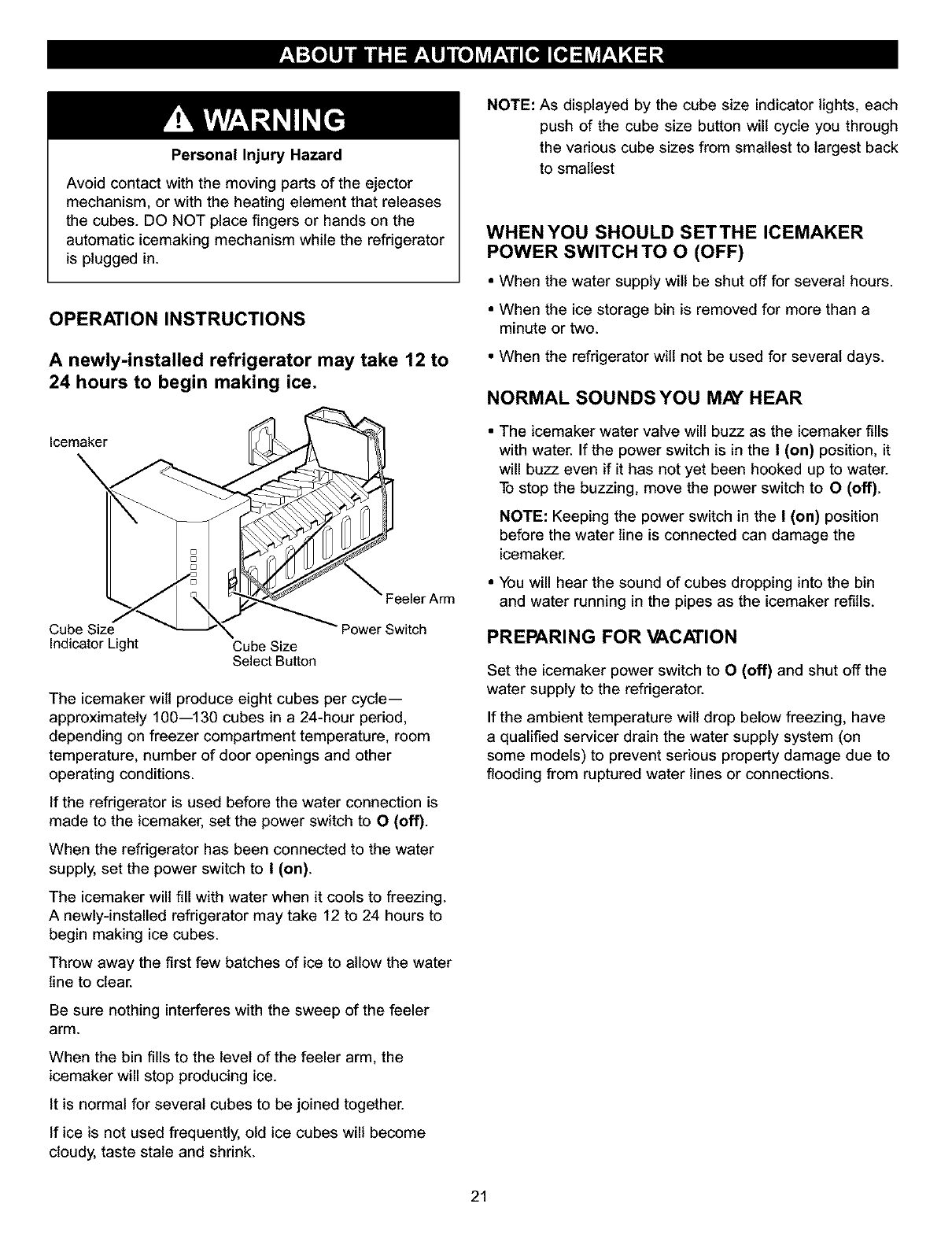

About the Automatic Icemaker 21

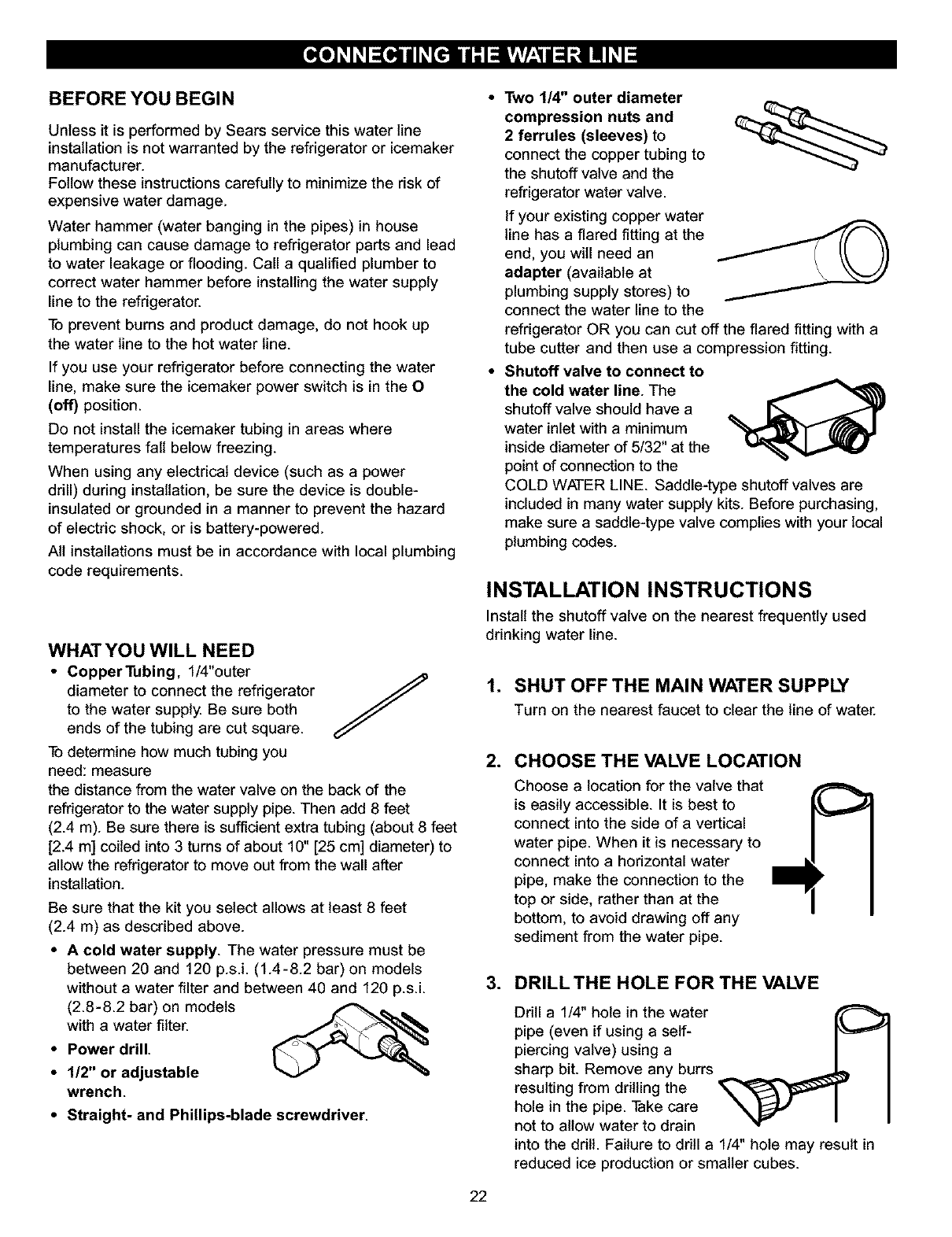

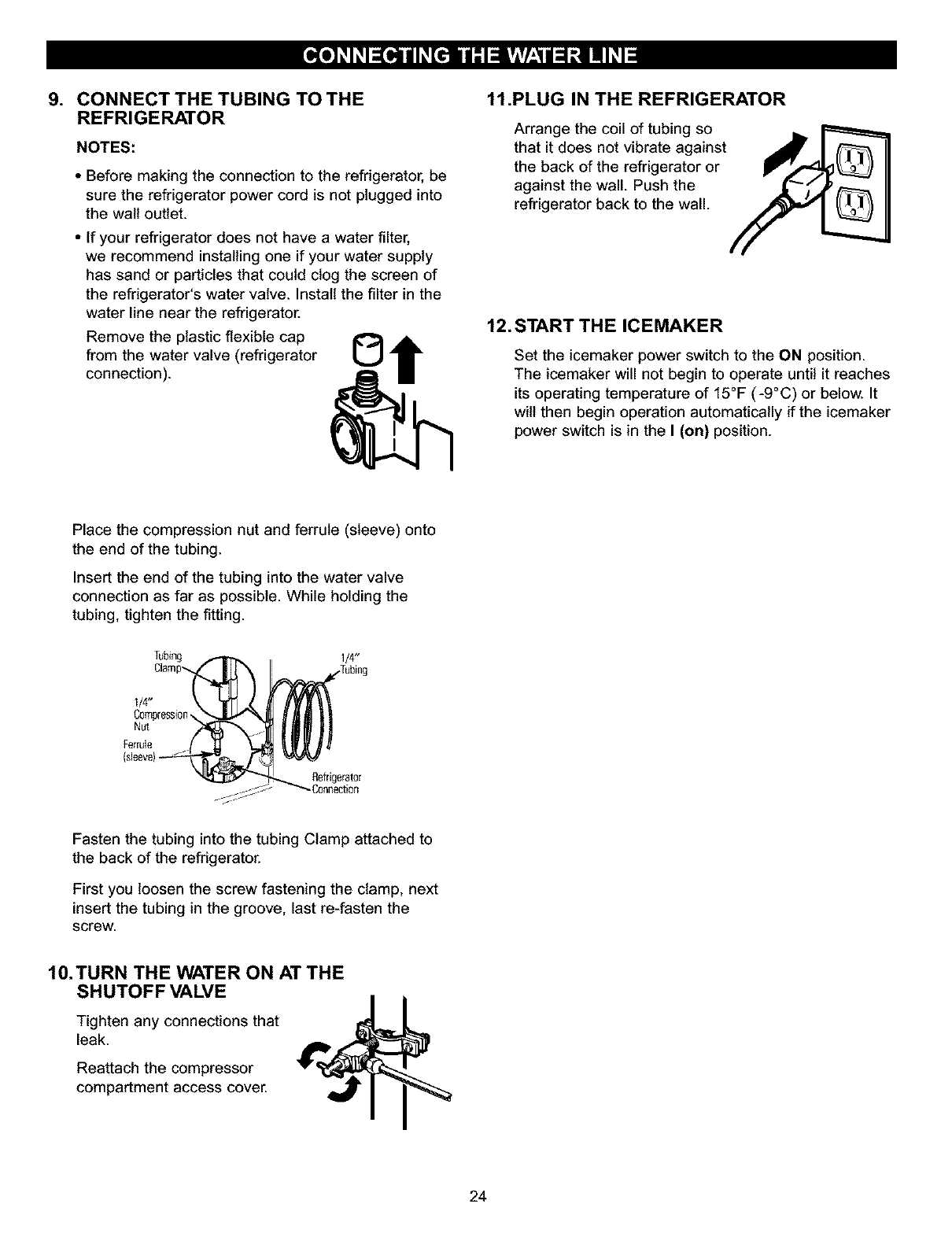

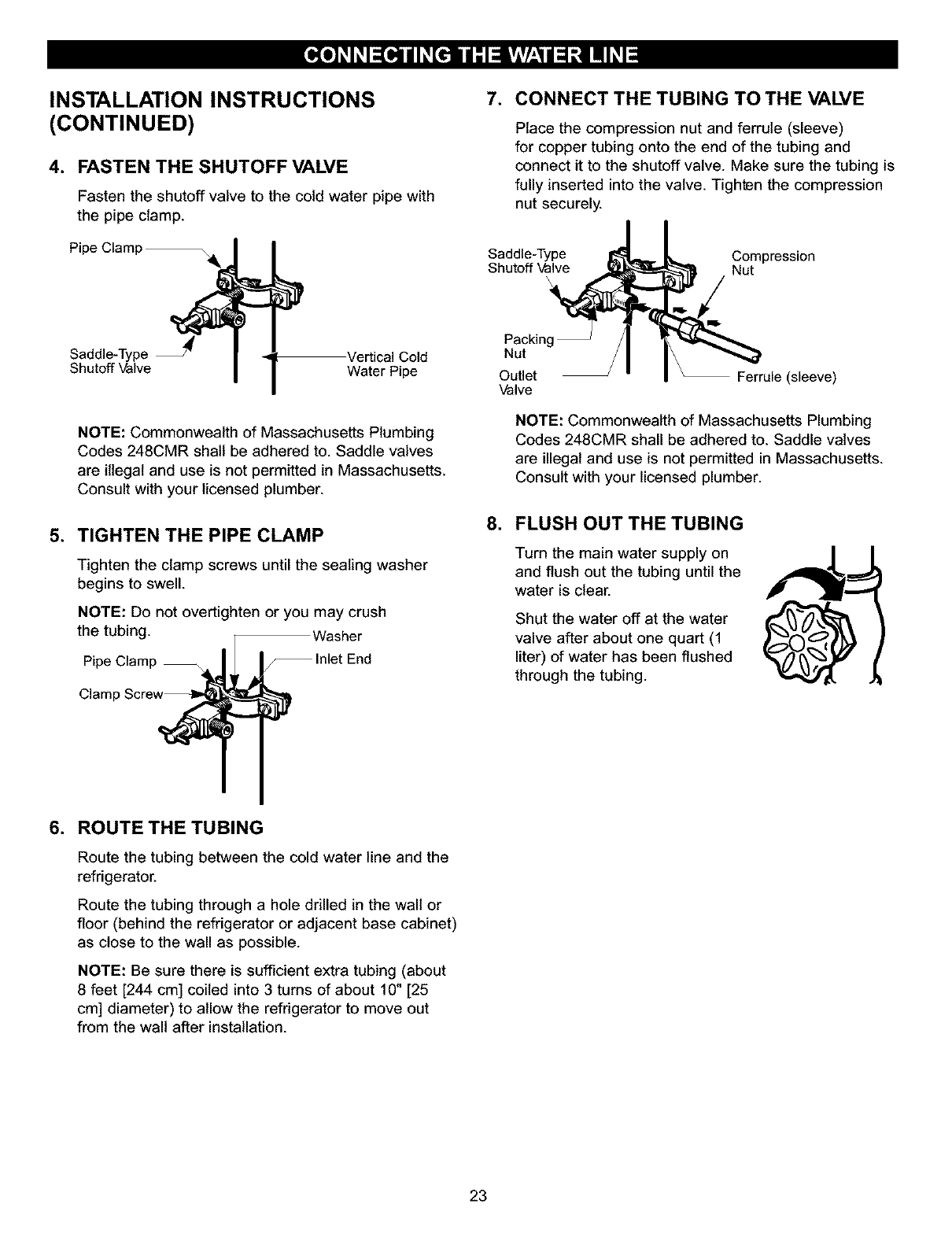

Connecting the Water Line 22-24

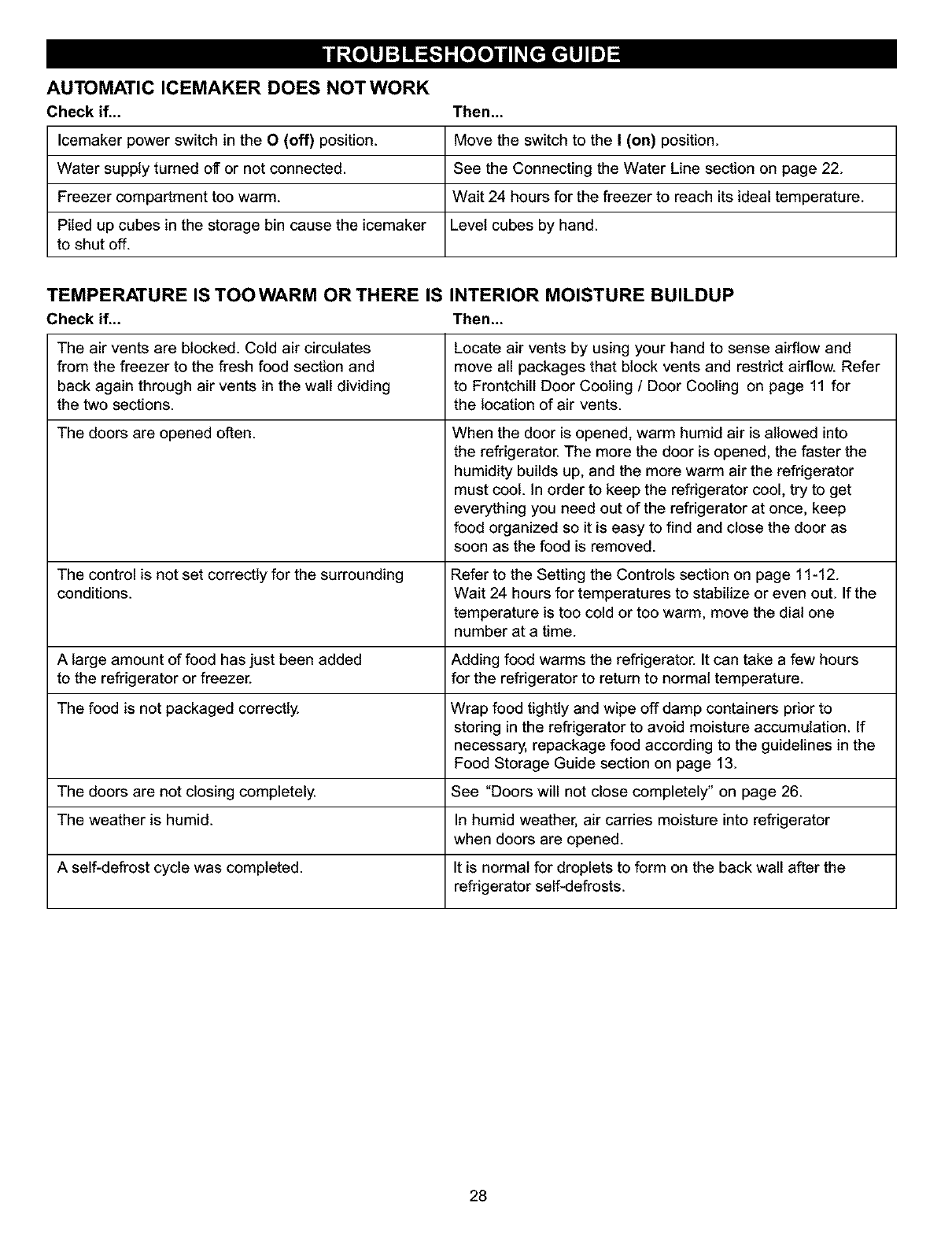

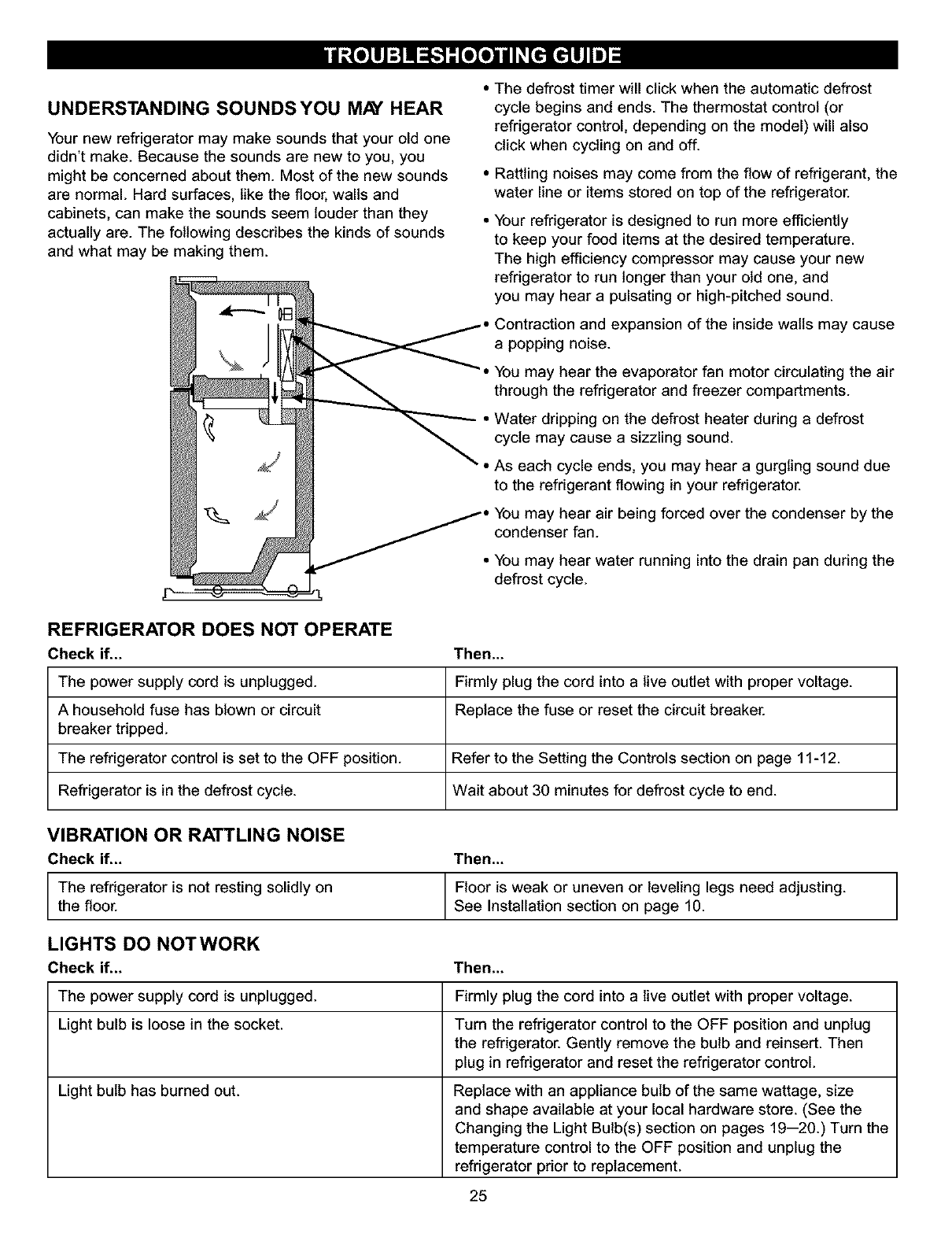

Troubleshooting Guide 25-28

Customer Service Back Cover

in the space below, record the date of purchase, model and serial number of your product. You will find the model and

serial number printed on an identification label located on the right-hand side of the refrigerator compartment. Have

these items of information available whenever you contact Sears concerning your product.

Model No. Date of Purchase

Serial No.

Save these instructions and your sales receipt for future reference.

TOP-MOUNT REFRIGERATOR

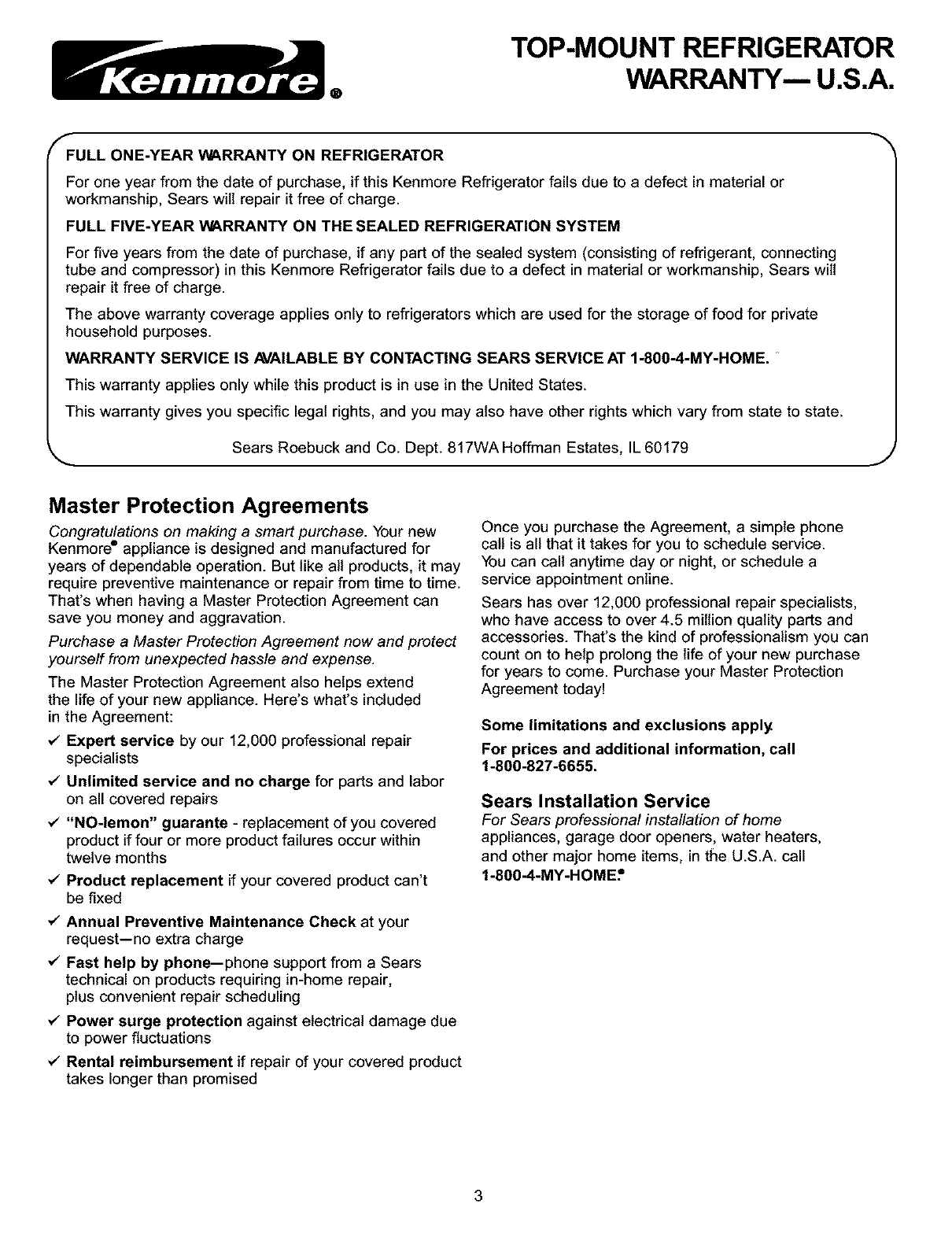

WARRANTY--- U.S.A.

FULL ONE-YEAR WARRANTY ON REFRIGERATOR

For one year from the date of purchase, if this Kenmore Refrigerator fails due to a defect in material or

workmanship, Sears will repair it free of charge.

FULL FIVE-YEAR WARRANTY ON THE SEALED REFRIGERATION SYSTEM

For five years from the date of purchase, if any part of the sealed system (consisting of refrigerant, connecting

tube and compressor) in this Kenmore Refrigerator fails due to a defect in material or workmanship, Sears wilt

repair it free of charge.

The above warranty coverage applies only to refrigerators which are used for the storage of food for private

household purposes.

WARRANTY SERVICE IS AVAILABLE BY CONTACTING SEARS SERVICE AT 1-800-4-MY-HOME.

This warranty applies only while this product is in use in the United States.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Sears Roebuck and Co. Dept. 817WA Hoffman Estates, IL 60179

Master Protection Agreements

Congratulations on making a smart purchase. Your new

Kenmore ° appliance is designed and manufactured for

years of dependable operation. But like all products, it may

require preventive maintenance or repair from time to time.

That's when having a Master Protection Agreement can

save you money and aggravation.

Purchase a Master Protection Agreement now and protect

yourself from unexpected hassle and expense.

The Master Protection Agreement also helps extend

the life of your new appliance. Here's what's included

in the Agreement:

,! Expert service by our 12,000 professional repair

specialists

,t Unlimited service and no charge for parts and labor

on all covered repairs

"NO-lemon" guarante - replacement of you covered

product if four or more product failures occur within

twelve months

Product replacement if your covered product can't

be fixed

v" Annual Preventive Maintenance Check at your

request--no extra charge

,1 Fast help by phone--phone support from aSears

technical on products requiring in-home repair,

plus convenient repair scheduling

v" Power surge protection against electrical damage due

to power fluctuations

v" Rental reimbursement if repair of your covered product

takes longer than promised

Once you purchase the Agreement, a simple phone

call is all that it takes for you to schedule service.

You can call anytime day or night, or schedule a

service appointment online.

Sears has over 12,000 professional repair specialists,

who have access to over 4.5 million quality parts and

accessories. That's the kind of professionalism you can

count on to help prolong the life of your new purchase

for years to come. Purchase your Master Protection

Agreement today!

Some limitations and exclusions apply

For prices and additional information, call

1-800-827-6655.

Sears Installation Service

For Sears professional installation of home

appliances, garage door openers, water heaters,

and other major home items, in the U.S.A. call

1-800-4-MY-HOME?

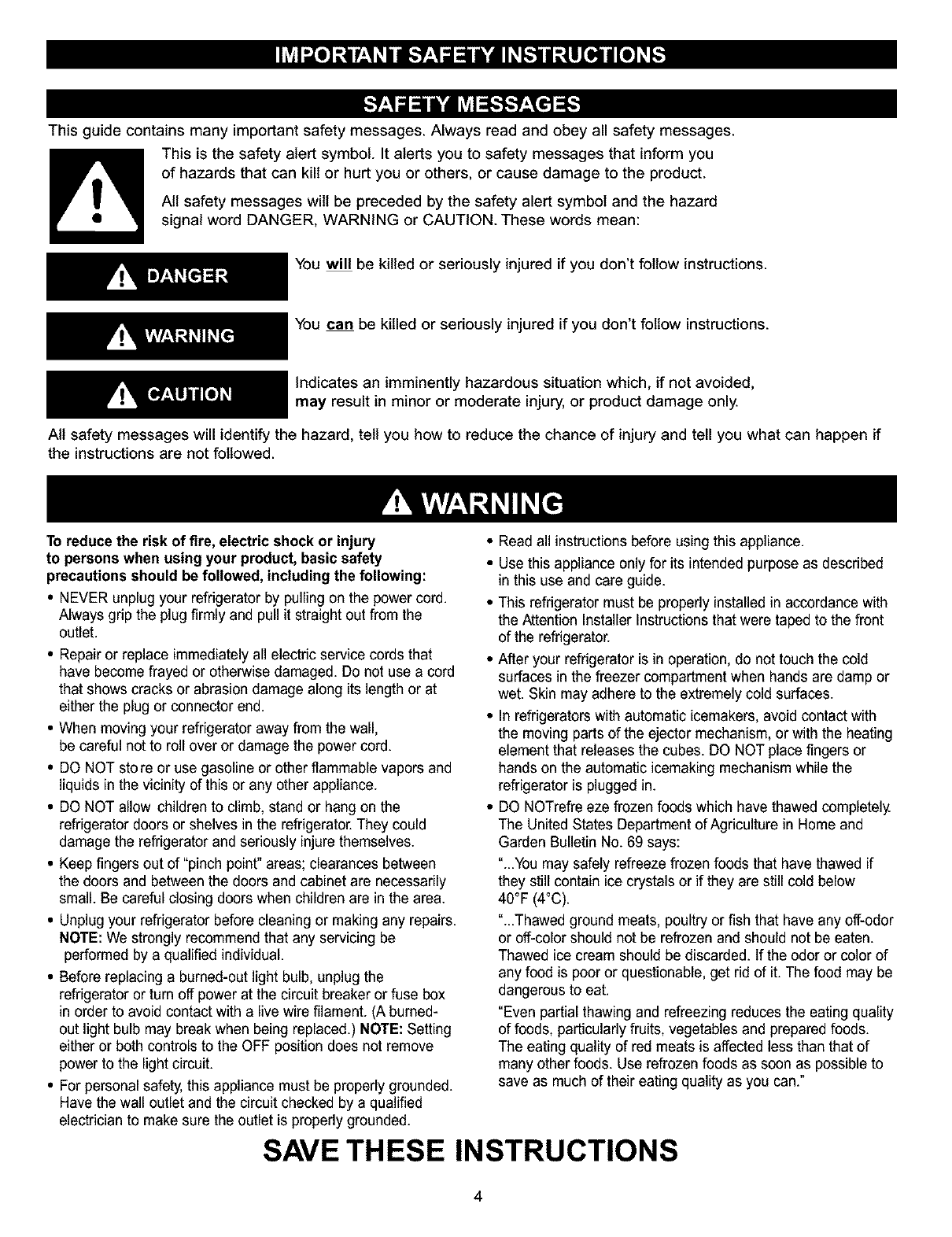

This guide contains many important safety messages. Always read and obey all safety messages.

This is the safety alert symbol. It alerts you to safety messages that inform you

of hazards that can kill or hurt you or others, or cause damage to the product.

All safety messages wilt be preceded by the safety alert symbol and the hazard

signal word DANGER, WARNING or CAUTION. These words mean:

You will be killed or seriously injured if you don't follow instructions.

You can be killed or seriously injured if you don't follow instructions.

Indicates an imminently hazardous situation which, if not avoided,

may result in minor or moderate injury, or product damage only

All safety messages will identify the hazard, tell you how to reduce the chance of injury and tell you what can happen if

the instructions are not followed.

To reduce the risk of fire, electric shock or injury

to persons when using your product, basic safety

precautions should be followed, including the following:

•NEVER unplug yourrefrigerator by pulling onthe powercord.

Always grip the plug firmly and pull it straight out from the

outlet.

• Repairor replace immediately all electric service cords that

have become frayed or otherwise damaged. Do not use a cord

that shows cracks or abrasion damage along its length or at

either the plug or connector end.

• When moving your refrigerator away from the wall,

be careful not to roll over or damage the power cord.

• DO NOT sto re or use gasoline or other flammable vapors and

liquids in the vicinity of this or any other appliance.

• DO NOT allow children to climb, stand or hang on the

refrigerator doors or shelves in the refrigerator. They could

damage the refrigerator and seriously injure themselves.

• Keep fingers out of "pinch point" areas; clearances between

the doors and between the doors and cabinet are necessarily

small. Be careful closing doors when children are in the area.

• Unplug your refrigerator before cleaning or making any repairs.

NOTE: We strongly recommend that any servicing be

performed by a qualified individual.

• Before replacing a burned-out light bulb, unplug the

refrigerator or turn off power at the circuit breaker or fuse box

in order to avoid contact with a live wire filament. (A burned-

out light bulb may break when being replaced.) NOTE: Setting

either or both controls to the OFF position does not remove

powerto the light circuit.

• For personal safety,this appliance must be properly grounded.

Have the wall outlet and the circuit checked by a qualified

electrician to make sure the outlet is properly grounded.

• Read all instructions before using this appliance.

• Use this appliance only for its intended purpose as described

in this use and care guide.

• This refrigerator must be properly installed in accordance with

the Attention Installer Instructions that were taped to the front

of the refrigerator.

• After your refrigerator is in operation, do not touch the cold

surfaces in the freezer compartment when hands are damp or

wet. Skin may adhere to the extremely cold surfaces.

• In refrigerators with automatic icemakers, avoid contact with

the moving parts of the ejector mechanism, or with the heating

element that releases the cubes. DO NOT place fingers or

hands on the automatic icemaking mechanism while the

refrigerator is plugged in.

• DO NOTrefre eze frozen foods which have thawed completely.

The United States Department of Agriculture in Home and

Garden Bulletin No. 69 says:

"...Youmay safely refreeze frozen foods that have thawed if

they still contain ice crystals or if they are still cold below

40°F (4°C).

"...Thawed ground meats, poultry or fish that have any off-odor

or off-color should not be refrozen and should not be eaten.

Thawed ice cream should be discarded. If the odor or color of

any food is poor or questionable, get rid of it. The food may be

dangerous to eat.

"Even partialthawingand refreezing reduces the eating quality

of foods, particularlyfruits, vegetables and prepared foods.

The eating quality of red meats is affected less than that of

many other foods. Use refrozen foods as soon as possible to

save as much of their eating quality as you can."

SAVE THESE INSTRUCTIONS

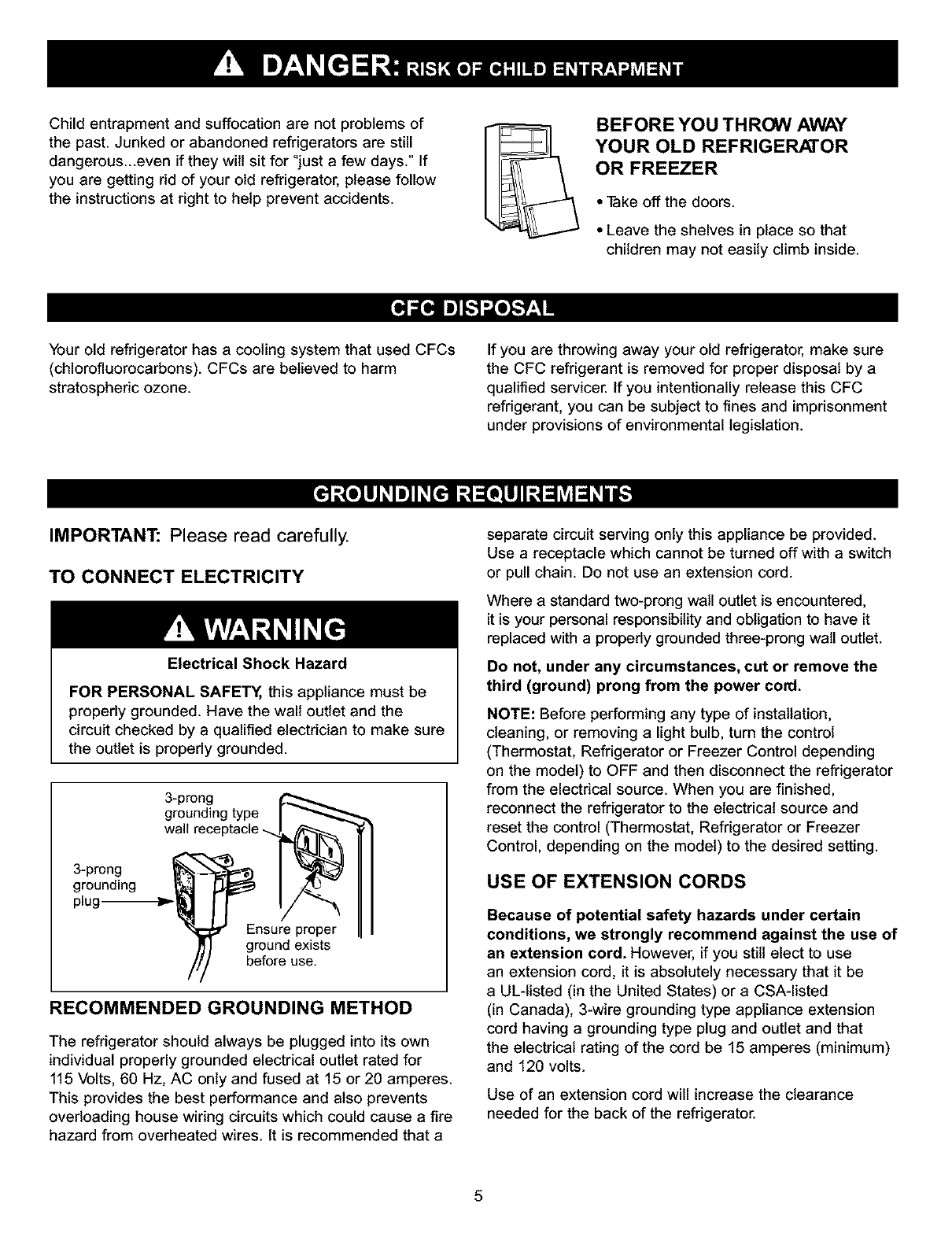

Childentrapmentandsuffocationarenotproblemsof

thepast.Junkedorabandonedrefrigeratorsarestill

dangerous...evenif theywiltsitfor"justafewdays."If

youaregettingridofyouroldrefrigerator,pleasefollow

theinstructionsat rightto helppreventaccidents.

BEFORE YOU THROW AWAY

YOUR OLD REFRIGERArOR

OR FREEZER

•Take off the doors.

•Leave the shelves in place so that

children may not easily climb inside.

Your old refrigerator has a cooling system that used CFCs

(chlorofluorocarbons). CFCs are believed to harm

stratospheric ozone.

If you are throwing away your old refrigerator, make sure

the CFC refrigerant is removed for proper disposal by a

qualified servicer. If you intentionally release this CFC

refrigerant, you can be subject to fines and imprisonment

under provisions of environmental legislation.

IMPORTANT: Please read carefully.

TO CONNECT ELECTRICITY

Electrical Shock Hazard

FOR PERSONAL SAFETY, this appliance must be

properly grounded. Have the wall outlet and the

circuit checked by a qualified electrician to make sure

the outlet is properly grounded.

3-prong

grounding type

wall receptacle -_.

grounding I_ _ _ -

1 _" Ensure proper

ground exists

before use.

RECOMMENDED GROUNDING METHOD

The refrigerator should always be plugged into its own

individual properly grounded electrical outlet rated for

115 Volts, 60 Hz, AC only and fused at 15 or 20 amperes.

This provides the best performance and also prevents

overloading house wiring circuits which could cause a fire

hazard from overheated wires. It is recommended that a

separate circuit serving only this appliance be provided.

Use a receptacle which cannot be turned off with a switch

or pull chain. Do not use an extension cord.

Where a standard two-prong wall outlet is encountered,

it is your personal responsibility and obligation to have it

replaced with a properly grounded three-prong wall outlet.

Do not, under any circumstances, cut or remove the

third (ground) prong from the power cord.

NOTE: Before performing any type of installation,

cleaning, or removing a light bulb, turn the control

(Thermostat, Refrigerator or Freezer Control depending

on the model) to OFF and then disconnect the refrigerator

from the electrical source. When you are finished,

reconnect the refrigerator to the electrical source and

reset the control (Thermostat, Refrigerator or Freezer

Control, depending on the model) to the desired setting.

USE OF EXTENSION CORDS

Because of potential safety hazards under certain

conditions, we strongly recommend against the use of

an extension cord. However, if you still elect to use

an extension cord, it is absolutely necessary that it be

a UL-listed (in the United States) or a CSA-listed

(in Canada), 3-wire grounding type appliance extension

cord having a grounding type plug and outlet and that

the electrical rating of the cord be 15 amperes (minimum)

and 120 volts.

Use of an extension cord will increase the clearance

needed for the back of the refrigerator.

Use this section to become more familiar with the parts and features. Page references are included for your

convenience.

NOTE: This guide covers several different models.The refrigerator you have purchased may have some

or all of the items listed below. The locations of the features shown below may not match your model.

O Swing-Down Shelf (p. 17)*

OAdjusta Cube Ice Maker (p. 21)

Pull-Over Shelf (p. 17)

_ Glide-Out Floor Tray (p. 18)*

CoolSense Electronic Temperature Control System (p. 11)

(Digital Readout)*

Refrigerator Light (p. 19)*

O Meat Tray * /Snack Pan (p.15)

Adjustable Shelves (p. 14)

_1 Can Dispenser*

_1 Supra Fresh Crisper with Tilt-Out Compartment (p. 15)

O Base Grille (p. 8)

Leveling Screw (inside) (p. 10)

_Refrigerator Door Rack (p. 16)

_Egg Box*

_Modular Door Bins (p. 16)

_Frontchill Door Cooling (p.11)*

Door Cooling

ODairy Corner (p. 17)

_Tilt-Out Door Basket (2 basket) (p. 17)*

OFreezer Light (p. 20)

* on some models

Excessive Weight Hazard

Use two or more people to move and instalJ

refrigerator,

Failure to do so can result in back or other injury.

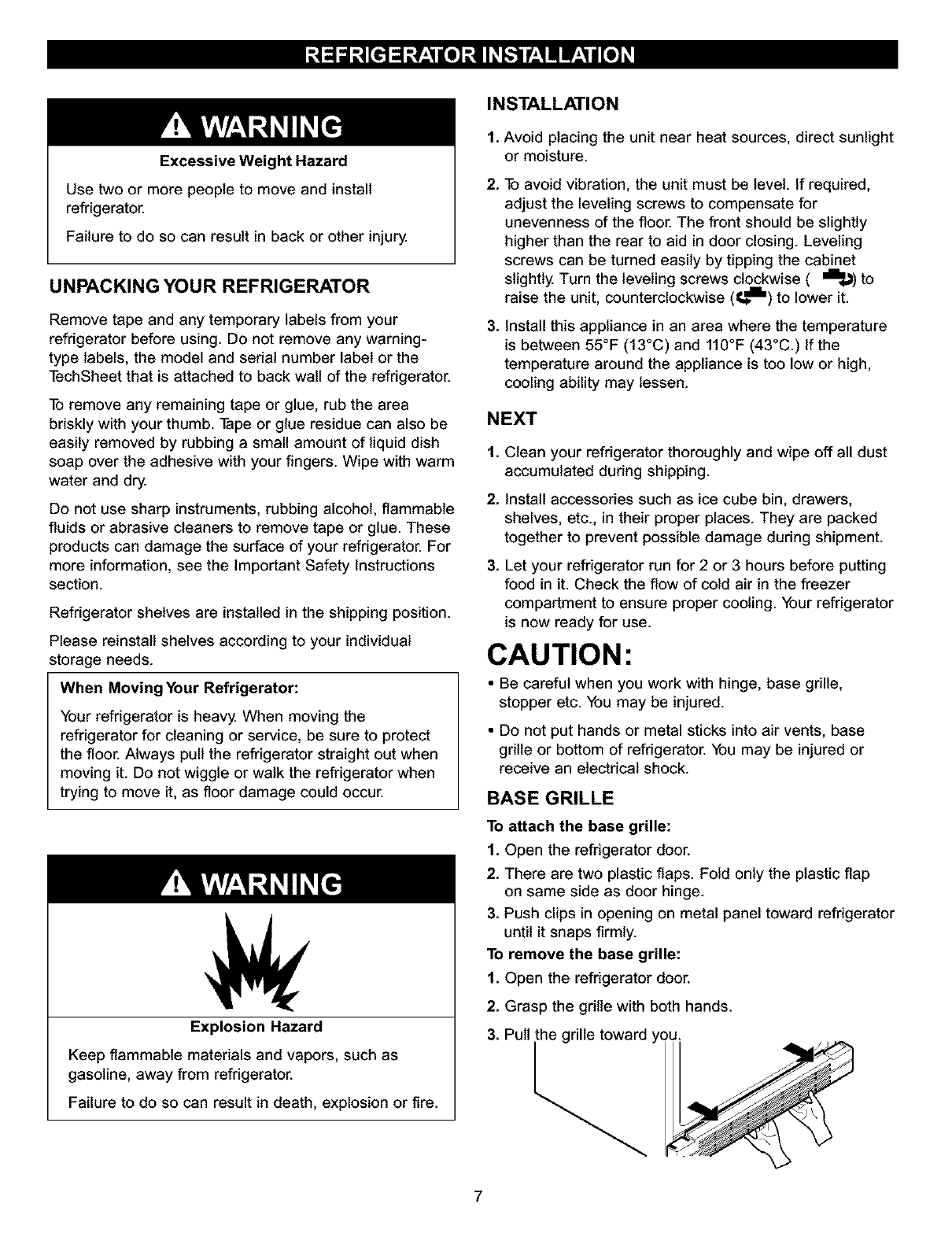

UNPACKING YOUR REFRIGERATOR

Remove tape and any temporary labels from your

refrigerator before using. Do not remove any warning-

type labels, the model and serial number label or the

TechSheet that is attached to back wall of the refrigerator.

To remove any remaining tape or glue, rub the area

briskly with your thumb. Tape or glue residue can also be

easily removed by rubbing a small amount of liquid dish

soap over the adhesive with your fingers. Wipe with warm

water and dry.

Do not use sharp instruments, rubbing alcohol, flammable

fluids or abrasive cleaners to remove tape or glue. These

products can damage the surface of your refrigerator. For

more information, see the Important Safety instructions

section.

Refrigerator shelves are installed in the shipping position.

Please reinstall shelves according to your individual

storage needs.

When Moving Your Refrigerator:

Your refrigerator is heavy When moving the

refrigerator for cleaning or service, be sure to protect

the floor. Always pull the refrigerator straight out when

moving it. Do not wiggle or walk the refrigerator when

trying to move it, as floor damage could occur.

Explosion Hazard

Keep flammable materials and vapors, such as

gasoline, away from refrigerator.

Failure to do so can result in death, explosion or fire.

INSTALLATION

Avoid placing the unit near heat sources, direct sunlight

or moisture.

To avoid vibration, the unit must be level. If required,

adjust the leveling screws to compensate for

unevenness of the floor. The front should be slightly

higher than the rear to aid in door closing. Leveling

screws can be turned easily by tipping the cabinet

slightly Turn the leveling screws clockwise (=_,,_) to

raise the unit, counterclockwise (t,,_"11") to lower it.

install this appliance in an area where the temperature

is between 55°F (13°C) and 110°F (43°C.) If the

temperature around the appliance is too low or high,

cooling ability may lessen.

Clean your refrigerator thoroughly and wipe off all dust

accumulated during shipping.

install accessories such as ice cube bin, drawers,

shelves, etc., in their proper places. They are packed

together to prevent possible damage during shipment.

Let your refrigerator run for 2 or 3 hours before putting

food in it. Check the flow of cold air in the freezer

compartment to ensure proper cooling. Your refrigerator

is now ready for use.

CAUTION:

•Be careful when you work with hinge, base grille,

stopper etc. You may be injured.

•Do not put hands or metal sticks into air vents, base

grille or bottom of refrigerator. You may be injured or

receive an electrical shock.

BASE GRILLE

To attach the base grille:

1. Open the refrigerator door.

2. There are two plastic flaps. Fold only the plastic flap

on same side as door hinge.

3. Push clips in opening on metal panel toward refrigerator

until it snaps firmly.

To remove the base grille:

1. Open the refrigerator door.

2. Grasp the grille with both hands.

3. Pull the grille toward '

REMOVING, REVERSING (OPTIONAL) AND

REPLACING REFRIGERATOR DOORS

TOOLS NEEDED: 1/4-inch hex-head socket wrench,

No. 2 Phillips screwdriver, fiat-head screwdriver, 1/4-inch

open=end wrench, fiat 2-inch putty knife.

IMPORTANT: Before you begin, turn the refrigerator OFF

and unplug it. Remove food and any adjustable door or

utility bins from doors.

HOWTO REVERSE DOOR OPENING DIRECTION

(when converting from the left-opening type to right-

opening type)

1. Removing Freezer Door

• Remove the top hinge cover (1).

• Remove the 3 screws and lift off the top hinge (2).

• Lift the freezer door (3) slightly and remove it.

• Pry off the cover (4) using a slotted screwdriver and

attach it on the right.

• Loosen the screw (5), remove (6), (7), (8), Reverse (6)

(7), (8) as illustrated exactly and attach it to the left

of the door.

2. Removing Refrigerator Door

• Loosen the screws (9) and lift off the middle

Hinge (10).

• Lift the door (11) slightly and remove it.

• Take off the base grille (12).

• Loosen the screw (14) and remove the pin (15) from

right side on hinge (20) to left side on hinge (20).

• Remove screw (17) on left side of the base.

• Loosen 3 screws (18) on right side of the base.

Remove the bottom hinge (20) and replace it on the

left side of the base.

• Attach screw (17) on right side of the base.

• Loosen 2 screws (22) and reverse (16) and (23) as

illustrated exactly and attach it to the left side

• Pry off the cover (24) using a slotted screwdriver and

attach it on the right.

Before After

........... I

i 9---0

After

Before J 1

L...... J

Before After

Before

3. Moving Freezer Handle

• Remove cap (3) and cover (4).

•Loosen the screws (1) (two on the top

and two on the bottom), take off the handle (2), and

attach it on the right.

• Attach the removed cover (4) on the left.

• Attach cap (3) on the top right side.

4. Moving Refrigerator Handle

•Remove caps (8) and (9)

• Pull cover (5) downward and take it off

• Loosen 3 screws (6) (two on the top and one on the

center), take off handle (7) and attach it on the right

• Attach the cover (5) by pushing it up

•Take off cap (10) and attach it on the right

• Attach the removed caps (8) and (9) on the left side

5. Attaching Refrigerator Door

• Attach the base gdlle (1)

• Remove screw (2) from left side to right side

• Attach the door (3) to the bottom hinge pin

• Attach the middle hinge (4) on the opposite side with the

3 screws (5)

6. Attaching Freezer Door

•Place the door (8) onto the middle

hinge pin (7).

• Attach the top hinge (10) with 3 screws.

•Reinstall top hinge cover (11).

7. After Completing the Job

•Make sure that the four comers of the door gasket are

not folded over. To ensure a good seal, apply a small

amount of silicon grease on the comer gaskets.

Corner

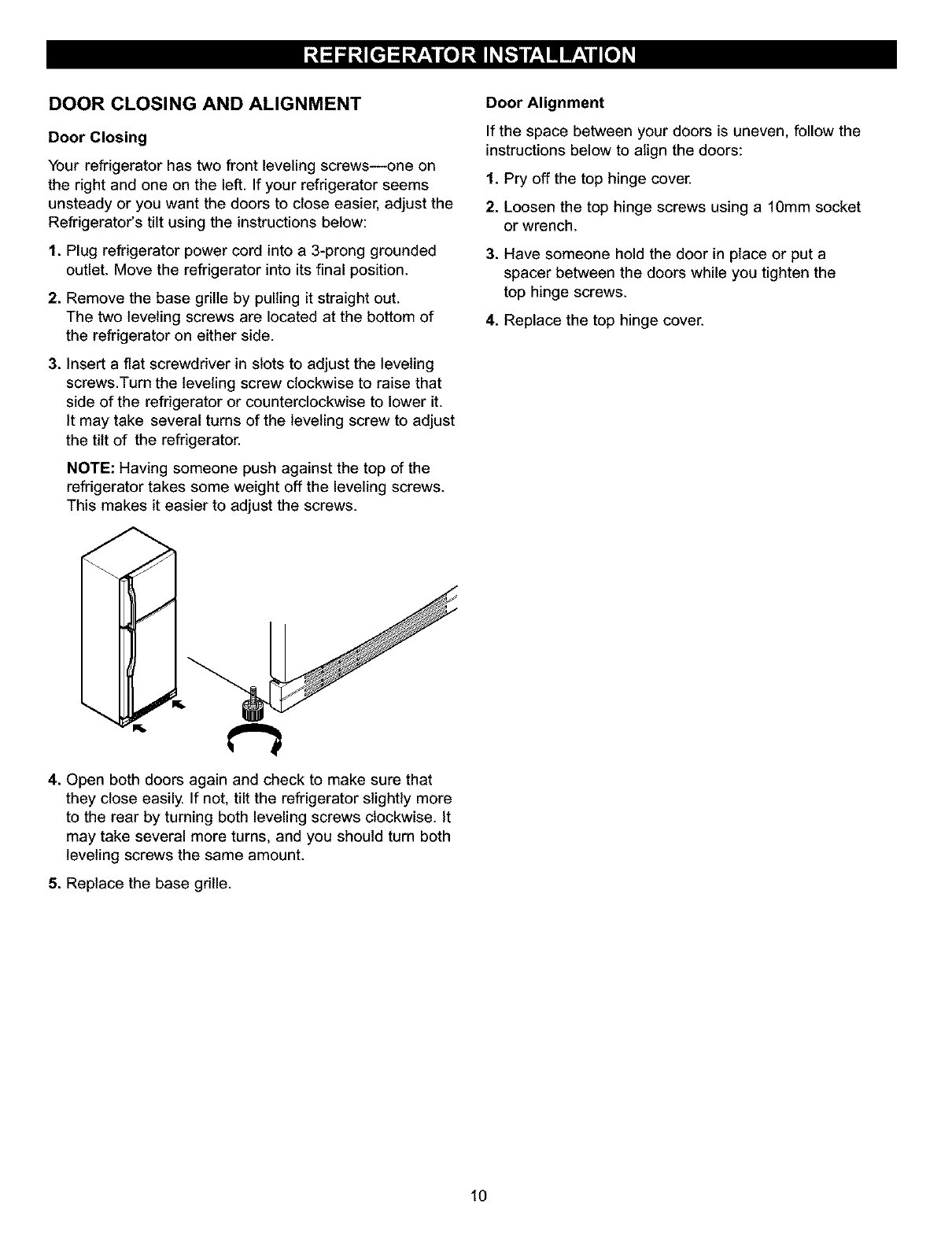

DOOR CLOSING AND ALIGNMENT

Door Closing

Your refrigerator has two front leveling screws--one on

the right and one on the left. If your refrigerator seems

unsteady or you want the doors to close easier, adjust the

Refrigerator's tilt using the instructions below:

1. Plug refrigerator power cord into a 3-prong grounded

outlet. Move the refrigerator into its final position.

2. Remove the base grille by pulling it straight out.

The two leveling screws are located at the bottom of

the refrigerator on either side.

3. Insert a fiat screwdriver in slots to adjust the leveling

screws.Turn the leveling screw clockwise to raise that

side of the refrigerator or counterclockwise to lower it.

it may take several turns of the leveling screw to adjust

the tilt of the refrigerator.

NOTE: Having someone push against the top of the

refrigerator takes some weight off the leveling screws.

This makes it easier to adjust the screws.

Door Alignment

If the space between your doors is uneven, follow the

instructions below to align the doors:

1. Pry off the top hinge cove_

2. Loosen the top hinge screws using a 10mm socket

or wrench.

3. Have someone hold the door in place or put a

spacer between the doors while you tighten the

top hinge screws.

4. Replace the top hinge cover.

t'3

4. Open both doors again and check to make sure that

they close easily If not, tilt the refrigerator slightly more

to the rear by turning both leveling screws clockwise, it

may take several more turns, and you should turn both

leveling screws the same amount.

5. Replace the base gdlle.

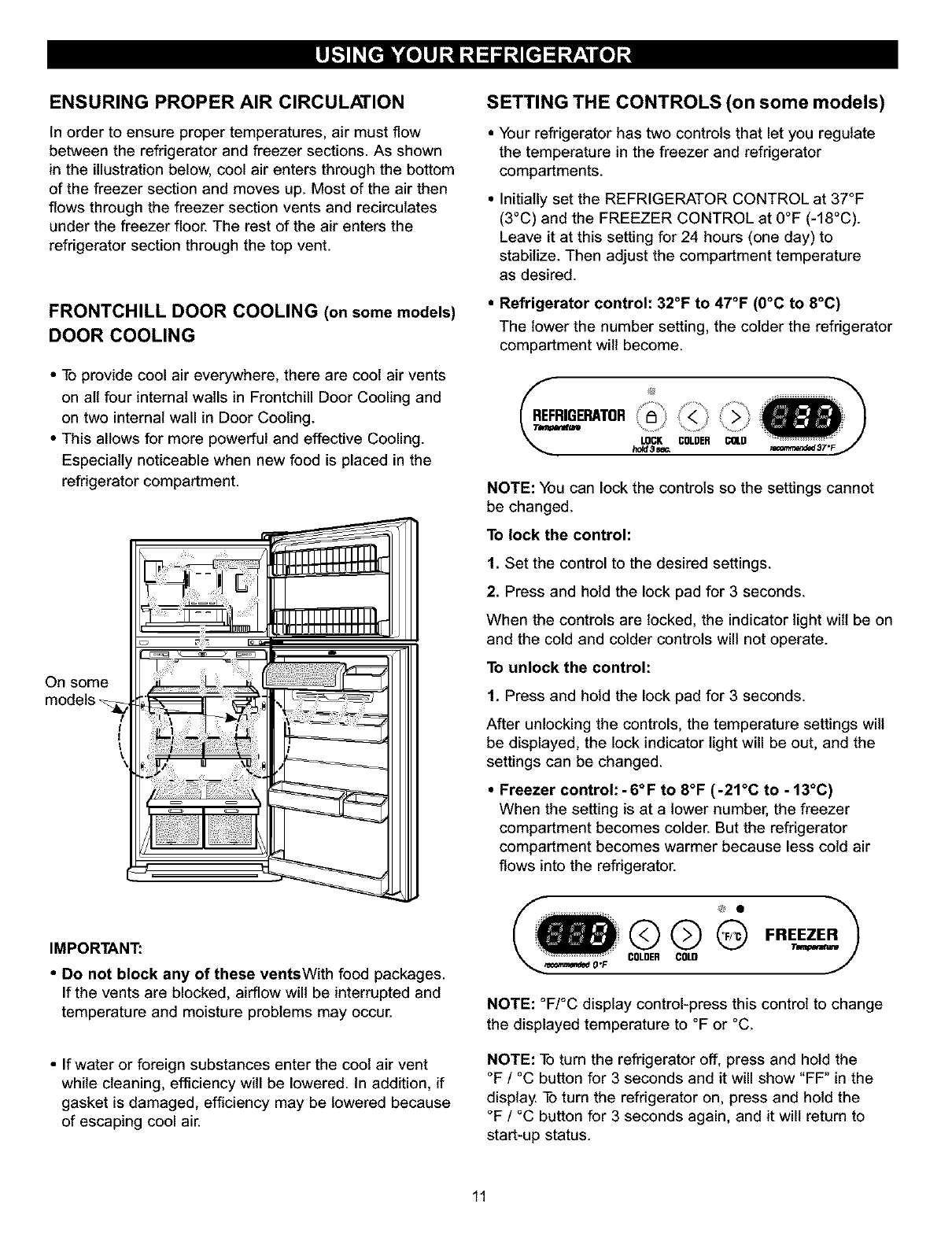

ENSURING PROPER AIR CIRCULATION

In order to ensure proper temperatures, air must flow

between the refrigerator and freezer sections. As shown

in the illustration below, cool air enters through the bottom

of the freezer section and moves up. Most of the air then

flows through the freezer section vents and recirculates

under the freezer floor. The rest of the air enters the

refrigerator section through the top vent.

FRONTCHILL DOOR COOLING (on some models)

DOOR COOLING

•To provide cool air everywhere, there are cool air vents

on all four internal walls in Frontchill Door Cooling and

on two internal wall in Door Cooling.

• This allows for more powerful and effective Cooling.

Especially noticeable when new food is placed in the

refrigerator compartment.

On some

IMPORTANT:

•Do not block any of these ventsWith food packages.

If the vents are blocked, airflow will be interrupted and

temperature and moisture problems may occur.

•If water or foreign substances enter the cool air vent

while cleaning, efficiency will be lowered. In addition, if

gasket is damaged, efficiency may be lowered because

of escaping cool air.

SETTING THE CONTROLS (on some models)

•Your refrigerator has two controls that let you regulate

the temperature in the freezer and refrigerator

compartments.

• Initially set the REFRIGERATOR CONTROL at 37°F

(3°C) and the FREEZER CONTROL at 0°F (-18°C).

Leave it at this setting for 24 hours (one day) to

stabilize. Then adjust the compartment temperature

as desired.

•Refrigerator control: 32°F to 47°F (0°C to 8°C)

The lower the number setting, the colder the refrigerator

compartment wilt become.

PAI'0R

LOCK COLDER COLD

ho_ 3s_. raos'mna_ed37"F _

NOTE: You can lock the controls so the settings cannot

be changed.

To lock the control:

1. Set the control to the desired settings.

2. Press and hold the lock pad for 3 seconds.

When the controls are locked, the indicator light wilt be on

and the cold and colder controls will not operate.

To unlock the control:

1. Press and hold the lock pad for 3 seconds.

After unlocking the controls, the temperature settings wilt

be displayed, the lock indicator light will be out, and the

settings can be changed.

•Freezer control: - 6°F to 8°F (-21°C to - 13°C)

When the setting is at a lower number, the freezer

compartment becomes colder. But the refrigerator

compartment becomes warmer because less cold air

flows into the refrigerator.

©@@ F.

COLDER COLD

NOTE: °F/°C display control-press this control to change

the displayed temperature to °F or °C.

NOTE: To turn the refrigerator off, press and hold the

°F /°C button for 3 seconds and it will show "FF" in the

display To turn the refrigerator on, press and hold the

°F /°C button for 3 seconds again, and it will return to

start-up status.

SETTING THE CONTROLS

• Your refrigerator has two controls that let you regulate

the temperature in the freezer and refrigerator

compartments.

• Initially set the REFRIGERATOR CONTROL at

4th position 37°F (3°C) and the FREEZER CONTROL

at 4th position 0°F(-18°C)

Leave it at this setting for 24 hours (one day) to

stabilize. Then adjust the compartment temperature

as desired.

•Refrigerator control: Position 1 to 7

(30°F to 48°F or -1°C to 9°C)

The higher position setting, the colder the refrigerator

compartment will become.

t23 4

LOCK AOJUST C01,9

#o/d3se&

NOTE: You can lock the controls so the settings cannot

be changed.

To lock the control:

1. Set the control to the desired settings.

2. Press and hold the lock pad for 3 seconds.

When the controls are locked, the indicator light will be on

and the cold and colder controls will not operate.

To unlock the control:

1. Press and hold the lock pad for 3 seconds.

After unlocking the controls, the lock indicator light

wil be out, and the setting can be changed.

•Freezer control: Position 1 to 7

(-6°F to 8°F or -21°C to -13.5°C)

When the setting is at a higer position, the freezer

compartment becomes colder. But the refrigerator

compartment becomes warmer because less cold air

flows into the refrigerator.

234567

COLDER ADJUST

FREEZER_

NOTE: Pressing OFF control key, we setting the

refrigerator for exhibition mode. Only the refrigerator

lights wilt work, not the refrigerator

NOTE: To turn the refrigerator off, press and hold

the OFF button for 3 seconds. To turn the

refrigerator ON, press and hold the OFF button

for 3 seconds again.

ADJUSTING CONTROL SETTINGS

Give the refrigerator time to cool down completely before

adding food. It is best to wait 24 hours before you put

food into the refrigerator. The mid-settings indicated in the

previous section should be correct for normal household

refrigerator usage. The controls are set correctly when

milk or juice is as cold as you like and when ice cream

is firm.

The refrigerator control functions as the thermostat for the

entire appliance (refrigerator and freezer sections.) The

higher the number setting, the longer the compressor will

run to keep the temperature colder. The freezer control

adjusts the cold air flow from the freezer to the

refrigerator. Setting the freezer control to a lower

temperature keeps more cold air in the Freezer

compartment to make it colder.

If you need to adjust temperatures in the refrigerator or

freezer, start by adjusting the refrigerator first. Wait 24

hours after the refrigerator adjustment to check the

freezer temperature. If it is too warm or too cold, then

adjust the freezer control as well.

Use the settings listed in the chart below as a guide.

Always remember to wait at least 24 hours between

adjustments.

CONDiTION/REASON: RECOMMENDED

ADJUSTMEN_

REFRIGERATORsection

too warm

• Door opened often

• Large amount of food added

• Room temperature very warm

Turn

REFRIGERATOR

control to next

higher number,

wait 24 hours,

then re*check

FREEZER section too warm/

ice not made fast enough

• Door opened often

• Large amount of food added

• Very cold room temperature

(Can't cycle often enough)

• Heavy ice usage

• Air vents blocked by items

REFRIGERATORsection too

cold

•Controls not set correctly for

your conditions

FREEZER section too cold

•Controls not set correctly for

your conditions

TurnFREEZER

control to next

higher number,

wait 24 hours,

then re-check

Move items out of

airstream

Turn

REFRIGERATOR

control to next

lower number,

wait 24 hours,

then re-check

TurnFREEZER

control to next

lower number,

wait 24 hours,

then re-check

FOOD STORAGE GUIDE

Storing Fresh Food

Wrap or store food in the refrigerator in airtight and

moisture-proof material unless otherwise noted. This

prevents food odor and taste transfer throughout the

refrigerator. For dated products, check code date to

ensure freshness.

Butter or margarine

Keep opened butter in a covered dish or closed

compartment. When storing an extra supply, wrap

in freezer packaging and freeze.

Cheese

Store in the original wrapping until you are ready to

use it. Once opened, rewrap tightly in plastic wrap or

aluminum foil.

Milk

Wipe milk cartons. For best storage, place milk on interior

shelf, not on door shelf.

Eggs

Store in original carton on interior shelf, not on door shelf.

Fruit

Wash, let dry and store in refrigerator in plastic bags or

crisper. Do not wash or hull berries until they are ready

to use. Sort and keep berries in original container in a

crisper, or store in a loosely closed paper bag on a

refrigerator shelf.

Leafy vegetables

Remove store wrapping and trim or tear off bruised and

discolored areas. Wash in cold water and drain. Place in

plastic bag or plastic container and store in crisper.

Vegetables with skins (carrots, peppers)

Place in plastic bags or plastic container and store

in crisper.

Fish

Use fresh fish and shellfish the same day purchased.

Meat

Store most meat in original wrapping as long as it is

airtight and moisture-proof. Rewrap if necessary. See the

following chart for storage times. When storing meat

longer than the times given, freeze the meat.

Chicken ........................................................... 1-2 days

Ground beef .................................................... 1-2 days

Organ meats (liver, heart, etc.) ....................... 1-2 days

Cold cuts ......................................................... 3-5 days

Steaks/roasts .................................................. 3-5 days

Cured meats ................................................... 7-10 days

Leftovers

Cover leftovers with plastic wrap or aluminum foil.

STORING FROZEN FOOD

NOTE: For further information about preparing food for

freezing or food storage times, check a freezer guide or

reliable cookbook.

Packaging

Successful freezing depends on the correct packaging.

When you close and seal the package, it must not allow

air or moisture in or out. If you do, you could have food

odor and taste transfer throughout the refrigerator, and

also dry out frozen food.

Packaging recommendations:

• Rigid plastic containers with tight-fitting lids

• Straight-sided canning/freezing jars

• Heavy-duty aluminum foil

• Plastic-coated paper

• Non-permeable plastic wraps

• Specified freezer-grade self-sealing plastic bags

Follow package or container instructions for proper

freezing methods.

Do not use:

•Bread wrappers

•Non-polyethylene plastic containers

• Containers without tight lids

•Wax paper or wax-coated freezer wrap

•Thin, semi-permeable wrap

Freezing

Your freezer will not quick-freeze any large quantity of

food. Do not put more unfrozen food into the freezer than

will freeze within 24 hours (no more than 2 to 3 Ibs of food

per cubic foot [907-1350 g per liter] of freezer space).

Leave enough space in the freezer for air to circulate

around packages. Be careful to leave enough room at

the front so the door can close tightly.

Storage times will vary according to the quality and type

of food, the type of packaging or wrap used (airtight and

moisture-proof) and the storage temperature. Ice crystals

inside a sealed package are normal. This simply means

that moisture in the food and air inside the package have

condensed, creating ice crystals.

NOTE: Allow hot foods to cool at room temperature for

30 minutes, then package and freeze. Cooling hot foods

before freezing saves energy.

NOTE: Do not store food near the sensor; it may cause

the sensor to malfunction.

Suffocation Hazard

When using dry ice, provide adequate ventilation.

Dry ice is frozen carbon dioxide (CO2). When it

vaporizes, it can displace oxygen, causing dizziness,

light-headedness, unconsciousness and death by

suffocation. Open a window and do not breathe

the vapors.

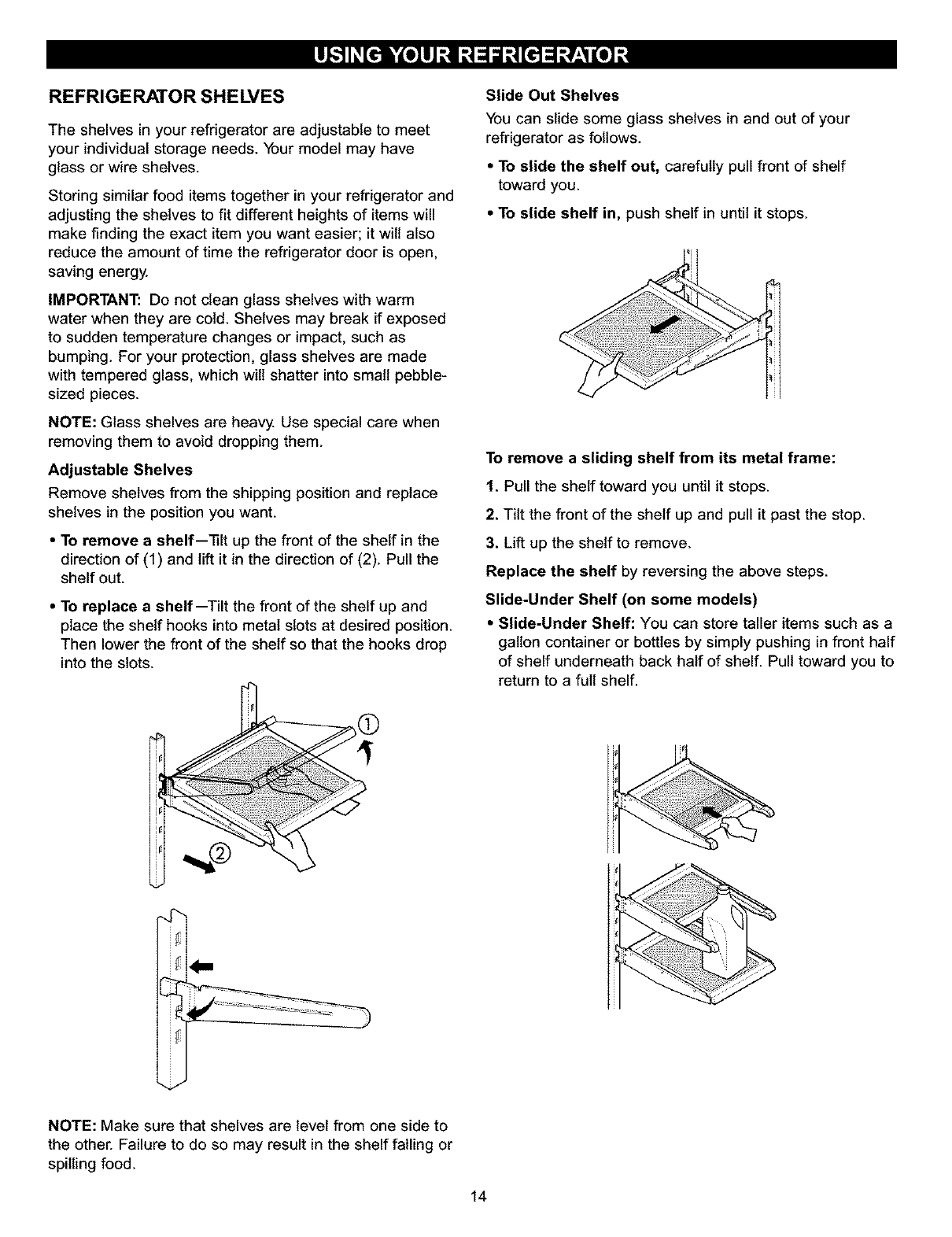

REFRIGERATOR SHELVES

The shelves in your refrigerator are adjustable to meet

your individual storage needs. Your model may have

glass or wire shelves.

Storing similar food items together in your refrigerator and

adjusting the shelves to fit different heights of items will

make finding the exact item you want easier; it will also

reduce the amount of time the refrigerator door is open,

saving energy

IMPORTANT: Do not clean glass shelves with warm

water when they are cold. Shelves may break if exposed

to sudden temperature changes or impact, such as

bumping. For your protection, glass shelves are made

with tempered glass, which will shatter into small pebble-

sized pieces.

NOTE: Glass shelves are heavy. Use special care when

removing them to avoid dropping them.

Adjustable Shelves

Remove shelves from the shipping position and replace

shelves in the position you want.

• To remove a shelf---51t up the front of the shelf in the

direction of (1) and lift it in the direction of (2). Pull the

shelf out.

• To replace a shelf--Tilt the front of the shelf up and

place the shelf hooks into metal slots at desired position.

Then lower the front of the shelf so that the hooks drop

into the slots.

Slide Out Shelves

You can slide some glass shelves in and out of your

refrigerator as follows.

• To slide the shelf out, carefully pull front of shelf

toward you.

• To slide shelf in, push shelf in until it stops.

To remove a sliding shelf from its metal frame:

1. Pull the shelf toward you until it stops.

2. Tilt the front of the shelf up and pull it past the stop.

3. Lift up the shelf to remove.

Replace the shelf by reversing the above steps.

Slide-Under Shelf (on some models)

•Slide-Under Shelf: You can store taller items such as a

gallon container or bottles by simply pushing in front half

of shelf underneath back half of shelf. Pull toward you to

return to a full shelf.

NOTE: Make sure that shelves are level from one side to

the other. Failure to do so may result in the shelf falling or

spilling food.

MEAT TRAY (on some models) /SNACK PAN

While holding the tray with one hand, pull it forward

slightly.Lift slightly and pull it out. Meat tray on some

models provide temperature control.

SUPRAFRESH CRISPERS WITH TILT-OUT

COMPARTMENT

The SupraFresh Crispers provide fresher-tasting fruit and

vegetables by letting you easily control humidity inside the

crisper. The SupraFresh Crispers include: 1) a humidity

control knob at the front of the crisper cover and 2) a

large lattice on the inner surface of the cover to hold

or release moisture. 3) Tilt-out compartment

CRISPER WITH TILT-OUT FEATURE

How to use tilt-out drawer:

1. Push the button (1) and tilt the drawer (2).

2. To close drawer, push it in while slightly lifting it.

i ....

To remove the tilt-out compartment:

1. Open the tilt-out crisper compartment.

2. Grasp side walt with one hand and pull outward.

3. Grasp tilt out cover with another hand and pull out until

the circular piece disengages from opening.

CRISPER HUMIDITY CONTROL

You can control the amount of humidity in the moisture-

sealed crispers. Adjust the control to any setting between

_l" and O.

• • lets moist air out of the crisper for best storage of

fruits.

• _ keeps moist air in the crisper for best storage of

fresh, leafy vegetables. To remove the crisper:

1. Slide crisper straight out until it stops.

2. Lift front of crisper, then pull out to remove.

3. Replace crisper by sliding it back.

CRISPER COVER WITH LATTICE ON INNER

SURFACE

To remove the crisper cover:

1. Remove both crisper drawers.

2. While holding the crisper cover support (2), pull the cover

up and out (1).

WARNING: Be careful when handing glass cover since

glass is not attached to cover

To remove lattice on inner surface

1. Remove crisper cover (as illustrated above)

2. Hold the glass cover and overturn crisper cover

3. For each lattice hold lattice and pull sides of the cover

outward to remove lattice.

DOOR RACKS

The door racks may be removed for easier cleaning.

Snap-On Door Racks

To remove the racks:

1. Remove all items in the door racks.

2. Push the rack away from the inside wall of the door (A)

and lift up the door rack (B).

To replace the racks:

1. Hold either end of the door rack against the inside wall

of the door.

2. Push down the rack end until it locks in place.

MODULAR DOOR BINS

1. Bins can be moved side to side by sliding right or left.

2. To remove the bin, lift until bin up bottom of bin unclicks

and pull straight out.

To replace lattice on inner surface,:

1. For each lattice insert middle tab in 1

(closest to glass cover) and pull sides of the cover to

insert lattice.

3. To replace the bin, slide it in above the desired

support slot and firmly push down until it locks in place.

WARNING: Be sure to clicks bottom portion of bin

otherwise, bins may fall

NOTE: Do not adjust a bin that is loaded with food.

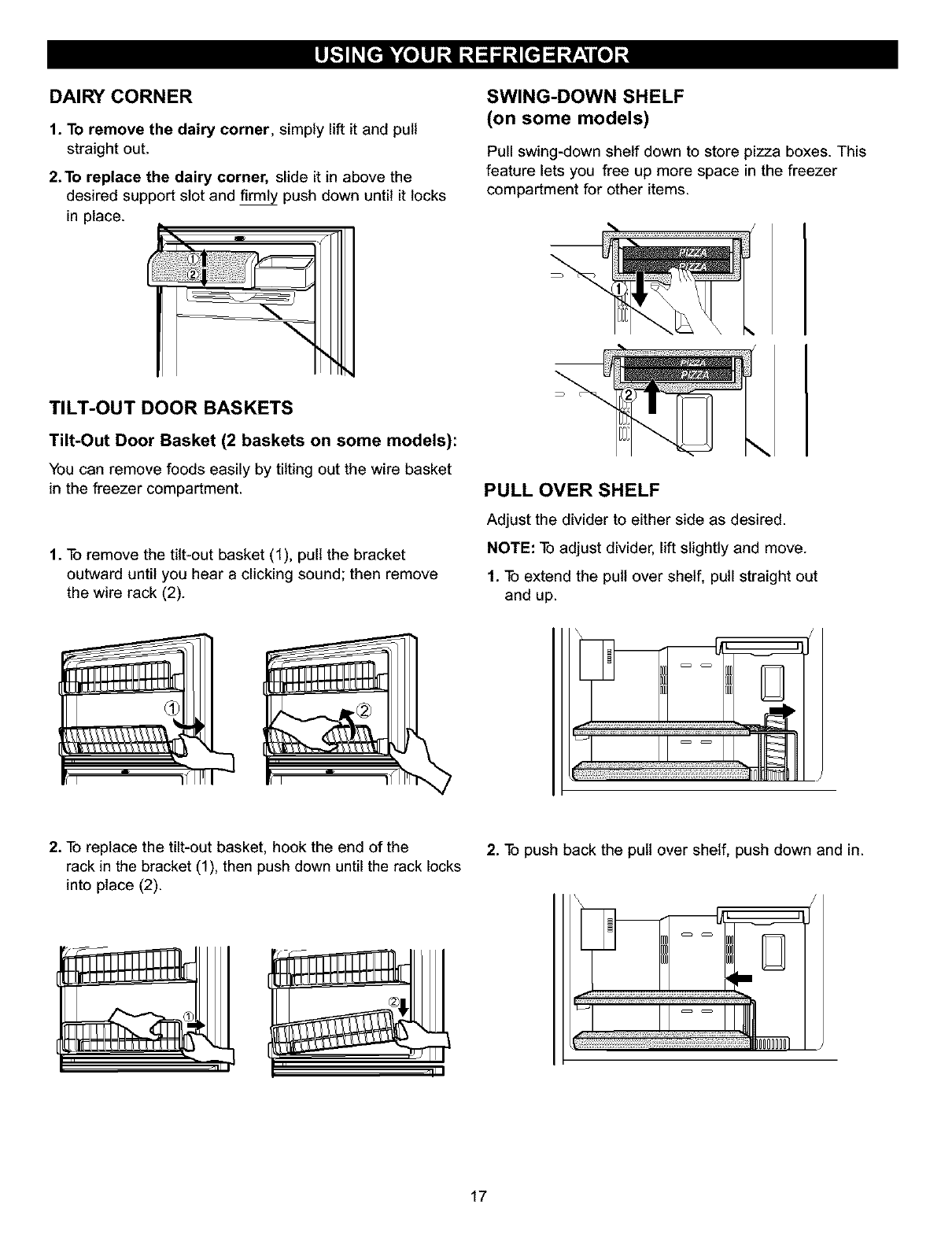

DAIRY CORNER

1. To remove the dairy corner, simply lift it and pull

straight out.

2.To replace the dairy corner, slide it in above the

desired support slot and firmly push down until it locks

in place.

SWING-DOWN SHELF

(on some models)

Pull swing-down shelf down to store pizza boxes. This

feature lets you free up more space in the freezer

compartment for other items.

TILT-OUT DOOR BASKETS

Tilt-Out Door Basket (2 baskets on some models):

You can remove foods easily by tilting out the wire basket

in the freezer compartment.

1. To remove the tilt-out basket (1), pull the bracket

outward until you hear a clicking sound; then remove

the wire rack (2).

-3

PULL OVER SHELF

Adjust the divider to either side as desired.

NOTE: To adjust divider, lift slightly and move.

1. To extend the pull over shelf, pull straight out

and up.

2. To replace the tilt-out basket, hook the end of the

rack in the bracket (1), then push down until the rack locks

into place (2).

ii •

2. To push back the pull over shelf, push down and in.

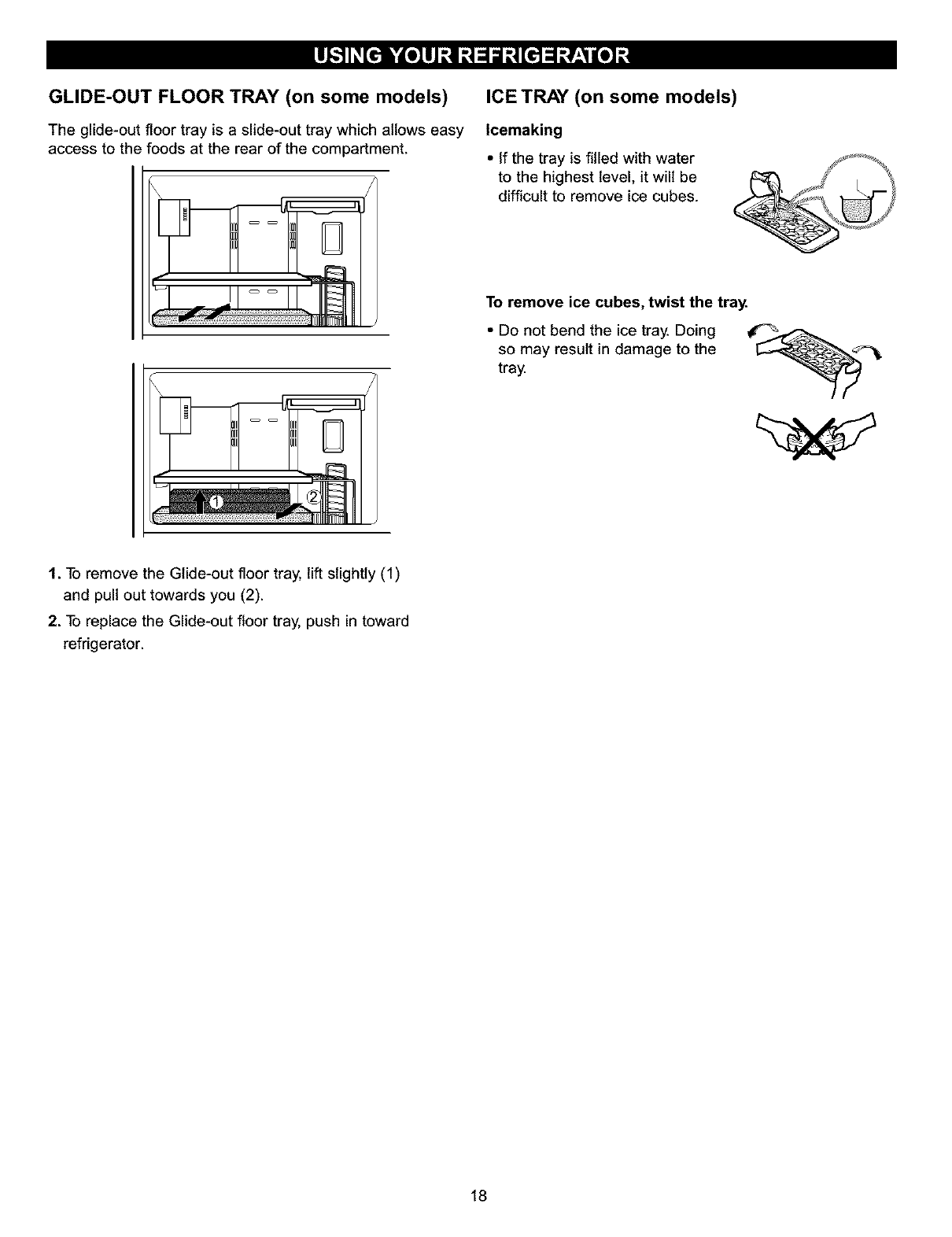

GLIDE-OUT FLOOR TRAY (on some models)

The glide-out floor tray is aslide-out tray which allows easy

access to the foods at the rear of the compartment.

ICE TRAY (on some models)

Icemaking

• If the tray is filled with water

to the highest level, itwill be

difficult to remove ice cubes.

To remove ice cubes, twist the tray.

• Do not bend the ice tray Doing

so may result in damage to the

tray

1. To remove the Glide-out floor tray, lift slightly (1)

and pull out towards you (2).

2. To replace the Glide-out floor tray, push in toward

refrigerator.

Explosion Hazard

Use non-flammable cleaner.

Failure to do so can result in death, explosion or fire.

Both the refrigerator and freezer sections defrost

automatically. However, clean both sections about once

a month to prevent odors. Wipe up spills immediately

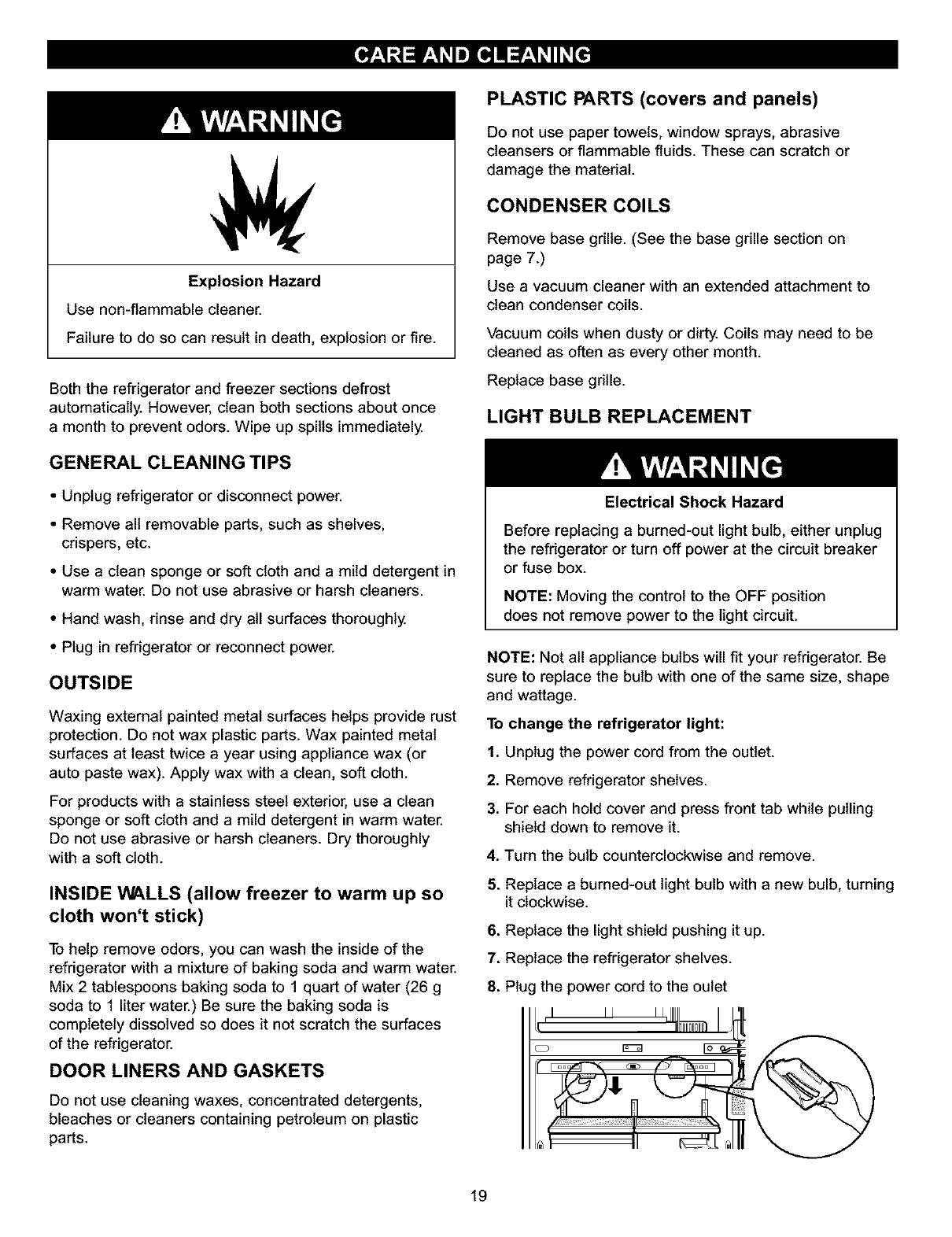

GENERAL CLEANING TIPS

•Unplug refrigerator or disconnect power.

• Remove all removable parts, such as shelves,

crispers, etc.

• Use a clean sponge or soft cloth and a mild detergent in

warm water. Do not use abrasive or harsh cleaners.

• Hand wash, rinse and dry all surfaces thoroughly

• Plug in refrigerator or reconnect power.

OUTSIDE

Waxing external painted metal surfaces helps provide rust

protection. Do not wax plastic parts. Wax painted metal

surfaces at least twice a year using appliance wax (or

auto paste wax). Apply wax with a clean, soft cloth.

For products with a stainless steel exterior, use a clean

sponge or soft cloth and a mild detergent in warm water.

Do not use abrasive or harsh cleaners. Dry thoroughly

with a soft cloth.

INSIDE V_LLS (allow freezer to warm up so

cloth won't stick)

To help remove odors, you can wash the inside of the

refrigerator with a mixture of baking soda and warm water.

Mix 2 tablespoons baking soda to 1 quart of water (26 g

soda to 1 liter water.) Be sure the baking soda is

completely dissolved so does it not scratch the surfaces

of the refrigerator.

DOOR LINERS AND GASKETS

Do not use cleaning waxes, concentrated detergents,

bleaches or cleaners containing petroleum on plastic

parts.

PLASTIC PARTS (covers and panels)

Do not use paper towels, window sprays, abrasive

cleansers or flammable fluids. These can scratch or

damage the material.

CONDENSER COILS

Remove base grille. (See the base grille section on

page 7.)

Use a vacuum cleaner with an extended attachment to

clean condenser coils.

Vacuum coils when dusty or dirty.Coils may need to be

cleaned as often as every other month.

Replace base grille.

LIGHT BULB REPLACEMENT

Electrical Shock Hazard

Before replacing a burned-out light bulb, either unplug

the refrigerator or turn off power at the circuit breaker

or fuse box.

NOTE: Moving the control to the OFF position

does not remove power to the light circuit.

NOTE: Not all appliance bulbs will fit your refrigerator. Be

sure to replace the bulb with one of the same size, shape

and wattage.

To change the refrigerator light:

1. Unplug the power cord from the outlet.

2. Remove refrigerator shelves.

3. For each hold cover and press front tab while pulling

shield down to remove it.

4. Turn the bulb counterclockwise and remove.

5. Replace a burned-out light bulb with a new bulb, turning

it clockwise.

6. Replace the light shield pushing it up.

7. Replace the refrigerator shelves.

8. Plug the power cord to the oulet

To change the freezer light:

1. Unplug refrigerator or disconnect power.

2. Remove the light shield and remove bulb.

3. Replace with a 40 watt appliance bulb and replace light

shield.

4. Plug in refrigerator or reconnect power.

,- Press down

right and

left side

POWER INTERRUPTIONS

If the electricity in your house goes off, call the power

company and ask how long it will be off.

1. If the power will be out for 24 hours or less, keep

both refrigerator doors closed to help foods stay

cold and frozen.

2. If the power will be out for more than 24 hours:

a) Remove all frozen food and store it in a frozen

food locker.

b) Place 2 lbs (ca. lkg) of dry ice in the freezer for

every cubic foot (28 L) of freezer space. This will

keep the food frozen for two to four days. While

handling dry ice, wear gloves to protect your hands

from ice bums.

c) If neither a food locker nor dry ice is available,

consume or perish food at once.

REMEMBER: In a power failure, afull freezer stays

cold longer than a partially filled one. A freezer full of

meat stays cold longer than a freezer full of baked

goods. If you see that food contains ice crystals, it may

be safely refrozen, although the quality and flavor may

be affected. If the condition of the food is poor, or if you

feel it is unsafe, dispose of it.

WHEN YOU GO ON VACATION

If you choose to leave the refrigerator on while you

are away follow these steps to prepare your refrigerator

before you leave.

1. Use up any perishables and freeze other items.

2. Empty the ice bin.

If you choose to turn the refrigerator off before you

leave, follow these steps.

1. Remove all food from the refrigerator.

2. Depending on your model, set the thermostat control

(refrigerator control) to OFE See the "Setting the

Controls" section.

3. Clean refrigerator, wipe it and dry well.

4. Tape rubber or wood blocks to the tops of both doors to

prop them open far enough for air to get in. This stops

odor and mold from building up.

WHEN YOU MOVE

When you are moving your refrigerator to a new home,

follow these steps to prepare it for the move.

1. Remove all food from the refrigerator and pack all

frozen food in dry ice.

2. Depending on your model, turn the thermostat control

(refrigerator control) to OFE See the "Setting the

Controls" section.

3. Unplug the refrigerator.

4. Empty water from the defrost pan.

5. Clean, wipe and dry thoroughly

6. Take out all removable parts, wrap them well and tape

them together so they don't shift and rattle during the

move.

7. Depending on the model, raise the front of the

refrigerator so it rolls more easily OR screw in the

leveling legs all the way so they don't scrape the floor.

See the "Door Closing" section.

8. Tape the doors shut and tape the power cord to the

refrigerator cabinet.

When you get to your new home, put everything back

and refer to the "installing Your Refrigerator" section for

preparation instructions.

Personal Injury Hazard

Avoid contact with the moving parts of the ejector

mechanism, or with the heating element that releases

the cubes. DO NOT place fingers or hands on the

automatic icemaking mechanism while the refrigerator

is plugged in.

OPERATION INSTRUCTIONS

A newly-installed refrigerator may take 12 to

24 hours to begin making ice.

Icemaker

Cube Size

Indicator Light Cube Size

Select Button

Feeler Arm

Switch

The icemaker wilt produce eight cubes per cycle--

approximately 100--130 cubes in a 24-hour period,

depending on freezer compartment temperature, room

temperature, number of door openings and other

operating conditions.

If the refrigerator is used before the water connection is

made to the icemaker, set the power switch to O (off).

When the refrigerator has been connected to the water

supply, set the power switch to I (on).

The icemaker will fill with water when it cools to freezing.

A newly-installed refrigerator may take 12 to 24 hours to

begin making ice cubes.

Throw away the first few batches of ice to allow the water

line to clear.

Be sure nothing interferes with the sweep of the feeler

arm.

When the bin fills to the level of the feeler arm, the

icemaker will stop producing ice.

It is normal for several cubes to be joined together.

If ice is not used frequently, old ice cubes will become

cloudy, taste stale and shrink.

NOTE: As displayed by the cube size indicator lights, each

push of the cube size button will cycle you through

the various cube sizes from smallest to largest back

to smallest

WHEN YOU SHOULD SETTHE ICEMAKER

POWER SWlTCHTO O (OFF)

• When the water supply wilt be shut off for several hours.

• When the ice storage bin is removed for more than a

minute or two.

• When the refrigerator will not be used for several days.

NORMAL SOUNDSYOU M/b' HEAR

• The icemaker water valve will buzz as the icemaker fills

with water. If the power switch is in the I (on) position, it

will buzz even if it has not yet been hooked up to water.

To stop the buzzing, move the power switch to O (off).

NOTE: Keeping the power switch in the I(on) position

before the water line is connected can damage the

icemaker.

• You will hear the sound of cubes dropping into the bin

and water running in the pipes as the icemaker refills.

PREPARING FOR VACATION

Set the icemaker power switch to O (off) and shut off the

water supply to the refrigerator.

If the ambient temperature wilt drop below freezing, have

a qualified servicer drain the water supply system (on

some models) to prevent serious property damage due to

flooding from ruptured water lines or connections.

BEFORE YOU BEGIN

Unless it is performed by Sears service this water line

installation is not warranted by the refrigerator or icemaker

manufacturer.

Follow these instructions carefully to minimize the risk of

expensive water damage.

Water hammer (water banging in the pipes) in house

plumbing can cause damage to refrigerator parts and lead

to water leakage or flooding. Call a qualified plumber to

correct water hammer before installing the water supply

line to the refrigerator.

To prevent burns and product damage, do not hook up

the water line to the hot water line.

if you use your refrigerator before connecting the water

line, make sure the icemaker power switch is in the O

(off) position.

Do not install the icemaker tubing in areas where

temperatures fall below freezing.

When using any electrical device (such as a power

drill) during installation, be sure the device is double-

insulated or grounded in a manner to prevent the hazard

of electric shock, or is battery-powered.

All installations must be in accordance with local plumbing

code requirements.

WHAT YOU WILL NEED

• CopperTubing, 1/4"outer

diameter to connect the refrigerator JJ

to the water supply. Be sure both

ends of the tubing are cut square.

Todetermine how much tubing you

need: measure

the distance from the water valve on the back of the

refrigerator to the water supply pipe. Then add 8 feet

(2.4 m). Be sure there is sufficient extra tubing (about 8 feet

[2.4 m] coiled into 3 turns of about 10" [25 cm] diameter) to

allow the refrigerator to move out from the wall after

installation.

Be sure that the kit you select allows at least 8 feet

(2.4 m) as described above.

• A cold water supply. The water pressure must be

between 20 and 120 p.s.i. (1.4-8.2 bar)on models

without a water filter and between 40 and 120 p.s.i.

(2.8-8.2 bar) on models

with a water filter.

•Power drill.

•1/2" or adjustable

wrench.

•Straight- and Phillips-blade screwdriver.

Two 1/4" outer diameter

compression nuts and

2ferrules (sleeves) to

connect the copper tubing to

the shutoff valve and the

refrigerator water valve.

If your existing copper water

line has a flared fitting at the

end, you will need an

adapter (available at

plumbing supply stores) to

connect the water line to the

refrigerator OR you can cut off the flared fitting with a

tube cutter and then use a compression fitting.

Shutoff valve to connect to

the cold water line. The

shutoff valve should have a

water inlet with a minimum

inside diameter of 5/32" at the

point of connection to the

COLD WATER LINE. Saddle-type shutoff valves are

included in many water supply kits. Before purchasing,

make sure a saddle-type valve complies with your local

plumbing codes.

INSTALLATION INSTRUCTIONS

Install the shutoff valve on the nearest frequently used

drinking water line.

1. SHUT OFF THE MAIN WATER SUPPLY

Turn on the nearest faucet to clear the line of water.

.CHOOSE THE VALVE LOCATION

Choose a location for the valve that

is easily accessible. It is best to

connect into the side of a vertical

water pipe. When it is necessary to

connect into a horizontal water

pipe, make the connection to the I l_

top or side, rather than at the

bottom, to avoid drawing off any

sediment from the water pipe.

3. DRILLTHE HOLE FOR THE VALVE

Drill a 1/4" hole in the water

pipe (even if using a self-

piercing valve) using a

sharp bit. Remove any burrs

resulting from drilling the

hole in the pipe. Take care

not to allow water to drain

into the drill. Failure to ddll a 1/4" hole may result in

reduced ice production or smaller cubes.

INSTALLATION INSTRUCTIONS

(CONTINUED)

4. FASTEN THE SHUTOFF VALVE

Fasten the shutoff valve to the cold water pipe with

the pipe clamp.

Pipe Clamp

7. CONNECT THE TUBING TO THE VALVE

Place the compression nut and ferrule (sleeve)

for copper tubing onto the end of the tubing and

connect it to the shutoff valve. Make sure the tubing is

fully inserted into the valve. Tighten the compression

nut securely.

Saddle-Type Compression

Shutoff Valve Nut

Saddle-Type J

Shutoff Valve Vertical Cold

Water Pipe

NOTE: Commonwealth of Massachusetts Plumbing

Codes 248CMR shall be adhered to. Saddle valves

are illegal and use is not permitted in Massachusetts.

Consult with your licensed plumber.

TIGHTEN THE PIPE CLAMP

Tighten the clamp screws until the sealing washer

begins to swell.

NOTE: Do not overtighten or you may crush

the tubing.

Pipe Clamp --_.

Clamp Screw_

Washer

/_ Inlet End

Packing

Nut

Outlet

Valve Ferrule (sleeve)

NOTE: Commonwealth of Massachusetts Plumbing

Codes 248CMR shall be adhered to. Saddle valves

are illegal and use is not permitted in Massachusetts.

Consult with your licensed plumber.

8. FLUSH OUT THE TUBING

Turn the main water supply on

and flush out the tubing until the

water is clear.

Shut the water off at the water

valve after about one quart (1

liter) of water has been flushed

through the tubing.

6. ROUTE THE TUBING

Route the tubing between the cold water line and the

refrigerator.

Route the tubing through a hole drilled in the wall or

floor (behind the refrigerator or adjacent base cabinet)

as close to the wall as possible.

NOTE: Be sure there is sufficient extra tubing (about

8 feet [244 cm] coiled into 3 turns of about 10" [25

cm] diameter) to allow the refrigerator to move out

from the wall after installation.

,CONNECT THE TUBING TO THE

REFRIGERATOR

NOTES:

•Before making the connection to the refrigerator, be

sure the refrigerator power cord is not plugged into

the walt outlet.

• If your refrigerator does not have a water filter,

we recommend installing one if your water supply

has sand or particles that could ctog the screen of

the refrigerator's water valve. Install the filter in the

water line near the refrigerator.

Remove the plastic flexible cap

from the water valve (refrigerator

connection).

11.PLUG IN THE REFRIGERATOR

Arrange the coil of tubing so

that it does not vibrate against

the back of the refrigerator or

against the wall. Push the

refrigerator back to the wall.

12. START THE ICEMAKER

Set the icemaker power switch to the ON position.

The icemaker will not begin to operate until it reaches

its operating temperature of 15°F (-9 °C) or below. It

witl then begin operation automatically if the icemaker

power switch is in the I (on) position.

Place the compression nut and ferrule (sleeve) onto

the end of the tubing.

insert the end of the tubing into the water valve

connection as far as possible. While holding the

tubing, tighten the fitting.

Tubing I/4"

Ferrule

Fasten the tubing into the tubing Clamp attached to

the back of the refrigerator.

First you loosen the screw fastening the clamp, next

insert the tubing in the groove, last re-fasten the

screw.

10.TURN THE WATER ON AT THE

SHUTOFF VALVE

Tighten any connections that

leak.

Reattach the compressor

compartment access cover.

UNDERSTANDING SOUNDSYOU M.'_' HEAR

Your new refrigerator may make sounds that your old one

didn't make. Because the sounds are new to you, you

might be concerned about them. Most of the new sounds

are normal. Hard surfaces, like the floor, walls and

cabinets, can make the sounds seem louder than they

actually are. The following describes the kinds of sounds

and what may be making them.

The defrost timer will click when the automatic defrost

cycle begins and ends. The thermostat control (or

refrigerator control, depending on the model) will also

click when cycling on and off.

Rattling noises may come from the flow of refrigerant, the

water line or items stored on top of the refrigerator.

Your refrigerator is designed to run more efficiently

to keep your food items at the desired temperature.

The high efficiency compressor may cause your new

refrigerator to run longer than your old one, and

you may hear a pulsating or high-pitched sound.

Contraction and expansion of the inside walls may cause

a popping noise.

You may hear the evaporator fan motor circulating the air

through the refrigerator and freezer compartments.

Water dripping on the defrost heater during a defrost

cycle may cause a sizzling sound.

As each cycle ends, you may hear a gurgling sound due

to the refrigerant flowing in your refrigerator.

You may hear air being forced over the condenser by the

condenser fan.

You may hear water running into the drain pan during the

defrost cycle.

REFRIGERATOR DOES NOT OPERATE

Check if...

The power supply cord is unplugged.

A household fuse has blown or circuit

breaker tripped.

The refrigerator control is set to the OFF position.

Refrigerator is in the defrost cycle.

Then...

Firmly plug the cord into a live outlet with proper voltage.

Replace the fuse or reset the circuit breaker.

Refer to the Setting the Controls section on page 11-12.

Wait about 30 minutes for defrost cycle to end.

VIBRATION OR RATTLING NOISE

Check if... Then...

The refrigerator is not resting solidly on Floor is weak or uneven or leveling legs need adjusting.

the floor. See Installation section on page 10.

LIGHTS DO NOTWORK

Check if... Then...

The power supply cord is unplugged. Firmly plug the cord into a live outlet with proper voltage.

Light bulb is loose in the socket. Turn the refrigerator control to the OFF position and unplug

the refrigerator. Gently remove the bulb and reinsert. Then

plug in refrigerator and reset the refrigerator control.

Light bulb has burned out. Replace with an appliance bulb of the same wattage, size

and shape available at your local hardware store. (See the

Changing the Light Bulb(s) section on pages 19--20.) Turn the

temperature control to the OFF position and unplug the

refrigerator prior to replacement.

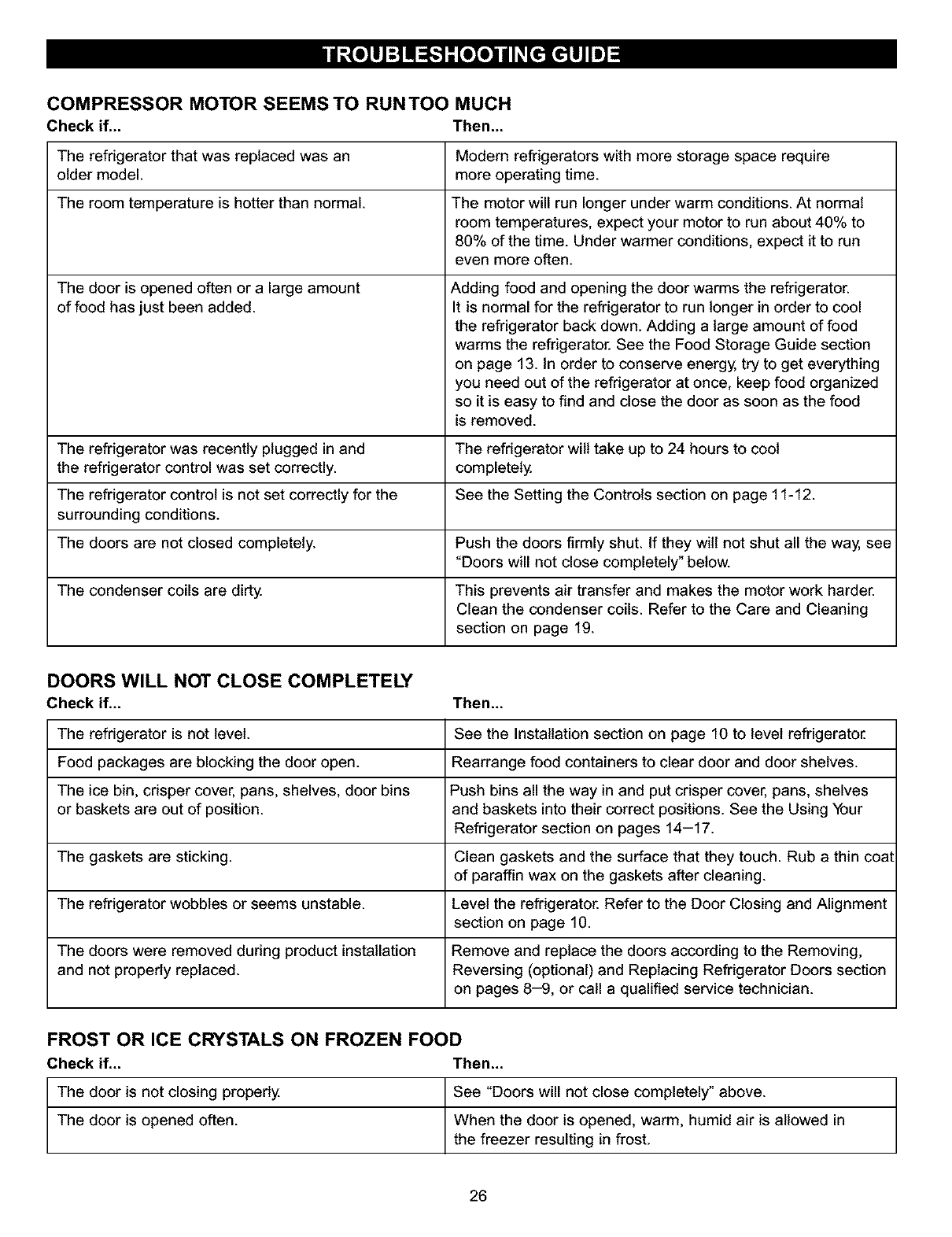

COMPRESSOR MOTOR SEEMS TO RUNTOO MUCH

Check if... Then...

The refrigerator that was replaced was an Modem refrigerators with more storage space require

older model, more operating time.

The room temperature is hotter than normal. The motor will run longer under warm conditions. At normal

room temperatures, expect your motor to run about 40% to

80% of the time. Under warmer conditions, expect it to run

even more often.

The door is opened often or a large amount

of food has just been added.

Adding food and opening the door warms the refrigerator.

It is normal for the refrigerator to run longer in order to cool

the refrigerator back down. Adding a large amount of food

warms the refrigerator. See the Food Storage Guide section

on page 13. In order to conserve energy, try to get everything

you need out of the refrigerator at once, keep food organized

so it is easy to find and close the door as soon as the food

is removed.

The refrigerator was recently plugged in and The refrigerator wilt take up to 24 hours to cool

the refrigerator control was set correctly, completely

The refrigerator control is not set correctly for the See the Setting the Controls section on page 11-12.

surrounding conditions.

The doors are not closed completely. Push the doors firmly shut. If they will not shut all the way, see

"Doors will not close completely" below.

The condenser coils are dirty This prevents air transfer and makes the motor work harder.

Clean the condenser coils. Refer to the Care and Cleaning

section on page 19.

DOORS WILL NOT CLOSE COMPLETELY

Check if... Then...

The refrigerator is not level. See the Installation section on page 10 to level refrigeratoc

Food packages are blocking the door open. Rearrange food containers to clear door and door shelves.

The ice bin, crisper cover, pans, shelves, door bins Push bins all the way in and put crisper cover, pans, shelves

or baskets are out of position, and baskets into their correct positions. See the Using Your

Refrigerator section on pages 14-17.

The gaskets are sticking. Clean gaskets and the surface that they touch. Rub a thin coat

of paraffin wax on the gaskets after cleaning.

The refrigerator wobbles or seems unstable. Level the refrigerator. Refer to the Door Closing and Alignment

section on page 10.

The doors were removed during product installation Remove and replace the doors according to the Removing,

and not properly replaced. Reversing (optional) and Replacing Refrigerator Doors section

on pages 8-9, or call a qualified service technician.

FROST OR ICE CRYSTALS ON FROZEN FOOD

Check if... Then...

The door is not closing properly See "Doors will not close completely" above.

The door is opened often. When the door is opened, warm, humid air is allowed in

the freezer resulting in frost.

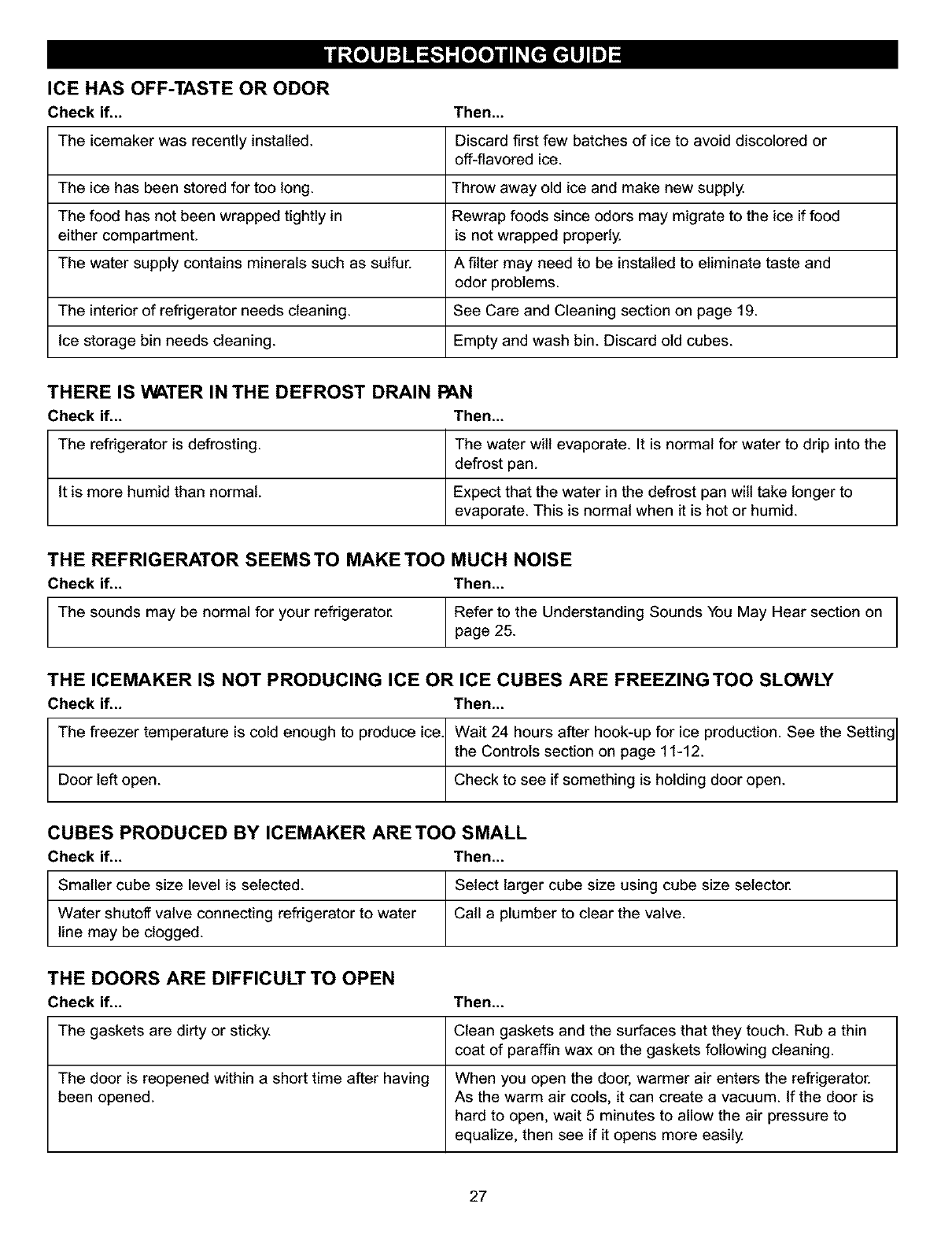

ICE HAS OFF-TASTE OR ODOR

Check if... Then...

The icemaker was recently installed. Discard first few batches of ice to avoid discolored or

off-flavored ice.

The ice has been stored for too long. Throw away old ice and make new supply.

The food has not been wrapped tightly in Rewrap foods since odors may migrate to the ice if food

either compartment, is not wrapped properly.

The water supply contains minerals such as sulfur. A filter may need to be installed to eliminate taste and

odor problems.

The interior of refrigerator needs cleaning. See Care and Cleaning section on page 19.

Ice storage bin needs cleaning. Empty and wash bin. Discard old cubes.

THERE IS WATER IN THE DEFROST DRAIN PAN

Check if... Then...

The refrigerator is defrosting. The water will evaporate. It is normal for water to drip into the

defrost pan.

It is more humid than normal. Expect that the water in the defrost pan wilt take longer to

evaporate. This is normal when it is hot or humid.

THE REFRIGERATOR SEEMSTO MAKETOO MUCH NOISE

Check if... Then...

The sounds may be normal for your refrigerator. Refer to the Understanding Sounds You May Hear section on

page 25.

THE ICEMAKER IS NOT PRODUCING ICE OR ICE CUBES ARE FREEZlNGTOO SLOWLY

Check if... Then...

The freezer temperature is cold enough to produce ice. Wait 24 hours after hook-up for ice production. See the Setting

the Controls section on page 11-12.

Door left open. Check to see if something is holding door open.

CUBES PRODUCED BY ICEMAKER ARETOO SMALL

Check if... Then...

Smaller cube size level is selected. Select larger cube size using cube size selector.

Water shutof_ valve connecting refrigerator to water Call a plumber to clear the valve.

line may be clogged.

THE DOORS ARE DIFFICULT TO OPEN

Check if... Then...

The gaskets are dirty or sticky. Clean gaskets and the surfaces that they touch. Rub a thin

coat of paraffin wax on the gaskets following cleaning.

The door is reopened within a short time after having When you open the door, warmer air enters the refrigerator.

been opened. As the warm air cools, it can create a vacuum. If the door is

hard to open, wait 5 minutes to allow the air pressure to

equalize, then see if it opens more easily

AUTOMATIC ICEMAKER DOES NOT WORK

Check if... Then...

Icemaker power switch in the O (off) position. Move the switch to the I (on) position.

Water supply turned o_ or not connected. See the Connecting the Water Line section on page 22.

Freezer compartment too warm. Wait 24 hours for the freezer to reach its ideal temperature.

Piled up cubes in the storage bin cause the icemaker Level cubes by hand.

to shut off.

TEMPERATURE IS TOO WARM OR THERE IS INTERIOR MOISTURE BUILDUP

Check if... Then...

The air vents are blocked. Cold air circulates Locate air vents by using your hand to sense airflow and

from the freezer to the fresh food section and move all packages that block vents and restrict airflow. Refer

back again through air vents in the wall dividing to Frontchill Door Cooling /Door Cooling on page 11 for

the two sections, the location of air vents.

The doors are opened often. When the door is opened, warm humid air is allowed into

the refrigerator. The more the door is opened, the faster the

humidity builds up, and the more warm air the refrigerator

must cool. In order to keep the refrigerator cool, try to get

everything you need out of the refrigerator at once, keep

food organized so it is easy to find and close the door as

soon as the food is removed.

The control is not set correctly for the surrounding Refer to the Setting the Controls section on page 11-12.

conditions. Wait 24 hours for temperatures to stabilize or even out. If the

temperature is too cold or too warm, move the dial one

number at a time.

A large amount of food has just been added Adding food warms the refrigerator. It can take a few hours

to the refrigerator or freezer, for the refrigerator to return to normal temperature.

The food is not packaged correctly. Wrap food tightly and wipe off damp containers prior to

storing in the refrigerator to avoid moisture accumulation. If

necessary, repackage food according to the guidelines in the

Food Storage Guide section on page 13.

The doors are not closing completely See "Doors will not close completely" on page 26.

The weather is humid. In humid weather, air carries moisture into refrigerator

when doors are opened.

A self-defrost cycle was completed. It is normal for droplets to form on the back wall after the

refrigerator self-defrosts.

Kenmore 79573252300 User Manual TOP MOUNT REFRIGERATOR Manuals And Guides L0306370

KENMORE Top Mount Refrigerator Manual L0306370 KENMORE Top Mount Refrigerator Owner's Manual, KENMORE Top Mount Refrigerator installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
