BOTTOM FREEZER REFRIGERATOR

CONGELADOR INFERIOR REFRIGERADOR

........................_ISO o' ..I._,,._,-_

CONGC:LATEUR INFC:RIEUR RiFRIGC:RATEUR

Models /Modelos /Mod61es

795.7730 ¢, 795.7731

=color number, n0mero de color, num@o de couleur

rfl

r =

(fl

"1=

rfl

(fl

r =

-13

3828JL8798A Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A. www.sears.com

Printed in Mexico

English Version

Warranty

Protection Agreements

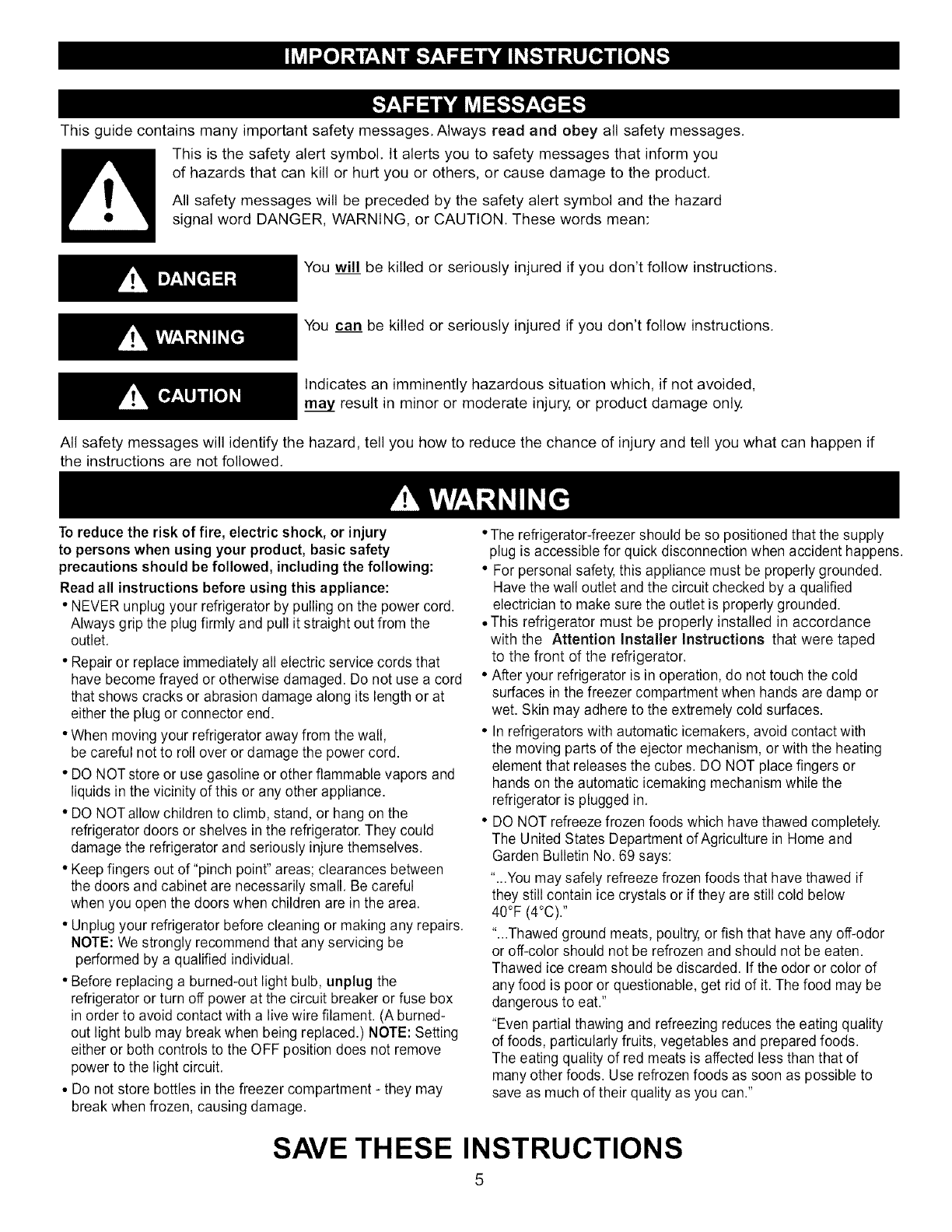

Safety Instructions

Grounding Requirements

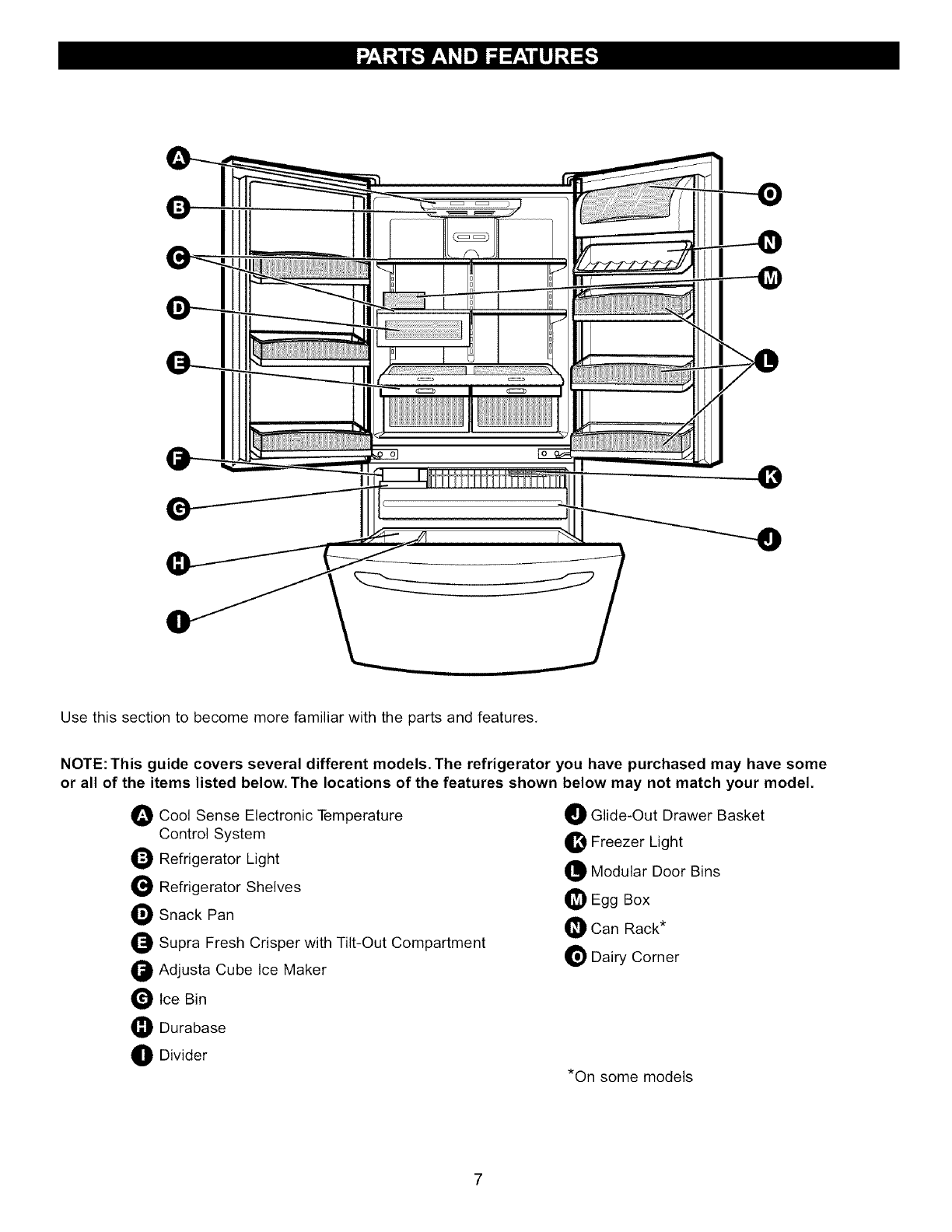

Parts and Features

Refrigerator Installation

Unpacking Your Refrigerator

Installation

Base Grille

Removing and Replacing

Your Refrigerator Doors 9-13

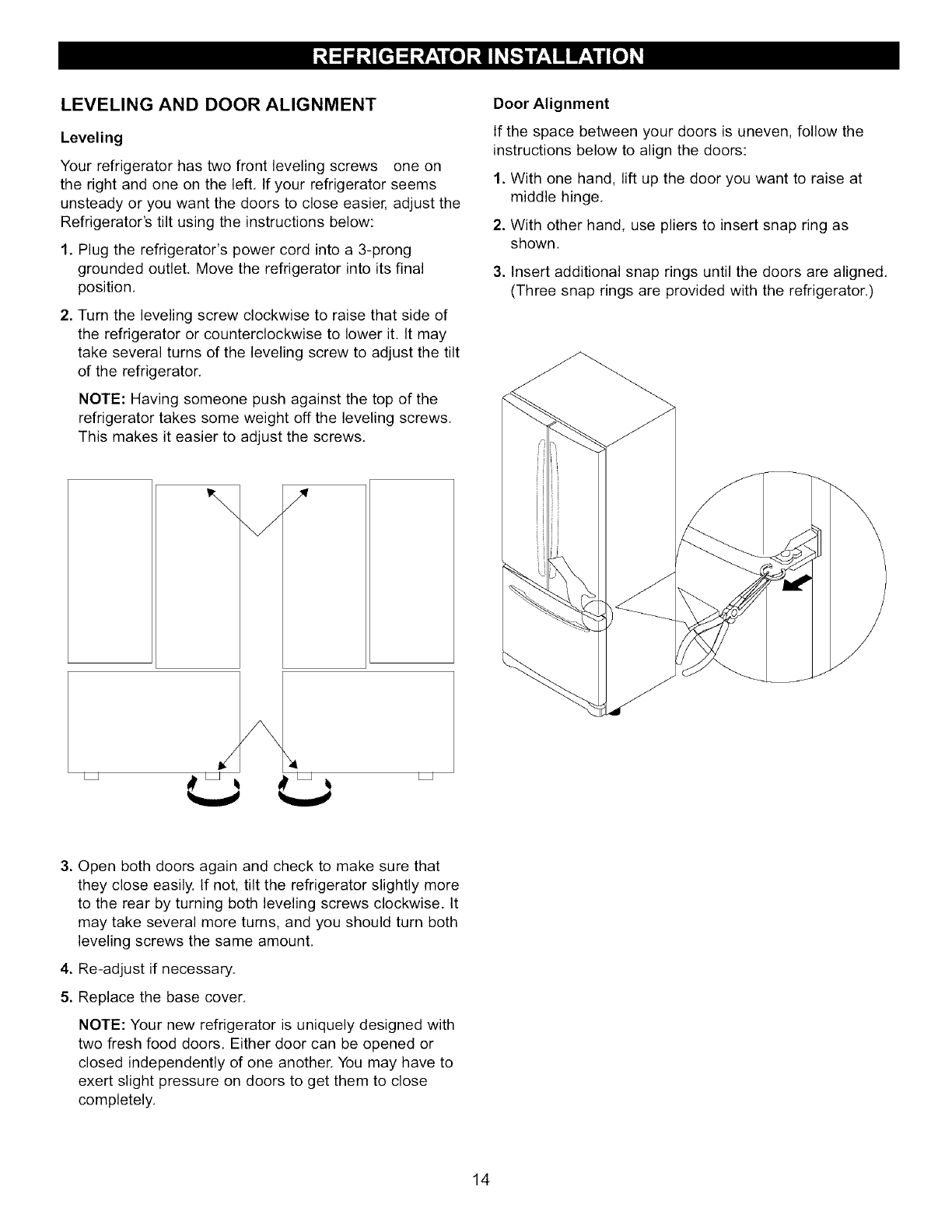

Leveling and DoorAlignment 14

Using Your Refrigerator 15-22

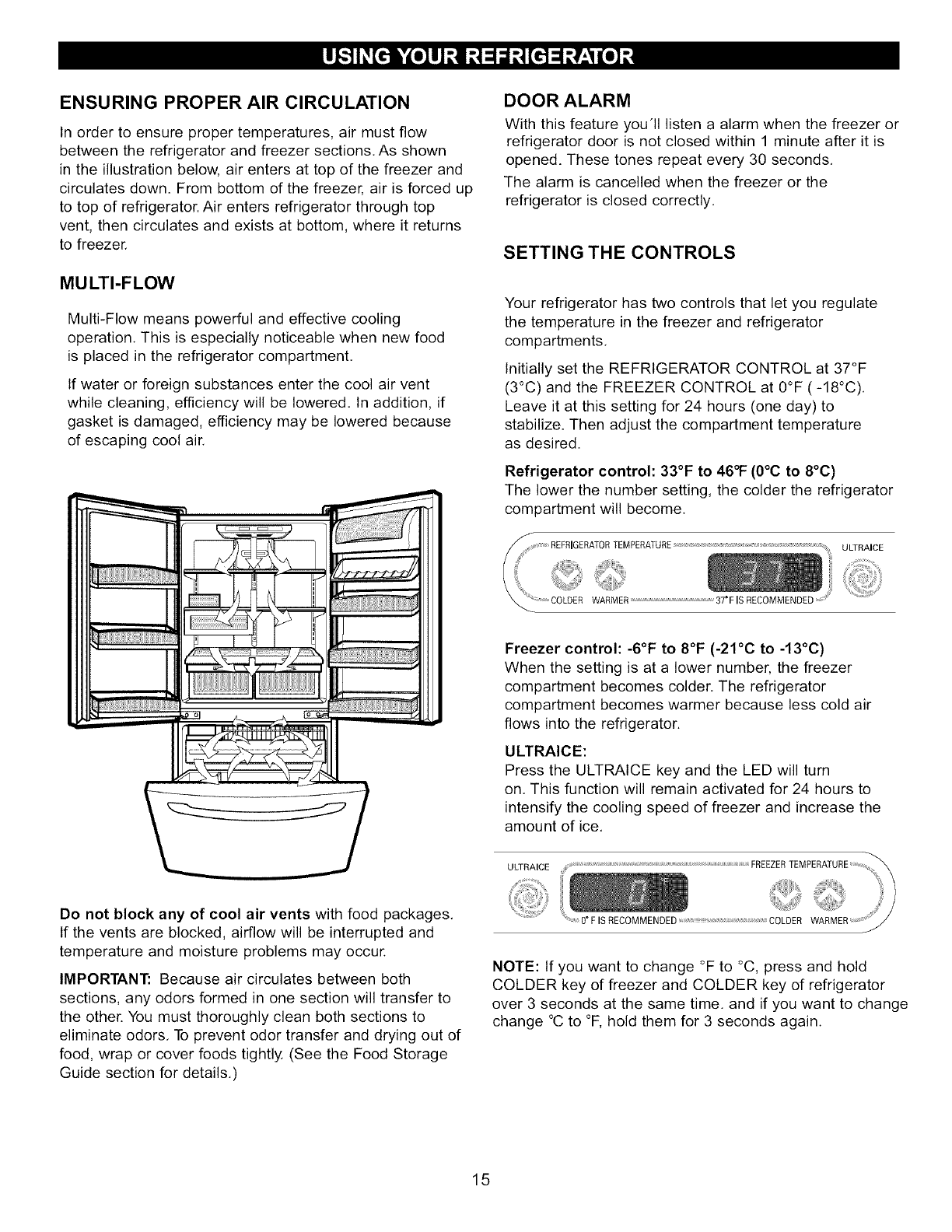

Ensuring Proper Air Circulation 15

Multi Flow 15

Setting the Controls 15

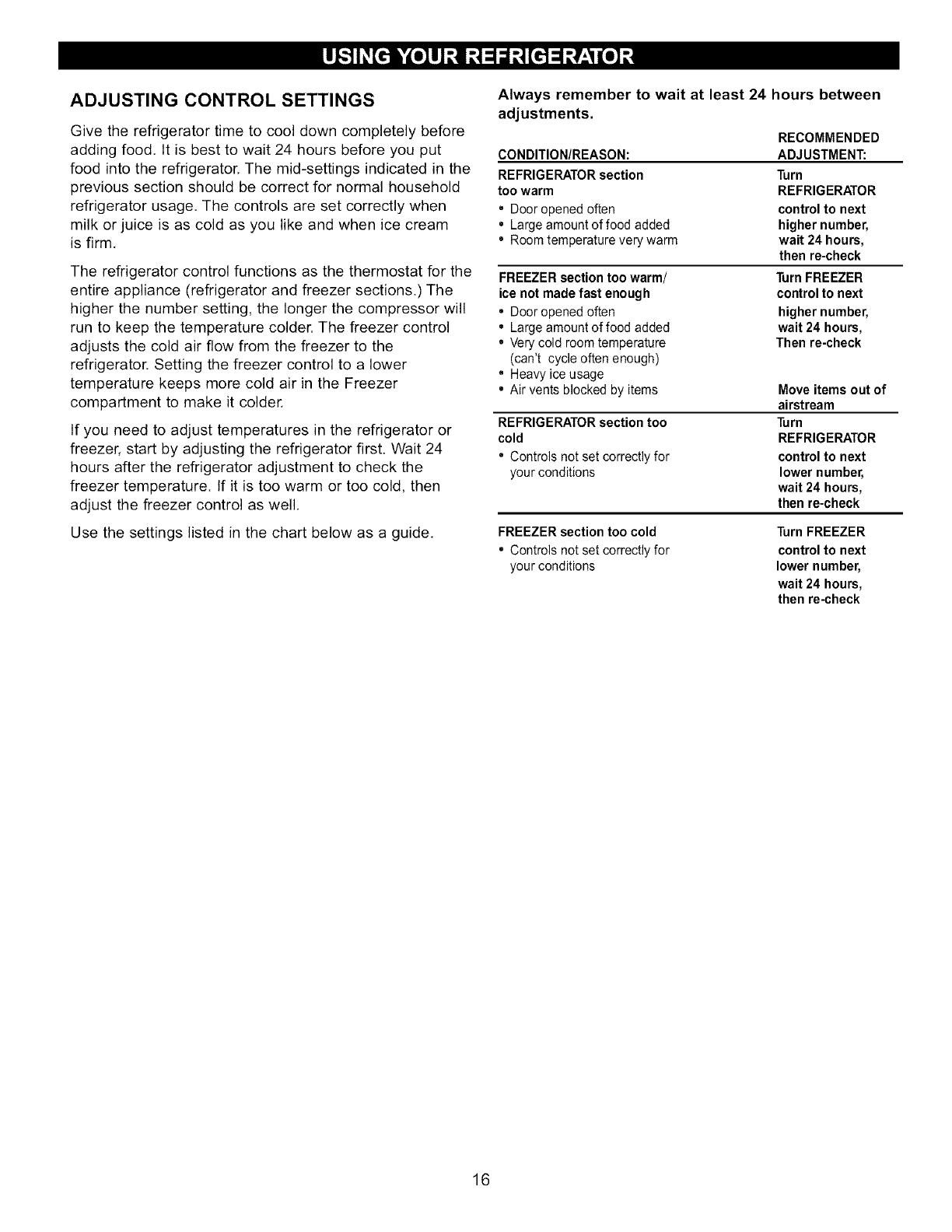

Adjusting Control Settings 16

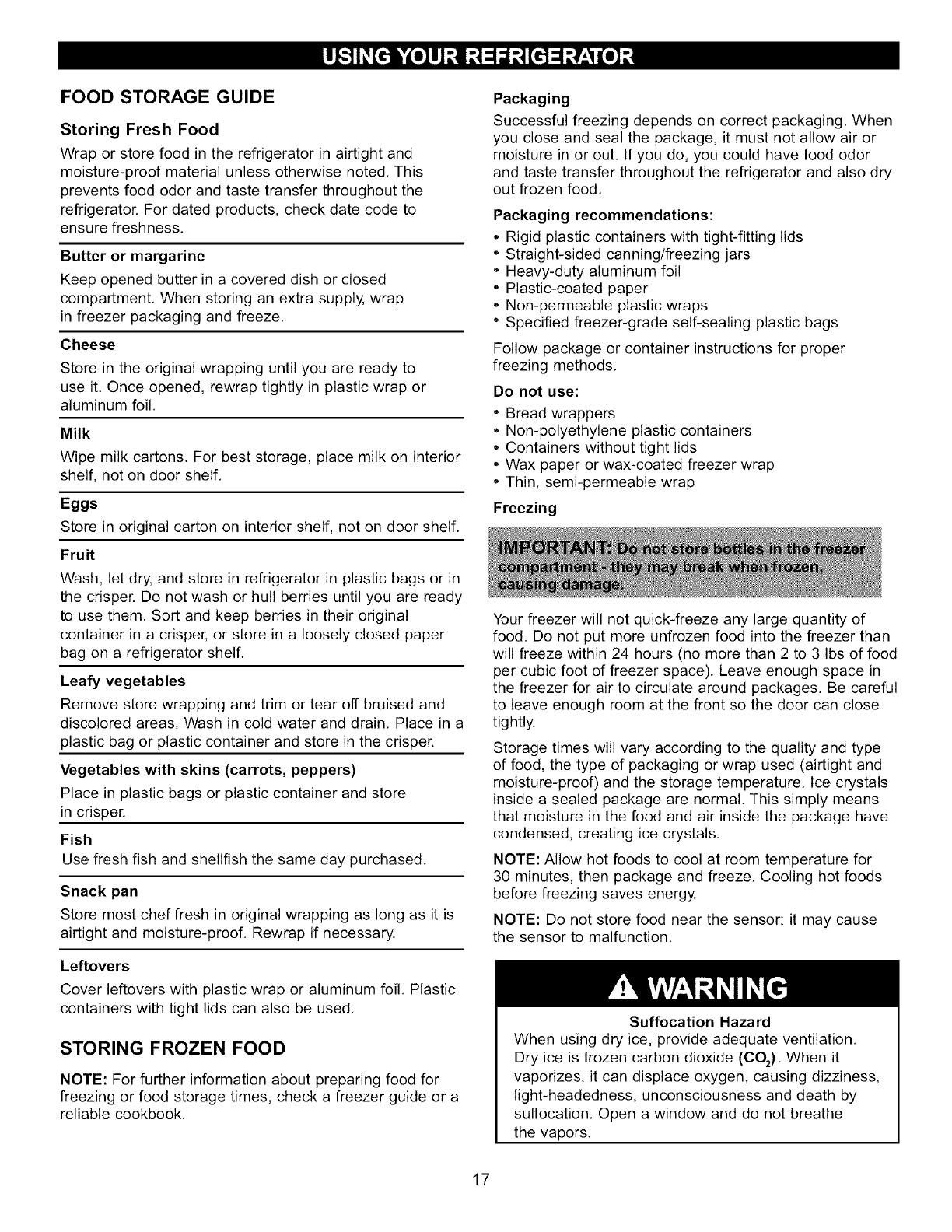

Food Storage Guide 16

Storing Frozen Food 17

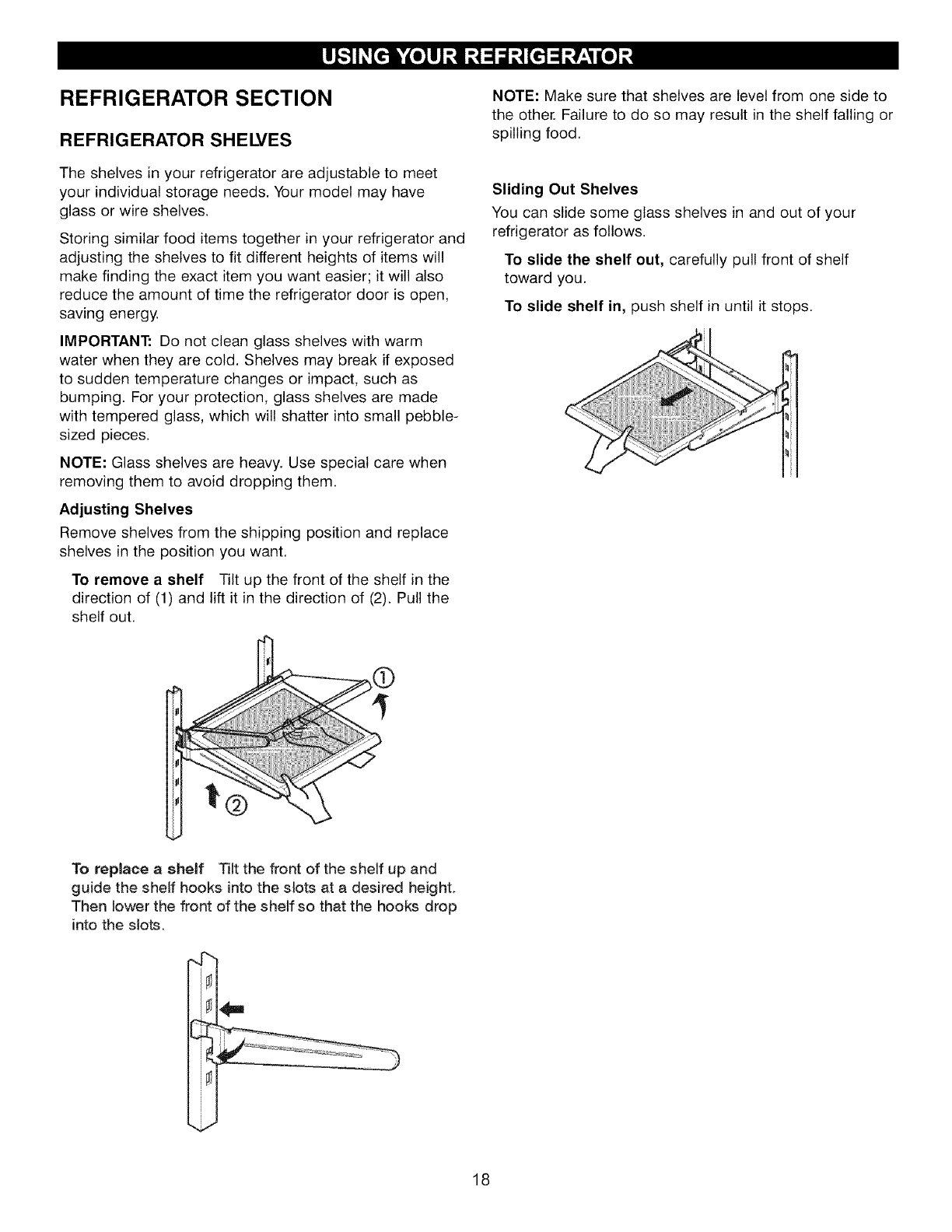

Refrigerator Shelves 18

Snack Pan 19

Suprafresh Crispers with Tilt-out Compartment 19

Crisper Humidity Control 19

Crisper with Tilt-out Feature 19

8-14

Crisper Cover with Lattice on inner Surface 20

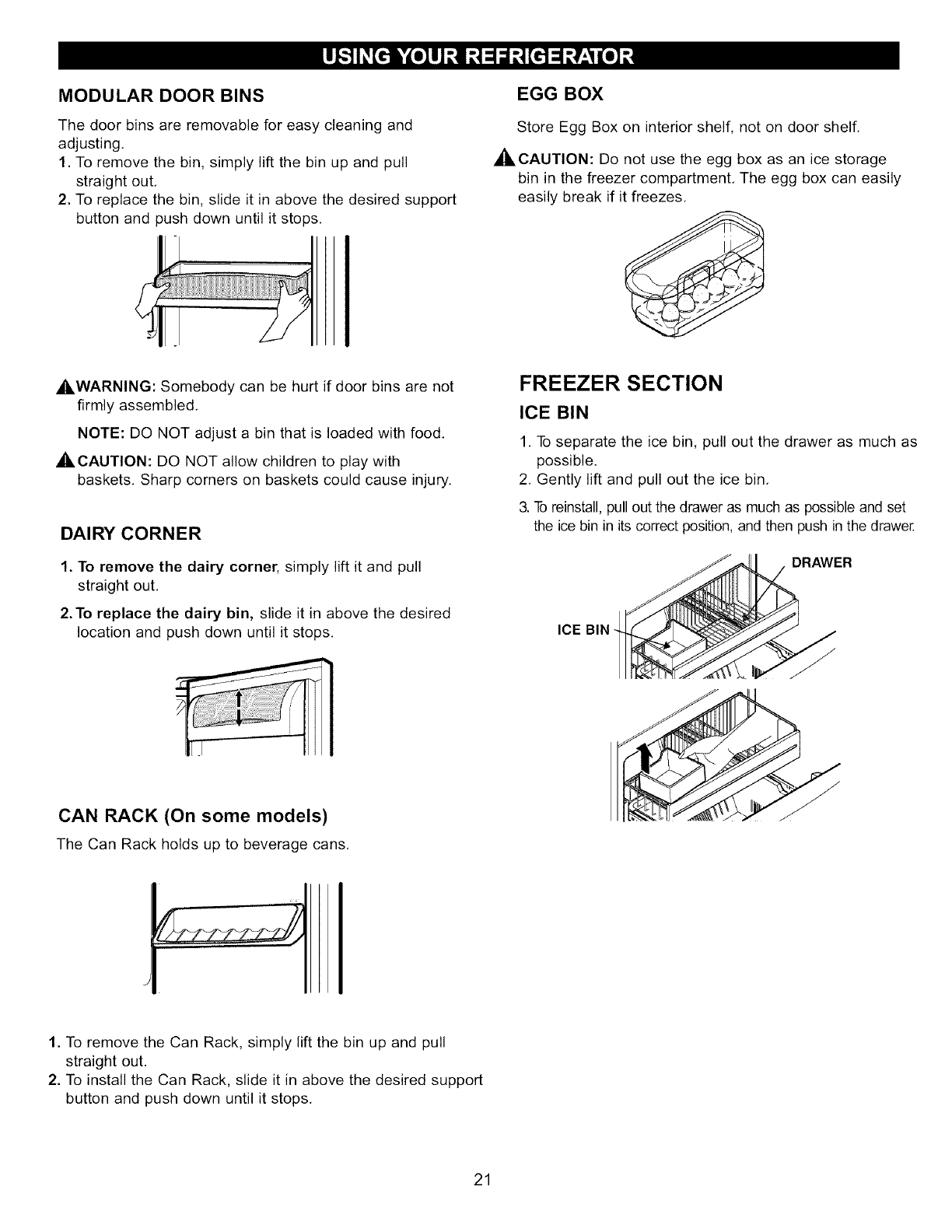

Modular Door Bins 21

Dairy Corner 21

Egg Box 21

Can Rack 21

Ice Bin 21

Durabase 22

Durabase Divider 22

Glide-Out Drawer Baskets 22

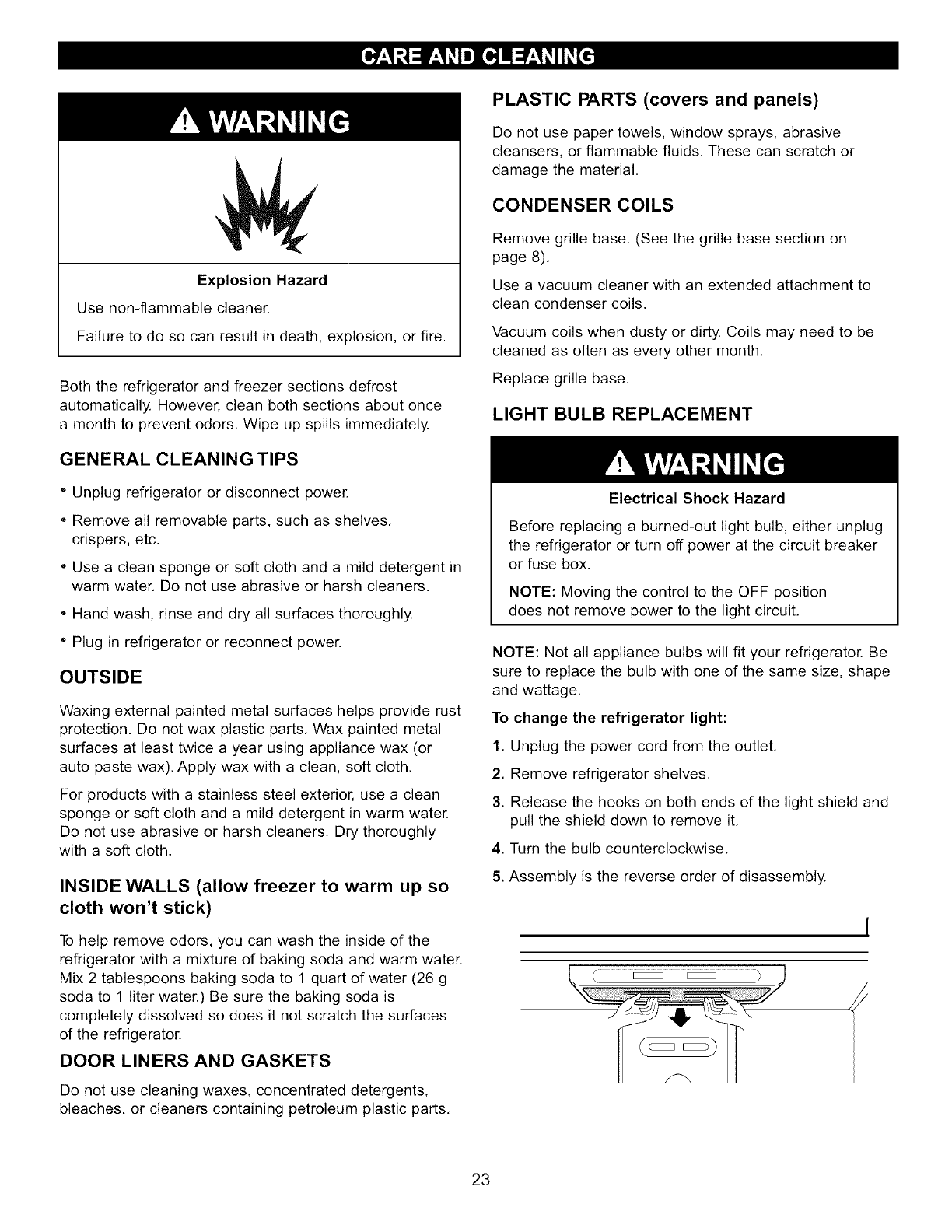

Care and Cleaning 23-24

General Cleaning Tips 23

Outside 23

Inside Walls 23

Door Liner and Gaskets 23

Plastic Parts 23

Condenser Coils 23

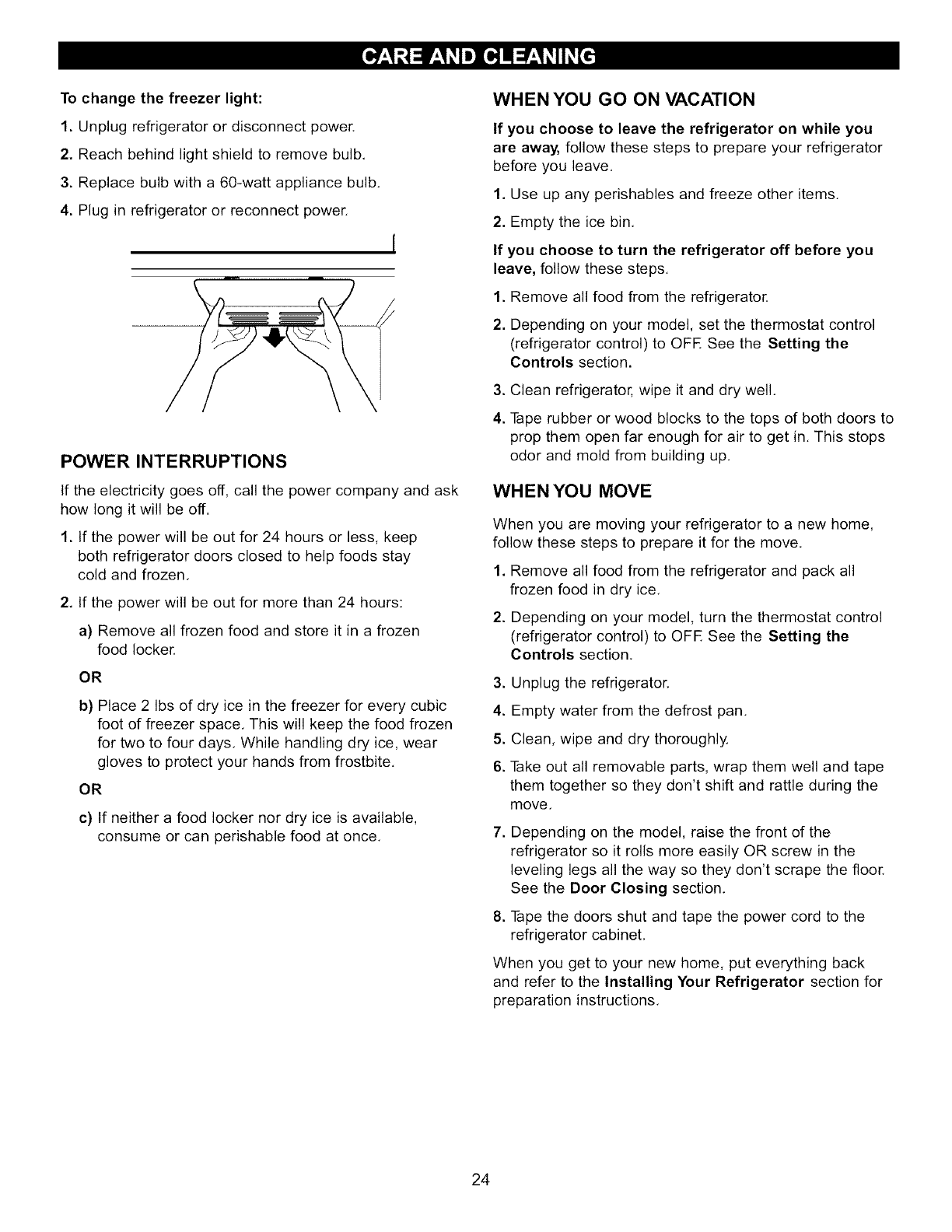

Light Bulb Replacement 23-24

Power Interruptions 24

When you go on vacation 24

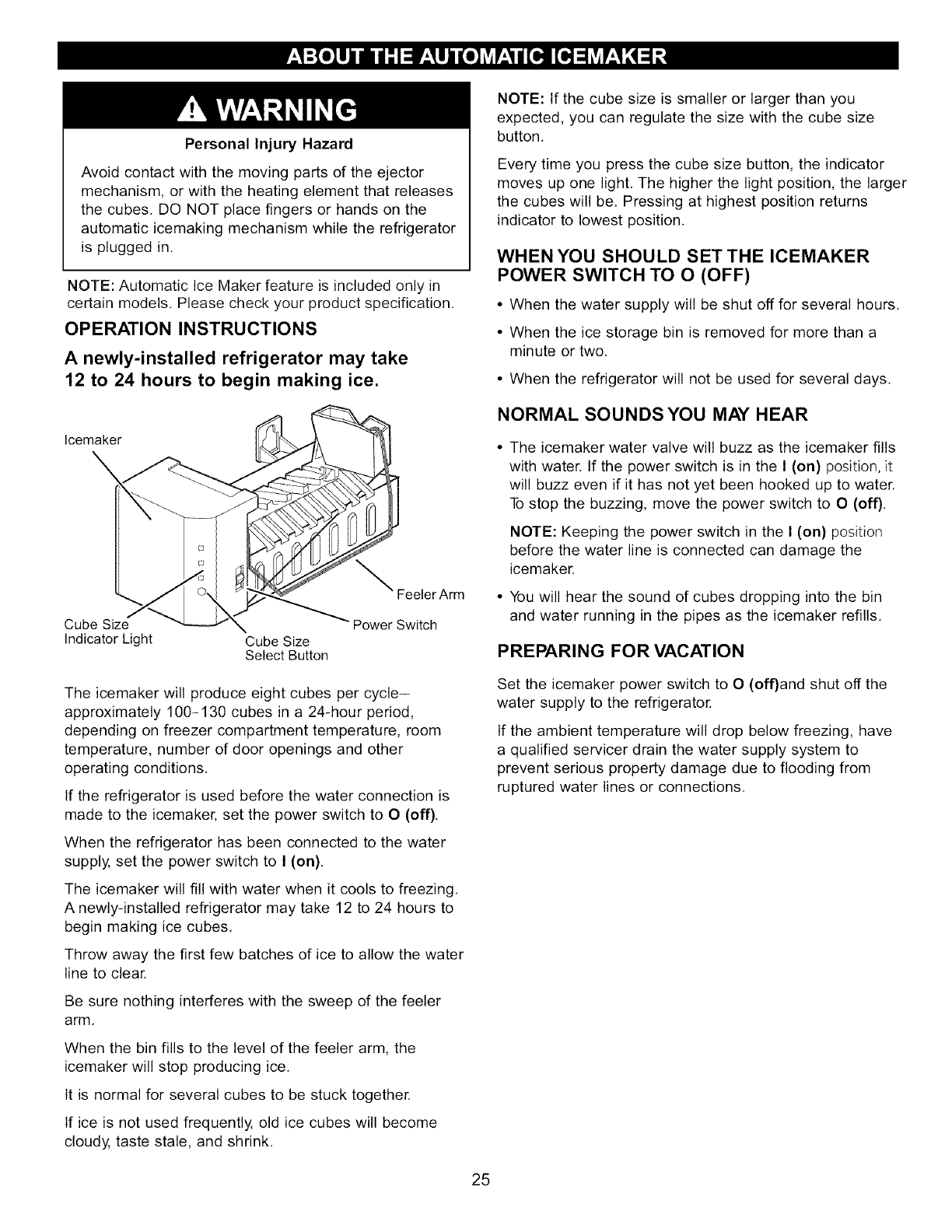

About the Automatic Icemaker 25

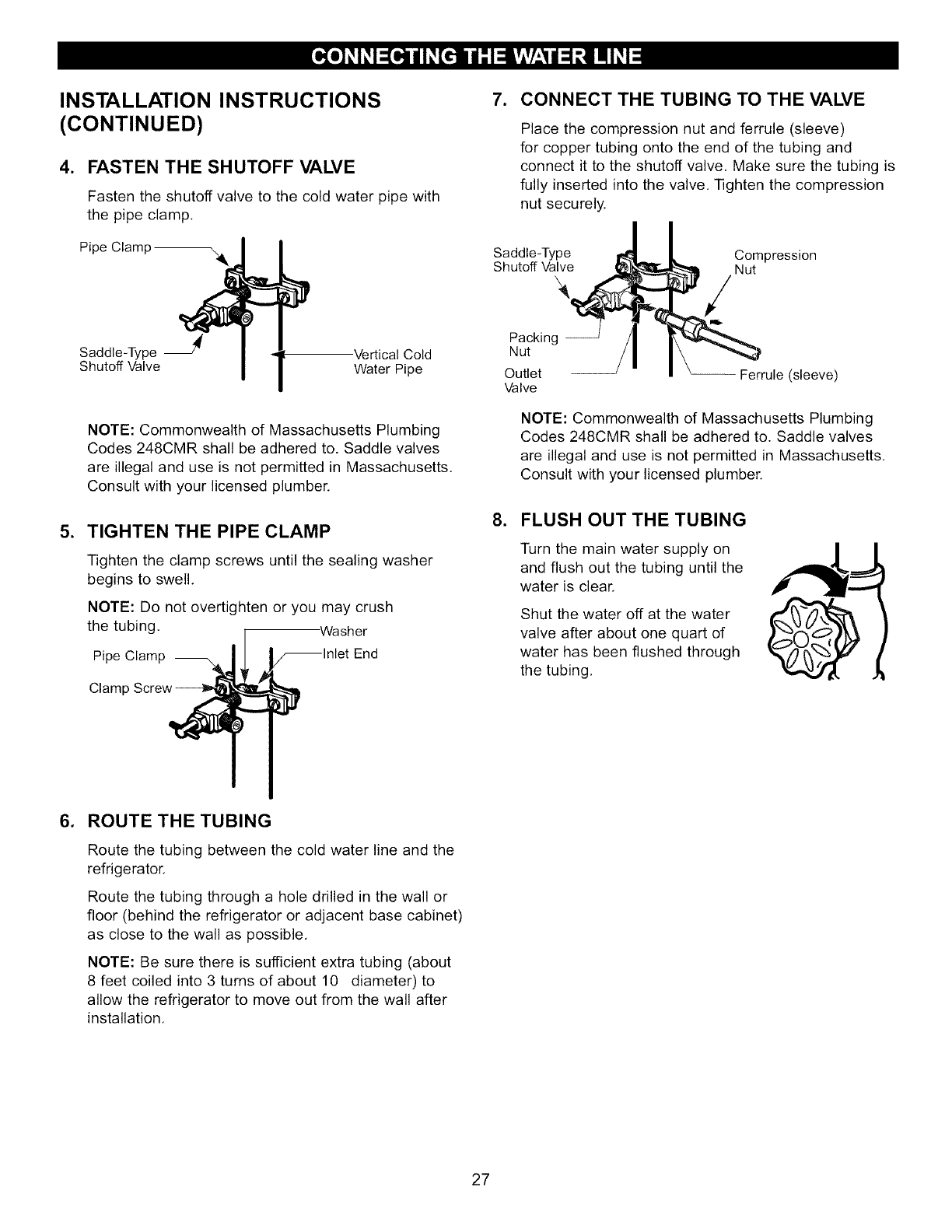

Connecting the Water Line 26-28

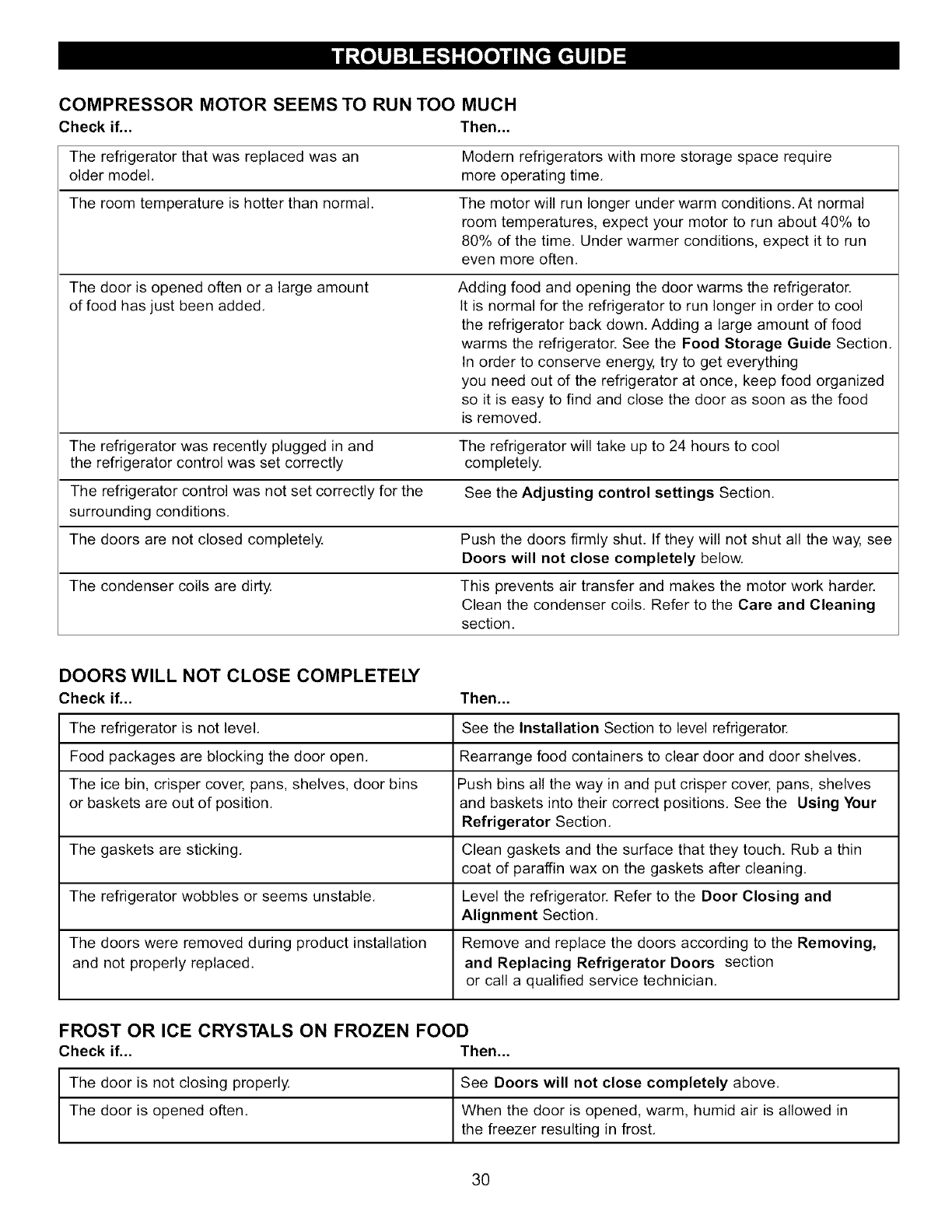

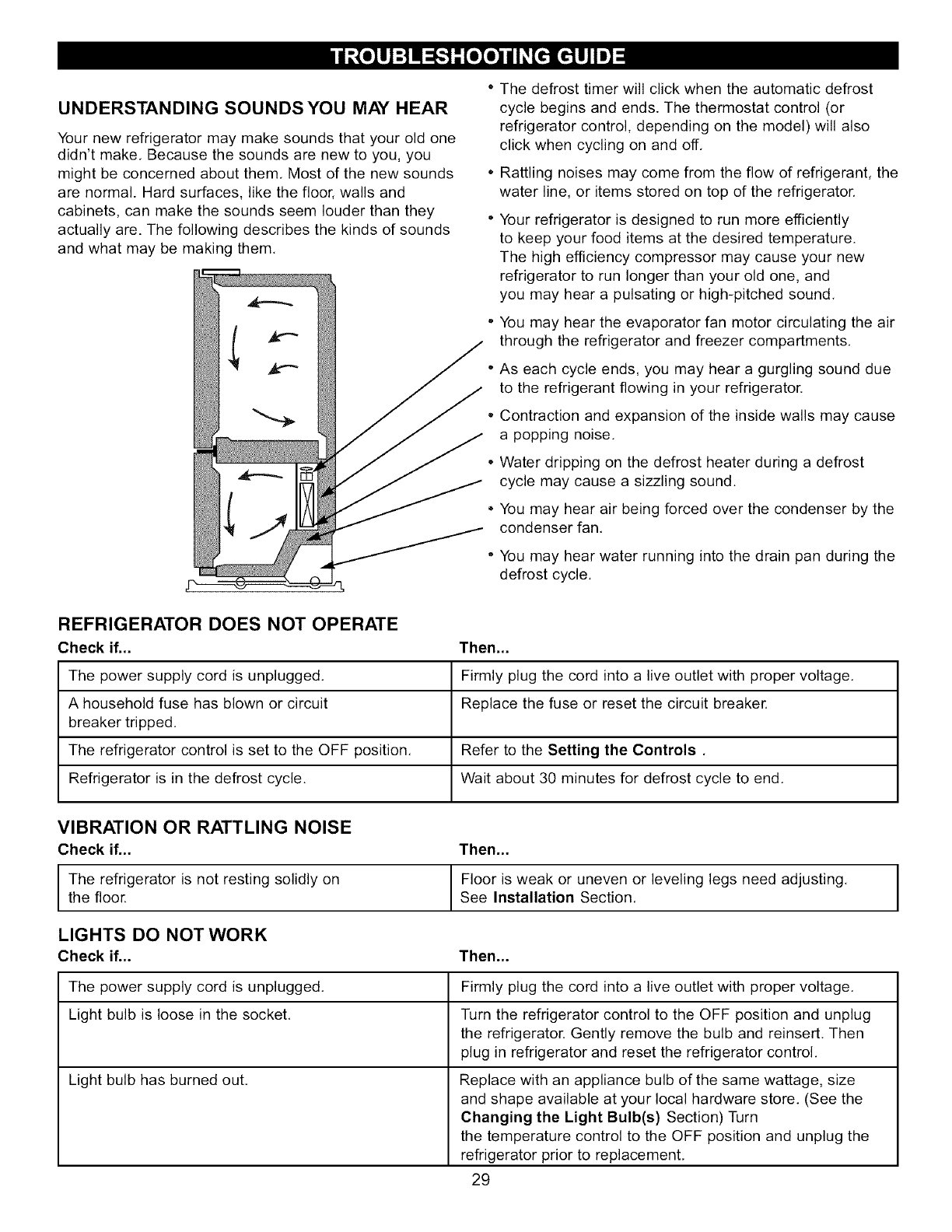

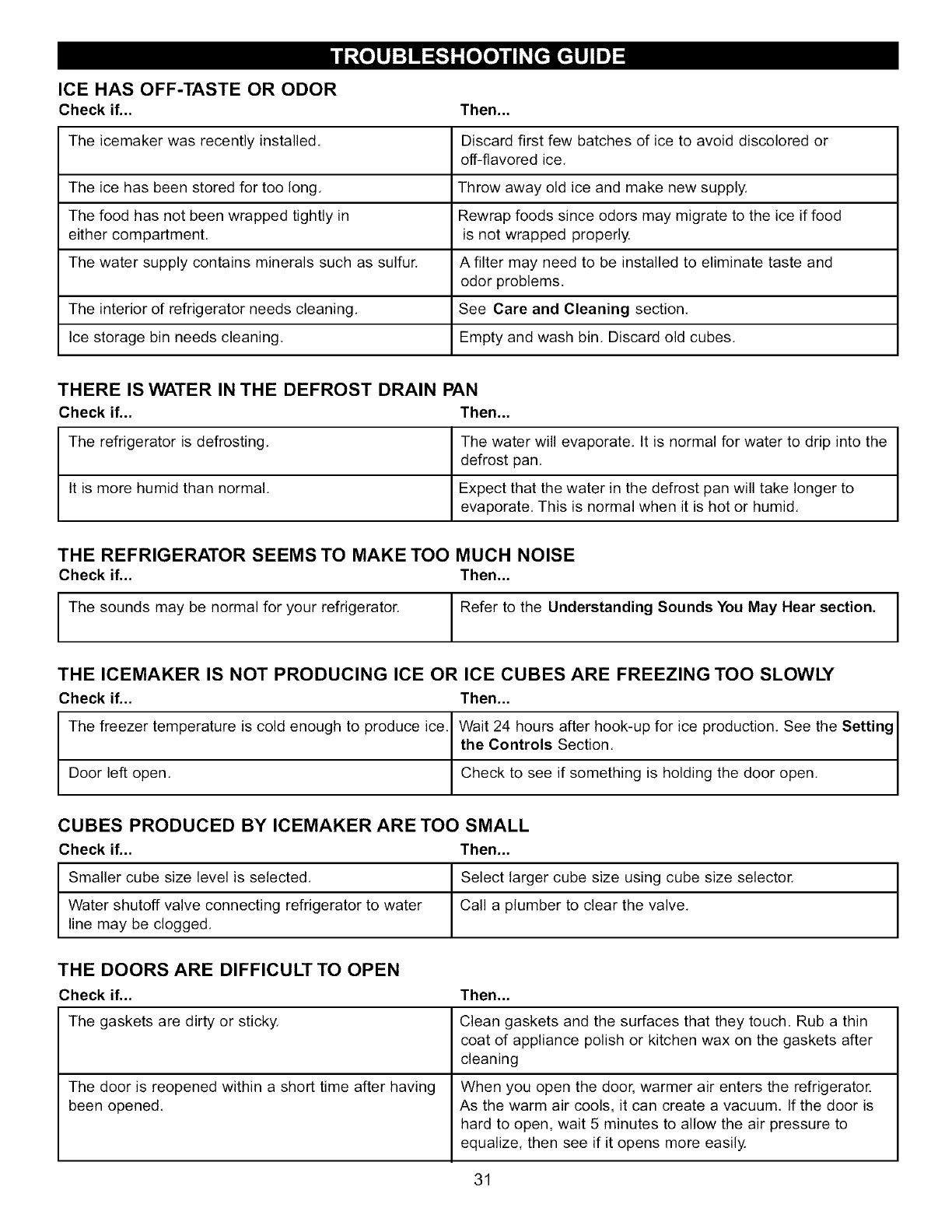

Troubleshooting Guide 29-32

Customer Service Back Cover

BOTTOM FREEZER REFRIGERATOR

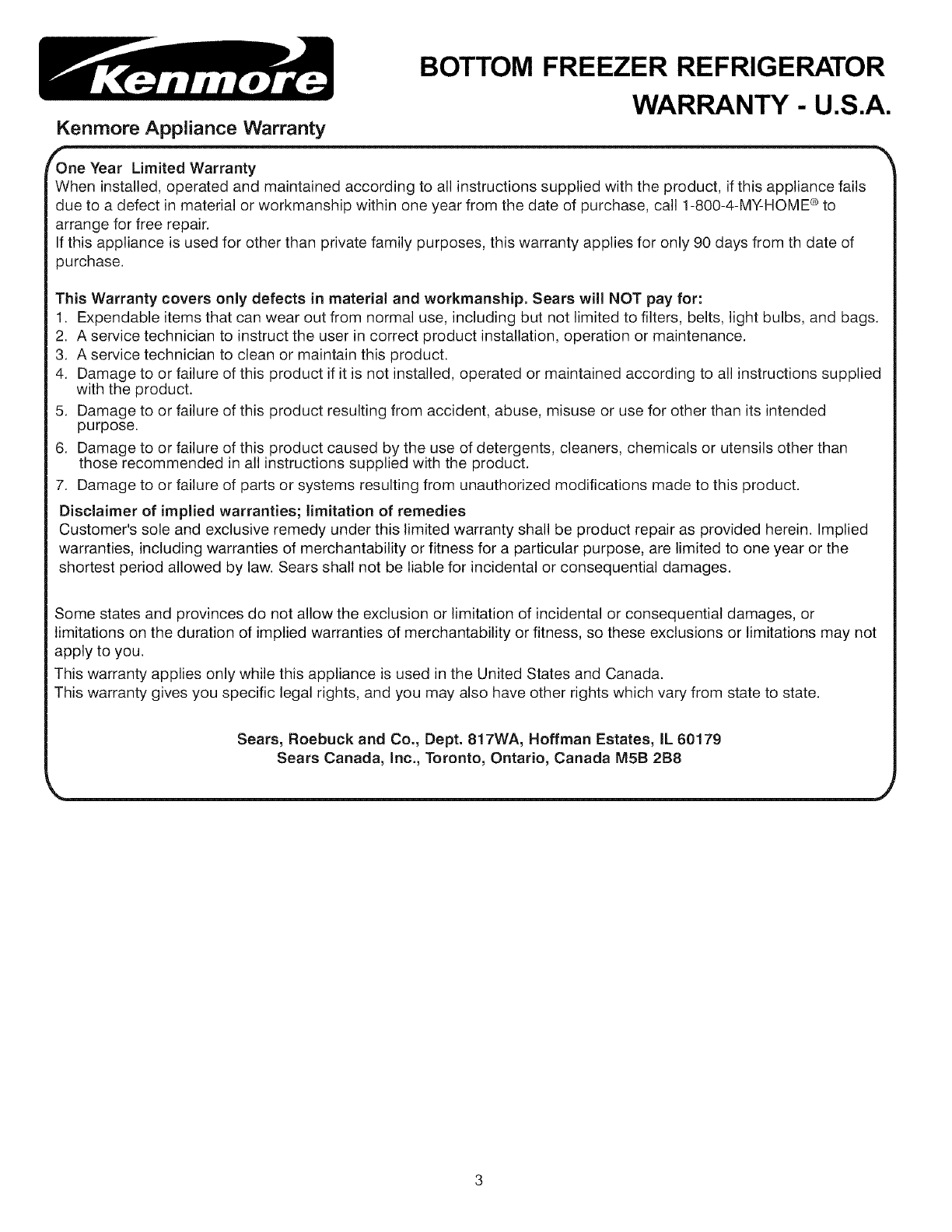

WARRANTY - U.S.A.

Kenrnore Appliance Warranty

One Year Limited Warranty

When installed, operated and maintained according to all instructions supplied with the product, if this appliance fails

due to a defect in material or workmanship within one year from the date of purchase, call 1-800-4-MY-HOME ®to

arrange for free repair.

If this appliance is used for other than private family purposes, this warranty applies for only 90 days from th date of

purchase.

This Warranty covers only defects in material and workmanship. Sears will NOT pay for:

1. Expendable items that can wear out from normal use, including but not limited to filters, belts, light bulbs, and bags.

2. A service technician to instruct the user in correct product installation, operation or maintenance.

3. A service technician to clean or maintain this product.

4. Damage to or failure of this product if it is not installed, operated or maintained according to all instructions supplied

with the product.

5. Damage to or failure of this product resulting from accident, abuse, misuse or use for other than its intended

purpose.

6. Damage to or failure of this product caused by the use of detergents, cleaners, chemicals or utensils other than

those recommended in all instructions supplied with the product.

7. Damage to or failure of parts or systems resulting from unauthorized modifications made to this product.

Disclaimer of implied warranties; limitation of remedies

Customer's sole and exclusive remedy under this limited warranty shall be product repair as provided herein. Implied

warranties, including warranties of merchantability or fitness for a particular purpose, are limited to one year or the

shortest period allowed by law. Sears shall not be liable for incidental or consequential damages.

Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, or

limitations on the duration of implied warranties of merchantability or fitness, so these exclusions or limitations may not

apply to you.

This warranty applies only while this appliance is used in the United States and Canada.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Sears, Roebuck and Co., Dept. 817WA, Hoffman Estates, IL 60179

Sears Canada, inc., Toronto, Ontario, Canada M5B 2B8

In the U.S.A.

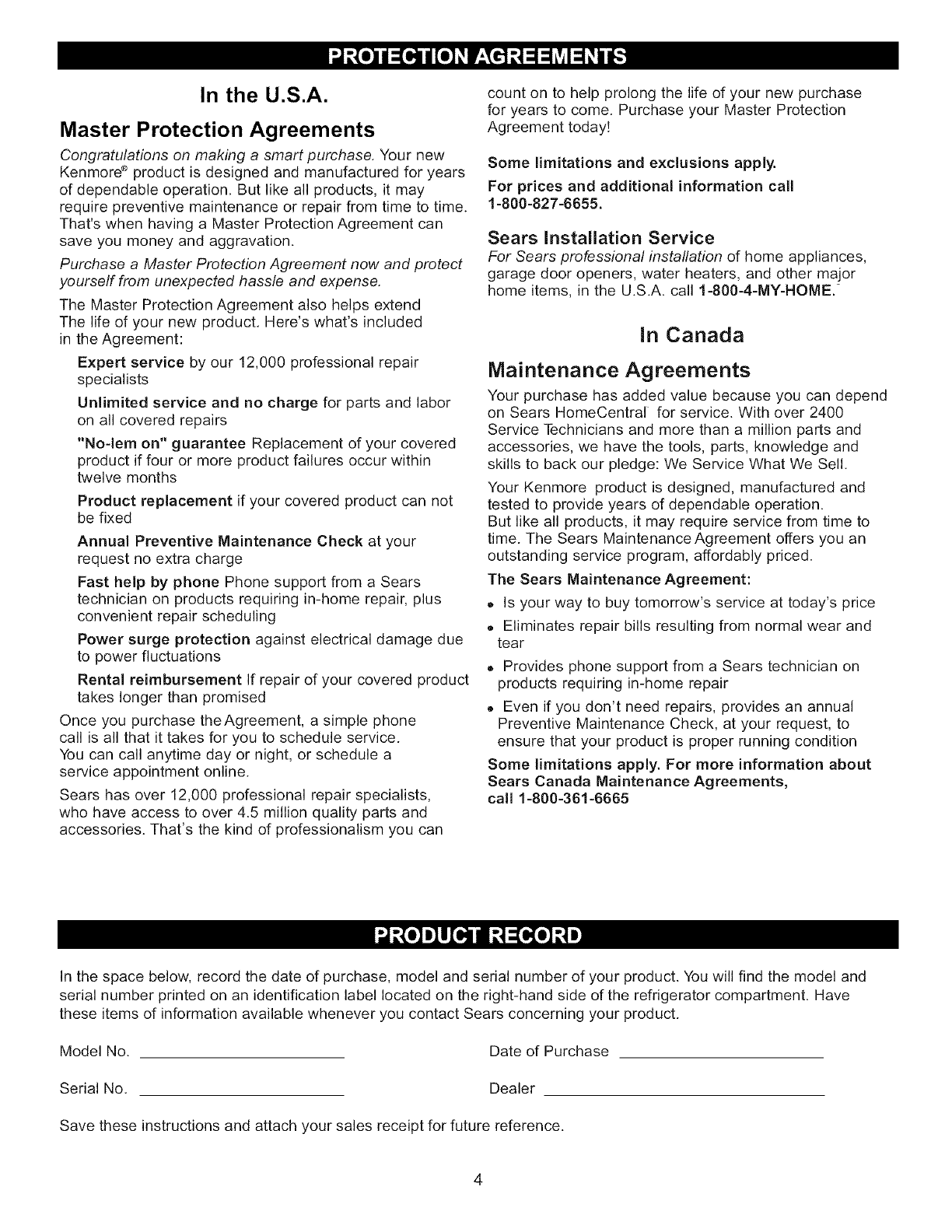

Master Protection Agreements

Congratulations on making a smart purchase. Your new

Kenmore ®product is designed and manufactured for years

of dependable operation. But like all products, it may

require preventive maintenance or repair from time to time.

That's when having a Master Protection Agreement can

save you money and aggravation.

Purchase a Master Protection Agreement now and protect

yourself from unexpected hassle and expense.

The Master Protection Agreement also helps extend

The life of your new product. Here's what's included

in the Agreement:

Expert service by our 12,000 professional repair

specialists

Unlimited service and no charge for parts and labor

on all covered repairs

"No-lem on" guarantee Replacement of your covered

product if four or more product failures occur within

twelve months

Product replacement if your covered product can not

be fixed

Annual Preventive Maintenance Check at your

request no extra charge

Fast help by phone Phone support from a Sears

technician on products requiring in-home repair, plus

convenient repair scheduling

Power surge protection against electrical damage due

to power fluctuations

Rental reimbursement If repair of your covered product

takes longer than promised

Once you purchase theAgreement, a simple phone

call is all that it takes for you to schedule service.

You can call anytime day or night, or schedule a

service appointment online.

Sears has over 12,000 professional repair specialists,

who have access to over 4.5 million quality parts and

accessories. That's the kind of professionalism you can

count on to help prolong the life of your new purchase

for years to come. Purchase your Master Protection

Agreement today!

Some limitations and exclusions apply.

For prices and additional information call

1-800-827-6655.

Sears Installation Service

For Sears professional installation of home appliances,

garage door openers, water heaters, and other major

home items, in the U.S.A. call 1-800-4-MY-HOME.

In Canada

Maintenance Agreements

Your purchase has added value because you can depend

on Sears HomeCentral for service. With over 2400

Service Technicians and more than a million parts and

accessories, we have the tools, parts, knowledge and

skills to back our pledge: We Service What We Sell.

Your Kenmore product is designed, manufactured and

tested to provide years of dependable operation.

But like all products, it may require service from time to

time. The Sears Maintenance Agreement offers you an

outstanding service program, affordably priced.

The Sears Maintenance Agreement:

• Is your way to buy tomorrow's service at today's price

• Eliminates repair bills resulting from normal wear and

tear

,, Provides phone support from a Sears technician on

products requiring in-home repair

• Even if you don't need repairs, provides an annual

Preventive Maintenance Check, at your request, to

ensure that your product is proper running condition

Some limitations apply. For more information about

Sears Canada Maintenance Agreements,

call 1-800-361-6665

In the space below, record the date of purchase, model and serial number of your product. You will find the model and

serial number printed on an identification label located on the right-hand side of the refrigerator compartment. Have

these items of information available whenever you contact Sears concerning your product.

Model No. Date of Purchase

Serial No. Dealer

Save these instructions and attach your sales receipt for future reference.

Thisguidecontainsmanyimportantsafetymessages,Alwaysreadandobeyallsafetymessages.

Thisisthesafetyalertsymbol,Italertsyouto safetymessagesthatinformyou

of hazardsthatcankillorhurtyouorothers,orcausedamagetotheproduct,

Allsafetymessageswillbeprecededbythesafetyalertsymbolandthehazard

signalwordDANGER,WARNING,or CAUTION.Thesewordsmean:

Youwill be killed or seriously injured if you don't follow instructions.

You can be killed or seriously injured if you don't follow instructions,

Indicates an imminently hazardous situation which, if not avoided,

may result in minor or moderate injury, or product damage only.

All safety messages will identify the hazard, tell you how to reduce the chance of injury and tell you what can happen if

the instructions are not followed,

To reduce the risk of fire, electric shock, or injury

to persons when using your product, basic safety

precautions should be followed, including the following:

Read all instructions before using this appliance:

• NEVER unplug your refrigerator by pulling on the power cord.

Always grip the plug firmly and pull it straight out from the

outlet.

• Repair or replace immediately all electric service cords that

have become frayed or otherwise damaged. Do not use a cord

that shows cracks or abrasion damage along its length or at

either the plug or connector end.

• When moving your refrigerator away from the wall,

be careful not to roll over or damage the power cord.

• DO NOT store or use gasoline or other flammable vapors and

liquids in the vicinity of this or any other appliance.

• DO NOT allow children to climb, stand, or hang on the

refrigerator doors or shelves in the refrigerator. They could

damage the refrigerator and seriously injure themselves.

• Keepfingers out of "pinch point"areas; clearances between

the doors and cabinet are necessarily small. Be careful

when you open the doors when children are in the area.

• Unplug your refrigerator before cleaning or making any repairs.

NOTE:We strongly recommend that any servicing be

performed by a qualified individual.

• Before replacing a burned-out light bulb, unplug the

refrigerator or turn off power at the circuit breaker or fuse box

in order to avoid contact with a live wire filament. (A burned-

out light bulb may break when being replaced.) NOTE: Setting

either or both controls to the OFF position does not remove

power to the light circuit.

• Do not store bottles in the freezer compartment - they may

break when frozen, causing damage.

• The refrigerator-freezer should be so positioned that the supply

plug is accessible for quick disconnection when accident happens.

•For personal safety, this appliance must be properly grounded.

Have the wall outlet and the circuit checked by a qualified

electrician to make sure the outlet is properly grounded.

• This refrigerator must be properly installed in accordance

with the Attention Installer Instructions that were taped

to the front of the refrigerator.

• After your refrigerator is in operation, do not touch the cold

surfaces in the freezer compartment when hands are damp or

wet. Skin may adhere to the extremely cold surfaces.

• In refrigerators with automatic icemakers, avoid contact with

the moving parts of the ejector mechanism, or with the heating

element that releases the cubes. DO NOT place fingers or

hands on the automatic icemaking mechanism while the

refrigerator is plugged in.

• DO NOT refreeze frozen foods which have thawed completely.

The United States Department of Agriculture in Home and

Garden Bulletin No. 69 says:

"...Youmay safely refreeze frozen foods that have thawed if

they still contain ice crystals or if they are still cold below

40°F (4°C).''

"...Thawed ground meats, poultry, or fish that have any off-odor

or off-color should not be refrozen and should not be eaten.

Thawed ice cream should be discarded. If the odor or color of

any food is poor or questionable, get rid of it. The food may be

dangerous to eat."

"Even partial thawing and refreezing reduces the eating quality

of foods, particularly fruits, vegetables and prepared foods.

The eating quality of red meats is affected less than that of

many other foods. Use refrozen foods as soon as possible to

save as much of their quality as you can."

SAVE THESE INSTRUCTIONS

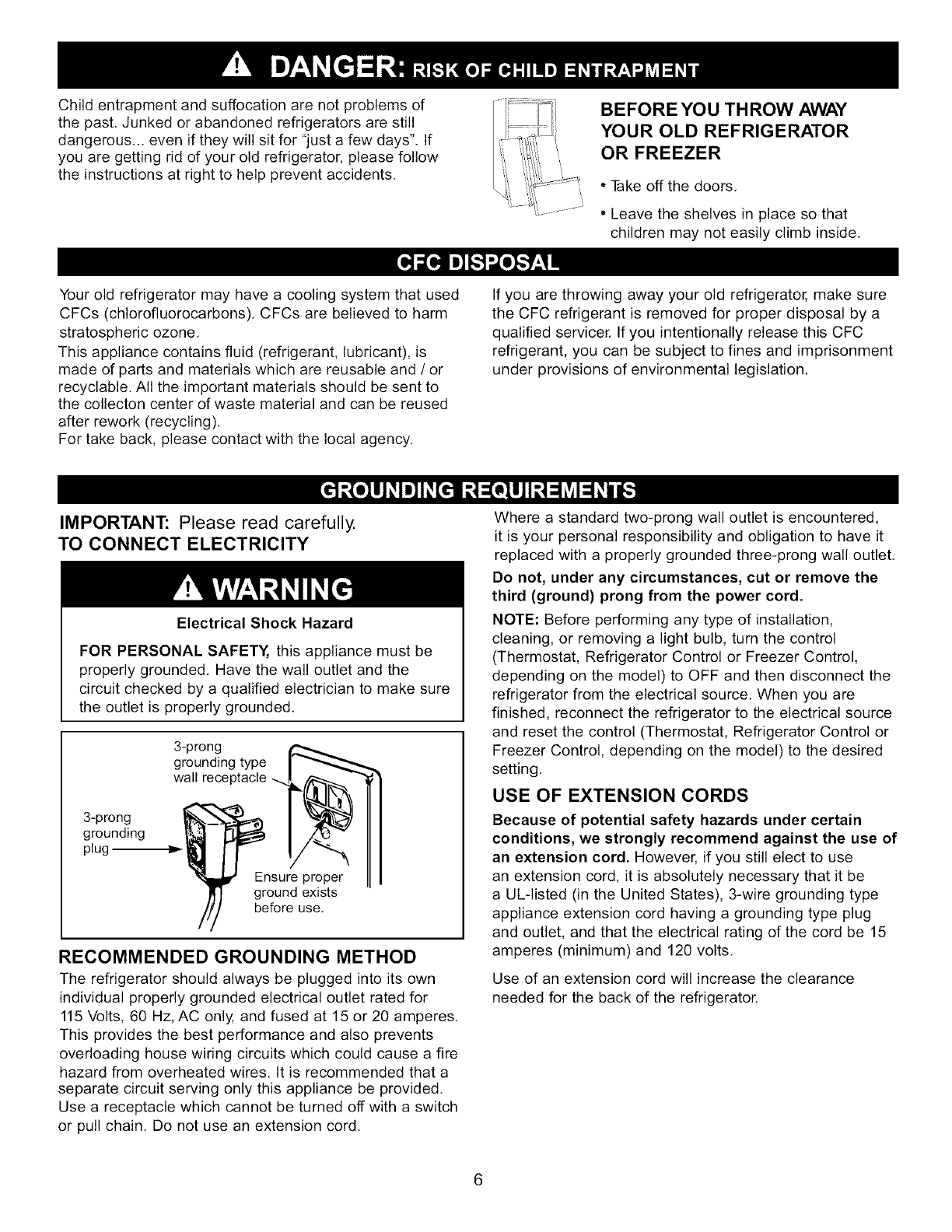

Child entrapment and suffocation are not problems of

the past. Junked or abandoned refrigerators are still

dangerous.., even if they will sit for "just a few days". If

you are getting rid of your old refrigerator, please follow

the instructions at right to help prevent accidents.

BEFORE YOU THROW AWAY

YOUR OLD REFRIGERATOR

OR FREEZER

Take off the doors.

. Leave the shelves in place so that

children may not easily climb inside.

Your old refrigerator may have a cooling system that used

CFCs (chlorofluorocarbons). CFCs are believed to harm

stratospheric ozone.

This appliance contains fluid (refrigerant, lubricant), is

made of parts and materials which are reusable and /or

recyclable. All the important materials should be sent to

the collecton center of waste material and can be reused

after rework (recycling).

For take back, please contact with the local agency.

If you are throwing away your old refrigerator, make sure

the CFC refrigerant is removed for proper disposal by a

qualified servicer. If you intentionally release this CFC

refrigerant, you can be subject to fines and imprisonment

under provisions of environmental legislation.

IMPORTANT: Please read carefully.

TO CONNECT ELECTRICITY

Electrical Shock Hazard

FOR PERSONAL SAFETY, this appliance must be

properly grounded, Have the wall outlet and the

circuit checked by a qualified electrician to make sure

the outlet is properly grounded.

3-prong

grounding type

wall receptacle -_.

3-prong

grounding

plug ._,,-

RECOMMENDED GROUNDING METHOD

The refrigerator should always be plugged into its own

individual properly grounded electrical outlet rated for

115 Volts, 60 Hz, AC only, and fused at 15 or 20 amperes.

This provides the best performance and also prevents

overloading house wiring circuits which could cause a fire

hazard from overheated wires. It is recommended that a

separate circuit serving only this appliance be provided.

Use a receptacle which cannot be turned off with a switch

or pull chain. Do not use an extension cord.

Where a standard two-prong wall outlet is encountered,

it is your personal responsibility and obligation to have it

replaced with a properly grounded three-prong wall outlet,

Do not, under any circumstances, cut or remove the

third (ground) prong from the power cord.

NOTE: Before performing any type of installation,

cleaning, or removing a light bulb, turn the control

(Thermostat, Refrigerator Control or Freezer Control,

depending on the model) to OFF and then disconnect the

refrigerator from the electrical source, When you are

finished, reconnect the refrigerator to the electrical source

and reset the control (Thermostat, Refrigerator Control or

Freezer Control, depending on the model) to the desired

setting.

USE OF EXTENSION CORDS

Because of potential safety hazards under certain

conditions, we strongly recommend against the use of

an extension cord. However, if you still elect to use

an extension cord, it is absolutely necessary that it be

a UL-listed (in the United States), 3-wire grounding type

appliance extension cord having a grounding type plug

and outlet, and that the electrical rating of the cord be 15

amperes (minimum) and 120 volts,

Use of an extension cord will increase the clearance

needed for the back of the refrigerator.

Usethissectionto becomemorefamiliarwiththepartsandfeatures,

NOTE: This guide covers several different models. The refrigerator you have purchased may have some

or all of the items listed below. The locations of the features shown below may not match your model.

OCool Sense Electronic Temperature

Control System

O Refrigerator Light

_ Refrigerator Shelves

O Snack Pan

OSupra Fresh Crisper with Tilt-Out Compartment

OAdjusta Cube Ice Maker

O Ice Bin

O Durabase

ODivider

O Glide-Out Drawer Basket

OFreezer Light

Modular Door Bins

@ Egg Box

OCan Rack*

Dairy Corner

*On some models

ExcessiveWeightHazard

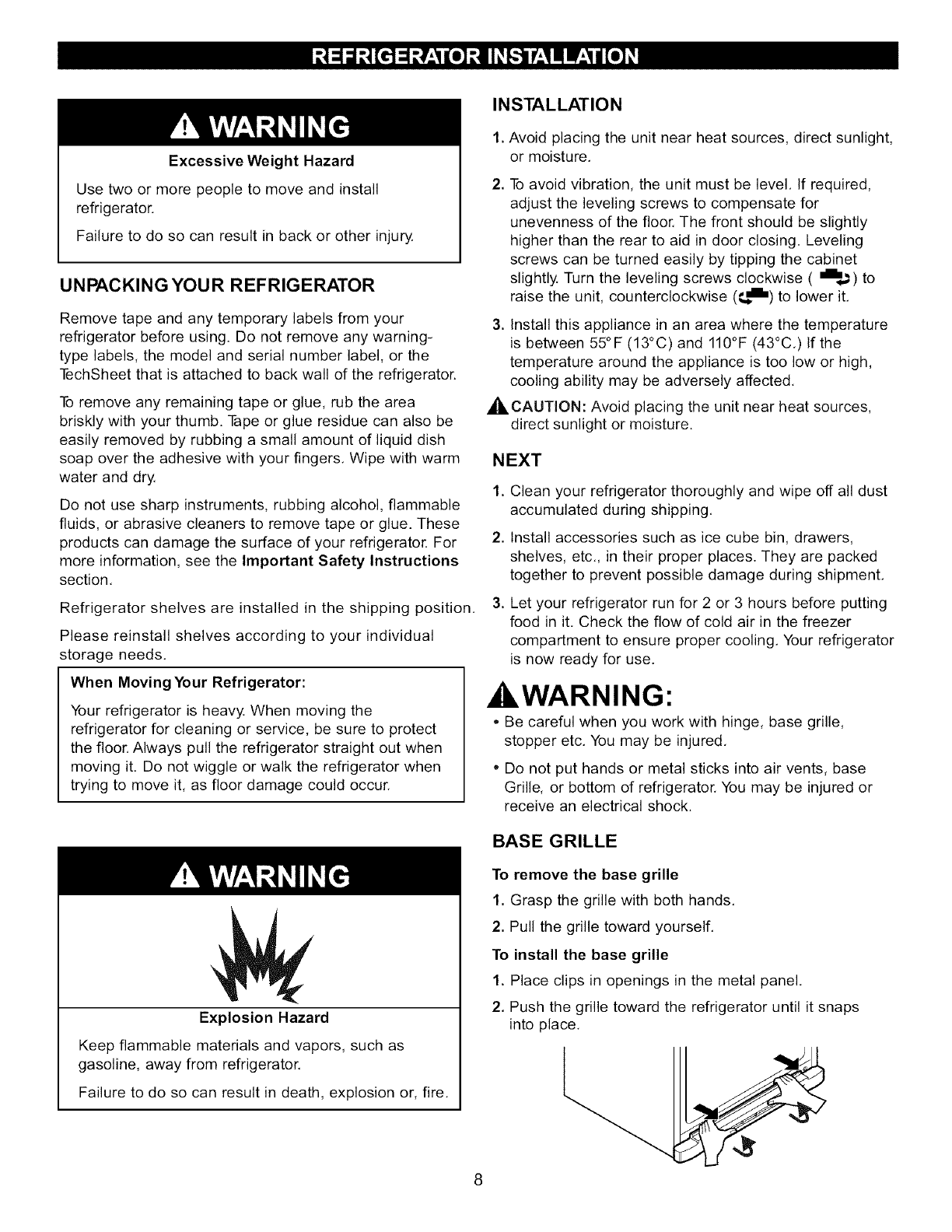

INSTALLATION

Use two or more people to move and install

refrigerator.

Failure to do so can result in back or other injury.

UNPACKING YOUR REFRIGERATOR

Remove tape and any temporary labels from your

refrigerator before using. Do not remove any warning-

type labels, the model and serial number label, or the

TechSheet that is attached to back wall of the refrigerator.

To remove any remaining tape or glue, rub the area

briskly with your thumb. Tape or glue residue can also be

easily removed by rubbing a small amount of liquid dish

soap over the adhesive with your fingers, Wipe with warm

water and dry.

Do not use sharp instruments, rubbing alcohol, flammable

fluids, or abrasive cleaners to remove tape or glue. These

products can damage the surface of your refrigerator. For

more information, see the Important Safety Instructions

section,

Refrigerator shelves are installed in the shipping position.

Please reinstall shelves according to your individual

storage needs.

When Moving Your Refrigerator:

Your refrigerator is heavy. When moving the

refrigerator for cleaning or service, be sure to protect

the floor. Always pull the refrigerator straight out when

moving it, Do not wiggle or walk the refrigerator when

trying to move it, as floor damage could occur.

1. Avoid placing the unit near heat sources, direct sunlight,

or moisture,

2, To avoid vibration, the unit must be level, If required,

adjust the leveling screws to compensate for

unevenness of the floor. The front should be slightly

higher than the rear to aid in door closing. Leveling

screws can be turned easily by tipping the cabinet

slightly. Turn the leveling screws clockwise (_) to

raise the unit, counterclockwise (_..m.) to lower it,

3. Install this appliance in an area where the temperature

is between 55°F (13°C) and 110°F (43°C,) If the

temperature around the appliance is too low or high,

cooling ability may be adversely affected,

,_ CAUTION: Avoid placing the unit near heat sources,

direct sunlight or moisture.

1. Clean your refrigerator thoroughly and wipe off all dust

accumulated during shipping,

2, Install accessories such as ice cube bin, drawers,

shelves, etc., in their proper places. They are packed

together to prevent possible damage during shipment,

.Let your refrigerator run for 2 or 3 hours before putting

food in it, Check the flow of cold air in the freezer

compartment to ensure proper cooling, Your refrigerator

is now ready for use.

_WARNING:

-Be careful when you work with hinge, base grille,

stopper etc, You may be injured,

.Do not put hands or metal sticks into air vents, base

Grille, or bottom of refrigerator. You may be injured or

receive an electrical shock.

BASE GRILLE

Explosion Hazard

Keep flammable materials and vapors, such as

gasoline, away from refrigerator.

Failure to do so can result in death, explosion or, fire.

To remove the base grille

1. Grasp the grille with both hands,

2. Pull the grille toward yourself,

To install the base grille

1. Place clips in openings in the metal panel,

2. Push the grille toward the refrigerator until it snaps

into place,

TOOLS YOU MAY NEED

I 1

1/4 in

3/8 in

Hex head socket wrench Phillips screwdriver Flat head screwdriver

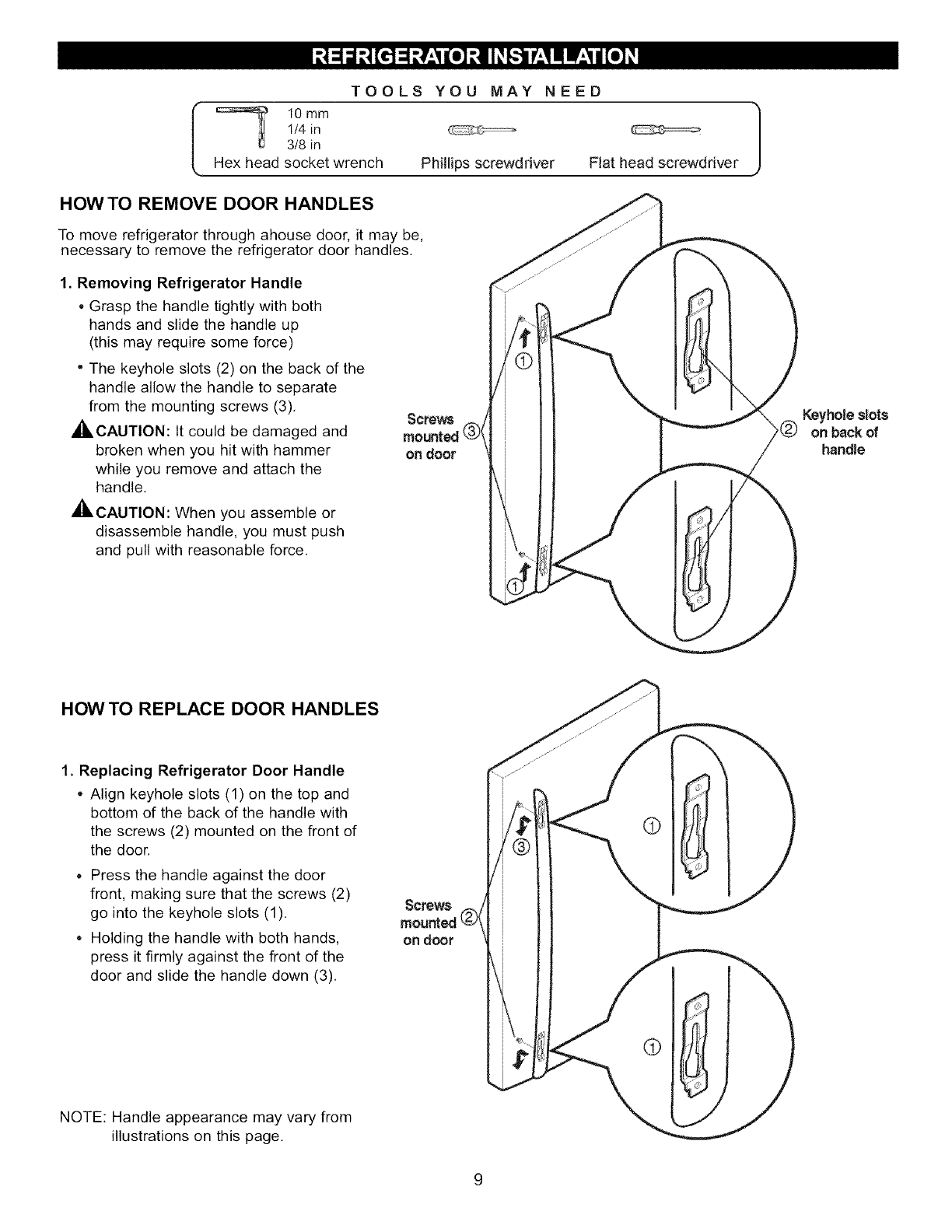

HOWTO REMOVE DOOR HANDLES

To move refrigerator through ahouse door, it may be,

necessary to remove the refrigerator door handles.

1. Removing Refrigerator Handle

• Grasp the handle tightly with both

hands and slide the handle up

(this may require some force)

• The keyhole slots (2) on the back of the

handle allow the handle to separate

from the mounting screws (3).

,_I, CAUTION: It could be damaged and

broken when you hit with hammer

while you remove and attach the

handle.

_, CAUTION: When you assemble or

disassemble handle, you must push

and pull with reasonable force.

Screws

mounted

on door

Keyhole slots

on back of

handle

HOWTO REPLACE DOOR HANDLES

1. Replacing Refrigerator Door Handle

• Align keyhole slots (1) on the top and

bottom of the back of the handle with

the screws (2) mounted on the front of

the door.

•Press the handle against the door

front, making sure that the screws (2)

go into the keyhole slots (1).

. Holding the handle with both hands,

press it firmly against the front of the

door and slide the handle down (3).

NOTE: Handle appearance may vary from

illustrations on this page.

Screw_,

on door

®@

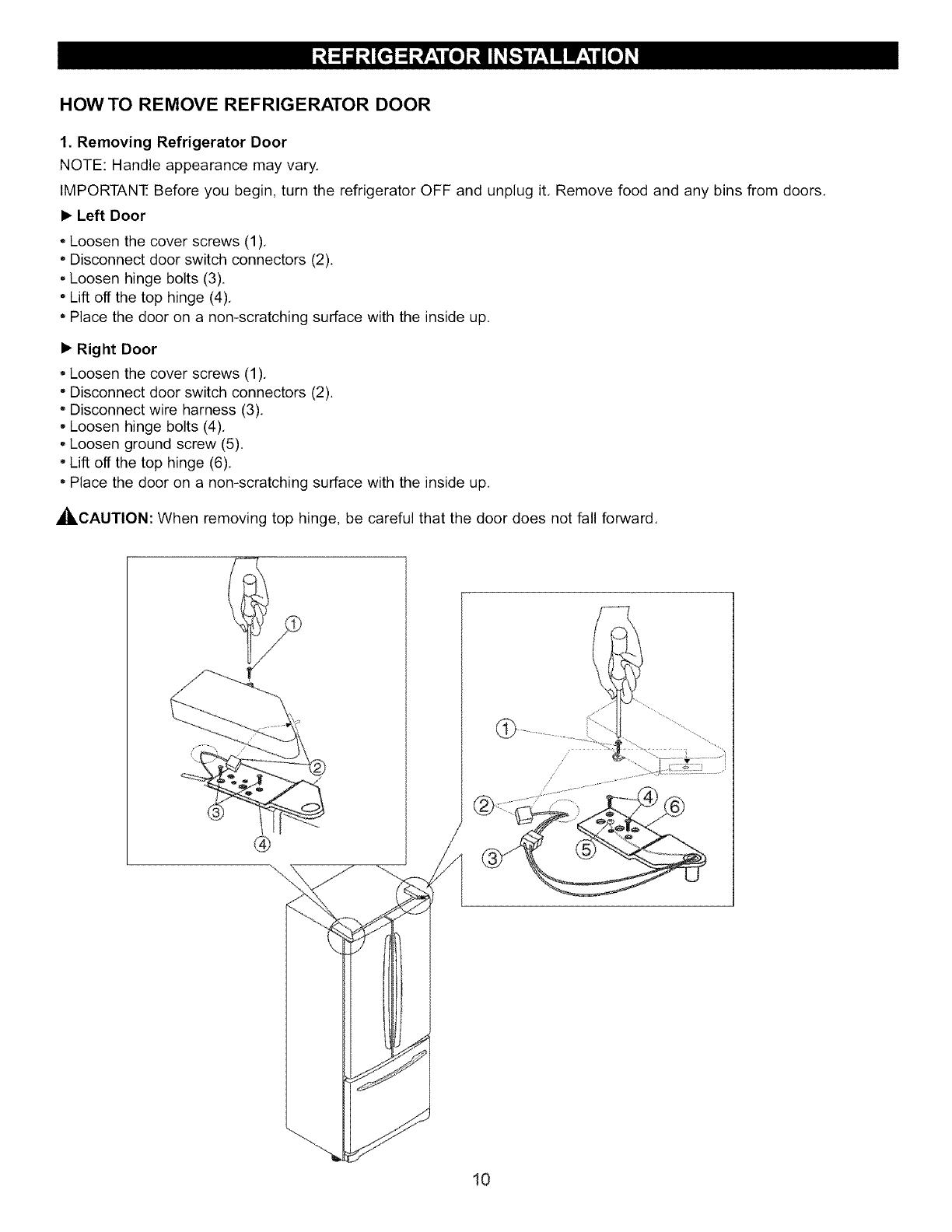

HOW TO REMOVE REFRIGERATOR DOOR

1. Removing Refrigerator Door

NOTE: Handle appearance may vary.

IMPORTANT." Before you begin, turn the refrigerator OFF and unplug it, Remove food and any bins from doors.

• Left Door

,Loosen the cover screws (1),

• Disconnect door switch connectors (2).

• Loosen hinge bolts (3).

• Lift off the top hinge (4),

• Place the door on a non-scratching surface with the inside up.

•Right Door

• Loosen the cover screws (1),

= Disconnect door switch connectors (2).

,Disconnect wire harness (3),

•Loosen hinge bolts (4),

•Loosen ground screw (5),

•Lift off the top hinge (6),

• Place the door on a non-scratching surface with the inside up.

,_,CAUTION: When removing top hinge, be careful that the door does not fall forward,

2. Replacing Refrigerator Door

•Right Door

• Lower the door onto the middle hinge pin (7).

• Make sure the door is aligned with the cabinet,

, Replace the top hinge (4) installing hinge

screws (3) to secure it,

• Make sure the gasket on the door is flush

against the cabinet and is not folded,

• Support the door on the handle side while

securing. And make sure the door is straight

and the gap between the doors is even across

the front.

. Install the ground screw (6).

, Connect the door switch wire (2),

• Tighten the cover screw (1),

•Left Door

•Lower the door onto the middle hinge pin (5),

• Make sure the door is aligned with the cabinet,

• Replace the top hinge (4) installing hinge

screws (3) to secure it,

• Make sure the gasket on the door is flush

against the cabinet and is not folded.

• Support the door on the handle side while

securing, And make sure the door is straight

and the gap between the doors is even across

the front,

• Connect the door switch wire (2).

• Tighten the cover screw (1),

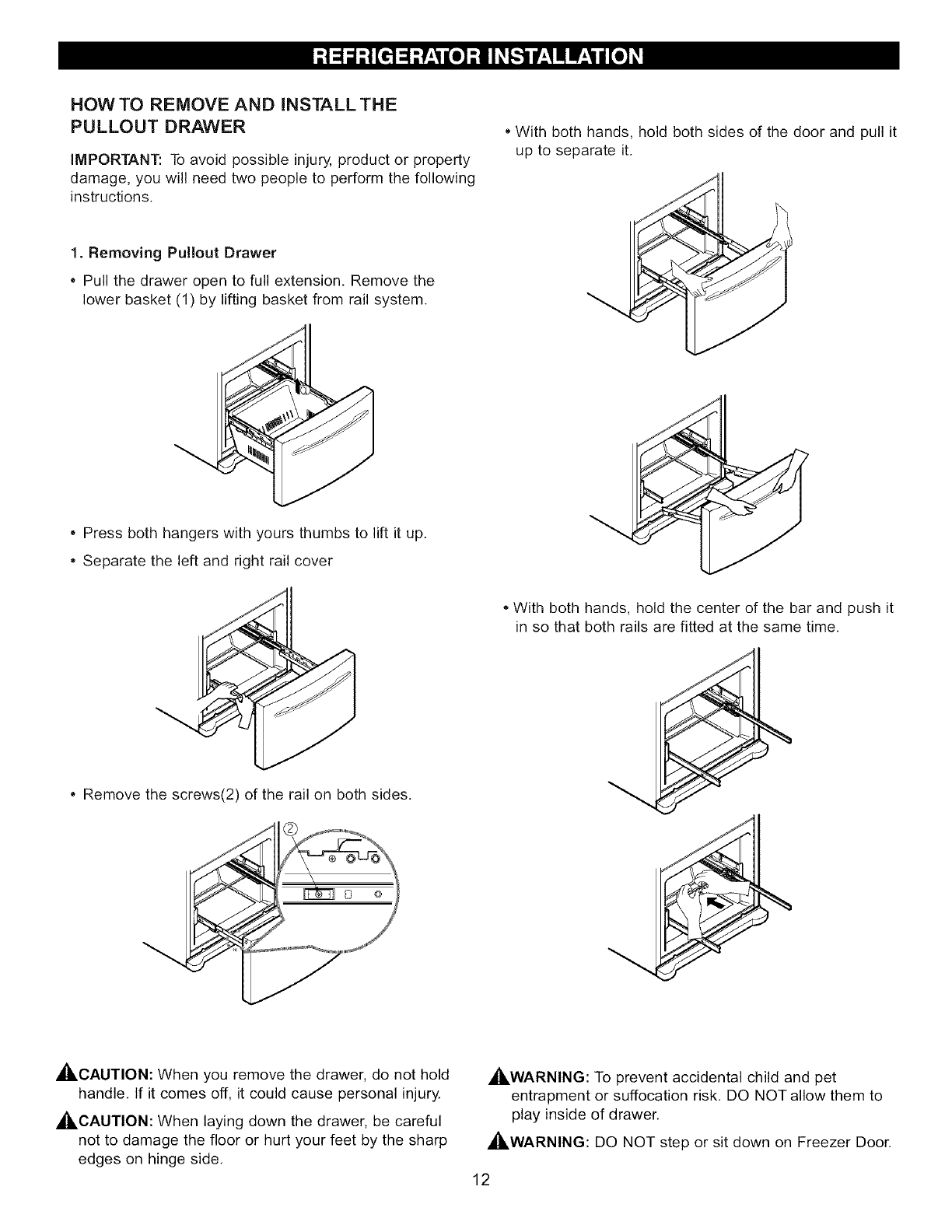

HOW TO REMOVE AND iNSTALL THE

PULLOUT DRAWER

iMPORTANT: To avoid possible inju_ product or property

damage, you will need two people to perform the following

instructions.

1. Removing Pullout Drawer

•Pull the drawer open to full extension. Remove the

lower basket (1) by lifting basket from rail system.

• With both hands, hold both sides of the door and pull it

up to separate it.

.Press both hangers with yours thumbs to lift it up.

*Separate the left and right rail cover

,Remove the screws(2) of the rail on both sides.

•With both hands, hold the center of the bar and push it

in so that both rails are fitted at the same time.

,_,CAUTION: When you remove the drawer, do not hold

handle. If it comes off, it could cause personal injury.

,_,CAUTION: When laying down the drawer, be careful

not to damage the floor or hurt your feet by the sharp

edges on hinge side.

,_WARNING: To prevent accidental child and pet

entrapment or suffocation risk, DO NOT allow them to

play inside of drawer,

,_,WARNING: DO NOT step or sit down on Freezer Door.

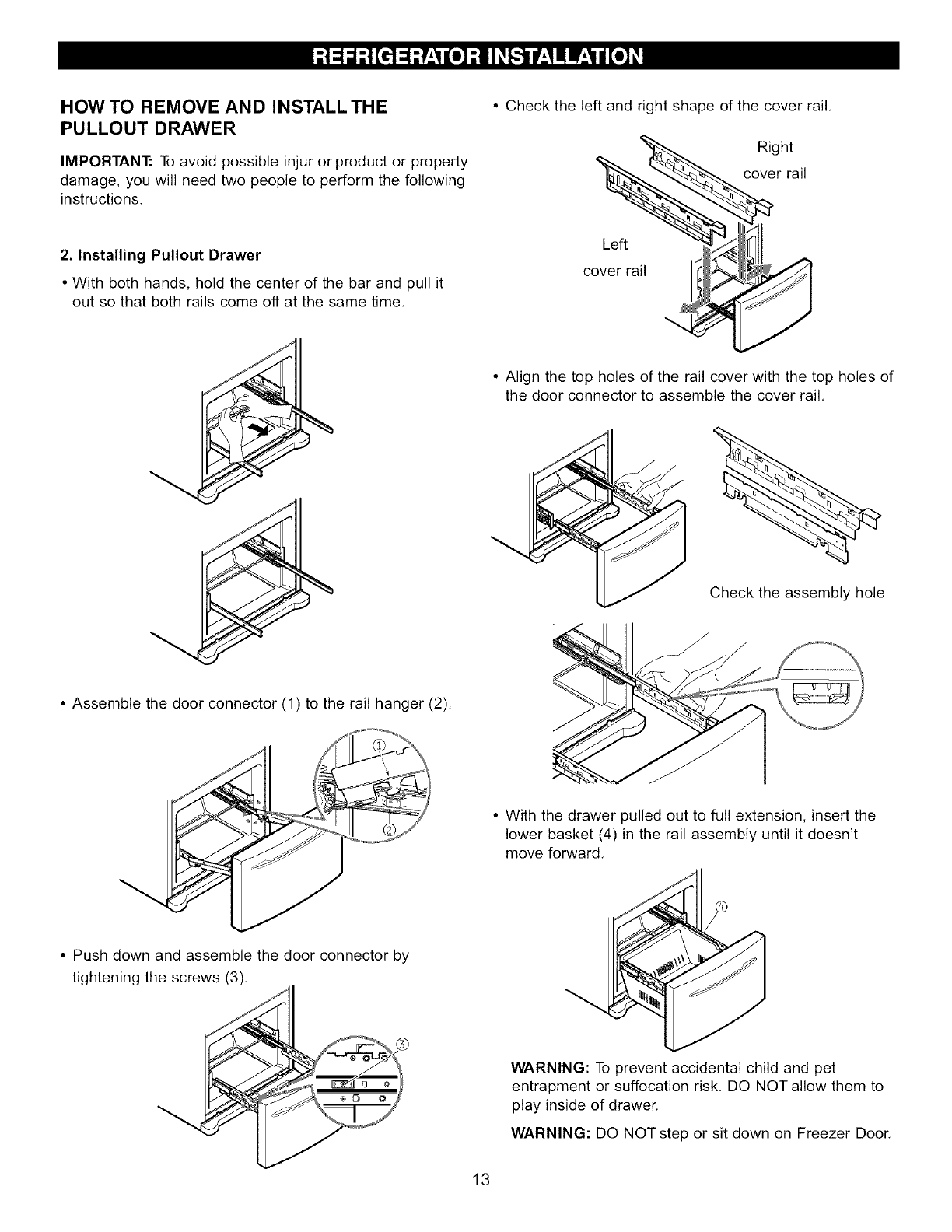

HOW TO REMOVE AND INSTALL THE

PULLOUT DRAWER

IMPORTANT: To avoid possible injur or product or property

damage, you will need two people to perform the following

instructions,

2. Installing Pullout Drawer

• With both hands, hold the center of the bar and pull it

out so that both rails come off at the same time,

• Check the left and right shape of the cover rail,

Left

cover rail

Right

cover rail

• Align the top holes of the rail cover with the top holes of

the door connector to assemble the cover rail,

Check the assembly hole

• Assemble the door connector (1) to the rail hanger (2),

• With the drawer pulled out to full extension, insert the

lower basket (4) in the rail assembly until it doesn't

move forward,

• Push down and assemble the door connector by

tightening the screws (3),

WARNING: To prevent accidental child and pet

entrapment or suffocation risk, DO NOT allow them to

play inside of drawer.

WARNING: DO NOT step or sit down on Freezer Door.

LEVELING AND DOOR ALIGNMENT

Leveling

Your refrigerator has two front leveling screws one on

the right and one on the left, If your refrigerator seems

unsteady or you want the doors to close easier, adjust the

Refrigerator's tilt using the instructions below:

1. Plug the refrigerator's power cord into a 3-prong

grounded outlet, Move the refrigerator into its final

position,

2. Turn the leveling screw clockwise to raise that side of

the refrigerator or counterclockwise to lower it. It may

take several turns of the leveling screw to adjust the tilt

of the refrigerator,

NOTE: Having someone push against the top of the

refrigerator takes some weight off the leveling screws,

This makes it easier to adjust the screws,

Door Alignment

If the space between your doors is uneven, follow the

instructions below to align the doors:

1. With one hand, lift up the door you want to raise at

middle hinge,

2. With other hand, use pliers to insert snap ring as

shown,

3. Insert additional snap rings until the doors are aligned,

(Three snap rings are provided with the refrigerator,)

\ J

3. Open both doors again and check to make sure that

they close easily. If not, tilt the refrigerator slightly more

to the rear by turning both leveling screws clockwise. It

may take several more turns, and you should turn both

leveling screws the same amount,

4. Re-adjust if necessary,

5. Replace the base cover,

NOTE: Your new refrigerator is uniquely designed with

two fresh food doors. Either door can be opened or

closed independently of one another. You may have to

exert slight pressure on doors to get them to close

completely,

ENSURING PROPER AIR CIRCULATION

In order to ensure proper temperatures, air must flow

between the refrigerator and freezer sections. As shown

in the illustration below, air enters at top of the freezer and

circulates down. From bottom of the freezer, air is forced up

to top of refrigerator. Air enters refrigerator through top

vent, then circulates and exists at bottom, where it returns

to freezer.

MULTI-FLOW

Multi-Flow means powerful and effective cooling

operation. This is especially noticeable when new food

is placed in the refrigerator compartment.

If water or foreign substances enter the cool air vent

while cleaning, efficiency will be lowered. In addition, if

gasket is damaged, efficiency may be lowered because

of escaping cool air.

DOOR ALARM

With this feature you'll listen a alarm when the freezer or

refrigerator door is not closed within 1 minute after it is

opened. These tones repeat every 30 seconds.

The alarm is cancelled when the freezer or the

refrigerator is closed correctly.

SETTING THE CONTROLS

Your refrigerator has two controls that let you regulate

the temperature in the freezer and refrigerator

compartments.

Initially set the REFRIGERATOR CONTROL at 37°F

(3°C) and the FREEZER CONTROL at 0°F (-18°C).

Leave it at this setting for 24 hours (one day) to

stabilize. Then adjust the compartment temperature

as desired.

Refrigerator control: 33°F to 46°1=(0°C to 8°C)

The lower the number setting, the colder the refrigerator

compartment will become.

U LTRAICE

Do not block any of cool air vents with food packages.

If the vents are blocked, airflow will be interrupted and

temperature and moisture problems may occur.

IMPORTANT." Because air circulates between both

sections, any odors formed in one section will transfer to

the other. You must thoroughly clean both sections to

eliminate odors, To prevent odor transfer and drying out of

food, wrap or cover foods tightly. (See the Food Storage

Guide section for details.)

Freezer control: -6°F to 8°F (-21°C to -13°C)

When the setting is at a lower number, the freezer

compartment becomes colder. The refrigerator

compartment becomes warmer because less cold air

flows into the refrigerator.

ULTRAICE:

Press the ULTRAICE key and the LED will turn

on, This function will remain activated for 24 hours to

intensify the cooling speed of freezer and increase the

amount of ice.

ULTRAICE Y_ FREEZERTEMPERATURE ii',/

O°FIS RECOMMENDED COiDER wARMER _J'i_

NOTE: If you want to change °F to °C, press and hold

COLDER key of freezer and COLDER key of refrigerator

over 3 seconds at the same time. and if you want to change

change °C to °F, hold them for 3 seconds again.

ADJUSTING CONTROL SETTINGS

Give the refrigerator time to cool down completely before

adding food. It is best to wait 24 hours before you put

food into the refrigerator. The mid-settings indicated in the

previous section should be correct for normal household

refrigerator usage, The controls are set correctly when

milk or juice is as cold as you like and when ice cream

is firm,

The refrigerator control functions as the thermostat for the

entire appliance (refrigerator and freezer sections.) The

higher the number setting, the longer the compressor will

run to keep the temperature colder. The freezer control

adjusts the cold air flow from the freezer to the

refrigerator. Setting the freezer control to a lower

temperature keeps more cold air in the Freezer

compartment to make it colder.

If you need to adjust temperatures in the refrigerator or

freezer, start by adjusting the refrigerator first. Wait 24

hours after the refrigerator adjustment to check the

freezer temperature. If it is too warm or too cold, then

adjust the freezer control as well,

Use the settings listed in the chart below as a guide,

Always remember to wait at least 24 hours between

adjustments.

CONDITION/REASON:

REFRIGERATORsection

too warm

= Door opened often

= Large amount of food added

•Room temperature very warm

RECOMMENDED

ADJUSTMENT:

Turn

REFRIGERATOR

control to next

higher number,

wait 24 hours,

then re-check

FREEZER sectiontoo warm/

ice not made fast enough

• Door opened often

• Large amount of food added

• Very cold room temperature

(can't cycle often enough)

" Heavy ice usage

• Air vents blocked by items

REFRIGERATORsection too

cold

• Controls not set correctly for

your conditions

TurnFREEZER

controlto next

higher number,

wait 24 hours,

Then re-check

Move items out of

airstream

Turn

REFRIGERATOR

control to next

lower number,

wait 24 hours,

then re-check

FREEZER section too cold

• Controls not set correctly for

your conditions

TurnFREEZER

control to next

lower number,

wait 24 hours,

then re-check

FOOD STORAGE GUIDE

Storing Fresh Food

Wrap or store food in the refrigerator in airtight and

moisture-proof material unless otherwise noted. This

prevents food odor and taste transfer throughout the

refrigerator. For dated products, check date code to

ensure freshness.

Butter or margarine

Keep opened butter in a covered dish or closed

compartment, When storing an extra supply, wrap

in freezer packaging and freeze.

Cheese

Store in the original wrapping until you are ready to

use it. Once opened, rewrap tightly in plastic wrap or

aluminum foil.

Milk

Wipe milk cartons, For best storage, place milk on interior

shelf, not on door shelf.

Eggs

Store in original carton on interior shelf, not on door shelf.

Fruit

Wash, let dry, and store in refrigerator in plastic bags or in

the crisper. Do not wash or hull berries until you are ready

to use them, Sort and keep berries in their original

container in a crisper, or store in a loosely closed paper

bag on a refrigerator shelf.

Leafy vegetables

Remove store wrapping and trim or tear off bruised and

discolored areas. Wash in cold water and drain, Place in a

plastic bag or plastic container and store in the crisper.

Vegetables with skins (carrots, peppers)

Place in plastic bags or plastic container and store

in crisper.

Fish

Use fresh fish and shellfish the same day purchased.

Snack pan

Store most chef fresh in original wrapping as long as it is

airtight and moisture-proof. Rewrap if necessary.

Leftovers

Cover leftovers with plastic wrap or aluminum foil. Plastic

containers with tight lids can also be used.

STORING FROZEN FOOD

NOTE: For further information about preparing food for

freezing or food storage times, check a freezer guide or a

reliable cookbook.

Packaging

Successful freezing depends on correct packaging. When

you close and seal the package, it must not allow air or

moisture in or out. If you do, you could have food odor

and taste transfer throughout the refrigerator and also dry

out frozen food,

Packaging recommendations:

. Rigid plastic containers with tight-fitting lids

= Straight-sided canning/freezing jars

• Heavy-duty aluminum foil

.Plastic-coated paper

-Non-permeable plastic wraps

° Specified freezer-grade self-sealing plastic bags

Follow package or container instructions for proper

freezing methods,

Do not use:

° Bread wrappers

•Non-polyethylene plastic containers

o Containers without tight lids

°Wax paper or wax-coated freezer wrap

,Thin, semi-permeable wrap

Freezing

Your freezer will not quick-freeze any large quantity of

food. Do not put more unfrozen food into the freezer than

will freeze within 24 hours (no more than 2 to 3 Ibs of food

per cubic foot of freezer space). Leave enough space in

the freezer for air to circulate around packages. Be careful

to leave enough room at the front so the door can close

tightly.

Storage times will vary according to the quality and type

of food, the type of packaging or wrap used (airtight and

moisture-proof) and the storage temperature. Ice crystals

inside a sealed package are normal. This simply means

that moisture in the food and air inside the package have

condensed, creating ice crystals,

NOTE: Allow hot foods to cool at room temperature for

30 minutes, then package and freeze, Cooling hot foods

before freezing saves energy.

NOTE: Do not store food near the sensor; it may cause

the sensor to malfunction.

Suffocation Hazard

When using dry ice, provide adequate ventilation.

Dry ice is frozen carbon dioxide (CO2). When it

vaporizes, it can displace oxygen, causing dizziness,

light-headedness, unconsciousness and death by

suffocation, Open a window and do not breathe

the vapors.

REFRIGERATOR SECTION

REFRIGERATOR SHELVES

The shelves in your refrigerator are adjustable to meet

your individual storage needs. Your model may have

glass or wire shelves.

Storing similar food items together in your refrigerator and

adjusting the shelves to fit different heights of items will

make finding the exact item you want easier; it will also

reduce the amount of time the refrigerator door is open,

saving energy.

IMPORTANT: Do not clean glass shelves with warm

water when they are cold. Shelves may break if exposed

to sudden temperature changes or impact, such as

bumping. For your protection, glass shelves are made

with tempered glass, which will shatter into small pebble-

sized pieces.

NOTE: Glass shelves are heavy. Use special care when

removing them to avoid dropping them.

Adjusting Shelves

Remove shelves from the shipping position and replace

shelves in the position you want.

To remove a shelf Tilt up the front of the shelf in the

direction of (1) and lift it in the direction of (2). Pull the

shelf out.

NOTE: Make sure that shelves are level from one side to

the other. Failure to do so may result in the shelf falling or

spilling food.

Sliding Out Shelves

You can slide some glass shelves in and out of your

refrigerator as follows.

To slide the shelf out, carefully pull front of shelf

toward you.

To slide shelf in, push shelf in until it stops.

To replace ashelf Tilt the front of the shelf up and

guide the shelf hooks into the slots at a desired height.

Then lower the front of the shelf so that the hooks drop

into the slots.

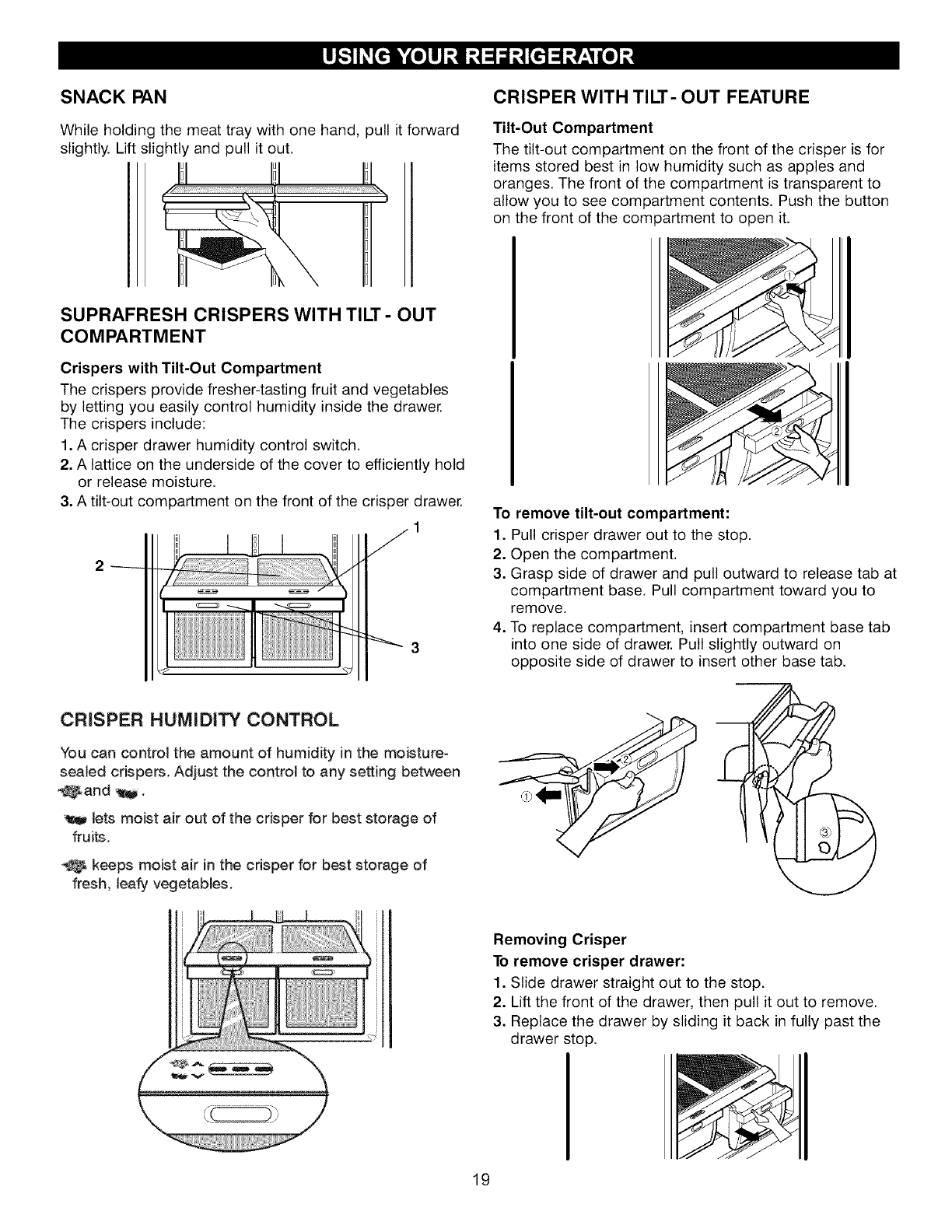

SNACK PAN

While holding the meat tray with one hand, pull it forward

slightly. Lift slightly and pull it out.

CRISPER WITH TILT- OUT FEATURE

Tilt-Out Compartment

The tilt-out compartment on the front of the crisper is for

items stored best in low humidity such as apples and

oranges. The front of the compartment is transparent to

allow you to see compartment contents. Push the button

on the front of the compartment to open it.

SUPRAFRESH CRISPERS WITH TILT- OUT

COMPARTMENT

Crispers with Tilt-Out Compartment

The crispers provide fresher-tasting fruit and vegetables

by letting you easily control humidity inside the drawer.

The crispers include:

1, A crisper drawer humidity control switch.

2, A lattice on the underside of the cover to efficiently hold

or release moisture.

3. A tilt-out compartment on the front of the crisper drawer.

CRISPER HUMIDITY CONTROL

'You can control the amount of humidity in the moisture-

sealed crispers, Adjust the control to any setting between

Rand _.

_ lets moist air out of the crisper for best storage of

fruits.

,_ keeps moist air in the crisper for best storage of

fresh, leafy vegetables.

To remove tilt-out compartment:

1, Pull crisper drawer out to the stop.

Open the compartment.

Grasp side of drawer and pull outward to release tab at

compartment base. Pull compartment toward you to

remove.

To replace compartment, insert compartment base tab

into one side of drawer. Pull slightly outward on

opposite side of drawer to insert other base tab.

Removing Crisper

To remove crisper drawer:

1. Slide drawer straight out to the stop.

2. Lift the front of the drawer, then pull it out to remove.

3. Replace the drawer by sliding it back in fully past the

drawer stop.

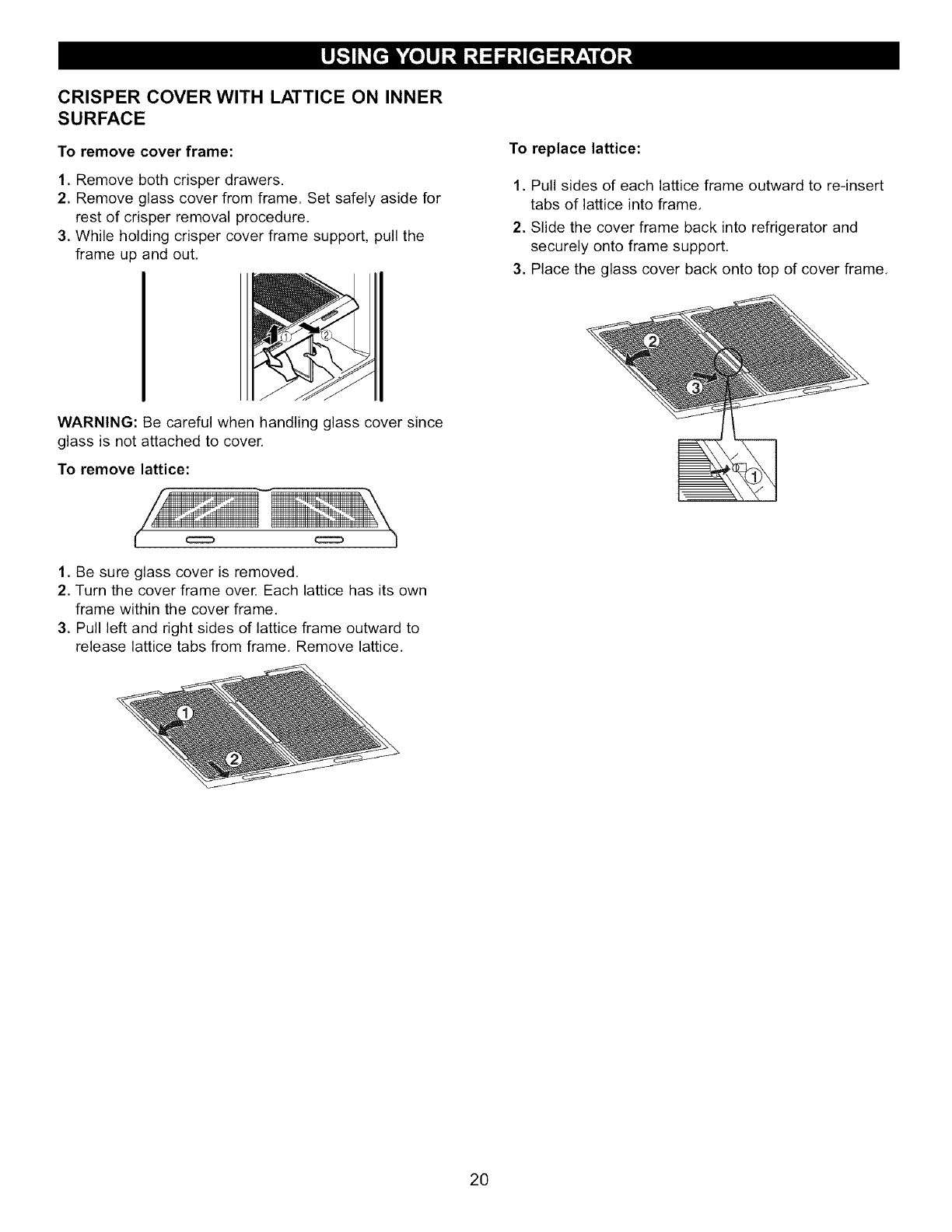

CRISPER COVER WITH LATTICE ON INNER

SURFACE

To remove cover frame:

1. Remove both crisper drawers.

2. Remove glass cover from frame. Set safely aside for

rest of crisper removal procedure.

3. While holding crisper cover frame support, pull the

frame up and out,

To replace lattice:

1. Pull sides of each lattice frame outward to re-insert

tabs of lattice into frame,

2. Slide the cover frame back into refrigerator and

securely onto frame support,

3. Place the glass cover back onto top of cover frame,

WARNING: Be careful when handling glass cover since

glass is not attached to cover.

To remove lattice:

1, Be sure glass cover is removed.

2, Turn the cover frame over. Each lattice has its own

frame within the cover frame.

3. Pull left and right sides of lattice frame outward to

release lattice tabs from frame, Remove lattice.

MODULAR DOOR BINS

The door bins are removable for easy cleaning and

adjusting.

1. To remove the bin, simply lift the bin up and pull

straight out,

2, To replace the bin, slide it in above the desired support

button and push down until it stops.

EGG BOX

Store Egg Box on interior shelf, not on door shelf.

_,CAUTION: Do not use the egg box as an ice storage

bin in the freezer compartment, The egg box can easily

easily break if it freezes.

_iLWARNING: Somebody can be hurt if door bins are not

firmly assembled,

NOTE: DO NOT adjust a bin that is loaded with food.

ACAUTION: DO NOT allow children to play with

baskets. Sharp corners on baskets could cause injury.

DAIRY CORNER

1. To remove the dairy corner, simply lift it and pull

straight out,

2. To replace the dairy bin, slide it in above the desired

location and push down until it stops.

FREEZER SECTION

ICE BIN

1. To separate the ice bin, pull out the drawer as much as

possible.

2. Gently lift and pull out the ice bin,

3. Toreinstall, pull out the drawer as much as possible and set

the ice bin in its correct position, and then push in the drawer

DRAWER

ICE BIN

CAN RACK (On some models)

The Can Rack holds up to beverage cans.

1. To remove the Can Rack, simply lift the bin up and pull

straight out.

2. To install the Can Rack, slide it in above the desired support

button and push down until it stops.

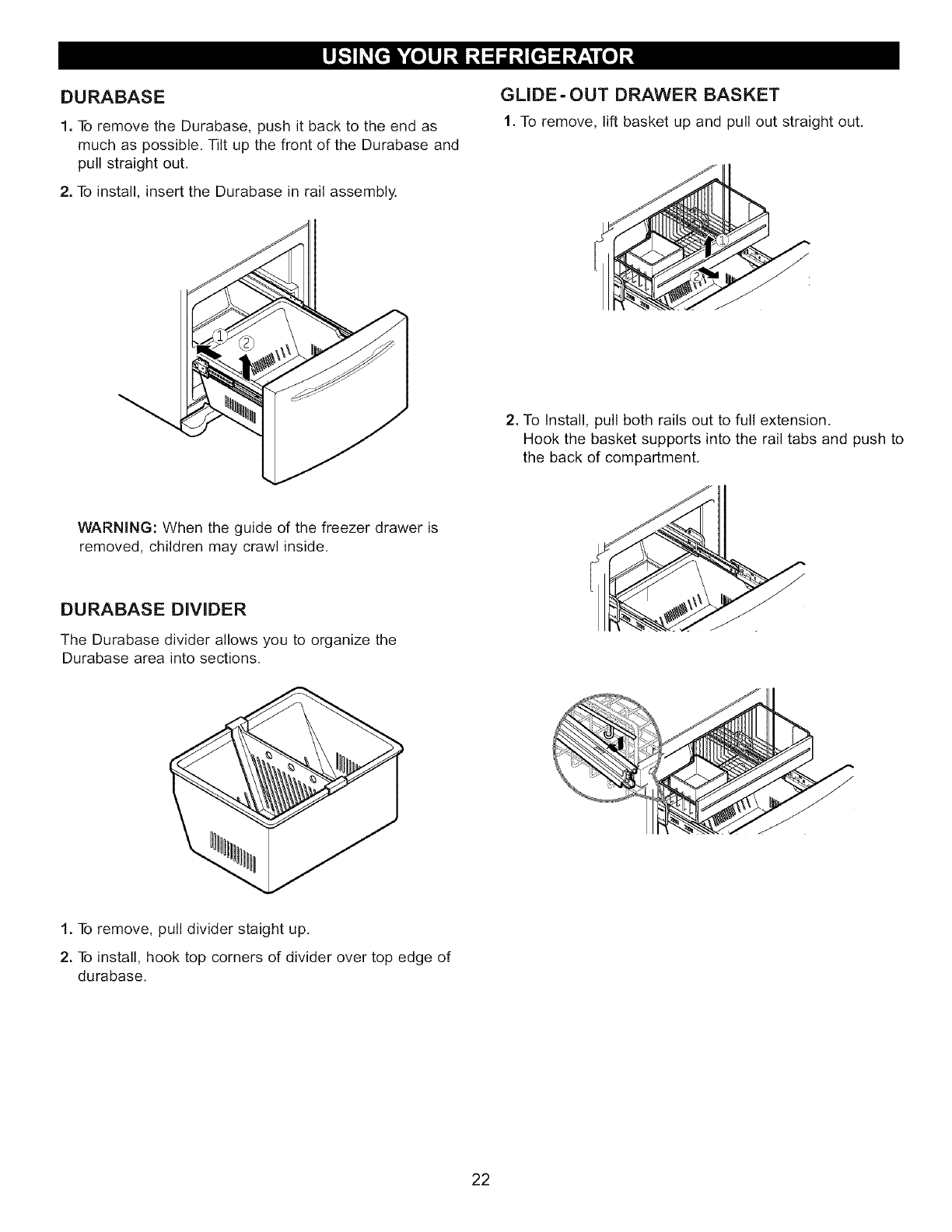

DURABASE

1. To remove the Durabase, push it back to the end as

much as possible. Tilt up the front of the Durabase and

pull straight out.

2. To install, insert the Durabase in rail assembly.

GLIDE-OUT DRAWER BASKET

1. To remove, lift basket up and pull out straight out

2, To Install, pull both rails out to full extension.

Hook the basket supports into the rail tabs and push to

the back of compartment,

WARNING: When the guide of the freezer drawer is

removed, children may crawl inside.

DURABASE DIVIDER

The Durabase divider allows you to organize the

Durabase area into sections.

1. To remove, pull divider staight up.

2. To install, hook top corners of divider over top edge of

durabase.

Explosion Hazard

Use non-flammable cleaner.

Failure to do so can result in death, explosion, or fire.

Both the refrigerator and freezer sections defrost

automatically. However, clean both sections about once

a month to prevent odors. Wipe up spills immediately.

GENERAL CLEANING TIPS

°Unplug refrigerator or disconnect power.

.Remove all removable parts, such as shelves,

crispers, etc,

.Use a clean sponge or soft cloth and a mild detergent in

warm water. Do not use abrasive or harsh cleaners.

.Hand wash, rinse and dry all surfaces thoroughly.

•Plug in refrigerator or reconnect power.

OUTSIDE

Waxing external painted metal surfaces helps provide rust

protection. Do not wax plastic parts, Wax painted metal

surfaces at least twice a year using appliance wax (or

auto paste wax), Apply wax with a clean, soft cloth,

For products with a stainless steel exterior, use a clean

sponge or soft cloth and a mild detergent in warm water.

Do not use abrasive or harsh cleaners. Dry thoroughly

with a soft cloth.

INSIDE WALLS (allow freezer to warm up so

cloth won't stick)

To help remove odors, you can wash the inside of the

refrigerator with a mixture of baking soda and warm water.

Mix 2 tablespoons baking soda to 1 quart of water (26 g

soda to 1 liter water.) Be sure the baking soda is

completely dissolved so does it not scratch the surfaces

of the refrigerator.

DOOR LINERS AND GASKETS

Do not use cleaning waxes, concentrated detergents,

bleaches, or cleaners containing petroleum plastic parts.

PLASTIC PARTS (covers and panels)

Do not use paper towels, window sprays, abrasive

cleansers, or flammable fluids. These can scratch or

damage the material,

CONDENSER COILS

Remove grille base, (See the grille base section on

page 8),

Use a vacuum cleaner with an extended attachment to

clean condenser coils.

Vacuum coils when dusty or dirty. Coils may need to be

cleaned as often as every other month.

Replace grille base.

LIGHT BULB REPLACEMENT

Electrical Shock Hazard

Before replacing a burned-out light bulb, either unplug

the refrigerator or turn off power at the circuit breaker

or fuse box,

NOTE: Moving the control to the OFF position

does not remove power to the light circuit,

NOTE: Not all appliance bulbs will fit your refrigerator. Be

sure to replace the bulb with one of the same size, shape

and wattage,

To change the refrigerator light:

1. Unplug the power cord from the outlet,

2. Remove refrigerator shelves,

3. Release the hooks on both ends of the light shield and

pull the shield down to remove it,

4. Turn the bulb counterclockwise,

5. Assembly is the reverse order of disassembly.

To change the freezer light:

1. Unplug refrigerator or disconnect power.

2, Reach behind light shield to remove bulb,

3. Replace bulb with a 60-watt appliance bulb.

4. Plug in refrigerator or reconnect power.

POWER INTERRUPTIONS

If the electricity goes off, call the power company and ask

how long it will be off.

1. If the power will be out for 24 hours or less, keep

both refrigerator doors closed to help foods stay

cold and frozen,

2. If the power will be out for more than 24 hours:

a) Remove all frozen food and store it in a frozen

food locker.

b) Place 2 Ibs of dry ice in the freezer for every cubic

foot of freezer space, This will keep the food frozen

for two to four days, While handling dry ice, wear

gloves to protect your hands from frostbite.

c) If neither a food locker nor dry ice is available,

consume or can perishable food at once,

WHEN YOU GO ON VACATION

If you choose to leave the refrigerator on while you

are away, follow these steps to prepare your refrigerator

before you leave.

1. Use up any perishables and freeze other items.

2. Empty the ice bin,

If you choose to turn the refrigerator off before you

leave, follow these steps.

Remove all food from the refrigerator.

Depending on your model, set the thermostat control

(refrigerator control to OFE See the Setting the

Controls section.

Clean refrigerator, wipe it and dry well.

Tape rubber or wood blocks to the tops of both doors to

prop them open far enough for air to get in. This stops

odor and mold from building up.

WHEN YOU MOVE

When you are moving your refrigerator to a new home,

follow these steps to prepare it for the move,

1. Remove all food from the refrigerator and pack all

frozen food in dry ice.

2. Depending on your model, turn the thermostat control

(refrigerator control) to OFE See the Setting the

Controls section,

Unplug the refrigerator.

Empty water from the defrost pan.

Clean, wipe and dry thoroughly.

Take out all removable parts, wrap them well and tape

them together so they don't shift and rattle during the

move,

Depending on the model, raise the front of the

refrigerator so it rolls more easily OR screw in the

leveling legs all the way so they don't scrape the floor.

See the Door Closing section.

Tape the doors shut and tape the power cord to the

refrigerator cabinet,

When you get to your new home, put everything back

and refer to the Installing Your Refrigerator section for

preparation instructions.

Personal Injury Hazard

Avoid contact with the moving parts of the ejector

mechanism, or with the heating element that releases

the cubes. DO NOT place fingers or hands on the

automatic icemaking mechanism while the refrigerator

is plugged in.

NOTE: Automatic Ice Maker feature is included only in

certain models. Please check your product specification.

OPERATION INSTRUCTIONS

A newly-installed refrigerator may take

12 to 24 hours to begin making ice.

Icemaker

Cube Size Power Switch

Indicator Light Cube Size

Select Button

NOTE: If the cube size is smaller or larger than you

expected, you can regulate the size with the cube size

button.

Every time you press the cube size button, the indicator

moves up one light. The higher the light position, the larger

the cubes will be. Pressing at highest position returns

indicator to lowest position.

WHEN YOU SHOULD SET THE ICEMAKER

POWER SWITCH TO O (OFF)

• When the water supply will be shut off for several hours.

• When the ice storage bin is removed for more than a

minute or two.

• When the refrigerator will not be used for several days.

NORMAL SOUNDS YOU MAY HEAR

The icemaker water valve will buzz as the icemaker fills

with water. If the power switch is in the I (on) position, it

will buzz even if it has not yet been hooked up to water.

To stop the buzzing, move the power switch to O (off).

NOTE: Keeping the power switch in the I (on) position

before the water line is connected can damage the

icemaker.

You will hear the sound of cubes dropping into the bin

and water running in the pipes as the icemaker refills.

PREPARING FOR VACATION

The icemaker will produce eight cubes per cycle-

approximately 100-130 cubes in a 24-hour period,

depending on freezer compartment temperature, room

temperature, number of door openings and other

operating conditions.

If the refrigerator is used before the water connection is

made to the icemaker, set the power switch to O (off).

When the refrigerator has been connected to the water

supply, set the power switch to I (on).

The icemaker will fill with water when it cools to freezing.

A newly-installed refrigerator may take 12 to 24 hours to

begin making ice cubes.

Throw away the first few batches of ice to allow the water

line to clear.

Be sure nothing interferes with the sweep of the feeler

arm.

When the bin fills to the level of the feeler arm, the

icemaker will stop producing ice.

It is normal for several cubes to be stuck together.

If ice is not used frequently, old ice cubes will become

cloudy, taste stale, and shrink.

Set the icemaker power switch to 0 (off)and shut off the

water supply to the refrigerator.

If the ambient temperature will drop below freezing, have

a qualified servicer drain the water supply system to

prevent serious property damage due to flooding from

ruptured water lines or connections.

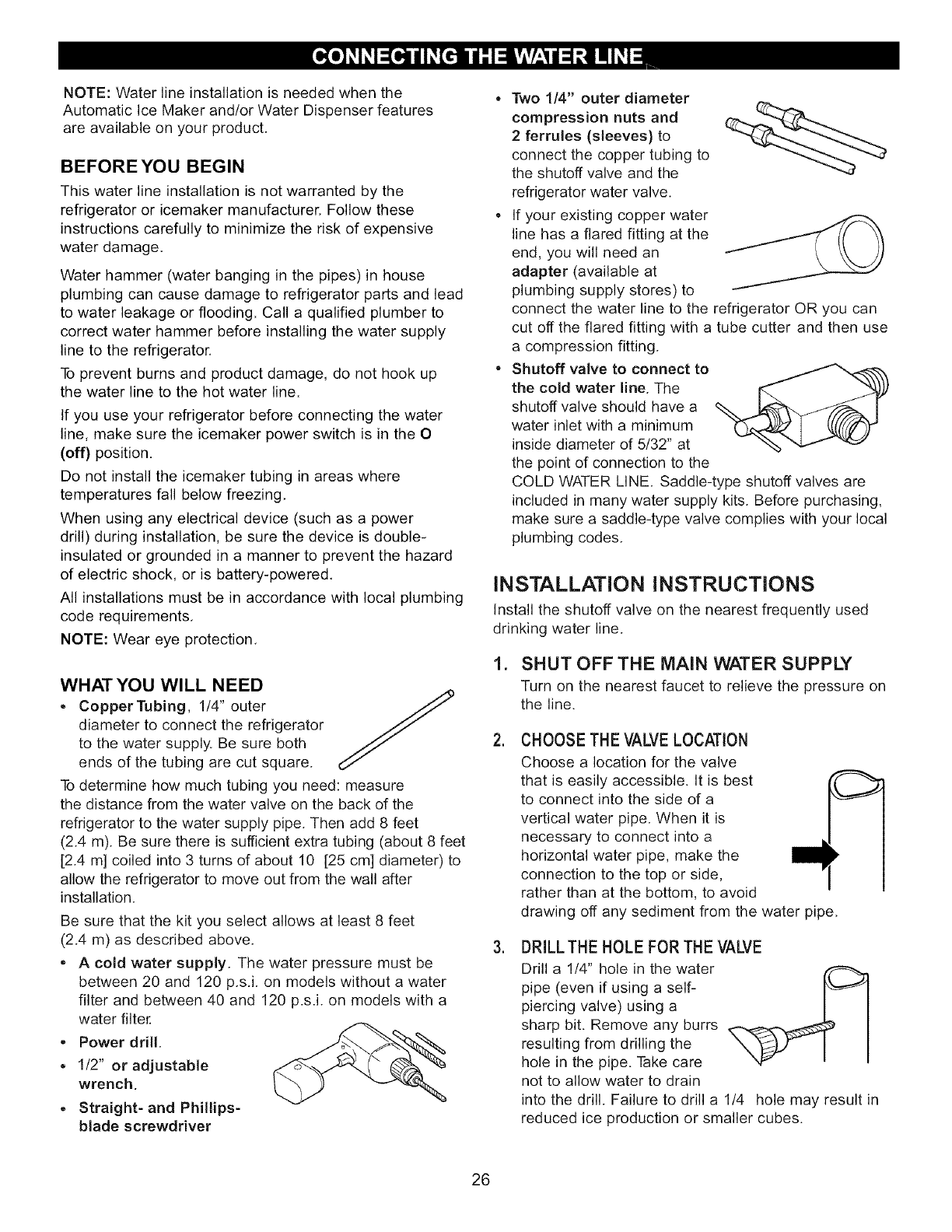

NOTE: Water line installation is needed when the

Automatic Ice Maker and/or Water Dispenser features

are available on your product.

BEFORE YOU BEGIN

This water line installation is not warranted by the

refrigerator or icemaker manufacturer. Follow these

instructions carefully to minimize the risk of expensive

water damage.

Water hammer (water banging in the pipes) in house

plumbing can cause damage to refrigerator parts and lead

to water leakage or flooding. Call a qualified plumber to

correct water hammer before installing the water supply

line to the refrigerator.

To prevent burns and product damage, do not hook up

the water line to the hot water line.

If you use your refrigerator before connecting the water

line, make sure the icemaker power switch is in the O

(off) position.

Do not install the icemaker tubing in areas where

temperatures fall below freezing.

When using any electrical device (such as a power

drill) during installation, be sure the device is double-

insulated or grounded in a manner to prevent the hazard

of electric shock, or is battery-powered.

All installations must be in accordance with local plumbing

code requirements.

NOTE: Wear eye protection.

WHAT YOU WILL NEED

•CopperTubing, 1/4" outer

diameter to connect the refrigerator

to the water supply. Be sure both

ends of the tubing are cut square.

To determine how much tubing you need: measure

the distance from the water valve on the back of the

refrigerator to the water supply pipe. Then add 8 feet

(2.4 m). Be sure there is sufficient extra tubing (about 8 feet

[2.4 m] coiled into 3 turns of about 10 [25 cm] diameter) to

allow the refrigerator to move out from the wall after

installation.

Be sure that the kit you select allows at least 8 feet

(2.4 m) as described above.

, A cold water supply. The water pressure must be

between 20 and 120 p.s.i, on models without a water

filter and between 40 and 120 p.s.i, on models with a

water filter.

• Power drill.

. 112" or adjustable

wrench.

• Straight- and Phillips-

blade screwdriver

Two 114" outer diameter

compression nuts and ¢_

2ferrules (sleeves) to

connect the copper tubing to

the shutoff valve and the

refrigerator water valve.

If your existing copper water

line has a flared fitting at the

end, you will need an

adapter (available at

plumbing supply stores) to

connect the water line to the refrigerator OR you can

cut off the flared fitting with a tube cutter and then use

a compression fitting.

Shutoff valve to connect to

the cold water line. The

shutoff valve should have a

water inlet with a minimum

inside diameter of 5/32" at

the point of connection to the

COLD WATER LINE. Saddle-type shutoff valves are

included in many water supply kits. Before purchasing,

make sure a saddle-type valve complies with your local

plumbing codes.

INSTALLATION INSTRUCTIONS

Install the shutoff valve on the nearest frequently used

drinking water line.

1. SHUT OFF THE MAIN WATER SUPPLY

Turn on the nearest faucet to relieve the pressure on

the line.

,CHOOSE THEVALVELOCATION

Choose a location for the valve

that is easily accessible. It is best

to connect into the side of a

vertical water pipe. When it is

necessary to connect into a

horizontal water pipe, make the

connection to the top or side,

rather than at the bottom, to avoid

drawing off any sediment from the water pipe.

,DRILLTHE HOLE FOR THEVALVE

Drill a 114" hole in the water

pipe (even if using a self-

piercing valve) using a

sharp bit. Remove any burrs

resulting from drilling the

hole in the pipe. Take care

not to allow water to drain

into the drill. Failure to drill a 1/4 hole may result in

reduced ice production or smaller cubes.

INSTALLATION INSTRUCTIONS

(CONTINUED)

4. FASTEN THE SHUTOFF VALVE

Fasten the shutoff valve to the cold water pipe with

the pipe clamp,

Pipe Clamp

Saddle-Type J

Shutoff Valve -Vertical Cold

Water Pipe

NOTE: Commonwealth of Massachusetts Plumbing

Codes 248CMR shall be adhered to. Saddle valves

are illegal and use is not permitted in Massachusetts,

Consult with your licensed plumber.

TIGHTEN THE PIPE CLAMP

Tighten the clamp screws until the sealing washer

begins to swell,

NOTE: Do not overtighten or you may crush

the tubing. Washer

Pipe Clamp --

Clamp

7. CONNECT THE TUBING TO THE VALVE

Place the compression nut and ferrule (sleeve)

for copper tubing onto the end of the tubing and

connect it to the shutoff valve, Make sure the tubing is

fully inserted into the valve. Tighten the compression

nut securely.

Saddle-Type

Shutoff Valve __

Packing

Nut

Outlet

Valve

Compression

_rule (sleeve)

NOTE: Commonwealth of Massachusetts Plumbing

Codes 248CMR shall be adhered to. Saddle valves

are illegal and use is not permitted in Massachusetts,

Consult with your licensed plumber.

8. FLUSH OUT THE TUBING

Turn the main water supply on

and flush out the tubing until the

water is clear.

Shut the water off at the water

valve after about one quart of

water has been flushed through

the tubing,

6. ROUTE THE TUBING

Route the tubing between the cold water line and the

refrigerator.

Route the tubing through a hole drilled in the wall or

floor (behind the refrigerator or adjacent base cabinet)

as close to the wall as possible,

NOTE: Be sure there is sufficient extra tubing (about

8 feet coiled into 3 turns of about 10 diameter) to

allow the refrigerator to move out from the wall after

installation.

=CONNECT THE TUBING TO THE

REFRIGERATOR

NOTES:

•Before making the connection to the refrigerator, be

sure the refrigerator power cord is not plugged into

the wall outlet,

,If your refrigerator does not have a water filter,

we recommend installing one. If your water supply

has sand or particles that could clog the screen of

the refrigerator's water valve, Install the filter in the

water line near the refrigerator.

Remove the plastic flexible cap from the refrigerator

connection,

Place the compression nut and ferrule (sleeve) onto

the end of the tubing,

Insert the end of the tubing into the connection as far

as possible. While holding the tubing, tighten the fitting,

11. PLUG IN THE REFRIGERATOR

Arrange the coil of tubing so

that it does not vibrate against

the back of the refrigerator or

against the wall. Push the

refrigerator back to the wall,

12. START THE ICEMAKER

Set the icemaker power switch to the ON position.

The icemaker will not begin to operate until it reaches

its operating temperature of 15°F (-9°C) or below. It

will then begin operation automatically if the icemaker

power switch is in the I (on) position,

Connection

Ferule

Tubing

1/4"

Compression

Nut

1/4"

I-ubing

Fasten the tubing into the tubing Clamp attached to

the back of the refrigerator.

First, loosen the screw fastening the clamp. Next,

insert the tubing in the groove. Finally, re-fasten the

screw.

10. TU RN TH EWATER ON AT THE

SHUTOFF VALVE

Tighten any connections that

leak,

Reattach the compressor

compartment access cover.

UNDERSTANDING SOUNDS YOU MAY HEAR

Your new refrigerator may make sounds that your old one

didn't make. Because the sounds are new to you, you

might be concerned about them. Most of the new sounds

are normal. Hard surfaces, like the floor, walls and

cabinets, can make the sounds seem louder than they

actually are. The following describes the kinds of sounds

and what may be making them.

•The defrost timer will click when the automatic defrost

cycle begins and ends. The thermostat control (or

refrigerator control, depending on the model) will also

click when cycling on and off.

Rattling noises may come from the flow of refrigerant, the

water line, or items stored on top of the refrigerator.

Your refrigerator is designed to run more efficiently

to keep your food items at the desired temperature.

The high efficiency compressor may cause your new

refrigerator to run longer than your old one, and

you may hear a pulsating or high-pitched sound.

• You may hear the evaporator fan motor circulating the air

through the refrigerator and freezer compartments.

• As each cycle ends, you may hear a gurgling sound due

to the refrigerant flowing in your refrigerator.

, Contraction and expansion of the inside walls may cause

a popping noise.

Water dripping on the defrost heater during a defrost

cycle may cause a sizzling sound.

• You may hear air being forced over the condenser by the

condenser fan.

• You may hear water running into the drain pan during the

defrost cycle.

REFRIGERATOR DOES NOT OPERATE

Check if...

The power supply cord is unplugged.

A household fuse has blown or circuit

breaker tripped.

The refrigerator control is set to the OFF position.

Refrigerator is in the defrost cycle.

Then...

Firmly plug the cord into a live outlet with proper voltage,

Replace the fuse or reset the circuit breaker.

Refer to the Setting the Controls.

Wait about 30 minutes for defrost cycle to end,

VIBRATION OR RATTLING NOISE

Check if... Then...

The refrigerator is not resting solidly on Floor is weak or uneven or leveling legs need adjusting.

the floor. See Installation Section.

LIGHTS DO NOT WORK

Check if... Then...

The power supply cord is unplugged. Firmly plug the cord into a live outlet with proper voltage.

Light bulb is loose in the socket. Turn the refrigerator control to the OFF position and unplug

the refrigerator. Gently remove the bulb and reinsert. Then

plug in refrigerator and reset the refrigerator control.

Light bulb has burned out. Replace with an appliance bulb of the same wattage, size

and shape available at your local hardware store. (See the

Changing the Light Bulb(s) Section) Turn

the temperature control to the OFF position and unplug the

refrigerator prior to replacement.

COMPRESSOR MOTOR SEEMS TO RUN TOO MUCH

Check if... Then...

The refrigerator that was replaced was an Modern refrigerators with more storage space require

older model, more operating time.

The room temperature is hotter than normal. The motor will run longer under warm conditions. At normal

room temperatures, expect your motor to run about 40% to

80% of the time. Under warmer conditions, expect it to run

even more often.

The door is opened often or a large amount Adding food and opening the door warms the refrigerator.

of food has just been added. It is normal for the refrigerator to run longer in order to cool

the refrigerator back down. Adding a large amount of food

warms the refrigerator. See the Food Storage Guide Section.

In order to conserve energy, try to get everything

you need out of the refrigerator at once, keep food organized

so it is easy to find and close the door as soon as the food

is removed.

The refrigerator was recently plugged in and The refrigerator will take up to 24 hours to cool

the refrigerator control was set correctly completely.

The refrigerator control was not set correctly for the See the Adjusting control settings Section,

surrounding conditions,

The doors are not closed completely. Push the doors firmly shut. If they will not shut all the way, see

Doors will not close completely below.

The condenser coils are dirty. This prevents air transfer and makes the motor work harder.

Clean the condenser coils, Refer to the Care and Cleaning

section,

DOORS WILL NOT CLOSE COMPLETELY

Check if... Then...

The refrigerator is not level, See the Installation Section to level refrigerator.

Food packages are blocking the door open, Rearrange food containers to clear door and door shelves,

The ice bin, crisper cover, pans, shelves, door bins Push bins all the way in and put crisper cover, pans, shelves

or baskets are out of position, and baskets into their correct positions, See the Using Your

Refrigerator Section,

The gaskets are sticking, Clean gaskets and the surface that they touch. Rub a thin

coat of paraffin wax on the gaskets after cleaning,

The refrigerator wobbles or seems unstable, Level the refrigerator. Refer to the Door Closing and

Alignment Section,

The doors were removed during product installation Remove and replace the doors according to the Removing,

and not properly replaced, and Replacing Refrigerator Doors section

or call a qualified service technician.

FROST OR ICE CRYSTALS ON FROZEN FOOD

Check if... Then...

The door is not closing properly. See Doors will not close completely above,

The door is opened often, When the door is opened, warm, humid air is allowed in

the freezer resulting in frost,

ICE HAS OFF-TASTE OR ODOR

Check if,.. Then,..

The icemaker was recently installed, Discard first few batches of ice to avoid discolored or

off-flavored ice,

The ice has been stored for too long, Throw away old ice and make new supply.

The food has not been wrapped tightly in Rewrap foods since odors may migrate to the ice if food

either compartment, is not wrapped properly.

The water supply contains minerals such as sulfur. A filter may need to be installed to eliminate taste and

odor problems.

The interior of refrigerator needs cleaning, See Care and Cleaning section,

Ice storage bin needs cleaning, Empty and wash bin, Discard old cubes,

THERE IS WATER IN THE DEFROST DRAIN PAN

Check if... Then...

The refrigerator is defrosting, The water will evaporate, It is normal for water to drip into the

defrost pan,

It is more humid than normal, Expect that the water in the defrost pan will take longer to

evaporate, This is normal when it is hot or humid,

THE REFRIGERATOR SEEMS TO MAKE TOO MUCH NOISE

Check if... Then...

The sounds may be normal for your refrigerator. I Refer to the Understanding Sounds You May Hear section.

THE ICEMAKER IS NOT PRODUCING ICE OR ICE CUBES ARE FREEZING TOO SLOWLY

Check if... Then...

The freezer temperature is cold enough to produce ice I Wait 24 hours after hook-up for ice production. See the Setting

tthe Controls Section,

Door left open, Check to see if somethinc is holding the door open,

CUBES PRODUCED BY ICEMAKER ARE TOO SMALL

Check if... Then...

Smaller cube size level is selected, [ Select larger cube size using cube size selector.

Water shutoff valve connecting refrigerator to water l Call a plumber to clear the valve,

line may be clogged,

THE DOORS ARE DIFFICULT TO OPEN

Check if... Then...

The gaskets are dirty or sticky. Clean gaskets and the surfaces that they touch. Rub a thin

coat of appliance polish or kitchen wax on the gaskets after

cleaning

The door is reopened within a short time after having When you open the door, warmer air enters the refrigerator.

been opened, As the warm air cools, it can create a vacuum, If the door is

hard to open, wait 5 minutes to allow the air pressure to

equalize, then see if it opens more easily.

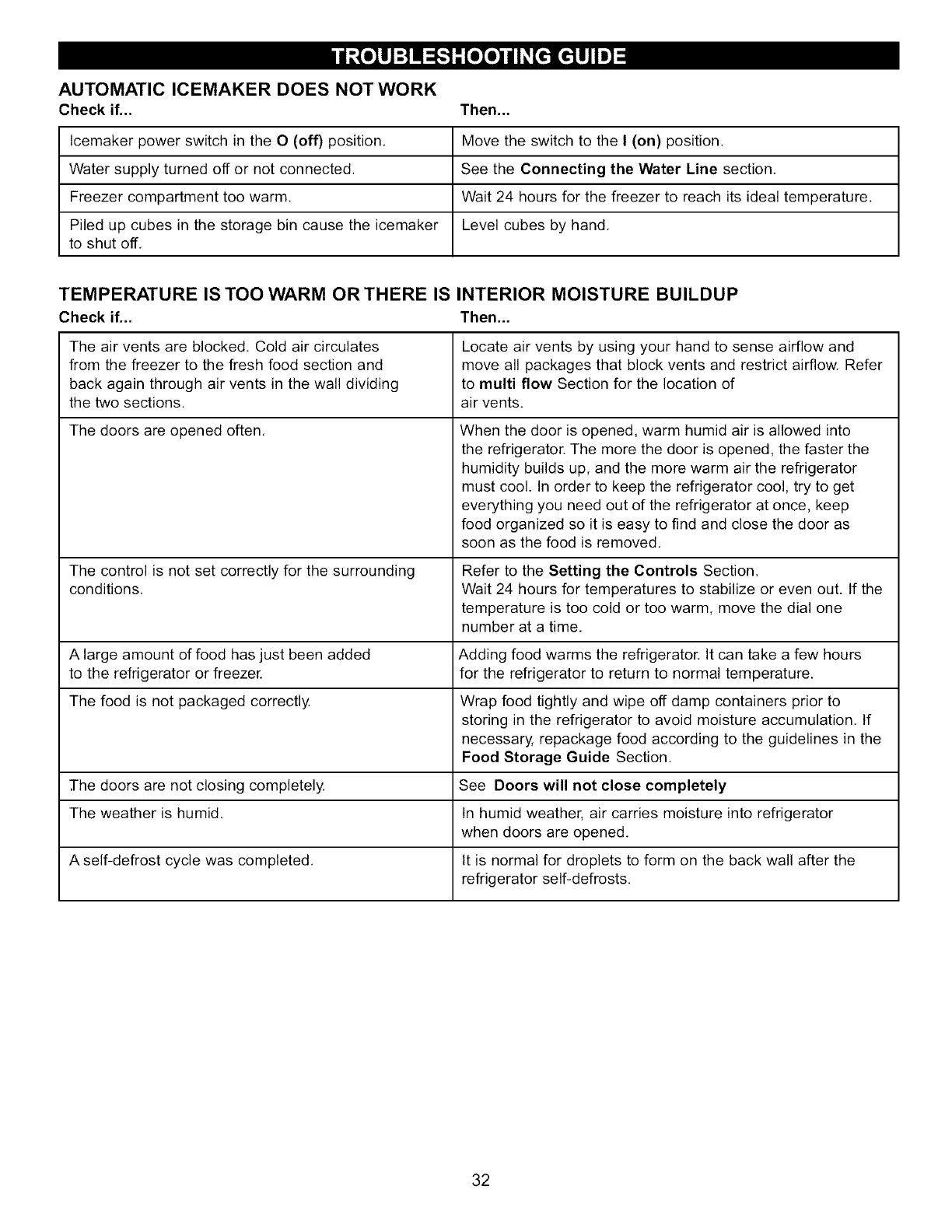

AUTOMATIC ICEMAKER DOES NOT WORK

Check if,.. Then,..

Icemaker power switch in the O(off) position, Move the switch to the I (on) position,

Water supply turned off or not connected, See the Connecting the Water Line section,

Freezer compartment too warm, Wait 24 hours for the freezer to reach its ideal temperature,

Piled up cubes in the storage bin cause the icemaker Level cubes by hand,

to shut off,

TEMPERATURE IS TOO WARM OR THERE IS INTERIOR MOISTURE BUILDUP

;heck if... Then...

The air vents are blocked. Cold air circulates Locate air vents by using your hand to sense airflow and

from the freezer to the fresh food section and move all packages that block vents and restrict airflow. Refer

back again through air vents in the wall dividing to multi flow Section for the location of

the two sections, air vents,

The doors are opened often, When the door is opened, warm humid air is allowed into

the refrigerator. The more the door is opened, the faster the

humidity builds up, and the more warm air the refrigerator

must cool. In order to keep the refrigerator cool, try to get

everything you need out of the refrigerator at once, keep

food organized so it is easy to find and close the door as

soon as the food is removed,

The control is not set correctly for the surrounding Refer to the Setting the Controls Section.

conditions, Wait 24 hours for temperatures to stabilize or even out. If the

temperature is too cold or too warm, move the dial one

number at a time,

A large amount of food has just been added Adding food warms the refrigerator. It can take a few hours

to the refrigerator or freezer, for the refrigerator to return to normal temperature,

The food is not packaged correctly. Wrap food tightly and wipe off damp containers prior to

storing in the refrigerator to avoid moisture accumulation. If

necessary, repackage food according to the guidelines in the

Food Storage Guide Section,

.The doors are not closing completely. See Doors will not close completely

The weather is humid, In humid weather, air carries moisture into refrigerator

when doors are opened,

A self-defrost cycle was completed, It is normal for droplets to form on the back wall after the

refrigerator self-defrosts,

Your Home

In USA for repair-in your home-of all major brand appliances,

lawn and garden equipment, or heating and cooling systems,

no matter who made it, no matter who sold it!

In Canada, for repair in your home of all major brand

appliances, no matter who made it, no matter who sold it!

For the replacement parts, accessories and

owner's manuals that you need to do-it-yourself.

For Sears professional installation of home appliances

and items like garage door openers and water heaters.

1-800-4-MY-HOME ® (1-800-469-4663)

Call anytime, day or night (U.S.A. and Canada)

www.sears.com www.sears.ca

Our Home

For repair of carry-in items like vacuums, lawn equipment,

and electronics, call or go on-line for the location of your nearest

Sears Parts & Repair Center.

1-800-488-1222 call anytime, day or night (U.S.A. only)

1-800-469-4663 Call anytime, day or night (Sears Canada)

www.sears.oom www.sears.ca

To purchase a protection agreement (U.S.A.)

or maintenance agreement (Canada) on a product serviced by Sears:

1-800-827-6655 (U.S.A.) 1-800-361-6665 (Canada)

Para pedir servicio de reparaci6n

a domicilio, y para ordenar piezas:

1-888-SU-HOGAR sM

(1-888-784-6427)

Au Canada pour service en frangais:

1-800-LE-FOYER Mc

(1-800-533-6937)

www.sears.ca

,$ea rs

® Registered Trademark /TMTrademark /SMService Mark of Sears, Roebuck and Co,

® Marca Registrada /TM Marca de Fabrica /SM Marca de Servicio de Sears, Roebuck and Co,

Kenmore 79577302600 User Manual REFRIGERATOR Manuals And Guides L0606609

KENMORE Bottom Mount Refrigerator Manual L0606609 KENMORE Bottom Mount Refrigerator Owner's Manual, KENMORE Bottom Mount Refrigerator installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
