TOP FREEZER REFRIGERATOR

CONGELADOR SUPERIOR REFRIGERADOR

CONGI_LATEUR SUPI_RIEUR REFRIGI_RATEUR

Models /Modelos /ModUles

795.7901

795.7930_

= color number, n_mero de color, num_ro de couleur

r =

r=,,

MFL61920620 Sears Brands Management Corporation, Hoffman Estates, IL 60179 www.sears.com

Printed in Mexico

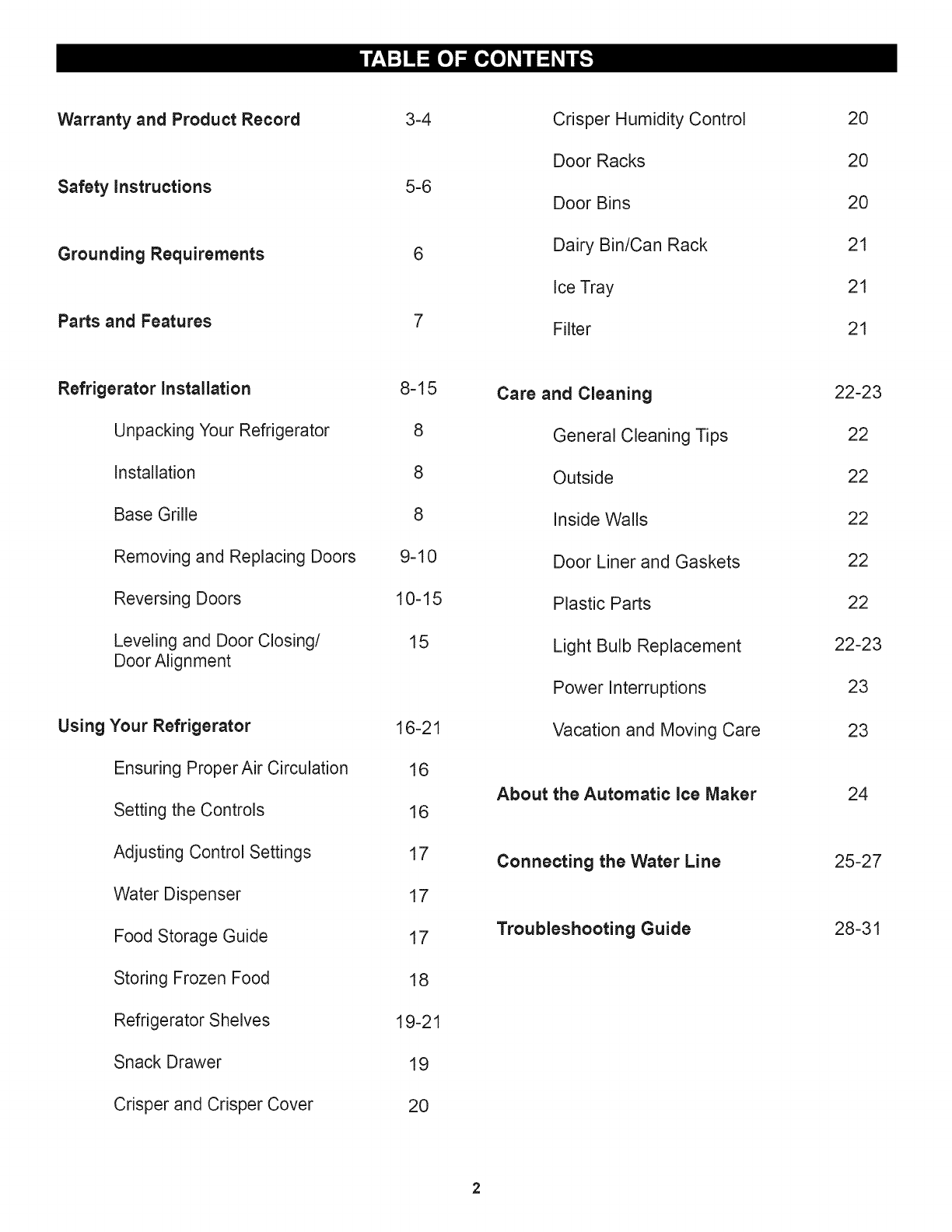

Warranty and Product Record

Safety instructions

Grounding Requirements

Parts and Features

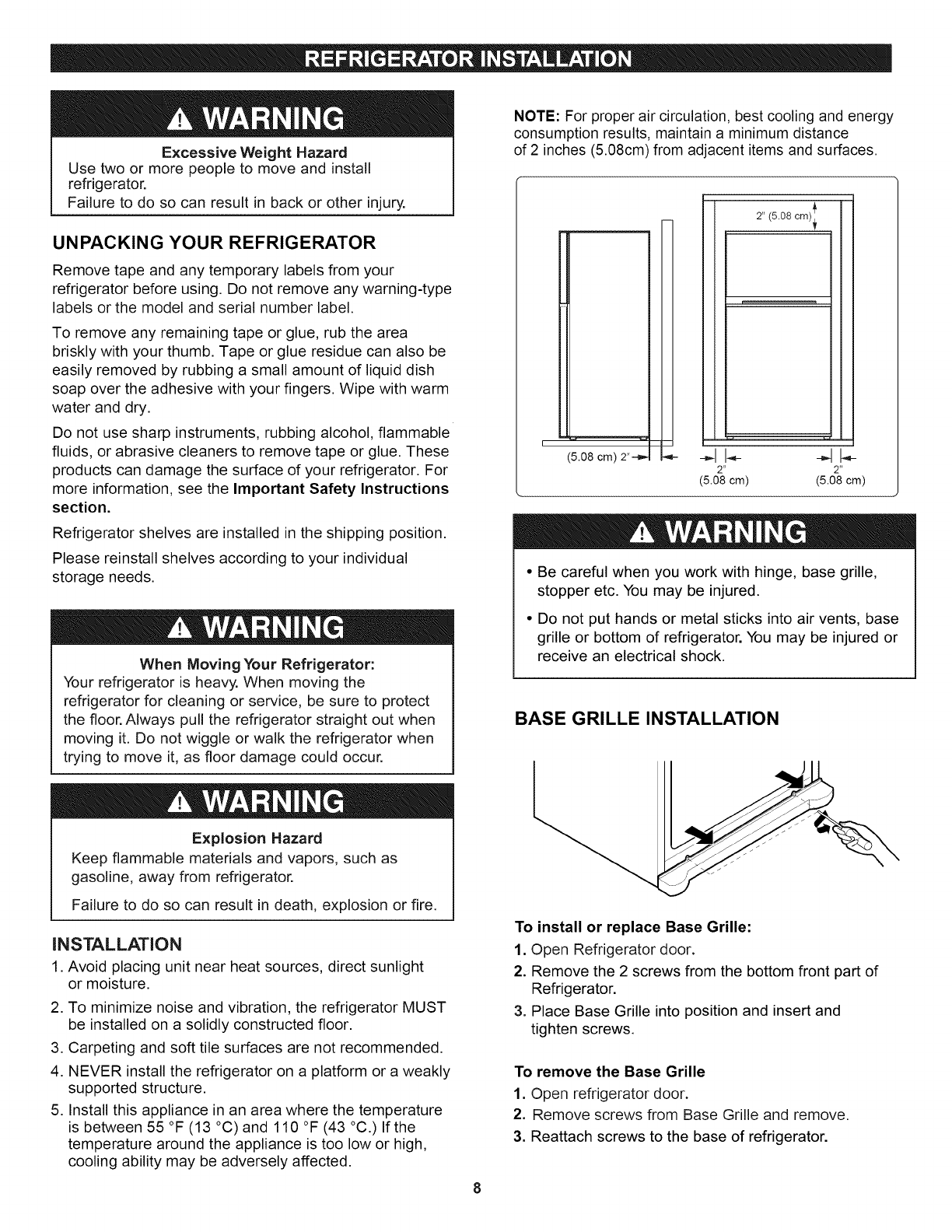

Refrigerator Installation

Unpacking Your Refrigerator

Installation

Base Grille

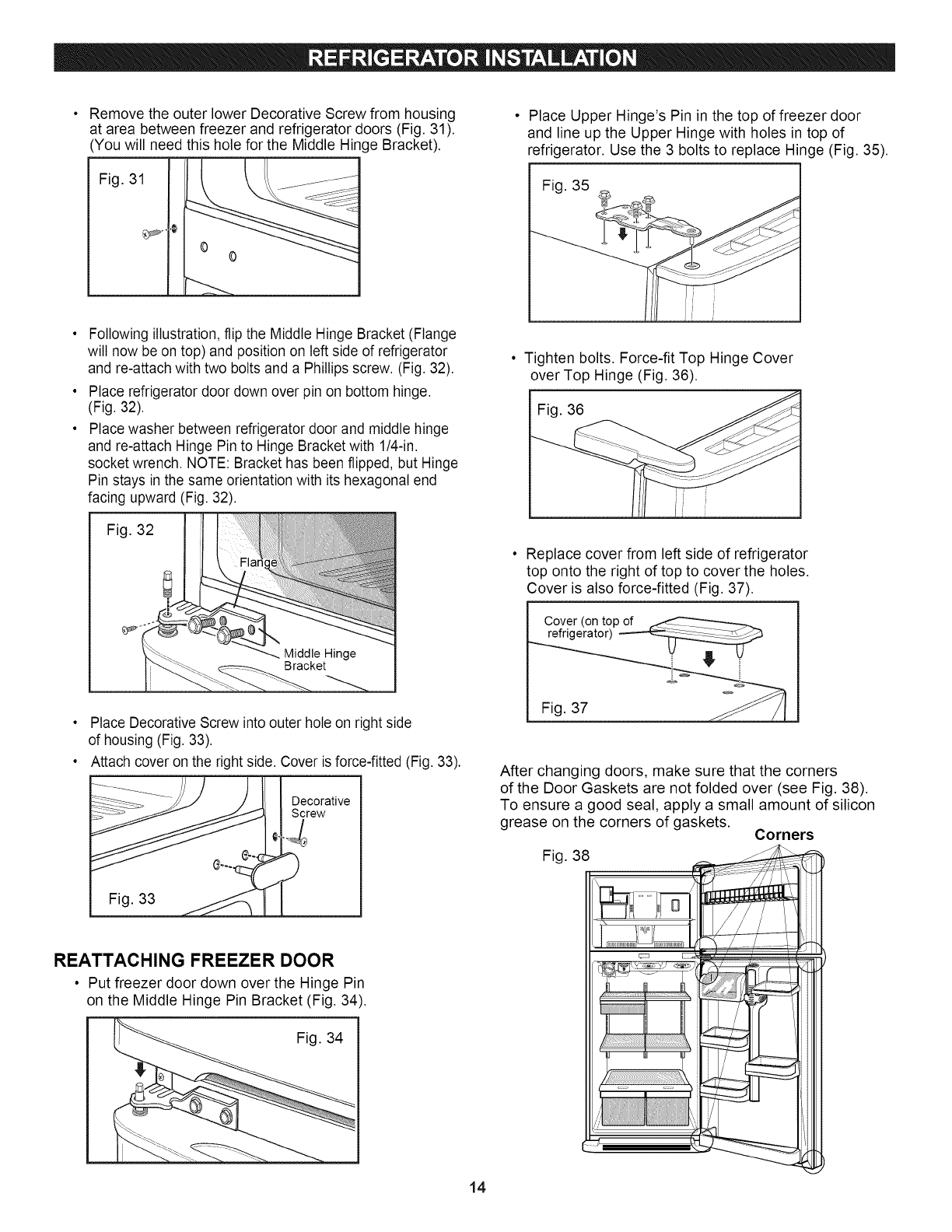

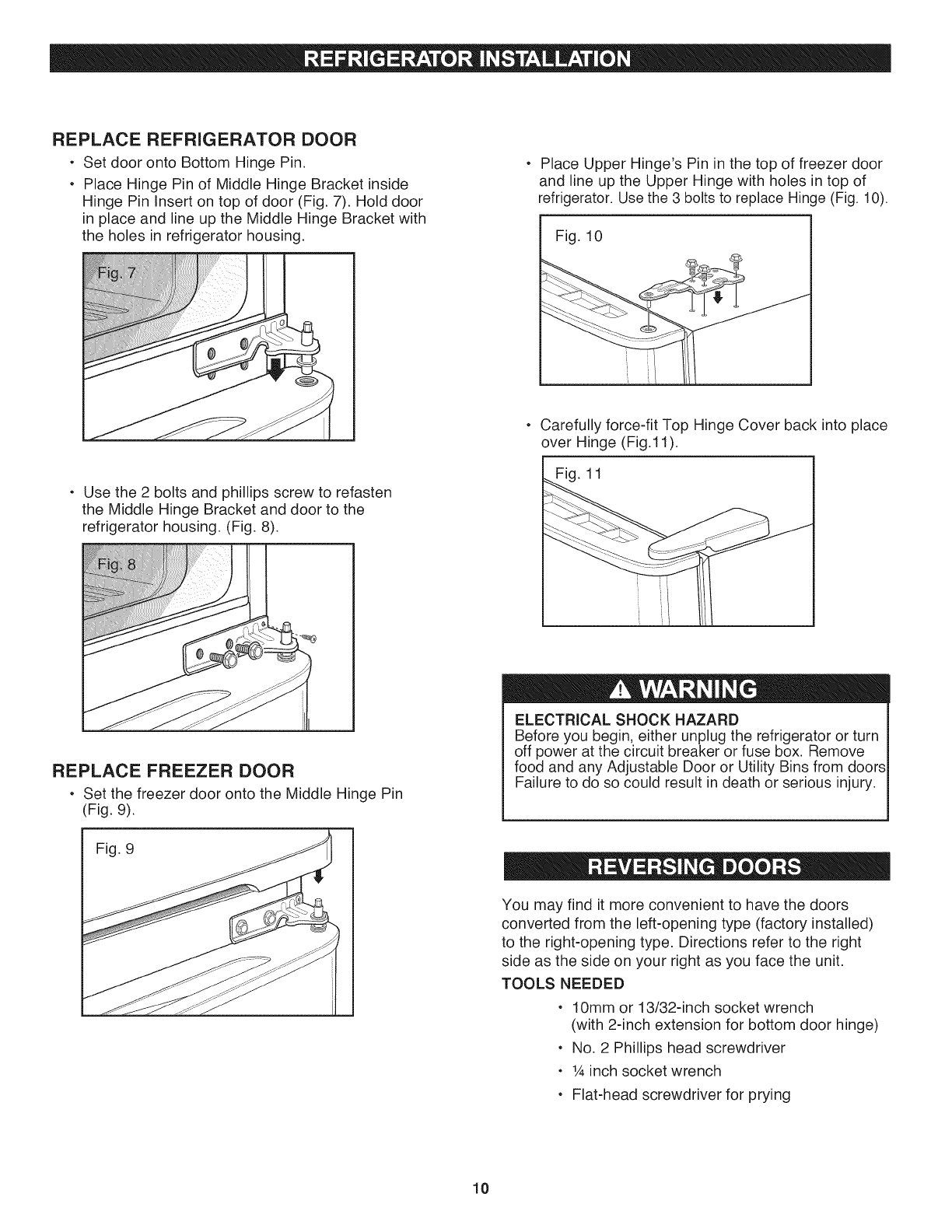

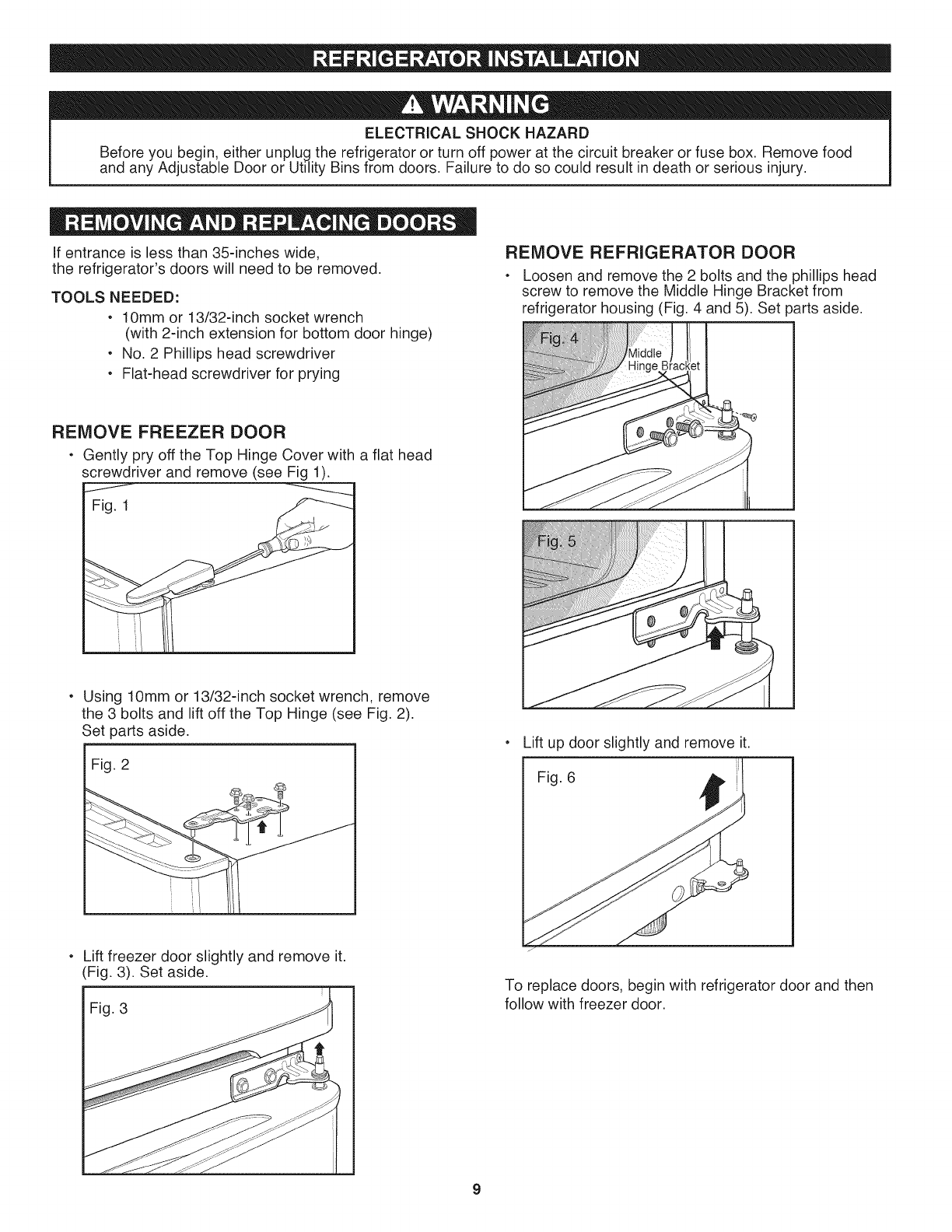

Removing and Replacing Doors

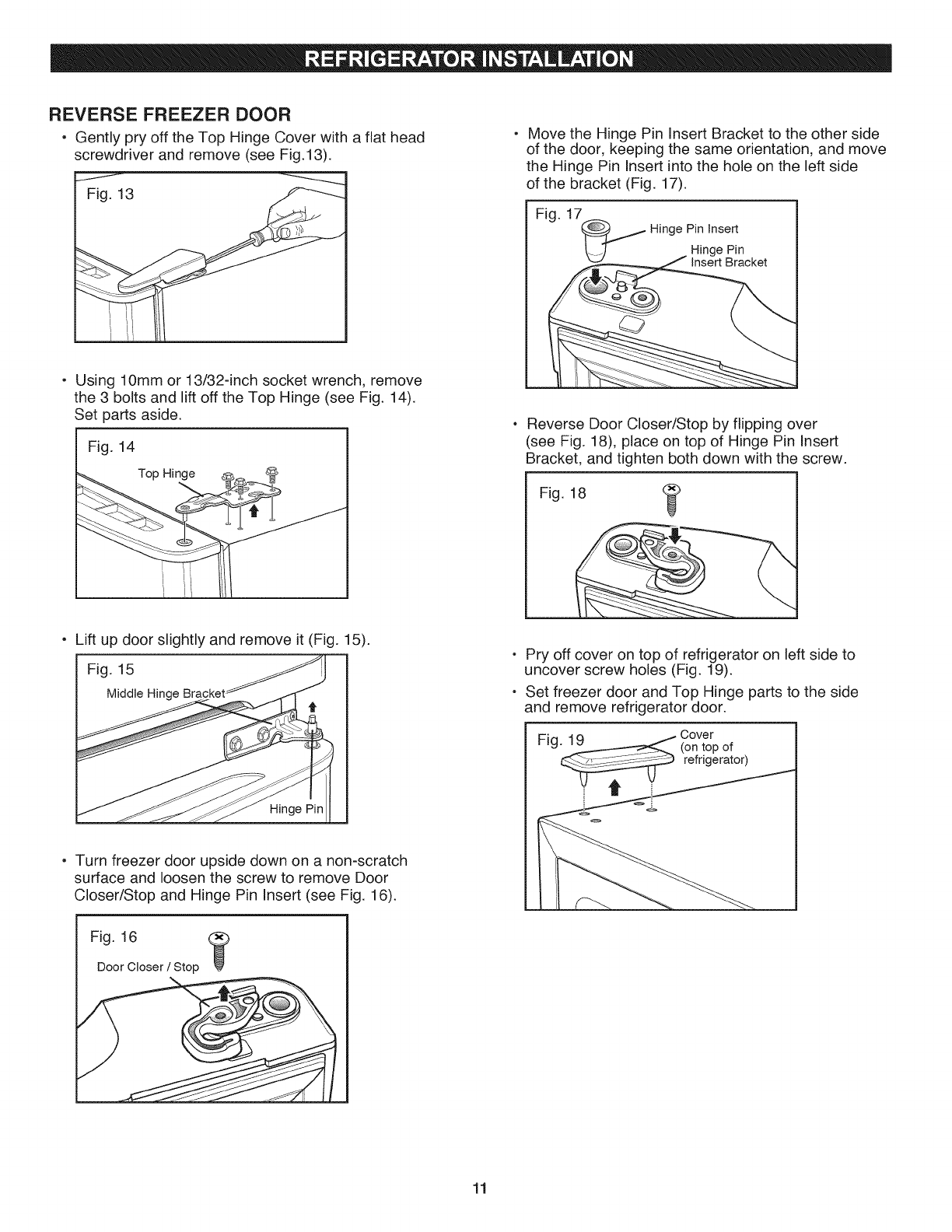

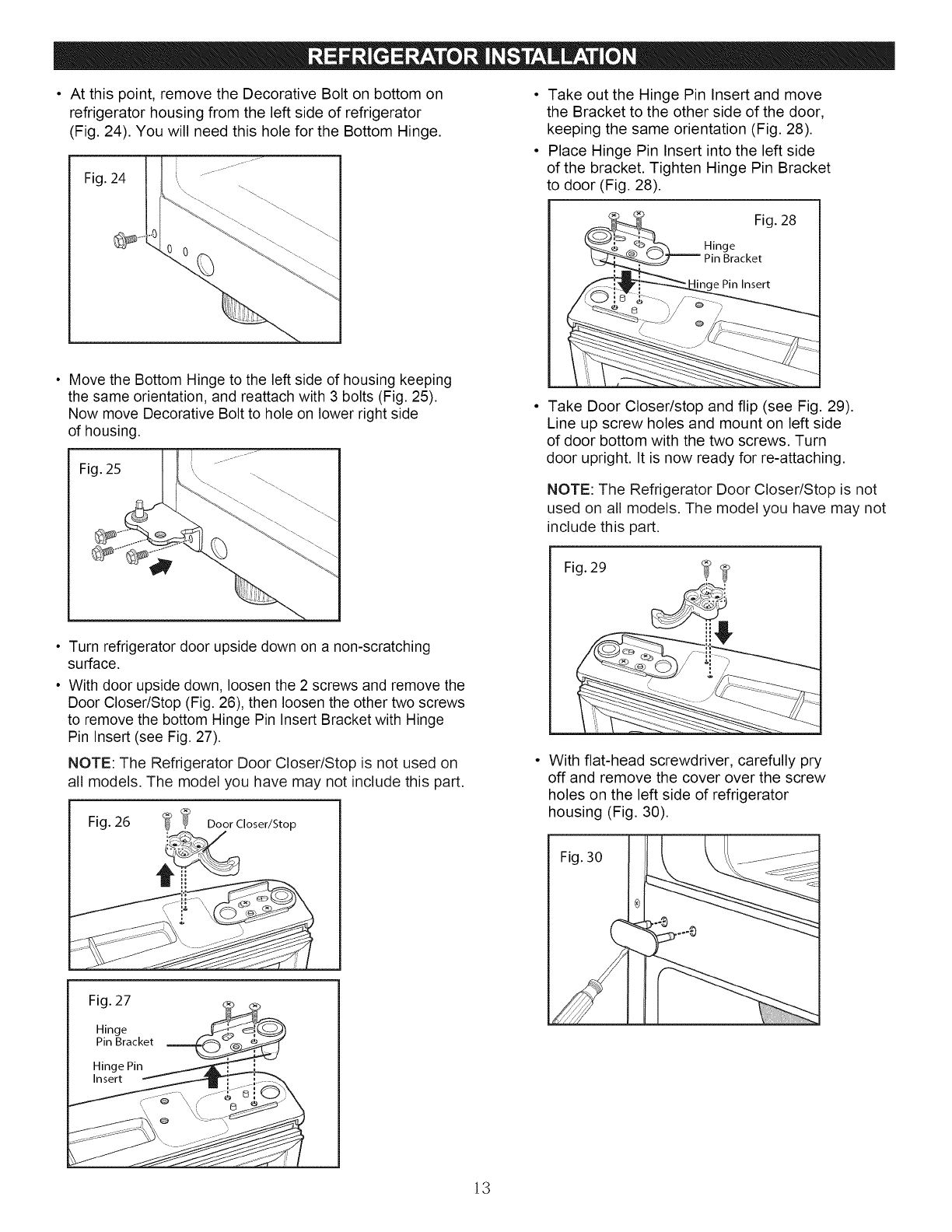

Reversing Doors

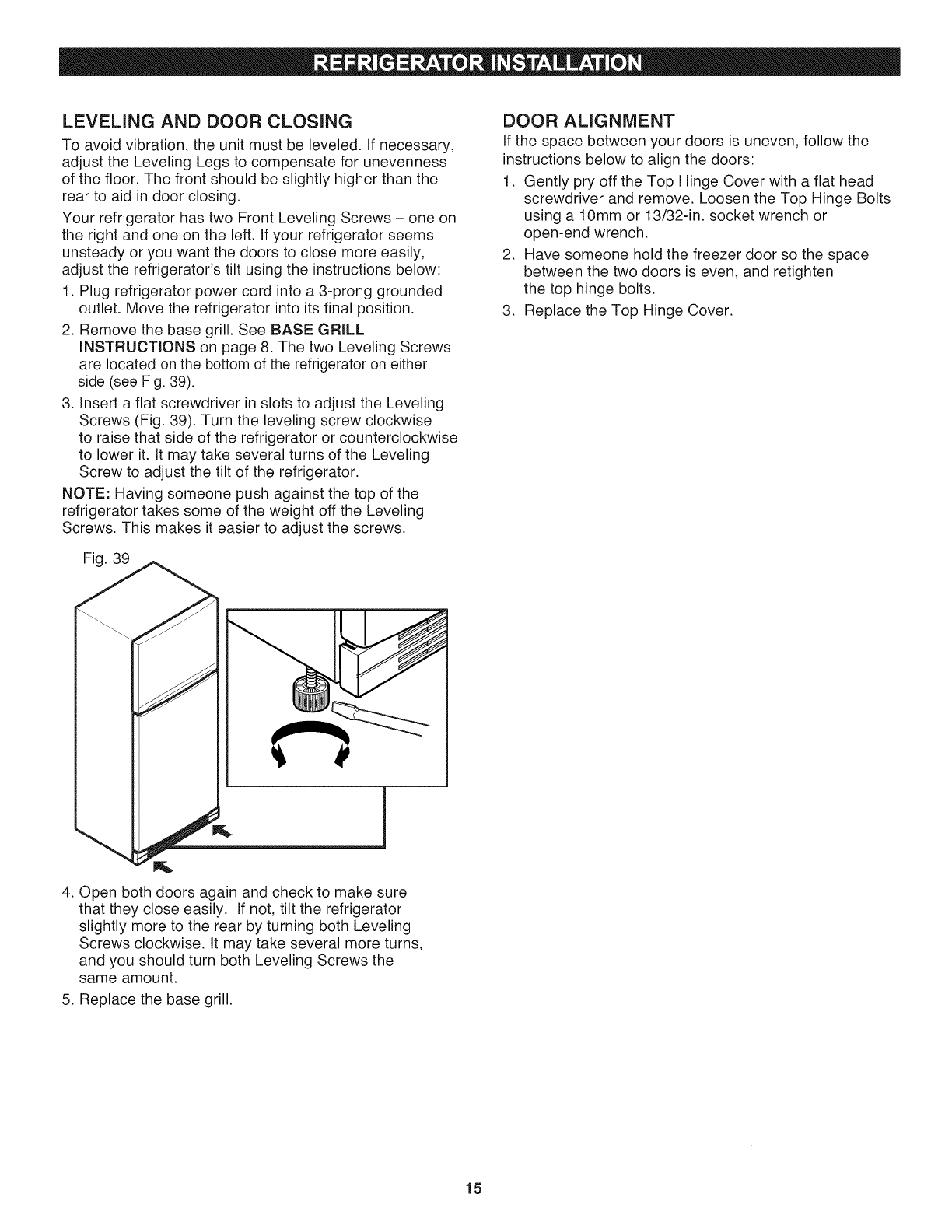

Leveling and Door Closing/

Door Alignment

Using Your Refrigerator

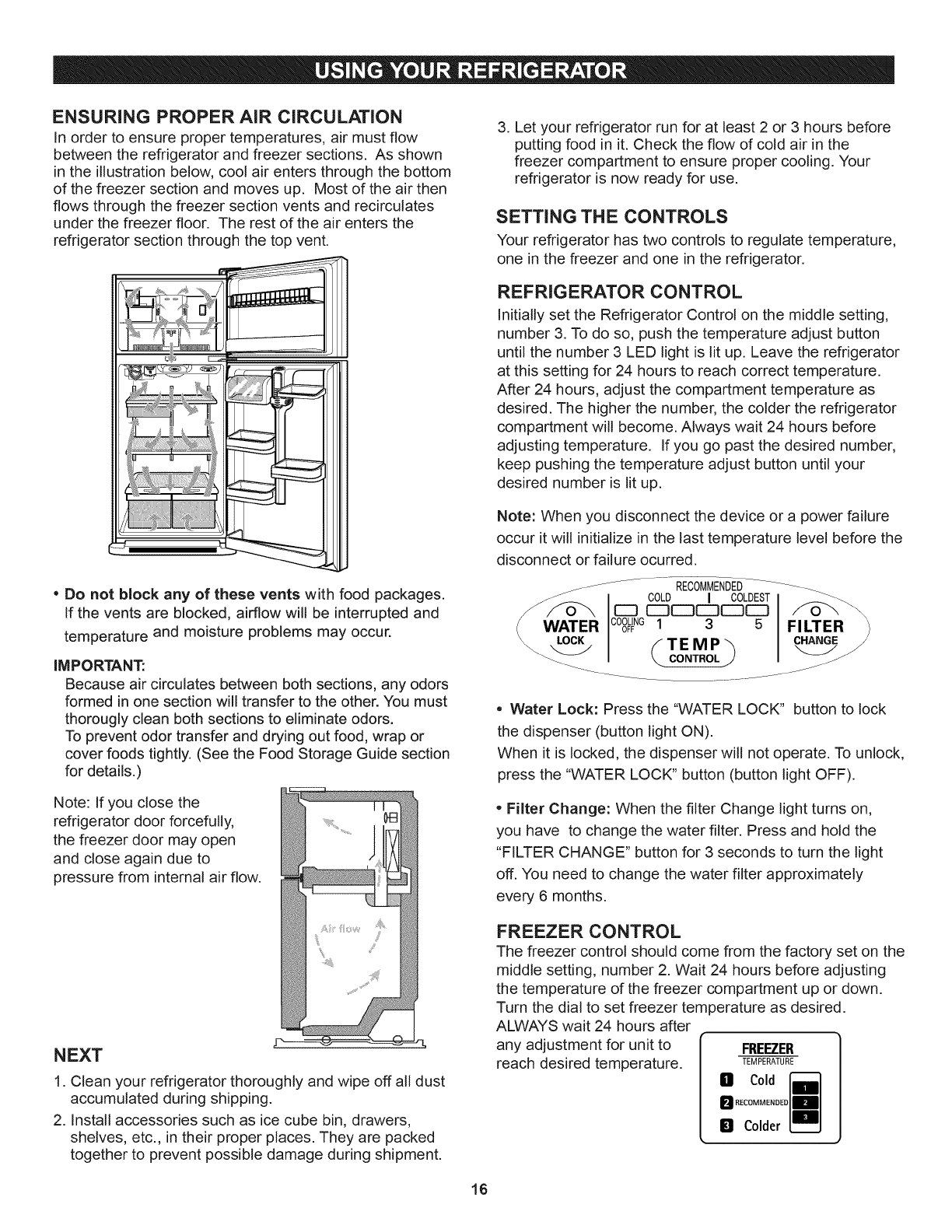

Ensuring Proper Air Circulation

Setting the Controls

Adjusting Control Settings

Water Dispenser

Food Storage Guide

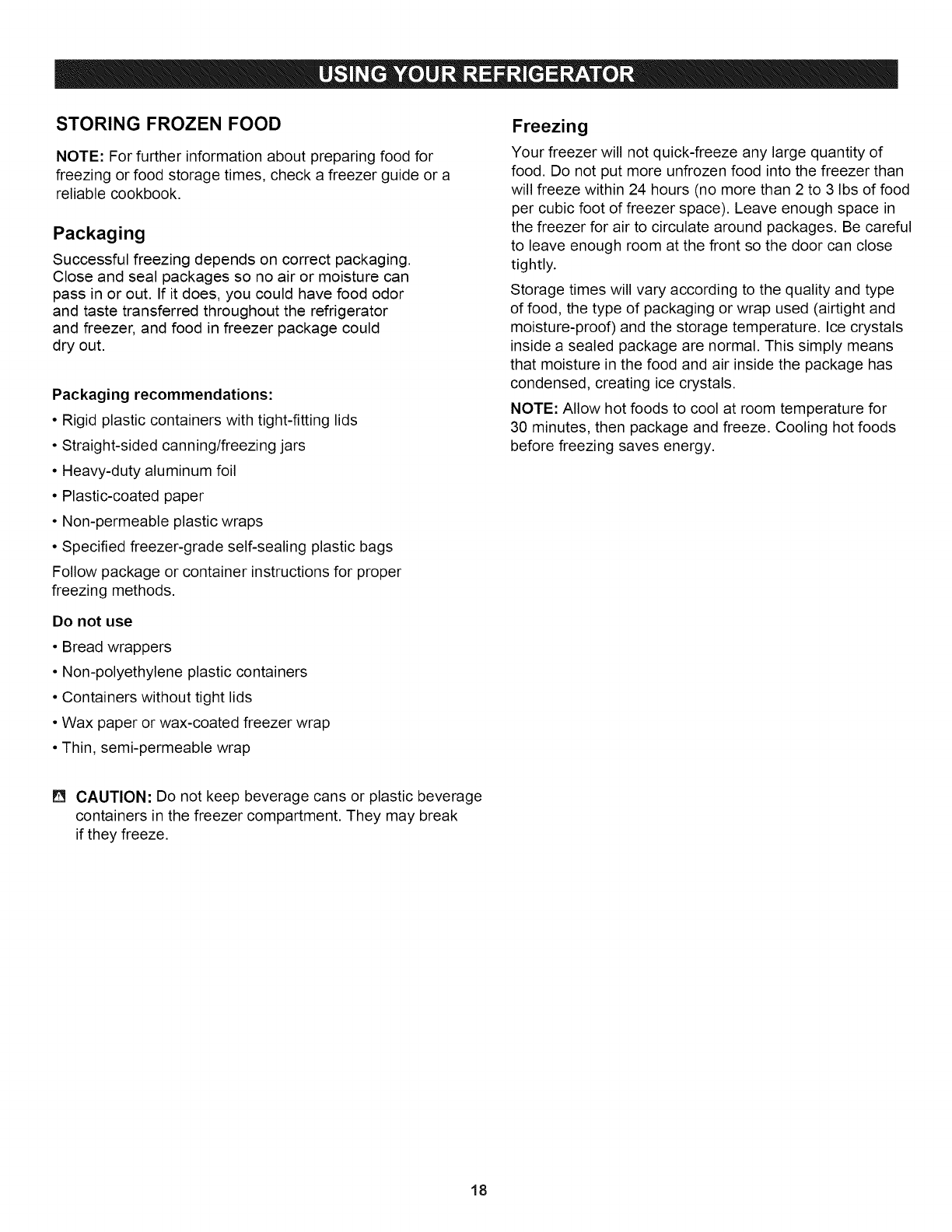

Storing Frozen Food

Refrigerator Shelves

Snack Drawer

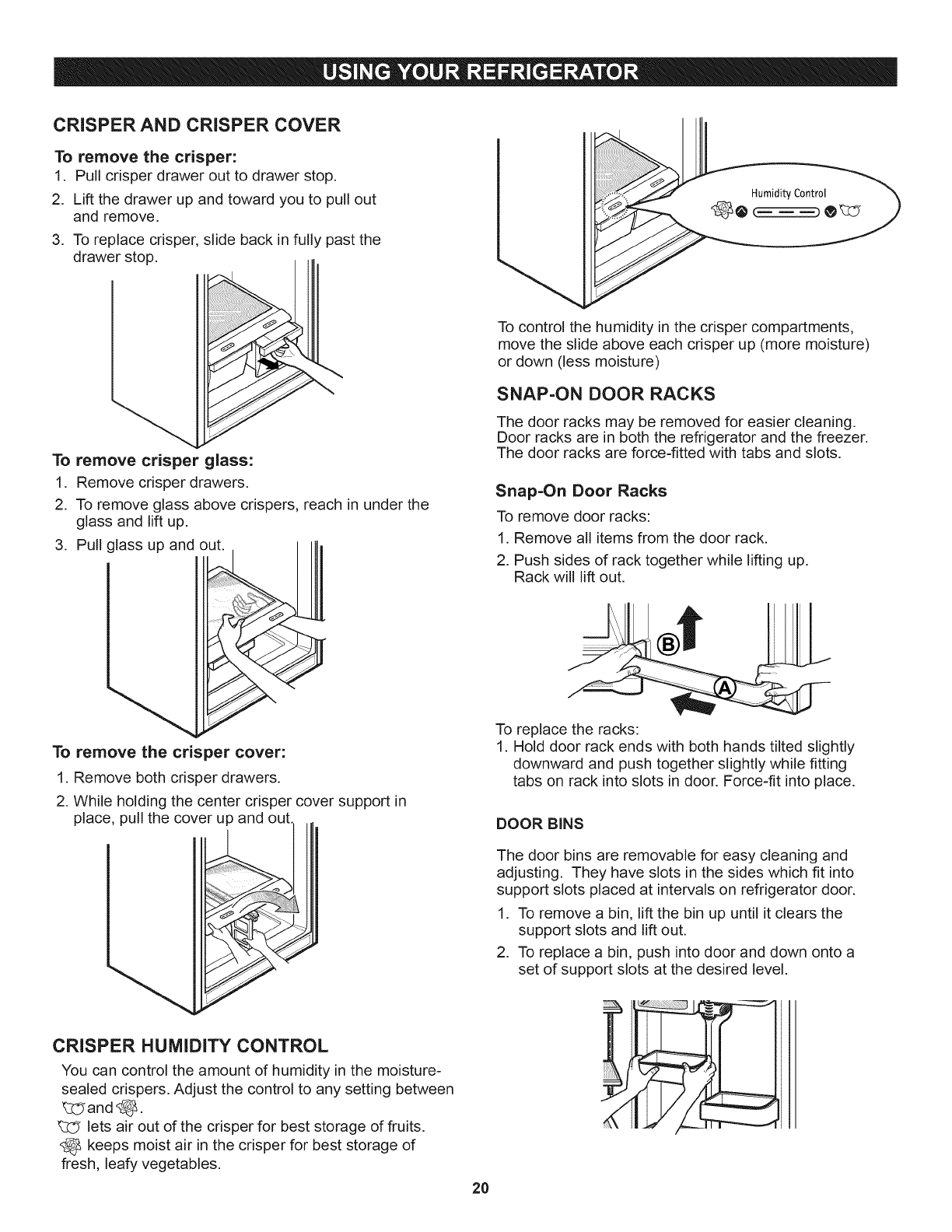

Crisper and Crisper Cover

3-4

5-6

8-15

9-10

10-15

16-21

19-21

Crisper Humidity Control

Door Racks

Door Bins

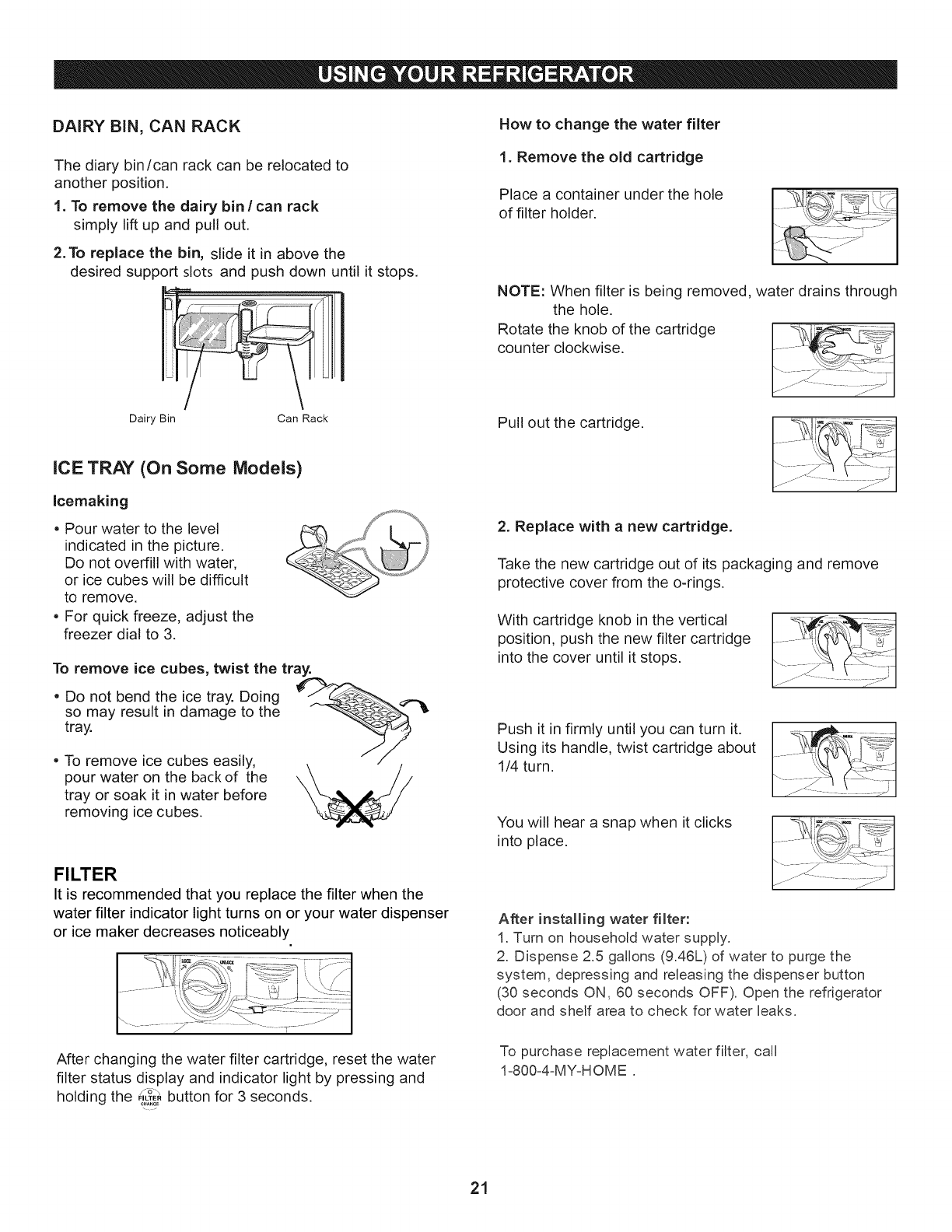

Dairy Bin/Can Rack

Ice Tray

Filter

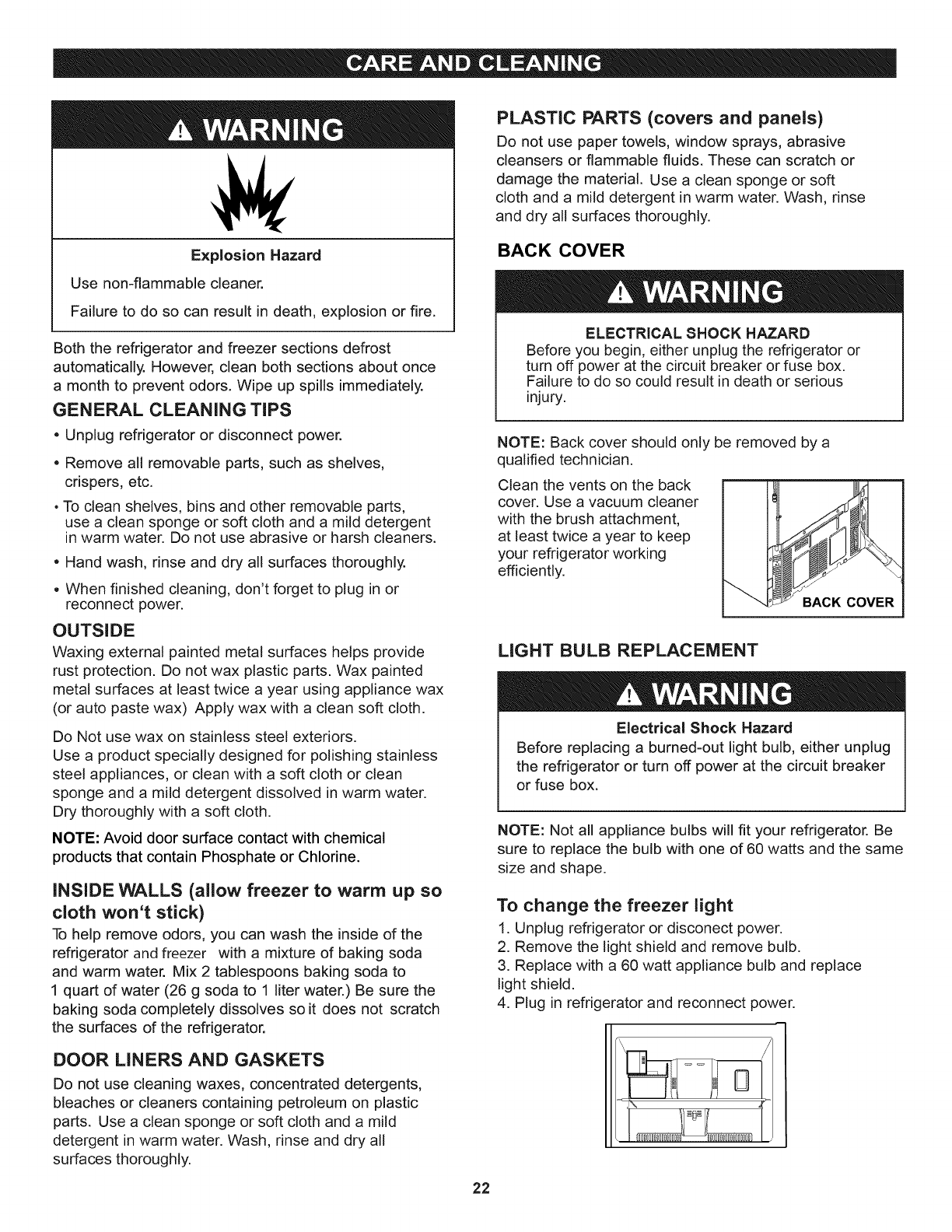

Care and Cleaning

General Cleaning Tips

Outside

Inside Walls

Door Liner and Gaskets

Plastic Parts

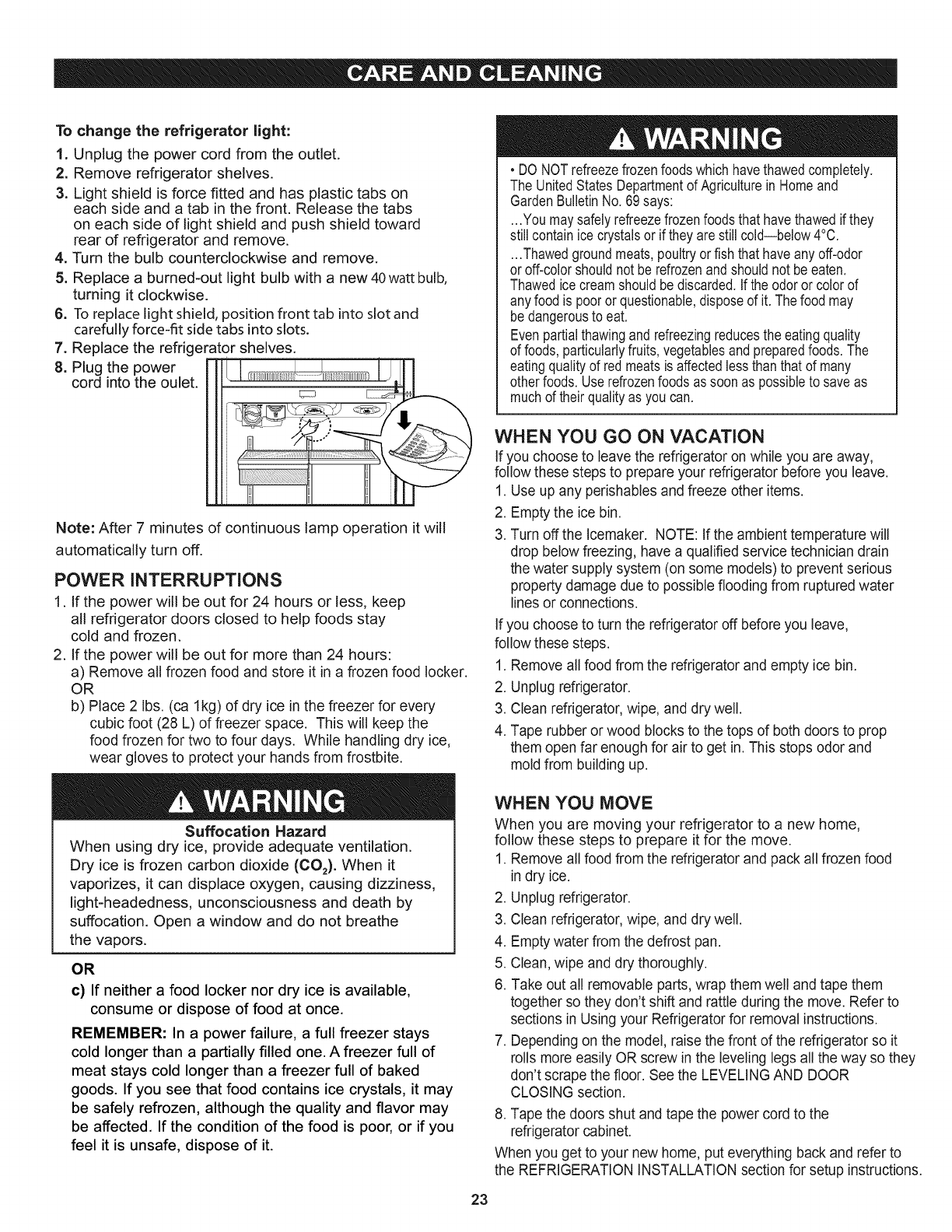

Light Bulb Replacement

Power Interruptions

Vacation and Moving Care

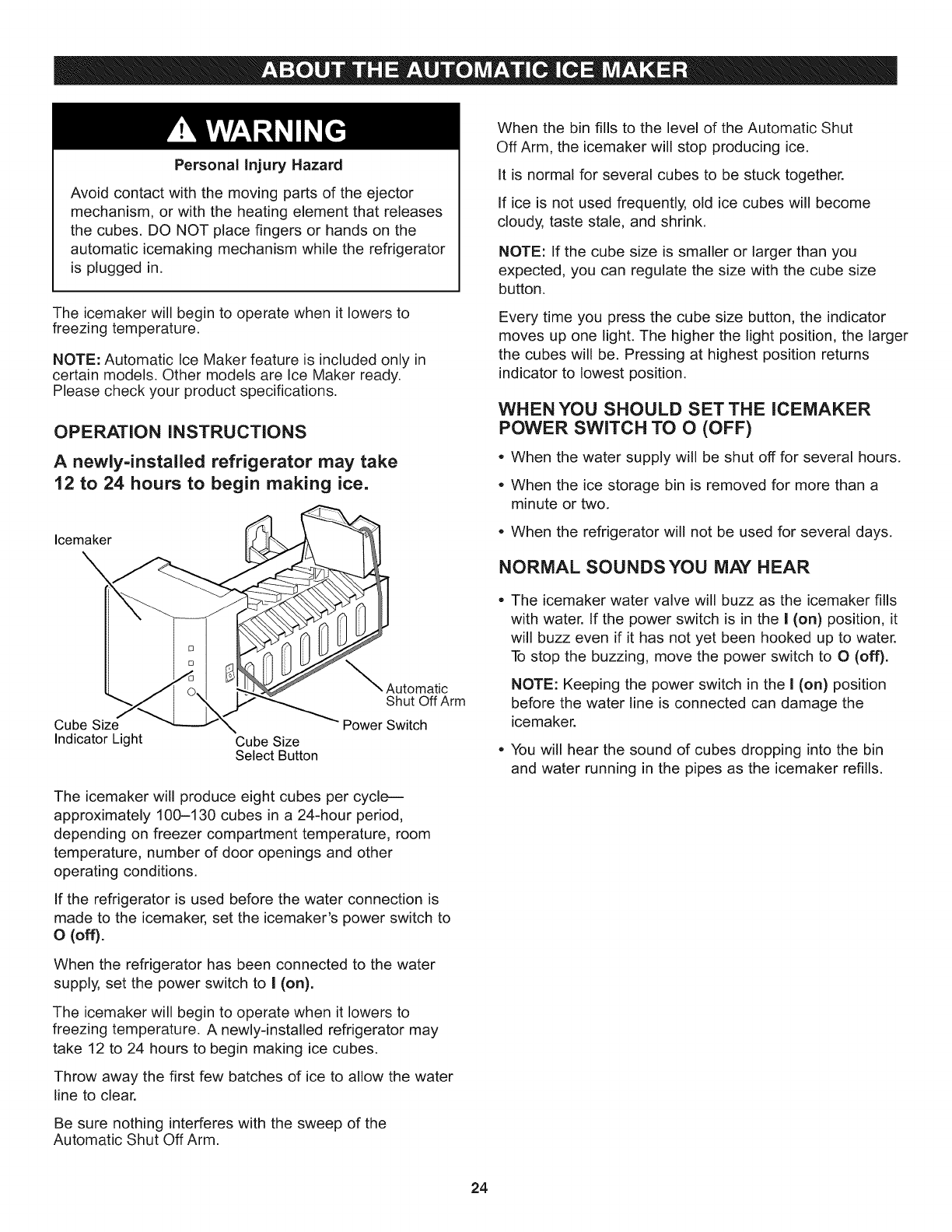

About the Automatic Ice Maker

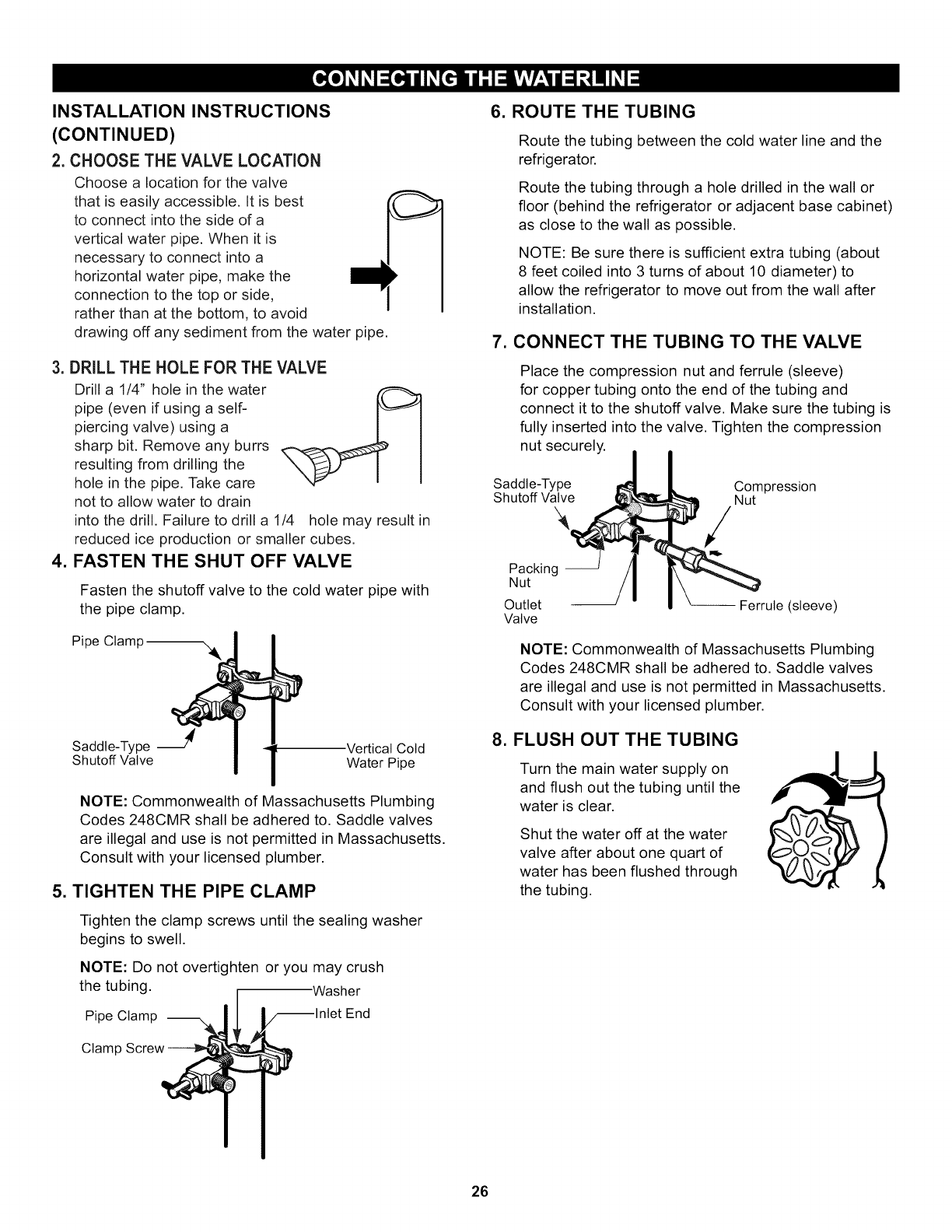

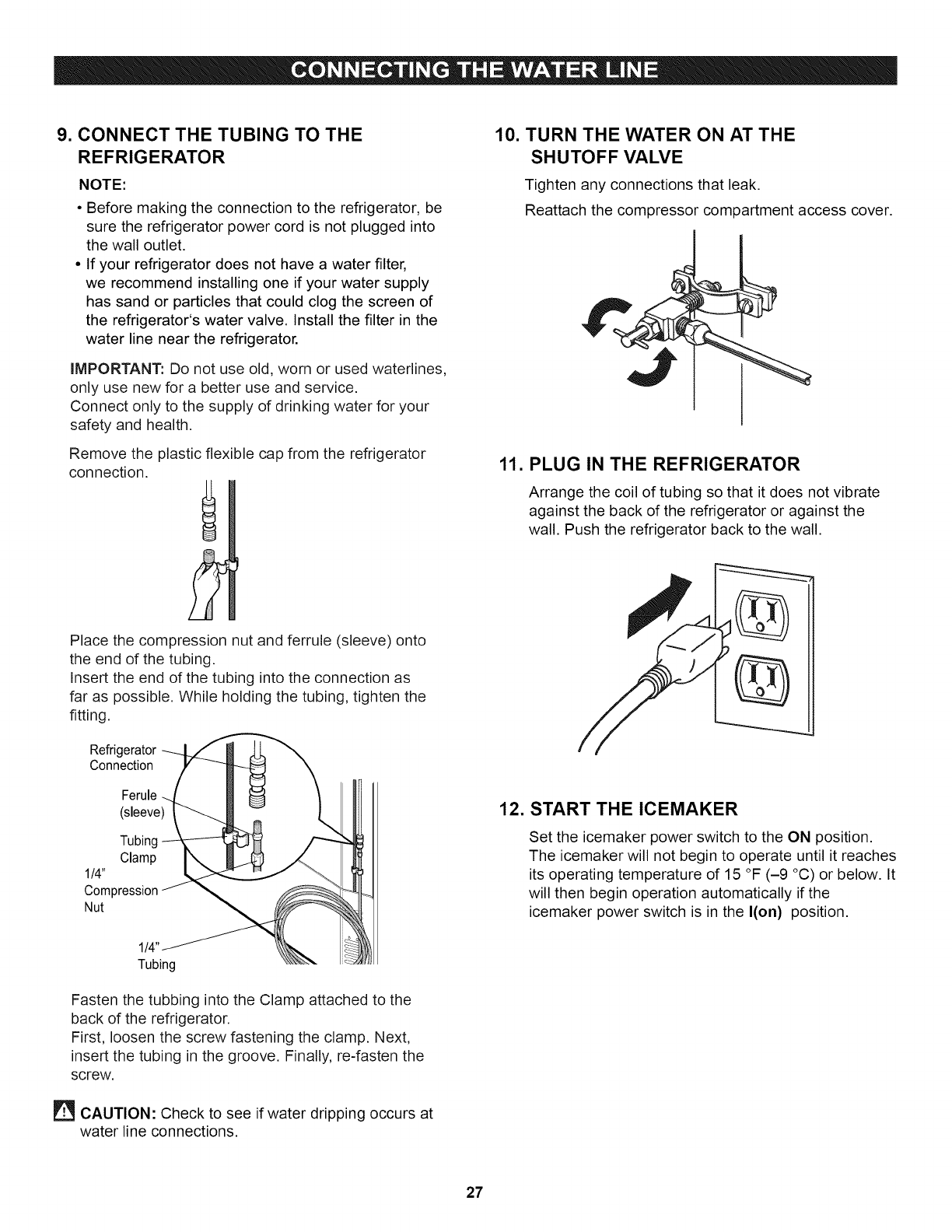

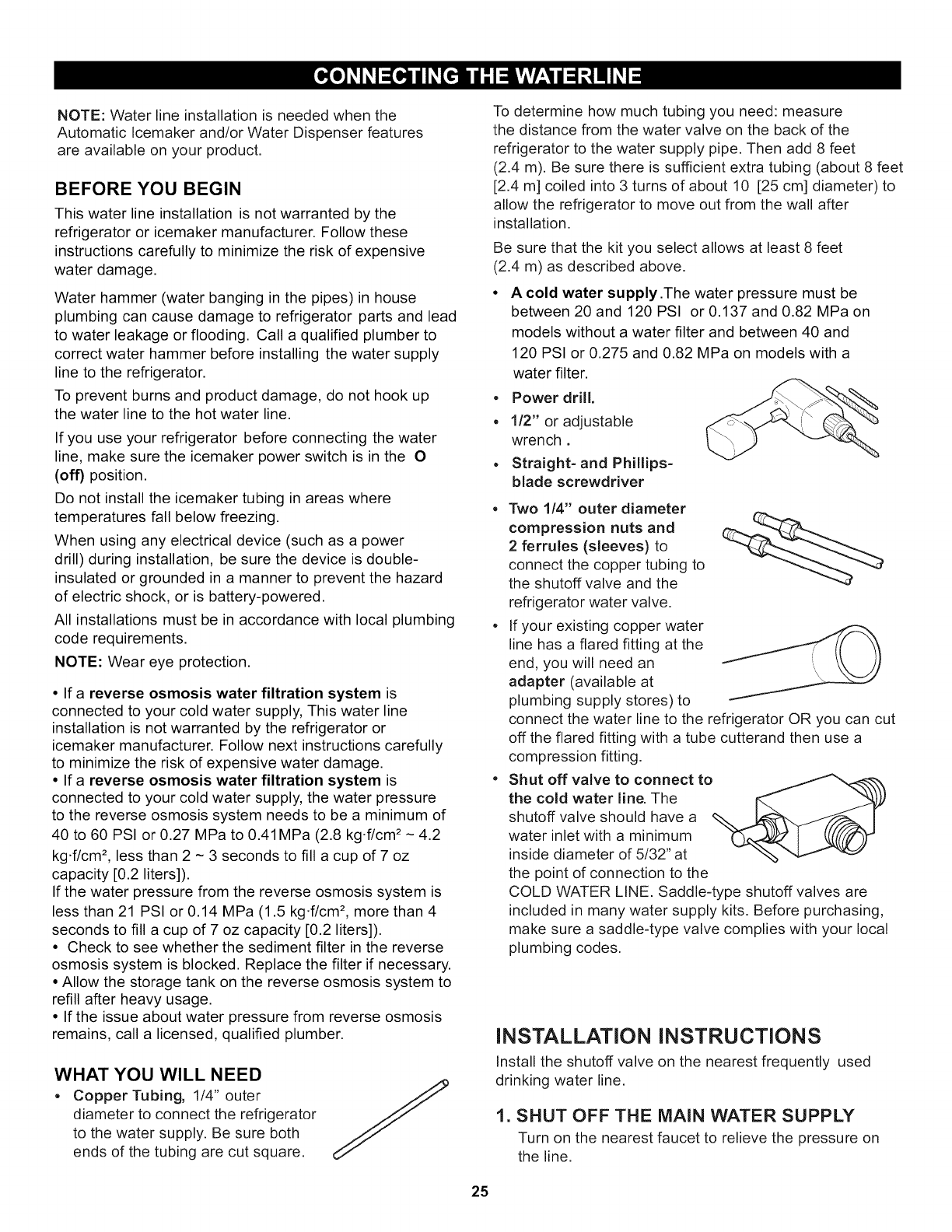

Connecting the Water Line

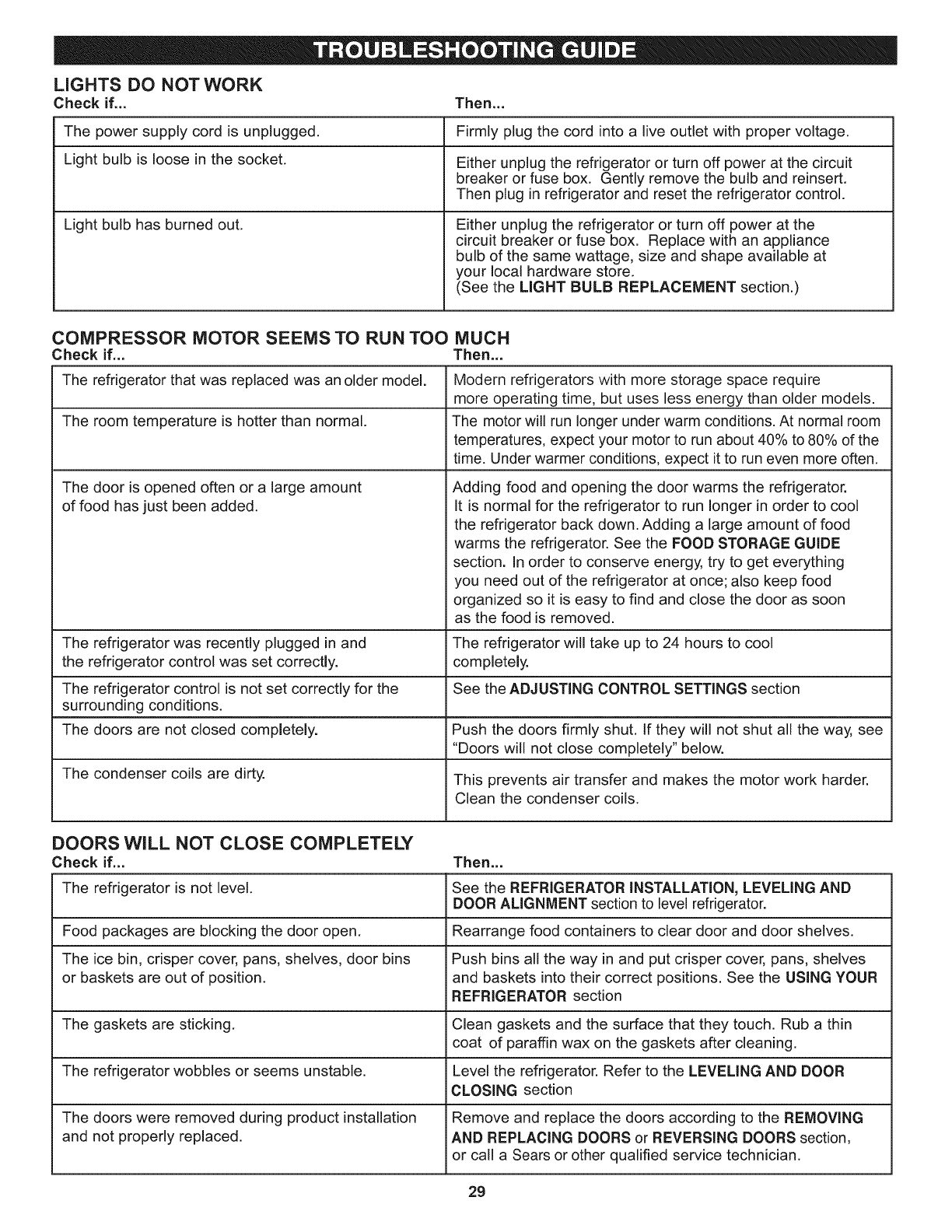

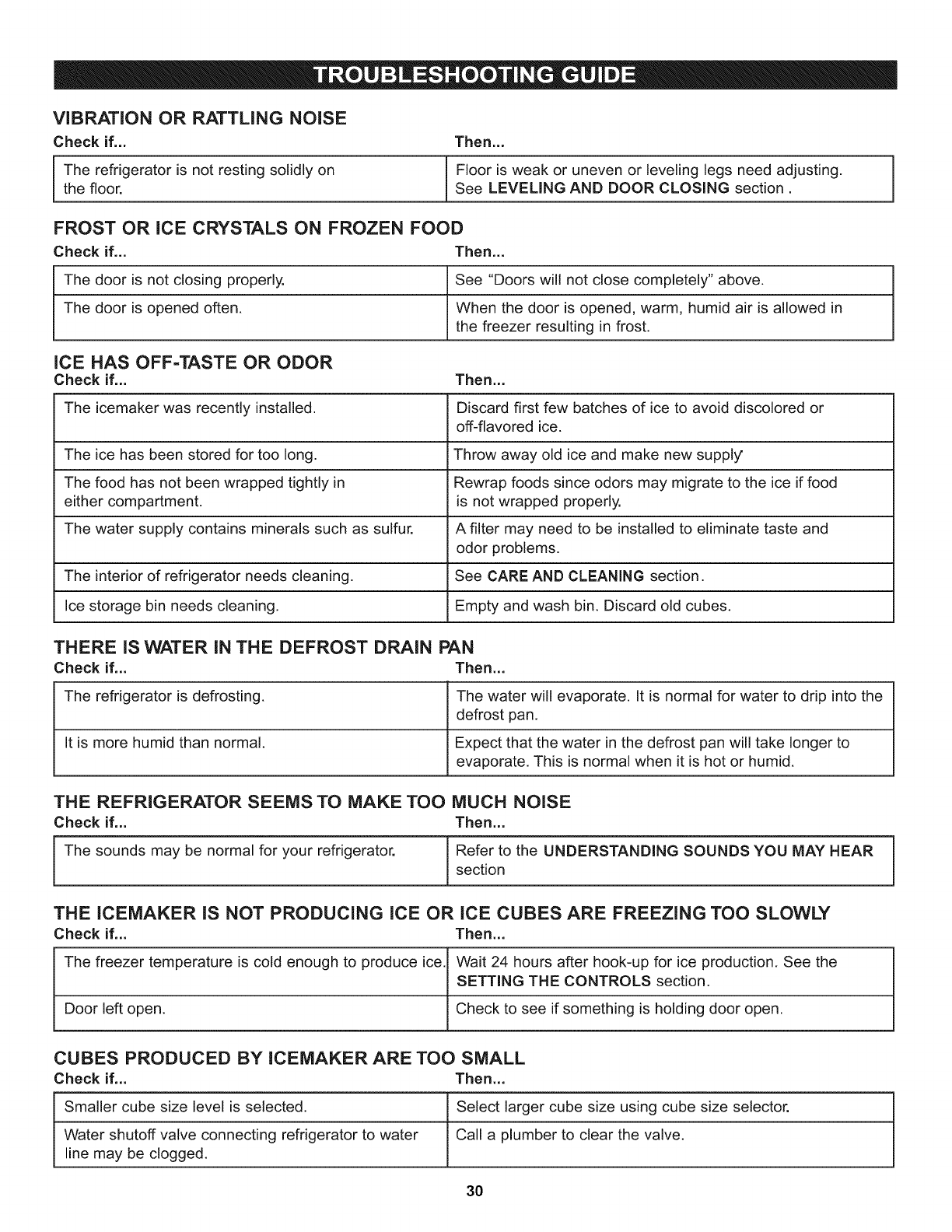

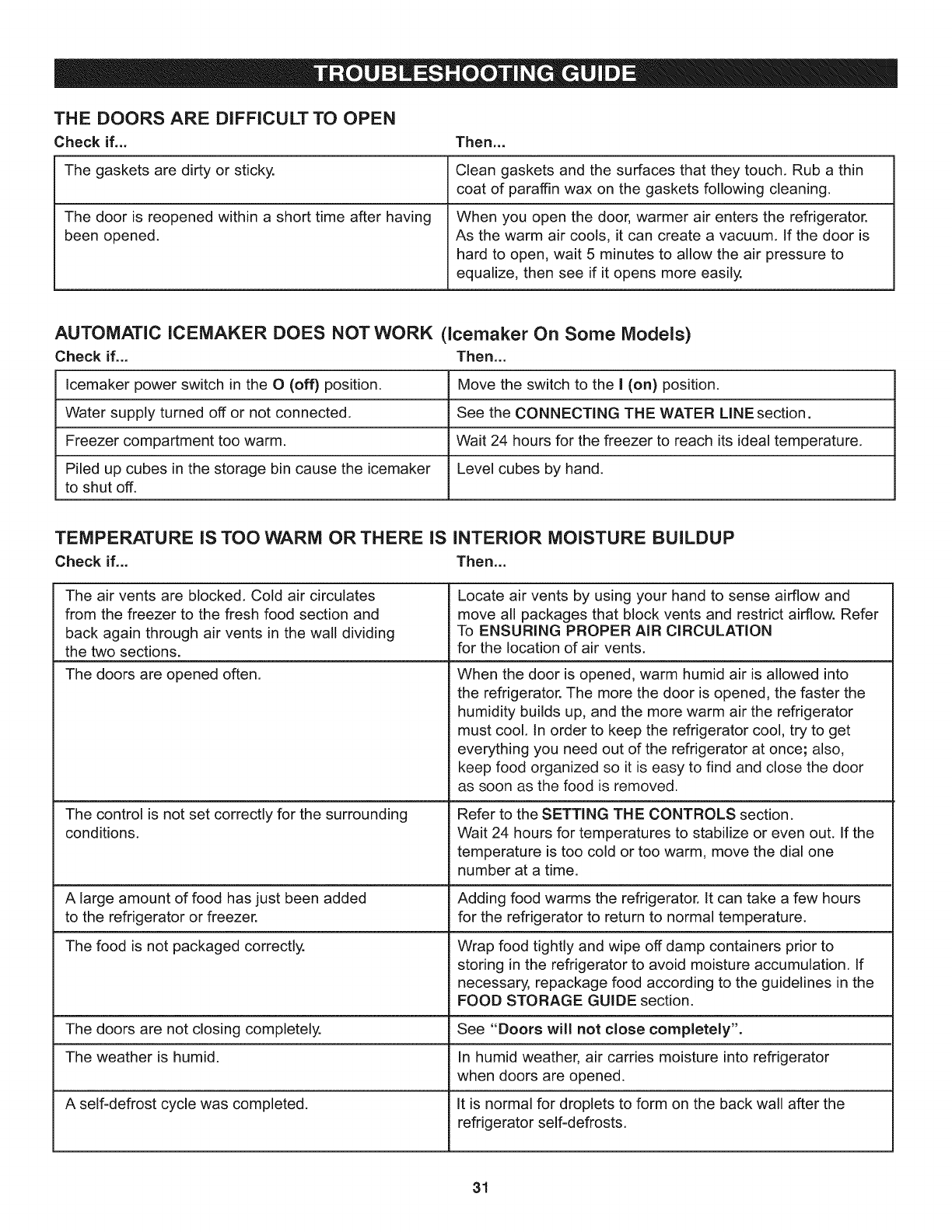

Troubleshooting Guide

22-23

25-27

28=31

TOP FREEZER REFRIGERATOR

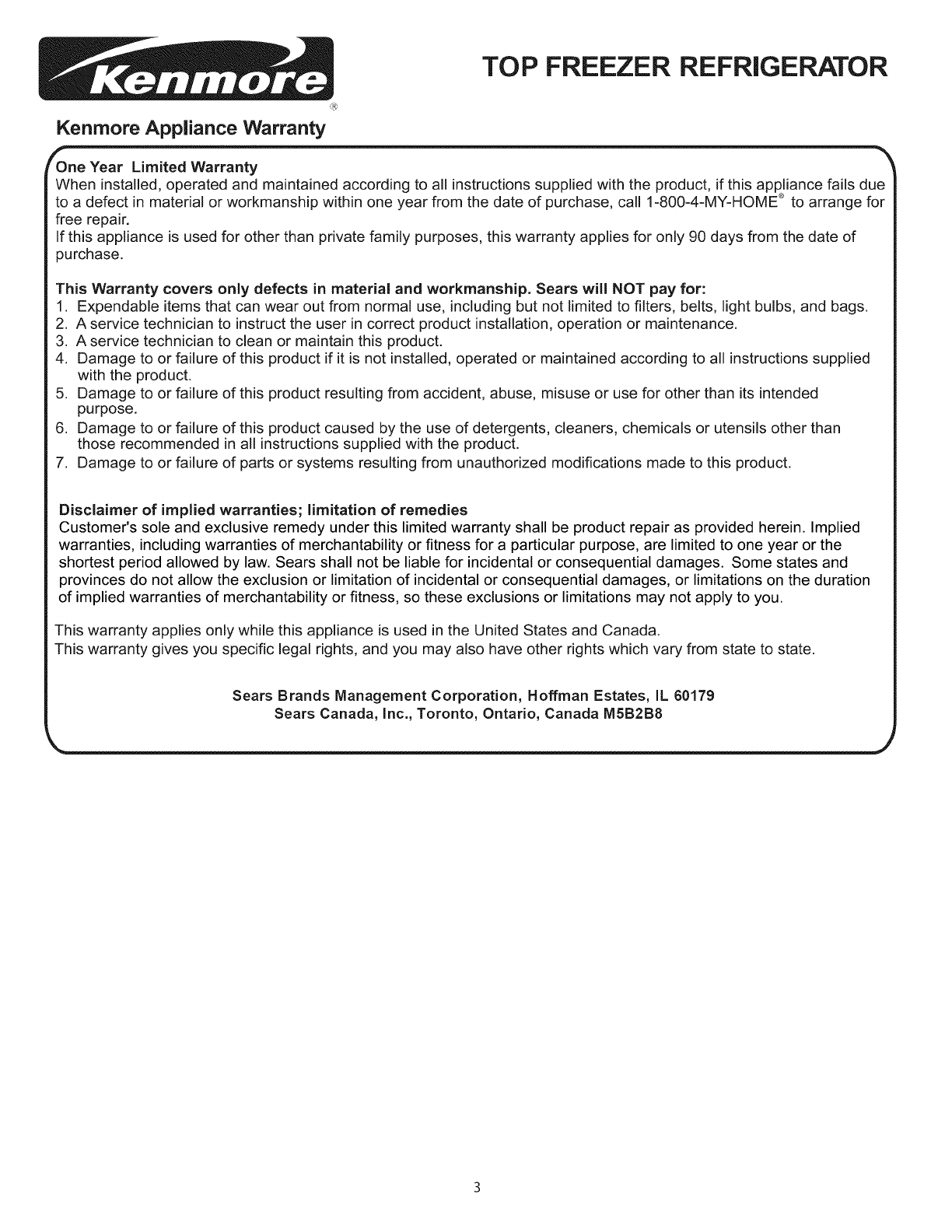

Kenmore Appliance Warranty

lone Year Limited Warranty

When installed, operated and maintained according to all instructions supplied with the product, if this appliance fails due

to a defect in material or workmanship within one year from the date of purchase, call 1-800-4-MY-HOME ® to arrange for

free repair.

If this appliance is used for other than private family purposes, this warranty applies for only 90 days from the date of

purchase.

This Warranty covers only defects in material and workmanship. Sears will NOT pay for:

1. Expendable items that can wear out from normal use, including but not limited to filters, belts, light bulbs, and bags.

2. A service technician to instruct the user in correct product installation, operation or maintenance.

3. A service technician to clean or maintain this product.

4. Damage to or failure of this product if it is not installed, operated or maintained according to all instructions supplied

with the product.

5. Damage to or failure

purpose.

6. Damage to or failure

those recommended

7. Damage to or failure

of this product resulting from accident, abuse, misuse or use for other than its intended

of this product caused by the use of detergents, cleaners, chemicals or utensils other than

in all instructions supplied with the product.

of parts or systems resulting from unauthorized modifications made to this product.

Disclaimer of imptied warranties; limitation of remedies

Customer's sole and exclusive remedy under this limited warranty shall be product repair as provided herein. Implied

warranties, includingwarranties of merchantability or fitness for aparticular purpose, are limited to one year or the

shortest period allowed by law. Sears shall not be liable for incidental or consequential damages. Some states and

provinces do not allow the exclusion or limitation of incidental or consequential damages, or limitations on the duration

of implied warranties of merchantability or fitness, so these exclusions or limitations may not apply to you.

This warranty applies only while this appliance is used in the United States and Canada.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Sears Brands Management Corporation, Hoffman Estates, IL 60179

Sears Canada, Inc., Toronto, Ontario, Canada MSB2B8

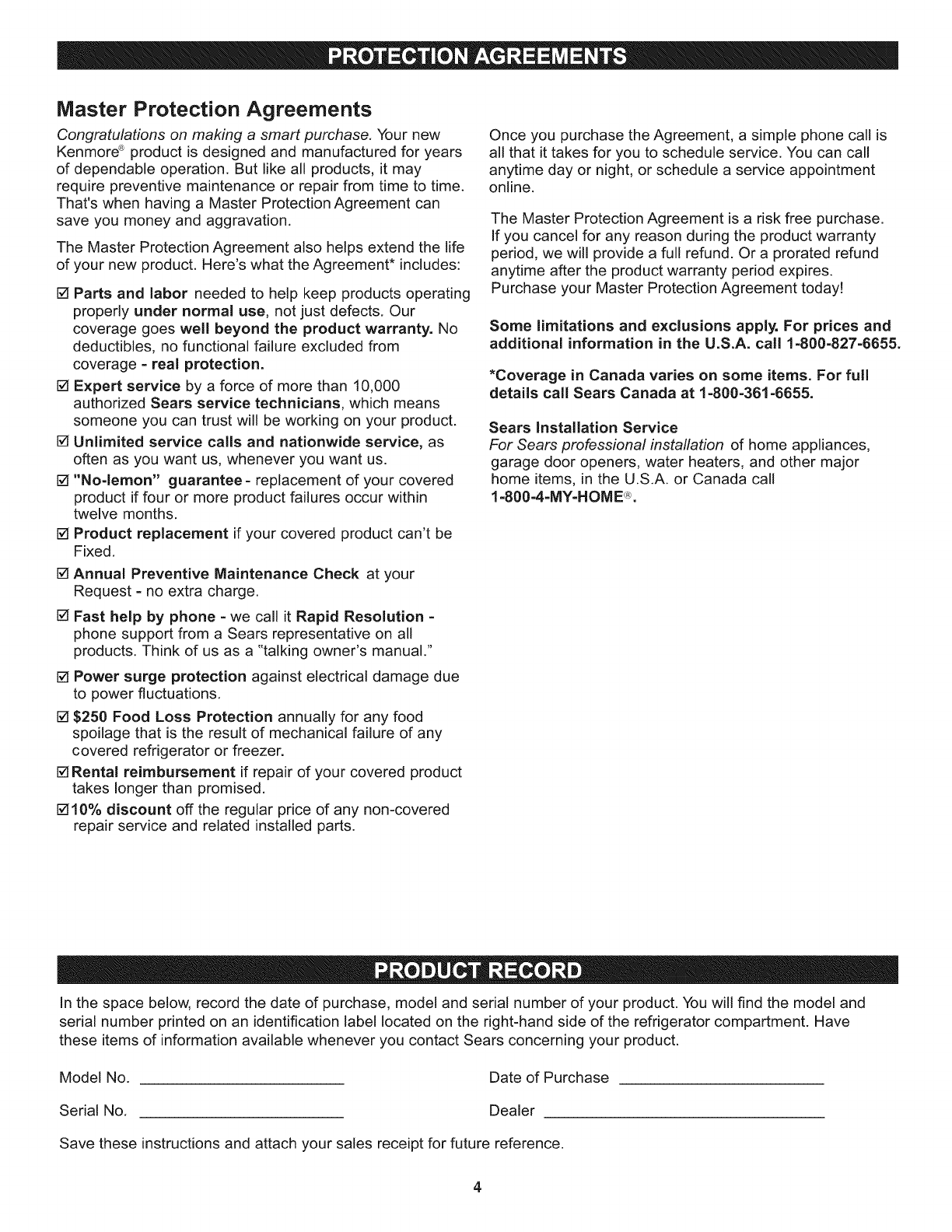

Master Protection Agreements

Congratulations on making a smart purchase. Your new

Kenmor# _ product is designed and manufactured for years

of dependable operation. But like all products, it may

require preventive maintenance or repair from time to time.

That's when having a Master Protection Agreement can

save you money and aggravation.

The Master Protection Agreement also helps extend the life

of your new product. Here's what the Agreement* includes:

[] Parts and labor needed to help keep products operating

properly under normal use, not just defects. Our

coverage goes well beyond the product warranty. No

deductibles, no functional failure excluded from

coverage = real protection.

[] Expert service by a force of more than 10,000

authorized Sears service technicians, which means

someone you can trust will be working on your product.

[] Unlimited service calls and nationwide service, as

often as you want us, whenever you want us.

[] "No-lemon" guarantee- replacement of your covered

product if four or more product failures occur within

twelve months.

[] Product replacement if your covered product can't be

Fixed.

[] Annual Preventive Maintenance Check at your

Request = no extra charge.

[] Fast help by phone = we cal! it Rapid Resolution =

phone support from a Sears representative on all

products. Think of us as a "talking owner's manual."

[] Power surge protection against electrical damage due

to power fluctuations.

[] $250 Food Loss Protection annually for any food

spoilage that is the result of mechanical failure of any

covered refrigerator or freezer.

[] Rental reimbursement if repair of your covered product

takes longer than promised.

[]18% discount off the regular price of any non-covered

repair service and related installed parts.

Once you purchase the Agreement, a simple phone call is

all that it takes for you to schedule service. You can call

anytime day or night, or schedule a service appointment

online.

The Master Protection Agreement is a risk free purchase.

If you cancel for any reason during the product warranty

period, we will provide a full refund. Or a prorated refund

anytime after the product warranty period expires.

Purchase your Master Protection Agreement today!

Some limitations and exclusions apply. For prices and

additional information in the U.S.A. call 1-800-827-6655.

*Coverage in Canada varies on some items. For full

details call Sears Canada at 1-880-361-6655.

Sears Installation Service

For Sears professional installation of home appliances,

garage door openers, water heaters, and other major

home items, in the U.S.A. or Canada call

1=800=4=MY=HOME_'.

In the space below, record the date of purchase, model and serial number of your product. You will find the model and

serial number printed on an identification label located on the right-hand side of the refrigerator compartment. Have

these items of information available whenever you contact Sears concerning your product.

Model No. Date of Purchase

Serial No. Dealer

Save these instructions and attach your sales receipt for future reference.

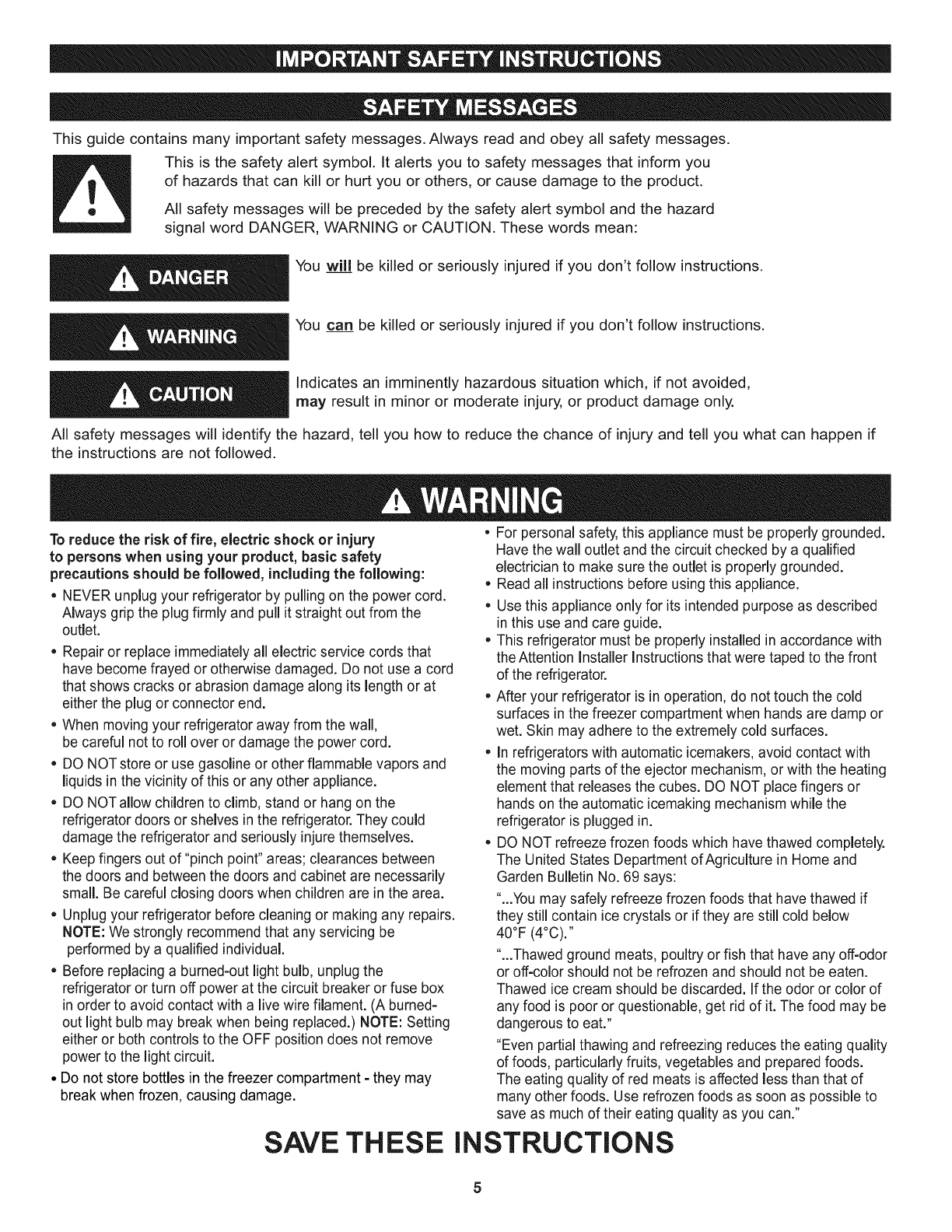

Thisguidecontainsmanyimportantsafetymessages.Alwaysreadandobeyallsafetymessages.

Thisisthesafetyalertsymbol.It alerts you to safety messages that inform you

of hazards that can kill or hurt you or others, or cause damage to the product.

All safety messages will be preceded by the safety alert symbol and the hazard

signal word DANGER, WARNING or CAUTION. These words mean:

You will be killed or seriously injured if you don't follow instructions.

You can be killed or seriously injured if you don't follow instructions.

Indicates an imminently hazardous situation which, if not avoided,may result in minor or moderate injury, or product damage only.

All safety messages will identify the hazard, tell you how to reduce the chance of injury and tell you what can happen if

the instructions are not followed.

To reduce the risk of fire, electric shock or injury

to persons when using your product, basic safety

precautions should be followed, including the following:

= NEVER unplug your refrigerator by pulling on the power cord.

Always grip the plug firmly and pull it straight out from the

outlet.

• Repair or replace immediately all electric service cords that

have become frayed or otherwise damaged. Do not use a cord

that shows cracks or abrasion damage along its length or at

either the plug or connector end.

° When moving your refrigerator away from the wall,

be careful not to roll over or damage the power cord.

• DO NOT store or use gasoline or other flammable vapors and

liquids in the vicinity of this or any other appliance.

- DO NOTallow children to climb, stand or hang on the

refrigerator doors or shelves in the refrigerator.They could

damage the refrigerator and seriously injure themselves.

- Keep fingers out of "pinch point" areas; clearances between

the doors and between the doors and cabinet are necessarily

small. Be careful closing doors when children are in the area.

- Unplug your refrigerator before cleaning or making any repairs.

NOTE: We strongly recommend that any servicing be

performed by a qualified individual.

- Before replacing a burned-out light bulb, unplug the

refrigerator or turn off power at the circuit breaker or fuse box

in order to avoid contact with a live wire filament. (A burned-

out light bulb may break when being replaced.) NOTE: Setting

either or both controls to the OFF position does not remove

power to the light circuit.

• Do not store bottles in the freezer compartment - they may

break when frozen, causing damage.

, For personal safety,this appliance must be properly grounded.

Have the wall outlet and the circuit checked by a qualified

electrician to make sure the outlet is properly grounded.

° Read all instructions before using this appliance.

• Use this appliance only for its intended purpose as described

in this use and care guide.

° This refrigerator must be properly installed in accordance with

the Attention Installer Instructions that were taped to the front

of the refrigerator.

° After your refrigerator is in operation, do not touch the cold

surfaces in the freezer compartment when hands are damp or

wet. Skin may adhere to the extremely cold surfaces.

° In refrigerators with automatic icemakers, avoid contact with

the moving parts of the ejector mechanism, or with the heating

element that releases the cubes. DO NOT place fingers or

hands on the automatic icemaking mechanism while the

refrigerator is plugged in.

• DO NOT refreeze frozen foods which have thawed completely.

The United States Department of Agriculture in Home and

Garden Bulletin No. 69 says:

"...Youmay safely refreeze frozen foods that have thawed if

they still contain ice crystals or if they are still cold below

40°F (4°C).,,

"...Thawed ground meats, poultry or fish that have any off-odor

or off-color should not be refrozen and should not be eaten.

Thawed ice cream should be discarded. If the odor or color of

any food is poor or questionable, get rid of it. The food may be

dangerous to eat."

"Even partial thawing and refreezing reduces the eating quality

of foods, particularly fruits, vegetables and prepared foods.

The eating quality of red meats is affected less than that of

many other foods. Use refrozen foods as soon as possible to

save as much of their eating quality as you can."

SAVE THESE INSTRUCTIONS

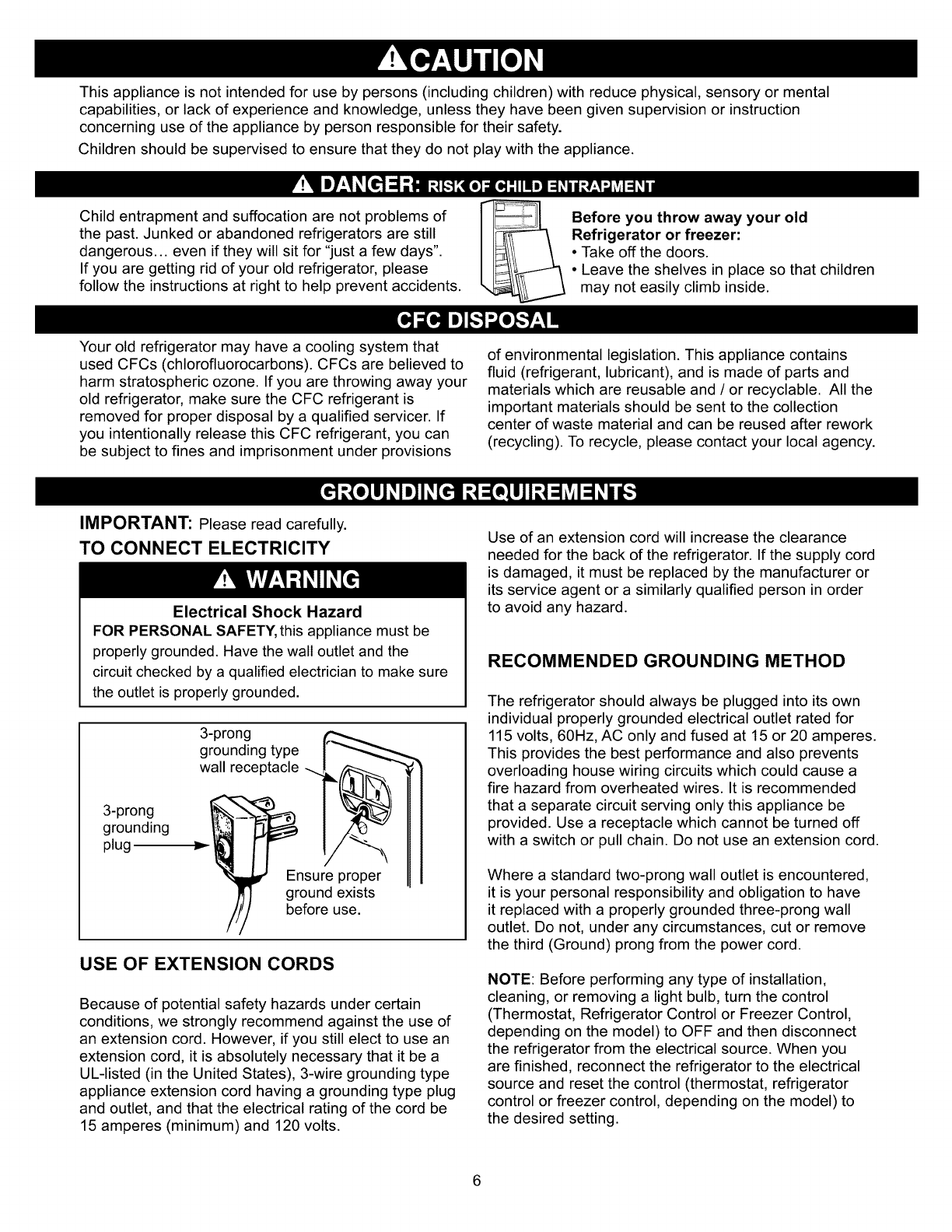

This appliance is not intended for use by persons (including children) with reduce physical, sensory or mental

capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction

concerning use of the appliance by person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

Child entrapment and suffocation are not problems of

the past. Junked or abandoned refrigerators are still

dangerous.., even if they will sit for "just a few days".

If you are getting rid of your old refrigerator, please

follow the instructions at right to help prevent accidents.

Before you throw away your old

Refrigerator or freezer:

• Take off the doors.

•Leave the shelves in place so that children

may not easily climb inside.

Your old refrigerator may have a cooling system that

used CFCs (chlorofluorocarbons). CFCs are believed to

harm stratospheric ozone. If you are throwing away your

old refrigerator, make sure the CFC refrigerant is

removed for proper disposal by a qualified servicer. If

you intentionally release this CFC refrigerant, you can

be subject to fines and imprisonment under provisions

of environmental legislation. This appliance contains

fluid (refrigerant, lubricant), and is made of parts and

materials which are reusable and /or recyclable. All the

important materials should be sent to the collection

center of waste material and can be reused after rework

(recycling). To recycle, please contact your local agency.

IMPORTANT: Please read carefully.

TO CONNECT ELECTRICITY

Electrical Shock Hazard

FOR PERSONAL SAFETY, this appliance must be

properly grounded. Have the wall outlet and the

circuit checked by a qualified electrician to make sure

the outlet is properly grounded.

3-prong

grounding

plug

3-prong

grounding type

wall receptacle

Ensure proper

ground exists

before use.

USE OF EXTENSION CORDS

Because of potential safety hazards under certain

conditions, we strongly recommend against the use of

an extension cord. However, if you still elect to use an

extension cord, it is absolutely necessary that it be a

UL-listed (in the United States), 3-wire grounding type

appliance extension cord having a grounding type plug

and outlet, and that the electrical rating of the cord be

15 amperes (minimum) and 120 volts.

Use of an extension cord will increase the clearance

needed for the back of the refrigerator. If the supply cord

is damaged, it must be replaced by the manufacturer or

its service agent or a similarly qualified person in order

to avoid any hazard.

RECOMMENDED GROUNDING METHOD

The refrigerator should always be plugged into its own

individual properly grounded electrical outlet rated for

115 volts, 60Hz, AC only and fused at 15 or 20 amperes.

This provides the best performance and also prevents

overloading house wiring circuits which could cause a

fire hazard from overheated wires. It is recommended

that a separate circuit serving only this appliance be

provided. Use a receptacle which cannot be turned off

with a switch or pull chain. Do not use an extension cord.

Where a standard two-prong wall outlet is encountered,

it is your personal responsibility and obligation to have

it replaced with a properly grounded three-prong wall

outlet. Do not, under any circumstances, cut or remove

the third (Ground) prong from the power cord.

NOTE: Before performing any type of installation,

cleaning, or removing a light bulb, turn the control

(Thermostat, Refrigerator Control or Freezer Control,

depending on the model) to OFF and then disconnect

the refrigerator from the electrical source. When you

are finished, reconnect the refrigerator to the electrical

source and reset the control (thermostat, refrigerator

control or freezer control, depending on the model) to

the desired setting.

Usethissectionto becomemorefamiliarwiththepartsandfeatures.Pagereferencesareincludedforyour

convenience.

NOTE: This guide covers several different models. The refrigerator you have purchased may have some

or all of the items listed below. The locations of the features shown below may not match your model.

O CustomCube Ice maker *

Ice Bin

Freezer Shelf

O Digital Temperature Control

Water filter

_lWater dispenser button

_1 Refrigerator Light

_1 Snack Drawer

OShelves

_tCrispers

Keeps fruits and vegetables fresh and crisp

OFreezer light

_I Freezer Door Racks

_)Can Rack *

_Dairy Bin

_) Door Bins

O1 Refrigerator Door Rack

*On some models

ExcessiveWeightHazard

Usetwoormorepeopleto moveandinstall

refrigerator.

Failure to do so can result in back or other injury.

UNPACKING YOUR REFRIGERATOR

Remove tape and any temporary labels from your

refrigerator before using. Do not remove any warning-type

labels or the model and serial number label.

To remove any remaining tape or glue, rub the area

briskly with your thumb. Tape or glue residue can also be

easily removed by rubbing a small amount of liquid dish

soap over the adhesive with your fingers. Wipe with warm

water and dry.

Do not use sharp instruments, rubbing alcohol, flammable

fluids, or abrasive cleaners to remove tape or glue. These

products can damage the surface of your refrigerator. For

more information, see the Important Safety Instructions

section.

Refrigerator shelves are installed in the shipping position.

Please reinstall shelves according to your individual

storage needs.

! ff "3 3

When Moving Your Refrigerator:

Your refrigerator is heavy. When moving the

refrigerator for cleaning or service, be sure to protect

the floor. Always pull the refrigerator straight out when

moving it. Do not wiggle or walk the refrigerator when

trying to move it, as floor damage could occur.

Explosion Hazard

Keep flammable materials and vapors, such as

gasoline, away from refrigerator.

Failure to do so can result in death, explosion or fire.

INSTALLATION

1. Avoid placing unit near heat sources, direct sunlight

or moisture.

2. To minimize noise and vibration, the refrigerator MUST

be installed on a solidly constructed floor.

3. Carpeting and soft tile surfaces are not recommended.

4. NEVER install the refrigerator on a platform or a weakly

supported structure.

5. Install this appliance in an area where the temperature

is between 55 °F (13 °C) and 110 °F (43 °C.) If the

temperature around the appliance is too low or high,

cooling ability may be adversely affected.

NOTE: For proper air circulation, best cooling and energy

consumption results, maintain a minimum distance

of 2 inches (5.08cm) from adjacent items and surfaces.

(5.08 cm) 2" 2"

(5.08 cm) (5.08 cm)

• Be careful when you work with hinge, base grille,

stopper etc. You may be injured.

• Do not put hands or metal sticks into air vents, base

grille or bottom of refrigerator. You may be injured or

receive an electrical shock.

BASE GRILLE INSTALLATION

To install or replace Base Grille:

1. Open Refrigerator door.

2. Remove the 2 screws from the bottom front part of

Refrigerator.

3. Place Base Grille into position and insert and

tighten screws.

To remove the Base Grille

1. Open refrigerator door.

2. Remove screws from Base Grille and remove.

3. Reattach screws to the base of refrigerator.

ELECTRICALSHOCKHAZARD

Beforeyoubegin,eitherunplugtherefrigeratororturnoffpoweratthecircuitbreakerorfusebox.Removefood

andanyAdjustableDoororUtilityBinsfromdoors.Failuretodosocouldresultindeathorseriousinjury.

Ifentranceislessthan35-incheswide,

therefrigerator'sdoorswillneedto beremoved.

TOOLSNEEDED:

• 10mmor 13/32-inchsocketwrench

(with2-inchextensionforbottomdoorhinge)

• No.2 Phillipsheadscrewdriver

• Flat-headscrewdriverforprying

REMOVE REFRIGERATOR DOOR

• Loosen and remove the 2 bolts and the phillips head

screw to remove the Middle Hinge Bracket from

refrigerator housing (Fig. 4 and 5). Set parts aside.

REMOVE FREEZER DOOR

• Gently pry off the Top Hinge Cover with a flat head

screwdriver and remove (see Fig 1).

Fig. 1

Using 10mm or 13/32-inch socket wrench, remove

the 3 bolts and lift off the Top Hinge (see Fig. 2).

Set parts aside.

Fig. 2

• Lift up door slightly and remove it.

Fig. 6

Lift freezer door slightly and remove it.

(Fig. 3). Set aside.

Fig. 3

To replace doors, begin with refrigerator door and then

follow with freezer door.

REPLACE REFRIGERATOR DOOR

•Set door onto Bottom Hinge Pin.

• Place Hinge Pin of Middle Hinge Bracket inside

Hinge Pin Insert on top of door (Fig. 7). Hold door

in place and line up the Middle Hinge Bracket with

the holes in refrigerator housing.

Place Upper Hinge's Pin in the top of freezer door

and line up the Upper Hinge with holes in top of

refrigerator. Use the 3 bolts to replace Hinge (Fig. 10).

Fig. 10

Use the 2 bolts and phillips screw to refasten

the Middle Hinge Bracket and door to the

refrigerator housing. (Fig. 8).

• Carefully force-fit Top Hinge Cover back into place

over Hinge (Fig.11 ).

I Fig. 11

REPLACE FREEZER DOOR

•Set the freezer door onto the Middle Hinge Pin

(Fig. 9).

Fig. 9

ELECTRICAL SHOCK HAZARD

Before you begin, either unplug the refrigerator or turn

off power at the circuit breaker or fuse box. Remove

food and any Adjustable Door or Utility Bins from doors

Failure to do so could result in death or serious injury.

You may find it more convenient to have the doors

converted from the left-opening type (factory installed)

to the right-opening type. Directions refer to the right

side as the side on your right as you face the unit.

TOOLS NEEDED

• 10mm or 13/32-inch socket wrench

(with 2-inch extension for bottom door hinge)

•No. 2 Phillips head screwdriver

•1Ainch socket wrench

•Flat-head screwdriver for prying

REVERSE FREEZER DOOR

° Gently pry off the Top Hinge Cover with a flat head

screwdriver and remove (see Fig.13).

Fig. 13

Using 10mm or 13/32-inch socket wrench, remove

the 3 bolts and lift off the Top Hinge (see Fig. 14).

Set parts aside.

Fig. 14

Top Hinge

• Move the Hinge Pin insert Bracket to the other side

of the door, keeping the same orientation, and move

the Hinge Pin insert into the hole on the left side

of the bracket (Fig. 17).

Fig. 17

i_ Hinge Pin tnsert

Hinge Pin

insert Bracket

Reverse Door Closer/Stop by flipping over

(see Fig. 18), place on top of Hinge Pin insert

Bracket, and tighten both down with the screw.

Fig. 18 (_

Lift up door slightly and remove it (Fig. 15).

Fig. 15

Middle Hinge Bracket _

Hinge Pin

Turn freezer door upside down on a non-scratch

surface and loosen the screw to remove Door

Closer/Stop and Hinge Pin insert (see Fig. 16).

• Pry off cover on top of refrigerator on left side to

uncover screw holes (Fig. 19).

• Set freezer door and Top Hinge parts to the side

and remove refrigerator door.

Fi- 1_' -- Cover

Y" _ (on top of

_ refrigerator)

Fig. 16

Door Closer /Stop

REVERSEANDREATTACHREFRIGERATORDOOR

•Using a 1A-inch socket wrench, loosen and remove °

Hinge Pin from the Middle Hinge Pin Bracket.

Remove washer underneath the middle hinge and •

set aside

NOTE: At this point the door will be loose, lift up o

door slightly and remove it. (Fig. 20 and 20a).

Fig. 20a

Loosen and remove the 2 bolts and the

phillips head screw to remove the Middle

Hinge Bracket from refrigerator housing

(Fig. 21). Set parts aside.

REMOVE base grill.

See BASE GRILL INSTRUCTIONS on page 8.

Remove the washer from the Bottom Hinge

Pin (Fig. 22).

Using a 1A-inch socket wrench, loosen and remove

the Hinge Pin from the Bottom Hinge. Reattach

the Hinge Pin to the opposite side of the Hinge

(see Fig. 22 and 22a). NOTE: This is easier to do

while the Hinge is still attached.

Fig. 22

22a

Using 10mm or 13/32-inch socket wrench

with 2-inch extension, loosen the 3 bolts

and remove the Bottom Hinge from right

side of housing (Fig. 23).

• Atthispoint,removetheDecorativeBoltonbottomon

refrigeratorhousingfromtheleftsideof refrigerator

(Fig.24).YouwillneedthisholefortheBottomHinge.

MovetheBottomHingetotheleftsideofhousingkeeping

thesameorientation,andreattachwith3bolts(Fig.25).

NowmoveDecorativeBolttoholeonlowerrightside

ofhousing.

Fig.25

Turnrefrigeratordoorupsidedownonanon-scratching

surface.

Withdoorupsidedown,loosenthe2screwsandremovethe

DoorCloser/Stop(Fig.26),thenloosentheothertwoscrews

toremovethebottomHingePinInsertBracketwithHinge

PinInsert(seeFig.27).

NOTE:TheRefrigeratorDoorCloser/Stopisnotusedon

all models.Themodelyouhavemaynotincludethispart.

Hinge __![_j_ _ _)

Pin Bracket _

Hinge Pin _: :

Insert /_--'_t"i_

• Take out the Hinge Pin Insert and move

the Bracket to the other side of the door,

keeping the same orientation (Fig. 28).

• Place Hinge Pin Insert into the left side

of the bracket. Tighten Hinge Pin Bracket

to door (Fig. 28).

Fig.28

Hinge

Bracket

e Pin Insert

• Take Door Closer/stop and flip (see Fig. 29).

Line up screw holes and mount on left side

of door bottom with the two screws. Turn

door upright. It is now ready for re-attaching.

NOTE: The Refrigerator Door Closer/Stop is not

used on all models. The model you have may not

include this part.

Fig. 29

• With flat-head screwdriver, carefully pry

off and remove the cover over the screw

holes on the left side of refrigerator

housing (Fig. 30).

Fig. 30

Remove the outer lower Decorative Screw from housing

at area between freezer and refrigerator doors (Fig. 31).

You will need this hole for the Middle Hinge Bracket).

Fig. 31_..._ _L---_-J .........__

Place Upper Hinge's Pin in the top of freezer door

and line up the Upper Hinge with holes in top of

refrigerator. Use the 3 bolts to replace Hinge (Fig. 35).

Fig. 35

• Following illustration, flip the Middle Hinge Bracket (Flange

will now be on top) and position on left side of refrigerator

and re-attach with two bolts and a Phillips screw• (Fig. 32).

• Place refrigerator door down over pin on bottom hinge•

(Fig. 32).

• Place washer between refrigerator door and middle hinge

and re-attach Hinge Pin to Hinge Bracket with 1/4-in.

socket wrench• NOTE: Bracket has been flipped, but Hinge

Pin stays in the same orientation with its hexagonal end

facing upward (Fig. 32).

Fig. 32

Bracket

Place Decorative Screw into outer hole on right side

of housing (Fig. 33)•

Attach cover on the right side• Cover is force-fitted (Fig. 33).

-_c_ ........ -_/// )J I Decorative

JV°w

E,g.33 IJI

• Tighten bolts. Force-fit Top Hinge Cover

over Top Hinge (Fig. 36).

Fig. 36

• Replace cover from left side of refrigerator

top onto the right of top to cover the holes.

Cover is also force-fitted (Fig. 37).

Cover (on top of _----_----A_

After changing doors, make sure that the corners

of the Door Gaskets are not folded over (see Fig. 38).

To ensure a good seal, apply a small amount of silicon

grease on the corners of gaskets. Corners

Fig. 38

REATTACHING FREEZER DOOR

• Put freezer door down over the Hinge Pin

on the Middle Hinge Pin Bracket (Fig. 34).

LEVELING AND DOOR CLOSING

To avoid vibration, the unit must be leveled, if necessary,

adjust the Leveling Legs to compensate for unevenness

of the floor. The front should be slightly higher than the

rear to aid in door closing.

Your refrigerator has two Front Leveling Screws - one on

the right and one on the left. if your refrigerator seems

unsteady or you want the doors to close more easily,

adjust the refrigerator's tilt using the instructions below:

1. Plug refrigerator power cord into a 3-prong grounded

outlet. Move the refrigerator into its final position.

2. Remove the base grill. See BASE GRILL

INSTRUCTIONS on page 8. The two Leveling Screws

are located on the bottom of the refrigerator on either

side (see Fig. 39).

3. insert a flat screwdriver in slots to adjust the Leveling

Screws (Fig. 39). Turn the leveling screw clockwise

to raise that side of the refrigerator or counterclockwise

to lower it. it may take several turns of the Leveling

Screw to adjust the tilt of the refrigerator.

NOTE: Having someone push against the top of the

refrigerator takes some of the weight off the Leveling

Screws. This makes it easier to adjust the screws.

Fig. 39

DOOR ALIGNMENT

If the space between your doors is uneven, follow the

instructions below to align the doors:

1. Gently pry off the Top Hinge Cover with a flat head

screwdriver and remove. Loosen the Top Hinge Bolts

using a 10mm or 13/32-in. socket wrench or

open-end wrench.

2. Have someone hold the freezer door so the space

between the two doors is even, and retighten

the top hinge bolts.

3. Replace the Top Hinge Cover.

4. Open both doors again and check to make sure

that they close easily. If not, tilt the refrigerator

slightly more to the rear by turning both Leveling

Screws clockwise. It may take several more turns,

and you should turn both Leveling Screws the

same amount.

5. Replace the base grill.

ENSURING PROPER AiR CiRCULATiON

In order to ensure proper temperatures, air must flow

between the refrigerator and freezer sections. As shown

in the illustration below, cool air enters through the bottom

of the freezer section and moves up. Most of the air then

flows through the freezer section vents and recirculates

under the freezer floor. The rest of the air enters the

refrigerator section through the top vent.

* Do not block any of these vents with food packages.

If the vents are blocked, airflow will be interrupted and

temperature and moisture problems may occur.

IMPORTANT:

Because air circulates between both sections, any odors

formed in one section will transfer to the other, You must

thorougly clean both sections to eliminate odors.

To prevent odor transfer and drying out food, wrap or

cover foods tightly. (See the Food Storage Guide section

for details.)

Note: If you close the

refrigerator door forcefully,

the freezer door may open

and close again due to

pressure from internal air flow.

1. Clean your refrigerator thoroughly and wipe off all dust

accumulated during shipping.

2. Install accessories such as ice cube bin, drawers,

shelves, eta, in their proper places. They are packed

together to prevent possible damage during shipment.

3. Let your refrigerator run for at least 2 or 3 hours before

putting food in it. Check the flow of cold air in the

freezer compartment to ensure proper cooling. Your

refrigerator is now ready for use.

SETTING THE CONTROLS

Your refrigerator has two controls to regulate temperature,

one in the freezer and one in the refrigerator.

REFRIGERATOR CONTROL

Initially set the Refrigerator Control on the middle setting,

number 3. To do so, push the temperature adjust button

until the number 3 LED light is lit up. Leave the refrigerator

at this setting for 24 hours to reach correct temperature.

After 24 hours, adjust the compartment temperature as

desired. The higher the number, the colder the refrigerator

compartment will become. Always wait 24 hours before

adjusting temperature. If you go past the desired number,

keep pushing the temperature adjust button until your

desired number is lit up.

Note: When you disconnect the device or a power failure

occur it will initialize in the last temperature level before the

disconnect or failure ocurred.

_ .... RECOMMENDED....

/WWAT COLD I COLDESTCOOLING 1__

ER OFF _ _ FILTER

_.-.._/ fTEMP_ CHANGE

• Water Lock: Press the "WATER LOCK" button to lock

the dispenser (button light ON).

When it is locked, the dispenser will not operate. To unlock,

press the "WATER LOCK" button (button light OFF).

•Filter Change: When the filter Change light turns on,

you have to change the water filter. Press and hold the

"FILTER CHANGE" button for 3 seconds to turn the light

off. You need to change the water filter approximately

every 6 months.

FREEZER CONTROL

The freezer control should come from the factory set on the

middle setting, number 2. Wait 24 hours before adjusting

the temperature of the freezer compartment up or down.

Turn the dial to set freezer temperature as desired.

ALWAYS wait 24 hours after

any adjustment for unit to

reach desired temperature. FREEZER

TEMPERATURE

BCold

MRECOMMENDE0

D Colder

CONDITION/ RECOMMENDED

REASON: ADJUSTMENT:

[] REFRIGERATOR section too

warm

- Door opened often

- Large amount of food added

- Room temperature very, warm

Turn REFRIGERATOR

control to next highest

number, wait 24 hours,

then re-check

[] FREEZER section too

warm/ice not made fast enough

- Door opened often

- Large amount of food added

- Very cold room temperature

(Compressor doesn't cycle

often enough)

- Heavy ice usage

- Air vents blocked by items

Turn FREEZER control

to next highest number

wait 24 hours, then

re-check

Move items out of

airstream

[] REFRIGERATOR section too

cold

- Controls not set correctly for

your conditions

Set REFRIGERATOR

control to next lower

number, wait 24 hours,

then re-check

[] FREEZER section too cold

- Controls not set correctly for

your conditions

Set FREEZER control to

next lower number, wait

24 hours, then re-check

WATER DISPENSER

There are 2 ways to activate the water dispenser.

1. Place the glass under the dispenser and push up on the

activation switch (see picture above).

2. Hold the glass under the dispenser and push the hand

activation button.

Important: When the refrigerator is first connected to the

water supply it is necesarry to dispense 2.5 gallons (9.46L)

of water to purge the system, depressing and releasing

the dispenser button (30 seconds ON, 60 seconds OFF).

Open the refrigerator door and shelf area to check

for water leaks.

FOOD STORAGE GUIDE

Wrap or store food in the refrigerator in airtight and

moisture-proof material unless otherwise noted. This

prevents food odor and taste transfer throughout the

refrigerator. For dated products, check date code to

ensure freshness.

Items

Butter or

margarine

How to

Keep opened butter in a covered

dish or closed compartment.

When storing an extra supply,

wrap in freezer packaging and

freeze.

Cheese

Milk

Store in the original wrapping until

you are ready to use. Once

opened, rewrap tightly in plastic

wrap or aluminum foil.

I_ Wipe milk cartons. For best

storage, place milk on interior

shelf, not on door shelf.

Eggs

Fruit

I_ Store in original carton or Egg Box

(on certain models) on interior shelf,

not on door shelf.

Leafy vegetables I_

Vegetables with

skins (carrots,

peppers)

Wash, let dry, and store in

refrigerator in plastic bags or in

the crisper. Do not wash or hull

berries until you are ready to use

them. Sort and keep berries in

their original container in a

crisper, or store in a loosely

closed paper bag on a refrigerator

shelf.

Remove store wrapping and trim

or tear off bruised and discolored

areas. Wash in cold water and

drain. Place in plastic bag or

plastic container and store in

crisper.

1_ Place in plastic bags or plastic

container and store in crisper.

Fish

Leftovers

I_ Use fresh fish and shellfish the

same day purchased.

I_ Cover leftovers with plastic wrap

or aluminum foil. Plastic

containers with tight lids can

also be used.

STORING FROZEN FOOD

NOTE: For further information about preparing food for

freezing or food storage times, check a freezer guide or a

reliable cookbook,

Packaging

Successful freezing depends on correct packaging.

Close and seal packages so no air or moisture can

pass in or out. If it does, you could have food odor

and taste transferred throughout the refrigerator

and freezer, and food in freezer package could

dry out.

Packaging recommendations:

•Rigid plastic containers with tight-fitting lids

• Straight-sided canning/freezing jars

• Heavy-duty aluminum foil

• Plastic-coated paper

• Non-permeable plastic wraps

• Specified freezer-grade self-sealing plastic bags

Follow package or container instructions for proper

freezing methods.

Do not use

• Bread wrappers

• Non-polyethylene plastic containers

• Containers without tight lids

• Wax paper or wax-coated freezer wrap

• Thin, semi-permeable wrap

Freezing

Your freezer will not quick-freeze any large quantity of

food. Do not put more unfrozen food into the freezer than

will freeze within 24 hours (no more than 2 to 3 Ibs of food

per cubic foot of freezer space). Leave enough space in

the freezer for air to circulate around packages. Be careful

to leave enough room at the front so the door can close

tightly.

Storage times will vary according to the quality and type

of food, the type of packaging or wrap used (airtight and

moisture-proof) and the storage temperature. Ice crystals

inside a sealed package are normal. This simply means

that moisture in the food and air inside the package has

condensed, creating ice crystals.

NOTE: Allow hot foods to cool at room temperature for

30 minutes, then package and freeze. Cooling hot foods

before freezing saves energy.

[] CAUTION: Do not keep beverage cans or plastic beverage

containers in the freezer compartment. They may break

if they freeze.

REFRIGERATOR SHELVES

The shelves in your refrigerator are adjustable to meet

your individual storage needs. All the shelves in this unit

are glass.

Storing similar food items together in your refrigerator and

adjusting the shelves to fit different heights of items will

make finding the exact item you want easier; it will also

reduce the amount of time the refrigerator door is open,

saving energy.

iMPORTANT: Do not clean glass shelves with warm

water when they are cold. Shelves may break if exposed

to sudden temperature changes or impact, such as

bumping. For your protection, glass shelves are made

with tempered glass, which will shatter into small pebble-

sized pieces.

NOTE: Glass shelves are heavy. Use special care when

removing them to avoid dropping them.

Adjustable Shelves

Remove shelves from the shipping position and replace

shelves in the position you want.

• To remove a shelf= Tilt the front of the shelf upward

and pull it out.

•To replace a shelf =_lt the front of the shelf up and

place the shelf hooks into metal slots at desired position.

Then lower the front of the shelf to secure the hooks

in the slots.

NOTE: Make sure that shelves are level from one side to

the other. Failure to do so may result in the shelf falling or

spilling food.

Slide Out Shelves (On Some Models)

You can slide some glass shelves in and out of your

refrigerator as follows.

•To slide the shelf out, carefully pull front of shelf

toward you.

,To slide shelf in, push shelf in until it stops.

SNACK DRAWER (On Some Models)

To remove the snack drawer:

Hold drawer by handle, pull forward to drawer stop,

lift up and pull out.

To replace snack drawer, slide back in fully past

the drawer stop.

CRISPER AND CRISPER COVER

To remove the crisper:

1. Pull crisper drawer out to drawer stop.

2. Lift the drawer up and toward you to pull out

and remove.

3. To replace crisper, slide back in fully past the

drawer stop.

To remove crisper glass:

1. Remove crisper drawers.

2. To remove glass above crispers, reach in under the

glass and lift up.

3. Pull glass up and out.

To control the humidity in the crisper compartments,

move the slide above each crisper up (more moisture)

or down (less moisture)

SNAP=ON DOOR RACKS

The door racks may be removed for easier cleaning.

Door racks are in both the refrigerator and the freezer.

The door racks are force-fitted with tabs and slots.

Snap=On Door Racks

To remove door racks:

1. Remove all items from the door rack.

2. Push sides of rack together while lifting up.

Rack will lift out.

To remove the crisper cover:

1. Remove both crisper drawers.

2. While holding the center crisper cover support in

place, pull the cover up and out.

CRISPER HUMIDITY CONTROL

You can control the amount of humidity in the moisture-

sealed crispers. Adjust the control to any setting between

_:_and _.

lets air out of the crisper for best storage of fruits.

keeps moist air in the crisper for best storage of

fresh, leafy vegetables.

To replace the racks:

1. Hold door rack ends with both hands tilted slightly

downward and push together slightly while fitting

tabs on rack into slots in door. Force-fit into place.

DOOR BINS

The door bins are removable for easy cleaning and

adjusting. They have slots in the sides which fit into

support slots placed at intervals on refrigerator door.

1. To remove a bin, lift the bin up until it clears the

support slots and lift out.

2. To replace a bin, push into door and down onto a

set of support slots at the desired level.

DAIRY BiN, CAN RACK

The diary bin/can rack can be relocated to

another position.

1. To remove the dairy bin /can rack

simply lift up and pull out.

2. To replace the bin, slide it in above the

desired support slots and push down until it stops.

Dairy Bin Can Rack

ICE TRAY (On Some Models)

Icemaking

•Pour water to the level

indicated in the picture.

Do not overfill with water,

or ice cubes will be difficult

to remove.

• For quick freeze, adjust the

freezer dial to 3.

To remove ice cubes, twist the tray.

•Do not bend the ice tray. Doing _4_,.,_

so may result in damage to the

tray.

•To remove ice cubes easily,

pour water on the back of the

tray or soak it in water before

removing ice cubes.

FILTER

It is recommended that you replace the filter when the

water filter indicator light turns on or your water dispenser

or ice maker decreases noticeably

How to change the water filter

1. Remove the old cartridge

Place a container under the hole

of filter holder.

NOTE: When filter is being removed, water drains through

the hole.

Rotate the knob of the cartridge

counter clockwise.

Pull out the cartridge.

2. Replace with a new cartridge.

Take the new cartridge out of its packaging and remove

protective cover from the o-rings.

With cartridge knob in the vertical

position, push the new filter cartridge

into the cover until it stops.

Push it in firmly until you can turn it.

Using its handle, twist cartridge about

1/4 turn.

You will hear a snap when it clicks

into place.

After installing water filter:

1. Turn on household water supply.

2. Dispense 2.5 gallons (9.46L) of water to purge the

system, depressing and releasing the dispenser button

(30 seconds ON, 60 seconds OFF). Open the refrigerator

door and shelf area to check for water leaks.

After changing the water filter cartridge, reset the water

filter status display and indicator light by pressing and

holding the _F,_Z__ button for 3 seconds.

To purchase replacement water filter, call

I=800=4=MY-HOME .

Explosion Hazard

Use non-flammable cleaner.

Failure to do so can result in death, explosion or fire.

Both the refrigerator and freezer sections defrost

automatically, However, clean both sections about once

a month to prevent odors. Wipe up spills immediately.

GENERAL CLEANING TiPS

• Unplug refrigerator or disconnect power.

• Remove all removable parts, such as shelves,

crispers, etc.

• To clean shelves, bins and other removable parts,

use a clean sponge or soft cloth and a mild detergent

in warm water. Do not use abrasive or harsh cleaners.

• Hand wash, rinse and dry all surfaces thoroughly.

• When finished cleaning, don't forget to plug in or

reconnect power.

OUTSIDE

Waxing external painted metal surfaces helps provide

rust protection. Do not wax plastic parts. Wax painted

metal surfaces at least twice a year using appliance wax

(or auto paste wax) Apply wax with a clean soft cloth.

Do Not use wax on stainless steel exteriors.

Use a product specially designed for polishing stainless

steel appliances, or clean with a soft cloth or clean

sponge and a mild detergent dissolved in warm water.

Dry thoroughly with a soft cloth.

NOTE: Avoid door surface contact with chemical

products that contain Phosphate or Chlorine.

INSIDE WALLS (allow freezer to warm up so

cloth won't stick)

To help remove odors, you can wash the inside of the

refrigerator and freezer with a mixture of baking soda

and warm water. Mix 2 tablespoons baking soda to

1 quart of water (26 g soda to 1 liter water.) Be sure the

baking soda completely dissolves so it does not scratch

the surfaces of the refrigerator.

DOOR LINERS AND GASKETS

Do not use cleaning waxes, concentrated detergents,

bleaches or cleaners containing petroleum on plastic

parts. Use a clean sponge or soft cloth and a mild

detergent in warm water. Wash, rinse and dry all

surfaces thoroughly.

PLASTIC PARTS (covers and panels)

Do not use paper towels, window sprays, abrasive

cleansers or flammable fluids. These can scratch or

damage the material. Use a clean sponge or soft

cloth and a mild detergent in warm water. Wash, rinse

and dry all surfaces thoroughly.

BACK COVER

ELECTRICAL SHOCK HAZARD

Before you begin, either unplug the refrigerator or

turn off power at the circuit breaker or fuse box.

Failure to do so could result in death or serious

injury.

NOTE: Back cover should only be removed by a

qualified technician.

Clean the vents on the back

cover. Use a vacuum cleaner

with the brush attachment,

at least twice a year to keep

your refrigerator working

efficiently.

LIGHT BULB REPLACEMENT

Electrical Shock Hazard

Before replacing a burned-out light bulb, either unplug

the refrigerator or turn off power at the circuit breaker

or fuse box.

NOTE: Not all appliance bulbs will fit your refrigerator. Be

sure to replace the bulb with one of 60 watts and the same

size and shape.

To change the freezer light

1. Unplug refrigerator or disconect power.

2. Remove the light shield and remove bulb.

3. Replace with a 60 watt appliance bulb and replace

light shield.

4. Plug in refrigerator and reconnect power.

Tochangethe refrigerator light:

1. Unplug the power cord from the outlet.

2. Remove refrigerator shelves.

3. Light shield is force fitted and has plastic tabs on

each side and a tab in the front. Release the tabs

on each side of light shield and push shield toward

rear of refrigerator and remove.

4. Turn the bulb counterclockwise and remove.

5. Replace a burned-out light bulb with a new 40watt bulb,

turning it clockwise.

6. To replace light shield, position front tab into slot and

carefully force-fit side tabs into slots.

7. Replace the refrigerator shelves.

8. Plug the power

cord into the oulet.

Note: After 7 minutes of continuous lamp operation it will

automatically turn off.

POWER INTERRUPTIONS

1. If the power will be out for 24 hours or less, keep

all refrigerator doors closed to help foods stay

cold and frozen.

2. If the power will be out for more than 24 hours:

a) Remove all frozen food and store it in a frozen food locker.

b) Place 2 Ibs. (ca lkg) of dry ice in the freezer for every

cubic foot (28 L) of freezer space. This will keep the

food frozen for two to four days. While handling dry ice,

wear gloves to protect your hands from frostbite.

Suffocation Hazard

When using dry ice, provide adequate ventilation.

Dry ice is frozen carbon dioxide (CO2). When it

vaporizes, it can displace oxygen, causing dizziness,

light=headedness, unconsciousness and death by

suffocation. Open a window and do not breathe

the vapors.

c) If neither a food locker nor dry ice is available,

consume or dispose of food at once.

REMEMBER: In a power failure, a full freezer stays

cold longer than a partially filled one. A freezer full of

meat stays cold longer than a freezer full of baked

goods. If you see that food contains ice crystals, it may

be safely refrozen, although the quality and flavor may

be affected. If the condition of the food is poor, or if you

feel it is unsafe, dispose of it.

•DO NOTrefreezefrozenfoodswhichhavethawedcompletely.

The UnitedStatesDepartmentof Agriculturein Homeand

GardenBulletinNo.69says:

...You maysafelyrefreezefrozenfoodsthathavethawedif they

still containicecrystalsor if theyarestillcold--below4°C.

•..Thawedgroundmeats,poultryorfish thathaveanyoff-odor

or off-colorshouldnotbe refrozenandshouldnot beeaten.

Thawedice creamshouldbediscarded.If the odoror colorof

any foodis pooror questionable,disposeof it. Thefoodmay

bedangerousto eat.

Evenpartialthawingandrefreezingreducesthe eatingquality

of foods,particularlyfruits,vegetablesandpreparedfoods•The

eatingqualityof redmeatsis affectedlessthanthatof many

otherfoods•Userefrozenfoodsas soonas possibleto saveas

muchof theirqualityas you can.

WHEN YOU GO ON VACATION

If you choose to leave the refrigerator on while you are away,

follow these steps to prepare your refrigerator before you leave.

1. Use up any perishables and freeze other items.

2. Empty the ice bin.

3. Turn off the Icemaker. NOTE: If the ambient temperature will

drop below freezing, have a qualified service technician drain

the water supply system (on some models) to prevent serious

property damage due to possible flooding from ruptured water

lines or connections.

If you choose to turn the refrigerator off before you leave,

follow these steps.

1. Remove all food from the refrigerator and empty ice bin.

2. Unplug refrigerator.

3. Clean refrigerator, wipe, and dry well.

4. Tape rubber or wood blocks to the tops of both doors to prop

them open far enough for air to get in. This stops odor and

mold from building up.

WHEN YOU MOVE

When you are moving your refrigerator to a new home,

follow these steps to prepare it for the move.

1. Remove all food from the refrigerator and pack all frozen food

in dry ice.

2. Unplug refrigerator.

3. Clean refrigerator, wipe, and dry well.

4. Empty water from the defrost pan.

5. Clean, wipe and dry thoroughly.

6. Take out all removable parts, wrap them well and tape them

together so they don't shift and rattle during the move. Refer to

sections in Using your Refrigerator for removal instructions.

7. Depending on the model, raise the front of the refrigerator so it

rolls more easily OR screw in the leveling legs all the way so they

don't scrape the floor. See the LEVELING AND DOOR

CLOSING section.

8. Tape the doorsshut and tape the power cord to the

refrigerator cabinet.

When you get to your new home, put everything back and refer to

the REFRIGERATION INSTALLATION section for setup instructions.

Personal injury Hazard

Avoid contact with the moving parts of the ejector

mechanism, or with the heating element that releases

the cubes. DO NOT place fingers or hands on the

automatic icemaking mechanism while the refrigerator

is plugged in.

The icemaker will begin to operate when it lowers to

freezing temperature.

NOTE: Automatic Ice Maker feature is included only in

certain models. Other models are Ice Maker ready.

Please check your product specifications.

OPERATION iNSTRUCTIONS

A newly-installed refrigerator may take

12 to 24 hours to begin making ice.

Icemaker

Automatic

Shut Off Arm

Cube Size Power Switch

Indicator Light Cube Size

Select Button

The icemaker will produce eight cubes per cycle---

approximately 100-130 cubes in a 24-hour period,

depending on freezer compartment temperature, room

temperature, number of door openings and other

operating conditions.

If the refrigerator is used before the water connection is

made to the icemaker, set the icemaker's power switch to

O(off).

When the refrigerator has been connected to the water

supply, set the power switch to I (on).

The icemaker will begin to operate when it lowers to

freezing temperature. A newly-installed refrigerator may

take 12 to 24 hours to begin making ice cubes.

Throw away the first few batches of ice to allow the water

line to clear.

Be sure nothing interferes with the sweep of the

Automatic Shut Off Arm.

When the bin fills to the level of the Automatic Shut

Off Arm, the icemaker will stop producing ice.

It is normal for several cubes to be stuck together.

If ice is not used frequently, old ice cubes will become

cloudy, taste stale, and shrink.

NOTE: If the cube size is smaller or larger than you

expected, you can regulate the size with the cube size

button.

Every time you press the cube size button, the indicator

moves up one light. The higher the light position, the larger

the cubes will be. Pressing at highest position returns

indicator to lowest position.

WHEN YOU SHOULD SET THE ICEMAKER

POWER SWITCH TO O (OFF)

• When the water supply will be shut off for several hours.

When the ice storage bin is removed for more than a

minute or two.

When the refrigerator will not be used for several days.

NORMAL SOUNDS YOU MAY HEAR

The icemaker water valve will buzz as the icemaker fills

with water. If the power switch is in the I (on) position, it

will buzz even if it has not yet been hooked up to water.

To stop the buzzing, move the power switch to O (off).

NOTE: Keeping the power switch in the I (on) position

before the water line is connected can damage the

icemaker.

You will hear the sound of cubes dropping into the bin

and water running in the pipes as the icemaker refills.

NOTE:Waterlineinstallationisneededwhenthe

AutomaticIcemakerand/orWaterDispenserfeatures

areavailableonyourproduct.

BEFORE YOU BEGIN

This water line installation is not warranted by the

refrigerator or icemaker manufacturer. Follow these

instructions carefully to minimize the risk of expensive

water damage.

Water hammer (water banging in the pipes) in house

plumbing can cause damage to refrigerator parts and lead

to water leakage or flooding. Call a qualified plumber to

correct water hammer before installing the water supply

line to the refrigerator.

To prevent burns and product damage, do not hook up

the water line to the hot water line.

If you use your refrigerator before connecting the water

line, make sure the icemaker power switch is in the O

(off) position.

Do not install the icemaker tubing in areas where

temperatures fall below freezing.

When using any electrical device (such as a power

drill) during installation, be sure the device is double-

insulated or grounded in a manner to prevent the hazard

of electric shock, or is battery-powered.

All installations must be in accordance with local plumbing

code requirements.

NOTE: Wear eye protection.

•Ifareverse osmosis water filtration system is

connected to your cold water supply, This water line

installation is not warranted by the refrigerator or

icemaker manufacturer. Follow next instructions carefully

to minimize the risk of expensive water damage.

• If a reverse osmosis water filtration system is

connected to your cold water supply, the water pressure

to the reverse osmosis system needs to be a minimum of

40 to 60 PSI or 0.27 MPa to 0.41MPa (2.8 kg.f/cm 2-4.2

kg.f/cm 2, less than 2 -3 seconds to fill a cup of 7 oz

capacity [0.2 liters]).

If the water pressure from the reverse osmosis system is

less than 21 PSI or 0.14 MPa (1.5 kg.f/cm 2, more than 4

seconds to fill a cup of 7 oz capacity [0.2 liters]).

• Check to see whether the sediment filter in the reverse

osmosis system is blocked. Replace the filter if necessary.

• Allow the storage tank on the reverse osmosis system to

refill after heavy usage.

• If the issue about water pressure from reverse osmosis

remains, call a licensed, qualified plumber.

WHAT YOU WILL NEED

° Copper Tubing, 1/4" outer

diameter to connect the refrigerator

to the water supply. Be sure both

ends of the tubing are cut square.

To determine how much tubing you need: measure

the distance from the water valve on the back of the

refrigerator to the water supply pipe. Then add 8 feet

(2.4 m). Be sure there is sufficient extra tubing (about 8 feet

[2.4 m] coiled into 3 turns of about 10 [25 cm] diameter) to

allow the refrigerator to move out from the wall after

installation.

Be sure that the kit you select allows at least 8 feet

(2.4 m) as described above.

A cold water supply.The water pressure must be

between 20 and 120 PSI or 0.137 and 0.82 MPa on

models without a water filter and between 40 and

120 PSI or 0.275 and 0.82 MPa on models with a

water filter.

• Power drill.

•1/2" or adjustable

wrench.

Straight= and Phillips=

blade screwdriver

Two 1/4" outer diameter

compression nuts and

2 ferrules (sleeves) to

connect the copper tubing to

the shutoff valve and the

refrigerator water valve.

If your existing copper water _,,

line has a flared fitting at the

end, you will need an

adapter (available at

plumbing supply stores) to

connect the water line to the refrigerator OR you can cut

off the flared fitting with a tube cutterand then use a

compression fitting.

Shut off valve to connect to

the cold water line. The

shutoff valve should have a

water inlet with a minimum

inside diameter of 5/32" at

the point of connection to the

COLD WATER LINE. Saddle-type shutoff valves are

included in many water supply kits. Before purchasing,

make sure a saddle-type valve complies with your local

plumbing codes.

INSTALLATION INSTRUCTIONS

Install the shutoff valve on the nearest frequently used

drinking water line.

1. SHUT OFF THE MAIN WATER SUPPLY

Turn on the nearest faucet to relieve the pressure on

the line.

INSTALLATION INSTRUCTIONS

(CONTINUED)

2. CHOOSE THE VALVE LOCATION

Choose a location for the valve

that is easily accessible. It is best

to connect into the side of a

vertical water pipe. When it is

necessary to connect into a

horizontal water pipe, make the

connection to the top or side,

rather than at the bottom, to avoid

drawing off any sediment from the water pipe.

3. DRILL THE HOLE FOR THE VALVE

Drill a 1/4" hole in the water

pipe (even if using a self-

piercing valve) using a

sharp bit. Remove any burrs

resulting from drilling the

hole in the pipe. Take care

not to allow water to drain

into the drill. Failure to drill a 1/4 hole may result in

reduced ice production or smaller cubes.

4. FASTEN THE SHUT OFF VALVE

Fasten the shutoff valve to the cold water pipe with

the pipe clamp.

Pipe Clamp-

Saddle-Type _/_ _ :Vertical Cold

Shutoff Valve Water Pipe

NOTE: Commonwealth of Massachusetts Plumbing

Codes 248CMR shall be adhered to. Saddle valves

are illegal and use is not permitted in Massachusetts.

Consult with your licensed plumber.

5. TIGHTEN THE PIPE CLAMP

Tighten the clamp screws until the sealing washer

begins to swell.

NOTE: Do not overtighten or you may crush

the tubing. Washer

Pipe Clamp

Clamp Screw

6. ROUTE THE TUBING

Route the tubing between the cold water line and the

refrigerator.

Route the tubing through a hole drilled in the wall or

floor (behind the refrigerator or adjacent base cabinet)

as close to the wall as possible.

NOTE: Be sure there is sufficient extra tubing (about

8 feet coiled into 3 turns of about 10 diameter) to

allow the refrigerator to move out from the wall after

installation.

7. CONNECT THE TUBING TO THE VALVE

Place the compression nut and ferrule (sleeve)

for copper tubing onto the end of the tubing and

connect it to the shutoff valve. Make sure the tubing is

fully inserted into the valve. Tighten the compression

nut securely.

Saddle-Type

Shutoff Valve

Packing

Nut

Outlet

Valve

Compression

/.ut

_rule (sleeve)

NOTE: Commonwealth of Massachusetts Plumbing

Codes 248CMR shall be adhered to. Saddle valves

are illegal and use is not permitted in Massachusetts.

Consult with your licensed plumber.

8. FLUSH OUT THE TUBING

Turn the main water supply on

and flush out the tubing until the

water is clear.

Shut the water off at the water

valve after about one quart of

water has been flushed through

the tubing.

9. CONNECT THE TUBING TO THE

REFRIGERATOR

NOTE:

•Before making the connection to the refrigerator, be

sure the refrigerator power cord is not plugged into

the wall outlet.

• If your refrigerator does not have a water filter,

we recommend installing one if your water supply

has sand or particles that could clog the screen of

the refrigerator's water valve. Install the filter in the

water line near the refrigerator.

IMPORTANT: Do not use old, worn or used waterlines,

only use new for a better use and service.

Connect only to the supply of drinking water for your

safety and health.

Remove the plastic flexible cap from the refrigerator

connection.

Place the compression nut and ferrule (sleeve) onto

the end of the tubing.

Insert the end of the tubing into the connection as

far as possible. While holding the tubing, tighten the

fitting.

Refrigerator

Connection

Ferule

(sleeve)

Tubing

Clamp

1/4"

Compression

Nut

1/4

Tubing

Fasten the tubbing into the Clamp attached to the

back of the refrigerator.

First, loosen the screw fastening the clamp. Next,

insert the tubing in the groove. Finally, re-fasten the

screw,

CAUTION" Check to see if water dripping occurs at

water line connections.

10. TURN THE WATER ON AT THE

SHUTOFF VALVE

Tighten any connections that leak.

Reattach the compressor compartment access cover.

11. PLUG IN THE REFRIGERATOR

Arrange the coil of tubing so that it does not vibrate

against the back of the refrigerator or against the

wall. Push the refrigerator back to the wall.

12. START THE ICEMAKER

Set the icemaker power switch to the ON position.

The icemaker will not begin to operate until it reaches

its operating temperature of 15 °F (-9 °C) or below. It

will then begin operation automatically if the

icemaker power switch is in the I(on) position.

UNDERSTANDING SOUNDS YOU MAY HEAR

Your new refrigerator may make sounds that your old one

didn't make. Because the sounds are new to you, you

might be concerned about them. Most of the new sounds

are normal. Hard surfaces, like the floor, walls and

cabinets, can make the sounds seem louder than they

actually are. The following describes the kinds of sounds

and what may be making them.

REFRIGERATOR DOES NOT OPERATE

Check if...

The defrost timer will click when the automatic defrost

cycle begins and ends. The thermostat control (or

refrigerator control, depending on the model) will also

click when cycling on and off.

Rattling noises may come from the flow of refrigerant, the

water line or items stored on top of the refrigerator.

Your refrigerator is designed to run more efficiently to

keep your food items at the desired temperature. The

high efficiency compressor may cause your new

refrigerator to run longer than your old one, but it will

take less energy to run. You may hear a pulsating or

high=pitched sound.

You may hear the evaporator fan motor circulating the air

through the refrigerator and freezer compartments.

As each cycle ends, you may hear a gurgling sound due

to the refrigerant flowing in your refrigerator.

Contraction and expansion of the inside walls may cause

a popping noise.

Water dripping on the defrost heater during a defrost

cycle may cause a sizzling sound.

You may hear air being forced over the condenser by the

condenser fan.

You may hear water running into the drain pan during the

defrost cycle.

Then...

Firmly plug the cord into a live outlet with proper voltage.

Replace the fuse or reset the circuit breaker.

The power supply cord is unplugged.

A household fuse has blown or circuit

breaker tripped.

COOLING OFF light is ON

......................... RECOMMENDED....

z/-j I COLD I COLDESTI :_.

fo_ Ic::3rmc:3c::3c::3c::31So_ '\

:WATER Ic°o%NG 1 3 5 IFILTER )

,.. LOCK I,_TEMP\ ICHANGE

The refrigerator control has been put into the store Demo

(Demonstration) Mode.

The Demonstration Mode disables the cooling system, only the

lamps and display work normaly.

To disable press the TEMP CONTROL button until you set the

desire temperature level and the COOLING OFF light turns off.

Refrigerator is in the defrost cycle. Wait about 30 minutes for defrost cycle to end.

WATER DISPENSER DOES NOT WORK

Check if... Then,.,

Water does not dispense.

Water does not dispense correctly.

Water is dispensed out of the glass.

Check if house valve is opened.

Purge system of air by dispensing approximately 2.5 gallons (9.46L)

of water. See the Water Dispenser Section.

WATER FROM DISPENSER IS WARM

Check if... Then...

Six or more glassfulls of water have been dispensed When six or more glasses are dispensed, it takes time for the

continuously, water to cool down.

The refrigerator compartment is too warm. Press the TEMP CONTROL to set to a colder temperature.

LIGHTS DO NOT WORK

Check if... Then...

The power supply cord is unplugged. Firmly plug the cord into a live outlet with proper voltage.

Light bulb is loose in the socket. Either unplug the refrigerator or turn off power at the circuit

breaker or fuse box. Gently remove the bulb and reinsert.

Then plug in refrigerator and reset the refrigerator control.

Light bulb has burned out. Either unplug the refrigerator or turn off power at the

circuit breaker or fuse box. Replace with an appliance

bulb of the same wattage, size and shape available at

your local hardware store.

(See the LIGHT BULB REPLACEMENT section.)

COMPRESSOR MOTOR SEEMS TO RUN TOO MUCH

Check if... Then...

The refrigerator that was replaced was an older model. Modern refrigerators with more storage space require

more operating time, but uses less energy than older models.

The room temperature is hotter than normal. The motor will run longer under warm conditions. At normal room

temperatures, expect your motor to run about 40% to 80% of the

time. Under warmer conditions, expect it to run even more often.

The door is opened often or a large amount

of food has just been added.

Adding food and opening the door warms the refrigerator,

It is normal for the refrigerator to run longer in order to cool

the refrigerator back down. Adding a large amount of food

warms the refrigerator. See the FOOD STORAGE GUIDE

section. In order to conserve energy, try to get everything

you need out of the refrigerator at once; also keep food

organized so it is easy to find and close the door as soon

as the food is removed.

The refrigerator was recently plugged in and The refrigerator will take up to 24 hours to cool

the refrigerator control was set correctly, completely.

The refrigerator control is not set correctly for the See the ADJUSTING CONTROL SETTINGS section

surrounding conditions.

The doors are not closed completely. Push the doors firmly shut. If they will not shut all the way, see

"Doors will not close completely" below.

The condenser coils are dirty. This prevents air transfer and makes the motor work harder.

Clean the condenser coils.

DOORS WILL NOT CLOSE COMPLETELY

Check if... Then...

The refrigerator is not level. See the REFRIGERATOR INSTALLATION, LEVELING AND

DOOR ALIGNMENT section to level refrigerator.

Food packages are blocking the door open. Rearrange food containers to clear door and door shelves.

The ice bin, crisper cover, pans, shelves, door bins Push bins all the way in and put crisper cover, pans, shelves

or baskets are out of position, and baskets into their correct positions. See the USING YOUR

REFRIGERATOR section

The gaskets are sticking. Clean gaskets and the surface that they touch. Rub a thin

coat of paraffin wax on the gaskets after cleaning.

The refrigerator wobbles or seems unstable. Level the refrigerator. Refer to the LEVELING AND DOOR

CLOSING section

The doors were removed during product installation Remove and replace the doors according to the REMOVING

and not properly replaced. AND REPLACING DOORS or REVERSING DOORS section,

or call a Sears or other qualified service technician.

ViBRATiON OR RATTLING NOISE

Check if... Then...

J The refrigerator is not resting solidly on Floor is weak or uneven or leveling legs need adjusting.the floor. See LEVELING AND DOOR CLOSING section.

FROST OR iCE CRYSTALS ON FROZEN FOOD

Check if... Then...

The door is not closing properly. See "Doors will not close completely" above.

The door is opened often. When the door is opened, warm, humid air is allowed in

the freezer resulting in frost.

iCE HAS OFF=TASTE OR ODOR

Check if... Then...

The icemaker was recently installed. Discard first few batches of ice to avoid discolored or

off-flavored ice.

The ice has been stored for too long. Throw away old ice and make new supply

The food has not been wrapped tightly in Rewrap foods since odors may migrate to the ice if food

either compartment, is not wrapped properly.

The water supply contains minerals such as sulfur. A filter may need to be installed to eliminate taste and

odor problems.

The interior of refrigerator needs cleaning. See CARE AND CLEANING section.

Ice storage bin needs cleaning. Empty and wash bin. Discard old cubes.

THERE iS WATER IN THE DEFROST DRAIN PAN

Check if... Then...

The refrigerator is defrosting. The water will evaporate. It is normal for water to drip into the

defrost pan.

It is more humid than normal. Expect that the water in the defrost pan will take longer to

evaporate. This is normal when it is hot or humid.

THE REFRIGERATOR SEEMS TO MAKE TOO MUCH NOISE

Check if... Then...

I The sounds may be normal for your refrigerator. Refer to the UNDERSTANDING SOUNDS YOU MAY HEAR 1section /

THE lCEMAKER iS NOT PRODUCING ICE OR ICE CUBES ARE FREEZING TOO SLOWLY

Check if... Then...

The freezer temperature is cold enough to produce ice.1 Wait 24 hours after hook-up for ice production. See the

ISETTING THE CONTROLS section.

Door left open. I Check to see if something is holding door open.

CUBES PRODUCED BY lCEMAKER ARE TOO SMALL

Check if... Then...

Smaller cube size level is selected. Select larger cube size using cube size selector.

Water shutoff valve connecting refrigerator to water Call a plumber to clear the valve.

line may be clogged.

THE DOORS ARE DiFFiCULT TO OPEN

Check if... Then...

Clean gaskets and the surfaces that they touch. Rub a thin

coat of paraffin wax on the gaskets following cleaning.

The gaskets are dirty or sticky.

The door is reopened within a short time after having

been opened.

When you open the door, warmer air enters the refrigerator.

As the warm air cools, it can create a vacuum. If the door is

hard to open, wait 5 minutes to allow the air pressure to

equalize, then see if it opens more easily.

AUTOMATIC ICEMAKER DOES NOT WORK (Icemaker On Some Models)

Check if...

Icemaker power switch in the O(off) position.

Water supply turned off or not connected.

Freezer compartment too warm.

Piled up cubes in the storage bin cause the icemaker

to shut off.

Then...

Move the switch to the I(on) position.

See the CONNECTING THE WATER LiNE section.

Wait 24 hours for the freezer to reach its ideal temperature.

Level cubes by hand.

TEMPERATURE iS TOO WARM OR THERE IS iNTERIOR MOISTURE BUILDUP

Check if... Then...

The air vents are blocked. Cold air circulates

from the freezer to the fresh food section and

back again through air vents in the wall dividing

the two sections.

The doors are opened often.

The control is not set correctly for the surrounding

conditions.

A large amount of food has just been added

to the refrigerator or freezer.

The food is not packaged correctly.

The doors are not closing completely.

The weather is humid.

A self-defrost cycle was completed.

Locate air vents by using your hand to sense airflow and

move all packages that block vents and restrict airflow. Refer

To ENSURING PROPER AiR CiRCULATiON

for the location of air vents.

When the door is opened, warm humid air is allowed into

the refrigerator. The more the door is opened, the faster the

humidity builds up, and the more warm air the refrigerator

must cool. In order to keep the refrigerator cool, try to get

everything you need out of the refrigerator at once; also,

keep food organized so it is easy to find and close the door

as soon as the food is removed.

Refer to the SETTING THE CONTROLS section.

Wait 24 hours for temperatures to stabilize or even out. If the

temperature is too cold or too warm, move the dial one

number at a time.

Adding food warms the refrigerator. It can take a few hours

for the refrigerator to return to normal temperature.

Wrap food tightly and wipe off damp containers prior to

storing in the refrigerator to avoid moisture accumulation. If

necessary, repackage food according to the guidelines in the

FOOD STORAGE GUIDE section.

See "Doors will not close completely".

in humid weather, air carries moisture into refrigerator

when doors are opened.

It is normal for droplets to form on the back wall after the

refrigerator self-defrosts.

Your Home

For troubleshooting, product manuals and expert advice:

managemylife

www.man ag emy life, corn

For repair- in your home - of all major brand appliances,

lawn and garden equipment, or heating and cooling systems,

no matter who made it, no matter who sold it!

For the replacement parts, accessories and

owner's manuals that you need to do-it-yourself.

For Sears professional installation of home appliances

and items like garage door openers and water heaters.

1-800-4-MY-HOME ® (1-8oo46e4663)

Calmanytime, day or night(US.A, and Canada)

www.sears.corn w_/vw.$ ears.ca

Our Home

For repair of carry-in items like vacuums, lawn equipment,

and electronics, call anytime for the location of your nearest

Sears Parts &Repair Service Center

1-800-488-1222 (U.S.A.) 1-800-469-4663 (Canada)

www. sea rs.co m www.s ears. ca

To purchase a protection agreement on a product serviced by Sears:

1-800-827-6655 (u.s.A.)

Para pedir servicio de reparacion

a domicilio, y para ordenar piezas:

1-888-SU-HOGAR _e_

(1-888-784-6427)

www, sears .corn

1-800-361-6665 (Canada)

Au Canada pour service en frangais:

1-8OO-LE-FOYER Mc

(1-800-533-6037)

www.sears.ca

®Registared I rademark /TU Irad_malk o{ KCD IP, LLC #1 the Unit_c S't_es, or Seais Brands, LLC in uther counLrias

,:6,Marca Registrada /_U Marca de F&brica de KCD IP, LLC en Estados Unicos. o Sears Brands. LLC en otros palses

•,u MsrqJe de commerce !u> Ma'que d6posee ce Sears Rrands. I I C

Kenmore 79579302901 User Manual REFRIGERATOR Manuals And Guides 1007003L

Navigation menu

Versions of this User Manual:

Views

Navigation
