ELECTRIC RANGE
ESTUFA ELECTRICA
. IJ_,ILII[ 0
Models
790.99012
790.99013
790.99014
790.99019
Sears Roebuck and Co., Hoffman Estates, IL 60179 U.S.A. PIN 316257910 REV B (020815)
www.sears.com

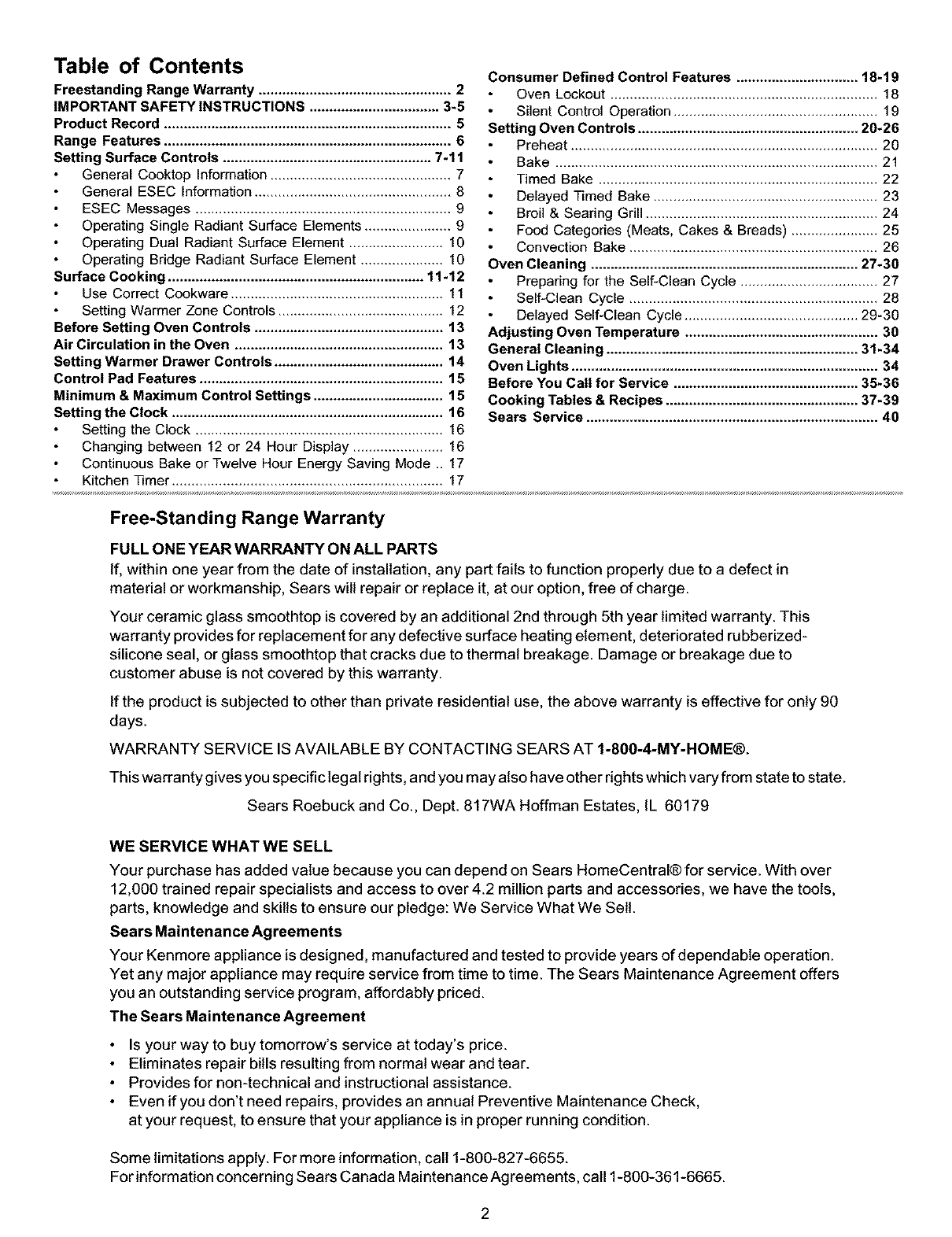

Table of Contents
Freestanding Range Warranty ................................................. 2
IMPORTANT SAFETY INSTRUCTIONS ................................. 3_5

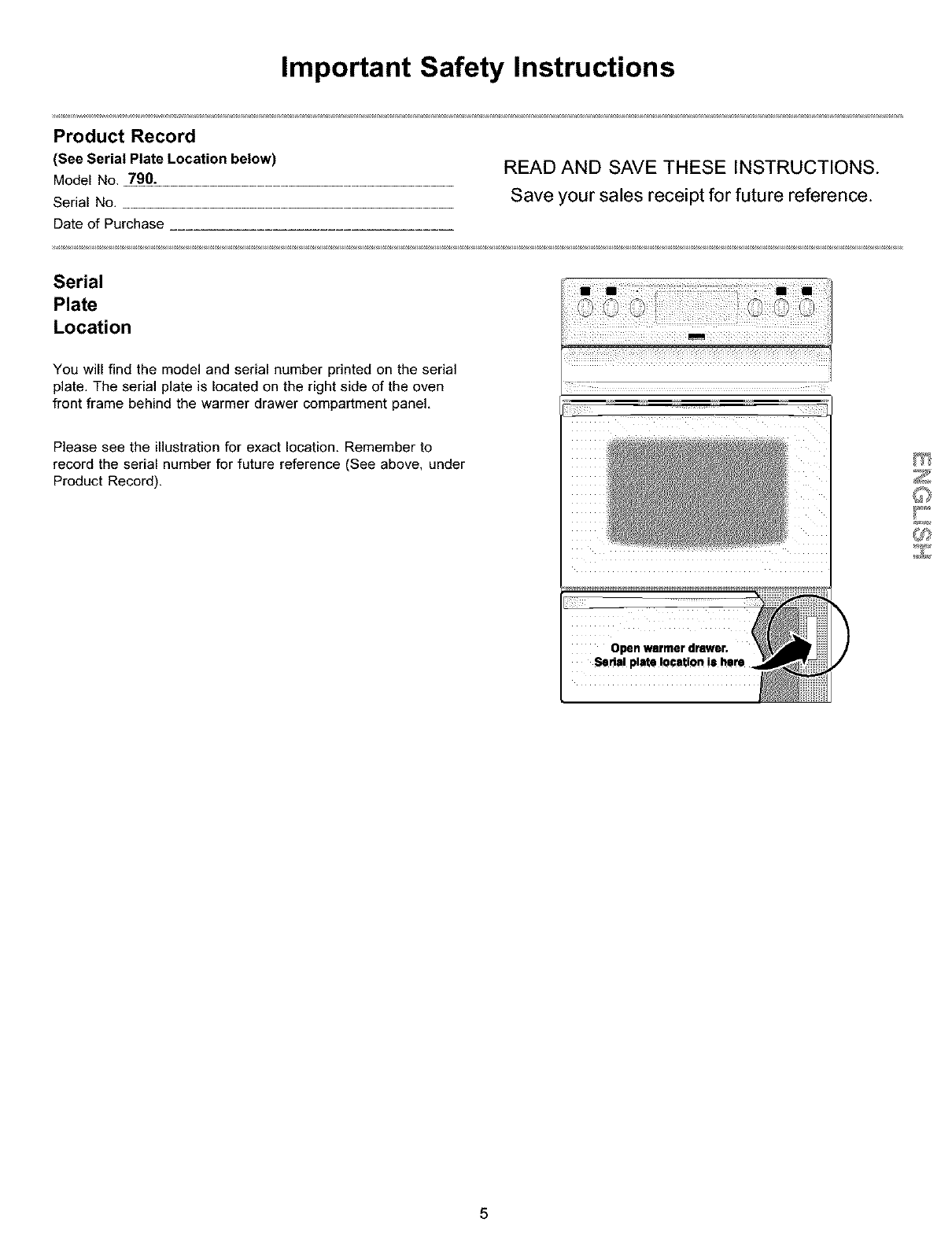

Product Record ......................................................................... 5

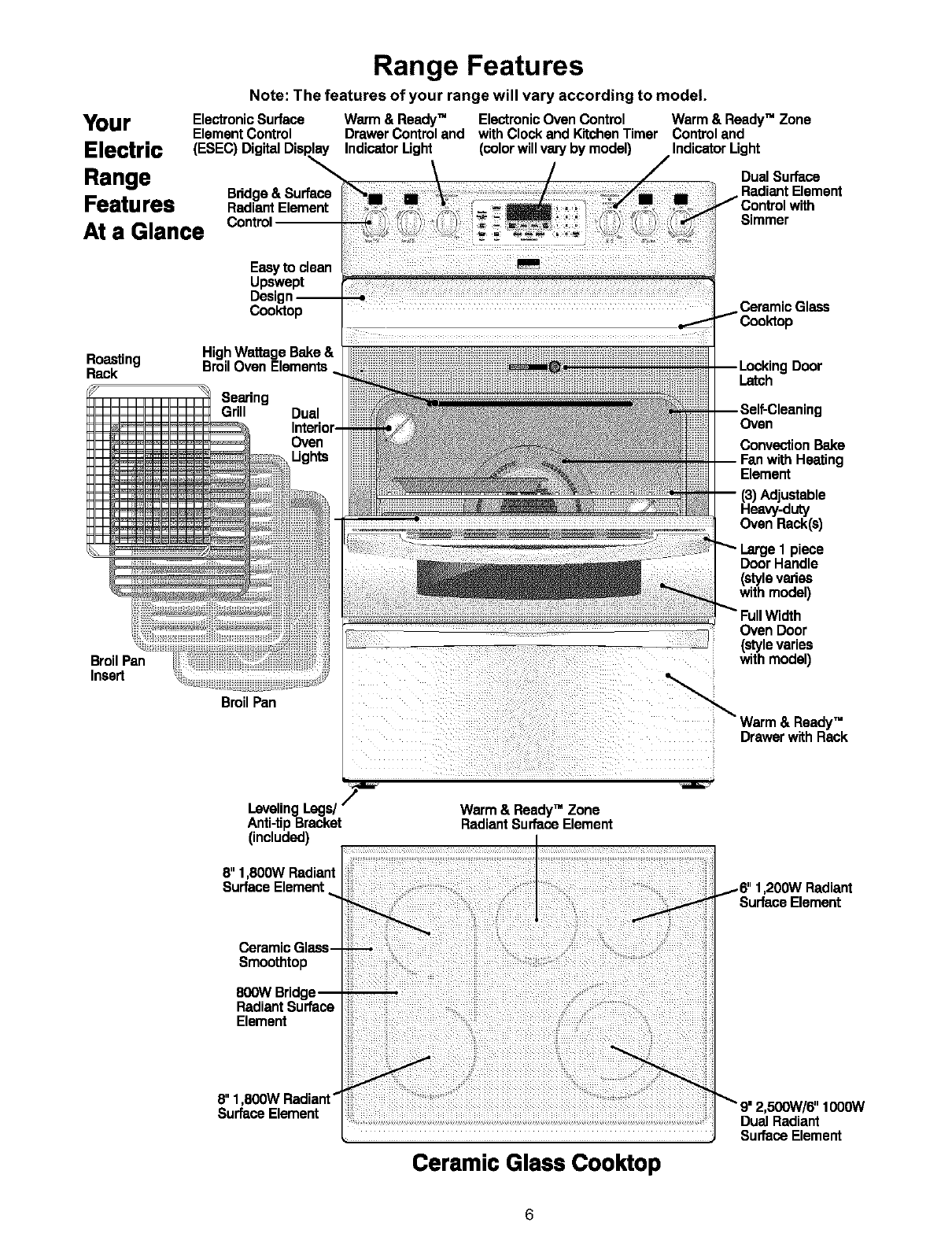

Range Features ......................................................................... 6

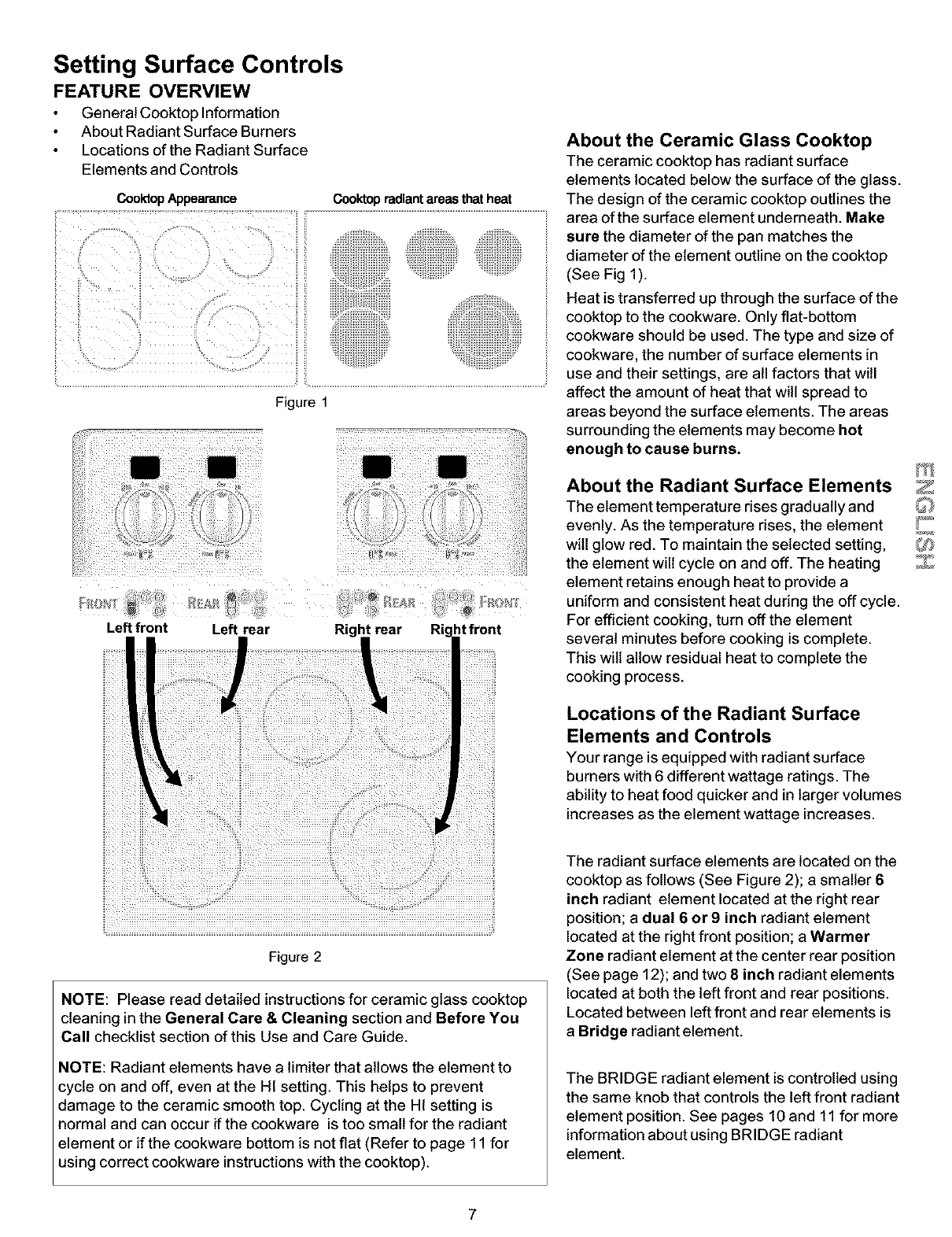

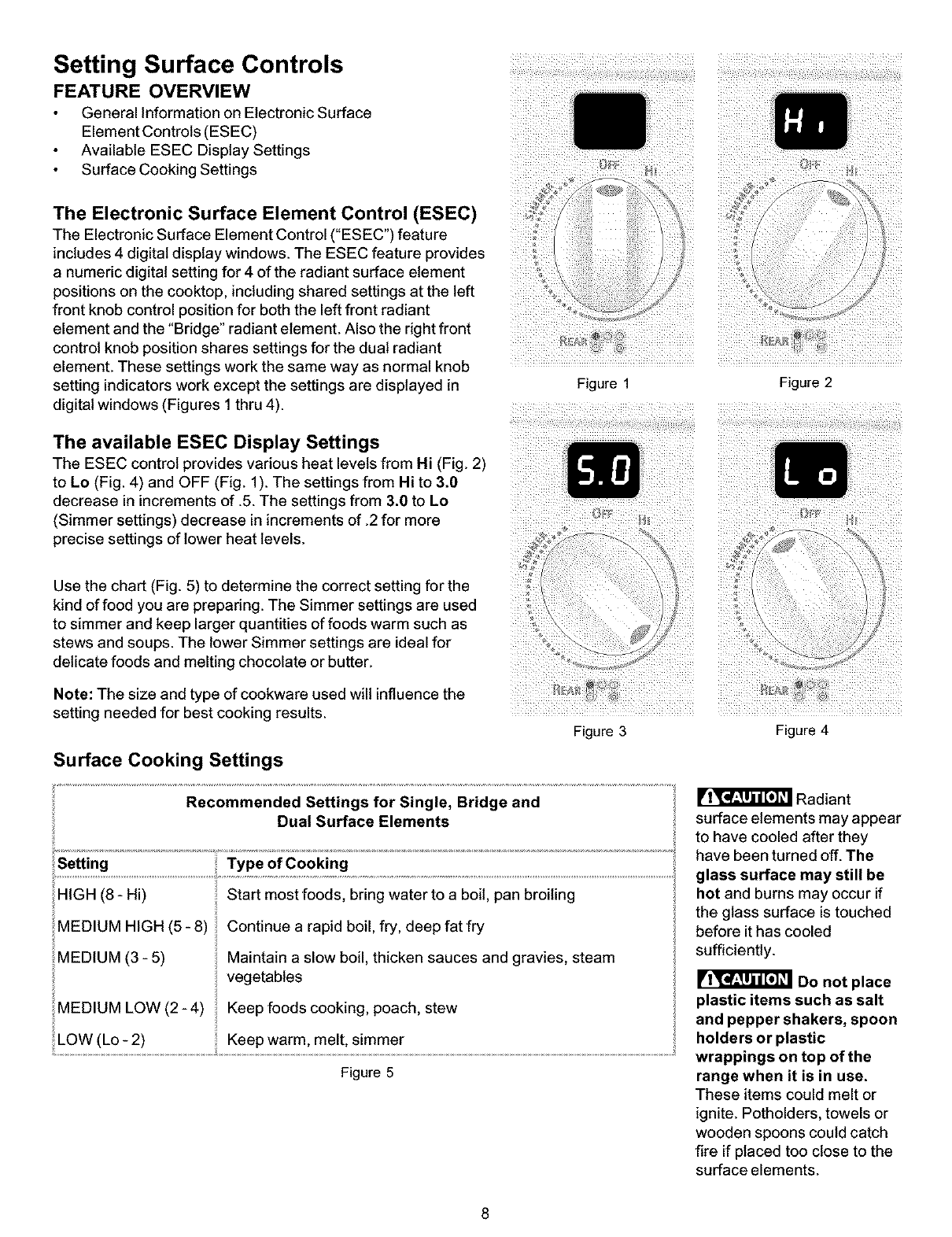

Setting Surface Controls ..................................................... 7-11
General Cooktop Information .............................................. 7
General ESEC Information .................................................. 8
ESEC Messages ................................................................. 9

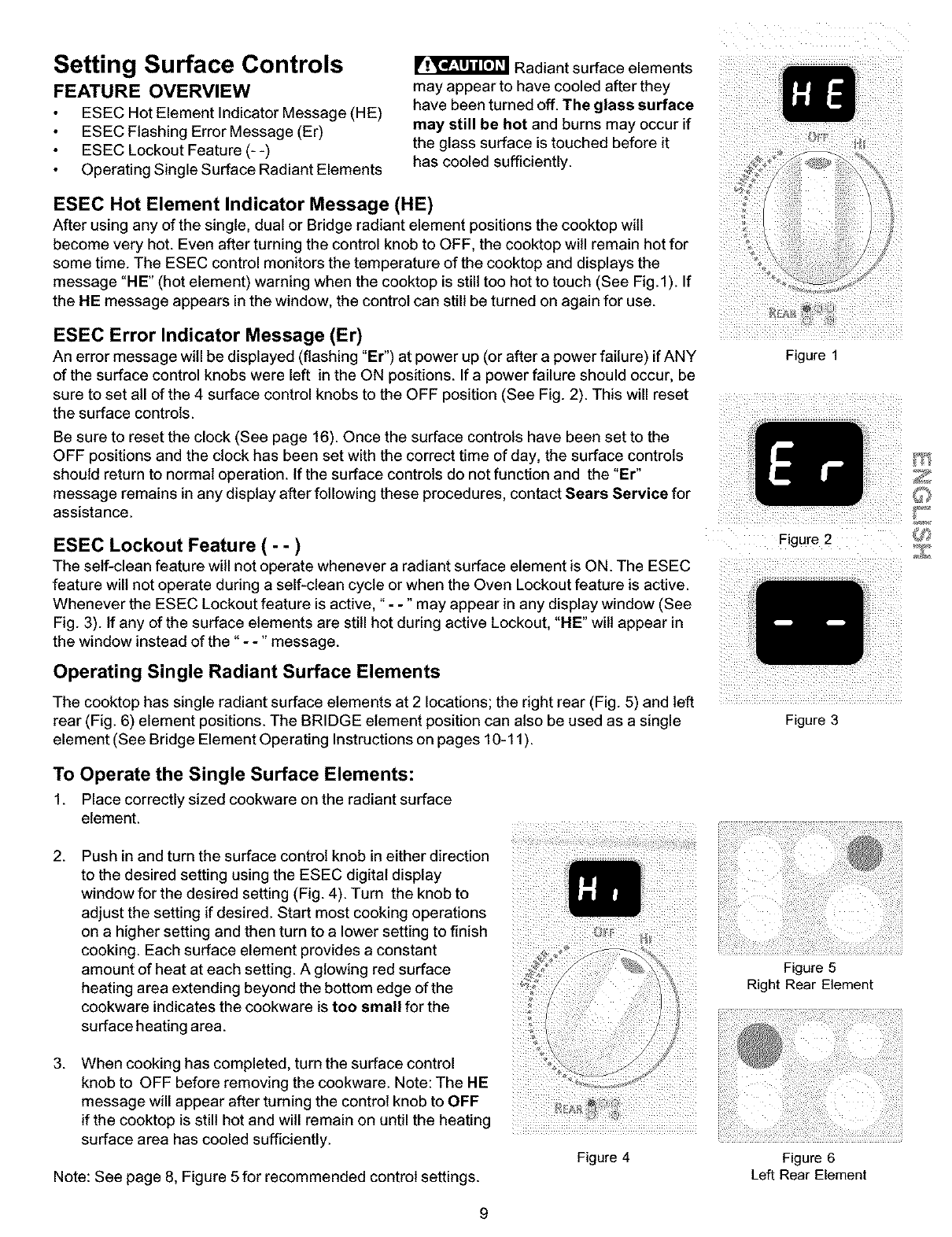

Operating Single Radiant Surface Elements ...................... 9

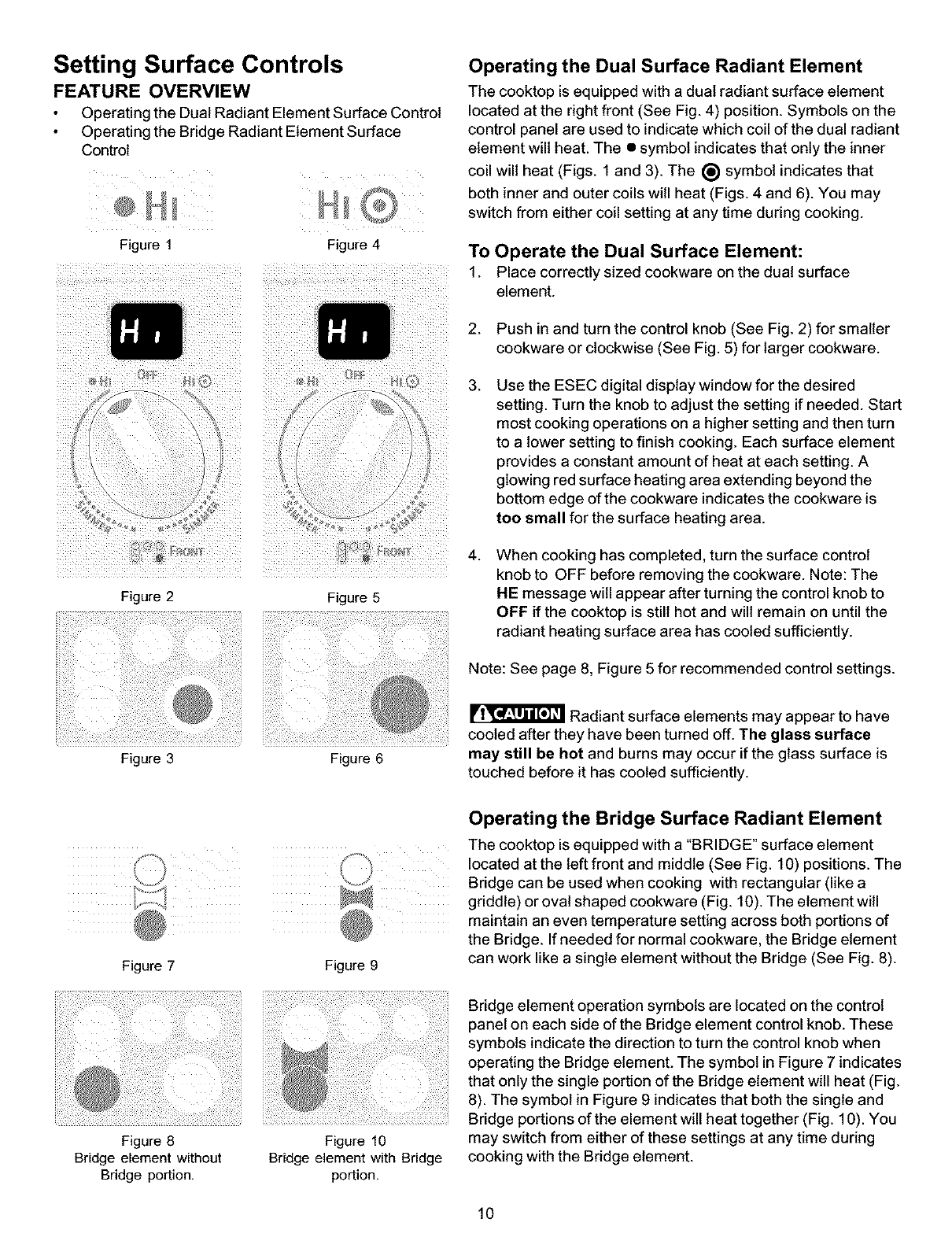

Operating Dual Radiant Surface Element ........................ 10

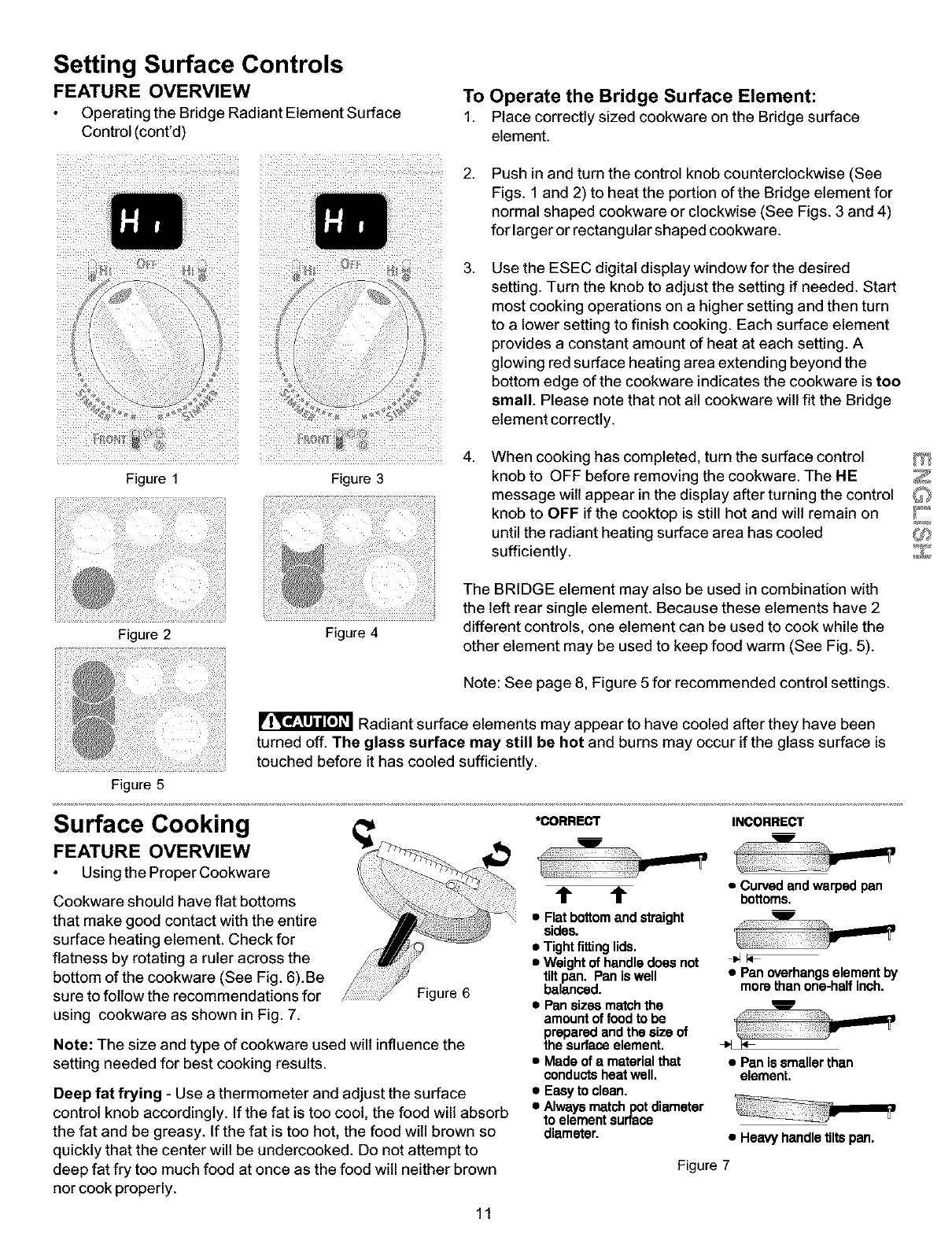

Operating Bridge Radiant Surface Element ..................... 10
Surface Cooking ................................................................. 11-12
Use Correct Cookware ...................................................... 11

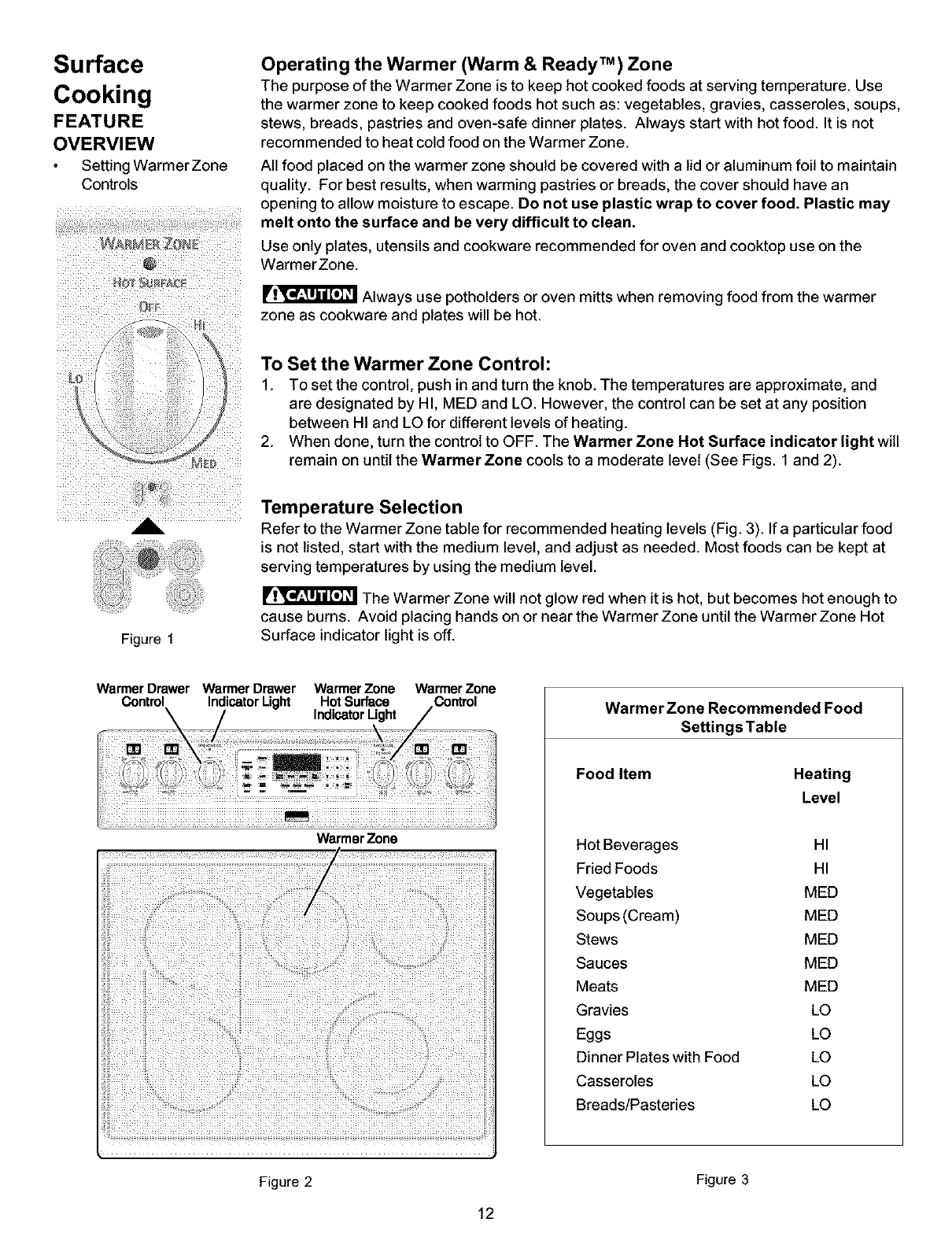

Setting Warmer Zone Controls .......................................... 12

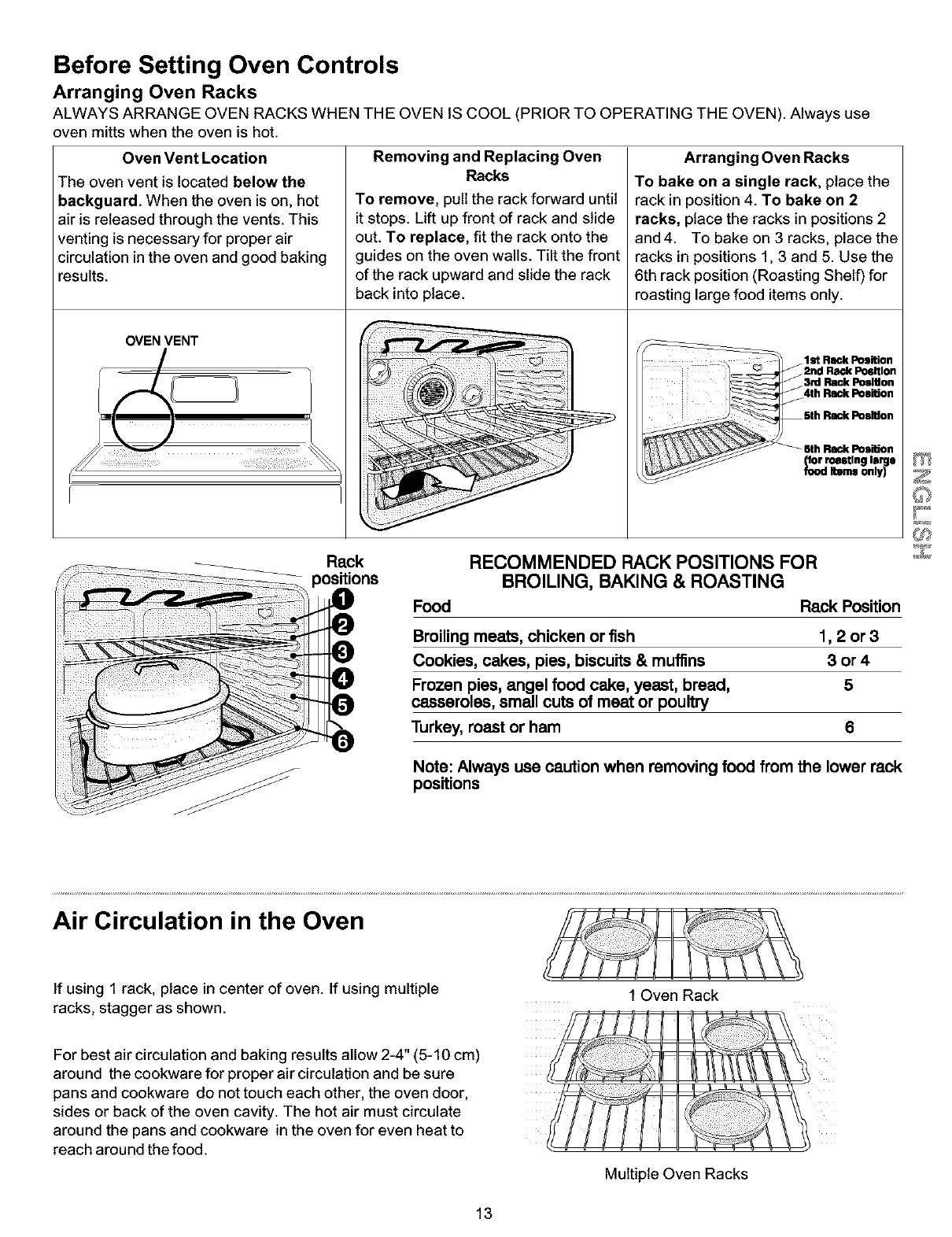

Before Setting Oven Controls ................................................ 13
Air Circulation in the Oven ..................................................... 13

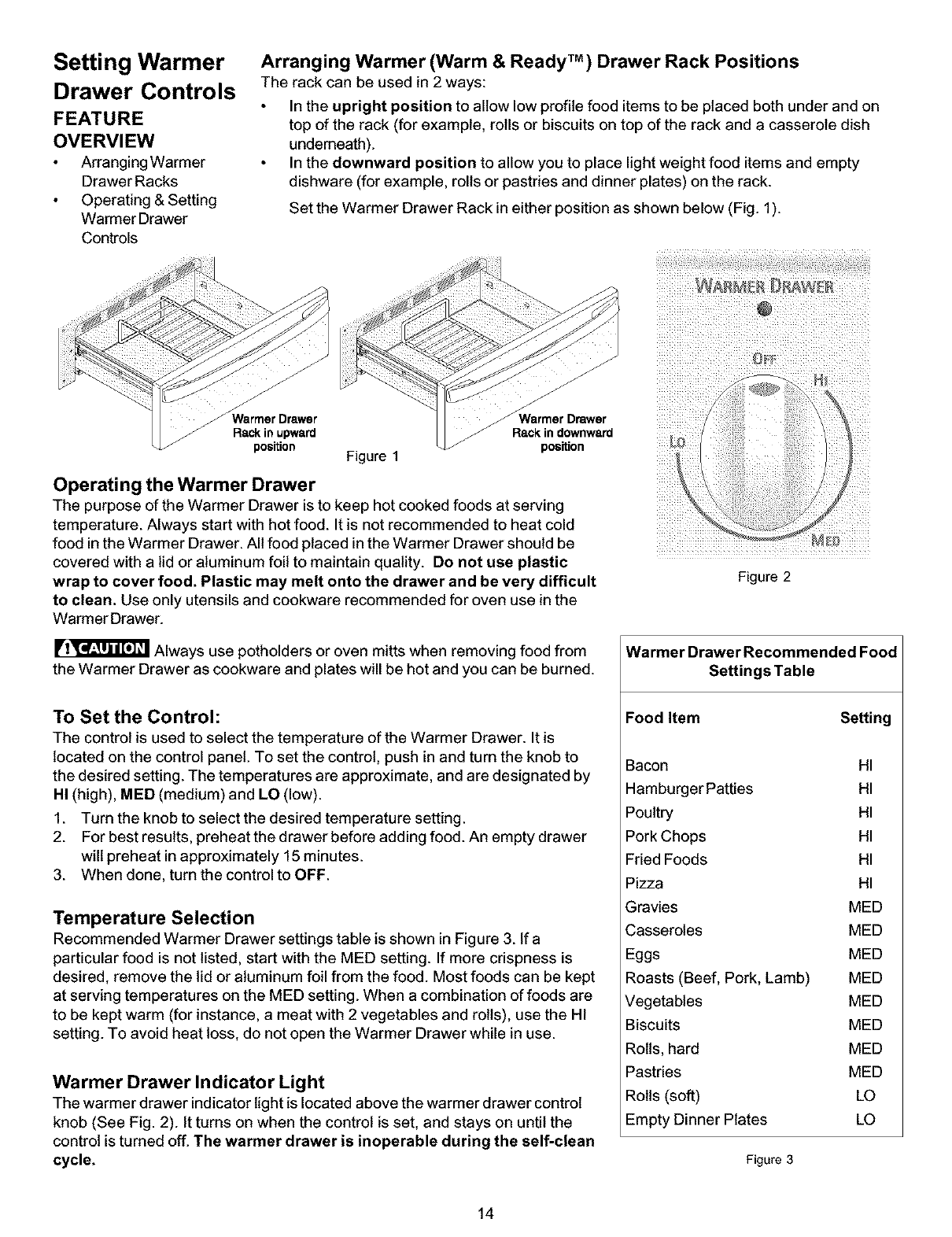

Setting Warmer Drawer Controls ........................................... 14

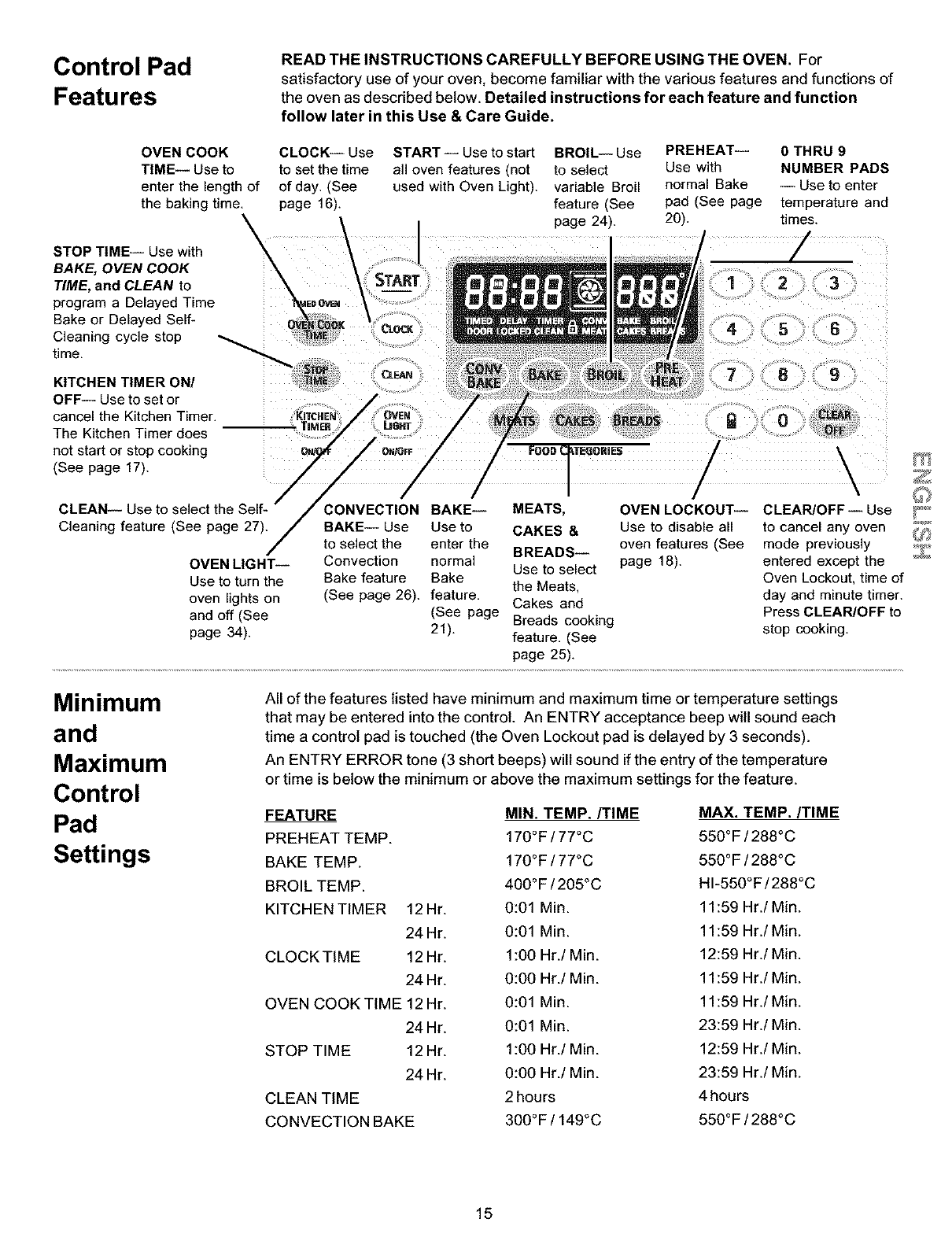

Control Pad Features .............................................................. 15
Minimum & Maximum Control Settings ................................. 15

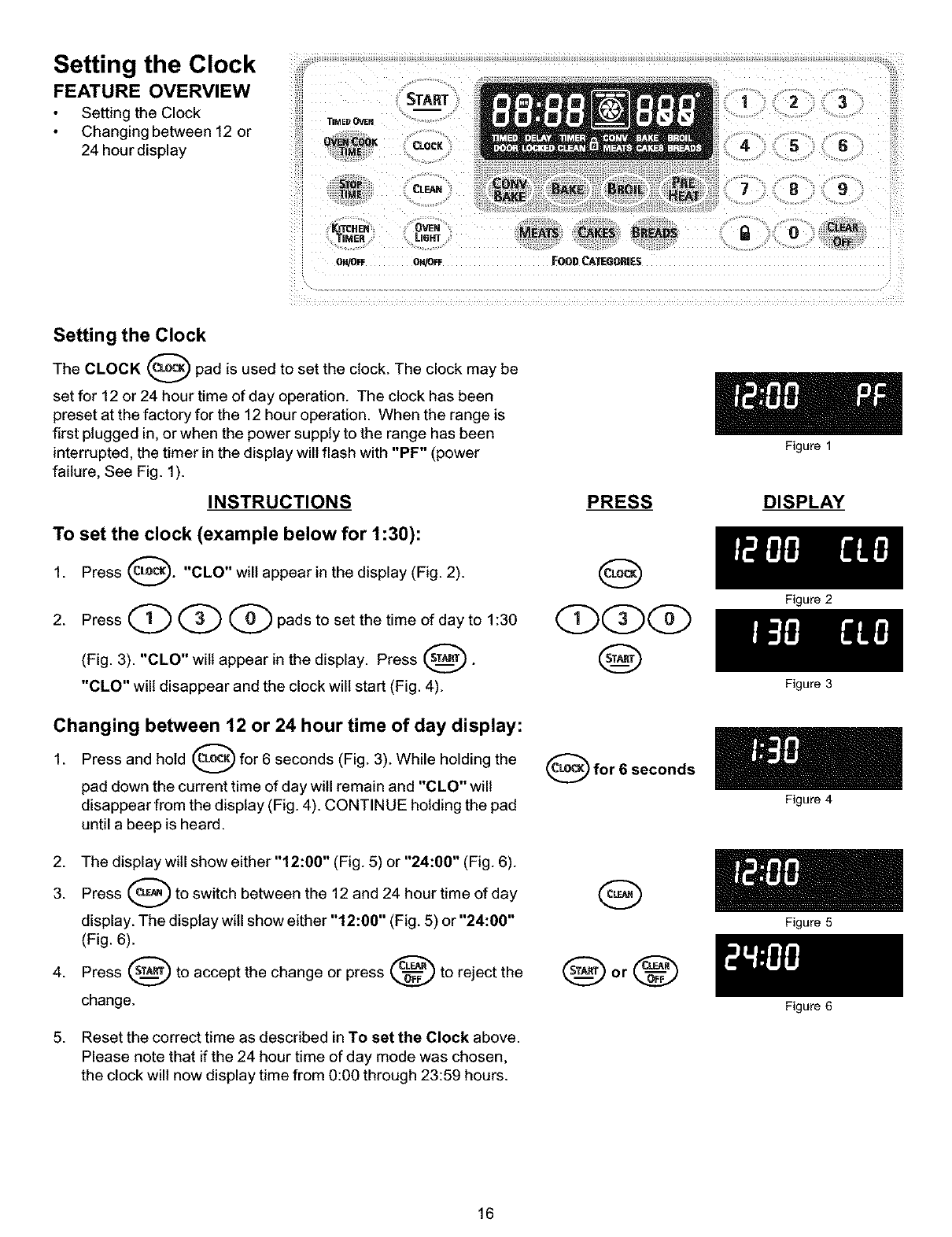

Setting the Clock ..................................................................... 16
Setting the Clock ............................................................... 16
Changing between 12 or 24 Hour Display ....................... 16

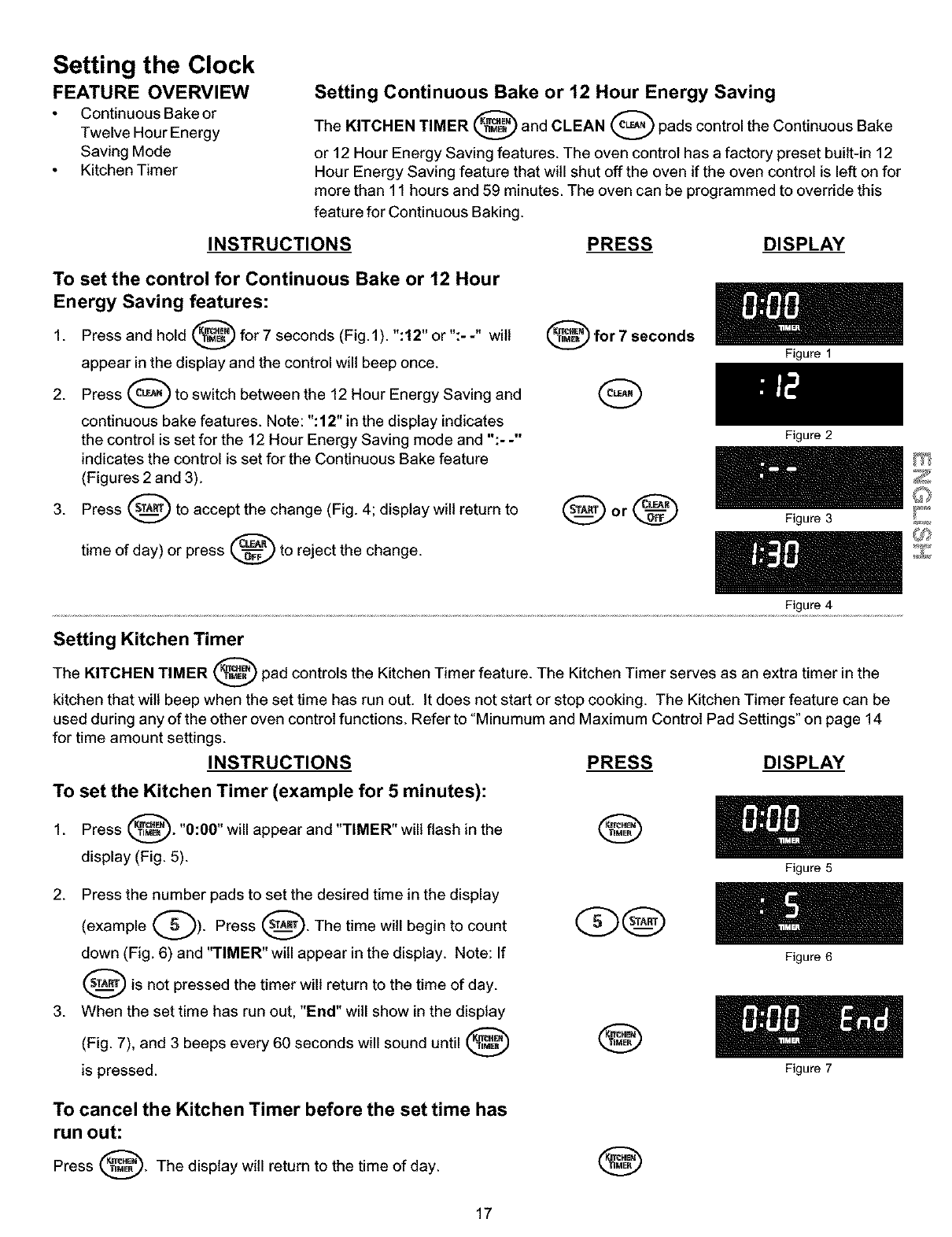

Continuous Bake or Twelve Hour Energy Saving Mode ,, 17
Kitchen Timer ..................................................................... 17

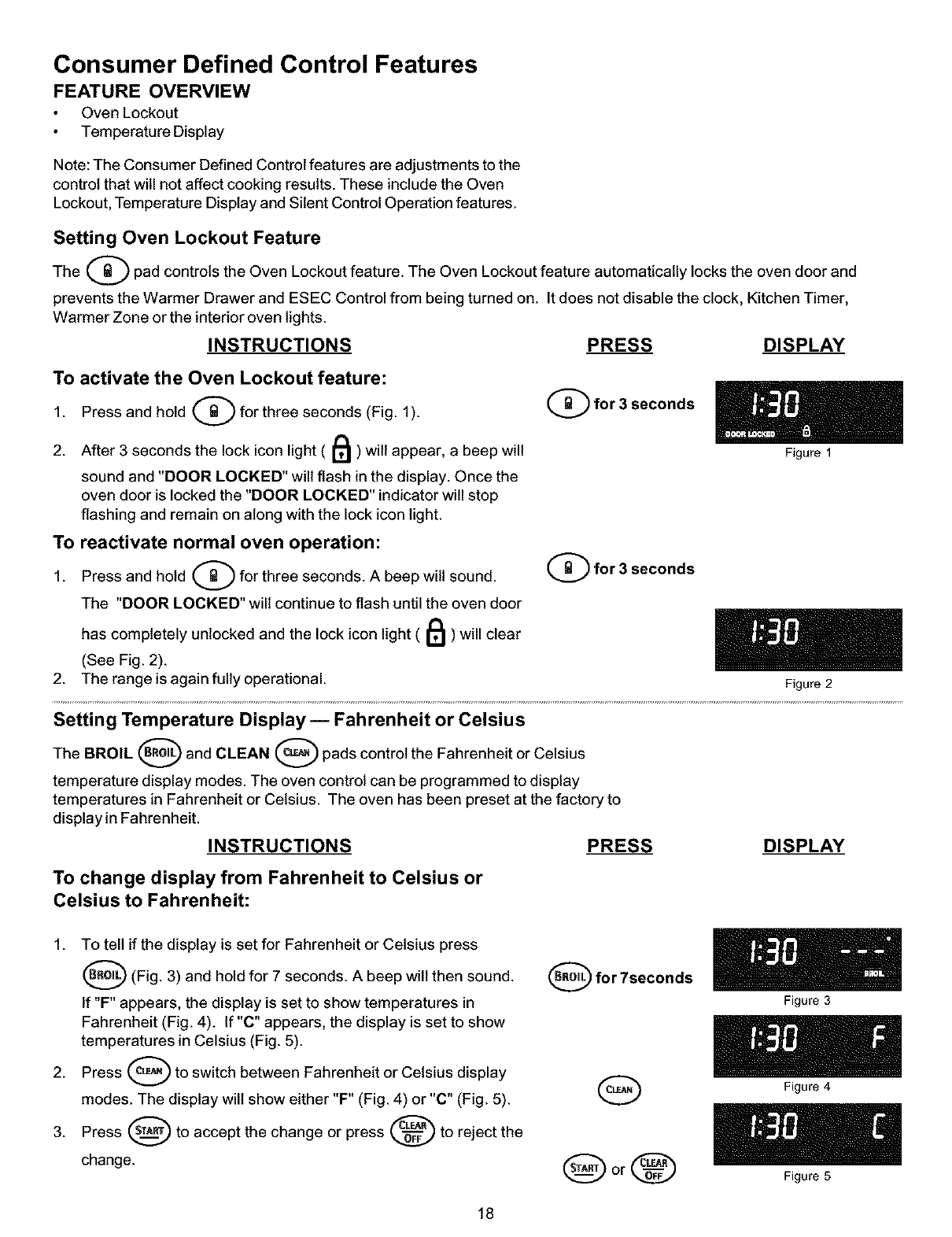

Consumer Defined Control Features ............................... 18-19
Oven Lockout .................................................................... 18

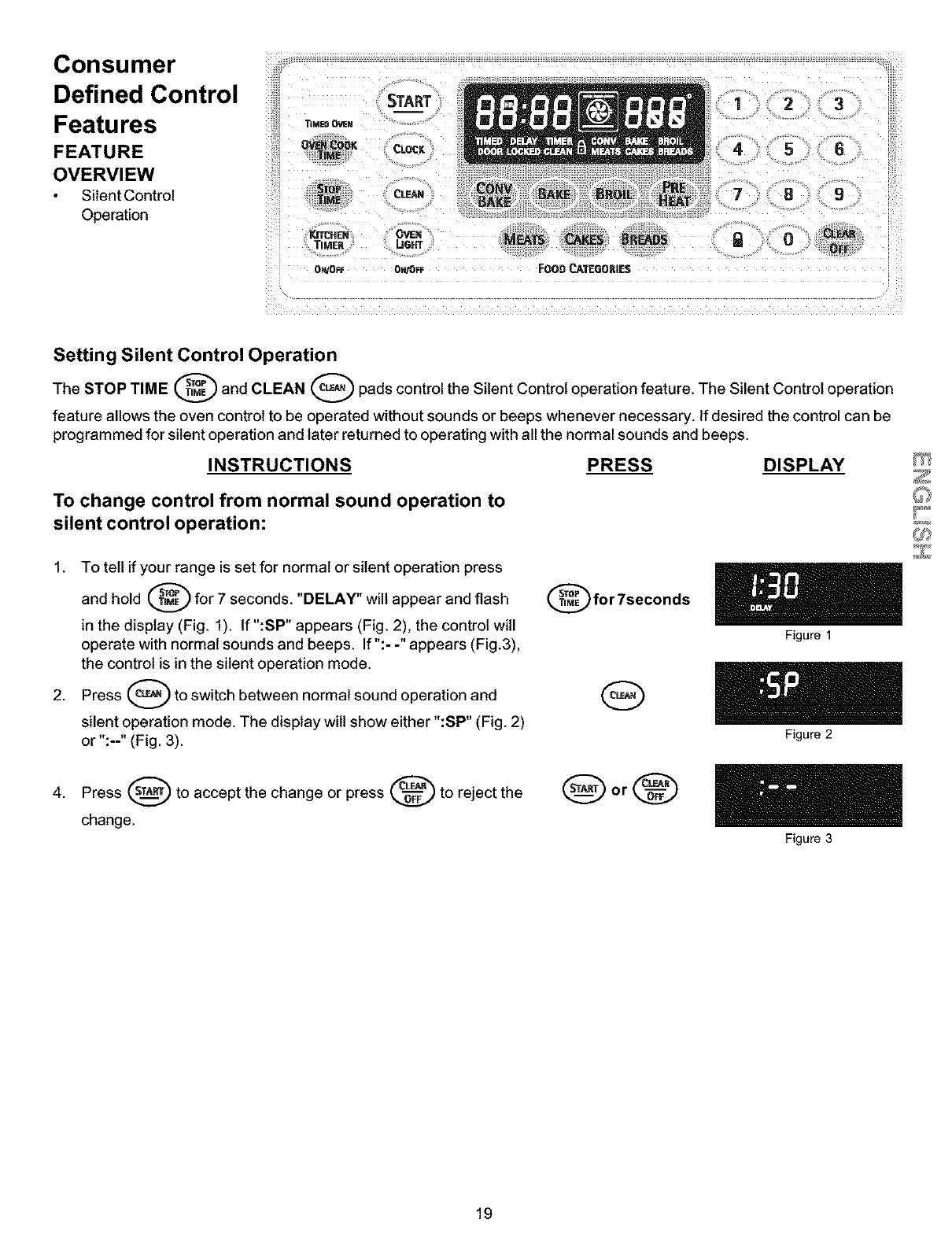

Silent Control Operation .................................................... 19
Setting Oven Controls ........................................................ 20-26

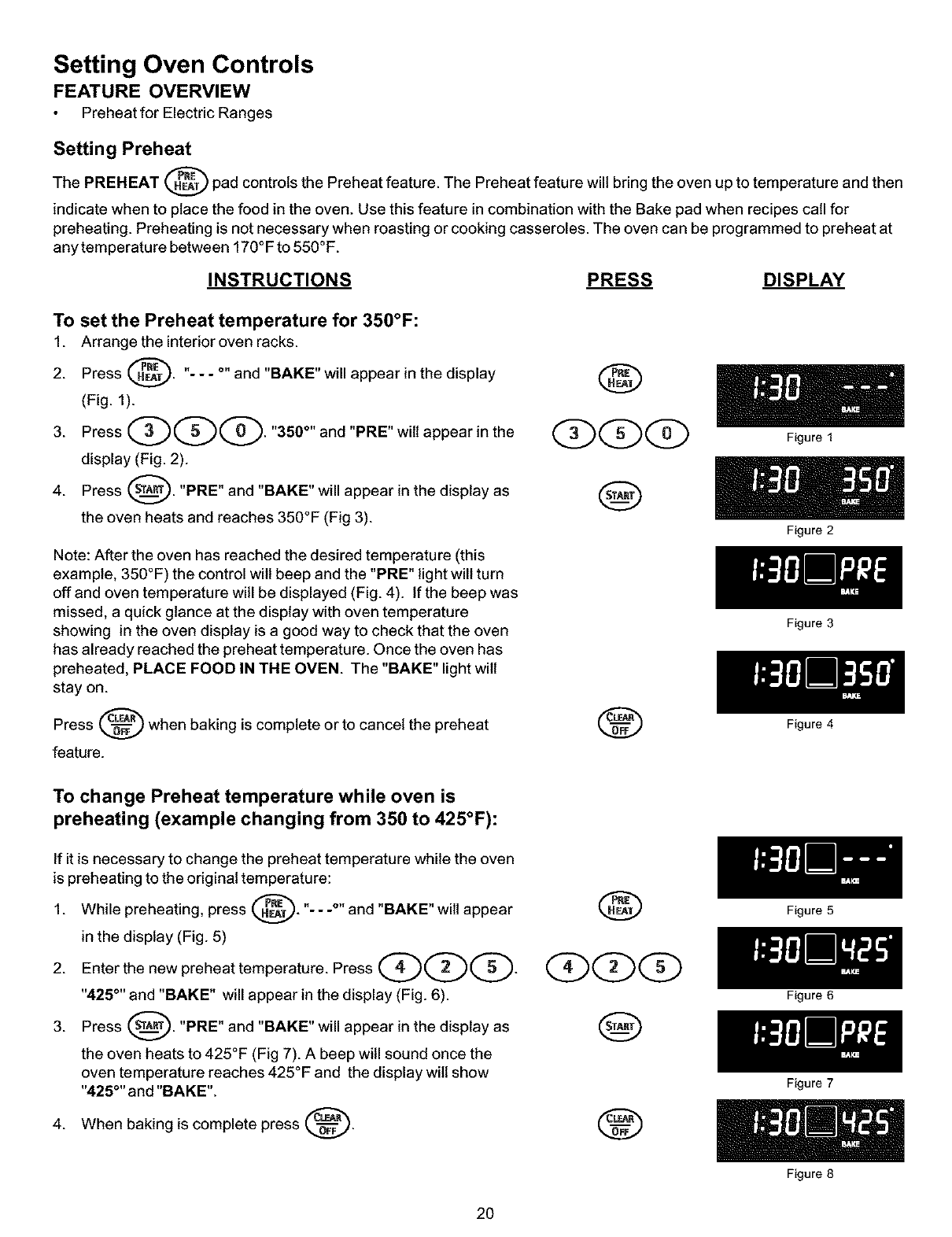

Preheat .............................................................................. 20

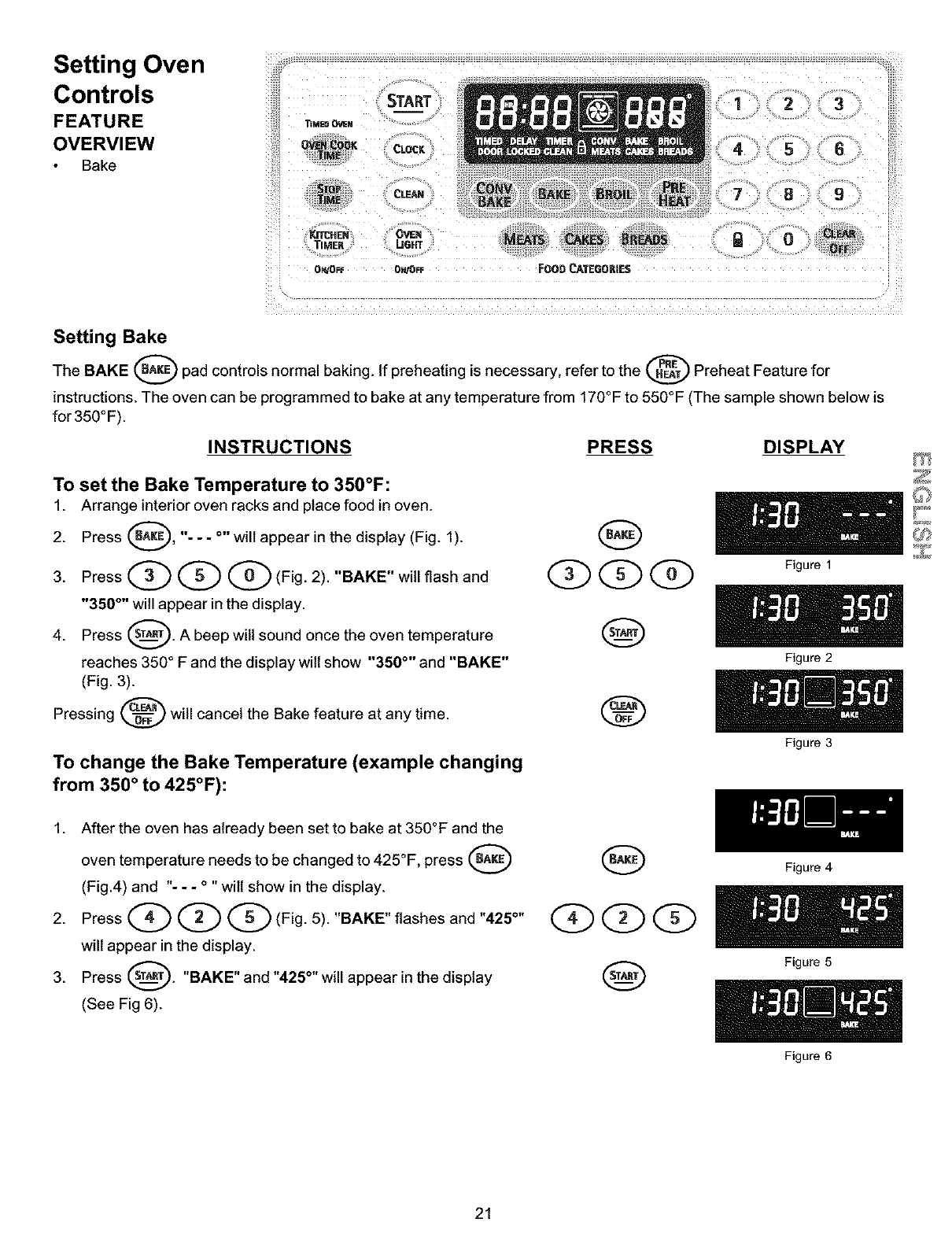

Bake .................................................................................. 21

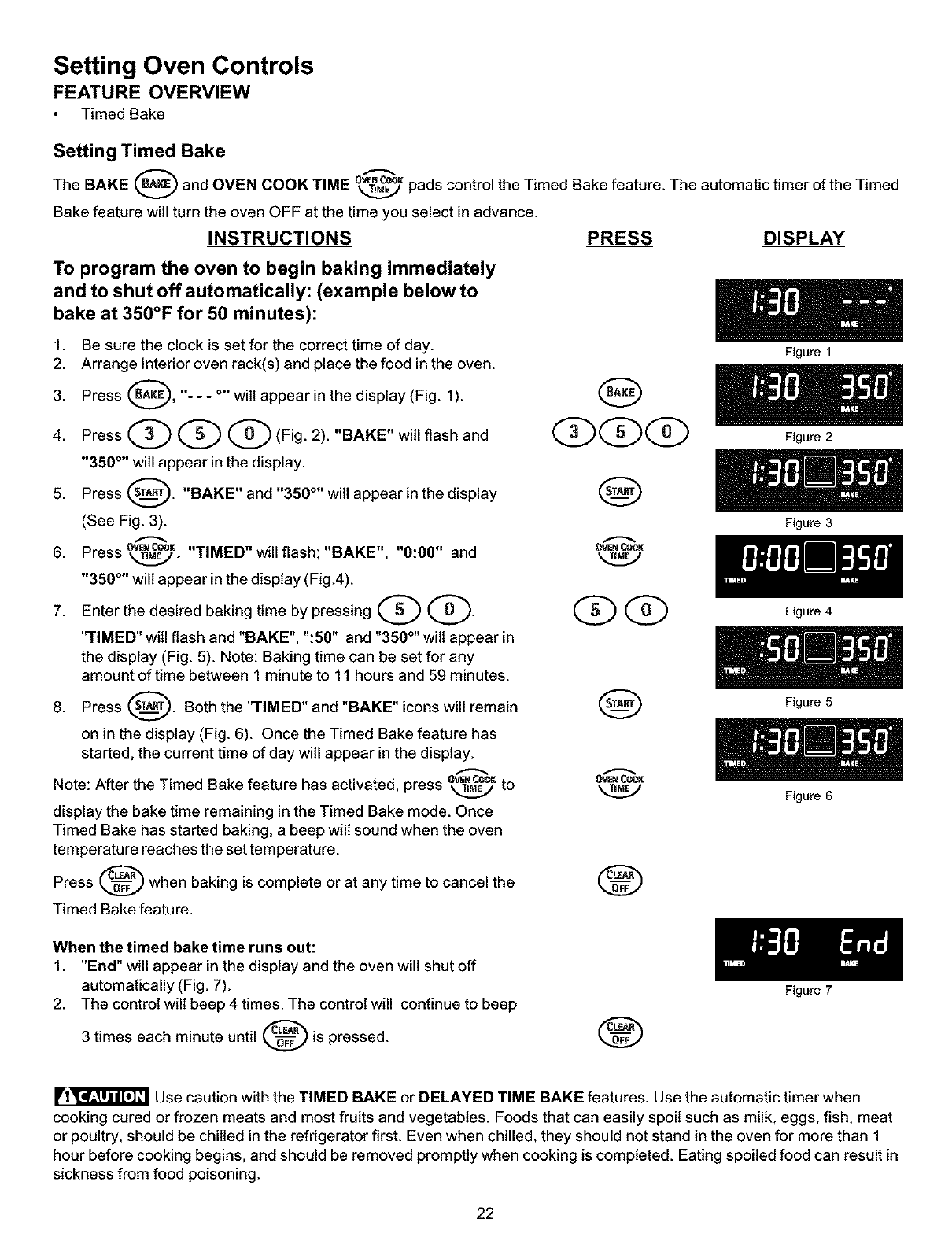

Timed Bake ....................................................................... 22

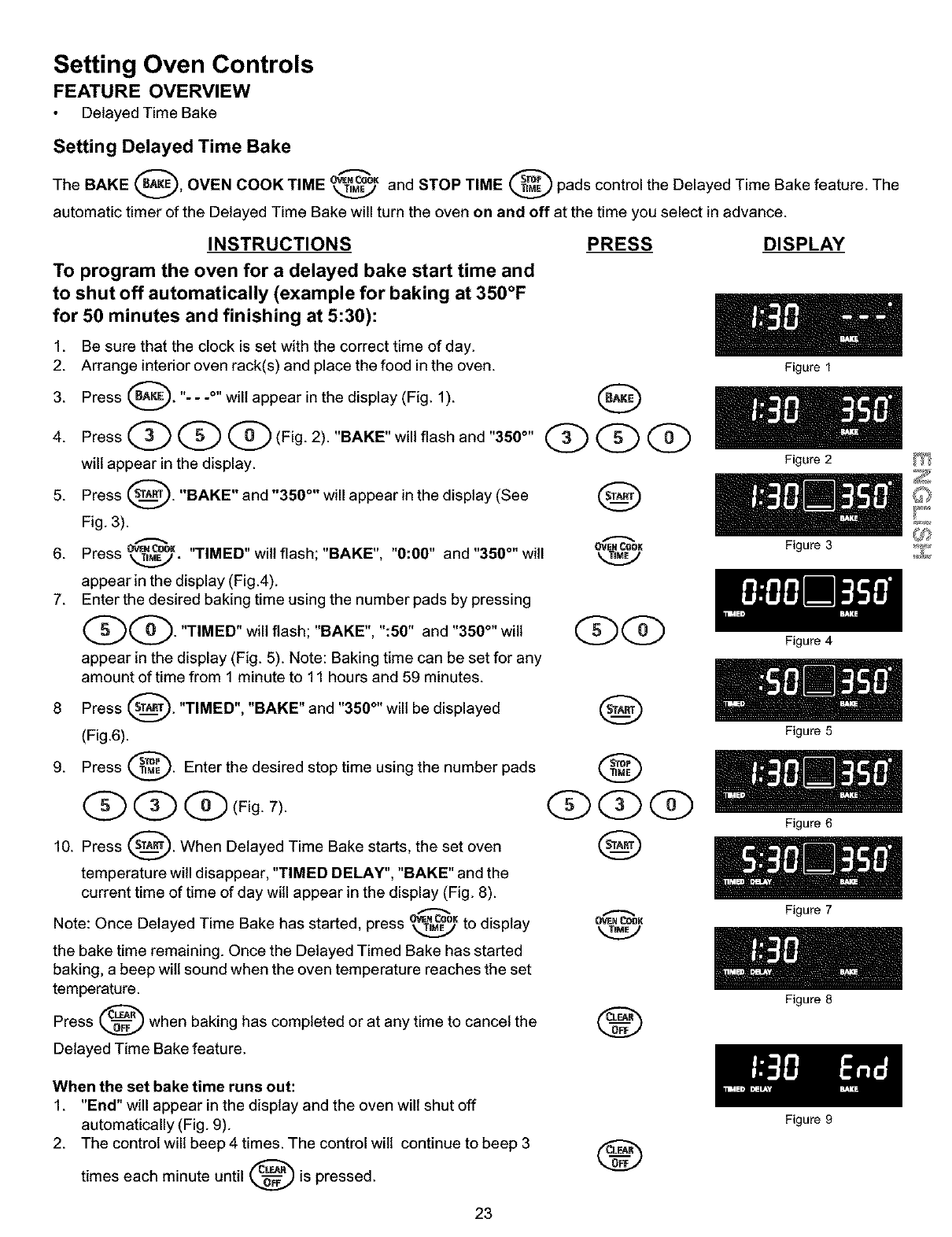

Delayed Timed Bake ......................................................... 23

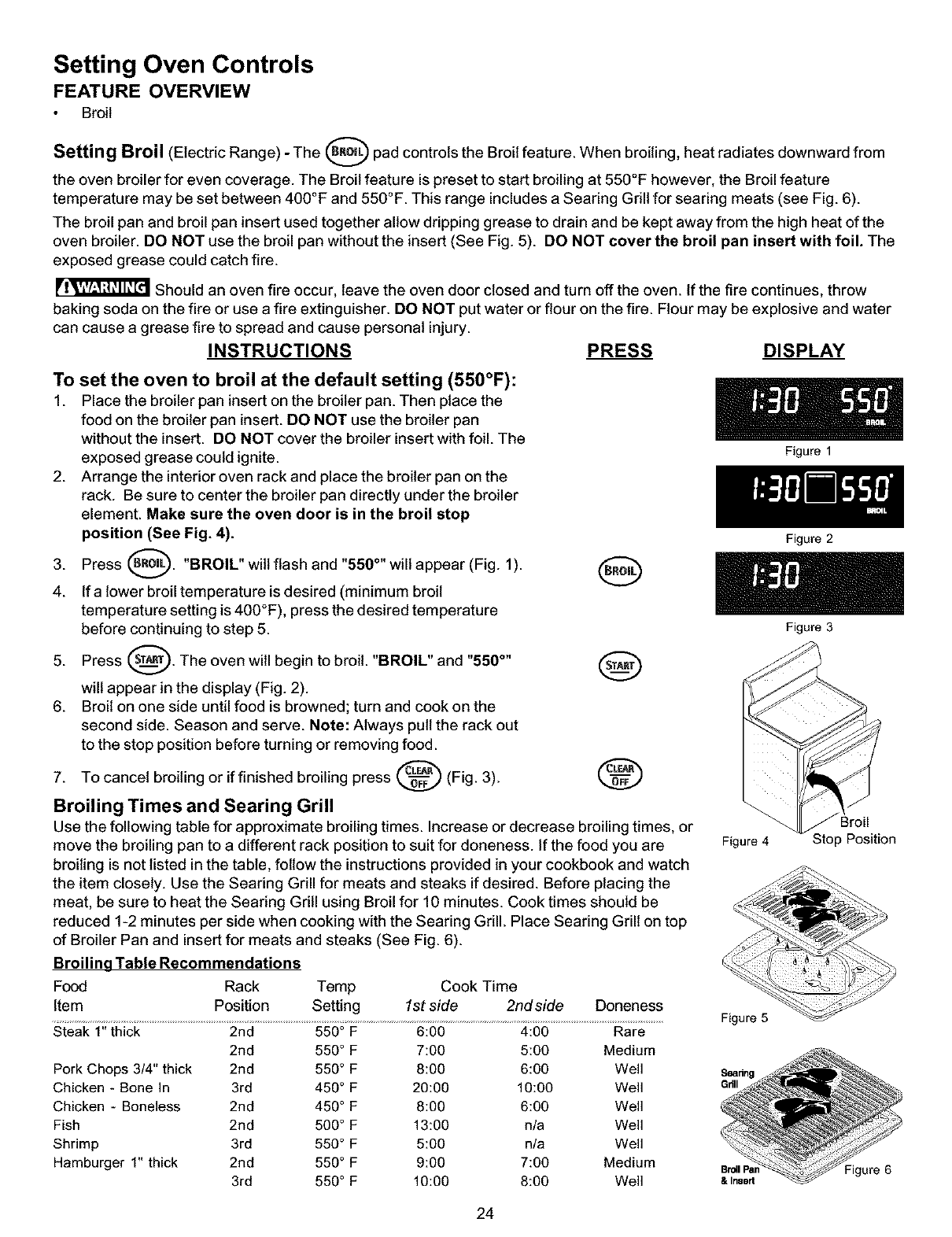

Broil & Searing Grill ........................................................... 24

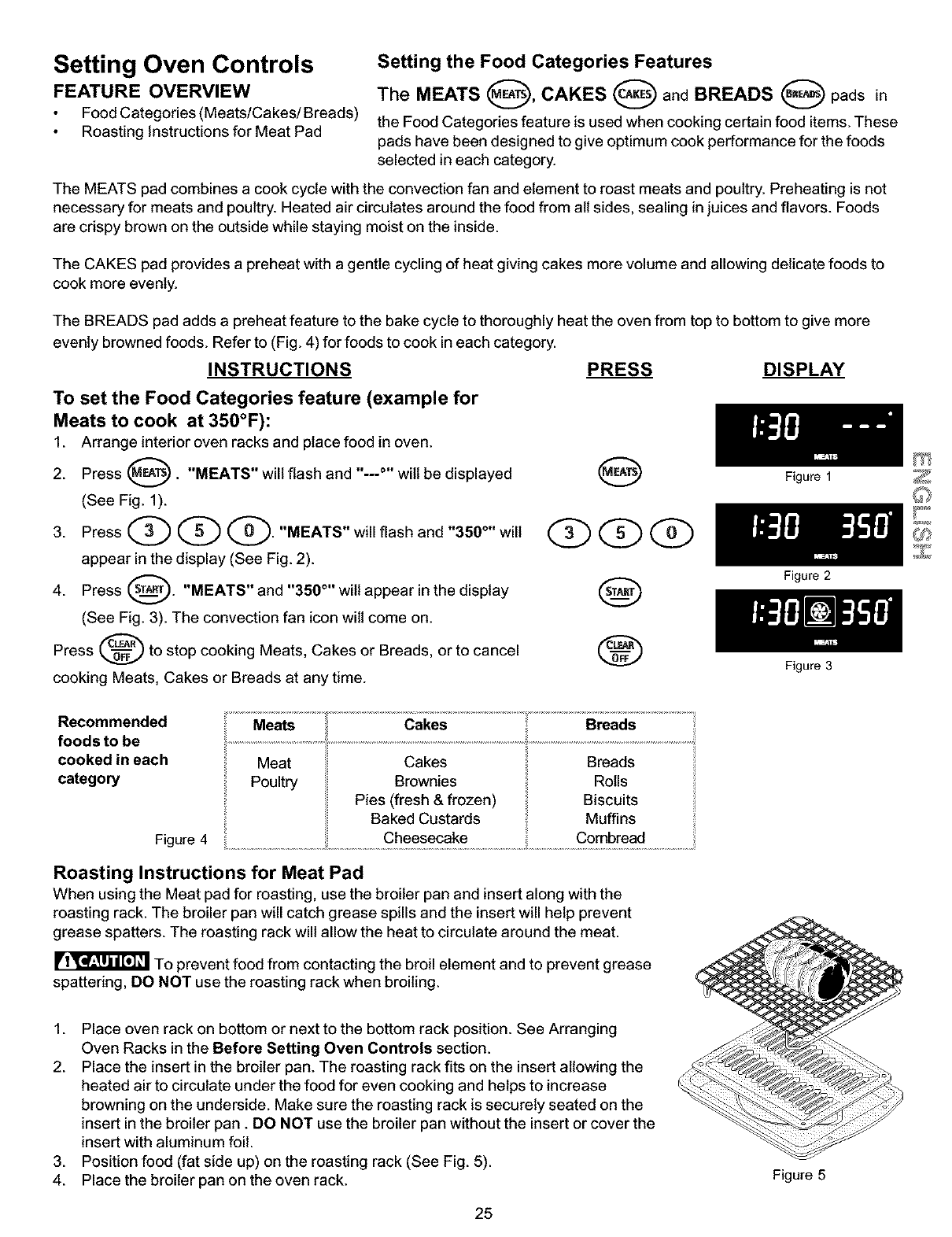

Food Categories (Meats, Cakes & Breads) ...................... 25

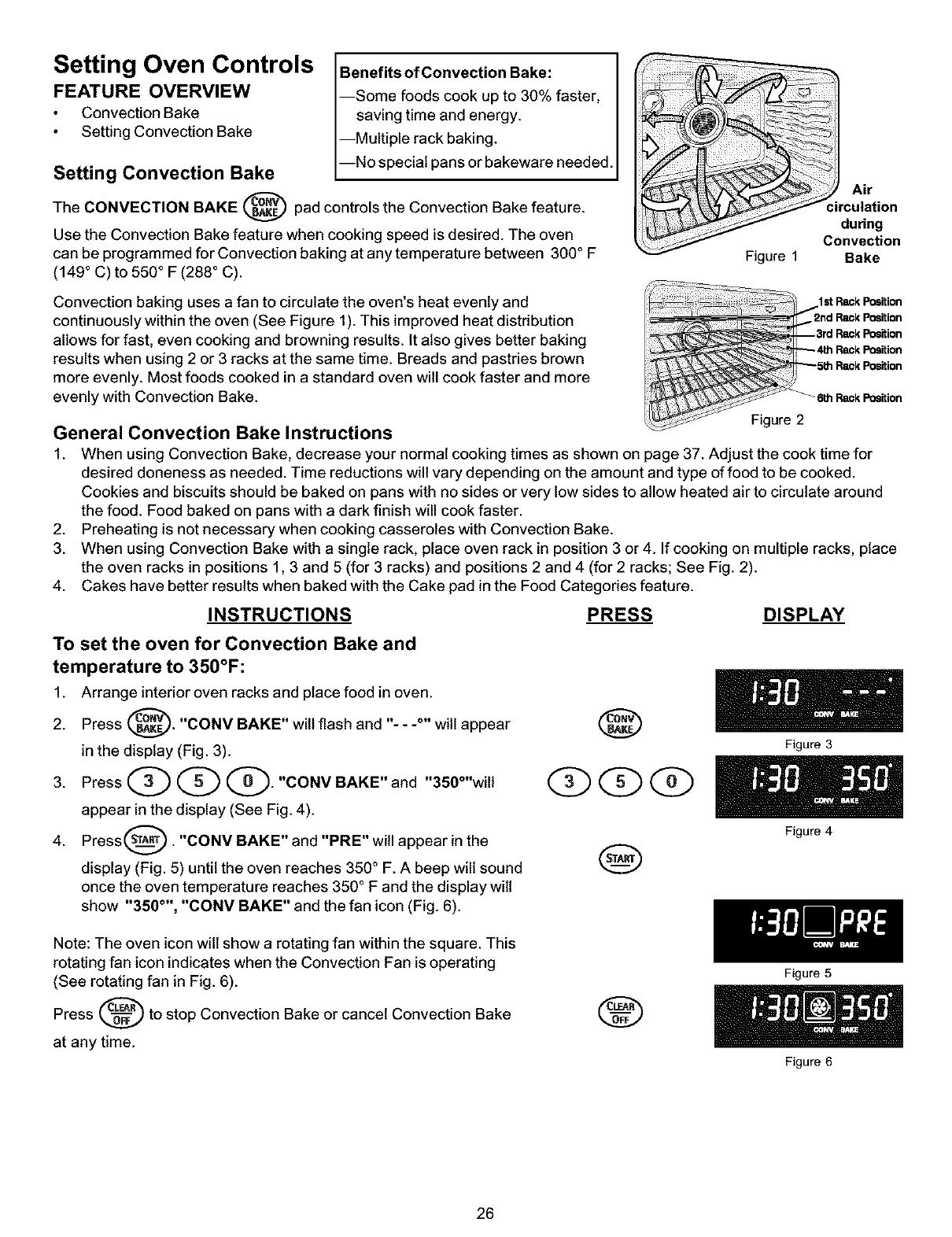

Convection Bake ............................................................... 26
Oven Cleaning .................................................................... 27-30

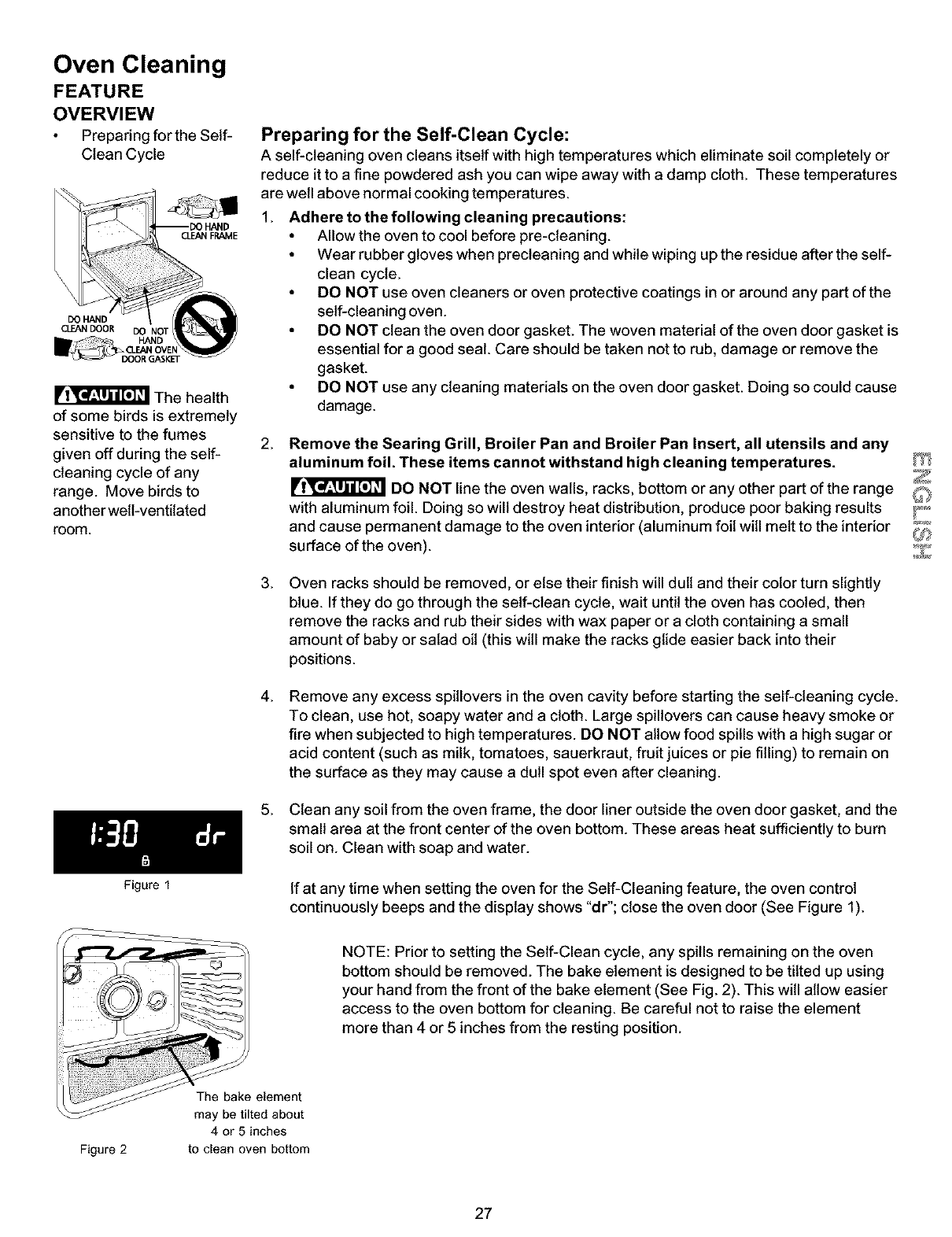

Preparing for the Self-Clean Cycle ................................... 27

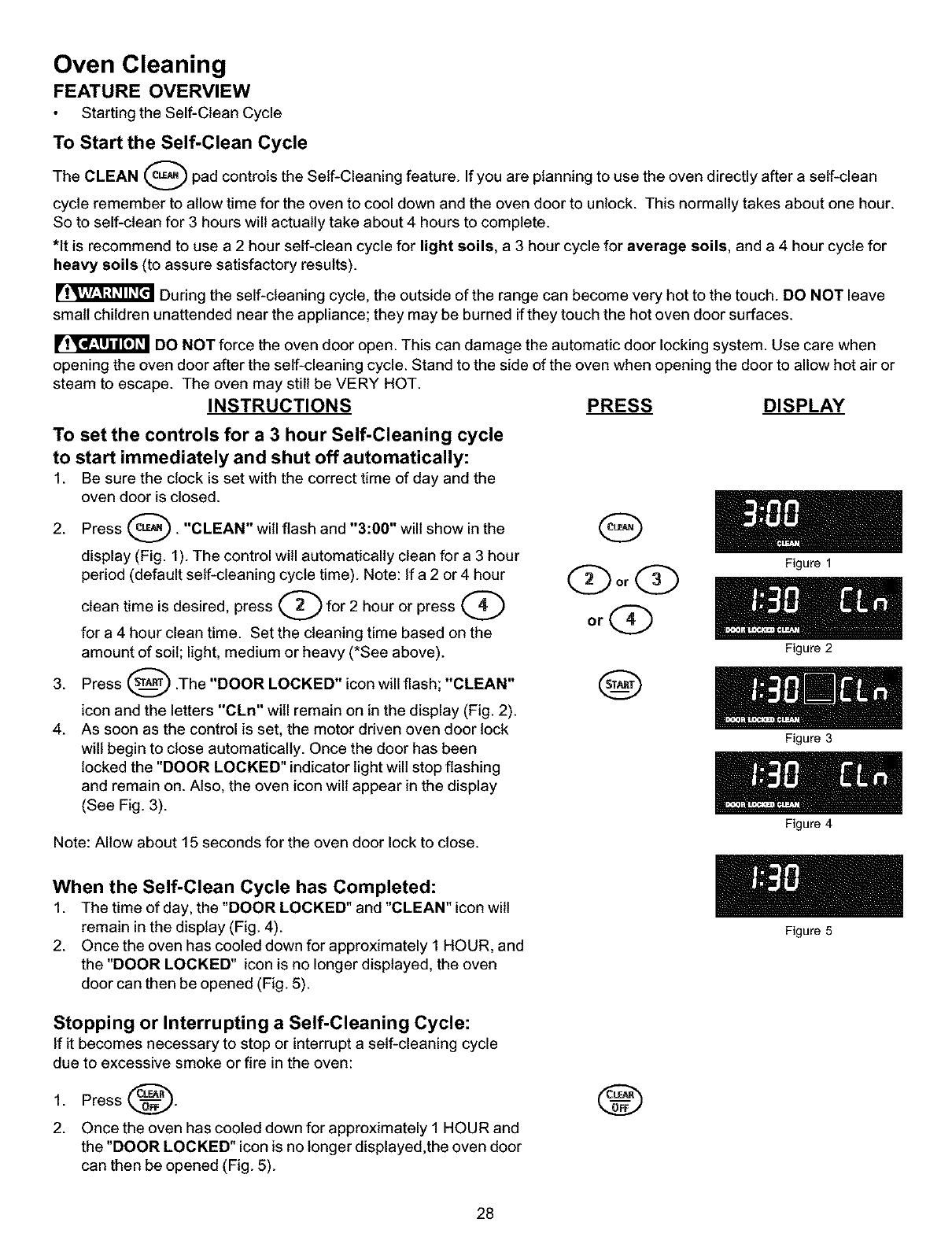

Self-Clean Cycle ............................................................... 28

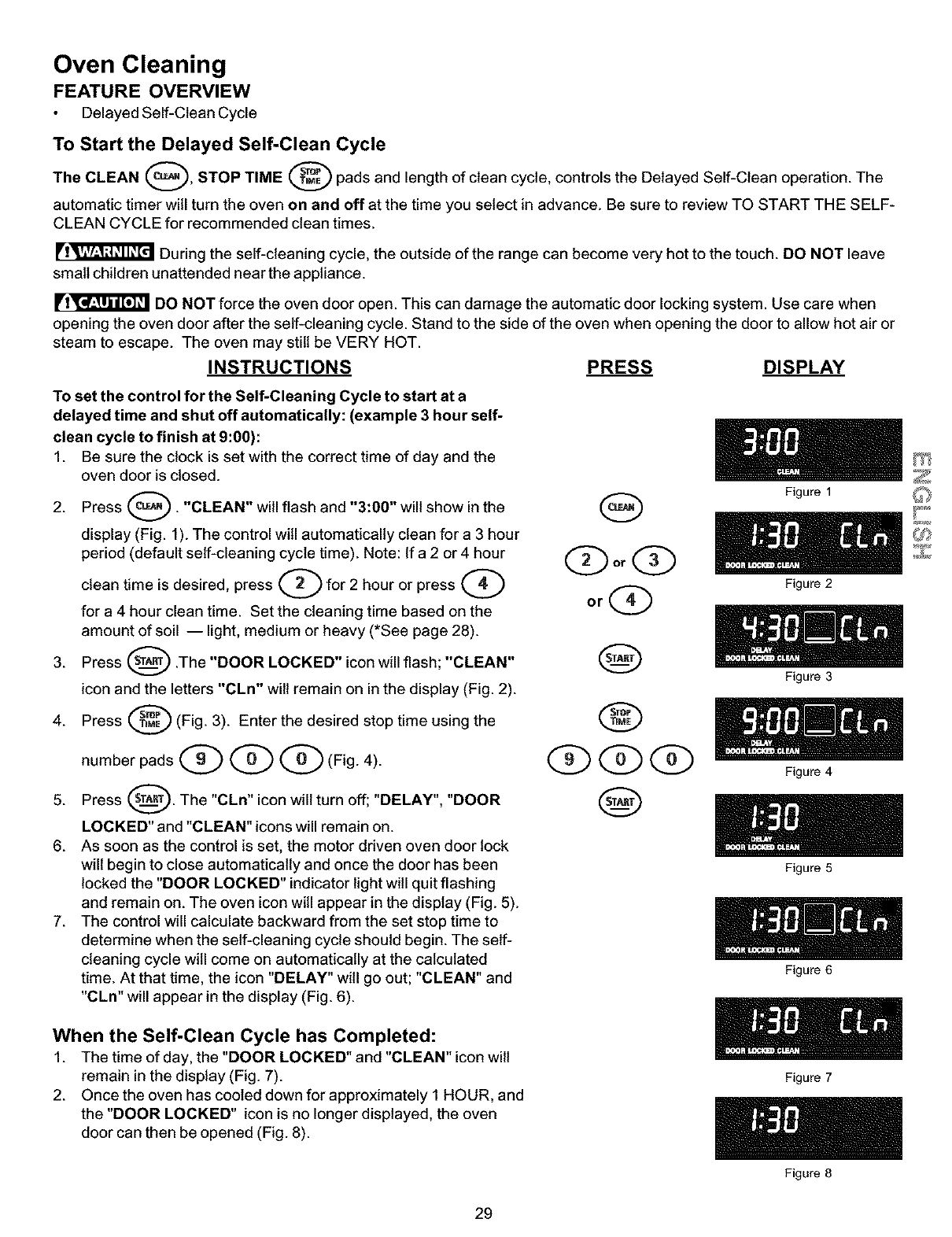

Delayed Self-Clean Cycle ............................................ 29-30

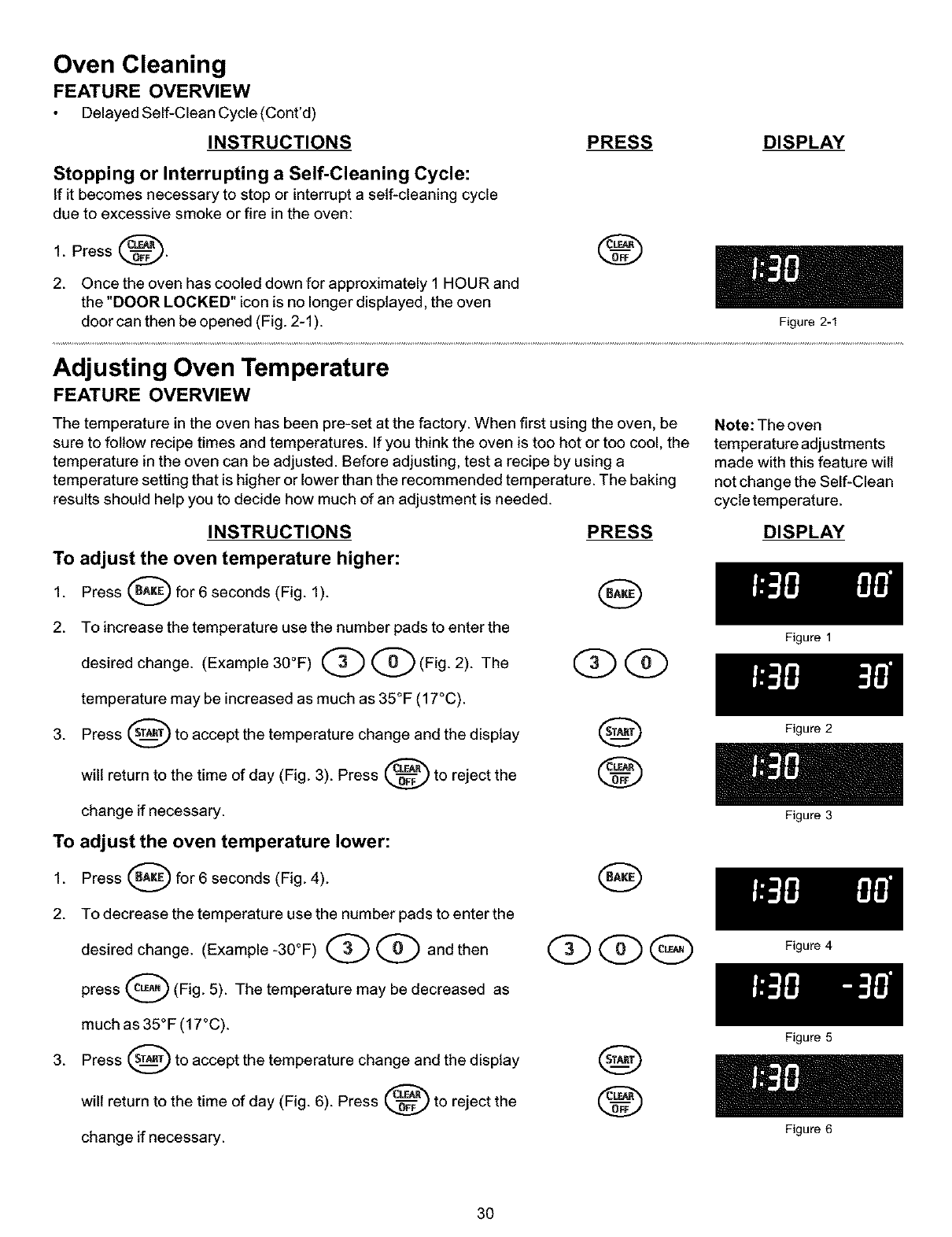

Adjusting Oven Temperature ................................................. 30

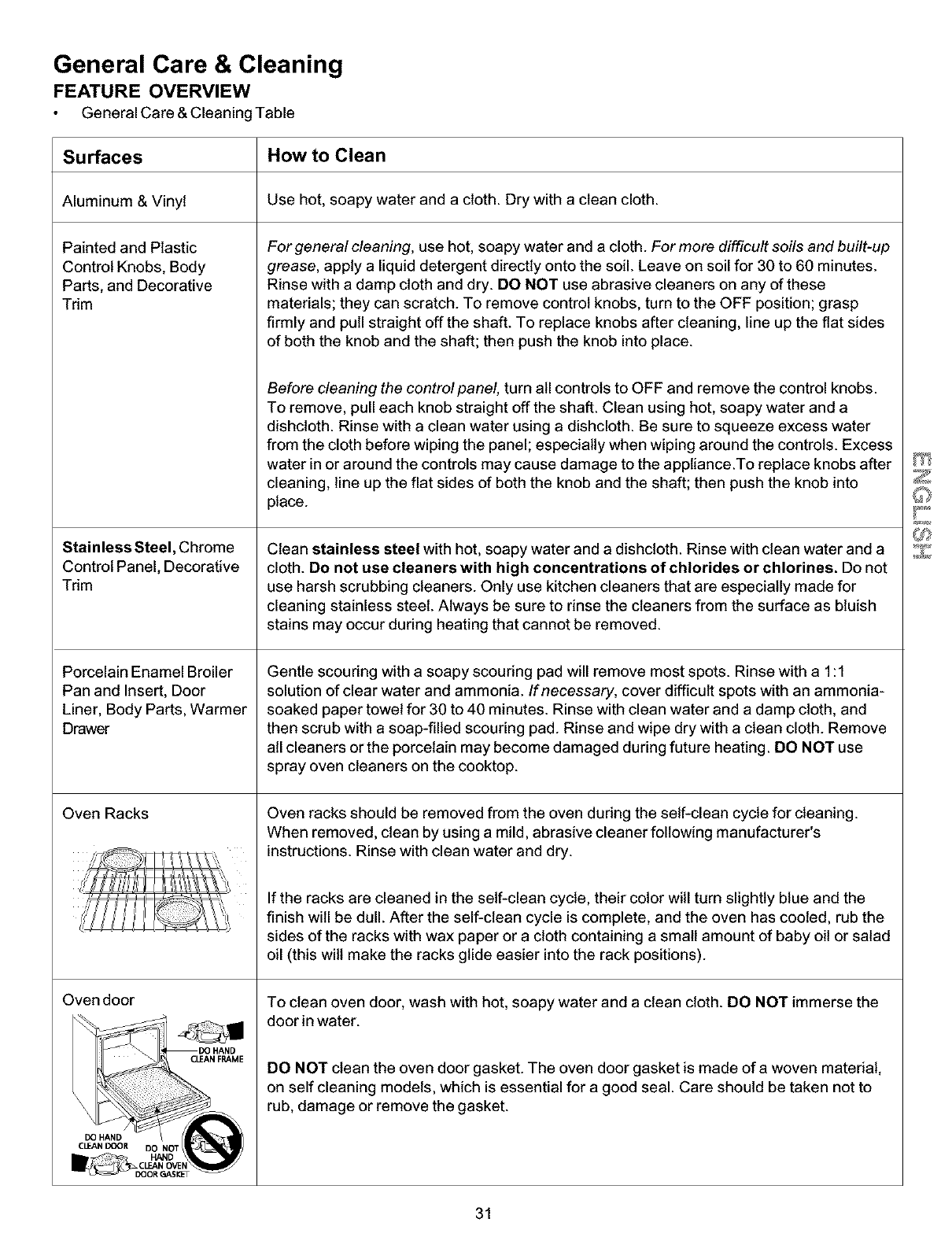

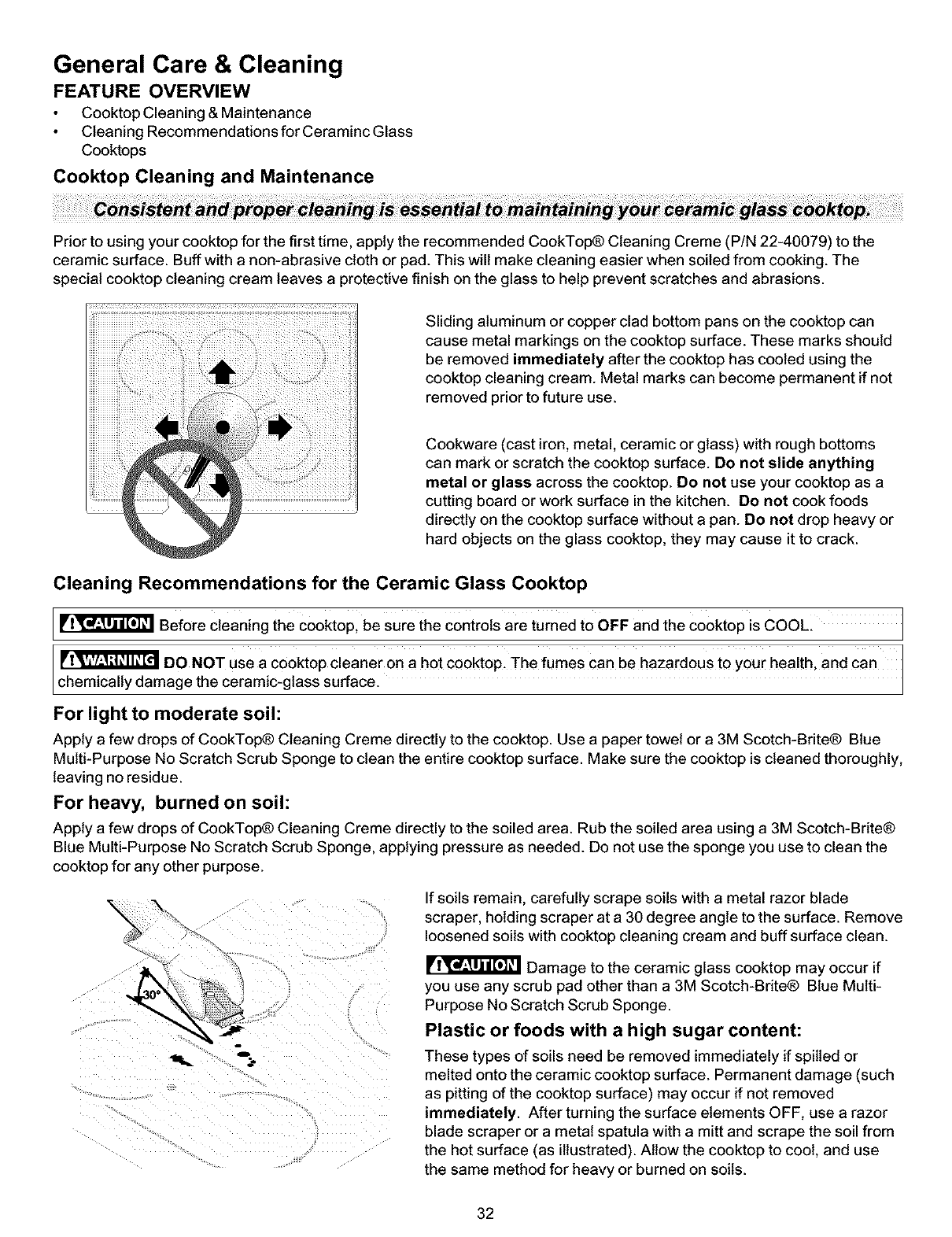

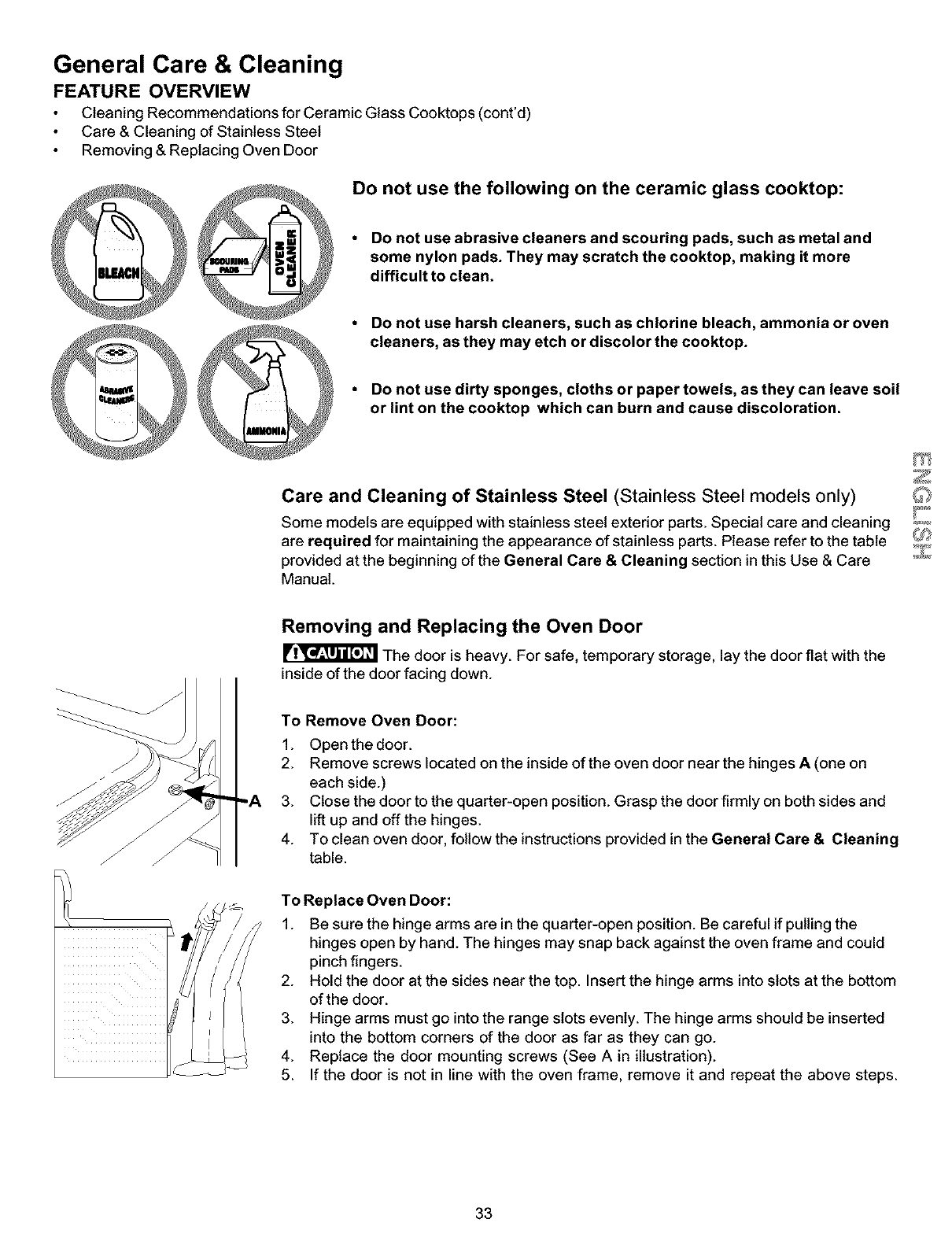

General Cleaning ................................................................ 3%34

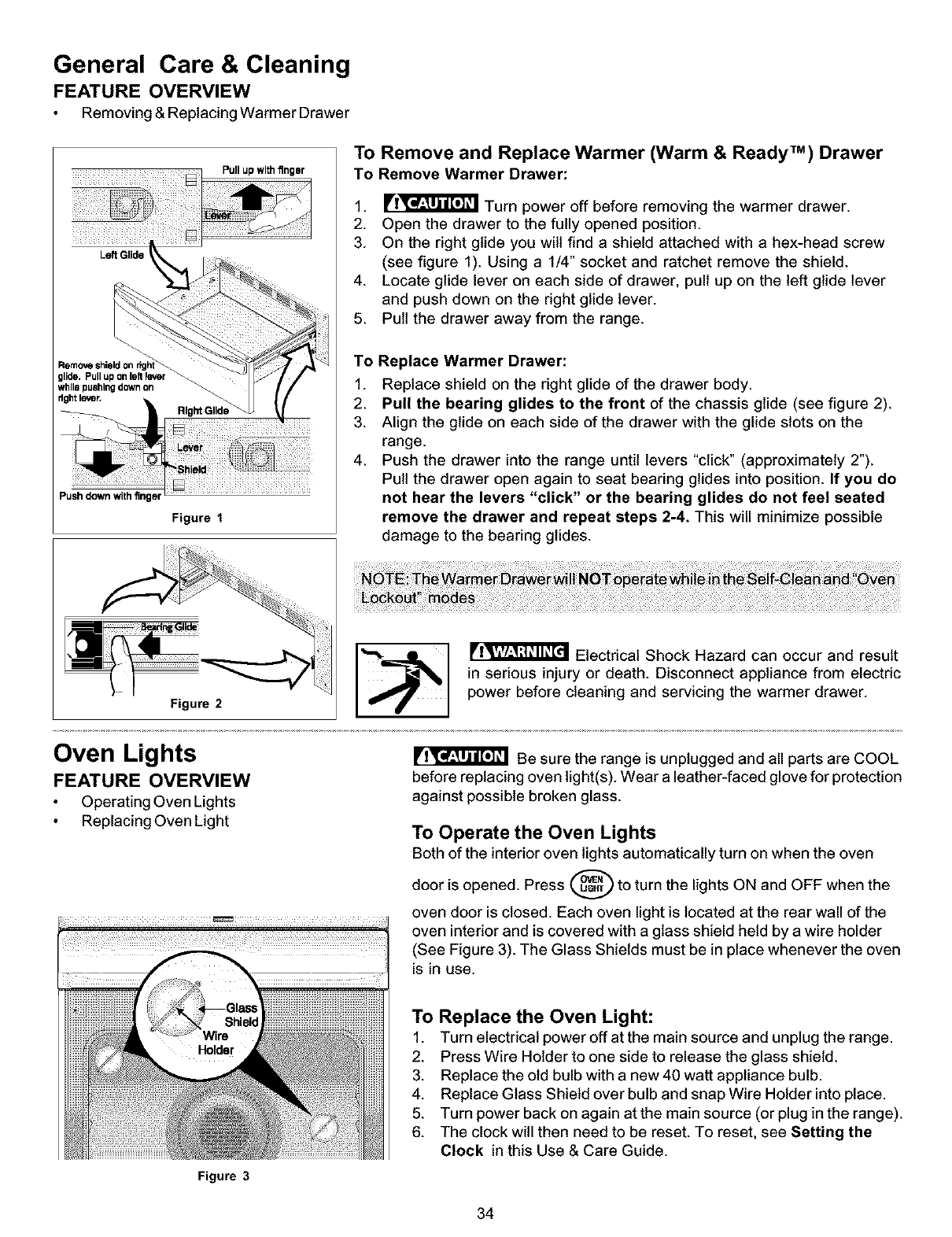

Oven Lights .............................................................................. 34

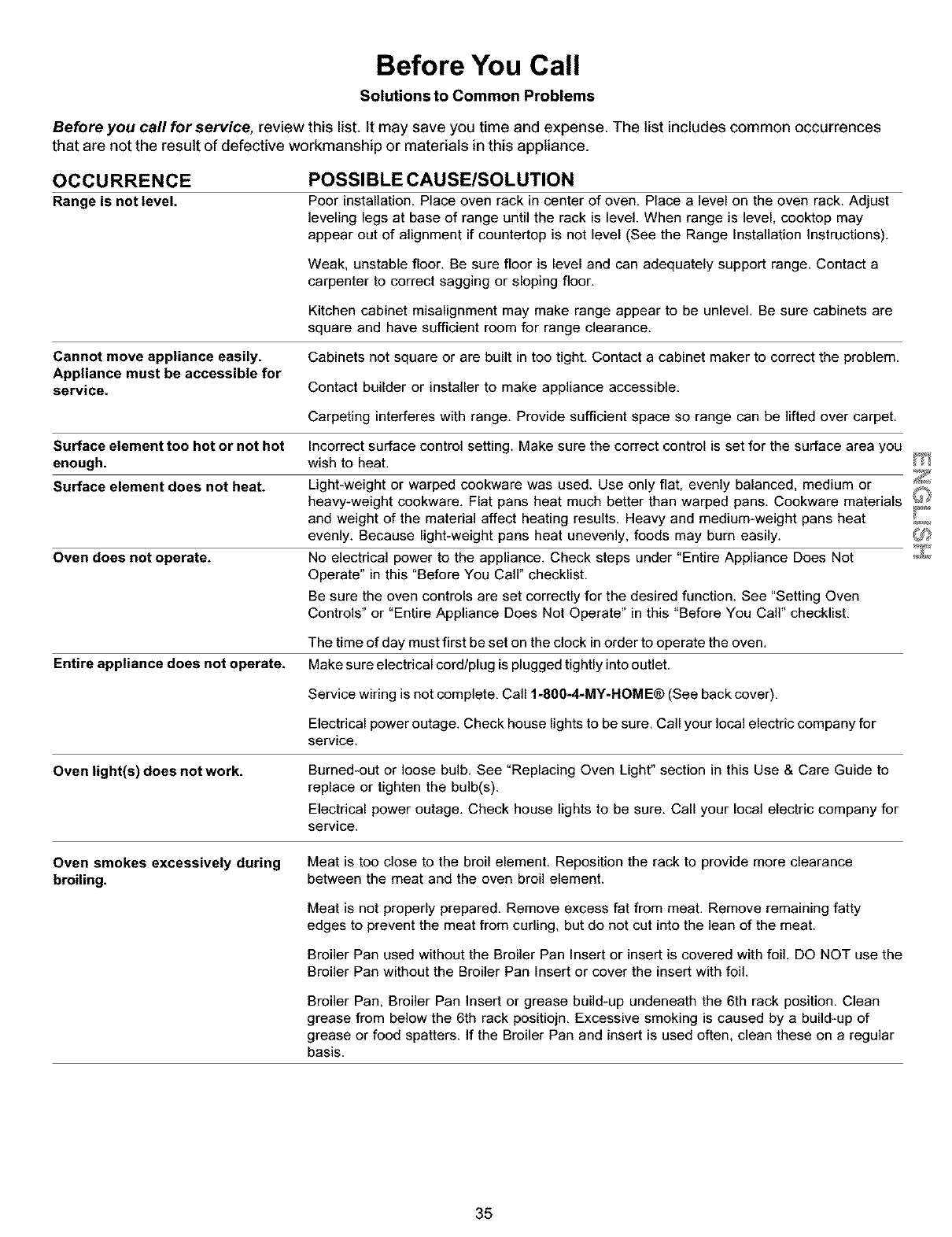

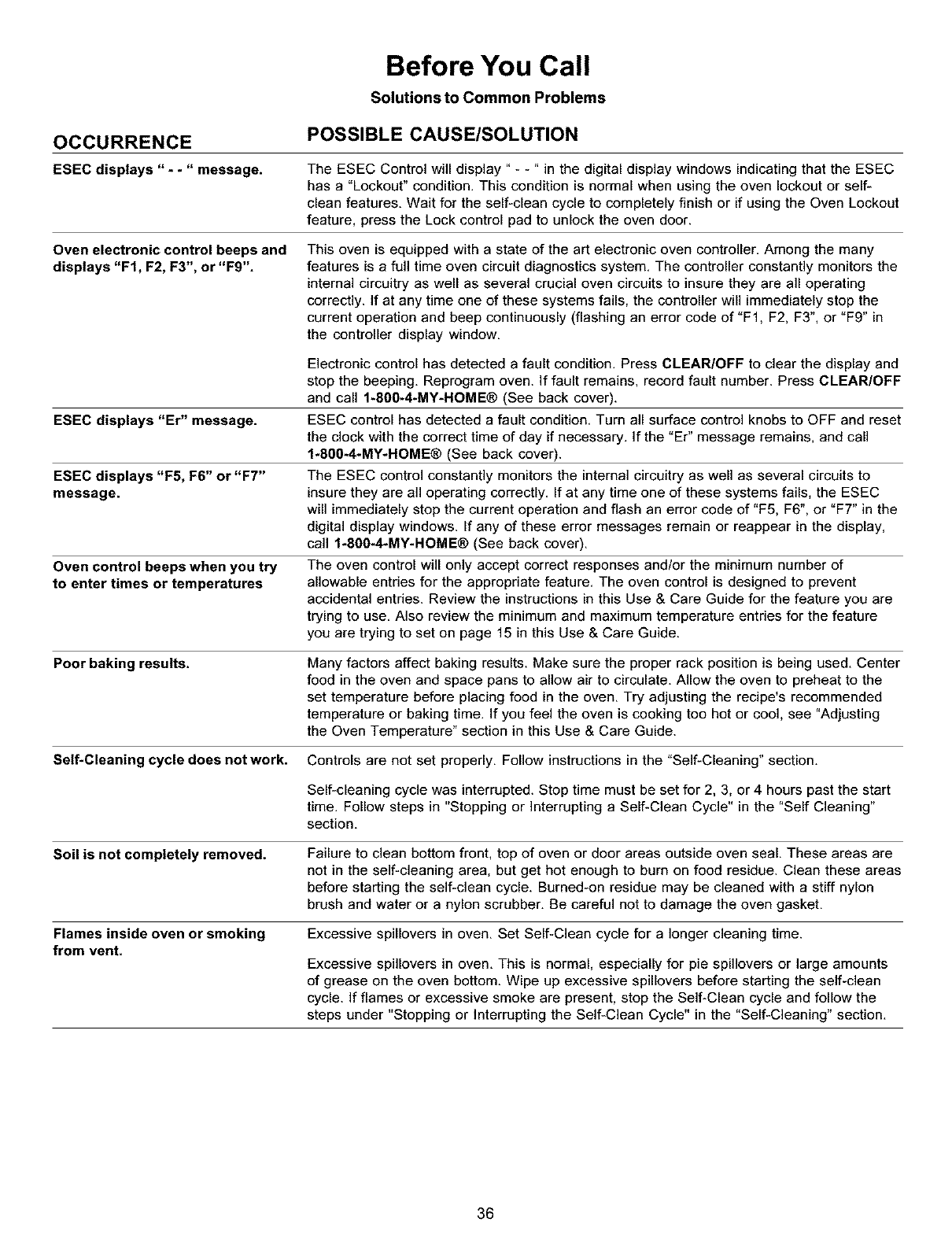

Before You Call for Service ............................................... 35-36

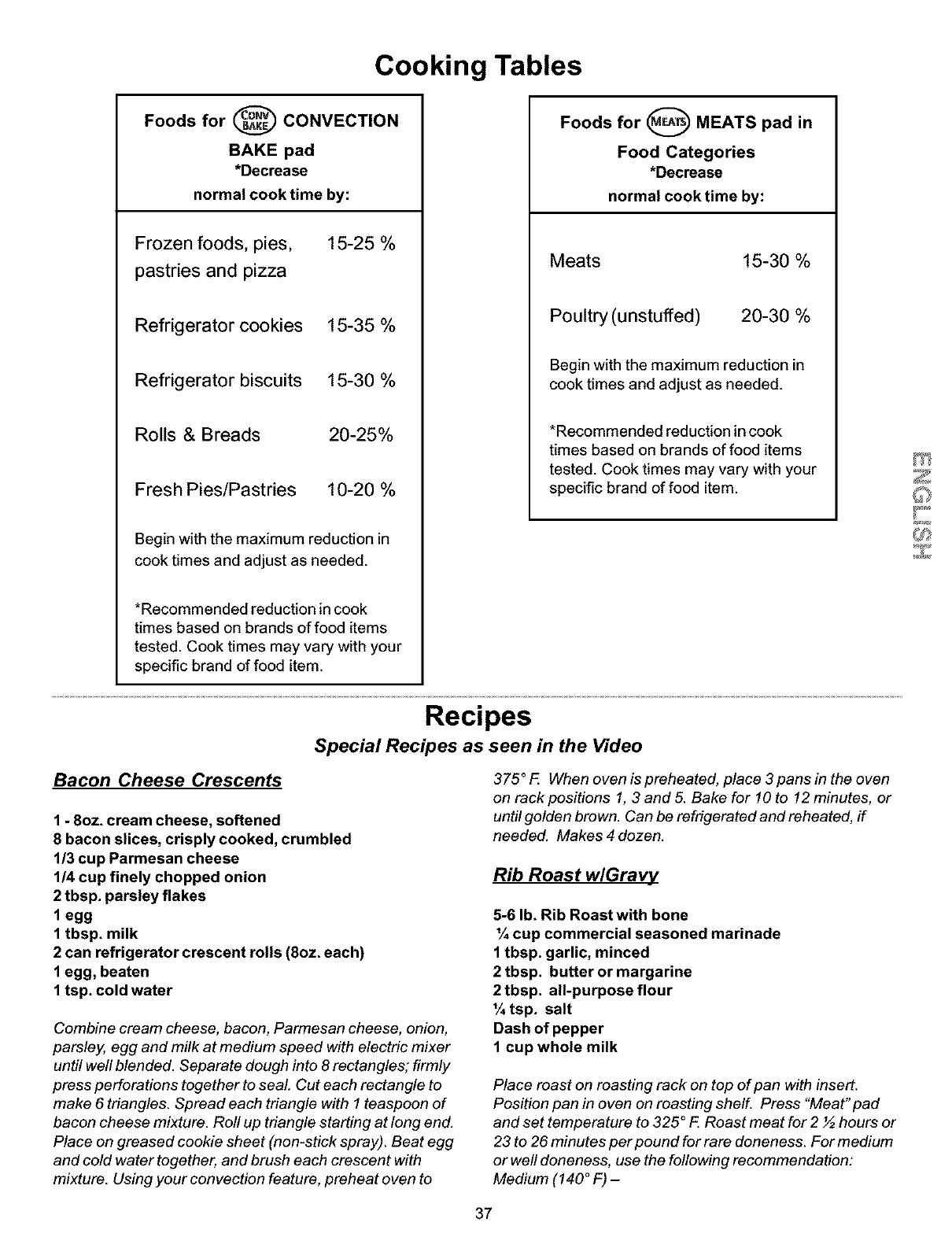

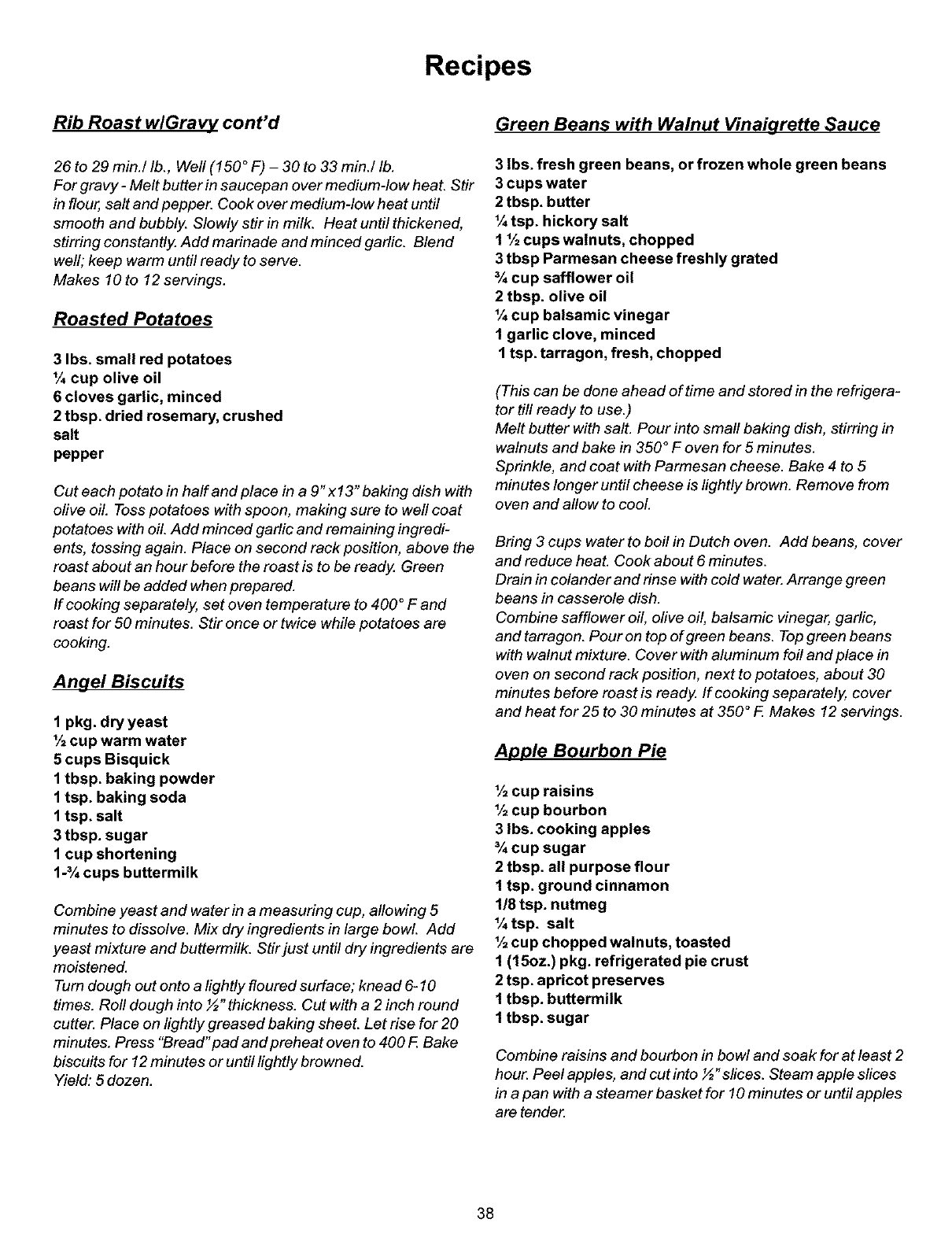

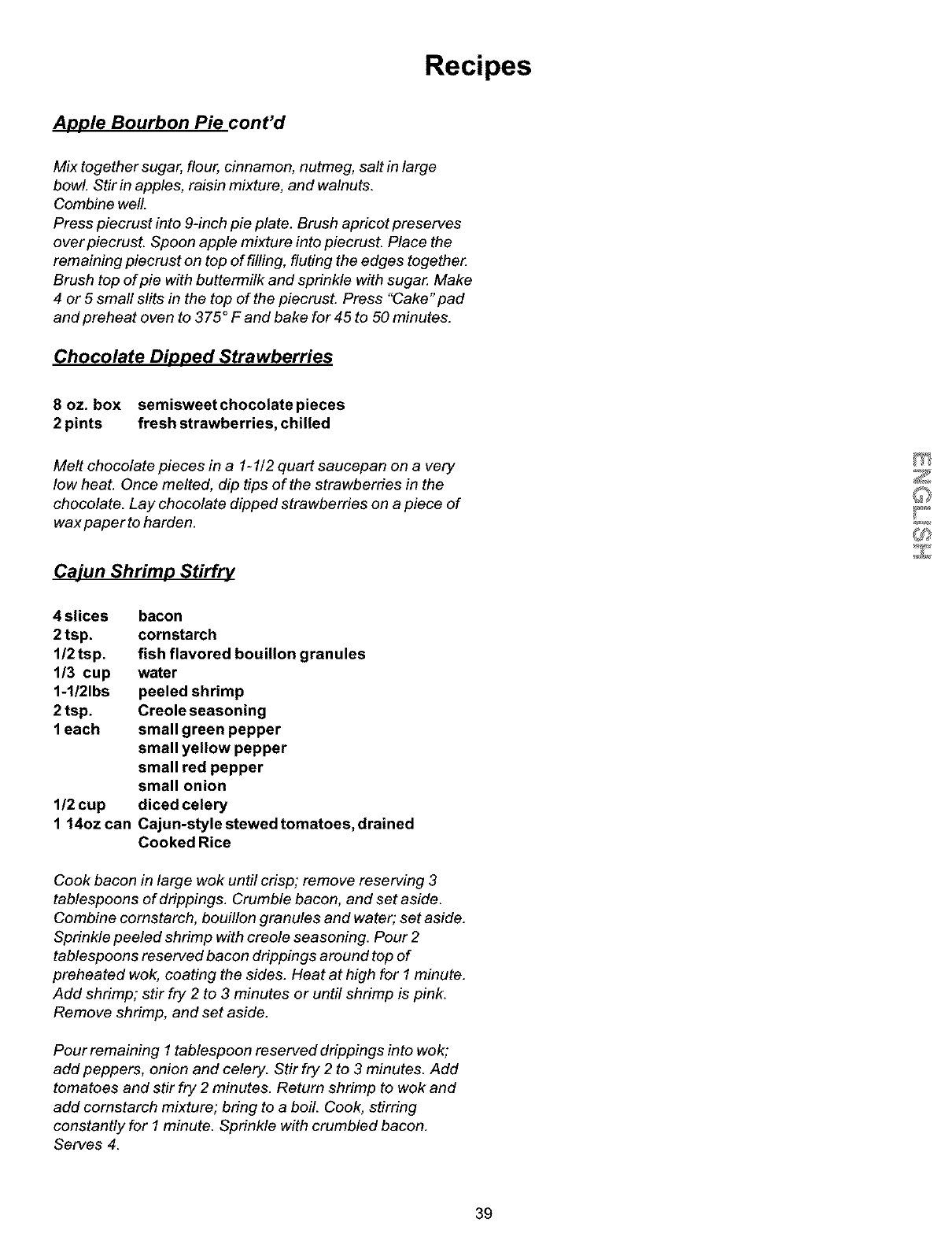

Cooking Tables & Recipes ................................................. 37-3g
Sears Service .......................................................................... 40
Free-Standing Range Warranty
FULL ONE YEAR WARRANTY ON ALL PARTS
If, within one year from the date of installation, any part fails to function properly due to a defect in
material or workmanship, Sears wilt repair or replace it, at our option, free of charge.
Your ceramic glass smoothtop is covered by an additional 2rid through 5th year limited warranty. This
warranty provides for replacement for any defective surface heating element, deteriorated rubberized-
silicone seal, or glass smoothtop that cracks due to thermal breakage. Damage or breakage due to
customer abuse is not covered by this warranty.
If the product is subjected to other than private residential use, the above warranty is effective for only 90
days.
WARRANTY SERVICE IS AVAILABLE BY CONTACTING SEARS AT 1-800-4-MY-HOME®.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
Sears Roebuck and Co., Dept. 817WA Hoffman Estates, IL 60179
WE SERVICE WHAT WE SELL
Your purchase has added value because you can depend on Sears HomeCentral® for service. With over
12,000 trained repair specialists and access to over 4.2 million parts and accessories, we have the tools,
parts, knowledge and skills to ensure our pledge: We Service What We Sell.
Sears Maintenance Agreements
Your Kenmore appliance is designed, manufactured and tested to provide years of dependable operation.
Yet any major appliance may require service from time to time. The Sears Maintenance Agreement offers
you an outstanding service program, affordably priced.
The Sears Maintenance Agreement
•Is your way to buy tomorrow's service at today's price.
•Eliminates repair bitls resulting from normal wear and tear.
•Provides for non-technical and instructional assistance.
•Even if you don't need repairs, provides an annual Preventive Maintenance Check,
at your request, to ensure that your appliance is in proper running condition.
Some limitations apply. For more information, call 1-800-827-6655.
For information concerning Sears Canada Maintenance Agreements, call 1-800-361-6665.

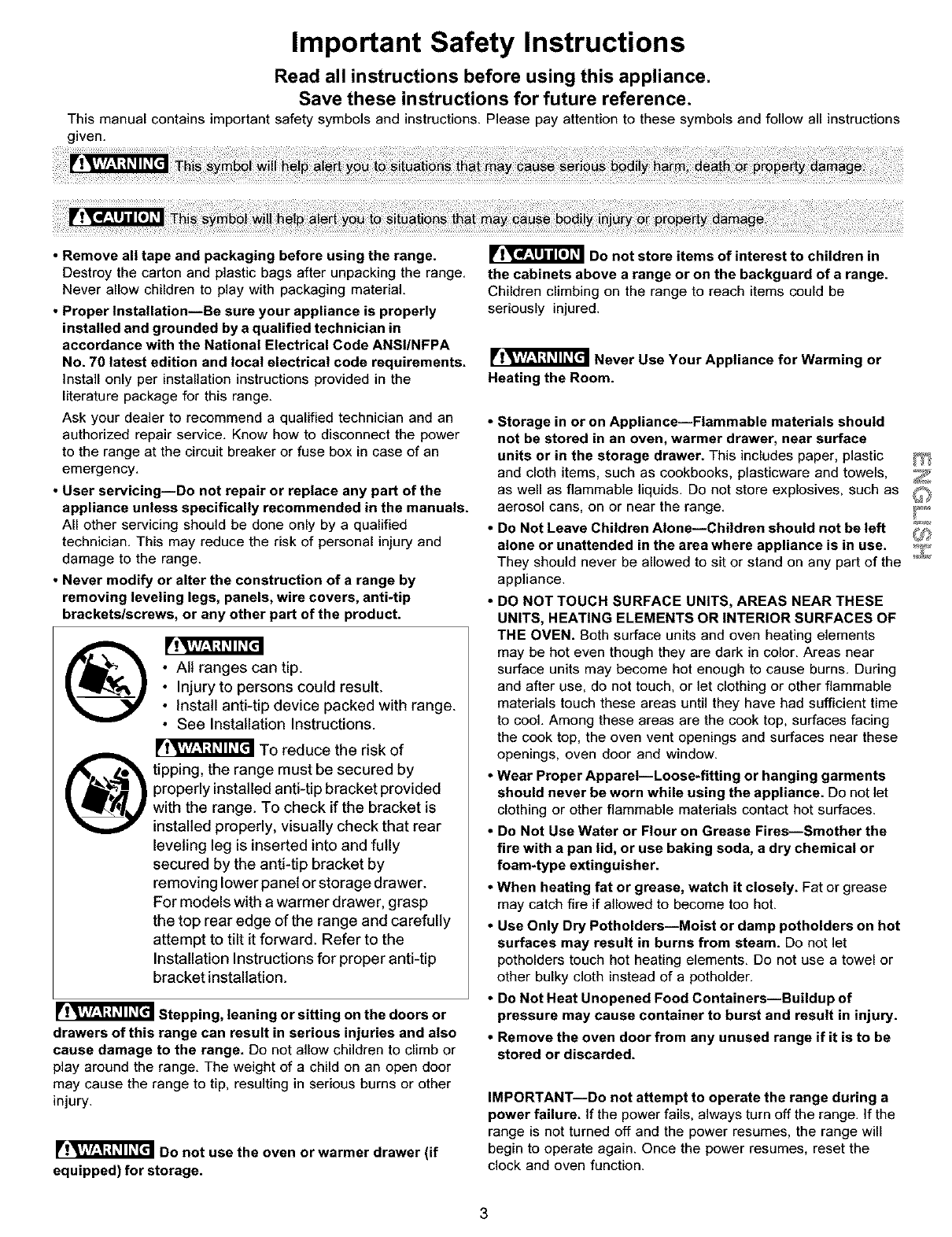

Important Safety Instructions
Read all instructions before using this appliance.
Save these instructions for future reference.
This manual contains important safety symbols and instructions. Please pay attention to these symbols and follow all instructions
given.
• Remove all tape and packaging before using the range.
Destroy the carton and plastic bags after unpacking the range.
Never allow children to play with packaging material.
• Proper Installation--Be sure your appliance is properly
installed and grounded by a qualified technician in
accordance with the National Electrical Code ANSI/NFPA
No. 70 latest edition and local electrical code requirements.
install only per installation instructions provided in the
literature package for this range.
Ask your dealer to recommend a qualified technician and an
authorized repair service. Know how to disconnect the power
to the range at the circuit breaker or fuse box in case of an
emergency.
•User servicing--Do not repair or replace any part of the
appliance unless specifically recommended in the manuals.
All other servicing should be done only by a qualified
technician. This may reduce the risk of personal injury and
damage to the range.
• Never modify or alter the construction of arange by
removing leveling legs, panels, wire covers, anti-tip
brackets/screws, or any other part of the product.
®• All ranges can tip.
• Injury to persons could result.
• Install anti-tip device packed with range.
• See Installation Instructions.
_!'W-'I;t#II_[t TO reduce the risk of
tipping, the range must be secured by
properly installed anti-tip bracket provided
with the range. To check if the bracket is
installed properly, visually check that rear
leveling leg is inserted into and fully
secured by the anti-tip bracket by
removing lower panel or storage drawer.
For models with a warmer drawer, grasp
the top rear edge of the range and carefully
attempt to tilt it forward. Refer to the
Installation Instructions for proper anti-tip
bracket installation.
FlV=V-'I:t_II_[tl Stepping, leaning or sitting on the doors or
drawers of this range can result in serious injuries and also
cause damage to the range. Do not allow children to climb or
play around the range. The weight of a child on an open door
may cause the range to tip, resulting in serious burns or other
injury.
Do not use the oven or warmer drawer (if
equipped) for storage.
Do not store items of interest to children in
the cabinets above a range or on the backguard of a range.
Children climbing on the range to reach items could be
seriously injured.
_F!_,W,._:]_II_[€'IINever Use Your Appliance for Warming or
Heating the Room.
•Storage in or on ApplianceiFlammable materials should
not be stored in an oven, warmer drawer, near surface
units or in the storage drawer. This includes paper, plastic
and cloth items, such as cookbooks, plasticware and towels,
as well as flammable liquids. Do not store explosives, such as _
aerosol cans, on or near the range. _,_
• Do Not Leave Children Alone--Children should not be left _f_
alone or unattended in the area where appliance is in use.
They should never be allowed to sit or stand on any part of the
appliance.
•DO NOT TOUCH SURFACE UNITS, AREAS NEAR THESE
UNITS, HEATING ELEMENTS OR INTERIOR SURFACES OF
THE OVEN. Both surface units and oven heating elements
may be hot even though they are dark in color. Areas near
surface units may become hot enough to cause burns. During
and after use, do not touch, or let clothing or other flammable
materials touch these areas until they have had sufficient time
to cool. Among these areas are the cook top, surfaces facing
the cook top, the oven vent openings and surfaces near these
openings, oven door and window.
•Wear Proper AppareliLoose-fitting or hanging garments
should never be worn while using the appliance. Do not let
clothing or other flammable materials contact hot surfaces.
•Do Not Use Water or Flour on Grease FiresiSmother the
fire with a pan lid, or use baking soda, a dry chemical or
foam-type extinguisher.
•When heating fat or grease, watch it closely. Fat or grease
may catch fire if allowed to become too hot.
•Use Only Dry PotholdersiMoist or damp potholders on hot
surfaces may result in burns from steam. Do not let
potholders touch hot heating elements. Do not use a towel or
other bulky cloth instead of a potholder.
• Do Not Heat Unopened Food ContainersiBuildup of
pressure may cause container to burst and result in injury.
•Remove the oven door from any unused range if it is to be
stored or discarded.
IMPORTANTiDo not attempt to operate the range during a
power failure. If the power fails, always turn off the range. If the
range is not turned off and the power resumes, the range will
begin to operate again. Once the power resumes, reset the
clock and oven function.
3

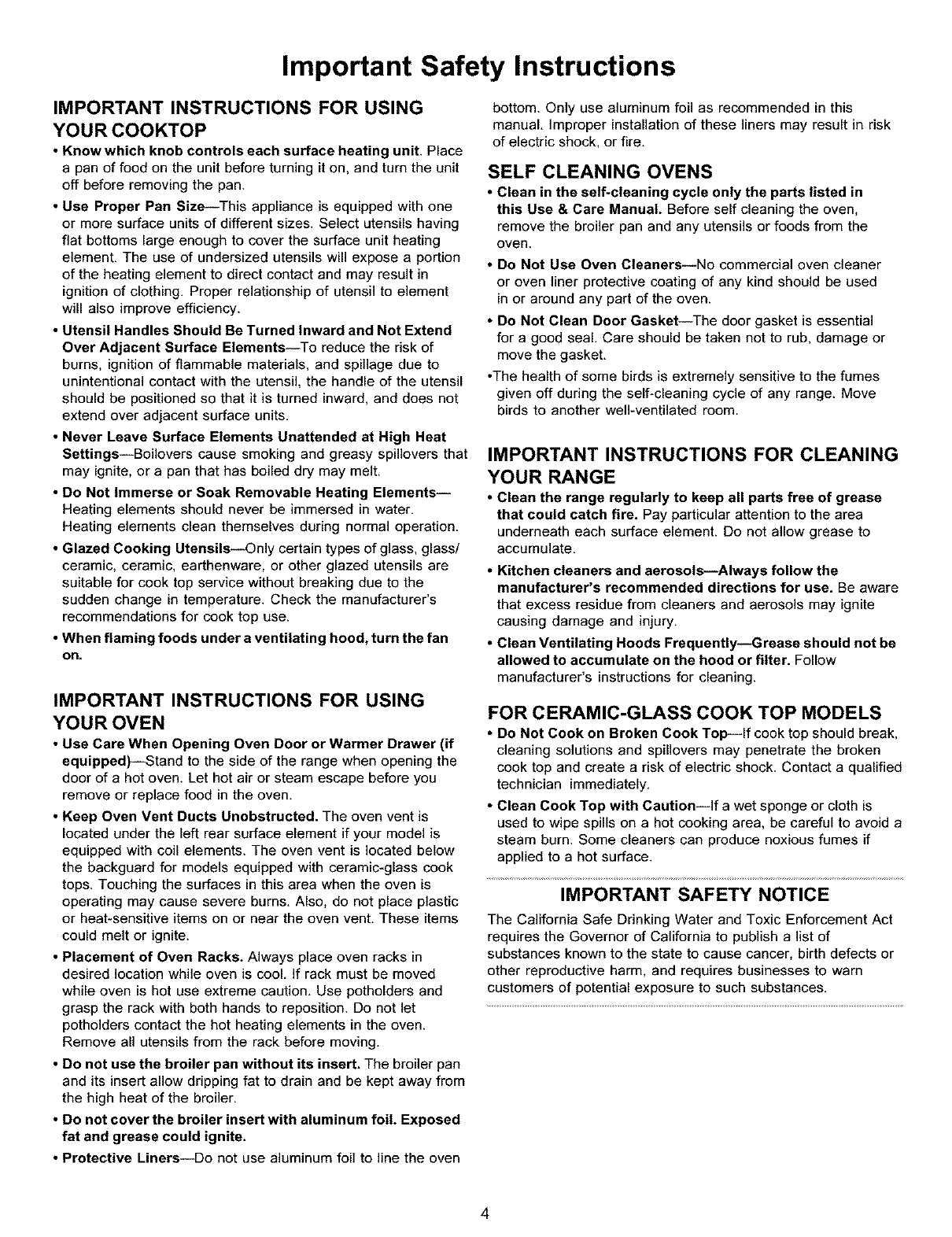

Important Safety Instructions
IMPORTANT INSTRUCTIONS FOR USING
YOUR COOKTOP
• Know which knob controls each surface heating unit. Place
a pan of food on the unit before turning it on, and turn the unit
off before removing the pan.
• Use Proper Pan Size--This appliance is equipped with one
or more surface units of different sizes. Select utensils having
flat bottoms large enough to cover the surface unit heating
element. The use of undersized utensils will expose a portion
of the heating element to direct contact and may result in
ignition of clothing. Proper relationship of utensil to element
will also improve efficiency.
•Utensil Handles Should Be Turned Inward and Not Extend
Over Adjacent Surface Elements--To reduce the risk of
burns, ignition of flammable materials, and spillage due to
unintentional contact with the utensil, the handle of the utensil
should be positioned so that it is turned inward, and does not
extend over adjacent surface units.
•Never Leave Surface Elements Unattended at High Heat
Settings--Boilovers cause smoking and greasy spillovers that
may ignite, or a pan that has boiled dry may melt.
•DO Not Immerse or Soak Removable Heating Elements--
Heating elements should never be immersed in water.
Heating elements clean themselves during normal operation.
• Glazed Cooking Utensils--Only certain types of glass, glass/
ceramic, ceramic, earthenware, or other glazed utensils are
suitable for cook top service without breaking due to the
sudden change in temperature. Check the manufacturer's
recommendations for cook top use.
•When flaming foods under a ventilating hood, turn the fan
on.
IMPORTANT INSTRUCTIONS FOR USING
YOUR OVEN
•Use Care When Opening Oven Door or Warmer Drawer (if
equipped)--Stand to the side of the range when opening the
door of a hot oven. Let hot air or steam escape before you
remove or replace food in the oven.
• Keep Oven Vent Ducts Unobstructed. The oven vent is
located under the left rear surface element if your model is
equipped with coil elements. The oven vent is located below
the backguard for models equipped with ceramic-glass cook
tops. Touching the surfaces in this area when the oven is
operating may cause severe burns. Also, do not place plastic
or heat-sensitive items on or near the oven vent. These items
could melt or ignite.
• Placement of Oven Racks. Always place oven racks in
desired location while oven is cool. If rack must be moved
while oven is hot use extreme caution. Use potholders and
grasp the rack with both hands to reposition. Do not let
potholders contact the hot heating elements in the oven.
Remove all utensils from the rack before moving.
•Do not use the broiler pan without its insert. The broiler pan
and its insert allow dripping fat to drain and be kept away from
the high heat of the broiler.
•Do not cover the broiler insert with aluminum foil. Exposed
fat and grease could ignite.
•Protective Liners--Do not use aluminum foil to line the oven
bottom. Only use aluminum foil as recommended in this
manual. Improper installation of these liners may result in risk
of electric shock, or fire.
SELF CLEANING OVENS
• Clean in the self-cleaning cycle only the parts listed in
this Use & Care Manual. Before self cleaning the oven,
remove the broiler pan and any utensils or foods from the
oven.
•Do Not Use Oven Cleaners--No commercial oven cleaner
or oven liner protective coating of any kind should be used
in or around any part of the oven.
•Do Not Clean Door Gasket--The door gasket is essential
for a good seal. Care should be taken not to rub, damage or
move the gasket.
•The health of some birds is extremely sensitive to the fumes
given off during the self-cleaning cycle of any range. Move
birds to another well-ventilated room.
IMPORTANT INSTRUCTIONS FOR CLEANING
YOUR RANGE
•Clean the range regularly to keep all parts free of grease
that could catch fire. Pay particular attention to the area
underneath each surface element. Do not allow grease to
accumulate.
•Kitchen cleaners and aerosols--Always follow the
manufacturer's recommended directions for use. Be aware
that excess residue from cleaners and aerosols may ignite
causing damage and injury.
• Clean Ventilating Hoods Frequently--Grease should not be
allowed to accumulate on the hood or filter. Follow
manufacturer's instructions for cleaning.
FOR CERAMIC-GLASS COOK TOP MODELS
•Do Not Cook on Broken Cook Top--If cook top should break,
cleaning solutions and spillovers may penetrate the broken
cook top and create a risk of electric shock. Contact aqualified
technician immediately.
•Clean Cook Top with Caution--If a wet sponge or cloth is
used to wipe spills on a hot cooking area, be careful to avoid a
steam burn. Some cleaners can produce noxious fumes if
applied to a hot surface.
IMPORTANT SAFETY NOTICE
The California Safe Drinking Water and Toxic Enforcement Act
requires the Governor of California to publish alist of
substances known to the state to cause cancer, birth defects or
other reproductive harm, and requires businesses to warn
customers of potential exposure to such substances.
Important Safety Instructions
Product Record
(See Serial Plate Location below)
Model No, 790.
Serial No.
Date of Purchase
READ AND SAVE THESE INSTRUCTIONS.
Save your sales receipt for future reference.
Serial
Plate
Location
You will find the model and serial number printed on the serial
plate. The serial plate is located on the right side of the oven
front frame behind the warmer drawer compartment panel.
Please see the illustration for exact location. Remember to
record the serial number for future reference (See above, under
Product Record).
• • o - ml •
5
Your
Electric
Range
Features
At a Glance
Roasting
Rack
BroilPan
Inse_
Electronic Surface
Element Control
(ESEC) Digital
Range Features
Note: The features of your range will vary according to model.
Warm & Ready" Electronic Oven Control Warm & Ready" Zone
Drawer Control and with Clock and Kitchen Timer Control and
Indicator Light (color will vary by model) Indicator Light
Dual Surface
Bddgd
Radiant Element
Control
Easytodean
Upswept
Cooktop
High Wattage Bake &
Broil Oven Elements
Searing
Grill
BroilPan
Simmer
Door
Latch
Oven
Convection Bake
with Heating
Element
Adjustable
Heavy-duty
Oven Rack(s)
piece
DoorHandle
(stylevanas
withmodel)
Full Width
Oven Door
(stytevades
with model)
_Warm&Ready TM
Drawer with Rack
Leveling Legs/'
Anti-tip Bracket
(included)
Warm & Ready" Zone
Radiant Surface Element
8"1,800WRadiant
SurfaceElement
Ceramic Glass Cooktop
200W Radiant
Surface Element
Smoothtop
800W
Radiant Surface
Element
8"1,800WRadiant"
SurfaceElement 1000W
Dual Radiant
Surface Element
6
Setting Surface Controls
FEATURE OVERVIEW
General Cooktop Information
About Radiant Surface Burners
Locations of the Radiant Surface
Elements and Controls
CooktopAppearance Cooktopradiantareasthatheat
..... area of the surface element underneath. Make
Figure 1
+9++,
Left front Left rear
About the Ceramic Glass Cooktop
The ceramic cooktop has radiant surface
elements located below the surface of the glass.
The design of the ceramic cooktop outlines the
sure the diameter of the pan matches the
diameter of the element outline on the cooktop
(See Fig 1).
Heat is transferred up through the surface of the
cooktop to the cookware. Only flat-bottom
cookware should be used. The type and size of
cookware, the number of surface elements in
use and their settings, are all factors that will
affect the amount of heat that will spread to
areas beyond the surface elements. The areas
surrounding the elements may become hot
enough to cause burns.
About the Radiant Surface Elements
The element temperature rises gradually and
evenly. As the temperature rises, the element
will glow red. To maintain the selected setting,
the element will cycle on and off. The heating
element retains enough heat to provide a
uniform and consistent heat during the off cycle.
Ri htfront For efficient cooking, turn offthe element
several minutes before cooking is complete.
This wiltallow residual heat to complete the
cooking process.
Locations of the Radiant Surface
Elements and Controls
Your range is equipped with radiant surface
burners with 6 different wattage ratings. The
ability to heat food quicker and in larger volumes
increases as the element wattage increases.
Figure 2
NOTE: Please read detailed instructions for ceramic glass cooktop
cleaning in the General Care & Cleaning section and Before You
Call checklist section of this Use and Care Guide.
NOTE: Radiant elements have a limiter that allows the element to
cycle on and off, even at the HI setting. This helps to prevent
damage to the ceramic smooth top. Cycling at the HI setting is
normal and can occur if the cookware is too small for the radiant
element or if the cookware bottom is not flat (Refer to page 11 for
using correct cookware instructions with the cooktop).
The radiant surface elements are located on the
cooktop as follows (See Figure 2); a smaller 6
inch radiant element located at the right rear
position; a dual 6 or 9 inch radiant element
located at the right front position; a Warmer
Zone radiant element at the center rear position
(See page 12); and two 8 inch radiant elements
located at both the left front and rear positions.
Located between left front and rear elements is
a Bridge radiant element.
The BRIDGE radiant element is controlled using
the same knob that controls the left front radiant
element position. See pages 10 and 11 for more
information about using BRIDGE radiant
element.
Setting Surface Controls
FEATURE OVERVIEW
General Information on Electronic Surface
Element Controls (ESEC)
Available ESEC Display Settings
Surface Cooking Settings
The Electronic Surface Element Control (ESEC)
The Electronic Surface Element Control ("ESEC") feature
includes 4 digital display windows. The ESEC feature provides
a numeric digital setting for 4 of the radiant surface element
positions on the cooktop, including shared settings at the left
front knob control position for both the left front radiant
element and the "Bridge" radiant element. Also the right front
control knob position shares settings for the dual radiant
element. These settings work the same way as normal knob
setting indicators work except the settings are displayed in
digital windows (Figures 1 thru 4).
Figure 1 Figure 2
The available ESEC Display Settings
The ESEC control provides various heat levels from Hi (Fig. 2)
to Lo (Fig. 4) and OFF (Fig. 1). The settings from Hi to 3.0
decrease in increments of .5. The settings from 3.0 to Lo
(Simmer settings) decrease in increments of .2 for more
precise settings of lower heat levels.
Use the chart (Fig. 5) to determine the correct setting for the
kind of food you are preparing. The Simmer settings are used
to simmer and keep larger quantities of foods warm such as
stews and soups. The lower Simmer settings are ideal for
delicate foods and melting chocolate or butter.
_©o
Note: The size and type of cookware used will influence the _ co
setting needed for best cooking results.
Figure 3
Surface Cooking Settings
Figure 4
Recommended Settings for Single, Bridge and _ Radiant
Dual Surface Elements surface elements may appear
to have cooled after they
have been turned off. The
Setting Type of Cooking
Start most foods, bring water to a boil, pan broiling
Continue a rapid boil, fry, deep fat fry
Maintain a slow boil, thicken sauces and gravies, steam
vegetables
MEDIUM LOW (2 - 4) Keep foods cooking, poach, stew
LOW (Lo - 2) Keep warm, melt, simmer
Figure 5
HIGH (8- Hi)
MEDIUM HIGH (5 - 8)
MEDIUM (3 - 5)
glass surface may still be
hot and burns may occur if
the glass surface is touched
before it has cooled
sufficiently.
Iri_'=!l_l'_ Do not place
plastic items such as salt
and pepper shakers, spoon
holders or plastic
wrappings on top of the
range when it is in use.
These items could melt or
ignite. Potholders, towels or
wooden spoons could catch
fire if placed too close to the
surface elements.
Setting Surface Controls
FEATURE OVERVIEW
ESEC Hot Element Indicator Message (HE)
ESEC Flashing Error Message (Er)
ESEC Lockout Feature (- -)
Operating Single Surface Radiant Elements
Radiant surface elements
may appear to have cooled after they
H u _ u_/Hy_ i_"ave "een "urne" o_. "Le -'ass su -=ace .....
may still be hot and burns may occur if
the glass surface is touched before it
has cooled sufficiently.
ESEC Hot Element Indicator Message (HE)
After using any of the single, dual or Bridge radiant element positions the cooktop will
become very hot. Even after turning the control knob to OFF, the cooktop will remain hot for
some time. The ESEC control monitors the temperature of the cooktop and displays the
message "HE" (hot element) warning when the cooktop is still too hot to touch (See Fig.l). If
the HE message appears in the window, the control can still be turned on again for use.
ESEC Error Indicator Message (Er)
An error message will be displayed (flashing "Er') at power up (or after a power failure) if ANY
of the surface control knobs were left in the ON positions. If a power failure should occur, be
sure to set all of the 4 surface control knobs to the OFF position (See Fig. 2). This will reset
the surface controls.
Figure 1
Be sure to reset the clock (See page 16). Once the surface controls have been set to the
OFF positions and the clock has been set with the correct time of day, the surface controls
should return to normal operation. If the surface controls do not funcfion and the "Er"
message remains in any display after following these procedures, contact Sears Service for
assistance.
ESEC Lockout Feature ( --)
The self-clean feature will not operate whenever a radiant surface element is ON. The ESEC
feature will not operate during a self-clean cycle or when the Oven Lockout feature is active.
Whenever the ESEC Lockout feature is active, "- -" may appear in any display window (See
Fig. 3). If any of the surface elements are still hot during active Lockout, "HE" wilt appear in .....
the window instead of the "- -" message.
Operating Single Radiant Surface Elements
The cooktop has single radiant surface elements at 2 locations; the right rear (Fig. 5) and left
rear (Fig. 6) element positions. The BRIDGE element position can also be used as a single Figure 3
element (See Bridge Element Operating Instructions on pages 10-11).
To Operate the Single Surface Elements:
1. Place correctly sized cookware on the radiant surface
element.
2. Push in and turn the surface control knob in either direction
to the desired setting using the ESEC digital display
window for the desired setting (Fig. 4). Turn the knob to
adjust the setting if desired. Start most cooking operations
on a higher setting and then turn to a lower setting to finish
cooking. Each surface element provides a constant
amount of heat at each setting. A glowing red surface
heating area extending beyond the bottom edge of the
cookware indicates the cookware is too small for the
surface heating area.
3. When cooking has completed, turn the surface control
knob to OFF before removing the cookware. Note: The HE
message will appear after turning the control knob to OFF
if the cooktop is still hot and will remain on until the heating
surface area has cooled sufficiently.
Note: See page 8, Figure 5for recommended control settings.
iiiiiiiiiiiiii iliiii! ! !i!iii!
Figure 5
Right Rear Element
Figure 4 Figure 6
Left Rear Element
9
Setting Surface Controls
FEATURE OVERVIEW
Operating the Dual Radiant Element Surface Control
Operating the Bridge Radiant Element Surface
Control
Figure 1Figure4
Figure 2 Figure 5
Figure 3 Figure 6
Operating the Dual Surface Radiant Element
The cooktop is equipped with a dual radiant surface element
located at the right front (See Fig. 4) position. Symbols on the
control panel are used to indicate which coil of the dual radiant
element will heat. The • symbol indicates that only the inner
coil will heat (Figs. 1 and 3). The _) symbol indicates that
both inner and outer coils will heat (Figs. 4 and 6). You may
switch from either coil setting at any time during cooking.
To Operate the Dual Surface Element:
1. Place correctly sized cookware on the dual surface
element.
2. Push in and turn the control knob (See Fig. 2) for smaller
cookware or clockwise (See Fig. 5) for larger cookware.
.Use the ESEC digital display window for the desired
setting. Turn the knob to adjust the setting if needed. Start
most cooking operations on a higher setting and then turn
to a lower setting to finish cooking. Each surface element
provides a constant amount of heat at each setting. A
glowing red surface heating area extending beyond the
bottom edge of the cookware indicates the cookware is
too small for the surface heating area.
4. When cooking has completed, turn the surface control
knob to OFF before removing the cookware. Note: The
HE message will appear after turning the control knob to
OFF if the cooktop is still hot and will remain on until the
radiant heating surface area has cooled sufficiently.
Note: See page 8, Figure 5 for recommended control settings.
Radiant surface elements may appear to have
cooled after they have been turned off. The glass surface
may still be hot and burns may occur if the glass surface is
touched before it has cooled sufficiently.
Figure 7
Figure 8
Bridge element without
Bridge portion.
iiiiiiiii iT--'i kiii
Figure 9
Figure 10
Bridge element with Bridge
portion.
Operating the Bridge Surface Radiant Element
The cooktop is equipped with a "BRIDGE" surface element
located at the left front and middle (See Fig. 10) positions. The
Bridge can be used when cooking with rectangular (like a
griddle) or oval shaped cookware (Fig. 10). The element will
maintain an even temperature setting across both portions of
the Bridge. If needed for normal cookware, the Bridge element
can work like a single element without the Bridge (See Fig. 8).
Bridge element operation symbols are located on the control
panel on each side of the Bridge element control knob. These
symbols indicate the direction to turn the control knob when
operating the Bridge element. The symbol in Figure 7 indicates
that only the single portion of the Bridge element will heat (Fig.
8). The symbol in Figure 9 indicates that both the single and
Bridge portions of the element will heat together (Fig. 10). You
may switch from either of these settings at any time during
cooking with the Bridge element.
10
Setting Surface Controls
FEATURE OVERVIEW
Operating the Bridge Radiant Element Surface
Control (cont'd)
To Operate the Bridge Surface Element:
1. Place correctly sized cookware on the Bridge surface
element.
2. Push in and turn the control knob counterclockwise (See
Figs. 1 and 2) to heat the portion of the Bridge element for
normal shaped cookware or clockwise (See Figs. 3 and 4)
for larger or rectangular shaped cookware.
.
Figure 1 Figure 3
Figure 2 Figure 4
Figure 5
Use the ESEC digital display window for the desired
setting. Turn the knob to adjust the setting if needed. Start
most cooking operations on a higher setting and then turn
to a lower setting to finish cooking. Each surface element
provides a constant amount of heat at each setting. A
glowing red surface heating area extending beyond the
bottom edge of the cookware indicates the cookware is too
small. Please note that not all cookware will fit the Bridge
element correctly.
When cooking has completed, turn the surface control
knob to OFF before removing the cookware. The HE
message wilt appear in the display after turning the control
knob to OFF if the cooktop is still hot and will remain on
until the radiant heating surface area has cooled
sufficiently.
The BRIDGE element may also be used in combination with
the left rear single element. Because these elements have 2
different controls, one element can be used to cook while the
other element may be used to keep food warm (See Fig. 5).
Note: See page 8, Figure 5 for recommended control settings.
Radiant surface elements may appear to have cooled after they have been
turned off. The glass surface may still be hot and burns may occur if the glass surface is
touched before it has cooled sufficiently.
Surface Cooking
FEATURE OVERVIEW
Usingthe Proper Cookware
Cookware should have flat bottoms
that make good contact with the entire
surface heating element. Check for
flatness by rotating a ruler across the
bottom of the cookware (See Fig. 6).Be
sure to follow the recommendations for
using cookware as shown in Fig. 7.
Figure 6
Note: The size and type of cookware used will influence the
setting needed for best cooking results.
Deep fat frying - Use a thermometer and adjust the surface
control knob accordingly. If the fat is too cool, the food will absorb
the fat and be greasy. If the fat is too hot, the food will brown so
quickly that the center will be undercooked. Do not attempt to
deep fat fry too much food at once as the food will neither brown
nor cook properly.
*CORRECT INCORRECT
u
t t
• Flat bottomand straight
sides.
• Tight fitting lids.
•Weight of handle does not
tilt pen. Pan is well
balanced.
• Pan sizes match the
amount of food to be
prepared and the size of
the surface element.
•Made of e material that
conductsheat well.
•Easy to clean.
•Always match pot diameter
to element surface
diameter.
• Curvedandwarpedpan
bottoms.
U
•Panoverhangselementby
morethanone-halfinch.
m
•Panissmallerthan
element.
• Heavy handle tilts pan.
Figure 7
11
Surface
Cooking
FEATURE
OVERVIEW
Setting WarmerZone
Controls
Operating the Warmer (Warm & Ready TM) Zone
The purpose of the Warmer Zone is to keep hot cooked foods at serving temperature. Use
the warmer zone to keep cooked foods hot such as: vegetables, gravies, casseroles, soups,
stews, breads, pastries and oven-safe dinner plates. Always start with hot food. It is not
recommended to heat cold food on the Warmer Zone.
All food placed on the warmer zone should be covered with a lid or aluminum foil to maintain
quality. For best results, when warming pastries or breads, the cover should have an
opening to allow moisture to escape. Do not use plastic wrap to cover food. Plastic may
melt onto the surface and be very difficult to clean.
Use only plates, utensils and cookware recommended for oven and cooktop use on the
WarmerZone.
Always use potholders or oven mitts when removing food from the warmer
zone as cookware and plates will be hot.
Figure 1
To Set the Warmer Zone Control:
1. To set the control, push in and turn the knob. The temperatures are approximate, and
are designated by HI, MED and LO. However, the control can be set at any position
between HI and LO for different levels of heating.
2. When done, turn the control to OFF. The Warmer Zone Hot Surface indicator light will
remain on until the Warmer Zone cools to amoderate level (See Figs. 1 and 2).
Temperature Selection
Refer to the Warmer Zone table for recommended heating levels (Fig. 3). If a particular food
is not listed, start with the medium level, and adjust as needed. Most foods can be kept at
serving temperatures by using the medium level.
The Warmer Zone will not glow red when it is hot, but becomes hot enough to
cause burns. Avoid placing hands on or near the Warmer Zone until the Warmer Zone Hot
Surface indicator light is off.
Warmer Drawer Warmer Drawer Warmer Zone Warmer Zone
Control IndicatorLight Hot Surface Control
IndicatorLight
Warmer Zone
i
Figure 2
WarmerZone Recommended Food
Settings Table
Food Item Heating
Level
Hot Beverages HI
Fried Foods HI
Vegetables MED
Soups (Cream) MED
Stews MED
Sauces MED
Meats MED
Gravies LO
Eggs LO
Dinner Plates with Food LO
Casseroles LO
Breads/Pasteries LO
Figure 3
12
Before Setting Oven Controls
Arranging Oven Racks
ALWAYS ARRANGE OVEN RACKS WHEN THE OVEN IS COOL (PRIOR TO OPERATING THE OVEN). Always use
oven mitts when the oven is hot.
Oven Vent Location
The oven vent is located below the
backguard. When the oven is on, hot
air is released through the vents. This
venting is necessary for proper air
circulation in the oven and good baking
results.
OVEN VENT
f
Removing and Replacing Oven
Racks
To remove, pull the rack forward until
it stops. Lift up front of rack and slide
out. To replace, fit the rack onto the
guides on the oven walls. Tilt the front
of the rack upward and slide the rack
back into place.
Arranging Oven Racks
To bake on a single rack, place the
rack in position 4. To bake on 2
racks, place the racks in positions 2
and 4. To bake on 3 racks, place the
racks in positions 1, 3 and 5. Use the
6th rack position (Roasting Shelf) for
roasting large food items only.
_1St RaCk Position
_2rid Rack Position
_3rd Rack Position
4th Rack Pooiion
__ Sth Rack Position
5th Rack PosiUon
r roasting large
Itemsonly)
Rack RECOMMENDED RACK POSITIONS FOR
BROILING, BAKING & ROASTING
Food Rack Position
Broiling meats, chicken or fish 1,2 or 3
Cookies, cakes, pies, biscuits & muffins 3 or 4
Frozen pies, angel food cake, yeast, bread, 5
casseroles, small cuts of meat or poultry
Turkey, roast or ham 6
Note: Always use caution when removing food from the lower rack
positions
Air Circulation in the Oven
If using 1 rack, place in center of oven. If using multiple
racks, stagger as shown.
For best air circulation and baking results allow 2-4" (5-10 cm)
around the cookware for proper air circulation and be sure
pans and cookware do not touch each other, the oven door,
sides or back of the oven cavity. The hot air must circulate
around the pans and cookware in the oven for even heat to
reach around the food.
1 Oven Rack
Multiple Oven Racks
13
Setting Warmer
Drawer Controls
FEATURE
OVERVIEW
Arranging Warmer
Drawer Racks
Operating & Setting
Warmer Drawer
Controls
Arranging Warmer (Warm & Ready TM) Drawer Rack Positions
The rack can be used in 2 ways:
In the upright position to allow low profile food items to be placed both under and on
top of the rack (for example, rolls or biscuits on top of the rack and a casserole dish
underneath).
In the downward position to allow you to place light weight food items and empty
dishware (for example, rolls or pastries and dinner plates) on the rack.
Set the Warmer Drawer Rack in either _osition as shown below (Fig. 1).
WarmerOra.er
ack in upward
position Figure 1
J
J
J
J
Warmer Drawer
Rack in downward
position
Operating the Warmer Drawer
The purpose of the Warmer Drawer is to keep hot cooked foods at serving
temperature. Always start with hot food. It is not recommended to heat cold
food in the Warmer Drawer. All food placed in the Warmer Drawer should be
covered with a lid or aluminum foil to maintain quality. Do not use plastic
wrap to cover food. Plastic may melt onto the drawer and be very difficult
to clean. Use only utensils and cookware recommended for oven use in the
Warmer Drawer.
_i _ii__ __i_iil_
Figure 2
Always use potholders or oven mitts when removing food from
the Warmer Drawer as cookware and plates will be hot and you can be burned.
To Set the Control:
The control is used to select the temperature of the Warmer Drawer. It is
located on the control panel. To set the control, push in and turn the knob to
the desired setting. The temperatures are approximate, and are designated by
HI (high), MED (medium) and LO (low).
1. Turn the knob to select the desired temperature setting.
2. For best results, preheat the drawer before adding food. An empty drawer
will preheat in approximately 15 minutes.
3. When done, turn the control to OFF.
Temperature Selection
Recommended Warmer Drawer settings table is shown in Figure 3. If a
particular food is not listed, start with the MED setting. If more crispness is
desired, remove the lid or aluminum foil from the food. Most foods can be kept
at serving temperatures on the MED setting. When a combination of foods are
to be kept warm (for instance, a meat with 2 vegetables and rolls), use the HI
setting. To avoid heat loss, do not open the Warmer Drawer while in use.
Warmer Drawer Indicator Light
The warmer drawer indicator light is located above the warmer drawer control
knob (See Fig. 2). It turns on when the control is set, and stays on until the
control is turned off. The warmer drawer is inoperable during the self-clean
cycle.
Warmer Drawer Recommended Food
Settings Table
Food Item Setting
Bacon HI
Hamburger Patties HI
Poultry HI
Pork Chops HI
Fried Foods HI
Pizza HI
Gravies MED
Casseroles MED
Eggs MED
Roasts (Beef, Pork, Lamb) MED
Vegetables MED
Biscuits MED
Rolls, hard MED
Pastries MED
Rolls (soft) LO
Empty Dinner Plates LO
Figure 3
14
Control Pad
Features
READ THE INSTRUCTIONS CAREFULLY BEFORE USING THE OVEN. For
satisfactory use of your oven, become familiar with the various features and functions of
the oven as described below. Detailed instructions for each feature and function
follow later in this Use & Care Guide.
OVEN COOK
TIME-- Use to
enter the length of
the baking time,
CLOCK-- Use START-- Useto start BROIL-- Use PREHEAT-- 0 THRU 9
to set the time all oven features (not to select Use with NUMBER PADS
of day. (See used withOven Light). variable Broil normal Bake -- Use to enter
page 16). feature (See pad (See page temperature and
page 24). 20). times.
# •
'/
STOP TIME-- Use with
BAKE, OVEN COOK
TIME, and CLEAN to
programa Delayed Time
Bake or Delayed Self-
Cleaning cycle stop __
time,
S_ CLEAN
KITCHEN TIMER ON/ TIME
OFF-- Use to set or J
cancel the Kitchen Timer. KITCHEN_ OVEN
•,TIMER _GHr
The Kitchen Timer does IMER////
not start or stop cooking o_.'_ / o_,vo_
(i;:E;;:leua7sle_o_;leeCtptah;eS;_f)_i_CiiOe_N /
BAKE--
f Use to
enter the
OVEN LIGHT-- Convection normal
Use to turn the Bake feature Bake
oven lights on (See page 26). feature,
and off (See (See page
page 34). 21).
23
45:6
789
FOODTEeO"'ES /
i\
/
MEATS, OVEN LOCKOUT-- CLEAR/OFF-- Use
CAKES & Use to disable all to cancel any oven
oven features (See mode previously
BREADS--
Use to select page 18). entered except the
Oven Lockout,time of
the Meats,
Cakes and day and minute timer.
Press CLEAR/OFF to
Breads cooking
feature, (See stop cooking.
page 25).
Minimum
and
Maximum
Control
Pad
Settings
All of the features listed have minimum and maximum time or temperature settings
that may be entered into the control. An ENTRY acceptance beep will sound each
time a control pad is touched (the Oven Lockout pad is delayed by 3 seconds).
An ENTRY ERROR tone (3 short beeps) will sound if the entry of the temperature
or time is below the minimum or above the maximum settings for the feature.
FEATURE MIN. TEMP./TIME MAX. TEMP./TIME
PREHEAT TEMP. 170°F /77°C 550°F /288°C
BAKE TEMP. 170°F /77°C 550°F /288°C
BROIL TEMP. 4OO°F/205°C HI-55O°F /288°C
KITCHENTIMER 12Hr. 0:01 Min. 11:59Hr./Min.
24 Hr. 0:01 Min. 11:59 Hr./Min.
CLOCKTIME 12Hr. l:OO Hr./Min. 12:59 Hr./Min.
24 Hr. O:OOHr./Min. 11:59 Hr./Min.
OVEN COOK TIME 12 Hr. 0:01 Min. 11:59 Hr./Min.
24 Hr. 0:01 Min. 23:59 Hr./Min.
STOP TIME 12 Hr. l:OO Hr./Min. 12:59 Hr./Min.
24 Hr. O:OOHr./Min. 23:59 Hr./Min.
CLEAN TIME 2 hours 4 hours
CONVECTION BAKE 300°F /149°C 550°F /288°C
15
Setting the Clock
FEATURE OVERVIEW
•Setting the Clock _M_DOw. ...............................
Changing between 12 or .......................
24 hour display
KI_HEN O_R MEA_P_ :,f_KES BREA_
TIMER LIGHT
Ot_VOFF OI_OFF FOODCATEGORIES
Setting the Clock
The CLOCK O pad is used to set the clock. The clock may be
set for 12 or 24 hour time of day operation. The clock has been
preset at the factory for the 12 hour operation. When the range is
first plugged in, or when the power supply to the range has been
interrupted, the timer in the display will flash with "PF" (power
failure, See Fig. 1).
INSTRUCTIONS
To set the clock (example below for 1:30):
1. Press 0" "CLO" will appear in the display (Fig. 2).
2, Press _ _ _ pads to set the time of day to 1_30
(Fig. 3). "CLO" wilt appear in the display. Press _.
"CLO" will disappear and the clock will start (Fig. 4).
PRESS
O
OQQ
Q
Figure 1
DISPLAY
Changing between 12 or 24 hour time of day display:
1. Press and hold O for 6 seconds (Fig. 3). While holding the
pad down the current time of day will remain and "CLO" will
disappear from the display (Fig. 4). CONTINUE holding the pad
until abeep is heard.
Ofor 6 seconds
2. The display will show either "12:00" (Fig. 5) or "24:00" (Fig. 6).
3. Press (_) to switch between the 12 and 24 hour time of day
display. The display will show either "12:00" (Fig. 5) or "24:00"
(Fig. 6).
4. Press _to accept the change or press _to reject the
change.
5. Reset the correct time as described in To set the Clock above.
Please note that if the 24 hour time of day mode was chosen,
the clock will now display time from 0:00 through 23:59 hours.
16
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6
Setting the Clock
FEATURE OVERVIEW
Continuous Bake or
Twelve Hour Energy
Saving Mode
Kitchen Timer
Setting Continuous Bake or 12 Hour Energy Saving
The KITCHEN TIMER _ and CLEAN (_ pads control the Continuous Bake
or 12 Hour Energy Saving features. The oven control has a factory preset built-in 12
Hour Energy Saving feature that will shut off the oven if the oven control is left on for
more than 11 hours and 59 minutes. The oven can be programmed to override this
feature for Continuous Baking.
INSTRUCTIONS PRESS DISPLAY
To set the control for Continuous Bake or 12 Hour
Energy Saving features:
1. Press and hold _ for 7 seconds (Fig.l). ":12" or ":- -" wilt
appear in the display and the control will beep once.
2. Press (_) to switch between the 12 Hour Energy Saving and
continuous bake features. Note: ":12" in the display indicates
the control is set for the 12 Hour Energy Saving mode and ":- -"
indicates the control is set for the Continuous Bake feature
(Figures 2 and 3).
3. Press _ to accept the change (Fig. 4; display will return to
time of day) or press _ to reject the change.
_for 7 seconds Figure 1
Figure 2
Figure 4
Setting Kitchen Timer
The KITCHEN TIMER _ pad controls the Kitchen Timer feature. The Kitchen Timer serves as an extra timer in the
kitchen that wilt beep when the set time has run out. It does not start or stop cooking. The Kitchen Timer feature can be
used during any of the other oven control functions. Refer to "Minumum and Maximum Control Pad Settings" on page 14
for time amount settings.
INSTRUCTIONS PRESS DISPLAY
To set the Kitchen Timer (example for 5 minutes):
1. Press @. "0:00" will appear and "TIMER" will flash in the
display (Fig. 5). Figure 5
2. Press the number pads to set the desired time in the display
(example (_)). Press _. The time will begin to count
down (Fig. 6) and "TIMER" will appear in the display. Note: If
_is not pressed the timer will return to the time of day.
3. When the set time has run out, "End" will show in the display
(Fig. 7), and 3 beeps every 60 seconds will sound until
is pressed.
To cancel the Kitchen Timer before the set time has
run out:
Press _. The display will return to the time of day.
17
Figure 6
Figure 7
Consumer Defined Control Features
FEATURE OVERVIEW
Oven Lockout
Temperature Display
Note: The Consumer Defined Control features are adjustments to the
control that will not affect cooking results. These include the Oven
Lockout, Temperature Display and Silent Control Operation features.
Setting Oven Lockout Feature
The (_ pad controls the Oven Lockout feature. The Oven Lockout feature automatically locks the oven door and
prevents the Warmer Drawer and ESEC Control from being turned on. It does not disable the clock, Kitchen Timer,
Warmer Zone or the interior oven lights.
INSTRUCTIONS PRESS DISPLAY
To activate the Oven Lockout feature:
1. Press and hold (_ for three seconds (Fig. 1).
2. After 3 seconds the lock icon light ( I1_ ) wilt appear, a beep will
sound and "DOOR LOCKED" will flash in the display. Once the
oven door is locked the "DOOR LOCKED" indicator will stop
flashing and remain on along with the lock icon light.
To reactivate normal oven operation:
1. Press and hold (_ for three seconds. A beep wilt sound.
The "DOOR LOCKED" will continue to flash until the oven door
has completely unlocked and the lock icon light ( I1_ ) will clear
(See Fig. 2).
2. The range is again fully operational.
(_for3seconds
Figure 1
Figure 2
DISPLAY
(_for3seconds
Setting Temperature Display-- Fahrenheit or Celsius
The BROIL (_ and CLEAN (_ pads control the Fahrenheit or Celsius
temperature display modes. The oven control can be programmed to display
temperatures in Fahrenheit or Celsius. The oven has been preset at the factory to
display in Fahrenheit.
INSTRUCTIONS PRESS
To change display from Fahrenheit to Celsius or
Celsius to Fahrenheit:
1. To tell if the display is set for Fahrenheit or Celsius press
(_ (Fig. 3) and hold for 7 seconds. A beep will then sound.
If "F" appears, the display is set to show temperatures in
Fahrenheit (Fig. 4). If "C" appears, the display is set to show
temperatures in Celsius (Fig. 5).
2. Press (_) to switch between Fahrenheit or Celsius display
modes. The display will show either "F" (Fig. 4) or "C" (Fig. 5).
3. Press _ to accept the change or press _ to reject the
change.
(_)for7seconds
Figure 3
Figure 4
Figure 5
18
Consumer
Defined Control START
Feat ures
FEATURE CLOCK
OVERVIEW
Silent Control TS_
Operation
_llEN
TIMEn
0N/0FF
Setting Silent Control Operation
The STOP TIME @and CLEAN (_ pads control the Silent Control operation feature. The Silent Control operation
feature allows the oven control to be operated without sounds or beeps whenever necessary. If desired the control can be
programmed for silent operation and later returned to operating with all the normal sounds and beeps.
INSTRUCTIONS PRESS DISPLAY
To change control from normal sound operation to
silent control operation:
1. To tell if your range is set for normal or silent operation press
and hold @ for 7 seconds. "DELAY" will appear and flash
in the display (Fig. 1). If ":SP" appears (Fig. 2), the control will
operate with normal sounds and beeps. If":- -" appears (Fig.3),
the control is in the silent operation mode.
2. Press _ to switch between normal sound operation and
silent operation mode. The display wilt show either ":SP" (Fig. 2)
or ":--" (Fig. 3).
for 7seconds
4. Press _ to accept the change or press _ to reject the
change.
Figure 1
Figure 2
Figure 3
19
Setting Oven Controls
FEATURE OVERVIEW
Preheat for Electric Ranges
Setting Preheat
The PREHEAT _ pad controls the Preheat feature. The Preheat feature will bring the oven up to temperature and then
indicate when to place the food in the oven. Use this feature in combination with the Bake pad when recipes call for
preheating. Preheating is not necessary when roasting or cooking casseroles. The oven can be programmed to preheat at
any temperature between 170°F to 550°F.
INSTRUCTIONS PRESS DISPLAY
To set the Preheat temperature for 350°F:
1. Arrange the interior oven racks.
2. Press _. "- - - °" and "BAKE" will appear in the display
(Fig. 1).
3. Press (_(_(_. "350°" and "PRE" wilt appear in the
display (Fig. 2).
4. Press _. "PRE" and "BAKE" will appear in the display as
the oven heats and reaches 350°F (Fig 3).
Note: After the oven has reached the desired temperature (this
example, 350°F) the control wilt beep and the "PRE" light will turn
off and oven temperature will be displayed (Fig. 4). If the beep was
missed, a quick glance at the display with oven temperature
showing in the oven display is a good way to check that the oven
has already reached the preheat temperature. Once the oven has
preheated, PLACE FOOD IN THE OVEN. The "BAKE" light wilt
stay on.
Press _ when baking is complete or to cancel the preheat
feature.
Figure 1
Figure 2
Figure 3
To change Preheat temperature while oven is
preheating (example changing from 350 to 425°F):
If it is necessary to change the preheat temperature while the oven
is preheating to the original temperature:
1. While preheating, press _. "- - -°" and "BAKE" wilt appear
in the display (Fig. 5)
2. Enter the new preheat temperature. Press @(_ (_.
"425 °" and "BAKE" will appear in the display (Fig. 6).
3. Press _. "PRE" and "BAKE" will appear in the display as
the oven heats to 425°F (Fig 7). A beep will sound once the
oven temperature reaches 425°F and the display wilt show
"425 °"and "BAKE".
4. When baking is complete press _.
Figure 4
C)QG>
Figure 5
Figure 6
Figure 7
Figure 8
2O
Setting Oven
Controls
FEATURE
OVERVIEW
Bake
START
TIMED _N
_'l_P CLEAR
TIME
1 2 3
4 5 6
7B9
[(rICHER
TIMER
O_OFF
OVER MEATS _CAKES BRF__5
LIGHT
O_FF FOOD CATEGORIES
Setting Bake
The BAKE (_ pad controls normal baking. If preheating is necessary, refer to the @ Preheat Feature for
instructions. The oven can be programmed to bake at any temperature from 170°F to 550°F (The sample shown below is
for350°F).
INSTRUCTIONS PRESS DISPLAY
To set the Bake Temperature to 350°F:
1. Arrange interior oven racks and place food in oven.
2. Press _, %- - °" will appear in the display (Fig. 1).
3. Press _ @ @ (Fig. 2). "BAKE" will flash and
"350 °" will appear in the display.
4. Press _. A beep wilt sound once the oven temperature
reaches 350° F and the display wilt show "350 °" and "BAKE"
(Fig. 3).
Pressing _ will cancel the Bake feature at any time.
To change the Bake Temperature (example changing
from 350 ° to 425°F):
1. After the oven has already been set to bake at 350°F and the
oven temperature needs to be changed to 425°F, press
(Fig.4) and "- - - °"wilt show in the display.
2. Press @ _ _ (Fig. 5). "BAKE" flashes and "425 °"
will appear in the display.
3. Press _. "BAKE" and "425 °" will appear in the display
(See Fig 6).
O
QOQ
Q
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
21
Figure 6
Setting Oven Controls
FEATURE OVERVIEW
Timed Bake
Setting Timed Bake
The BAKE (_ and OVEN COOK TIME °_"_'c_ pads control the Timed Bake feature. The automatic timer of the Timed
Bake feature will turn the oven OFF at the time you select in advance.
INSTRUCTIONS PRESS DISPLAY
To program the oven to begin baking immediately
and to shut off automatically: (example below to
bake at 350°F for 50 minutes):
1. Be sure the clock is set for the correct time of day.
2. Arrange interior oven rack(s) and place the food in the oven.
3. Press _, "- --°" wilt appear in the display (Fig. 1).
4. Press (_ @ @ (Fig. 2). "BAKE" will flash and
"350 °" will appear in the display.
5. Press _. "BAKE" and "350 °" wilt appear in the display
(See Fig. 3).
6. Press _k,___- "TIMED" will flash; "BAKE", "0:00" and
"350 °" will appear in the display (Fig.4).
7. Enter the desired baking time by pressing _,_ 0____.
"TIMED" will flash and "BAKE", ":50" and "350 °"wilt appear in
the display (Fig. 5). Note: Baking time can be set for any
amount of time between 1 minute to 11 hours and 59 minutes.
8. Press _. Both the "TIMED" and "BAKE" icons will remain
on in the display (Fig. 6). Once the Timed Bake feature has
started, the current time of day will appear in the display.
ress ew,'_'c_eoKto
Note: After the Timed Bake feature has activated, p
display the bake time remaining in the Timed Bake mode. Once
Timed Bake has started baking, a beep will sound when the oven
temperature reaches the set temperature.
Press _ when baking is complete or at any time to cancel the
Timed Bake feature.
Q(Z)Q
Q
G)Q
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
When the timed bake time runs out:
1. "End" will appear in the display and the oven will shut off
automatically (Fig. 7).
2. The control will beep 4 times. The control will continue to beep
3 times each minute until (_ is pressed.
Figure 6
Figure 7
[Ir_['==
Setting Oven Controls
FEATURE OVERVIEW
Delayed Time Bake
Setting Delayed Time Bake
The BAKE (_, OVEN COOK TIME _,--"_-_oK_and STOP TIME @ pads control the Delayed Time Bake feature. The
automatic timer of the Delayed Time Bake will turn the oven on and off at the time you select in advance.
INSTRUCTIONS
To program the oven for a delayed bake start time and
to shut off automatically (example for baking at 350°F
for 50 minutes and finishing at 5:30):
1. Be sure that the clock is set with the correct time of day.
2. Arrange interior oven rack(s) and place the food in the oven.
PRESS DISPLAY
Figure 1
3. Press _. "- - -°" will appear in the display (Fig. 1). _
4. Press@@@(Fig. 2). "BAKE" will flash and "350 °'' @@@
will appear in the display.
5. Press _. "BAKE" and "350 °'' will appear in the display (See
V
Fig. 3).
6. Press _,,_j. "TIMED" wilt flash; "BAKE", "0:00" and "350 °" will
appear in the display (Fig.4).
7. Enter the desired baking time using the number pads by pressing
"TIMED" will flash, BAKE ,.50 and "350 °" wilt
appear in the display (Fig. 5). Note: Baking time can be set for any
amount of time from 1minute to 11 hours and 59 minutes.
8 Press _. "TIMED", "BAKE" and "350 °" will be displayed _-_
(Fig.6).
9. Press @. Enter the desired stop time using the number pads @
QQ@ F,g 7> QQ
10. Press _. When Delayed Time Bake starts, the set oven
temperature will disappear, "TIMED DELAY", "BAKE" and the
current time of time of day will appear in the display (Fig. 8).
Note: Once Delayed Time Bake has started, press _ to display
the bake time remaining. Once the Delayed Timed Bake has started
baking, a beep wilt sound when the oven temperature reaches the set
temperature.
Press _ when baking has completed or at any time to cancel the
Delayed Time Bake feature.
Figure 2
Figure 3
Figure 4
•h
Figure 5
Q
When the set bake time runs out:
1. "End" will appear in the display and the oven will shut off
automatically (Fig. 9).
2. The control will beep 4 times. The control wilt continue to beep 3
times each minute until _D is pressed.
23
Figure 6
Figure 7
Figure 8
Figure g
Setting Oven Controls
FEATURE OVERVIEW
Broil
Setting Broil (Electric Range) -The _ pad controls the Broil feature. When broiling, heat radiates downward from
the oven broiler for even coverage. The Broil feature is preset to start broiling at 550°F however, the Broil feature
temperature may be set between 400°F and 550°F. This range includes a Searing Grill for searing meats (see Fig. 6).
The broil pan and broil pan insert used together allow dripping grease to drain and be kept away from the high heat of the
oven broiler. DO NOT use the broil pan without the insert (See Fig. 5). DO NOT cover the broil pan insert with foil. The
exposed grease could catch fire.
rJ,w-.!:t#ll#[_l Should an oven fire occur, leave the oven door closed and turn off the oven. If the fire continues, throw
baking soda on the fire or use a fire extinguisher. DO NOT put water or flour on the fire. Flour may be explosive and water
can cause a grease fire to spread and cause personal injury.
INSTRUCTIONS PRESS DISPLAY
To set the oven to broil at the default setting (550°F):
1. Place the broiler pan insert on the broiler pan. Then place the
food on the broiler pan insert. DO NOT use the broiler pan
without the insert. DO NOT cover the broiler insert with foil. The
exposed grease could ignite.
2. Arrange the interior oven rack and place the broiter pan on the
rack. Be sure to center the broiler pan directly under the broiler
element. Make sure the oven door is in the broil stop
position (See Fig. 4).
3. Press _. "BROIL" wilt flash and "550°" will appear (Fig. 1).
4. If a lower broil temperature is desired (minimum broil
temperature setting is 400°F), press the desired temperature
before continuing to step 5.
5. Press _. The oven will begin to broil. "BROIL" and "550 °"
will appear in the display (Fig. 2).
6. Broil on one side until food is browned; turn and cook on the
second side. Season and serve. Note: Always pull the rack out
to the stop position before turning or removing food.
7. To cancel broiling or if finished broiling press _ (Fig. 3).
Broiling Times and Searing Grill
Use the following table for approximate broiling times. Increase or decrease broiling times, or
move the broiling pan to a different rack position to suit for doneness. If the food you are
broiling is not listed in the table, follow the instructions provided in your cookbook and watch
the item closely. Use the Searing Grill for meats and steaks if desired. Before placing the
meat, be sure to heat the Searing Grill using Broil for 10 minutes. Cook times should be
reduced 1-2 minutes per side when cooking with the Searing Grill. Place Searing Grill on top
of Broiler Pan and insert for meats and steaks (See Fig. 6).
Broiling Table Recommendations
Food Rack Temp Cook Time
Item Position Setting 1st side 2ndside Doneness
Steak 1" thick 2rid 550° F 6:00 4:00 Rare
2nd 550 ° F 7:00 5:00 Medium
Pork Chops 3/4" thick 2rid 550 ° F 8:00 6:00 Well
Chicken - Bone in 3rd 450 ° F 20:00 10:00 Well
Chicken - Boneless 2rid 450 ° F 8:00 6:00 Well
Fish 2rid 500 ° F 13:00 n/a Well
Shrimp 3rd 550 ° F 5:00 n/a Well
Hamburger 1" thick 2rid 550 ° F 9:00 7:00 Medium
3rd 550 ° F 10:00 8:00 Well
Figure 1
Figure 2
Figure 3
Broil
Figure 4 p Position
Figure 5
Seadng
Grill
BroilPar :igure 6
& Insert
24
Setting Oven Controls
FEATURE OVERVIEW
Food Categories (Meats/Cakes/Breads)
Roasting Instructions for Meat Pad
Setting the Food Categories Features
The MEATS O' CAKES O and BREADS O pads in
the Food Categories feature is used when cooking certain food items. These
pads have been designed to give optimum cook performance for the foods
selected in each category.
The MEATS pad combines a cook cycle with the convection fan and element to roast meats and poultry. Preheating is not
necessary for meats and poultry. Heated air circulates around the food from alt sides, sealing in juices and flavors. Foods
are crispy brown on the outside while staying moist on the inside.
The CAKES pad provides a preheat with a gentle cycling of heat giving cakes more volume and allowing delicate foods to
cook more evenly.
The BREADS pad adds a preheat feature to the bake cycle to thoroughly heat the oven from top to bottom to give more
evenly browned foods. Refer to (Fig. 4) for foods to cook in each category.
INSTRUCTIONS PRESS DISPLAY
To set the Food Categories feature (example for
Meats to cook at 350°F):
1. Arrange interior oven racks and place food in oven.
2. Press O" "MEATS" will flash and "---°" wilt be displayed
(See Fig. 1).
3.PressO Q Q."MEATS"W"' ashand"350°"w,,
appear in the display (See Fig. 2).
4. Press _. "MEATS" and "350 °'' wilt appear in the display
(See Fig. 3). The convection fan icon wilt come on.
Press _ to stop cooking Meats, Cakes or Breads, or to cancel
cooking Meats, Cakes or Breads at any time.
@
@@@
@
@
Recommended
foods to be
cooked in each
category
Figure 4
Meats Cakes Breads
Meat Cakes _ Breads _
Poultry Brownies Roils
Pies (fresh & frozen) ;; Biscuits
Baked Custards Muffins
..................................................................Cheesecake...............................................Co nbread.....................
Roasting Instructions for Meat Pad
When using the Meat pad for roasting, use the broiler pan and insert along with the
roasting rack. The broiler pan will catch grease spills and the insert will help prevent
grease spatters. The roasting rack will allow the heat to circulate around the meat.
To prevent food from contacting the broil element and to prevent grease
spattering, DO NOT use the roasting rack when broiling.
1. Place oven rack on bottom or next to the bottom rack position. See Arranging
Oven Racks in the Before Setting Oven Controls section.
2. Place the insert in the broiler pan. The roasting rack fits on the insert allowing the
heated air to circulate under the food for even cooking and helps to increase
browning on the underside. Make sure the roasting rack is securely seated on the
insert in the broiler pan. DO NOT use the broiler pan without the insert or cover the
insert with aluminum foil.
3. Position food (fat side up) on the roasting rack (See Fig. 5).
4. Place the broiler pan on the oven rack.
Figure 1
Figure 2
Figure 3
Figure 5
25
Setting Oven Controls
FEATURE OVERVIEW
Convection Bake
Setting Convection Bake
Setting Convection Bake
Benefits of Convection Bake:
--Some foods cook up to 30% faster,
saving time and energy.
--Multiple rack baking.
--No special pans or bakeware needed.
The CONVECTION BAKE _ pad controls the Convection Bake feature.
Use the Convection Bake feature when cooking speed is desired. The oven
can be programmed for Convecfion baking at any temperature between 300 ° F
(149 ° C) to 550 ° F (288 ° C).
Convection baking uses a fan to circulate the oven's heat evenly and
continuously within the oven (See Figure 1). This improved heat distribution
allows for fast, even cooking and browning results. It also gives better baking
results when using 2 or 3 racks at the same time. Breads and pastries brown
more evenly. Most foods cooked in a standard oven will cook faster and more
evenly with Convection Bake.
General Convection Bake Instructions
Figure 1
Air
during
Convection
Bake
1stnd RackRackPositionPosition
rd Rack F_ition
4th Rack Position
561 Rack Position
6th Rack Position
1. When using Convection Bake, decrease your normal cooking times as shown on page 37. Adjust the cook time for
desired doneness as needed. Time reductions will vary depending on the amount and type of food to be cooked.
Cookies and biscuits should be baked on pans with no sides or very low sides to allow heated air to circulate around
the food. Food baked on pans with a dark finish will cook faster.
2. Preheating is not necessary when cooking casseroles with Convection Bake.
3. When using Convection Bake with a single rack, place oven rack in position 3 or 4. If cooking on multiple racks, place
the oven racks in positions 1,3 and 5 (for 3 racks) and positions 2 and 4 (for 2 racks; See Fig. 2).
4. Cakes have better results when baked with the Cake pad in the Food Categories feature.
INSTRUCTIONS PRESS DISPLAY
To set the oven for Convection Bake and
temperature to 350°F:
1. Arrange interior oven racks and place food in oven.
2. Press @. "CONV BAKE" will flash and "- - .o. will appear
in the display (Fig. 3).
3. Press_@@."CONVBAKE"and "350°"will
appear in the display (See Fig. 4).
4. Press_. "CONV BAKE" and "PRE" will appear in the
display (Fig. 5) until the oven reaches 350 °F. A beep will sound
once the oven temperature reaches 350 °F and the display wilt
show "350 °", "CONV BAKE" and the fan icon (Fig. 6).
Note: The oven icon will show a rotating fan within the square. This
rotating fan icon indicates when the Convection Fan is operating
(See rotating fan in Fig. 6).
Press _ to stop Convection Bake or cancel Convection Bake
at any time.
26
Figure 3
Figure 4
Figure 5
Figure 6
Oven Cleaning
FEATURE
OVERVIEW
Preparing for the Self-
Clean Cycle
The health
of some birds is extremely
sensitive to the fumes
given off during the self-
cleaning cycle of any
range. Move birds to
another well-ventilated
room.
Figure 1
Preparing for the Self-Clean Cycle:
A self-cleaning oven cleans itself with high temperatures which eliminate soil completely or
reduce it to a fine powdered ash you can wipe away with a damp cloth. These temperatures
are well above normal cooking temperatures.
1. Adhere to the following cleaning precautions:
Allow the oven to cool before pre-cteaning.
Wear rubber gloves when precteaning and while wiping up the residue after the self-
clean cycle.
DO NOT use oven cleaners or oven protective coatings in or around any part of the
self-cleaning oven.
DO NOT clean the oven door gasket. The woven material of the oven door gasket is
essential for a good seal. Care should be taken not to rub, damage or remove the
gasket.
DO NOT use any cleaning materials on the oven door gasket. Doing so could cause
damage.
2. Remove the Searing Grill, Broiler Pan and Broiler Pan Insert, all utensils and any
aluminum foil. These items cannot withstand high cleaning temperatures.
DO NOT line the oven walls, racks, bottom or any other part of the range
with aluminum foil. Doing so will destroy heat distribution, produce poor baking results _,,_o
and cause permanent damage to the oven interior (aluminum foil will melt to the interior _f>
surface of the oven).
.Oven racks should be removed, or else their finish will dull and their color turn slightly
blue. If they do go through the self-clean cycle, wait until the oven has cooled, then
remove the racks and rub their sides with wax paper or a cloth containing a small
amount of baby or salad oil (this will make the racks glide easier back into their
positions.
4. Remove any excess spitlovers in the oven cavity before starting the self-cleaning cycle.
To clean, use hot, soapy water and a cloth. Large spillovers can cause heavy smoke or
fire when subjected to high temperatures. DO NOT allow food spills with a high sugar or
acid content (such as milk, tomatoes, sauerkraut, fruit juices or pie filling) to remain on
the surface as they may cause a dull spot even after cleaning.
5. Clean any soil from the oven frame, the door liner outside the oven door gasket, and the
small area at the front center of the oven bottom. These areas heat sufficiently to burn
soil on. Clean with soap and water.
If at any time when setting the oven for the Self-Cleaning feature, the oven control
continuously beeps and the display shows "dr"; close the oven door (See Figure 1).
NOTE: Prior to setting the Self-Clean cycle, any spills remaining on the oven
bottom should be removed. The bake element is designed to be tilted up using
your hand from the front of the bake element (See Fig. 2). This will allow easier
access to the oven bottom for cleaning. Be careful not to raise the element
more than 4 or 5 inches from the resting position.
Figure 2
The bake element
may be tilted about
4 or 5 inches
to clean oven bottom
27
Oven Cleaning
FEATURE OVERVIEW
Starting the Self-Clean Cycle
To Start the Self-Clean Cycle
The CLEAN (_ pad controls the Self-Cleaning feature. If you are planning to use the oven directly after a self-clean
cycle remember to allow time for the oven to cool down and the oven door to unlock. This normally takes about one hour.
So to self-clean for 3hours will actually take about 4 hours to complete.
*It is recommend to use a 2 hour self-clean cycle for light soils, a 3 hour cycle for average soils, and a 4 hour cycle for
heavy soils (to assure satisfactory results).
During the self-cleaning cycle, the outside of the range can become very hot to the touch. DO NOT leave
small children unattended near the appliance; they may be burned if they touch the hot oven door surfaces.
DO NOT force the oven door open. This can damage the automatic door locking system. Use care when
opening the oven door after the self-cleaning cycle. Stand to the side of the oven when opening the door to allow hot air or
steam to escape. The oven may still be VERY HOT.
INSTRUCTIONS PRESS DISPLAY
To set the controls for a 3 hour Self-Cleaning cycle
to start immediately and shut off automatically:
1. Be sure the clock is set with the correct time of day and the
oven door is closed.
2. Press (_. "CLEAN" will flash and "3:00" will show in the
display (Fig. 1). The control will automatically clean for a 3 hour
period (default self-cleaning cycle time). Note: If a 2 or 4 hour
clean time is desired, press (_) for 2 hour or press (_
for a 4 hour clean time. Set the cleaning time based on the
amount of soil; light, medium or heavy (*See above).
3. Press _ .The "DOOR LOCKED" icon will flash; "CLEAN"
icon and the letters "CLn" will remain on in the display (Fig. 2).
4. As soon as the control is set, the motor driven oven door lock
will begin to close automatically. Once the door has been
locked the "DOOR LOCKED" indicator light will stop flashing
and remain on. Also, the oven icon will appear in the display
(See Fig. 3).
Q
OorQ
or(
Q
Figure 1
Figure 2
Figure 3
Note: Allow about 15 seconds for the oven door lock to close.
When the Self-Clean Cycle has Completed:
1. The time of day, the "DOOR LOCKED" and "CLEAN" icon wilt
remain in the display (Fig. 4).
2. Once the oven has cooled down for approximately 1 HOUR, and
the "DOOR LOCKED" icon is no longer displayed, the oven
door can then be opened (Fig. 5).
Figure 4
Figure 5
Stopping or Interrupting a Self-Cleaning Cycle:
If it becomes necessary to stop or interrupt a self-cleaning cycle
due to excessive smoke or fire in the oven:
1.
2.
Press _.
Once the oven has cooled down for approximately 1 HOUR and
the "DOOR LOCKED" icon is no longer displayed,the oven door
can then be opened (Fig. 5).
28
Oven Cleaning
FEATURE OVERVIEW
Delayed Self-Clean Cycle
To Start the Delayed Self-Clean Cycle
The CLEAN c_, STOP TIME @ pads and length of clean cycle, controls the Delayed Self-Clean operation. The
automatic timer will turn the oven on and off at the time you select in advance. Be sure to review TO START THE SELF-
CLEAN CYCLE for recommended clean times.
During the self-cleaning cycle, the outside of the range can become very hot to the touch. DO NOT leave
small children unattended near the appliance.
DO NOT force the oven door open. This can damage the automatic door locking system. Use care when
opening the oven door after the self-cleaning cycle. Stand to the side of the oven when opening the door to allow hot air or
steam to escape. The oven may still be VERY HOT.
INSTRUCTIONS PRESS DISPLAY
To set the control for the Self-Cleaning Cycle to start at a
delayed time and shut off automatically: (example 3 hour self-
clean cycle to finish at 9:00):
1. Be sure the clock is set with the correct time of day and the
oven door is closed.
2. Press (_. "CLEAN" will flash and "3:00" will show in the
display (Fig. 1). The control will automatically clean for a 3 hour
period (default self-cleaning cycle time). Note: If a 2 or 4 hour
clean time is desired, press _ for 2 hour or press
for a 4 hour clean time. Set the cleaning time based on the
amount of soil --light, medium or heavy (*See page 28).
3. Press _ .The "DOOR LOCKED" icon will flash; "CLEAN"
icon and the letters "CLn" wilt remain on in the display (Fig. 2).
4. Press @ (Fig. 3). Enter the desired stop time using the
num0erpadsC) C>Q (Fig,)
5. Press _. The "CLn" icon will turn off; "DELAY", "DOOR
LOCKED" and "CLEAN" icons will remain on.
6. As soon as the control is set, the motor driven oven door lock
will begin to close automatically and once the door has been
locked the "DOOR LOCKED" indicator light will quit flashing
and remain on. The oven icon will appear in the display (Fig. 5).
7. The control will calculate backward from the set stop time to
determine when the self-cleaning cycle should begin. The self-
cleaning cycle will come on automatically at the calculated
time. At that time, the icon "DELAY" will go out; "CLEAN" and
"CLn" will appear in the display (Fig. 6).
Oo, Q
or(
@
(Z)GG
Q
Figure 1
Figure 2
Figure 3
When the Self-Clean Cycle has Completed:
1. The time of day, the "DOOR LOCKED" and "CLEAN" icon wilt
remain in the display (Fig. 7).
2. Once the oven has cooled down for approximately 1 HOUR, and
the "DOOR LOCKED" icon is no longer displayed, the oven
door can then be opened (Fig. 8).
Figure 4
Figure 5
Figure 6
Figure 7
Figure 8
29
Oven Cleaning
FEATURE OVERVIEW
Delayed Self-Clean Cycle (Cont'd)
INSTRUCTIONS
Stopping or Interrupting a Self-Cleaning Cycle:
If it becomes necessary to stop or interrupt a self-cleaning cycle
due to excessive smoke or fire in the oven:
1. Press _.
2. Once the oven has cooled down for approximately 1HOUR and
the "DOOR LOCKED" icon is no longer displayed, the oven
door can then be opened (Fig. 2-1).
Adjusting Oven Temperature
PRESS DISPLAY
Figure 2-1
Note: The oven
temperature adjustments
made with this feature wilt
not change the Self-Clean
cycle temperature.
DISPLAY
Figure 1
Figure 2
FEATURE OVERVIEW
The temperature in the oven has been pre-set at the factory. When first using the oven, be
sure to fellow recipe times and temperatures. If you think the oven is too hot or too cool, the
temperature in the oven can be adjusted. Before adjusting, test arecipe by using a
temperature setting that is higher or lower than the recommended temperature. The baking
results should help you to decide how much of an adjustment is needed.
INSTRUCTIONS PRESS
To adjust the oven temperature higher:
1. Press _ for 6 seconds (Fig. 1).
2. To increase the temperature use the number pads to enter the
desired change. (Example 30°F) _ _ (Fig. 2). The O
temperature may be increased as much as 35°F (17°C).
3. Press _ to accept the temperature change and the display
will return to the time of day (Fig. 3). Press _ to reject the
change if necessary.
To adjust the oven temperature lower:
1. Press _ for 6 seconds (Fig.4).
2. TO decrease the temperature use the number pads to enter the
desired change- (Example -30°F) @ @ and then @@@
press (_ (Fig. 5). The temperature may be decreased as
much as 35°F (17°C).
3. Press _ to accept the temperature change and the display
will return to the time of day (Fig. 6). Press _ to reject the
change if necessary.
Figure 3
3O
Figure 4
Figure 5
Figure 6
General Care & Cleaning
FEATURE OVERVIEW
General Care & Cleaning Table
Surfaces How to Clean
Aluminum & Vinyl Use hot, soapy water and a cloth. Dry with a clean cloth.
Painted and Plastic
Control Knobs, Body
Parts, and Decorative
Trim
StainlessSteel, Chrome
Control Panel, Decorative
Trim
Porcelain Enamel Broiler
Pan and Insert, Door
Liner, Body Parts, Warmer
Drawer
Oven Racks
Oven door
For general cleaning, use hot, soapy water and a cloth. For more difficult soils and built-up
grease, apply a liquid detergent directly onto the soil. Leave on soil for 30 to 60 minutes.
Rinse with a damp cloth and dry. DO NOT use abrasive cleaners on any of these
materials; they can scratch. To remove control knobs, turn to the OFF position; grasp
firmly and pull straight off the shaft. To replace knobs after cleaning, line up the flat sides
of both the knob and the shaft; then push the knob into place.
Before cleaning the control panel, turn all controls to OFF and remove the control knobs.
To remove, pull each knob straight off the shaft. Clean using hot, soapy water and a
dishcloth. Rinse with a clean water using a dishcloth. Be sure to squeeze excess water
from the cloth before wiping the panel; especially when wiping around the controls. Excess
water in or around the controls may cause damage to the appliance.To replace knobs after
cleaning, line up the flat sides of both the knob and the shaft; then push the knob into
place.
Clean stainless steel with hot, soapy water and a dishcloth. Rinse with clean water and a
cloth. Do not use cleaners with high concentrations of chlorides or chlorines. Do not
use harsh scrubbing cleaners. Only use kitchen cleaners that are especially made for
cleaning stainless steel. Always be sure to rinse the cleaners from the surface as bluish
stains may occur during heating that cannot be removed.
Gentle scouring with a soapy scouring pad will remove most spots. Rinse with a 1:1
solution of clear water and ammonia. If necessary, cover difficult spots with an ammonia-
soaked paper towel for 30 to 40 minutes. Rinse with clean water and a damp cloth, and
then scrub with a soap-filled scouring pad. Rinse and wipe dry with a clean cloth. Remove
all cleaners orthe porcelain may become damaged during future heating. DO NOT use
spray oven cleaners on the cooktop.
Oven racks should be removed from the oven during the self-clean cycle for cleaning.
When removed, clean by using a mild, abrasive cleaner following manufacturer's
instructions. Rinse with clean water and dry.
If the racks are cleaned in the self-clean cycle, their color will turn slightly blue and the
finish will be dull. After the self-clean cycle is complete, and the oven has cooled, rub the
sides of the racks with wax paper or a cloth containing a small amount of baby oil or salad
oil (this wilt make the racks glide easier into the rack positions).
To clean oven door, wash with hot, soapy water and a clean cloth. DO NOT immerse the
door in water.
DO NOT clean the oven door gasket. The oven door gasket is made of a woven material,
on self cleaning models, which is essential for a good seal. Care should be taken not to
rub, damage or remove the gasket.
31
General Care & Cleaning
FEATURE OVERVIEW
Cooktop Cleaning & Maintenance
Cleaning Recommendations for Ceraminc Glass
Cooktops
Cooktop Cleaning and Maintenance
Prior to using your cooktop for the first time, apply the recommended CookTop® Cleaning Creme (P/N 22-40079) to the
ceramic surface. Buff with a non-abrasive cloth or pad. This will make cleaning easier when soiled from cooking. The
special cooktop cleaning cream leaves a protective finish on the glass to help prevent scratches and abrasions.
Sliding aluminum or copper clad bottom pans on the cooktop can
cause metal markings on the cooktop surface. These marks should
be removed immediately after the cooktop has cooled using the
cooktop cleaning cream. Metal marks can become permanent if not
removed prior to future use.
Cookware (cast iron, metal, ceramic or glass) with rough bottoms
can mark or scratch the cooktop surface. Do not slide anything
metal or glass across the cooktop. Do not use your cooktop as a
cutting board or work surface in the kitchen. Do not cook foods
directly on the cooktop surface without a pan. Do not drop heavy or
hard objects on the glass cooktop, they may cause it to crack.
Cleaning Recommendations for the Ceramic Glass Cooktop
Before Cleaning the cooktop, be sure the controls are turned to OFF and the cooktop is COOL
_'t,,,,l,_1.'t#ll_[ell DO NOT use a cooktop cleaner on a hot cooktop. The fumes can be hazardous to your health, and can
chemically damage the ceramic-glass surface.
For light to moderate soil:
Apply afew drops of CookTop@ Cleaning Creme directly to the cooktop. Use a paper towel or a 3M Scotch-Brite@ Blue
Multi-Purpose No Scratch Scrub Sponge to clean the entire cooktop surface. Make sure the cooktop is cleaned thoroughly,
leaving no residue.
For heavy, burned on soil:
Apply afew drops of CookTop® Cleaning Creme directly to the soiled area. Rub the soiled area using a 3M Scotch-Bdte®
Blue Multi-Purpose No Scratch Scrub Sponge, applying pressure as needed. Do not use the sponge you use to clean the
cooktop for any other purpose.
o
If soils remain, carefully scrape soils with a metal razor blade
scraper, holding scraper at a 30 degree angle to the surface. Remove
loosened soils with cooktop cleaning cream and buff surface clean.
Damage to the ceramic glass cooktop may occur if
you use any scrub pad other than a 3M Scotch-Bdte@ Blue Multi-
Purpose No Scratch Scrub Sponge.
Plastic or foods with a high sugar content:
These types of soils need be removed immediately if spilled or
melted onto the ceramic cooktop surface. Permanent damage (such
as pitting of the cooktop surface) may occur if not removed
immediately. After turning the surface elements OFF, use a razor
blade scraper or a metal spatula with a mitt and scrape the soil from
the hot surface (as illustrated). Allow the cooktop to cool, and use
the same method for heavy or burned on soils.
32
General Care & Cleaning
FEATURE OVERVIEW
Cleaning Recommendations for Ceramic Glass Cooktops (cont'd)
Care & Cleaning of Stainless Steel
Removing & Replacing Oven Door
Do not use the following on the ceramic glass cooktop:
Do not use abrasive cleaners and scouring pads, such as metal and
some nylon pads. They may scratch the cooktop, making it more
difficult to clean.
Do not use harsh cleaners, such as chlorine bleach, ammonia or oven
cleaners, as they may etch or discolor the cooktop.
Do not use dirty sponges, cloths or paper towels, as they can leave soil
or lint on the cooktop which can burn and cause discoloration.
Care and Cleaning of Stainless Steel (Stainless Steel models only)
Some models are equipped with stainless steel exterior parts. Special care and cleaning _
are required for maintaining the appearance of stainless parts. Please refer to the table _f>
provided at the beginning of the General Care & Cleaning section in this Use & Care
Manual.
Removing and Replacing the Oven Door
The door is heavy. For safe, temporary storage, lay the door flat with the
inside of the door facing down.
To Remove Oven Door:
1. Open the door.
2. Remove screws located on the inside of the oven door near the hinges A(one on
each side.)
3. Close the door to the quarter-open position. Grasp the door firmly on both sides and
lift up and off the hinges.
4. To clean oven door, follow the instructions provided in the General Care & Cleaning
table.
To Replace Oven Door:
1. Be sure the hinge arms are inthe quarter-open position. Be careful if pulling the
hinges open by hand. The hinges may snap back against the oven frame and could
pinch fingers.
2. Hold the door at the sides near the top. Insert the hinge arms into slots at the bottom
of the door.
3. Hinge arms must go into the range slots evenly. The hinge arms should be inserted
into the bottom corners of the door as far as they can go.
4. Replace the door mounting screws (See A in illustration).
5. If the door is not in line with the oven frame, remove it and repeat the above steps.
33
General Care & Cleaning
FEATURE OVERVIEW
Removing & Replacing Warmer Drawer
Removeshieldonri
glide. Pullup onleft lever
while pushingdownon
Figure 1
Pull up with finger
To Remove and Replace Warmer (Warm & Ready TM) Drawer
To Remove Warmer Drawer:
1. r_ _ Turn power off before removing the warmer drawer.
2. Open the drawer to the fully opened position.
3. On the right glide you wilt find a shield attached with a hex-head screw
(see figure 1). Using a 1/4" socket and ratchet remove the shield.
4. Locate glide lever on each side of drawer, pull up on the left glide lever
and push down on the right glide lever.
5. Pull the drawer away from the range.
To Replace Warmer Drawer:
1. Replace shield on the right glide of the drawer body.
2. Pull the bearing glides to the front of the chassis glide (see figure 2).
3. Align the glide on each side of the drawer with the glide slots on the
range.
4. Push the drawer into the range until levers "click" (approximately 2").
Pull the drawer open again to seat bearing glides into position. If you do
not hear the levers "click" or the bearing glides do not feel seated
remove the drawer and repeat steps 2-4. This will minimize possible
damage to the bearing glides.
Figure 2
Oven Lights
FEATURE OVERVIEW
Operating Oven Lights
Replacing Oven Light
_'IVJV-'1;t#ll_?[_lElectrical Shock Hazard can occur and result
in serious injury or death. Disconnect appliance from electric
power before cleaning and servicing the warmer drawer.
Be sure the range is unplugged and all parts are COOL
before replacing oven light(s). Wear a leather-faced glove for protection
against possible broken glass.
To Operate the Oven Lights
Both of the interior oven lights automatically turn on when the oven
door is opened. Press @ to turn the lights ON and OFF when the
oven door is closed. Each oven light is located at the rear wall of the
oven interior and is covered with a glass shield held by a wire holder
(See Figure 3). The Glass Shields must be in place whenever the oven
is in use.
Figure 3
To Replace the Oven Light:
1. Turn electrical power off at the main source and unplug the range.
2. Press Wire Holder to one side to release the glass shield.
3. Replace the old bulb with a new 40 watt appliance bulb.
4. Replace Glass Shield over bulb and snap Wire Holder into place.
5. Turn power back on again at the main source (or plug in the range).
6. The clock will then need to be reset. To reset, see Setting the
Clock in this Use & Care Guide.
34
Before You Call
Solutions to Common Problems
Before you call for service, review this list. It may save you time and expense. The list includes common occurrences
that are not the result of defective workmanship or materials in this appliance.
OCCURRENCE
Range is not level.
POSSIBLE CAUSE/SOLUTION
Poor installation. Place oven rack in center of oven. Place alevel on the oven rack. Adjust
leveling legs at base of range until the rack is level. When range is level, cooktop may
appear out of alignment if countertop is not level (See the Range Installation instructions).
Weak, unstable floor. Be sure floor is level and can adequately support range. Contact a
carpenter to correct sagging or sloping floor.
Kitchen cabinet misalignment may make range appear to be unlevel. Be sure cabinets are
square and have sufficient room for range clearance.
Cannot move appliance easily. Cabinets not square or are built in too tight. Contact a cabinet maker to correct the problem.
Appliance must be accessible for
service. Contact builder or installer to make appliance accessible.
Carpeting interferes with range. Provide sufficient space so range can be lifted over carpet.
Surface element too hot or not hot Incorrect surface control setting. Make sure the correct control is set for the surface area you
enough, wish to heat.
Surface element does not heat. Light-weight or warped cookware was used. Use only flat, evenly balanced, medium or
heavy-weight cookware. Flat pans heat much better than warped pans. Cookware materials _
and weight of the material affect heating results. Heavy and medium-weight pans heat
evenly. Because light-weight pans heat unevenly, foods may burn easily. _f_
Oven does not operate. No electrical power to the appliance. Check steps under "Entire Appliance Does Not
Operate" in this "Before You Call" checklist.
Be sure the oven controls are set correctly for the desired function. See "Setting Oven
Controls" or "Entire Appliance Does Not Operate" in this "Before You Call" checklist.
The time of day must first be set on the clock in order to operate the oven.
Entire appliance does not operate. Make sure electrical cord/plug is plugged tightly into outlet.
Service wiring is not complete, Call 1-800-4-MY-HOME® (See back cover),
Electrical power outage. Check house lights to be sure, Call your local electric company for
service.
Oven light(s) does not work. Burned-out or loose bulb. See "Replacing Oven Light" section in this Use & Care Guide to
replace or tighten the bulb(s).
Electrical power outage. Check house lights to be sure. Call your local electric company for
service.
Oven smokes excessively during
broiling.
Meat is too close to the broil element. Reposition the rack to provide more clearance
between the meat and the oven broil element.
Meat is not properly prepared. Remove excess fat from meat. Remove remaining fatty
edges to prevent the meat from curling, but do not cut into the lean of the meat.
Broiler Pan used without the Broiler Pan Insert or insert is covered with foil, DO NOT use the
Broiler Pan without the Broiler Pan Insert or cover the insert with foil.
Broiler Pan, Broiler Pan Insert or grease build-up undeneath the 6th rack position. Clean
grease from below the 6th rack positiojn. Excessive smoking is caused by abuild-up of
grease or food spatters. If the Broiler Pan and insert is used often, clean these on a regular
basis.
35
Before You Call
Solutions to Common Problems
OCCURRENCE POSSIBLE CAUSE/SOLUTION
ESEC displays "- - " message. The ESEC Control will display " - - " in the digital display windows indicating that the ESEC
has a "Lockout" condition. This condition is normal when using the oven lockout or self-
clean features. Wait for the self-clean cycle to completely finish or if using the Oven Lockout
feature, press the Lock control pad to unlock the oven door.
Oven electronic control beeps and This oven is equipped with a state of the art electronic oven controller. Among the many
displays "F1, F2, F3", or"Fg", features is afull time oven circuit diagnostics system. The controller constantly monitors the
internal circuitry as well as several crucial oven circuits to insure they are all operating
correctly. If at any time one of these systems fails, the controller will immediately stop the
current operation and beep continuously (flashing an error code of "F1, F2, F3", or "F9" in
the controller display window.
ESEC displays "Er" message.
ESEC displays "F5, F6" or "F7"
message.
Oven control beeps when you try
to enter times or temperatures
Electronic control has detected a fault condition. Press CLEARIOFF to clear the display and
stop the beeping. Reprogram oven. If fault remains, record fault number. Press CLEAR/OFF
and call 1-800-4-MY-HOME® (See back cover).
ESEC control has detected a fault condition. Turn all surface control knobs to OFF and reset
the clock with the correct time of day if necessary. If the "Er" message remains, and call
1-800-4-MY-HOME® (See back cover).
The ESEC control constantly monitors the internal circuitry as well as several circuits to
insure they are all operating correctly. If at any time one of these systems fails, the ESEC
will immediately stop the current operation and flash an error code of "F5, F6", or "F7" in the
digital display windows. If any of these error messages remain or reappear in the display,
call 1-800-4-MY-HOME® (See back cover).
The oven control will only accept correct responses and/or the minimum number of
allowable entries for the appropriate feature. The oven control is designed to prevent
accidental entries. Review the instructions in this Use & Care Guide for the feature you are
trying to use. Also review the minimum and maximum temperature entries for the feature
you are trying to set on page 15 in this Use & Care Guide.
Poor baking results. Many factors affect baking results. Make sure the proper rack position is being used. Center
food in the oven and space pans to allow air to circulate. Allow the oven to preheat to the
set temperature before placing food in the oven. Try adjusting the recipe's recommended
temperature or baking time. If you feel the oven is cooking too hot or cool, see "Adjusting
the Oven Temperature" section in this Use & Care Guide.
Self-Cleaning cycle does not work. Controls are not set properly. Follow instructions in the "Self-Cleaning" section.
Self-cleaning cycle was interrupted. Stop time must be set for 2, 3, or 4 hours past the start
time. Follow steps in "Stopping or Interrupting a Self-Clean Cycle" in the "Self Cleaning"
section.
Soil is not completely removed. Failure to clean bottom front, top of oven or door areas outside oven seal. These areas are
not in the self-cleaning area, but get hot enough to burn on food residue. Clean these areas
before starting the self-clean cycle. Burned-on residue may be cleaned with a stiff nylon
brush and water or a nylon scrubber. Be careful not to damage the oven gasket.
Flames inside oven or smoking
from vent. Excessive spillovers in oven. Set Self-Clean cycle for a longer cleaning time.
Excessive spiilovers in oven. This is normal, especially for pie spiilovers or large amounts
of grease on the oven bottom. Wipe up excessive spillovers before starting the self-clean
cycle. If flames or excessive smoke are present, stop the Self-Clean cycle and follow the
steps under "Stopping or Interrupting the Self-Clean Cycle" in the "Self-Cleaning" section.
36
Cooking Tables
Foods for _ CONVECTION
BAKE pad
*Decrease
normal cook time by:
Frozen foods, pies,
pastries and pizza
15-25 %
Refrigerator cookies 15-35 %
Refrigerator biscuits 15-30 %
Rolls & Breads 20-25%
Fresh Pies/Pastries 10-20 %
Begin with the maximum reduction in
cook times and adjust as needed.
*Recommended reduction in cook
times based on brands of food items
tested. Cook times may vary with your
specific brand of food item.
Foods for _ MEATS pad in
Food Categories
*Decrease
normal cook time by:
Meats 15-30 %
Poultry (unstuffed) 20-30 %
Begin with the maximum reduction in
cook times and adjust as needed.
*Recommended reduction in cook
times based on brands of food items
tested. Cook times may vary with your
specific brand of food item.
Bacon Cheese Crescents
Recipes
Special Recipes as seen in the Video
1 - 8oz. cream cheese, softened
8 bacon slices, crisply cooked, crumbled
1/3 cup Parmesan cheese
1/4 cup finely chopped onion
2 tbsp. parsley flakes
1egg
1 tbsp. milk
2 can refrigerator crescent rolls (8oz. each)
1egg, beaten
1 tsp. cold water
Combine cream cheese, bacon, Parmesan cheese, onion,
parsley, egg and milk at medium speed with electric mixer
until well blended. Separate dough into 8 rectangles; firmly
press perforations together to seal Cut each rectangle to
make 6 triangles. Spread each triangle with 1 teaspoon of
bacon cheese mixture. Roll up triangle starting at long end.
Place on greased cookie sheet (non-stick spray). Beat egg
and cold water together, and brush each crescent with
mixture. Using your convection feature, preheat oven to
375 °IE When oven is preheated, place 3 pans in the oven
on rack positions 1, 3 and 5. Bake for 10 to 12 minutes, or
until golden brown. Can be refrigerated and reheated, if
needed. Makes 4 dozen.
Rib Roast wlGravy
5-6 lb. Rib Roast with bone
1/4cup commercial seasoned marinade
1 tbsp. garlic, minced
2 tbsp. butter or margarine
2 tbsp. all-purpose flour
% tsp. salt
Dash of pepper
1 cup whole milk
Place roast on masting rack on top of pan with insert.
Position pan in oven on masting shelf. Press "Meat"pad
and set temperature to 325 °IE Roast meat for 2 ½hours or
23 to 26 minutes per pound for rare doneness. For medium
or well doneness, use the following recommendation:
Medium (140 ° F) -
37
Recipes
Rib Roast wlGravy cont'd
26 to 29 min./ lb., Well (150 °F) -30 to 33 min./ lb.
For gravy- Melt butter in saucepan over medium-low heat. Stir
in flour, salt and pepper. Cook over medium-low heat until
smooth and bubbly. Slowly stir in milk. Heat until thickened,
stirring constantly Add marinade and minced garlic. Blend
well; keep warm until ready to serve.
Makes 10 to 12 servings.
Roasted Potatoes
3 Ibs. small red potatoes
¼ cup olive oil
6 cloves garlic, minced
2 tbsp. dried rosemary, crushed
salt
pepper
Cut each potato in half and place in a 9" x13" baking dish with
olive oil. Toss potatoes with spoon, making sure to well coat
potatoes with oil. Add minced garlic and remaining ingredi-
ents, tossing again. Place on second rack position, above the
roast about an hour before the roast is to be ready Green
beans will be added when prepared.
If cooking separately, set oven temperature to 400 ° F and
roast for 50 minutes. Stir once or twice while potatoes are
cooking.
Angel Biscuits
1 pkg. dry yeast
1/2cup warm water
5 cups Bisquick
1 tbsp. baking powder
1 tsp. baking soda
1 tsp. salt
3 tbsp. sugar
1 cup shortening
1-% cups buttermilk
Combine yeast and water in a measuring cup, allowing 5
minutes to dissolve. Mix dry ingredients in large bowl. Add
yeast mixture and buttermilk. Stir just until dry ingredients are
moistened.
Turn dough out onto a lightly floured surface; knead 6-10
times. Roll dough into ½"thickness. Cut with a 2 inch round
cutter. Place on lightly greased baking sheet. Let rise for 20
minutes. Press "Bread"pad and preheat oven to 400 IEBake
biscuits for 12 minutes or until lightly browned.
Yield: 5 dozen.
Green Beans with Walnut Vinaigrette Sauce
3 Ibs. fresh green beans, or frozen whole green beans
3 cups water
2 tbsp. butter
t/4tsp. hickory salt
1t/2cups walnuts, chopped
3 tbsp Parmesan cheese freshly grated
% cup safflower oil
2 tbsp. olive oil
t/4cup balsamic vinegar
1 garlic clove, minced
1 tsp. tarragon, fresh, chopped
(This can be done ahead of time and stored in the refrigera-
tor till ready to use.)
Melt butter with salt. Pour into small baking dish, stirring in
walnuts and bake in 350 °F oven for 5 minutes.
Sprinkle, and coat with Parmesan cheese. Bake 4 to 5
minutes longer until cheese is lightly brown. Remove from
oven and aflew to cool
Bring 3 cups water to boil in Dutch oven. Add beans, cover
and reduce heal Cook about 6 minutes.
Drain in colander and rinse with cold water. Arrange green
beans in casserole dish.
Combine safflower oil, olive oil, balsamic vinegar, garlic,
and tarragon. Pour on top of green beans. Top green beans
with walnut mixture. Cover with aluminum fall and place in
oven on second rack position, next to potatoes, about 30
minutes before reast is ready, If cooking separately, cover
and heat for 25 to 30 minutes at 350 ° _ Makes 12 servings.
Apple Bourbon Pie
t/2cup raisins
t/2cup bourbon
3Ibs. cooking apples
% cup sugar
2 tbsp. all purpose flour
1 tsp. ground cinnamon
1/8 tsp. nutmeg
t/4tsp. salt
t/2cup chopped walnuts, toasted
1 (15oz.) pkg. refrigerated pie crust
2 tsp. apricot preserves
I tbsp. buttermilk
I tbsp. sugar
Combine raisins and bourbon in bowl and soak for at least 2
hour. Peel apples, and cut into ½"slices. Steam apple slices
in a pan with a steamer basket for 10 minutes or until apples
are tende_
38
Recipes
Apple Bourbon Pie cont'd
Mix together sugar, flour, cinnamon, nutmeg, salt in large
bowl. Stir in apples, raisin mixture, and walnuts.
Combine well.
Press piecrust into 9-inch pie plate. Brush apricot preserves
over piecrust. Spoon apple mixture into piecrust. Place the
remaining piecrust on top of filling, fluting the edges togethe_
Brush top of pie with buttermilk and sprinkle with suga_ Make
4 or 5 small slits in the top of the piecrust. Press "Cake"pad
and preheat oven to 375 ° F and bake for45 to 50 minutes.
Chocolate Dipped Strawberries
8 oz. box semisweetchocolatepieces
2 pints fresh strawberries, chilled
Melt chocolate pieces in a 1-1/2 quart saucepan on a very
low heat. Once melted, dip tips of the strawberries in the
chocolate. Lay chocolate dipped strawberries on a piece of
wax paperto harden.
Cajun Shrimp Stirfry
4 slices
2 tsp.
1/2 tsp.
1/3 cup
1-1/21bs
2 tsp.
I each
1/2 cup
1 14oz can
bacon
cornstarch
fish flavored bouillon granules
water
peeled shrimp
Creole seasoning
small green pepper
small yellow pepper
small red pepper
small onion
diced celery
Cajun-style stewed tomatoes, drained
Cooked Rice
Cook bacon in large wok until crisp; remove reserving 3
tablespoons of drippings. Crumble bacon, and set aside.
Combine cornstarch, bouillon granules and water; set aside.
Sprinkle peeled shrimp with creole seasoning. Pour 2
tablespoons reserved bacon drippings around top of
preheated wok, coating the sides. Heat at high for 1 minute.
Add shrimp; stir fry 2 to 3 minutes or until shrimp is pink.
Remove shrimp, and set aside.
Pour remaining 1tablespoon reserved drippings into wok;
add peppers, onion and celery. Stir fry 2to 3minutes. Add
tomatoes and stir fry 2 minutes. Return shrimp to wok and
add cornstarch mixture; bring to a boil. Cook, stirring
constantly for 1 minute. Sprinkle with crumbled bacon.
Serves 4.
39
Your Home
For repair-in your home-of all major brand appliances,
lawn and garden equipment, or heating and coolingsystems,
no matter who made it, no matter who sold it!
For the replacement parts, accessories and
owner's manuals that you need to do-it-yourself.
For Sears professional installationof home appliances
and items like garage door openers and water heaters.
1-800-4-MY-HOME ®(1-800-469-4663)
Call anytime, day or night (U,S,A, and Canada)
www.sears.com www.sears.ca
Our Home
For repair of carry-in items like vacuums, lawn equipment,
and electronics, call or go on-line for the location of your nearest
Sears Parts & Repair Center.
1-800-488-1222
Call anytime, day or night (U,S,A, only)
www.sears.com
To purchase aprotection agreement on a product serviced by Sears:
1-800-827-6655 (U.S.A.)
Para pedirserviciode reparaciSn
a domicilio,y paraordenarp_ezas:
1-888-SU-HOGAR _
(1-888-784-64271
1-800-361-6665 (Canada)
Au Canada pour service en fran_ais:
1-800-LE-FOYER "c
(1-800-533-6937)
www.sears.ca
ARS
8M
®Registered Trademark/ Trademark/ Sewice Mark of Seam, Roebuck and Co.
TM SM
®Mama Registrada/Mama de Fdbdca /Mama de Serviciode Seam, Roebuck and Co.
MC MD
Marque de cammeme /Marque d_,_e de Seam, Roebuck and Co. ® Seam, Roebuck and Co.
