REFRIGERATOR

OWNERSMANUAL

ooooo

i i "' i i

Model #s:

795.75542401

795.75549401

795.75544401

795.75543401

795.75546401

795.75552401

795.75559401

795.75554401

795.75553401

795.75556401

P/No. 3828JL8027A

English Version 2

Spanish Version 36

French Version 70

Warranty (U.S.A.) 2

Protection Agreements 3

Safety Instructions 4-5

Grounding Requirements 5

Parts and Features 6

Refrigerator Installation 7-13

Unpacking Your Refrigerator 7

Installation 7

Removing and Replacing

Your Refrigerator Handles

and Doors 8-12

Leveling and Door Alignment 13

Base Cover 13

Using Your Refrigerator 14-23

Ensuring Proper Air Circulation 14

Multi-Flow 14

Setting the Controls 14

Adjusting Control Settings 15

Food Storage Guide 15

Storing Frozen Food 16

•Refrigerator Features

Water Dispenser 16

Refrigerator Shelves 17

Wine Holder 17

Suprafresh Crispers with -lilt-out Compartment 18

Crisper Humidity Control 18

Crisper with Tilt-out Feature 18

Removing Crisper 18-19

Crisper Cover with Lattice on inner

Surface 19

Glide N Serve 20

Modular Door Bins 20

Dairy Bin 21

Egg Box 21

•Freezer Features

Tilting Door 21

Ice Bin 21

Tilt-Out Door Basket 22

Durabase 22

Durabase Divider 22

Pull out Drawer 22

Water Filter 23

Care and Cleaning 24-25

General Cleaning Tips 24

Outside 24

Inside Walls 24

Door Liner and Gaskets 24

Plastic Parts 24

Condenser Coils 24

Light Bulb Replacement 24-25

Power Interruptions 25

When you go on vacation 25

When you move 25

About the Automatic Icemaker 26

Connecting the Water Line 27-30

Troubleshooting Guide 31-34

EL I E®

BOTTOM FREEZER REFRIGERATOR

WARRANTY--U.S.A.

fFULL ONE-YEAR WARRANTY ON REFRIGERATOR

For one year from the date of purchase, if this Kenmore Refrigerator fails due to a defect in material or

workmanship, Sears will repair it free of charge.

FULL FIVE-YEAR WARRANTY ON THE SEALED REFRIGERATION SYSTEM

For five years from the date of purchase, if any part of the sealed system (consisting of refrigerant, connecting

tube and compressor) in this Kenmore Refrigerator fails due to a defect in material or workmanship, Sears will

repair it free of charge.

The above warranty coverage applies only to refrigerators which are used for the storage of food for private

household purposes.

WARRANTY SERVICE IS AVAILABLE BY CONTACTING SEARS SERVICE AT 1-800-4-MY-HOME. ®

This warranty applies only while this product is in use in the United States.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Sears Roebuck and Co. Dept. 817 WA Hoffman Estates, IL 60179

2

J

In the U.S.A.

Master Protection Agreements

Congratulations on making a smart purchase. Your new

Kenmore ®product is designed and manufactured for years

of dependable operation. But like all products, it may

require preventive maintenance or repair from time to time.

That's when having a Master Protection Agreement can

save you money and aggravation.

Purchase a Master Protection Agreement now and protect

yourself from unexpected hassle and expense.

The Master Protection Agreement also helps extend

the life of your new product. Here's what's included

in the Agreement:

v' Expert service by our 12,000 professional repair

specialists

v' Unlimited service and no charge for parts and labor

on all covered repairs

v' "No-lemon" guarantee--replacement of your covered

product if four or more product failures occur within

twelve months

v' Product replacement if your covered product can't

be fixed

v' Annual Preventive Maintenance Check at your

request--no extra charge

v' Fast help by phone--phone support from a Sears

technician on products requiring in-home repair, plus

convenient repair scheduling

v' Power surge protection against electrical damage due

to power fluctuations

v' Rental reimbursement if repair of your covered product

takes longer than promised

Once you purchase the Agreement, a simple phone

call is all that it takes for you to schedule service.

You can call anytime day or night, or schedule a

service appointment online.

Sears has over 12,000 professional repair specialists,

who have access to over 4.5 million quality parts and

accessories. That's the kind of professionalism you can

count on to help prolong the life of your new purchase

for years to come. Purchase your Master Protection

Agreement today!

Some limitations and exclusions apply.

For prices and additional information call

1-800-827-6655.

Sears Installation Service

For Sears professional installation of home appliances,

garage door openers, water heaters, and other major

home items, in the U.S.A. call 1-800-4-MY-HOME. ®

In Canada

Maintenance Agreements

Your purchase has added value because you can depend

on Sears HomeCentral ®for service. With over 2400

Service Technicians and more than a million parts and

accessories, we have the tools, parts, knowledge and

skills to back our pledge: We Service What We Sell.

Your Kenmore®product is designed, manufactured and

tested to provide years of dependable operation.

But like all products, it may require service from time to

time. The Sears Maintenance Agreement offers you an

outstanding service program, affordably priced.

The Sears Maintenance Agreement:

• Is your way to buy tomorrow's service at today's price

• Eliminates repair bills resulting from normal wear and

tear

• Provides phone support from a Sears technician on

products requiring in-home repair

• Even if you don't need repairs, provides an annual

Preventive Maintenance Check, at your request, to

ensure that your product is proper running condition

Some limitations apply. For more information about

Sears Canada Maintenance Agreements,

call 1-800-361-6665

In the space below, record the date of purchase, model and serial number of your product. You will find the model and

serial number printed on an identification label located on the right-hand side of the refrigerator compartment. Have

these items of information available whenever you contact Sears concerning your product.

Model No. Date of Purchase

Serial No. Dealer

Save these instructions and attach your sales receipt for future reference.

3

This guide contains many important safety messages. Always read and obey all safety messages.

This is the safety alert symbol. It alerts you to safety messages that inform you

of hazards that can kill or hurt you or others, or cause damage to the product.

All safety messages will be preceded by the safety alert symbol and the hazard

signal word DANGER, WARNING, CAUTION. These words mean:

You will be killed or seriously injured if you don't follow instructions.

You can be killed or seriously injured if you don't follow instructions.

Indicates an imminently hazardous situation which, if not avoided,

may result in minor or moderate injury, or product damage only.

All safety messages will identify the hazard, tell you how to reduce the chance of injury and tell you what can happen if

the instructions are not followed.

To reduce the risk of fire, electric shock, or injury

to persons when using your product, basic safety

precautions should be followed, including the following:

Read all instructions before using this appliance.

• NEVER unplug your refrigerator by pulling on the power

cord. Always grip the plug firmly and pull it straight out from

the outlet.

• Repair or replace immediately all electric service cords that

have become frayed or otherwise damaged. Do not use a

cord that shows cracks or abrasion damage along its length

or at either the plug or connector end.

• When moving your refrigerator away from the wall,

be careful not to roll over or damage the power cord.

• DO NOT store or use gasoline or other flammable vapors

and liquids in the vicinity of this or any other appliance.

• DO NOT allow children to climb, stand or hang on the

refrigerator doors or shelves in the refrigerator. They could

damage the refrigerator and seriously injure themselves.

• Keep fingers out of pinch point areas; clearances between

the doors and cabinet are necessarily small. Be careful

closing doors when children are in the area.

• Unplug your refrigerator before cleaning or making any

repairs.

NOTE: We strongly recommend that any servicing be

performed by a qualified individual.

• Before replacing a burned-out light bulb, unplug the

refrigerator or turn off power at the circuit breaker or fuse

box in order to avoid contact with a live wire filament. (A

burned-out light bulb may break when being replaced.)

NOTE: Setting either or both controls to the OFF position

does not remove power to the light circuit.

This refrigerator must be properly installed in accordance

with the Attention Installer Instructions that were taped

to the front of the refrigerator.

After your refrigerator is in operation, do not touch the cold

surfaces in the freezer compartment when hands are damp

or wet. Skin may adhere to the extremely cold surfaces.

In refrigerators with automatic icemakers, avoid contact

with the moving parts of the ejector mechanism, or with the

heating element that releases the cubes. DO NOT place

fingers or hands on the automatic icemaking mechanism

while the refrigerator is plugged in.

DO NOT refreeze frozen foods which have thawed

completely. The United States Department of Agriculture in

Home and Garden Bulletin No. 69 says:

...You may safely refreeze frozen foods that have thawed if

they still contain ice crystals or if they are still cold--below

40°F (4°C).

...Thawed ground meats, poultry or fish that have any off-

odor or off-color should not be refrozen and should not be

eaten. Thawed ice cream should be discarded. If the odor

or color of any food is poor or questionable, get rid of it.

The food may be dangerous to eat.

Even partial thawing and refreezing reduces the eating

quality of foods, particularly fruits, vegetables and prepared

foods. The eating quality of red meats is affected less than

that of many other foods. Use refrozen foods as soon as

possible to save as much of their quality as you can.

SAVE THESE INSTRUCTIONS

4

Child entrapment and suffocation are not problems of

the past. Junked or abandoned refrigerators are still

dangerous...even if they will sit for just a few days. If

you are getting rid of your old refrigerator, please follow

the instructions at right to help prevent accidents.

BEFORE YOU THROW AWAY

YOUR OLD REFRIGERATOR

OR FREEZER

•Take off the doors.

• Leave the shelves in place so that

children may not easily climb inside.

Your old refrigerator may have a cooling system that used

CFCs (chlorofluorocarbons). CFCs are believed to harm

stratospheric ozone.

If you are throwing away your old refrigerator, make sure

the CFC refrigerant is removed for proper disposal by a

qualified servicer. If you intentionally release this CFC

refrigerant, you can be subject to fines and imprisonment

under provisions of environmental legislation.

IMPORTANT: Please read carefully.

TO CONNECT ELECTRICITY

Electrical Shock Hazard

FOR PERSONAL SAFETY, this appliance must be

properly grounded. Have the wall outlet and the

circuit checked by a qualified electrician to make sure

the outlet is properly grounded.

3-prong

grounding

plug

g_r_ii!!ne g ttyp ee _--_"_

RECOMMENDED GROUNDING METHOD

The refrigerator should always be plugged into its own

individual properly grounded electrical outlet rated for

115 Volts, 60 Hz, AC only, and fused at 15 or 20 amperes.

This provides the best performance and also prevents

overloading house wiring circuits which could cause a fire

hazard from overheated wires. It is recommended that a

separate circuit serving only this appliance be provided.

Use a receptacle which cannot be turned off with a switch

or pull chain. Do not use an extension cord.

Where a standard two-prong wall outlet is encountered,

it is your personal responsibility and obligation to have it

replaced with a properly grounded three-prong wall outlet.

Do not, under any circumstances, cut or remove the

third (ground) prong from the power cord.

NOTE: Before performing any type of installation,

cleaning, or removing a light bulb, turn the control

(Thermostat, Refrigerator Control or Freezer Control,

depending on the model) to OFF and then disconnect the

refrigerator from the electrical source. When you are

finished, reconnect the refrigerator to the electrical source

and reset the control (Thermostat, Refrigerator Control or

Freezer Control, depending on the model) to the desired

setting.

USE OF EXTENSION CORDS

Because of potential safety hazards under certain

conditions, we strongly recommend against the use of

an extension cord. However, if you still elect to use an

extension cord, it is absolutely necessary that it be a

UL-listed (USA), 3-wire grounding type appliance

extension cord having a grounding type plug and outlet,

and that the electrical rating of the cord be 15 amperes

(minimum) and 120 volts.

Use of an extension cord will increase the clearance

needed for the back of the refrigerator.

Usethispageto becomemorefamiliarwiththepartsandfeatures.Pagereferencesareincludedforyourconvenience.

NOTE:Thisguidecoversseveraldifferentmodels.Therefrigeratoryouhavepurchasedmayhavesome

or all of the itemslistedbelow.Thelocationsof thefeaturesshownbelowmaynot matchyourmodel.

ORefrigerator Light (p.24)

Filter (Inside) (p.23)

Refrigerator Shelves (p.17)

Modular Door Bins (p.20)

Supra Fresh Crisper with Tilt-Out Compartment (p.18)

Glide N Serve (p.20)

_Adjusta Cube Ice Maker (p.26)

i_) Ice Bin (p.21)

OPull out Drawer (p.22)

ODurabase (p.22)

Divider (p.22)

_Tilt-Out Door Basket (795.7554*, 7555* Models only)

(p.22)

i_)Dairy Bin (p.21)

_Wine Holder (795.7555* Model Only) (p.17)

OEgg Box (p.21)

6

Excessive Weight Hazard

Use two or more people to move and install

refrigerator.

Failure to do so can result in back or other injury.

UNPACKING YOUR REFRIGERATOR

Remove tape and any temporary labels from your

refrigerator before using. Do not remove any warning-

type labels, the model and serial number label, or the

TechSheet that is attached to back wall of the refrigerator.

To remove any remaining tape or glue, rub the area

briskly with your thumb. Tape or glue residue can also be

easily removed by rubbing a small amount of liquid dish

soap over the adhesive with your fingers. Wipe with warm

water and dry.

Do not use sharp instruments, rubbing alcohol, flammable

fluids or abrasive cleaners to remove tape or glue. These

products can damage the surface of your refrigerator. For

more information, see the Important Safety Instructions

section.

Refrigerator shelves are installed in the shipping position.

Please reinstall shelves according to your individual

storage needs.

When Moving Your Refrigerator:

Your refrigerator is heavy. When moving the

refrigerator for cleaning or service, be sure to protect

the floor. Always pull the refrigerator straight out

when moving it. Do not wiggle or walk the refrigerator

when trying to move it, as floor damage could occur.

INSTALLATION

1. To avoid vibration, the unit must be level. If required,

adjust the leveling screws to compensate for

unevenness of the floor. The front should be slightly

higher than the rear to aid in door closing. Leveling

screws can be turned easily by tipping the cabinet

slightly. Turn the leveling screws clockwise ("L_) to

raise the unit, counterclockwise (_..L) to lower it.

2. Install this appliance in an area where the temperature

is between 55°F (13°C) and 110°F (43°C.) If the

temperature around the appliance is too low or high,

cooling ability may be adversely affected.

3. Allow the clearance of at least 2 inch from the ceiling and

1 inch from the side walls for better cooling efficiency, ease

of installation, proper air circulation and electrical

connections.

&CAUTION: Avoid placing the unit near heat sources,

direct sunlight or moisture.

NEXT

1. Clean your refrigerator thoroughly and wipe off all dust

accumulated during shipping.

2. Install accessories such as ice cube bin, drawers,

shelves, etc., in their proper places. They are packed

together to prevent possible damage during shipment.

3. Let your refrigerator run for at least 2 or 3 hours before

putting food in it. Check the flow of cold air in the

freezer compartment to ensure proper cooling. Your

refrigerator is now ready for use.

WARNING

• Be careful when you work with hinge, base cover,

stopper etc. You may be injured.

• Do not put hands or foot or metal sticks into air vents,

base cover or bottom of refrigerator. You may be injured

or receive an electrical shock.

Explosion Hazard

Keep flammable materials and vapors, such as

gasoline, away from refrigerator.

Failure to do so can result in death, explosion or fire.

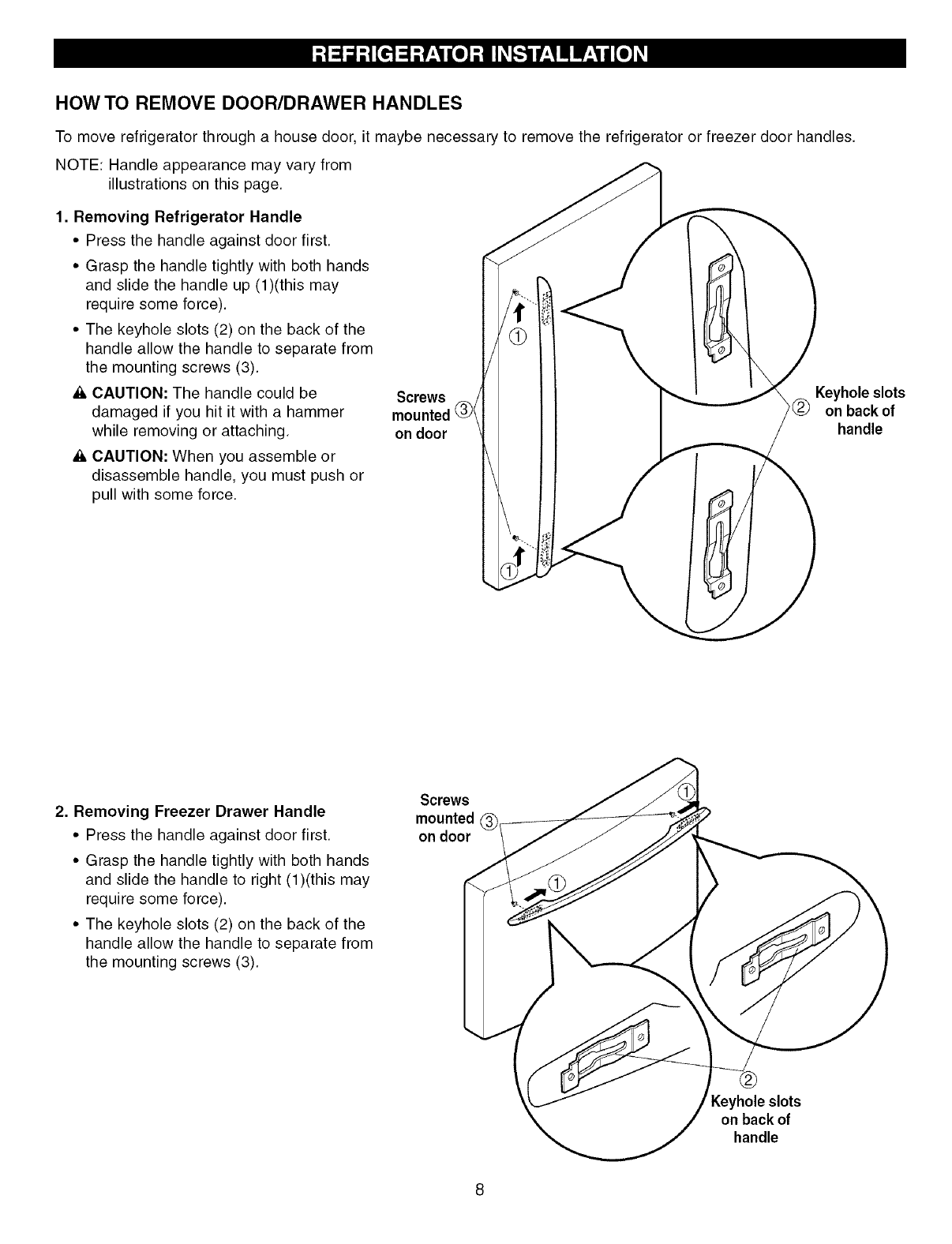

HOW TO REMOVE DOOR/DRAWER HANDLES

To move refrigerator through a house door, it maybe necessary to remove the refrigerator or freezer door handles.

NOTE: Handle appearance may vary from

illustrations on this page.

1. Removing Refrigerator Handle

•Press the handle against door first.

• Grasp the handle tightly with both hands

and slide the handle up (1)(this may

require some force).

• The keyhole slots (2) on the back of the

handle allow the handle to separate from

the mounting screws (3).

_, CAUTION: The handle could be

damaged if you hit it with a hammer

while removing or attaching.

_, CAUTION: When you assemble or

disassemble handle, you must push or

pull with some force.

Screws

mounted

on door

Keyholeslots

on back of

handle

2. Removing Freezer Drawer Handle

• Press the handle against door first.

• Grasp the handle tightly with both hands

and slide the handle to right (1)(this may

require some force).

• The keyhole slots (2) on the back of the

handle allow the handle to separate from

the mounting screws (3).

Screws

mounted @I

on door

on back of

handle

HOW TO REPLACE DOOR/DRAWER HANDLES

NOTE: Handle appearance may vary from

illustrations on this page.

1. Replacing Refrigerator Door Handle

• Align keyhole slots (1) on the top and

bottom of the back of the handle with

the screws (2) mounted on the front of

the door.

• Press the handle against the door

front, making sure that the screws (2)

go into the keyhole slots (1).

• Holding the handle with both hands,

press it firmly against the front of the

door and slide the handle down (3). Screws

mounted

on door

2. Replacing Freezer Drawer Handle

• Align keyhole slots (4) on the right and

left sides of the back of the handle

with the screws (5) mounted on the

front of the drawer.

• Press the handle against the drawer

front, making sure that the screws (5)

go into the keyhole slots (4).

• Holding the handle with both hands,

press it firmly against the front of the

drawer and slide the handle to the left

(6).

®

Screws

mounted

on door

on back of

handle

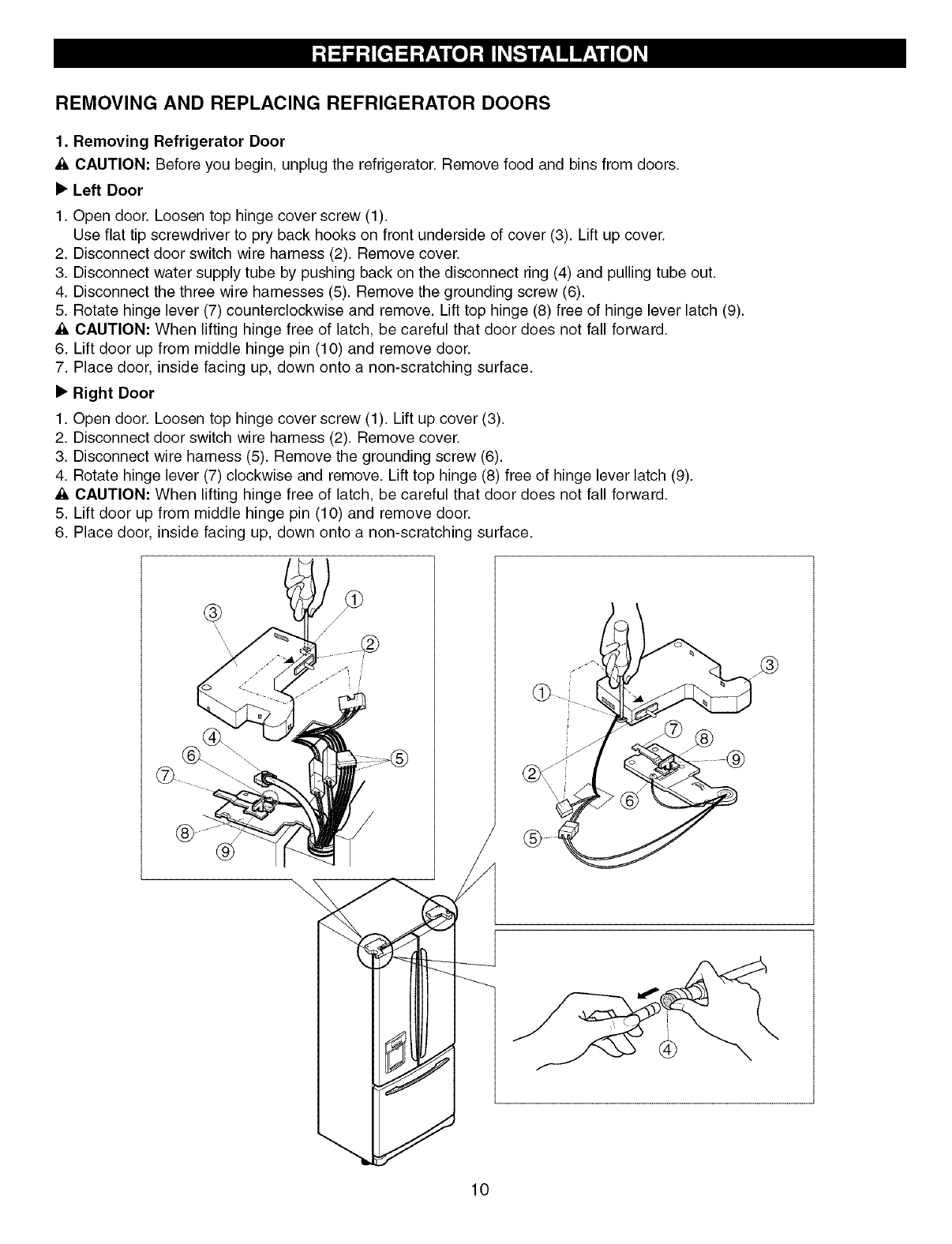

REMOVING AND REPLACING REFRIGERATOR DOORS

1. Removing Refrigerator Door

_, CAUTION: Before you begin, unplug the refrigerator. Remove food and bins from doors.

• Left Door

1. Open door. Loosen top hinge cover screw (1).

Use flat tip screwdriver to pry back hooks on front underside of cover (3). Lift up cover.

2. Disconnect door switch wire harness (2). Remove cover.

3. Disconnect water supply tube by pushing back on the disconnect ring (4) and pulling tube out.

4. Disconnect the three wire harnesses (5). Remove the grounding screw (6).

5. Rotate hinge lever (7) counterclockwise and remove. Lift top hinge (8) free of hinge lever latch (9).

_, CAUTION: When lifting hinge free of latch, be careful that door does not fall forward.

6. Lift door up from middle hinge pin (10) and remove door.

7. Place door, inside facing up, down onto a non-scratching surface.

• Right Door

1. Open door. Loosen top hinge cover screw (1). Lift up cover (3).

2. Disconnect door switch wire harness (2). Remove cover.

3. Disconnect wire harness (5). Remove the grounding screw (6).

4. Rotate hinge lever (7) clockwise and remove. Lift top hinge (8) free of hinge lever latch (9).

_, CAUTION: When lifting hinge free of latch, be careful that door does not fall forward.

5. Lift door up from middle hinge pin (10) and remove door.

6. Place door, inside facing up, down onto a non-scratching surface.

®

\

®

\

10

2. Replacing Refrigerator Door

•Right Door

1. Lower the door onto middle hinge pin (10).

2. Fit top hinge (8) over hinge lever latch (9) and into place. Insert hinge lever (7) under lever latch. Rotate lever

counterclockwise to secure hinge.

3. Install the grounding screw (6) and connect the three wire harnesses (5).

4. Connect door switch wire harness (2).

5. Hook tab on door switch side of cover under edge of wire opening in cabinet top. Position cover (3) into place. Insert

and tighten cover screw (1).

• Left Door

1. Lower the door onto middle hinge pin (10).

2. Fit top hinge (8) over hinge lever latch (9) and into place. Insert hinge lever (7) under lever latch. Rotate lever clockwise

to secure hinge.

3. Install the grounding screw (6) and connect the three wire harnesses (5).

4. Connect door switch wire harness (2).

5. Insert the water supply tube (3) into the connector tube until you see only one scale mark.

(Fully insert the tube over 5/8"(15mm)).

6. Hook tab on door switch side of cover (3) under edge of wire opening in cabinet top. Position cover into place. Insert

and tighten cover screw (1).

Correct Incorrect

11

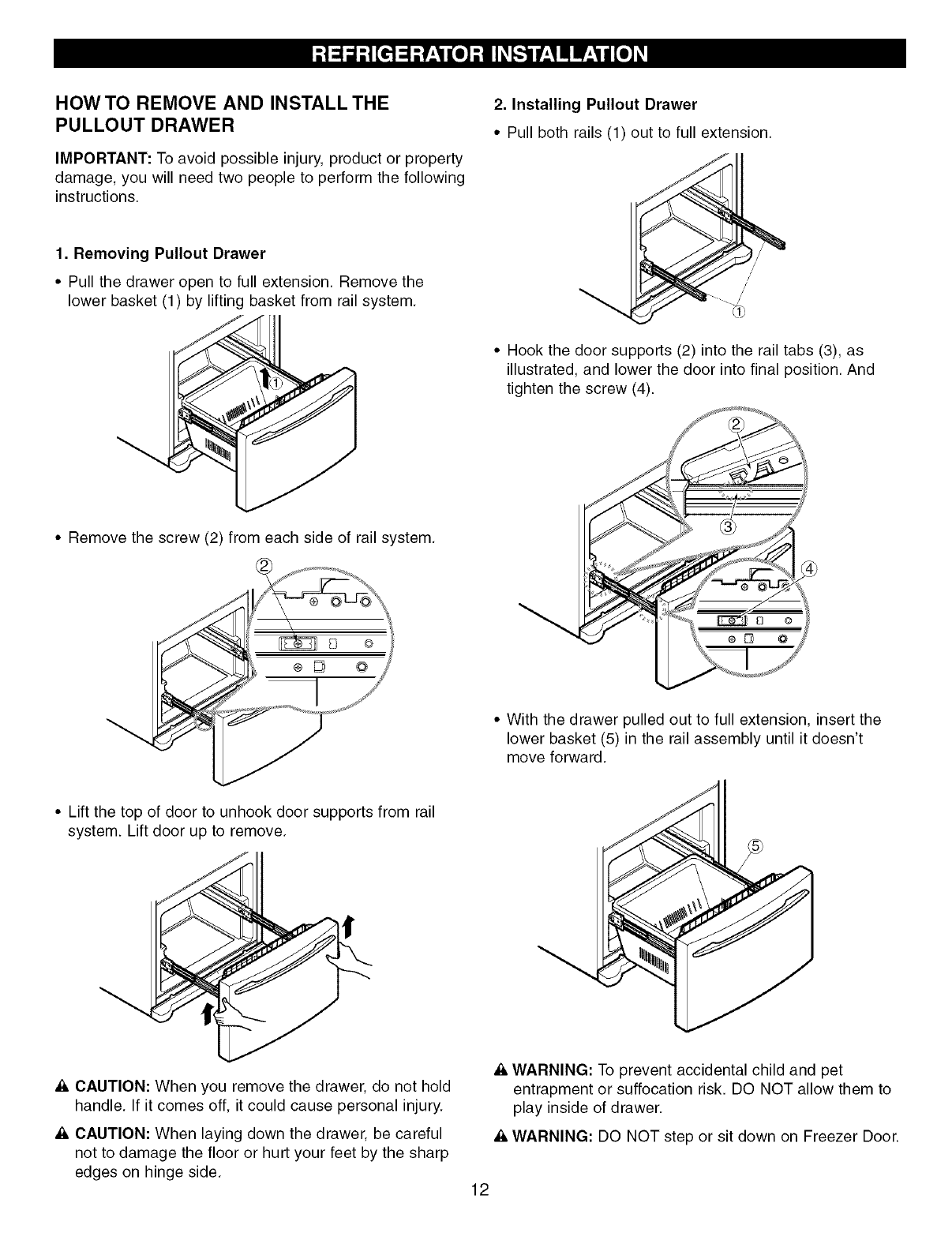

HOW TO REMOVE AND INSTALL THE

PULLOUT DRAWER

IMPORTANT: To avoid possible injury, product or property

damage, you will need two people to perform the following

instructions.

1. Removing Pullout Drawer

• Pull the drawer open to full extension. Remove the

lower basket (1) by lifting basket from rail system.

• Remove the screw (2) from each side of rail system.

2. Installing Pullout Drawer

• Pull both rails (1) out to full extension.

• Hook the door supports (2) into the rail tabs (3), as

illustrated, and lower the door into final position. And

tighten the screw (4).

• With the drawer pulled out to full extension, insert the

lower basket (5) in the rail assembly until it doesn't

move forward.

• Lift the top of door to unhook door supports from rail

system. Lift door up to remove.

!

CAUTION: When you remove the drawer, do not hold

handle. If it comes off, it could cause personal injury.

CAUTION: When laying down the drawer, be careful

not to damage the floor or hurt your feet by the sharp

edges on hinge side.

_i, WARNING: To prevent accidental child and pet

entrapment or suffocation risk. DO NOT allow them to

play inside of drawer.

WARNING: DO NOT step or sit down on Freezer Door.

12

LEVELING AND DOOR ALIGNMENT

Leveling

Your refrigerator has two front leveling screwsIone on

the right and one on the left. Adjust screws to alter tilt

from front-to-back or side-to-side. If your refrigerator

seems unsteady or you want the doors to close easier,

adjust the refrigerator's tilt using the instructions below:

1. Plug the refrigerator's power cord into a 3-prong grounded

outlet. Move the refrigerator into its final position. Remove

the base cover.

To remove the base cover

1. Open the Freezer Drawer. (Drawer not shown for clarity.)

2. Once drawer is open there is sufficient clearance to

remove screws on top of cover.

To replace base cover:

• Place cover into position and insert and tighten screws.

2. Turn the leveling screw clockwise to raise that side of

the refrigerator or counterclockwise to lower it. It may

take several turns of the leveling screw to adjust the tilt

of the refrigerator.

NOTE: Having someone push against the top of the

refrigerator takes some weight off the leveling screws.

This makes it easier to adjust the screws.

3. Open both doors again and check to make sure that

they close easily. If not, tilt the refrigerator slightly more

to the rear by turning both leveling screws clockwise. It

may take several more turns, and you should turn both

leveling screws the same amount.

4. Re-adjust if necessary.

5. Replace the base cover.

NOTE: Your new refrigerator is uniquely designed with

two fresh food doors. Either door can be opened or

closed independently of one another. You may have to

exert slight pressure on doors to get them to close

completely.

Door Alignment

If the space between your doors is uneven, follow the

instructions below to align the doors:

1. With one hand, lift up the door you want to raise at

middle hinge.

2. With other hand, use pliers to insert snap ring as

shown.

3. Insert additional snap rings until the doors are aligned.

(Three snap rings are provided with unit.)

13

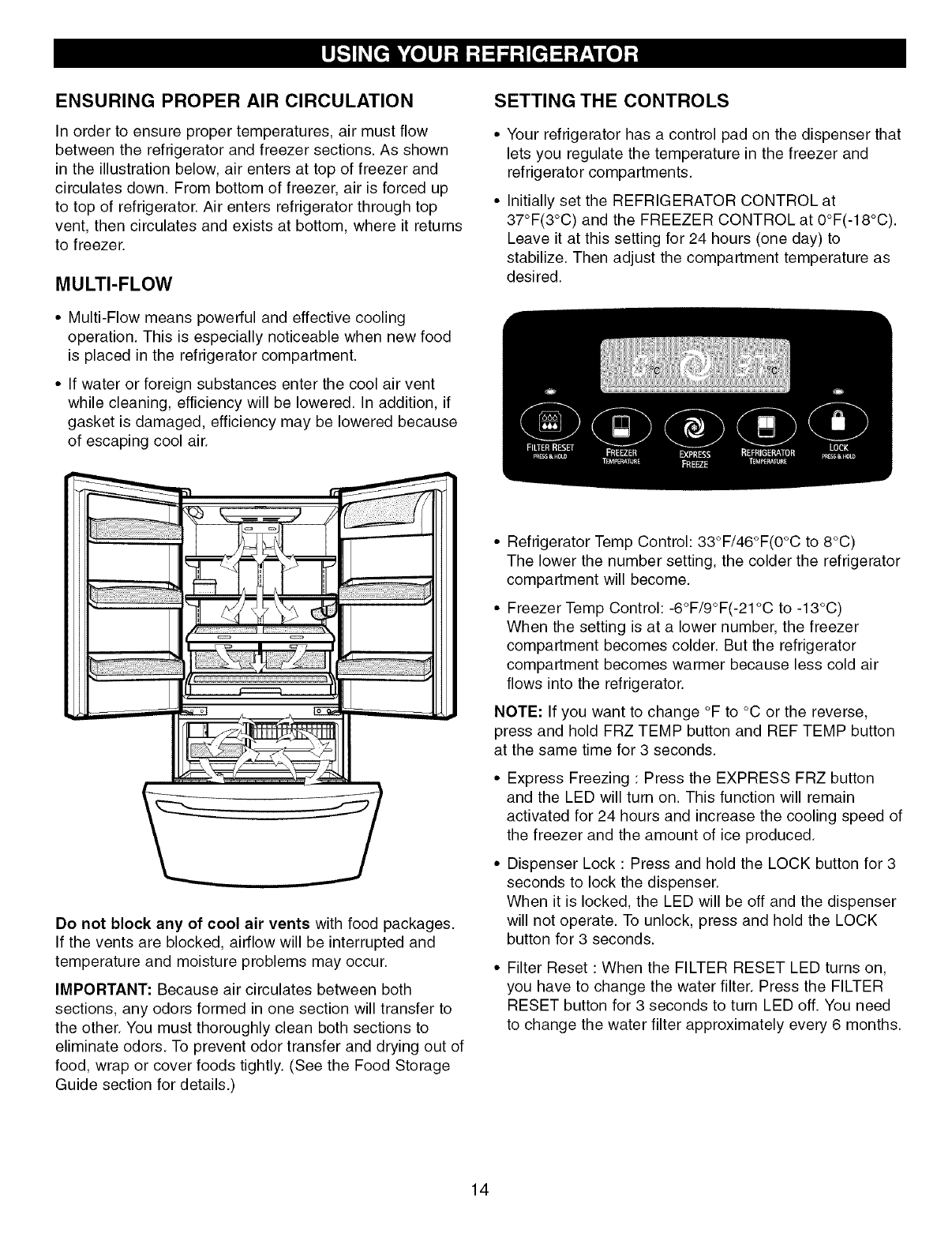

ENSURING PROPER AIR CIRCULATION

In order to ensure proper temperatures, air must flow

between the refrigerator and freezer sections. As shown

in the illustration below, air enters at top of freezer and

circulates down. From bottom of freezer, air is forced up

to top of refrigerator. Air enters refrigerator through top

vent, then circulates and exists at bottom, where it returns

to freezer.

MULTI-FLOW

• Multi-Flow means powerful and effective cooling

operation. This is especially noticeable when new food

is placed in the refrigerator compartment.

• If water or foreign substances enter the cool air vent

while cleaning, efficiency will be lowered. In addition, if

gasket is damaged, efficiency may be lowered because

of escaping cool air.

SETTING THE CONTROLS

• Your refrigerator has a control pad on the dispenser that

lets you regulate the temperature in the freezer and

refrigerator compartments.

• Initially set the REFRIGERATOR CONTROL at

37°F(3°C) and the FREEZER CONTROL at 0°F(-18°C).

Leave it at this setting for 24 hours (one day) to

stabilize. Then adjust the compartment temperature as

desired.

Do not block any of cool air vents with food packages.

If the vents are blocked, airflow will be interrupted and

temperature and moisture problems may occur.

IMPORTANT: Because air circulates between both

sections, any odors formed in one section will transfer to

the other. You must thoroughly clean both sections to

eliminate odors. To prevent odor transfer and drying out of

food, wrap or cover foods tightly. (See the Food Storage

Guide section for details.)

• Refrigerator Temp Control: 33°F/46°F(O°C to 8°C)

The lower the number setting, the colder the refrigerator

compartment will become.

• Freezer Temp Control: -6°F/9°F(-21°C to -13°C)

When the setting is at a lower number, the freezer

compartment becomes colder. But the refrigerator

compartment becomes warmer because less cold air

flows into the refrigerator.

NOTE: If you want to change °F to °C or the reverse,

press and hold FRZ TEMP button and REF TEMP button

at the same time for 3 seconds.

• Express Freezing : Press the EXPRESS FRZ button

and the LED will turn on. This function will remain

activated for 24 hours and increase the cooling speed of

the freezer and the amount of ice produced.

• Dispenser Lock : Press and hold the LOCK button for 3

seconds to lock the dispenser.

When it is locked, the LED will be off and the dispenser

will not operate. To unlock, press and hold the LOCK

button for 3 seconds.

• Filter Reset : When the FILTER RESET LED turns on,

you have to change the water filter. Press the FILTER

RESET button for 3 seconds to turn LED off. You need

to change the water filter approximately every 6 months.

14

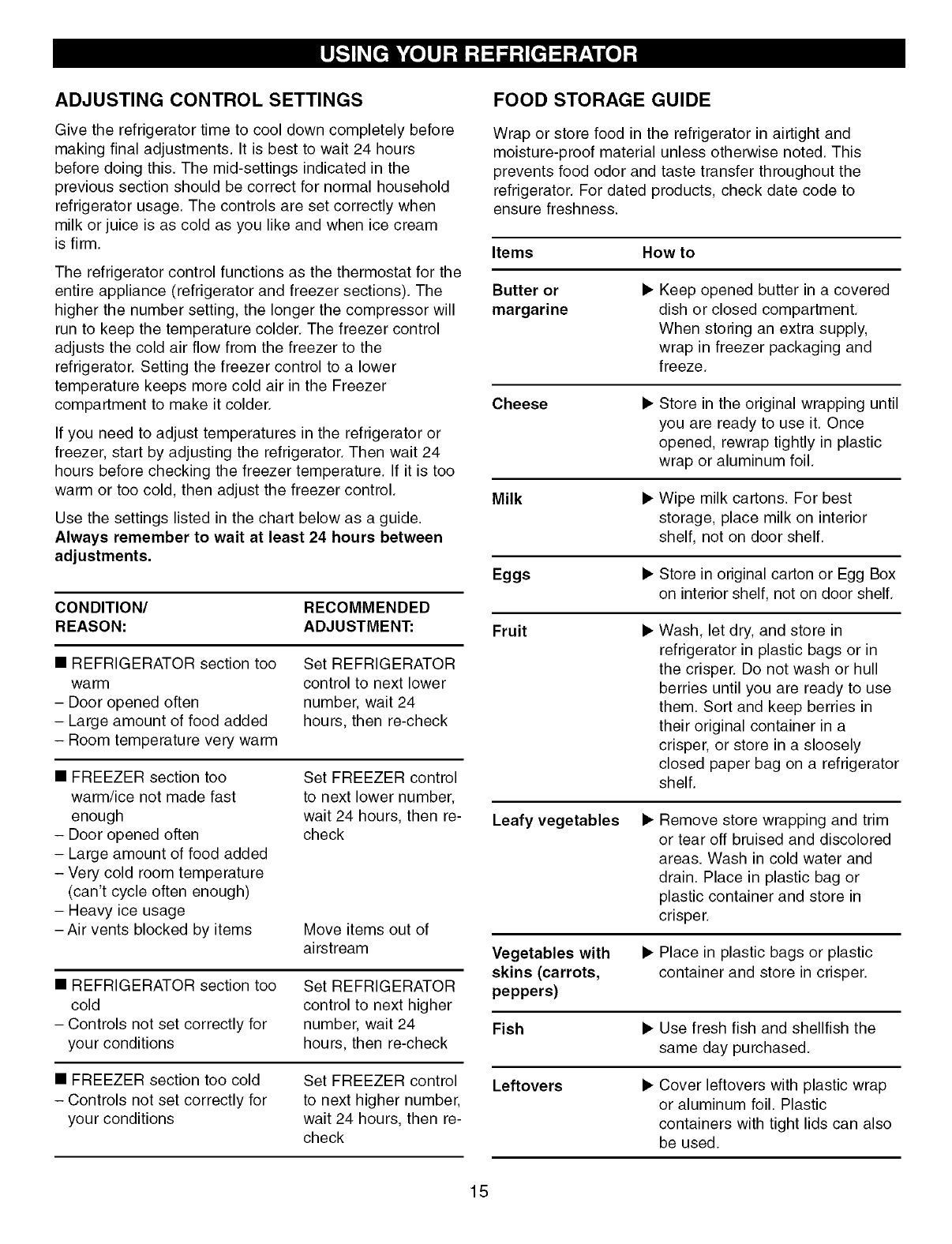

ADJUSTING CONTROL SETTINGS

Give the refrigerator time to cool down completely before

making final adjustments. It is best to wait 24 hours

before doing this. The mid-settings indicated in the

previous section should be correct for normal household

refrigerator usage. The controls are set correctly when

milk or juice is as cold as you like and when ice cream

is firm.

The refrigerator control functions as the thermostat for the

entire appliance (refrigerator and freezer sections). The

higher the number setting, the longer the compressor will

run to keep the temperature colder. The freezer control

adjusts the cold air flow from the freezer to the

refrigerator. Setting the freezer control to a lower

temperature keeps more cold air in the Freezer

compartment to make it colder.

If you need to adjust temperatures in the refrigerator or

freezer, start by adjusting the refrigerator. Then wait 24

hours before checking the freezer temperature. If it is too

warm or too cold, then adjust the freezer control.

Use the settings listed in the chart below as a guide.

Always remember to wait at least 24 hours between

adjustments.

CONDITION/ RECOMMENDED

REASON: ADJUSTMENT:

•REFRIGERATOR section too

wa rm

- Door opened often

- Large amount of food added

- Room temperature very warm

Set REFRIGERATOR

control to next lower

number, wait 24

hours, then re-check

• FREEZER section too

warm/ice not made fast

enough

- Door opened often

- Large amount of food added

- Very cold room temperature

(can't cycle often enough)

- Heavy ice usage

- Air vents blocked by items

Set FREEZER control

to next lower number,

wait 24 hours, then re-

check

Move items out of

airstream

• REFRIGERATOR section too

cold

- Controls not set correctly for

your conditions

Set REFRIGERATOR

control to next higher

number, wait 24

hours, then re-check

• FREEZER section too cold

- Controls not set correctly for

your conditions

Set FREEZER control

to next higher number,

wait 24 hours, then re-

check

FOOD STORAGE GUIDE

Wrap or store food in the refrigerator in airtight and

moisture-proof material unless otherwise noted. This

prevents food odor and taste transfer throughout the

refrigerator. For dated products, check date code to

ensure freshness.

Items How to

Butter or •

margarine

Keep opened butter in a covered

dish or closed compartment.

When storing an extra supply,

wrap in freezer packaging and

freeze.

Cheese • Store in the original wrapping until

you are ready to use it. Once

opened, rewrap tightly in plastic

wrap or aluminum foil.

Milk • Wipe milk cartons. For best

storage, place milk on interior

shelf, not on door shelf.

Eggs • Store in original carton or Egg Box

on interior shelf, not on door shelf.

Fruit • Wash, let dry, and store in

refrigerator in plastic bags or in

the crisper. Do not wash or hull

berries until you are ready to use

them. Sort and keep berries in

their original container in a

crisper, or store in a sloosely

closed paper bag on a refrigerator

shelf.

Leafy vegetables •Remove store wrapping and trim

or tear off bruised and discolored

areas. Wash in cold water and

drain. Place in plastic bag or

plastic container and store in

crisper.

Vegetables with

skins (carrots,

peppers)

• Place in plastic bags or plastic

container and store in crisper.

Fish • Use fresh fish and shellfish the

same day purchased.

Leftovers Cover leftovers with plastic wrap

or aluminum foil. Plastic

containers with tight lids can also

be used.

15

STORING FROZEN FOOD

NOTE: For further information about preparing food for

freezing or food storage times, check a freezer guide or a

reliable cookbook.

Packaging

Successful freezing depends on correct packaging. When

you close and seal the package, it must not allow air or

moisture in or out. If it does, you could have food odor

and taste transfer throughout the refrigerator and also dry

out frozen food.

Packaging recommendations:

• Rigid plastic containers with tight-fitting lids

• Straight-sided canning/freezing jars

• Heavy-duty aluminum foil

• Plastic-coated paper

• Non-permeable plastic wraps

• Specified freezer-grade self-sealing plastic bags

Follow package or container instructions for proper

freezing methods.

Do not use:

• Bread wrappers

• Non-polyethylene plastic containers

• Containers without tight lids

• Wax paper or wax-coated freezer wrap

• Thin, semi-permeable wrap

A CAUTION: Do not keep beverage cans or plastic

containers in the freezer compartment. They may be

broken when they are frozen.

Freezing

Your freezer will not quick-freeze any large quantity of

food. Do not put more unfrozen food into the freezer than

will freeze within 24 hours (no more than 2 to 3 Ibs of food

per cubic foot of freezer space). Leave enough space in

the freezer for air to circulate around packages. Be careful

to leave enough room at

the front so the door can close tightly.

Storage times will vary according to the quality and type

of food, the type of packaging or wrap used (airtight and

moisture-proof) and the storage temperature. Ice crystals

inside a sealed package are normal. This simply means

that moisture in the food and air inside the package have

condensed, creating ice crystals.

NOTE: Allow hot foods to cool at room temperature for

30 minutes, then package and freeze. Cooling hot foods

before freezing saves energy.

REFRIGERATOR FEATURES

WATER DISPENSER

Push up the dispenser switch with a glass until you hear

click to get cold water.

f

J

J

Dispenser

Switch

Push up

Tray can be easily removed by pressing and pulling it.

Tilt up the front of tray slightly and snap the ribs into the

holes to replace the tray.

Ribs

16

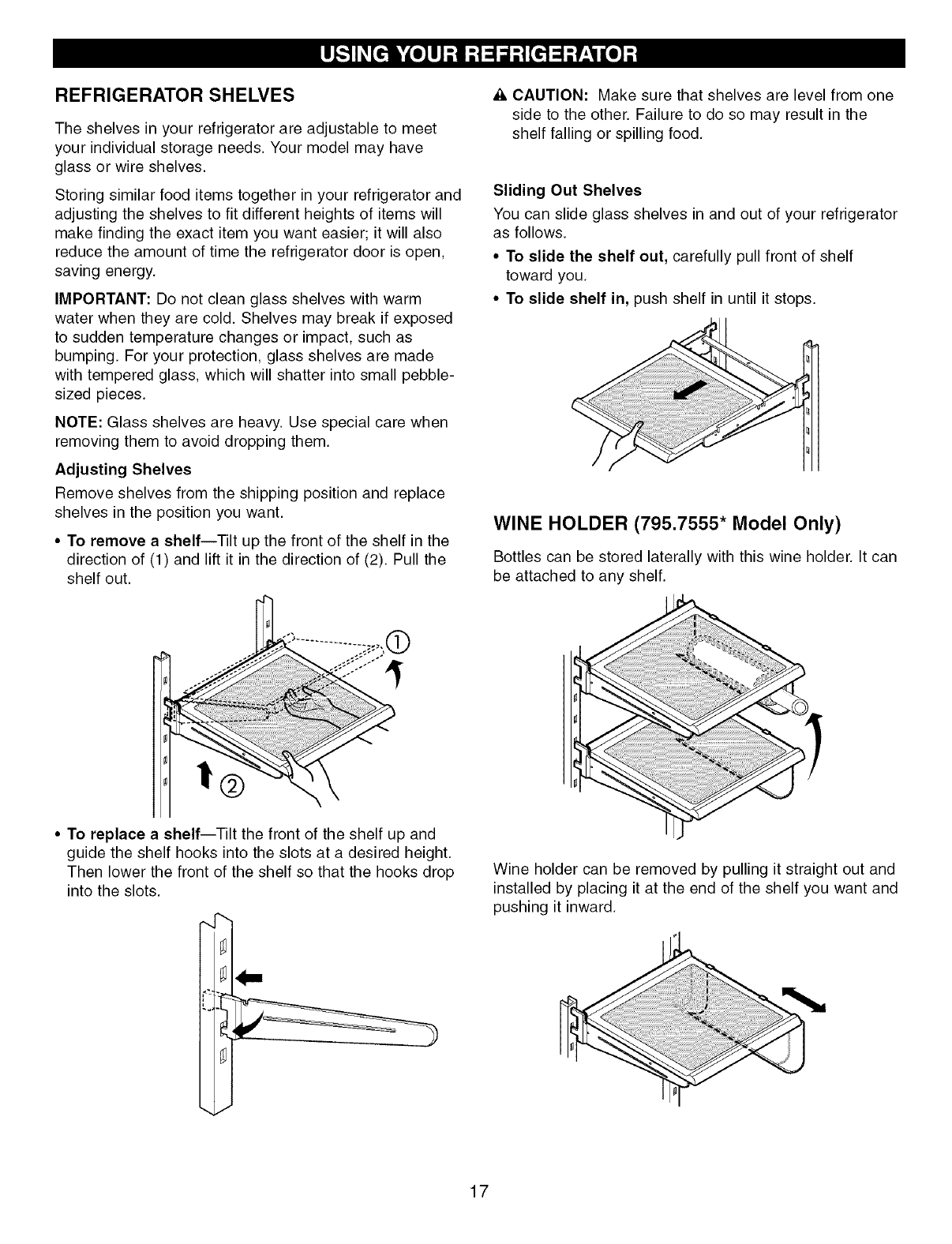

REFRIGERATOR SHELVES

The shelves in your refrigerator are adjustable to meet

your individual storage needs. Your model may have

glass or wire shelves.

Storing similar food items together in your refrigerator and

adjusting the shelves to fit different heights of items will

make finding the exact item you want easier; it will also

reduce the amount of time the refrigerator door is open,

saving energy.

IMPORTANT: Do not clean glass shelves with warm

water when they are cold. Shelves may break if exposed

to sudden temperature changes or impact, such as

bumping. For your protection, glass shelves are made

with tempered glass, which will shatter into small pebble-

sized pieces.

NOTE: Glass shelves are heavy. Use special care when

removing them to avoid dropping them.

Adjusting Shelves

Remove shelves from the shipping position and replace

shelves in the position you want.

• To remove a shelf--Tilt up the front of the shelf in the

direction of (1) and lift it in the direction of (2). Pull the

shelf out.

CAUTION: Make sure that shelves are level from one

side to the other. Failure to do so may result in the

shelf falling or spilling food.

Sliding Out Shelves

You can slide glass shelves in and out of your refrigerator

as follows.

• To slide the shelf out, carefully pull front of shelf

toward you.

• To slide shelf in, push shelf in until it stops.

WINE HOLDER (795.7555* Model Only)

Bottles can be stored laterally with this wine holder. It can

be attached to any shelf.

• To replace a shelf--Tilt the front of the shelf up and

guide the shelf hooks into the slots at a desired height.

Then lower the front of the shelf so that the hooks drop

into the slots.

,I

Wine holder can be removed by pulling it straight out and

installed by placing it at the end of the shelf you want and

pushing it inward.

17

SUPRAFRESH CRISPERS WITH TILT-OUT

COMPARTMENT

Crispers with Tilt-Out Compartment

The crispers provide fresher-tasting fruit and vegetables

by letting you easily control humidity inside the drawer.

The crispers include:

1. A crisper drawer humidity control switch.

2. A lattice on the underside of the cover to efficiently hold

or release moisture.

3. A tilt-out compartment on the front of the crisper drawer.

_

/1

_3

CRISPER WITH TILT-OUT FEATURE

Tilt-Out Compartment

The tilt-out compartment on the front of the crisper is for

items stored best in low humidity such as apples and

oranges. The front of the compartment is transparent to

allow you to see compartment contents. Push the button

on the front of the compartment to open it.

CRISPER HUMIDITY CONTROL

You can control the amount of humidity in the moisture-

sealed crispers. Adjust the control to any setting between

_;:) ^ and v_ .

• _ ^ keeps moist air in the crisper for best storage

of fresh, leafy vegetables.

• v _ lets moist air out of the crisper for best storage

of fruits.

To remove tilt-out compartment:

1. Pull crisper drawer out to the stop.

2. Open the compartment.

3. Grasp side of drawer and pull outward to release tab at

compartment base. Pull compartment toward you to

remove.

4. To replace compartment, insert compartment base tab

into one side of drawer. Pull slightly outward on

opposite side of drawer to insert other base tab.

REMOVING CRISPER

• Crispers without rails

To remove crisper drawer:

1. Slide drawer straight out to the stop.

2. Lift the front of the drawer, then pull it out to remove.

3. Replace the drawer by sliding it back in fully past the

drawer stop.

18

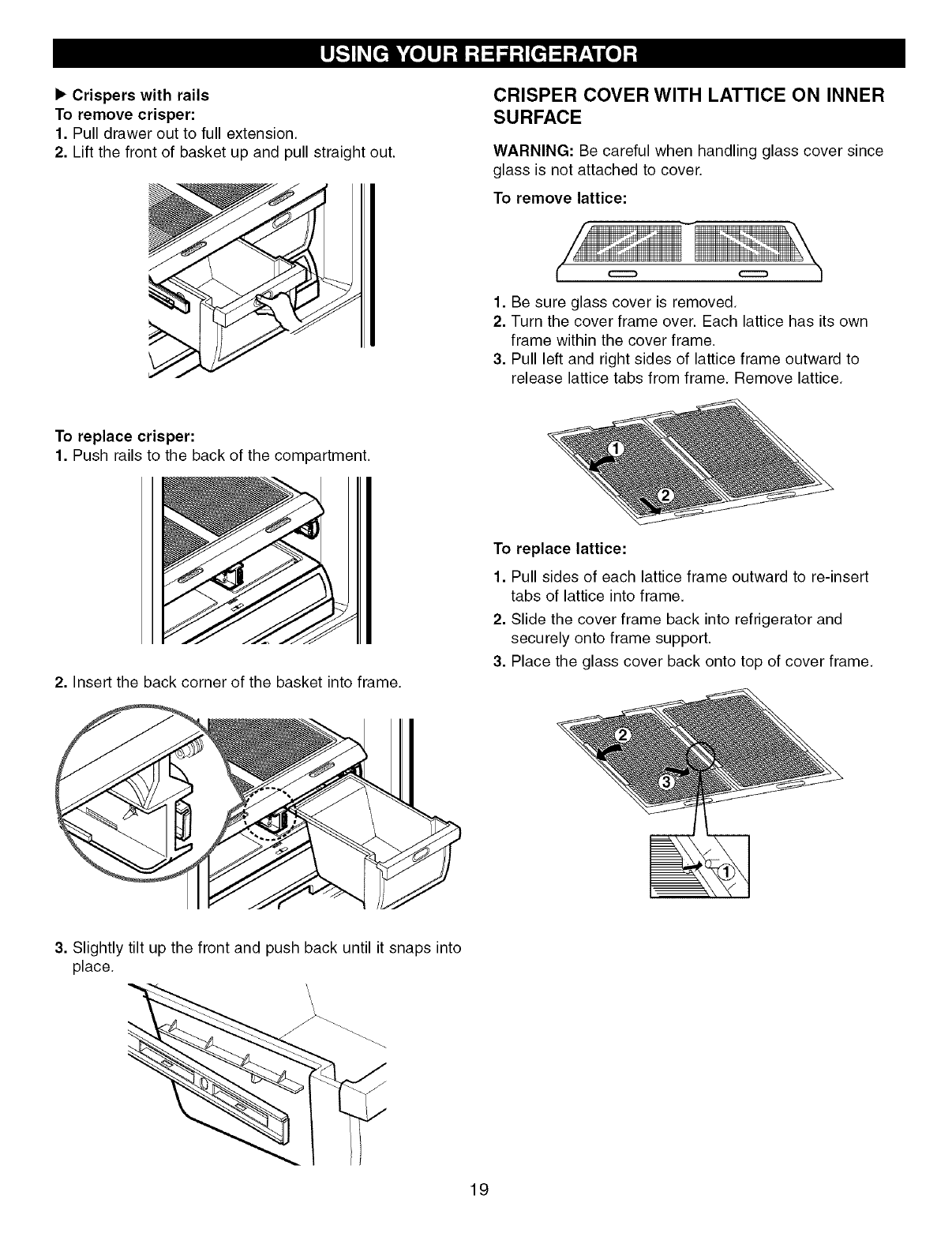

• Crispers with rails

To remove crisper:

1. Pull drawer out to full extension.

2. Lift the front of basket up and pull straight out.

CRISPER COVER WITH LATTICE ON INNER

SURFACE

WARNING: Be careful when handling glass cover since

glass is not attached to cover.

To remove lattice:

1. Be sure glass cover is removed.

2. Turn the cover frame over. Each lattice has its own

frame within the cover frame.

3. Pull left and right sides of lattice frame outward to

release lattice tabs from frame. Remove lattice.

To replace crisper:

1. Push rails to the back of the compartment.

2. Insert the back corner of the basket into frame.

To replace lattice:

1. Pull sides of each lattice frame outward to re-insert

tabs of lattice into frame.

2. Slide the cover frame back into refrigerator and

securely onto frame support.

3. Place the glass cover back onto top of cover frame.

3. Slightly tilt up the front and push back until it snaps into

place.

\\

19

GLIDE N SERVE

The Glide N Serve provides storage space with a variable

temperature control that keeps the compartment colder than

refrigerator temperature. The drawer also features a self-

opening lid that opens whenever the drawer is pulled open.

This drawer can be used for large party trays, deli items,

or beverages.

<>

Controls

The control regulates the air temperature in the drawer.

Set control level to cold to provide normal refrigerator

temperature. Use the colder setting for meats or other deli

items.

NOTE: Cold air directed to the Glide N Serve can

decrease refrigerator temperature. Refrigerator

control may need to be adjusted.

To remove Glide N Serve:

Tilt up the front on it's closed position and pull straight out.

To replace Glide N Serve:

1. Push metal rails to the back of the refrigerator.

2. Place drawer onto rails and slide drawer back until it

falls into place.

Glide N Serve Food Storage Guide

NOTE: DO NOT store lettuce or other leafy produce in

this drawer.

COLD COLDER

• cauliflower • steaks

• cucumbers • hard cheeses

• zucchinis • cold cuts

• apples • bacon

• corn • hot dogs

• oranges

• grapes

_, CAUTION: Fruits and vegetables may be damaged at

the coldest setting.

_, CAUTION: DO NOT store bottles. If they are frozen,

they can be broken and cause personal injury.

MODULAR DOOR BIN

The door bins are removable for easy cleaning and

adjusting.

1. To remove the bin, simply lift the bin up and pull

straight out.

2. To replace the bin, slide it in above the desired support

button and push down until it snaps in the place.

/

_, WARNING: Somebody can be hurt if door bins are not

firmly assembled.

_, CAUTION: DO NOT adjust a bin that is loaded with

food.

_, CAUTION: DO NOT allow children to play with

baskets. Sharp corners on baskets could cause injury.

20

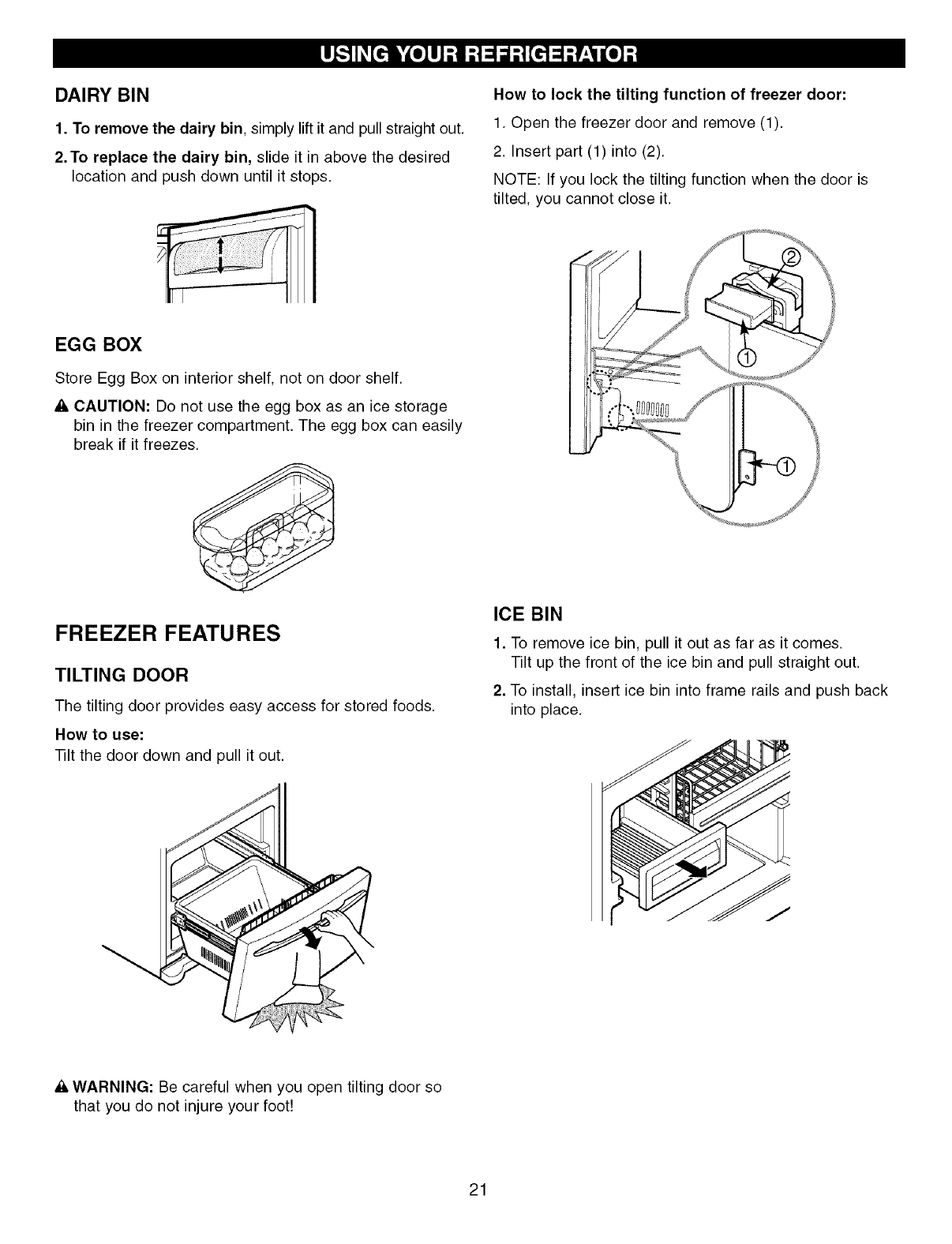

DAIRY BIN

1. To remove the dairy bin, simply liftit and pull straight out.

2.To replace the dairy bin, slide it in above the desired

location and push down until it stops.

How to lock the tilting function of freezer door:

1. Open the freezer door and remove (1).

2. Insert part (1) into (2).

NOTE: If you lock the tilting function when the door is

tilted, you cannot close it.

EGG BOX

Store Egg Box on interior shelf, not on door shelf.

A CAUTION: Do not use the egg box as an ice storage

bin in the freezer compartment. The egg box can easily

break if it freezes.

FREEZER FEATURES

TILTING DOOR

The tilting door provides easy access for stored foods.

How to use:

Tilt the door down and pull it out.

ICE BIN

1. To remove ice bin, pull it out as far as it comes.

Tilt up the front of the ice bin and pull straight out.

2. To install, insert ice bin into frame rails and push back

into place,

WARNING: Be careful when you open tilting door so

that you do not injure your foot!

21

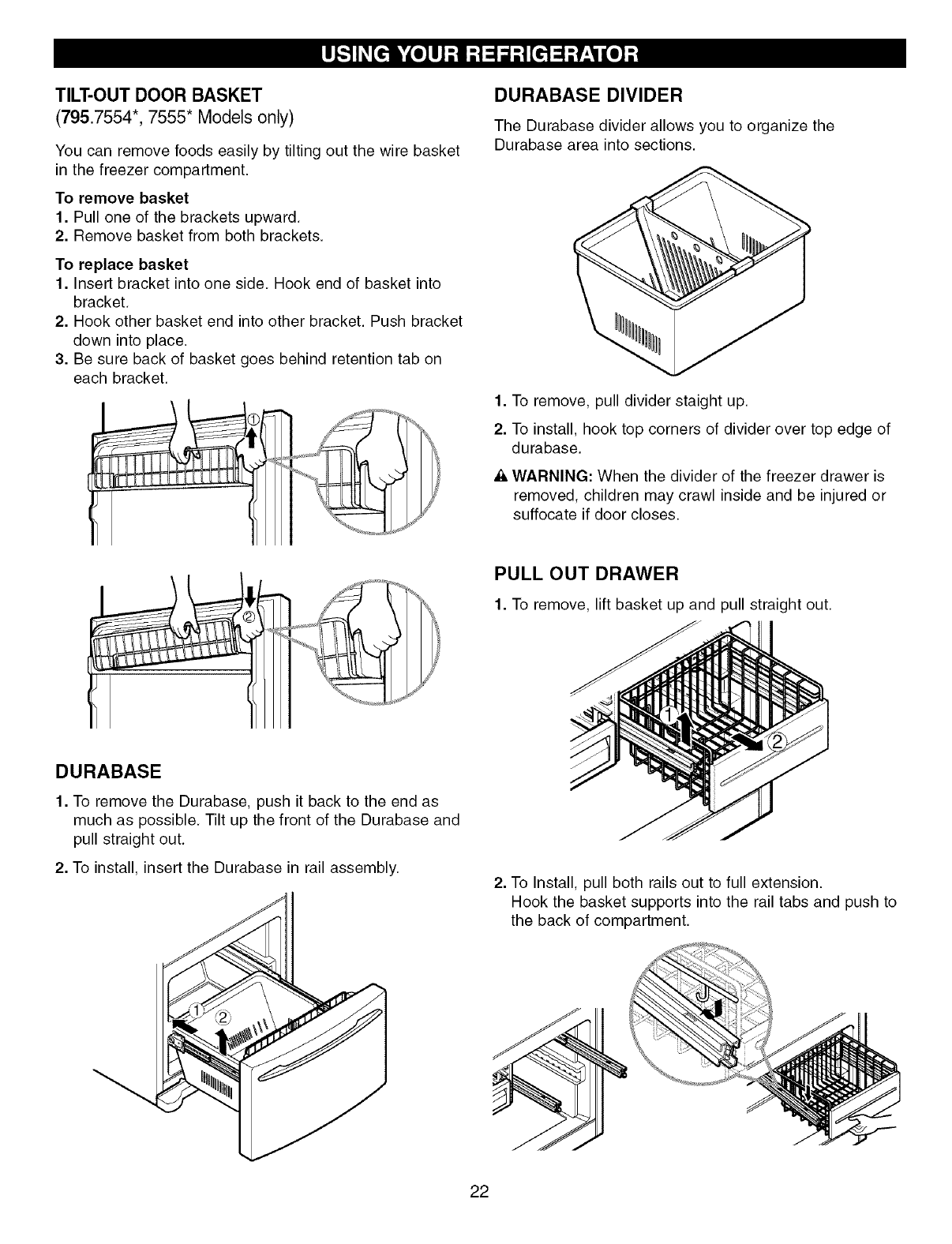

TILT-OUT DOOR BASKET

(795.7554*, 7555* Models only)

You can remove foods easily by tilting out the wire basket

in the freezer compartment.

To remove basket

1. Pull one of the brackets upward.

2. Remove basket from both brackets.

To replace basket

1. Insert bracket into one side. Hook end of basket into

bracket.

2. Hook other basket end into other bracket. Push bracket

down into place.

3. Be sure back of basket goes behind retention tab on

each bracket.

DURABASE DIVIDER

The Durabase divider allows you to organize the

Durabase area into sections.

1. To remove, pull divider staight up.

2. To install, hook top corners of divider over top edge of

durabase.

WARNING: When the divider of the freezer drawer is

removed, children may crawl inside and be injured or

suffocate if door closes.

PULL OUT DRAWER

1. To remove, lift basket up and pull straight out.

DURABASE

1. To remove the Durabase, push it back to the end as

much as possible. Tilt up the front of the Durabase and

pull straight out.

2. To install, insert the Durabase in rail assembly. 2. To Install, pull both rails out to full extension.

Hook the basket supports into the rail tabs and push to

the back of compartment.

22

WATER FILTER

It is recommended that you replace the filter when the

water filter indicator light turns on or your water dispenser

or ice maker performance decreases noticeably.

After changing the water filter cartridge, reset the water

filter status display and indicator light by pressing and

holding the button for 3 seconds.

1. Remove the old cartridge.

If you are replacing the cartridge, first remove the old

one. Open the cartridge cover by pressing in on the tab

(1) at the front and pulling down (2).

2. Replace with a new cartridge.

Take the new cartridge out of its packaging and remove

protective cover from the o-rings.

With cartridge knob in the vertical position, push the new

filter cartridge into the cover until it stops.

If you can't turn the filter from side to side, it isn't fully

inserted. Push it in firmly and use its handle to twist the

cartridge clockwise about 1/4 turn. You will hear a snap

when it clicks into place.

Rotate the knob of the cartridge counter clockwise until it

clicks forward.

3. Flushing the Water System After Replacing Filter

Dispense water through the water dispenser for 3 minutes

to purge the system.

To order a replacement water filter call 1-800-4-MY-

HOME _>.Ask for part number 5231JA2006B.

Pull out the cartridge.

NOTE: There will be water in the cartridge. Some spilling

may occur.

23

Explosion Hazard

Use non-flammable cleaner.

Failure to do so can result in death, explosion, or fire.

Both the refrigerator and freeler sections defrost

automatically. However, clean both sections about once

a month to prevent odors. Wipe up spills immediately.

GENERAL CLEANING TIPS

• Unplug refrigerator or disconnect power.

• Remove all removable parts, such as shelves,

crispers, etc. Refer to sections in Using Your

Refrigerator for removal instructions.

• Use a clean sponge or soft cloth and a mild detergent in

warm water. Do not use abrasive or harsh cleaners.

• Hand wash, rinse and dry all surfaces thoroughly.

• Plug in refrigerator or reconnect power.

OUTSIDE

Waxing external painted metal surfaces helps provide rust

protection. Do not wax plastic parts. Wax painted metal

surfaces at least twice a year using appliance wax (or

auto paste wax). Apply wax with a clean, soft cloth.

For products with a stainless steel exterior, use a clean

sponge or soft cloth and a mild detergent in warm water.

Do not use abrasive or harsh cleaners. Dry thoroughly

with a soft cloth.

CONDENSER COILS

Remove base cover. (See the base cover section on page 13.)

Use a vacuum cleaner with an extended attachment to

clean condenser coils.

Vacuum coils when dusty or dirty. Coils may need to be

cleaned as often as every other month.

Replace base cover.

LIGHT BULB REPLACEMENT

Electrical Shock Hazard

Before replacing a burned-out light bulb, either unplug

the refrigerator or turn off power at the circuit breaker

or fuse box.

NOTE: Moving the control to the OFF position

does not remove power to the light circuit.

NOTE: Not all appliance bulbs will fit your refrigerator. Be

sure to replace the bulb with one of the same size, shape

and wattage.

To change Refrigerator Light Bulbs:

1. Unplug Refrigerator, or disconnect power at the circuit

breaker.

2. If necessary, remove top shelf or shelves.

3. Using a flat instrument, gently pry the lamp cover loose in

the front as shown. Rotate downward to remove rear tabs.

4. Make sure the bulbs are cool to the touch.

Turn bulbs counterclockwise to remove. Insert new bulb(s).

5. Assemble in reverse order by snapping the Lamp Cover

in, engaging the rear tabs followed by the front tabs.

INSIDE WALLS (allow freezer to warm up so

cloth won't stick)

To help remove odors, you can wash the inside of the

refrigerator with a mixture of baking soda and warm water.

Mix 2 tablespoons baking soda to 1 quart of water (26 g

soda to 1 liter water.) Be sure the baking soda is

completely dissolved so does it not scratch the surfaces

of the refrigerator.

&CAUTION: While cleaning the inside, do not spray water.

DOOR LINERS AND GASKETS

Do not use cleaning waxes, concentrated detergents,

bleaches, or cleaners containing petroleum on plastic

refrigerator parts.

PLASTIC PARTS (covers and panels)

Do not use window sprays, abrasive cleansers, or flammable

fluids. These can scratch or damage the material. 24

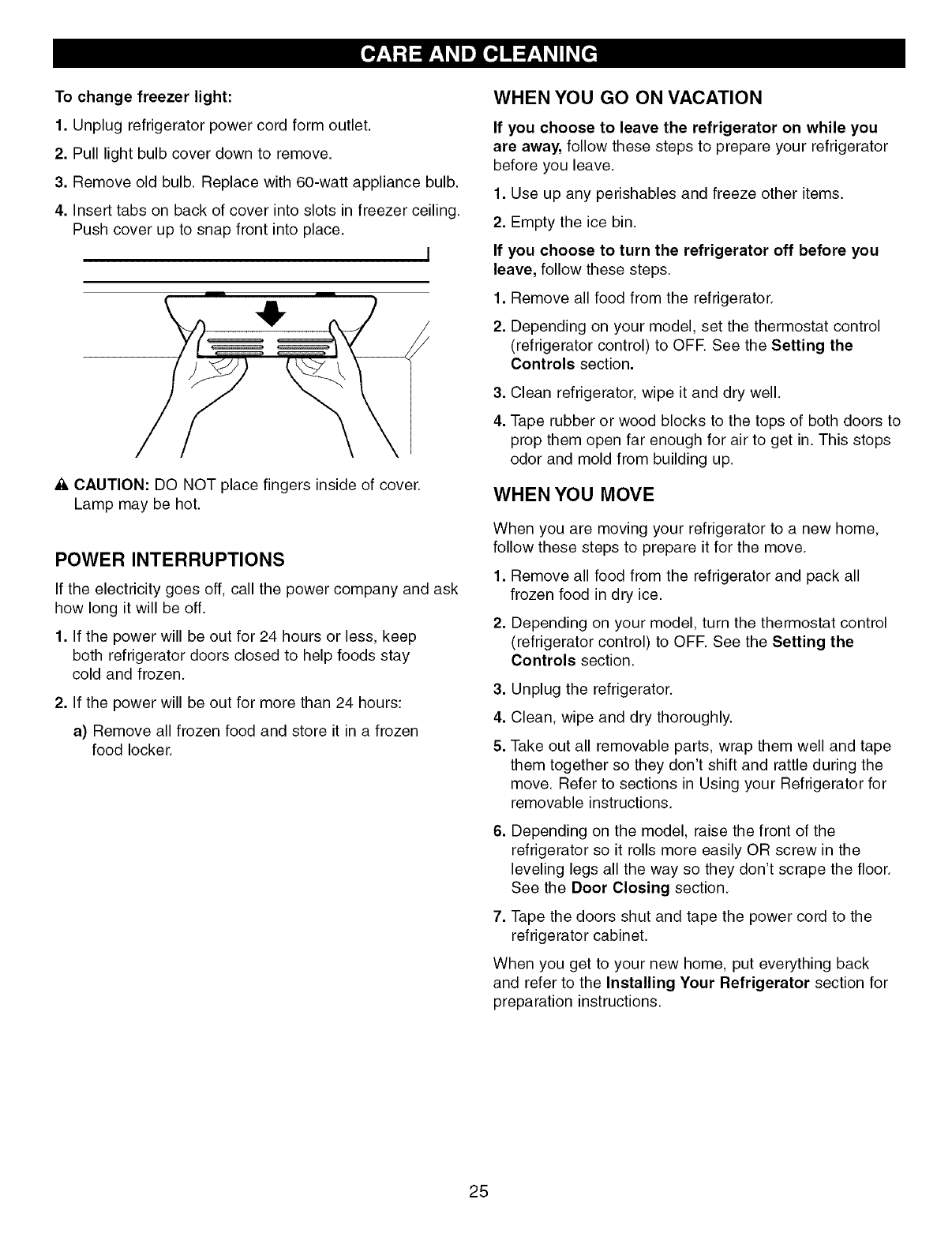

Tochangefreezerlight:

1.Unplugrefrigeratorpowercordformoutlet.

2. Pulllightbulbcoverdownto remove.

3. Removeoldbulb.Replacewith60-wattappliancebulb.

4. Inserttabsonbackofcoverintoslotsinfreezerceiling.

Pushcoveruptosnapfrontintoplace.

I

I

_, CAUTION: DO NOT place fingers inside of cover.

Lamp may be hot.

POWER INTERRUPTIONS

If the electricity goes off, call the power company and ask

how long it will be off.

1. If the power will be out for 24 hours or less, keep

both refrigerator doors closed to help foods stay

cold and frozen.

2. If the power will be out for more than 24 hours:

a) Remove all frozen food and store it in a frozen

food locker.

WHEN YOU GO ON VACATION

If you choose to leave the refrigerator on while you

are away, follow these steps to prepare your refrigerator

before you leave.

1. Use up any perishables and freeze other items.

2. Empty the ice bin.

If you choose to turn the refrigerator off before you

leave, follow these steps.

1. Remove all food from the refrigerator.

2. Depending on your model, set the thermostat control

(refrigerator control) to OFR See the Setting the

Controls section.

.

4.

Clean refrigerator, wipe it and dry well.

Tape rubber or wood blocks to the tops of both doors to

prop them open far enough for air to get in. This stops

odor and mold from building up.

WHEN YOU MOVE

When you are moving your refrigerator to a new home,

follow these steps to prepare it for the move.

1. Remove all food from the refrigerator and pack all

frozen food in dry ice.

2. Depending on your model, turn the thermostat control

(refrigerator control) to OFF. See the Setting the

Controls section.

3. Unplug the refrigerator.

4. Clean, wipe and dry thoroughly.

5. Take out all removable parts, wrap them well and tape

them together so they don't shift and rattle during the

move. Refer to sections in Using your Refrigerator for

removable instructions.

6. Depending on the model, raise the front of the

refrigerator so it rolls more easily OR screw in the

leveling legs all the way so they don't scrape the floor.

See the Door Closing section.

7. Tape the doors shut and tape the power cord to the

refrigerator cabinet.

When you get to your new home, put everything back

and refer to the Installing Your Refrigerator section for

preparation instructions.

25

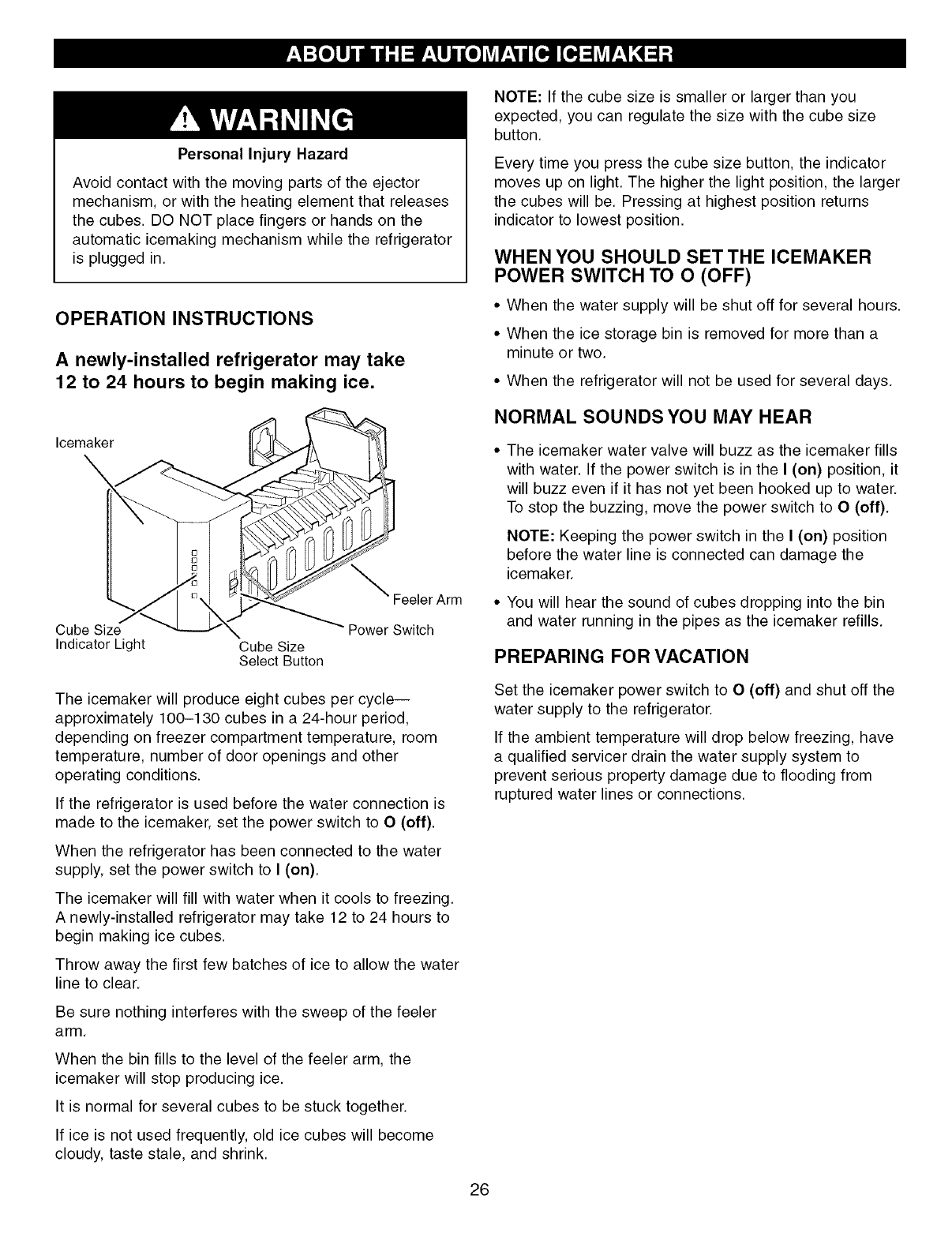

Personal Injury Hazard

Avoid contact with the moving parts of the ejector

mechanism, or with the heating element that releases

the cubes. DO NOT place fingers or hands on the

automatic icemaking mechanism while the refrigerator

is plugged in.

OPERATION INSTRUCTIONS

A newly-installed refrigerator may take

12 to 24 hours to begin making ice.

Icemaker

Cube Size

Indicator Light Cube Size

Select Button

Feeler Arm

Power Switch

The icemaker will produce eight cubes per cycle--

approximately 100-130 cubes in a 24-hour period,

depending on freezer compartment temperature, room

temperature, number of door openings and other

operating conditions.

If the refrigerator is used before the water connection is

made to the icemaker, set the power switch to O (off).

When the refrigerator has been connected to the water

supply, set the power switch to I (on).

The icemaker will fill with water when it cools to freezing.

A newly-installed refrigerator may take 12 to 24 hours to

begin making ice cubes.

Throw away the first few batches of ice to allow the water

line to clear.

Be sure nothing interferes with the sweep of the feeler

arm.

When the bin fills to the level of the feeler arm, the

icemaker will stop producing ice.

It is normal for several cubes to be stuck together.

If ice is not used frequently, old ice cubes will become

cloudy, taste stale, and shrink.

26

NOTE: If the cube size is smaller or larger than you

expected, you can regulate the size with the cube size

button.

Every time you press the cube size button, the indicator

moves up on light. The higher the light position, the larger

the cubes will be. Pressing at highest position returns

indicator to lowest position.

WHEN YOU SHOULD SET THE ICEMAKER

POWER SWITCH TO O (OFF)

• When the water supply will be shut off for several hours.

• When the ice storage bin is removed for more than a

minute or two.

• When the refrigerator will not be used for several days.

NORMAL SOUNDSYOU MAY HEAR

• The icemaker water valve will buzz as the icemaker fills

with water. If the power switch is in the I (on) position, it

will buzz even if it has not yet been hooked up to water.

To stop the buzzing, move the power switch to O (off).

NOTE: Keeping the power switch in the I (on) position

before the water line is connected can damage the

icemaker.

• You will hear the sound of cubes dropping into the bin

and water running in the pipes as the icemaker refills.

PREPARING FOR VACATION

Set the icemaker power switch to O (off) and shut off the

water supply to the refrigerator.

If the ambient temperature will drop below freezing, have

a qualified servicer drain the water supply system to

prevent serious property damage due to flooding from

ruptured water lines or connections.

BEFORE YOU BEGIN

This water line installation is not warranted by the

refrigerator or icemaker manufacturer. Follow these

instructions carefully to minimize the risk of expensive

water damage.

Water hammer (water banging in the pipes) in house

plumbing can cause damage to refrigerator parts and lead

to water leakage or flooding. Call a qualified plumber to

correct water hammer before installing the water supply

line to the refrigerator.

To prevent burns and product damage, do not hook up

the water line to the hot water line.

If you use your refrigerator before connecting the water

line, make sure the icemaker power switch is in the O

(off) position.

Do not install the icemaker tubing in areas where

temperatures fall below freezing.

When using any electrical device (such as a power

drill) during installation, be sure the device is double-

insulated or grounded in a manner to prevent the hazard

of electric shock, or is battery-powered.

All installations must be in accordance with local plumbing

code requirements.

NOTE: Wear eye protection.

WHAT YOU WILL NEED

•Copper Tubing, 1/4" outer J_"

diameter to connect the refrigerator

to the water supply. Be sure both

ends of the tubing are cut square.

To determine how much tubing you need: measure

the distance from the water valve on the back of the

refrigerator to the water supply pipe. Then add 8 feet

(2.4 m). Be sure there is sufficient extra tubing (about 8 feet

[2.4 m] coiled into 3 turns of about 10" [25 cm] diameter) to

allow the refrigerator to move out from the wall after

installation.

•A cold water supply. The water pressure must be

between 20 and 120 p.s.i, on models without a water

filter and between 40 and 120 p.s.i, on models with a

water filter.

•Power drill.

• 1/2" or adjustable

wrench.

• Straight- and Phillips-

blade screwdriver.

Two 1/4" outer diameter

compression nuts and

2ferrules (sleeves) to

connect the copper tubing to

the shutoff valve and the

refrigerator water valve.

If your existing copper water

line has a flared fitting at the

end, you will need an

adapter (available at

plumbing supply stores) to

connect the water line to the refrigerator OR you can

cut off the flared fitting with a tube cutter and then use

a compression fitting.

Shutoff valve to connect to

the cold water line. The

shutoff valve should have a

water inlet with a minimum

inside diameter of 5/32" at

the point of connection to the

COLD WATER LINE. Saddle-type shutoff valves are

included in many water supply kits. Before purchasing,

make sure a saddle-type valve complies with your local

plumbing codes.

INSTALLATION INSTRUCTIONS

Install the shutoff valve on the nearest frequently used

drinking water line.

1. SHUT OFF THE MAIN WATER SUPPLY

Turn on the nearest faucet to relieve the pressure on

the line.

,CHOOSETHE VALVELOCATION

Choose a location for the valve

that is easily accessible. It is best

to connect into the side of a

vertical water pipe. When it is

necessary to connect into a

horizontal water pipe, make the

connection to the top or side,

rather than at the bottom, to avoid

drawing off any sediment from the water pipe.

,DRILLTHEHOLEFORTHEVALVE

Drill a 1/4" hole in the water f?==_

pipe (even if using a self-

piercing valve) using a

sharp bit. Remove any burrs

resulting from drilling the

hole in the pipe. Take care

not to allow water to drain

into the drill. Failure to drill a 1/4" hole may result in

reduced ice production or smaller cubes.

27

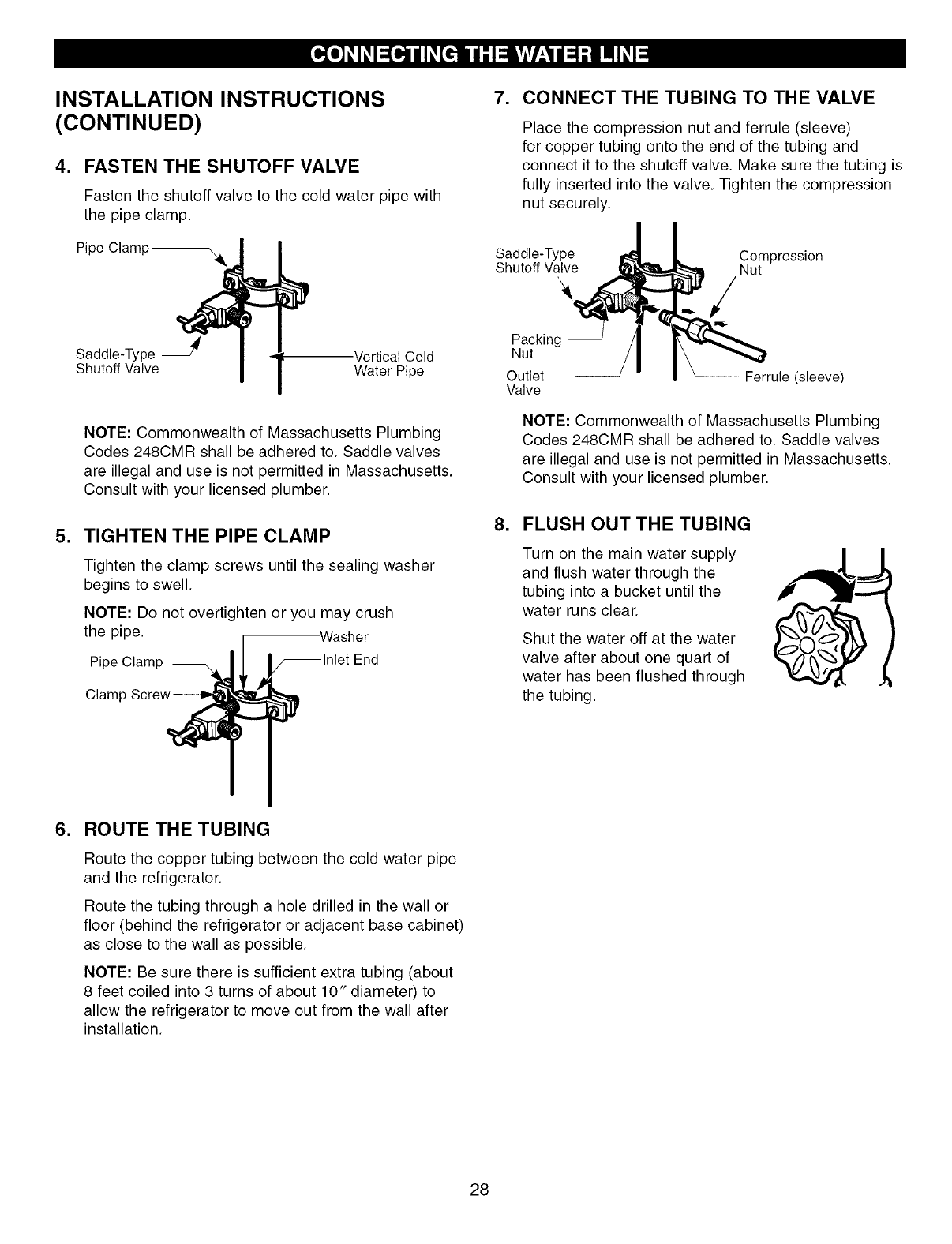

INSTALLATION INSTRUCTIONS

(CONTINUED)

4. FASTEN THE SHUTOFF VALVE

Fasten the shutoff valve to the cold water pipe with

the pipe clamp.

Pipe Clamp

Saddle-Type J

Shutoff Valve Vertical Cold

Water Pipe

NOTE: Commonwealth of Massachusetts Plumbing

Codes 248CMR shall be adhered to. Saddle valves

are illegal and use is not permitted in Massachusetts.

Consult with your licensed plumber.

5. TIGHTEN THE PIPE CLAMP

Tighten the clamp screws until the sealing washer

begins to swell.

NOTE: Do not overtighten or you may crush

the pipe. Washer

Pipe Clamp -- End

Clamp

7. CONNECT THE TUBING TO THE VALVE

Place the compression nut and ferrule (sleeve)

for copper tubing onto the end of the tubing and

connect it to the shutoff valve. Make sure the tubing is

fully inserted into the valve. Tighten the compression

nut securely.

Saddle-Type _,_

Shutoff Valve

Packing_

Nut

Outlet

Valve

Compression

Ferrule (sleeve)

NOTE: Commonwealth of Massachusetts Plumbing

Codes 248CMR shall be adhered to. Saddle valves

are illegal and use is not permitted in Massachusetts.

Consult with your licensed plumber.

8. FLUSH OUT THE TUBING

Turn on the main water supply

and flush water through the

tubing into a bucket until the

water runs clear.

Shut the water off at the water

valve after about one quart of

water has been flushed through

the tubing.

6. ROUTE THE TUBING

Route the copper tubing between the cold water pipe

and the refrigerator.

Route the tubing through a hole drilled in the wall or

floor (behind the refrigerator or adjacent base cabinet)

as close to the wall as possible.

NOTE: Be sure there is sufficient extra tubing (about

8 feet coiled into 3 turns of about 10" diameter) to

allow the refrigerator to move out from the wall after

installation.

28

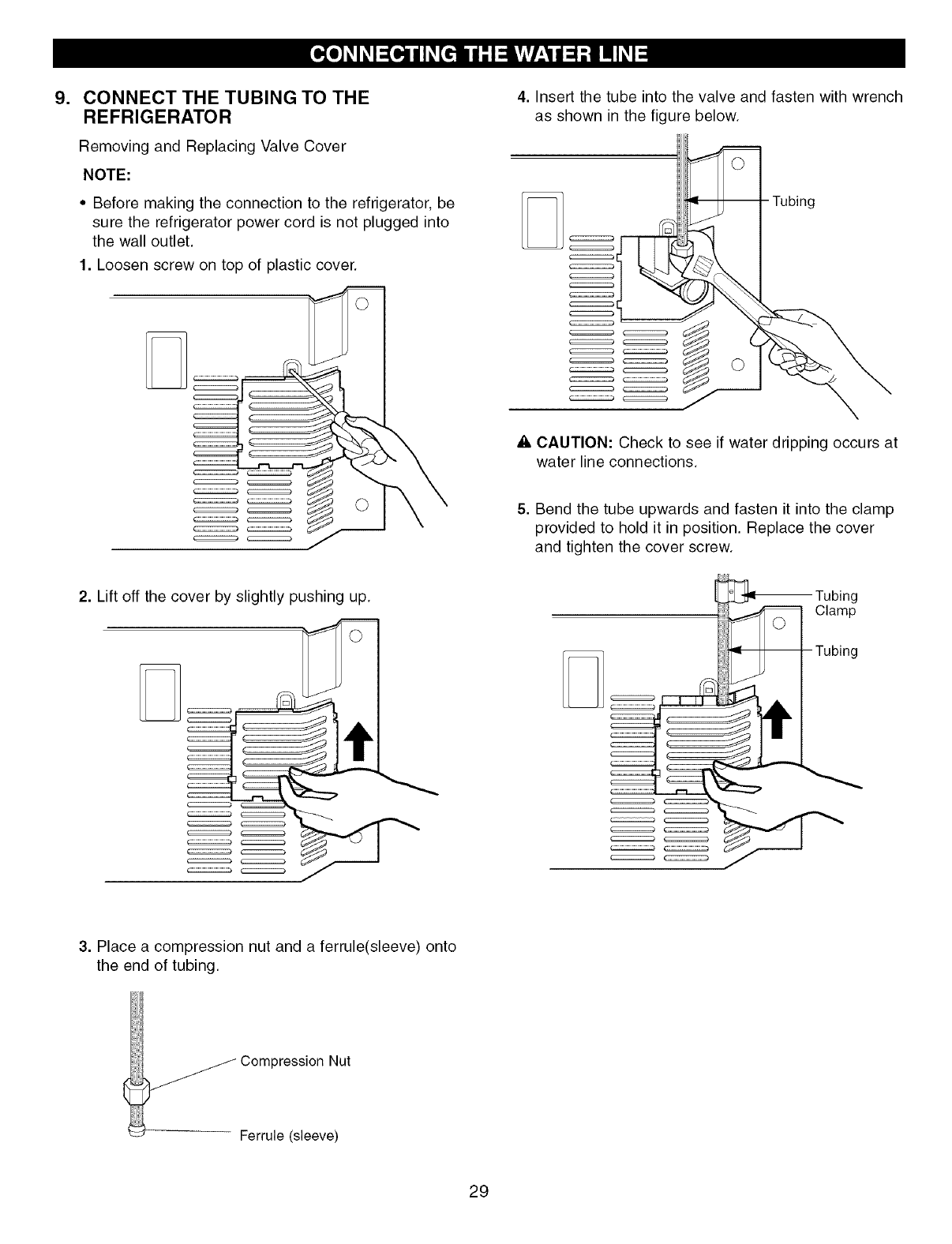

,CONNECT THE TUBING TO THE

REFRIGERATOR

Removing and Replacing Valve Cover

NOTE:

• Before making the connection to the refrigerator, be

sure the refrigerator power cord is not plugged into

the wall outlet.

1. Loosen screw on top of plastic cover.

4. Insert the tube into the valve and fasten with wrench

as shown in the figure below.

Tubing

ACAUTION: Check to see if water dripping occurs at

water line connections.

5. Bend the tube upwards and fasten it into the clamp

provided to hold it in position. Replace the cover

and tighten the cover screw.

2. Lift off the cover by slightly pushing up. Tubing

Clamp

3. Place a compression nut and a ferrule(sleeve) onto

the end of tubing.

_ ompression Nut

Ferrule (sleeve)

29

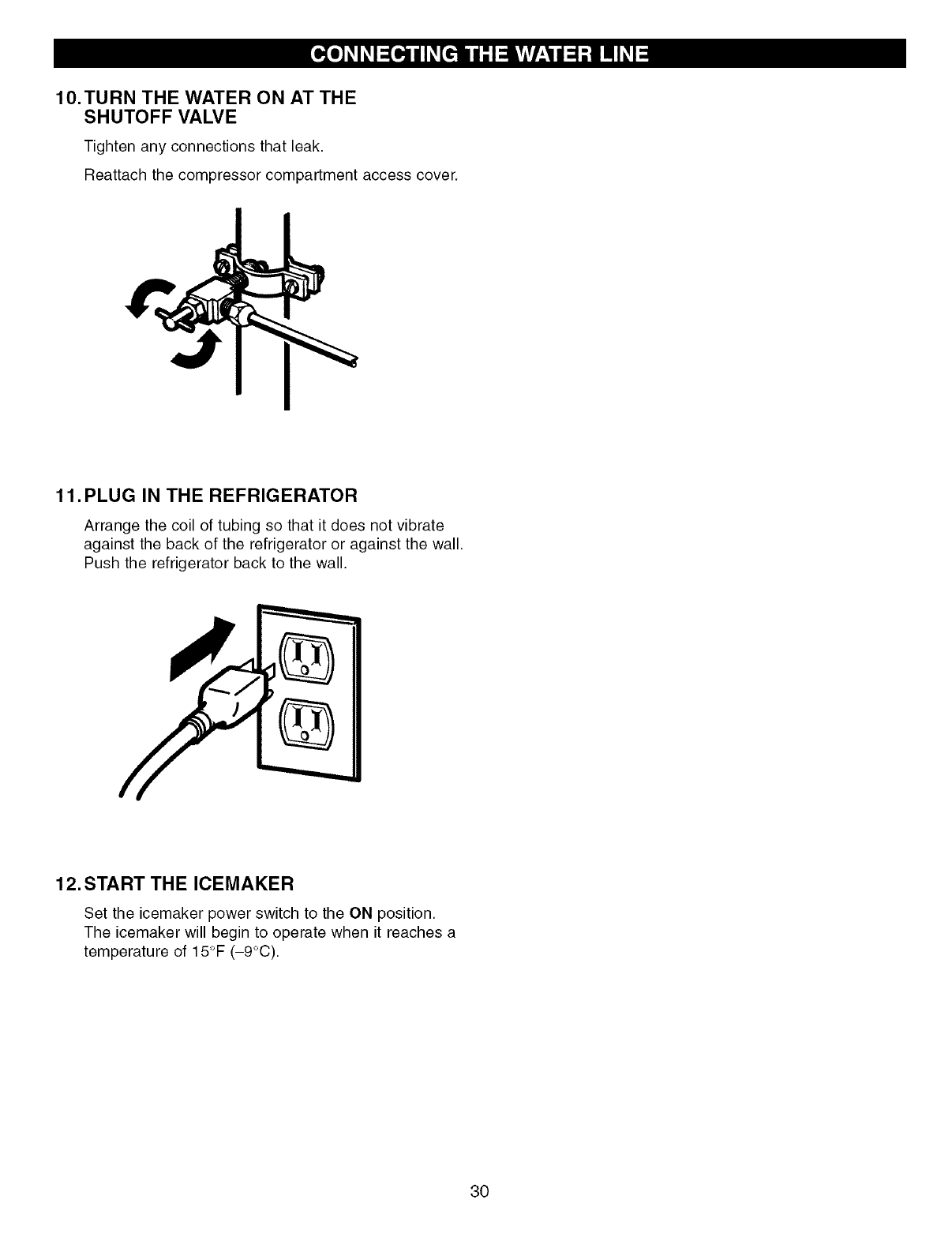

10.TURN THE WATER ON AT THE

SHUTOFF VALVE

Tighten any connections that leak.

Reattach the compressor compartment access cover.

11. PLUG IN THE REFRIGERATOR

Arrange the coil of tubing so that it does not vibrate

against the back of the refrigerator or against the wall.

Push the refrigerator back to the wall.

12. START THE ICEMAKER

Set the icemaker power switch to the ON position.

The icemaker will begin to operate when it reaches a

temperature of 15°F (-9°C).

30

UNDERSTANDING SOUNDS YOU MAY HEAR

Your new refrigerator may make sounds that your old one

didn't make. Because the sounds are new to you, you

might be concerned about them. Most of the new sounds

are normal. Hard surfaces, like the floor, walls and

cabinets, can make the sounds seem louder than they

actually are. The following describes the kinds of sounds

and what may be making them.

• The defrost timer will click when the automatic defrost

cycle begins and ends. The thermostat control (or

refrigerator control, depending on the model) will also

click when cycling on and off.

• Rattling noises may come from the flow of refrigerant, the

water line, or items stored on top of the refrigerator.

• Your refrigerator is designed to run more efficiently

to keep your food items at the desired temperature.

The high efficiency compressor may cause your new

refrigerator to run longer than your old one, and

you may hear a pulsating or high-pitched sound.

You may hear the evaporator fan motor circulating the air

through the refrigerator and freezer compartments.

• As each cycle ends, you may hear a gurgling sound due

to the refrigerant flowing in your refrigerator.

• Contraction and expansion of the inside walls may cause

a popping noise.

• Water dripping on the defrost heater during a defrost

cycle may cause a sizzling sound.

You may hear air being forced over the condenser by the

condenser fan.

• You may hear water running into the drain pan during the

defrost cycle.

REFRIGERATOR DOES NOT OPERATE

Check if... Then...

The power supply cord is unplugged. Firmly plug the cord into a live outlet with proper voltage.

A household fuse has blown or circuit Replace the fuse or reset the circuit breaker.

breaker tripped.

The refrigerator control is set to the OFF position. Refer to the Setting the Controls section on page 14.

Refrigerator is in the defrost cycle. Wait about 30 minutes for defrost cycle to end.

VIBRATION OR RATTLING NOISE

Check if... Then...

The refrigerator is not resting solidly on Floor is weak or uneven or leveling legs need adjusting.

the floor. See Installation section on page 7 and 13.

LIGHTS DO NOT WORK

Check if... Then...

The power supply cord is unplugged. Firmly plug the cord into a live outlet with proper voltage.

Light bulb is loose in the socket. Turn the refrigerator control to the OFF position and unplug

the refrigerator. Gently remove the bulb and reinsert. Then

plug in refrigerator and reset the refrigerator control.

Light bulb has burned out. Replace with an appliance bulb of the same wattage, size

and shape available at your local hardware store. (See the

Changing the Light Bulb(s) section on pages 24-25.) Turn

the temperature control to the OFF position and unplug the

refrigerator prior to replacement.

31

COMPRESSOR MOTOR SEEMS TO RUN TOO MUCH

Check if... Then...

The refrigerator that was replaced was an Modern refrigerators with more storage space require

older model, more operating time.

The room temperature is hotter than normal. The motor will run longer under warm conditions. At normal

room temperatures, expect your motor to run about 40% to

80% of the time. Under warmer conditions, expect it to run

even more often.

The door is opened often or a large amount

of food has just been added.

Adding food and opening the door warms the refrigerator.

It is normal for the refrigerator to run longer in order to cool

the refrigerator back down. Adding a large amount of food

warms the refrigerator. See the Food Storage Guide section

on page 15. In order to conserve energy, try to get everything

you need out of the refrigerator at once, keep food organized

so it is easy to find and close the door as soon as the food

is removed.

The refrigerator was recently plugged in and The refrigerator will take up to 24 hours to cool

the refrigerator control was set correctly, completely.

The refrigerator control is not set correctly for the See the Adjusting Control Settings section on page 15.

surrounding conditions.

The doors are not closed completely. Push the doors firmly shut. If they will not shut all the way, see

Doors will not close completely below.

The condenser coils are dirty. This prevents air transfer and makes the motor work harder.

Clean the condenser coils. Refer to the Care and Cleaning

section on pages 24-25.

DOORS WILL NOT CLOSE COMPLETELY

Check if... Then...

The refrigerator is not level. See Leveling and Door Alignment section on page 13.

Food packages are blocking the door open. Rearrange food containers to clear door and door shelves.

The ice bin, crisper cover, pans, shelves, door bins Push bins all the way in and put crisper cover, pans, shelves

or baskets are out of position, and baskets into their correct positions. See the Using Your

Refrigerator section on pages 17-23.

The gaskets are sticking. Clean gaskets and the surface that they touch. Rub a thin coat

of paraffin wax on the gaskets after cleaning.

The refrigerator wobbles or seems unstable. Level the refrigerator. Refer to the Leveling and Door

Alignment section on page 13.

The doors were removed during product installation Remove and replace the doors according to the Removing

and not properly replaced, and Replacing Refrigerator handles and doors section on

pages 8-12, or call a qualified service technician.

FROST OR ICE CRYSTALS ON FROZEN FOOD

Check if...

I The door is not closing properly.

The door is opened often.

Then...

See Doors will not close completely above.

When the door is opened, warm, humid air is allowed in

the freezer, resulting in frost.

32

ICE HAS OFF-TASTE OR ODOR

Check if... Then...

The icemaker was recently installed. Discard first few batches of ice to avoid discolored or

off-flavored ice.

The ice has been stored for too long. Throw away old ice and make new supply.

The food has not been wrapped tightly in Rewrap foods since odors may migrate to the ice if food

either compartment, is not wrapped properly.

The water supply contains minerals such as sulfur. A filter may need to be installed to eliminate taste and

odor problems.

The interior of refrigerator needs cleaning. See Care and Cleaning section on pages 24-25.

Ice storage bin needs cleaning. Empty and wash bin. Discard old cubes.

THERE IS WATER IN THE DEFROST DRAIN PAN

Check if... Then...

The refrigerator is defrosting. The water will evaporate. It is normal for water to drip into the

defrost pan.

It is more humid than normal. Expect that the water in the defrost pan will take longer to

evaporate. This is normal when it is hot or humid.

THE REFRIGERATOR SEEMS TO MAKE TOO MUCH NOISE

Check if... Then...

The sounds may be normal for your refrigerator. Refer to the Understanding Sounds You May Hear section

on page 31.

THE ICEMAKER IS NOT PRODUCING ICE OR ICE CUBES ARE FREEZING TOO SLOWLY

Check if... Then...

The freezer temperature is cold enough to produce iceJ Wait 24 hours after hook-up for ice production. See the

tSetting the Controls section on page 14.

Door left open. Check to see if something is holding the door open.

CUBES PRODUCED BY ICEMAKER ARE TOO SMALL

Check if... Then...

Smaller cube size level is selected. Select larger cube size using cube size selector.

Water shutoff valve connecting refrigerator to water Call a plumber to clear the valve.

line may be clogged.

THE DOORS ARE DIFFICULT TO OPEN

Check if... Then...

The gaskets are dirty or sticky. Clean gaskets and the surfaces that they touch. Rub a thin

coat of appliance polish or kitchen wax on the gaskets after

cleaning.

The door is reopened within a short time after having When you open the door, warmer air enters the refrigerator.

been opened. As the warm air cools, it can create a vacuum. If the door is

hard to open, wait 5 minutes to allow the air pressure to

equalize, then see if it opens more easily.

33

TEMPERATURE IS TOO WARM OR THERE IS INTERIOR MOISTURE BUILDUP

Check if... Then...

The air vents are blocked. Cold air circulates

from the freezer to the fresh food section and

back again through air vents in the wall dividing

the two sections.

The doors are opened often.

Locate air vents by using your hand to sense airflow and

move all packages that block vents and restrict airflow. Refer

to Multi Flow on page 14 for the location of air vents.

When the door is opened, warm humid air is allowed into

the refrigerator. The more the door is opened, the faster the

humidity builds up, and the more warm air the refrigerator

must cool. In order to keep the refrigerator cool, try to get

everything you need out of the refrigerator at once, keep

food organized so it is easy to find and close the door as

soon as the food is removed.

The control is not set correctly for the surrounding Refer to the Setting the Controls section on page 14.

conditions. Wait 24 hours for temperatures to stabilize or even out. If the

temperature is too cold or too warm, move the dial one

number at a time.

A large amount of food has just been added Adding food warms the refrigerator. It can take a few hours

to the refrigerator or freezer, for the refrigerator to return to normal temperature.

The food is not packaged correctly. Wrap food tightly and wipe off damp containers prior to

storing in the refrigerator to avoid moisture accumulation. If

necessary, repackage food according to the guidelines in the

Food Storage Guide section on page 15.

The doors are not closing completely. See Doors will not close completely on page 32.

The weather is humid. In humid weather, air carries moisture into refrigerator

when doors are opened.

A self-defrost cycle was completed. It is normal for droplets to form on the back wall after the

refrigerator self-defrosts.

34

35
