REPAIR
PARTS
LIST
587.15412100A
587.15413100A
For Parts or Service:
Call
1-800-4-MY-HOME®
(1-800-469-4663)
Or Visit
www.sears.com
24-INCH BUILT-IN DISHWASHER
In all orders or correspondence, avoid delays and misunderstandings
by always giving the complete model number shown on the right hand
side of the front tub flange, directly behind the door of the dishwasher.
All repair parts listed are available for immediate purchase or special
order when you visit your nearest Sears Parts & Repair Center, or the
Service Department at most Sears stores. To order parts by phone, call
the toll-free number listed to the left or visit sears.com.
When requesting service or ordering parts, always provide the following
information:
• Product Type • Part Number
• Model Number • Part Description
Sears Brands Management Corporation, Hoffman Estates, IL 60179
Publication number 5995598264
587.1541
08/11 2
CONTROL PANEL
CAUTION: Use the Kenmore part number to order part, not the illustration number.
587.1541
# Functional Parts 3 08/11
* Non-Illustrated Parts
CONTROL PANEL
CAUTION: Use the Kenmore part number to order part, not the illustration number.
Model Index: A 587.1541 (587.15412100A)
B 587.1541 (587.15413100A)
POS. NO PART NO. DESCRIPTION
1 5304475567 A B Cover Assembly, PC board, w/screws
2 5304475568 A B Gasket, PCB cover
3 # 5304480721 A B PC Board Assembly, main, w/screws
4 # 5304475570 A B Latch, door
5 # 5304480722 A B PC Board Assembly, display, w/screws
6 # 5304484721 A - Console Assembly, white, w/overlay
6 # 5304484722 - B Console Assembly, black, w/overlay
14 5304480746 A B Handle Assembly, latch, white, w/gasket
* # 5304480731 A B Harness, wiring, main
* 5995598264 A B Repair Parts List
* 5304484867 A B Owners Manual
* 5304484868 A B Installation Instructions
* 5304484869 A B Service Data Sheet
* 5304484870 A B Energy Guide
587.1541
08/11 4

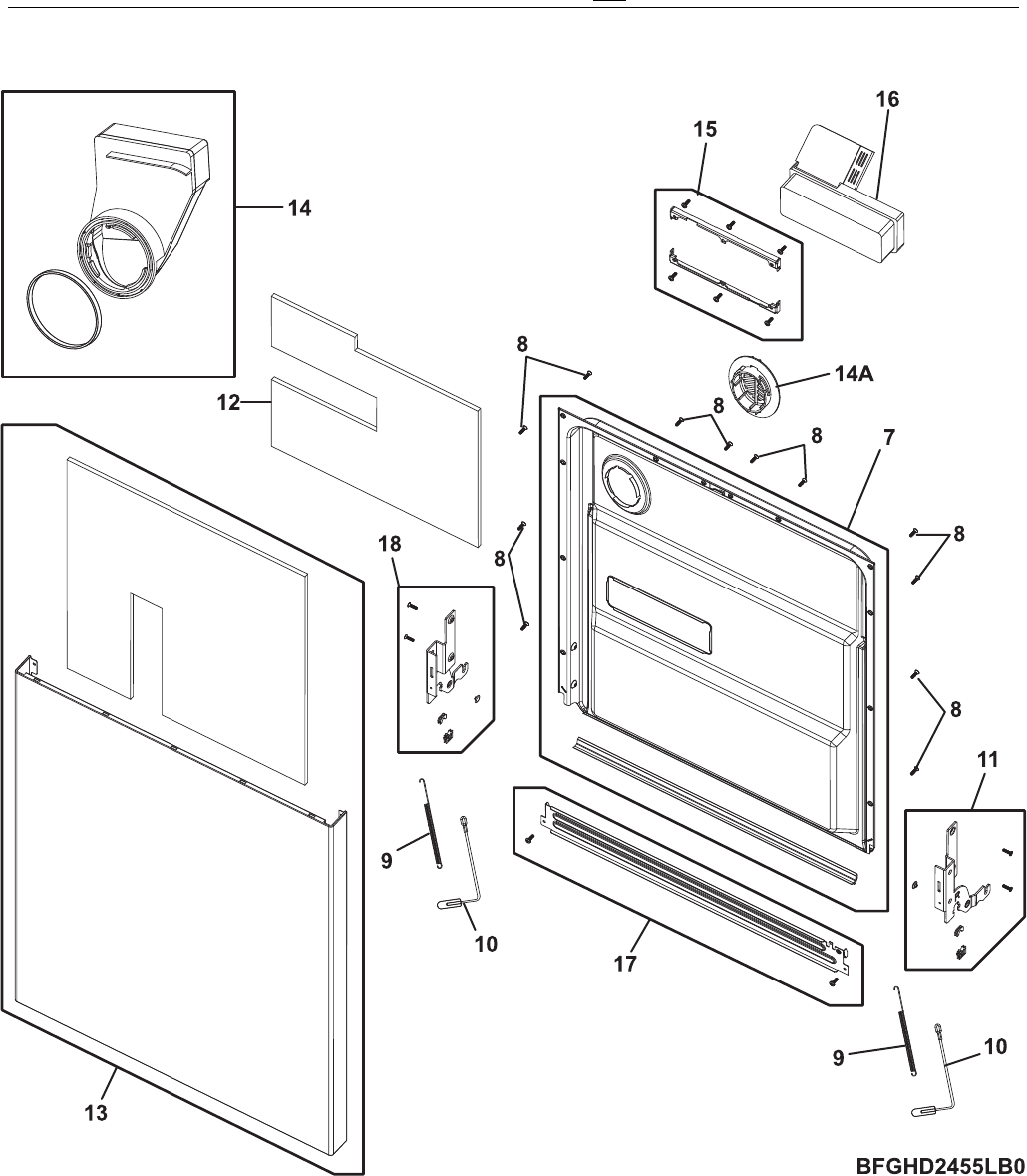

DOOR
CAUTION: Use the Kenmore part number to order part, not the illustration number.
587.1541
# Functional Parts 5 08/11
* Non-Illustrated Parts
DOOR
CAUTION: Use the Kenmore part number to order part, not the illustration number.
Model Index: A 587.1541 (587.15412100A)
B 587.1541 (587.15413100A)
POS. NO PART NO. DESCRIPTION
7 5304480727 A B Liner Assembly, door, inner, w/mastic
8 5304480728 A B Screw, door liner, (12)
9 5304475581 A B Spring, door, (2)
10 5304475582 A B Cable, door, (2)
11 5304475583 A B Hinge Assembly, RH, w/screws-spacer
12 5304475584 A B Insulation, door liner
13 5304480748 A - Door Assembly, outer, white, w/insulation
13* 5304484724 A - Nameplate, door, white, Kenmore
13 5304480750 - B Door Assembly, outer, stainless, w/insulation
13* 5304484725 - B Nameplate, door, stainless, Kenmore
14 5304480726 A B Vent Assembly, door
14A 5304480723 A B Connector, door vent
15 5304475587 A B Bracket Assembly, dispenser, w/screws
16 # 5304484723 A B Dispenser Assembly, detergent
16* 5304480730 A B Cover, dispenser
17 5304475589 A B Support Assembly, hinge, w/screws
18 5304475590 A B Hinge Assembly, LH, w/screws-spacer
587.1541
08/11 6

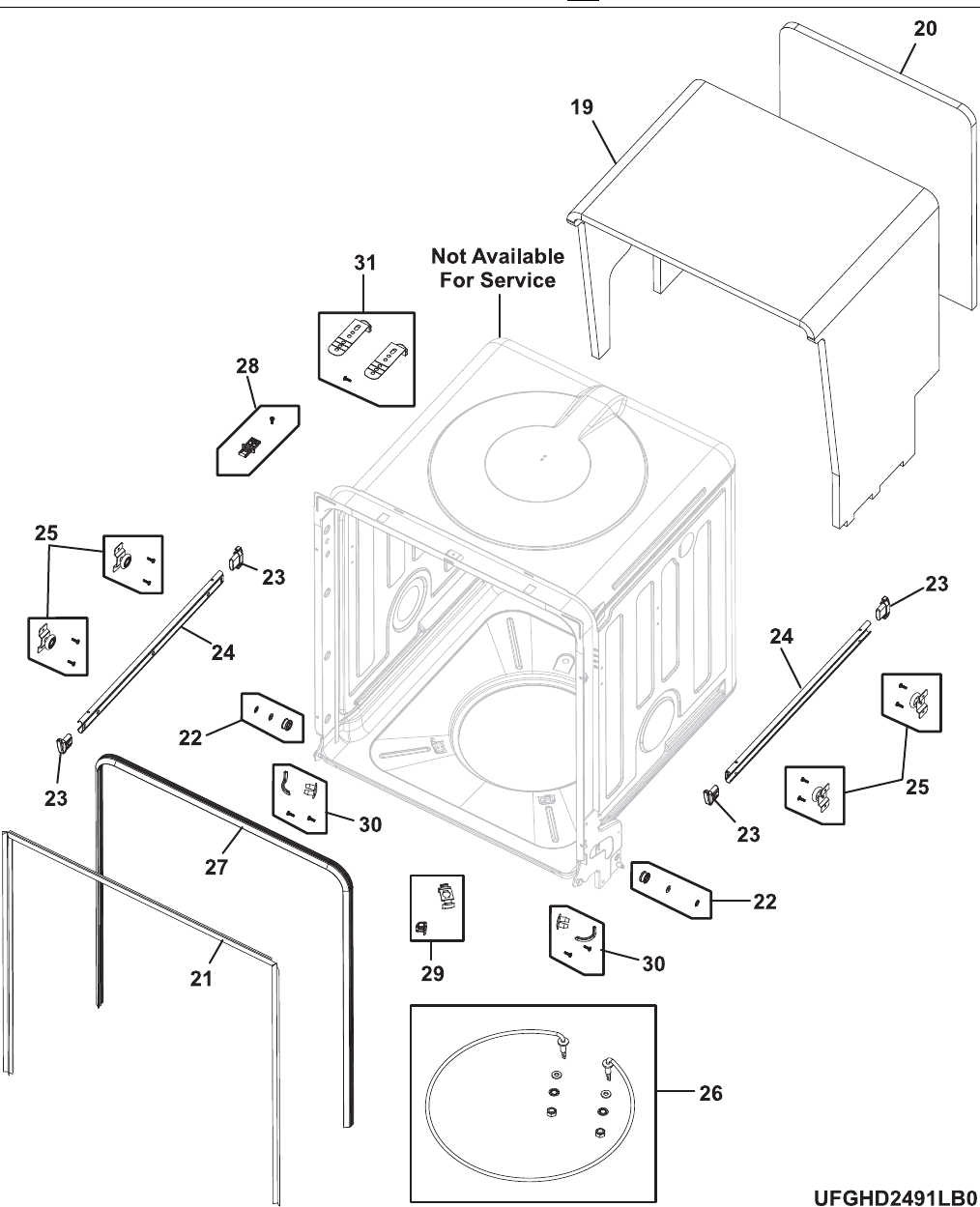

TUB
CAUTION: Use the Kenmore part number to order part, not the illustration number.
587.1541
# Functional Parts 7 08/11
* Non-Illustrated Parts
TUB
CAUTION: Use the Kenmore part number to order part, not the illustration number.
Model Index: A 587.1541 (587.15412100A)
B 587.1541 (587.15413100A)
POS. NO PART NO. DESCRIPTION
19 5304484726 A B Insulation, blanket, top & sides
20 5304475592 A B Insulation, blanket, back
21 5304475593 A B Seal Kit, cabinet
22 5304475594 A B Roller Assembly, hinge, (2)
23 5304475595 A B Cap, rack slide, (4)
24 5304475596 A B Slide, upper rack, (2)
25 5304475597 A B Roller Assembly, rack slide, (4), w/screws
26 # 5304475598 A B Heater Assembly, tub, w/nuts-washers
27 5304475599 A B Gasket, tub
28 5304475600 A B Strike Assembly, latch, w/screws
29 # 5304475601 A B Thermostat Assembly, hi limit, w/bracket
30 5304475602 A B Mounting Kit, side, w/screws
31 5304475603 A B Bracket Assembly, top cabinet, w/screws
587.1541
08/11 8

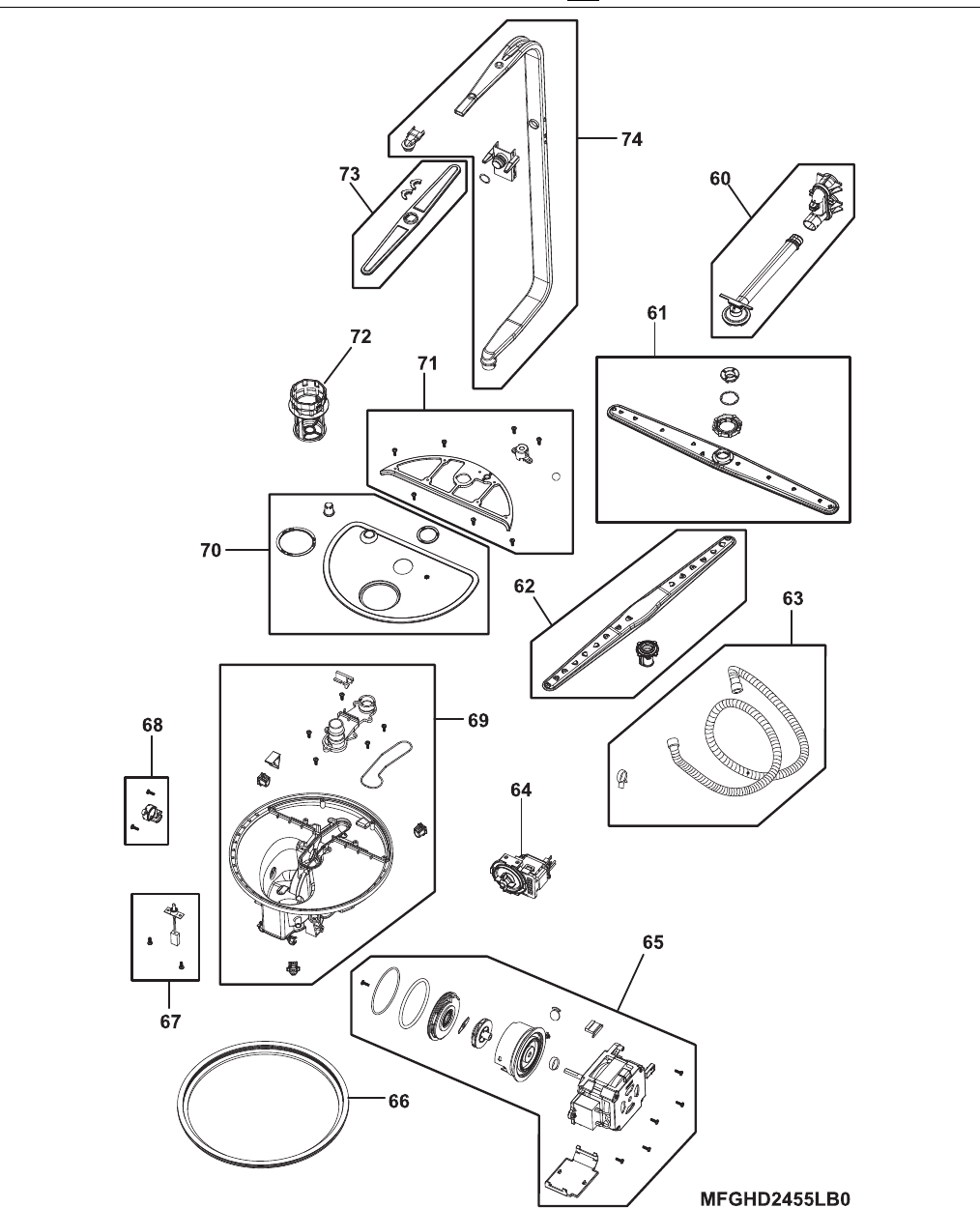

MOTOR & PUMP
CAUTION: Use the Kenmore part number to order part, not the illustration number.
587.1541
# Functional Parts 9 08/11
* Non-Illustrated Parts
MOTOR & PUMP
CAUTION: Use the Kenmore part number to order part, not the illustration number.
Model Index: A 587.1541 (587.15412100A)
B 587.1541 (587.15413100A)
POS. NO PART NO. DESCRIPTION
60 # 5304480739 A B Duct Assembly, spray arm, middle
61 # 5304480740 A B Spray Arm Assembly, middle
62 # 5304480741 A B Spray Arm Assembly, lower
63 # 5304475635 A B Hose Assembly, drain, w/clamp
64 # 5304475636 A B Pump, drain
65 # 5304475637 A B Motor Assembly, wash, w/screws-seals
66 5304475638 A B Gasket, sump
67 # 5304475639 A B Senser Assembly, thermistor, w/screws
68 # 5304475640 A B Senser Assembly, turbidity, w/screws
69 # 5304480742 A B Sump Assembly, w/clips-screws
70 5304480743 A B Filter Assembly, coarse
71 5304475643 A B Filter Assembly, fine, w/screws
72 5304475644 A B Trap, glass
73 # 5304480744 A B Spray Arm Assembly, upper
74 # 5304480745 A B Tube Assembly, delivery
587.1541
08/11 10

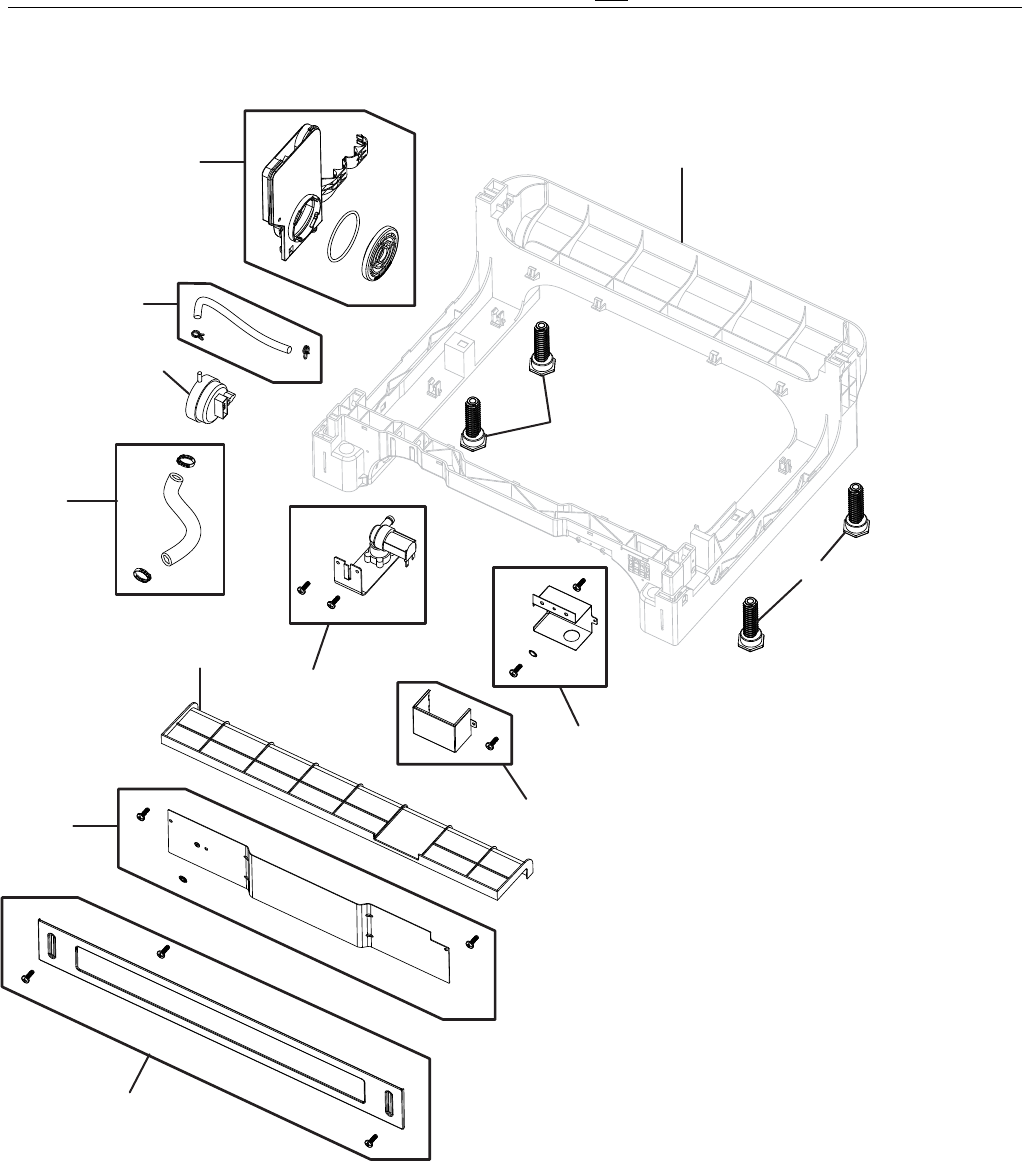

FRAME
CAUTION: Use the Kenmore part number to order part, not the illustration number.
F58715412100A
Not Available
For Service
46
32
33
34
45
45
35
36
43
44
38
37
587.1541
# Functional Parts 11 08/11
* Non-Illustrated Parts
FRAME
CAUTION: Use the Kenmore part number to order part, not the illustration number.
Model Index: A 587.1541 (587.15412100A)
B 587.1541 (587.15413100A)
POS. NO PART NO. DESCRIPTION
32 5304475604 A B Brake Assembly, air
33 # 5304475605 A B Hose Assembly, pressure switch, w/clamps
34 # 5304475606 A B Switch, pressure
35 # 5304475607 A B Hose Assembly, water valve, w/clamps
36 # 5304475608 A B Valve Assembly, water, w/screws
37 5304475609 A B Support Assembly, kickplate, w/screws
38 5304475610 - B Kickplate Assembly, black, w/screws
38 5304480749 A - Kickplate Assembly, white, w/screws
43 5304475615 A B Cover Assembly, junction box, w/screw
44 5304475616 A B Box Assembly, junction, w/screws-washer
45 5304475617 A B Leg, leveling, (4)
46 5304484727 A B Cover, front, lower
587.1541
08/11 12

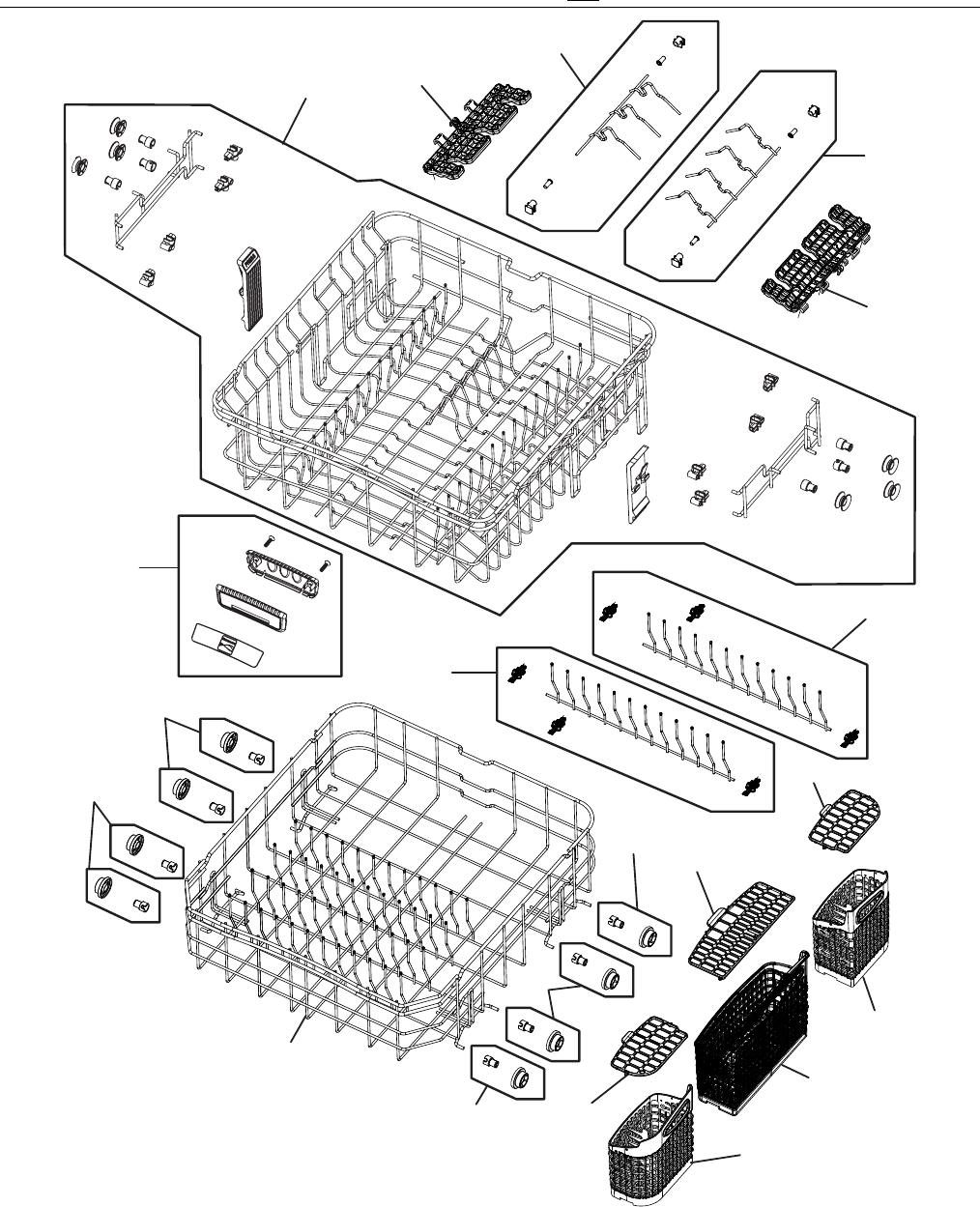

RACKS
CAUTION: Use the Kenmore part number to order part, not the illustration number.
R58715412100A
47
47
49
50
46
48
51
51
53
53
53
53
53
52
59
56
54
55
57
58
587.1541
# Functional Parts 13 08/11
* Non-Illustrated Parts
RACKS
CAUTION: Use the Kenmore part number to order part, not the illustration number.
Model Index: A 587.1541 (587.15412100A)
B 587.1541 (587.15413100A)
POS. NO PART NO. DESCRIPTION
46 5304484728 A B Rack Assembly, upper, w/rollers
47 5304480733 A B Shelf, cup
48 5304484729 A B Handle Assembly, upper rack, w/screws
49 5304480734 A B Fence Assembly, LH, w/bushings
50 5304480735 A B Fence Assembly, RH, w/bushings
51 5304480736 A B Fence Assembly, fold down, w/brackets
52 5304484730 A B Rack Assembly, lower
53 5304480738 A B Wheel Assembly, lower rack, (4)
54 5304475627 A B Cover, front basket
55 5304475626 A B Basket, silverware, front
56 5304475629 A B Cover, middle basket
57 5304475628 A B Basket, silverware, middle
58 5304475631 A B Basket, silverware, rear
59 5304475630 A B Cover, rear basket
