Kenmore Elite 795 7105 Users Manual

79571052010 79571052010 KENMORE ELITE REFRIGERATOR - Manuals and Guides L1004027 View the owners manual for your KENMORE ELITE REFRIGERATOR #79571052010. Home:Kitchen Appliance Parts:Kenmore Elite Parts:Kenmore Elite REFRIGERATOR Manual

KENMORE ELITE Bottom Mount Refrigerator Manual L1004027 KENMORE ELITE Bottom Mount Refrigerator Owner's Manual, KENMORE ELITE Bottom Mount Refrigerator installation guides

ELITE 795.7105 L1004027

795.7105 to the manual 1e9eb0de-a895-4fc7-8d80-045aff32cbca

2015-01-24

: Kenmore Kenmore-Elite-795-7105-Users-Manual-327572 kenmore-elite-795-7105-users-manual-327572 kenmore pdf

Open the PDF directly: View PDF .
Page Count: 46

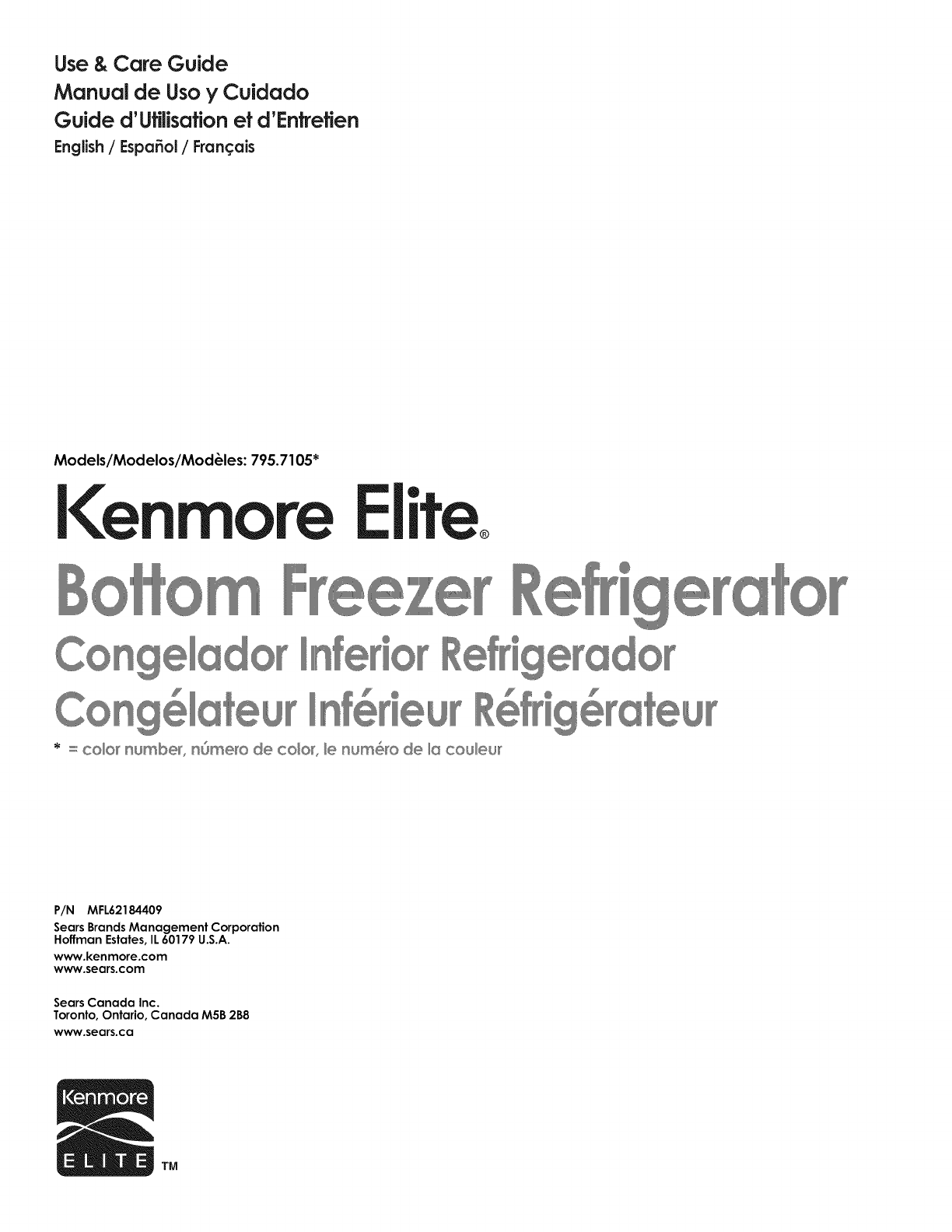

Use & Care Guide

Manual de Uso yCuidado

Guide d'Ufllisafionetd'Entrefien

English /Espa_ol /Fran_:ais

Models/Modelos/Mod_les: 795.7105"

Kenmore Elite

I°

*=:cobr number_ nOmer_o de co_or_ _enum6r_o de _a cou_eur

P/N MFL62184409

SearsBrandsManagement Corporation

HoffmanEstates,IL60179U.S.A.

www.kenmore.com

www.sears.com

Sears Canada Inc.

Toronto, Ontario, Canada MSB 2B8

www.sears.ca

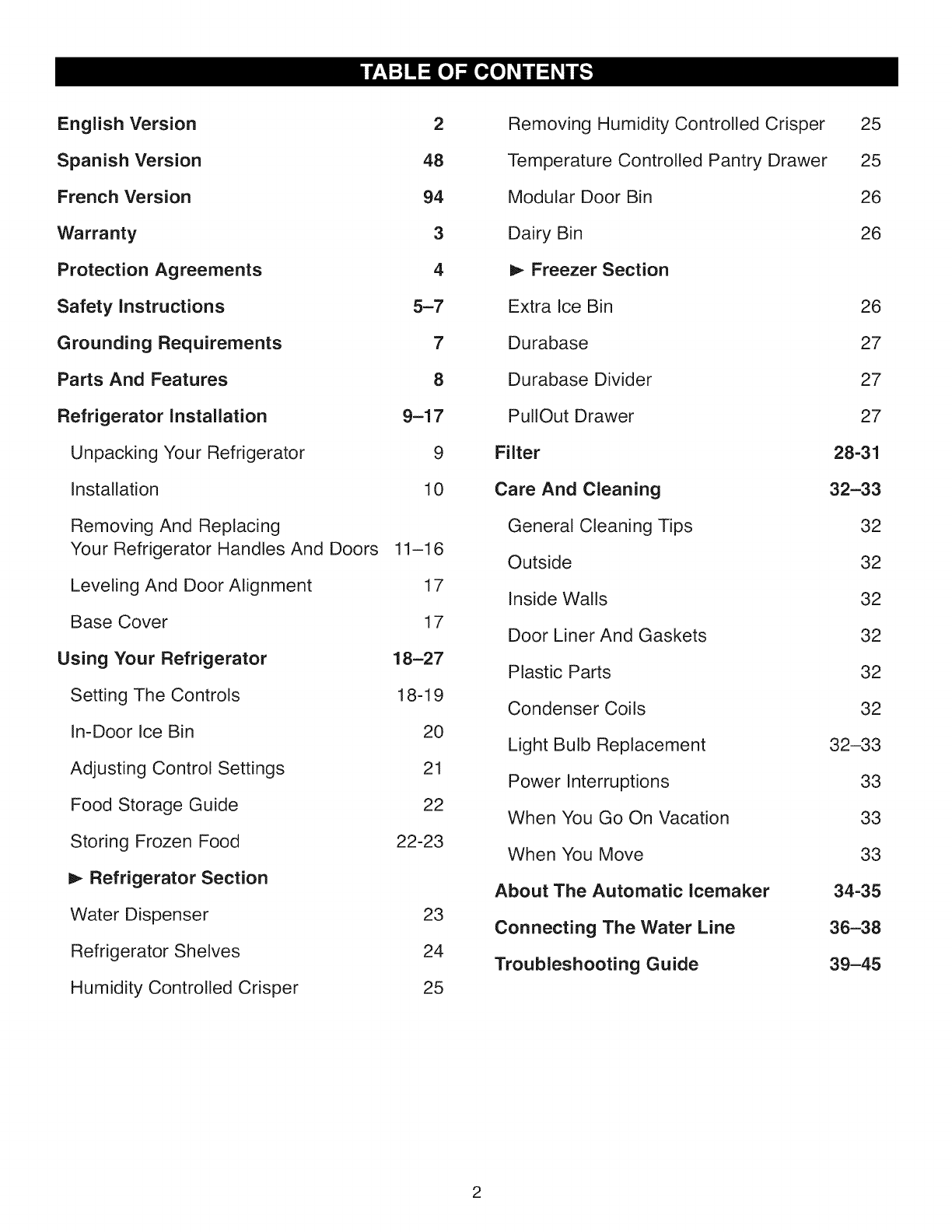

English Version 2

Spanish Version 48

French Version 94

Warranty 3

Protection Agreements 4

Safety Instructions 5-7

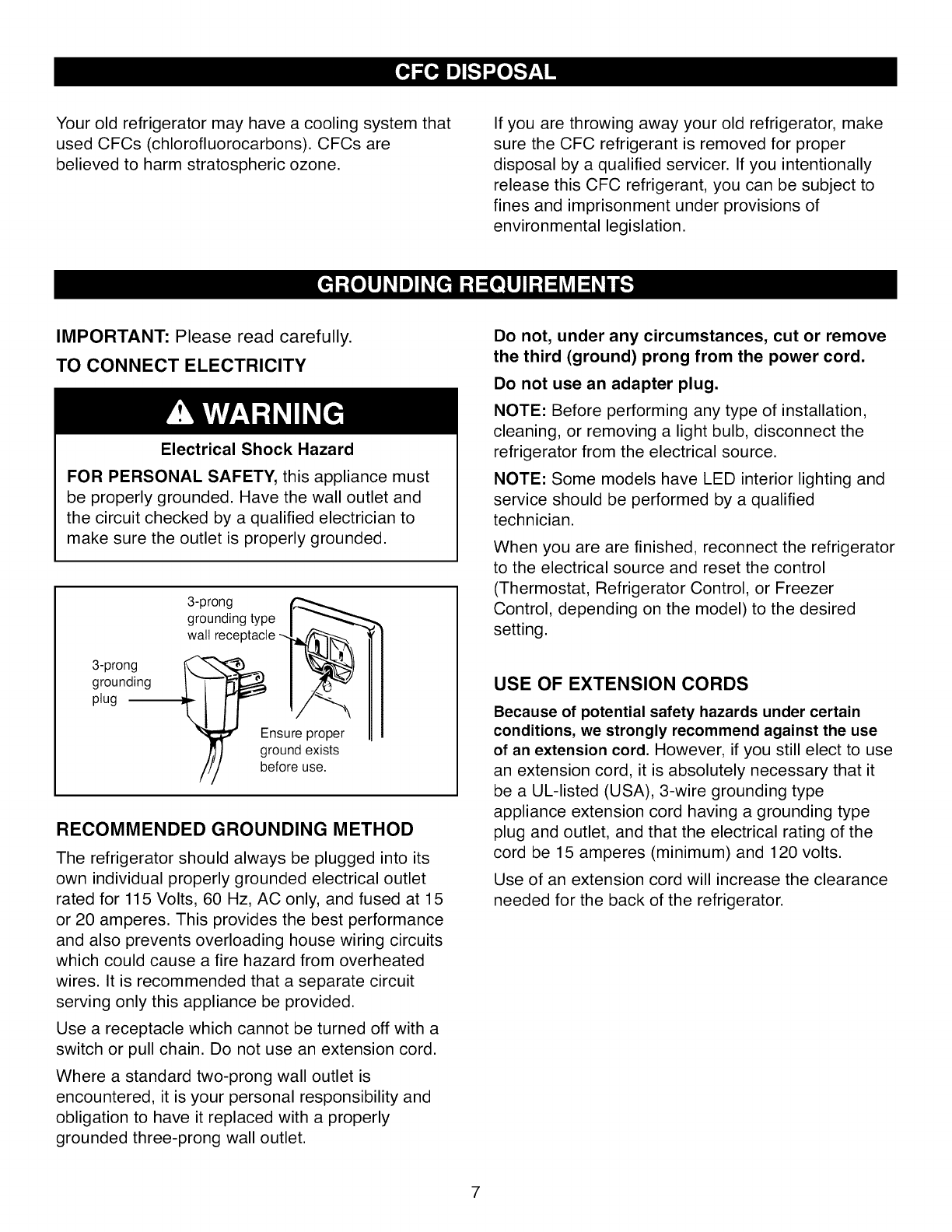

Grounding Requirements 7

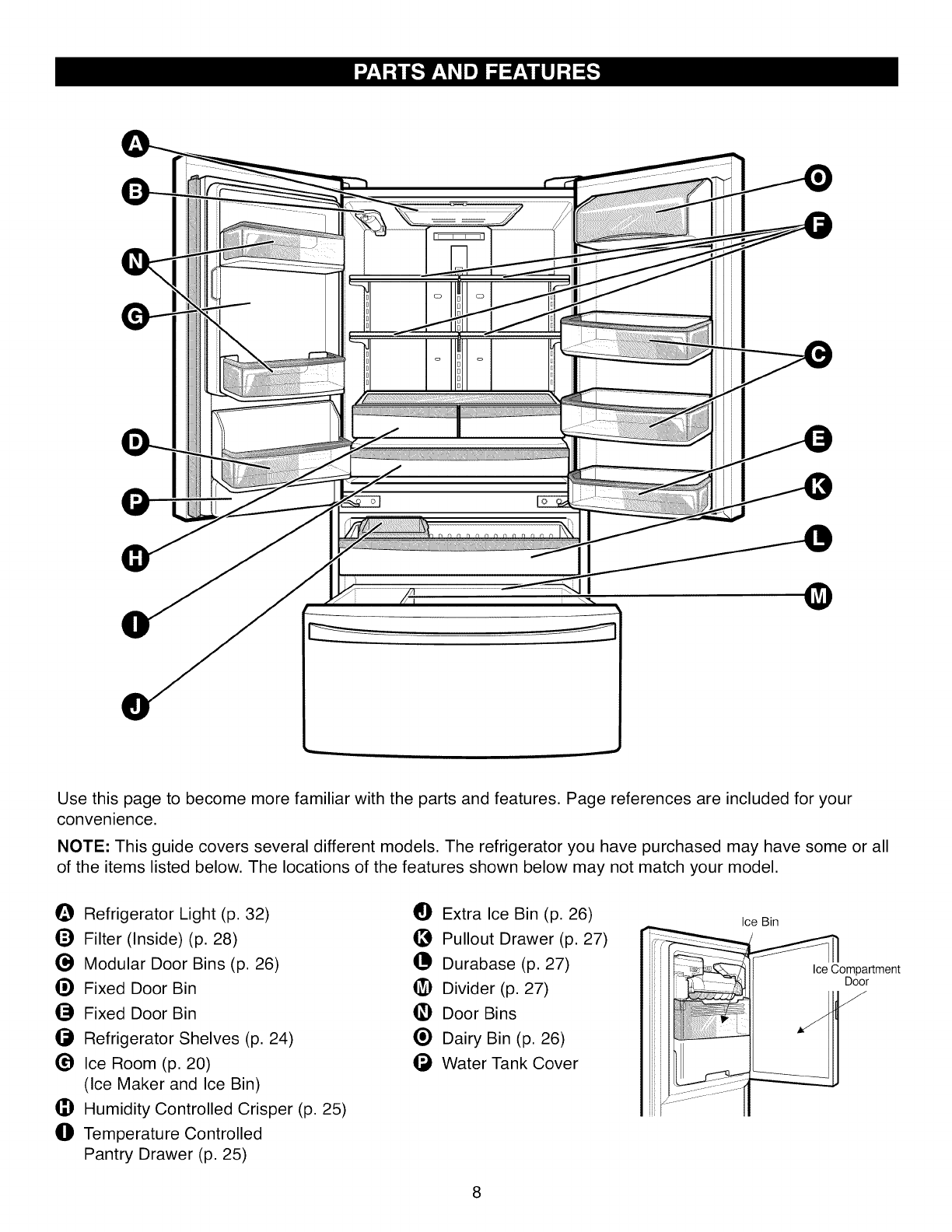

Parts And Features 8

Refrigerator Installation 9-17

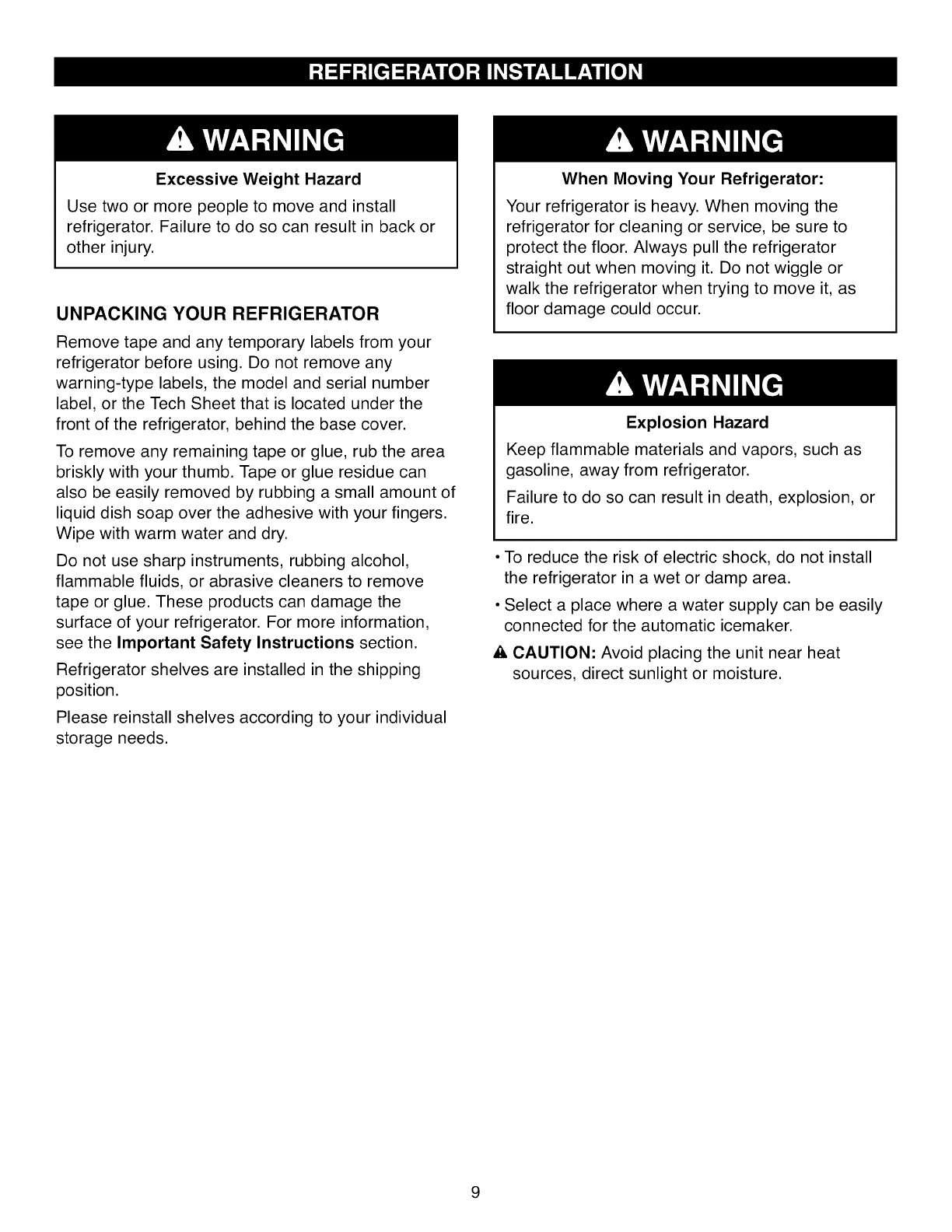

Unpacking Your Refrigerator 9

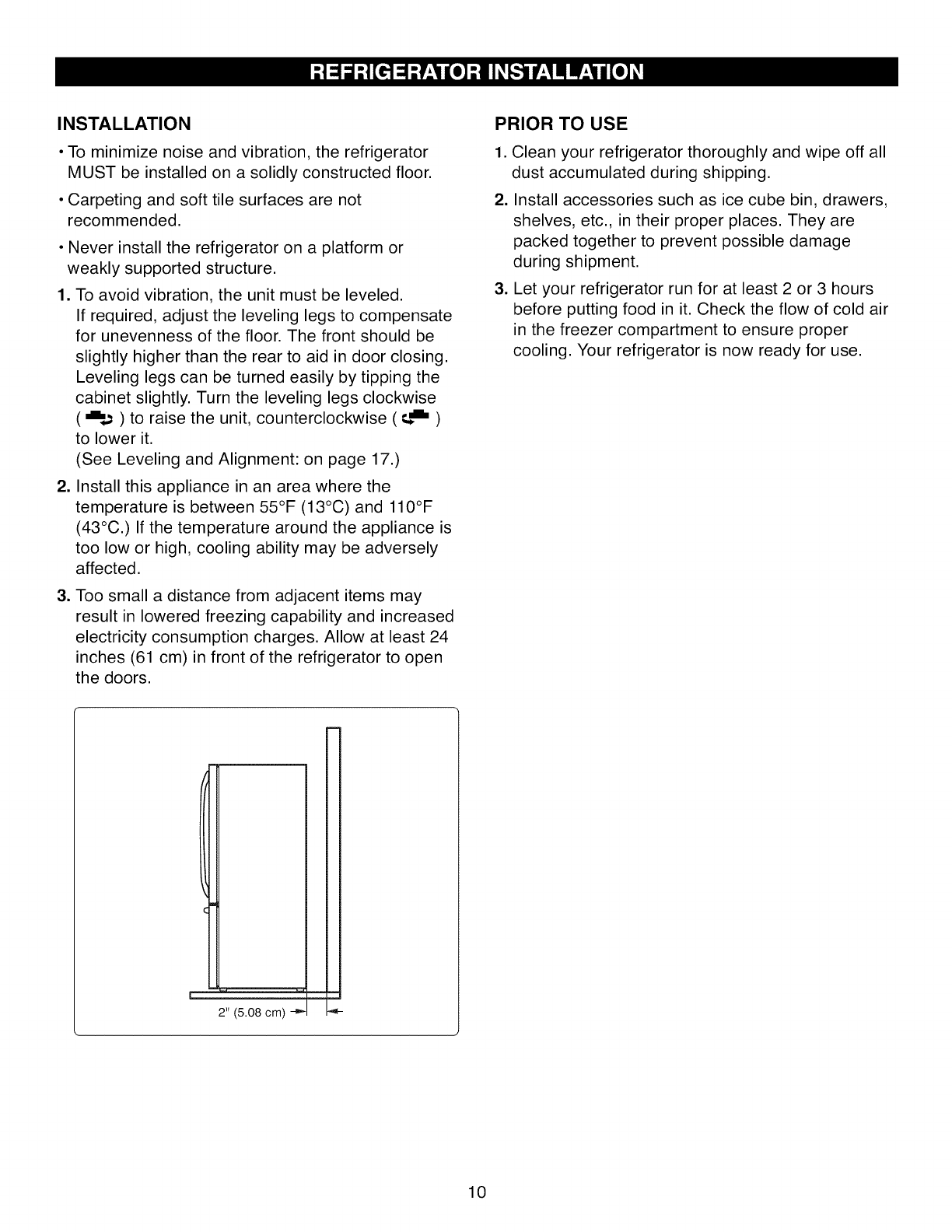

Installation 10

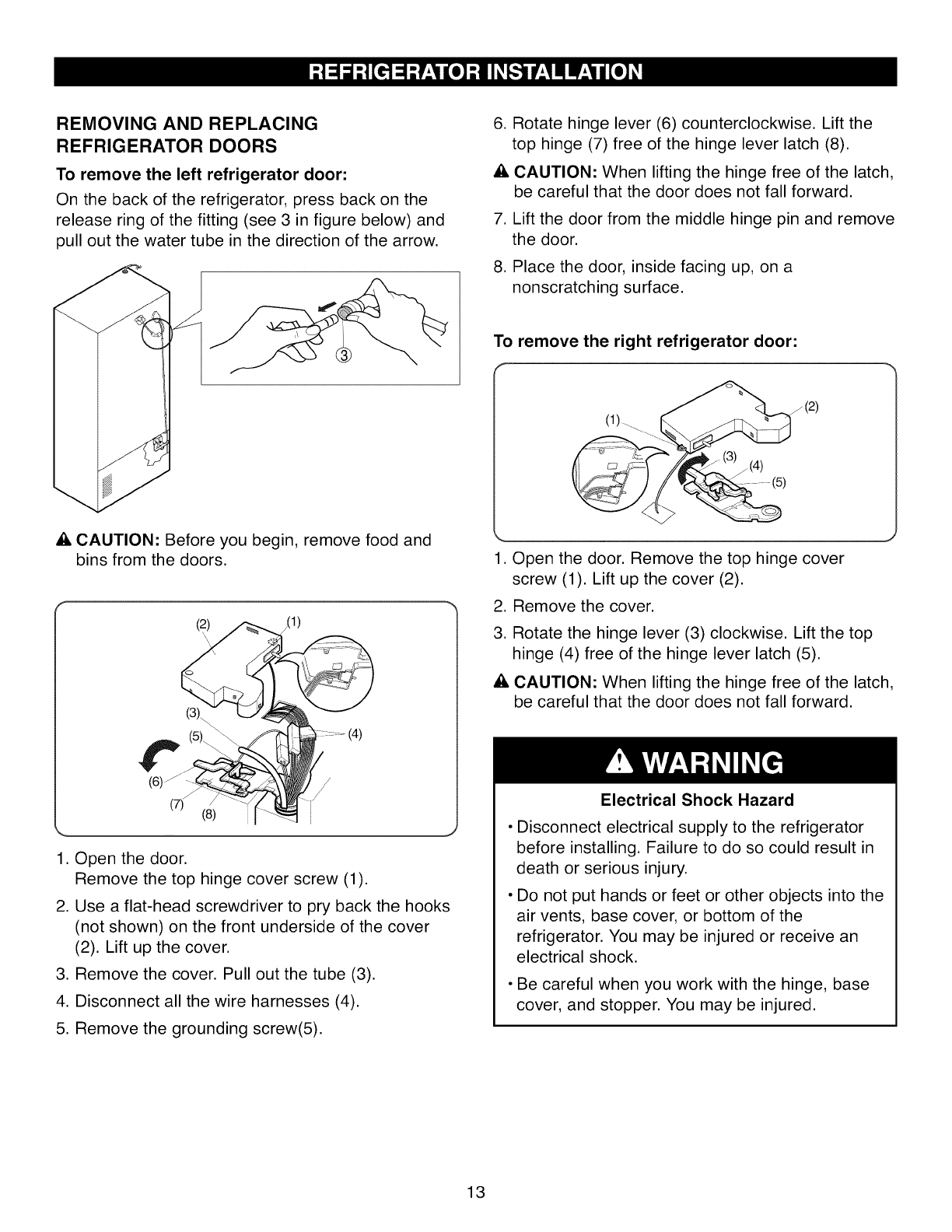

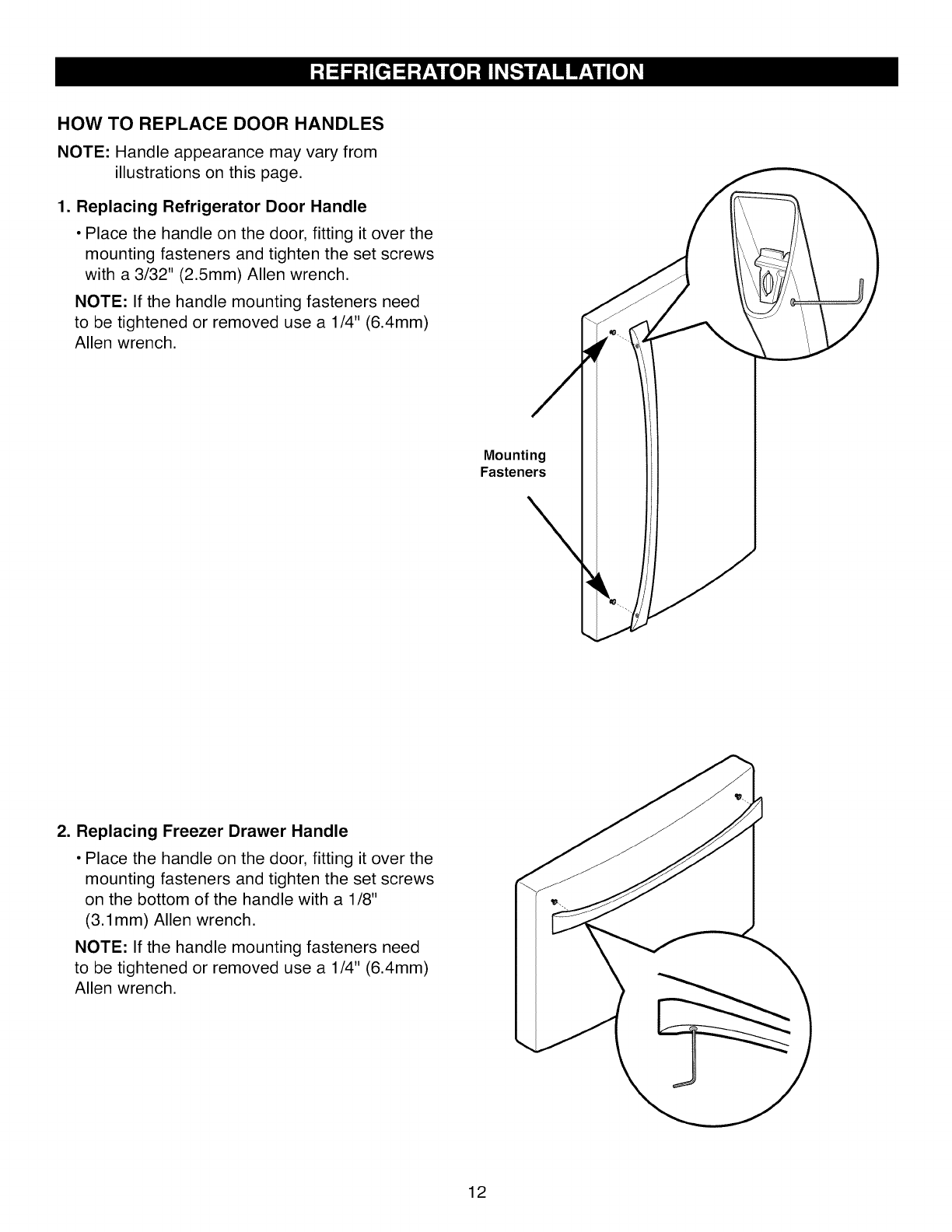

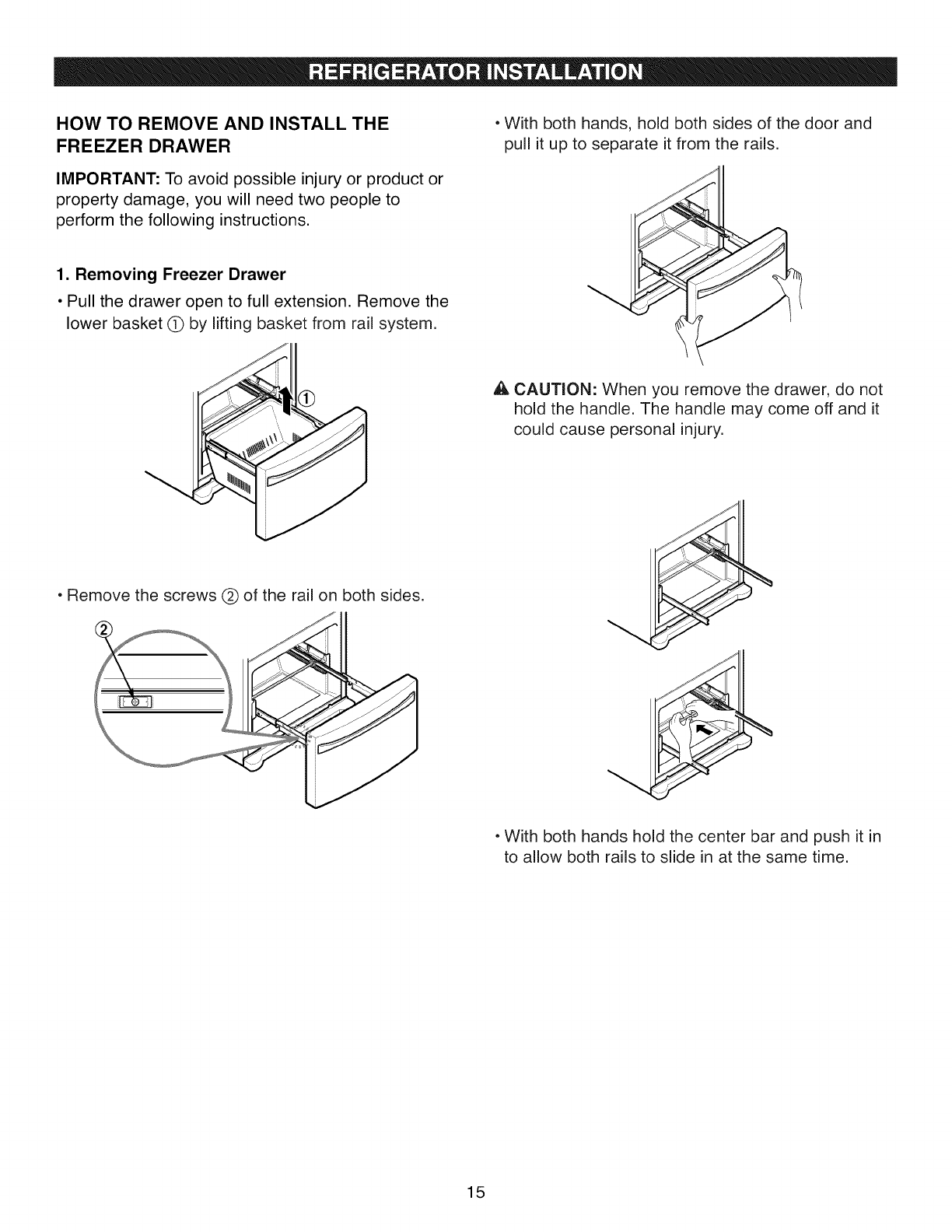

Removing And Replacing

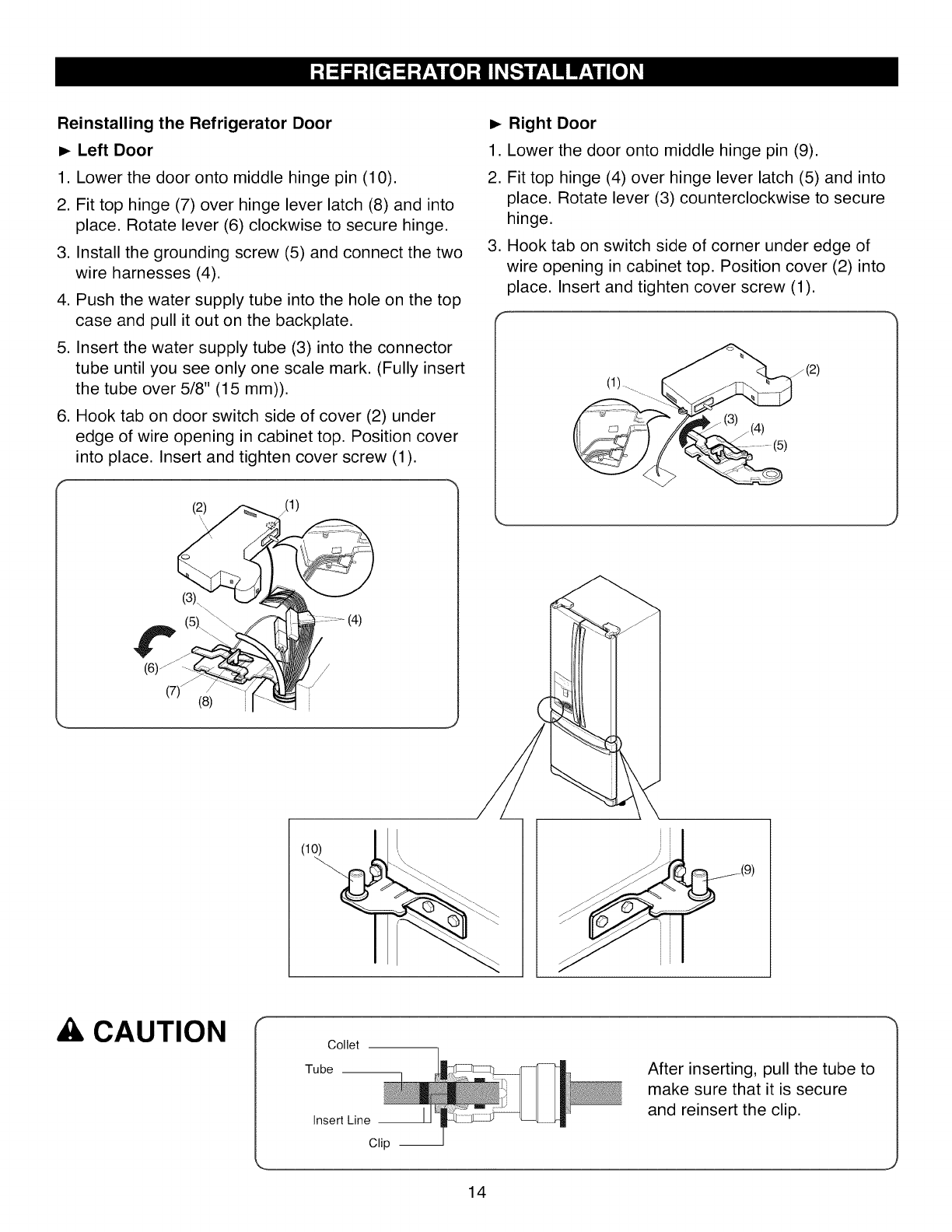

Your Refrigerator Handles And Doors 11-16

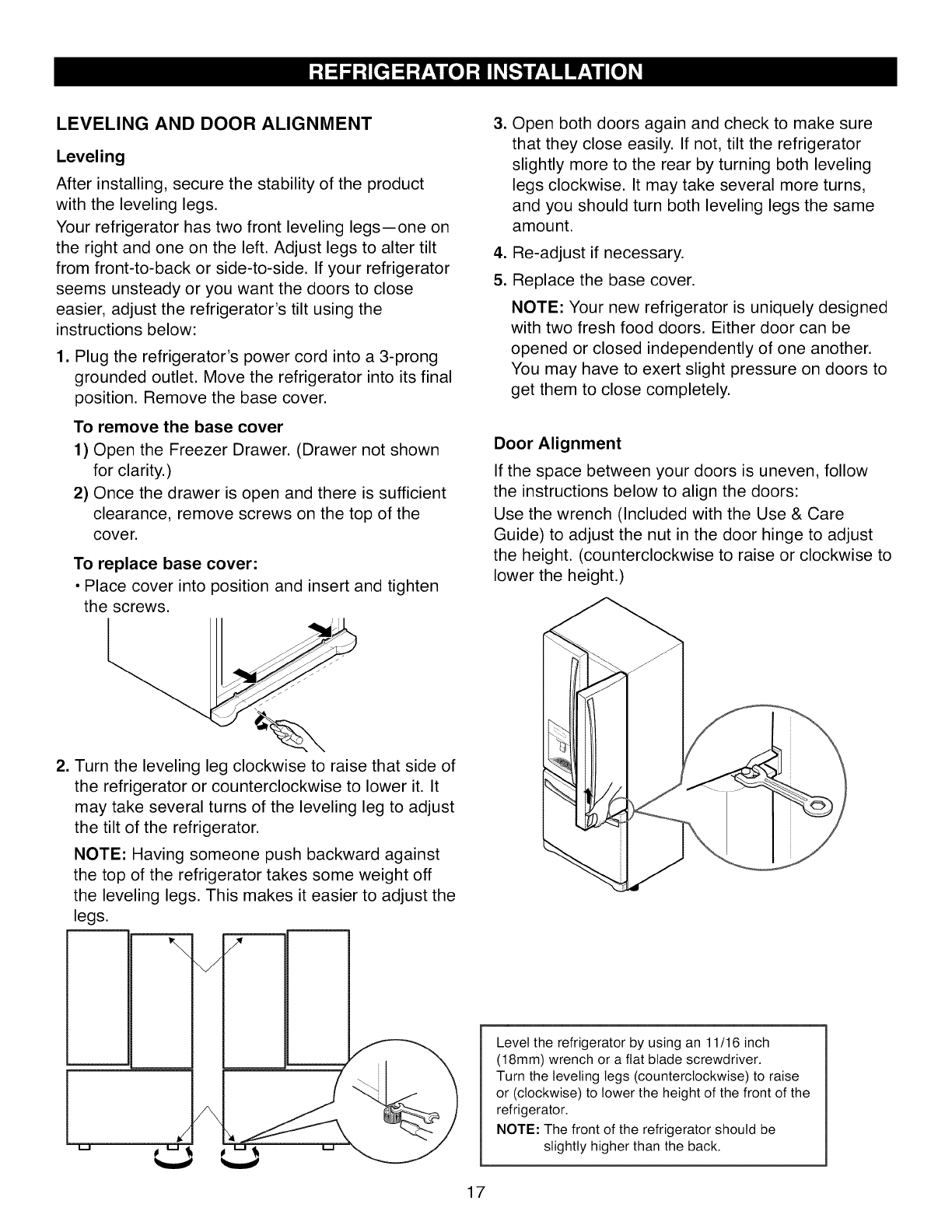

Leveling And Door Alignment 17

Base Cover 17

Using Your Refrigerator 18-27

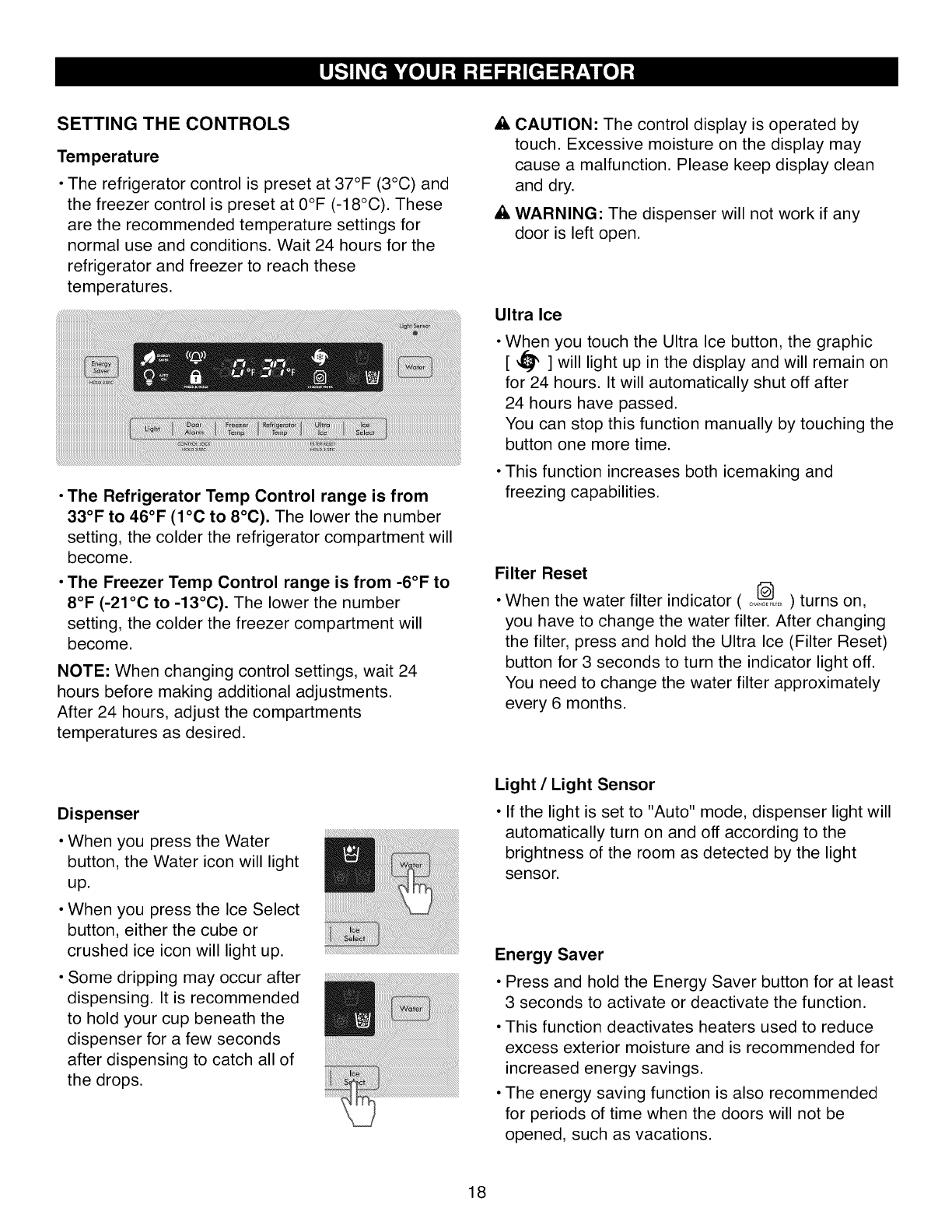

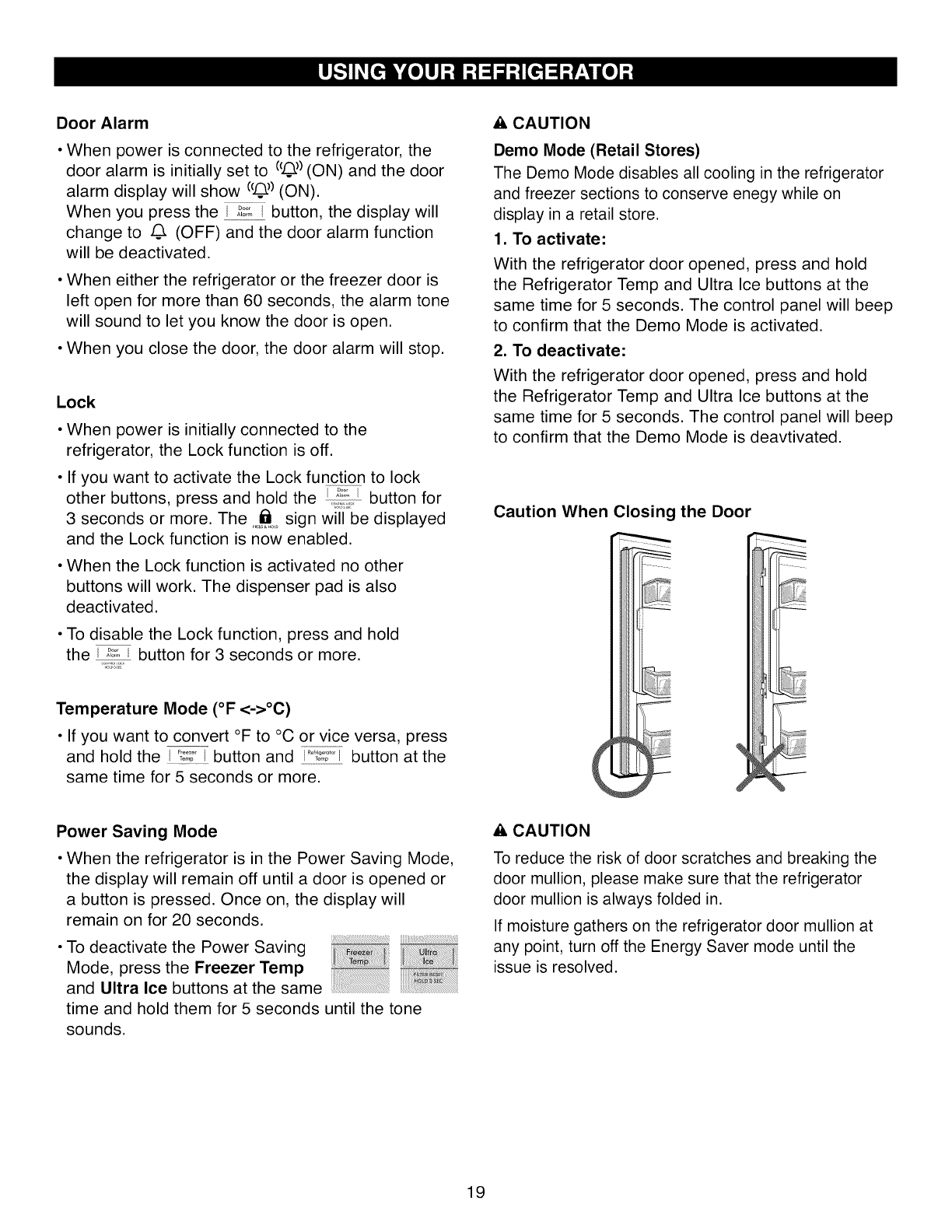

Setting The Controls 18-19

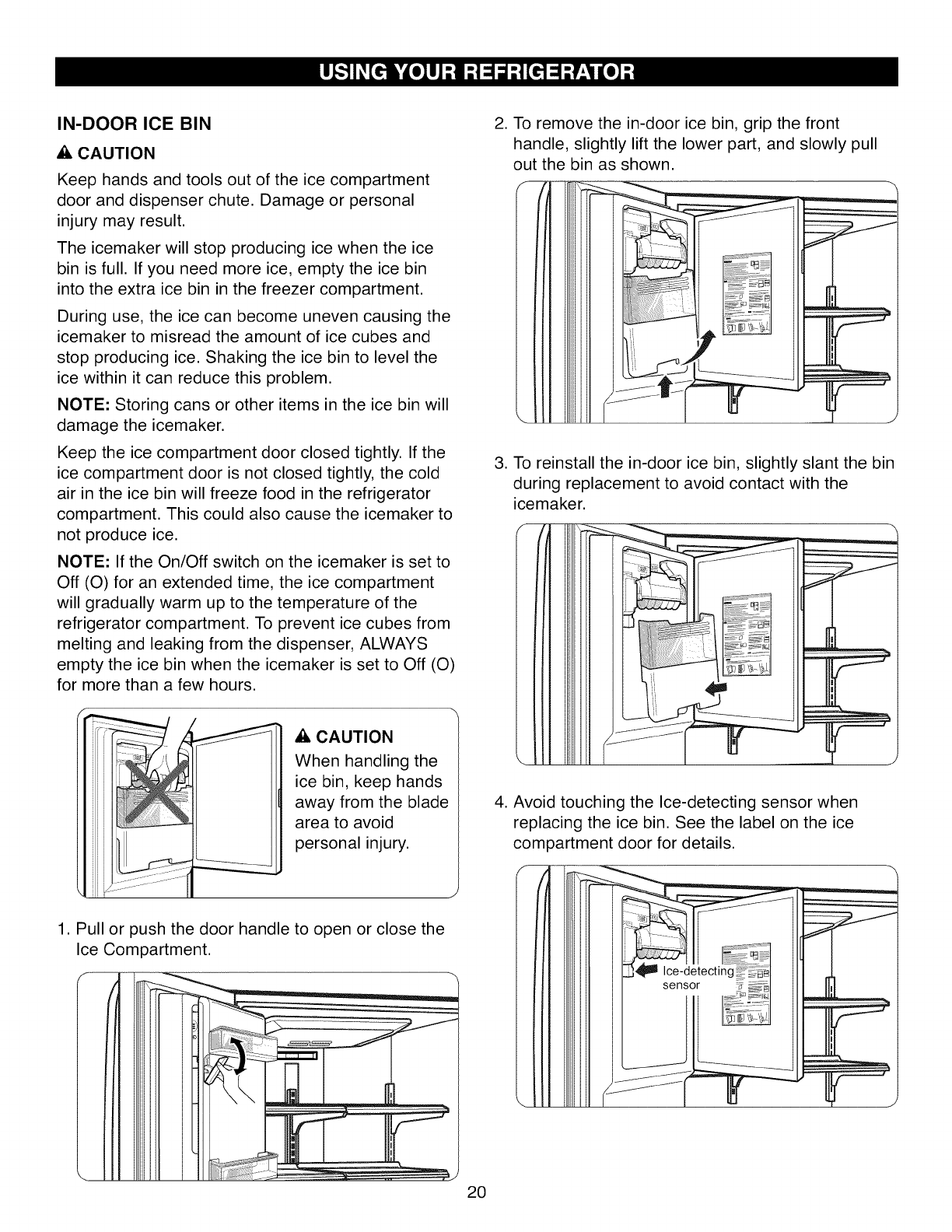

In-Door Ice Bin 20

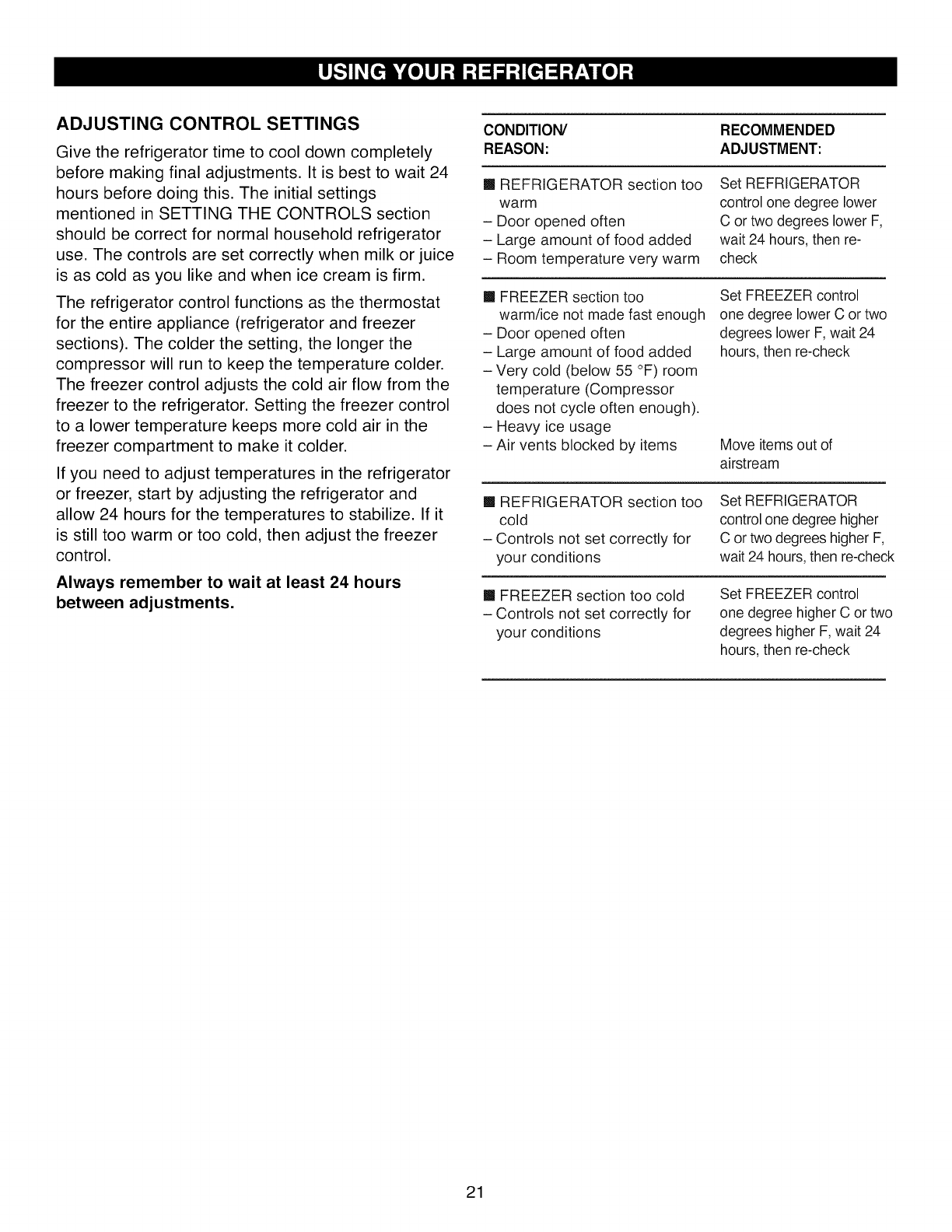

Adjusting Control Settings 21

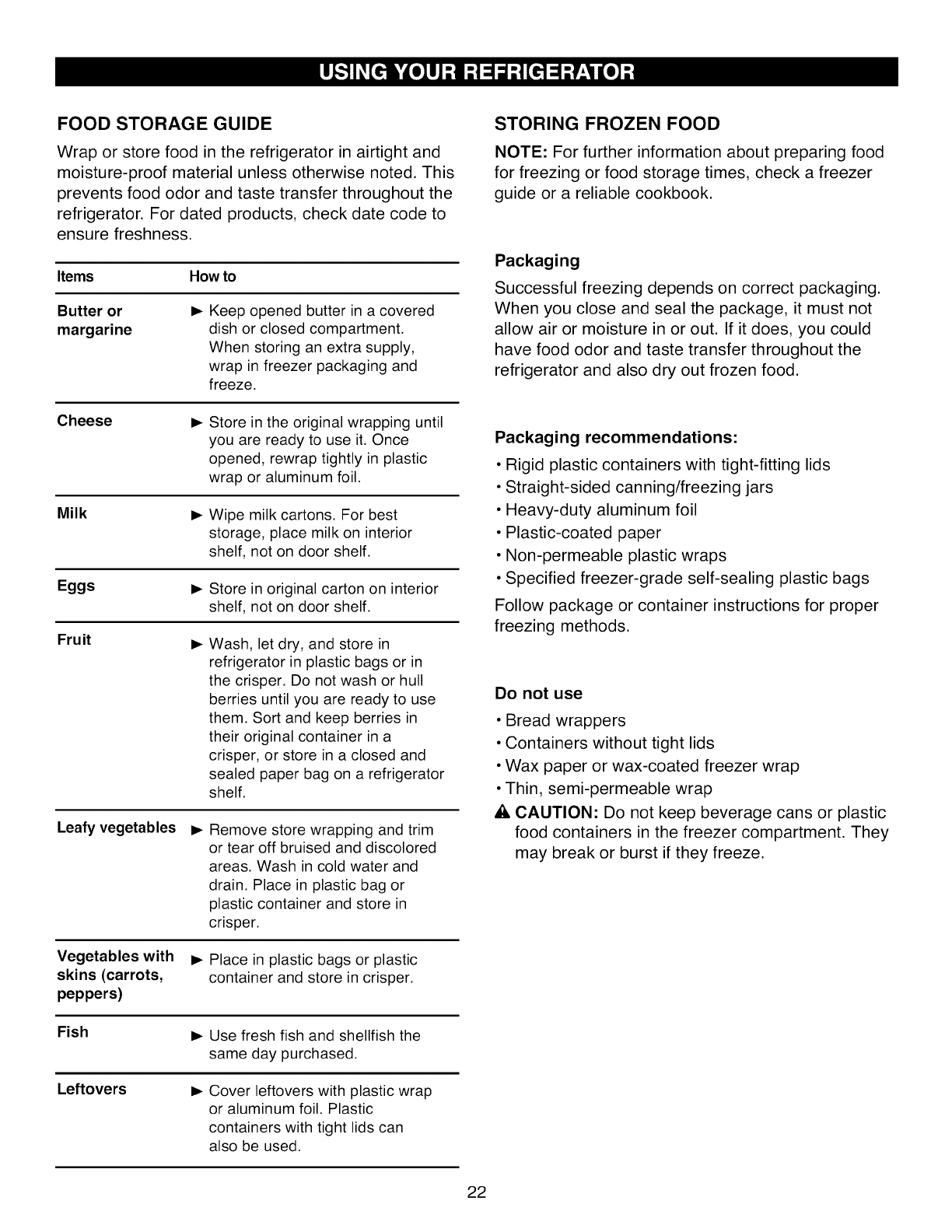

Food Storage Guide 22

Storing Frozen Food 22-23

D,-Refrigerator Section

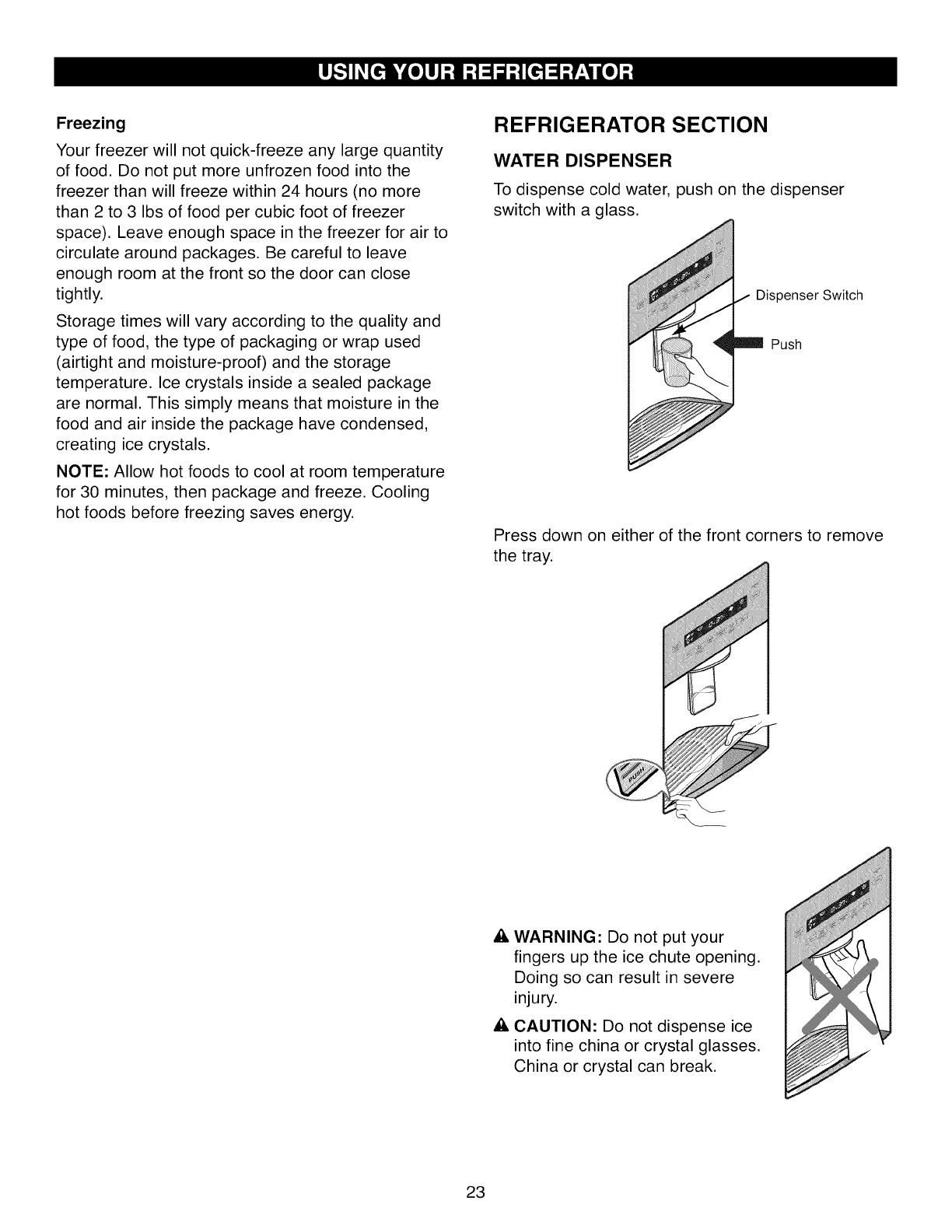

Water Dispenser 23

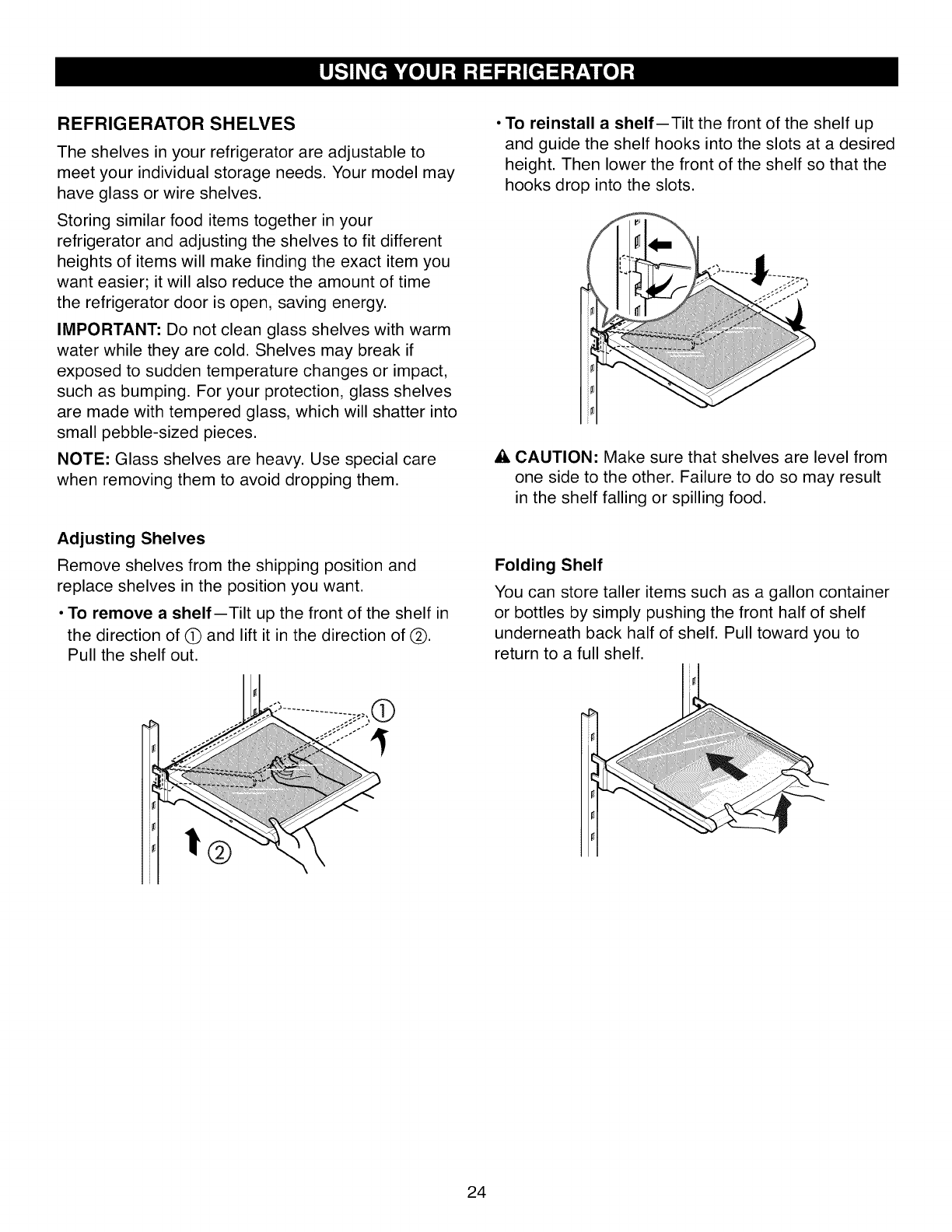

Refrigerator Shelves 24

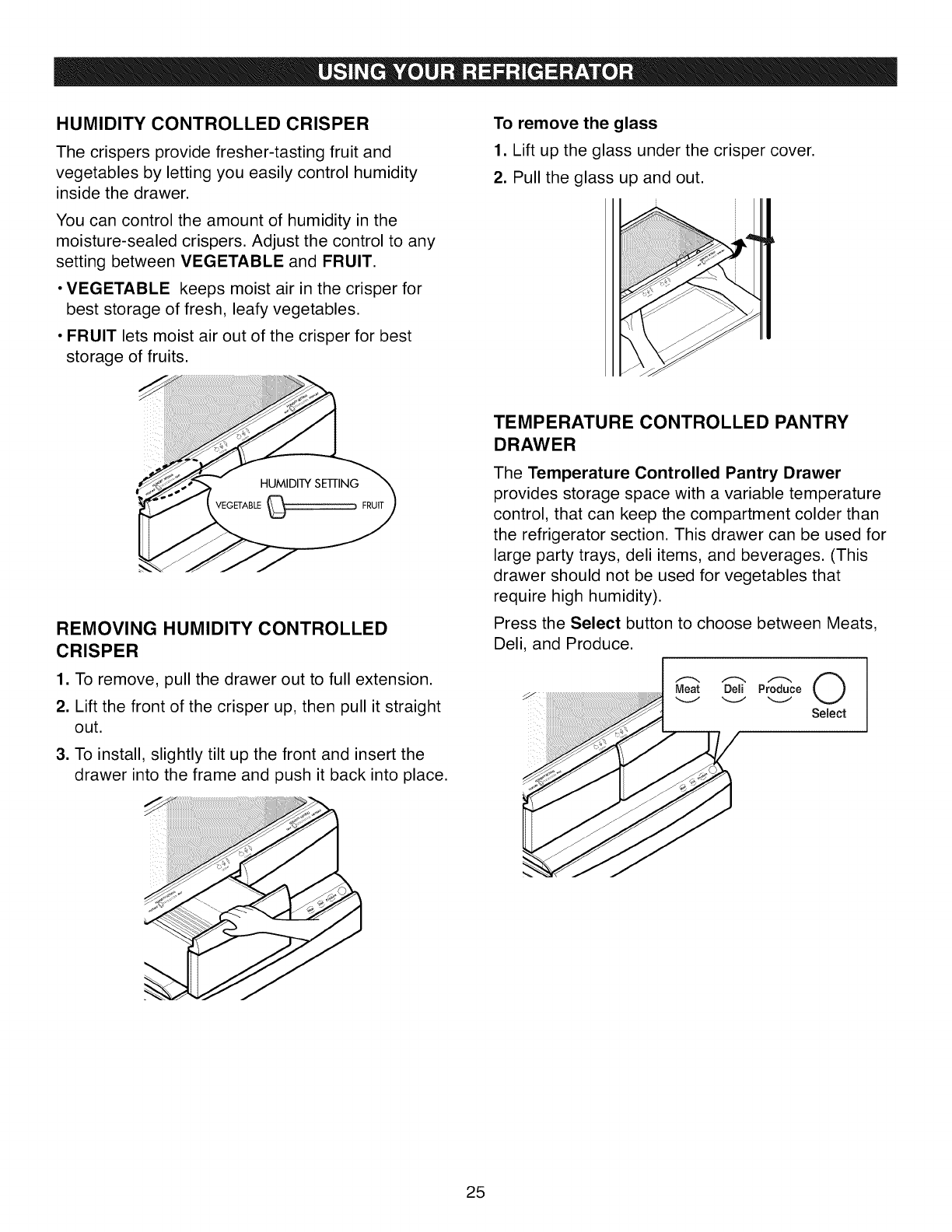

Humidity Controlled Crisper 25

Removing Humidity Controlled Crisper 25

Temperature Controlled Pantry Drawer 25

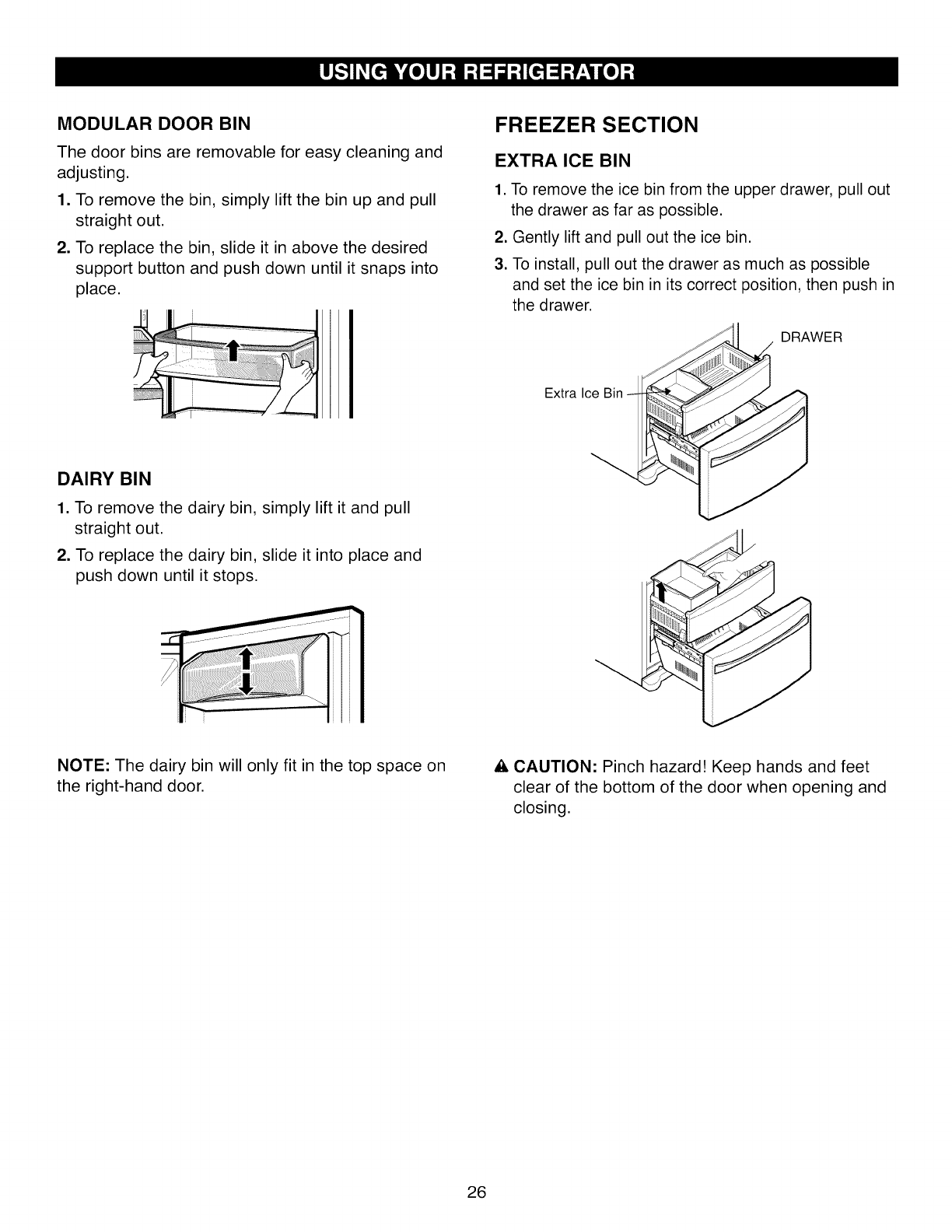

Modular Door Bin 26

Dairy Bin 26

D,-Freezer Section

Extra Ice Bin 26

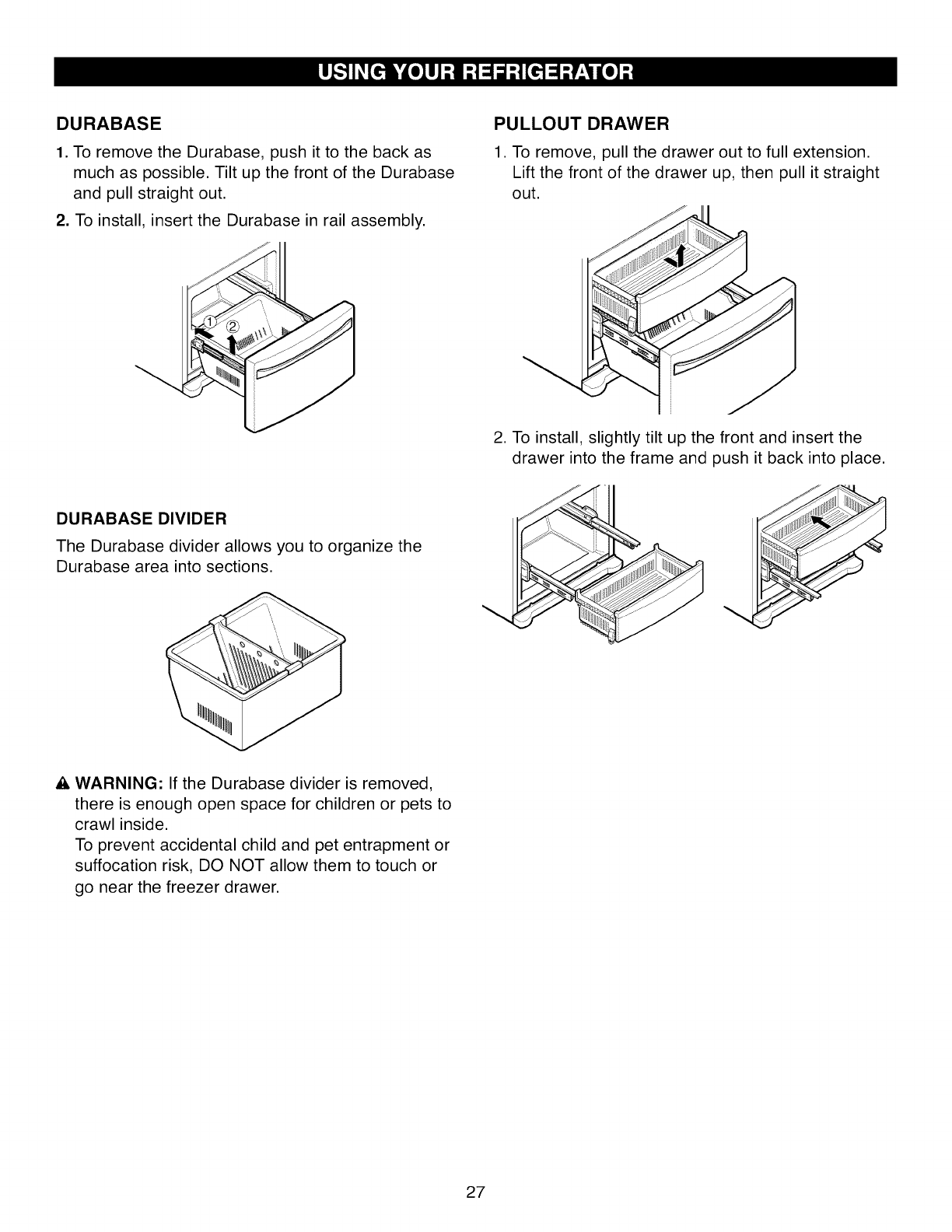

Durabase 27

Durabase Divider 27

PullOut Drawer 27

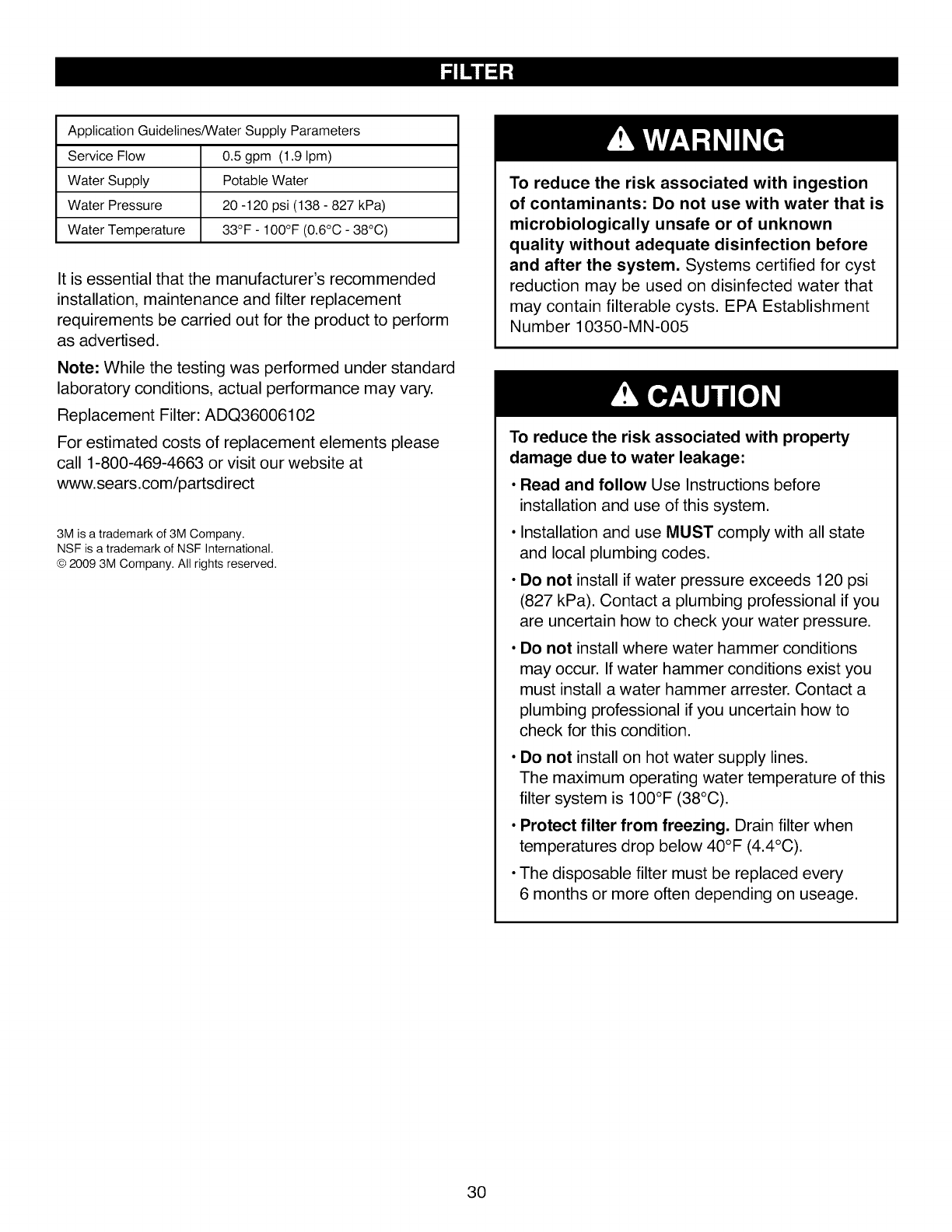

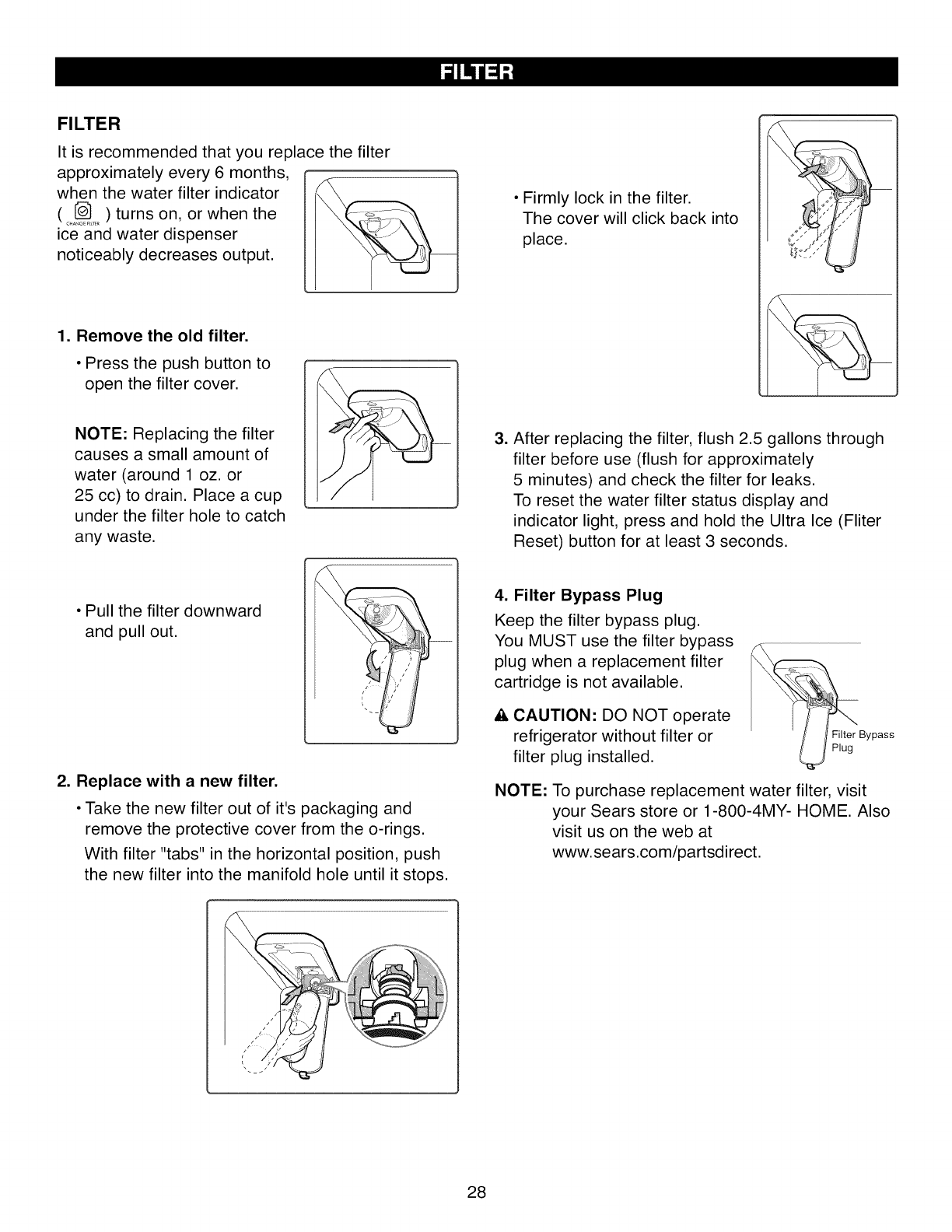

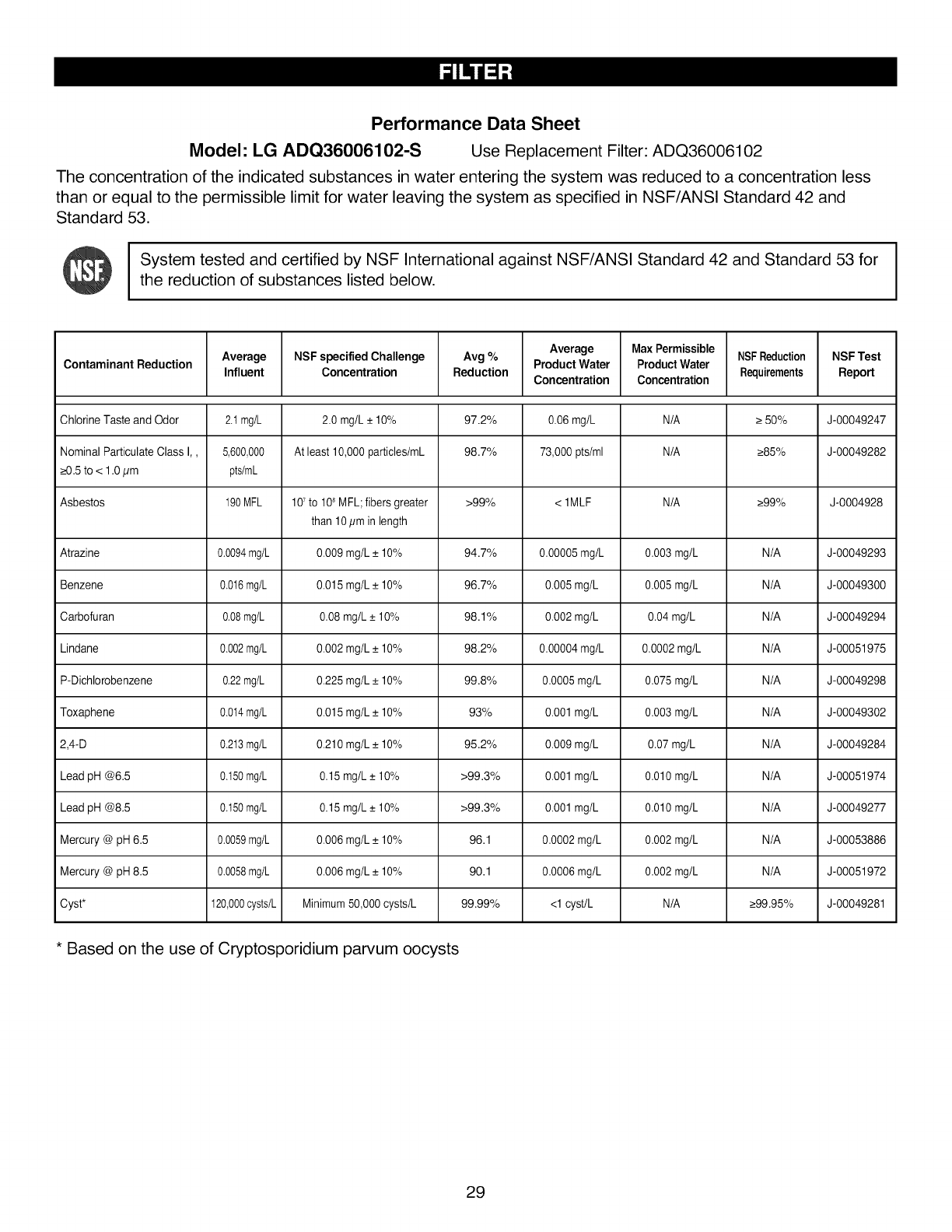

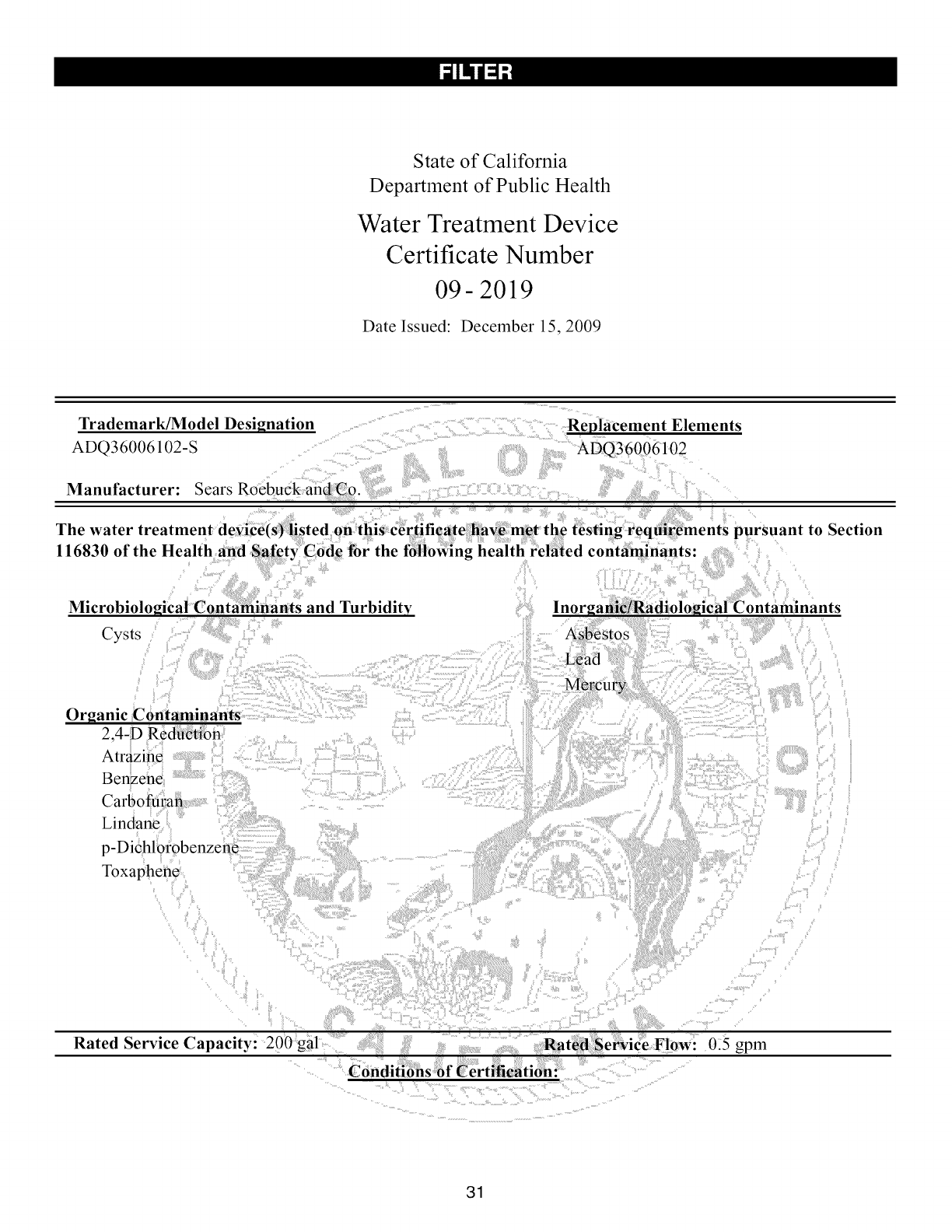

Filter 28-31

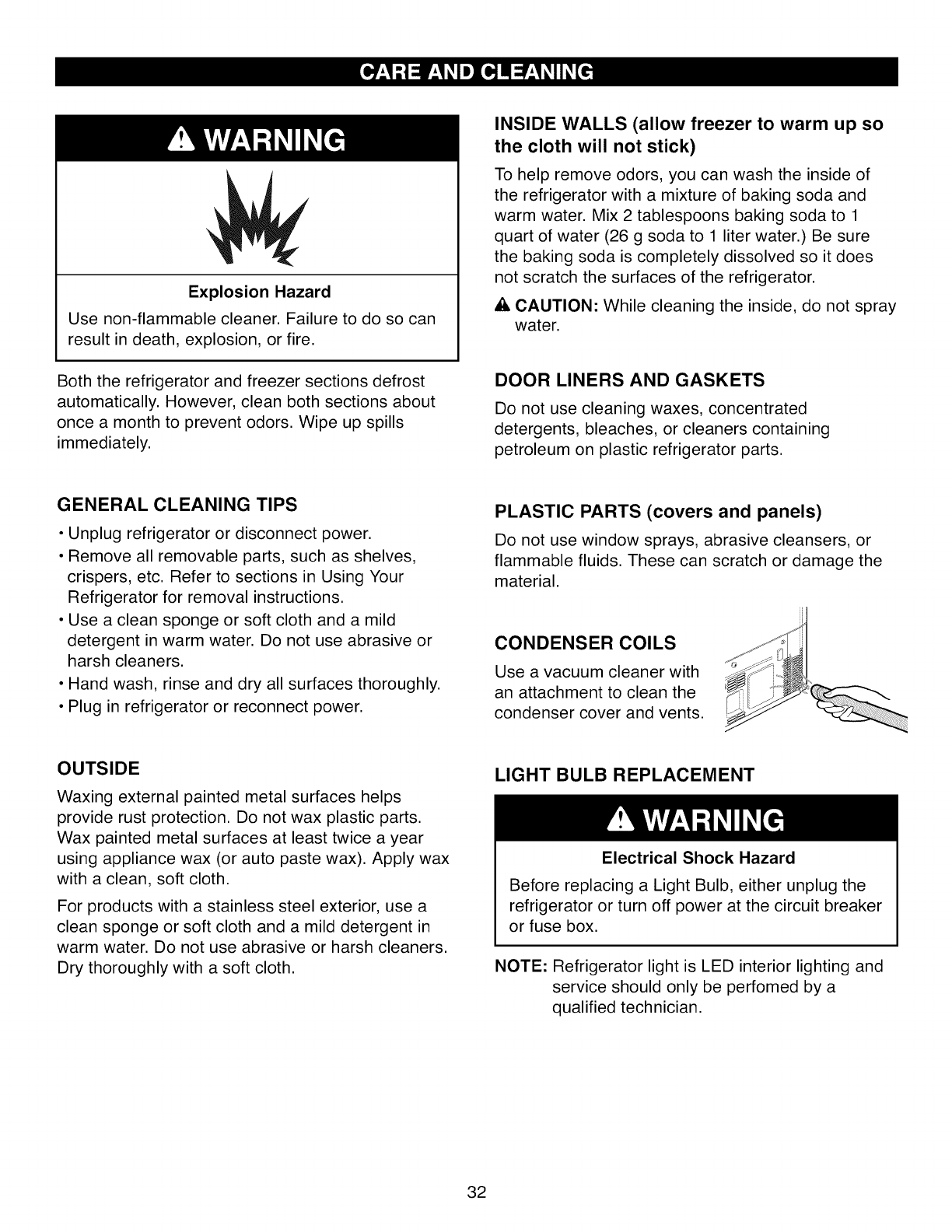

Care And Cleaning 32-33

General Cleaning Tips 32

Outside 32

Inside Walls 32

Door Liner And Gaskets 32

Plastic Parts 32

Condenser Coils 32

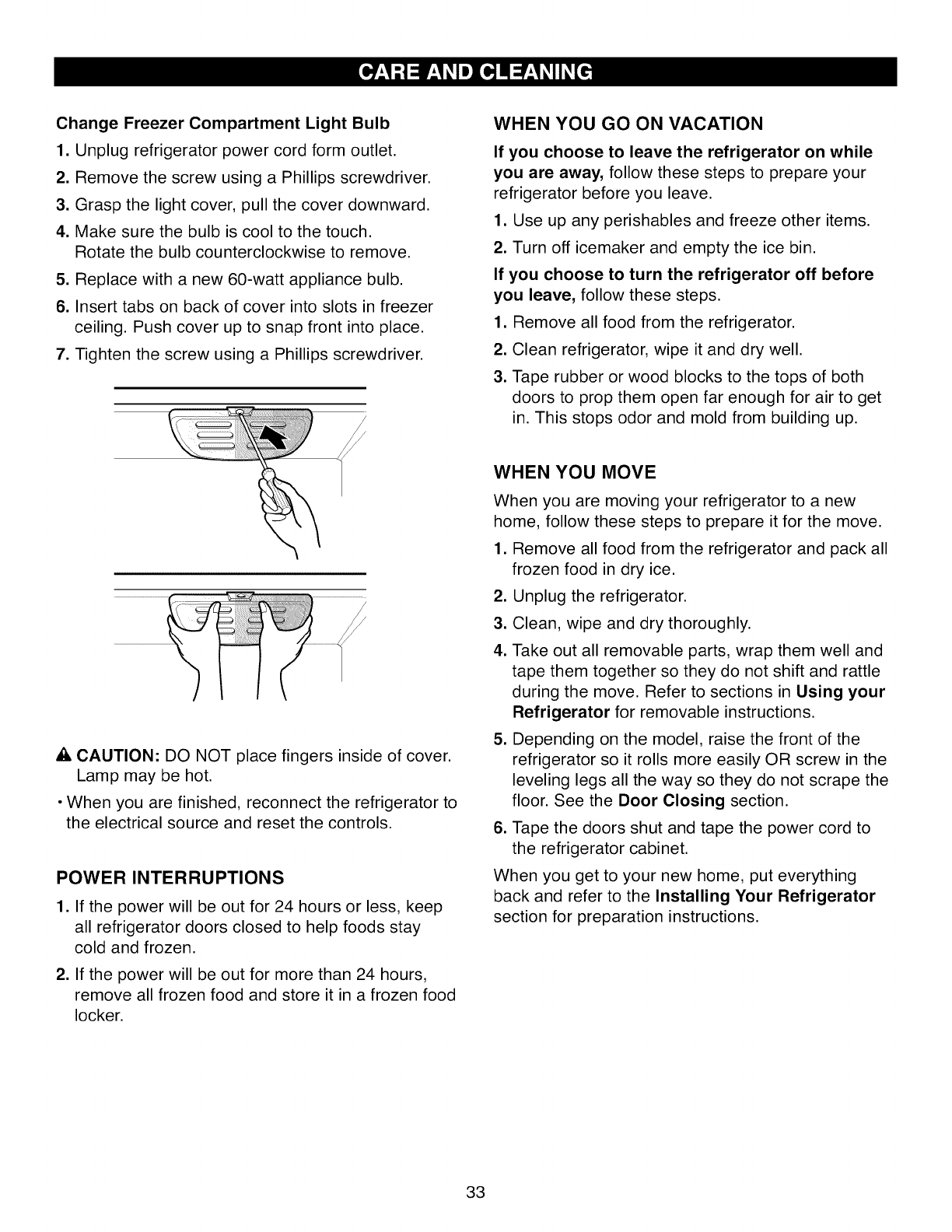

Light Bulb Replacement 32-33

Power Interruptions 33

When You Go On Vacation 33

When You Move 33

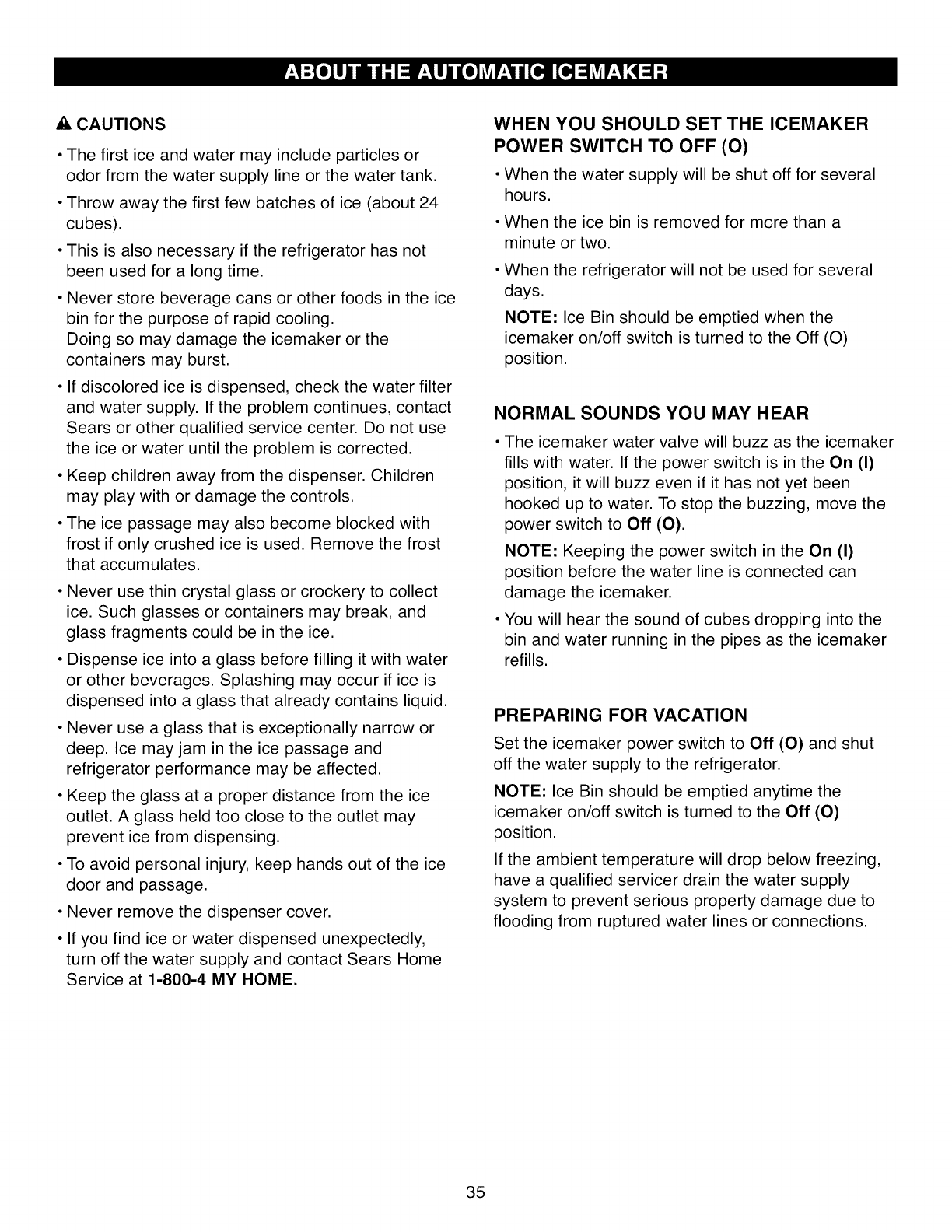

About The Automatic lcemaker 34-35

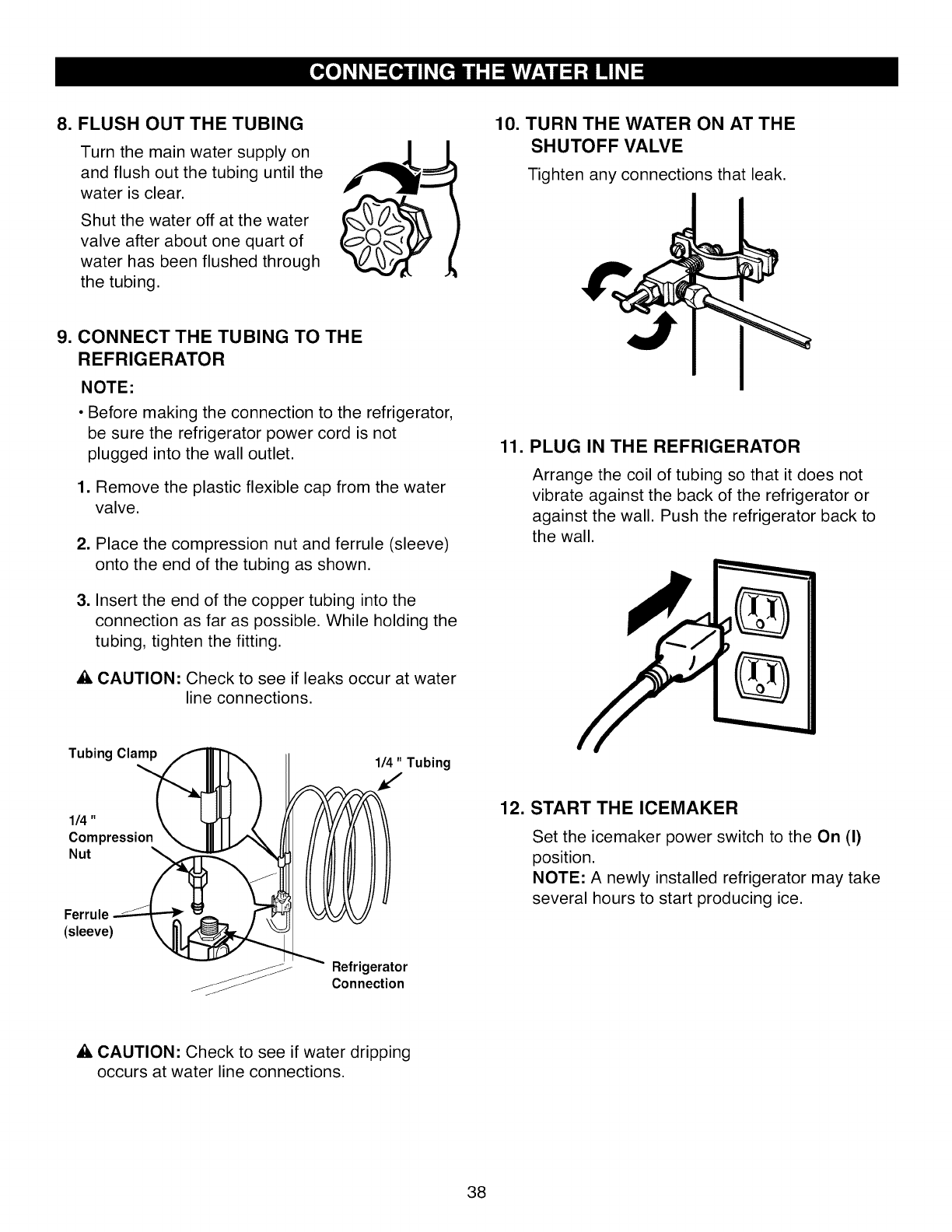

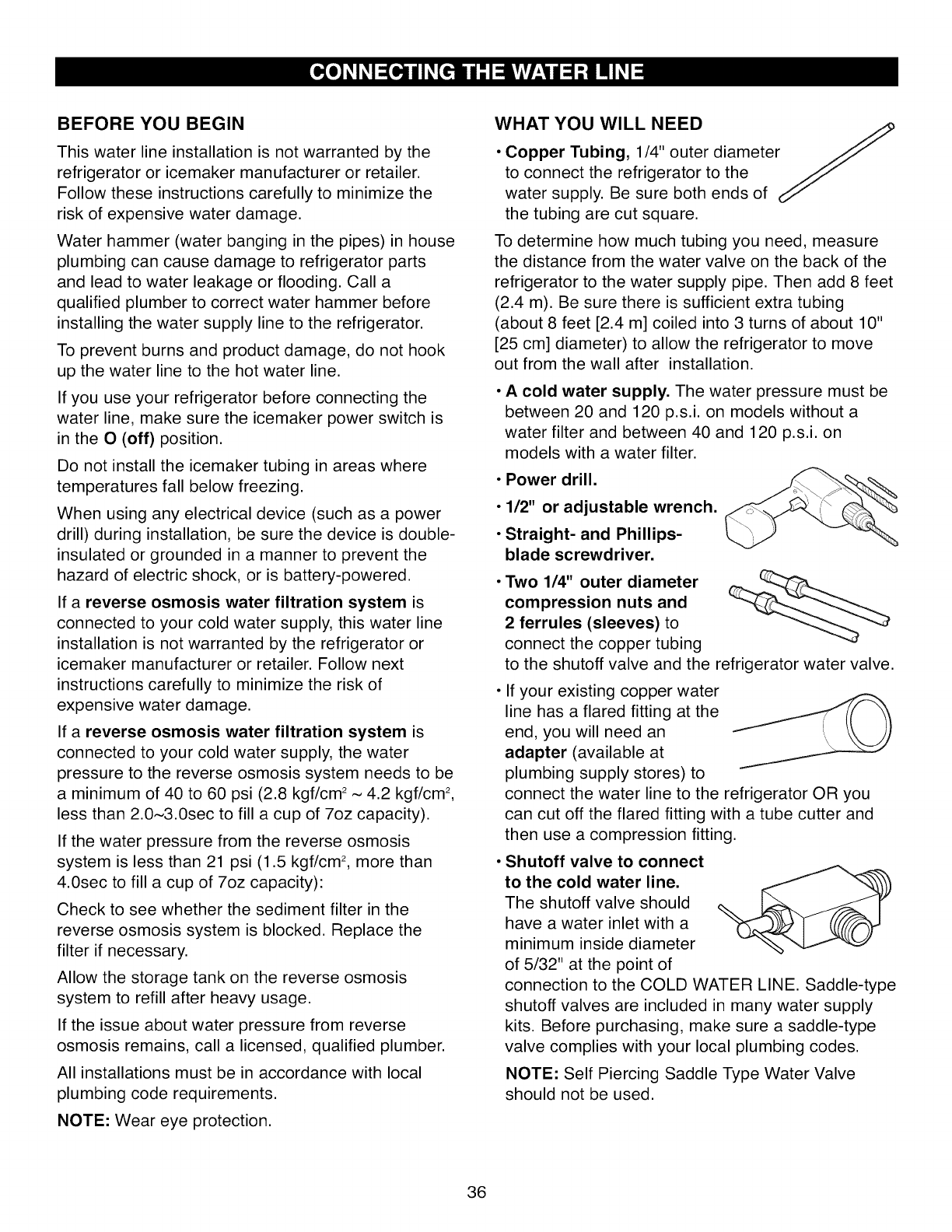

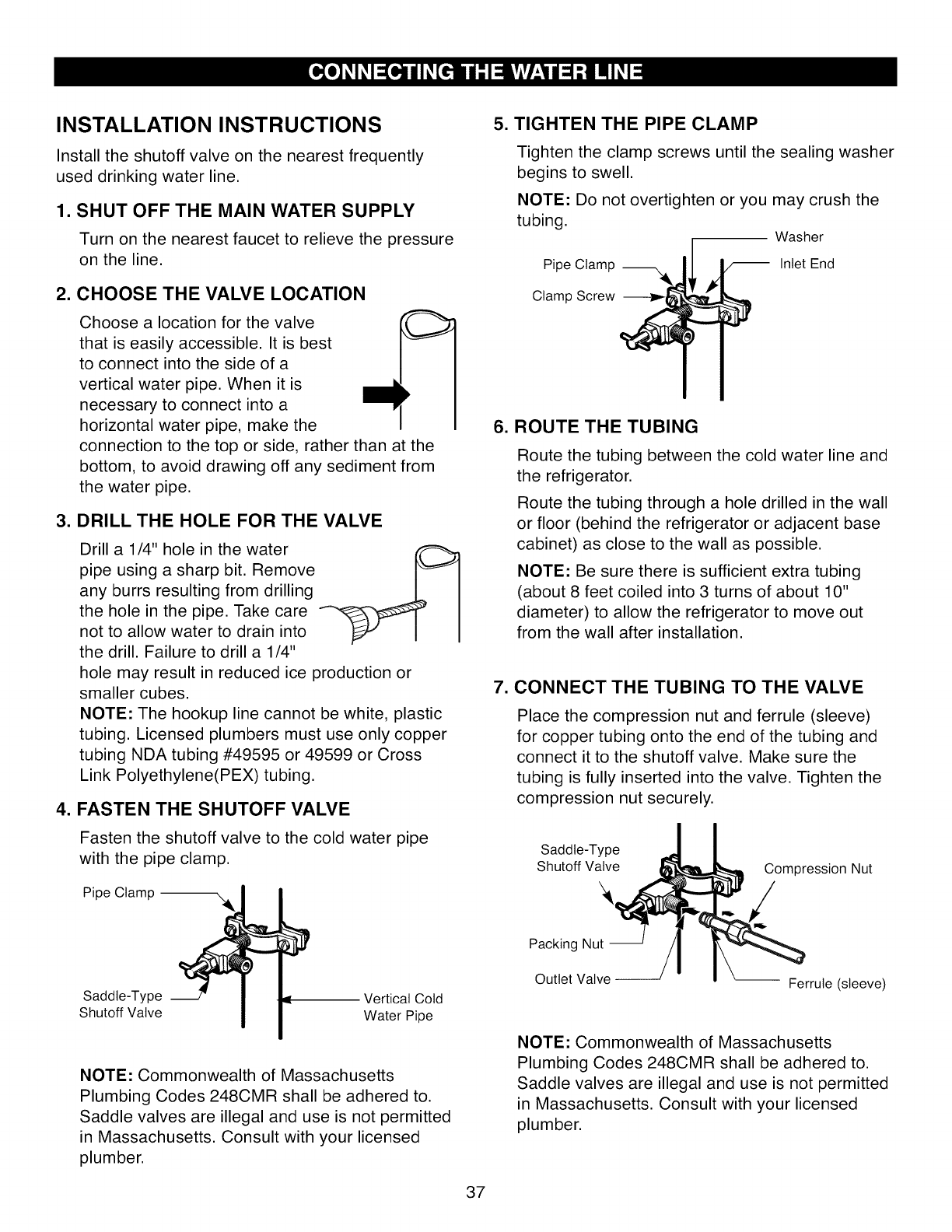

Connecting The Water Line 38-38

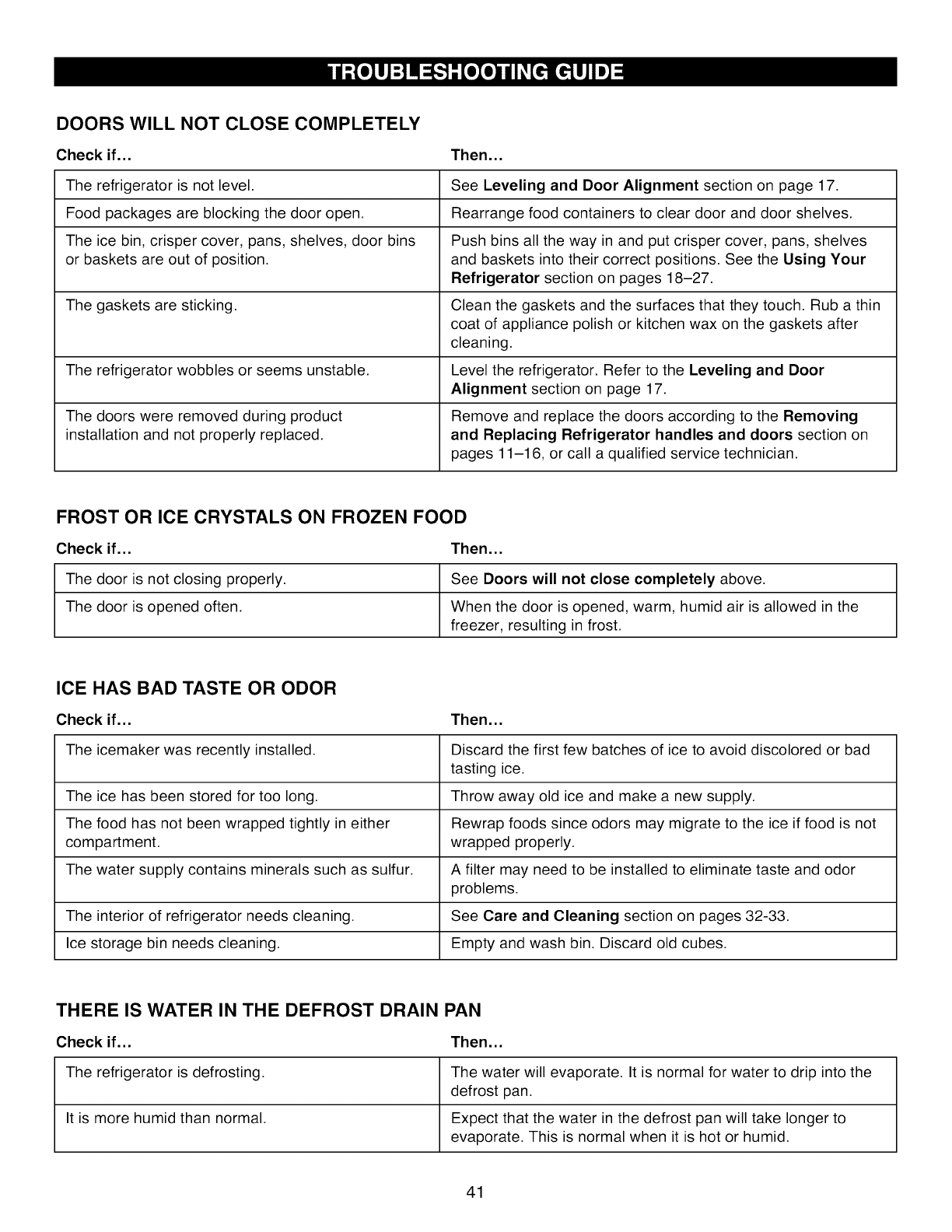

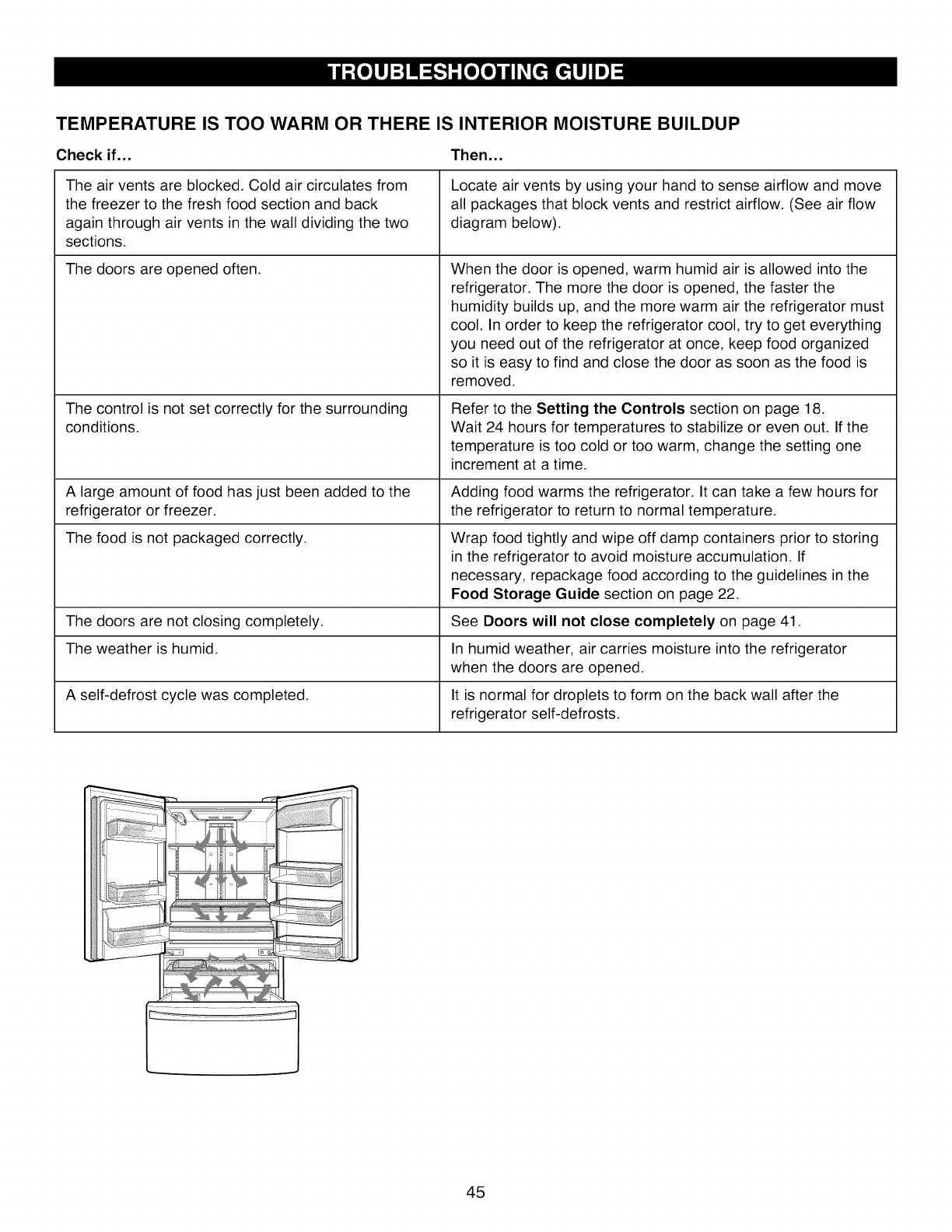

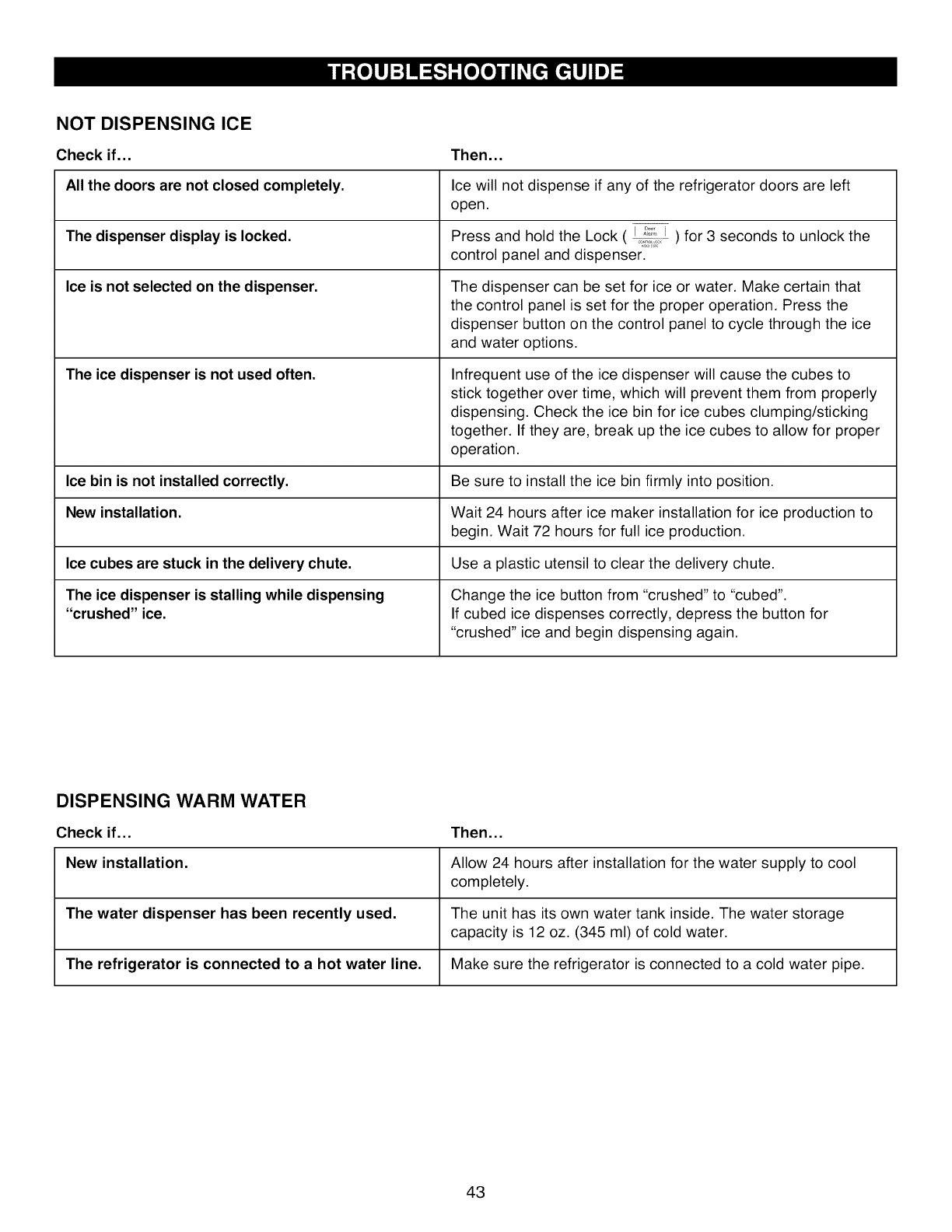

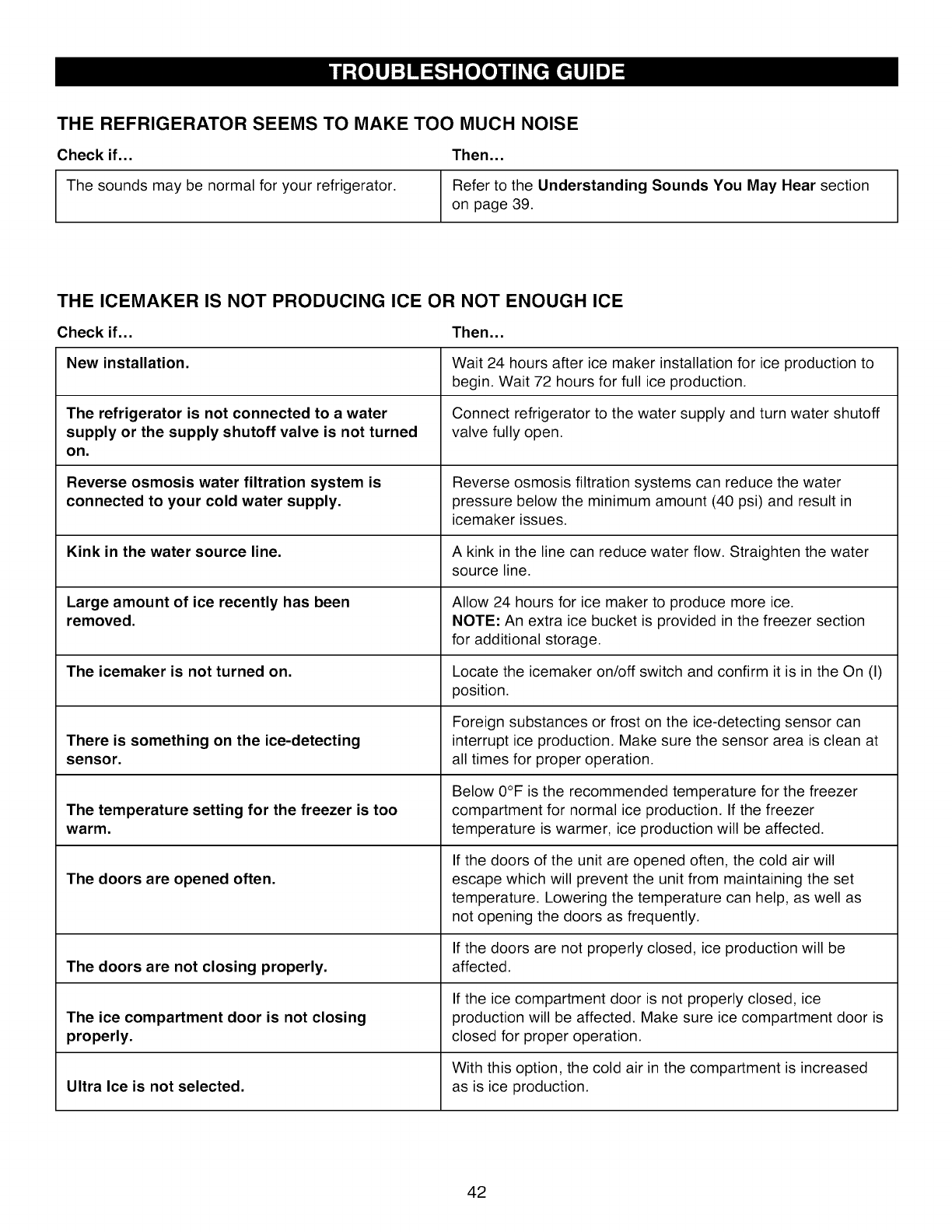

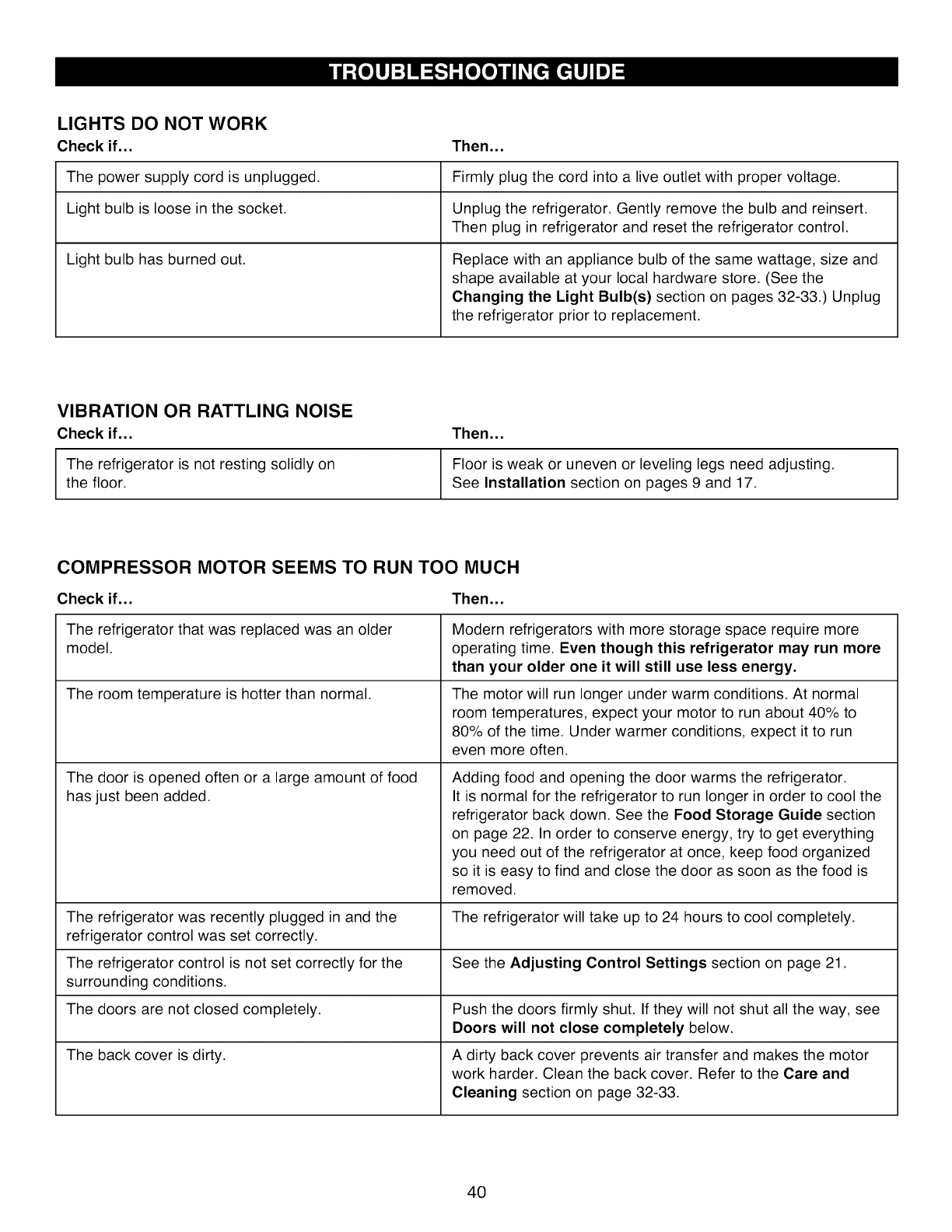

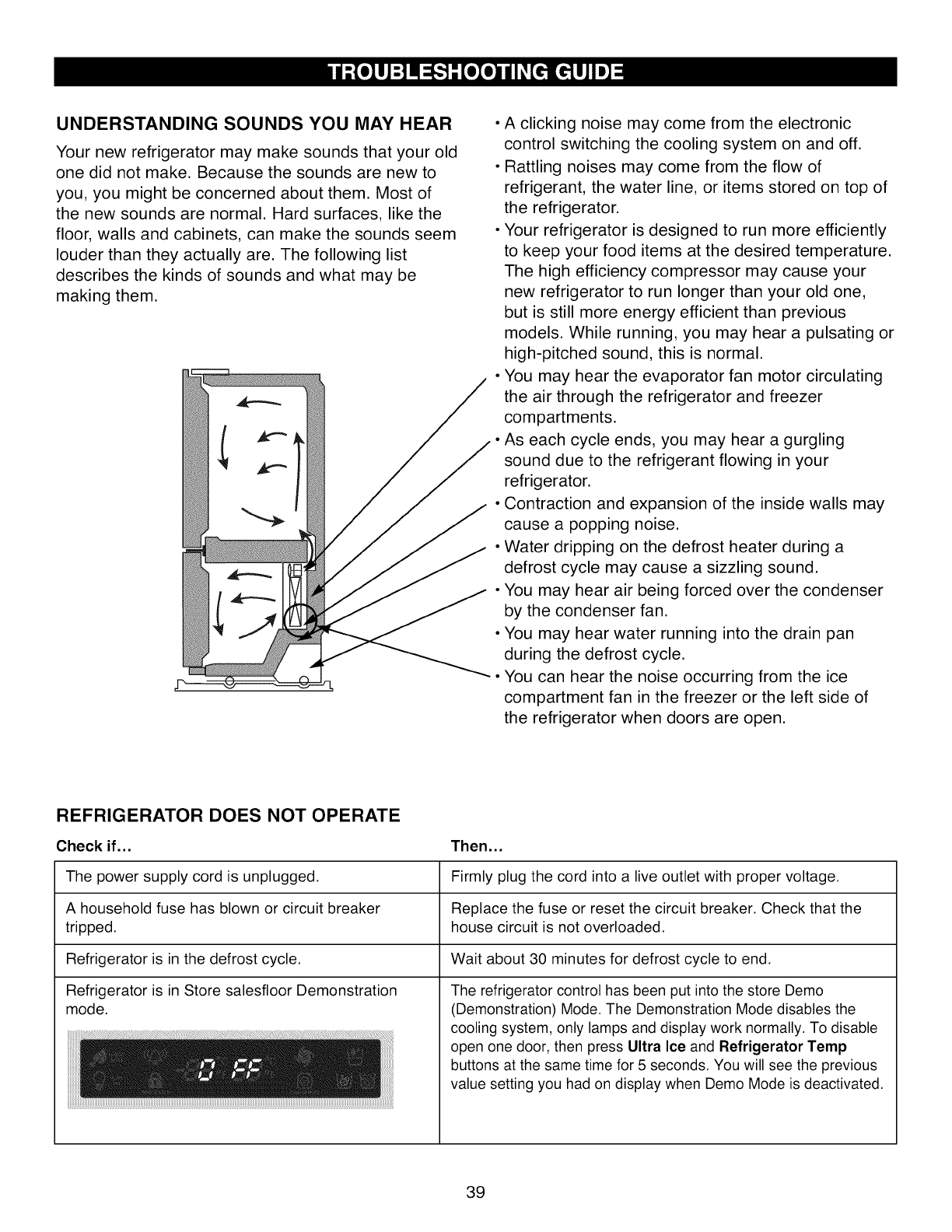

Troubleshooting Guide 39-45

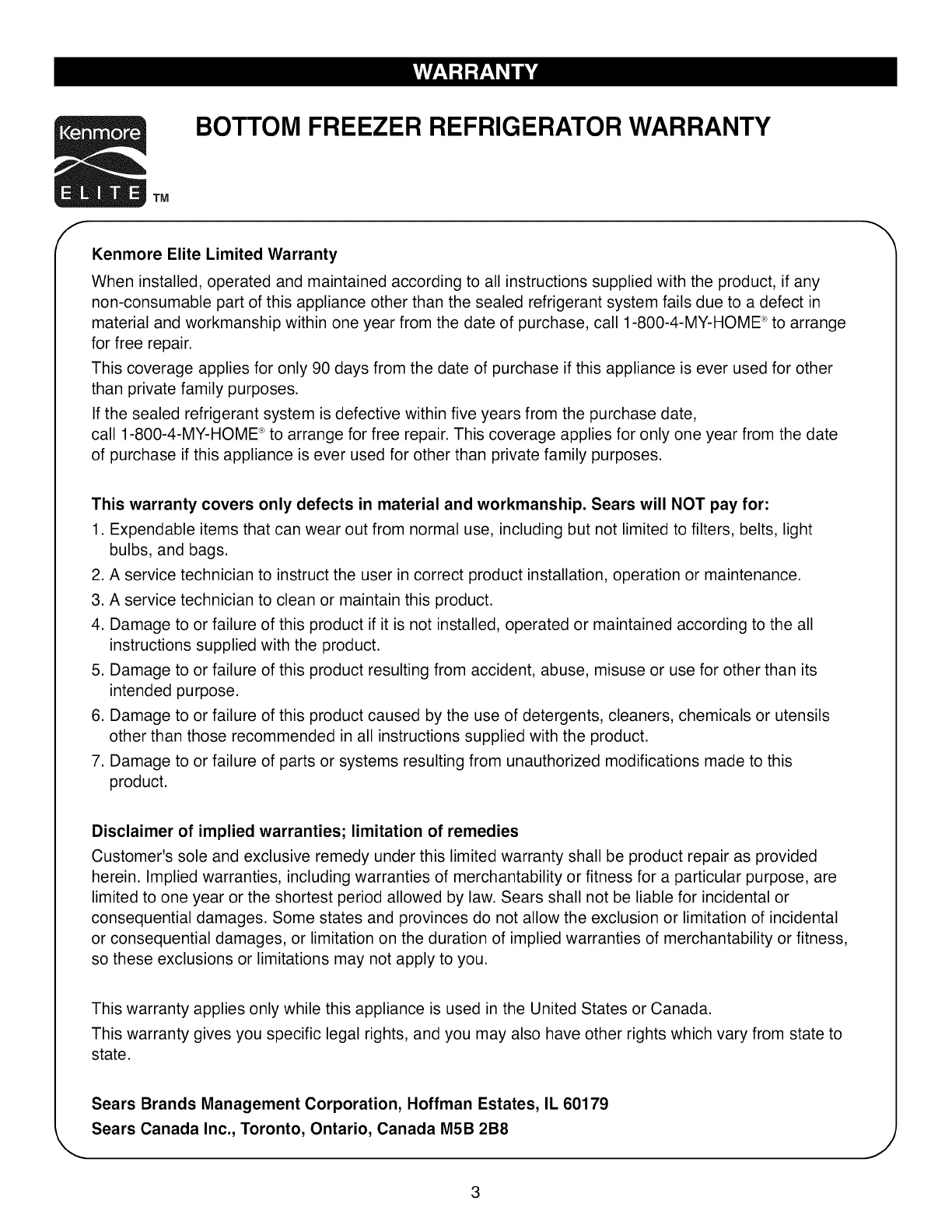

BOTTOM FREEZER REFRIGERATOR WARRANTY

Kenmore Elite Limited Warranty

When installed, operated and maintained according to all instructions supplied with the product, if any

non-consumable part of this appliance other than the sealed refrigerant system fails due to a defect in

material and workmanship within one year from the date of purchase, call 1-800-4-MY-HOME ®to arrange

for free repair.

This coverage applies for only 90 days from the date of purchase if this appliance is ever used for other

than private family purposes.

If the sealed refrigerant system is defective within five years from the purchase date,

call 1-800-4-MY-HOME ®to arrange for free repair. This coverage applies for only one year from the date

of purchase if this appliance is ever used for other than private family purposes.

This warranty covers only defects in material and workmanship. Sears will NOT pay for:

1. Expendable items that can wear out from normal use, including but not limited to filters, belts, light

bulbs, and bags.

2. A service technician to instruct the user in correct product installation, operation or maintenance.

3. A service technician to clean or maintain this product.

4. of this product if it is not installed, operated or maintained according to the all

with the product.

5. of this product resulting from accident, abuse, misuse or use for other than its

Damage to or failure

instructions supplied

Damage to or failure

intended purpose.

6. Damage to or failure of this product caused by the use of detergents, cleaners, chemicals or utensils

other than those recommended in all instructions supplied with the product.

7. Damage to or failure of parts or systems resulting from unauthorized modifications made to this

product.

Disclaimer of implied warranties; limitation of remedies

Customer's sole and exclusive remedy under this limited warranty shall be product repair as provided

herein. Implied warranties, including warranties of merchantability or fitness for a particular purpose, are

limited to one year or the shortest period allowed by law. Sears shall not be liable for incidental or

consequential damages. Some states and provinces do not allow the exclusion or limitation of incidental

or consequential damages, or limitation on the duration of implied warranties of merchantability or fitness,

so these exclusions or limitations may not apply to you.

This warranty applies only while this appliance is used in the United States or Canada.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to

state.

Sears Brands Management Corporation, Hoffman Estates, IL 60179

Sears Canada Inc., Toronto, Ontario, Canada M5B 2B8 J

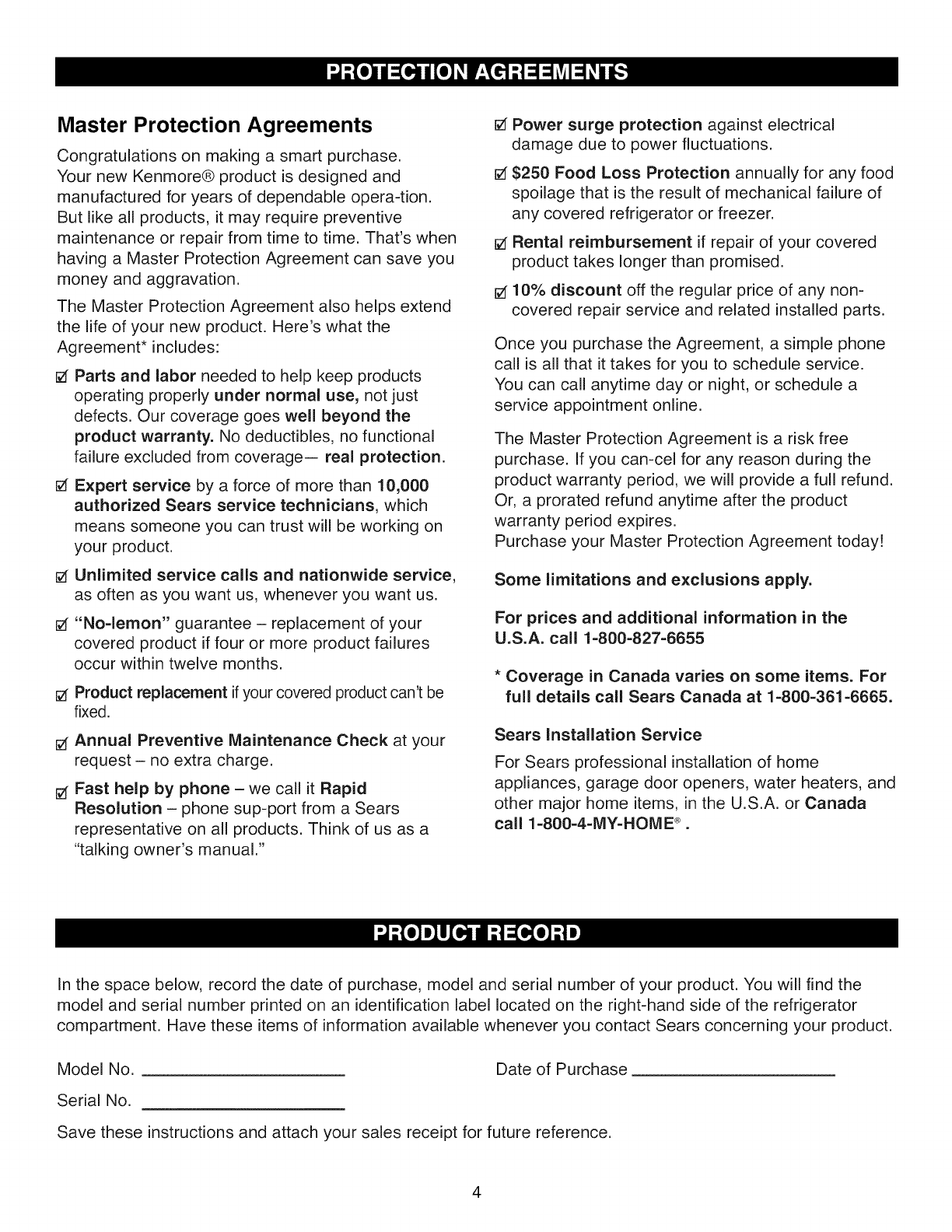

Master Protection Agreements

Congratulations on making a smart purchase.

Your new Kenmore® product is designed and

manufactured for years of dependable opera-tion.

But like all products, it may require preventive

maintenance or repair from time to time. That's when

having a Master Protection Agreement can save you

money and aggravation.

The Master Protection Agreement also helps extend

the life of your new product. Here's what the

Agreement* includes:

Parts and labor needed to help keep products

operating properly under normal use, not just

defects. Our coverage goes well beyond the

product warranty. No deductibles, no functional

failure excluded from coverage-- real protection.

dExpert service by a force of more than 10,000

authorized Sears service technicians, which

means someone you can trust will be working on

your product.

dUnlimited service calls and nationwide service,

as often as you want us, whenever you want us.

"No-lemon" guarantee - replacement of your

covered product if four or more product failures

occur within twelve months.

I_ Product replacement if your covered product can't be

fixed.

Annual Preventive Maintenance Check at your

request- no extra charge.

Fast help by phone - we call it Rapid

Resolution -phone sup-port from a Sears

representative on all products. Think of us as a

"talking owner's manual."

Ef Power surge protection against electrical

damage due to power fluctuations.

Id $250 Food Loss Protection annually for any food

spoilage that is the result of mechanical failure of

any covered refrigerator or freezer.

E[ Rental reimbursement if repair of your covered

product takes longer than promised.

Id 10% discount off the regular price of any non-

covered repair service and related installed parts.

Once you purchase the Agreement, a simple phone

call is all that it takes for you to schedule service.

You can call anytime day or night, or schedule a

service appointment online.

The Master Protection Agreement is a risk free

purchase. If you can-cel for any reason during the

product warranty period, we will provide a full refund.

Or, a prorated refund anytime after the product

warranty period expires.

Purchase your Master Protection Agreement today!

Some limitations and exclusions apply.

For prices and additional information in the

U.S.A. call 1-800-827-6655

* Coverage in Canada varies on some items. For

full details call Sears Canada at 1-800-361-6665.

Sears installation Service

For Sears professional installation of home

appliances, garage door openers, water heaters, and

other major home items, in the U.S.A. or Canada

call 1-800-4-MY-HOME ®.

In the space below, record the date of purchase, model and serial number of your product. You will find the

model and serial number printed on an identification label located on the right-hand side of the refrigerator

compartment. Have these items of information available whenever you contact Sears concerning your product.

Model No. Date of Purchase

Serial No.

Save these instructions and attach your sales receipt for future reference.

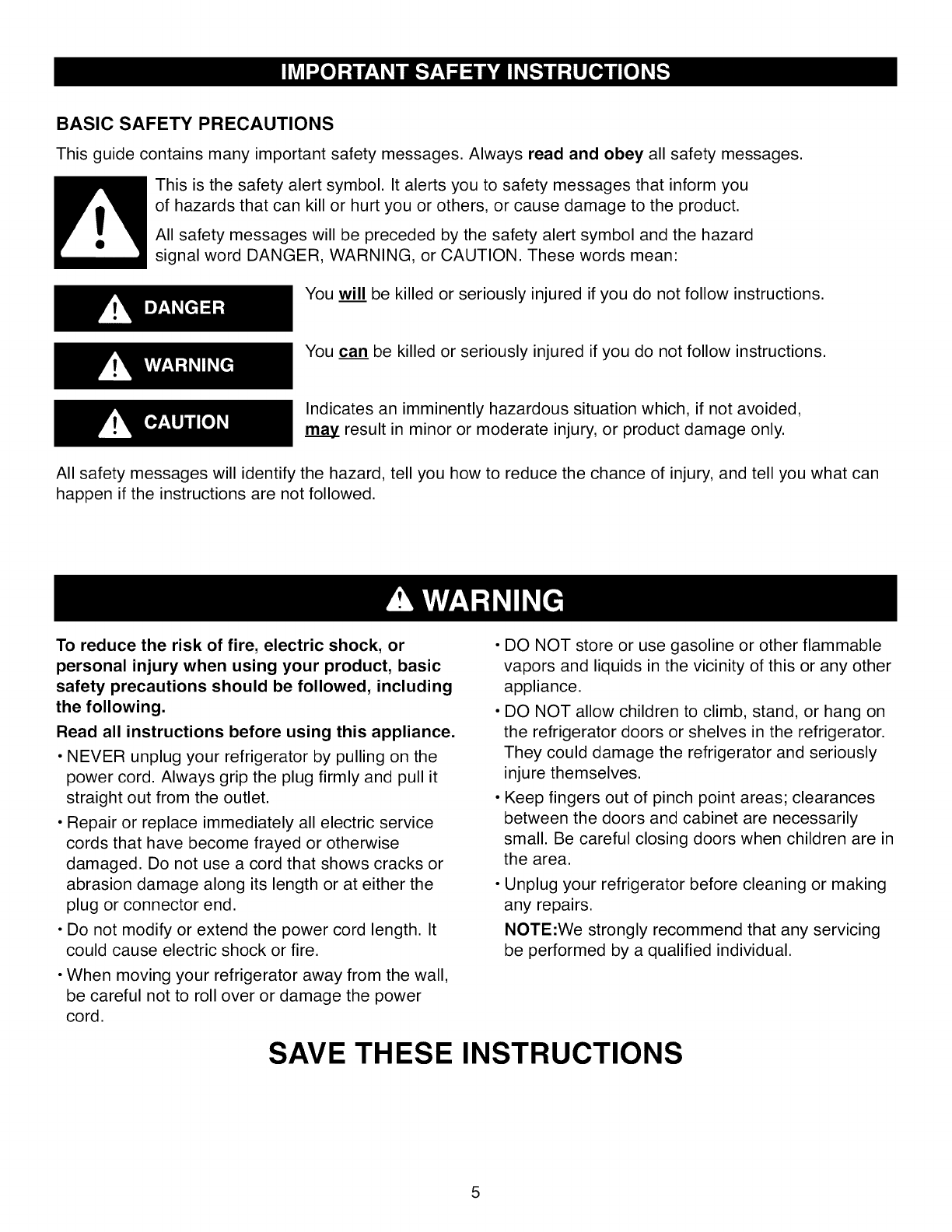

BASIC SAFETY PRECAUTIONS

Thisguidecontainsmanyimportantsafetymessages.Alwaysread and obey all safetymessages.

This isthe safetyalertsymbol.It alertsyouto safetymessagesthat informyou

of hazardsthatcankill or hurtyouor others,or causedamagetothe product.

All safetymessageswill be precededbythe safetyalertsymbolandthehazard

signalword DANGER,WARNING,or CAUTION.Thesewordsmean:

Youwill be killed or seriously injured if you do not follow instructions.

You can be killed or seriously injured if you do not follow instructions.

Indicates an imminently hazardous situation which, if not avoided,

result in minor or moderate injury, or product damage only.

All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell you what can

happen if the instructions are not followed.

To reduce the risk of fire, electric shock, or

personal injury when using your product, basic

safety precautions should be followed, including

the following.

Read all instructions before using this appliance.

• NEVER unplug your refrigerator by pulling on the

power cord. Always grip the plug firmly and pull it

straight out from the outlet.

• Repair or replace immediately all electric service

cords that have become frayed or otherwise

damaged. Do not use a cord that shows cracks or

abrasion damage along its length or at either the

plug or connector end.

• Do not modify or extend the power cord length. It

could cause electric shock or fire.

• When moving your refrigerator away from the wall,

be careful not to roll over or damage the power

cord.

• DO NOT store or use gasoline or other flammable

vapors and liquids in the vicinity of this or any other

appliance.

• DO NOT allow children to climb, stand, or hang on

the refrigerator doors or shelves in the refrigerator.

They could damage the refrigerator and seriously

injure themselves.

• Keep fingers out of pinch point areas; clearances

between the doors and cabinet are necessarily

small. Be careful closing doors when children are in

the area.

Unplug your refrigerator before cleaning or making

any repairs.

NOTE:We strongly recommend that any servicing

be performed by a qualified individual.

SAVE THESE INSTRUCTIONS

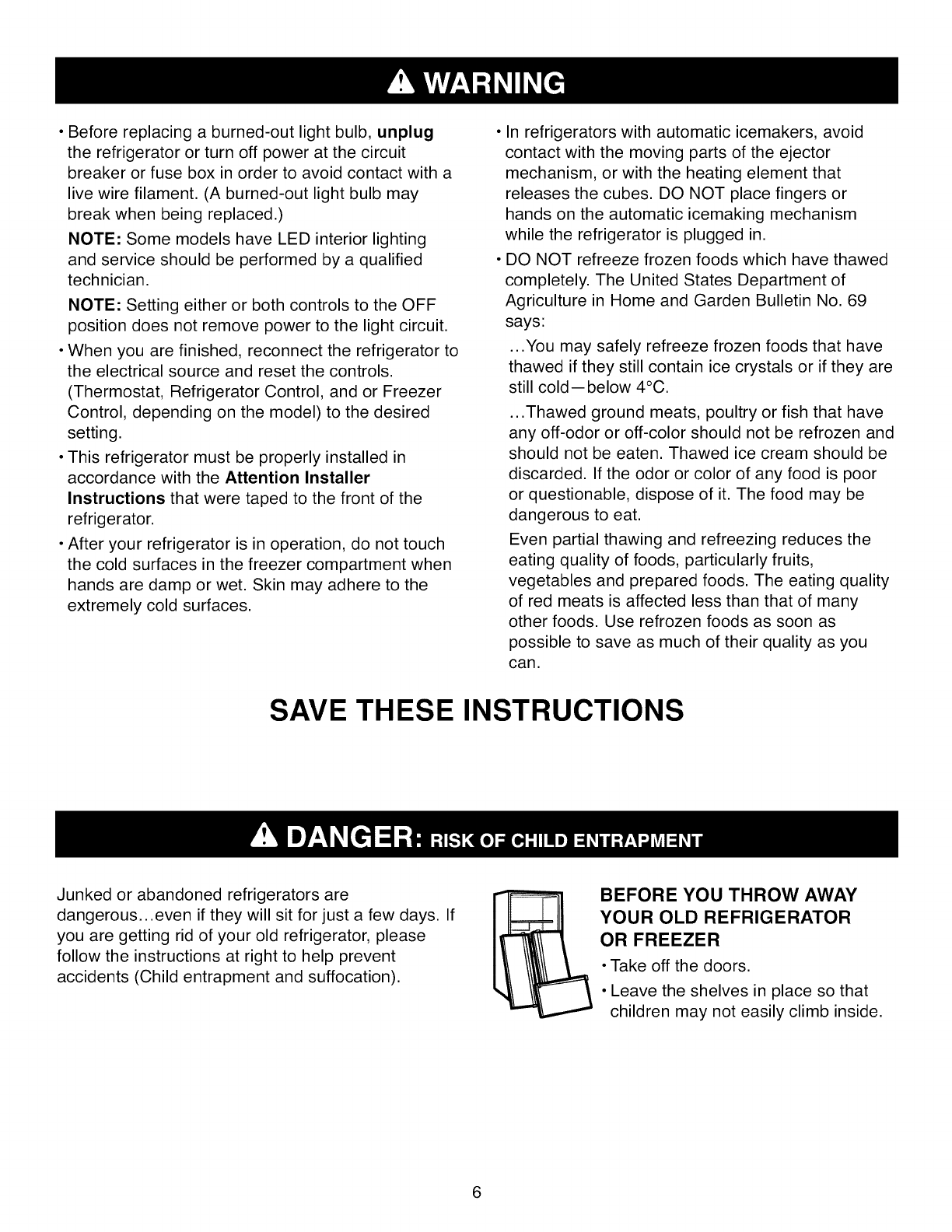

•Before replacing a burned-out light bulb, unplug

the refrigerator or turn off power at the circuit

breaker or fuse box in order to avoid contact with a

live wire filament. (A burned-out light bulb may

break when being replaced.)

NOTE: Some models have LED interior lighting

and service should be performed by a qualified

technician.

NOTE: Setting either or both controls to the OFF

position does not remove power to the light circuit.

• When you are finished, reconnect the refrigerator to

the electrical source and reset the controls.

(Thermostat, Refrigerator Control, and or Freezer

Control, depending on the model) to the desired

setting.

• This refrigerator must be properly installed in

accordance with the Attention Installer

Instructions that were taped to the front of the

refrigerator.

• After your refrigerator is in operation, do not touch

the cold surfaces in the freezer compartment when

hands are damp or wet. Skin may adhere to the

extremely cold surfaces.

In refrigerators with automatic icemakers, avoid

contact with the moving parts of the ejector

mechanism, or with the heating element that

releases the cubes. DO NOT place fingers or

hands on the automatic icemaking mechanism

while the refrigerator is plugged in.

DO NOT refreeze frozen foods which have thawed

completely. The United States Department of

Agriculture in Home and Garden Bulletin No. 69

says:

...You may safely refreeze frozen foods that have

thawed if they still contain ice crystals or if they are

still cold-- below 4°C.

...Thawed ground meats, poultry or fish that have

any off-odor or off-color should not be refrozen and

should not be eaten. Thawed ice cream should be

discarded. If the odor or color of any food is poor

or questionable, dispose of it. The food may be

dangerous to eat.

Even partial thawing and refreezing reduces the

eating quality of foods, particularly fruits,

vegetables and prepared foods. The eating quality

of red meats is affected less than that of many

other foods. Use refrozen foods as soon as

possible to save as much of their quality as you

can.

SAVE THESE INSTRUCTIONS

Junked or abandoned refrigerators are

dangerous...even if they will sit for just a few days. If

you are getting rid of your old refrigerator, please

follow the instructions at right to help prevent

accidents (Child entrapment and suffocation).

BEFORE YOU THROW AWAY

YOUR OLD REFRIGERATOR

OR FREEZER

• Take off the doors.

• Leave the shelves in place so that

children may not easily climb inside.

Your old refrigerator may have a cooling system that

used CFCs (chlorofluorocarbons). CFCs are

believed to harm stratospheric ozone.

If you are throwing away your old refrigerator, make

sure the CFC refrigerant is removed for proper

disposal by a qualified servicer. If you intentionally

release this CFC refrigerant, you can be subject to

fines and imprisonment under provisions of

environmental legislation.

IMPORTANT: Please read carefully.

TO CONNECT ELECTRICITY

Electrical Shock Hazard

FOR PERSONAL SAFETY, this appliance must

be properly grounded. Have the wall outlet and

the circuit checked by a qualified electrician to

make sure the outlet is properly grounded.

3-prong

grounding type

wall receptacle _.

3-prong_

groundingplug

Ensure proper

ground exists

before use.

RECOMMENDED GROUNDING METHOD

The refrigerator should always be plugged into its

own individual properly grounded electrical outlet

rated for 115 Volts, 60 Hz, AC only, and fused at 15

or 20 amperes. This provides the best performance

and also prevents overloading house wiring circuits

which could cause a fire hazard from overheated

wires. It is recommended that a separate circuit

serving only this appliance be provided.

Use a receptacle which cannot be turned off with a

switch or pull chain. Do not use an extension cord.

Where a standard two-prong wall outlet is

encountered, it is your personal responsibility and

obligation to have it replaced with a properly

grounded three-prong wall outlet.

Do not, under any circumstances, cut or remove

the third (ground) prong from the power cord.

Do not use an adapter plug.

NOTE: Before performing any type of installation,

cleaning, or removing a light bulb, disconnect the

refrigerator from the electrical source.

NOTE: Some models have LED interior lighting and

service should be performed by a qualified

technician.

When you are are finished, reconnect the refrigerator

to the electrical source and reset the control

(Thermostat, Refrigerator Control, or Freezer

Control, depending on the model) to the desired

setting.

USE OF EXTENSION CORDS

Because of potential safety hazards under certain

conditions, we strongly recommend against the use

of an extension cord. However, if you still elect to use

an extension cord, it is absolutely necessary that it

be a UL-listed (USA), 3-wire grounding type

appliance extension cord having a grounding type

plug and outlet, and that the electrical rating of the

cord be 15 amperes (minimum) and 120 volts.

Use of an extension cord will increase the clearance

needed for the back of the refrigerator.

Use this page to become more familiar with the parts and features. Page references are included for your

convenience.

NOTE: This guide covers several different models. The refrigerator you have purchased may have some or all

of the items listed below. The locations of the features shown below may not match your model.

Q Refrigerator Light (p. 32)

O Filter (Inside) (p. 28)

(_ Modular Door Bins (p. 26)

_) Fixed Door Bin

Fixed Door Bin

Refrigerator Shelves (p. 24)

(_) Ice Room (p. 20)

(Ice Maker and Ice Bin)

_) Humidity Controlled Crisper (p. 25)

_]_ Temperature Controlled

Pantry Drawer (p. 25)

Extra Ice Bin (p. 26)

Pullout Drawer (p. 27)

Durabase (p. 27)

_) Divider (p. 27)

(_) Door Bins

_) Dairy Bin (p. 26)

Water Tank Cover

Ice Bin

ice Compartment

Door

Excessive Weight Hazard

Use two or more people to move and install

refrigerator. Failure to do so can result in back or

other injury.

UNPACKING YOUR REFRIGERATOR

Remove tape and any temporary labels from your

refrigerator before using. Do not remove any

warning-type labels, the model and serial number

label, or the Tech Sheet that is located under the

front of the refrigerator, behind the base cover.

To remove any remaining tape or glue, rub the area

briskly with your thumb. Tape or glue residue can

also be easily removed by rubbing a small amount of

liquid dish soap over the adhesive with your fingers.

Wipe with warm water and dry.

Do not use sharp instruments, rubbing alcohol,

flammable fluids, or abrasive cleaners to remove

tape or glue. These products can damage the

surface of your refrigerator. For more information,

see the Important Safety Instructions section.

Refrigerator shelves are installed in the shipping

position.

Please reinstall shelves according to your individual

storage needs.

When Moving Your Refrigerator:

Your refrigerator is heavy. When moving the

refrigerator for cleaning or service, be sure to

protect the floor. Always pull the refrigerator

straight out when moving it. Do not wiggle or

walk the refrigerator when trying to move it, as

floor damage could occur.

Explosion Hazard

Keep flammable materials and vapors, such as

gasoline, away from refrigerator.

Failure to do so can result in death, explosion, or

fire.

• To reduce the risk of electric shock, do not install

the refrigerator in a wet or damp area.

• Select a place where a water supply can be easily

connected for the automatic icemaker.

• , CAUTION: Avoid placing the unit near heat

sources, direct sunlight or moisture.

INSTALLATION

• To minimize noise and vibration, the refrigerator

MUST be installed on a solidly constructed floor.

• Carpeting and soft tile surfaces are not

recommended.

• Never install the refrigerator on a platform or

weakly supported structure.

1. To avoid vibration, the unit must be leveled.

If required, adjust the leveling legs to compensate

for unevenness of the floor. The front should be

slightly higher than the rear to aid in door closing.

Leveling legs can be turned easily by tipping the

cabinet slightly. Turn the leveling legs clockwise

( .L._ ) to raise the unit, counterclockwise ( _,'_" )

to lower it.

(See Leveling and Alignment: on page 17.)

2. Install this appliance in an area where the

temperature is between 55°F (13°C) and 110°F

(43°C.) If the temperature around the appliance is

too low or high, cooling ability may be adversely

affected.

3. Too small a distance from adjacent items may

result in lowered freezing capability and increased

electricity consumption charges. Allow at least 24

inches (61 cm) in front of the refrigerator to open

the doors.

PRIOR TO USE

1. Clean your refrigerator thoroughly and wipe off all

dust accumulated during shipping.

2. Install accessories such as ice cube bin, drawers,

shelves, etc., in their proper places. They are

packed together to prevent possible damage

during shipment.

3. Let your refrigerator run for at least 2 or 3 hours

before putting food in it. Check the flow of cold air

in the freezer compartment to ensure proper

cooling. Your refrigerator is now ready for use.

NOTE:Removingthe doorsis alwaysrecommendedwhenit is necessaryto movethe refrigeratorthrougha

narrowopening.If it is necessaryto removethe handles,followthedirectionsbelow.

HOW TO REMOVE DOOR HANDLES

NOTE: Handle appearance may vary from

illustrations on this page.

1. Removing Refrigerator Handle

•Loosen the set screws with a 3/32"

(2.5mm) Allen wrench and remove the

handle.

NOTE: If the handle mounting fasteners

need to be tightened or removed, use a

1/4" (6.4mm) Allen wrench.

Set Screw

Mounting

Fasteners

Allen

Wrench

2. Removing Freezer Drawer Handle

• Loosen the set screws located on

the lower side of the handle with a 1/8"

(3.1 mm) Allen wrench and remove

the handle.

NOTE: If the handle mounting fasteners

need to be tightened or removed, use

a 1/4" (6.4mm) Allen wrench.

HOW TO REPLACE DOOR HANDLES

NOTE: Handle appearance may vary from

illustrations on this page.

1. Replacing Refrigerator Door Handle

•Place the handle on the door, fitting it over the

mounting fasteners and tighten the set screws

with a 3/32" (2.5mm) Allen wrench.

NOTE: If the handle mounting fasteners need

to be tightened or removed use a 1/4" (6.4mm)

Allen wrench.

Mounting

Fasteners

2. Replacing Freezer Drawer Handle

• Place the handle on the door, fitting it over the

mounting fasteners and tighten the set screws

on the bottom of the handle with a 1/8"

(3.1 mm) Allen wrench.

NOTE: If the handle mounting fasteners need

to be tightened or removed use a 1/4" (6.4mm)

Allen wrench.

REMOVING AND REPLACING

REFRIGERATOR DOORS

To remove the left refrigerator door:

On the back of the refrigerator, press back on the

release ring of the fitting (see 3 in figure below) and

pull out the water tube in the direction of the arrow.

6. Rotate hinge lever (6) counterclockwise. Lift the

top hinge (7) free of the hinge lever latch (8).

_, CAUTION: When lifting the hinge free of the latch,

be careful that the door does not fall forward.

7. Lift the door from the middle hinge pin and remove

the door.

8. Place the door, inside facing up, on a

nonscratching surface.

_, CAUTION: Before you begin, remove food and

bins from the doors.

(2) _1)

(3).

(7)" (8)

1. Open the door.

Remove the top hinge cover screw (1).

2. Use a flat-head screwdriver to pry back the hooks

(not shown) on the front underside of the cover

(2). Lift up the cover.

3. Remove the cover. Pull out the tube (3).

4. Disconnect all the wire harnesses (4).

5. Remove the grounding screw(5).

To remove the right refrigerator door:

__/(2)

Open the door. Remove the top hinge cover

screw (1). Lift up the cover (2).

Remove the cover.

Rotate the hinge lever (3) clockwise. Lift the top

hinge (4) free of the hinge lever latch (5).

CAUTION: When lifting the hinge free of the latch,

be careful that the door does not fall forward.

Electrical Shock Hazard

• Disconnect electrical supply to the refrigerator

before installing. Failure to do so could result in

death or serious injury.

• Do not put hands or feet or other objects into the

air vents, base cover, or bottom of the

refrigerator. You may be injured or receive an

electrical shock.

• Be careful when you work with the hinge, base

cover, and stopper. You may be injured.

Reinstalling the Refrigerator Door

Left Door

1. Lower the door onto middle hinge pin (10).

2. Fit top hinge (7) over hinge lever latch (8) and into

place. Rotate lever (6) clockwise to secure hinge.

3. Install the grounding screw (5) and connect the two

wire harnesses (4).

4. Push the water supply tube into the hole on the top

case and pull it out on the backplate.

5. Insert the water supply tube (3) into the connector

tube until you see only one scale mark. (Fully insert

the tube over 5/8" (15 mm)).

6. Hook tab on door switch side of cover (2) under

edge of wire opening in cabinet top. Position cover

into place. Insert and tighten cover screw (1).

(2) /1)

(3).

(7)_ (8)

_,- Right Door

1. Lower the door onto middle hinge pin (9).

2. Fit top hinge (4) over hinge lever latch (5) and into

place. Rotate lever (3) counterclockwise to secure

hinge.

3. Hook tab on switch side of corner under edge of

wire opening in cabinet top. Position cover (2) into

place. Insert and tighten cover screw (1).

(1)..... _/(2)

.........._,_(3) (4) ,_,

(10) IL

ACAUTION Collet

Tube

Insert Line

Clip --

After inserting, pull the tube to

make sure that it is secure

and reinsert the clip.

HOW TO REMOVE AND INSTALL THE

FREEZER DRAWER

IMPORTANT: To avoid possible injury or product or

property damage, you will need two people to

perform the following instructions.

•With both hands, hold both sides of the door and

pull it up to separate it from the rails.

1. Removing Freezer Drawer

•Pull the drawer open to full extension. Remove the

lower basket Q by lifting basket from rail system.

_t, CAUTION: When you remove the drawer, do not

hold the handle. The handle may come off and it

could cause personal injury.

• Remove the screws Q of the rail on both sides.

•With both hands hold the center bar and push it in

to allow both rails to slide in at the same time.

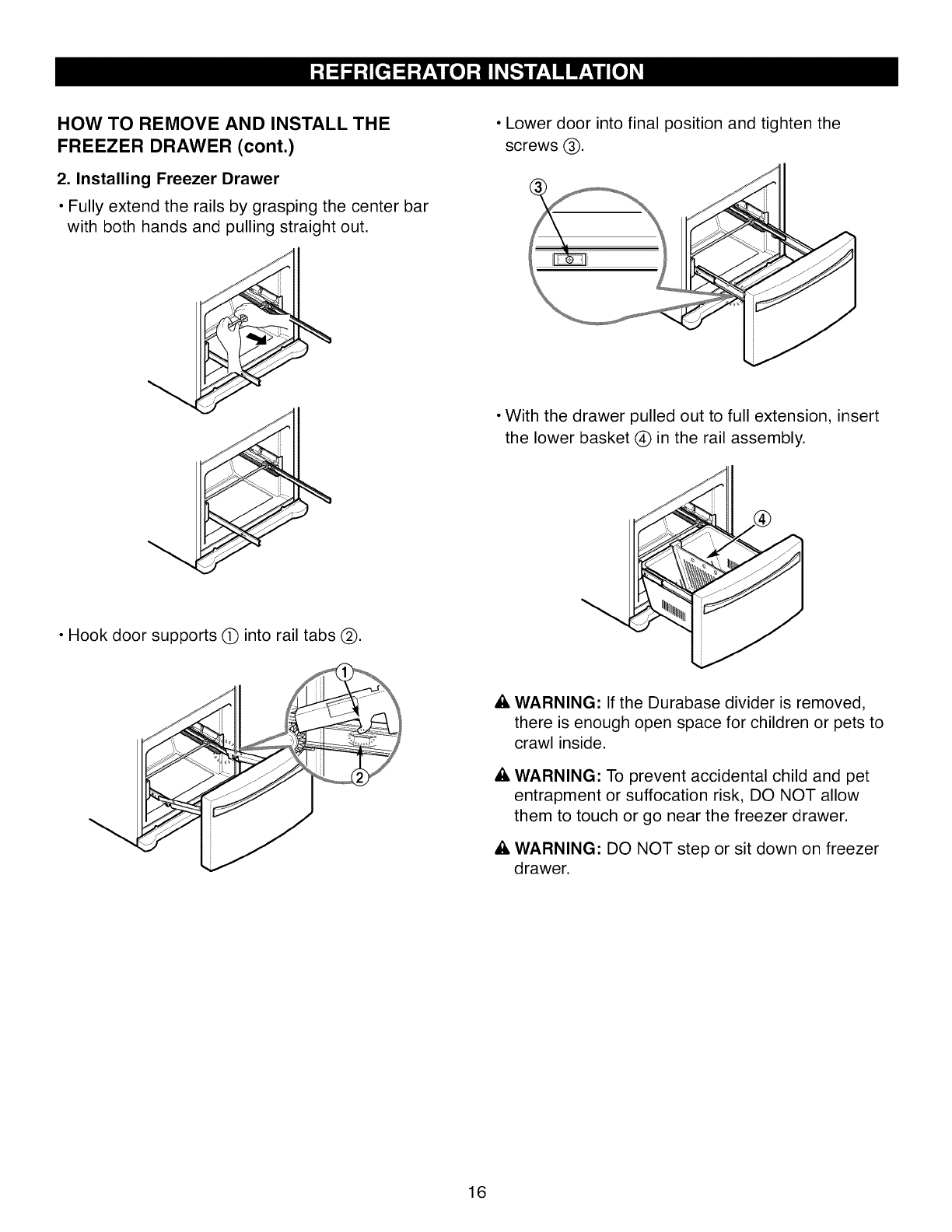

HOW TO REMOVE AND INSTALL THE

FREEZER DRAWER (cont.)

2. Installing Freezer Drawer

•Fully extend the rails by grasping the center bar

with both hands and pulling straight out.

• Lower door into final

screws (_.

3osition and tighten the

• With the drawer pulled out to full extension, insert

the lower basket (_ in the rail assembly.

• Hook door supports (_ into rail tabs @.

A WARNING: If the Durabase divider is removed,

there is enough open space for children or pets to

crawl inside.

AWARNING: To prevent accidental child and pet

entrapment or suffocation risk, DO NOT allow

them to touch or go near the freezer drawer.

A WARNING: DO NOT step or sit down on freezer

drawer.

LEVELING AND DOOR ALIGNMENT

Leveling

After installing, secure the stability of the product

with the leveling legs.

Your refrigerator has two front leveling legs--one on

the right and one on the left. Adjust legs to alter tilt

from front-to-back or side-to-side. If your refrigerator

seems unsteady or you want the doors to close

easier, adjust the refrigerator's tilt using the

instructions below:

1. Plug the refrigerator's power cord into a 3-prong

grounded outlet. Move the refrigerator into its final

position. Remove the base cover.

To remove the base cover

1) Open the Freezer Drawer. (Drawer not shown

for clarity.)

2) Once the drawer is open and there is sufficient

clearance, remove screws on the top of the

cover.

To replace base cover:

• Place cover into position and insert and tighten

the screws.

2. Turn the leveling leg clockwise to raise that side of

the refrigerator or counterclockwise to lower it. It

may take several turns of the leveling leg to adjust

the tilt of the refrigerator.

NOTE: Having someone push backward against

the top of the refrigerator takes some weight off

the leveling legs. This makes it easier to adjust the

legs.

Open both doors again and check to make sure

that they close easily. If not, tilt the refrigerator

slightly more to the rear by turning both leveling

legs clockwise. It may take several more turns,

and you should turn both leveling legs the same

amount.

Re-adjust if necessary.

Replace the base cover.

NOTE: Your new refrigerator is uniquely designed

with two fresh food doors. Either door can be

opened or closed independently of one another.

You may have to exert slight pressure on doors to

get them to close completely.

Door Alignment

If the space between your doors is uneven, follow

the instructions below to align the doors:

Use the wrench (Included with the Use & Care

Guide) to adjust the nut in the door hinge to adjust

the height. (counterclockwise to raise or clockwise to

lower the height.)

Level the refrigerator by using an 11116 inch

(18mm) wrench or a flat blade screwdriver.

Turn the leveling legs (counterclockwise) to raise

or (clockwise) to lower the height of the front of the

refrigerator.

NOTE: The front of the refrigerator should be

slightly higher than the back.

SETTING THE CONTROLS

Temperature

• The refrigerator control is preset at 37°F (3°C) and

the freezer control is preset at 0°F (-18°C). These

are the recommended temperature settings for

normal use and conditions. Wait 24 hours for the

refrigerator and freezer to reach these

temperatures.

•The Refrigerator Temp Control range is from

33°F to 46°F (1°C to 8°C). The lower the number

setting, the colder the refrigerator compartment will

become.

•The Freezer Temp Control range is from -6°F to

8°F (-21°C to -13°C). The lower the number

setting, the colder the freezer compartment will

become.

NOTE: When changing control settings, wait 24

hours before making additional adjustments.

After 24 hours, adjust the compartments

temperatures as desired.

_, CAUTION: The control display is operated by

touch. Excessive moisture on the display may

cause a malfunction. Please keep display clean

and dry.

_, WARNING: The dispenser will not work if any

door is left open.

Ultra Ice

When you touch the Ultra Ice button, the graphic

[ _ ] will light up in the display and will remain on

for 24 hours. It will automatically shut off after

24 hours have passed.

You can stop this function manually by touching the

button one more time.

• This function increases both icemaking and

freezing capabilities.

Filter Reset

• When the water filter indicator ( c_,._,,,_) turns on,

you have to change the water filter. After changing

the filter, press and hold the Ultra Ice (Filter Reset)

button for 3 seconds to turn the indicator light off.

You need to change the water filter approximately

every 6 months.

Dispenser

• When you press the Water

button, the Water icon will light

up.

• When you press the Ice Select

button, either the cube or

crushed ice icon will light up.

• Some dripping may occur after

dispensing. It is recommended

to hold your cup beneath the

dispenser for a few seconds

after dispensing to catch all of

the drops.

Light /Light Sensor

• If the light is set to "Auto" mode, dispenser light will

automatically turn on and off according to the

brightness of the room as detected by the light

sensor.

Energy Saver

• Press and hold the Energy Saver button for at least

3 seconds to activate or deactivate the function.

• This function deactivates heaters used to reduce

excess exterior moisture and is recommended for

increased energy savings.

• The energy saving function is also recommended

for periods of time when the doors will not be

opened, such as vacations.

Door Alarm

•When power is connected to the refrigerator, the

door alarm is initially set to ((.£57)(ON) and the door

alarm display will show ((,£_1_)(ON).

When you press the J _:,:, button, the display will

change to ,,_ (OFF) and the door alarm function

will be deactivated.

• When either the refrigerator or the freezer door is

left open for more than 60 seconds, the alarm tone

will sound to let you know the door is open.

• When you close the door, the door alarm will stop.

Lock

• When power is initially connected to the

refrigerator, the Lock function is off.

• If you want to activate the Lock function to lock

other buttons, press and hold the _:':' button for

3 seconds or more. The _,_,osign will be displayed

and the Lock function is now enabled.

• When the Lock function is activated no other

buttons will work. The dispenser pad is also

deactivated.

• To disable the Lock function, press and hold

the .....................I_::'.,J button for 3 seconds or more.

• , CAUTION

Demo Mode (Retail Stores)

The Demo Mode disables all cooling in the refrigerator

and freezer sections to conserve enegy while on

display in a retail store.

1. To activate:

With the refrigerator door opened, press and hold

the Refrigerator Temp and Ultra Ice buttons at the

same time for 5 seconds. The control panel will beep

to confirm that the Demo Mode is activated.

2. To deactivate:

With the refrigerator door opened, press and hold

the Refrigerator Temp and Ultra Ice buttons at the

same time for 5 seconds. The control panel will beep

to confirm that the Demo Mode is deavtivated.

Caution When Closing the Door

Temperature Mode (°F <->°C)

• If you want to convert °F to °C or vice versa, press

and hold the _:::;'I button and J%:'°'J button at the

same time for 5 seconds or more.

Power Saving Mode

• When the refrigerator is in the Power Saving Mode,

the display will remain off until a door is opened or

a button is pressed. Once on, the display will

remain on for 20 seconds.

iiiiiiiiiiiiii!

• To deactivate the Power Saving ii ii iii_i

!!!

Mode, press the Freezer Temp ........................

iii

and Ultra Ice buttons at the same

time and hold them for 5 seconds until the tone

sounds.

• , CAUTION

To reduce the risk of door scratches and breaking the

door mullion, please make sure that the refrigerator

door mullion is always folded in.

If moisture gathers on the refrigerator door mullion at

any point, turn off the Energy Saver mode until the

issue is resolved.

IN-DOOR ICE BIN

_, CAUTION

Keep hands and tools out of the ice compartment

door and dispenser chute. Damage or personal

injury may result.

The icemaker will stop producing ice when the ice

bin is full. If you need more ice, empty the ice bin

into the extra ice bin in the freezer compartment.

During use, the ice can become uneven causing the

icemaker to misread the amount of ice cubes and

stop producing ice. Shaking the ice bin to level the

ice within it can reduce this problem.

NOTE: Storing cans or other items in the ice bin will

damage the icemaker.

Keep the ice compartment door closed tightly. If the

ice compartment door is not closed tightly, the cold

air in the ice bin will freeze food in the refrigerator

compartment. This could also cause the icemaker to

not produce ice.

NOTE: If the On/Off switch on the icemaker is set to

Off (O) for an extended time, the ice compartment

will gradually warm up to the temperature of the

refrigerator compartment. To prevent ice cubes from

melting and leaking from the dispenser, ALWAYS

empty the ice bin when the icemaker is set to Off (O)

for more than a few hours.

_, CAUTION

When handling the

ice bin, keep hands

away from the blade

area to avoid

personal injury.

1. Pull or push the door handle to open or close the

Ice Compartment.

2. To remove the in-door ice bin, grip the front

handle, slightly lift the lower part, and slowly pull

out the bin as shown.

3. To reinstall the in-door ice bin, slightly slant the bin

during replacement to avoid contact with the

icemaker.

4. Avoid touching the Ice-detecting sensor when

replacing the ice bin. See the label on the ice

compartment door for details.

ADJUSTING CONTROL SETTINGS

Give the refrigerator time to cool down completely

before making final adjustments. It is best to wait 24

hours before doing this. The initial settings

mentioned in SETTING THE CONTROLS section

should be correct for normal household refrigerator

use. The controls are set correctly when milk or juice

is as cold as you like and when ice cream is firm.

The refrigerator control functions as the thermostat

for the entire appliance (refrigerator and freezer

sections). The colder the setting, the longer the

compressor will run to keep the temperature colder.

The freezer control adjusts the cold air flow from the

freezer to the refrigerator. Setting the freezer control

to a lower temperature keeps more cold air in the

freezer compartment to make it colder.

If you need to adjust temperatures in the refrigerator

or freezer, start by adjusting the refrigerator and

allow 24 hours for the temperatures to stabilize. If it

is still too warm or too cold, then adjust the freezer

control.

Always remember to wait at least 24 hours

between adjustments.

CONDITION/ RECOMMENDED

REASON: ADJUSTMENT:

[] REFRIGERATOR section too

warm

- Door opened often

- Large amount of food added

- Room temperature very warm

Set REFRIGERATOR

control one degree lower

C or two degrees lower F,

wait 24 hours, then re-

check

[] FREEZER section too

warm/ice not made fast enough

- Door opened often

- Large amount of food added

- Very cold (below 55 °F) room

temperature (Compressor

does not cycle often enough).

- Heavy ice usage

- Air vents blocked by items

Set FREEZER control

one degree lower C or two

degrees lower F, wait 24

hours, then re-check

Move items out of

airstream

[] REFRIGERATOR section too

cold

- Controls not set correctly for

your conditions

Set REFRIGERATOR

control one degree higher

C or two degrees higher F,

wait 24 hours, then re-check

[] FREEZER section too cold

- Controls not set correctly for

your conditions

Set FREEZER control

one degree higher C or two

degrees higher F, wait 24

hours, then re-check

FOOD STORAGE GUIDE

Wrap or store food in the refrigerator in airtight and

moisture-proof material unless otherwise noted. This

prevents food odor and taste transfer throughout the

refrigerator. For dated products, check date code to

ensure freshness.

Items How to

Butter or

margarine

Keep opened butter in a covered

dish or closed compartment.

When storing an extra supply,

wrap in freezer packaging and

freeze.

Cheese Store in the original wrapping until

you are ready to use it. Once

opened, rewrap tightly in plastic

wrap or aluminum foil.

Milk I_ Wipe milk cartons. For best

storage, place milk on interior

shelf, not on door shelf.

Eggs I_ Store in original carton on interior

shelf, not on door shelf.

Fruit I_ Wash, let dry, and store in

refrigerator in plastic bags or in

the crisper. Do not wash or hull

berries until you are ready to use

them. Sort and keep berries in

their original container in a

crisper, or store in a closed and

sealed paper bag on a refrigerator

shelf.

Leafy vegetables Remove store wrapping and trim

or tear off bruised and discolored

areas. Wash in cold water and

drain. Place in plastic bag or

plastic container and store in

crisper.

Vegetables with I_ Place in plastic bags or plastic

skins (carrots, container and store in crisper.

peppers)

Fish I_ Use fresh fish and shellfish the

same day purchased.

Leftovers I_ Cover leftovers with plastic wrap

or aluminum foil. Plastic

containers with tight lids can

also be used.

STORING FROZEN FOOD

NOTE: For further information about preparing food

for freezing or food storage times, check a freezer

guide or a reliable cookbook.

Packaging

Successful freezing depends on correct packaging.

When you close and seal the package, it must not

allow air or moisture in or out. If it does, you could

have food odor and taste transfer throughout the

refrigerator and also dry out frozen food.

Packaging recommendations:

•Rigid plastic containers with tight-fitting lids

• Straight-sided canning/freezing jars

• Heavy-duty aluminum foil

• Plastic-coated paper

• Non-permeable plastic wraps

• Specified freezer-grade self-sealing plastic bags

Follow package or container instructions for proper

freezing methods.

Do not use

• Bread wrappers

• Containers without tight lids

• Wax paper or wax-coated freezer wrap

• Thin, semi-permeable wrap

• , CAUTION: Do not keep beverage cans or plastic

food containers in the freezer compartment. They

may break or burst if they freeze.

Freezing

Yourfreezerwill notquick-freezeanylargequantity

of food.Donotput moreunfrozenfoodintothe

freezerthanwillfreezewithin24 hours(nomore

than2 to 3 Ibsof food percubicfootof freezer

space).Leaveenoughspaceinthe freezerfor airto

circulatearoundpackages.Becarefulto leave

enoughroomatthe frontso thedoorcanclose

tightly.

Storagetimeswill varyaccordingto the qualityand

typeof food,thetypeof packagingor wrapused

(airtightand moisture-proof)and thestorage

temperature.Icecrystalsinsidea sealedpackage

arenormal.Thissimplymeansthat moistureinthe

foodand airinsidethe packagehavecondensed,

creatingice crystals.

NOTE:Allowhotfoodsto cool at roomtemperature

for30 minutes,thenpackageand freeze.Cooling

hotfoodsbeforefreezingsavesenergy.

REFRIGERATOR SECTION

WATER DISPENSER

To dispense cold water, push on the dispenser

switch with a glass.

Dispenser Switch

Push

Press down on either of the front corners to remove

the tray.

_i, WARNING: Do not put your

fingers up the ice chute opening.

Doing so can result in severe

injury.

_i, CAUTION: Do not dispense ice

into fine china or crystal glasses.

China or crystal can break.

REFRIGERATOR SHELVES

The shelves in your refrigerator are adjustable to

meet your individual storage needs. Your model may

have glass or wire shelves.

Storing similar food items together in your

refrigerator and adjusting the shelves to fit different

heights of items will make finding the exact item you

want easier; it will also reduce the amount of time

the refrigerator door is open, saving energy.

IMPORTANT: Do not clean glass shelves with warm

water while they are cold. Shelves may break if

exposed to sudden temperature changes or impact,

such as bumping. For your protection, glass shelves

are made with tempered glass, which will shatter into

small pebble-sized pieces.

NOTE: Glass shelves are heavy. Use special care

when removing them to avoid dropping them.

Adjusting Shelves

Remove shelves from the shipping position and

replace shelves in the position you want.

• To remove a shelf--Tilt up the front of the shelf in

the direction of (_ and lift it in the direction of @.

Pull the shelf out.

• To reinstall a shelf--Tilt the front of the shelf up

and guide the shelf hooks into the slots at a desired

height. Then lower the front of the shelf so that the

hooks drop into the slots.

• , CAUTION: Make sure that shelves are level from

one side to the other. Failure to do so may result

in the shelf falling or spilling food.

Folding Shelf

You can store taller items such as a gallon container

or bottles by simply pushing the front half of shelf

underneath back half of shelf. Pull toward you to

return to a full shelf.

HUMIDITY CONTROLLED CRISPER

The crispers provide fresher-tasting fruit and

vegetables by letting you easily control humidity

inside the drawer.

You can control the amount of humidity in the

moisture-sealed crispers. Adjust the control to any

setting between VEGETABLE and FRUIT.

• VEGETABLE keeps moist air in the crisper for

best storage of fresh, leafy vegetables.

• FRUIT lets moist air out of the crisper for best

storage of fruits.

To remove the glass

1. Lift up the glass under the crisper cover.

2. Pull the glass up and out.

REMOVING HUMIDITY CONTROLLED

CRISPER

1. To remove, pull the drawer out to full extension.

2. Lift the front of the crisper up, then pull it straight

out.

3. To install, slightly tilt up the front and insert the

drawer into the frame and push it back into place.

TEMPERATURE CONTROLLED PANTRY

DRAWER

The Temperature Controlled Pantry Drawer

provides storage space with a variable temperature

control, that can keep the compartment colder than

the refrigerator section. This drawer can be used for

large party trays, dell items, and beverages. (This

drawer should not be used for vegetables that

require high humidity).

Press the Select button to choose between Meats,

Dell, and Produce.

Meat Dell Produce

Select

MODULAR DOOR BIN

The door bins are removable for easy cleaning and

adjusting.

1. To remove the bin, simply lift the bin up and pull

straight out.

2. To replace the bin, slide it in above the desired

support button and push down until it snaps into

place.

FREEZER SECTION

EXTRA ICE BIN

1. To remove the ice bin from the upper drawer, pull out

the drawer as far as possible.

2. Gently lift and pull out the ice bin.

3. To install, pull out the drawer as much as possible

and set the ice bin in its correct position, then push in

the drawer.

DRAWER

Extra Ice

DAIRY BIN

1. To remove the dairy bin, simply lift it and pull

straight out.

2. To replace the dairy bin, slide it into place and

push down until it stops.

y-.._

NOTE: The dairy bin will only fit in the top space on

the right-hand door.

• , CAUTION: Pinch hazard! Keep hands and feet

clear of the bottom of the door when opening and

closing.

DURABASE

1. To remove the Durabase, push it to the back as

much as possible. Tilt up the front of the Durabase

and pull straight out.

2. To install, insert the Durabase in rail assembly.

DURABASE DIVIDER

The Durabase divider allows you to organize the

Durabase area into sections.

PULLOUT DRAWER

1. To remove, pull the drawer out to full extension.

Lift the front of the drawer up, then pull it straight

out.

2. To install, slightly tilt up the front and insert the

drawer into the frame and push it back into place.

• , WARNING: If the Durabase divider is removed,

there is enough open space for children or pets to

crawl inside.

To prevent accidental child and pet entrapment or

suffocation risk, DO NOT allow them to touch or

go near the freezer drawer.

FILTER

It is recommended that you replace the filter

approximately every 6 months,

when the water filter indicator

( ...........) turns on, or when the

ice and water dispenser

noticeably decreases output.

1. Remove the old filter.

• Press the push button to

open the filter cover.

NOTE: Replacing the filter

causes a small amount of

water (around 1 oz. or

25 cc) to drain. Place a cup

under the filter hole to catch

any waste.

• Firmly lock in the filter.

The cover will click back into

place.

3. After replacing the filter, flush 2.5 gallons through

filter before use (flush for approximately

5 minutes) and check the filter for leaks.

To reset the water filter status display and

indicator light, press and hold the Ultra Ice (Fliter

Reset) button for at least 3 seconds.

• Pull the filter downward

and pull out.

2. Replace with a new filter.

• Take the new filter out of it's packaging and

remove the protective cover from the o-rings.

With filter "tabs" in the horizontal position, push

the new filter into the manifold hole until it stops.

4. Filter Bypass Plug

Keep the filter bypass plug.

You MUST use the filter bypass

plug when a replacement filter

cartridge is not available.

• , CAUTION: DO NOT operate

refrigerator without filter or

filter plug installed.

NOTE: To purchase replacement water filter, visit

your Sears store or 1-800-4MY- HOME. Also

visit us on the web at

www.sears.com/partsdirect.

Performance Data Sheet

Model: LG ADQ36006102-S Use Replacement Filter: ADQ36006102

The concentration of the indicated substances in water entering the system was reduced to a concentration less

than or equal to the permissible limit for water leaving the system as specified in NSF/ANSI Standard 42 and

Standard 53.

I System tested and certified by NSF International against NSF/ANSI Standard 42 and Standard 53 for I

the reduction of substances listed below. I

Average Max Permissible NSFReduction NSF Test

Contaminant Reduction Average NSF specified Challenge Avg % Product Water Product Water

Influent Concentration Reduction Concentration Concentration Requirements Report

Chlorine Taste and Odor 2.1 mg/L 2.0 mg/L _+10% 97.2% 0.06 mg/L N/A _>50% J-00049247

Nominal ParticulateClass I,, 5,600,000 At least 10,000particles/mL 98.7% 73,000pts/ml N/A _>85% J-00049282

_>0,5to < 1,0pm pts/mL

Asbestos 190MFL 107to 10_MFL;fibers greater >99% < 1MLF N/A _>99% J-0004928

than 10/_m in length

Atrazine 0.0094mg/L 0.009 mg/L _+10% 94.7% 0.00005 mg/L 0.003 mg/L N/A J-00049293

Benzene 0.016mg/L 0.015 mg/L _+10% 96.7% 0.005 mg/L 0.005 mg/L N/A J-00049300

Carbofuran 0.08mg/L 0.08 mg/L _+10% 98.1% 0.002 mg/L 0.04 mg/L N/A J-00049294

Lindane 0.002mg/L 0.002 mg/L _+10% 98.2% 0.00004 mg/L 0.0002 mg/L N/A J-00051975

P-Dichlorobenzene 0.22mg/L 0.225 mg/L _+10% 99.8% 0.0005 mg/L 0.075 mg/L N/A J-00049298

Toxaphene 0.014mg/L 0.015 mg/L _+10% 93% 0.001 mg/L 0.003 mg/L N/A J-00049302

2,4-D 0.213mg/L 0.210 mg/L _+10% 95.2% 0.009 mg/L 0.07 mg/L N/A J-00049284

Lead pH @6.5 0.t50 mg/L 0.15 mg/L _+10% >99.3% 0.001 mg/L 0.010 mg/L N/A J-00051974

Lead pH @8.5 0.t50 mg/L 0.15 mg/L _+10% >99.3% 0.001 mg/L 0.010 mg/L N/A J-00049277

Mercury @ pH 6.5 0.0059mg/L 0.006 mg/L _+10% 96.1 0.0002 mg/L 0.002 mg/L N/A J-00053886

Mercury @ pH 8.5 0.0058mg/L 0.006 mg/L _+10% 90.1 0.0006 mg/L 0.002 mg/L N/A J-00051972

Cyst* 120,000cysts/L Minimum50,000 cysts/L 99.99% <1 cyst/L N/A _>99.95% J-00049281

* Based on the use of Cryptosporidium parvum oocysts

Application Guidelines/Water Supply Parameters

Service Flow 0.5 gpm (1.9 Ipm)

Water Supply Potable Water

Water Pressure 20 -120 psi (138 - 827 kPa)

Water Temperature 33°F - 100°F (0.6°C - 38°C)

It is essential that the manufacturer's recommended

installation, maintenance and filter replacement

requirements be carried out for the product to perform

as advertised.

Note: While the testing was performed under standard

laboratory conditions, actual performance may vary.

Replacement Filter: ADQ36006102

For estimated costs of replacement elements please

call 1-800-469-4663 or visit our website at

www.sears.com/partsdirect

3M is a trademark of 3M Company.

NSF is a trademark of NSF International.

To reduce the risk associated with ingestion

of contaminants: Do not use with water that is

microbiologically unsafe or of unknown

quality without adequate disinfection before

and after the system. Systems certified for cyst

reduction may be used on disinfected water that

may contain filterable cysts. EPA Establishment

Number 10350-MN-005

To reduce the risk associated with property

damage due to water leakage:

• Read and follow Use Instructions before

installation and use of this system.

• Installation and use MUST comply with all state

and local plumbing codes.

• Do not install if water pressure exceeds 120 psi

(827 kPa). Contact a plumbing professional if you

are uncertain how to check your water pressure.

• Do not install where water hammer conditions

may occur. If water hammer conditions exist you

must install a water hammer arrester. Contact a

plumbing professional if you uncertain how to

check for this condition.

•Do not install on hot water supply lines.

The maximum operating water temperature of this

filter system is 100°F (38°C).

• Protect filter from freezing. Drain filter when

temperatures drop below 40°F (4.4°C).

• The disposable filter must be replaced every

6 months or more often depending on useage.

State of California

Department of Public Health

Water Treatment Device

Certificate Number

09- 2019

Date Issued: December 15, 2009

Trademark/Model Designation

ADQ36006102-S

Manufacturer: Sears Roebuck andCo.

The water treatment deVice_

116830 of the Health and Safet)

Microbiological Cont_inants and Turbidity

Cysts

pursuant to Section

Organic Contaminants

2.4-D Re n

Atrazine

Benzene

Carbofuran

Lindane

p-DiChlorobenzene

Toxaphene

Rated Service Capacity: 200 gal Rated ServiCe Flow: 0.5 gpm

Conditions of Certificationi

Explosion Hazard

Use non-flammable cleaner. Failure to do so can

result in death, explosion, or fire.

Both the refrigerator and freezer sections defrost

automatically. However, clean both sections about

once a month to prevent odors. Wipe up spills

immediately.

INSIDE WALLS (allow freezer to warm up so

the cloth will not stick)

To help remove odors, you can wash the inside of

the refrigerator with a mixture of baking soda and

warm water. Mix 2 tablespoons baking soda to 1

quart of water (26 g soda to 1 liter water.) Be sure

the baking soda is completely dissolved so it does

not scratch the surfaces of the refrigerator.

CAUTION: While cleaning the inside, do not spray

water.

DOOR LINERS AND GASKETS

Do not use cleaning waxes, concentrated

detergents, bleaches, or cleaners containing

petroleum on plastic refrigerator parts.

GENERAL CLEANING TIPS

• Unplug refrigerator or disconnect power.

• Remove all removable parts, such as shelves,

crispers, etc. Refer to sections in Using Your

Refrigerator for removal instructions.

• Use a clean sponge or soft cloth and a mild

detergent in warm water. Do not use abrasive or

harsh cleaners.

• Hand wash, rinse and dry all surfaces thoroughly.

• Plug in refrigerator or reconnect power.

OUTSIDE

Waxing external painted metal surfaces helps

provide rust protection. Do not wax plastic parts.

Wax painted metal surfaces at least twice a year

using appliance wax (or auto paste wax). Apply wax

with a clean, soft cloth.

For products with a stainless steel exterior, use a

clean sponge or soft cloth and a mild detergent in

warm water. Do not use abrasive or harsh cleaners.

Dry thoroughly with a soft cloth.

PLASTIC PARTS (covers and panels)

Do not use window sprays, abrasive cleansers, or

flammable fluids. These can scratch or damage the

material.

CONDENSER COILS

Use a vacuum cleaner with

an attachment to clean the

condenser cover and vents.

LIGHT BULB REPLACEMENT

Electrical Shock Hazard

Before replacing a Light Bulb, either unplug the

refrigerator or turn off power at the circuit breaker

or fuse box.

NOTE: Refrigerator light is LED interior lighting and

service should only be perfomed by a

qualified technician.

Change Freezer Compartment Light Bulb

1. Unplug refrigerator power cord form outlet.

2. Remove the screw using a Phillips screwdriver.

3. Grasp the light cover, pull the cover downward.

4. Make sure the bulb is cool to the touch.

Rotate the bulb counterclockwise to remove.

5. Replace with a new 60-watt appliance bulb.

6. Insert tabs on back of cover into slots in freezer

ceiling. Push cover up to snap front into place.

7. Tighten the screw using a Phillips screwdriver.

WHEN YOU GO ON VACATION

If you choose to leave the refrigerator on while

you are away, follow these steps to prepare your

refrigerator before you leave.

1. Use up any perishables and freeze other items.

2. Turn off icemaker and empty the ice bin.

If you choose to turn the refrigerator off before

you leave, follow these steps.

1. Remove all food from the refrigerator.

2. Clean refrigerator, wipe it and dry well.

3. Tape rubber or wood blocks to the tops of both

doors to prop them open far enough for air to get

in. This stops odor and mold from building up.

• , CAUTION: DO NOT place fingers inside of cover.

Lamp may be hot.

• When you are finished, reconnect the refrigerator to

the electrical source and reset the controls.

POWER INTERRUPTIONS

1. If the power will be out for 24 hours or less, keep

all refrigerator doors closed to help foods stay

cold and frozen.

2. If the power will be out for more than 24 hours,

remove all frozen food and store it in a frozen food

locker.

WHEN YOU MOVE

When you are moving your refrigerator to a new

home, follow these steps to prepare it for the move.

1. Remove all food from the refrigerator and pack all

frozen food in dry ice.

2. Unplug the refrigerator.

3. Clean, wipe and dry thoroughly.

4. Take out all removable parts, wrap them well and

tape them together so they do not shift and rattle

during the move. Refer to sections in Using your

Refrigerator for removable instructions.

5. Depending on the model, raise the front of the

refrigerator so it rolls more easily OR screw in the

leveling legs all the way so they do not scrape the

floor. See the Door Closing section.

6. Tape the doors shut and tape the power cord to

the refrigerator cabinet.

When you get to your new home, put everything

back and refer to the Installing Your Refrigerator

section for preparation instructions.

AUTOMATIC ICEMAKER

Ice is made in the automatic icemaker and sent to

the dispenser. The icemaker will produce 12 cubes

per cycle--approximately 100 in a 24-hour period,

depending on freezer compartment temperature,

room temperature, number of door openings and

other operating conditions.

• It takes about 12 to 24 hours for a newly installed

refrigerator to make ice.

• Icemaking stops when the ice storage bin is full.

• To turn off the automatic icemaker, set the

icemaker switch to OFF(O). To turn on the

automatic icemaker, set the switch to ON(I).

• The water pressure must be between 20 and

120psi on models without a water filter and

between 40 and 120 psi on models with a water

filter to produce the normal amount and size of ice

cubes.

Personal Injury Hazard

DO NOT place fingers or hands on the automatic

icemaking mechanism while the refrigerator is

plugged in.

Icemaker

Power Switch

Ice-detecting Sensor

_, CAUTIONS

•The first ice and water may include particles or

odor from the water supply line or the water tank.

• Throw away the first few batches of ice (about 24

cubes).

• This is also necessary if the refrigerator has not

been used for a long time.

• Never store beverage cans or other foods in the ice

bin for the purpose of rapid cooling.

Doing so may damage the icemaker or the

containers may burst.

• If discolored ice is dispensed, check the water filter

and water supply. If the problem continues, contact

Sears or other qualified service center. Do not use

the ice or water until the problem is corrected.

• Keep children away from the dispenser. Children

may play with or damage the controls.

• The ice passage may also become blocked with

frost if only crushed ice is used. Remove the frost

that accumulates.

• Never use thin crystal glass or crockery to collect

ice. Such glasses or containers may break, and

glass fragments could be in the ice.

• Dispense ice into a glass before filling it with water

or other beverages. Splashing may occur if ice is

dispensed into a glass that already contains liquid.

• Never use a glass that is exceptionally narrow or

deep. Ice may jam in the ice passage and

refrigerator performance may be affected.

• Keep the glass at a proper distance from the ice

outlet. A glass held too close to the outlet may

prevent ice from dispensing.

• To avoid personal injury, keep hands out of the ice

door and passage.

• Never remove the dispenser cover.

• If you find ice or water dispensed unexpectedly,

turn off the water supply and contact Sears Home

Service at 1-800-4 MY HOME.

WHEN YOU SHOULD SET THE ICEMAKER

POWER SWITCH TO OFF (O)

• When the water supply will be shut off for several

hours.

• When the ice bin is removed for more than a

minute or two.

When the refrigerator will not be used for several

days.

NOTE: Ice Bin should be emptied when the

icemaker on/off switch is turned to the Off (0)

position.

NORMAL SOUNDS YOU MAY HEAR

• The icemaker water valve will buzz as the icemaker

fills with water. If the power switch is in the On (I)

position, it will buzz even if it has not yet been

hooked up to water. To stop the buzzing, move the

power switch to Off (0).

NOTE: Keeping the power switch in the On (I)

position before the water line is connected can

damage the icemaker.

• You will hear the sound of cubes dropping into the

bin and water running in the pipes as the icemaker

refills.

PREPARING FOR VACATION

Set the icemaker power switch to Off (0) and shut

off the water supply to the refrigerator.

NOTE: Ice Bin should be emptied anytime the

icemaker on/off switch is turned to the Off (0)

position.

If the ambient temperature will drop below freezing,

have a qualified servicer drain the water supply

system to prevent serious property damage due to

flooding from ruptured water lines or connections.

BEFORE YOU BEGIN

This water line installation is not warranted by the

refrigerator or icemaker manufacturer or retailer.

Follow these instructions carefully to minimize the

risk of expensive water damage.

Water hammer (water banging in the pipes) in house

plumbing can cause damage to refrigerator parts

and lead to water leakage or flooding. Call a

qualified plumber to correct water hammer before

installing the water supply line to the refrigerator.

To prevent burns and product damage, do not hook

up the water line to the hot water line.

If you use your refrigerator before connecting the

water line, make sure the icemaker power switch is

in the 0 (off) position.

Do not install the icemaker tubing in areas where

temperatures fall below freezing.

When using any electrical device (such as a power

drill) during installation, be sure the device is double-

insulated or grounded in a manner to prevent the

hazard of electric shock, or is battery-powered.

If a reverse osmosis water filtration system is

connected to your cold water supply, this water line

installation is not warranted by the refrigerator or

icemaker manufacturer or retailer. Follow next

instructions carefully to minimize the risk of

expensive water damage.

If a reverse osmosis water filtration system is

connected to your cold water supply, the water

pressure to the reverse osmosis system needs to be

a minimum of 40 to 60 psi (2.8 kgf/cm 2 ~ 4.2 kgf/cm 2,

less than 2.0~3.0sec to fill a cup of 7oz capacity).

If the water pressure from the reverse osmosis

system is less than 21 psi (1.5 kgf/cm _, more than

4.0sec to fill a cup of 7oz capacity):

Check to see whether the sediment filter in the

reverse osmosis system is blocked. Replace the

filter if necessary.

Allow the storage tank on the reverse osmosis

system to refill after heavy usage.

If the issue about water pressure from reverse

osmosis remains, call a licensed, qualified plumber.

All installations must be in accordance with local

plumbing code requirements.

NOTE: Wear eye protection.

WHAT YOU WILL NEED .,_

• Copper Tubing, 1/4" outer diameter

to connect the refrigerator to the //

water supply. Be sure both ends of //"

the tubing are cut square.

To determine how much tubing you need, measure

the distance from the water valve on the back of the

refrigerator to the water supply pipe. Then add 8 feet

(2.4 m). Be sure there is sufficient extra tubing

(about 8 feet [2.4 m] coiled into 3 turns of about 10"

[25 cm] diameter) to allow the refrigerator to move

out from the wall after installation.

A cold water supply. The water pressure must be

between 20 and 120 p.s.i, on models without a

water filter and between 40 and 120 p.s.i, on

models with a water filter.

Power drill.

1/2" or adjustable wrench.

Straight- and Phillips-

blade screwdriver.

Two 1/4" outer diameter

compression nuts and

2ferrules (sleeves) to

connect the copper tubing

to the shutoff valve and the refrigerator water valve.

If your existing copper water

line has a flared fitting at the

end, you will need an

adapter (available at

plumbing supply stores) to

connect the water line to the refrigerator OR you

can cut off the flared fitting with a tube cutter and

then use a compression fitting.

Shutoff valve to connect

to the cold water line.

The shutoff valve should

have a water inlet with a

minimum inside diameter

of 5/32" at the point of

connection to the COLD WATER LINE. Saddle-type

shutoff valves are included in many water supply

kits. Before purchasing, make sure a saddle-type

valve complies with your local plumbing codes.

NOTE: Self Piercing Saddle Type Water Valve

should not be used.

INSTALLATION INSTRUCTIONS

Install the shutoff valve on the nearest frequently

used drinking water line.

1. SHUT OFF THE MAIN WATER SUPPLY

Turn on the nearest faucet to relieve the pressure

on the line.

2. CHOOSE THE VALVE LOCATION

Choose a location for the valve

that is easily accessible. It is best

to connect into the side of a

vertical water pipe. When it is

necessary to connect into a

horizontal water pipe, make the

connection to the top or side, rather than at the

bottom, to avoid drawing off any sediment from

the water pipe.

3. DRILL THE HOLE FOR THE VALVE

Drill a 1/4" hole in the water

pipe using a sharp bit. Remove 1_1

any burrs resulting from drilling J_ I

the hole in the pipe. Take care _ I

not to allow water to drain into J_Y 1 I

the drill. Failure to drill a 1/4"

hole may result in reduced ice production or

smaller cubes.

NOTE: The hookup line cannot be white, plastic

tubing. Licensed plumbers must use only copper

tubing NDA tubing #49595 or 49599 or Cross

Link Polyethylene(PEX) tubing.

4. FASTEN THE SHUTOFF VALVE

5. TIGHTEN THE PIPE CLAMP

Tighten the clamp screws until the sealing washer

begins to swell.

NOTE: Do not overtighten or you may crush the

tubing. Washer

Pipe Clamp __

Clamp Screw

Inlet End

6. ROUTE THE TUBING

Route the tubing between the cold water line and

the refrigerator.

Route the tubing through a hole drilled in the wall

or floor (behind the refrigerator or adjacent base

cabinet) as close to the wall as possible.

NOTE: Be sure there is sufficient extra tubing

(about 8 feet coiled into 3 turns of about 10"

diameter) to allow the refrigerator to move out

from the wall after installation.

7. CONNECT THE TUBING TO THE VALVE

Place the compression nut and ferrule (sleeve)

for copper tubing onto the end of the tubing and

connect it to the shutoff valve. Make sure the

tubing is fully inserted into the valve. Tighten the

compression nut securely.

Fasten the shutoff valve to the cold water pipe

with the pipe clamp.

Pipe Clamp

Saddle-Type

Shutoff Valve Vertical Cold

Water Pipe

NOTE: Commonwealth of Massachusetts

Plumbing Codes 248CMR shall be adhered to.

Saddle valves are illegal and use is not permitted

in Massachusetts. Consult with your licensed

plumber.

Saddle-Type ,,_

Shutoff Valve _

Packing Nut _

Outlet Valve

ession Nut

Ferrule (sleeve)

NOTE: Commonwealth of Massachusetts

Plumbing Codes 248CMR shall be adhered to.

Saddle valves are illegal and use is not permitted

in Massachusetts. Consult with your licensed

plumber.

8. FLUSH OUT THE TUBING

Turn the main water supply on

and flush out the tubing until the

water is clear.

Shut the water off at the water

valve after about one quart of

water has been flushed through

the tubing.

10. TURN THE WATER ON AT THE

SHUTOFF VALVE

Tighten any connections that leak.

9. CONNECT THE TUBING TO THE

REFRIGERATOR

NOTE:

• Before making the connection to the refrigerator,

be sure the refrigerator power cord is not

plugged into the wall outlet.

1. Remove the plastic flexible cap from the water

valve.

2. Place the compression nut and ferrule (sleeve)

onto the end of the tubing as shown.

3. Insert the end of the copper tubing into the

connection as far as possible. While holding the

tubing, tighten the fitting.

_, CAUTION: Check to see if leaks occur at water

line connections.

Tubing Cla_

1/4" \ /

Compression _ IIIIM'_

Nut _ "_

1/4" Tubing

(sleeve)

RefrigeratorConnection

11. PLUG IN THE REFRIGERATOR

Arrange the coil of tubing so that it does not

vibrate against the back of the refrigerator or

against the wall. Push the refrigerator back to

the wall.

12. START THE ICEMAKER

Set the icemaker power switch to the On (I)

position.

NOTE: A newly installed refrigerator may take

several hours to start producing ice.

_, CAUTION: Check to see if water dripping

occurs at water line connections.

UNDERSTANDING SOUNDS YOU MAY HEAR

Your new refrigerator may make sounds that your old

one did not make. Because the sounds are new to

you, you might be concerned about them. Most of

the new sounds are normal. Hard surfaces, like the

floor, walls and cabinets, can make the sounds seem

louder than they actually are. The following list

describes the kinds of sounds and what may be

making them.

• A clicking noise may come from the electronic

control switching the cooling system on and off.

• Rattling noises may come from the flow of

refrigerant, the water line, or items stored on top of

the refrigerator.

• Your refrigerator is designed to run more efficiently

to keep your food items at the desired temperature.

The high efficiency compressor may cause your

new refrigerator to run longer than your old one,

but is still more energy efficient than previous

models. While running, you may hear a pulsating or

high-pitched sound, this is normal.

• You may hear the evaporator fan motor circulating

the air through the refrigerator and freezer

compartments.

As each cycle ends, you may hear a gurgling

sound due to the refrigerant flowing in your

refrigerator.

• Contraction and expansion of the inside walls may

cause a popping noise.

• Water dripping on the defrost heater during a

defrost cycle may cause a sizzling sound.

• You may hear air being forced over the condenser

by the condenser fan.

• You may hear water running into the drain pan

during the defrost cycle.

• You can hear the noise occurring from the ice

compartment fan in the freezer or the left side of

the refrigerator when doors are open.

REFRIGERATOR DOES NOT OPERATE

Check if...

The power supply cord is unplugged.

A household fuse has blown or circuit breaker

tripped.

Refrigerator is in the defrost cycle.

Refrigerator is in Store salesfloor Demonstration

mode.

Then..,

Firmly plug the cord into a live outlet with proper voltage.

Replace the fuse or reset the circuit breaker. Check that the

house circuit is not overloaded.

Wait about 30 minutes for defrost cycle to end.

The refrigerator control has been put into the store Demo

(Demonstration) Mode. The Demonstration Mode disables the

cooling system, only lamps and display work normally. To disable

open one door, then press Ultra Ice and Refrigerator Temp

buttons at the same time for 5 seconds. You will see the previous

value setting you had on display when Demo Mode is deactivated.

LIGHTS DO NOT WORK

Check if... Then...

The power supply cord is unplugged. Firmly plug the cord into a live outlet with proper voltage.

Light bulb is loose in the socket. Unplug the refrigerator. Gently remove the bulb and reinsert.

Then plug in refrigerator and reset the refrigerator control.

Light bulb has burned out. Replace with an appliance bulb of the same wattage, size and

shape available at your local hardware store. (See the

Changing the Light Bulb(s} section on pages 32-33.) Unplug

the refrigerator prior to replacement.

VIBRATION OR RATTLING NOISE

Check if... Then...

The refrigerator is not resting solidly on Floor is weak or uneven or leveling legs need adjusting.

the floor. See Installation section on pages 9 and 17.

COMPRESSOR MOTOR SEEMS TO RUN TOO MUCH

Check if... Then...

The refrigerator that was replaced was an older

model.

The room temperature is hotter than normal.

The door is opened often or a large amount of food

has just been added.

Modern refrigerators with more storage space require more

operating time. Even though this refrigerator may run more

than your older one it will still use less energy.

The motor will run longer under warm conditions. At normal

room temperatures, expect your motor to run about 40% to

80% of the time. Under warmer conditions, expect it to run

even more often.

Adding food and opening the door warms the refrigerator.

It is normal for the refrigerator to run longer in order to cool the

refrigerator back down. See the Food Storage Guide section

on page 22. In order to conserve energy, try to get everything

you need out of the refrigerator at once, keep food organized

so it is easy to find and close the door as soon as the food is

removed.

The refrigerator was recently plugged in and the The refrigerator will take up to 24 hours to cool completely.

refrigerator control was set correctly.

The refrigerator control is not set correctly for the See the Adjusting Control Settings section on page 21.

surrounding conditions.

The doors are not closed completely. Push the doors firmly shut. If they will not shut all the way, see

Doors will not close completely below.

The back cover is dirty. A dirty back cover prevents air transfer and makes the motor

work harder. Clean the back cover. Refer to the Care and

Cleaning section on page 32-33.

DOORS WILL NOT CLOSE COMPLETELY

Check if... Then...

The refrigerator is not level. See Leveling and Door Alignment section on page 17.

Food packages are blocking the door open. Rearrange food containers to clear door and door shelves.

The ice bin, crisper cover, pans, shelves, door bins Push bins all the way in and put crisper cover, pans, shelves

or baskets are out of position, and baskets into their correct positions. See the Using Your

Refrigerator section on pages 18-27.

The gaskets are sticking. Clean the gaskets and the surfaces that they touch. Rub a thin

coat of appliance polish or kitchen wax on the gaskets after

cleaning.

The refrigerator wobbles or seems unstable. Level the refrigerator. Refer to the Leveling and Door

Alignment section on page 17.

The doors were removed during product Remove and replace the doors according to the Removing

installation and not properly replaced, and Replacing Refrigerator handles and doors section on

pages 11-16, or call a qualified service technician.

FROST OR ICE CRYSTALS ON FROZEN FOOD

Check if... Then...

The door is not closing properly. See Doors will not close completely above.

The door is opened often. When the door is opened, warm, humid air is allowed in the

freezer, resulting in frost.

ICE HAS BAD TASTE OR ODOR

Check if... Then...

The icemaker was recently installed. Discard the first few batches of ice to avoid discolored or bad

tasting ice.

The ice has been stored for too long. Throw away old ice and make a new supply.

The food has not been wrapped tightly in either Rewrap foods since odors may migrate to the ice if food is not

compartment, wrapped properly.

The water supply contains minerals such as sulfur. A filter may need to be installed to eliminate taste and odor

problems.

The interior of refrigerator needs cleaning. See Care and Cleaning section on pages 32-33.

Ice storage bin needs cleaning. Empty and wash bin. Discard old cubes.

Check if...

The refrigerator is defrosting.

THERE IS WATER IN THE DEFROST DRAIN PAN

Then...

The water will evaporate. It is normal for water to drip into the

defrost pan.

It is more humid than normal. Expect that the water in the defrost pan will take longer to

evaporate. This is normal when it is hot or humid.

THE REFRIGERATOR SEEMS TO MAKE TOO MUCH NOISE

Check if... Then...

The sounds may be normal for your refrigerator. Refer to the Understanding Sounds You May Hear section

on page 39.

THE ICEMAKER IS NOT PRODUCING ICE OR NOT ENOUGH ICE

Check if... Then...

New installation.

The refrigerator is not connected to a water

supply or the supply shutoff valve is not turned

on.

Reverse osmosis water filtration system is

connected to your cold water supply.

Kink in the water source line.

Large amount of ice recently has been

removed.

The icemaker is not turned on.

There is something on the ice-detecting

sensor.

The temperature setting for the freezer is too

warm.

The doors are opened often.

The doors are not closing properly.

The ice compartment door is not closing

properly.

Ultra Ice is not selected.

Wait 24 hours after ice maker installation for ice production to

begin. Wait 72 hours for full ice production.

Connect refrigerator to the water supply and turn water shutoff

valve fully open.

Reverse osmosis filtration systems can reduce the water

pressure below the minimum amount (40 psi) and result in

icemaker issues.

A kink in the line can reduce water flow. Straighten the water

source line.

Allow 24 hours for ice maker to produce more ice.

NOTE: An extra ice bucket is provided in the freezer section

for additional storage.

Locate the icemaker on/off switch and confirm it is in the On (I)

position.

Foreign substances or frost on the ice-detecting sensor can

interrupt ice production. Make sure the sensor area is clean at

all times for proper operation.

Below 0°F is the recommended temperature for the freezer

compartment for normal ice production. If the freezer

temperature is warmer, ice production will be affected.

If the doors of the unit are opened often, the cold air will

escape which will prevent the unit from maintaining the set

temperature. Lowering the temperature can help, as well as

not opening the doors as frequently.

If the doors are not properly closed, ice production will be

affected.

If the ice compartment door is not properly closed, ice

production will be affected. Make sure ice compartment door is

closed for proper operation.

With this option, the cold air in the compartment is increased

as is ice production.

NOT DISPENSING ICE

Check if... Then...

All the doors are not closed completely. Ice will not dispense if any of the refrigerator doors are left

open.

The dispenser display is locked.

Ice is not selected on the dispenser.

The ice dispenser is not used often.

Press and hold the Lock ( I _:'_:c_,o,_-) for 3 seconds to unlock the

control panel and dispenser.

The dispenser can be set for ice or water. Make certain that

the control panel is set for the proper operation. Press the

dispenser button on the control panel to cycle through the ice

and water options.

Infrequent use of the ice dispenser will cause the cubes to

stick together over time, which will prevent them from properly

dispensing, Check the ice bin for ice cubes clumping/sticking

together, If they are, break up the ice cubes to allow for proper

operation.

Ice bin is not installed correctly. Be sure to install the ice bin firmly into position.

New installation. Wait 24 hours after ice maker installation for ice production to

begin. Wait 72 hours for full ice production.

Ice cubes are stuck in the delivery chute. Use a plastic utensil to clear the delivery chute.

The ice dispenser is stalling while dispensing Change the ice button from "crushed" to "cubed".

"crushed" ice. If cubed ice dispenses correctly, depress the button for

"crushed" ice and begin dispensing again.

DISPENSING WARM WATER

Check if... Then...

New installation. Allow 24 hours after installation for the water supply to cool

completely.

The water dispenser has been recently used. The unit has its own water tank inside. The water storage

capacity is 12 oz. (345 ml) of cold water.

The refrigerator is connected to a hot water line. Make sure the refrigerator is connected to a cold water pipe.

NOT DISPENSING WATER

Check if...

The dispenser panel is locked.

New installation.

Refrigerator or freezer doors are not closed

properly.

The refrigerator is not connected to a water

supply or the supply shutoff valve is not turned

on.

Then..,

Press and hold the Lock ( _:..!.. ) for 3 seconds to unlock the

control panel and dispenser.

Flush and fill the water system.

Water will not dispense if any of the refrigerator doors are left

open.

Connect refrigerator to the water supply and turn water shutoff

valve fully open.

The water pressure is less than 40 psi. The water pressure to the home affects the flow from the

dispenser.

Home filter or reverse osmosis system is used. This can decrease water pressure. It is recommended not to

connect the supply line to a reverse osmosis system for optimal

operation.

The dispenser is not set for water dispensing.

Water filter needs to be changed.

The dispenser can be set for ice or water. Make certain that the

control panel is set for the proper operation. Press the

dispenser button on the control panel to cycle through the ice

and water options.

The filter should be changed every 6 months or more often

depending on usage. The filter can become blocked over time

with foreign particles and reduce the water pressure.

THE DOORS ARE DIFFICULT TO OPEN

Check if...

The gaskets are dirty or sticky.

The door is reopened within a short time after

having been opened.

Then..,

Clean gaskets and the surfaces that they touch. Rub a thin

coat of appliance polish or kitchen wax on the gaskets after

cleaning.

When you open the door, warmer air enters the refrigerator.

As the warm air cools, it can create a vacuum. If the door is

hard to open, wait 5 minutes to allow the air pressure to

equalize, then see if it opens more easily.

TEMPERATURE IS TOO WARM OR THERE IS INTERIOR MOISTURE BUILDUP

Check if... Then...

The air vents are blocked. Cold air circulates from

the freezer to the fresh food section and back

again through air vents in the wall dividing the two

sections.

The doors are opened often.

The control is not set correctly for the surrounding

conditions.

Locate air vents by using your hand to sense airflow and move

all packages that block vents and restrict airflow. (See air flow

diagram below).

When the door is opened, warm humid air is allowed into the

refrigerator. The more the door is opened, the faster the

humidity builds up, and the more warm air the refrigerator must

cool. In order to keep the refrigerator cool, try to get everything

you need out of the refrigerator at once, keep food organized

so it is easy to find and close the door as soon as the food is

removed.

Refer to the Setting the Controls section on page 18.

Wait 24 hours for temperatures to stabilize or even out. If the

temperature is too cold or too warm, change the setting one

increment at a time.

A large amount of food has just been added to the Adding food warms the refrigerator. It can take a few hours for

refrigerator or freezer, the refrigerator to return to normal temperature.

The food is not packaged correctly. Wrap food tightly and wipe off damp containers prior to storing

in the refrigerator to avoid moisture accumulation. If

necessary, repackage food according to the guidelines in the

Food Storage Guide section on page 22.

The doors are not closing completely. See Doors will not close completely on page 41.

The weather is humid. In humid weather, air carries moisture into the refrigerator

when the doors are opened.

A self-defrost cycle was completed. It is normal for droplets to form on the back wall after the

refrigerator self-defrosts.

Your Home

For troubleshooting, product manuals and home solutions advice:

www.managemylife.com

For repair = in your home = of all major brand appliances,

lawn and garden equipment, or heating and cooling systems,

no matter who made it, no matter who sold it!

For the replacement parts, accessories and

owner's manuals that you need to do-it-yourself.

For Sears professional installation of home appliances

and items like garage door openers and water heaters.

1-800-4-MY-HOME ® (1-8oo-4sg-4ss3)

Call anytime, day or night (U.S.A. and Canada)

www.sears.con3 www.sea[s.ca

Our Home

For repair of carry-in items like vacuums, lawn equipment,

and electronics, call anytime for the location of your nearest

Sears Parts & Repair Service Center

1-800-488-t222 (U.S.A.) 1-800-469-4663 (Canada)

WWW.SeaFs.coR3 www,sears.ca

To purchase a protection agreement on a product serviced by Sears:

1-800-827-6655 (U.S.A.) t-800-361-6665 (Canada)

Para pedir servicio de reparaci6n

a domicilio, y para ordenar piezas:

1-888-SU-HOGAR ®

(1-888-784-6427)

www.sears,com

Au Canada pour service en fran£ais:

1-800-LE-FOYER Mc

(1-800-533-6937)

www.sears.ca

® Registered Trademark /TMTrademark of KCD IP, LLC in the United States, or Sears Brands, LLC in other countries

® Marca Registrada /TMMarca de F&brica de KCD IP, LLC en Estados Unidos, o Sears Brands, LLC in otros paises

MCMarque de commerce /Marque depos6e de Sears Brands, LLC

Kenmore Elite 795 7105 Users Manual

79571052010 79571052010 KENMORE ELITE REFRIGERATOR - Manuals and Guides L1004027 View the owners manual for your KENMORE ELITE REFRIGERATOR #79571052010. Home:Kitchen Appliance Parts:Kenmore Elite Parts:Kenmore Elite REFRIGERATOR Manual

KENMORE ELITE Bottom Mount Refrigerator Manual L1004027 KENMORE ELITE Bottom Mount Refrigerator Owner's Manual, KENMORE ELITE Bottom Mount Refrigerator installation guides

ELITE 795.7105 L1004027

795.7105 to the manual 1e9eb0de-a895-4fc7-8d80-045aff32cbca

Navigation menu

Versions of this User Manual:

Views

Navigation
