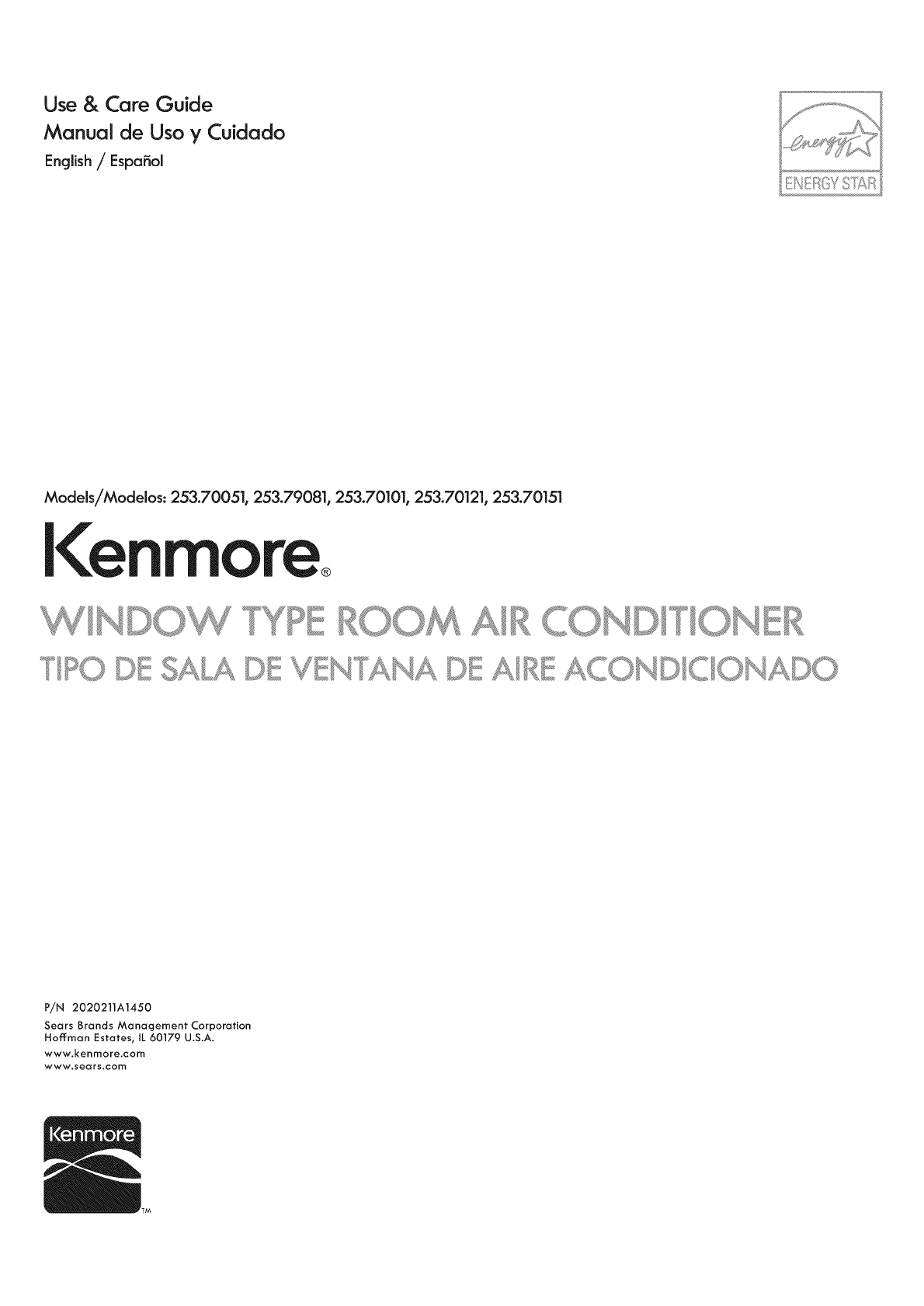

Use & Care Guide

Manual de Uso y Cuidado

English /Espa_ol

Models/Modelos: 253.70051, 253.79081, 253.70101, 253.70121, 253.70151

l<enmore

P/N 2020211A1450

Sears Brands Management Corporation

Hofl:man Estates, IL 60179 U.S.A.

www.kenmore.com

www.sears.com

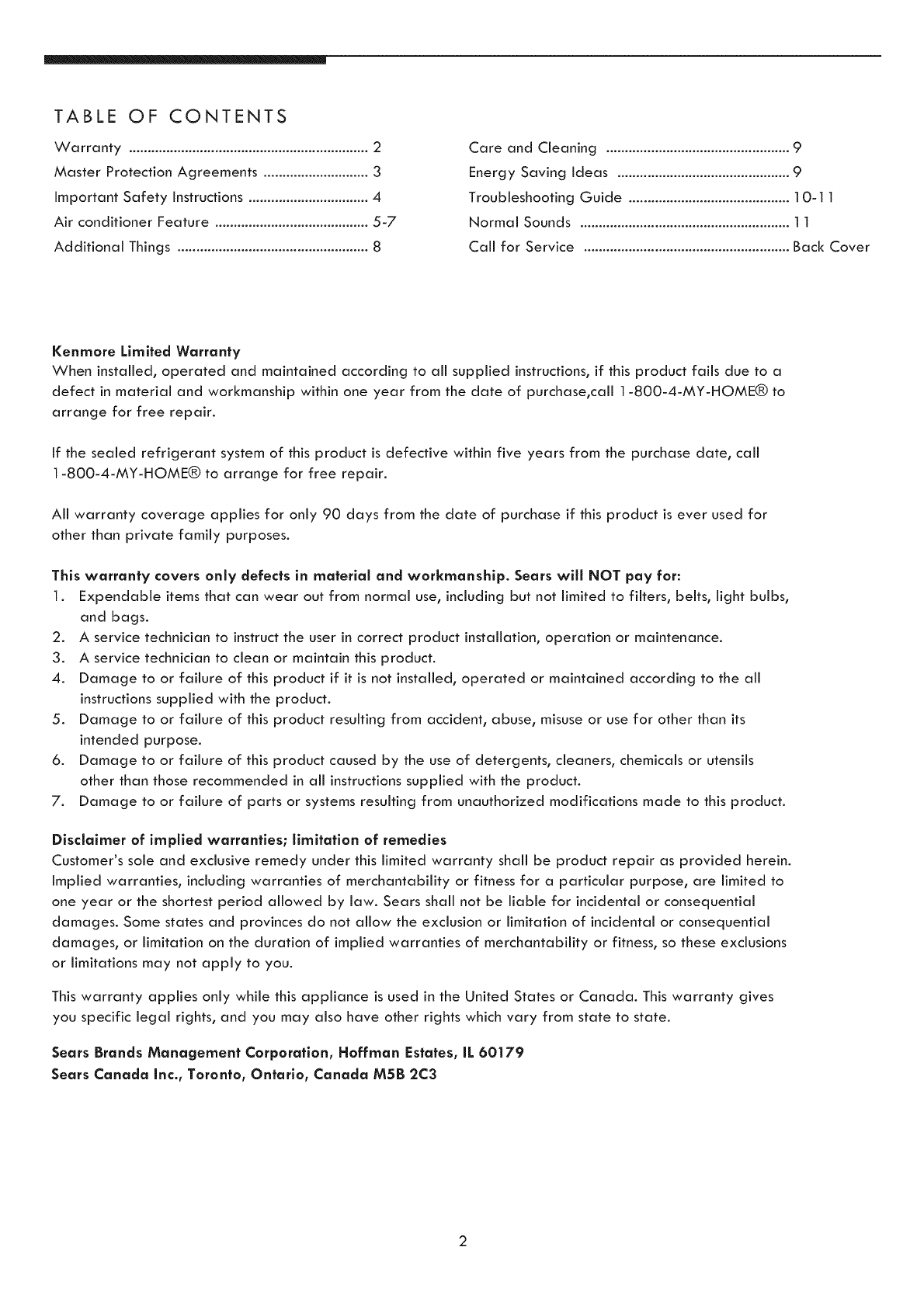

TABLE OF CONTENTS

Warranty ................................................................ 2

Master Protection Agreements ............................ 3

Important Safety Instructions ................................ 4

Air conditioner Feature ......................................... 5-7

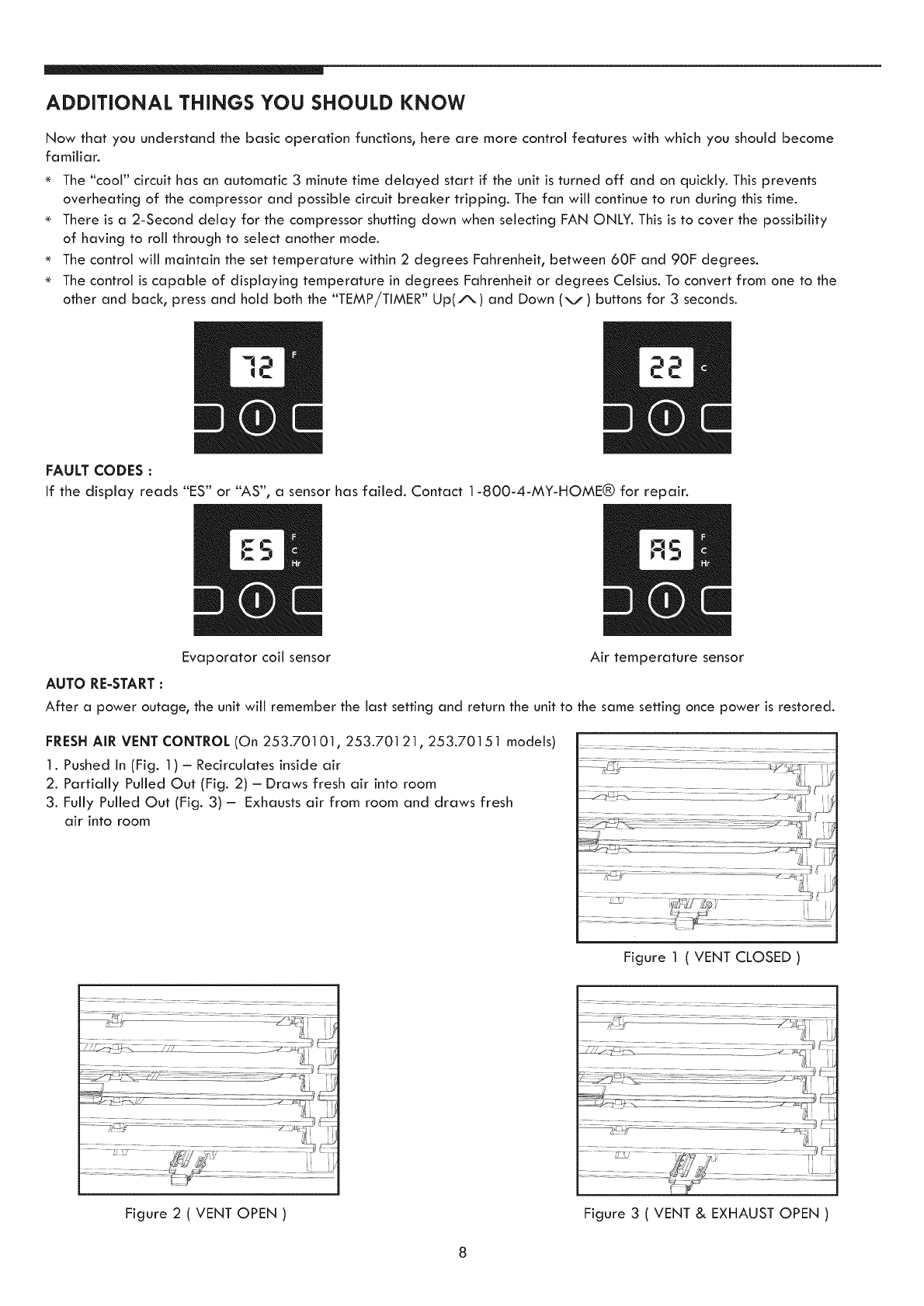

Additional Things ................................................... 8

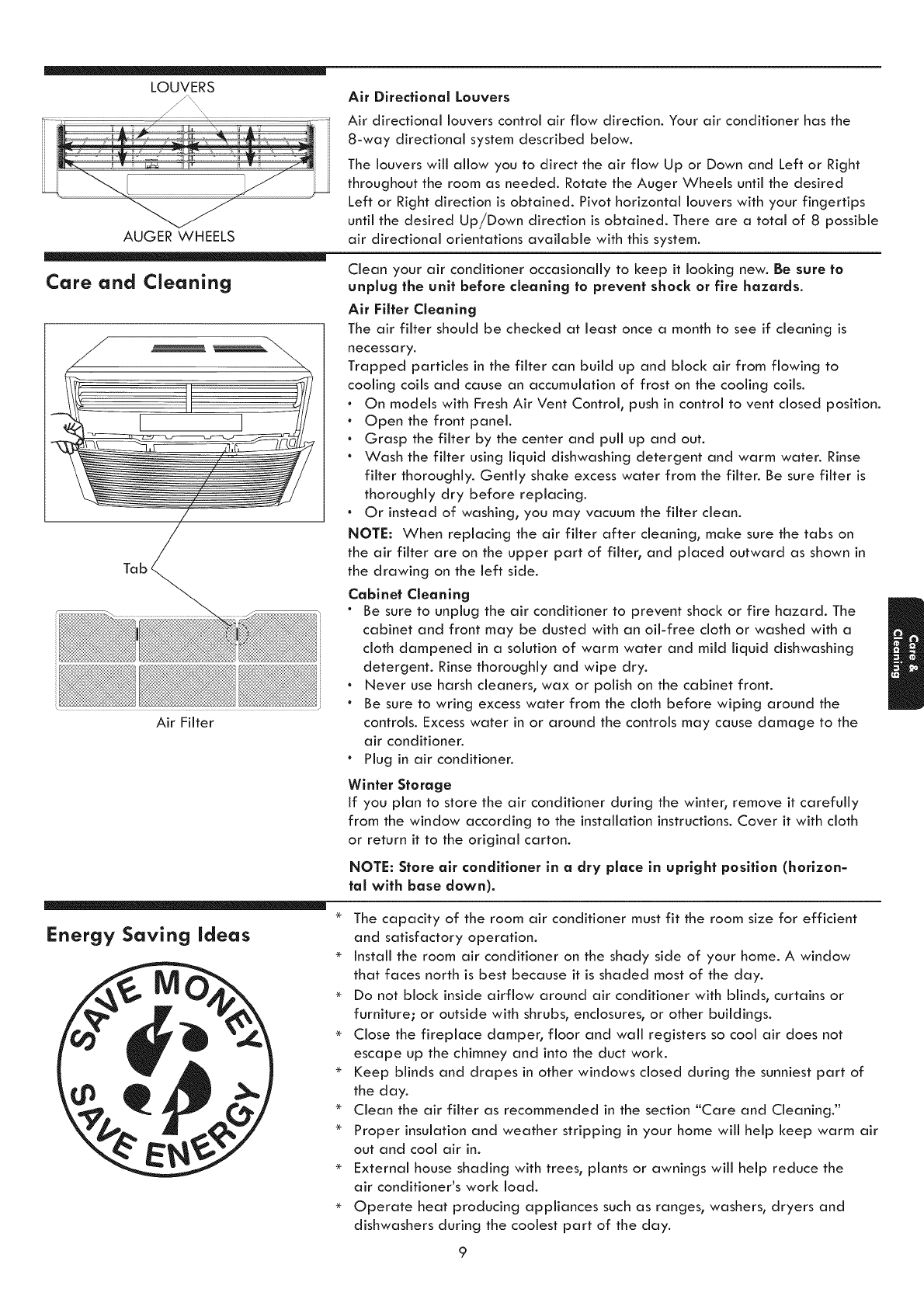

Care and Cleaning ................................................. 9

Energy Saving Ideas .............................................. 9

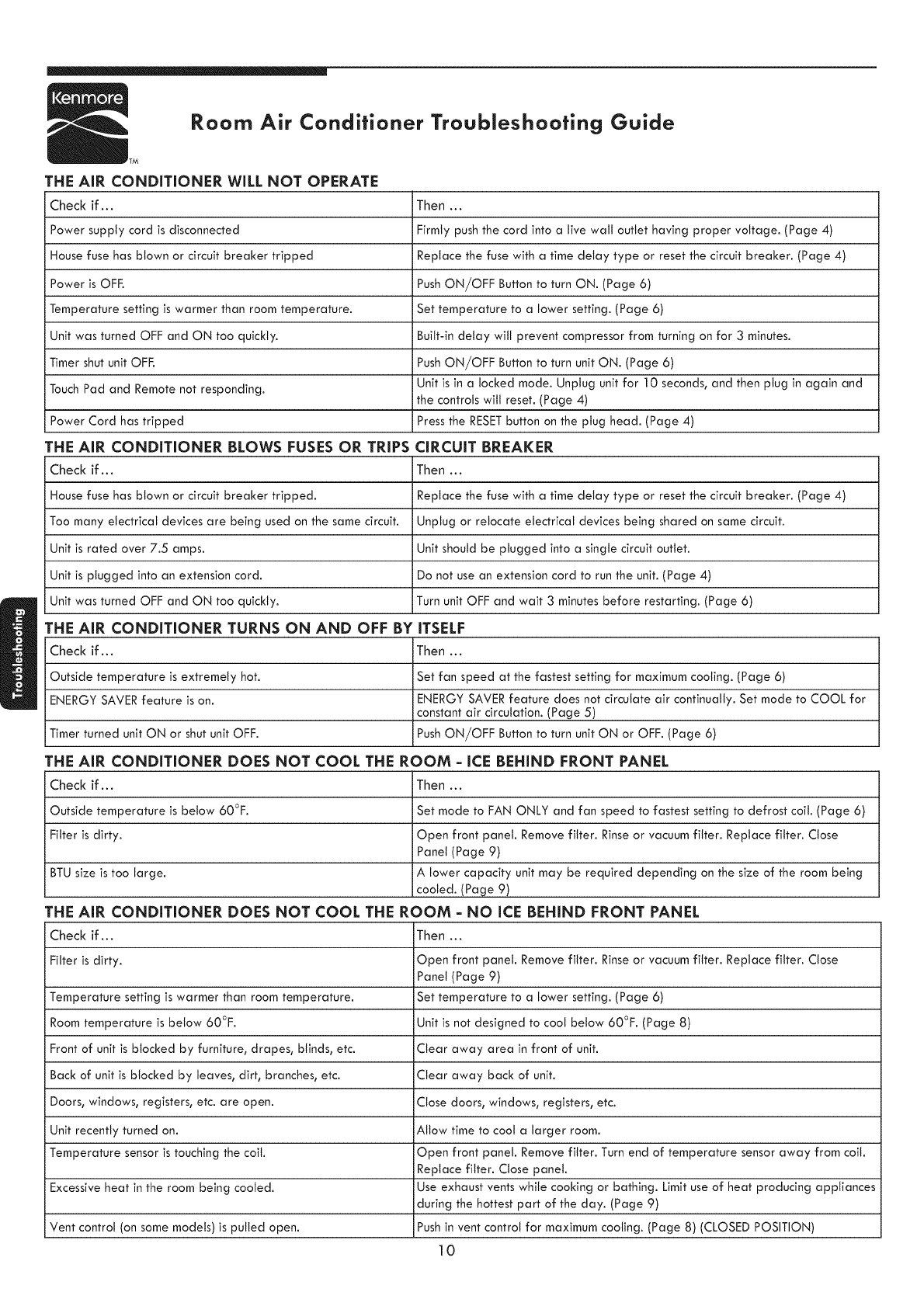

Troubleshooting Guide ........................................... 10-1 1

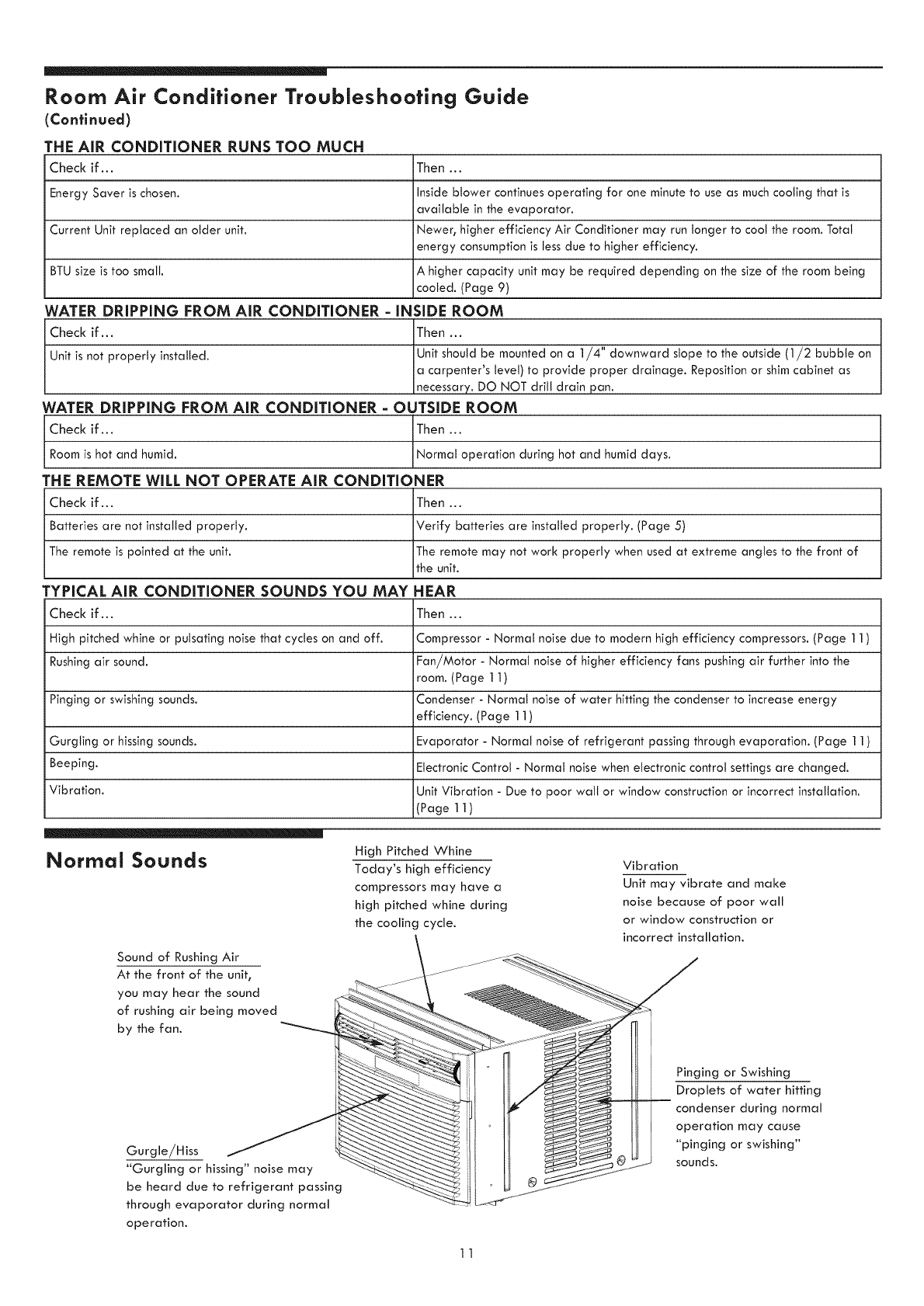

Normal Sounds ........................................................ 1 1

Call for Service ....................................................... Back Cover

Kenmore Limited Warranty

When instaJJed, operated and maintained according to aJJ supplied instructions, if this product faiJs due to a

defect in material and workmanship within one year from the date of purchase,call 1-800-4-MY-HOME® to

arrange for free repair.

If the sealed refrigerant system of this product is defective within five years from the purchase date, call

1-800-4-MY-HOME® to arrange for free repair.

All warranty coverage applies for only 90 days from the date of purchase if this product is ever used for

other than private family purposes.

This warranty covers only defects in material and workmanship. Sears wlll NOT pay for:

1. Expendable items that can wear out from normal use, including but not limited to filters, belts, light bulbs,

and bags.

2. A service technician to instruct the user in correct product installation, operation or maintenance.

3. A service technician to clean or maintain this product.

4. Damage to or failure of this product if it is not installed, operated or maintained according to the all

instructions supplied with the product.

5. Damage to or failure of this product resulting from accident, abuse, misuse or use for other than its

intended purpose.

6. Damage to or failure of this product caused by the use of detergents, cleaners, chemicals or utensils

other than those recommended in all instructions supplied with the product.

7. Damage to or failure of parts or systems resulting from unauthorized modifications made to this product.

Disclaimer of impiled warranties; limltatlon of remedies

Customer's sole and exclusive remedy under this limited warranty shall be product repair as provided herein.

Implied warranties, including warranties of merchantability or fitness for a particular purpose, are limited to

one year or the shortest period allowed by law. Sears shall not be liable for incidental or consequential

damages. Some states and provinces do not allow the exclusion or limitation of incidental or consequential

damages, or limitation on the duration of implied warranties of merchantability or fitness, so these exclusions

or Jimitations may not appJy to you.

This warranty applies only while this appliance is used in the United States or Canada. This warranty gives

you specific legal rights, and you may also have other rights which vary from state to state.

Sears Brands Management Corporation, Hoffman Estates, IL 60179

Sears Canada inc., Toronto, Ontario, Canada MSB 2C3

2

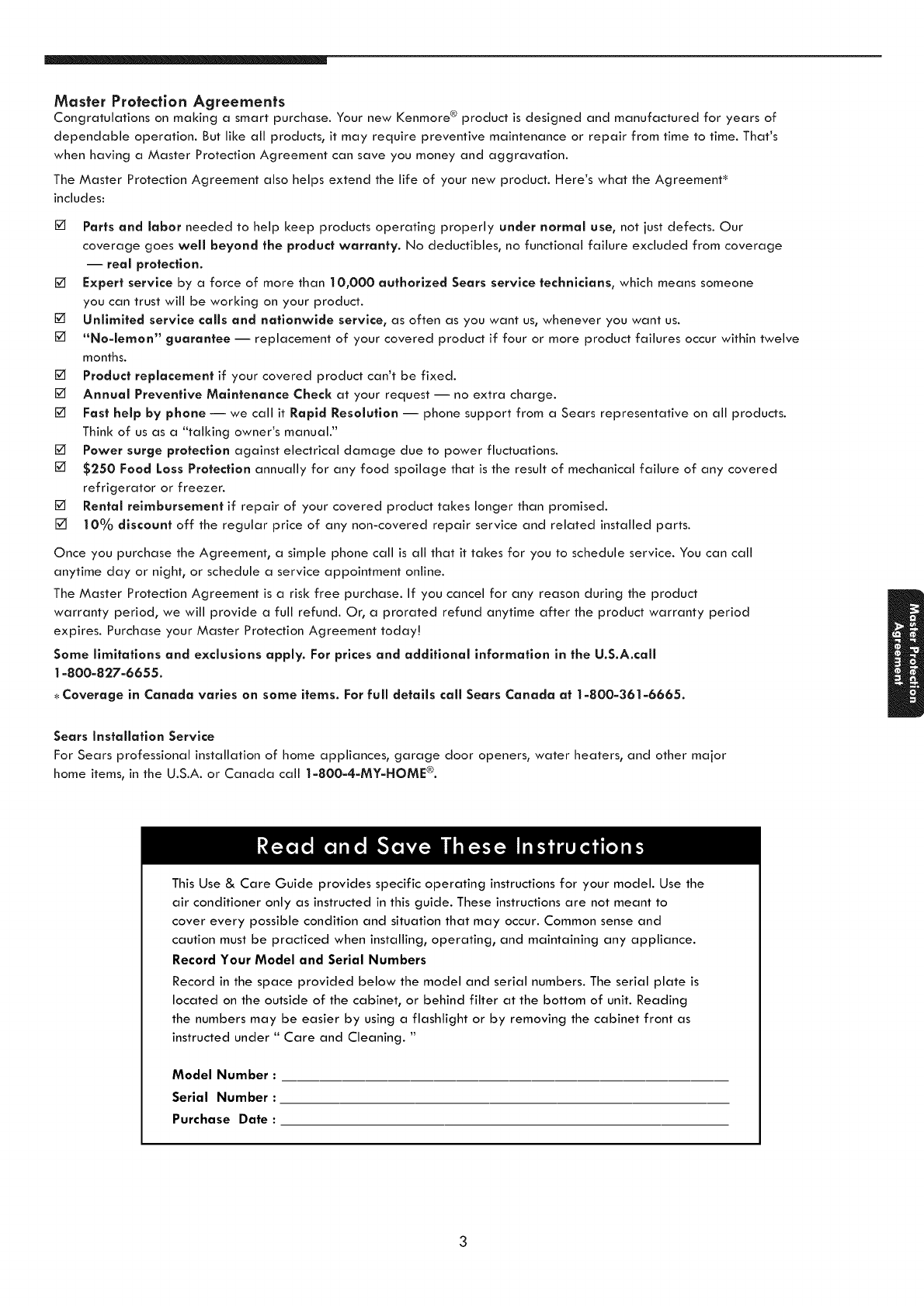

Master Protection Agreements

Congratulations on making a smart purchase. Your new Kenmore ® product is designed and manufactured for years of

dependable operation. But like all products, it may require preventive maintenance or repair from time to time. That's

when having a Master Protection Agreement can save you money and aggravation.

The Master Protection Agreement also helps extend the life of your new product. Here's what the Agreement _

includes:

[] Ports and Iobor needed to help keep products operating properly under normal use, not just defects. Our

coverage goes well beyond the product warranty. No deductibles, no functional failure excluded from coverage

-- real protection.

[] Expert service by a force of more than 10,000 authorized Sears service technicians, which means someone

you can trust will be working on your product.

[] Unlimited service calls and nationwide service, as often as you want us, whenever you want us.

[] "No-lemon" guarantee -- replacement of your covered product if four or more product failures occur within twelve

months.

[] Product replacement if your covered product can't be fixed.

[] Annual Preventive Maintenance Check at your request -- no extra charge.

[] Fast help by phone -- we call it Rapid Resolution -- phone support from a Sears representative on all products.

Think of us as a "talking owner's manual."

[] Power surge protection against electrical damage due to power fluctuations.

[] $250 Food Loss Protection annually for any food spoilage that is the result of mechanical failure of any covered

refrigerator or freezer.

[] Rental reimbursement if repair of your covered product takes longer than promised.

[] 10% discount off the regular price of any non-covered repair service and related installed parts.

Once you purchase the Agreement, a simple phone call is all that it takes for you to schedule service. You can call

anytime day or night, or schedule a service appointment online.

The Master Protection Agreement is a risk free purchase. If you cancel for any reason during the product

warranty period, we will provide a full refund. Or, a prorated refund anytime after the product warranty period

expires. Purchase your Master Protection Agreement todayJ

Some limitations and exclusions apply. For prices and additional information in the U.S.A.call

1-800-827-6655.

Coverage in Canada varies on some items. For full details call Sears Canada at 1-800-36|-6665.

Sears Installatlon Service

For Sears professional installation of home appliances, garage door openers, water heaters, and other major

home items, in the U.S.A. or Canada call |-800-4-MY-HOME ®.

This Use & Care Guide provides specific operating instructions for your model. Use the

air conditioner only as instructed in this guide. These instructions are not meant to

cover every possible condition and situation that may occur. Common sense and

caution must be practiced when installing, operating, and maintaining any appliance.

Record Your Model and Serial Numbers

Record in the space provided below the model and serial numbers. The serial plate is

located on the outside of the cabinet, or behind filter at the bottom of unit. Reading

the numbers may be easier by using a flashlight or by removing the cabinet front as

instructed under " Care and Cleaning. "

Model Number :

Serial Number :

Purchase Date :

I!

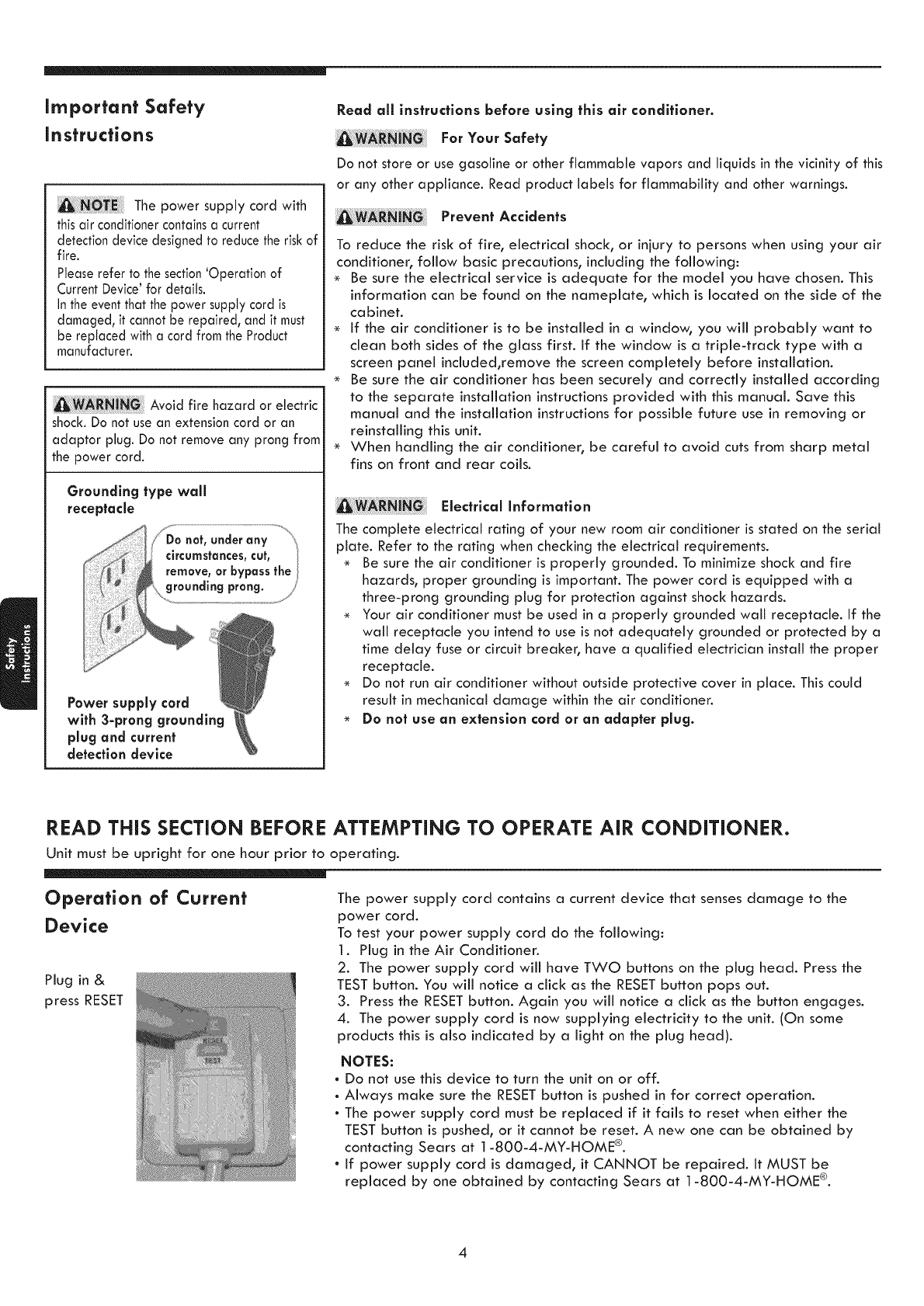

important Safety

instructions

The power supply cord with

this air conditioner contains a current

detection device designed to reduce the risk of

fire.

Please refer to the section'Operation of

Current Device' for details.

In the eventthat the power supply cord is

damaged, it cannot be repaired, and it must

be replaced with a cord from the Product

manufacturer.

Avoid fire hazard or electric

shock. Do not use an extension cord or an

adaptor plug. Do not remove any prong from

the power cord.

Power supply cord

with 3-prong grounding

plug and current

detection device

Read allinstructions before using this air conditioner.

For Your Safety

Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this

or any other appliance. Read product labels for flammability and other warnings.

Prevent Accidents

To reduce the risk of fire, electrical shock, or injury to persons when using your air

conditioner, follow basic precautions, including the following:

Be sure the electrical service is adequate for the model you have chosen. This

information can be found on the nameplate, which is located on the side of the

cabinet.

If the air conditioner is to be installed in a window, you will probably want to

dean both sides of the glass first. If the window is a triple-track type with a

screen panel included,remove the screen completely before installation.

Be sure the air conditioner has been securely and correctly installed according

to the separate installation instructions provided with this manual. Save this

manual and the installation instructions for possible future use in removing or

reinstalling this unit.

When handling the air conditioner, be careful to avoid cuts from sharp metal

fins on front and rear coils.

Electrical Information

The complete electrical rating of your new room air conditioner is stated on the serial

plate. Refer to the rating when checking the electrical requirements.

Be sure the air conditioner is properly grounded. To minimize shock and fire

hazards, proper grounding is important. The power cord is equipped with a

three-prong grounding plug for protection against shock hazards.

Your air conditioner must be used in a properly grounded wall receptacle. If the

wall receptacle you intend to use is not adequately grounded or protected by a

time delay fuse or circuit breaker, have a qualified electrician install the proper

receptacle.

Do not run air conditioner without outside protective cover in place. This could

result in mechanical damage within the air conditioner.

Do not use an extension cord or an adapter plug.

READ THIS SECTION BEFORE ATTEMPTING TO OPERATE AIR CONDITIONER.

Unit must be upright for one hour prior to operating.

Operation of Current

Device

Plug in &

press RESET

The power supply cord contains a current device that senses damage to the

power cord.

To test your power supply cord do the following:

1. Plug in the Air Conditioner.

2. The power supply cord will have TWO buttons on the plug head. Press the

TEST button. You will notice a click as the RESET button pops out.

3. Press the RESET button. Again you will notice a click as the button engages.

4. The power supply cord is now supplying electricity to the unit. (On some

products this is also indicated by a light on the plug head).

NOTES:

•Do not use this device to turn the unit on or off.

. Always make sure the RESET button is pushed in for correct operation.

•The power supply cord must be replaced if it fails to reset when either the

TEST button is pushed, or it cannot be reset. A new one can be obtained by

contacting Sears at 1 -800-4-MY-HOME ®.

•If power supply cord is damaged, it CANNOT be repaired. It MUST be

replaced by one obtained by contacting Sears at 1-800-4-MY-HOME ®.

4

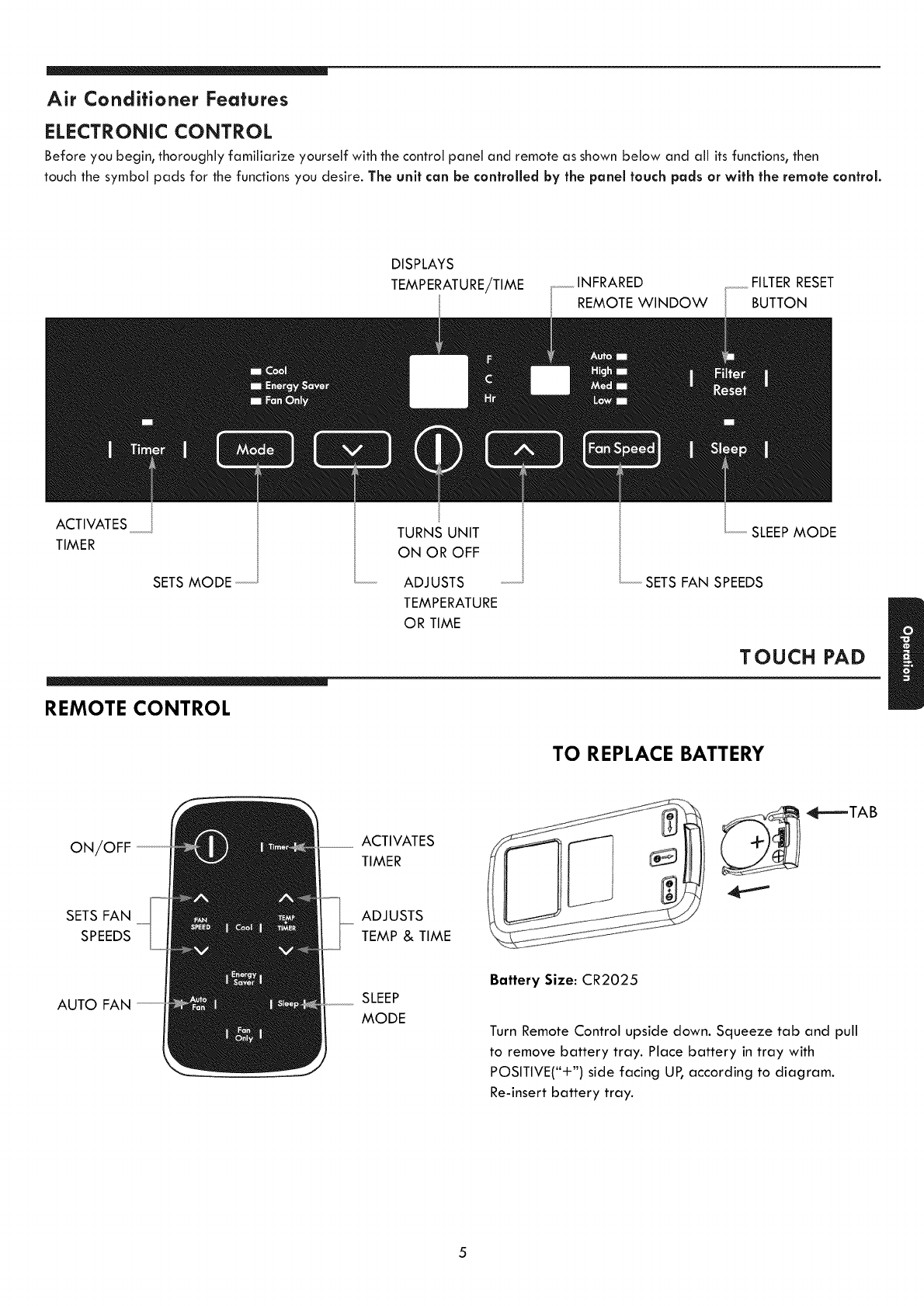

Air Conditioner Features

ELECTRONIC CONTROL

Before you begin, thoroughly familiarize yourself with the control panel and remote as shown below and all its functions, then

touch the symbol pads for the functions you desire. The unit can be controlled by the panel touch pads or with the remote control.

DISPLAYS

TEMPERATURE/TIME ................INFRARED ................FILTER RESET

REMOTE WINDOW BUTTON

ACTIVATES .................

TIMER

SETS MODE ...................

REMOTE CONTROL

TURNS UNIT

ON OR OFF

ADJUSTS .................

TEMPERATURE

OR TIME

/................SLEEPMODE

...................SETS FAN SPEEDS

TOUCH PAD

TO REPLACE BATTERY

SETS FAN

SPEEDS

AUTO FAN

ACTIVATES

TIMER

ADJUSTS

TEMP & TIME

SLEEP

MODE

_4.._TAB

Battery Size: CR2025

Turn Remote Control upside down. Squeeze tab and pull

to remove battery tray. Place battery in tray with

POSITIVE("+") side facing UP, according to diagram.

Re-insert battery tray.

5

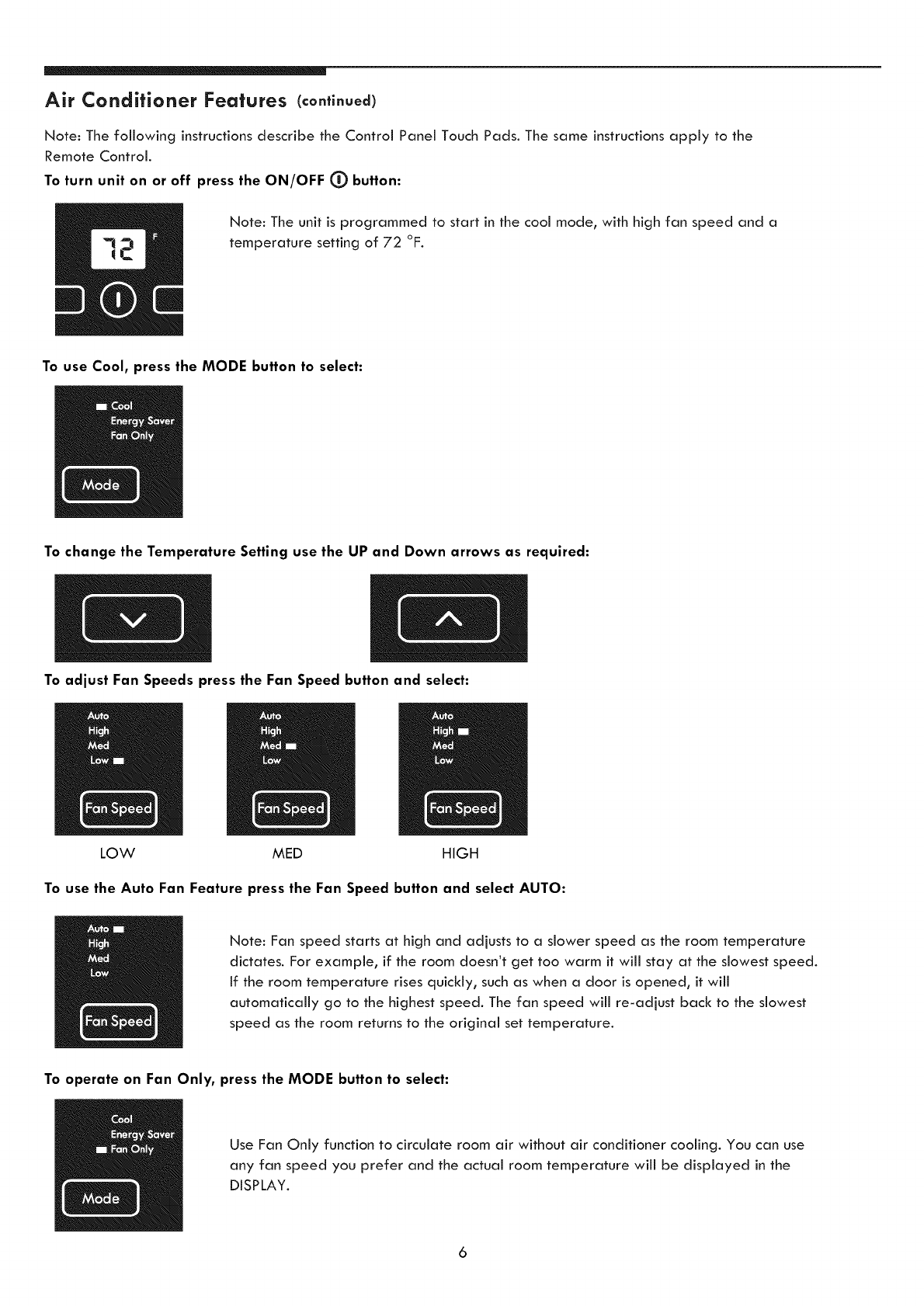

Air Conditioner Features Ccontlnued)

Note: The following instructions describe the Control Panel Touch Pads. The same instructions apply to the

Remote Control.

To turn unit on or off press the ON/OFF _) button:

Note: The unit is programmed to start in the cool mode, with high fan speed and a

temperature setting of 72 °F.

To use Cool, press the MODE button to select:

To change the Temperature Setting use the UP and Down arrows as required:

To adjust Fan Speeds press the Fan Speed button and select:

MED HIGH

To use the Auto Fan Feature press the Fan Speed button and select AUTO:

Note: Fan speed starts at high and adiusts to a slower speed as the room temperature

dictates. For example, if the room doesn't get too warm it will stay at the slowest speed.

If the room temperature rises quickly, such as when a door is opened, it will

automatically go to the highest speed. The fan speed will re-adiust back to the slowest

speed as the room returns to the original set temperature.

To operate on Fan Only, press the MODE button to select:

Use Fan Only function to circulate room air without air conditioner cooling. You can use

any fan speed you prefer and the actual room temperature will be displayed in the

DISPLAY.

6

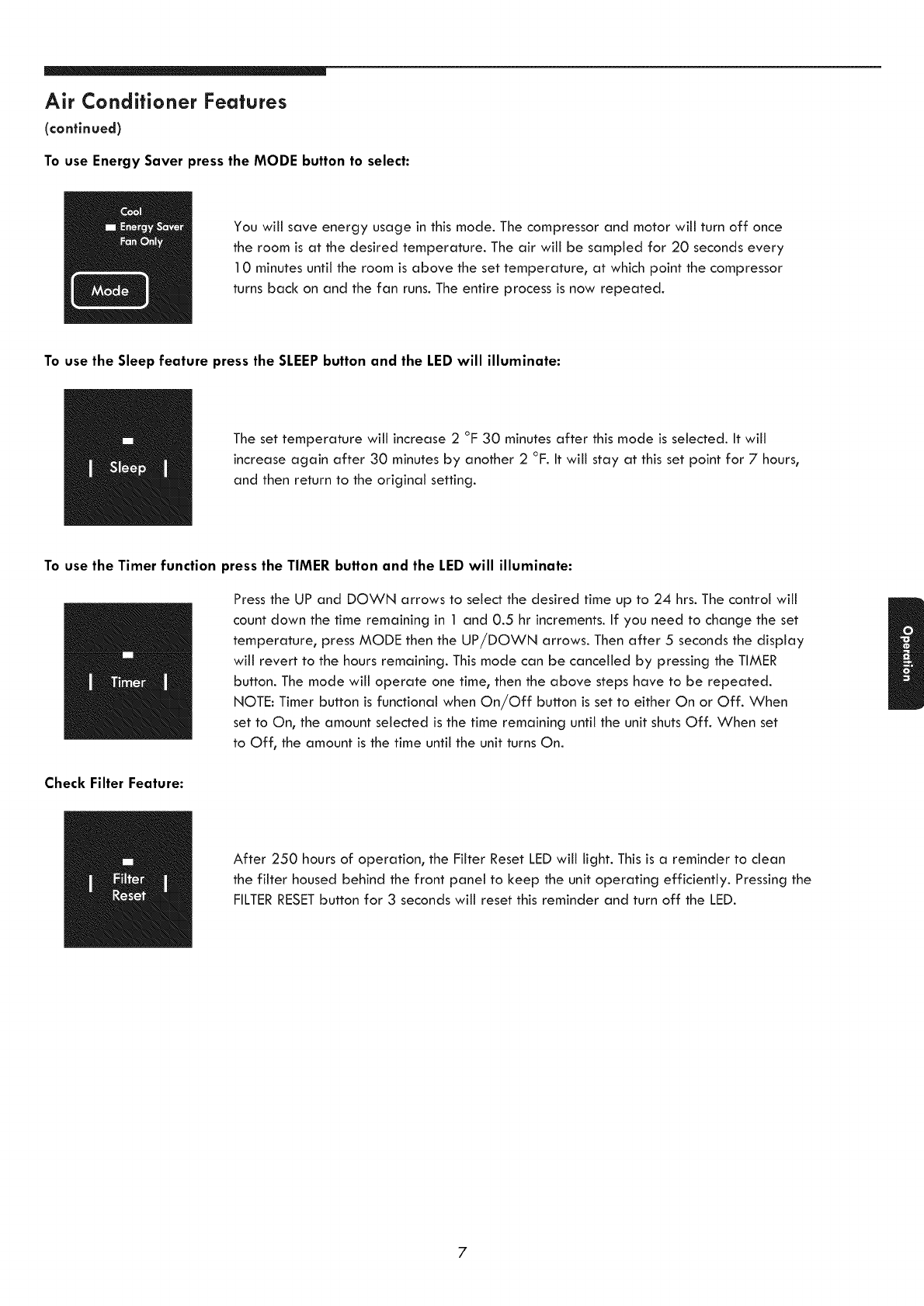

Air Conditioner Features

(continued)

To use Energy Saver press the MODE button to select:

You will save energy usage in this mode. The compressor and motor will turn off once

the room is at the desired temperature. The air will be sampled for 20 seconds every

10 minutes until the room is above the set temperature, at which point the compressor

turns back on and the fan runs. The entire process is now repeated.

To use the Sleep feature press the SLEEP button and the LED will illuminate:

The set temperature will increase 2 °F 30 minutes after this mode is selected. It will

increase again after 30 minutes by another 2 °F. It will stay at this set point for 7hours,

and then return to the original setting.

To use the Timer function press the TIMER button and the LED will illuminate:

Press the UP and DOWN arrows to select the desired time up to 24 hrs. The control will

count down the time remaining in 1 and 0.5 hr increments. If you need to change the set

temperature, press MODE then the UP/DOWN arrows. Then after 5seconds the display

will revert to the hours remaining. This mode can be cancelled by pressing the TIMER

button. The mode will operate one time, then the above steps have to be repeated.

NOTE: Timer button is functional when On/Off button is set to either On or Off. When

set to On, the amount selected is the time remaining until the unit shuts Off. When set

to Off, the amount is the time until the unit turns On.

Check Filter Feature:

After 250 hours of operation, the Filter Reset LED will light. This is a reminder to clean

the filter housed behind the front panel to keep the unit operating efficiently. Pressing the

FILTER RESETbutton for 3 seconds will reset this reminder and turn off the LED.

7

ADDiTiONAL THINGS YOU SHOULD KNOW

Now that you understand the basic operation functions, here are more control features with which you should became

familiar.

The "cool" circuit has an automatic 3 minute time delayed start if the unit is turned off and on quickly. This prevents

overheating of the compressor and possible circuit breaker tripping. The fan will continue to run during this time.

There is a 2-Second delay for the compressor shutting down when selecting FAN ONLY. This is to cover the possibility

of having to roll through to select another mode.

The control will maintain the set temperature within 2 degrees Fahrenheit, between 60F and 90F degrees.

The control is capable of displaying temperature in degrees Fahrenheit or degrees CeLsius. To convert from one to the

other and back, press and hold both the "TEMP/TIMER" Up(A) and Down (v) buttons for 3 seconds.

FAULT CODES :

If the display reads "ES" or "AS", a sensor has failed. Contact 1-800-4-MY-HOME® for repair.

Evaporator coil sensor Air temperature sensor

AUTO RE-START :

After a power outage, the unit will remember the last setting and return the unit to the same setting once power is restored.

FRESH AIR VENT CONTROL (On 253.70101,253.70121,253.70151 models)

1. Pushed In (Fig. 1) - Recirculates inside air

2. Partially Pulled Out (Fig. 2) - Draws fresh air into room

3. Fully Pulled Out (Fig. 3) - Exhausts air from room and draws fresh

air into room

Figure 1 ( VENT CLOSED )

Figure 2 ( VENT OPEN ) Figure 3 ( VENT & EXHAUST OPEN )

8

LOUVERS

AUGER WHEELS

Care and Cleaning

Air Filter

Energy Saving Ideas

Air Directional Louvers

Air directional louvers control air flow direction. Your air conditioner has the

8-way directional system described below.

The louvers will allow you to direct the air flow Up or Down and Left or Right

throughout the room as needed. Rotate the Auger Wheels until the desired

Left or Right direction is obtained. Pivot horizontal louvers with your fingertips

until the desired Up!Down direction is obtained. There are a total of 8 possible

air directional orientations available with this system.

Clean your air conditioner occasionally to keep it looking new. Be sure to

unplug the unit before cleaning to prevent shock or fire hazards.

Air Filter Cleaning

The air filter should be checked at least once a month to see if cleaning is

necessary.

Trapped particles in the filter can build up and block air from flowing to

cooling coils and cause an accumulation of frost on the cooling coils.

•On models with Fresh Air Vent Control, push in control to vent closed position.

•Open the front panel.

. Grasp the filter by the center and pull up and out.

° Wash the filter using liquid dishwashing detergent and warm water. Rinse

filter thoroughly. Gently shake excess water from the filter. Be sure filter is

thoroughly dry before replacing.

•Or instead of washing, you may vacuum the filter clean.

NOTE: When replacing the air filter after cleaning, make sure the tabs on

the air filter are on the upper part of filter, and placed outward as shown in

the drawing on the left side.

Cabinet Cleaning

"Be sure to unplug the air conditioner to prevent shock or fire hazard. The

cabinet and front may be dusted with an oil-free cloth or washed with a

cloth dampened in a solution of warm water and mild liquid dishwashing

detergent. Rinse thoroughly and wipe dry.

• Never use harsh cleaners, wax or polish on the cabinet front.

"Be sure to wring excess water from the cloth before wiping around the

controls. Excess water in or around the controls may cause damage to the

air conditioner.

Plug in air conditioner.

Winter Storage

If you plan to store the air conditioner during the winter, remove it carefully

from the window according to the installation instructions. Cover it with cloth

or return it to the original carton.

NOTE: Store air conditioner in a dry place in upright position (horizon-

tal with base down).

The capacity of the room air conditioner must fit the room size for efficient

and satisfactory operation.

Install the room air conditioner on the shady side of your home. A window

that faces north is best because it is shaded most of the day.

_- Do not block inside airflow around air conditioner with blinds, curtains or

furniture; or outside with shrubs, enclosures, or other buildings.

Close the fireplace damper, floor and wall registers so cool air does not

escape up the chimney and into the duct work.

Keep blinds and drapes in other windows closed during the sunniest part of

the day.

Clean the air filter as recommended in the section "Care and Cleaning."

Proper insulation and weather stripping in your home will help keep warm air

out and cool air in.

External house shading with trees, plants or awnings will help reduce the

air conditioner's work load.

Operate heat producing appliances such as ranges, washers, dryers and

dishwashers during the coolest part of the day.

9

Room Air Conditioner Troubleshooting Guide

THE AiR CONDITIONER WiLL NOT OPERATE

Check if... Then ...

Power supply cord is disconnected Firmly push the cord into a live wall outlet having proper voltage. (Page 4)

House fuse has blown or circuit breaker tripped Replace the fuse with a time delay type or reset the circuit breaker. (Page 4)

Power is OFF. Push ON/OFF Button to turn ON. (Page 6)

Temperature setting is warmer than room temperature. Set temperature to a lower setting. (Page 6)

Unit was turned OFF and ON too quickly. Built-in delay will prevent compressor from turning on for 3 minutes.

Timer shut unit OFF. Push ON/OFF Button to turn unit ON. (Page 6)

Touch Pad and Remote not responding. Unit is in a locked mode. Unplug unit for 10 seconds, and then plug in again and

the controls will reset. (Page 4)

Power Cord has tripped Press the RESETbutton on the plug head. (Page 4)

THE AiR CONDITIONER BLOWS FUSES OR TRIPS CIRCUIT BREAKER

Check if... Then ...

House fuse has blown or circuit breaker tripped. Replace the fuse with a time delay type or reset the circuit breaker. (Page 4)

Too many electrical devices are being used on the same circuit. Unplug or relocate electrical devices being shared on same circuit.

Unit is rated over 7.5 amps. Unit should be plugged into a single circuit outlet.

Unit is plugged into an extension cord. Do not use an extension cord to run the unit. (Page 4)

Turn unit OFF and wait 3 minutes before restarting. (Page 6)

g nit was turned OFF and ON too quickly.

THE AIR CONDITIONER TURNS ON AND OFF BY iTSELF

__ Th_ ...Ch_ if...

Outside temperature is extremely hot. ISet fan speed at the fastest setting for maximum cooling. (Page 6)

g

JENERGY SAVER feature is on. JENERGY SAVER feature does not circulate air continually. Set mode to COOL for

Iconstant air circulation. (Page 5)

JTimer turned unit ON or shut unit OFF. IPush ON/OFF Button to turn unit ON or OFF. (Page 6)

THE AiR CONDITIONER DOES NOT COOL THE ROOM miCE BEHIND FRONT PANEL

Check if... Then ...

Outside temperature is below 60°F. Set mode to FAN ONLY and fan speed to fastest setting to defrost coil. (Page 6)

Filter is dirty. Open front panel. Remove filter. Rinse or vacuum filter. Replace filter. Close

Panel (Page 9)

BTU size is too large. A lower capacity unit may be required depending on the size of the room being

cooled. (Page 9)

THE AiR CONDiTiONER DOES NOT COOL THE ROOM mNO iCE BEHIND FRONT PANEL

Check if... Then ...

Filter is dirty. Open front panel. Remove filter. Rinse or vacuum filter. Replace filter. Close

Panel (Page 9)

Temperature setting is warmer than room temperature. Set temperature to a lower setting. (Page 6)

Room temperature is below 60°F. Unit is not designed to cool below 60°F. (Page 8)

Front of unit is blocked by furniture, drapes, blinds, etc. Clear away area in front of unit.

Back of unit is blocked by leaves, dirt, branches, etc. Clear away back of unit.

Doors, windows, registers, etc. are open. Close doors, windows, registers, etc.

Unit recently turned on. Allow time to cool a larger room.

Temperature sensor is touching the coil. Open front panel. Remove filter. Turn end of temperature sensor away from coil.

Replace filter. Close panel.

Excessive heat in the room being cooled. Use exhaust vents while cooking or bathing. Limit use of heat producing appliances

during the hottest part of the day. (Page 9)

Vent control (on some models) is pulled open. Push in vent control for maximum cooling. (Page 8) (CLOSED POSiTiON)

10

Room Air Conditioner Troubleshooting Guide

(Continued)

THE AiR CONDiTiONER RUNS TOO MUCH

Check if...

Energy Saver is chosen.

Then ...

inside blower continuesoperating for one minute to use as muchcooITngthat is

available in the evaporator.

Current Unit replaced an older unit. Newer, higher efficiency Air Conditioner may run longer to cool the room. Total

energy consumption is less due to higher efficiency.

BTU size is too small. A higher capacity unit may be required depending on the size of the room being

cooled. (Page 9)

WATER DRiPPiNG FROM AiR CONDiTiONER = iNSiDE ROOM

_sn_t properly installed. I Unit should be mounted on a 1/4" downward slope to the outside (1/2 bubble on

Ja carpenter's level) to provTde proper drainage. ReposTtTonor shim cabTnet as

Inecessary. DO NOT drill drain pan.

WATER DRIPPING FROM AiR CONDITIONER =OUTSNDE ROOM

Check if... Then ...

Room is hot and humid. Normal operation during hot and humid days.

THE REMOTE WILL NOT OPERATE AiR CONDiTiONER

Check if... Then ...

Batteries are not installed properly. Verify batteries are installed properly. (Page 5)

The remote is pointed at the unit. The remote may not work properly when used at extreme angles to the front of

the unit.

TYPICAL AiR CONDiTiONER SOUNDS YOU MAY HEAR

Check if... Then ...

High pitched whine or pulsating noise that cycles on and off. Compressor -Normal noise due to modern high efficiency compressors. (Page 1 1)

Rushing air sound. Fan/Motor -Normal noise of higher efficiency fans pushing air further into the

room. (Page 1 1)

Pinging or swishing sounds. Condenser -Normal noise of water hitting the condenser to increase energy

efficiency. (Page 11 )

Gurgling or hissing sounds. Evaporator -Normal noise of refrigerant passing through evaporation. (Page 1 1 )

Beeping. Electronic Control -Normal noise when electronic control settings are changed.

Vibration. Unit Vibration -Due to poor wall or window construction or incorrect installation.

(Page 1 1 )

Normal Sounds High Pitched Whine

Today's high efficiency

compressors may have a

high pitched whine during

the cooling cycle.

Sound of Rushing Air

At the front of the unit,

you may hear the sound

of rushing air being moved

by the fan.

Gurgle/Hiss

"Gurgling or hissing" noise may

be heard due to refrigerant passing

through evaporator during normal

operation.

Vibration

Unit may vibrate and make

noise because of poor wall

or window construction or

incorrect installation.

Pinging or Swishing

Droplets of water hitting

condenser during normal

operation may cause

"pinging or swishing"

sounds.

11

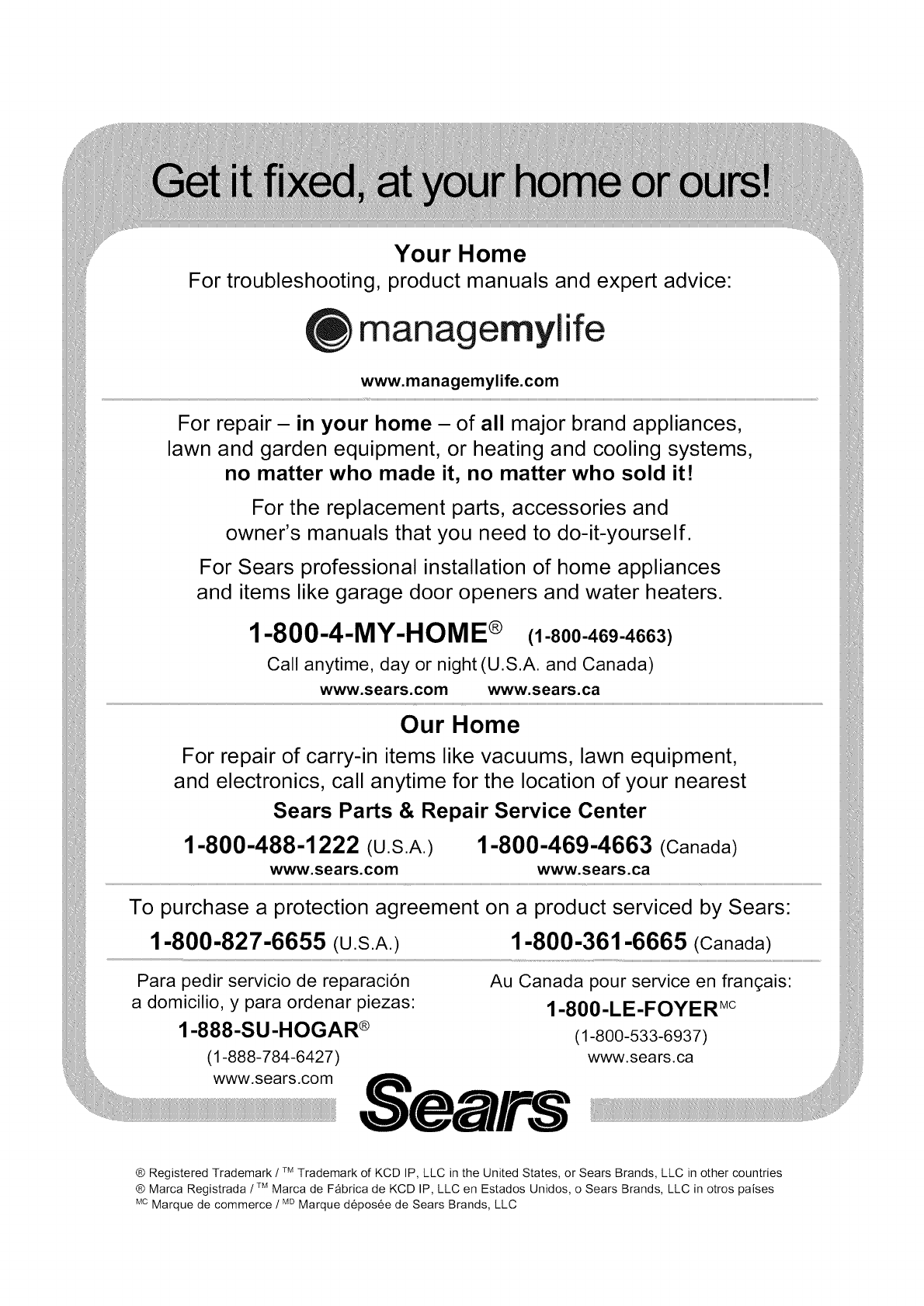

Your Home

For troubleshooting, product manuals and expert advice:

managemylife

www.managemylife.com

For repair - in your home - of all major brand appliances,

lawn and garden equipment, or heating and cooling systems,

no matter who made it, no matter who sold it!

For the replacement parts, accessories and

owner's manuals that you need to do-it-yourself.

For Sears professional installation of home appliances

and items like garage door openers and water heaters.

1-800-4-MY-HOME ®(1-800-469-4663)

Call anytime, day or night (U.S.A. and Canada)

www.sears.com www.sears.ca

Our Home

For repair of carry-in items like vacuums, lawn equipment,

and electronics, call anytime for the location of your nearest

Sears Parts & Repair Service Center

1-800-488-1222 (U.S.A.) 1-800-469-4663 (Canada)

www.sears.com www.sears.ca

To purchase a protection agreement on a product serviced by Sears:

1-800-827-6655 (u.S.A.) 1-800-361-6665 (Canada)

Para pedir servicio de reparaci6n

a domicilio, y para ordenar piezas:

1-888-SU-HOGAR ®

(1-888-784-6427)

Au Canada pour service en fran(_ais:

1-800-LE-FOYER Mc

(1-800-533-6937)

www.sears.ca

www.sears.com

® Registered Trademark /TMTrademark of KCD IP, LLC in the United States, or Sears Brands, LLC in other countries

® Marca Registrada /TMMarca de Fabrica de KCD IP, LLC en Estados Unidos, o Sears Brands, LLC in otros paises

MCMarque de commerce /MDMarque d6pos6e de Sears Brands, LLC
