Use & Care Guide

Models: 795.7032*

Bottom Freezer Refrigerator

* = color number

P/N MFL63264261

Sears Brands Management Corporation

www.kenmore.com

Sears Canada Inc.

Toronto, Ontario, Canada M5B 2C3

www.sears.com

www.sears.ca

English

®

2

TABLE OF CONTENTS

Warranty............................................................................. 3

Protection Agreements ..............................................4

Important Safety Instructions ........................... 5-7

Electrical & Grounding Requirements ..............7

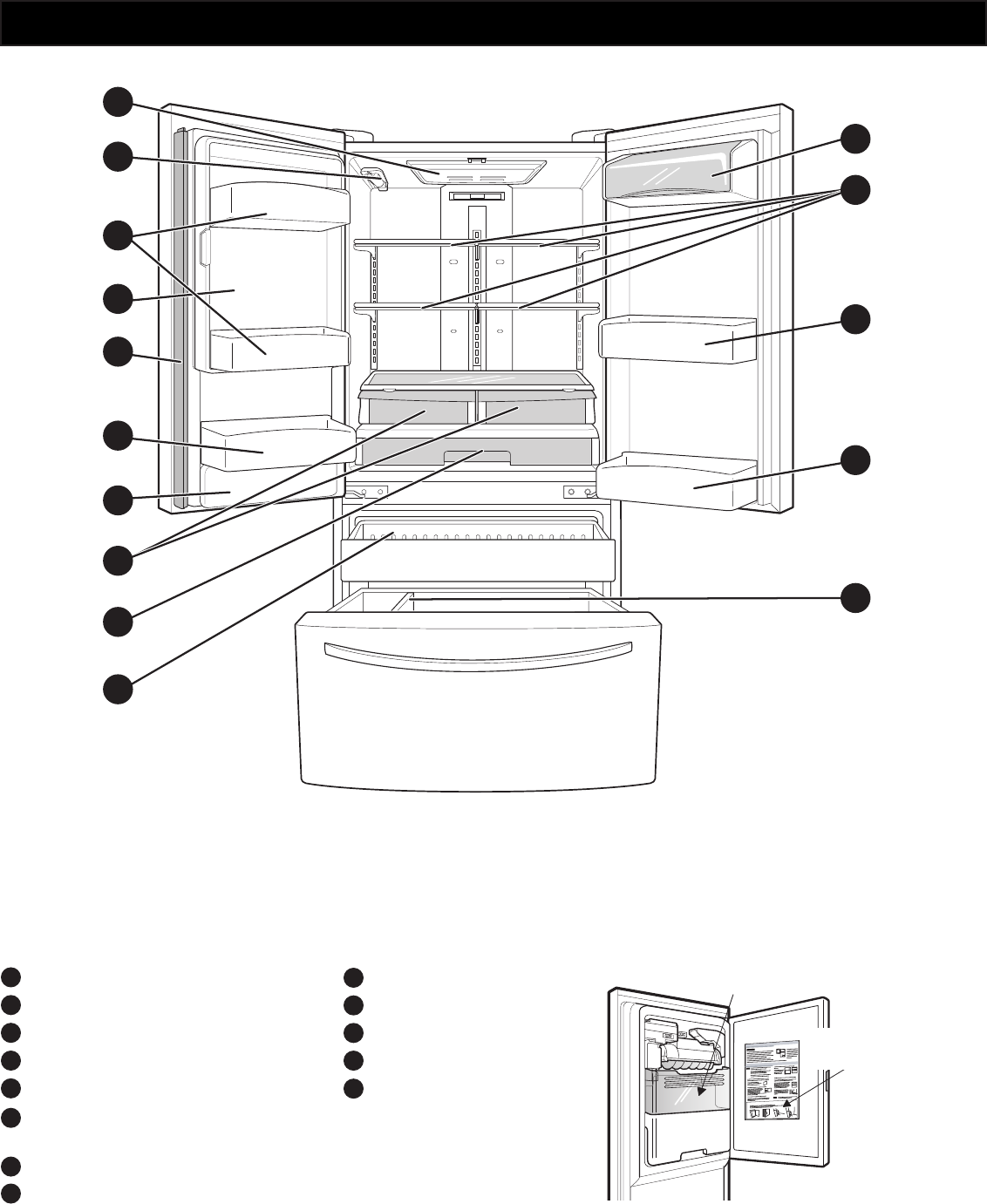

Parts and Features ....................................................... 8

Refrigerator Installation ..................................... 9-17

Unpacking Your Refrigerator ............................... 9

Installation .................................................................... 10

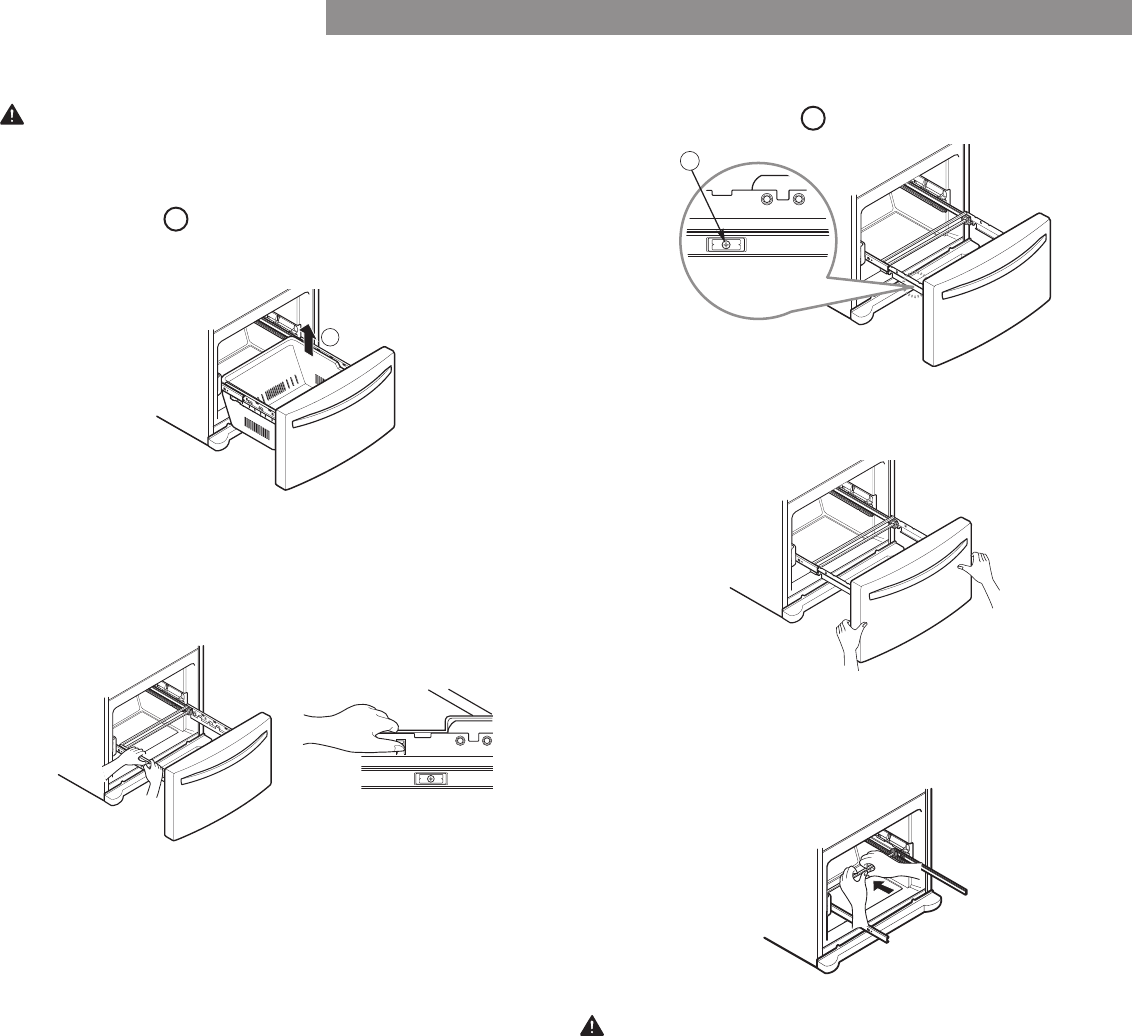

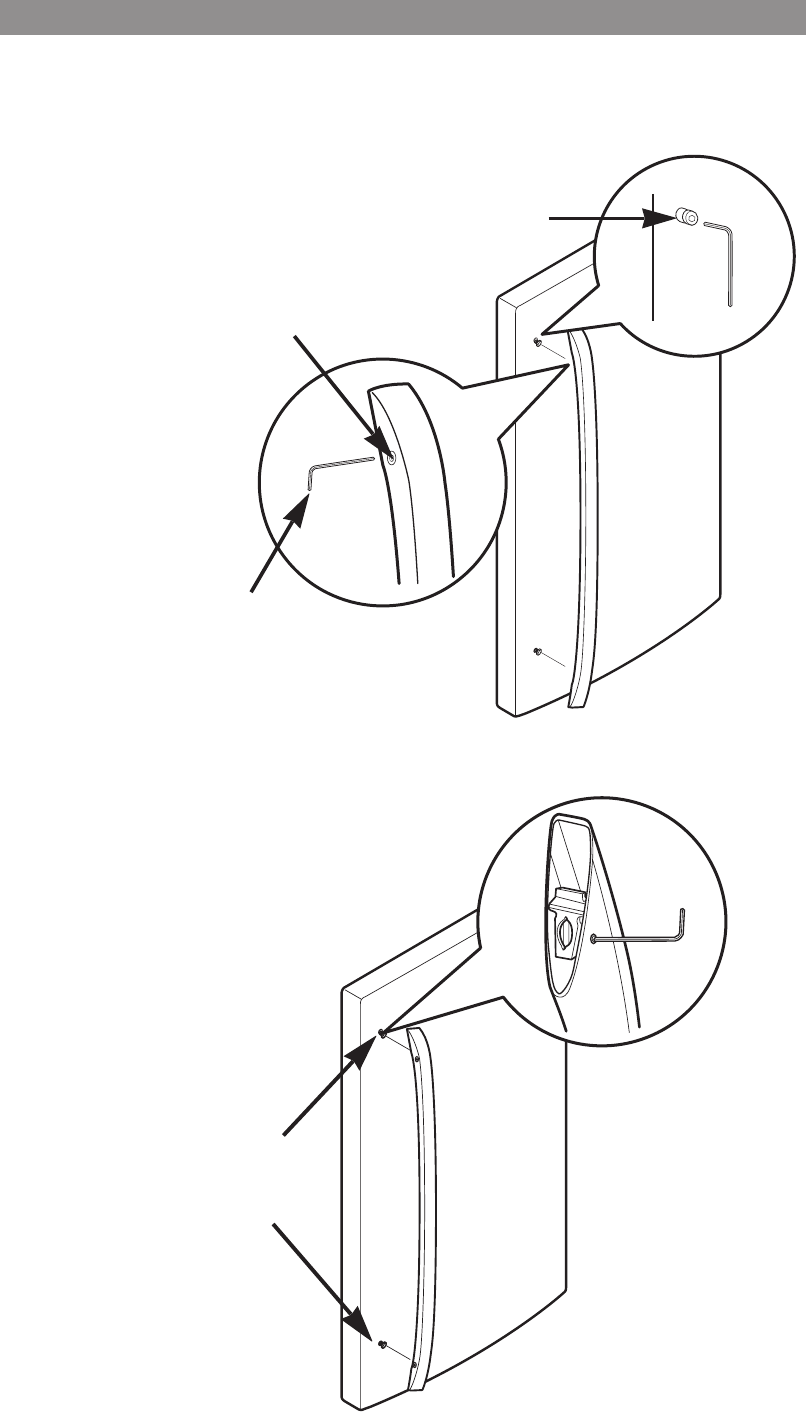

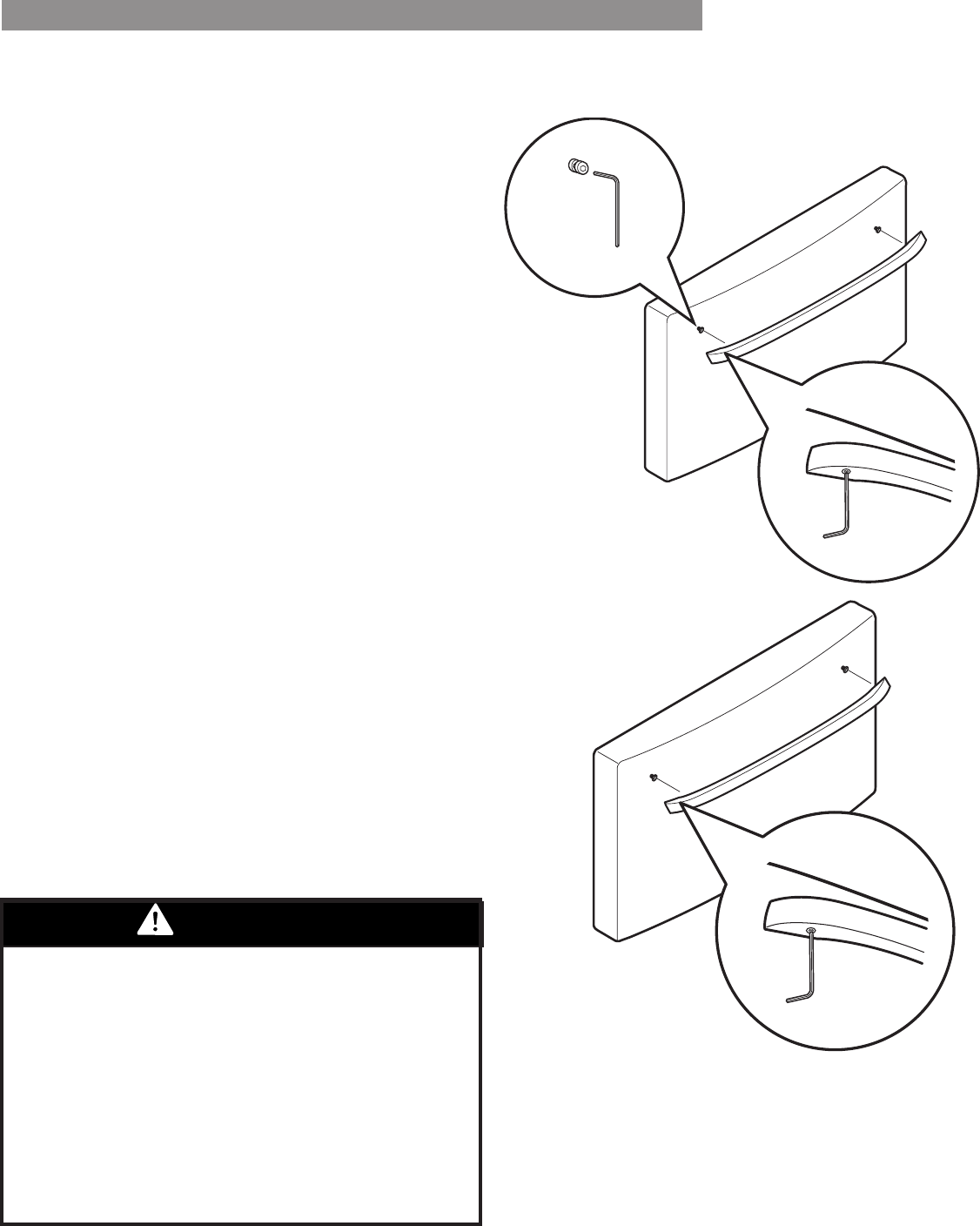

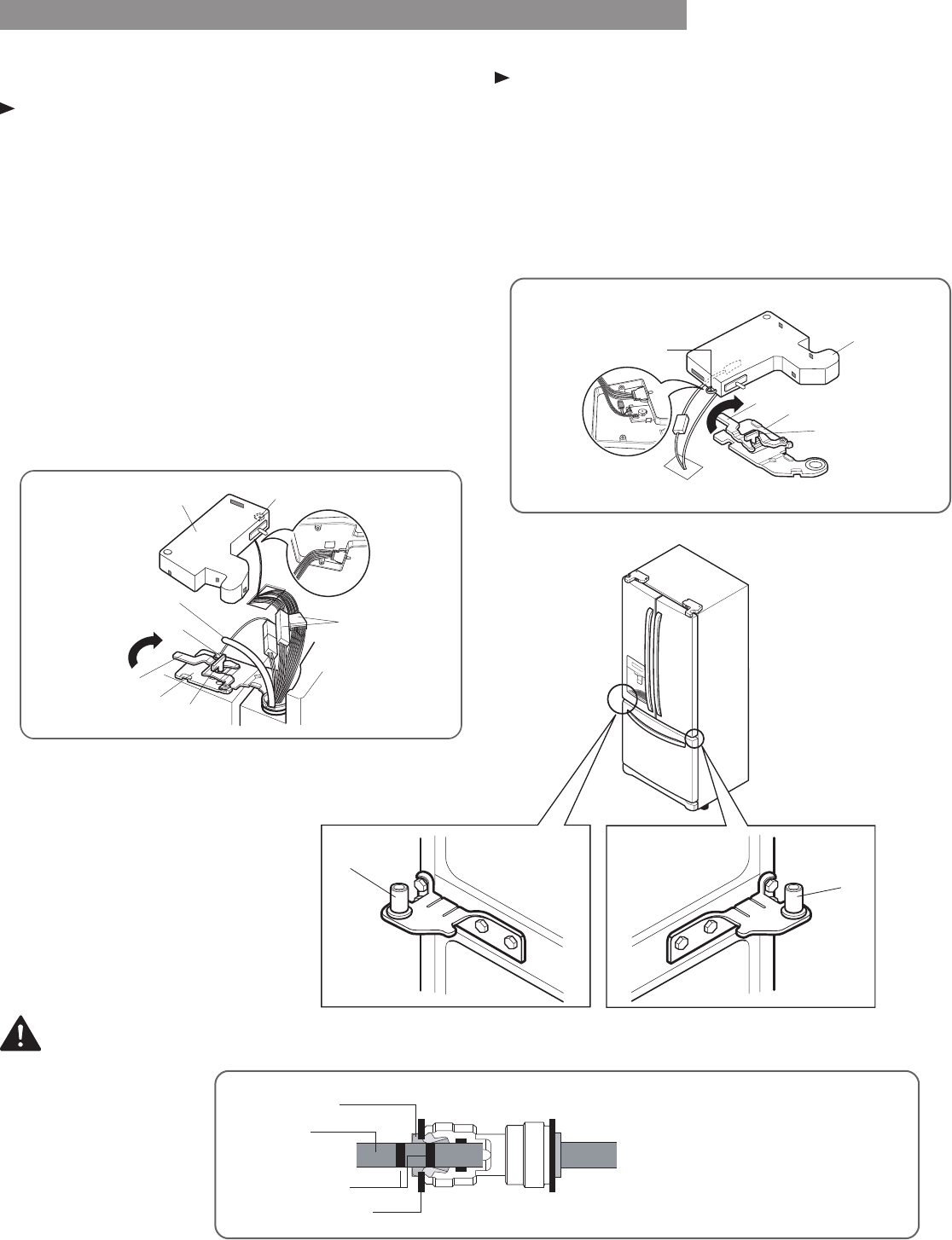

Removing/Replacing Your Refrigerator and

Freezer Handles, Doors and Drawers ....... 11-16

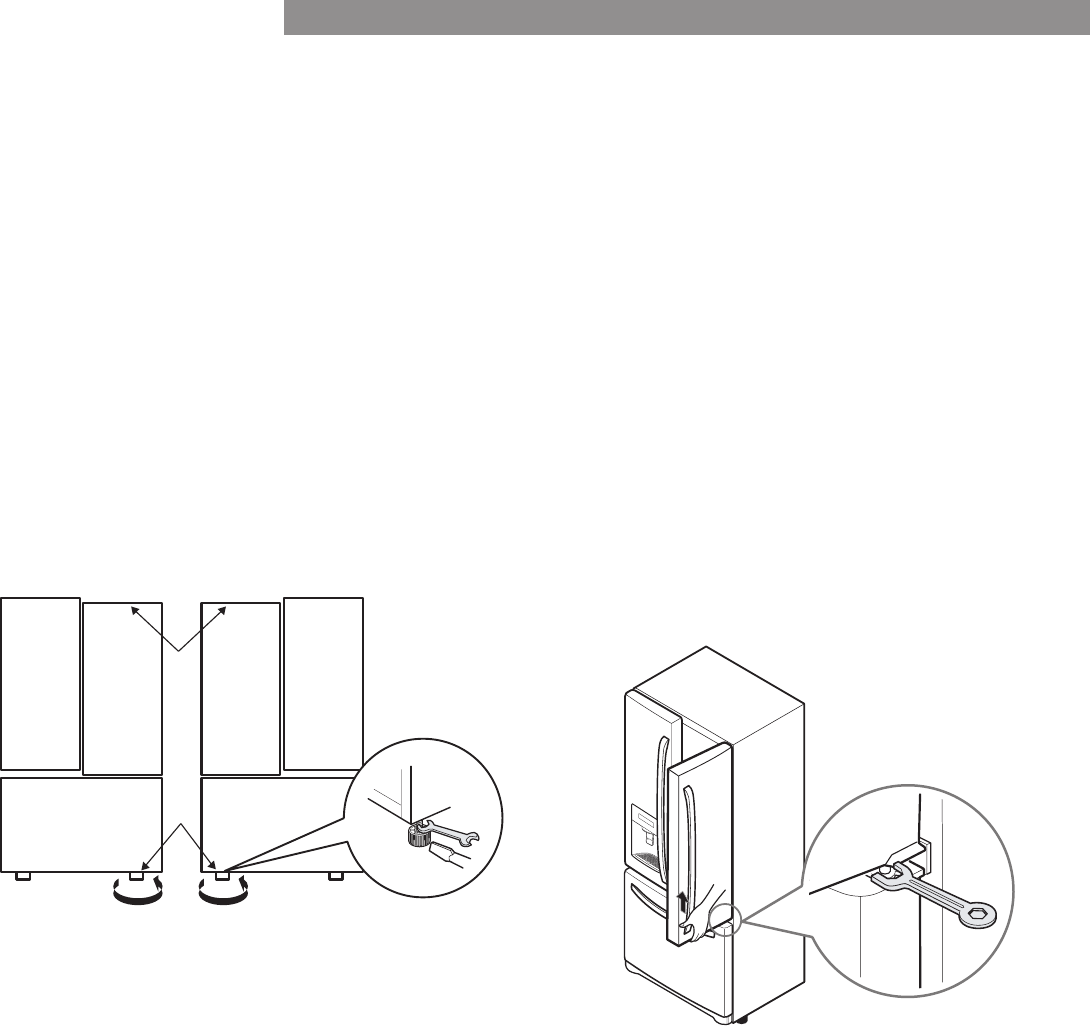

Leveling and Door Alignment ............................17

Using Your Refrigerator ....................................18-28

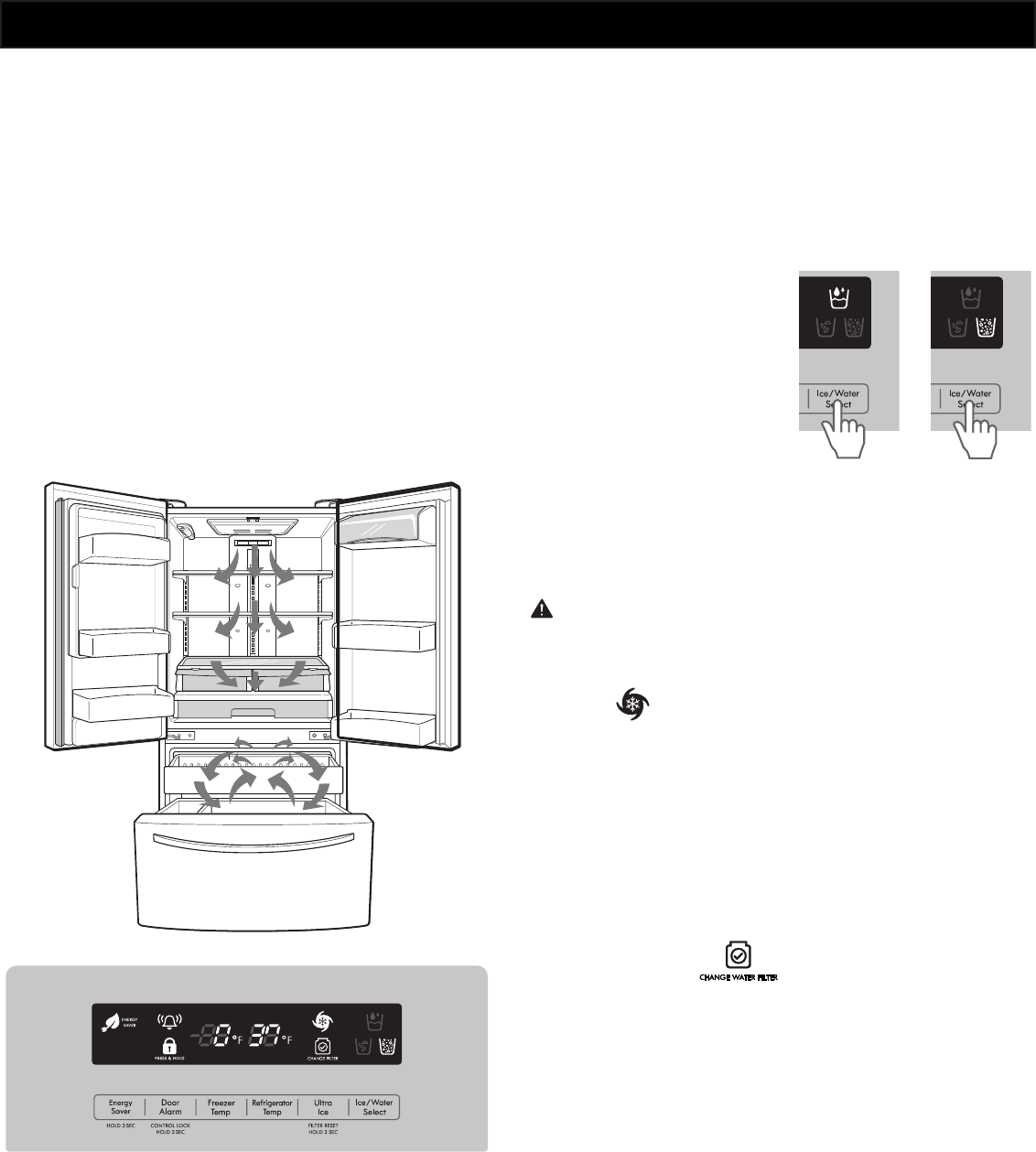

Setting the Controls ...........................................18-19

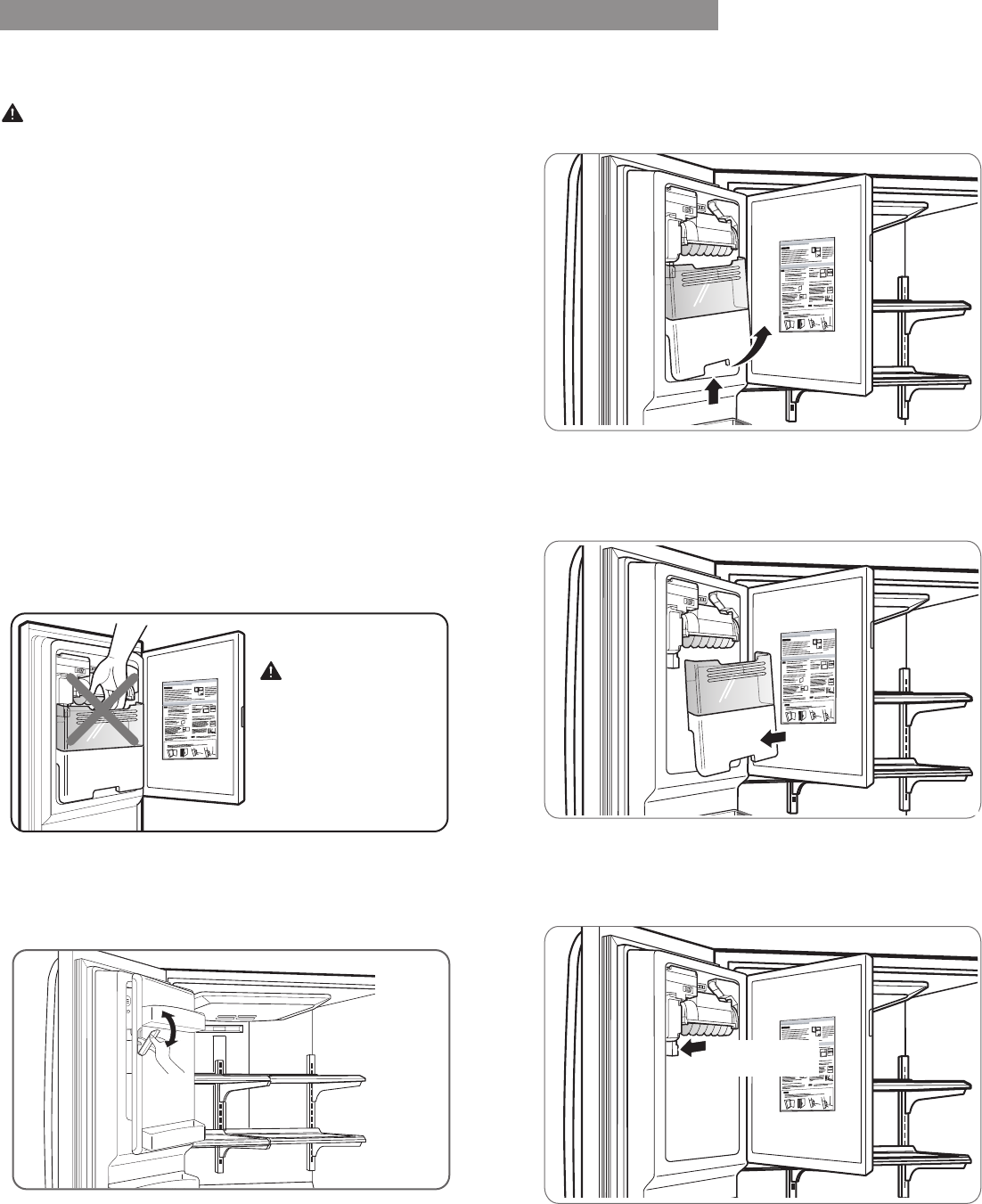

In-Door Ice Bin .......................................................... 20

Automatic Icemaker ......................................... 21-22

Food Storage Guide ...............................................23

Refrigerator Section

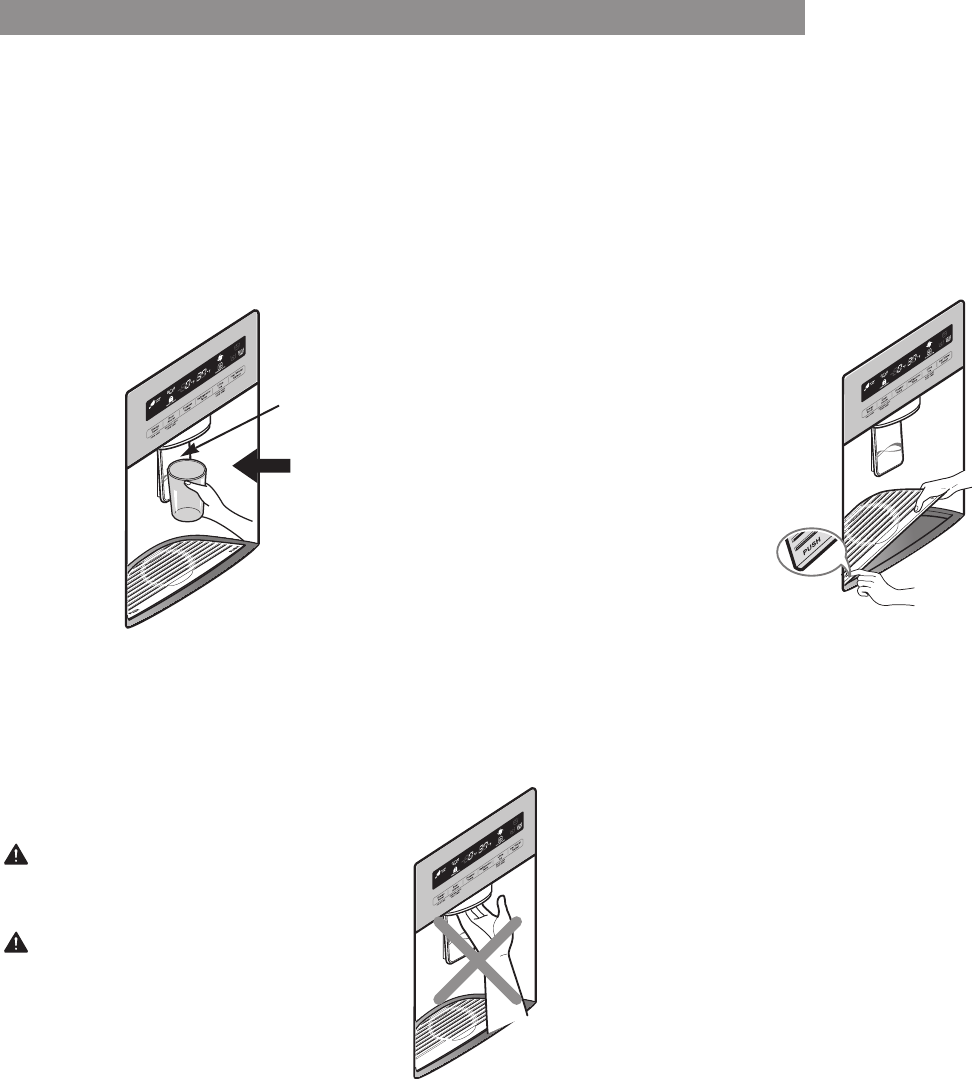

Water Dispenser ...................................................... 24

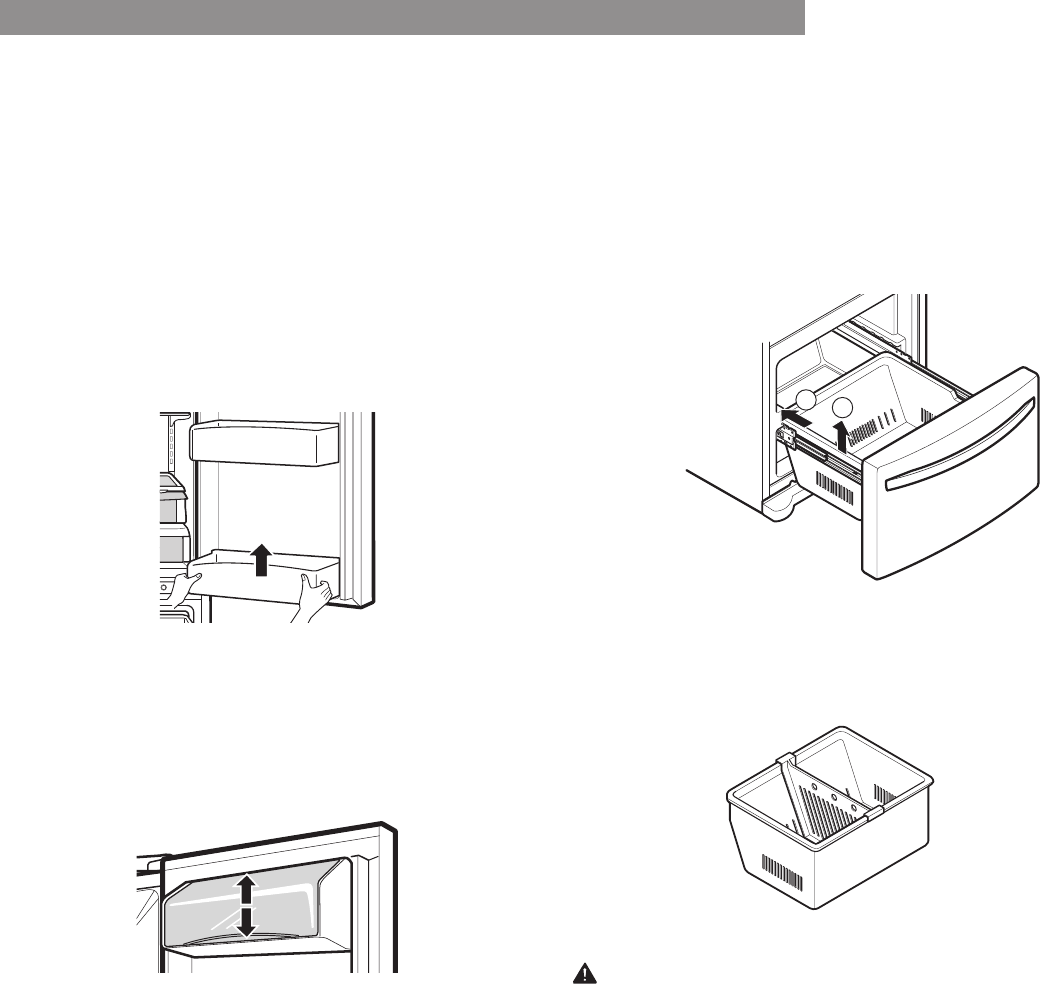

Refrigerator Shelves ................................................25

Humidity Controlled Crisper ...............................25

Door Bin ............................................................................. 26

Freezer Section

Durabase .......................................................................26

Durabase Divider ...................................................... 26

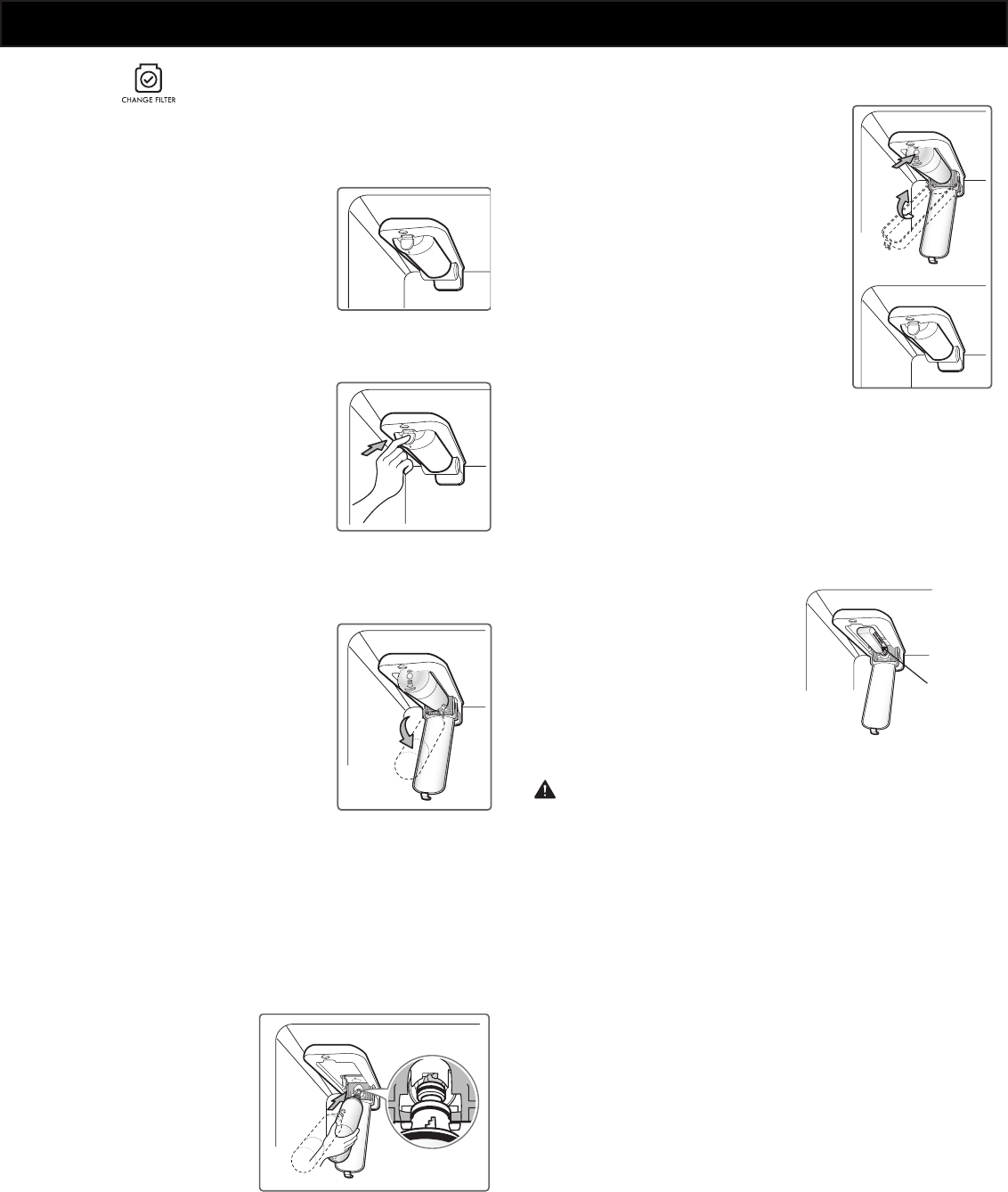

Water Filter .............................................................27-30

Care and Cleaning .............................................. 31-32

General Cleaning Tips ............................................ 31

Exterior ............................................................................31

Inside Walls ..................................................................31

Door Liner And Gaskets ......................................... 31

Plastic Parts ...................................................................31

Condenser Coils ..........................................................31

Light Bulb Replacement ........................................32

Power Interruptions ..................................................32

When You Go On Vacation ...............................32

When You Move ........................................................ 32

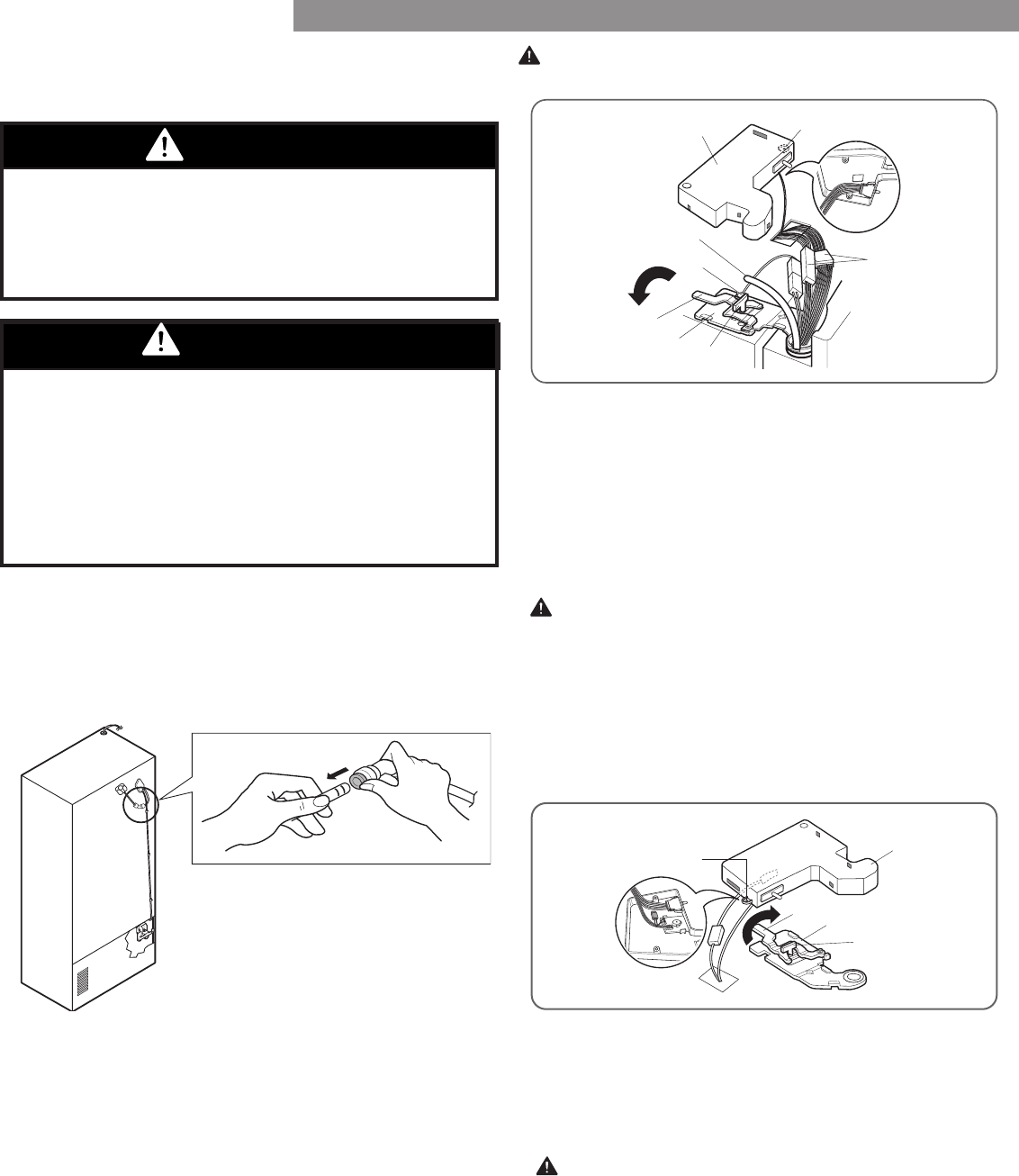

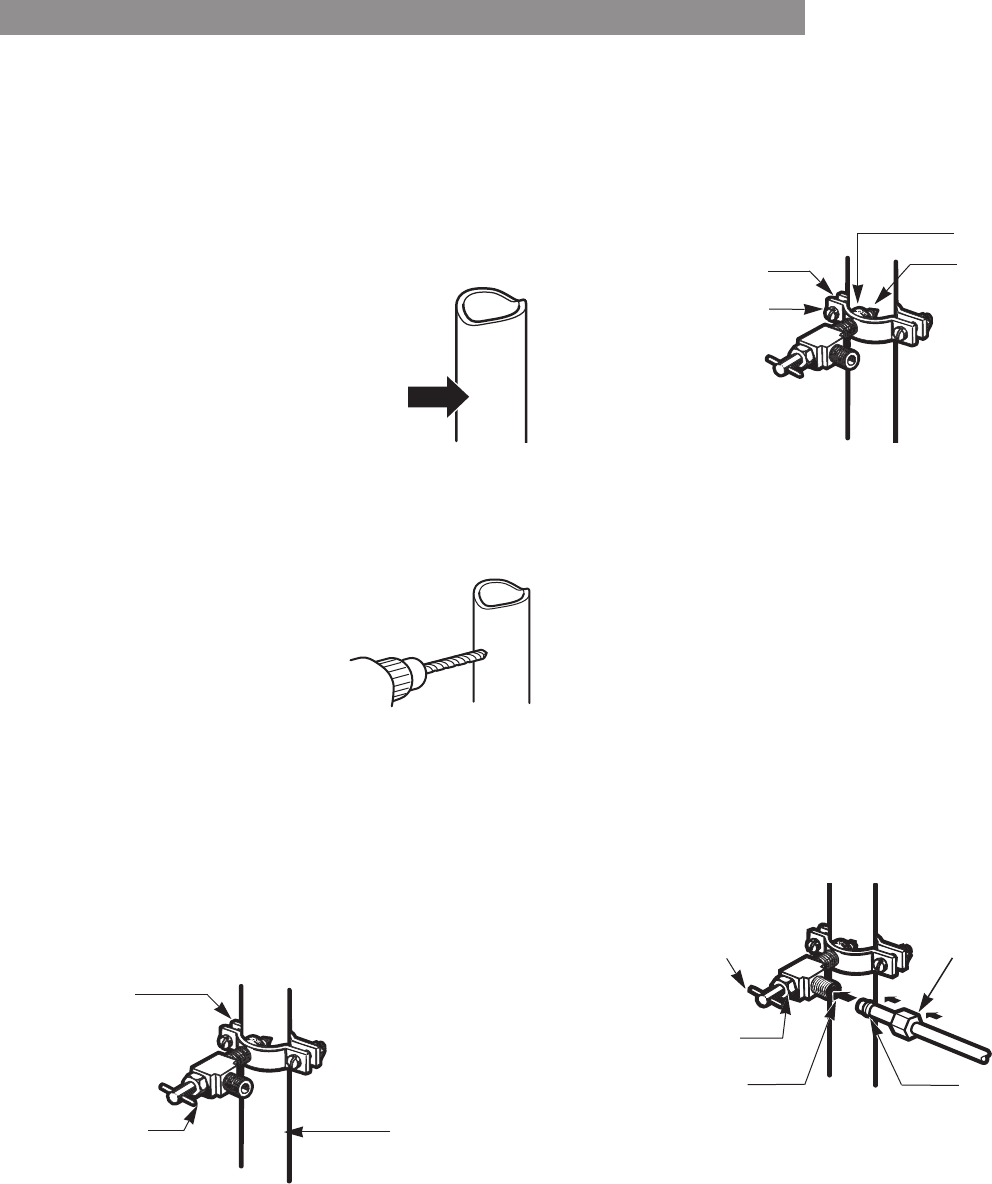

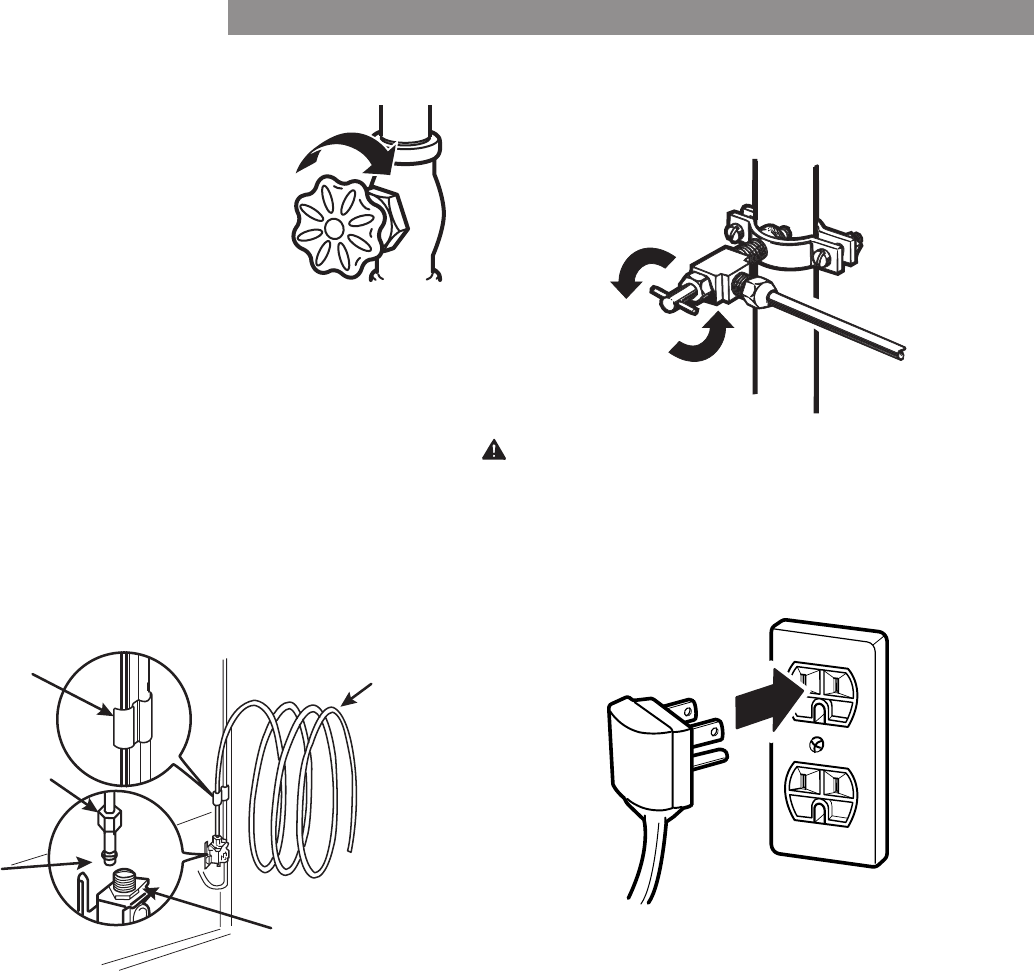

Connecting the Water Line ............................ 33-35

Troubleshooting Guide .....................................36-43

Service ........................................................... Back Cover

3

WARRANTY

REFRIGERATOR WARRANTY

Kenmore Limited Warranty

When this appliance is installed, operated and maintained according to all supplied

instructions, the following warranty coverage applies. To arrange for warranty service,

call 1-800-4-MY-HOME® (1-800-469-4663).

• Foroneyearfromthedateofpurchase,free repair will be provided if any non-consumable part of this

appliance fails due to defects in material or workmanship. If the appliance is ever used for other than

private family purposes, this coverage applies for only 90 days from the purchase date.

• Fortenyearsfromthedateofpurchase, the linear compressor of this appliance is warranted against

any defects in material or workmanship. A new linear compressor will be supplied free of charge. You



appliance is ever used for other than private household purposes, this coverage applies for only two

years from the purchase date.

This warranty covers only defects in material and workmanship, and will NOT pay for:



bulbs, and bags.

2. A service technician to instruct the user in correct product installation, operation or maintenance.

3. A service technician to clean or maintain this product.

4. Damage to or failure of this product if it is not installed, operated or maintained according to all

instructions supplied with the product.

5. Damage to or failure of this product resulting from accident, abuse, misuse or use for other than its

intended purpose.

6. Damage to or failure of this product caused by the use of detergents, cleaners, chemicals or utensils

other than those recommended in all instructions supplied with the product.



Disclaimer of implied warranties; limitation of remedies

Customer’s sole and exclusive remedy under this limited warranty shall be product repair as provided



are limited to one year or the shortest period allowed by law. Sears shall not be liable for incidental or

consequential damages. Some states and provinces do not allow the exclusion or limitation of incidental or



these exclusions or limitations may not apply to you.

This warranty applies only while this appliance is used in the United States or Canada.



to state.

Sears Brands Management Corporation, Homan Estates, IL 60179

Sears Canada Inc., Toronto, Ontario, Canada M5B 2C3

®

4

PROTECTION AGREEMENTS

PRODUCT RECORD

Master Protection Agreements

Congratulations on making a smart purchase. Your new

Kenmore® product is designed and manufactured for

years of dependable operation. But like all products,

it may require preventive maintenance or repair from

time to time. That’s when having a Master Protection

Agreement can save you money and aggravation.

The Master Protection Agreement also helps extend

the life of your new product. Here’s what the

Agreement* includes:

 Parts and labor needed to help keep products

operating properly under normal use, not just defects.

Our coverage goes well beyond the product warranty.

No deductibles, no functional failure excluded from

coverage—real protection.

 Expert service by a force of more than 10,000

authorized Sears service technicians, which means

someone you can trust will be working on your product.

 Unlimited service calls and nationwide service, as

often as you want us, whenever you want us.

 “No-lemon” guarantee – replacement of your covered

product if four or more product failures occur within

twelve months.

 Product replacement if your covered product can’t be



 Annual Preventive Maintenance Check at your request

– no extra charge.

 Fast help by phone – we call it Rapid Resolution

– phone support from a Sears representative on all

products. Think of us as a “talking owner’s manual.”

 Power surge protection against electrical damage due



 $250 Food Loss Protection annually for any food

spoilage that is the result of mechanical failure of any

covered refrigerator or freezer.

 Rental reimbursement if repair of your covered

product takes longer than promised.

 25% discount

repair service and related installed parts.

Once you purchase the Agreement, a simple phone call

is all that it takes to schedule service. You can call at

any time day or night, or schedule a service appointment

online.

The Master Protection Agreement is a risk free purchase.

If you cancel for any reason during the product warranty

period, we will provide a full refund or a prorated refund

anytime after the product warranty period expires.

Purchase your Master Protection Agreement today!

Some limitations and exclusions apply.

For prices and additional information in the

U.S.A. call 1-800-827-6655.

* Coverage in Canada varies on some items. For full

details call Sears Canada at 1-800-361-6665.

Sears Installation Service

For Sears professional installation of home appliances,

garage door openers, water heaters, and other major

home items, in the U.S.A. or Canada call

1-800-4-MY-HOME®.





items of information available whenever you contact Sears concerning your product.

Model No.___________________ Date of Purchase ___________________

Serial No.___________________

Save these instructions and attach your sales receipt for future reference.

5

IMPORTANT SAFETY INSTRUCTIONS

WARNING

SAVE THESE INSTRUCTIONS

To reduce the risk of re, electric shock, or personal

injury when using your product, basic safety precautions

should be followed, including the following.

Read all instructions before using this appliance.

 NEVER unplug your refrigerator by pulling on the



straight out from the outlet.

 Immediately repair or replace all power cords that

have become frayed or otherwise damaged. Do not

use a cord that shows cracks or abrasion damage

along its length or at either the plug or connector end.

 Do not modify or extend the power cord length. It



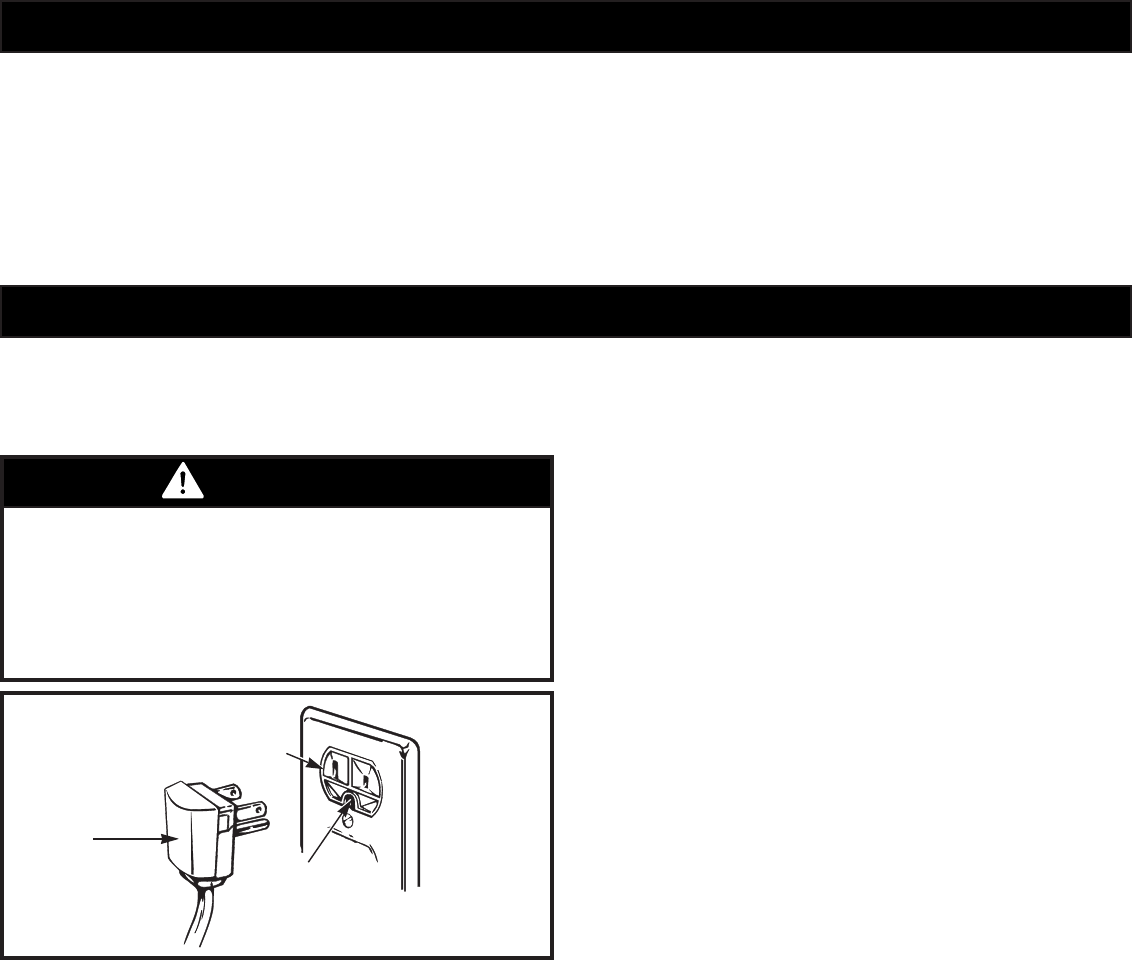

 When moving your refrigerator away from the wall, be

careful not to roll over or damage the power cord.

BASIC SAFETY PRECAUTIONS

This guide contains many important safety messages. Always read and obey all safety messages.

This is the safety alert symbol. It alerts you to safety messages that inform you of hazards that can kill

or hurt you or others, or cause damage to the product.

All safety messages will be preceded by the safety alert symbol and the hazard

signal word DANGER, WARNING or CAUTION. These words mean:

You will be killed or seriously injured if you do not follow instructions.

You can be killed or seriously injured if you do not follow instructions.

Indicates an imminently hazardous situation which, if not avoided,

may result in minor or moderate injury, or product damage.

All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell you what can happen

if the instructions are not followed.

 

vapors and liquids in the vicinity of this or any other

appliance.

 DO NOT allow children to climb, stand, or hang on the

refrigerator doors or shelves in the refrigerator. They

could damage the refrigerator and seriously injure

themselves.

 

between the doors and cabinets are necessarily small.

Be careful closing doors when children are in the area.

 Unplug your refrigerator before cleaning or making

any repairs.

NOTE: It is strongly recommended that any service be



DANGER

WARNING

CAUTION

6

WARNING

DANGER: RISK OF CHILD ENTRAPMENT

SAVE THESE INSTRUCTIONS

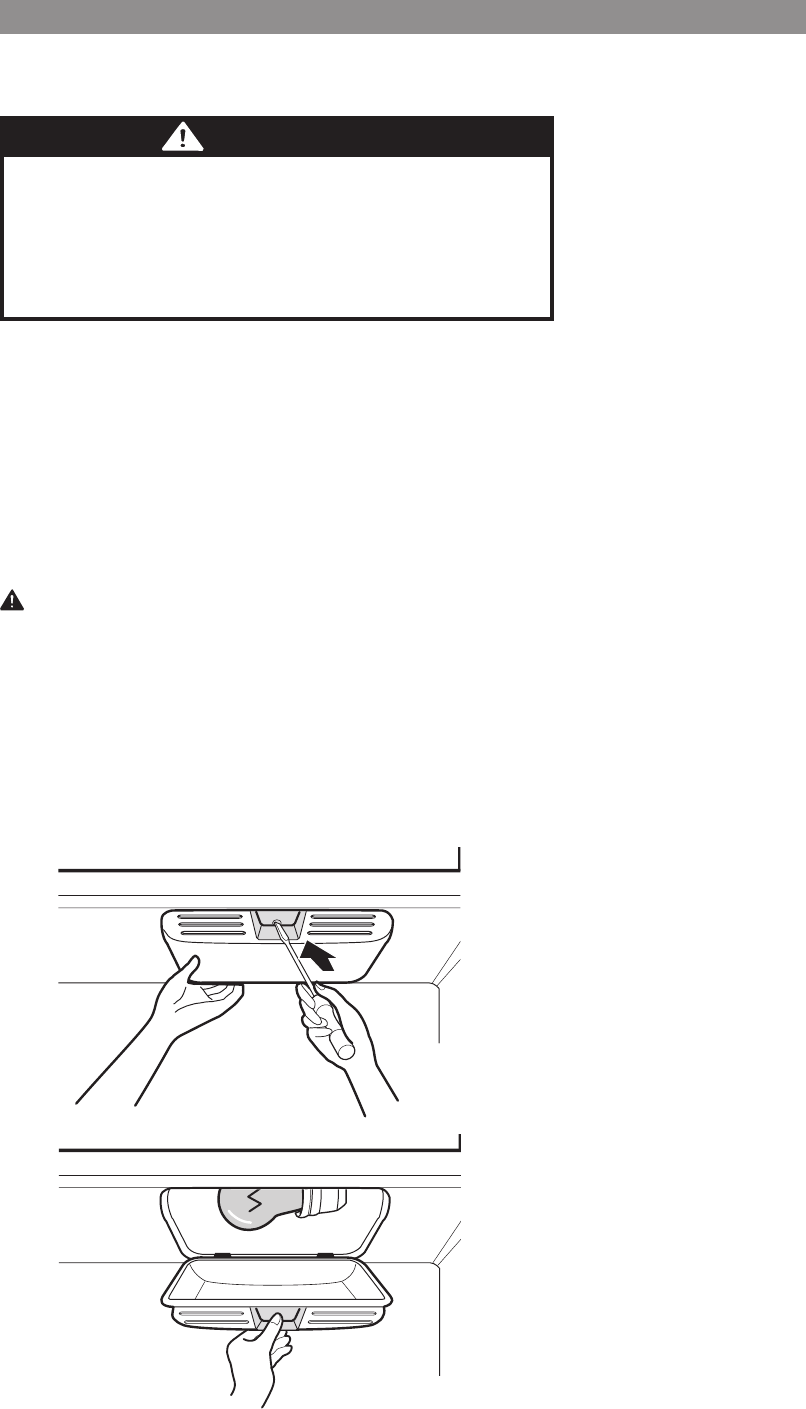

 Before replacing a burned-out or broken light bulb,



breaker or fuse box in order to avoid contact with a live





NOTE: Some models have LED interior lighting and



WARNING: Setting either or both controls to the OFF

position does not remove power to the light circuit.

 

the electrical source and reset the controls (Thermostat,

Refrigerator Control, and or Freezer Control, depending

on the model) to the desired setting.

 This refrigerator must be properly installed in

accordance with the AttentionInstallerInstructions that

were taped to the front of the refrigerator.

 After your refrigerator is in operation, do not touch the

cold surfaces in the freezer compartment when hands

are damp or wet. Skin may adhere to the extremely cold

surfaces.

Junked or abandoned refrigerators are dangerous, even

if they are sitting for only a few days. If you are getting

rid of your old refrigerator, please follow the instructions

at right to help prevent accidents (child entrapment and



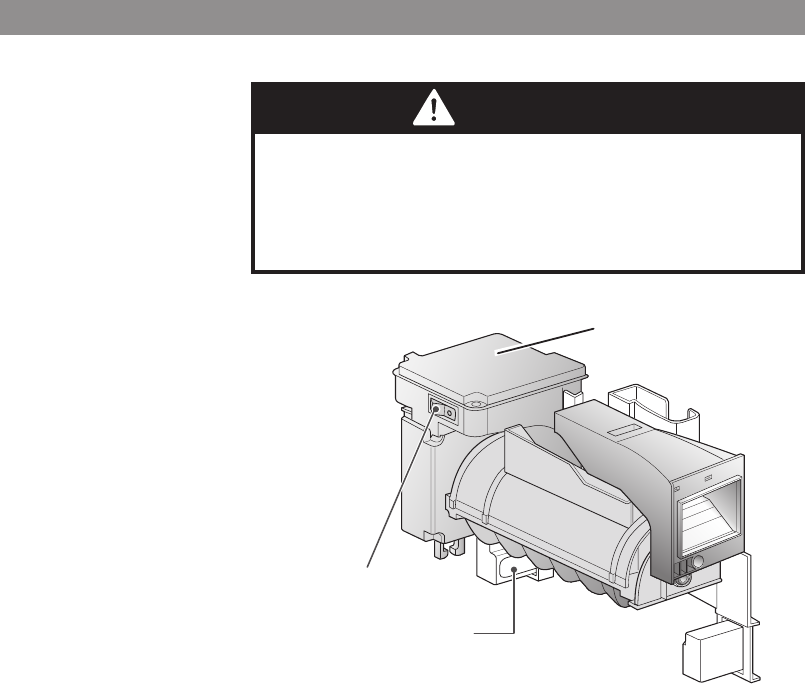

 DO NOT touch the automatic ice making mechanism

while the refrigerator is plugged in.

 DO NOT refreeze frozen foods which have thawed

completely. The United States Department of

Agriculture in Home and Garden Bulletin No. 69 says:

…You may safely refreeze frozen foods that have

thawed if they still contain ice crystals or if they are

still cold—below 39°F (4°C).





not be eaten. Thawed ice cream should be discarded.

If the odor or color of any food is poor or questionable,

dispose of it. The food may be dangerous to eat.

Even partial thawing and refreezing reduces the

eating quality of foods, particularly fruits, vegetables

and prepared foods. The eating quality of red meats



refrozen foods as soon as possible to save as much of

their quality as you can.

BEFORE YOU THROW AWAY

YOUR OLD REFRIGERATOR

OR FREEZER:

 

 Leave the shelves in place so that

children may not easily climb inside.

7

CFC/HCFC DISPOSAL

ELECTRICAL & GROUNDING REQUIREMENTS

WARNING

Your old refrigerator may have a cooling system





believed to harm stratospheric ozone if released to the

atmosphere. Other refrigerants may also cause harm to

the environment if released to the atmosphere.

IMPORTANT: Please read carefully.

TO CONNECT ELECTRICITY

RECOMMENDED GROUNDING METHOD

The refrigerator should always be plugged into its own

individual properly grounded electrical outlet rated for

115 Volts, 60 Hz, AC only, and fused at 15 or 20 amperes.

This provides the best performance and also prevents



hazard from overheated wires. It is recommended that a

separate circuit serving only this appliance be provided.



or pull chain. Do not use an extension cord.

Where a standard two-prong wall outlet is encountered,

it is your personal responsibility and obligation to have

it replaced with a properly grounded three-prong wall

outlet.

Electrical Shock Hazard

FOR PERSONAL SAFETY, this appliance must be

properly grounded. Have the wall outlet and the circuit



outlet is properly grounded.

If you are throwing away your old refrigerator, make

sure the refrigerant is removed for proper disposal





under provisions of environmental legislation.

USE OF EXTENSION CORDS

Because of potential safety hazards under certain

conditions, the use of an extension cord is not

recommended. However, if you still elect to use an

extension cord, it is absolutely necessary that it be a UL-

listed (USA), 3-wire grounding type appliance extension

cord having a grounding type plug and outlet, and that

the electrical rating of the cord be 15 amperes (minimum)

and 120 volts.

Use of an extension cord will increase the clearance

needed for the back of the refrigerator.

3-prong

grounding

plug

3-prong

grounding type

wall receptacle

Ensure proper

ground exists

before use.

8

PARTS AND FEATURES

Use this page to become more familiar with the parts and features of your refrigerator.

NOTE:

items listed below. The locations of the features shown below may not match your model.

Pullout Drawer

Durabase Divider

Dairy Bin

Water Tank Cover

Articulating Mullion

J

K

L

M

Refrigerator Light

Water Filter

Adjustable Door Bins

Fixed Door Bins

Refrigerator Shelves

Ice Compartment

(Icemaker and Ice Bin)

Humidity Controlled Crisper

Glide ‘N’ Serve

A

B

C

D

E

G

H

I

F

A

B

F

M

D

D

L

G

H

I

K

E

C

D

J

Ice Compartment

Door

Ice Bin

9

REFRIGERATOR INSTALLATION

WARNING WARNING

WARNING

UNPACKING YOUR REFRIGERATOR

Remove tape and any temporary labels from your

refrigerator before using. Do not remove any warning-

type labels, the model and serial number label, or

the Tech Sheet that is located under the front of the

refrigerator, behind the base grille.

To remove any remaining tape or glue, rub the area

briskly with your thumb. Tape or glue residue can also be

easily removed by rubbing a small amount of liquid dish



water and dry.





products can damage the surface of your refrigerator.

Refrigerator shelves are installed in the shipping position.

Please reinstall shelves according to your individual

storage needs.

Excessive Weight Hazard:

Use two or more people to move and install the

refrigerator. Failure to do so can result in back or

other injury.

Excessive Weight Hazard:

Your refrigerator is heavy. When moving the

refrigerator for cleaning or service, be sure to protect



moving it. Do not wiggle or walk the refrigerator when



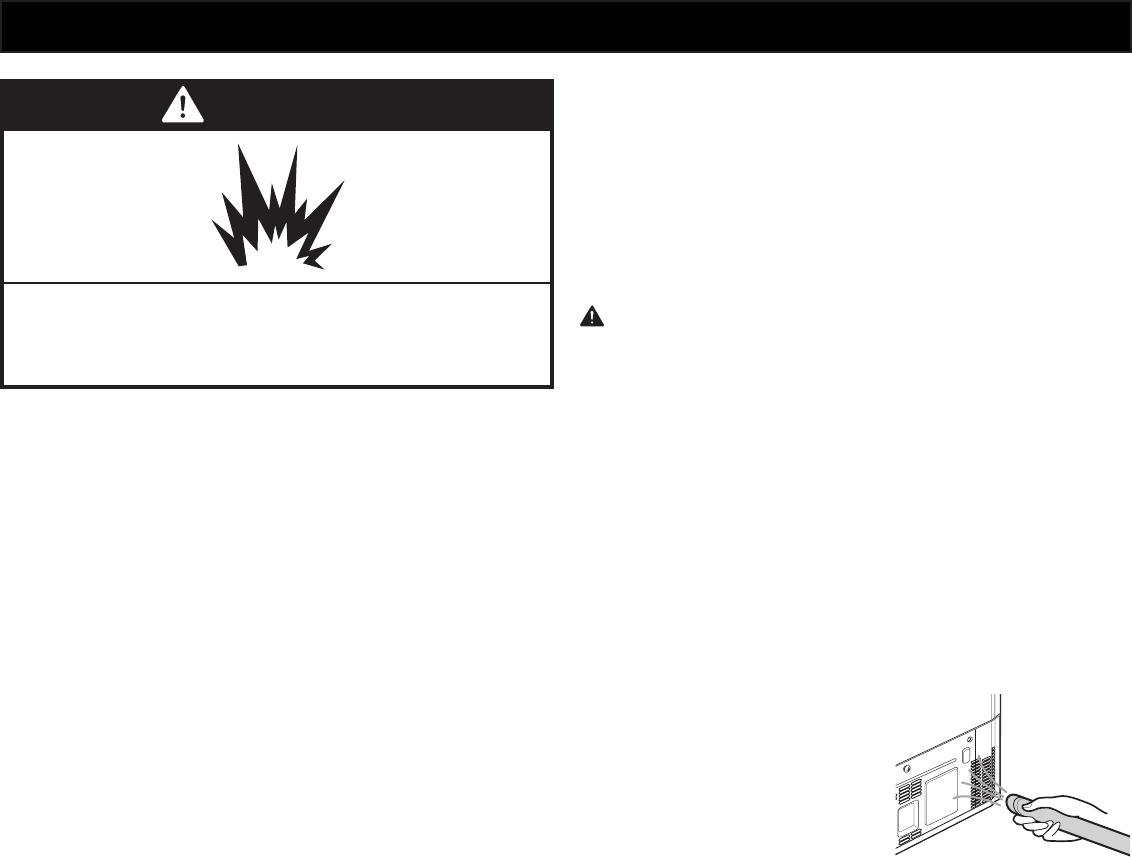

Explosion Hazard:



gasoline, away from the refrigerator. Failure to do so



10

INSTALLATION (continued)

1. To avoid noise and vibration, the unit must be leveled



adjust the leveling legs to compensate for unevenness



the rear to aid in door closing. Leveling legs can be

turned easily by tipping the cabinet slightly. Turn the

leveling legs to the left to raise the unit or to the right to

lower it. (See LEVELINGANDDOORALIGNMENT.)

NOTE: Installing on carpeting, soft tile surfaces,

a platform or weakly supported structure is not

recommended.

2. Install this appliance in an area where the temperature

is between 55°F (13°C) and 110°F (43°C). If the

temperature around the appliance is too low or high,



3. Select a place where a water supply can be easily

connected for the automatic icemaker.

NOTE: The water pressure must be between 20 and





4. Too small of a distance from adjacent items may

result in lowered freezing capability and increased

electricity consumption charges. Allow at least 24

inches (61 cm) in front of the refrigerator to open the

doors and at least 2 inches (5.08 cm) between the

back of the refrigerator and the wall.

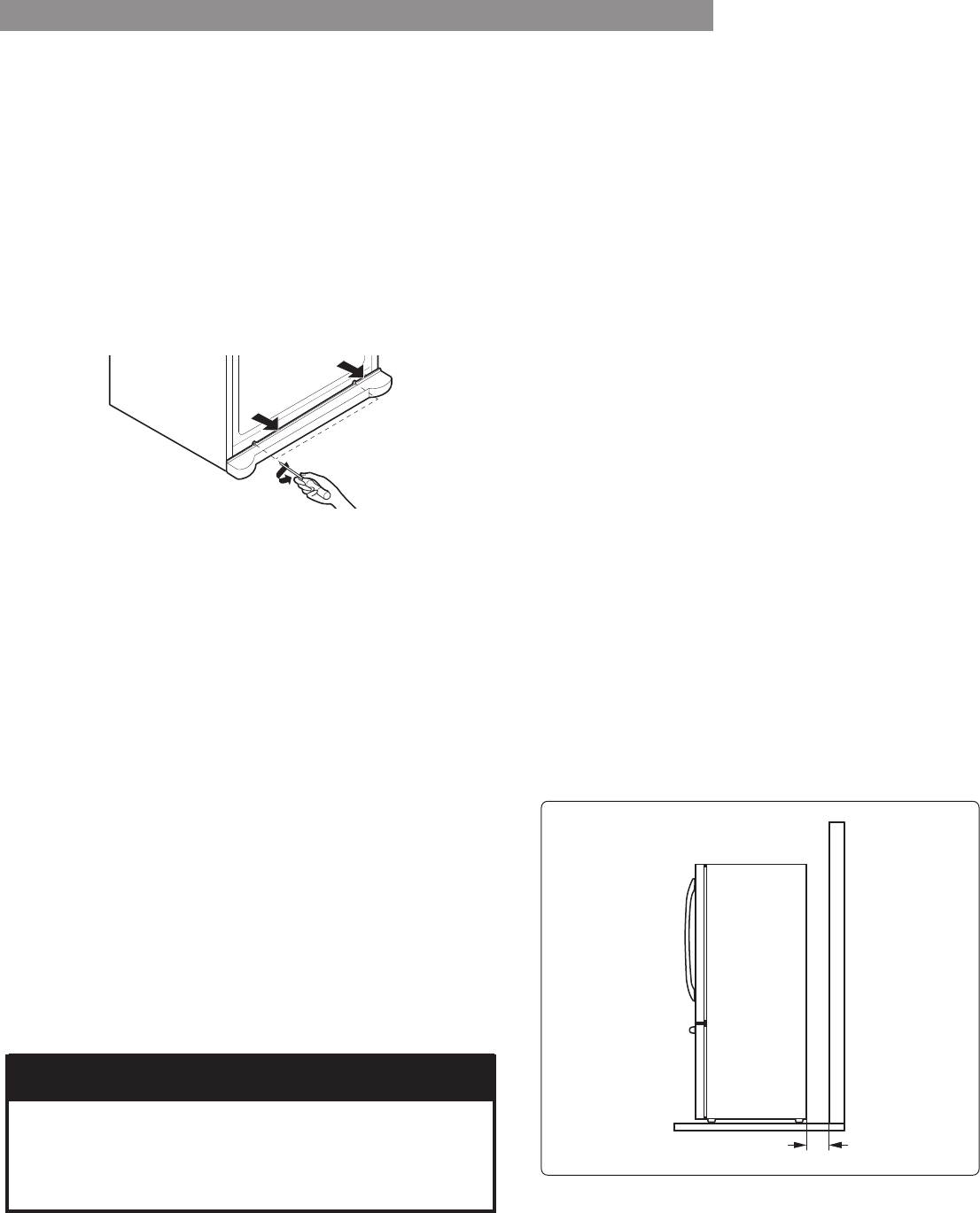

BASE GRILLE INSTALLATION

To remove the base grille:

1) Open the Freezer Drawer. (Drawer not shown for

clarity.)

 

clearance, remove the screws on the top of the

cover.

To replace the base grille:

Place the cover into position and then insert and

tighten the screws..

PRIOR TO USE

1.

dust that accumulated during shipping.

2. Install accessories such as ice cube bin, drawers,

shelves, etc., in their proper places. They are packed

together to prevent possible damage during shipment.

3. Allow your refrigerator to run for at least two to three



cold air in the freezer compartment to ensure proper

cooling. Your refrigerator is now ready for use.

INSTALLATION

The refrigerator should always be plugged into its own

individual properly grounded electrical outlet rated for

115 Volts, 60 Hz, AC only, and fused at 15 or 20 amperes.

This provides the best performance and also prevents



hazard from overheated wires. It is recommended that a

separate circuit serving only this appliance be provided.

2” (5.08 cm)

REFRIGERATOR INSTALLATION

Shock Hazard:

To reduce the risk of electric shock, do not install the

refrigerator in a wet or damp area.

WARNING

11

HOW TO REMOVE REFRIGERATOR

DOOR HANDLE

NOTE: Handle appearance may vary from

illustrations on this page.

Removing Refrigerator Handle

Loosen the set screws with a / in. Allen

wrench and remove the handle.

NOTE: If the handle mounting fasteners need

to be tightened or removed, use a ¼ in. Allen

wrench.

NOTE: Removing the doors is always recommended when it is necessary to move the refrigerator through a narrow

opening. If it is necessary to remove the handles, follow the directions below.

REFRIGERATOR INSTALLATION

HOW TO REPLACE REFRIGERATOR

DOOR HANDLE

NOTE: Handle appearance may vary from

illustrations on this page.

Replacing Refrigerator Door Handle



the handle footprints over the mounting

fasteners and tightening the set screws

with a / in Allen wrench.

NOTE: If the handle mounting fasteners

need to be tightened or removed, use a

¼ in. Allen wrench.

Mounting

Fasteners

Mounting

Fasteners

Set Screw

Allen

Wrench

12

HOW TO REPLACE FREEZER DOOR HANDLE

NOTE: Handle appearance may vary from illustrations on

this page.

Replacing Freezer Drawer Handle



footprints over the mounting fasteners and tightening



NOTE: If the handle mounting fasteners need to be

tightened or removed, use a ¼ in. Allen wrench.

REFRIGERATOR INSTALLATION

HOW TO REMOVE FREEZER DOOR HANDLE

NOTE: Handle appearance may vary from illustrations on

this page.

Removing Freezer Drawer Handle

Loosen the set screws located on the lower side of



handle.

NOTE: If the handle mounting fasteners need to be

tightened or removed, use a ¼ in. Allen wrench.

NOTE: Removing the doors is always recommended when it is necessary to move the refrigerator through a narrow

opening. If it is necessary to remove the handles, follow the directions below.

WARNING

When taking apart or assembling the refrigerator or

freezer handle:

 Grasp the handle tightly to avoid dropping it.

Dropping the handle could cause personal injury or



 Do not swing the handle towards people or animals

after taking apart the handle.

 Insert the bracket hole of the handle into the stopper

bolt of the door exactly, and then assemble the set



 Check if there’s any gap between the door and



13

To remove the left refrigerator door:

On the back of the refrigerator, pull the water tube out of



release ring (see picture below).

1. Open the door. Remove the top hinge cover screw (1).

Lift up the cover (2).

2. Remove the cover.

3. Pull out the tube (3).

4. Disconnect all wire harnesses (4).

5. Remove the grounding screw (5).

6. Rotate hinge lever (6) counterclockwise. Lift the top

hinge (7) free of the hinge lever latch (8).

CAUTION: When lifting the hinge free of the latch,

be careful that the door does not fall forward.

7. Lift the door from the middle hinge pin and remove the

door.

8. Place the door, inside facing up, on a non-scratching

surface.

1. Open the door. Remove the top hinge cover screw (1).

Lift up the cover (2).

2. Remove the cover.

3. Rotate the hinge lever (3) clockwise. Lift the top hinge

(4) free of the hinge lever latch (5).

CAUTION: When lifting the hinge free of the latch, be

careful that the door does not fall forward.

4. Lift the door from the middle hinge pin and remove

the door.

5. Place the door, inside facing up, on a non-scratching

surface.

WARNING

Electrical Shock Hazard

 Disconnect the electrical supply to the refrigerator

before installing. Failure to do so could result in

serious injury or death.

 Do not put hands, feet or other objects into the air

vents or bottom of the refrigerator. You may be

injured or receive an electrical shock.

REFRIGERATOR INSTALLATION

To remove the right refrigerator door:

REMOVING AND REPLACING

REFRIGERATOR DOORS

CAUTION: Before you begin, remove food and bins

from the doors.

WARNING

Excessive Weight Hazard:

Use two or more people to remove and install the

refrigerator doors. Failure to do so can result in back or

other injury.

(1)

(2)

(4)

(3)

(6)

(7) (8)

(5)

(2)

(3)(4)

(5)

(1)

14

After inserting, pull the tube to

make sure that it is secure and

reinsert the clip.

Tube

Scale Mark

Collet

Clip

Reinstalling the Refrigerator Door

Left Door

1. Lower the door onto middle hinge pin (10).

2. Fit top hinge (7) over hinge lever latch (8) and into

place. Rotate lever (6) clockwise to secure hinge.

3. Install the grounding screw (5) and connect the two

wire harnesses (4).

4. Push the water tube (3) located at the top of the left

door into the hole beside the left hinge on the top of

the cabinet until it exits through the back.

5. Insert the water supply tube (3) into the connector until

you see only one scale mark. Fully insert the tube over



6. Hook tabs on left side of hinge cover (1) under the

edge of the top hinge (7) and position the cover in

place. Insert and tighten the cover screw (1).

Right Door

1. Lower the door onto middle hinge pin (9).

2. Fit top hinge (4) over hinge lever latch (5) and into

place. Rotate lever (3) counterclockwise to secure

hinge.

3. Hook the tabs on right side of hinge cover (2) under

the edge of the top hinge (4) and position the cover in

place. Insert and tighten the cover screw (1).

REFRIGERATOR INSTALLATION

(2)

(3)(4)

(5)

(1)

(1)

(2)

(4)

(3)

(6)

(7) (8)

(5)

CAUTION

(9)

(10)

15

Pull the drawer open to full extension. Remove the

lower basket 1 by lifting the basket from the rail

system.

Remove the screws 2 of the rail on both sides.

Grasp the drawer on each side and pull it up to

separate it from the rails.

With both hands, hold the center bar and push it in to

allow both rails to slide in simultaneously.

CAUTION: Do not hold the handle when removing or



could cause personal injury.

REFRIGERATOR INSTALLATION

HOW TO REMOVE THE FREEZER DRAWER

WARNING: Use two or more people to remove and

install the freezer drawer. Failure to do so can result in

back or other injury.

Press the tabs on each of the rail covers and lift them

up to separate from the rail assembly.

1

2

16

Assembly Hole

Right Rail

Cover

Left Rail

Cover

REFRIGERATOR INSTALLATION

2

1

4

3

With both hands, pull out the center bar until the rail

is fully extended.

Hook the door support into the rail tabs on both sides.



screws 3 .

Align the tabs on the covers with the assembly holes

on each rail and snap the rail covers in place to

secure.

NOTE: Make sure that the left and right rail covers are

attached to the correct rails. See picture below.

With the drawer pulled out to full extension, insert the

lower basket 4 in the rail assembly.

REFRIGERATOR INSTALLATION

HOW TO REPLACE THE FREEZER DRAWER

WARNING: If the Durabase divider is removed, there is

enough open space for children or pets to crawl inside.

To prevent accidental child and pet entrapment or



near the freezer drawer.

WARNING: DO NOT step or sit down on freezer

drawer.

17

LEVELING AND DOOR ALIGNMENT

Leveling

After installing, plug the refrigerator’s power cord into a

3-prong grounded outlet and push the refrigerator into the



Your refrigerator has two front leveling legs—one on the

right and one on the left. Adjust the legs to alter the tilt

from front-to-back or side-to-side. If your refrigerator

seems unsteady, or you want the doors to close more

easily, adjust the refrigerator’s tilt using the instructions

below:

NOTE: Tools Required: /

screwdriver.

1. Turn the leveling leg to the left to raise that side of

the refrigerator or to the right to lower it. It may take

several turns of the leveling leg to adjust the tilt of the

refrigerator.

NOTE: Having someone push backward against the top of



This makes it easier to adjust the legs.

2. Open both doors again and check to make sure that

they close easily. If the doors do not close easily, tilt

the refrigerator slightly more to the rear by turning

both leveling legs to the left. It may take several more

turns, and you should turn both leveling legs the same

amount.

NOTE: Your refrigerator is uniquely designed with

two fresh food doors. Either door can be opened or

closed independently of the other. You may have to

exert slight pressure on the doors to get them to close

completely.

Door Alignment

Both the left and right refrigerator doors have an

adjustable nut, located on the bottom hinge, to raise and

lower them to align properly.

If the space between your doors is uneven, follow the

instructions below to align the doors evenly:

Use the wrench (included with the Use & Care Guide) to

turn the nut in the door hinge to adjust the height. To the

right to raise or to the left to lower the height.

REFRIGERATOR INSTALLATION

18

NOTE: When changing control settings, wait 24 hours

before making additional adjustments. The controls are set

correctly when milk or juice is as cold as you would like



compartment is too cold or too warm, change the setting

one increment at a time. Wait 24 hours for the change to

stabilize before adjusting again.

Dispenser

 Press the Ice/Water

Select button to select

eitherWater, Cubed

Ice or Crushed Ice. The

selected option will

illuminate.

 Some dripping may

occur after dispensing.

Hold your cup beneath

the dispenser for a few seconds after dispensing to

catch all of the drops.

NOTE: The dispenser will not work if any door is left open

or if the control lock is engaged.

CAUTION: The control display is operated by

touch. Excessive moisture on the display may cause a

malfunction. Please keep the display clean and dry.

Ultra Ice

 When you press the Ice button, the Ultra Ice graphic

will illuminate in the display and will continue for 24



hours.

 You can stop this function manually by touching the

button one more time.

 This function increases both ice making and freezing

capabilities.

Water Filter Reset





press and hold the WaterFilterReset button for three





USING YOUR REFRIGERATOR

SETTING THE CONTROLS

AIRFLOW

The refrigerator control functions as the thermostat for the

entire appliance (refrigerator and freezer sections). The

colder the setting, the longer the compressor will run to

keep the temperature colder. The freezer control adjusts



Setting the freezer control to a lower temperature keeps

more cold air in the freezer compartment to make it

colder.

Cold air circulates from the freezer to the fresh food

section and back again through air vents in the wall

dividing the two sections. Be sure not to block vents while



and may cause the refrigerator temperature to become



diagram below.)

• The Refrigerator Temp Control ranges from 33°F to

46°F (0°C to 8°C). Press the refrigeratortemp button

to cycle through the available temperature settings one

increment at a time.

• The Freezer Temp Control range is from -6°F to 8°F

(-21°C to -13°C). Press the freezer temp button to

cycle through the available temperature settings one

increment at a time.

Temperature

19

Articulating Mullion

This feature is a metal strip attached to the left door that

articulates (rotates) 90 degrees as the door is closed,

forming a mullion (base) for the left and right door

gaskets to seal against.

CAUTION: To reduce the risk of scratching the door

or breaking the door mullion, please make sure that the

refrigerator door mullion is always folded in.

Door Alarm

 When power is connected to the refrigerator, the door

alarm is initially set to ON. When you press the Door

Alarm button, the display will change to OFF and the

DoorAlarm function will deactivate.

 When either the refrigerator or the freezer door is left

open for more than 60 seconds, the alarm tone will

sound to let you know that the door is open.

 When you close the door, the door alarm will stop.

Energy Saver

The Energy Saver function disables the mullion heater

located on the refrigerator door in order to conserve

electricity. Press and hold the EnergySaver button for 3

seconds to activate or deactivate this function.

NOTE: Discontinue using the Energy Saver function if

excessive moisture begins to collect on the door mullion.

Control Lock

 When power is initially connected to the refrigerator,

the Lock

 If you want to activate the Lock function to lock other

buttons, press and hold the ControlLock button for

three seconds or more. The ControlLock icon will

display and the Lock function is now enabled.

 When the Lock function is activated, no other buttons

will work. The dispenser pad is also deactivated.

 To disable the Lock function, press and hold the Control

Lock button for approximately three seconds.

Temperature Mode Switch Function (°F <->°C)

If you want to convert °F to °C or vice versa, press and

hold the FreezerTemp and RefrigeratorTempbuttons at



Demo Mode (For Store Use Only)

The DemoMode disables all cooling in the refrigerator

and freezer sections to conserve energy while on display

in a retail store. When activated, OFF will display on the

control panel.

To deactivate:

With either refrigerator door opened, press and hold

the RefrigeratorTemp and UltraIce buttons at the same



Demo

Mode is deactivated. Use the same procedure to activate

the DemoMode.

USING YOUR REFRIGERATOR

20

IN-DOOR ICE BIN

CAUTION

Keep hands and tools out of the ice compartment door

and dispenser chute. Failure to do so may result in

damage or personal injury.

The icemaker will stop producing ice when the in-door ice

bin is full. If you need more ice, empty the ice bin into the

extra ice bin in the freezer compartment. During use, the

ice can become uneven causing the icemaker to misread

the amount of ice cubes and stop producing ice. Shaking

the ice bin to level the ice within it can reduce this problem.

NOTE: Storing cans or other items in the ice bin will

damage the icemaker.

Keep the ice compartment door closed tightly. If the ice

compartment door is not closed tightly, the cold air in the

ice bin will freeze food in the refrigerator compartment.

This could also cause the icemaker to stop producing ice.

NOTE: If the ON/OFF switch on the icemaker is set to

OFF for an extended period of time, it is recommended to

empty the ice bin.

1. Pull or push the door handle to open or close the ice

compartment.

2. To remove the in-door ice bin, grip the front handle,

slightly lift the lower part, and slowly pull out the bin

as shown.

3. To reinstall the in-door ice bin, slightly slant the

bin during replacement to avoid contact with the

icemaker.

4. Avoid touching the ice-detecting sensor when

replacing the ice bin. See the label on the ice

compartment door for details.

CAUTION

When handling the

ice bin, keep hands

away from the

icemaker tray area to

avoid personal injury.

USING YOUR REFRIGERATOR

Ice-detecting

sensor

21

USING YOUR REFRIGERATOR

AUTOMATIC ICEMAKER

Ice is made in the automatic icemaker and sent to the

dispenser. The icemaker will produce 70-210 cubes in

a 24-hour period, depending on freezer compartment

temperature, room temperature, number of door openings

and other operating conditions.

 It takes about 12 to 24 hours for a newly installed

refrigerator to begin making ice. Wait 72 hours for full

ice production to occur.

 Ice making stops when the in-door ice bin is full. When

full, the in-door ice bin holds approximately 6 to 8 (12-

16 oz) glasses of ice.

 

switch to OFF (O). To turn on the automatic icemaker,

set the switch to ON (I).

 The water pressure must be between 20 and

120 psi (140 and 830 kPa) on models without a water





amount and size of ice cubes.

 Foreign substances or frost on the ice-detecting sensor

can interrupt ice production. Make sure the sensor area

is clean at all times for proper operation.

WARNING

Personal Injury Hazard



making mechanism while the refrigerator is plugged in.

Ice-detecting

Sensor

Power

Switch

Icemaker

22

 

or odor from the water supply line or the water tank.

 

necessary if the refrigerator has not been used for a

long time.

 Never store beverage cans or other items in the ice

bin for the purpose of rapid cooling. Doing so may

damage the icemaker or the containers may burst.

 

and water supply. If the problem continues, contact a



ice or water until the problem is corrected.

 Keep children away from the dispenser. Children may

play with or damage the controls.

 The ice passage may become blocked with frost if only

crushed ice is used. Remove the frost that accumulates

by removing the ice bin and clearing the passage with

a rubber spatula. Dispensing cubed ice can also help

prevent frost buildup.

 Never use thin crystal glass or crockery to collect ice.

Such containers may chip or break resulting in glass

fragments in the ice.

 

or other beverages. Splashing may occur if ice is

dispensed into a glass that already contains liquid.

 Never use a glass that is exceptionally narrow or

deep. Ice may jam in the ice passage and refrigerator



 Keep the glass at a proper distance from the ice outlet.

A glass held too close to the outlet may prevent ice

from dispensing.

 To avoid personal injury, keep hands out of the ice

door and passage.

 Never remove the dispenser cover.

 

water supply and contact Sears Home Service at

1-800-4-MY HOME®.

WHEN YOU SHOULD SET THE ICEMAKER

POWER SWITCH TO OFF (O)

 

hours.

 When the ice bin is removed for more than one or two

minutes.

 When the refrigerator will not be used for several days.

NOTE: The ice bin should be emptied when the

icemaker ON/OFF switch is turned to the OFF position.

NORMAL SOUNDS YOU MAY HEAR

 

with water. If the power switch is in the ON (I) position,

it will buzz even if it has not yet been hooked up to

water. To stop the buzzing, move the power switch to

OFF (O).

NOTE: Keeping the power switch in the ON (I) position

before the water line is connected can damage the

icemaker.

 You will hear the sound of cubes dropping into the bin



PREPARING FOR VACATION

Set the icemaker power switch to OFF (O)

the water supply to the refrigerator.

NOTE: The ice bin should be emptied anytime the

icemaker ON/OFF switch is turned to the OFF (O)

position.

If the ambient temperature will drop below freezing, have





by ruptured water lines or connections.

CAUTION

AUTOMATIC ICEMAKER (continued)

USING YOUR REFRIGERATOR

23

USING YOUR REFRIGERATOR

FOOD STORAGE GUIDE

Wrap or store food in the refrigerator in airtight and

moisture-proof material unless otherwise noted. This

prevents food odor and taste transfer throughout the

refrigerator. For dated products, check date code to

ensure freshness.

STORING FROZEN FOOD

NOTE: Check a freezer guide or a reliable cookbook

for further information about preparing food for

freezing or food storage times.

Freezing

Your freezer will not quick-freeze a large quantity of

food. Do not put more unfrozen food into the freezer

than will freeze within 24 hours (no more than 2 to 3

lbs. of food per cubic foot of freezer space). Leave

enough space in the freezer for air to circulate around

packages. Be careful to leave enough room at the

front so the door can close tightly.

Storage times will vary according to the quality and

type of food, the type of packaging or wrap used

(how airtight and moisture-proof) and the storage

temperature. Ice crystals inside a sealed package are

normal. This simply means that moisture in the food

and air inside the package have condensed, creating

ice crystals.

NOTE: Allow hot foods to cool at room temperature

for 30 minutes, then package and freeze. Cooling hot

foods before freezing saves energy.

Packaging

Successful freezing depends on correct packaging.

When you close and seal the package, it must not

allow air or moisture in or out. If it does, you could

have food odor and taste transfer throughout the

refrigerator and could also dry out frozen food.

Packaging recommendations:

 

 Straight-sided canning/freezing jars

 Heavy-duty aluminum foil

 Plastic-coated paper

 Non-permeable plastic wraps

 

Follow package or container instructions for proper

freezing methods.

Do not use

 Bread wrappers

 Non-polyethylene plastic containers

 Containers without tight lids

 Wax paper or wax-coated freezer wrap

 Thin, semi-permeable wrap

CAUTION: Do not keep beverage cans or plastic

food containers in the freezer compartment. They may

break or burst if they freeze.

Items How to

Butter or

margarine

Cheese

Milk

Eggs

Fruit

Leafy

vegetables

Vegetables

with skins

(carrots,

peppers)

Fish

Leftovers

Keep opened butter in a covered

dish or closed compartment.

When storing an extra supply,

wrap in freezer packaging and

freeze.

Store in the original wrapping

until you are ready to use it. Once

opened, rewrap tightly in plastic

wrap or aluminum foil.

Wipe milk cartons. For best

storage, place milk on interior

shelf, not on door shelf.

Store in original carton on interior

shelf, not on door shelf.

Do not wash or hull the fruit

until it is ready to be used. Sort

and keep fruit in its original

container, in a crisper, or store in a

completely closed paper bag on a

refrigerator shelf.

Remove store wrapping and trim



areas. Wash in cold water and

drain. Place in plastic bag or

plastic container and store in

crisper.

Place in plastic bags or plastic

container and store in crisper.



the freezer section if they are not

being consumed the same day of

purchase. It is recommended to



same day purchased.

Cover leftovers with plastic wrap,

aluminum foil, or plastic containers

with tight lids.

24

REFRIGERATOR SECTION

WATER DISPENSER

To dispense cold water, push on the dispenser switch

with a glass.

NOTE: The dispenser is equipped with a light that

turns on when the dispenser pad is engaged.

WATER TRAY

Press down on either of the front corners to remove

the tray.

NOTE: There is no drain beneath the tray. You may

need to empty the tray of any liquid that collects in it.

WARNING: Do not put your



Doing so can result in severe injury.

CAUTION: Do not dispense ice



China or crystal can break.

Some dripping may occur after dispensing. Hold your

cup beneath the dispenser for a few seconds after

dispensing to catch all of the drops.

USING YOUR REFRIGERATOR

Dispenser Switch

Push

25

USING YOUR REFRIGERATOR

REFRIGERATOR SHELVES

The shelves in your refrigerator are adjustable to meet

your individual storage needs. Your model may have glass

or wire shelves.





also reduce the amount of time the refrigerator door is

open which will save energy.

IMPORTANT: Do not clean glass shelves with warm water

while they are cold. Shelves may break if exposed to

sudden temperature changes or impact.

CAUTION: Glass shelves are heavy. Use special care

when removing them.

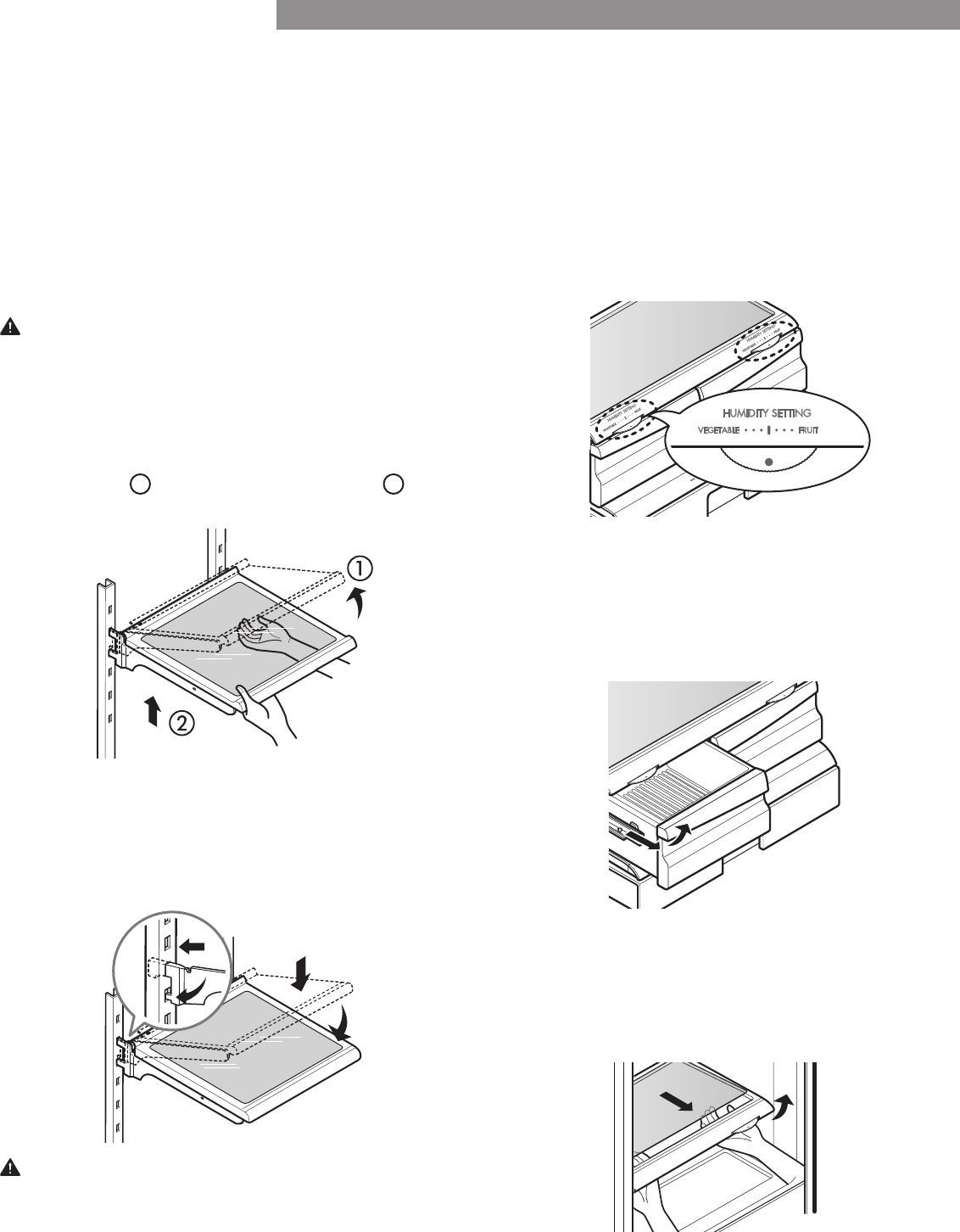

Adjusting Shelves (Cantilever)

Remove shelves from the shipping position and replace

shelves in the position you want.

To remove a shelf—Tilt up the front of the shelf in the

direction of 1 and lift it in the direction of 2. Pull

the shelf out.

To reinstall a shelf—Tilt the front of the shelf up and

guide the shelf hooks into the slots at a desired height.

Then, lower the front of the shelf so that the hooks

drop into the slots.

CAUTION: Make sure that shelves are level from one

side to the other. Failure to do so may result in the shelf

falling or spilling food.

HUMIDITY CONTROLLED CRISPER

The crispers provide fresher tasting fruit and vegetables by

letting you easily control humidity inside the drawer.

You can control the amount of humidity in the moisture-

sealed crispers by adjusting the control to any setting

between VEGETABLE and FRUIT.

• VEGETABLE keeps moist air in the crisper for best

storage of fresh, leafy vegetables.

• FRUIT lets moist air out of the crisper for best storage

of fruit.

Removing the glass

1. Lift up the glass under the crisper cover.

2. Pull the glass up and out.

NOTE: Pantry drawer not shown for clarity.

Removing and installing the humidity controlled crisper

1. To remove, pull the drawer out to full extension.

2. Lift the front of the crisper up, then pull it straight out.

3. To install, slightly tilt up the front, insert the drawer into

the frame and push it back into place.

26

DOOR BIN

The door bins are removable for easy cleaning and

adjustment.

1. To remove the bin, simply lift the bin up and pull

straight out.

2. To replace the bin, slide it in above the desired support

and push down until it snaps into place.

NOTE: Some bins may vary in appearance and will



USING YOUR REFRIGERATOR

FREEZER SECTION

DURABASE

1. To remove the Durabase, push it to the back as much

as possible. Tilt up the front of the Durabase and pull

straight out.

2. To replace, insert the Durabase in the rail assembly.

DURABASE DIVIDER

The Durabase divider allows you to organize the

Durabase area into sections. It can be adjusted from side



WARNING: If the Durabase divider is removed, there is

enough open space for children or pets to crawl inside.

To prevent accidental child and pet entrapment or



touch or go near the drawer.

12

DAIRY BIN

1. To remove the dairy bin, simply lift it and pull straight

out.

2. To replace the dairy bin, slide it into place and push

down until it stops.

NOTE: 

right-hand door.

27

WATER FILTER

WATER FILTER



 Approximately every six

months.

 

turns on.

 When the water dispenser

output decreases.

 When the ice cubes are smaller

than normal.

 

position and close the cover.

The cover will click when closed

correctly.

3.



5 minutes) to remove trapped air and contaminates

from the system. Do not dispense the entire 2.5

gallon (9 liter) amount continuously. Depress and

release the dispenser pad for cycles of 30 seconds

ON and 60 seconds OFF.

4. Water Filter Bypass Plug

 

bypass plug. You MUST



plug when a replacement



not available.

CAUTION: DO NOT operate refrigerator without



NOTE:

number: ADQ36006102) visit a Sears store or call

1-800-4-MY-HOME®. Also, you may order on-line at:

www.sears.com/partsdirect.

1. Remove the old water filter.

 Lower or remove the top left



rotate all the way down.

 Press the push button to open the



NOTE:

causes a small amount of water

(around 1 oz. or 25 cc) to drain.

Place a cup under the front end of



any leaking water. Hold the water



prevent any remaining water from



 

and pull out. Make sure



completely before pulling it out

of the manifold hole.

2. Replace with a new water lter.

 





into the manifold hole until it stops.

Water Filter

Bypass Plug

Water Filter

Bypass Plug

Water Filter

Bypass Plug

Water Filter

Bypass Plug

Water Filter

Bypass Plug

Water Filter

Bypass Plug

28

Performance Data Sheet

The concentration of the indicated substances in water entering the system was reduced to a concentration less than or



* Based on the use of Cryptosporidium parvum oocysts



reduction of substances listed below.

Contaminant Reduction Average

Inuent

NSF specied Challenge

Concentration

Avg %

Reduction

Average

Product Water

Concentration

Max Permissible

Product Water

Concentration

NSF Reduction

Requirements

NSF Test

Report

Chlorine Taste and Odor 2.1 mg/L 2.0 mg/L ± 10% 97.2% 0.06 mg/L N/A  J-00049247

Nominal Particulate Class I, ,



5,600,000

pts/mL At least 10,000 particles/mL 98.7% 73,000 pts/ml N/A  J-00049282

Asbestos 190 MFL 

 >99%  N/A  J-0004928

Atrazine 0.0094 mg/L 0.009 mg/L ± 10% 94.7% 0.00005 mg/L 0.003 mg/L N/A J-00049293

Benzene 0.016 mg/L 0.015 mg/L ± 10% 96.7% 0.005 mg/L 0.005 mg/L N/A J-00049300

Carbofuran 0.08 mg/L 0.08 mg/L ± 10% 98.1% 0.002 mg/L 0.04 mg/L N/A J-00049294

Lindane 0.002 mg/L 0.002 mg/L ± 10% 98.2% 0.00004 mg/L 0.0002 mg/L N/A J-00051975

P-Dichlorobenzene 0.22 mg/L 0.225 mg/L ± 10% 99.8% 0.0005 mg/L 0.075 mg/L N/A J-00049298

Toxaphene 0.014 mg/L 0.015 mg/L ± 10% 93% 0.001 mg/L 0.003 mg/L N/A J-00049302

2,4-D 0.213 mg/L 0.210 mg/L ± 10% 95.2% 0.009 mg/L 0.07 mg/L N/A J-00049284

Lead pH @6.5 0.150 mg/L 0.15 mg/L ± 10% >99.3% 0.001 mg/L 0.010 mg/L N/A J-00051974

Lead pH @8.5 0.150 mg/L 0.15 mg/L ± 10% >99.3% 0.001 mg/L 0.010 mg/L N/A J-00049277

Mercury @ pH 6.5 0.0059 mg/L 0.006 mg/L ± 10% 96.1 0.0002 mg/L 0.002 mg/L N/A J-00053886

Mercury @ pH 8.5 0.0058 mg/L 0.006 mg/L ± 10% 90.1 0.0006 mg/L 0.002 mg/L N/A J-00051972

Cyst* 120,000 cysts/L Minimum 50,000 cysts/L 99.99%  N/A  J-00049281

WATER FILTER

29

WATER FILTER

It is essential that the manufacturer’s recommended



requirements be carried out for the product to perform as

advertised.

NOTE: While the testing was performed under standard

laboratory conditions, actual performance may vary.

For estimated costs of replacement elements, please call

1-800-469-4663 (part number: ADQ36006102) or visit

our website at: www.sears.com/partsdirect

3M is a trademark of 3M Company.

NSF is a trademark of NSF International.

© 2009 3M Company. All rights reserved.

WARNING

CAUTION

To reduce the risk associated with ingestion of

contaminants: Do not use with water that is

microbiologically unsafe or of unknown quality

without adequate disinfection before and after of the

system.



cysts. EPA Establishment Number 10350-MN-005

To reduce the risk associated with property damage

due to water leakage:

• Read and follow the Water Filter instructions before

installation and use of this system.

 Installation and use MUST comply with all state and

local plumbing codes.

• Do not install if water pressure exceeds 120 psi (827

kPa). Contact a plumbing professional if you are

uncertain of how to check your water pressure.

• Do not install where water hammer conditions may

occur. If water hammer conditions exist, you must

install a water hammer arrester. Contact a plumbing

professional if you are uncertain of how to check for

this condition.

• Do not install on hot water supply lines.

The maximum operating water temperature of this



• Protect water lter from freezing. Do not operate

refrigerator in ambient conditions below 55°F

(12.7°C). 

temperatures below 40°F (4.4°C).

 

six months, at the rated capacity, or if a noticeable



Application Guidelines/Water Supply Parameters

Service Flow 0.5 gpm (1.9 lpm)

Water Supply Potable Water

Water Pressure 40-120 psi (138 - 827 kPa)

Water Temperature 33°F - 100°F (0.6°C - 38°C)

30

WATER FILTER

State of California

Department of Public Health

Water Treatment Device

Certificate Number

Date Issued: December 15, 2009

201909-

Manufacturer: Sears Roebuck and Co.

The water treatment device(s) listed on this certificate have met the testing requirements pursuant to Section

116830 of the Health and Safety Code for the following health related contaminants:

sotsebsAstsyC

Lead

Mercury

2,4-D Reduction

Atrazine

Benzene

Carbofuran

Lindane

p-Dichlorobenzene

Toxaphene

Microbiological Contaminants and Turbidity Inorganic/Radiological Contaminants

Organic Contaminants

200 gal

Rated Service Capacity: 0.5 gpm

Rated Service Flow:

Conditions of Certification:

31

CARE AND CLEANING

WARNING

Explosion Hazard





Both the refrigerator and freezer sections defrost



month to prevent odors. Wipe up spills immediately.

GENERAL CLEANING TIPS

 Unplug refrigerator or disconnect power.

 Remove all removable parts, such as shelves, crispers,

etc. Refer to sections in UsingYourRefrigerator for

removal instructions.

 Use a clean sponge or soft cloth and a mild detergent

in warm water. Do not use abrasive or harsh cleaners.

 Hand wash, rinse and dry all surfaces thoroughly.

 Plug in refrigerator or reconnect power.

EXTERIOR

Waxing external painted metal surfaces helps provide

rust protection. Do not wax plastic parts. Wax painted

metal surfaces at least twice a year using appliance wax

(or auto paste wax). Apply wax with a clean, soft cloth.

For products with a stainless steel exterior, use a clean

sponge or soft cloth and a mild detergent in warm water.

Do not use abrasive or harsh cleaners. Dry thoroughly

with a soft cloth.

INSIDE WALLS (allow freezer to warm up so

the cloth will not stick)

To help remove odors, you can wash the inside of the

refrigerator with a mixture of baking soda and warm

water. Mix 2 tablespoons of baking soda to 1 quart of

water (26 g soda to 1 liter water.) Be sure the baking soda

is completely dissolved so it does not scratch the surfaces

of the refrigerator.

DOOR LINERS AND GASKETS

Use a clean sponge or soft cloth and a mild detergent

in warm water. Do not use cleaning waxes, concentrated

detergents, bleaches, or cleaners containing petroleum on

plastic refrigerator parts.

PLASTIC PARTS (Covers and Panels)

Use a clean sponge or soft cloth and a mild detergent

in warm water. Do not use window sprays, abrasive



damage the material.

CONDENSER COILS

Use a vacuum cleaner with

an attachment to clean the

condenser cover and vents.

Do not remove the panel

covering the condenser

coil area.

CAUTION: While cleaning the inside, do not spray

water.

32

LIGHT BULB REPLACEMENT

NOTE: The refrigerator and freezer compartment

lights have LED interior lighting, and service should be



CHANGE FREEZER COMPARTMENT LIGHT BULB

1. Unplug refrigerator power cord form outlet.

2. Remove the screw using a Phillips screwdriver.

3. Grasp the light cover and pull the cover downward.

CAUTION: Make sure that the bulb is cool to

the touch.

4. Rotate the bulb counterclockwise to remove.

5. Replace with a new 60-watt appliance bulb.

6. Insert tabs on back of cover into slots in freezer

ceiling. Push cover up to snap front into place.

7. Tighten the screw using a Phillips screwdriver.

WARNING

Electrical Shock Hazard

Before replacing a Compartment Lamp, either unplug



or fuse box.

POWER INTERRUPTIONS

1. If the power will be out for 24 hours or less, keep all

refrigerator doors closed to help foods stay cold and

frozen.

2. If the power will be out for more than 24 hours, remove

all frozen food and store it in a frozen food locker.

WHEN YOU GO ON VACATION

If you choose to leave the refrigerator on while you are

away, follow these steps to prepare your refrigerator

before you leave.

1. Use up any perishables and freeze other items.

2.

If you choose to turn the refrigerator o before you leave,

follow these steps.

1. Remove all food from the refrigerator.

2. Depending on your model, set the thermostat control

(refrigerator control) to OFF. See the Settingthe

Controls section.

3. Clean the refrigerator, wipe it and dry well.

4. Tape rubber or wood blocks to the tops of both doors

to prop them open far enough for air to get in. This

stops odor and mold from building up.

WHEN YOU MOVE

When you are moving your refrigerator to a new home,

follow these steps to prepare it for the move.

1. Remove all food from the refrigerator and pack all

frozen food in dry ice.

2. Unplug the refrigerator.

3. Clean, wipe and dry thoroughly.

4. Take out all removable parts, wrap them well and

tape them together so they do not shift and rattle

during the move. Refer to the UsingyourRefrigerator

section for removable instructions.

5. Depending on the model, raise the front of the

refrigerator so it rolls easier OR screw in the leveling



the DoorClosing section.

6. Tape the doors shut and tape the power cord to the

refrigerator cabinet.

When you get to your new home, put everything back and

refer to the RefrigeratorInstallation section for preparation

instructions.

CARE AND CLEANING

33

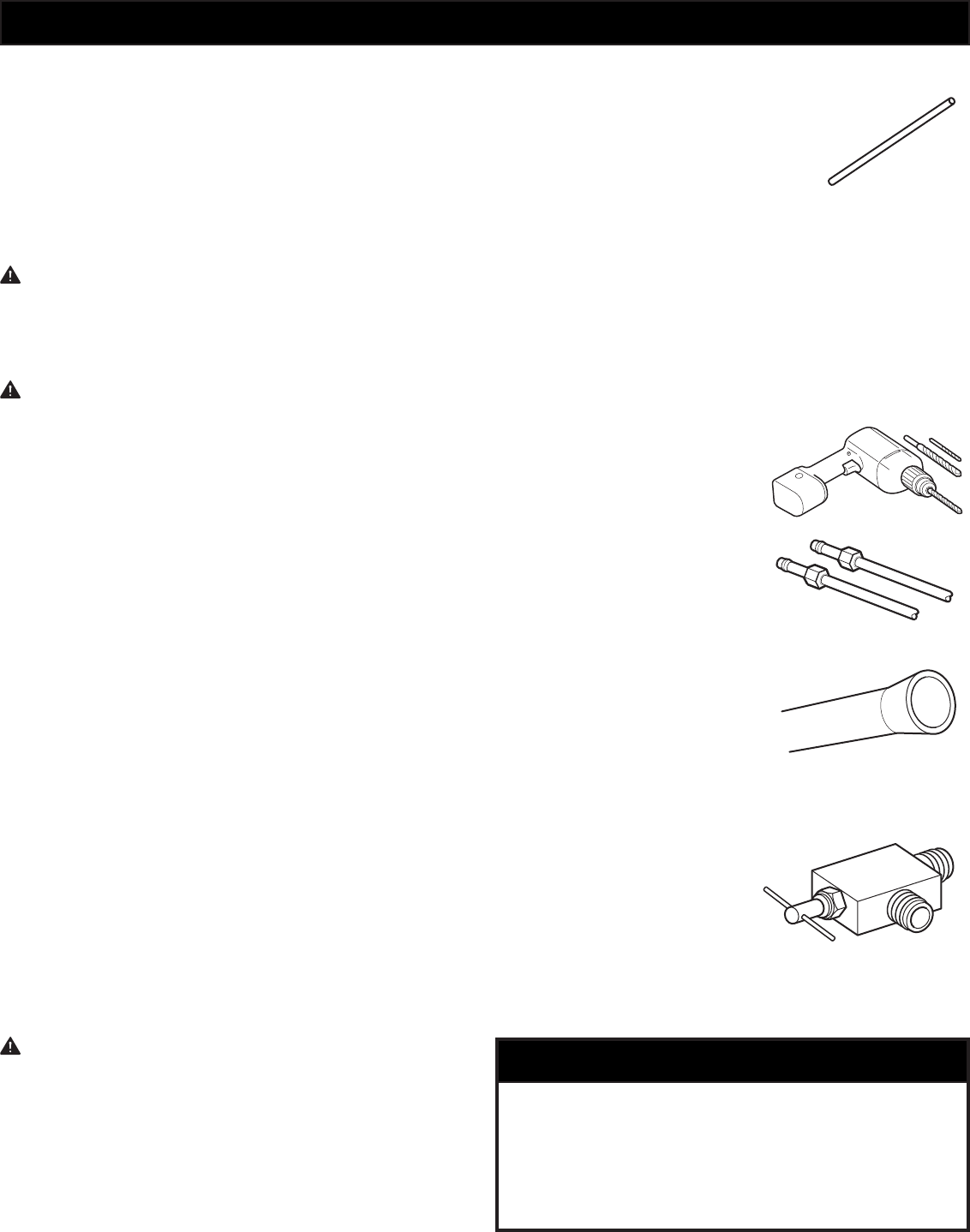

CONNECTING THE WATER LINE

BEFORE YOU BEGIN

This water line installation is not covered by the

refrigerator warranty. Follow these instructions carefully to

minimize the risk of expensive water damage.

Water hammer (water banging in the pipes) in house

plumbing can cause damage to refrigerator parts and can



to correct water hammer before installing the water supply

line to the refrigerator.

CAUTION: To prevent burns and product damage, only

connect the refrigerator water line to a cold water supply.

If you use your refrigerator before connecting the water

line, make sure the icemaker power switch is in the OFF (O)

position.

CAUTION: Do not install the icemaker tubing in areas

where temperatures fall below freezing.

WATER PRESSURE

A cold water supply. The water pressure must be between

20 and 120 psi (140 and 830 kPa) on models without a





If a reverse osmosis water ltration system is connected

to your cold water supply, this water line installation is not

covered by the refrigerator warranty. Follow the following

instructions carefully to minimize the risk of expensive water

damage.

If a reverse osmosis water ltration system is connected

to your cold water supply, the water pressure to the reverse

osmosis system needs to be a minimum of 40 to 60 psi (2.8

kgf/cm2 ~ 4.2 kgf/cm2

of 7 oz capacity).

If the water pressure from the reverse osmosis system is less



cup of 7 oz capacity):

 



 Allow the storage tank on the reverse osmosis system to



 If the issue concerning water pressure from reverse



 All installations must be in accordance with local

plumbing code requirements.

CAUTION: Wear eye protection during installation to

prevent injury.

WHAT YOU WILL NEED

• Copper Tubing, ¼ in. outer

diameter, to connect the refrigerator

to the water supply. Be sure both

ends of the tubing are cut square.

 To determine how much tubing you

need: measure the distance from the water valve on the

back of the refrigerator to the water supply pipe. Then,



(about 8 feet [2.4 m] coiled into 3 turns of about 10 in.

[25 cm] diameter) to allow the refrigerator to move out

from the wall after installation.

• Power drill.

• ½ in. or adjustable wrench.

• Flat blade and Phillips head screwdrivers.

• Two ¼ in. outer diameter

compression nuts and

2 ferrules (sleeves) to

connect the copper tubing



refrigerator water valve.

 If your existing copper water



end, you will need an adapter

(available at plumbing supply

stores) to connect the water line

to the refrigerator OR you can



a tube cutter and then use a



• Shuto valve to connect

to the cold water line. The



inside diameter of / in. at the point of connection

to the COLD WATER LINE.



are included in many water

supply kits. Before purchasing,

make sure a saddle-type

valve complies with your local

plumbing codes.

NOTE: A Self Piercing Saddle Type Water Valve should

not be used.

WARNING

Electrical Shock Hazard

When using any electrical device (such as a power

drill) during installation, be sure the device is battery

powered, double insulated or grounded in a manner

that will prevent the hazard of electric shock.

34

INSTALLATION INSTRUCTIONS



drinking water line.

1. SHUT OFF THE MAIN WATER SUPPLY

Turn on the nearest faucet to relieve the pressure on

the line.

2. CHOOSE THE VALVE LOCATION

Choose a location for the valve

that is easily accessible. It is best to

connect into the side of a vertical

water pipe. When it is necessary to

connect into a horizontal water pipe,

make the connection to the top or

side, rather than at the bottom, to



3. DRILL THE HOLE FOR THE VALVE

Drill a ¼ in. hole in the water pipe using a sharp bit.

Remove any burrs resulting from

drilling the hole in the pipe. Be

careful not to allow water to

drain into the drill. Failure to

drill a ¼ in. hole may result

in reduced ice production or

smaller cubes.

NOTE: The hookup line cannot be white, plastic

tubing. Licensed plumbers must use only copper

tubing NDA tubing #49595 or 49599 or Cross Link

Polyethylene (PEX) tubing.

4. FASTEN THE SHUTOFF VALVE



the pipe clamp.

NOTE: Commonwealth of Massachusetts Plumbing

Codes 248CMR shall be adhered to. Saddle valves are

illegal and use is not permitted in Massachusetts.

Consult with your licensed plumber.

5. TIGHTEN THE PIPE CLAMP

Tighten the clamp screws until the sealing washer

begins to swell.

NOTE: Do not overtighten clamp or you may crush the

tubing.

6. ROUTE THE TUBING

Route the tubing between the cold water line and the

refrigerator.

Route the tubing through a hole drilled in the wall



cabinet) as close to the wall as possible.

NOTE:

8 feet coiled into 3 turns of about 10 in. diameter) to

allow the refrigerator to move out from the wall after

installation.

7. CONNECT THE TUBING TO THE VALVE

Place the compression nut and ferrule (sleeve) for

copper tubing onto the end of the tubing and connect



inserted into the valve. Tighten the compression nut

securely.

NOTE: Commonwealth of Massachusetts Plumbing

Codes 248CMR shall be adhered to. Saddle valves are

illegal and their use is not permitted in

Massachusetts. Consult with your licensed plumber.

Pipe Clamp

Saddle-Type

 Vertical Cold

Water Pipe

Pipe Clamp

Clamp Screw

Washer

Inlet End

Saddle-Type



Packing Nut

Outlet Valve

Compression Nut

Ferrule (sleeve)

CONNECTING THE WATER LINE

35

CONNECTING THE WATER LINE

8. FLUSH OUT THE TUBING

Turn the main water supply on and



is clear.

 

valve after about one quart of



tubing.

9. CONNECT THE TUBING TO THE

REFRIGERATOR

NOTE: Before making the connection to the

refrigerator, be sure that the refrigerator power cord is

not plugged into the wall outlet.

1.

2. Place the compression nut and ferrule (sleeve) onto the

end of the tubing as shown.

3. Insert the end of the copper tubing into the connection

as far as possible. While holding the tubing, tighten



10. TURN THE WATER ON AT THE SHUTOFF VALVE

Tighten any connections that leak.

11. PLUG IN THE REFRIGERATOR

Arrange the coil of tubing so that it does not vibrate

against the back of the refrigerator or against the wall.

Push the refrigerator back to the wall.

12. START THE ICEMAKER

Set the icemaker power switch to the ON position.

The icemaker will not begin to operate until it reaches

its operating temperature of 15°F (–9°C) or below.

It will then begin operation automatically if the

icemaker power switch is in the ON (I) position.

Tubing Clamp ¼ in. Tubing

¼ in.

Compression

Nut

Refrigerator

Connection

Ferrule

(sleeve)

CAUTION: Check to see if leaks occur at the water line

connections.

36

TROUBLESHOOTING GUIDE

Problem Possible Causes Solutions

Refrigerator and

Freezer section are

not cooling.

The refrigerator control is set to OFF

(some models). Turn the control ON. Refer to the SettingtheControls

section for proper temperature settings.

Refrigerator is set to Demo Mode. Demo Mode allows the lights and control display to

work normally while disabling cooling to save energy

Settingthe

Controls section for instructions on how to disable

Demo Mode.

Refrigerator is in the defrost cycle. During the defrost cycle, the temperature of each

compartment may raise slightly. Wait 30 minutes and



once the defrost cycle has completed.

Refrigerator was recently installed. It may take up to 24 hours for each compartment to

reach the desired temperature.

Refrigerator was recently relocated. If the refrigerator was stored for a long period of time

or moved on its side, it is necessary for the refrigerator

to stand upright for 24 hours before connecting it to

power.

Cooling System runs

too much. Refrigerator is replacing an older

model. Modern refrigerators require more operating time but



Refrigerator was recently plugged in

or power restored. The refrigerator will take up to 24 hours to cool

completely.

Door opened often or a large amount

of food / hot food was added. Adding food and opening the door warms the

refrigerator, requiring the compressor to run longer in

order to cool the refrigerator back down. In order to

conserve energy, try to get everything you need out of

the refrigerator at once, keep food organized so it is



removed. (Refer to the FoodStorageGuide.)

Doors are not closed completely. Firmly push the doors shut. If they will not shut all the

way, see the Doorswillnotclosecompletelyorpop

opensection in Parts & Features Troubleshooting.

Refrigerator is installed in a hot

location. The compressor will run longer under warm conditions.

At normal room temperatures (70°F) expect your

compressor to run about 40% to 80% of the time.

Under warmer conditions, expect it to run even more

often. The refrigerator should not be operated above

110°F.

Condenser / back cover is clogged. Use a vacuum cleaner with an attachment to clean the

condenser cover and vents. Do not remove the panel

covering the condenser coil area.

COOLING

Before conducting troubleshooting, make sure that the following basic requirements are met:

Service Flow 0.5 gpm (1.9 lpm)

Water Supply Potable Water

Water Pressure 40-120 psi (138 - 827 kPa)

Operating Ambient

Temperature Limits 55°F - 110°F

Electrical Ratings 115 Volts, 60 Hz, AC only, and fused

at 15 or 20 amperes.

37

TROUBLESHOOTING GUIDE

Problem Possible Causes Solutions

Refrigerator or

Freezer section is too

warm.

Refrigerator was recently installed. It may take up to 24 hours for each compartment to

reach the desired temperature.

Air vents are blocked. 



UsingYourRefrigerator section.

Doors are opened often or for long

periods of time. When the doors are opened often or for long periods

of time, warm, humid air enters the compartment.

This raises the temperature and moisture level within



frequency and duration of door openings.

Unit is installed in a hot location. The refrigerator should not be operated in

temperatures above 110F.

A large amount of food or hot food

was added to either compartment. Adding food warms the compartment requiring the

cooling system to run. Allowing hot food to cool to

room temperature before putting it in the refrigerator



Doors not closed correctly. See the Doorswillnotclosecorrectlyorpopopen

section in Parts & Features Troubleshooting.

Temperature control is not set

correctly. If the temperature is too warm, adjust the control one

increment at a time and wait for the temperature to

stabilize. Refer to the SettingtheControls section for

more information.

Defrost cycle has recently completed. During the defrost cycle, the temperature of each

compartment may raise slightly and condensation may



the proper temperature has been restored once the

defrost cycle has completed.

Interior moisture

buildup. Doors are opened often or for long

periods of time. When the doors are opened often or for long periods

of time, warm, humid air enters the compartment.

This raises the temperature and moisture level within



frequency and duration of door openings.

Doors not closed correctly. See the Doorswillnotclosecorrectly section in the

Troubleshooting section.

Weather is humid. Humid weather allows additional moisture to enter the

compartments when the doors are opened leading to

condensation or frost. Maintaining a reasonable level

of humidity in the home will help to control the amount

of moisture that can enter the compartments.

Defrost cycle recently completed. During the defrost cycle, the temperature of each

compartment may raise slightly and condensation may



that the proper temperature has been restored once

the defrost cycle has completed.

Food is not packaged correctly. Food stored uncovered or unwrapped, and damp

containers can lead to moisture accumulation within

each compartment. Wipe all containers dry and store

food in sealed packaging to prevent condensation and

frost.

COOLING

38

TROUBLESHOOTING GUIDE

Problem Possible Causes Solutions

Food is freezing

in the refrigerator

compartment.

Food with high water content was

placed near an air vent. Rearrange items with high water content away from

air vents.

Refrigerator temperature control is set

incorrectly. If the temperature is too cold, adjust the control one

increment at a time and wait for the temperature to

stabilize. Refer to the SettingtheControlssection for

more information.

Refrigerator is installed in a cold

location. When the refrigerator is operated in temperature

below 41°F (5°C), food can freeze in the refrigerator

compartment. The refrigerator should not be operated

in temperature below 55°F (13°C).

Frost or ice crystals

form on frozen food

(outside of package).

Door is opened frequently or for long

periods of time. When the doors are opened often or for long periods

of time, warm, humid air enters the compartment. This

raises the temperature and moisture level within the

compartment. Increased moisture will lead to frost



frequency and duration of door openings.

Door is not closing properly. Refer to the Doorswillnotclosecorrectlyorpop

open section in the Troubleshooting section.

Refrigerator or

Freezer section is too

cold.

Incorrect temperature control settings. If the temperature is too cold, adjust the control one

increment at a time and wait for the temperature to

stabilize. Refer to the SettingtheControls section for

more information.

Frost or ice crystals

on frozen food

(inside of sealed

package).

Condensation from food with a high

water content has frozen inside of the

food package.

This is normal for food items with a high water

content.

Food has been left in the freezer for

a long period of time. Do not store food items with high water content in the

freezer for a long period of time.

Icemaker is not

making enough ice. Demand exceeds ice storage

capacity. The icemaker will produce approximately 70-210

cubes in a 24 hour period.

House water supply is not connected,

valve is not turned on fully, or valve is

clogged.

Connect the refrigerator to a cold water supply with



fully open.

If the problem persists, it may be necessary to contact

a plumber.

 

Approximately every six months.



When the water dispenser output decreases.

When the ice cubes are smaller than normal.

Low house water supply pressure. The water pressure must be between 20 and 120 psi



and between 40 and 120 psi (280 and 830 kPa) on



If the problem persists, it may be necessary to contact

a plumber.



used. 

water pressure below the minimum amount and result

in icemaker issues. (Refer to WaterPressuresection.)

Tubing connecting refrigerator to

house supply valve is kinked. The tubing can kink when the refrigerator is moved

during installation or cleaning resulting in reduced



and arrange it to prevent future kinks.

COOLING/ICE & WATER

39

TROUBLESHOOTING GUIDE

Problem Possible Causes Solutions

Icemaker is not

making enough ice

(continued).

Doors are opened often or for long

periods of time. If the doors of the unit are opened often, ambient

air will warm the refrigerator which will prevent the

unit from maintaining the set temperature. Lowering

the refrigerator temperature can help, as well as not

opening the doors as frequently.

Doors are not closed completely. If the doors are not properly closed, ice production

Doorswillnotclose

completelyorpopopen section in Parts & Features

Troubleshooting for more information.

The temperature setting for the

freezer is too warm. The recommended temperature for the freezer

compartment for normal ice production is 0°F(-18°C).

If the freezer temperature is warmer, ice production



Dispensing water

slowly.  

Approximately every six months.



When the water dispenser output decreases.

When the ice cubes are smaller than normal.



used. 

pressure below the minimum amount and result in

icemaker issues.

If the problem persists, it may be necessary to contact

a plumber.

Low house water supply pressure. The water pressure must be between 20 and 120 psi



and between 40 and 120 psi (280 and 830 kPa) on



If the problem persists, it may be necessary to contact

a plumber.

Not dispensing ice. Doors are not closed completely. Ice will not dispense if any of the refrigerator doors

are left open.

Infrequent use of the dispenser. Infrequent use of the ice dispenser will cause the cubes

to stick together over time, which will prevent them

from properly dispensing. Check the ice bin for ice

cubes clumping/sticking together. If they are, break up

the ice cubes to allow for proper operation.

The delivery chute is clogged with

frost or ice fragments. Eliminate the frost or ice fragments by removing the

ice bin and clearing the chute with a plastic utensil.

Dispensing cubed ice can also help prevent frost or ice

fragment buildup.

The dispenser display is locked. Press and hold the Lock button for three seconds to

unlock the control panel and dispenser.

Ice bin is empty. It may take up to 24 hours for each compartment to

reach the desired temperature and for the icemaker



sensor) is not obstructed.

Once the ice supply in the bin has been completely

exhausted, it my take up to 90 minutes before

additional ice is available, and approximately 24



ICE & WATER

40

TROUBLESHOOTING GUIDE

Problem Possible Causes Solutions

Icemaker is not

making ice. Refrigerator was recently installed or

icemaker recently connected. It may take up to 24 hours for each compartment to

reach the desired temperature and for the icemaker to

begin making ice.

Icemaker not turned on. Locate the icemaker ON/OFF

it is in the ON (I) position.

The ice detecting sensor is obstructed. Foreign substances or frost on the ice-detecting sensor

can interrupt ice production. Make sure that the sensor

area is clean at all times for proper operation.

The refrigerator is not connected to



valve is not turned on.

Connect refrigerator to the water supply and turn the





obstructed. 

make sure that the arm moves freely. If your icemaker



make sure that there is a clear path between the two

sensors.



system is connected to your cold

water supply.



water pressure below the minimum amount and result

in icemaker issues. (Refer to the WaterPressure

section.)

Not dispensing water. New installation or water line recently

connected. 

5 minutes) to remove trapped air and contaminates

from the system. Do not dispense the entire 2.5

gallon amount continuously. Depress and release the

dispenser pad for cycles of 30 seconds ON and 60

seconds OFF.

The dispenser panel is locked. Press and hold the Lock button for three seconds to

unlock the control panel and dispenser.

The dispenser is not set for water

dispensing. The dispenser can be set for ice or water. Make

certain that the control panel is set for the proper

operation. Press the Ice/Water Select button on the

control panel.

Refrigerator or freezer doors are not

closed properly. Water will not dispense if any of the refrigerator

doors are left open.



removed or replaced. 



trapped air and contaminates from the system. Do not

dispense the entire 2.5 gallon amount continuously.

Depress and release the dispenser pad for cycles of

30 seconds ON and 60 seconds OFF.

Tubing connecting refrigerator to

house supply valve is kinked. The tubing can kink when the refrigerator is moved

during installation or cleaning resulting in reduced



and arrange it to prevent future kinks.

The house water supply is not

connected, the valve is not turned on

fully, or the valve is clogged.

Connect refrigerator to the water supply and turn the



If the problem persists, it may be necessary to contact

a plumber.

ICE & WATER

41

TROUBLESHOOTING GUIDE

Problem Possible Causes Solutions

Ice has bad taste or

odor. Water supply contains minerals such

as sulfur. 

taste and odor problems.

NOTE: 

be possible to remove all minerals / odor / taste in all

water supplies.

Icemaker was recently installed. 

or bad tasting ice.

Ice has been stored for too long. Ice that has been stored for too long will shrink,

become cloudy, and may develop a stale taste. Throw

away old ice and make a new supply.

The food has not been stored

properly in either compartment. Rewrap the food. Odors may migrate to the ice if

food is not wrapped properly.

The interior of the refrigerator needs

to be cleaned. See the CareandCleaning section for more

information.

The ice storage bin needs to be

cleaned. Empty and wash the bin (discard old cubes). Make

sure that the bin is completely dry before reinstalling

it.

Dispensing warm

water. Refrigerator was recently installed. Allow 24 hours after installation for the water storage

tank to cool completely.

The water dispenser has been used

recently and the storage tank was

exhausted.



capacity will range from approximately 20 to 30 oz.

Dispenser has not been used for

several hours. If the dispenser has not been used for several hours,





Refrigerator is connected to the hot

water supply. Make sure that the refrigerator is connected to a cold

water pipe.

WARNING: Connecting the refrigerator to a hot

water line may damage the icemaker.

Water has bad taste

or odor. Water supply contains minerals such

as sulfur. 

taste and odor problems.

 

Approximately every 6 months.



When the water dispenser output decreases.

When the ice cubes are smaller than normal.

Refrigerator was recently installed. 

5 minutes) to remove trapped air and contaminates

from the system. Do not dispense the entire 2.5

gallon amount continuously. Depress and release the

dispenser pad for cycles of 30 seconds ON and 60

seconds OFF.

Icemaker is making

too much ice. 

obstructed. Empty the ice bin. If your icemaker is equipped with



freely. If your icemaker is equipped with the electronic



between the two sensors. Reinstall the ice bin and wait



ICE & WATER

42

Problem Possible Causes Solutions

Clicking The defrost control will click when

the automatic defrost cycle begins

and ends. The thermostat control (or

refrigerator control on some models)

will also click when cycling on and



Normal Operation

Rattling Rattling noises may come from the



the back of the unit, or items stored

on top of or around the refrigerator.

Normal Operation

Refrigerator is not resting solidly on

 Floor is weak or uneven or leveling legs need to be

adjusted. See the DoorAlignment section.

Refrigerator with linear compressor

was jarred while running. Normal Operation

Whooshing Evaporator fan motor is circulating

air through the refrigerator and

freezer compartments.

Normal Operation

Air is being forced over the condenser

by the condenser fan. Normal Operation

Gurgling 

cooling system. Normal Operation

Popping Contraction and expansion of the

inside walls due to changes in

temperature.

Normal Operation

Sizzling Water dripping on the defrost heater

during a defrost cycle. Normal Operation

Vibrating If the side or back of the refrigerator

is touching a cabinet or wall, some of

the normal vibrations may make an

audible sound.

To eliminate the noise, make sure that the sides and

back cannot vibrate against any wall or cabinet.

Dripping Water running into the drain pan

during the defrost cycle. Normal Operation

Pulsating or High-

Pitched Sound Your refrigerator is designed to run



items at the desired temperature. The



your new refrigerator to run longer

than your old one, but it is still more



While the refrigerator is running, it is

normal to hear a pulsating or high-

pitched sound.

Normal Operation

NOISE

TROUBLESHOOTING GUIDE

43

TROUBLESHOOTING GUIDE

Problem Possible Causes Solutions

Doors will not close

correctly or pop

open.

Food packages are blocking the door

open. Rearrange food containers to clear the door and door

shelves.

Ice bin, crisper cover, pans, shelves,

door bins, or baskets are out of

position.

Push bins all the way in and put crisper cover, pans,

shelves and baskets into their correct positions. See the

UsingYourRefrigerator section for more information.

The doors were removed during

product installation and not properly

replaced.

Remove and replace the doors according to the

RemovingandReplacingRefrigeratorHandlesand

Doors section.

Refrigerator is not leveled properly. See DoorAlignment in theRefrigerationInstallation

section to level refrigerator.



open. The gaskets are dirty or sticky. Clean the gaskets and the surfaces that they touch.

Rub a thin coat of appliance polish or kitchen wax on

the gaskets after cleaning.

Door was recently closed. When you open the door, warmer air enters the

refrigerator. As the warm air cools, it can create a

vacuum. If the door is hard to open, wait one minute

to allow the air pressure to equalize, then see if it

opens more easily.

Refrigerator wobbles

or seems unstable. Leveling legs are not adjusted

properly. Refer to the LevelingandDoorAlignment section.

Floor is not level. It may be necessary to add shims under the leveling

legs or rollers to complete installation.

Lights do not work. LED interior lighting failure. The refrigerator compartment lamp is LED interior

lighting, and service should be performed by

LightBulb

Replacement section.

The interior of

the refrigerator is

covered with dust or

soot.





or candle.

Make sure that the refrigerator is not located near a



PARTS & FEATURES

® Registered Trademark / TM Trademark of KCD IP, LLC in the United States, or Sears Brands, LLC in other countries

® Marca Registrada / TM Marca de Fábrica de KCD IP, LLC en Estados Unidos, o Sears Brands, LLC in otros países

MC Marque de commerce / MD Marque déposée de Sears Brands, LLC

Get it fixed, at your home or ours!

Your Home

For troubleshooting, product manuals and expert advice:

www.managemylife.com

For repair – in your home – of all major brand appliances,

lawn and garden equipment, or heating and cooling systems,

no matter who made it, no matter who sold it!

For the replacement parts, accessories and

owner’s manuals that you need to do-it-yourself.

For Sears professional installation of home appliances

and items like garage door openers and water heaters.

1-800-4-MY-HOME®(1-800-469-4663)

Call anytime, day or night (U.S.A. and Canada)

www.sears.com www.sears.ca

Our Home

For repair of carry-in items like vacuums, lawn equipment,

and electronics, call anytime for the location of your nearest

Sears Parts & Repair Service Center

1-800-488-1222 (U.S.A.) 1-800-469-4663 (Canada)

www.sears.com www.sears.ca

To purchase a protection agreement on a product serviced by Sears:

1-800-827-6655 (U.S.A.) 1-800-361-6665 (Canada)

Para pedir servicio de reparación

a domicilio, y para ordenar piezas:

1-888-SU-HOGAR®

(1-888-784-6427)

www.sears.com

Au Canada pour service en français:

1-800-LE-FOYERMC

(1-800-533-6937)

www.sears.ca
