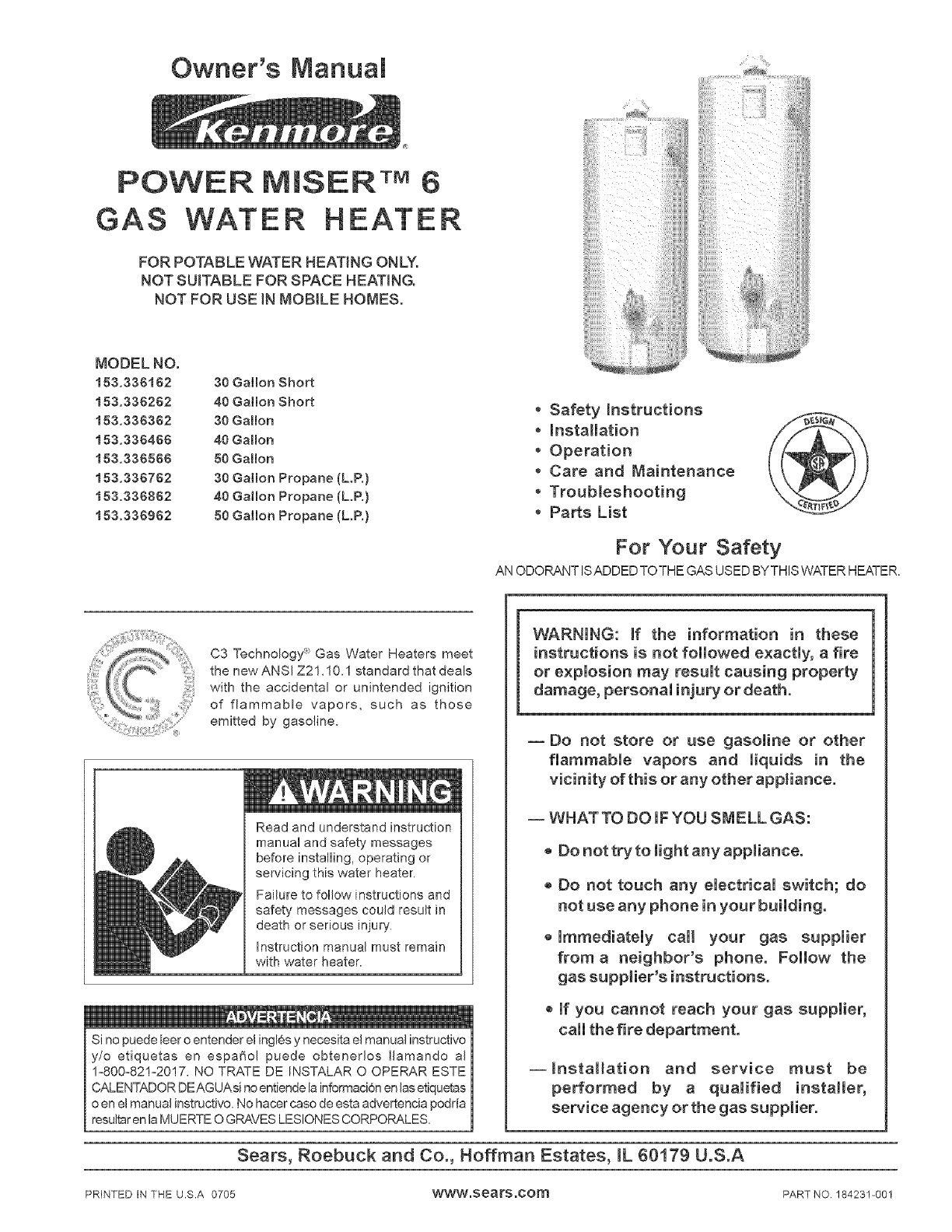

Owner's Manual

POWER MISERTM 6

GAS WATER HEATER

FOR POTABLE WATER HEATING ONLY.

NOT SUITABLE FOR SPACE HEATING,

NOT FOR USE IN MOBILE HOMES.

MODEL NO.

153,336162

153.336262

153,336362

153,336466

153,336566

153,336762

153,336862

153.336962

30 Gallon Short

40 GaHon Short

30 Gallon

40 Gallon

50 Gallon

30 Gallon Propane (L.R)

40 Gallon Propane (L.R)

50 Gallon Propane (L.P,)

*Safety mnstructions

*mnstaHation

*Operation

*Care and Maintenance

*Troubleshooting

*Parts List

For Your Safety

AN ODORANT IS ADDED TO THE GAS USED BYTHIS WATER HEATER.

C3 Technology s*Gas Water Heaters meet

the new ANSI Z21.10.1 standard that deals

with the accidental or unintended ignition

of flammable vapors, such as those

emitted by gasoline.

Read and understand instruction

manual and safety messages

before instaNing, operating or

servicing this water heater.

Failure to follow instructions and

safety messages could result in

death or serious injury'.

Instruction manual must remain

with water heater.

Si no puede leer o entender el ingles y necesita el manual instructivo

y/o etiquetas en espaSol puede obtenerlos Ilamando al

1=800=821=2017. NO TRATE DE INSTALAR O OPERAR ESTE

CALENTADOR DEAGUAsi no entiende la infom_aci6n en las etiquetas

o en el manual instructivo. No hacer caso de esta advertencia podria

resultar en la MU ERTE O GRAVES LESIONES CORPORALES.

WARNING: if the information in these

instructions is not followed exactly, a fire

or explosion may result causing property

damage, personal injury or death.

--Do not store or use gasoline or other

flammable vapors and liquids in the

vicinity of this or any other appliance.

-- WHAT TO DO iF YOU SMELL GAS:

•Do not try to light any appliance.

o Do not touch any emectricam switch; do

not use any phone in your buimding.

,, mmmediatemy caml your gas suppmier

from a neighbor's phone. Fommow the

gas eupplier'e instructions,

,, mfyou cannot reach your gas suppmier,

cammthe fire department.

--Installation and service must be

performed by a qualified installer,

service agency orthe gas supplier.

Sears, Roebuck and Co., Hoffman Estates, _L 60179 U.S.A

PRINTED IN THE U.S.A 0705 V',_nC_,'v,seat'S,CO_rn PART NO 184231-001

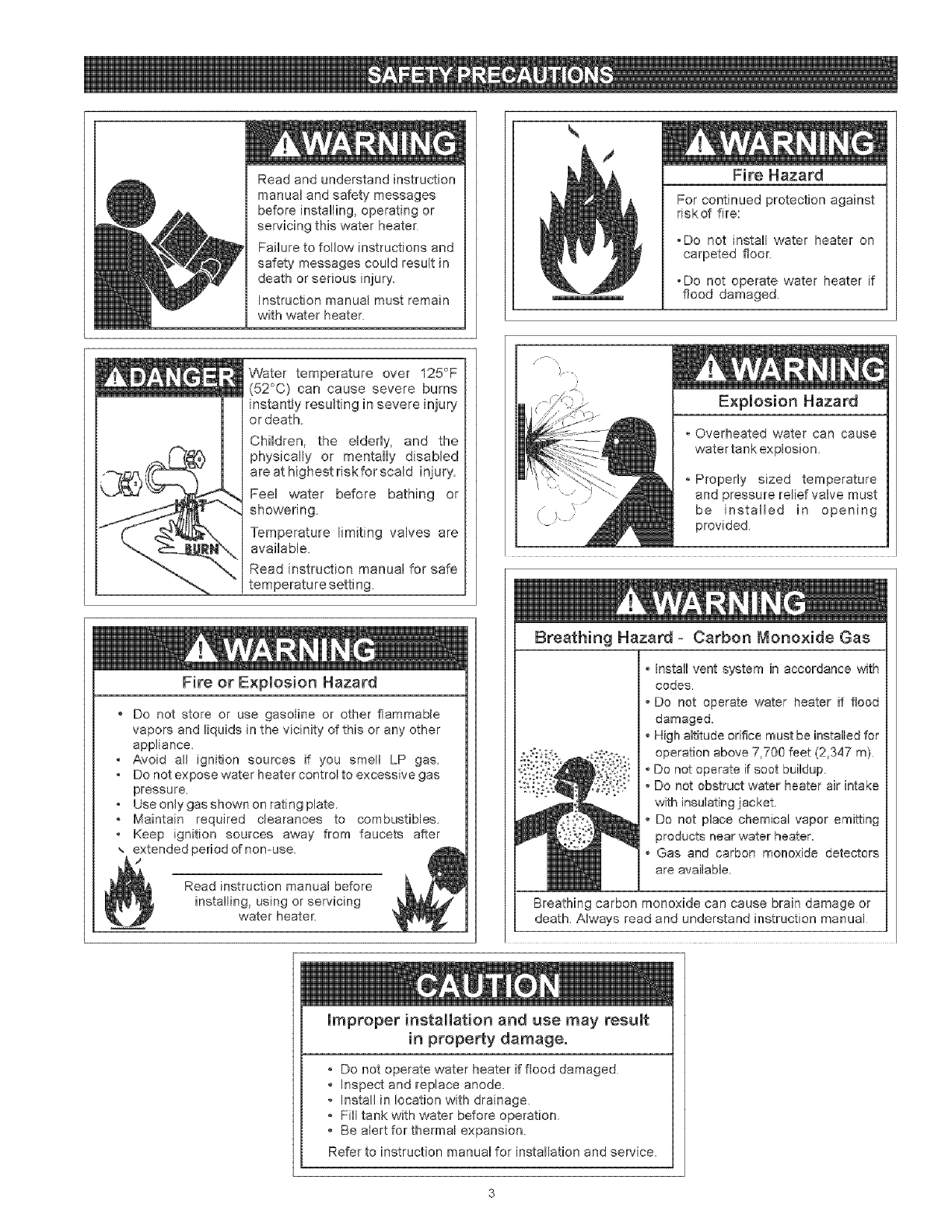

Your safety and the safety of others is extremely important in the installation, use and servicing of this water heater.

Many safetyoreLated messages and instructions have been provided in this manual and on your own water heater to warn you and

others of a potential injury hazard. Read and obey all safety messages and instructions throughout this manuaL, mt is very

important that the meaning of each safety message is understood by you and others who instalm, use or service this water heater.

This is the safety amert symbol, ff is used to alert you

to potential personal injury hazards. Obey aH safety

messages that follow this symbol to avoid possible

injury or death.

DANGER indicates an imminently

hazardous situation which, if not avoided,

could result in death or injury.

WARNmNG indicates apotentially hazardous

situation which, if not avoided, could result

in death or injury.

CAUTmON indicates a potentially hazardous

situation which, if not avoided, may result

in minor or moderate injury.

CAUTLON used without the safety aJert

symbo{ indicates a potentially hazardous

situation which, if not avoided, could result

in property damage.

AH safety messages will generally tell you about the type of hazard, what can happen if you do not follow the safety message and

how to avoid the risk of injury.

IMPORTANT DEF_NIT_ONS

Gas Supplier: The natural gas or propane utility or service who supplies gas for utilization by the gas burning

appliances within this application. The gas supplier typically has responsibility for the inspection and code approval of

gas piping up to and including the natural gas meter or propane storage tank of a building. Many gas suppliers also

offer service and inspection of appliances within the building.

Readandunderstandinstruction

manualandsafetymessages

beforeinstalling,operatingor

servicingthiswaterheater

Failuretofollowinstructionsand

safetymessagescouldresultin

deathorseriousinjury,

Instructionmanualmustremain

withwaterheater

Fire Hazard

mtinued protection against

riskof fire:

,Do ot install water heater on

carl: .tted floor

,Do ot operate water heater if

flood damaged.

Water temperature over 125°F

(52°0) can cause severe burns

instantly resulting in severe injury

or death_

Children, the elderly, and the

physically or mentally disabled

are at highest r[skfor scald injury.

Feel water before bathing or

showering

Temperature limiting valves are

available.

Read instruction manual for safe

temperature setting.

Fire or Explosion Hazard

Do not store or use gasoline or other flammable

vapors and liquids in the vicinity of this or any other

appliance.

Avoid all ignition sources if you smell LP gas_

, Do not expose water heater control to excessive gas

pressure.

, Use only gas shown on rating plate

, Maintain required clearances to combustibles_

, Keep ignition sources away from faucets after

,, extended period of nen-use.

Read instruction manual before

installing, using or sewucmg

water heater.

Explosion Hazard

o Overheated water can cause

water tankexplosion,

-Properly sized temperature

and pressure relief valve must

be installed in opening

provided.

Breathing Hazard - Carbon Monoxide (}as

•Install vent system in accordance with

codes,

• Do not operate water heater it flood

damaged.

• High altitude or[flee must be installed for

operation above 7,700 feet (2,347 m)

, Do not operate [f soot buildup.

• Do not obstruct water heater air intake

with insulating jacket.

• Do not place chemical vapor emitting

products near water heater.

• Gas and carbon monoxide detectors

are available

Breathing carbon monoxide can cause brain damage or

death, Always read and understand instruction manual

improper installation and use may result

in property damage.

, Do not operate water heater if flood damaged

o Inspect and replace anode.

o Install in location with drainage,

- Fill tank with water before operation.

• Be alert for thermal expansion

Refer to instruction manual for installation and service.

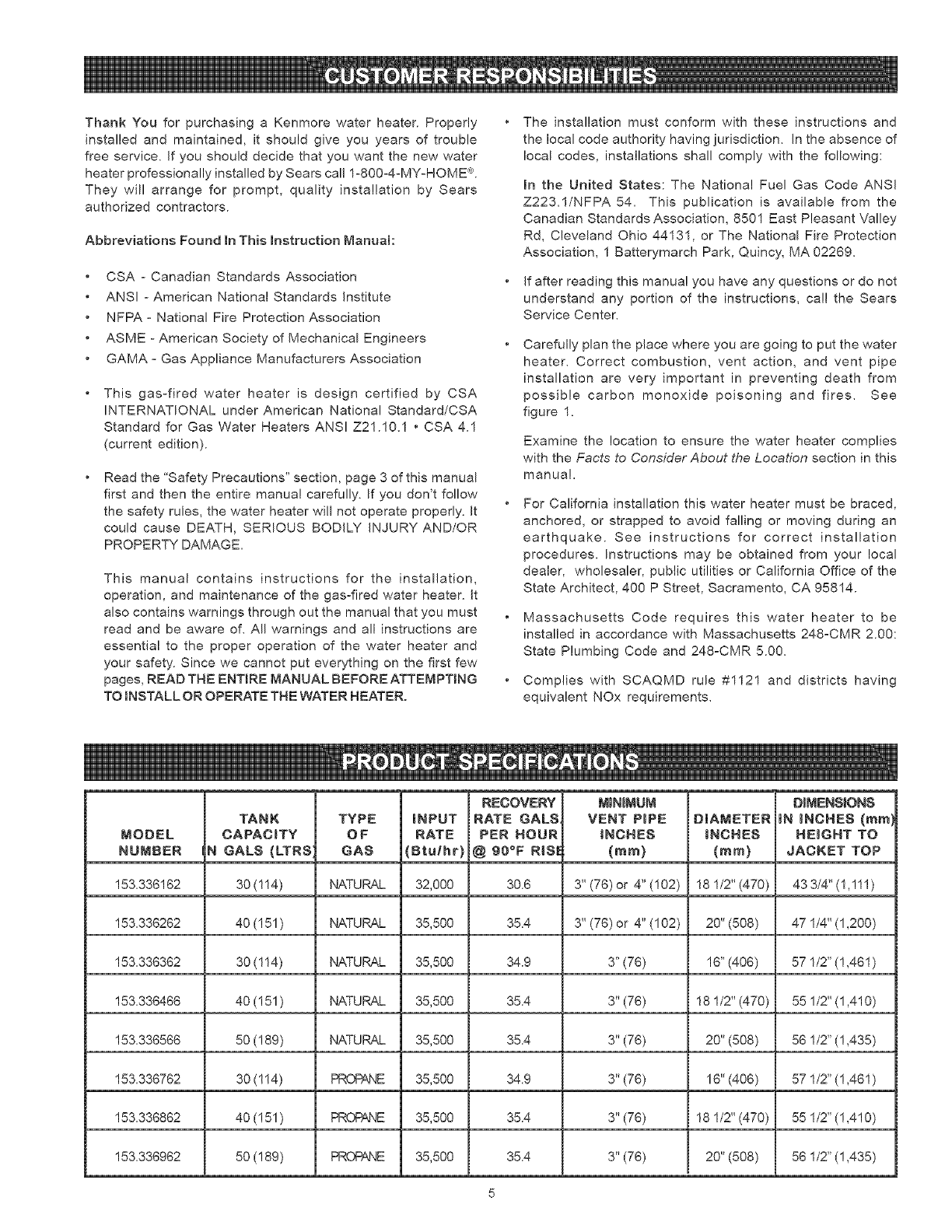

ThankYouforpurchasinga Kenmorewaterheater.Properly

installedandmaintained,it shouldgiveyouyearsoftrouble

freeservice.Ifyoushoulddecidethatyouwantthenewwater

heaterprofessionallyinstalledbySearscall1-800-4+MY-HOME®.

Theywillarrangefor prompt,qualityinstallationbySears

authorizedcontractors.

AbbreviationsFoundInThisInstructionManual:

CSA- CanadianStandardsAssociation

ANSI- AmericanNationalStandardsInstitute

NFPA-NationalFireProtectionAssociation

ASME-AmericanSocietyofMechanicalEngineers

GAMA-Gas Appliance Manufacturers Association

This gas-fired water heater is design certified by CSA

INTERNATIONAL under American National Standard/CSA

Standard for Gas Water Heaters ANSI Z21.10.1 • CSA 4.1

(current edition).

Read the "Safety Precautions" section, page 3 of this manual

first and then the entire manual carefully+ If you don't follow

the safety rules, the water heater will not operate properly. It

could cause DEATH, SERIOUS BODILY INJURY AND/OR

PROPERTY DAMAGE.

This manual contains instructions for the installation,

operation, and maintenance of the gas-fired water heater. It

also contains warnings through out the manual that you must

read and be aware of+ All warnings and all instructions are

essential to the proper operation of the water heater and

your safety. Since we cannot put everything on the first few

pages, READ THE ENTIRE MANUAL BEFORE ATTEMPTING

TO INSTALL OR OPERATE THE WATER HEATER.

The installation must conform with these instructions and

the local code authority having jurisdiction. In the absence of

local codes, installations shall comply with the following:

In the United States: The National Fuel Gas Code ANSI

Z223.1/NFPA 54+ This publication is available from the

Canadian Standards Association, 8501 East Pleasant Valley

Rd, Cleveland Ohio 44131, or The Nationa! Fire Protection

Association, 1 Batterymarch Park, Quincy, MA 02269.

If after reading this manual you have any questions or do not

understand any portion of the instructions, call the Sears

Service Center.

Carefully plan the place where you are going to put the water

heater. Correct combustion, vent action, and vent pipe

installation are very important in preventing death from

possible carbon monoxide poisoning and fires. See

figure 1.

Examine the location to ensure the water heater complies

with the Facts to Consider About the Location section in this

manual.

For California installation this water heater must be braced,

anchored, or strapped to avoid falling or moving during an

earthquake. See instructions for correct installation

procedures. Instructions may be obtained from your local

dealer, wholesaler, public utilities or California Office of the

State Architect, 400 P Street, Sacramento, CA 95814.

Massachusetts Code requires this water heater to be

installed in accordance with Massachusetts 248-CMR 2.00:

State Plumbing Code and 248-CMR 5.00.

Complies with SCAQMD rule #1121 and districts having

equivalent NOx requirements.

RECOVERY MiNiMUM DIMENSIONS

TANK TYPE iNPUT RATE GALS VENT PiPE DIAMETER iN iNCHES (rein}

MODEL CAPACITY OF RATE PER HOUR iNCHES iNCHES HEIGHT TO

NUMBER N GALS (LTRS GAS (Btu/hr) @ 9G°F RISl (ram) (ram) JACKET TOP

153.336162 30 (114) NATURAL 32,000 30.6 3" (76) or 4" (!02) 18 1/2" (470) 43 3/4" (1,!11)

153.336262 40 (! 51 ) NATURAL 35,500 35.4 3" (76) or 4" (102) 20" (508) 47 1/4" (1,200)

153.336362 30 (114) NATURAL 35,500 34.9 3" (76) 16" (406) 57 1/2" (I ,461 )

153.336466 40 (! 51 ) NATURAL 35,500 35.4 3" (76) 18 1/2" (470) 55 1/2" (1,41 O)

153.336566 50 (! 89) NATURAL 35,500 35.4 3" (76) 20" (508) 56 1/2" (! ,435)

153.336762 30 (114) PROPANE 35,500 34.9 3" (76) 16" (406) 57 1/2" (! ,461 )

153.336862 40 (!51) PROPANE 35,500 35.4 3" (76) 18 1/2" (470) 55 1/2" (! ,410)

153.336962 50 (! 89) PROPANE 35,500 35.4 3" (76) 20" (508) 56 1/2" (! ,435)

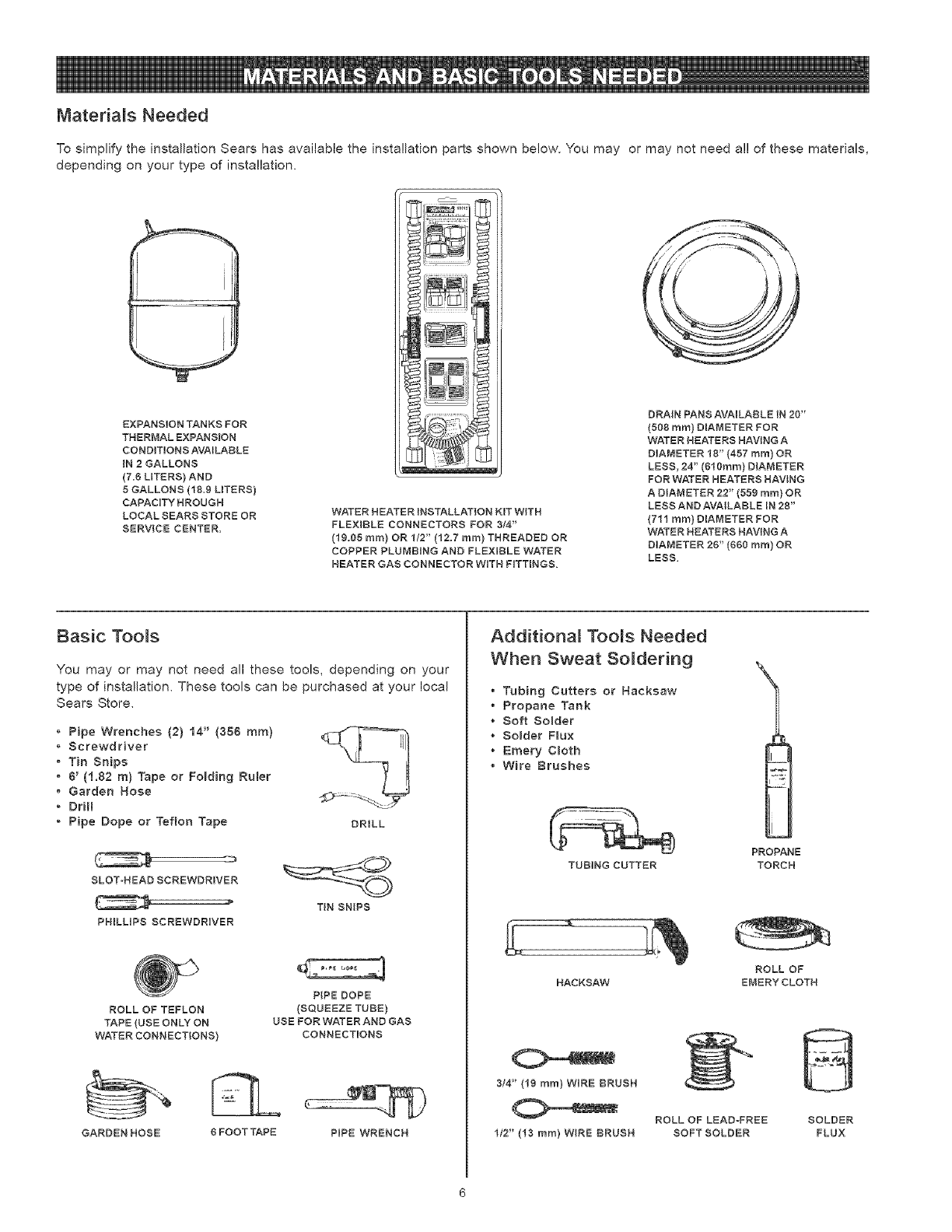

Materials Needed

To simplify the installation Sears has available the installation parts shown below. You may or may not need al! of these materials,

depending on your type of installation.

EXPANSION TANKS FOR

THERMAL EXPANSION

CONDITIONS AVAILABLE

IN 2 GALLONS

(7=5 LITERS) AND

5 GALLONS (18.8 LITERS)

CAPACITY NROUGN

LOCAL SEARS STORE OR

SERVICE CENTER.

_'"'............i!1I_

_,_ I

_'_il I_

WATER HEATER INSTALLATION KIT WITH

FLEXIBLE CONNECTORS FOR 8/4"

(19.05 ram) OR 1/2" (12.7 ram) THREADED OR

COPPER PLUMBING AND FLEXIBLE WATER

HEATER GAS CONNECTOR W_TH FITTINGS.

DRAIN PANS AVAILABLE iN 20"

(508 ram) DIAMETER FOR

WATER HEATERS HAVING A

DIAMETER 18" (457 ram) OR

LESS, 24" (510ram) DIAMETER

FOR WATER HEATERS HAVING

A DIAMETER 22" (559 ram) OR

LESS AND AVAILABLE iN 28"

(711 ram) DIAMETER FOR

WATER HEATERS HAVING A

DIAMETER 25" (550 ram) OR

LESS.

Basic Too_s

You may or may not need all these tools, depending on your

type of installation, These tools can be purchased at your local

Sears Store,

Pipe Wrenches (2) 14" (356 ram)

Screwdriver

Tin Snips

6' (1.82 m) Tape or Fo_ding Ru_er

Garden Hose

DriH

Pipe Dope or Teflon Tape DRILL

SLOT-HEAD SCREWDRIVER

PHILLIPS SCREWDRIVER

TIN SNIPS

ROLL OF TEFLON

TAPE (USE ONLY ON

WATER CONNECTIONS)

PIPE DOPE

(SQUEEZE TUBE)

USE FOR WATER AND GAS

CONNECTIONS

GARDEN HOSE 5 FOOT TAPE PIPE WRENCH

Additionam Too_s Needed

When Sweat So_dering

Tubing Cutters or Hacksaw

Propane Tank

Soft Solder

Solder Fmux

Emery C_oth

Wire Brushes

TUBING CUTTER

PROPANE

TORCH

HACKSAW

ROLL OF

EMERYCLOTH

8/4" (19 ram) WiRE BRUSH

ROLL OF LEAD-FREE

1/2" (13 ram) WIRE BRUSH SOFT SOLDER

SOLDER

FLUX

GET TO KNOW YOUR WATER HEATER o GAS MODELS

A Vent Pipe J Drip Leg (Sediment Trap) S F[ueBaff[e

B Draft Hood K BnnerDoor T Thermostat

C Anode L Outer door U Drain Valve

D Hot Water Outlet M Union V Pilot and Main Burner

E Outlet N BnmetWater Shut-off Valve W Flue

F Flexible Water Connections O Cold Water mnlet X Drain Pan

G GasSupply P hmet Dip Tube Y Thermostat Shiemd (optional)

H ManuamGasShut-offVa[ve Q Temperature-Pressure Relief Valve Z Piezo[gaiter

m Ground Joint Union R Rating Plate AA AirlntakeScreen

* tNSTALL JN ACCORDANCE

WiTH LOCAL CODES.

* DRmP LEG AS REQUIRED

BY LOCAL CODES.

TO VENT TERMiNATiON

ON ROOF

YJ THERMOSTAT

COVER

{OPTIONAL)

(T) THERMOSTAT

GAS CONTROL KNOB

WATER TE_,_PERATURE

(ADJUSTING DIAL)

"OFF .... PILOT .... ON"

POSITUON POSITION POSITION

TOP ViEW

(V) PILOT & MAIN BURNER

BURNER TUBE

PULOTTUBmNG /

THERMOCOUPLE

TCO

UGNmTER ROD

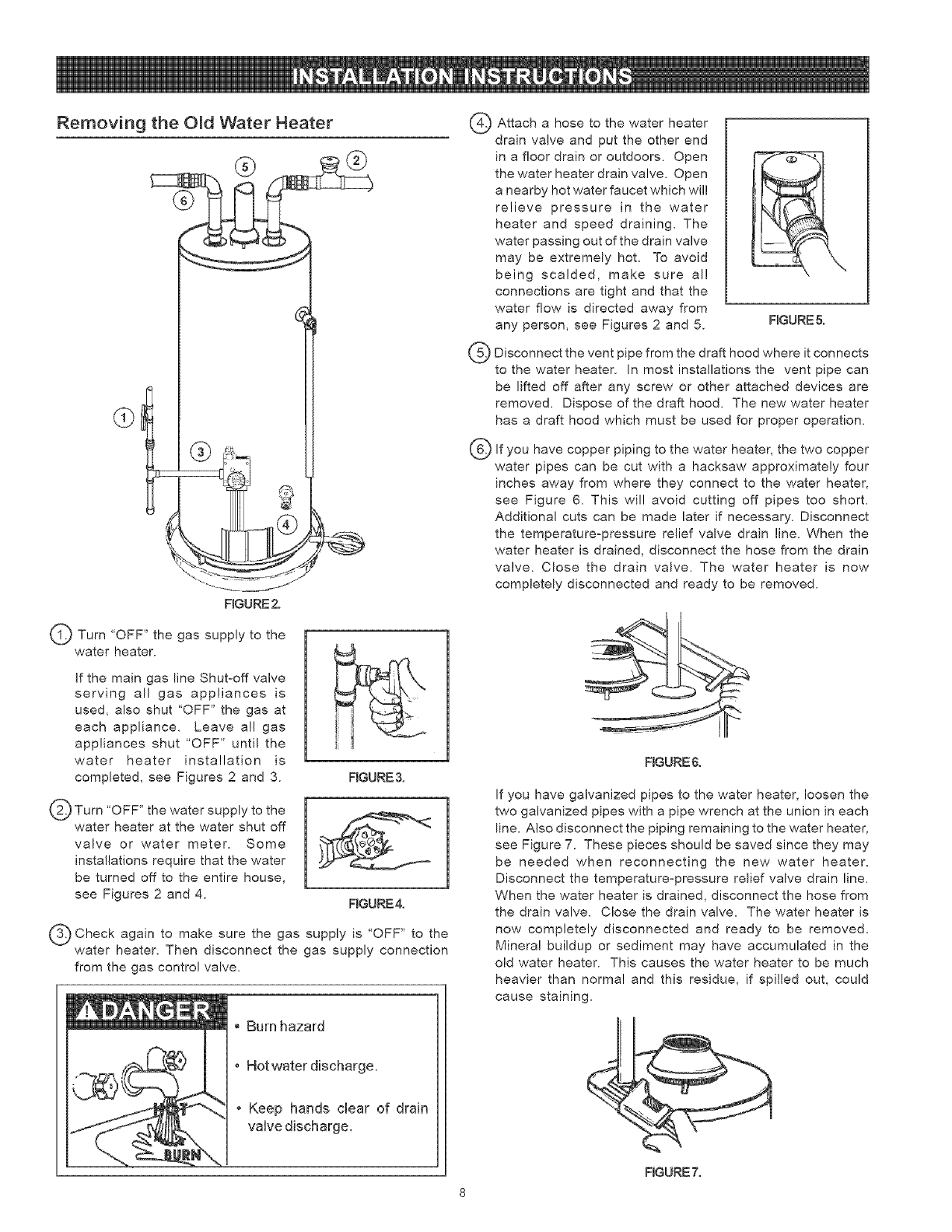

Removing the O_d Water Heater (_

F_GURE2.

Q Turn "OFF" the gas supply to the

water heater.

If the main gas line Shut-off valve

serving all gas appliances is

used, also shut "OFF" the gas at

each appliance. Leave al! gas

appliances shut "OFF" until the

water heater installation is

completed, see Figures 2 and 3. RGURE 3.

Q Turn "OFF" the water supply to the

water heater at the water shut off

valve or water meter. Some

installations require that the water

be turned off to the entire house,

see Figures 2 and 4. FIGURE4.

Check again to make sure the supply is "OFF" to the

Q . gas

water heater. Then disconnect the gas supply connection

from the gas control valve.

Burn hazard

*Hotwater discharge.

o Keep hands clear of drain

valve discharge,

Attach a hose to the water heater

drain valve and put the other end

in a floor drain or outdoors. Open

the water heater drain valve. Open

a nearby hot water faucet which wil!

relieve pressure in the water

heater and speed draining. The

water passing out of the drain valve

may be extremely hot. To avoid

being scalded, make sure al!

connections are tight and that the

water flow is directed away from

any person, see Figures 2 and 5. FIGURE 5.

Disconnect the vent pipe from the draft hood where it connects

to the water heater. In most installations the vent pipe can

be lifted off after any screw or other attached devices are

removed. Dispose of the draft hood. The new water heater

has a draft hood which must be used for proper operation.

If you have copper piping to the water heater, the two copper

water pipes can be cut with a hacksaw approximately four

inches away from where they connect to the water heater,

see Figure 6. This wil! avoid cutting off pipes too short.

Additional cuts can be made later if necessary. Disconnect

the temperature-pressure relief valve drain line. When the

water heater is drained, disconnect the hose from the drain

valve. Close the drain valve. The water heater is now

completely disconnected and ready to be removed.

FmGURE6.

If you have galvanized pipes to the water heater, loosen the

two galvanized pipes with a pipe wrench at the union in each

line. Also disconnect the piping remaining to the water heater,

see Figure 7. These pieces should be saved since they may

be needed when reconnecting the new water heater.

Disconnect the temperature-pressure relief valve drain line.

When the water heater is drained, disconnect the hose from

the drain valve. Close the drain valve. The water heater is

now completely disconnected and ready to be removed.

Mineral buildup or sediment may have accumulated in the

old water heater. This causes the water heater to be much

heavier than normal and this residue, if spilled out, could

cause staining.

FmGURE7.

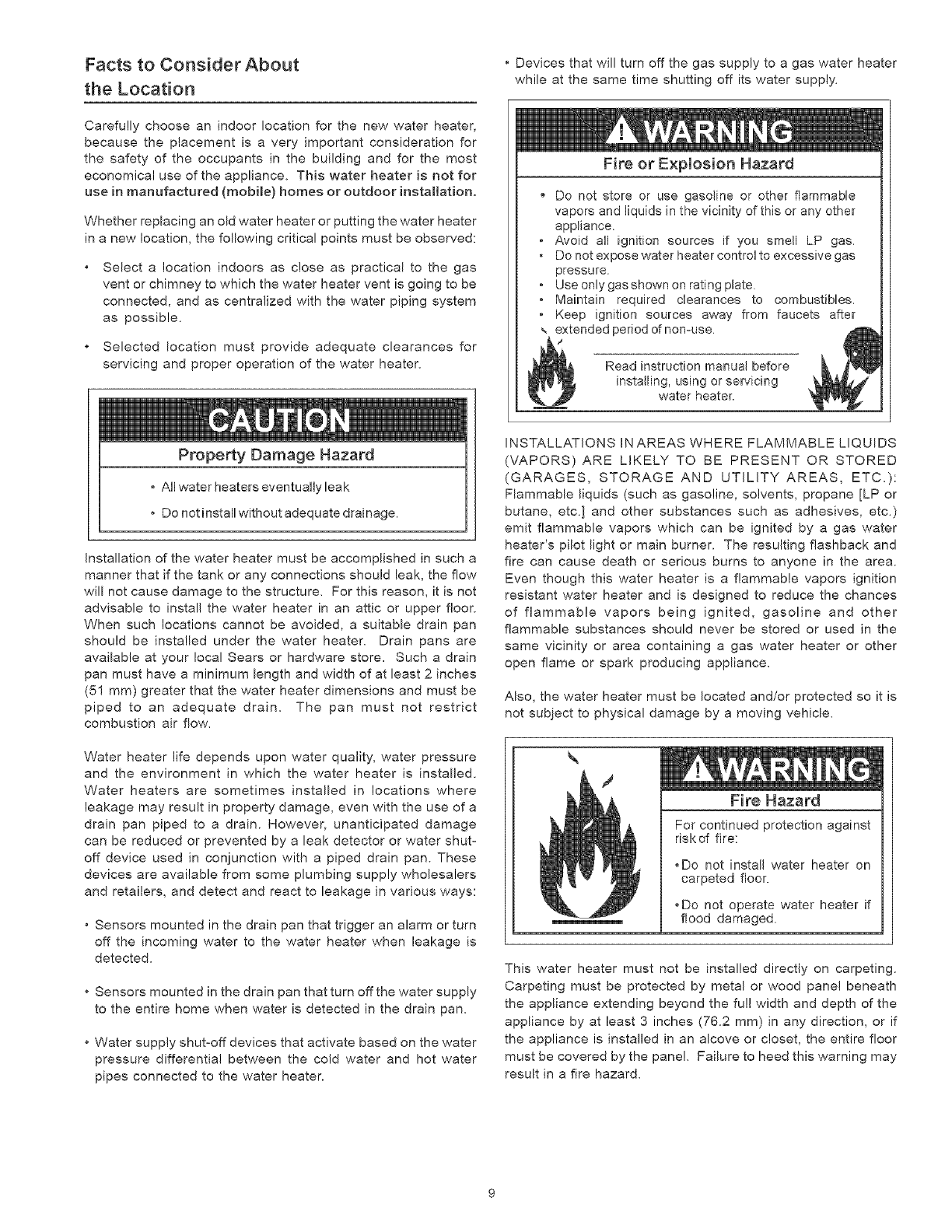

Facts to Consider About

the Location

Carefully choose an indoor location for the new water heater,

because the placement is a very important consideration for

the safety of the occupants in the building and for the most

economical use of the appliance. This water heater is not for

use in manufactured (mobile) homes or outdoor installation.

Whether replacing an old water heater or putting the water heater

in a new location, the following critical points must be observed:

Select a location indoors as close as practical to the gas

vent or chimney to which the water heater vent is going to be

connected, and as centralized with the water piping system

as possible.

*Selected location must provide adequate clearances for

servicing and proper operation of the water heater.

Property Damage Hazard

, All water heaters eventually leak

, Do not install without adequate drainage.

Installation of the water heater must be accomplished in such a

manner that if the tank or any connections should leak, the flow

will not cause damage to the structure. For this reason, it is not

advisable to install the water heater in an attic or upper floor.

When such locations cannot be avoided, a suitable drain pan

should be installed under the water heater. Drain pans are

available at your local Sears or hardware store. Such a drain

pan must have a minimum length and width of at bast 2 inches

(51 mm) greater that the water heater dimensions and must be

piped to an adequate drain. The pan must not restrict

combustion air flow.

Water heater life depends upon water quality, water pressure

and the environment in which the water heater is installed.

Water heaters are sometimes installed in locations where

leakage may result in property damage, even with the use of a

drain pan piped to a drain. However, unanticipated damage

can be reduced or prevented by a leak detector or water shut-

off device used in conjunction with a piped drain pan. These

devices are available from some plumbing supply wholesalers

and retailers, and detect and react to leakage in various ways:

• Sensors mounted in the drain pan that trigger an alarm or turn

off the incoming water to the water heater when leakage is

detected.

*Sensors mounted in the drain pan that turn off the water supply

to the entire home when water is detected in the drain pan.

*Water supply shut-off devices that activate based on the water

pressure differential between the cold water and hot water

pipes connected to the water heater.

• Devices that will turn off the gas supply to a gas water heater

while at the same time shutting off its water supply.

Fire or Explosion Hazard

Do not store or use gasoline or other flammable

vapors and liquids in the vicinity of this or any other

appliance_

• Avoid all ignition sources if you smell LP gas.

, Do not expose water heater control to excessive gas

pressure.

, Use only gas shown on rating plate.

, Maintain required clearances to combustibles.

• Keep ignition sources away from faucets after

,, extended period of non-use.

Read instruction manual before

installing, using or servicing

water heater

INSTALLATIONS IN AREAS WHERE FLAMMABLE LIQUIDS

(VAPORS) ARE LIKELY TO BE PRESENT OR STORED

(GARAGES, STORAGE AND UTILITY AREAS, ETC.):

Flammable liquids (such as gasoline, solvents, propane [LP or

butane, etc.] and other substances such as adhesives, etc.)

emit flammable vapors which can be ignited by a gas water

heater's pilot light or main burner. The resulting flashback and

fire can cause death or serious burns to anyone in the area.

Even though this water heater is a flammable vapors ignition

resistant water heater and is designed to reduce the chances

of flammable vapors being ignited, gasoline and other

flammable substances should never be stored or used in the

same vicinity or area containing a gas water heater or other

open flame or spark producing appliance.

Also, the water heater must be located and/or protected so it is

not subject to physical damage by a moving vehicle.

Fire Hazard

For continued protection against

risk of fire:

,Do not install water heater on

carpeted floor.

Do not operate water heater if

flood damaged.

This water heater must not be installed directly on carpeting.

Carpeting must be protected by metal or wood panel beneath

the appliance extending beyond the full width and depth of the

appliance by at least 3 inches (76.2 ram) in any direction, or if

the appliance is installed in an alcove or closet, the entire floor

must be covered by the panel. Failure to heed this warning may

result in a fire hazard.

Fire or Explosion Hazard

Read instruction manual before installing,

using or servicing water heater

° improper use may result in fire or

explosion,

• Maintain required clearances to

combustibles.

Minimum clearances be_,,veen the water heater and combustible

construction are 0 inch at the sides and rear,

4 inches (102 ram) at the front, and 6 inches (153 ram) from the

vent pipe, see Figure 8. Clearance from the top of the jacket is 12

inches (305 ram) on most models. Note that a lesser dimension

may be allowed on some models, refer to the labe! attached

adjacent to the gas control valve on the water heater.

TOP V_EW TOP VIEW

OF CLOSET OF CLOSET

WITHOUT DOOR WiTH DOOR

O" BVIIN.

O" M|N.

FIGURE&

Breathing Hazard = Carbon Monoxide Gas

Install water heater in accordance

with the instruction manual and

NFPA 54.

To avoid injury, combustion and

venNation air must be taken from

outdoors

Do not place chemical vapor

emitting products near water

heater.

Breathing carbon monoxide can cause brain damage or

death, Always read and understand instruction manual,

A gas water heater cannot operate properly without the correct

amount of air for combustion, see Figure 9. Do not install in a

confined area such as a closet, unless you provide air as shown

in the Locating The New Water Heater section. Never obstruct

the flow of ventilation air. If you have any doubts or questions at

all, call your gas supplien Failure to provide the proper amount

of combustion air can result in a fire or explosion and cause

death, serious bodily injury, or property damage.

,L12 '' MAX. {30 era}

VEN'R LATION

FRONT vmEw

OF DOOR

AmRDUCT

RGURE&

If this water heater will be used in beauty shops, barber shops,

cleaning establishments, or self=service laundries with dry

cleaning equipment, it is imperative that the water heater or

water heaters be installed so that combustion and ventilation

air be taken directly from outdoors (direct vent).

Propellants of aerosol sprays and volatile compounds,

(cleaners, chlorine based chemicals, refrigerants, etc.) in

addition to being highly flammable in many cases, will also

change to corrosive hydrochloric acid when exposed to the

combustion products of the water heater. The results can be

hazardous, and also cause product failure.

Insulation B_ankets

Insulation blankets available to the general public for external

use on gas water heaters are not necessary with Kenmore

products. The purpose of an insulation blanket is to reduce the

standby heat loss encountered with storage tank heaters. Your

Kenmore water heater meets or exceeds the National Appliance

Energy Conservation Act standards with respect to insulation

and standby loss requirements, making an insulation blanket

unnecessary.

Breathing Hazard - Carbon Monoxide Gas

.Do not obstruct water heater air

intake with insulating blanket.

. Gas and carbon monoxide detectors

are available

Install water heater in accordance

with the instruction manual,

Breathing carbon monoxide can cause brain damage or

death Always read and understand instruction manual,

Should you choose to apply an insulation blanket to this heater,

you should follow these instructions (See Figure 1 for

identification of components mentioned below). Failure to follow

these instructions can restrict the air flow required for proper

combustion, potentially resulting in fire, asphyxiation, serious

personal injury or death.

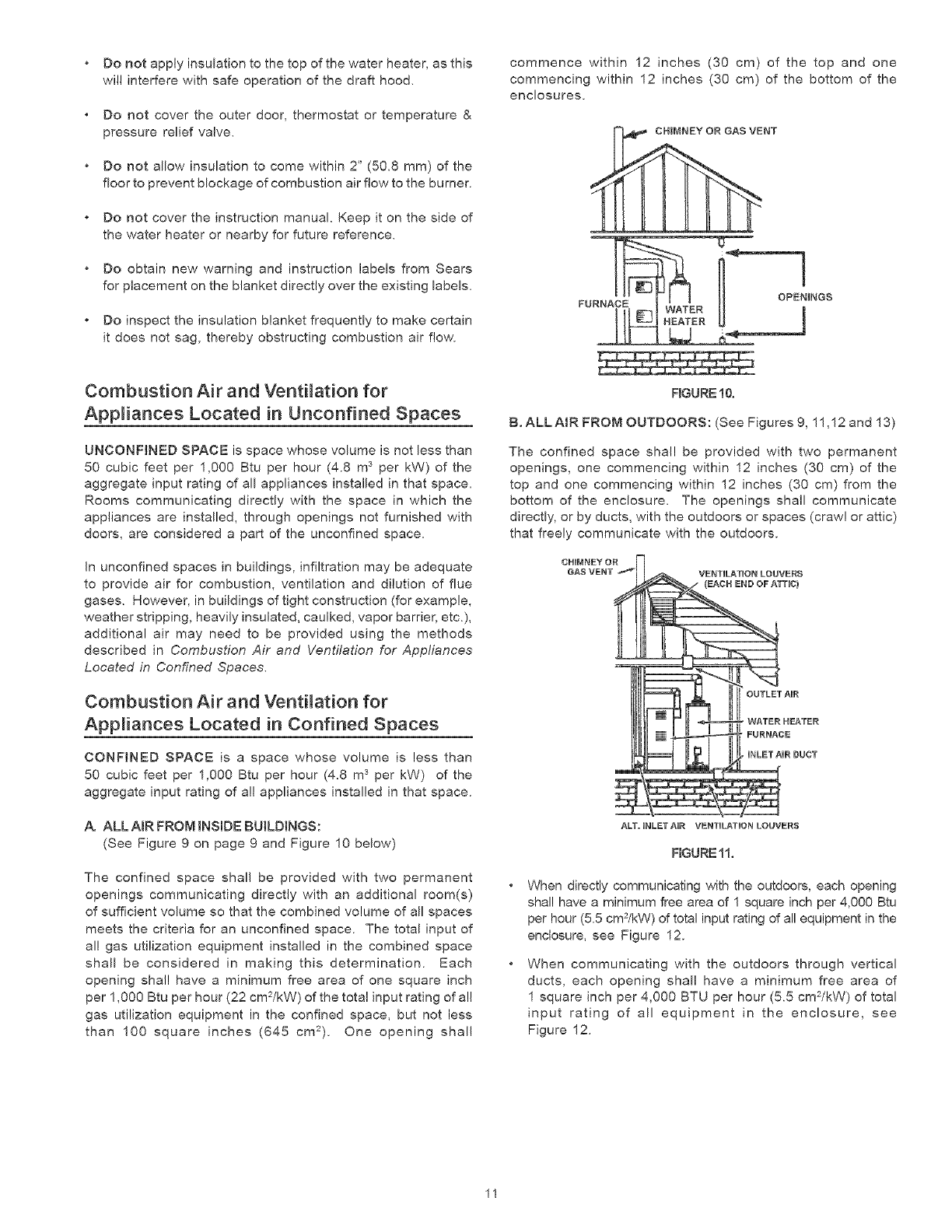

Donotapplyinsulationtothetopofthewaterheater,asthis

willinterferewithsafeoperationofthedrafthood.

Donotcovertheouterdoor,thermostatortemperature&

pressurereliefvalve.

Donotallowinsulationtocomewithin2"(50_8mm)ofthe

floortopreventblockageofcombustionairflowtotheburner.

DonotcovertheinstructionmanualKeepitonthesideof

thewaterheaterornearbyforfuturereference.

DoobtainnewwarningandinstructionlabelsfromSears

forplacementontheblanketdirectlyovertheexistinglabels.

Doinspecttheinsulationblanketfrequentlytomakecertain

it doesnotsag,therebyobstructingcombustionairflow.

commencewithin12inches(30cm)of thetopandone

commencingwithin12inches(30cm)of thebottomofthe

enclosures.

Combustion Air and Ventilation for

Appmiances Located in Unconfined Spaces

UNCONFINED SPACE is space whose volume is not less than

50 cubic feet per 1,000 Btu per hour (4.8 m 3 per kW) of the

aggregate input rating of all appliances installed in that space_

Rooms communicating directly with the space in which the

appliances are installed, through openings not furnished with

doors, are considered a part of the unconfined space.

In unconfined spaces in buildings, infiltration may be adequate

to provide air for combustion, ventilation and dilution of flue

gases. However, in buildings of tight construction (for example,

weather stripping, heavily insulated, caulked, vapor barrier, etc.),

additional air may need to be provided using the methods

described in Combustion Air and Ventilation for Appfiances

Located in Confined Spaces.

Combustion Air and Ventimation for

Appliances Located in Confined Spaces

CONFINED SPACE is a space whose volume is less than

50 cubic feet per 1,000 Btu per hour (4.8 m _ per kW) of the

aggregate input rating of all appliances installed in that space.

A. ALL AIR FROM INSmDE BUmLDgNGS:

(See Figure 9 on page 9 and Figure 10 below)

The confined space shall be provided with two permanent

openings communicating directly with an additional room(s)

of sufficient volume so that the combined volume of all spaces

meets the criteria for an unconfined space. The total input of

al! gas utilization equipment installed in the combined space

shall be considered in making this determination. Each

opening shall have a minimum free area of one square inch

per 1,000 Btu per hour (22 cm2/kW) of the total input rating of al!

gas utilization equipment in the confined space, but not less

than 100 square inches (645 cm2). One opening shal!

FIGURE1&

B. ALL AIR FROM OUTDOORS: (See Figures 9, 11,12 and 13)

The confined space shall be provided with two permanent

openings, one commencing within 12 inches (30 cm) of the

top and one commencing within 12 inches (30 cm) from the

bottom of the enclosure. The openings shall communicate

directly, or by ducts, with the outdoors or spaces (craw! or attic)

that freely communicate with the outdoors.

VENT&ATUON LOUVERS

END OF ATTIC_

ALT. INLETAIR VENTULATUON LOUVERS

FmGURE11,

When directly communicating with the outdoors, each opening

shall have a minimum free area of 1 square inch per 4,000 Btu

per hour (5.5 cm_/kW) of total input rating of all equipment in the

enclosure, see Figure 12.

When communicating with the outdoors through vertical

ducts, each opening shall have a minimum free area of

1 square inch per 4,000 BTU per hour (5.5 cm_/kW) of total

input rating of all equipment in the enclosure, see

Figure 12.

FIGURE12.

Whencommunicatingwiththeoutdoorsthroughhorizontal

ducts,eachopeningshallhaveaminimumfreeareaof 1

squareinchper2,000BTUperhour(11cm2/kW)oftotal

inputratingof all equipmentin theenclosure,see

Figure13.

Whenductsareused,theyshallbeofthesamecross-

sectionalareaasthefreeareaoftheopeningsto which

theyconnect.Theminimumshortsidedimensionof

rectangularair ductsshallnotbelessthan3 inches

(76.2ram),seeFigure13.

OUTLET AURDUCT

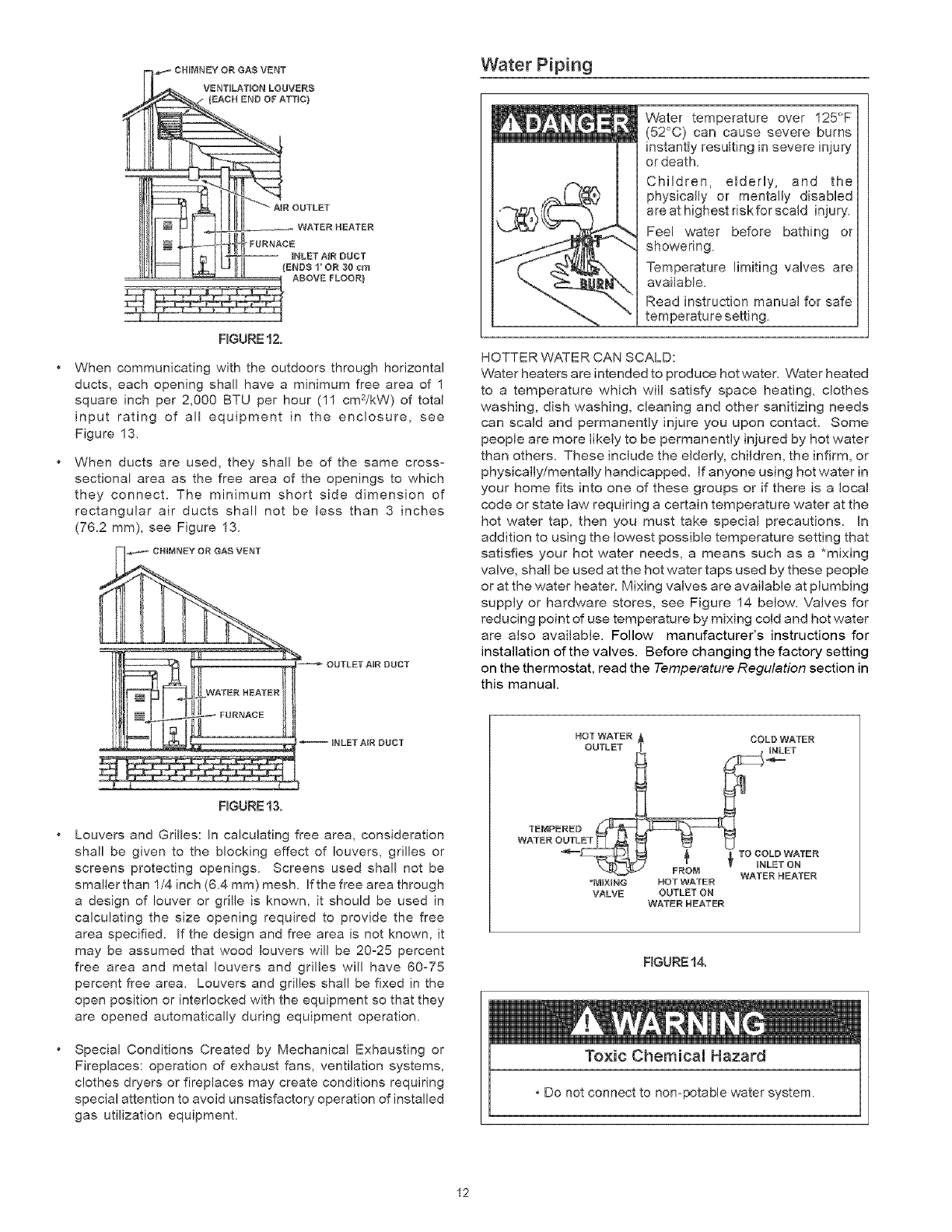

Water Piping

Water temperature over 125°F

(52°0) can cause severe burns

instantly resulting in severe injury

or death.

Children, elderly, and the

physically or mentally disabled

are at highest risk for scald injury.

Feel water before bathing or

showering

Temperature limiting valves are

available.

Read instruction manual for safe

temperature setting

HOTTER WATER CAN SCALD:

VVater heaters are intended to produce hot water. Water heated

to a temperature which will satisfy space heating, clothes

washing, dish washing, cleaning and other sanitizing needs

can scald and permanently injure you upon contact. Some

people are more likely to be permanently injured by hot water

than others. These include the elderly, children, the infirm, or

physically/mentally handicapped. Ifanyone using hotwaterin

your home fits into one of these groups or if there is a local

code or state law requiring a certain temperature water at the

hot water tap, then you must take special precautions. In

addition to using the lowest possible temperature setting that

satisfies your hot water needs, a means such as a *mixing

valve, shall be used at the hot water taps used by these people

or at the water heater. Mixing valves are available at plumbing

supply or hardware stores, see Figure 14 below. Valves for

reducing point of use temperature by mixing cold and hot water

are also available. Follow manufacturer's instructions for

installation of the valves. Before changing the factory setting

on the thermostat, read the Temperature Regulation section in

this manual.

HNLET AiR DUCT

FIGURE 13.

Louvers and Grilles: In calculating free area, consideration

shall be given to the blocking effect of louvers, grilles or

screens protecting openings. Screens used shall not be

smaller than 1/4 inch (6.4 mm) mesh. If the free area through

a design of louver or grille is known, it should be used in

calculating the size opening required to provide the free

area specified. If the design and free area is not known, it

may be assumed that wood louvers will be 20-25 percent

free area and metal louvers and grilles will have 60-75

percent free area. Louvers and grilles shall be fixed in the

open position or interlocked with the equipment so that they

are opened automatically during equipment operation.

Special Conditions Created by Mechanical Exhausting or

Fireplaces: operation of exhaust fans, ventilation systems,

clothes dryers or fireplaces may create conditions requiring

special attention to avoid unsatisfactory operation of installed

gas utilization equipment.

*MIXING NOT _JATER

VALVE OUTLET ON

WATERNEATER

WATER HEATER

FIGURE14.

Toxic Chemical Hazard

* Do not connect to non-potable water system.

Thiswaterheatershallnotbeconnectedtoanyheatingsystems

or component(s)usedwitha non-potablewaterheating

appliance.

Allpipingcomponentsconnectedtothisunitforspaceheating

applicationsshallbesuitableforusewithpotablewater.

Lookatthetopofthewaterheater.Thecoldwaterinletis

marked'COLD".Puttwoorthreeturnsofteflontapearound

thethreadedendof thethreaded-to-sweatcouplingand

aroundbothendsofthe3/4"NPTthreadednipple.Using

flexibleconnectors,connectthecoldwaterpipetothecold

waterinletofthewaterheater.

Toxicchemicals,suchasthoseusedforboilertreatmentshall

notbeintroducedintothissystem.

Watersupplysystemsmay,becauseofsucheventsashigh

linepressure,frequentcut-offsortheeffectsofwaterhammer

amongothers,haveinstalleddevicessuchaspressure

reducingvalves,checkvalves,backflowpreventers,etc.to

controlthesetypesofproblems.Whenthesedevicesarenot

equippedwithaninternalby-pass,andnoothermeasuresare

taken,thedevicescausethewatersystemto beclosed.As

wateris heated,it expands(thermalexpansion)andclosed

systemsdonotallowfortheexpansionofheatedwater.

Thewaterwithinthewaterheatertankexpandsasitisheated

andincreasesthepressureofthewatersystem.Iftherelieving

pointofthewaterheater'stemperature-pressurereliefvalveis

reached,thevalvewillrelievetheexcesspressure.The

temperature-pressurereliefvalveis notintendedfor the

constantreliefofthermalexpansion.Thisisanunacceptable

conditionandmustbecorrected.Itisrecommendedthatany

devicesinstalledwhichcouldcreateaclosedsystemhavea

by-passand/orthesystemhaveanexpansiontanktorelieve

thepressurebuiltbythermalexpansioninthewatersystem.

RefertotheTheTma! Expansion section under Troubleshooting

Guide or contact local plumbing authority or local Sears Service

Center on how to control this situation.

NOTE: To protect against untimely corrosion of hot and cold

water fittings, it is strongly recommended that dioelectric

unions or couplings be installed on this water heater when

connected to copper pipe.

Property Damage Hazard

o Avoid water heater damage.

• Install thermal expansion tank if necessary.

,Do not apply heat to cold water inlet

,Contact qualified installer or Sears Service Center.

NOTE: This water heater is super insulated to minimize

heat loss from the tank. Further reduction in heat loss

can be accomplished by insulating the hot water lines

from the water heater.

INSTALLATION COMPLETED USING

INSTALLATION KIT

FLEXIBLE

WATER

CONRSGTORS

HOT WATER

OUTLET

THREADED TO

l SHUTOFF

VALVE

THREADED TO

COLD WATER

mNLET

DRAFT HOOD

FIGURE 15.

T & P Valve and Pipe Insumation

Remove insulation for T & P valve and pipe connections from

carton.

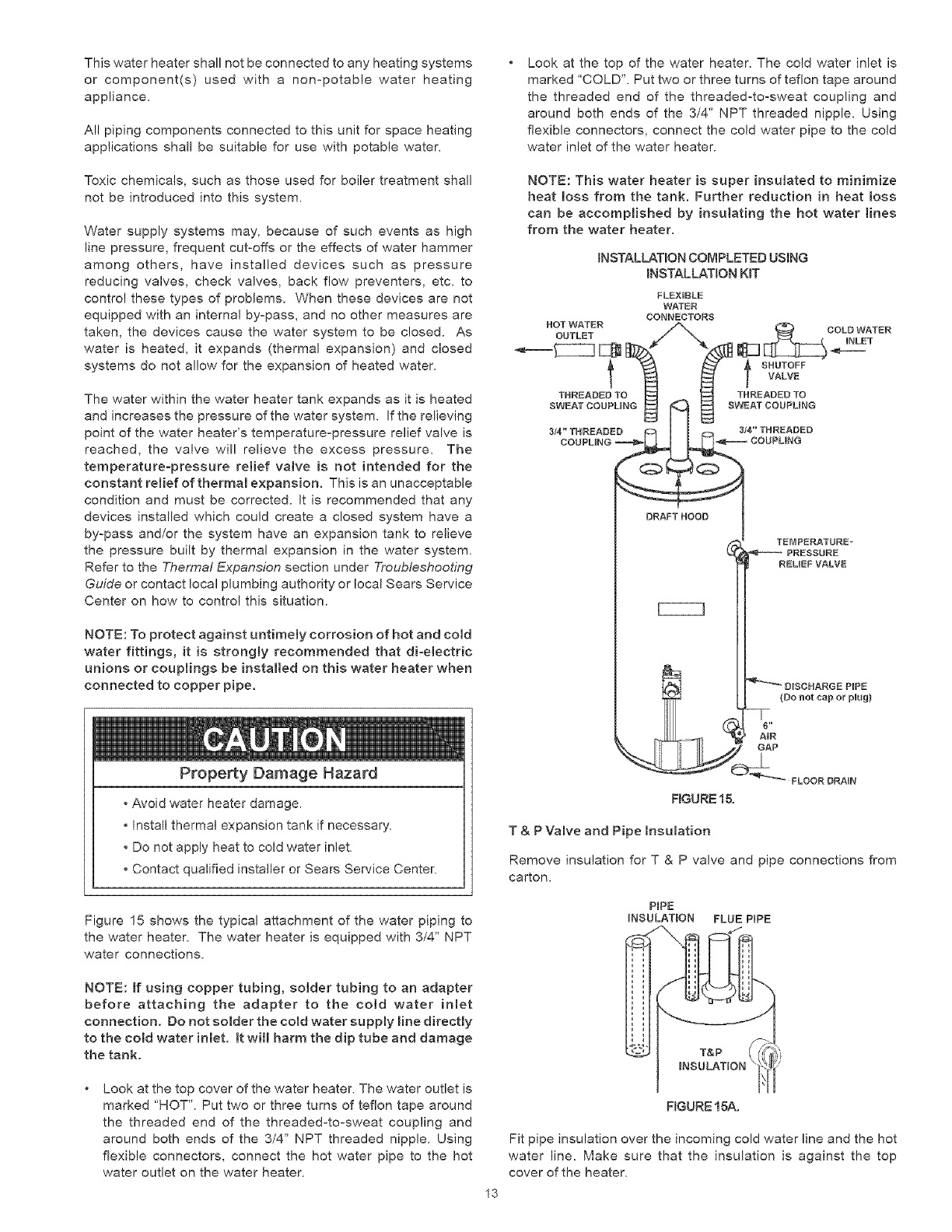

Figure 15 shows the typical attachment of the water piping to

the water heater. The water heater is equipped with 3/4" NPT

water connections.

NOTE: If using copper tubing, solder tubing to an adapter

before attaching the adapter to the cold water inlet

connection. Do not somder the cold water suppmy Hne directly

to the cold water inlet. It will harm the dip tube and damage

the tank.

Look at the top cover of the water heater. The water outlet is

marked "HOT". Put two or three turns of teflon tape around

the threaded end of the threadedoto-sweat coupling and

around both ends of the 3/4" NPT threaded nipple. Using

flexible connectors, connect the hot water pipe to the hot

water outlet on the water heater.

PmPE

INSULATmON FLUE PUPE

FIGURE 15A.

Fit pipe insulation over the incoming cold water line and the hot

water line. Make sure that the insulation is against the top

cover of the heater.

FitT&Pvalveinsulationovervalve.Makesurethattheinsulation HOT WATER

does not interfere with the lever of the T & P valve. OUTLET

Secure al! insulation using tape.

Temperature-Pressure Relief Valve

Explosion Hazard

o Temperature-pressure relief valve

must comply w_th ANSI Z21.22

and ASME code.

• Properly sized temperature°

pressure relief valve must be

installed in opening provided.

•Can result in overheating and

excessive tank pressure

o Can cause serious injury or death.

DRAFT HOOD

REUEF VALVE

(OPTIONAL TOP T & P RELIEF

VALVE NOT SHOWN)

DISHCARGEPUPE

_--'(DO NOT CAP OR PLUG)

This heater is provided with a properly certified combination

temperature - pressure relief valve by the manufacturer.

The valve is certified by a nationally recognized testing

laboratory that maintains periodic inspection of production of

listed equipment as meeting the requirements for Relief Valves

and Automatic Gas Shut-off Devices for Hot Water Supply

Systems, ANSI Z21.22 and the code requirements of ASME.

If replaced, the valve must meet the requirements of local

codes, but not less than a combination temperature and

pressure relief valve certified as indicated in the above

paragraph.

The valve must be marked with a maximum set pressure not to

exceed the marked hydrostatic working pressure of the water

heater (150 psi = 1,035kPa) and a discharge capacity not less

than the water heater input rate as shown on the mode! rating

plate.

For safe operation of the water heater, the relief valve must not

be removed from its designated opening nor plugged.

The temperature-pressure relief valve must be installed directly

into the fitting of the water heater designed for the relief valve.

Position the valve downward and provide tubing so that any

discharge will exit only within 6 inches (153 mm) above, or at

any distance below the structural floor, see Figure 16. Be certain

that no contact is made with any live electrica! part. The

discharge opening must not be blocked or reduced in size

under any circumstances. Excessive length, over 30 feet

(9.14 m), or use of more than four elbows can cause restriction

and reduce the discharge capacity of the valve.

No valve or other obstruction is to be placed between the relief

valve and the tank. Do not connect tubing directly to discharge

drain unless a 6 inch air gap is provide& To prevent bodily

injury, hazard to life, or property damage, the relief valve must

be allowed to discharge water in quantities should

circumstances demand. If the discharge pipe is not connected

to a drain or other suitable means, the water flow may cause

property damage.

FIGURE1&

Water Damage Hazard

, Temperature=pressure relief valve discharge

pipe must terminate at adequate drain.

The Discharge Pipe:

*Shall not be smaller in size than the outlet pipe size of the

valve, or have any reducing couplings or other restrictions.

Shall not be plugged or blocked.

Shall be of material listed for hot water distribution.

Shall be installed so as to allow complete drainage of both

the temperature-pressure relief valve, and the discharge

pipe.

, Shah terminate at an adequate drain.

Shall not have any valve between the relief valve and tank.

Water temperature over 125°F

(52°C) can cause severe burns

instantly resulting in severe injury

or death

Children, the elderly, and the

physicaNy or mentaNy disabled

are at highest riskfor scald injury.

Feel water before bathing or

showering,

Temperature limiting valves are

available.

Read instruction manual for safe

temperature setting.

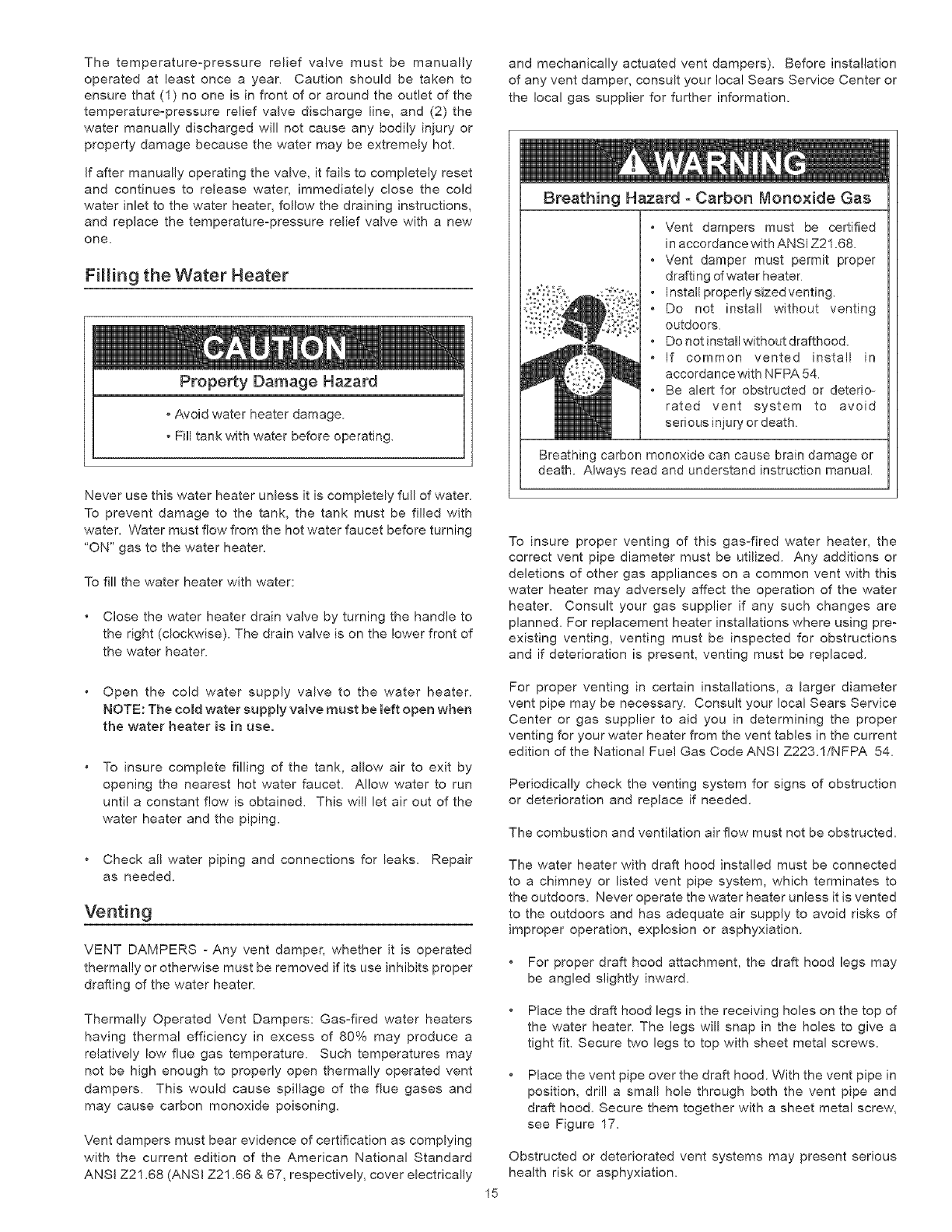

Thetemperatureopressurereliefvalvemustbemanually

operatedat leastoncea year.Cautionshouldbetakento

ensurethat(1)nooneisinfrontoforaroundtheoutletofthe

temperatureopressurereliefvalvedischargeline,and(2)the

watermanuallydischargedwillnotcauseanybodilyiniuryor

propertydamagebecausethewatermaybeextremelyhot.

Ifaftermanuallyoperatingthevalve,itfailstocompletelyreset

andcontinuesto releasewater,immediatelyclosethecold

waterinlettothewaterheater,followthedraininginstructions,

andreplacethetemperatureopressurereliefvalvewitha new

one,

Filling the Water Heater

Property Damage Hazard

- Avoid water heater damage_

- Fill tank with water before operating.

Never use this water heater unless it is completely full of water.

To prevent damage to the tank, the tank must be filled with

water. Water must flow from the hot water faucet before turning

"ON" gas to the water heater.

To fill the water heater with water:

• Close the water heater drain valve by turning the handle to

the right (clockwise). The drain valve is on the lower front of

the water heater.

and mechanically actuated vent dampers). Before installation

of any vent damper, consult your local Sears Service Center or

the local gas supplier for further information.

Breathing Hazard - Carbon Monoxide Gas

° Vent dampers must be certified

in accordance with ANSI Z21.68.

• Vent damper must permit proper

drafting of water heater

. Install propedysizedventing

Do not install without venting

outdoors

o Do not install without drafthood.

If common vented install in

accordance with NFPA 54,

. Be alert for obstructed or deterio-

rated vent system to avoid

serious injury or death.

Breathing carbon monoxide can cause brain damage or

death. Always read and understand instruction manual,

To insure proper venting of this gasofired water heater, the

correct vent pipe diameter must be utilized. Any additions or

deletions of other gas appliances on a common vent with this

water heater may adversely affect the operation of the water

heater. Consult your gas supplier if any such changes are

planned. For replacement heater installations where using preo

existing venting, venting must be inspected for obstructions

and if deterioration is present, venting must be replaced.

Open the cold water supply valve to the water heater.

NOTE: The cold water supply vaJve must be left open when

the water heater is in use.

To insure complete filling of the tank, allow air to exit by

opening the nearest hot water faucet Allow water to run

until a constant flow is obtained. This will let air out of the

water heater and the piping.

For proper venting in certain installations, a larger diameter

vent pipe may be necessary. Consult your local Sears Service

Center or gas supplier to aid you in determining the proper

venting for your water heater from the vent tables in the current

edition of the National Fuel Gas Code ANSI Z223.1/NFPA 54.

Periodically check the venting system for signs of obstruction

or deterioration and replace if needed.

The combustion and ventilation air flow must not be obstructed.

Check all water piping and connections for leaks. Repair

as needed.

Venting

VENT DAMPERS o Any vent damper, whether it is operated

thermally or otherwise must be removed if its use inhibits proper

drafting of the water heater.

Thermally Operated Vent Dampers: Gasofired water heaters

having thermal efficiency in excess of 80% may produce a

relatively low flue gas temperature. Such temperatures may

not be high enough to properly open thermally operated vent

dampers. This would cause spillage of the flue gases and

may cause carbon monoxide poisoning.

Vent dampers must bear evidence of certification as complying

with the current edition of the American National Standard

ANSI Z21.68 (ANSI Z21.66 & 67, respectively, cover electrically

The water heater with draft hood installed must be connected

to a chimney or listed vent pipe system, which terminates to

the outdoors. Never operate the water heater unless it is vented

to the outdoors and has adequate air supply to avoid risks of

improper operation, explosion or asphyxiation.

For proper draft hood attachment, the draft hood legs may

be angled slightly inward.

Place the draft hood legs in the receiving holes on the top of

the water heater. The legs will snap in the holes to give a

tight fit. Secure two legs to top with sheet metal screws.

Place the vent pipe over the draft hood. With the vent pipe in

position, drill a small hole through both the vent pipe and

draft hood. Secure them together with a sheet metal screw,

see Figure 17.

Obstructed or deteriorated vent systems may present serious

health risk or asphyxiation.

DRAFT HOOD

VENT TO OUTDOORS

OR. OHOMH'_Y

Be sure vent pipe is properly connected to prevent escape of

dangerous flue gases which could cause deadly asphyxiation.

Chemical vapor corrosion of the flue and vent system may

occur if air for combustion contains certain chemical vapors.

Spray can propellants, cleaning solvents, refrigerator and air

conditioner refrigerants, swimming pool chemicals, calcium

and sodium chloride, waxes, bleach and process chemicals

are typical compounds which are potentially corrosive.

Gas Piping

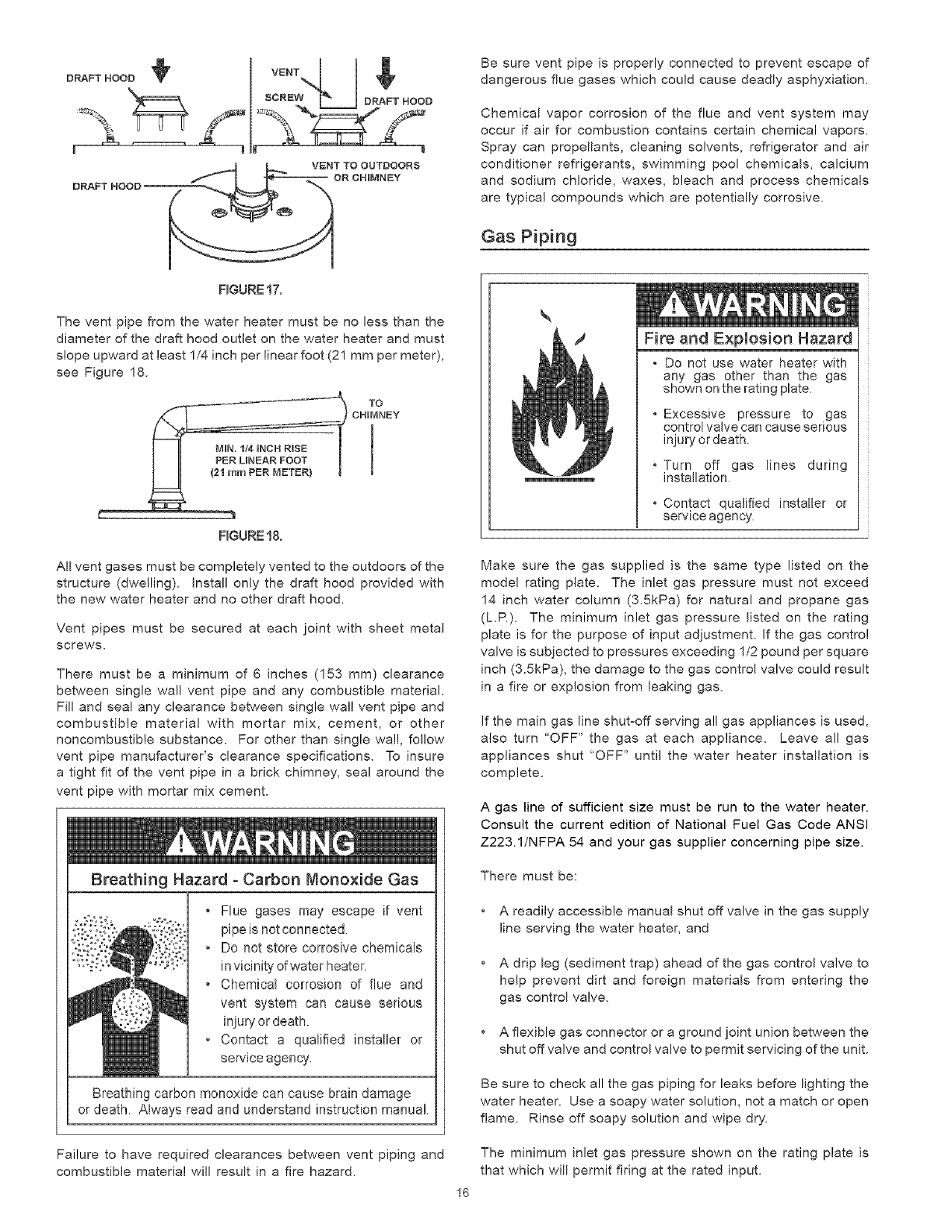

FIGURE 17.

The vent pipe from the water heater must be no less than the

diameter of the draft hood outlet on the water heater and must

slope upward at least 1/4 inch per linear foot (21 mm per meter),

see Figure 18.

CHmMNEY

FIGURE18.

All vent gases must be completely vented to the outdoors of the

structure (dwelling). Install only the draft hood provided with

the new water heater and no other draft hood.

Vent pipes must be secured at each joint with sheet metal

SCreWS.

There must be a minimum of 6 inches (153 mm) clearance

between single wall vent pipe and any combustible material.

Fill and sea! any clearance between single wal! vent pipe and

combustible material with mortar mix, cement, or other

noncombustible substance. For other than single wall, follow

vent pipe manufacturer's clearance specifications. To insure

a tight fit of the vent pipe in a brick chimney, seal around the

vent pipe with mortar mix cement.

• Flue gases may escape if vent

pipe is not connected

-Do not store corrosive chemicals

in vicinity of water heater.

• Chemical corrosion of flue and

vent system can cause serious

injury or death

-Contact a qualified instalbr or

service agency.

Breathing carbon monoxide can cause brain damage

or death. Always read and understand instruction manual.

Failure to have required clearances between vent piping and

combustible material will result in a fire hazard.

Fire and Expmosion Hazard

Do not use water heater with

any gas other than the gas

shown on the rating plate.

Excessive pressure to gas

control valve can cause serious

injury or death

Turn off gas lines during

installation

Contact qualified installer or

service agency

Make sure the gas supplied is the same type listed on the

model rating plate. The inlet gas pressure must not exceed

14 inch water column (3.5kPa) for natural and propane gas

(L.R). The minimum inlet gas pressure listed on the rating

plate is for the purpose of input adjustment. If the gas control

valve is subjected to pressures exceeding 1/2 pound per square

inch (3.5kPa), the damage to the gas control valve could result

in a fire or explosion from leaking gas.

If the main gas line shut-off serving all gas appliances is used,

also turn "OFF" the gas at each appliance. Leave all gas

appliances shut "OFF" until the water heater installation is

complete.

A gas line of sufficient size must be run to the water heater.

Consult the current edition of National Fuel Gas Code ANSI

Z223.1/NFPA 54 and your gas supplier concerning pipe size.

There must be:

*A readily accessible manual shut off valve in the gas supply

line serving the water heater, and

*A drip leg (sediment trap) ahead of the gas control valve to

help prevent dirt and foreign materials from entering the

gas control valve.

*A flexible gas connector or a ground joint union between the

shut off valve and control valve to permit servicing of the unit.

Be sure to check al! the gas piping for leaks before lighting the

water heater. Use a soapy water solution, not a match or open

flame. Rinse off soapy solution and wipe dry.

The minimum inlet gas pressure shown on the rating plate is

that which will permit firing at the rated input.

Breathing Hazard - Carbon Monoxide Gas

o High altitude orifice must be installed for

operation above 7,700 feet (2,347 m).

- Contact a qualified installer or service

agency

Breathing carbon monoxide can cause brain damage or

death. Always read and L4nderstand instruction manual

Sediment Traps

Fire and Explosion Hazard

" Contaminants in gas lines can

cause fire or explosion

• Clean all gas piping before

installation.

• InstaN drip leg in accordance with

NFPA 54

Water heaters covered in this manual have been tested and

approved for installation at elevations up to 7,700 feet (2,347 m)

above sea level. For installation above 7,700 feet (2,347m),

the water heater's Btu input should be reduced at the rate of 4

percent for each 1,000 feet (305 m) above sea level which

requires replacement of the burner orifice in accordance with

the National Fuel Gas Code ANSI Z22&1/NFPA 54. Contact

your local gas supplier for further information.

Failure to replace the standard orifice with the proper high

altitude orifice when installed at elevations above 7,700 feet

(2,347 m) could result in improper and inefficient operation of

the appliance, producing carbon monoxide gas in excess of

the safe limits. This could result in serious injury or death.

Contact your local gas supplier for any specific changes that

may be required in your area.

Firs and Explosion Hazard

, Use joint compound or tape

corn patible with propane,

Leak test before operating

heater.

, Disconnect gas piping and

shut-off valve before pressure

testi ng syste m.

Use pipe joint compound or teflon tape marked as being

resistant to the action of petroleum (Propane [LR]) gases,

The appliance and its gas connection must be leak tested

before placing the appliance in operation.

The appliance and its individual shut-off valve shall be

disconnected from the gas supply piping system during any

pressure testing of that system at test pressures in excess of

1/2 pound per square inch (3.5 kPa). It shall be isolated from

the gas supply piping system by closing its individual manual

shut-off valve during any pressure testing of the gas supply

piping system at test pressures equal to or less than 1/2 pound

per square inch (3.5 kPa).

Connecting the gas piping to the gas control valve of the water

heater can be accomplished by either of the two methods

shown in Figures 19 and 20.

Contaminants in the gas lines may cause improper operation

of the gas control valve that may result in fire or explosion.

Before attaching the gas line be sure that al! gas pipe is clean

on the inside. To trap any dirt or foreign material in the gas

supply line, a drip leg (sometimes called a sediment trap)

must be incorporated in the piping. The drip leg must be readily

accessible. Install in accordance with the Gas Piping section.

Refer to the current edition of the National Fuel Gas Code,

ANSI Z223.1INFPA 54.

A sediment trap shall be installed as close to the inlet of the

water heater as practical at the time of water heater installation.

The sediment trap shall be either a tee fitting with a capped

nipple in the bottom outlet or other device recognized as an

effective sediment trap. If a tee fitting is used, it shall be installed

in conformance with one of the methods of installation, shown

in Figures 19 and 20.

GROUND JOINT -

UNION

(OPTIONAL)

CAP

FIGURE 19. GAS PIPING WITH FLEXIBLE CONNECTOR.

CAP

FIGURE 20. GAS PIPING WITH ALL

BLACK IRON PIPE TO GAS CONTROL.

FOR YOUR SAFETY READ BEFORE UGHTING

WARNING: If you do not follow these instructions exactly, a fire or

explosion may result causing property damage, personal injury or loss of life.

BEFORE OPERATING: ENTIRE SYSTEM MUST BE FILLED W}TH WATER AND AIR PURGED FROM ALL LINES.

A. This appliance has a pilot which is lit by a piezo electric

gas ignition system. Do not open the inner door of the

appliance and try to light the pilot by hand.

B. BEFORE UGHTING smell all around the applianoe area

for gas. Be sure to smell next to the floor because some

gas is heavier than air and will settle on the floor.

WHAT TO DO IFYOU SMELL GAS:

Do not try to light any appliance.

Do not touch any electric switch; do not use any phone

in your building.

Immediately call your gas supplier from a neighbor's

phone. Follow the gas supplier's instructions.

If you cannot reach your gas supplier, call the fire

department.

Use only your hand to push in or turn the gas control

knob. Never use tools. If the knob will not push in or turn

by hand, don't try to repair it, call a qualified service

technician. Force or attempted repair may result in a fire

or explosion.

Do not use this appliance if any part has been under

water. Immediately contact a qualified installer or service

agency to replace a flooded water heater. Do not attempt

to repair the unit! It must be replaced!

UGHTING iNSTRUCTiONS

FmGURE "A"

"OFF POSITION

HGURE "g" HGURE "C"

"PILOT" POSITION "ON" POSITRON

MAI_ 8U_NER

GAS CONTROL

TOPKNOB

FIGURr: "D"

STOPI Read the safety information

above on this label.

Set the thermostat to lowest setting (PILOT LIGHTING).

Turn thermostat dial fully clockwise t_ until it stops.

Push the gas control knob down slightly and turn clockwise

f_ to"OFF", SEE FIGURE 'W'.

NOTE: Knob CANNOT be turned from "PILOT" to "OFF"

unless it is pushed down slightly. Do not force.

Remove the outer burner door located below the gas

control.

Wait five (5) minutes to clear out any gas. If you then

smell gas, @STOPI Follow"B" in the safety information

above on this label. If you don't smell gas, go to next step.

This unit is equipped with a push button pilot igniter, which

is used to light the pilot. Locate the igniter on the gas

control.

Turn gas control knob counterclockwise _'_ to "PILOT",

SEE FIGURE "B".

The pilot is located on the right side of the burner. It can be

located by looking through the glass view port while

pressing the piezo igniter button several times. Look for a

spark at the pilot location, FIGURE "D'.

9. Once the pilot has been found, push the gas knob all the

way down. Immediately press the pilot igniter button rapidly

(4) to (5) times. If the pilot will not light, repeat step (3)

through (9).

10. Continue to hold the gas control knob down for about one

(!) minute after the pilot is lit. Release the gas control knob

and it will pop back up. Pilot should remain lit. If it goes out,

repeat step (3) through (9). It may take several minutes for

air to clear the lines before the pilot will light.

°If knob does not pop up when released, stop and

immediately call your service technician or gas supplier.

°If the pilot will not stay lit after several tries, turn the gas

control knob clockwise f_ to "OFF" and call your service

technician or gas supplier. SEE FIGURE "A".

11. Once the pilot flame is established replace the outer burner

door.

12. At arms length away, turn gas control knob

counterclockwise ('_ to "ON". SEE FIGURE "C".

13. Set thermostat to desired setting.

DANGER: Hotter water increases the risk of

scald injury. Consuk the instruction manual

before changing temperature.

_to "OFF". Do not force. SEE FIGURE "A".

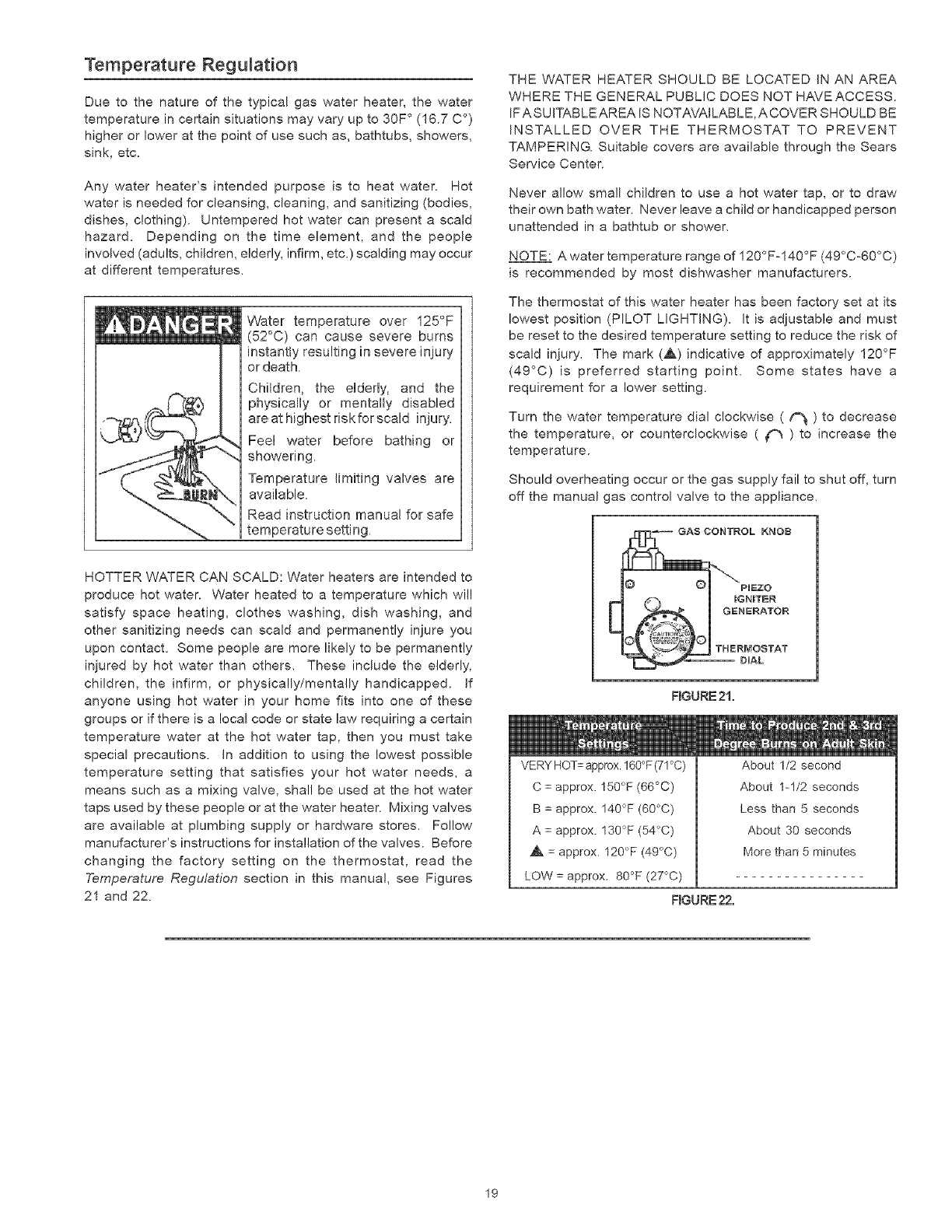

Temperature Regulation

Due to the nature of the typical gas water heater, the water

temperature in certain situations may vary up to 30F ° (16.7 C °)

higher or lower at the point of use such as, bathtubs, showers,

sink, etc.

Any water heater's intended purpose is to heat water. Hot

water is needed for cleansing, cleaning, and sanitizing (bodies,

dishes, clothing). Untempered hot water can present a scald

hazard. Depending on the time element, and the people

involved (adults, children, elderly, infirm, etc.)scalding may occur

at different temperatures.

Water temperature over 125°F

(52°C) can cause severe burns

instantly resulting in severe injury

or death

Children, the elderly, and the

physically or mentally disabled

are at highest fiskforscald injury,

Fed water before bathing or

showering,

Temperature limiting valves are

available_

Read instruction manual for safe

temperature setting,

THE WATER HEATER SHOULD BE LOCATED IN AN AREA

WHERE THE GENERAL PUBLIC DOES NOT HAVE ACCESS.

IF ASUITABLEAREA IS NOTAVAtLABLE,A COVER SHOULD BE

INSTALLED OVER THE THERMOSTAT TO PREVENT

TAMPERING. Suitable covers are available through the Sears

Service Center.

Never allow small children to use a hot water tap, or to draw

their own bath water. Never leave a child or handicapped person

unattended in a bathtub or shower.

NOTE: A water temperature range of 120°F-140°F (49°C-60°C)

is recommended by most dishwasher manufacturers.

The thermostat of this water heater has been factory set at its

lowest position (PILOT LIGHTING). It is adjustable and must

be reset to the desired temperature setting to reduce the risk of

scald injury. The mark (A) indicative of approximately 120°F

(49°C) is preferred starting point. Some states have a

requirement for a lower setting.

Turn the water temperature dial clockwise ( G ) to decrease

the temperature, or counterclockwise ( _ ) to increase the

temperature.

Should overheating occur or the gas supply fail to shut off, turn

off the manual gas control valve to the appliance.

HOTTER WATER CAN SCALD: Water heaters are intended to

produce hot water. Water heated to a temperature which will

satisfy space heating, clothes washing, dish washing, and

other sanitizing needs can scald and permanently injure you

upon contact. Some people are more likely to be permanently

injured by hot water than others. These include the elderly,

children, the infirm, or physically/mentally handicapped. If

anyone using hot water in your home fits into one of these

groups or if there is a local code or state law requiring a certain

temperature water at the hot water tap, then you must take

special precautions. In addition to using the lowest possible

temperature setting that satisfies your hot water needs, a

means such as a mixing valve, shall be used at the hot water

taps used by these people or at the water heater. Mixing valves

are available at plumbing supply or hardware stores. Follow

manufacturer's instructions for installation of the valves. Before

changing the factory setting on the thermostat, read the

Temperature Regulation section in this manual, see Figures

21 and 22.

FIGURE 21,

VERY HOT= approx.160°F (71°C)

C = approx. 150°F (66°C)

B = approx. 140°F (60°C)

A = approx. 130°F (54'>C)

A = approx. 120°F (49°C)

LOW = approx. 80°F (27°C)

FIGURE 22.

About 1/2 second

About 1-1/2 seconds

Less than 5 seconds

About 30 seconds

More than 5 minutes

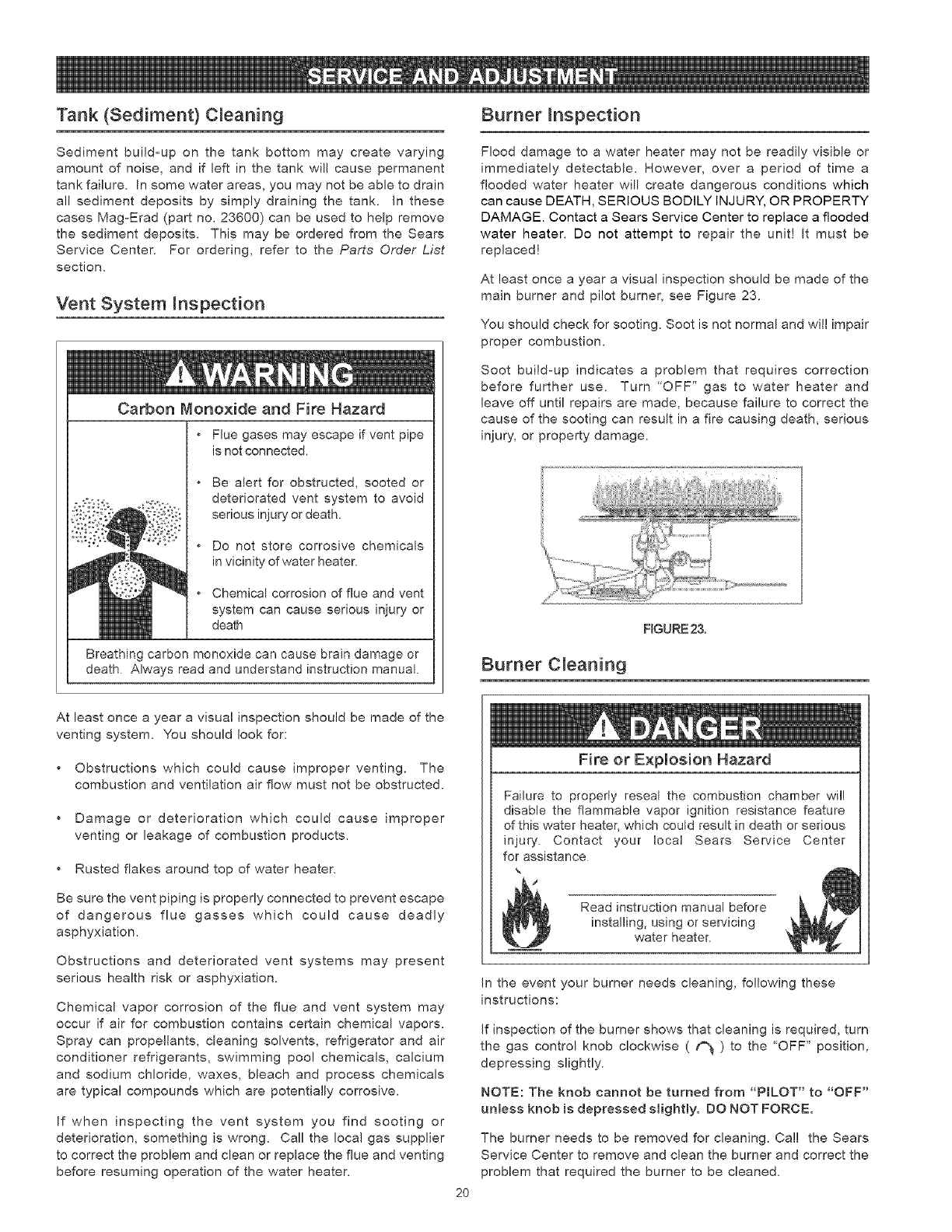

Tank (Sediment) C_eaning

Sediment build-up on the tank bottom may create varying

amount of noise, and if left in the tank will cause permanent

tank failure. In some water areas, you may not be able to drain

all sediment deposits by simply draining the tank. In these

cases Mag-Erad (part no. 23600) can be used to help remove

the sediment deposits. This may be ordered from the Sears

Service Center. For ordering, refer to the Parts Order List

section.

Vent System _nspection

Carbon Monoxide and Fire Hazard

Flue gases may escape if vent pipe

is not connected.

o Be alert for obstructed, sooted or

deteriorated vent system to avoid

serious injury or death.

Do not store corrosive chemicals

in vicinity of water heater.

Chemical corrosion of flue and vent

system can cause serious injury or

death

Breathing carbon monoxide can cause brain damage or

death Ak_ays read and understand instruction manual

Burner Inspection

Flood damage to a water heater may not be readily visible or

immediately detectable. However, over a period of time a

flooded water heater will create dangerous conditions which

can cause DEATH, SERIOUS BODILY INJURY, OR PROPERTY

DAMAGE. Contact a Sears Service Center to replace a flooded

water heater. Do not attempt to repair the unit! It must be

replaced!

At least once a year a visual inspection should be made of the

main burner and pilot burner, see Figure 23.

You should check for sooting. Soot is not normal and will impair

proper combustion.

Soot build-up indicates a problem that requires correction

before further use. Turn 'OFF" gas to water heater and

leave off until repairs are made, because failure to correct the

cause of the sooting can result in a fire causing death, serious

injury, or property damage.

FIGURE23.

Burner C_eaning

At least once a year a visual inspection should be made of the

venting system. You should look for:

Obstructions which could cause improper venting. The

combustion and ventilation air flow must not be obstructed.

Damage or deterioration which could cause improper

venting or leakage of combustion products.

Rusted flakes around top of water heater.

Be sure the vent piping is properly connected to prevent escape

of dangerous flue gasses which could cause deadly

asphyxiation.

Obstructions and deteriorated vent systems may present

serious health risk or asphyxiation.

Chemical vapor corrosion of the flue and vent system may

occur if air for combustion contains certain chemical vapors.

Spray can propellants, cleaning solvents, refrigerator and air

conditioner refrigerants, swimming poo! chemicals, calcium

and sodium chloride, waxes, bleach and process chemicals

are typical compounds which are potentially corrosive.

If when inspecting the vent system you find sooting or

deterioration, something is wrong_ Call the local gas supplier

to correct the problem and clean or replace the flue and venting

before resuming operation of the water heater.

Fire or Explosion Hazard

Failure to properly reseal the combustion chamber will

disable the flammable vapor ignition resistance feature

of this water heater, which could result in death or serious

injury Contact your local Sears Service Center

for assistance

Read instruction manual before

installing, using or serwcmg

water heater,

In the event your burner needs cleaning, following these

instructions:

If inspection of the burner shows that cleaning is required, turn

the gas control knob clockwise ( r'_ ) to the 'OFF" position,

depressing slightly.

NOTE: The knob cannot be turned from "PmLOT" to "OFF"

unless knob is depressed siightmy. DO NOT FORCE.

The burner needs to be removed for cleaning. Cal! the Sears

Service Center to remove and clean the burner and correct the

problem that required the burner to be cleaned.

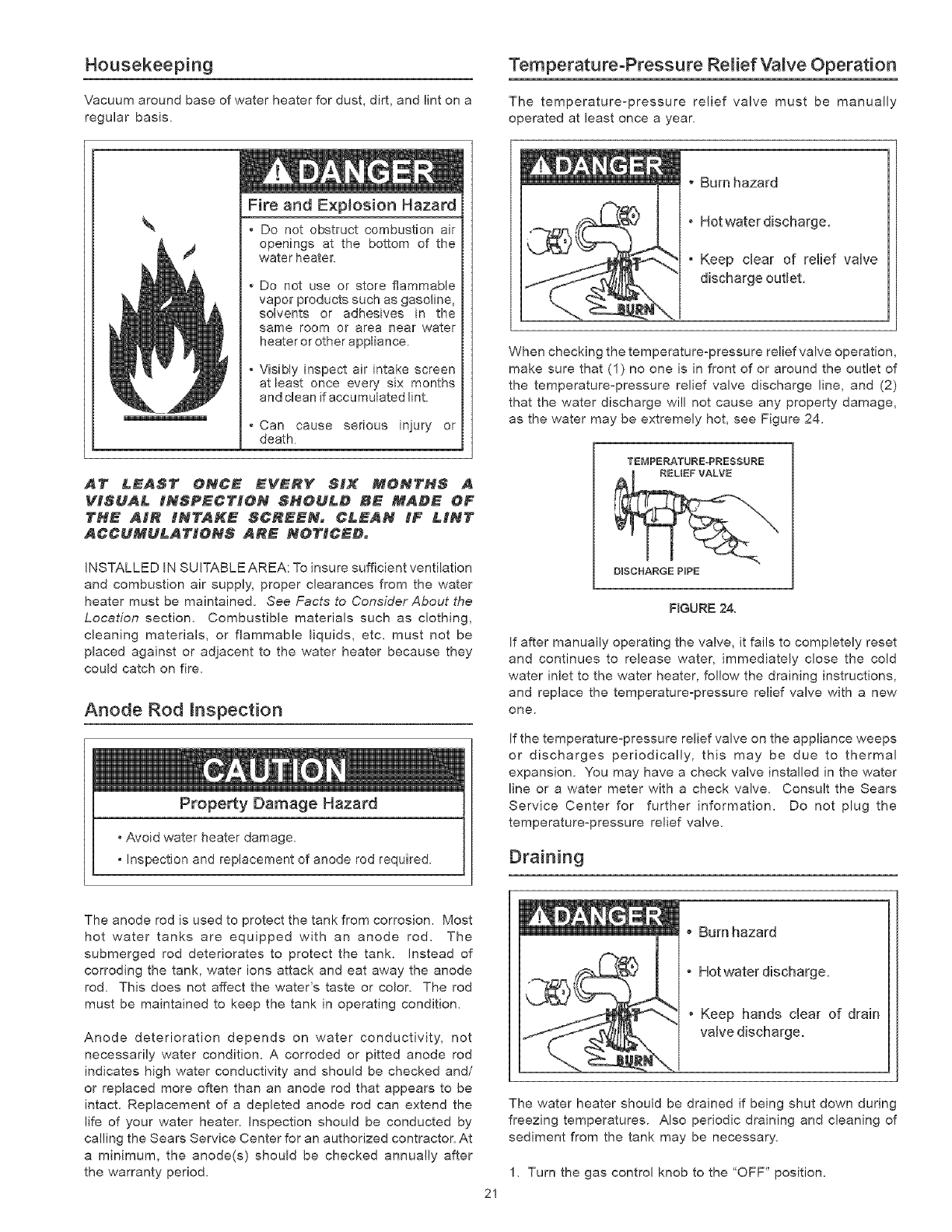

Housekeeping

Vacuum around base of water heater for dust, dirt, and lint on a

regular basis.

Fire and Explosion Hazard

Temperature-Pressure Relief Valve Operation

The temperature-pressure relief valve must be manually

operated at bast once a year.

\° Do not obstruct combustion air

openings at the bottom of the

water heater.

Do not use or store flammable

vapor products such as gasoline,

solvents or adhesives in the

sarne room or area near water

heater or other appliance

-Visibly inspect air intake screen

at least once every six months

and clean if accumulated lint.

, Can cause serious in}ury or

death

INSTALLED IN SUITABLE AREA: To insure sufficient ventilation

and combustion air supply, proper clearances from the water

heater must be maintained. See Facts to Consider About the

Location section. Combustible materials such as clothing,

cleaning materials, or flammable liquids, etc. must not be

placed against or adjacent to the water heater because they

could catch on fire.

Anode Rod _nspection

Property Damage Hazard

°Avoid water heater damage.

, Inspection and replacement of anode rod required.

, Burn hazard

, Hotwater discharge.

° Keep dear of relief valve

discharge outlet.

When checking the temperature-pressure relief valve operation,

make sure that (1) no one is in front of or around the outlet of

the temperature-pressure relief valve discharge line, and (2)

that the water discharge will not cause any property damage,

as the water may be extremely hot, see Figure 24.

TEMPERATURE-PRESSURE

DISCHARGE PiPE

HGURE 24.

If after manually operating the valve, it fails to completely reset

and continues to release water, immediately close the cold

water inlet to the water heater, follow the draining instructions,

and replace the temperature-pressure relief valve with a new

one.

If the temperature-pressure relief valve on the appliance weeps

or discharges periodically, this may be due to thermal

expansion. You may have a check valve installed in the water

line or a water meter with a check valve. Consult the Sears

Service Center for further information. Do not plug the

temperature-pressure relief valve.

Draining

The anode rod is used to protect the tank from corrosion. Most

hot water tanks are equipped with an anode rod. The

submerged rod deteriorates to protect the tank. Instead of

corroding the tank, water ions attack and eat away the anode

rod. This does not affect the water's taste or color. The rod

must be maintained to keep the tank in operating condition.

Anode deterioration depends on water conductivity, not

necessarily water condition_ A corroded or pitted anode rod

indicates high water conductivity and should be checked and/

or replaced more often than an anode rod that appears to be

intact. Replacement of a depleted anode rod can extend the

life of your water heater. Inspection should be conducted by

calling the Sears Service Center for an authorized contractor. At

a minimum, the anode(s) should be checked annually after

the warranty period.

Burn hazard

o Hotwater discharge.

o Keep hands dear of drain

valve discharge.

The water heater should be drained if being shut down during

freezing temperatures. Also periodic draining and cleaning of

sediment from the tank may be necessary.

1. Turn the gas control knob to the "OFF" position.

2. CLOSEthecoldwaterinletvalvetothewaterheater,

3. OPENanearbyhotwaterfaucetandleaveopentoallowfor

draining.

4. Connecta hoseto thedrainvalveandterminateto an

adequatedrain.

5. OPENthewaterheaterdrainvalvetoallowfortankdraining.

NOTE:ffthewaterheaterisgoingto beshutdownand

drainedforanextendedperiod,thedrainvalveshoumdbe

leftopenwithhoseconnectedallowingwatertoterminate

toanadequatedrain.

6. CLOSEthedrainvalve.

7. FollowinstructionsintheFifling The Water heater section.

8. Follow the lighting instructions in the Lighting section to

restart the water heater,

Drain Valve Washer Repmacement

(See Figure 25)

1. Turn "OFF" gas supply to water heater.

2. Follow "Draining" instructions,

3. Turning counter clockwise ( _ ), remove the hex cap below

the screw handle,

4. Remove the washer and put the new one in place.

5. Screw the handle and cap assembly back into the drain

valve and retighten using a wrench. DO NOT OVER

TIGHTEN.

6. Forlow instructions in the FiihtTg The Water Heater section.

7. Check for leaks.

8. Follow the lighting instructions in the Lighting section to

restart the water heater,

_HAHDLEAND

CAP ASSEMBLY

WASHER

FIGURE 25.

Service

Before calling for repair service, read the Start Up Conditions

and Operational Conditions found in the Troubleshooting Guide

of this manual.

If a condition persists or you are uncertain about the operation

of the water heater, let the Sears Service Center check it out,

Contact Sears Service Center at:

1-800o4-MyoHOME _'_(1o800o469o4663),

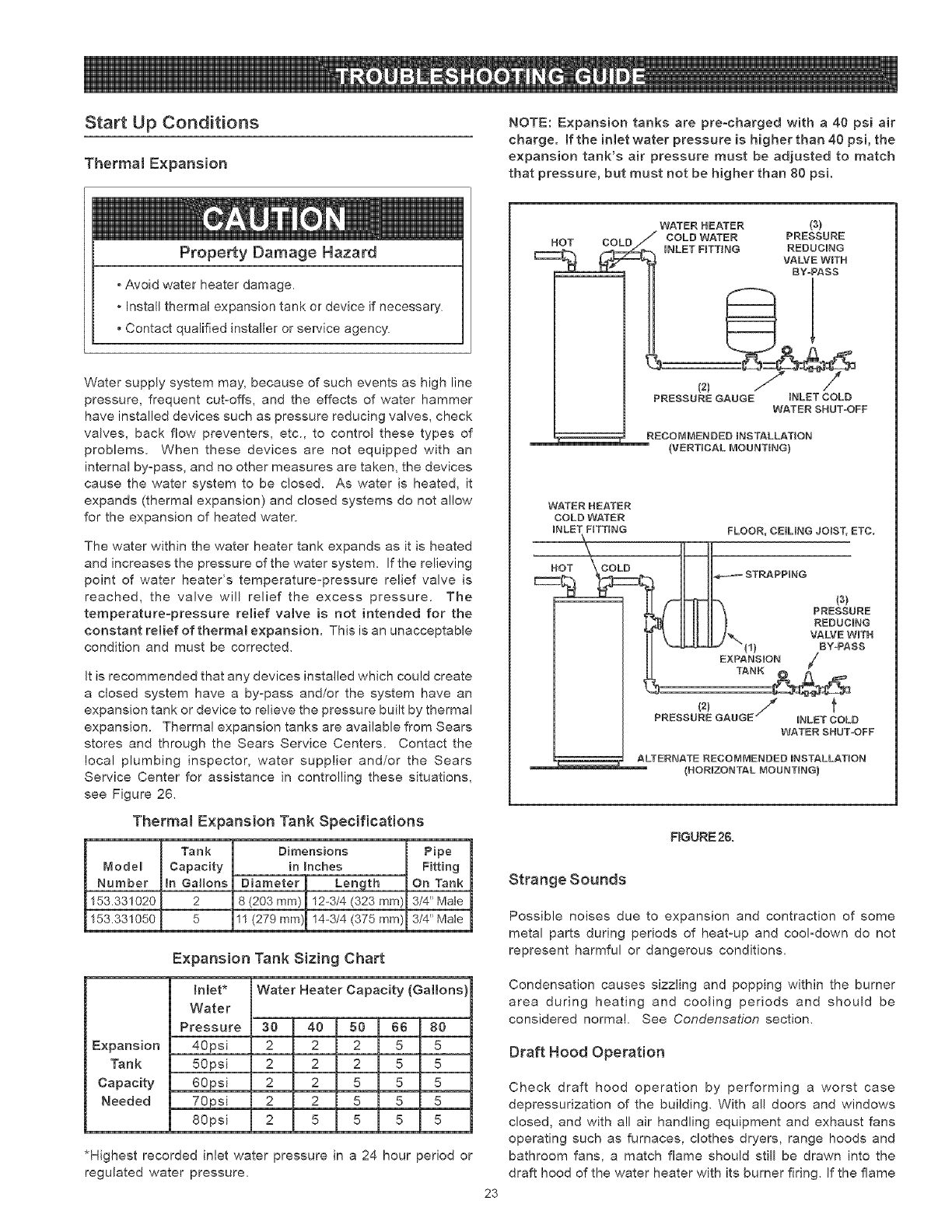

Start Up Conditions

Thermal Expansion

Property Damage Hazard

- Avoid water heater damage.

o Install thermal expansion tank or device if necessary,

• Contact qualified installer or service agency.

NOTE: Expansion tanks are preocharged with a 40 psi air

charge, mfthe intact water pressure is higher than 40 psi, the

expansion tank's air pressure must be adjusted to match

that pressure, but must not be higher than 80 psi.

Water supply system may, because of such events as high line

pressure, frequent cut-offs, and the effects of water hammer

have installed devices such as pressure reducing valves, check

valves, back flow preventers, etc., to control these types of

problems. When these devices are not equipped with an

internal by-pass, and no other measures are taken, the devices

cause the water system to be closed. As water is heated, it

expands (thermal expansion) and closed systems do not allow

for the expansion of heated water.

The water within the water heater tank expands as it is heated

and increases the pressure of the water system. If the relieving

point of water heater's temperature-pressure relief valve is

reached, the valve will relief the excess pressure. The

temperature-pressure relief valve is not intended for the

constant relief of thermal expansion, This is an unacceptable

condition and must be corrected.

It is recommended that any devices installed which could create

a closed system have a by-pass and/or the system have an

expansion tank or device to relieve the pressure built by thermal

expansion. Thermal expansion tanks are available from Sears

stores and through the Sears Service Centers. Contact the

local plumbing inspector, water supplier and/or the Sears

Service Center for assistance in controlling these situations,

see Figure 26.

Therma! Expansion Tank Specifications

Tank Dimensions

Mode_ Capacity in Inches

Number iln Gallons Diameter Length

153.331020 2 8 (203 ram) 12-3/4 (323 mm)

153.331050 5 11 (279 mm) 14-3/4 (375 mm)

Pipe

Fitting

On Tank

3/4" Mate

Expansion Tank Sizing Chart

Water Heater Capacity (Gallons)

h[et*

Water

Pressure

40psi

50psi

60psi

70psi

80psi

30 40 50 66 80

Expansion 2 2 2 5 5

Tank 2 2 2 5 5

Capacity 2 2 5 5 5

Needed 2 2 5 5 5

2 5 5 5 5

WATER HEATER (3)

(VERTICAL MOUNTING)

WATER HEATER

COLD WATER

INLET HTTING

HOT COLD

FLOOR, CEILING JOBST, ETC,

(3)

PRESSURE

REDUCING

VALVE WITH

(1_ BY-PASS

EXPANSION J

TANK :_ t

INLETCOLD

WATER SHUT=OFF

ALTERNATE RECOMMENDED INSTALLATION

(HORIZONTAL MOUNTING)

F_GURE2&

Strange Sounds

Possible noises due to expansion and contraction of some

metal parts during periods of heat-up and cool-down do not

represent harmful or dangerous conditions.

Condensation causes sizzling and popping within the burner

area during heating and cooling periods and should be

considered normal. See Condensation section.

Draft Hood Operation

Check draft hood operation by performing a worst case

depressurization of the building. With all doors and windows

closed, and with all air handling equipment and exhaust fans

operating such as furnaces, clothes dryers, range hoods and

bathroom fans, a match flame should still be drawn into the

draft hood of the water heater with its burner firing. If the flame

*Highest recorded inlet water pressure in a 24 hour period or

regulated water pressure.

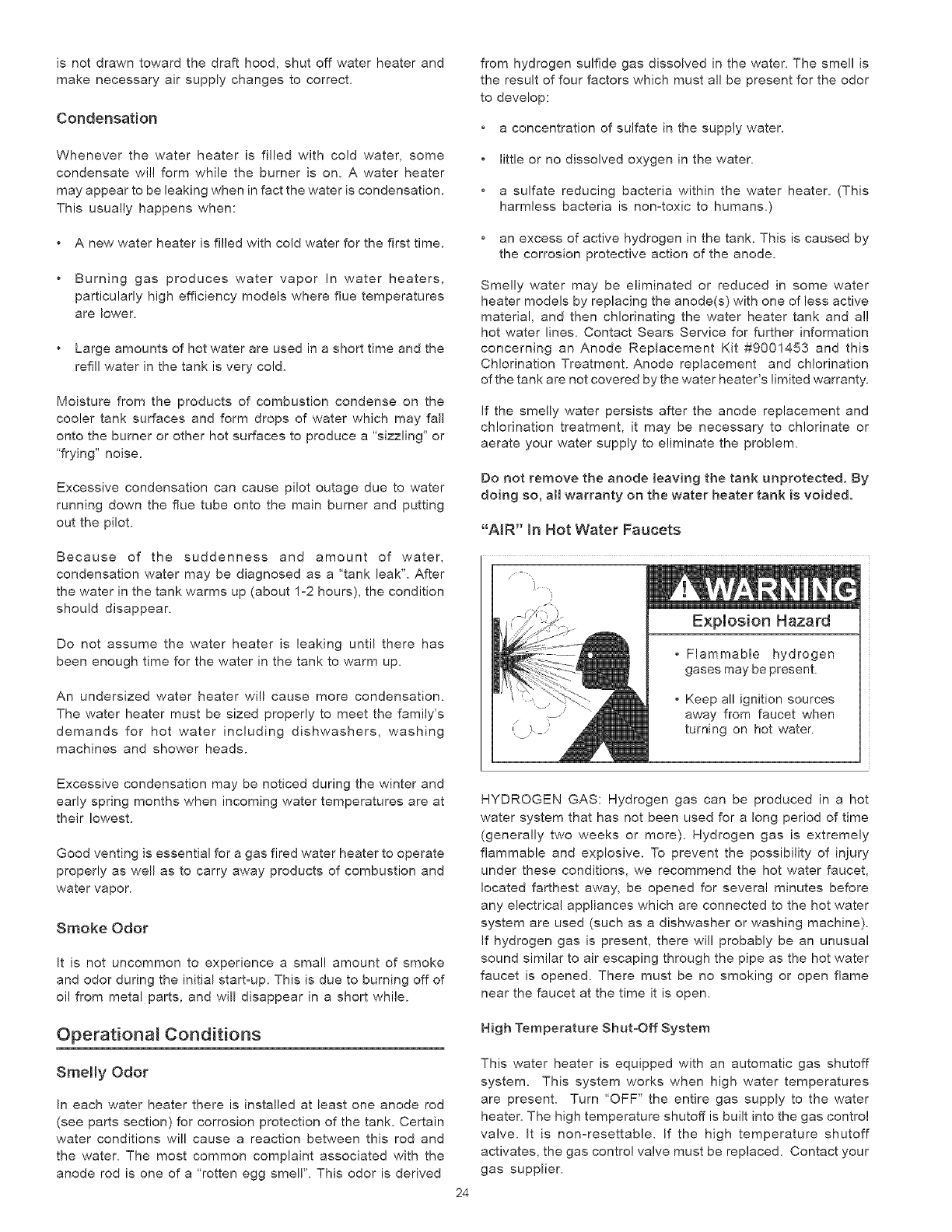

isnotdrawntowardthedrafthood,shutoffwaterheaterand

makenecessaryairsupplychangestocorrect.

Condensation

Whenever the water heater is filled with cold water, some

condensate wil! form while the burner is on. A water heater

may appear to be leaking when in fact the water is condensation.

This usually happens when:

• A new water heater is filled with cold water for the first time.

Burning gas produces water vapor In water heaters,

particularly high efficiency models where flue temperatures

are lower.

Large amounts of hot water are used in a short time and the

refill water in the tank is very cold.

Moisture from the products of combustion condense on the

cooler tank surfaces and form drops of water which may fall

onto the burner or other hot surfaces to produce a "sizzling" or

'frying" noise.

Excessive condensation can cause pilot outage due to water

running down the flue tube onto the main burner and putting

out the pilot.

Because of the suddenness and amount of water,

condensation water may be diagnosed as a 'tank leak'L After

the water in the tank warms up (about 1-2 hours), the condition

should disappear.

Do not assume the water heater is leaking until there has

been enough time for the water in the tank to warm up.

An undersized water heater will cause more condensation.

The water heater must be sized properly to meet the family's

demands for hot water including dishwashers, washing

machines and shower heads.

from hydrogen sulfide gas dissolved in the waten The smell is

the result of four factors which must al! be present for the odor

to develop:

*a concentration of sulfate in the supply water.

little or no dissolved oxygen in the water.

a sulfate reducing bacteria within the water heater. (This

harmless bacteria is nomtoxic to humans.)

an excess of active hydrogen in the tank. This is caused by

the corrosion protective action of the anode.

Smelly water may be eliminated or reduced in some water

heater models by replacing the anode(s) with one of less active

material, and then chlorinating the water heater tank and al!

hot water lines. Contact Sears Service for further information

concerning an Anode Replacement Kit #9001453 and this

Chlorination Treatment. Anode replacement and chlorination

of the tank are not covered by the water heater's limited warranty.

if the smelly water persists after the anode replacement and

chlorination treatment, it may be necessary to chlorinate or

aerate your water supply to eliminate the problem.

Do not remove the anode leaving the tank unprotected, By

doing so, all warranty on the water heater tank is voided.

"AIR" In Hot Water Faucets

'}. •

)

Explosion Hazard

, Flammable hydrogen

gases may be present.

Keep all ignition sources

away from faucet when

turning on hot water

Excessive condensation may be noticed during the winter and

early spring months when incoming water temperatures are at

their lowest.

Good venting is essential for a gas fired water heater to operate

properly as well as to carry away products of combustion and

water vapor.

Smoke Odor

It is not uncommon to experience a small amount of smoke

and odor during the initial start-up. This is due to burning off of

oil from metal parts, and will disappear in a short while.

Operational Conditions

Smelly Odor

In each water heater there is installed at least one anode rod

(see parts section) for corrosion protection of the tank. Certain

water conditions will cause a reaction between this rod and

the waten The most common complaint associated with the

anode rod is one of a 'rotten egg smell". This odor is derived

HYDROGEN GAS: Hydrogen gas can be produced in a hot

water system that has not been used for a long period of time

(generally two weeks or more). Hydrogen gas is extremely

flammable and explosive. To prevent the possibility of injury

under these conditions, we recommend the hot water faucet,

located farthest away, be opened for several minutes before

any electrical appliances which are connected to the hot water

system are used (such as a dishwasher or washing machine).

if hydrogen gas is present, there will probably be an unusual

sound similar to air escaping through the pipe as the hot water

faucet is opened. There must be no smoking or open flame

near the faucet at the time it is open.

High Temperature Shut-Off System

This water heater is equipped with an automatic gas shutoff

system. This system works when high water temperatures

are present. Turn 'OFF" the entire gas supply to the water

heater. The high temperature shutoff is built into the gas contro!

valve. It is nomresettable. If the high temperature shutoff

activates, the gas control valve must be replaced. Contact your

gas supplier.

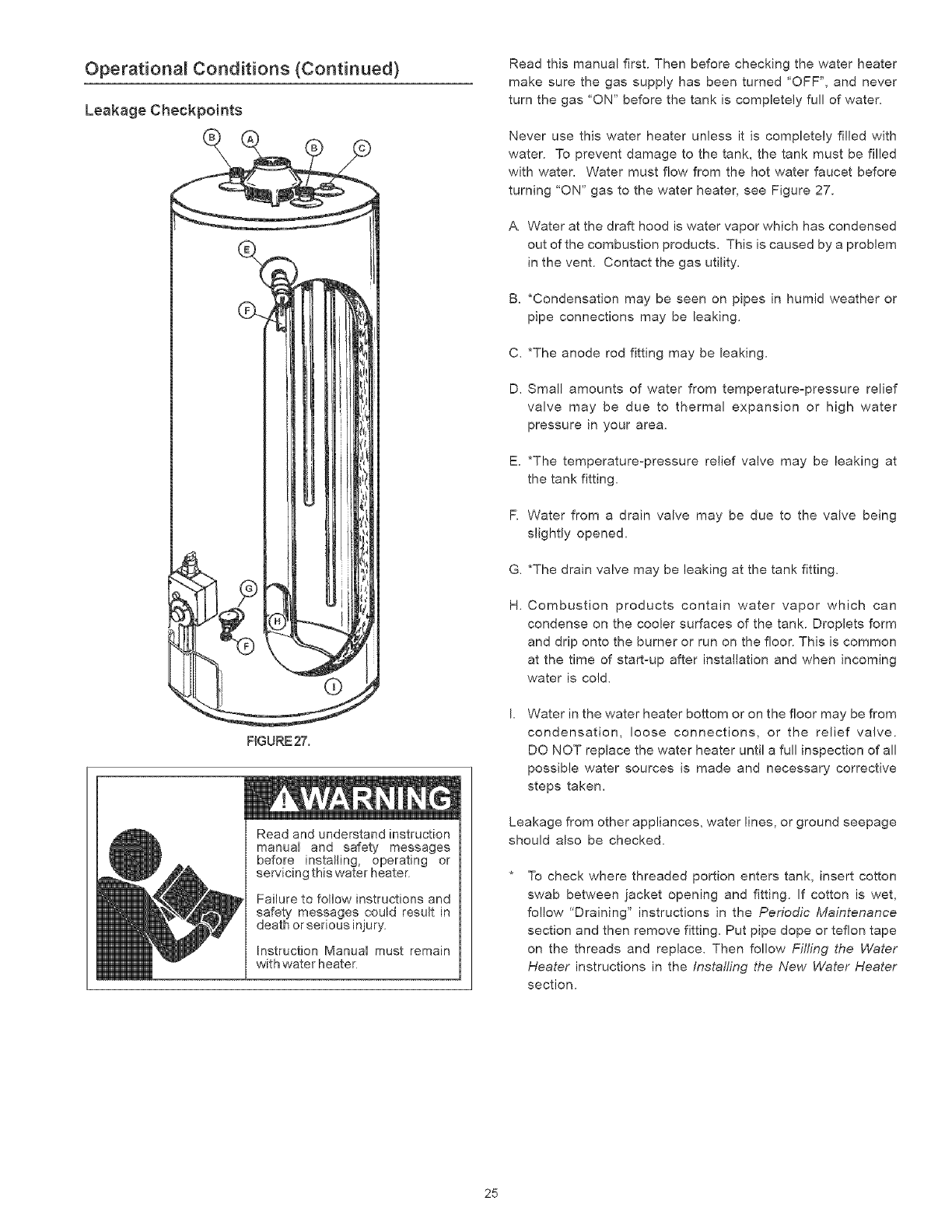

Operational Conditions (Continued)

Leakage Checkpoints

FIGURE27.

Read and understand instruction

manual and safety messages

before installing, operating or

sewicing this water heater,

Failure to follow instructions and

safety' messages could result in

death or serious injury

Instruction Manual must remain

with water heater

Read this manual first. Then before checking the water heater

make sure the gas supply has been turned 'OFF", and never

turn the gas 'ON" before the tank is completely full of water.

Never use this water heater unless it is completely filled with

water. To prevent damage to the tank, the tank must be filled

with water. Water must flow from the hot water faucet before

turning "ON" gas to the water heater, see Figure 27.

A Water at the draft hood is water vapor which has condensed

out of the combustion products. This is caused by a problem

in the vent. Contact the gas utility.

B. *Condensation may be seen on pipes in humid weather or

pipe connections may be leaking.

C. *The anode rod fitting may be leaking.

D. Small amounts of water from temperatureopressure relief

valve may be due to thermal expansion or high water

pressure in your area.

E. *The temperature-pressure relief valve may be leaking at

the tank fitting.

R Water from a drain valve may be due to the valve being

slightly opened.

G. *The drain valve may be leaking at the tank fitting.

m_ Combustion products contain water vapor which can

condense on the cooler surfaces of the tank. Droplets form

and drip onto the burner or run on the floor. This is common

at the time of start-up after installation and when incoming

water is cold.

Water in the water heater bottom or on the floor may be from

condensation, loose connections, or the relief valve.

DO NOT replace the water heater until a full inspection of all

possible water sources is made and necessary corrective

steps taken.

Leakage from other appliances, water lines, or ground seepage

should also be checked.

To check where threaded portion enters tank, insert cotton

swab between jacket opening and fitting. If cotton is wet,

fo!low 'Draining" instructions in the Periodic Maintenance

section and then remove fitting. Put pipe dope or teflon tape

on the threads and replace. Then follow Fifling the Water

Heater instructions in the instah'ing the New Water Heater

section.

Theseguidelinesshouldbeusedbyaqualifiedserviceagent.CallSearsServiceat1-800o4oMYoHOME'_;(Io800-469-4663)

forassistance,informtheassociatethatthisisa"FlammableVaporignitionResistant"Product.

WATERLEAKS

LEAKINGT&PVALVE

SMELLYODORS

PILOT WILL NOT L_GHT

BURNER WILL NOT

STAY UT

PILOT OUTAGE

NOT ENOUGH

HOT WATE R

WATER TOO HOT

WATER HEATER SOUNDS

StZZLING oRUMBLBNG

SOOTING

VENTGASODORS

Improperly sealed, hot or cold supply connection,

relief valve, drain valve, or thermostat threads.

Leakage from other appliances or water lines.

Condensation of flue products.

Thermal expansion in closed water system.

Improperly seated valve.

High sulfate or mineral content in water supply.

Bacteria in water suppty.

Gas controt knob not positioned correctly.

Main gas supply off.

Igniter tip more than 1/8" from pilot hood.

Thermocouple malfunction.

Thermocouple TCO malfunction.

Melted insulation on igniter wire or shorting

of igniter wire.

High ambient room temperature.

Wire disconnected from spark igniter.

Broken electrode or electrical wire.

Piezo tgniter generator fails to operate or

malfunctions.

Thermocouple TCO malfunction.

High ambient room temperature.

Dirty or ctogged air intake screen.

Flame arrestor openings blocked.

Defective Gas Control.

Dirty pilot burner.

Dirty or clogged air intake screen.

Thermocouple tip is not in contact with pilot flame.

Thermocouple malfunction.

Thermocouple TCO malfunction.

Defective Gas Control.

Heater not tit or thermostat not on.

Thermostat set too low.

Heater undersized.

Low gas pressure.

Incoming water is unusually cold.

Leaking hot water pipes or fixtures.

High temperature limit switch activated.

Thermostat set too high.

Condensation dripping on burner.

Sediment or calcium in bottom of heater tank.

Improper combustion.

Lack of supply air.

Improperly installed vent piping.

Downdraft.

Poor combustion.

Tighten threaded connections.

Inspect other appliances near water heater.

Refer to CONDENSATION.

install thermal expansion tank (DO NOT plug T&P valve).

Check relief valve for proper operation

(DO NOT plug T&P valve).

Drain and flush heater thoroughly, then refill.

Chlorinate or aerate water supply.

Refer to LIGHTING INSTRUCTIONS.

Turn on main gas shutoff valve.

Adjust igniter tip.

Replace pilot assembly.

Reptace pilot assembly.

Contact Sears Service to determine cause.

Reconnect wire connector to spark igniter.

Replace pilot assembly.

Replace Piezo Igniter generator.

Reptace pilot assembly.

Contact a service agency to

determine cause.

Ctean and reinstall air intake screen.

Contact Sears Service to

determine cause.

Replace Gas Control.

Clean pilot assembly.

Clean and reinstall air intake screen.

Insert thermocoupIe correctly.

Replace pilot assembly.

Replace Gas Control.

Refer to LIGHTING INSTRUCTIONS.

Refer to TEMPERATURE REGULATtON.

Reduce hot water use.

Contact your gas supplier.

Allow more time for heater to re-heat.

Have plumber check and repair leaks.

Contact Sears Service to

determine cause.

Refer to TEMPER_,TURE REGULATION.

Refer to CONDENSATION.

Clean sediment from tank. Refer to DRAINtNG

instructions in Maintenance section of manual.

No adjustment available. Contact Sears Service

to determine cause.

Contact Sears Service to determine cause.

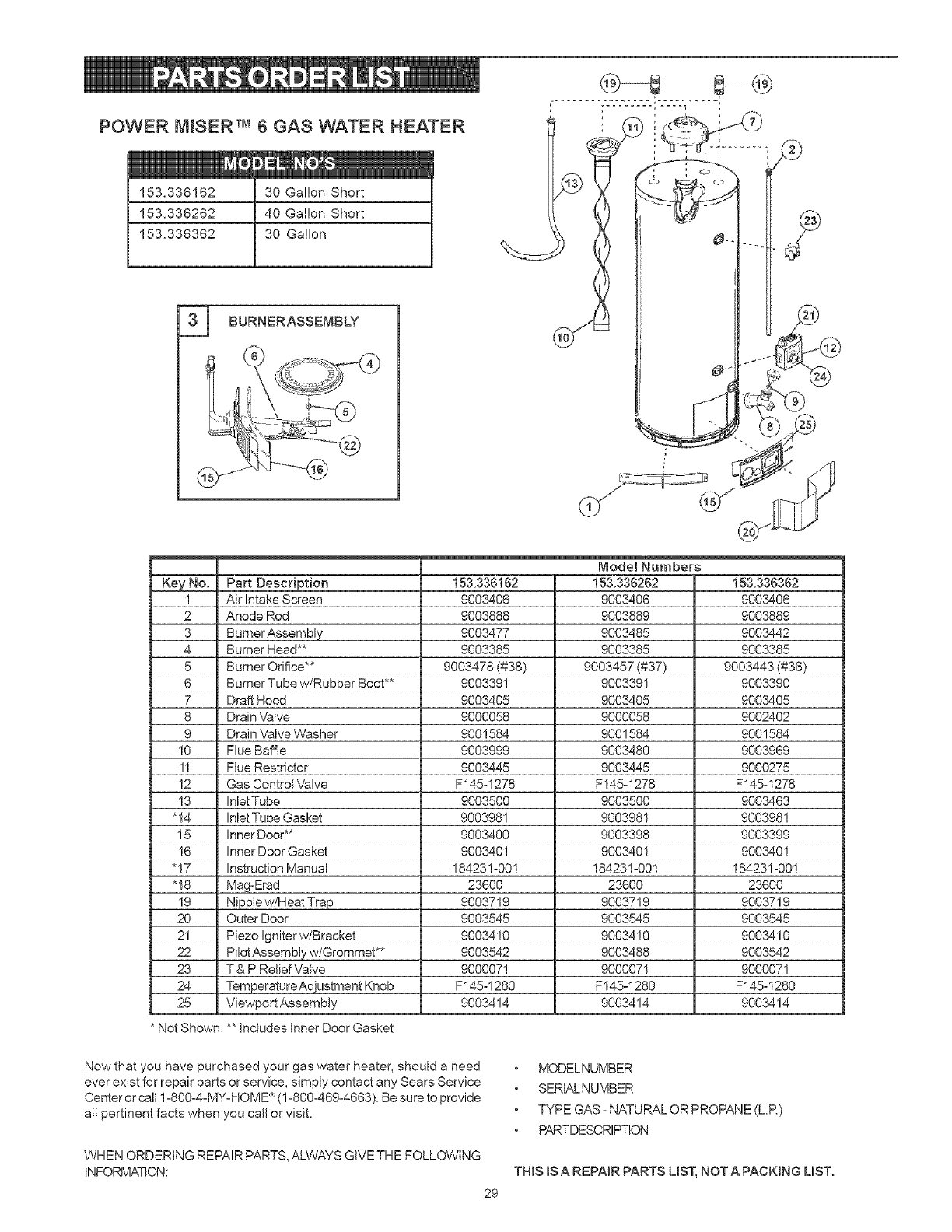

POWER MISER TM6 GAS WATER HEATER

153.336162

153,336262

153.336362

30 Gallon Short

40 Gallon Short

30 Gallon

BURNERASSEMBLY

Key No.

"14

"17

"18

Not Shown.

Part Description

Air Intake Screen

Anode Rod

BumerAssembly

Burner Head**

Burner Orifice**

Burner Tube w/Rubber Boot**

Draft Hood

Drain Valve

Drain Valve Washer

Flue Baffle

Flue Restrictor

Gas Control VaNe

InletTube

Inlet Tube Gasket

Inner Door**

Inner Door Gasket

Instruction Manual

MagoErad

Nipple w/Heat Trap

Outer Door

Piezo Igniter w/Bracket

Pilot Assembly w/Grommet**

T & P Relief VaNe

Temperature Adjustment Knob

Viewport Assembly

** Includes Inner Door Gasket

153,336162

9003406

9003888

9003477

9003385

9003478 (#38)

9003391

9003405

9000058

9001584

9003999

9003445

F145-1278

9003500

9003981

9003400

9003401

18423!_001

23600

9003719

9003545

9003410

9003542

9000071

F145-1280

9003414

Model Numbers

153.336262

9003406

9003889

9003485

9003385

9003457 (#37)

9003891

9003405

9000058

9001584

9003480

9003445

F145-1278

9003500

9003981

9003398

9003401

184231o001

23600

9003719

9003545

9003410

9003488

9000071

F145-1280

9003414

153.336362

9003406

9003889

9003442

9003385

9003443(#36)

9003890

9003405

9002402

9001584

9003969

9000275

F145-1278

9003463

9003981

9003399

9003401

184231-00!

23600

9003719

9003545

9003410

9003542

9000071

F145-1280

9003414

Now that you have purchased your gas water heater, should a need

ever exist for repair parts or service, simply contact any Sears Service

Center or call 1=800=4=MY=HOME '_;(!o800-469o4663). Be sure to provide

all pertinent facts when you carl or visit.

WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE FOLLOWING

INFORMATION:

MODELNUMBER

SERIALNUMBER

TYPE GAS-NATURALORPROPANE(LR)

PARTDESCRIPTION

THIS IS A REPAIR PARTS UST, NOT A PACKING UST.

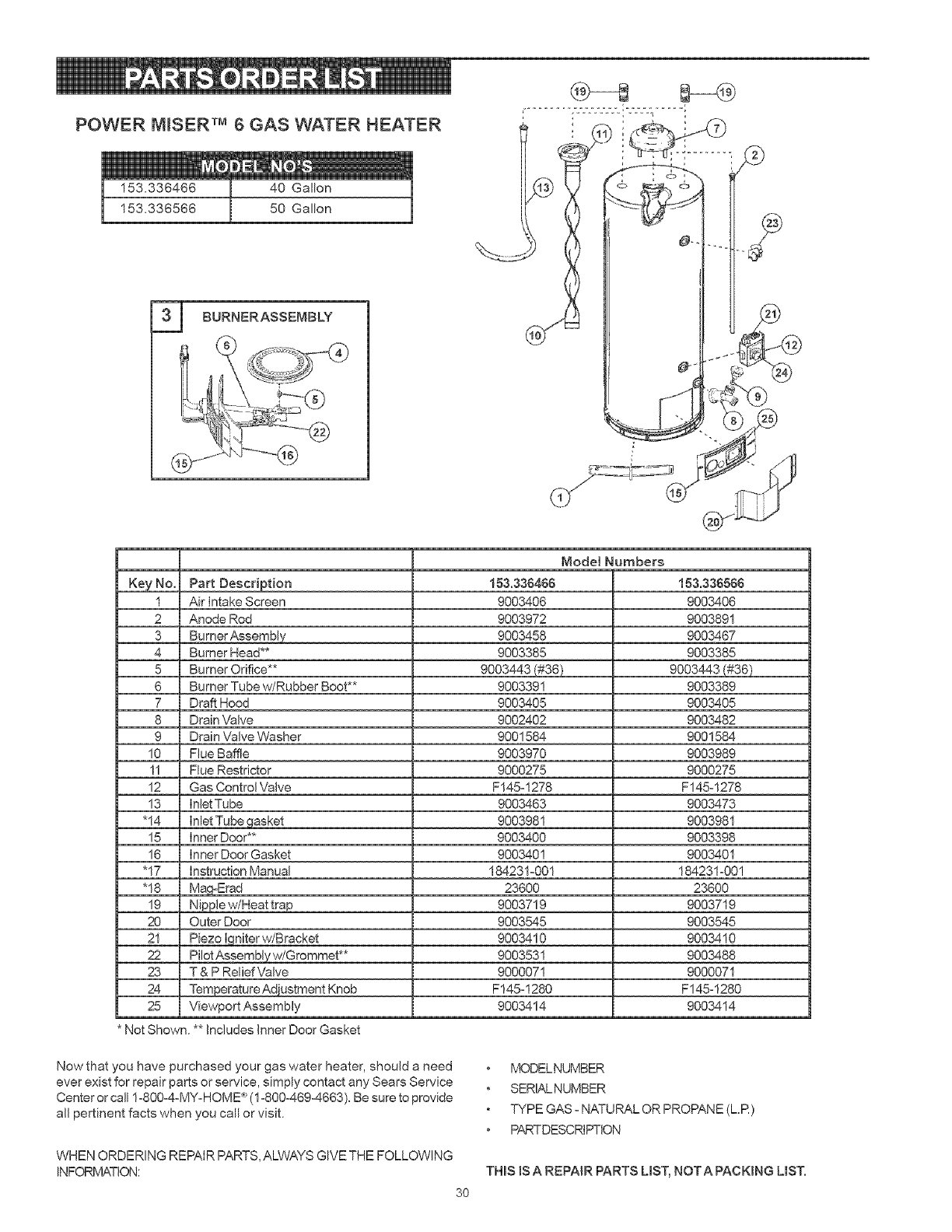

POWER M_SER TM 6 GAS WATER HEATER

153.336466 40 Gallon

153.336566 50 Gallon

BURNERASSEMBLY

Key No. Part Description

1 Air intake Screen

2 Anode Rod

3 Burner Assembly

4 Burner Head**

5 Burner Orifice**

6 Burner Tube w/Rubber Boot**

7 Draft Hood

8 Drain Valve

9 Drain Valve Washer

10 Flue Baffle

11 Flue Restrictor

12 Gas Control Valve

13 lnletTube

"14 Inlet Tube gasket

15 inner Door**

16 Inner Door Gasket

"17 instruction Manual

"18 Mag-Erad

19 Nipple w/Heat trap

20 Outer Door

21 Piezo Igniter w/Bracket

22 Pilot Assembly w/Grommet**

23 T & P Relief Valve

24 Temperature Adjustment Knob

25 Viewport Assembly

153.336466

9003406

9003972

9003458

9003385

9003443 (#36)

9003391

9003405

9002402

9001584

9003970

9000275

F145-1278

9003463

9003981

9003400

9003401

184231o001

23600

9003719

9003545

9003410

9003531

9000071

F145-!280

9003414

Model Numbers

153.336566

9003406

9003891

9003467

9003385

9003443 (#36)

9003389

9003405

9003482

9001584

9003989

9000275

F145=1278

9003473

9003981

9003398

9003401

184231=00!

23600

9003719

9003545

9003410

9003488

9000071

F145=1280

9003414

* Not Shown. ** Includes Inner Door Gasket

Now that you have purchased your gas water heater, should a need

ever exist for repair parts or service, simply contact any Sears Service

Center or call I-800-4oMY-HOME <R'(1-800o469-4663). Be sure to provide

all pertinent facts when you call or visit.

WHEN ORDERING REPAIR PARTS, ALW'AYS GIVE THE FOLLOWING

INFORbIATION:

MODELNUMBER

SERALNUMBER

TYPE GAS°NATURALORPROPANE(LR)

PARTDESCRiPTION

THinS IS A REPAIR PARTS L_ST, NOTA PACKING UST.

POWER M_SER TM 6 GAS WATER HEATER

153.336752

153.336852

153.336962

30 Gallon Propane (L.R)

40 Gallon Propane (L.R)

50 Gallon Propane (L.R)

BURNERASSEMBLY

Key No.

"14

"17

"18

* Not Shown.

Model Numbers

Part Description 153.335762 153.336862 153.336952

Air intake Screen 9003406 9003406 9003406

Anode Rod 9003889 9003972 9003891

Burner Assembly 9003451 9003460 9003565

Burner Head** 9003422 9003422 9003385

Burner Orifice** 9003453 (#51) 9003453 (#51) 9003453 (#51)

Burner Tube w/Rubber Boot** 9003454 9003392 9003389

Draft Hood 9003405 9003405 9003405

Drain Valve 9002402 9002402 9003482

Drain Valve W'asher 9001584 9001584 9001584

Flue Baffle 9003969 9003970 9003989

Flue Restrictor 9000275 9000275 9000275

Gas Control Valve F145-1279 F145-!279 F145-1279

Inlet Tube 9003463 9003463 9003473

Inlet Tube Gasket 9003981 9003981 9003981

inner Doo¢* 9003399 9003400 9003398

inner Door Gasket 9003401 9003401 9003401

Instruction Manual 184231-001 18423!-001 184231-001

23600 23600 23600

9003719 9003719 9003719

9003545 9003545 9003545

90034 10 9003410 90034! 0

9003455 9003455 9004021

9000071 9000071 9000071

F145-1280 F145-1280 F145-1280

90034 14 9003414 90034!4

Mag°Erad

Nipple w/Heat Trap

Outer Door

Piezo Igniter w/Bracket

Pilot Assembly w/Grommet**

T & P Relief Valve

Temperature Adjustment Knob

Viewport Assembly

** Includes Inner Door Gasket

Now that you have purchased your gas water heater, should a need

ever exist for repair parts or service, simply contact any Sears Service

Center or call 1-800-4-MY-HOME " (1-800-469o4653). Be sure to provide

all pertinent facts when you call or visit.

WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE FOLLOWING

INFORMATION:

MODELNUMBER

SERIALNUMBER

TYPE GAS-NATURALOR PROPANE(LR)

PARTDESCRIPTION

THinSroSAREPAmRPARTS UST, NOT A PACKmNGLIST.

6 -YEAR LmMITED WARRANTY ON WATER HEATER

For six years from the date of purchase, if this water heater is installed and operated in a single-family home in accordance with the

owner's manual instructions and all local applicable plumbing codes, Sears will:

1. Supply free water heater parts for those that are defective in material or workmanship.

2. Supply a free water heater for one that develops a leak.

For the second through sixth year from the purchase date, you must pay the labor cost for installation of parts or water heater.

For commercial, institutional, industrial or residential use by two or more families, the above limited warranty is only for two years.

During the second year you must pay the labor cost for parts or water heater installation.

1 -YEAR EXCLUSWE KENMORE LABOR WARRANTY

For the first year from the date of purchase, Sears will, free of charge, supply and install new water heater parts for defective ones

or a new water heater for one that develops a leak.

WARRANTY SERVICE

To obtain warranty service, call 1-800:4-MY:HOME _'(!-800-469-4663).

This warranty applies only while this product is in use in the United States.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

SEARS, ROEBUCK AND CO., Dept.817WA, Hoffman Estates, IL 60179

The price of your water heater does not include a free checkup service call. On water heater installations arranged by Sears, Sears

warrants the installation.

A charge will be made on service calls due to poor or incomplete installation. These include:

a. Adiusting thermostat c. Condensation b. Leaks in pipes or fittings

_,IASTER PROTECT{ON AGREEMENTS

Congratulations on making a smart purchase. Your new Kenmord R'

product is designed and manufactured for years of dependable operation.

But like all products, it may require preventive maintenance or repair from

time to time. That's when having a Master Protection Agreement can

save you money and aggravation.

Purchase a Master Protection Agreement now and protect yourself from

unexpected hassle and expense.

The Master Protection Agreement also helps extend the life of your new

product. Here's what's included in theAgreement:

Expert Service by our 12,000 professional repair specialist.

Unlimited service and no charge for parts and labor on all covered

repairs.

"No-lemon" guarantee -replacement of your covered product if

four or more product failures occur within twelve months.

Product replacement if your covered product can't be fixed.

Annual Preventive Maintenance Check at your request - no

extra charge.

Fast help by phone - phone support from a Sears technician on

products requiring in-home repair, plus convenient repair scheduling.

Power surge protection against electrical damage due to power

fluctuations.

Rental reimbursement if repair of your covered product takes

longer than promised.

Once you purchase the Agreement, a simple phone call is all that it takes

for you to schedule service. You can call anytime day or night, or

schedule a service appointment on-line.

Sears has over 12,000 professional repair specialists, who have access

to over 4.5 million quality parts and accessories. That's the kind of

professionalism you can count on to help prolong the life of your new

purchase for years to come. Purchase your Master ProtectionAgreement

today[

Some limitations and exclusions apply. For prices and additional

information call 1o800o827-6655.

SEARS INSTALLATmON SERWCE

For Sears professiona! Installation of home appliances, garage door

openers, water heaters, and other major home items, in the U.S.A., call

1 oSO04oMY-HOME "_.

For in-home major brand repair service

Call 24 hours a day, 7 days a week (U.S.A. and Canada)

1-800-4oMY-HOM =®

(1°800°469-4663)

www.sears.com

The model number of your water heater is found on the model rating plate on the front of the water heater.

Sears, Roebuck and Co., Hoffman Estates, _L 60179 U.S.A

Kenmore Power Miser 6 153 336262 Users Manual

153336162 153336162 KENMORE WATER HEATER - Manuals and Guides L0522225 View the owners manual for your KENMORE WATER HEATER #153336162. Home:Plumbing Parts:Kenmore Parts:Kenmore WATER HEATER Manual

KENMORE Water heater, Gas Manual L0522225 KENMORE Water heater, Gas Owner's Manual, KENMORE Water heater, Gas installation guides

153336762 to the manual c7cdf389-49e8-4ec9-8c53-2ff1eb372106

Navigation menu

Versions of this User Manual:

Views

Navigation
