Owners

Manual

FOR POTABLE WATER

HEATING ONLY

NOT SUITABLE FOR

SPACEHEATING

NOT FOR USE IN

MOBILE HOMES

Model No.

153.332111 39 Gal. High Altitude

153.332161 39GaL

153.332319 30 GaL High Altitude

153.332363 30 Gal.

153.332419 40 GaL High Altitude

153.332463 40 GaL

153.332563 50 Gal.

Caution:

Read and Follow

All Safety Rules and

Operating Instructions

Before First Use of

This Product.

Save this Manual for Future Reference.

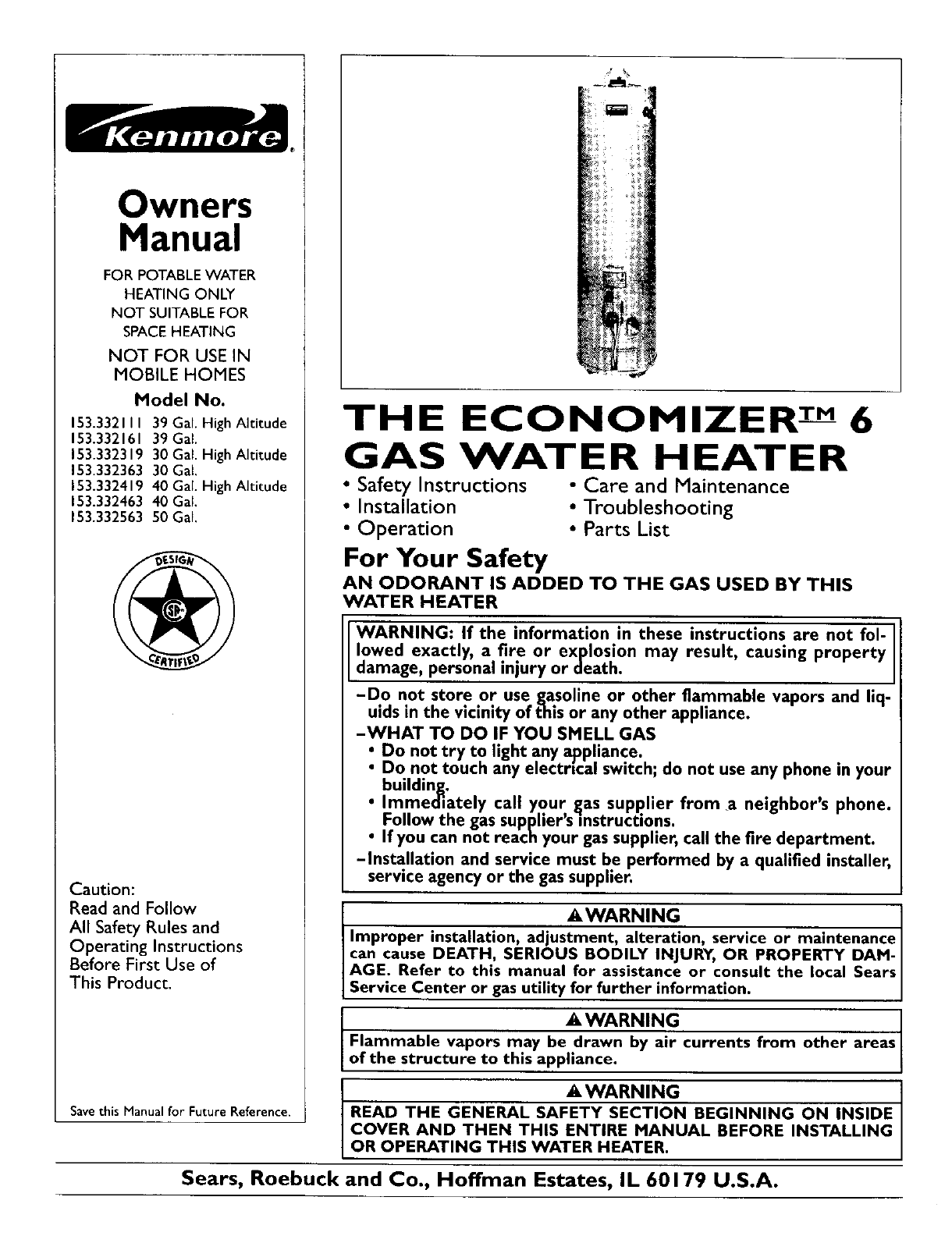

THE ECONOMIZER T-M6

GAS WATER HEATER

•Safety Instructions

•Installation

• Operation

For Your Safety

• Care and Maintenance

• Troubleshooting

• Parts List

AN ODORANT IS ADDED TO THE GAS USED BY THIS

WATER HEATER

WARNING: If the information in these instructions are not fol-

lowed exactly, a fire or explosion may result, causing property

damage, personal mlury or death.

-Do not store or use gasoline or other flammable vapors and liq-

uids in the vicinity of this or any other appliance.

-WHAT TO DO IF YOU SMELL GAS

:Do not try to light any appliance.

Do not touch any electrical switch; do not use any phone in your

building.

Immediately call your gas supper from .a neighbor's phone.

iollow the gas supplier's]nstructions.

If you can not reach your gas supplier, call the fire department.

-Installation and service must be performed by a qualified installer,

service agency or the gas supplier.

. &WARNING ]

Improper installation, ad|us_on, service or maintenance I

can cause DEATH, SERIOUS BODILY INJURY, OR PROPERTY DAM- I

AGE. Refer to this manual for assistance or consult the local Sears I

Service Center or gas utility for further information, j

AWARNING t

Flammable vapors may be drawn by air currents from other areas

of the structure to this appliance.

AWARNING

READ THE GENERAL SAFETY SECTION BEGINNING ON INSIDE

COVER AND THEN THIS ENTIRE MANUAL BEFORE INSTALLING

OR OPERATING THIS WATER HEATER.

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

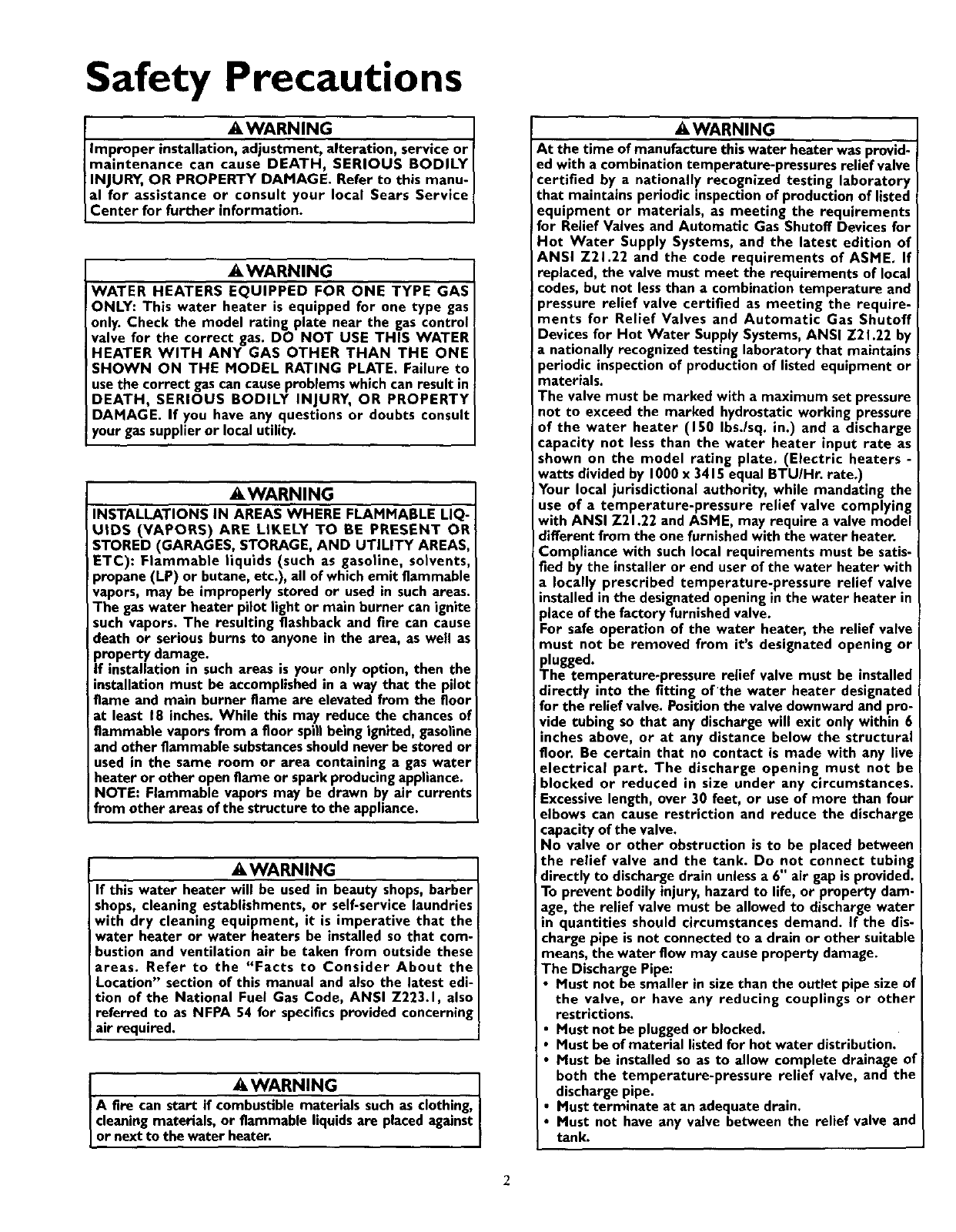

Safety Precautions

•,WARNING I

Improper installation, adjustment, alteration, service or

maintenance can cause DEATH, SERIOUS BODILY

INJURY, OR PROPERTY DAMAGE. Refer to this manu-

al for assistance or consult your local Sears Service

Center for further nformat on.

AWARNING

WATER HEATERS EQUIPPED FOR ONE TYPE GAS

ONLY: This water heater is equipped for one type gas

only. Check the model rating plate near the gas control

valve for the correct gas. DO NOT USE THIS WATER

HEATER WITH ANY GAS OTHER THAN THE ONE

SHOWN ON THE MODEL RATING PLATE. Failure to

use the correct gas can cause problems which can result in

DEATH, SERIOUS BODILY INJURY, OR PROPERTY

DAMAGE. If you have any questions or doubts consult

your gas supplier or local utility.

_,WARNING

INSTALLATIONS IN AREAS WHERE FLAMMABLE LIQ-

UIDS (VAPORS) ARE LIKELY TO BE PRESENT OR

STORED (GARAGES, STORAGE, AND UTILITY AREAS,

ETC): Flammable liquids (such as gasoline, solvents,

propane (LP) or butane, etc.), all of which emit flammable

vapors, may be improperly stored or used in such areas.

The gas water heater pilot light or main burner can ignite

such vapors. The resulting flashback and fire can cause

death or serious burns to anyone in the area, as well as

property damage.

if installation in such areas is your only option, then the

installation must be accomplished in a way that the pilot

flame and main burner flame are elevated from the floor

at least 18 inches. While this may reduce the chances of

flammable vapors from a floor spill being ignited, gasoline

and other flammable substances should never be stored or

used in the same room or area containing a gas water

heater or other open flame or spark producing appliance.

NOTE: Flammable vapors may be drawn by air currents

from other areas of the structure to the appliance.

_,WARNING

If this water heater will be used in beauty shops, barber

shops, cleaning establishments, or self-service laundries

with dry cleaning equipment, it is imperative that the

water heater or water heaters be installed so that com-

bustion and ventilation air be taken from outside these

areas. Refer to the "Facts to Consider About the

Location" section of this manual and also the latest edi-

tion of the National Fuel Gas Code, ANSI Z223.1, also

referred to as NFPA 54 for specifics provided concernin

air required.

_,WARNING

A fire can start if combustible materials such as clothing,

cleaning materials, or flammable liquids are placed against

or next to the water heater.

_,WARNING

At the time of manufacture this water heater was provid-

ed with a combination temperature-pressures relief valve

certified by a nationally recognized testing laboratory

that maintains periodic inspection of production of listed

equipment or materials, as meeting the requirements

for Relief Valves and Automatic Gas Shutoff Devices for

Hot Water Supply Systems, and the latest edition of

ANSI Z21.22 and the code requirements of ASHE. If

replaced, the valve must meet the requirements of local

! codes, but not less than a combination temperature and

pressure relief valve certified as meeting the require-

ments for Relief Valves and Automatic Gas Shutoff

Devices for Hot Water Supply Systems, ANSI Z21.22 by

anationa yrecogn zed test ng aboratory that maintains

periodic inspection of production of listed equipment or

materials.

The valve must be marked with a maximum set pressure

not to exceed the marked hydrostatic working pressure

of the water heater (150 IbsJsq. in.) and a discharge

capacity not less than the water heater input rate as

shown on the model rating plate, (Electric heaters -

watts divided by 1000 x 3415 equal BTU/Hr. rate.)

Your local jurisdictional authority, while mandating the

use of a temperature-pressure relief valve complying

with ANSI Z21.22 and ASME, may require a valve model

different from the one furnished with the water heater.

Compliance with such local requirements must be satis-

fied by the installer or end user of the water heater with

a locally prescribed temperature-pressure relief valve

installed in the designated opening in the water heater in

place of the factory furnished valve.

For safe operation of the water heater, the relief valve

must not be removed from it's designated opening or

plugged.

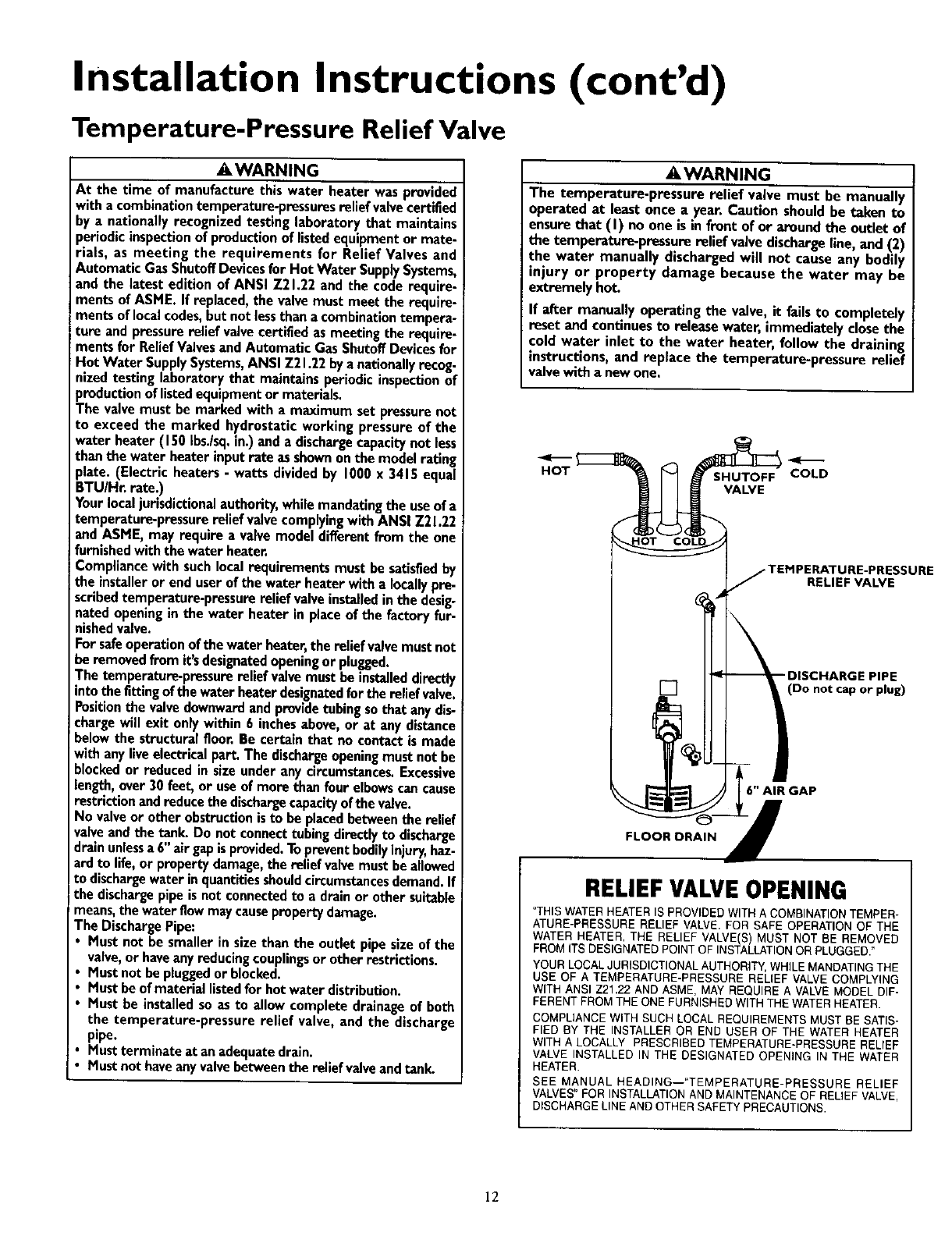

The temperaturo-pressure relief valve must be installed

directly into the fitting of the water heater designated

for the relief valve. Position the valve downward and pro-

vide tubing so that any discharge will exit only within 6

inches above, or at any distance below the structural

floor. Be certain that no contact is made with any live

electrical part. The discharge opening must not be

blocked or reduced in size under any circumstances.

Excessive length, over 30 feet, or use of more than four

elbows can cause restriction and reduce the discharge

capacity of the valve.

No valve or other obstruction is to be placed between

the relief valve and the tank. Do not connect tubing

directly to discharge drain unless a 6" air gap is provided.

To prevent bodily injury, hazard to life, or property dam-

age, the relief valve must be allowed to discharge water

in quantities should circumstances demand. If the dis-

charge pipe is not connected to a drain or other suitable

means, the water flow may cause property damage.

The Discharge Pipe:

• Hust not be smaller in size than the outlet pipe size of

the valve, or have any reducing couplings or other

restrictions.

Must not be plugged or blocked.

Must be of material listed for hot water distribution.

Must be installed so as to allow complete drainage of

both the temperature-pressure relief valve, and the

discharge pipe.

Must terminate at an adequate drain.

Must not have any valve between the relief valve and

tank.

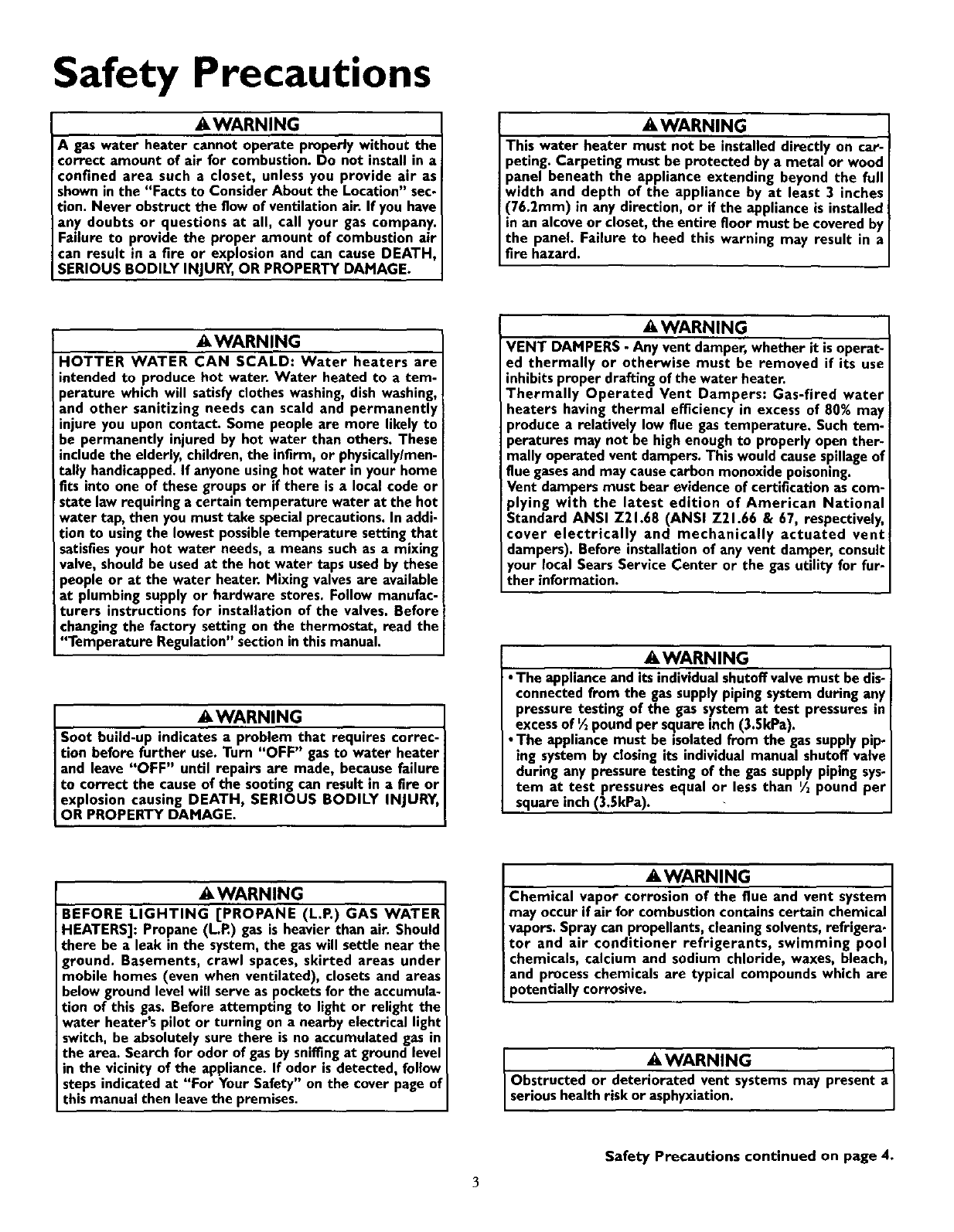

Safety Precautions

_WARNING

A gas water heater cannot operate properly without the

correct amount of air for combustion. Do not install in a

confined area such a closet, unless you provide air as

shown in the "Facts to Consider About the Location" sec-

tion. Never obstruct the flow of ventilation air. If you have

any doubts or questions at all, call your gas company.

Failure to provide the proper amount of combustion air

can result in a fire or explosion and can cause DEATH,

SERIOUS BODILY INJURY, OR PROPERTY DAMAGE.

_,WARNING

This water heater must not be installed directly on car-

peting. Carpeting must be protected by a metal or wood

panel beneath the appliance extending beyond the full

width and depth of the appliance by at least 3 inches

(76.2mm) in any direction, or if the appliance is installed

in an alcove or closet, the entire floor must be covered by

the panel. Failure to heed this warning may result in a

fire hazard.

AWARNING

HOTTER WATER CAN SCALD: Water heaters are

intended to produce hot water. Water heated to a tem-

perature which will satisfy clothes washing, dish washing,

and other sanitizing needs can scald and permanently

injure you upon contact. Some people are more likely to

be permanently injured by hot water than others. These

include the elderly, children, the infirm, or physicallylmen-

tally handicapped. If anyone using hot water in your home

fits into one of these groups or if there is a local code or

state law requiring a certain temperature water at the hot

water tap, then you must take special precautions. In addi-

tion to using the lowest possible temperature setting that

satisfies your hot water needs, a means such as a mixing

valve, should be used at the hot water taps used by these

people or at the water heater. Hixing valves are available

at plumbing supply or hardware stores. Follow manufac-

turers instructions for installation of the valves. Before

changing the factory setting on the thermostat, read the

"Temperature Regulation" section in this manual.

AWARNING

Soot build-up indicates aproblem that requires correc-

tion before further use. Turn "OFF" gas to water heater

and leave "OFF" until repairs are made, because failure

to correct the cause of the sooting can result in a fire or

explosion causing DEATH, SERIOUS BODILY INJURY,

OR PROPERTY DAMAGE.

AWARNING

VENT DAMPERS -Any vent damper, whether it is operat-

ed thermally or otherwise must be removed if its use

inhibits proper drafting of the water heater.

Thermally Operated Vent Dampers: Gas-fired water

heaters having thermal efficiency in excess of 80% may

produce a relatively low flue gas temperature. Such tem-

peratures may not be high enough to properly open ther-

mally operated vent dampers. This would cause spillage of

flue gases and may cause carbon monoxide poisoning.

Vent dampers must bear evidence of certification as com-

plying with the latest edition of American National

Standard ANSI Z21.68 (ANSI Z2h66 & 67, respectively,

cover electrically and mechanically actuated vent

dampers). Before installation of any vent damper, consult

your local Sears Service Center or the gas utility for fur-

ther information.

AWARNING

• The appliance and its individual shutoff valve must be dis-

connected from the gas supply piping system during any

pressure testing of the gas system at test pressures in

excess of ½pound per square inch (3.SkPa).

•The appliance must be isolated from the gas supply pip-

ing system by closing its individual manual shutoff valve

during any pressure testing of the gas supply piping sys-

tem at test pressures equal or less than Y2 pound per

square inch (3,5kPa).

AWARNING

BEFORE LIGHTING [PROPANE (L.R) GAS WATER

HEATERS]: Propane (L.R) gas is heavier than air. Should

there be aleak in the system, the gas will settle near the

ground. Basements, crawl spaces, skirted areas under

mobile homes (even when ventilated), closets and areas

below ground level will serve as pockets for the accumula-

tion of this gas. Before attempting to light or relight the

water heater's pilot or turning on a nearby electrical light

switch, be absolutely sure there is no accumulated gas in

:he area. Search for odor of gas by sniffing at ground level

in the vicinity of the appliance. If odor is detected, follow

steps indicated at "For Your Safety" on the cover page of

this manual then leave the premises.

•_WARNING

Chemical vapor corrosion of the flue and vent system

may occur if air for combustion contains certain chemical

vapors. Spray can propellants, cleaning solvents, refrigera-

tor and air conditioner refrigerants, swimming pool

chemicals, calcium and sodium chloride, waxes, bleach,

and process chemicals are typical compounds which are

_otentially corrosive.

AWARNING

Obstructed or deteriorated vent systems may present a

serious heath rsk or asphyx at on.

Safety Precautions continued on page 4.

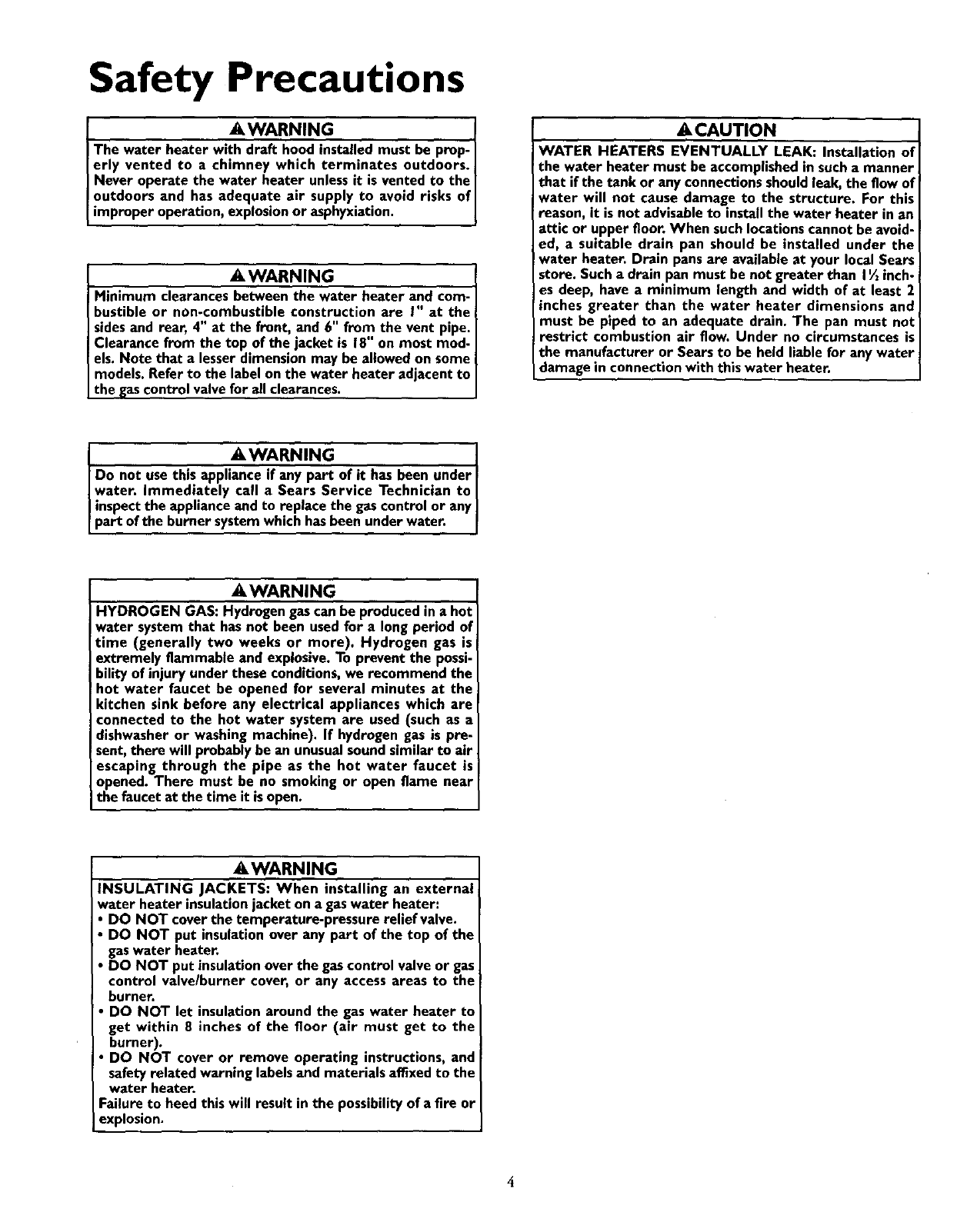

Safety Precautions

_WARNING I

The water heater wi_talled must be prop- I

erly vented to a chimney which terminates outdoors.

Never operate the water heater unless it is vented to the I

outdoors and has adequate air supply to avoid risks of

improper operation, explosion or asphyxiation.

_,WARNING

Hinimum clearances between the water heater and com-

bustible or non-combustible construction are I" at the

sides and rear, 4" at the front, and 6" from the vent pipe.

Clearance from the top of the jacket is 18" on most mod-

els. Note that a lesser dimension may be allowed on some

models. Refer to the label on the water heater adjacent to

the _as control valve for all clearances.

ACAUTION

WATER HEATERS EVENTUALLY LEAK: Installation of

the water heater must be accomplished in such a manner

that if the tank or any connections should leak, the flow of

water will not cause damage to the structure. For this

reason, it is not advisable to install the water heater in an

attic or upper floor. When such locations cannot be avoid-

ed, a suitable drain pan should be installed under the

water heater. Drain pans are available at your local Sears

store. Such a drain pan must be not greater than I '/2inch-

es deep, have a minimum length and width of at least 2

inches greater than the water heater dimensions and

must be piped to an adequate drain. The pan must not

restrict combustion air flow. Under no circumstances is

the manufacturer or Sears to be held liable for any water

damage in connection with this water heater.

_,WARNING

Do not use this appliance if any part of it has been under

water. Immediately call a Sears Service Technician to

inspect the appliance and to replace the gas control or any

part of the burner system wh ch has been under water.

AWARNING

HYDROGEN GAS: Hydrogen gas can be produced in ahot

water system that has not been used for a long period of

time (generally two weeks or more). Hydrogen gas is

extremely flammable and explosive. To prevent the possi-

bility of injury under these conditions, we recommend the

hot water faucet be opened for several minutes at the

kitchen sink before any electrical appliances which are

connected to the hot water system are used (such as a

dishwasher or washing machine). If hydrogen gas is pre-

sent, there will probably be an unusual sound similar to air

escaping through the pipe as the hot water faucet is

opened. There must be no smoking or open flame near

the faucet at the time it is open.

A, WARNING

INSULATING JACKETS: When installing an external

water heater insulation jacket on a gas water heater:

DO NOT cover the temperature-pressure relief valve.

DO NOT put insulation over any part of the top of the

gas water heater.

• DO NOT put insulation over the gas control valve or gas

control valve/burner cover, or any access areas to the

burner.

•DO NOT let insulation around the gas water heater to

get within 8 inches of the floor (air must get to the

burner).

• DO NOT cover or remove operating instructions, and

safety related warning labels and materials affixed to the

water heater.

Failure to heed this will result in the possibility of a fire or

explosion.

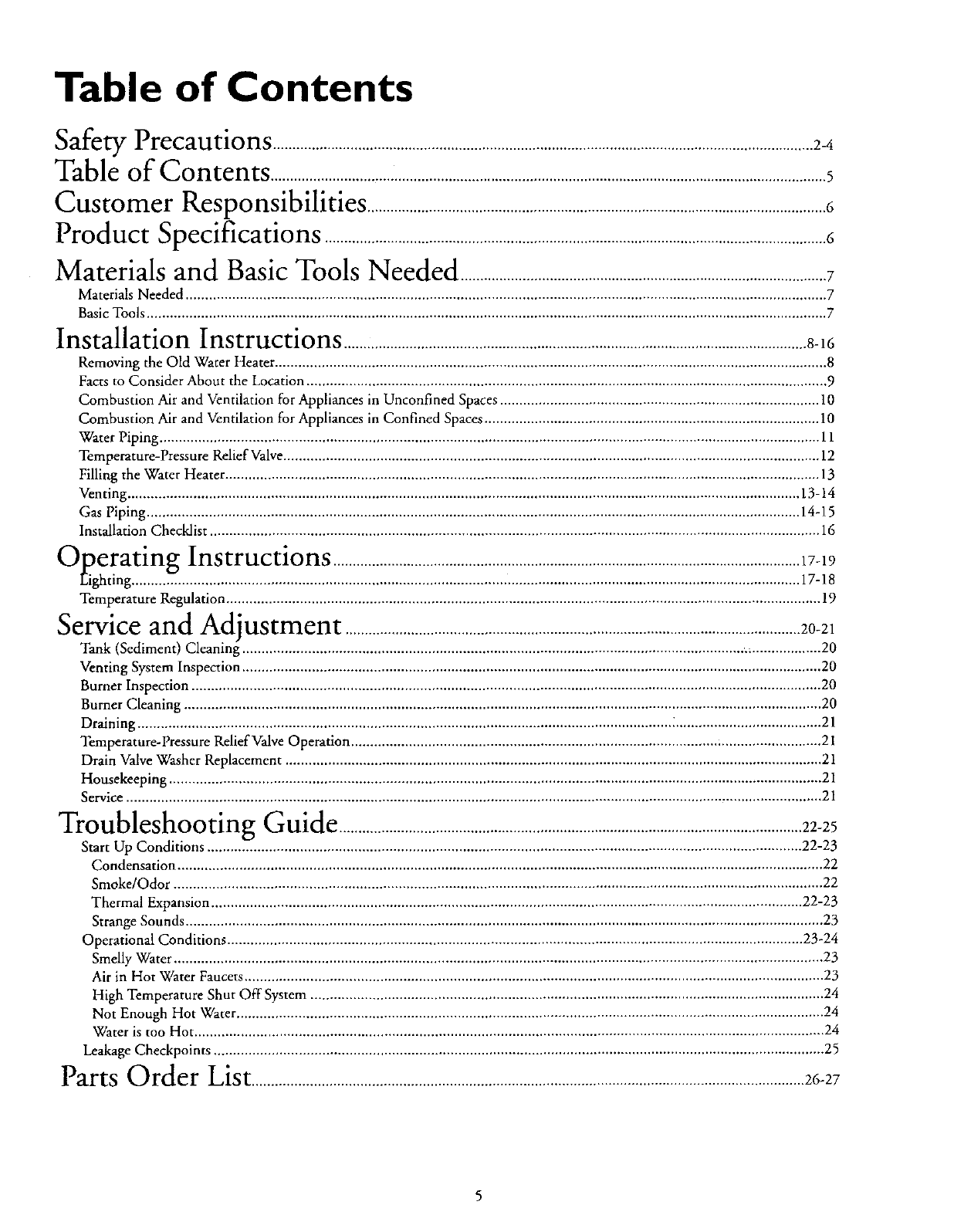

Table of Contents

erA.__oa,ckyPrecautions ............................................................................................................................................2-4

Table of Contents ................................................................................................................................................5

Customer Responsibilities .......................................................................................................................6

Product Specifications ..................................................................................................................................6

Materials and Basic Tools Needed ...............................................................................................7

Materials Needed ...................................................................................................................................................................... 7

Basic Tools ................................................................................................................................................................................ 7

Installation Instructions ........................................................................................................................s-16

Removing the Old Water Heater ............................................................................................................................................... 8

Facts to Consider About the Location ....................................................................................................................................... 9

Combustion Air and Ventilation for Appliances in Unconfined Spaces ................................................................................... 10

Combustion Air and Ventilation for Appliances in Confined Spaces ....................................................................................... 10

Water Piping ........................................................................................................................................................................... 11

Temperature-Pressure Relief Valve ........................................................................................................................................... 12

Filling the Water Heater .......................................................................................................................................................... 13

Venting .............................................................................................................................................................................. 13-14

Gas Piping ......................................................................................................................................................................... 14-15

Installation Checklist .............................................................................................................................................................. 16

Operatin_ Instructions .........................................................................................................................17-19

€-."-'Lighting............................................................................................................................................................................. 17-18

Temperature Regulation .......................................................................................................................................................... 19

Service and Adjustment ...................................................................................................................... 20-21

m 20

Tank (Sediment) Clean" g .................................................................................................................................. •....................

Venting System Inspection ...................................................................................................................................................... 20

Burner Inspection ................................................................................................................................................................... 20

Burner Cleaning ..................................................................................................................................................................... 20

Draining .......................................................................................................................................... 2...................................... 21

Temperature-Pressure Rdief Valve Operation .......................................................................................................................... 21

Drain Valve Washer Replacement ........................................................................................................................................... 21

Housekeeping ......................................................................................................................................................................... 21

Service .................................................................................................................................................................................... 21

Troubleshooting Guide ........................................................................................................................22-25

Start Up Conditions .......................................................................................................................................................... 22-23

Condensation ....................................................................................................................................................................... 22

Smoke/Odor ........................................................................................................................................................................ 22

Thermal Expansion ......................................................................................................................................................... 22-23

Strange Sounds ..................................................................................................................................................................... 23

Operational Conditions ..................................................................................................................................................... 23-24

Smelly Water ........................................................................................................................................................................ 23

Air in Hot Water Faucets ...................................................................................................................................................... 23

High Temperature Shut Off System ..................................................................................................................................... 24

Not Enough Hot Water ........................................................................................................................................................ 24

Water is too Hot ................................................................................................................................................................... 24

Leakage Checkpoints .............................................................................................................................................................. 25

Parts Order List...............................................................................................................................................26-27

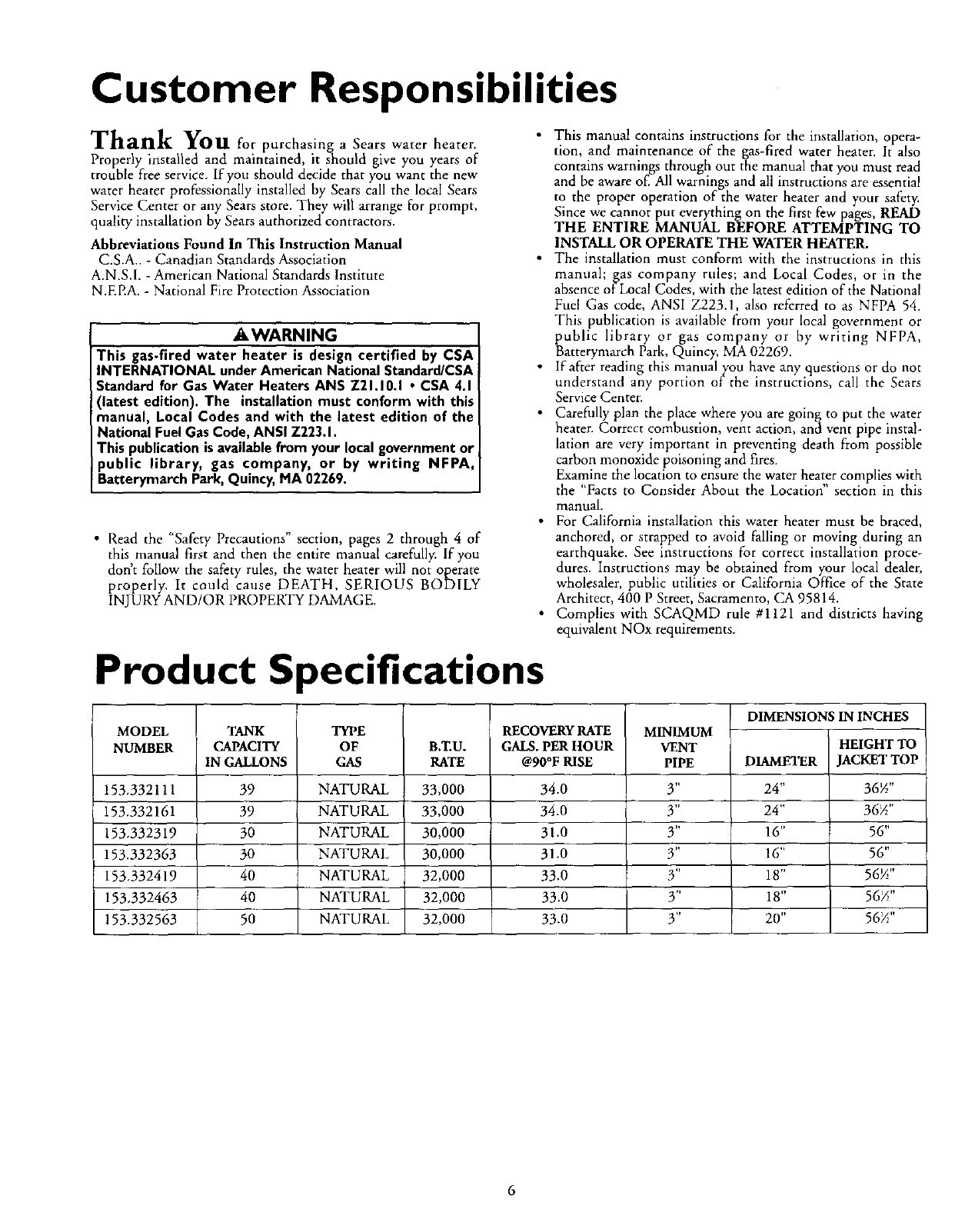

Customer Responsibilities

Thank You for purchasing a Sears water heater.

Properly installed and maintained, it should give you years of

trouble free service. If you should decide that you want the new

water heater professionally installed by Sears call the local Sears

Service Cemer or any Sears store. They will arrange for prompt,

quality installation by Sears authorized contractors.

Abbreviations Found In This Instruction Manual

C.S.A.. - Canadian Standards Association

A.N.S.I. - American National Standards Institute

N.EP.A. - National Fire Protection Association

AWARNING

This gas-fired water heater is design certified by CSA

INTERNATIONAL underAmerican National Standard/CSA

Standardfor Gas Water Heaters ANS Z2 .10. --CSA 4.

(latest edition). The installation must conform with this

manual, Local Codes and with the latest edition of the

National Fuel GasCode,ANSI Z223.1.

This publicationis availablefrom your localgovernment or

public library, gas company, or by writing NFPA,

Batterymarch Park, Quincy,MA 02269.

•Read the "Safety Precautions" section, pages 2 through 4of

this manual first and then the entire manual carefully. If you

don't follow the safety rules, the water heater will not operate

properly. It could cause DEATH, SERIOUS BODILY

INJURY AND/OR PROPERTY DAMAGE.

•This manual contains instructions for the installation, opera-

tion, and maintenance of the gas-fired water heater. It also

contains warnings through out the manual that you must read

and be aware of. All warnings and all instructions are essential

to the proper operation of the water heater and your safety.

Since we cannot put everything on the first few pages, READ

THE ENTIRE MANUAL BEFORE ATTEMPTING TO

INSTALL OR OPERATE THE WATER HEATER.

•The installation must conform with the instructions in this

manual; gas company rules; and Local Codes, or in the

absence of Local Codes, with the latest edition of the National

Fuel Gas code, ANSI Z223.1, also referred to as NFPA 54.

This publication is available from your local government or

public library or gas company or by writing NFPA,

Batterymarch Park,Quincy, MA 02269.

• If after reading this manual you have any questions or do not

understand any portion of the instructions, call the Sears

Service Center.

• Carefully plan the place where you are going to put the water

heater. Correct combustion, vent action, ana vent pipe instal-

lation are very important in preventing death from possible

carbon monoxide poisoning and fires.

Examine the location to ensure the water heater complies with

the "Facts to Consider About the Location" section in this

manual.

• For California installation this water heater must be braced,

anchored, or strapped to avoid falling or moving during an

earthquake. See instructions for correct installation proce-

dures. Instructions may be obtained from your local dealer,

wholesaler, public utilities or California Office of the State

Architect, 400 P Street, Sacramento, CA 95814.

• Complies with SCAQMD rule #1121 and districts having

equivalent NOx requirements.

Product Specifications

MODEL

NUMBER

153,332111

153.332161

153.332319

153.332363

153.332419

153.332463

153.332563

TANK

CAPACITY

IN GALLONS

TYPE

GAS

NATURAL

B.T.U.

RATE

33,000

30,000

32,000

RECOVERY RATE

GALS. PER HOUR

@90°F RISE

34.0

31.0

33.0

MINIMUM

VENT

PIPE

DIMENSIONS IN INCHES

HEIGHT TO

DIAMETER JACKETTOP

24" 36_"

16" 56"

18" 56_"

20" 56_"

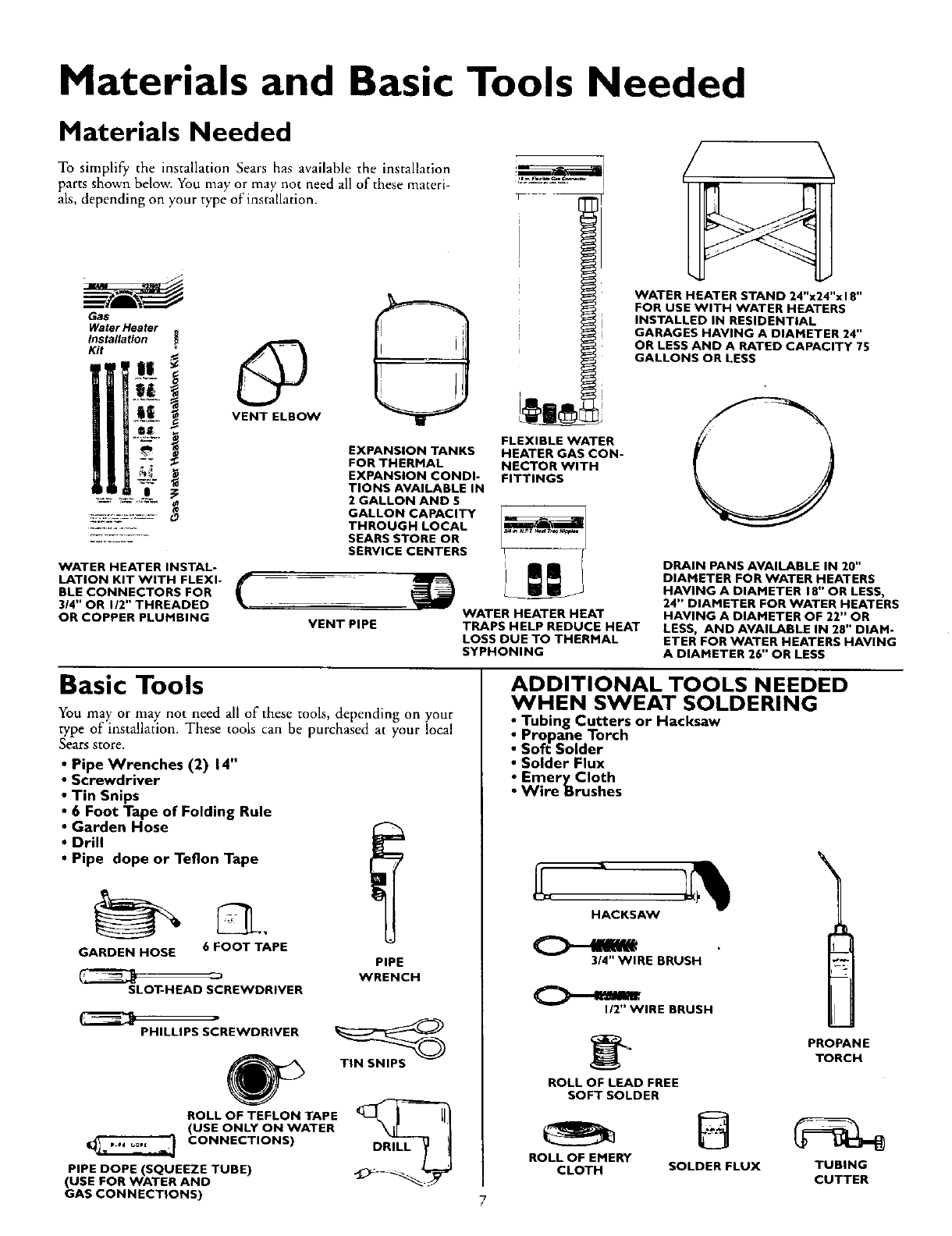

Materials and Basic Tools Needed

Materials Needed

To simplify the installation Sears has available the installation

parts shown below. You may or may not need all of these materi-

als, depending on your type of installation.

Gas

Water Heater

Installation !

Kit

llI'lo

WATER HEATER INSTAL-

LATION KIT WITH FLEXI- f

BLE CONNECTORS FOR k

3/4" OR I/2" THREADED

OR COPPER PLUMBING

VENT ELBOW

EXPANSION TANKS

FOR THERMAL

EXPANSION CONDI-

TIONS AVAILABLE IN

2 GALLON AND 5

GALLON CAPACITY

THROUGH LOCAL

SEARS STORE OR

SERVICE CENTERS

FLEXIBLE WATER

HEATER GAS CON-

NECTOR WITH

FITTINGS

WATER HEATER HEAT

VENT PIPE TRAPS HELP REDUCE HEAT

LOSS DUE TO THERMAL

SYPHONING

WATER HEATER STAND 24"x24"xl 8"

FOR USE WITH WATER HEATERS

INSTALLED IN RESIDENTIAL

GARAGES HAVING A DIAMETER 24"

OR LESS AND A RATED CAPACITY 75

GALLONS OR LESS

DRAIN PANS AVAILABLE IN 20"

DIAMETER FOR WATER HEATERS

HAVING A DIAMETER 18" OR LESS,

24" DIAMETER FOR WATER HEATERS

HAVING A DIAMETER OF 22" OR

LESS, AND AVAILABLE IN 28" DIAM-

ETER FOR WATER HEATERS HAVING

A DIAMETER 26" OR LESS

Basic Tools

You may or may not need all of these tools, depending on your

type of installation. These tools can be purchased at your local

Sears store.

• Pipe Wrenches (2) 14"

• Screwdriver

•Tin Snips

•6 Foot Tape of Folding Rule

•Garden Hose

•Drill

•Pipe dope or Teflon Tape

GARDEN HOSE 6 FOOT TAPE

SLOT-HEAD SCREWDRIVER

PIPE

WRENCH

PHILLIPS SCREWDRIVER

ROLL OF TEFLON TAPE

(USE ONLY ON WATER

CONNECTIONS)

PIPE DOPE (SQUEEZE TUBE)

(USE FOR WATER AND

GAS CONNECTIONS)

TIN SNIPS

DRILL

ADDITIONAL TOOLS NEEDED

WHEN SWEAT SOLDERING

Tubing Cutters or Hacksaw

Propane Torch

Soft Solder

Solder Flux

EmeryCIoth

Wire Brushes

HACKSAW

_RE BRUSH

__1 J2 _IRE BRUSH

PROPANE

TORCH

ROLL OF LEAD FREE

SOFT SOLDER

ROLL OF EMERY

CLOTH SOLDER FLUX TUBING

CUTTER

Installation Instructions

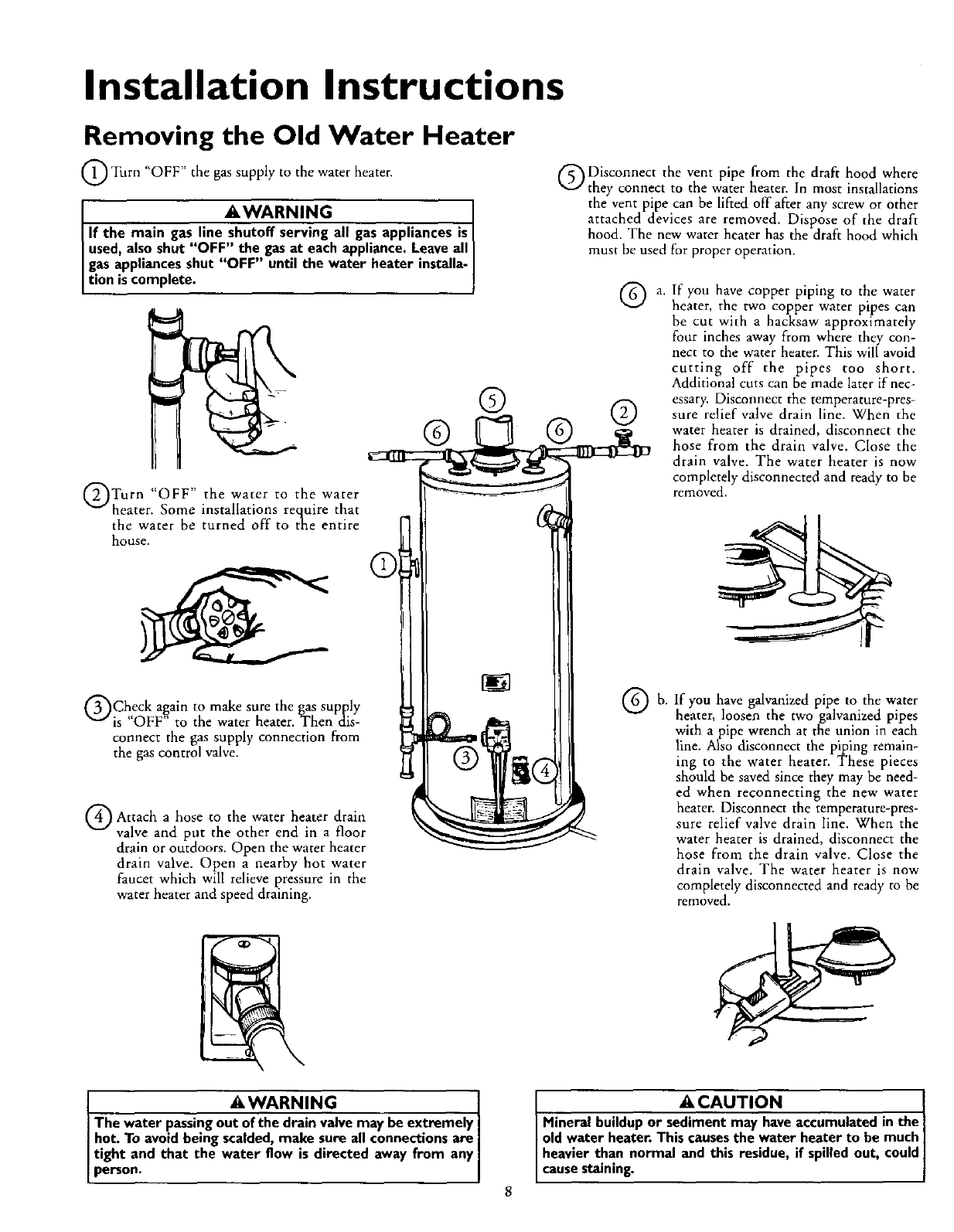

Removing the Old Water Heater

Turn "OFF" the gas supply to the water heater.

AWARNING

If the main gas line--all gas appliances is

used, alsoshut "OFF" the gasat each appliance.Leave all

gas appliances shut "OFF" until the water heater installa-

tion iscomplete.

QTurn water to water

"OFF" the the

heater. Some installations require that

the water be turned off to the entire

house.

GCheck a,gain to make sure the gas supply

is ' OFF to the water heater. Then dis-

connect the gas supply connection from

the gas control valve.

G Attach hose the heater drain

ato water

valve and put the other end in a floor

drain or outdoors. Open the water heater

drain valve. Open anearby hot water

faucet which will relieve pressure in the

water heater and speed draining.

Disconnect the vent pipe from the draft hood where

they connect to the water heater. In most installations

the vent pipe can be lifted off after any screw or other

attached devices are removed. Dispose of the draft

hood. The new water heater has the draft hood which

must be used for proper operation.

® ®

a. If you have copper piping to the water

heater, the two copper water pipes can

be cut with a hacksaw approximately

four inches away from where they con-

nect to the water heater. This will avoid

cutting off the pipes too short.

Additional cuts can be made later if nec-

essary. Disconnect the temperature-pres-

sure relief valve drain line. When the

water heater is drained, disconnect the

hose from the drain valve. Close the

drain valve. The water heater is now

completely disconnected and ready to be

relnoved.

If you have galvanized pipe to the water

heater, loosen the two galvanized pipes

with apipe wrench at the union in each

line. Also disconnect the piping remain-

ing to the water heater. These pieces

should be saved since they may be need-

ed when reconnecting the new water

heateL Disconnect the temperature-pres-

sure relief valve drain line. When the

water heater is drained, disconnect the

hose from the drain valve. Close the

drain valve. The water heater is now

completely disconnected and ready to be

removed.

AWARNING 1

The water passing o_alve may be extremely

hot. To avoid being scalded, make sure all connections are

tight and that the water flow is directed away from any

person. I

ACAUTION I

Mineral buildupor sere accumulatedin the I

old water heater. This causesthe water heater to be much]

heavier than normal and this residue, if spilled out, could

causestaining. 1

Installation Instructions (cont'd)

Facts to Consider About the

Location

You should carefidly choose an indoor location for the new

water heater, because the placement is avery important consid-

eration for the safety of the occupants in the building and for

the most economical use of the appliance. This water heater is

not for use in mobile homes or outdoor installation.

Whether replacing an old water heater or putting the water

beater in a new location, the following critical points must he

observed.

•The location selected should be indoors as close as practical

to the gas vent or chimney to which the water heater vent is

going to be connected, and as centralized with tbe water

_iping system as possible. The water heater, as all water

eaters, will eventually leak. Do not install without

adequate drainage provisions where water flow will cause

damage.

ACAUTION

WATER HEATERS EVENTUALLY LEAK: Installation of the

water heater must be accomplished in such a manner that if

the tank or any connections should leak, the flow of water will

not cause damage to the structure. For this reason, it is not

advisable to install the water heater in an attic or upper floor.

When such locations cannot be avoided, a suitable drain pan

should be installed under the water heater. Drain pans are avail-

able at your local Sears store. Such adrain pan must be not

greater than I '/2inchesdeep, have a minimum length and width

of at least 2 inches greater than the water heater dimensions

and must be piped to an adequate drain. The pan must not

restrict combustion air flow. Under no circumstances is the

manufacturer or Sears to be held liable for any water damage

in connection with this water heater.

_,WARNING

INSTALLATIONS IN AREAS WHERE FLAMMABLE LIQUIDS

(VAPORS) ARE LIKELY TO BE PRESENT OR STORED

(GARAGES, STORAGE, AND UTILITY AREAS, ETC):

Flammable liquids (such as gasoline, solvents, propane (LP) or

butane, etc.), all of which emit flammable vapors, may be

improperly stored or used in such areas. The gas water heater

pilot light or main burner can ignite such vapors. The resulting

flashbackand fire can cause death or seriousburns to anyone in

the area, as well as property damage.

If installation in suchareas isyour only option, then the installa-

tion must be accomplished in a way that the pilot flame and

main burner flame are elevated from the floor at least 18 inches.

While this may reduce the chancesof flammable vapors from a

floor spillbeing ignited, gasolineand other flammable substances

should never be stored or used in the same room or area con-

taining a gaswater heater or other open flame or spark produc-

ingappliance.

NOTE: Flammable vapors may be drawn by air currents from

other areasof the structure to the appliance.

AWARNING

Propellants of aerosol spraysand volatile compounds, (clean-

ers, chlorine based chemicals, refrigerants, etc.) in addition to

being highly flammable in many cases,will also change to cor-

rosive hydrochloric acid when exposed to the combustion

products of the water heater. The results can be hazardous,

and alsocause product failure.

• The location selection must provide adequate clearances for ser-

vicing and proper operation of the waterheater.

&WARNING

This water heater must not be installed directly on carpeting.

Carpeting must be protected by a metal or wood panel

beneath the appliance extending beyond the full width and

depth of the appliance by at least 3 inches (76.2mm) in an)

direction, or if the appliance is installed in an alcoveor closet

the entire floor must be covered by the panel. Failure to bee(

this warning may result in afire hazard.

&WARNING

Minimum clearances between the water heater and com-

bustible or non-combustible construction are I" at the sides

and roar, 4" at the front, and 6" from the vent pipe, Clearance

from the top of the jacket is 18" on most models. Note that a

lesserdimension may be allowed on some models. Refer to the

label on the water heater adjacent to the gas control valve for

all clearances.

_2" MAX.

VENTILATION

AIR

OPENINGS 0

FRONT VIEW

OF DOOR

Figure I I

" IN MIN

TOP VID/V ,i

OF CLOSET TOP VIEW I" MIN.

WITHOUT DOOR OF CLOSET

12" MAX WITH DOOR

AIR DUCT

&WARNING

A gas water heater cannot operate properly without the cor-

rect amount of air for combustion. Do not install in a confined

area such a closet, unlessyou provide air as shownin the "Facts

to Consider About the Location" section. Never obstruct the

flow of ventilation air. If you have any doubts or questions at all,

call your gascompany. Failure to provide the proper amount of

combustion air can result in a fire or explosion and can cause

DEATH, SERIOUS BODILY INJUR%OR PROPERTY DAHAGE.

AWARNING

If this water heater will be used in beauty shops, barber shops,

cleaning establishments, or self-service laundries with dry

cleaning equipment, it is imperative that the water heater or

water heaters be installed so that combustion and ventilation

air be taken from outside these areas. Refer to the "Facts to

Consider About the Location" section of this manual and also

the latest edition of the National Fuel Gas Code, ANSI Z223. I,

also referred to as NFPA 54 for specificsprovided concerning

air required.

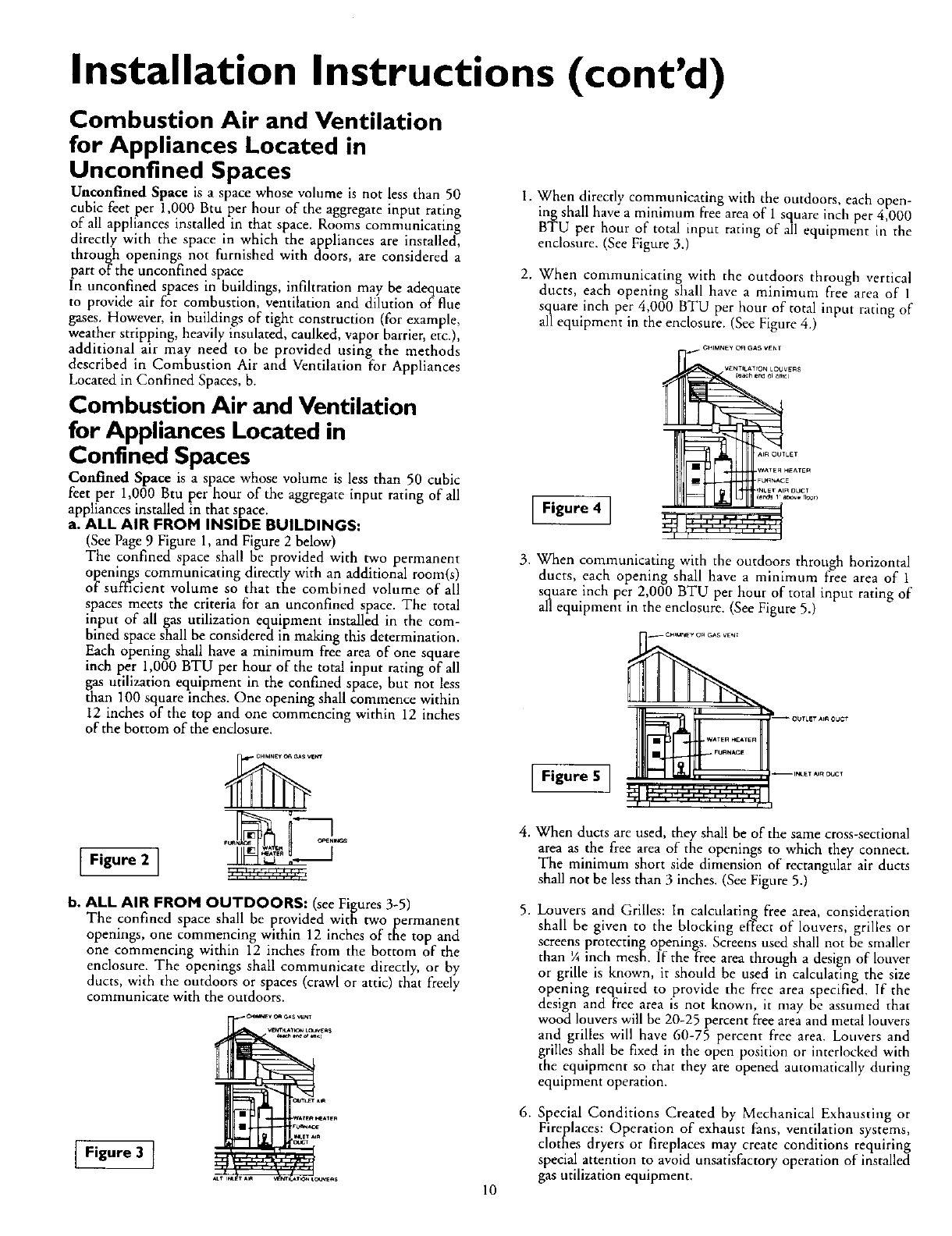

Installation Instructions (cont'd)

Combustion Air and Ventilation

for Appliances Located in

Unconfined Spaces

Unconfined Space is a space whose volume is not less than 50

cubic feet per 1,000 Btu per hour of the aggregate input rating

of all appliances installed in that space. Rooms communicating

directly with the space in which the appliances are installed,

through openings not furnished with doors, are considered a

part of the unconfined space

In unconfined spaces in buildings, infiltration may be adequate

to provide air for combustion, ventilation and dilution of flue

gases. However, in buildings of tight construction (for example,

weather stripping, heavily insulated, caulked, vapor barrier, etc.),

additional air may need to be provided using the methods

described in Combustion Air and Ventilation for Appliances

Located in Confined Spaces, b.

Combustion Air and Ventilation

for Appliances Located in

Confined Spaces

Confined Space is a space whose volume is less than 50 cubic

feet per 1,000 Btu per hour of the aggregate input rating of all

appliances installed in that space.

a. ALL AIR FROM INSIDE BUILDINGS:

(See Page 9 Figure 1, and Figure 2 below)

The confined space shall be provided with two permanent

openi_ngs communicating directly with an additional room(s)

of sufficient volume so that the combined volume of all

spaces meets the criteria for an unconfined space. The total

input of all _as utilization equipment installed in the com-

bined space shall be considered in making this determination.

Each opening shall have a minimum free area of one square

inch per 1,000 BTU per hour of the total input rating of all

gas utilization equipment in the confined space, but not less

than 100 square inches. One opening shall commence within

12 inches of the top and one commencing within 12 inches

of the bottom of the enclosure.

b. ALL AIR FROM OUTDOORS: (see Figures 3-5)

The confined space shall be provided with two permanent

openings, one commencing within 12 inches of the top and

one commencing within 12 inches from the bottom of the

enclosure. The openings shall communicate directly, or by

ducts, with the outdoors or spaces (crawl or attic) that freely

communicate with the outdoors.

IFigure 3 ]

I. When directly communicating with the outdoors, each open-

ing shall have a minimum free area of 1 square inch per 4,000

BTU per hour of total input rating of all equipment in the

enclosure. (See Figure 3.)

2. When communicating with the outdoors through vertical

ducts, each opening shall have a minimum free area of 1

square inch per 4,000 BTU per hour of total input rating of

all equipment in the enclosure. (See Figure 4.)

Figure 4 ]

3. When communicating with the outdoors through horizontal

ducts, each opening shall have a minimum free area of 1

sguare inch per 2,000 BTU per hour of total input rating of

all equipment in the enclosure. (See Figure 5.)

_ CHbM_EY O_ GA_ VEN_ ____UrLEr A_n OUCh.

[ Figure 5 ] ..........

4, When ducts are used, they shall be of the same cross-sectional

area as the free area of the openings to which they connect.

The minimum short side dimension of rectangular air ducts

shall not be less than 3 inches. (See Figure 5.)

5. Louvers and Grilles: In calculating free area, consideration

shall be given to the blocking effect of louvers, grilles or

screens protectin_ openings. Screens used shall not be smaller

than ¼ inch mesh. If the free area through a design of louver

or grille is known, it should be used in calculating the size

opening required to provide the free area specified. If the

design and free area is not known, it may be assumed that

wood louvers will be 20-25 percent free area and metal louvers

and grilles will have 60-75 percent free area. Louvers and

grilles shall be fixed in the open position or interlocked with

the equipment so that they are opened automatically during

equipment operation.

6. Special Conditions Created by Mechanical Exhausting or

Fireplaces: Operation of exhaust fans, ventilation systems,

clothes dryers or fireplaces may create conditions requiring

special attention to avoid unsatisfactory operation of installed

gas utilization equipment.

Installation Instructions (cont'd)

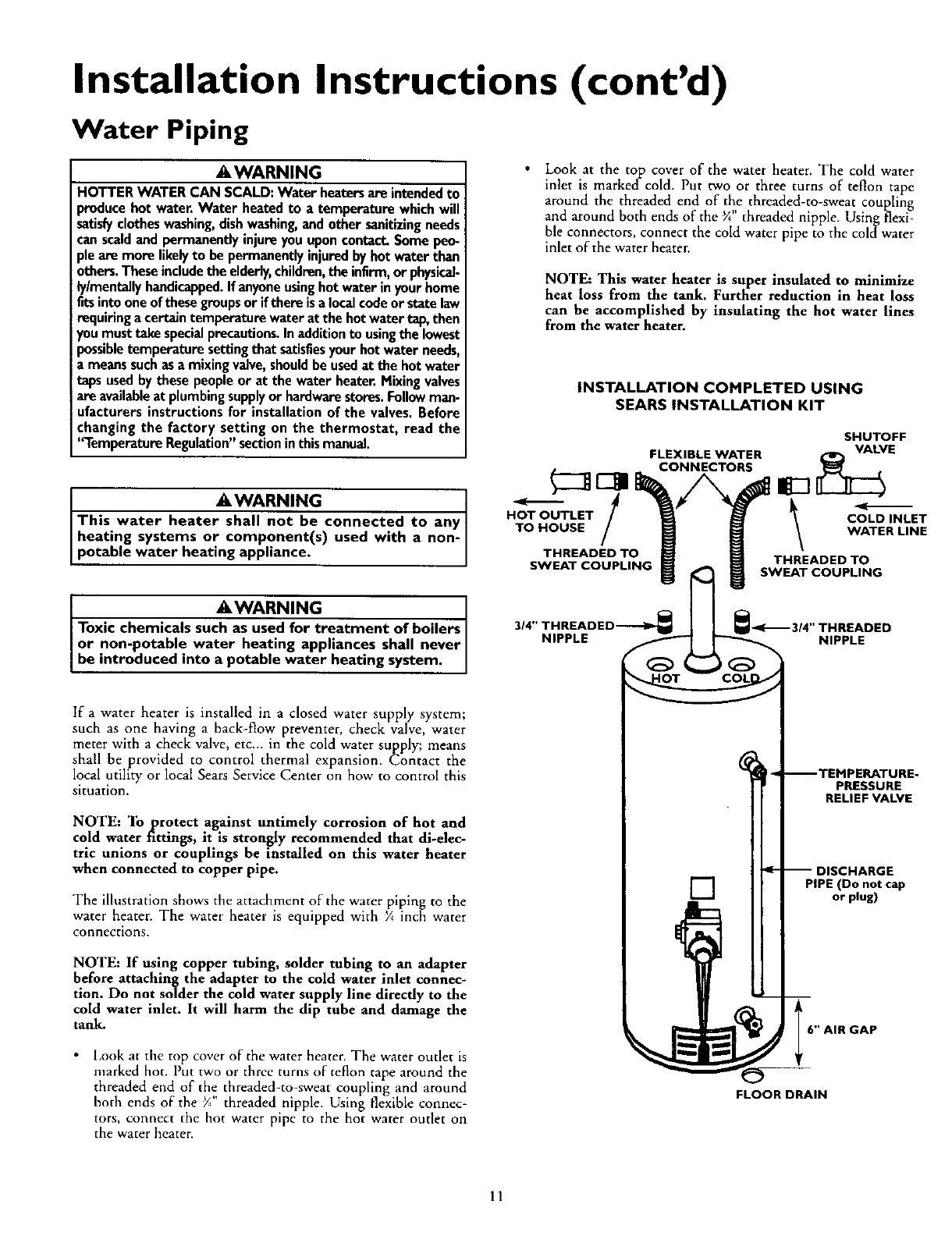

Water Piping

AWARNING

HOTTER WATER CAN SCALD: Water heaters are intended to

_reduce hot water. Water heated to a temperature which will

satisfyclothes washing,dish washing,and other sanitizing needs

can scald and permanently injure you upon contact. Some peo-

fie are more likely to be permanently injured by hot water than

others. These include the elderly,children,the infirm, or physical.

lylmentally handicapped.If anyoneusinghot water in your home

fitsinto one of these groups or if there is a local code or state law

requiring a certain temperature water at the hot water tap, then

_u must take specialprecautions.In addition to usingthe lowest

)ossibletemperature setting that satisfiesyour hot water needs,

a means such asa mixing valve, shouldbe usedat the hot water

taps used by these people or at the water heater. Mixing valves

are availableat plumbing supplyor hardware stores.Follow man-

ufacturers instructions for installation of the valves. Before

changing the factory setting on the thermostat, read the

"Temperature Regulation" sectionin this manual.

AWARNING ]

This water heater_connected to any|

heating systems or component(s) used with a non-|

potable water heating appliance. ]

I"WARN,.G 1

Toxic chemicals suc_reatment of boilers/

or non-potable water heating appliances shall never|

be introduced into a potable water heating system, /

If a water heater is installed in a closed water supply system;

such as one having a back-flow preventer, check valve, water

meter with a check valve, etc.., in the cold water supply; means

shall be provided to control thermal expansion. Contact the

local utility or local Sears Service Center on how to control this

situation.

NOTE: To _protect against untimely corrosion of hot and

cold water tlttings, it is strongly recommended that di-elec-

tric unions or couplings be installed on this water heater

when connected to copper pipe.

The illustration shows the attachment of the water piping to the

water heater. The water heater is equipped with 5a inch water

con Ilections,

NOTE: If using copper tubing, solder tubing to an adapter

before attaching the adapter to the cold water inlet connec-

tion. Do not solder the cold water supply line direcdy to the

cold water inlet. It will harm the dip tube and damage the

tank.

•Look at the top cover of the water heater. The water outlet is

marked hot. Put two or three turns o| teflon tape around the

threaded end of the threaded-to-sweat coupling and around

both ends of the _" threaded nipple. Using flexible connec-

tors, connect the hot water pipe to the hot water outlet on

the water heater.

Look at the top cover of the water heater. The cold water

inlet is marked cold. Put two or three turns of teflon tape

around the threaded end of the threaded-to-sweat coupling

and around both ends of the ¼" threaded nipple. Using flexi-

ble connectors, connect the cold water pipe to the coldwater

inlet of the water heater.

NOTE: This water heater is super insulated to minimize

heat loss from the tank. Further reduction in heat loss

can be accomplished by insulating the hot water lines

from the water heater.

INSTALLATION COMPLETED USING

SEARS INSTALLATION KIT

SHUTOFF

FLEXIBLE WATER [_E

CONNECTORS

--/ \'-

HOTOUTLET COLD INLET

TO HOUSE WATER LINE

THREADED TO THREADED TO

SWEAT COUPLING SWEAT COUPLING

314"THREADED_-_

NIPPLE _314"THREADED

NIPPLE

40T COL

[]

I_ --TEMPERATURE-

PRESSURE

RELIEF VALVE

<- -- DISCHARGE

PIPE (Do not cap

or plug)

6" AIR GAP

FLOOR DRAIN

Installation Instructions (cont'd)

Temperature-Pressure Relief Valve

_,WARNING

At the time of manufacture this water heater was provided

with a combination temperature-pressures relief valve certified

by a nationally recognized testing laboratory that maintains

periodic inspection of production of listed equipment or mate-

rials, as meeting the requirements for Relief Valves and

Automatic Gas Shutoff Devicesfor Hot Water Supply Systems,

and the latest edition of ANSI Z21.22 and the code require-

ments of ASME. If replaced, the valve must meet the require-

ments of local codes,but not less than a combination tempera-

ture and pressure relief valve certified as meeting the require-

ments for Relief Valves and Automatic Gas Shutoff Devicesfor

Hot Water Supply Systems,ANSI Z21.22 by a nationally recog-

nized testing laboratory that maintains periodic inspection of

production of listed equipment or materials.

The valve must be marked with a maximum set pressure not

to exceed the marked hydrostatic working pressure of the

water heater (150 Ibs./sq.in.) and a discharge capacity not less

than the water heater input rate as shown on the model rating

plate. (Electric heaters - watts divided by 1000 x 3415 equal

BTU/Hr. rate.)

Your local jurisdictional authority, while mandating the use of a

temperature-pressure relief valve complying with ANSI Z2h22

and ASME, may require a valve model different from the one

furnished with the water heater

Compliance with such local requirements must be satisfied by

the installer or end user of the water heater with a locally pre-

scribed temperature-pressure relief valve installed in the desig-

nated opening in the water heater in place of the factory fur-

nished valve.

For safeoperation of the water heater, the relief valve must not

be removed from it'sdesignated opening or plugged.

The temperature.pressure relief valve must be installeddirectly

into the fitting of the water heater designatedfor the relief valve.

Position the valve downward and provide tubing so that any dis- i

charge will exit only within 6 inches above, or at any distance

below the structural floor Be certain that no contact is made

with any live electrical part. The dischargeopening must not be

_locked or reduced in size under any circumstances.Excessive

length, over 30 feet, or use of more than four elbowscan cause

restriction and reduce the dischargecapacity of the valve.

No valve or other obstruction is to be placed between the relief

valve and the tank. Do not connect tubing directly to discharge

drain unlessa 6" air gap is provided.Toprevent bodilyinjury,haz.

ard to life, or property damage, the relief valvemust be allowed

to dischargewater in quantities shouldcircumstancesdemand. If

the dischargepipe is not connected to a drain or other suitable

imeans, the water flow may causeproperty damage.

The Discharge Pipe:

• Must not be smaller in size than the outlet pipe size of the

valve, or have any reducing couplingsor other restrictions.

Must not be pluggedor blocked.

Must be of material listedfor hot water distribution.

Must be installed so as to allow complete drainage of both

the temperature-pressure relief valve, and the discharge

pipe.

Must terminate at an adequate drain.

Must not haveany valvebetween the relief valve and tank.

AWARNING

The temperature-pressure relief valve must be manually

operated at least once a year. Caution should be taken to

ensure that (I) no one is in front of or around the outlet of

the temperature-pressure relief valve discharge line, and (2)

the water manually discharged will not cause any bodily

injury or property damage because the water may be

extremely hot.

If after manually operating the valve, it fails to completely

reset and continues to release water, immediately close the

cold water inlet to the water heater, follow the draining

nstructions, and replace the temperature-pressure relief

valve with a new one.

HOT COLD

VALVE

RELIEF VALVE

[] (Do not cap or plug)

6" AIR GAP

FLOOR ORA|N I

RELIEF VALVE OPENING

"THIS WATER HEATER IS PROVIDED WITH A COMBINATION TEMPER-

ATURE-PRESSURE RELIEF VALVE. FOR SAFE OPERATION OF THE

WATER HEATER, THE RELIEF VALVE(S) MUST NOT BE REMOVED

FROM ITS DESIGNATED POINT OF INSTALLATION OR PLUGGED."

YOUR LOCAL 3UR_SDICT_ONALAUTHORITY,WH_LEMANDATING THE

USE OF A TEMPERATURE-PRESSURE RELIEF VALVE COMPLYING

WITH ANSI Z21.22 AND ASME, MAY REQUIRE A VALVE MODEL DIF-

FERENT FROM THE ONE FURNISHED WITH THE WATER HEATER.

COMPLIANCE WITH SUCH LOCAL REQUIREMENTS MUST BE SATIS-

FIED BY THE INSTALLER OR END USER OF THE WATER HEATER

WITH A LOCALLY PRESCRIBED TEMPERATURE-PRESSURE RELIEF

VALVE INSTALLED IN THE DESIGNATED OPENING IN THE WATER

HEATER.

SEE MANUAL HEADING--"TEMPERATURE-PRESSURE RELIEF

VALVES" FOR INSTALLATION AND MAINTENANCE OF REUEF VALVE,

DISCHARGE LINE AND OTHER SAFETY PRECAUTIONS.

Installation Instructions (cont'd)

Filling the Water Heater

ACAUTION

Never usethiswater heater unlessit Jscompletelyfilledwith I

I water.Toprevent damageto the tank,the tank must be filledI

[with water. Water must flow from the hot water faucet

Jbeforeturning"ON" gasto the water heater.

For proper venting in certain installations, a larger diameter vent

pipe may be necessary. Due to great variances in installations,

unforeseeable by the manufacturer of the water heater, you must

consult your gas company to aid you in determining the proper

venting for your water heater from the vent tables in the latest edi-

tion of the National Fuel Gas Code ANSI Z223.1, also referred to

as NFPA 54.

To fill the water heater with water:

Close the water heater drain valve by turning the handle to

the right (clockwise). The drain valve is on the lower front of

the water heater.

Open the cold water supply valve to the water heater.

NOTE: The cold water supply valve must be left open

when the water heater is in use.

To insure complete filling of the tank, allow air to exit by

opening the nearest hot water faucet. Allow water to run

until a constant flow is obtained. This will let air out of the

water heater and the piping.

Check all new water piping for leaks. Repair as needed.

Venting

AWARNING

VENT DAMPERS• Any vent damper,whether it is operated

thermally or otherwisemust beremoved ifits useinhibitsprop-

er draftingof the water heater.

Thermally Operated Vent Dampers:Gas-firedwater heaters

havingthermal efficiencyin excessof 80%mayproducearela-

tivelylowfluegastemperature.Suchtemperaturesmaynot be

high enough to properly open thermally operated vent

dampers.Thiswouldcausespillageof fluegasesandmaycause

carbonmonoxidepoisoning.

Ventdampersmust bearevidenceof certificationascomplying

with the latest edition of American National StandardANSI

7.21.68(ANSI 7_21.66& 67, respectively,coverelectricallyand

mechanicallyactuatedventdampers).Beforeinstallationofany

vent damper,consultyourlocalSearsServiceCenteror the gas

utilityforfurther information.

AWARNING

To insureproper ventingof this gas-firedwater heater, the

correct vent pipediameter mustbe utilized.Anyadditionsor

deletionsof other gasappliancesonacommon vent with this

water heater may adverselyaffectthe operationof the water

heater.Consultthe localSearsServiceCenter or gasutilityif

any suchchangesare planned.

Check the venting system for signs of obstruction or deterioration

and replace if needed.

The combustion and ventilation air flow must not be obstructed.

AWARNING

Obstructedor deteriorated vent systemsmay presenta serious

healthrisk orasphyxiation.

•Place the draft hood legs in the receiving holes on the top of

the water heater. The legs will snap in the holes to give a tight

fit.

•Place the vent pipe over the draft hood. With the vent pipe

in position, drill a small hole through both the vent pipe and

draft hood. Secure them together with a sheet metal screw.

DRAFT HOOD _Jr VENT_J !

, "--_fi,_ ai__SCRE_'-J DRAFT HOOD

VENT TO OUTDOORS

1.40_J_-OR CHIMNEY

DRAFT

AWARNING J

The water heaterwith dreft hoodinstalledmust be properly

ventedto a chimneywhichterminatesoutdoors_Never oper-J

Jate the water heaterunlessit isventedto the outdoorsand has

Jadequateairsupplyto avoidrisksof improperoperation,explo-J

I sionor asphyxiation. !

lAWARNING 1

The ventpipefrom thrust be nolessthan the I

diameter of the draft hood outlet on the water heater, andI

must slopeupwardto the chimneyat least '/4inchper linear[

foot. j

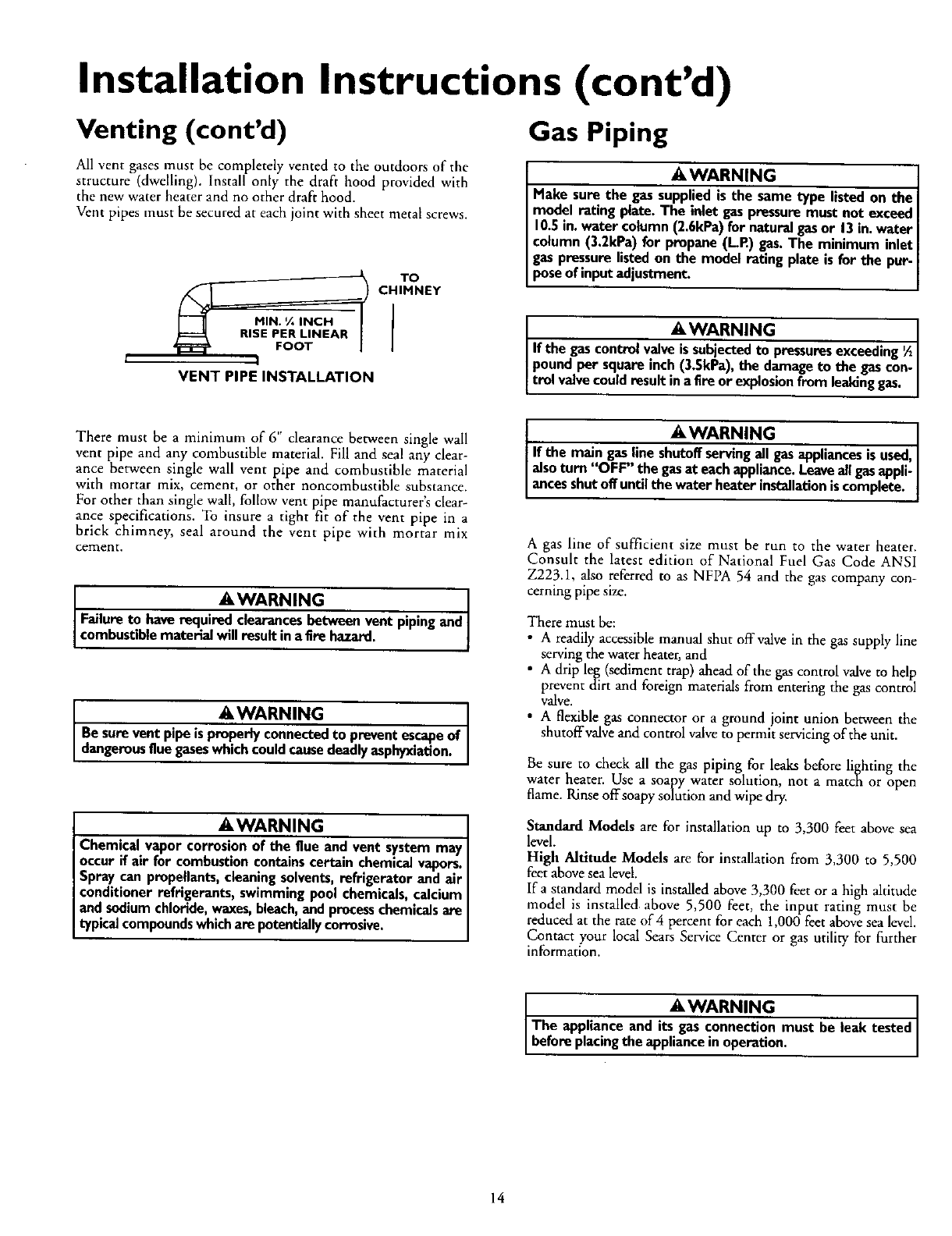

Installation Instructions (cont'd)

Venting (cont'd) Gas Piping

All vent gases must be completely vented to the outdoors of the

structure (dwelling). Install only the draft hood provided with

the new water heater and no other draft hood.

Vent pipes must be secured at each joint with sheet metal screws.

RISE PER LINEAR

VENT PIPE INSTALLATION

CHIMNEY

_,WARNING

Hake sure the gassuppliedis the same type listed on the

model rating plate. The inlet gaspressuremust not exceed

10.5in. water column(2.6kPa)for natural gasor 13in. water

column (3.2kPa) for propane(LR) gas.The minimum inlet

gaspressurelistedon the model rating plate is for the pur-

poseof inputadjustment.

_,WARNING

If the gascontrol valveissubected to pressuresexceeding½

poundper squareinch(3.5kPa),the damageto the gascon-

tro valvecouldresult inafire or explosionfrom lealdnggas.

There must be a minimum of 6" clearance between single wail

vent pipe and any combustible material. Fill and seal any clear-

ance between single wall vent pipe and combustible material

with mortar mix, cement, or other noncombustible substance.

For other than single wall, follow vent pipe manufacturer's clear-

ance specifications. To insure a tight fit of the vent pipe in a

brick chimney, seal around the vent pipe with mortar mix

cement.

_,WARNING I

Failureto haverequired clearancesbetween vent pipingand J

combustiblematerial will result in afire hazard. I

&WARNING I

Be surevent pipeisproperlyconnectedto preventescapeof

dangerousfluegaseswhichcouldcausedeadlyasphyxation.

_,WARNING

Chemicalvapor corrosionof the flue and vent systemmay

occurif air for combustioncontainscertain chemicalvapors.

Spraycan propellants,cleaningsolvents,refrigerator and air

conditionerrefrigerants, swimmingpool chemicals,calcium

andsodiumchloride,waxes,bleach,and processchemicalsare

typicalcompoundswhichare potentiallycorrosive.

_, WARNING J

IIf the main gasline shutoffservingall gasappliancesis used J

J o turn OFF the.gasat eachappliance..Leave.allgasapph-

Jancesshutoff untJIthe water heater nstallatmnmcomplete. J

A gas line of sufficient size must be run to the water heater.

Consult the latest edition of National Fuel Gas Code ANSI

Z223.1, also referred to as NFPA 54 and the gas company con-

cerning pipe size.

There must be:

•A readily accessible manual shut offvalve in the gas supply line

serving the water heater, and

• A drip let (sediment trap) ahead of the gas control valve to help

prevent dirt and foreign materials from entering the gas control

valve.

•A flexible gas connector or aground joint union between the

shutoffvalve and control valve to permit servicingof the unit.

Be sure to check all the gas piping for leaks before li8hting the

water heater. Use a soapy water solution, not a match or open

flame. Rinse offsoapy solution and wipe dry.

Standard Models are for installation up to 3,300 feet above sea

level.

High Altitude Models are for installation from 3,300 to 5,500

feet above sea level.

Ifa standard model is installed above 3,300 feet or a high altitude

model is installed, above 5,500 feet, the input rating must be

reduced at the rate of 4 percent for each 1,000 feet above sea level.

Contact your local Sears Service Center or gas utility for further

information.

_, WARNING tested

The appliance and its gas connection must be leak

beforeplacingthe appliancein operation.

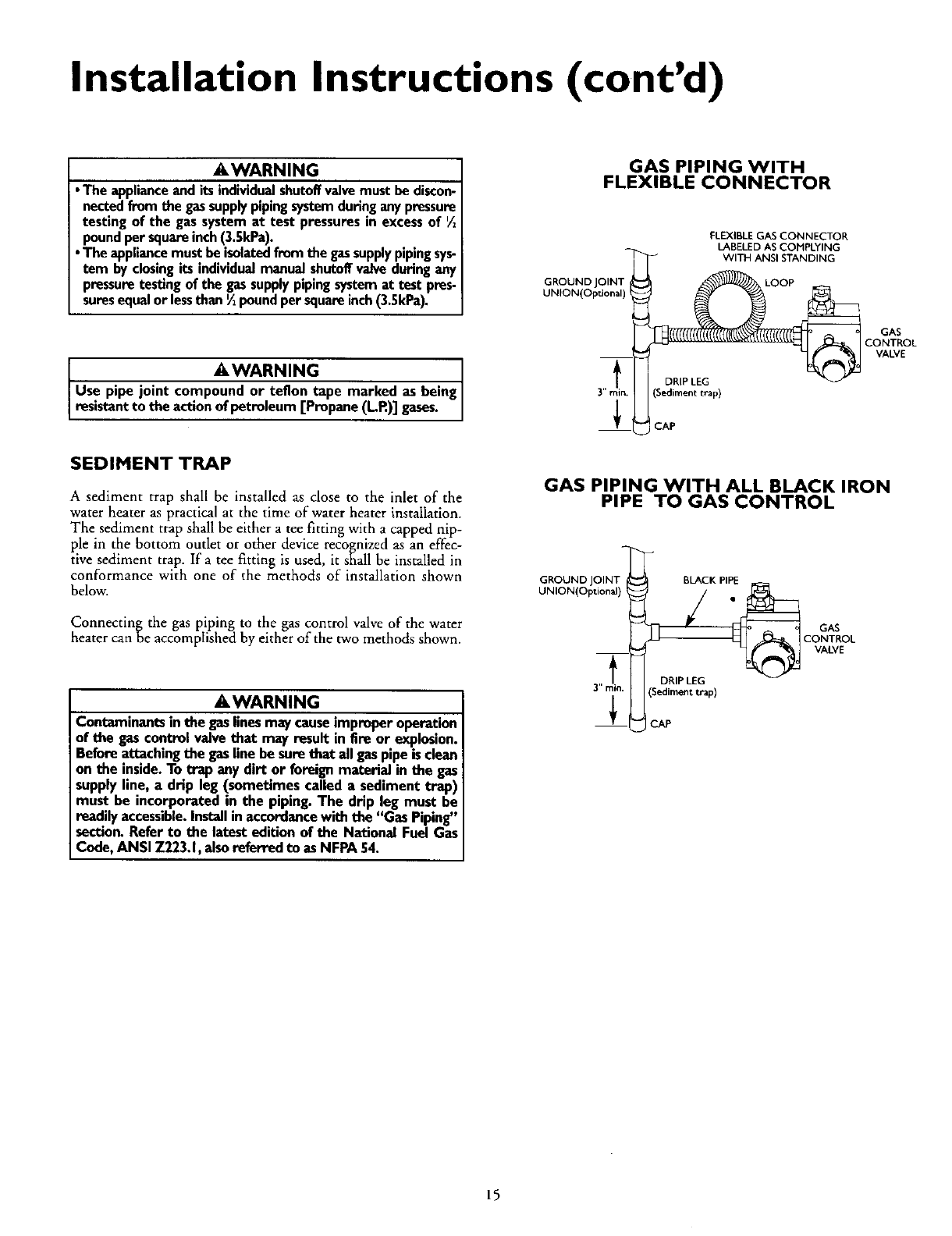

Installation Instructions (cont'd)

,_ WARNING

•The applianceand its individualshutoffvalvemustbe discon-

nectedfrom the gassupplypipingsystemduringanypressure

testing of the gas systemat test pressuresin excessof ½

poundper squareinch(3.5kPa).

•The appliancemustbe isolatedfromthe gassupplypipingsys-

tem by closingits individualmanualshutoffvalveduringany

pressuretestingof the gassupplypipingsystemat test pres-

suresequalor lessthan_poundpersquareinch(3.5kPa).

_,WARNING I

Use pipe joint compound or teflon tape marked as being

resistant to the action of potro eum [Propane (LR)] gases.

SEDIMENT TRAP

A sediment trap shall be installed as close to the inlet of the

water heater as practical at the time of water heater installation.

The sediment trap shall be either atee fitting with a capped nip-

ple in the bottom outlet or other device recognized as an effec-

tive sediment trap. If a tee fitting is used, it shall be installed in

conformance with one of the methods of installation shown

below.

Connecting the gas piping to the gas control valve of the water

heater can be accomplished by either of the two methods shown.

AWARNING

Contaminants in the gas lines may cause improper operation

of the gas control valve that may result in fire or explosion.

Before attaching the gas line be sore that all gas pipe is clean

on the inside. To trap any dirt or foreign material in the gas

supply line, a drip leg (sometimes called a sediment trap)

must be incorporated in the piping. The drip leg must be

readily accessible. Install in accordance with the "Gas Piping"

section. Refer to the latest edition of the National Fuel Gas

Code, ANSI Z223.1, also referred to as NFPA 54.

GAS PIPING WITH

FLEXIBLE CONNECTOR

FLEXIBLEGAS CONNECTOR

GROUND IOINT_ _LOOP

,, __ CONTROLvALVE

3,,T..(sD, ='Po

GAS PIPING WITH ALL BLACK IRON

PIPE TO GAS CONTROL

GROUND JOINT BLACK PIPE

UNION(Optional)

3" m_in DRIP LEG

•(Sediment trap)

_1 CAP

GAS

CONTROL

VALVE

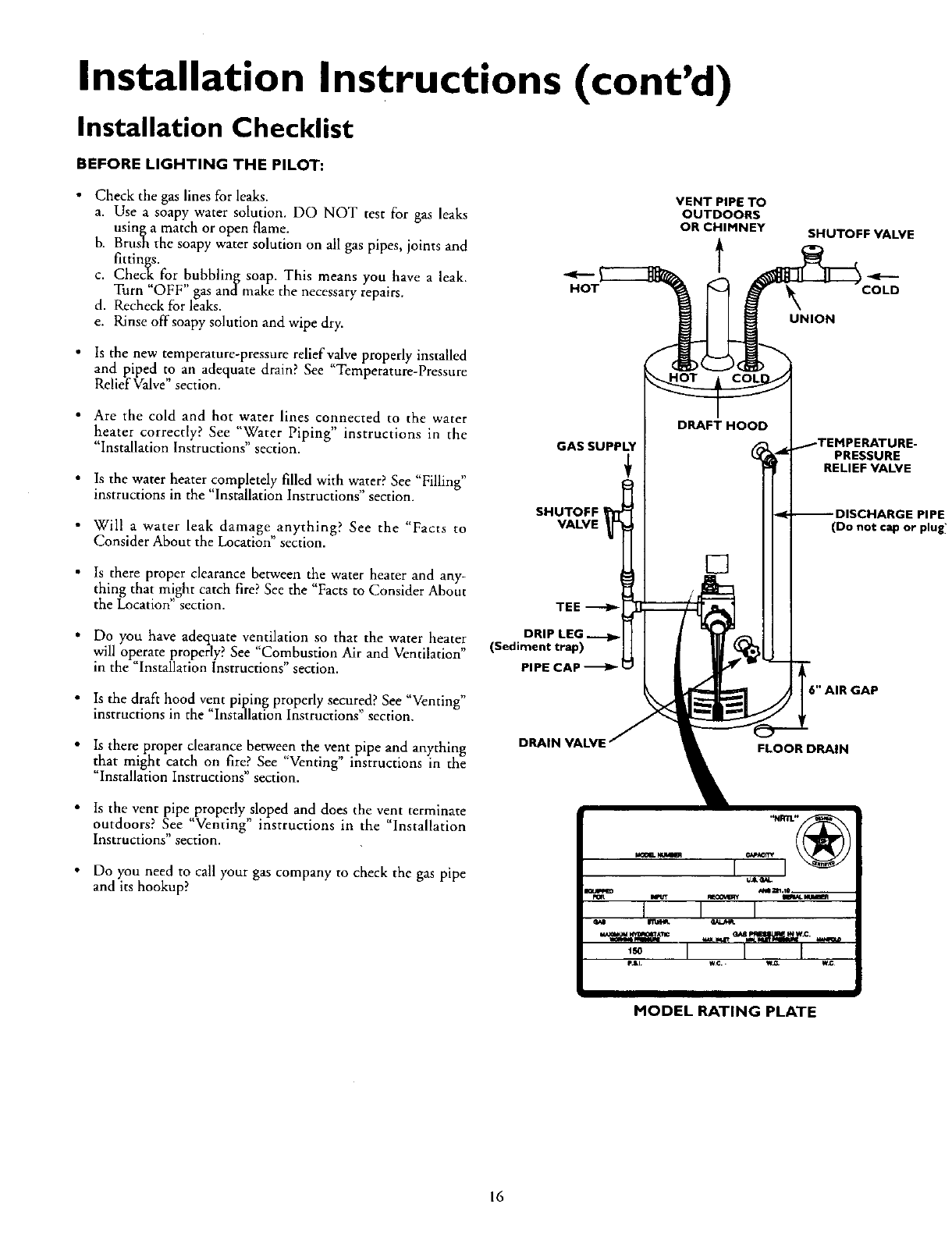

Installation Instructions (cont'd)

Installation Checklist

BEFORE LIGHTING THE PILOT:

Check the gas lines for leaks.

a. Use a soapy water solution• DO NOT test for gas leaks

usinga match or open flame•

b. Brush the soapy water solution on all gas pipes, joints and

fittings•

c. Check for bubbling soap. This means you have a leak.

Turn'OFF gas andmake the necessary repairs.

d. Recheck for leaks.

e. Rinse offsoapy solution and wipe dry.

Is the new temperature-pressure relief valve properly installed

and piped to an adequate drain? See "Temperature-Pressure

Relief VaLve" section.

•Are the cold and hot water lines connected to the water

heater correctly? See "Water Piping" instructions in the

"Installation Instructions" section.

• Is the water heater completely filled with water? See "Filling"

• , • ++ , ._,

instructions in the Installation Instrucnons section.

•Will a water leak damage anything? See the "Facts to

Consider About the Location" section.

• Is there proper clearance between the water heater and any-

thing that m!ght catch fire? See the "Facts to Consider About

the Location section.

• Do you have adequate ventilation so that the water heater

will operate properly? See "Combustion Air and Ventilation"

in the "Installation Instructions" section.

• Is the draft hood vent piping properly secured? See "Venting"

lnsrrtlCtlons Ill the Installation Instructions section.

• Is there proper clearance between the vent pipe and anything

that might catch on fire? See "Venting" instructions in the

"Installation Instructions" section.

HOT

GAS SUPPLY

SHUTOFF

VALVE

DRAIN VALVE

VENT PIPE TO

OUTDOORS

OR CHIMNEY

DRAFT HOOD

SHUTOFF VALVE

_. COLD

UNION

PRESSURE

RELIEF VALVE

(Do not cap or plug I

6" AIR GAP

FLOOR DRAIN

• Is the vent pipe properly sloped and does the vent terminate

outdoors? See "Venting" instructions in the "Installation

Instructions" section.

Do you need to call your gas company to check the gas pipe

and its hookup?

7®

ItJak_

"7 '2 i-I''-

,,..,_,_'_ ,_.._ %_"_lt _L_.w-c.

I I I

f,Ai we. w_ W_

MODEL RATING PLATE

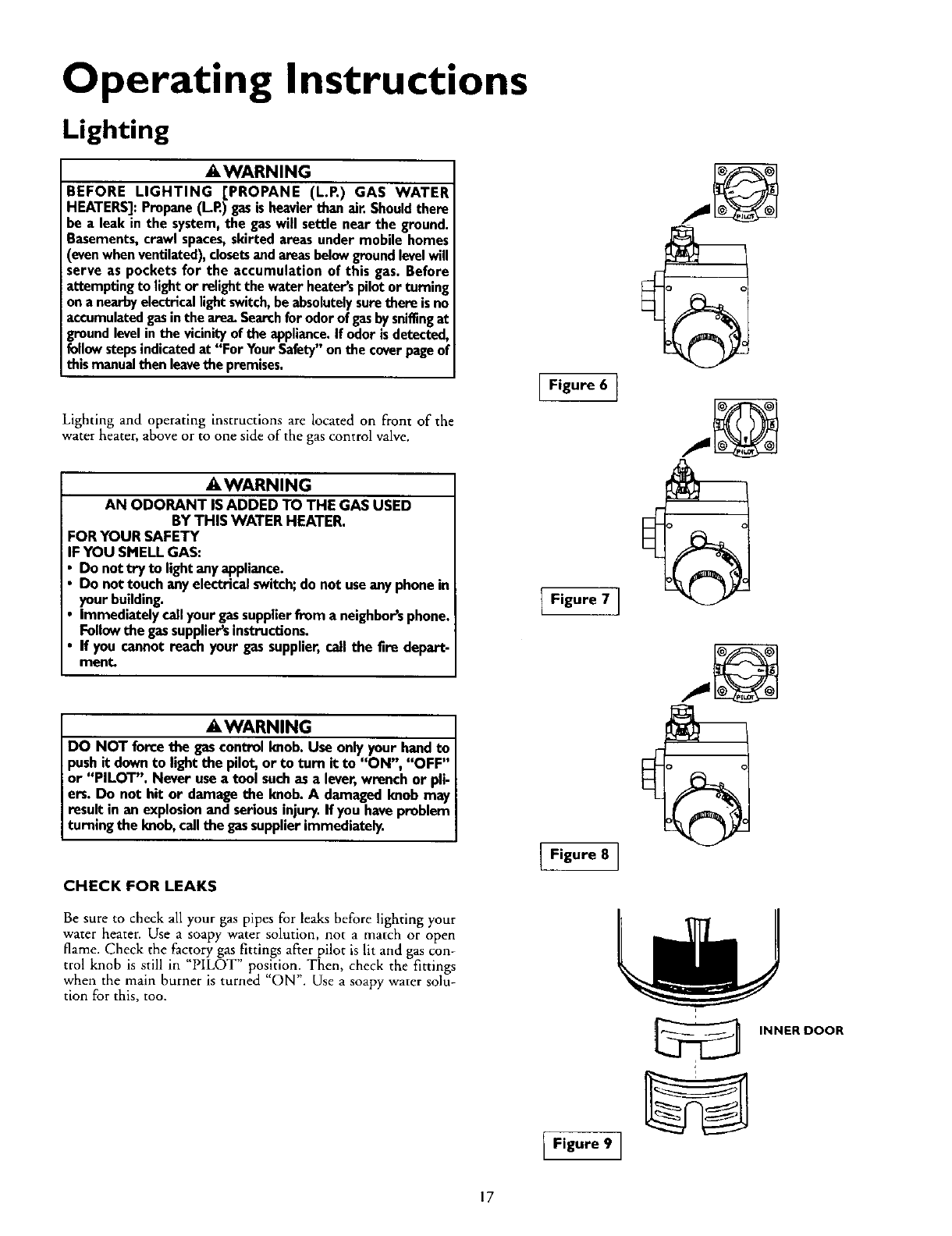

Operating Instructions

Lighting

IIWARNING

BEFORE LIGHTING [PROPANE (L.P.) GAS WATER

HEATERS]:Propane(L.R) gasis heavierthanair.Shouldthere

be a leak in the system,the gaswill settle near the ground.

Basements,crawl spaces,skirted areasunder mobile homes

(evenwhenventilated),closetsandareasbelowgroundlevelwill

serve as pocketsfor the accumulation of this gas. Before

attemptingto lightor relight the water heater'spilotor turning

on anearby electricallightswitch,be absolutelysurethere isno

accumulatedgasinthe area.Searchforodorofgasbysniffingat

groundlevelin the vicinityof the appliance.If odorisdetected,

followstepsindicatedat "For YourSafety"onthe coverpageof

this manualthen leavethe premises.

Lighting and operating instructions are located on front of the

water heater, above or to one side of the gas control valve.

IIWARNING

AN ODORANT IS ADDED TO THE GAS USED

BY THIS WATER HEATER.

FOR YOUR SAFETY

IF YOU SMELL GAS:

• Do not try to lightanyappliance.

•Do not touch anyelectricalswitch;do not useany phonein

your building.

•Immediatelycallyour gassupplierfrom a neighbor's phone.

Followthe gassuppliersinstructions.

• If you cannot reach your gas supplier,call the fire depart-

ment.

AWARNING

DO NOT force the gascontrol knob, Use onlyyour handto

pushit downto lightthe pilot, or to tom it to "ON", "OFF"

or "PILOT". Never usea tool suchas a lever,wrench or pli-

ers. Do not hit or damagethe knob.A damaged knob may

result in an explosionand serious injury.If youhaveproblem

turningthe knob, callthe gassupplierimmediately.

CHECK FOR LEAKS

Be sure to check all your gas pipes for leaks before lighting your

water heater. Use a soapy water solution, not a match or open

flame. Check the factory gas fittings after pilot is lit and gas con-

trol knob is still in "PILOT" position. Then, check the fittings

when the main burner is turned "ON". Use a soapy water solur

tion for this, too.

Figure 6 I

Figure 8 ]

Figure 9 J

INNER DOOR

Operating Instructions (cont'd)

Lighting label on the water heater as it appears above the thermostat

FOR YOUR SAFETY READ BEFORE LIG

WARNING

If you do not follow these instructions exactly, a fire or explosion

may result causing property damage, personal injury or loss of life.

A. This appliancehas a pilot whichmust be lighted by

hand.Whenlightingthe pilot,followthese instructions

exactly.

B. BEFORELIGHTINGsmellall aroundthe appliancearea

for gas. Be sure to smell next to the floor because

somegasis heavierthanairandwillsettleonthefloor.

WHATTODO IFYOUSMELLGAS

• Donottryto lightanyappliance.

•Do not touch any electric switch;do not use any

phonein yourbuilding.

•Immediatelycallyourgas supplierfrom a neighbor's

phone.Followthe gassupplier'sinstructions.

•If you cannotreachyour gas supplier,callthe fire

department.

C. Useonlyyourhandto pushin or turnthe gas control

knob.Neverusetools. If the knobwill not pushin or

turnby hand,don'ttry to repairit,call a qualifiedser-

vice technician.Forceor attemptedrepairmayresult

ina fire orexplosion.

D. Do not usethis applianceif any part has beenunder

water.Immediatelycalla qualified servicetechnician

to inspecttheapplianceandto replaceany partof the

controlsystemand any gas controlwhichhas been

underwater.

LIGHTING INSTRUCTIONS

1. STOP!Readthe safetyinformationaboveonthislabel.

2. Removeouterdoor.

3. Set the thermostat to lowest setting by turning the

watertemperaturedial clockwise,(F-_) to its lowest

temperaturesetting(witharrowon dial)as shown.DO

NOT FORCE,

4. Turngas controlknobclockwise_) to "OFF" posi-

tion. Knobcannot be turnedfrom "PILOT" to "OFF"

unlessknob is depressedslightly.DO NOT FORCE.

(Figure6, page17)

5. Waitfive (5) minutesto clearout any gas. If you then

smellgas, STOP!Follow"B" in the safetyinformation

aboveon this label.If you don't smellgas, go to the

nextstep.

6. Remove(or open) inner door located belowthe gas

controlunit.

7. Findpilot-followmetal / ....

THERMOCOUPLE _:PLOTBURNER'

tubefromgascontrol. VI :_

Thepilot is locatedin

front of theburner. _

8. If youdon'tsmellgas,turn knobongascontrolcounter

clockwise_,@to "PILOT"position.(Figure7, page17)

9. Push in control knob all the way and hold down.

Immediatelylightthe pilotwitha match.Continueto

hold controlknob in for about one (1) minute after

the pilotis lit. Releaseknob andit will popback up.

Pilot shouldremainlit. If it goes out, repeatsteps3

through8.

•If knobdoesnotpop upwhenreleased,stopand

immediatelycall your servicetechnicianor gas

supplier.

•If the pilot will not stay lit after several tries,

depressandturnthe gas controlknobclockwise

_to "OFF" andcallyourservicetechnician

orgassupplier.(Figure6, page17)

10. Replace(or close)inner door.Replaceouter doorif

doordoesnotcovergas controlon/offknobor tern-

peratureadjustmentknob.(Figureg,page17)

11. At armslen_lthaway,turngas controlknobcounter-

clockwise_to the full "ON" position.Warning

do not use gas control knob to regulate gas

flow. (Figure8, page17)

12. At arms lengthaway,set the thermostatto desired

setting.The mark ( •) indicative of approximate

120°Fis preferredstarting point. Some local laws

mayrequirea lowerstartingpoint.If hotterwater is

desired,seeinstructionmanualand"warning" below.

13.Replacethe outerdoorif not replacedinstep10.

WARNING

•Iotter water increasesthe risk of scaldinjury.Beforechangingtemperaturesetting see instructionmanual.

TO TURN OFF GAS TO APPLIANCE

1. Set the thermostat to lowestsetting by turningthe

watertemperaturedial clockwise(F_) to its lowest

temperaturesetting(with arrowon dial) as shown.DO

NOT FORCE,

.:2 Ij

2.Turngas controlknobclockwise__ J to "OFF" posi-

tion. Knob cannotbe turned from "PILOT" to "OFF"

unless knob is depressedslightly. DO NOT FORCE,

3. Replaceouter door (if removed).

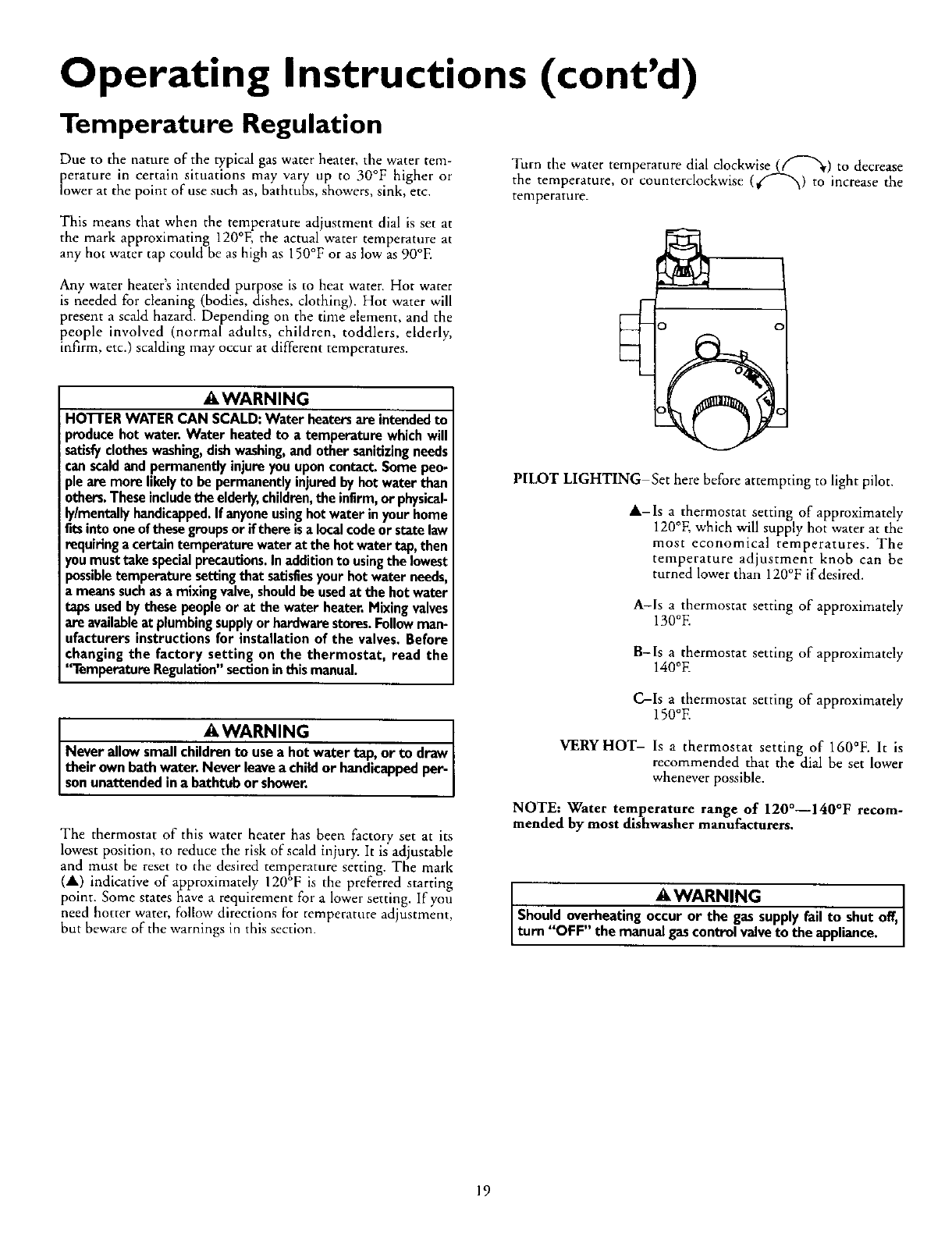

Operating Instructions (cont'd)

Temperature Regulation

Due to the nature of the typical gas water heater, the water tem-

erature in certain situations may vary up to 30°F higher or

ro_werat the point of use such as, bathtubs, showers, sink, etc.

This means that when the temperature adjustment dial is set at

the mark approximating 120°F, the actual water temperature at

any hot water tap could be as high as 150°F or as low as 90°E

Turn the water temperature dial clockwise (_"_) to decrease

the temperature, or counterclockwise (_'_) to increase the

temperature.

Any water heater's intended purpose is to heat water. Hot water

is needed for cleaning (bodies, dishes, clothing). Hot water will

present a scald hazard. Depending on the time element, and the

people involved (normal adults, children, toddlers, elderly,

infirm, etc.) scalding may occur at different temperatures.

AWARNING

HOTTERWATERCAN SCALD:Water heatersare intendedto

producehot water.Water heatedto a temperaturewhichwill

satisfyclotheswashing,dishwashing,andother sanitizingneeds

canscaldand permanentlyinjureyouuponcontact.Some peo-

pleare more likelyto be permanentlyinjuredbyhotwater than

others.Theseincludetheelderly,children,the infirm,orphysical.

ly/mentally handicapped.If anyoneusinghotwater inyourhome

fitsintooneofthesegroupsor ifthereisa localcodeor statelaw

requiring acertaintemperaturewater atthe hotwater tap,then

youmust takespecialprecautions.Inadditionto usingthe lowest

possibletemperaturesettingthat satisfiesyourhotwater needs,

a meanssuchasa mixingvalve,shouldbe usedat the hot water

tapsusedby thesepeopleor at the water heater.Mixingvalves

are availableat plumbingsupplyorhardwarestores.Followman-

ufacturersinstructionsfor installationof the valves.Before

changingthe factory setting on the thermostat, read the

'q'emperatureRegulation"sectionin this manual.

AWARNING ]

Never allow small children to use a hot water tap, or to draw I

their own bath water. Never leave a child or handicapped per- I

sonunattended in a bathtub or shower. ]

The thermostat of this water heater has been factory set at its

lowest position, to reduce the risk of scald injury. It is adjustable

and must be reset to the desired temperature setting. The mark

(at) indicative of approximately 120°F is the preferred starting

point. Some states have a requirement for a lower setting. If you

need hotter water, follow directions for temperature adjustment,

but beware of the warnings in this section.

PILOT LIGHTING Set here before attempting to light pilot.

A-Is a thermostat setting of approximately

120°E which will supply hot water at the

most economical temperatures. The

temperature adjustment knob can be

turned lower than 120°F if desired.

A-Is a thermostat setting of approximately

130°E

B-Is a thermostat setting of approximately

140°E

C-Is a thermostat setting of approximately

150°E

VERYHOT- Is a thermostat setting of 160°F. It is

recommended that the dial be set lower

whenever possible.

NOTE: Water temperature range of 120°--140°F recom-

mended by most dishwasher manufacturers.

AWARNING ]

Should overheatingoccur or the gas supplyfail to shut off,

turn "OFF" the manual gascontrolvalveto the appliance.

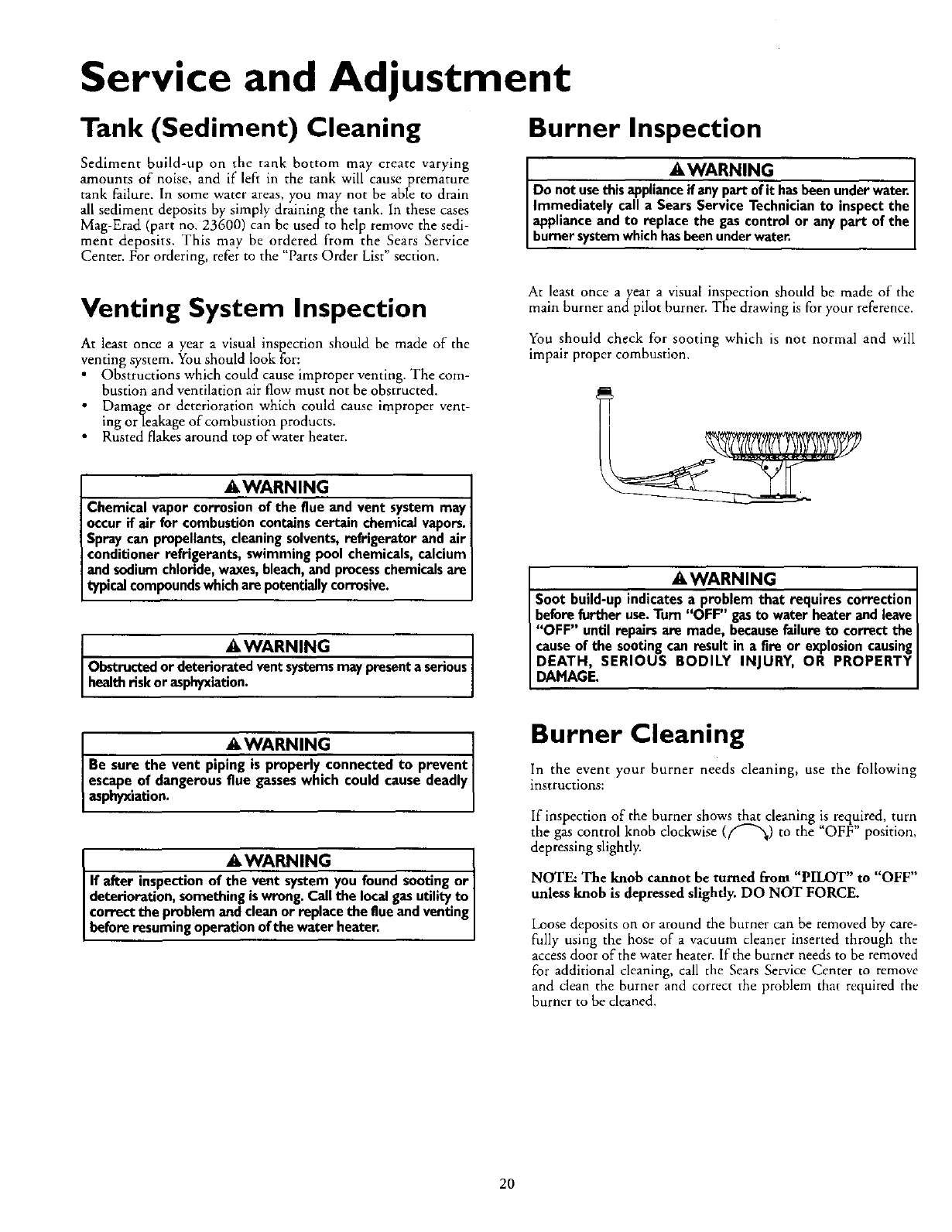

Service and Adjustment

Tank (Sediment) Cleaning Burner Inspection

Sediment build-up on the tank bottom may create varying

amounts of noise, and if left in the tank will cause premature

tank failure. In some water areas, you may not be able to drain

all sediment deposits by simply draining the tank. In these cases

Mag-Erad (part no. 23600) can be used to help remove the sedi-

ment deposits. This may be ordered from the Sears Service

Center. For ordering, refer to the "Parts Order List" section.

"WARNING

Do not usethisapplian_ hasbeenunderwater

Immediately call a Sears Service Technicianto inspectthe

applianceand to replace the gascontrol or any part of the

burnersystemwhichhasbeenunderwater.

Venting System Inspection

At least once a year a visual inspection should be made of the

venting system. You should look for:

•Obstructions which could cause improper venting. The com-

bustion and ventilation air flow must not be obstructed.

Damage or deterioration which could cause improper vent-

ing or leakage of combustion products.

Rusted flakes around top of water heater.

"WARNING

Chemical vapor corrosion of the flue and vent systemmay

occurif air for combustioncontainscertain chemicalvapors.

Spraycan propellants,cleaningsolvents,refrigerator and air

conditionerrefrigerants, swimmingpool chemicals,calcium

and sodiumchloride,waxes,bleach,andprocesschemicalsare

typicalcompoundswhichare potentiallycorrosive.

.WARNING I

Obstructed or deterioratedvent systemsmaypresenta serious

healthrisk or asphyxat on.

I"WARNING ]

Be sure the vent piping is properly connected to prevent|

escapeof dangerousflue gasseswhich could cause deadly|

asphyxiation. ]

"WARNING l

If after inspectionof_you foundsootingor ]

deterioration,somethingiswrong. Call the localgasutilityto I

correct the problemandcleanor replacethe flueand venting

before resuming operationofthe water heater.

At least once ayear a visual inspection should be made of the

main burner and pilot burner. The drawing is for your reference.

You should check for sooting which is not normal and will

impair proper combustion.

"WARNING

Soot build-upindicatesa problem that requires correction

beforefurther use.Turn"OFF" gasto water heaterandleave

"OFF" until repairs are made, becausefailureto correctthe

causeof the sootingcan result in a fire or explosioncausing

DEATH, SERIOUS BODILY INJURY, OR PROPERTY

DAMAGE.

Burner Cleaning

In the event your burner needs cleaning, use the following

instructions:

If inspection of the burner shows that cleaning is required, turn

the gas control knob clockwise (f"_) to the "OFF" position,

depressing slightly.

NOTE: The knob cannot be turned from "PILOT" to "OFF"

unless knob is depressed slightly. DO NOT FORCE.

Loose deposits on or around the burner can be removed by care-

fully using the hose of a vacuum cleaner inserted through the

access door of the water heater. If the burner needs to be removed

for additional cleaning, call die Sears Service Center to remove

and clean the burner and correct the problem that required the

burner to be cleaned.

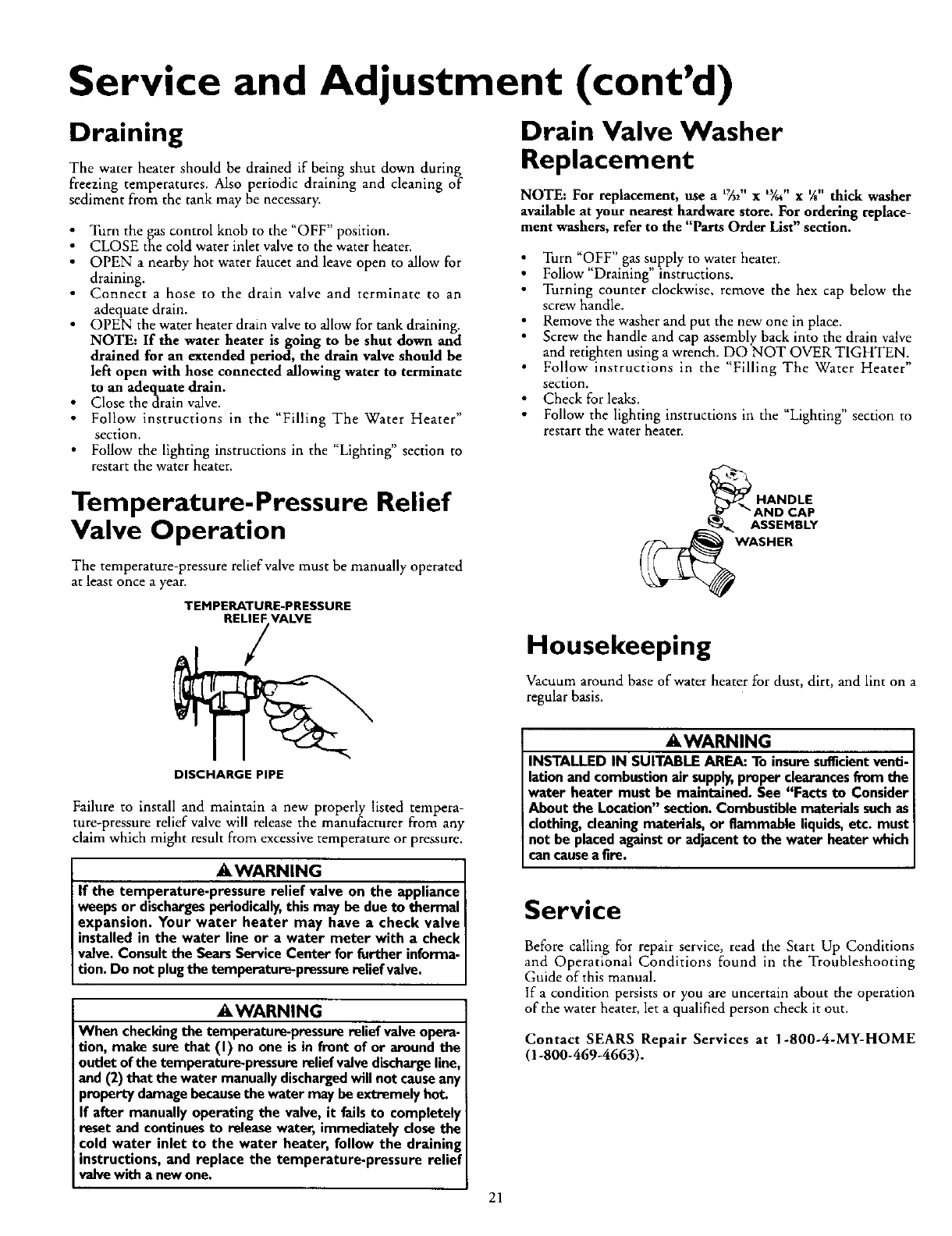

Service and Adjustment (cont'd)

Draining

The water heater should be drained if being shut down during

freezing temperatures. Also periodic draining and cleaning of

sediment from the tank may be necessary.

Turn the gas control knob to the "OFF" position.

CLOSE the cold water inlet valve to the water heater.

OPEN a nearby hot water faucet and leave open to allow for

draining.

Connect a hose to the drain valve and terminate to an

adequate drain.

OPEN the water heater drain valve to allow for tank draining.

NOTE: If the water heater is going to he shut down and

drained for an extended period, the drain valve should be

left open with hose connected allowing water to terminate

to an adequate drain.

Close thedrain valve.

Follow instructions in the "Filling The Water Heater"

section.

Follow the lighting instructions in the "Lighting" section to

restart the water heater.

Drain Valve Washer

Replacement

NOTE: For replacement, use a '_;' x'¥_" xX" thick washer

available at your nearest hardware store. For ordering replace-

ment washers, refer to the "Parts Order List" section.

Turn "OFF" gas supply to water heater.

Follow "Draining" instructions.

Turning counter clockwise, remove the hex cap below the

screw handle.

Remove the washer and put the new one in place.

Screw the handle and cap assembly back into the drain valve

and retighten using a wrench. DO NOT OVER TIGHTEN.

Follow instructions in the "Filling The Water Heater"

section.

Check for leaks.

Follow the lighting instructions in the "Lighting" section to

restart the water heater.

Temperature-Pressure Relief

Valve Operation

The temperature-pressure relief valve must be manually operated

at least once a year.

TEMPERATURE-PRESSURE

DISCHARGE PIPE

Failure to install and maintain a new properly listed tempera-

ture-pressure relief valve will release the manufacturer from any

claim which might result from excessive temperature or pressure.

AWARNING

If the temperature-pressure relief valve on the appliance

weepsor dischargesperiodically,thismay be dueto thermal

expansion. Your water heater may have a check valve

installed in the water line or a water meter with a check

valve.Consultthe SearsService Center for further informa-

tion.Do not plugthe temperature-pressurerelief valve.

AWARNING

When checking the temperature-pressure relief valve opera-

tion, make sure that (I) no one is in front of or around the

outlet of the temperature-pressure relief valve discharge line,

and (2) that the water manually discharged will not cause any

property damage because the water may be extremely hot.

If after manually operating the valve, it fails to completely

reset and continues to release water, immediately close the

cold water inlet to the water heater, follow the draining

instructions, and replace the temperature-pressure relief

valve with a new one.

_AP

ASSEMBLY

WASHER

Housekeeping

Vacuum around base of water heater for dust, dirt, and lint on a

regular basis.

AWARNING

INSTALLED IN SUITABLE AREA: To insure sufrmient venti-

lation and combustion air supply, proper clearances from the

water heater must be maintained. See "Facts to Consider

About the Location" section. Combustible materials suchas

clothing, cleaning materials, or flammable liquids, etc. must

not be placed against or adjacent to the water heater which

can cause afire.

Service

Before calling for repair service, read the Start Up Conditions

and Operational Conditions found in the Troubleshooting

Guide of this manual.

If a condition persists or you are uncertain about the operation

of the water heater, let a qualified person check it out.

Contact SEARS Repair Services at 1-800-4-MY-HOME

(1-800-469-4663).

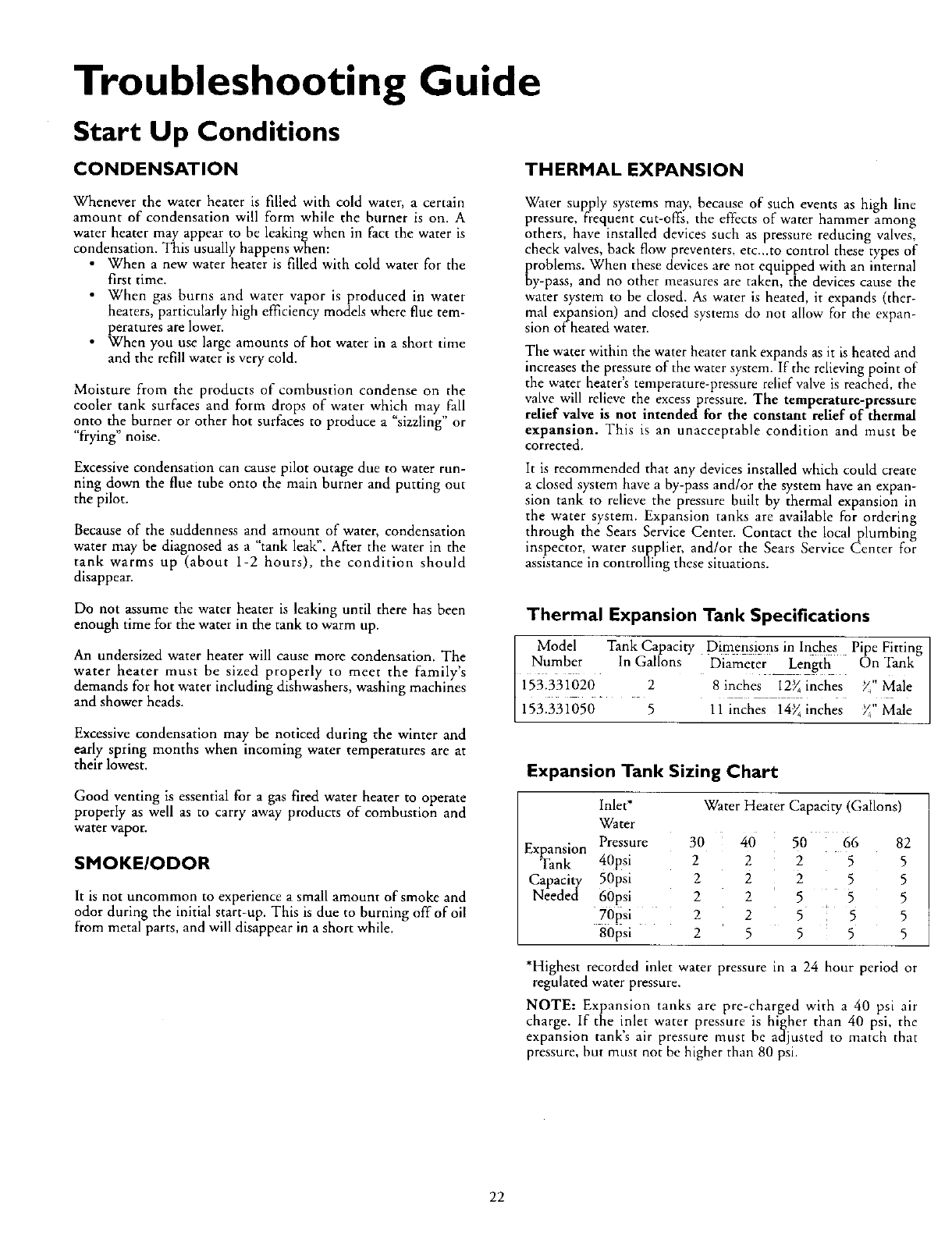

Troubleshooting Guide

Start Up Conditions

CONDENSATION THERMAL EXPANSION

Whenever the water heater is filled with cold water, a certain

amount of condensation will form while the burner is on. A

water heater may appear to be leaking when in fact the water is

condensation. This usually happens when:

•When a new water heater is filled with cold water for the

first time.

When gas burns and water vapor is produced in water

heaters, particularly high efficiency models where flue tem-

peratures are lower.

When you use large amounts of hot water in a short time

and the refill water is very cold.

Moisture from the products of combustion condense on the

cooler tank surfaces and form drops of water which may fall

onto the burner or other hot surfaces to produce a "sizzling" or

"frying" noise.

Excessive condensation can cause pilot outage due to water run-

ning down the title tube onto the main burner and putting out

the pilot.

Because of the suddenness and amount of water, condensation

water may be diagnosed as a "tank leak". After the water in the

tank warms up (about 1-2 hours), the condition should

disappear.

Do not assume the water heater is leaking until there has been

enough time for the water in the tank to warm up.

An undersized water heater will cause more condensation. The

water heater must be sized properly to meet the family's

demands for hot water including dishwashers, washing machines

and shower heads.

Excessive condensation may be noticed during the winter and

early spring months when incoming water temperatures are at

their lowest.

Good venting is essential for a gas fired water heater to operate

properly as well as to carry away products of combustion and

water vapor.

SMOKE/ODOR

It is not uncommon to experience a small amount of smoke and

odor during the initial start-up. This is due to burning off of oil

from metal parts, and will disappear in a short while.

Water supply systems may, because of such events as high line

pressure, frequent cut-oti;, the effects of water hammer among

others, have installed devices such as pressure reducing valves,

check valves, back flowpreventers, etc...to control these types of

problems. When these devices are not equipped with an internal

by-pass, and no other measures are taken, the devices cause the

water system to be closed. As water is heated, it expands (ther-

mal expansion) and closed systems do not allow for the expan-

sion of heated water.

The water within the water heater tank expands as it is heated and

increases the pressure of the water system. If the relieving point of

the water heater's temperature-pressure relief valve is reached, the

valve will relieve the excess pressure. The temperature-pressure

relief valve is not intended for the constant relief of thermal

expansion. This is an unacceptable condition and must be

corrected,

It is recommended that any devices installed which could create

a closed system have a by-pass and/or the system have an expan-

sion tank to relieve the pressure built by thermal expansion in

the water system. Expansion tanks are available for ordering

through the Sears Service Center. Contact the local plumbing

inspector, water supplier, and/or the Sears Service Center for

assistance in controlling these situations.

Thermal Expansion Tank Specifications

Model Tank Capacity Dimensions in Inches Pipe Fitting

Number In Gallons Diameter _ Length On Tank

153.331020 2 8 inches 12_ inches _" Male

[153.331050 5 l i inches-14_inches _';Male

Expansion Tank Sizing Chart

Water Heater Capacity (Gallons)

Inlet*

Water

Expansion Pressure 30

Tank 40psi 2

Capacity 50psi 2

Needed 60psi 2

70psi 2

80psi 2

50 66

2 5

5 5

*Highest recorded inlet water pressure in a 24 hour period or

regulated water pressure.

NOTE: Expansion tanks are pre-charged with a 40 psi air

charge. If the inlet water pressure is higher than 40 psi, the

expansion tank's air pressure must be adjusted to match that

pressure, but most not be higher than 80 psi.

Troubleshooting Guide (cont'd)

Operational Conditions

HOT COLD WATER HEATER (3)

COLDWATER PRESSURE

INLETFITTING REDUCING

VALVEWITH

BY-PASS

0) 1TANK

(z)

PRESSUREGAUGE WATER

SHUTOFF

RECOMMENDED INSTALLATION

(VERTICAL MOUNTING)

SMELLY WATER

In each glasslined water heater there is installed at least one

anode rod (see parts section) for corrosion protection of the

tank. Certain water conditions will cause areaction between this

rod and the water. The most common complaint associated with

the anode rod is one of a"rotten egg smell". This odor is derived

from hydrogen sulfide gas dissolved in the water. The smell is

the result of four factors which must all be present for the odor

to develop:

a. a concentration of sulfate in the supply water.

b. little or no dissolved oxygen in the water.

c. a sulfate reducing bacteria within the water heater. (This

harmless bacteria is non-toxic to humans.)

d. an excess of active hydrogen in the tank. This is caused by

the corrosion protective action of the anode.

WATER HEATER

COLD WATER

INLET FITTING

FLOOR,CEILING

iols'r, ETc.

Smelly water may be eliminated or reduced in some water heater

models by replacing the anode(s) with one of less active material,

and then chlorinating the water heater tank and all hot water

lines. Contact Sears Service for further information concerning

an Anode Replacement Kit #9001453 and this Chlorination

Treatment.

HOT STRAPPING

PRESSURE

REDUCING

VALVE WITH

(I) BY-PASS

EXPANSION

INLET COLD

WATER

SHUTOFF

If the smelly water persistsafter the anode replacement and chlo-

rination treatment, we can only suggest that continuous chlori-

nation and filtering conditioning equipment be considered to

eliminate the water problem.

Do not remove the anode leaving the tank unprotected. By

doing so, all warranty on the water heater tank is voided.

"AIR" IN HOT WATER FAUCETS

(z)

PRESSUREGAUGE

ALTERNATE RECOMMENDED

INSTALLATION

(HORIZONTAL MOUNTING)

STRANGE SOUNDS

Possible noises due to expansion and contraction of some metal

_arts during periods of heat-up and cool-down do not represent

armful or dangerous conditions.

AWARNING

HYDROGEN GAS: Hydrogengascan be producedin ahot

water systemthat hasnot beenusedfor a longperiodof time

(generally two weeksor more). Hydrogengasis extremely

flammableand explosive.To preventthe possibilityof injury

underthese conditions,we recommend the hot water faucet

be openedfor severalminutesat the kitchensinkbeforeany

electricalapplianceswhichare connectedto the hot water sys-

tem are used(suchas a dishwasheror washingmachine).If

hydrogengasis present,there will probablybe an unusual

soundsimilarto air escapingthrough the pipeasthe hotwater

faucet is opened.There must be no smokingor open flame

nearthe faucetat the time it isopen.

Condensation causes sizzling and popping with the burner area

during heating and cooling periods and should be considered

normal. See "Condensation" section.

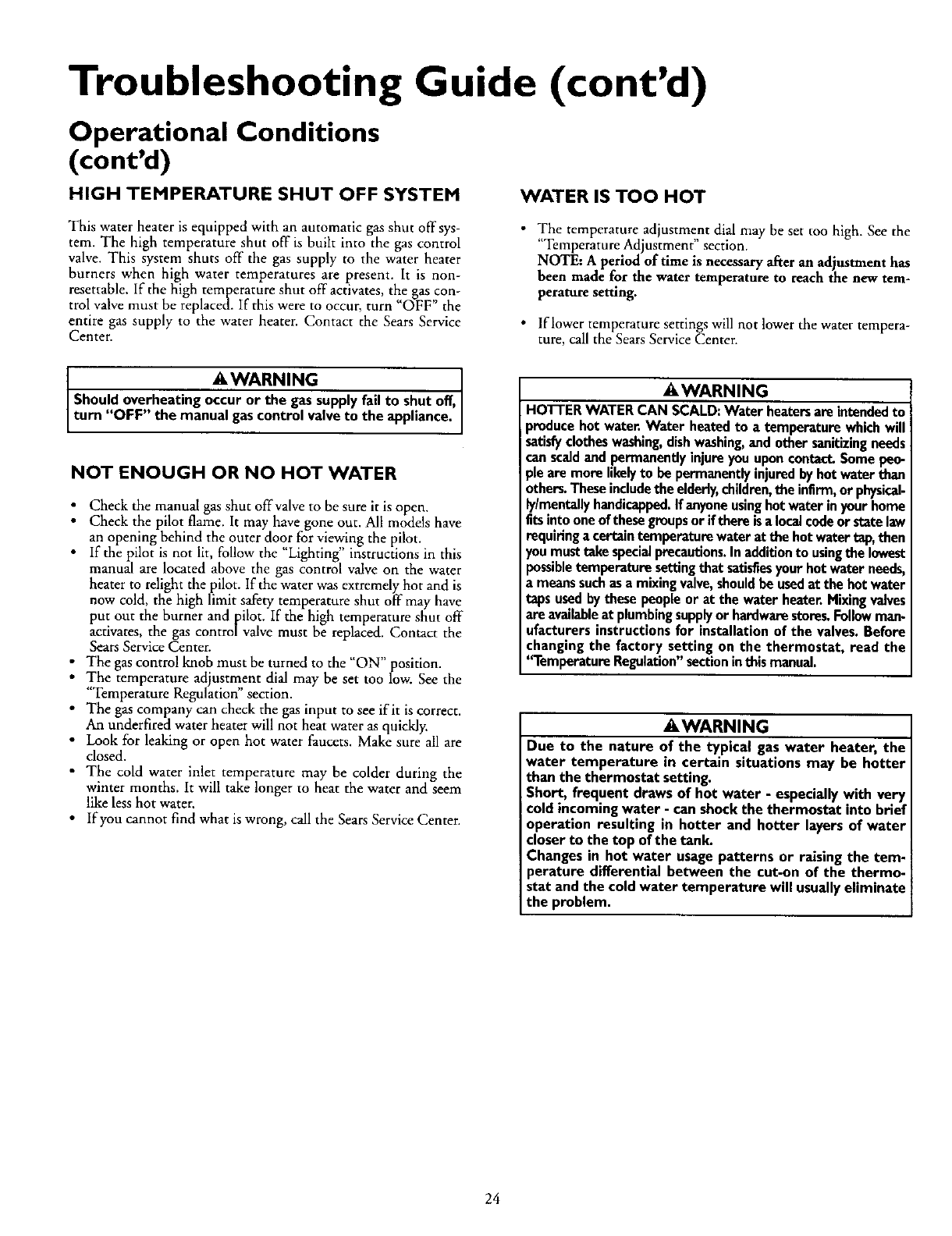

Troubleshooting Guide (cont'd)

Operational Conditions

(cont'd)

HIGH TEMPERATURE SHUT OFF SYSTEM WATER IS TOO HOT

This waterheater is equipped with an automatic gas shut offsys-

tern. The high temperature shut off is built into the gas control

valve. This system shuts off the gas supply to the water heater

burners when high water temperatures are present. It is non-

resettable.If the high temperature shut offactivates, the gas con-

trol valve must be replaced. If this were to occur, turn "OFF" the

entire gas supply to the water heater. Contact the Sears Service

Center,

•The temperature adjustment dial may be set too high. See the

"Temperature Adjustment" section.

NOTE: A period of time is necessary after an adjustment has

been made for the water temperature to reach the new tem-

perature setting.

•If lower temperature settings will not lower the water tempera-

ture, call the Sears Service Center.

AWARNING

Shouldoverheating occur or the gassupplyfail to shut off,

turn OFF the manual gascontrol valveto the appliance.

NOT ENOUGH OR NO HOT WATER

Check the manual gas shut offvalve to be sure it is open.

Check the pilot flame. It may have gone out. All models have

an opening behind the outer door for viewing the pilot.

If the pilot is not lit, follow the "Lighting" instructions in this

manual are located above the gas control valve on the water

heater to relight the pilot. If the water was extremely hot and is

now cold, the high limit safety temperature shut off may have

put out the burner and pilot. If the high temperature shut off

activates, the gas controlvalve must be replaced. Contact the

Sears Service Center.

Th ......

e gas control knob must be turned to the ON posmon.

The temperature adjustment dial may be set too low. See the

"Temperature Regulation" section.

• The gas company can check the gas input to see if it is correct.

An underfired water heater will not heat water as quickly.

• Look for leaking or open hot water faucets. Make sure all are

closed.

• The cold water inlet temperature may be colder during the

winter months. It will take longer to heat the water and seem

like less hot water.

• If you cannot find what iswrong, call the Sears Service Center.

AWARNING

HOTTERWATERCAN SCALD:Water heatersare intendedto

,roducehot water.Water heatedto a temperaturewhichwill

satisfyclotheswashing,dishwashing,andother sanitizingneeds

canscaldand permanentlyinjureyouuponcontact.Somepeo-

fie aremore likelyto be permanentlyinjuredbyhotwater than

others.Theseincludetheeldedy,children,the infirm,or physical-

ly/mentallyhandicapped.If anyoneusinghotwaterinyour home

fitsintooneofthesegroupsor if thereisalocalcodeorstatelaw

requiringacertaintemperaturewateratthe hotwater tap,then

,oumust takespecialprecautions.Inadditionto usingthe lowest

_ssible temperaturesettingthat satisfiesyour hotwater needs,

a meanssuchasa mixingvalve,shouldbe usedatthe hot water

tapsusedbythesepeopleor at the water heater.Mixingvalves

are availableat plumbingsupplyor hardwarestores.Followman-

ufacturersinstructionsfor installationof the valves.Before

changingthe factory setting on the thermostat, read the

"TemperatureRegulation"sectioninthis manual.

AWARNING

Due to the nature of the typical gas water heater, the

water temperature in certain situations may be hotter

than the thermostat setting.

Short, frequent draws of hot water - especiallywith very

cold incomingwater - can shockthe thermostat into brief

operation resulting in hotter and hotter layersof water

closerto the top of the tank.

Changesin hot water usagepatterns or raising the tem-

perature differential between the cut-on of the thermo-

stat and the cold water temperature will usuallyeliminate

the problem.

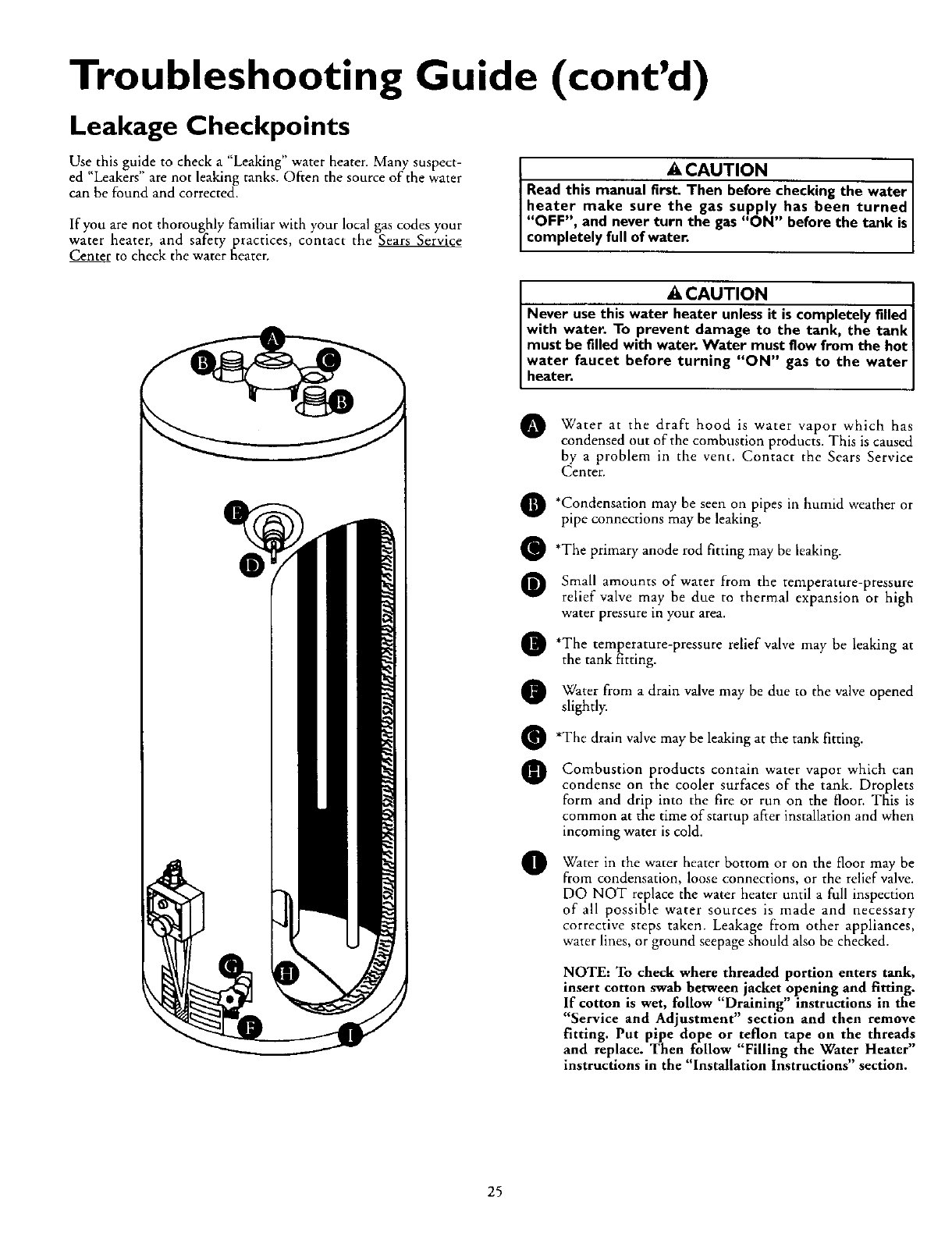

Troubleshooting Guide (cont'd)

Leakage Checkpoints

Use this guide to check a "Leaking" water heater. Many suspect-

ed "Leakers" are not leaking tanks. Often the source of the water

can be found and corrected.

If you are not thoroughly familiar with your local gas codes your

water heater, and safety practices, contact the Sears Service

Cente_r to check the water heater.

ACAUTION I

Read this manual first. Then before checking the water I

heater make sure the gas supply has been turned I

"OFF", and never turn the gas "ON" before the tank is

completely full of water.

ACAUTION J

Never use this water heater unless it is completely filled J

with water. To prevent damage to the tank, the tank J

must be filled with water. Water must flow from the hot I

water faucet before turning "ON" gas to the water

heater.

Water at the draft hood is which has

water vapor

condensed out of the combustion products. This is caused

by a problem in the vent, Contact the Sears Service

Center.

may seen on pipes or

*Condensation be in humid weather

pipe connections may be leaking.

*The primary anode rod fitting may be leaking.

Small amounts of water from the temperature-pressure

relief valve may be due to thermal expansion or high

water pressure in your area.

O'The temperature-pressure may be leaking at

relief valve

the tank fitting.

Water from drain valve be due the valve

amay tO opened

slightly.

O'The drain valve may be leaking at the tank fitting.

0Combustion products contain water vapor which can

condense on the cooler surfaces of the tank. Droplets

form and drip into the fire or run on the floor. This is

common at the time of startup after installation and when

incoming water is cold.

OWater in the water heater bottom or on the floor may be

from condensation, loose connections, or the relief valve.

DO NOT replace the water heater until a full inspection

of all possible water sources is made and necessary

corrective steps taken. Leakage from other appliances,

water lines, or ground seepage should also be checked.

NOTE: To check where threaded portion enters tank,

insert cotton swab between jacket opening and fitting.

If cotton is wet, follow "Draining" instructions in the

"Service and Adjustment" section and then remove

fitting. Put pipe dope or teflon tape on the threads

and replace. Then follow "Filling the Water Heater"

instructions in the "Installation Instructions" section.

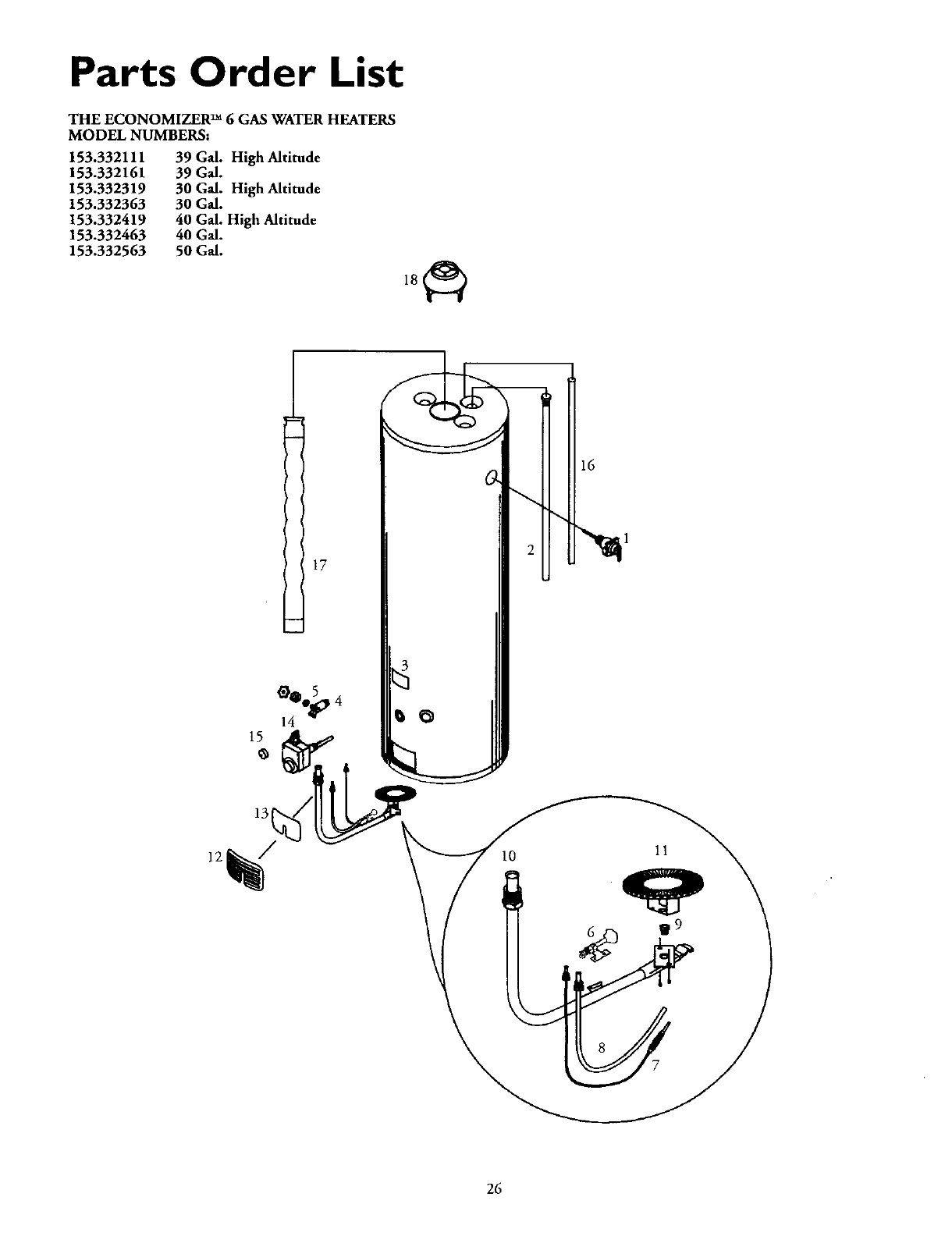

Parts Order List

THE ECONOMIZER TM 6 GAS WATER HEATERS

MODEL NUMBERS:

153.332111 39 Gal. High Altitude

153.332161 39 Gal.

153.332319 30 Gal. High Altitude

153.332363 30 Gal.

153.332419 40 Gal. High Altitude

153.332463 40 Gal.

153.332563 50 Gal.

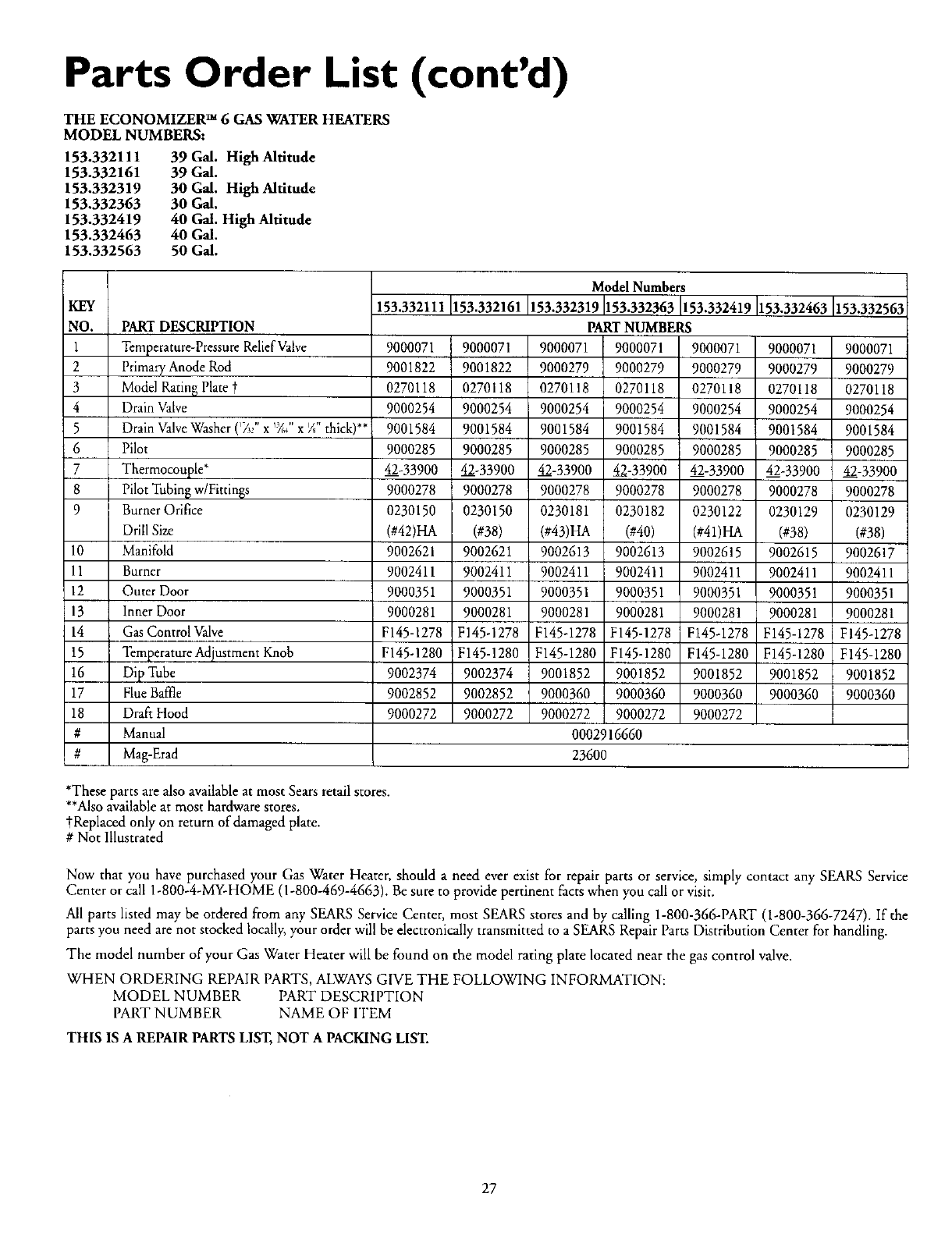

Parts Order List (cont'd)

THE ECONOMIZER TM 6 GAS WATER HEATERS

MODEL NUMBERS:

153.332111 39 Gal. High Altitude

153.332161 39 Gal.

153.332319 30 Gal. High Altitude

153.332363 30 Gal.

153.332419 40 Gal. High Altitude

153.332463 40 Gal.

153.332563 50 Gal.

KEY

NO.

153.332111 153.332161 153.332463 153.332563

PARTDESCRIPTION

Temperature-PressureReliefValve

PrimaryAnodeRod

Model Rati% Plate_

Drain Valve

Drain ValveWasher(Tu" x '_4"x ¼"thick)**

Pilot

Thermocoupie*

Pilot Tubin_w/Fittin{_s

9000071 9000071 9000071 9000071

9001822 9001822 9000279 9000279

0270118 0270118 0270118 0270118

9000254 9000254 9000254 9000254

9001584 9001584 9001584 9001584

9000285 9000285 9000285 9000285

42-33900 42-33900 42-33900 42-33900

9000278 9000278 9000278 9000278

Burner Orifice 0230150 0230150 0230129 0230129

Drill Size (#42)HA (#38) (#38) (#38)

10 Manifold 9002621 9002621 9002615 9002617

11 Burner 9002411 9002411 9002411 9002411

12 Outer Door 9000351 9000351 9000351 9000351

13 Inner Door 9000281 9000281 9000281 9000281

14 GasControlValve F145-1278 F145-1278 F145-1278 F145-1278

15 TemperatureAdjustmentKnob F145-1280 F145-1280 F145-1280 F145-1280

16 Dip Tube 9002374 9002374 9001852 9001852

17 Flue Baffle 9002852 9002852 9000360 9000360

18 Draft Hood 9000272 9000272

#Manual

# Mag-Erad

Model Numbers

153.332319 153.332363 153.332419

PART NUMBERS

9000071 9000071 9000071

9000279 9000279 9000279

0270118 0270118 0270118

9000254 9000254 9000254

9001584 9001584 9001584

9000285 9000285 9000285

42-33900 4_22-33900 42-33900

9000278 9000278 9000278

0230181 0230182 0230122

(#43)HA (#40) (#41)HA

9002613 9002613 9002615

9002411 9002411 9002411

9000351 9000351 9000351

9000281 9000281 9000281

F145-1278 F145-1278 F145-1278

F145-1280 F145-1280 F145-1280

9001852 9001852 9001852

9000360 9000360 9000360

9000272 9000272 9000272

OOO291666O

23600

*These parts are also available at most Sears retail stores.

**Also available at most hardware stores.

tReplaced only on return of damaged plate.

# Not Illustrated

Now that you have purchased your Gas Water Heater, should a need ever exist for repair parts or service, simply contact any SEARS Service

Center or call 1-800-4-MY-HOME (1-800-469-4663). Be sure to provide pertinent facts when you call or visit.

All parts listed may be ordered from any SEARS Service Center, most SEARS stores and by calling 1-800-366-PART (1-800-366-7247). If the

parts you need are not stocked locally, your order will be electronically transmitted to a SEARS Repair Parts Distribution Center for handling.

The model number of your Gas Water Heater will be found on the model rating plate located near the gas control valve.

WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE FOLLOWING INFORMATION:

MODEL NUMBER PART DESCRIPTION

PART NUMBER NAME OF ITEM

THIS IS A REPAIR PARTS LIST, NOT A PACKING LIST.

Warranty

About Your Warranty

THE PRICE OF YOUR WATER HEATER DOES NOT INCLUDE

AFREE CHECKUP SERVICE CALL. On Water Heater Installations

Arranged By Sears, Sears warrants the installation.

ON INSTALLATIONS NOT MADE BY SEARS AUTHORIZED

CONTRACTORS:

1. Your Sears warranty applies to the product only.

2. Sears does not warrant the installation.

3. A charge will be made on service calls due to poor or incomplete

installation. These include:

a. Adjusting thermostat

b. Lighting pilot

c. Leaks in pipes or fittings

d. Improper venting

e. Condensation

This manual is in non-technical language. It may help you avoid the

cost of a needless service call. Many service calls really aren't needed.

Such as when:

1.The gas is turned "OFF".

2. The pilot is out.

3. A gas or water leak is due to loose pipe or connections.

FULL ONE YEAR WARRANTY ON WATER HEATER

For one year from the date of purchase, when your Sears Kenmore water heater is installed and operated in asingle-family

residence in accordance with the instructions in this manual, Sears will:

1. Repair defects in material or workmanship in this water heater, free of charge.

2. Furnish and install a new current model water heater of equal capacity and quality, free of charge, ifa leak occurs in the

tank.

LIMITED WARRANTY ON TANKS THAT LEAK

After one year and through 6 years from the date of purchase for water heaters used in a single-family residence, if a leak

occurs in the tank, Sears will furnish a new current model water heater of equal capacity and quality. You will be charged

for any installation.

If the water heater is subjected to commercial, institutional, industrial or use in residences of two families or more, the

above warranty coverage for tanks that leak is effective for 2 years from the date of purchase.

To obtain warranty service, SIMPLY CALL 1-800-4MY-HOME (1-800-469-4663). "This warranty applies only while this

product is in use in the United States."

This warranty gives you specific legal rights and you may also have other rights which vary from state to state.

SEARS, ROEBUCK AND CO., Dept. 817 WA, HOFFMAN ESTATES, IL 60179

Sears Installation Warranty

In addition to any warranty extended to you on the Sears merchandise

involved, which warranty becomes effective the date the merchandise is

installed should the workmanship of any Sears arranged installation

prove faulty within one year, Sears will, upon notice from you, cause

such faults to be corrected at no additional cost to you. If you want this

heater professionally installed by Sears contact your Sears Salesperson.

They will arrange for prompt, quality installation.

Sears Installation Policy

All installation labor arranged by Sears shall be performed in a neat,

workmanlike manner in accordance with generally accepted trade prac-

tices. Further, all installations shall comply with all local laws, codes

regulations and ordinances. The customer shall also be protected, dur-

ing installation, by insurance relating to property damage, Worker's

Compensation and Public Liability.

If you want this water heater professionally installed by Sears contact

your Salesperson. They will arrange for prompt, quality installation by

Sears authorized contractors.

Forin-homemajorbrandrepairservice

Call24 hoursaday,7 daysa week

1-800-4-MY-HOME

(1-800-469-4663)

'The model:_lt_xOdf_our water heater is found on the model rating plateon the front of the water heater.

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

04-00 0002916660-0

Kenmore The Economizer 153 332111 Users Manual

153332111 153332111 KENMORE Gas, Water heater - Manuals and Guides L0050191 View the owners manual for your KENMORE Gas, Water heater #153332111. Home:Plumbing Parts:Kenmore Parts:Kenmore Gas, Water heater Manual

KENMORE Water heater, Gas Manual L0050191 KENMORE Water heater, Gas Owner's Manual, KENMORE Water heater, Gas installation guides

THE ECONOMIZER 153.332161 L0050191

153.332463 to the manual cfda5552-57ae-491b-9d43-dfdc01aa6299

Navigation menu

Versions of this User Manual:

Views

Navigation
