Kenwood USA 29473130 UHF-FM Hand Held Transceiver User Manual TK 270G 370G E 00 Covers
Kenwood USA Corporation UHF-FM Hand Held Transceiver TK 270G 370G E 00 Covers
Manual
INSTRUCTION MANUAL
TK-270G/ TK-370G
TK-278G/ TK-378G
MANUAL DE INSTRUCCIONES
INSTRUCTION MANUAL
KENWOOD CORPORATION
© B62-1113-00 (K,M,C)
09 08 07 06 05 04 03 02 01 00
VHF FM TRANSCEIVER/
UHF FM TRANSCEIVER
TRANSCEPTOR DE FM VHF/
TRANSCEPTOR DE FM UHF
VHF FM TRANSCEIVER/
UHF FM TRANSCEIVER
TK-270G/ TK-370G
TK-278G/ TK-378G
TK-270G/ TK-370G
TK-278G/ TK-378G
TK-270G/ TK-370G
TK-278G/ TK-378G
VHF FM TRANSCEIVER/
UHF FM TRANSCEIVER
INSTRUCTION MANUAL
ENGLISH
WARNING:
EXPLOSIVE ATMOSPHERES (GASES, DUST, FUMES, etc.)
Turn off your transceiver while taking on fuel, or while parked in
gasoline service stations.
◆
GOVERNMENT LAW PROHIBITS THE OPERATION OF
UNLICENSED RADIO TRANSMITTERS WITHIN THE
TERRITORIES UNDER GOVERNMENT CONTROL.
◆
ILLEGAL OPERATION IS PUNISHABLE BY FINE OR
IMPRISONMENT OR BOTH.
◆
REFER SERVICE TO QUALIFIED TECHNICIANS ONLY.
SAFETY: It is important that the operator is aware of
and understands hazards common to the operation of
any transceiver.
THANK YOU
We are grateful you chose KENWOOD for your land
mobile radio applications. We believe this easy-to-use
transceiver will provide dependable communications to
keep personnel operating at peak efficiency.
KENWOOD transceivers incorporate the latest in
advanced technology. As a result, we feel strongly that
you will be pleased with the quality and features of this
product.
MODELS COVERED BY THIS MANUAL
• TK-270G: VHF FM Transceiver
• TK-278G: VHF FM Transceiver
• TK-370G: UHF FM Transceiver
• TK-378G: UHF FM Transceiver
NOTICES TO THE USER
i
One or more of the following statements may be
applicable:
FCC WARNING
This equipment generates or uses radio frequency energy. Changes
or modifications to this equipment may cause harmful interference
unless the modifications are expressly approved in the instruction
manual. The user could lose the authority to operate this equipment if
an unauthorized change or modification is made.
INFORMATION TO THE DIGITAL DEVICE USER REQUIRED BY
THE FCC
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation.
This equipment generates, uses and can generate radio frequency
energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However,
there is no guarantee that the interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
•
Reorient or relocate the receiving antenna.
•
Increase the separation between the equipment and receiver.
•
Connect the equipment to an outlet on a circuit different from that
to which the receiver is connected.
•
Consult the dealer for technical assistance.
ATTENTION (U.S.A. Only):
The RBRC Recycle seal found on KENWOOD
nickel-cadmium (Ni-Cd) battery packs indicates
KENWOOD’s voluntary participation in an industry
program to collect and recycle Ni-Cd batteries after
their operating life has expired. The RBRC program
is an alternative to disposing Ni-Cd batteries with
your regular refuse or in municipal waste streams,
which is illegal in some areas.
For information on Ni-Cd battery recycling in your area, call (toll free)
1-800-8-BATTERY (1-800-822-8837).
KENWOOD’s involvement in this program is part of our commitment
to preserve our environment and conserve our natural resources.
ii
PRECAUTIONS
Observe the following precautions to prevent fire,
personal injury, and transceiver damage.
• Do not modify this transceiver for any reason.
• Do not expose the transceiver to long periods of
direct sunlight, nor place it close to heating
appliances.
• Do not place the transceiver in excessively dusty,
humid, and/or wet areas, nor on unstable surfaces.
• If an abnormal odor or smoke is detected coming
from the transceiver, switch OFF the power
immediately and remove the optional battery pack
from the transceiver. Contact your KENWOOD
dealer.
iii
CONTENTS
UNPACKING AND CHECKING EQUIPMENT................... 1
Supplied Accessories ...................................... 1
PREPARATION .................................................. 3
Charging the Optional NiCd Battery Pack .................. 3
Installing/ Removing the Optional NiCd Battery Pack ..... 4
Installing the Antenna ..................................... 5
Installing the Belt Clip ..................................... 5
Installing the Hand Strap .................................. 5

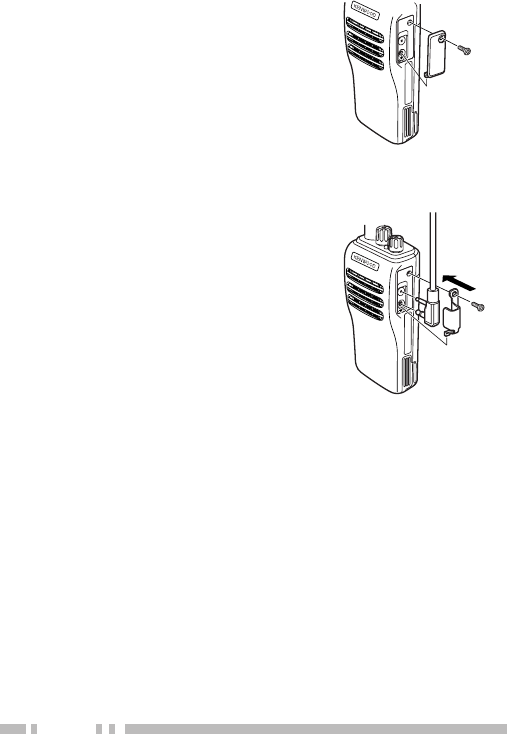

Installing the Cap over the Speaker/ Microphone Jacks ... 6
Installing the Optional Speaker/ Microphone ........... 6

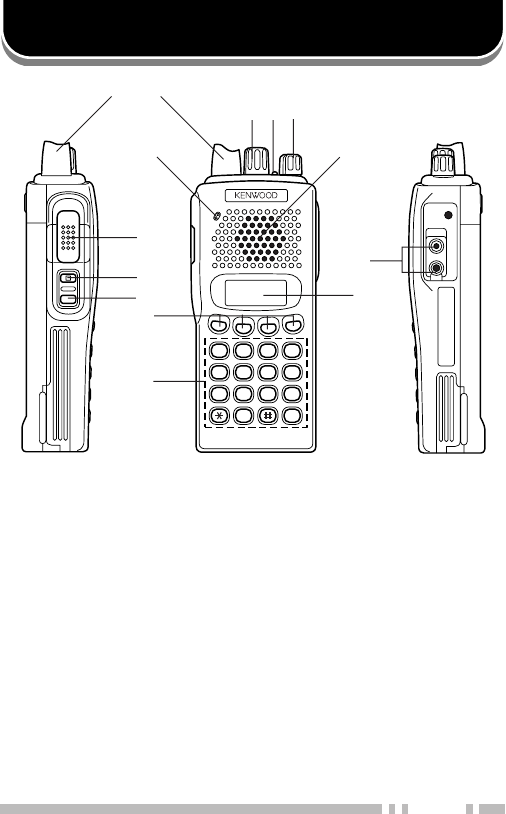

GETTING ACQUAINTED ........................................ 7

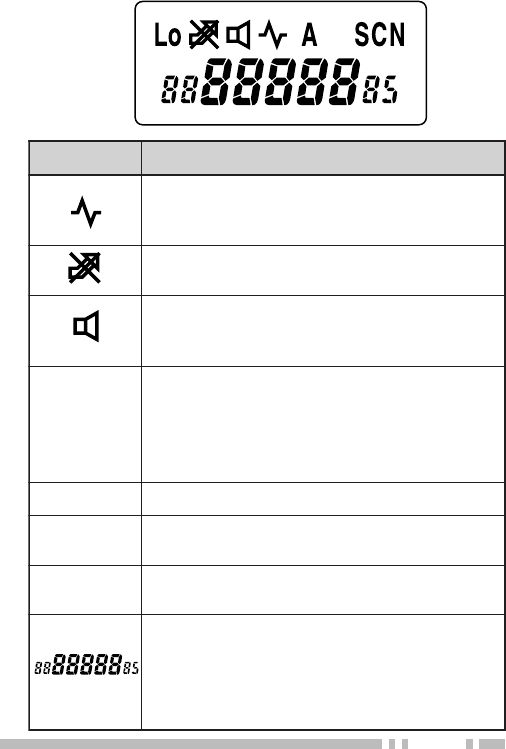

Display ...................................................... 9
PROGRAMMABLE AUXILIARY FUNCTIONS ................ 10
OPERATING BASICS ...........................................11
Switching Power ON/OFF ................................11
Adjusting the Volume ..................................... 11
Selecting a Group or Channel ...........................11
Adjusting the Squelch Level .............................12
Placing a Call ..............................................13
Receiving a Call ...........................................13
CHANNEL SCAN ...............................................14
Priority Scan ...............................................15
Channel Lockout ..........................................15
Revert Channel ............................................15
DTMF CALLS ...................................................16
Manual Dialling ............................................ 16
iv
Storing DTMF Numbers .................................... 17
Confirming Stored DTMF Numbers .....................17
Dialling Stored DTMF Numbers .........................18
Clearing Stored DTMF Numbers .......................... 18
Redialling .................................................. 18
CODE SQUELCH ...............................................19
Receiving ..................................................19
Transmitting ...............................................20
SELECTIVE CALL ..............................................21
Receiving ..................................................22
Transmitting ...............................................23
2-TONE SIGNALLING ..........................................24
Receiving ..................................................24
Transmitting ...............................................25
AUXILIARY FUNCTIONS ......................................26
Selecting an Output Power ...............................26
Time-out Timer (TOT) ....................................26
Busy Channel Lockout (BCL) .............................27
Talk-Around ................................................27
Reverse ....................................................28
Battery Voltage Level .....................................28
Lamp .......................................................28
Monitor .....................................................29
Beginning/ End of Transmission Signal ................29
1
UNPACKING AND CHECKING EQUIPMENT
Note: The following unpacking instructions are for use by your
KENWOOD dealer, an authorized KENWOOD service facility, or the
factory.
Carefully unpack the transceiver. We recommend that
you identify the items listed in the following table before
discarding the packing material. If any items are
missing or have been damaged during shipment, file a
claim with the carrier immediately.

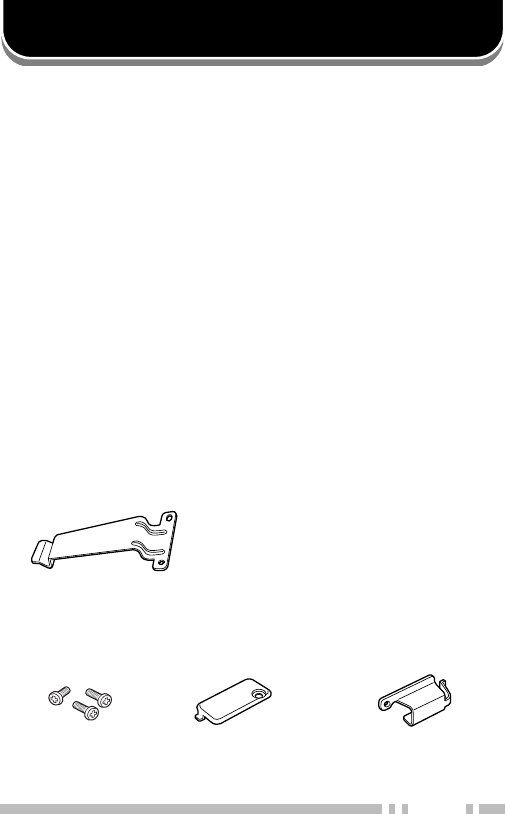

■Supplied Accessories
Belt clip
Speaker/ microphone
jacks cap
Screw set Speaker/ microphone
locking bracket
Antenna
(TK-270G/ TK-278G)
(M and C markets only)
Hand strap bracket
(C market only) Hand strap
(C market only)
Antenna
(TK-370G/ TK-378G)
(M and C markets only)
2
metI rebmuntraP ytitnauQ
annetnA CdnaM( stekram )ylno
)M(G072-KT5X-9760-09T
1
)2M(G072-KT5X-0860-09T
)M(G073-KT5X-2860-09T
)3M,2M(G073-KT5X-3860-09T
)4M(G073-KT5X-4860-09T
)C(G872-KT5X-0470-09T
)2C(G872-KT5X-2470-09T
)C(G873-KT5X-3470-09T
)4C(G873-KT5X-4470-09T
pilctleB3X-4260-92J1
tekcarbpartsdnaH )ylnotekramC( 4X-3932-12J1
)ylnotekramC(partsdnaH5X-9330-96J1
teswercS5X-2102-99N1
skcajenohporcim/rekaepS pac 3X-1530-90B1
enohporcim/rekaepS tekcarbgnikcol 4X-3944-12J1
dracytnarraW )ylnotekramK( ––1
launamnoitcurtsnIXX-3111-26B1
Note: A market code (K, M, or C) can be found on the label
attached to the package box.
3
PREPARATION
■Charging the Optional NiCd Battery Pack
The optional battery pack is not charged at the
factory; charge it before use (refer to the battery
pack instruction manual).
◆
DO NOT RECHARGE THE BATTERY PACK IF IT IS
ALREADY FULLY CHARGED. DOING SO MAY CAUSE THE
LIFE OF THE BATTERY PACK TO SHORTEN OR THE
BATTERY PACK MAY BE DAMAGED.
◆
AFTER RECHARGING THE BATTERY PACK, DISCONNECT
IT FROM THE CHARGER. IF THE CHARGER POWER IS
RESET (TURNED ON AFTER BEING TURNED OFF),
RECHARGING WILL START AGAIN AND THE BATTERY
PACK WILL BECOME OVERCHARGED.
Initially charging the battery pack after purchase or
extended storage (greater than 2 months) will not
bring the battery pack to its normal operating
capacity. After repeating the charge/discharge cycle
two or three times, the operating capacity will
increase to normal.
4
1Match the four grooves
of the battery pack with
the corresponding
guides on the back of
the transceiver.
2Slide the battery pack
along the back of the
transceiver until the
release latch on the
base of the transceiver
locks.
3To remove the battery
pack, pull back on the
release latch and slide
the pack away from the
transceiver.
◆
DO NOT SHORT THE BATTERY TERMINALS OR DISPOSE
OF THE BATTERY BY FIRE.
◆
NEVER ATTEMPT TO REMOVE THE CASING FROM THE
BATTERY PACK.
■Installing/ Removing the Optional NiCd Battery Pack
Only use the KNB-14 and KNB-15A battery packs
with this transceiver.
5
Screw the antenna into the
connector on the top of the
transceiver by holding the
antenna at its base and
turning it clockwise until
secure.
Note: An antenna is not provided
for K market models. It must be
purchased separately.
■Installing the Antenna
■Installing the Belt Clip
If necessary, attach the belt
clip using the two supplied
3 x 8 mm screws.
Note: If the belt clip is not installed,
its mounting location may get hot
during continuous transmission or
when left sitting in a hot
environment.
■Installing the Hand Strap
1Attach the hand strap
bracket using the two
supplied 3 x 8 mm
screws.
2Loop the hand strap
through the center hole
of the hand strap
bracket.
Note: If desired, you can install the
hand strap bracket over the belt clip.
6
If you are not using an
optional speaker/
microphone, install the
cover over the SP/MIC
jacks using the supplied
3 x 6 mm screw.
■Installing the Cap over the Speaker/ Microphone Jacks
■Installing the Optional Speaker/ Microphone
1Insert the speaker/
microphone plugs into
the SP/MIC jacks.
2Install the speaker/
microphone locking
bracket over the plugs
using the supplied
3 x 6 mm screw.
7
GETTING ACQUAINTED
A321
B654
C987
D
0
DIAL
TA
SCN
LO
qq
qq
qee
ee
e
rr
rr
r
tt
tt
t
yy
yy
y
uu
uu
u
ii
ii
i
oo
oo
o
!0!0
!0!0
!0
ww
ww
w
Antenna
Microphone Speaker
The transceiver is shown with the optional KNB-14 battery pack.
qq
qq
qRotary encoder
Your dealer can program the encoder as either
Group Up/Down or Channel Up/Down (default
setting). Rotate to select a group or channel. Also
rotate to adjust the squelch in Squelch Adjustment
mode.
ww
ww
wLED indicator
Lights red while transmitting. Lights green while
receiving. Flashes orange while receiving a Code
Squelch code or a Selective Call code, or a 2-Tone
or DTMF signal that matches the one set up in your
transceiver. Flashes red when the battery power is
low while transmitting.
8
ee
ee
ePower switch/ Volume control
Turn clockwise to switch ON the transceiver. Rotate
to adjust the volume. To switch OFF the transceiver,
turn counterclockwise fully.
rr
rr
rPTT (Push-to-Talk) switch
Press this switch, then speak into the microphone to
call a station.
tt
tt
tSide 1 key
This is a PF (Programmable Function) key. Press it
to activate its auxiliary function {page 10}.
yy
yy
ySide 2 key
This is a PF (Programmable Function) key. Press it
to activate its auxiliary function {page 10}.
uu
uu
uo, •, <, > keys
These are PF (Programmable Function) keys. Press
each key to activate its auxiliary function {page 10}.
ii
ii
iDTMF keypad
Used for storing and transmitting DTMF numbers.
oo
oo
oSP/MIC jacks
Connect an optional speaker/ microphone here.
!0!0
!0!0
!0 Display
(See page 9.)
Note: The PF keys are programmed with default functions:
•
Side 1 key: Lamp
•
Side 2 key: Monitor A
•o
key: Scan
••
key: Scan Del/Add
•<
key: Talk Around (K and M markets)
Reverse (C market)
•>
key: RF Power Lo
9
nocI noitpircseD
ehtelihwsraeppA rotinoM sinoitcnuf
raehotuoygniwolla,evitca .esiondnuorgkcab
silennahcdetcelesehtnehwsraeppA .ysub
ro,FMTD,TQD,TQnehwsraeppA yb(detavitcaedsignidocedenoT-2 ehtgnisserp rotinoM .)yek
edoCaevieceruoynehwsraeppA ro,enoT-2,llaCevitceleS,hcleuqS sraeppaoslA.llacgnillangiSFMTD hcleuqSedoCgnisutimsnartuoynehw .llaCevitceleSro
.gninnacselihwsraeppA
ehtnorewopwolgnisunehwsraeppA .lennahcdetceles
silennahcdetcelesehtnehwsraeppA .ecneuqesgninnacsehtnidedulcni
eht,lennahcdetcelesehtsyalpsiD nehw(stigidFMTD,levelhcleuqs ro,stigidgnimrifnoc,stigidgniretne deviecersegassemdna,)llacagnikam .llaCevitceleSaiv
■Display
CALL
SCN
LO
A
10
PROGRAMMABLE AUXILIARY FUNCTIONS
Side 1, Side 2, o, •, <, and > can be programmed with
the auxiliary functions listed below.
• Channel Down
• Channel Up
• Display Character
• Group Down
• Group Up
• Home Channel
• Key Lock
• Lamp
• Monitor A (Monitor Unmute–Momentary)
• Monitor B (Monitor Unmute–Toggle)
• Monitor C (Carrier Squelch–Momentary)
• Monitor D (Carrier Squelch–Toggle)
• None
• Operator Sel Tone 1
• Redial
• Reverse 2
• RF Power Lo
• Scan
• Scan Del/Add
• Scrambler
• Selectable QT 3
• Talk-Around 1
• TX Code Select
1
Available for K and M market models only.
2
Available for C market models only.
3
Available for C and M market models only.
11
OPERATING BASICS
■Switching Power ON/OFF
Turn the Power switch/ Volume control clockwise to
switch the transceiver ON.
Turn the Power switch/ Volume control counter-
clockwise to switch the transceiver OFF.
■Adjusting the Volume
Rotate the Power switch/ Volume control to adjust
the volume. Clockwise increases the volume and
counterclockwise decreases it.
• You may need to adjust the volume more precisely
while communicating with other parties.
Note: Depending on dealer programming, you may be able to use
the Monitor key while adjusting the volume (refer to “Monitor” on
page 29).
■Selecting a Group or Channel
Rotate the Rotary encoder (or press the keys
programmed as Group Up/Down or Channel Up/
Down) to choose your desired group or channel.
Clockwise increases the number and counter-
clockwise decreases it.
• If a group or channel has not been programmed, it
cannot be used.
12
■Adjusting the Squelch Level
Squelch is used to silence the speaker when no
signals are present. When squelch is turned OFF,
you will hear background noise from the speaker.
When it is ON, you will not hear background noise.
The squelch level you select determines when
squelch will turn OFF and ON. If you select a
squelch level that is too high, you will not hear
weaker signals. If you select a squelch level that is
too low, you will hear background noise between
signals.
To adjust the squelch:
1Press and hold the Side 2 key, then press the >
key.
• “SQL” and the current squelch level appear.
2Rotate the Rotary encoder to select a squelch
level from 0 ~ 9.
• Clockwise increases the squelch level and
counterclockwise decreases it.
3Press any key other than the key programmed as
Lamp to complete the setting.
• Normal operation is restored.
13
■Placing a Call
1Make sure no parties are currently transmitting on
your selected channel.
2Press the PTT switch and speak into the
microphone in your normal speaking voice.
•For best sound quality at the receiving station, hold
the microphone approximately 1.5 inches
(3 ~ 4 cm) from your mouth.
3Release the PTT switch to receive.
■Receiving a Call
Your dealer may have programmed QT or DQT
signalling on your transceiver. If your selected
channel is programmed with one of these features,
you will hear calls only when another party in your
system makes a call. All other calls will not be
heard.
If your selected channel is not set up with QT or
DQT, you will hear calls made by any party (not just
those in your system).
14
CHANNEL SCAN
Scan is useful for monitoring signals on the channels
programmed on the transceiver. When scanning, the
transceiver checks for a signal on each channel, and
only stops on a channel if a signal is present.
The transceiver will remain on a busy channel until the
signal is no longer present. Your dealer programs the
delay time between signal drop-out and scan
resumption. If a signal is received during the delay
time, the transceiver will remain on the same channel.
Note:
◆
You can only use Scan if your dealer has programmed at least 2
channels on the transceiver. Also, there must be at least 2 channels
not locked out of Scan.
◆
Ask your dealer for an explanation on how Channel Scan functions
when using Code Squelch, Selective Call, or 2-Tone signalling.
To start scanning, press the key programmed as Scan.
• Scanning starts from the current channel and ascends
through the channel numbers.
• The SCN icon and “SCAN” appear on the display.
To end Scan, press the Scan key again.
15
■Priority Scan
If your dealer set up a priority channel on your
transceiver, the transceiver will continuously monitor
that channel while receiving a signal on another
channel. When a signal is received on the Priority
channel, the transceiver immediately switches to that
channel.
• “P” appears on the display.
The transceiver will remain on the Priority channel
until the signal drops out. Your dealer programs the
delay time between signal drop-out and scan
resumption.
■Channel Lockout
If programmed by your dealer, you can select
channels to lock out of the scanning sequence.
Perform the following steps while not in Scan mode.
1Rotate the Rotary encoder to select the channel
you want to lock out of Scan.
2Press the key programmed as Scan Del/Add.
• Each press of Scan Del/Add toggles the lockout
status of the selected channel ON and OFF.
• Channels that are included in Scan are represented
by an “A” on the display. Channels locked out of
Scan do not have an “A” on the display.
■Revert Channel
During Scan, pressing the PTT switch to transmit will
cause the transceiver to select the revert channel.
Your dealer programs the Revert channel for your
transceiver. Consult your dealer for details.
16
DTMF CALLS
■Manual Dialling
There are two ways to manually call a number:
1) Press and hold the PTT switch, then enter the
desired digits on the keypad.
• You can enter the digits 0 ~ 9, A ~ D,, and #.
(A ~ D may be disabled by your dealer.)
• If programmed by your dealer, you do not need to
continuously hold the PTT switch. The transceiver
will remain in the transmit state for 2 seconds after
releasing each key.
• While transmitting DTMF tones, the microphone is
muted. You can monitor tones as they are
transmitted by listening to the speaker audio.
2) First enter the desired digits on the keypad (16
digits maximum).
• Each digit appears on the display as it is entered
and its corresponding DTMF tone sounds.
• You can enter the digits 0 ~ 9, A ~ D,, and #.
(A ~ D may be disabled by your dealer, however
you can still enter them if desired.)
• If you entered a wrong digit or decide not to dial the
number, press the o, •, <, or > key to exit.
After entering the desired digits, press the PTT
switch to make the call.
• The digits scroll across the display and their
corresponding DTMF tone sounds.
• If programmed by your dealer, no DTMF tone will
sound when “D” is transmitted. “D” is used for a
pause time. The pause duration is programmed by
your dealer.
17
■Storing DTMF Numbers
Note: Auto Dialling must first be activated by your dealer.
You can store DTMF numbers (16 digits maximum)
in each of the 9 Auto Dial memory locations (1 ~ 9).
1Press the # key.
• “D” appears on the display.
2Enter the desired digits on the keypad.
• You can enter the digits 0 ~ 9, A ~ D,, and #.
(A ~ D may be disabled by your dealer, however
you can still enter them if desired.) When entering
“#”, you must first press the PTT switch.
• To cancel, press o, •, <, or >.
3Press the # key, then enter a single digit number
(1 ~ 9) for the memory location.
• The original display is restored.
■Confirming Stored DTMF Numbers
To confirm the numbers stored in memory locations:
1Press the key.
• “A” appears on the display.
2Enter the desired memory location number (1 ~ 9).
• The stored digits are displayed and their
corresponding DTMF tones sound.
• If programmed by your dealer, no DTMF tone will
sound when “D” is transmitted. “D” is used for a
pause time. The pause duration is programmed by
your dealer.
3Press any key other than the PTT switch to exit.
18
■Dialling Stored DTMF Numbers
To call a number stored in a memory location:
1Press the key.
• “A” appears on the display.
2Enter the desired memory location number (1 ~ 9).
• The stored digits are displayed.
3Press the PTT switch.
• If programmed by your dealer, no DTMF tone will
sound when “D” is transmitted. “D” is used for a
pause time. The pause duration is programmed by
your dealer.
■Clearing Stored DTMF Numbers
To clear the numbers from a memory location:
1Press the # key twice.
• “D- CLR” appears on the display.
• To cancel the process, press any key other than
1 ~ 9.
2Enter the desired memory location number (1 ~ 9).
■Redialling
You can redial the last number you transmitted (16
digits maximum).
1Press the key, then press the 0 key.
• “A” and the digits are displayed.
2Press the PTT switch.
Note: Switching OFF the transceiver power clears the redial
memory.
19
CODE SQUELCH
Code Squelch is enabled or disabled by your dealer.
This function turns the transceiver squelch OFF only
when it receives the DTMF code that has been set up in
your transceiver. Transceivers that do not transmit the
correct code will not be heard. Consequently, you can
communicate with a specific party without listening to
other parties using the same channel.
Your dealer may also activate Group Call for your
transceiver. This is useful when you want to pass
information to a number of units in a fleet. Ask your
dealer for details.
Note: Code Squelch cannot be used on channels programmed with
Selective Call or 2-Tone Signalling.
■Receiving
When you receive a signal containing the correct
code, squelch turns OFF and you will hear the call.
• “CALL” appears on the display and the LED indicator
flashes orange.
• To mute the speaker after squelch turns OFF, press the
key programmed as Monitor.
• Your dealer can program squelch to automatically turn
back ON after a specific time period elapses.
• If Transpond for Code Squelch is programmed, an
acknowledgment signal is returned to the calling
station. Transpond does not function when you are
called with a Group code. Transpond for Selective Call
can send an alert tone, a transceiver ID code, or a
code stored in memory location 1.
• If Tone Alert for Code Squelch is programmed, an alert
tone will sound when the correct code is received.
20
■Transmitting
1Press and hold the PTT switch.
2Enter the code of the transceiver you want to call
or enter a Group code on the keypad.
• If desired, you can send codes the same way you
make DTMF calls {page 16}. Both manual methods
can be used or you can store codes in memory,
then dial them from a memory location.
• “CALL” appears on the display and the LED
indicator lights red.
3Use the transceiver the same as in a regular call;
press the PTT switch to transmit and release it to
receive.
• The called transceiver’s squelch will turn OFF while
you are transmitting. After you stop transmitting,
the squelch will turn back ON after a pre-set time
period elapses. This time period is programmed by
your dealer.
• When you release the PTT switch, squelch turns
OFF and the LED indicator flashes orange. When
you receive a signal, the LED indicator lights green.
When the signal drops out, the LED indicator
flashes orange again. If no signal is received for a
pre-determined time, squelch turns back ON.
• Pressing the key programmed as Monitor at any
time will turn the squelch back ON.
21
SELECTIVE CALL
Selective Call is enabled or disabled by your dealer.
This function is similar to Code Squelch {page 19}. The
differences from Code Squelch are:
• You can send or receive message codes containing a
maximum of 5 digits.
• Selective Call turns the squelch OFF only when the
transceiver receives a predetermined DTMF code in the
correct sequence:
1) A 3-digit ID code
2) A 1-digit Intermediate code
3) A message code (up to 5 digits)
Your dealer may also activate Group Call for your
transceiver. This is useful when you want to pass
information to a number of units in a fleet. Ask your
dealer for details.
Note: Selective Call cannot be used on channels programmed with
Code Squelch or 2-Tone Signalling.
22
■Receiving
When you receive the correct ID and Intermediate
codes, squelch turns OFF and you will hear the call.
If a message code is also received, the message
appears on the display
• “CALL” appears on the display and the LED indicator
flashes orange.
• When you receive a call with your ID code, “C”
appears on the display (i.e.- C 12345).
• When you receive a call wih your Group code, “A”
appears on the display (i.e.- A 12345).
• When no message is received, “NO DATA” appears on
the display.
• You can clear a message by pressing any key other
than the key programmed as Lamp.
• To mute the speaker after squelch turns OFF, press
the key programmed as Monitor.
• Your dealer can program squelch to automatically turn
back ON after a specific time period elapses.
• If Transpond for Selective Call is programmed, an
acknowledgment signal is returned to the calling
station. Transpond does not function when you are
called with a Group code. Transpond for Selective
Call can send an alert tone, a transceiver ID code, or a
code stored in memory location 1.
• If Tone Alert for Selective Call is programmed, an alert
tone will sound when the correct code is received.
23
■Transmitting
1Press and hold the PTT switch.
2Enter the code of the transceiver you want to call
or enter a Group code on the keypad.
• Be sure to enter the ID or Group code, followed by
the Intermediate code of the transceiver you want
to call. If desired, you can also enter a message
code of up to 5 digits.
• If desired, you can send codes the same way you
make DTMF calls {page 16}. Both manual
methods can be used or you can store codes in
memory, then dial them from a memory location.
• “CALL” appears on the display and the LED
indicator lights red.
3Use the transceiver the same as in a regular call;
press the PTT switch to transmit and release it to
receive.
• When you release the PTT switch, squelch turns
OFF and the LED indicator flashes orange. When
you receive a signal, the LED indicator lights green.
When the signal drops out, the LED indicator
flashes orange again. If no signal is received for a
pre-determined time, squelch turns back ON.
• Pressing the key programmed as Monitor at any
time will turn the squelch back ON.
24
2-TONE SIGNALLING
2-Tone Signalling is enabled or disabled by your dealer.
This function turns the transceiver squelch OFF only
when it receives the 2-tone signal that has been set up
in your transceiver. Transceivers that do not transmit
the correct tones will not be heard.
Your dealer may also activate Group Call for your
transceiver. Ask your dealer for details.
■Receiving
When you receive a signal containing the correct
tones, squelch turns OFF and you will hear the call.
• “CALL” appears on the display and the LED indicator
flashes orange.
• To mute the speaker after squelch turns OFF, press the
key programmed as Monitor.
• Your dealer can program squelch to automatically turn
back ON after a specific time period elapses.
• If Transpond for 2-Tone Signalling is programmed, an
acknowledgment signal is returned to the calling
station. Transpond for 2-Tone Signalling can transmit
an alert tone only.
• If Tone Alert for Code Squelch is programmed, an alert
tone will sound when the correct tones are received.
25
■Transmitting
1Press the key programmed as TX Code Select.
• A 2-Tone code appears on the display.
2Rotate the Rotary encoder to select your desired
2-Tone code.
3Use the transceiver the same as in a regular call;
press the PTT switch to transmit and release it to
receive.
• When you release the PTT switch, squelch turns
OFF and the LED indicator flashes orange. When
you receive a signal, the LED indicator lights green.
When the signal drops out, the LED indicator
flashes orange again. If no signal is received for a
pre-determined time, squelch turns back ON.
• Pressing the key programmed as Monitor at any
time will turn the squelch back ON.
26
AUXILIARY FUNCTIONS
■Selecting an Output Power
Each channel is programmed with either high or low
output power by your dealer. You can change the
output power of only channels programmed as high.
When you can reliably communicate with other
parties without using high power, select low power by
pressing the key programmed as RF Power Lo.
Each time you press RF Power Lo, the output power
toggles between high and low.
• Using low power conserves battery power and reduces
the risk of interfering with other communications.
• The “LO” icon appears when you are using low power.
Note:
◆
Pressing RF Power Lo while using a channel programmed with
low power causes an error tone to sound.
◆
When changing a channel from high power to low power, all
channels programmed with high power are changed to low.
■Time-out Timer (TOT)
The purpose of the Time-out Timer is to prevent any
caller from using a channel for an extended period of
time.
If you continuously transmit for a period of time that
exceeds the programmed time, the transceiver will
stop transmitting and an alert tone will sound. To
stop the tone, release the PTT switch.
Your dealer can program a warning function to alert
you before the TOT expires. Continuously
transmitting for the time specified by your dealer will
cause the warning tone to sound.
27
■Busy Channel Lockout (BCL)
The Busy Channel Lockout feature is activated or
deactivated by your dealer.
When activated, BCL prevents you from interfering
with other parties who may be using the same
channel that you selected. Pressing the PTT switch
while the channel is in use will cause your
transceiver to emit an alert tone and transmission will
be inhibited (you cannot transmit). Release the PTT
switch to stop the tone and return to receive mode.
■Talk-Around
You may occasionally experience an interruption in
service (due to a power failure, etc.). During such an
occurence, you can continue communication by
using the Talk-Around feature, if it has been
programmed by your dealer. Talk-Around allows you
to communicate directly with other transceivers,
without the use of a repeater. However, if the station
you want to contact is too far away, or there are
geographical obstacles in the way, you may not be
able to contact the station.
Toggle Talk-Around ON and OFF by pressing the key
programmed as Talk-Around.
• “T” or “TA” appears on the display while Talk-Around is
active.
• When using Talk-Around, the “receive” frequency is
used for both transmission and reception, and the QT/
DQT “decode” signalling is used for both encoding and
decoding.
28
■Reverse
Your dealer may have programmed the Reverse
function instead of the Talk-Around function.
When using Reverse, the transmit and receive
frequencies are swapped. This means that you will
transmit on the “receive” frequency and receive on
the “transmit” frequency. The QT/DQT encoding and
decoding signals are also reversed, meaning that
transmitted signals are encoded using the “decode”
signal, and received signals are decoded using the
“encode” signal.
Toggle Reverse ON and OFF by pressing the key
programmed as Reverse.
• “R” or “RE” appears on the display while Reverse is
active.
■Battery Voltage Level
While transmitting, the transceiver automatically
checks the battery voltage level. When the voltage
level becomes low, the LED indicator flashes red.
When a tone sounds, transmission stops. Recharge
or replace the battery pack at this time.
■Lamp
Press the key programmed as Lamp to toggle the
display backlight ON or OFF. The backlight
automatically turns OFF approximately 5 seconds
after it is switched ON.
Press any key other than Lamp while the backlight is
ON to reset the 5 second timer. The timer will reset
and the backlight will remain on for 5 seconds.
29
■Monitor
Your dealer can program a key with the Monitor
function one of four ways:
APress and hold the Monitor key to hear background
noise. Release the key to return to normal operation.
BMomentarily press the Monitor key to hear
background noise. Press the key again to return to
normal operation.
CPress and hold the Monitor key to deactivate QT,
DQT, or 2-Tone signalling. Release the key to return to
normal operation.
DMomentarily press the Monitor key to deactivate QT,
DQT, or 2-Tone signalling. Press the key again to
return to normal operation.
You can use the Monitor key to listen to weak
signals that you cannot hear during normal operation
and to adjust the volume when no signals are
present on your selected channel.
■Beginning/ End of Transmission Signal
Your dealer can enable or disable the Beginning/
End of Transmission identification signals. These
signals are used to access and release some
repeaters and telephone systems.
To send a Beginning of Transmission signal, either
press the PTT switch, or press the key two times.
To send an End of Transmission signal, either
release the PTT switch or press the key followed
by the # key.
• Ask your dealer which method has been activated on
your transceiver.
