Kenwood USA 35733110 VHF/FM HANDHELD TRANSCEIVER User Manual 5400 cover
Kenwood USA Corporation VHF/FM HANDHELD TRANSCEIVER 5400 cover
USERS MANUAL
© B62-1796-10 (K)
09 08 07 06 05 04 03 02 01
INSTRUCTION MANUAL
MANUAL DE INSTRUCCIONES
VHF APCO P25 TRANSCEIVER
TRANSCEPTOR APCO P25 VHF
TK-5210
i
WARNING:
EXPLOSIVE ATMOSPHERES (GASES, DUST, FUMES, etc.)
Turn off your transceiver while taking on fuel, or while parked in
gasoline service stations.
◆GOVERNMENT LAW PROHIBITS THE OPERATION OF
UNLICENSED RADIO TRANSMITTERS WITHIN THE
TERRITORIES UNDER GOVERNMENT CONTROL.
◆ILLEGAL OPERATION IS PUNISHABLE BY FINE OR
IMPRISONMENT OR BOTH.
◆REFER SERVICE TO QUALIFIED TECHNICIANS ONLY.
SAFETY: It is important that the operator is aware of
and understands hazards common to the operation of
any transceiver.
THANK YOU
We are grateful you chose KENWOOD for your land
mobile radio applications. We believe this easy-to-use
transceiver will provide dependable communications to
keep personnel operating at peak efficiency.
KENWOOD transceivers incorporate the latest in advanced
technology. As a result, we feel strongly that you will be
pleased with the quality and features of this product.
NOTICES TO THE USER
This device made under license under one or more of the following US
Patents: 4,590,473; 4,636,791; 4,716,407; 4,972,460; 5,148,482; 5,185,796;
5,271,017; 5,377,229; 5,502,767.
The IMBE™ voice coding Technology embodied in this product is protected
by intellectual property rights including patent rights, copyrights, and trade
secrets of Digital Voice Systems, Inc. This voice coding Technology is
licensed solely for use within this Communications Equipment. The user of
this Technology is explicitly prohibited from attempting to decompile, reverse
engineer, or disassemble the Object Code, or in any other way convert the
Object Code into a human-readable form.
ii
One or more of the following statements may be
applicable:
ATTENTION (U.S.A. Only):
The RBRC Recycle seal found on KENWOOD
nickel-cadmium (Ni-Cd) battery packs indicates
KENWOOD’s voluntary participation in an industry
program to collect and recycle Ni-Cd batteries after
their operating life has expired. The RBRC program
is an alternative to disposing Ni-Cd batteries with
your regular refuse or in municipal waste streams,
which is illegal in some areas.
For information on Ni-Cd battery recycling in your area, call (toll free)
1-800-8-BATTERY (1-800-822-8837).
KENWOOD’s involvement in this program is part of our commitment
to preserve our environment and conserve our natural resources.
FCC WARNING
This equipment generates or uses radio frequency energy. Changes
or modifications to this equipment may cause harmful interference
unless the modifications are expressly approved in the instruction
manual. The user could lose the authority to operate this equipment
if an unauthorized change or modification is made.
INFORMATION TO THE DIGITAL DEVICE USER REQUIRED BY
THE FCC
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation.
This equipment generates, uses and can generate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that the interference will not occur in a
particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment to an outlet on a circuit different from that
to which the receiver is connected.
•Consult the dealer for technical assistance.
UNPACKING AND CHECKING EQUIPMENT
Note: The following unpacking instructions are for use by your
KENWOOD dealer, an authorized KENWOOD service facility, or the factory.
Carefully unpack the transceiver. We recommend that you identify the items listed in the following table before
discarding the packing material. If any items are missing or have been damaged during shipment, file a claim with
the carrier immediately.
SUPPLIED ACCESSORIES
Item Parts Number
Instruction Manual B62-1796-00 1
Pamphlet B59-2390-00 1
Belt Hook J29-0710-05 1
Screw Set N99-2044-05 1
Cap B09-0682-03 1

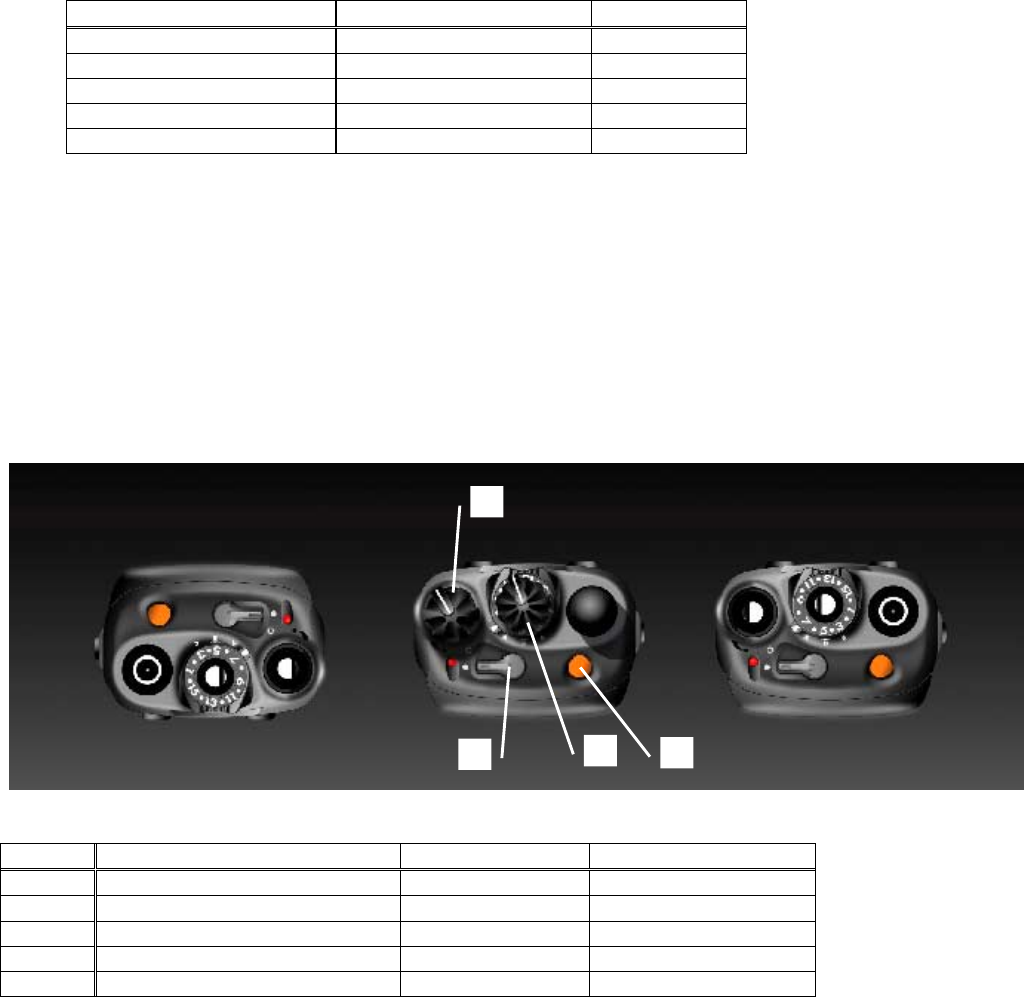

Appearance
TOP
No. Name Correspondence Note
1 Power SW/Volume control Type 1/2/3
2 Selector Type 1/2/3
3 Concentric Switch Type 1/2/3
4 Lever Switch Type 1/2/3
5 Orange key Type 1/2/3
1
1
2
4 5

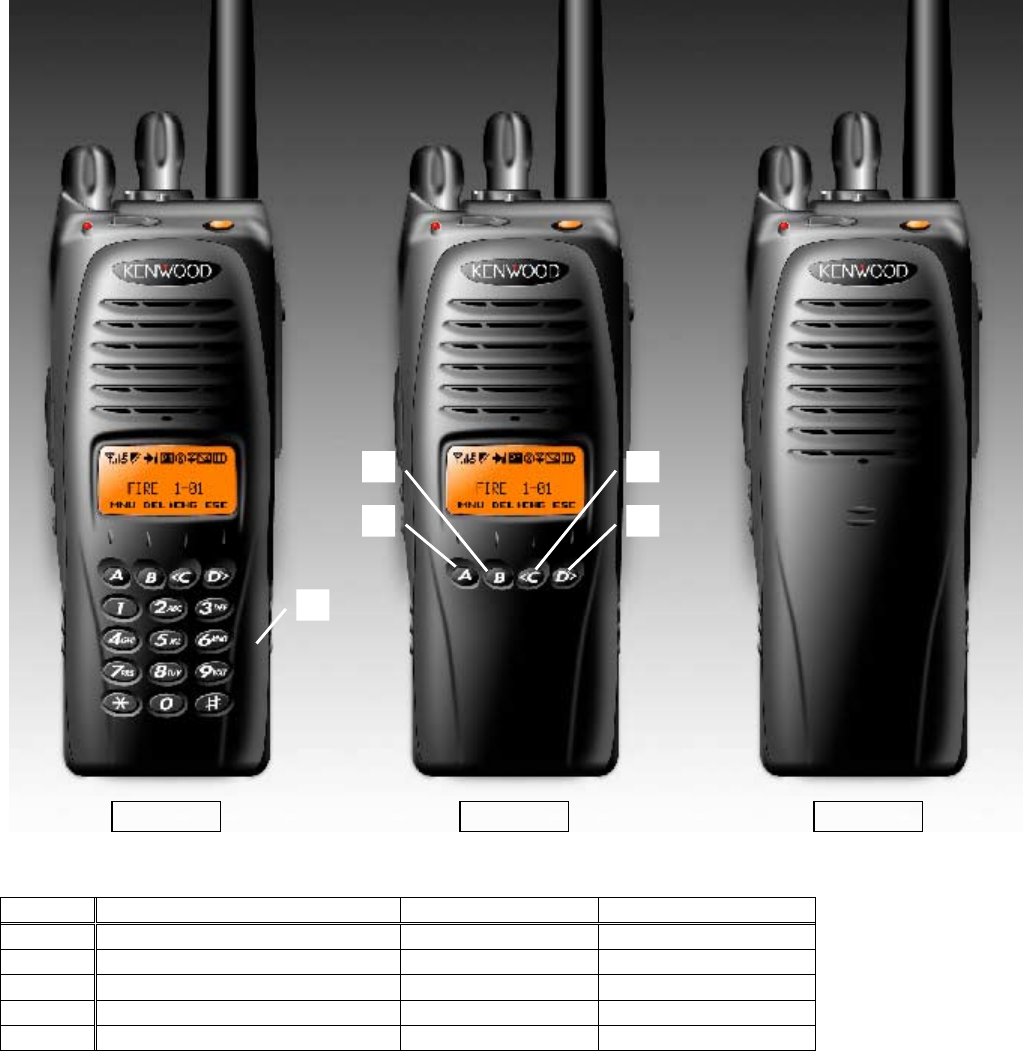

Front
No. Name Correspondence Note
1 PF A key Type 2/3
2 PF B key Type 2/3
3 PF C key Type 2/3
4 PF D key Type 2/3
5 12 keypad Type 3
1
2 3
4
5
Type 3 Type 2 Type 1

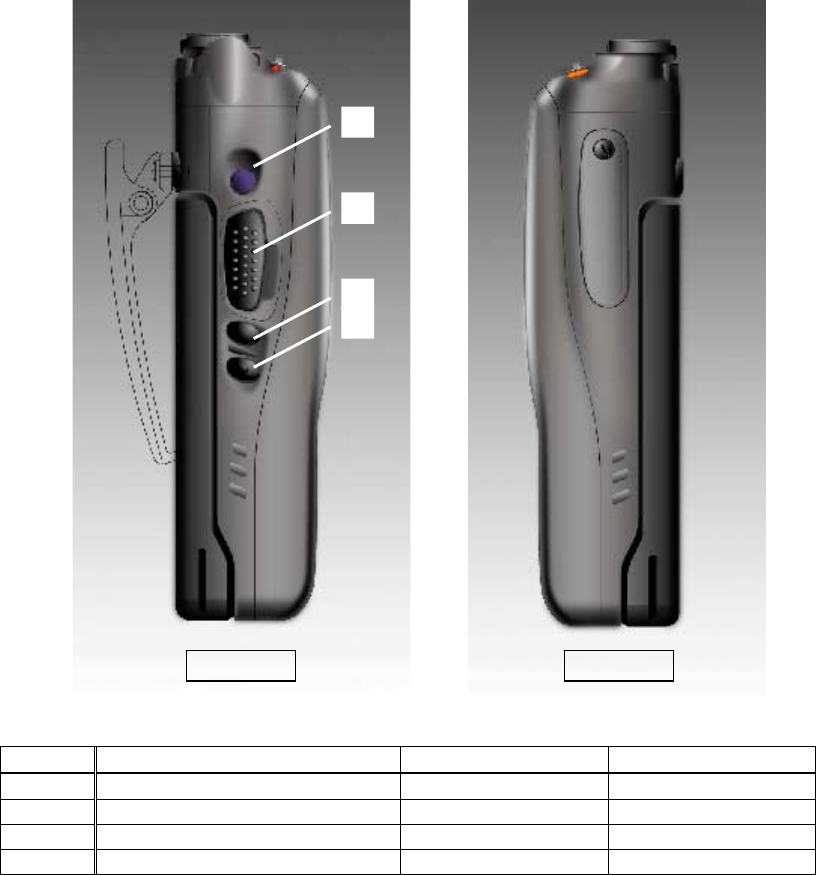

Side
No. Name Correspondence Note
1 Side1 key Type 1/2/3
2 PTT Type 1/2/3
3 Side2 key Type 1/2/3
4 Side3 key Type 1/2/3
1
2
3
4
Left side Right side
Key
Type1 Type2 Type3
(Power SW/Volume) Power Switch/Volume Power Switch/Volume Power Switch/ Volume
(Selector) 16 Position Rotaly SW 16 Position Rotaly SW 16 Position Rotaly SW
(Concentric Switch) 3 Position Selector 3 Position Selector 3 Position Selector
(Lever Switch) 2 Position Selector 2 Position Selector 2 Position Selector
(Orange) Orange Orange Orange
(Side 1) Side 1 Side 1 Side 1
(Side 2) Side 2 Side 2 Side 2
(Side 3) Side 3 Side 3 Side 3
(PTT) PTT PTT PTT
(A) -- A A
(B) -- B B
(C) -- C C
(D) -- D D
(DTMF 12 Key) -- -- DTMF

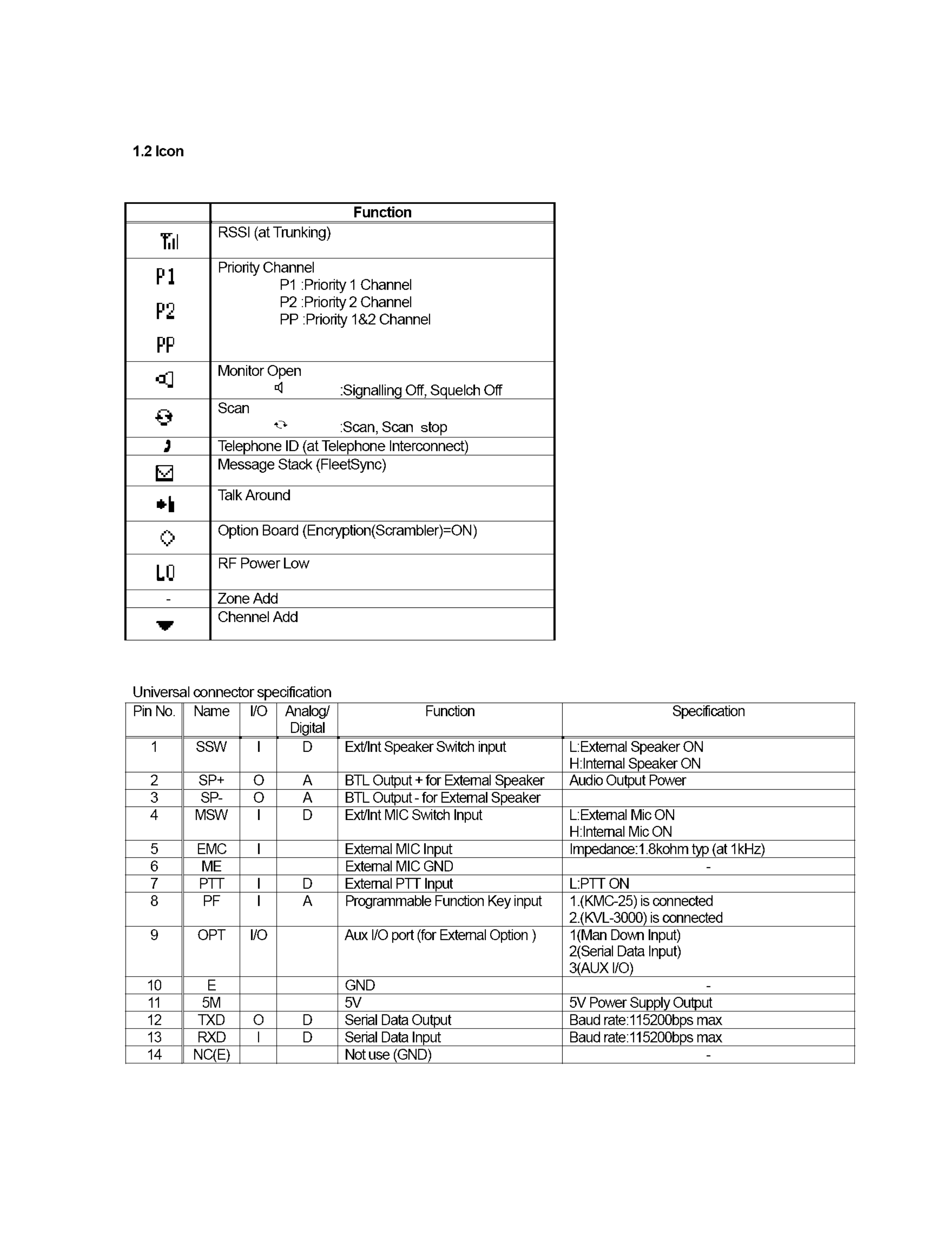

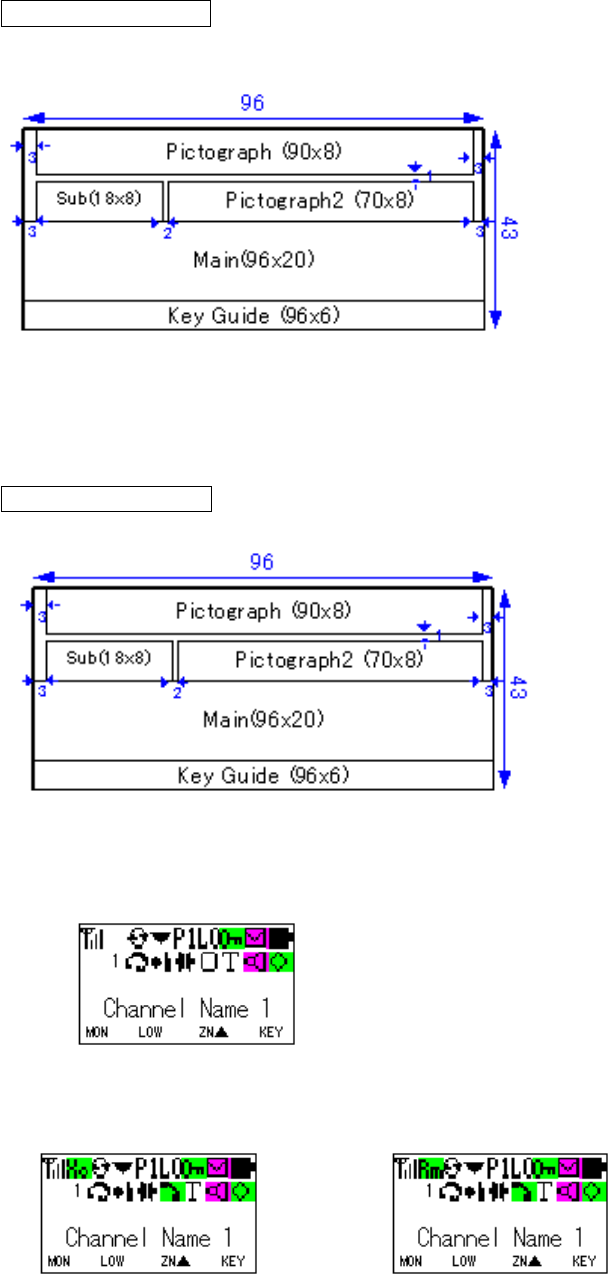

1.1 LCD(Type2,Type3)
Standard Display (2Line)
Message Display (3Line)
Conventional
Trunking
PREPARATION

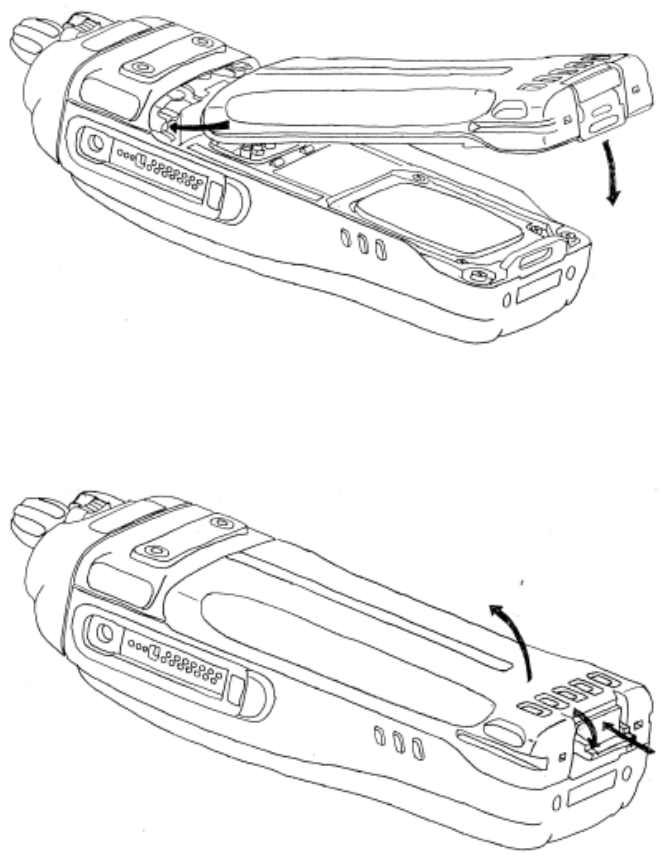

INSTALLING/ REMOVING THE (OPTIONAL) BATTERY PACK
CAUTION:
-DO NOT RECHARGE HE BATTERY PACK IF IT IS ALREADY FULLY CHARGED. DOING SO MAY CAUSE
THE LIFE OF THE BATTERY PACK TO SHORTEN OR THE BATTERY PACK MAY BE DAMAGED.
-AFTER RECHARGING THE BATTERY PACK, DISCONNECT IT FROM THE CHARGER. IF THE CHARGER
POWER IS RESET (TURNED ON AFTER BEING TURNED OFF), RECHARGING WILL START AGAIN AND
THE BATTERY PACK WILL BECOME OVERCHARGED.
-DO NOT SHORT THE BATTERY TERMINALS OR DISPOSE OF THE BATTERY BY FIRE.
-NEVER ATTEMPT TO REMOVE THE CASING FROM THE BATTERY PACK.
1 Match the four grooves of the battery pack with the corresponding guides on the back of the transceiver.
2 Slide the battery pack along the back of the transceiver until the release latch on the base of the transceiver
locks.
3 To remove the battery pack, pull back on the release latch and slide the pack away from the transceiver.

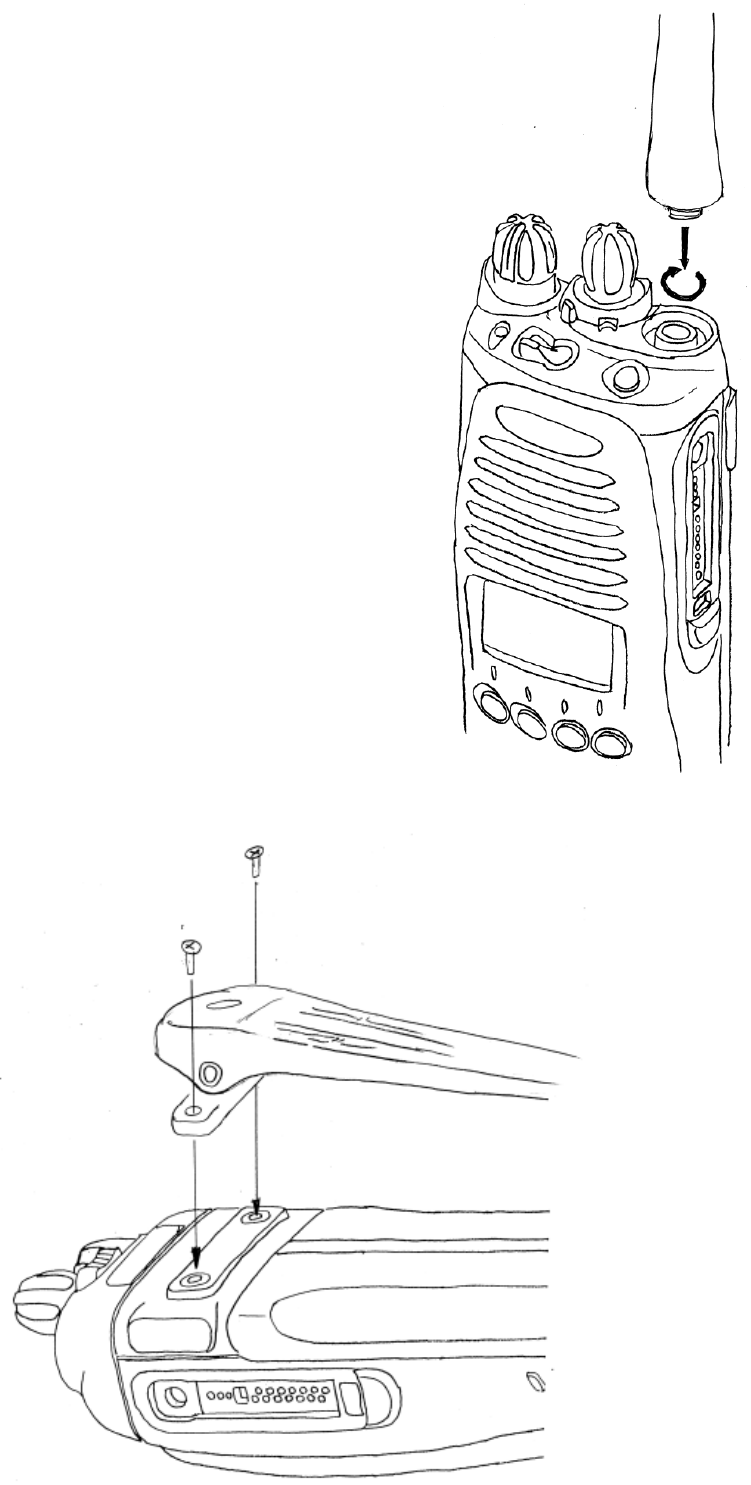

THE ANTENNA INSTALLING
Screw the antenna into the connector on the top of the transceiver
by holding theantenna at its base and turning it clockwise until
secure.
INSTALLING THE BELT CLIP
If necessary, attach the belt clip using the two supplied binding
screws.
Note: If the belt clip is not installed, its mounting location may get
hotduring continuous transmission or when left sitting in a hot environment.

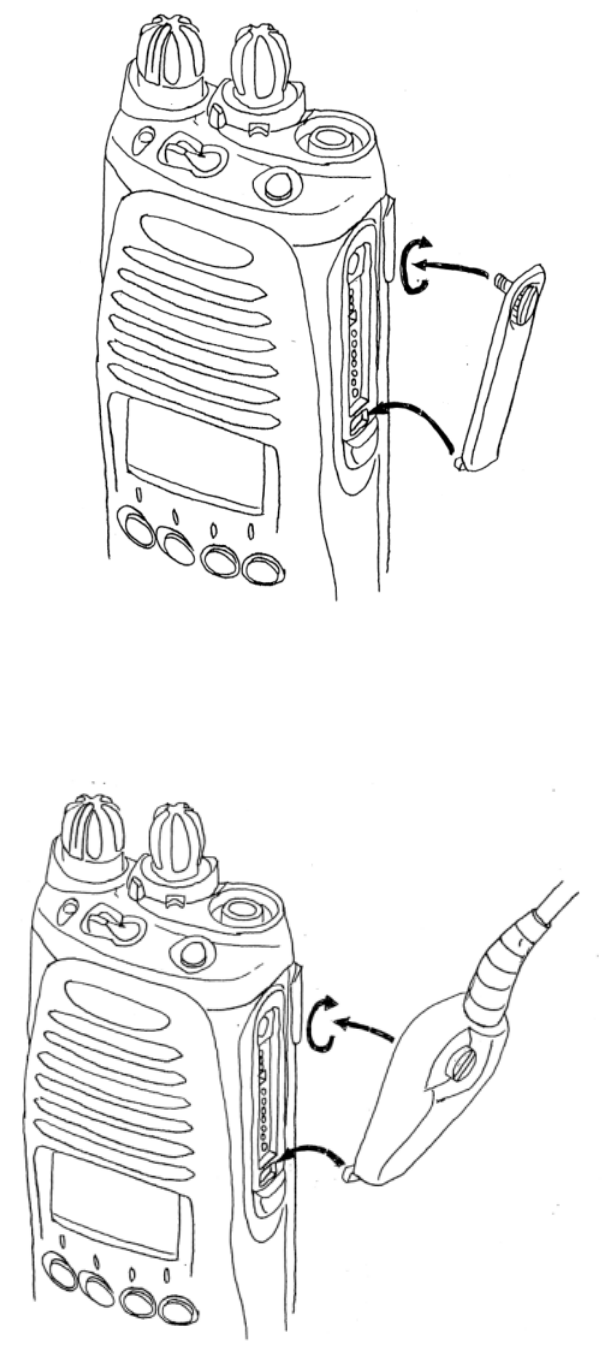

INSTALLING THE COVER OVER THE UNIVERSAL CONNECTOR
If you are not using the optional KMC-** speaker/ microphone, install the cover over the universal connector using
the supplied 4 x 6 mm dressing screw.
INSTALLING THE (OPTIONAL KMC-25, KMC-25W) SPEAKER/ MICROPHONE
1 Insert the guide of the speaker/ microphone connector into the groove of the universal connector.
2 Secure the connector in place using the attached screw.
RADIO FREQUENCY ENERGY SAFETY INFORMATION _____
This KENWOOD transceiver has been tested and complies with the standards listed below, in regards to Radio
Frequency (RF) energy and electromagnetic energy (EME) generated by the transceiver.
• FCC RF exposure limits for Occupational Use Only. RF Exposure limits adopted by the FCC are generally
based on recommendations from the National Council on Radiation Protection and Measurements, & the
American National Standards Institute.
• FCC OET Bulletin 65 Edition 97-01 Supplement C
• American National Standards Institute (C95.1 – 1992)
• American National Standards Institute (C95.3 – 1992)
WARNING
This KENWOOD transceiver generates RF EME while transmitting. RF EME (Radio Frequency Electric &
Magnetic Energy) has the potential to cause slight thermal, or heating effects to any part of your body less than the
recommended distance from this radio transmitter’s antenna. RF energy exposure is determined primarily by the
distance to and the power of the transmitting device. In general, RF exposure is minimized when the lowest possible
power is used or transmission time is kept to the minimum required for consistent communications, and the greatest
distance possible from the antenna to the body is maintain. The transceiver has been designed for and is classified
for Occupational Use Only. Occupational/ controlled exposure limits are applicable to situations in which persons
are exposed to RF energy as a consequence of their employment, and such persons have been made aware of the
potential for exposure and can exercise control over their exposure. This means you can use the transceiver only if
you are aware of the hazards of operating a transceiver and are familiar in ways to minimize these hazards. This
transceiver is not intended for use by the general public in uncontrolled environments. Uncontrolled environment
exposure limits are applicable to situations in which the general public may be exposed to RF energy, or in which
the persons who are exposed as a consequence of their employment may not be fully aware of the potential for
exposure or cannot exercise control over their exposure.
The following list provides you with the information required to ensure that you are aware of RF exposure and of
how to operate this transceiver so that the FCC RF exposure limitations are not exceeded.
• While transmitting (holding the PTT switch), always keep the antenna at least 3 cm (1 3/16 inches) from
your body or face, as well as from any bystanders.
• Do not transmit for more than 50% of the total transceiver use time; transmitting over 50% of the total use
time may exceed the limits in accordance to the FCC RF exposure requirements. Nominal transceiver
operation is 5% transmission time, 5% reception time, and 90% stand-by time.
• Use only the specified antenna for this transceiver; this may be either the antenna provided with the
transceiver or another antenna authorized by KENWOOD.
Use only KENWOOD authorized accessories (antennas, battery packs, belt clips, Speaker/ Mics or headsets etc.):
When worn on the body, always place the radio in a KENWOOD recommended clip or carrying case meant for this
product. The use of other than recommended or approved body- worn accessories may result in RF exposure levels
which exceed the FCC’s occupational/ controlled environment RF exposure limits.
CAUTION
To ensure that your exposure to RF EME is within the FCC limits for occupational use, you must observe and
adhere to the above points.
Electromagnetic Interference Compatibility
Electronic devices are susceptible to electromagnetic interference (EMI) if they are not adequately shielded or
designed for electromagnetic compatibility. Because this transceiver generates RF energy, it can cause interference
to such equipment.
• Turn OFF your transceiver where signs are posted to do so. Hospitals and health care facilities use
equipment that is sensitive to electromagnetic radiation.
• Turn OFF your transceiver while on board an aircraft when so instructed. Use of the transceiver must be in
accordance with airline regulations and/or crew instructions.
