Kenwood USA 37683110 VHF FM Handheld Transceiver User Manual INSTRUCTION MANUAL
Kenwood USA Corporation VHF FM Handheld Transceiver INSTRUCTION MANUAL
Contents
- 1. Instruction Manual
- 2. Revised Instruction Manual
Instruction Manual
KENWOOD CORPORATION TK-2212-1 FCC ID: ALH37683110 / IC: 282D-37683110
TK-3212-1 FCC ID: ALH37693110 / IC: 282D-37693110
TK-3212-2 FCCID: ALH37693120
INSTRUCTION MANUAL
TK-2212-1/TK-3212-1/TK-3212-2
THANK YOU!
We are grateful you chose KENWOOD for your land mobile radio applications. We believe this easy-to-use transceiver will provide
dependable communications to keep personnel operating at peak efficiency.
KENWOOD transceivers incorporate the latest in advanced technology. As a result, we feel strongly that you will be pleased with the
quality and features of this product.
NOTICES TO THE USER
WARNING:
• GOVERNMENT LAW PROHIBITS THE OPERATION OF UNLICENSED RADIO TRANSMITTERS WITHIN THE
TERRITORIES UNDER GOVERNMENT CONTROL.
•ILLEGAL OPERATION IS PUNISHABLE BY FINE OR IMPRISONMENT OR BOTH.
•REFER SERVICE TO QUALIFIED TECHNICIANS ONLY.
•DO NOT OPERATE YOUR TRANSCEIVER IN EXPLOSIVE ATMOSPHERES (GASES, DUST, FUMES, ETC.).
•TURN OFF YOUR TRANSCEIVER WHILE TAKING ON FUEL, OR WHILE PARKED IN GASOLINE SERVICE STATIONS.
SAFETY:
It is important that the operator is aware of and understands hazards common to the operation of any transceiver.
WARNING:
EXPLOSIVE ATMOSPHERES (GASES, DUST, FUMES, etc.)
Turn off your transceiver while taking on fuel, or while parked in gasoline service stations.
One or more of the following statements may be applicable:
FCC WARNING
This equipment generates or uses radio frequency energy. Changes or modifications to this equipment may cause harmful interference
unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if
an unauthorized change or modification is made.
INFORMATION TO THE DIGITAL DEVICE USER REQUIRED BY THE FCC
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can generate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that the interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• I ncrease the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer for technical assistance.
KENWOOD CORPORATION TK-2212-1 FCC ID: ALH37683110 / IC: 282D-37683110
TK-3212-1 FCC ID: ALH37693110 / IC: 282D-37693110
TK-3212-2 FCCID: ALH37693120
ATTENTION (U.S.A. Only):
The RBRC Recycle seal found on KENWOOD nickel-metal hydride (Ni-MH) battery packs
indicates KENWOOD’s voluntary participation in an industry program to collect and recycle
Ni-MH batteries after their operating life has expired. The RBRC program is an alternative to
disposing Ni-MH batteries with your regular refuse or in municipal waste streams, which is illegal
in some areas.
For information on Ni-MH battery recycling in your area, call (toll free) 1-800-8-BATTERY
(1-800-822-8837). KENWOOD’s involvement in this program is part of our commitment to
preserve our environment and conserve our natural resources.
UNPACKING AND CHECKING EQUIPMENT
Note:
The following unpacking instructions are for use by your
KENWOOD dealer, an authorized KENWOOD service facility, or the factory.
Carefully unpack the transceiver. We recommend that you identify the items listed in the following table before discarding the packing
material. If any items are missing or have been damaged during shipment, file a claim with the carrier immediately.
• Accessories
Quantity
Item Part Number TK-2212-1 TK-3212-1 TK-3212-2
Instruction Manual B62 –1817 - *0 1 1 1
Instruction Manual B62 –1846 - *0 1 1 1
Belt Hook J29 –0712 - *5 1 1 1
Screw Set N99-2043 - *5 1 1 1
Cap B09 – 0680 - *3 1 1 1
Holder J19 – 5472 - *3 1 1 1
Helical Antenna T90 –1036 - *5 1
Whip Antenna T90 –1039 - *5 1
Whip Antenna T90 –1040 - *5 1
Battery Assy. W09 –1000 - *5 1 1 1
Charger W08 –0969 - *5 1 1 1
AC Adapter W08 –0970 - *5 1 1 1
Pamphlet B59 –2391 - *0 1 1 1
KENWOOD CORPORATION TK-2212-1 FCC ID: ALH37683110 / IC: 282D-37683110
TK-3212-1 FCC ID: ALH37693110 / IC: 282D-37693110
TK-3212-2 FCCID: ALH37693120
Installing/ Removing the Optional Battery Pack PREPARATION
The battery pack is not charged at the factory; charge it before use.
CAUTION:
• DO NOT RECHARGE THE BATTERY PACK IF IT IS ALREADY FULLY CHARGED. DOING SO MAY CAUSE THE LIFE
OF THE BATTERY PACK TO SHORTEN OR THE BATTERY PACK MAY BE DAMAGED.
• AFTER RECHARGING THE BATTERY PACK, DISCONNECT IT FROM THE CHARGER. IF THE CHARGER POWER IS
RESET (TURNED ON AFTER BEING TURNED OFF), RECHARGING WILL START AGAIN AND THE BATTERY PACK
WILL BECOME OVERCHARGED.
• DO NOT SHORT THE BATTERY TERMINALS OR DISPOSE OF THE BATTERY BY FIRE.
• NEVER ATTEMPT TO REMOVE THE CASING FROM THE BATTERY PACK.
1 Match the guides of the battery pack with the corresponding grooves on the upper rear of the transceiver, then firmly press the battery
pack t
2 To remove the battery pack, lift the safety catch, press the release latch, then pull the battery pack away from the transceiver.
KENWOOD CORPORATION TK-2212-1 FCC ID: ALH37683110 / IC: 282D-37683110
TK-3212-1 FCC ID: ALH37693110 / IC: 282D-37693110
TK-3212-2 FCCID: ALH37693120

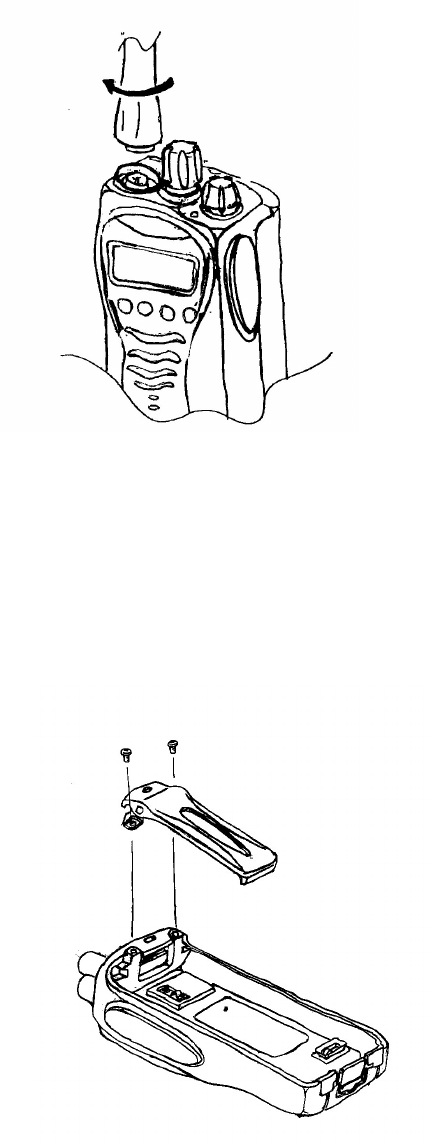

Installing the Antenna
Screw the antenna into the connector on the top of the transceiver by holding the antenna at its base and
turning it clockwise until secure.
Installing the Belt Clip
Using the 2 screws, affix the belt clip in place.
KENWOOD CORPORATION TK-2212-1 FCC ID: ALH37683110 / IC: 282D-37683110
TK-3212-1 FCC ID: ALH37693110 / IC: 282D-37693110
TK-3212-2 FCCID: ALH37693120

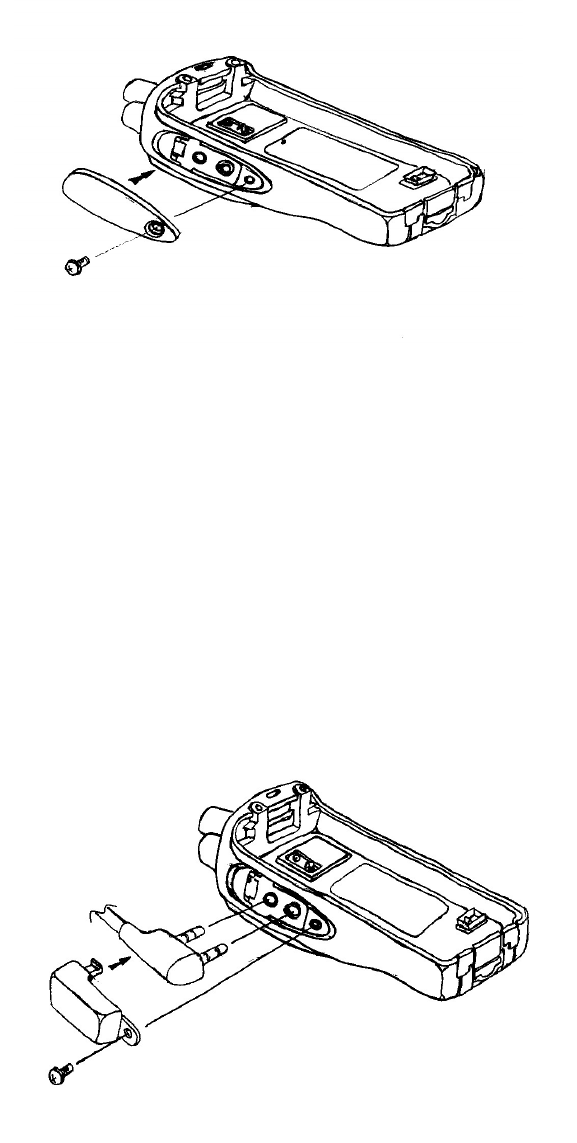

Installing the Cap over the Speaker/Microphone Jacks
If you are not using an optional speaker/ microphone, install the cap over the SP/MIC jacks using the supplied screw.
Note:
To keep the transceiver water resistant, you must cover the SP/MIC jacks with the cap or the cap or the speaker/microphone connector.
Installing the Optional Speaker/ Microphone
1 Insert the speaker/ microphone plugs into the SP/MIC jacks.
2 Install the speaker/microphone locking Holder over the plugs using the supplied screw.
KENWOOD CORPORATION TK-2212-1 FCC ID: ALH37683110 / IC: 282D-37683110
TK-3212-1 FCC ID: ALH37693110 / IC: 282D-37693110
TK-3212-2 FCCID: ALH37693120
GETTING ACQUAINTED
Knob
NO. Name Lock/
Non Lock Description
1 Power switch/
Volume control
Lock/
Non Lock
Power SW (CCW : Power OFF)
Audio Volume adjuster
2 Selector switch Lock Channel Selector
Switch
Fig. 1 Left Side Fig.2 Front
< Left side >
NO. Name Lock/
Non Lock Description
1 PTT Non Lock
TX ON/OFF
2 Side 1 Non Lock Programmable default : No Function
3 Side 2 Non Lock Programmable default : Monitor Momentary
< Front >
NO. Name Lock/
Non Lock Description
1 S Non Lock
Programmable default : No Function
2 A Non Lock
Programmable default : No Function
3 <B Non Lock Programmable default : Channel Up
4 C> Non Lock
Programmable default : Channel Down
PTT
PF1
PF2
Selectable knob
V
olume
S
A
<B
C
KENWOOD CORPORATION TK-2212-1 FCC ID: ALH37683110 / IC: 282D-37683110
TK-3212-1 FCC ID: ALH37693110 / IC: 282D-37693110
TK-3212-2 FCCID: ALH37693120
LED
NO. Name Description
1 LED
The LED is three colors.
Lights green while receiving at user mode. Lights red while transmitting, flashes
red when the battery power is low while transmitting. Lights orange when
individual called.

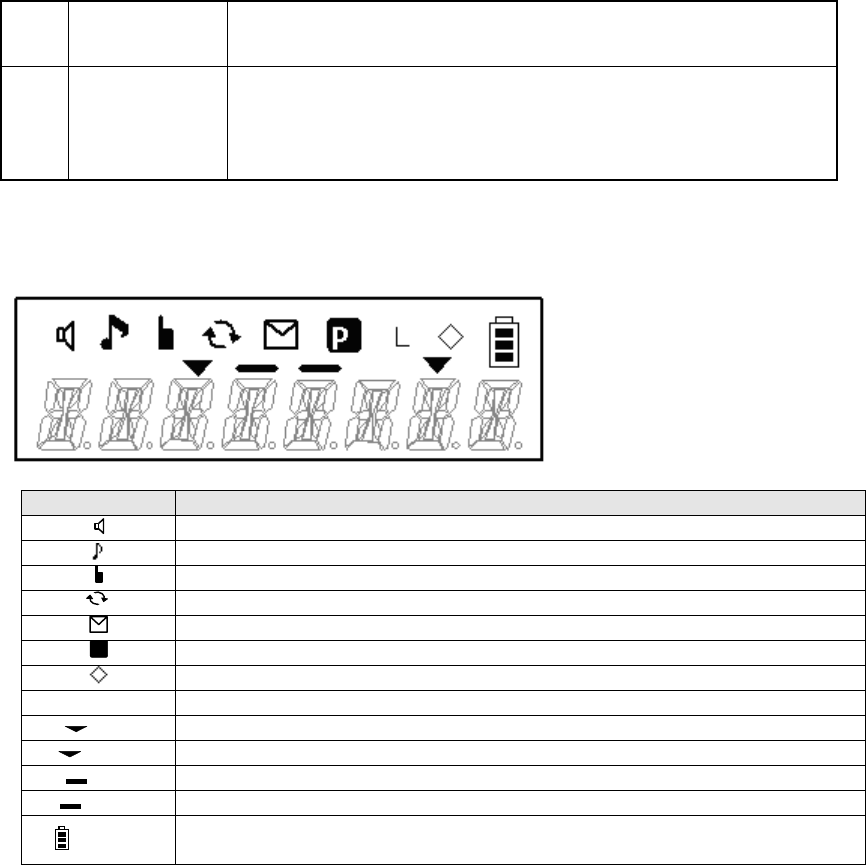

LCD Display
Icon Function
Monitor
Call Indicator
Talk Around
Scan
Message Stack ( FleetSync )
P
Priority Channel
Scrambler
L RF Power Low
(Left) Zone Add
(Right) Channel Add
(Left) VOX
(Right) AUX
Battery Indicator
KENWOOD CORPORATION TK-2212-1 FCC ID: ALH37683110 / IC: 282D-37683110
TK-3212-1 FCC ID: ALH37693110 / IC: 282D-37693110
TK-3212-2 FCCID: ALH37693120
TERMINAL
SP/MIC jacks
SP/MIC covering for blindfold mode of resin is possible.
NO. Name Description I/O
1 PTT/RXD PTT input / Serial data input I
2 MIC MIC input I
3 MIC IN To internal MIC -
4 OPTDET Option Detect I
5 5MS 5V output O
6 AE Audio Earth -
7 TXD Serial data output O
8 NC No Connect -
9 SPO AF power output O
10 SPI To internal SP -
Battery Terminal
It’s type of spring plate. The minus terminal connect to chassis ground
It’s mounted to rear side of radio and mounting instruction is slide method.
OTHER
Rear
A rail and a hook for battery installation.
Space which affixes name plate. Model name plate
Screw holes for belt hook installation.
Bottom
Battery release lever
KENWOOD CORPORATION TK-2212-1 FCC ID: ALH37683110 / IC: 282D-37683110
TK-3212-1 FCC ID: ALH37693110 / IC: 282D-37693110
TK-3212-2 FCCID: ALH37693120

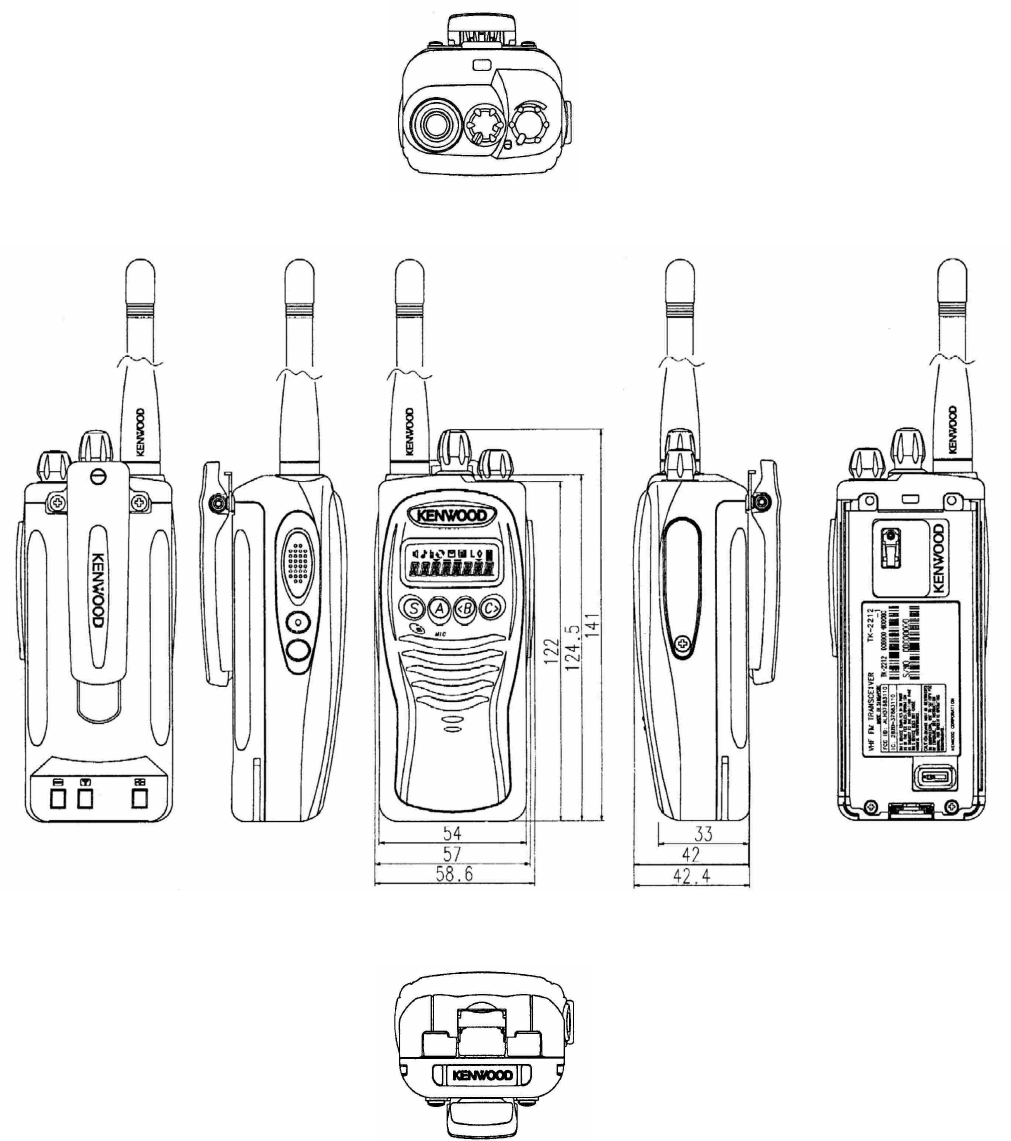

Appearance
KENWOOD CORPORATION TK-2212-1 FCC ID: ALH37683110 / IC: 282D-37683110
TK-3212-1 FCC ID: ALH37693110 / IC: 282D-37693110
TK-3212-2 FCCID: ALH37693120
OPERATING BASICSATINGBASICS
• Switching Power ON/OFF
Turn the Power switch/ Volume control clockwise to switch the transceiver ON.
Turn the Power switch/ Volume control counterclockwise to switch the transceiver OFF.
• Adjusting the Volume
Rotate the Power switch/ Volume control to adjust the volume.
• Selecting a Channel
Rotate the Channel selector to select a channel.
Clockwise increases the channel number and counterclockwise decreases it.
• Making a Call
1 Select the desired channel.
2 Press and hold the PTT switch, then speak into the microphone in your normal voice.
• For best results, hold the microphone approximately 3 to 4 cm (1 1/2 inches) from your lips.
4 Release the PTT switch to receive.
AUXILIARY FEATURES
• Time-out Timer (TOT)
The TOT is used to automatically inhibit transmission after a specified time elapse. If the PTT switch is held down for longer than
specified time, the transceiver will stop transmitting and a tone will sound. Release the PTT switch, then press it again to continue
transmitting.
RADIO FREQUENCY ENERGY SAFETY INFORMATION
This KENWOOD transceiver has been evaluated and complies with the standards listed below, in
regards to Radio Frequency (RF) energy and electromagnetic energy (EME) generated by the
transceiver.
•FCC RF exposure limits for
Occupational Use Only.
RF Exposure limits adopted by the FCC are
generally based on recommendations from the National Council on Radiation Protection and
Measurements, & the American National Standards Institute.
•FCC OET Bulletin 65 Edition 97-01 Supplement C
•American National Standards Institute (C95.1 – 1992)
•American National Standards Institute (C95.3 – 1992)
This KENWOOD transceiver generates RF EME while transmitting. RF EME (Radio Frequency Electric &
Magnetic Energy) has the potential to cause slight thermal, or heating effects to any part of your body less
than the recommended distance from this radio transmitter’s antenna. RF energy exposure is determined
primarily by the distance to and the power of the transmitting device. In general, RF exposure is
minimized when the lowest possible power is used or transmission time is kept to the minimum required
for consistent communications, and the greatest distance possible from the antenna to the body is
maintained. The transceiver has been designed for and is classified for
Occupational Use Only
.
Occupational/ controlled exposure limits are applicable to situations in which persons are exposed to RF
energy as a consequence of their employment, and such persons have been made aware of the potential
for exposure and can exercise control over their exposure. This means you can use the transceiver only if
you are aware of the potential hazards of operating a transceiver and are familiar in ways to minimize
these hazards. This transceiver is not intended for use by the general public in uncontrolled environments.
Uncontrolled environment exposure limits are applicable to situations in which the general public may be
exposed to RF energy, or in which the persons who are exposed as a consequence of their employment
may not be fully aware of the potential for exposure or cannot exercise control over their exposure.
The following list provides you with the information required to ensure that you are aware of RF
exposure and of how to operate this transceiver so that the FCC RF exposure limitations are not
exceeded.
•While transmitting (holding the PTT switch), always keep the antenna and the radio at least 3 cm (1 3/16
inches) from your body or face, as well as from any bystanders.
•Do not transmit for more than 50% of the total transceiver use time; transmitting over 50% of the total use
time may exceed the limits in accordance to the FCC RF exposure requirements. Nominal transceiver
operation is 5% transmission time, 5% reception time, and 90% stand-by time.
•Use only the specified antenna for this transceiver; this may be either the antenna provided with the
transceiver or another antenna authorized by KENWOOD.
Use only KENWOOD authorized accessories (antennas, battery packs, belt clips, Speaker/ Mics or
headsets etc.): When worn on the body, always place the radio in a KENWOOD recommended clip or
carrying case meant for this product. The use of other than recommended or approved body- worn
accessories may result in RF exposure levels which exceed the FCC’s occupational/ controlled
environment RF exposure limits.
To ensure that your exposure to RF EME is within the FCC limits for occupational use, you must observe
and adhere to the above points.
Electromagnetic Interference Compatibility
Electronic devices are susceptible to electromagnetic interference (EMI) if they are not adequately
shielded or designed for electromagnetic compatibility. Because this transceiver generates RF energy,
it can cause interference to such equipment.
•Turn OFF your transceiver where signs are posted to do so. Hospitals and health care facilities use
equipment that is sensitive to electromagnetic radiation.
•Turn OFF your transceiver while on board an aircraft when so instructed. Use of the transceiver must be
in accordance with airline regulations and/or crew instructions. B59-2391-00
RF Safety Info A6 (B59-2391-00) 04.5.20, 9:06 AM1
