Kenwood USA Corporation UHF Digital Transceiver Instruction Manual
Instruction Manual
© B62-2292-00 (K)
09 08 07 06 05 04 03 02 01 00
VHF DIGITAL TRANSCEIVER/
UHF DIGITAL TRANSCEIVER
INSTRUCTION MANUAL
ÉMETTEUR-RÉCEPTEUR NUMÉRIQUE VHF/
ÉMETTEUR-RÉCEPTEUR NUMÉRIQUE UHF
MODE D’EMPLOI
TRANSCEPTOR DIGITAL VHF/
TRANSCEPTOR DIGITAL UHF
MANUAL DE INSTRUCCIONES
NX-220/ NX-320
VHF DIGITAL TRANSCEIVER/
UHF DIGITAL TRANSCEIVER
NX-220/ NX-320
INSTRUCTION MANUAL
ENGLISH
Thank You
We are grateful you have chosen Kenwood for your land
mobile radio applications.
noTices To The user
◆ Government law prohibits the operation of unlicensed radio
transmitters within the territories under government control.
◆ Illegal operation is punishable by fine and/or imprisonment.
◆ Refer service to qualified technicians only.
Safety: It is important that the operator is aware of, and
understands, hazards common to the operation of any
transceiver.
The AMBE+2™ voice coding Technology embodied in this product
is protected by intellectual property rights including patent rights,
copyrights and trade secrets of Digital Voice Systems, Inc. This
voice coding Technology is licensed solely for use within this
Communications Equipment. The user of this Technology is explicitly
prohibited from attempting to extract, remove, decompile, reverse
engineer, or disassemble the Object Code, or in any other way
convert the Object Code into a human-readable form. U.S. Patent
Nos. #5,870,405, #5,826,222, #5,754,974, #5,701,390, #5,715,365,
#5,649,050, #5,630,011, #5,581,656, #5,517,511, #5,491,772,
#5,247,579, #5,226,084 and #5,195,166.
Firmware Copyrights
The title to and ownership of copyrights for firmware embedded in
Kenwood product memories are reserved for Kenwood Corporation.
i
ATTENTION:
The RBRC Recycle seal found on Kenwood
lithium-ion (Li-ion) battery packs indicates
Kenwood’s voluntary participation in an industry
program to collect and recycle Li-ion batteries after
their operating life has expired. The RBRC program
is an alternative to disposing Li-ion batteries with
your regular refuse or in municipal waste streams,
which is illegal in some areas.
For information on Li-ion battery recycling in your area, call (toll free)
1-800-8-BATTERY (1-800-822-8837).
Kenwood’s involvement in this program is part of our commitment to
preserve our environment and conserve our natural resources.
ATTENTION:
The RBRC Recycle seal found on Kenwood
nickel
metal hydride (Ni-MH) battery packs indicates
Kenwood’s
voluntary participation in an industry
program to collect and recycle Ni-MH batteries after
their operating life has expired. The RBRC program
is an alternative to disposing Ni-MH batteries with
your regular refuse or in municipal waste streams,
which is illegal in some areas.
For information on
Ni-MH
battery recycling in your area, call (toll free)
1-800-8-BATTERY (1-800-822-8837).
Kenwood’s involvement in this program is part of our commitment to
preserve our environment and conserve our natural resources.
ii
Terminal DescripTions

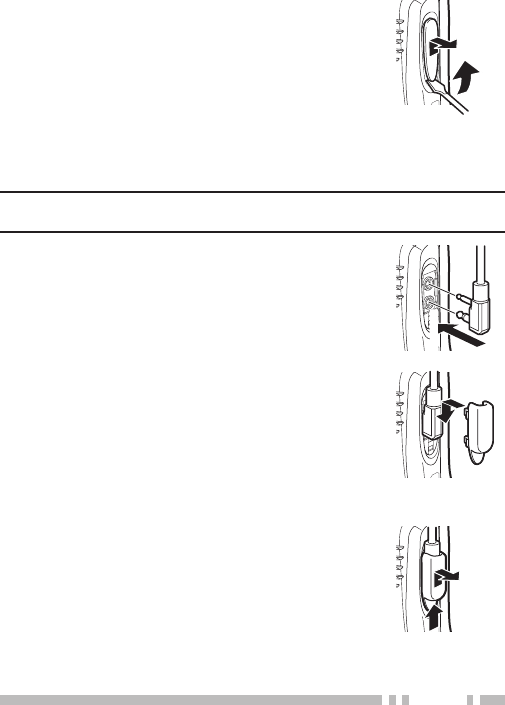

Speaker/ Microphone Jacks
You can use a resin-based cover for the Speaker/ Microphone
jacks.
No. Name Description Impedance I/O
1 PTT/RXD PTT input / Serial data input 10 kΩ I
2 MICI MIC input 1.8 kΩ I
3 MICO Output from internal MIC −O
4 OPTDET Option Detect 74 kΩ I
5 50V 5V output −O
6 AE Audio Earth GND −
7 TXD Serial data output 6.8 kΩ O
8 SPI To internal SP 8 Ω (Load) I
9 SPO AF power output −O
Antenna Terminal
50 Ω impedance
iii
One or more of the following statements may be applicable:
FCC WARNING
This equipment generates or uses radio frequency energy.
Changes or modifications to this equipment may cause harmful
interference unless the modifications are expressly approved in the
instruction manual. The user could lose the authority to operate this
equipment if an unauthorized change or modification is made.
INFORMATION TO THE DIGITAL DEVICE USER REQUIRED BY
THE FCC
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation.
This equipment generates, uses and can generate radio
frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that the
interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of
the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from
that to which the receiver is connected.
• Consult the dealer for technical assistance.
iv
Turn the transceiver power off in the following locations:
• Near explosives or blasting sites.
• In aircrafts. (Any use of the transceiver must follow the
instructions and regulations provided by the airline crew.)
• Where restrictions or warnings are posted regarding the use of
radio devices, including but not limited to medical facilities.
• Near persons wearing pacemakers.
Turn the transceiver power off in the following locations,
unless the model is specifically qualified for such use
(Intrinsically Safe such as approved by Factory Mutual, CSA):
• In explosive atmospheres (inflammable gas, dust particles,
metallic powders, grain powders, etc.).
• While taking on fuel or while parked at gasoline service stations.
precauTions
• Do not charge the transceiver and battery pack when they are wet.
• Ensure that there are no metallic items located between the
transceiver and the battery pack.
• Do not use options not specified by Kenwood.
• If the die-cast chassis or other transceiver part is damaged, do not
touch the damaged parts.
• If a headset or headphone is connected to the transceiver, reduce
the transceiver volume. Pay attention to the volume level when
turning the squelch off.
• Do not place the microphone cable around your neck while near
machinery that may catch the cable.
• Do not place the transceiver on unstable surfaces.
• Ensure that the end of the antenna does not touch your eyes.
• When the transceiver is used for transmission for many hours, the
radiator and chassis will become hot. Do not touch these locations
when replacing the battery pack.
• Always switch the transceiver power off before installing optional
accessories.
• The charger is the device that disconnects the unit from the AC
mains line. The AC plug should be readily accessible.
v
• Do not disassemble or modify the transceiver for any reason.
• Do not place the transceiver on or near airbag equipment while
the vehicle is running. When the airbag inflates, the transceiver
may be ejected and strike the driver or passengers.
• Do not transmit while touching the antenna terminal or if
any metallic parts are exposed from the antenna covering.
Transmitting at such a time may result in a high-frequency burn.
• If an abnormal odor or smoke is detected coming from the
transceiver, switch the transceiver power off immediately,
remove the battery pack from the transceiver, and contact your
Kenwood dealer.
• Use of the transceiver while you are driving may be against
traffic laws. Please check and observe the vehicle regulations
in your area.
• Do not expose the transceiver to extremely hot or cold
conditions.
• Do not carry the battery pack (or battery case) with metal
objects, as they may short the battery terminals.
• Danger of explosion if the battery is incorrectly replaced;
replace only with the same type.
• When operating the transceiver in areas where the air is dry, it
is easy to build up an electric charge (static electricity). When
using a earphone accessory in such conditions, it is possible for
the transceiver to send an electric shock through the earphone
and to your ear. We recommend you use only a speaker/
microphone in these conditions, to avoid electric shocks.
vi
informaTion concerning The baTTery pack
The battery pack includes flammable objects such as organic solvent.
Mishandling may cause the battery to rupture producing flames or
extreme heat, deteriorate, or cause other forms of damage to the
battery. Please observe the following prohibitive matters.
• Do not disassemble or reconstruct battery!
The battery pack has a safety function and protection circuit to
avoid danger. If they suffer serious damage, the battery may
generate heat or smoke, rupture, or burst into flame.
• Do not short-circuit the battery!
Do not join the + and – terminals using any form of metal (such
as a paper clip or wire). Do not carry or store the battery pack
in containers holding metal objects (such as wires, chain-
necklace or hairpins). If the battery pack is short-circuited,
excessive current will flow and the battery may generate heat
or smoke, rupture, or burst into flame. It will also cause metal
objects to heat up.
• Do not incinerate or apply heat to the battery!
If the insulator is melted, the gas release vent or safety function
is damaged, or the electrolyte is ignited, the battery may
generate heat or smoke, rupture, or burst into flame.
• Do not leave the battery near fires, stoves, or other heat
generators (areas reaching over 80°C/ 176°F)!
If the polymer separator is melted due to high temperature,
an internal short-circuit may occur in the individual cells and
the battery may generate heat or smoke, rupture, or burst into
flame.
• Avoid immersing the battery in water or getting it wet by
other means!
If the battery becomes wet, wipe it off with a dry towel before
use. If the battery’s protection circuit is damaged, the battery
may charge at extreme current (or voltage) and an abnormal
chemical reaction may occur. The battery may generate heat or
smoke, rupture, or burst into flame.
vii
• Do not charge the battery near fires or under direct
sunlight!
If the battery’s protection circuit is damaged, the battery may
charge at extreme current (or voltage) and an abnormal
chemical reaction may occur. The battery may generate heat or
smoke, rupture, or burst into flame.
• Use only the specified charger and observe charging
requirements!
If the battery is charged in unspecified conditions (under high
temperature over the regulated value, excessive high voltage
or current over regulated value, or with a remodelled charger),
it may overcharge or an abnormal chemical reaction may occur.
The battery may generate heat or smoke, rupture, or burst into
flame.
• Do not pierce the battery with any object, strike it with an
instrument, or step on it!
This may break or deform the battery, causing a short-circuit.
The battery may generate heat or smoke, rupture, or burst into
flame.
• Do not jar or throw the battery!
An impact may cause the battery to leak, generate heat
or smoke, rupture, and/or burst into flame. If the battery’s
protection circuit is damaged, the battery may charge at an
abnormal current (or voltage), and an abnormal chemical
reaction may occur.
• Do not use the battery pack if it is damaged in any way!
The battery may generate heat or smoke, rupture, or burst into
flame.
• Do not solder directly onto the battery!
If the insulator is melted or the gas release vent or safety
function is damaged, the battery may generate heat or smoke,
rupture, or burst into flame.
• Do not reverse the battery polarity (and terminals)!
When charging a reversed battery, an abnormal chemical
reaction may occur. In some cases, an unexpected large
amount of current may flow upon discharging. The battery may
generate heat or smoke, rupture, or burst into flame.
viii
• Do not charge the battery for longer than the specified
time!
If the battery pack has not finished charging even after the
regulated time has passed, stop it. The battery may generate
heat or smoke, rupture, or burst into flame.
• Do not place the battery pack into a microwave or high
pressure container!
The battery may generate heat or smoke, rupture, or burst into
flame.
• Keep ruptured and leaking battery packs away from fire!
If the battery pack is leaking (or the battery emits a bad odor),
immediately remove it from flammable areas. Electrolyte
leaking from battery can easily catch on fire and may cause the
battery to generate smoke or burst into flame.
• Do not use an abnormal battery!
If the battery pack emits a bad odor, appears to have different
coloring, is deformed, or seems abnormal for any other reason,
remove it from the charger or operating equipment and do not
use it. The battery may generate heat or smoke, rupture, or
burst into flame.
• Do not reverse-charge or reverse-connect the battery!
The battery pack has positive and negative poles. If the battery
pack does not smoothly connect with a charger or operating
equipment, do not force it; check the polarity of the battery. If
the battery pack is reverse-connected to the charger, it will be
reverse-charged and an abnormal chemical reaction may occur.
The battery may generate heat or smoke, rupture, or burst into
flame.
• Do not touch a ruptured and leaking battery!
If the electrolyte liquid from the battery gets into your eyes,
wash your eyes out with fresh water as soon as possible,
without rubbing your eyes. Go to the hospital immediately. If
left untreated, it may cause eye-problems.
1
UNPACKING AND CHECKING EQUIPMENT .................................... 1
PREPARATION ...................................................................................2
ORIENTATION .....................................................................................6
PROGRAMMABLE AUXILIARY FUNCTIONS ..................................10
BASIC OPERATIONS ........................................................................12
SCAN .................................................................................................15
FleetSync: ALPHANUMERIC 2-WAY PAGING FUNCTION ............ 17
TRUNKING CALLS (ANALOG) .........................................................20
ADVANCED OPERATIONS ..............................................................22
BACKGROUND OPERATIONS ........................................................27
Note: These unpacking instructions are for use by your Kenwood
dealer, an authorized Kenwood service facility, or the factory.
Carefully unpack the transceiver. If any items are missing or
damaged, file a claim with the carrier immediately.
Belt clip .................................................................................................1
Speaker/ microphone jacks cap ...........................................................1
Speaker/ microphone locking bracket ..................................................1
Stopper .................................................................................................1
Instruction manual ................................................................................1
Note: Inquire at your dealer for a stopper.
2

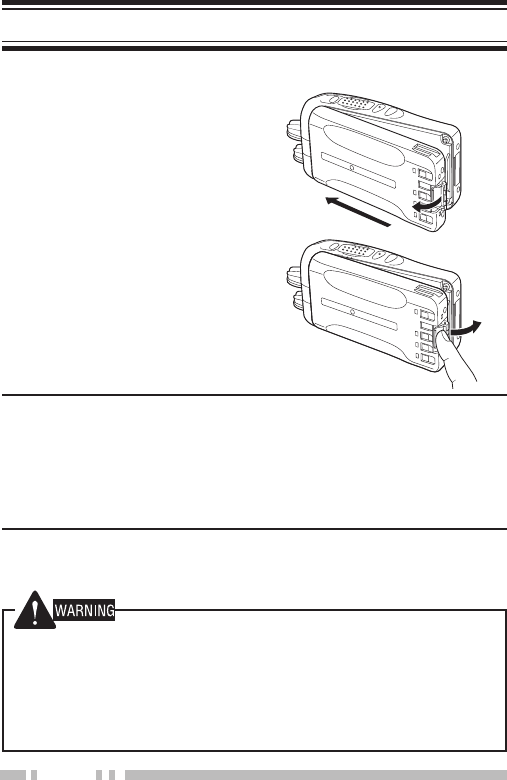

1 Match the guides of the
battery pack with the grooves
on the upper rear of the
transceiver, then firmly press
the battery pack in place.
2 Lock the safety catch to
prevent accidentally releasing
the battery pack.
3 To remove the battery pack,
lift the safety catch, press the
release latch, then pull the
battery pack away from the
transceiver.
Note:
◆ For battery pack charging procedures and useage, refer to the
battery charger Instruction Manual.
◆ The battery pack is not charged at the factory; charge it before
use.
◆ Before charging a battery pack that is attached to the
transceiver, ensure that the safety catch is firmly closed.
◆ Do not install batteries in a hazardous environment where
sparks could cause an explosion.
◆ Never discard batteries in fire; extremely high temperatures can
cause batteries to explode.
◆ Do not short circuit the battery case terminals.
◆ Do not use rechargeable batteries.
1
3
2
3
Note:
◆ If you do not plan to use the transceiver for a long period,
remove the batteries from the battery case.
◆ This battery case has been designed for transmitting at a
power of approximately 1 W (the low power setting on your
transceiver). If you want to transmit a stronger signal (using
the high power setting on your transceiver), use an optional
rechargeable battery pack.

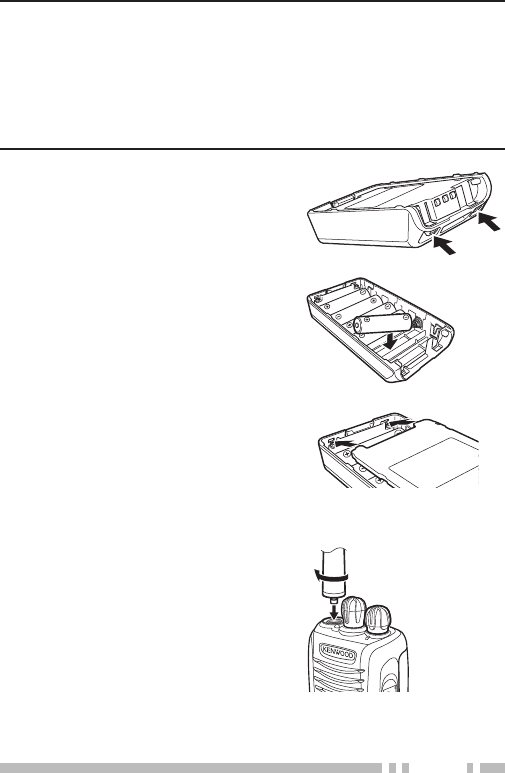

1 To open the battery case, press
on the two tabs on the upper
rear of the case, then pull the
two halls apart.
2 Insert 6 AA (LR6) Alkaline
batteries into the battery case.
• Be sure to match the polarities
with those marked in the bottom
of the battery case.
3 Align the tabs of the cover with
the base, then push down on
the cover until it locks in place.
Screw the antenna into the
connector on the top of the
transceiver by holding the antenna
at its base and turning
it clockwise until secure.
4

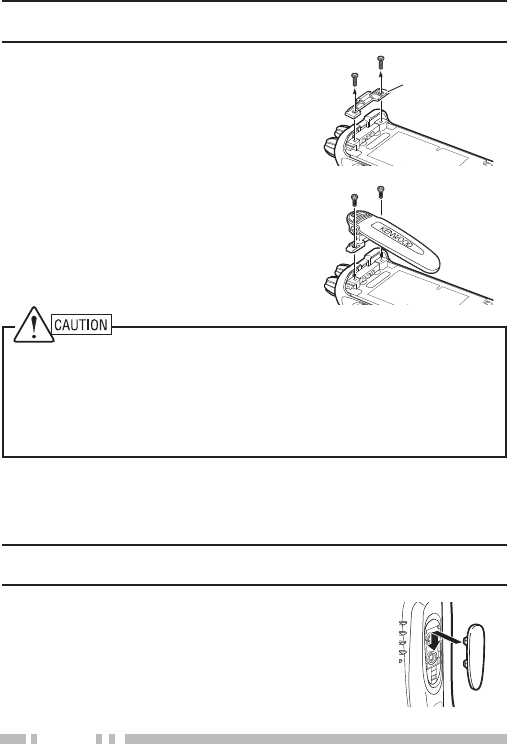

Note: When first installing the belt clip, you must remove the
battery pack from the rear of the transceiver.
1 Remove the 2 screws from the
rear of the transceiver, then
remove the small, plastic black
covering that was held in place.
2 Insert the belt clip mount into
the space on the rear of the
transceiver.
3 Using the 2 screws, affix the belt
clip in place.
• When the belt clip is not installed, leave the plastic covering in
place.
• Do not use glue which is designed to prevent screw loosening
when installing the belt clip, as it may cause damage to the
transceiver. Acrylic ester, which is contained in these glues,
may crack the transceiver’s back panel.
Install the cap over the speaker/ microphone jacks when not
using an optional speaker/ microphone.
Note: To keep the transceiver water resistant, you must cover the
speaker/ microphone jacks with the supplied cap.
1 Place the cap over the jacks so that the
locking tabs insert into the transceiver
grooves.
Plastic
covering
5
2 While holding the cap in place, push it
towards the bottom of the transceiver until
the tabs on the cap click into place.
• To remove the cap, hold the top of the cap
in place with your finger while inserting a 3
mm or smaller flat blade screwdriver under
the bottom of the cap. Slowly slide the
screwdriver in until its tip touches the tab
inside the cap, then gently pry the cap up
(handle of screwdriver moving away from the
transceiver) to remove the cap.
Note: The transceiver is not fully water resistant when using a
speaker/ microphone or headset.
1 Insert the speaker/ microphone plugs
into the speaker/ microphone jacks of the
transceiver.
2 Place the locking bracket over the speaker/
microphone plugs so that the locking tabs
insert into the transceiver grooves.
3 While holding the locking bracket in
place, push it towards the bottom of the
transceiver until the tabs on the bracket
click into place.
• To remove the locking bracket, push the
bracket up from the base.
6

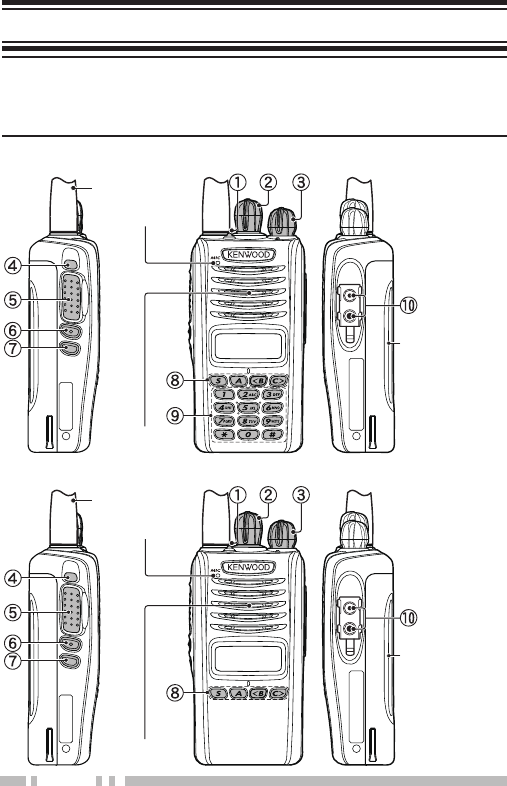

There are 3 types available:
Type I: Equipped with a display and full keypad.
Type II
: Equipped with a display and 4-key keypad (S, A, <B, and C>).
Type III: Basic models.
Battery pack
Antenna
Microphone
Microphone
Type I
Speaker
Battery pack
Antenna
Microphone
Type II
7

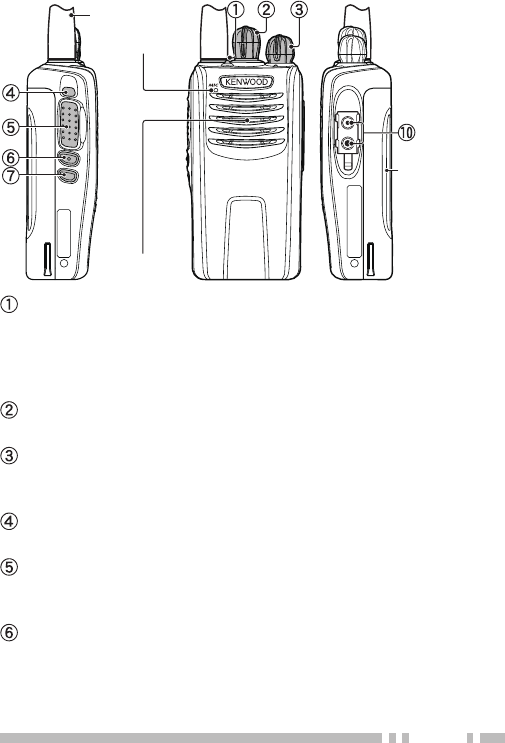

Transmit/ Receive/ Battery low indicator
If enabled by your dealer, lights red while transmitting,
green while receiving a call (Conventional channels only),
and orange when receiving an optional signaling call. Blinks
red when the battery power is low while transmitting.
Selector knob
Rotate to select a zone or channel/group ID (default).
Power switch/ Volume control
Rotate to turn the transceiver ON/OFF and to adjust the
volume.
Auxiliary (orange) key
Press to activate its programmable function {page 10}.
PTT (Push-To-Talk) switch
Press and hold this switch, then speak into the microphone
to call a station.
Side 1 key
Press to activate its programmable function {page 10}.
The default is Squelch Off Momentary.
Battery pack
Antenna
Microphone
Speaker
Type III
8
Side 2 key
Press to activate its programmable function {page 10}.
The default is Backlight.
S, A, <B, C> key <Type I, II>
Press to activate its programmable function {page 10}.
S key: The default setting is [None] (no function).
A key: The default setting is [None] (no function).
<B key: The default setting is [Channel Down].
C> key: The default setting is [Channel Up].
Keypad <Type I>
Press these keys to send DTMF tones. These keys can
also be programmed with secondary functions {page 10} if
a programmable function key is programmed as “Function”.
Speaker/ Microphone jacks
Insert the Speaker/ Microphone or Headset plug into
this jack.
9

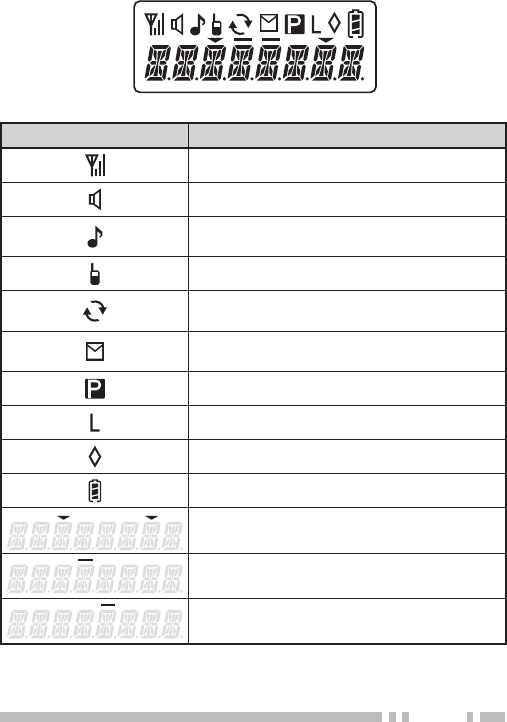

Indicator Description
Signal strength indicator {page 28}.
Monitor or Squelch Off is activated.
Blinks when an incoming call matches your
Optional Signaling.
Talk Around is activated.
Scan is in progress. Blinks while scan is
paused.
A message is stored in memory. Blinks
when a new message has arrived.
The current channel is a Priority channel.
The channel is using low transmit power.
Scrambler/ Encryption is activated.
Battery power indicator {page 27}.
The current zone (left icon) or CH/GID
(right icon) is added to scan.
VOX is activated.
The auxiliary function is activated.
10
The Selector, Auxiliary (orange), Side 1, Side 2, S, A, <B,
and C> keys can be programmed with the functions listed
below. Please contact your dealer for further details on these
functions.
• None
• 2-tone 1, 7
• Activity Detection
• Activity Reset
• Autodial 1
• Autodial Programming 1
• Auto Telephone 1, 2
• AUX
• Backlight 1
• Battery Indicator 3
• Broadcast 4
• Call 1 ~ 6
• CH/GID Down
• Channel Entry 1
• CH/GID Recall
• CH/GID Select 5
• CH/GID Up
• CW Message 6
• Direct CH/GID 1 ~ 5
• Direct CH/GID Select 1 ~ 5
• Display Format 1
• Emergency 7
• Fixed Volume
• Forced Search 4
• Function
• GPS Position Display 1
• Group 6
• Group + Short Message 1, 8
• Group + Status 1, 8
• Home CH/GID
• Home CH/GID Select
• Individual 1, 8
• Individual + Short Message 1, 8
• Individual + Status 1, 8
• Key Lock
• Lone Worker
• Low Transmit Power
• Maintenance 1, 8
• Monitor 9
• Monitor Momentary 9
• Operator Selectable Tone
(OST) 1, 10
• Priority-channel Select 7
• Scan
• Scan Delete/Add
• Scrambler/ Encryption
• Selcall 1, 10
• Selcall + Short Message 1, 10
• Selcall + Status 1, 10
• Send the GPS data
• Site Down 4
• Site Lock 4
• Site Select 4
• Site Up 4
• Squelch Level 1, 10
• Squelch Off 10
• Squelch Off Momentary 10
• Stack 1
• Status 1
• Short Message 1
• Talk Around
11
• Telephone Disconnect 2
• Transceiver Password 1
• VOX 1
• Zone Delete/Add
• Zone Down
• Zone Select 5
• Zone Up
1 Available only for Type I, II.
2 Available only for Analog Trunking operation.
3 Available only for Type III.
4 Available only for NXDN Trunking operation.
5 Can be programmed only on the Selector.
6 Available only for NXDN Conventional operation.
7 Can be programmed only on the Auxiliary (orange) key.
8 Available only for NXDN Conventional operation, and NXDN
Trunking operation.
9 Available only for Analog Conventional, Analog Trunking, and NXDN
Conventional operation.
10 Available only for Analog Conventional operation.
11 Available only for Analog Conventional and NXDN Conventional
operation.
12
Turn the Power switch/ Volume control clockwise to switch the
transceiver ON.
Turn the Power switch/ Volume control counterclockwise fully
to switch the transceiver OFF.
■
If your transceiver is password protected, you must first
enter the password before you can use the transceiver.
1 Rotate the Selector to select the first digit of the
password.
2 Press the C> key to accept the entry and move to the
next digit.
• Press the A or # key to delete an incorrect digit.
3 Repeat steps 1 and 2 to enter the entire password.
• The password can contain a maximum of 6 digits.
4 Press the S or key to confirm the entered password.
• If you enter an incorrect password, an error tone sounds
and the transceiver remains locked.
Rotate the Power switch/ Volume control to adjust the volume.
Clockwise increases the volume and counterclockwise
decreases it.
Select the desired zone using the key programmed as [Zone
Select] or [Zone Up/Down]. Each zone contains a group of
channels.
Select the desired channel/group ID using the Selector knob
(default). Each channel/group ID is programmed with settings
for transmitting and receiving.
13
1 Select the desired zone and channel/group ID.
2 Press the key programmed as [Monitor] or [Squelch Off]
to check whether or not the channel is free.
• If the channel is busy, wait until it becomes free.
3 Press the PTT switch and speak into the microphone.
Release the PTT switch to receive.
• For best sound quality, hold the transceiver approximately
1.5 inches (3 ~ 4 cm) from your mouth.
■
If a key has been programmed with [Group] or [Group +
Status], you can select a group ID from the list to make a
call to those parties on a Conventional channel.
To select a group ID:
1
Press the key programmed as
[
Group
]
or
[
Group +
Status
]
.
2 Press
the <B or C> key programmed
to select a group
ID/name from the list.
3 Press and hold the PTT switch to make the call.
• Speak into the transceiver as you would during a normal
transmission.
■
If a key has been programmed with [Individual] or
[Individual + Status], you can make calls to specific
persons.
1 Press the key programmed as [Individual] or
[Individual + Status].
2
Press
the <B or C>
to select a unit ID from the list.
• On Type I, you can enter a unit ID directly.
3 Press and hold the PTT switch to make the call.
• Speak into the transceiver as you would during a normal
transmission.
14
Select the desired zone and channel. If signaling has been
programmed on the selected channel, you will hear a call only
if the received signal matches your transceiver settings.
Note: Signaling allows your transceiver to code your calls.
This will prevent you from listening to unwanted calls. Refer to
“SIGNALING” on page 24 for details.
■
When you receive a group call on a Conventional channel
and the received group ID matches the ID set up on your
transceiver, you can hear the caller’s voice.
When you receive a group call on a Trunking channel, the
transceiver automatically switches to the communications
channel to receive the call.
■
When you receive an individual call, a ringing tone will
sound and the caller’s ID will appear on the display <Type
I, II>. To respond to the call, press and hold the PTT
switch and speak into the transceiver as you would during a
normal transmission.
15
Scan monitors for signals on the transceiver channels. While
scanning, the transceiver checks for a signal on each channel
and only stops if a signal is present.
To begin scanning, press the key programmed as [Scan].
• The indicator on the display <Type I, II>.
• The LED blinks green.
• When a signal is detected on a channel, Scan pauses at that
channel. The transceiver will remain on the busy channel until the
signal is no longer present, at which time Scan resumes.
To stop scanning, press the [Scan] key again.
Note: To use Scan, there must be at least 2 channels in the scan
sequence.
During scan, you can temporarily remove specific channels
from the scanning sequence by selecting them and pressing
the key programmed as [Scan Delete/Add].
• The channel is no longer scanned. However, when scanning is
ended and restarted, the channels are reset and deleted channels
will again be in the scanning sequence.
If a Priority channel has been programmed, the transceiver
will automatically change to the Priority channel when a call
is received on that channel, even if call is being received on a
normal channel.
• The indicator appears when the selected channel is the Priority
channel (depending on dealer setting) <Type I, II>.
16
The Scan Revert channel is the channel selected when you
press the PTT switch to transmit during scan. Your dealer can
program one of the following types of Scan Revert channels:
• Selected: The last channel selected before scan.
• Selected + Talkback: Same as “Selected”, plus you can
respond to calls on the channel at which scan is paused.
• Priority: The Priority channel.
• Priority + Talkback: Same as “Priority”, plus you can
respond to calls on the channel at which scan is paused.
• Last Called + Selected: The last channel on which you
receive a call.
You can add and remove zones and/or channels/group IDs to
and from your scan list.
1 Select your desired zone and/or channel/group ID.
2 Press the key programmed as [Zone Delete/Add] (to
add/remove zones) or [Scan Delete/Add] (to add/remove
channels/group IDs) <Type I, II>.
• You can also press and hold the key programmed as [Scan
Delete/Add] to add/remove zones.
17
FleetSync is an Alphanumeric 2-way Paging Function, and is a
protocol owned by Kenwood Corporation.
Note: This function is available only in analog operation.
A Selcall is a voice call to a station or group of stations.
■
1 Select your desired zone and channel.
2 Press the key programmed as [Selcall] or [Selcall +
Status] to enter Selcall mode.
3 Press
the <B or C> key
to select the station you want to
call.
• On keypad models, if Manual Dialing is enabled, you can
directly enter the station ID.
4 Press the PTT switch and begin your conversation.
■
An alert tone will sound and the transceiver will enter
Selcall mode. The calling station’s ID will appear when
a Selcall is received <Type I, II>. You can respond to
the call by pressing the PTT switch and speaking into the
microphone.
■
An ID code is a combination of a 3-digit Fleet number and a
4-digit ID number. Each transceiver has its own ID.
• Enter a Fleet number (100 ~ 349) to make a group call.
• Enter an ID number (1000 ~ 4999) to make an individual call in
your fleet.
• Enter a Fleet number to make a call to all units in the selected
fleet (Fleet call).
• Enter an ID number to make a call to the selected ID in all
fleets (Supervisor call).
18
• Select “ALL” Fleet and “ALL” ID to make a call to all units
(Broadcast call).
You can send and receive 2-digit Status messages which may
be decided in your talk group. Messages can contain up to 16
alphanumeric characters. Status messages range from 10 to
99 (80 ~ 99 are reserved for special messages).
A maximum of 15 received messages (combined status
messages and short messages) can be stored in the stack
memory of your transceiver.
■
1 Select your desired zone and channel.
2 Press the key programmed as [Status] to enter Status
mode (proceed to step 5) or [Selcall + Status] to enter
Selcall mode (proceed to step 3).
3 Press
the <B or C> key
to select the station you want to call.
• If Manual Dialing is enabled, you can enter a station ID
by using the DTMF keypad, or by using the <B or C> key.
When using the <B or C> key, cycle through the digits
to select a digit, then press the S key to set the digit and
move the cursor to the right. Repeat this process until the
entire ID is entered.
4 Press
the S key
to enter Status mode.
5 Press
the <B or C> key
to select the status you want to
transmit.
• If Manual Dialing is enabled, you can enter a status ID
by using the DTMF keypad, or by using the <B or C> key
(refer to step 3, above).
6 Press the PTT switch or Side 2 key to initiate the call.
• “COMPLETE” appears on the display when the status has
been successfully transmitted.
19
■
A calling ID or text message will appear when a Status call
is received. Press any key to return to normal operation.
■
1
Press the key programmed as
[
Stack
]
, or press and hold
the key programmed as
[
Selcall
]
,
[
Status
]
, or
[
Selcall +
Status
]
to enter Stack mode.
• The last received message is displayed.
2 Press
the <B or C> key
to select the desired message.
• Message types are identified as follows:
I: Caller ID, S: Status Message, M: Short Message
• Press and hold the S key for 1 second to cycle the display
information as follows:
ID Name > Status/Short Message > CH/GID > Time Stamp
3 Press the Side 1 key to return to normal operation.
• To delete the selected message, press the A key. To
confirm the deletion, Press the S key.
• To delete all messages, press and hold the A or # key for 1
second. To confirm the deletion, Press the S or key.
Received short messages are displayed the same as Status
messages and are stored in the same stack memory (Type I,
II). To send short messages, and to send and receive long
messages, you must connect the transceiver to a PC. Ask
your dealer for details.
To send your location data, you must first connect a GPS unit
to the transceiver. GPS data can be manually transmitted by
pressing the key programmed as [Send the GPS data]. If set up
by your dealer, GPS data may be automatically transmitted at a
preset time interval.
20
1 Select the desired zone and group ID using the selector
and the Zone or CH/GID keys.
2 Press and hold the PTT switch.
3 If the “PTT Proceed” tone sounds, communication is
possible; start speaking into the microphone. Release the
PTT switch to receive.
• For best sound quality at the receiving station, hold the
microphone approximately 1.5 inches (3 ~ 4 cm) from
your mouth.
• Your dealer can deactivate the Proceed PTT tone, if
necessary. Ask your dealer for details.
1 When a dispatch call is received, the transceiver will
automatically change to the correct group ID and you will
hear the call.
2 Readjust the volume as necessary.
1 Select the desired zone and group ID using the selector
and the Zone or CH/GID keys.
• Alternatively, you can press the key programmed as [Auto
Telephone] to automatically search for a Telephone Repeater.
2 Press and hold the PTT switch for approximately 1 second
to ensure a connection.
• Confirm that there is a dial tone after you release the PTT
switch.
3 Place the call, following the instructions for making a DTMF
call, starting on page 22.
21
4 When the called party responds, press the PTT switch and
speak into the microphone. Release the PTT switch to
receive.
• Only one person can speak at a time.
5 To end the call, press and hold the PTT switch, then
press the # key or the key programmed as [Telephone
Disconnect].
1 When a telephone call is received, the transceiver will
automatically change to the correct group ID and you will
hear the call.
• A ringer tone will sound when a call is received.
2 Press and hold the PTT switch to speak, and release it to
receive.
• Only one person can speak at a time.
3 To end the call, press and hold the PTT switch, then
press the # key or the key programmed as Telephone
Disconnect.
22
■
Manual Dialing <Type I>
1 Press and hold the PTT switch.
2 Enter the desired digits using the DTMF keypad.
• If you release the PTT switch, transmit mode will end even
if the complete number has not been sent.
• If the Keypad Auto PTT function has been enabled by
your dealer, you do not need to press the PTT switch to
transmit; you can make the call simply pressing the DTMF
keys.
Store & Send
1 Press the key programmed as [Autodial].
2 Enter up to 30 digits using the DTMF keypad.
• Alternatively, you can enter digits by using the <B or C>
key .
3 Press the PTT switch to make the call.
■
Autodial allows you to quickly call DTMF numbers that have
been programmed onto your transceiver.
1 Press the key programmed as Autodial.
• The first entry in the Autodial list appears on the display.
2 Press
the <B or C> key
to select your desired Autodial list
number, or enter the list number directly (01 ~ 32).
• The stored entry appears on the display.
3 Press the PTT switch to make the call.
■
This function is used when a transceiver is stolen or lost.
When the transceiver receives a call containing a stun
23
code, the transceiver becomes disabled. The stun code is
cancelled when the transceiver receives a call with a revive
code.
If your transceiver has been programmed with the Emergency
function, you can make emergency calls.
1 Press and hold the key programmed as [Emergency].
• Ask your dealer for the length of time necessary to hold this
key before the transceiver enters Emergency mode.
• When the transceiver enters Emergency mode, it will change
to the Emergency channel and begin transmitting based on
how it is set up by your dealer.
2 To exit Emergency mode, press the [Emergency] key
again.
• If the Emergency mode completes a preset number of cycles,
Emergency mode will automatically end and the transceiver
will return to the zone and channel that was in use before
Emergency mode was entered.
Note:
◆ Your dealer can set the transceiver to emit a tone when
transmitting in Emergency mode.
◆ Your dealer can set the transceiver to emit tones and received
signals as normal, or mute the speaker during Emergency
operation.
■
Press the key programmed as [Activity Detection],
toggle Activity Detection ON and OFF. If an event occurs
while Activity Detection is enabled, the transceiver enters
Emergency mode.
Note:
◆ When Activity Detection has been turned off, and the
transceiver power is then turned off and back on, Activity
Detection is automatically enabled.
◆ When using this function, verify that it operates before
taking the transceiver.
24
■
While Activity Detection is active, press the key
programmed as [Activity Reset] to reset the Activity
Detection countdown timer. This will allow you to remain in
a tilted or stationary position, etc., without the Emergency
mode activating unnecessarily.
Press the key programmed as [Scrambler/ Encryption], to
switch the transceiver to secure (encrypted) transmission.
• Pressing the PTT switch after the Scrambler function has been
turned ON encrypts the transmitted signal.
■
Your dealer may have programmed QT or DQT signaling
on your transceiver channels. A QT tone/ DQT code is a
sub-audible tone/code which allows you to ignore (not hear)
calls from other parties who are using the same channel.
Operator Selectable Tone <Type I, II>
If a key has been programmed with [OST], you can
reprogram the QT/DQT settings on each of your channels.
1 Select your desired channel.
2 Press and hold the key programmed as [OST] for
1 second.
3 Press
the <B or C> key
to select your desired tone or
code.
• Your dealer can set up to 40 tones/codes.
4 Press
the S key
to save your new setting.
5 When you have finished operating using OST, press the
[OST key again to turn the OST function OFF.
25
■
RAN is a new signaling system designed for digital radio
communications.
When a channel is set up with a RAN, squelch will only
open when a call containing a matching RAN is received.
If a call containing a different RAN is made on the same
channel you are using, you will not hear the call. This
allows you to ignore (not hear) calls from other parties who
are using the same channel.
■
Your dealer may also program several types of optional
signaling for your transceiver channels.
DTMF Signaling
: DTMF Signaling opens the squelch only
when the transceiver receives a call containing a matching
DTMF code.
FleetSync Signaling
: Refer to “SELCALL (SELECTIVE
CALLING)” on page 17.
NXDN ID Signaling: NXDN ID is an optional signaling
system available only for digital communications.
VOX can be activated or deactivated by your dealer. VOX
operation allows you to transmit hands-free.
Note: To operate VOX, you must use an optional headset.
■
1 Connect the headset to the transceiver.
2 Press the key programmed as [VOX].
• The current VOX Gain level appears on the display.
3 Press
the <B or C> key
to increase or decrease the VOX
Gain level.
• The VOX Gain can be adjusted from levels 1 to 10.
26
4 While adjusting the level, speak into the headset
microphone to test the sensitivity level. (Your voice is
not transmitted during this test procedure.)
• When sound is recognized, the LED lights orange.
5 Press
the S key
to save the setting.
■
1 Connect the headset to the transceiver.
2 Press and hold the key programmed as [VOX] for
2 seconds.
3 To transmit, simply speak into the microphone.
• The transceiver recognizes sound levels depending on
the VOX Gain level. If it is too sensitive, it will transmit
when there is noise in the background. If it is not sensitive
enough, it will not pick up your voice when you begin
speaking.
4 When you finish speaking, transmission ends.
5 To turn the VOX function OFF, press and hold the
[VOX] key again, for 2 seconds.
Note: If a speaker/ microphone is connected to the transceiver
while VOX is ON, and the VOX Gain Level is set to a sensitive
level, louder received signals may cause the transceiver to
transmit.
27
Your dealer can activate a variety of transceiver functions to
perform without any additional operation on your part.
The Time-out Timer is used to prevent you from using a
channel for an extended duration. If you continuously transmit
for a preset time, the transceiver will stop transmitting and an
alert tone will sound. Release the PTT switch.
The Battery Saver can be activated only on Conventional
channels. This function decreases the amount of power used
when a signal is not being received and no operations are
being performed.
Press the key programmed as [Key Lock] to lock and unlock
the transceiver keys.
• The following keys still function when Key Lock is activated:
Emergency, Backlight, Monitor, Monitor Momentary, Squelch Off,
Squelch Off Momentary, Function, Key Lock, PTT.
Your dealer can set an alert tone to sound and the LED
indicator to blink red when the battery power is low. The
battery power icon displays the battery power remaining, as
described in the table below. When the battery power is very
low, recharge or replace the battery pack.
High Sufficient Low Very low
28
Press the key programmed as [Battery Indicator]. The LED
lights for 2 seconds, displaying the battery power remaining, as
described in the table below. When the battery power is very
low, recharge or replace the battery pack.
Lights Green
Lights Orange
Lights Red Blinks Red
High Sufficient Low Very low
The signal strength indicator displays the strength of received
calls. No icon appears when no signal is available.
Strong Sufficient Weak Very weak
flashes when out of range (NXDN Trunking only).
If programmed by your dealer for a channel, the compander
will remove excessive noise from transmitted signals, to
provide higher clarity of signals.
Note: The COMPANDER is used only in analog operation.
On Conventional channels, if BCL is set up by your dealer, you
will be unable to transmit if the channel is already in use. Use
a different channel or wait until the channel becomes free.
If BCL Override has been programmed, you can transmit over
the current signal:
1 Press and hold the PTT switch.
• If the channel is already in use, a warning tone will sound.
2 Quickly release and then press the PTT switch again.
3 Speak into the transceiver as you would during a normal
call.
29
On digital Trunking channels, the transceiver automatically
searches for a control channel.
• While searching for a control channel, the antenna icon will flash
<Type I, II> and no signals can be received.
PTT ID is the transceiver unique ID code which is sent each
time the PTT switch is pressed and/or released.
Note: PTT ID can be made only in analog operation.
Radio FRequency eneRgy SaFety inFoRmation
This Kenwood transceiver has been tested and complies with the standards listed below, in regards
to Radio Frequency (RF) energy and electromagnetic energy (EME) generated by the transceiver.
• FCC RF exposure limits for
Occupational Use Only
. RF Exposure limits adopted by the FCC are generally
based on recommendations from the National Council on Radiation Protection and Measurements, & the
American National Standards Institute.
• FCC OET Bulletin 65 Edition 97-01 Supplement C
• American National Standards Institute (C95.1 – 1992)
• American National Standards Institute (C95.3 – 1992)
This Kenwood transceiver generates RF EME while transmitting. RF EME (Radio Frequency Electric &
Magnetic Energy) has the potential to cause slight thermal, or heating effects to any part of your body less
than the recommended distance from this radio transmitter’s antenna. RF energy exposure is determined
primarily by the distance to and the power of the transmitting device. In general, RF exposure is minimized
when the lowest possible power is used or transmission time is kept to the minimum required for consistent
communications, and the greatest distance possible from the antenna to the body is maintained. The
transceiver has been designed for and is classied for
Occupational Use Only
. Occupational/ controlled
exposure limits are applicable to situations in which persons are exposed to RF energy as a consequence
of their employment, and such persons have been made aware of the potential for exposure and can
exercise control over their exposure. This means you can use the transceiver only if you are aware of
the potential hazards of operating a transceiver and are familiar in ways to minimize these hazards. This
transceiver is not intended for use by the general public in uncontrolled environments. Uncontrolled
environment exposure limits are applicable to situations in which the general public may be exposed to RF
energy, or in which the persons who are exposed as a consequence of their employment may not be fully
aware of the potential for exposure or cannot exercise control over their exposure.
The following list provides you with the information required to ensure that you are aware of RF
exposure and of how to operate this transceiver so that the FCC RF exposure limitations are not
exceeded.
• While transmitting (holding the PTT switch or speaking with VOX enabled), always keep the antenna
and the radio at least 3 cm (1 3/16 inches) from your body or face, as well as from any bystanders. A
LED on the top of the radio shows red when the transmitter is operating in both PTT and VOX modes.
• Do not transmit for more than 50% of the total transceiver use time; transmitting over 50% of the total use
time may exceed the limits in accordance to the FCC RF exposure requirements. Nominal transceiver
operation is 5% transmission time, 5% reception time, and 90% stand-by time.
• Use only the specied antenna for this transceiver; this may be either the antenna provided with the
transceiver or another antenna authorized by Kenwood.
Use only Kenwood authorized accessories (antennas, battery packs, belt clips, Speaker/ Mics or
headsets etc.): When worn on the body, always place the radio in a Kenwood recommended clip or
carrying case meant for this product. The use of other than recommended or approved body- worn
accessories may result in RF exposure levels which exceed the FCC’s occupational/ controlled
environment RF exposure limits.
To ensure that your exposure to RF EME is within the FCC limits for occupational use, you must
observe and adhere to the above points.
Electromagnetic Interference Compatibility
Electronic devices are susceptible to electromagnetic interference (EMI) if they are not adequately
shielded or designed for electromagnetic compatibility. Because this transceiver generates RF
energy, it can cause interference to such equipment.
• Turn OFF your transceiver where signs are posted to do so. Hospitals and health care facilities use
equipment that is sensitive to electromagnetic radiation.
• Turn OFF your transceiver while on board an aircraft when so instructed. Use of the transceiver must
be in accordance with airline regulations and/or crew instructions. B59-2546-00
