Kenwood USA Corporation VHF FM Transceiver TK 2000 Instruction Manual
TK-2000 Instruction Manual
VHF FM TRANSCEIVER
TK-2000
TK-U100(V)
UHF FM TRANSCEIVER
TK-3000
TK-U100(U)
INSTRUCTION MANUAL
© B62-2229-00 (K, M, C)
09 08 07 06 05 04 03 02 01 00
Thank You
We are grateful you have chosen Kenwood for your land mobile radio applications.
noTices To The user
◆ Government law prohibits the operation of unlicensed radio transmitters within the territories under
government control.
◆ Illegal operation is punishable by fine and/or imprisonment.
◆ Refer service to qualified technicians only.
Safety: It is important that the operator is aware of, and understands, hazards common to the
operation of any transceiver.
PrecauTions
• Do not charge the transceiver and battery pack when they are wet.
• Ensure that there are no metallic items located between the transceiver and the battery pack.
• Do not use options not specified by Kenwood.
• If the die-cast chassis or other transceiver part is damaged, do not touch the damaged parts.
• If a headset or headphone is connected to the transceiver, reduce the transceiver volume. Pay
attention to the volume level when turning the squelch off.
• Do not place the microphone cable around your neck while near machinery that may catch the
cable.
• Do not place the transceiver on unstable surfaces.
• Ensure that the end of the antenna does not touch your eyes.
• When the transceiver is used for transmission for many hours, the radiator and chassis will become
hot. Do not touch these locations when replacing the battery pack.
• Do not immerse the transceiver in water.
• Always switch the transceiver power off before installing optional accessories.
• For safety reasons, we recommend that the AC adapter (for the battery charger) should be
connected to an easily accessible AC socket.
Turn the transceiver power off in the following locations:
• In explosive atmospheres (inflammable gas, dust particles, metallic powders, grain powders, etc.).
• While taking on fuel or while parked at gasoline service stations.
• Near explosives or blasting sites.
• In aircrafts. (Any use of the transceiver must follow the instructions and regulations provided by the
airline crew.)
• Where restrictions or warnings are posted regarding the use of radio devices, including but not
limited to medical facilities.
• Near persons using pacemakers.
• Do not disassemble or modify the transceiver for any reason.
• Do not place the transceiver on or near airbag equipment while the vehicle is running. When the
airbag inflates, the transceiver may be ejected and strike the driver or passengers.
• Do not transmit while touching the antenna terminal or if any metallic parts are exposed from the
antenna covering. Transmitting at such a time may result in a high-frequency burn.
• If an abnormal odor or smoke is detected coming from the transceiver, switch the transceiver power
off immediately, remove the battery pack from the transceiver, and contact your Kenwood dealer.
• Use of the transceiver while you are driving may be against traffic laws. Please check and observe
the vehicle regulations in your area.
• Do not expose the transceiver to extremely hot or cold conditions.
• Do not carry the battery pack with metal objects, as they may short the battery terminals.
• Danger of explosion if the battery is incorrectly replaced; replace only with the same type.
• When operating the transceiver in areas where the air is dry, it is easy to build up an electric charge
(static electricity). When using a earphone accessory in such conditions, it is possible for the
transceiver to send an electric shock through the earphone and to your ear. We recommend you
use only a speaker/microphone in these conditions, to avoid electric shocks.
Information concerning the battery pack:
The battery pack includes flammable objects such as organic solvent. Mishandling may cause
the battery to rupture producing flames or extreme heat, deteriorate, or cause other forms of
damage to the battery. Please observe the following prohibitive matters.
• Do not disassemble or reconstruct battery!
The battery pack has a safety function and protection circuit to avoid danger. If they suffer serious
damage, the battery may generate heat or smoke, rupture, or burst into flame.
• Do not short-circuit the battery!
Do not join the + and – terminals using any form of metal (such as a paper clip or wire). Do not carry or
store the battery pack in containers holding metal objects (such as wires, chain-necklace or hairpins).
If the battery pack is short-circuited, excessive current will flow and the battery may generate heat or
smoke, rupture, or burst into flame. It will also cause metal objects to heat up.
• Do not incinerate or apply heat to the battery!
If the insulator is melted, the gas release vent or safety function is damaged, or the electrolyte is
ignited, the battery may generate heat or smoke, rupture, or burst into flame.
• Do not leave the battery near fire, stoves, or other heat generators (areas reaching over 80°
C/ 176°F)!
If the polymer separator is melted due to high temperature, an internal short-circuit may occur in the
individual cells and the battery may generate heat or smoke, rupture, or burst into flame.
• Do not immerse the battery in water or get it wet by other means!
If the battery’s protection circuit is damaged, the battery may charge at extreme current (or voltage)
and an abnormal chemical reaction may occur. The battery may generate heat or smoke, rupture,
or burst into flame.
• Do not charge the battery near fire or under direct sunlight!
If the battery’s protection circuit is damaged, the battery may charge at extreme current (or voltage)
and an abnormal chemical reaction may occur. The battery may generate heat or smoke, rupture,
or burst into flame.
• Use only the specified charger and observe charging requirements!
If the battery is charged in unspecified conditions (under high temperature over the regulated
value, excessive high voltage or current over regulated value, or with a remodeled charger), it
may overcharge or an abnormal chemical reaction may occur. The battery may generate heat or
smoke, rupture, or burst into flame.
• Do not pierce the battery with any object, strike it with an instrument, or step on it!
This may break or deform the battery, causing a short-circuit. The battery may generate heat or
smoke, rupture, or burst into flame.
• Do not jar or throw the battery!
An impact may cause the battery to leak, generate heat or smoke, rupture, and/or burst into flame.
If the battery’s protection circuit is damaged, the battery may charge at an abnormal current (or
voltage), and an abnormal chemical reaction may occur. The battery may generate heat or smoke,
rupture, or burst into flame.
• Do not use the battery pack if it is damaged in any way!
The battery may generate heat or smoke, rupture, or burst into flame.
• Do not solder directly onto the battery!
If the insulator is melted or the gas release vent or safety function is damaged, the battery may
generate heat or smoke, rupture, or burst into flame.
• Do not reverse the battery polarity (and terminals)!
When charging a reversed battery, an abnormal chemical reaction may occur. In some cases, an
unexpected large amount of current may flow upon discharging. The battery may generate heat or
smoke, rupture, or burst into flame.
• Do not reverse-charge or reverse-connect the battery!
The battery pack has positive and negative poles. If the battery pack does not smoothly connect
with a charger or operating equipment, do not force it; check the polarity of the battery. If the
battery pack is reverse-connected to the charger, it will be reverse-charged and an abnormal
chemical reaction may occur. The battery may generate heat or smoke, rupture, or burst into flame.
• Do not touch a ruptured and leaking battery!
If the electrolyte liquid from the battery gets into your eyes, wash your eyes with fresh water as soon
as possible, without rubbing your eyes. Go to the hospital immediately. If left untreated, it may
cause eye-problems.
• Do not charge the battery for longer than the specified time!
If the battery pack has not finished charging even after the regulated time has passed, stop it. The
battery may generate heat or smoke, rupture, or burst into flame.
• Do not place the battery pack into a microwave or high pressure container!
The battery may generate heat or smoke, rupture, or burst into flame.
• Keep ruptured and leaking battery packs away from fire!
If the battery pack is leaking (or the battery emits a bad odor), immediately remove it from
flammable areas. Electrolyte leaking from battery can easily catch on fire and may cause the
battery to generate smoke or burst into flame.
• Do not use an abnormal battery!
If the battery pack emits a bad odor, appears to have different coloring, is deformed, or seems
abnormal for any other reason, remove it from the charger or operating equipment and do not use
it. The battery may generate heat or smoke, rupture, or burst into flame.
One or more of the following statements may be applicable:
FCC WARNING
This equipment generates or uses radio frequency energy. Changes or modifications to this equipment may
cause harmful interference unless the modifications are expressly approved in the instruction manual. The
user could lose the authority to operate this equipment if an unauthorized change or modification is made.
INFORMATION TO THE DIGITAL DEVICE USER REQUIRED BY THE FCC
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation.
This equipment generates, uses and can generate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there
is no guarantee that the interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer for technical assistance.
unPackinG anD checkinG eQuiPMenT
Carefully unpack the transceiver. If any of the items listed
below are missing or damaged, file a claim with the carrier
immediately.
suPPlieD accessories
• Antenna ..................................................................................1
• Battery charger/ AC adapter ...................................................1
• Li-ion Battery pack (KNB-63L) ...............................................1
• Speaker/ microphone jack cover ............................................1
• Belt clip ...................................................................................1
• Screw set
• 3 x 6 mm ................................................................................ 1
• Instruction manual ..................................................................1

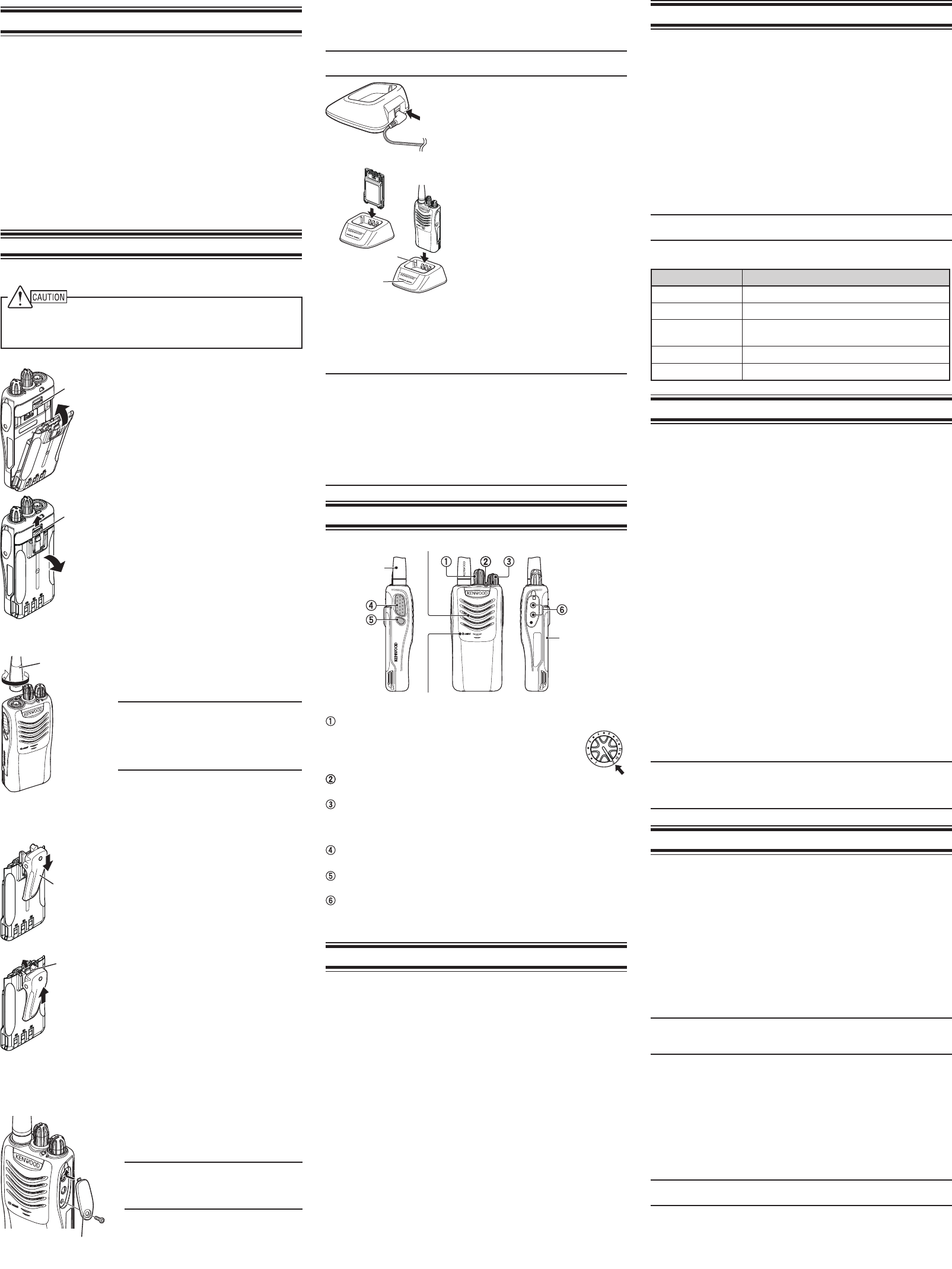

PreParaTion
insTallinG/ reMovinG The BaTTerY Pack
◆ Do not short the battery terminals or dispose of the battery by
fire.
◆ Never attempt to remove the casing from the battery pack.
Lock lever
1 To install the battery pack, align
the base of the battery pack
with the transceiver, then press
the battery pack into place until
the lock lever is secure.
Lock lever
2 To remove the battery pack,
push the lock lever up, then pull
the battery pack away from the
transceiver.
insTallinG The anTenna
Antenna Screw the antenna into the connector
on the top of the transceiver by holding
the antenna at its base and turning it
clockwise until secure.
Note: The antenna is neither a handle,
a key ring retainer, nor a speaker/
microphone attachment point. Using the
antenna in these ways may damage the
antenna and degrade your transceiver’s
performance.
insTallinG The BelT cliP
Belt clip
1 Remove the battery pack, as
described above.
2 To install the belt clip, align the
guides of the belt clip with the
grooves on the rear of the battery
pack, then slide the belt clip into
place until the lock lever is secure.
Lock lever 3 To remove the belt clip, push the
lock lever towards the transceiver
while sliding the belt clip up.
insTallinG The cover over The sPeaker/
MicroPhone Jacks
Speaker/ microphone jack
cover
If you are not using a speaker/
microphone, install the cover over the
speaker/ microphone jacks using the
supplied 3 x 6 mm screw.
Note: To keep the transceiver water
resistant, you must cover the speaker/
microphone jacks with the supplied
cover.
charGinG The BaTTerY Pack
The battery pack is not charged at the factory; charge it before
use.
ATTENTION: Always switch OFF a transceiver equipped with a
battery pack before inserting the transceiver into the charger.
1 Plug the AC adapter cable into
the jack located on the rear of
the charger.
2 Plug the AC adapter into an AC
outlet.
3 Slide a battery pack or a
transceiver equipped with a
battery pack into the charging
slot of the charger.
• Make sure the metal contacts
of the battery pack mate
securely with the charger
terminals.
• The indicator lights red and
charging begins.
4 When charging is completed, the indicator lights green.
Remove the battery pack or the transceiver from the
charging slot of the charger.
• It takes approximately 3 hours to charge the battery pack.
• When the charger will not be used for a long time, unplug
the AC adapter from the AC outlet.
Note:
◆ When the indicator blinks red, the battery pack is either
defective or the battery pack contacts are not properly mated
with those of the charger.
◆ The ambient temperature should be between 5°C and 40°C
while charging is in progress. Charging outside this range may
not fully charge the battery.
◆ The battery pack life is over when its operating time decreases
even though it is fully and correctly charged. Replace the battery
pack.
orienTaTion
Channel selector
Rotate to change the operating channel.
• If your dealer has set the [S-Selector] function,
rotate the Channel selector and select the “S”
position to begin scanning.
LED indicator
Refer to the LED Indicator Status table.
Power switch/ Volume control
Turn clockwise to switch the transceiver ON. To switch the
transceiver OFF, turn counterclockwise until a click sounds.
Rotate to adjust the volume level.
PTT (Push to Talk) switch
Press and hold, then speak into the microphone to transmit.
Side key
Press to activate its programmable function.
Speaker/ microphone jacks
Insert the speaker/ microphone or headset plug into this
jack.
ProGraMMaBle auXiliarY FuncTions
Your dealer can program the Side key each with one of the
following functions.
■ None
No function has been programmed.
■ Autodial
DTMF Autodial allows you to make a private call to another
party.
■ Monitor
Momentarily press this key to deactivate QT or DQT
signaling. Press the key again to return to normal operation.
■ Monitor Momentary
Press and hold this key to deactivate QT or DQT signaling.
Release the key to return to normal operation.
■ Scan
Press this key to start scanning the transceiver channels.
■ S-Selector (Scan)
Rotate the Channel selector and select the “S” position to
begin scanning.
■ Squelch Off
Momentarily press this key to hear background noise. Press
the key again to return to normal operation.
■ Squelch Off Momentary
Press and hold this key to hear background noise. Release
the key to return to normal operation.
Basic oPeraTions
1 Turn the Power switch/ Volume control clockwise to switch
the transceiver power ON.
• A beep sounds if enabled by your dealer.
2 Press the key programmed with the Monitor or Squelch
Off function to hear background noise, then rotate the
Power switch/ Volume control to adjust the volume.
3 Rotate the Channel selector to select your desired channel.
• When you receive an appropriate signal, you will hear audio
from the speaker.
4 To make a call, press and hold the PTT switch, then speak
into the microphone using your normal speaking voice.
• Hold the microphone approximately 3 to 4 cm (1.5 inches)
from your lips.
5 Release the PTT switch to receive.
Note: When the battery pack voltage becomes too low, transmission
will stop and an alert tone will sound.
LED Indicator Status
Indicator Color Meaning
Lights red Transmitting
Lights green Receiving a call
Alternates red and
green VOX gain level adjustment mode
Blinks red Battery power is low while transmitting
Blinks green Scanning
voice oPeraTeD TransMission (voX)
VOX operation allows you to transmit hands-free. This feature
must first be activated by your dealer, and can only be used if
you are using a supported headset. This function can be turned
off for specific channels by your dealer.
To activate VOX and set the VOX Gain level, perform the
following steps:
1 Connect the headset to the transceiver .
• The VOX function does not activate when a headset is not
connected to the accessory terminal of the transceiver.
2 With the transceiver power OFF, press and hold the Side
key while turning the transceiver power ON.
3 Continue to hold the Side key until a beep sounds.
• The LED indicator alternates betwee red and green.
4 Release the Side key.
5 Rotate the Channel selector clockwise to increase the
VOX gain level and counterclockwise to decrease the VOX
gain level.
• The VOX Gain can be adjusted from levels 1 to 10 and OFF
(select the “11” ~ “S” position)
• While speaking into the transceiver, the LED will light
orange when you reach a VOX gain level that recognizes
your voice.
6 Press and hold the Side key for 2 seconds to save the
setting.
• A beep will sound.
7 Turn the transceiver power OFF and then ON again to
activate VOX.
Note: If a headset is connected to the transceiver while the VOX
function is switched ON and the VOX Gain level is configured to a
higher, more sensitive level, louder received signals may cause the
transceiver to start transmission.
BackGrounD oPeraTions
TiMe-ouT TiMer (ToT)
The Time-out Timer prevents callers from using a channel
for an extended duration. If you continuously transmit for the
duration programmed by your dealer (default is 1 minute),
transmission will stop and an alert tone will sound. To stop the
tone, release the PTT switch.
BaTTerY saver
When activated by your dealer, the Battery Saver function
decreases the amount of power used after no signal is present
and no operations are being performed for 5 seconds. When a
signal is received or an operation is performed, Battery Saver
turns off.
Note: While the Battery Saver is operating, the LED may flash
green when receiving a QT/DQT signal which does not match the
QT/DQT tone/code set up in your transceiver.
low BaTTerY warninG
While operating the transceiver, the Low Battery Warning
sounds an alert tone every 30 seconds and the LED indicator
blinks red when the battery needs recharged or replaced.
BusY channel lockouT (Bcl)
When activated, BCL prevents you from interfering on a
channel that is already in use. Pressing the PTT switch will
cause an alert tone to sound and the transceiver will not
transmit. Release the PTT switch to stop the tone.
Note: Ask your dealer for an explanation on how BCL functions
when using QT or DQT signaling.
QT/ DQT siGnalinG
QT/ DQT is used to segregate talk groups, so users only hear
calls from their own group.
Antenna
Microphone
Speaker
Battery Pack
Charging slot
Indicator
Radio FRequency eneRgy SaFety inFoRmation
This Kenwood transceiver has been tested and complies with the standards listed below, in regards
to Radio Frequency (RF) energy and electromagnetic energy (EME) generated by the transceiver.
• FCC RF exposure limits for
Occupational Use Only
. RF Exposure limits adopted by the FCC are generally
based on recommendations from the National Council on Radiation Protection and Measurements, & the
American National Standards Institute.
• FCC OET Bulletin 65 Edition 97-01 Supplement C
• American National Standards Institute (C95.1 – 1992)
• American National Standards Institute (C95.3 – 1992)
This Kenwood transceiver generates RF EME while transmitting. RF EME (Radio Frequency Electric &
Magnetic Energy) has the potential to cause slight thermal, or heating effects to any part of your body less
than the recommended distance from this radio transmitter’s antenna. RF energy exposure is determined
primarily by the distance to and the power of the transmitting device. In general, RF exposure is minimized
when the lowest possible power is used or transmission time is kept to the minimum required for consistent
communications, and the greatest distance possible from the antenna to the body is maintained. The
transceiver has been designed for and is classied for
Occupational Use Only
. Occupational/ controlled
exposure limits are applicable to situations in which persons are exposed to RF energy as a consequence
of their employment, and such persons have been made aware of the potential for exposure and can
exercise control over their exposure. This means you can use the transceiver only if you are aware of
the potential hazards of operating a transceiver and are familiar in ways to minimize these hazards. This
transceiver is not intended for use by the general public in uncontrolled environments. Uncontrolled
environment exposure limits are applicable to situations in which the general public may be exposed to RF
energy, or in which the persons who are exposed as a consequence of their employment may not be fully
aware of the potential for exposure or cannot exercise control over their exposure.
The following list provides you with the information required to ensure that you are aware of RF
exposure and of how to operate this transceiver so that the FCC RF exposure limitations are not
exceeded.
• While transmitting (holding the PTT switch or speaking with VOX enabled), always keep the antenna
and the radio at least 3 cm (1 3/16 inches) from your body or face, as well as from any bystanders. A
LED on the top of the radio shows red when the transmitter is operating in both PTT and VOX modes.
• Do not transmit for more than 50% of the total transceiver use time; transmitting over 50% of the total use
time may exceed the limits in accordance to the FCC RF exposure requirements. Nominal transceiver
operation is 5% transmission time, 5% reception time, and 90% stand-by time.
• Use only the specied antenna for this transceiver; this may be either the antenna provided with the
transceiver or another antenna authorized by Kenwood.
Use only Kenwood authorized accessories (antennas, battery packs, belt clips, Speaker/ Mics or
headsets etc.): When worn on the body, always place the radio in a Kenwood recommended clip or
carrying case meant for this product. The use of other than recommended or approved body- worn
accessories may result in RF exposure levels which exceed the FCC’s occupational/ controlled
environment RF exposure limits.
To ensure that your exposure to RF EME is within the FCC limits for occupational use, you must
observe and adhere to the above points.
Electromagnetic Interference Compatibility
Electronic devices are susceptible to electromagnetic interference (EMI) if they are not adequately
shielded or designed for electromagnetic compatibility. Because this transceiver generates RF
energy, it can cause interference to such equipment.
• Turn OFF your transceiver where signs are posted to do so. Hospitals and health care facilities use
equipment that is sensitive to electromagnetic radiation.
• Turn OFF your transceiver while on board an aircraft when so instructed. Use of the transceiver must
be in accordance with airline regulations and/or crew instructions. B59-2546-00
