Instruction Manual

09 08 07 06 05 04 03 02 01 00

VHF DIGITAL TRANSCEIVER/

UHF DIGITAL TRANSCEIVER/

800MHz DIGITAL TRANSCEIVER

INSTRUCTION MANUAL

ÉMETTEUR-RÉCEPTEUR NUMÉRIQUE VHF/

ÉMETTEUR-RÉCEPTEUR NUMÉRIQUE UHF/

ÉMETTEUR-RÉCEPTEUR NUMÉRIQUE 800MHz

MODE D’EMPLOI

TRANSCEPTOR DIGITAL VHF/

TRANSCEPTOR DIGITAL UHF/

TRANSCEPTOR DIGITAL 800MHz

MANUAL DE INSTRUCCIONES

NX-220/ NX-320/ NX-420

VHF DIGITAL TRANSCEIVER/

UHF DIGITAL TRANSCEIVER/

800MHz DIGITAL TRANSCEIVER

NX-220/ NX-320/ NX-420

INSTRUCTION MANUAL

ENGLISH

THANK YOU

We are grateful you have chosen KENWOOD for your land

mobile radio applications.

This instruction manual covers only the basic operations of your

NEXEDGE portable radio. Ask your dealer for information on any

customized features they may have added to your radio.

NOTICES TO THE USER

◆ Government law prohibits the operation of unlicensed radio

transmitters within the territories under government control.

◆ Illegal operation is punishable by fine and/or imprisonment.

◆ Refer service to qualified technicians only.

Safety: It is important that the operator is aware of, and

understands, hazards common to the operation of any

transceiver.

ATTENTION:

The RBRC Recycle seal found on KENWOOD

lithium-ion (Li-ion) battery packs indicates

KENWOOD’s voluntary participation in an industry

program to collect and recycle Li-ion batteries after

their operating life has expired. The RBRC program

is an alternative to disposing Li-ion batteries with

your regular refuse or in municipal waste streams,

which is illegal in some areas.

For information on Li-ion battery recycling in your area, call (toll free)

1-800-8-BATTERY (1-800-822-8837).

KENWOOD’s involvement in this program is part of our commitment to

preserve our environment and conserve our natural resources.

ATTENTION:

The RBRC Recycle seal found on KENWOOD

nickel

metal hydride (Ni-MH) battery packs indicates

KENWOOD’s

voluntary participation in an industry

program to collect and recycle Ni-MH batteries after

their operating life has expired. The RBRC program

is an alternative to disposing Ni-MH batteries with

your regular refuse or in municipal waste streams,

which is illegal in some areas.

For information on

Ni-MH

battery recycling in your area, call (toll free)

1-800-8-BATTERY (1-800-822-8837).

KENWOOD’s involvement in this program is part of our commitment to

preserve our environment and conserve our natural resources.

TERMINAL DESCRIPTIONS

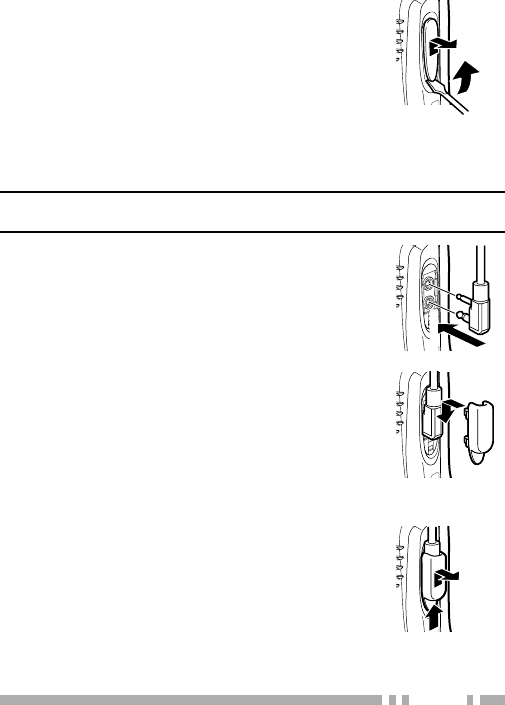

Speaker/ Microphone Jacks

You can use a resin-based cover for the Speaker/ Microphone

jacks.

No. Name Description Impedance I/O

1 PTT/RXD PTT input / Serial data input 10 kΩI

2 MICI MIC input 1.8 kΩI

3 MICO Output from internal MIC −O

4 OPTDET Option Detect 74 kΩI

5 5OV 5V output −O

6 AE Audio Earth GND −

7 TXD Serial data output 6.8 kΩO

8 SPI To internal SP 8 Ω (Load) I

9 SPO AF power output −O

Antenna Terminal

50 Ω impedance

iii

One or more of the following statements may be applicable:

FCC WARNING

This equipment generates or uses radio frequency energy.

Changes or modifications to this equipment may cause harmful

interference unless the modifications are expressly approved in the

instruction manual. The user could lose the authority to operate this

equipment if an unauthorized change or modification is made.

INFORMATION TO THE DIGITAL DEVICE USER REQUIRED BY

THE FCC

This equipment has been tested and found to comply with the limits

for a Class B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against

harmful interference in a residential installation.

This equipment generates, uses and can generate radio

frequency energy and, if not installed and used in accordance

with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that the

interference will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television reception,

which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of

the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment to an outlet on a circuit different from

that to which the receiver is connected.

• Consult the dealer for technical assistance.

PRECAUTIONS

• Do not charge the transceiver and battery pack when they are wet.

• Ensure that there are no metallic items located between the

transceiver and the battery pack.

• Do not use options not specified by KENWOOD.

• If the die-cast chassis or other transceiver part is damaged, do not

touch the damaged parts.

• If a headset or headphone is connected to the transceiver, reduce

the transceiver volume. Pay attention to the volume level when

turning the squelch off.

• Do not place the microphone cable around your neck while near

machinery that may catch the cable.

• Do not place the transceiver on unstable surfaces.

• Ensure that the end of the antenna does not touch your eyes.

• When the transceiver is used for transmission for many hours, the

radiator and chassis will become hot. Do not touch these locations

when replacing the battery pack.

• Always switch the transceiver power off before installing optional

accessories.

• The charger is the device that disconnects the unit from the AC

mains line. The AC plug should be readily accessible.

Turn the transceiver power off in the following locations:

• In explosive atmospheres (inflammable gas, dust particles, metallic

powders, grain powders, etc.).

• While taking on fuel or while parked at gasoline service stations.

• Near explosives or blasting sites.

• In aircrafts. (Any use of the transceiver must follow the instructions

and regulations provided by the airline crew.)

• Where restrictions or warnings are posted regarding the use of

radio devices, including but not limited to medical facilities.

• Near persons using pacemakers.

• Do not disassemble or modify the transceiver for any reason.

• Do not place the transceiver on or near airbag equipment while the

vehicle is running. When the airbag inflates, the transceiver may

be ejected and strike the driver or passengers.

• Do not transmit while touching the antenna terminal or if any

metallic parts are exposed from the antenna covering. Transmitting

at such a time may result in a high-frequency burn.

• If an abnormal odor or smoke is detected coming from the

transceiver, switch the transceiver power off immediately, remove

the battery pack from the transceiver, and contact your KENWOOD

dealer.

• Use of the transceiver while you are driving may be against traffic

laws. Please check and observe the vehicle regulations in your

area.

• Do not expose the transceiver to extremely hot or cold conditions.

• Do not carry the battery pack with metal objects, as they may short

the battery terminals.

• Danger of explosion if the battery is incorrectly replaced; replace

only with the same type.

• When operating the transceiver in areas where the air is dry, it is

easy to build up an electric charge (static electricity). When using

an earphone accessory in such conditions, it is possible for the

transceiver to send an electric shock through the earphone and to

your ear. We recommend you use only a speaker/microphone in

these conditions, to avoid electric shocks.

Information concerning the battery pack:

The battery pack includes flammable objects such as organic solvent.

Mishandling may cause the battery to rupture producing flames or

extreme heat, deteriorate, or cause other forms of damage to the

battery. Please observe the following prohibitive matters.

• Do not disassemble or reconstruct battery!

The battery pack has a safety function and protection circuit to

avoid danger. If they suffer serious damage, the battery may

generate heat or smoke, rupture, or burst into flame.

• Do not short-circuit the battery!

Do not join the + and – terminals using any form of metal (such

as a paper clip or wire). Do not carry or store the battery pack

in containers holding metal objects (such as wires, chain-

necklace or hairpins). If the battery pack is short-circuited,

excessive current will flow and the battery may generate heat

or smoke, rupture, or burst into flame. It will also cause metal

objects to heat up.

• Do not incinerate or apply heat to the battery!

If the insulator is melted, the gas release vent or safety function

is damaged, or the electrolyte is ignited, the battery may

generate heat or smoke, rupture, or burst into flame.

• Do not leave the battery near fires, stoves, or other heat

generators (areas reaching over 80°C/ 176°F)!

If the polymer separator is melted due to high temperature,

an internal short-circuit may occur in the individual cells and

the battery may generate heat or smoke, rupture, or burst into

flame.

• Avoid immersing the battery in water or getting it wet by

other means!

If the battery becomes wet, wipe it off with a dry towel before

use. If the battery’s protection circuit is damaged, the battery

may charge at extreme current (or voltage) and an abnormal

chemical reaction may occur. The battery may generate heat or

smoke, rupture, or burst into flame.

vii

• Do not charge the battery near fires or under direct

sunlight!

If the battery’s protection circuit is damaged, the battery may

charge at extreme current (or voltage) and an abnormal

chemical reaction may occur. The battery may generate heat or

smoke, rupture, or burst into flame.

• Use only the specified charger and observe charging

requirements!

If the battery is charged in unspecified conditions (under high

temperature over the regulated value, excessive high voltage

or current over regulated value, or with a remodelled charger),

it may overcharge or an abnormal chemical reaction may occur.

The battery may generate heat or smoke, rupture, or burst into

flame.

• Do not pierce the battery with any object, strike it with an

instrument, or step on it!

This may break or deform the battery, causing a short-circuit.

The battery may generate heat or smoke, rupture, or burst into

flame.

• Do not jar or throw the battery!

An impact may cause the battery to leak, generate heat

or smoke, rupture, and/or burst into flame. If the battery’s

protection circuit is damaged, the battery may charge at an

abnormal current (or voltage), and an abnormal chemical

reaction may occur.

• Do not use the battery pack if it is damaged in any way!

The battery may generate heat or smoke, rupture, or burst into

flame.

• Do not solder directly onto the battery!

If the insulator is melted or the gas release vent or safety

function is damaged, the battery may generate heat or smoke,

rupture, or burst into flame.

• Do not reverse the battery polarity (and terminals)!

When charging a reversed battery, an abnormal chemical

reaction may occur. In some cases, an unexpected large

amount of current may flow upon discharging. The battery may

generate heat or smoke, rupture, or burst into flame.

viii

• Do not charge the battery for longer than the specified

time!

If the battery pack has not finished charging even after the

regulated time has passed, stop it. The battery may generate

heat or smoke, rupture, or burst into flame.

• Do not place the battery pack into a microwave or high

pressure container!

The battery may generate heat or smoke, rupture, or burst into

flame.

• Keep ruptured and leaking battery packs away from fire!

If the battery pack is leaking (or the battery emits a bad odor),

immediately remove it from flammable areas. Electrolyte

leaking from battery can easily catch on fire and may cause the

battery to generate smoke or burst into flame.

• Do not use an abnormal battery!

If the battery pack emits a bad odor, appears to have different

coloring, is deformed, or seems abnormal for any other reason,

remove it from the charger or operating equipment and do not

use it. The battery may generate heat or smoke, rupture, or

burst into flame.

• Do not reverse-charge or reverse-connect the battery!

The battery pack has positive and negative poles. If the battery

pack does not smoothly connect with a charger or operating

equipment, do not force it; check the polarity of the battery. If

the battery pack is reverse-connected to the charger, it will be

reverse-charged and an abnormal chemical reaction may occur.

The battery may generate heat or smoke, rupture, or burst into

flame.

• Do not touch a ruptured and leaking battery!

If the electrolyte liquid from the battery gets into your eyes,

wash your eyes out with fresh water as soon as possible,

without rubbing your eyes. Go to the hospital immediately. If

left untreated, it may cause eye-problems.

CONTENTS

UNPACKING AND CHECKING EQUIPMENT ....................................1

PREPARATION ...................................................................................2

ORIENTATION .....................................................................................6

PROGRAMMABLE AUXILIARY FUNCTIONS ..................................10

BASIC OPERATIONS ........................................................................12

SCAN .................................................................................................15

FleetSync: ALPHANUMERIC 2-WAY PAGING FUNCTION ............17

TRUNKING CALLS (ANALOG) .........................................................20

ADVANCED OPERATIONS ..............................................................22

BACKGROUND OPERATIONS ........................................................27

UNPACKING AND CHECKING EQUIPMENT

Note: These unpacking instructions are for use by your

KENWOOD dealer, an authorized KENWOOD service facility, or

the factory.

Carefully unpack the transceiver. If any items are missing or

damaged, file a claim with the carrier immediately.

SUPPLIED ACCESSORIES

Antenna (NX-420 only) .........................................................................1

Belt clip .................................................................................................1

Speaker/ microphone jacks cap ...........................................................1

Speaker/ microphone locking bracket ..................................................1

Stopper (types I and II only) .................................................................1

Instruction manual ................................................................................1

Note: Inquire at your dealer for a stopper.

1 Match the guides of the

battery pack with the grooves

on the upper rear of the

transceiver, then firmly press

the battery pack in place.

2 Lock the safety catch to

prevent accidentally releasing

the battery pack.

3 To remove the battery pack,

lift the safety catch, press the

release latch, then pull the

battery pack away from the

transceiver.

Note:

◆ For battery pack charging procedures and useage, refer to the

battery charger Instruction Manual.

◆ The battery pack is not charged at the factory; charge it before

use.

◆ Before charging a battery pack that is attached to the

transceiver, ensure that the safety catch is firmly closed.

INSTALLING/ REMOVING ALKALINE BATTERIES (OPTIONAL

BATTERY CASE)

◆ Do not install batteries in a hazardous environment where

sparks could cause an explosion.

◆ Never discard batteries in fire; extremely high temperatures can

cause batteries to explode.

◆ Do not short circuit the battery case terminals.

◆ Do not use rechargeable batteries.

PREPARATION

INSTALLING/ REMOVING THE (OPTIONAL) BATTERY PACK

Note:

◆ If you do not plan to use the transceiver for a long period,

remove the batteries from the battery case.

◆ This battery case has been designed for transmitting at a

power of approximately 1 W (the low power setting on your

transceiver). If you want to transmit a stronger signal (using

the high power setting on your transceiver), use an optional

rechargeable battery pack.

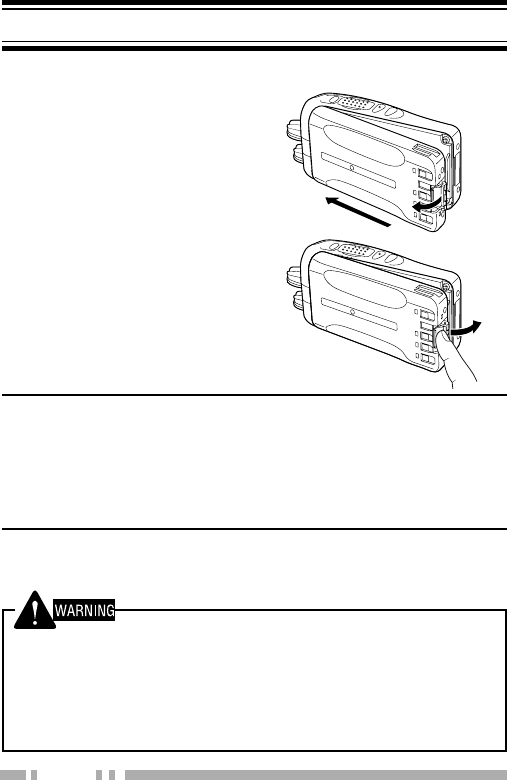

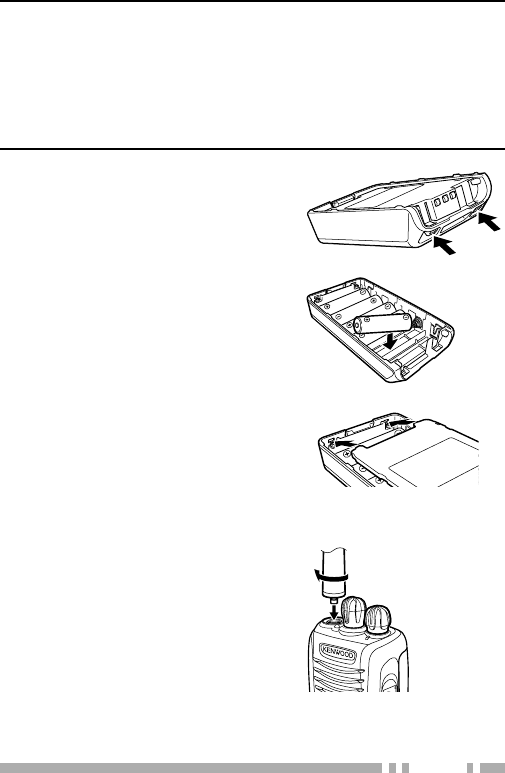

1 To open the battery case, press

on the two tabs on the upper

rear of the case, then pull the

two halves apart.

2 Insert 6 AA (LR6) Alkaline

batteries into the battery case.

• Be sure to match the polarities

with those marked in the bottom

of the battery case.

3 Align the tabs of the cover with

the base, then push down on

the cover until it locks in place.

INSTALLING THE ANTENNA

Screw the antenna into the

connector on the top of the

transceiver by holding the antenna

at its base and turning

it clockwise until secure.

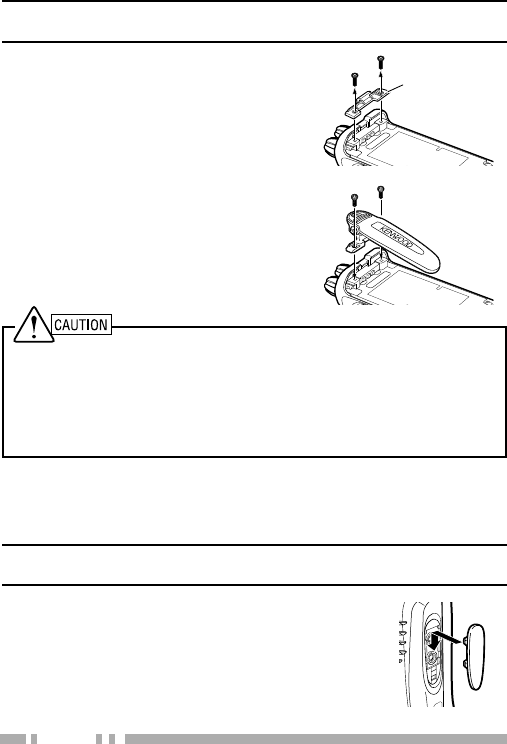

INSTALLING THE BELT CLIP

Note: When first installing the belt clip, you must remove the

battery pack from the rear of the transceiver.

1 Remove the 2 screws from the

rear of the transceiver, then

remove the small, plastic black

covering that was held in place.

2 Insert the belt clip mount into

the space on the rear of the

transceiver.

3 Using the 2 screws, affix the belt

clip in place.

• When the belt clip is not installed, leave the plastic covering in

place.

• Do not use glue which is designed to prevent screw loosening

when installing the belt clip, as it may cause damage to the

transceiver. Acrylic ester, which is contained in these glues,

may crack the transceiver’s back panel.

INSTALLING THE CAP OVER THE SPEAKER/ MICROPHONE JACKS

Install the cap over the speaker/ microphone jacks when not

using an optional speaker/ microphone.

Note: To keep the transceiver water resistant, you must cover the

speaker/ microphone jacks with the supplied cap.

1 Place the cap over the jacks so that the

locking tabs insert into the transceiver

grooves.

Plastic

covering

2 While holding the cap in place, push it

towards the bottom of the transceiver until

the tabs on the cap click into place.

• To remove the cap, hold the top of the cap in

place with your finger while inserting a

3 mm or smaller flat blade screwdriver under

the bottom of the cap. Slowly slide the

screwdriver in until its tip touches the tab

inside the cap, then gently pry the cap up

(handle of screwdriver moving away from the

transceiver) to remove the cap.

INSTALLING THE (OPTIONAL) SPEAKER/ MICROPHONE

Note: The transceiver is not fully water resistant when using a

speaker/ microphone or headset.

1 Insert the speaker/ microphone plugs

into the speaker/ microphone jacks of the

transceiver.

2 Place the locking bracket over the speaker/

microphone plugs so that the locking tabs

insert into the transceiver grooves.

3 While holding the locking bracket in

place, push it towards the bottom of the

transceiver until the tabs on the bracket

click into place.

• To remove the locking bracket, push the

bracket up from the base.

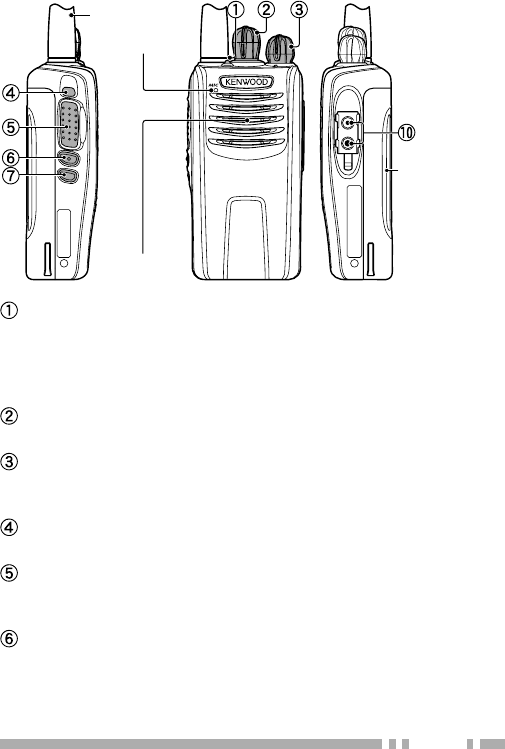

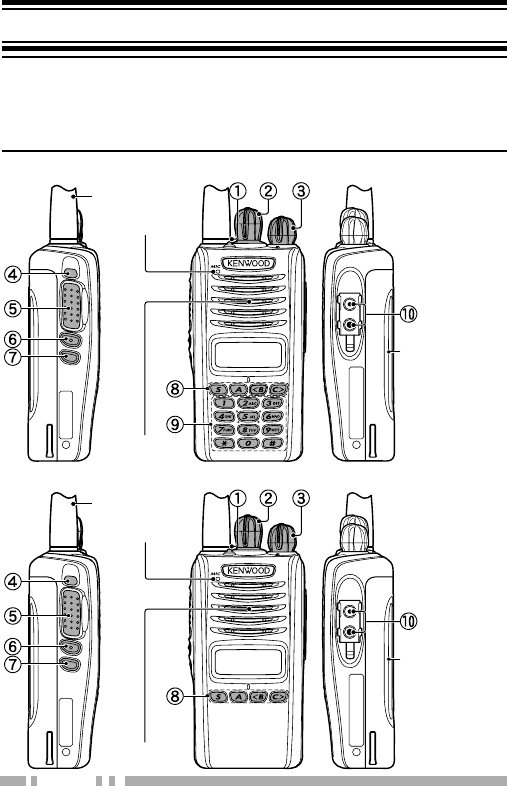

ORIENTATION

There are 3 types of transceivers available:

Type I: Equipped with a display and full keypad.

Type II

: Equipped with a display and 4-key keypad (S, A, <B, and C>) <NX-

220/ NX-320 only>.

Type III: Basic model.

Speaker

Battery pack

Antenna

Microphone

Type I

Speaker

Battery pack

Antenna

Microphone

Type II

Transmit/ Receive/ Battery low indicator

If enabled by your dealer, lights red while transmitting,

green while receiving a call (Conventional channels only),

and orange when receiving an optional signaling call. Blinks

red when the battery power is low while transmitting.

Selector knob

Rotate to select a zone or channel/group ID (default).

Power switch/ Volume control

Rotate to turn the transceiver ON/OFF and to adjust the

volume.

Auxiliary (orange) key

Press to activate its programmable function {page 10}.

PTT (Push-To-Talk) switch

Press and hold this switch, then speak into the microphone

to call a station.

Side 1 key

Press to activate its programmable function {page 10}.

The default is [Squelch Off Momentary].

Battery pack

Antenna

Microphone

Speaker

Type III

Side 2 key

Press to activate its programmable function {page 10}.

Types I and II: The default setting is [Backlight].

Type III: The default setting is [None] (no function).

S, A, <B, C> keys (Types I and II only)

Press to activate their programmable functions {page 10}.

S key: The default setting is [None] (no function).

A key: The default setting is [None] (no function).

<B key: The default setting is [Zone Down].

C> key: The default setting is [Zone Up].

Keypad (Type I only)

Press these keys to send DTMF tones. These keys can

also be programmed with secondary functions {page

10} if a programmable function key is programmed as

[Function].

Speaker/ Microphone jacks

Insert the Speaker/ Microphone or Headset plug into this

jack {page 5}.

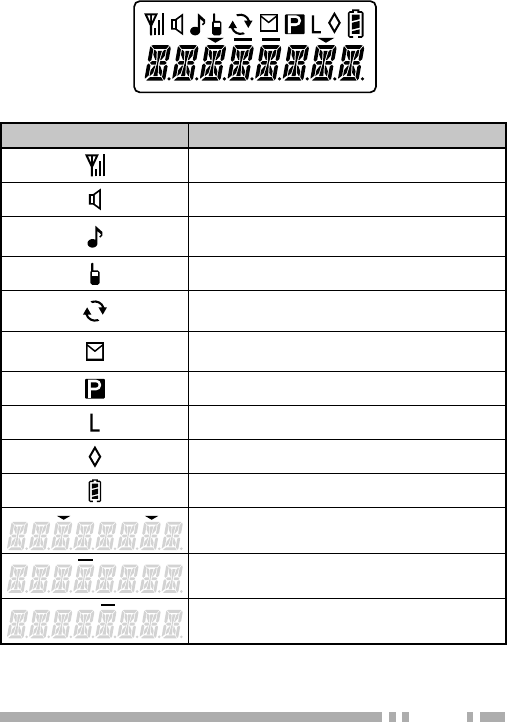

DISPLAY (TYPES I AND II ONLY)

Indicator Description

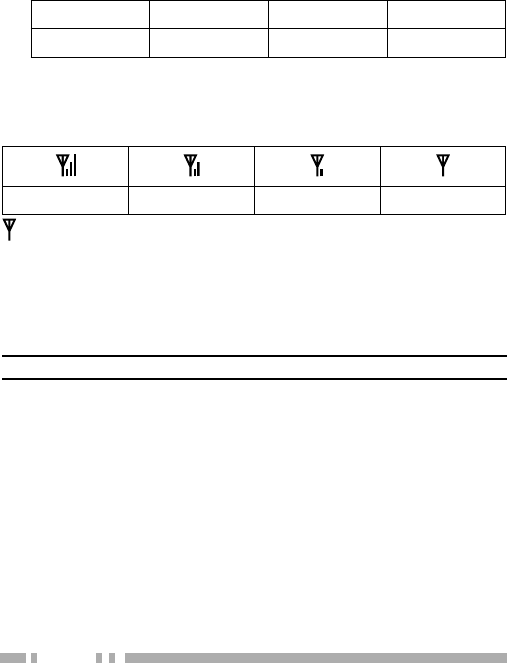

Signal strength indicator {page 28}.

Monitor or Squelch Off is activated.

Blinks when an incoming call matches your

Optional Signaling.

Talk Around is activated.

Scan is in progress. Blinks while scan is

paused.

A message is stored in memory. Blinks

when a new message has arrived.

The current channel is a Priority channel.

The channel is using low transmit power.

Scrambler/ Encryption is activated.

Battery power indicator {page 27}.

The current zone (left icon) or CH/GID

(right icon) is added to scan.

VOX is activated.

Not used.

PROGRAMMABLE AUXILIARY FUNCTIONS

The Selector, Auxiliary (orange), Side 1, Side 2, S, A, <B,

and C> keys, as well as the Keypad, can be programmed

with the functions listed below. Please contact your dealer for

further details on these functions.

• None

• 2-tone

1, 10, 13

• Activity Detection

• Activity Reset

• Autodial

• Autodial Programming

• Auto Telephone

• Backlight

• Battery Indicator

• Broadcast

• Call 1 ~ 6

• CH/GID Down

• CH/GID Recall

• CH/GID Select

• CH/GID Up

• Channel Entry

• CW Message

• Direct CH/GID 1 ~ 5

• Direct CH/GID Select 1 ~ 5

• Display Format

• Emergency

• Fixed Volume

• Forced Search

• Function

• GPS Position Display 1

• Group

1, 6

• Group + Short Message 1, 8

• Group + Status 1, 8

• Home CH/GID

• Home CH/GID Select

• Individual

1, 8

• Individual + Short Message 1, 8

• Individual + Status 1, 8

• Key Lock

• Lone Worker

• Low Transmit Power

• Maintenance

• Monitor

• Monitor Momentary

• Operator Selectable Tone

(OST) 1, 10

• Priority-channel Select

1, 11

• Scan

• Scan Delete/Add

• Scrambler/ Encryption

• Selcall

1, 12

• Selcall + Short Message 1, 12

• Selcall + Status

1, 12

• Send the GPS data

• Short Message

• Site Down

• Site Lock

• Site Select

4, 5

• Site Up

• Squelch Level

1, 10

• Squelch Off

• Squelch Off Momentary 10

• Stack

• Status

• Talk Around

• Telephone Disconnect

• Transceiver Password

• VOX

• Zone Delete/Add

• Zone Down

• Zone Select

• Zone Up

1 Available only for Types I and II.

2 Available only for Analog Trunking operation.

3 Available only for Type III.

4 Available only for NXDN Trunking operation.

5 Can be programmed only on the Selector.

6 Available only for NXDN Conventional operation.

7 Can be programmed only on the Auxiliary (orange) key.

8 Available only for NXDN Conventional operation and NXDN

Trunking operation.

9 Available only for Analog Conventional, Analog Trunking, and NXDN

Conventional operation.

10 Available only for Analog Conventional operation.

11 Available only for Analog Conventional and NXDN Conventional

operation.

12 Available only for Analog Conventional and Analog Trunking

operation.

13 Available only for NX-220/ NX-320.

BASIC OPERATIONS

SWITCHING POWER ON/OFF

Turn the Power switch/ Volume control clockwise to switch the

transceiver ON.

Turn the Power switch/ Volume control counterclockwise fully

to switch the transceiver OFF.

■ Transceiver Password (Types I and II Only)

If your transceiver is password protected, you must first

enter the password before you can use the transceiver.

1 Rotate the Selector to select the first digit of the

password.

2 Press the S or key to accept the entry and move to

the next digit.

• Press the A or # key to delete an incorrect digit.

3 Repeat steps 1 and 2 to enter the entire password.

• The password can contain a maximum of 6 digits.

4 Press the S or key to confirm the entered password.

• If you enter an incorrect password, an error tone sounds

and the transceiver remains locked.

ADJUSTING THE VOLUME

Rotate the Power switch/ Volume control to adjust the volume.

Clockwise increases the volume and counterclockwise

decreases it.

SELECTING A ZONE AND CHANNEL/GROUP ID

Select the desired zone using the key programmed as [Zone

Select] or [Zone Up/Down]. Each zone contains a group of

channels.

Select the desired channel/group ID using the Selector knob

(default). Each channel/group ID is programmed with settings

for transmitting and receiving.

TRANSMITTING

1 Select the desired zone and channel/group ID.

2 Press the key programmed as [Monitor] or [Squelch Off]

to check whether or not the channel is free.

• If the channel is busy, wait until it becomes free.

3 Press the PTT switch and speak into the microphone.

Release the PTT switch to receive.

• For best sound quality, hold the transceiver approximately

1.5 inches (3 ~ 4 cm) from your mouth.

■ Making Group Calls (Digital) (Types I and II Only)

If a key has been programmed with [Group], you can

select a group ID from the list to make a call to those

parties on a Conventional channel.

To select a group ID:

Press the key programmed as

[

Group

]

2 Press

the key

to select a group ID/name from

the list.

3 Press and hold the PTT switch to make the call.

• Speak into the transceiver as you would during a normal

transmission.

■ Making Individual Calls (Digital) (Types I and II Only)

If a key has been programmed with [Individual], you can

make calls to specific persons.

1 Press the key programmed as [Individual].

Press

the

key

to select a unit ID from the list.

• On Type I models, you can enter a unit ID directly.

3 Press and hold the PTT switch to make the call.

• Speak into the transceiver as you would during a normal

transmission.

RECEIVING

Select the desired zone and channel. If signaling has been

programmed on the selected channel, you will hear a call only

if the received signal matches your transceiver settings.

Note: Signaling allows your transceiver to code your calls.

This will prevent you from listening to unwanted calls. Refer to

“SIGNALING” on page 24 for details.

■ Receiving Group Calls (Digital)

When you receive a group call on a Conventional channel

and the received group ID matches the ID set up on your

transceiver, you can hear the caller’s voice.

When you receive a group call on a Trunking channel, the

transceiver automatically switches to the communications

channel to receive the call.

■ Receiving Individual Calls (Digital)

When you receive an individual call, a ringing tone will

sound and the caller’s ID will appear on the display (types I

and II only). To respond to the call, press and hold the PTT

switch and speak into the transceiver as you would during a

normal transmission.

SCAN

Scan monitors for signals on the transceiver channels. While

scanning, the transceiver checks for a signal on each channel

and only stops if a signal is present.

To begin scanning, press the key programmed as [Scan].

• The indicator appears (types I and II only).

• The LED blinks green (type III only).

• When a signal is detected on a channel, Scan pauses at that

channel. The transceiver will remain on the busy channel until the

signal is no longer present, at which time Scan resumes.

To stop scanning, press the [Scan] key again.

Note: To use Scan, there must be at least 2 channels in the scan

sequence.

TEMPORARY CHANNEL LOCKOUT

During scan, you can temporarily remove specific channels

from the scanning sequence by selecting them and pressing

the key programmed as [Scan Delete/Add].

• The channel is no longer scanned. However, when scanning is

ended and restarted, the channels are reset and deleted channels

will again be in the scanning sequence.

PRIORITY SCAN

If a Priority channel has been programmed, the transceiver

will automatically change to the Priority channel when a call is

received on that channel, even if a call is being received on a

normal channel.

• The indicator appears when the selected channel is the Priority

channel (depending on dealer setting) (types I and II only).

SCAN REVERT

The Scan Revert channel is the channel selected when you

press the PTT switch to transmit during scan. Your dealer can

program one of the following types of Scan Revert channels:

• Selected: The last channel selected before scan.

• Selected + Talkback: Same as “Selected”, plus you can

respond to calls on the channel at which scan is paused.

• Priority: The Priority channel.

• Priority + Talkback: Same as “Priority”, plus you can

respond to calls on the channel at which scan is paused.

• Last Called + Selected: The last channel on which you

receive a call.

SCAN DELETE/ADD

You can add and remove zones and/or channels/group IDs to

and from your scan list.

1 Select your desired zone and/or channel/group ID.

2 Press the key programmed as [Zone Delete/Add] (to

add/remove zones) or [Scan Delete/Add] (to add/remove

channels/group IDs) (types I and II only).

• You can also press and hold the key programmed as

[Scan Delete/Add] to add/remove zones.

FleetSync: ALPHANUMERIC 2-WAY PAGING FUNCTION

FleetSync is an Alphanumeric 2-way Paging Function, and is a

protocol owned by JVC KENWOOD Corporation.

Note: This function is available only in analog operation.

SELCALL (SELECTIVE CALLING)

A Selcall is a voice call to a station or group of stations.

■ Transmitting (Types I and II Only)

1 Select your desired zone and channel.

2 Press the key programmed as [Selcall] to enter Selcall

mode.

3 Press

the key

to select the station you want to

call.

• If Manual Dialing is enabled, you can directly enter the

station ID (type I only).

4 Press the PTT switch and begin your conversation.

■ Receiving

An alert tone will sound and the transceiver will enter

Selcall mode. The calling station’s ID will appear when a

Selcall is received (types I and II only). You can respond to

the call by pressing the PTT switch and speaking into the

microphone.

■ Identification Codes

An ID code is a combination of a 3-digit Fleet number and a

4-digit ID number. Each transceiver has its own ID.

• Enter a Fleet number (100 ~ 349) to make a group call.

• Enter an ID number (1000 ~ 4999) to make an individual call in

your fleet.

• Enter a Fleet number to make a call to all units in the selected

fleet (Fleet call).

STATUS MESSAGE (TYPES I AND II ONLY)

You can send and receive 2-digit Status messages which may

be decided in your talk group. Messages can contain up to 16

alphanumeric characters. Status messages range from 10 to

99 (80 ~ 99 are reserved for special messages).

A maximum of 15 received messages (combined status

messages and short messages) can be stored in the stack

memory of your transceiver.

■ Transmitting

1 Select your desired zone and channel.

2 Press the key programmed as [Status] to enter Status

mode (proceed to step 5) or [Selcall + Status] to enter

Selcall mode (proceed to step 3).

3 Press

the key

to select the station you want to call.

• If Manual Dialing is enabled, you can enter a station ID by

using the DTMF keypad, or by using the Selector. When

using the Selector, cycle through the digits to select a

digit, then press the S key to set the digit and move the

cursor to the right. Repeat this process until the entire ID

is entered.

4 Press

the

S or key

to enter Status mode.

5 Press

the key

to select the status you want to

transmit.

• If Manual Dialing is enabled, you can enter a status ID by

using the DTMF keypad, or by using the Selector (refer to

step 3, above).

6 Press the PTT switch or Side 2 key to initiate the call.

• “COMPLETE” appears on the display when the status has

been successfully transmitted.

■ Receiving

A calling ID or text message will appear when a Status call

is received. Press any key to return to normal operation.

■

Reviewing Messages in the Stack Memory

Press the key programmed as

[

Stack

]

, or press and hold

the key programmed as

[

Selcall

]

[

Status

]

, or

[

Selcall +

Status

]

to enter Stack mode.

• The last received message is displayed.

2 Press

the key

to select the desired message.

• Message types are identified as follows:

ID: Caller ID, ST: Status Message, ME: Short Message

• Press and hold the S key for 1 second to cycle the display

information as follows:

ID Name > Status/Short Message > CH/GID

3 Press the Side 1 key to return to normal operation.

• To delete the selected message, press the A key. To

confirm the deletion, Press the S key.

• To delete all messages, press and hold the A or # key for

1 second. To confirm the deletion, Press the S or key.

SHORT MESSAGES

This transceiver can receive short data messages which

contain a maximum of 48 characters.

• Received short messages are displayed the same as Status

messages. A maximum of 15 received messages (combined

status messages and short messages) can be stored in the stack

memory of your transceiver.

GPS REPORT

To send your location data, you must first connect a GPS unit

to the transceiver. GPS data can be manually transmitted by

pressing the key programmed as [Send the GPS data]. If set up

by your dealer, GPS data may be automatically transmitted at a

preset time interval.

TRUNKING CALLS (ANALOG)

PLACING A DISPATCH CALL

1 Select the desired zone and group ID using the selector

and the Zone or CH/GID keys.

2 Press and hold the PTT switch.

3 If the “PTT Proceed” tone sounds, communication is

possible; start speaking into the microphone. Release the

PTT switch to receive.

• For best sound quality at the receiving station, hold the

microphone approximately 1.5 inches (3 ~ 4 cm) from your

mouth.

• Your dealer can deactivate the Proceed PTT tone, if

necessary. Ask your dealer for details.

RECEIVING A DISPATCH CALL

1 When a dispatch call is received, the transceiver will

automatically change to the correct group ID and you will

hear the call.

2 Readjust the volume as necessary.

PLACING A TELEPHONE CALL

1 Select the desired zone and group ID using the selector

and the Zone or CH/GID keys.

• Alternatively, you can press the key programmed as [Auto

Telephone] to automatically search for a Telephone Repeater.

2 Press and hold the PTT switch for approximately 1 second

to ensure a connection.

• Confirm that there is a dial tone after you release the PTT

switch.

3 Place the call, following the instructions for making a DTMF

call, starting on page 22.

4 When the called party responds, press the PTT switch and

speak into the microphone. Release the PTT switch to

receive.

• Only one person can speak at a time.

5 To end the call, press and hold the PTT switch, then

press the # key or the key programmed as [Telephone

Disconnect].

RECEIVING A TELEPHONE CALL

1 When a telephone call is received, the transceiver will

automatically change to the correct group ID and you will

hear the call.

• A ringer tone will sound when a call is received.

2 Press and hold the PTT switch to speak, and release it to

receive.

• Only one person can speak at a time.

3 To end the call, press and hold the PTT switch, then

press the # key or the key programmed as [Telephone

Disconnect].

ADVANCED OPERATIONS

DTMF (DUAL TONE MULTI FREQUENCY) CALLS

■ Making a DTMF Call (Types I and II Only)

Manual Dialing (Type I Only)

1 Press and hold the PTT switch.

2 Enter the desired digits using the DTMF keypad.

• If you release the PTT switch, transmit mode will end even

if the complete number has not been sent.

• If the Keypad Auto PTT function has been enabled by

your dealer, you do not need to press the PTT switch to

transmit; you can make the call simply by pressing the

DTMF keys.

Store & Send

1 Press the key programmed as [Autodial].

2 Enter up to 30 digits using the DTMF keypad.

• Alternatively, you can enter digits by using the Selector.

3 Press the PTT switch to make the call.

■ Autodial (Types I and II Only)

Autodial allows you to quickly call DTMF numbers that have

been programmed onto your transceiver.

1 Press the key programmed as [Autodial].

• The first entry in the Autodial list appears on the display.

2 Press

the key

to select your desired Autodial list

number, or enter the list number directly (01 ~ 32).

• The stored entry appears on the display.

3 Press the PTT switch to make the call.

■ Stun Code

This function is used when a transceiver is stolen or lost.

When the transceiver receives a call containing a stun

code, the transceiver becomes disabled. The stun code is

cancelled when the transceiver receives a call with a revive

code.

EMERGENCY CALLS

If your transceiver has been programmed with the Emergency

function, you can make emergency calls.

1 Press and hold the key programmed as [Emergency].

• Ask your dealer for the length of time necessary to hold this

key before the transceiver enters Emergency mode.

• When the transceiver enters Emergency mode, it will change

to the Emergency channel and begin transmitting based on

how it is set up by your dealer.

2 To exit Emergency mode, press the [Emergency] key

again.

• If the Emergency mode completes a preset number of cycles,

Emergency mode will automatically end and the transceiver

will return to the zone and channel that was in use before

Emergency mode was entered.

Note:

◆ Your dealer can set the transceiver to emit a tone when

transmitting in Emergency mode.

◆ Your dealer can set the transceiver to emit tones and received

signals as normal, or mute the speaker during Emergency

operation.

■ Activity Detection

Press the key programmed as [Activity Detection], to

toggle Activity Detection ON and OFF. If an event occurs

while Activity Detection is enabled, the transceiver enters

Emergency mode.

Note:

◆ When Activity Detection has been turned off, and the

transceiver power is then turned off and back on, Activity

Detection is automatically enabled.

◆ When using this function, verify that it operates before

taking the transceiver.

■ Activity Reset

While Activity Detection is active, press the key

programmed as [Activity Reset] to reset the Activity

Detection countdown timer. This will allow you to remain in

a tilted or stationary position, etc., without the Emergency

mode activating unnecessarily.

SCRAMBLER

Press the key programmed as [Scrambler/ Encryption], to

switch the transceiver to secure (encrypted) transmission.

• Pressing the PTT switch after the Scrambler function has been

turned ON encrypts the transmitted signal.

SIGNALING

■ Quiet Talk (QT)/ Digital Quiet Talk (DQT)

Your dealer may have programmed QT or DQT signaling

on your transceiver channels. A QT tone/ DQT code is a

sub-audible tone/code which allows you to ignore (not hear)

calls from other parties who are using the same channel.

Operator Selectable Tone (Types I and II Only)

If a key has been programmed with [OST], you can

reprogram the QT/DQT settings on each of your channels.

1 Select your desired channel.

2 Press and hold the key programmed as [OST] for

1 second.

3 Press

the key

to select your desired tone or

code.

• Your dealer can set up to 40 tones/codes.

4 Press

the

S or key

to save your new setting.

5 When you have finished operating using OST, press the

[OST] key again to turn the OST function OFF.

■ Radio Access Number (RAN)

RAN is a new signaling system designed for digital radio

communications.

When a channel is set up with a RAN, squelch will only

open when a call containing a matching RAN is received.

If a call containing a different RAN is made on the same

channel you are using, you will not hear the call. This

allows you to ignore (not hear) calls from other parties who

are using the same channel.

■ Optional Signaling

Your dealer may also program several types of optional

signaling for your transceiver channels.

2-tone Signaling: 2-tone Signaling opens the squelch only

when your transceiver receives a call containing matching 2

tones (Available only for NX-220/ NX-320).

DTMF Signaling: DTMF Signaling opens the squelch only

when the transceiver receives a call containing a matching

DTMF code.

FleetSync Signaling: Refer to “SELCALL (SELECTIVE

CALLING)” on page 17.

NXDN ID Signaling: NXDN ID is an optional signaling

system available only for digital communications.

VOICE OPERATED TRANSMISSION (VOX)

VOX can be activated or deactivated by your dealer. VOX

operation allows you to transmit hands-free.

Note: To operate VOX, you must use an optional headset.

■ VOX Gain Level (Types I and II Only)

1 Connect the headset to the transceiver.

2 Press the key programmed as [VOX].

• The current VOX Gain level appears on the display.

3 Press

the key

to increase or decrease the VOX

Gain level.

• The VOX Gain can be adjusted from levels 1 to 10.

4 While adjusting the level, speak into the headset

microphone to test the sensitivity level. (Your voice is

not transmitted during this test procedure.)

• When sound is recognized, the LED lights orange.

5 Press

the

S or key

to save the setting.

■ VOX Operation

1 Connect the headset to the transceiver.

2 Press and hold the key programmed as [VOX] for

2 seconds.

3 To transmit, simply speak into the microphone.

• The transceiver recognizes sound levels depending on

the VOX Gain level. If it is too sensitive, it will transmit

when there is noise in the background. If it is not sensitive

enough, it will not pick up your voice when you begin

speaking.

4 When you finish speaking, transmission ends.

5 To turn the VOX function OFF, press and hold the

[VOX] key again, for 2 seconds.

Note: If a speaker/ microphone is connected to the transceiver

while VOX is ON, and the VOX Gain Level is set to a sensitive

level, louder received signals may cause the transceiver to

transmit.

BACKGROUND OPERATIONS

Your dealer can activate a variety of transceiver functions to

perform without any additional operation on your part.

TIME-OUT TIMER (TOT)

The Time-out Timer prevents you from using a channel for an

extended duration. If you continuously transmit for a preset

time, the transceiver will stop transmitting and an alert tone will

sound. Release the PTT switch.

BATTERY SAVER

The Battery Saver can be activated only on Conventional

channels. This function decreases the amount of power used

when a signal is not being received and no operations are

being performed.

KEY LOCK

Press the key programmed as [Key Lock] to lock and unlock

the transceiver keys.

• The following keys still function when Key Lock is activated:

Emergency, Backlight, Monitor, Monitor Momentary, Squelch Off,

Squelch Off Momentary, Function, Key Lock, and PTT.

LOW BATTERY WARNING

■ Battery Power Icon (Types I and II Only)

Your dealer can set an alert tone to sound and the LED

indicator to blink red when the battery power is low. The

battery power icon displays the battery power remaining,

as described in the table below. When the battery power is

very low, recharge or replace the battery pack.

High Sufficient Low Very low

■ Battery Indicator (Types III Only)

Press the key programmed as [Battery Indicator]. The LED

lights for 2 seconds, displaying the battery power remaining,

as described in the table below. When the battery power is

very low, recharge or replace the battery pack.

Lights Green

Lights Orange

Lights Red Blinks Red

High Sufficient Low Very low

SIGNAL STRENGTH INDICATOR (TYPES I AND II ONLY)

The signal strength indicator displays the strength of received

calls. No icon appears when no signal is available.

Strong Sufficient Weak Very weak

flashes when out of range (NXDN Trunking only).

COMPANDER

If programmed by your dealer for a channel, the compander

will remove excessive noise from transmitted signals, to

provide higher clarity of signals.

Note: The compander is used only in analog operation.

BUSY CHANNEL LOCKOUT (BCL)

On Conventional channels, if BCL is set up by your dealer, you

will be unable to transmit if the channel is already in use. Use

a different channel or wait until the channel becomes free.

If BCL Override has been programmed, you can transmit over

the current signal:

1 Press and hold the PTT switch.

• If the channel is already in use, a warning tone will sound.

2 Quickly release and then press the PTT switch again.

3 Speak into the transceiver as you would during a normal

call.

CONTROL CHANNEL HUNT

On digital Trunking channels, the transceiver automatically

searches for a control channel.

• While searching for a control channel, the antenna icon will flash

(types I and II only) and no signals can be received.

PTT ID

PTT ID is the transceiver unique ID code which is sent each

time the PTT switch is pressed and/or released.

Note: PTT ID can be made only in analog operation.

VOICE ANNUNCIATION

When changing the zone, channel, and/or group, an audio

voice will announce the new zone, channel and group number.

TRANSMIT POWER

Each channel is programmed with either high or low transmit

power. On high transmit power channels, press the key

programmed as [Low Transmit Power] to change the transmit

power to low power (you cannot change low transmit power

channels to use high power).

• The indicator appears while using low transmit power.

RADIO FREQUENCY ENERGY SAFETY INFORMATION

This KENWOOD transceiver has been tested and complies with the standards listed below, in regards

to Radio Frequency (RF) energy and electromagnetic energy (EME) generated by the transceiver.

• FCC RF exposure limits for

Occupational Use Only

. RF Exposure limits adopted by the FCC are generally

based on recommendations from the National Council on Radiation Protection and Measurements, & the

American National Standards Institute.

• FCC OET Bulletin 65 Edition 97-01 Supplement C

• American National Standards Institute (C95.1 – 1992)

• American National Standards Institute (C95.3 – 1992)

This KENWOOD transceiver generates RF EME while transmitting. RF EME (Radio Frequency Electric &

Magnetic Energy) has the potential to cause slight thermal, or heating effects to any part of your body less

than the recommended distance from this radio transmitter’s antenna. RF energy exposure is determined

primarily by the distance to and the power of the transmitting device. In general, RF exposure is minimized

when the lowest possible power is used or transmission time is kept to the minimum required for consistent

communications, and the greatest distance possible from the antenna to the body is maintained. The

transceiver has been designed for and is classified for

Occupational Use Only

. Occupational/ controlled

exposure limits are applicable to situations in which persons are exposed to RF energy as a consequence

of their employment, and such persons have been made aware of the potential for exposure and can

exercise control over their exposure. This means you can use the transceiver only if you are aware of

the potential hazards of operating a transceiver and are familiar in ways to minimize these hazards. This

transceiver is not intended for use by the general public in uncontrolled environments. Uncontrolled

environment exposure limits are applicable to situations in which the general public may be exposed to RF

energy, or in which the persons who are exposed as a consequence of their employment may not be fully

aware of the potential for exposure or cannot exercise control over their exposure.

The following list provides you with the information required to ensure that you are aware of RF

exposure and of how to operate this transceiver so that the FCC RF exposure limitations are not

exceeded.

• While transmitting (holding the PTT switch or speaking with VOX enabled), always keep the antenna

and the radio at least 3 cm (1 3/16 inches) from your body or face, as well as from any bystanders. A

LED on the top of the radio shows red when the transmitter is operating in both PTT and VOX modes.

• Do not transmit for more than 50% of the total transceiver use time; transmitting over 50% of the total use

time may exceed the limits in accordance to the FCC RF exposure requirements. Nominal transceiver

operation is 5% transmission time, 5% reception time, and 90% stand-by time.

• Use only the specified antenna for this transceiver; this may be either the antenna provided with the

transceiver or another antenna authorized by KENWOOD.

Use only KENWOOD authorized accessories (antennas, battery packs, belt clips, Speaker/ Mics

or headsets etc.): When worn on the body, always place the radio in a KENWOOD recommended

clip or carrying case meant for this product. The use of other than recommended or approved

body- worn accessories may result in RF exposure levels which exceed the FCC’s occupational/

controlled environment RF exposure limits.

To ensure that your exposure to RF EME is within the FCC limits for occupational use, you must

observe and adhere to the above points.

Electromagnetic Interference Compatibility

Electronic devices are susceptible to electromagnetic interference (EMI) if they are not adequately

shielded or designed for electromagnetic compatibility. Because this transceiver generates RF

energy, it can cause interference to such equipment.

• Turn OFF your transceiver where signs are posted to do so. Hospitals and health care facilities use

equipment that is sensitive to electromagnetic radiation.

• Turn OFF your transceiver while on board an aircraft when so instructed. Use of the transceiver must

be in accordance with airline regulations and/or crew instructions. B59-2687-00

Kenwood USA 458200 800 MHz Digital Transceiver User Manual Instruction Manual

Kenwood USA Corporation 800 MHz Digital Transceiver Instruction Manual

Instruction Manual

Navigation menu

Namespaces

Views

Navigation
